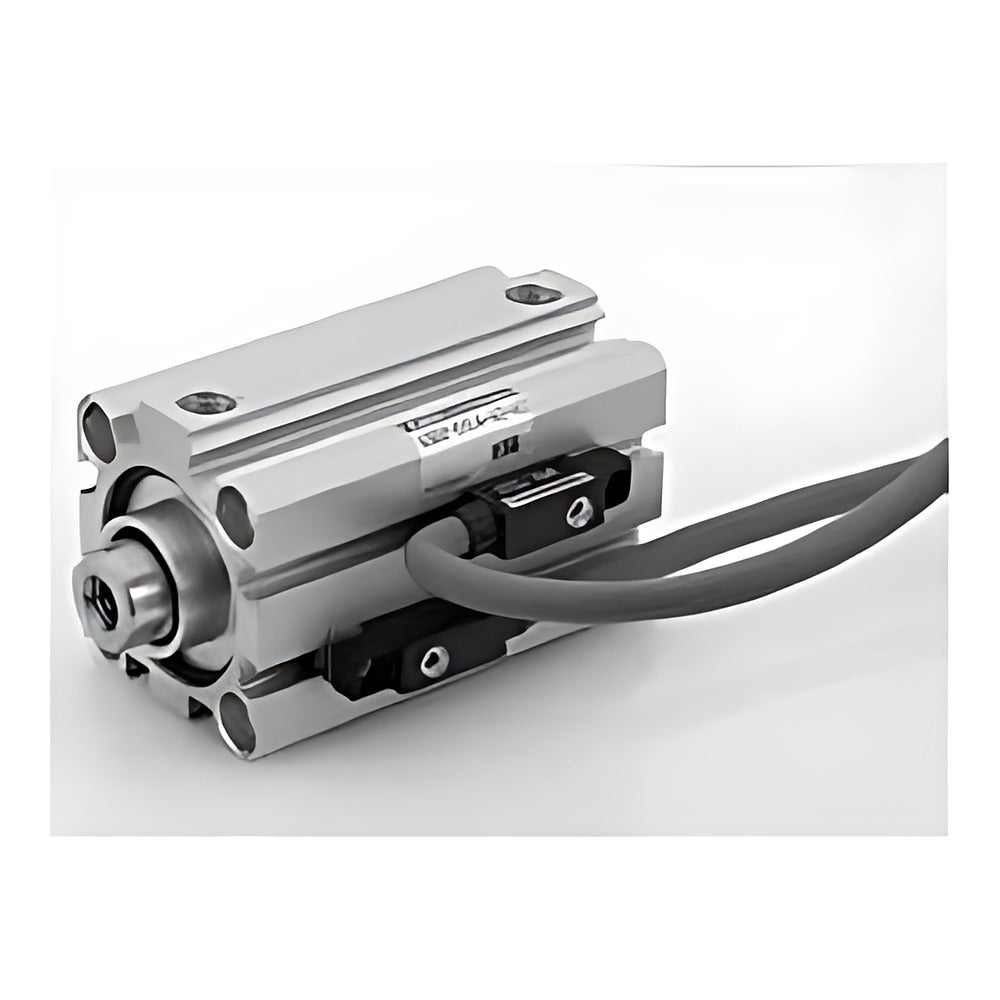

CKD SSD2-G1L4 Super Compact Cylinder (Strong Field Switch, Scraper)

CKD SSD2-G1L4 Super Compact Cylinder (Strong Field Switch, Scraper)

CKD SSD2-G1L4 is a coil scraper double-acting super compact cylinder equipped for the V0 reed switch that resists strong magnetic fields near welding equipment.

Key features

  • Designed for V0 reed switch (DC12/24 V, AC110 V) immune to strong welding magnetic fields
  • Switch V0 with quantity R/H/D/T and lead 1/3/5 m is added as suffix (e.g. -V0-D)
  • Coil scraper protects rod from chips and spatter
  • Mounting none/LB/CB/FA/FB (LB and FA made to order); rod-end male thread N, knuckles I/Y
  • Intermediate strokes in 1 mm steps with spacers (e.g. SSD2-G1L4-40-38)

Specifications

Action Double acting, single rod
Bore 40 to 100 mm
Operating pressure Up to 1.0 MPa
Proof pressure 1.6 MPa
Ambient temperature -10 to 60 C (no freezing)
Port size Rc1/8 to Rc3/8 (by bore)
Cushion None
Switch V0 reed, strong magnetic field type
Min. stroke 20 mm (35 mm with 3 switches)
Source CKD Korea catalog CB-029SK-9, p. 1106-1111
SSD2-G1L4-40-20 Bore: 40 mm | Stroke: 20 mm | Mounting: None (basic)
SSD2-G1L4-40-20-LB Bore: 40 mm | Stroke: 20 mm | Mounting: Axial foot (LB)
SSD2-G1L4-40-20-CB Bore: 40 mm | Stroke: 20 mm | Mounting: Double clevis (CB)
SSD2-G1L4-40-20-FA Bore: 40 mm | Stroke: 20 mm | Mounting: Rod flange (FA)
SSD2-G1L4-40-20-FB Bore: 40 mm | Stroke: 20 mm | Mounting: Head flange (FB)
SSD2-G1L4-40-25 Bore: 40 mm | Stroke: 25 mm | Mounting: None (basic)
SSD2-G1L4-40-25-LB Bore: 40 mm | Stroke: 25 mm | Mounting: Axial foot (LB)
SSD2-G1L4-40-25-CB Bore: 40 mm | Stroke: 25 mm | Mounting: Double clevis (CB)
SSD2-G1L4-40-25-FA Bore: 40 mm | Stroke: 25 mm | Mounting: Rod flange (FA)
SSD2-G1L4-40-25-FB Bore: 40 mm | Stroke: 25 mm | Mounting: Head flange (FB)
SSD2-G1L4-40-30 Bore: 40 mm | Stroke: 30 mm | Mounting: None (basic)
SSD2-G1L4-40-30-LB Bore: 40 mm | Stroke: 30 mm | Mounting: Axial foot (LB)
SSD2-G1L4-40-30-CB Bore: 40 mm | Stroke: 30 mm | Mounting: Double clevis (CB)
SSD2-G1L4-40-30-FA Bore: 40 mm | Stroke: 30 mm | Mounting: Rod flange (FA)
SSD2-G1L4-40-30-FB Bore: 40 mm | Stroke: 30 mm | Mounting: Head flange (FB)
SSD2-G1L4-40-35 Bore: 40 mm | Stroke: 35 mm | Mounting: None (basic)
SSD2-G1L4-40-35-LB Bore: 40 mm | Stroke: 35 mm | Mounting: Axial foot (LB)
SSD2-G1L4-40-35-CB Bore: 40 mm | Stroke: 35 mm | Mounting: Double clevis (CB)
SSD2-G1L4-40-35-FA Bore: 40 mm | Stroke: 35 mm | Mounting: Rod flange (FA)
SSD2-G1L4-40-35-FB Bore: 40 mm | Stroke: 35 mm | Mounting: Head flange (FB)
SSD2-G1L4-40-40 Bore: 40 mm | Stroke: 40 mm | Mounting: None (basic)
SSD2-G1L4-40-40-LB Bore: 40 mm | Stroke: 40 mm | Mounting: Axial foot (LB)
SSD2-G1L4-40-40-CB Bore: 40 mm | Stroke: 40 mm | Mounting: Double clevis (CB)
SSD2-G1L4-40-40-FA Bore: 40 mm | Stroke: 40 mm | Mounting: Rod flange (FA)
SSD2-G1L4-40-40-FB Bore: 40 mm | Stroke: 40 mm | Mounting: Head flange (FB)
SSD2-G1L4-40-45 Bore: 40 mm | Stroke: 45 mm | Mounting: None (basic)
SSD2-G1L4-40-45-LB Bore: 40 mm | Stroke: 45 mm | Mounting: Axial foot (LB)
SSD2-G1L4-40-45-CB Bore: 40 mm | Stroke: 45 mm | Mounting: Double clevis (CB)
SSD2-G1L4-40-45-FA Bore: 40 mm | Stroke: 45 mm | Mounting: Rod flange (FA)
SSD2-G1L4-40-45-FB Bore: 40 mm | Stroke: 45 mm | Mounting: Head flange (FB)
SSD2-G1L4-40-50 Bore: 40 mm | Stroke: 50 mm | Mounting: None (basic)
SSD2-G1L4-40-50-LB Bore: 40 mm | Stroke: 50 mm | Mounting: Axial foot (LB)
SSD2-G1L4-40-50-CB Bore: 40 mm | Stroke: 50 mm | Mounting: Double clevis (CB)
SSD2-G1L4-40-50-FA Bore: 40 mm | Stroke: 50 mm | Mounting: Rod flange (FA)
SSD2-G1L4-40-50-FB Bore: 40 mm | Stroke: 50 mm | Mounting: Head flange (FB)
SSD2-G1L4-40-75 Bore: 40 mm | Stroke: 75 mm | Mounting: None (basic)
SSD2-G1L4-40-75-LB Bore: 40 mm | Stroke: 75 mm | Mounting: Axial foot (LB)
SSD2-G1L4-40-75-CB Bore: 40 mm | Stroke: 75 mm | Mounting: Double clevis (CB)
SSD2-G1L4-40-75-FA Bore: 40 mm | Stroke: 75 mm | Mounting: Rod flange (FA)
SSD2-G1L4-40-75-FB Bore: 40 mm | Stroke: 75 mm | Mounting: Head flange (FB)
SSD2-G1L4-40-100 Bore: 40 mm | Stroke: 100 mm | Mounting: None (basic)
SSD2-G1L4-40-100-LB Bore: 40 mm | Stroke: 100 mm | Mounting: Axial foot (LB)
SSD2-G1L4-40-100-CB Bore: 40 mm | Stroke: 100 mm | Mounting: Double clevis (CB)
SSD2-G1L4-40-100-FA Bore: 40 mm | Stroke: 100 mm | Mounting: Rod flange (FA)
SSD2-G1L4-40-100-FB Bore: 40 mm | Stroke: 100 mm | Mounting: Head flange (FB)
SSD2-G1L4-50-20 Bore: 50 mm | Stroke: 20 mm | Mounting: None (basic)
SSD2-G1L4-50-20-LB Bore: 50 mm | Stroke: 20 mm | Mounting: Axial foot (LB)
SSD2-G1L4-50-20-CB Bore: 50 mm | Stroke: 20 mm | Mounting: Double clevis (CB)
SSD2-G1L4-50-20-FA Bore: 50 mm | Stroke: 20 mm | Mounting: Rod flange (FA)
SSD2-G1L4-50-20-FB Bore: 50 mm | Stroke: 20 mm | Mounting: Head flange (FB)
SSD2-G1L4-50-25 Bore: 50 mm | Stroke: 25 mm | Mounting: None (basic)
SSD2-G1L4-50-25-LB Bore: 50 mm | Stroke: 25 mm | Mounting: Axial foot (LB)
SSD2-G1L4-50-25-CB Bore: 50 mm | Stroke: 25 mm | Mounting: Double clevis (CB)
SSD2-G1L4-50-25-FA Bore: 50 mm | Stroke: 25 mm | Mounting: Rod flange (FA)
SSD2-G1L4-50-25-FB Bore: 50 mm | Stroke: 25 mm | Mounting: Head flange (FB)
SSD2-G1L4-50-30 Bore: 50 mm | Stroke: 30 mm | Mounting: None (basic)
SSD2-G1L4-50-30-LB Bore: 50 mm | Stroke: 30 mm | Mounting: Axial foot (LB)
SSD2-G1L4-50-30-CB Bore: 50 mm | Stroke: 30 mm | Mounting: Double clevis (CB)
SSD2-G1L4-50-30-FA Bore: 50 mm | Stroke: 30 mm | Mounting: Rod flange (FA)
SSD2-G1L4-50-30-FB Bore: 50 mm | Stroke: 30 mm | Mounting: Head flange (FB)
SSD2-G1L4-50-35 Bore: 50 mm | Stroke: 35 mm | Mounting: None (basic)
SSD2-G1L4-50-35-LB Bore: 50 mm | Stroke: 35 mm | Mounting: Axial foot (LB)
SSD2-G1L4-50-35-CB Bore: 50 mm | Stroke: 35 mm | Mounting: Double clevis (CB)
SSD2-G1L4-50-35-FA Bore: 50 mm | Stroke: 35 mm | Mounting: Rod flange (FA)
SSD2-G1L4-50-35-FB Bore: 50 mm | Stroke: 35 mm | Mounting: Head flange (FB)
SSD2-G1L4-50-40 Bore: 50 mm | Stroke: 40 mm | Mounting: None (basic)
SSD2-G1L4-50-40-LB Bore: 50 mm | Stroke: 40 mm | Mounting: Axial foot (LB)
SSD2-G1L4-50-40-CB Bore: 50 mm | Stroke: 40 mm | Mounting: Double clevis (CB)
SSD2-G1L4-50-40-FA Bore: 50 mm | Stroke: 40 mm | Mounting: Rod flange (FA)
SSD2-G1L4-50-40-FB Bore: 50 mm | Stroke: 40 mm | Mounting: Head flange (FB)
SSD2-G1L4-50-45 Bore: 50 mm | Stroke: 45 mm | Mounting: None (basic)
SSD2-G1L4-50-45-LB Bore: 50 mm | Stroke: 45 mm | Mounting: Axial foot (LB)
SSD2-G1L4-50-45-CB Bore: 50 mm | Stroke: 45 mm | Mounting: Double clevis (CB)
SSD2-G1L4-50-45-FA Bore: 50 mm | Stroke: 45 mm | Mounting: Rod flange (FA)
SSD2-G1L4-50-45-FB Bore: 50 mm | Stroke: 45 mm | Mounting: Head flange (FB)
SSD2-G1L4-50-50 Bore: 50 mm | Stroke: 50 mm | Mounting: None (basic)
SSD2-G1L4-50-50-LB Bore: 50 mm | Stroke: 50 mm | Mounting: Axial foot (LB)
SSD2-G1L4-50-50-CB Bore: 50 mm | Stroke: 50 mm | Mounting: Double clevis (CB)
SSD2-G1L4-50-50-FA Bore: 50 mm | Stroke: 50 mm | Mounting: Rod flange (FA)
SSD2-G1L4-50-50-FB Bore: 50 mm | Stroke: 50 mm | Mounting: Head flange (FB)
SSD2-G1L4-50-75 Bore: 50 mm | Stroke: 75 mm | Mounting: None (basic)
SSD2-G1L4-50-75-LB Bore: 50 mm | Stroke: 75 mm | Mounting: Axial foot (LB)
SSD2-G1L4-50-75-CB Bore: 50 mm | Stroke: 75 mm | Mounting: Double clevis (CB)
SSD2-G1L4-50-75-FA Bore: 50 mm | Stroke: 75 mm | Mounting: Rod flange (FA)
SSD2-G1L4-50-75-FB Bore: 50 mm | Stroke: 75 mm | Mounting: Head flange (FB)
SSD2-G1L4-50-100 Bore: 50 mm | Stroke: 100 mm | Mounting: None (basic)
SSD2-G1L4-50-100-LB Bore: 50 mm | Stroke: 100 mm | Mounting: Axial foot (LB)
SSD2-G1L4-50-100-CB Bore: 50 mm | Stroke: 100 mm | Mounting: Double clevis (CB)
SSD2-G1L4-50-100-FA Bore: 50 mm | Stroke: 100 mm | Mounting: Rod flange (FA)
SSD2-G1L4-50-100-FB Bore: 50 mm | Stroke: 100 mm | Mounting: Head flange (FB)
SSD2-G1L4-63-20 Bore: 63 mm | Stroke: 20 mm | Mounting: None (basic)
SSD2-G1L4-63-20-LB Bore: 63 mm | Stroke: 20 mm | Mounting: Axial foot (LB)
SSD2-G1L4-63-20-CB Bore: 63 mm | Stroke: 20 mm | Mounting: Double clevis (CB)
SSD2-G1L4-63-20-FA Bore: 63 mm | Stroke: 20 mm | Mounting: Rod flange (FA)
SSD2-G1L4-63-20-FB Bore: 63 mm | Stroke: 20 mm | Mounting: Head flange (FB)
SSD2-G1L4-63-25 Bore: 63 mm | Stroke: 25 mm | Mounting: None (basic)
SSD2-G1L4-63-25-LB Bore: 63 mm | Stroke: 25 mm | Mounting: Axial foot (LB)
SSD2-G1L4-63-25-CB Bore: 63 mm | Stroke: 25 mm | Mounting: Double clevis (CB)
SSD2-G1L4-63-25-FA Bore: 63 mm | Stroke: 25 mm | Mounting: Rod flange (FA)
SSD2-G1L4-63-25-FB Bore: 63 mm | Stroke: 25 mm | Mounting: Head flange (FB)
SSD2-G1L4-63-30 Bore: 63 mm | Stroke: 30 mm | Mounting: None (basic)
SSD2-G1L4-63-30-LB Bore: 63 mm | Stroke: 30 mm | Mounting: Axial foot (LB)
SSD2-G1L4-63-30-CB Bore: 63 mm | Stroke: 30 mm | Mounting: Double clevis (CB)
SSD2-G1L4-63-30-FA Bore: 63 mm | Stroke: 30 mm | Mounting: Rod flange (FA)
SSD2-G1L4-63-30-FB Bore: 63 mm | Stroke: 30 mm | Mounting: Head flange (FB)
SSD2-G1L4-63-35 Bore: 63 mm | Stroke: 35 mm | Mounting: None (basic)
SSD2-G1L4-63-35-LB Bore: 63 mm | Stroke: 35 mm | Mounting: Axial foot (LB)
SSD2-G1L4-63-35-CB Bore: 63 mm | Stroke: 35 mm | Mounting: Double clevis (CB)
SSD2-G1L4-63-35-FA Bore: 63 mm | Stroke: 35 mm | Mounting: Rod flange (FA)
SSD2-G1L4-63-35-FB Bore: 63 mm | Stroke: 35 mm | Mounting: Head flange (FB)
SSD2-G1L4-63-40 Bore: 63 mm | Stroke: 40 mm | Mounting: None (basic)
SSD2-G1L4-63-40-LB Bore: 63 mm | Stroke: 40 mm | Mounting: Axial foot (LB)
SSD2-G1L4-63-40-CB Bore: 63 mm | Stroke: 40 mm | Mounting: Double clevis (CB)
SSD2-G1L4-63-40-FA Bore: 63 mm | Stroke: 40 mm | Mounting: Rod flange (FA)
SSD2-G1L4-63-40-FB Bore: 63 mm | Stroke: 40 mm | Mounting: Head flange (FB)
SSD2-G1L4-63-45 Bore: 63 mm | Stroke: 45 mm | Mounting: None (basic)
SSD2-G1L4-63-45-LB Bore: 63 mm | Stroke: 45 mm | Mounting: Axial foot (LB)
SSD2-G1L4-63-45-CB Bore: 63 mm | Stroke: 45 mm | Mounting: Double clevis (CB)
SSD2-G1L4-63-45-FA Bore: 63 mm | Stroke: 45 mm | Mounting: Rod flange (FA)
SSD2-G1L4-63-45-FB Bore: 63 mm | Stroke: 45 mm | Mounting: Head flange (FB)
SSD2-G1L4-63-50 Bore: 63 mm | Stroke: 50 mm | Mounting: None (basic)
SSD2-G1L4-63-50-LB Bore: 63 mm | Stroke: 50 mm | Mounting: Axial foot (LB)
SSD2-G1L4-63-50-CB Bore: 63 mm | Stroke: 50 mm | Mounting: Double clevis (CB)
SSD2-G1L4-63-50-FA Bore: 63 mm | Stroke: 50 mm | Mounting: Rod flange (FA)
SSD2-G1L4-63-50-FB Bore: 63 mm | Stroke: 50 mm | Mounting: Head flange (FB)
SSD2-G1L4-63-75 Bore: 63 mm | Stroke: 75 mm | Mounting: None (basic)
SSD2-G1L4-63-75-LB Bore: 63 mm | Stroke: 75 mm | Mounting: Axial foot (LB)
SSD2-G1L4-63-75-CB Bore: 63 mm | Stroke: 75 mm | Mounting: Double clevis (CB)
SSD2-G1L4-63-75-FA Bore: 63 mm | Stroke: 75 mm | Mounting: Rod flange (FA)
SSD2-G1L4-63-75-FB Bore: 63 mm | Stroke: 75 mm | Mounting: Head flange (FB)
SSD2-G1L4-63-100 Bore: 63 mm | Stroke: 100 mm | Mounting: None (basic)
SSD2-G1L4-63-100-LB Bore: 63 mm | Stroke: 100 mm | Mounting: Axial foot (LB)
SSD2-G1L4-63-100-CB Bore: 63 mm | Stroke: 100 mm | Mounting: Double clevis (CB)
SSD2-G1L4-63-100-FA Bore: 63 mm | Stroke: 100 mm | Mounting: Rod flange (FA)
SSD2-G1L4-63-100-FB Bore: 63 mm | Stroke: 100 mm | Mounting: Head flange (FB)
SSD2-G1L4-80-20 Bore: 80 mm | Stroke: 20 mm | Mounting: None (basic)
SSD2-G1L4-80-20-LB Bore: 80 mm | Stroke: 20 mm | Mounting: Axial foot (LB)
SSD2-G1L4-80-20-CB Bore: 80 mm | Stroke: 20 mm | Mounting: Double clevis (CB)
SSD2-G1L4-80-20-FA Bore: 80 mm | Stroke: 20 mm | Mounting: Rod flange (FA)
SSD2-G1L4-80-20-FB Bore: 80 mm | Stroke: 20 mm | Mounting: Head flange (FB)
SSD2-G1L4-80-25 Bore: 80 mm | Stroke: 25 mm | Mounting: None (basic)
SSD2-G1L4-80-25-LB Bore: 80 mm | Stroke: 25 mm | Mounting: Axial foot (LB)
SSD2-G1L4-80-25-CB Bore: 80 mm | Stroke: 25 mm | Mounting: Double clevis (CB)
SSD2-G1L4-80-25-FA Bore: 80 mm | Stroke: 25 mm | Mounting: Rod flange (FA)
SSD2-G1L4-80-25-FB Bore: 80 mm | Stroke: 25 mm | Mounting: Head flange (FB)
SSD2-G1L4-80-30 Bore: 80 mm | Stroke: 30 mm | Mounting: None (basic)
SSD2-G1L4-80-30-LB Bore: 80 mm | Stroke: 30 mm | Mounting: Axial foot (LB)
SSD2-G1L4-80-30-CB Bore: 80 mm | Stroke: 30 mm | Mounting: Double clevis (CB)
SSD2-G1L4-80-30-FA Bore: 80 mm | Stroke: 30 mm | Mounting: Rod flange (FA)
SSD2-G1L4-80-30-FB Bore: 80 mm | Stroke: 30 mm | Mounting: Head flange (FB)
SSD2-G1L4-80-35 Bore: 80 mm | Stroke: 35 mm | Mounting: None (basic)
SSD2-G1L4-80-35-LB Bore: 80 mm | Stroke: 35 mm | Mounting: Axial foot (LB)
SSD2-G1L4-80-35-CB Bore: 80 mm | Stroke: 35 mm | Mounting: Double clevis (CB)
SSD2-G1L4-80-35-FA Bore: 80 mm | Stroke: 35 mm | Mounting: Rod flange (FA)
SSD2-G1L4-80-35-FB Bore: 80 mm | Stroke: 35 mm | Mounting: Head flange (FB)
SSD2-G1L4-80-40 Bore: 80 mm | Stroke: 40 mm | Mounting: None (basic)
SSD2-G1L4-80-40-LB Bore: 80 mm | Stroke: 40 mm | Mounting: Axial foot (LB)
SSD2-G1L4-80-40-CB Bore: 80 mm | Stroke: 40 mm | Mounting: Double clevis (CB)
SSD2-G1L4-80-40-FA Bore: 80 mm | Stroke: 40 mm | Mounting: Rod flange (FA)
SSD2-G1L4-80-40-FB Bore: 80 mm | Stroke: 40 mm | Mounting: Head flange (FB)
SSD2-G1L4-80-45 Bore: 80 mm | Stroke: 45 mm | Mounting: None (basic)
SSD2-G1L4-80-45-LB Bore: 80 mm | Stroke: 45 mm | Mounting: Axial foot (LB)
SSD2-G1L4-80-45-CB Bore: 80 mm | Stroke: 45 mm | Mounting: Double clevis (CB)
SSD2-G1L4-80-45-FA Bore: 80 mm | Stroke: 45 mm | Mounting: Rod flange (FA)
SSD2-G1L4-80-45-FB Bore: 80 mm | Stroke: 45 mm | Mounting: Head flange (FB)
SSD2-G1L4-80-50 Bore: 80 mm | Stroke: 50 mm | Mounting: None (basic)
SSD2-G1L4-80-50-LB Bore: 80 mm | Stroke: 50 mm | Mounting: Axial foot (LB)
SSD2-G1L4-80-50-CB Bore: 80 mm | Stroke: 50 mm | Mounting: Double clevis (CB)
SSD2-G1L4-80-50-FA Bore: 80 mm | Stroke: 50 mm | Mounting: Rod flange (FA)
SSD2-G1L4-80-50-FB Bore: 80 mm | Stroke: 50 mm | Mounting: Head flange (FB)
SSD2-G1L4-80-75 Bore: 80 mm | Stroke: 75 mm | Mounting: None (basic)
SSD2-G1L4-80-75-LB Bore: 80 mm | Stroke: 75 mm | Mounting: Axial foot (LB)
SSD2-G1L4-80-75-CB Bore: 80 mm | Stroke: 75 mm | Mounting: Double clevis (CB)
SSD2-G1L4-80-75-FA Bore: 80 mm | Stroke: 75 mm | Mounting: Rod flange (FA)
SSD2-G1L4-80-75-FB Bore: 80 mm | Stroke: 75 mm | Mounting: Head flange (FB)
SSD2-G1L4-80-100 Bore: 80 mm | Stroke: 100 mm | Mounting: None (basic)
SSD2-G1L4-80-100-LB Bore: 80 mm | Stroke: 100 mm | Mounting: Axial foot (LB)
SSD2-G1L4-80-100-CB Bore: 80 mm | Stroke: 100 mm | Mounting: Double clevis (CB)
SSD2-G1L4-80-100-FA Bore: 80 mm | Stroke: 100 mm | Mounting: Rod flange (FA)
SSD2-G1L4-80-100-FB Bore: 80 mm | Stroke: 100 mm | Mounting: Head flange (FB)
SSD2-G1L4-100-20 Bore: 100 mm | Stroke: 20 mm | Mounting: None (basic)
SSD2-G1L4-100-20-LB Bore: 100 mm | Stroke: 20 mm | Mounting: Axial foot (LB)
SSD2-G1L4-100-20-CB Bore: 100 mm | Stroke: 20 mm | Mounting: Double clevis (CB)
SSD2-G1L4-100-20-FA Bore: 100 mm | Stroke: 20 mm | Mounting: Rod flange (FA)
SSD2-G1L4-100-20-FB Bore: 100 mm | Stroke: 20 mm | Mounting: Head flange (FB)
SSD2-G1L4-100-25 Bore: 100 mm | Stroke: 25 mm | Mounting: None (basic)
SSD2-G1L4-100-25-LB Bore: 100 mm | Stroke: 25 mm | Mounting: Axial foot (LB)
SSD2-G1L4-100-25-CB Bore: 100 mm | Stroke: 25 mm | Mounting: Double clevis (CB)
SSD2-G1L4-100-25-FA Bore: 100 mm | Stroke: 25 mm | Mounting: Rod flange (FA)
SSD2-G1L4-100-25-FB Bore: 100 mm | Stroke: 25 mm | Mounting: Head flange (FB)
SSD2-G1L4-100-30 Bore: 100 mm | Stroke: 30 mm | Mounting: None (basic)
SSD2-G1L4-100-30-LB Bore: 100 mm | Stroke: 30 mm | Mounting: Axial foot (LB)
SSD2-G1L4-100-30-CB Bore: 100 mm | Stroke: 30 mm | Mounting: Double clevis (CB)
SSD2-G1L4-100-30-FA Bore: 100 mm | Stroke: 30 mm | Mounting: Rod flange (FA)
SSD2-G1L4-100-30-FB Bore: 100 mm | Stroke: 30 mm | Mounting: Head flange (FB)
SSD2-G1L4-100-35 Bore: 100 mm | Stroke: 35 mm | Mounting: None (basic)
SSD2-G1L4-100-35-LB Bore: 100 mm | Stroke: 35 mm | Mounting: Axial foot (LB)
SSD2-G1L4-100-35-CB Bore: 100 mm | Stroke: 35 mm | Mounting: Double clevis (CB)
SSD2-G1L4-100-35-FA Bore: 100 mm | Stroke: 35 mm | Mounting: Rod flange (FA)
SSD2-G1L4-100-35-FB Bore: 100 mm | Stroke: 35 mm | Mounting: Head flange (FB)
SSD2-G1L4-100-40 Bore: 100 mm | Stroke: 40 mm | Mounting: None (basic)
SSD2-G1L4-100-40-LB Bore: 100 mm | Stroke: 40 mm | Mounting: Axial foot (LB)
SSD2-G1L4-100-40-CB Bore: 100 mm | Stroke: 40 mm | Mounting: Double clevis (CB)
SSD2-G1L4-100-40-FA Bore: 100 mm | Stroke: 40 mm | Mounting: Rod flange (FA)
SSD2-G1L4-100-40-FB Bore: 100 mm | Stroke: 40 mm | Mounting: Head flange (FB)
SSD2-G1L4-100-45 Bore: 100 mm | Stroke: 45 mm | Mounting: None (basic)
SSD2-G1L4-100-45-LB Bore: 100 mm | Stroke: 45 mm | Mounting: Axial foot (LB)
SSD2-G1L4-100-45-CB Bore: 100 mm | Stroke: 45 mm | Mounting: Double clevis (CB)
SSD2-G1L4-100-45-FA Bore: 100 mm | Stroke: 45 mm | Mounting: Rod flange (FA)
SSD2-G1L4-100-45-FB Bore: 100 mm | Stroke: 45 mm | Mounting: Head flange (FB)
SSD2-G1L4-100-50 Bore: 100 mm | Stroke: 50 mm | Mounting: None (basic)
SSD2-G1L4-100-50-LB Bore: 100 mm | Stroke: 50 mm | Mounting: Axial foot (LB)
SSD2-G1L4-100-50-CB Bore: 100 mm | Stroke: 50 mm | Mounting: Double clevis (CB)
SSD2-G1L4-100-50-FA Bore: 100 mm | Stroke: 50 mm | Mounting: Rod flange (FA)
SSD2-G1L4-100-50-FB Bore: 100 mm | Stroke: 50 mm | Mounting: Head flange (FB)
SSD2-G1L4-100-75 Bore: 100 mm | Stroke: 75 mm | Mounting: None (basic)
SSD2-G1L4-100-75-LB Bore: 100 mm | Stroke: 75 mm | Mounting: Axial foot (LB)
SSD2-G1L4-100-75-CB Bore: 100 mm | Stroke: 75 mm | Mounting: Double clevis (CB)
SSD2-G1L4-100-75-FA Bore: 100 mm | Stroke: 75 mm | Mounting: Rod flange (FA)
SSD2-G1L4-100-75-FB Bore: 100 mm | Stroke: 75 mm | Mounting: Head flange (FB)
SSD2-G1L4-100-100 Bore: 100 mm | Stroke: 100 mm | Mounting: None (basic)
SSD2-G1L4-100-100-LB Bore: 100 mm | Stroke: 100 mm | Mounting: Axial foot (LB)
SSD2-G1L4-100-100-CB Bore: 100 mm | Stroke: 100 mm | Mounting: Double clevis (CB)
SSD2-G1L4-100-100-FA Bore: 100 mm | Stroke: 100 mm | Mounting: Rod flange (FA)
SSD2-G1L4-100-100-FB Bore: 100 mm | Stroke: 100 mm | Mounting: Head flange (FB)
Compact CylindersCKD
225 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD SSD2-G1L4 Super Compact Cylinder (Strong Field Switch, Scraper)

Brand CKD·Compact Cylinders

Available part numbers (225)

SSD2-G1L4-40-20, SSD2-G1L4-40-20-LB, SSD2-G1L4-40-20-CB, SSD2-G1L4-40-20-FA, SSD2-G1L4-40-20-FB, SSD2-G1L4-40-25, SSD2-G1L4-40-25-LB, SSD2-G1L4-40-25-CB, SSD2-G1L4-40-25-FA, SSD2-G1L4-40-25-FB + 215 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SSD2-G1L4-40-20Bore: 40 mm | Stroke: 20 mm | Mounting: None (basic)
SSD2-G1L4-40-20-LBBore: 40 mm | Stroke: 20 mm | Mounting: Axial foot (LB)
SSD2-G1L4-40-20-CBBore: 40 mm | Stroke: 20 mm | Mounting: Double clevis (CB)
SSD2-G1L4-40-20-FABore: 40 mm | Stroke: 20 mm | Mounting: Rod flange (FA)
SSD2-G1L4-40-20-FBBore: 40 mm | Stroke: 20 mm | Mounting: Head flange (FB)
SSD2-G1L4-40-25Bore: 40 mm | Stroke: 25 mm | Mounting: None (basic)
SSD2-G1L4-40-25-LBBore: 40 mm | Stroke: 25 mm | Mounting: Axial foot (LB)
SSD2-G1L4-40-25-CBBore: 40 mm | Stroke: 25 mm | Mounting: Double clevis (CB)
SSD2-G1L4-40-25-FABore: 40 mm | Stroke: 25 mm | Mounting: Rod flange (FA)
SSD2-G1L4-40-25-FBBore: 40 mm | Stroke: 25 mm | Mounting: Head flange (FB)
SSD2-G1L4-40-30Bore: 40 mm | Stroke: 30 mm | Mounting: None (basic)
SSD2-G1L4-40-30-LBBore: 40 mm | Stroke: 30 mm | Mounting: Axial foot (LB)
SSD2-G1L4-40-30-CBBore: 40 mm | Stroke: 30 mm | Mounting: Double clevis (CB)
SSD2-G1L4-40-30-FABore: 40 mm | Stroke: 30 mm | Mounting: Rod flange (FA)
SSD2-G1L4-40-30-FBBore: 40 mm | Stroke: 30 mm | Mounting: Head flange (FB)
SSD2-G1L4-40-35Bore: 40 mm | Stroke: 35 mm | Mounting: None (basic)
SSD2-G1L4-40-35-LBBore: 40 mm | Stroke: 35 mm | Mounting: Axial foot (LB)
SSD2-G1L4-40-35-CBBore: 40 mm | Stroke: 35 mm | Mounting: Double clevis (CB)
SSD2-G1L4-40-35-FABore: 40 mm | Stroke: 35 mm | Mounting: Rod flange (FA)
SSD2-G1L4-40-35-FBBore: 40 mm | Stroke: 35 mm | Mounting: Head flange (FB)
SSD2-G1L4-40-40Bore: 40 mm | Stroke: 40 mm | Mounting: None (basic)
SSD2-G1L4-40-40-LBBore: 40 mm | Stroke: 40 mm | Mounting: Axial foot (LB)
SSD2-G1L4-40-40-CBBore: 40 mm | Stroke: 40 mm | Mounting: Double clevis (CB)
SSD2-G1L4-40-40-FABore: 40 mm | Stroke: 40 mm | Mounting: Rod flange (FA)
SSD2-G1L4-40-40-FBBore: 40 mm | Stroke: 40 mm | Mounting: Head flange (FB)
SSD2-G1L4-40-45Bore: 40 mm | Stroke: 45 mm | Mounting: None (basic)
SSD2-G1L4-40-45-LBBore: 40 mm | Stroke: 45 mm | Mounting: Axial foot (LB)
SSD2-G1L4-40-45-CBBore: 40 mm | Stroke: 45 mm | Mounting: Double clevis (CB)
SSD2-G1L4-40-45-FABore: 40 mm | Stroke: 45 mm | Mounting: Rod flange (FA)
SSD2-G1L4-40-45-FBBore: 40 mm | Stroke: 45 mm | Mounting: Head flange (FB)
SSD2-G1L4-40-50Bore: 40 mm | Stroke: 50 mm | Mounting: None (basic)
SSD2-G1L4-40-50-LBBore: 40 mm | Stroke: 50 mm | Mounting: Axial foot (LB)
SSD2-G1L4-40-50-CBBore: 40 mm | Stroke: 50 mm | Mounting: Double clevis (CB)
SSD2-G1L4-40-50-FABore: 40 mm | Stroke: 50 mm | Mounting: Rod flange (FA)
SSD2-G1L4-40-50-FBBore: 40 mm | Stroke: 50 mm | Mounting: Head flange (FB)
SSD2-G1L4-40-75Bore: 40 mm | Stroke: 75 mm | Mounting: None (basic)
SSD2-G1L4-40-75-LBBore: 40 mm | Stroke: 75 mm | Mounting: Axial foot (LB)
SSD2-G1L4-40-75-CBBore: 40 mm | Stroke: 75 mm | Mounting: Double clevis (CB)
SSD2-G1L4-40-75-FABore: 40 mm | Stroke: 75 mm | Mounting: Rod flange (FA)
SSD2-G1L4-40-75-FBBore: 40 mm | Stroke: 75 mm | Mounting: Head flange (FB)
SSD2-G1L4-40-100Bore: 40 mm | Stroke: 100 mm | Mounting: None (basic)
SSD2-G1L4-40-100-LBBore: 40 mm | Stroke: 100 mm | Mounting: Axial foot (LB)
SSD2-G1L4-40-100-CBBore: 40 mm | Stroke: 100 mm | Mounting: Double clevis (CB)
SSD2-G1L4-40-100-FABore: 40 mm | Stroke: 100 mm | Mounting: Rod flange (FA)
SSD2-G1L4-40-100-FBBore: 40 mm | Stroke: 100 mm | Mounting: Head flange (FB)
SSD2-G1L4-50-20Bore: 50 mm | Stroke: 20 mm | Mounting: None (basic)
SSD2-G1L4-50-20-LBBore: 50 mm | Stroke: 20 mm | Mounting: Axial foot (LB)
SSD2-G1L4-50-20-CBBore: 50 mm | Stroke: 20 mm | Mounting: Double clevis (CB)
SSD2-G1L4-50-20-FABore: 50 mm | Stroke: 20 mm | Mounting: Rod flange (FA)
SSD2-G1L4-50-20-FBBore: 50 mm | Stroke: 20 mm | Mounting: Head flange (FB)
SSD2-G1L4-50-25Bore: 50 mm | Stroke: 25 mm | Mounting: None (basic)
SSD2-G1L4-50-25-LBBore: 50 mm | Stroke: 25 mm | Mounting: Axial foot (LB)
SSD2-G1L4-50-25-CBBore: 50 mm | Stroke: 25 mm | Mounting: Double clevis (CB)
SSD2-G1L4-50-25-FABore: 50 mm | Stroke: 25 mm | Mounting: Rod flange (FA)
SSD2-G1L4-50-25-FBBore: 50 mm | Stroke: 25 mm | Mounting: Head flange (FB)
SSD2-G1L4-50-30Bore: 50 mm | Stroke: 30 mm | Mounting: None (basic)
SSD2-G1L4-50-30-LBBore: 50 mm | Stroke: 30 mm | Mounting: Axial foot (LB)
SSD2-G1L4-50-30-CBBore: 50 mm | Stroke: 30 mm | Mounting: Double clevis (CB)
SSD2-G1L4-50-30-FABore: 50 mm | Stroke: 30 mm | Mounting: Rod flange (FA)
SSD2-G1L4-50-30-FBBore: 50 mm | Stroke: 30 mm | Mounting: Head flange (FB)
SSD2-G1L4-50-35Bore: 50 mm | Stroke: 35 mm | Mounting: None (basic)
SSD2-G1L4-50-35-LBBore: 50 mm | Stroke: 35 mm | Mounting: Axial foot (LB)
SSD2-G1L4-50-35-CBBore: 50 mm | Stroke: 35 mm | Mounting: Double clevis (CB)
SSD2-G1L4-50-35-FABore: 50 mm | Stroke: 35 mm | Mounting: Rod flange (FA)
SSD2-G1L4-50-35-FBBore: 50 mm | Stroke: 35 mm | Mounting: Head flange (FB)
SSD2-G1L4-50-40Bore: 50 mm | Stroke: 40 mm | Mounting: None (basic)
SSD2-G1L4-50-40-LBBore: 50 mm | Stroke: 40 mm | Mounting: Axial foot (LB)
SSD2-G1L4-50-40-CBBore: 50 mm | Stroke: 40 mm | Mounting: Double clevis (CB)
SSD2-G1L4-50-40-FABore: 50 mm | Stroke: 40 mm | Mounting: Rod flange (FA)
SSD2-G1L4-50-40-FBBore: 50 mm | Stroke: 40 mm | Mounting: Head flange (FB)
SSD2-G1L4-50-45Bore: 50 mm | Stroke: 45 mm | Mounting: None (basic)
SSD2-G1L4-50-45-LBBore: 50 mm | Stroke: 45 mm | Mounting: Axial foot (LB)
SSD2-G1L4-50-45-CBBore: 50 mm | Stroke: 45 mm | Mounting: Double clevis (CB)
SSD2-G1L4-50-45-FABore: 50 mm | Stroke: 45 mm | Mounting: Rod flange (FA)
SSD2-G1L4-50-45-FBBore: 50 mm | Stroke: 45 mm | Mounting: Head flange (FB)
SSD2-G1L4-50-50Bore: 50 mm | Stroke: 50 mm | Mounting: None (basic)
SSD2-G1L4-50-50-LBBore: 50 mm | Stroke: 50 mm | Mounting: Axial foot (LB)
SSD2-G1L4-50-50-CBBore: 50 mm | Stroke: 50 mm | Mounting: Double clevis (CB)
SSD2-G1L4-50-50-FABore: 50 mm | Stroke: 50 mm | Mounting: Rod flange (FA)
SSD2-G1L4-50-50-FBBore: 50 mm | Stroke: 50 mm | Mounting: Head flange (FB)
SSD2-G1L4-50-75Bore: 50 mm | Stroke: 75 mm | Mounting: None (basic)
SSD2-G1L4-50-75-LBBore: 50 mm | Stroke: 75 mm | Mounting: Axial foot (LB)
SSD2-G1L4-50-75-CBBore: 50 mm | Stroke: 75 mm | Mounting: Double clevis (CB)
SSD2-G1L4-50-75-FABore: 50 mm | Stroke: 75 mm | Mounting: Rod flange (FA)
SSD2-G1L4-50-75-FBBore: 50 mm | Stroke: 75 mm | Mounting: Head flange (FB)
SSD2-G1L4-50-100Bore: 50 mm | Stroke: 100 mm | Mounting: None (basic)
SSD2-G1L4-50-100-LBBore: 50 mm | Stroke: 100 mm | Mounting: Axial foot (LB)
SSD2-G1L4-50-100-CBBore: 50 mm | Stroke: 100 mm | Mounting: Double clevis (CB)
SSD2-G1L4-50-100-FABore: 50 mm | Stroke: 100 mm | Mounting: Rod flange (FA)
SSD2-G1L4-50-100-FBBore: 50 mm | Stroke: 100 mm | Mounting: Head flange (FB)
SSD2-G1L4-63-20Bore: 63 mm | Stroke: 20 mm | Mounting: None (basic)
SSD2-G1L4-63-20-LBBore: 63 mm | Stroke: 20 mm | Mounting: Axial foot (LB)
SSD2-G1L4-63-20-CBBore: 63 mm | Stroke: 20 mm | Mounting: Double clevis (CB)
SSD2-G1L4-63-20-FABore: 63 mm | Stroke: 20 mm | Mounting: Rod flange (FA)
SSD2-G1L4-63-20-FBBore: 63 mm | Stroke: 20 mm | Mounting: Head flange (FB)
SSD2-G1L4-63-25Bore: 63 mm | Stroke: 25 mm | Mounting: None (basic)
SSD2-G1L4-63-25-LBBore: 63 mm | Stroke: 25 mm | Mounting: Axial foot (LB)
SSD2-G1L4-63-25-CBBore: 63 mm | Stroke: 25 mm | Mounting: Double clevis (CB)
SSD2-G1L4-63-25-FABore: 63 mm | Stroke: 25 mm | Mounting: Rod flange (FA)
SSD2-G1L4-63-25-FBBore: 63 mm | Stroke: 25 mm | Mounting: Head flange (FB)
SSD2-G1L4-63-30Bore: 63 mm | Stroke: 30 mm | Mounting: None (basic)
SSD2-G1L4-63-30-LBBore: 63 mm | Stroke: 30 mm | Mounting: Axial foot (LB)
SSD2-G1L4-63-30-CBBore: 63 mm | Stroke: 30 mm | Mounting: Double clevis (CB)
SSD2-G1L4-63-30-FABore: 63 mm | Stroke: 30 mm | Mounting: Rod flange (FA)
SSD2-G1L4-63-30-FBBore: 63 mm | Stroke: 30 mm | Mounting: Head flange (FB)
SSD2-G1L4-63-35Bore: 63 mm | Stroke: 35 mm | Mounting: None (basic)
SSD2-G1L4-63-35-LBBore: 63 mm | Stroke: 35 mm | Mounting: Axial foot (LB)
SSD2-G1L4-63-35-CBBore: 63 mm | Stroke: 35 mm | Mounting: Double clevis (CB)
SSD2-G1L4-63-35-FABore: 63 mm | Stroke: 35 mm | Mounting: Rod flange (FA)
SSD2-G1L4-63-35-FBBore: 63 mm | Stroke: 35 mm | Mounting: Head flange (FB)
SSD2-G1L4-63-40Bore: 63 mm | Stroke: 40 mm | Mounting: None (basic)
SSD2-G1L4-63-40-LBBore: 63 mm | Stroke: 40 mm | Mounting: Axial foot (LB)
SSD2-G1L4-63-40-CBBore: 63 mm | Stroke: 40 mm | Mounting: Double clevis (CB)
SSD2-G1L4-63-40-FABore: 63 mm | Stroke: 40 mm | Mounting: Rod flange (FA)
SSD2-G1L4-63-40-FBBore: 63 mm | Stroke: 40 mm | Mounting: Head flange (FB)
SSD2-G1L4-63-45Bore: 63 mm | Stroke: 45 mm | Mounting: None (basic)
SSD2-G1L4-63-45-LBBore: 63 mm | Stroke: 45 mm | Mounting: Axial foot (LB)
SSD2-G1L4-63-45-CBBore: 63 mm | Stroke: 45 mm | Mounting: Double clevis (CB)
SSD2-G1L4-63-45-FABore: 63 mm | Stroke: 45 mm | Mounting: Rod flange (FA)
SSD2-G1L4-63-45-FBBore: 63 mm | Stroke: 45 mm | Mounting: Head flange (FB)
SSD2-G1L4-63-50Bore: 63 mm | Stroke: 50 mm | Mounting: None (basic)
SSD2-G1L4-63-50-LBBore: 63 mm | Stroke: 50 mm | Mounting: Axial foot (LB)
SSD2-G1L4-63-50-CBBore: 63 mm | Stroke: 50 mm | Mounting: Double clevis (CB)
SSD2-G1L4-63-50-FABore: 63 mm | Stroke: 50 mm | Mounting: Rod flange (FA)
SSD2-G1L4-63-50-FBBore: 63 mm | Stroke: 50 mm | Mounting: Head flange (FB)
SSD2-G1L4-63-75Bore: 63 mm | Stroke: 75 mm | Mounting: None (basic)
SSD2-G1L4-63-75-LBBore: 63 mm | Stroke: 75 mm | Mounting: Axial foot (LB)
SSD2-G1L4-63-75-CBBore: 63 mm | Stroke: 75 mm | Mounting: Double clevis (CB)
SSD2-G1L4-63-75-FABore: 63 mm | Stroke: 75 mm | Mounting: Rod flange (FA)
SSD2-G1L4-63-75-FBBore: 63 mm | Stroke: 75 mm | Mounting: Head flange (FB)
SSD2-G1L4-63-100Bore: 63 mm | Stroke: 100 mm | Mounting: None (basic)
SSD2-G1L4-63-100-LBBore: 63 mm | Stroke: 100 mm | Mounting: Axial foot (LB)
SSD2-G1L4-63-100-CBBore: 63 mm | Stroke: 100 mm | Mounting: Double clevis (CB)
SSD2-G1L4-63-100-FABore: 63 mm | Stroke: 100 mm | Mounting: Rod flange (FA)
SSD2-G1L4-63-100-FBBore: 63 mm | Stroke: 100 mm | Mounting: Head flange (FB)
SSD2-G1L4-80-20Bore: 80 mm | Stroke: 20 mm | Mounting: None (basic)
SSD2-G1L4-80-20-LBBore: 80 mm | Stroke: 20 mm | Mounting: Axial foot (LB)
SSD2-G1L4-80-20-CBBore: 80 mm | Stroke: 20 mm | Mounting: Double clevis (CB)
SSD2-G1L4-80-20-FABore: 80 mm | Stroke: 20 mm | Mounting: Rod flange (FA)
SSD2-G1L4-80-20-FBBore: 80 mm | Stroke: 20 mm | Mounting: Head flange (FB)
SSD2-G1L4-80-25Bore: 80 mm | Stroke: 25 mm | Mounting: None (basic)
SSD2-G1L4-80-25-LBBore: 80 mm | Stroke: 25 mm | Mounting: Axial foot (LB)
SSD2-G1L4-80-25-CBBore: 80 mm | Stroke: 25 mm | Mounting: Double clevis (CB)
SSD2-G1L4-80-25-FABore: 80 mm | Stroke: 25 mm | Mounting: Rod flange (FA)
SSD2-G1L4-80-25-FBBore: 80 mm | Stroke: 25 mm | Mounting: Head flange (FB)
SSD2-G1L4-80-30Bore: 80 mm | Stroke: 30 mm | Mounting: None (basic)
SSD2-G1L4-80-30-LBBore: 80 mm | Stroke: 30 mm | Mounting: Axial foot (LB)
SSD2-G1L4-80-30-CBBore: 80 mm | Stroke: 30 mm | Mounting: Double clevis (CB)
SSD2-G1L4-80-30-FABore: 80 mm | Stroke: 30 mm | Mounting: Rod flange (FA)
SSD2-G1L4-80-30-FBBore: 80 mm | Stroke: 30 mm | Mounting: Head flange (FB)
SSD2-G1L4-80-35Bore: 80 mm | Stroke: 35 mm | Mounting: None (basic)
SSD2-G1L4-80-35-LBBore: 80 mm | Stroke: 35 mm | Mounting: Axial foot (LB)
SSD2-G1L4-80-35-CBBore: 80 mm | Stroke: 35 mm | Mounting: Double clevis (CB)
SSD2-G1L4-80-35-FABore: 80 mm | Stroke: 35 mm | Mounting: Rod flange (FA)
SSD2-G1L4-80-35-FBBore: 80 mm | Stroke: 35 mm | Mounting: Head flange (FB)
SSD2-G1L4-80-40Bore: 80 mm | Stroke: 40 mm | Mounting: None (basic)
SSD2-G1L4-80-40-LBBore: 80 mm | Stroke: 40 mm | Mounting: Axial foot (LB)
SSD2-G1L4-80-40-CBBore: 80 mm | Stroke: 40 mm | Mounting: Double clevis (CB)
SSD2-G1L4-80-40-FABore: 80 mm | Stroke: 40 mm | Mounting: Rod flange (FA)
SSD2-G1L4-80-40-FBBore: 80 mm | Stroke: 40 mm | Mounting: Head flange (FB)
SSD2-G1L4-80-45Bore: 80 mm | Stroke: 45 mm | Mounting: None (basic)
SSD2-G1L4-80-45-LBBore: 80 mm | Stroke: 45 mm | Mounting: Axial foot (LB)
SSD2-G1L4-80-45-CBBore: 80 mm | Stroke: 45 mm | Mounting: Double clevis (CB)
SSD2-G1L4-80-45-FABore: 80 mm | Stroke: 45 mm | Mounting: Rod flange (FA)
SSD2-G1L4-80-45-FBBore: 80 mm | Stroke: 45 mm | Mounting: Head flange (FB)
SSD2-G1L4-80-50Bore: 80 mm | Stroke: 50 mm | Mounting: None (basic)
SSD2-G1L4-80-50-LBBore: 80 mm | Stroke: 50 mm | Mounting: Axial foot (LB)
SSD2-G1L4-80-50-CBBore: 80 mm | Stroke: 50 mm | Mounting: Double clevis (CB)
SSD2-G1L4-80-50-FABore: 80 mm | Stroke: 50 mm | Mounting: Rod flange (FA)
SSD2-G1L4-80-50-FBBore: 80 mm | Stroke: 50 mm | Mounting: Head flange (FB)
SSD2-G1L4-80-75Bore: 80 mm | Stroke: 75 mm | Mounting: None (basic)
SSD2-G1L4-80-75-LBBore: 80 mm | Stroke: 75 mm | Mounting: Axial foot (LB)
SSD2-G1L4-80-75-CBBore: 80 mm | Stroke: 75 mm | Mounting: Double clevis (CB)
SSD2-G1L4-80-75-FABore: 80 mm | Stroke: 75 mm | Mounting: Rod flange (FA)
SSD2-G1L4-80-75-FBBore: 80 mm | Stroke: 75 mm | Mounting: Head flange (FB)
SSD2-G1L4-80-100Bore: 80 mm | Stroke: 100 mm | Mounting: None (basic)
SSD2-G1L4-80-100-LBBore: 80 mm | Stroke: 100 mm | Mounting: Axial foot (LB)
SSD2-G1L4-80-100-CBBore: 80 mm | Stroke: 100 mm | Mounting: Double clevis (CB)
SSD2-G1L4-80-100-FABore: 80 mm | Stroke: 100 mm | Mounting: Rod flange (FA)
SSD2-G1L4-80-100-FBBore: 80 mm | Stroke: 100 mm | Mounting: Head flange (FB)
SSD2-G1L4-100-20Bore: 100 mm | Stroke: 20 mm | Mounting: None (basic)
SSD2-G1L4-100-20-LBBore: 100 mm | Stroke: 20 mm | Mounting: Axial foot (LB)
SSD2-G1L4-100-20-CBBore: 100 mm | Stroke: 20 mm | Mounting: Double clevis (CB)
SSD2-G1L4-100-20-FABore: 100 mm | Stroke: 20 mm | Mounting: Rod flange (FA)
SSD2-G1L4-100-20-FBBore: 100 mm | Stroke: 20 mm | Mounting: Head flange (FB)
SSD2-G1L4-100-25Bore: 100 mm | Stroke: 25 mm | Mounting: None (basic)
SSD2-G1L4-100-25-LBBore: 100 mm | Stroke: 25 mm | Mounting: Axial foot (LB)
SSD2-G1L4-100-25-CBBore: 100 mm | Stroke: 25 mm | Mounting: Double clevis (CB)
SSD2-G1L4-100-25-FABore: 100 mm | Stroke: 25 mm | Mounting: Rod flange (FA)
SSD2-G1L4-100-25-FBBore: 100 mm | Stroke: 25 mm | Mounting: Head flange (FB)
SSD2-G1L4-100-30Bore: 100 mm | Stroke: 30 mm | Mounting: None (basic)
SSD2-G1L4-100-30-LBBore: 100 mm | Stroke: 30 mm | Mounting: Axial foot (LB)
SSD2-G1L4-100-30-CBBore: 100 mm | Stroke: 30 mm | Mounting: Double clevis (CB)
SSD2-G1L4-100-30-FABore: 100 mm | Stroke: 30 mm | Mounting: Rod flange (FA)
SSD2-G1L4-100-30-FBBore: 100 mm | Stroke: 30 mm | Mounting: Head flange (FB)
SSD2-G1L4-100-35Bore: 100 mm | Stroke: 35 mm | Mounting: None (basic)
SSD2-G1L4-100-35-LBBore: 100 mm | Stroke: 35 mm | Mounting: Axial foot (LB)
SSD2-G1L4-100-35-CBBore: 100 mm | Stroke: 35 mm | Mounting: Double clevis (CB)
SSD2-G1L4-100-35-FABore: 100 mm | Stroke: 35 mm | Mounting: Rod flange (FA)
SSD2-G1L4-100-35-FBBore: 100 mm | Stroke: 35 mm | Mounting: Head flange (FB)
SSD2-G1L4-100-40Bore: 100 mm | Stroke: 40 mm | Mounting: None (basic)
SSD2-G1L4-100-40-LBBore: 100 mm | Stroke: 40 mm | Mounting: Axial foot (LB)
SSD2-G1L4-100-40-CBBore: 100 mm | Stroke: 40 mm | Mounting: Double clevis (CB)
SSD2-G1L4-100-40-FABore: 100 mm | Stroke: 40 mm | Mounting: Rod flange (FA)
SSD2-G1L4-100-40-FBBore: 100 mm | Stroke: 40 mm | Mounting: Head flange (FB)
SSD2-G1L4-100-45Bore: 100 mm | Stroke: 45 mm | Mounting: None (basic)
SSD2-G1L4-100-45-LBBore: 100 mm | Stroke: 45 mm | Mounting: Axial foot (LB)
SSD2-G1L4-100-45-CBBore: 100 mm | Stroke: 45 mm | Mounting: Double clevis (CB)
SSD2-G1L4-100-45-FABore: 100 mm | Stroke: 45 mm | Mounting: Rod flange (FA)
SSD2-G1L4-100-45-FBBore: 100 mm | Stroke: 45 mm | Mounting: Head flange (FB)
SSD2-G1L4-100-50Bore: 100 mm | Stroke: 50 mm | Mounting: None (basic)
SSD2-G1L4-100-50-LBBore: 100 mm | Stroke: 50 mm | Mounting: Axial foot (LB)
SSD2-G1L4-100-50-CBBore: 100 mm | Stroke: 50 mm | Mounting: Double clevis (CB)
SSD2-G1L4-100-50-FABore: 100 mm | Stroke: 50 mm | Mounting: Rod flange (FA)
SSD2-G1L4-100-50-FBBore: 100 mm | Stroke: 50 mm | Mounting: Head flange (FB)
SSD2-G1L4-100-75Bore: 100 mm | Stroke: 75 mm | Mounting: None (basic)
SSD2-G1L4-100-75-LBBore: 100 mm | Stroke: 75 mm | Mounting: Axial foot (LB)
SSD2-G1L4-100-75-CBBore: 100 mm | Stroke: 75 mm | Mounting: Double clevis (CB)
SSD2-G1L4-100-75-FABore: 100 mm | Stroke: 75 mm | Mounting: Rod flange (FA)
SSD2-G1L4-100-75-FBBore: 100 mm | Stroke: 75 mm | Mounting: Head flange (FB)
SSD2-G1L4-100-100Bore: 100 mm | Stroke: 100 mm | Mounting: None (basic)
SSD2-G1L4-100-100-LBBore: 100 mm | Stroke: 100 mm | Mounting: Axial foot (LB)
SSD2-G1L4-100-100-CBBore: 100 mm | Stroke: 100 mm | Mounting: Double clevis (CB)
SSD2-G1L4-100-100-FABore: 100 mm | Stroke: 100 mm | Mounting: Rod flange (FA)
SSD2-G1L4-100-100-FBBore: 100 mm | Stroke: 100 mm | Mounting: Head flange (FB)

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
