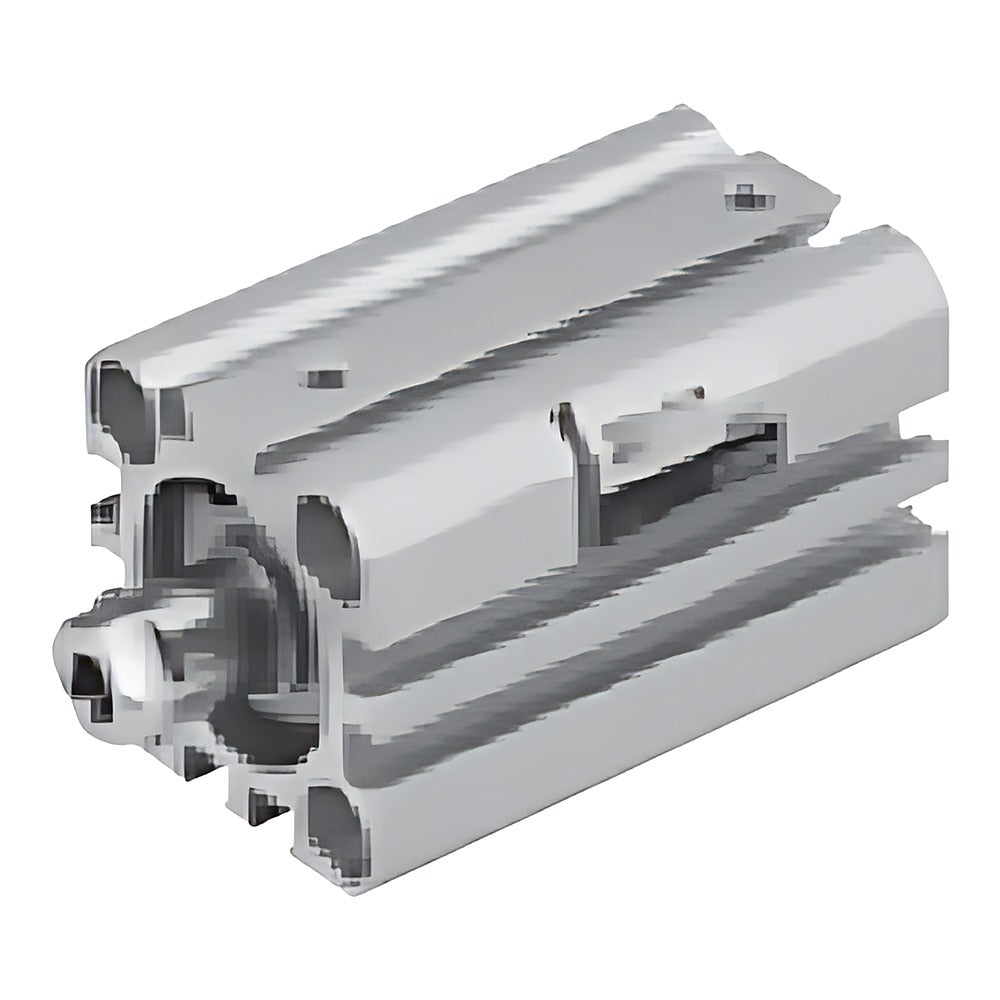

CKD SSD2-HP1 Long-life Super Compact Cylinder (Bore 12-40 mm)

CKD SSD2-HP1 Long-life Super Compact Cylinder (Bore 12-40 mm)

CKD SSD2-HP1 long-life double-acting single-rod super compact cylinder for bores 12-40 mm.

Key features

  • HP1 long-life design: optimised sliding parts, rated for 20 million+ cycles (about 4x conventional, CKD test conditions)
  • SSD2 (no magnet) or SSD2-L (switch magnet built in)
  • Mounting bracket code: none, LB foot, CB double clevis, FA rod flange or FB head flange
  • Standard strokes 5-30 (12/16), 5-50 (20/25), 5-100 mm (32/40); spacer-type intermediate strokes in 1 mm steps
  • Options not expanded: NN/GN threads, F/T auto switches, N male rod end with I/Y accessories, M stainless rod

Specifications

Operation Double acting, single rod
Fluid Compressed air
Max. operating pressure 1.0 MPa
Min. operating pressure 0.1 MPa
Proof pressure 1.6 MPa
Ambient temperature -10 to 60 C (no freezing)
Port size M5 (12-25), Rc1/8 (32, 40)
Piston speed 50-500 mm/s
Cushion None
Code format SSD2[-L]-<bore>-<stroke>[-<bracket>]-HP1
Source CKD Korea catalog CC-1421KR-7, p. 32-34
SSD2-12-5-HP1 Model: SSD2 (No switch magnet) | Bore: 12 mm | Stroke: 5 mm | Bracket: None
SSD2-12-5-LB-HP1 Model: SSD2 (No switch magnet) | Bore: 12 mm | Stroke: 5 mm | Bracket: Axial foot
SSD2-12-5-CB-HP1 Model: SSD2 (No switch magnet) | Bore: 12 mm | Stroke: 5 mm | Bracket: Double clevis
SSD2-12-5-FA-HP1 Model: SSD2 (No switch magnet) | Bore: 12 mm | Stroke: 5 mm | Bracket: Rod-end flange
SSD2-12-5-FB-HP1 Model: SSD2 (No switch magnet) | Bore: 12 mm | Stroke: 5 mm | Bracket: Head-end flange
SSD2-12-10-HP1 Model: SSD2 (No switch magnet) | Bore: 12 mm | Stroke: 10 mm | Bracket: None
SSD2-12-10-LB-HP1 Model: SSD2 (No switch magnet) | Bore: 12 mm | Stroke: 10 mm | Bracket: Axial foot
SSD2-12-10-CB-HP1 Model: SSD2 (No switch magnet) | Bore: 12 mm | Stroke: 10 mm | Bracket: Double clevis
SSD2-12-10-FA-HP1 Model: SSD2 (No switch magnet) | Bore: 12 mm | Stroke: 10 mm | Bracket: Rod-end flange
SSD2-12-10-FB-HP1 Model: SSD2 (No switch magnet) | Bore: 12 mm | Stroke: 10 mm | Bracket: Head-end flange
SSD2-12-15-HP1 Model: SSD2 (No switch magnet) | Bore: 12 mm | Stroke: 15 mm | Bracket: None
SSD2-12-15-LB-HP1 Model: SSD2 (No switch magnet) | Bore: 12 mm | Stroke: 15 mm | Bracket: Axial foot
SSD2-12-15-CB-HP1 Model: SSD2 (No switch magnet) | Bore: 12 mm | Stroke: 15 mm | Bracket: Double clevis
SSD2-12-15-FA-HP1 Model: SSD2 (No switch magnet) | Bore: 12 mm | Stroke: 15 mm | Bracket: Rod-end flange
SSD2-12-15-FB-HP1 Model: SSD2 (No switch magnet) | Bore: 12 mm | Stroke: 15 mm | Bracket: Head-end flange
SSD2-12-20-HP1 Model: SSD2 (No switch magnet) | Bore: 12 mm | Stroke: 20 mm | Bracket: None
SSD2-12-20-LB-HP1 Model: SSD2 (No switch magnet) | Bore: 12 mm | Stroke: 20 mm | Bracket: Axial foot
SSD2-12-20-CB-HP1 Model: SSD2 (No switch magnet) | Bore: 12 mm | Stroke: 20 mm | Bracket: Double clevis
SSD2-12-20-FA-HP1 Model: SSD2 (No switch magnet) | Bore: 12 mm | Stroke: 20 mm | Bracket: Rod-end flange
SSD2-12-20-FB-HP1 Model: SSD2 (No switch magnet) | Bore: 12 mm | Stroke: 20 mm | Bracket: Head-end flange
SSD2-12-25-HP1 Model: SSD2 (No switch magnet) | Bore: 12 mm | Stroke: 25 mm | Bracket: None
SSD2-12-25-LB-HP1 Model: SSD2 (No switch magnet) | Bore: 12 mm | Stroke: 25 mm | Bracket: Axial foot
SSD2-12-25-CB-HP1 Model: SSD2 (No switch magnet) | Bore: 12 mm | Stroke: 25 mm | Bracket: Double clevis
SSD2-12-25-FA-HP1 Model: SSD2 (No switch magnet) | Bore: 12 mm | Stroke: 25 mm | Bracket: Rod-end flange
SSD2-12-25-FB-HP1 Model: SSD2 (No switch magnet) | Bore: 12 mm | Stroke: 25 mm | Bracket: Head-end flange
SSD2-12-30-HP1 Model: SSD2 (No switch magnet) | Bore: 12 mm | Stroke: 30 mm | Bracket: None
SSD2-12-30-LB-HP1 Model: SSD2 (No switch magnet) | Bore: 12 mm | Stroke: 30 mm | Bracket: Axial foot
SSD2-12-30-CB-HP1 Model: SSD2 (No switch magnet) | Bore: 12 mm | Stroke: 30 mm | Bracket: Double clevis
SSD2-12-30-FA-HP1 Model: SSD2 (No switch magnet) | Bore: 12 mm | Stroke: 30 mm | Bracket: Rod-end flange
SSD2-12-30-FB-HP1 Model: SSD2 (No switch magnet) | Bore: 12 mm | Stroke: 30 mm | Bracket: Head-end flange
SSD2-16-5-HP1 Model: SSD2 (No switch magnet) | Bore: 16 mm | Stroke: 5 mm | Bracket: None
SSD2-16-5-LB-HP1 Model: SSD2 (No switch magnet) | Bore: 16 mm | Stroke: 5 mm | Bracket: Axial foot
SSD2-16-5-CB-HP1 Model: SSD2 (No switch magnet) | Bore: 16 mm | Stroke: 5 mm | Bracket: Double clevis
SSD2-16-5-FA-HP1 Model: SSD2 (No switch magnet) | Bore: 16 mm | Stroke: 5 mm | Bracket: Rod-end flange
SSD2-16-5-FB-HP1 Model: SSD2 (No switch magnet) | Bore: 16 mm | Stroke: 5 mm | Bracket: Head-end flange
SSD2-16-10-HP1 Model: SSD2 (No switch magnet) | Bore: 16 mm | Stroke: 10 mm | Bracket: None
SSD2-16-10-LB-HP1 Model: SSD2 (No switch magnet) | Bore: 16 mm | Stroke: 10 mm | Bracket: Axial foot
SSD2-16-10-CB-HP1 Model: SSD2 (No switch magnet) | Bore: 16 mm | Stroke: 10 mm | Bracket: Double clevis
SSD2-16-10-FA-HP1 Model: SSD2 (No switch magnet) | Bore: 16 mm | Stroke: 10 mm | Bracket: Rod-end flange
SSD2-16-10-FB-HP1 Model: SSD2 (No switch magnet) | Bore: 16 mm | Stroke: 10 mm | Bracket: Head-end flange
SSD2-16-15-HP1 Model: SSD2 (No switch magnet) | Bore: 16 mm | Stroke: 15 mm | Bracket: None
SSD2-16-15-LB-HP1 Model: SSD2 (No switch magnet) | Bore: 16 mm | Stroke: 15 mm | Bracket: Axial foot
SSD2-16-15-CB-HP1 Model: SSD2 (No switch magnet) | Bore: 16 mm | Stroke: 15 mm | Bracket: Double clevis
SSD2-16-15-FA-HP1 Model: SSD2 (No switch magnet) | Bore: 16 mm | Stroke: 15 mm | Bracket: Rod-end flange
SSD2-16-15-FB-HP1 Model: SSD2 (No switch magnet) | Bore: 16 mm | Stroke: 15 mm | Bracket: Head-end flange
SSD2-16-20-HP1 Model: SSD2 (No switch magnet) | Bore: 16 mm | Stroke: 20 mm | Bracket: None
SSD2-16-20-LB-HP1 Model: SSD2 (No switch magnet) | Bore: 16 mm | Stroke: 20 mm | Bracket: Axial foot
SSD2-16-20-CB-HP1 Model: SSD2 (No switch magnet) | Bore: 16 mm | Stroke: 20 mm | Bracket: Double clevis
SSD2-16-20-FA-HP1 Model: SSD2 (No switch magnet) | Bore: 16 mm | Stroke: 20 mm | Bracket: Rod-end flange
SSD2-16-20-FB-HP1 Model: SSD2 (No switch magnet) | Bore: 16 mm | Stroke: 20 mm | Bracket: Head-end flange
SSD2-16-25-HP1 Model: SSD2 (No switch magnet) | Bore: 16 mm | Stroke: 25 mm | Bracket: None
SSD2-16-25-LB-HP1 Model: SSD2 (No switch magnet) | Bore: 16 mm | Stroke: 25 mm | Bracket: Axial foot
SSD2-16-25-CB-HP1 Model: SSD2 (No switch magnet) | Bore: 16 mm | Stroke: 25 mm | Bracket: Double clevis
SSD2-16-25-FA-HP1 Model: SSD2 (No switch magnet) | Bore: 16 mm | Stroke: 25 mm | Bracket: Rod-end flange
SSD2-16-25-FB-HP1 Model: SSD2 (No switch magnet) | Bore: 16 mm | Stroke: 25 mm | Bracket: Head-end flange
SSD2-16-30-HP1 Model: SSD2 (No switch magnet) | Bore: 16 mm | Stroke: 30 mm | Bracket: None
SSD2-16-30-LB-HP1 Model: SSD2 (No switch magnet) | Bore: 16 mm | Stroke: 30 mm | Bracket: Axial foot
SSD2-16-30-CB-HP1 Model: SSD2 (No switch magnet) | Bore: 16 mm | Stroke: 30 mm | Bracket: Double clevis
SSD2-16-30-FA-HP1 Model: SSD2 (No switch magnet) | Bore: 16 mm | Stroke: 30 mm | Bracket: Rod-end flange
SSD2-16-30-FB-HP1 Model: SSD2 (No switch magnet) | Bore: 16 mm | Stroke: 30 mm | Bracket: Head-end flange
SSD2-20-5-HP1 Model: SSD2 (No switch magnet) | Bore: 20 mm | Stroke: 5 mm | Bracket: None
SSD2-20-5-LB-HP1 Model: SSD2 (No switch magnet) | Bore: 20 mm | Stroke: 5 mm | Bracket: Axial foot
SSD2-20-5-CB-HP1 Model: SSD2 (No switch magnet) | Bore: 20 mm | Stroke: 5 mm | Bracket: Double clevis
SSD2-20-5-FA-HP1 Model: SSD2 (No switch magnet) | Bore: 20 mm | Stroke: 5 mm | Bracket: Rod-end flange
SSD2-20-5-FB-HP1 Model: SSD2 (No switch magnet) | Bore: 20 mm | Stroke: 5 mm | Bracket: Head-end flange
SSD2-20-10-HP1 Model: SSD2 (No switch magnet) | Bore: 20 mm | Stroke: 10 mm | Bracket: None
SSD2-20-10-LB-HP1 Model: SSD2 (No switch magnet) | Bore: 20 mm | Stroke: 10 mm | Bracket: Axial foot
SSD2-20-10-CB-HP1 Model: SSD2 (No switch magnet) | Bore: 20 mm | Stroke: 10 mm | Bracket: Double clevis
SSD2-20-10-FA-HP1 Model: SSD2 (No switch magnet) | Bore: 20 mm | Stroke: 10 mm | Bracket: Rod-end flange
SSD2-20-10-FB-HP1 Model: SSD2 (No switch magnet) | Bore: 20 mm | Stroke: 10 mm | Bracket: Head-end flange
SSD2-20-15-HP1 Model: SSD2 (No switch magnet) | Bore: 20 mm | Stroke: 15 mm | Bracket: None
SSD2-20-15-LB-HP1 Model: SSD2 (No switch magnet) | Bore: 20 mm | Stroke: 15 mm | Bracket: Axial foot
SSD2-20-15-CB-HP1 Model: SSD2 (No switch magnet) | Bore: 20 mm | Stroke: 15 mm | Bracket: Double clevis
SSD2-20-15-FA-HP1 Model: SSD2 (No switch magnet) | Bore: 20 mm | Stroke: 15 mm | Bracket: Rod-end flange
SSD2-20-15-FB-HP1 Model: SSD2 (No switch magnet) | Bore: 20 mm | Stroke: 15 mm | Bracket: Head-end flange
SSD2-20-20-HP1 Model: SSD2 (No switch magnet) | Bore: 20 mm | Stroke: 20 mm | Bracket: None
SSD2-20-20-LB-HP1 Model: SSD2 (No switch magnet) | Bore: 20 mm | Stroke: 20 mm | Bracket: Axial foot
SSD2-20-20-CB-HP1 Model: SSD2 (No switch magnet) | Bore: 20 mm | Stroke: 20 mm | Bracket: Double clevis
SSD2-20-20-FA-HP1 Model: SSD2 (No switch magnet) | Bore: 20 mm | Stroke: 20 mm | Bracket: Rod-end flange
SSD2-20-20-FB-HP1 Model: SSD2 (No switch magnet) | Bore: 20 mm | Stroke: 20 mm | Bracket: Head-end flange
SSD2-20-25-HP1 Model: SSD2 (No switch magnet) | Bore: 20 mm | Stroke: 25 mm | Bracket: None
SSD2-20-25-LB-HP1 Model: SSD2 (No switch magnet) | Bore: 20 mm | Stroke: 25 mm | Bracket: Axial foot
SSD2-20-25-CB-HP1 Model: SSD2 (No switch magnet) | Bore: 20 mm | Stroke: 25 mm | Bracket: Double clevis
SSD2-20-25-FA-HP1 Model: SSD2 (No switch magnet) | Bore: 20 mm | Stroke: 25 mm | Bracket: Rod-end flange
SSD2-20-25-FB-HP1 Model: SSD2 (No switch magnet) | Bore: 20 mm | Stroke: 25 mm | Bracket: Head-end flange
SSD2-20-30-HP1 Model: SSD2 (No switch magnet) | Bore: 20 mm | Stroke: 30 mm | Bracket: None
SSD2-20-30-LB-HP1 Model: SSD2 (No switch magnet) | Bore: 20 mm | Stroke: 30 mm | Bracket: Axial foot
SSD2-20-30-CB-HP1 Model: SSD2 (No switch magnet) | Bore: 20 mm | Stroke: 30 mm | Bracket: Double clevis
SSD2-20-30-FA-HP1 Model: SSD2 (No switch magnet) | Bore: 20 mm | Stroke: 30 mm | Bracket: Rod-end flange
SSD2-20-30-FB-HP1 Model: SSD2 (No switch magnet) | Bore: 20 mm | Stroke: 30 mm | Bracket: Head-end flange
SSD2-20-35-HP1 Model: SSD2 (No switch magnet) | Bore: 20 mm | Stroke: 35 mm | Bracket: None
SSD2-20-35-LB-HP1 Model: SSD2 (No switch magnet) | Bore: 20 mm | Stroke: 35 mm | Bracket: Axial foot
SSD2-20-35-CB-HP1 Model: SSD2 (No switch magnet) | Bore: 20 mm | Stroke: 35 mm | Bracket: Double clevis
SSD2-20-35-FA-HP1 Model: SSD2 (No switch magnet) | Bore: 20 mm | Stroke: 35 mm | Bracket: Rod-end flange
SSD2-20-35-FB-HP1 Model: SSD2 (No switch magnet) | Bore: 20 mm | Stroke: 35 mm | Bracket: Head-end flange
SSD2-20-40-HP1 Model: SSD2 (No switch magnet) | Bore: 20 mm | Stroke: 40 mm | Bracket: None
SSD2-20-40-LB-HP1 Model: SSD2 (No switch magnet) | Bore: 20 mm | Stroke: 40 mm | Bracket: Axial foot
SSD2-20-40-CB-HP1 Model: SSD2 (No switch magnet) | Bore: 20 mm | Stroke: 40 mm | Bracket: Double clevis
SSD2-20-40-FA-HP1 Model: SSD2 (No switch magnet) | Bore: 20 mm | Stroke: 40 mm | Bracket: Rod-end flange
SSD2-20-40-FB-HP1 Model: SSD2 (No switch magnet) | Bore: 20 mm | Stroke: 40 mm | Bracket: Head-end flange
SSD2-20-45-HP1 Model: SSD2 (No switch magnet) | Bore: 20 mm | Stroke: 45 mm | Bracket: None
SSD2-20-45-LB-HP1 Model: SSD2 (No switch magnet) | Bore: 20 mm | Stroke: 45 mm | Bracket: Axial foot
SSD2-20-45-CB-HP1 Model: SSD2 (No switch magnet) | Bore: 20 mm | Stroke: 45 mm | Bracket: Double clevis
SSD2-20-45-FA-HP1 Model: SSD2 (No switch magnet) | Bore: 20 mm | Stroke: 45 mm | Bracket: Rod-end flange
SSD2-20-45-FB-HP1 Model: SSD2 (No switch magnet) | Bore: 20 mm | Stroke: 45 mm | Bracket: Head-end flange
SSD2-20-50-HP1 Model: SSD2 (No switch magnet) | Bore: 20 mm | Stroke: 50 mm | Bracket: None
SSD2-20-50-LB-HP1 Model: SSD2 (No switch magnet) | Bore: 20 mm | Stroke: 50 mm | Bracket: Axial foot
SSD2-20-50-CB-HP1 Model: SSD2 (No switch magnet) | Bore: 20 mm | Stroke: 50 mm | Bracket: Double clevis
SSD2-20-50-FA-HP1 Model: SSD2 (No switch magnet) | Bore: 20 mm | Stroke: 50 mm | Bracket: Rod-end flange
SSD2-20-50-FB-HP1 Model: SSD2 (No switch magnet) | Bore: 20 mm | Stroke: 50 mm | Bracket: Head-end flange
SSD2-25-5-HP1 Model: SSD2 (No switch magnet) | Bore: 25 mm | Stroke: 5 mm | Bracket: None
SSD2-25-5-LB-HP1 Model: SSD2 (No switch magnet) | Bore: 25 mm | Stroke: 5 mm | Bracket: Axial foot
SSD2-25-5-CB-HP1 Model: SSD2 (No switch magnet) | Bore: 25 mm | Stroke: 5 mm | Bracket: Double clevis
SSD2-25-5-FA-HP1 Model: SSD2 (No switch magnet) | Bore: 25 mm | Stroke: 5 mm | Bracket: Rod-end flange
SSD2-25-5-FB-HP1 Model: SSD2 (No switch magnet) | Bore: 25 mm | Stroke: 5 mm | Bracket: Head-end flange
SSD2-25-10-HP1 Model: SSD2 (No switch magnet) | Bore: 25 mm | Stroke: 10 mm | Bracket: None
SSD2-25-10-LB-HP1 Model: SSD2 (No switch magnet) | Bore: 25 mm | Stroke: 10 mm | Bracket: Axial foot
SSD2-25-10-CB-HP1 Model: SSD2 (No switch magnet) | Bore: 25 mm | Stroke: 10 mm | Bracket: Double clevis
SSD2-25-10-FA-HP1 Model: SSD2 (No switch magnet) | Bore: 25 mm | Stroke: 10 mm | Bracket: Rod-end flange
SSD2-25-10-FB-HP1 Model: SSD2 (No switch magnet) | Bore: 25 mm | Stroke: 10 mm | Bracket: Head-end flange
SSD2-25-15-HP1 Model: SSD2 (No switch magnet) | Bore: 25 mm | Stroke: 15 mm | Bracket: None
SSD2-25-15-LB-HP1 Model: SSD2 (No switch magnet) | Bore: 25 mm | Stroke: 15 mm | Bracket: Axial foot
SSD2-25-15-CB-HP1 Model: SSD2 (No switch magnet) | Bore: 25 mm | Stroke: 15 mm | Bracket: Double clevis
SSD2-25-15-FA-HP1 Model: SSD2 (No switch magnet) | Bore: 25 mm | Stroke: 15 mm | Bracket: Rod-end flange
SSD2-25-15-FB-HP1 Model: SSD2 (No switch magnet) | Bore: 25 mm | Stroke: 15 mm | Bracket: Head-end flange
SSD2-25-20-HP1 Model: SSD2 (No switch magnet) | Bore: 25 mm | Stroke: 20 mm | Bracket: None
SSD2-25-20-LB-HP1 Model: SSD2 (No switch magnet) | Bore: 25 mm | Stroke: 20 mm | Bracket: Axial foot
SSD2-25-20-CB-HP1 Model: SSD2 (No switch magnet) | Bore: 25 mm | Stroke: 20 mm | Bracket: Double clevis
SSD2-25-20-FA-HP1 Model: SSD2 (No switch magnet) | Bore: 25 mm | Stroke: 20 mm | Bracket: Rod-end flange
SSD2-25-20-FB-HP1 Model: SSD2 (No switch magnet) | Bore: 25 mm | Stroke: 20 mm | Bracket: Head-end flange
SSD2-25-25-HP1 Model: SSD2 (No switch magnet) | Bore: 25 mm | Stroke: 25 mm | Bracket: None
SSD2-25-25-LB-HP1 Model: SSD2 (No switch magnet) | Bore: 25 mm | Stroke: 25 mm | Bracket: Axial foot
SSD2-25-25-CB-HP1 Model: SSD2 (No switch magnet) | Bore: 25 mm | Stroke: 25 mm | Bracket: Double clevis
SSD2-25-25-FA-HP1 Model: SSD2 (No switch magnet) | Bore: 25 mm | Stroke: 25 mm | Bracket: Rod-end flange
SSD2-25-25-FB-HP1 Model: SSD2 (No switch magnet) | Bore: 25 mm | Stroke: 25 mm | Bracket: Head-end flange
SSD2-25-30-HP1 Model: SSD2 (No switch magnet) | Bore: 25 mm | Stroke: 30 mm | Bracket: None
SSD2-25-30-LB-HP1 Model: SSD2 (No switch magnet) | Bore: 25 mm | Stroke: 30 mm | Bracket: Axial foot
SSD2-25-30-CB-HP1 Model: SSD2 (No switch magnet) | Bore: 25 mm | Stroke: 30 mm | Bracket: Double clevis
SSD2-25-30-FA-HP1 Model: SSD2 (No switch magnet) | Bore: 25 mm | Stroke: 30 mm | Bracket: Rod-end flange
SSD2-25-30-FB-HP1 Model: SSD2 (No switch magnet) | Bore: 25 mm | Stroke: 30 mm | Bracket: Head-end flange
SSD2-25-35-HP1 Model: SSD2 (No switch magnet) | Bore: 25 mm | Stroke: 35 mm | Bracket: None
SSD2-25-35-LB-HP1 Model: SSD2 (No switch magnet) | Bore: 25 mm | Stroke: 35 mm | Bracket: Axial foot
SSD2-25-35-CB-HP1 Model: SSD2 (No switch magnet) | Bore: 25 mm | Stroke: 35 mm | Bracket: Double clevis
SSD2-25-35-FA-HP1 Model: SSD2 (No switch magnet) | Bore: 25 mm | Stroke: 35 mm | Bracket: Rod-end flange
SSD2-25-35-FB-HP1 Model: SSD2 (No switch magnet) | Bore: 25 mm | Stroke: 35 mm | Bracket: Head-end flange
SSD2-25-40-HP1 Model: SSD2 (No switch magnet) | Bore: 25 mm | Stroke: 40 mm | Bracket: None
SSD2-25-40-LB-HP1 Model: SSD2 (No switch magnet) | Bore: 25 mm | Stroke: 40 mm | Bracket: Axial foot
SSD2-25-40-CB-HP1 Model: SSD2 (No switch magnet) | Bore: 25 mm | Stroke: 40 mm | Bracket: Double clevis
SSD2-25-40-FA-HP1 Model: SSD2 (No switch magnet) | Bore: 25 mm | Stroke: 40 mm | Bracket: Rod-end flange
SSD2-25-40-FB-HP1 Model: SSD2 (No switch magnet) | Bore: 25 mm | Stroke: 40 mm | Bracket: Head-end flange
SSD2-25-45-HP1 Model: SSD2 (No switch magnet) | Bore: 25 mm | Stroke: 45 mm | Bracket: None
SSD2-25-45-LB-HP1 Model: SSD2 (No switch magnet) | Bore: 25 mm | Stroke: 45 mm | Bracket: Axial foot
SSD2-25-45-CB-HP1 Model: SSD2 (No switch magnet) | Bore: 25 mm | Stroke: 45 mm | Bracket: Double clevis
SSD2-25-45-FA-HP1 Model: SSD2 (No switch magnet) | Bore: 25 mm | Stroke: 45 mm | Bracket: Rod-end flange
SSD2-25-45-FB-HP1 Model: SSD2 (No switch magnet) | Bore: 25 mm | Stroke: 45 mm | Bracket: Head-end flange
SSD2-25-50-HP1 Model: SSD2 (No switch magnet) | Bore: 25 mm | Stroke: 50 mm | Bracket: None
SSD2-25-50-LB-HP1 Model: SSD2 (No switch magnet) | Bore: 25 mm | Stroke: 50 mm | Bracket: Axial foot
SSD2-25-50-CB-HP1 Model: SSD2 (No switch magnet) | Bore: 25 mm | Stroke: 50 mm | Bracket: Double clevis
SSD2-25-50-FA-HP1 Model: SSD2 (No switch magnet) | Bore: 25 mm | Stroke: 50 mm | Bracket: Rod-end flange
SSD2-25-50-FB-HP1 Model: SSD2 (No switch magnet) | Bore: 25 mm | Stroke: 50 mm | Bracket: Head-end flange
SSD2-32-5-HP1 Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 5 mm | Bracket: None
SSD2-32-5-LB-HP1 Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 5 mm | Bracket: Axial foot
SSD2-32-5-CB-HP1 Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 5 mm | Bracket: Double clevis
SSD2-32-5-FA-HP1 Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 5 mm | Bracket: Rod-end flange
SSD2-32-5-FB-HP1 Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 5 mm | Bracket: Head-end flange
SSD2-32-10-HP1 Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 10 mm | Bracket: None
SSD2-32-10-LB-HP1 Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 10 mm | Bracket: Axial foot
SSD2-32-10-CB-HP1 Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 10 mm | Bracket: Double clevis
SSD2-32-10-FA-HP1 Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 10 mm | Bracket: Rod-end flange
SSD2-32-10-FB-HP1 Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 10 mm | Bracket: Head-end flange
SSD2-32-15-HP1 Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 15 mm | Bracket: None
SSD2-32-15-LB-HP1 Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 15 mm | Bracket: Axial foot
SSD2-32-15-CB-HP1 Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 15 mm | Bracket: Double clevis
SSD2-32-15-FA-HP1 Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 15 mm | Bracket: Rod-end flange
SSD2-32-15-FB-HP1 Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 15 mm | Bracket: Head-end flange
SSD2-32-20-HP1 Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 20 mm | Bracket: None
SSD2-32-20-LB-HP1 Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 20 mm | Bracket: Axial foot
SSD2-32-20-CB-HP1 Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 20 mm | Bracket: Double clevis
SSD2-32-20-FA-HP1 Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 20 mm | Bracket: Rod-end flange
SSD2-32-20-FB-HP1 Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 20 mm | Bracket: Head-end flange
SSD2-32-25-HP1 Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 25 mm | Bracket: None
SSD2-32-25-LB-HP1 Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 25 mm | Bracket: Axial foot
SSD2-32-25-CB-HP1 Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 25 mm | Bracket: Double clevis
SSD2-32-25-FA-HP1 Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 25 mm | Bracket: Rod-end flange
SSD2-32-25-FB-HP1 Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 25 mm | Bracket: Head-end flange
SSD2-32-30-HP1 Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 30 mm | Bracket: None
SSD2-32-30-LB-HP1 Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 30 mm | Bracket: Axial foot
SSD2-32-30-CB-HP1 Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 30 mm | Bracket: Double clevis
SSD2-32-30-FA-HP1 Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 30 mm | Bracket: Rod-end flange
SSD2-32-30-FB-HP1 Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 30 mm | Bracket: Head-end flange
SSD2-32-35-HP1 Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 35 mm | Bracket: None
SSD2-32-35-LB-HP1 Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 35 mm | Bracket: Axial foot
SSD2-32-35-CB-HP1 Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 35 mm | Bracket: Double clevis
SSD2-32-35-FA-HP1 Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 35 mm | Bracket: Rod-end flange
SSD2-32-35-FB-HP1 Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 35 mm | Bracket: Head-end flange
SSD2-32-40-HP1 Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 40 mm | Bracket: None
SSD2-32-40-LB-HP1 Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 40 mm | Bracket: Axial foot
SSD2-32-40-CB-HP1 Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 40 mm | Bracket: Double clevis
SSD2-32-40-FA-HP1 Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 40 mm | Bracket: Rod-end flange
SSD2-32-40-FB-HP1 Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 40 mm | Bracket: Head-end flange
SSD2-32-45-HP1 Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 45 mm | Bracket: None
SSD2-32-45-LB-HP1 Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 45 mm | Bracket: Axial foot
SSD2-32-45-CB-HP1 Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 45 mm | Bracket: Double clevis
SSD2-32-45-FA-HP1 Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 45 mm | Bracket: Rod-end flange
SSD2-32-45-FB-HP1 Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 45 mm | Bracket: Head-end flange
SSD2-32-50-HP1 Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 50 mm | Bracket: None
SSD2-32-50-LB-HP1 Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 50 mm | Bracket: Axial foot
SSD2-32-50-CB-HP1 Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 50 mm | Bracket: Double clevis
SSD2-32-50-FA-HP1 Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 50 mm | Bracket: Rod-end flange
SSD2-32-50-FB-HP1 Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 50 mm | Bracket: Head-end flange
SSD2-32-75-HP1 Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 75 mm | Bracket: None
SSD2-32-75-LB-HP1 Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 75 mm | Bracket: Axial foot
SSD2-32-75-CB-HP1 Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 75 mm | Bracket: Double clevis
SSD2-32-75-FA-HP1 Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 75 mm | Bracket: Rod-end flange
SSD2-32-75-FB-HP1 Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 75 mm | Bracket: Head-end flange
SSD2-32-100-HP1 Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 100 mm | Bracket: None
SSD2-32-100-LB-HP1 Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 100 mm | Bracket: Axial foot
SSD2-32-100-CB-HP1 Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 100 mm | Bracket: Double clevis
SSD2-32-100-FA-HP1 Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 100 mm | Bracket: Rod-end flange
SSD2-32-100-FB-HP1 Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 100 mm | Bracket: Head-end flange
SSD2-40-5-HP1 Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 5 mm | Bracket: None
SSD2-40-5-LB-HP1 Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 5 mm | Bracket: Axial foot
SSD2-40-5-CB-HP1 Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 5 mm | Bracket: Double clevis
SSD2-40-5-FA-HP1 Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 5 mm | Bracket: Rod-end flange
SSD2-40-5-FB-HP1 Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 5 mm | Bracket: Head-end flange
SSD2-40-10-HP1 Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 10 mm | Bracket: None
SSD2-40-10-LB-HP1 Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 10 mm | Bracket: Axial foot
SSD2-40-10-CB-HP1 Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 10 mm | Bracket: Double clevis
SSD2-40-10-FA-HP1 Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 10 mm | Bracket: Rod-end flange
SSD2-40-10-FB-HP1 Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 10 mm | Bracket: Head-end flange
SSD2-40-15-HP1 Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 15 mm | Bracket: None
SSD2-40-15-LB-HP1 Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 15 mm | Bracket: Axial foot
SSD2-40-15-CB-HP1 Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 15 mm | Bracket: Double clevis
SSD2-40-15-FA-HP1 Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 15 mm | Bracket: Rod-end flange
SSD2-40-15-FB-HP1 Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 15 mm | Bracket: Head-end flange
SSD2-40-20-HP1 Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 20 mm | Bracket: None
SSD2-40-20-LB-HP1 Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 20 mm | Bracket: Axial foot
SSD2-40-20-CB-HP1 Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 20 mm | Bracket: Double clevis
SSD2-40-20-FA-HP1 Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 20 mm | Bracket: Rod-end flange
SSD2-40-20-FB-HP1 Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 20 mm | Bracket: Head-end flange
SSD2-40-25-HP1 Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 25 mm | Bracket: None
SSD2-40-25-LB-HP1 Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 25 mm | Bracket: Axial foot
SSD2-40-25-CB-HP1 Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 25 mm | Bracket: Double clevis
SSD2-40-25-FA-HP1 Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 25 mm | Bracket: Rod-end flange
SSD2-40-25-FB-HP1 Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 25 mm | Bracket: Head-end flange
SSD2-40-30-HP1 Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 30 mm | Bracket: None
SSD2-40-30-LB-HP1 Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 30 mm | Bracket: Axial foot
SSD2-40-30-CB-HP1 Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 30 mm | Bracket: Double clevis
SSD2-40-30-FA-HP1 Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 30 mm | Bracket: Rod-end flange
SSD2-40-30-FB-HP1 Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 30 mm | Bracket: Head-end flange
SSD2-40-35-HP1 Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 35 mm | Bracket: None
SSD2-40-35-LB-HP1 Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 35 mm | Bracket: Axial foot
SSD2-40-35-CB-HP1 Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 35 mm | Bracket: Double clevis
SSD2-40-35-FA-HP1 Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 35 mm | Bracket: Rod-end flange
SSD2-40-35-FB-HP1 Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 35 mm | Bracket: Head-end flange
SSD2-40-40-HP1 Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 40 mm | Bracket: None
SSD2-40-40-LB-HP1 Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 40 mm | Bracket: Axial foot
SSD2-40-40-CB-HP1 Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 40 mm | Bracket: Double clevis
SSD2-40-40-FA-HP1 Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 40 mm | Bracket: Rod-end flange
SSD2-40-40-FB-HP1 Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 40 mm | Bracket: Head-end flange
SSD2-40-45-HP1 Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 45 mm | Bracket: None
SSD2-40-45-LB-HP1 Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 45 mm | Bracket: Axial foot
SSD2-40-45-CB-HP1 Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 45 mm | Bracket: Double clevis
SSD2-40-45-FA-HP1 Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 45 mm | Bracket: Rod-end flange
SSD2-40-45-FB-HP1 Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 45 mm | Bracket: Head-end flange
SSD2-40-50-HP1 Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 50 mm | Bracket: None
SSD2-40-50-LB-HP1 Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 50 mm | Bracket: Axial foot
SSD2-40-50-CB-HP1 Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 50 mm | Bracket: Double clevis
SSD2-40-50-FA-HP1 Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 50 mm | Bracket: Rod-end flange
SSD2-40-50-FB-HP1 Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 50 mm | Bracket: Head-end flange
SSD2-40-75-HP1 Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 75 mm | Bracket: None
SSD2-40-75-LB-HP1 Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 75 mm | Bracket: Axial foot
SSD2-40-75-CB-HP1 Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 75 mm | Bracket: Double clevis
SSD2-40-75-FA-HP1 Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 75 mm | Bracket: Rod-end flange
SSD2-40-75-FB-HP1 Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 75 mm | Bracket: Head-end flange
SSD2-40-100-HP1 Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 100 mm | Bracket: None
SSD2-40-100-LB-HP1 Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 100 mm | Bracket: Axial foot
SSD2-40-100-CB-HP1 Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 100 mm | Bracket: Double clevis
SSD2-40-100-FA-HP1 Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 100 mm | Bracket: Rod-end flange
SSD2-40-100-FB-HP1 Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 100 mm | Bracket: Head-end flange
SSD2-L-12-5-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 12 mm | Stroke: 5 mm | Bracket: None
SSD2-L-12-5-LB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 12 mm | Stroke: 5 mm | Bracket: Axial foot
SSD2-L-12-5-CB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 12 mm | Stroke: 5 mm | Bracket: Double clevis
SSD2-L-12-5-FA-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 12 mm | Stroke: 5 mm | Bracket: Rod-end flange
SSD2-L-12-5-FB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 12 mm | Stroke: 5 mm | Bracket: Head-end flange
SSD2-L-12-10-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 12 mm | Stroke: 10 mm | Bracket: None
SSD2-L-12-10-LB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 12 mm | Stroke: 10 mm | Bracket: Axial foot
SSD2-L-12-10-CB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 12 mm | Stroke: 10 mm | Bracket: Double clevis
SSD2-L-12-10-FA-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 12 mm | Stroke: 10 mm | Bracket: Rod-end flange
SSD2-L-12-10-FB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 12 mm | Stroke: 10 mm | Bracket: Head-end flange
SSD2-L-12-15-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 12 mm | Stroke: 15 mm | Bracket: None
SSD2-L-12-15-LB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 12 mm | Stroke: 15 mm | Bracket: Axial foot
SSD2-L-12-15-CB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 12 mm | Stroke: 15 mm | Bracket: Double clevis
SSD2-L-12-15-FA-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 12 mm | Stroke: 15 mm | Bracket: Rod-end flange
SSD2-L-12-15-FB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 12 mm | Stroke: 15 mm | Bracket: Head-end flange
SSD2-L-12-20-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 12 mm | Stroke: 20 mm | Bracket: None
SSD2-L-12-20-LB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 12 mm | Stroke: 20 mm | Bracket: Axial foot
SSD2-L-12-20-CB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 12 mm | Stroke: 20 mm | Bracket: Double clevis
SSD2-L-12-20-FA-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 12 mm | Stroke: 20 mm | Bracket: Rod-end flange
SSD2-L-12-20-FB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 12 mm | Stroke: 20 mm | Bracket: Head-end flange
SSD2-L-12-25-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 12 mm | Stroke: 25 mm | Bracket: None
SSD2-L-12-25-LB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 12 mm | Stroke: 25 mm | Bracket: Axial foot
SSD2-L-12-25-CB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 12 mm | Stroke: 25 mm | Bracket: Double clevis
SSD2-L-12-25-FA-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 12 mm | Stroke: 25 mm | Bracket: Rod-end flange
SSD2-L-12-25-FB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 12 mm | Stroke: 25 mm | Bracket: Head-end flange
SSD2-L-12-30-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 12 mm | Stroke: 30 mm | Bracket: None
SSD2-L-12-30-LB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 12 mm | Stroke: 30 mm | Bracket: Axial foot
SSD2-L-12-30-CB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 12 mm | Stroke: 30 mm | Bracket: Double clevis
SSD2-L-12-30-FA-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 12 mm | Stroke: 30 mm | Bracket: Rod-end flange
SSD2-L-12-30-FB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 12 mm | Stroke: 30 mm | Bracket: Head-end flange
SSD2-L-16-5-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 16 mm | Stroke: 5 mm | Bracket: None
SSD2-L-16-5-LB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 16 mm | Stroke: 5 mm | Bracket: Axial foot
SSD2-L-16-5-CB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 16 mm | Stroke: 5 mm | Bracket: Double clevis
SSD2-L-16-5-FA-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 16 mm | Stroke: 5 mm | Bracket: Rod-end flange
SSD2-L-16-5-FB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 16 mm | Stroke: 5 mm | Bracket: Head-end flange
SSD2-L-16-10-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 16 mm | Stroke: 10 mm | Bracket: None
SSD2-L-16-10-LB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 16 mm | Stroke: 10 mm | Bracket: Axial foot
SSD2-L-16-10-CB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 16 mm | Stroke: 10 mm | Bracket: Double clevis
SSD2-L-16-10-FA-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 16 mm | Stroke: 10 mm | Bracket: Rod-end flange
SSD2-L-16-10-FB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 16 mm | Stroke: 10 mm | Bracket: Head-end flange
SSD2-L-16-15-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 16 mm | Stroke: 15 mm | Bracket: None
SSD2-L-16-15-LB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 16 mm | Stroke: 15 mm | Bracket: Axial foot
SSD2-L-16-15-CB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 16 mm | Stroke: 15 mm | Bracket: Double clevis
SSD2-L-16-15-FA-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 16 mm | Stroke: 15 mm | Bracket: Rod-end flange
SSD2-L-16-15-FB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 16 mm | Stroke: 15 mm | Bracket: Head-end flange
SSD2-L-16-20-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 16 mm | Stroke: 20 mm | Bracket: None
SSD2-L-16-20-LB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 16 mm | Stroke: 20 mm | Bracket: Axial foot
SSD2-L-16-20-CB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 16 mm | Stroke: 20 mm | Bracket: Double clevis
SSD2-L-16-20-FA-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 16 mm | Stroke: 20 mm | Bracket: Rod-end flange
SSD2-L-16-20-FB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 16 mm | Stroke: 20 mm | Bracket: Head-end flange
SSD2-L-16-25-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 16 mm | Stroke: 25 mm | Bracket: None
SSD2-L-16-25-LB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 16 mm | Stroke: 25 mm | Bracket: Axial foot
SSD2-L-16-25-CB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 16 mm | Stroke: 25 mm | Bracket: Double clevis
SSD2-L-16-25-FA-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 16 mm | Stroke: 25 mm | Bracket: Rod-end flange
SSD2-L-16-25-FB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 16 mm | Stroke: 25 mm | Bracket: Head-end flange
SSD2-L-16-30-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 16 mm | Stroke: 30 mm | Bracket: None
SSD2-L-16-30-LB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 16 mm | Stroke: 30 mm | Bracket: Axial foot
SSD2-L-16-30-CB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 16 mm | Stroke: 30 mm | Bracket: Double clevis
SSD2-L-16-30-FA-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 16 mm | Stroke: 30 mm | Bracket: Rod-end flange
SSD2-L-16-30-FB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 16 mm | Stroke: 30 mm | Bracket: Head-end flange
SSD2-L-20-5-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 20 mm | Stroke: 5 mm | Bracket: None
SSD2-L-20-5-LB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 20 mm | Stroke: 5 mm | Bracket: Axial foot
SSD2-L-20-5-CB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 20 mm | Stroke: 5 mm | Bracket: Double clevis
SSD2-L-20-5-FA-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 20 mm | Stroke: 5 mm | Bracket: Rod-end flange
SSD2-L-20-5-FB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 20 mm | Stroke: 5 mm | Bracket: Head-end flange
SSD2-L-20-10-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 20 mm | Stroke: 10 mm | Bracket: None
SSD2-L-20-10-LB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 20 mm | Stroke: 10 mm | Bracket: Axial foot
SSD2-L-20-10-CB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 20 mm | Stroke: 10 mm | Bracket: Double clevis
SSD2-L-20-10-FA-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 20 mm | Stroke: 10 mm | Bracket: Rod-end flange
SSD2-L-20-10-FB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 20 mm | Stroke: 10 mm | Bracket: Head-end flange
SSD2-L-20-15-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 20 mm | Stroke: 15 mm | Bracket: None
SSD2-L-20-15-LB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 20 mm | Stroke: 15 mm | Bracket: Axial foot
SSD2-L-20-15-CB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 20 mm | Stroke: 15 mm | Bracket: Double clevis
SSD2-L-20-15-FA-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 20 mm | Stroke: 15 mm | Bracket: Rod-end flange
SSD2-L-20-15-FB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 20 mm | Stroke: 15 mm | Bracket: Head-end flange
SSD2-L-20-20-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 20 mm | Stroke: 20 mm | Bracket: None
SSD2-L-20-20-LB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 20 mm | Stroke: 20 mm | Bracket: Axial foot
SSD2-L-20-20-CB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 20 mm | Stroke: 20 mm | Bracket: Double clevis
SSD2-L-20-20-FA-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 20 mm | Stroke: 20 mm | Bracket: Rod-end flange
SSD2-L-20-20-FB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 20 mm | Stroke: 20 mm | Bracket: Head-end flange
SSD2-L-20-25-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 20 mm | Stroke: 25 mm | Bracket: None
SSD2-L-20-25-LB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 20 mm | Stroke: 25 mm | Bracket: Axial foot
SSD2-L-20-25-CB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 20 mm | Stroke: 25 mm | Bracket: Double clevis
SSD2-L-20-25-FA-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 20 mm | Stroke: 25 mm | Bracket: Rod-end flange
SSD2-L-20-25-FB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 20 mm | Stroke: 25 mm | Bracket: Head-end flange
SSD2-L-20-30-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 20 mm | Stroke: 30 mm | Bracket: None
SSD2-L-20-30-LB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 20 mm | Stroke: 30 mm | Bracket: Axial foot
SSD2-L-20-30-CB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 20 mm | Stroke: 30 mm | Bracket: Double clevis
SSD2-L-20-30-FA-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 20 mm | Stroke: 30 mm | Bracket: Rod-end flange
SSD2-L-20-30-FB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 20 mm | Stroke: 30 mm | Bracket: Head-end flange
SSD2-L-20-35-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 20 mm | Stroke: 35 mm | Bracket: None
SSD2-L-20-35-LB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 20 mm | Stroke: 35 mm | Bracket: Axial foot
SSD2-L-20-35-CB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 20 mm | Stroke: 35 mm | Bracket: Double clevis
SSD2-L-20-35-FA-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 20 mm | Stroke: 35 mm | Bracket: Rod-end flange
SSD2-L-20-35-FB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 20 mm | Stroke: 35 mm | Bracket: Head-end flange
SSD2-L-20-40-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 20 mm | Stroke: 40 mm | Bracket: None
SSD2-L-20-40-LB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 20 mm | Stroke: 40 mm | Bracket: Axial foot
SSD2-L-20-40-CB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 20 mm | Stroke: 40 mm | Bracket: Double clevis
SSD2-L-20-40-FA-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 20 mm | Stroke: 40 mm | Bracket: Rod-end flange
SSD2-L-20-40-FB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 20 mm | Stroke: 40 mm | Bracket: Head-end flange
SSD2-L-20-45-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 20 mm | Stroke: 45 mm | Bracket: None
SSD2-L-20-45-LB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 20 mm | Stroke: 45 mm | Bracket: Axial foot
SSD2-L-20-45-CB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 20 mm | Stroke: 45 mm | Bracket: Double clevis
SSD2-L-20-45-FA-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 20 mm | Stroke: 45 mm | Bracket: Rod-end flange
SSD2-L-20-45-FB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 20 mm | Stroke: 45 mm | Bracket: Head-end flange
SSD2-L-20-50-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 20 mm | Stroke: 50 mm | Bracket: None
SSD2-L-20-50-LB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 20 mm | Stroke: 50 mm | Bracket: Axial foot
SSD2-L-20-50-CB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 20 mm | Stroke: 50 mm | Bracket: Double clevis
SSD2-L-20-50-FA-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 20 mm | Stroke: 50 mm | Bracket: Rod-end flange
SSD2-L-20-50-FB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 20 mm | Stroke: 50 mm | Bracket: Head-end flange
SSD2-L-25-5-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 25 mm | Stroke: 5 mm | Bracket: None
SSD2-L-25-5-LB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 25 mm | Stroke: 5 mm | Bracket: Axial foot
SSD2-L-25-5-CB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 25 mm | Stroke: 5 mm | Bracket: Double clevis
SSD2-L-25-5-FA-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 25 mm | Stroke: 5 mm | Bracket: Rod-end flange
SSD2-L-25-5-FB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 25 mm | Stroke: 5 mm | Bracket: Head-end flange
SSD2-L-25-10-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 25 mm | Stroke: 10 mm | Bracket: None
SSD2-L-25-10-LB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 25 mm | Stroke: 10 mm | Bracket: Axial foot
SSD2-L-25-10-CB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 25 mm | Stroke: 10 mm | Bracket: Double clevis
SSD2-L-25-10-FA-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 25 mm | Stroke: 10 mm | Bracket: Rod-end flange
SSD2-L-25-10-FB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 25 mm | Stroke: 10 mm | Bracket: Head-end flange
SSD2-L-25-15-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 25 mm | Stroke: 15 mm | Bracket: None
SSD2-L-25-15-LB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 25 mm | Stroke: 15 mm | Bracket: Axial foot
SSD2-L-25-15-CB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 25 mm | Stroke: 15 mm | Bracket: Double clevis
SSD2-L-25-15-FA-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 25 mm | Stroke: 15 mm | Bracket: Rod-end flange
SSD2-L-25-15-FB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 25 mm | Stroke: 15 mm | Bracket: Head-end flange
SSD2-L-25-20-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 25 mm | Stroke: 20 mm | Bracket: None
SSD2-L-25-20-LB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 25 mm | Stroke: 20 mm | Bracket: Axial foot
SSD2-L-25-20-CB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 25 mm | Stroke: 20 mm | Bracket: Double clevis
SSD2-L-25-20-FA-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 25 mm | Stroke: 20 mm | Bracket: Rod-end flange
SSD2-L-25-20-FB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 25 mm | Stroke: 20 mm | Bracket: Head-end flange
SSD2-L-25-25-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 25 mm | Stroke: 25 mm | Bracket: None
SSD2-L-25-25-LB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 25 mm | Stroke: 25 mm | Bracket: Axial foot
SSD2-L-25-25-CB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 25 mm | Stroke: 25 mm | Bracket: Double clevis
SSD2-L-25-25-FA-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 25 mm | Stroke: 25 mm | Bracket: Rod-end flange
SSD2-L-25-25-FB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 25 mm | Stroke: 25 mm | Bracket: Head-end flange
SSD2-L-25-30-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 25 mm | Stroke: 30 mm | Bracket: None
SSD2-L-25-30-LB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 25 mm | Stroke: 30 mm | Bracket: Axial foot
SSD2-L-25-30-CB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 25 mm | Stroke: 30 mm | Bracket: Double clevis
SSD2-L-25-30-FA-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 25 mm | Stroke: 30 mm | Bracket: Rod-end flange
SSD2-L-25-30-FB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 25 mm | Stroke: 30 mm | Bracket: Head-end flange
SSD2-L-25-35-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 25 mm | Stroke: 35 mm | Bracket: None
SSD2-L-25-35-LB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 25 mm | Stroke: 35 mm | Bracket: Axial foot
SSD2-L-25-35-CB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 25 mm | Stroke: 35 mm | Bracket: Double clevis
SSD2-L-25-35-FA-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 25 mm | Stroke: 35 mm | Bracket: Rod-end flange
SSD2-L-25-35-FB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 25 mm | Stroke: 35 mm | Bracket: Head-end flange
SSD2-L-25-40-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 25 mm | Stroke: 40 mm | Bracket: None
SSD2-L-25-40-LB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 25 mm | Stroke: 40 mm | Bracket: Axial foot
SSD2-L-25-40-CB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 25 mm | Stroke: 40 mm | Bracket: Double clevis
SSD2-L-25-40-FA-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 25 mm | Stroke: 40 mm | Bracket: Rod-end flange
SSD2-L-25-40-FB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 25 mm | Stroke: 40 mm | Bracket: Head-end flange
SSD2-L-25-45-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 25 mm | Stroke: 45 mm | Bracket: None
SSD2-L-25-45-LB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 25 mm | Stroke: 45 mm | Bracket: Axial foot
SSD2-L-25-45-CB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 25 mm | Stroke: 45 mm | Bracket: Double clevis
SSD2-L-25-45-FA-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 25 mm | Stroke: 45 mm | Bracket: Rod-end flange
SSD2-L-25-45-FB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 25 mm | Stroke: 45 mm | Bracket: Head-end flange
SSD2-L-25-50-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 25 mm | Stroke: 50 mm | Bracket: None
SSD2-L-25-50-LB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 25 mm | Stroke: 50 mm | Bracket: Axial foot
SSD2-L-25-50-CB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 25 mm | Stroke: 50 mm | Bracket: Double clevis
SSD2-L-25-50-FA-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 25 mm | Stroke: 50 mm | Bracket: Rod-end flange
SSD2-L-25-50-FB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 25 mm | Stroke: 50 mm | Bracket: Head-end flange
SSD2-L-32-5-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 5 mm | Bracket: None
SSD2-L-32-5-LB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 5 mm | Bracket: Axial foot
SSD2-L-32-5-CB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 5 mm | Bracket: Double clevis
SSD2-L-32-5-FA-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 5 mm | Bracket: Rod-end flange
SSD2-L-32-5-FB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 5 mm | Bracket: Head-end flange
SSD2-L-32-10-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 10 mm | Bracket: None
SSD2-L-32-10-LB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 10 mm | Bracket: Axial foot
SSD2-L-32-10-CB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 10 mm | Bracket: Double clevis
SSD2-L-32-10-FA-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 10 mm | Bracket: Rod-end flange
SSD2-L-32-10-FB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 10 mm | Bracket: Head-end flange
SSD2-L-32-15-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 15 mm | Bracket: None
SSD2-L-32-15-LB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 15 mm | Bracket: Axial foot
SSD2-L-32-15-CB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 15 mm | Bracket: Double clevis
SSD2-L-32-15-FA-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 15 mm | Bracket: Rod-end flange
SSD2-L-32-15-FB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 15 mm | Bracket: Head-end flange
SSD2-L-32-20-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 20 mm | Bracket: None
SSD2-L-32-20-LB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 20 mm | Bracket: Axial foot
SSD2-L-32-20-CB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 20 mm | Bracket: Double clevis
SSD2-L-32-20-FA-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 20 mm | Bracket: Rod-end flange
SSD2-L-32-20-FB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 20 mm | Bracket: Head-end flange
SSD2-L-32-25-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 25 mm | Bracket: None
SSD2-L-32-25-LB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 25 mm | Bracket: Axial foot
SSD2-L-32-25-CB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 25 mm | Bracket: Double clevis
SSD2-L-32-25-FA-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 25 mm | Bracket: Rod-end flange
SSD2-L-32-25-FB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 25 mm | Bracket: Head-end flange
SSD2-L-32-30-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 30 mm | Bracket: None
SSD2-L-32-30-LB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 30 mm | Bracket: Axial foot
SSD2-L-32-30-CB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 30 mm | Bracket: Double clevis
SSD2-L-32-30-FA-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 30 mm | Bracket: Rod-end flange
SSD2-L-32-30-FB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 30 mm | Bracket: Head-end flange
SSD2-L-32-35-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 35 mm | Bracket: None
SSD2-L-32-35-LB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 35 mm | Bracket: Axial foot
SSD2-L-32-35-CB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 35 mm | Bracket: Double clevis
SSD2-L-32-35-FA-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 35 mm | Bracket: Rod-end flange
SSD2-L-32-35-FB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 35 mm | Bracket: Head-end flange
SSD2-L-32-40-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 40 mm | Bracket: None
SSD2-L-32-40-LB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 40 mm | Bracket: Axial foot
SSD2-L-32-40-CB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 40 mm | Bracket: Double clevis
SSD2-L-32-40-FA-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 40 mm | Bracket: Rod-end flange
SSD2-L-32-40-FB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 40 mm | Bracket: Head-end flange
SSD2-L-32-45-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 45 mm | Bracket: None
SSD2-L-32-45-LB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 45 mm | Bracket: Axial foot
SSD2-L-32-45-CB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 45 mm | Bracket: Double clevis
SSD2-L-32-45-FA-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 45 mm | Bracket: Rod-end flange
SSD2-L-32-45-FB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 45 mm | Bracket: Head-end flange
SSD2-L-32-50-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 50 mm | Bracket: None
SSD2-L-32-50-LB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 50 mm | Bracket: Axial foot
SSD2-L-32-50-CB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 50 mm | Bracket: Double clevis
SSD2-L-32-50-FA-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 50 mm | Bracket: Rod-end flange
SSD2-L-32-50-FB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 50 mm | Bracket: Head-end flange
SSD2-L-32-75-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 75 mm | Bracket: None
SSD2-L-32-75-LB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 75 mm | Bracket: Axial foot
SSD2-L-32-75-CB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 75 mm | Bracket: Double clevis
SSD2-L-32-75-FA-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 75 mm | Bracket: Rod-end flange
SSD2-L-32-75-FB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 75 mm | Bracket: Head-end flange
SSD2-L-32-100-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 100 mm | Bracket: None
SSD2-L-32-100-LB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 100 mm | Bracket: Axial foot
SSD2-L-32-100-CB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 100 mm | Bracket: Double clevis
SSD2-L-32-100-FA-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 100 mm | Bracket: Rod-end flange
SSD2-L-32-100-FB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 100 mm | Bracket: Head-end flange
SSD2-L-40-5-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 5 mm | Bracket: None
SSD2-L-40-5-LB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 5 mm | Bracket: Axial foot
SSD2-L-40-5-CB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 5 mm | Bracket: Double clevis
SSD2-L-40-5-FA-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 5 mm | Bracket: Rod-end flange
SSD2-L-40-5-FB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 5 mm | Bracket: Head-end flange
SSD2-L-40-10-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 10 mm | Bracket: None
SSD2-L-40-10-LB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 10 mm | Bracket: Axial foot
SSD2-L-40-10-CB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 10 mm | Bracket: Double clevis
SSD2-L-40-10-FA-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 10 mm | Bracket: Rod-end flange
SSD2-L-40-10-FB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 10 mm | Bracket: Head-end flange
SSD2-L-40-15-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 15 mm | Bracket: None
SSD2-L-40-15-LB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 15 mm | Bracket: Axial foot
SSD2-L-40-15-CB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 15 mm | Bracket: Double clevis
SSD2-L-40-15-FA-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 15 mm | Bracket: Rod-end flange
SSD2-L-40-15-FB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 15 mm | Bracket: Head-end flange
SSD2-L-40-20-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 20 mm | Bracket: None
SSD2-L-40-20-LB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 20 mm | Bracket: Axial foot
SSD2-L-40-20-CB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 20 mm | Bracket: Double clevis
SSD2-L-40-20-FA-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 20 mm | Bracket: Rod-end flange
SSD2-L-40-20-FB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 20 mm | Bracket: Head-end flange
SSD2-L-40-25-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 25 mm | Bracket: None
SSD2-L-40-25-LB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 25 mm | Bracket: Axial foot
SSD2-L-40-25-CB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 25 mm | Bracket: Double clevis
SSD2-L-40-25-FA-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 25 mm | Bracket: Rod-end flange
SSD2-L-40-25-FB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 25 mm | Bracket: Head-end flange
SSD2-L-40-30-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 30 mm | Bracket: None
SSD2-L-40-30-LB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 30 mm | Bracket: Axial foot
SSD2-L-40-30-CB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 30 mm | Bracket: Double clevis
SSD2-L-40-30-FA-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 30 mm | Bracket: Rod-end flange
SSD2-L-40-30-FB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 30 mm | Bracket: Head-end flange
SSD2-L-40-35-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 35 mm | Bracket: None
SSD2-L-40-35-LB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 35 mm | Bracket: Axial foot
SSD2-L-40-35-CB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 35 mm | Bracket: Double clevis
SSD2-L-40-35-FA-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 35 mm | Bracket: Rod-end flange
SSD2-L-40-35-FB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 35 mm | Bracket: Head-end flange
SSD2-L-40-40-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 40 mm | Bracket: None
SSD2-L-40-40-LB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 40 mm | Bracket: Axial foot
SSD2-L-40-40-CB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 40 mm | Bracket: Double clevis
SSD2-L-40-40-FA-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 40 mm | Bracket: Rod-end flange
SSD2-L-40-40-FB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 40 mm | Bracket: Head-end flange
SSD2-L-40-45-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 45 mm | Bracket: None
SSD2-L-40-45-LB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 45 mm | Bracket: Axial foot
SSD2-L-40-45-CB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 45 mm | Bracket: Double clevis
SSD2-L-40-45-FA-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 45 mm | Bracket: Rod-end flange
SSD2-L-40-45-FB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 45 mm | Bracket: Head-end flange
SSD2-L-40-50-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 50 mm | Bracket: None
SSD2-L-40-50-LB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 50 mm | Bracket: Axial foot
SSD2-L-40-50-CB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 50 mm | Bracket: Double clevis
SSD2-L-40-50-FA-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 50 mm | Bracket: Rod-end flange
SSD2-L-40-50-FB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 50 mm | Bracket: Head-end flange
SSD2-L-40-75-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 75 mm | Bracket: None
SSD2-L-40-75-LB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 75 mm | Bracket: Axial foot
SSD2-L-40-75-CB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 75 mm | Bracket: Double clevis
SSD2-L-40-75-FA-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 75 mm | Bracket: Rod-end flange
SSD2-L-40-75-FB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 75 mm | Bracket: Head-end flange
SSD2-L-40-100-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 100 mm | Bracket: None
SSD2-L-40-100-LB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 100 mm | Bracket: Axial foot
SSD2-L-40-100-CB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 100 mm | Bracket: Double clevis
SSD2-L-40-100-FA-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 100 mm | Bracket: Rod-end flange
SSD2-L-40-100-FB-HP1 Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 100 mm | Bracket: Head-end flange
Compact CylindersCKD
560 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD SSD2-HP1 Long-life Super Compact Cylinder (Bore 12-40 mm)

Brand CKD·Compact Cylinders

Available part numbers (560)

SSD2-12-5-HP1, SSD2-12-5-LB-HP1, SSD2-12-5-CB-HP1, SSD2-12-5-FA-HP1, SSD2-12-5-FB-HP1, SSD2-12-10-HP1, SSD2-12-10-LB-HP1, SSD2-12-10-CB-HP1, SSD2-12-10-FA-HP1, SSD2-12-10-FB-HP1 + 550 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SSD2-12-5-HP1Model: SSD2 (No switch magnet) | Bore: 12 mm | Stroke: 5 mm | Bracket: None
SSD2-12-5-LB-HP1Model: SSD2 (No switch magnet) | Bore: 12 mm | Stroke: 5 mm | Bracket: Axial foot
SSD2-12-5-CB-HP1Model: SSD2 (No switch magnet) | Bore: 12 mm | Stroke: 5 mm | Bracket: Double clevis
SSD2-12-5-FA-HP1Model: SSD2 (No switch magnet) | Bore: 12 mm | Stroke: 5 mm | Bracket: Rod-end flange
SSD2-12-5-FB-HP1Model: SSD2 (No switch magnet) | Bore: 12 mm | Stroke: 5 mm | Bracket: Head-end flange
SSD2-12-10-HP1Model: SSD2 (No switch magnet) | Bore: 12 mm | Stroke: 10 mm | Bracket: None
SSD2-12-10-LB-HP1Model: SSD2 (No switch magnet) | Bore: 12 mm | Stroke: 10 mm | Bracket: Axial foot
SSD2-12-10-CB-HP1Model: SSD2 (No switch magnet) | Bore: 12 mm | Stroke: 10 mm | Bracket: Double clevis
SSD2-12-10-FA-HP1Model: SSD2 (No switch magnet) | Bore: 12 mm | Stroke: 10 mm | Bracket: Rod-end flange
SSD2-12-10-FB-HP1Model: SSD2 (No switch magnet) | Bore: 12 mm | Stroke: 10 mm | Bracket: Head-end flange
SSD2-12-15-HP1Model: SSD2 (No switch magnet) | Bore: 12 mm | Stroke: 15 mm | Bracket: None
SSD2-12-15-LB-HP1Model: SSD2 (No switch magnet) | Bore: 12 mm | Stroke: 15 mm | Bracket: Axial foot
SSD2-12-15-CB-HP1Model: SSD2 (No switch magnet) | Bore: 12 mm | Stroke: 15 mm | Bracket: Double clevis
SSD2-12-15-FA-HP1Model: SSD2 (No switch magnet) | Bore: 12 mm | Stroke: 15 mm | Bracket: Rod-end flange
SSD2-12-15-FB-HP1Model: SSD2 (No switch magnet) | Bore: 12 mm | Stroke: 15 mm | Bracket: Head-end flange
SSD2-12-20-HP1Model: SSD2 (No switch magnet) | Bore: 12 mm | Stroke: 20 mm | Bracket: None
SSD2-12-20-LB-HP1Model: SSD2 (No switch magnet) | Bore: 12 mm | Stroke: 20 mm | Bracket: Axial foot
SSD2-12-20-CB-HP1Model: SSD2 (No switch magnet) | Bore: 12 mm | Stroke: 20 mm | Bracket: Double clevis
SSD2-12-20-FA-HP1Model: SSD2 (No switch magnet) | Bore: 12 mm | Stroke: 20 mm | Bracket: Rod-end flange
SSD2-12-20-FB-HP1Model: SSD2 (No switch magnet) | Bore: 12 mm | Stroke: 20 mm | Bracket: Head-end flange
SSD2-12-25-HP1Model: SSD2 (No switch magnet) | Bore: 12 mm | Stroke: 25 mm | Bracket: None
SSD2-12-25-LB-HP1Model: SSD2 (No switch magnet) | Bore: 12 mm | Stroke: 25 mm | Bracket: Axial foot
SSD2-12-25-CB-HP1Model: SSD2 (No switch magnet) | Bore: 12 mm | Stroke: 25 mm | Bracket: Double clevis
SSD2-12-25-FA-HP1Model: SSD2 (No switch magnet) | Bore: 12 mm | Stroke: 25 mm | Bracket: Rod-end flange
SSD2-12-25-FB-HP1Model: SSD2 (No switch magnet) | Bore: 12 mm | Stroke: 25 mm | Bracket: Head-end flange
SSD2-12-30-HP1Model: SSD2 (No switch magnet) | Bore: 12 mm | Stroke: 30 mm | Bracket: None
SSD2-12-30-LB-HP1Model: SSD2 (No switch magnet) | Bore: 12 mm | Stroke: 30 mm | Bracket: Axial foot
SSD2-12-30-CB-HP1Model: SSD2 (No switch magnet) | Bore: 12 mm | Stroke: 30 mm | Bracket: Double clevis
SSD2-12-30-FA-HP1Model: SSD2 (No switch magnet) | Bore: 12 mm | Stroke: 30 mm | Bracket: Rod-end flange
SSD2-12-30-FB-HP1Model: SSD2 (No switch magnet) | Bore: 12 mm | Stroke: 30 mm | Bracket: Head-end flange
SSD2-16-5-HP1Model: SSD2 (No switch magnet) | Bore: 16 mm | Stroke: 5 mm | Bracket: None
SSD2-16-5-LB-HP1Model: SSD2 (No switch magnet) | Bore: 16 mm | Stroke: 5 mm | Bracket: Axial foot
SSD2-16-5-CB-HP1Model: SSD2 (No switch magnet) | Bore: 16 mm | Stroke: 5 mm | Bracket: Double clevis
SSD2-16-5-FA-HP1Model: SSD2 (No switch magnet) | Bore: 16 mm | Stroke: 5 mm | Bracket: Rod-end flange
SSD2-16-5-FB-HP1Model: SSD2 (No switch magnet) | Bore: 16 mm | Stroke: 5 mm | Bracket: Head-end flange
SSD2-16-10-HP1Model: SSD2 (No switch magnet) | Bore: 16 mm | Stroke: 10 mm | Bracket: None
SSD2-16-10-LB-HP1Model: SSD2 (No switch magnet) | Bore: 16 mm | Stroke: 10 mm | Bracket: Axial foot
SSD2-16-10-CB-HP1Model: SSD2 (No switch magnet) | Bore: 16 mm | Stroke: 10 mm | Bracket: Double clevis
SSD2-16-10-FA-HP1Model: SSD2 (No switch magnet) | Bore: 16 mm | Stroke: 10 mm | Bracket: Rod-end flange
SSD2-16-10-FB-HP1Model: SSD2 (No switch magnet) | Bore: 16 mm | Stroke: 10 mm | Bracket: Head-end flange
SSD2-16-15-HP1Model: SSD2 (No switch magnet) | Bore: 16 mm | Stroke: 15 mm | Bracket: None
SSD2-16-15-LB-HP1Model: SSD2 (No switch magnet) | Bore: 16 mm | Stroke: 15 mm | Bracket: Axial foot
SSD2-16-15-CB-HP1Model: SSD2 (No switch magnet) | Bore: 16 mm | Stroke: 15 mm | Bracket: Double clevis
SSD2-16-15-FA-HP1Model: SSD2 (No switch magnet) | Bore: 16 mm | Stroke: 15 mm | Bracket: Rod-end flange
SSD2-16-15-FB-HP1Model: SSD2 (No switch magnet) | Bore: 16 mm | Stroke: 15 mm | Bracket: Head-end flange
SSD2-16-20-HP1Model: SSD2 (No switch magnet) | Bore: 16 mm | Stroke: 20 mm | Bracket: None
SSD2-16-20-LB-HP1Model: SSD2 (No switch magnet) | Bore: 16 mm | Stroke: 20 mm | Bracket: Axial foot
SSD2-16-20-CB-HP1Model: SSD2 (No switch magnet) | Bore: 16 mm | Stroke: 20 mm | Bracket: Double clevis
SSD2-16-20-FA-HP1Model: SSD2 (No switch magnet) | Bore: 16 mm | Stroke: 20 mm | Bracket: Rod-end flange
SSD2-16-20-FB-HP1Model: SSD2 (No switch magnet) | Bore: 16 mm | Stroke: 20 mm | Bracket: Head-end flange
SSD2-16-25-HP1Model: SSD2 (No switch magnet) | Bore: 16 mm | Stroke: 25 mm | Bracket: None
SSD2-16-25-LB-HP1Model: SSD2 (No switch magnet) | Bore: 16 mm | Stroke: 25 mm | Bracket: Axial foot
SSD2-16-25-CB-HP1Model: SSD2 (No switch magnet) | Bore: 16 mm | Stroke: 25 mm | Bracket: Double clevis
SSD2-16-25-FA-HP1Model: SSD2 (No switch magnet) | Bore: 16 mm | Stroke: 25 mm | Bracket: Rod-end flange
SSD2-16-25-FB-HP1Model: SSD2 (No switch magnet) | Bore: 16 mm | Stroke: 25 mm | Bracket: Head-end flange
SSD2-16-30-HP1Model: SSD2 (No switch magnet) | Bore: 16 mm | Stroke: 30 mm | Bracket: None
SSD2-16-30-LB-HP1Model: SSD2 (No switch magnet) | Bore: 16 mm | Stroke: 30 mm | Bracket: Axial foot
SSD2-16-30-CB-HP1Model: SSD2 (No switch magnet) | Bore: 16 mm | Stroke: 30 mm | Bracket: Double clevis
SSD2-16-30-FA-HP1Model: SSD2 (No switch magnet) | Bore: 16 mm | Stroke: 30 mm | Bracket: Rod-end flange
SSD2-16-30-FB-HP1Model: SSD2 (No switch magnet) | Bore: 16 mm | Stroke: 30 mm | Bracket: Head-end flange
SSD2-20-5-HP1Model: SSD2 (No switch magnet) | Bore: 20 mm | Stroke: 5 mm | Bracket: None
SSD2-20-5-LB-HP1Model: SSD2 (No switch magnet) | Bore: 20 mm | Stroke: 5 mm | Bracket: Axial foot
SSD2-20-5-CB-HP1Model: SSD2 (No switch magnet) | Bore: 20 mm | Stroke: 5 mm | Bracket: Double clevis
SSD2-20-5-FA-HP1Model: SSD2 (No switch magnet) | Bore: 20 mm | Stroke: 5 mm | Bracket: Rod-end flange
SSD2-20-5-FB-HP1Model: SSD2 (No switch magnet) | Bore: 20 mm | Stroke: 5 mm | Bracket: Head-end flange
SSD2-20-10-HP1Model: SSD2 (No switch magnet) | Bore: 20 mm | Stroke: 10 mm | Bracket: None
SSD2-20-10-LB-HP1Model: SSD2 (No switch magnet) | Bore: 20 mm | Stroke: 10 mm | Bracket: Axial foot
SSD2-20-10-CB-HP1Model: SSD2 (No switch magnet) | Bore: 20 mm | Stroke: 10 mm | Bracket: Double clevis
SSD2-20-10-FA-HP1Model: SSD2 (No switch magnet) | Bore: 20 mm | Stroke: 10 mm | Bracket: Rod-end flange
SSD2-20-10-FB-HP1Model: SSD2 (No switch magnet) | Bore: 20 mm | Stroke: 10 mm | Bracket: Head-end flange
SSD2-20-15-HP1Model: SSD2 (No switch magnet) | Bore: 20 mm | Stroke: 15 mm | Bracket: None
SSD2-20-15-LB-HP1Model: SSD2 (No switch magnet) | Bore: 20 mm | Stroke: 15 mm | Bracket: Axial foot
SSD2-20-15-CB-HP1Model: SSD2 (No switch magnet) | Bore: 20 mm | Stroke: 15 mm | Bracket: Double clevis
SSD2-20-15-FA-HP1Model: SSD2 (No switch magnet) | Bore: 20 mm | Stroke: 15 mm | Bracket: Rod-end flange
SSD2-20-15-FB-HP1Model: SSD2 (No switch magnet) | Bore: 20 mm | Stroke: 15 mm | Bracket: Head-end flange
SSD2-20-20-HP1Model: SSD2 (No switch magnet) | Bore: 20 mm | Stroke: 20 mm | Bracket: None
SSD2-20-20-LB-HP1Model: SSD2 (No switch magnet) | Bore: 20 mm | Stroke: 20 mm | Bracket: Axial foot
SSD2-20-20-CB-HP1Model: SSD2 (No switch magnet) | Bore: 20 mm | Stroke: 20 mm | Bracket: Double clevis
SSD2-20-20-FA-HP1Model: SSD2 (No switch magnet) | Bore: 20 mm | Stroke: 20 mm | Bracket: Rod-end flange
SSD2-20-20-FB-HP1Model: SSD2 (No switch magnet) | Bore: 20 mm | Stroke: 20 mm | Bracket: Head-end flange
SSD2-20-25-HP1Model: SSD2 (No switch magnet) | Bore: 20 mm | Stroke: 25 mm | Bracket: None
SSD2-20-25-LB-HP1Model: SSD2 (No switch magnet) | Bore: 20 mm | Stroke: 25 mm | Bracket: Axial foot
SSD2-20-25-CB-HP1Model: SSD2 (No switch magnet) | Bore: 20 mm | Stroke: 25 mm | Bracket: Double clevis
SSD2-20-25-FA-HP1Model: SSD2 (No switch magnet) | Bore: 20 mm | Stroke: 25 mm | Bracket: Rod-end flange
SSD2-20-25-FB-HP1Model: SSD2 (No switch magnet) | Bore: 20 mm | Stroke: 25 mm | Bracket: Head-end flange
SSD2-20-30-HP1Model: SSD2 (No switch magnet) | Bore: 20 mm | Stroke: 30 mm | Bracket: None
SSD2-20-30-LB-HP1Model: SSD2 (No switch magnet) | Bore: 20 mm | Stroke: 30 mm | Bracket: Axial foot
SSD2-20-30-CB-HP1Model: SSD2 (No switch magnet) | Bore: 20 mm | Stroke: 30 mm | Bracket: Double clevis
SSD2-20-30-FA-HP1Model: SSD2 (No switch magnet) | Bore: 20 mm | Stroke: 30 mm | Bracket: Rod-end flange
SSD2-20-30-FB-HP1Model: SSD2 (No switch magnet) | Bore: 20 mm | Stroke: 30 mm | Bracket: Head-end flange
SSD2-20-35-HP1Model: SSD2 (No switch magnet) | Bore: 20 mm | Stroke: 35 mm | Bracket: None
SSD2-20-35-LB-HP1Model: SSD2 (No switch magnet) | Bore: 20 mm | Stroke: 35 mm | Bracket: Axial foot
SSD2-20-35-CB-HP1Model: SSD2 (No switch magnet) | Bore: 20 mm | Stroke: 35 mm | Bracket: Double clevis
SSD2-20-35-FA-HP1Model: SSD2 (No switch magnet) | Bore: 20 mm | Stroke: 35 mm | Bracket: Rod-end flange
SSD2-20-35-FB-HP1Model: SSD2 (No switch magnet) | Bore: 20 mm | Stroke: 35 mm | Bracket: Head-end flange
SSD2-20-40-HP1Model: SSD2 (No switch magnet) | Bore: 20 mm | Stroke: 40 mm | Bracket: None
SSD2-20-40-LB-HP1Model: SSD2 (No switch magnet) | Bore: 20 mm | Stroke: 40 mm | Bracket: Axial foot
SSD2-20-40-CB-HP1Model: SSD2 (No switch magnet) | Bore: 20 mm | Stroke: 40 mm | Bracket: Double clevis
SSD2-20-40-FA-HP1Model: SSD2 (No switch magnet) | Bore: 20 mm | Stroke: 40 mm | Bracket: Rod-end flange
SSD2-20-40-FB-HP1Model: SSD2 (No switch magnet) | Bore: 20 mm | Stroke: 40 mm | Bracket: Head-end flange
SSD2-20-45-HP1Model: SSD2 (No switch magnet) | Bore: 20 mm | Stroke: 45 mm | Bracket: None
SSD2-20-45-LB-HP1Model: SSD2 (No switch magnet) | Bore: 20 mm | Stroke: 45 mm | Bracket: Axial foot
SSD2-20-45-CB-HP1Model: SSD2 (No switch magnet) | Bore: 20 mm | Stroke: 45 mm | Bracket: Double clevis
SSD2-20-45-FA-HP1Model: SSD2 (No switch magnet) | Bore: 20 mm | Stroke: 45 mm | Bracket: Rod-end flange
SSD2-20-45-FB-HP1Model: SSD2 (No switch magnet) | Bore: 20 mm | Stroke: 45 mm | Bracket: Head-end flange
SSD2-20-50-HP1Model: SSD2 (No switch magnet) | Bore: 20 mm | Stroke: 50 mm | Bracket: None
SSD2-20-50-LB-HP1Model: SSD2 (No switch magnet) | Bore: 20 mm | Stroke: 50 mm | Bracket: Axial foot
SSD2-20-50-CB-HP1Model: SSD2 (No switch magnet) | Bore: 20 mm | Stroke: 50 mm | Bracket: Double clevis
SSD2-20-50-FA-HP1Model: SSD2 (No switch magnet) | Bore: 20 mm | Stroke: 50 mm | Bracket: Rod-end flange
SSD2-20-50-FB-HP1Model: SSD2 (No switch magnet) | Bore: 20 mm | Stroke: 50 mm | Bracket: Head-end flange
SSD2-25-5-HP1Model: SSD2 (No switch magnet) | Bore: 25 mm | Stroke: 5 mm | Bracket: None
SSD2-25-5-LB-HP1Model: SSD2 (No switch magnet) | Bore: 25 mm | Stroke: 5 mm | Bracket: Axial foot
SSD2-25-5-CB-HP1Model: SSD2 (No switch magnet) | Bore: 25 mm | Stroke: 5 mm | Bracket: Double clevis
SSD2-25-5-FA-HP1Model: SSD2 (No switch magnet) | Bore: 25 mm | Stroke: 5 mm | Bracket: Rod-end flange
SSD2-25-5-FB-HP1Model: SSD2 (No switch magnet) | Bore: 25 mm | Stroke: 5 mm | Bracket: Head-end flange
SSD2-25-10-HP1Model: SSD2 (No switch magnet) | Bore: 25 mm | Stroke: 10 mm | Bracket: None
SSD2-25-10-LB-HP1Model: SSD2 (No switch magnet) | Bore: 25 mm | Stroke: 10 mm | Bracket: Axial foot
SSD2-25-10-CB-HP1Model: SSD2 (No switch magnet) | Bore: 25 mm | Stroke: 10 mm | Bracket: Double clevis
SSD2-25-10-FA-HP1Model: SSD2 (No switch magnet) | Bore: 25 mm | Stroke: 10 mm | Bracket: Rod-end flange
SSD2-25-10-FB-HP1Model: SSD2 (No switch magnet) | Bore: 25 mm | Stroke: 10 mm | Bracket: Head-end flange
SSD2-25-15-HP1Model: SSD2 (No switch magnet) | Bore: 25 mm | Stroke: 15 mm | Bracket: None
SSD2-25-15-LB-HP1Model: SSD2 (No switch magnet) | Bore: 25 mm | Stroke: 15 mm | Bracket: Axial foot
SSD2-25-15-CB-HP1Model: SSD2 (No switch magnet) | Bore: 25 mm | Stroke: 15 mm | Bracket: Double clevis
SSD2-25-15-FA-HP1Model: SSD2 (No switch magnet) | Bore: 25 mm | Stroke: 15 mm | Bracket: Rod-end flange
SSD2-25-15-FB-HP1Model: SSD2 (No switch magnet) | Bore: 25 mm | Stroke: 15 mm | Bracket: Head-end flange
SSD2-25-20-HP1Model: SSD2 (No switch magnet) | Bore: 25 mm | Stroke: 20 mm | Bracket: None
SSD2-25-20-LB-HP1Model: SSD2 (No switch magnet) | Bore: 25 mm | Stroke: 20 mm | Bracket: Axial foot
SSD2-25-20-CB-HP1Model: SSD2 (No switch magnet) | Bore: 25 mm | Stroke: 20 mm | Bracket: Double clevis
SSD2-25-20-FA-HP1Model: SSD2 (No switch magnet) | Bore: 25 mm | Stroke: 20 mm | Bracket: Rod-end flange
SSD2-25-20-FB-HP1Model: SSD2 (No switch magnet) | Bore: 25 mm | Stroke: 20 mm | Bracket: Head-end flange
SSD2-25-25-HP1Model: SSD2 (No switch magnet) | Bore: 25 mm | Stroke: 25 mm | Bracket: None
SSD2-25-25-LB-HP1Model: SSD2 (No switch magnet) | Bore: 25 mm | Stroke: 25 mm | Bracket: Axial foot
SSD2-25-25-CB-HP1Model: SSD2 (No switch magnet) | Bore: 25 mm | Stroke: 25 mm | Bracket: Double clevis
SSD2-25-25-FA-HP1Model: SSD2 (No switch magnet) | Bore: 25 mm | Stroke: 25 mm | Bracket: Rod-end flange
SSD2-25-25-FB-HP1Model: SSD2 (No switch magnet) | Bore: 25 mm | Stroke: 25 mm | Bracket: Head-end flange
SSD2-25-30-HP1Model: SSD2 (No switch magnet) | Bore: 25 mm | Stroke: 30 mm | Bracket: None
SSD2-25-30-LB-HP1Model: SSD2 (No switch magnet) | Bore: 25 mm | Stroke: 30 mm | Bracket: Axial foot
SSD2-25-30-CB-HP1Model: SSD2 (No switch magnet) | Bore: 25 mm | Stroke: 30 mm | Bracket: Double clevis
SSD2-25-30-FA-HP1Model: SSD2 (No switch magnet) | Bore: 25 mm | Stroke: 30 mm | Bracket: Rod-end flange
SSD2-25-30-FB-HP1Model: SSD2 (No switch magnet) | Bore: 25 mm | Stroke: 30 mm | Bracket: Head-end flange
SSD2-25-35-HP1Model: SSD2 (No switch magnet) | Bore: 25 mm | Stroke: 35 mm | Bracket: None
SSD2-25-35-LB-HP1Model: SSD2 (No switch magnet) | Bore: 25 mm | Stroke: 35 mm | Bracket: Axial foot
SSD2-25-35-CB-HP1Model: SSD2 (No switch magnet) | Bore: 25 mm | Stroke: 35 mm | Bracket: Double clevis
SSD2-25-35-FA-HP1Model: SSD2 (No switch magnet) | Bore: 25 mm | Stroke: 35 mm | Bracket: Rod-end flange
SSD2-25-35-FB-HP1Model: SSD2 (No switch magnet) | Bore: 25 mm | Stroke: 35 mm | Bracket: Head-end flange
SSD2-25-40-HP1Model: SSD2 (No switch magnet) | Bore: 25 mm | Stroke: 40 mm | Bracket: None
SSD2-25-40-LB-HP1Model: SSD2 (No switch magnet) | Bore: 25 mm | Stroke: 40 mm | Bracket: Axial foot
SSD2-25-40-CB-HP1Model: SSD2 (No switch magnet) | Bore: 25 mm | Stroke: 40 mm | Bracket: Double clevis
SSD2-25-40-FA-HP1Model: SSD2 (No switch magnet) | Bore: 25 mm | Stroke: 40 mm | Bracket: Rod-end flange
SSD2-25-40-FB-HP1Model: SSD2 (No switch magnet) | Bore: 25 mm | Stroke: 40 mm | Bracket: Head-end flange
SSD2-25-45-HP1Model: SSD2 (No switch magnet) | Bore: 25 mm | Stroke: 45 mm | Bracket: None
SSD2-25-45-LB-HP1Model: SSD2 (No switch magnet) | Bore: 25 mm | Stroke: 45 mm | Bracket: Axial foot
SSD2-25-45-CB-HP1Model: SSD2 (No switch magnet) | Bore: 25 mm | Stroke: 45 mm | Bracket: Double clevis
SSD2-25-45-FA-HP1Model: SSD2 (No switch magnet) | Bore: 25 mm | Stroke: 45 mm | Bracket: Rod-end flange
SSD2-25-45-FB-HP1Model: SSD2 (No switch magnet) | Bore: 25 mm | Stroke: 45 mm | Bracket: Head-end flange
SSD2-25-50-HP1Model: SSD2 (No switch magnet) | Bore: 25 mm | Stroke: 50 mm | Bracket: None
SSD2-25-50-LB-HP1Model: SSD2 (No switch magnet) | Bore: 25 mm | Stroke: 50 mm | Bracket: Axial foot
SSD2-25-50-CB-HP1Model: SSD2 (No switch magnet) | Bore: 25 mm | Stroke: 50 mm | Bracket: Double clevis
SSD2-25-50-FA-HP1Model: SSD2 (No switch magnet) | Bore: 25 mm | Stroke: 50 mm | Bracket: Rod-end flange
SSD2-25-50-FB-HP1Model: SSD2 (No switch magnet) | Bore: 25 mm | Stroke: 50 mm | Bracket: Head-end flange
SSD2-32-5-HP1Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 5 mm | Bracket: None
SSD2-32-5-LB-HP1Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 5 mm | Bracket: Axial foot
SSD2-32-5-CB-HP1Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 5 mm | Bracket: Double clevis
SSD2-32-5-FA-HP1Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 5 mm | Bracket: Rod-end flange
SSD2-32-5-FB-HP1Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 5 mm | Bracket: Head-end flange
SSD2-32-10-HP1Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 10 mm | Bracket: None
SSD2-32-10-LB-HP1Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 10 mm | Bracket: Axial foot
SSD2-32-10-CB-HP1Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 10 mm | Bracket: Double clevis
SSD2-32-10-FA-HP1Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 10 mm | Bracket: Rod-end flange
SSD2-32-10-FB-HP1Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 10 mm | Bracket: Head-end flange
SSD2-32-15-HP1Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 15 mm | Bracket: None
SSD2-32-15-LB-HP1Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 15 mm | Bracket: Axial foot
SSD2-32-15-CB-HP1Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 15 mm | Bracket: Double clevis
SSD2-32-15-FA-HP1Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 15 mm | Bracket: Rod-end flange
SSD2-32-15-FB-HP1Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 15 mm | Bracket: Head-end flange
SSD2-32-20-HP1Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 20 mm | Bracket: None
SSD2-32-20-LB-HP1Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 20 mm | Bracket: Axial foot
SSD2-32-20-CB-HP1Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 20 mm | Bracket: Double clevis
SSD2-32-20-FA-HP1Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 20 mm | Bracket: Rod-end flange
SSD2-32-20-FB-HP1Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 20 mm | Bracket: Head-end flange
SSD2-32-25-HP1Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 25 mm | Bracket: None
SSD2-32-25-LB-HP1Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 25 mm | Bracket: Axial foot
SSD2-32-25-CB-HP1Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 25 mm | Bracket: Double clevis
SSD2-32-25-FA-HP1Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 25 mm | Bracket: Rod-end flange
SSD2-32-25-FB-HP1Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 25 mm | Bracket: Head-end flange
SSD2-32-30-HP1Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 30 mm | Bracket: None
SSD2-32-30-LB-HP1Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 30 mm | Bracket: Axial foot
SSD2-32-30-CB-HP1Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 30 mm | Bracket: Double clevis
SSD2-32-30-FA-HP1Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 30 mm | Bracket: Rod-end flange
SSD2-32-30-FB-HP1Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 30 mm | Bracket: Head-end flange
SSD2-32-35-HP1Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 35 mm | Bracket: None
SSD2-32-35-LB-HP1Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 35 mm | Bracket: Axial foot
SSD2-32-35-CB-HP1Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 35 mm | Bracket: Double clevis
SSD2-32-35-FA-HP1Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 35 mm | Bracket: Rod-end flange
SSD2-32-35-FB-HP1Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 35 mm | Bracket: Head-end flange
SSD2-32-40-HP1Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 40 mm | Bracket: None
SSD2-32-40-LB-HP1Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 40 mm | Bracket: Axial foot
SSD2-32-40-CB-HP1Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 40 mm | Bracket: Double clevis
SSD2-32-40-FA-HP1Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 40 mm | Bracket: Rod-end flange
SSD2-32-40-FB-HP1Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 40 mm | Bracket: Head-end flange
SSD2-32-45-HP1Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 45 mm | Bracket: None
SSD2-32-45-LB-HP1Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 45 mm | Bracket: Axial foot
SSD2-32-45-CB-HP1Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 45 mm | Bracket: Double clevis
SSD2-32-45-FA-HP1Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 45 mm | Bracket: Rod-end flange
SSD2-32-45-FB-HP1Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 45 mm | Bracket: Head-end flange
SSD2-32-50-HP1Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 50 mm | Bracket: None
SSD2-32-50-LB-HP1Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 50 mm | Bracket: Axial foot
SSD2-32-50-CB-HP1Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 50 mm | Bracket: Double clevis
SSD2-32-50-FA-HP1Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 50 mm | Bracket: Rod-end flange
SSD2-32-50-FB-HP1Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 50 mm | Bracket: Head-end flange
SSD2-32-75-HP1Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 75 mm | Bracket: None
SSD2-32-75-LB-HP1Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 75 mm | Bracket: Axial foot
SSD2-32-75-CB-HP1Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 75 mm | Bracket: Double clevis
SSD2-32-75-FA-HP1Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 75 mm | Bracket: Rod-end flange
SSD2-32-75-FB-HP1Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 75 mm | Bracket: Head-end flange
SSD2-32-100-HP1Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 100 mm | Bracket: None
SSD2-32-100-LB-HP1Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 100 mm | Bracket: Axial foot
SSD2-32-100-CB-HP1Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 100 mm | Bracket: Double clevis
SSD2-32-100-FA-HP1Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 100 mm | Bracket: Rod-end flange
SSD2-32-100-FB-HP1Model: SSD2 (No switch magnet) | Bore: 32 mm | Stroke: 100 mm | Bracket: Head-end flange
SSD2-40-5-HP1Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 5 mm | Bracket: None
SSD2-40-5-LB-HP1Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 5 mm | Bracket: Axial foot
SSD2-40-5-CB-HP1Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 5 mm | Bracket: Double clevis
SSD2-40-5-FA-HP1Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 5 mm | Bracket: Rod-end flange
SSD2-40-5-FB-HP1Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 5 mm | Bracket: Head-end flange
SSD2-40-10-HP1Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 10 mm | Bracket: None
SSD2-40-10-LB-HP1Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 10 mm | Bracket: Axial foot
SSD2-40-10-CB-HP1Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 10 mm | Bracket: Double clevis
SSD2-40-10-FA-HP1Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 10 mm | Bracket: Rod-end flange
SSD2-40-10-FB-HP1Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 10 mm | Bracket: Head-end flange
SSD2-40-15-HP1Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 15 mm | Bracket: None
SSD2-40-15-LB-HP1Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 15 mm | Bracket: Axial foot
SSD2-40-15-CB-HP1Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 15 mm | Bracket: Double clevis
SSD2-40-15-FA-HP1Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 15 mm | Bracket: Rod-end flange
SSD2-40-15-FB-HP1Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 15 mm | Bracket: Head-end flange
SSD2-40-20-HP1Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 20 mm | Bracket: None
SSD2-40-20-LB-HP1Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 20 mm | Bracket: Axial foot
SSD2-40-20-CB-HP1Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 20 mm | Bracket: Double clevis
SSD2-40-20-FA-HP1Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 20 mm | Bracket: Rod-end flange
SSD2-40-20-FB-HP1Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 20 mm | Bracket: Head-end flange
SSD2-40-25-HP1Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 25 mm | Bracket: None
SSD2-40-25-LB-HP1Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 25 mm | Bracket: Axial foot
SSD2-40-25-CB-HP1Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 25 mm | Bracket: Double clevis
SSD2-40-25-FA-HP1Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 25 mm | Bracket: Rod-end flange
SSD2-40-25-FB-HP1Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 25 mm | Bracket: Head-end flange
SSD2-40-30-HP1Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 30 mm | Bracket: None
SSD2-40-30-LB-HP1Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 30 mm | Bracket: Axial foot
SSD2-40-30-CB-HP1Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 30 mm | Bracket: Double clevis
SSD2-40-30-FA-HP1Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 30 mm | Bracket: Rod-end flange
SSD2-40-30-FB-HP1Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 30 mm | Bracket: Head-end flange
SSD2-40-35-HP1Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 35 mm | Bracket: None
SSD2-40-35-LB-HP1Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 35 mm | Bracket: Axial foot
SSD2-40-35-CB-HP1Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 35 mm | Bracket: Double clevis
SSD2-40-35-FA-HP1Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 35 mm | Bracket: Rod-end flange
SSD2-40-35-FB-HP1Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 35 mm | Bracket: Head-end flange
SSD2-40-40-HP1Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 40 mm | Bracket: None
SSD2-40-40-LB-HP1Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 40 mm | Bracket: Axial foot
SSD2-40-40-CB-HP1Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 40 mm | Bracket: Double clevis
SSD2-40-40-FA-HP1Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 40 mm | Bracket: Rod-end flange
SSD2-40-40-FB-HP1Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 40 mm | Bracket: Head-end flange
SSD2-40-45-HP1Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 45 mm | Bracket: None
SSD2-40-45-LB-HP1Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 45 mm | Bracket: Axial foot
SSD2-40-45-CB-HP1Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 45 mm | Bracket: Double clevis
SSD2-40-45-FA-HP1Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 45 mm | Bracket: Rod-end flange
SSD2-40-45-FB-HP1Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 45 mm | Bracket: Head-end flange
SSD2-40-50-HP1Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 50 mm | Bracket: None
SSD2-40-50-LB-HP1Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 50 mm | Bracket: Axial foot
SSD2-40-50-CB-HP1Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 50 mm | Bracket: Double clevis
SSD2-40-50-FA-HP1Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 50 mm | Bracket: Rod-end flange
SSD2-40-50-FB-HP1Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 50 mm | Bracket: Head-end flange
SSD2-40-75-HP1Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 75 mm | Bracket: None
SSD2-40-75-LB-HP1Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 75 mm | Bracket: Axial foot
SSD2-40-75-CB-HP1Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 75 mm | Bracket: Double clevis
SSD2-40-75-FA-HP1Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 75 mm | Bracket: Rod-end flange
SSD2-40-75-FB-HP1Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 75 mm | Bracket: Head-end flange
SSD2-40-100-HP1Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 100 mm | Bracket: None
SSD2-40-100-LB-HP1Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 100 mm | Bracket: Axial foot
SSD2-40-100-CB-HP1Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 100 mm | Bracket: Double clevis
SSD2-40-100-FA-HP1Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 100 mm | Bracket: Rod-end flange
SSD2-40-100-FB-HP1Model: SSD2 (No switch magnet) | Bore: 40 mm | Stroke: 100 mm | Bracket: Head-end flange
SSD2-L-12-5-HP1Model: SSD2-L (Switch magnet built in) | Bore: 12 mm | Stroke: 5 mm | Bracket: None
SSD2-L-12-5-LB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 12 mm | Stroke: 5 mm | Bracket: Axial foot
SSD2-L-12-5-CB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 12 mm | Stroke: 5 mm | Bracket: Double clevis
SSD2-L-12-5-FA-HP1Model: SSD2-L (Switch magnet built in) | Bore: 12 mm | Stroke: 5 mm | Bracket: Rod-end flange
SSD2-L-12-5-FB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 12 mm | Stroke: 5 mm | Bracket: Head-end flange
SSD2-L-12-10-HP1Model: SSD2-L (Switch magnet built in) | Bore: 12 mm | Stroke: 10 mm | Bracket: None
SSD2-L-12-10-LB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 12 mm | Stroke: 10 mm | Bracket: Axial foot
SSD2-L-12-10-CB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 12 mm | Stroke: 10 mm | Bracket: Double clevis
SSD2-L-12-10-FA-HP1Model: SSD2-L (Switch magnet built in) | Bore: 12 mm | Stroke: 10 mm | Bracket: Rod-end flange
SSD2-L-12-10-FB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 12 mm | Stroke: 10 mm | Bracket: Head-end flange
SSD2-L-12-15-HP1Model: SSD2-L (Switch magnet built in) | Bore: 12 mm | Stroke: 15 mm | Bracket: None
SSD2-L-12-15-LB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 12 mm | Stroke: 15 mm | Bracket: Axial foot
SSD2-L-12-15-CB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 12 mm | Stroke: 15 mm | Bracket: Double clevis
SSD2-L-12-15-FA-HP1Model: SSD2-L (Switch magnet built in) | Bore: 12 mm | Stroke: 15 mm | Bracket: Rod-end flange
SSD2-L-12-15-FB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 12 mm | Stroke: 15 mm | Bracket: Head-end flange
SSD2-L-12-20-HP1Model: SSD2-L (Switch magnet built in) | Bore: 12 mm | Stroke: 20 mm | Bracket: None
SSD2-L-12-20-LB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 12 mm | Stroke: 20 mm | Bracket: Axial foot
SSD2-L-12-20-CB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 12 mm | Stroke: 20 mm | Bracket: Double clevis
SSD2-L-12-20-FA-HP1Model: SSD2-L (Switch magnet built in) | Bore: 12 mm | Stroke: 20 mm | Bracket: Rod-end flange
SSD2-L-12-20-FB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 12 mm | Stroke: 20 mm | Bracket: Head-end flange
SSD2-L-12-25-HP1Model: SSD2-L (Switch magnet built in) | Bore: 12 mm | Stroke: 25 mm | Bracket: None
SSD2-L-12-25-LB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 12 mm | Stroke: 25 mm | Bracket: Axial foot
SSD2-L-12-25-CB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 12 mm | Stroke: 25 mm | Bracket: Double clevis
SSD2-L-12-25-FA-HP1Model: SSD2-L (Switch magnet built in) | Bore: 12 mm | Stroke: 25 mm | Bracket: Rod-end flange
SSD2-L-12-25-FB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 12 mm | Stroke: 25 mm | Bracket: Head-end flange
SSD2-L-12-30-HP1Model: SSD2-L (Switch magnet built in) | Bore: 12 mm | Stroke: 30 mm | Bracket: None
SSD2-L-12-30-LB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 12 mm | Stroke: 30 mm | Bracket: Axial foot
SSD2-L-12-30-CB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 12 mm | Stroke: 30 mm | Bracket: Double clevis
SSD2-L-12-30-FA-HP1Model: SSD2-L (Switch magnet built in) | Bore: 12 mm | Stroke: 30 mm | Bracket: Rod-end flange
SSD2-L-12-30-FB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 12 mm | Stroke: 30 mm | Bracket: Head-end flange
SSD2-L-16-5-HP1Model: SSD2-L (Switch magnet built in) | Bore: 16 mm | Stroke: 5 mm | Bracket: None
SSD2-L-16-5-LB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 16 mm | Stroke: 5 mm | Bracket: Axial foot
SSD2-L-16-5-CB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 16 mm | Stroke: 5 mm | Bracket: Double clevis
SSD2-L-16-5-FA-HP1Model: SSD2-L (Switch magnet built in) | Bore: 16 mm | Stroke: 5 mm | Bracket: Rod-end flange
SSD2-L-16-5-FB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 16 mm | Stroke: 5 mm | Bracket: Head-end flange
SSD2-L-16-10-HP1Model: SSD2-L (Switch magnet built in) | Bore: 16 mm | Stroke: 10 mm | Bracket: None
SSD2-L-16-10-LB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 16 mm | Stroke: 10 mm | Bracket: Axial foot
SSD2-L-16-10-CB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 16 mm | Stroke: 10 mm | Bracket: Double clevis
SSD2-L-16-10-FA-HP1Model: SSD2-L (Switch magnet built in) | Bore: 16 mm | Stroke: 10 mm | Bracket: Rod-end flange
SSD2-L-16-10-FB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 16 mm | Stroke: 10 mm | Bracket: Head-end flange
SSD2-L-16-15-HP1Model: SSD2-L (Switch magnet built in) | Bore: 16 mm | Stroke: 15 mm | Bracket: None
SSD2-L-16-15-LB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 16 mm | Stroke: 15 mm | Bracket: Axial foot
SSD2-L-16-15-CB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 16 mm | Stroke: 15 mm | Bracket: Double clevis
SSD2-L-16-15-FA-HP1Model: SSD2-L (Switch magnet built in) | Bore: 16 mm | Stroke: 15 mm | Bracket: Rod-end flange
SSD2-L-16-15-FB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 16 mm | Stroke: 15 mm | Bracket: Head-end flange
SSD2-L-16-20-HP1Model: SSD2-L (Switch magnet built in) | Bore: 16 mm | Stroke: 20 mm | Bracket: None
SSD2-L-16-20-LB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 16 mm | Stroke: 20 mm | Bracket: Axial foot
SSD2-L-16-20-CB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 16 mm | Stroke: 20 mm | Bracket: Double clevis
SSD2-L-16-20-FA-HP1Model: SSD2-L (Switch magnet built in) | Bore: 16 mm | Stroke: 20 mm | Bracket: Rod-end flange
SSD2-L-16-20-FB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 16 mm | Stroke: 20 mm | Bracket: Head-end flange
SSD2-L-16-25-HP1Model: SSD2-L (Switch magnet built in) | Bore: 16 mm | Stroke: 25 mm | Bracket: None
SSD2-L-16-25-LB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 16 mm | Stroke: 25 mm | Bracket: Axial foot
SSD2-L-16-25-CB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 16 mm | Stroke: 25 mm | Bracket: Double clevis
SSD2-L-16-25-FA-HP1Model: SSD2-L (Switch magnet built in) | Bore: 16 mm | Stroke: 25 mm | Bracket: Rod-end flange
SSD2-L-16-25-FB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 16 mm | Stroke: 25 mm | Bracket: Head-end flange
SSD2-L-16-30-HP1Model: SSD2-L (Switch magnet built in) | Bore: 16 mm | Stroke: 30 mm | Bracket: None
SSD2-L-16-30-LB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 16 mm | Stroke: 30 mm | Bracket: Axial foot
SSD2-L-16-30-CB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 16 mm | Stroke: 30 mm | Bracket: Double clevis
SSD2-L-16-30-FA-HP1Model: SSD2-L (Switch magnet built in) | Bore: 16 mm | Stroke: 30 mm | Bracket: Rod-end flange
SSD2-L-16-30-FB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 16 mm | Stroke: 30 mm | Bracket: Head-end flange
SSD2-L-20-5-HP1Model: SSD2-L (Switch magnet built in) | Bore: 20 mm | Stroke: 5 mm | Bracket: None
SSD2-L-20-5-LB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 20 mm | Stroke: 5 mm | Bracket: Axial foot
SSD2-L-20-5-CB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 20 mm | Stroke: 5 mm | Bracket: Double clevis
SSD2-L-20-5-FA-HP1Model: SSD2-L (Switch magnet built in) | Bore: 20 mm | Stroke: 5 mm | Bracket: Rod-end flange
SSD2-L-20-5-FB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 20 mm | Stroke: 5 mm | Bracket: Head-end flange
SSD2-L-20-10-HP1Model: SSD2-L (Switch magnet built in) | Bore: 20 mm | Stroke: 10 mm | Bracket: None
SSD2-L-20-10-LB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 20 mm | Stroke: 10 mm | Bracket: Axial foot
SSD2-L-20-10-CB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 20 mm | Stroke: 10 mm | Bracket: Double clevis
SSD2-L-20-10-FA-HP1Model: SSD2-L (Switch magnet built in) | Bore: 20 mm | Stroke: 10 mm | Bracket: Rod-end flange
SSD2-L-20-10-FB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 20 mm | Stroke: 10 mm | Bracket: Head-end flange
SSD2-L-20-15-HP1Model: SSD2-L (Switch magnet built in) | Bore: 20 mm | Stroke: 15 mm | Bracket: None
SSD2-L-20-15-LB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 20 mm | Stroke: 15 mm | Bracket: Axial foot
SSD2-L-20-15-CB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 20 mm | Stroke: 15 mm | Bracket: Double clevis
SSD2-L-20-15-FA-HP1Model: SSD2-L (Switch magnet built in) | Bore: 20 mm | Stroke: 15 mm | Bracket: Rod-end flange
SSD2-L-20-15-FB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 20 mm | Stroke: 15 mm | Bracket: Head-end flange
SSD2-L-20-20-HP1Model: SSD2-L (Switch magnet built in) | Bore: 20 mm | Stroke: 20 mm | Bracket: None
SSD2-L-20-20-LB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 20 mm | Stroke: 20 mm | Bracket: Axial foot
SSD2-L-20-20-CB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 20 mm | Stroke: 20 mm | Bracket: Double clevis
SSD2-L-20-20-FA-HP1Model: SSD2-L (Switch magnet built in) | Bore: 20 mm | Stroke: 20 mm | Bracket: Rod-end flange
SSD2-L-20-20-FB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 20 mm | Stroke: 20 mm | Bracket: Head-end flange
SSD2-L-20-25-HP1Model: SSD2-L (Switch magnet built in) | Bore: 20 mm | Stroke: 25 mm | Bracket: None
SSD2-L-20-25-LB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 20 mm | Stroke: 25 mm | Bracket: Axial foot
SSD2-L-20-25-CB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 20 mm | Stroke: 25 mm | Bracket: Double clevis
SSD2-L-20-25-FA-HP1Model: SSD2-L (Switch magnet built in) | Bore: 20 mm | Stroke: 25 mm | Bracket: Rod-end flange
SSD2-L-20-25-FB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 20 mm | Stroke: 25 mm | Bracket: Head-end flange
SSD2-L-20-30-HP1Model: SSD2-L (Switch magnet built in) | Bore: 20 mm | Stroke: 30 mm | Bracket: None
SSD2-L-20-30-LB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 20 mm | Stroke: 30 mm | Bracket: Axial foot
SSD2-L-20-30-CB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 20 mm | Stroke: 30 mm | Bracket: Double clevis
SSD2-L-20-30-FA-HP1Model: SSD2-L (Switch magnet built in) | Bore: 20 mm | Stroke: 30 mm | Bracket: Rod-end flange
SSD2-L-20-30-FB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 20 mm | Stroke: 30 mm | Bracket: Head-end flange
SSD2-L-20-35-HP1Model: SSD2-L (Switch magnet built in) | Bore: 20 mm | Stroke: 35 mm | Bracket: None
SSD2-L-20-35-LB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 20 mm | Stroke: 35 mm | Bracket: Axial foot
SSD2-L-20-35-CB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 20 mm | Stroke: 35 mm | Bracket: Double clevis
SSD2-L-20-35-FA-HP1Model: SSD2-L (Switch magnet built in) | Bore: 20 mm | Stroke: 35 mm | Bracket: Rod-end flange
SSD2-L-20-35-FB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 20 mm | Stroke: 35 mm | Bracket: Head-end flange
SSD2-L-20-40-HP1Model: SSD2-L (Switch magnet built in) | Bore: 20 mm | Stroke: 40 mm | Bracket: None
SSD2-L-20-40-LB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 20 mm | Stroke: 40 mm | Bracket: Axial foot
SSD2-L-20-40-CB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 20 mm | Stroke: 40 mm | Bracket: Double clevis
SSD2-L-20-40-FA-HP1Model: SSD2-L (Switch magnet built in) | Bore: 20 mm | Stroke: 40 mm | Bracket: Rod-end flange
SSD2-L-20-40-FB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 20 mm | Stroke: 40 mm | Bracket: Head-end flange
SSD2-L-20-45-HP1Model: SSD2-L (Switch magnet built in) | Bore: 20 mm | Stroke: 45 mm | Bracket: None
SSD2-L-20-45-LB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 20 mm | Stroke: 45 mm | Bracket: Axial foot
SSD2-L-20-45-CB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 20 mm | Stroke: 45 mm | Bracket: Double clevis
SSD2-L-20-45-FA-HP1Model: SSD2-L (Switch magnet built in) | Bore: 20 mm | Stroke: 45 mm | Bracket: Rod-end flange
SSD2-L-20-45-FB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 20 mm | Stroke: 45 mm | Bracket: Head-end flange
SSD2-L-20-50-HP1Model: SSD2-L (Switch magnet built in) | Bore: 20 mm | Stroke: 50 mm | Bracket: None
SSD2-L-20-50-LB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 20 mm | Stroke: 50 mm | Bracket: Axial foot
SSD2-L-20-50-CB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 20 mm | Stroke: 50 mm | Bracket: Double clevis
SSD2-L-20-50-FA-HP1Model: SSD2-L (Switch magnet built in) | Bore: 20 mm | Stroke: 50 mm | Bracket: Rod-end flange
SSD2-L-20-50-FB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 20 mm | Stroke: 50 mm | Bracket: Head-end flange
SSD2-L-25-5-HP1Model: SSD2-L (Switch magnet built in) | Bore: 25 mm | Stroke: 5 mm | Bracket: None
SSD2-L-25-5-LB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 25 mm | Stroke: 5 mm | Bracket: Axial foot
SSD2-L-25-5-CB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 25 mm | Stroke: 5 mm | Bracket: Double clevis
SSD2-L-25-5-FA-HP1Model: SSD2-L (Switch magnet built in) | Bore: 25 mm | Stroke: 5 mm | Bracket: Rod-end flange
SSD2-L-25-5-FB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 25 mm | Stroke: 5 mm | Bracket: Head-end flange
SSD2-L-25-10-HP1Model: SSD2-L (Switch magnet built in) | Bore: 25 mm | Stroke: 10 mm | Bracket: None
SSD2-L-25-10-LB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 25 mm | Stroke: 10 mm | Bracket: Axial foot
SSD2-L-25-10-CB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 25 mm | Stroke: 10 mm | Bracket: Double clevis
SSD2-L-25-10-FA-HP1Model: SSD2-L (Switch magnet built in) | Bore: 25 mm | Stroke: 10 mm | Bracket: Rod-end flange
SSD2-L-25-10-FB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 25 mm | Stroke: 10 mm | Bracket: Head-end flange
SSD2-L-25-15-HP1Model: SSD2-L (Switch magnet built in) | Bore: 25 mm | Stroke: 15 mm | Bracket: None
SSD2-L-25-15-LB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 25 mm | Stroke: 15 mm | Bracket: Axial foot
SSD2-L-25-15-CB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 25 mm | Stroke: 15 mm | Bracket: Double clevis
SSD2-L-25-15-FA-HP1Model: SSD2-L (Switch magnet built in) | Bore: 25 mm | Stroke: 15 mm | Bracket: Rod-end flange
SSD2-L-25-15-FB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 25 mm | Stroke: 15 mm | Bracket: Head-end flange
SSD2-L-25-20-HP1Model: SSD2-L (Switch magnet built in) | Bore: 25 mm | Stroke: 20 mm | Bracket: None
SSD2-L-25-20-LB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 25 mm | Stroke: 20 mm | Bracket: Axial foot
SSD2-L-25-20-CB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 25 mm | Stroke: 20 mm | Bracket: Double clevis
SSD2-L-25-20-FA-HP1Model: SSD2-L (Switch magnet built in) | Bore: 25 mm | Stroke: 20 mm | Bracket: Rod-end flange
SSD2-L-25-20-FB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 25 mm | Stroke: 20 mm | Bracket: Head-end flange
SSD2-L-25-25-HP1Model: SSD2-L (Switch magnet built in) | Bore: 25 mm | Stroke: 25 mm | Bracket: None
SSD2-L-25-25-LB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 25 mm | Stroke: 25 mm | Bracket: Axial foot
SSD2-L-25-25-CB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 25 mm | Stroke: 25 mm | Bracket: Double clevis
SSD2-L-25-25-FA-HP1Model: SSD2-L (Switch magnet built in) | Bore: 25 mm | Stroke: 25 mm | Bracket: Rod-end flange
SSD2-L-25-25-FB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 25 mm | Stroke: 25 mm | Bracket: Head-end flange
SSD2-L-25-30-HP1Model: SSD2-L (Switch magnet built in) | Bore: 25 mm | Stroke: 30 mm | Bracket: None
SSD2-L-25-30-LB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 25 mm | Stroke: 30 mm | Bracket: Axial foot
SSD2-L-25-30-CB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 25 mm | Stroke: 30 mm | Bracket: Double clevis
SSD2-L-25-30-FA-HP1Model: SSD2-L (Switch magnet built in) | Bore: 25 mm | Stroke: 30 mm | Bracket: Rod-end flange
SSD2-L-25-30-FB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 25 mm | Stroke: 30 mm | Bracket: Head-end flange
SSD2-L-25-35-HP1Model: SSD2-L (Switch magnet built in) | Bore: 25 mm | Stroke: 35 mm | Bracket: None
SSD2-L-25-35-LB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 25 mm | Stroke: 35 mm | Bracket: Axial foot
SSD2-L-25-35-CB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 25 mm | Stroke: 35 mm | Bracket: Double clevis
SSD2-L-25-35-FA-HP1Model: SSD2-L (Switch magnet built in) | Bore: 25 mm | Stroke: 35 mm | Bracket: Rod-end flange
SSD2-L-25-35-FB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 25 mm | Stroke: 35 mm | Bracket: Head-end flange
SSD2-L-25-40-HP1Model: SSD2-L (Switch magnet built in) | Bore: 25 mm | Stroke: 40 mm | Bracket: None
SSD2-L-25-40-LB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 25 mm | Stroke: 40 mm | Bracket: Axial foot
SSD2-L-25-40-CB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 25 mm | Stroke: 40 mm | Bracket: Double clevis
SSD2-L-25-40-FA-HP1Model: SSD2-L (Switch magnet built in) | Bore: 25 mm | Stroke: 40 mm | Bracket: Rod-end flange
SSD2-L-25-40-FB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 25 mm | Stroke: 40 mm | Bracket: Head-end flange
SSD2-L-25-45-HP1Model: SSD2-L (Switch magnet built in) | Bore: 25 mm | Stroke: 45 mm | Bracket: None
SSD2-L-25-45-LB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 25 mm | Stroke: 45 mm | Bracket: Axial foot
SSD2-L-25-45-CB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 25 mm | Stroke: 45 mm | Bracket: Double clevis
SSD2-L-25-45-FA-HP1Model: SSD2-L (Switch magnet built in) | Bore: 25 mm | Stroke: 45 mm | Bracket: Rod-end flange
SSD2-L-25-45-FB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 25 mm | Stroke: 45 mm | Bracket: Head-end flange
SSD2-L-25-50-HP1Model: SSD2-L (Switch magnet built in) | Bore: 25 mm | Stroke: 50 mm | Bracket: None
SSD2-L-25-50-LB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 25 mm | Stroke: 50 mm | Bracket: Axial foot
SSD2-L-25-50-CB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 25 mm | Stroke: 50 mm | Bracket: Double clevis
SSD2-L-25-50-FA-HP1Model: SSD2-L (Switch magnet built in) | Bore: 25 mm | Stroke: 50 mm | Bracket: Rod-end flange
SSD2-L-25-50-FB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 25 mm | Stroke: 50 mm | Bracket: Head-end flange
SSD2-L-32-5-HP1Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 5 mm | Bracket: None
SSD2-L-32-5-LB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 5 mm | Bracket: Axial foot
SSD2-L-32-5-CB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 5 mm | Bracket: Double clevis
SSD2-L-32-5-FA-HP1Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 5 mm | Bracket: Rod-end flange
SSD2-L-32-5-FB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 5 mm | Bracket: Head-end flange
SSD2-L-32-10-HP1Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 10 mm | Bracket: None
SSD2-L-32-10-LB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 10 mm | Bracket: Axial foot
SSD2-L-32-10-CB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 10 mm | Bracket: Double clevis
SSD2-L-32-10-FA-HP1Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 10 mm | Bracket: Rod-end flange
SSD2-L-32-10-FB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 10 mm | Bracket: Head-end flange
SSD2-L-32-15-HP1Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 15 mm | Bracket: None
SSD2-L-32-15-LB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 15 mm | Bracket: Axial foot
SSD2-L-32-15-CB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 15 mm | Bracket: Double clevis
SSD2-L-32-15-FA-HP1Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 15 mm | Bracket: Rod-end flange
SSD2-L-32-15-FB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 15 mm | Bracket: Head-end flange
SSD2-L-32-20-HP1Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 20 mm | Bracket: None
SSD2-L-32-20-LB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 20 mm | Bracket: Axial foot
SSD2-L-32-20-CB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 20 mm | Bracket: Double clevis
SSD2-L-32-20-FA-HP1Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 20 mm | Bracket: Rod-end flange
SSD2-L-32-20-FB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 20 mm | Bracket: Head-end flange
SSD2-L-32-25-HP1Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 25 mm | Bracket: None
SSD2-L-32-25-LB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 25 mm | Bracket: Axial foot
SSD2-L-32-25-CB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 25 mm | Bracket: Double clevis
SSD2-L-32-25-FA-HP1Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 25 mm | Bracket: Rod-end flange
SSD2-L-32-25-FB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 25 mm | Bracket: Head-end flange
SSD2-L-32-30-HP1Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 30 mm | Bracket: None
SSD2-L-32-30-LB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 30 mm | Bracket: Axial foot
SSD2-L-32-30-CB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 30 mm | Bracket: Double clevis
SSD2-L-32-30-FA-HP1Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 30 mm | Bracket: Rod-end flange
SSD2-L-32-30-FB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 30 mm | Bracket: Head-end flange
SSD2-L-32-35-HP1Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 35 mm | Bracket: None
SSD2-L-32-35-LB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 35 mm | Bracket: Axial foot
SSD2-L-32-35-CB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 35 mm | Bracket: Double clevis
SSD2-L-32-35-FA-HP1Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 35 mm | Bracket: Rod-end flange
SSD2-L-32-35-FB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 35 mm | Bracket: Head-end flange
SSD2-L-32-40-HP1Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 40 mm | Bracket: None
SSD2-L-32-40-LB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 40 mm | Bracket: Axial foot
SSD2-L-32-40-CB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 40 mm | Bracket: Double clevis
SSD2-L-32-40-FA-HP1Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 40 mm | Bracket: Rod-end flange
SSD2-L-32-40-FB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 40 mm | Bracket: Head-end flange
SSD2-L-32-45-HP1Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 45 mm | Bracket: None
SSD2-L-32-45-LB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 45 mm | Bracket: Axial foot
SSD2-L-32-45-CB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 45 mm | Bracket: Double clevis
SSD2-L-32-45-FA-HP1Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 45 mm | Bracket: Rod-end flange
SSD2-L-32-45-FB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 45 mm | Bracket: Head-end flange
SSD2-L-32-50-HP1Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 50 mm | Bracket: None
SSD2-L-32-50-LB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 50 mm | Bracket: Axial foot
SSD2-L-32-50-CB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 50 mm | Bracket: Double clevis
SSD2-L-32-50-FA-HP1Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 50 mm | Bracket: Rod-end flange
SSD2-L-32-50-FB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 50 mm | Bracket: Head-end flange
SSD2-L-32-75-HP1Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 75 mm | Bracket: None
SSD2-L-32-75-LB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 75 mm | Bracket: Axial foot
SSD2-L-32-75-CB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 75 mm | Bracket: Double clevis
SSD2-L-32-75-FA-HP1Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 75 mm | Bracket: Rod-end flange
SSD2-L-32-75-FB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 75 mm | Bracket: Head-end flange
SSD2-L-32-100-HP1Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 100 mm | Bracket: None
SSD2-L-32-100-LB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 100 mm | Bracket: Axial foot
SSD2-L-32-100-CB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 100 mm | Bracket: Double clevis
SSD2-L-32-100-FA-HP1Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 100 mm | Bracket: Rod-end flange
SSD2-L-32-100-FB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 32 mm | Stroke: 100 mm | Bracket: Head-end flange
SSD2-L-40-5-HP1Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 5 mm | Bracket: None
SSD2-L-40-5-LB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 5 mm | Bracket: Axial foot
SSD2-L-40-5-CB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 5 mm | Bracket: Double clevis
SSD2-L-40-5-FA-HP1Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 5 mm | Bracket: Rod-end flange
SSD2-L-40-5-FB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 5 mm | Bracket: Head-end flange
SSD2-L-40-10-HP1Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 10 mm | Bracket: None
SSD2-L-40-10-LB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 10 mm | Bracket: Axial foot
SSD2-L-40-10-CB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 10 mm | Bracket: Double clevis
SSD2-L-40-10-FA-HP1Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 10 mm | Bracket: Rod-end flange
SSD2-L-40-10-FB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 10 mm | Bracket: Head-end flange
SSD2-L-40-15-HP1Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 15 mm | Bracket: None
SSD2-L-40-15-LB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 15 mm | Bracket: Axial foot
SSD2-L-40-15-CB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 15 mm | Bracket: Double clevis
SSD2-L-40-15-FA-HP1Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 15 mm | Bracket: Rod-end flange
SSD2-L-40-15-FB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 15 mm | Bracket: Head-end flange
SSD2-L-40-20-HP1Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 20 mm | Bracket: None
SSD2-L-40-20-LB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 20 mm | Bracket: Axial foot
SSD2-L-40-20-CB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 20 mm | Bracket: Double clevis
SSD2-L-40-20-FA-HP1Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 20 mm | Bracket: Rod-end flange
SSD2-L-40-20-FB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 20 mm | Bracket: Head-end flange
SSD2-L-40-25-HP1Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 25 mm | Bracket: None
SSD2-L-40-25-LB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 25 mm | Bracket: Axial foot
SSD2-L-40-25-CB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 25 mm | Bracket: Double clevis
SSD2-L-40-25-FA-HP1Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 25 mm | Bracket: Rod-end flange
SSD2-L-40-25-FB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 25 mm | Bracket: Head-end flange
SSD2-L-40-30-HP1Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 30 mm | Bracket: None
SSD2-L-40-30-LB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 30 mm | Bracket: Axial foot
SSD2-L-40-30-CB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 30 mm | Bracket: Double clevis
SSD2-L-40-30-FA-HP1Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 30 mm | Bracket: Rod-end flange
SSD2-L-40-30-FB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 30 mm | Bracket: Head-end flange
SSD2-L-40-35-HP1Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 35 mm | Bracket: None
SSD2-L-40-35-LB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 35 mm | Bracket: Axial foot
SSD2-L-40-35-CB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 35 mm | Bracket: Double clevis
SSD2-L-40-35-FA-HP1Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 35 mm | Bracket: Rod-end flange
SSD2-L-40-35-FB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 35 mm | Bracket: Head-end flange
SSD2-L-40-40-HP1Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 40 mm | Bracket: None
SSD2-L-40-40-LB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 40 mm | Bracket: Axial foot
SSD2-L-40-40-CB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 40 mm | Bracket: Double clevis
SSD2-L-40-40-FA-HP1Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 40 mm | Bracket: Rod-end flange
SSD2-L-40-40-FB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 40 mm | Bracket: Head-end flange
SSD2-L-40-45-HP1Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 45 mm | Bracket: None
SSD2-L-40-45-LB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 45 mm | Bracket: Axial foot
SSD2-L-40-45-CB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 45 mm | Bracket: Double clevis
SSD2-L-40-45-FA-HP1Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 45 mm | Bracket: Rod-end flange
SSD2-L-40-45-FB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 45 mm | Bracket: Head-end flange
SSD2-L-40-50-HP1Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 50 mm | Bracket: None
SSD2-L-40-50-LB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 50 mm | Bracket: Axial foot
SSD2-L-40-50-CB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 50 mm | Bracket: Double clevis
SSD2-L-40-50-FA-HP1Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 50 mm | Bracket: Rod-end flange
SSD2-L-40-50-FB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 50 mm | Bracket: Head-end flange
SSD2-L-40-75-HP1Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 75 mm | Bracket: None
SSD2-L-40-75-LB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 75 mm | Bracket: Axial foot
SSD2-L-40-75-CB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 75 mm | Bracket: Double clevis
SSD2-L-40-75-FA-HP1Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 75 mm | Bracket: Rod-end flange
SSD2-L-40-75-FB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 75 mm | Bracket: Head-end flange
SSD2-L-40-100-HP1Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 100 mm | Bracket: None
SSD2-L-40-100-LB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 100 mm | Bracket: Axial foot
SSD2-L-40-100-CB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 100 mm | Bracket: Double clevis
SSD2-L-40-100-FA-HP1Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 100 mm | Bracket: Rod-end flange
SSD2-L-40-100-FB-HP1Model: SSD2-L (Switch magnet built in) | Bore: 40 mm | Stroke: 100 mm | Bracket: Head-end flange

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
