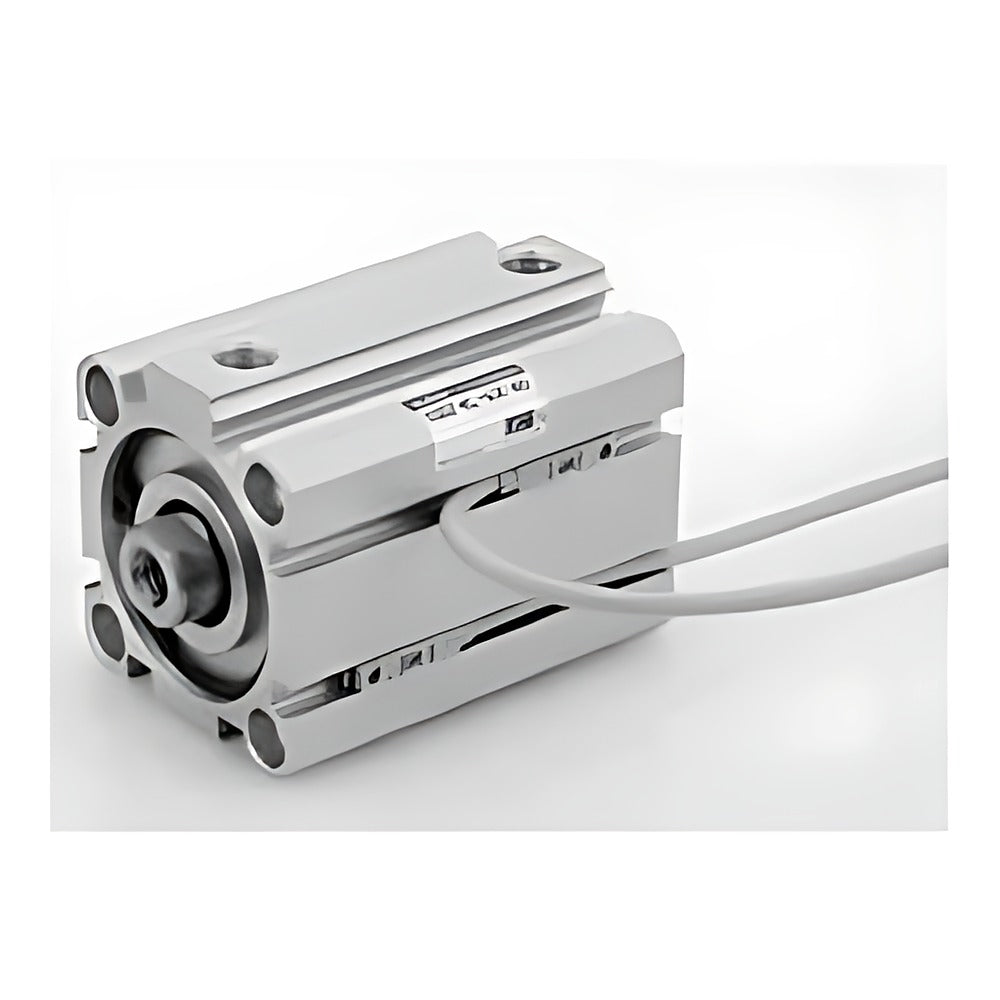

CKD SSD2-K-C Super Compact Cylinder (High Load, Rubber Air Cushion)

CKD SSD2-K-C is a high-load super compact cylinder with a combined rubber and air cushion that lowers impact noise and shock, bores 20-100 mm.

Key features

Rubber air cushion reduces end-of-stroke impact noise and acceleration versus the standard rubber cushion
High-load body based on SSD2-K
SSD2-KL version with built-in magnet for F-type and T-type auto switches
Mounting brackets LB, CB, FA, FB selectable in the model code
Options: rod-end male thread (N), stainless piston rod (M)

Specifications

Operation	Double acting, single rod, high load
Fluid	Compressed air
Max. operating pressure	1.0 MPa
Min. operating pressure	0.25 MPa (20/25), 0.2 MPa (32-100)
Proof pressure	1.6 MPa
Ambient temperature	-10 to 60 C (no freezing)
Piston speed	50-500 mm/s (50-300 mm/s for 63-100)
Cushion	Rubber air cushion
Source	CKD Korea catalog CB-029SK-9, p. 920-927

SSD2-K-20C-5		Bore: 20 mm \| Stroke: 5 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
SSD2-K-20C-5-LB		Bore: 20 mm \| Stroke: 5 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-K-20C-5-CB		Bore: 20 mm \| Stroke: 5 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-K-20C-5-FA		Bore: 20 mm \| Stroke: 5 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-K-20C-5-FB		Bore: 20 mm \| Stroke: 5 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-K-20C-10		Bore: 20 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
SSD2-K-20C-10-LB		Bore: 20 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-K-20C-10-CB		Bore: 20 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-K-20C-10-FA		Bore: 20 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-K-20C-10-FB		Bore: 20 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-K-20C-15		Bore: 20 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
SSD2-K-20C-15-LB		Bore: 20 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-K-20C-15-CB		Bore: 20 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-K-20C-15-FA		Bore: 20 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-K-20C-15-FB		Bore: 20 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-K-20C-20		Bore: 20 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
SSD2-K-20C-20-LB		Bore: 20 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-K-20C-20-CB		Bore: 20 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-K-20C-20-FA		Bore: 20 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-K-20C-20-FB		Bore: 20 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-K-20C-25		Bore: 20 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
SSD2-K-20C-25-LB		Bore: 20 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-K-20C-25-CB		Bore: 20 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-K-20C-25-FA		Bore: 20 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-K-20C-25-FB		Bore: 20 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-K-20C-30		Bore: 20 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
SSD2-K-20C-30-LB		Bore: 20 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-K-20C-30-CB		Bore: 20 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-K-20C-30-FA		Bore: 20 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-K-20C-30-FB		Bore: 20 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-K-20C-35		Bore: 20 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
SSD2-K-20C-35-LB		Bore: 20 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-K-20C-35-CB		Bore: 20 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-K-20C-35-FA		Bore: 20 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-K-20C-35-FB		Bore: 20 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-K-20C-40		Bore: 20 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
SSD2-K-20C-40-LB		Bore: 20 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-K-20C-40-CB		Bore: 20 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-K-20C-40-FA		Bore: 20 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-K-20C-40-FB		Bore: 20 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-K-20C-45		Bore: 20 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
SSD2-K-20C-45-LB		Bore: 20 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-K-20C-45-CB		Bore: 20 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-K-20C-45-FA		Bore: 20 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-K-20C-45-FB		Bore: 20 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-K-20C-50		Bore: 20 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
SSD2-K-20C-50-LB		Bore: 20 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-K-20C-50-CB		Bore: 20 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-K-20C-50-FA		Bore: 20 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-K-20C-50-FB		Bore: 20 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-K-25C-5		Bore: 25 mm \| Stroke: 5 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
SSD2-K-25C-5-LB		Bore: 25 mm \| Stroke: 5 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-K-25C-5-CB		Bore: 25 mm \| Stroke: 5 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-K-25C-5-FA		Bore: 25 mm \| Stroke: 5 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-K-25C-5-FB		Bore: 25 mm \| Stroke: 5 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-K-25C-10		Bore: 25 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
SSD2-K-25C-10-LB		Bore: 25 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-K-25C-10-CB		Bore: 25 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-K-25C-10-FA		Bore: 25 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-K-25C-10-FB		Bore: 25 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-K-25C-15		Bore: 25 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
SSD2-K-25C-15-LB		Bore: 25 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-K-25C-15-CB		Bore: 25 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-K-25C-15-FA		Bore: 25 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-K-25C-15-FB		Bore: 25 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-K-25C-20		Bore: 25 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
SSD2-K-25C-20-LB		Bore: 25 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-K-25C-20-CB		Bore: 25 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-K-25C-20-FA		Bore: 25 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-K-25C-20-FB		Bore: 25 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-K-25C-25		Bore: 25 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
SSD2-K-25C-25-LB		Bore: 25 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-K-25C-25-CB		Bore: 25 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-K-25C-25-FA		Bore: 25 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-K-25C-25-FB		Bore: 25 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-K-25C-30		Bore: 25 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
SSD2-K-25C-30-LB		Bore: 25 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-K-25C-30-CB		Bore: 25 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-K-25C-30-FA		Bore: 25 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-K-25C-30-FB		Bore: 25 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-K-25C-35		Bore: 25 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
SSD2-K-25C-35-LB		Bore: 25 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-K-25C-35-CB		Bore: 25 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-K-25C-35-FA		Bore: 25 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-K-25C-35-FB		Bore: 25 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-K-25C-40		Bore: 25 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
SSD2-K-25C-40-LB		Bore: 25 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-K-25C-40-CB		Bore: 25 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-K-25C-40-FA		Bore: 25 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-K-25C-40-FB		Bore: 25 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-K-25C-45		Bore: 25 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
SSD2-K-25C-45-LB		Bore: 25 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-K-25C-45-CB		Bore: 25 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-K-25C-45-FA		Bore: 25 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-K-25C-45-FB		Bore: 25 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-K-25C-50		Bore: 25 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
SSD2-K-25C-50-LB		Bore: 25 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-K-25C-50-CB		Bore: 25 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-K-25C-50-FA		Bore: 25 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-K-25C-50-FB		Bore: 25 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-K-32C-5		Bore: 32 mm \| Stroke: 5 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
SSD2-K-32C-5-LB		Bore: 32 mm \| Stroke: 5 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-K-32C-5-CB		Bore: 32 mm \| Stroke: 5 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-K-32C-5-FA		Bore: 32 mm \| Stroke: 5 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-K-32C-5-FB		Bore: 32 mm \| Stroke: 5 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-K-32C-10		Bore: 32 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
SSD2-K-32C-10-LB		Bore: 32 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-K-32C-10-CB		Bore: 32 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-K-32C-10-FA		Bore: 32 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-K-32C-10-FB		Bore: 32 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-K-32C-15		Bore: 32 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
SSD2-K-32C-15-LB		Bore: 32 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-K-32C-15-CB		Bore: 32 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-K-32C-15-FA		Bore: 32 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-K-32C-15-FB		Bore: 32 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-K-32C-20		Bore: 32 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
SSD2-K-32C-20-LB		Bore: 32 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-K-32C-20-CB		Bore: 32 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-K-32C-20-FA		Bore: 32 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-K-32C-20-FB		Bore: 32 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-K-32C-25		Bore: 32 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
SSD2-K-32C-25-LB		Bore: 32 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-K-32C-25-CB		Bore: 32 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-K-32C-25-FA		Bore: 32 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-K-32C-25-FB		Bore: 32 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-K-32C-30		Bore: 32 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
SSD2-K-32C-30-LB		Bore: 32 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-K-32C-30-CB		Bore: 32 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-K-32C-30-FA		Bore: 32 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-K-32C-30-FB		Bore: 32 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-K-32C-35		Bore: 32 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
SSD2-K-32C-35-LB		Bore: 32 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-K-32C-35-CB		Bore: 32 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-K-32C-35-FA		Bore: 32 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-K-32C-35-FB		Bore: 32 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-K-32C-40		Bore: 32 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
SSD2-K-32C-40-LB		Bore: 32 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-K-32C-40-CB		Bore: 32 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-K-32C-40-FA		Bore: 32 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-K-32C-40-FB		Bore: 32 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-K-32C-45		Bore: 32 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
SSD2-K-32C-45-LB		Bore: 32 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-K-32C-45-CB		Bore: 32 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-K-32C-45-FA		Bore: 32 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-K-32C-45-FB		Bore: 32 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-K-32C-50		Bore: 32 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
SSD2-K-32C-50-LB		Bore: 32 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-K-32C-50-CB		Bore: 32 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-K-32C-50-FA		Bore: 32 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-K-32C-50-FB		Bore: 32 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-K-32C-75		Bore: 32 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
SSD2-K-32C-75-LB		Bore: 32 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-K-32C-75-CB		Bore: 32 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-K-32C-75-FA		Bore: 32 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-K-32C-75-FB		Bore: 32 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-K-32C-100		Bore: 32 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
SSD2-K-32C-100-LB		Bore: 32 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-K-32C-100-CB		Bore: 32 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-K-32C-100-FA		Bore: 32 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-K-32C-100-FB		Bore: 32 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-K-40C-5		Bore: 40 mm \| Stroke: 5 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
SSD2-K-40C-5-LB		Bore: 40 mm \| Stroke: 5 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-K-40C-5-CB		Bore: 40 mm \| Stroke: 5 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-K-40C-5-FA		Bore: 40 mm \| Stroke: 5 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-K-40C-5-FB		Bore: 40 mm \| Stroke: 5 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-K-40C-10		Bore: 40 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
SSD2-K-40C-10-LB		Bore: 40 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-K-40C-10-CB		Bore: 40 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-K-40C-10-FA		Bore: 40 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-K-40C-10-FB		Bore: 40 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-K-40C-15		Bore: 40 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
SSD2-K-40C-15-LB		Bore: 40 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-K-40C-15-CB		Bore: 40 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-K-40C-15-FA		Bore: 40 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-K-40C-15-FB		Bore: 40 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-K-40C-20		Bore: 40 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
SSD2-K-40C-20-LB		Bore: 40 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-K-40C-20-CB		Bore: 40 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-K-40C-20-FA		Bore: 40 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-K-40C-20-FB		Bore: 40 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-K-40C-25		Bore: 40 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
SSD2-K-40C-25-LB		Bore: 40 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-K-40C-25-CB		Bore: 40 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-K-40C-25-FA		Bore: 40 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-K-40C-25-FB		Bore: 40 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-K-40C-30		Bore: 40 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
SSD2-K-40C-30-LB		Bore: 40 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-K-40C-30-CB		Bore: 40 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-K-40C-30-FA		Bore: 40 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-K-40C-30-FB		Bore: 40 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-K-40C-35		Bore: 40 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
SSD2-K-40C-35-LB		Bore: 40 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-K-40C-35-CB		Bore: 40 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-K-40C-35-FA		Bore: 40 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-K-40C-35-FB		Bore: 40 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-K-40C-40		Bore: 40 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
SSD2-K-40C-40-LB		Bore: 40 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-K-40C-40-CB		Bore: 40 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-K-40C-40-FA		Bore: 40 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-K-40C-40-FB		Bore: 40 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-K-40C-45		Bore: 40 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
SSD2-K-40C-45-LB		Bore: 40 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-K-40C-45-CB		Bore: 40 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-K-40C-45-FA		Bore: 40 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-K-40C-45-FB		Bore: 40 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-K-40C-50		Bore: 40 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
SSD2-K-40C-50-LB		Bore: 40 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-K-40C-50-CB		Bore: 40 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-K-40C-50-FA		Bore: 40 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-K-40C-50-FB		Bore: 40 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-K-40C-75		Bore: 40 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
SSD2-K-40C-75-LB		Bore: 40 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-K-40C-75-CB		Bore: 40 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-K-40C-75-FA		Bore: 40 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-K-40C-75-FB		Bore: 40 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-K-40C-100		Bore: 40 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
SSD2-K-40C-100-LB		Bore: 40 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-K-40C-100-CB		Bore: 40 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-K-40C-100-FA		Bore: 40 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-K-40C-100-FB		Bore: 40 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-K-50C-10		Bore: 50 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/4
SSD2-K-50C-10-LB		Bore: 50 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-K-50C-10-CB		Bore: 50 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-K-50C-10-FA		Bore: 50 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/4
SSD2-K-50C-10-FB		Bore: 50 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/4
SSD2-K-50C-15		Bore: 50 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/4
SSD2-K-50C-15-LB		Bore: 50 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-K-50C-15-CB		Bore: 50 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-K-50C-15-FA		Bore: 50 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/4
SSD2-K-50C-15-FB		Bore: 50 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/4
SSD2-K-50C-20		Bore: 50 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/4
SSD2-K-50C-20-LB		Bore: 50 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-K-50C-20-CB		Bore: 50 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-K-50C-20-FA		Bore: 50 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/4
SSD2-K-50C-20-FB		Bore: 50 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/4
SSD2-K-50C-25		Bore: 50 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/4
SSD2-K-50C-25-LB		Bore: 50 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-K-50C-25-CB		Bore: 50 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-K-50C-25-FA		Bore: 50 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/4
SSD2-K-50C-25-FB		Bore: 50 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/4
SSD2-K-50C-30		Bore: 50 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/4
SSD2-K-50C-30-LB		Bore: 50 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-K-50C-30-CB		Bore: 50 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-K-50C-30-FA		Bore: 50 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/4
SSD2-K-50C-30-FB		Bore: 50 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/4
SSD2-K-50C-35		Bore: 50 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/4
SSD2-K-50C-35-LB		Bore: 50 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-K-50C-35-CB		Bore: 50 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-K-50C-35-FA		Bore: 50 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/4
SSD2-K-50C-35-FB		Bore: 50 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/4
SSD2-K-50C-40		Bore: 50 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/4
SSD2-K-50C-40-LB		Bore: 50 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-K-50C-40-CB		Bore: 50 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-K-50C-40-FA		Bore: 50 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/4
SSD2-K-50C-40-FB		Bore: 50 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/4
SSD2-K-50C-45		Bore: 50 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/4
SSD2-K-50C-45-LB		Bore: 50 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-K-50C-45-CB		Bore: 50 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-K-50C-45-FA		Bore: 50 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/4
SSD2-K-50C-45-FB		Bore: 50 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/4
SSD2-K-50C-50		Bore: 50 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/4
SSD2-K-50C-50-LB		Bore: 50 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-K-50C-50-CB		Bore: 50 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-K-50C-50-FA		Bore: 50 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/4
SSD2-K-50C-50-FB		Bore: 50 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/4
SSD2-K-50C-75		Bore: 50 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/4
SSD2-K-50C-75-LB		Bore: 50 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-K-50C-75-CB		Bore: 50 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-K-50C-75-FA		Bore: 50 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/4
SSD2-K-50C-75-FB		Bore: 50 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/4
SSD2-K-50C-100		Bore: 50 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/4
SSD2-K-50C-100-LB		Bore: 50 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-K-50C-100-CB		Bore: 50 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-K-50C-100-FA		Bore: 50 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/4
SSD2-K-50C-100-FB		Bore: 50 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/4
SSD2-K-63C-10		Bore: 63 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/4
SSD2-K-63C-10-LB		Bore: 63 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-K-63C-10-CB		Bore: 63 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-K-63C-10-FA		Bore: 63 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/4
SSD2-K-63C-10-FB		Bore: 63 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/4
SSD2-K-63C-15		Bore: 63 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/4
SSD2-K-63C-15-LB		Bore: 63 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-K-63C-15-CB		Bore: 63 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-K-63C-15-FA		Bore: 63 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/4
SSD2-K-63C-15-FB		Bore: 63 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/4
SSD2-K-63C-20		Bore: 63 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/4
SSD2-K-63C-20-LB		Bore: 63 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-K-63C-20-CB		Bore: 63 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-K-63C-20-FA		Bore: 63 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/4
SSD2-K-63C-20-FB		Bore: 63 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/4
SSD2-K-63C-25		Bore: 63 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/4
SSD2-K-63C-25-LB		Bore: 63 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-K-63C-25-CB		Bore: 63 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-K-63C-25-FA		Bore: 63 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/4
SSD2-K-63C-25-FB		Bore: 63 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/4
SSD2-K-63C-30		Bore: 63 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/4
SSD2-K-63C-30-LB		Bore: 63 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-K-63C-30-CB		Bore: 63 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-K-63C-30-FA		Bore: 63 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/4
SSD2-K-63C-30-FB		Bore: 63 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/4
SSD2-K-63C-35		Bore: 63 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/4
SSD2-K-63C-35-LB		Bore: 63 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-K-63C-35-CB		Bore: 63 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-K-63C-35-FA		Bore: 63 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/4
SSD2-K-63C-35-FB		Bore: 63 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/4
SSD2-K-63C-40		Bore: 63 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/4
SSD2-K-63C-40-LB		Bore: 63 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-K-63C-40-CB		Bore: 63 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-K-63C-40-FA		Bore: 63 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/4
SSD2-K-63C-40-FB		Bore: 63 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/4
SSD2-K-63C-45		Bore: 63 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/4
SSD2-K-63C-45-LB		Bore: 63 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-K-63C-45-CB		Bore: 63 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-K-63C-45-FA		Bore: 63 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/4
SSD2-K-63C-45-FB		Bore: 63 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/4
SSD2-K-63C-50		Bore: 63 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/4
SSD2-K-63C-50-LB		Bore: 63 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-K-63C-50-CB		Bore: 63 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-K-63C-50-FA		Bore: 63 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/4
SSD2-K-63C-50-FB		Bore: 63 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/4
SSD2-K-63C-75		Bore: 63 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/4
SSD2-K-63C-75-LB		Bore: 63 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-K-63C-75-CB		Bore: 63 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-K-63C-75-FA		Bore: 63 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/4
SSD2-K-63C-75-FB		Bore: 63 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/4
SSD2-K-63C-100		Bore: 63 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/4
SSD2-K-63C-100-LB		Bore: 63 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-K-63C-100-CB		Bore: 63 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-K-63C-100-FA		Bore: 63 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/4
SSD2-K-63C-100-FB		Bore: 63 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/4
SSD2-K-80C-10		Bore: 80 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc3/8
SSD2-K-80C-10-LB		Bore: 80 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-K-80C-10-CB		Bore: 80 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-K-80C-10-FA		Bore: 80 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc3/8
SSD2-K-80C-10-FB		Bore: 80 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc3/8
SSD2-K-80C-15		Bore: 80 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc3/8
SSD2-K-80C-15-CB		Bore: 80 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-K-80C-15-FA		Bore: 80 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc3/8
SSD2-K-80C-15-FB		Bore: 80 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc3/8
SSD2-K-80C-20		Bore: 80 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc3/8
SSD2-K-80C-20-LB		Bore: 80 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-K-80C-20-CB		Bore: 80 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-K-80C-20-FA		Bore: 80 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc3/8
SSD2-K-80C-20-FB		Bore: 80 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc3/8
SSD2-K-80C-25		Bore: 80 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc3/8
SSD2-K-80C-25-LB		Bore: 80 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-K-80C-25-CB		Bore: 80 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-K-80C-25-FA		Bore: 80 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc3/8
SSD2-K-80C-25-FB		Bore: 80 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc3/8
SSD2-K-80C-30		Bore: 80 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc3/8
SSD2-K-80C-30-LB		Bore: 80 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-K-80C-30-CB		Bore: 80 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-K-80C-30-FA		Bore: 80 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc3/8
SSD2-K-80C-30-FB		Bore: 80 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc3/8
SSD2-K-80C-35		Bore: 80 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc3/8
SSD2-K-80C-35-LB		Bore: 80 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-K-80C-35-CB		Bore: 80 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-K-80C-35-FA		Bore: 80 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc3/8
SSD2-K-80C-35-FB		Bore: 80 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc3/8
SSD2-K-80C-40		Bore: 80 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc3/8
SSD2-K-80C-40-LB		Bore: 80 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-K-80C-40-CB		Bore: 80 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-K-80C-40-FA		Bore: 80 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc3/8
SSD2-K-80C-40-FB		Bore: 80 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc3/8
SSD2-K-80C-45		Bore: 80 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc3/8
SSD2-K-80C-45-LB		Bore: 80 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-K-80C-45-CB		Bore: 80 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-K-80C-45-FA		Bore: 80 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc3/8
SSD2-K-80C-45-FB		Bore: 80 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc3/8
SSD2-K-80C-50		Bore: 80 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc3/8
SSD2-K-80C-50-LB		Bore: 80 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-K-80C-50-CB		Bore: 80 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-K-80C-50-FA		Bore: 80 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc3/8
SSD2-K-80C-50-FB		Bore: 80 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc3/8
SSD2-K-80C-75		Bore: 80 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc3/8
SSD2-K-80C-75-LB		Bore: 80 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-K-80C-75-CB		Bore: 80 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-K-80C-75-FA		Bore: 80 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc3/8
SSD2-K-80C-75-FB		Bore: 80 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc3/8
SSD2-K-80C-100		Bore: 80 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc3/8
SSD2-K-80C-100-LB		Bore: 80 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-K-80C-100-CB		Bore: 80 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-K-80C-100-FA		Bore: 80 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc3/8
SSD2-K-80C-100-FB		Bore: 80 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc3/8
SSD2-K-100C-10		Bore: 100 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc3/8
SSD2-K-100C-10-LB		Bore: 100 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-K-100C-10-CB		Bore: 100 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-K-100C-10-FA		Bore: 100 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc3/8
SSD2-K-100C-10-FB		Bore: 100 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc3/8
SSD2-K-100C-15		Bore: 100 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc3/8
SSD2-K-100C-15-LB		Bore: 100 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-K-100C-15-CB		Bore: 100 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-K-100C-15-FA		Bore: 100 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc3/8
SSD2-K-100C-15-FB		Bore: 100 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc3/8
SSD2-K-100C-20		Bore: 100 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc3/8
SSD2-K-100C-20-LB		Bore: 100 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-K-100C-20-CB		Bore: 100 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-K-100C-20-FA		Bore: 100 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc3/8
SSD2-K-100C-20-FB		Bore: 100 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc3/8
SSD2-K-100C-25		Bore: 100 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc3/8
SSD2-K-100C-25-LB		Bore: 100 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-K-100C-25-CB		Bore: 100 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-K-100C-25-FA		Bore: 100 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc3/8
SSD2-K-100C-25-FB		Bore: 100 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc3/8
SSD2-K-100C-30		Bore: 100 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc3/8
SSD2-K-100C-30-LB		Bore: 100 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-K-100C-30-CB		Bore: 100 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-K-100C-30-FA		Bore: 100 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc3/8
SSD2-K-100C-30-FB		Bore: 100 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc3/8
SSD2-K-100C-35		Bore: 100 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc3/8
SSD2-K-100C-35-LB		Bore: 100 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-K-100C-35-CB		Bore: 100 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-K-100C-35-FA		Bore: 100 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc3/8
SSD2-K-100C-35-FB		Bore: 100 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc3/8
SSD2-K-100C-40		Bore: 100 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc3/8
SSD2-K-100C-40-LB		Bore: 100 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-K-100C-40-CB		Bore: 100 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-K-100C-40-FA		Bore: 100 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc3/8
SSD2-K-100C-40-FB		Bore: 100 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc3/8
SSD2-K-100C-45		Bore: 100 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc3/8
SSD2-K-100C-45-LB		Bore: 100 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-K-100C-45-CB		Bore: 100 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-K-100C-45-FA		Bore: 100 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc3/8
SSD2-K-100C-45-FB		Bore: 100 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc3/8
SSD2-K-100C-50		Bore: 100 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc3/8
SSD2-K-100C-50-LB		Bore: 100 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-K-100C-50-CB		Bore: 100 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-K-100C-50-FA		Bore: 100 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc3/8
SSD2-K-100C-50-FB		Bore: 100 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc3/8
SSD2-K-100C-75		Bore: 100 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc3/8
SSD2-K-100C-75-LB		Bore: 100 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-K-100C-75-CB		Bore: 100 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-K-100C-75-FA		Bore: 100 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc3/8
SSD2-K-100C-75-FB		Bore: 100 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc3/8
SSD2-K-100C-100		Bore: 100 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc3/8
SSD2-K-100C-100-LB		Bore: 100 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-K-100C-100-CB		Bore: 100 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-K-100C-100-FA		Bore: 100 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc3/8
SSD2-K-100C-100-FB		Bore: 100 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc3/8
SSD2-KL-20C-5		Bore: 20 mm \| Stroke: 5 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
SSD2-KL-20C-5-LB		Bore: 20 mm \| Stroke: 5 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-KL-20C-5-CB		Bore: 20 mm \| Stroke: 5 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KL-20C-5-FA		Bore: 20 mm \| Stroke: 5 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-KL-20C-5-FB		Bore: 20 mm \| Stroke: 5 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-KL-20C-10		Bore: 20 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
SSD2-KL-20C-10-LB		Bore: 20 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-KL-20C-10-CB		Bore: 20 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KL-20C-10-FA		Bore: 20 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-KL-20C-10-FB		Bore: 20 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-KL-20C-15		Bore: 20 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
SSD2-KL-20C-15-LB		Bore: 20 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-KL-20C-15-CB		Bore: 20 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KL-20C-15-FA		Bore: 20 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-KL-20C-15-FB		Bore: 20 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-KL-20C-20		Bore: 20 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
SSD2-KL-20C-20-LB		Bore: 20 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-KL-20C-20-CB		Bore: 20 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KL-20C-20-FA		Bore: 20 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-KL-20C-20-FB		Bore: 20 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-KL-20C-25		Bore: 20 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
SSD2-KL-20C-25-LB		Bore: 20 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-KL-20C-25-CB		Bore: 20 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KL-20C-25-FA		Bore: 20 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-KL-20C-25-FB		Bore: 20 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-KL-20C-30		Bore: 20 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
SSD2-KL-20C-30-LB		Bore: 20 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-KL-20C-30-CB		Bore: 20 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KL-20C-30-FA		Bore: 20 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-KL-20C-30-FB		Bore: 20 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-KL-20C-35		Bore: 20 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
SSD2-KL-20C-35-LB		Bore: 20 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-KL-20C-35-CB		Bore: 20 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KL-20C-35-FA		Bore: 20 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-KL-20C-35-FB		Bore: 20 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-KL-20C-40		Bore: 20 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
SSD2-KL-20C-40-LB		Bore: 20 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-KL-20C-40-CB		Bore: 20 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KL-20C-40-FA		Bore: 20 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-KL-20C-40-FB		Bore: 20 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-KL-20C-45		Bore: 20 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
SSD2-KL-20C-45-LB		Bore: 20 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-KL-20C-45-CB		Bore: 20 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KL-20C-45-FA		Bore: 20 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-KL-20C-45-FB		Bore: 20 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-KL-20C-50		Bore: 20 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
SSD2-KL-20C-50-LB		Bore: 20 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-KL-20C-50-CB		Bore: 20 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KL-20C-50-FA		Bore: 20 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-KL-20C-50-FB		Bore: 20 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-KL-25C-5		Bore: 25 mm \| Stroke: 5 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
SSD2-KL-25C-5-LB		Bore: 25 mm \| Stroke: 5 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-KL-25C-5-CB		Bore: 25 mm \| Stroke: 5 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KL-25C-5-FA		Bore: 25 mm \| Stroke: 5 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-KL-25C-5-FB		Bore: 25 mm \| Stroke: 5 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-KL-25C-10		Bore: 25 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
SSD2-KL-25C-10-LB		Bore: 25 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-KL-25C-10-CB		Bore: 25 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KL-25C-10-FA		Bore: 25 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-KL-25C-10-FB		Bore: 25 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-KL-25C-15		Bore: 25 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
SSD2-KL-25C-15-LB		Bore: 25 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-KL-25C-15-CB		Bore: 25 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KL-25C-15-FA		Bore: 25 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-KL-25C-15-FB		Bore: 25 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-KL-25C-20		Bore: 25 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
SSD2-KL-25C-20-LB		Bore: 25 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-KL-25C-20-CB		Bore: 25 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KL-25C-20-FA		Bore: 25 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-KL-25C-20-FB		Bore: 25 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-KL-25C-25		Bore: 25 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
SSD2-KL-25C-25-LB		Bore: 25 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-KL-25C-25-CB		Bore: 25 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KL-25C-25-FA		Bore: 25 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-KL-25C-25-FB		Bore: 25 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-KL-25C-30		Bore: 25 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
SSD2-KL-25C-30-LB		Bore: 25 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-KL-25C-30-CB		Bore: 25 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KL-25C-30-FA		Bore: 25 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-KL-25C-30-FB		Bore: 25 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-KL-25C-35		Bore: 25 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
SSD2-KL-25C-35-LB		Bore: 25 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-KL-25C-35-CB		Bore: 25 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KL-25C-35-FA		Bore: 25 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-KL-25C-35-FB		Bore: 25 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-KL-25C-40		Bore: 25 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
SSD2-KL-25C-40-LB		Bore: 25 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-KL-25C-40-CB		Bore: 25 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KL-25C-40-FA		Bore: 25 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-KL-25C-40-FB		Bore: 25 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-KL-25C-45		Bore: 25 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
SSD2-KL-25C-45-LB		Bore: 25 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-KL-25C-45-CB		Bore: 25 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KL-25C-45-FA		Bore: 25 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-KL-25C-45-FB		Bore: 25 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-KL-25C-50		Bore: 25 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
SSD2-KL-25C-50-LB		Bore: 25 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-KL-25C-50-CB		Bore: 25 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KL-25C-50-FA		Bore: 25 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-KL-25C-50-FB		Bore: 25 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-KL-32C-5		Bore: 32 mm \| Stroke: 5 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
SSD2-KL-32C-5-LB		Bore: 32 mm \| Stroke: 5 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-KL-32C-5-CB		Bore: 32 mm \| Stroke: 5 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KL-32C-5-FA		Bore: 32 mm \| Stroke: 5 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-KL-32C-5-FB		Bore: 32 mm \| Stroke: 5 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-KL-32C-10		Bore: 32 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
SSD2-KL-32C-10-LB		Bore: 32 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-KL-32C-10-CB		Bore: 32 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KL-32C-10-FA		Bore: 32 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-KL-32C-10-FB		Bore: 32 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-KL-32C-15		Bore: 32 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
SSD2-KL-32C-15-LB		Bore: 32 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-KL-32C-15-CB		Bore: 32 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KL-32C-15-FA		Bore: 32 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-KL-32C-15-FB		Bore: 32 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-KL-32C-20		Bore: 32 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
SSD2-KL-32C-20-LB		Bore: 32 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-KL-32C-20-CB		Bore: 32 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KL-32C-20-FA		Bore: 32 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-KL-32C-20-FB		Bore: 32 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-KL-32C-25		Bore: 32 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
SSD2-KL-32C-25-LB		Bore: 32 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-KL-32C-25-CB		Bore: 32 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KL-32C-25-FA		Bore: 32 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-KL-32C-25-FB		Bore: 32 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-KL-32C-30		Bore: 32 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
SSD2-KL-32C-30-LB		Bore: 32 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-KL-32C-30-CB		Bore: 32 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KL-32C-30-FA		Bore: 32 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-KL-32C-30-FB		Bore: 32 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-KL-32C-35		Bore: 32 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
SSD2-KL-32C-35-LB		Bore: 32 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-KL-32C-35-CB		Bore: 32 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KL-32C-35-FA		Bore: 32 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-KL-32C-35-FB		Bore: 32 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-KL-32C-40		Bore: 32 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
SSD2-KL-32C-40-LB		Bore: 32 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-KL-32C-40-CB		Bore: 32 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KL-32C-40-FA		Bore: 32 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-KL-32C-40-FB		Bore: 32 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-KL-32C-45		Bore: 32 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
SSD2-KL-32C-45-LB		Bore: 32 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-KL-32C-45-CB		Bore: 32 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KL-32C-45-FA		Bore: 32 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-KL-32C-45-FB		Bore: 32 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-KL-32C-50		Bore: 32 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
SSD2-KL-32C-50-LB		Bore: 32 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-KL-32C-50-CB		Bore: 32 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KL-32C-50-FA		Bore: 32 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-KL-32C-50-FB		Bore: 32 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-KL-32C-75		Bore: 32 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
SSD2-KL-32C-75-LB		Bore: 32 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-KL-32C-75-CB		Bore: 32 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KL-32C-75-FA		Bore: 32 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-KL-32C-75-FB		Bore: 32 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-KL-32C-100		Bore: 32 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
SSD2-KL-32C-100-LB		Bore: 32 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-KL-32C-100-CB		Bore: 32 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KL-32C-100-FA		Bore: 32 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-KL-32C-100-FB		Bore: 32 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-KL-40C-5		Bore: 40 mm \| Stroke: 5 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
SSD2-KL-40C-5-LB		Bore: 40 mm \| Stroke: 5 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-KL-40C-5-CB		Bore: 40 mm \| Stroke: 5 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KL-40C-5-FA		Bore: 40 mm \| Stroke: 5 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-KL-40C-5-FB		Bore: 40 mm \| Stroke: 5 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-KL-40C-10		Bore: 40 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
SSD2-KL-40C-10-LB		Bore: 40 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-KL-40C-10-CB		Bore: 40 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KL-40C-10-FA		Bore: 40 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-KL-40C-10-FB		Bore: 40 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-KL-40C-15		Bore: 40 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
SSD2-KL-40C-15-LB		Bore: 40 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-KL-40C-15-CB		Bore: 40 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KL-40C-15-FA		Bore: 40 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-KL-40C-15-FB		Bore: 40 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-KL-40C-20		Bore: 40 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
SSD2-KL-40C-20-LB		Bore: 40 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-KL-40C-20-CB		Bore: 40 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KL-40C-20-FA		Bore: 40 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-KL-40C-20-FB		Bore: 40 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-KL-40C-25		Bore: 40 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
SSD2-KL-40C-25-LB		Bore: 40 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-KL-40C-25-CB		Bore: 40 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KL-40C-25-FA		Bore: 40 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-KL-40C-25-FB		Bore: 40 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-KL-40C-30		Bore: 40 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
SSD2-KL-40C-30-LB		Bore: 40 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-KL-40C-30-CB		Bore: 40 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KL-40C-30-FA		Bore: 40 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-KL-40C-30-FB		Bore: 40 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-KL-40C-35		Bore: 40 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
SSD2-KL-40C-35-LB		Bore: 40 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-KL-40C-35-CB		Bore: 40 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KL-40C-35-FA		Bore: 40 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-KL-40C-35-FB		Bore: 40 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-KL-40C-40		Bore: 40 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
SSD2-KL-40C-40-LB		Bore: 40 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-KL-40C-40-CB		Bore: 40 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KL-40C-40-FA		Bore: 40 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-KL-40C-40-FB		Bore: 40 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-KL-40C-45		Bore: 40 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
SSD2-KL-40C-45-LB		Bore: 40 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-KL-40C-45-CB		Bore: 40 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KL-40C-45-FA		Bore: 40 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-KL-40C-45-FB		Bore: 40 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-KL-40C-50		Bore: 40 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
SSD2-KL-40C-50-LB		Bore: 40 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-KL-40C-50-CB		Bore: 40 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KL-40C-50-FA		Bore: 40 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-KL-40C-50-FB		Bore: 40 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-KL-40C-75		Bore: 40 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
SSD2-KL-40C-75-LB		Bore: 40 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-KL-40C-75-CB		Bore: 40 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KL-40C-75-FA		Bore: 40 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-KL-40C-75-FB		Bore: 40 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-KL-40C-100		Bore: 40 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
SSD2-KL-40C-100-LB		Bore: 40 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-KL-40C-100-CB		Bore: 40 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KL-40C-100-FA		Bore: 40 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-KL-40C-100-FB		Bore: 40 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-KL-50C-10		Bore: 50 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/4
SSD2-KL-50C-10-LB		Bore: 50 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-KL-50C-10-CB		Bore: 50 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KL-50C-10-FA		Bore: 50 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/4
SSD2-KL-50C-10-FB		Bore: 50 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/4
SSD2-KL-50C-15		Bore: 50 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/4
SSD2-KL-50C-15-LB		Bore: 50 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-KL-50C-15-CB		Bore: 50 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KL-50C-15-FA		Bore: 50 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/4
SSD2-KL-50C-15-FB		Bore: 50 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/4
SSD2-KL-50C-20		Bore: 50 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/4
SSD2-KL-50C-20-LB		Bore: 50 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-KL-50C-20-CB		Bore: 50 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KL-50C-20-FA		Bore: 50 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/4
SSD2-KL-50C-20-FB		Bore: 50 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/4
SSD2-KL-50C-25		Bore: 50 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/4
SSD2-KL-50C-25-LB		Bore: 50 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-KL-50C-25-CB		Bore: 50 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KL-50C-25-FA		Bore: 50 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/4
SSD2-KL-50C-25-FB		Bore: 50 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/4
SSD2-KL-50C-30		Bore: 50 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/4
SSD2-KL-50C-30-LB		Bore: 50 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-KL-50C-30-CB		Bore: 50 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KL-50C-30-FA		Bore: 50 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/4
SSD2-KL-50C-30-FB		Bore: 50 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/4
SSD2-KL-50C-35		Bore: 50 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/4
SSD2-KL-50C-35-LB		Bore: 50 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-KL-50C-35-CB		Bore: 50 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KL-50C-35-FA		Bore: 50 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/4
SSD2-KL-50C-35-FB		Bore: 50 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/4
SSD2-KL-50C-40		Bore: 50 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/4
SSD2-KL-50C-40-LB		Bore: 50 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-KL-50C-40-CB		Bore: 50 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KL-50C-40-FA		Bore: 50 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/4
SSD2-KL-50C-40-FB		Bore: 50 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/4
SSD2-KL-50C-45		Bore: 50 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/4
SSD2-KL-50C-45-LB		Bore: 50 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-KL-50C-45-CB		Bore: 50 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KL-50C-45-FA		Bore: 50 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/4
SSD2-KL-50C-45-FB		Bore: 50 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/4
SSD2-KL-50C-50		Bore: 50 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/4
SSD2-KL-50C-50-LB		Bore: 50 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-KL-50C-50-CB		Bore: 50 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KL-50C-50-FA		Bore: 50 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/4
SSD2-KL-50C-50-FB		Bore: 50 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/4
SSD2-KL-50C-75		Bore: 50 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/4
SSD2-KL-50C-75-LB		Bore: 50 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-KL-50C-75-CB		Bore: 50 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KL-50C-75-FA		Bore: 50 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/4
SSD2-KL-50C-75-FB		Bore: 50 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/4
SSD2-KL-50C-100		Bore: 50 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/4
SSD2-KL-50C-100-LB		Bore: 50 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-KL-50C-100-CB		Bore: 50 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KL-50C-100-FA		Bore: 50 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/4
SSD2-KL-50C-100-FB		Bore: 50 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/4
SSD2-KL-63C-10		Bore: 63 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/4
SSD2-KL-63C-10-LB		Bore: 63 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-KL-63C-10-CB		Bore: 63 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KL-63C-10-FA		Bore: 63 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/4
SSD2-KL-63C-10-FB		Bore: 63 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/4
SSD2-KL-63C-15		Bore: 63 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/4
SSD2-KL-63C-15-LB		Bore: 63 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-KL-63C-15-CB		Bore: 63 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KL-63C-15-FA		Bore: 63 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/4
SSD2-KL-63C-15-FB		Bore: 63 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/4
SSD2-KL-63C-20		Bore: 63 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/4
SSD2-KL-63C-20-LB		Bore: 63 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-KL-63C-20-CB		Bore: 63 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KL-63C-20-FA		Bore: 63 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/4
SSD2-KL-63C-20-FB		Bore: 63 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/4
SSD2-KL-63C-25		Bore: 63 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/4
SSD2-KL-63C-25-LB		Bore: 63 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-KL-63C-25-CB		Bore: 63 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KL-63C-25-FA		Bore: 63 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/4
SSD2-KL-63C-25-FB		Bore: 63 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/4
SSD2-KL-63C-30		Bore: 63 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/4
SSD2-KL-63C-30-LB		Bore: 63 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-KL-63C-30-CB		Bore: 63 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KL-63C-30-FA		Bore: 63 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/4
SSD2-KL-63C-30-FB		Bore: 63 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/4
SSD2-KL-63C-35		Bore: 63 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/4
SSD2-KL-63C-35-LB		Bore: 63 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-KL-63C-35-CB		Bore: 63 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KL-63C-35-FA		Bore: 63 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/4
SSD2-KL-63C-35-FB		Bore: 63 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/4
SSD2-KL-63C-40		Bore: 63 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/4
SSD2-KL-63C-40-LB		Bore: 63 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-KL-63C-40-CB		Bore: 63 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KL-63C-40-FA		Bore: 63 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/4
SSD2-KL-63C-40-FB		Bore: 63 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/4
SSD2-KL-63C-45		Bore: 63 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/4
SSD2-KL-63C-45-LB		Bore: 63 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-KL-63C-45-CB		Bore: 63 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KL-63C-45-FA		Bore: 63 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/4
SSD2-KL-63C-45-FB		Bore: 63 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/4
SSD2-KL-63C-50		Bore: 63 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/4
SSD2-KL-63C-50-LB		Bore: 63 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-KL-63C-50-CB		Bore: 63 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KL-63C-50-FA		Bore: 63 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/4
SSD2-KL-63C-50-FB		Bore: 63 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/4
SSD2-KL-63C-75		Bore: 63 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/4
SSD2-KL-63C-75-LB		Bore: 63 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-KL-63C-75-CB		Bore: 63 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KL-63C-75-FA		Bore: 63 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/4
SSD2-KL-63C-75-FB		Bore: 63 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/4
SSD2-KL-63C-100		Bore: 63 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/4
SSD2-KL-63C-100-LB		Bore: 63 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-KL-63C-100-CB		Bore: 63 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KL-63C-100-FA		Bore: 63 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/4
SSD2-KL-63C-100-FB		Bore: 63 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/4
SSD2-KL-80C-10		Bore: 80 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc3/8
SSD2-KL-80C-10-LB		Bore: 80 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-KL-80C-10-CB		Bore: 80 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KL-80C-10-FA		Bore: 80 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc3/8
SSD2-KL-80C-10-FB		Bore: 80 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc3/8
SSD2-KL-80C-15		Bore: 80 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc3/8
SSD2-KL-80C-15-LB		Bore: 80 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-KL-80C-15-CB		Bore: 80 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KL-80C-15-FA		Bore: 80 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc3/8
SSD2-KL-80C-15-FB		Bore: 80 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc3/8
SSD2-KL-80C-20		Bore: 80 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc3/8
SSD2-KL-80C-20-LB		Bore: 80 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-KL-80C-20-CB		Bore: 80 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KL-80C-20-FA		Bore: 80 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc3/8
SSD2-KL-80C-20-FB		Bore: 80 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc3/8
SSD2-KL-80C-25		Bore: 80 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc3/8
SSD2-KL-80C-25-LB		Bore: 80 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-KL-80C-25-CB		Bore: 80 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KL-80C-25-FA		Bore: 80 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc3/8
SSD2-KL-80C-25-FB		Bore: 80 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc3/8
SSD2-KL-80C-30		Bore: 80 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc3/8
SSD2-KL-80C-30-LB		Bore: 80 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-KL-80C-30-CB		Bore: 80 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KL-80C-30-FA		Bore: 80 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc3/8
SSD2-KL-80C-30-FB		Bore: 80 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc3/8
SSD2-KL-80C-35		Bore: 80 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc3/8
SSD2-KL-80C-35-LB		Bore: 80 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-KL-80C-35-CB		Bore: 80 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KL-80C-35-FA		Bore: 80 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc3/8
SSD2-KL-80C-35-FB		Bore: 80 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc3/8
SSD2-KL-80C-40		Bore: 80 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc3/8
SSD2-KL-80C-40-LB		Bore: 80 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-KL-80C-40-CB		Bore: 80 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KL-80C-40-FA		Bore: 80 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc3/8
SSD2-KL-80C-40-FB		Bore: 80 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc3/8
SSD2-KL-80C-45		Bore: 80 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc3/8
SSD2-KL-80C-45-LB		Bore: 80 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-KL-80C-45-CB		Bore: 80 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KL-80C-45-FA		Bore: 80 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc3/8
SSD2-KL-80C-45-FB		Bore: 80 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc3/8
SSD2-KL-80C-50		Bore: 80 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc3/8
SSD2-KL-80C-50-LB		Bore: 80 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-KL-80C-50-CB		Bore: 80 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KL-80C-50-FA		Bore: 80 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc3/8
SSD2-KL-80C-50-FB		Bore: 80 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc3/8
SSD2-KL-80C-75		Bore: 80 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc3/8
SSD2-KL-80C-75-LB		Bore: 80 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-KL-80C-75-CB		Bore: 80 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KL-80C-75-FA		Bore: 80 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc3/8
SSD2-KL-80C-75-FB		Bore: 80 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc3/8
SSD2-KL-80C-100		Bore: 80 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc3/8
SSD2-KL-80C-100-LB		Bore: 80 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-KL-80C-100-CB		Bore: 80 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KL-80C-100-FA		Bore: 80 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc3/8
SSD2-KL-80C-100-FB		Bore: 80 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc3/8
SSD2-KL-100C-10		Bore: 100 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc3/8
SSD2-KL-100C-10-LB		Bore: 100 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-KL-100C-10-CB		Bore: 100 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KL-100C-10-FA		Bore: 100 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc3/8
SSD2-KL-100C-10-FB		Bore: 100 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc3/8
SSD2-KL-100C-15		Bore: 100 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc3/8
SSD2-KL-100C-15-LB		Bore: 100 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-KL-100C-15-CB		Bore: 100 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KL-100C-15-FA		Bore: 100 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc3/8
SSD2-KL-100C-15-FB		Bore: 100 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc3/8
SSD2-KL-100C-20		Bore: 100 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc3/8
SSD2-KL-100C-20-LB		Bore: 100 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-KL-100C-20-CB		Bore: 100 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KL-100C-20-FA		Bore: 100 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc3/8
SSD2-KL-100C-20-FB		Bore: 100 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc3/8
SSD2-KL-100C-25		Bore: 100 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc3/8
SSD2-KL-100C-25-LB		Bore: 100 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-KL-100C-25-CB		Bore: 100 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KL-100C-25-FA		Bore: 100 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc3/8
SSD2-KL-100C-25-FB		Bore: 100 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc3/8
SSD2-KL-100C-30		Bore: 100 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc3/8
SSD2-KL-100C-30-LB		Bore: 100 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-KL-100C-30-CB		Bore: 100 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KL-100C-30-FA		Bore: 100 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc3/8
SSD2-KL-100C-30-FB		Bore: 100 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc3/8
SSD2-KL-100C-35		Bore: 100 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc3/8
SSD2-KL-100C-35-LB		Bore: 100 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-KL-100C-35-CB		Bore: 100 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KL-100C-35-FA		Bore: 100 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc3/8
SSD2-KL-100C-35-FB		Bore: 100 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc3/8
SSD2-KL-100C-40		Bore: 100 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc3/8
SSD2-KL-100C-40-LB		Bore: 100 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-KL-100C-40-CB		Bore: 100 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KL-100C-40-FA		Bore: 100 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc3/8
SSD2-KL-100C-40-FB		Bore: 100 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc3/8
SSD2-KL-100C-45		Bore: 100 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc3/8
SSD2-KL-100C-45-LB		Bore: 100 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-KL-100C-45-CB		Bore: 100 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KL-100C-45-FA		Bore: 100 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc3/8
SSD2-KL-100C-45-FB		Bore: 100 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc3/8
SSD2-KL-100C-50		Bore: 100 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc3/8
SSD2-KL-100C-50-LB		Bore: 100 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-KL-100C-50-CB		Bore: 100 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KL-100C-50-FA		Bore: 100 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc3/8
SSD2-KL-100C-50-FB		Bore: 100 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc3/8
SSD2-KL-100C-75		Bore: 100 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc3/8
SSD2-KL-100C-75-LB		Bore: 100 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-KL-100C-75-CB		Bore: 100 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KL-100C-75-FA		Bore: 100 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc3/8
SSD2-KL-100C-75-FB		Bore: 100 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc3/8
SSD2-KL-100C-100		Bore: 100 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc3/8
SSD2-KL-100C-100-LB		Bore: 100 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-KL-100C-100-CB		Bore: 100 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KL-100C-100-FA		Bore: 100 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc3/8
SSD2-KL-100C-100-FB		Bore: 100 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc3/8

Compact CylindersCKD

879 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD SSD2-K-C Super Compact Cylinder (High Load, Rubber Air Cushion)

Brand CKD·Compact Cylinders

Available part numbers (879)

SSD2-K-20C-5, SSD2-K-20C-5-LB, SSD2-K-20C-5-CB, SSD2-K-20C-5-FA, SSD2-K-20C-5-FB, SSD2-K-20C-10, SSD2-K-20C-10-LB, SSD2-K-20C-10-CB, SSD2-K-20C-10-FA, SSD2-K-20C-10-FB + 869 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	SSD2-K-20C-5	Bore: 20 mm \| Stroke: 5 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-K-20C-5-LB	Bore: 20 mm \| Stroke: 5 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-K-20C-5-CB	Bore: 20 mm \| Stroke: 5 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-K-20C-5-FA	Bore: 20 mm \| Stroke: 5 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-K-20C-5-FB	Bore: 20 mm \| Stroke: 5 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-K-20C-10	Bore: 20 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-K-20C-10-LB	Bore: 20 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-K-20C-10-CB	Bore: 20 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-K-20C-10-FA	Bore: 20 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-K-20C-10-FB	Bore: 20 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-K-20C-15	Bore: 20 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-K-20C-15-LB	Bore: 20 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-K-20C-15-CB	Bore: 20 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-K-20C-15-FA	Bore: 20 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-K-20C-15-FB	Bore: 20 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-K-20C-20	Bore: 20 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-K-20C-20-LB	Bore: 20 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-K-20C-20-CB	Bore: 20 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-K-20C-20-FA	Bore: 20 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-K-20C-20-FB	Bore: 20 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-K-20C-25	Bore: 20 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-K-20C-25-LB	Bore: 20 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-K-20C-25-CB	Bore: 20 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-K-20C-25-FA	Bore: 20 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-K-20C-25-FB	Bore: 20 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-K-20C-30	Bore: 20 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-K-20C-30-LB	Bore: 20 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-K-20C-30-CB	Bore: 20 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-K-20C-30-FA	Bore: 20 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-K-20C-30-FB	Bore: 20 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-K-20C-35	Bore: 20 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-K-20C-35-LB	Bore: 20 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-K-20C-35-CB	Bore: 20 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-K-20C-35-FA	Bore: 20 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-K-20C-35-FB	Bore: 20 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-K-20C-40	Bore: 20 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-K-20C-40-LB	Bore: 20 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-K-20C-40-CB	Bore: 20 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-K-20C-40-FA	Bore: 20 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-K-20C-40-FB	Bore: 20 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-K-20C-45	Bore: 20 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-K-20C-45-LB	Bore: 20 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-K-20C-45-CB	Bore: 20 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-K-20C-45-FA	Bore: 20 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-K-20C-45-FB	Bore: 20 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-K-20C-50	Bore: 20 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-K-20C-50-LB	Bore: 20 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-K-20C-50-CB	Bore: 20 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-K-20C-50-FA	Bore: 20 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-K-20C-50-FB	Bore: 20 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-K-25C-5	Bore: 25 mm \| Stroke: 5 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-K-25C-5-LB	Bore: 25 mm \| Stroke: 5 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-K-25C-5-CB	Bore: 25 mm \| Stroke: 5 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-K-25C-5-FA	Bore: 25 mm \| Stroke: 5 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-K-25C-5-FB	Bore: 25 mm \| Stroke: 5 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-K-25C-10	Bore: 25 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-K-25C-10-LB	Bore: 25 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-K-25C-10-CB	Bore: 25 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-K-25C-10-FA	Bore: 25 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-K-25C-10-FB	Bore: 25 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-K-25C-15	Bore: 25 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-K-25C-15-LB	Bore: 25 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-K-25C-15-CB	Bore: 25 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-K-25C-15-FA	Bore: 25 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-K-25C-15-FB	Bore: 25 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-K-25C-20	Bore: 25 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-K-25C-20-LB	Bore: 25 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-K-25C-20-CB	Bore: 25 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-K-25C-20-FA	Bore: 25 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-K-25C-20-FB	Bore: 25 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-K-25C-25	Bore: 25 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-K-25C-25-LB	Bore: 25 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-K-25C-25-CB	Bore: 25 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-K-25C-25-FA	Bore: 25 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-K-25C-25-FB	Bore: 25 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-K-25C-30	Bore: 25 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-K-25C-30-LB	Bore: 25 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-K-25C-30-CB	Bore: 25 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-K-25C-30-FA	Bore: 25 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-K-25C-30-FB	Bore: 25 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-K-25C-35	Bore: 25 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-K-25C-35-LB	Bore: 25 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-K-25C-35-CB	Bore: 25 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-K-25C-35-FA	Bore: 25 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-K-25C-35-FB	Bore: 25 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-K-25C-40	Bore: 25 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-K-25C-40-LB	Bore: 25 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-K-25C-40-CB	Bore: 25 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-K-25C-40-FA	Bore: 25 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-K-25C-40-FB	Bore: 25 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-K-25C-45	Bore: 25 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-K-25C-45-LB	Bore: 25 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-K-25C-45-CB	Bore: 25 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-K-25C-45-FA	Bore: 25 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-K-25C-45-FB	Bore: 25 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-K-25C-50	Bore: 25 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-K-25C-50-LB	Bore: 25 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-K-25C-50-CB	Bore: 25 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-K-25C-50-FA	Bore: 25 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-K-25C-50-FB	Bore: 25 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-K-32C-5	Bore: 32 mm \| Stroke: 5 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-K-32C-5-LB	Bore: 32 mm \| Stroke: 5 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-K-32C-5-CB	Bore: 32 mm \| Stroke: 5 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-K-32C-5-FA	Bore: 32 mm \| Stroke: 5 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-K-32C-5-FB	Bore: 32 mm \| Stroke: 5 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-K-32C-10	Bore: 32 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-K-32C-10-LB	Bore: 32 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-K-32C-10-CB	Bore: 32 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-K-32C-10-FA	Bore: 32 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-K-32C-10-FB	Bore: 32 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-K-32C-15	Bore: 32 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-K-32C-15-LB	Bore: 32 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-K-32C-15-CB	Bore: 32 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-K-32C-15-FA	Bore: 32 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-K-32C-15-FB	Bore: 32 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-K-32C-20	Bore: 32 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-K-32C-20-LB	Bore: 32 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-K-32C-20-CB	Bore: 32 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-K-32C-20-FA	Bore: 32 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-K-32C-20-FB	Bore: 32 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-K-32C-25	Bore: 32 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-K-32C-25-LB	Bore: 32 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-K-32C-25-CB	Bore: 32 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-K-32C-25-FA	Bore: 32 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-K-32C-25-FB	Bore: 32 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-K-32C-30	Bore: 32 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-K-32C-30-LB	Bore: 32 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-K-32C-30-CB	Bore: 32 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-K-32C-30-FA	Bore: 32 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-K-32C-30-FB	Bore: 32 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-K-32C-35	Bore: 32 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-K-32C-35-LB	Bore: 32 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-K-32C-35-CB	Bore: 32 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-K-32C-35-FA	Bore: 32 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-K-32C-35-FB	Bore: 32 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-K-32C-40	Bore: 32 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-K-32C-40-LB	Bore: 32 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-K-32C-40-CB	Bore: 32 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-K-32C-40-FA	Bore: 32 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-K-32C-40-FB	Bore: 32 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-K-32C-45	Bore: 32 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-K-32C-45-LB	Bore: 32 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-K-32C-45-CB	Bore: 32 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-K-32C-45-FA	Bore: 32 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-K-32C-45-FB	Bore: 32 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-K-32C-50	Bore: 32 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-K-32C-50-LB	Bore: 32 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-K-32C-50-CB	Bore: 32 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-K-32C-50-FA	Bore: 32 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-K-32C-50-FB	Bore: 32 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-K-32C-75	Bore: 32 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-K-32C-75-LB	Bore: 32 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-K-32C-75-CB	Bore: 32 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-K-32C-75-FA	Bore: 32 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-K-32C-75-FB	Bore: 32 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-K-32C-100	Bore: 32 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-K-32C-100-LB	Bore: 32 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-K-32C-100-CB	Bore: 32 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-K-32C-100-FA	Bore: 32 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-K-32C-100-FB	Bore: 32 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-K-40C-5	Bore: 40 mm \| Stroke: 5 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-K-40C-5-LB	Bore: 40 mm \| Stroke: 5 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-K-40C-5-CB	Bore: 40 mm \| Stroke: 5 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-K-40C-5-FA	Bore: 40 mm \| Stroke: 5 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-K-40C-5-FB	Bore: 40 mm \| Stroke: 5 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-K-40C-10	Bore: 40 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-K-40C-10-LB	Bore: 40 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-K-40C-10-CB	Bore: 40 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-K-40C-10-FA	Bore: 40 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-K-40C-10-FB	Bore: 40 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-K-40C-15	Bore: 40 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-K-40C-15-LB	Bore: 40 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-K-40C-15-CB	Bore: 40 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-K-40C-15-FA	Bore: 40 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-K-40C-15-FB	Bore: 40 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-K-40C-20	Bore: 40 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-K-40C-20-LB	Bore: 40 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-K-40C-20-CB	Bore: 40 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-K-40C-20-FA	Bore: 40 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-K-40C-20-FB	Bore: 40 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-K-40C-25	Bore: 40 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-K-40C-25-LB	Bore: 40 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-K-40C-25-CB	Bore: 40 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-K-40C-25-FA	Bore: 40 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-K-40C-25-FB	Bore: 40 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-K-40C-30	Bore: 40 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-K-40C-30-LB	Bore: 40 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-K-40C-30-CB	Bore: 40 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-K-40C-30-FA	Bore: 40 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-K-40C-30-FB	Bore: 40 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-K-40C-35	Bore: 40 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-K-40C-35-LB	Bore: 40 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-K-40C-35-CB	Bore: 40 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-K-40C-35-FA	Bore: 40 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-K-40C-35-FB	Bore: 40 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-K-40C-40	Bore: 40 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-K-40C-40-LB	Bore: 40 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-K-40C-40-CB	Bore: 40 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-K-40C-40-FA	Bore: 40 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-K-40C-40-FB	Bore: 40 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-K-40C-45	Bore: 40 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-K-40C-45-LB	Bore: 40 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-K-40C-45-CB	Bore: 40 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-K-40C-45-FA	Bore: 40 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-K-40C-45-FB	Bore: 40 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-K-40C-50	Bore: 40 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-K-40C-50-LB	Bore: 40 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-K-40C-50-CB	Bore: 40 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-K-40C-50-FA	Bore: 40 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-K-40C-50-FB	Bore: 40 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-K-40C-75	Bore: 40 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-K-40C-75-LB	Bore: 40 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-K-40C-75-CB	Bore: 40 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-K-40C-75-FA	Bore: 40 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-K-40C-75-FB	Bore: 40 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-K-40C-100	Bore: 40 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-K-40C-100-LB	Bore: 40 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-K-40C-100-CB	Bore: 40 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-K-40C-100-FA	Bore: 40 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-K-40C-100-FB	Bore: 40 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-K-50C-10	Bore: 50 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/4
	SSD2-K-50C-10-LB	Bore: 50 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-K-50C-10-CB	Bore: 50 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-K-50C-10-FA	Bore: 50 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/4
	SSD2-K-50C-10-FB	Bore: 50 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/4
	SSD2-K-50C-15	Bore: 50 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/4
	SSD2-K-50C-15-LB	Bore: 50 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-K-50C-15-CB	Bore: 50 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-K-50C-15-FA	Bore: 50 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/4
	SSD2-K-50C-15-FB	Bore: 50 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/4
	SSD2-K-50C-20	Bore: 50 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/4
	SSD2-K-50C-20-LB	Bore: 50 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-K-50C-20-CB	Bore: 50 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-K-50C-20-FA	Bore: 50 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/4
	SSD2-K-50C-20-FB	Bore: 50 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/4
	SSD2-K-50C-25	Bore: 50 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/4
	SSD2-K-50C-25-LB	Bore: 50 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-K-50C-25-CB	Bore: 50 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-K-50C-25-FA	Bore: 50 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/4
	SSD2-K-50C-25-FB	Bore: 50 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/4
	SSD2-K-50C-30	Bore: 50 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/4
	SSD2-K-50C-30-LB	Bore: 50 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-K-50C-30-CB	Bore: 50 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-K-50C-30-FA	Bore: 50 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/4
	SSD2-K-50C-30-FB	Bore: 50 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/4
	SSD2-K-50C-35	Bore: 50 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/4
	SSD2-K-50C-35-LB	Bore: 50 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-K-50C-35-CB	Bore: 50 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-K-50C-35-FA	Bore: 50 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/4
	SSD2-K-50C-35-FB	Bore: 50 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/4
	SSD2-K-50C-40	Bore: 50 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/4
	SSD2-K-50C-40-LB	Bore: 50 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-K-50C-40-CB	Bore: 50 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-K-50C-40-FA	Bore: 50 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/4
	SSD2-K-50C-40-FB	Bore: 50 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/4
	SSD2-K-50C-45	Bore: 50 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/4
	SSD2-K-50C-45-LB	Bore: 50 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-K-50C-45-CB	Bore: 50 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-K-50C-45-FA	Bore: 50 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/4
	SSD2-K-50C-45-FB	Bore: 50 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/4
	SSD2-K-50C-50	Bore: 50 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/4
	SSD2-K-50C-50-LB	Bore: 50 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-K-50C-50-CB	Bore: 50 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-K-50C-50-FA	Bore: 50 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/4
	SSD2-K-50C-50-FB	Bore: 50 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/4
	SSD2-K-50C-75	Bore: 50 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/4
	SSD2-K-50C-75-LB	Bore: 50 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-K-50C-75-CB	Bore: 50 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-K-50C-75-FA	Bore: 50 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/4
	SSD2-K-50C-75-FB	Bore: 50 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/4
	SSD2-K-50C-100	Bore: 50 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/4
	SSD2-K-50C-100-LB	Bore: 50 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-K-50C-100-CB	Bore: 50 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-K-50C-100-FA	Bore: 50 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/4
	SSD2-K-50C-100-FB	Bore: 50 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/4
	SSD2-K-63C-10	Bore: 63 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/4
	SSD2-K-63C-10-LB	Bore: 63 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-K-63C-10-CB	Bore: 63 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-K-63C-10-FA	Bore: 63 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/4
	SSD2-K-63C-10-FB	Bore: 63 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/4
	SSD2-K-63C-15	Bore: 63 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/4
	SSD2-K-63C-15-LB	Bore: 63 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-K-63C-15-CB	Bore: 63 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-K-63C-15-FA	Bore: 63 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/4
	SSD2-K-63C-15-FB	Bore: 63 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/4
	SSD2-K-63C-20	Bore: 63 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/4
	SSD2-K-63C-20-LB	Bore: 63 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-K-63C-20-CB	Bore: 63 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-K-63C-20-FA	Bore: 63 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/4
	SSD2-K-63C-20-FB	Bore: 63 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/4
	SSD2-K-63C-25	Bore: 63 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/4
	SSD2-K-63C-25-LB	Bore: 63 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-K-63C-25-CB	Bore: 63 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-K-63C-25-FA	Bore: 63 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/4
	SSD2-K-63C-25-FB	Bore: 63 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/4
	SSD2-K-63C-30	Bore: 63 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/4
	SSD2-K-63C-30-LB	Bore: 63 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-K-63C-30-CB	Bore: 63 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-K-63C-30-FA	Bore: 63 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/4
	SSD2-K-63C-30-FB	Bore: 63 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/4
	SSD2-K-63C-35	Bore: 63 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/4
	SSD2-K-63C-35-LB	Bore: 63 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-K-63C-35-CB	Bore: 63 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-K-63C-35-FA	Bore: 63 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/4
	SSD2-K-63C-35-FB	Bore: 63 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/4
	SSD2-K-63C-40	Bore: 63 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/4
	SSD2-K-63C-40-LB	Bore: 63 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-K-63C-40-CB	Bore: 63 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-K-63C-40-FA	Bore: 63 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/4
	SSD2-K-63C-40-FB	Bore: 63 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/4
	SSD2-K-63C-45	Bore: 63 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/4
	SSD2-K-63C-45-LB	Bore: 63 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-K-63C-45-CB	Bore: 63 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-K-63C-45-FA	Bore: 63 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/4
	SSD2-K-63C-45-FB	Bore: 63 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/4
	SSD2-K-63C-50	Bore: 63 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/4
	SSD2-K-63C-50-LB	Bore: 63 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-K-63C-50-CB	Bore: 63 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-K-63C-50-FA	Bore: 63 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/4
	SSD2-K-63C-50-FB	Bore: 63 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/4
	SSD2-K-63C-75	Bore: 63 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/4
	SSD2-K-63C-75-LB	Bore: 63 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-K-63C-75-CB	Bore: 63 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-K-63C-75-FA	Bore: 63 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/4
	SSD2-K-63C-75-FB	Bore: 63 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/4
	SSD2-K-63C-100	Bore: 63 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/4
	SSD2-K-63C-100-LB	Bore: 63 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-K-63C-100-CB	Bore: 63 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-K-63C-100-FA	Bore: 63 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/4
	SSD2-K-63C-100-FB	Bore: 63 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/4
	SSD2-K-80C-10	Bore: 80 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc3/8
	SSD2-K-80C-10-LB	Bore: 80 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-K-80C-10-CB	Bore: 80 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-K-80C-10-FA	Bore: 80 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc3/8
	SSD2-K-80C-10-FB	Bore: 80 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc3/8
	SSD2-K-80C-15	Bore: 80 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc3/8
	SSD2-K-80C-15-CB	Bore: 80 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-K-80C-15-FA	Bore: 80 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc3/8
	SSD2-K-80C-15-FB	Bore: 80 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc3/8
	SSD2-K-80C-20	Bore: 80 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc3/8
	SSD2-K-80C-20-LB	Bore: 80 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-K-80C-20-CB	Bore: 80 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-K-80C-20-FA	Bore: 80 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc3/8
	SSD2-K-80C-20-FB	Bore: 80 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc3/8
	SSD2-K-80C-25	Bore: 80 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc3/8
	SSD2-K-80C-25-LB	Bore: 80 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-K-80C-25-CB	Bore: 80 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-K-80C-25-FA	Bore: 80 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc3/8
	SSD2-K-80C-25-FB	Bore: 80 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc3/8
	SSD2-K-80C-30	Bore: 80 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc3/8
	SSD2-K-80C-30-LB	Bore: 80 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-K-80C-30-CB	Bore: 80 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-K-80C-30-FA	Bore: 80 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc3/8
	SSD2-K-80C-30-FB	Bore: 80 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc3/8
	SSD2-K-80C-35	Bore: 80 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc3/8
	SSD2-K-80C-35-LB	Bore: 80 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-K-80C-35-CB	Bore: 80 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-K-80C-35-FA	Bore: 80 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc3/8
	SSD2-K-80C-35-FB	Bore: 80 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc3/8
	SSD2-K-80C-40	Bore: 80 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc3/8
	SSD2-K-80C-40-LB	Bore: 80 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-K-80C-40-CB	Bore: 80 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-K-80C-40-FA	Bore: 80 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc3/8
	SSD2-K-80C-40-FB	Bore: 80 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc3/8
	SSD2-K-80C-45	Bore: 80 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc3/8
	SSD2-K-80C-45-LB	Bore: 80 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-K-80C-45-CB	Bore: 80 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-K-80C-45-FA	Bore: 80 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc3/8
	SSD2-K-80C-45-FB	Bore: 80 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc3/8
	SSD2-K-80C-50	Bore: 80 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc3/8
	SSD2-K-80C-50-LB	Bore: 80 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-K-80C-50-CB	Bore: 80 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-K-80C-50-FA	Bore: 80 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc3/8
	SSD2-K-80C-50-FB	Bore: 80 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc3/8
	SSD2-K-80C-75	Bore: 80 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc3/8
	SSD2-K-80C-75-LB	Bore: 80 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-K-80C-75-CB	Bore: 80 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-K-80C-75-FA	Bore: 80 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc3/8
	SSD2-K-80C-75-FB	Bore: 80 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc3/8
	SSD2-K-80C-100	Bore: 80 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc3/8
	SSD2-K-80C-100-LB	Bore: 80 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-K-80C-100-CB	Bore: 80 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-K-80C-100-FA	Bore: 80 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc3/8
	SSD2-K-80C-100-FB	Bore: 80 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc3/8
	SSD2-K-100C-10	Bore: 100 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc3/8
	SSD2-K-100C-10-LB	Bore: 100 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-K-100C-10-CB	Bore: 100 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-K-100C-10-FA	Bore: 100 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc3/8
	SSD2-K-100C-10-FB	Bore: 100 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc3/8
	SSD2-K-100C-15	Bore: 100 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc3/8
	SSD2-K-100C-15-LB	Bore: 100 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-K-100C-15-CB	Bore: 100 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-K-100C-15-FA	Bore: 100 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc3/8
	SSD2-K-100C-15-FB	Bore: 100 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc3/8
	SSD2-K-100C-20	Bore: 100 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc3/8
	SSD2-K-100C-20-LB	Bore: 100 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-K-100C-20-CB	Bore: 100 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-K-100C-20-FA	Bore: 100 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc3/8
	SSD2-K-100C-20-FB	Bore: 100 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc3/8
	SSD2-K-100C-25	Bore: 100 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc3/8
	SSD2-K-100C-25-LB	Bore: 100 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-K-100C-25-CB	Bore: 100 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-K-100C-25-FA	Bore: 100 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc3/8
	SSD2-K-100C-25-FB	Bore: 100 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc3/8
	SSD2-K-100C-30	Bore: 100 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc3/8
	SSD2-K-100C-30-LB	Bore: 100 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-K-100C-30-CB	Bore: 100 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-K-100C-30-FA	Bore: 100 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc3/8
	SSD2-K-100C-30-FB	Bore: 100 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc3/8
	SSD2-K-100C-35	Bore: 100 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc3/8
	SSD2-K-100C-35-LB	Bore: 100 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-K-100C-35-CB	Bore: 100 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-K-100C-35-FA	Bore: 100 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc3/8
	SSD2-K-100C-35-FB	Bore: 100 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc3/8
	SSD2-K-100C-40	Bore: 100 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc3/8
	SSD2-K-100C-40-LB	Bore: 100 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-K-100C-40-CB	Bore: 100 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-K-100C-40-FA	Bore: 100 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc3/8
	SSD2-K-100C-40-FB	Bore: 100 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc3/8
	SSD2-K-100C-45	Bore: 100 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc3/8
	SSD2-K-100C-45-LB	Bore: 100 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-K-100C-45-CB	Bore: 100 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-K-100C-45-FA	Bore: 100 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc3/8
	SSD2-K-100C-45-FB	Bore: 100 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc3/8
	SSD2-K-100C-50	Bore: 100 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc3/8
	SSD2-K-100C-50-LB	Bore: 100 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-K-100C-50-CB	Bore: 100 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-K-100C-50-FA	Bore: 100 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc3/8
	SSD2-K-100C-50-FB	Bore: 100 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc3/8
	SSD2-K-100C-75	Bore: 100 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc3/8
	SSD2-K-100C-75-LB	Bore: 100 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-K-100C-75-CB	Bore: 100 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-K-100C-75-FA	Bore: 100 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc3/8
	SSD2-K-100C-75-FB	Bore: 100 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc3/8
	SSD2-K-100C-100	Bore: 100 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc3/8
	SSD2-K-100C-100-LB	Bore: 100 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-K-100C-100-CB	Bore: 100 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-K-100C-100-FA	Bore: 100 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc3/8
	SSD2-K-100C-100-FB	Bore: 100 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc3/8
	SSD2-KL-20C-5	Bore: 20 mm \| Stroke: 5 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-KL-20C-5-LB	Bore: 20 mm \| Stroke: 5 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-KL-20C-5-CB	Bore: 20 mm \| Stroke: 5 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KL-20C-5-FA	Bore: 20 mm \| Stroke: 5 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-KL-20C-5-FB	Bore: 20 mm \| Stroke: 5 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-KL-20C-10	Bore: 20 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-KL-20C-10-LB	Bore: 20 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-KL-20C-10-CB	Bore: 20 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KL-20C-10-FA	Bore: 20 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-KL-20C-10-FB	Bore: 20 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-KL-20C-15	Bore: 20 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-KL-20C-15-LB	Bore: 20 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-KL-20C-15-CB	Bore: 20 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KL-20C-15-FA	Bore: 20 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-KL-20C-15-FB	Bore: 20 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-KL-20C-20	Bore: 20 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-KL-20C-20-LB	Bore: 20 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-KL-20C-20-CB	Bore: 20 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KL-20C-20-FA	Bore: 20 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-KL-20C-20-FB	Bore: 20 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-KL-20C-25	Bore: 20 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-KL-20C-25-LB	Bore: 20 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-KL-20C-25-CB	Bore: 20 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KL-20C-25-FA	Bore: 20 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-KL-20C-25-FB	Bore: 20 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-KL-20C-30	Bore: 20 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-KL-20C-30-LB	Bore: 20 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-KL-20C-30-CB	Bore: 20 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KL-20C-30-FA	Bore: 20 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-KL-20C-30-FB	Bore: 20 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-KL-20C-35	Bore: 20 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-KL-20C-35-LB	Bore: 20 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-KL-20C-35-CB	Bore: 20 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KL-20C-35-FA	Bore: 20 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-KL-20C-35-FB	Bore: 20 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-KL-20C-40	Bore: 20 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-KL-20C-40-LB	Bore: 20 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-KL-20C-40-CB	Bore: 20 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KL-20C-40-FA	Bore: 20 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-KL-20C-40-FB	Bore: 20 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-KL-20C-45	Bore: 20 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-KL-20C-45-LB	Bore: 20 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-KL-20C-45-CB	Bore: 20 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KL-20C-45-FA	Bore: 20 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-KL-20C-45-FB	Bore: 20 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-KL-20C-50	Bore: 20 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-KL-20C-50-LB	Bore: 20 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-KL-20C-50-CB	Bore: 20 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KL-20C-50-FA	Bore: 20 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-KL-20C-50-FB	Bore: 20 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-KL-25C-5	Bore: 25 mm \| Stroke: 5 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-KL-25C-5-LB	Bore: 25 mm \| Stroke: 5 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-KL-25C-5-CB	Bore: 25 mm \| Stroke: 5 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KL-25C-5-FA	Bore: 25 mm \| Stroke: 5 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-KL-25C-5-FB	Bore: 25 mm \| Stroke: 5 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-KL-25C-10	Bore: 25 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-KL-25C-10-LB	Bore: 25 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-KL-25C-10-CB	Bore: 25 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KL-25C-10-FA	Bore: 25 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-KL-25C-10-FB	Bore: 25 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-KL-25C-15	Bore: 25 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-KL-25C-15-LB	Bore: 25 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-KL-25C-15-CB	Bore: 25 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KL-25C-15-FA	Bore: 25 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-KL-25C-15-FB	Bore: 25 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-KL-25C-20	Bore: 25 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-KL-25C-20-LB	Bore: 25 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-KL-25C-20-CB	Bore: 25 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KL-25C-20-FA	Bore: 25 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-KL-25C-20-FB	Bore: 25 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-KL-25C-25	Bore: 25 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-KL-25C-25-LB	Bore: 25 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-KL-25C-25-CB	Bore: 25 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KL-25C-25-FA	Bore: 25 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-KL-25C-25-FB	Bore: 25 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-KL-25C-30	Bore: 25 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-KL-25C-30-LB	Bore: 25 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-KL-25C-30-CB	Bore: 25 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KL-25C-30-FA	Bore: 25 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-KL-25C-30-FB	Bore: 25 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-KL-25C-35	Bore: 25 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-KL-25C-35-LB	Bore: 25 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-KL-25C-35-CB	Bore: 25 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KL-25C-35-FA	Bore: 25 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-KL-25C-35-FB	Bore: 25 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-KL-25C-40	Bore: 25 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-KL-25C-40-LB	Bore: 25 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-KL-25C-40-CB	Bore: 25 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KL-25C-40-FA	Bore: 25 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-KL-25C-40-FB	Bore: 25 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-KL-25C-45	Bore: 25 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-KL-25C-45-LB	Bore: 25 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-KL-25C-45-CB	Bore: 25 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KL-25C-45-FA	Bore: 25 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-KL-25C-45-FB	Bore: 25 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-KL-25C-50	Bore: 25 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-KL-25C-50-LB	Bore: 25 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-KL-25C-50-CB	Bore: 25 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KL-25C-50-FA	Bore: 25 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-KL-25C-50-FB	Bore: 25 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-KL-32C-5	Bore: 32 mm \| Stroke: 5 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-KL-32C-5-LB	Bore: 32 mm \| Stroke: 5 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-KL-32C-5-CB	Bore: 32 mm \| Stroke: 5 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KL-32C-5-FA	Bore: 32 mm \| Stroke: 5 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-KL-32C-5-FB	Bore: 32 mm \| Stroke: 5 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-KL-32C-10	Bore: 32 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-KL-32C-10-LB	Bore: 32 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-KL-32C-10-CB	Bore: 32 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KL-32C-10-FA	Bore: 32 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-KL-32C-10-FB	Bore: 32 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-KL-32C-15	Bore: 32 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-KL-32C-15-LB	Bore: 32 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-KL-32C-15-CB	Bore: 32 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KL-32C-15-FA	Bore: 32 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-KL-32C-15-FB	Bore: 32 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-KL-32C-20	Bore: 32 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-KL-32C-20-LB	Bore: 32 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-KL-32C-20-CB	Bore: 32 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KL-32C-20-FA	Bore: 32 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-KL-32C-20-FB	Bore: 32 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-KL-32C-25	Bore: 32 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-KL-32C-25-LB	Bore: 32 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-KL-32C-25-CB	Bore: 32 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KL-32C-25-FA	Bore: 32 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-KL-32C-25-FB	Bore: 32 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-KL-32C-30	Bore: 32 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-KL-32C-30-LB	Bore: 32 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-KL-32C-30-CB	Bore: 32 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KL-32C-30-FA	Bore: 32 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-KL-32C-30-FB	Bore: 32 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-KL-32C-35	Bore: 32 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-KL-32C-35-LB	Bore: 32 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-KL-32C-35-CB	Bore: 32 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KL-32C-35-FA	Bore: 32 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-KL-32C-35-FB	Bore: 32 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-KL-32C-40	Bore: 32 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-KL-32C-40-LB	Bore: 32 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-KL-32C-40-CB	Bore: 32 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KL-32C-40-FA	Bore: 32 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-KL-32C-40-FB	Bore: 32 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-KL-32C-45	Bore: 32 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-KL-32C-45-LB	Bore: 32 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-KL-32C-45-CB	Bore: 32 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KL-32C-45-FA	Bore: 32 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-KL-32C-45-FB	Bore: 32 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-KL-32C-50	Bore: 32 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-KL-32C-50-LB	Bore: 32 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-KL-32C-50-CB	Bore: 32 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KL-32C-50-FA	Bore: 32 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-KL-32C-50-FB	Bore: 32 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-KL-32C-75	Bore: 32 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-KL-32C-75-LB	Bore: 32 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-KL-32C-75-CB	Bore: 32 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KL-32C-75-FA	Bore: 32 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-KL-32C-75-FB	Bore: 32 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-KL-32C-100	Bore: 32 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-KL-32C-100-LB	Bore: 32 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-KL-32C-100-CB	Bore: 32 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KL-32C-100-FA	Bore: 32 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-KL-32C-100-FB	Bore: 32 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-KL-40C-5	Bore: 40 mm \| Stroke: 5 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-KL-40C-5-LB	Bore: 40 mm \| Stroke: 5 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-KL-40C-5-CB	Bore: 40 mm \| Stroke: 5 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KL-40C-5-FA	Bore: 40 mm \| Stroke: 5 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-KL-40C-5-FB	Bore: 40 mm \| Stroke: 5 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-KL-40C-10	Bore: 40 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-KL-40C-10-LB	Bore: 40 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-KL-40C-10-CB	Bore: 40 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KL-40C-10-FA	Bore: 40 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-KL-40C-10-FB	Bore: 40 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-KL-40C-15	Bore: 40 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-KL-40C-15-LB	Bore: 40 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-KL-40C-15-CB	Bore: 40 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KL-40C-15-FA	Bore: 40 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-KL-40C-15-FB	Bore: 40 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-KL-40C-20	Bore: 40 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-KL-40C-20-LB	Bore: 40 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-KL-40C-20-CB	Bore: 40 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KL-40C-20-FA	Bore: 40 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-KL-40C-20-FB	Bore: 40 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-KL-40C-25	Bore: 40 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-KL-40C-25-LB	Bore: 40 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-KL-40C-25-CB	Bore: 40 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KL-40C-25-FA	Bore: 40 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-KL-40C-25-FB	Bore: 40 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-KL-40C-30	Bore: 40 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-KL-40C-30-LB	Bore: 40 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-KL-40C-30-CB	Bore: 40 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KL-40C-30-FA	Bore: 40 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-KL-40C-30-FB	Bore: 40 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-KL-40C-35	Bore: 40 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-KL-40C-35-LB	Bore: 40 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-KL-40C-35-CB	Bore: 40 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KL-40C-35-FA	Bore: 40 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-KL-40C-35-FB	Bore: 40 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-KL-40C-40	Bore: 40 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-KL-40C-40-LB	Bore: 40 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-KL-40C-40-CB	Bore: 40 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KL-40C-40-FA	Bore: 40 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-KL-40C-40-FB	Bore: 40 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-KL-40C-45	Bore: 40 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-KL-40C-45-LB	Bore: 40 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-KL-40C-45-CB	Bore: 40 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KL-40C-45-FA	Bore: 40 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-KL-40C-45-FB	Bore: 40 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-KL-40C-50	Bore: 40 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-KL-40C-50-LB	Bore: 40 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-KL-40C-50-CB	Bore: 40 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KL-40C-50-FA	Bore: 40 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-KL-40C-50-FB	Bore: 40 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-KL-40C-75	Bore: 40 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-KL-40C-75-LB	Bore: 40 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-KL-40C-75-CB	Bore: 40 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KL-40C-75-FA	Bore: 40 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-KL-40C-75-FB	Bore: 40 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-KL-40C-100	Bore: 40 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-KL-40C-100-LB	Bore: 40 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-KL-40C-100-CB	Bore: 40 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KL-40C-100-FA	Bore: 40 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-KL-40C-100-FB	Bore: 40 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-KL-50C-10	Bore: 50 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/4
	SSD2-KL-50C-10-LB	Bore: 50 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-KL-50C-10-CB	Bore: 50 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KL-50C-10-FA	Bore: 50 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/4
	SSD2-KL-50C-10-FB	Bore: 50 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/4
	SSD2-KL-50C-15	Bore: 50 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/4
	SSD2-KL-50C-15-LB	Bore: 50 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-KL-50C-15-CB	Bore: 50 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KL-50C-15-FA	Bore: 50 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/4
	SSD2-KL-50C-15-FB	Bore: 50 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/4
	SSD2-KL-50C-20	Bore: 50 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/4
	SSD2-KL-50C-20-LB	Bore: 50 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-KL-50C-20-CB	Bore: 50 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KL-50C-20-FA	Bore: 50 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/4
	SSD2-KL-50C-20-FB	Bore: 50 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/4
	SSD2-KL-50C-25	Bore: 50 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/4
	SSD2-KL-50C-25-LB	Bore: 50 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-KL-50C-25-CB	Bore: 50 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KL-50C-25-FA	Bore: 50 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/4
	SSD2-KL-50C-25-FB	Bore: 50 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/4
	SSD2-KL-50C-30	Bore: 50 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/4
	SSD2-KL-50C-30-LB	Bore: 50 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-KL-50C-30-CB	Bore: 50 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KL-50C-30-FA	Bore: 50 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/4
	SSD2-KL-50C-30-FB	Bore: 50 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/4
	SSD2-KL-50C-35	Bore: 50 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/4
	SSD2-KL-50C-35-LB	Bore: 50 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-KL-50C-35-CB	Bore: 50 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KL-50C-35-FA	Bore: 50 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/4
	SSD2-KL-50C-35-FB	Bore: 50 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/4
	SSD2-KL-50C-40	Bore: 50 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/4
	SSD2-KL-50C-40-LB	Bore: 50 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-KL-50C-40-CB	Bore: 50 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KL-50C-40-FA	Bore: 50 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/4
	SSD2-KL-50C-40-FB	Bore: 50 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/4
	SSD2-KL-50C-45	Bore: 50 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/4
	SSD2-KL-50C-45-LB	Bore: 50 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-KL-50C-45-CB	Bore: 50 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KL-50C-45-FA	Bore: 50 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/4
	SSD2-KL-50C-45-FB	Bore: 50 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/4
	SSD2-KL-50C-50	Bore: 50 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/4
	SSD2-KL-50C-50-LB	Bore: 50 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-KL-50C-50-CB	Bore: 50 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KL-50C-50-FA	Bore: 50 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/4
	SSD2-KL-50C-50-FB	Bore: 50 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/4
	SSD2-KL-50C-75	Bore: 50 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/4
	SSD2-KL-50C-75-LB	Bore: 50 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-KL-50C-75-CB	Bore: 50 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KL-50C-75-FA	Bore: 50 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/4
	SSD2-KL-50C-75-FB	Bore: 50 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/4
	SSD2-KL-50C-100	Bore: 50 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/4
	SSD2-KL-50C-100-LB	Bore: 50 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-KL-50C-100-CB	Bore: 50 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KL-50C-100-FA	Bore: 50 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/4
	SSD2-KL-50C-100-FB	Bore: 50 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/4
	SSD2-KL-63C-10	Bore: 63 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/4
	SSD2-KL-63C-10-LB	Bore: 63 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-KL-63C-10-CB	Bore: 63 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KL-63C-10-FA	Bore: 63 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/4
	SSD2-KL-63C-10-FB	Bore: 63 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/4
	SSD2-KL-63C-15	Bore: 63 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/4
	SSD2-KL-63C-15-LB	Bore: 63 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-KL-63C-15-CB	Bore: 63 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KL-63C-15-FA	Bore: 63 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/4
	SSD2-KL-63C-15-FB	Bore: 63 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/4
	SSD2-KL-63C-20	Bore: 63 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/4
	SSD2-KL-63C-20-LB	Bore: 63 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-KL-63C-20-CB	Bore: 63 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KL-63C-20-FA	Bore: 63 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/4
	SSD2-KL-63C-20-FB	Bore: 63 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/4
	SSD2-KL-63C-25	Bore: 63 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/4
	SSD2-KL-63C-25-LB	Bore: 63 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-KL-63C-25-CB	Bore: 63 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KL-63C-25-FA	Bore: 63 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/4
	SSD2-KL-63C-25-FB	Bore: 63 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/4
	SSD2-KL-63C-30	Bore: 63 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/4
	SSD2-KL-63C-30-LB	Bore: 63 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-KL-63C-30-CB	Bore: 63 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KL-63C-30-FA	Bore: 63 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/4
	SSD2-KL-63C-30-FB	Bore: 63 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/4
	SSD2-KL-63C-35	Bore: 63 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/4
	SSD2-KL-63C-35-LB	Bore: 63 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-KL-63C-35-CB	Bore: 63 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KL-63C-35-FA	Bore: 63 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/4
	SSD2-KL-63C-35-FB	Bore: 63 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/4
	SSD2-KL-63C-40	Bore: 63 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/4
	SSD2-KL-63C-40-LB	Bore: 63 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-KL-63C-40-CB	Bore: 63 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KL-63C-40-FA	Bore: 63 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/4
	SSD2-KL-63C-40-FB	Bore: 63 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/4
	SSD2-KL-63C-45	Bore: 63 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/4
	SSD2-KL-63C-45-LB	Bore: 63 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-KL-63C-45-CB	Bore: 63 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KL-63C-45-FA	Bore: 63 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/4
	SSD2-KL-63C-45-FB	Bore: 63 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/4
	SSD2-KL-63C-50	Bore: 63 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/4
	SSD2-KL-63C-50-LB	Bore: 63 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-KL-63C-50-CB	Bore: 63 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KL-63C-50-FA	Bore: 63 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/4
	SSD2-KL-63C-50-FB	Bore: 63 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/4
	SSD2-KL-63C-75	Bore: 63 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/4
	SSD2-KL-63C-75-LB	Bore: 63 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-KL-63C-75-CB	Bore: 63 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KL-63C-75-FA	Bore: 63 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/4
	SSD2-KL-63C-75-FB	Bore: 63 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/4
	SSD2-KL-63C-100	Bore: 63 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/4
	SSD2-KL-63C-100-LB	Bore: 63 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-KL-63C-100-CB	Bore: 63 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KL-63C-100-FA	Bore: 63 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/4
	SSD2-KL-63C-100-FB	Bore: 63 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/4
	SSD2-KL-80C-10	Bore: 80 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc3/8
	SSD2-KL-80C-10-LB	Bore: 80 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-KL-80C-10-CB	Bore: 80 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KL-80C-10-FA	Bore: 80 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc3/8
	SSD2-KL-80C-10-FB	Bore: 80 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc3/8
	SSD2-KL-80C-15	Bore: 80 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc3/8
	SSD2-KL-80C-15-LB	Bore: 80 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-KL-80C-15-CB	Bore: 80 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KL-80C-15-FA	Bore: 80 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc3/8
	SSD2-KL-80C-15-FB	Bore: 80 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc3/8
	SSD2-KL-80C-20	Bore: 80 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc3/8
	SSD2-KL-80C-20-LB	Bore: 80 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-KL-80C-20-CB	Bore: 80 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KL-80C-20-FA	Bore: 80 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc3/8
	SSD2-KL-80C-20-FB	Bore: 80 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc3/8
	SSD2-KL-80C-25	Bore: 80 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc3/8
	SSD2-KL-80C-25-LB	Bore: 80 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-KL-80C-25-CB	Bore: 80 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KL-80C-25-FA	Bore: 80 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc3/8
	SSD2-KL-80C-25-FB	Bore: 80 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc3/8
	SSD2-KL-80C-30	Bore: 80 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc3/8
	SSD2-KL-80C-30-LB	Bore: 80 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-KL-80C-30-CB	Bore: 80 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KL-80C-30-FA	Bore: 80 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc3/8
	SSD2-KL-80C-30-FB	Bore: 80 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc3/8
	SSD2-KL-80C-35	Bore: 80 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc3/8
	SSD2-KL-80C-35-LB	Bore: 80 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-KL-80C-35-CB	Bore: 80 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KL-80C-35-FA	Bore: 80 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc3/8
	SSD2-KL-80C-35-FB	Bore: 80 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc3/8
	SSD2-KL-80C-40	Bore: 80 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc3/8
	SSD2-KL-80C-40-LB	Bore: 80 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-KL-80C-40-CB	Bore: 80 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KL-80C-40-FA	Bore: 80 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc3/8
	SSD2-KL-80C-40-FB	Bore: 80 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc3/8
	SSD2-KL-80C-45	Bore: 80 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc3/8
	SSD2-KL-80C-45-LB	Bore: 80 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-KL-80C-45-CB	Bore: 80 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KL-80C-45-FA	Bore: 80 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc3/8
	SSD2-KL-80C-45-FB	Bore: 80 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc3/8
	SSD2-KL-80C-50	Bore: 80 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc3/8
	SSD2-KL-80C-50-LB	Bore: 80 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-KL-80C-50-CB	Bore: 80 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KL-80C-50-FA	Bore: 80 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc3/8
	SSD2-KL-80C-50-FB	Bore: 80 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc3/8
	SSD2-KL-80C-75	Bore: 80 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc3/8
	SSD2-KL-80C-75-LB	Bore: 80 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-KL-80C-75-CB	Bore: 80 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KL-80C-75-FA	Bore: 80 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc3/8
	SSD2-KL-80C-75-FB	Bore: 80 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc3/8
	SSD2-KL-80C-100	Bore: 80 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc3/8
	SSD2-KL-80C-100-LB	Bore: 80 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-KL-80C-100-CB	Bore: 80 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KL-80C-100-FA	Bore: 80 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc3/8
	SSD2-KL-80C-100-FB	Bore: 80 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc3/8
	SSD2-KL-100C-10	Bore: 100 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc3/8
	SSD2-KL-100C-10-LB	Bore: 100 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-KL-100C-10-CB	Bore: 100 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KL-100C-10-FA	Bore: 100 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc3/8
	SSD2-KL-100C-10-FB	Bore: 100 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc3/8
	SSD2-KL-100C-15	Bore: 100 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc3/8
	SSD2-KL-100C-15-LB	Bore: 100 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-KL-100C-15-CB	Bore: 100 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KL-100C-15-FA	Bore: 100 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc3/8
	SSD2-KL-100C-15-FB	Bore: 100 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc3/8
	SSD2-KL-100C-20	Bore: 100 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc3/8
	SSD2-KL-100C-20-LB	Bore: 100 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-KL-100C-20-CB	Bore: 100 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KL-100C-20-FA	Bore: 100 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc3/8
	SSD2-KL-100C-20-FB	Bore: 100 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc3/8
	SSD2-KL-100C-25	Bore: 100 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc3/8
	SSD2-KL-100C-25-LB	Bore: 100 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-KL-100C-25-CB	Bore: 100 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KL-100C-25-FA	Bore: 100 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc3/8
	SSD2-KL-100C-25-FB	Bore: 100 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc3/8
	SSD2-KL-100C-30	Bore: 100 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc3/8
	SSD2-KL-100C-30-LB	Bore: 100 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-KL-100C-30-CB	Bore: 100 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KL-100C-30-FA	Bore: 100 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc3/8
	SSD2-KL-100C-30-FB	Bore: 100 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc3/8
	SSD2-KL-100C-35	Bore: 100 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc3/8
	SSD2-KL-100C-35-LB	Bore: 100 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-KL-100C-35-CB	Bore: 100 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KL-100C-35-FA	Bore: 100 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc3/8
	SSD2-KL-100C-35-FB	Bore: 100 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc3/8
	SSD2-KL-100C-40	Bore: 100 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc3/8
	SSD2-KL-100C-40-LB	Bore: 100 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-KL-100C-40-CB	Bore: 100 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KL-100C-40-FA	Bore: 100 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc3/8
	SSD2-KL-100C-40-FB	Bore: 100 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc3/8
	SSD2-KL-100C-45	Bore: 100 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc3/8
	SSD2-KL-100C-45-LB	Bore: 100 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-KL-100C-45-CB	Bore: 100 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KL-100C-45-FA	Bore: 100 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc3/8
	SSD2-KL-100C-45-FB	Bore: 100 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc3/8
	SSD2-KL-100C-50	Bore: 100 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc3/8
	SSD2-KL-100C-50-LB	Bore: 100 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-KL-100C-50-CB	Bore: 100 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KL-100C-50-FA	Bore: 100 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc3/8
	SSD2-KL-100C-50-FB	Bore: 100 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc3/8
	SSD2-KL-100C-75	Bore: 100 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc3/8
	SSD2-KL-100C-75-LB	Bore: 100 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-KL-100C-75-CB	Bore: 100 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KL-100C-75-FA	Bore: 100 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc3/8
	SSD2-KL-100C-75-FB	Bore: 100 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc3/8
	SSD2-KL-100C-100	Bore: 100 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc3/8
	SSD2-KL-100C-100-LB	Bore: 100 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-KL-100C-100-CB	Bore: 100 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KL-100C-100-FA	Bore: 100 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc3/8
	SSD2-KL-100C-100-FB	Bore: 100 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc3/8

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

CKD SSD2-K-C Super Compact Cylinder (High Load, Rubber Air Cushion)
