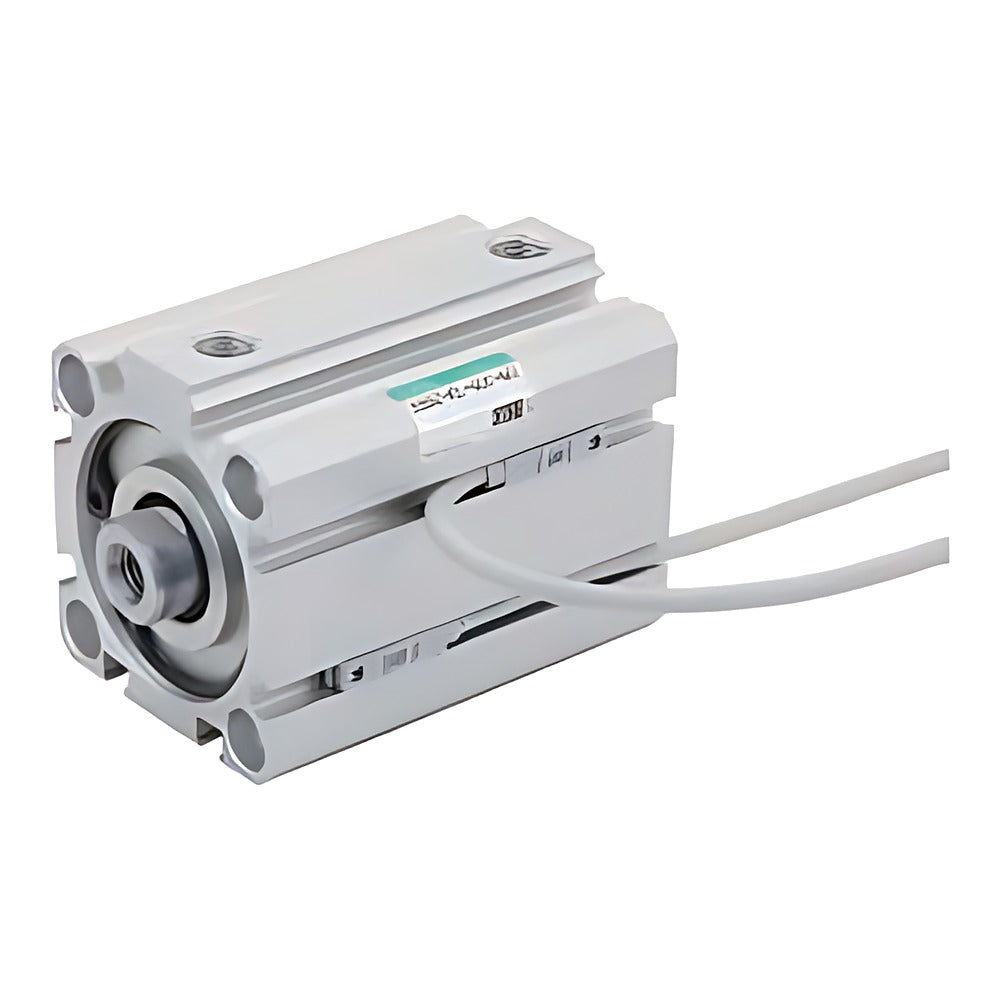

CKD SSD2-K Super Compact Cylinder (High Load, Bore 12-100)

CKD SSD2-K is a double-acting single-rod super compact cylinder with a reinforced rod guide for higher lateral loads, bores 12-100 mm.

Key features

High-load type with longer bearing for improved lateral load resistance
Rubber cushion fitted as standard
SSD2-KL has a built-in magnet for F-type and T-type auto switches
Mounting brackets LB, CB, FA, FB shipped attached when specified in the code
Options: rod-end male thread (N), stainless rod (M), wear ring (P6), P4/P40 battery-plant spec

Specifications

Operation	Double acting, single rod, high load
Fluid	Compressed air
Max. operating pressure	1.0 MPa
Min. operating pressure	0.1 MPa (0.05 MPa for 63-100)
Proof pressure	1.6 MPa
Ambient temperature	-10 to 60 C (no freezing)
Piston speed	50-500 mm/s (50-300 mm/s for 63-100)
Cushion	Rubber cushion
Source	CKD Korea catalog CB-029SK-9, p. 864-879

SSD2-K-12-5		Bore: 12 mm \| Stroke: 5 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
SSD2-K-12-5-LB		Bore: 12 mm \| Stroke: 5 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
SSD2-K-12-5-CB		Bore: 12 mm \| Stroke: 5 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
SSD2-K-12-5-FA		Bore: 12 mm \| Stroke: 5 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
SSD2-K-12-5-FB		Bore: 12 mm \| Stroke: 5 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
SSD2-K-12-10		Bore: 12 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
SSD2-K-12-10-LB		Bore: 12 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
SSD2-K-12-10-CB		Bore: 12 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
SSD2-K-12-10-FA		Bore: 12 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
SSD2-K-12-10-FB		Bore: 12 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
SSD2-K-12-15		Bore: 12 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
SSD2-K-12-15-LB		Bore: 12 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
SSD2-K-12-15-CB		Bore: 12 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
SSD2-K-12-15-FA		Bore: 12 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
SSD2-K-12-15-FB		Bore: 12 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
SSD2-K-12-20		Bore: 12 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
SSD2-K-12-20-LB		Bore: 12 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
SSD2-K-12-20-CB		Bore: 12 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
SSD2-K-12-20-FA		Bore: 12 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
SSD2-K-12-20-FB		Bore: 12 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
SSD2-K-12-25		Bore: 12 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
SSD2-K-12-25-LB		Bore: 12 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
SSD2-K-12-25-CB		Bore: 12 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
SSD2-K-12-25-FA		Bore: 12 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
SSD2-K-12-25-FB		Bore: 12 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
SSD2-K-12-30		Bore: 12 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
SSD2-K-12-30-LB		Bore: 12 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
SSD2-K-12-30-CB		Bore: 12 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
SSD2-K-12-30-FA		Bore: 12 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
SSD2-K-12-30-FB		Bore: 12 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
SSD2-K-16-5		Bore: 16 mm \| Stroke: 5 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
SSD2-K-16-5-LB		Bore: 16 mm \| Stroke: 5 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
SSD2-K-16-5-CB		Bore: 16 mm \| Stroke: 5 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
SSD2-K-16-5-FA		Bore: 16 mm \| Stroke: 5 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
SSD2-K-16-5-FB		Bore: 16 mm \| Stroke: 5 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
SSD2-K-16-10		Bore: 16 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
SSD2-K-16-10-LB		Bore: 16 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
SSD2-K-16-10-CB		Bore: 16 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
SSD2-K-16-10-FA		Bore: 16 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
SSD2-K-16-10-FB		Bore: 16 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
SSD2-K-16-15		Bore: 16 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
SSD2-K-16-15-LB		Bore: 16 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
SSD2-K-16-15-CB		Bore: 16 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
SSD2-K-16-15-FA		Bore: 16 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
SSD2-K-16-15-FB		Bore: 16 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
SSD2-K-16-20		Bore: 16 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
SSD2-K-16-20-LB		Bore: 16 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
SSD2-K-16-20-CB		Bore: 16 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
SSD2-K-16-20-FA		Bore: 16 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
SSD2-K-16-20-FB		Bore: 16 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
SSD2-K-16-25		Bore: 16 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
SSD2-K-16-25-LB		Bore: 16 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
SSD2-K-16-25-CB		Bore: 16 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
SSD2-K-16-25-FA		Bore: 16 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
SSD2-K-16-25-FB		Bore: 16 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
SSD2-K-16-30		Bore: 16 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
SSD2-K-16-30-LB		Bore: 16 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
SSD2-K-16-30-CB		Bore: 16 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
SSD2-K-16-30-FA		Bore: 16 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
SSD2-K-16-30-FB		Bore: 16 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
SSD2-K-20-5		Bore: 20 mm \| Stroke: 5 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
SSD2-K-20-5-LB		Bore: 20 mm \| Stroke: 5 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
SSD2-K-20-5-CB		Bore: 20 mm \| Stroke: 5 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
SSD2-K-20-5-FA		Bore: 20 mm \| Stroke: 5 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
SSD2-K-20-5-FB		Bore: 20 mm \| Stroke: 5 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
SSD2-K-20-10		Bore: 20 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
SSD2-K-20-10-LB		Bore: 20 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
SSD2-K-20-10-CB		Bore: 20 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
SSD2-K-20-10-FA		Bore: 20 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
SSD2-K-20-10-FB		Bore: 20 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
SSD2-K-20-15		Bore: 20 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
SSD2-K-20-15-LB		Bore: 20 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
SSD2-K-20-15-CB		Bore: 20 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
SSD2-K-20-15-FA		Bore: 20 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
SSD2-K-20-15-FB		Bore: 20 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
SSD2-K-20-20		Bore: 20 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
SSD2-K-20-20-LB		Bore: 20 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
SSD2-K-20-20-CB		Bore: 20 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
SSD2-K-20-20-FA		Bore: 20 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
SSD2-K-20-20-FB		Bore: 20 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
SSD2-K-20-25		Bore: 20 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
SSD2-K-20-25-LB		Bore: 20 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
SSD2-K-20-25-CB		Bore: 20 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
SSD2-K-20-25-FA		Bore: 20 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
SSD2-K-20-25-FB		Bore: 20 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
SSD2-K-20-30		Bore: 20 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
SSD2-K-20-30-LB		Bore: 20 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
SSD2-K-20-30-CB		Bore: 20 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
SSD2-K-20-30-FA		Bore: 20 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
SSD2-K-20-30-FB		Bore: 20 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
SSD2-K-20-35		Bore: 20 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
SSD2-K-20-35-LB		Bore: 20 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
SSD2-K-20-35-CB		Bore: 20 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
SSD2-K-20-35-FA		Bore: 20 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
SSD2-K-20-35-FB		Bore: 20 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
SSD2-K-20-40		Bore: 20 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
SSD2-K-20-40-LB		Bore: 20 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
SSD2-K-20-40-CB		Bore: 20 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
SSD2-K-20-40-FA		Bore: 20 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
SSD2-K-20-40-FB		Bore: 20 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
SSD2-K-20-45		Bore: 20 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
SSD2-K-20-45-LB		Bore: 20 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
SSD2-K-20-45-CB		Bore: 20 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
SSD2-K-20-45-FA		Bore: 20 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
SSD2-K-20-45-FB		Bore: 20 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
SSD2-K-20-50		Bore: 20 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
SSD2-K-20-50-LB		Bore: 20 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
SSD2-K-20-50-CB		Bore: 20 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
SSD2-K-20-50-FA		Bore: 20 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
SSD2-K-20-50-FB		Bore: 20 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
SSD2-K-25-5		Bore: 25 mm \| Stroke: 5 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
SSD2-K-25-5-LB		Bore: 25 mm \| Stroke: 5 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
SSD2-K-25-5-CB		Bore: 25 mm \| Stroke: 5 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
SSD2-K-25-5-FA		Bore: 25 mm \| Stroke: 5 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
SSD2-K-25-5-FB		Bore: 25 mm \| Stroke: 5 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
SSD2-K-25-10		Bore: 25 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
SSD2-K-25-10-LB		Bore: 25 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
SSD2-K-25-10-CB		Bore: 25 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
SSD2-K-25-10-FA		Bore: 25 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
SSD2-K-25-10-FB		Bore: 25 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
SSD2-K-25-15		Bore: 25 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
SSD2-K-25-15-LB		Bore: 25 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
SSD2-K-25-15-CB		Bore: 25 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
SSD2-K-25-15-FA		Bore: 25 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
SSD2-K-25-15-FB		Bore: 25 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
SSD2-K-25-20		Bore: 25 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
SSD2-K-25-20-LB		Bore: 25 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
SSD2-K-25-20-CB		Bore: 25 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
SSD2-K-25-20-FA		Bore: 25 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
SSD2-K-25-20-FB		Bore: 25 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
SSD2-K-25-25		Bore: 25 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
SSD2-K-25-25-LB		Bore: 25 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
SSD2-K-25-25-CB		Bore: 25 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
SSD2-K-25-25-FA		Bore: 25 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
SSD2-K-25-25-FB		Bore: 25 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
SSD2-K-25-30		Bore: 25 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
SSD2-K-25-30-LB		Bore: 25 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
SSD2-K-25-30-CB		Bore: 25 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
SSD2-K-25-30-FA		Bore: 25 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
SSD2-K-25-30-FB		Bore: 25 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
SSD2-K-25-35		Bore: 25 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
SSD2-K-25-35-LB		Bore: 25 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
SSD2-K-25-35-CB		Bore: 25 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
SSD2-K-25-35-FA		Bore: 25 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
SSD2-K-25-35-FB		Bore: 25 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
SSD2-K-25-40		Bore: 25 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
SSD2-K-25-40-LB		Bore: 25 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
SSD2-K-25-40-CB		Bore: 25 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
SSD2-K-25-40-FA		Bore: 25 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
SSD2-K-25-40-FB		Bore: 25 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
SSD2-K-25-45		Bore: 25 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
SSD2-K-25-45-LB		Bore: 25 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
SSD2-K-25-45-CB		Bore: 25 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
SSD2-K-25-45-FA		Bore: 25 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
SSD2-K-25-45-FB		Bore: 25 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
SSD2-K-25-50		Bore: 25 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
SSD2-K-25-50-LB		Bore: 25 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
SSD2-K-25-50-CB		Bore: 25 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
SSD2-K-25-50-FA		Bore: 25 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
SSD2-K-25-50-FB		Bore: 25 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
SSD2-K-32-5		Bore: 32 mm \| Stroke: 5 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
SSD2-K-32-5-LB		Bore: 32 mm \| Stroke: 5 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-K-32-5-CB		Bore: 32 mm \| Stroke: 5 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-K-32-5-FA		Bore: 32 mm \| Stroke: 5 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-K-32-5-FB		Bore: 32 mm \| Stroke: 5 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-K-32-10		Bore: 32 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
SSD2-K-32-10-LB		Bore: 32 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-K-32-10-CB		Bore: 32 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-K-32-10-FA		Bore: 32 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-K-32-10-FB		Bore: 32 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-K-32-15		Bore: 32 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
SSD2-K-32-15-LB		Bore: 32 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-K-32-15-CB		Bore: 32 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-K-32-15-FA		Bore: 32 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-K-32-15-FB		Bore: 32 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-K-32-20		Bore: 32 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
SSD2-K-32-20-LB		Bore: 32 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-K-32-20-CB		Bore: 32 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-K-32-20-FA		Bore: 32 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-K-32-20-FB		Bore: 32 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-K-32-25		Bore: 32 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
SSD2-K-32-25-LB		Bore: 32 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-K-32-25-CB		Bore: 32 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-K-32-25-FA		Bore: 32 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-K-32-25-FB		Bore: 32 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-K-32-30		Bore: 32 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
SSD2-K-32-30-LB		Bore: 32 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-K-32-30-CB		Bore: 32 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-K-32-30-FA		Bore: 32 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-K-32-30-FB		Bore: 32 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-K-32-35		Bore: 32 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
SSD2-K-32-35-LB		Bore: 32 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-K-32-35-CB		Bore: 32 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-K-32-35-FA		Bore: 32 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-K-32-35-FB		Bore: 32 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-K-32-40		Bore: 32 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
SSD2-K-32-40-LB		Bore: 32 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-K-32-40-CB		Bore: 32 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-K-32-40-FA		Bore: 32 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-K-32-40-FB		Bore: 32 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-K-32-45		Bore: 32 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
SSD2-K-32-45-LB		Bore: 32 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-K-32-45-CB		Bore: 32 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-K-32-45-FA		Bore: 32 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-K-32-45-FB		Bore: 32 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-K-32-50		Bore: 32 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
SSD2-K-32-50-LB		Bore: 32 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-K-32-50-CB		Bore: 32 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-K-32-50-FA		Bore: 32 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-K-32-50-FB		Bore: 32 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-K-32-75		Bore: 32 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
SSD2-K-32-75-LB		Bore: 32 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-K-32-75-CB		Bore: 32 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-K-32-75-FA		Bore: 32 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-K-32-75-FB		Bore: 32 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-K-32-100		Bore: 32 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
SSD2-K-32-100-LB		Bore: 32 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-K-32-100-CB		Bore: 32 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-K-32-100-FA		Bore: 32 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-K-32-100-FB		Bore: 32 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-K-40-5		Bore: 40 mm \| Stroke: 5 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
SSD2-K-40-5-LB		Bore: 40 mm \| Stroke: 5 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-K-40-5-CB		Bore: 40 mm \| Stroke: 5 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-K-40-5-FA		Bore: 40 mm \| Stroke: 5 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-K-40-5-FB		Bore: 40 mm \| Stroke: 5 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-K-40-10		Bore: 40 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
SSD2-K-40-10-LB		Bore: 40 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-K-40-10-CB		Bore: 40 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-K-40-10-FA		Bore: 40 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-K-40-10-FB		Bore: 40 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-K-40-15		Bore: 40 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
SSD2-K-40-15-LB		Bore: 40 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-K-40-15-CB		Bore: 40 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-K-40-15-FA		Bore: 40 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-K-40-15-FB		Bore: 40 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-K-40-20		Bore: 40 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
SSD2-K-40-20-LB		Bore: 40 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-K-40-20-CB		Bore: 40 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-K-40-20-FA		Bore: 40 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-K-40-20-FB		Bore: 40 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-K-40-25		Bore: 40 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
SSD2-K-40-25-LB		Bore: 40 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-K-40-25-CB		Bore: 40 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-K-40-25-FA		Bore: 40 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-K-40-25-FB		Bore: 40 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-K-40-30		Bore: 40 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
SSD2-K-40-30-LB		Bore: 40 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-K-40-30-CB		Bore: 40 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-K-40-30-FA		Bore: 40 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-K-40-30-FB		Bore: 40 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-K-40-35		Bore: 40 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
SSD2-K-40-35-LB		Bore: 40 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-K-40-35-CB		Bore: 40 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-K-40-35-FA		Bore: 40 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-K-40-35-FB		Bore: 40 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-K-40-40		Bore: 40 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
SSD2-K-40-40-LB		Bore: 40 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-K-40-40-CB		Bore: 40 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-K-40-40-FA		Bore: 40 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-K-40-40-FB		Bore: 40 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-K-40-45		Bore: 40 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
SSD2-K-40-45-LB		Bore: 40 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-K-40-45-CB		Bore: 40 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-K-40-45-FA		Bore: 40 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-K-40-45-FB		Bore: 40 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-K-40-50		Bore: 40 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
SSD2-K-40-50-LB		Bore: 40 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-K-40-50-CB		Bore: 40 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-K-40-50-FA		Bore: 40 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-K-40-50-FB		Bore: 40 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-K-40-75		Bore: 40 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
SSD2-K-40-75-LB		Bore: 40 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-K-40-75-CB		Bore: 40 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-K-40-75-FA		Bore: 40 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-K-40-75-FB		Bore: 40 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-K-40-100		Bore: 40 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
SSD2-K-40-100-LB		Bore: 40 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-K-40-100-CB		Bore: 40 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-K-40-100-FA		Bore: 40 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-K-40-100-FB		Bore: 40 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-K-50-10		Bore: 50 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/4
SSD2-K-50-10-LB		Bore: 50 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-K-50-10-CB		Bore: 50 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-K-50-10-FA		Bore: 50 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/4
SSD2-K-50-10-FB		Bore: 50 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/4
SSD2-K-50-15		Bore: 50 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/4
SSD2-K-50-15-LB		Bore: 50 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-K-50-15-CB		Bore: 50 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-K-50-15-FA		Bore: 50 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/4
SSD2-K-50-15-FB		Bore: 50 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/4
SSD2-K-50-20		Bore: 50 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/4
SSD2-K-50-20-LB		Bore: 50 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-K-50-20-CB		Bore: 50 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-K-50-20-FA		Bore: 50 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/4
SSD2-K-50-20-FB		Bore: 50 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/4
SSD2-K-50-25		Bore: 50 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/4
SSD2-K-50-25-LB		Bore: 50 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-K-50-25-CB		Bore: 50 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-K-50-25-FA		Bore: 50 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/4
SSD2-K-50-25-FB		Bore: 50 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/4
SSD2-K-50-30		Bore: 50 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/4
SSD2-K-50-30-LB		Bore: 50 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-K-50-30-CB		Bore: 50 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-K-50-30-FA		Bore: 50 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/4
SSD2-K-50-30-FB		Bore: 50 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/4
SSD2-K-50-35		Bore: 50 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/4
SSD2-K-50-35-LB		Bore: 50 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-K-50-35-CB		Bore: 50 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-K-50-35-FA		Bore: 50 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/4
SSD2-K-50-35-FB		Bore: 50 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/4
SSD2-K-50-40		Bore: 50 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/4
SSD2-K-50-40-LB		Bore: 50 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-K-50-40-CB		Bore: 50 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-K-50-40-FA		Bore: 50 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/4
SSD2-K-50-40-FB		Bore: 50 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/4
SSD2-K-50-45		Bore: 50 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/4
SSD2-K-50-45-LB		Bore: 50 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-K-50-45-CB		Bore: 50 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-K-50-45-FA		Bore: 50 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/4
SSD2-K-50-45-FB		Bore: 50 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/4
SSD2-K-50-50		Bore: 50 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/4
SSD2-K-50-50-LB		Bore: 50 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-K-50-50-CB		Bore: 50 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-K-50-50-FA		Bore: 50 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/4
SSD2-K-50-50-FB		Bore: 50 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/4
SSD2-K-50-75		Bore: 50 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/4
SSD2-K-50-75-LB		Bore: 50 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-K-50-75-CB		Bore: 50 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-K-50-75-FA		Bore: 50 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/4
SSD2-K-50-75-FB		Bore: 50 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/4
SSD2-K-50-100		Bore: 50 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/4
SSD2-K-50-100-LB		Bore: 50 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-K-50-100-CB		Bore: 50 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-K-50-100-FA		Bore: 50 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/4
SSD2-K-50-100-FB		Bore: 50 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/4
SSD2-K-63-10		Bore: 63 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/4
SSD2-K-63-10-LB		Bore: 63 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-K-63-10-CB		Bore: 63 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-K-63-10-FA		Bore: 63 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/4
SSD2-K-63-10-FB		Bore: 63 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/4
SSD2-K-63-15		Bore: 63 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/4
SSD2-K-63-15-LB		Bore: 63 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-K-63-15-CB		Bore: 63 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-K-63-15-FA		Bore: 63 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/4
SSD2-K-63-15-FB		Bore: 63 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/4
SSD2-K-63-20		Bore: 63 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/4
SSD2-K-63-20-LB		Bore: 63 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-K-63-20-CB		Bore: 63 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-K-63-20-FA		Bore: 63 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/4
SSD2-K-63-20-FB		Bore: 63 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/4
SSD2-K-63-25		Bore: 63 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/4
SSD2-K-63-25-LB		Bore: 63 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-K-63-25-CB		Bore: 63 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-K-63-25-FA		Bore: 63 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/4
SSD2-K-63-25-FB		Bore: 63 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/4
SSD2-K-63-30		Bore: 63 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/4
SSD2-K-63-30-LB		Bore: 63 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-K-63-30-CB		Bore: 63 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-K-63-30-FA		Bore: 63 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/4
SSD2-K-63-30-FB		Bore: 63 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/4
SSD2-K-63-35		Bore: 63 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/4
SSD2-K-63-35-LB		Bore: 63 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-K-63-35-CB		Bore: 63 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-K-63-35-FA		Bore: 63 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/4
SSD2-K-63-35-FB		Bore: 63 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/4
SSD2-K-63-40		Bore: 63 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/4
SSD2-K-63-40-LB		Bore: 63 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-K-63-40-CB		Bore: 63 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-K-63-40-FA		Bore: 63 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/4
SSD2-K-63-40-FB		Bore: 63 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/4
SSD2-K-63-45		Bore: 63 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/4
SSD2-K-63-45-LB		Bore: 63 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-K-63-45-CB		Bore: 63 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-K-63-45-FA		Bore: 63 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/4
SSD2-K-63-45-FB		Bore: 63 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/4
SSD2-K-63-50		Bore: 63 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/4
SSD2-K-63-50-LB		Bore: 63 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-K-63-50-CB		Bore: 63 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-K-63-50-FA		Bore: 63 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/4
SSD2-K-63-50-FB		Bore: 63 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/4
SSD2-K-63-75		Bore: 63 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/4
SSD2-K-63-75-LB		Bore: 63 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-K-63-75-CB		Bore: 63 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-K-63-75-FA		Bore: 63 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/4
SSD2-K-63-75-FB		Bore: 63 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/4
SSD2-K-63-100		Bore: 63 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/4
SSD2-K-63-100-LB		Bore: 63 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-K-63-100-CB		Bore: 63 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-K-63-100-FA		Bore: 63 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/4
SSD2-K-63-100-FB		Bore: 63 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/4
SSD2-K-80-10		Bore: 80 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc3/8
SSD2-K-80-10-LB		Bore: 80 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-K-80-10-CB		Bore: 80 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-K-80-10-FA		Bore: 80 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc3/8
SSD2-K-80-10-FB		Bore: 80 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc3/8
SSD2-K-80-15		Bore: 80 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc3/8
SSD2-K-80-15-CB		Bore: 80 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-K-80-15-FA		Bore: 80 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc3/8
SSD2-K-80-15-FB		Bore: 80 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc3/8
SSD2-K-80-20		Bore: 80 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc3/8
SSD2-K-80-20-LB		Bore: 80 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-K-80-20-CB		Bore: 80 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-K-80-20-FA		Bore: 80 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc3/8
SSD2-K-80-20-FB		Bore: 80 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc3/8
SSD2-K-80-25		Bore: 80 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc3/8
SSD2-K-80-25-LB		Bore: 80 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-K-80-25-CB		Bore: 80 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-K-80-25-FA		Bore: 80 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc3/8
SSD2-K-80-25-FB		Bore: 80 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc3/8
SSD2-K-80-30		Bore: 80 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc3/8
SSD2-K-80-30-LB		Bore: 80 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-K-80-30-CB		Bore: 80 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-K-80-30-FA		Bore: 80 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc3/8
SSD2-K-80-30-FB		Bore: 80 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc3/8
SSD2-K-80-35		Bore: 80 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc3/8
SSD2-K-80-35-LB		Bore: 80 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-K-80-35-CB		Bore: 80 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-K-80-35-FA		Bore: 80 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc3/8
SSD2-K-80-35-FB		Bore: 80 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc3/8
SSD2-K-80-40		Bore: 80 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc3/8
SSD2-K-80-40-LB		Bore: 80 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-K-80-40-CB		Bore: 80 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-K-80-40-FA		Bore: 80 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc3/8
SSD2-K-80-40-FB		Bore: 80 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc3/8
SSD2-K-80-45		Bore: 80 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc3/8
SSD2-K-80-45-LB		Bore: 80 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-K-80-45-CB		Bore: 80 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-K-80-45-FA		Bore: 80 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc3/8
SSD2-K-80-45-FB		Bore: 80 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc3/8
SSD2-K-80-50		Bore: 80 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc3/8
SSD2-K-80-50-LB		Bore: 80 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-K-80-50-CB		Bore: 80 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-K-80-50-FA		Bore: 80 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc3/8
SSD2-K-80-50-FB		Bore: 80 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc3/8
SSD2-K-80-75		Bore: 80 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc3/8
SSD2-K-80-75-LB		Bore: 80 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-K-80-75-CB		Bore: 80 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-K-80-75-FA		Bore: 80 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc3/8
SSD2-K-80-75-FB		Bore: 80 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc3/8
SSD2-K-80-100		Bore: 80 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc3/8
SSD2-K-80-100-LB		Bore: 80 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-K-80-100-CB		Bore: 80 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-K-80-100-FA		Bore: 80 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc3/8
SSD2-K-80-100-FB		Bore: 80 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc3/8
SSD2-K-100-10		Bore: 100 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc3/8
SSD2-K-100-10-LB		Bore: 100 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-K-100-10-CB		Bore: 100 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-K-100-10-FA		Bore: 100 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc3/8
SSD2-K-100-10-FB		Bore: 100 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc3/8
SSD2-K-100-15		Bore: 100 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc3/8
SSD2-K-100-15-LB		Bore: 100 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-K-100-15-CB		Bore: 100 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-K-100-15-FA		Bore: 100 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc3/8
SSD2-K-100-15-FB		Bore: 100 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc3/8
SSD2-K-100-20		Bore: 100 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc3/8
SSD2-K-100-20-LB		Bore: 100 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-K-100-20-CB		Bore: 100 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-K-100-20-FA		Bore: 100 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc3/8
SSD2-K-100-20-FB		Bore: 100 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc3/8
SSD2-K-100-25		Bore: 100 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc3/8
SSD2-K-100-25-LB		Bore: 100 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-K-100-25-CB		Bore: 100 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-K-100-25-FA		Bore: 100 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc3/8
SSD2-K-100-25-FB		Bore: 100 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc3/8
SSD2-K-100-30		Bore: 100 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc3/8
SSD2-K-100-30-LB		Bore: 100 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-K-100-30-CB		Bore: 100 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-K-100-30-FA		Bore: 100 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc3/8
SSD2-K-100-30-FB		Bore: 100 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc3/8
SSD2-K-100-35		Bore: 100 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc3/8
SSD2-K-100-35-LB		Bore: 100 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-K-100-35-CB		Bore: 100 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-K-100-35-FA		Bore: 100 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc3/8
SSD2-K-100-35-FB		Bore: 100 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc3/8
SSD2-K-100-40		Bore: 100 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc3/8
SSD2-K-100-40-LB		Bore: 100 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-K-100-40-CB		Bore: 100 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-K-100-40-FA		Bore: 100 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc3/8
SSD2-K-100-40-FB		Bore: 100 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc3/8
SSD2-K-100-45		Bore: 100 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc3/8
SSD2-K-100-45-LB		Bore: 100 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-K-100-45-CB		Bore: 100 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-K-100-45-FA		Bore: 100 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc3/8
SSD2-K-100-45-FB		Bore: 100 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc3/8
SSD2-K-100-50		Bore: 100 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc3/8
SSD2-K-100-50-LB		Bore: 100 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-K-100-50-CB		Bore: 100 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-K-100-50-FA		Bore: 100 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc3/8
SSD2-K-100-50-FB		Bore: 100 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc3/8
SSD2-K-100-75		Bore: 100 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc3/8
SSD2-K-100-75-LB		Bore: 100 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-K-100-75-CB		Bore: 100 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-K-100-75-FA		Bore: 100 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc3/8
SSD2-K-100-75-FB		Bore: 100 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc3/8
SSD2-K-100-100		Bore: 100 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc3/8
SSD2-K-100-100-LB		Bore: 100 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-K-100-100-CB		Bore: 100 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-K-100-100-FA		Bore: 100 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc3/8
SSD2-K-100-100-FB		Bore: 100 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc3/8
SSD2-KL-12-5		Bore: 12 mm \| Stroke: 5 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: M5
SSD2-KL-12-5-LB		Bore: 12 mm \| Stroke: 5 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: M5
SSD2-KL-12-5-CB		Bore: 12 mm \| Stroke: 5 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KL-12-5-FA		Bore: 12 mm \| Stroke: 5 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: M5
SSD2-KL-12-5-FB		Bore: 12 mm \| Stroke: 5 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: M5
SSD2-KL-12-10		Bore: 12 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: M5
SSD2-KL-12-10-LB		Bore: 12 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: M5
SSD2-KL-12-10-CB		Bore: 12 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KL-12-10-FA		Bore: 12 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: M5
SSD2-KL-12-10-FB		Bore: 12 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: M5
SSD2-KL-12-15		Bore: 12 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: M5
SSD2-KL-12-15-LB		Bore: 12 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: M5
SSD2-KL-12-15-CB		Bore: 12 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KL-12-15-FA		Bore: 12 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: M5
SSD2-KL-12-15-FB		Bore: 12 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: M5
SSD2-KL-12-20		Bore: 12 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: M5
SSD2-KL-12-20-LB		Bore: 12 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: M5
SSD2-KL-12-20-CB		Bore: 12 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KL-12-20-FA		Bore: 12 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: M5
SSD2-KL-12-20-FB		Bore: 12 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: M5
SSD2-KL-12-25		Bore: 12 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: M5
SSD2-KL-12-25-LB		Bore: 12 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: M5
SSD2-KL-12-25-CB		Bore: 12 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KL-12-25-FA		Bore: 12 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: M5
SSD2-KL-12-25-FB		Bore: 12 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: M5
SSD2-KL-12-30		Bore: 12 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: M5
SSD2-KL-12-30-LB		Bore: 12 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: M5
SSD2-KL-12-30-CB		Bore: 12 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KL-12-30-FA		Bore: 12 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: M5
SSD2-KL-12-30-FB		Bore: 12 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: M5
SSD2-KL-16-5		Bore: 16 mm \| Stroke: 5 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: M5
SSD2-KL-16-5-LB		Bore: 16 mm \| Stroke: 5 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: M5
SSD2-KL-16-5-CB		Bore: 16 mm \| Stroke: 5 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KL-16-5-FA		Bore: 16 mm \| Stroke: 5 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: M5
SSD2-KL-16-5-FB		Bore: 16 mm \| Stroke: 5 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: M5
SSD2-KL-16-10		Bore: 16 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: M5
SSD2-KL-16-10-LB		Bore: 16 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: M5
SSD2-KL-16-10-CB		Bore: 16 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KL-16-10-FA		Bore: 16 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: M5
SSD2-KL-16-10-FB		Bore: 16 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: M5
SSD2-KL-16-15		Bore: 16 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: M5
SSD2-KL-16-15-LB		Bore: 16 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: M5
SSD2-KL-16-15-CB		Bore: 16 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KL-16-15-FA		Bore: 16 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: M5
SSD2-KL-16-15-FB		Bore: 16 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: M5
SSD2-KL-16-20		Bore: 16 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: M5
SSD2-KL-16-20-LB		Bore: 16 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: M5
SSD2-KL-16-20-CB		Bore: 16 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KL-16-20-FA		Bore: 16 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: M5
SSD2-KL-16-20-FB		Bore: 16 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: M5
SSD2-KL-16-25		Bore: 16 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: M5
SSD2-KL-16-25-LB		Bore: 16 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: M5
SSD2-KL-16-25-CB		Bore: 16 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KL-16-25-FA		Bore: 16 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: M5
SSD2-KL-16-25-FB		Bore: 16 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: M5
SSD2-KL-16-30		Bore: 16 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: M5
SSD2-KL-16-30-LB		Bore: 16 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: M5
SSD2-KL-16-30-CB		Bore: 16 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KL-16-30-FA		Bore: 16 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: M5
SSD2-KL-16-30-FB		Bore: 16 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: M5
SSD2-KL-20-5		Bore: 20 mm \| Stroke: 5 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: M5
SSD2-KL-20-5-LB		Bore: 20 mm \| Stroke: 5 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: M5
SSD2-KL-20-5-CB		Bore: 20 mm \| Stroke: 5 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KL-20-5-FA		Bore: 20 mm \| Stroke: 5 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: M5
SSD2-KL-20-5-FB		Bore: 20 mm \| Stroke: 5 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: M5
SSD2-KL-20-10		Bore: 20 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: M5
SSD2-KL-20-10-LB		Bore: 20 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: M5
SSD2-KL-20-10-CB		Bore: 20 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KL-20-10-FA		Bore: 20 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: M5
SSD2-KL-20-10-FB		Bore: 20 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: M5
SSD2-KL-20-15		Bore: 20 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: M5
SSD2-KL-20-15-LB		Bore: 20 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: M5
SSD2-KL-20-15-CB		Bore: 20 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KL-20-15-FA		Bore: 20 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: M5
SSD2-KL-20-15-FB		Bore: 20 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: M5
SSD2-KL-20-20		Bore: 20 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: M5
SSD2-KL-20-20-LB		Bore: 20 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: M5
SSD2-KL-20-20-CB		Bore: 20 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KL-20-20-FA		Bore: 20 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: M5
SSD2-KL-20-20-FB		Bore: 20 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: M5
SSD2-KL-20-25		Bore: 20 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: M5
SSD2-KL-20-25-LB		Bore: 20 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: M5
SSD2-KL-20-25-CB		Bore: 20 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KL-20-25-FA		Bore: 20 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: M5
SSD2-KL-20-25-FB		Bore: 20 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: M5
SSD2-KL-20-30		Bore: 20 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: M5
SSD2-KL-20-30-LB		Bore: 20 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: M5
SSD2-KL-20-30-CB		Bore: 20 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KL-20-30-FA		Bore: 20 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: M5
SSD2-KL-20-30-FB		Bore: 20 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: M5
SSD2-KL-20-35		Bore: 20 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: M5
SSD2-KL-20-35-LB		Bore: 20 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: M5
SSD2-KL-20-35-CB		Bore: 20 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KL-20-35-FA		Bore: 20 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: M5
SSD2-KL-20-35-FB		Bore: 20 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: M5
SSD2-KL-20-40		Bore: 20 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: M5
SSD2-KL-20-40-LB		Bore: 20 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: M5
SSD2-KL-20-40-CB		Bore: 20 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KL-20-40-FA		Bore: 20 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: M5
SSD2-KL-20-40-FB		Bore: 20 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: M5
SSD2-KL-20-45		Bore: 20 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: M5
SSD2-KL-20-45-LB		Bore: 20 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: M5
SSD2-KL-20-45-CB		Bore: 20 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KL-20-45-FA		Bore: 20 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: M5
SSD2-KL-20-45-FB		Bore: 20 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: M5
SSD2-KL-20-50		Bore: 20 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: M5
SSD2-KL-20-50-LB		Bore: 20 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: M5
SSD2-KL-20-50-CB		Bore: 20 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KL-20-50-FA		Bore: 20 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: M5
SSD2-KL-20-50-FB		Bore: 20 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: M5
SSD2-KL-25-5		Bore: 25 mm \| Stroke: 5 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: M5
SSD2-KL-25-5-LB		Bore: 25 mm \| Stroke: 5 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: M5
SSD2-KL-25-5-CB		Bore: 25 mm \| Stroke: 5 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KL-25-5-FA		Bore: 25 mm \| Stroke: 5 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: M5
SSD2-KL-25-5-FB		Bore: 25 mm \| Stroke: 5 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: M5
SSD2-KL-25-10		Bore: 25 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: M5
SSD2-KL-25-10-LB		Bore: 25 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: M5
SSD2-KL-25-10-CB		Bore: 25 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KL-25-10-FA		Bore: 25 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: M5
SSD2-KL-25-10-FB		Bore: 25 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: M5
SSD2-KL-25-15		Bore: 25 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: M5
SSD2-KL-25-15-LB		Bore: 25 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: M5
SSD2-KL-25-15-CB		Bore: 25 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KL-25-15-FA		Bore: 25 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: M5
SSD2-KL-25-15-FB		Bore: 25 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: M5
SSD2-KL-25-20		Bore: 25 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: M5
SSD2-KL-25-20-LB		Bore: 25 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: M5
SSD2-KL-25-20-CB		Bore: 25 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KL-25-20-FA		Bore: 25 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: M5
SSD2-KL-25-20-FB		Bore: 25 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: M5
SSD2-KL-25-25		Bore: 25 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: M5
SSD2-KL-25-25-LB		Bore: 25 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: M5
SSD2-KL-25-25-CB		Bore: 25 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KL-25-25-FA		Bore: 25 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: M5
SSD2-KL-25-25-FB		Bore: 25 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: M5
SSD2-KL-25-30		Bore: 25 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: M5
SSD2-KL-25-30-LB		Bore: 25 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: M5
SSD2-KL-25-30-CB		Bore: 25 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KL-25-30-FA		Bore: 25 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: M5
SSD2-KL-25-30-FB		Bore: 25 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: M5
SSD2-KL-25-35		Bore: 25 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: M5
SSD2-KL-25-35-LB		Bore: 25 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: M5
SSD2-KL-25-35-CB		Bore: 25 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KL-25-35-FA		Bore: 25 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: M5
SSD2-KL-25-35-FB		Bore: 25 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: M5
SSD2-KL-25-40		Bore: 25 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: M5
SSD2-KL-25-40-LB		Bore: 25 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: M5
SSD2-KL-25-40-CB		Bore: 25 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KL-25-40-FA		Bore: 25 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: M5
SSD2-KL-25-40-FB		Bore: 25 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: M5
SSD2-KL-25-45		Bore: 25 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: M5
SSD2-KL-25-45-LB		Bore: 25 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: M5
SSD2-KL-25-45-CB		Bore: 25 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KL-25-45-FA		Bore: 25 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: M5
SSD2-KL-25-45-FB		Bore: 25 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: M5
SSD2-KL-25-50		Bore: 25 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: M5
SSD2-KL-25-50-LB		Bore: 25 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: M5
SSD2-KL-25-50-CB		Bore: 25 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KL-25-50-FA		Bore: 25 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: M5
SSD2-KL-25-50-FB		Bore: 25 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: M5
SSD2-KL-32-5		Bore: 32 mm \| Stroke: 5 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
SSD2-KL-32-5-LB		Bore: 32 mm \| Stroke: 5 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-KL-32-5-CB		Bore: 32 mm \| Stroke: 5 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KL-32-5-FA		Bore: 32 mm \| Stroke: 5 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-KL-32-5-FB		Bore: 32 mm \| Stroke: 5 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-KL-32-10		Bore: 32 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
SSD2-KL-32-10-LB		Bore: 32 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-KL-32-10-CB		Bore: 32 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KL-32-10-FA		Bore: 32 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-KL-32-10-FB		Bore: 32 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-KL-32-15		Bore: 32 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
SSD2-KL-32-15-LB		Bore: 32 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-KL-32-15-CB		Bore: 32 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KL-32-15-FA		Bore: 32 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-KL-32-15-FB		Bore: 32 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-KL-32-20		Bore: 32 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
SSD2-KL-32-20-LB		Bore: 32 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-KL-32-20-CB		Bore: 32 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KL-32-20-FA		Bore: 32 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-KL-32-20-FB		Bore: 32 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-KL-32-25		Bore: 32 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
SSD2-KL-32-25-LB		Bore: 32 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-KL-32-25-CB		Bore: 32 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KL-32-25-FA		Bore: 32 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-KL-32-25-FB		Bore: 32 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-KL-32-30		Bore: 32 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
SSD2-KL-32-30-LB		Bore: 32 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-KL-32-30-CB		Bore: 32 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KL-32-30-FA		Bore: 32 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-KL-32-30-FB		Bore: 32 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-KL-32-35		Bore: 32 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
SSD2-KL-32-35-LB		Bore: 32 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-KL-32-35-CB		Bore: 32 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KL-32-35-FA		Bore: 32 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-KL-32-35-FB		Bore: 32 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-KL-32-40		Bore: 32 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
SSD2-KL-32-40-LB		Bore: 32 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-KL-32-40-CB		Bore: 32 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KL-32-40-FA		Bore: 32 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-KL-32-40-FB		Bore: 32 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-KL-32-45		Bore: 32 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
SSD2-KL-32-45-LB		Bore: 32 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-KL-32-45-CB		Bore: 32 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KL-32-45-FA		Bore: 32 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-KL-32-45-FB		Bore: 32 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-KL-32-50		Bore: 32 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
SSD2-KL-32-50-LB		Bore: 32 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-KL-32-50-CB		Bore: 32 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KL-32-50-FA		Bore: 32 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-KL-32-50-FB		Bore: 32 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-KL-32-75		Bore: 32 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
SSD2-KL-32-75-LB		Bore: 32 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-KL-32-75-CB		Bore: 32 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KL-32-75-FA		Bore: 32 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-KL-32-75-FB		Bore: 32 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-KL-32-100		Bore: 32 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
SSD2-KL-32-100-LB		Bore: 32 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-KL-32-100-CB		Bore: 32 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KL-32-100-FA		Bore: 32 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-KL-32-100-FB		Bore: 32 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-KL-40-5		Bore: 40 mm \| Stroke: 5 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
SSD2-KL-40-5-LB		Bore: 40 mm \| Stroke: 5 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-KL-40-5-CB		Bore: 40 mm \| Stroke: 5 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KL-40-5-FA		Bore: 40 mm \| Stroke: 5 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-KL-40-5-FB		Bore: 40 mm \| Stroke: 5 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-KL-40-10		Bore: 40 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
SSD2-KL-40-10-LB		Bore: 40 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-KL-40-10-CB		Bore: 40 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KL-40-10-FA		Bore: 40 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-KL-40-10-FB		Bore: 40 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-KL-40-15		Bore: 40 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
SSD2-KL-40-15-LB		Bore: 40 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-KL-40-15-CB		Bore: 40 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KL-40-15-FA		Bore: 40 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-KL-40-15-FB		Bore: 40 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-KL-40-20		Bore: 40 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
SSD2-KL-40-20-LB		Bore: 40 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-KL-40-20-CB		Bore: 40 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KL-40-20-FA		Bore: 40 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-KL-40-20-FB		Bore: 40 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-KL-40-25		Bore: 40 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
SSD2-KL-40-25-LB		Bore: 40 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-KL-40-25-CB		Bore: 40 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KL-40-25-FA		Bore: 40 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-KL-40-25-FB		Bore: 40 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-KL-40-30		Bore: 40 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
SSD2-KL-40-30-LB		Bore: 40 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-KL-40-30-CB		Bore: 40 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KL-40-30-FA		Bore: 40 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-KL-40-30-FB		Bore: 40 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-KL-40-35		Bore: 40 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
SSD2-KL-40-35-LB		Bore: 40 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-KL-40-35-CB		Bore: 40 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KL-40-35-FA		Bore: 40 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-KL-40-35-FB		Bore: 40 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-KL-40-40		Bore: 40 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
SSD2-KL-40-40-LB		Bore: 40 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-KL-40-40-CB		Bore: 40 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KL-40-40-FA		Bore: 40 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-KL-40-40-FB		Bore: 40 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-KL-40-45		Bore: 40 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
SSD2-KL-40-45-LB		Bore: 40 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-KL-40-45-CB		Bore: 40 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KL-40-45-FA		Bore: 40 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-KL-40-45-FB		Bore: 40 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-KL-40-50		Bore: 40 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
SSD2-KL-40-50-LB		Bore: 40 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-KL-40-50-CB		Bore: 40 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KL-40-50-FA		Bore: 40 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-KL-40-50-FB		Bore: 40 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-KL-40-75		Bore: 40 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
SSD2-KL-40-75-LB		Bore: 40 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-KL-40-75-CB		Bore: 40 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KL-40-75-FA		Bore: 40 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-KL-40-75-FB		Bore: 40 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-KL-40-100		Bore: 40 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
SSD2-KL-40-100-LB		Bore: 40 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-KL-40-100-CB		Bore: 40 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KL-40-100-FA		Bore: 40 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-KL-40-100-FB		Bore: 40 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-KL-50-10		Bore: 50 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/4
SSD2-KL-50-10-LB		Bore: 50 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-KL-50-10-CB		Bore: 50 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KL-50-10-FA		Bore: 50 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/4
SSD2-KL-50-10-FB		Bore: 50 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/4
SSD2-KL-50-15		Bore: 50 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/4
SSD2-KL-50-15-LB		Bore: 50 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-KL-50-15-CB		Bore: 50 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KL-50-15-FA		Bore: 50 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/4
SSD2-KL-50-15-FB		Bore: 50 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/4
SSD2-KL-50-20		Bore: 50 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/4
SSD2-KL-50-20-LB		Bore: 50 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-KL-50-20-CB		Bore: 50 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KL-50-20-FA		Bore: 50 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/4
SSD2-KL-50-20-FB		Bore: 50 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/4
SSD2-KL-50-25		Bore: 50 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/4
SSD2-KL-50-25-LB		Bore: 50 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-KL-50-25-CB		Bore: 50 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KL-50-25-FA		Bore: 50 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/4
SSD2-KL-50-25-FB		Bore: 50 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/4
SSD2-KL-50-30		Bore: 50 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/4
SSD2-KL-50-30-LB		Bore: 50 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-KL-50-30-CB		Bore: 50 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KL-50-30-FA		Bore: 50 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/4
SSD2-KL-50-30-FB		Bore: 50 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/4
SSD2-KL-50-35		Bore: 50 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/4
SSD2-KL-50-35-LB		Bore: 50 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-KL-50-35-CB		Bore: 50 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KL-50-35-FA		Bore: 50 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/4
SSD2-KL-50-35-FB		Bore: 50 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/4
SSD2-KL-50-40		Bore: 50 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/4
SSD2-KL-50-40-LB		Bore: 50 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-KL-50-40-CB		Bore: 50 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KL-50-40-FA		Bore: 50 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/4
SSD2-KL-50-40-FB		Bore: 50 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/4
SSD2-KL-50-45		Bore: 50 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/4
SSD2-KL-50-45-LB		Bore: 50 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-KL-50-45-CB		Bore: 50 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KL-50-45-FA		Bore: 50 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/4
SSD2-KL-50-45-FB		Bore: 50 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/4
SSD2-KL-50-50		Bore: 50 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/4
SSD2-KL-50-50-LB		Bore: 50 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-KL-50-50-CB		Bore: 50 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KL-50-50-FA		Bore: 50 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/4
SSD2-KL-50-50-FB		Bore: 50 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/4
SSD2-KL-50-75		Bore: 50 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/4
SSD2-KL-50-75-LB		Bore: 50 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-KL-50-75-CB		Bore: 50 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KL-50-75-FA		Bore: 50 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/4
SSD2-KL-50-75-FB		Bore: 50 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/4
SSD2-KL-50-100		Bore: 50 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/4
SSD2-KL-50-100-LB		Bore: 50 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-KL-50-100-CB		Bore: 50 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KL-50-100-FA		Bore: 50 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/4
SSD2-KL-50-100-FB		Bore: 50 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/4
SSD2-KL-63-10		Bore: 63 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/4
SSD2-KL-63-10-LB		Bore: 63 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-KL-63-10-CB		Bore: 63 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KL-63-10-FA		Bore: 63 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/4
SSD2-KL-63-10-FB		Bore: 63 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/4
SSD2-KL-63-15		Bore: 63 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/4
SSD2-KL-63-15-LB		Bore: 63 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-KL-63-15-CB		Bore: 63 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KL-63-15-FA		Bore: 63 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/4
SSD2-KL-63-15-FB		Bore: 63 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/4
SSD2-KL-63-20		Bore: 63 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/4
SSD2-KL-63-20-LB		Bore: 63 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-KL-63-20-CB		Bore: 63 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KL-63-20-FA		Bore: 63 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/4
SSD2-KL-63-20-FB		Bore: 63 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/4
SSD2-KL-63-25		Bore: 63 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/4
SSD2-KL-63-25-LB		Bore: 63 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-KL-63-25-CB		Bore: 63 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KL-63-25-FA		Bore: 63 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/4
SSD2-KL-63-25-FB		Bore: 63 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/4
SSD2-KL-63-30		Bore: 63 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/4
SSD2-KL-63-30-LB		Bore: 63 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-KL-63-30-CB		Bore: 63 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KL-63-30-FA		Bore: 63 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/4
SSD2-KL-63-30-FB		Bore: 63 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/4
SSD2-KL-63-35		Bore: 63 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/4
SSD2-KL-63-35-LB		Bore: 63 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-KL-63-35-CB		Bore: 63 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KL-63-35-FA		Bore: 63 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/4
SSD2-KL-63-35-FB		Bore: 63 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/4
SSD2-KL-63-40		Bore: 63 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/4
SSD2-KL-63-40-LB		Bore: 63 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-KL-63-40-CB		Bore: 63 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KL-63-40-FA		Bore: 63 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/4
SSD2-KL-63-40-FB		Bore: 63 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/4
SSD2-KL-63-45		Bore: 63 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/4
SSD2-KL-63-45-LB		Bore: 63 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-KL-63-45-CB		Bore: 63 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KL-63-45-FA		Bore: 63 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/4
SSD2-KL-63-45-FB		Bore: 63 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/4
SSD2-KL-63-50		Bore: 63 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/4
SSD2-KL-63-50-LB		Bore: 63 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-KL-63-50-CB		Bore: 63 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KL-63-50-FA		Bore: 63 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/4
SSD2-KL-63-50-FB		Bore: 63 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/4
SSD2-KL-63-75		Bore: 63 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/4
SSD2-KL-63-75-LB		Bore: 63 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-KL-63-75-CB		Bore: 63 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KL-63-75-FA		Bore: 63 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/4
SSD2-KL-63-75-FB		Bore: 63 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/4
SSD2-KL-63-100		Bore: 63 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/4
SSD2-KL-63-100-LB		Bore: 63 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-KL-63-100-CB		Bore: 63 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KL-63-100-FA		Bore: 63 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/4
SSD2-KL-63-100-FB		Bore: 63 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/4
SSD2-KL-80-10		Bore: 80 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc3/8
SSD2-KL-80-10-LB		Bore: 80 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-KL-80-10-CB		Bore: 80 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KL-80-10-FA		Bore: 80 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc3/8
SSD2-KL-80-10-FB		Bore: 80 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc3/8
SSD2-KL-80-15		Bore: 80 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc3/8
SSD2-KL-80-15-LB		Bore: 80 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-KL-80-15-CB		Bore: 80 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KL-80-15-FA		Bore: 80 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc3/8
SSD2-KL-80-15-FB		Bore: 80 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc3/8
SSD2-KL-80-20		Bore: 80 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc3/8
SSD2-KL-80-20-LB		Bore: 80 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-KL-80-20-CB		Bore: 80 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KL-80-20-FA		Bore: 80 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc3/8
SSD2-KL-80-20-FB		Bore: 80 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc3/8
SSD2-KL-80-25		Bore: 80 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc3/8
SSD2-KL-80-25-LB		Bore: 80 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-KL-80-25-CB		Bore: 80 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KL-80-25-FA		Bore: 80 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc3/8
SSD2-KL-80-25-FB		Bore: 80 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc3/8
SSD2-KL-80-30		Bore: 80 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc3/8
SSD2-KL-80-30-LB		Bore: 80 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-KL-80-30-CB		Bore: 80 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KL-80-30-FA		Bore: 80 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc3/8
SSD2-KL-80-30-FB		Bore: 80 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc3/8
SSD2-KL-80-35		Bore: 80 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc3/8
SSD2-KL-80-35-LB		Bore: 80 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-KL-80-35-CB		Bore: 80 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KL-80-35-FA		Bore: 80 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc3/8
SSD2-KL-80-35-FB		Bore: 80 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc3/8
SSD2-KL-80-40		Bore: 80 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc3/8
SSD2-KL-80-40-LB		Bore: 80 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-KL-80-40-CB		Bore: 80 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KL-80-40-FA		Bore: 80 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc3/8
SSD2-KL-80-40-FB		Bore: 80 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc3/8
SSD2-KL-80-45		Bore: 80 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc3/8
SSD2-KL-80-45-LB		Bore: 80 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-KL-80-45-CB		Bore: 80 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KL-80-45-FA		Bore: 80 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc3/8
SSD2-KL-80-45-FB		Bore: 80 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc3/8
SSD2-KL-80-50		Bore: 80 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc3/8
SSD2-KL-80-50-LB		Bore: 80 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-KL-80-50-CB		Bore: 80 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KL-80-50-FA		Bore: 80 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc3/8
SSD2-KL-80-50-FB		Bore: 80 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc3/8
SSD2-KL-80-75		Bore: 80 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc3/8
SSD2-KL-80-75-LB		Bore: 80 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-KL-80-75-CB		Bore: 80 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KL-80-75-FA		Bore: 80 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc3/8
SSD2-KL-80-75-FB		Bore: 80 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc3/8
SSD2-KL-80-100		Bore: 80 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc3/8
SSD2-KL-80-100-LB		Bore: 80 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-KL-80-100-CB		Bore: 80 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KL-80-100-FA		Bore: 80 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc3/8
SSD2-KL-80-100-FB		Bore: 80 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc3/8
SSD2-KL-100-10		Bore: 100 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc3/8
SSD2-KL-100-10-LB		Bore: 100 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-KL-100-10-CB		Bore: 100 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KL-100-10-FA		Bore: 100 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc3/8
SSD2-KL-100-10-FB		Bore: 100 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc3/8
SSD2-KL-100-15		Bore: 100 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc3/8
SSD2-KL-100-15-LB		Bore: 100 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-KL-100-15-CB		Bore: 100 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KL-100-15-FA		Bore: 100 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc3/8
SSD2-KL-100-15-FB		Bore: 100 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc3/8
SSD2-KL-100-20		Bore: 100 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc3/8
SSD2-KL-100-20-LB		Bore: 100 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-KL-100-20-CB		Bore: 100 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KL-100-20-FA		Bore: 100 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc3/8
SSD2-KL-100-20-FB		Bore: 100 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc3/8
SSD2-KL-100-25		Bore: 100 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc3/8
SSD2-KL-100-25-LB		Bore: 100 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-KL-100-25-CB		Bore: 100 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KL-100-25-FA		Bore: 100 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc3/8
SSD2-KL-100-25-FB		Bore: 100 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc3/8
SSD2-KL-100-30		Bore: 100 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc3/8
SSD2-KL-100-30-LB		Bore: 100 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-KL-100-30-CB		Bore: 100 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KL-100-30-FA		Bore: 100 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc3/8
SSD2-KL-100-30-FB		Bore: 100 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc3/8
SSD2-KL-100-35		Bore: 100 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc3/8
SSD2-KL-100-35-LB		Bore: 100 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-KL-100-35-CB		Bore: 100 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KL-100-35-FA		Bore: 100 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc3/8
SSD2-KL-100-35-FB		Bore: 100 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc3/8
SSD2-KL-100-40		Bore: 100 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc3/8
SSD2-KL-100-40-LB		Bore: 100 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-KL-100-40-CB		Bore: 100 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KL-100-40-FA		Bore: 100 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc3/8
SSD2-KL-100-40-FB		Bore: 100 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc3/8
SSD2-KL-100-45		Bore: 100 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc3/8
SSD2-KL-100-45-LB		Bore: 100 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-KL-100-45-CB		Bore: 100 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KL-100-45-FA		Bore: 100 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc3/8
SSD2-KL-100-45-FB		Bore: 100 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc3/8
SSD2-KL-100-50		Bore: 100 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc3/8
SSD2-KL-100-50-LB		Bore: 100 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-KL-100-50-CB		Bore: 100 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KL-100-50-FA		Bore: 100 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc3/8
SSD2-KL-100-50-FB		Bore: 100 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc3/8
SSD2-KL-100-75		Bore: 100 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc3/8
SSD2-KL-100-75-LB		Bore: 100 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-KL-100-75-CB		Bore: 100 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KL-100-75-FA		Bore: 100 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc3/8
SSD2-KL-100-75-FB		Bore: 100 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc3/8
SSD2-KL-100-100		Bore: 100 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc3/8
SSD2-KL-100-100-LB		Bore: 100 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-KL-100-100-CB		Bore: 100 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KL-100-100-FA		Bore: 100 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc3/8
SSD2-KL-100-100-FB		Bore: 100 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc3/8

Compact CylindersCKD

999 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD SSD2-K Super Compact Cylinder (High Load, Bore 12-100)

Brand CKD·Compact Cylinders

Available part numbers (999)

SSD2-K-12-5, SSD2-K-12-5-LB, SSD2-K-12-5-CB, SSD2-K-12-5-FA, SSD2-K-12-5-FB, SSD2-K-12-10, SSD2-K-12-10-LB, SSD2-K-12-10-CB, SSD2-K-12-10-FA, SSD2-K-12-10-FB + 989 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	SSD2-K-12-5	Bore: 12 mm \| Stroke: 5 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
	SSD2-K-12-5-LB	Bore: 12 mm \| Stroke: 5 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-K-12-5-CB	Bore: 12 mm \| Stroke: 5 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-K-12-5-FA	Bore: 12 mm \| Stroke: 5 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-K-12-5-FB	Bore: 12 mm \| Stroke: 5 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
	SSD2-K-12-10	Bore: 12 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
	SSD2-K-12-10-LB	Bore: 12 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-K-12-10-CB	Bore: 12 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-K-12-10-FA	Bore: 12 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-K-12-10-FB	Bore: 12 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
	SSD2-K-12-15	Bore: 12 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
	SSD2-K-12-15-LB	Bore: 12 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-K-12-15-CB	Bore: 12 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-K-12-15-FA	Bore: 12 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-K-12-15-FB	Bore: 12 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
	SSD2-K-12-20	Bore: 12 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
	SSD2-K-12-20-LB	Bore: 12 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-K-12-20-CB	Bore: 12 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-K-12-20-FA	Bore: 12 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-K-12-20-FB	Bore: 12 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
	SSD2-K-12-25	Bore: 12 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
	SSD2-K-12-25-LB	Bore: 12 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-K-12-25-CB	Bore: 12 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-K-12-25-FA	Bore: 12 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-K-12-25-FB	Bore: 12 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
	SSD2-K-12-30	Bore: 12 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
	SSD2-K-12-30-LB	Bore: 12 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-K-12-30-CB	Bore: 12 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-K-12-30-FA	Bore: 12 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-K-12-30-FB	Bore: 12 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
	SSD2-K-16-5	Bore: 16 mm \| Stroke: 5 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
	SSD2-K-16-5-LB	Bore: 16 mm \| Stroke: 5 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-K-16-5-CB	Bore: 16 mm \| Stroke: 5 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-K-16-5-FA	Bore: 16 mm \| Stroke: 5 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-K-16-5-FB	Bore: 16 mm \| Stroke: 5 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
	SSD2-K-16-10	Bore: 16 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
	SSD2-K-16-10-LB	Bore: 16 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-K-16-10-CB	Bore: 16 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-K-16-10-FA	Bore: 16 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-K-16-10-FB	Bore: 16 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
	SSD2-K-16-15	Bore: 16 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
	SSD2-K-16-15-LB	Bore: 16 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-K-16-15-CB	Bore: 16 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-K-16-15-FA	Bore: 16 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-K-16-15-FB	Bore: 16 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
	SSD2-K-16-20	Bore: 16 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
	SSD2-K-16-20-LB	Bore: 16 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-K-16-20-CB	Bore: 16 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-K-16-20-FA	Bore: 16 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-K-16-20-FB	Bore: 16 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
	SSD2-K-16-25	Bore: 16 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
	SSD2-K-16-25-LB	Bore: 16 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-K-16-25-CB	Bore: 16 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-K-16-25-FA	Bore: 16 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-K-16-25-FB	Bore: 16 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
	SSD2-K-16-30	Bore: 16 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
	SSD2-K-16-30-LB	Bore: 16 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-K-16-30-CB	Bore: 16 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-K-16-30-FA	Bore: 16 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-K-16-30-FB	Bore: 16 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
	SSD2-K-20-5	Bore: 20 mm \| Stroke: 5 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
	SSD2-K-20-5-LB	Bore: 20 mm \| Stroke: 5 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-K-20-5-CB	Bore: 20 mm \| Stroke: 5 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-K-20-5-FA	Bore: 20 mm \| Stroke: 5 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-K-20-5-FB	Bore: 20 mm \| Stroke: 5 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
	SSD2-K-20-10	Bore: 20 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
	SSD2-K-20-10-LB	Bore: 20 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-K-20-10-CB	Bore: 20 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-K-20-10-FA	Bore: 20 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-K-20-10-FB	Bore: 20 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
	SSD2-K-20-15	Bore: 20 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
	SSD2-K-20-15-LB	Bore: 20 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-K-20-15-CB	Bore: 20 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-K-20-15-FA	Bore: 20 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-K-20-15-FB	Bore: 20 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
	SSD2-K-20-20	Bore: 20 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
	SSD2-K-20-20-LB	Bore: 20 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-K-20-20-CB	Bore: 20 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-K-20-20-FA	Bore: 20 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-K-20-20-FB	Bore: 20 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
	SSD2-K-20-25	Bore: 20 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
	SSD2-K-20-25-LB	Bore: 20 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-K-20-25-CB	Bore: 20 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-K-20-25-FA	Bore: 20 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-K-20-25-FB	Bore: 20 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
	SSD2-K-20-30	Bore: 20 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
	SSD2-K-20-30-LB	Bore: 20 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-K-20-30-CB	Bore: 20 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-K-20-30-FA	Bore: 20 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-K-20-30-FB	Bore: 20 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
	SSD2-K-20-35	Bore: 20 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
	SSD2-K-20-35-LB	Bore: 20 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-K-20-35-CB	Bore: 20 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-K-20-35-FA	Bore: 20 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-K-20-35-FB	Bore: 20 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
	SSD2-K-20-40	Bore: 20 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
	SSD2-K-20-40-LB	Bore: 20 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-K-20-40-CB	Bore: 20 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-K-20-40-FA	Bore: 20 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-K-20-40-FB	Bore: 20 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
	SSD2-K-20-45	Bore: 20 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
	SSD2-K-20-45-LB	Bore: 20 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-K-20-45-CB	Bore: 20 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-K-20-45-FA	Bore: 20 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-K-20-45-FB	Bore: 20 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
	SSD2-K-20-50	Bore: 20 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
	SSD2-K-20-50-LB	Bore: 20 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-K-20-50-CB	Bore: 20 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-K-20-50-FA	Bore: 20 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-K-20-50-FB	Bore: 20 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
	SSD2-K-25-5	Bore: 25 mm \| Stroke: 5 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
	SSD2-K-25-5-LB	Bore: 25 mm \| Stroke: 5 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-K-25-5-CB	Bore: 25 mm \| Stroke: 5 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-K-25-5-FA	Bore: 25 mm \| Stroke: 5 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-K-25-5-FB	Bore: 25 mm \| Stroke: 5 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
	SSD2-K-25-10	Bore: 25 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
	SSD2-K-25-10-LB	Bore: 25 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-K-25-10-CB	Bore: 25 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-K-25-10-FA	Bore: 25 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-K-25-10-FB	Bore: 25 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
	SSD2-K-25-15	Bore: 25 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
	SSD2-K-25-15-LB	Bore: 25 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-K-25-15-CB	Bore: 25 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-K-25-15-FA	Bore: 25 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-K-25-15-FB	Bore: 25 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
	SSD2-K-25-20	Bore: 25 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
	SSD2-K-25-20-LB	Bore: 25 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-K-25-20-CB	Bore: 25 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-K-25-20-FA	Bore: 25 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-K-25-20-FB	Bore: 25 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
	SSD2-K-25-25	Bore: 25 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
	SSD2-K-25-25-LB	Bore: 25 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-K-25-25-CB	Bore: 25 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-K-25-25-FA	Bore: 25 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-K-25-25-FB	Bore: 25 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
	SSD2-K-25-30	Bore: 25 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
	SSD2-K-25-30-LB	Bore: 25 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-K-25-30-CB	Bore: 25 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-K-25-30-FA	Bore: 25 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-K-25-30-FB	Bore: 25 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
	SSD2-K-25-35	Bore: 25 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
	SSD2-K-25-35-LB	Bore: 25 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-K-25-35-CB	Bore: 25 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-K-25-35-FA	Bore: 25 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-K-25-35-FB	Bore: 25 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
	SSD2-K-25-40	Bore: 25 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
	SSD2-K-25-40-LB	Bore: 25 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-K-25-40-CB	Bore: 25 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-K-25-40-FA	Bore: 25 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-K-25-40-FB	Bore: 25 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
	SSD2-K-25-45	Bore: 25 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
	SSD2-K-25-45-LB	Bore: 25 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-K-25-45-CB	Bore: 25 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-K-25-45-FA	Bore: 25 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-K-25-45-FB	Bore: 25 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
	SSD2-K-25-50	Bore: 25 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
	SSD2-K-25-50-LB	Bore: 25 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-K-25-50-CB	Bore: 25 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-K-25-50-FA	Bore: 25 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-K-25-50-FB	Bore: 25 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
	SSD2-K-32-5	Bore: 32 mm \| Stroke: 5 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-K-32-5-LB	Bore: 32 mm \| Stroke: 5 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-K-32-5-CB	Bore: 32 mm \| Stroke: 5 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-K-32-5-FA	Bore: 32 mm \| Stroke: 5 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-K-32-5-FB	Bore: 32 mm \| Stroke: 5 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-K-32-10	Bore: 32 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-K-32-10-LB	Bore: 32 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-K-32-10-CB	Bore: 32 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-K-32-10-FA	Bore: 32 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-K-32-10-FB	Bore: 32 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-K-32-15	Bore: 32 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-K-32-15-LB	Bore: 32 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-K-32-15-CB	Bore: 32 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-K-32-15-FA	Bore: 32 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-K-32-15-FB	Bore: 32 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-K-32-20	Bore: 32 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-K-32-20-LB	Bore: 32 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-K-32-20-CB	Bore: 32 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-K-32-20-FA	Bore: 32 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-K-32-20-FB	Bore: 32 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-K-32-25	Bore: 32 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-K-32-25-LB	Bore: 32 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-K-32-25-CB	Bore: 32 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-K-32-25-FA	Bore: 32 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-K-32-25-FB	Bore: 32 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-K-32-30	Bore: 32 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-K-32-30-LB	Bore: 32 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-K-32-30-CB	Bore: 32 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-K-32-30-FA	Bore: 32 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-K-32-30-FB	Bore: 32 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-K-32-35	Bore: 32 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-K-32-35-LB	Bore: 32 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-K-32-35-CB	Bore: 32 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-K-32-35-FA	Bore: 32 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-K-32-35-FB	Bore: 32 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-K-32-40	Bore: 32 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-K-32-40-LB	Bore: 32 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-K-32-40-CB	Bore: 32 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-K-32-40-FA	Bore: 32 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-K-32-40-FB	Bore: 32 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-K-32-45	Bore: 32 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-K-32-45-LB	Bore: 32 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-K-32-45-CB	Bore: 32 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-K-32-45-FA	Bore: 32 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-K-32-45-FB	Bore: 32 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-K-32-50	Bore: 32 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-K-32-50-LB	Bore: 32 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-K-32-50-CB	Bore: 32 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-K-32-50-FA	Bore: 32 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-K-32-50-FB	Bore: 32 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-K-32-75	Bore: 32 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-K-32-75-LB	Bore: 32 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-K-32-75-CB	Bore: 32 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-K-32-75-FA	Bore: 32 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-K-32-75-FB	Bore: 32 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-K-32-100	Bore: 32 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-K-32-100-LB	Bore: 32 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-K-32-100-CB	Bore: 32 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-K-32-100-FA	Bore: 32 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-K-32-100-FB	Bore: 32 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-K-40-5	Bore: 40 mm \| Stroke: 5 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-K-40-5-LB	Bore: 40 mm \| Stroke: 5 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-K-40-5-CB	Bore: 40 mm \| Stroke: 5 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-K-40-5-FA	Bore: 40 mm \| Stroke: 5 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-K-40-5-FB	Bore: 40 mm \| Stroke: 5 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-K-40-10	Bore: 40 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-K-40-10-LB	Bore: 40 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-K-40-10-CB	Bore: 40 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-K-40-10-FA	Bore: 40 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-K-40-10-FB	Bore: 40 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-K-40-15	Bore: 40 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-K-40-15-LB	Bore: 40 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-K-40-15-CB	Bore: 40 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-K-40-15-FA	Bore: 40 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-K-40-15-FB	Bore: 40 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-K-40-20	Bore: 40 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-K-40-20-LB	Bore: 40 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-K-40-20-CB	Bore: 40 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-K-40-20-FA	Bore: 40 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-K-40-20-FB	Bore: 40 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-K-40-25	Bore: 40 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-K-40-25-LB	Bore: 40 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-K-40-25-CB	Bore: 40 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-K-40-25-FA	Bore: 40 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-K-40-25-FB	Bore: 40 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-K-40-30	Bore: 40 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-K-40-30-LB	Bore: 40 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-K-40-30-CB	Bore: 40 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-K-40-30-FA	Bore: 40 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-K-40-30-FB	Bore: 40 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-K-40-35	Bore: 40 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-K-40-35-LB	Bore: 40 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-K-40-35-CB	Bore: 40 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-K-40-35-FA	Bore: 40 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-K-40-35-FB	Bore: 40 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-K-40-40	Bore: 40 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-K-40-40-LB	Bore: 40 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-K-40-40-CB	Bore: 40 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-K-40-40-FA	Bore: 40 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-K-40-40-FB	Bore: 40 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-K-40-45	Bore: 40 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-K-40-45-LB	Bore: 40 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-K-40-45-CB	Bore: 40 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-K-40-45-FA	Bore: 40 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-K-40-45-FB	Bore: 40 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-K-40-50	Bore: 40 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-K-40-50-LB	Bore: 40 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-K-40-50-CB	Bore: 40 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-K-40-50-FA	Bore: 40 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-K-40-50-FB	Bore: 40 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-K-40-75	Bore: 40 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-K-40-75-LB	Bore: 40 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-K-40-75-CB	Bore: 40 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-K-40-75-FA	Bore: 40 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-K-40-75-FB	Bore: 40 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-K-40-100	Bore: 40 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-K-40-100-LB	Bore: 40 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-K-40-100-CB	Bore: 40 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-K-40-100-FA	Bore: 40 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-K-40-100-FB	Bore: 40 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-K-50-10	Bore: 50 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/4
	SSD2-K-50-10-LB	Bore: 50 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-K-50-10-CB	Bore: 50 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-K-50-10-FA	Bore: 50 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/4
	SSD2-K-50-10-FB	Bore: 50 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/4
	SSD2-K-50-15	Bore: 50 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/4
	SSD2-K-50-15-LB	Bore: 50 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-K-50-15-CB	Bore: 50 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-K-50-15-FA	Bore: 50 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/4
	SSD2-K-50-15-FB	Bore: 50 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/4
	SSD2-K-50-20	Bore: 50 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/4
	SSD2-K-50-20-LB	Bore: 50 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-K-50-20-CB	Bore: 50 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-K-50-20-FA	Bore: 50 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/4
	SSD2-K-50-20-FB	Bore: 50 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/4
	SSD2-K-50-25	Bore: 50 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/4
	SSD2-K-50-25-LB	Bore: 50 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-K-50-25-CB	Bore: 50 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-K-50-25-FA	Bore: 50 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/4
	SSD2-K-50-25-FB	Bore: 50 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/4
	SSD2-K-50-30	Bore: 50 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/4
	SSD2-K-50-30-LB	Bore: 50 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-K-50-30-CB	Bore: 50 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-K-50-30-FA	Bore: 50 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/4
	SSD2-K-50-30-FB	Bore: 50 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/4
	SSD2-K-50-35	Bore: 50 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/4
	SSD2-K-50-35-LB	Bore: 50 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-K-50-35-CB	Bore: 50 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-K-50-35-FA	Bore: 50 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/4
	SSD2-K-50-35-FB	Bore: 50 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/4
	SSD2-K-50-40	Bore: 50 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/4
	SSD2-K-50-40-LB	Bore: 50 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-K-50-40-CB	Bore: 50 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-K-50-40-FA	Bore: 50 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/4
	SSD2-K-50-40-FB	Bore: 50 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/4
	SSD2-K-50-45	Bore: 50 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/4
	SSD2-K-50-45-LB	Bore: 50 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-K-50-45-CB	Bore: 50 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-K-50-45-FA	Bore: 50 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/4
	SSD2-K-50-45-FB	Bore: 50 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/4
	SSD2-K-50-50	Bore: 50 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/4
	SSD2-K-50-50-LB	Bore: 50 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-K-50-50-CB	Bore: 50 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-K-50-50-FA	Bore: 50 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/4
	SSD2-K-50-50-FB	Bore: 50 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/4
	SSD2-K-50-75	Bore: 50 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/4
	SSD2-K-50-75-LB	Bore: 50 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-K-50-75-CB	Bore: 50 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-K-50-75-FA	Bore: 50 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/4
	SSD2-K-50-75-FB	Bore: 50 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/4
	SSD2-K-50-100	Bore: 50 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/4
	SSD2-K-50-100-LB	Bore: 50 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-K-50-100-CB	Bore: 50 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-K-50-100-FA	Bore: 50 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/4
	SSD2-K-50-100-FB	Bore: 50 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/4
	SSD2-K-63-10	Bore: 63 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/4
	SSD2-K-63-10-LB	Bore: 63 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-K-63-10-CB	Bore: 63 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-K-63-10-FA	Bore: 63 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/4
	SSD2-K-63-10-FB	Bore: 63 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/4
	SSD2-K-63-15	Bore: 63 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/4
	SSD2-K-63-15-LB	Bore: 63 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-K-63-15-CB	Bore: 63 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-K-63-15-FA	Bore: 63 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/4
	SSD2-K-63-15-FB	Bore: 63 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/4
	SSD2-K-63-20	Bore: 63 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/4
	SSD2-K-63-20-LB	Bore: 63 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-K-63-20-CB	Bore: 63 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-K-63-20-FA	Bore: 63 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/4
	SSD2-K-63-20-FB	Bore: 63 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/4
	SSD2-K-63-25	Bore: 63 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/4
	SSD2-K-63-25-LB	Bore: 63 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-K-63-25-CB	Bore: 63 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-K-63-25-FA	Bore: 63 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/4
	SSD2-K-63-25-FB	Bore: 63 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/4
	SSD2-K-63-30	Bore: 63 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/4
	SSD2-K-63-30-LB	Bore: 63 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-K-63-30-CB	Bore: 63 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-K-63-30-FA	Bore: 63 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/4
	SSD2-K-63-30-FB	Bore: 63 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/4
	SSD2-K-63-35	Bore: 63 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/4
	SSD2-K-63-35-LB	Bore: 63 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-K-63-35-CB	Bore: 63 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-K-63-35-FA	Bore: 63 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/4
	SSD2-K-63-35-FB	Bore: 63 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/4
	SSD2-K-63-40	Bore: 63 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/4
	SSD2-K-63-40-LB	Bore: 63 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-K-63-40-CB	Bore: 63 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-K-63-40-FA	Bore: 63 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/4
	SSD2-K-63-40-FB	Bore: 63 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/4
	SSD2-K-63-45	Bore: 63 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/4
	SSD2-K-63-45-LB	Bore: 63 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-K-63-45-CB	Bore: 63 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-K-63-45-FA	Bore: 63 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/4
	SSD2-K-63-45-FB	Bore: 63 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/4
	SSD2-K-63-50	Bore: 63 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/4
	SSD2-K-63-50-LB	Bore: 63 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-K-63-50-CB	Bore: 63 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-K-63-50-FA	Bore: 63 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/4
	SSD2-K-63-50-FB	Bore: 63 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/4
	SSD2-K-63-75	Bore: 63 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/4
	SSD2-K-63-75-LB	Bore: 63 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-K-63-75-CB	Bore: 63 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-K-63-75-FA	Bore: 63 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/4
	SSD2-K-63-75-FB	Bore: 63 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/4
	SSD2-K-63-100	Bore: 63 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/4
	SSD2-K-63-100-LB	Bore: 63 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-K-63-100-CB	Bore: 63 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-K-63-100-FA	Bore: 63 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/4
	SSD2-K-63-100-FB	Bore: 63 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/4
	SSD2-K-80-10	Bore: 80 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc3/8
	SSD2-K-80-10-LB	Bore: 80 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-K-80-10-CB	Bore: 80 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-K-80-10-FA	Bore: 80 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc3/8
	SSD2-K-80-10-FB	Bore: 80 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc3/8
	SSD2-K-80-15	Bore: 80 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc3/8
	SSD2-K-80-15-CB	Bore: 80 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-K-80-15-FA	Bore: 80 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc3/8
	SSD2-K-80-15-FB	Bore: 80 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc3/8
	SSD2-K-80-20	Bore: 80 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc3/8
	SSD2-K-80-20-LB	Bore: 80 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-K-80-20-CB	Bore: 80 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-K-80-20-FA	Bore: 80 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc3/8
	SSD2-K-80-20-FB	Bore: 80 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc3/8
	SSD2-K-80-25	Bore: 80 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc3/8
	SSD2-K-80-25-LB	Bore: 80 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-K-80-25-CB	Bore: 80 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-K-80-25-FA	Bore: 80 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc3/8
	SSD2-K-80-25-FB	Bore: 80 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc3/8
	SSD2-K-80-30	Bore: 80 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc3/8
	SSD2-K-80-30-LB	Bore: 80 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-K-80-30-CB	Bore: 80 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-K-80-30-FA	Bore: 80 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc3/8
	SSD2-K-80-30-FB	Bore: 80 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc3/8
	SSD2-K-80-35	Bore: 80 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc3/8
	SSD2-K-80-35-LB	Bore: 80 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-K-80-35-CB	Bore: 80 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-K-80-35-FA	Bore: 80 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc3/8
	SSD2-K-80-35-FB	Bore: 80 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc3/8
	SSD2-K-80-40	Bore: 80 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc3/8
	SSD2-K-80-40-LB	Bore: 80 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-K-80-40-CB	Bore: 80 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-K-80-40-FA	Bore: 80 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc3/8
	SSD2-K-80-40-FB	Bore: 80 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc3/8
	SSD2-K-80-45	Bore: 80 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc3/8
	SSD2-K-80-45-LB	Bore: 80 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-K-80-45-CB	Bore: 80 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-K-80-45-FA	Bore: 80 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc3/8
	SSD2-K-80-45-FB	Bore: 80 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc3/8
	SSD2-K-80-50	Bore: 80 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc3/8
	SSD2-K-80-50-LB	Bore: 80 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-K-80-50-CB	Bore: 80 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-K-80-50-FA	Bore: 80 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc3/8
	SSD2-K-80-50-FB	Bore: 80 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc3/8
	SSD2-K-80-75	Bore: 80 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc3/8
	SSD2-K-80-75-LB	Bore: 80 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-K-80-75-CB	Bore: 80 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-K-80-75-FA	Bore: 80 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc3/8
	SSD2-K-80-75-FB	Bore: 80 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc3/8
	SSD2-K-80-100	Bore: 80 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc3/8
	SSD2-K-80-100-LB	Bore: 80 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-K-80-100-CB	Bore: 80 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-K-80-100-FA	Bore: 80 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc3/8
	SSD2-K-80-100-FB	Bore: 80 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc3/8
	SSD2-K-100-10	Bore: 100 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc3/8
	SSD2-K-100-10-LB	Bore: 100 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-K-100-10-CB	Bore: 100 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-K-100-10-FA	Bore: 100 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc3/8
	SSD2-K-100-10-FB	Bore: 100 mm \| Stroke: 10 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc3/8
	SSD2-K-100-15	Bore: 100 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc3/8
	SSD2-K-100-15-LB	Bore: 100 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-K-100-15-CB	Bore: 100 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-K-100-15-FA	Bore: 100 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc3/8
	SSD2-K-100-15-FB	Bore: 100 mm \| Stroke: 15 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc3/8
	SSD2-K-100-20	Bore: 100 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc3/8
	SSD2-K-100-20-LB	Bore: 100 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-K-100-20-CB	Bore: 100 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-K-100-20-FA	Bore: 100 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc3/8
	SSD2-K-100-20-FB	Bore: 100 mm \| Stroke: 20 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc3/8
	SSD2-K-100-25	Bore: 100 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc3/8
	SSD2-K-100-25-LB	Bore: 100 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-K-100-25-CB	Bore: 100 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-K-100-25-FA	Bore: 100 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc3/8
	SSD2-K-100-25-FB	Bore: 100 mm \| Stroke: 25 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc3/8
	SSD2-K-100-30	Bore: 100 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc3/8
	SSD2-K-100-30-LB	Bore: 100 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-K-100-30-CB	Bore: 100 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-K-100-30-FA	Bore: 100 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc3/8
	SSD2-K-100-30-FB	Bore: 100 mm \| Stroke: 30 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc3/8
	SSD2-K-100-35	Bore: 100 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc3/8
	SSD2-K-100-35-LB	Bore: 100 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-K-100-35-CB	Bore: 100 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-K-100-35-FA	Bore: 100 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc3/8
	SSD2-K-100-35-FB	Bore: 100 mm \| Stroke: 35 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc3/8
	SSD2-K-100-40	Bore: 100 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc3/8
	SSD2-K-100-40-LB	Bore: 100 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-K-100-40-CB	Bore: 100 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-K-100-40-FA	Bore: 100 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc3/8
	SSD2-K-100-40-FB	Bore: 100 mm \| Stroke: 40 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc3/8
	SSD2-K-100-45	Bore: 100 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc3/8
	SSD2-K-100-45-LB	Bore: 100 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-K-100-45-CB	Bore: 100 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-K-100-45-FA	Bore: 100 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc3/8
	SSD2-K-100-45-FB	Bore: 100 mm \| Stroke: 45 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc3/8
	SSD2-K-100-50	Bore: 100 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc3/8
	SSD2-K-100-50-LB	Bore: 100 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-K-100-50-CB	Bore: 100 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-K-100-50-FA	Bore: 100 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc3/8
	SSD2-K-100-50-FB	Bore: 100 mm \| Stroke: 50 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc3/8
	SSD2-K-100-75	Bore: 100 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc3/8
	SSD2-K-100-75-LB	Bore: 100 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-K-100-75-CB	Bore: 100 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-K-100-75-FA	Bore: 100 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc3/8
	SSD2-K-100-75-FB	Bore: 100 mm \| Stroke: 75 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc3/8
	SSD2-K-100-100	Bore: 100 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc3/8
	SSD2-K-100-100-LB	Bore: 100 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-K-100-100-CB	Bore: 100 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-K-100-100-FA	Bore: 100 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc3/8
	SSD2-K-100-100-FB	Bore: 100 mm \| Stroke: 100 mm \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc3/8
	SSD2-KL-12-5	Bore: 12 mm \| Stroke: 5 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: M5
	SSD2-KL-12-5-LB	Bore: 12 mm \| Stroke: 5 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-KL-12-5-CB	Bore: 12 mm \| Stroke: 5 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KL-12-5-FA	Bore: 12 mm \| Stroke: 5 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-KL-12-5-FB	Bore: 12 mm \| Stroke: 5 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: M5
	SSD2-KL-12-10	Bore: 12 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: M5
	SSD2-KL-12-10-LB	Bore: 12 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-KL-12-10-CB	Bore: 12 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KL-12-10-FA	Bore: 12 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-KL-12-10-FB	Bore: 12 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: M5
	SSD2-KL-12-15	Bore: 12 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: M5
	SSD2-KL-12-15-LB	Bore: 12 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-KL-12-15-CB	Bore: 12 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KL-12-15-FA	Bore: 12 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-KL-12-15-FB	Bore: 12 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: M5
	SSD2-KL-12-20	Bore: 12 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: M5
	SSD2-KL-12-20-LB	Bore: 12 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-KL-12-20-CB	Bore: 12 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KL-12-20-FA	Bore: 12 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-KL-12-20-FB	Bore: 12 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: M5
	SSD2-KL-12-25	Bore: 12 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: M5
	SSD2-KL-12-25-LB	Bore: 12 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-KL-12-25-CB	Bore: 12 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KL-12-25-FA	Bore: 12 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-KL-12-25-FB	Bore: 12 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: M5
	SSD2-KL-12-30	Bore: 12 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: M5
	SSD2-KL-12-30-LB	Bore: 12 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-KL-12-30-CB	Bore: 12 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KL-12-30-FA	Bore: 12 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-KL-12-30-FB	Bore: 12 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: M5
	SSD2-KL-16-5	Bore: 16 mm \| Stroke: 5 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: M5
	SSD2-KL-16-5-LB	Bore: 16 mm \| Stroke: 5 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-KL-16-5-CB	Bore: 16 mm \| Stroke: 5 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KL-16-5-FA	Bore: 16 mm \| Stroke: 5 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-KL-16-5-FB	Bore: 16 mm \| Stroke: 5 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: M5
	SSD2-KL-16-10	Bore: 16 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: M5
	SSD2-KL-16-10-LB	Bore: 16 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-KL-16-10-CB	Bore: 16 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KL-16-10-FA	Bore: 16 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-KL-16-10-FB	Bore: 16 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: M5
	SSD2-KL-16-15	Bore: 16 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: M5
	SSD2-KL-16-15-LB	Bore: 16 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-KL-16-15-CB	Bore: 16 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KL-16-15-FA	Bore: 16 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-KL-16-15-FB	Bore: 16 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: M5
	SSD2-KL-16-20	Bore: 16 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: M5
	SSD2-KL-16-20-LB	Bore: 16 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-KL-16-20-CB	Bore: 16 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KL-16-20-FA	Bore: 16 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-KL-16-20-FB	Bore: 16 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: M5
	SSD2-KL-16-25	Bore: 16 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: M5
	SSD2-KL-16-25-LB	Bore: 16 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-KL-16-25-CB	Bore: 16 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KL-16-25-FA	Bore: 16 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-KL-16-25-FB	Bore: 16 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: M5
	SSD2-KL-16-30	Bore: 16 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: M5
	SSD2-KL-16-30-LB	Bore: 16 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-KL-16-30-CB	Bore: 16 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KL-16-30-FA	Bore: 16 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-KL-16-30-FB	Bore: 16 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: M5
	SSD2-KL-20-5	Bore: 20 mm \| Stroke: 5 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: M5
	SSD2-KL-20-5-LB	Bore: 20 mm \| Stroke: 5 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-KL-20-5-CB	Bore: 20 mm \| Stroke: 5 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KL-20-5-FA	Bore: 20 mm \| Stroke: 5 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-KL-20-5-FB	Bore: 20 mm \| Stroke: 5 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: M5
	SSD2-KL-20-10	Bore: 20 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: M5
	SSD2-KL-20-10-LB	Bore: 20 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-KL-20-10-CB	Bore: 20 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KL-20-10-FA	Bore: 20 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-KL-20-10-FB	Bore: 20 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: M5
	SSD2-KL-20-15	Bore: 20 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: M5
	SSD2-KL-20-15-LB	Bore: 20 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-KL-20-15-CB	Bore: 20 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KL-20-15-FA	Bore: 20 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-KL-20-15-FB	Bore: 20 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: M5
	SSD2-KL-20-20	Bore: 20 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: M5
	SSD2-KL-20-20-LB	Bore: 20 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-KL-20-20-CB	Bore: 20 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KL-20-20-FA	Bore: 20 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-KL-20-20-FB	Bore: 20 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: M5
	SSD2-KL-20-25	Bore: 20 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: M5
	SSD2-KL-20-25-LB	Bore: 20 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-KL-20-25-CB	Bore: 20 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KL-20-25-FA	Bore: 20 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-KL-20-25-FB	Bore: 20 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: M5
	SSD2-KL-20-30	Bore: 20 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: M5
	SSD2-KL-20-30-LB	Bore: 20 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-KL-20-30-CB	Bore: 20 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KL-20-30-FA	Bore: 20 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-KL-20-30-FB	Bore: 20 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: M5
	SSD2-KL-20-35	Bore: 20 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: M5
	SSD2-KL-20-35-LB	Bore: 20 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-KL-20-35-CB	Bore: 20 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KL-20-35-FA	Bore: 20 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-KL-20-35-FB	Bore: 20 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: M5
	SSD2-KL-20-40	Bore: 20 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: M5
	SSD2-KL-20-40-LB	Bore: 20 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-KL-20-40-CB	Bore: 20 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KL-20-40-FA	Bore: 20 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-KL-20-40-FB	Bore: 20 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: M5
	SSD2-KL-20-45	Bore: 20 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: M5
	SSD2-KL-20-45-LB	Bore: 20 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-KL-20-45-CB	Bore: 20 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KL-20-45-FA	Bore: 20 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-KL-20-45-FB	Bore: 20 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: M5
	SSD2-KL-20-50	Bore: 20 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: M5
	SSD2-KL-20-50-LB	Bore: 20 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-KL-20-50-CB	Bore: 20 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KL-20-50-FA	Bore: 20 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-KL-20-50-FB	Bore: 20 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: M5
	SSD2-KL-25-5	Bore: 25 mm \| Stroke: 5 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: M5
	SSD2-KL-25-5-LB	Bore: 25 mm \| Stroke: 5 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-KL-25-5-CB	Bore: 25 mm \| Stroke: 5 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KL-25-5-FA	Bore: 25 mm \| Stroke: 5 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-KL-25-5-FB	Bore: 25 mm \| Stroke: 5 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: M5
	SSD2-KL-25-10	Bore: 25 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: M5
	SSD2-KL-25-10-LB	Bore: 25 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-KL-25-10-CB	Bore: 25 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KL-25-10-FA	Bore: 25 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-KL-25-10-FB	Bore: 25 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: M5
	SSD2-KL-25-15	Bore: 25 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: M5
	SSD2-KL-25-15-LB	Bore: 25 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-KL-25-15-CB	Bore: 25 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KL-25-15-FA	Bore: 25 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-KL-25-15-FB	Bore: 25 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: M5
	SSD2-KL-25-20	Bore: 25 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: M5
	SSD2-KL-25-20-LB	Bore: 25 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-KL-25-20-CB	Bore: 25 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KL-25-20-FA	Bore: 25 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-KL-25-20-FB	Bore: 25 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: M5
	SSD2-KL-25-25	Bore: 25 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: M5
	SSD2-KL-25-25-LB	Bore: 25 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-KL-25-25-CB	Bore: 25 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KL-25-25-FA	Bore: 25 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-KL-25-25-FB	Bore: 25 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: M5
	SSD2-KL-25-30	Bore: 25 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: M5
	SSD2-KL-25-30-LB	Bore: 25 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-KL-25-30-CB	Bore: 25 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KL-25-30-FA	Bore: 25 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-KL-25-30-FB	Bore: 25 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: M5
	SSD2-KL-25-35	Bore: 25 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: M5
	SSD2-KL-25-35-LB	Bore: 25 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-KL-25-35-CB	Bore: 25 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KL-25-35-FA	Bore: 25 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-KL-25-35-FB	Bore: 25 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: M5
	SSD2-KL-25-40	Bore: 25 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: M5
	SSD2-KL-25-40-LB	Bore: 25 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-KL-25-40-CB	Bore: 25 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KL-25-40-FA	Bore: 25 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-KL-25-40-FB	Bore: 25 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: M5
	SSD2-KL-25-45	Bore: 25 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: M5
	SSD2-KL-25-45-LB	Bore: 25 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-KL-25-45-CB	Bore: 25 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KL-25-45-FA	Bore: 25 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-KL-25-45-FB	Bore: 25 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: M5
	SSD2-KL-25-50	Bore: 25 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: M5
	SSD2-KL-25-50-LB	Bore: 25 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-KL-25-50-CB	Bore: 25 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KL-25-50-FA	Bore: 25 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-KL-25-50-FB	Bore: 25 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: M5
	SSD2-KL-32-5	Bore: 32 mm \| Stroke: 5 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-KL-32-5-LB	Bore: 32 mm \| Stroke: 5 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-KL-32-5-CB	Bore: 32 mm \| Stroke: 5 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KL-32-5-FA	Bore: 32 mm \| Stroke: 5 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-KL-32-5-FB	Bore: 32 mm \| Stroke: 5 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-KL-32-10	Bore: 32 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-KL-32-10-LB	Bore: 32 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-KL-32-10-CB	Bore: 32 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KL-32-10-FA	Bore: 32 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-KL-32-10-FB	Bore: 32 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-KL-32-15	Bore: 32 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-KL-32-15-LB	Bore: 32 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-KL-32-15-CB	Bore: 32 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KL-32-15-FA	Bore: 32 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-KL-32-15-FB	Bore: 32 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-KL-32-20	Bore: 32 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-KL-32-20-LB	Bore: 32 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-KL-32-20-CB	Bore: 32 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KL-32-20-FA	Bore: 32 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-KL-32-20-FB	Bore: 32 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-KL-32-25	Bore: 32 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-KL-32-25-LB	Bore: 32 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-KL-32-25-CB	Bore: 32 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KL-32-25-FA	Bore: 32 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-KL-32-25-FB	Bore: 32 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-KL-32-30	Bore: 32 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-KL-32-30-LB	Bore: 32 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-KL-32-30-CB	Bore: 32 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KL-32-30-FA	Bore: 32 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-KL-32-30-FB	Bore: 32 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-KL-32-35	Bore: 32 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-KL-32-35-LB	Bore: 32 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-KL-32-35-CB	Bore: 32 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KL-32-35-FA	Bore: 32 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-KL-32-35-FB	Bore: 32 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-KL-32-40	Bore: 32 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-KL-32-40-LB	Bore: 32 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-KL-32-40-CB	Bore: 32 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KL-32-40-FA	Bore: 32 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-KL-32-40-FB	Bore: 32 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-KL-32-45	Bore: 32 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-KL-32-45-LB	Bore: 32 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-KL-32-45-CB	Bore: 32 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KL-32-45-FA	Bore: 32 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-KL-32-45-FB	Bore: 32 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-KL-32-50	Bore: 32 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-KL-32-50-LB	Bore: 32 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-KL-32-50-CB	Bore: 32 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KL-32-50-FA	Bore: 32 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-KL-32-50-FB	Bore: 32 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-KL-32-75	Bore: 32 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-KL-32-75-LB	Bore: 32 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-KL-32-75-CB	Bore: 32 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KL-32-75-FA	Bore: 32 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-KL-32-75-FB	Bore: 32 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-KL-32-100	Bore: 32 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-KL-32-100-LB	Bore: 32 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-KL-32-100-CB	Bore: 32 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KL-32-100-FA	Bore: 32 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-KL-32-100-FB	Bore: 32 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-KL-40-5	Bore: 40 mm \| Stroke: 5 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-KL-40-5-LB	Bore: 40 mm \| Stroke: 5 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-KL-40-5-CB	Bore: 40 mm \| Stroke: 5 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KL-40-5-FA	Bore: 40 mm \| Stroke: 5 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-KL-40-5-FB	Bore: 40 mm \| Stroke: 5 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-KL-40-10	Bore: 40 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-KL-40-10-LB	Bore: 40 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-KL-40-10-CB	Bore: 40 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KL-40-10-FA	Bore: 40 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-KL-40-10-FB	Bore: 40 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-KL-40-15	Bore: 40 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-KL-40-15-LB	Bore: 40 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-KL-40-15-CB	Bore: 40 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KL-40-15-FA	Bore: 40 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-KL-40-15-FB	Bore: 40 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-KL-40-20	Bore: 40 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-KL-40-20-LB	Bore: 40 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-KL-40-20-CB	Bore: 40 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KL-40-20-FA	Bore: 40 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-KL-40-20-FB	Bore: 40 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-KL-40-25	Bore: 40 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-KL-40-25-LB	Bore: 40 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-KL-40-25-CB	Bore: 40 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KL-40-25-FA	Bore: 40 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-KL-40-25-FB	Bore: 40 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-KL-40-30	Bore: 40 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-KL-40-30-LB	Bore: 40 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-KL-40-30-CB	Bore: 40 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KL-40-30-FA	Bore: 40 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-KL-40-30-FB	Bore: 40 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-KL-40-35	Bore: 40 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-KL-40-35-LB	Bore: 40 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-KL-40-35-CB	Bore: 40 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KL-40-35-FA	Bore: 40 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-KL-40-35-FB	Bore: 40 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-KL-40-40	Bore: 40 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-KL-40-40-LB	Bore: 40 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-KL-40-40-CB	Bore: 40 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KL-40-40-FA	Bore: 40 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-KL-40-40-FB	Bore: 40 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-KL-40-45	Bore: 40 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-KL-40-45-LB	Bore: 40 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-KL-40-45-CB	Bore: 40 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KL-40-45-FA	Bore: 40 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-KL-40-45-FB	Bore: 40 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-KL-40-50	Bore: 40 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-KL-40-50-LB	Bore: 40 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-KL-40-50-CB	Bore: 40 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KL-40-50-FA	Bore: 40 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-KL-40-50-FB	Bore: 40 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-KL-40-75	Bore: 40 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-KL-40-75-LB	Bore: 40 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-KL-40-75-CB	Bore: 40 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KL-40-75-FA	Bore: 40 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-KL-40-75-FB	Bore: 40 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-KL-40-100	Bore: 40 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-KL-40-100-LB	Bore: 40 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-KL-40-100-CB	Bore: 40 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KL-40-100-FA	Bore: 40 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-KL-40-100-FB	Bore: 40 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-KL-50-10	Bore: 50 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/4
	SSD2-KL-50-10-LB	Bore: 50 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-KL-50-10-CB	Bore: 50 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KL-50-10-FA	Bore: 50 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/4
	SSD2-KL-50-10-FB	Bore: 50 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/4
	SSD2-KL-50-15	Bore: 50 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/4
	SSD2-KL-50-15-LB	Bore: 50 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-KL-50-15-CB	Bore: 50 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KL-50-15-FA	Bore: 50 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/4
	SSD2-KL-50-15-FB	Bore: 50 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/4
	SSD2-KL-50-20	Bore: 50 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/4
	SSD2-KL-50-20-LB	Bore: 50 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-KL-50-20-CB	Bore: 50 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KL-50-20-FA	Bore: 50 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/4
	SSD2-KL-50-20-FB	Bore: 50 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/4
	SSD2-KL-50-25	Bore: 50 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/4
	SSD2-KL-50-25-LB	Bore: 50 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-KL-50-25-CB	Bore: 50 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KL-50-25-FA	Bore: 50 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/4
	SSD2-KL-50-25-FB	Bore: 50 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/4
	SSD2-KL-50-30	Bore: 50 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/4
	SSD2-KL-50-30-LB	Bore: 50 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-KL-50-30-CB	Bore: 50 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KL-50-30-FA	Bore: 50 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/4
	SSD2-KL-50-30-FB	Bore: 50 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/4
	SSD2-KL-50-35	Bore: 50 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/4
	SSD2-KL-50-35-LB	Bore: 50 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-KL-50-35-CB	Bore: 50 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KL-50-35-FA	Bore: 50 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/4
	SSD2-KL-50-35-FB	Bore: 50 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/4
	SSD2-KL-50-40	Bore: 50 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/4
	SSD2-KL-50-40-LB	Bore: 50 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-KL-50-40-CB	Bore: 50 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KL-50-40-FA	Bore: 50 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/4
	SSD2-KL-50-40-FB	Bore: 50 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/4
	SSD2-KL-50-45	Bore: 50 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/4
	SSD2-KL-50-45-LB	Bore: 50 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-KL-50-45-CB	Bore: 50 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KL-50-45-FA	Bore: 50 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/4
	SSD2-KL-50-45-FB	Bore: 50 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/4
	SSD2-KL-50-50	Bore: 50 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/4
	SSD2-KL-50-50-LB	Bore: 50 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-KL-50-50-CB	Bore: 50 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KL-50-50-FA	Bore: 50 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/4
	SSD2-KL-50-50-FB	Bore: 50 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/4
	SSD2-KL-50-75	Bore: 50 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/4
	SSD2-KL-50-75-LB	Bore: 50 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-KL-50-75-CB	Bore: 50 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KL-50-75-FA	Bore: 50 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/4
	SSD2-KL-50-75-FB	Bore: 50 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/4
	SSD2-KL-50-100	Bore: 50 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/4
	SSD2-KL-50-100-LB	Bore: 50 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-KL-50-100-CB	Bore: 50 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KL-50-100-FA	Bore: 50 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/4
	SSD2-KL-50-100-FB	Bore: 50 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/4
	SSD2-KL-63-10	Bore: 63 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/4
	SSD2-KL-63-10-LB	Bore: 63 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-KL-63-10-CB	Bore: 63 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KL-63-10-FA	Bore: 63 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/4
	SSD2-KL-63-10-FB	Bore: 63 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/4
	SSD2-KL-63-15	Bore: 63 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/4
	SSD2-KL-63-15-LB	Bore: 63 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-KL-63-15-CB	Bore: 63 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KL-63-15-FA	Bore: 63 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/4
	SSD2-KL-63-15-FB	Bore: 63 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/4
	SSD2-KL-63-20	Bore: 63 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/4
	SSD2-KL-63-20-LB	Bore: 63 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-KL-63-20-CB	Bore: 63 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KL-63-20-FA	Bore: 63 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/4
	SSD2-KL-63-20-FB	Bore: 63 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/4
	SSD2-KL-63-25	Bore: 63 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/4
	SSD2-KL-63-25-LB	Bore: 63 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-KL-63-25-CB	Bore: 63 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KL-63-25-FA	Bore: 63 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/4
	SSD2-KL-63-25-FB	Bore: 63 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/4
	SSD2-KL-63-30	Bore: 63 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/4
	SSD2-KL-63-30-LB	Bore: 63 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-KL-63-30-CB	Bore: 63 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KL-63-30-FA	Bore: 63 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/4
	SSD2-KL-63-30-FB	Bore: 63 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/4
	SSD2-KL-63-35	Bore: 63 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/4
	SSD2-KL-63-35-LB	Bore: 63 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-KL-63-35-CB	Bore: 63 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KL-63-35-FA	Bore: 63 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/4
	SSD2-KL-63-35-FB	Bore: 63 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/4
	SSD2-KL-63-40	Bore: 63 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/4
	SSD2-KL-63-40-LB	Bore: 63 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-KL-63-40-CB	Bore: 63 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KL-63-40-FA	Bore: 63 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/4
	SSD2-KL-63-40-FB	Bore: 63 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/4
	SSD2-KL-63-45	Bore: 63 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/4
	SSD2-KL-63-45-LB	Bore: 63 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-KL-63-45-CB	Bore: 63 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KL-63-45-FA	Bore: 63 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/4
	SSD2-KL-63-45-FB	Bore: 63 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/4
	SSD2-KL-63-50	Bore: 63 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/4
	SSD2-KL-63-50-LB	Bore: 63 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-KL-63-50-CB	Bore: 63 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KL-63-50-FA	Bore: 63 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/4
	SSD2-KL-63-50-FB	Bore: 63 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/4
	SSD2-KL-63-75	Bore: 63 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/4
	SSD2-KL-63-75-LB	Bore: 63 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-KL-63-75-CB	Bore: 63 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KL-63-75-FA	Bore: 63 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/4
	SSD2-KL-63-75-FB	Bore: 63 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/4
	SSD2-KL-63-100	Bore: 63 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc1/4
	SSD2-KL-63-100-LB	Bore: 63 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-KL-63-100-CB	Bore: 63 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KL-63-100-FA	Bore: 63 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc1/4
	SSD2-KL-63-100-FB	Bore: 63 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc1/4
	SSD2-KL-80-10	Bore: 80 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc3/8
	SSD2-KL-80-10-LB	Bore: 80 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-KL-80-10-CB	Bore: 80 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KL-80-10-FA	Bore: 80 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc3/8
	SSD2-KL-80-10-FB	Bore: 80 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc3/8
	SSD2-KL-80-15	Bore: 80 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc3/8
	SSD2-KL-80-15-LB	Bore: 80 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-KL-80-15-CB	Bore: 80 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KL-80-15-FA	Bore: 80 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc3/8
	SSD2-KL-80-15-FB	Bore: 80 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc3/8
	SSD2-KL-80-20	Bore: 80 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc3/8
	SSD2-KL-80-20-LB	Bore: 80 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-KL-80-20-CB	Bore: 80 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KL-80-20-FA	Bore: 80 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc3/8
	SSD2-KL-80-20-FB	Bore: 80 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc3/8
	SSD2-KL-80-25	Bore: 80 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc3/8
	SSD2-KL-80-25-LB	Bore: 80 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-KL-80-25-CB	Bore: 80 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KL-80-25-FA	Bore: 80 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc3/8
	SSD2-KL-80-25-FB	Bore: 80 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc3/8
	SSD2-KL-80-30	Bore: 80 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc3/8
	SSD2-KL-80-30-LB	Bore: 80 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-KL-80-30-CB	Bore: 80 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KL-80-30-FA	Bore: 80 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc3/8
	SSD2-KL-80-30-FB	Bore: 80 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc3/8
	SSD2-KL-80-35	Bore: 80 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc3/8
	SSD2-KL-80-35-LB	Bore: 80 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-KL-80-35-CB	Bore: 80 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KL-80-35-FA	Bore: 80 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc3/8
	SSD2-KL-80-35-FB	Bore: 80 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc3/8
	SSD2-KL-80-40	Bore: 80 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc3/8
	SSD2-KL-80-40-LB	Bore: 80 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-KL-80-40-CB	Bore: 80 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KL-80-40-FA	Bore: 80 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc3/8
	SSD2-KL-80-40-FB	Bore: 80 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc3/8
	SSD2-KL-80-45	Bore: 80 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc3/8
	SSD2-KL-80-45-LB	Bore: 80 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-KL-80-45-CB	Bore: 80 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KL-80-45-FA	Bore: 80 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc3/8
	SSD2-KL-80-45-FB	Bore: 80 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc3/8
	SSD2-KL-80-50	Bore: 80 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc3/8
	SSD2-KL-80-50-LB	Bore: 80 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-KL-80-50-CB	Bore: 80 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KL-80-50-FA	Bore: 80 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc3/8
	SSD2-KL-80-50-FB	Bore: 80 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc3/8
	SSD2-KL-80-75	Bore: 80 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc3/8
	SSD2-KL-80-75-LB	Bore: 80 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-KL-80-75-CB	Bore: 80 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KL-80-75-FA	Bore: 80 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc3/8
	SSD2-KL-80-75-FB	Bore: 80 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc3/8
	SSD2-KL-80-100	Bore: 80 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc3/8
	SSD2-KL-80-100-LB	Bore: 80 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-KL-80-100-CB	Bore: 80 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KL-80-100-FA	Bore: 80 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc3/8
	SSD2-KL-80-100-FB	Bore: 80 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc3/8
	SSD2-KL-100-10	Bore: 100 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc3/8
	SSD2-KL-100-10-LB	Bore: 100 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-KL-100-10-CB	Bore: 100 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KL-100-10-FA	Bore: 100 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc3/8
	SSD2-KL-100-10-FB	Bore: 100 mm \| Stroke: 10 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc3/8
	SSD2-KL-100-15	Bore: 100 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc3/8
	SSD2-KL-100-15-LB	Bore: 100 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-KL-100-15-CB	Bore: 100 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KL-100-15-FA	Bore: 100 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc3/8
	SSD2-KL-100-15-FB	Bore: 100 mm \| Stroke: 15 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc3/8
	SSD2-KL-100-20	Bore: 100 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc3/8
	SSD2-KL-100-20-LB	Bore: 100 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-KL-100-20-CB	Bore: 100 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KL-100-20-FA	Bore: 100 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc3/8
	SSD2-KL-100-20-FB	Bore: 100 mm \| Stroke: 20 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc3/8
	SSD2-KL-100-25	Bore: 100 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc3/8
	SSD2-KL-100-25-LB	Bore: 100 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-KL-100-25-CB	Bore: 100 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KL-100-25-FA	Bore: 100 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc3/8
	SSD2-KL-100-25-FB	Bore: 100 mm \| Stroke: 25 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc3/8
	SSD2-KL-100-30	Bore: 100 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc3/8
	SSD2-KL-100-30-LB	Bore: 100 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-KL-100-30-CB	Bore: 100 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KL-100-30-FA	Bore: 100 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc3/8
	SSD2-KL-100-30-FB	Bore: 100 mm \| Stroke: 30 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc3/8
	SSD2-KL-100-35	Bore: 100 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc3/8
	SSD2-KL-100-35-LB	Bore: 100 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-KL-100-35-CB	Bore: 100 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KL-100-35-FA	Bore: 100 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc3/8
	SSD2-KL-100-35-FB	Bore: 100 mm \| Stroke: 35 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc3/8
	SSD2-KL-100-40	Bore: 100 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc3/8
	SSD2-KL-100-40-LB	Bore: 100 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-KL-100-40-CB	Bore: 100 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KL-100-40-FA	Bore: 100 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc3/8
	SSD2-KL-100-40-FB	Bore: 100 mm \| Stroke: 40 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc3/8
	SSD2-KL-100-45	Bore: 100 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc3/8
	SSD2-KL-100-45-LB	Bore: 100 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-KL-100-45-CB	Bore: 100 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KL-100-45-FA	Bore: 100 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc3/8
	SSD2-KL-100-45-FB	Bore: 100 mm \| Stroke: 45 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc3/8
	SSD2-KL-100-50	Bore: 100 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc3/8
	SSD2-KL-100-50-LB	Bore: 100 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-KL-100-50-CB	Bore: 100 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KL-100-50-FA	Bore: 100 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc3/8
	SSD2-KL-100-50-FB	Bore: 100 mm \| Stroke: 50 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc3/8
	SSD2-KL-100-75	Bore: 100 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc3/8
	SSD2-KL-100-75-LB	Bore: 100 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-KL-100-75-CB	Bore: 100 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KL-100-75-FA	Bore: 100 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc3/8
	SSD2-KL-100-75-FB	Bore: 100 mm \| Stroke: 75 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc3/8
	SSD2-KL-100-100	Bore: 100 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: None (basic) \| Port: Rc3/8
	SSD2-KL-100-100-LB	Bore: 100 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-KL-100-100-CB	Bore: 100 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KL-100-100-FA	Bore: 100 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Rod flange (FA) \| Port: Rc3/8
	SSD2-KL-100-100-FB	Bore: 100 mm \| Stroke: 100 mm \| Switch magnet: Yes (SSD2-KL) \| Mounting: Head flange (FB) \| Port: Rc3/8

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

CKD SSD2-K Super Compact Cylinder (High Load, Bore 12-100)
