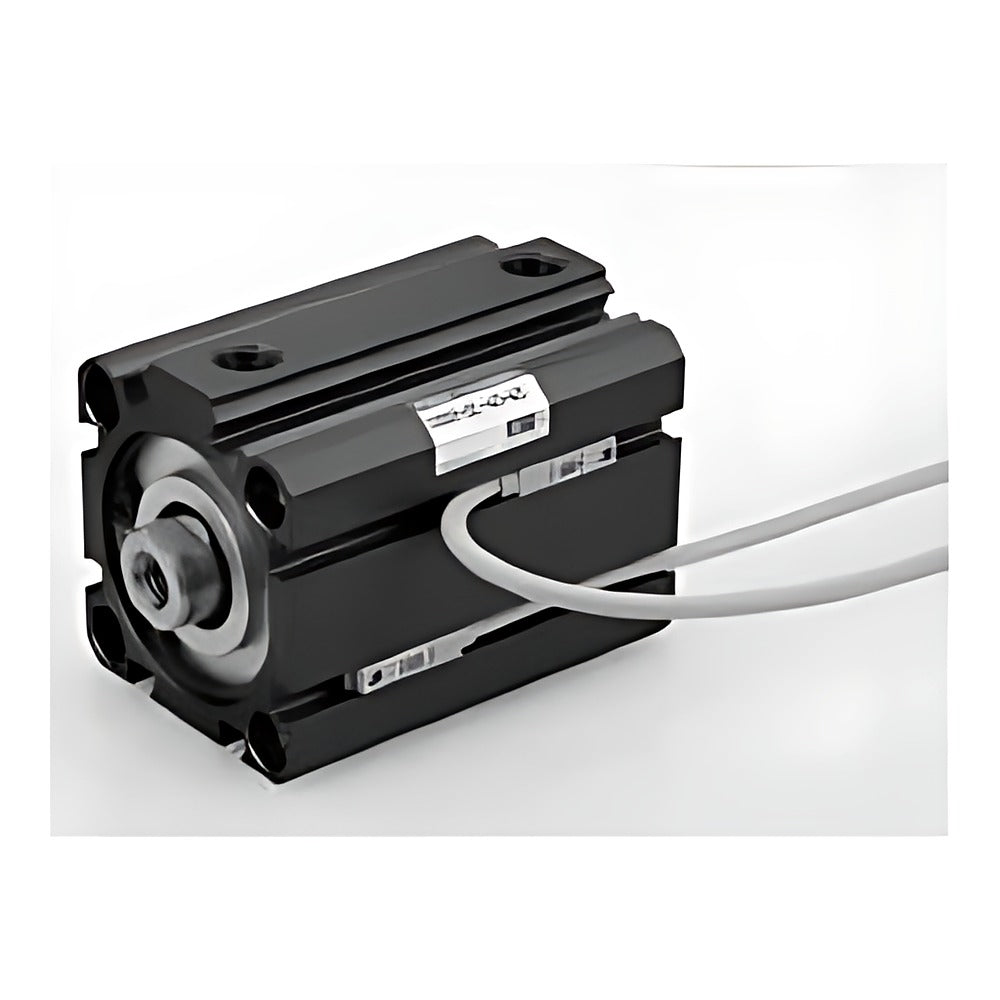

CKD SSD2-KF Super Compact Cylinder (High Load, Fine Speed)

CKD SSD2-KF high-load double-acting super compact cylinder combining a reinforced rod/bearing with fine-speed operation from 1 mm/s.

Key features

High-load construction with fine-speed operation (1 to 200 mm/s)
Rubber cushion standard
Bores 12 to 100 mm with standard strokes 5 to 100 mm
Switch-ready SSD2-KLF version with built-in magnet
Intermediate strokes in 1 mm steps via spacer
Mounting brackets LB, CB, FA, FB supplied attached

Specifications

Action	Double acting, single rod, high load
Fluid	Compressed air
Max. working pressure	1.0 MPa
Min. working pressure	0.1 MPa (50-100: 0.05 MPa)
Proof pressure	1.6 MPa
Ambient temperature	5 to 60 C
Piston speed	1-200 mm/s
Cushion	Rubber cushion
Lubrication	Not allowed
Source	CKD Korea catalog CB-029SK-9, p. 942-945

SSD2-KF-12-5		Body: No switch magnet \| Bore: 12 mm \| Stroke: 5 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KF-12-5-LB		Body: No switch magnet \| Bore: 12 mm \| Stroke: 5 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-KF-12-5-CB		Body: No switch magnet \| Bore: 12 mm \| Stroke: 5 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KF-12-5-FA		Body: No switch magnet \| Bore: 12 mm \| Stroke: 5 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-KF-12-5-FB		Body: No switch magnet \| Bore: 12 mm \| Stroke: 5 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KF-12-10		Body: No switch magnet \| Bore: 12 mm \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KF-12-10-LB		Body: No switch magnet \| Bore: 12 mm \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-KF-12-10-CB		Body: No switch magnet \| Bore: 12 mm \| Stroke: 10 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KF-12-10-FA		Body: No switch magnet \| Bore: 12 mm \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-KF-12-10-FB		Body: No switch magnet \| Bore: 12 mm \| Stroke: 10 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KF-12-15		Body: No switch magnet \| Bore: 12 mm \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KF-12-15-LB		Body: No switch magnet \| Bore: 12 mm \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-KF-12-15-CB		Body: No switch magnet \| Bore: 12 mm \| Stroke: 15 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KF-12-15-FA		Body: No switch magnet \| Bore: 12 mm \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-KF-12-15-FB		Body: No switch magnet \| Bore: 12 mm \| Stroke: 15 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KF-12-20		Body: No switch magnet \| Bore: 12 mm \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KF-12-20-LB		Body: No switch magnet \| Bore: 12 mm \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-KF-12-20-CB		Body: No switch magnet \| Bore: 12 mm \| Stroke: 20 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KF-12-20-FA		Body: No switch magnet \| Bore: 12 mm \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-KF-12-20-FB		Body: No switch magnet \| Bore: 12 mm \| Stroke: 20 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KF-12-25		Body: No switch magnet \| Bore: 12 mm \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KF-12-25-LB		Body: No switch magnet \| Bore: 12 mm \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-KF-12-25-CB		Body: No switch magnet \| Bore: 12 mm \| Stroke: 25 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KF-12-25-FA		Body: No switch magnet \| Bore: 12 mm \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-KF-12-25-FB		Body: No switch magnet \| Bore: 12 mm \| Stroke: 25 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KF-12-30		Body: No switch magnet \| Bore: 12 mm \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KF-12-30-LB		Body: No switch magnet \| Bore: 12 mm \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-KF-12-30-CB		Body: No switch magnet \| Bore: 12 mm \| Stroke: 30 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KF-12-30-FA		Body: No switch magnet \| Bore: 12 mm \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-KF-12-30-FB		Body: No switch magnet \| Bore: 12 mm \| Stroke: 30 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KF-16-5		Body: No switch magnet \| Bore: 16 mm \| Stroke: 5 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KF-16-5-LB		Body: No switch magnet \| Bore: 16 mm \| Stroke: 5 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-KF-16-5-CB		Body: No switch magnet \| Bore: 16 mm \| Stroke: 5 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KF-16-5-FA		Body: No switch magnet \| Bore: 16 mm \| Stroke: 5 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-KF-16-5-FB		Body: No switch magnet \| Bore: 16 mm \| Stroke: 5 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KF-16-10		Body: No switch magnet \| Bore: 16 mm \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KF-16-10-LB		Body: No switch magnet \| Bore: 16 mm \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-KF-16-10-CB		Body: No switch magnet \| Bore: 16 mm \| Stroke: 10 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KF-16-10-FA		Body: No switch magnet \| Bore: 16 mm \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-KF-16-10-FB		Body: No switch magnet \| Bore: 16 mm \| Stroke: 10 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KF-16-15		Body: No switch magnet \| Bore: 16 mm \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KF-16-15-LB		Body: No switch magnet \| Bore: 16 mm \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-KF-16-15-CB		Body: No switch magnet \| Bore: 16 mm \| Stroke: 15 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KF-16-15-FA		Body: No switch magnet \| Bore: 16 mm \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-KF-16-15-FB		Body: No switch magnet \| Bore: 16 mm \| Stroke: 15 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KF-16-20		Body: No switch magnet \| Bore: 16 mm \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KF-16-20-LB		Body: No switch magnet \| Bore: 16 mm \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-KF-16-20-CB		Body: No switch magnet \| Bore: 16 mm \| Stroke: 20 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KF-16-20-FA		Body: No switch magnet \| Bore: 16 mm \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-KF-16-20-FB		Body: No switch magnet \| Bore: 16 mm \| Stroke: 20 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KF-16-25		Body: No switch magnet \| Bore: 16 mm \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KF-16-25-LB		Body: No switch magnet \| Bore: 16 mm \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-KF-16-25-CB		Body: No switch magnet \| Bore: 16 mm \| Stroke: 25 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KF-16-25-FA		Body: No switch magnet \| Bore: 16 mm \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-KF-16-25-FB		Body: No switch magnet \| Bore: 16 mm \| Stroke: 25 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KF-16-30		Body: No switch magnet \| Bore: 16 mm \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KF-16-30-LB		Body: No switch magnet \| Bore: 16 mm \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-KF-16-30-CB		Body: No switch magnet \| Bore: 16 mm \| Stroke: 30 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KF-16-30-FA		Body: No switch magnet \| Bore: 16 mm \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-KF-16-30-FB		Body: No switch magnet \| Bore: 16 mm \| Stroke: 30 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KF-20-5		Body: No switch magnet \| Bore: 20 mm \| Stroke: 5 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KF-20-5-LB		Body: No switch magnet \| Bore: 20 mm \| Stroke: 5 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-KF-20-5-CB		Body: No switch magnet \| Bore: 20 mm \| Stroke: 5 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KF-20-5-FA		Body: No switch magnet \| Bore: 20 mm \| Stroke: 5 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-KF-20-5-FB		Body: No switch magnet \| Bore: 20 mm \| Stroke: 5 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KF-20-10		Body: No switch magnet \| Bore: 20 mm \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KF-20-10-LB		Body: No switch magnet \| Bore: 20 mm \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-KF-20-10-CB		Body: No switch magnet \| Bore: 20 mm \| Stroke: 10 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KF-20-10-FA		Body: No switch magnet \| Bore: 20 mm \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-KF-20-10-FB		Body: No switch magnet \| Bore: 20 mm \| Stroke: 10 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KF-20-15		Body: No switch magnet \| Bore: 20 mm \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KF-20-15-LB		Body: No switch magnet \| Bore: 20 mm \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-KF-20-15-CB		Body: No switch magnet \| Bore: 20 mm \| Stroke: 15 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KF-20-15-FA		Body: No switch magnet \| Bore: 20 mm \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-KF-20-15-FB		Body: No switch magnet \| Bore: 20 mm \| Stroke: 15 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KF-20-20		Body: No switch magnet \| Bore: 20 mm \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KF-20-20-LB		Body: No switch magnet \| Bore: 20 mm \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-KF-20-20-CB		Body: No switch magnet \| Bore: 20 mm \| Stroke: 20 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KF-20-20-FA		Body: No switch magnet \| Bore: 20 mm \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-KF-20-20-FB		Body: No switch magnet \| Bore: 20 mm \| Stroke: 20 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KF-20-25		Body: No switch magnet \| Bore: 20 mm \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KF-20-25-LB		Body: No switch magnet \| Bore: 20 mm \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-KF-20-25-CB		Body: No switch magnet \| Bore: 20 mm \| Stroke: 25 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KF-20-25-FA		Body: No switch magnet \| Bore: 20 mm \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-KF-20-25-FB		Body: No switch magnet \| Bore: 20 mm \| Stroke: 25 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KF-20-30		Body: No switch magnet \| Bore: 20 mm \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KF-20-30-LB		Body: No switch magnet \| Bore: 20 mm \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-KF-20-30-CB		Body: No switch magnet \| Bore: 20 mm \| Stroke: 30 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KF-20-30-FA		Body: No switch magnet \| Bore: 20 mm \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-KF-20-30-FB		Body: No switch magnet \| Bore: 20 mm \| Stroke: 30 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KF-20-35		Body: No switch magnet \| Bore: 20 mm \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KF-20-35-LB		Body: No switch magnet \| Bore: 20 mm \| Stroke: 35 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-KF-20-35-CB		Body: No switch magnet \| Bore: 20 mm \| Stroke: 35 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KF-20-35-FA		Body: No switch magnet \| Bore: 20 mm \| Stroke: 35 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-KF-20-35-FB		Body: No switch magnet \| Bore: 20 mm \| Stroke: 35 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KF-20-40		Body: No switch magnet \| Bore: 20 mm \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KF-20-40-LB		Body: No switch magnet \| Bore: 20 mm \| Stroke: 40 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-KF-20-40-CB		Body: No switch magnet \| Bore: 20 mm \| Stroke: 40 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KF-20-40-FA		Body: No switch magnet \| Bore: 20 mm \| Stroke: 40 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-KF-20-40-FB		Body: No switch magnet \| Bore: 20 mm \| Stroke: 40 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KF-20-45		Body: No switch magnet \| Bore: 20 mm \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KF-20-45-LB		Body: No switch magnet \| Bore: 20 mm \| Stroke: 45 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-KF-20-45-CB		Body: No switch magnet \| Bore: 20 mm \| Stroke: 45 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KF-20-45-FA		Body: No switch magnet \| Bore: 20 mm \| Stroke: 45 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-KF-20-45-FB		Body: No switch magnet \| Bore: 20 mm \| Stroke: 45 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KF-20-50		Body: No switch magnet \| Bore: 20 mm \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KF-20-50-LB		Body: No switch magnet \| Bore: 20 mm \| Stroke: 50 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-KF-20-50-CB		Body: No switch magnet \| Bore: 20 mm \| Stroke: 50 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KF-20-50-FA		Body: No switch magnet \| Bore: 20 mm \| Stroke: 50 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-KF-20-50-FB		Body: No switch magnet \| Bore: 20 mm \| Stroke: 50 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KF-25-5		Body: No switch magnet \| Bore: 25 mm \| Stroke: 5 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KF-25-5-LB		Body: No switch magnet \| Bore: 25 mm \| Stroke: 5 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-KF-25-5-CB		Body: No switch magnet \| Bore: 25 mm \| Stroke: 5 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KF-25-5-FA		Body: No switch magnet \| Bore: 25 mm \| Stroke: 5 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-KF-25-5-FB		Body: No switch magnet \| Bore: 25 mm \| Stroke: 5 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KF-25-10		Body: No switch magnet \| Bore: 25 mm \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KF-25-10-LB		Body: No switch magnet \| Bore: 25 mm \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-KF-25-10-CB		Body: No switch magnet \| Bore: 25 mm \| Stroke: 10 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KF-25-10-FA		Body: No switch magnet \| Bore: 25 mm \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-KF-25-10-FB		Body: No switch magnet \| Bore: 25 mm \| Stroke: 10 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KF-25-15		Body: No switch magnet \| Bore: 25 mm \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KF-25-15-LB		Body: No switch magnet \| Bore: 25 mm \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-KF-25-15-CB		Body: No switch magnet \| Bore: 25 mm \| Stroke: 15 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KF-25-15-FA		Body: No switch magnet \| Bore: 25 mm \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-KF-25-15-FB		Body: No switch magnet \| Bore: 25 mm \| Stroke: 15 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KF-25-20		Body: No switch magnet \| Bore: 25 mm \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KF-25-20-LB		Body: No switch magnet \| Bore: 25 mm \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-KF-25-20-CB		Body: No switch magnet \| Bore: 25 mm \| Stroke: 20 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KF-25-20-FA		Body: No switch magnet \| Bore: 25 mm \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-KF-25-20-FB		Body: No switch magnet \| Bore: 25 mm \| Stroke: 20 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KF-25-25		Body: No switch magnet \| Bore: 25 mm \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KF-25-25-LB		Body: No switch magnet \| Bore: 25 mm \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-KF-25-25-CB		Body: No switch magnet \| Bore: 25 mm \| Stroke: 25 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KF-25-25-FA		Body: No switch magnet \| Bore: 25 mm \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-KF-25-25-FB		Body: No switch magnet \| Bore: 25 mm \| Stroke: 25 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KF-25-30		Body: No switch magnet \| Bore: 25 mm \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KF-25-30-LB		Body: No switch magnet \| Bore: 25 mm \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-KF-25-30-CB		Body: No switch magnet \| Bore: 25 mm \| Stroke: 30 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KF-25-30-FA		Body: No switch magnet \| Bore: 25 mm \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-KF-25-30-FB		Body: No switch magnet \| Bore: 25 mm \| Stroke: 30 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KF-25-35		Body: No switch magnet \| Bore: 25 mm \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KF-25-35-LB		Body: No switch magnet \| Bore: 25 mm \| Stroke: 35 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-KF-25-35-CB		Body: No switch magnet \| Bore: 25 mm \| Stroke: 35 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KF-25-35-FA		Body: No switch magnet \| Bore: 25 mm \| Stroke: 35 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-KF-25-35-FB		Body: No switch magnet \| Bore: 25 mm \| Stroke: 35 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KF-25-40		Body: No switch magnet \| Bore: 25 mm \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KF-25-40-LB		Body: No switch magnet \| Bore: 25 mm \| Stroke: 40 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-KF-25-40-CB		Body: No switch magnet \| Bore: 25 mm \| Stroke: 40 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KF-25-40-FA		Body: No switch magnet \| Bore: 25 mm \| Stroke: 40 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-KF-25-40-FB		Body: No switch magnet \| Bore: 25 mm \| Stroke: 40 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KF-25-45		Body: No switch magnet \| Bore: 25 mm \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KF-25-45-LB		Body: No switch magnet \| Bore: 25 mm \| Stroke: 45 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-KF-25-45-CB		Body: No switch magnet \| Bore: 25 mm \| Stroke: 45 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KF-25-45-FA		Body: No switch magnet \| Bore: 25 mm \| Stroke: 45 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-KF-25-45-FB		Body: No switch magnet \| Bore: 25 mm \| Stroke: 45 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KF-25-50		Body: No switch magnet \| Bore: 25 mm \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KF-25-50-LB		Body: No switch magnet \| Bore: 25 mm \| Stroke: 50 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-KF-25-50-CB		Body: No switch magnet \| Bore: 25 mm \| Stroke: 50 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KF-25-50-FA		Body: No switch magnet \| Bore: 25 mm \| Stroke: 50 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-KF-25-50-FB		Body: No switch magnet \| Bore: 25 mm \| Stroke: 50 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KF-32-5		Body: No switch magnet \| Bore: 32 mm \| Stroke: 5 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KF-32-5-LB		Body: No switch magnet \| Bore: 32 mm \| Stroke: 5 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-KF-32-5-CB		Body: No switch magnet \| Bore: 32 mm \| Stroke: 5 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KF-32-5-FA		Body: No switch magnet \| Bore: 32 mm \| Stroke: 5 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-KF-32-5-FB		Body: No switch magnet \| Bore: 32 mm \| Stroke: 5 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KF-32-10		Body: No switch magnet \| Bore: 32 mm \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KF-32-10-LB		Body: No switch magnet \| Bore: 32 mm \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-KF-32-10-CB		Body: No switch magnet \| Bore: 32 mm \| Stroke: 10 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KF-32-10-FA		Body: No switch magnet \| Bore: 32 mm \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-KF-32-10-FB		Body: No switch magnet \| Bore: 32 mm \| Stroke: 10 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KF-32-15		Body: No switch magnet \| Bore: 32 mm \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KF-32-15-LB		Body: No switch magnet \| Bore: 32 mm \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-KF-32-15-CB		Body: No switch magnet \| Bore: 32 mm \| Stroke: 15 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KF-32-15-FA		Body: No switch magnet \| Bore: 32 mm \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-KF-32-15-FB		Body: No switch magnet \| Bore: 32 mm \| Stroke: 15 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KF-32-20		Body: No switch magnet \| Bore: 32 mm \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KF-32-20-LB		Body: No switch magnet \| Bore: 32 mm \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-KF-32-20-CB		Body: No switch magnet \| Bore: 32 mm \| Stroke: 20 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KF-32-20-FA		Body: No switch magnet \| Bore: 32 mm \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-KF-32-20-FB		Body: No switch magnet \| Bore: 32 mm \| Stroke: 20 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KF-32-25		Body: No switch magnet \| Bore: 32 mm \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KF-32-25-LB		Body: No switch magnet \| Bore: 32 mm \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-KF-32-25-CB		Body: No switch magnet \| Bore: 32 mm \| Stroke: 25 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KF-32-25-FA		Body: No switch magnet \| Bore: 32 mm \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-KF-32-25-FB		Body: No switch magnet \| Bore: 32 mm \| Stroke: 25 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KF-32-30		Body: No switch magnet \| Bore: 32 mm \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KF-32-30-LB		Body: No switch magnet \| Bore: 32 mm \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-KF-32-30-CB		Body: No switch magnet \| Bore: 32 mm \| Stroke: 30 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KF-32-30-FA		Body: No switch magnet \| Bore: 32 mm \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-KF-32-30-FB		Body: No switch magnet \| Bore: 32 mm \| Stroke: 30 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KF-32-35		Body: No switch magnet \| Bore: 32 mm \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KF-32-35-LB		Body: No switch magnet \| Bore: 32 mm \| Stroke: 35 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-KF-32-35-CB		Body: No switch magnet \| Bore: 32 mm \| Stroke: 35 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KF-32-35-FA		Body: No switch magnet \| Bore: 32 mm \| Stroke: 35 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-KF-32-35-FB		Body: No switch magnet \| Bore: 32 mm \| Stroke: 35 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KF-32-40		Body: No switch magnet \| Bore: 32 mm \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KF-32-40-LB		Body: No switch magnet \| Bore: 32 mm \| Stroke: 40 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-KF-32-40-CB		Body: No switch magnet \| Bore: 32 mm \| Stroke: 40 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KF-32-40-FA		Body: No switch magnet \| Bore: 32 mm \| Stroke: 40 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-KF-32-40-FB		Body: No switch magnet \| Bore: 32 mm \| Stroke: 40 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KF-32-45		Body: No switch magnet \| Bore: 32 mm \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KF-32-45-LB		Body: No switch magnet \| Bore: 32 mm \| Stroke: 45 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-KF-32-45-CB		Body: No switch magnet \| Bore: 32 mm \| Stroke: 45 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KF-32-45-FA		Body: No switch magnet \| Bore: 32 mm \| Stroke: 45 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-KF-32-45-FB		Body: No switch magnet \| Bore: 32 mm \| Stroke: 45 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KF-32-50		Body: No switch magnet \| Bore: 32 mm \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KF-32-50-LB		Body: No switch magnet \| Bore: 32 mm \| Stroke: 50 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-KF-32-50-CB		Body: No switch magnet \| Bore: 32 mm \| Stroke: 50 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KF-32-50-FA		Body: No switch magnet \| Bore: 32 mm \| Stroke: 50 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-KF-32-50-FB		Body: No switch magnet \| Bore: 32 mm \| Stroke: 50 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KF-32-75		Body: No switch magnet \| Bore: 32 mm \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KF-32-75-LB		Body: No switch magnet \| Bore: 32 mm \| Stroke: 75 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-KF-32-75-CB		Body: No switch magnet \| Bore: 32 mm \| Stroke: 75 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KF-32-75-FA		Body: No switch magnet \| Bore: 32 mm \| Stroke: 75 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-KF-32-75-FB		Body: No switch magnet \| Bore: 32 mm \| Stroke: 75 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KF-32-100		Body: No switch magnet \| Bore: 32 mm \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KF-32-100-LB		Body: No switch magnet \| Bore: 32 mm \| Stroke: 100 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-KF-32-100-CB		Body: No switch magnet \| Bore: 32 mm \| Stroke: 100 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KF-32-100-FA		Body: No switch magnet \| Bore: 32 mm \| Stroke: 100 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-KF-32-100-FB		Body: No switch magnet \| Bore: 32 mm \| Stroke: 100 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KF-40-5		Body: No switch magnet \| Bore: 40 mm \| Stroke: 5 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KF-40-5-LB		Body: No switch magnet \| Bore: 40 mm \| Stroke: 5 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-KF-40-5-CB		Body: No switch magnet \| Bore: 40 mm \| Stroke: 5 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KF-40-5-FA		Body: No switch magnet \| Bore: 40 mm \| Stroke: 5 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-KF-40-5-FB		Body: No switch magnet \| Bore: 40 mm \| Stroke: 5 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KF-40-10		Body: No switch magnet \| Bore: 40 mm \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KF-40-10-LB		Body: No switch magnet \| Bore: 40 mm \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-KF-40-10-CB		Body: No switch magnet \| Bore: 40 mm \| Stroke: 10 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KF-40-10-FA		Body: No switch magnet \| Bore: 40 mm \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-KF-40-10-FB		Body: No switch magnet \| Bore: 40 mm \| Stroke: 10 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KF-40-15		Body: No switch magnet \| Bore: 40 mm \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KF-40-15-LB		Body: No switch magnet \| Bore: 40 mm \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-KF-40-15-CB		Body: No switch magnet \| Bore: 40 mm \| Stroke: 15 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KF-40-15-FA		Body: No switch magnet \| Bore: 40 mm \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-KF-40-15-FB		Body: No switch magnet \| Bore: 40 mm \| Stroke: 15 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KF-40-20		Body: No switch magnet \| Bore: 40 mm \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KF-40-20-LB		Body: No switch magnet \| Bore: 40 mm \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-KF-40-20-CB		Body: No switch magnet \| Bore: 40 mm \| Stroke: 20 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KF-40-20-FA		Body: No switch magnet \| Bore: 40 mm \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-KF-40-20-FB		Body: No switch magnet \| Bore: 40 mm \| Stroke: 20 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KF-40-25		Body: No switch magnet \| Bore: 40 mm \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KF-40-25-LB		Body: No switch magnet \| Bore: 40 mm \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-KF-40-25-CB		Body: No switch magnet \| Bore: 40 mm \| Stroke: 25 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KF-40-25-FA		Body: No switch magnet \| Bore: 40 mm \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-KF-40-25-FB		Body: No switch magnet \| Bore: 40 mm \| Stroke: 25 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KF-40-30		Body: No switch magnet \| Bore: 40 mm \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KF-40-30-LB		Body: No switch magnet \| Bore: 40 mm \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-KF-40-30-CB		Body: No switch magnet \| Bore: 40 mm \| Stroke: 30 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KF-40-30-FA		Body: No switch magnet \| Bore: 40 mm \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-KF-40-30-FB		Body: No switch magnet \| Bore: 40 mm \| Stroke: 30 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KF-40-35		Body: No switch magnet \| Bore: 40 mm \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KF-40-35-LB		Body: No switch magnet \| Bore: 40 mm \| Stroke: 35 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-KF-40-35-CB		Body: No switch magnet \| Bore: 40 mm \| Stroke: 35 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KF-40-35-FA		Body: No switch magnet \| Bore: 40 mm \| Stroke: 35 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-KF-40-35-FB		Body: No switch magnet \| Bore: 40 mm \| Stroke: 35 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KF-40-40		Body: No switch magnet \| Bore: 40 mm \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KF-40-40-LB		Body: No switch magnet \| Bore: 40 mm \| Stroke: 40 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-KF-40-40-CB		Body: No switch magnet \| Bore: 40 mm \| Stroke: 40 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KF-40-40-FA		Body: No switch magnet \| Bore: 40 mm \| Stroke: 40 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-KF-40-40-FB		Body: No switch magnet \| Bore: 40 mm \| Stroke: 40 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KF-40-45		Body: No switch magnet \| Bore: 40 mm \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KF-40-45-LB		Body: No switch magnet \| Bore: 40 mm \| Stroke: 45 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-KF-40-45-CB		Body: No switch magnet \| Bore: 40 mm \| Stroke: 45 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KF-40-45-FA		Body: No switch magnet \| Bore: 40 mm \| Stroke: 45 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-KF-40-45-FB		Body: No switch magnet \| Bore: 40 mm \| Stroke: 45 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KF-40-50		Body: No switch magnet \| Bore: 40 mm \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KF-40-50-LB		Body: No switch magnet \| Bore: 40 mm \| Stroke: 50 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-KF-40-50-CB		Body: No switch magnet \| Bore: 40 mm \| Stroke: 50 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KF-40-50-FA		Body: No switch magnet \| Bore: 40 mm \| Stroke: 50 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-KF-40-50-FB		Body: No switch magnet \| Bore: 40 mm \| Stroke: 50 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KF-40-75		Body: No switch magnet \| Bore: 40 mm \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KF-40-75-LB		Body: No switch magnet \| Bore: 40 mm \| Stroke: 75 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-KF-40-75-CB		Body: No switch magnet \| Bore: 40 mm \| Stroke: 75 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KF-40-75-FA		Body: No switch magnet \| Bore: 40 mm \| Stroke: 75 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-KF-40-75-FB		Body: No switch magnet \| Bore: 40 mm \| Stroke: 75 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KF-40-100		Body: No switch magnet \| Bore: 40 mm \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KF-40-100-LB		Body: No switch magnet \| Bore: 40 mm \| Stroke: 100 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-KF-40-100-CB		Body: No switch magnet \| Bore: 40 mm \| Stroke: 100 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KF-40-100-FA		Body: No switch magnet \| Bore: 40 mm \| Stroke: 100 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-KF-40-100-FB		Body: No switch magnet \| Bore: 40 mm \| Stroke: 100 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KF-50-10		Body: No switch magnet \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KF-50-10-LB		Body: No switch magnet \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-KF-50-10-CB		Body: No switch magnet \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KF-50-10-FA		Body: No switch magnet \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-KF-50-10-FB		Body: No switch magnet \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KF-50-15		Body: No switch magnet \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KF-50-15-LB		Body: No switch magnet \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-KF-50-15-CB		Body: No switch magnet \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KF-50-15-FA		Body: No switch magnet \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-KF-50-15-FB		Body: No switch magnet \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KF-50-20		Body: No switch magnet \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KF-50-20-LB		Body: No switch magnet \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-KF-50-20-CB		Body: No switch magnet \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KF-50-20-FA		Body: No switch magnet \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-KF-50-20-FB		Body: No switch magnet \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KF-50-25		Body: No switch magnet \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KF-50-25-LB		Body: No switch magnet \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-KF-50-25-CB		Body: No switch magnet \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KF-50-25-FA		Body: No switch magnet \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-KF-50-25-FB		Body: No switch magnet \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KF-50-30		Body: No switch magnet \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KF-50-30-LB		Body: No switch magnet \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-KF-50-30-CB		Body: No switch magnet \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KF-50-30-FA		Body: No switch magnet \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-KF-50-30-FB		Body: No switch magnet \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KF-50-35		Body: No switch magnet \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KF-50-35-LB		Body: No switch magnet \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-KF-50-35-CB		Body: No switch magnet \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KF-50-35-FA		Body: No switch magnet \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-KF-50-35-FB		Body: No switch magnet \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KF-50-40		Body: No switch magnet \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KF-50-40-LB		Body: No switch magnet \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-KF-50-40-CB		Body: No switch magnet \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KF-50-40-FA		Body: No switch magnet \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-KF-50-40-FB		Body: No switch magnet \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KF-50-45		Body: No switch magnet \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KF-50-45-LB		Body: No switch magnet \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-KF-50-45-CB		Body: No switch magnet \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KF-50-45-FA		Body: No switch magnet \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-KF-50-45-FB		Body: No switch magnet \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KF-50-50		Body: No switch magnet \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KF-50-50-LB		Body: No switch magnet \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-KF-50-50-CB		Body: No switch magnet \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KF-50-50-FA		Body: No switch magnet \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-KF-50-50-FB		Body: No switch magnet \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KF-50-75		Body: No switch magnet \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KF-50-75-LB		Body: No switch magnet \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-KF-50-75-CB		Body: No switch magnet \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KF-50-75-FA		Body: No switch magnet \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-KF-50-75-FB		Body: No switch magnet \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KF-50-100		Body: No switch magnet \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KF-50-100-LB		Body: No switch magnet \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-KF-50-100-CB		Body: No switch magnet \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KF-50-100-FA		Body: No switch magnet \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-KF-50-100-FB		Body: No switch magnet \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KF-63-10		Body: No switch magnet \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KF-63-10-LB		Body: No switch magnet \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-KF-63-10-CB		Body: No switch magnet \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KF-63-10-FA		Body: No switch magnet \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-KF-63-10-FB		Body: No switch magnet \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KF-63-15		Body: No switch magnet \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KF-63-15-LB		Body: No switch magnet \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-KF-63-15-CB		Body: No switch magnet \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KF-63-15-FA		Body: No switch magnet \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-KF-63-15-FB		Body: No switch magnet \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KF-63-20		Body: No switch magnet \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KF-63-20-LB		Body: No switch magnet \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-KF-63-20-CB		Body: No switch magnet \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KF-63-20-FA		Body: No switch magnet \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-KF-63-20-FB		Body: No switch magnet \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KF-63-25		Body: No switch magnet \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KF-63-25-LB		Body: No switch magnet \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-KF-63-25-CB		Body: No switch magnet \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KF-63-25-FA		Body: No switch magnet \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-KF-63-25-FB		Body: No switch magnet \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KF-63-30		Body: No switch magnet \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KF-63-30-LB		Body: No switch magnet \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-KF-63-30-CB		Body: No switch magnet \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KF-63-30-FA		Body: No switch magnet \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-KF-63-30-FB		Body: No switch magnet \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KF-63-35		Body: No switch magnet \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KF-63-35-LB		Body: No switch magnet \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-KF-63-35-CB		Body: No switch magnet \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KF-63-35-FA		Body: No switch magnet \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-KF-63-35-FB		Body: No switch magnet \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KF-63-40		Body: No switch magnet \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KF-63-40-LB		Body: No switch magnet \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-KF-63-40-CB		Body: No switch magnet \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KF-63-40-FA		Body: No switch magnet \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-KF-63-40-FB		Body: No switch magnet \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KF-63-45		Body: No switch magnet \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KF-63-45-LB		Body: No switch magnet \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-KF-63-45-CB		Body: No switch magnet \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KF-63-45-FA		Body: No switch magnet \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-KF-63-45-FB		Body: No switch magnet \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KF-63-50		Body: No switch magnet \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KF-63-50-LB		Body: No switch magnet \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-KF-63-50-CB		Body: No switch magnet \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KF-63-50-FA		Body: No switch magnet \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-KF-63-50-FB		Body: No switch magnet \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KF-63-75		Body: No switch magnet \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KF-63-75-LB		Body: No switch magnet \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-KF-63-75-CB		Body: No switch magnet \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KF-63-75-FA		Body: No switch magnet \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-KF-63-75-FB		Body: No switch magnet \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KF-63-100		Body: No switch magnet \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KF-63-100-LB		Body: No switch magnet \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-KF-63-100-CB		Body: No switch magnet \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KF-63-100-FA		Body: No switch magnet \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-KF-63-100-FB		Body: No switch magnet \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KF-80-10		Body: No switch magnet \| Bore: 80 mm \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KF-80-10-LB		Body: No switch magnet \| Bore: 80 mm \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-KF-80-10-CB		Body: No switch magnet \| Bore: 80 mm \| Stroke: 10 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KF-80-10-FA		Body: No switch magnet \| Bore: 80 mm \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-KF-80-10-FB		Body: No switch magnet \| Bore: 80 mm \| Stroke: 10 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KF-80-15		Body: No switch magnet \| Bore: 80 mm \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KF-80-15-LB		Body: No switch magnet \| Bore: 80 mm \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-KF-80-15-CB		Body: No switch magnet \| Bore: 80 mm \| Stroke: 15 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KF-80-15-FA		Body: No switch magnet \| Bore: 80 mm \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-KF-80-15-FB		Body: No switch magnet \| Bore: 80 mm \| Stroke: 15 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KF-80-20		Body: No switch magnet \| Bore: 80 mm \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KF-80-20-LB		Body: No switch magnet \| Bore: 80 mm \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-KF-80-20-CB		Body: No switch magnet \| Bore: 80 mm \| Stroke: 20 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KF-80-20-FA		Body: No switch magnet \| Bore: 80 mm \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-KF-80-20-FB		Body: No switch magnet \| Bore: 80 mm \| Stroke: 20 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KF-80-25		Body: No switch magnet \| Bore: 80 mm \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KF-80-25-LB		Body: No switch magnet \| Bore: 80 mm \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-KF-80-25-CB		Body: No switch magnet \| Bore: 80 mm \| Stroke: 25 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KF-80-25-FA		Body: No switch magnet \| Bore: 80 mm \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-KF-80-25-FB		Body: No switch magnet \| Bore: 80 mm \| Stroke: 25 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KF-80-30		Body: No switch magnet \| Bore: 80 mm \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KF-80-30-LB		Body: No switch magnet \| Bore: 80 mm \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-KF-80-30-CB		Body: No switch magnet \| Bore: 80 mm \| Stroke: 30 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KF-80-30-FA		Body: No switch magnet \| Bore: 80 mm \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-KF-80-30-FB		Body: No switch magnet \| Bore: 80 mm \| Stroke: 30 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KF-80-35		Body: No switch magnet \| Bore: 80 mm \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KF-80-35-LB		Body: No switch magnet \| Bore: 80 mm \| Stroke: 35 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-KF-80-35-CB		Body: No switch magnet \| Bore: 80 mm \| Stroke: 35 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KF-80-35-FA		Body: No switch magnet \| Bore: 80 mm \| Stroke: 35 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-KF-80-35-FB		Body: No switch magnet \| Bore: 80 mm \| Stroke: 35 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KF-80-40		Body: No switch magnet \| Bore: 80 mm \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KF-80-40-LB		Body: No switch magnet \| Bore: 80 mm \| Stroke: 40 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-KF-80-40-CB		Body: No switch magnet \| Bore: 80 mm \| Stroke: 40 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KF-80-40-FA		Body: No switch magnet \| Bore: 80 mm \| Stroke: 40 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-KF-80-40-FB		Body: No switch magnet \| Bore: 80 mm \| Stroke: 40 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KF-80-45		Body: No switch magnet \| Bore: 80 mm \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KF-80-45-LB		Body: No switch magnet \| Bore: 80 mm \| Stroke: 45 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-KF-80-45-CB		Body: No switch magnet \| Bore: 80 mm \| Stroke: 45 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KF-80-45-FA		Body: No switch magnet \| Bore: 80 mm \| Stroke: 45 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-KF-80-45-FB		Body: No switch magnet \| Bore: 80 mm \| Stroke: 45 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KF-80-50		Body: No switch magnet \| Bore: 80 mm \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KF-80-50-LB		Body: No switch magnet \| Bore: 80 mm \| Stroke: 50 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-KF-80-50-CB		Body: No switch magnet \| Bore: 80 mm \| Stroke: 50 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KF-80-50-FA		Body: No switch magnet \| Bore: 80 mm \| Stroke: 50 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-KF-80-50-FB		Body: No switch magnet \| Bore: 80 mm \| Stroke: 50 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KF-80-75		Body: No switch magnet \| Bore: 80 mm \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KF-80-75-LB		Body: No switch magnet \| Bore: 80 mm \| Stroke: 75 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-KF-80-75-CB		Body: No switch magnet \| Bore: 80 mm \| Stroke: 75 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KF-80-75-FA		Body: No switch magnet \| Bore: 80 mm \| Stroke: 75 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-KF-80-75-FB		Body: No switch magnet \| Bore: 80 mm \| Stroke: 75 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KF-80-100		Body: No switch magnet \| Bore: 80 mm \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KF-80-100-LB		Body: No switch magnet \| Bore: 80 mm \| Stroke: 100 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-KF-80-100-CB		Body: No switch magnet \| Bore: 80 mm \| Stroke: 100 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KF-80-100-FA		Body: No switch magnet \| Bore: 80 mm \| Stroke: 100 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-KF-80-100-FB		Body: No switch magnet \| Bore: 80 mm \| Stroke: 100 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KF-100-10		Body: No switch magnet \| Bore: 100 mm \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KF-100-10-LB		Body: No switch magnet \| Bore: 100 mm \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-KF-100-10-CB		Body: No switch magnet \| Bore: 100 mm \| Stroke: 10 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KF-100-10-FA		Body: No switch magnet \| Bore: 100 mm \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-KF-100-10-FB		Body: No switch magnet \| Bore: 100 mm \| Stroke: 10 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KF-100-15		Body: No switch magnet \| Bore: 100 mm \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KF-100-15-LB		Body: No switch magnet \| Bore: 100 mm \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-KF-100-15-CB		Body: No switch magnet \| Bore: 100 mm \| Stroke: 15 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KF-100-15-FA		Body: No switch magnet \| Bore: 100 mm \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-KF-100-15-FB		Body: No switch magnet \| Bore: 100 mm \| Stroke: 15 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KF-100-20		Body: No switch magnet \| Bore: 100 mm \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KF-100-20-LB		Body: No switch magnet \| Bore: 100 mm \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-KF-100-20-CB		Body: No switch magnet \| Bore: 100 mm \| Stroke: 20 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KF-100-20-FA		Body: No switch magnet \| Bore: 100 mm \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-KF-100-20-FB		Body: No switch magnet \| Bore: 100 mm \| Stroke: 20 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KF-100-25		Body: No switch magnet \| Bore: 100 mm \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KF-100-25-LB		Body: No switch magnet \| Bore: 100 mm \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-KF-100-25-CB		Body: No switch magnet \| Bore: 100 mm \| Stroke: 25 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KF-100-25-FA		Body: No switch magnet \| Bore: 100 mm \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-KF-100-25-FB		Body: No switch magnet \| Bore: 100 mm \| Stroke: 25 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KF-100-30		Body: No switch magnet \| Bore: 100 mm \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KF-100-30-LB		Body: No switch magnet \| Bore: 100 mm \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-KF-100-30-CB		Body: No switch magnet \| Bore: 100 mm \| Stroke: 30 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KF-100-30-FA		Body: No switch magnet \| Bore: 100 mm \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-KF-100-30-FB		Body: No switch magnet \| Bore: 100 mm \| Stroke: 30 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KF-100-35		Body: No switch magnet \| Bore: 100 mm \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KF-100-35-LB		Body: No switch magnet \| Bore: 100 mm \| Stroke: 35 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-KF-100-35-CB		Body: No switch magnet \| Bore: 100 mm \| Stroke: 35 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KF-100-35-FA		Body: No switch magnet \| Bore: 100 mm \| Stroke: 35 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-KF-100-35-FB		Body: No switch magnet \| Bore: 100 mm \| Stroke: 35 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KF-100-40		Body: No switch magnet \| Bore: 100 mm \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KF-100-40-LB		Body: No switch magnet \| Bore: 100 mm \| Stroke: 40 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-KF-100-40-CB		Body: No switch magnet \| Bore: 100 mm \| Stroke: 40 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KF-100-40-FA		Body: No switch magnet \| Bore: 100 mm \| Stroke: 40 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-KF-100-40-FB		Body: No switch magnet \| Bore: 100 mm \| Stroke: 40 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KF-100-45		Body: No switch magnet \| Bore: 100 mm \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KF-100-45-LB		Body: No switch magnet \| Bore: 100 mm \| Stroke: 45 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-KF-100-45-CB		Body: No switch magnet \| Bore: 100 mm \| Stroke: 45 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KF-100-45-FA		Body: No switch magnet \| Bore: 100 mm \| Stroke: 45 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-KF-100-45-FB		Body: No switch magnet \| Bore: 100 mm \| Stroke: 45 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KF-100-50		Body: No switch magnet \| Bore: 100 mm \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KF-100-50-LB		Body: No switch magnet \| Bore: 100 mm \| Stroke: 50 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-KF-100-50-CB		Body: No switch magnet \| Bore: 100 mm \| Stroke: 50 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KF-100-50-FA		Body: No switch magnet \| Bore: 100 mm \| Stroke: 50 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-KF-100-50-FB		Body: No switch magnet \| Bore: 100 mm \| Stroke: 50 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KF-100-75		Body: No switch magnet \| Bore: 100 mm \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KF-100-75-LB		Body: No switch magnet \| Bore: 100 mm \| Stroke: 75 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-KF-100-75-CB		Body: No switch magnet \| Bore: 100 mm \| Stroke: 75 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KF-100-75-FA		Body: No switch magnet \| Bore: 100 mm \| Stroke: 75 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-KF-100-75-FB		Body: No switch magnet \| Bore: 100 mm \| Stroke: 75 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KF-100-100		Body: No switch magnet \| Bore: 100 mm \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KF-100-100-LB		Body: No switch magnet \| Bore: 100 mm \| Stroke: 100 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-KF-100-100-CB		Body: No switch magnet \| Bore: 100 mm \| Stroke: 100 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KF-100-100-FA		Body: No switch magnet \| Bore: 100 mm \| Stroke: 100 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-KF-100-100-FB		Body: No switch magnet \| Bore: 100 mm \| Stroke: 100 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KLF-12-5		Body: Switch magnet built in \| Bore: 12 mm \| Stroke: 5 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KLF-12-5-LB		Body: Switch magnet built in \| Bore: 12 mm \| Stroke: 5 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-KLF-12-5-CB		Body: Switch magnet built in \| Bore: 12 mm \| Stroke: 5 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KLF-12-5-FA		Body: Switch magnet built in \| Bore: 12 mm \| Stroke: 5 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-KLF-12-5-FB		Body: Switch magnet built in \| Bore: 12 mm \| Stroke: 5 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KLF-12-10		Body: Switch magnet built in \| Bore: 12 mm \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KLF-12-10-LB		Body: Switch magnet built in \| Bore: 12 mm \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-KLF-12-10-CB		Body: Switch magnet built in \| Bore: 12 mm \| Stroke: 10 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KLF-12-10-FA		Body: Switch magnet built in \| Bore: 12 mm \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-KLF-12-10-FB		Body: Switch magnet built in \| Bore: 12 mm \| Stroke: 10 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KLF-12-15		Body: Switch magnet built in \| Bore: 12 mm \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KLF-12-15-LB		Body: Switch magnet built in \| Bore: 12 mm \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-KLF-12-15-CB		Body: Switch magnet built in \| Bore: 12 mm \| Stroke: 15 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KLF-12-15-FA		Body: Switch magnet built in \| Bore: 12 mm \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-KLF-12-15-FB		Body: Switch magnet built in \| Bore: 12 mm \| Stroke: 15 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KLF-12-20		Body: Switch magnet built in \| Bore: 12 mm \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KLF-12-20-LB		Body: Switch magnet built in \| Bore: 12 mm \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-KLF-12-20-CB		Body: Switch magnet built in \| Bore: 12 mm \| Stroke: 20 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KLF-12-20-FA		Body: Switch magnet built in \| Bore: 12 mm \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-KLF-12-20-FB		Body: Switch magnet built in \| Bore: 12 mm \| Stroke: 20 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KLF-12-25		Body: Switch magnet built in \| Bore: 12 mm \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KLF-12-25-LB		Body: Switch magnet built in \| Bore: 12 mm \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-KLF-12-25-CB		Body: Switch magnet built in \| Bore: 12 mm \| Stroke: 25 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KLF-12-25-FA		Body: Switch magnet built in \| Bore: 12 mm \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-KLF-12-25-FB		Body: Switch magnet built in \| Bore: 12 mm \| Stroke: 25 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KLF-12-30		Body: Switch magnet built in \| Bore: 12 mm \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KLF-12-30-LB		Body: Switch magnet built in \| Bore: 12 mm \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-KLF-12-30-CB		Body: Switch magnet built in \| Bore: 12 mm \| Stroke: 30 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KLF-12-30-FA		Body: Switch magnet built in \| Bore: 12 mm \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-KLF-12-30-FB		Body: Switch magnet built in \| Bore: 12 mm \| Stroke: 30 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KLF-16-5		Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 5 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KLF-16-5-LB		Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 5 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-KLF-16-5-CB		Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 5 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KLF-16-5-FA		Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 5 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-KLF-16-5-FB		Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 5 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KLF-16-10		Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KLF-16-10-LB		Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-KLF-16-10-CB		Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 10 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KLF-16-10-FA		Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-KLF-16-10-FB		Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 10 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KLF-16-15		Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KLF-16-15-LB		Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-KLF-16-15-CB		Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 15 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KLF-16-15-FA		Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-KLF-16-15-FB		Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 15 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KLF-16-20		Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KLF-16-20-LB		Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-KLF-16-20-CB		Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 20 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KLF-16-20-FA		Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-KLF-16-20-FB		Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 20 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KLF-16-25		Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KLF-16-25-LB		Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-KLF-16-25-CB		Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 25 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KLF-16-25-FA		Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-KLF-16-25-FB		Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 25 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KLF-16-30		Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KLF-16-30-LB		Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-KLF-16-30-CB		Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 30 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KLF-16-30-FA		Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-KLF-16-30-FB		Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 30 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KLF-20-5		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 5 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KLF-20-5-LB		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 5 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-KLF-20-5-CB		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 5 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KLF-20-5-FA		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 5 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-KLF-20-5-FB		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 5 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KLF-20-10		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KLF-20-10-LB		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-KLF-20-10-CB		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 10 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KLF-20-10-FA		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-KLF-20-10-FB		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 10 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KLF-20-15		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KLF-20-15-LB		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-KLF-20-15-CB		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 15 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KLF-20-15-FA		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-KLF-20-15-FB		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 15 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KLF-20-20		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KLF-20-20-LB		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-KLF-20-20-CB		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 20 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KLF-20-20-FA		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-KLF-20-20-FB		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 20 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KLF-20-25		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KLF-20-25-LB		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-KLF-20-25-CB		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 25 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KLF-20-25-FA		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-KLF-20-25-FB		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 25 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KLF-20-30		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KLF-20-30-LB		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-KLF-20-30-CB		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 30 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KLF-20-30-FA		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-KLF-20-30-FB		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 30 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KLF-20-35		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KLF-20-35-LB		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 35 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-KLF-20-35-CB		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 35 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KLF-20-35-FA		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 35 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-KLF-20-35-FB		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 35 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KLF-20-40		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KLF-20-40-LB		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 40 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-KLF-20-40-CB		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 40 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KLF-20-40-FA		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 40 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-KLF-20-40-FB		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 40 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KLF-20-45		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KLF-20-45-LB		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 45 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-KLF-20-45-CB		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 45 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KLF-20-45-FA		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 45 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-KLF-20-45-FB		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 45 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KLF-20-50		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KLF-20-50-LB		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 50 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-KLF-20-50-CB		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 50 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KLF-20-50-FA		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 50 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-KLF-20-50-FB		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 50 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KLF-25-5		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 5 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KLF-25-5-LB		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 5 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-KLF-25-5-CB		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 5 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KLF-25-5-FA		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 5 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-KLF-25-5-FB		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 5 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KLF-25-10		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KLF-25-10-LB		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-KLF-25-10-CB		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 10 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KLF-25-10-FA		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-KLF-25-10-FB		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 10 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KLF-25-15		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KLF-25-15-LB		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-KLF-25-15-CB		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 15 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KLF-25-15-FA		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-KLF-25-15-FB		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 15 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KLF-25-20		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KLF-25-20-LB		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-KLF-25-20-CB		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 20 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KLF-25-20-FA		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-KLF-25-20-FB		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 20 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KLF-25-25		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KLF-25-25-LB		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-KLF-25-25-CB		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 25 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KLF-25-25-FA		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-KLF-25-25-FB		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 25 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KLF-25-30		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KLF-25-30-LB		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-KLF-25-30-CB		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 30 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KLF-25-30-FA		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-KLF-25-30-FB		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 30 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KLF-25-35		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KLF-25-35-LB		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 35 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-KLF-25-35-CB		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 35 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KLF-25-35-FA		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 35 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-KLF-25-35-FB		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 35 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KLF-25-40		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KLF-25-40-LB		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 40 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-KLF-25-40-CB		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 40 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KLF-25-40-FA		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 40 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-KLF-25-40-FB		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 40 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KLF-25-45		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KLF-25-45-LB		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 45 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-KLF-25-45-CB		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 45 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KLF-25-45-FA		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 45 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-KLF-25-45-FB		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 45 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KLF-25-50		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KLF-25-50-LB		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 50 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-KLF-25-50-CB		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 50 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KLF-25-50-FA		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 50 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-KLF-25-50-FB		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 50 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KLF-32-5		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 5 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KLF-32-5-LB		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 5 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-KLF-32-5-CB		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 5 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KLF-32-5-FA		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 5 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-KLF-32-5-FB		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 5 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KLF-32-10		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KLF-32-10-LB		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-KLF-32-10-CB		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 10 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KLF-32-10-FA		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-KLF-32-10-FB		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 10 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KLF-32-15		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KLF-32-15-LB		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-KLF-32-15-CB		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 15 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KLF-32-15-FA		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-KLF-32-15-FB		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 15 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KLF-32-20		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KLF-32-20-LB		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-KLF-32-20-CB		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 20 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KLF-32-20-FA		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-KLF-32-20-FB		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 20 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KLF-32-25		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KLF-32-25-LB		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-KLF-32-25-CB		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 25 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KLF-32-25-FA		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-KLF-32-25-FB		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 25 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KLF-32-30		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KLF-32-30-LB		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-KLF-32-30-CB		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 30 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KLF-32-30-FA		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-KLF-32-30-FB		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 30 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KLF-32-35		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KLF-32-35-LB		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 35 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-KLF-32-35-CB		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 35 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KLF-32-35-FA		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 35 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-KLF-32-35-FB		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 35 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KLF-32-40		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KLF-32-40-LB		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 40 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-KLF-32-40-CB		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 40 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KLF-32-40-FA		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 40 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-KLF-32-40-FB		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 40 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KLF-32-45		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KLF-32-45-LB		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 45 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-KLF-32-45-CB		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 45 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KLF-32-45-FA		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 45 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-KLF-32-45-FB		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 45 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KLF-32-50		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KLF-32-50-LB		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 50 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-KLF-32-50-CB		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 50 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KLF-32-50-FA		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 50 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-KLF-32-50-FB		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 50 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KLF-32-75		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KLF-32-75-LB		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 75 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-KLF-32-75-CB		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 75 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KLF-32-75-FA		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 75 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-KLF-32-75-FB		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 75 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KLF-32-100		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KLF-32-100-LB		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 100 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-KLF-32-100-CB		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 100 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KLF-32-100-FA		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 100 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-KLF-32-100-FB		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 100 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KLF-40-5		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 5 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KLF-40-5-LB		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 5 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-KLF-40-5-CB		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 5 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KLF-40-5-FA		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 5 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-KLF-40-5-FB		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 5 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KLF-40-10		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KLF-40-10-LB		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-KLF-40-10-CB		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 10 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KLF-40-10-FA		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-KLF-40-10-FB		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 10 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KLF-40-15		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KLF-40-15-LB		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-KLF-40-15-CB		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 15 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KLF-40-15-FA		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-KLF-40-15-FB		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 15 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KLF-40-20		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KLF-40-20-LB		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-KLF-40-20-CB		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 20 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KLF-40-20-FA		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-KLF-40-20-FB		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 20 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KLF-40-25		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KLF-40-25-LB		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-KLF-40-25-CB		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 25 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KLF-40-25-FA		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-KLF-40-25-FB		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 25 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KLF-40-30		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KLF-40-30-LB		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-KLF-40-30-CB		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 30 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KLF-40-30-FA		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-KLF-40-30-FB		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 30 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KLF-40-35		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KLF-40-35-LB		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 35 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-KLF-40-35-CB		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 35 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KLF-40-35-FA		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 35 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-KLF-40-35-FB		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 35 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KLF-40-40		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KLF-40-40-LB		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 40 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-KLF-40-40-CB		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 40 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KLF-40-40-FA		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 40 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-KLF-40-40-FB		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 40 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KLF-40-45		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KLF-40-45-LB		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 45 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-KLF-40-45-CB		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 45 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KLF-40-45-FA		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 45 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-KLF-40-45-FB		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 45 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KLF-40-50		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KLF-40-50-LB		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 50 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-KLF-40-50-CB		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 50 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KLF-40-50-FA		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 50 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-KLF-40-50-FB		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 50 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KLF-40-75		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KLF-40-75-LB		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 75 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-KLF-40-75-CB		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 75 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KLF-40-75-FA		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 75 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-KLF-40-75-FB		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 75 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KLF-40-100		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KLF-40-100-LB		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 100 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-KLF-40-100-CB		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 100 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KLF-40-100-FA		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 100 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-KLF-40-100-FB		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 100 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KLF-50-10		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KLF-50-10-LB		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-KLF-50-10-CB		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KLF-50-10-FA		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-KLF-50-10-FB		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KLF-50-15		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KLF-50-15-LB		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-KLF-50-15-CB		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KLF-50-15-FA		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-KLF-50-15-FB		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KLF-50-20		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KLF-50-20-LB		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-KLF-50-20-CB		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KLF-50-20-FA		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-KLF-50-20-FB		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KLF-50-25		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KLF-50-25-LB		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-KLF-50-25-CB		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KLF-50-25-FA		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-KLF-50-25-FB		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KLF-50-30		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KLF-50-30-LB		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-KLF-50-30-CB		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KLF-50-30-FA		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-KLF-50-30-FB		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KLF-50-35		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KLF-50-35-LB		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-KLF-50-35-CB		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KLF-50-35-FA		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-KLF-50-35-FB		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KLF-50-40		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KLF-50-40-LB		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-KLF-50-40-CB		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KLF-50-40-FA		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-KLF-50-40-FB		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KLF-50-45		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KLF-50-45-LB		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-KLF-50-45-CB		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KLF-50-45-FA		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-KLF-50-45-FB		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KLF-50-50		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KLF-50-50-LB		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-KLF-50-50-CB		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KLF-50-50-FA		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-KLF-50-50-FB		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KLF-50-75		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KLF-50-75-LB		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-KLF-50-75-CB		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KLF-50-75-FA		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-KLF-50-75-FB		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KLF-50-100		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KLF-50-100-LB		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-KLF-50-100-CB		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KLF-50-100-FA		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-KLF-50-100-FB		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KLF-63-10		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KLF-63-10-LB		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-KLF-63-10-CB		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KLF-63-10-FA		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-KLF-63-10-FB		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KLF-63-15		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KLF-63-15-LB		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-KLF-63-15-CB		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KLF-63-15-FA		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-KLF-63-15-FB		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KLF-63-20		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KLF-63-20-LB		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-KLF-63-20-CB		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KLF-63-20-FA		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-KLF-63-20-FB		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KLF-63-25		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KLF-63-25-LB		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-KLF-63-25-CB		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KLF-63-25-FA		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-KLF-63-25-FB		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KLF-63-30		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KLF-63-30-LB		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-KLF-63-30-CB		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KLF-63-30-FA		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-KLF-63-30-FB		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KLF-63-35		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KLF-63-35-LB		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-KLF-63-35-CB		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KLF-63-35-FA		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-KLF-63-35-FB		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KLF-63-40		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KLF-63-40-LB		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-KLF-63-40-CB		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KLF-63-40-FA		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-KLF-63-40-FB		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KLF-63-45		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KLF-63-45-LB		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-KLF-63-45-CB		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KLF-63-45-FA		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-KLF-63-45-FB		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KLF-63-50		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KLF-63-50-LB		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-KLF-63-50-CB		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KLF-63-50-FA		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-KLF-63-50-FB		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KLF-63-75		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KLF-63-75-LB		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-KLF-63-75-CB		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KLF-63-75-FA		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-KLF-63-75-FB		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KLF-63-100		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KLF-63-100-LB		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-KLF-63-100-CB		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KLF-63-100-FA		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-KLF-63-100-FB		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KLF-80-10		Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KLF-80-10-LB		Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-KLF-80-10-CB		Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 10 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KLF-80-10-FA		Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-KLF-80-10-FB		Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 10 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KLF-80-15		Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KLF-80-15-LB		Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-KLF-80-15-CB		Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 15 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KLF-80-15-FA		Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-KLF-80-15-FB		Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 15 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KLF-80-20		Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KLF-80-20-LB		Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-KLF-80-20-CB		Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 20 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KLF-80-20-FA		Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-KLF-80-20-FB		Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 20 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KLF-80-25		Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KLF-80-25-LB		Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-KLF-80-25-CB		Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 25 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KLF-80-25-FA		Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-KLF-80-25-FB		Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 25 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KLF-80-30		Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KLF-80-30-LB		Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-KLF-80-30-CB		Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 30 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KLF-80-30-FA		Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-KLF-80-30-FB		Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 30 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KLF-80-35		Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KLF-80-35-LB		Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 35 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-KLF-80-35-CB		Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 35 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KLF-80-35-FA		Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 35 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-KLF-80-35-FB		Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 35 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KLF-80-40		Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KLF-80-40-LB		Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 40 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-KLF-80-40-CB		Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 40 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KLF-80-40-FA		Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 40 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-KLF-80-40-FB		Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 40 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KLF-80-45		Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KLF-80-45-LB		Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 45 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-KLF-80-45-CB		Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 45 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KLF-80-45-FA		Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 45 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-KLF-80-45-FB		Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 45 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KLF-80-50		Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KLF-80-50-LB		Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 50 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-KLF-80-50-CB		Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 50 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KLF-80-50-FA		Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 50 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-KLF-80-50-FB		Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 50 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KLF-80-75		Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KLF-80-75-LB		Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 75 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-KLF-80-75-CB		Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 75 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KLF-80-75-FA		Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 75 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-KLF-80-75-FB		Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 75 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KLF-80-100		Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KLF-80-100-LB		Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 100 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-KLF-80-100-CB		Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 100 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KLF-80-100-FA		Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 100 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-KLF-80-100-FB		Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 100 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KLF-100-10		Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KLF-100-10-LB		Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-KLF-100-10-CB		Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 10 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KLF-100-10-FA		Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-KLF-100-10-FB		Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 10 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KLF-100-15		Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KLF-100-15-LB		Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-KLF-100-15-CB		Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 15 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KLF-100-15-FA		Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-KLF-100-15-FB		Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 15 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KLF-100-20		Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KLF-100-20-LB		Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-KLF-100-20-CB		Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 20 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KLF-100-20-FA		Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-KLF-100-20-FB		Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 20 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KLF-100-25		Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KLF-100-25-LB		Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-KLF-100-25-CB		Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 25 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KLF-100-25-FA		Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-KLF-100-25-FB		Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 25 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KLF-100-30		Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KLF-100-30-LB		Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-KLF-100-30-CB		Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 30 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KLF-100-30-FA		Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-KLF-100-30-FB		Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 30 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KLF-100-35		Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KLF-100-35-LB		Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 35 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-KLF-100-35-CB		Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 35 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KLF-100-35-FA		Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 35 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-KLF-100-35-FB		Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 35 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KLF-100-40		Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KLF-100-40-LB		Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 40 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-KLF-100-40-CB		Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 40 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KLF-100-40-FA		Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 40 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-KLF-100-40-FB		Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 40 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KLF-100-45		Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KLF-100-45-LB		Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 45 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-KLF-100-45-CB		Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 45 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KLF-100-45-FA		Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 45 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-KLF-100-45-FB		Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 45 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KLF-100-50		Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KLF-100-50-LB		Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 50 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-KLF-100-50-CB		Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 50 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KLF-100-50-FA		Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 50 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-KLF-100-50-FB		Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 50 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KLF-100-75		Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KLF-100-75-LB		Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 75 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-KLF-100-75-CB		Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 75 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KLF-100-75-FA		Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 75 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-KLF-100-75-FB		Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 75 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KLF-100-100		Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KLF-100-100-LB		Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 100 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-KLF-100-100-CB		Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 100 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KLF-100-100-FA		Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 100 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-KLF-100-100-FB		Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 100 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8

Compact CylindersCKD

1000 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD SSD2-KF Super Compact Cylinder (High Load, Fine Speed)

Brand CKD·Compact Cylinders

Available part numbers (1000)

SSD2-KF-12-5, SSD2-KF-12-5-LB, SSD2-KF-12-5-CB, SSD2-KF-12-5-FA, SSD2-KF-12-5-FB, SSD2-KF-12-10, SSD2-KF-12-10-LB, SSD2-KF-12-10-CB, SSD2-KF-12-10-FA, SSD2-KF-12-10-FB + 990 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	SSD2-KF-12-5	Body: No switch magnet \| Bore: 12 mm \| Stroke: 5 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KF-12-5-LB	Body: No switch magnet \| Bore: 12 mm \| Stroke: 5 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-KF-12-5-CB	Body: No switch magnet \| Bore: 12 mm \| Stroke: 5 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KF-12-5-FA	Body: No switch magnet \| Bore: 12 mm \| Stroke: 5 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-KF-12-5-FB	Body: No switch magnet \| Bore: 12 mm \| Stroke: 5 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KF-12-10	Body: No switch magnet \| Bore: 12 mm \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KF-12-10-LB	Body: No switch magnet \| Bore: 12 mm \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-KF-12-10-CB	Body: No switch magnet \| Bore: 12 mm \| Stroke: 10 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KF-12-10-FA	Body: No switch magnet \| Bore: 12 mm \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-KF-12-10-FB	Body: No switch magnet \| Bore: 12 mm \| Stroke: 10 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KF-12-15	Body: No switch magnet \| Bore: 12 mm \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KF-12-15-LB	Body: No switch magnet \| Bore: 12 mm \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-KF-12-15-CB	Body: No switch magnet \| Bore: 12 mm \| Stroke: 15 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KF-12-15-FA	Body: No switch magnet \| Bore: 12 mm \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-KF-12-15-FB	Body: No switch magnet \| Bore: 12 mm \| Stroke: 15 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KF-12-20	Body: No switch magnet \| Bore: 12 mm \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KF-12-20-LB	Body: No switch magnet \| Bore: 12 mm \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-KF-12-20-CB	Body: No switch magnet \| Bore: 12 mm \| Stroke: 20 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KF-12-20-FA	Body: No switch magnet \| Bore: 12 mm \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-KF-12-20-FB	Body: No switch magnet \| Bore: 12 mm \| Stroke: 20 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KF-12-25	Body: No switch magnet \| Bore: 12 mm \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KF-12-25-LB	Body: No switch magnet \| Bore: 12 mm \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-KF-12-25-CB	Body: No switch magnet \| Bore: 12 mm \| Stroke: 25 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KF-12-25-FA	Body: No switch magnet \| Bore: 12 mm \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-KF-12-25-FB	Body: No switch magnet \| Bore: 12 mm \| Stroke: 25 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KF-12-30	Body: No switch magnet \| Bore: 12 mm \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KF-12-30-LB	Body: No switch magnet \| Bore: 12 mm \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-KF-12-30-CB	Body: No switch magnet \| Bore: 12 mm \| Stroke: 30 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KF-12-30-FA	Body: No switch magnet \| Bore: 12 mm \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-KF-12-30-FB	Body: No switch magnet \| Bore: 12 mm \| Stroke: 30 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KF-16-5	Body: No switch magnet \| Bore: 16 mm \| Stroke: 5 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KF-16-5-LB	Body: No switch magnet \| Bore: 16 mm \| Stroke: 5 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-KF-16-5-CB	Body: No switch magnet \| Bore: 16 mm \| Stroke: 5 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KF-16-5-FA	Body: No switch magnet \| Bore: 16 mm \| Stroke: 5 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-KF-16-5-FB	Body: No switch magnet \| Bore: 16 mm \| Stroke: 5 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KF-16-10	Body: No switch magnet \| Bore: 16 mm \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KF-16-10-LB	Body: No switch magnet \| Bore: 16 mm \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-KF-16-10-CB	Body: No switch magnet \| Bore: 16 mm \| Stroke: 10 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KF-16-10-FA	Body: No switch magnet \| Bore: 16 mm \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-KF-16-10-FB	Body: No switch magnet \| Bore: 16 mm \| Stroke: 10 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KF-16-15	Body: No switch magnet \| Bore: 16 mm \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KF-16-15-LB	Body: No switch magnet \| Bore: 16 mm \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-KF-16-15-CB	Body: No switch magnet \| Bore: 16 mm \| Stroke: 15 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KF-16-15-FA	Body: No switch magnet \| Bore: 16 mm \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-KF-16-15-FB	Body: No switch magnet \| Bore: 16 mm \| Stroke: 15 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KF-16-20	Body: No switch magnet \| Bore: 16 mm \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KF-16-20-LB	Body: No switch magnet \| Bore: 16 mm \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-KF-16-20-CB	Body: No switch magnet \| Bore: 16 mm \| Stroke: 20 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KF-16-20-FA	Body: No switch magnet \| Bore: 16 mm \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-KF-16-20-FB	Body: No switch magnet \| Bore: 16 mm \| Stroke: 20 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KF-16-25	Body: No switch magnet \| Bore: 16 mm \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KF-16-25-LB	Body: No switch magnet \| Bore: 16 mm \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-KF-16-25-CB	Body: No switch magnet \| Bore: 16 mm \| Stroke: 25 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KF-16-25-FA	Body: No switch magnet \| Bore: 16 mm \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-KF-16-25-FB	Body: No switch magnet \| Bore: 16 mm \| Stroke: 25 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KF-16-30	Body: No switch magnet \| Bore: 16 mm \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KF-16-30-LB	Body: No switch magnet \| Bore: 16 mm \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-KF-16-30-CB	Body: No switch magnet \| Bore: 16 mm \| Stroke: 30 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KF-16-30-FA	Body: No switch magnet \| Bore: 16 mm \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-KF-16-30-FB	Body: No switch magnet \| Bore: 16 mm \| Stroke: 30 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KF-20-5	Body: No switch magnet \| Bore: 20 mm \| Stroke: 5 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KF-20-5-LB	Body: No switch magnet \| Bore: 20 mm \| Stroke: 5 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-KF-20-5-CB	Body: No switch magnet \| Bore: 20 mm \| Stroke: 5 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KF-20-5-FA	Body: No switch magnet \| Bore: 20 mm \| Stroke: 5 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-KF-20-5-FB	Body: No switch magnet \| Bore: 20 mm \| Stroke: 5 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KF-20-10	Body: No switch magnet \| Bore: 20 mm \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KF-20-10-LB	Body: No switch magnet \| Bore: 20 mm \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-KF-20-10-CB	Body: No switch magnet \| Bore: 20 mm \| Stroke: 10 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KF-20-10-FA	Body: No switch magnet \| Bore: 20 mm \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-KF-20-10-FB	Body: No switch magnet \| Bore: 20 mm \| Stroke: 10 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KF-20-15	Body: No switch magnet \| Bore: 20 mm \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KF-20-15-LB	Body: No switch magnet \| Bore: 20 mm \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-KF-20-15-CB	Body: No switch magnet \| Bore: 20 mm \| Stroke: 15 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KF-20-15-FA	Body: No switch magnet \| Bore: 20 mm \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-KF-20-15-FB	Body: No switch magnet \| Bore: 20 mm \| Stroke: 15 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KF-20-20	Body: No switch magnet \| Bore: 20 mm \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KF-20-20-LB	Body: No switch magnet \| Bore: 20 mm \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-KF-20-20-CB	Body: No switch magnet \| Bore: 20 mm \| Stroke: 20 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KF-20-20-FA	Body: No switch magnet \| Bore: 20 mm \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-KF-20-20-FB	Body: No switch magnet \| Bore: 20 mm \| Stroke: 20 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KF-20-25	Body: No switch magnet \| Bore: 20 mm \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KF-20-25-LB	Body: No switch magnet \| Bore: 20 mm \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-KF-20-25-CB	Body: No switch magnet \| Bore: 20 mm \| Stroke: 25 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KF-20-25-FA	Body: No switch magnet \| Bore: 20 mm \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-KF-20-25-FB	Body: No switch magnet \| Bore: 20 mm \| Stroke: 25 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KF-20-30	Body: No switch magnet \| Bore: 20 mm \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KF-20-30-LB	Body: No switch magnet \| Bore: 20 mm \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-KF-20-30-CB	Body: No switch magnet \| Bore: 20 mm \| Stroke: 30 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KF-20-30-FA	Body: No switch magnet \| Bore: 20 mm \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-KF-20-30-FB	Body: No switch magnet \| Bore: 20 mm \| Stroke: 30 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KF-20-35	Body: No switch magnet \| Bore: 20 mm \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KF-20-35-LB	Body: No switch magnet \| Bore: 20 mm \| Stroke: 35 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-KF-20-35-CB	Body: No switch magnet \| Bore: 20 mm \| Stroke: 35 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KF-20-35-FA	Body: No switch magnet \| Bore: 20 mm \| Stroke: 35 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-KF-20-35-FB	Body: No switch magnet \| Bore: 20 mm \| Stroke: 35 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KF-20-40	Body: No switch magnet \| Bore: 20 mm \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KF-20-40-LB	Body: No switch magnet \| Bore: 20 mm \| Stroke: 40 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-KF-20-40-CB	Body: No switch magnet \| Bore: 20 mm \| Stroke: 40 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KF-20-40-FA	Body: No switch magnet \| Bore: 20 mm \| Stroke: 40 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-KF-20-40-FB	Body: No switch magnet \| Bore: 20 mm \| Stroke: 40 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KF-20-45	Body: No switch magnet \| Bore: 20 mm \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KF-20-45-LB	Body: No switch magnet \| Bore: 20 mm \| Stroke: 45 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-KF-20-45-CB	Body: No switch magnet \| Bore: 20 mm \| Stroke: 45 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KF-20-45-FA	Body: No switch magnet \| Bore: 20 mm \| Stroke: 45 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-KF-20-45-FB	Body: No switch magnet \| Bore: 20 mm \| Stroke: 45 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KF-20-50	Body: No switch magnet \| Bore: 20 mm \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KF-20-50-LB	Body: No switch magnet \| Bore: 20 mm \| Stroke: 50 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-KF-20-50-CB	Body: No switch magnet \| Bore: 20 mm \| Stroke: 50 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KF-20-50-FA	Body: No switch magnet \| Bore: 20 mm \| Stroke: 50 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-KF-20-50-FB	Body: No switch magnet \| Bore: 20 mm \| Stroke: 50 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KF-25-5	Body: No switch magnet \| Bore: 25 mm \| Stroke: 5 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KF-25-5-LB	Body: No switch magnet \| Bore: 25 mm \| Stroke: 5 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-KF-25-5-CB	Body: No switch magnet \| Bore: 25 mm \| Stroke: 5 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KF-25-5-FA	Body: No switch magnet \| Bore: 25 mm \| Stroke: 5 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-KF-25-5-FB	Body: No switch magnet \| Bore: 25 mm \| Stroke: 5 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KF-25-10	Body: No switch magnet \| Bore: 25 mm \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KF-25-10-LB	Body: No switch magnet \| Bore: 25 mm \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-KF-25-10-CB	Body: No switch magnet \| Bore: 25 mm \| Stroke: 10 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KF-25-10-FA	Body: No switch magnet \| Bore: 25 mm \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-KF-25-10-FB	Body: No switch magnet \| Bore: 25 mm \| Stroke: 10 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KF-25-15	Body: No switch magnet \| Bore: 25 mm \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KF-25-15-LB	Body: No switch magnet \| Bore: 25 mm \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-KF-25-15-CB	Body: No switch magnet \| Bore: 25 mm \| Stroke: 15 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KF-25-15-FA	Body: No switch magnet \| Bore: 25 mm \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-KF-25-15-FB	Body: No switch magnet \| Bore: 25 mm \| Stroke: 15 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KF-25-20	Body: No switch magnet \| Bore: 25 mm \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KF-25-20-LB	Body: No switch magnet \| Bore: 25 mm \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-KF-25-20-CB	Body: No switch magnet \| Bore: 25 mm \| Stroke: 20 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KF-25-20-FA	Body: No switch magnet \| Bore: 25 mm \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-KF-25-20-FB	Body: No switch magnet \| Bore: 25 mm \| Stroke: 20 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KF-25-25	Body: No switch magnet \| Bore: 25 mm \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KF-25-25-LB	Body: No switch magnet \| Bore: 25 mm \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-KF-25-25-CB	Body: No switch magnet \| Bore: 25 mm \| Stroke: 25 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KF-25-25-FA	Body: No switch magnet \| Bore: 25 mm \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-KF-25-25-FB	Body: No switch magnet \| Bore: 25 mm \| Stroke: 25 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KF-25-30	Body: No switch magnet \| Bore: 25 mm \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KF-25-30-LB	Body: No switch magnet \| Bore: 25 mm \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-KF-25-30-CB	Body: No switch magnet \| Bore: 25 mm \| Stroke: 30 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KF-25-30-FA	Body: No switch magnet \| Bore: 25 mm \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-KF-25-30-FB	Body: No switch magnet \| Bore: 25 mm \| Stroke: 30 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KF-25-35	Body: No switch magnet \| Bore: 25 mm \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KF-25-35-LB	Body: No switch magnet \| Bore: 25 mm \| Stroke: 35 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-KF-25-35-CB	Body: No switch magnet \| Bore: 25 mm \| Stroke: 35 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KF-25-35-FA	Body: No switch magnet \| Bore: 25 mm \| Stroke: 35 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-KF-25-35-FB	Body: No switch magnet \| Bore: 25 mm \| Stroke: 35 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KF-25-40	Body: No switch magnet \| Bore: 25 mm \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KF-25-40-LB	Body: No switch magnet \| Bore: 25 mm \| Stroke: 40 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-KF-25-40-CB	Body: No switch magnet \| Bore: 25 mm \| Stroke: 40 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KF-25-40-FA	Body: No switch magnet \| Bore: 25 mm \| Stroke: 40 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-KF-25-40-FB	Body: No switch magnet \| Bore: 25 mm \| Stroke: 40 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KF-25-45	Body: No switch magnet \| Bore: 25 mm \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KF-25-45-LB	Body: No switch magnet \| Bore: 25 mm \| Stroke: 45 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-KF-25-45-CB	Body: No switch magnet \| Bore: 25 mm \| Stroke: 45 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KF-25-45-FA	Body: No switch magnet \| Bore: 25 mm \| Stroke: 45 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-KF-25-45-FB	Body: No switch magnet \| Bore: 25 mm \| Stroke: 45 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KF-25-50	Body: No switch magnet \| Bore: 25 mm \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KF-25-50-LB	Body: No switch magnet \| Bore: 25 mm \| Stroke: 50 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-KF-25-50-CB	Body: No switch magnet \| Bore: 25 mm \| Stroke: 50 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KF-25-50-FA	Body: No switch magnet \| Bore: 25 mm \| Stroke: 50 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-KF-25-50-FB	Body: No switch magnet \| Bore: 25 mm \| Stroke: 50 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KF-32-5	Body: No switch magnet \| Bore: 32 mm \| Stroke: 5 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KF-32-5-LB	Body: No switch magnet \| Bore: 32 mm \| Stroke: 5 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-KF-32-5-CB	Body: No switch magnet \| Bore: 32 mm \| Stroke: 5 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KF-32-5-FA	Body: No switch magnet \| Bore: 32 mm \| Stroke: 5 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-KF-32-5-FB	Body: No switch magnet \| Bore: 32 mm \| Stroke: 5 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KF-32-10	Body: No switch magnet \| Bore: 32 mm \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KF-32-10-LB	Body: No switch magnet \| Bore: 32 mm \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-KF-32-10-CB	Body: No switch magnet \| Bore: 32 mm \| Stroke: 10 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KF-32-10-FA	Body: No switch magnet \| Bore: 32 mm \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-KF-32-10-FB	Body: No switch magnet \| Bore: 32 mm \| Stroke: 10 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KF-32-15	Body: No switch magnet \| Bore: 32 mm \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KF-32-15-LB	Body: No switch magnet \| Bore: 32 mm \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-KF-32-15-CB	Body: No switch magnet \| Bore: 32 mm \| Stroke: 15 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KF-32-15-FA	Body: No switch magnet \| Bore: 32 mm \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-KF-32-15-FB	Body: No switch magnet \| Bore: 32 mm \| Stroke: 15 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KF-32-20	Body: No switch magnet \| Bore: 32 mm \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KF-32-20-LB	Body: No switch magnet \| Bore: 32 mm \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-KF-32-20-CB	Body: No switch magnet \| Bore: 32 mm \| Stroke: 20 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KF-32-20-FA	Body: No switch magnet \| Bore: 32 mm \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-KF-32-20-FB	Body: No switch magnet \| Bore: 32 mm \| Stroke: 20 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KF-32-25	Body: No switch magnet \| Bore: 32 mm \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KF-32-25-LB	Body: No switch magnet \| Bore: 32 mm \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-KF-32-25-CB	Body: No switch magnet \| Bore: 32 mm \| Stroke: 25 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KF-32-25-FA	Body: No switch magnet \| Bore: 32 mm \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-KF-32-25-FB	Body: No switch magnet \| Bore: 32 mm \| Stroke: 25 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KF-32-30	Body: No switch magnet \| Bore: 32 mm \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KF-32-30-LB	Body: No switch magnet \| Bore: 32 mm \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-KF-32-30-CB	Body: No switch magnet \| Bore: 32 mm \| Stroke: 30 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KF-32-30-FA	Body: No switch magnet \| Bore: 32 mm \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-KF-32-30-FB	Body: No switch magnet \| Bore: 32 mm \| Stroke: 30 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KF-32-35	Body: No switch magnet \| Bore: 32 mm \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KF-32-35-LB	Body: No switch magnet \| Bore: 32 mm \| Stroke: 35 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-KF-32-35-CB	Body: No switch magnet \| Bore: 32 mm \| Stroke: 35 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KF-32-35-FA	Body: No switch magnet \| Bore: 32 mm \| Stroke: 35 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-KF-32-35-FB	Body: No switch magnet \| Bore: 32 mm \| Stroke: 35 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KF-32-40	Body: No switch magnet \| Bore: 32 mm \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KF-32-40-LB	Body: No switch magnet \| Bore: 32 mm \| Stroke: 40 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-KF-32-40-CB	Body: No switch magnet \| Bore: 32 mm \| Stroke: 40 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KF-32-40-FA	Body: No switch magnet \| Bore: 32 mm \| Stroke: 40 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-KF-32-40-FB	Body: No switch magnet \| Bore: 32 mm \| Stroke: 40 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KF-32-45	Body: No switch magnet \| Bore: 32 mm \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KF-32-45-LB	Body: No switch magnet \| Bore: 32 mm \| Stroke: 45 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-KF-32-45-CB	Body: No switch magnet \| Bore: 32 mm \| Stroke: 45 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KF-32-45-FA	Body: No switch magnet \| Bore: 32 mm \| Stroke: 45 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-KF-32-45-FB	Body: No switch magnet \| Bore: 32 mm \| Stroke: 45 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KF-32-50	Body: No switch magnet \| Bore: 32 mm \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KF-32-50-LB	Body: No switch magnet \| Bore: 32 mm \| Stroke: 50 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-KF-32-50-CB	Body: No switch magnet \| Bore: 32 mm \| Stroke: 50 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KF-32-50-FA	Body: No switch magnet \| Bore: 32 mm \| Stroke: 50 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-KF-32-50-FB	Body: No switch magnet \| Bore: 32 mm \| Stroke: 50 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KF-32-75	Body: No switch magnet \| Bore: 32 mm \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KF-32-75-LB	Body: No switch magnet \| Bore: 32 mm \| Stroke: 75 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-KF-32-75-CB	Body: No switch magnet \| Bore: 32 mm \| Stroke: 75 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KF-32-75-FA	Body: No switch magnet \| Bore: 32 mm \| Stroke: 75 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-KF-32-75-FB	Body: No switch magnet \| Bore: 32 mm \| Stroke: 75 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KF-32-100	Body: No switch magnet \| Bore: 32 mm \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KF-32-100-LB	Body: No switch magnet \| Bore: 32 mm \| Stroke: 100 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-KF-32-100-CB	Body: No switch magnet \| Bore: 32 mm \| Stroke: 100 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KF-32-100-FA	Body: No switch magnet \| Bore: 32 mm \| Stroke: 100 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-KF-32-100-FB	Body: No switch magnet \| Bore: 32 mm \| Stroke: 100 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KF-40-5	Body: No switch magnet \| Bore: 40 mm \| Stroke: 5 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KF-40-5-LB	Body: No switch magnet \| Bore: 40 mm \| Stroke: 5 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-KF-40-5-CB	Body: No switch magnet \| Bore: 40 mm \| Stroke: 5 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KF-40-5-FA	Body: No switch magnet \| Bore: 40 mm \| Stroke: 5 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-KF-40-5-FB	Body: No switch magnet \| Bore: 40 mm \| Stroke: 5 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KF-40-10	Body: No switch magnet \| Bore: 40 mm \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KF-40-10-LB	Body: No switch magnet \| Bore: 40 mm \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-KF-40-10-CB	Body: No switch magnet \| Bore: 40 mm \| Stroke: 10 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KF-40-10-FA	Body: No switch magnet \| Bore: 40 mm \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-KF-40-10-FB	Body: No switch magnet \| Bore: 40 mm \| Stroke: 10 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KF-40-15	Body: No switch magnet \| Bore: 40 mm \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KF-40-15-LB	Body: No switch magnet \| Bore: 40 mm \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-KF-40-15-CB	Body: No switch magnet \| Bore: 40 mm \| Stroke: 15 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KF-40-15-FA	Body: No switch magnet \| Bore: 40 mm \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-KF-40-15-FB	Body: No switch magnet \| Bore: 40 mm \| Stroke: 15 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KF-40-20	Body: No switch magnet \| Bore: 40 mm \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KF-40-20-LB	Body: No switch magnet \| Bore: 40 mm \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-KF-40-20-CB	Body: No switch magnet \| Bore: 40 mm \| Stroke: 20 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KF-40-20-FA	Body: No switch magnet \| Bore: 40 mm \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-KF-40-20-FB	Body: No switch magnet \| Bore: 40 mm \| Stroke: 20 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KF-40-25	Body: No switch magnet \| Bore: 40 mm \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KF-40-25-LB	Body: No switch magnet \| Bore: 40 mm \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-KF-40-25-CB	Body: No switch magnet \| Bore: 40 mm \| Stroke: 25 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KF-40-25-FA	Body: No switch magnet \| Bore: 40 mm \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-KF-40-25-FB	Body: No switch magnet \| Bore: 40 mm \| Stroke: 25 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KF-40-30	Body: No switch magnet \| Bore: 40 mm \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KF-40-30-LB	Body: No switch magnet \| Bore: 40 mm \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-KF-40-30-CB	Body: No switch magnet \| Bore: 40 mm \| Stroke: 30 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KF-40-30-FA	Body: No switch magnet \| Bore: 40 mm \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-KF-40-30-FB	Body: No switch magnet \| Bore: 40 mm \| Stroke: 30 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KF-40-35	Body: No switch magnet \| Bore: 40 mm \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KF-40-35-LB	Body: No switch magnet \| Bore: 40 mm \| Stroke: 35 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-KF-40-35-CB	Body: No switch magnet \| Bore: 40 mm \| Stroke: 35 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KF-40-35-FA	Body: No switch magnet \| Bore: 40 mm \| Stroke: 35 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-KF-40-35-FB	Body: No switch magnet \| Bore: 40 mm \| Stroke: 35 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KF-40-40	Body: No switch magnet \| Bore: 40 mm \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KF-40-40-LB	Body: No switch magnet \| Bore: 40 mm \| Stroke: 40 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-KF-40-40-CB	Body: No switch magnet \| Bore: 40 mm \| Stroke: 40 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KF-40-40-FA	Body: No switch magnet \| Bore: 40 mm \| Stroke: 40 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-KF-40-40-FB	Body: No switch magnet \| Bore: 40 mm \| Stroke: 40 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KF-40-45	Body: No switch magnet \| Bore: 40 mm \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KF-40-45-LB	Body: No switch magnet \| Bore: 40 mm \| Stroke: 45 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-KF-40-45-CB	Body: No switch magnet \| Bore: 40 mm \| Stroke: 45 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KF-40-45-FA	Body: No switch magnet \| Bore: 40 mm \| Stroke: 45 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-KF-40-45-FB	Body: No switch magnet \| Bore: 40 mm \| Stroke: 45 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KF-40-50	Body: No switch magnet \| Bore: 40 mm \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KF-40-50-LB	Body: No switch magnet \| Bore: 40 mm \| Stroke: 50 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-KF-40-50-CB	Body: No switch magnet \| Bore: 40 mm \| Stroke: 50 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KF-40-50-FA	Body: No switch magnet \| Bore: 40 mm \| Stroke: 50 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-KF-40-50-FB	Body: No switch magnet \| Bore: 40 mm \| Stroke: 50 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KF-40-75	Body: No switch magnet \| Bore: 40 mm \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KF-40-75-LB	Body: No switch magnet \| Bore: 40 mm \| Stroke: 75 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-KF-40-75-CB	Body: No switch magnet \| Bore: 40 mm \| Stroke: 75 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KF-40-75-FA	Body: No switch magnet \| Bore: 40 mm \| Stroke: 75 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-KF-40-75-FB	Body: No switch magnet \| Bore: 40 mm \| Stroke: 75 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KF-40-100	Body: No switch magnet \| Bore: 40 mm \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KF-40-100-LB	Body: No switch magnet \| Bore: 40 mm \| Stroke: 100 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-KF-40-100-CB	Body: No switch magnet \| Bore: 40 mm \| Stroke: 100 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KF-40-100-FA	Body: No switch magnet \| Bore: 40 mm \| Stroke: 100 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-KF-40-100-FB	Body: No switch magnet \| Bore: 40 mm \| Stroke: 100 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KF-50-10	Body: No switch magnet \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KF-50-10-LB	Body: No switch magnet \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-KF-50-10-CB	Body: No switch magnet \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KF-50-10-FA	Body: No switch magnet \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-KF-50-10-FB	Body: No switch magnet \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KF-50-15	Body: No switch magnet \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KF-50-15-LB	Body: No switch magnet \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-KF-50-15-CB	Body: No switch magnet \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KF-50-15-FA	Body: No switch magnet \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-KF-50-15-FB	Body: No switch magnet \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KF-50-20	Body: No switch magnet \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KF-50-20-LB	Body: No switch magnet \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-KF-50-20-CB	Body: No switch magnet \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KF-50-20-FA	Body: No switch magnet \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-KF-50-20-FB	Body: No switch magnet \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KF-50-25	Body: No switch magnet \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KF-50-25-LB	Body: No switch magnet \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-KF-50-25-CB	Body: No switch magnet \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KF-50-25-FA	Body: No switch magnet \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-KF-50-25-FB	Body: No switch magnet \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KF-50-30	Body: No switch magnet \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KF-50-30-LB	Body: No switch magnet \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-KF-50-30-CB	Body: No switch magnet \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KF-50-30-FA	Body: No switch magnet \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-KF-50-30-FB	Body: No switch magnet \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KF-50-35	Body: No switch magnet \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KF-50-35-LB	Body: No switch magnet \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-KF-50-35-CB	Body: No switch magnet \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KF-50-35-FA	Body: No switch magnet \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-KF-50-35-FB	Body: No switch magnet \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KF-50-40	Body: No switch magnet \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KF-50-40-LB	Body: No switch magnet \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-KF-50-40-CB	Body: No switch magnet \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KF-50-40-FA	Body: No switch magnet \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-KF-50-40-FB	Body: No switch magnet \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KF-50-45	Body: No switch magnet \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KF-50-45-LB	Body: No switch magnet \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-KF-50-45-CB	Body: No switch magnet \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KF-50-45-FA	Body: No switch magnet \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-KF-50-45-FB	Body: No switch magnet \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KF-50-50	Body: No switch magnet \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KF-50-50-LB	Body: No switch magnet \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-KF-50-50-CB	Body: No switch magnet \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KF-50-50-FA	Body: No switch magnet \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-KF-50-50-FB	Body: No switch magnet \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KF-50-75	Body: No switch magnet \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KF-50-75-LB	Body: No switch magnet \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-KF-50-75-CB	Body: No switch magnet \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KF-50-75-FA	Body: No switch magnet \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-KF-50-75-FB	Body: No switch magnet \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KF-50-100	Body: No switch magnet \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KF-50-100-LB	Body: No switch magnet \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-KF-50-100-CB	Body: No switch magnet \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KF-50-100-FA	Body: No switch magnet \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-KF-50-100-FB	Body: No switch magnet \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KF-63-10	Body: No switch magnet \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KF-63-10-LB	Body: No switch magnet \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-KF-63-10-CB	Body: No switch magnet \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KF-63-10-FA	Body: No switch magnet \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-KF-63-10-FB	Body: No switch magnet \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KF-63-15	Body: No switch magnet \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KF-63-15-LB	Body: No switch magnet \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-KF-63-15-CB	Body: No switch magnet \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KF-63-15-FA	Body: No switch magnet \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-KF-63-15-FB	Body: No switch magnet \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KF-63-20	Body: No switch magnet \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KF-63-20-LB	Body: No switch magnet \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-KF-63-20-CB	Body: No switch magnet \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KF-63-20-FA	Body: No switch magnet \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-KF-63-20-FB	Body: No switch magnet \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KF-63-25	Body: No switch magnet \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KF-63-25-LB	Body: No switch magnet \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-KF-63-25-CB	Body: No switch magnet \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KF-63-25-FA	Body: No switch magnet \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-KF-63-25-FB	Body: No switch magnet \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KF-63-30	Body: No switch magnet \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KF-63-30-LB	Body: No switch magnet \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-KF-63-30-CB	Body: No switch magnet \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KF-63-30-FA	Body: No switch magnet \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-KF-63-30-FB	Body: No switch magnet \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KF-63-35	Body: No switch magnet \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KF-63-35-LB	Body: No switch magnet \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-KF-63-35-CB	Body: No switch magnet \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KF-63-35-FA	Body: No switch magnet \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-KF-63-35-FB	Body: No switch magnet \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KF-63-40	Body: No switch magnet \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KF-63-40-LB	Body: No switch magnet \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-KF-63-40-CB	Body: No switch magnet \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KF-63-40-FA	Body: No switch magnet \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-KF-63-40-FB	Body: No switch magnet \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KF-63-45	Body: No switch magnet \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KF-63-45-LB	Body: No switch magnet \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-KF-63-45-CB	Body: No switch magnet \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KF-63-45-FA	Body: No switch magnet \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-KF-63-45-FB	Body: No switch magnet \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KF-63-50	Body: No switch magnet \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KF-63-50-LB	Body: No switch magnet \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-KF-63-50-CB	Body: No switch magnet \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KF-63-50-FA	Body: No switch magnet \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-KF-63-50-FB	Body: No switch magnet \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KF-63-75	Body: No switch magnet \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KF-63-75-LB	Body: No switch magnet \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-KF-63-75-CB	Body: No switch magnet \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KF-63-75-FA	Body: No switch magnet \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-KF-63-75-FB	Body: No switch magnet \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KF-63-100	Body: No switch magnet \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KF-63-100-LB	Body: No switch magnet \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-KF-63-100-CB	Body: No switch magnet \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KF-63-100-FA	Body: No switch magnet \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-KF-63-100-FB	Body: No switch magnet \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KF-80-10	Body: No switch magnet \| Bore: 80 mm \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KF-80-10-LB	Body: No switch magnet \| Bore: 80 mm \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-KF-80-10-CB	Body: No switch magnet \| Bore: 80 mm \| Stroke: 10 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KF-80-10-FA	Body: No switch magnet \| Bore: 80 mm \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-KF-80-10-FB	Body: No switch magnet \| Bore: 80 mm \| Stroke: 10 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KF-80-15	Body: No switch magnet \| Bore: 80 mm \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KF-80-15-LB	Body: No switch magnet \| Bore: 80 mm \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-KF-80-15-CB	Body: No switch magnet \| Bore: 80 mm \| Stroke: 15 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KF-80-15-FA	Body: No switch magnet \| Bore: 80 mm \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-KF-80-15-FB	Body: No switch magnet \| Bore: 80 mm \| Stroke: 15 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KF-80-20	Body: No switch magnet \| Bore: 80 mm \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KF-80-20-LB	Body: No switch magnet \| Bore: 80 mm \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-KF-80-20-CB	Body: No switch magnet \| Bore: 80 mm \| Stroke: 20 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KF-80-20-FA	Body: No switch magnet \| Bore: 80 mm \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-KF-80-20-FB	Body: No switch magnet \| Bore: 80 mm \| Stroke: 20 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KF-80-25	Body: No switch magnet \| Bore: 80 mm \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KF-80-25-LB	Body: No switch magnet \| Bore: 80 mm \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-KF-80-25-CB	Body: No switch magnet \| Bore: 80 mm \| Stroke: 25 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KF-80-25-FA	Body: No switch magnet \| Bore: 80 mm \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-KF-80-25-FB	Body: No switch magnet \| Bore: 80 mm \| Stroke: 25 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KF-80-30	Body: No switch magnet \| Bore: 80 mm \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KF-80-30-LB	Body: No switch magnet \| Bore: 80 mm \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-KF-80-30-CB	Body: No switch magnet \| Bore: 80 mm \| Stroke: 30 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KF-80-30-FA	Body: No switch magnet \| Bore: 80 mm \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-KF-80-30-FB	Body: No switch magnet \| Bore: 80 mm \| Stroke: 30 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KF-80-35	Body: No switch magnet \| Bore: 80 mm \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KF-80-35-LB	Body: No switch magnet \| Bore: 80 mm \| Stroke: 35 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-KF-80-35-CB	Body: No switch magnet \| Bore: 80 mm \| Stroke: 35 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KF-80-35-FA	Body: No switch magnet \| Bore: 80 mm \| Stroke: 35 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-KF-80-35-FB	Body: No switch magnet \| Bore: 80 mm \| Stroke: 35 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KF-80-40	Body: No switch magnet \| Bore: 80 mm \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KF-80-40-LB	Body: No switch magnet \| Bore: 80 mm \| Stroke: 40 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-KF-80-40-CB	Body: No switch magnet \| Bore: 80 mm \| Stroke: 40 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KF-80-40-FA	Body: No switch magnet \| Bore: 80 mm \| Stroke: 40 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-KF-80-40-FB	Body: No switch magnet \| Bore: 80 mm \| Stroke: 40 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KF-80-45	Body: No switch magnet \| Bore: 80 mm \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KF-80-45-LB	Body: No switch magnet \| Bore: 80 mm \| Stroke: 45 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-KF-80-45-CB	Body: No switch magnet \| Bore: 80 mm \| Stroke: 45 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KF-80-45-FA	Body: No switch magnet \| Bore: 80 mm \| Stroke: 45 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-KF-80-45-FB	Body: No switch magnet \| Bore: 80 mm \| Stroke: 45 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KF-80-50	Body: No switch magnet \| Bore: 80 mm \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KF-80-50-LB	Body: No switch magnet \| Bore: 80 mm \| Stroke: 50 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-KF-80-50-CB	Body: No switch magnet \| Bore: 80 mm \| Stroke: 50 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KF-80-50-FA	Body: No switch magnet \| Bore: 80 mm \| Stroke: 50 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-KF-80-50-FB	Body: No switch magnet \| Bore: 80 mm \| Stroke: 50 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KF-80-75	Body: No switch magnet \| Bore: 80 mm \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KF-80-75-LB	Body: No switch magnet \| Bore: 80 mm \| Stroke: 75 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-KF-80-75-CB	Body: No switch magnet \| Bore: 80 mm \| Stroke: 75 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KF-80-75-FA	Body: No switch magnet \| Bore: 80 mm \| Stroke: 75 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-KF-80-75-FB	Body: No switch magnet \| Bore: 80 mm \| Stroke: 75 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KF-80-100	Body: No switch magnet \| Bore: 80 mm \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KF-80-100-LB	Body: No switch magnet \| Bore: 80 mm \| Stroke: 100 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-KF-80-100-CB	Body: No switch magnet \| Bore: 80 mm \| Stroke: 100 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KF-80-100-FA	Body: No switch magnet \| Bore: 80 mm \| Stroke: 100 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-KF-80-100-FB	Body: No switch magnet \| Bore: 80 mm \| Stroke: 100 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KF-100-10	Body: No switch magnet \| Bore: 100 mm \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KF-100-10-LB	Body: No switch magnet \| Bore: 100 mm \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-KF-100-10-CB	Body: No switch magnet \| Bore: 100 mm \| Stroke: 10 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KF-100-10-FA	Body: No switch magnet \| Bore: 100 mm \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-KF-100-10-FB	Body: No switch magnet \| Bore: 100 mm \| Stroke: 10 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KF-100-15	Body: No switch magnet \| Bore: 100 mm \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KF-100-15-LB	Body: No switch magnet \| Bore: 100 mm \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-KF-100-15-CB	Body: No switch magnet \| Bore: 100 mm \| Stroke: 15 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KF-100-15-FA	Body: No switch magnet \| Bore: 100 mm \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-KF-100-15-FB	Body: No switch magnet \| Bore: 100 mm \| Stroke: 15 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KF-100-20	Body: No switch magnet \| Bore: 100 mm \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KF-100-20-LB	Body: No switch magnet \| Bore: 100 mm \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-KF-100-20-CB	Body: No switch magnet \| Bore: 100 mm \| Stroke: 20 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KF-100-20-FA	Body: No switch magnet \| Bore: 100 mm \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-KF-100-20-FB	Body: No switch magnet \| Bore: 100 mm \| Stroke: 20 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KF-100-25	Body: No switch magnet \| Bore: 100 mm \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KF-100-25-LB	Body: No switch magnet \| Bore: 100 mm \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-KF-100-25-CB	Body: No switch magnet \| Bore: 100 mm \| Stroke: 25 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KF-100-25-FA	Body: No switch magnet \| Bore: 100 mm \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-KF-100-25-FB	Body: No switch magnet \| Bore: 100 mm \| Stroke: 25 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KF-100-30	Body: No switch magnet \| Bore: 100 mm \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KF-100-30-LB	Body: No switch magnet \| Bore: 100 mm \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-KF-100-30-CB	Body: No switch magnet \| Bore: 100 mm \| Stroke: 30 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KF-100-30-FA	Body: No switch magnet \| Bore: 100 mm \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-KF-100-30-FB	Body: No switch magnet \| Bore: 100 mm \| Stroke: 30 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KF-100-35	Body: No switch magnet \| Bore: 100 mm \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KF-100-35-LB	Body: No switch magnet \| Bore: 100 mm \| Stroke: 35 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-KF-100-35-CB	Body: No switch magnet \| Bore: 100 mm \| Stroke: 35 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KF-100-35-FA	Body: No switch magnet \| Bore: 100 mm \| Stroke: 35 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-KF-100-35-FB	Body: No switch magnet \| Bore: 100 mm \| Stroke: 35 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KF-100-40	Body: No switch magnet \| Bore: 100 mm \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KF-100-40-LB	Body: No switch magnet \| Bore: 100 mm \| Stroke: 40 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-KF-100-40-CB	Body: No switch magnet \| Bore: 100 mm \| Stroke: 40 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KF-100-40-FA	Body: No switch magnet \| Bore: 100 mm \| Stroke: 40 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-KF-100-40-FB	Body: No switch magnet \| Bore: 100 mm \| Stroke: 40 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KF-100-45	Body: No switch magnet \| Bore: 100 mm \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KF-100-45-LB	Body: No switch magnet \| Bore: 100 mm \| Stroke: 45 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-KF-100-45-CB	Body: No switch magnet \| Bore: 100 mm \| Stroke: 45 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KF-100-45-FA	Body: No switch magnet \| Bore: 100 mm \| Stroke: 45 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-KF-100-45-FB	Body: No switch magnet \| Bore: 100 mm \| Stroke: 45 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KF-100-50	Body: No switch magnet \| Bore: 100 mm \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KF-100-50-LB	Body: No switch magnet \| Bore: 100 mm \| Stroke: 50 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-KF-100-50-CB	Body: No switch magnet \| Bore: 100 mm \| Stroke: 50 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KF-100-50-FA	Body: No switch magnet \| Bore: 100 mm \| Stroke: 50 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-KF-100-50-FB	Body: No switch magnet \| Bore: 100 mm \| Stroke: 50 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KF-100-75	Body: No switch magnet \| Bore: 100 mm \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KF-100-75-LB	Body: No switch magnet \| Bore: 100 mm \| Stroke: 75 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-KF-100-75-CB	Body: No switch magnet \| Bore: 100 mm \| Stroke: 75 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KF-100-75-FA	Body: No switch magnet \| Bore: 100 mm \| Stroke: 75 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-KF-100-75-FB	Body: No switch magnet \| Bore: 100 mm \| Stroke: 75 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KF-100-100	Body: No switch magnet \| Bore: 100 mm \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KF-100-100-LB	Body: No switch magnet \| Bore: 100 mm \| Stroke: 100 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-KF-100-100-CB	Body: No switch magnet \| Bore: 100 mm \| Stroke: 100 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KF-100-100-FA	Body: No switch magnet \| Bore: 100 mm \| Stroke: 100 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-KF-100-100-FB	Body: No switch magnet \| Bore: 100 mm \| Stroke: 100 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KLF-12-5	Body: Switch magnet built in \| Bore: 12 mm \| Stroke: 5 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KLF-12-5-LB	Body: Switch magnet built in \| Bore: 12 mm \| Stroke: 5 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-KLF-12-5-CB	Body: Switch magnet built in \| Bore: 12 mm \| Stroke: 5 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KLF-12-5-FA	Body: Switch magnet built in \| Bore: 12 mm \| Stroke: 5 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-KLF-12-5-FB	Body: Switch magnet built in \| Bore: 12 mm \| Stroke: 5 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KLF-12-10	Body: Switch magnet built in \| Bore: 12 mm \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KLF-12-10-LB	Body: Switch magnet built in \| Bore: 12 mm \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-KLF-12-10-CB	Body: Switch magnet built in \| Bore: 12 mm \| Stroke: 10 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KLF-12-10-FA	Body: Switch magnet built in \| Bore: 12 mm \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-KLF-12-10-FB	Body: Switch magnet built in \| Bore: 12 mm \| Stroke: 10 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KLF-12-15	Body: Switch magnet built in \| Bore: 12 mm \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KLF-12-15-LB	Body: Switch magnet built in \| Bore: 12 mm \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-KLF-12-15-CB	Body: Switch magnet built in \| Bore: 12 mm \| Stroke: 15 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KLF-12-15-FA	Body: Switch magnet built in \| Bore: 12 mm \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-KLF-12-15-FB	Body: Switch magnet built in \| Bore: 12 mm \| Stroke: 15 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KLF-12-20	Body: Switch magnet built in \| Bore: 12 mm \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KLF-12-20-LB	Body: Switch magnet built in \| Bore: 12 mm \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-KLF-12-20-CB	Body: Switch magnet built in \| Bore: 12 mm \| Stroke: 20 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KLF-12-20-FA	Body: Switch magnet built in \| Bore: 12 mm \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-KLF-12-20-FB	Body: Switch magnet built in \| Bore: 12 mm \| Stroke: 20 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KLF-12-25	Body: Switch magnet built in \| Bore: 12 mm \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KLF-12-25-LB	Body: Switch magnet built in \| Bore: 12 mm \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-KLF-12-25-CB	Body: Switch magnet built in \| Bore: 12 mm \| Stroke: 25 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KLF-12-25-FA	Body: Switch magnet built in \| Bore: 12 mm \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-KLF-12-25-FB	Body: Switch magnet built in \| Bore: 12 mm \| Stroke: 25 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KLF-12-30	Body: Switch magnet built in \| Bore: 12 mm \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KLF-12-30-LB	Body: Switch magnet built in \| Bore: 12 mm \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-KLF-12-30-CB	Body: Switch magnet built in \| Bore: 12 mm \| Stroke: 30 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KLF-12-30-FA	Body: Switch magnet built in \| Bore: 12 mm \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-KLF-12-30-FB	Body: Switch magnet built in \| Bore: 12 mm \| Stroke: 30 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KLF-16-5	Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 5 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KLF-16-5-LB	Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 5 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-KLF-16-5-CB	Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 5 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KLF-16-5-FA	Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 5 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-KLF-16-5-FB	Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 5 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KLF-16-10	Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KLF-16-10-LB	Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-KLF-16-10-CB	Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 10 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KLF-16-10-FA	Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-KLF-16-10-FB	Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 10 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KLF-16-15	Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KLF-16-15-LB	Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-KLF-16-15-CB	Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 15 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KLF-16-15-FA	Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-KLF-16-15-FB	Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 15 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KLF-16-20	Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KLF-16-20-LB	Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-KLF-16-20-CB	Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 20 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KLF-16-20-FA	Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-KLF-16-20-FB	Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 20 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KLF-16-25	Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KLF-16-25-LB	Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-KLF-16-25-CB	Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 25 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KLF-16-25-FA	Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-KLF-16-25-FB	Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 25 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KLF-16-30	Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KLF-16-30-LB	Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-KLF-16-30-CB	Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 30 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KLF-16-30-FA	Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-KLF-16-30-FB	Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 30 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KLF-20-5	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 5 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KLF-20-5-LB	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 5 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-KLF-20-5-CB	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 5 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KLF-20-5-FA	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 5 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-KLF-20-5-FB	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 5 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KLF-20-10	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KLF-20-10-LB	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-KLF-20-10-CB	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 10 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KLF-20-10-FA	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-KLF-20-10-FB	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 10 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KLF-20-15	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KLF-20-15-LB	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-KLF-20-15-CB	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 15 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KLF-20-15-FA	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-KLF-20-15-FB	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 15 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KLF-20-20	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KLF-20-20-LB	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-KLF-20-20-CB	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 20 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KLF-20-20-FA	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-KLF-20-20-FB	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 20 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KLF-20-25	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KLF-20-25-LB	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-KLF-20-25-CB	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 25 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KLF-20-25-FA	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-KLF-20-25-FB	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 25 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KLF-20-30	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KLF-20-30-LB	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-KLF-20-30-CB	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 30 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KLF-20-30-FA	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-KLF-20-30-FB	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 30 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KLF-20-35	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KLF-20-35-LB	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 35 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-KLF-20-35-CB	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 35 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KLF-20-35-FA	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 35 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-KLF-20-35-FB	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 35 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KLF-20-40	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KLF-20-40-LB	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 40 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-KLF-20-40-CB	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 40 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KLF-20-40-FA	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 40 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-KLF-20-40-FB	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 40 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KLF-20-45	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KLF-20-45-LB	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 45 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-KLF-20-45-CB	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 45 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KLF-20-45-FA	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 45 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-KLF-20-45-FB	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 45 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KLF-20-50	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KLF-20-50-LB	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 50 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-KLF-20-50-CB	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 50 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KLF-20-50-FA	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 50 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-KLF-20-50-FB	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 50 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KLF-25-5	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 5 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KLF-25-5-LB	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 5 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-KLF-25-5-CB	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 5 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KLF-25-5-FA	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 5 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-KLF-25-5-FB	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 5 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KLF-25-10	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KLF-25-10-LB	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-KLF-25-10-CB	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 10 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KLF-25-10-FA	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-KLF-25-10-FB	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 10 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KLF-25-15	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KLF-25-15-LB	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-KLF-25-15-CB	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 15 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KLF-25-15-FA	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-KLF-25-15-FB	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 15 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KLF-25-20	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KLF-25-20-LB	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-KLF-25-20-CB	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 20 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KLF-25-20-FA	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-KLF-25-20-FB	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 20 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KLF-25-25	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KLF-25-25-LB	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-KLF-25-25-CB	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 25 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KLF-25-25-FA	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-KLF-25-25-FB	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 25 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KLF-25-30	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KLF-25-30-LB	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-KLF-25-30-CB	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 30 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KLF-25-30-FA	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-KLF-25-30-FB	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 30 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KLF-25-35	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KLF-25-35-LB	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 35 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-KLF-25-35-CB	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 35 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KLF-25-35-FA	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 35 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-KLF-25-35-FB	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 35 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KLF-25-40	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KLF-25-40-LB	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 40 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-KLF-25-40-CB	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 40 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KLF-25-40-FA	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 40 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-KLF-25-40-FB	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 40 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KLF-25-45	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KLF-25-45-LB	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 45 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-KLF-25-45-CB	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 45 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KLF-25-45-FA	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 45 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-KLF-25-45-FB	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 45 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KLF-25-50	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KLF-25-50-LB	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 50 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-KLF-25-50-CB	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 50 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KLF-25-50-FA	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 50 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-KLF-25-50-FB	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 50 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KLF-32-5	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 5 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KLF-32-5-LB	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 5 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-KLF-32-5-CB	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 5 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KLF-32-5-FA	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 5 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-KLF-32-5-FB	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 5 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KLF-32-10	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KLF-32-10-LB	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-KLF-32-10-CB	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 10 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KLF-32-10-FA	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-KLF-32-10-FB	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 10 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KLF-32-15	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KLF-32-15-LB	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-KLF-32-15-CB	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 15 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KLF-32-15-FA	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-KLF-32-15-FB	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 15 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KLF-32-20	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KLF-32-20-LB	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-KLF-32-20-CB	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 20 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KLF-32-20-FA	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-KLF-32-20-FB	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 20 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KLF-32-25	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KLF-32-25-LB	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-KLF-32-25-CB	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 25 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KLF-32-25-FA	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-KLF-32-25-FB	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 25 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KLF-32-30	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KLF-32-30-LB	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-KLF-32-30-CB	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 30 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KLF-32-30-FA	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-KLF-32-30-FB	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 30 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KLF-32-35	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KLF-32-35-LB	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 35 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-KLF-32-35-CB	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 35 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KLF-32-35-FA	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 35 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-KLF-32-35-FB	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 35 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KLF-32-40	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KLF-32-40-LB	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 40 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-KLF-32-40-CB	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 40 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KLF-32-40-FA	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 40 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-KLF-32-40-FB	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 40 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KLF-32-45	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KLF-32-45-LB	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 45 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-KLF-32-45-CB	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 45 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KLF-32-45-FA	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 45 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-KLF-32-45-FB	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 45 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KLF-32-50	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KLF-32-50-LB	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 50 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-KLF-32-50-CB	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 50 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KLF-32-50-FA	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 50 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-KLF-32-50-FB	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 50 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KLF-32-75	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KLF-32-75-LB	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 75 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-KLF-32-75-CB	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 75 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KLF-32-75-FA	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 75 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-KLF-32-75-FB	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 75 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KLF-32-100	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KLF-32-100-LB	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 100 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-KLF-32-100-CB	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 100 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KLF-32-100-FA	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 100 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-KLF-32-100-FB	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 100 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KLF-40-5	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 5 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KLF-40-5-LB	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 5 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-KLF-40-5-CB	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 5 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KLF-40-5-FA	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 5 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-KLF-40-5-FB	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 5 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KLF-40-10	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KLF-40-10-LB	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-KLF-40-10-CB	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 10 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KLF-40-10-FA	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-KLF-40-10-FB	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 10 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KLF-40-15	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KLF-40-15-LB	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-KLF-40-15-CB	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 15 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KLF-40-15-FA	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-KLF-40-15-FB	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 15 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KLF-40-20	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KLF-40-20-LB	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-KLF-40-20-CB	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 20 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KLF-40-20-FA	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-KLF-40-20-FB	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 20 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KLF-40-25	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KLF-40-25-LB	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-KLF-40-25-CB	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 25 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KLF-40-25-FA	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-KLF-40-25-FB	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 25 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KLF-40-30	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KLF-40-30-LB	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-KLF-40-30-CB	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 30 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KLF-40-30-FA	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-KLF-40-30-FB	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 30 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KLF-40-35	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KLF-40-35-LB	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 35 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-KLF-40-35-CB	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 35 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KLF-40-35-FA	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 35 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-KLF-40-35-FB	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 35 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KLF-40-40	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KLF-40-40-LB	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 40 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-KLF-40-40-CB	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 40 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KLF-40-40-FA	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 40 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-KLF-40-40-FB	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 40 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KLF-40-45	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KLF-40-45-LB	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 45 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-KLF-40-45-CB	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 45 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KLF-40-45-FA	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 45 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-KLF-40-45-FB	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 45 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KLF-40-50	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KLF-40-50-LB	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 50 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-KLF-40-50-CB	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 50 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KLF-40-50-FA	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 50 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-KLF-40-50-FB	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 50 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KLF-40-75	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KLF-40-75-LB	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 75 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-KLF-40-75-CB	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 75 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KLF-40-75-FA	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 75 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-KLF-40-75-FB	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 75 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KLF-40-100	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KLF-40-100-LB	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 100 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-KLF-40-100-CB	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 100 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KLF-40-100-FA	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 100 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-KLF-40-100-FB	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 100 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KLF-50-10	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KLF-50-10-LB	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-KLF-50-10-CB	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KLF-50-10-FA	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-KLF-50-10-FB	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KLF-50-15	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KLF-50-15-LB	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-KLF-50-15-CB	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KLF-50-15-FA	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-KLF-50-15-FB	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KLF-50-20	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KLF-50-20-LB	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-KLF-50-20-CB	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KLF-50-20-FA	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-KLF-50-20-FB	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KLF-50-25	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KLF-50-25-LB	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-KLF-50-25-CB	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KLF-50-25-FA	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-KLF-50-25-FB	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KLF-50-30	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KLF-50-30-LB	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-KLF-50-30-CB	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KLF-50-30-FA	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-KLF-50-30-FB	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KLF-50-35	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KLF-50-35-LB	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-KLF-50-35-CB	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KLF-50-35-FA	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-KLF-50-35-FB	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KLF-50-40	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KLF-50-40-LB	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-KLF-50-40-CB	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KLF-50-40-FA	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-KLF-50-40-FB	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KLF-50-45	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KLF-50-45-LB	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-KLF-50-45-CB	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KLF-50-45-FA	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-KLF-50-45-FB	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KLF-50-50	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KLF-50-50-LB	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-KLF-50-50-CB	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KLF-50-50-FA	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-KLF-50-50-FB	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KLF-50-75	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KLF-50-75-LB	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-KLF-50-75-CB	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KLF-50-75-FA	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-KLF-50-75-FB	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KLF-50-100	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KLF-50-100-LB	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-KLF-50-100-CB	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KLF-50-100-FA	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-KLF-50-100-FB	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KLF-63-10	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KLF-63-10-LB	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-KLF-63-10-CB	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KLF-63-10-FA	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-KLF-63-10-FB	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KLF-63-15	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KLF-63-15-LB	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-KLF-63-15-CB	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KLF-63-15-FA	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-KLF-63-15-FB	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KLF-63-20	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KLF-63-20-LB	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-KLF-63-20-CB	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KLF-63-20-FA	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-KLF-63-20-FB	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KLF-63-25	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KLF-63-25-LB	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-KLF-63-25-CB	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KLF-63-25-FA	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-KLF-63-25-FB	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KLF-63-30	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KLF-63-30-LB	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-KLF-63-30-CB	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KLF-63-30-FA	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-KLF-63-30-FB	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KLF-63-35	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KLF-63-35-LB	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-KLF-63-35-CB	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KLF-63-35-FA	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-KLF-63-35-FB	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KLF-63-40	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KLF-63-40-LB	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-KLF-63-40-CB	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KLF-63-40-FA	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-KLF-63-40-FB	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KLF-63-45	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KLF-63-45-LB	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-KLF-63-45-CB	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KLF-63-45-FA	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-KLF-63-45-FB	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KLF-63-50	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KLF-63-50-LB	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-KLF-63-50-CB	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KLF-63-50-FA	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-KLF-63-50-FB	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KLF-63-75	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KLF-63-75-LB	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-KLF-63-75-CB	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KLF-63-75-FA	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-KLF-63-75-FB	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KLF-63-100	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KLF-63-100-LB	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-KLF-63-100-CB	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KLF-63-100-FA	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-KLF-63-100-FB	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KLF-80-10	Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KLF-80-10-LB	Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-KLF-80-10-CB	Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 10 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KLF-80-10-FA	Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-KLF-80-10-FB	Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 10 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KLF-80-15	Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KLF-80-15-LB	Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-KLF-80-15-CB	Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 15 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KLF-80-15-FA	Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-KLF-80-15-FB	Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 15 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KLF-80-20	Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KLF-80-20-LB	Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-KLF-80-20-CB	Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 20 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KLF-80-20-FA	Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-KLF-80-20-FB	Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 20 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KLF-80-25	Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KLF-80-25-LB	Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-KLF-80-25-CB	Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 25 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KLF-80-25-FA	Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-KLF-80-25-FB	Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 25 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KLF-80-30	Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KLF-80-30-LB	Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-KLF-80-30-CB	Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 30 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KLF-80-30-FA	Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-KLF-80-30-FB	Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 30 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KLF-80-35	Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KLF-80-35-LB	Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 35 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-KLF-80-35-CB	Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 35 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KLF-80-35-FA	Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 35 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-KLF-80-35-FB	Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 35 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KLF-80-40	Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KLF-80-40-LB	Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 40 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-KLF-80-40-CB	Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 40 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KLF-80-40-FA	Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 40 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-KLF-80-40-FB	Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 40 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KLF-80-45	Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KLF-80-45-LB	Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 45 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-KLF-80-45-CB	Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 45 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KLF-80-45-FA	Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 45 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-KLF-80-45-FB	Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 45 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KLF-80-50	Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KLF-80-50-LB	Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 50 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-KLF-80-50-CB	Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 50 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KLF-80-50-FA	Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 50 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-KLF-80-50-FB	Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 50 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KLF-80-75	Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KLF-80-75-LB	Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 75 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-KLF-80-75-CB	Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 75 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KLF-80-75-FA	Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 75 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-KLF-80-75-FB	Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 75 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KLF-80-100	Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KLF-80-100-LB	Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 100 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-KLF-80-100-CB	Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 100 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KLF-80-100-FA	Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 100 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-KLF-80-100-FB	Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 100 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KLF-100-10	Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KLF-100-10-LB	Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-KLF-100-10-CB	Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 10 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KLF-100-10-FA	Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-KLF-100-10-FB	Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 10 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KLF-100-15	Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KLF-100-15-LB	Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-KLF-100-15-CB	Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 15 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KLF-100-15-FA	Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-KLF-100-15-FB	Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 15 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KLF-100-20	Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KLF-100-20-LB	Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-KLF-100-20-CB	Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 20 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KLF-100-20-FA	Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-KLF-100-20-FB	Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 20 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KLF-100-25	Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KLF-100-25-LB	Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-KLF-100-25-CB	Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 25 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KLF-100-25-FA	Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-KLF-100-25-FB	Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 25 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KLF-100-30	Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KLF-100-30-LB	Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-KLF-100-30-CB	Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 30 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KLF-100-30-FA	Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-KLF-100-30-FB	Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 30 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KLF-100-35	Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KLF-100-35-LB	Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 35 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-KLF-100-35-CB	Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 35 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KLF-100-35-FA	Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 35 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-KLF-100-35-FB	Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 35 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KLF-100-40	Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KLF-100-40-LB	Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 40 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-KLF-100-40-CB	Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 40 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KLF-100-40-FA	Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 40 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-KLF-100-40-FB	Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 40 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KLF-100-45	Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KLF-100-45-LB	Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 45 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-KLF-100-45-CB	Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 45 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KLF-100-45-FA	Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 45 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-KLF-100-45-FB	Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 45 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KLF-100-50	Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KLF-100-50-LB	Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 50 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-KLF-100-50-CB	Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 50 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KLF-100-50-FA	Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 50 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-KLF-100-50-FB	Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 50 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KLF-100-75	Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KLF-100-75-LB	Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 75 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-KLF-100-75-CB	Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 75 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KLF-100-75-FA	Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 75 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-KLF-100-75-FB	Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 75 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KLF-100-100	Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KLF-100-100-LB	Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 100 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-KLF-100-100-CB	Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 100 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KLF-100-100-FA	Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 100 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-KLF-100-100-FB	Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 100 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

CKD SSD2-KF Super Compact Cylinder (High Load, Fine Speed)
