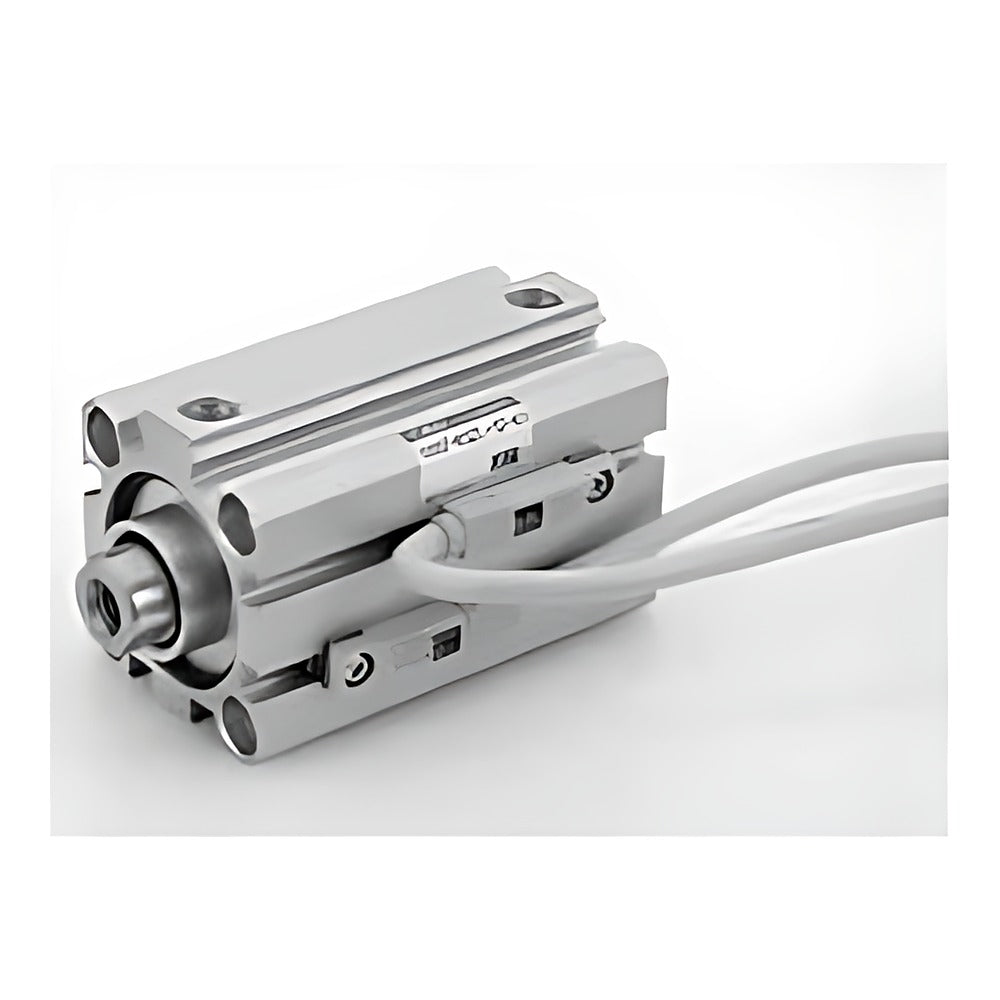

CKD SSD2-KG2/KG3 Super Compact Cylinder (High Load, Coolant Resist.)

CKD SSD2-KG2/KG3 high-load super compact cylinder with coolant-resistant scraper and NBR (KG2) or FKM (KG3) packings.

Key features

High-load rod construction with rubber cushion
Coolant-resistant scraper; NBR packing (KG2) or FKM packing (KG3)
Bores 16 to 100 mm with standard strokes 5 to 100 mm
Switch-ready KG2L/KG3L with built-in magnet (T2YL/T3YL switches)
Standard mountings CB and FB attached; LB and FA made to order

Specifications

Action	Double acting, single rod, high load
Fluid	Compressed air
Max. working pressure	1.0 MPa
Min. working pressure	0.15 MPa (63-100: 0.1 MPa)
Proof pressure	1.6 MPa
Ambient temperature	-10 to 60 C (no freezing)
Piston speed	50-500 mm/s (63-100: 50-300 mm/s)
Cushion	Rubber cushion
Source	CKD Korea catalog CB-029SK-9, p. 1044-1053

SSD2-KG2-16-5		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 16 mm \| Stroke: 5 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KG2-16-5-CB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 16 mm \| Stroke: 5 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KG2-16-5-FB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 16 mm \| Stroke: 5 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KG2-16-10		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 16 mm \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KG2-16-10-CB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 16 mm \| Stroke: 10 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KG2-16-10-FB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 16 mm \| Stroke: 10 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KG2-16-15		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 16 mm \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KG2-16-15-CB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 16 mm \| Stroke: 15 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KG2-16-15-FB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 16 mm \| Stroke: 15 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KG2-16-20		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 16 mm \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KG2-16-20-CB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 16 mm \| Stroke: 20 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KG2-16-20-FB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 16 mm \| Stroke: 20 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KG2-16-25		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 16 mm \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KG2-16-25-CB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 16 mm \| Stroke: 25 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KG2-16-25-FB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 16 mm \| Stroke: 25 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KG2-16-30		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 16 mm \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KG2-16-30-CB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 16 mm \| Stroke: 30 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KG2-16-30-FB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 16 mm \| Stroke: 30 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KG2-20-5		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 5 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KG2-20-5-CB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 5 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KG2-20-5-FB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 5 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KG2-20-10		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KG2-20-10-CB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 10 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KG2-20-10-FB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 10 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KG2-20-15		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KG2-20-15-CB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 15 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KG2-20-15-FB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 15 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KG2-20-20		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KG2-20-20-CB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 20 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KG2-20-20-FB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 20 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KG2-20-25		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KG2-20-25-CB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 25 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KG2-20-25-FB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 25 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KG2-20-30		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KG2-20-30-CB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 30 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KG2-20-30-FB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 30 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KG2-20-35		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KG2-20-35-CB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 35 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KG2-20-35-FB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 35 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KG2-20-40		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KG2-20-40-CB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 40 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KG2-20-40-FB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 40 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KG2-20-45		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KG2-20-45-CB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 45 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KG2-20-45-FB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 45 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KG2-20-50		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KG2-20-50-CB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 50 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KG2-20-50-FB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 50 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KG2-25-5		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 5 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KG2-25-5-CB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 5 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KG2-25-5-FB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 5 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KG2-25-10		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KG2-25-10-CB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 10 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KG2-25-10-FB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 10 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KG2-25-15		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KG2-25-15-CB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 15 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KG2-25-15-FB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 15 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KG2-25-20		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KG2-25-20-CB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 20 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KG2-25-20-FB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 20 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KG2-25-25		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KG2-25-25-CB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 25 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KG2-25-25-FB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 25 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KG2-25-30		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KG2-25-30-CB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 30 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KG2-25-30-FB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 30 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KG2-25-35		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KG2-25-35-CB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 35 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KG2-25-35-FB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 35 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KG2-25-40		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KG2-25-40-CB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 40 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KG2-25-40-FB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 40 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KG2-25-45		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KG2-25-45-CB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 45 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KG2-25-45-FB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 45 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KG2-25-50		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KG2-25-50-CB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 50 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KG2-25-50-FB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 50 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KG2-32-5		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 5 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KG2-32-5-CB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 5 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KG2-32-5-FB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 5 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KG2-32-10		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KG2-32-10-CB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 10 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KG2-32-10-FB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 10 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KG2-32-15		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KG2-32-15-CB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 15 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KG2-32-15-FB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 15 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KG2-32-20		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KG2-32-20-CB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 20 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KG2-32-20-FB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 20 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KG2-32-25		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KG2-32-25-CB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 25 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KG2-32-25-FB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 25 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KG2-32-30		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KG2-32-30-CB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 30 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KG2-32-30-FB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 30 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KG2-32-35		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KG2-32-35-CB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 35 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KG2-32-35-FB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 35 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KG2-32-40		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KG2-32-40-CB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 40 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KG2-32-40-FB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 40 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KG2-32-45		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KG2-32-45-CB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 45 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KG2-32-45-FB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 45 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KG2-32-50		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KG2-32-50-CB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 50 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KG2-32-50-FB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 50 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KG2-32-75		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KG2-32-75-CB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 75 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KG2-32-75-FB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 75 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KG2-32-100		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KG2-32-100-CB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 100 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KG2-32-100-FB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 100 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KG2-40-5		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 5 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KG2-40-5-CB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 5 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KG2-40-5-FB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 5 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KG2-40-10		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KG2-40-10-CB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 10 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KG2-40-10-FB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 10 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KG2-40-15		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KG2-40-15-CB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 15 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KG2-40-15-FB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 15 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KG2-40-20		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KG2-40-20-CB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 20 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KG2-40-20-FB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 20 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KG2-40-25		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KG2-40-25-CB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 25 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KG2-40-25-FB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 25 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KG2-40-30		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KG2-40-30-CB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 30 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KG2-40-30-FB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 30 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KG2-40-35		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KG2-40-35-CB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 35 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KG2-40-35-FB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 35 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KG2-40-40		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KG2-40-40-CB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 40 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KG2-40-40-FB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 40 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KG2-40-45		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KG2-40-45-CB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 45 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KG2-40-45-FB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 45 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KG2-40-50		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KG2-40-50-CB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 50 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KG2-40-50-FB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 50 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KG2-40-75		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KG2-40-75-CB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 75 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KG2-40-75-FB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 75 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KG2-40-100		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KG2-40-100-CB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 100 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KG2-40-100-FB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 100 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KG2-50-10		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KG2-50-10-CB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KG2-50-10-FB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KG2-50-15		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KG2-50-15-CB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KG2-50-15-FB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KG2-50-20		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KG2-50-20-CB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KG2-50-20-FB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KG2-50-25		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KG2-50-25-CB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KG2-50-25-FB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KG2-50-30		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KG2-50-30-CB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KG2-50-30-FB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KG2-50-35		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KG2-50-35-CB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KG2-50-35-FB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KG2-50-40		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KG2-50-40-CB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KG2-50-40-FB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KG2-50-45		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KG2-50-45-CB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KG2-50-45-FB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KG2-50-50		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KG2-50-50-CB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KG2-50-50-FB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KG2-50-75		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KG2-50-75-CB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KG2-50-75-FB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KG2-50-100		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KG2-50-100-CB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KG2-50-100-FB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KG2-63-10		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KG2-63-10-CB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KG2-63-10-FB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KG2-63-15		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KG2-63-15-CB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KG2-63-15-FB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KG2-63-20		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KG2-63-20-CB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KG2-63-20-FB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KG2-63-25		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KG2-63-25-CB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KG2-63-25-FB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KG2-63-30		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KG2-63-30-CB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KG2-63-30-FB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KG2-63-35		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KG2-63-35-CB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KG2-63-35-FB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KG2-63-40		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KG2-63-40-CB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KG2-63-40-FB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KG2-63-45		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KG2-63-45-CB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KG2-63-45-FB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KG2-63-50		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KG2-63-50-CB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KG2-63-50-FB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KG2-63-75		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KG2-63-75-CB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KG2-63-75-FB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KG2-63-100		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KG2-63-100-CB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KG2-63-100-FB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KG2-80-10		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KG2-80-10-CB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 10 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KG2-80-10-FB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 10 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KG2-80-15		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KG2-80-15-CB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 15 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KG2-80-15-FB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 15 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KG2-80-20		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KG2-80-20-CB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 20 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KG2-80-20-FB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 20 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KG2-80-25		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KG2-80-25-CB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 25 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KG2-80-25-FB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 25 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KG2-80-30		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KG2-80-30-CB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 30 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KG2-80-30-FB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 30 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KG2-80-35		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KG2-80-35-CB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 35 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KG2-80-35-FB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 35 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KG2-80-40		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KG2-80-40-CB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 40 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KG2-80-40-FB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 40 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KG2-80-45		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KG2-80-45-CB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 45 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KG2-80-45-FB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 45 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KG2-80-50		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KG2-80-50-CB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 50 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KG2-80-50-FB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 50 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KG2-80-75		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KG2-80-75-CB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 75 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KG2-80-75-FB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 75 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KG2-80-100		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KG2-80-100-CB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 100 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KG2-80-100-FB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 100 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KG2-100-10		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KG2-100-10-CB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 10 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KG2-100-10-FB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 10 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KG2-100-15		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KG2-100-15-CB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 15 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KG2-100-15-FB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 15 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KG2-100-20		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KG2-100-20-CB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 20 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KG2-100-20-FB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 20 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KG2-100-25		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KG2-100-25-CB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 25 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KG2-100-25-FB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 25 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KG2-100-30		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KG2-100-30-CB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 30 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KG2-100-30-FB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 30 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KG2-100-35		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KG2-100-35-CB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 35 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KG2-100-35-FB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 35 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KG2-100-40		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KG2-100-40-CB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 40 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KG2-100-40-FB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 40 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KG2-100-45		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KG2-100-45-CB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 45 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KG2-100-45-FB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 45 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KG2-100-50		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KG2-100-50-CB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 50 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KG2-100-50-FB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 50 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KG2-100-75		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KG2-100-75-CB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 75 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KG2-100-75-FB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 75 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KG2-100-100		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KG2-100-100-CB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 100 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KG2-100-100-FB		Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 100 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KG3-16-5		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 16 mm \| Stroke: 5 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KG3-16-5-CB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 16 mm \| Stroke: 5 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KG3-16-5-FB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 16 mm \| Stroke: 5 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KG3-16-10		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 16 mm \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KG3-16-10-CB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 16 mm \| Stroke: 10 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KG3-16-10-FB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 16 mm \| Stroke: 10 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KG3-16-15		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 16 mm \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KG3-16-15-CB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 16 mm \| Stroke: 15 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KG3-16-15-FB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 16 mm \| Stroke: 15 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KG3-16-20		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 16 mm \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KG3-16-20-CB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 16 mm \| Stroke: 20 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KG3-16-20-FB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 16 mm \| Stroke: 20 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KG3-16-25		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 16 mm \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KG3-16-25-CB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 16 mm \| Stroke: 25 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KG3-16-25-FB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 16 mm \| Stroke: 25 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KG3-16-30		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 16 mm \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KG3-16-30-CB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 16 mm \| Stroke: 30 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KG3-16-30-FB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 16 mm \| Stroke: 30 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KG3-20-5		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 5 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KG3-20-5-CB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 5 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KG3-20-5-FB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 5 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KG3-20-10		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KG3-20-10-CB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 10 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KG3-20-10-FB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 10 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KG3-20-15		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KG3-20-15-CB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 15 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KG3-20-15-FB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 15 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KG3-20-20		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KG3-20-20-CB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 20 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KG3-20-20-FB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 20 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KG3-20-25		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KG3-20-25-CB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 25 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KG3-20-25-FB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 25 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KG3-20-30		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KG3-20-30-CB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 30 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KG3-20-30-FB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 30 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KG3-20-35		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KG3-20-35-CB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 35 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KG3-20-35-FB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 35 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KG3-20-40		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KG3-20-40-CB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 40 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KG3-20-40-FB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 40 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KG3-20-45		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KG3-20-45-CB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 45 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KG3-20-45-FB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 45 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KG3-20-50		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KG3-20-50-CB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 50 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KG3-20-50-FB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 50 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KG3-25-5		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 5 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KG3-25-5-CB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 5 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KG3-25-5-FB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 5 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KG3-25-10		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KG3-25-10-CB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 10 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KG3-25-10-FB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 10 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KG3-25-15		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KG3-25-15-CB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 15 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KG3-25-15-FB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 15 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KG3-25-20		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KG3-25-20-CB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 20 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KG3-25-20-FB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 20 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KG3-25-25		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KG3-25-25-CB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 25 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KG3-25-25-FB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 25 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KG3-25-30		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KG3-25-30-CB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 30 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KG3-25-30-FB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 30 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KG3-25-35		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KG3-25-35-CB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 35 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KG3-25-35-FB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 35 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KG3-25-40		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KG3-25-40-CB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 40 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KG3-25-40-FB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 40 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KG3-25-45		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KG3-25-45-CB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 45 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KG3-25-45-FB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 45 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KG3-25-50		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KG3-25-50-CB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 50 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KG3-25-50-FB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 50 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KG3-32-5		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 5 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KG3-32-5-CB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 5 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KG3-32-5-FB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 5 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KG3-32-10		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KG3-32-10-CB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 10 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KG3-32-10-FB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 10 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KG3-32-15		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KG3-32-15-CB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 15 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KG3-32-15-FB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 15 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KG3-32-20		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KG3-32-20-CB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 20 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KG3-32-20-FB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 20 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KG3-32-25		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KG3-32-25-CB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 25 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KG3-32-25-FB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 25 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KG3-32-30		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KG3-32-30-CB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 30 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KG3-32-30-FB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 30 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KG3-32-35		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KG3-32-35-CB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 35 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KG3-32-35-FB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 35 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KG3-32-40		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KG3-32-40-CB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 40 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KG3-32-40-FB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 40 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KG3-32-45		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KG3-32-45-CB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 45 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KG3-32-45-FB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 45 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KG3-32-50		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KG3-32-50-CB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 50 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KG3-32-50-FB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 50 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KG3-32-75		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KG3-32-75-CB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 75 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KG3-32-75-FB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 75 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KG3-32-100		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KG3-32-100-CB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 100 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KG3-32-100-FB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 100 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KG3-40-5		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 5 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KG3-40-5-CB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 5 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KG3-40-5-FB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 5 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KG3-40-10		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KG3-40-10-CB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 10 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KG3-40-10-FB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 10 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KG3-40-15		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KG3-40-15-CB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 15 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KG3-40-15-FB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 15 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KG3-40-20		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KG3-40-20-CB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 20 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KG3-40-20-FB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 20 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KG3-40-25		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KG3-40-25-CB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 25 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KG3-40-25-FB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 25 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KG3-40-30		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KG3-40-30-CB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 30 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KG3-40-30-FB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 30 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KG3-40-35		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KG3-40-35-CB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 35 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KG3-40-35-FB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 35 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KG3-40-40		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KG3-40-40-CB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 40 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KG3-40-40-FB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 40 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KG3-40-45		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KG3-40-45-CB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 45 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KG3-40-45-FB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 45 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KG3-40-50		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KG3-40-50-CB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 50 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KG3-40-50-FB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 50 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KG3-40-75		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KG3-40-75-CB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 75 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KG3-40-75-FB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 75 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KG3-40-100		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KG3-40-100-CB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 100 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KG3-40-100-FB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 100 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KG3-50-10		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KG3-50-10-CB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KG3-50-10-FB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KG3-50-15		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KG3-50-15-CB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KG3-50-15-FB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KG3-50-20		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KG3-50-20-CB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KG3-50-20-FB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KG3-50-25		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KG3-50-25-CB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KG3-50-25-FB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KG3-50-30		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KG3-50-30-CB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KG3-50-30-FB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KG3-50-35		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KG3-50-35-CB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KG3-50-35-FB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KG3-50-40		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KG3-50-40-CB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KG3-50-40-FB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KG3-50-45		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KG3-50-45-CB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KG3-50-45-FB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KG3-50-50		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KG3-50-50-CB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KG3-50-50-FB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KG3-50-75		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KG3-50-75-CB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KG3-50-75-FB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KG3-50-100		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KG3-50-100-CB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KG3-50-100-FB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KG3-63-10		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KG3-63-10-CB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KG3-63-10-FB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KG3-63-15		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KG3-63-15-CB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KG3-63-15-FB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KG3-63-20		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KG3-63-20-CB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KG3-63-20-FB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KG3-63-25		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KG3-63-25-CB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KG3-63-25-FB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KG3-63-30		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KG3-63-30-CB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KG3-63-30-FB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KG3-63-35		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KG3-63-35-CB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KG3-63-35-FB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KG3-63-40		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KG3-63-40-CB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KG3-63-40-FB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KG3-63-45		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KG3-63-45-CB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KG3-63-45-FB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KG3-63-50		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KG3-63-50-CB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KG3-63-50-FB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KG3-63-75		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KG3-63-75-CB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KG3-63-75-FB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KG3-63-100		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KG3-63-100-CB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KG3-63-100-FB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KG3-80-10		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KG3-80-10-CB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 10 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KG3-80-10-FB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 10 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KG3-80-15		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KG3-80-15-CB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 15 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KG3-80-15-FB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 15 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KG3-80-20		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KG3-80-20-CB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 20 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KG3-80-20-FB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 20 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KG3-80-25		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KG3-80-25-CB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 25 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KG3-80-25-FB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 25 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KG3-80-30		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KG3-80-30-CB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 30 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KG3-80-30-FB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 30 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KG3-80-35		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KG3-80-35-CB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 35 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KG3-80-35-FB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 35 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KG3-80-40		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KG3-80-40-CB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 40 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KG3-80-40-FB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 40 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KG3-80-45		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KG3-80-45-CB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 45 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KG3-80-45-FB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 45 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KG3-80-50		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KG3-80-50-CB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 50 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KG3-80-50-FB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 50 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KG3-80-75		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KG3-80-75-CB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 75 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KG3-80-75-FB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 75 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KG3-80-100		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KG3-80-100-CB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 100 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KG3-80-100-FB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 100 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KG3-100-10		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KG3-100-10-CB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 10 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KG3-100-10-FB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 10 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KG3-100-15		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KG3-100-15-CB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 15 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KG3-100-15-FB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 15 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KG3-100-20		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KG3-100-20-CB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 20 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KG3-100-20-FB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 20 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KG3-100-25		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KG3-100-25-CB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 25 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KG3-100-25-FB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 25 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KG3-100-30		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KG3-100-30-CB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 30 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KG3-100-30-FB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 30 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KG3-100-35		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KG3-100-35-CB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 35 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KG3-100-35-FB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 35 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KG3-100-40		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KG3-100-40-CB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 40 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KG3-100-40-FB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 40 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KG3-100-45		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KG3-100-45-CB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 45 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KG3-100-45-FB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 45 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KG3-100-50		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KG3-100-50-CB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 50 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KG3-100-50-FB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 50 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KG3-100-75		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KG3-100-75-CB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 75 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KG3-100-75-FB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 75 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KG3-100-100		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KG3-100-100-CB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 100 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KG3-100-100-FB		Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 100 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KG2L-16-10		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KG2L-16-10-CB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 10 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KG2L-16-10-FB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 10 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KG2L-16-15		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KG2L-16-15-CB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 15 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KG2L-16-15-FB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 15 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KG2L-16-20		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KG2L-16-20-CB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 20 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KG2L-16-20-FB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 20 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KG2L-16-25		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KG2L-16-25-CB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 25 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KG2L-16-25-FB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 25 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KG2L-16-30		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KG2L-16-30-CB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 30 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KG2L-16-30-FB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 30 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KG2L-20-10		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KG2L-20-10-CB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 10 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KG2L-20-10-FB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 10 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KG2L-20-15		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KG2L-20-15-CB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 15 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KG2L-20-15-FB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 15 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KG2L-20-20		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KG2L-20-20-CB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 20 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KG2L-20-20-FB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 20 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KG2L-20-25		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KG2L-20-25-CB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 25 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KG2L-20-25-FB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 25 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KG2L-20-30		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KG2L-20-30-CB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 30 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KG2L-20-30-FB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 30 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KG2L-20-35		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KG2L-20-35-CB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 35 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KG2L-20-35-FB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 35 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KG2L-20-40		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KG2L-20-40-CB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 40 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KG2L-20-40-FB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 40 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KG2L-20-45		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KG2L-20-45-CB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 45 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KG2L-20-45-FB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 45 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KG2L-20-50		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KG2L-20-50-CB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 50 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KG2L-20-50-FB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 50 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KG2L-25-10		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KG2L-25-10-CB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 10 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KG2L-25-10-FB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 10 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KG2L-25-15		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KG2L-25-15-CB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 15 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KG2L-25-15-FB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 15 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KG2L-25-20		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KG2L-25-20-CB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 20 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KG2L-25-20-FB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 20 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KG2L-25-25		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KG2L-25-25-CB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 25 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KG2L-25-25-FB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 25 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KG2L-25-30		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KG2L-25-30-CB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 30 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KG2L-25-30-FB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 30 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KG2L-25-35		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KG2L-25-35-CB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 35 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KG2L-25-35-FB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 35 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KG2L-25-40		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KG2L-25-40-CB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 40 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KG2L-25-40-FB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 40 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KG2L-25-45		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KG2L-25-45-CB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 45 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KG2L-25-45-FB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 45 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KG2L-25-50		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KG2L-25-50-CB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 50 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KG2L-25-50-FB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 50 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KG2L-32-10		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KG2L-32-10-CB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 10 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KG2L-32-10-FB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 10 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KG2L-32-15		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KG2L-32-15-CB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 15 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KG2L-32-15-FB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 15 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KG2L-32-20		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KG2L-32-20-CB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 20 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KG2L-32-20-FB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 20 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KG2L-32-25		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KG2L-32-25-CB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 25 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KG2L-32-25-FB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 25 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KG2L-32-30		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KG2L-32-30-CB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 30 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KG2L-32-30-FB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 30 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KG2L-32-35		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KG2L-32-35-CB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 35 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KG2L-32-35-FB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 35 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KG2L-32-40		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KG2L-32-40-CB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 40 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KG2L-32-40-FB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 40 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KG2L-32-45		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KG2L-32-45-CB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 45 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KG2L-32-45-FB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 45 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KG2L-32-50		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KG2L-32-50-CB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 50 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KG2L-32-50-FB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 50 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KG2L-32-75		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KG2L-32-75-CB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 75 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KG2L-32-75-FB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 75 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KG2L-32-100		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KG2L-32-100-CB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 100 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KG2L-32-100-FB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 100 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KG2L-40-10		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KG2L-40-10-CB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 10 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KG2L-40-10-FB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 10 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KG2L-40-15		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KG2L-40-15-CB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 15 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KG2L-40-15-FB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 15 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KG2L-40-20		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KG2L-40-20-CB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 20 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KG2L-40-20-FB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 20 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KG2L-40-25		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KG2L-40-25-CB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 25 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KG2L-40-25-FB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 25 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KG2L-40-30		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KG2L-40-30-CB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 30 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KG2L-40-30-FB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 30 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KG2L-40-35		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KG2L-40-35-CB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 35 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KG2L-40-35-FB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 35 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KG2L-40-40		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KG2L-40-40-CB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 40 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KG2L-40-40-FB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 40 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KG2L-40-45		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KG2L-40-45-CB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 45 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KG2L-40-45-FB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 45 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KG2L-40-50		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KG2L-40-50-CB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 50 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KG2L-40-50-FB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 50 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KG2L-40-75		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KG2L-40-75-CB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 75 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KG2L-40-75-FB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 75 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KG2L-40-100		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KG2L-40-100-CB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 100 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KG2L-40-100-FB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 100 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KG2L-50-10		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KG2L-50-10-CB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KG2L-50-10-FB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KG2L-50-15		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KG2L-50-15-CB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KG2L-50-15-FB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KG2L-50-20		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KG2L-50-20-CB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KG2L-50-20-FB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KG2L-50-25		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KG2L-50-25-CB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KG2L-50-25-FB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KG2L-50-30		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KG2L-50-30-CB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KG2L-50-30-FB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KG2L-50-35		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KG2L-50-35-CB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KG2L-50-35-FB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KG2L-50-40		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KG2L-50-40-CB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KG2L-50-40-FB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KG2L-50-45		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KG2L-50-45-CB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KG2L-50-45-FB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KG2L-50-50		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KG2L-50-50-CB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KG2L-50-50-FB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KG2L-50-75		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KG2L-50-75-CB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KG2L-50-75-FB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KG2L-50-100		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KG2L-50-100-CB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KG2L-50-100-FB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KG2L-63-10		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KG2L-63-10-CB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KG2L-63-10-FB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KG2L-63-15		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KG2L-63-15-CB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KG2L-63-15-FB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KG2L-63-20		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KG2L-63-20-CB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KG2L-63-20-FB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KG2L-63-25		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KG2L-63-25-CB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KG2L-63-25-FB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KG2L-63-30		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KG2L-63-30-CB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KG2L-63-30-FB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KG2L-63-35		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KG2L-63-35-CB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KG2L-63-35-FB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KG2L-63-40		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KG2L-63-40-CB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KG2L-63-40-FB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KG2L-63-45		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KG2L-63-45-CB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KG2L-63-45-FB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KG2L-63-50		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KG2L-63-50-CB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KG2L-63-50-FB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KG2L-63-75		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KG2L-63-75-CB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KG2L-63-75-FB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KG2L-63-100		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KG2L-63-100-CB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KG2L-63-100-FB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KG2L-80-10		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KG2L-80-10-CB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 10 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KG2L-80-10-FB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 10 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KG2L-80-15		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KG2L-80-15-CB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 15 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KG2L-80-15-FB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 15 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KG2L-80-20		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KG2L-80-20-CB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 20 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KG2L-80-20-FB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 20 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KG2L-80-25		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KG2L-80-25-CB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 25 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KG2L-80-25-FB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 25 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KG2L-80-30		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KG2L-80-30-CB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 30 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KG2L-80-30-FB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 30 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KG2L-80-35		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KG2L-80-35-CB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 35 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KG2L-80-35-FB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 35 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KG2L-80-40		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KG2L-80-40-CB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 40 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KG2L-80-40-FB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 40 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KG2L-80-45		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KG2L-80-45-CB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 45 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KG2L-80-45-FB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 45 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KG2L-80-50		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KG2L-80-50-CB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 50 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KG2L-80-50-FB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 50 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KG2L-80-75		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KG2L-80-75-CB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 75 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KG2L-80-75-FB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 75 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KG2L-80-100		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KG2L-80-100-CB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 100 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KG2L-80-100-FB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 100 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KG2L-100-10		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KG2L-100-10-CB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 10 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KG2L-100-10-FB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 10 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KG2L-100-15		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KG2L-100-15-CB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 15 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KG2L-100-15-FB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 15 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KG2L-100-20		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KG2L-100-20-CB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 20 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KG2L-100-20-FB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 20 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KG2L-100-25		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KG2L-100-25-CB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 25 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KG2L-100-25-FB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 25 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KG2L-100-30		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KG2L-100-30-CB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 30 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KG2L-100-30-FB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 30 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KG2L-100-35		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KG2L-100-35-CB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 35 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KG2L-100-35-FB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 35 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KG2L-100-40		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KG2L-100-40-CB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 40 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KG2L-100-40-FB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 40 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KG2L-100-45		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KG2L-100-45-CB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 45 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KG2L-100-45-FB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 45 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KG2L-100-50		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KG2L-100-50-CB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 50 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KG2L-100-50-FB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 50 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KG2L-100-75		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KG2L-100-75-CB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 75 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KG2L-100-75-FB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 75 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KG2L-100-100		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KG2L-100-100-CB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 100 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KG2L-100-100-FB		Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 100 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KG3L-16-10		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KG3L-16-10-CB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 10 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KG3L-16-10-FB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 10 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KG3L-16-15		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KG3L-16-15-CB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 15 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KG3L-16-15-FB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 15 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KG3L-16-20		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KG3L-16-20-CB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 20 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KG3L-16-20-FB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 20 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KG3L-16-25		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KG3L-16-25-CB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 25 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KG3L-16-25-FB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 25 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KG3L-16-30		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KG3L-16-30-CB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 30 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KG3L-16-30-FB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 30 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KG3L-20-10		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KG3L-20-10-CB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 10 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KG3L-20-10-FB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 10 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KG3L-20-15		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KG3L-20-15-CB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 15 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KG3L-20-15-FB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 15 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KG3L-20-20		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KG3L-20-20-CB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 20 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KG3L-20-20-FB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 20 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KG3L-20-25		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KG3L-20-25-CB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 25 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KG3L-20-25-FB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 25 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KG3L-20-30		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KG3L-20-30-CB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 30 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KG3L-20-30-FB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 30 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KG3L-20-35		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KG3L-20-35-CB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 35 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KG3L-20-35-FB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 35 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KG3L-20-40		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KG3L-20-40-CB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 40 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KG3L-20-40-FB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 40 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KG3L-20-45		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KG3L-20-45-CB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 45 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KG3L-20-45-FB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 45 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KG3L-20-50		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KG3L-20-50-CB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 50 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KG3L-20-50-FB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 50 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KG3L-25-10		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KG3L-25-10-CB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 10 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KG3L-25-10-FB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 10 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KG3L-25-15		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KG3L-25-15-CB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 15 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KG3L-25-15-FB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 15 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KG3L-25-20		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KG3L-25-20-CB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 20 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KG3L-25-20-FB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 20 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KG3L-25-25		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KG3L-25-25-CB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 25 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KG3L-25-25-FB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 25 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KG3L-25-30		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KG3L-25-30-CB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 30 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KG3L-25-30-FB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 30 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KG3L-25-35		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KG3L-25-35-CB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 35 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KG3L-25-35-FB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 35 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KG3L-25-40		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KG3L-25-40-CB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 40 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KG3L-25-40-FB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 40 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KG3L-25-45		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KG3L-25-45-CB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 45 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KG3L-25-45-FB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 45 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KG3L-25-50		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-KG3L-25-50-CB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 50 mm \| Mounting: Double clevis (CB) \| Port: M5
SSD2-KG3L-25-50-FB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 50 mm \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-KG3L-32-10		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KG3L-32-10-CB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 10 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KG3L-32-10-FB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 10 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KG3L-32-15		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KG3L-32-15-CB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 15 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KG3L-32-15-FB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 15 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KG3L-32-20		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KG3L-32-20-CB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 20 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KG3L-32-20-FB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 20 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KG3L-32-25		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KG3L-32-25-CB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 25 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KG3L-32-25-FB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 25 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KG3L-32-30		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KG3L-32-30-CB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 30 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KG3L-32-30-FB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 30 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KG3L-32-35		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KG3L-32-35-CB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 35 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KG3L-32-35-FB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 35 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KG3L-32-40		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KG3L-32-40-CB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 40 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KG3L-32-40-FB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 40 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KG3L-32-45		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KG3L-32-45-CB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 45 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KG3L-32-45-FB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 45 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KG3L-32-50		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KG3L-32-50-CB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 50 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KG3L-32-50-FB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 50 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KG3L-32-75		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KG3L-32-75-CB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 75 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KG3L-32-75-FB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 75 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KG3L-32-100		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KG3L-32-100-CB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 100 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KG3L-32-100-FB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 100 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KG3L-40-10		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KG3L-40-10-CB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 10 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KG3L-40-10-FB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 10 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KG3L-40-15		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KG3L-40-15-CB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 15 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KG3L-40-15-FB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 15 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KG3L-40-20		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KG3L-40-20-CB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 20 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KG3L-40-20-FB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 20 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KG3L-40-25		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KG3L-40-25-CB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 25 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KG3L-40-25-FB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 25 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KG3L-40-30		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KG3L-40-30-CB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 30 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KG3L-40-30-FB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 30 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KG3L-40-35		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KG3L-40-35-CB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 35 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KG3L-40-35-FB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 35 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KG3L-40-40		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KG3L-40-40-CB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 40 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KG3L-40-40-FB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 40 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KG3L-40-45		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KG3L-40-45-CB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 45 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KG3L-40-45-FB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 45 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KG3L-40-50		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KG3L-40-50-CB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 50 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KG3L-40-50-FB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 50 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KG3L-40-75		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KG3L-40-75-CB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 75 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KG3L-40-75-FB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 75 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KG3L-40-100		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-KG3L-40-100-CB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 100 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-KG3L-40-100-FB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 100 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-KG3L-50-10		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KG3L-50-10-CB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KG3L-50-10-FB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KG3L-50-15		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KG3L-50-15-CB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KG3L-50-15-FB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KG3L-50-20		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KG3L-50-20-CB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KG3L-50-20-FB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KG3L-50-25		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KG3L-50-25-CB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KG3L-50-25-FB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KG3L-50-30		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KG3L-50-30-CB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KG3L-50-30-FB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KG3L-50-35		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KG3L-50-35-CB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KG3L-50-35-FB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KG3L-50-40		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KG3L-50-40-CB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KG3L-50-40-FB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KG3L-50-45		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KG3L-50-45-CB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KG3L-50-45-FB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KG3L-50-50		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KG3L-50-50-CB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KG3L-50-50-FB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KG3L-50-75		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KG3L-50-75-CB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KG3L-50-75-FB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KG3L-50-100		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KG3L-50-100-CB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KG3L-50-100-FB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KG3L-63-10		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KG3L-63-10-CB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KG3L-63-10-FB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KG3L-63-15		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KG3L-63-15-CB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KG3L-63-15-FB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KG3L-63-20		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KG3L-63-20-CB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KG3L-63-20-FB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KG3L-63-25		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KG3L-63-25-CB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KG3L-63-25-FB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KG3L-63-30		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KG3L-63-30-CB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KG3L-63-30-FB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KG3L-63-35		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KG3L-63-35-CB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KG3L-63-35-FB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KG3L-63-40		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KG3L-63-40-CB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KG3L-63-40-FB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KG3L-63-45		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KG3L-63-45-CB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KG3L-63-45-FB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KG3L-63-50		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KG3L-63-50-CB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KG3L-63-50-FB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KG3L-63-75		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KG3L-63-75-CB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KG3L-63-75-FB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KG3L-63-100		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-KG3L-63-100-CB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-KG3L-63-100-FB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-KG3L-80-10		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KG3L-80-10-CB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 10 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KG3L-80-10-FB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 10 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KG3L-80-15		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KG3L-80-15-CB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 15 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KG3L-80-15-FB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 15 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KG3L-80-20		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KG3L-80-20-CB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 20 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KG3L-80-20-FB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 20 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KG3L-80-25		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KG3L-80-25-CB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 25 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KG3L-80-25-FB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 25 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KG3L-80-30		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KG3L-80-30-CB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 30 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KG3L-80-30-FB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 30 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KG3L-80-35		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KG3L-80-35-CB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 35 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KG3L-80-35-FB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 35 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KG3L-80-40		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KG3L-80-40-CB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 40 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KG3L-80-40-FB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 40 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KG3L-80-45		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KG3L-80-45-CB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 45 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KG3L-80-45-FB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 45 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KG3L-80-50		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KG3L-80-50-CB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 50 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KG3L-80-50-FB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 50 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KG3L-80-75		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KG3L-80-75-CB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 75 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KG3L-80-75-FB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 75 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KG3L-80-100		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KG3L-80-100-CB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 100 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KG3L-80-100-FB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 100 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KG3L-100-10		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KG3L-100-10-CB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 10 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KG3L-100-10-FB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 10 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KG3L-100-15		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KG3L-100-15-CB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 15 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KG3L-100-15-FB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 15 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KG3L-100-20		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KG3L-100-20-CB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 20 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KG3L-100-20-FB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 20 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KG3L-100-25		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KG3L-100-25-CB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 25 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KG3L-100-25-FB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 25 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KG3L-100-30		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KG3L-100-30-CB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 30 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KG3L-100-30-FB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 30 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KG3L-100-35		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KG3L-100-35-CB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 35 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KG3L-100-35-FB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 35 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KG3L-100-40		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KG3L-100-40-CB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 40 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KG3L-100-40-FB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 40 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KG3L-100-45		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KG3L-100-45-CB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 45 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KG3L-100-45-FB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 45 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KG3L-100-50		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KG3L-100-50-CB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 50 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KG3L-100-50-FB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 50 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KG3L-100-75		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KG3L-100-75-CB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 75 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KG3L-100-75-FB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 75 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-KG3L-100-100		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-KG3L-100-100-CB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 100 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-KG3L-100-100-FB		Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 100 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8

Compact CylindersCKD

1098 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD SSD2-KG2/KG3 Super Compact Cylinder (High Load, Coolant Resist.)

Brand CKD·Compact Cylinders

Available part numbers (1098)

SSD2-KG2-16-5, SSD2-KG2-16-5-CB, SSD2-KG2-16-5-FB, SSD2-KG2-16-10, SSD2-KG2-16-10-CB, SSD2-KG2-16-10-FB, SSD2-KG2-16-15, SSD2-KG2-16-15-CB, SSD2-KG2-16-15-FB, SSD2-KG2-16-20 + 1088 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	SSD2-KG2-16-5	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 16 mm \| Stroke: 5 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KG2-16-5-CB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 16 mm \| Stroke: 5 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KG2-16-5-FB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 16 mm \| Stroke: 5 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KG2-16-10	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 16 mm \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KG2-16-10-CB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 16 mm \| Stroke: 10 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KG2-16-10-FB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 16 mm \| Stroke: 10 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KG2-16-15	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 16 mm \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KG2-16-15-CB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 16 mm \| Stroke: 15 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KG2-16-15-FB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 16 mm \| Stroke: 15 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KG2-16-20	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 16 mm \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KG2-16-20-CB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 16 mm \| Stroke: 20 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KG2-16-20-FB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 16 mm \| Stroke: 20 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KG2-16-25	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 16 mm \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KG2-16-25-CB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 16 mm \| Stroke: 25 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KG2-16-25-FB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 16 mm \| Stroke: 25 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KG2-16-30	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 16 mm \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KG2-16-30-CB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 16 mm \| Stroke: 30 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KG2-16-30-FB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 16 mm \| Stroke: 30 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KG2-20-5	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 5 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KG2-20-5-CB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 5 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KG2-20-5-FB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 5 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KG2-20-10	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KG2-20-10-CB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 10 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KG2-20-10-FB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 10 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KG2-20-15	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KG2-20-15-CB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 15 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KG2-20-15-FB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 15 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KG2-20-20	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KG2-20-20-CB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 20 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KG2-20-20-FB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 20 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KG2-20-25	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KG2-20-25-CB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 25 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KG2-20-25-FB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 25 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KG2-20-30	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KG2-20-30-CB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 30 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KG2-20-30-FB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 30 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KG2-20-35	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KG2-20-35-CB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 35 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KG2-20-35-FB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 35 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KG2-20-40	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KG2-20-40-CB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 40 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KG2-20-40-FB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 40 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KG2-20-45	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KG2-20-45-CB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 45 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KG2-20-45-FB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 45 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KG2-20-50	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KG2-20-50-CB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 50 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KG2-20-50-FB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 50 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KG2-25-5	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 5 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KG2-25-5-CB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 5 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KG2-25-5-FB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 5 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KG2-25-10	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KG2-25-10-CB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 10 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KG2-25-10-FB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 10 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KG2-25-15	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KG2-25-15-CB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 15 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KG2-25-15-FB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 15 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KG2-25-20	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KG2-25-20-CB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 20 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KG2-25-20-FB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 20 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KG2-25-25	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KG2-25-25-CB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 25 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KG2-25-25-FB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 25 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KG2-25-30	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KG2-25-30-CB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 30 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KG2-25-30-FB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 30 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KG2-25-35	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KG2-25-35-CB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 35 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KG2-25-35-FB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 35 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KG2-25-40	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KG2-25-40-CB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 40 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KG2-25-40-FB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 40 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KG2-25-45	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KG2-25-45-CB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 45 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KG2-25-45-FB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 45 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KG2-25-50	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KG2-25-50-CB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 50 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KG2-25-50-FB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 50 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KG2-32-5	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 5 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KG2-32-5-CB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 5 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KG2-32-5-FB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 5 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KG2-32-10	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KG2-32-10-CB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 10 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KG2-32-10-FB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 10 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KG2-32-15	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KG2-32-15-CB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 15 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KG2-32-15-FB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 15 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KG2-32-20	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KG2-32-20-CB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 20 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KG2-32-20-FB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 20 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KG2-32-25	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KG2-32-25-CB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 25 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KG2-32-25-FB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 25 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KG2-32-30	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KG2-32-30-CB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 30 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KG2-32-30-FB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 30 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KG2-32-35	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KG2-32-35-CB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 35 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KG2-32-35-FB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 35 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KG2-32-40	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KG2-32-40-CB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 40 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KG2-32-40-FB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 40 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KG2-32-45	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KG2-32-45-CB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 45 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KG2-32-45-FB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 45 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KG2-32-50	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KG2-32-50-CB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 50 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KG2-32-50-FB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 50 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KG2-32-75	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KG2-32-75-CB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 75 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KG2-32-75-FB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 75 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KG2-32-100	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KG2-32-100-CB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 100 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KG2-32-100-FB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 100 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KG2-40-5	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 5 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KG2-40-5-CB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 5 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KG2-40-5-FB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 5 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KG2-40-10	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KG2-40-10-CB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 10 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KG2-40-10-FB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 10 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KG2-40-15	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KG2-40-15-CB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 15 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KG2-40-15-FB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 15 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KG2-40-20	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KG2-40-20-CB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 20 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KG2-40-20-FB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 20 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KG2-40-25	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KG2-40-25-CB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 25 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KG2-40-25-FB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 25 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KG2-40-30	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KG2-40-30-CB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 30 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KG2-40-30-FB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 30 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KG2-40-35	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KG2-40-35-CB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 35 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KG2-40-35-FB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 35 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KG2-40-40	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KG2-40-40-CB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 40 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KG2-40-40-FB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 40 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KG2-40-45	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KG2-40-45-CB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 45 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KG2-40-45-FB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 45 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KG2-40-50	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KG2-40-50-CB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 50 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KG2-40-50-FB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 50 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KG2-40-75	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KG2-40-75-CB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 75 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KG2-40-75-FB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 75 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KG2-40-100	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KG2-40-100-CB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 100 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KG2-40-100-FB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 100 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KG2-50-10	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KG2-50-10-CB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KG2-50-10-FB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KG2-50-15	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KG2-50-15-CB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KG2-50-15-FB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KG2-50-20	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KG2-50-20-CB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KG2-50-20-FB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KG2-50-25	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KG2-50-25-CB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KG2-50-25-FB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KG2-50-30	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KG2-50-30-CB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KG2-50-30-FB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KG2-50-35	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KG2-50-35-CB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KG2-50-35-FB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KG2-50-40	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KG2-50-40-CB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KG2-50-40-FB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KG2-50-45	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KG2-50-45-CB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KG2-50-45-FB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KG2-50-50	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KG2-50-50-CB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KG2-50-50-FB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KG2-50-75	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KG2-50-75-CB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KG2-50-75-FB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KG2-50-100	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KG2-50-100-CB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KG2-50-100-FB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KG2-63-10	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KG2-63-10-CB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KG2-63-10-FB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KG2-63-15	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KG2-63-15-CB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KG2-63-15-FB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KG2-63-20	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KG2-63-20-CB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KG2-63-20-FB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KG2-63-25	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KG2-63-25-CB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KG2-63-25-FB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KG2-63-30	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KG2-63-30-CB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KG2-63-30-FB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KG2-63-35	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KG2-63-35-CB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KG2-63-35-FB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KG2-63-40	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KG2-63-40-CB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KG2-63-40-FB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KG2-63-45	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KG2-63-45-CB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KG2-63-45-FB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KG2-63-50	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KG2-63-50-CB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KG2-63-50-FB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KG2-63-75	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KG2-63-75-CB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KG2-63-75-FB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KG2-63-100	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KG2-63-100-CB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KG2-63-100-FB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KG2-80-10	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KG2-80-10-CB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 10 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KG2-80-10-FB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 10 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KG2-80-15	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KG2-80-15-CB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 15 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KG2-80-15-FB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 15 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KG2-80-20	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KG2-80-20-CB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 20 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KG2-80-20-FB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 20 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KG2-80-25	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KG2-80-25-CB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 25 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KG2-80-25-FB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 25 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KG2-80-30	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KG2-80-30-CB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 30 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KG2-80-30-FB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 30 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KG2-80-35	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KG2-80-35-CB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 35 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KG2-80-35-FB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 35 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KG2-80-40	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KG2-80-40-CB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 40 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KG2-80-40-FB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 40 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KG2-80-45	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KG2-80-45-CB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 45 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KG2-80-45-FB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 45 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KG2-80-50	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KG2-80-50-CB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 50 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KG2-80-50-FB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 50 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KG2-80-75	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KG2-80-75-CB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 75 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KG2-80-75-FB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 75 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KG2-80-100	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KG2-80-100-CB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 100 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KG2-80-100-FB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 100 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KG2-100-10	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KG2-100-10-CB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 10 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KG2-100-10-FB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 10 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KG2-100-15	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KG2-100-15-CB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 15 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KG2-100-15-FB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 15 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KG2-100-20	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KG2-100-20-CB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 20 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KG2-100-20-FB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 20 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KG2-100-25	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KG2-100-25-CB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 25 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KG2-100-25-FB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 25 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KG2-100-30	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KG2-100-30-CB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 30 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KG2-100-30-FB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 30 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KG2-100-35	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KG2-100-35-CB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 35 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KG2-100-35-FB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 35 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KG2-100-40	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KG2-100-40-CB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 40 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KG2-100-40-FB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 40 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KG2-100-45	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KG2-100-45-CB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 45 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KG2-100-45-FB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 45 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KG2-100-50	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KG2-100-50-CB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 50 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KG2-100-50-FB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 50 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KG2-100-75	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KG2-100-75-CB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 75 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KG2-100-75-FB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 75 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KG2-100-100	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KG2-100-100-CB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 100 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KG2-100-100-FB	Packing: NBR (KG2) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 100 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KG3-16-5	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 16 mm \| Stroke: 5 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KG3-16-5-CB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 16 mm \| Stroke: 5 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KG3-16-5-FB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 16 mm \| Stroke: 5 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KG3-16-10	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 16 mm \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KG3-16-10-CB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 16 mm \| Stroke: 10 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KG3-16-10-FB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 16 mm \| Stroke: 10 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KG3-16-15	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 16 mm \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KG3-16-15-CB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 16 mm \| Stroke: 15 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KG3-16-15-FB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 16 mm \| Stroke: 15 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KG3-16-20	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 16 mm \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KG3-16-20-CB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 16 mm \| Stroke: 20 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KG3-16-20-FB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 16 mm \| Stroke: 20 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KG3-16-25	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 16 mm \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KG3-16-25-CB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 16 mm \| Stroke: 25 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KG3-16-25-FB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 16 mm \| Stroke: 25 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KG3-16-30	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 16 mm \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KG3-16-30-CB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 16 mm \| Stroke: 30 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KG3-16-30-FB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 16 mm \| Stroke: 30 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KG3-20-5	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 5 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KG3-20-5-CB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 5 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KG3-20-5-FB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 5 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KG3-20-10	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KG3-20-10-CB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 10 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KG3-20-10-FB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 10 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KG3-20-15	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KG3-20-15-CB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 15 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KG3-20-15-FB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 15 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KG3-20-20	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KG3-20-20-CB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 20 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KG3-20-20-FB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 20 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KG3-20-25	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KG3-20-25-CB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 25 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KG3-20-25-FB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 25 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KG3-20-30	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KG3-20-30-CB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 30 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KG3-20-30-FB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 30 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KG3-20-35	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KG3-20-35-CB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 35 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KG3-20-35-FB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 35 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KG3-20-40	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KG3-20-40-CB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 40 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KG3-20-40-FB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 40 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KG3-20-45	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KG3-20-45-CB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 45 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KG3-20-45-FB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 45 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KG3-20-50	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KG3-20-50-CB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 50 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KG3-20-50-FB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 20 mm \| Stroke: 50 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KG3-25-5	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 5 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KG3-25-5-CB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 5 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KG3-25-5-FB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 5 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KG3-25-10	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KG3-25-10-CB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 10 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KG3-25-10-FB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 10 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KG3-25-15	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KG3-25-15-CB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 15 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KG3-25-15-FB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 15 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KG3-25-20	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KG3-25-20-CB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 20 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KG3-25-20-FB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 20 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KG3-25-25	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KG3-25-25-CB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 25 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KG3-25-25-FB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 25 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KG3-25-30	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KG3-25-30-CB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 30 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KG3-25-30-FB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 30 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KG3-25-35	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KG3-25-35-CB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 35 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KG3-25-35-FB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 35 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KG3-25-40	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KG3-25-40-CB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 40 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KG3-25-40-FB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 40 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KG3-25-45	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KG3-25-45-CB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 45 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KG3-25-45-FB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 45 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KG3-25-50	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KG3-25-50-CB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 50 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KG3-25-50-FB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 25 mm \| Stroke: 50 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KG3-32-5	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 5 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KG3-32-5-CB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 5 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KG3-32-5-FB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 5 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KG3-32-10	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KG3-32-10-CB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 10 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KG3-32-10-FB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 10 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KG3-32-15	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KG3-32-15-CB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 15 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KG3-32-15-FB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 15 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KG3-32-20	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KG3-32-20-CB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 20 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KG3-32-20-FB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 20 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KG3-32-25	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KG3-32-25-CB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 25 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KG3-32-25-FB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 25 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KG3-32-30	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KG3-32-30-CB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 30 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KG3-32-30-FB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 30 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KG3-32-35	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KG3-32-35-CB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 35 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KG3-32-35-FB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 35 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KG3-32-40	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KG3-32-40-CB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 40 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KG3-32-40-FB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 40 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KG3-32-45	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KG3-32-45-CB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 45 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KG3-32-45-FB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 45 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KG3-32-50	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KG3-32-50-CB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 50 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KG3-32-50-FB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 50 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KG3-32-75	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KG3-32-75-CB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 75 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KG3-32-75-FB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 75 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KG3-32-100	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KG3-32-100-CB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 100 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KG3-32-100-FB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 32 mm \| Stroke: 100 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KG3-40-5	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 5 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KG3-40-5-CB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 5 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KG3-40-5-FB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 5 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KG3-40-10	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KG3-40-10-CB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 10 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KG3-40-10-FB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 10 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KG3-40-15	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KG3-40-15-CB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 15 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KG3-40-15-FB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 15 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KG3-40-20	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KG3-40-20-CB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 20 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KG3-40-20-FB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 20 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KG3-40-25	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KG3-40-25-CB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 25 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KG3-40-25-FB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 25 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KG3-40-30	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KG3-40-30-CB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 30 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KG3-40-30-FB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 30 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KG3-40-35	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KG3-40-35-CB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 35 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KG3-40-35-FB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 35 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KG3-40-40	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KG3-40-40-CB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 40 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KG3-40-40-FB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 40 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KG3-40-45	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KG3-40-45-CB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 45 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KG3-40-45-FB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 45 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KG3-40-50	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KG3-40-50-CB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 50 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KG3-40-50-FB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 50 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KG3-40-75	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KG3-40-75-CB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 75 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KG3-40-75-FB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 75 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KG3-40-100	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KG3-40-100-CB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 100 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KG3-40-100-FB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 40 mm \| Stroke: 100 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KG3-50-10	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KG3-50-10-CB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KG3-50-10-FB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KG3-50-15	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KG3-50-15-CB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KG3-50-15-FB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KG3-50-20	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KG3-50-20-CB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KG3-50-20-FB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KG3-50-25	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KG3-50-25-CB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KG3-50-25-FB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KG3-50-30	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KG3-50-30-CB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KG3-50-30-FB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KG3-50-35	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KG3-50-35-CB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KG3-50-35-FB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KG3-50-40	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KG3-50-40-CB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KG3-50-40-FB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KG3-50-45	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KG3-50-45-CB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KG3-50-45-FB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KG3-50-50	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KG3-50-50-CB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KG3-50-50-FB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KG3-50-75	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KG3-50-75-CB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KG3-50-75-FB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KG3-50-100	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KG3-50-100-CB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KG3-50-100-FB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KG3-63-10	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KG3-63-10-CB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KG3-63-10-FB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KG3-63-15	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KG3-63-15-CB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KG3-63-15-FB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KG3-63-20	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KG3-63-20-CB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KG3-63-20-FB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KG3-63-25	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KG3-63-25-CB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KG3-63-25-FB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KG3-63-30	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KG3-63-30-CB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KG3-63-30-FB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KG3-63-35	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KG3-63-35-CB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KG3-63-35-FB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KG3-63-40	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KG3-63-40-CB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KG3-63-40-FB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KG3-63-45	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KG3-63-45-CB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KG3-63-45-FB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KG3-63-50	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KG3-63-50-CB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KG3-63-50-FB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KG3-63-75	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KG3-63-75-CB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KG3-63-75-FB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KG3-63-100	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KG3-63-100-CB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KG3-63-100-FB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KG3-80-10	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KG3-80-10-CB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 10 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KG3-80-10-FB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 10 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KG3-80-15	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KG3-80-15-CB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 15 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KG3-80-15-FB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 15 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KG3-80-20	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KG3-80-20-CB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 20 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KG3-80-20-FB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 20 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KG3-80-25	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KG3-80-25-CB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 25 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KG3-80-25-FB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 25 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KG3-80-30	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KG3-80-30-CB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 30 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KG3-80-30-FB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 30 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KG3-80-35	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KG3-80-35-CB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 35 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KG3-80-35-FB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 35 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KG3-80-40	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KG3-80-40-CB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 40 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KG3-80-40-FB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 40 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KG3-80-45	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KG3-80-45-CB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 45 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KG3-80-45-FB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 45 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KG3-80-50	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KG3-80-50-CB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 50 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KG3-80-50-FB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 50 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KG3-80-75	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KG3-80-75-CB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 75 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KG3-80-75-FB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 75 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KG3-80-100	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KG3-80-100-CB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 100 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KG3-80-100-FB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 80 mm \| Stroke: 100 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KG3-100-10	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KG3-100-10-CB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 10 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KG3-100-10-FB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 10 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KG3-100-15	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KG3-100-15-CB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 15 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KG3-100-15-FB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 15 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KG3-100-20	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KG3-100-20-CB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 20 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KG3-100-20-FB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 20 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KG3-100-25	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KG3-100-25-CB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 25 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KG3-100-25-FB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 25 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KG3-100-30	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KG3-100-30-CB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 30 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KG3-100-30-FB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 30 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KG3-100-35	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KG3-100-35-CB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 35 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KG3-100-35-FB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 35 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KG3-100-40	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KG3-100-40-CB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 40 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KG3-100-40-FB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 40 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KG3-100-45	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KG3-100-45-CB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 45 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KG3-100-45-FB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 45 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KG3-100-50	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KG3-100-50-CB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 50 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KG3-100-50-FB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 50 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KG3-100-75	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KG3-100-75-CB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 75 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KG3-100-75-FB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 75 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KG3-100-100	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KG3-100-100-CB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 100 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KG3-100-100-FB	Packing: FKM (KG3) \| Body: No switch magnet \| Bore: 100 mm \| Stroke: 100 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KG2L-16-10	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KG2L-16-10-CB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 10 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KG2L-16-10-FB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 10 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KG2L-16-15	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KG2L-16-15-CB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 15 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KG2L-16-15-FB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 15 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KG2L-16-20	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KG2L-16-20-CB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 20 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KG2L-16-20-FB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 20 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KG2L-16-25	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KG2L-16-25-CB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 25 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KG2L-16-25-FB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 25 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KG2L-16-30	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KG2L-16-30-CB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 30 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KG2L-16-30-FB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 30 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KG2L-20-10	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KG2L-20-10-CB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 10 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KG2L-20-10-FB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 10 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KG2L-20-15	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KG2L-20-15-CB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 15 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KG2L-20-15-FB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 15 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KG2L-20-20	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KG2L-20-20-CB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 20 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KG2L-20-20-FB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 20 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KG2L-20-25	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KG2L-20-25-CB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 25 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KG2L-20-25-FB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 25 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KG2L-20-30	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KG2L-20-30-CB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 30 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KG2L-20-30-FB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 30 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KG2L-20-35	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KG2L-20-35-CB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 35 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KG2L-20-35-FB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 35 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KG2L-20-40	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KG2L-20-40-CB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 40 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KG2L-20-40-FB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 40 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KG2L-20-45	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KG2L-20-45-CB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 45 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KG2L-20-45-FB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 45 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KG2L-20-50	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KG2L-20-50-CB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 50 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KG2L-20-50-FB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 50 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KG2L-25-10	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KG2L-25-10-CB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 10 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KG2L-25-10-FB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 10 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KG2L-25-15	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KG2L-25-15-CB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 15 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KG2L-25-15-FB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 15 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KG2L-25-20	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KG2L-25-20-CB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 20 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KG2L-25-20-FB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 20 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KG2L-25-25	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KG2L-25-25-CB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 25 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KG2L-25-25-FB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 25 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KG2L-25-30	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KG2L-25-30-CB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 30 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KG2L-25-30-FB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 30 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KG2L-25-35	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KG2L-25-35-CB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 35 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KG2L-25-35-FB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 35 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KG2L-25-40	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KG2L-25-40-CB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 40 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KG2L-25-40-FB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 40 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KG2L-25-45	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KG2L-25-45-CB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 45 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KG2L-25-45-FB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 45 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KG2L-25-50	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KG2L-25-50-CB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 50 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KG2L-25-50-FB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 50 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KG2L-32-10	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KG2L-32-10-CB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 10 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KG2L-32-10-FB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 10 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KG2L-32-15	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KG2L-32-15-CB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 15 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KG2L-32-15-FB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 15 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KG2L-32-20	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KG2L-32-20-CB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 20 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KG2L-32-20-FB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 20 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KG2L-32-25	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KG2L-32-25-CB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 25 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KG2L-32-25-FB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 25 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KG2L-32-30	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KG2L-32-30-CB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 30 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KG2L-32-30-FB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 30 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KG2L-32-35	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KG2L-32-35-CB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 35 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KG2L-32-35-FB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 35 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KG2L-32-40	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KG2L-32-40-CB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 40 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KG2L-32-40-FB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 40 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KG2L-32-45	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KG2L-32-45-CB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 45 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KG2L-32-45-FB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 45 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KG2L-32-50	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KG2L-32-50-CB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 50 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KG2L-32-50-FB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 50 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KG2L-32-75	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KG2L-32-75-CB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 75 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KG2L-32-75-FB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 75 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KG2L-32-100	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KG2L-32-100-CB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 100 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KG2L-32-100-FB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 100 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KG2L-40-10	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KG2L-40-10-CB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 10 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KG2L-40-10-FB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 10 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KG2L-40-15	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KG2L-40-15-CB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 15 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KG2L-40-15-FB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 15 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KG2L-40-20	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KG2L-40-20-CB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 20 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KG2L-40-20-FB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 20 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KG2L-40-25	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KG2L-40-25-CB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 25 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KG2L-40-25-FB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 25 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KG2L-40-30	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KG2L-40-30-CB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 30 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KG2L-40-30-FB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 30 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KG2L-40-35	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KG2L-40-35-CB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 35 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KG2L-40-35-FB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 35 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KG2L-40-40	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KG2L-40-40-CB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 40 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KG2L-40-40-FB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 40 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KG2L-40-45	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KG2L-40-45-CB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 45 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KG2L-40-45-FB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 45 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KG2L-40-50	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KG2L-40-50-CB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 50 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KG2L-40-50-FB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 50 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KG2L-40-75	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KG2L-40-75-CB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 75 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KG2L-40-75-FB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 75 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KG2L-40-100	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KG2L-40-100-CB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 100 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KG2L-40-100-FB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 100 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KG2L-50-10	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KG2L-50-10-CB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KG2L-50-10-FB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KG2L-50-15	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KG2L-50-15-CB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KG2L-50-15-FB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KG2L-50-20	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KG2L-50-20-CB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KG2L-50-20-FB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KG2L-50-25	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KG2L-50-25-CB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KG2L-50-25-FB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KG2L-50-30	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KG2L-50-30-CB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KG2L-50-30-FB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KG2L-50-35	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KG2L-50-35-CB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KG2L-50-35-FB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KG2L-50-40	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KG2L-50-40-CB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KG2L-50-40-FB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KG2L-50-45	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KG2L-50-45-CB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KG2L-50-45-FB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KG2L-50-50	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KG2L-50-50-CB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KG2L-50-50-FB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KG2L-50-75	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KG2L-50-75-CB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KG2L-50-75-FB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KG2L-50-100	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KG2L-50-100-CB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KG2L-50-100-FB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KG2L-63-10	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KG2L-63-10-CB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KG2L-63-10-FB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KG2L-63-15	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KG2L-63-15-CB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KG2L-63-15-FB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KG2L-63-20	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KG2L-63-20-CB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KG2L-63-20-FB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KG2L-63-25	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KG2L-63-25-CB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KG2L-63-25-FB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KG2L-63-30	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KG2L-63-30-CB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KG2L-63-30-FB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KG2L-63-35	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KG2L-63-35-CB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KG2L-63-35-FB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KG2L-63-40	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KG2L-63-40-CB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KG2L-63-40-FB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KG2L-63-45	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KG2L-63-45-CB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KG2L-63-45-FB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KG2L-63-50	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KG2L-63-50-CB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KG2L-63-50-FB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KG2L-63-75	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KG2L-63-75-CB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KG2L-63-75-FB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KG2L-63-100	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KG2L-63-100-CB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KG2L-63-100-FB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KG2L-80-10	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KG2L-80-10-CB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 10 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KG2L-80-10-FB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 10 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KG2L-80-15	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KG2L-80-15-CB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 15 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KG2L-80-15-FB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 15 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KG2L-80-20	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KG2L-80-20-CB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 20 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KG2L-80-20-FB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 20 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KG2L-80-25	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KG2L-80-25-CB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 25 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KG2L-80-25-FB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 25 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KG2L-80-30	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KG2L-80-30-CB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 30 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KG2L-80-30-FB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 30 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KG2L-80-35	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KG2L-80-35-CB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 35 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KG2L-80-35-FB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 35 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KG2L-80-40	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KG2L-80-40-CB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 40 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KG2L-80-40-FB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 40 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KG2L-80-45	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KG2L-80-45-CB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 45 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KG2L-80-45-FB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 45 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KG2L-80-50	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KG2L-80-50-CB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 50 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KG2L-80-50-FB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 50 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KG2L-80-75	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KG2L-80-75-CB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 75 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KG2L-80-75-FB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 75 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KG2L-80-100	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KG2L-80-100-CB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 100 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KG2L-80-100-FB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 100 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KG2L-100-10	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KG2L-100-10-CB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 10 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KG2L-100-10-FB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 10 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KG2L-100-15	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KG2L-100-15-CB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 15 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KG2L-100-15-FB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 15 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KG2L-100-20	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KG2L-100-20-CB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 20 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KG2L-100-20-FB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 20 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KG2L-100-25	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KG2L-100-25-CB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 25 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KG2L-100-25-FB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 25 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KG2L-100-30	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KG2L-100-30-CB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 30 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KG2L-100-30-FB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 30 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KG2L-100-35	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KG2L-100-35-CB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 35 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KG2L-100-35-FB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 35 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KG2L-100-40	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KG2L-100-40-CB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 40 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KG2L-100-40-FB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 40 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KG2L-100-45	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KG2L-100-45-CB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 45 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KG2L-100-45-FB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 45 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KG2L-100-50	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KG2L-100-50-CB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 50 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KG2L-100-50-FB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 50 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KG2L-100-75	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KG2L-100-75-CB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 75 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KG2L-100-75-FB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 75 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KG2L-100-100	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KG2L-100-100-CB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 100 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KG2L-100-100-FB	Packing: NBR (KG2) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 100 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KG3L-16-10	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KG3L-16-10-CB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 10 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KG3L-16-10-FB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 10 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KG3L-16-15	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KG3L-16-15-CB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 15 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KG3L-16-15-FB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 15 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KG3L-16-20	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KG3L-16-20-CB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 20 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KG3L-16-20-FB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 20 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KG3L-16-25	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KG3L-16-25-CB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 25 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KG3L-16-25-FB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 25 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KG3L-16-30	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KG3L-16-30-CB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 30 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KG3L-16-30-FB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 16 mm \| Stroke: 30 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KG3L-20-10	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KG3L-20-10-CB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 10 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KG3L-20-10-FB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 10 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KG3L-20-15	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KG3L-20-15-CB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 15 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KG3L-20-15-FB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 15 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KG3L-20-20	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KG3L-20-20-CB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 20 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KG3L-20-20-FB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 20 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KG3L-20-25	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KG3L-20-25-CB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 25 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KG3L-20-25-FB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 25 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KG3L-20-30	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KG3L-20-30-CB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 30 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KG3L-20-30-FB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 30 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KG3L-20-35	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KG3L-20-35-CB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 35 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KG3L-20-35-FB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 35 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KG3L-20-40	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KG3L-20-40-CB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 40 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KG3L-20-40-FB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 40 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KG3L-20-45	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KG3L-20-45-CB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 45 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KG3L-20-45-FB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 45 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KG3L-20-50	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KG3L-20-50-CB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 50 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KG3L-20-50-FB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 50 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KG3L-25-10	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KG3L-25-10-CB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 10 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KG3L-25-10-FB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 10 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KG3L-25-15	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KG3L-25-15-CB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 15 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KG3L-25-15-FB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 15 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KG3L-25-20	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KG3L-25-20-CB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 20 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KG3L-25-20-FB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 20 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KG3L-25-25	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KG3L-25-25-CB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 25 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KG3L-25-25-FB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 25 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KG3L-25-30	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KG3L-25-30-CB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 30 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KG3L-25-30-FB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 30 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KG3L-25-35	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KG3L-25-35-CB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 35 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KG3L-25-35-FB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 35 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KG3L-25-40	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KG3L-25-40-CB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 40 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KG3L-25-40-FB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 40 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KG3L-25-45	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KG3L-25-45-CB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 45 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KG3L-25-45-FB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 45 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KG3L-25-50	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-KG3L-25-50-CB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 50 mm \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-KG3L-25-50-FB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 50 mm \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-KG3L-32-10	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KG3L-32-10-CB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 10 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KG3L-32-10-FB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 10 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KG3L-32-15	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KG3L-32-15-CB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 15 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KG3L-32-15-FB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 15 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KG3L-32-20	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KG3L-32-20-CB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 20 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KG3L-32-20-FB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 20 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KG3L-32-25	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KG3L-32-25-CB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 25 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KG3L-32-25-FB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 25 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KG3L-32-30	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KG3L-32-30-CB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 30 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KG3L-32-30-FB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 30 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KG3L-32-35	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KG3L-32-35-CB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 35 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KG3L-32-35-FB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 35 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KG3L-32-40	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KG3L-32-40-CB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 40 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KG3L-32-40-FB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 40 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KG3L-32-45	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KG3L-32-45-CB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 45 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KG3L-32-45-FB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 45 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KG3L-32-50	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KG3L-32-50-CB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 50 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KG3L-32-50-FB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 50 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KG3L-32-75	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KG3L-32-75-CB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 75 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KG3L-32-75-FB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 75 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KG3L-32-100	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KG3L-32-100-CB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 100 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KG3L-32-100-FB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 100 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KG3L-40-10	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KG3L-40-10-CB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 10 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KG3L-40-10-FB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 10 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KG3L-40-15	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KG3L-40-15-CB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 15 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KG3L-40-15-FB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 15 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KG3L-40-20	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KG3L-40-20-CB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 20 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KG3L-40-20-FB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 20 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KG3L-40-25	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KG3L-40-25-CB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 25 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KG3L-40-25-FB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 25 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KG3L-40-30	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KG3L-40-30-CB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 30 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KG3L-40-30-FB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 30 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KG3L-40-35	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KG3L-40-35-CB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 35 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KG3L-40-35-FB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 35 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KG3L-40-40	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KG3L-40-40-CB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 40 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KG3L-40-40-FB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 40 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KG3L-40-45	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KG3L-40-45-CB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 45 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KG3L-40-45-FB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 45 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KG3L-40-50	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KG3L-40-50-CB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 50 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KG3L-40-50-FB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 50 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KG3L-40-75	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KG3L-40-75-CB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 75 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KG3L-40-75-FB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 75 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KG3L-40-100	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-KG3L-40-100-CB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 100 mm \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-KG3L-40-100-FB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 100 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-KG3L-50-10	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KG3L-50-10-CB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KG3L-50-10-FB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KG3L-50-15	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KG3L-50-15-CB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KG3L-50-15-FB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KG3L-50-20	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KG3L-50-20-CB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KG3L-50-20-FB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KG3L-50-25	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KG3L-50-25-CB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KG3L-50-25-FB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KG3L-50-30	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KG3L-50-30-CB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KG3L-50-30-FB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KG3L-50-35	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KG3L-50-35-CB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KG3L-50-35-FB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KG3L-50-40	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KG3L-50-40-CB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KG3L-50-40-FB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KG3L-50-45	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KG3L-50-45-CB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KG3L-50-45-FB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KG3L-50-50	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KG3L-50-50-CB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KG3L-50-50-FB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KG3L-50-75	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KG3L-50-75-CB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KG3L-50-75-FB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KG3L-50-100	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KG3L-50-100-CB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KG3L-50-100-FB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KG3L-63-10	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KG3L-63-10-CB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KG3L-63-10-FB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KG3L-63-15	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KG3L-63-15-CB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KG3L-63-15-FB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KG3L-63-20	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KG3L-63-20-CB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KG3L-63-20-FB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KG3L-63-25	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KG3L-63-25-CB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KG3L-63-25-FB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KG3L-63-30	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KG3L-63-30-CB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KG3L-63-30-FB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KG3L-63-35	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KG3L-63-35-CB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KG3L-63-35-FB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KG3L-63-40	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KG3L-63-40-CB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KG3L-63-40-FB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KG3L-63-45	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KG3L-63-45-CB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KG3L-63-45-FB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KG3L-63-50	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KG3L-63-50-CB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KG3L-63-50-FB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KG3L-63-75	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KG3L-63-75-CB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KG3L-63-75-FB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KG3L-63-100	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-KG3L-63-100-CB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-KG3L-63-100-FB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-KG3L-80-10	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KG3L-80-10-CB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 10 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KG3L-80-10-FB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 10 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KG3L-80-15	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KG3L-80-15-CB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 15 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KG3L-80-15-FB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 15 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KG3L-80-20	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KG3L-80-20-CB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 20 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KG3L-80-20-FB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 20 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KG3L-80-25	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KG3L-80-25-CB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 25 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KG3L-80-25-FB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 25 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KG3L-80-30	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KG3L-80-30-CB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 30 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KG3L-80-30-FB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 30 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KG3L-80-35	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KG3L-80-35-CB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 35 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KG3L-80-35-FB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 35 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KG3L-80-40	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KG3L-80-40-CB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 40 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KG3L-80-40-FB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 40 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KG3L-80-45	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KG3L-80-45-CB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 45 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KG3L-80-45-FB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 45 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KG3L-80-50	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KG3L-80-50-CB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 50 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KG3L-80-50-FB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 50 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KG3L-80-75	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KG3L-80-75-CB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 75 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KG3L-80-75-FB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 75 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KG3L-80-100	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KG3L-80-100-CB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 100 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KG3L-80-100-FB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 100 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KG3L-100-10	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KG3L-100-10-CB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 10 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KG3L-100-10-FB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 10 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KG3L-100-15	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KG3L-100-15-CB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 15 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KG3L-100-15-FB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 15 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KG3L-100-20	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KG3L-100-20-CB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 20 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KG3L-100-20-FB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 20 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KG3L-100-25	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KG3L-100-25-CB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 25 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KG3L-100-25-FB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 25 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KG3L-100-30	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KG3L-100-30-CB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 30 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KG3L-100-30-FB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 30 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KG3L-100-35	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KG3L-100-35-CB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 35 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KG3L-100-35-FB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 35 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KG3L-100-40	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KG3L-100-40-CB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 40 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KG3L-100-40-FB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 40 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KG3L-100-45	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KG3L-100-45-CB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 45 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KG3L-100-45-FB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 45 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KG3L-100-50	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KG3L-100-50-CB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 50 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KG3L-100-50-FB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 50 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KG3L-100-75	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KG3L-100-75-CB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 75 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KG3L-100-75-FB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 75 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-KG3L-100-100	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-KG3L-100-100-CB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 100 mm \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-KG3L-100-100-FB	Packing: FKM (KG3) \| Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 100 mm \| Mounting: Head-end flange (FB) \| Port: Rc3/8

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

CKD SSD2-KG2/KG3 Super Compact Cylinder (High Load, Coolant Resist.)
