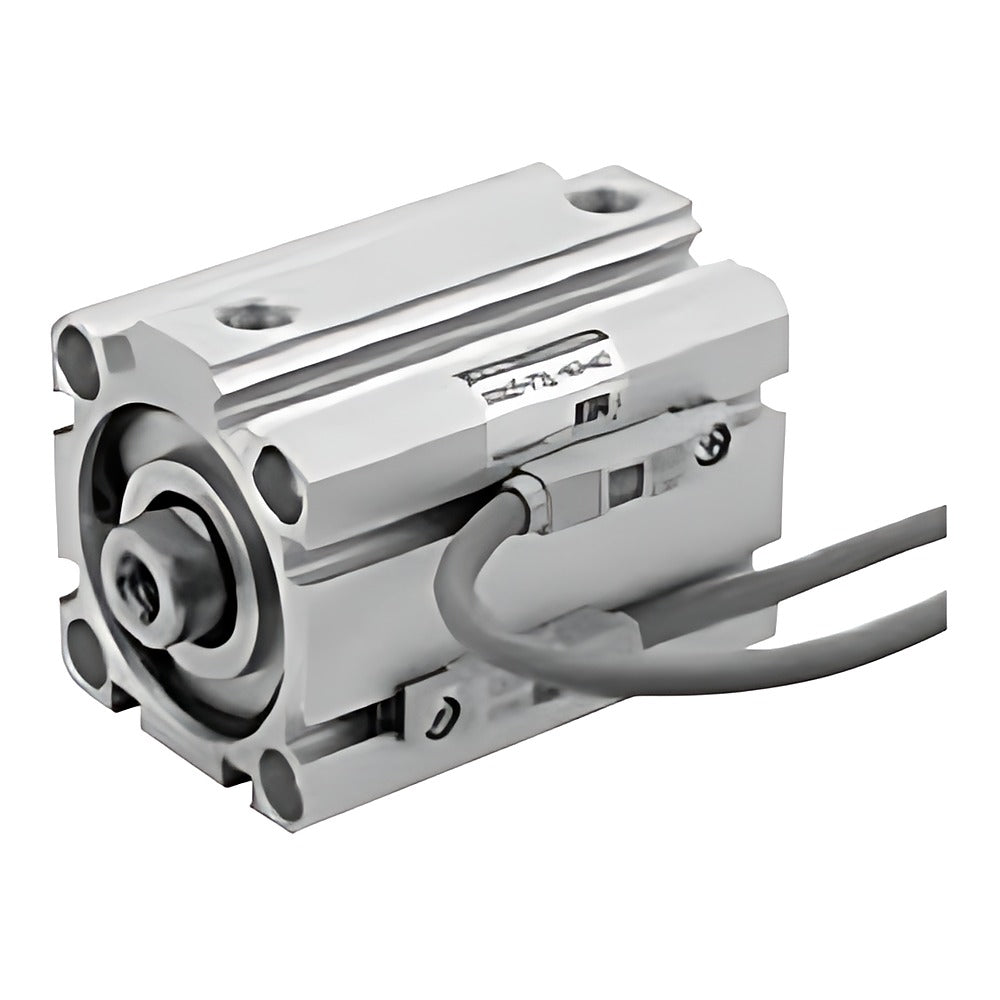

CKD SSD2-M-FP1 Super Compact Cylinder (Non-Rotating, Bore 12-32)

CKD SSD2-M-FP1 Super Compact Cylinder (Non-Rotating, Bore 12-32)

CKD SSD2-M-FP1 non-rotating super compact cylinder, bore 12-32 mm, with NSF H1 food-grade grease.

Key features

  • NSF H1 registered food-grade grease used on sliding parts (FP1 food processing specification)
  • Super compact cylinder; each type with (L) or without switch magnet; rubber cushion (D) or no cushion
  • Mounting bracket (LB, CB, FA, FB) is specified after FP1 and shipped with the cylinder
  • Auto switches (T0H, T2H, T2WH, F2H etc.) with count R/H/D, rod-end male thread N, stainless rod M, intermediate-stroke body S and knuckles I/Y ordered as suffixes
  • NPT/G threads (bore 32 and over) made to order
  • Non-rotating piston rod

Specifications

Fluid Compressed air
Max. operating pressure 1.0 MPa
Min. operating pressure 0.1 MPa (12-63), 0.05 MPa (80/100)
Proof pressure 1.6 MPa
Ambient temperature -10 to 60 C
Port M5 (12-25), Rc1/8 (32-40), Rc1/4 (50-63), Rc3/8 (80/100)
Type Double acting, non-rotating (M)
Source CKD Korea catalog CC-1271K, p. 82-84
SSD2-M-12-5-FP1 Switch magnet: No | Bore: 12 mm | Cushion: None | Stroke: 5 mm | Mounting: None (cylinder only)
SSD2-M-12-5-FP1-LB Switch magnet: No | Bore: 12 mm | Cushion: None | Stroke: 5 mm | Mounting: Axial foot
SSD2-M-12-5-FP1-CB Switch magnet: No | Bore: 12 mm | Cushion: None | Stroke: 5 mm | Mounting: Double clevis
SSD2-M-12-5-FP1-FA Switch magnet: No | Bore: 12 mm | Cushion: None | Stroke: 5 mm | Mounting: Rod-side flange
SSD2-M-12-5-FP1-FB Switch magnet: No | Bore: 12 mm | Cushion: None | Stroke: 5 mm | Mounting: Head-side flange
SSD2-M-12-10-FP1 Switch magnet: No | Bore: 12 mm | Cushion: None | Stroke: 10 mm | Mounting: None (cylinder only)
SSD2-M-12-10-FP1-LB Switch magnet: No | Bore: 12 mm | Cushion: None | Stroke: 10 mm | Mounting: Axial foot
SSD2-M-12-10-FP1-CB Switch magnet: No | Bore: 12 mm | Cushion: None | Stroke: 10 mm | Mounting: Double clevis
SSD2-M-12-10-FP1-FA Switch magnet: No | Bore: 12 mm | Cushion: None | Stroke: 10 mm | Mounting: Rod-side flange
SSD2-M-12-10-FP1-FB Switch magnet: No | Bore: 12 mm | Cushion: None | Stroke: 10 mm | Mounting: Head-side flange
SSD2-M-12-15-FP1 Switch magnet: No | Bore: 12 mm | Cushion: None | Stroke: 15 mm | Mounting: None (cylinder only)
SSD2-M-12-15-FP1-LB Switch magnet: No | Bore: 12 mm | Cushion: None | Stroke: 15 mm | Mounting: Axial foot
SSD2-M-12-15-FP1-CB Switch magnet: No | Bore: 12 mm | Cushion: None | Stroke: 15 mm | Mounting: Double clevis
SSD2-M-12-15-FP1-FA Switch magnet: No | Bore: 12 mm | Cushion: None | Stroke: 15 mm | Mounting: Rod-side flange
SSD2-M-12-15-FP1-FB Switch magnet: No | Bore: 12 mm | Cushion: None | Stroke: 15 mm | Mounting: Head-side flange
SSD2-M-12-20-FP1 Switch magnet: No | Bore: 12 mm | Cushion: None | Stroke: 20 mm | Mounting: None (cylinder only)
SSD2-M-12-20-FP1-LB Switch magnet: No | Bore: 12 mm | Cushion: None | Stroke: 20 mm | Mounting: Axial foot
SSD2-M-12-20-FP1-CB Switch magnet: No | Bore: 12 mm | Cushion: None | Stroke: 20 mm | Mounting: Double clevis
SSD2-M-12-20-FP1-FA Switch magnet: No | Bore: 12 mm | Cushion: None | Stroke: 20 mm | Mounting: Rod-side flange
SSD2-M-12-20-FP1-FB Switch magnet: No | Bore: 12 mm | Cushion: None | Stroke: 20 mm | Mounting: Head-side flange
SSD2-M-12-25-FP1 Switch magnet: No | Bore: 12 mm | Cushion: None | Stroke: 25 mm | Mounting: None (cylinder only)
SSD2-M-12-25-FP1-LB Switch magnet: No | Bore: 12 mm | Cushion: None | Stroke: 25 mm | Mounting: Axial foot
SSD2-M-12-25-FP1-CB Switch magnet: No | Bore: 12 mm | Cushion: None | Stroke: 25 mm | Mounting: Double clevis
SSD2-M-12-25-FP1-FA Switch magnet: No | Bore: 12 mm | Cushion: None | Stroke: 25 mm | Mounting: Rod-side flange
SSD2-M-12-25-FP1-FB Switch magnet: No | Bore: 12 mm | Cushion: None | Stroke: 25 mm | Mounting: Head-side flange
SSD2-M-12-30-FP1 Switch magnet: No | Bore: 12 mm | Cushion: None | Stroke: 30 mm | Mounting: None (cylinder only)
SSD2-M-12-30-FP1-LB Switch magnet: No | Bore: 12 mm | Cushion: None | Stroke: 30 mm | Mounting: Axial foot
SSD2-M-12-30-FP1-CB Switch magnet: No | Bore: 12 mm | Cushion: None | Stroke: 30 mm | Mounting: Double clevis
SSD2-M-12-30-FP1-FA Switch magnet: No | Bore: 12 mm | Cushion: None | Stroke: 30 mm | Mounting: Rod-side flange
SSD2-M-12-30-FP1-FB Switch magnet: No | Bore: 12 mm | Cushion: None | Stroke: 30 mm | Mounting: Head-side flange
SSD2-M-12D-5-FP1 Switch magnet: No | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 5 mm | Mounting: None (cylinder only)
SSD2-M-12D-5-FP1-LB Switch magnet: No | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 5 mm | Mounting: Axial foot
SSD2-M-12D-5-FP1-CB Switch magnet: No | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 5 mm | Mounting: Double clevis
SSD2-M-12D-5-FP1-FA Switch magnet: No | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 5 mm | Mounting: Rod-side flange
SSD2-M-12D-5-FP1-FB Switch magnet: No | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 5 mm | Mounting: Head-side flange
SSD2-M-12D-10-FP1 Switch magnet: No | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 10 mm | Mounting: None (cylinder only)
SSD2-M-12D-10-FP1-LB Switch magnet: No | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 10 mm | Mounting: Axial foot
SSD2-M-12D-10-FP1-CB Switch magnet: No | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 10 mm | Mounting: Double clevis
SSD2-M-12D-10-FP1-FA Switch magnet: No | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 10 mm | Mounting: Rod-side flange
SSD2-M-12D-10-FP1-FB Switch magnet: No | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 10 mm | Mounting: Head-side flange
SSD2-M-12D-15-FP1 Switch magnet: No | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 15 mm | Mounting: None (cylinder only)
SSD2-M-12D-15-FP1-LB Switch magnet: No | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 15 mm | Mounting: Axial foot
SSD2-M-12D-15-FP1-CB Switch magnet: No | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 15 mm | Mounting: Double clevis
SSD2-M-12D-15-FP1-FA Switch magnet: No | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 15 mm | Mounting: Rod-side flange
SSD2-M-12D-15-FP1-FB Switch magnet: No | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 15 mm | Mounting: Head-side flange
SSD2-M-12D-20-FP1 Switch magnet: No | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 20 mm | Mounting: None (cylinder only)
SSD2-M-12D-20-FP1-LB Switch magnet: No | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 20 mm | Mounting: Axial foot
SSD2-M-12D-20-FP1-CB Switch magnet: No | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 20 mm | Mounting: Double clevis
SSD2-M-12D-20-FP1-FA Switch magnet: No | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 20 mm | Mounting: Rod-side flange
SSD2-M-12D-20-FP1-FB Switch magnet: No | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 20 mm | Mounting: Head-side flange
SSD2-M-12D-25-FP1 Switch magnet: No | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 25 mm | Mounting: None (cylinder only)
SSD2-M-12D-25-FP1-LB Switch magnet: No | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 25 mm | Mounting: Axial foot
SSD2-M-12D-25-FP1-CB Switch magnet: No | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 25 mm | Mounting: Double clevis
SSD2-M-12D-25-FP1-FA Switch magnet: No | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 25 mm | Mounting: Rod-side flange
SSD2-M-12D-25-FP1-FB Switch magnet: No | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 25 mm | Mounting: Head-side flange
SSD2-M-12D-30-FP1 Switch magnet: No | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 30 mm | Mounting: None (cylinder only)
SSD2-M-12D-30-FP1-LB Switch magnet: No | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 30 mm | Mounting: Axial foot
SSD2-M-12D-30-FP1-CB Switch magnet: No | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 30 mm | Mounting: Double clevis
SSD2-M-12D-30-FP1-FA Switch magnet: No | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 30 mm | Mounting: Rod-side flange
SSD2-M-12D-30-FP1-FB Switch magnet: No | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 30 mm | Mounting: Head-side flange
SSD2-M-16-5-FP1 Switch magnet: No | Bore: 16 mm | Cushion: None | Stroke: 5 mm | Mounting: None (cylinder only)
SSD2-M-16-5-FP1-LB Switch magnet: No | Bore: 16 mm | Cushion: None | Stroke: 5 mm | Mounting: Axial foot
SSD2-M-16-5-FP1-CB Switch magnet: No | Bore: 16 mm | Cushion: None | Stroke: 5 mm | Mounting: Double clevis
SSD2-M-16-5-FP1-FA Switch magnet: No | Bore: 16 mm | Cushion: None | Stroke: 5 mm | Mounting: Rod-side flange
SSD2-M-16-5-FP1-FB Switch magnet: No | Bore: 16 mm | Cushion: None | Stroke: 5 mm | Mounting: Head-side flange
SSD2-M-16-10-FP1 Switch magnet: No | Bore: 16 mm | Cushion: None | Stroke: 10 mm | Mounting: None (cylinder only)
SSD2-M-16-10-FP1-LB Switch magnet: No | Bore: 16 mm | Cushion: None | Stroke: 10 mm | Mounting: Axial foot
SSD2-M-16-10-FP1-CB Switch magnet: No | Bore: 16 mm | Cushion: None | Stroke: 10 mm | Mounting: Double clevis
SSD2-M-16-10-FP1-FA Switch magnet: No | Bore: 16 mm | Cushion: None | Stroke: 10 mm | Mounting: Rod-side flange
SSD2-M-16-10-FP1-FB Switch magnet: No | Bore: 16 mm | Cushion: None | Stroke: 10 mm | Mounting: Head-side flange
SSD2-M-16-15-FP1 Switch magnet: No | Bore: 16 mm | Cushion: None | Stroke: 15 mm | Mounting: None (cylinder only)
SSD2-M-16-15-FP1-LB Switch magnet: No | Bore: 16 mm | Cushion: None | Stroke: 15 mm | Mounting: Axial foot
SSD2-M-16-15-FP1-CB Switch magnet: No | Bore: 16 mm | Cushion: None | Stroke: 15 mm | Mounting: Double clevis
SSD2-M-16-15-FP1-FA Switch magnet: No | Bore: 16 mm | Cushion: None | Stroke: 15 mm | Mounting: Rod-side flange
SSD2-M-16-15-FP1-FB Switch magnet: No | Bore: 16 mm | Cushion: None | Stroke: 15 mm | Mounting: Head-side flange
SSD2-M-16-20-FP1 Switch magnet: No | Bore: 16 mm | Cushion: None | Stroke: 20 mm | Mounting: None (cylinder only)
SSD2-M-16-20-FP1-LB Switch magnet: No | Bore: 16 mm | Cushion: None | Stroke: 20 mm | Mounting: Axial foot
SSD2-M-16-20-FP1-CB Switch magnet: No | Bore: 16 mm | Cushion: None | Stroke: 20 mm | Mounting: Double clevis
SSD2-M-16-20-FP1-FA Switch magnet: No | Bore: 16 mm | Cushion: None | Stroke: 20 mm | Mounting: Rod-side flange
SSD2-M-16-20-FP1-FB Switch magnet: No | Bore: 16 mm | Cushion: None | Stroke: 20 mm | Mounting: Head-side flange
SSD2-M-16-25-FP1 Switch magnet: No | Bore: 16 mm | Cushion: None | Stroke: 25 mm | Mounting: None (cylinder only)
SSD2-M-16-25-FP1-LB Switch magnet: No | Bore: 16 mm | Cushion: None | Stroke: 25 mm | Mounting: Axial foot
SSD2-M-16-25-FP1-CB Switch magnet: No | Bore: 16 mm | Cushion: None | Stroke: 25 mm | Mounting: Double clevis
SSD2-M-16-25-FP1-FA Switch magnet: No | Bore: 16 mm | Cushion: None | Stroke: 25 mm | Mounting: Rod-side flange
SSD2-M-16-25-FP1-FB Switch magnet: No | Bore: 16 mm | Cushion: None | Stroke: 25 mm | Mounting: Head-side flange
SSD2-M-16-30-FP1 Switch magnet: No | Bore: 16 mm | Cushion: None | Stroke: 30 mm | Mounting: None (cylinder only)
SSD2-M-16-30-FP1-LB Switch magnet: No | Bore: 16 mm | Cushion: None | Stroke: 30 mm | Mounting: Axial foot
SSD2-M-16-30-FP1-CB Switch magnet: No | Bore: 16 mm | Cushion: None | Stroke: 30 mm | Mounting: Double clevis
SSD2-M-16-30-FP1-FA Switch magnet: No | Bore: 16 mm | Cushion: None | Stroke: 30 mm | Mounting: Rod-side flange
SSD2-M-16-30-FP1-FB Switch magnet: No | Bore: 16 mm | Cushion: None | Stroke: 30 mm | Mounting: Head-side flange
SSD2-M-16D-5-FP1 Switch magnet: No | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 5 mm | Mounting: None (cylinder only)
SSD2-M-16D-5-FP1-LB Switch magnet: No | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 5 mm | Mounting: Axial foot
SSD2-M-16D-5-FP1-CB Switch magnet: No | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 5 mm | Mounting: Double clevis
SSD2-M-16D-5-FP1-FA Switch magnet: No | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 5 mm | Mounting: Rod-side flange
SSD2-M-16D-5-FP1-FB Switch magnet: No | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 5 mm | Mounting: Head-side flange
SSD2-M-16D-10-FP1 Switch magnet: No | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 10 mm | Mounting: None (cylinder only)
SSD2-M-16D-10-FP1-LB Switch magnet: No | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 10 mm | Mounting: Axial foot
SSD2-M-16D-10-FP1-CB Switch magnet: No | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 10 mm | Mounting: Double clevis
SSD2-M-16D-10-FP1-FA Switch magnet: No | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 10 mm | Mounting: Rod-side flange
SSD2-M-16D-10-FP1-FB Switch magnet: No | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 10 mm | Mounting: Head-side flange
SSD2-M-16D-15-FP1 Switch magnet: No | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 15 mm | Mounting: None (cylinder only)
SSD2-M-16D-15-FP1-LB Switch magnet: No | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 15 mm | Mounting: Axial foot
SSD2-M-16D-15-FP1-CB Switch magnet: No | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 15 mm | Mounting: Double clevis
SSD2-M-16D-15-FP1-FA Switch magnet: No | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 15 mm | Mounting: Rod-side flange
SSD2-M-16D-15-FP1-FB Switch magnet: No | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 15 mm | Mounting: Head-side flange
SSD2-M-16D-20-FP1 Switch magnet: No | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 20 mm | Mounting: None (cylinder only)
SSD2-M-16D-20-FP1-LB Switch magnet: No | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 20 mm | Mounting: Axial foot
SSD2-M-16D-20-FP1-CB Switch magnet: No | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 20 mm | Mounting: Double clevis
SSD2-M-16D-20-FP1-FA Switch magnet: No | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 20 mm | Mounting: Rod-side flange
SSD2-M-16D-20-FP1-FB Switch magnet: No | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 20 mm | Mounting: Head-side flange
SSD2-M-16D-25-FP1 Switch magnet: No | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 25 mm | Mounting: None (cylinder only)
SSD2-M-16D-25-FP1-LB Switch magnet: No | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 25 mm | Mounting: Axial foot
SSD2-M-16D-25-FP1-CB Switch magnet: No | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 25 mm | Mounting: Double clevis
SSD2-M-16D-25-FP1-FA Switch magnet: No | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 25 mm | Mounting: Rod-side flange
SSD2-M-16D-25-FP1-FB Switch magnet: No | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 25 mm | Mounting: Head-side flange
SSD2-M-16D-30-FP1 Switch magnet: No | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 30 mm | Mounting: None (cylinder only)
SSD2-M-16D-30-FP1-LB Switch magnet: No | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 30 mm | Mounting: Axial foot
SSD2-M-16D-30-FP1-CB Switch magnet: No | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 30 mm | Mounting: Double clevis
SSD2-M-16D-30-FP1-FA Switch magnet: No | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 30 mm | Mounting: Rod-side flange
SSD2-M-16D-30-FP1-FB Switch magnet: No | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 30 mm | Mounting: Head-side flange
SSD2-M-20-5-FP1 Switch magnet: No | Bore: 20 mm | Cushion: None | Stroke: 5 mm | Mounting: None (cylinder only)
SSD2-M-20-5-FP1-LB Switch magnet: No | Bore: 20 mm | Cushion: None | Stroke: 5 mm | Mounting: Axial foot
SSD2-M-20-5-FP1-CB Switch magnet: No | Bore: 20 mm | Cushion: None | Stroke: 5 mm | Mounting: Double clevis
SSD2-M-20-5-FP1-FA Switch magnet: No | Bore: 20 mm | Cushion: None | Stroke: 5 mm | Mounting: Rod-side flange
SSD2-M-20-5-FP1-FB Switch magnet: No | Bore: 20 mm | Cushion: None | Stroke: 5 mm | Mounting: Head-side flange
SSD2-M-20-10-FP1 Switch magnet: No | Bore: 20 mm | Cushion: None | Stroke: 10 mm | Mounting: None (cylinder only)
SSD2-M-20-10-FP1-LB Switch magnet: No | Bore: 20 mm | Cushion: None | Stroke: 10 mm | Mounting: Axial foot
SSD2-M-20-10-FP1-CB Switch magnet: No | Bore: 20 mm | Cushion: None | Stroke: 10 mm | Mounting: Double clevis
SSD2-M-20-10-FP1-FA Switch magnet: No | Bore: 20 mm | Cushion: None | Stroke: 10 mm | Mounting: Rod-side flange
SSD2-M-20-10-FP1-FB Switch magnet: No | Bore: 20 mm | Cushion: None | Stroke: 10 mm | Mounting: Head-side flange
SSD2-M-20-15-FP1 Switch magnet: No | Bore: 20 mm | Cushion: None | Stroke: 15 mm | Mounting: None (cylinder only)
SSD2-M-20-15-FP1-LB Switch magnet: No | Bore: 20 mm | Cushion: None | Stroke: 15 mm | Mounting: Axial foot
SSD2-M-20-15-FP1-CB Switch magnet: No | Bore: 20 mm | Cushion: None | Stroke: 15 mm | Mounting: Double clevis
SSD2-M-20-15-FP1-FA Switch magnet: No | Bore: 20 mm | Cushion: None | Stroke: 15 mm | Mounting: Rod-side flange
SSD2-M-20-15-FP1-FB Switch magnet: No | Bore: 20 mm | Cushion: None | Stroke: 15 mm | Mounting: Head-side flange
SSD2-M-20-20-FP1 Switch magnet: No | Bore: 20 mm | Cushion: None | Stroke: 20 mm | Mounting: None (cylinder only)
SSD2-M-20-20-FP1-LB Switch magnet: No | Bore: 20 mm | Cushion: None | Stroke: 20 mm | Mounting: Axial foot
SSD2-M-20-20-FP1-CB Switch magnet: No | Bore: 20 mm | Cushion: None | Stroke: 20 mm | Mounting: Double clevis
SSD2-M-20-20-FP1-FA Switch magnet: No | Bore: 20 mm | Cushion: None | Stroke: 20 mm | Mounting: Rod-side flange
SSD2-M-20-20-FP1-FB Switch magnet: No | Bore: 20 mm | Cushion: None | Stroke: 20 mm | Mounting: Head-side flange
SSD2-M-20-25-FP1 Switch magnet: No | Bore: 20 mm | Cushion: None | Stroke: 25 mm | Mounting: None (cylinder only)
SSD2-M-20-25-FP1-LB Switch magnet: No | Bore: 20 mm | Cushion: None | Stroke: 25 mm | Mounting: Axial foot
SSD2-M-20-25-FP1-CB Switch magnet: No | Bore: 20 mm | Cushion: None | Stroke: 25 mm | Mounting: Double clevis
SSD2-M-20-25-FP1-FA Switch magnet: No | Bore: 20 mm | Cushion: None | Stroke: 25 mm | Mounting: Rod-side flange
SSD2-M-20-25-FP1-FB Switch magnet: No | Bore: 20 mm | Cushion: None | Stroke: 25 mm | Mounting: Head-side flange
SSD2-M-20-30-FP1 Switch magnet: No | Bore: 20 mm | Cushion: None | Stroke: 30 mm | Mounting: None (cylinder only)
SSD2-M-20-30-FP1-LB Switch magnet: No | Bore: 20 mm | Cushion: None | Stroke: 30 mm | Mounting: Axial foot
SSD2-M-20-30-FP1-CB Switch magnet: No | Bore: 20 mm | Cushion: None | Stroke: 30 mm | Mounting: Double clevis
SSD2-M-20-30-FP1-FA Switch magnet: No | Bore: 20 mm | Cushion: None | Stroke: 30 mm | Mounting: Rod-side flange
SSD2-M-20-30-FP1-FB Switch magnet: No | Bore: 20 mm | Cushion: None | Stroke: 30 mm | Mounting: Head-side flange
SSD2-M-20-35-FP1 Switch magnet: No | Bore: 20 mm | Cushion: None | Stroke: 35 mm | Mounting: None (cylinder only)
SSD2-M-20-35-FP1-LB Switch magnet: No | Bore: 20 mm | Cushion: None | Stroke: 35 mm | Mounting: Axial foot
SSD2-M-20-35-FP1-CB Switch magnet: No | Bore: 20 mm | Cushion: None | Stroke: 35 mm | Mounting: Double clevis
SSD2-M-20-35-FP1-FA Switch magnet: No | Bore: 20 mm | Cushion: None | Stroke: 35 mm | Mounting: Rod-side flange
SSD2-M-20-35-FP1-FB Switch magnet: No | Bore: 20 mm | Cushion: None | Stroke: 35 mm | Mounting: Head-side flange
SSD2-M-20-40-FP1 Switch magnet: No | Bore: 20 mm | Cushion: None | Stroke: 40 mm | Mounting: None (cylinder only)
SSD2-M-20-40-FP1-LB Switch magnet: No | Bore: 20 mm | Cushion: None | Stroke: 40 mm | Mounting: Axial foot
SSD2-M-20-40-FP1-CB Switch magnet: No | Bore: 20 mm | Cushion: None | Stroke: 40 mm | Mounting: Double clevis
SSD2-M-20-40-FP1-FA Switch magnet: No | Bore: 20 mm | Cushion: None | Stroke: 40 mm | Mounting: Rod-side flange
SSD2-M-20-40-FP1-FB Switch magnet: No | Bore: 20 mm | Cushion: None | Stroke: 40 mm | Mounting: Head-side flange
SSD2-M-20-45-FP1 Switch magnet: No | Bore: 20 mm | Cushion: None | Stroke: 45 mm | Mounting: None (cylinder only)
SSD2-M-20-45-FP1-LB Switch magnet: No | Bore: 20 mm | Cushion: None | Stroke: 45 mm | Mounting: Axial foot
SSD2-M-20-45-FP1-CB Switch magnet: No | Bore: 20 mm | Cushion: None | Stroke: 45 mm | Mounting: Double clevis
SSD2-M-20-45-FP1-FA Switch magnet: No | Bore: 20 mm | Cushion: None | Stroke: 45 mm | Mounting: Rod-side flange
SSD2-M-20-45-FP1-FB Switch magnet: No | Bore: 20 mm | Cushion: None | Stroke: 45 mm | Mounting: Head-side flange
SSD2-M-20-50-FP1 Switch magnet: No | Bore: 20 mm | Cushion: None | Stroke: 50 mm | Mounting: None (cylinder only)
SSD2-M-20-50-FP1-LB Switch magnet: No | Bore: 20 mm | Cushion: None | Stroke: 50 mm | Mounting: Axial foot
SSD2-M-20-50-FP1-CB Switch magnet: No | Bore: 20 mm | Cushion: None | Stroke: 50 mm | Mounting: Double clevis
SSD2-M-20-50-FP1-FA Switch magnet: No | Bore: 20 mm | Cushion: None | Stroke: 50 mm | Mounting: Rod-side flange
SSD2-M-20-50-FP1-FB Switch magnet: No | Bore: 20 mm | Cushion: None | Stroke: 50 mm | Mounting: Head-side flange
SSD2-M-20D-5-FP1 Switch magnet: No | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 5 mm | Mounting: None (cylinder only)
SSD2-M-20D-5-FP1-LB Switch magnet: No | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 5 mm | Mounting: Axial foot
SSD2-M-20D-5-FP1-CB Switch magnet: No | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 5 mm | Mounting: Double clevis
SSD2-M-20D-5-FP1-FA Switch magnet: No | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 5 mm | Mounting: Rod-side flange
SSD2-M-20D-5-FP1-FB Switch magnet: No | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 5 mm | Mounting: Head-side flange
SSD2-M-20D-10-FP1 Switch magnet: No | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 10 mm | Mounting: None (cylinder only)
SSD2-M-20D-10-FP1-LB Switch magnet: No | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 10 mm | Mounting: Axial foot
SSD2-M-20D-10-FP1-CB Switch magnet: No | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 10 mm | Mounting: Double clevis
SSD2-M-20D-10-FP1-FA Switch magnet: No | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 10 mm | Mounting: Rod-side flange
SSD2-M-20D-10-FP1-FB Switch magnet: No | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 10 mm | Mounting: Head-side flange
SSD2-M-20D-15-FP1 Switch magnet: No | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 15 mm | Mounting: None (cylinder only)
SSD2-M-20D-15-FP1-LB Switch magnet: No | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 15 mm | Mounting: Axial foot
SSD2-M-20D-15-FP1-CB Switch magnet: No | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 15 mm | Mounting: Double clevis
SSD2-M-20D-15-FP1-FA Switch magnet: No | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 15 mm | Mounting: Rod-side flange
SSD2-M-20D-15-FP1-FB Switch magnet: No | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 15 mm | Mounting: Head-side flange
SSD2-M-20D-20-FP1 Switch magnet: No | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 20 mm | Mounting: None (cylinder only)
SSD2-M-20D-20-FP1-LB Switch magnet: No | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 20 mm | Mounting: Axial foot
SSD2-M-20D-20-FP1-CB Switch magnet: No | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 20 mm | Mounting: Double clevis
SSD2-M-20D-20-FP1-FA Switch magnet: No | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 20 mm | Mounting: Rod-side flange
SSD2-M-20D-20-FP1-FB Switch magnet: No | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 20 mm | Mounting: Head-side flange
SSD2-M-20D-25-FP1 Switch magnet: No | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 25 mm | Mounting: None (cylinder only)
SSD2-M-20D-25-FP1-LB Switch magnet: No | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 25 mm | Mounting: Axial foot
SSD2-M-20D-25-FP1-CB Switch magnet: No | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 25 mm | Mounting: Double clevis
SSD2-M-20D-25-FP1-FA Switch magnet: No | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 25 mm | Mounting: Rod-side flange
SSD2-M-20D-25-FP1-FB Switch magnet: No | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 25 mm | Mounting: Head-side flange
SSD2-M-20D-30-FP1 Switch magnet: No | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 30 mm | Mounting: None (cylinder only)
SSD2-M-20D-30-FP1-LB Switch magnet: No | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 30 mm | Mounting: Axial foot
SSD2-M-20D-30-FP1-CB Switch magnet: No | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 30 mm | Mounting: Double clevis
SSD2-M-20D-30-FP1-FA Switch magnet: No | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 30 mm | Mounting: Rod-side flange
SSD2-M-20D-30-FP1-FB Switch magnet: No | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 30 mm | Mounting: Head-side flange
SSD2-M-20D-35-FP1 Switch magnet: No | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 35 mm | Mounting: None (cylinder only)
SSD2-M-20D-35-FP1-LB Switch magnet: No | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 35 mm | Mounting: Axial foot
SSD2-M-20D-35-FP1-CB Switch magnet: No | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 35 mm | Mounting: Double clevis
SSD2-M-20D-35-FP1-FA Switch magnet: No | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 35 mm | Mounting: Rod-side flange
SSD2-M-20D-35-FP1-FB Switch magnet: No | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 35 mm | Mounting: Head-side flange
SSD2-M-20D-40-FP1 Switch magnet: No | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 40 mm | Mounting: None (cylinder only)
SSD2-M-20D-40-FP1-LB Switch magnet: No | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 40 mm | Mounting: Axial foot
SSD2-M-20D-40-FP1-CB Switch magnet: No | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 40 mm | Mounting: Double clevis
SSD2-M-20D-40-FP1-FA Switch magnet: No | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 40 mm | Mounting: Rod-side flange
SSD2-M-20D-40-FP1-FB Switch magnet: No | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 40 mm | Mounting: Head-side flange
SSD2-M-20D-45-FP1 Switch magnet: No | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 45 mm | Mounting: None (cylinder only)
SSD2-M-20D-45-FP1-LB Switch magnet: No | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 45 mm | Mounting: Axial foot
SSD2-M-20D-45-FP1-CB Switch magnet: No | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 45 mm | Mounting: Double clevis
SSD2-M-20D-45-FP1-FA Switch magnet: No | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 45 mm | Mounting: Rod-side flange
SSD2-M-20D-45-FP1-FB Switch magnet: No | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 45 mm | Mounting: Head-side flange
SSD2-M-20D-50-FP1 Switch magnet: No | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 50 mm | Mounting: None (cylinder only)
SSD2-M-20D-50-FP1-LB Switch magnet: No | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 50 mm | Mounting: Axial foot
SSD2-M-20D-50-FP1-CB Switch magnet: No | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 50 mm | Mounting: Double clevis
SSD2-M-20D-50-FP1-FA Switch magnet: No | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 50 mm | Mounting: Rod-side flange
SSD2-M-20D-50-FP1-FB Switch magnet: No | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 50 mm | Mounting: Head-side flange
SSD2-M-25-5-FP1 Switch magnet: No | Bore: 25 mm | Cushion: None | Stroke: 5 mm | Mounting: None (cylinder only)
SSD2-M-25-5-FP1-LB Switch magnet: No | Bore: 25 mm | Cushion: None | Stroke: 5 mm | Mounting: Axial foot
SSD2-M-25-5-FP1-CB Switch magnet: No | Bore: 25 mm | Cushion: None | Stroke: 5 mm | Mounting: Double clevis
SSD2-M-25-5-FP1-FA Switch magnet: No | Bore: 25 mm | Cushion: None | Stroke: 5 mm | Mounting: Rod-side flange
SSD2-M-25-5-FP1-FB Switch magnet: No | Bore: 25 mm | Cushion: None | Stroke: 5 mm | Mounting: Head-side flange
SSD2-M-25-10-FP1 Switch magnet: No | Bore: 25 mm | Cushion: None | Stroke: 10 mm | Mounting: None (cylinder only)
SSD2-M-25-10-FP1-LB Switch magnet: No | Bore: 25 mm | Cushion: None | Stroke: 10 mm | Mounting: Axial foot
SSD2-M-25-10-FP1-CB Switch magnet: No | Bore: 25 mm | Cushion: None | Stroke: 10 mm | Mounting: Double clevis
SSD2-M-25-10-FP1-FA Switch magnet: No | Bore: 25 mm | Cushion: None | Stroke: 10 mm | Mounting: Rod-side flange
SSD2-M-25-10-FP1-FB Switch magnet: No | Bore: 25 mm | Cushion: None | Stroke: 10 mm | Mounting: Head-side flange
SSD2-M-25-15-FP1 Switch magnet: No | Bore: 25 mm | Cushion: None | Stroke: 15 mm | Mounting: None (cylinder only)
SSD2-M-25-15-FP1-LB Switch magnet: No | Bore: 25 mm | Cushion: None | Stroke: 15 mm | Mounting: Axial foot
SSD2-M-25-15-FP1-CB Switch magnet: No | Bore: 25 mm | Cushion: None | Stroke: 15 mm | Mounting: Double clevis
SSD2-M-25-15-FP1-FA Switch magnet: No | Bore: 25 mm | Cushion: None | Stroke: 15 mm | Mounting: Rod-side flange
SSD2-M-25-15-FP1-FB Switch magnet: No | Bore: 25 mm | Cushion: None | Stroke: 15 mm | Mounting: Head-side flange
SSD2-M-25-20-FP1 Switch magnet: No | Bore: 25 mm | Cushion: None | Stroke: 20 mm | Mounting: None (cylinder only)
SSD2-M-25-20-FP1-LB Switch magnet: No | Bore: 25 mm | Cushion: None | Stroke: 20 mm | Mounting: Axial foot
SSD2-M-25-20-FP1-CB Switch magnet: No | Bore: 25 mm | Cushion: None | Stroke: 20 mm | Mounting: Double clevis
SSD2-M-25-20-FP1-FA Switch magnet: No | Bore: 25 mm | Cushion: None | Stroke: 20 mm | Mounting: Rod-side flange
SSD2-M-25-20-FP1-FB Switch magnet: No | Bore: 25 mm | Cushion: None | Stroke: 20 mm | Mounting: Head-side flange
SSD2-M-25-25-FP1 Switch magnet: No | Bore: 25 mm | Cushion: None | Stroke: 25 mm | Mounting: None (cylinder only)
SSD2-M-25-25-FP1-LB Switch magnet: No | Bore: 25 mm | Cushion: None | Stroke: 25 mm | Mounting: Axial foot
SSD2-M-25-25-FP1-CB Switch magnet: No | Bore: 25 mm | Cushion: None | Stroke: 25 mm | Mounting: Double clevis
SSD2-M-25-25-FP1-FA Switch magnet: No | Bore: 25 mm | Cushion: None | Stroke: 25 mm | Mounting: Rod-side flange
SSD2-M-25-25-FP1-FB Switch magnet: No | Bore: 25 mm | Cushion: None | Stroke: 25 mm | Mounting: Head-side flange
SSD2-M-25-30-FP1 Switch magnet: No | Bore: 25 mm | Cushion: None | Stroke: 30 mm | Mounting: None (cylinder only)
SSD2-M-25-30-FP1-LB Switch magnet: No | Bore: 25 mm | Cushion: None | Stroke: 30 mm | Mounting: Axial foot
SSD2-M-25-30-FP1-CB Switch magnet: No | Bore: 25 mm | Cushion: None | Stroke: 30 mm | Mounting: Double clevis
SSD2-M-25-30-FP1-FA Switch magnet: No | Bore: 25 mm | Cushion: None | Stroke: 30 mm | Mounting: Rod-side flange
SSD2-M-25-30-FP1-FB Switch magnet: No | Bore: 25 mm | Cushion: None | Stroke: 30 mm | Mounting: Head-side flange
SSD2-M-25-35-FP1 Switch magnet: No | Bore: 25 mm | Cushion: None | Stroke: 35 mm | Mounting: None (cylinder only)
SSD2-M-25-35-FP1-LB Switch magnet: No | Bore: 25 mm | Cushion: None | Stroke: 35 mm | Mounting: Axial foot
SSD2-M-25-35-FP1-CB Switch magnet: No | Bore: 25 mm | Cushion: None | Stroke: 35 mm | Mounting: Double clevis
SSD2-M-25-35-FP1-FA Switch magnet: No | Bore: 25 mm | Cushion: None | Stroke: 35 mm | Mounting: Rod-side flange
SSD2-M-25-35-FP1-FB Switch magnet: No | Bore: 25 mm | Cushion: None | Stroke: 35 mm | Mounting: Head-side flange
SSD2-M-25-40-FP1 Switch magnet: No | Bore: 25 mm | Cushion: None | Stroke: 40 mm | Mounting: None (cylinder only)
SSD2-M-25-40-FP1-LB Switch magnet: No | Bore: 25 mm | Cushion: None | Stroke: 40 mm | Mounting: Axial foot
SSD2-M-25-40-FP1-CB Switch magnet: No | Bore: 25 mm | Cushion: None | Stroke: 40 mm | Mounting: Double clevis
SSD2-M-25-40-FP1-FA Switch magnet: No | Bore: 25 mm | Cushion: None | Stroke: 40 mm | Mounting: Rod-side flange
SSD2-M-25-40-FP1-FB Switch magnet: No | Bore: 25 mm | Cushion: None | Stroke: 40 mm | Mounting: Head-side flange
SSD2-M-25-45-FP1 Switch magnet: No | Bore: 25 mm | Cushion: None | Stroke: 45 mm | Mounting: None (cylinder only)
SSD2-M-25-45-FP1-LB Switch magnet: No | Bore: 25 mm | Cushion: None | Stroke: 45 mm | Mounting: Axial foot
SSD2-M-25-45-FP1-CB Switch magnet: No | Bore: 25 mm | Cushion: None | Stroke: 45 mm | Mounting: Double clevis
SSD2-M-25-45-FP1-FA Switch magnet: No | Bore: 25 mm | Cushion: None | Stroke: 45 mm | Mounting: Rod-side flange
SSD2-M-25-45-FP1-FB Switch magnet: No | Bore: 25 mm | Cushion: None | Stroke: 45 mm | Mounting: Head-side flange
SSD2-M-25-50-FP1 Switch magnet: No | Bore: 25 mm | Cushion: None | Stroke: 50 mm | Mounting: None (cylinder only)
SSD2-M-25-50-FP1-LB Switch magnet: No | Bore: 25 mm | Cushion: None | Stroke: 50 mm | Mounting: Axial foot
SSD2-M-25-50-FP1-CB Switch magnet: No | Bore: 25 mm | Cushion: None | Stroke: 50 mm | Mounting: Double clevis
SSD2-M-25-50-FP1-FA Switch magnet: No | Bore: 25 mm | Cushion: None | Stroke: 50 mm | Mounting: Rod-side flange
SSD2-M-25-50-FP1-FB Switch magnet: No | Bore: 25 mm | Cushion: None | Stroke: 50 mm | Mounting: Head-side flange
SSD2-M-25D-5-FP1 Switch magnet: No | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 5 mm | Mounting: None (cylinder only)
SSD2-M-25D-5-FP1-LB Switch magnet: No | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 5 mm | Mounting: Axial foot
SSD2-M-25D-5-FP1-CB Switch magnet: No | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 5 mm | Mounting: Double clevis
SSD2-M-25D-5-FP1-FA Switch magnet: No | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 5 mm | Mounting: Rod-side flange
SSD2-M-25D-5-FP1-FB Switch magnet: No | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 5 mm | Mounting: Head-side flange
SSD2-M-25D-10-FP1 Switch magnet: No | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 10 mm | Mounting: None (cylinder only)
SSD2-M-25D-10-FP1-LB Switch magnet: No | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 10 mm | Mounting: Axial foot
SSD2-M-25D-10-FP1-CB Switch magnet: No | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 10 mm | Mounting: Double clevis
SSD2-M-25D-10-FP1-FA Switch magnet: No | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 10 mm | Mounting: Rod-side flange
SSD2-M-25D-10-FP1-FB Switch magnet: No | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 10 mm | Mounting: Head-side flange
SSD2-M-25D-15-FP1 Switch magnet: No | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 15 mm | Mounting: None (cylinder only)
SSD2-M-25D-15-FP1-LB Switch magnet: No | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 15 mm | Mounting: Axial foot
SSD2-M-25D-15-FP1-CB Switch magnet: No | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 15 mm | Mounting: Double clevis
SSD2-M-25D-15-FP1-FA Switch magnet: No | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 15 mm | Mounting: Rod-side flange
SSD2-M-25D-15-FP1-FB Switch magnet: No | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 15 mm | Mounting: Head-side flange
SSD2-M-25D-20-FP1 Switch magnet: No | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 20 mm | Mounting: None (cylinder only)
SSD2-M-25D-20-FP1-LB Switch magnet: No | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 20 mm | Mounting: Axial foot
SSD2-M-25D-20-FP1-CB Switch magnet: No | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 20 mm | Mounting: Double clevis
SSD2-M-25D-20-FP1-FA Switch magnet: No | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 20 mm | Mounting: Rod-side flange
SSD2-M-25D-20-FP1-FB Switch magnet: No | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 20 mm | Mounting: Head-side flange
SSD2-M-25D-25-FP1 Switch magnet: No | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 25 mm | Mounting: None (cylinder only)
SSD2-M-25D-25-FP1-LB Switch magnet: No | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 25 mm | Mounting: Axial foot
SSD2-M-25D-25-FP1-CB Switch magnet: No | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 25 mm | Mounting: Double clevis
SSD2-M-25D-25-FP1-FA Switch magnet: No | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 25 mm | Mounting: Rod-side flange
SSD2-M-25D-25-FP1-FB Switch magnet: No | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 25 mm | Mounting: Head-side flange
SSD2-M-25D-30-FP1 Switch magnet: No | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 30 mm | Mounting: None (cylinder only)
SSD2-M-25D-30-FP1-LB Switch magnet: No | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 30 mm | Mounting: Axial foot
SSD2-M-25D-30-FP1-CB Switch magnet: No | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 30 mm | Mounting: Double clevis
SSD2-M-25D-30-FP1-FA Switch magnet: No | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 30 mm | Mounting: Rod-side flange
SSD2-M-25D-30-FP1-FB Switch magnet: No | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 30 mm | Mounting: Head-side flange
SSD2-M-25D-35-FP1 Switch magnet: No | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 35 mm | Mounting: None (cylinder only)
SSD2-M-25D-35-FP1-LB Switch magnet: No | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 35 mm | Mounting: Axial foot
SSD2-M-25D-35-FP1-CB Switch magnet: No | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 35 mm | Mounting: Double clevis
SSD2-M-25D-35-FP1-FA Switch magnet: No | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 35 mm | Mounting: Rod-side flange
SSD2-M-25D-35-FP1-FB Switch magnet: No | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 35 mm | Mounting: Head-side flange
SSD2-M-25D-40-FP1 Switch magnet: No | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 40 mm | Mounting: None (cylinder only)
SSD2-M-25D-40-FP1-LB Switch magnet: No | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 40 mm | Mounting: Axial foot
SSD2-M-25D-40-FP1-CB Switch magnet: No | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 40 mm | Mounting: Double clevis
SSD2-M-25D-40-FP1-FA Switch magnet: No | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 40 mm | Mounting: Rod-side flange
SSD2-M-25D-40-FP1-FB Switch magnet: No | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 40 mm | Mounting: Head-side flange
SSD2-M-25D-45-FP1 Switch magnet: No | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 45 mm | Mounting: None (cylinder only)
SSD2-M-25D-45-FP1-LB Switch magnet: No | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 45 mm | Mounting: Axial foot
SSD2-M-25D-45-FP1-CB Switch magnet: No | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 45 mm | Mounting: Double clevis
SSD2-M-25D-45-FP1-FA Switch magnet: No | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 45 mm | Mounting: Rod-side flange
SSD2-M-25D-45-FP1-FB Switch magnet: No | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 45 mm | Mounting: Head-side flange
SSD2-M-25D-50-FP1 Switch magnet: No | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 50 mm | Mounting: None (cylinder only)
SSD2-M-25D-50-FP1-LB Switch magnet: No | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 50 mm | Mounting: Axial foot
SSD2-M-25D-50-FP1-CB Switch magnet: No | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 50 mm | Mounting: Double clevis
SSD2-M-25D-50-FP1-FA Switch magnet: No | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 50 mm | Mounting: Rod-side flange
SSD2-M-25D-50-FP1-FB Switch magnet: No | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 50 mm | Mounting: Head-side flange
SSD2-M-32-5-FP1 Switch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 5 mm | Mounting: None (cylinder only)
SSD2-M-32-5-FP1-LB Switch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 5 mm | Mounting: Axial foot
SSD2-M-32-5-FP1-CB Switch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 5 mm | Mounting: Double clevis
SSD2-M-32-5-FP1-FA Switch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 5 mm | Mounting: Rod-side flange
SSD2-M-32-5-FP1-FB Switch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 5 mm | Mounting: Head-side flange
SSD2-M-32-10-FP1 Switch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 10 mm | Mounting: None (cylinder only)
SSD2-M-32-10-FP1-LB Switch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 10 mm | Mounting: Axial foot
SSD2-M-32-10-FP1-CB Switch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 10 mm | Mounting: Double clevis
SSD2-M-32-10-FP1-FA Switch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 10 mm | Mounting: Rod-side flange
SSD2-M-32-10-FP1-FB Switch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 10 mm | Mounting: Head-side flange
SSD2-M-32-15-FP1 Switch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 15 mm | Mounting: None (cylinder only)
SSD2-M-32-15-FP1-LB Switch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 15 mm | Mounting: Axial foot
SSD2-M-32-15-FP1-CB Switch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 15 mm | Mounting: Double clevis
SSD2-M-32-15-FP1-FA Switch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 15 mm | Mounting: Rod-side flange
SSD2-M-32-15-FP1-FB Switch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 15 mm | Mounting: Head-side flange
SSD2-M-32-20-FP1 Switch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 20 mm | Mounting: None (cylinder only)
SSD2-M-32-20-FP1-LB Switch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 20 mm | Mounting: Axial foot
SSD2-M-32-20-FP1-CB Switch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 20 mm | Mounting: Double clevis
SSD2-M-32-20-FP1-FA Switch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 20 mm | Mounting: Rod-side flange
SSD2-M-32-20-FP1-FB Switch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 20 mm | Mounting: Head-side flange
SSD2-M-32-25-FP1 Switch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 25 mm | Mounting: None (cylinder only)
SSD2-M-32-25-FP1-LB Switch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 25 mm | Mounting: Axial foot
SSD2-M-32-25-FP1-CB Switch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 25 mm | Mounting: Double clevis
SSD2-M-32-25-FP1-FA Switch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 25 mm | Mounting: Rod-side flange
SSD2-M-32-25-FP1-FB Switch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 25 mm | Mounting: Head-side flange
SSD2-M-32-30-FP1 Switch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 30 mm | Mounting: None (cylinder only)
SSD2-M-32-30-FP1-LB Switch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 30 mm | Mounting: Axial foot
SSD2-M-32-30-FP1-CB Switch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 30 mm | Mounting: Double clevis
SSD2-M-32-30-FP1-FA Switch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 30 mm | Mounting: Rod-side flange
SSD2-M-32-30-FP1-FB Switch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 30 mm | Mounting: Head-side flange
SSD2-M-32-35-FP1 Switch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 35 mm | Mounting: None (cylinder only)
SSD2-M-32-35-FP1-LB Switch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 35 mm | Mounting: Axial foot
SSD2-M-32-35-FP1-CB Switch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 35 mm | Mounting: Double clevis
SSD2-M-32-35-FP1-FA Switch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 35 mm | Mounting: Rod-side flange
SSD2-M-32-35-FP1-FB Switch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 35 mm | Mounting: Head-side flange
SSD2-M-32-40-FP1 Switch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 40 mm | Mounting: None (cylinder only)
SSD2-M-32-40-FP1-LB Switch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 40 mm | Mounting: Axial foot
SSD2-M-32-40-FP1-CB Switch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 40 mm | Mounting: Double clevis
SSD2-M-32-40-FP1-FA Switch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 40 mm | Mounting: Rod-side flange
SSD2-M-32-40-FP1-FB Switch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 40 mm | Mounting: Head-side flange
SSD2-M-32-45-FP1 Switch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 45 mm | Mounting: None (cylinder only)
SSD2-M-32-45-FP1-LB Switch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 45 mm | Mounting: Axial foot
SSD2-M-32-45-FP1-CB Switch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 45 mm | Mounting: Double clevis
SSD2-M-32-45-FP1-FA Switch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 45 mm | Mounting: Rod-side flange
SSD2-M-32-45-FP1-FB Switch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 45 mm | Mounting: Head-side flange
SSD2-M-32-50-FP1 Switch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 50 mm | Mounting: None (cylinder only)
SSD2-M-32-50-FP1-LB Switch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 50 mm | Mounting: Axial foot
SSD2-M-32-50-FP1-CB Switch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 50 mm | Mounting: Double clevis
SSD2-M-32-50-FP1-FA Switch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 50 mm | Mounting: Rod-side flange
SSD2-M-32-50-FP1-FB Switch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 50 mm | Mounting: Head-side flange
SSD2-M-32-75-FP1 Switch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 75 mm | Mounting: None (cylinder only)
SSD2-M-32-75-FP1-LB Switch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 75 mm | Mounting: Axial foot
SSD2-M-32-75-FP1-CB Switch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 75 mm | Mounting: Double clevis
SSD2-M-32-75-FP1-FA Switch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 75 mm | Mounting: Rod-side flange
SSD2-M-32-75-FP1-FB Switch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 75 mm | Mounting: Head-side flange
SSD2-M-32-100-FP1 Switch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 100 mm | Mounting: None (cylinder only)
SSD2-M-32-100-FP1-LB Switch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 100 mm | Mounting: Axial foot
SSD2-M-32-100-FP1-CB Switch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 100 mm | Mounting: Double clevis
SSD2-M-32-100-FP1-FA Switch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 100 mm | Mounting: Rod-side flange
SSD2-M-32-100-FP1-FB Switch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 100 mm | Mounting: Head-side flange
SSD2-M-32D-5-FP1 Switch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 5 mm | Mounting: None (cylinder only)
SSD2-M-32D-5-FP1-LB Switch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 5 mm | Mounting: Axial foot
SSD2-M-32D-5-FP1-CB Switch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 5 mm | Mounting: Double clevis
SSD2-M-32D-5-FP1-FA Switch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 5 mm | Mounting: Rod-side flange
SSD2-M-32D-5-FP1-FB Switch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 5 mm | Mounting: Head-side flange
SSD2-M-32D-10-FP1 Switch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 10 mm | Mounting: None (cylinder only)
SSD2-M-32D-10-FP1-LB Switch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 10 mm | Mounting: Axial foot
SSD2-M-32D-10-FP1-CB Switch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 10 mm | Mounting: Double clevis
SSD2-M-32D-10-FP1-FA Switch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 10 mm | Mounting: Rod-side flange
SSD2-M-32D-10-FP1-FB Switch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 10 mm | Mounting: Head-side flange
SSD2-M-32D-15-FP1 Switch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 15 mm | Mounting: None (cylinder only)
SSD2-M-32D-15-FP1-LB Switch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 15 mm | Mounting: Axial foot
SSD2-M-32D-15-FP1-CB Switch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 15 mm | Mounting: Double clevis
SSD2-M-32D-15-FP1-FA Switch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 15 mm | Mounting: Rod-side flange
SSD2-M-32D-15-FP1-FB Switch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 15 mm | Mounting: Head-side flange
SSD2-M-32D-20-FP1 Switch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 20 mm | Mounting: None (cylinder only)
SSD2-M-32D-20-FP1-LB Switch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 20 mm | Mounting: Axial foot
SSD2-M-32D-20-FP1-CB Switch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 20 mm | Mounting: Double clevis
SSD2-M-32D-20-FP1-FA Switch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 20 mm | Mounting: Rod-side flange
SSD2-M-32D-20-FP1-FB Switch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 20 mm | Mounting: Head-side flange
SSD2-M-32D-25-FP1 Switch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 25 mm | Mounting: None (cylinder only)
SSD2-M-32D-25-FP1-LB Switch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 25 mm | Mounting: Axial foot
SSD2-M-32D-25-FP1-CB Switch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 25 mm | Mounting: Double clevis
SSD2-M-32D-25-FP1-FA Switch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 25 mm | Mounting: Rod-side flange
SSD2-M-32D-25-FP1-FB Switch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 25 mm | Mounting: Head-side flange
SSD2-M-32D-30-FP1 Switch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 30 mm | Mounting: None (cylinder only)
SSD2-M-32D-30-FP1-LB Switch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 30 mm | Mounting: Axial foot
SSD2-M-32D-30-FP1-CB Switch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 30 mm | Mounting: Double clevis
SSD2-M-32D-30-FP1-FA Switch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 30 mm | Mounting: Rod-side flange
SSD2-M-32D-30-FP1-FB Switch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 30 mm | Mounting: Head-side flange
SSD2-M-32D-35-FP1 Switch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 35 mm | Mounting: None (cylinder only)
SSD2-M-32D-35-FP1-LB Switch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 35 mm | Mounting: Axial foot
SSD2-M-32D-35-FP1-CB Switch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 35 mm | Mounting: Double clevis
SSD2-M-32D-35-FP1-FA Switch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 35 mm | Mounting: Rod-side flange
SSD2-M-32D-35-FP1-FB Switch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 35 mm | Mounting: Head-side flange
SSD2-M-32D-40-FP1 Switch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 40 mm | Mounting: None (cylinder only)
SSD2-M-32D-40-FP1-LB Switch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 40 mm | Mounting: Axial foot
SSD2-M-32D-40-FP1-CB Switch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 40 mm | Mounting: Double clevis
SSD2-M-32D-40-FP1-FA Switch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 40 mm | Mounting: Rod-side flange
SSD2-M-32D-40-FP1-FB Switch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 40 mm | Mounting: Head-side flange
SSD2-M-32D-45-FP1 Switch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 45 mm | Mounting: None (cylinder only)
SSD2-M-32D-45-FP1-LB Switch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 45 mm | Mounting: Axial foot
SSD2-M-32D-45-FP1-CB Switch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 45 mm | Mounting: Double clevis
SSD2-M-32D-45-FP1-FA Switch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 45 mm | Mounting: Rod-side flange
SSD2-M-32D-45-FP1-FB Switch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 45 mm | Mounting: Head-side flange
SSD2-M-32D-50-FP1 Switch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 50 mm | Mounting: None (cylinder only)
SSD2-M-32D-50-FP1-LB Switch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 50 mm | Mounting: Axial foot
SSD2-M-32D-50-FP1-CB Switch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 50 mm | Mounting: Double clevis
SSD2-M-32D-50-FP1-FA Switch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 50 mm | Mounting: Rod-side flange
SSD2-M-32D-50-FP1-FB Switch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 50 mm | Mounting: Head-side flange
SSD2-M-32D-75-FP1 Switch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 75 mm | Mounting: None (cylinder only)
SSD2-M-32D-75-FP1-LB Switch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 75 mm | Mounting: Axial foot
SSD2-M-32D-75-FP1-CB Switch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 75 mm | Mounting: Double clevis
SSD2-M-32D-75-FP1-FA Switch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 75 mm | Mounting: Rod-side flange
SSD2-M-32D-75-FP1-FB Switch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 75 mm | Mounting: Head-side flange
SSD2-M-32D-100-FP1 Switch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 100 mm | Mounting: None (cylinder only)
SSD2-M-32D-100-FP1-LB Switch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 100 mm | Mounting: Axial foot
SSD2-M-32D-100-FP1-CB Switch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 100 mm | Mounting: Double clevis
SSD2-M-32D-100-FP1-FA Switch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 100 mm | Mounting: Rod-side flange
SSD2-M-32D-100-FP1-FB Switch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 100 mm | Mounting: Head-side flange
SSD2-ML-12-5-FP1 Switch magnet: Yes | Bore: 12 mm | Cushion: None | Stroke: 5 mm | Mounting: None (cylinder only)
SSD2-ML-12-5-FP1-LB Switch magnet: Yes | Bore: 12 mm | Cushion: None | Stroke: 5 mm | Mounting: Axial foot
SSD2-ML-12-5-FP1-CB Switch magnet: Yes | Bore: 12 mm | Cushion: None | Stroke: 5 mm | Mounting: Double clevis
SSD2-ML-12-5-FP1-FA Switch magnet: Yes | Bore: 12 mm | Cushion: None | Stroke: 5 mm | Mounting: Rod-side flange
SSD2-ML-12-5-FP1-FB Switch magnet: Yes | Bore: 12 mm | Cushion: None | Stroke: 5 mm | Mounting: Head-side flange
SSD2-ML-12-10-FP1 Switch magnet: Yes | Bore: 12 mm | Cushion: None | Stroke: 10 mm | Mounting: None (cylinder only)
SSD2-ML-12-10-FP1-LB Switch magnet: Yes | Bore: 12 mm | Cushion: None | Stroke: 10 mm | Mounting: Axial foot
SSD2-ML-12-10-FP1-CB Switch magnet: Yes | Bore: 12 mm | Cushion: None | Stroke: 10 mm | Mounting: Double clevis
SSD2-ML-12-10-FP1-FA Switch magnet: Yes | Bore: 12 mm | Cushion: None | Stroke: 10 mm | Mounting: Rod-side flange
SSD2-ML-12-10-FP1-FB Switch magnet: Yes | Bore: 12 mm | Cushion: None | Stroke: 10 mm | Mounting: Head-side flange
SSD2-ML-12-15-FP1 Switch magnet: Yes | Bore: 12 mm | Cushion: None | Stroke: 15 mm | Mounting: None (cylinder only)
SSD2-ML-12-15-FP1-LB Switch magnet: Yes | Bore: 12 mm | Cushion: None | Stroke: 15 mm | Mounting: Axial foot
SSD2-ML-12-15-FP1-CB Switch magnet: Yes | Bore: 12 mm | Cushion: None | Stroke: 15 mm | Mounting: Double clevis
SSD2-ML-12-15-FP1-FA Switch magnet: Yes | Bore: 12 mm | Cushion: None | Stroke: 15 mm | Mounting: Rod-side flange
SSD2-ML-12-15-FP1-FB Switch magnet: Yes | Bore: 12 mm | Cushion: None | Stroke: 15 mm | Mounting: Head-side flange
SSD2-ML-12-20-FP1 Switch magnet: Yes | Bore: 12 mm | Cushion: None | Stroke: 20 mm | Mounting: None (cylinder only)
SSD2-ML-12-20-FP1-LB Switch magnet: Yes | Bore: 12 mm | Cushion: None | Stroke: 20 mm | Mounting: Axial foot
SSD2-ML-12-20-FP1-CB Switch magnet: Yes | Bore: 12 mm | Cushion: None | Stroke: 20 mm | Mounting: Double clevis
SSD2-ML-12-20-FP1-FA Switch magnet: Yes | Bore: 12 mm | Cushion: None | Stroke: 20 mm | Mounting: Rod-side flange
SSD2-ML-12-20-FP1-FB Switch magnet: Yes | Bore: 12 mm | Cushion: None | Stroke: 20 mm | Mounting: Head-side flange
SSD2-ML-12-25-FP1 Switch magnet: Yes | Bore: 12 mm | Cushion: None | Stroke: 25 mm | Mounting: None (cylinder only)
SSD2-ML-12-25-FP1-LB Switch magnet: Yes | Bore: 12 mm | Cushion: None | Stroke: 25 mm | Mounting: Axial foot
SSD2-ML-12-25-FP1-CB Switch magnet: Yes | Bore: 12 mm | Cushion: None | Stroke: 25 mm | Mounting: Double clevis
SSD2-ML-12-25-FP1-FA Switch magnet: Yes | Bore: 12 mm | Cushion: None | Stroke: 25 mm | Mounting: Rod-side flange
SSD2-ML-12-25-FP1-FB Switch magnet: Yes | Bore: 12 mm | Cushion: None | Stroke: 25 mm | Mounting: Head-side flange
SSD2-ML-12-30-FP1 Switch magnet: Yes | Bore: 12 mm | Cushion: None | Stroke: 30 mm | Mounting: None (cylinder only)
SSD2-ML-12-30-FP1-LB Switch magnet: Yes | Bore: 12 mm | Cushion: None | Stroke: 30 mm | Mounting: Axial foot
SSD2-ML-12-30-FP1-CB Switch magnet: Yes | Bore: 12 mm | Cushion: None | Stroke: 30 mm | Mounting: Double clevis
SSD2-ML-12-30-FP1-FA Switch magnet: Yes | Bore: 12 mm | Cushion: None | Stroke: 30 mm | Mounting: Rod-side flange
SSD2-ML-12-30-FP1-FB Switch magnet: Yes | Bore: 12 mm | Cushion: None | Stroke: 30 mm | Mounting: Head-side flange
SSD2-ML-12D-5-FP1 Switch magnet: Yes | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 5 mm | Mounting: None (cylinder only)
SSD2-ML-12D-5-FP1-LB Switch magnet: Yes | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 5 mm | Mounting: Axial foot
SSD2-ML-12D-5-FP1-CB Switch magnet: Yes | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 5 mm | Mounting: Double clevis
SSD2-ML-12D-5-FP1-FA Switch magnet: Yes | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 5 mm | Mounting: Rod-side flange
SSD2-ML-12D-5-FP1-FB Switch magnet: Yes | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 5 mm | Mounting: Head-side flange
SSD2-ML-12D-10-FP1 Switch magnet: Yes | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 10 mm | Mounting: None (cylinder only)
SSD2-ML-12D-10-FP1-LB Switch magnet: Yes | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 10 mm | Mounting: Axial foot
SSD2-ML-12D-10-FP1-CB Switch magnet: Yes | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 10 mm | Mounting: Double clevis
SSD2-ML-12D-10-FP1-FA Switch magnet: Yes | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 10 mm | Mounting: Rod-side flange
SSD2-ML-12D-10-FP1-FB Switch magnet: Yes | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 10 mm | Mounting: Head-side flange
SSD2-ML-12D-15-FP1 Switch magnet: Yes | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 15 mm | Mounting: None (cylinder only)
SSD2-ML-12D-15-FP1-LB Switch magnet: Yes | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 15 mm | Mounting: Axial foot
SSD2-ML-12D-15-FP1-CB Switch magnet: Yes | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 15 mm | Mounting: Double clevis
SSD2-ML-12D-15-FP1-FA Switch magnet: Yes | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 15 mm | Mounting: Rod-side flange
SSD2-ML-12D-15-FP1-FB Switch magnet: Yes | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 15 mm | Mounting: Head-side flange
SSD2-ML-12D-20-FP1 Switch magnet: Yes | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 20 mm | Mounting: None (cylinder only)
SSD2-ML-12D-20-FP1-LB Switch magnet: Yes | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 20 mm | Mounting: Axial foot
SSD2-ML-12D-20-FP1-CB Switch magnet: Yes | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 20 mm | Mounting: Double clevis
SSD2-ML-12D-20-FP1-FA Switch magnet: Yes | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 20 mm | Mounting: Rod-side flange
SSD2-ML-12D-20-FP1-FB Switch magnet: Yes | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 20 mm | Mounting: Head-side flange
SSD2-ML-12D-25-FP1 Switch magnet: Yes | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 25 mm | Mounting: None (cylinder only)
SSD2-ML-12D-25-FP1-LB Switch magnet: Yes | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 25 mm | Mounting: Axial foot
SSD2-ML-12D-25-FP1-CB Switch magnet: Yes | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 25 mm | Mounting: Double clevis
SSD2-ML-12D-25-FP1-FA Switch magnet: Yes | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 25 mm | Mounting: Rod-side flange
SSD2-ML-12D-25-FP1-FB Switch magnet: Yes | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 25 mm | Mounting: Head-side flange
SSD2-ML-12D-30-FP1 Switch magnet: Yes | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 30 mm | Mounting: None (cylinder only)
SSD2-ML-12D-30-FP1-LB Switch magnet: Yes | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 30 mm | Mounting: Axial foot
SSD2-ML-12D-30-FP1-CB Switch magnet: Yes | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 30 mm | Mounting: Double clevis
SSD2-ML-12D-30-FP1-FA Switch magnet: Yes | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 30 mm | Mounting: Rod-side flange
SSD2-ML-12D-30-FP1-FB Switch magnet: Yes | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 30 mm | Mounting: Head-side flange
SSD2-ML-16-5-FP1 Switch magnet: Yes | Bore: 16 mm | Cushion: None | Stroke: 5 mm | Mounting: None (cylinder only)
SSD2-ML-16-5-FP1-LB Switch magnet: Yes | Bore: 16 mm | Cushion: None | Stroke: 5 mm | Mounting: Axial foot
SSD2-ML-16-5-FP1-CB Switch magnet: Yes | Bore: 16 mm | Cushion: None | Stroke: 5 mm | Mounting: Double clevis
SSD2-ML-16-5-FP1-FA Switch magnet: Yes | Bore: 16 mm | Cushion: None | Stroke: 5 mm | Mounting: Rod-side flange
SSD2-ML-16-5-FP1-FB Switch magnet: Yes | Bore: 16 mm | Cushion: None | Stroke: 5 mm | Mounting: Head-side flange
SSD2-ML-16-10-FP1 Switch magnet: Yes | Bore: 16 mm | Cushion: None | Stroke: 10 mm | Mounting: None (cylinder only)
SSD2-ML-16-10-FP1-LB Switch magnet: Yes | Bore: 16 mm | Cushion: None | Stroke: 10 mm | Mounting: Axial foot
SSD2-ML-16-10-FP1-CB Switch magnet: Yes | Bore: 16 mm | Cushion: None | Stroke: 10 mm | Mounting: Double clevis
SSD2-ML-16-10-FP1-FA Switch magnet: Yes | Bore: 16 mm | Cushion: None | Stroke: 10 mm | Mounting: Rod-side flange
SSD2-ML-16-10-FP1-FB Switch magnet: Yes | Bore: 16 mm | Cushion: None | Stroke: 10 mm | Mounting: Head-side flange
SSD2-ML-16-15-FP1 Switch magnet: Yes | Bore: 16 mm | Cushion: None | Stroke: 15 mm | Mounting: None (cylinder only)
SSD2-ML-16-15-FP1-LB Switch magnet: Yes | Bore: 16 mm | Cushion: None | Stroke: 15 mm | Mounting: Axial foot
SSD2-ML-16-15-FP1-CB Switch magnet: Yes | Bore: 16 mm | Cushion: None | Stroke: 15 mm | Mounting: Double clevis
SSD2-ML-16-15-FP1-FA Switch magnet: Yes | Bore: 16 mm | Cushion: None | Stroke: 15 mm | Mounting: Rod-side flange
SSD2-ML-16-15-FP1-FB Switch magnet: Yes | Bore: 16 mm | Cushion: None | Stroke: 15 mm | Mounting: Head-side flange
SSD2-ML-16-20-FP1 Switch magnet: Yes | Bore: 16 mm | Cushion: None | Stroke: 20 mm | Mounting: None (cylinder only)
SSD2-ML-16-20-FP1-LB Switch magnet: Yes | Bore: 16 mm | Cushion: None | Stroke: 20 mm | Mounting: Axial foot
SSD2-ML-16-20-FP1-CB Switch magnet: Yes | Bore: 16 mm | Cushion: None | Stroke: 20 mm | Mounting: Double clevis
SSD2-ML-16-20-FP1-FA Switch magnet: Yes | Bore: 16 mm | Cushion: None | Stroke: 20 mm | Mounting: Rod-side flange
SSD2-ML-16-20-FP1-FB Switch magnet: Yes | Bore: 16 mm | Cushion: None | Stroke: 20 mm | Mounting: Head-side flange
SSD2-ML-16-25-FP1 Switch magnet: Yes | Bore: 16 mm | Cushion: None | Stroke: 25 mm | Mounting: None (cylinder only)
SSD2-ML-16-25-FP1-LB Switch magnet: Yes | Bore: 16 mm | Cushion: None | Stroke: 25 mm | Mounting: Axial foot
SSD2-ML-16-25-FP1-CB Switch magnet: Yes | Bore: 16 mm | Cushion: None | Stroke: 25 mm | Mounting: Double clevis
SSD2-ML-16-25-FP1-FA Switch magnet: Yes | Bore: 16 mm | Cushion: None | Stroke: 25 mm | Mounting: Rod-side flange
SSD2-ML-16-25-FP1-FB Switch magnet: Yes | Bore: 16 mm | Cushion: None | Stroke: 25 mm | Mounting: Head-side flange
SSD2-ML-16-30-FP1 Switch magnet: Yes | Bore: 16 mm | Cushion: None | Stroke: 30 mm | Mounting: None (cylinder only)
SSD2-ML-16-30-FP1-LB Switch magnet: Yes | Bore: 16 mm | Cushion: None | Stroke: 30 mm | Mounting: Axial foot
SSD2-ML-16-30-FP1-CB Switch magnet: Yes | Bore: 16 mm | Cushion: None | Stroke: 30 mm | Mounting: Double clevis
SSD2-ML-16-30-FP1-FA Switch magnet: Yes | Bore: 16 mm | Cushion: None | Stroke: 30 mm | Mounting: Rod-side flange
SSD2-ML-16-30-FP1-FB Switch magnet: Yes | Bore: 16 mm | Cushion: None | Stroke: 30 mm | Mounting: Head-side flange
SSD2-ML-16D-5-FP1 Switch magnet: Yes | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 5 mm | Mounting: None (cylinder only)
SSD2-ML-16D-5-FP1-LB Switch magnet: Yes | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 5 mm | Mounting: Axial foot
SSD2-ML-16D-5-FP1-CB Switch magnet: Yes | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 5 mm | Mounting: Double clevis
SSD2-ML-16D-5-FP1-FA Switch magnet: Yes | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 5 mm | Mounting: Rod-side flange
SSD2-ML-16D-5-FP1-FB Switch magnet: Yes | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 5 mm | Mounting: Head-side flange
SSD2-ML-16D-10-FP1 Switch magnet: Yes | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 10 mm | Mounting: None (cylinder only)
SSD2-ML-16D-10-FP1-LB Switch magnet: Yes | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 10 mm | Mounting: Axial foot
SSD2-ML-16D-10-FP1-CB Switch magnet: Yes | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 10 mm | Mounting: Double clevis
SSD2-ML-16D-10-FP1-FA Switch magnet: Yes | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 10 mm | Mounting: Rod-side flange
SSD2-ML-16D-10-FP1-FB Switch magnet: Yes | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 10 mm | Mounting: Head-side flange
SSD2-ML-16D-15-FP1 Switch magnet: Yes | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 15 mm | Mounting: None (cylinder only)
SSD2-ML-16D-15-FP1-LB Switch magnet: Yes | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 15 mm | Mounting: Axial foot
SSD2-ML-16D-15-FP1-CB Switch magnet: Yes | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 15 mm | Mounting: Double clevis
SSD2-ML-16D-15-FP1-FA Switch magnet: Yes | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 15 mm | Mounting: Rod-side flange
SSD2-ML-16D-15-FP1-FB Switch magnet: Yes | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 15 mm | Mounting: Head-side flange
SSD2-ML-16D-20-FP1 Switch magnet: Yes | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 20 mm | Mounting: None (cylinder only)
SSD2-ML-16D-20-FP1-LB Switch magnet: Yes | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 20 mm | Mounting: Axial foot
SSD2-ML-16D-20-FP1-CB Switch magnet: Yes | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 20 mm | Mounting: Double clevis
SSD2-ML-16D-20-FP1-FA Switch magnet: Yes | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 20 mm | Mounting: Rod-side flange
SSD2-ML-16D-20-FP1-FB Switch magnet: Yes | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 20 mm | Mounting: Head-side flange
SSD2-ML-16D-25-FP1 Switch magnet: Yes | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 25 mm | Mounting: None (cylinder only)
SSD2-ML-16D-25-FP1-LB Switch magnet: Yes | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 25 mm | Mounting: Axial foot
SSD2-ML-16D-25-FP1-CB Switch magnet: Yes | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 25 mm | Mounting: Double clevis
SSD2-ML-16D-25-FP1-FA Switch magnet: Yes | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 25 mm | Mounting: Rod-side flange
SSD2-ML-16D-25-FP1-FB Switch magnet: Yes | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 25 mm | Mounting: Head-side flange
SSD2-ML-16D-30-FP1 Switch magnet: Yes | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 30 mm | Mounting: None (cylinder only)
SSD2-ML-16D-30-FP1-LB Switch magnet: Yes | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 30 mm | Mounting: Axial foot
SSD2-ML-16D-30-FP1-CB Switch magnet: Yes | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 30 mm | Mounting: Double clevis
SSD2-ML-16D-30-FP1-FA Switch magnet: Yes | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 30 mm | Mounting: Rod-side flange
SSD2-ML-16D-30-FP1-FB Switch magnet: Yes | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 30 mm | Mounting: Head-side flange
SSD2-ML-20-5-FP1 Switch magnet: Yes | Bore: 20 mm | Cushion: None | Stroke: 5 mm | Mounting: None (cylinder only)
SSD2-ML-20-5-FP1-LB Switch magnet: Yes | Bore: 20 mm | Cushion: None | Stroke: 5 mm | Mounting: Axial foot
SSD2-ML-20-5-FP1-CB Switch magnet: Yes | Bore: 20 mm | Cushion: None | Stroke: 5 mm | Mounting: Double clevis
SSD2-ML-20-5-FP1-FA Switch magnet: Yes | Bore: 20 mm | Cushion: None | Stroke: 5 mm | Mounting: Rod-side flange
SSD2-ML-20-5-FP1-FB Switch magnet: Yes | Bore: 20 mm | Cushion: None | Stroke: 5 mm | Mounting: Head-side flange
SSD2-ML-20-10-FP1 Switch magnet: Yes | Bore: 20 mm | Cushion: None | Stroke: 10 mm | Mounting: None (cylinder only)
SSD2-ML-20-10-FP1-LB Switch magnet: Yes | Bore: 20 mm | Cushion: None | Stroke: 10 mm | Mounting: Axial foot
SSD2-ML-20-10-FP1-CB Switch magnet: Yes | Bore: 20 mm | Cushion: None | Stroke: 10 mm | Mounting: Double clevis
SSD2-ML-20-10-FP1-FA Switch magnet: Yes | Bore: 20 mm | Cushion: None | Stroke: 10 mm | Mounting: Rod-side flange
SSD2-ML-20-10-FP1-FB Switch magnet: Yes | Bore: 20 mm | Cushion: None | Stroke: 10 mm | Mounting: Head-side flange
SSD2-ML-20-15-FP1 Switch magnet: Yes | Bore: 20 mm | Cushion: None | Stroke: 15 mm | Mounting: None (cylinder only)
SSD2-ML-20-15-FP1-LB Switch magnet: Yes | Bore: 20 mm | Cushion: None | Stroke: 15 mm | Mounting: Axial foot
SSD2-ML-20-15-FP1-CB Switch magnet: Yes | Bore: 20 mm | Cushion: None | Stroke: 15 mm | Mounting: Double clevis
SSD2-ML-20-15-FP1-FA Switch magnet: Yes | Bore: 20 mm | Cushion: None | Stroke: 15 mm | Mounting: Rod-side flange
SSD2-ML-20-15-FP1-FB Switch magnet: Yes | Bore: 20 mm | Cushion: None | Stroke: 15 mm | Mounting: Head-side flange
SSD2-ML-20-20-FP1 Switch magnet: Yes | Bore: 20 mm | Cushion: None | Stroke: 20 mm | Mounting: None (cylinder only)
SSD2-ML-20-20-FP1-LB Switch magnet: Yes | Bore: 20 mm | Cushion: None | Stroke: 20 mm | Mounting: Axial foot
SSD2-ML-20-20-FP1-CB Switch magnet: Yes | Bore: 20 mm | Cushion: None | Stroke: 20 mm | Mounting: Double clevis
SSD2-ML-20-20-FP1-FA Switch magnet: Yes | Bore: 20 mm | Cushion: None | Stroke: 20 mm | Mounting: Rod-side flange
SSD2-ML-20-20-FP1-FB Switch magnet: Yes | Bore: 20 mm | Cushion: None | Stroke: 20 mm | Mounting: Head-side flange
SSD2-ML-20-25-FP1 Switch magnet: Yes | Bore: 20 mm | Cushion: None | Stroke: 25 mm | Mounting: None (cylinder only)
SSD2-ML-20-25-FP1-LB Switch magnet: Yes | Bore: 20 mm | Cushion: None | Stroke: 25 mm | Mounting: Axial foot
SSD2-ML-20-25-FP1-CB Switch magnet: Yes | Bore: 20 mm | Cushion: None | Stroke: 25 mm | Mounting: Double clevis
SSD2-ML-20-25-FP1-FA Switch magnet: Yes | Bore: 20 mm | Cushion: None | Stroke: 25 mm | Mounting: Rod-side flange
SSD2-ML-20-25-FP1-FB Switch magnet: Yes | Bore: 20 mm | Cushion: None | Stroke: 25 mm | Mounting: Head-side flange
SSD2-ML-20-30-FP1 Switch magnet: Yes | Bore: 20 mm | Cushion: None | Stroke: 30 mm | Mounting: None (cylinder only)
SSD2-ML-20-30-FP1-LB Switch magnet: Yes | Bore: 20 mm | Cushion: None | Stroke: 30 mm | Mounting: Axial foot
SSD2-ML-20-30-FP1-CB Switch magnet: Yes | Bore: 20 mm | Cushion: None | Stroke: 30 mm | Mounting: Double clevis
SSD2-ML-20-30-FP1-FA Switch magnet: Yes | Bore: 20 mm | Cushion: None | Stroke: 30 mm | Mounting: Rod-side flange
SSD2-ML-20-30-FP1-FB Switch magnet: Yes | Bore: 20 mm | Cushion: None | Stroke: 30 mm | Mounting: Head-side flange
SSD2-ML-20-35-FP1 Switch magnet: Yes | Bore: 20 mm | Cushion: None | Stroke: 35 mm | Mounting: None (cylinder only)
SSD2-ML-20-35-FP1-LB Switch magnet: Yes | Bore: 20 mm | Cushion: None | Stroke: 35 mm | Mounting: Axial foot
SSD2-ML-20-35-FP1-CB Switch magnet: Yes | Bore: 20 mm | Cushion: None | Stroke: 35 mm | Mounting: Double clevis
SSD2-ML-20-35-FP1-FA Switch magnet: Yes | Bore: 20 mm | Cushion: None | Stroke: 35 mm | Mounting: Rod-side flange
SSD2-ML-20-35-FP1-FB Switch magnet: Yes | Bore: 20 mm | Cushion: None | Stroke: 35 mm | Mounting: Head-side flange
SSD2-ML-20-40-FP1 Switch magnet: Yes | Bore: 20 mm | Cushion: None | Stroke: 40 mm | Mounting: None (cylinder only)
SSD2-ML-20-40-FP1-LB Switch magnet: Yes | Bore: 20 mm | Cushion: None | Stroke: 40 mm | Mounting: Axial foot
SSD2-ML-20-40-FP1-CB Switch magnet: Yes | Bore: 20 mm | Cushion: None | Stroke: 40 mm | Mounting: Double clevis
SSD2-ML-20-40-FP1-FA Switch magnet: Yes | Bore: 20 mm | Cushion: None | Stroke: 40 mm | Mounting: Rod-side flange
SSD2-ML-20-40-FP1-FB Switch magnet: Yes | Bore: 20 mm | Cushion: None | Stroke: 40 mm | Mounting: Head-side flange
SSD2-ML-20-45-FP1 Switch magnet: Yes | Bore: 20 mm | Cushion: None | Stroke: 45 mm | Mounting: None (cylinder only)
SSD2-ML-20-45-FP1-LB Switch magnet: Yes | Bore: 20 mm | Cushion: None | Stroke: 45 mm | Mounting: Axial foot
SSD2-ML-20-45-FP1-CB Switch magnet: Yes | Bore: 20 mm | Cushion: None | Stroke: 45 mm | Mounting: Double clevis
SSD2-ML-20-45-FP1-FA Switch magnet: Yes | Bore: 20 mm | Cushion: None | Stroke: 45 mm | Mounting: Rod-side flange
SSD2-ML-20-45-FP1-FB Switch magnet: Yes | Bore: 20 mm | Cushion: None | Stroke: 45 mm | Mounting: Head-side flange
SSD2-ML-20-50-FP1 Switch magnet: Yes | Bore: 20 mm | Cushion: None | Stroke: 50 mm | Mounting: None (cylinder only)
SSD2-ML-20-50-FP1-LB Switch magnet: Yes | Bore: 20 mm | Cushion: None | Stroke: 50 mm | Mounting: Axial foot
SSD2-ML-20-50-FP1-CB Switch magnet: Yes | Bore: 20 mm | Cushion: None | Stroke: 50 mm | Mounting: Double clevis
SSD2-ML-20-50-FP1-FA Switch magnet: Yes | Bore: 20 mm | Cushion: None | Stroke: 50 mm | Mounting: Rod-side flange
SSD2-ML-20-50-FP1-FB Switch magnet: Yes | Bore: 20 mm | Cushion: None | Stroke: 50 mm | Mounting: Head-side flange
SSD2-ML-20D-5-FP1 Switch magnet: Yes | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 5 mm | Mounting: None (cylinder only)
SSD2-ML-20D-5-FP1-LB Switch magnet: Yes | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 5 mm | Mounting: Axial foot
SSD2-ML-20D-5-FP1-CB Switch magnet: Yes | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 5 mm | Mounting: Double clevis
SSD2-ML-20D-5-FP1-FA Switch magnet: Yes | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 5 mm | Mounting: Rod-side flange
SSD2-ML-20D-5-FP1-FB Switch magnet: Yes | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 5 mm | Mounting: Head-side flange
SSD2-ML-20D-10-FP1 Switch magnet: Yes | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 10 mm | Mounting: None (cylinder only)
SSD2-ML-20D-10-FP1-LB Switch magnet: Yes | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 10 mm | Mounting: Axial foot
SSD2-ML-20D-10-FP1-CB Switch magnet: Yes | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 10 mm | Mounting: Double clevis
SSD2-ML-20D-10-FP1-FA Switch magnet: Yes | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 10 mm | Mounting: Rod-side flange
SSD2-ML-20D-10-FP1-FB Switch magnet: Yes | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 10 mm | Mounting: Head-side flange
SSD2-ML-20D-15-FP1 Switch magnet: Yes | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 15 mm | Mounting: None (cylinder only)
SSD2-ML-20D-15-FP1-LB Switch magnet: Yes | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 15 mm | Mounting: Axial foot
SSD2-ML-20D-15-FP1-CB Switch magnet: Yes | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 15 mm | Mounting: Double clevis
SSD2-ML-20D-15-FP1-FA Switch magnet: Yes | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 15 mm | Mounting: Rod-side flange
SSD2-ML-20D-15-FP1-FB Switch magnet: Yes | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 15 mm | Mounting: Head-side flange
SSD2-ML-20D-20-FP1 Switch magnet: Yes | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 20 mm | Mounting: None (cylinder only)
SSD2-ML-20D-20-FP1-LB Switch magnet: Yes | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 20 mm | Mounting: Axial foot
SSD2-ML-20D-20-FP1-CB Switch magnet: Yes | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 20 mm | Mounting: Double clevis
SSD2-ML-20D-20-FP1-FA Switch magnet: Yes | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 20 mm | Mounting: Rod-side flange
SSD2-ML-20D-20-FP1-FB Switch magnet: Yes | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 20 mm | Mounting: Head-side flange
SSD2-ML-20D-25-FP1 Switch magnet: Yes | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 25 mm | Mounting: None (cylinder only)
SSD2-ML-20D-25-FP1-LB Switch magnet: Yes | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 25 mm | Mounting: Axial foot
SSD2-ML-20D-25-FP1-CB Switch magnet: Yes | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 25 mm | Mounting: Double clevis
SSD2-ML-20D-25-FP1-FA Switch magnet: Yes | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 25 mm | Mounting: Rod-side flange
SSD2-ML-20D-25-FP1-FB Switch magnet: Yes | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 25 mm | Mounting: Head-side flange
SSD2-ML-20D-30-FP1 Switch magnet: Yes | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 30 mm | Mounting: None (cylinder only)
SSD2-ML-20D-30-FP1-LB Switch magnet: Yes | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 30 mm | Mounting: Axial foot
SSD2-ML-20D-30-FP1-CB Switch magnet: Yes | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 30 mm | Mounting: Double clevis
SSD2-ML-20D-30-FP1-FA Switch magnet: Yes | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 30 mm | Mounting: Rod-side flange
SSD2-ML-20D-30-FP1-FB Switch magnet: Yes | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 30 mm | Mounting: Head-side flange
SSD2-ML-20D-35-FP1 Switch magnet: Yes | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 35 mm | Mounting: None (cylinder only)
SSD2-ML-20D-35-FP1-LB Switch magnet: Yes | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 35 mm | Mounting: Axial foot
SSD2-ML-20D-35-FP1-CB Switch magnet: Yes | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 35 mm | Mounting: Double clevis
SSD2-ML-20D-35-FP1-FA Switch magnet: Yes | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 35 mm | Mounting: Rod-side flange
SSD2-ML-20D-35-FP1-FB Switch magnet: Yes | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 35 mm | Mounting: Head-side flange
SSD2-ML-20D-40-FP1 Switch magnet: Yes | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 40 mm | Mounting: None (cylinder only)
SSD2-ML-20D-40-FP1-LB Switch magnet: Yes | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 40 mm | Mounting: Axial foot
SSD2-ML-20D-40-FP1-CB Switch magnet: Yes | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 40 mm | Mounting: Double clevis
SSD2-ML-20D-40-FP1-FA Switch magnet: Yes | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 40 mm | Mounting: Rod-side flange
SSD2-ML-20D-40-FP1-FB Switch magnet: Yes | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 40 mm | Mounting: Head-side flange
SSD2-ML-20D-45-FP1 Switch magnet: Yes | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 45 mm | Mounting: None (cylinder only)
SSD2-ML-20D-45-FP1-LB Switch magnet: Yes | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 45 mm | Mounting: Axial foot
SSD2-ML-20D-45-FP1-CB Switch magnet: Yes | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 45 mm | Mounting: Double clevis
SSD2-ML-20D-45-FP1-FA Switch magnet: Yes | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 45 mm | Mounting: Rod-side flange
SSD2-ML-20D-45-FP1-FB Switch magnet: Yes | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 45 mm | Mounting: Head-side flange
SSD2-ML-20D-50-FP1 Switch magnet: Yes | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 50 mm | Mounting: None (cylinder only)
SSD2-ML-20D-50-FP1-LB Switch magnet: Yes | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 50 mm | Mounting: Axial foot
SSD2-ML-20D-50-FP1-CB Switch magnet: Yes | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 50 mm | Mounting: Double clevis
SSD2-ML-20D-50-FP1-FA Switch magnet: Yes | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 50 mm | Mounting: Rod-side flange
SSD2-ML-20D-50-FP1-FB Switch magnet: Yes | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 50 mm | Mounting: Head-side flange
SSD2-ML-25-5-FP1 Switch magnet: Yes | Bore: 25 mm | Cushion: None | Stroke: 5 mm | Mounting: None (cylinder only)
SSD2-ML-25-5-FP1-LB Switch magnet: Yes | Bore: 25 mm | Cushion: None | Stroke: 5 mm | Mounting: Axial foot
SSD2-ML-25-5-FP1-CB Switch magnet: Yes | Bore: 25 mm | Cushion: None | Stroke: 5 mm | Mounting: Double clevis
SSD2-ML-25-5-FP1-FA Switch magnet: Yes | Bore: 25 mm | Cushion: None | Stroke: 5 mm | Mounting: Rod-side flange
SSD2-ML-25-5-FP1-FB Switch magnet: Yes | Bore: 25 mm | Cushion: None | Stroke: 5 mm | Mounting: Head-side flange
SSD2-ML-25-10-FP1 Switch magnet: Yes | Bore: 25 mm | Cushion: None | Stroke: 10 mm | Mounting: None (cylinder only)
SSD2-ML-25-10-FP1-LB Switch magnet: Yes | Bore: 25 mm | Cushion: None | Stroke: 10 mm | Mounting: Axial foot
SSD2-ML-25-10-FP1-CB Switch magnet: Yes | Bore: 25 mm | Cushion: None | Stroke: 10 mm | Mounting: Double clevis
SSD2-ML-25-10-FP1-FA Switch magnet: Yes | Bore: 25 mm | Cushion: None | Stroke: 10 mm | Mounting: Rod-side flange
SSD2-ML-25-10-FP1-FB Switch magnet: Yes | Bore: 25 mm | Cushion: None | Stroke: 10 mm | Mounting: Head-side flange
SSD2-ML-25-15-FP1 Switch magnet: Yes | Bore: 25 mm | Cushion: None | Stroke: 15 mm | Mounting: None (cylinder only)
SSD2-ML-25-15-FP1-LB Switch magnet: Yes | Bore: 25 mm | Cushion: None | Stroke: 15 mm | Mounting: Axial foot
SSD2-ML-25-15-FP1-CB Switch magnet: Yes | Bore: 25 mm | Cushion: None | Stroke: 15 mm | Mounting: Double clevis
SSD2-ML-25-15-FP1-FA Switch magnet: Yes | Bore: 25 mm | Cushion: None | Stroke: 15 mm | Mounting: Rod-side flange
SSD2-ML-25-15-FP1-FB Switch magnet: Yes | Bore: 25 mm | Cushion: None | Stroke: 15 mm | Mounting: Head-side flange
SSD2-ML-25-20-FP1 Switch magnet: Yes | Bore: 25 mm | Cushion: None | Stroke: 20 mm | Mounting: None (cylinder only)
SSD2-ML-25-20-FP1-LB Switch magnet: Yes | Bore: 25 mm | Cushion: None | Stroke: 20 mm | Mounting: Axial foot
SSD2-ML-25-20-FP1-CB Switch magnet: Yes | Bore: 25 mm | Cushion: None | Stroke: 20 mm | Mounting: Double clevis
SSD2-ML-25-20-FP1-FA Switch magnet: Yes | Bore: 25 mm | Cushion: None | Stroke: 20 mm | Mounting: Rod-side flange
SSD2-ML-25-20-FP1-FB Switch magnet: Yes | Bore: 25 mm | Cushion: None | Stroke: 20 mm | Mounting: Head-side flange
SSD2-ML-25-25-FP1 Switch magnet: Yes | Bore: 25 mm | Cushion: None | Stroke: 25 mm | Mounting: None (cylinder only)
SSD2-ML-25-25-FP1-LB Switch magnet: Yes | Bore: 25 mm | Cushion: None | Stroke: 25 mm | Mounting: Axial foot
SSD2-ML-25-25-FP1-CB Switch magnet: Yes | Bore: 25 mm | Cushion: None | Stroke: 25 mm | Mounting: Double clevis
SSD2-ML-25-25-FP1-FA Switch magnet: Yes | Bore: 25 mm | Cushion: None | Stroke: 25 mm | Mounting: Rod-side flange
SSD2-ML-25-25-FP1-FB Switch magnet: Yes | Bore: 25 mm | Cushion: None | Stroke: 25 mm | Mounting: Head-side flange
SSD2-ML-25-30-FP1 Switch magnet: Yes | Bore: 25 mm | Cushion: None | Stroke: 30 mm | Mounting: None (cylinder only)
SSD2-ML-25-30-FP1-LB Switch magnet: Yes | Bore: 25 mm | Cushion: None | Stroke: 30 mm | Mounting: Axial foot
SSD2-ML-25-30-FP1-CB Switch magnet: Yes | Bore: 25 mm | Cushion: None | Stroke: 30 mm | Mounting: Double clevis
SSD2-ML-25-30-FP1-FA Switch magnet: Yes | Bore: 25 mm | Cushion: None | Stroke: 30 mm | Mounting: Rod-side flange
SSD2-ML-25-30-FP1-FB Switch magnet: Yes | Bore: 25 mm | Cushion: None | Stroke: 30 mm | Mounting: Head-side flange
SSD2-ML-25-35-FP1 Switch magnet: Yes | Bore: 25 mm | Cushion: None | Stroke: 35 mm | Mounting: None (cylinder only)
SSD2-ML-25-35-FP1-LB Switch magnet: Yes | Bore: 25 mm | Cushion: None | Stroke: 35 mm | Mounting: Axial foot
SSD2-ML-25-35-FP1-CB Switch magnet: Yes | Bore: 25 mm | Cushion: None | Stroke: 35 mm | Mounting: Double clevis
SSD2-ML-25-35-FP1-FA Switch magnet: Yes | Bore: 25 mm | Cushion: None | Stroke: 35 mm | Mounting: Rod-side flange
SSD2-ML-25-35-FP1-FB Switch magnet: Yes | Bore: 25 mm | Cushion: None | Stroke: 35 mm | Mounting: Head-side flange
SSD2-ML-25-40-FP1 Switch magnet: Yes | Bore: 25 mm | Cushion: None | Stroke: 40 mm | Mounting: None (cylinder only)
SSD2-ML-25-40-FP1-LB Switch magnet: Yes | Bore: 25 mm | Cushion: None | Stroke: 40 mm | Mounting: Axial foot
SSD2-ML-25-40-FP1-CB Switch magnet: Yes | Bore: 25 mm | Cushion: None | Stroke: 40 mm | Mounting: Double clevis
SSD2-ML-25-40-FP1-FA Switch magnet: Yes | Bore: 25 mm | Cushion: None | Stroke: 40 mm | Mounting: Rod-side flange
SSD2-ML-25-40-FP1-FB Switch magnet: Yes | Bore: 25 mm | Cushion: None | Stroke: 40 mm | Mounting: Head-side flange
SSD2-ML-25-45-FP1 Switch magnet: Yes | Bore: 25 mm | Cushion: None | Stroke: 45 mm | Mounting: None (cylinder only)
SSD2-ML-25-45-FP1-LB Switch magnet: Yes | Bore: 25 mm | Cushion: None | Stroke: 45 mm | Mounting: Axial foot
SSD2-ML-25-45-FP1-CB Switch magnet: Yes | Bore: 25 mm | Cushion: None | Stroke: 45 mm | Mounting: Double clevis
SSD2-ML-25-45-FP1-FA Switch magnet: Yes | Bore: 25 mm | Cushion: None | Stroke: 45 mm | Mounting: Rod-side flange
SSD2-ML-25-45-FP1-FB Switch magnet: Yes | Bore: 25 mm | Cushion: None | Stroke: 45 mm | Mounting: Head-side flange
SSD2-ML-25-50-FP1 Switch magnet: Yes | Bore: 25 mm | Cushion: None | Stroke: 50 mm | Mounting: None (cylinder only)
SSD2-ML-25-50-FP1-LB Switch magnet: Yes | Bore: 25 mm | Cushion: None | Stroke: 50 mm | Mounting: Axial foot
SSD2-ML-25-50-FP1-CB Switch magnet: Yes | Bore: 25 mm | Cushion: None | Stroke: 50 mm | Mounting: Double clevis
SSD2-ML-25-50-FP1-FA Switch magnet: Yes | Bore: 25 mm | Cushion: None | Stroke: 50 mm | Mounting: Rod-side flange
SSD2-ML-25-50-FP1-FB Switch magnet: Yes | Bore: 25 mm | Cushion: None | Stroke: 50 mm | Mounting: Head-side flange
SSD2-ML-25D-5-FP1 Switch magnet: Yes | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 5 mm | Mounting: None (cylinder only)
SSD2-ML-25D-5-FP1-LB Switch magnet: Yes | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 5 mm | Mounting: Axial foot
SSD2-ML-25D-5-FP1-CB Switch magnet: Yes | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 5 mm | Mounting: Double clevis
SSD2-ML-25D-5-FP1-FA Switch magnet: Yes | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 5 mm | Mounting: Rod-side flange
SSD2-ML-25D-5-FP1-FB Switch magnet: Yes | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 5 mm | Mounting: Head-side flange
SSD2-ML-25D-10-FP1 Switch magnet: Yes | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 10 mm | Mounting: None (cylinder only)
SSD2-ML-25D-10-FP1-LB Switch magnet: Yes | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 10 mm | Mounting: Axial foot
SSD2-ML-25D-10-FP1-CB Switch magnet: Yes | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 10 mm | Mounting: Double clevis
SSD2-ML-25D-10-FP1-FA Switch magnet: Yes | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 10 mm | Mounting: Rod-side flange
SSD2-ML-25D-10-FP1-FB Switch magnet: Yes | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 10 mm | Mounting: Head-side flange
SSD2-ML-25D-15-FP1 Switch magnet: Yes | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 15 mm | Mounting: None (cylinder only)
SSD2-ML-25D-15-FP1-LB Switch magnet: Yes | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 15 mm | Mounting: Axial foot
SSD2-ML-25D-15-FP1-CB Switch magnet: Yes | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 15 mm | Mounting: Double clevis
SSD2-ML-25D-15-FP1-FA Switch magnet: Yes | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 15 mm | Mounting: Rod-side flange
SSD2-ML-25D-15-FP1-FB Switch magnet: Yes | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 15 mm | Mounting: Head-side flange
SSD2-ML-25D-20-FP1 Switch magnet: Yes | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 20 mm | Mounting: None (cylinder only)
SSD2-ML-25D-20-FP1-LB Switch magnet: Yes | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 20 mm | Mounting: Axial foot
SSD2-ML-25D-20-FP1-CB Switch magnet: Yes | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 20 mm | Mounting: Double clevis
SSD2-ML-25D-20-FP1-FA Switch magnet: Yes | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 20 mm | Mounting: Rod-side flange
SSD2-ML-25D-20-FP1-FB Switch magnet: Yes | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 20 mm | Mounting: Head-side flange
SSD2-ML-25D-25-FP1 Switch magnet: Yes | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 25 mm | Mounting: None (cylinder only)
SSD2-ML-25D-25-FP1-LB Switch magnet: Yes | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 25 mm | Mounting: Axial foot
SSD2-ML-25D-25-FP1-CB Switch magnet: Yes | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 25 mm | Mounting: Double clevis
SSD2-ML-25D-25-FP1-FA Switch magnet: Yes | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 25 mm | Mounting: Rod-side flange
SSD2-ML-25D-25-FP1-FB Switch magnet: Yes | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 25 mm | Mounting: Head-side flange
SSD2-ML-25D-30-FP1 Switch magnet: Yes | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 30 mm | Mounting: None (cylinder only)
SSD2-ML-25D-30-FP1-LB Switch magnet: Yes | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 30 mm | Mounting: Axial foot
SSD2-ML-25D-30-FP1-CB Switch magnet: Yes | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 30 mm | Mounting: Double clevis
SSD2-ML-25D-30-FP1-FA Switch magnet: Yes | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 30 mm | Mounting: Rod-side flange
SSD2-ML-25D-30-FP1-FB Switch magnet: Yes | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 30 mm | Mounting: Head-side flange
SSD2-ML-25D-35-FP1 Switch magnet: Yes | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 35 mm | Mounting: None (cylinder only)
SSD2-ML-25D-35-FP1-LB Switch magnet: Yes | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 35 mm | Mounting: Axial foot
SSD2-ML-25D-35-FP1-CB Switch magnet: Yes | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 35 mm | Mounting: Double clevis
SSD2-ML-25D-35-FP1-FA Switch magnet: Yes | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 35 mm | Mounting: Rod-side flange
SSD2-ML-25D-35-FP1-FB Switch magnet: Yes | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 35 mm | Mounting: Head-side flange
SSD2-ML-25D-40-FP1 Switch magnet: Yes | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 40 mm | Mounting: None (cylinder only)
SSD2-ML-25D-40-FP1-LB Switch magnet: Yes | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 40 mm | Mounting: Axial foot
SSD2-ML-25D-40-FP1-CB Switch magnet: Yes | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 40 mm | Mounting: Double clevis
SSD2-ML-25D-40-FP1-FA Switch magnet: Yes | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 40 mm | Mounting: Rod-side flange
SSD2-ML-25D-40-FP1-FB Switch magnet: Yes | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 40 mm | Mounting: Head-side flange
SSD2-ML-25D-45-FP1 Switch magnet: Yes | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 45 mm | Mounting: None (cylinder only)
SSD2-ML-25D-45-FP1-LB Switch magnet: Yes | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 45 mm | Mounting: Axial foot
SSD2-ML-25D-45-FP1-CB Switch magnet: Yes | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 45 mm | Mounting: Double clevis
SSD2-ML-25D-45-FP1-FA Switch magnet: Yes | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 45 mm | Mounting: Rod-side flange
SSD2-ML-25D-45-FP1-FB Switch magnet: Yes | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 45 mm | Mounting: Head-side flange
SSD2-ML-25D-50-FP1 Switch magnet: Yes | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 50 mm | Mounting: None (cylinder only)
SSD2-ML-25D-50-FP1-LB Switch magnet: Yes | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 50 mm | Mounting: Axial foot
SSD2-ML-25D-50-FP1-CB Switch magnet: Yes | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 50 mm | Mounting: Double clevis
SSD2-ML-25D-50-FP1-FA Switch magnet: Yes | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 50 mm | Mounting: Rod-side flange
SSD2-ML-25D-50-FP1-FB Switch magnet: Yes | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 50 mm | Mounting: Head-side flange
SSD2-ML-32-5-FP1 Switch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 5 mm | Mounting: None (cylinder only)
SSD2-ML-32-5-FP1-LB Switch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 5 mm | Mounting: Axial foot
SSD2-ML-32-5-FP1-CB Switch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 5 mm | Mounting: Double clevis
SSD2-ML-32-5-FP1-FA Switch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 5 mm | Mounting: Rod-side flange
SSD2-ML-32-5-FP1-FB Switch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 5 mm | Mounting: Head-side flange
SSD2-ML-32-10-FP1 Switch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 10 mm | Mounting: None (cylinder only)
SSD2-ML-32-10-FP1-LB Switch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 10 mm | Mounting: Axial foot
SSD2-ML-32-10-FP1-CB Switch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 10 mm | Mounting: Double clevis
SSD2-ML-32-10-FP1-FA Switch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 10 mm | Mounting: Rod-side flange
SSD2-ML-32-10-FP1-FB Switch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 10 mm | Mounting: Head-side flange
SSD2-ML-32-15-FP1 Switch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 15 mm | Mounting: None (cylinder only)
SSD2-ML-32-15-FP1-LB Switch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 15 mm | Mounting: Axial foot
SSD2-ML-32-15-FP1-CB Switch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 15 mm | Mounting: Double clevis
SSD2-ML-32-15-FP1-FA Switch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 15 mm | Mounting: Rod-side flange
SSD2-ML-32-15-FP1-FB Switch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 15 mm | Mounting: Head-side flange
SSD2-ML-32-20-FP1 Switch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 20 mm | Mounting: None (cylinder only)
SSD2-ML-32-20-FP1-LB Switch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 20 mm | Mounting: Axial foot
SSD2-ML-32-20-FP1-CB Switch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 20 mm | Mounting: Double clevis
SSD2-ML-32-20-FP1-FA Switch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 20 mm | Mounting: Rod-side flange
SSD2-ML-32-20-FP1-FB Switch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 20 mm | Mounting: Head-side flange
SSD2-ML-32-25-FP1 Switch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 25 mm | Mounting: None (cylinder only)
SSD2-ML-32-25-FP1-LB Switch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 25 mm | Mounting: Axial foot
SSD2-ML-32-25-FP1-CB Switch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 25 mm | Mounting: Double clevis
SSD2-ML-32-25-FP1-FA Switch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 25 mm | Mounting: Rod-side flange
SSD2-ML-32-25-FP1-FB Switch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 25 mm | Mounting: Head-side flange
SSD2-ML-32-30-FP1 Switch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 30 mm | Mounting: None (cylinder only)
SSD2-ML-32-30-FP1-LB Switch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 30 mm | Mounting: Axial foot
SSD2-ML-32-30-FP1-CB Switch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 30 mm | Mounting: Double clevis
SSD2-ML-32-30-FP1-FA Switch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 30 mm | Mounting: Rod-side flange
SSD2-ML-32-30-FP1-FB Switch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 30 mm | Mounting: Head-side flange
SSD2-ML-32-35-FP1 Switch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 35 mm | Mounting: None (cylinder only)
SSD2-ML-32-35-FP1-LB Switch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 35 mm | Mounting: Axial foot
SSD2-ML-32-35-FP1-CB Switch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 35 mm | Mounting: Double clevis
SSD2-ML-32-35-FP1-FA Switch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 35 mm | Mounting: Rod-side flange
SSD2-ML-32-35-FP1-FB Switch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 35 mm | Mounting: Head-side flange
SSD2-ML-32-40-FP1 Switch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 40 mm | Mounting: None (cylinder only)
SSD2-ML-32-40-FP1-LB Switch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 40 mm | Mounting: Axial foot
SSD2-ML-32-40-FP1-CB Switch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 40 mm | Mounting: Double clevis
SSD2-ML-32-40-FP1-FA Switch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 40 mm | Mounting: Rod-side flange
SSD2-ML-32-40-FP1-FB Switch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 40 mm | Mounting: Head-side flange
SSD2-ML-32-45-FP1 Switch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 45 mm | Mounting: None (cylinder only)
SSD2-ML-32-45-FP1-LB Switch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 45 mm | Mounting: Axial foot
SSD2-ML-32-45-FP1-CB Switch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 45 mm | Mounting: Double clevis
SSD2-ML-32-45-FP1-FA Switch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 45 mm | Mounting: Rod-side flange
SSD2-ML-32-45-FP1-FB Switch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 45 mm | Mounting: Head-side flange
SSD2-ML-32-50-FP1 Switch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 50 mm | Mounting: None (cylinder only)
SSD2-ML-32-50-FP1-LB Switch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 50 mm | Mounting: Axial foot
SSD2-ML-32-50-FP1-CB Switch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 50 mm | Mounting: Double clevis
SSD2-ML-32-50-FP1-FA Switch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 50 mm | Mounting: Rod-side flange
SSD2-ML-32-50-FP1-FB Switch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 50 mm | Mounting: Head-side flange
SSD2-ML-32-75-FP1 Switch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 75 mm | Mounting: None (cylinder only)
SSD2-ML-32-75-FP1-LB Switch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 75 mm | Mounting: Axial foot
SSD2-ML-32-75-FP1-CB Switch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 75 mm | Mounting: Double clevis
SSD2-ML-32-75-FP1-FA Switch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 75 mm | Mounting: Rod-side flange
SSD2-ML-32-75-FP1-FB Switch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 75 mm | Mounting: Head-side flange
SSD2-ML-32-100-FP1 Switch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 100 mm | Mounting: None (cylinder only)
SSD2-ML-32-100-FP1-LB Switch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 100 mm | Mounting: Axial foot
SSD2-ML-32-100-FP1-CB Switch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 100 mm | Mounting: Double clevis
SSD2-ML-32-100-FP1-FA Switch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 100 mm | Mounting: Rod-side flange
SSD2-ML-32-100-FP1-FB Switch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 100 mm | Mounting: Head-side flange
SSD2-ML-32D-5-FP1 Switch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 5 mm | Mounting: None (cylinder only)
SSD2-ML-32D-5-FP1-LB Switch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 5 mm | Mounting: Axial foot
SSD2-ML-32D-5-FP1-CB Switch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 5 mm | Mounting: Double clevis
SSD2-ML-32D-5-FP1-FA Switch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 5 mm | Mounting: Rod-side flange
SSD2-ML-32D-5-FP1-FB Switch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 5 mm | Mounting: Head-side flange
SSD2-ML-32D-10-FP1 Switch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 10 mm | Mounting: None (cylinder only)
SSD2-ML-32D-10-FP1-LB Switch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 10 mm | Mounting: Axial foot
SSD2-ML-32D-10-FP1-CB Switch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 10 mm | Mounting: Double clevis
SSD2-ML-32D-10-FP1-FA Switch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 10 mm | Mounting: Rod-side flange
SSD2-ML-32D-10-FP1-FB Switch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 10 mm | Mounting: Head-side flange
SSD2-ML-32D-15-FP1 Switch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 15 mm | Mounting: None (cylinder only)
SSD2-ML-32D-15-FP1-LB Switch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 15 mm | Mounting: Axial foot
SSD2-ML-32D-15-FP1-CB Switch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 15 mm | Mounting: Double clevis
SSD2-ML-32D-15-FP1-FA Switch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 15 mm | Mounting: Rod-side flange
SSD2-ML-32D-15-FP1-FB Switch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 15 mm | Mounting: Head-side flange
SSD2-ML-32D-20-FP1 Switch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 20 mm | Mounting: None (cylinder only)
SSD2-ML-32D-20-FP1-LB Switch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 20 mm | Mounting: Axial foot
SSD2-ML-32D-20-FP1-CB Switch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 20 mm | Mounting: Double clevis
SSD2-ML-32D-20-FP1-FA Switch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 20 mm | Mounting: Rod-side flange
SSD2-ML-32D-20-FP1-FB Switch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 20 mm | Mounting: Head-side flange
SSD2-ML-32D-25-FP1 Switch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 25 mm | Mounting: None (cylinder only)
SSD2-ML-32D-25-FP1-LB Switch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 25 mm | Mounting: Axial foot
SSD2-ML-32D-25-FP1-CB Switch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 25 mm | Mounting: Double clevis
SSD2-ML-32D-25-FP1-FA Switch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 25 mm | Mounting: Rod-side flange
SSD2-ML-32D-25-FP1-FB Switch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 25 mm | Mounting: Head-side flange
SSD2-ML-32D-30-FP1 Switch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 30 mm | Mounting: None (cylinder only)
SSD2-ML-32D-30-FP1-LB Switch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 30 mm | Mounting: Axial foot
SSD2-ML-32D-30-FP1-CB Switch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 30 mm | Mounting: Double clevis
SSD2-ML-32D-30-FP1-FA Switch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 30 mm | Mounting: Rod-side flange
SSD2-ML-32D-30-FP1-FB Switch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 30 mm | Mounting: Head-side flange
SSD2-ML-32D-35-FP1 Switch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 35 mm | Mounting: None (cylinder only)
SSD2-ML-32D-35-FP1-LB Switch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 35 mm | Mounting: Axial foot
SSD2-ML-32D-35-FP1-CB Switch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 35 mm | Mounting: Double clevis
SSD2-ML-32D-35-FP1-FA Switch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 35 mm | Mounting: Rod-side flange
SSD2-ML-32D-35-FP1-FB Switch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 35 mm | Mounting: Head-side flange
SSD2-ML-32D-40-FP1 Switch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 40 mm | Mounting: None (cylinder only)
SSD2-ML-32D-40-FP1-LB Switch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 40 mm | Mounting: Axial foot
SSD2-ML-32D-40-FP1-CB Switch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 40 mm | Mounting: Double clevis
SSD2-ML-32D-40-FP1-FA Switch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 40 mm | Mounting: Rod-side flange
SSD2-ML-32D-40-FP1-FB Switch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 40 mm | Mounting: Head-side flange
SSD2-ML-32D-45-FP1 Switch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 45 mm | Mounting: None (cylinder only)
SSD2-ML-32D-45-FP1-LB Switch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 45 mm | Mounting: Axial foot
SSD2-ML-32D-45-FP1-CB Switch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 45 mm | Mounting: Double clevis
SSD2-ML-32D-45-FP1-FA Switch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 45 mm | Mounting: Rod-side flange
SSD2-ML-32D-45-FP1-FB Switch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 45 mm | Mounting: Head-side flange
SSD2-ML-32D-50-FP1 Switch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 50 mm | Mounting: None (cylinder only)
SSD2-ML-32D-50-FP1-LB Switch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 50 mm | Mounting: Axial foot
SSD2-ML-32D-50-FP1-CB Switch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 50 mm | Mounting: Double clevis
SSD2-ML-32D-50-FP1-FA Switch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 50 mm | Mounting: Rod-side flange
SSD2-ML-32D-50-FP1-FB Switch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 50 mm | Mounting: Head-side flange
SSD2-ML-32D-75-FP1 Switch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 75 mm | Mounting: None (cylinder only)
SSD2-ML-32D-75-FP1-LB Switch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 75 mm | Mounting: Axial foot
SSD2-ML-32D-75-FP1-CB Switch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 75 mm | Mounting: Double clevis
SSD2-ML-32D-75-FP1-FA Switch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 75 mm | Mounting: Rod-side flange
SSD2-ML-32D-75-FP1-FB Switch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 75 mm | Mounting: Head-side flange
SSD2-ML-32D-100-FP1 Switch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 100 mm | Mounting: None (cylinder only)
SSD2-ML-32D-100-FP1-LB Switch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 100 mm | Mounting: Axial foot
SSD2-ML-32D-100-FP1-CB Switch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 100 mm | Mounting: Double clevis
SSD2-ML-32D-100-FP1-FA Switch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 100 mm | Mounting: Rod-side flange
SSD2-ML-32D-100-FP1-FB Switch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 100 mm | Mounting: Head-side flange
Compact CylindersCKD
880 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD SSD2-M-FP1 Super Compact Cylinder (Non-Rotating, Bore 12-32)

Brand CKD·Compact Cylinders

Available part numbers (880)

SSD2-M-12-5-FP1, SSD2-M-12-5-FP1-LB, SSD2-M-12-5-FP1-CB, SSD2-M-12-5-FP1-FA, SSD2-M-12-5-FP1-FB, SSD2-M-12-10-FP1, SSD2-M-12-10-FP1-LB, SSD2-M-12-10-FP1-CB, SSD2-M-12-10-FP1-FA, SSD2-M-12-10-FP1-FB + 870 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SSD2-M-12-5-FP1Switch magnet: No | Bore: 12 mm | Cushion: None | Stroke: 5 mm | Mounting: None (cylinder only)
SSD2-M-12-5-FP1-LBSwitch magnet: No | Bore: 12 mm | Cushion: None | Stroke: 5 mm | Mounting: Axial foot
SSD2-M-12-5-FP1-CBSwitch magnet: No | Bore: 12 mm | Cushion: None | Stroke: 5 mm | Mounting: Double clevis
SSD2-M-12-5-FP1-FASwitch magnet: No | Bore: 12 mm | Cushion: None | Stroke: 5 mm | Mounting: Rod-side flange
SSD2-M-12-5-FP1-FBSwitch magnet: No | Bore: 12 mm | Cushion: None | Stroke: 5 mm | Mounting: Head-side flange
SSD2-M-12-10-FP1Switch magnet: No | Bore: 12 mm | Cushion: None | Stroke: 10 mm | Mounting: None (cylinder only)
SSD2-M-12-10-FP1-LBSwitch magnet: No | Bore: 12 mm | Cushion: None | Stroke: 10 mm | Mounting: Axial foot
SSD2-M-12-10-FP1-CBSwitch magnet: No | Bore: 12 mm | Cushion: None | Stroke: 10 mm | Mounting: Double clevis
SSD2-M-12-10-FP1-FASwitch magnet: No | Bore: 12 mm | Cushion: None | Stroke: 10 mm | Mounting: Rod-side flange
SSD2-M-12-10-FP1-FBSwitch magnet: No | Bore: 12 mm | Cushion: None | Stroke: 10 mm | Mounting: Head-side flange
SSD2-M-12-15-FP1Switch magnet: No | Bore: 12 mm | Cushion: None | Stroke: 15 mm | Mounting: None (cylinder only)
SSD2-M-12-15-FP1-LBSwitch magnet: No | Bore: 12 mm | Cushion: None | Stroke: 15 mm | Mounting: Axial foot
SSD2-M-12-15-FP1-CBSwitch magnet: No | Bore: 12 mm | Cushion: None | Stroke: 15 mm | Mounting: Double clevis
SSD2-M-12-15-FP1-FASwitch magnet: No | Bore: 12 mm | Cushion: None | Stroke: 15 mm | Mounting: Rod-side flange
SSD2-M-12-15-FP1-FBSwitch magnet: No | Bore: 12 mm | Cushion: None | Stroke: 15 mm | Mounting: Head-side flange
SSD2-M-12-20-FP1Switch magnet: No | Bore: 12 mm | Cushion: None | Stroke: 20 mm | Mounting: None (cylinder only)
SSD2-M-12-20-FP1-LBSwitch magnet: No | Bore: 12 mm | Cushion: None | Stroke: 20 mm | Mounting: Axial foot
SSD2-M-12-20-FP1-CBSwitch magnet: No | Bore: 12 mm | Cushion: None | Stroke: 20 mm | Mounting: Double clevis
SSD2-M-12-20-FP1-FASwitch magnet: No | Bore: 12 mm | Cushion: None | Stroke: 20 mm | Mounting: Rod-side flange
SSD2-M-12-20-FP1-FBSwitch magnet: No | Bore: 12 mm | Cushion: None | Stroke: 20 mm | Mounting: Head-side flange
SSD2-M-12-25-FP1Switch magnet: No | Bore: 12 mm | Cushion: None | Stroke: 25 mm | Mounting: None (cylinder only)
SSD2-M-12-25-FP1-LBSwitch magnet: No | Bore: 12 mm | Cushion: None | Stroke: 25 mm | Mounting: Axial foot
SSD2-M-12-25-FP1-CBSwitch magnet: No | Bore: 12 mm | Cushion: None | Stroke: 25 mm | Mounting: Double clevis
SSD2-M-12-25-FP1-FASwitch magnet: No | Bore: 12 mm | Cushion: None | Stroke: 25 mm | Mounting: Rod-side flange
SSD2-M-12-25-FP1-FBSwitch magnet: No | Bore: 12 mm | Cushion: None | Stroke: 25 mm | Mounting: Head-side flange
SSD2-M-12-30-FP1Switch magnet: No | Bore: 12 mm | Cushion: None | Stroke: 30 mm | Mounting: None (cylinder only)
SSD2-M-12-30-FP1-LBSwitch magnet: No | Bore: 12 mm | Cushion: None | Stroke: 30 mm | Mounting: Axial foot
SSD2-M-12-30-FP1-CBSwitch magnet: No | Bore: 12 mm | Cushion: None | Stroke: 30 mm | Mounting: Double clevis
SSD2-M-12-30-FP1-FASwitch magnet: No | Bore: 12 mm | Cushion: None | Stroke: 30 mm | Mounting: Rod-side flange
SSD2-M-12-30-FP1-FBSwitch magnet: No | Bore: 12 mm | Cushion: None | Stroke: 30 mm | Mounting: Head-side flange
SSD2-M-12D-5-FP1Switch magnet: No | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 5 mm | Mounting: None (cylinder only)
SSD2-M-12D-5-FP1-LBSwitch magnet: No | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 5 mm | Mounting: Axial foot
SSD2-M-12D-5-FP1-CBSwitch magnet: No | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 5 mm | Mounting: Double clevis
SSD2-M-12D-5-FP1-FASwitch magnet: No | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 5 mm | Mounting: Rod-side flange
SSD2-M-12D-5-FP1-FBSwitch magnet: No | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 5 mm | Mounting: Head-side flange
SSD2-M-12D-10-FP1Switch magnet: No | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 10 mm | Mounting: None (cylinder only)
SSD2-M-12D-10-FP1-LBSwitch magnet: No | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 10 mm | Mounting: Axial foot
SSD2-M-12D-10-FP1-CBSwitch magnet: No | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 10 mm | Mounting: Double clevis
SSD2-M-12D-10-FP1-FASwitch magnet: No | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 10 mm | Mounting: Rod-side flange
SSD2-M-12D-10-FP1-FBSwitch magnet: No | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 10 mm | Mounting: Head-side flange
SSD2-M-12D-15-FP1Switch magnet: No | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 15 mm | Mounting: None (cylinder only)
SSD2-M-12D-15-FP1-LBSwitch magnet: No | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 15 mm | Mounting: Axial foot
SSD2-M-12D-15-FP1-CBSwitch magnet: No | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 15 mm | Mounting: Double clevis
SSD2-M-12D-15-FP1-FASwitch magnet: No | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 15 mm | Mounting: Rod-side flange
SSD2-M-12D-15-FP1-FBSwitch magnet: No | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 15 mm | Mounting: Head-side flange
SSD2-M-12D-20-FP1Switch magnet: No | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 20 mm | Mounting: None (cylinder only)
SSD2-M-12D-20-FP1-LBSwitch magnet: No | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 20 mm | Mounting: Axial foot
SSD2-M-12D-20-FP1-CBSwitch magnet: No | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 20 mm | Mounting: Double clevis
SSD2-M-12D-20-FP1-FASwitch magnet: No | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 20 mm | Mounting: Rod-side flange
SSD2-M-12D-20-FP1-FBSwitch magnet: No | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 20 mm | Mounting: Head-side flange
SSD2-M-12D-25-FP1Switch magnet: No | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 25 mm | Mounting: None (cylinder only)
SSD2-M-12D-25-FP1-LBSwitch magnet: No | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 25 mm | Mounting: Axial foot
SSD2-M-12D-25-FP1-CBSwitch magnet: No | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 25 mm | Mounting: Double clevis
SSD2-M-12D-25-FP1-FASwitch magnet: No | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 25 mm | Mounting: Rod-side flange
SSD2-M-12D-25-FP1-FBSwitch magnet: No | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 25 mm | Mounting: Head-side flange
SSD2-M-12D-30-FP1Switch magnet: No | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 30 mm | Mounting: None (cylinder only)
SSD2-M-12D-30-FP1-LBSwitch magnet: No | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 30 mm | Mounting: Axial foot
SSD2-M-12D-30-FP1-CBSwitch magnet: No | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 30 mm | Mounting: Double clevis
SSD2-M-12D-30-FP1-FASwitch magnet: No | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 30 mm | Mounting: Rod-side flange
SSD2-M-12D-30-FP1-FBSwitch magnet: No | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 30 mm | Mounting: Head-side flange
SSD2-M-16-5-FP1Switch magnet: No | Bore: 16 mm | Cushion: None | Stroke: 5 mm | Mounting: None (cylinder only)
SSD2-M-16-5-FP1-LBSwitch magnet: No | Bore: 16 mm | Cushion: None | Stroke: 5 mm | Mounting: Axial foot
SSD2-M-16-5-FP1-CBSwitch magnet: No | Bore: 16 mm | Cushion: None | Stroke: 5 mm | Mounting: Double clevis
SSD2-M-16-5-FP1-FASwitch magnet: No | Bore: 16 mm | Cushion: None | Stroke: 5 mm | Mounting: Rod-side flange
SSD2-M-16-5-FP1-FBSwitch magnet: No | Bore: 16 mm | Cushion: None | Stroke: 5 mm | Mounting: Head-side flange
SSD2-M-16-10-FP1Switch magnet: No | Bore: 16 mm | Cushion: None | Stroke: 10 mm | Mounting: None (cylinder only)
SSD2-M-16-10-FP1-LBSwitch magnet: No | Bore: 16 mm | Cushion: None | Stroke: 10 mm | Mounting: Axial foot
SSD2-M-16-10-FP1-CBSwitch magnet: No | Bore: 16 mm | Cushion: None | Stroke: 10 mm | Mounting: Double clevis
SSD2-M-16-10-FP1-FASwitch magnet: No | Bore: 16 mm | Cushion: None | Stroke: 10 mm | Mounting: Rod-side flange
SSD2-M-16-10-FP1-FBSwitch magnet: No | Bore: 16 mm | Cushion: None | Stroke: 10 mm | Mounting: Head-side flange
SSD2-M-16-15-FP1Switch magnet: No | Bore: 16 mm | Cushion: None | Stroke: 15 mm | Mounting: None (cylinder only)
SSD2-M-16-15-FP1-LBSwitch magnet: No | Bore: 16 mm | Cushion: None | Stroke: 15 mm | Mounting: Axial foot
SSD2-M-16-15-FP1-CBSwitch magnet: No | Bore: 16 mm | Cushion: None | Stroke: 15 mm | Mounting: Double clevis
SSD2-M-16-15-FP1-FASwitch magnet: No | Bore: 16 mm | Cushion: None | Stroke: 15 mm | Mounting: Rod-side flange
SSD2-M-16-15-FP1-FBSwitch magnet: No | Bore: 16 mm | Cushion: None | Stroke: 15 mm | Mounting: Head-side flange
SSD2-M-16-20-FP1Switch magnet: No | Bore: 16 mm | Cushion: None | Stroke: 20 mm | Mounting: None (cylinder only)
SSD2-M-16-20-FP1-LBSwitch magnet: No | Bore: 16 mm | Cushion: None | Stroke: 20 mm | Mounting: Axial foot
SSD2-M-16-20-FP1-CBSwitch magnet: No | Bore: 16 mm | Cushion: None | Stroke: 20 mm | Mounting: Double clevis
SSD2-M-16-20-FP1-FASwitch magnet: No | Bore: 16 mm | Cushion: None | Stroke: 20 mm | Mounting: Rod-side flange
SSD2-M-16-20-FP1-FBSwitch magnet: No | Bore: 16 mm | Cushion: None | Stroke: 20 mm | Mounting: Head-side flange
SSD2-M-16-25-FP1Switch magnet: No | Bore: 16 mm | Cushion: None | Stroke: 25 mm | Mounting: None (cylinder only)
SSD2-M-16-25-FP1-LBSwitch magnet: No | Bore: 16 mm | Cushion: None | Stroke: 25 mm | Mounting: Axial foot
SSD2-M-16-25-FP1-CBSwitch magnet: No | Bore: 16 mm | Cushion: None | Stroke: 25 mm | Mounting: Double clevis
SSD2-M-16-25-FP1-FASwitch magnet: No | Bore: 16 mm | Cushion: None | Stroke: 25 mm | Mounting: Rod-side flange
SSD2-M-16-25-FP1-FBSwitch magnet: No | Bore: 16 mm | Cushion: None | Stroke: 25 mm | Mounting: Head-side flange
SSD2-M-16-30-FP1Switch magnet: No | Bore: 16 mm | Cushion: None | Stroke: 30 mm | Mounting: None (cylinder only)
SSD2-M-16-30-FP1-LBSwitch magnet: No | Bore: 16 mm | Cushion: None | Stroke: 30 mm | Mounting: Axial foot
SSD2-M-16-30-FP1-CBSwitch magnet: No | Bore: 16 mm | Cushion: None | Stroke: 30 mm | Mounting: Double clevis
SSD2-M-16-30-FP1-FASwitch magnet: No | Bore: 16 mm | Cushion: None | Stroke: 30 mm | Mounting: Rod-side flange
SSD2-M-16-30-FP1-FBSwitch magnet: No | Bore: 16 mm | Cushion: None | Stroke: 30 mm | Mounting: Head-side flange
SSD2-M-16D-5-FP1Switch magnet: No | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 5 mm | Mounting: None (cylinder only)
SSD2-M-16D-5-FP1-LBSwitch magnet: No | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 5 mm | Mounting: Axial foot
SSD2-M-16D-5-FP1-CBSwitch magnet: No | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 5 mm | Mounting: Double clevis
SSD2-M-16D-5-FP1-FASwitch magnet: No | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 5 mm | Mounting: Rod-side flange
SSD2-M-16D-5-FP1-FBSwitch magnet: No | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 5 mm | Mounting: Head-side flange
SSD2-M-16D-10-FP1Switch magnet: No | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 10 mm | Mounting: None (cylinder only)
SSD2-M-16D-10-FP1-LBSwitch magnet: No | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 10 mm | Mounting: Axial foot
SSD2-M-16D-10-FP1-CBSwitch magnet: No | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 10 mm | Mounting: Double clevis
SSD2-M-16D-10-FP1-FASwitch magnet: No | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 10 mm | Mounting: Rod-side flange
SSD2-M-16D-10-FP1-FBSwitch magnet: No | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 10 mm | Mounting: Head-side flange
SSD2-M-16D-15-FP1Switch magnet: No | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 15 mm | Mounting: None (cylinder only)
SSD2-M-16D-15-FP1-LBSwitch magnet: No | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 15 mm | Mounting: Axial foot
SSD2-M-16D-15-FP1-CBSwitch magnet: No | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 15 mm | Mounting: Double clevis
SSD2-M-16D-15-FP1-FASwitch magnet: No | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 15 mm | Mounting: Rod-side flange
SSD2-M-16D-15-FP1-FBSwitch magnet: No | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 15 mm | Mounting: Head-side flange
SSD2-M-16D-20-FP1Switch magnet: No | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 20 mm | Mounting: None (cylinder only)
SSD2-M-16D-20-FP1-LBSwitch magnet: No | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 20 mm | Mounting: Axial foot
SSD2-M-16D-20-FP1-CBSwitch magnet: No | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 20 mm | Mounting: Double clevis
SSD2-M-16D-20-FP1-FASwitch magnet: No | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 20 mm | Mounting: Rod-side flange
SSD2-M-16D-20-FP1-FBSwitch magnet: No | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 20 mm | Mounting: Head-side flange
SSD2-M-16D-25-FP1Switch magnet: No | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 25 mm | Mounting: None (cylinder only)
SSD2-M-16D-25-FP1-LBSwitch magnet: No | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 25 mm | Mounting: Axial foot
SSD2-M-16D-25-FP1-CBSwitch magnet: No | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 25 mm | Mounting: Double clevis
SSD2-M-16D-25-FP1-FASwitch magnet: No | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 25 mm | Mounting: Rod-side flange
SSD2-M-16D-25-FP1-FBSwitch magnet: No | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 25 mm | Mounting: Head-side flange
SSD2-M-16D-30-FP1Switch magnet: No | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 30 mm | Mounting: None (cylinder only)
SSD2-M-16D-30-FP1-LBSwitch magnet: No | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 30 mm | Mounting: Axial foot
SSD2-M-16D-30-FP1-CBSwitch magnet: No | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 30 mm | Mounting: Double clevis
SSD2-M-16D-30-FP1-FASwitch magnet: No | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 30 mm | Mounting: Rod-side flange
SSD2-M-16D-30-FP1-FBSwitch magnet: No | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 30 mm | Mounting: Head-side flange
SSD2-M-20-5-FP1Switch magnet: No | Bore: 20 mm | Cushion: None | Stroke: 5 mm | Mounting: None (cylinder only)
SSD2-M-20-5-FP1-LBSwitch magnet: No | Bore: 20 mm | Cushion: None | Stroke: 5 mm | Mounting: Axial foot
SSD2-M-20-5-FP1-CBSwitch magnet: No | Bore: 20 mm | Cushion: None | Stroke: 5 mm | Mounting: Double clevis
SSD2-M-20-5-FP1-FASwitch magnet: No | Bore: 20 mm | Cushion: None | Stroke: 5 mm | Mounting: Rod-side flange
SSD2-M-20-5-FP1-FBSwitch magnet: No | Bore: 20 mm | Cushion: None | Stroke: 5 mm | Mounting: Head-side flange
SSD2-M-20-10-FP1Switch magnet: No | Bore: 20 mm | Cushion: None | Stroke: 10 mm | Mounting: None (cylinder only)
SSD2-M-20-10-FP1-LBSwitch magnet: No | Bore: 20 mm | Cushion: None | Stroke: 10 mm | Mounting: Axial foot
SSD2-M-20-10-FP1-CBSwitch magnet: No | Bore: 20 mm | Cushion: None | Stroke: 10 mm | Mounting: Double clevis
SSD2-M-20-10-FP1-FASwitch magnet: No | Bore: 20 mm | Cushion: None | Stroke: 10 mm | Mounting: Rod-side flange
SSD2-M-20-10-FP1-FBSwitch magnet: No | Bore: 20 mm | Cushion: None | Stroke: 10 mm | Mounting: Head-side flange
SSD2-M-20-15-FP1Switch magnet: No | Bore: 20 mm | Cushion: None | Stroke: 15 mm | Mounting: None (cylinder only)
SSD2-M-20-15-FP1-LBSwitch magnet: No | Bore: 20 mm | Cushion: None | Stroke: 15 mm | Mounting: Axial foot
SSD2-M-20-15-FP1-CBSwitch magnet: No | Bore: 20 mm | Cushion: None | Stroke: 15 mm | Mounting: Double clevis
SSD2-M-20-15-FP1-FASwitch magnet: No | Bore: 20 mm | Cushion: None | Stroke: 15 mm | Mounting: Rod-side flange
SSD2-M-20-15-FP1-FBSwitch magnet: No | Bore: 20 mm | Cushion: None | Stroke: 15 mm | Mounting: Head-side flange
SSD2-M-20-20-FP1Switch magnet: No | Bore: 20 mm | Cushion: None | Stroke: 20 mm | Mounting: None (cylinder only)
SSD2-M-20-20-FP1-LBSwitch magnet: No | Bore: 20 mm | Cushion: None | Stroke: 20 mm | Mounting: Axial foot
SSD2-M-20-20-FP1-CBSwitch magnet: No | Bore: 20 mm | Cushion: None | Stroke: 20 mm | Mounting: Double clevis
SSD2-M-20-20-FP1-FASwitch magnet: No | Bore: 20 mm | Cushion: None | Stroke: 20 mm | Mounting: Rod-side flange
SSD2-M-20-20-FP1-FBSwitch magnet: No | Bore: 20 mm | Cushion: None | Stroke: 20 mm | Mounting: Head-side flange
SSD2-M-20-25-FP1Switch magnet: No | Bore: 20 mm | Cushion: None | Stroke: 25 mm | Mounting: None (cylinder only)
SSD2-M-20-25-FP1-LBSwitch magnet: No | Bore: 20 mm | Cushion: None | Stroke: 25 mm | Mounting: Axial foot
SSD2-M-20-25-FP1-CBSwitch magnet: No | Bore: 20 mm | Cushion: None | Stroke: 25 mm | Mounting: Double clevis
SSD2-M-20-25-FP1-FASwitch magnet: No | Bore: 20 mm | Cushion: None | Stroke: 25 mm | Mounting: Rod-side flange
SSD2-M-20-25-FP1-FBSwitch magnet: No | Bore: 20 mm | Cushion: None | Stroke: 25 mm | Mounting: Head-side flange
SSD2-M-20-30-FP1Switch magnet: No | Bore: 20 mm | Cushion: None | Stroke: 30 mm | Mounting: None (cylinder only)
SSD2-M-20-30-FP1-LBSwitch magnet: No | Bore: 20 mm | Cushion: None | Stroke: 30 mm | Mounting: Axial foot
SSD2-M-20-30-FP1-CBSwitch magnet: No | Bore: 20 mm | Cushion: None | Stroke: 30 mm | Mounting: Double clevis
SSD2-M-20-30-FP1-FASwitch magnet: No | Bore: 20 mm | Cushion: None | Stroke: 30 mm | Mounting: Rod-side flange
SSD2-M-20-30-FP1-FBSwitch magnet: No | Bore: 20 mm | Cushion: None | Stroke: 30 mm | Mounting: Head-side flange
SSD2-M-20-35-FP1Switch magnet: No | Bore: 20 mm | Cushion: None | Stroke: 35 mm | Mounting: None (cylinder only)
SSD2-M-20-35-FP1-LBSwitch magnet: No | Bore: 20 mm | Cushion: None | Stroke: 35 mm | Mounting: Axial foot
SSD2-M-20-35-FP1-CBSwitch magnet: No | Bore: 20 mm | Cushion: None | Stroke: 35 mm | Mounting: Double clevis
SSD2-M-20-35-FP1-FASwitch magnet: No | Bore: 20 mm | Cushion: None | Stroke: 35 mm | Mounting: Rod-side flange
SSD2-M-20-35-FP1-FBSwitch magnet: No | Bore: 20 mm | Cushion: None | Stroke: 35 mm | Mounting: Head-side flange
SSD2-M-20-40-FP1Switch magnet: No | Bore: 20 mm | Cushion: None | Stroke: 40 mm | Mounting: None (cylinder only)
SSD2-M-20-40-FP1-LBSwitch magnet: No | Bore: 20 mm | Cushion: None | Stroke: 40 mm | Mounting: Axial foot
SSD2-M-20-40-FP1-CBSwitch magnet: No | Bore: 20 mm | Cushion: None | Stroke: 40 mm | Mounting: Double clevis
SSD2-M-20-40-FP1-FASwitch magnet: No | Bore: 20 mm | Cushion: None | Stroke: 40 mm | Mounting: Rod-side flange
SSD2-M-20-40-FP1-FBSwitch magnet: No | Bore: 20 mm | Cushion: None | Stroke: 40 mm | Mounting: Head-side flange
SSD2-M-20-45-FP1Switch magnet: No | Bore: 20 mm | Cushion: None | Stroke: 45 mm | Mounting: None (cylinder only)
SSD2-M-20-45-FP1-LBSwitch magnet: No | Bore: 20 mm | Cushion: None | Stroke: 45 mm | Mounting: Axial foot
SSD2-M-20-45-FP1-CBSwitch magnet: No | Bore: 20 mm | Cushion: None | Stroke: 45 mm | Mounting: Double clevis
SSD2-M-20-45-FP1-FASwitch magnet: No | Bore: 20 mm | Cushion: None | Stroke: 45 mm | Mounting: Rod-side flange
SSD2-M-20-45-FP1-FBSwitch magnet: No | Bore: 20 mm | Cushion: None | Stroke: 45 mm | Mounting: Head-side flange
SSD2-M-20-50-FP1Switch magnet: No | Bore: 20 mm | Cushion: None | Stroke: 50 mm | Mounting: None (cylinder only)
SSD2-M-20-50-FP1-LBSwitch magnet: No | Bore: 20 mm | Cushion: None | Stroke: 50 mm | Mounting: Axial foot
SSD2-M-20-50-FP1-CBSwitch magnet: No | Bore: 20 mm | Cushion: None | Stroke: 50 mm | Mounting: Double clevis
SSD2-M-20-50-FP1-FASwitch magnet: No | Bore: 20 mm | Cushion: None | Stroke: 50 mm | Mounting: Rod-side flange
SSD2-M-20-50-FP1-FBSwitch magnet: No | Bore: 20 mm | Cushion: None | Stroke: 50 mm | Mounting: Head-side flange
SSD2-M-20D-5-FP1Switch magnet: No | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 5 mm | Mounting: None (cylinder only)
SSD2-M-20D-5-FP1-LBSwitch magnet: No | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 5 mm | Mounting: Axial foot
SSD2-M-20D-5-FP1-CBSwitch magnet: No | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 5 mm | Mounting: Double clevis
SSD2-M-20D-5-FP1-FASwitch magnet: No | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 5 mm | Mounting: Rod-side flange
SSD2-M-20D-5-FP1-FBSwitch magnet: No | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 5 mm | Mounting: Head-side flange
SSD2-M-20D-10-FP1Switch magnet: No | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 10 mm | Mounting: None (cylinder only)
SSD2-M-20D-10-FP1-LBSwitch magnet: No | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 10 mm | Mounting: Axial foot
SSD2-M-20D-10-FP1-CBSwitch magnet: No | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 10 mm | Mounting: Double clevis
SSD2-M-20D-10-FP1-FASwitch magnet: No | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 10 mm | Mounting: Rod-side flange
SSD2-M-20D-10-FP1-FBSwitch magnet: No | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 10 mm | Mounting: Head-side flange
SSD2-M-20D-15-FP1Switch magnet: No | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 15 mm | Mounting: None (cylinder only)
SSD2-M-20D-15-FP1-LBSwitch magnet: No | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 15 mm | Mounting: Axial foot
SSD2-M-20D-15-FP1-CBSwitch magnet: No | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 15 mm | Mounting: Double clevis
SSD2-M-20D-15-FP1-FASwitch magnet: No | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 15 mm | Mounting: Rod-side flange
SSD2-M-20D-15-FP1-FBSwitch magnet: No | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 15 mm | Mounting: Head-side flange
SSD2-M-20D-20-FP1Switch magnet: No | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 20 mm | Mounting: None (cylinder only)
SSD2-M-20D-20-FP1-LBSwitch magnet: No | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 20 mm | Mounting: Axial foot
SSD2-M-20D-20-FP1-CBSwitch magnet: No | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 20 mm | Mounting: Double clevis
SSD2-M-20D-20-FP1-FASwitch magnet: No | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 20 mm | Mounting: Rod-side flange
SSD2-M-20D-20-FP1-FBSwitch magnet: No | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 20 mm | Mounting: Head-side flange
SSD2-M-20D-25-FP1Switch magnet: No | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 25 mm | Mounting: None (cylinder only)
SSD2-M-20D-25-FP1-LBSwitch magnet: No | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 25 mm | Mounting: Axial foot
SSD2-M-20D-25-FP1-CBSwitch magnet: No | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 25 mm | Mounting: Double clevis
SSD2-M-20D-25-FP1-FASwitch magnet: No | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 25 mm | Mounting: Rod-side flange
SSD2-M-20D-25-FP1-FBSwitch magnet: No | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 25 mm | Mounting: Head-side flange
SSD2-M-20D-30-FP1Switch magnet: No | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 30 mm | Mounting: None (cylinder only)
SSD2-M-20D-30-FP1-LBSwitch magnet: No | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 30 mm | Mounting: Axial foot
SSD2-M-20D-30-FP1-CBSwitch magnet: No | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 30 mm | Mounting: Double clevis
SSD2-M-20D-30-FP1-FASwitch magnet: No | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 30 mm | Mounting: Rod-side flange
SSD2-M-20D-30-FP1-FBSwitch magnet: No | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 30 mm | Mounting: Head-side flange
SSD2-M-20D-35-FP1Switch magnet: No | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 35 mm | Mounting: None (cylinder only)
SSD2-M-20D-35-FP1-LBSwitch magnet: No | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 35 mm | Mounting: Axial foot
SSD2-M-20D-35-FP1-CBSwitch magnet: No | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 35 mm | Mounting: Double clevis
SSD2-M-20D-35-FP1-FASwitch magnet: No | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 35 mm | Mounting: Rod-side flange
SSD2-M-20D-35-FP1-FBSwitch magnet: No | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 35 mm | Mounting: Head-side flange
SSD2-M-20D-40-FP1Switch magnet: No | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 40 mm | Mounting: None (cylinder only)
SSD2-M-20D-40-FP1-LBSwitch magnet: No | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 40 mm | Mounting: Axial foot
SSD2-M-20D-40-FP1-CBSwitch magnet: No | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 40 mm | Mounting: Double clevis
SSD2-M-20D-40-FP1-FASwitch magnet: No | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 40 mm | Mounting: Rod-side flange
SSD2-M-20D-40-FP1-FBSwitch magnet: No | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 40 mm | Mounting: Head-side flange
SSD2-M-20D-45-FP1Switch magnet: No | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 45 mm | Mounting: None (cylinder only)
SSD2-M-20D-45-FP1-LBSwitch magnet: No | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 45 mm | Mounting: Axial foot
SSD2-M-20D-45-FP1-CBSwitch magnet: No | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 45 mm | Mounting: Double clevis
SSD2-M-20D-45-FP1-FASwitch magnet: No | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 45 mm | Mounting: Rod-side flange
SSD2-M-20D-45-FP1-FBSwitch magnet: No | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 45 mm | Mounting: Head-side flange
SSD2-M-20D-50-FP1Switch magnet: No | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 50 mm | Mounting: None (cylinder only)
SSD2-M-20D-50-FP1-LBSwitch magnet: No | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 50 mm | Mounting: Axial foot
SSD2-M-20D-50-FP1-CBSwitch magnet: No | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 50 mm | Mounting: Double clevis
SSD2-M-20D-50-FP1-FASwitch magnet: No | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 50 mm | Mounting: Rod-side flange
SSD2-M-20D-50-FP1-FBSwitch magnet: No | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 50 mm | Mounting: Head-side flange
SSD2-M-25-5-FP1Switch magnet: No | Bore: 25 mm | Cushion: None | Stroke: 5 mm | Mounting: None (cylinder only)
SSD2-M-25-5-FP1-LBSwitch magnet: No | Bore: 25 mm | Cushion: None | Stroke: 5 mm | Mounting: Axial foot
SSD2-M-25-5-FP1-CBSwitch magnet: No | Bore: 25 mm | Cushion: None | Stroke: 5 mm | Mounting: Double clevis
SSD2-M-25-5-FP1-FASwitch magnet: No | Bore: 25 mm | Cushion: None | Stroke: 5 mm | Mounting: Rod-side flange
SSD2-M-25-5-FP1-FBSwitch magnet: No | Bore: 25 mm | Cushion: None | Stroke: 5 mm | Mounting: Head-side flange
SSD2-M-25-10-FP1Switch magnet: No | Bore: 25 mm | Cushion: None | Stroke: 10 mm | Mounting: None (cylinder only)
SSD2-M-25-10-FP1-LBSwitch magnet: No | Bore: 25 mm | Cushion: None | Stroke: 10 mm | Mounting: Axial foot
SSD2-M-25-10-FP1-CBSwitch magnet: No | Bore: 25 mm | Cushion: None | Stroke: 10 mm | Mounting: Double clevis
SSD2-M-25-10-FP1-FASwitch magnet: No | Bore: 25 mm | Cushion: None | Stroke: 10 mm | Mounting: Rod-side flange
SSD2-M-25-10-FP1-FBSwitch magnet: No | Bore: 25 mm | Cushion: None | Stroke: 10 mm | Mounting: Head-side flange
SSD2-M-25-15-FP1Switch magnet: No | Bore: 25 mm | Cushion: None | Stroke: 15 mm | Mounting: None (cylinder only)
SSD2-M-25-15-FP1-LBSwitch magnet: No | Bore: 25 mm | Cushion: None | Stroke: 15 mm | Mounting: Axial foot
SSD2-M-25-15-FP1-CBSwitch magnet: No | Bore: 25 mm | Cushion: None | Stroke: 15 mm | Mounting: Double clevis
SSD2-M-25-15-FP1-FASwitch magnet: No | Bore: 25 mm | Cushion: None | Stroke: 15 mm | Mounting: Rod-side flange
SSD2-M-25-15-FP1-FBSwitch magnet: No | Bore: 25 mm | Cushion: None | Stroke: 15 mm | Mounting: Head-side flange
SSD2-M-25-20-FP1Switch magnet: No | Bore: 25 mm | Cushion: None | Stroke: 20 mm | Mounting: None (cylinder only)
SSD2-M-25-20-FP1-LBSwitch magnet: No | Bore: 25 mm | Cushion: None | Stroke: 20 mm | Mounting: Axial foot
SSD2-M-25-20-FP1-CBSwitch magnet: No | Bore: 25 mm | Cushion: None | Stroke: 20 mm | Mounting: Double clevis
SSD2-M-25-20-FP1-FASwitch magnet: No | Bore: 25 mm | Cushion: None | Stroke: 20 mm | Mounting: Rod-side flange
SSD2-M-25-20-FP1-FBSwitch magnet: No | Bore: 25 mm | Cushion: None | Stroke: 20 mm | Mounting: Head-side flange
SSD2-M-25-25-FP1Switch magnet: No | Bore: 25 mm | Cushion: None | Stroke: 25 mm | Mounting: None (cylinder only)
SSD2-M-25-25-FP1-LBSwitch magnet: No | Bore: 25 mm | Cushion: None | Stroke: 25 mm | Mounting: Axial foot
SSD2-M-25-25-FP1-CBSwitch magnet: No | Bore: 25 mm | Cushion: None | Stroke: 25 mm | Mounting: Double clevis
SSD2-M-25-25-FP1-FASwitch magnet: No | Bore: 25 mm | Cushion: None | Stroke: 25 mm | Mounting: Rod-side flange
SSD2-M-25-25-FP1-FBSwitch magnet: No | Bore: 25 mm | Cushion: None | Stroke: 25 mm | Mounting: Head-side flange
SSD2-M-25-30-FP1Switch magnet: No | Bore: 25 mm | Cushion: None | Stroke: 30 mm | Mounting: None (cylinder only)
SSD2-M-25-30-FP1-LBSwitch magnet: No | Bore: 25 mm | Cushion: None | Stroke: 30 mm | Mounting: Axial foot
SSD2-M-25-30-FP1-CBSwitch magnet: No | Bore: 25 mm | Cushion: None | Stroke: 30 mm | Mounting: Double clevis
SSD2-M-25-30-FP1-FASwitch magnet: No | Bore: 25 mm | Cushion: None | Stroke: 30 mm | Mounting: Rod-side flange
SSD2-M-25-30-FP1-FBSwitch magnet: No | Bore: 25 mm | Cushion: None | Stroke: 30 mm | Mounting: Head-side flange
SSD2-M-25-35-FP1Switch magnet: No | Bore: 25 mm | Cushion: None | Stroke: 35 mm | Mounting: None (cylinder only)
SSD2-M-25-35-FP1-LBSwitch magnet: No | Bore: 25 mm | Cushion: None | Stroke: 35 mm | Mounting: Axial foot
SSD2-M-25-35-FP1-CBSwitch magnet: No | Bore: 25 mm | Cushion: None | Stroke: 35 mm | Mounting: Double clevis
SSD2-M-25-35-FP1-FASwitch magnet: No | Bore: 25 mm | Cushion: None | Stroke: 35 mm | Mounting: Rod-side flange
SSD2-M-25-35-FP1-FBSwitch magnet: No | Bore: 25 mm | Cushion: None | Stroke: 35 mm | Mounting: Head-side flange
SSD2-M-25-40-FP1Switch magnet: No | Bore: 25 mm | Cushion: None | Stroke: 40 mm | Mounting: None (cylinder only)
SSD2-M-25-40-FP1-LBSwitch magnet: No | Bore: 25 mm | Cushion: None | Stroke: 40 mm | Mounting: Axial foot
SSD2-M-25-40-FP1-CBSwitch magnet: No | Bore: 25 mm | Cushion: None | Stroke: 40 mm | Mounting: Double clevis
SSD2-M-25-40-FP1-FASwitch magnet: No | Bore: 25 mm | Cushion: None | Stroke: 40 mm | Mounting: Rod-side flange
SSD2-M-25-40-FP1-FBSwitch magnet: No | Bore: 25 mm | Cushion: None | Stroke: 40 mm | Mounting: Head-side flange
SSD2-M-25-45-FP1Switch magnet: No | Bore: 25 mm | Cushion: None | Stroke: 45 mm | Mounting: None (cylinder only)
SSD2-M-25-45-FP1-LBSwitch magnet: No | Bore: 25 mm | Cushion: None | Stroke: 45 mm | Mounting: Axial foot
SSD2-M-25-45-FP1-CBSwitch magnet: No | Bore: 25 mm | Cushion: None | Stroke: 45 mm | Mounting: Double clevis
SSD2-M-25-45-FP1-FASwitch magnet: No | Bore: 25 mm | Cushion: None | Stroke: 45 mm | Mounting: Rod-side flange
SSD2-M-25-45-FP1-FBSwitch magnet: No | Bore: 25 mm | Cushion: None | Stroke: 45 mm | Mounting: Head-side flange
SSD2-M-25-50-FP1Switch magnet: No | Bore: 25 mm | Cushion: None | Stroke: 50 mm | Mounting: None (cylinder only)
SSD2-M-25-50-FP1-LBSwitch magnet: No | Bore: 25 mm | Cushion: None | Stroke: 50 mm | Mounting: Axial foot
SSD2-M-25-50-FP1-CBSwitch magnet: No | Bore: 25 mm | Cushion: None | Stroke: 50 mm | Mounting: Double clevis
SSD2-M-25-50-FP1-FASwitch magnet: No | Bore: 25 mm | Cushion: None | Stroke: 50 mm | Mounting: Rod-side flange
SSD2-M-25-50-FP1-FBSwitch magnet: No | Bore: 25 mm | Cushion: None | Stroke: 50 mm | Mounting: Head-side flange
SSD2-M-25D-5-FP1Switch magnet: No | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 5 mm | Mounting: None (cylinder only)
SSD2-M-25D-5-FP1-LBSwitch magnet: No | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 5 mm | Mounting: Axial foot
SSD2-M-25D-5-FP1-CBSwitch magnet: No | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 5 mm | Mounting: Double clevis
SSD2-M-25D-5-FP1-FASwitch magnet: No | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 5 mm | Mounting: Rod-side flange
SSD2-M-25D-5-FP1-FBSwitch magnet: No | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 5 mm | Mounting: Head-side flange
SSD2-M-25D-10-FP1Switch magnet: No | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 10 mm | Mounting: None (cylinder only)
SSD2-M-25D-10-FP1-LBSwitch magnet: No | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 10 mm | Mounting: Axial foot
SSD2-M-25D-10-FP1-CBSwitch magnet: No | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 10 mm | Mounting: Double clevis
SSD2-M-25D-10-FP1-FASwitch magnet: No | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 10 mm | Mounting: Rod-side flange
SSD2-M-25D-10-FP1-FBSwitch magnet: No | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 10 mm | Mounting: Head-side flange
SSD2-M-25D-15-FP1Switch magnet: No | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 15 mm | Mounting: None (cylinder only)
SSD2-M-25D-15-FP1-LBSwitch magnet: No | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 15 mm | Mounting: Axial foot
SSD2-M-25D-15-FP1-CBSwitch magnet: No | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 15 mm | Mounting: Double clevis
SSD2-M-25D-15-FP1-FASwitch magnet: No | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 15 mm | Mounting: Rod-side flange
SSD2-M-25D-15-FP1-FBSwitch magnet: No | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 15 mm | Mounting: Head-side flange
SSD2-M-25D-20-FP1Switch magnet: No | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 20 mm | Mounting: None (cylinder only)
SSD2-M-25D-20-FP1-LBSwitch magnet: No | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 20 mm | Mounting: Axial foot
SSD2-M-25D-20-FP1-CBSwitch magnet: No | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 20 mm | Mounting: Double clevis
SSD2-M-25D-20-FP1-FASwitch magnet: No | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 20 mm | Mounting: Rod-side flange
SSD2-M-25D-20-FP1-FBSwitch magnet: No | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 20 mm | Mounting: Head-side flange
SSD2-M-25D-25-FP1Switch magnet: No | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 25 mm | Mounting: None (cylinder only)
SSD2-M-25D-25-FP1-LBSwitch magnet: No | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 25 mm | Mounting: Axial foot
SSD2-M-25D-25-FP1-CBSwitch magnet: No | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 25 mm | Mounting: Double clevis
SSD2-M-25D-25-FP1-FASwitch magnet: No | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 25 mm | Mounting: Rod-side flange
SSD2-M-25D-25-FP1-FBSwitch magnet: No | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 25 mm | Mounting: Head-side flange
SSD2-M-25D-30-FP1Switch magnet: No | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 30 mm | Mounting: None (cylinder only)
SSD2-M-25D-30-FP1-LBSwitch magnet: No | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 30 mm | Mounting: Axial foot
SSD2-M-25D-30-FP1-CBSwitch magnet: No | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 30 mm | Mounting: Double clevis
SSD2-M-25D-30-FP1-FASwitch magnet: No | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 30 mm | Mounting: Rod-side flange
SSD2-M-25D-30-FP1-FBSwitch magnet: No | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 30 mm | Mounting: Head-side flange
SSD2-M-25D-35-FP1Switch magnet: No | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 35 mm | Mounting: None (cylinder only)
SSD2-M-25D-35-FP1-LBSwitch magnet: No | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 35 mm | Mounting: Axial foot
SSD2-M-25D-35-FP1-CBSwitch magnet: No | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 35 mm | Mounting: Double clevis
SSD2-M-25D-35-FP1-FASwitch magnet: No | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 35 mm | Mounting: Rod-side flange
SSD2-M-25D-35-FP1-FBSwitch magnet: No | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 35 mm | Mounting: Head-side flange
SSD2-M-25D-40-FP1Switch magnet: No | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 40 mm | Mounting: None (cylinder only)
SSD2-M-25D-40-FP1-LBSwitch magnet: No | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 40 mm | Mounting: Axial foot
SSD2-M-25D-40-FP1-CBSwitch magnet: No | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 40 mm | Mounting: Double clevis
SSD2-M-25D-40-FP1-FASwitch magnet: No | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 40 mm | Mounting: Rod-side flange
SSD2-M-25D-40-FP1-FBSwitch magnet: No | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 40 mm | Mounting: Head-side flange
SSD2-M-25D-45-FP1Switch magnet: No | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 45 mm | Mounting: None (cylinder only)
SSD2-M-25D-45-FP1-LBSwitch magnet: No | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 45 mm | Mounting: Axial foot
SSD2-M-25D-45-FP1-CBSwitch magnet: No | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 45 mm | Mounting: Double clevis
SSD2-M-25D-45-FP1-FASwitch magnet: No | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 45 mm | Mounting: Rod-side flange
SSD2-M-25D-45-FP1-FBSwitch magnet: No | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 45 mm | Mounting: Head-side flange
SSD2-M-25D-50-FP1Switch magnet: No | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 50 mm | Mounting: None (cylinder only)
SSD2-M-25D-50-FP1-LBSwitch magnet: No | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 50 mm | Mounting: Axial foot
SSD2-M-25D-50-FP1-CBSwitch magnet: No | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 50 mm | Mounting: Double clevis
SSD2-M-25D-50-FP1-FASwitch magnet: No | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 50 mm | Mounting: Rod-side flange
SSD2-M-25D-50-FP1-FBSwitch magnet: No | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 50 mm | Mounting: Head-side flange
SSD2-M-32-5-FP1Switch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 5 mm | Mounting: None (cylinder only)
SSD2-M-32-5-FP1-LBSwitch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 5 mm | Mounting: Axial foot
SSD2-M-32-5-FP1-CBSwitch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 5 mm | Mounting: Double clevis
SSD2-M-32-5-FP1-FASwitch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 5 mm | Mounting: Rod-side flange
SSD2-M-32-5-FP1-FBSwitch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 5 mm | Mounting: Head-side flange
SSD2-M-32-10-FP1Switch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 10 mm | Mounting: None (cylinder only)
SSD2-M-32-10-FP1-LBSwitch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 10 mm | Mounting: Axial foot
SSD2-M-32-10-FP1-CBSwitch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 10 mm | Mounting: Double clevis
SSD2-M-32-10-FP1-FASwitch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 10 mm | Mounting: Rod-side flange
SSD2-M-32-10-FP1-FBSwitch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 10 mm | Mounting: Head-side flange
SSD2-M-32-15-FP1Switch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 15 mm | Mounting: None (cylinder only)
SSD2-M-32-15-FP1-LBSwitch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 15 mm | Mounting: Axial foot
SSD2-M-32-15-FP1-CBSwitch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 15 mm | Mounting: Double clevis
SSD2-M-32-15-FP1-FASwitch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 15 mm | Mounting: Rod-side flange
SSD2-M-32-15-FP1-FBSwitch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 15 mm | Mounting: Head-side flange
SSD2-M-32-20-FP1Switch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 20 mm | Mounting: None (cylinder only)
SSD2-M-32-20-FP1-LBSwitch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 20 mm | Mounting: Axial foot
SSD2-M-32-20-FP1-CBSwitch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 20 mm | Mounting: Double clevis
SSD2-M-32-20-FP1-FASwitch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 20 mm | Mounting: Rod-side flange
SSD2-M-32-20-FP1-FBSwitch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 20 mm | Mounting: Head-side flange
SSD2-M-32-25-FP1Switch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 25 mm | Mounting: None (cylinder only)
SSD2-M-32-25-FP1-LBSwitch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 25 mm | Mounting: Axial foot
SSD2-M-32-25-FP1-CBSwitch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 25 mm | Mounting: Double clevis
SSD2-M-32-25-FP1-FASwitch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 25 mm | Mounting: Rod-side flange
SSD2-M-32-25-FP1-FBSwitch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 25 mm | Mounting: Head-side flange
SSD2-M-32-30-FP1Switch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 30 mm | Mounting: None (cylinder only)
SSD2-M-32-30-FP1-LBSwitch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 30 mm | Mounting: Axial foot
SSD2-M-32-30-FP1-CBSwitch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 30 mm | Mounting: Double clevis
SSD2-M-32-30-FP1-FASwitch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 30 mm | Mounting: Rod-side flange
SSD2-M-32-30-FP1-FBSwitch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 30 mm | Mounting: Head-side flange
SSD2-M-32-35-FP1Switch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 35 mm | Mounting: None (cylinder only)
SSD2-M-32-35-FP1-LBSwitch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 35 mm | Mounting: Axial foot
SSD2-M-32-35-FP1-CBSwitch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 35 mm | Mounting: Double clevis
SSD2-M-32-35-FP1-FASwitch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 35 mm | Mounting: Rod-side flange
SSD2-M-32-35-FP1-FBSwitch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 35 mm | Mounting: Head-side flange
SSD2-M-32-40-FP1Switch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 40 mm | Mounting: None (cylinder only)
SSD2-M-32-40-FP1-LBSwitch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 40 mm | Mounting: Axial foot
SSD2-M-32-40-FP1-CBSwitch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 40 mm | Mounting: Double clevis
SSD2-M-32-40-FP1-FASwitch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 40 mm | Mounting: Rod-side flange
SSD2-M-32-40-FP1-FBSwitch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 40 mm | Mounting: Head-side flange
SSD2-M-32-45-FP1Switch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 45 mm | Mounting: None (cylinder only)
SSD2-M-32-45-FP1-LBSwitch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 45 mm | Mounting: Axial foot
SSD2-M-32-45-FP1-CBSwitch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 45 mm | Mounting: Double clevis
SSD2-M-32-45-FP1-FASwitch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 45 mm | Mounting: Rod-side flange
SSD2-M-32-45-FP1-FBSwitch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 45 mm | Mounting: Head-side flange
SSD2-M-32-50-FP1Switch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 50 mm | Mounting: None (cylinder only)
SSD2-M-32-50-FP1-LBSwitch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 50 mm | Mounting: Axial foot
SSD2-M-32-50-FP1-CBSwitch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 50 mm | Mounting: Double clevis
SSD2-M-32-50-FP1-FASwitch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 50 mm | Mounting: Rod-side flange
SSD2-M-32-50-FP1-FBSwitch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 50 mm | Mounting: Head-side flange
SSD2-M-32-75-FP1Switch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 75 mm | Mounting: None (cylinder only)
SSD2-M-32-75-FP1-LBSwitch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 75 mm | Mounting: Axial foot
SSD2-M-32-75-FP1-CBSwitch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 75 mm | Mounting: Double clevis
SSD2-M-32-75-FP1-FASwitch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 75 mm | Mounting: Rod-side flange
SSD2-M-32-75-FP1-FBSwitch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 75 mm | Mounting: Head-side flange
SSD2-M-32-100-FP1Switch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 100 mm | Mounting: None (cylinder only)
SSD2-M-32-100-FP1-LBSwitch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 100 mm | Mounting: Axial foot
SSD2-M-32-100-FP1-CBSwitch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 100 mm | Mounting: Double clevis
SSD2-M-32-100-FP1-FASwitch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 100 mm | Mounting: Rod-side flange
SSD2-M-32-100-FP1-FBSwitch magnet: No | Bore: 32 mm | Cushion: None | Stroke: 100 mm | Mounting: Head-side flange
SSD2-M-32D-5-FP1Switch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 5 mm | Mounting: None (cylinder only)
SSD2-M-32D-5-FP1-LBSwitch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 5 mm | Mounting: Axial foot
SSD2-M-32D-5-FP1-CBSwitch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 5 mm | Mounting: Double clevis
SSD2-M-32D-5-FP1-FASwitch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 5 mm | Mounting: Rod-side flange
SSD2-M-32D-5-FP1-FBSwitch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 5 mm | Mounting: Head-side flange
SSD2-M-32D-10-FP1Switch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 10 mm | Mounting: None (cylinder only)
SSD2-M-32D-10-FP1-LBSwitch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 10 mm | Mounting: Axial foot
SSD2-M-32D-10-FP1-CBSwitch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 10 mm | Mounting: Double clevis
SSD2-M-32D-10-FP1-FASwitch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 10 mm | Mounting: Rod-side flange
SSD2-M-32D-10-FP1-FBSwitch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 10 mm | Mounting: Head-side flange
SSD2-M-32D-15-FP1Switch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 15 mm | Mounting: None (cylinder only)
SSD2-M-32D-15-FP1-LBSwitch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 15 mm | Mounting: Axial foot
SSD2-M-32D-15-FP1-CBSwitch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 15 mm | Mounting: Double clevis
SSD2-M-32D-15-FP1-FASwitch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 15 mm | Mounting: Rod-side flange
SSD2-M-32D-15-FP1-FBSwitch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 15 mm | Mounting: Head-side flange
SSD2-M-32D-20-FP1Switch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 20 mm | Mounting: None (cylinder only)
SSD2-M-32D-20-FP1-LBSwitch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 20 mm | Mounting: Axial foot
SSD2-M-32D-20-FP1-CBSwitch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 20 mm | Mounting: Double clevis
SSD2-M-32D-20-FP1-FASwitch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 20 mm | Mounting: Rod-side flange
SSD2-M-32D-20-FP1-FBSwitch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 20 mm | Mounting: Head-side flange
SSD2-M-32D-25-FP1Switch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 25 mm | Mounting: None (cylinder only)
SSD2-M-32D-25-FP1-LBSwitch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 25 mm | Mounting: Axial foot
SSD2-M-32D-25-FP1-CBSwitch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 25 mm | Mounting: Double clevis
SSD2-M-32D-25-FP1-FASwitch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 25 mm | Mounting: Rod-side flange
SSD2-M-32D-25-FP1-FBSwitch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 25 mm | Mounting: Head-side flange
SSD2-M-32D-30-FP1Switch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 30 mm | Mounting: None (cylinder only)
SSD2-M-32D-30-FP1-LBSwitch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 30 mm | Mounting: Axial foot
SSD2-M-32D-30-FP1-CBSwitch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 30 mm | Mounting: Double clevis
SSD2-M-32D-30-FP1-FASwitch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 30 mm | Mounting: Rod-side flange
SSD2-M-32D-30-FP1-FBSwitch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 30 mm | Mounting: Head-side flange
SSD2-M-32D-35-FP1Switch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 35 mm | Mounting: None (cylinder only)
SSD2-M-32D-35-FP1-LBSwitch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 35 mm | Mounting: Axial foot
SSD2-M-32D-35-FP1-CBSwitch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 35 mm | Mounting: Double clevis
SSD2-M-32D-35-FP1-FASwitch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 35 mm | Mounting: Rod-side flange
SSD2-M-32D-35-FP1-FBSwitch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 35 mm | Mounting: Head-side flange
SSD2-M-32D-40-FP1Switch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 40 mm | Mounting: None (cylinder only)
SSD2-M-32D-40-FP1-LBSwitch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 40 mm | Mounting: Axial foot
SSD2-M-32D-40-FP1-CBSwitch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 40 mm | Mounting: Double clevis
SSD2-M-32D-40-FP1-FASwitch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 40 mm | Mounting: Rod-side flange
SSD2-M-32D-40-FP1-FBSwitch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 40 mm | Mounting: Head-side flange
SSD2-M-32D-45-FP1Switch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 45 mm | Mounting: None (cylinder only)
SSD2-M-32D-45-FP1-LBSwitch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 45 mm | Mounting: Axial foot
SSD2-M-32D-45-FP1-CBSwitch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 45 mm | Mounting: Double clevis
SSD2-M-32D-45-FP1-FASwitch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 45 mm | Mounting: Rod-side flange
SSD2-M-32D-45-FP1-FBSwitch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 45 mm | Mounting: Head-side flange
SSD2-M-32D-50-FP1Switch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 50 mm | Mounting: None (cylinder only)
SSD2-M-32D-50-FP1-LBSwitch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 50 mm | Mounting: Axial foot
SSD2-M-32D-50-FP1-CBSwitch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 50 mm | Mounting: Double clevis
SSD2-M-32D-50-FP1-FASwitch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 50 mm | Mounting: Rod-side flange
SSD2-M-32D-50-FP1-FBSwitch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 50 mm | Mounting: Head-side flange
SSD2-M-32D-75-FP1Switch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 75 mm | Mounting: None (cylinder only)
SSD2-M-32D-75-FP1-LBSwitch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 75 mm | Mounting: Axial foot
SSD2-M-32D-75-FP1-CBSwitch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 75 mm | Mounting: Double clevis
SSD2-M-32D-75-FP1-FASwitch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 75 mm | Mounting: Rod-side flange
SSD2-M-32D-75-FP1-FBSwitch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 75 mm | Mounting: Head-side flange
SSD2-M-32D-100-FP1Switch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 100 mm | Mounting: None (cylinder only)
SSD2-M-32D-100-FP1-LBSwitch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 100 mm | Mounting: Axial foot
SSD2-M-32D-100-FP1-CBSwitch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 100 mm | Mounting: Double clevis
SSD2-M-32D-100-FP1-FASwitch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 100 mm | Mounting: Rod-side flange
SSD2-M-32D-100-FP1-FBSwitch magnet: No | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 100 mm | Mounting: Head-side flange
SSD2-ML-12-5-FP1Switch magnet: Yes | Bore: 12 mm | Cushion: None | Stroke: 5 mm | Mounting: None (cylinder only)
SSD2-ML-12-5-FP1-LBSwitch magnet: Yes | Bore: 12 mm | Cushion: None | Stroke: 5 mm | Mounting: Axial foot
SSD2-ML-12-5-FP1-CBSwitch magnet: Yes | Bore: 12 mm | Cushion: None | Stroke: 5 mm | Mounting: Double clevis
SSD2-ML-12-5-FP1-FASwitch magnet: Yes | Bore: 12 mm | Cushion: None | Stroke: 5 mm | Mounting: Rod-side flange
SSD2-ML-12-5-FP1-FBSwitch magnet: Yes | Bore: 12 mm | Cushion: None | Stroke: 5 mm | Mounting: Head-side flange
SSD2-ML-12-10-FP1Switch magnet: Yes | Bore: 12 mm | Cushion: None | Stroke: 10 mm | Mounting: None (cylinder only)
SSD2-ML-12-10-FP1-LBSwitch magnet: Yes | Bore: 12 mm | Cushion: None | Stroke: 10 mm | Mounting: Axial foot
SSD2-ML-12-10-FP1-CBSwitch magnet: Yes | Bore: 12 mm | Cushion: None | Stroke: 10 mm | Mounting: Double clevis
SSD2-ML-12-10-FP1-FASwitch magnet: Yes | Bore: 12 mm | Cushion: None | Stroke: 10 mm | Mounting: Rod-side flange
SSD2-ML-12-10-FP1-FBSwitch magnet: Yes | Bore: 12 mm | Cushion: None | Stroke: 10 mm | Mounting: Head-side flange
SSD2-ML-12-15-FP1Switch magnet: Yes | Bore: 12 mm | Cushion: None | Stroke: 15 mm | Mounting: None (cylinder only)
SSD2-ML-12-15-FP1-LBSwitch magnet: Yes | Bore: 12 mm | Cushion: None | Stroke: 15 mm | Mounting: Axial foot
SSD2-ML-12-15-FP1-CBSwitch magnet: Yes | Bore: 12 mm | Cushion: None | Stroke: 15 mm | Mounting: Double clevis
SSD2-ML-12-15-FP1-FASwitch magnet: Yes | Bore: 12 mm | Cushion: None | Stroke: 15 mm | Mounting: Rod-side flange
SSD2-ML-12-15-FP1-FBSwitch magnet: Yes | Bore: 12 mm | Cushion: None | Stroke: 15 mm | Mounting: Head-side flange
SSD2-ML-12-20-FP1Switch magnet: Yes | Bore: 12 mm | Cushion: None | Stroke: 20 mm | Mounting: None (cylinder only)
SSD2-ML-12-20-FP1-LBSwitch magnet: Yes | Bore: 12 mm | Cushion: None | Stroke: 20 mm | Mounting: Axial foot
SSD2-ML-12-20-FP1-CBSwitch magnet: Yes | Bore: 12 mm | Cushion: None | Stroke: 20 mm | Mounting: Double clevis
SSD2-ML-12-20-FP1-FASwitch magnet: Yes | Bore: 12 mm | Cushion: None | Stroke: 20 mm | Mounting: Rod-side flange
SSD2-ML-12-20-FP1-FBSwitch magnet: Yes | Bore: 12 mm | Cushion: None | Stroke: 20 mm | Mounting: Head-side flange
SSD2-ML-12-25-FP1Switch magnet: Yes | Bore: 12 mm | Cushion: None | Stroke: 25 mm | Mounting: None (cylinder only)
SSD2-ML-12-25-FP1-LBSwitch magnet: Yes | Bore: 12 mm | Cushion: None | Stroke: 25 mm | Mounting: Axial foot
SSD2-ML-12-25-FP1-CBSwitch magnet: Yes | Bore: 12 mm | Cushion: None | Stroke: 25 mm | Mounting: Double clevis
SSD2-ML-12-25-FP1-FASwitch magnet: Yes | Bore: 12 mm | Cushion: None | Stroke: 25 mm | Mounting: Rod-side flange
SSD2-ML-12-25-FP1-FBSwitch magnet: Yes | Bore: 12 mm | Cushion: None | Stroke: 25 mm | Mounting: Head-side flange
SSD2-ML-12-30-FP1Switch magnet: Yes | Bore: 12 mm | Cushion: None | Stroke: 30 mm | Mounting: None (cylinder only)
SSD2-ML-12-30-FP1-LBSwitch magnet: Yes | Bore: 12 mm | Cushion: None | Stroke: 30 mm | Mounting: Axial foot
SSD2-ML-12-30-FP1-CBSwitch magnet: Yes | Bore: 12 mm | Cushion: None | Stroke: 30 mm | Mounting: Double clevis
SSD2-ML-12-30-FP1-FASwitch magnet: Yes | Bore: 12 mm | Cushion: None | Stroke: 30 mm | Mounting: Rod-side flange
SSD2-ML-12-30-FP1-FBSwitch magnet: Yes | Bore: 12 mm | Cushion: None | Stroke: 30 mm | Mounting: Head-side flange
SSD2-ML-12D-5-FP1Switch magnet: Yes | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 5 mm | Mounting: None (cylinder only)
SSD2-ML-12D-5-FP1-LBSwitch magnet: Yes | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 5 mm | Mounting: Axial foot
SSD2-ML-12D-5-FP1-CBSwitch magnet: Yes | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 5 mm | Mounting: Double clevis
SSD2-ML-12D-5-FP1-FASwitch magnet: Yes | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 5 mm | Mounting: Rod-side flange
SSD2-ML-12D-5-FP1-FBSwitch magnet: Yes | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 5 mm | Mounting: Head-side flange
SSD2-ML-12D-10-FP1Switch magnet: Yes | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 10 mm | Mounting: None (cylinder only)
SSD2-ML-12D-10-FP1-LBSwitch magnet: Yes | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 10 mm | Mounting: Axial foot
SSD2-ML-12D-10-FP1-CBSwitch magnet: Yes | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 10 mm | Mounting: Double clevis
SSD2-ML-12D-10-FP1-FASwitch magnet: Yes | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 10 mm | Mounting: Rod-side flange
SSD2-ML-12D-10-FP1-FBSwitch magnet: Yes | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 10 mm | Mounting: Head-side flange
SSD2-ML-12D-15-FP1Switch magnet: Yes | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 15 mm | Mounting: None (cylinder only)
SSD2-ML-12D-15-FP1-LBSwitch magnet: Yes | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 15 mm | Mounting: Axial foot
SSD2-ML-12D-15-FP1-CBSwitch magnet: Yes | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 15 mm | Mounting: Double clevis
SSD2-ML-12D-15-FP1-FASwitch magnet: Yes | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 15 mm | Mounting: Rod-side flange
SSD2-ML-12D-15-FP1-FBSwitch magnet: Yes | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 15 mm | Mounting: Head-side flange
SSD2-ML-12D-20-FP1Switch magnet: Yes | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 20 mm | Mounting: None (cylinder only)
SSD2-ML-12D-20-FP1-LBSwitch magnet: Yes | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 20 mm | Mounting: Axial foot
SSD2-ML-12D-20-FP1-CBSwitch magnet: Yes | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 20 mm | Mounting: Double clevis
SSD2-ML-12D-20-FP1-FASwitch magnet: Yes | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 20 mm | Mounting: Rod-side flange
SSD2-ML-12D-20-FP1-FBSwitch magnet: Yes | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 20 mm | Mounting: Head-side flange
SSD2-ML-12D-25-FP1Switch magnet: Yes | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 25 mm | Mounting: None (cylinder only)
SSD2-ML-12D-25-FP1-LBSwitch magnet: Yes | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 25 mm | Mounting: Axial foot
SSD2-ML-12D-25-FP1-CBSwitch magnet: Yes | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 25 mm | Mounting: Double clevis
SSD2-ML-12D-25-FP1-FASwitch magnet: Yes | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 25 mm | Mounting: Rod-side flange
SSD2-ML-12D-25-FP1-FBSwitch magnet: Yes | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 25 mm | Mounting: Head-side flange
SSD2-ML-12D-30-FP1Switch magnet: Yes | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 30 mm | Mounting: None (cylinder only)
SSD2-ML-12D-30-FP1-LBSwitch magnet: Yes | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 30 mm | Mounting: Axial foot
SSD2-ML-12D-30-FP1-CBSwitch magnet: Yes | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 30 mm | Mounting: Double clevis
SSD2-ML-12D-30-FP1-FASwitch magnet: Yes | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 30 mm | Mounting: Rod-side flange
SSD2-ML-12D-30-FP1-FBSwitch magnet: Yes | Bore: 12 mm | Cushion: Rubber (D) | Stroke: 30 mm | Mounting: Head-side flange
SSD2-ML-16-5-FP1Switch magnet: Yes | Bore: 16 mm | Cushion: None | Stroke: 5 mm | Mounting: None (cylinder only)
SSD2-ML-16-5-FP1-LBSwitch magnet: Yes | Bore: 16 mm | Cushion: None | Stroke: 5 mm | Mounting: Axial foot
SSD2-ML-16-5-FP1-CBSwitch magnet: Yes | Bore: 16 mm | Cushion: None | Stroke: 5 mm | Mounting: Double clevis
SSD2-ML-16-5-FP1-FASwitch magnet: Yes | Bore: 16 mm | Cushion: None | Stroke: 5 mm | Mounting: Rod-side flange
SSD2-ML-16-5-FP1-FBSwitch magnet: Yes | Bore: 16 mm | Cushion: None | Stroke: 5 mm | Mounting: Head-side flange
SSD2-ML-16-10-FP1Switch magnet: Yes | Bore: 16 mm | Cushion: None | Stroke: 10 mm | Mounting: None (cylinder only)
SSD2-ML-16-10-FP1-LBSwitch magnet: Yes | Bore: 16 mm | Cushion: None | Stroke: 10 mm | Mounting: Axial foot
SSD2-ML-16-10-FP1-CBSwitch magnet: Yes | Bore: 16 mm | Cushion: None | Stroke: 10 mm | Mounting: Double clevis
SSD2-ML-16-10-FP1-FASwitch magnet: Yes | Bore: 16 mm | Cushion: None | Stroke: 10 mm | Mounting: Rod-side flange
SSD2-ML-16-10-FP1-FBSwitch magnet: Yes | Bore: 16 mm | Cushion: None | Stroke: 10 mm | Mounting: Head-side flange
SSD2-ML-16-15-FP1Switch magnet: Yes | Bore: 16 mm | Cushion: None | Stroke: 15 mm | Mounting: None (cylinder only)
SSD2-ML-16-15-FP1-LBSwitch magnet: Yes | Bore: 16 mm | Cushion: None | Stroke: 15 mm | Mounting: Axial foot
SSD2-ML-16-15-FP1-CBSwitch magnet: Yes | Bore: 16 mm | Cushion: None | Stroke: 15 mm | Mounting: Double clevis
SSD2-ML-16-15-FP1-FASwitch magnet: Yes | Bore: 16 mm | Cushion: None | Stroke: 15 mm | Mounting: Rod-side flange
SSD2-ML-16-15-FP1-FBSwitch magnet: Yes | Bore: 16 mm | Cushion: None | Stroke: 15 mm | Mounting: Head-side flange
SSD2-ML-16-20-FP1Switch magnet: Yes | Bore: 16 mm | Cushion: None | Stroke: 20 mm | Mounting: None (cylinder only)
SSD2-ML-16-20-FP1-LBSwitch magnet: Yes | Bore: 16 mm | Cushion: None | Stroke: 20 mm | Mounting: Axial foot
SSD2-ML-16-20-FP1-CBSwitch magnet: Yes | Bore: 16 mm | Cushion: None | Stroke: 20 mm | Mounting: Double clevis
SSD2-ML-16-20-FP1-FASwitch magnet: Yes | Bore: 16 mm | Cushion: None | Stroke: 20 mm | Mounting: Rod-side flange
SSD2-ML-16-20-FP1-FBSwitch magnet: Yes | Bore: 16 mm | Cushion: None | Stroke: 20 mm | Mounting: Head-side flange
SSD2-ML-16-25-FP1Switch magnet: Yes | Bore: 16 mm | Cushion: None | Stroke: 25 mm | Mounting: None (cylinder only)
SSD2-ML-16-25-FP1-LBSwitch magnet: Yes | Bore: 16 mm | Cushion: None | Stroke: 25 mm | Mounting: Axial foot
SSD2-ML-16-25-FP1-CBSwitch magnet: Yes | Bore: 16 mm | Cushion: None | Stroke: 25 mm | Mounting: Double clevis
SSD2-ML-16-25-FP1-FASwitch magnet: Yes | Bore: 16 mm | Cushion: None | Stroke: 25 mm | Mounting: Rod-side flange
SSD2-ML-16-25-FP1-FBSwitch magnet: Yes | Bore: 16 mm | Cushion: None | Stroke: 25 mm | Mounting: Head-side flange
SSD2-ML-16-30-FP1Switch magnet: Yes | Bore: 16 mm | Cushion: None | Stroke: 30 mm | Mounting: None (cylinder only)
SSD2-ML-16-30-FP1-LBSwitch magnet: Yes | Bore: 16 mm | Cushion: None | Stroke: 30 mm | Mounting: Axial foot
SSD2-ML-16-30-FP1-CBSwitch magnet: Yes | Bore: 16 mm | Cushion: None | Stroke: 30 mm | Mounting: Double clevis
SSD2-ML-16-30-FP1-FASwitch magnet: Yes | Bore: 16 mm | Cushion: None | Stroke: 30 mm | Mounting: Rod-side flange
SSD2-ML-16-30-FP1-FBSwitch magnet: Yes | Bore: 16 mm | Cushion: None | Stroke: 30 mm | Mounting: Head-side flange
SSD2-ML-16D-5-FP1Switch magnet: Yes | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 5 mm | Mounting: None (cylinder only)
SSD2-ML-16D-5-FP1-LBSwitch magnet: Yes | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 5 mm | Mounting: Axial foot
SSD2-ML-16D-5-FP1-CBSwitch magnet: Yes | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 5 mm | Mounting: Double clevis
SSD2-ML-16D-5-FP1-FASwitch magnet: Yes | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 5 mm | Mounting: Rod-side flange
SSD2-ML-16D-5-FP1-FBSwitch magnet: Yes | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 5 mm | Mounting: Head-side flange
SSD2-ML-16D-10-FP1Switch magnet: Yes | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 10 mm | Mounting: None (cylinder only)
SSD2-ML-16D-10-FP1-LBSwitch magnet: Yes | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 10 mm | Mounting: Axial foot
SSD2-ML-16D-10-FP1-CBSwitch magnet: Yes | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 10 mm | Mounting: Double clevis
SSD2-ML-16D-10-FP1-FASwitch magnet: Yes | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 10 mm | Mounting: Rod-side flange
SSD2-ML-16D-10-FP1-FBSwitch magnet: Yes | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 10 mm | Mounting: Head-side flange
SSD2-ML-16D-15-FP1Switch magnet: Yes | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 15 mm | Mounting: None (cylinder only)
SSD2-ML-16D-15-FP1-LBSwitch magnet: Yes | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 15 mm | Mounting: Axial foot
SSD2-ML-16D-15-FP1-CBSwitch magnet: Yes | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 15 mm | Mounting: Double clevis
SSD2-ML-16D-15-FP1-FASwitch magnet: Yes | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 15 mm | Mounting: Rod-side flange
SSD2-ML-16D-15-FP1-FBSwitch magnet: Yes | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 15 mm | Mounting: Head-side flange
SSD2-ML-16D-20-FP1Switch magnet: Yes | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 20 mm | Mounting: None (cylinder only)
SSD2-ML-16D-20-FP1-LBSwitch magnet: Yes | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 20 mm | Mounting: Axial foot
SSD2-ML-16D-20-FP1-CBSwitch magnet: Yes | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 20 mm | Mounting: Double clevis
SSD2-ML-16D-20-FP1-FASwitch magnet: Yes | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 20 mm | Mounting: Rod-side flange
SSD2-ML-16D-20-FP1-FBSwitch magnet: Yes | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 20 mm | Mounting: Head-side flange
SSD2-ML-16D-25-FP1Switch magnet: Yes | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 25 mm | Mounting: None (cylinder only)
SSD2-ML-16D-25-FP1-LBSwitch magnet: Yes | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 25 mm | Mounting: Axial foot
SSD2-ML-16D-25-FP1-CBSwitch magnet: Yes | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 25 mm | Mounting: Double clevis
SSD2-ML-16D-25-FP1-FASwitch magnet: Yes | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 25 mm | Mounting: Rod-side flange
SSD2-ML-16D-25-FP1-FBSwitch magnet: Yes | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 25 mm | Mounting: Head-side flange
SSD2-ML-16D-30-FP1Switch magnet: Yes | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 30 mm | Mounting: None (cylinder only)
SSD2-ML-16D-30-FP1-LBSwitch magnet: Yes | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 30 mm | Mounting: Axial foot
SSD2-ML-16D-30-FP1-CBSwitch magnet: Yes | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 30 mm | Mounting: Double clevis
SSD2-ML-16D-30-FP1-FASwitch magnet: Yes | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 30 mm | Mounting: Rod-side flange
SSD2-ML-16D-30-FP1-FBSwitch magnet: Yes | Bore: 16 mm | Cushion: Rubber (D) | Stroke: 30 mm | Mounting: Head-side flange
SSD2-ML-20-5-FP1Switch magnet: Yes | Bore: 20 mm | Cushion: None | Stroke: 5 mm | Mounting: None (cylinder only)
SSD2-ML-20-5-FP1-LBSwitch magnet: Yes | Bore: 20 mm | Cushion: None | Stroke: 5 mm | Mounting: Axial foot
SSD2-ML-20-5-FP1-CBSwitch magnet: Yes | Bore: 20 mm | Cushion: None | Stroke: 5 mm | Mounting: Double clevis
SSD2-ML-20-5-FP1-FASwitch magnet: Yes | Bore: 20 mm | Cushion: None | Stroke: 5 mm | Mounting: Rod-side flange
SSD2-ML-20-5-FP1-FBSwitch magnet: Yes | Bore: 20 mm | Cushion: None | Stroke: 5 mm | Mounting: Head-side flange
SSD2-ML-20-10-FP1Switch magnet: Yes | Bore: 20 mm | Cushion: None | Stroke: 10 mm | Mounting: None (cylinder only)
SSD2-ML-20-10-FP1-LBSwitch magnet: Yes | Bore: 20 mm | Cushion: None | Stroke: 10 mm | Mounting: Axial foot
SSD2-ML-20-10-FP1-CBSwitch magnet: Yes | Bore: 20 mm | Cushion: None | Stroke: 10 mm | Mounting: Double clevis
SSD2-ML-20-10-FP1-FASwitch magnet: Yes | Bore: 20 mm | Cushion: None | Stroke: 10 mm | Mounting: Rod-side flange
SSD2-ML-20-10-FP1-FBSwitch magnet: Yes | Bore: 20 mm | Cushion: None | Stroke: 10 mm | Mounting: Head-side flange
SSD2-ML-20-15-FP1Switch magnet: Yes | Bore: 20 mm | Cushion: None | Stroke: 15 mm | Mounting: None (cylinder only)
SSD2-ML-20-15-FP1-LBSwitch magnet: Yes | Bore: 20 mm | Cushion: None | Stroke: 15 mm | Mounting: Axial foot
SSD2-ML-20-15-FP1-CBSwitch magnet: Yes | Bore: 20 mm | Cushion: None | Stroke: 15 mm | Mounting: Double clevis
SSD2-ML-20-15-FP1-FASwitch magnet: Yes | Bore: 20 mm | Cushion: None | Stroke: 15 mm | Mounting: Rod-side flange
SSD2-ML-20-15-FP1-FBSwitch magnet: Yes | Bore: 20 mm | Cushion: None | Stroke: 15 mm | Mounting: Head-side flange
SSD2-ML-20-20-FP1Switch magnet: Yes | Bore: 20 mm | Cushion: None | Stroke: 20 mm | Mounting: None (cylinder only)
SSD2-ML-20-20-FP1-LBSwitch magnet: Yes | Bore: 20 mm | Cushion: None | Stroke: 20 mm | Mounting: Axial foot
SSD2-ML-20-20-FP1-CBSwitch magnet: Yes | Bore: 20 mm | Cushion: None | Stroke: 20 mm | Mounting: Double clevis
SSD2-ML-20-20-FP1-FASwitch magnet: Yes | Bore: 20 mm | Cushion: None | Stroke: 20 mm | Mounting: Rod-side flange
SSD2-ML-20-20-FP1-FBSwitch magnet: Yes | Bore: 20 mm | Cushion: None | Stroke: 20 mm | Mounting: Head-side flange
SSD2-ML-20-25-FP1Switch magnet: Yes | Bore: 20 mm | Cushion: None | Stroke: 25 mm | Mounting: None (cylinder only)
SSD2-ML-20-25-FP1-LBSwitch magnet: Yes | Bore: 20 mm | Cushion: None | Stroke: 25 mm | Mounting: Axial foot
SSD2-ML-20-25-FP1-CBSwitch magnet: Yes | Bore: 20 mm | Cushion: None | Stroke: 25 mm | Mounting: Double clevis
SSD2-ML-20-25-FP1-FASwitch magnet: Yes | Bore: 20 mm | Cushion: None | Stroke: 25 mm | Mounting: Rod-side flange
SSD2-ML-20-25-FP1-FBSwitch magnet: Yes | Bore: 20 mm | Cushion: None | Stroke: 25 mm | Mounting: Head-side flange
SSD2-ML-20-30-FP1Switch magnet: Yes | Bore: 20 mm | Cushion: None | Stroke: 30 mm | Mounting: None (cylinder only)
SSD2-ML-20-30-FP1-LBSwitch magnet: Yes | Bore: 20 mm | Cushion: None | Stroke: 30 mm | Mounting: Axial foot
SSD2-ML-20-30-FP1-CBSwitch magnet: Yes | Bore: 20 mm | Cushion: None | Stroke: 30 mm | Mounting: Double clevis
SSD2-ML-20-30-FP1-FASwitch magnet: Yes | Bore: 20 mm | Cushion: None | Stroke: 30 mm | Mounting: Rod-side flange
SSD2-ML-20-30-FP1-FBSwitch magnet: Yes | Bore: 20 mm | Cushion: None | Stroke: 30 mm | Mounting: Head-side flange
SSD2-ML-20-35-FP1Switch magnet: Yes | Bore: 20 mm | Cushion: None | Stroke: 35 mm | Mounting: None (cylinder only)
SSD2-ML-20-35-FP1-LBSwitch magnet: Yes | Bore: 20 mm | Cushion: None | Stroke: 35 mm | Mounting: Axial foot
SSD2-ML-20-35-FP1-CBSwitch magnet: Yes | Bore: 20 mm | Cushion: None | Stroke: 35 mm | Mounting: Double clevis
SSD2-ML-20-35-FP1-FASwitch magnet: Yes | Bore: 20 mm | Cushion: None | Stroke: 35 mm | Mounting: Rod-side flange
SSD2-ML-20-35-FP1-FBSwitch magnet: Yes | Bore: 20 mm | Cushion: None | Stroke: 35 mm | Mounting: Head-side flange
SSD2-ML-20-40-FP1Switch magnet: Yes | Bore: 20 mm | Cushion: None | Stroke: 40 mm | Mounting: None (cylinder only)
SSD2-ML-20-40-FP1-LBSwitch magnet: Yes | Bore: 20 mm | Cushion: None | Stroke: 40 mm | Mounting: Axial foot
SSD2-ML-20-40-FP1-CBSwitch magnet: Yes | Bore: 20 mm | Cushion: None | Stroke: 40 mm | Mounting: Double clevis
SSD2-ML-20-40-FP1-FASwitch magnet: Yes | Bore: 20 mm | Cushion: None | Stroke: 40 mm | Mounting: Rod-side flange
SSD2-ML-20-40-FP1-FBSwitch magnet: Yes | Bore: 20 mm | Cushion: None | Stroke: 40 mm | Mounting: Head-side flange
SSD2-ML-20-45-FP1Switch magnet: Yes | Bore: 20 mm | Cushion: None | Stroke: 45 mm | Mounting: None (cylinder only)
SSD2-ML-20-45-FP1-LBSwitch magnet: Yes | Bore: 20 mm | Cushion: None | Stroke: 45 mm | Mounting: Axial foot
SSD2-ML-20-45-FP1-CBSwitch magnet: Yes | Bore: 20 mm | Cushion: None | Stroke: 45 mm | Mounting: Double clevis
SSD2-ML-20-45-FP1-FASwitch magnet: Yes | Bore: 20 mm | Cushion: None | Stroke: 45 mm | Mounting: Rod-side flange
SSD2-ML-20-45-FP1-FBSwitch magnet: Yes | Bore: 20 mm | Cushion: None | Stroke: 45 mm | Mounting: Head-side flange
SSD2-ML-20-50-FP1Switch magnet: Yes | Bore: 20 mm | Cushion: None | Stroke: 50 mm | Mounting: None (cylinder only)
SSD2-ML-20-50-FP1-LBSwitch magnet: Yes | Bore: 20 mm | Cushion: None | Stroke: 50 mm | Mounting: Axial foot
SSD2-ML-20-50-FP1-CBSwitch magnet: Yes | Bore: 20 mm | Cushion: None | Stroke: 50 mm | Mounting: Double clevis
SSD2-ML-20-50-FP1-FASwitch magnet: Yes | Bore: 20 mm | Cushion: None | Stroke: 50 mm | Mounting: Rod-side flange
SSD2-ML-20-50-FP1-FBSwitch magnet: Yes | Bore: 20 mm | Cushion: None | Stroke: 50 mm | Mounting: Head-side flange
SSD2-ML-20D-5-FP1Switch magnet: Yes | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 5 mm | Mounting: None (cylinder only)
SSD2-ML-20D-5-FP1-LBSwitch magnet: Yes | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 5 mm | Mounting: Axial foot
SSD2-ML-20D-5-FP1-CBSwitch magnet: Yes | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 5 mm | Mounting: Double clevis
SSD2-ML-20D-5-FP1-FASwitch magnet: Yes | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 5 mm | Mounting: Rod-side flange
SSD2-ML-20D-5-FP1-FBSwitch magnet: Yes | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 5 mm | Mounting: Head-side flange
SSD2-ML-20D-10-FP1Switch magnet: Yes | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 10 mm | Mounting: None (cylinder only)
SSD2-ML-20D-10-FP1-LBSwitch magnet: Yes | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 10 mm | Mounting: Axial foot
SSD2-ML-20D-10-FP1-CBSwitch magnet: Yes | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 10 mm | Mounting: Double clevis
SSD2-ML-20D-10-FP1-FASwitch magnet: Yes | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 10 mm | Mounting: Rod-side flange
SSD2-ML-20D-10-FP1-FBSwitch magnet: Yes | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 10 mm | Mounting: Head-side flange
SSD2-ML-20D-15-FP1Switch magnet: Yes | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 15 mm | Mounting: None (cylinder only)
SSD2-ML-20D-15-FP1-LBSwitch magnet: Yes | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 15 mm | Mounting: Axial foot
SSD2-ML-20D-15-FP1-CBSwitch magnet: Yes | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 15 mm | Mounting: Double clevis
SSD2-ML-20D-15-FP1-FASwitch magnet: Yes | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 15 mm | Mounting: Rod-side flange
SSD2-ML-20D-15-FP1-FBSwitch magnet: Yes | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 15 mm | Mounting: Head-side flange
SSD2-ML-20D-20-FP1Switch magnet: Yes | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 20 mm | Mounting: None (cylinder only)
SSD2-ML-20D-20-FP1-LBSwitch magnet: Yes | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 20 mm | Mounting: Axial foot
SSD2-ML-20D-20-FP1-CBSwitch magnet: Yes | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 20 mm | Mounting: Double clevis
SSD2-ML-20D-20-FP1-FASwitch magnet: Yes | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 20 mm | Mounting: Rod-side flange
SSD2-ML-20D-20-FP1-FBSwitch magnet: Yes | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 20 mm | Mounting: Head-side flange
SSD2-ML-20D-25-FP1Switch magnet: Yes | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 25 mm | Mounting: None (cylinder only)
SSD2-ML-20D-25-FP1-LBSwitch magnet: Yes | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 25 mm | Mounting: Axial foot
SSD2-ML-20D-25-FP1-CBSwitch magnet: Yes | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 25 mm | Mounting: Double clevis
SSD2-ML-20D-25-FP1-FASwitch magnet: Yes | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 25 mm | Mounting: Rod-side flange
SSD2-ML-20D-25-FP1-FBSwitch magnet: Yes | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 25 mm | Mounting: Head-side flange
SSD2-ML-20D-30-FP1Switch magnet: Yes | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 30 mm | Mounting: None (cylinder only)
SSD2-ML-20D-30-FP1-LBSwitch magnet: Yes | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 30 mm | Mounting: Axial foot
SSD2-ML-20D-30-FP1-CBSwitch magnet: Yes | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 30 mm | Mounting: Double clevis
SSD2-ML-20D-30-FP1-FASwitch magnet: Yes | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 30 mm | Mounting: Rod-side flange
SSD2-ML-20D-30-FP1-FBSwitch magnet: Yes | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 30 mm | Mounting: Head-side flange
SSD2-ML-20D-35-FP1Switch magnet: Yes | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 35 mm | Mounting: None (cylinder only)
SSD2-ML-20D-35-FP1-LBSwitch magnet: Yes | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 35 mm | Mounting: Axial foot
SSD2-ML-20D-35-FP1-CBSwitch magnet: Yes | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 35 mm | Mounting: Double clevis
SSD2-ML-20D-35-FP1-FASwitch magnet: Yes | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 35 mm | Mounting: Rod-side flange
SSD2-ML-20D-35-FP1-FBSwitch magnet: Yes | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 35 mm | Mounting: Head-side flange
SSD2-ML-20D-40-FP1Switch magnet: Yes | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 40 mm | Mounting: None (cylinder only)
SSD2-ML-20D-40-FP1-LBSwitch magnet: Yes | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 40 mm | Mounting: Axial foot
SSD2-ML-20D-40-FP1-CBSwitch magnet: Yes | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 40 mm | Mounting: Double clevis
SSD2-ML-20D-40-FP1-FASwitch magnet: Yes | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 40 mm | Mounting: Rod-side flange
SSD2-ML-20D-40-FP1-FBSwitch magnet: Yes | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 40 mm | Mounting: Head-side flange
SSD2-ML-20D-45-FP1Switch magnet: Yes | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 45 mm | Mounting: None (cylinder only)
SSD2-ML-20D-45-FP1-LBSwitch magnet: Yes | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 45 mm | Mounting: Axial foot
SSD2-ML-20D-45-FP1-CBSwitch magnet: Yes | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 45 mm | Mounting: Double clevis
SSD2-ML-20D-45-FP1-FASwitch magnet: Yes | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 45 mm | Mounting: Rod-side flange
SSD2-ML-20D-45-FP1-FBSwitch magnet: Yes | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 45 mm | Mounting: Head-side flange
SSD2-ML-20D-50-FP1Switch magnet: Yes | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 50 mm | Mounting: None (cylinder only)
SSD2-ML-20D-50-FP1-LBSwitch magnet: Yes | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 50 mm | Mounting: Axial foot
SSD2-ML-20D-50-FP1-CBSwitch magnet: Yes | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 50 mm | Mounting: Double clevis
SSD2-ML-20D-50-FP1-FASwitch magnet: Yes | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 50 mm | Mounting: Rod-side flange
SSD2-ML-20D-50-FP1-FBSwitch magnet: Yes | Bore: 20 mm | Cushion: Rubber (D) | Stroke: 50 mm | Mounting: Head-side flange
SSD2-ML-25-5-FP1Switch magnet: Yes | Bore: 25 mm | Cushion: None | Stroke: 5 mm | Mounting: None (cylinder only)
SSD2-ML-25-5-FP1-LBSwitch magnet: Yes | Bore: 25 mm | Cushion: None | Stroke: 5 mm | Mounting: Axial foot
SSD2-ML-25-5-FP1-CBSwitch magnet: Yes | Bore: 25 mm | Cushion: None | Stroke: 5 mm | Mounting: Double clevis
SSD2-ML-25-5-FP1-FASwitch magnet: Yes | Bore: 25 mm | Cushion: None | Stroke: 5 mm | Mounting: Rod-side flange
SSD2-ML-25-5-FP1-FBSwitch magnet: Yes | Bore: 25 mm | Cushion: None | Stroke: 5 mm | Mounting: Head-side flange
SSD2-ML-25-10-FP1Switch magnet: Yes | Bore: 25 mm | Cushion: None | Stroke: 10 mm | Mounting: None (cylinder only)
SSD2-ML-25-10-FP1-LBSwitch magnet: Yes | Bore: 25 mm | Cushion: None | Stroke: 10 mm | Mounting: Axial foot
SSD2-ML-25-10-FP1-CBSwitch magnet: Yes | Bore: 25 mm | Cushion: None | Stroke: 10 mm | Mounting: Double clevis
SSD2-ML-25-10-FP1-FASwitch magnet: Yes | Bore: 25 mm | Cushion: None | Stroke: 10 mm | Mounting: Rod-side flange
SSD2-ML-25-10-FP1-FBSwitch magnet: Yes | Bore: 25 mm | Cushion: None | Stroke: 10 mm | Mounting: Head-side flange
SSD2-ML-25-15-FP1Switch magnet: Yes | Bore: 25 mm | Cushion: None | Stroke: 15 mm | Mounting: None (cylinder only)
SSD2-ML-25-15-FP1-LBSwitch magnet: Yes | Bore: 25 mm | Cushion: None | Stroke: 15 mm | Mounting: Axial foot
SSD2-ML-25-15-FP1-CBSwitch magnet: Yes | Bore: 25 mm | Cushion: None | Stroke: 15 mm | Mounting: Double clevis
SSD2-ML-25-15-FP1-FASwitch magnet: Yes | Bore: 25 mm | Cushion: None | Stroke: 15 mm | Mounting: Rod-side flange
SSD2-ML-25-15-FP1-FBSwitch magnet: Yes | Bore: 25 mm | Cushion: None | Stroke: 15 mm | Mounting: Head-side flange
SSD2-ML-25-20-FP1Switch magnet: Yes | Bore: 25 mm | Cushion: None | Stroke: 20 mm | Mounting: None (cylinder only)
SSD2-ML-25-20-FP1-LBSwitch magnet: Yes | Bore: 25 mm | Cushion: None | Stroke: 20 mm | Mounting: Axial foot
SSD2-ML-25-20-FP1-CBSwitch magnet: Yes | Bore: 25 mm | Cushion: None | Stroke: 20 mm | Mounting: Double clevis
SSD2-ML-25-20-FP1-FASwitch magnet: Yes | Bore: 25 mm | Cushion: None | Stroke: 20 mm | Mounting: Rod-side flange
SSD2-ML-25-20-FP1-FBSwitch magnet: Yes | Bore: 25 mm | Cushion: None | Stroke: 20 mm | Mounting: Head-side flange
SSD2-ML-25-25-FP1Switch magnet: Yes | Bore: 25 mm | Cushion: None | Stroke: 25 mm | Mounting: None (cylinder only)
SSD2-ML-25-25-FP1-LBSwitch magnet: Yes | Bore: 25 mm | Cushion: None | Stroke: 25 mm | Mounting: Axial foot
SSD2-ML-25-25-FP1-CBSwitch magnet: Yes | Bore: 25 mm | Cushion: None | Stroke: 25 mm | Mounting: Double clevis
SSD2-ML-25-25-FP1-FASwitch magnet: Yes | Bore: 25 mm | Cushion: None | Stroke: 25 mm | Mounting: Rod-side flange
SSD2-ML-25-25-FP1-FBSwitch magnet: Yes | Bore: 25 mm | Cushion: None | Stroke: 25 mm | Mounting: Head-side flange
SSD2-ML-25-30-FP1Switch magnet: Yes | Bore: 25 mm | Cushion: None | Stroke: 30 mm | Mounting: None (cylinder only)
SSD2-ML-25-30-FP1-LBSwitch magnet: Yes | Bore: 25 mm | Cushion: None | Stroke: 30 mm | Mounting: Axial foot
SSD2-ML-25-30-FP1-CBSwitch magnet: Yes | Bore: 25 mm | Cushion: None | Stroke: 30 mm | Mounting: Double clevis
SSD2-ML-25-30-FP1-FASwitch magnet: Yes | Bore: 25 mm | Cushion: None | Stroke: 30 mm | Mounting: Rod-side flange
SSD2-ML-25-30-FP1-FBSwitch magnet: Yes | Bore: 25 mm | Cushion: None | Stroke: 30 mm | Mounting: Head-side flange
SSD2-ML-25-35-FP1Switch magnet: Yes | Bore: 25 mm | Cushion: None | Stroke: 35 mm | Mounting: None (cylinder only)
SSD2-ML-25-35-FP1-LBSwitch magnet: Yes | Bore: 25 mm | Cushion: None | Stroke: 35 mm | Mounting: Axial foot
SSD2-ML-25-35-FP1-CBSwitch magnet: Yes | Bore: 25 mm | Cushion: None | Stroke: 35 mm | Mounting: Double clevis
SSD2-ML-25-35-FP1-FASwitch magnet: Yes | Bore: 25 mm | Cushion: None | Stroke: 35 mm | Mounting: Rod-side flange
SSD2-ML-25-35-FP1-FBSwitch magnet: Yes | Bore: 25 mm | Cushion: None | Stroke: 35 mm | Mounting: Head-side flange
SSD2-ML-25-40-FP1Switch magnet: Yes | Bore: 25 mm | Cushion: None | Stroke: 40 mm | Mounting: None (cylinder only)
SSD2-ML-25-40-FP1-LBSwitch magnet: Yes | Bore: 25 mm | Cushion: None | Stroke: 40 mm | Mounting: Axial foot
SSD2-ML-25-40-FP1-CBSwitch magnet: Yes | Bore: 25 mm | Cushion: None | Stroke: 40 mm | Mounting: Double clevis
SSD2-ML-25-40-FP1-FASwitch magnet: Yes | Bore: 25 mm | Cushion: None | Stroke: 40 mm | Mounting: Rod-side flange
SSD2-ML-25-40-FP1-FBSwitch magnet: Yes | Bore: 25 mm | Cushion: None | Stroke: 40 mm | Mounting: Head-side flange
SSD2-ML-25-45-FP1Switch magnet: Yes | Bore: 25 mm | Cushion: None | Stroke: 45 mm | Mounting: None (cylinder only)
SSD2-ML-25-45-FP1-LBSwitch magnet: Yes | Bore: 25 mm | Cushion: None | Stroke: 45 mm | Mounting: Axial foot
SSD2-ML-25-45-FP1-CBSwitch magnet: Yes | Bore: 25 mm | Cushion: None | Stroke: 45 mm | Mounting: Double clevis
SSD2-ML-25-45-FP1-FASwitch magnet: Yes | Bore: 25 mm | Cushion: None | Stroke: 45 mm | Mounting: Rod-side flange
SSD2-ML-25-45-FP1-FBSwitch magnet: Yes | Bore: 25 mm | Cushion: None | Stroke: 45 mm | Mounting: Head-side flange
SSD2-ML-25-50-FP1Switch magnet: Yes | Bore: 25 mm | Cushion: None | Stroke: 50 mm | Mounting: None (cylinder only)
SSD2-ML-25-50-FP1-LBSwitch magnet: Yes | Bore: 25 mm | Cushion: None | Stroke: 50 mm | Mounting: Axial foot
SSD2-ML-25-50-FP1-CBSwitch magnet: Yes | Bore: 25 mm | Cushion: None | Stroke: 50 mm | Mounting: Double clevis
SSD2-ML-25-50-FP1-FASwitch magnet: Yes | Bore: 25 mm | Cushion: None | Stroke: 50 mm | Mounting: Rod-side flange
SSD2-ML-25-50-FP1-FBSwitch magnet: Yes | Bore: 25 mm | Cushion: None | Stroke: 50 mm | Mounting: Head-side flange
SSD2-ML-25D-5-FP1Switch magnet: Yes | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 5 mm | Mounting: None (cylinder only)
SSD2-ML-25D-5-FP1-LBSwitch magnet: Yes | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 5 mm | Mounting: Axial foot
SSD2-ML-25D-5-FP1-CBSwitch magnet: Yes | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 5 mm | Mounting: Double clevis
SSD2-ML-25D-5-FP1-FASwitch magnet: Yes | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 5 mm | Mounting: Rod-side flange
SSD2-ML-25D-5-FP1-FBSwitch magnet: Yes | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 5 mm | Mounting: Head-side flange
SSD2-ML-25D-10-FP1Switch magnet: Yes | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 10 mm | Mounting: None (cylinder only)
SSD2-ML-25D-10-FP1-LBSwitch magnet: Yes | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 10 mm | Mounting: Axial foot
SSD2-ML-25D-10-FP1-CBSwitch magnet: Yes | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 10 mm | Mounting: Double clevis
SSD2-ML-25D-10-FP1-FASwitch magnet: Yes | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 10 mm | Mounting: Rod-side flange
SSD2-ML-25D-10-FP1-FBSwitch magnet: Yes | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 10 mm | Mounting: Head-side flange
SSD2-ML-25D-15-FP1Switch magnet: Yes | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 15 mm | Mounting: None (cylinder only)
SSD2-ML-25D-15-FP1-LBSwitch magnet: Yes | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 15 mm | Mounting: Axial foot
SSD2-ML-25D-15-FP1-CBSwitch magnet: Yes | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 15 mm | Mounting: Double clevis
SSD2-ML-25D-15-FP1-FASwitch magnet: Yes | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 15 mm | Mounting: Rod-side flange
SSD2-ML-25D-15-FP1-FBSwitch magnet: Yes | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 15 mm | Mounting: Head-side flange
SSD2-ML-25D-20-FP1Switch magnet: Yes | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 20 mm | Mounting: None (cylinder only)
SSD2-ML-25D-20-FP1-LBSwitch magnet: Yes | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 20 mm | Mounting: Axial foot
SSD2-ML-25D-20-FP1-CBSwitch magnet: Yes | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 20 mm | Mounting: Double clevis
SSD2-ML-25D-20-FP1-FASwitch magnet: Yes | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 20 mm | Mounting: Rod-side flange
SSD2-ML-25D-20-FP1-FBSwitch magnet: Yes | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 20 mm | Mounting: Head-side flange
SSD2-ML-25D-25-FP1Switch magnet: Yes | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 25 mm | Mounting: None (cylinder only)
SSD2-ML-25D-25-FP1-LBSwitch magnet: Yes | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 25 mm | Mounting: Axial foot
SSD2-ML-25D-25-FP1-CBSwitch magnet: Yes | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 25 mm | Mounting: Double clevis
SSD2-ML-25D-25-FP1-FASwitch magnet: Yes | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 25 mm | Mounting: Rod-side flange
SSD2-ML-25D-25-FP1-FBSwitch magnet: Yes | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 25 mm | Mounting: Head-side flange
SSD2-ML-25D-30-FP1Switch magnet: Yes | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 30 mm | Mounting: None (cylinder only)
SSD2-ML-25D-30-FP1-LBSwitch magnet: Yes | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 30 mm | Mounting: Axial foot
SSD2-ML-25D-30-FP1-CBSwitch magnet: Yes | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 30 mm | Mounting: Double clevis
SSD2-ML-25D-30-FP1-FASwitch magnet: Yes | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 30 mm | Mounting: Rod-side flange
SSD2-ML-25D-30-FP1-FBSwitch magnet: Yes | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 30 mm | Mounting: Head-side flange
SSD2-ML-25D-35-FP1Switch magnet: Yes | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 35 mm | Mounting: None (cylinder only)
SSD2-ML-25D-35-FP1-LBSwitch magnet: Yes | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 35 mm | Mounting: Axial foot
SSD2-ML-25D-35-FP1-CBSwitch magnet: Yes | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 35 mm | Mounting: Double clevis
SSD2-ML-25D-35-FP1-FASwitch magnet: Yes | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 35 mm | Mounting: Rod-side flange
SSD2-ML-25D-35-FP1-FBSwitch magnet: Yes | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 35 mm | Mounting: Head-side flange
SSD2-ML-25D-40-FP1Switch magnet: Yes | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 40 mm | Mounting: None (cylinder only)
SSD2-ML-25D-40-FP1-LBSwitch magnet: Yes | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 40 mm | Mounting: Axial foot
SSD2-ML-25D-40-FP1-CBSwitch magnet: Yes | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 40 mm | Mounting: Double clevis
SSD2-ML-25D-40-FP1-FASwitch magnet: Yes | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 40 mm | Mounting: Rod-side flange
SSD2-ML-25D-40-FP1-FBSwitch magnet: Yes | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 40 mm | Mounting: Head-side flange
SSD2-ML-25D-45-FP1Switch magnet: Yes | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 45 mm | Mounting: None (cylinder only)
SSD2-ML-25D-45-FP1-LBSwitch magnet: Yes | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 45 mm | Mounting: Axial foot
SSD2-ML-25D-45-FP1-CBSwitch magnet: Yes | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 45 mm | Mounting: Double clevis
SSD2-ML-25D-45-FP1-FASwitch magnet: Yes | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 45 mm | Mounting: Rod-side flange
SSD2-ML-25D-45-FP1-FBSwitch magnet: Yes | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 45 mm | Mounting: Head-side flange
SSD2-ML-25D-50-FP1Switch magnet: Yes | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 50 mm | Mounting: None (cylinder only)
SSD2-ML-25D-50-FP1-LBSwitch magnet: Yes | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 50 mm | Mounting: Axial foot
SSD2-ML-25D-50-FP1-CBSwitch magnet: Yes | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 50 mm | Mounting: Double clevis
SSD2-ML-25D-50-FP1-FASwitch magnet: Yes | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 50 mm | Mounting: Rod-side flange
SSD2-ML-25D-50-FP1-FBSwitch magnet: Yes | Bore: 25 mm | Cushion: Rubber (D) | Stroke: 50 mm | Mounting: Head-side flange
SSD2-ML-32-5-FP1Switch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 5 mm | Mounting: None (cylinder only)
SSD2-ML-32-5-FP1-LBSwitch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 5 mm | Mounting: Axial foot
SSD2-ML-32-5-FP1-CBSwitch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 5 mm | Mounting: Double clevis
SSD2-ML-32-5-FP1-FASwitch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 5 mm | Mounting: Rod-side flange
SSD2-ML-32-5-FP1-FBSwitch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 5 mm | Mounting: Head-side flange
SSD2-ML-32-10-FP1Switch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 10 mm | Mounting: None (cylinder only)
SSD2-ML-32-10-FP1-LBSwitch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 10 mm | Mounting: Axial foot
SSD2-ML-32-10-FP1-CBSwitch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 10 mm | Mounting: Double clevis
SSD2-ML-32-10-FP1-FASwitch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 10 mm | Mounting: Rod-side flange
SSD2-ML-32-10-FP1-FBSwitch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 10 mm | Mounting: Head-side flange
SSD2-ML-32-15-FP1Switch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 15 mm | Mounting: None (cylinder only)
SSD2-ML-32-15-FP1-LBSwitch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 15 mm | Mounting: Axial foot
SSD2-ML-32-15-FP1-CBSwitch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 15 mm | Mounting: Double clevis
SSD2-ML-32-15-FP1-FASwitch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 15 mm | Mounting: Rod-side flange
SSD2-ML-32-15-FP1-FBSwitch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 15 mm | Mounting: Head-side flange
SSD2-ML-32-20-FP1Switch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 20 mm | Mounting: None (cylinder only)
SSD2-ML-32-20-FP1-LBSwitch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 20 mm | Mounting: Axial foot
SSD2-ML-32-20-FP1-CBSwitch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 20 mm | Mounting: Double clevis
SSD2-ML-32-20-FP1-FASwitch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 20 mm | Mounting: Rod-side flange
SSD2-ML-32-20-FP1-FBSwitch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 20 mm | Mounting: Head-side flange
SSD2-ML-32-25-FP1Switch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 25 mm | Mounting: None (cylinder only)
SSD2-ML-32-25-FP1-LBSwitch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 25 mm | Mounting: Axial foot
SSD2-ML-32-25-FP1-CBSwitch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 25 mm | Mounting: Double clevis
SSD2-ML-32-25-FP1-FASwitch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 25 mm | Mounting: Rod-side flange
SSD2-ML-32-25-FP1-FBSwitch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 25 mm | Mounting: Head-side flange
SSD2-ML-32-30-FP1Switch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 30 mm | Mounting: None (cylinder only)
SSD2-ML-32-30-FP1-LBSwitch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 30 mm | Mounting: Axial foot
SSD2-ML-32-30-FP1-CBSwitch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 30 mm | Mounting: Double clevis
SSD2-ML-32-30-FP1-FASwitch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 30 mm | Mounting: Rod-side flange
SSD2-ML-32-30-FP1-FBSwitch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 30 mm | Mounting: Head-side flange
SSD2-ML-32-35-FP1Switch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 35 mm | Mounting: None (cylinder only)
SSD2-ML-32-35-FP1-LBSwitch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 35 mm | Mounting: Axial foot
SSD2-ML-32-35-FP1-CBSwitch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 35 mm | Mounting: Double clevis
SSD2-ML-32-35-FP1-FASwitch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 35 mm | Mounting: Rod-side flange
SSD2-ML-32-35-FP1-FBSwitch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 35 mm | Mounting: Head-side flange
SSD2-ML-32-40-FP1Switch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 40 mm | Mounting: None (cylinder only)
SSD2-ML-32-40-FP1-LBSwitch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 40 mm | Mounting: Axial foot
SSD2-ML-32-40-FP1-CBSwitch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 40 mm | Mounting: Double clevis
SSD2-ML-32-40-FP1-FASwitch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 40 mm | Mounting: Rod-side flange
SSD2-ML-32-40-FP1-FBSwitch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 40 mm | Mounting: Head-side flange
SSD2-ML-32-45-FP1Switch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 45 mm | Mounting: None (cylinder only)
SSD2-ML-32-45-FP1-LBSwitch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 45 mm | Mounting: Axial foot
SSD2-ML-32-45-FP1-CBSwitch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 45 mm | Mounting: Double clevis
SSD2-ML-32-45-FP1-FASwitch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 45 mm | Mounting: Rod-side flange
SSD2-ML-32-45-FP1-FBSwitch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 45 mm | Mounting: Head-side flange
SSD2-ML-32-50-FP1Switch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 50 mm | Mounting: None (cylinder only)
SSD2-ML-32-50-FP1-LBSwitch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 50 mm | Mounting: Axial foot
SSD2-ML-32-50-FP1-CBSwitch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 50 mm | Mounting: Double clevis
SSD2-ML-32-50-FP1-FASwitch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 50 mm | Mounting: Rod-side flange
SSD2-ML-32-50-FP1-FBSwitch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 50 mm | Mounting: Head-side flange
SSD2-ML-32-75-FP1Switch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 75 mm | Mounting: None (cylinder only)
SSD2-ML-32-75-FP1-LBSwitch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 75 mm | Mounting: Axial foot
SSD2-ML-32-75-FP1-CBSwitch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 75 mm | Mounting: Double clevis
SSD2-ML-32-75-FP1-FASwitch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 75 mm | Mounting: Rod-side flange
SSD2-ML-32-75-FP1-FBSwitch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 75 mm | Mounting: Head-side flange
SSD2-ML-32-100-FP1Switch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 100 mm | Mounting: None (cylinder only)
SSD2-ML-32-100-FP1-LBSwitch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 100 mm | Mounting: Axial foot
SSD2-ML-32-100-FP1-CBSwitch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 100 mm | Mounting: Double clevis
SSD2-ML-32-100-FP1-FASwitch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 100 mm | Mounting: Rod-side flange
SSD2-ML-32-100-FP1-FBSwitch magnet: Yes | Bore: 32 mm | Cushion: None | Stroke: 100 mm | Mounting: Head-side flange
SSD2-ML-32D-5-FP1Switch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 5 mm | Mounting: None (cylinder only)
SSD2-ML-32D-5-FP1-LBSwitch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 5 mm | Mounting: Axial foot
SSD2-ML-32D-5-FP1-CBSwitch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 5 mm | Mounting: Double clevis
SSD2-ML-32D-5-FP1-FASwitch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 5 mm | Mounting: Rod-side flange
SSD2-ML-32D-5-FP1-FBSwitch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 5 mm | Mounting: Head-side flange
SSD2-ML-32D-10-FP1Switch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 10 mm | Mounting: None (cylinder only)
SSD2-ML-32D-10-FP1-LBSwitch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 10 mm | Mounting: Axial foot
SSD2-ML-32D-10-FP1-CBSwitch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 10 mm | Mounting: Double clevis
SSD2-ML-32D-10-FP1-FASwitch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 10 mm | Mounting: Rod-side flange
SSD2-ML-32D-10-FP1-FBSwitch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 10 mm | Mounting: Head-side flange
SSD2-ML-32D-15-FP1Switch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 15 mm | Mounting: None (cylinder only)
SSD2-ML-32D-15-FP1-LBSwitch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 15 mm | Mounting: Axial foot
SSD2-ML-32D-15-FP1-CBSwitch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 15 mm | Mounting: Double clevis
SSD2-ML-32D-15-FP1-FASwitch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 15 mm | Mounting: Rod-side flange
SSD2-ML-32D-15-FP1-FBSwitch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 15 mm | Mounting: Head-side flange
SSD2-ML-32D-20-FP1Switch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 20 mm | Mounting: None (cylinder only)
SSD2-ML-32D-20-FP1-LBSwitch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 20 mm | Mounting: Axial foot
SSD2-ML-32D-20-FP1-CBSwitch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 20 mm | Mounting: Double clevis
SSD2-ML-32D-20-FP1-FASwitch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 20 mm | Mounting: Rod-side flange
SSD2-ML-32D-20-FP1-FBSwitch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 20 mm | Mounting: Head-side flange
SSD2-ML-32D-25-FP1Switch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 25 mm | Mounting: None (cylinder only)
SSD2-ML-32D-25-FP1-LBSwitch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 25 mm | Mounting: Axial foot
SSD2-ML-32D-25-FP1-CBSwitch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 25 mm | Mounting: Double clevis
SSD2-ML-32D-25-FP1-FASwitch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 25 mm | Mounting: Rod-side flange
SSD2-ML-32D-25-FP1-FBSwitch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 25 mm | Mounting: Head-side flange
SSD2-ML-32D-30-FP1Switch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 30 mm | Mounting: None (cylinder only)
SSD2-ML-32D-30-FP1-LBSwitch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 30 mm | Mounting: Axial foot
SSD2-ML-32D-30-FP1-CBSwitch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 30 mm | Mounting: Double clevis
SSD2-ML-32D-30-FP1-FASwitch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 30 mm | Mounting: Rod-side flange
SSD2-ML-32D-30-FP1-FBSwitch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 30 mm | Mounting: Head-side flange
SSD2-ML-32D-35-FP1Switch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 35 mm | Mounting: None (cylinder only)
SSD2-ML-32D-35-FP1-LBSwitch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 35 mm | Mounting: Axial foot
SSD2-ML-32D-35-FP1-CBSwitch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 35 mm | Mounting: Double clevis
SSD2-ML-32D-35-FP1-FASwitch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 35 mm | Mounting: Rod-side flange
SSD2-ML-32D-35-FP1-FBSwitch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 35 mm | Mounting: Head-side flange
SSD2-ML-32D-40-FP1Switch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 40 mm | Mounting: None (cylinder only)
SSD2-ML-32D-40-FP1-LBSwitch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 40 mm | Mounting: Axial foot
SSD2-ML-32D-40-FP1-CBSwitch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 40 mm | Mounting: Double clevis
SSD2-ML-32D-40-FP1-FASwitch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 40 mm | Mounting: Rod-side flange
SSD2-ML-32D-40-FP1-FBSwitch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 40 mm | Mounting: Head-side flange
SSD2-ML-32D-45-FP1Switch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 45 mm | Mounting: None (cylinder only)
SSD2-ML-32D-45-FP1-LBSwitch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 45 mm | Mounting: Axial foot
SSD2-ML-32D-45-FP1-CBSwitch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 45 mm | Mounting: Double clevis
SSD2-ML-32D-45-FP1-FASwitch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 45 mm | Mounting: Rod-side flange
SSD2-ML-32D-45-FP1-FBSwitch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 45 mm | Mounting: Head-side flange
SSD2-ML-32D-50-FP1Switch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 50 mm | Mounting: None (cylinder only)
SSD2-ML-32D-50-FP1-LBSwitch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 50 mm | Mounting: Axial foot
SSD2-ML-32D-50-FP1-CBSwitch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 50 mm | Mounting: Double clevis
SSD2-ML-32D-50-FP1-FASwitch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 50 mm | Mounting: Rod-side flange
SSD2-ML-32D-50-FP1-FBSwitch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 50 mm | Mounting: Head-side flange
SSD2-ML-32D-75-FP1Switch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 75 mm | Mounting: None (cylinder only)
SSD2-ML-32D-75-FP1-LBSwitch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 75 mm | Mounting: Axial foot
SSD2-ML-32D-75-FP1-CBSwitch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 75 mm | Mounting: Double clevis
SSD2-ML-32D-75-FP1-FASwitch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 75 mm | Mounting: Rod-side flange
SSD2-ML-32D-75-FP1-FBSwitch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 75 mm | Mounting: Head-side flange
SSD2-ML-32D-100-FP1Switch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 100 mm | Mounting: None (cylinder only)
SSD2-ML-32D-100-FP1-LBSwitch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 100 mm | Mounting: Axial foot
SSD2-ML-32D-100-FP1-CBSwitch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 100 mm | Mounting: Double clevis
SSD2-ML-32D-100-FP1-FASwitch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 100 mm | Mounting: Rod-side flange
SSD2-ML-32D-100-FP1-FBSwitch magnet: Yes | Bore: 32 mm | Cushion: Rubber (D) | Stroke: 100 mm | Mounting: Head-side flange

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
