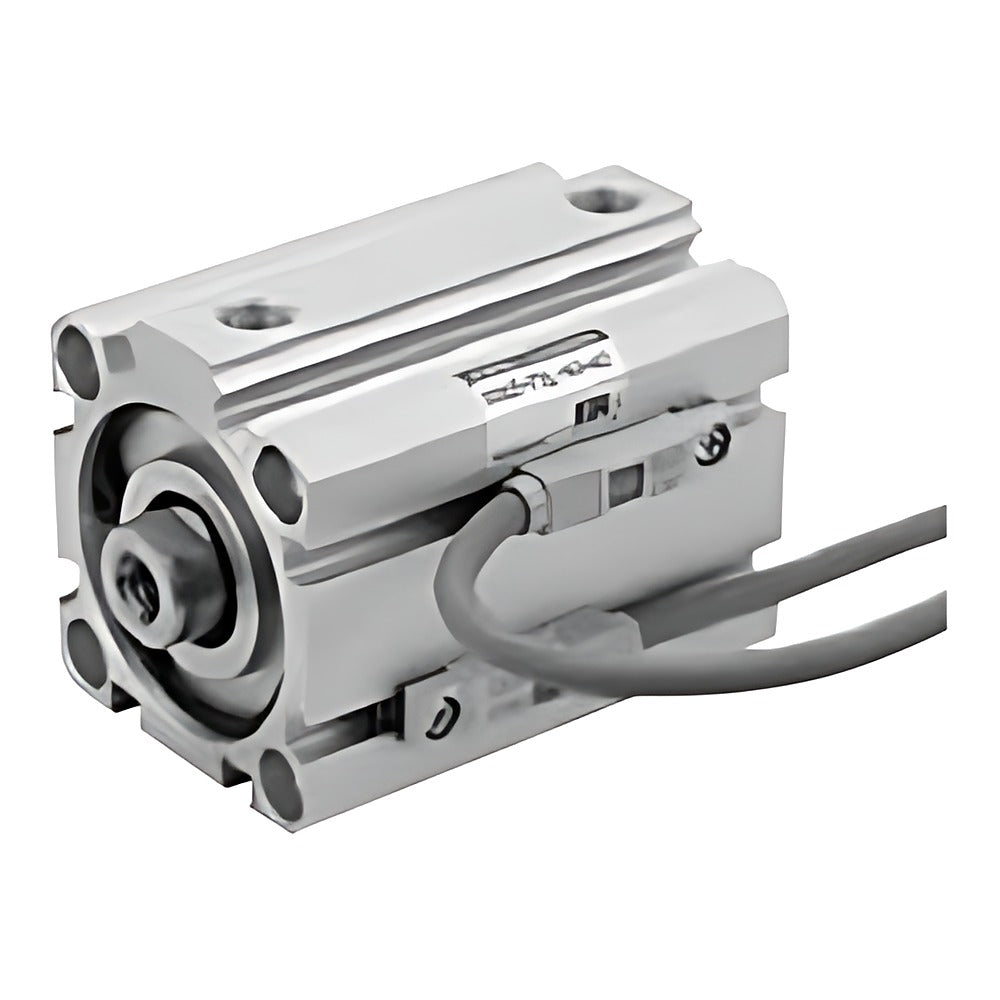

CKD SSD2-M-FP1 Super Compact Cylinder (Non-Rotating, Bore 40-63)

CKD SSD2-M-FP1 non-rotating super compact cylinder, bore 40-63 mm, with NSF H1 food-grade grease.

Key features

NSF H1 registered food-grade grease used on sliding parts (FP1 food processing specification)
Super compact cylinder; each type with (L) or without switch magnet; rubber cushion (D) or no cushion
Mounting bracket (LB, CB, FA, FB) is specified after FP1 and shipped with the cylinder
Auto switches (T0H, T2H, T2WH, F2H etc.) with count R/H/D, rod-end male thread N, stainless rod M, intermediate-stroke body S and knuckles I/Y ordered as suffixes
NPT/G threads (bore 32 and over) made to order
Non-rotating piston rod

Specifications

Fluid	Compressed air
Max. operating pressure	1.0 MPa
Min. operating pressure	0.1 MPa (12-63), 0.05 MPa (80/100)
Proof pressure	1.6 MPa
Ambient temperature	-10 to 60 C
Port	M5 (12-25), Rc1/8 (32-40), Rc1/4 (50-63), Rc3/8 (80/100)
Type	Double acting, non-rotating (M)
Source	CKD Korea catalog CC-1271K, p. 82-84

SSD2-M-40-5-FP1		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (cylinder only)
SSD2-M-40-5-FP1-LB		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot
SSD2-M-40-5-FP1-CB		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis
SSD2-M-40-5-FP1-FA		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod-side flange
SSD2-M-40-5-FP1-FB		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Head-side flange
SSD2-M-40-10-FP1		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only)
SSD2-M-40-10-FP1-LB		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot
SSD2-M-40-10-FP1-CB		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis
SSD2-M-40-10-FP1-FA		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-side flange
SSD2-M-40-10-FP1-FB		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Head-side flange
SSD2-M-40-15-FP1		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: None (cylinder only)
SSD2-M-40-15-FP1-LB		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Axial foot
SSD2-M-40-15-FP1-CB		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Double clevis
SSD2-M-40-15-FP1-FA		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Rod-side flange
SSD2-M-40-15-FP1-FB		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Head-side flange
SSD2-M-40-20-FP1		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: None (cylinder only)
SSD2-M-40-20-FP1-LB		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot
SSD2-M-40-20-FP1-CB		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Double clevis
SSD2-M-40-20-FP1-FA		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Rod-side flange
SSD2-M-40-20-FP1-FB		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Head-side flange
SSD2-M-40-25-FP1		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: None (cylinder only)
SSD2-M-40-25-FP1-LB		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Axial foot
SSD2-M-40-25-FP1-CB		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Double clevis
SSD2-M-40-25-FP1-FA		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Rod-side flange
SSD2-M-40-25-FP1-FB		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Head-side flange
SSD2-M-40-30-FP1		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: None (cylinder only)
SSD2-M-40-30-FP1-LB		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Axial foot
SSD2-M-40-30-FP1-CB		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Double clevis
SSD2-M-40-30-FP1-FA		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Rod-side flange
SSD2-M-40-30-FP1-FB		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Head-side flange
SSD2-M-40-35-FP1		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: None (cylinder only)
SSD2-M-40-35-FP1-LB		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Axial foot
SSD2-M-40-35-FP1-CB		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Double clevis
SSD2-M-40-35-FP1-FA		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Rod-side flange
SSD2-M-40-35-FP1-FB		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Head-side flange
SSD2-M-40-40-FP1		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: None (cylinder only)
SSD2-M-40-40-FP1-LB		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Axial foot
SSD2-M-40-40-FP1-CB		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Double clevis
SSD2-M-40-40-FP1-FA		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Rod-side flange
SSD2-M-40-40-FP1-FB		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Head-side flange
SSD2-M-40-45-FP1		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: None (cylinder only)
SSD2-M-40-45-FP1-LB		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Axial foot
SSD2-M-40-45-FP1-CB		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Double clevis
SSD2-M-40-45-FP1-FA		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Rod-side flange
SSD2-M-40-45-FP1-FB		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Head-side flange
SSD2-M-40-50-FP1		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: None (cylinder only)
SSD2-M-40-50-FP1-LB		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Axial foot
SSD2-M-40-50-FP1-CB		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Double clevis
SSD2-M-40-50-FP1-FA		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Rod-side flange
SSD2-M-40-50-FP1-FB		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Head-side flange
SSD2-M-40-75-FP1		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: None (cylinder only)
SSD2-M-40-75-FP1-LB		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Axial foot
SSD2-M-40-75-FP1-CB		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Double clevis
SSD2-M-40-75-FP1-FA		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Rod-side flange
SSD2-M-40-75-FP1-FB		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Head-side flange
SSD2-M-40-100-FP1		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: None (cylinder only)
SSD2-M-40-100-FP1-LB		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Axial foot
SSD2-M-40-100-FP1-CB		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Double clevis
SSD2-M-40-100-FP1-FA		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Rod-side flange
SSD2-M-40-100-FP1-FB		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Head-side flange
SSD2-M-40D-5-FP1		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: None (cylinder only)
SSD2-M-40D-5-FP1-LB		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Axial foot
SSD2-M-40D-5-FP1-CB		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Double clevis
SSD2-M-40D-5-FP1-FA		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Rod-side flange
SSD2-M-40D-5-FP1-FB		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Head-side flange
SSD2-M-40D-10-FP1		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: None (cylinder only)
SSD2-M-40D-10-FP1-LB		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Axial foot
SSD2-M-40D-10-FP1-CB		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Double clevis
SSD2-M-40D-10-FP1-FA		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Rod-side flange
SSD2-M-40D-10-FP1-FB		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Head-side flange
SSD2-M-40D-15-FP1		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: None (cylinder only)
SSD2-M-40D-15-FP1-LB		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: Axial foot
SSD2-M-40D-15-FP1-CB		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: Double clevis
SSD2-M-40D-15-FP1-FA		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: Rod-side flange
SSD2-M-40D-15-FP1-FB		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: Head-side flange
SSD2-M-40D-20-FP1		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: None (cylinder only)
SSD2-M-40D-20-FP1-LB		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Axial foot
SSD2-M-40D-20-FP1-CB		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Double clevis
SSD2-M-40D-20-FP1-FA		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Rod-side flange
SSD2-M-40D-20-FP1-FB		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Head-side flange
SSD2-M-40D-25-FP1		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: None (cylinder only)
SSD2-M-40D-25-FP1-LB		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: Axial foot
SSD2-M-40D-25-FP1-CB		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: Double clevis
SSD2-M-40D-25-FP1-FA		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: Rod-side flange
SSD2-M-40D-25-FP1-FB		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: Head-side flange
SSD2-M-40D-30-FP1		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: None (cylinder only)
SSD2-M-40D-30-FP1-LB		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: Axial foot
SSD2-M-40D-30-FP1-CB		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: Double clevis
SSD2-M-40D-30-FP1-FA		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: Rod-side flange
SSD2-M-40D-30-FP1-FB		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: Head-side flange
SSD2-M-40D-35-FP1		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: None (cylinder only)
SSD2-M-40D-35-FP1-LB		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: Axial foot
SSD2-M-40D-35-FP1-CB		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: Double clevis
SSD2-M-40D-35-FP1-FA		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: Rod-side flange
SSD2-M-40D-35-FP1-FB		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: Head-side flange
SSD2-M-40D-40-FP1		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: None (cylinder only)
SSD2-M-40D-40-FP1-LB		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: Axial foot
SSD2-M-40D-40-FP1-CB		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: Double clevis
SSD2-M-40D-40-FP1-FA		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: Rod-side flange
SSD2-M-40D-40-FP1-FB		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: Head-side flange
SSD2-M-40D-45-FP1		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: None (cylinder only)
SSD2-M-40D-45-FP1-LB		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: Axial foot
SSD2-M-40D-45-FP1-CB		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: Double clevis
SSD2-M-40D-45-FP1-FA		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: Rod-side flange
SSD2-M-40D-45-FP1-FB		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: Head-side flange
SSD2-M-40D-50-FP1		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: None (cylinder only)
SSD2-M-40D-50-FP1-LB		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: Axial foot
SSD2-M-40D-50-FP1-CB		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: Double clevis
SSD2-M-40D-50-FP1-FA		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: Rod-side flange
SSD2-M-40D-50-FP1-FB		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: Head-side flange
SSD2-M-40D-75-FP1		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 75 mm \| Mounting: None (cylinder only)
SSD2-M-40D-75-FP1-LB		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 75 mm \| Mounting: Axial foot
SSD2-M-40D-75-FP1-CB		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 75 mm \| Mounting: Double clevis
SSD2-M-40D-75-FP1-FA		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 75 mm \| Mounting: Rod-side flange
SSD2-M-40D-75-FP1-FB		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 75 mm \| Mounting: Head-side flange
SSD2-M-40D-100-FP1		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 100 mm \| Mounting: None (cylinder only)
SSD2-M-40D-100-FP1-LB		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 100 mm \| Mounting: Axial foot
SSD2-M-40D-100-FP1-CB		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 100 mm \| Mounting: Double clevis
SSD2-M-40D-100-FP1-FA		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 100 mm \| Mounting: Rod-side flange
SSD2-M-40D-100-FP1-FB		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 100 mm \| Mounting: Head-side flange
SSD2-M-50-5-FP1		Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (cylinder only)
SSD2-M-50-5-FP1-LB		Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot
SSD2-M-50-5-FP1-CB		Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis
SSD2-M-50-5-FP1-FA		Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod-side flange
SSD2-M-50-5-FP1-FB		Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Head-side flange
SSD2-M-50-10-FP1		Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only)
SSD2-M-50-10-FP1-LB		Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot
SSD2-M-50-10-FP1-CB		Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis
SSD2-M-50-10-FP1-FA		Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-side flange
SSD2-M-50-10-FP1-FB		Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Head-side flange
SSD2-M-50-15-FP1		Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: None (cylinder only)
SSD2-M-50-15-FP1-LB		Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Axial foot
SSD2-M-50-15-FP1-CB		Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Double clevis
SSD2-M-50-15-FP1-FA		Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Rod-side flange
SSD2-M-50-15-FP1-FB		Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Head-side flange
SSD2-M-50-20-FP1		Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: None (cylinder only)
SSD2-M-50-20-FP1-LB		Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot
SSD2-M-50-20-FP1-CB		Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Double clevis
SSD2-M-50-20-FP1-FA		Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Rod-side flange
SSD2-M-50-20-FP1-FB		Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Head-side flange
SSD2-M-50-25-FP1		Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: None (cylinder only)
SSD2-M-50-25-FP1-LB		Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Axial foot
SSD2-M-50-25-FP1-CB		Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Double clevis
SSD2-M-50-25-FP1-FA		Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Rod-side flange
SSD2-M-50-25-FP1-FB		Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Head-side flange
SSD2-M-50-30-FP1		Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: None (cylinder only)
SSD2-M-50-30-FP1-LB		Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Axial foot
SSD2-M-50-30-FP1-CB		Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Double clevis
SSD2-M-50-30-FP1-FA		Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Rod-side flange
SSD2-M-50-30-FP1-FB		Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Head-side flange
SSD2-M-50-35-FP1		Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: None (cylinder only)
SSD2-M-50-35-FP1-LB		Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Axial foot
SSD2-M-50-35-FP1-CB		Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Double clevis
SSD2-M-50-35-FP1-FA		Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Rod-side flange
SSD2-M-50-35-FP1-FB		Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Head-side flange
SSD2-M-50-40-FP1		Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: None (cylinder only)
SSD2-M-50-40-FP1-LB		Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Axial foot
SSD2-M-50-40-FP1-CB		Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Double clevis
SSD2-M-50-40-FP1-FA		Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Rod-side flange
SSD2-M-50-40-FP1-FB		Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Head-side flange
SSD2-M-50-45-FP1		Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: None (cylinder only)
SSD2-M-50-45-FP1-LB		Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Axial foot
SSD2-M-50-45-FP1-CB		Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Double clevis
SSD2-M-50-45-FP1-FA		Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Rod-side flange
SSD2-M-50-45-FP1-FB		Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Head-side flange
SSD2-M-50-50-FP1		Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: None (cylinder only)
SSD2-M-50-50-FP1-LB		Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Axial foot
SSD2-M-50-50-FP1-CB		Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Double clevis
SSD2-M-50-50-FP1-FA		Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Rod-side flange
SSD2-M-50-50-FP1-FB		Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Head-side flange
SSD2-M-50-75-FP1		Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: None (cylinder only)
SSD2-M-50-75-FP1-LB		Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Axial foot
SSD2-M-50-75-FP1-CB		Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Double clevis
SSD2-M-50-75-FP1-FA		Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Rod-side flange
SSD2-M-50-75-FP1-FB		Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Head-side flange
SSD2-M-50-100-FP1		Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: None (cylinder only)
SSD2-M-50-100-FP1-LB		Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Axial foot
SSD2-M-50-100-FP1-CB		Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Double clevis
SSD2-M-50-100-FP1-FA		Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Rod-side flange
SSD2-M-50-100-FP1-FB		Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Head-side flange
SSD2-M-50D-5-FP1		Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: None (cylinder only)
SSD2-M-50D-5-FP1-LB		Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Axial foot
SSD2-M-50D-5-FP1-CB		Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Double clevis
SSD2-M-50D-5-FP1-FA		Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Rod-side flange
SSD2-M-50D-5-FP1-FB		Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Head-side flange
SSD2-M-50D-10-FP1		Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: None (cylinder only)
SSD2-M-50D-10-FP1-LB		Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Axial foot
SSD2-M-50D-10-FP1-CB		Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Double clevis
SSD2-M-50D-10-FP1-FA		Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Rod-side flange
SSD2-M-50D-10-FP1-FB		Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Head-side flange
SSD2-M-50D-15-FP1		Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: None (cylinder only)
SSD2-M-50D-15-FP1-LB		Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: Axial foot
SSD2-M-50D-15-FP1-CB		Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: Double clevis
SSD2-M-50D-15-FP1-FA		Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: Rod-side flange
SSD2-M-50D-15-FP1-FB		Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: Head-side flange
SSD2-M-50D-20-FP1		Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: None (cylinder only)
SSD2-M-50D-20-FP1-LB		Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Axial foot
SSD2-M-50D-20-FP1-CB		Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Double clevis
SSD2-M-50D-20-FP1-FA		Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Rod-side flange
SSD2-M-50D-20-FP1-FB		Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Head-side flange
SSD2-M-50D-25-FP1		Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: None (cylinder only)
SSD2-M-50D-25-FP1-LB		Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: Axial foot
SSD2-M-50D-25-FP1-CB		Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: Double clevis
SSD2-M-50D-25-FP1-FA		Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: Rod-side flange
SSD2-M-50D-25-FP1-FB		Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: Head-side flange
SSD2-M-50D-30-FP1		Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: None (cylinder only)
SSD2-M-50D-30-FP1-LB		Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: Axial foot
SSD2-M-50D-30-FP1-CB		Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: Double clevis
SSD2-M-50D-30-FP1-FA		Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: Rod-side flange
SSD2-M-50D-30-FP1-FB		Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: Head-side flange
SSD2-M-50D-35-FP1		Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: None (cylinder only)
SSD2-M-50D-35-FP1-LB		Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: Axial foot
SSD2-M-50D-35-FP1-CB		Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: Double clevis
SSD2-M-50D-35-FP1-FA		Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: Rod-side flange
SSD2-M-50D-35-FP1-FB		Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: Head-side flange
SSD2-M-50D-40-FP1		Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: None (cylinder only)
SSD2-M-50D-40-FP1-LB		Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: Axial foot
SSD2-M-50D-40-FP1-CB		Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: Double clevis
SSD2-M-50D-40-FP1-FA		Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: Rod-side flange
SSD2-M-50D-40-FP1-FB		Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: Head-side flange
SSD2-M-50D-45-FP1		Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: None (cylinder only)
SSD2-M-50D-45-FP1-LB		Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: Axial foot
SSD2-M-50D-45-FP1-CB		Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: Double clevis
SSD2-M-50D-45-FP1-FA		Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: Rod-side flange
SSD2-M-50D-45-FP1-FB		Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: Head-side flange
SSD2-M-50D-50-FP1		Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: None (cylinder only)
SSD2-M-50D-50-FP1-LB		Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: Axial foot
SSD2-M-50D-50-FP1-CB		Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: Double clevis
SSD2-M-50D-50-FP1-FA		Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: Rod-side flange
SSD2-M-50D-50-FP1-FB		Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: Head-side flange
SSD2-M-50D-75-FP1		Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 75 mm \| Mounting: None (cylinder only)
SSD2-M-50D-75-FP1-LB		Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 75 mm \| Mounting: Axial foot
SSD2-M-50D-75-FP1-CB		Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 75 mm \| Mounting: Double clevis
SSD2-M-50D-75-FP1-FA		Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 75 mm \| Mounting: Rod-side flange
SSD2-M-50D-75-FP1-FB		Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 75 mm \| Mounting: Head-side flange
SSD2-M-50D-100-FP1		Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 100 mm \| Mounting: None (cylinder only)
SSD2-M-50D-100-FP1-LB		Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 100 mm \| Mounting: Axial foot
SSD2-M-50D-100-FP1-CB		Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 100 mm \| Mounting: Double clevis
SSD2-M-50D-100-FP1-FA		Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 100 mm \| Mounting: Rod-side flange
SSD2-M-50D-100-FP1-FB		Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 100 mm \| Mounting: Head-side flange
SSD2-M-63-5-FP1		Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (cylinder only)
SSD2-M-63-5-FP1-LB		Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot
SSD2-M-63-5-FP1-CB		Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis
SSD2-M-63-5-FP1-FA		Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod-side flange
SSD2-M-63-5-FP1-FB		Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Head-side flange
SSD2-M-63-10-FP1		Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only)
SSD2-M-63-10-FP1-LB		Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot
SSD2-M-63-10-FP1-CB		Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis
SSD2-M-63-10-FP1-FA		Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-side flange
SSD2-M-63-10-FP1-FB		Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Head-side flange
SSD2-M-63-15-FP1		Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: None (cylinder only)
SSD2-M-63-15-FP1-LB		Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Axial foot
SSD2-M-63-15-FP1-CB		Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Double clevis
SSD2-M-63-15-FP1-FA		Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Rod-side flange
SSD2-M-63-15-FP1-FB		Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Head-side flange
SSD2-M-63-20-FP1		Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: None (cylinder only)
SSD2-M-63-20-FP1-LB		Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot
SSD2-M-63-20-FP1-CB		Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Double clevis
SSD2-M-63-20-FP1-FA		Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Rod-side flange
SSD2-M-63-20-FP1-FB		Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Head-side flange
SSD2-M-63-25-FP1		Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: None (cylinder only)
SSD2-M-63-25-FP1-LB		Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Axial foot
SSD2-M-63-25-FP1-CB		Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Double clevis
SSD2-M-63-25-FP1-FA		Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Rod-side flange
SSD2-M-63-25-FP1-FB		Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Head-side flange
SSD2-M-63-30-FP1		Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: None (cylinder only)
SSD2-M-63-30-FP1-LB		Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Axial foot
SSD2-M-63-30-FP1-CB		Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Double clevis
SSD2-M-63-30-FP1-FA		Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Rod-side flange
SSD2-M-63-30-FP1-FB		Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Head-side flange
SSD2-M-63-35-FP1		Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: None (cylinder only)
SSD2-M-63-35-FP1-LB		Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Axial foot
SSD2-M-63-35-FP1-CB		Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Double clevis
SSD2-M-63-35-FP1-FA		Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Rod-side flange
SSD2-M-63-35-FP1-FB		Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Head-side flange
SSD2-M-63-40-FP1		Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: None (cylinder only)
SSD2-M-63-40-FP1-LB		Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Axial foot
SSD2-M-63-40-FP1-CB		Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Double clevis
SSD2-M-63-40-FP1-FA		Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Rod-side flange
SSD2-M-63-40-FP1-FB		Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Head-side flange
SSD2-M-63-45-FP1		Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: None (cylinder only)
SSD2-M-63-45-FP1-LB		Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Axial foot
SSD2-M-63-45-FP1-CB		Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Double clevis
SSD2-M-63-45-FP1-FA		Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Rod-side flange
SSD2-M-63-45-FP1-FB		Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Head-side flange
SSD2-M-63-50-FP1		Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: None (cylinder only)
SSD2-M-63-50-FP1-LB		Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Axial foot
SSD2-M-63-50-FP1-CB		Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Double clevis
SSD2-M-63-50-FP1-FA		Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Rod-side flange
SSD2-M-63-50-FP1-FB		Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Head-side flange
SSD2-M-63-75-FP1		Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: None (cylinder only)
SSD2-M-63-75-FP1-LB		Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Axial foot
SSD2-M-63-75-FP1-CB		Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Double clevis
SSD2-M-63-75-FP1-FA		Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Rod-side flange
SSD2-M-63-75-FP1-FB		Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Head-side flange
SSD2-M-63-100-FP1		Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: None (cylinder only)
SSD2-M-63-100-FP1-LB		Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Axial foot
SSD2-M-63-100-FP1-CB		Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Double clevis
SSD2-M-63-100-FP1-FA		Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Rod-side flange
SSD2-M-63-100-FP1-FB		Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Head-side flange
SSD2-M-63D-5-FP1		Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: None (cylinder only)
SSD2-M-63D-5-FP1-LB		Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Axial foot
SSD2-M-63D-5-FP1-CB		Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Double clevis
SSD2-M-63D-5-FP1-FA		Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Rod-side flange
SSD2-M-63D-5-FP1-FB		Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Head-side flange
SSD2-M-63D-10-FP1		Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: None (cylinder only)
SSD2-M-63D-10-FP1-LB		Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Axial foot
SSD2-M-63D-10-FP1-CB		Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Double clevis
SSD2-M-63D-10-FP1-FA		Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Rod-side flange
SSD2-M-63D-10-FP1-FB		Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Head-side flange
SSD2-M-63D-15-FP1		Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: None (cylinder only)
SSD2-M-63D-15-FP1-LB		Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: Axial foot
SSD2-M-63D-15-FP1-CB		Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: Double clevis
SSD2-M-63D-15-FP1-FA		Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: Rod-side flange
SSD2-M-63D-15-FP1-FB		Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: Head-side flange
SSD2-M-63D-20-FP1		Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: None (cylinder only)
SSD2-M-63D-20-FP1-LB		Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Axial foot
SSD2-M-63D-20-FP1-CB		Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Double clevis
SSD2-M-63D-20-FP1-FA		Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Rod-side flange
SSD2-M-63D-20-FP1-FB		Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Head-side flange
SSD2-M-63D-25-FP1		Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: None (cylinder only)
SSD2-M-63D-25-FP1-LB		Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: Axial foot
SSD2-M-63D-25-FP1-CB		Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: Double clevis
SSD2-M-63D-25-FP1-FA		Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: Rod-side flange
SSD2-M-63D-25-FP1-FB		Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: Head-side flange
SSD2-M-63D-30-FP1		Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: None (cylinder only)
SSD2-M-63D-30-FP1-LB		Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: Axial foot
SSD2-M-63D-30-FP1-CB		Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: Double clevis
SSD2-M-63D-30-FP1-FA		Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: Rod-side flange
SSD2-M-63D-30-FP1-FB		Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: Head-side flange
SSD2-M-63D-35-FP1		Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: None (cylinder only)
SSD2-M-63D-35-FP1-LB		Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: Axial foot
SSD2-M-63D-35-FP1-CB		Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: Double clevis
SSD2-M-63D-35-FP1-FA		Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: Rod-side flange
SSD2-M-63D-35-FP1-FB		Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: Head-side flange
SSD2-M-63D-40-FP1		Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: None (cylinder only)
SSD2-M-63D-40-FP1-LB		Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: Axial foot
SSD2-M-63D-40-FP1-CB		Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: Double clevis
SSD2-M-63D-40-FP1-FA		Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: Rod-side flange
SSD2-M-63D-40-FP1-FB		Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: Head-side flange
SSD2-M-63D-45-FP1		Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: None (cylinder only)
SSD2-M-63D-45-FP1-LB		Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: Axial foot
SSD2-M-63D-45-FP1-CB		Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: Double clevis
SSD2-M-63D-45-FP1-FA		Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: Rod-side flange
SSD2-M-63D-45-FP1-FB		Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: Head-side flange
SSD2-M-63D-50-FP1		Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: None (cylinder only)
SSD2-M-63D-50-FP1-LB		Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: Axial foot
SSD2-M-63D-50-FP1-CB		Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: Double clevis
SSD2-M-63D-50-FP1-FA		Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: Rod-side flange
SSD2-M-63D-50-FP1-FB		Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: Head-side flange
SSD2-M-63D-75-FP1		Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 75 mm \| Mounting: None (cylinder only)
SSD2-M-63D-75-FP1-LB		Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 75 mm \| Mounting: Axial foot
SSD2-M-63D-75-FP1-CB		Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 75 mm \| Mounting: Double clevis
SSD2-M-63D-75-FP1-FA		Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 75 mm \| Mounting: Rod-side flange
SSD2-M-63D-75-FP1-FB		Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 75 mm \| Mounting: Head-side flange
SSD2-M-63D-100-FP1		Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 100 mm \| Mounting: None (cylinder only)
SSD2-M-63D-100-FP1-LB		Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 100 mm \| Mounting: Axial foot
SSD2-M-63D-100-FP1-CB		Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 100 mm \| Mounting: Double clevis
SSD2-M-63D-100-FP1-FA		Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 100 mm \| Mounting: Rod-side flange
SSD2-M-63D-100-FP1-FB		Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 100 mm \| Mounting: Head-side flange
SSD2-ML-40-5-FP1		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (cylinder only)
SSD2-ML-40-5-FP1-LB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot
SSD2-ML-40-5-FP1-CB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis
SSD2-ML-40-5-FP1-FA		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod-side flange
SSD2-ML-40-5-FP1-FB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Head-side flange
SSD2-ML-40-10-FP1		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only)
SSD2-ML-40-10-FP1-LB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot
SSD2-ML-40-10-FP1-CB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis
SSD2-ML-40-10-FP1-FA		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-side flange
SSD2-ML-40-10-FP1-FB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Head-side flange
SSD2-ML-40-15-FP1		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: None (cylinder only)
SSD2-ML-40-15-FP1-LB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Axial foot
SSD2-ML-40-15-FP1-CB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Double clevis
SSD2-ML-40-15-FP1-FA		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Rod-side flange
SSD2-ML-40-15-FP1-FB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Head-side flange
SSD2-ML-40-20-FP1		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: None (cylinder only)
SSD2-ML-40-20-FP1-LB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot
SSD2-ML-40-20-FP1-CB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Double clevis
SSD2-ML-40-20-FP1-FA		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Rod-side flange
SSD2-ML-40-20-FP1-FB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Head-side flange
SSD2-ML-40-25-FP1		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: None (cylinder only)
SSD2-ML-40-25-FP1-LB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Axial foot
SSD2-ML-40-25-FP1-CB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Double clevis
SSD2-ML-40-25-FP1-FA		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Rod-side flange
SSD2-ML-40-25-FP1-FB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Head-side flange
SSD2-ML-40-30-FP1		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: None (cylinder only)
SSD2-ML-40-30-FP1-LB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Axial foot
SSD2-ML-40-30-FP1-CB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Double clevis
SSD2-ML-40-30-FP1-FA		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Rod-side flange
SSD2-ML-40-30-FP1-FB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Head-side flange
SSD2-ML-40-35-FP1		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: None (cylinder only)
SSD2-ML-40-35-FP1-LB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Axial foot
SSD2-ML-40-35-FP1-CB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Double clevis
SSD2-ML-40-35-FP1-FA		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Rod-side flange
SSD2-ML-40-35-FP1-FB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Head-side flange
SSD2-ML-40-40-FP1		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: None (cylinder only)
SSD2-ML-40-40-FP1-LB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Axial foot
SSD2-ML-40-40-FP1-CB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Double clevis
SSD2-ML-40-40-FP1-FA		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Rod-side flange
SSD2-ML-40-40-FP1-FB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Head-side flange
SSD2-ML-40-45-FP1		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: None (cylinder only)
SSD2-ML-40-45-FP1-LB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Axial foot
SSD2-ML-40-45-FP1-CB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Double clevis
SSD2-ML-40-45-FP1-FA		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Rod-side flange
SSD2-ML-40-45-FP1-FB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Head-side flange
SSD2-ML-40-50-FP1		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: None (cylinder only)
SSD2-ML-40-50-FP1-LB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Axial foot
SSD2-ML-40-50-FP1-CB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Double clevis
SSD2-ML-40-50-FP1-FA		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Rod-side flange
SSD2-ML-40-50-FP1-FB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Head-side flange
SSD2-ML-40-75-FP1		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: None (cylinder only)
SSD2-ML-40-75-FP1-LB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Axial foot
SSD2-ML-40-75-FP1-CB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Double clevis
SSD2-ML-40-75-FP1-FA		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Rod-side flange
SSD2-ML-40-75-FP1-FB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Head-side flange
SSD2-ML-40-100-FP1		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: None (cylinder only)
SSD2-ML-40-100-FP1-LB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Axial foot
SSD2-ML-40-100-FP1-CB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Double clevis
SSD2-ML-40-100-FP1-FA		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Rod-side flange
SSD2-ML-40-100-FP1-FB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Head-side flange
SSD2-ML-40D-5-FP1		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: None (cylinder only)
SSD2-ML-40D-5-FP1-LB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Axial foot
SSD2-ML-40D-5-FP1-CB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Double clevis
SSD2-ML-40D-5-FP1-FA		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Rod-side flange
SSD2-ML-40D-5-FP1-FB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Head-side flange
SSD2-ML-40D-10-FP1		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: None (cylinder only)
SSD2-ML-40D-10-FP1-LB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Axial foot
SSD2-ML-40D-10-FP1-CB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Double clevis
SSD2-ML-40D-10-FP1-FA		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Rod-side flange
SSD2-ML-40D-10-FP1-FB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Head-side flange
SSD2-ML-40D-15-FP1		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: None (cylinder only)
SSD2-ML-40D-15-FP1-LB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: Axial foot
SSD2-ML-40D-15-FP1-CB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: Double clevis
SSD2-ML-40D-15-FP1-FA		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: Rod-side flange
SSD2-ML-40D-15-FP1-FB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: Head-side flange
SSD2-ML-40D-20-FP1		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: None (cylinder only)
SSD2-ML-40D-20-FP1-LB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Axial foot
SSD2-ML-40D-20-FP1-CB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Double clevis
SSD2-ML-40D-20-FP1-FA		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Rod-side flange
SSD2-ML-40D-20-FP1-FB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Head-side flange
SSD2-ML-40D-25-FP1		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: None (cylinder only)
SSD2-ML-40D-25-FP1-LB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: Axial foot
SSD2-ML-40D-25-FP1-CB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: Double clevis
SSD2-ML-40D-25-FP1-FA		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: Rod-side flange
SSD2-ML-40D-25-FP1-FB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: Head-side flange
SSD2-ML-40D-30-FP1		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: None (cylinder only)
SSD2-ML-40D-30-FP1-LB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: Axial foot
SSD2-ML-40D-30-FP1-CB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: Double clevis
SSD2-ML-40D-30-FP1-FA		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: Rod-side flange
SSD2-ML-40D-30-FP1-FB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: Head-side flange
SSD2-ML-40D-35-FP1		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: None (cylinder only)
SSD2-ML-40D-35-FP1-LB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: Axial foot
SSD2-ML-40D-35-FP1-CB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: Double clevis
SSD2-ML-40D-35-FP1-FA		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: Rod-side flange
SSD2-ML-40D-35-FP1-FB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: Head-side flange
SSD2-ML-40D-40-FP1		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: None (cylinder only)
SSD2-ML-40D-40-FP1-LB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: Axial foot
SSD2-ML-40D-40-FP1-CB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: Double clevis
SSD2-ML-40D-40-FP1-FA		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: Rod-side flange
SSD2-ML-40D-40-FP1-FB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: Head-side flange
SSD2-ML-40D-45-FP1		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: None (cylinder only)
SSD2-ML-40D-45-FP1-LB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: Axial foot
SSD2-ML-40D-45-FP1-CB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: Double clevis
SSD2-ML-40D-45-FP1-FA		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: Rod-side flange
SSD2-ML-40D-45-FP1-FB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: Head-side flange
SSD2-ML-40D-50-FP1		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: None (cylinder only)
SSD2-ML-40D-50-FP1-LB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: Axial foot
SSD2-ML-40D-50-FP1-CB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: Double clevis
SSD2-ML-40D-50-FP1-FA		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: Rod-side flange
SSD2-ML-40D-50-FP1-FB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: Head-side flange
SSD2-ML-40D-75-FP1		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 75 mm \| Mounting: None (cylinder only)
SSD2-ML-40D-75-FP1-LB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 75 mm \| Mounting: Axial foot
SSD2-ML-40D-75-FP1-CB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 75 mm \| Mounting: Double clevis
SSD2-ML-40D-75-FP1-FA		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 75 mm \| Mounting: Rod-side flange
SSD2-ML-40D-75-FP1-FB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 75 mm \| Mounting: Head-side flange
SSD2-ML-40D-100-FP1		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 100 mm \| Mounting: None (cylinder only)
SSD2-ML-40D-100-FP1-LB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 100 mm \| Mounting: Axial foot
SSD2-ML-40D-100-FP1-CB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 100 mm \| Mounting: Double clevis
SSD2-ML-40D-100-FP1-FA		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 100 mm \| Mounting: Rod-side flange
SSD2-ML-40D-100-FP1-FB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 100 mm \| Mounting: Head-side flange
SSD2-ML-50-5-FP1		Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (cylinder only)
SSD2-ML-50-5-FP1-LB		Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot
SSD2-ML-50-5-FP1-CB		Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis
SSD2-ML-50-5-FP1-FA		Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod-side flange
SSD2-ML-50-5-FP1-FB		Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Head-side flange
SSD2-ML-50-10-FP1		Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only)
SSD2-ML-50-10-FP1-LB		Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot
SSD2-ML-50-10-FP1-CB		Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis
SSD2-ML-50-10-FP1-FA		Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-side flange
SSD2-ML-50-10-FP1-FB		Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Head-side flange
SSD2-ML-50-15-FP1		Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: None (cylinder only)
SSD2-ML-50-15-FP1-LB		Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Axial foot
SSD2-ML-50-15-FP1-CB		Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Double clevis
SSD2-ML-50-15-FP1-FA		Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Rod-side flange
SSD2-ML-50-15-FP1-FB		Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Head-side flange
SSD2-ML-50-20-FP1		Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: None (cylinder only)
SSD2-ML-50-20-FP1-LB		Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot
SSD2-ML-50-20-FP1-CB		Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Double clevis
SSD2-ML-50-20-FP1-FA		Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Rod-side flange
SSD2-ML-50-20-FP1-FB		Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Head-side flange
SSD2-ML-50-25-FP1		Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: None (cylinder only)
SSD2-ML-50-25-FP1-LB		Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Axial foot
SSD2-ML-50-25-FP1-CB		Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Double clevis
SSD2-ML-50-25-FP1-FA		Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Rod-side flange
SSD2-ML-50-25-FP1-FB		Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Head-side flange
SSD2-ML-50-30-FP1		Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: None (cylinder only)
SSD2-ML-50-30-FP1-LB		Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Axial foot
SSD2-ML-50-30-FP1-CB		Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Double clevis
SSD2-ML-50-30-FP1-FA		Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Rod-side flange
SSD2-ML-50-30-FP1-FB		Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Head-side flange
SSD2-ML-50-35-FP1		Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: None (cylinder only)
SSD2-ML-50-35-FP1-LB		Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Axial foot
SSD2-ML-50-35-FP1-CB		Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Double clevis
SSD2-ML-50-35-FP1-FA		Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Rod-side flange
SSD2-ML-50-35-FP1-FB		Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Head-side flange
SSD2-ML-50-40-FP1		Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: None (cylinder only)
SSD2-ML-50-40-FP1-LB		Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Axial foot
SSD2-ML-50-40-FP1-CB		Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Double clevis
SSD2-ML-50-40-FP1-FA		Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Rod-side flange
SSD2-ML-50-40-FP1-FB		Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Head-side flange
SSD2-ML-50-45-FP1		Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: None (cylinder only)
SSD2-ML-50-45-FP1-LB		Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Axial foot
SSD2-ML-50-45-FP1-CB		Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Double clevis
SSD2-ML-50-45-FP1-FA		Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Rod-side flange
SSD2-ML-50-45-FP1-FB		Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Head-side flange
SSD2-ML-50-50-FP1		Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: None (cylinder only)
SSD2-ML-50-50-FP1-LB		Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Axial foot
SSD2-ML-50-50-FP1-CB		Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Double clevis
SSD2-ML-50-50-FP1-FA		Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Rod-side flange
SSD2-ML-50-50-FP1-FB		Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Head-side flange
SSD2-ML-50-75-FP1		Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: None (cylinder only)
SSD2-ML-50-75-FP1-LB		Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Axial foot
SSD2-ML-50-75-FP1-CB		Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Double clevis
SSD2-ML-50-75-FP1-FA		Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Rod-side flange
SSD2-ML-50-75-FP1-FB		Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Head-side flange
SSD2-ML-50-100-FP1		Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: None (cylinder only)
SSD2-ML-50-100-FP1-LB		Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Axial foot
SSD2-ML-50-100-FP1-CB		Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Double clevis
SSD2-ML-50-100-FP1-FA		Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Rod-side flange
SSD2-ML-50-100-FP1-FB		Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Head-side flange
SSD2-ML-50D-5-FP1		Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: None (cylinder only)
SSD2-ML-50D-5-FP1-LB		Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Axial foot
SSD2-ML-50D-5-FP1-CB		Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Double clevis
SSD2-ML-50D-5-FP1-FA		Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Rod-side flange
SSD2-ML-50D-5-FP1-FB		Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Head-side flange
SSD2-ML-50D-10-FP1		Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: None (cylinder only)
SSD2-ML-50D-10-FP1-LB		Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Axial foot
SSD2-ML-50D-10-FP1-CB		Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Double clevis
SSD2-ML-50D-10-FP1-FA		Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Rod-side flange
SSD2-ML-50D-10-FP1-FB		Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Head-side flange
SSD2-ML-50D-15-FP1		Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: None (cylinder only)
SSD2-ML-50D-15-FP1-LB		Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: Axial foot
SSD2-ML-50D-15-FP1-CB		Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: Double clevis
SSD2-ML-50D-15-FP1-FA		Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: Rod-side flange
SSD2-ML-50D-15-FP1-FB		Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: Head-side flange
SSD2-ML-50D-20-FP1		Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: None (cylinder only)
SSD2-ML-50D-20-FP1-LB		Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Axial foot
SSD2-ML-50D-20-FP1-CB		Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Double clevis
SSD2-ML-50D-20-FP1-FA		Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Rod-side flange
SSD2-ML-50D-20-FP1-FB		Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Head-side flange
SSD2-ML-50D-25-FP1		Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: None (cylinder only)
SSD2-ML-50D-25-FP1-LB		Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: Axial foot
SSD2-ML-50D-25-FP1-CB		Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: Double clevis
SSD2-ML-50D-25-FP1-FA		Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: Rod-side flange
SSD2-ML-50D-25-FP1-FB		Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: Head-side flange
SSD2-ML-50D-30-FP1		Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: None (cylinder only)
SSD2-ML-50D-30-FP1-LB		Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: Axial foot
SSD2-ML-50D-30-FP1-CB		Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: Double clevis
SSD2-ML-50D-30-FP1-FA		Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: Rod-side flange
SSD2-ML-50D-30-FP1-FB		Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: Head-side flange
SSD2-ML-50D-35-FP1		Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: None (cylinder only)
SSD2-ML-50D-35-FP1-LB		Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: Axial foot
SSD2-ML-50D-35-FP1-CB		Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: Double clevis
SSD2-ML-50D-35-FP1-FA		Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: Rod-side flange
SSD2-ML-50D-35-FP1-FB		Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: Head-side flange
SSD2-ML-50D-40-FP1		Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: None (cylinder only)
SSD2-ML-50D-40-FP1-LB		Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: Axial foot
SSD2-ML-50D-40-FP1-CB		Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: Double clevis
SSD2-ML-50D-40-FP1-FA		Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: Rod-side flange
SSD2-ML-50D-40-FP1-FB		Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: Head-side flange
SSD2-ML-50D-45-FP1		Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: None (cylinder only)
SSD2-ML-50D-45-FP1-LB		Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: Axial foot
SSD2-ML-50D-45-FP1-CB		Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: Double clevis
SSD2-ML-50D-45-FP1-FA		Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: Rod-side flange
SSD2-ML-50D-45-FP1-FB		Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: Head-side flange
SSD2-ML-50D-50-FP1		Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: None (cylinder only)
SSD2-ML-50D-50-FP1-LB		Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: Axial foot
SSD2-ML-50D-50-FP1-CB		Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: Double clevis
SSD2-ML-50D-50-FP1-FA		Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: Rod-side flange
SSD2-ML-50D-50-FP1-FB		Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: Head-side flange
SSD2-ML-50D-75-FP1		Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 75 mm \| Mounting: None (cylinder only)
SSD2-ML-50D-75-FP1-LB		Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 75 mm \| Mounting: Axial foot
SSD2-ML-50D-75-FP1-CB		Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 75 mm \| Mounting: Double clevis
SSD2-ML-50D-75-FP1-FA		Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 75 mm \| Mounting: Rod-side flange
SSD2-ML-50D-75-FP1-FB		Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 75 mm \| Mounting: Head-side flange
SSD2-ML-50D-100-FP1		Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 100 mm \| Mounting: None (cylinder only)
SSD2-ML-50D-100-FP1-LB		Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 100 mm \| Mounting: Axial foot
SSD2-ML-50D-100-FP1-CB		Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 100 mm \| Mounting: Double clevis
SSD2-ML-50D-100-FP1-FA		Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 100 mm \| Mounting: Rod-side flange
SSD2-ML-50D-100-FP1-FB		Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 100 mm \| Mounting: Head-side flange
SSD2-ML-63-5-FP1		Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (cylinder only)
SSD2-ML-63-5-FP1-LB		Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot
SSD2-ML-63-5-FP1-CB		Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis
SSD2-ML-63-5-FP1-FA		Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod-side flange
SSD2-ML-63-5-FP1-FB		Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Head-side flange
SSD2-ML-63-10-FP1		Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only)
SSD2-ML-63-10-FP1-LB		Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot
SSD2-ML-63-10-FP1-CB		Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis
SSD2-ML-63-10-FP1-FA		Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-side flange
SSD2-ML-63-10-FP1-FB		Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Head-side flange
SSD2-ML-63-15-FP1		Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: None (cylinder only)
SSD2-ML-63-15-FP1-LB		Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Axial foot
SSD2-ML-63-15-FP1-CB		Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Double clevis
SSD2-ML-63-15-FP1-FA		Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Rod-side flange
SSD2-ML-63-15-FP1-FB		Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Head-side flange
SSD2-ML-63-20-FP1		Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: None (cylinder only)
SSD2-ML-63-20-FP1-LB		Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot
SSD2-ML-63-20-FP1-CB		Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Double clevis
SSD2-ML-63-20-FP1-FA		Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Rod-side flange
SSD2-ML-63-20-FP1-FB		Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Head-side flange
SSD2-ML-63-25-FP1		Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: None (cylinder only)
SSD2-ML-63-25-FP1-LB		Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Axial foot
SSD2-ML-63-25-FP1-CB		Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Double clevis
SSD2-ML-63-25-FP1-FA		Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Rod-side flange
SSD2-ML-63-25-FP1-FB		Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Head-side flange
SSD2-ML-63-30-FP1		Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: None (cylinder only)
SSD2-ML-63-30-FP1-LB		Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Axial foot
SSD2-ML-63-30-FP1-CB		Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Double clevis
SSD2-ML-63-30-FP1-FA		Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Rod-side flange
SSD2-ML-63-30-FP1-FB		Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Head-side flange
SSD2-ML-63-35-FP1		Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: None (cylinder only)
SSD2-ML-63-35-FP1-LB		Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Axial foot
SSD2-ML-63-35-FP1-CB		Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Double clevis
SSD2-ML-63-35-FP1-FA		Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Rod-side flange
SSD2-ML-63-35-FP1-FB		Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Head-side flange
SSD2-ML-63-40-FP1		Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: None (cylinder only)
SSD2-ML-63-40-FP1-LB		Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Axial foot
SSD2-ML-63-40-FP1-CB		Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Double clevis
SSD2-ML-63-40-FP1-FA		Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Rod-side flange
SSD2-ML-63-40-FP1-FB		Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Head-side flange
SSD2-ML-63-45-FP1		Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: None (cylinder only)
SSD2-ML-63-45-FP1-LB		Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Axial foot
SSD2-ML-63-45-FP1-CB		Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Double clevis
SSD2-ML-63-45-FP1-FA		Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Rod-side flange
SSD2-ML-63-45-FP1-FB		Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Head-side flange
SSD2-ML-63-50-FP1		Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: None (cylinder only)
SSD2-ML-63-50-FP1-LB		Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Axial foot
SSD2-ML-63-50-FP1-CB		Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Double clevis
SSD2-ML-63-50-FP1-FA		Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Rod-side flange
SSD2-ML-63-50-FP1-FB		Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Head-side flange
SSD2-ML-63-75-FP1		Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: None (cylinder only)
SSD2-ML-63-75-FP1-LB		Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Axial foot
SSD2-ML-63-75-FP1-CB		Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Double clevis
SSD2-ML-63-75-FP1-FA		Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Rod-side flange
SSD2-ML-63-75-FP1-FB		Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Head-side flange
SSD2-ML-63-100-FP1		Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: None (cylinder only)
SSD2-ML-63-100-FP1-LB		Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Axial foot
SSD2-ML-63-100-FP1-CB		Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Double clevis
SSD2-ML-63-100-FP1-FA		Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Rod-side flange
SSD2-ML-63-100-FP1-FB		Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Head-side flange
SSD2-ML-63D-5-FP1		Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: None (cylinder only)
SSD2-ML-63D-5-FP1-LB		Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Axial foot
SSD2-ML-63D-5-FP1-CB		Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Double clevis
SSD2-ML-63D-5-FP1-FA		Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Rod-side flange
SSD2-ML-63D-5-FP1-FB		Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Head-side flange
SSD2-ML-63D-10-FP1		Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: None (cylinder only)
SSD2-ML-63D-10-FP1-LB		Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Axial foot
SSD2-ML-63D-10-FP1-CB		Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Double clevis
SSD2-ML-63D-10-FP1-FA		Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Rod-side flange
SSD2-ML-63D-10-FP1-FB		Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Head-side flange
SSD2-ML-63D-15-FP1		Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: None (cylinder only)
SSD2-ML-63D-15-FP1-LB		Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: Axial foot
SSD2-ML-63D-15-FP1-CB		Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: Double clevis
SSD2-ML-63D-15-FP1-FA		Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: Rod-side flange
SSD2-ML-63D-15-FP1-FB		Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: Head-side flange
SSD2-ML-63D-20-FP1		Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: None (cylinder only)
SSD2-ML-63D-20-FP1-LB		Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Axial foot
SSD2-ML-63D-20-FP1-CB		Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Double clevis
SSD2-ML-63D-20-FP1-FA		Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Rod-side flange
SSD2-ML-63D-20-FP1-FB		Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Head-side flange
SSD2-ML-63D-25-FP1		Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: None (cylinder only)
SSD2-ML-63D-25-FP1-LB		Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: Axial foot
SSD2-ML-63D-25-FP1-CB		Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: Double clevis
SSD2-ML-63D-25-FP1-FA		Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: Rod-side flange
SSD2-ML-63D-25-FP1-FB		Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: Head-side flange
SSD2-ML-63D-30-FP1		Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: None (cylinder only)
SSD2-ML-63D-30-FP1-LB		Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: Axial foot
SSD2-ML-63D-30-FP1-CB		Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: Double clevis
SSD2-ML-63D-30-FP1-FA		Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: Rod-side flange
SSD2-ML-63D-30-FP1-FB		Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: Head-side flange
SSD2-ML-63D-35-FP1		Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: None (cylinder only)
SSD2-ML-63D-35-FP1-LB		Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: Axial foot
SSD2-ML-63D-35-FP1-CB		Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: Double clevis
SSD2-ML-63D-35-FP1-FA		Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: Rod-side flange
SSD2-ML-63D-35-FP1-FB		Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: Head-side flange
SSD2-ML-63D-40-FP1		Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: None (cylinder only)
SSD2-ML-63D-40-FP1-LB		Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: Axial foot
SSD2-ML-63D-40-FP1-CB		Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: Double clevis
SSD2-ML-63D-40-FP1-FA		Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: Rod-side flange
SSD2-ML-63D-40-FP1-FB		Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: Head-side flange
SSD2-ML-63D-45-FP1		Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: None (cylinder only)
SSD2-ML-63D-45-FP1-LB		Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: Axial foot
SSD2-ML-63D-45-FP1-CB		Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: Double clevis
SSD2-ML-63D-45-FP1-FA		Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: Rod-side flange
SSD2-ML-63D-45-FP1-FB		Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: Head-side flange
SSD2-ML-63D-50-FP1		Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: None (cylinder only)
SSD2-ML-63D-50-FP1-LB		Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: Axial foot
SSD2-ML-63D-50-FP1-CB		Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: Double clevis
SSD2-ML-63D-50-FP1-FA		Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: Rod-side flange
SSD2-ML-63D-50-FP1-FB		Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: Head-side flange
SSD2-ML-63D-75-FP1		Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 75 mm \| Mounting: None (cylinder only)
SSD2-ML-63D-75-FP1-LB		Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 75 mm \| Mounting: Axial foot
SSD2-ML-63D-75-FP1-CB		Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 75 mm \| Mounting: Double clevis
SSD2-ML-63D-75-FP1-FA		Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 75 mm \| Mounting: Rod-side flange
SSD2-ML-63D-75-FP1-FB		Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 75 mm \| Mounting: Head-side flange
SSD2-ML-63D-100-FP1		Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 100 mm \| Mounting: None (cylinder only)
SSD2-ML-63D-100-FP1-LB		Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 100 mm \| Mounting: Axial foot
SSD2-ML-63D-100-FP1-CB		Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 100 mm \| Mounting: Double clevis
SSD2-ML-63D-100-FP1-FA		Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 100 mm \| Mounting: Rod-side flange
SSD2-ML-63D-100-FP1-FB		Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 100 mm \| Mounting: Head-side flange

Compact CylindersCKD

720 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD SSD2-M-FP1 Super Compact Cylinder (Non-Rotating, Bore 40-63)

Brand CKD·Compact Cylinders

Available part numbers (720)

SSD2-M-40-5-FP1, SSD2-M-40-5-FP1-LB, SSD2-M-40-5-FP1-CB, SSD2-M-40-5-FP1-FA, SSD2-M-40-5-FP1-FB, SSD2-M-40-10-FP1, SSD2-M-40-10-FP1-LB, SSD2-M-40-10-FP1-CB, SSD2-M-40-10-FP1-FA, SSD2-M-40-10-FP1-FB + 710 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	SSD2-M-40-5-FP1	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (cylinder only)
	SSD2-M-40-5-FP1-LB	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot
	SSD2-M-40-5-FP1-CB	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis
	SSD2-M-40-5-FP1-FA	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod-side flange
	SSD2-M-40-5-FP1-FB	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Head-side flange
	SSD2-M-40-10-FP1	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only)
	SSD2-M-40-10-FP1-LB	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot
	SSD2-M-40-10-FP1-CB	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis
	SSD2-M-40-10-FP1-FA	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-side flange
	SSD2-M-40-10-FP1-FB	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Head-side flange
	SSD2-M-40-15-FP1	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: None (cylinder only)
	SSD2-M-40-15-FP1-LB	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Axial foot
	SSD2-M-40-15-FP1-CB	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Double clevis
	SSD2-M-40-15-FP1-FA	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Rod-side flange
	SSD2-M-40-15-FP1-FB	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Head-side flange
	SSD2-M-40-20-FP1	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: None (cylinder only)
	SSD2-M-40-20-FP1-LB	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot
	SSD2-M-40-20-FP1-CB	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Double clevis
	SSD2-M-40-20-FP1-FA	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Rod-side flange
	SSD2-M-40-20-FP1-FB	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Head-side flange
	SSD2-M-40-25-FP1	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: None (cylinder only)
	SSD2-M-40-25-FP1-LB	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Axial foot
	SSD2-M-40-25-FP1-CB	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Double clevis
	SSD2-M-40-25-FP1-FA	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Rod-side flange
	SSD2-M-40-25-FP1-FB	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Head-side flange
	SSD2-M-40-30-FP1	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: None (cylinder only)
	SSD2-M-40-30-FP1-LB	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Axial foot
	SSD2-M-40-30-FP1-CB	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Double clevis
	SSD2-M-40-30-FP1-FA	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Rod-side flange
	SSD2-M-40-30-FP1-FB	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Head-side flange
	SSD2-M-40-35-FP1	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: None (cylinder only)
	SSD2-M-40-35-FP1-LB	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Axial foot
	SSD2-M-40-35-FP1-CB	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Double clevis
	SSD2-M-40-35-FP1-FA	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Rod-side flange
	SSD2-M-40-35-FP1-FB	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Head-side flange
	SSD2-M-40-40-FP1	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: None (cylinder only)
	SSD2-M-40-40-FP1-LB	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Axial foot
	SSD2-M-40-40-FP1-CB	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Double clevis
	SSD2-M-40-40-FP1-FA	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Rod-side flange
	SSD2-M-40-40-FP1-FB	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Head-side flange
	SSD2-M-40-45-FP1	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: None (cylinder only)
	SSD2-M-40-45-FP1-LB	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Axial foot
	SSD2-M-40-45-FP1-CB	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Double clevis
	SSD2-M-40-45-FP1-FA	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Rod-side flange
	SSD2-M-40-45-FP1-FB	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Head-side flange
	SSD2-M-40-50-FP1	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: None (cylinder only)
	SSD2-M-40-50-FP1-LB	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Axial foot
	SSD2-M-40-50-FP1-CB	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Double clevis
	SSD2-M-40-50-FP1-FA	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Rod-side flange
	SSD2-M-40-50-FP1-FB	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Head-side flange
	SSD2-M-40-75-FP1	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: None (cylinder only)
	SSD2-M-40-75-FP1-LB	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Axial foot
	SSD2-M-40-75-FP1-CB	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Double clevis
	SSD2-M-40-75-FP1-FA	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Rod-side flange
	SSD2-M-40-75-FP1-FB	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Head-side flange
	SSD2-M-40-100-FP1	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: None (cylinder only)
	SSD2-M-40-100-FP1-LB	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Axial foot
	SSD2-M-40-100-FP1-CB	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Double clevis
	SSD2-M-40-100-FP1-FA	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Rod-side flange
	SSD2-M-40-100-FP1-FB	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Head-side flange
	SSD2-M-40D-5-FP1	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: None (cylinder only)
	SSD2-M-40D-5-FP1-LB	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Axial foot
	SSD2-M-40D-5-FP1-CB	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Double clevis
	SSD2-M-40D-5-FP1-FA	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Rod-side flange
	SSD2-M-40D-5-FP1-FB	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Head-side flange
	SSD2-M-40D-10-FP1	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: None (cylinder only)
	SSD2-M-40D-10-FP1-LB	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Axial foot
	SSD2-M-40D-10-FP1-CB	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Double clevis
	SSD2-M-40D-10-FP1-FA	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Rod-side flange
	SSD2-M-40D-10-FP1-FB	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Head-side flange
	SSD2-M-40D-15-FP1	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: None (cylinder only)
	SSD2-M-40D-15-FP1-LB	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: Axial foot
	SSD2-M-40D-15-FP1-CB	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: Double clevis
	SSD2-M-40D-15-FP1-FA	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: Rod-side flange
	SSD2-M-40D-15-FP1-FB	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: Head-side flange
	SSD2-M-40D-20-FP1	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: None (cylinder only)
	SSD2-M-40D-20-FP1-LB	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Axial foot
	SSD2-M-40D-20-FP1-CB	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Double clevis
	SSD2-M-40D-20-FP1-FA	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Rod-side flange
	SSD2-M-40D-20-FP1-FB	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Head-side flange
	SSD2-M-40D-25-FP1	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: None (cylinder only)
	SSD2-M-40D-25-FP1-LB	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: Axial foot
	SSD2-M-40D-25-FP1-CB	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: Double clevis
	SSD2-M-40D-25-FP1-FA	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: Rod-side flange
	SSD2-M-40D-25-FP1-FB	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: Head-side flange
	SSD2-M-40D-30-FP1	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: None (cylinder only)
	SSD2-M-40D-30-FP1-LB	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: Axial foot
	SSD2-M-40D-30-FP1-CB	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: Double clevis
	SSD2-M-40D-30-FP1-FA	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: Rod-side flange
	SSD2-M-40D-30-FP1-FB	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: Head-side flange
	SSD2-M-40D-35-FP1	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: None (cylinder only)
	SSD2-M-40D-35-FP1-LB	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: Axial foot
	SSD2-M-40D-35-FP1-CB	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: Double clevis
	SSD2-M-40D-35-FP1-FA	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: Rod-side flange
	SSD2-M-40D-35-FP1-FB	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: Head-side flange
	SSD2-M-40D-40-FP1	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: None (cylinder only)
	SSD2-M-40D-40-FP1-LB	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: Axial foot
	SSD2-M-40D-40-FP1-CB	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: Double clevis
	SSD2-M-40D-40-FP1-FA	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: Rod-side flange
	SSD2-M-40D-40-FP1-FB	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: Head-side flange
	SSD2-M-40D-45-FP1	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: None (cylinder only)
	SSD2-M-40D-45-FP1-LB	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: Axial foot
	SSD2-M-40D-45-FP1-CB	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: Double clevis
	SSD2-M-40D-45-FP1-FA	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: Rod-side flange
	SSD2-M-40D-45-FP1-FB	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: Head-side flange
	SSD2-M-40D-50-FP1	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: None (cylinder only)
	SSD2-M-40D-50-FP1-LB	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: Axial foot
	SSD2-M-40D-50-FP1-CB	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: Double clevis
	SSD2-M-40D-50-FP1-FA	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: Rod-side flange
	SSD2-M-40D-50-FP1-FB	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: Head-side flange
	SSD2-M-40D-75-FP1	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 75 mm \| Mounting: None (cylinder only)
	SSD2-M-40D-75-FP1-LB	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 75 mm \| Mounting: Axial foot
	SSD2-M-40D-75-FP1-CB	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 75 mm \| Mounting: Double clevis
	SSD2-M-40D-75-FP1-FA	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 75 mm \| Mounting: Rod-side flange
	SSD2-M-40D-75-FP1-FB	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 75 mm \| Mounting: Head-side flange
	SSD2-M-40D-100-FP1	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 100 mm \| Mounting: None (cylinder only)
	SSD2-M-40D-100-FP1-LB	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 100 mm \| Mounting: Axial foot
	SSD2-M-40D-100-FP1-CB	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 100 mm \| Mounting: Double clevis
	SSD2-M-40D-100-FP1-FA	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 100 mm \| Mounting: Rod-side flange
	SSD2-M-40D-100-FP1-FB	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 100 mm \| Mounting: Head-side flange
	SSD2-M-50-5-FP1	Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (cylinder only)
	SSD2-M-50-5-FP1-LB	Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot
	SSD2-M-50-5-FP1-CB	Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis
	SSD2-M-50-5-FP1-FA	Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod-side flange
	SSD2-M-50-5-FP1-FB	Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Head-side flange
	SSD2-M-50-10-FP1	Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only)
	SSD2-M-50-10-FP1-LB	Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot
	SSD2-M-50-10-FP1-CB	Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis
	SSD2-M-50-10-FP1-FA	Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-side flange
	SSD2-M-50-10-FP1-FB	Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Head-side flange
	SSD2-M-50-15-FP1	Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: None (cylinder only)
	SSD2-M-50-15-FP1-LB	Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Axial foot
	SSD2-M-50-15-FP1-CB	Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Double clevis
	SSD2-M-50-15-FP1-FA	Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Rod-side flange
	SSD2-M-50-15-FP1-FB	Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Head-side flange
	SSD2-M-50-20-FP1	Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: None (cylinder only)
	SSD2-M-50-20-FP1-LB	Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot
	SSD2-M-50-20-FP1-CB	Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Double clevis
	SSD2-M-50-20-FP1-FA	Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Rod-side flange
	SSD2-M-50-20-FP1-FB	Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Head-side flange
	SSD2-M-50-25-FP1	Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: None (cylinder only)
	SSD2-M-50-25-FP1-LB	Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Axial foot
	SSD2-M-50-25-FP1-CB	Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Double clevis
	SSD2-M-50-25-FP1-FA	Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Rod-side flange
	SSD2-M-50-25-FP1-FB	Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Head-side flange
	SSD2-M-50-30-FP1	Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: None (cylinder only)
	SSD2-M-50-30-FP1-LB	Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Axial foot
	SSD2-M-50-30-FP1-CB	Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Double clevis
	SSD2-M-50-30-FP1-FA	Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Rod-side flange
	SSD2-M-50-30-FP1-FB	Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Head-side flange
	SSD2-M-50-35-FP1	Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: None (cylinder only)
	SSD2-M-50-35-FP1-LB	Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Axial foot
	SSD2-M-50-35-FP1-CB	Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Double clevis
	SSD2-M-50-35-FP1-FA	Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Rod-side flange
	SSD2-M-50-35-FP1-FB	Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Head-side flange
	SSD2-M-50-40-FP1	Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: None (cylinder only)
	SSD2-M-50-40-FP1-LB	Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Axial foot
	SSD2-M-50-40-FP1-CB	Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Double clevis
	SSD2-M-50-40-FP1-FA	Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Rod-side flange
	SSD2-M-50-40-FP1-FB	Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Head-side flange
	SSD2-M-50-45-FP1	Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: None (cylinder only)
	SSD2-M-50-45-FP1-LB	Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Axial foot
	SSD2-M-50-45-FP1-CB	Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Double clevis
	SSD2-M-50-45-FP1-FA	Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Rod-side flange
	SSD2-M-50-45-FP1-FB	Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Head-side flange
	SSD2-M-50-50-FP1	Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: None (cylinder only)
	SSD2-M-50-50-FP1-LB	Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Axial foot
	SSD2-M-50-50-FP1-CB	Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Double clevis
	SSD2-M-50-50-FP1-FA	Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Rod-side flange
	SSD2-M-50-50-FP1-FB	Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Head-side flange
	SSD2-M-50-75-FP1	Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: None (cylinder only)
	SSD2-M-50-75-FP1-LB	Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Axial foot
	SSD2-M-50-75-FP1-CB	Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Double clevis
	SSD2-M-50-75-FP1-FA	Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Rod-side flange
	SSD2-M-50-75-FP1-FB	Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Head-side flange
	SSD2-M-50-100-FP1	Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: None (cylinder only)
	SSD2-M-50-100-FP1-LB	Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Axial foot
	SSD2-M-50-100-FP1-CB	Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Double clevis
	SSD2-M-50-100-FP1-FA	Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Rod-side flange
	SSD2-M-50-100-FP1-FB	Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Head-side flange
	SSD2-M-50D-5-FP1	Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: None (cylinder only)
	SSD2-M-50D-5-FP1-LB	Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Axial foot
	SSD2-M-50D-5-FP1-CB	Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Double clevis
	SSD2-M-50D-5-FP1-FA	Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Rod-side flange
	SSD2-M-50D-5-FP1-FB	Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Head-side flange
	SSD2-M-50D-10-FP1	Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: None (cylinder only)
	SSD2-M-50D-10-FP1-LB	Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Axial foot
	SSD2-M-50D-10-FP1-CB	Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Double clevis
	SSD2-M-50D-10-FP1-FA	Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Rod-side flange
	SSD2-M-50D-10-FP1-FB	Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Head-side flange
	SSD2-M-50D-15-FP1	Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: None (cylinder only)
	SSD2-M-50D-15-FP1-LB	Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: Axial foot
	SSD2-M-50D-15-FP1-CB	Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: Double clevis
	SSD2-M-50D-15-FP1-FA	Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: Rod-side flange
	SSD2-M-50D-15-FP1-FB	Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: Head-side flange
	SSD2-M-50D-20-FP1	Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: None (cylinder only)
	SSD2-M-50D-20-FP1-LB	Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Axial foot
	SSD2-M-50D-20-FP1-CB	Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Double clevis
	SSD2-M-50D-20-FP1-FA	Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Rod-side flange
	SSD2-M-50D-20-FP1-FB	Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Head-side flange
	SSD2-M-50D-25-FP1	Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: None (cylinder only)
	SSD2-M-50D-25-FP1-LB	Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: Axial foot
	SSD2-M-50D-25-FP1-CB	Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: Double clevis
	SSD2-M-50D-25-FP1-FA	Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: Rod-side flange
	SSD2-M-50D-25-FP1-FB	Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: Head-side flange
	SSD2-M-50D-30-FP1	Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: None (cylinder only)
	SSD2-M-50D-30-FP1-LB	Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: Axial foot
	SSD2-M-50D-30-FP1-CB	Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: Double clevis
	SSD2-M-50D-30-FP1-FA	Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: Rod-side flange
	SSD2-M-50D-30-FP1-FB	Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: Head-side flange
	SSD2-M-50D-35-FP1	Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: None (cylinder only)
	SSD2-M-50D-35-FP1-LB	Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: Axial foot
	SSD2-M-50D-35-FP1-CB	Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: Double clevis
	SSD2-M-50D-35-FP1-FA	Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: Rod-side flange
	SSD2-M-50D-35-FP1-FB	Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: Head-side flange
	SSD2-M-50D-40-FP1	Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: None (cylinder only)
	SSD2-M-50D-40-FP1-LB	Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: Axial foot
	SSD2-M-50D-40-FP1-CB	Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: Double clevis
	SSD2-M-50D-40-FP1-FA	Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: Rod-side flange
	SSD2-M-50D-40-FP1-FB	Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: Head-side flange
	SSD2-M-50D-45-FP1	Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: None (cylinder only)
	SSD2-M-50D-45-FP1-LB	Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: Axial foot
	SSD2-M-50D-45-FP1-CB	Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: Double clevis
	SSD2-M-50D-45-FP1-FA	Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: Rod-side flange
	SSD2-M-50D-45-FP1-FB	Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: Head-side flange
	SSD2-M-50D-50-FP1	Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: None (cylinder only)
	SSD2-M-50D-50-FP1-LB	Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: Axial foot
	SSD2-M-50D-50-FP1-CB	Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: Double clevis
	SSD2-M-50D-50-FP1-FA	Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: Rod-side flange
	SSD2-M-50D-50-FP1-FB	Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: Head-side flange
	SSD2-M-50D-75-FP1	Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 75 mm \| Mounting: None (cylinder only)
	SSD2-M-50D-75-FP1-LB	Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 75 mm \| Mounting: Axial foot
	SSD2-M-50D-75-FP1-CB	Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 75 mm \| Mounting: Double clevis
	SSD2-M-50D-75-FP1-FA	Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 75 mm \| Mounting: Rod-side flange
	SSD2-M-50D-75-FP1-FB	Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 75 mm \| Mounting: Head-side flange
	SSD2-M-50D-100-FP1	Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 100 mm \| Mounting: None (cylinder only)
	SSD2-M-50D-100-FP1-LB	Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 100 mm \| Mounting: Axial foot
	SSD2-M-50D-100-FP1-CB	Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 100 mm \| Mounting: Double clevis
	SSD2-M-50D-100-FP1-FA	Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 100 mm \| Mounting: Rod-side flange
	SSD2-M-50D-100-FP1-FB	Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 100 mm \| Mounting: Head-side flange
	SSD2-M-63-5-FP1	Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (cylinder only)
	SSD2-M-63-5-FP1-LB	Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot
	SSD2-M-63-5-FP1-CB	Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis
	SSD2-M-63-5-FP1-FA	Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod-side flange
	SSD2-M-63-5-FP1-FB	Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Head-side flange
	SSD2-M-63-10-FP1	Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only)
	SSD2-M-63-10-FP1-LB	Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot
	SSD2-M-63-10-FP1-CB	Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis
	SSD2-M-63-10-FP1-FA	Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-side flange
	SSD2-M-63-10-FP1-FB	Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Head-side flange
	SSD2-M-63-15-FP1	Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: None (cylinder only)
	SSD2-M-63-15-FP1-LB	Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Axial foot
	SSD2-M-63-15-FP1-CB	Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Double clevis
	SSD2-M-63-15-FP1-FA	Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Rod-side flange
	SSD2-M-63-15-FP1-FB	Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Head-side flange
	SSD2-M-63-20-FP1	Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: None (cylinder only)
	SSD2-M-63-20-FP1-LB	Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot
	SSD2-M-63-20-FP1-CB	Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Double clevis
	SSD2-M-63-20-FP1-FA	Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Rod-side flange
	SSD2-M-63-20-FP1-FB	Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Head-side flange
	SSD2-M-63-25-FP1	Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: None (cylinder only)
	SSD2-M-63-25-FP1-LB	Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Axial foot
	SSD2-M-63-25-FP1-CB	Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Double clevis
	SSD2-M-63-25-FP1-FA	Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Rod-side flange
	SSD2-M-63-25-FP1-FB	Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Head-side flange
	SSD2-M-63-30-FP1	Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: None (cylinder only)
	SSD2-M-63-30-FP1-LB	Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Axial foot
	SSD2-M-63-30-FP1-CB	Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Double clevis
	SSD2-M-63-30-FP1-FA	Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Rod-side flange
	SSD2-M-63-30-FP1-FB	Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Head-side flange
	SSD2-M-63-35-FP1	Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: None (cylinder only)
	SSD2-M-63-35-FP1-LB	Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Axial foot
	SSD2-M-63-35-FP1-CB	Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Double clevis
	SSD2-M-63-35-FP1-FA	Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Rod-side flange
	SSD2-M-63-35-FP1-FB	Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Head-side flange
	SSD2-M-63-40-FP1	Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: None (cylinder only)
	SSD2-M-63-40-FP1-LB	Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Axial foot
	SSD2-M-63-40-FP1-CB	Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Double clevis
	SSD2-M-63-40-FP1-FA	Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Rod-side flange
	SSD2-M-63-40-FP1-FB	Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Head-side flange
	SSD2-M-63-45-FP1	Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: None (cylinder only)
	SSD2-M-63-45-FP1-LB	Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Axial foot
	SSD2-M-63-45-FP1-CB	Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Double clevis
	SSD2-M-63-45-FP1-FA	Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Rod-side flange
	SSD2-M-63-45-FP1-FB	Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Head-side flange
	SSD2-M-63-50-FP1	Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: None (cylinder only)
	SSD2-M-63-50-FP1-LB	Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Axial foot
	SSD2-M-63-50-FP1-CB	Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Double clevis
	SSD2-M-63-50-FP1-FA	Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Rod-side flange
	SSD2-M-63-50-FP1-FB	Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Head-side flange
	SSD2-M-63-75-FP1	Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: None (cylinder only)
	SSD2-M-63-75-FP1-LB	Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Axial foot
	SSD2-M-63-75-FP1-CB	Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Double clevis
	SSD2-M-63-75-FP1-FA	Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Rod-side flange
	SSD2-M-63-75-FP1-FB	Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Head-side flange
	SSD2-M-63-100-FP1	Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: None (cylinder only)
	SSD2-M-63-100-FP1-LB	Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Axial foot
	SSD2-M-63-100-FP1-CB	Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Double clevis
	SSD2-M-63-100-FP1-FA	Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Rod-side flange
	SSD2-M-63-100-FP1-FB	Switch magnet: No \| Bore: 63 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Head-side flange
	SSD2-M-63D-5-FP1	Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: None (cylinder only)
	SSD2-M-63D-5-FP1-LB	Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Axial foot
	SSD2-M-63D-5-FP1-CB	Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Double clevis
	SSD2-M-63D-5-FP1-FA	Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Rod-side flange
	SSD2-M-63D-5-FP1-FB	Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Head-side flange
	SSD2-M-63D-10-FP1	Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: None (cylinder only)
	SSD2-M-63D-10-FP1-LB	Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Axial foot
	SSD2-M-63D-10-FP1-CB	Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Double clevis
	SSD2-M-63D-10-FP1-FA	Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Rod-side flange
	SSD2-M-63D-10-FP1-FB	Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Head-side flange
	SSD2-M-63D-15-FP1	Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: None (cylinder only)
	SSD2-M-63D-15-FP1-LB	Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: Axial foot
	SSD2-M-63D-15-FP1-CB	Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: Double clevis
	SSD2-M-63D-15-FP1-FA	Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: Rod-side flange
	SSD2-M-63D-15-FP1-FB	Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: Head-side flange
	SSD2-M-63D-20-FP1	Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: None (cylinder only)
	SSD2-M-63D-20-FP1-LB	Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Axial foot
	SSD2-M-63D-20-FP1-CB	Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Double clevis
	SSD2-M-63D-20-FP1-FA	Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Rod-side flange
	SSD2-M-63D-20-FP1-FB	Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Head-side flange
	SSD2-M-63D-25-FP1	Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: None (cylinder only)
	SSD2-M-63D-25-FP1-LB	Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: Axial foot
	SSD2-M-63D-25-FP1-CB	Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: Double clevis
	SSD2-M-63D-25-FP1-FA	Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: Rod-side flange
	SSD2-M-63D-25-FP1-FB	Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: Head-side flange
	SSD2-M-63D-30-FP1	Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: None (cylinder only)
	SSD2-M-63D-30-FP1-LB	Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: Axial foot
	SSD2-M-63D-30-FP1-CB	Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: Double clevis
	SSD2-M-63D-30-FP1-FA	Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: Rod-side flange
	SSD2-M-63D-30-FP1-FB	Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: Head-side flange
	SSD2-M-63D-35-FP1	Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: None (cylinder only)
	SSD2-M-63D-35-FP1-LB	Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: Axial foot
	SSD2-M-63D-35-FP1-CB	Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: Double clevis
	SSD2-M-63D-35-FP1-FA	Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: Rod-side flange
	SSD2-M-63D-35-FP1-FB	Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: Head-side flange
	SSD2-M-63D-40-FP1	Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: None (cylinder only)
	SSD2-M-63D-40-FP1-LB	Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: Axial foot
	SSD2-M-63D-40-FP1-CB	Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: Double clevis
	SSD2-M-63D-40-FP1-FA	Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: Rod-side flange
	SSD2-M-63D-40-FP1-FB	Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: Head-side flange
	SSD2-M-63D-45-FP1	Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: None (cylinder only)
	SSD2-M-63D-45-FP1-LB	Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: Axial foot
	SSD2-M-63D-45-FP1-CB	Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: Double clevis
	SSD2-M-63D-45-FP1-FA	Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: Rod-side flange
	SSD2-M-63D-45-FP1-FB	Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: Head-side flange
	SSD2-M-63D-50-FP1	Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: None (cylinder only)
	SSD2-M-63D-50-FP1-LB	Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: Axial foot
	SSD2-M-63D-50-FP1-CB	Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: Double clevis
	SSD2-M-63D-50-FP1-FA	Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: Rod-side flange
	SSD2-M-63D-50-FP1-FB	Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: Head-side flange
	SSD2-M-63D-75-FP1	Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 75 mm \| Mounting: None (cylinder only)
	SSD2-M-63D-75-FP1-LB	Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 75 mm \| Mounting: Axial foot
	SSD2-M-63D-75-FP1-CB	Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 75 mm \| Mounting: Double clevis
	SSD2-M-63D-75-FP1-FA	Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 75 mm \| Mounting: Rod-side flange
	SSD2-M-63D-75-FP1-FB	Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 75 mm \| Mounting: Head-side flange
	SSD2-M-63D-100-FP1	Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 100 mm \| Mounting: None (cylinder only)
	SSD2-M-63D-100-FP1-LB	Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 100 mm \| Mounting: Axial foot
	SSD2-M-63D-100-FP1-CB	Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 100 mm \| Mounting: Double clevis
	SSD2-M-63D-100-FP1-FA	Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 100 mm \| Mounting: Rod-side flange
	SSD2-M-63D-100-FP1-FB	Switch magnet: No \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 100 mm \| Mounting: Head-side flange
	SSD2-ML-40-5-FP1	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (cylinder only)
	SSD2-ML-40-5-FP1-LB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot
	SSD2-ML-40-5-FP1-CB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis
	SSD2-ML-40-5-FP1-FA	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod-side flange
	SSD2-ML-40-5-FP1-FB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Head-side flange
	SSD2-ML-40-10-FP1	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only)
	SSD2-ML-40-10-FP1-LB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot
	SSD2-ML-40-10-FP1-CB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis
	SSD2-ML-40-10-FP1-FA	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-side flange
	SSD2-ML-40-10-FP1-FB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Head-side flange
	SSD2-ML-40-15-FP1	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: None (cylinder only)
	SSD2-ML-40-15-FP1-LB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Axial foot
	SSD2-ML-40-15-FP1-CB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Double clevis
	SSD2-ML-40-15-FP1-FA	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Rod-side flange
	SSD2-ML-40-15-FP1-FB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Head-side flange
	SSD2-ML-40-20-FP1	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: None (cylinder only)
	SSD2-ML-40-20-FP1-LB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot
	SSD2-ML-40-20-FP1-CB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Double clevis
	SSD2-ML-40-20-FP1-FA	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Rod-side flange
	SSD2-ML-40-20-FP1-FB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Head-side flange
	SSD2-ML-40-25-FP1	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: None (cylinder only)
	SSD2-ML-40-25-FP1-LB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Axial foot
	SSD2-ML-40-25-FP1-CB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Double clevis
	SSD2-ML-40-25-FP1-FA	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Rod-side flange
	SSD2-ML-40-25-FP1-FB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Head-side flange
	SSD2-ML-40-30-FP1	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: None (cylinder only)
	SSD2-ML-40-30-FP1-LB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Axial foot
	SSD2-ML-40-30-FP1-CB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Double clevis
	SSD2-ML-40-30-FP1-FA	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Rod-side flange
	SSD2-ML-40-30-FP1-FB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Head-side flange
	SSD2-ML-40-35-FP1	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: None (cylinder only)
	SSD2-ML-40-35-FP1-LB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Axial foot
	SSD2-ML-40-35-FP1-CB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Double clevis
	SSD2-ML-40-35-FP1-FA	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Rod-side flange
	SSD2-ML-40-35-FP1-FB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Head-side flange
	SSD2-ML-40-40-FP1	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: None (cylinder only)
	SSD2-ML-40-40-FP1-LB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Axial foot
	SSD2-ML-40-40-FP1-CB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Double clevis
	SSD2-ML-40-40-FP1-FA	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Rod-side flange
	SSD2-ML-40-40-FP1-FB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Head-side flange
	SSD2-ML-40-45-FP1	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: None (cylinder only)
	SSD2-ML-40-45-FP1-LB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Axial foot
	SSD2-ML-40-45-FP1-CB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Double clevis
	SSD2-ML-40-45-FP1-FA	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Rod-side flange
	SSD2-ML-40-45-FP1-FB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Head-side flange
	SSD2-ML-40-50-FP1	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: None (cylinder only)
	SSD2-ML-40-50-FP1-LB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Axial foot
	SSD2-ML-40-50-FP1-CB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Double clevis
	SSD2-ML-40-50-FP1-FA	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Rod-side flange
	SSD2-ML-40-50-FP1-FB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Head-side flange
	SSD2-ML-40-75-FP1	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: None (cylinder only)
	SSD2-ML-40-75-FP1-LB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Axial foot
	SSD2-ML-40-75-FP1-CB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Double clevis
	SSD2-ML-40-75-FP1-FA	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Rod-side flange
	SSD2-ML-40-75-FP1-FB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Head-side flange
	SSD2-ML-40-100-FP1	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: None (cylinder only)
	SSD2-ML-40-100-FP1-LB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Axial foot
	SSD2-ML-40-100-FP1-CB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Double clevis
	SSD2-ML-40-100-FP1-FA	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Rod-side flange
	SSD2-ML-40-100-FP1-FB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Head-side flange
	SSD2-ML-40D-5-FP1	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: None (cylinder only)
	SSD2-ML-40D-5-FP1-LB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Axial foot
	SSD2-ML-40D-5-FP1-CB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Double clevis
	SSD2-ML-40D-5-FP1-FA	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Rod-side flange
	SSD2-ML-40D-5-FP1-FB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Head-side flange
	SSD2-ML-40D-10-FP1	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: None (cylinder only)
	SSD2-ML-40D-10-FP1-LB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Axial foot
	SSD2-ML-40D-10-FP1-CB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Double clevis
	SSD2-ML-40D-10-FP1-FA	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Rod-side flange
	SSD2-ML-40D-10-FP1-FB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Head-side flange
	SSD2-ML-40D-15-FP1	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: None (cylinder only)
	SSD2-ML-40D-15-FP1-LB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: Axial foot
	SSD2-ML-40D-15-FP1-CB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: Double clevis
	SSD2-ML-40D-15-FP1-FA	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: Rod-side flange
	SSD2-ML-40D-15-FP1-FB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: Head-side flange
	SSD2-ML-40D-20-FP1	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: None (cylinder only)
	SSD2-ML-40D-20-FP1-LB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Axial foot
	SSD2-ML-40D-20-FP1-CB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Double clevis
	SSD2-ML-40D-20-FP1-FA	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Rod-side flange
	SSD2-ML-40D-20-FP1-FB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Head-side flange
	SSD2-ML-40D-25-FP1	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: None (cylinder only)
	SSD2-ML-40D-25-FP1-LB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: Axial foot
	SSD2-ML-40D-25-FP1-CB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: Double clevis
	SSD2-ML-40D-25-FP1-FA	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: Rod-side flange
	SSD2-ML-40D-25-FP1-FB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: Head-side flange
	SSD2-ML-40D-30-FP1	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: None (cylinder only)
	SSD2-ML-40D-30-FP1-LB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: Axial foot
	SSD2-ML-40D-30-FP1-CB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: Double clevis
	SSD2-ML-40D-30-FP1-FA	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: Rod-side flange
	SSD2-ML-40D-30-FP1-FB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: Head-side flange
	SSD2-ML-40D-35-FP1	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: None (cylinder only)
	SSD2-ML-40D-35-FP1-LB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: Axial foot
	SSD2-ML-40D-35-FP1-CB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: Double clevis
	SSD2-ML-40D-35-FP1-FA	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: Rod-side flange
	SSD2-ML-40D-35-FP1-FB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: Head-side flange
	SSD2-ML-40D-40-FP1	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: None (cylinder only)
	SSD2-ML-40D-40-FP1-LB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: Axial foot
	SSD2-ML-40D-40-FP1-CB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: Double clevis
	SSD2-ML-40D-40-FP1-FA	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: Rod-side flange
	SSD2-ML-40D-40-FP1-FB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: Head-side flange
	SSD2-ML-40D-45-FP1	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: None (cylinder only)
	SSD2-ML-40D-45-FP1-LB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: Axial foot
	SSD2-ML-40D-45-FP1-CB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: Double clevis
	SSD2-ML-40D-45-FP1-FA	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: Rod-side flange
	SSD2-ML-40D-45-FP1-FB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: Head-side flange
	SSD2-ML-40D-50-FP1	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: None (cylinder only)
	SSD2-ML-40D-50-FP1-LB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: Axial foot
	SSD2-ML-40D-50-FP1-CB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: Double clevis
	SSD2-ML-40D-50-FP1-FA	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: Rod-side flange
	SSD2-ML-40D-50-FP1-FB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: Head-side flange
	SSD2-ML-40D-75-FP1	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 75 mm \| Mounting: None (cylinder only)
	SSD2-ML-40D-75-FP1-LB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 75 mm \| Mounting: Axial foot
	SSD2-ML-40D-75-FP1-CB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 75 mm \| Mounting: Double clevis
	SSD2-ML-40D-75-FP1-FA	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 75 mm \| Mounting: Rod-side flange
	SSD2-ML-40D-75-FP1-FB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 75 mm \| Mounting: Head-side flange
	SSD2-ML-40D-100-FP1	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 100 mm \| Mounting: None (cylinder only)
	SSD2-ML-40D-100-FP1-LB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 100 mm \| Mounting: Axial foot
	SSD2-ML-40D-100-FP1-CB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 100 mm \| Mounting: Double clevis
	SSD2-ML-40D-100-FP1-FA	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 100 mm \| Mounting: Rod-side flange
	SSD2-ML-40D-100-FP1-FB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 100 mm \| Mounting: Head-side flange
	SSD2-ML-50-5-FP1	Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (cylinder only)
	SSD2-ML-50-5-FP1-LB	Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot
	SSD2-ML-50-5-FP1-CB	Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis
	SSD2-ML-50-5-FP1-FA	Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod-side flange
	SSD2-ML-50-5-FP1-FB	Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Head-side flange
	SSD2-ML-50-10-FP1	Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only)
	SSD2-ML-50-10-FP1-LB	Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot
	SSD2-ML-50-10-FP1-CB	Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis
	SSD2-ML-50-10-FP1-FA	Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-side flange
	SSD2-ML-50-10-FP1-FB	Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Head-side flange
	SSD2-ML-50-15-FP1	Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: None (cylinder only)
	SSD2-ML-50-15-FP1-LB	Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Axial foot
	SSD2-ML-50-15-FP1-CB	Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Double clevis
	SSD2-ML-50-15-FP1-FA	Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Rod-side flange
	SSD2-ML-50-15-FP1-FB	Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Head-side flange
	SSD2-ML-50-20-FP1	Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: None (cylinder only)
	SSD2-ML-50-20-FP1-LB	Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot
	SSD2-ML-50-20-FP1-CB	Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Double clevis
	SSD2-ML-50-20-FP1-FA	Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Rod-side flange
	SSD2-ML-50-20-FP1-FB	Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Head-side flange
	SSD2-ML-50-25-FP1	Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: None (cylinder only)
	SSD2-ML-50-25-FP1-LB	Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Axial foot
	SSD2-ML-50-25-FP1-CB	Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Double clevis
	SSD2-ML-50-25-FP1-FA	Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Rod-side flange
	SSD2-ML-50-25-FP1-FB	Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Head-side flange
	SSD2-ML-50-30-FP1	Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: None (cylinder only)
	SSD2-ML-50-30-FP1-LB	Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Axial foot
	SSD2-ML-50-30-FP1-CB	Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Double clevis
	SSD2-ML-50-30-FP1-FA	Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Rod-side flange
	SSD2-ML-50-30-FP1-FB	Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Head-side flange
	SSD2-ML-50-35-FP1	Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: None (cylinder only)
	SSD2-ML-50-35-FP1-LB	Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Axial foot
	SSD2-ML-50-35-FP1-CB	Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Double clevis
	SSD2-ML-50-35-FP1-FA	Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Rod-side flange
	SSD2-ML-50-35-FP1-FB	Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Head-side flange
	SSD2-ML-50-40-FP1	Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: None (cylinder only)
	SSD2-ML-50-40-FP1-LB	Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Axial foot
	SSD2-ML-50-40-FP1-CB	Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Double clevis
	SSD2-ML-50-40-FP1-FA	Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Rod-side flange
	SSD2-ML-50-40-FP1-FB	Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Head-side flange
	SSD2-ML-50-45-FP1	Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: None (cylinder only)
	SSD2-ML-50-45-FP1-LB	Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Axial foot
	SSD2-ML-50-45-FP1-CB	Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Double clevis
	SSD2-ML-50-45-FP1-FA	Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Rod-side flange
	SSD2-ML-50-45-FP1-FB	Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Head-side flange
	SSD2-ML-50-50-FP1	Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: None (cylinder only)
	SSD2-ML-50-50-FP1-LB	Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Axial foot
	SSD2-ML-50-50-FP1-CB	Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Double clevis
	SSD2-ML-50-50-FP1-FA	Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Rod-side flange
	SSD2-ML-50-50-FP1-FB	Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Head-side flange
	SSD2-ML-50-75-FP1	Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: None (cylinder only)
	SSD2-ML-50-75-FP1-LB	Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Axial foot
	SSD2-ML-50-75-FP1-CB	Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Double clevis
	SSD2-ML-50-75-FP1-FA	Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Rod-side flange
	SSD2-ML-50-75-FP1-FB	Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Head-side flange
	SSD2-ML-50-100-FP1	Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: None (cylinder only)
	SSD2-ML-50-100-FP1-LB	Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Axial foot
	SSD2-ML-50-100-FP1-CB	Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Double clevis
	SSD2-ML-50-100-FP1-FA	Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Rod-side flange
	SSD2-ML-50-100-FP1-FB	Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Head-side flange
	SSD2-ML-50D-5-FP1	Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: None (cylinder only)
	SSD2-ML-50D-5-FP1-LB	Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Axial foot
	SSD2-ML-50D-5-FP1-CB	Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Double clevis
	SSD2-ML-50D-5-FP1-FA	Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Rod-side flange
	SSD2-ML-50D-5-FP1-FB	Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Head-side flange
	SSD2-ML-50D-10-FP1	Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: None (cylinder only)
	SSD2-ML-50D-10-FP1-LB	Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Axial foot
	SSD2-ML-50D-10-FP1-CB	Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Double clevis
	SSD2-ML-50D-10-FP1-FA	Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Rod-side flange
	SSD2-ML-50D-10-FP1-FB	Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Head-side flange
	SSD2-ML-50D-15-FP1	Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: None (cylinder only)
	SSD2-ML-50D-15-FP1-LB	Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: Axial foot
	SSD2-ML-50D-15-FP1-CB	Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: Double clevis
	SSD2-ML-50D-15-FP1-FA	Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: Rod-side flange
	SSD2-ML-50D-15-FP1-FB	Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: Head-side flange
	SSD2-ML-50D-20-FP1	Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: None (cylinder only)
	SSD2-ML-50D-20-FP1-LB	Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Axial foot
	SSD2-ML-50D-20-FP1-CB	Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Double clevis
	SSD2-ML-50D-20-FP1-FA	Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Rod-side flange
	SSD2-ML-50D-20-FP1-FB	Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Head-side flange
	SSD2-ML-50D-25-FP1	Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: None (cylinder only)
	SSD2-ML-50D-25-FP1-LB	Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: Axial foot
	SSD2-ML-50D-25-FP1-CB	Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: Double clevis
	SSD2-ML-50D-25-FP1-FA	Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: Rod-side flange
	SSD2-ML-50D-25-FP1-FB	Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: Head-side flange
	SSD2-ML-50D-30-FP1	Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: None (cylinder only)
	SSD2-ML-50D-30-FP1-LB	Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: Axial foot
	SSD2-ML-50D-30-FP1-CB	Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: Double clevis
	SSD2-ML-50D-30-FP1-FA	Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: Rod-side flange
	SSD2-ML-50D-30-FP1-FB	Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: Head-side flange
	SSD2-ML-50D-35-FP1	Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: None (cylinder only)
	SSD2-ML-50D-35-FP1-LB	Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: Axial foot
	SSD2-ML-50D-35-FP1-CB	Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: Double clevis
	SSD2-ML-50D-35-FP1-FA	Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: Rod-side flange
	SSD2-ML-50D-35-FP1-FB	Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: Head-side flange
	SSD2-ML-50D-40-FP1	Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: None (cylinder only)
	SSD2-ML-50D-40-FP1-LB	Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: Axial foot
	SSD2-ML-50D-40-FP1-CB	Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: Double clevis
	SSD2-ML-50D-40-FP1-FA	Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: Rod-side flange
	SSD2-ML-50D-40-FP1-FB	Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: Head-side flange
	SSD2-ML-50D-45-FP1	Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: None (cylinder only)
	SSD2-ML-50D-45-FP1-LB	Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: Axial foot
	SSD2-ML-50D-45-FP1-CB	Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: Double clevis
	SSD2-ML-50D-45-FP1-FA	Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: Rod-side flange
	SSD2-ML-50D-45-FP1-FB	Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: Head-side flange
	SSD2-ML-50D-50-FP1	Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: None (cylinder only)
	SSD2-ML-50D-50-FP1-LB	Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: Axial foot
	SSD2-ML-50D-50-FP1-CB	Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: Double clevis
	SSD2-ML-50D-50-FP1-FA	Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: Rod-side flange
	SSD2-ML-50D-50-FP1-FB	Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: Head-side flange
	SSD2-ML-50D-75-FP1	Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 75 mm \| Mounting: None (cylinder only)
	SSD2-ML-50D-75-FP1-LB	Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 75 mm \| Mounting: Axial foot
	SSD2-ML-50D-75-FP1-CB	Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 75 mm \| Mounting: Double clevis
	SSD2-ML-50D-75-FP1-FA	Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 75 mm \| Mounting: Rod-side flange
	SSD2-ML-50D-75-FP1-FB	Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 75 mm \| Mounting: Head-side flange
	SSD2-ML-50D-100-FP1	Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 100 mm \| Mounting: None (cylinder only)
	SSD2-ML-50D-100-FP1-LB	Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 100 mm \| Mounting: Axial foot
	SSD2-ML-50D-100-FP1-CB	Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 100 mm \| Mounting: Double clevis
	SSD2-ML-50D-100-FP1-FA	Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 100 mm \| Mounting: Rod-side flange
	SSD2-ML-50D-100-FP1-FB	Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 100 mm \| Mounting: Head-side flange
	SSD2-ML-63-5-FP1	Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (cylinder only)
	SSD2-ML-63-5-FP1-LB	Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot
	SSD2-ML-63-5-FP1-CB	Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis
	SSD2-ML-63-5-FP1-FA	Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod-side flange
	SSD2-ML-63-5-FP1-FB	Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Head-side flange
	SSD2-ML-63-10-FP1	Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only)
	SSD2-ML-63-10-FP1-LB	Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot
	SSD2-ML-63-10-FP1-CB	Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis
	SSD2-ML-63-10-FP1-FA	Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-side flange
	SSD2-ML-63-10-FP1-FB	Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Head-side flange
	SSD2-ML-63-15-FP1	Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: None (cylinder only)
	SSD2-ML-63-15-FP1-LB	Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Axial foot
	SSD2-ML-63-15-FP1-CB	Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Double clevis
	SSD2-ML-63-15-FP1-FA	Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Rod-side flange
	SSD2-ML-63-15-FP1-FB	Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Head-side flange
	SSD2-ML-63-20-FP1	Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: None (cylinder only)
	SSD2-ML-63-20-FP1-LB	Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot
	SSD2-ML-63-20-FP1-CB	Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Double clevis
	SSD2-ML-63-20-FP1-FA	Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Rod-side flange
	SSD2-ML-63-20-FP1-FB	Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Head-side flange
	SSD2-ML-63-25-FP1	Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: None (cylinder only)
	SSD2-ML-63-25-FP1-LB	Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Axial foot
	SSD2-ML-63-25-FP1-CB	Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Double clevis
	SSD2-ML-63-25-FP1-FA	Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Rod-side flange
	SSD2-ML-63-25-FP1-FB	Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Head-side flange
	SSD2-ML-63-30-FP1	Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: None (cylinder only)
	SSD2-ML-63-30-FP1-LB	Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Axial foot
	SSD2-ML-63-30-FP1-CB	Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Double clevis
	SSD2-ML-63-30-FP1-FA	Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Rod-side flange
	SSD2-ML-63-30-FP1-FB	Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Head-side flange
	SSD2-ML-63-35-FP1	Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: None (cylinder only)
	SSD2-ML-63-35-FP1-LB	Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Axial foot
	SSD2-ML-63-35-FP1-CB	Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Double clevis
	SSD2-ML-63-35-FP1-FA	Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Rod-side flange
	SSD2-ML-63-35-FP1-FB	Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Head-side flange
	SSD2-ML-63-40-FP1	Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: None (cylinder only)
	SSD2-ML-63-40-FP1-LB	Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Axial foot
	SSD2-ML-63-40-FP1-CB	Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Double clevis
	SSD2-ML-63-40-FP1-FA	Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Rod-side flange
	SSD2-ML-63-40-FP1-FB	Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Head-side flange
	SSD2-ML-63-45-FP1	Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: None (cylinder only)
	SSD2-ML-63-45-FP1-LB	Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Axial foot
	SSD2-ML-63-45-FP1-CB	Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Double clevis
	SSD2-ML-63-45-FP1-FA	Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Rod-side flange
	SSD2-ML-63-45-FP1-FB	Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Head-side flange
	SSD2-ML-63-50-FP1	Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: None (cylinder only)
	SSD2-ML-63-50-FP1-LB	Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Axial foot
	SSD2-ML-63-50-FP1-CB	Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Double clevis
	SSD2-ML-63-50-FP1-FA	Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Rod-side flange
	SSD2-ML-63-50-FP1-FB	Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Head-side flange
	SSD2-ML-63-75-FP1	Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: None (cylinder only)
	SSD2-ML-63-75-FP1-LB	Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Axial foot
	SSD2-ML-63-75-FP1-CB	Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Double clevis
	SSD2-ML-63-75-FP1-FA	Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Rod-side flange
	SSD2-ML-63-75-FP1-FB	Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Head-side flange
	SSD2-ML-63-100-FP1	Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: None (cylinder only)
	SSD2-ML-63-100-FP1-LB	Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Axial foot
	SSD2-ML-63-100-FP1-CB	Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Double clevis
	SSD2-ML-63-100-FP1-FA	Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Rod-side flange
	SSD2-ML-63-100-FP1-FB	Switch magnet: Yes \| Bore: 63 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Head-side flange
	SSD2-ML-63D-5-FP1	Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: None (cylinder only)
	SSD2-ML-63D-5-FP1-LB	Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Axial foot
	SSD2-ML-63D-5-FP1-CB	Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Double clevis
	SSD2-ML-63D-5-FP1-FA	Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Rod-side flange
	SSD2-ML-63D-5-FP1-FB	Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Head-side flange
	SSD2-ML-63D-10-FP1	Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: None (cylinder only)
	SSD2-ML-63D-10-FP1-LB	Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Axial foot
	SSD2-ML-63D-10-FP1-CB	Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Double clevis
	SSD2-ML-63D-10-FP1-FA	Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Rod-side flange
	SSD2-ML-63D-10-FP1-FB	Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Head-side flange
	SSD2-ML-63D-15-FP1	Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: None (cylinder only)
	SSD2-ML-63D-15-FP1-LB	Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: Axial foot
	SSD2-ML-63D-15-FP1-CB	Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: Double clevis
	SSD2-ML-63D-15-FP1-FA	Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: Rod-side flange
	SSD2-ML-63D-15-FP1-FB	Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: Head-side flange
	SSD2-ML-63D-20-FP1	Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: None (cylinder only)
	SSD2-ML-63D-20-FP1-LB	Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Axial foot
	SSD2-ML-63D-20-FP1-CB	Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Double clevis
	SSD2-ML-63D-20-FP1-FA	Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Rod-side flange
	SSD2-ML-63D-20-FP1-FB	Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Head-side flange
	SSD2-ML-63D-25-FP1	Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: None (cylinder only)
	SSD2-ML-63D-25-FP1-LB	Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: Axial foot
	SSD2-ML-63D-25-FP1-CB	Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: Double clevis
	SSD2-ML-63D-25-FP1-FA	Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: Rod-side flange
	SSD2-ML-63D-25-FP1-FB	Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: Head-side flange
	SSD2-ML-63D-30-FP1	Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: None (cylinder only)
	SSD2-ML-63D-30-FP1-LB	Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: Axial foot
	SSD2-ML-63D-30-FP1-CB	Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: Double clevis
	SSD2-ML-63D-30-FP1-FA	Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: Rod-side flange
	SSD2-ML-63D-30-FP1-FB	Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: Head-side flange
	SSD2-ML-63D-35-FP1	Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: None (cylinder only)
	SSD2-ML-63D-35-FP1-LB	Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: Axial foot
	SSD2-ML-63D-35-FP1-CB	Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: Double clevis
	SSD2-ML-63D-35-FP1-FA	Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: Rod-side flange
	SSD2-ML-63D-35-FP1-FB	Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: Head-side flange
	SSD2-ML-63D-40-FP1	Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: None (cylinder only)
	SSD2-ML-63D-40-FP1-LB	Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: Axial foot
	SSD2-ML-63D-40-FP1-CB	Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: Double clevis
	SSD2-ML-63D-40-FP1-FA	Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: Rod-side flange
	SSD2-ML-63D-40-FP1-FB	Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: Head-side flange
	SSD2-ML-63D-45-FP1	Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: None (cylinder only)
	SSD2-ML-63D-45-FP1-LB	Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: Axial foot
	SSD2-ML-63D-45-FP1-CB	Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: Double clevis
	SSD2-ML-63D-45-FP1-FA	Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: Rod-side flange
	SSD2-ML-63D-45-FP1-FB	Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: Head-side flange
	SSD2-ML-63D-50-FP1	Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: None (cylinder only)
	SSD2-ML-63D-50-FP1-LB	Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: Axial foot
	SSD2-ML-63D-50-FP1-CB	Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: Double clevis
	SSD2-ML-63D-50-FP1-FA	Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: Rod-side flange
	SSD2-ML-63D-50-FP1-FB	Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: Head-side flange
	SSD2-ML-63D-75-FP1	Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 75 mm \| Mounting: None (cylinder only)
	SSD2-ML-63D-75-FP1-LB	Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 75 mm \| Mounting: Axial foot
	SSD2-ML-63D-75-FP1-CB	Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 75 mm \| Mounting: Double clevis
	SSD2-ML-63D-75-FP1-FA	Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 75 mm \| Mounting: Rod-side flange
	SSD2-ML-63D-75-FP1-FB	Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 75 mm \| Mounting: Head-side flange
	SSD2-ML-63D-100-FP1	Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 100 mm \| Mounting: None (cylinder only)
	SSD2-ML-63D-100-FP1-LB	Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 100 mm \| Mounting: Axial foot
	SSD2-ML-63D-100-FP1-CB	Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 100 mm \| Mounting: Double clevis
	SSD2-ML-63D-100-FP1-FA	Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 100 mm \| Mounting: Rod-side flange
	SSD2-ML-63D-100-FP1-FB	Switch magnet: Yes \| Bore: 63 mm \| Cushion: Rubber (D) \| Stroke: 100 mm \| Mounting: Head-side flange

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

CKD SSD2-M-FP1 Super Compact Cylinder (Non-Rotating, Bore 40-63)
