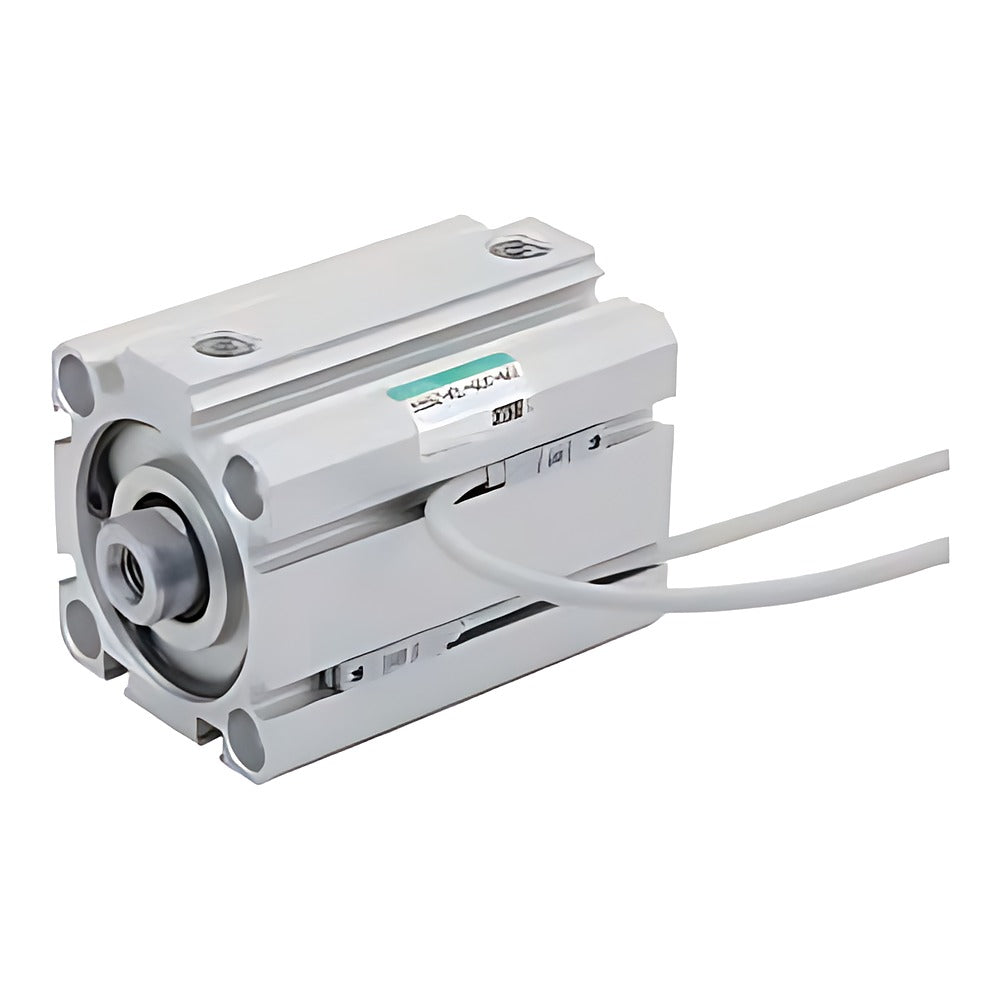

CKD SSD2-Q Super Compact Cylinder (With Drop Prevention Lock)

CKD SSD2-Q double-acting super compact cylinder with a built-in mechanical drop-prevention lock at the rod end or head end, holding the piston at stroke end when air pressure is lost.

Key features

Mechanical stroke-end lock at rod end (R) or head end (H)
Holding force up to 0.7 x maximum thrust
Bores 20 to 100 mm; standard strokes 10 to 100 mm (25 to 100 mm for 80/100)
Rubber cushion standard; switch-ready QL version with built-in magnet
Manual release options: non-locking (M0) or locking (M1) manual override
Mounting brackets LB, CB, FA, FB supplied attached to the cylinder

Specifications

Action	Double acting, drop prevention lock
Fluid	Compressed air
Max. working pressure	1.0 MPa
Min. working pressure	0.15 MPa
Proof pressure	1.6 MPa
Ambient temperature	-10 to 60 C (no freezing)
Piston speed	50-500 mm/s (80/100: 50-300 mm/s)
Cushion	Rubber cushion
Holding force	Max. thrust x 0.7
Source	CKD Korea catalog CB-029SK-9, p. 928-941

SSD2-Q-20-10-R		Body: No switch magnet \| Bore: 20 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: M5
SSD2-Q-20-10-R-LB		Body: No switch magnet \| Bore: 20 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: M5
SSD2-Q-20-10-R-CB		Body: No switch magnet \| Bore: 20 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: M5
SSD2-Q-20-10-R-FA		Body: No switch magnet \| Bore: 20 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-Q-20-10-R-FB		Body: No switch magnet \| Bore: 20 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-Q-20-10-H		Body: No switch magnet \| Bore: 20 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: M5
SSD2-Q-20-10-H-LB		Body: No switch magnet \| Bore: 20 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: M5
SSD2-Q-20-10-H-CB		Body: No switch magnet \| Bore: 20 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: M5
SSD2-Q-20-10-H-FA		Body: No switch magnet \| Bore: 20 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-Q-20-10-H-FB		Body: No switch magnet \| Bore: 20 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-Q-20-15-R		Body: No switch magnet \| Bore: 20 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: M5
SSD2-Q-20-15-R-LB		Body: No switch magnet \| Bore: 20 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: M5
SSD2-Q-20-15-R-CB		Body: No switch magnet \| Bore: 20 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: M5
SSD2-Q-20-15-R-FA		Body: No switch magnet \| Bore: 20 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-Q-20-15-R-FB		Body: No switch magnet \| Bore: 20 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-Q-20-15-H		Body: No switch magnet \| Bore: 20 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: M5
SSD2-Q-20-15-H-LB		Body: No switch magnet \| Bore: 20 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: M5
SSD2-Q-20-15-H-CB		Body: No switch magnet \| Bore: 20 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: M5
SSD2-Q-20-15-H-FA		Body: No switch magnet \| Bore: 20 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-Q-20-15-H-FB		Body: No switch magnet \| Bore: 20 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-Q-20-20-R		Body: No switch magnet \| Bore: 20 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: M5
SSD2-Q-20-20-R-LB		Body: No switch magnet \| Bore: 20 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: M5
SSD2-Q-20-20-R-CB		Body: No switch magnet \| Bore: 20 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: M5
SSD2-Q-20-20-R-FA		Body: No switch magnet \| Bore: 20 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-Q-20-20-R-FB		Body: No switch magnet \| Bore: 20 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-Q-20-20-H		Body: No switch magnet \| Bore: 20 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: M5
SSD2-Q-20-20-H-LB		Body: No switch magnet \| Bore: 20 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: M5
SSD2-Q-20-20-H-CB		Body: No switch magnet \| Bore: 20 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: M5
SSD2-Q-20-20-H-FA		Body: No switch magnet \| Bore: 20 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-Q-20-20-H-FB		Body: No switch magnet \| Bore: 20 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-Q-20-25-R		Body: No switch magnet \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: M5
SSD2-Q-20-25-R-LB		Body: No switch magnet \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: M5
SSD2-Q-20-25-R-CB		Body: No switch magnet \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: M5
SSD2-Q-20-25-R-FA		Body: No switch magnet \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-Q-20-25-R-FB		Body: No switch magnet \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-Q-20-25-H		Body: No switch magnet \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: M5
SSD2-Q-20-25-H-LB		Body: No switch magnet \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: M5
SSD2-Q-20-25-H-CB		Body: No switch magnet \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: M5
SSD2-Q-20-25-H-FA		Body: No switch magnet \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-Q-20-25-H-FB		Body: No switch magnet \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-Q-20-50-R		Body: No switch magnet \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: M5
SSD2-Q-20-50-R-LB		Body: No switch magnet \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: M5
SSD2-Q-20-50-R-CB		Body: No switch magnet \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: M5
SSD2-Q-20-50-R-FA		Body: No switch magnet \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-Q-20-50-R-FB		Body: No switch magnet \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-Q-20-50-H		Body: No switch magnet \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: M5
SSD2-Q-20-50-H-LB		Body: No switch magnet \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: M5
SSD2-Q-20-50-H-CB		Body: No switch magnet \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: M5
SSD2-Q-20-50-H-FA		Body: No switch magnet \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-Q-20-50-H-FB		Body: No switch magnet \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-Q-20-75-R		Body: No switch magnet \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: M5
SSD2-Q-20-75-R-LB		Body: No switch magnet \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: M5
SSD2-Q-20-75-R-CB		Body: No switch magnet \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: M5
SSD2-Q-20-75-R-FA		Body: No switch magnet \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-Q-20-75-R-FB		Body: No switch magnet \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-Q-20-75-H		Body: No switch magnet \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: M5
SSD2-Q-20-75-H-LB		Body: No switch magnet \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: M5
SSD2-Q-20-75-H-CB		Body: No switch magnet \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: M5
SSD2-Q-20-75-H-FA		Body: No switch magnet \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-Q-20-75-H-FB		Body: No switch magnet \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-Q-20-100-R		Body: No switch magnet \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: M5
SSD2-Q-20-100-R-LB		Body: No switch magnet \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: M5
SSD2-Q-20-100-R-CB		Body: No switch magnet \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: M5
SSD2-Q-20-100-R-FA		Body: No switch magnet \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-Q-20-100-R-FB		Body: No switch magnet \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-Q-20-100-H		Body: No switch magnet \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: M5
SSD2-Q-20-100-H-LB		Body: No switch magnet \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: M5
SSD2-Q-20-100-H-CB		Body: No switch magnet \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: M5
SSD2-Q-20-100-H-FA		Body: No switch magnet \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-Q-20-100-H-FB		Body: No switch magnet \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-Q-25-10-R		Body: No switch magnet \| Bore: 25 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: M5
SSD2-Q-25-10-R-LB		Body: No switch magnet \| Bore: 25 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: M5
SSD2-Q-25-10-R-CB		Body: No switch magnet \| Bore: 25 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: M5
SSD2-Q-25-10-R-FA		Body: No switch magnet \| Bore: 25 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-Q-25-10-R-FB		Body: No switch magnet \| Bore: 25 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-Q-25-10-H		Body: No switch magnet \| Bore: 25 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: M5
SSD2-Q-25-10-H-LB		Body: No switch magnet \| Bore: 25 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: M5
SSD2-Q-25-10-H-CB		Body: No switch magnet \| Bore: 25 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: M5
SSD2-Q-25-10-H-FA		Body: No switch magnet \| Bore: 25 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-Q-25-10-H-FB		Body: No switch magnet \| Bore: 25 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-Q-25-15-R		Body: No switch magnet \| Bore: 25 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: M5
SSD2-Q-25-15-R-LB		Body: No switch magnet \| Bore: 25 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: M5
SSD2-Q-25-15-R-CB		Body: No switch magnet \| Bore: 25 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: M5
SSD2-Q-25-15-R-FA		Body: No switch magnet \| Bore: 25 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-Q-25-15-R-FB		Body: No switch magnet \| Bore: 25 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-Q-25-15-H		Body: No switch magnet \| Bore: 25 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: M5
SSD2-Q-25-15-H-LB		Body: No switch magnet \| Bore: 25 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: M5
SSD2-Q-25-15-H-CB		Body: No switch magnet \| Bore: 25 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: M5
SSD2-Q-25-15-H-FA		Body: No switch magnet \| Bore: 25 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-Q-25-15-H-FB		Body: No switch magnet \| Bore: 25 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-Q-25-20-R		Body: No switch magnet \| Bore: 25 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: M5
SSD2-Q-25-20-R-LB		Body: No switch magnet \| Bore: 25 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: M5
SSD2-Q-25-20-R-CB		Body: No switch magnet \| Bore: 25 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: M5
SSD2-Q-25-20-R-FA		Body: No switch magnet \| Bore: 25 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-Q-25-20-R-FB		Body: No switch magnet \| Bore: 25 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-Q-25-20-H		Body: No switch magnet \| Bore: 25 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: M5
SSD2-Q-25-20-H-LB		Body: No switch magnet \| Bore: 25 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: M5
SSD2-Q-25-20-H-CB		Body: No switch magnet \| Bore: 25 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: M5
SSD2-Q-25-20-H-FA		Body: No switch magnet \| Bore: 25 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-Q-25-20-H-FB		Body: No switch magnet \| Bore: 25 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-Q-25-25-R		Body: No switch magnet \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: M5
SSD2-Q-25-25-R-LB		Body: No switch magnet \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: M5
SSD2-Q-25-25-R-CB		Body: No switch magnet \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: M5
SSD2-Q-25-25-R-FA		Body: No switch magnet \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-Q-25-25-R-FB		Body: No switch magnet \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-Q-25-25-H		Body: No switch magnet \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: M5
SSD2-Q-25-25-H-LB		Body: No switch magnet \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: M5
SSD2-Q-25-25-H-CB		Body: No switch magnet \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: M5
SSD2-Q-25-25-H-FA		Body: No switch magnet \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-Q-25-25-H-FB		Body: No switch magnet \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-Q-25-50-R		Body: No switch magnet \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: M5
SSD2-Q-25-50-R-LB		Body: No switch magnet \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: M5
SSD2-Q-25-50-R-CB		Body: No switch magnet \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: M5
SSD2-Q-25-50-R-FA		Body: No switch magnet \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-Q-25-50-R-FB		Body: No switch magnet \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-Q-25-50-H		Body: No switch magnet \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: M5
SSD2-Q-25-50-H-LB		Body: No switch magnet \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: M5
SSD2-Q-25-50-H-CB		Body: No switch magnet \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: M5
SSD2-Q-25-50-H-FA		Body: No switch magnet \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-Q-25-50-H-FB		Body: No switch magnet \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-Q-25-75-R		Body: No switch magnet \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: M5
SSD2-Q-25-75-R-LB		Body: No switch magnet \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: M5
SSD2-Q-25-75-R-CB		Body: No switch magnet \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: M5
SSD2-Q-25-75-R-FA		Body: No switch magnet \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-Q-25-75-R-FB		Body: No switch magnet \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-Q-25-75-H		Body: No switch magnet \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: M5
SSD2-Q-25-75-H-LB		Body: No switch magnet \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: M5
SSD2-Q-25-75-H-CB		Body: No switch magnet \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: M5
SSD2-Q-25-75-H-FA		Body: No switch magnet \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-Q-25-75-H-FB		Body: No switch magnet \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-Q-25-100-R		Body: No switch magnet \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: M5
SSD2-Q-25-100-R-LB		Body: No switch magnet \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: M5
SSD2-Q-25-100-R-CB		Body: No switch magnet \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: M5
SSD2-Q-25-100-R-FA		Body: No switch magnet \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-Q-25-100-R-FB		Body: No switch magnet \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-Q-25-100-H		Body: No switch magnet \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: M5
SSD2-Q-25-100-H-LB		Body: No switch magnet \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: M5
SSD2-Q-25-100-H-CB		Body: No switch magnet \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: M5
SSD2-Q-25-100-H-FA		Body: No switch magnet \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-Q-25-100-H-FB		Body: No switch magnet \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-Q-32-10-R		Body: No switch magnet \| Bore: 32 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-Q-32-10-R-LB		Body: No switch magnet \| Bore: 32 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-Q-32-10-R-CB		Body: No switch magnet \| Bore: 32 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-Q-32-10-R-FA		Body: No switch magnet \| Bore: 32 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-Q-32-10-R-FB		Body: No switch magnet \| Bore: 32 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-Q-32-10-H		Body: No switch magnet \| Bore: 32 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-Q-32-10-H-LB		Body: No switch magnet \| Bore: 32 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-Q-32-10-H-CB		Body: No switch magnet \| Bore: 32 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-Q-32-10-H-FA		Body: No switch magnet \| Bore: 32 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-Q-32-10-H-FB		Body: No switch magnet \| Bore: 32 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-Q-32-15-R		Body: No switch magnet \| Bore: 32 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-Q-32-15-R-LB		Body: No switch magnet \| Bore: 32 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-Q-32-15-R-CB		Body: No switch magnet \| Bore: 32 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-Q-32-15-R-FA		Body: No switch magnet \| Bore: 32 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-Q-32-15-R-FB		Body: No switch magnet \| Bore: 32 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-Q-32-15-H		Body: No switch magnet \| Bore: 32 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-Q-32-15-H-LB		Body: No switch magnet \| Bore: 32 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-Q-32-15-H-CB		Body: No switch magnet \| Bore: 32 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-Q-32-15-H-FA		Body: No switch magnet \| Bore: 32 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-Q-32-15-H-FB		Body: No switch magnet \| Bore: 32 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-Q-32-20-R		Body: No switch magnet \| Bore: 32 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-Q-32-20-R-LB		Body: No switch magnet \| Bore: 32 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-Q-32-20-R-CB		Body: No switch magnet \| Bore: 32 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-Q-32-20-R-FA		Body: No switch magnet \| Bore: 32 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-Q-32-20-R-FB		Body: No switch magnet \| Bore: 32 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-Q-32-20-H		Body: No switch magnet \| Bore: 32 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-Q-32-20-H-LB		Body: No switch magnet \| Bore: 32 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-Q-32-20-H-CB		Body: No switch magnet \| Bore: 32 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-Q-32-20-H-FA		Body: No switch magnet \| Bore: 32 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-Q-32-20-H-FB		Body: No switch magnet \| Bore: 32 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-Q-32-25-R		Body: No switch magnet \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-Q-32-25-R-LB		Body: No switch magnet \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-Q-32-25-R-CB		Body: No switch magnet \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-Q-32-25-R-FA		Body: No switch magnet \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-Q-32-25-R-FB		Body: No switch magnet \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-Q-32-25-H		Body: No switch magnet \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-Q-32-25-H-LB		Body: No switch magnet \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-Q-32-25-H-CB		Body: No switch magnet \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-Q-32-25-H-FA		Body: No switch magnet \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-Q-32-25-H-FB		Body: No switch magnet \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-Q-32-50-R		Body: No switch magnet \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-Q-32-50-R-LB		Body: No switch magnet \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-Q-32-50-R-CB		Body: No switch magnet \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-Q-32-50-R-FA		Body: No switch magnet \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-Q-32-50-R-FB		Body: No switch magnet \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-Q-32-50-H		Body: No switch magnet \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-Q-32-50-H-LB		Body: No switch magnet \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-Q-32-50-H-CB		Body: No switch magnet \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-Q-32-50-H-FA		Body: No switch magnet \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-Q-32-50-H-FB		Body: No switch magnet \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-Q-32-75-R		Body: No switch magnet \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-Q-32-75-R-LB		Body: No switch magnet \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-Q-32-75-R-CB		Body: No switch magnet \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-Q-32-75-R-FA		Body: No switch magnet \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-Q-32-75-R-FB		Body: No switch magnet \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-Q-32-75-H		Body: No switch magnet \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-Q-32-75-H-LB		Body: No switch magnet \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-Q-32-75-H-CB		Body: No switch magnet \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-Q-32-75-H-FA		Body: No switch magnet \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-Q-32-75-H-FB		Body: No switch magnet \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-Q-32-100-R		Body: No switch magnet \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-Q-32-100-R-LB		Body: No switch magnet \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-Q-32-100-R-CB		Body: No switch magnet \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-Q-32-100-R-FA		Body: No switch magnet \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-Q-32-100-R-FB		Body: No switch magnet \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-Q-32-100-H		Body: No switch magnet \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-Q-32-100-H-LB		Body: No switch magnet \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-Q-32-100-H-CB		Body: No switch magnet \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-Q-32-100-H-FA		Body: No switch magnet \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-Q-32-100-H-FB		Body: No switch magnet \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-Q-40-10-R		Body: No switch magnet \| Bore: 40 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-Q-40-10-R-LB		Body: No switch magnet \| Bore: 40 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-Q-40-10-R-CB		Body: No switch magnet \| Bore: 40 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-Q-40-10-R-FA		Body: No switch magnet \| Bore: 40 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-Q-40-10-R-FB		Body: No switch magnet \| Bore: 40 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-Q-40-10-H		Body: No switch magnet \| Bore: 40 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-Q-40-10-H-LB		Body: No switch magnet \| Bore: 40 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-Q-40-10-H-CB		Body: No switch magnet \| Bore: 40 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-Q-40-10-H-FA		Body: No switch magnet \| Bore: 40 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-Q-40-10-H-FB		Body: No switch magnet \| Bore: 40 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-Q-40-15-R		Body: No switch magnet \| Bore: 40 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-Q-40-15-R-LB		Body: No switch magnet \| Bore: 40 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-Q-40-15-R-CB		Body: No switch magnet \| Bore: 40 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-Q-40-15-R-FA		Body: No switch magnet \| Bore: 40 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-Q-40-15-R-FB		Body: No switch magnet \| Bore: 40 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-Q-40-15-H		Body: No switch magnet \| Bore: 40 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-Q-40-15-H-LB		Body: No switch magnet \| Bore: 40 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-Q-40-15-H-CB		Body: No switch magnet \| Bore: 40 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-Q-40-15-H-FA		Body: No switch magnet \| Bore: 40 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-Q-40-15-H-FB		Body: No switch magnet \| Bore: 40 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-Q-40-20-R		Body: No switch magnet \| Bore: 40 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-Q-40-20-R-LB		Body: No switch magnet \| Bore: 40 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-Q-40-20-R-CB		Body: No switch magnet \| Bore: 40 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-Q-40-20-R-FA		Body: No switch magnet \| Bore: 40 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-Q-40-20-R-FB		Body: No switch magnet \| Bore: 40 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-Q-40-20-H		Body: No switch magnet \| Bore: 40 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-Q-40-20-H-LB		Body: No switch magnet \| Bore: 40 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-Q-40-20-H-CB		Body: No switch magnet \| Bore: 40 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-Q-40-20-H-FA		Body: No switch magnet \| Bore: 40 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-Q-40-20-H-FB		Body: No switch magnet \| Bore: 40 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-Q-40-25-R		Body: No switch magnet \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-Q-40-25-R-LB		Body: No switch magnet \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-Q-40-25-R-CB		Body: No switch magnet \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-Q-40-25-R-FA		Body: No switch magnet \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-Q-40-25-R-FB		Body: No switch magnet \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-Q-40-25-H		Body: No switch magnet \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-Q-40-25-H-LB		Body: No switch magnet \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-Q-40-25-H-CB		Body: No switch magnet \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-Q-40-25-H-FA		Body: No switch magnet \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-Q-40-25-H-FB		Body: No switch magnet \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-Q-40-50-R		Body: No switch magnet \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-Q-40-50-R-LB		Body: No switch magnet \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-Q-40-50-R-CB		Body: No switch magnet \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-Q-40-50-R-FA		Body: No switch magnet \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-Q-40-50-R-FB		Body: No switch magnet \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-Q-40-50-H		Body: No switch magnet \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-Q-40-50-H-LB		Body: No switch magnet \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-Q-40-50-H-CB		Body: No switch magnet \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-Q-40-50-H-FA		Body: No switch magnet \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-Q-40-50-H-FB		Body: No switch magnet \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-Q-40-75-R		Body: No switch magnet \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-Q-40-75-R-LB		Body: No switch magnet \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-Q-40-75-R-CB		Body: No switch magnet \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-Q-40-75-R-FA		Body: No switch magnet \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-Q-40-75-R-FB		Body: No switch magnet \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-Q-40-75-H		Body: No switch magnet \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-Q-40-75-H-LB		Body: No switch magnet \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-Q-40-75-H-CB		Body: No switch magnet \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-Q-40-75-H-FA		Body: No switch magnet \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-Q-40-75-H-FB		Body: No switch magnet \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-Q-40-100-R		Body: No switch magnet \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-Q-40-100-R-LB		Body: No switch magnet \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-Q-40-100-R-CB		Body: No switch magnet \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-Q-40-100-R-FA		Body: No switch magnet \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-Q-40-100-R-FB		Body: No switch magnet \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-Q-40-100-H		Body: No switch magnet \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-Q-40-100-H-LB		Body: No switch magnet \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-Q-40-100-H-CB		Body: No switch magnet \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-Q-40-100-H-FA		Body: No switch magnet \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-Q-40-100-H-FB		Body: No switch magnet \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-Q-50-10-R		Body: No switch magnet \| Bore: 50 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-Q-50-10-R-LB		Body: No switch magnet \| Bore: 50 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-Q-50-10-R-CB		Body: No switch magnet \| Bore: 50 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-Q-50-10-R-FA		Body: No switch magnet \| Bore: 50 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-Q-50-10-R-FB		Body: No switch magnet \| Bore: 50 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-Q-50-10-H		Body: No switch magnet \| Bore: 50 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-Q-50-10-H-LB		Body: No switch magnet \| Bore: 50 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-Q-50-10-H-CB		Body: No switch magnet \| Bore: 50 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-Q-50-10-H-FA		Body: No switch magnet \| Bore: 50 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-Q-50-10-H-FB		Body: No switch magnet \| Bore: 50 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-Q-50-15-R		Body: No switch magnet \| Bore: 50 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-Q-50-15-R-LB		Body: No switch magnet \| Bore: 50 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-Q-50-15-R-CB		Body: No switch magnet \| Bore: 50 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-Q-50-15-R-FA		Body: No switch magnet \| Bore: 50 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-Q-50-15-R-FB		Body: No switch magnet \| Bore: 50 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-Q-50-15-H		Body: No switch magnet \| Bore: 50 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-Q-50-15-H-LB		Body: No switch magnet \| Bore: 50 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-Q-50-15-H-CB		Body: No switch magnet \| Bore: 50 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-Q-50-15-H-FA		Body: No switch magnet \| Bore: 50 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-Q-50-15-H-FB		Body: No switch magnet \| Bore: 50 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-Q-50-20-R		Body: No switch magnet \| Bore: 50 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-Q-50-20-R-LB		Body: No switch magnet \| Bore: 50 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-Q-50-20-R-CB		Body: No switch magnet \| Bore: 50 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-Q-50-20-R-FA		Body: No switch magnet \| Bore: 50 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-Q-50-20-R-FB		Body: No switch magnet \| Bore: 50 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-Q-50-20-H		Body: No switch magnet \| Bore: 50 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-Q-50-20-H-LB		Body: No switch magnet \| Bore: 50 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-Q-50-20-H-CB		Body: No switch magnet \| Bore: 50 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-Q-50-20-H-FA		Body: No switch magnet \| Bore: 50 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-Q-50-20-H-FB		Body: No switch magnet \| Bore: 50 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-Q-50-25-R		Body: No switch magnet \| Bore: 50 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-Q-50-25-R-LB		Body: No switch magnet \| Bore: 50 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-Q-50-25-R-CB		Body: No switch magnet \| Bore: 50 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-Q-50-25-R-FA		Body: No switch magnet \| Bore: 50 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-Q-50-25-R-FB		Body: No switch magnet \| Bore: 50 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-Q-50-25-H		Body: No switch magnet \| Bore: 50 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-Q-50-25-H-LB		Body: No switch magnet \| Bore: 50 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-Q-50-25-H-CB		Body: No switch magnet \| Bore: 50 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-Q-50-25-H-FA		Body: No switch magnet \| Bore: 50 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-Q-50-25-H-FB		Body: No switch magnet \| Bore: 50 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-Q-50-50-R		Body: No switch magnet \| Bore: 50 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-Q-50-50-R-LB		Body: No switch magnet \| Bore: 50 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-Q-50-50-R-CB		Body: No switch magnet \| Bore: 50 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-Q-50-50-R-FA		Body: No switch magnet \| Bore: 50 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-Q-50-50-R-FB		Body: No switch magnet \| Bore: 50 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-Q-50-50-H		Body: No switch magnet \| Bore: 50 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-Q-50-50-H-LB		Body: No switch magnet \| Bore: 50 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-Q-50-50-H-CB		Body: No switch magnet \| Bore: 50 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-Q-50-50-H-FA		Body: No switch magnet \| Bore: 50 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-Q-50-50-H-FB		Body: No switch magnet \| Bore: 50 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-Q-50-75-R		Body: No switch magnet \| Bore: 50 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-Q-50-75-R-LB		Body: No switch magnet \| Bore: 50 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-Q-50-75-R-CB		Body: No switch magnet \| Bore: 50 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-Q-50-75-R-FA		Body: No switch magnet \| Bore: 50 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-Q-50-75-R-FB		Body: No switch magnet \| Bore: 50 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-Q-50-75-H		Body: No switch magnet \| Bore: 50 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-Q-50-75-H-LB		Body: No switch magnet \| Bore: 50 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-Q-50-75-H-CB		Body: No switch magnet \| Bore: 50 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-Q-50-75-H-FA		Body: No switch magnet \| Bore: 50 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-Q-50-75-H-FB		Body: No switch magnet \| Bore: 50 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-Q-50-100-R		Body: No switch magnet \| Bore: 50 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-Q-50-100-R-LB		Body: No switch magnet \| Bore: 50 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-Q-50-100-R-CB		Body: No switch magnet \| Bore: 50 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-Q-50-100-R-FA		Body: No switch magnet \| Bore: 50 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-Q-50-100-R-FB		Body: No switch magnet \| Bore: 50 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-Q-50-100-H		Body: No switch magnet \| Bore: 50 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-Q-50-100-H-LB		Body: No switch magnet \| Bore: 50 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-Q-50-100-H-CB		Body: No switch magnet \| Bore: 50 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-Q-50-100-H-FA		Body: No switch magnet \| Bore: 50 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-Q-50-100-H-FB		Body: No switch magnet \| Bore: 50 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-Q-63-10-R		Body: No switch magnet \| Bore: 63 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-Q-63-10-R-LB		Body: No switch magnet \| Bore: 63 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-Q-63-10-R-CB		Body: No switch magnet \| Bore: 63 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-Q-63-10-R-FA		Body: No switch magnet \| Bore: 63 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-Q-63-10-R-FB		Body: No switch magnet \| Bore: 63 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-Q-63-10-H		Body: No switch magnet \| Bore: 63 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-Q-63-10-H-LB		Body: No switch magnet \| Bore: 63 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-Q-63-10-H-CB		Body: No switch magnet \| Bore: 63 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-Q-63-10-H-FA		Body: No switch magnet \| Bore: 63 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-Q-63-10-H-FB		Body: No switch magnet \| Bore: 63 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-Q-63-15-R		Body: No switch magnet \| Bore: 63 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-Q-63-15-R-LB		Body: No switch magnet \| Bore: 63 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-Q-63-15-R-CB		Body: No switch magnet \| Bore: 63 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-Q-63-15-R-FA		Body: No switch magnet \| Bore: 63 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-Q-63-15-R-FB		Body: No switch magnet \| Bore: 63 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-Q-63-15-H		Body: No switch magnet \| Bore: 63 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-Q-63-15-H-LB		Body: No switch magnet \| Bore: 63 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-Q-63-15-H-CB		Body: No switch magnet \| Bore: 63 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-Q-63-15-H-FA		Body: No switch magnet \| Bore: 63 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-Q-63-15-H-FB		Body: No switch magnet \| Bore: 63 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-Q-63-20-R		Body: No switch magnet \| Bore: 63 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-Q-63-20-R-LB		Body: No switch magnet \| Bore: 63 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-Q-63-20-R-CB		Body: No switch magnet \| Bore: 63 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-Q-63-20-R-FA		Body: No switch magnet \| Bore: 63 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-Q-63-20-R-FB		Body: No switch magnet \| Bore: 63 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-Q-63-20-H		Body: No switch magnet \| Bore: 63 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-Q-63-20-H-LB		Body: No switch magnet \| Bore: 63 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-Q-63-20-H-CB		Body: No switch magnet \| Bore: 63 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-Q-63-20-H-FA		Body: No switch magnet \| Bore: 63 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-Q-63-20-H-FB		Body: No switch magnet \| Bore: 63 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-Q-63-25-R		Body: No switch magnet \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-Q-63-25-R-LB		Body: No switch magnet \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-Q-63-25-R-CB		Body: No switch magnet \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-Q-63-25-R-FA		Body: No switch magnet \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-Q-63-25-R-FB		Body: No switch magnet \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-Q-63-25-H		Body: No switch magnet \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-Q-63-25-H-LB		Body: No switch magnet \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-Q-63-25-H-CB		Body: No switch magnet \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-Q-63-25-H-FA		Body: No switch magnet \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-Q-63-25-H-FB		Body: No switch magnet \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-Q-63-50-R		Body: No switch magnet \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-Q-63-50-R-LB		Body: No switch magnet \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-Q-63-50-R-CB		Body: No switch magnet \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-Q-63-50-R-FA		Body: No switch magnet \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-Q-63-50-R-FB		Body: No switch magnet \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-Q-63-50-H		Body: No switch magnet \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-Q-63-50-H-LB		Body: No switch magnet \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-Q-63-50-H-CB		Body: No switch magnet \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-Q-63-50-H-FA		Body: No switch magnet \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-Q-63-50-H-FB		Body: No switch magnet \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-Q-63-75-R		Body: No switch magnet \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-Q-63-75-R-LB		Body: No switch magnet \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-Q-63-75-R-CB		Body: No switch magnet \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-Q-63-75-R-FA		Body: No switch magnet \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-Q-63-75-R-FB		Body: No switch magnet \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-Q-63-75-H		Body: No switch magnet \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-Q-63-75-H-LB		Body: No switch magnet \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-Q-63-75-H-CB		Body: No switch magnet \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-Q-63-75-H-FA		Body: No switch magnet \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-Q-63-75-H-FB		Body: No switch magnet \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-Q-63-100-R		Body: No switch magnet \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-Q-63-100-R-LB		Body: No switch magnet \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-Q-63-100-R-CB		Body: No switch magnet \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-Q-63-100-R-FA		Body: No switch magnet \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-Q-63-100-R-FB		Body: No switch magnet \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-Q-63-100-H		Body: No switch magnet \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-Q-63-100-H-LB		Body: No switch magnet \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-Q-63-100-H-CB		Body: No switch magnet \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-Q-63-100-H-FA		Body: No switch magnet \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-Q-63-100-H-FB		Body: No switch magnet \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-Q-80-25-R		Body: No switch magnet \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-Q-80-25-R-LB		Body: No switch magnet \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-Q-80-25-R-CB		Body: No switch magnet \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-Q-80-25-R-FA		Body: No switch magnet \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-Q-80-25-R-FB		Body: No switch magnet \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-Q-80-25-H		Body: No switch magnet \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-Q-80-25-H-LB		Body: No switch magnet \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-Q-80-25-H-CB		Body: No switch magnet \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-Q-80-25-H-FA		Body: No switch magnet \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-Q-80-25-H-FB		Body: No switch magnet \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-Q-80-50-R		Body: No switch magnet \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-Q-80-50-R-LB		Body: No switch magnet \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-Q-80-50-R-CB		Body: No switch magnet \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-Q-80-50-R-FA		Body: No switch magnet \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-Q-80-50-R-FB		Body: No switch magnet \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-Q-80-50-H		Body: No switch magnet \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-Q-80-50-H-LB		Body: No switch magnet \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-Q-80-50-H-CB		Body: No switch magnet \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-Q-80-50-H-FA		Body: No switch magnet \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-Q-80-50-H-FB		Body: No switch magnet \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-Q-80-75-R		Body: No switch magnet \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-Q-80-75-R-LB		Body: No switch magnet \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-Q-80-75-R-CB		Body: No switch magnet \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-Q-80-75-R-FA		Body: No switch magnet \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-Q-80-75-R-FB		Body: No switch magnet \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-Q-80-75-H		Body: No switch magnet \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-Q-80-75-H-LB		Body: No switch magnet \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-Q-80-75-H-CB		Body: No switch magnet \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-Q-80-75-H-FA		Body: No switch magnet \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-Q-80-75-H-FB		Body: No switch magnet \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-Q-80-100-R		Body: No switch magnet \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-Q-80-100-R-LB		Body: No switch magnet \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-Q-80-100-R-CB		Body: No switch magnet \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-Q-80-100-R-FA		Body: No switch magnet \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-Q-80-100-R-FB		Body: No switch magnet \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-Q-80-100-H		Body: No switch magnet \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-Q-80-100-H-LB		Body: No switch magnet \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-Q-80-100-H-CB		Body: No switch magnet \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-Q-80-100-H-FA		Body: No switch magnet \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-Q-80-100-H-FB		Body: No switch magnet \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-Q-100-25-R		Body: No switch magnet \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-Q-100-25-R-LB		Body: No switch magnet \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-Q-100-25-R-CB		Body: No switch magnet \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-Q-100-25-R-FA		Body: No switch magnet \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-Q-100-25-R-FB		Body: No switch magnet \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-Q-100-25-H		Body: No switch magnet \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-Q-100-25-H-LB		Body: No switch magnet \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-Q-100-25-H-CB		Body: No switch magnet \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-Q-100-25-H-FA		Body: No switch magnet \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-Q-100-25-H-FB		Body: No switch magnet \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-Q-100-50-R		Body: No switch magnet \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-Q-100-50-R-LB		Body: No switch magnet \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-Q-100-50-R-CB		Body: No switch magnet \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-Q-100-50-R-FA		Body: No switch magnet \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-Q-100-50-R-FB		Body: No switch magnet \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-Q-100-50-H		Body: No switch magnet \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-Q-100-50-H-LB		Body: No switch magnet \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-Q-100-50-H-CB		Body: No switch magnet \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-Q-100-50-H-FA		Body: No switch magnet \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-Q-100-50-H-FB		Body: No switch magnet \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-Q-100-75-R		Body: No switch magnet \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-Q-100-75-R-LB		Body: No switch magnet \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-Q-100-75-R-CB		Body: No switch magnet \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-Q-100-75-R-FA		Body: No switch magnet \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-Q-100-75-R-FB		Body: No switch magnet \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-Q-100-75-H		Body: No switch magnet \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-Q-100-75-H-LB		Body: No switch magnet \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-Q-100-75-H-CB		Body: No switch magnet \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-Q-100-75-H-FA		Body: No switch magnet \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-Q-100-75-H-FB		Body: No switch magnet \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-Q-100-100-R		Body: No switch magnet \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-Q-100-100-R-LB		Body: No switch magnet \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-Q-100-100-R-CB		Body: No switch magnet \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-Q-100-100-R-FA		Body: No switch magnet \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-Q-100-100-R-FB		Body: No switch magnet \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-Q-100-100-H		Body: No switch magnet \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-Q-100-100-H-LB		Body: No switch magnet \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-Q-100-100-H-CB		Body: No switch magnet \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-Q-100-100-H-FA		Body: No switch magnet \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-Q-100-100-H-FB		Body: No switch magnet \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-QL-20-10-R		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: M5
SSD2-QL-20-10-R-LB		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: M5
SSD2-QL-20-10-R-CB		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: M5
SSD2-QL-20-10-R-FA		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-QL-20-10-R-FB		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-QL-20-10-H		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: M5
SSD2-QL-20-10-H-LB		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: M5
SSD2-QL-20-10-H-CB		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: M5
SSD2-QL-20-10-H-FA		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-QL-20-10-H-FB		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-QL-20-15-R		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: M5
SSD2-QL-20-15-R-LB		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: M5
SSD2-QL-20-15-R-CB		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: M5
SSD2-QL-20-15-R-FA		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-QL-20-15-R-FB		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-QL-20-15-H		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: M5
SSD2-QL-20-15-H-LB		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: M5
SSD2-QL-20-15-H-CB		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: M5
SSD2-QL-20-15-H-FA		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-QL-20-15-H-FB		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-QL-20-20-R		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: M5
SSD2-QL-20-20-R-LB		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: M5
SSD2-QL-20-20-R-CB		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: M5
SSD2-QL-20-20-R-FA		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-QL-20-20-R-FB		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-QL-20-20-H		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: M5
SSD2-QL-20-20-H-LB		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: M5
SSD2-QL-20-20-H-CB		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: M5
SSD2-QL-20-20-H-FA		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-QL-20-20-H-FB		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-QL-20-25-R		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: M5
SSD2-QL-20-25-R-LB		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: M5
SSD2-QL-20-25-R-CB		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: M5
SSD2-QL-20-25-R-FA		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-QL-20-25-R-FB		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-QL-20-25-H		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: M5
SSD2-QL-20-25-H-LB		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: M5
SSD2-QL-20-25-H-CB		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: M5
SSD2-QL-20-25-H-FA		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-QL-20-25-H-FB		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-QL-20-50-R		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: M5
SSD2-QL-20-50-R-LB		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: M5
SSD2-QL-20-50-R-CB		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: M5
SSD2-QL-20-50-R-FA		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-QL-20-50-R-FB		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-QL-20-50-H		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: M5
SSD2-QL-20-50-H-LB		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: M5
SSD2-QL-20-50-H-CB		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: M5
SSD2-QL-20-50-H-FA		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-QL-20-50-H-FB		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-QL-20-75-R		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: M5
SSD2-QL-20-75-R-LB		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: M5
SSD2-QL-20-75-R-CB		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: M5
SSD2-QL-20-75-R-FA		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-QL-20-75-R-FB		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-QL-20-75-H		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: M5
SSD2-QL-20-75-H-LB		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: M5
SSD2-QL-20-75-H-CB		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: M5
SSD2-QL-20-75-H-FA		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-QL-20-75-H-FB		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-QL-20-100-R		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: M5
SSD2-QL-20-100-R-LB		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: M5
SSD2-QL-20-100-R-CB		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: M5
SSD2-QL-20-100-R-FA		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-QL-20-100-R-FB		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-QL-20-100-H		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: M5
SSD2-QL-20-100-H-LB		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: M5
SSD2-QL-20-100-H-CB		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: M5
SSD2-QL-20-100-H-FA		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-QL-20-100-H-FB		Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-QL-25-10-R		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: M5
SSD2-QL-25-10-R-LB		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: M5
SSD2-QL-25-10-R-CB		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: M5
SSD2-QL-25-10-R-FA		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-QL-25-10-R-FB		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-QL-25-10-H		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: M5
SSD2-QL-25-10-H-LB		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: M5
SSD2-QL-25-10-H-CB		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: M5
SSD2-QL-25-10-H-FA		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-QL-25-10-H-FB		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-QL-25-15-R		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: M5
SSD2-QL-25-15-R-LB		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: M5
SSD2-QL-25-15-R-CB		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: M5
SSD2-QL-25-15-R-FA		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-QL-25-15-R-FB		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-QL-25-15-H		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: M5
SSD2-QL-25-15-H-LB		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: M5
SSD2-QL-25-15-H-CB		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: M5
SSD2-QL-25-15-H-FA		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-QL-25-15-H-FB		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-QL-25-20-R		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: M5
SSD2-QL-25-20-R-LB		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: M5
SSD2-QL-25-20-R-CB		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: M5
SSD2-QL-25-20-R-FA		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-QL-25-20-R-FB		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-QL-25-20-H		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: M5
SSD2-QL-25-20-H-LB		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: M5
SSD2-QL-25-20-H-CB		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: M5
SSD2-QL-25-20-H-FA		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-QL-25-20-H-FB		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-QL-25-25-R		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: M5
SSD2-QL-25-25-R-LB		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: M5
SSD2-QL-25-25-R-CB		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: M5
SSD2-QL-25-25-R-FA		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-QL-25-25-R-FB		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-QL-25-25-H		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: M5
SSD2-QL-25-25-H-LB		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: M5
SSD2-QL-25-25-H-CB		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: M5
SSD2-QL-25-25-H-FA		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-QL-25-25-H-FB		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-QL-25-50-R		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: M5
SSD2-QL-25-50-R-LB		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: M5
SSD2-QL-25-50-R-CB		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: M5
SSD2-QL-25-50-R-FA		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-QL-25-50-R-FB		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-QL-25-50-H		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: M5
SSD2-QL-25-50-H-LB		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: M5
SSD2-QL-25-50-H-CB		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: M5
SSD2-QL-25-50-H-FA		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-QL-25-50-H-FB		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-QL-25-75-R		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: M5
SSD2-QL-25-75-R-LB		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: M5
SSD2-QL-25-75-R-CB		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: M5
SSD2-QL-25-75-R-FA		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-QL-25-75-R-FB		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-QL-25-75-H		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: M5
SSD2-QL-25-75-H-LB		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: M5
SSD2-QL-25-75-H-CB		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: M5
SSD2-QL-25-75-H-FA		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-QL-25-75-H-FB		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-QL-25-100-R		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: M5
SSD2-QL-25-100-R-LB		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: M5
SSD2-QL-25-100-R-CB		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: M5
SSD2-QL-25-100-R-FA		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-QL-25-100-R-FB		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-QL-25-100-H		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: M5
SSD2-QL-25-100-H-LB		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: M5
SSD2-QL-25-100-H-CB		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: M5
SSD2-QL-25-100-H-FA		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-QL-25-100-H-FB		Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: M5
SSD2-QL-32-10-R		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-QL-32-10-R-LB		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-QL-32-10-R-CB		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-QL-32-10-R-FA		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-QL-32-10-R-FB		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-QL-32-10-H		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-QL-32-10-H-LB		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-QL-32-10-H-CB		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-QL-32-10-H-FA		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-QL-32-10-H-FB		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-QL-32-15-R		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-QL-32-15-R-LB		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-QL-32-15-R-CB		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-QL-32-15-R-FA		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-QL-32-15-R-FB		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-QL-32-15-H		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-QL-32-15-H-LB		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-QL-32-15-H-CB		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-QL-32-15-H-FA		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-QL-32-15-H-FB		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-QL-32-20-R		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-QL-32-20-R-LB		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-QL-32-20-R-CB		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-QL-32-20-R-FA		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-QL-32-20-R-FB		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-QL-32-20-H		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-QL-32-20-H-LB		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-QL-32-20-H-CB		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-QL-32-20-H-FA		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-QL-32-20-H-FB		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-QL-32-25-R		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-QL-32-25-R-LB		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-QL-32-25-R-CB		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-QL-32-25-R-FA		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-QL-32-25-R-FB		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-QL-32-25-H		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-QL-32-25-H-LB		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-QL-32-25-H-CB		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-QL-32-25-H-FA		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-QL-32-25-H-FB		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-QL-32-50-R		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-QL-32-50-R-LB		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-QL-32-50-R-CB		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-QL-32-50-R-FA		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-QL-32-50-R-FB		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-QL-32-50-H		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-QL-32-50-H-LB		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-QL-32-50-H-CB		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-QL-32-50-H-FA		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-QL-32-50-H-FB		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-QL-32-75-R		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-QL-32-75-R-LB		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-QL-32-75-R-CB		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-QL-32-75-R-FA		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-QL-32-75-R-FB		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-QL-32-75-H		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-QL-32-75-H-LB		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-QL-32-75-H-CB		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-QL-32-75-H-FA		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-QL-32-75-H-FB		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-QL-32-100-R		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-QL-32-100-R-LB		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-QL-32-100-R-CB		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-QL-32-100-R-FA		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-QL-32-100-R-FB		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-QL-32-100-H		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-QL-32-100-H-LB		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-QL-32-100-H-CB		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-QL-32-100-H-FA		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-QL-32-100-H-FB		Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-QL-40-10-R		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-QL-40-10-R-LB		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-QL-40-10-R-CB		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-QL-40-10-R-FA		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-QL-40-10-R-FB		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-QL-40-10-H		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-QL-40-10-H-LB		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-QL-40-10-H-CB		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-QL-40-10-H-FA		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-QL-40-10-H-FB		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-QL-40-15-R		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-QL-40-15-R-LB		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-QL-40-15-R-CB		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-QL-40-15-R-FA		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-QL-40-15-R-FB		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-QL-40-15-H		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-QL-40-15-H-LB		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-QL-40-15-H-CB		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-QL-40-15-H-FA		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-QL-40-15-H-FB		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-QL-40-20-R		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-QL-40-20-R-LB		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-QL-40-20-R-CB		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-QL-40-20-R-FA		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-QL-40-20-R-FB		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-QL-40-20-H		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-QL-40-20-H-LB		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-QL-40-20-H-CB		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-QL-40-20-H-FA		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-QL-40-20-H-FB		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-QL-40-25-R		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-QL-40-25-R-LB		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-QL-40-25-R-CB		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-QL-40-25-R-FA		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-QL-40-25-R-FB		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-QL-40-25-H		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-QL-40-25-H-LB		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-QL-40-25-H-CB		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-QL-40-25-H-FA		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-QL-40-25-H-FB		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-QL-40-50-R		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-QL-40-50-R-LB		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-QL-40-50-R-CB		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-QL-40-50-R-FA		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-QL-40-50-R-FB		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-QL-40-50-H		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-QL-40-50-H-LB		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-QL-40-50-H-CB		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-QL-40-50-H-FA		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-QL-40-50-H-FB		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-QL-40-75-R		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-QL-40-75-R-LB		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-QL-40-75-R-CB		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-QL-40-75-R-FA		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-QL-40-75-R-FB		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-QL-40-75-H		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-QL-40-75-H-LB		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-QL-40-75-H-CB		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-QL-40-75-H-FA		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-QL-40-75-H-FB		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-QL-40-100-R		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-QL-40-100-R-LB		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-QL-40-100-R-CB		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-QL-40-100-R-FA		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-QL-40-100-R-FB		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-QL-40-100-H		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-QL-40-100-H-LB		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-QL-40-100-H-CB		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-QL-40-100-H-FA		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-QL-40-100-H-FB		Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc1/8
SSD2-QL-50-10-R		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-QL-50-10-R-LB		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-QL-50-10-R-CB		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-QL-50-10-R-FA		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-QL-50-10-R-FB		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-QL-50-10-H		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-QL-50-10-H-LB		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-QL-50-10-H-CB		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-QL-50-10-H-FA		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-QL-50-10-H-FB		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-QL-50-15-R		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-QL-50-15-R-LB		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-QL-50-15-R-CB		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-QL-50-15-R-FA		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-QL-50-15-R-FB		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-QL-50-15-H		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-QL-50-15-H-LB		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-QL-50-15-H-CB		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-QL-50-15-H-FA		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-QL-50-15-H-FB		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-QL-50-20-R		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-QL-50-20-R-LB		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-QL-50-20-R-CB		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-QL-50-20-R-FA		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-QL-50-20-R-FB		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-QL-50-20-H		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-QL-50-20-H-LB		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-QL-50-20-H-CB		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-QL-50-20-H-FA		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-QL-50-20-H-FB		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-QL-50-25-R		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-QL-50-25-R-LB		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-QL-50-25-R-CB		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-QL-50-25-R-FA		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-QL-50-25-R-FB		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-QL-50-25-H		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-QL-50-25-H-LB		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-QL-50-25-H-CB		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-QL-50-25-H-FA		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-QL-50-25-H-FB		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-QL-50-50-R		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-QL-50-50-R-LB		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-QL-50-50-R-CB		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-QL-50-50-R-FA		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-QL-50-50-R-FB		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-QL-50-50-H		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-QL-50-50-H-LB		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-QL-50-50-H-CB		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-QL-50-50-H-FA		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-QL-50-50-H-FB		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-QL-50-75-R		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-QL-50-75-R-LB		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-QL-50-75-R-CB		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-QL-50-75-R-FA		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-QL-50-75-R-FB		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-QL-50-75-H		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-QL-50-75-H-LB		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-QL-50-75-H-CB		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-QL-50-75-H-FA		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-QL-50-75-H-FB		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-QL-50-100-R		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-QL-50-100-R-LB		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-QL-50-100-R-CB		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-QL-50-100-R-FA		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-QL-50-100-R-FB		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-QL-50-100-H		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-QL-50-100-H-LB		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-QL-50-100-H-CB		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-QL-50-100-H-FA		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-QL-50-100-H-FB		Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-QL-63-10-R		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-QL-63-10-R-LB		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-QL-63-10-R-CB		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-QL-63-10-R-FA		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-QL-63-10-R-FB		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-QL-63-10-H		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-QL-63-10-H-LB		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-QL-63-10-H-CB		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-QL-63-10-H-FA		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-QL-63-10-H-FB		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-QL-63-15-R		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-QL-63-15-R-LB		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-QL-63-15-R-CB		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-QL-63-15-R-FA		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-QL-63-15-R-FB		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-QL-63-15-H		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-QL-63-15-H-LB		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-QL-63-15-H-CB		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-QL-63-15-H-FA		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-QL-63-15-H-FB		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-QL-63-20-R		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-QL-63-20-R-LB		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-QL-63-20-R-CB		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-QL-63-20-R-FA		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-QL-63-20-R-FB		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-QL-63-20-H		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-QL-63-20-H-LB		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-QL-63-20-H-CB		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-QL-63-20-H-FA		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-QL-63-20-H-FB		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-QL-63-25-R		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-QL-63-25-R-LB		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-QL-63-25-R-CB		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-QL-63-25-R-FA		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-QL-63-25-R-FB		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-QL-63-25-H		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-QL-63-25-H-LB		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-QL-63-25-H-CB		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-QL-63-25-H-FA		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-QL-63-25-H-FB		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-QL-63-50-R		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-QL-63-50-R-LB		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-QL-63-50-R-CB		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-QL-63-50-R-FA		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-QL-63-50-R-FB		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-QL-63-50-H		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-QL-63-50-H-LB		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-QL-63-50-H-CB		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-QL-63-50-H-FA		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-QL-63-50-H-FB		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-QL-63-75-R		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-QL-63-75-R-LB		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-QL-63-75-R-CB		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-QL-63-75-R-FA		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-QL-63-75-R-FB		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-QL-63-75-H		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-QL-63-75-H-LB		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-QL-63-75-H-CB		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-QL-63-75-H-FA		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-QL-63-75-H-FB		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-QL-63-100-R		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-QL-63-100-R-LB		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-QL-63-100-R-CB		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-QL-63-100-R-FA		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-QL-63-100-R-FB		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-QL-63-100-H		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-QL-63-100-H-LB		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-QL-63-100-H-CB		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc1/4
SSD2-QL-63-100-H-FA		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-QL-63-100-H-FB		Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc1/4
SSD2-QL-80-25-R		Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-QL-80-25-R-LB		Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-QL-80-25-R-CB		Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-QL-80-25-R-FA		Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-QL-80-25-R-FB		Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-QL-80-25-H		Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-QL-80-25-H-LB		Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-QL-80-25-H-CB		Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-QL-80-25-H-FA		Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-QL-80-25-H-FB		Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-QL-80-50-R		Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-QL-80-50-R-LB		Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-QL-80-50-R-CB		Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-QL-80-50-R-FA		Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-QL-80-50-R-FB		Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-QL-80-50-H		Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-QL-80-50-H-LB		Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-QL-80-50-H-CB		Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-QL-80-50-H-FA		Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-QL-80-50-H-FB		Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-QL-80-75-R		Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-QL-80-75-R-LB		Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-QL-80-75-R-CB		Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-QL-80-75-R-FA		Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-QL-80-75-R-FB		Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-QL-80-75-H		Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-QL-80-75-H-LB		Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-QL-80-75-H-CB		Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-QL-80-75-H-FA		Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-QL-80-75-H-FB		Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-QL-80-100-R		Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-QL-80-100-R-LB		Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-QL-80-100-R-CB		Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-QL-80-100-R-FA		Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-QL-80-100-R-FB		Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-QL-80-100-H		Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-QL-80-100-H-LB		Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-QL-80-100-H-CB		Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-QL-80-100-H-FA		Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-QL-80-100-H-FB		Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-QL-100-25-R		Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-QL-100-25-R-LB		Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-QL-100-25-R-CB		Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-QL-100-25-R-FA		Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-QL-100-25-R-FB		Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-QL-100-25-H		Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-QL-100-25-H-LB		Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-QL-100-25-H-CB		Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-QL-100-25-H-FA		Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-QL-100-25-H-FB		Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-QL-100-50-R		Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-QL-100-50-R-LB		Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-QL-100-50-R-CB		Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-QL-100-50-R-FA		Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-QL-100-50-R-FB		Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-QL-100-50-H		Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-QL-100-50-H-LB		Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-QL-100-50-H-CB		Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-QL-100-50-H-FA		Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-QL-100-50-H-FB		Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-QL-100-75-R		Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-QL-100-75-R-LB		Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-QL-100-75-R-CB		Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-QL-100-75-R-FA		Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-QL-100-75-R-FB		Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-QL-100-75-H		Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-QL-100-75-H-LB		Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-QL-100-75-H-CB		Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-QL-100-75-H-FA		Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-QL-100-75-H-FB		Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-QL-100-100-R		Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-QL-100-100-R-LB		Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-QL-100-100-R-CB		Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-QL-100-100-R-FA		Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-QL-100-100-R-FB		Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc3/8
SSD2-QL-100-100-H		Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-QL-100-100-H-LB		Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-QL-100-100-H-CB		Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc3/8
SSD2-QL-100-100-H-FA		Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-QL-100-100-H-FB		Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc3/8

Compact CylindersCKD

1000 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD SSD2-Q Super Compact Cylinder (With Drop Prevention Lock)

Brand CKD·Compact Cylinders

Available part numbers (1000)

SSD2-Q-20-10-R, SSD2-Q-20-10-R-LB, SSD2-Q-20-10-R-CB, SSD2-Q-20-10-R-FA, SSD2-Q-20-10-R-FB, SSD2-Q-20-10-H, SSD2-Q-20-10-H-LB, SSD2-Q-20-10-H-CB, SSD2-Q-20-10-H-FA, SSD2-Q-20-10-H-FB + 990 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	SSD2-Q-20-10-R	Body: No switch magnet \| Bore: 20 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: M5
	SSD2-Q-20-10-R-LB	Body: No switch magnet \| Bore: 20 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-Q-20-10-R-CB	Body: No switch magnet \| Bore: 20 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-Q-20-10-R-FA	Body: No switch magnet \| Bore: 20 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-Q-20-10-R-FB	Body: No switch magnet \| Bore: 20 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-Q-20-10-H	Body: No switch magnet \| Bore: 20 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: M5
	SSD2-Q-20-10-H-LB	Body: No switch magnet \| Bore: 20 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-Q-20-10-H-CB	Body: No switch magnet \| Bore: 20 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-Q-20-10-H-FA	Body: No switch magnet \| Bore: 20 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-Q-20-10-H-FB	Body: No switch magnet \| Bore: 20 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-Q-20-15-R	Body: No switch magnet \| Bore: 20 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: M5
	SSD2-Q-20-15-R-LB	Body: No switch magnet \| Bore: 20 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-Q-20-15-R-CB	Body: No switch magnet \| Bore: 20 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-Q-20-15-R-FA	Body: No switch magnet \| Bore: 20 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-Q-20-15-R-FB	Body: No switch magnet \| Bore: 20 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-Q-20-15-H	Body: No switch magnet \| Bore: 20 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: M5
	SSD2-Q-20-15-H-LB	Body: No switch magnet \| Bore: 20 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-Q-20-15-H-CB	Body: No switch magnet \| Bore: 20 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-Q-20-15-H-FA	Body: No switch magnet \| Bore: 20 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-Q-20-15-H-FB	Body: No switch magnet \| Bore: 20 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-Q-20-20-R	Body: No switch magnet \| Bore: 20 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: M5
	SSD2-Q-20-20-R-LB	Body: No switch magnet \| Bore: 20 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-Q-20-20-R-CB	Body: No switch magnet \| Bore: 20 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-Q-20-20-R-FA	Body: No switch magnet \| Bore: 20 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-Q-20-20-R-FB	Body: No switch magnet \| Bore: 20 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-Q-20-20-H	Body: No switch magnet \| Bore: 20 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: M5
	SSD2-Q-20-20-H-LB	Body: No switch magnet \| Bore: 20 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-Q-20-20-H-CB	Body: No switch magnet \| Bore: 20 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-Q-20-20-H-FA	Body: No switch magnet \| Bore: 20 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-Q-20-20-H-FB	Body: No switch magnet \| Bore: 20 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-Q-20-25-R	Body: No switch magnet \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: M5
	SSD2-Q-20-25-R-LB	Body: No switch magnet \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-Q-20-25-R-CB	Body: No switch magnet \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-Q-20-25-R-FA	Body: No switch magnet \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-Q-20-25-R-FB	Body: No switch magnet \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-Q-20-25-H	Body: No switch magnet \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: M5
	SSD2-Q-20-25-H-LB	Body: No switch magnet \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-Q-20-25-H-CB	Body: No switch magnet \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-Q-20-25-H-FA	Body: No switch magnet \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-Q-20-25-H-FB	Body: No switch magnet \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-Q-20-50-R	Body: No switch magnet \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: M5
	SSD2-Q-20-50-R-LB	Body: No switch magnet \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-Q-20-50-R-CB	Body: No switch magnet \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-Q-20-50-R-FA	Body: No switch magnet \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-Q-20-50-R-FB	Body: No switch magnet \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-Q-20-50-H	Body: No switch magnet \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: M5
	SSD2-Q-20-50-H-LB	Body: No switch magnet \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-Q-20-50-H-CB	Body: No switch magnet \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-Q-20-50-H-FA	Body: No switch magnet \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-Q-20-50-H-FB	Body: No switch magnet \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-Q-20-75-R	Body: No switch magnet \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: M5
	SSD2-Q-20-75-R-LB	Body: No switch magnet \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-Q-20-75-R-CB	Body: No switch magnet \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-Q-20-75-R-FA	Body: No switch magnet \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-Q-20-75-R-FB	Body: No switch magnet \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-Q-20-75-H	Body: No switch magnet \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: M5
	SSD2-Q-20-75-H-LB	Body: No switch magnet \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-Q-20-75-H-CB	Body: No switch magnet \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-Q-20-75-H-FA	Body: No switch magnet \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-Q-20-75-H-FB	Body: No switch magnet \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-Q-20-100-R	Body: No switch magnet \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: M5
	SSD2-Q-20-100-R-LB	Body: No switch magnet \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-Q-20-100-R-CB	Body: No switch magnet \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-Q-20-100-R-FA	Body: No switch magnet \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-Q-20-100-R-FB	Body: No switch magnet \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-Q-20-100-H	Body: No switch magnet \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: M5
	SSD2-Q-20-100-H-LB	Body: No switch magnet \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-Q-20-100-H-CB	Body: No switch magnet \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-Q-20-100-H-FA	Body: No switch magnet \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-Q-20-100-H-FB	Body: No switch magnet \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-Q-25-10-R	Body: No switch magnet \| Bore: 25 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: M5
	SSD2-Q-25-10-R-LB	Body: No switch magnet \| Bore: 25 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-Q-25-10-R-CB	Body: No switch magnet \| Bore: 25 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-Q-25-10-R-FA	Body: No switch magnet \| Bore: 25 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-Q-25-10-R-FB	Body: No switch magnet \| Bore: 25 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-Q-25-10-H	Body: No switch magnet \| Bore: 25 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: M5
	SSD2-Q-25-10-H-LB	Body: No switch magnet \| Bore: 25 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-Q-25-10-H-CB	Body: No switch magnet \| Bore: 25 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-Q-25-10-H-FA	Body: No switch magnet \| Bore: 25 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-Q-25-10-H-FB	Body: No switch magnet \| Bore: 25 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-Q-25-15-R	Body: No switch magnet \| Bore: 25 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: M5
	SSD2-Q-25-15-R-LB	Body: No switch magnet \| Bore: 25 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-Q-25-15-R-CB	Body: No switch magnet \| Bore: 25 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-Q-25-15-R-FA	Body: No switch magnet \| Bore: 25 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-Q-25-15-R-FB	Body: No switch magnet \| Bore: 25 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-Q-25-15-H	Body: No switch magnet \| Bore: 25 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: M5
	SSD2-Q-25-15-H-LB	Body: No switch magnet \| Bore: 25 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-Q-25-15-H-CB	Body: No switch magnet \| Bore: 25 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-Q-25-15-H-FA	Body: No switch magnet \| Bore: 25 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-Q-25-15-H-FB	Body: No switch magnet \| Bore: 25 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-Q-25-20-R	Body: No switch magnet \| Bore: 25 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: M5
	SSD2-Q-25-20-R-LB	Body: No switch magnet \| Bore: 25 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-Q-25-20-R-CB	Body: No switch magnet \| Bore: 25 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-Q-25-20-R-FA	Body: No switch magnet \| Bore: 25 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-Q-25-20-R-FB	Body: No switch magnet \| Bore: 25 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-Q-25-20-H	Body: No switch magnet \| Bore: 25 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: M5
	SSD2-Q-25-20-H-LB	Body: No switch magnet \| Bore: 25 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-Q-25-20-H-CB	Body: No switch magnet \| Bore: 25 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-Q-25-20-H-FA	Body: No switch magnet \| Bore: 25 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-Q-25-20-H-FB	Body: No switch magnet \| Bore: 25 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-Q-25-25-R	Body: No switch magnet \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: M5
	SSD2-Q-25-25-R-LB	Body: No switch magnet \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-Q-25-25-R-CB	Body: No switch magnet \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-Q-25-25-R-FA	Body: No switch magnet \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-Q-25-25-R-FB	Body: No switch magnet \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-Q-25-25-H	Body: No switch magnet \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: M5
	SSD2-Q-25-25-H-LB	Body: No switch magnet \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-Q-25-25-H-CB	Body: No switch magnet \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-Q-25-25-H-FA	Body: No switch magnet \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-Q-25-25-H-FB	Body: No switch magnet \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-Q-25-50-R	Body: No switch magnet \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: M5
	SSD2-Q-25-50-R-LB	Body: No switch magnet \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-Q-25-50-R-CB	Body: No switch magnet \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-Q-25-50-R-FA	Body: No switch magnet \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-Q-25-50-R-FB	Body: No switch magnet \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-Q-25-50-H	Body: No switch magnet \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: M5
	SSD2-Q-25-50-H-LB	Body: No switch magnet \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-Q-25-50-H-CB	Body: No switch magnet \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-Q-25-50-H-FA	Body: No switch magnet \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-Q-25-50-H-FB	Body: No switch magnet \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-Q-25-75-R	Body: No switch magnet \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: M5
	SSD2-Q-25-75-R-LB	Body: No switch magnet \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-Q-25-75-R-CB	Body: No switch magnet \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-Q-25-75-R-FA	Body: No switch magnet \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-Q-25-75-R-FB	Body: No switch magnet \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-Q-25-75-H	Body: No switch magnet \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: M5
	SSD2-Q-25-75-H-LB	Body: No switch magnet \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-Q-25-75-H-CB	Body: No switch magnet \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-Q-25-75-H-FA	Body: No switch magnet \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-Q-25-75-H-FB	Body: No switch magnet \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-Q-25-100-R	Body: No switch magnet \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: M5
	SSD2-Q-25-100-R-LB	Body: No switch magnet \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-Q-25-100-R-CB	Body: No switch magnet \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-Q-25-100-R-FA	Body: No switch magnet \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-Q-25-100-R-FB	Body: No switch magnet \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-Q-25-100-H	Body: No switch magnet \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: M5
	SSD2-Q-25-100-H-LB	Body: No switch magnet \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-Q-25-100-H-CB	Body: No switch magnet \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-Q-25-100-H-FA	Body: No switch magnet \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-Q-25-100-H-FB	Body: No switch magnet \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-Q-32-10-R	Body: No switch magnet \| Bore: 32 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-Q-32-10-R-LB	Body: No switch magnet \| Bore: 32 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-Q-32-10-R-CB	Body: No switch magnet \| Bore: 32 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-Q-32-10-R-FA	Body: No switch magnet \| Bore: 32 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-Q-32-10-R-FB	Body: No switch magnet \| Bore: 32 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-Q-32-10-H	Body: No switch magnet \| Bore: 32 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-Q-32-10-H-LB	Body: No switch magnet \| Bore: 32 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-Q-32-10-H-CB	Body: No switch magnet \| Bore: 32 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-Q-32-10-H-FA	Body: No switch magnet \| Bore: 32 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-Q-32-10-H-FB	Body: No switch magnet \| Bore: 32 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-Q-32-15-R	Body: No switch magnet \| Bore: 32 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-Q-32-15-R-LB	Body: No switch magnet \| Bore: 32 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-Q-32-15-R-CB	Body: No switch magnet \| Bore: 32 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-Q-32-15-R-FA	Body: No switch magnet \| Bore: 32 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-Q-32-15-R-FB	Body: No switch magnet \| Bore: 32 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-Q-32-15-H	Body: No switch magnet \| Bore: 32 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-Q-32-15-H-LB	Body: No switch magnet \| Bore: 32 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-Q-32-15-H-CB	Body: No switch magnet \| Bore: 32 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-Q-32-15-H-FA	Body: No switch magnet \| Bore: 32 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-Q-32-15-H-FB	Body: No switch magnet \| Bore: 32 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-Q-32-20-R	Body: No switch magnet \| Bore: 32 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-Q-32-20-R-LB	Body: No switch magnet \| Bore: 32 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-Q-32-20-R-CB	Body: No switch magnet \| Bore: 32 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-Q-32-20-R-FA	Body: No switch magnet \| Bore: 32 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-Q-32-20-R-FB	Body: No switch magnet \| Bore: 32 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-Q-32-20-H	Body: No switch magnet \| Bore: 32 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-Q-32-20-H-LB	Body: No switch magnet \| Bore: 32 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-Q-32-20-H-CB	Body: No switch magnet \| Bore: 32 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-Q-32-20-H-FA	Body: No switch magnet \| Bore: 32 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-Q-32-20-H-FB	Body: No switch magnet \| Bore: 32 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-Q-32-25-R	Body: No switch magnet \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-Q-32-25-R-LB	Body: No switch magnet \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-Q-32-25-R-CB	Body: No switch magnet \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-Q-32-25-R-FA	Body: No switch magnet \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-Q-32-25-R-FB	Body: No switch magnet \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-Q-32-25-H	Body: No switch magnet \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-Q-32-25-H-LB	Body: No switch magnet \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-Q-32-25-H-CB	Body: No switch magnet \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-Q-32-25-H-FA	Body: No switch magnet \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-Q-32-25-H-FB	Body: No switch magnet \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-Q-32-50-R	Body: No switch magnet \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-Q-32-50-R-LB	Body: No switch magnet \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-Q-32-50-R-CB	Body: No switch magnet \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-Q-32-50-R-FA	Body: No switch magnet \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-Q-32-50-R-FB	Body: No switch magnet \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-Q-32-50-H	Body: No switch magnet \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-Q-32-50-H-LB	Body: No switch magnet \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-Q-32-50-H-CB	Body: No switch magnet \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-Q-32-50-H-FA	Body: No switch magnet \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-Q-32-50-H-FB	Body: No switch magnet \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-Q-32-75-R	Body: No switch magnet \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-Q-32-75-R-LB	Body: No switch magnet \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-Q-32-75-R-CB	Body: No switch magnet \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-Q-32-75-R-FA	Body: No switch magnet \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-Q-32-75-R-FB	Body: No switch magnet \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-Q-32-75-H	Body: No switch magnet \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-Q-32-75-H-LB	Body: No switch magnet \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-Q-32-75-H-CB	Body: No switch magnet \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-Q-32-75-H-FA	Body: No switch magnet \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-Q-32-75-H-FB	Body: No switch magnet \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-Q-32-100-R	Body: No switch magnet \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-Q-32-100-R-LB	Body: No switch magnet \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-Q-32-100-R-CB	Body: No switch magnet \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-Q-32-100-R-FA	Body: No switch magnet \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-Q-32-100-R-FB	Body: No switch magnet \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-Q-32-100-H	Body: No switch magnet \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-Q-32-100-H-LB	Body: No switch magnet \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-Q-32-100-H-CB	Body: No switch magnet \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-Q-32-100-H-FA	Body: No switch magnet \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-Q-32-100-H-FB	Body: No switch magnet \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-Q-40-10-R	Body: No switch magnet \| Bore: 40 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-Q-40-10-R-LB	Body: No switch magnet \| Bore: 40 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-Q-40-10-R-CB	Body: No switch magnet \| Bore: 40 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-Q-40-10-R-FA	Body: No switch magnet \| Bore: 40 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-Q-40-10-R-FB	Body: No switch magnet \| Bore: 40 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-Q-40-10-H	Body: No switch magnet \| Bore: 40 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-Q-40-10-H-LB	Body: No switch magnet \| Bore: 40 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-Q-40-10-H-CB	Body: No switch magnet \| Bore: 40 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-Q-40-10-H-FA	Body: No switch magnet \| Bore: 40 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-Q-40-10-H-FB	Body: No switch magnet \| Bore: 40 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-Q-40-15-R	Body: No switch magnet \| Bore: 40 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-Q-40-15-R-LB	Body: No switch magnet \| Bore: 40 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-Q-40-15-R-CB	Body: No switch magnet \| Bore: 40 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-Q-40-15-R-FA	Body: No switch magnet \| Bore: 40 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-Q-40-15-R-FB	Body: No switch magnet \| Bore: 40 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-Q-40-15-H	Body: No switch magnet \| Bore: 40 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-Q-40-15-H-LB	Body: No switch magnet \| Bore: 40 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-Q-40-15-H-CB	Body: No switch magnet \| Bore: 40 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-Q-40-15-H-FA	Body: No switch magnet \| Bore: 40 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-Q-40-15-H-FB	Body: No switch magnet \| Bore: 40 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-Q-40-20-R	Body: No switch magnet \| Bore: 40 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-Q-40-20-R-LB	Body: No switch magnet \| Bore: 40 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-Q-40-20-R-CB	Body: No switch magnet \| Bore: 40 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-Q-40-20-R-FA	Body: No switch magnet \| Bore: 40 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-Q-40-20-R-FB	Body: No switch magnet \| Bore: 40 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-Q-40-20-H	Body: No switch magnet \| Bore: 40 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-Q-40-20-H-LB	Body: No switch magnet \| Bore: 40 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-Q-40-20-H-CB	Body: No switch magnet \| Bore: 40 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-Q-40-20-H-FA	Body: No switch magnet \| Bore: 40 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-Q-40-20-H-FB	Body: No switch magnet \| Bore: 40 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-Q-40-25-R	Body: No switch magnet \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-Q-40-25-R-LB	Body: No switch magnet \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-Q-40-25-R-CB	Body: No switch magnet \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-Q-40-25-R-FA	Body: No switch magnet \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-Q-40-25-R-FB	Body: No switch magnet \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-Q-40-25-H	Body: No switch magnet \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-Q-40-25-H-LB	Body: No switch magnet \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-Q-40-25-H-CB	Body: No switch magnet \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-Q-40-25-H-FA	Body: No switch magnet \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-Q-40-25-H-FB	Body: No switch magnet \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-Q-40-50-R	Body: No switch magnet \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-Q-40-50-R-LB	Body: No switch magnet \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-Q-40-50-R-CB	Body: No switch magnet \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-Q-40-50-R-FA	Body: No switch magnet \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-Q-40-50-R-FB	Body: No switch magnet \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-Q-40-50-H	Body: No switch magnet \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-Q-40-50-H-LB	Body: No switch magnet \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-Q-40-50-H-CB	Body: No switch magnet \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-Q-40-50-H-FA	Body: No switch magnet \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-Q-40-50-H-FB	Body: No switch magnet \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-Q-40-75-R	Body: No switch magnet \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-Q-40-75-R-LB	Body: No switch magnet \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-Q-40-75-R-CB	Body: No switch magnet \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-Q-40-75-R-FA	Body: No switch magnet \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-Q-40-75-R-FB	Body: No switch magnet \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-Q-40-75-H	Body: No switch magnet \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-Q-40-75-H-LB	Body: No switch magnet \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-Q-40-75-H-CB	Body: No switch magnet \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-Q-40-75-H-FA	Body: No switch magnet \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-Q-40-75-H-FB	Body: No switch magnet \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-Q-40-100-R	Body: No switch magnet \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-Q-40-100-R-LB	Body: No switch magnet \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-Q-40-100-R-CB	Body: No switch magnet \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-Q-40-100-R-FA	Body: No switch magnet \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-Q-40-100-R-FB	Body: No switch magnet \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-Q-40-100-H	Body: No switch magnet \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-Q-40-100-H-LB	Body: No switch magnet \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-Q-40-100-H-CB	Body: No switch magnet \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-Q-40-100-H-FA	Body: No switch magnet \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-Q-40-100-H-FB	Body: No switch magnet \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-Q-50-10-R	Body: No switch magnet \| Bore: 50 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-Q-50-10-R-LB	Body: No switch magnet \| Bore: 50 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-Q-50-10-R-CB	Body: No switch magnet \| Bore: 50 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-Q-50-10-R-FA	Body: No switch magnet \| Bore: 50 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-Q-50-10-R-FB	Body: No switch magnet \| Bore: 50 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-Q-50-10-H	Body: No switch magnet \| Bore: 50 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-Q-50-10-H-LB	Body: No switch magnet \| Bore: 50 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-Q-50-10-H-CB	Body: No switch magnet \| Bore: 50 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-Q-50-10-H-FA	Body: No switch magnet \| Bore: 50 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-Q-50-10-H-FB	Body: No switch magnet \| Bore: 50 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-Q-50-15-R	Body: No switch magnet \| Bore: 50 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-Q-50-15-R-LB	Body: No switch magnet \| Bore: 50 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-Q-50-15-R-CB	Body: No switch magnet \| Bore: 50 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-Q-50-15-R-FA	Body: No switch magnet \| Bore: 50 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-Q-50-15-R-FB	Body: No switch magnet \| Bore: 50 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-Q-50-15-H	Body: No switch magnet \| Bore: 50 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-Q-50-15-H-LB	Body: No switch magnet \| Bore: 50 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-Q-50-15-H-CB	Body: No switch magnet \| Bore: 50 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-Q-50-15-H-FA	Body: No switch magnet \| Bore: 50 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-Q-50-15-H-FB	Body: No switch magnet \| Bore: 50 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-Q-50-20-R	Body: No switch magnet \| Bore: 50 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-Q-50-20-R-LB	Body: No switch magnet \| Bore: 50 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-Q-50-20-R-CB	Body: No switch magnet \| Bore: 50 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-Q-50-20-R-FA	Body: No switch magnet \| Bore: 50 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-Q-50-20-R-FB	Body: No switch magnet \| Bore: 50 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-Q-50-20-H	Body: No switch magnet \| Bore: 50 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-Q-50-20-H-LB	Body: No switch magnet \| Bore: 50 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-Q-50-20-H-CB	Body: No switch magnet \| Bore: 50 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-Q-50-20-H-FA	Body: No switch magnet \| Bore: 50 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-Q-50-20-H-FB	Body: No switch magnet \| Bore: 50 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-Q-50-25-R	Body: No switch magnet \| Bore: 50 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-Q-50-25-R-LB	Body: No switch magnet \| Bore: 50 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-Q-50-25-R-CB	Body: No switch magnet \| Bore: 50 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-Q-50-25-R-FA	Body: No switch magnet \| Bore: 50 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-Q-50-25-R-FB	Body: No switch magnet \| Bore: 50 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-Q-50-25-H	Body: No switch magnet \| Bore: 50 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-Q-50-25-H-LB	Body: No switch magnet \| Bore: 50 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-Q-50-25-H-CB	Body: No switch magnet \| Bore: 50 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-Q-50-25-H-FA	Body: No switch magnet \| Bore: 50 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-Q-50-25-H-FB	Body: No switch magnet \| Bore: 50 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-Q-50-50-R	Body: No switch magnet \| Bore: 50 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-Q-50-50-R-LB	Body: No switch magnet \| Bore: 50 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-Q-50-50-R-CB	Body: No switch magnet \| Bore: 50 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-Q-50-50-R-FA	Body: No switch magnet \| Bore: 50 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-Q-50-50-R-FB	Body: No switch magnet \| Bore: 50 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-Q-50-50-H	Body: No switch magnet \| Bore: 50 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-Q-50-50-H-LB	Body: No switch magnet \| Bore: 50 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-Q-50-50-H-CB	Body: No switch magnet \| Bore: 50 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-Q-50-50-H-FA	Body: No switch magnet \| Bore: 50 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-Q-50-50-H-FB	Body: No switch magnet \| Bore: 50 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-Q-50-75-R	Body: No switch magnet \| Bore: 50 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-Q-50-75-R-LB	Body: No switch magnet \| Bore: 50 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-Q-50-75-R-CB	Body: No switch magnet \| Bore: 50 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-Q-50-75-R-FA	Body: No switch magnet \| Bore: 50 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-Q-50-75-R-FB	Body: No switch magnet \| Bore: 50 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-Q-50-75-H	Body: No switch magnet \| Bore: 50 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-Q-50-75-H-LB	Body: No switch magnet \| Bore: 50 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-Q-50-75-H-CB	Body: No switch magnet \| Bore: 50 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-Q-50-75-H-FA	Body: No switch magnet \| Bore: 50 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-Q-50-75-H-FB	Body: No switch magnet \| Bore: 50 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-Q-50-100-R	Body: No switch magnet \| Bore: 50 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-Q-50-100-R-LB	Body: No switch magnet \| Bore: 50 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-Q-50-100-R-CB	Body: No switch magnet \| Bore: 50 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-Q-50-100-R-FA	Body: No switch magnet \| Bore: 50 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-Q-50-100-R-FB	Body: No switch magnet \| Bore: 50 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-Q-50-100-H	Body: No switch magnet \| Bore: 50 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-Q-50-100-H-LB	Body: No switch magnet \| Bore: 50 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-Q-50-100-H-CB	Body: No switch magnet \| Bore: 50 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-Q-50-100-H-FA	Body: No switch magnet \| Bore: 50 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-Q-50-100-H-FB	Body: No switch magnet \| Bore: 50 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-Q-63-10-R	Body: No switch magnet \| Bore: 63 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-Q-63-10-R-LB	Body: No switch magnet \| Bore: 63 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-Q-63-10-R-CB	Body: No switch magnet \| Bore: 63 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-Q-63-10-R-FA	Body: No switch magnet \| Bore: 63 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-Q-63-10-R-FB	Body: No switch magnet \| Bore: 63 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-Q-63-10-H	Body: No switch magnet \| Bore: 63 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-Q-63-10-H-LB	Body: No switch magnet \| Bore: 63 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-Q-63-10-H-CB	Body: No switch magnet \| Bore: 63 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-Q-63-10-H-FA	Body: No switch magnet \| Bore: 63 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-Q-63-10-H-FB	Body: No switch magnet \| Bore: 63 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-Q-63-15-R	Body: No switch magnet \| Bore: 63 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-Q-63-15-R-LB	Body: No switch magnet \| Bore: 63 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-Q-63-15-R-CB	Body: No switch magnet \| Bore: 63 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-Q-63-15-R-FA	Body: No switch magnet \| Bore: 63 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-Q-63-15-R-FB	Body: No switch magnet \| Bore: 63 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-Q-63-15-H	Body: No switch magnet \| Bore: 63 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-Q-63-15-H-LB	Body: No switch magnet \| Bore: 63 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-Q-63-15-H-CB	Body: No switch magnet \| Bore: 63 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-Q-63-15-H-FA	Body: No switch magnet \| Bore: 63 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-Q-63-15-H-FB	Body: No switch magnet \| Bore: 63 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-Q-63-20-R	Body: No switch magnet \| Bore: 63 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-Q-63-20-R-LB	Body: No switch magnet \| Bore: 63 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-Q-63-20-R-CB	Body: No switch magnet \| Bore: 63 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-Q-63-20-R-FA	Body: No switch magnet \| Bore: 63 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-Q-63-20-R-FB	Body: No switch magnet \| Bore: 63 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-Q-63-20-H	Body: No switch magnet \| Bore: 63 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-Q-63-20-H-LB	Body: No switch magnet \| Bore: 63 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-Q-63-20-H-CB	Body: No switch magnet \| Bore: 63 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-Q-63-20-H-FA	Body: No switch magnet \| Bore: 63 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-Q-63-20-H-FB	Body: No switch magnet \| Bore: 63 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-Q-63-25-R	Body: No switch magnet \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-Q-63-25-R-LB	Body: No switch magnet \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-Q-63-25-R-CB	Body: No switch magnet \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-Q-63-25-R-FA	Body: No switch magnet \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-Q-63-25-R-FB	Body: No switch magnet \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-Q-63-25-H	Body: No switch magnet \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-Q-63-25-H-LB	Body: No switch magnet \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-Q-63-25-H-CB	Body: No switch magnet \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-Q-63-25-H-FA	Body: No switch magnet \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-Q-63-25-H-FB	Body: No switch magnet \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-Q-63-50-R	Body: No switch magnet \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-Q-63-50-R-LB	Body: No switch magnet \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-Q-63-50-R-CB	Body: No switch magnet \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-Q-63-50-R-FA	Body: No switch magnet \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-Q-63-50-R-FB	Body: No switch magnet \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-Q-63-50-H	Body: No switch magnet \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-Q-63-50-H-LB	Body: No switch magnet \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-Q-63-50-H-CB	Body: No switch magnet \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-Q-63-50-H-FA	Body: No switch magnet \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-Q-63-50-H-FB	Body: No switch magnet \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-Q-63-75-R	Body: No switch magnet \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-Q-63-75-R-LB	Body: No switch magnet \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-Q-63-75-R-CB	Body: No switch magnet \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-Q-63-75-R-FA	Body: No switch magnet \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-Q-63-75-R-FB	Body: No switch magnet \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-Q-63-75-H	Body: No switch magnet \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-Q-63-75-H-LB	Body: No switch magnet \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-Q-63-75-H-CB	Body: No switch magnet \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-Q-63-75-H-FA	Body: No switch magnet \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-Q-63-75-H-FB	Body: No switch magnet \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-Q-63-100-R	Body: No switch magnet \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-Q-63-100-R-LB	Body: No switch magnet \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-Q-63-100-R-CB	Body: No switch magnet \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-Q-63-100-R-FA	Body: No switch magnet \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-Q-63-100-R-FB	Body: No switch magnet \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-Q-63-100-H	Body: No switch magnet \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-Q-63-100-H-LB	Body: No switch magnet \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-Q-63-100-H-CB	Body: No switch magnet \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-Q-63-100-H-FA	Body: No switch magnet \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-Q-63-100-H-FB	Body: No switch magnet \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-Q-80-25-R	Body: No switch magnet \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-Q-80-25-R-LB	Body: No switch magnet \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-Q-80-25-R-CB	Body: No switch magnet \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-Q-80-25-R-FA	Body: No switch magnet \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-Q-80-25-R-FB	Body: No switch magnet \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-Q-80-25-H	Body: No switch magnet \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-Q-80-25-H-LB	Body: No switch magnet \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-Q-80-25-H-CB	Body: No switch magnet \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-Q-80-25-H-FA	Body: No switch magnet \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-Q-80-25-H-FB	Body: No switch magnet \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-Q-80-50-R	Body: No switch magnet \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-Q-80-50-R-LB	Body: No switch magnet \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-Q-80-50-R-CB	Body: No switch magnet \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-Q-80-50-R-FA	Body: No switch magnet \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-Q-80-50-R-FB	Body: No switch magnet \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-Q-80-50-H	Body: No switch magnet \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-Q-80-50-H-LB	Body: No switch magnet \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-Q-80-50-H-CB	Body: No switch magnet \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-Q-80-50-H-FA	Body: No switch magnet \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-Q-80-50-H-FB	Body: No switch magnet \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-Q-80-75-R	Body: No switch magnet \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-Q-80-75-R-LB	Body: No switch magnet \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-Q-80-75-R-CB	Body: No switch magnet \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-Q-80-75-R-FA	Body: No switch magnet \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-Q-80-75-R-FB	Body: No switch magnet \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-Q-80-75-H	Body: No switch magnet \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-Q-80-75-H-LB	Body: No switch magnet \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-Q-80-75-H-CB	Body: No switch magnet \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-Q-80-75-H-FA	Body: No switch magnet \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-Q-80-75-H-FB	Body: No switch magnet \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-Q-80-100-R	Body: No switch magnet \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-Q-80-100-R-LB	Body: No switch magnet \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-Q-80-100-R-CB	Body: No switch magnet \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-Q-80-100-R-FA	Body: No switch magnet \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-Q-80-100-R-FB	Body: No switch magnet \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-Q-80-100-H	Body: No switch magnet \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-Q-80-100-H-LB	Body: No switch magnet \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-Q-80-100-H-CB	Body: No switch magnet \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-Q-80-100-H-FA	Body: No switch magnet \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-Q-80-100-H-FB	Body: No switch magnet \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-Q-100-25-R	Body: No switch magnet \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-Q-100-25-R-LB	Body: No switch magnet \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-Q-100-25-R-CB	Body: No switch magnet \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-Q-100-25-R-FA	Body: No switch magnet \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-Q-100-25-R-FB	Body: No switch magnet \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-Q-100-25-H	Body: No switch magnet \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-Q-100-25-H-LB	Body: No switch magnet \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-Q-100-25-H-CB	Body: No switch magnet \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-Q-100-25-H-FA	Body: No switch magnet \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-Q-100-25-H-FB	Body: No switch magnet \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-Q-100-50-R	Body: No switch magnet \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-Q-100-50-R-LB	Body: No switch magnet \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-Q-100-50-R-CB	Body: No switch magnet \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-Q-100-50-R-FA	Body: No switch magnet \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-Q-100-50-R-FB	Body: No switch magnet \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-Q-100-50-H	Body: No switch magnet \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-Q-100-50-H-LB	Body: No switch magnet \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-Q-100-50-H-CB	Body: No switch magnet \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-Q-100-50-H-FA	Body: No switch magnet \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-Q-100-50-H-FB	Body: No switch magnet \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-Q-100-75-R	Body: No switch magnet \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-Q-100-75-R-LB	Body: No switch magnet \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-Q-100-75-R-CB	Body: No switch magnet \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-Q-100-75-R-FA	Body: No switch magnet \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-Q-100-75-R-FB	Body: No switch magnet \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-Q-100-75-H	Body: No switch magnet \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-Q-100-75-H-LB	Body: No switch magnet \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-Q-100-75-H-CB	Body: No switch magnet \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-Q-100-75-H-FA	Body: No switch magnet \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-Q-100-75-H-FB	Body: No switch magnet \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-Q-100-100-R	Body: No switch magnet \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-Q-100-100-R-LB	Body: No switch magnet \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-Q-100-100-R-CB	Body: No switch magnet \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-Q-100-100-R-FA	Body: No switch magnet \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-Q-100-100-R-FB	Body: No switch magnet \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-Q-100-100-H	Body: No switch magnet \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-Q-100-100-H-LB	Body: No switch magnet \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-Q-100-100-H-CB	Body: No switch magnet \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-Q-100-100-H-FA	Body: No switch magnet \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-Q-100-100-H-FB	Body: No switch magnet \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-QL-20-10-R	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: M5
	SSD2-QL-20-10-R-LB	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-QL-20-10-R-CB	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-QL-20-10-R-FA	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-QL-20-10-R-FB	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-QL-20-10-H	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: M5
	SSD2-QL-20-10-H-LB	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-QL-20-10-H-CB	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-QL-20-10-H-FA	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-QL-20-10-H-FB	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-QL-20-15-R	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: M5
	SSD2-QL-20-15-R-LB	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-QL-20-15-R-CB	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-QL-20-15-R-FA	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-QL-20-15-R-FB	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-QL-20-15-H	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: M5
	SSD2-QL-20-15-H-LB	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-QL-20-15-H-CB	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-QL-20-15-H-FA	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-QL-20-15-H-FB	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-QL-20-20-R	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: M5
	SSD2-QL-20-20-R-LB	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-QL-20-20-R-CB	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-QL-20-20-R-FA	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-QL-20-20-R-FB	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-QL-20-20-H	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: M5
	SSD2-QL-20-20-H-LB	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-QL-20-20-H-CB	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-QL-20-20-H-FA	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-QL-20-20-H-FB	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-QL-20-25-R	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: M5
	SSD2-QL-20-25-R-LB	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-QL-20-25-R-CB	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-QL-20-25-R-FA	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-QL-20-25-R-FB	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-QL-20-25-H	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: M5
	SSD2-QL-20-25-H-LB	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-QL-20-25-H-CB	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-QL-20-25-H-FA	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-QL-20-25-H-FB	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-QL-20-50-R	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: M5
	SSD2-QL-20-50-R-LB	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-QL-20-50-R-CB	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-QL-20-50-R-FA	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-QL-20-50-R-FB	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-QL-20-50-H	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: M5
	SSD2-QL-20-50-H-LB	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-QL-20-50-H-CB	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-QL-20-50-H-FA	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-QL-20-50-H-FB	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-QL-20-75-R	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: M5
	SSD2-QL-20-75-R-LB	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-QL-20-75-R-CB	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-QL-20-75-R-FA	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-QL-20-75-R-FB	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-QL-20-75-H	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: M5
	SSD2-QL-20-75-H-LB	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-QL-20-75-H-CB	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-QL-20-75-H-FA	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-QL-20-75-H-FB	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-QL-20-100-R	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: M5
	SSD2-QL-20-100-R-LB	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-QL-20-100-R-CB	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-QL-20-100-R-FA	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-QL-20-100-R-FB	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-QL-20-100-H	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: M5
	SSD2-QL-20-100-H-LB	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-QL-20-100-H-CB	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-QL-20-100-H-FA	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-QL-20-100-H-FB	Body: Switch magnet built in \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-QL-25-10-R	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: M5
	SSD2-QL-25-10-R-LB	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-QL-25-10-R-CB	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-QL-25-10-R-FA	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-QL-25-10-R-FB	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-QL-25-10-H	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: M5
	SSD2-QL-25-10-H-LB	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-QL-25-10-H-CB	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-QL-25-10-H-FA	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-QL-25-10-H-FB	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-QL-25-15-R	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: M5
	SSD2-QL-25-15-R-LB	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-QL-25-15-R-CB	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-QL-25-15-R-FA	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-QL-25-15-R-FB	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-QL-25-15-H	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: M5
	SSD2-QL-25-15-H-LB	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-QL-25-15-H-CB	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-QL-25-15-H-FA	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-QL-25-15-H-FB	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-QL-25-20-R	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: M5
	SSD2-QL-25-20-R-LB	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-QL-25-20-R-CB	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-QL-25-20-R-FA	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-QL-25-20-R-FB	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-QL-25-20-H	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: M5
	SSD2-QL-25-20-H-LB	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-QL-25-20-H-CB	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-QL-25-20-H-FA	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-QL-25-20-H-FB	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-QL-25-25-R	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: M5
	SSD2-QL-25-25-R-LB	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-QL-25-25-R-CB	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-QL-25-25-R-FA	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-QL-25-25-R-FB	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-QL-25-25-H	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: M5
	SSD2-QL-25-25-H-LB	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-QL-25-25-H-CB	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-QL-25-25-H-FA	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-QL-25-25-H-FB	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-QL-25-50-R	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: M5
	SSD2-QL-25-50-R-LB	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-QL-25-50-R-CB	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-QL-25-50-R-FA	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-QL-25-50-R-FB	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-QL-25-50-H	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: M5
	SSD2-QL-25-50-H-LB	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-QL-25-50-H-CB	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-QL-25-50-H-FA	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-QL-25-50-H-FB	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-QL-25-75-R	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: M5
	SSD2-QL-25-75-R-LB	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-QL-25-75-R-CB	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-QL-25-75-R-FA	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-QL-25-75-R-FB	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-QL-25-75-H	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: M5
	SSD2-QL-25-75-H-LB	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-QL-25-75-H-CB	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-QL-25-75-H-FA	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-QL-25-75-H-FB	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-QL-25-100-R	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: M5
	SSD2-QL-25-100-R-LB	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-QL-25-100-R-CB	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-QL-25-100-R-FA	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-QL-25-100-R-FB	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-QL-25-100-H	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: M5
	SSD2-QL-25-100-H-LB	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-QL-25-100-H-CB	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-QL-25-100-H-FA	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-QL-25-100-H-FB	Body: Switch magnet built in \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: M5
	SSD2-QL-32-10-R	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-QL-32-10-R-LB	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-QL-32-10-R-CB	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-QL-32-10-R-FA	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-QL-32-10-R-FB	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-QL-32-10-H	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-QL-32-10-H-LB	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-QL-32-10-H-CB	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-QL-32-10-H-FA	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-QL-32-10-H-FB	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-QL-32-15-R	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-QL-32-15-R-LB	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-QL-32-15-R-CB	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-QL-32-15-R-FA	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-QL-32-15-R-FB	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-QL-32-15-H	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-QL-32-15-H-LB	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-QL-32-15-H-CB	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-QL-32-15-H-FA	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-QL-32-15-H-FB	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-QL-32-20-R	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-QL-32-20-R-LB	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-QL-32-20-R-CB	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-QL-32-20-R-FA	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-QL-32-20-R-FB	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-QL-32-20-H	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-QL-32-20-H-LB	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-QL-32-20-H-CB	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-QL-32-20-H-FA	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-QL-32-20-H-FB	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-QL-32-25-R	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-QL-32-25-R-LB	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-QL-32-25-R-CB	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-QL-32-25-R-FA	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-QL-32-25-R-FB	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-QL-32-25-H	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-QL-32-25-H-LB	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-QL-32-25-H-CB	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-QL-32-25-H-FA	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-QL-32-25-H-FB	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-QL-32-50-R	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-QL-32-50-R-LB	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-QL-32-50-R-CB	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-QL-32-50-R-FA	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-QL-32-50-R-FB	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-QL-32-50-H	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-QL-32-50-H-LB	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-QL-32-50-H-CB	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-QL-32-50-H-FA	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-QL-32-50-H-FB	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-QL-32-75-R	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-QL-32-75-R-LB	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-QL-32-75-R-CB	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-QL-32-75-R-FA	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-QL-32-75-R-FB	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-QL-32-75-H	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-QL-32-75-H-LB	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-QL-32-75-H-CB	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-QL-32-75-H-FA	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-QL-32-75-H-FB	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-QL-32-100-R	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-QL-32-100-R-LB	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-QL-32-100-R-CB	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-QL-32-100-R-FA	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-QL-32-100-R-FB	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-QL-32-100-H	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-QL-32-100-H-LB	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-QL-32-100-H-CB	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-QL-32-100-H-FA	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-QL-32-100-H-FB	Body: Switch magnet built in \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-QL-40-10-R	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-QL-40-10-R-LB	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-QL-40-10-R-CB	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-QL-40-10-R-FA	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-QL-40-10-R-FB	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-QL-40-10-H	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-QL-40-10-H-LB	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-QL-40-10-H-CB	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-QL-40-10-H-FA	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-QL-40-10-H-FB	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-QL-40-15-R	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-QL-40-15-R-LB	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-QL-40-15-R-CB	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-QL-40-15-R-FA	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-QL-40-15-R-FB	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-QL-40-15-H	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-QL-40-15-H-LB	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-QL-40-15-H-CB	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-QL-40-15-H-FA	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-QL-40-15-H-FB	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-QL-40-20-R	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-QL-40-20-R-LB	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-QL-40-20-R-CB	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-QL-40-20-R-FA	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-QL-40-20-R-FB	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-QL-40-20-H	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-QL-40-20-H-LB	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-QL-40-20-H-CB	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-QL-40-20-H-FA	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-QL-40-20-H-FB	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-QL-40-25-R	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-QL-40-25-R-LB	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-QL-40-25-R-CB	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-QL-40-25-R-FA	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-QL-40-25-R-FB	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-QL-40-25-H	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-QL-40-25-H-LB	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-QL-40-25-H-CB	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-QL-40-25-H-FA	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-QL-40-25-H-FB	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-QL-40-50-R	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-QL-40-50-R-LB	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-QL-40-50-R-CB	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-QL-40-50-R-FA	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-QL-40-50-R-FB	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-QL-40-50-H	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-QL-40-50-H-LB	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-QL-40-50-H-CB	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-QL-40-50-H-FA	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-QL-40-50-H-FB	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-QL-40-75-R	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-QL-40-75-R-LB	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-QL-40-75-R-CB	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-QL-40-75-R-FA	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-QL-40-75-R-FB	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-QL-40-75-H	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-QL-40-75-H-LB	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-QL-40-75-H-CB	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-QL-40-75-H-FA	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-QL-40-75-H-FB	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-QL-40-100-R	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-QL-40-100-R-LB	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-QL-40-100-R-CB	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-QL-40-100-R-FA	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-QL-40-100-R-FB	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-QL-40-100-H	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-QL-40-100-H-LB	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-QL-40-100-H-CB	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-QL-40-100-H-FA	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-QL-40-100-H-FB	Body: Switch magnet built in \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc1/8
	SSD2-QL-50-10-R	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-QL-50-10-R-LB	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-QL-50-10-R-CB	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-QL-50-10-R-FA	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-QL-50-10-R-FB	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-QL-50-10-H	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-QL-50-10-H-LB	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-QL-50-10-H-CB	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-QL-50-10-H-FA	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-QL-50-10-H-FB	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-QL-50-15-R	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-QL-50-15-R-LB	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-QL-50-15-R-CB	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-QL-50-15-R-FA	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-QL-50-15-R-FB	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-QL-50-15-H	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-QL-50-15-H-LB	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-QL-50-15-H-CB	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-QL-50-15-H-FA	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-QL-50-15-H-FB	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-QL-50-20-R	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-QL-50-20-R-LB	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-QL-50-20-R-CB	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-QL-50-20-R-FA	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-QL-50-20-R-FB	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-QL-50-20-H	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-QL-50-20-H-LB	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-QL-50-20-H-CB	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-QL-50-20-H-FA	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-QL-50-20-H-FB	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-QL-50-25-R	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-QL-50-25-R-LB	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-QL-50-25-R-CB	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-QL-50-25-R-FA	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-QL-50-25-R-FB	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-QL-50-25-H	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-QL-50-25-H-LB	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-QL-50-25-H-CB	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-QL-50-25-H-FA	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-QL-50-25-H-FB	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-QL-50-50-R	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-QL-50-50-R-LB	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-QL-50-50-R-CB	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-QL-50-50-R-FA	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-QL-50-50-R-FB	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-QL-50-50-H	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-QL-50-50-H-LB	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-QL-50-50-H-CB	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-QL-50-50-H-FA	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-QL-50-50-H-FB	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-QL-50-75-R	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-QL-50-75-R-LB	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-QL-50-75-R-CB	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-QL-50-75-R-FA	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-QL-50-75-R-FB	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-QL-50-75-H	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-QL-50-75-H-LB	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-QL-50-75-H-CB	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-QL-50-75-H-FA	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-QL-50-75-H-FB	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-QL-50-100-R	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-QL-50-100-R-LB	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-QL-50-100-R-CB	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-QL-50-100-R-FA	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-QL-50-100-R-FB	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-QL-50-100-H	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-QL-50-100-H-LB	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-QL-50-100-H-CB	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-QL-50-100-H-FA	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-QL-50-100-H-FB	Body: Switch magnet built in \| Bore: 50 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-QL-63-10-R	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-QL-63-10-R-LB	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-QL-63-10-R-CB	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-QL-63-10-R-FA	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-QL-63-10-R-FB	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 10 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-QL-63-10-H	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-QL-63-10-H-LB	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-QL-63-10-H-CB	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-QL-63-10-H-FA	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-QL-63-10-H-FB	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 10 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-QL-63-15-R	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-QL-63-15-R-LB	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-QL-63-15-R-CB	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-QL-63-15-R-FA	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-QL-63-15-R-FB	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 15 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-QL-63-15-H	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-QL-63-15-H-LB	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-QL-63-15-H-CB	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-QL-63-15-H-FA	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-QL-63-15-H-FB	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 15 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-QL-63-20-R	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-QL-63-20-R-LB	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-QL-63-20-R-CB	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-QL-63-20-R-FA	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-QL-63-20-R-FB	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 20 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-QL-63-20-H	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-QL-63-20-H-LB	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-QL-63-20-H-CB	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-QL-63-20-H-FA	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-QL-63-20-H-FB	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 20 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-QL-63-25-R	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-QL-63-25-R-LB	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-QL-63-25-R-CB	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-QL-63-25-R-FA	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-QL-63-25-R-FB	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-QL-63-25-H	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-QL-63-25-H-LB	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-QL-63-25-H-CB	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-QL-63-25-H-FA	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-QL-63-25-H-FB	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-QL-63-50-R	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-QL-63-50-R-LB	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-QL-63-50-R-CB	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-QL-63-50-R-FA	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-QL-63-50-R-FB	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-QL-63-50-H	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-QL-63-50-H-LB	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-QL-63-50-H-CB	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-QL-63-50-H-FA	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-QL-63-50-H-FB	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-QL-63-75-R	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-QL-63-75-R-LB	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-QL-63-75-R-CB	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-QL-63-75-R-FA	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-QL-63-75-R-FB	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-QL-63-75-H	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-QL-63-75-H-LB	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-QL-63-75-H-CB	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-QL-63-75-H-FA	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-QL-63-75-H-FB	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-QL-63-100-R	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-QL-63-100-R-LB	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-QL-63-100-R-CB	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-QL-63-100-R-FA	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-QL-63-100-R-FB	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-QL-63-100-H	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-QL-63-100-H-LB	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-QL-63-100-H-CB	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc1/4
	SSD2-QL-63-100-H-FA	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-QL-63-100-H-FB	Body: Switch magnet built in \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc1/4
	SSD2-QL-80-25-R	Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-QL-80-25-R-LB	Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-QL-80-25-R-CB	Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-QL-80-25-R-FA	Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-QL-80-25-R-FB	Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-QL-80-25-H	Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-QL-80-25-H-LB	Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-QL-80-25-H-CB	Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-QL-80-25-H-FA	Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-QL-80-25-H-FB	Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-QL-80-50-R	Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-QL-80-50-R-LB	Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-QL-80-50-R-CB	Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-QL-80-50-R-FA	Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-QL-80-50-R-FB	Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-QL-80-50-H	Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-QL-80-50-H-LB	Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-QL-80-50-H-CB	Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-QL-80-50-H-FA	Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-QL-80-50-H-FB	Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-QL-80-75-R	Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-QL-80-75-R-LB	Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-QL-80-75-R-CB	Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-QL-80-75-R-FA	Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-QL-80-75-R-FB	Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-QL-80-75-H	Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-QL-80-75-H-LB	Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-QL-80-75-H-CB	Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-QL-80-75-H-FA	Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-QL-80-75-H-FB	Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-QL-80-100-R	Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-QL-80-100-R-LB	Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-QL-80-100-R-CB	Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-QL-80-100-R-FA	Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-QL-80-100-R-FB	Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-QL-80-100-H	Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-QL-80-100-H-LB	Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-QL-80-100-H-CB	Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-QL-80-100-H-FA	Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-QL-80-100-H-FB	Body: Switch magnet built in \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-QL-100-25-R	Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-QL-100-25-R-LB	Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-QL-100-25-R-CB	Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-QL-100-25-R-FA	Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-QL-100-25-R-FB	Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-QL-100-25-H	Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-QL-100-25-H-LB	Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-QL-100-25-H-CB	Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-QL-100-25-H-FA	Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-QL-100-25-H-FB	Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-QL-100-50-R	Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-QL-100-50-R-LB	Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-QL-100-50-R-CB	Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-QL-100-50-R-FA	Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-QL-100-50-R-FB	Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-QL-100-50-H	Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-QL-100-50-H-LB	Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-QL-100-50-H-CB	Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-QL-100-50-H-FA	Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-QL-100-50-H-FB	Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-QL-100-75-R	Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-QL-100-75-R-LB	Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-QL-100-75-R-CB	Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-QL-100-75-R-FA	Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-QL-100-75-R-FB	Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-QL-100-75-H	Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-QL-100-75-H-LB	Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-QL-100-75-H-CB	Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-QL-100-75-H-FA	Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-QL-100-75-H-FB	Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-QL-100-100-R	Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-QL-100-100-R-LB	Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-QL-100-100-R-CB	Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-QL-100-100-R-FA	Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-QL-100-100-R-FB	Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Rod end \| Mounting: Head-end flange (FB) \| Port: Rc3/8
	SSD2-QL-100-100-H	Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-QL-100-100-H-LB	Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-QL-100-100-H-CB	Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Double clevis (CB) \| Port: Rc3/8
	SSD2-QL-100-100-H-FA	Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-QL-100-100-H-FB	Body: Switch magnet built in \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Head end \| Mounting: Head-end flange (FB) \| Port: Rc3/8

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

CKD SSD2-Q Super Compact Cylinder (With Drop Prevention Lock)
