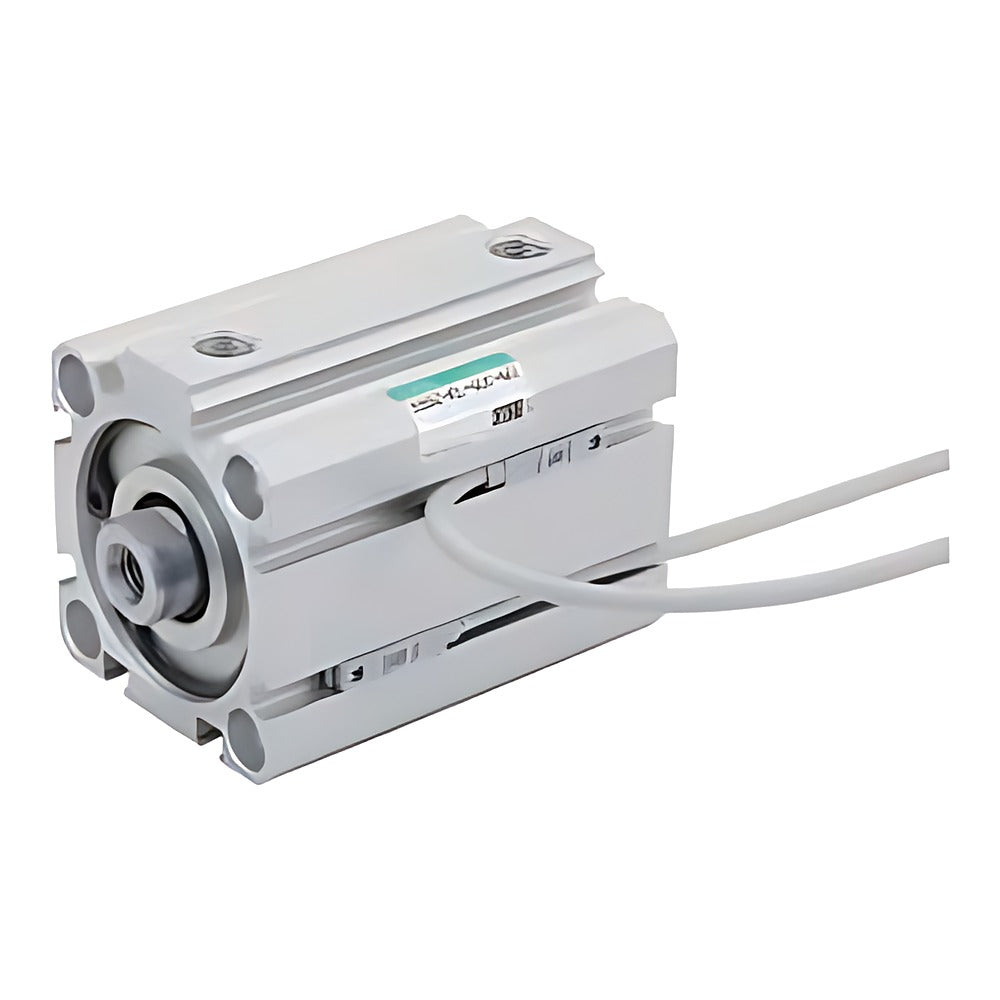

CKD SSD2 Super Compact Cylinder (Double Acting, Bore 12-32)

CKD SSD2 double-acting single-rod super compact cylinder, bores 12-32 mm, with standard strokes from the catalog stroke table.

Key features

Space-saving square-body super compact cylinder; short overall length for tight installations
Rubber cushion (D) or no cushion selectable in bores 12-100
SSD2-L has a built-in switch magnet for F-type (bore 20/25) and T-type auto switches
Mounting brackets LB, CB, FA, FB can be ordered with the cylinder or separately (e.g. SSD2-LB-12)
Options: rod-end male thread (N), stainless rod (M), intermediate strokes in 1 mm steps, P4 battery-plant spec

Specifications

Operation	Double acting, single rod
Fluid	Compressed air
Max. operating pressure	1.0 MPa
Min. operating pressure	0.1 MPa (0.05 MPa for 63-100)
Proof pressure	1.6 MPa
Ambient temperature	-10 to 60 C (no freezing)
Piston speed	50-500 mm/s (50-300 mm/s for 63-100)
Lubrication	Not required
Source	CKD Korea catalog CB-029SK-9, p. 833-855

SSD2-12-5		Bore: 12 mm \| Stroke: 5 mm \| Cushion: None \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
SSD2-12-5-LB		Bore: 12 mm \| Stroke: 5 mm \| Cushion: None \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
SSD2-12-5-CB		Bore: 12 mm \| Stroke: 5 mm \| Cushion: None \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
SSD2-12-5-FA		Bore: 12 mm \| Stroke: 5 mm \| Cushion: None \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
SSD2-12-5-FB		Bore: 12 mm \| Stroke: 5 mm \| Cushion: None \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
SSD2-12-10		Bore: 12 mm \| Stroke: 10 mm \| Cushion: None \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
SSD2-12-10-LB		Bore: 12 mm \| Stroke: 10 mm \| Cushion: None \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
SSD2-12-10-CB		Bore: 12 mm \| Stroke: 10 mm \| Cushion: None \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
SSD2-12-10-FA		Bore: 12 mm \| Stroke: 10 mm \| Cushion: None \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
SSD2-12-10-FB		Bore: 12 mm \| Stroke: 10 mm \| Cushion: None \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
SSD2-12-15		Bore: 12 mm \| Stroke: 15 mm \| Cushion: None \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
SSD2-12-15-LB		Bore: 12 mm \| Stroke: 15 mm \| Cushion: None \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
SSD2-12-15-CB		Bore: 12 mm \| Stroke: 15 mm \| Cushion: None \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
SSD2-12-15-FA		Bore: 12 mm \| Stroke: 15 mm \| Cushion: None \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
SSD2-12-15-FB		Bore: 12 mm \| Stroke: 15 mm \| Cushion: None \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
SSD2-12-20		Bore: 12 mm \| Stroke: 20 mm \| Cushion: None \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
SSD2-12-20-LB		Bore: 12 mm \| Stroke: 20 mm \| Cushion: None \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
SSD2-12-20-CB		Bore: 12 mm \| Stroke: 20 mm \| Cushion: None \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
SSD2-12-20-FA		Bore: 12 mm \| Stroke: 20 mm \| Cushion: None \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
SSD2-12-20-FB		Bore: 12 mm \| Stroke: 20 mm \| Cushion: None \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
SSD2-12-25		Bore: 12 mm \| Stroke: 25 mm \| Cushion: None \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
SSD2-12-25-LB		Bore: 12 mm \| Stroke: 25 mm \| Cushion: None \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
SSD2-12-25-CB		Bore: 12 mm \| Stroke: 25 mm \| Cushion: None \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
SSD2-12-25-FA		Bore: 12 mm \| Stroke: 25 mm \| Cushion: None \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
SSD2-12-25-FB		Bore: 12 mm \| Stroke: 25 mm \| Cushion: None \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
SSD2-12-30		Bore: 12 mm \| Stroke: 30 mm \| Cushion: None \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
SSD2-12-30-LB		Bore: 12 mm \| Stroke: 30 mm \| Cushion: None \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
SSD2-12-30-CB		Bore: 12 mm \| Stroke: 30 mm \| Cushion: None \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
SSD2-12-30-FA		Bore: 12 mm \| Stroke: 30 mm \| Cushion: None \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
SSD2-12-30-FB		Bore: 12 mm \| Stroke: 30 mm \| Cushion: None \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
SSD2-12D-5		Bore: 12 mm \| Stroke: 5 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
SSD2-12D-5-LB		Bore: 12 mm \| Stroke: 5 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
SSD2-12D-5-CB		Bore: 12 mm \| Stroke: 5 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
SSD2-12D-5-FA		Bore: 12 mm \| Stroke: 5 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
SSD2-12D-5-FB		Bore: 12 mm \| Stroke: 5 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
SSD2-12D-10		Bore: 12 mm \| Stroke: 10 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
SSD2-12D-10-LB		Bore: 12 mm \| Stroke: 10 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
SSD2-12D-10-CB		Bore: 12 mm \| Stroke: 10 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
SSD2-12D-10-FA		Bore: 12 mm \| Stroke: 10 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
SSD2-12D-10-FB		Bore: 12 mm \| Stroke: 10 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
SSD2-12D-15		Bore: 12 mm \| Stroke: 15 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
SSD2-12D-15-LB		Bore: 12 mm \| Stroke: 15 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
SSD2-12D-15-CB		Bore: 12 mm \| Stroke: 15 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
SSD2-12D-15-FA		Bore: 12 mm \| Stroke: 15 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
SSD2-12D-15-FB		Bore: 12 mm \| Stroke: 15 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
SSD2-12D-20		Bore: 12 mm \| Stroke: 20 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
SSD2-12D-20-LB		Bore: 12 mm \| Stroke: 20 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
SSD2-12D-20-CB		Bore: 12 mm \| Stroke: 20 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
SSD2-12D-20-FA		Bore: 12 mm \| Stroke: 20 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
SSD2-12D-20-FB		Bore: 12 mm \| Stroke: 20 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
SSD2-12D-25		Bore: 12 mm \| Stroke: 25 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
SSD2-12D-25-LB		Bore: 12 mm \| Stroke: 25 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
SSD2-12D-25-CB		Bore: 12 mm \| Stroke: 25 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
SSD2-12D-25-FA		Bore: 12 mm \| Stroke: 25 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
SSD2-12D-25-FB		Bore: 12 mm \| Stroke: 25 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
SSD2-12D-30		Bore: 12 mm \| Stroke: 30 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
SSD2-12D-30-LB		Bore: 12 mm \| Stroke: 30 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
SSD2-12D-30-CB		Bore: 12 mm \| Stroke: 30 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
SSD2-12D-30-FA		Bore: 12 mm \| Stroke: 30 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
SSD2-12D-30-FB		Bore: 12 mm \| Stroke: 30 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
SSD2-16-5		Bore: 16 mm \| Stroke: 5 mm \| Cushion: None \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
SSD2-16-5-LB		Bore: 16 mm \| Stroke: 5 mm \| Cushion: None \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
SSD2-16-5-CB		Bore: 16 mm \| Stroke: 5 mm \| Cushion: None \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
SSD2-16-5-FA		Bore: 16 mm \| Stroke: 5 mm \| Cushion: None \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
SSD2-16-5-FB		Bore: 16 mm \| Stroke: 5 mm \| Cushion: None \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
SSD2-16-10		Bore: 16 mm \| Stroke: 10 mm \| Cushion: None \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
SSD2-16-10-LB		Bore: 16 mm \| Stroke: 10 mm \| Cushion: None \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
SSD2-16-10-CB		Bore: 16 mm \| Stroke: 10 mm \| Cushion: None \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
SSD2-16-10-FA		Bore: 16 mm \| Stroke: 10 mm \| Cushion: None \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
SSD2-16-10-FB		Bore: 16 mm \| Stroke: 10 mm \| Cushion: None \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
SSD2-16-15		Bore: 16 mm \| Stroke: 15 mm \| Cushion: None \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
SSD2-16-15-LB		Bore: 16 mm \| Stroke: 15 mm \| Cushion: None \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
SSD2-16-15-CB		Bore: 16 mm \| Stroke: 15 mm \| Cushion: None \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
SSD2-16-15-FA		Bore: 16 mm \| Stroke: 15 mm \| Cushion: None \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
SSD2-16-15-FB		Bore: 16 mm \| Stroke: 15 mm \| Cushion: None \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
SSD2-16-20		Bore: 16 mm \| Stroke: 20 mm \| Cushion: None \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
SSD2-16-20-LB		Bore: 16 mm \| Stroke: 20 mm \| Cushion: None \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
SSD2-16-20-CB		Bore: 16 mm \| Stroke: 20 mm \| Cushion: None \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
SSD2-16-20-FA		Bore: 16 mm \| Stroke: 20 mm \| Cushion: None \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
SSD2-16-20-FB		Bore: 16 mm \| Stroke: 20 mm \| Cushion: None \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
SSD2-16-25		Bore: 16 mm \| Stroke: 25 mm \| Cushion: None \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
SSD2-16-25-LB		Bore: 16 mm \| Stroke: 25 mm \| Cushion: None \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
SSD2-16-25-CB		Bore: 16 mm \| Stroke: 25 mm \| Cushion: None \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
SSD2-16-25-FA		Bore: 16 mm \| Stroke: 25 mm \| Cushion: None \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
SSD2-16-25-FB		Bore: 16 mm \| Stroke: 25 mm \| Cushion: None \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
SSD2-16-30		Bore: 16 mm \| Stroke: 30 mm \| Cushion: None \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
SSD2-16-30-LB		Bore: 16 mm \| Stroke: 30 mm \| Cushion: None \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
SSD2-16-30-CB		Bore: 16 mm \| Stroke: 30 mm \| Cushion: None \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
SSD2-16-30-FA		Bore: 16 mm \| Stroke: 30 mm \| Cushion: None \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
SSD2-16-30-FB		Bore: 16 mm \| Stroke: 30 mm \| Cushion: None \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
SSD2-16D-5		Bore: 16 mm \| Stroke: 5 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
SSD2-16D-5-LB		Bore: 16 mm \| Stroke: 5 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
SSD2-16D-5-CB		Bore: 16 mm \| Stroke: 5 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
SSD2-16D-5-FA		Bore: 16 mm \| Stroke: 5 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
SSD2-16D-5-FB		Bore: 16 mm \| Stroke: 5 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
SSD2-16D-10		Bore: 16 mm \| Stroke: 10 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
SSD2-16D-10-LB		Bore: 16 mm \| Stroke: 10 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
SSD2-16D-10-CB		Bore: 16 mm \| Stroke: 10 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
SSD2-16D-10-FA		Bore: 16 mm \| Stroke: 10 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
SSD2-16D-10-FB		Bore: 16 mm \| Stroke: 10 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
SSD2-16D-15		Bore: 16 mm \| Stroke: 15 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
SSD2-16D-15-LB		Bore: 16 mm \| Stroke: 15 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
SSD2-16D-15-CB		Bore: 16 mm \| Stroke: 15 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
SSD2-16D-15-FA		Bore: 16 mm \| Stroke: 15 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
SSD2-16D-15-FB		Bore: 16 mm \| Stroke: 15 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
SSD2-16D-20		Bore: 16 mm \| Stroke: 20 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
SSD2-16D-20-LB		Bore: 16 mm \| Stroke: 20 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
SSD2-16D-20-CB		Bore: 16 mm \| Stroke: 20 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
SSD2-16D-20-FA		Bore: 16 mm \| Stroke: 20 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
SSD2-16D-20-FB		Bore: 16 mm \| Stroke: 20 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
SSD2-16D-25		Bore: 16 mm \| Stroke: 25 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
SSD2-16D-25-LB		Bore: 16 mm \| Stroke: 25 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
SSD2-16D-25-CB		Bore: 16 mm \| Stroke: 25 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
SSD2-16D-25-FA		Bore: 16 mm \| Stroke: 25 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
SSD2-16D-25-FB		Bore: 16 mm \| Stroke: 25 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
SSD2-16D-30		Bore: 16 mm \| Stroke: 30 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
SSD2-16D-30-LB		Bore: 16 mm \| Stroke: 30 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
SSD2-16D-30-CB		Bore: 16 mm \| Stroke: 30 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
SSD2-16D-30-FA		Bore: 16 mm \| Stroke: 30 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
SSD2-16D-30-FB		Bore: 16 mm \| Stroke: 30 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
SSD2-20-5		Bore: 20 mm \| Stroke: 5 mm \| Cushion: None \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
SSD2-20-5-CB		Bore: 20 mm \| Stroke: 5 mm \| Cushion: None \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
SSD2-20-5-FA		Bore: 20 mm \| Stroke: 5 mm \| Cushion: None \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
SSD2-20-5-FB		Bore: 20 mm \| Stroke: 5 mm \| Cushion: None \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
SSD2-20-10		Bore: 20 mm \| Stroke: 10 mm \| Cushion: None \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
SSD2-20-10-LB		Bore: 20 mm \| Stroke: 10 mm \| Cushion: None \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
SSD2-20-10-CB		Bore: 20 mm \| Stroke: 10 mm \| Cushion: None \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
SSD2-20-10-FA		Bore: 20 mm \| Stroke: 10 mm \| Cushion: None \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
SSD2-20-10-FB		Bore: 20 mm \| Stroke: 10 mm \| Cushion: None \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
SSD2-20-15		Bore: 20 mm \| Stroke: 15 mm \| Cushion: None \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
SSD2-20-15-LB		Bore: 20 mm \| Stroke: 15 mm \| Cushion: None \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
SSD2-20-15-CB		Bore: 20 mm \| Stroke: 15 mm \| Cushion: None \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
SSD2-20-15-FA		Bore: 20 mm \| Stroke: 15 mm \| Cushion: None \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
SSD2-20-15-FB		Bore: 20 mm \| Stroke: 15 mm \| Cushion: None \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
SSD2-20-20		Bore: 20 mm \| Stroke: 20 mm \| Cushion: None \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
SSD2-20-20-LB		Bore: 20 mm \| Stroke: 20 mm \| Cushion: None \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
SSD2-20-20-CB		Bore: 20 mm \| Stroke: 20 mm \| Cushion: None \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
SSD2-20-20-FA		Bore: 20 mm \| Stroke: 20 mm \| Cushion: None \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
SSD2-20-20-FB		Bore: 20 mm \| Stroke: 20 mm \| Cushion: None \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
SSD2-20-25		Bore: 20 mm \| Stroke: 25 mm \| Cushion: None \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
SSD2-20-25-LB		Bore: 20 mm \| Stroke: 25 mm \| Cushion: None \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
SSD2-20-25-CB		Bore: 20 mm \| Stroke: 25 mm \| Cushion: None \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
SSD2-20-25-FA		Bore: 20 mm \| Stroke: 25 mm \| Cushion: None \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
SSD2-20-25-FB		Bore: 20 mm \| Stroke: 25 mm \| Cushion: None \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
SSD2-20-30		Bore: 20 mm \| Stroke: 30 mm \| Cushion: None \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
SSD2-20-30-LB		Bore: 20 mm \| Stroke: 30 mm \| Cushion: None \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
SSD2-20-30-CB		Bore: 20 mm \| Stroke: 30 mm \| Cushion: None \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
SSD2-20-30-FA		Bore: 20 mm \| Stroke: 30 mm \| Cushion: None \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
SSD2-20-30-FB		Bore: 20 mm \| Stroke: 30 mm \| Cushion: None \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
SSD2-20-35		Bore: 20 mm \| Stroke: 35 mm \| Cushion: None \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
SSD2-20-35-LB		Bore: 20 mm \| Stroke: 35 mm \| Cushion: None \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
SSD2-20-35-CB		Bore: 20 mm \| Stroke: 35 mm \| Cushion: None \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
SSD2-20-35-FA		Bore: 20 mm \| Stroke: 35 mm \| Cushion: None \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
SSD2-20-35-FB		Bore: 20 mm \| Stroke: 35 mm \| Cushion: None \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
SSD2-20-40		Bore: 20 mm \| Stroke: 40 mm \| Cushion: None \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
SSD2-20-40-LB		Bore: 20 mm \| Stroke: 40 mm \| Cushion: None \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
SSD2-20-40-CB		Bore: 20 mm \| Stroke: 40 mm \| Cushion: None \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
SSD2-20-40-FA		Bore: 20 mm \| Stroke: 40 mm \| Cushion: None \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
SSD2-20-40-FB		Bore: 20 mm \| Stroke: 40 mm \| Cushion: None \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
SSD2-20-45		Bore: 20 mm \| Stroke: 45 mm \| Cushion: None \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
SSD2-20-45-LB		Bore: 20 mm \| Stroke: 45 mm \| Cushion: None \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
SSD2-20-45-CB		Bore: 20 mm \| Stroke: 45 mm \| Cushion: None \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
SSD2-20-45-FA		Bore: 20 mm \| Stroke: 45 mm \| Cushion: None \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
SSD2-20-45-FB		Bore: 20 mm \| Stroke: 45 mm \| Cushion: None \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
SSD2-20-50		Bore: 20 mm \| Stroke: 50 mm \| Cushion: None \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
SSD2-20-50-LB		Bore: 20 mm \| Stroke: 50 mm \| Cushion: None \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
SSD2-20-50-CB		Bore: 20 mm \| Stroke: 50 mm \| Cushion: None \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
SSD2-20-50-FA		Bore: 20 mm \| Stroke: 50 mm \| Cushion: None \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
SSD2-20-50-FB		Bore: 20 mm \| Stroke: 50 mm \| Cushion: None \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
SSD2-20D-5		Bore: 20 mm \| Stroke: 5 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
SSD2-20D-5-CB		Bore: 20 mm \| Stroke: 5 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
SSD2-20D-5-FA		Bore: 20 mm \| Stroke: 5 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
SSD2-20D-5-FB		Bore: 20 mm \| Stroke: 5 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
SSD2-20D-10		Bore: 20 mm \| Stroke: 10 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
SSD2-20D-10-LB		Bore: 20 mm \| Stroke: 10 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
SSD2-20D-10-CB		Bore: 20 mm \| Stroke: 10 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
SSD2-20D-10-FA		Bore: 20 mm \| Stroke: 10 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
SSD2-20D-10-FB		Bore: 20 mm \| Stroke: 10 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
SSD2-20D-15		Bore: 20 mm \| Stroke: 15 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
SSD2-20D-15-LB		Bore: 20 mm \| Stroke: 15 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
SSD2-20D-15-CB		Bore: 20 mm \| Stroke: 15 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
SSD2-20D-15-FA		Bore: 20 mm \| Stroke: 15 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
SSD2-20D-15-FB		Bore: 20 mm \| Stroke: 15 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
SSD2-20D-20		Bore: 20 mm \| Stroke: 20 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
SSD2-20D-20-LB		Bore: 20 mm \| Stroke: 20 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
SSD2-20D-20-CB		Bore: 20 mm \| Stroke: 20 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
SSD2-20D-20-FA		Bore: 20 mm \| Stroke: 20 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
SSD2-20D-20-FB		Bore: 20 mm \| Stroke: 20 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
SSD2-20D-25		Bore: 20 mm \| Stroke: 25 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
SSD2-20D-25-LB		Bore: 20 mm \| Stroke: 25 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
SSD2-20D-25-CB		Bore: 20 mm \| Stroke: 25 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
SSD2-20D-25-FA		Bore: 20 mm \| Stroke: 25 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
SSD2-20D-25-FB		Bore: 20 mm \| Stroke: 25 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
SSD2-20D-30		Bore: 20 mm \| Stroke: 30 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
SSD2-20D-30-LB		Bore: 20 mm \| Stroke: 30 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
SSD2-20D-30-CB		Bore: 20 mm \| Stroke: 30 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
SSD2-20D-30-FA		Bore: 20 mm \| Stroke: 30 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
SSD2-20D-30-FB		Bore: 20 mm \| Stroke: 30 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
SSD2-20D-35		Bore: 20 mm \| Stroke: 35 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
SSD2-20D-35-LB		Bore: 20 mm \| Stroke: 35 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
SSD2-20D-35-CB		Bore: 20 mm \| Stroke: 35 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
SSD2-20D-35-FA		Bore: 20 mm \| Stroke: 35 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
SSD2-20D-35-FB		Bore: 20 mm \| Stroke: 35 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
SSD2-20D-40		Bore: 20 mm \| Stroke: 40 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
SSD2-20D-40-LB		Bore: 20 mm \| Stroke: 40 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
SSD2-20D-40-CB		Bore: 20 mm \| Stroke: 40 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
SSD2-20D-40-FA		Bore: 20 mm \| Stroke: 40 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
SSD2-20D-40-FB		Bore: 20 mm \| Stroke: 40 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
SSD2-20D-45		Bore: 20 mm \| Stroke: 45 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
SSD2-20D-45-LB		Bore: 20 mm \| Stroke: 45 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
SSD2-20D-45-CB		Bore: 20 mm \| Stroke: 45 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
SSD2-20D-45-FA		Bore: 20 mm \| Stroke: 45 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
SSD2-20D-45-FB		Bore: 20 mm \| Stroke: 45 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
SSD2-20D-50		Bore: 20 mm \| Stroke: 50 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
SSD2-20D-50-LB		Bore: 20 mm \| Stroke: 50 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
SSD2-20D-50-CB		Bore: 20 mm \| Stroke: 50 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
SSD2-20D-50-FA		Bore: 20 mm \| Stroke: 50 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
SSD2-20D-50-FB		Bore: 20 mm \| Stroke: 50 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
SSD2-25-5		Bore: 25 mm \| Stroke: 5 mm \| Cushion: None \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
SSD2-25-5-LB		Bore: 25 mm \| Stroke: 5 mm \| Cushion: None \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
SSD2-25-5-CB		Bore: 25 mm \| Stroke: 5 mm \| Cushion: None \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
SSD2-25-5-FA		Bore: 25 mm \| Stroke: 5 mm \| Cushion: None \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
SSD2-25-5-FB		Bore: 25 mm \| Stroke: 5 mm \| Cushion: None \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
SSD2-25-10		Bore: 25 mm \| Stroke: 10 mm \| Cushion: None \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
SSD2-25-10-LB		Bore: 25 mm \| Stroke: 10 mm \| Cushion: None \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
SSD2-25-10-CB		Bore: 25 mm \| Stroke: 10 mm \| Cushion: None \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
SSD2-25-10-FA		Bore: 25 mm \| Stroke: 10 mm \| Cushion: None \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
SSD2-25-10-FB		Bore: 25 mm \| Stroke: 10 mm \| Cushion: None \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
SSD2-25-15		Bore: 25 mm \| Stroke: 15 mm \| Cushion: None \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
SSD2-25-15-LB		Bore: 25 mm \| Stroke: 15 mm \| Cushion: None \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
SSD2-25-15-CB		Bore: 25 mm \| Stroke: 15 mm \| Cushion: None \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
SSD2-25-15-FA		Bore: 25 mm \| Stroke: 15 mm \| Cushion: None \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
SSD2-25-15-FB		Bore: 25 mm \| Stroke: 15 mm \| Cushion: None \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
SSD2-25-20		Bore: 25 mm \| Stroke: 20 mm \| Cushion: None \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
SSD2-25-20-LB		Bore: 25 mm \| Stroke: 20 mm \| Cushion: None \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
SSD2-25-20-CB		Bore: 25 mm \| Stroke: 20 mm \| Cushion: None \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
SSD2-25-20-FA		Bore: 25 mm \| Stroke: 20 mm \| Cushion: None \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
SSD2-25-20-FB		Bore: 25 mm \| Stroke: 20 mm \| Cushion: None \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
SSD2-25-25		Bore: 25 mm \| Stroke: 25 mm \| Cushion: None \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
SSD2-25-25-LB		Bore: 25 mm \| Stroke: 25 mm \| Cushion: None \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
SSD2-25-25-CB		Bore: 25 mm \| Stroke: 25 mm \| Cushion: None \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
SSD2-25-25-FA		Bore: 25 mm \| Stroke: 25 mm \| Cushion: None \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
SSD2-25-25-FB		Bore: 25 mm \| Stroke: 25 mm \| Cushion: None \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
SSD2-25-30		Bore: 25 mm \| Stroke: 30 mm \| Cushion: None \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
SSD2-25-30-LB		Bore: 25 mm \| Stroke: 30 mm \| Cushion: None \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
SSD2-25-30-CB		Bore: 25 mm \| Stroke: 30 mm \| Cushion: None \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
SSD2-25-30-FA		Bore: 25 mm \| Stroke: 30 mm \| Cushion: None \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
SSD2-25-30-FB		Bore: 25 mm \| Stroke: 30 mm \| Cushion: None \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
SSD2-25-35		Bore: 25 mm \| Stroke: 35 mm \| Cushion: None \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
SSD2-25-35-LB		Bore: 25 mm \| Stroke: 35 mm \| Cushion: None \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
SSD2-25-35-CB		Bore: 25 mm \| Stroke: 35 mm \| Cushion: None \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
SSD2-25-35-FA		Bore: 25 mm \| Stroke: 35 mm \| Cushion: None \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
SSD2-25-35-FB		Bore: 25 mm \| Stroke: 35 mm \| Cushion: None \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
SSD2-25-40		Bore: 25 mm \| Stroke: 40 mm \| Cushion: None \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
SSD2-25-40-LB		Bore: 25 mm \| Stroke: 40 mm \| Cushion: None \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
SSD2-25-40-CB		Bore: 25 mm \| Stroke: 40 mm \| Cushion: None \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
SSD2-25-40-FA		Bore: 25 mm \| Stroke: 40 mm \| Cushion: None \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
SSD2-25-40-FB		Bore: 25 mm \| Stroke: 40 mm \| Cushion: None \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
SSD2-25-45		Bore: 25 mm \| Stroke: 45 mm \| Cushion: None \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
SSD2-25-45-LB		Bore: 25 mm \| Stroke: 45 mm \| Cushion: None \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
SSD2-25-45-CB		Bore: 25 mm \| Stroke: 45 mm \| Cushion: None \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
SSD2-25-45-FA		Bore: 25 mm \| Stroke: 45 mm \| Cushion: None \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
SSD2-25-45-FB		Bore: 25 mm \| Stroke: 45 mm \| Cushion: None \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
SSD2-25-50		Bore: 25 mm \| Stroke: 50 mm \| Cushion: None \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
SSD2-25-50-LB		Bore: 25 mm \| Stroke: 50 mm \| Cushion: None \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
SSD2-25-50-CB		Bore: 25 mm \| Stroke: 50 mm \| Cushion: None \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
SSD2-25-50-FA		Bore: 25 mm \| Stroke: 50 mm \| Cushion: None \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
SSD2-25-50-FB		Bore: 25 mm \| Stroke: 50 mm \| Cushion: None \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
SSD2-25D-5		Bore: 25 mm \| Stroke: 5 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
SSD2-25D-5-LB		Bore: 25 mm \| Stroke: 5 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
SSD2-25D-5-CB		Bore: 25 mm \| Stroke: 5 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
SSD2-25D-5-FA		Bore: 25 mm \| Stroke: 5 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
SSD2-25D-5-FB		Bore: 25 mm \| Stroke: 5 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
SSD2-25D-10		Bore: 25 mm \| Stroke: 10 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
SSD2-25D-10-LB		Bore: 25 mm \| Stroke: 10 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
SSD2-25D-10-CB		Bore: 25 mm \| Stroke: 10 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
SSD2-25D-10-FA		Bore: 25 mm \| Stroke: 10 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
SSD2-25D-10-FB		Bore: 25 mm \| Stroke: 10 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
SSD2-25D-15		Bore: 25 mm \| Stroke: 15 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
SSD2-25D-15-LB		Bore: 25 mm \| Stroke: 15 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
SSD2-25D-15-CB		Bore: 25 mm \| Stroke: 15 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
SSD2-25D-15-FA		Bore: 25 mm \| Stroke: 15 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
SSD2-25D-15-FB		Bore: 25 mm \| Stroke: 15 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
SSD2-25D-20		Bore: 25 mm \| Stroke: 20 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
SSD2-25D-20-LB		Bore: 25 mm \| Stroke: 20 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
SSD2-25D-20-CB		Bore: 25 mm \| Stroke: 20 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
SSD2-25D-20-FA		Bore: 25 mm \| Stroke: 20 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
SSD2-25D-20-FB		Bore: 25 mm \| Stroke: 20 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
SSD2-25D-25		Bore: 25 mm \| Stroke: 25 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
SSD2-25D-25-LB		Bore: 25 mm \| Stroke: 25 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
SSD2-25D-25-CB		Bore: 25 mm \| Stroke: 25 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
SSD2-25D-25-FA		Bore: 25 mm \| Stroke: 25 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
SSD2-25D-25-FB		Bore: 25 mm \| Stroke: 25 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
SSD2-25D-30		Bore: 25 mm \| Stroke: 30 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
SSD2-25D-30-LB		Bore: 25 mm \| Stroke: 30 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
SSD2-25D-30-CB		Bore: 25 mm \| Stroke: 30 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
SSD2-25D-30-FA		Bore: 25 mm \| Stroke: 30 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
SSD2-25D-30-FB		Bore: 25 mm \| Stroke: 30 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
SSD2-25D-35		Bore: 25 mm \| Stroke: 35 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
SSD2-25D-35-LB		Bore: 25 mm \| Stroke: 35 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
SSD2-25D-35-CB		Bore: 25 mm \| Stroke: 35 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
SSD2-25D-35-FA		Bore: 25 mm \| Stroke: 35 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
SSD2-25D-35-FB		Bore: 25 mm \| Stroke: 35 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
SSD2-25D-40		Bore: 25 mm \| Stroke: 40 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
SSD2-25D-40-LB		Bore: 25 mm \| Stroke: 40 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
SSD2-25D-40-CB		Bore: 25 mm \| Stroke: 40 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
SSD2-25D-40-FA		Bore: 25 mm \| Stroke: 40 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
SSD2-25D-40-FB		Bore: 25 mm \| Stroke: 40 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
SSD2-25D-45		Bore: 25 mm \| Stroke: 45 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
SSD2-25D-45-LB		Bore: 25 mm \| Stroke: 45 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
SSD2-25D-45-CB		Bore: 25 mm \| Stroke: 45 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
SSD2-25D-45-FA		Bore: 25 mm \| Stroke: 45 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
SSD2-25D-45-FB		Bore: 25 mm \| Stroke: 45 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
SSD2-25D-50		Bore: 25 mm \| Stroke: 50 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
SSD2-25D-50-LB		Bore: 25 mm \| Stroke: 50 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
SSD2-25D-50-CB		Bore: 25 mm \| Stroke: 50 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
SSD2-25D-50-FA		Bore: 25 mm \| Stroke: 50 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
SSD2-25D-50-FB		Bore: 25 mm \| Stroke: 50 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
SSD2-32-5		Bore: 32 mm \| Stroke: 5 mm \| Cushion: None \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
SSD2-32-5-LB		Bore: 32 mm \| Stroke: 5 mm \| Cushion: None \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-32-5-CB		Bore: 32 mm \| Stroke: 5 mm \| Cushion: None \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-32-5-FA		Bore: 32 mm \| Stroke: 5 mm \| Cushion: None \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-32-5-FB		Bore: 32 mm \| Stroke: 5 mm \| Cushion: None \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-32-10		Bore: 32 mm \| Stroke: 10 mm \| Cushion: None \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
SSD2-32-10-LB		Bore: 32 mm \| Stroke: 10 mm \| Cushion: None \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-32-10-CB		Bore: 32 mm \| Stroke: 10 mm \| Cushion: None \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-32-10-FA		Bore: 32 mm \| Stroke: 10 mm \| Cushion: None \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-32-10-FB		Bore: 32 mm \| Stroke: 10 mm \| Cushion: None \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-32-15		Bore: 32 mm \| Stroke: 15 mm \| Cushion: None \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
SSD2-32-15-LB		Bore: 32 mm \| Stroke: 15 mm \| Cushion: None \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-32-15-CB		Bore: 32 mm \| Stroke: 15 mm \| Cushion: None \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-32-15-FA		Bore: 32 mm \| Stroke: 15 mm \| Cushion: None \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-32-15-FB		Bore: 32 mm \| Stroke: 15 mm \| Cushion: None \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-32-20		Bore: 32 mm \| Stroke: 20 mm \| Cushion: None \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
SSD2-32-20-LB		Bore: 32 mm \| Stroke: 20 mm \| Cushion: None \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-32-20-CB		Bore: 32 mm \| Stroke: 20 mm \| Cushion: None \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-32-20-FA		Bore: 32 mm \| Stroke: 20 mm \| Cushion: None \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-32-20-FB		Bore: 32 mm \| Stroke: 20 mm \| Cushion: None \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-32-25		Bore: 32 mm \| Stroke: 25 mm \| Cushion: None \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
SSD2-32-25-LB		Bore: 32 mm \| Stroke: 25 mm \| Cushion: None \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-32-25-CB		Bore: 32 mm \| Stroke: 25 mm \| Cushion: None \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-32-25-FA		Bore: 32 mm \| Stroke: 25 mm \| Cushion: None \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-32-25-FB		Bore: 32 mm \| Stroke: 25 mm \| Cushion: None \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-32-30		Bore: 32 mm \| Stroke: 30 mm \| Cushion: None \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
SSD2-32-30-LB		Bore: 32 mm \| Stroke: 30 mm \| Cushion: None \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-32-30-CB		Bore: 32 mm \| Stroke: 30 mm \| Cushion: None \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-32-30-FA		Bore: 32 mm \| Stroke: 30 mm \| Cushion: None \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-32-30-FB		Bore: 32 mm \| Stroke: 30 mm \| Cushion: None \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-32-35		Bore: 32 mm \| Stroke: 35 mm \| Cushion: None \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
SSD2-32-35-LB		Bore: 32 mm \| Stroke: 35 mm \| Cushion: None \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-32-35-CB		Bore: 32 mm \| Stroke: 35 mm \| Cushion: None \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-32-35-FA		Bore: 32 mm \| Stroke: 35 mm \| Cushion: None \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-32-35-FB		Bore: 32 mm \| Stroke: 35 mm \| Cushion: None \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-32-40		Bore: 32 mm \| Stroke: 40 mm \| Cushion: None \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
SSD2-32-40-LB		Bore: 32 mm \| Stroke: 40 mm \| Cushion: None \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-32-40-CB		Bore: 32 mm \| Stroke: 40 mm \| Cushion: None \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-32-40-FA		Bore: 32 mm \| Stroke: 40 mm \| Cushion: None \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-32-40-FB		Bore: 32 mm \| Stroke: 40 mm \| Cushion: None \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-32-45		Bore: 32 mm \| Stroke: 45 mm \| Cushion: None \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
SSD2-32-45-LB		Bore: 32 mm \| Stroke: 45 mm \| Cushion: None \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-32-45-CB		Bore: 32 mm \| Stroke: 45 mm \| Cushion: None \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-32-45-FA		Bore: 32 mm \| Stroke: 45 mm \| Cushion: None \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-32-45-FB		Bore: 32 mm \| Stroke: 45 mm \| Cushion: None \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-32-50		Bore: 32 mm \| Stroke: 50 mm \| Cushion: None \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
SSD2-32-50-LB		Bore: 32 mm \| Stroke: 50 mm \| Cushion: None \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-32-50-CB		Bore: 32 mm \| Stroke: 50 mm \| Cushion: None \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-32-50-FA		Bore: 32 mm \| Stroke: 50 mm \| Cushion: None \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-32-50-FB		Bore: 32 mm \| Stroke: 50 mm \| Cushion: None \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-32-75		Bore: 32 mm \| Stroke: 75 mm \| Cushion: None \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
SSD2-32-75-LB		Bore: 32 mm \| Stroke: 75 mm \| Cushion: None \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-32-75-CB		Bore: 32 mm \| Stroke: 75 mm \| Cushion: None \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-32-75-FA		Bore: 32 mm \| Stroke: 75 mm \| Cushion: None \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-32-75-FB		Bore: 32 mm \| Stroke: 75 mm \| Cushion: None \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-32-100		Bore: 32 mm \| Stroke: 100 mm \| Cushion: None \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
SSD2-32-100-LB		Bore: 32 mm \| Stroke: 100 mm \| Cushion: None \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-32-100-CB		Bore: 32 mm \| Stroke: 100 mm \| Cushion: None \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-32-100-FA		Bore: 32 mm \| Stroke: 100 mm \| Cushion: None \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-32-100-FB		Bore: 32 mm \| Stroke: 100 mm \| Cushion: None \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-32D-5		Bore: 32 mm \| Stroke: 5 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
SSD2-32D-5-LB		Bore: 32 mm \| Stroke: 5 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-32D-5-CB		Bore: 32 mm \| Stroke: 5 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-32D-5-FA		Bore: 32 mm \| Stroke: 5 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-32D-5-FB		Bore: 32 mm \| Stroke: 5 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-32D-10		Bore: 32 mm \| Stroke: 10 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
SSD2-32D-10-LB		Bore: 32 mm \| Stroke: 10 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-32D-10-CB		Bore: 32 mm \| Stroke: 10 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-32D-10-FA		Bore: 32 mm \| Stroke: 10 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-32D-10-FB		Bore: 32 mm \| Stroke: 10 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-32D-15		Bore: 32 mm \| Stroke: 15 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
SSD2-32D-15-LB		Bore: 32 mm \| Stroke: 15 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-32D-15-CB		Bore: 32 mm \| Stroke: 15 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-32D-15-FA		Bore: 32 mm \| Stroke: 15 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-32D-15-FB		Bore: 32 mm \| Stroke: 15 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-32D-20		Bore: 32 mm \| Stroke: 20 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
SSD2-32D-20-LB		Bore: 32 mm \| Stroke: 20 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-32D-20-CB		Bore: 32 mm \| Stroke: 20 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-32D-20-FA		Bore: 32 mm \| Stroke: 20 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-32D-20-FB		Bore: 32 mm \| Stroke: 20 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-32D-25		Bore: 32 mm \| Stroke: 25 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
SSD2-32D-25-LB		Bore: 32 mm \| Stroke: 25 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-32D-25-CB		Bore: 32 mm \| Stroke: 25 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-32D-25-FA		Bore: 32 mm \| Stroke: 25 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-32D-25-FB		Bore: 32 mm \| Stroke: 25 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-32D-30		Bore: 32 mm \| Stroke: 30 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
SSD2-32D-30-LB		Bore: 32 mm \| Stroke: 30 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-32D-30-CB		Bore: 32 mm \| Stroke: 30 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-32D-30-FA		Bore: 32 mm \| Stroke: 30 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-32D-30-FB		Bore: 32 mm \| Stroke: 30 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-32D-35		Bore: 32 mm \| Stroke: 35 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
SSD2-32D-35-LB		Bore: 32 mm \| Stroke: 35 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-32D-35-CB		Bore: 32 mm \| Stroke: 35 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-32D-35-FA		Bore: 32 mm \| Stroke: 35 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-32D-35-FB		Bore: 32 mm \| Stroke: 35 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-32D-40		Bore: 32 mm \| Stroke: 40 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
SSD2-32D-40-LB		Bore: 32 mm \| Stroke: 40 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-32D-40-CB		Bore: 32 mm \| Stroke: 40 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-32D-40-FA		Bore: 32 mm \| Stroke: 40 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-32D-40-FB		Bore: 32 mm \| Stroke: 40 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-32D-45		Bore: 32 mm \| Stroke: 45 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
SSD2-32D-45-LB		Bore: 32 mm \| Stroke: 45 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-32D-45-CB		Bore: 32 mm \| Stroke: 45 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-32D-45-FA		Bore: 32 mm \| Stroke: 45 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-32D-45-FB		Bore: 32 mm \| Stroke: 45 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-32D-50		Bore: 32 mm \| Stroke: 50 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
SSD2-32D-50-LB		Bore: 32 mm \| Stroke: 50 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-32D-50-CB		Bore: 32 mm \| Stroke: 50 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-32D-50-FA		Bore: 32 mm \| Stroke: 50 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-32D-50-FB		Bore: 32 mm \| Stroke: 50 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-32D-75		Bore: 32 mm \| Stroke: 75 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
SSD2-32D-75-LB		Bore: 32 mm \| Stroke: 75 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-32D-75-CB		Bore: 32 mm \| Stroke: 75 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-32D-75-FA		Bore: 32 mm \| Stroke: 75 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-32D-75-FB		Bore: 32 mm \| Stroke: 75 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-32D-100		Bore: 32 mm \| Stroke: 100 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
SSD2-32D-100-LB		Bore: 32 mm \| Stroke: 100 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-32D-100-CB		Bore: 32 mm \| Stroke: 100 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-32D-100-FA		Bore: 32 mm \| Stroke: 100 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-32D-100-FB		Bore: 32 mm \| Stroke: 100 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-L-12-5		Bore: 12 mm \| Stroke: 5 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
SSD2-L-12-5-LB		Bore: 12 mm \| Stroke: 5 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
SSD2-L-12-5-CB		Bore: 12 mm \| Stroke: 5 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
SSD2-L-12-5-FA		Bore: 12 mm \| Stroke: 5 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
SSD2-L-12-5-FB		Bore: 12 mm \| Stroke: 5 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
SSD2-L-12-10		Bore: 12 mm \| Stroke: 10 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
SSD2-L-12-10-LB		Bore: 12 mm \| Stroke: 10 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
SSD2-L-12-10-CB		Bore: 12 mm \| Stroke: 10 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
SSD2-L-12-10-FA		Bore: 12 mm \| Stroke: 10 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
SSD2-L-12-10-FB		Bore: 12 mm \| Stroke: 10 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
SSD2-L-12-15		Bore: 12 mm \| Stroke: 15 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
SSD2-L-12-15-LB		Bore: 12 mm \| Stroke: 15 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
SSD2-L-12-15-CB		Bore: 12 mm \| Stroke: 15 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
SSD2-L-12-15-FA		Bore: 12 mm \| Stroke: 15 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
SSD2-L-12-15-FB		Bore: 12 mm \| Stroke: 15 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
SSD2-L-12-20		Bore: 12 mm \| Stroke: 20 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
SSD2-L-12-20-LB		Bore: 12 mm \| Stroke: 20 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
SSD2-L-12-20-CB		Bore: 12 mm \| Stroke: 20 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
SSD2-L-12-20-FA		Bore: 12 mm \| Stroke: 20 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
SSD2-L-12-20-FB		Bore: 12 mm \| Stroke: 20 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
SSD2-L-12-25		Bore: 12 mm \| Stroke: 25 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
SSD2-L-12-25-LB		Bore: 12 mm \| Stroke: 25 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
SSD2-L-12-25-CB		Bore: 12 mm \| Stroke: 25 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
SSD2-L-12-25-FA		Bore: 12 mm \| Stroke: 25 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
SSD2-L-12-25-FB		Bore: 12 mm \| Stroke: 25 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
SSD2-L-12-30		Bore: 12 mm \| Stroke: 30 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
SSD2-L-12-30-LB		Bore: 12 mm \| Stroke: 30 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
SSD2-L-12-30-CB		Bore: 12 mm \| Stroke: 30 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
SSD2-L-12-30-FA		Bore: 12 mm \| Stroke: 30 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
SSD2-L-12-30-FB		Bore: 12 mm \| Stroke: 30 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
SSD2-L-12D-5		Bore: 12 mm \| Stroke: 5 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
SSD2-L-12D-5-LB		Bore: 12 mm \| Stroke: 5 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
SSD2-L-12D-5-CB		Bore: 12 mm \| Stroke: 5 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
SSD2-L-12D-5-FA		Bore: 12 mm \| Stroke: 5 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
SSD2-L-12D-5-FB		Bore: 12 mm \| Stroke: 5 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
SSD2-L-12D-10		Bore: 12 mm \| Stroke: 10 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
SSD2-L-12D-10-LB		Bore: 12 mm \| Stroke: 10 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
SSD2-L-12D-10-CB		Bore: 12 mm \| Stroke: 10 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
SSD2-L-12D-10-FA		Bore: 12 mm \| Stroke: 10 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
SSD2-L-12D-10-FB		Bore: 12 mm \| Stroke: 10 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
SSD2-L-12D-15		Bore: 12 mm \| Stroke: 15 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
SSD2-L-12D-15-LB		Bore: 12 mm \| Stroke: 15 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
SSD2-L-12D-15-CB		Bore: 12 mm \| Stroke: 15 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
SSD2-L-12D-15-FA		Bore: 12 mm \| Stroke: 15 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
SSD2-L-12D-15-FB		Bore: 12 mm \| Stroke: 15 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
SSD2-L-12D-20		Bore: 12 mm \| Stroke: 20 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
SSD2-L-12D-20-LB		Bore: 12 mm \| Stroke: 20 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
SSD2-L-12D-20-CB		Bore: 12 mm \| Stroke: 20 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
SSD2-L-12D-20-FA		Bore: 12 mm \| Stroke: 20 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
SSD2-L-12D-20-FB		Bore: 12 mm \| Stroke: 20 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
SSD2-L-12D-25		Bore: 12 mm \| Stroke: 25 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
SSD2-L-12D-25-LB		Bore: 12 mm \| Stroke: 25 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
SSD2-L-12D-25-CB		Bore: 12 mm \| Stroke: 25 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
SSD2-L-12D-25-FA		Bore: 12 mm \| Stroke: 25 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
SSD2-L-12D-25-FB		Bore: 12 mm \| Stroke: 25 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
SSD2-L-12D-30		Bore: 12 mm \| Stroke: 30 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
SSD2-L-12D-30-LB		Bore: 12 mm \| Stroke: 30 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
SSD2-L-12D-30-CB		Bore: 12 mm \| Stroke: 30 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
SSD2-L-12D-30-FA		Bore: 12 mm \| Stroke: 30 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
SSD2-L-12D-30-FB		Bore: 12 mm \| Stroke: 30 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
SSD2-L-16-5		Bore: 16 mm \| Stroke: 5 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
SSD2-L-16-5-LB		Bore: 16 mm \| Stroke: 5 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
SSD2-L-16-5-CB		Bore: 16 mm \| Stroke: 5 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
SSD2-L-16-5-FA		Bore: 16 mm \| Stroke: 5 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
SSD2-L-16-5-FB		Bore: 16 mm \| Stroke: 5 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
SSD2-L-16-10		Bore: 16 mm \| Stroke: 10 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
SSD2-L-16-10-LB		Bore: 16 mm \| Stroke: 10 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
SSD2-L-16-10-CB		Bore: 16 mm \| Stroke: 10 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
SSD2-L-16-10-FA		Bore: 16 mm \| Stroke: 10 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
SSD2-L-16-10-FB		Bore: 16 mm \| Stroke: 10 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
SSD2-L-16-15		Bore: 16 mm \| Stroke: 15 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
SSD2-L-16-15-LB		Bore: 16 mm \| Stroke: 15 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
SSD2-L-16-15-CB		Bore: 16 mm \| Stroke: 15 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
SSD2-L-16-15-FA		Bore: 16 mm \| Stroke: 15 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
SSD2-L-16-15-FB		Bore: 16 mm \| Stroke: 15 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
SSD2-L-16-20		Bore: 16 mm \| Stroke: 20 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
SSD2-L-16-20-LB		Bore: 16 mm \| Stroke: 20 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
SSD2-L-16-20-CB		Bore: 16 mm \| Stroke: 20 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
SSD2-L-16-20-FA		Bore: 16 mm \| Stroke: 20 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
SSD2-L-16-20-FB		Bore: 16 mm \| Stroke: 20 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
SSD2-L-16-25		Bore: 16 mm \| Stroke: 25 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
SSD2-L-16-25-LB		Bore: 16 mm \| Stroke: 25 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
SSD2-L-16-25-CB		Bore: 16 mm \| Stroke: 25 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
SSD2-L-16-25-FA		Bore: 16 mm \| Stroke: 25 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
SSD2-L-16-25-FB		Bore: 16 mm \| Stroke: 25 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
SSD2-L-16-30		Bore: 16 mm \| Stroke: 30 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
SSD2-L-16-30-LB		Bore: 16 mm \| Stroke: 30 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
SSD2-L-16-30-CB		Bore: 16 mm \| Stroke: 30 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
SSD2-L-16-30-FA		Bore: 16 mm \| Stroke: 30 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
SSD2-L-16-30-FB		Bore: 16 mm \| Stroke: 30 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
SSD2-L-16D-5		Bore: 16 mm \| Stroke: 5 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
SSD2-L-16D-5-LB		Bore: 16 mm \| Stroke: 5 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
SSD2-L-16D-5-CB		Bore: 16 mm \| Stroke: 5 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
SSD2-L-16D-5-FA		Bore: 16 mm \| Stroke: 5 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
SSD2-L-16D-5-FB		Bore: 16 mm \| Stroke: 5 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
SSD2-L-16D-10		Bore: 16 mm \| Stroke: 10 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
SSD2-L-16D-10-LB		Bore: 16 mm \| Stroke: 10 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
SSD2-L-16D-10-CB		Bore: 16 mm \| Stroke: 10 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
SSD2-L-16D-10-FA		Bore: 16 mm \| Stroke: 10 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
SSD2-L-16D-10-FB		Bore: 16 mm \| Stroke: 10 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
SSD2-L-16D-15		Bore: 16 mm \| Stroke: 15 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
SSD2-L-16D-15-LB		Bore: 16 mm \| Stroke: 15 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
SSD2-L-16D-15-CB		Bore: 16 mm \| Stroke: 15 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
SSD2-L-16D-15-FA		Bore: 16 mm \| Stroke: 15 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
SSD2-L-16D-15-FB		Bore: 16 mm \| Stroke: 15 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
SSD2-L-16D-20		Bore: 16 mm \| Stroke: 20 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
SSD2-L-16D-20-LB		Bore: 16 mm \| Stroke: 20 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
SSD2-L-16D-20-CB		Bore: 16 mm \| Stroke: 20 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
SSD2-L-16D-20-FA		Bore: 16 mm \| Stroke: 20 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
SSD2-L-16D-20-FB		Bore: 16 mm \| Stroke: 20 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
SSD2-L-16D-25		Bore: 16 mm \| Stroke: 25 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
SSD2-L-16D-25-LB		Bore: 16 mm \| Stroke: 25 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
SSD2-L-16D-25-CB		Bore: 16 mm \| Stroke: 25 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
SSD2-L-16D-25-FA		Bore: 16 mm \| Stroke: 25 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
SSD2-L-16D-25-FB		Bore: 16 mm \| Stroke: 25 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
SSD2-L-16D-30		Bore: 16 mm \| Stroke: 30 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
SSD2-L-16D-30-LB		Bore: 16 mm \| Stroke: 30 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
SSD2-L-16D-30-CB		Bore: 16 mm \| Stroke: 30 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
SSD2-L-16D-30-FA		Bore: 16 mm \| Stroke: 30 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
SSD2-L-16D-30-FB		Bore: 16 mm \| Stroke: 30 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
SSD2-L-20-5		Bore: 20 mm \| Stroke: 5 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
SSD2-L-20-5-LB		Bore: 20 mm \| Stroke: 5 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
SSD2-L-20-5-CB		Bore: 20 mm \| Stroke: 5 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
SSD2-L-20-5-FA		Bore: 20 mm \| Stroke: 5 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
SSD2-L-20-5-FB		Bore: 20 mm \| Stroke: 5 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
SSD2-L-20-10		Bore: 20 mm \| Stroke: 10 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
SSD2-L-20-10-LB		Bore: 20 mm \| Stroke: 10 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
SSD2-L-20-10-CB		Bore: 20 mm \| Stroke: 10 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
SSD2-L-20-10-FA		Bore: 20 mm \| Stroke: 10 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
SSD2-L-20-10-FB		Bore: 20 mm \| Stroke: 10 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
SSD2-L-20-15		Bore: 20 mm \| Stroke: 15 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
SSD2-L-20-15-LB		Bore: 20 mm \| Stroke: 15 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
SSD2-L-20-15-CB		Bore: 20 mm \| Stroke: 15 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
SSD2-L-20-15-FA		Bore: 20 mm \| Stroke: 15 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
SSD2-L-20-15-FB		Bore: 20 mm \| Stroke: 15 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
SSD2-L-20-20		Bore: 20 mm \| Stroke: 20 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
SSD2-L-20-20-LB		Bore: 20 mm \| Stroke: 20 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
SSD2-L-20-20-CB		Bore: 20 mm \| Stroke: 20 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
SSD2-L-20-20-FA		Bore: 20 mm \| Stroke: 20 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
SSD2-L-20-20-FB		Bore: 20 mm \| Stroke: 20 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
SSD2-L-20-25		Bore: 20 mm \| Stroke: 25 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
SSD2-L-20-25-LB		Bore: 20 mm \| Stroke: 25 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
SSD2-L-20-25-CB		Bore: 20 mm \| Stroke: 25 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
SSD2-L-20-25-FA		Bore: 20 mm \| Stroke: 25 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
SSD2-L-20-25-FB		Bore: 20 mm \| Stroke: 25 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
SSD2-L-20-30		Bore: 20 mm \| Stroke: 30 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
SSD2-L-20-30-LB		Bore: 20 mm \| Stroke: 30 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
SSD2-L-20-30-CB		Bore: 20 mm \| Stroke: 30 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
SSD2-L-20-30-FA		Bore: 20 mm \| Stroke: 30 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
SSD2-L-20-30-FB		Bore: 20 mm \| Stroke: 30 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
SSD2-L-20-35		Bore: 20 mm \| Stroke: 35 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
SSD2-L-20-35-LB		Bore: 20 mm \| Stroke: 35 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
SSD2-L-20-35-CB		Bore: 20 mm \| Stroke: 35 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
SSD2-L-20-35-FA		Bore: 20 mm \| Stroke: 35 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
SSD2-L-20-35-FB		Bore: 20 mm \| Stroke: 35 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
SSD2-L-20-40		Bore: 20 mm \| Stroke: 40 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
SSD2-L-20-40-LB		Bore: 20 mm \| Stroke: 40 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
SSD2-L-20-40-CB		Bore: 20 mm \| Stroke: 40 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
SSD2-L-20-40-FA		Bore: 20 mm \| Stroke: 40 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
SSD2-L-20-40-FB		Bore: 20 mm \| Stroke: 40 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
SSD2-L-20-45		Bore: 20 mm \| Stroke: 45 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
SSD2-L-20-45-LB		Bore: 20 mm \| Stroke: 45 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
SSD2-L-20-45-CB		Bore: 20 mm \| Stroke: 45 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
SSD2-L-20-45-FA		Bore: 20 mm \| Stroke: 45 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
SSD2-L-20-45-FB		Bore: 20 mm \| Stroke: 45 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
SSD2-L-20-50		Bore: 20 mm \| Stroke: 50 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
SSD2-L-20-50-LB		Bore: 20 mm \| Stroke: 50 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
SSD2-L-20-50-CB		Bore: 20 mm \| Stroke: 50 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
SSD2-L-20-50-FA		Bore: 20 mm \| Stroke: 50 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
SSD2-L-20-50-FB		Bore: 20 mm \| Stroke: 50 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
SSD2-L-20D-5		Bore: 20 mm \| Stroke: 5 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
SSD2-L-20D-5-LB		Bore: 20 mm \| Stroke: 5 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
SSD2-L-20D-5-CB		Bore: 20 mm \| Stroke: 5 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
SSD2-L-20D-5-FA		Bore: 20 mm \| Stroke: 5 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
SSD2-L-20D-5-FB		Bore: 20 mm \| Stroke: 5 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
SSD2-L-20D-10		Bore: 20 mm \| Stroke: 10 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
SSD2-L-20D-10-LB		Bore: 20 mm \| Stroke: 10 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
SSD2-L-20D-10-CB		Bore: 20 mm \| Stroke: 10 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
SSD2-L-20D-10-FA		Bore: 20 mm \| Stroke: 10 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
SSD2-L-20D-10-FB		Bore: 20 mm \| Stroke: 10 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
SSD2-L-20D-15		Bore: 20 mm \| Stroke: 15 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
SSD2-L-20D-15-LB		Bore: 20 mm \| Stroke: 15 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
SSD2-L-20D-15-CB		Bore: 20 mm \| Stroke: 15 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
SSD2-L-20D-15-FA		Bore: 20 mm \| Stroke: 15 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
SSD2-L-20D-15-FB		Bore: 20 mm \| Stroke: 15 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
SSD2-L-20D-20		Bore: 20 mm \| Stroke: 20 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
SSD2-L-20D-20-LB		Bore: 20 mm \| Stroke: 20 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
SSD2-L-20D-20-CB		Bore: 20 mm \| Stroke: 20 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
SSD2-L-20D-20-FA		Bore: 20 mm \| Stroke: 20 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
SSD2-L-20D-20-FB		Bore: 20 mm \| Stroke: 20 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
SSD2-L-20D-25		Bore: 20 mm \| Stroke: 25 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
SSD2-L-20D-25-LB		Bore: 20 mm \| Stroke: 25 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
SSD2-L-20D-25-CB		Bore: 20 mm \| Stroke: 25 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
SSD2-L-20D-25-FA		Bore: 20 mm \| Stroke: 25 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
SSD2-L-20D-25-FB		Bore: 20 mm \| Stroke: 25 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
SSD2-L-20D-30		Bore: 20 mm \| Stroke: 30 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
SSD2-L-20D-30-LB		Bore: 20 mm \| Stroke: 30 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
SSD2-L-20D-30-CB		Bore: 20 mm \| Stroke: 30 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
SSD2-L-20D-30-FA		Bore: 20 mm \| Stroke: 30 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
SSD2-L-20D-30-FB		Bore: 20 mm \| Stroke: 30 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
SSD2-L-20D-35		Bore: 20 mm \| Stroke: 35 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
SSD2-L-20D-35-LB		Bore: 20 mm \| Stroke: 35 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
SSD2-L-20D-35-CB		Bore: 20 mm \| Stroke: 35 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
SSD2-L-20D-35-FA		Bore: 20 mm \| Stroke: 35 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
SSD2-L-20D-35-FB		Bore: 20 mm \| Stroke: 35 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
SSD2-L-20D-40		Bore: 20 mm \| Stroke: 40 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
SSD2-L-20D-40-LB		Bore: 20 mm \| Stroke: 40 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
SSD2-L-20D-40-CB		Bore: 20 mm \| Stroke: 40 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
SSD2-L-20D-40-FA		Bore: 20 mm \| Stroke: 40 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
SSD2-L-20D-40-FB		Bore: 20 mm \| Stroke: 40 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
SSD2-L-20D-45		Bore: 20 mm \| Stroke: 45 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
SSD2-L-20D-45-LB		Bore: 20 mm \| Stroke: 45 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
SSD2-L-20D-45-CB		Bore: 20 mm \| Stroke: 45 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
SSD2-L-20D-45-FA		Bore: 20 mm \| Stroke: 45 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
SSD2-L-20D-45-FB		Bore: 20 mm \| Stroke: 45 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
SSD2-L-20D-50		Bore: 20 mm \| Stroke: 50 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
SSD2-L-20D-50-LB		Bore: 20 mm \| Stroke: 50 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
SSD2-L-20D-50-CB		Bore: 20 mm \| Stroke: 50 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
SSD2-L-20D-50-FA		Bore: 20 mm \| Stroke: 50 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
SSD2-L-20D-50-FB		Bore: 20 mm \| Stroke: 50 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
SSD2-L-25-5		Bore: 25 mm \| Stroke: 5 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
SSD2-L-25-5-LB		Bore: 25 mm \| Stroke: 5 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
SSD2-L-25-5-CB		Bore: 25 mm \| Stroke: 5 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
SSD2-L-25-5-FA		Bore: 25 mm \| Stroke: 5 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
SSD2-L-25-5-FB		Bore: 25 mm \| Stroke: 5 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
SSD2-L-25-10		Bore: 25 mm \| Stroke: 10 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
SSD2-L-25-10-LB		Bore: 25 mm \| Stroke: 10 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
SSD2-L-25-10-CB		Bore: 25 mm \| Stroke: 10 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
SSD2-L-25-10-FA		Bore: 25 mm \| Stroke: 10 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
SSD2-L-25-10-FB		Bore: 25 mm \| Stroke: 10 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
SSD2-L-25-15		Bore: 25 mm \| Stroke: 15 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
SSD2-L-25-15-LB		Bore: 25 mm \| Stroke: 15 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
SSD2-L-25-15-CB		Bore: 25 mm \| Stroke: 15 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
SSD2-L-25-15-FA		Bore: 25 mm \| Stroke: 15 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
SSD2-L-25-15-FB		Bore: 25 mm \| Stroke: 15 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
SSD2-L-25-20		Bore: 25 mm \| Stroke: 20 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
SSD2-L-25-20-LB		Bore: 25 mm \| Stroke: 20 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
SSD2-L-25-20-CB		Bore: 25 mm \| Stroke: 20 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
SSD2-L-25-20-FA		Bore: 25 mm \| Stroke: 20 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
SSD2-L-25-20-FB		Bore: 25 mm \| Stroke: 20 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
SSD2-L-25-25		Bore: 25 mm \| Stroke: 25 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
SSD2-L-25-25-LB		Bore: 25 mm \| Stroke: 25 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
SSD2-L-25-25-CB		Bore: 25 mm \| Stroke: 25 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
SSD2-L-25-25-FA		Bore: 25 mm \| Stroke: 25 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
SSD2-L-25-25-FB		Bore: 25 mm \| Stroke: 25 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
SSD2-L-25-30		Bore: 25 mm \| Stroke: 30 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
SSD2-L-25-30-LB		Bore: 25 mm \| Stroke: 30 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
SSD2-L-25-30-CB		Bore: 25 mm \| Stroke: 30 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
SSD2-L-25-30-FA		Bore: 25 mm \| Stroke: 30 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
SSD2-L-25-30-FB		Bore: 25 mm \| Stroke: 30 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
SSD2-L-25-35		Bore: 25 mm \| Stroke: 35 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
SSD2-L-25-35-LB		Bore: 25 mm \| Stroke: 35 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
SSD2-L-25-35-CB		Bore: 25 mm \| Stroke: 35 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
SSD2-L-25-35-FA		Bore: 25 mm \| Stroke: 35 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
SSD2-L-25-35-FB		Bore: 25 mm \| Stroke: 35 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
SSD2-L-25-40		Bore: 25 mm \| Stroke: 40 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
SSD2-L-25-40-LB		Bore: 25 mm \| Stroke: 40 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
SSD2-L-25-40-CB		Bore: 25 mm \| Stroke: 40 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
SSD2-L-25-40-FA		Bore: 25 mm \| Stroke: 40 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
SSD2-L-25-40-FB		Bore: 25 mm \| Stroke: 40 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
SSD2-L-25-45		Bore: 25 mm \| Stroke: 45 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
SSD2-L-25-45-LB		Bore: 25 mm \| Stroke: 45 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
SSD2-L-25-45-CB		Bore: 25 mm \| Stroke: 45 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
SSD2-L-25-45-FA		Bore: 25 mm \| Stroke: 45 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
SSD2-L-25-45-FB		Bore: 25 mm \| Stroke: 45 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
SSD2-L-25-50		Bore: 25 mm \| Stroke: 50 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
SSD2-L-25-50-LB		Bore: 25 mm \| Stroke: 50 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
SSD2-L-25-50-CB		Bore: 25 mm \| Stroke: 50 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
SSD2-L-25-50-FA		Bore: 25 mm \| Stroke: 50 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
SSD2-L-25-50-FB		Bore: 25 mm \| Stroke: 50 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
SSD2-L-25D-5		Bore: 25 mm \| Stroke: 5 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
SSD2-L-25D-5-LB		Bore: 25 mm \| Stroke: 5 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
SSD2-L-25D-5-CB		Bore: 25 mm \| Stroke: 5 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
SSD2-L-25D-5-FA		Bore: 25 mm \| Stroke: 5 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
SSD2-L-25D-5-FB		Bore: 25 mm \| Stroke: 5 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
SSD2-L-25D-10		Bore: 25 mm \| Stroke: 10 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
SSD2-L-25D-10-LB		Bore: 25 mm \| Stroke: 10 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
SSD2-L-25D-10-CB		Bore: 25 mm \| Stroke: 10 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
SSD2-L-25D-10-FA		Bore: 25 mm \| Stroke: 10 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
SSD2-L-25D-10-FB		Bore: 25 mm \| Stroke: 10 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
SSD2-L-25D-15		Bore: 25 mm \| Stroke: 15 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
SSD2-L-25D-15-LB		Bore: 25 mm \| Stroke: 15 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
SSD2-L-25D-15-CB		Bore: 25 mm \| Stroke: 15 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
SSD2-L-25D-15-FA		Bore: 25 mm \| Stroke: 15 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
SSD2-L-25D-15-FB		Bore: 25 mm \| Stroke: 15 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
SSD2-L-25D-20		Bore: 25 mm \| Stroke: 20 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
SSD2-L-25D-20-LB		Bore: 25 mm \| Stroke: 20 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
SSD2-L-25D-20-CB		Bore: 25 mm \| Stroke: 20 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
SSD2-L-25D-20-FA		Bore: 25 mm \| Stroke: 20 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
SSD2-L-25D-20-FB		Bore: 25 mm \| Stroke: 20 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
SSD2-L-25D-25		Bore: 25 mm \| Stroke: 25 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
SSD2-L-25D-25-LB		Bore: 25 mm \| Stroke: 25 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
SSD2-L-25D-25-CB		Bore: 25 mm \| Stroke: 25 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
SSD2-L-25D-25-FA		Bore: 25 mm \| Stroke: 25 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
SSD2-L-25D-25-FB		Bore: 25 mm \| Stroke: 25 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
SSD2-L-25D-30		Bore: 25 mm \| Stroke: 30 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
SSD2-L-25D-30-LB		Bore: 25 mm \| Stroke: 30 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
SSD2-L-25D-30-CB		Bore: 25 mm \| Stroke: 30 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
SSD2-L-25D-30-FA		Bore: 25 mm \| Stroke: 30 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
SSD2-L-25D-30-FB		Bore: 25 mm \| Stroke: 30 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
SSD2-L-25D-35		Bore: 25 mm \| Stroke: 35 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
SSD2-L-25D-35-LB		Bore: 25 mm \| Stroke: 35 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
SSD2-L-25D-35-CB		Bore: 25 mm \| Stroke: 35 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
SSD2-L-25D-35-FA		Bore: 25 mm \| Stroke: 35 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
SSD2-L-25D-35-FB		Bore: 25 mm \| Stroke: 35 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
SSD2-L-25D-40		Bore: 25 mm \| Stroke: 40 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
SSD2-L-25D-40-LB		Bore: 25 mm \| Stroke: 40 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
SSD2-L-25D-40-CB		Bore: 25 mm \| Stroke: 40 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
SSD2-L-25D-40-FA		Bore: 25 mm \| Stroke: 40 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
SSD2-L-25D-40-FB		Bore: 25 mm \| Stroke: 40 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
SSD2-L-25D-45		Bore: 25 mm \| Stroke: 45 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
SSD2-L-25D-45-LB		Bore: 25 mm \| Stroke: 45 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
SSD2-L-25D-45-CB		Bore: 25 mm \| Stroke: 45 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
SSD2-L-25D-45-FA		Bore: 25 mm \| Stroke: 45 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
SSD2-L-25D-45-FB		Bore: 25 mm \| Stroke: 45 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
SSD2-L-25D-50		Bore: 25 mm \| Stroke: 50 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
SSD2-L-25D-50-LB		Bore: 25 mm \| Stroke: 50 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
SSD2-L-25D-50-CB		Bore: 25 mm \| Stroke: 50 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
SSD2-L-25D-50-FA		Bore: 25 mm \| Stroke: 50 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
SSD2-L-25D-50-FB		Bore: 25 mm \| Stroke: 50 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
SSD2-L-32-5		Bore: 32 mm \| Stroke: 5 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: Rc1/8
SSD2-L-32-5-LB		Bore: 32 mm \| Stroke: 5 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-L-32-5-CB		Bore: 32 mm \| Stroke: 5 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-L-32-5-FA		Bore: 32 mm \| Stroke: 5 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-L-32-5-FB		Bore: 32 mm \| Stroke: 5 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-L-32-10		Bore: 32 mm \| Stroke: 10 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: Rc1/8
SSD2-L-32-10-LB		Bore: 32 mm \| Stroke: 10 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-L-32-10-CB		Bore: 32 mm \| Stroke: 10 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-L-32-10-FA		Bore: 32 mm \| Stroke: 10 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-L-32-10-FB		Bore: 32 mm \| Stroke: 10 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-L-32-15		Bore: 32 mm \| Stroke: 15 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: Rc1/8
SSD2-L-32-15-LB		Bore: 32 mm \| Stroke: 15 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-L-32-15-CB		Bore: 32 mm \| Stroke: 15 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-L-32-15-FA		Bore: 32 mm \| Stroke: 15 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-L-32-15-FB		Bore: 32 mm \| Stroke: 15 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-L-32-20		Bore: 32 mm \| Stroke: 20 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: Rc1/8
SSD2-L-32-20-LB		Bore: 32 mm \| Stroke: 20 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-L-32-20-CB		Bore: 32 mm \| Stroke: 20 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-L-32-20-FA		Bore: 32 mm \| Stroke: 20 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-L-32-20-FB		Bore: 32 mm \| Stroke: 20 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-L-32-25		Bore: 32 mm \| Stroke: 25 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: Rc1/8
SSD2-L-32-25-LB		Bore: 32 mm \| Stroke: 25 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-L-32-25-CB		Bore: 32 mm \| Stroke: 25 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-L-32-25-FA		Bore: 32 mm \| Stroke: 25 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-L-32-25-FB		Bore: 32 mm \| Stroke: 25 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-L-32-30		Bore: 32 mm \| Stroke: 30 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: Rc1/8
SSD2-L-32-30-LB		Bore: 32 mm \| Stroke: 30 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-L-32-30-CB		Bore: 32 mm \| Stroke: 30 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-L-32-30-FA		Bore: 32 mm \| Stroke: 30 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-L-32-30-FB		Bore: 32 mm \| Stroke: 30 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-L-32-35		Bore: 32 mm \| Stroke: 35 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: Rc1/8
SSD2-L-32-35-LB		Bore: 32 mm \| Stroke: 35 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-L-32-35-CB		Bore: 32 mm \| Stroke: 35 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-L-32-35-FA		Bore: 32 mm \| Stroke: 35 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-L-32-35-FB		Bore: 32 mm \| Stroke: 35 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-L-32-40		Bore: 32 mm \| Stroke: 40 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: Rc1/8
SSD2-L-32-40-LB		Bore: 32 mm \| Stroke: 40 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-L-32-40-CB		Bore: 32 mm \| Stroke: 40 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-L-32-40-FA		Bore: 32 mm \| Stroke: 40 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-L-32-40-FB		Bore: 32 mm \| Stroke: 40 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-L-32-45		Bore: 32 mm \| Stroke: 45 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: Rc1/8
SSD2-L-32-45-LB		Bore: 32 mm \| Stroke: 45 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-L-32-45-CB		Bore: 32 mm \| Stroke: 45 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-L-32-45-FA		Bore: 32 mm \| Stroke: 45 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-L-32-45-FB		Bore: 32 mm \| Stroke: 45 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-L-32-50		Bore: 32 mm \| Stroke: 50 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: Rc1/8
SSD2-L-32-50-LB		Bore: 32 mm \| Stroke: 50 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-L-32-50-CB		Bore: 32 mm \| Stroke: 50 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-L-32-50-FA		Bore: 32 mm \| Stroke: 50 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-L-32-50-FB		Bore: 32 mm \| Stroke: 50 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-L-32-75		Bore: 32 mm \| Stroke: 75 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: Rc1/8
SSD2-L-32-75-LB		Bore: 32 mm \| Stroke: 75 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-L-32-75-CB		Bore: 32 mm \| Stroke: 75 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-L-32-75-FA		Bore: 32 mm \| Stroke: 75 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-L-32-75-FB		Bore: 32 mm \| Stroke: 75 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-L-32-100		Bore: 32 mm \| Stroke: 100 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: Rc1/8
SSD2-L-32-100-LB		Bore: 32 mm \| Stroke: 100 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-L-32-100-CB		Bore: 32 mm \| Stroke: 100 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-L-32-100-FA		Bore: 32 mm \| Stroke: 100 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-L-32-100-FB		Bore: 32 mm \| Stroke: 100 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-L-32D-5		Bore: 32 mm \| Stroke: 5 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: Rc1/8
SSD2-L-32D-5-LB		Bore: 32 mm \| Stroke: 5 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-L-32D-5-CB		Bore: 32 mm \| Stroke: 5 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-L-32D-5-FA		Bore: 32 mm \| Stroke: 5 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-L-32D-5-FB		Bore: 32 mm \| Stroke: 5 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-L-32D-10		Bore: 32 mm \| Stroke: 10 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: Rc1/8
SSD2-L-32D-10-LB		Bore: 32 mm \| Stroke: 10 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-L-32D-10-CB		Bore: 32 mm \| Stroke: 10 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-L-32D-10-FA		Bore: 32 mm \| Stroke: 10 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-L-32D-10-FB		Bore: 32 mm \| Stroke: 10 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-L-32D-15		Bore: 32 mm \| Stroke: 15 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: Rc1/8
SSD2-L-32D-15-LB		Bore: 32 mm \| Stroke: 15 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-L-32D-15-CB		Bore: 32 mm \| Stroke: 15 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-L-32D-15-FA		Bore: 32 mm \| Stroke: 15 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-L-32D-15-FB		Bore: 32 mm \| Stroke: 15 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-L-32D-20		Bore: 32 mm \| Stroke: 20 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: Rc1/8
SSD2-L-32D-20-LB		Bore: 32 mm \| Stroke: 20 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-L-32D-20-CB		Bore: 32 mm \| Stroke: 20 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-L-32D-20-FA		Bore: 32 mm \| Stroke: 20 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-L-32D-20-FB		Bore: 32 mm \| Stroke: 20 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-L-32D-25		Bore: 32 mm \| Stroke: 25 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: Rc1/8
SSD2-L-32D-25-LB		Bore: 32 mm \| Stroke: 25 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-L-32D-25-CB		Bore: 32 mm \| Stroke: 25 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-L-32D-25-FA		Bore: 32 mm \| Stroke: 25 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-L-32D-25-FB		Bore: 32 mm \| Stroke: 25 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-L-32D-30		Bore: 32 mm \| Stroke: 30 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: Rc1/8
SSD2-L-32D-30-LB		Bore: 32 mm \| Stroke: 30 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-L-32D-30-CB		Bore: 32 mm \| Stroke: 30 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-L-32D-30-FA		Bore: 32 mm \| Stroke: 30 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-L-32D-30-FB		Bore: 32 mm \| Stroke: 30 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-L-32D-35		Bore: 32 mm \| Stroke: 35 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: Rc1/8
SSD2-L-32D-35-LB		Bore: 32 mm \| Stroke: 35 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-L-32D-35-CB		Bore: 32 mm \| Stroke: 35 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-L-32D-35-FA		Bore: 32 mm \| Stroke: 35 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-L-32D-35-FB		Bore: 32 mm \| Stroke: 35 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-L-32D-40		Bore: 32 mm \| Stroke: 40 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: Rc1/8
SSD2-L-32D-40-LB		Bore: 32 mm \| Stroke: 40 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-L-32D-40-CB		Bore: 32 mm \| Stroke: 40 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-L-32D-40-FA		Bore: 32 mm \| Stroke: 40 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-L-32D-40-FB		Bore: 32 mm \| Stroke: 40 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-L-32D-45		Bore: 32 mm \| Stroke: 45 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: Rc1/8
SSD2-L-32D-45-LB		Bore: 32 mm \| Stroke: 45 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-L-32D-45-CB		Bore: 32 mm \| Stroke: 45 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-L-32D-45-FA		Bore: 32 mm \| Stroke: 45 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-L-32D-45-FB		Bore: 32 mm \| Stroke: 45 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-L-32D-50		Bore: 32 mm \| Stroke: 50 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: Rc1/8
SSD2-L-32D-50-LB		Bore: 32 mm \| Stroke: 50 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-L-32D-50-CB		Bore: 32 mm \| Stroke: 50 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-L-32D-50-FA		Bore: 32 mm \| Stroke: 50 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-L-32D-50-FB		Bore: 32 mm \| Stroke: 50 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-L-32D-75		Bore: 32 mm \| Stroke: 75 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: Rc1/8
SSD2-L-32D-75-LB		Bore: 32 mm \| Stroke: 75 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-L-32D-75-CB		Bore: 32 mm \| Stroke: 75 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-L-32D-75-FA		Bore: 32 mm \| Stroke: 75 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-L-32D-75-FB		Bore: 32 mm \| Stroke: 75 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-L-32D-100		Bore: 32 mm \| Stroke: 100 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: Rc1/8
SSD2-L-32D-100-LB		Bore: 32 mm \| Stroke: 100 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-L-32D-100-CB		Bore: 32 mm \| Stroke: 100 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: Rc1/8
SSD2-L-32D-100-FA		Bore: 32 mm \| Stroke: 100 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: Rc1/8
SSD2-L-32D-100-FB		Bore: 32 mm \| Stroke: 100 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: Rc1/8
SSD2-LB-12		Legacy code \| Item: Foot bracket (LB), 2 pcs/set \| Bore: 12 mm
SSD2-LB-16		Legacy code \| Item: Foot bracket (LB), 2 pcs/set \| Bore: 16 mm
SSD2-LB-20		Legacy code \| Item: Foot bracket (LB), 2 pcs/set \| Bore: 20 mm
SSD2-LB-25		Legacy code \| Item: Foot bracket (LB), 2 pcs/set \| Bore: 25 mm
SSD2-LB-32		Legacy code \| Item: Foot bracket (LB), 2 pcs/set \| Bore: 32 mm
SSD2-FA-12		Legacy code \| Item: Flange bracket (FA/FB) \| Bore: 12 mm
SSD2-FA-16		Legacy code \| Item: Flange bracket (FA/FB) \| Bore: 16 mm
SSD2-FA-20		Legacy code \| Item: Flange bracket (FA/FB) \| Bore: 20 mm
SSD2-FA-25		Legacy code \| Item: Flange bracket (FA/FB) \| Bore: 25 mm
SSD2-FA-32		Legacy code \| Item: Flange bracket (FA/FB) \| Bore: 32 mm
SSD2-CB-12		Legacy code \| Item: Double clevis bracket (CB) \| Bore: 12 mm
SSD2-CB-16		Legacy code \| Item: Double clevis bracket (CB) \| Bore: 16 mm
SSD2-CB-20		Legacy code \| Item: Double clevis bracket (CB) \| Bore: 20 mm
SSD2-CB-25		Legacy code \| Item: Double clevis bracket (CB) \| Bore: 25 mm
SSD2-CB-32		Legacy code \| Item: Double clevis bracket (CB) \| Bore: 32 mm
SSD2-P-12		Legacy code \| Item: Rod-end accessory (P) \| Bore: 12 mm
SSD2-P-16		Legacy code \| Item: Rod-end accessory (P) \| Bore: 16 mm
SSD2-P-20		Legacy code \| Item: Rod-end accessory (P) \| Bore: 20 mm
SSD2-P-25		Legacy code \| Item: Rod-end accessory (P) \| Bore: 25 mm
SSD2-P-32		Legacy code \| Item: Rod-end accessory (P) \| Bore: 32 mm
SSD2-I-12		Legacy code \| Item: Single knuckle (I) \| Bore: 12 mm
SSD2-I-16		Legacy code \| Item: Single knuckle (I) \| Bore: 16 mm
SSD2-I-20		Legacy code \| Item: Single knuckle (I) \| Bore: 20 mm
SSD2-I-25		Legacy code \| Item: Single knuckle (I) \| Bore: 25 mm
SSD2-I-32		Legacy code \| Item: Single knuckle (I) \| Bore: 32 mm
SSD2-Y-12		Legacy code \| Item: Double knuckle (Y) \| Bore: 12 mm
SSD2-Y-16		Legacy code \| Item: Double knuckle (Y) \| Bore: 16 mm
SSD2-Y-20		Legacy code \| Item: Double knuckle (Y) \| Bore: 20 mm
SSD2-Y-25		Legacy code \| Item: Double knuckle (Y) \| Bore: 25 mm
SSD2-Y-32		Legacy code \| Item: Double knuckle (Y) \| Bore: 32 mm

Compact CylindersCKD

908 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD SSD2 Super Compact Cylinder (Double Acting, Bore 12-32)

Brand CKD·Compact Cylinders

Available part numbers (908)

SSD2-12-5, SSD2-12-5-LB, SSD2-12-5-CB, SSD2-12-5-FA, SSD2-12-5-FB, SSD2-12-10, SSD2-12-10-LB, SSD2-12-10-CB, SSD2-12-10-FA, SSD2-12-10-FB + 898 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	SSD2-12-5	Bore: 12 mm \| Stroke: 5 mm \| Cushion: None \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
	SSD2-12-5-LB	Bore: 12 mm \| Stroke: 5 mm \| Cushion: None \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-12-5-CB	Bore: 12 mm \| Stroke: 5 mm \| Cushion: None \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-12-5-FA	Bore: 12 mm \| Stroke: 5 mm \| Cushion: None \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-12-5-FB	Bore: 12 mm \| Stroke: 5 mm \| Cushion: None \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
	SSD2-12-10	Bore: 12 mm \| Stroke: 10 mm \| Cushion: None \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
	SSD2-12-10-LB	Bore: 12 mm \| Stroke: 10 mm \| Cushion: None \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-12-10-CB	Bore: 12 mm \| Stroke: 10 mm \| Cushion: None \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-12-10-FA	Bore: 12 mm \| Stroke: 10 mm \| Cushion: None \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-12-10-FB	Bore: 12 mm \| Stroke: 10 mm \| Cushion: None \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
	SSD2-12-15	Bore: 12 mm \| Stroke: 15 mm \| Cushion: None \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
	SSD2-12-15-LB	Bore: 12 mm \| Stroke: 15 mm \| Cushion: None \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-12-15-CB	Bore: 12 mm \| Stroke: 15 mm \| Cushion: None \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-12-15-FA	Bore: 12 mm \| Stroke: 15 mm \| Cushion: None \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-12-15-FB	Bore: 12 mm \| Stroke: 15 mm \| Cushion: None \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
	SSD2-12-20	Bore: 12 mm \| Stroke: 20 mm \| Cushion: None \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
	SSD2-12-20-LB	Bore: 12 mm \| Stroke: 20 mm \| Cushion: None \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-12-20-CB	Bore: 12 mm \| Stroke: 20 mm \| Cushion: None \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-12-20-FA	Bore: 12 mm \| Stroke: 20 mm \| Cushion: None \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-12-20-FB	Bore: 12 mm \| Stroke: 20 mm \| Cushion: None \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
	SSD2-12-25	Bore: 12 mm \| Stroke: 25 mm \| Cushion: None \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
	SSD2-12-25-LB	Bore: 12 mm \| Stroke: 25 mm \| Cushion: None \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-12-25-CB	Bore: 12 mm \| Stroke: 25 mm \| Cushion: None \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-12-25-FA	Bore: 12 mm \| Stroke: 25 mm \| Cushion: None \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-12-25-FB	Bore: 12 mm \| Stroke: 25 mm \| Cushion: None \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
	SSD2-12-30	Bore: 12 mm \| Stroke: 30 mm \| Cushion: None \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
	SSD2-12-30-LB	Bore: 12 mm \| Stroke: 30 mm \| Cushion: None \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-12-30-CB	Bore: 12 mm \| Stroke: 30 mm \| Cushion: None \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-12-30-FA	Bore: 12 mm \| Stroke: 30 mm \| Cushion: None \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-12-30-FB	Bore: 12 mm \| Stroke: 30 mm \| Cushion: None \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
	SSD2-12D-5	Bore: 12 mm \| Stroke: 5 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
	SSD2-12D-5-LB	Bore: 12 mm \| Stroke: 5 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-12D-5-CB	Bore: 12 mm \| Stroke: 5 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-12D-5-FA	Bore: 12 mm \| Stroke: 5 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-12D-5-FB	Bore: 12 mm \| Stroke: 5 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
	SSD2-12D-10	Bore: 12 mm \| Stroke: 10 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
	SSD2-12D-10-LB	Bore: 12 mm \| Stroke: 10 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-12D-10-CB	Bore: 12 mm \| Stroke: 10 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-12D-10-FA	Bore: 12 mm \| Stroke: 10 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-12D-10-FB	Bore: 12 mm \| Stroke: 10 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
	SSD2-12D-15	Bore: 12 mm \| Stroke: 15 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
	SSD2-12D-15-LB	Bore: 12 mm \| Stroke: 15 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-12D-15-CB	Bore: 12 mm \| Stroke: 15 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-12D-15-FA	Bore: 12 mm \| Stroke: 15 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-12D-15-FB	Bore: 12 mm \| Stroke: 15 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
	SSD2-12D-20	Bore: 12 mm \| Stroke: 20 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
	SSD2-12D-20-LB	Bore: 12 mm \| Stroke: 20 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-12D-20-CB	Bore: 12 mm \| Stroke: 20 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-12D-20-FA	Bore: 12 mm \| Stroke: 20 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-12D-20-FB	Bore: 12 mm \| Stroke: 20 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
	SSD2-12D-25	Bore: 12 mm \| Stroke: 25 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
	SSD2-12D-25-LB	Bore: 12 mm \| Stroke: 25 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-12D-25-CB	Bore: 12 mm \| Stroke: 25 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-12D-25-FA	Bore: 12 mm \| Stroke: 25 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-12D-25-FB	Bore: 12 mm \| Stroke: 25 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
	SSD2-12D-30	Bore: 12 mm \| Stroke: 30 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
	SSD2-12D-30-LB	Bore: 12 mm \| Stroke: 30 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-12D-30-CB	Bore: 12 mm \| Stroke: 30 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-12D-30-FA	Bore: 12 mm \| Stroke: 30 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-12D-30-FB	Bore: 12 mm \| Stroke: 30 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
	SSD2-16-5	Bore: 16 mm \| Stroke: 5 mm \| Cushion: None \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
	SSD2-16-5-LB	Bore: 16 mm \| Stroke: 5 mm \| Cushion: None \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-16-5-CB	Bore: 16 mm \| Stroke: 5 mm \| Cushion: None \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-16-5-FA	Bore: 16 mm \| Stroke: 5 mm \| Cushion: None \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-16-5-FB	Bore: 16 mm \| Stroke: 5 mm \| Cushion: None \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
	SSD2-16-10	Bore: 16 mm \| Stroke: 10 mm \| Cushion: None \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
	SSD2-16-10-LB	Bore: 16 mm \| Stroke: 10 mm \| Cushion: None \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-16-10-CB	Bore: 16 mm \| Stroke: 10 mm \| Cushion: None \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-16-10-FA	Bore: 16 mm \| Stroke: 10 mm \| Cushion: None \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-16-10-FB	Bore: 16 mm \| Stroke: 10 mm \| Cushion: None \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
	SSD2-16-15	Bore: 16 mm \| Stroke: 15 mm \| Cushion: None \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
	SSD2-16-15-LB	Bore: 16 mm \| Stroke: 15 mm \| Cushion: None \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-16-15-CB	Bore: 16 mm \| Stroke: 15 mm \| Cushion: None \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-16-15-FA	Bore: 16 mm \| Stroke: 15 mm \| Cushion: None \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-16-15-FB	Bore: 16 mm \| Stroke: 15 mm \| Cushion: None \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
	SSD2-16-20	Bore: 16 mm \| Stroke: 20 mm \| Cushion: None \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
	SSD2-16-20-LB	Bore: 16 mm \| Stroke: 20 mm \| Cushion: None \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-16-20-CB	Bore: 16 mm \| Stroke: 20 mm \| Cushion: None \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-16-20-FA	Bore: 16 mm \| Stroke: 20 mm \| Cushion: None \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-16-20-FB	Bore: 16 mm \| Stroke: 20 mm \| Cushion: None \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
	SSD2-16-25	Bore: 16 mm \| Stroke: 25 mm \| Cushion: None \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
	SSD2-16-25-LB	Bore: 16 mm \| Stroke: 25 mm \| Cushion: None \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-16-25-CB	Bore: 16 mm \| Stroke: 25 mm \| Cushion: None \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-16-25-FA	Bore: 16 mm \| Stroke: 25 mm \| Cushion: None \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-16-25-FB	Bore: 16 mm \| Stroke: 25 mm \| Cushion: None \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
	SSD2-16-30	Bore: 16 mm \| Stroke: 30 mm \| Cushion: None \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
	SSD2-16-30-LB	Bore: 16 mm \| Stroke: 30 mm \| Cushion: None \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-16-30-CB	Bore: 16 mm \| Stroke: 30 mm \| Cushion: None \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-16-30-FA	Bore: 16 mm \| Stroke: 30 mm \| Cushion: None \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-16-30-FB	Bore: 16 mm \| Stroke: 30 mm \| Cushion: None \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
	SSD2-16D-5	Bore: 16 mm \| Stroke: 5 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
	SSD2-16D-5-LB	Bore: 16 mm \| Stroke: 5 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-16D-5-CB	Bore: 16 mm \| Stroke: 5 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-16D-5-FA	Bore: 16 mm \| Stroke: 5 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-16D-5-FB	Bore: 16 mm \| Stroke: 5 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
	SSD2-16D-10	Bore: 16 mm \| Stroke: 10 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
	SSD2-16D-10-LB	Bore: 16 mm \| Stroke: 10 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-16D-10-CB	Bore: 16 mm \| Stroke: 10 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-16D-10-FA	Bore: 16 mm \| Stroke: 10 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-16D-10-FB	Bore: 16 mm \| Stroke: 10 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
	SSD2-16D-15	Bore: 16 mm \| Stroke: 15 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
	SSD2-16D-15-LB	Bore: 16 mm \| Stroke: 15 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-16D-15-CB	Bore: 16 mm \| Stroke: 15 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-16D-15-FA	Bore: 16 mm \| Stroke: 15 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-16D-15-FB	Bore: 16 mm \| Stroke: 15 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
	SSD2-16D-20	Bore: 16 mm \| Stroke: 20 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
	SSD2-16D-20-LB	Bore: 16 mm \| Stroke: 20 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-16D-20-CB	Bore: 16 mm \| Stroke: 20 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-16D-20-FA	Bore: 16 mm \| Stroke: 20 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-16D-20-FB	Bore: 16 mm \| Stroke: 20 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
	SSD2-16D-25	Bore: 16 mm \| Stroke: 25 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
	SSD2-16D-25-LB	Bore: 16 mm \| Stroke: 25 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-16D-25-CB	Bore: 16 mm \| Stroke: 25 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-16D-25-FA	Bore: 16 mm \| Stroke: 25 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-16D-25-FB	Bore: 16 mm \| Stroke: 25 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
	SSD2-16D-30	Bore: 16 mm \| Stroke: 30 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
	SSD2-16D-30-LB	Bore: 16 mm \| Stroke: 30 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-16D-30-CB	Bore: 16 mm \| Stroke: 30 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-16D-30-FA	Bore: 16 mm \| Stroke: 30 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-16D-30-FB	Bore: 16 mm \| Stroke: 30 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
	SSD2-20-5	Bore: 20 mm \| Stroke: 5 mm \| Cushion: None \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
	SSD2-20-5-CB	Bore: 20 mm \| Stroke: 5 mm \| Cushion: None \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-20-5-FA	Bore: 20 mm \| Stroke: 5 mm \| Cushion: None \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-20-5-FB	Bore: 20 mm \| Stroke: 5 mm \| Cushion: None \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
	SSD2-20-10	Bore: 20 mm \| Stroke: 10 mm \| Cushion: None \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
	SSD2-20-10-LB	Bore: 20 mm \| Stroke: 10 mm \| Cushion: None \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-20-10-CB	Bore: 20 mm \| Stroke: 10 mm \| Cushion: None \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-20-10-FA	Bore: 20 mm \| Stroke: 10 mm \| Cushion: None \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-20-10-FB	Bore: 20 mm \| Stroke: 10 mm \| Cushion: None \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
	SSD2-20-15	Bore: 20 mm \| Stroke: 15 mm \| Cushion: None \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
	SSD2-20-15-LB	Bore: 20 mm \| Stroke: 15 mm \| Cushion: None \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-20-15-CB	Bore: 20 mm \| Stroke: 15 mm \| Cushion: None \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-20-15-FA	Bore: 20 mm \| Stroke: 15 mm \| Cushion: None \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-20-15-FB	Bore: 20 mm \| Stroke: 15 mm \| Cushion: None \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
	SSD2-20-20	Bore: 20 mm \| Stroke: 20 mm \| Cushion: None \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
	SSD2-20-20-LB	Bore: 20 mm \| Stroke: 20 mm \| Cushion: None \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-20-20-CB	Bore: 20 mm \| Stroke: 20 mm \| Cushion: None \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-20-20-FA	Bore: 20 mm \| Stroke: 20 mm \| Cushion: None \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-20-20-FB	Bore: 20 mm \| Stroke: 20 mm \| Cushion: None \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
	SSD2-20-25	Bore: 20 mm \| Stroke: 25 mm \| Cushion: None \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
	SSD2-20-25-LB	Bore: 20 mm \| Stroke: 25 mm \| Cushion: None \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-20-25-CB	Bore: 20 mm \| Stroke: 25 mm \| Cushion: None \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-20-25-FA	Bore: 20 mm \| Stroke: 25 mm \| Cushion: None \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-20-25-FB	Bore: 20 mm \| Stroke: 25 mm \| Cushion: None \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
	SSD2-20-30	Bore: 20 mm \| Stroke: 30 mm \| Cushion: None \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
	SSD2-20-30-LB	Bore: 20 mm \| Stroke: 30 mm \| Cushion: None \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-20-30-CB	Bore: 20 mm \| Stroke: 30 mm \| Cushion: None \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-20-30-FA	Bore: 20 mm \| Stroke: 30 mm \| Cushion: None \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-20-30-FB	Bore: 20 mm \| Stroke: 30 mm \| Cushion: None \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
	SSD2-20-35	Bore: 20 mm \| Stroke: 35 mm \| Cushion: None \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
	SSD2-20-35-LB	Bore: 20 mm \| Stroke: 35 mm \| Cushion: None \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-20-35-CB	Bore: 20 mm \| Stroke: 35 mm \| Cushion: None \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-20-35-FA	Bore: 20 mm \| Stroke: 35 mm \| Cushion: None \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-20-35-FB	Bore: 20 mm \| Stroke: 35 mm \| Cushion: None \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
	SSD2-20-40	Bore: 20 mm \| Stroke: 40 mm \| Cushion: None \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
	SSD2-20-40-LB	Bore: 20 mm \| Stroke: 40 mm \| Cushion: None \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-20-40-CB	Bore: 20 mm \| Stroke: 40 mm \| Cushion: None \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-20-40-FA	Bore: 20 mm \| Stroke: 40 mm \| Cushion: None \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-20-40-FB	Bore: 20 mm \| Stroke: 40 mm \| Cushion: None \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
	SSD2-20-45	Bore: 20 mm \| Stroke: 45 mm \| Cushion: None \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
	SSD2-20-45-LB	Bore: 20 mm \| Stroke: 45 mm \| Cushion: None \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-20-45-CB	Bore: 20 mm \| Stroke: 45 mm \| Cushion: None \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-20-45-FA	Bore: 20 mm \| Stroke: 45 mm \| Cushion: None \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-20-45-FB	Bore: 20 mm \| Stroke: 45 mm \| Cushion: None \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
	SSD2-20-50	Bore: 20 mm \| Stroke: 50 mm \| Cushion: None \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
	SSD2-20-50-LB	Bore: 20 mm \| Stroke: 50 mm \| Cushion: None \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-20-50-CB	Bore: 20 mm \| Stroke: 50 mm \| Cushion: None \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-20-50-FA	Bore: 20 mm \| Stroke: 50 mm \| Cushion: None \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-20-50-FB	Bore: 20 mm \| Stroke: 50 mm \| Cushion: None \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
	SSD2-20D-5	Bore: 20 mm \| Stroke: 5 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
	SSD2-20D-5-CB	Bore: 20 mm \| Stroke: 5 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-20D-5-FA	Bore: 20 mm \| Stroke: 5 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-20D-5-FB	Bore: 20 mm \| Stroke: 5 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
	SSD2-20D-10	Bore: 20 mm \| Stroke: 10 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
	SSD2-20D-10-LB	Bore: 20 mm \| Stroke: 10 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-20D-10-CB	Bore: 20 mm \| Stroke: 10 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-20D-10-FA	Bore: 20 mm \| Stroke: 10 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-20D-10-FB	Bore: 20 mm \| Stroke: 10 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
	SSD2-20D-15	Bore: 20 mm \| Stroke: 15 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
	SSD2-20D-15-LB	Bore: 20 mm \| Stroke: 15 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-20D-15-CB	Bore: 20 mm \| Stroke: 15 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-20D-15-FA	Bore: 20 mm \| Stroke: 15 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-20D-15-FB	Bore: 20 mm \| Stroke: 15 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
	SSD2-20D-20	Bore: 20 mm \| Stroke: 20 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
	SSD2-20D-20-LB	Bore: 20 mm \| Stroke: 20 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-20D-20-CB	Bore: 20 mm \| Stroke: 20 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-20D-20-FA	Bore: 20 mm \| Stroke: 20 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-20D-20-FB	Bore: 20 mm \| Stroke: 20 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
	SSD2-20D-25	Bore: 20 mm \| Stroke: 25 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
	SSD2-20D-25-LB	Bore: 20 mm \| Stroke: 25 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-20D-25-CB	Bore: 20 mm \| Stroke: 25 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-20D-25-FA	Bore: 20 mm \| Stroke: 25 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-20D-25-FB	Bore: 20 mm \| Stroke: 25 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
	SSD2-20D-30	Bore: 20 mm \| Stroke: 30 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
	SSD2-20D-30-LB	Bore: 20 mm \| Stroke: 30 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-20D-30-CB	Bore: 20 mm \| Stroke: 30 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-20D-30-FA	Bore: 20 mm \| Stroke: 30 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-20D-30-FB	Bore: 20 mm \| Stroke: 30 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
	SSD2-20D-35	Bore: 20 mm \| Stroke: 35 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
	SSD2-20D-35-LB	Bore: 20 mm \| Stroke: 35 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-20D-35-CB	Bore: 20 mm \| Stroke: 35 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-20D-35-FA	Bore: 20 mm \| Stroke: 35 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-20D-35-FB	Bore: 20 mm \| Stroke: 35 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
	SSD2-20D-40	Bore: 20 mm \| Stroke: 40 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
	SSD2-20D-40-LB	Bore: 20 mm \| Stroke: 40 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-20D-40-CB	Bore: 20 mm \| Stroke: 40 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-20D-40-FA	Bore: 20 mm \| Stroke: 40 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-20D-40-FB	Bore: 20 mm \| Stroke: 40 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
	SSD2-20D-45	Bore: 20 mm \| Stroke: 45 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
	SSD2-20D-45-LB	Bore: 20 mm \| Stroke: 45 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-20D-45-CB	Bore: 20 mm \| Stroke: 45 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-20D-45-FA	Bore: 20 mm \| Stroke: 45 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-20D-45-FB	Bore: 20 mm \| Stroke: 45 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
	SSD2-20D-50	Bore: 20 mm \| Stroke: 50 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
	SSD2-20D-50-LB	Bore: 20 mm \| Stroke: 50 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-20D-50-CB	Bore: 20 mm \| Stroke: 50 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-20D-50-FA	Bore: 20 mm \| Stroke: 50 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-20D-50-FB	Bore: 20 mm \| Stroke: 50 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
	SSD2-25-5	Bore: 25 mm \| Stroke: 5 mm \| Cushion: None \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
	SSD2-25-5-LB	Bore: 25 mm \| Stroke: 5 mm \| Cushion: None \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-25-5-CB	Bore: 25 mm \| Stroke: 5 mm \| Cushion: None \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-25-5-FA	Bore: 25 mm \| Stroke: 5 mm \| Cushion: None \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-25-5-FB	Bore: 25 mm \| Stroke: 5 mm \| Cushion: None \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
	SSD2-25-10	Bore: 25 mm \| Stroke: 10 mm \| Cushion: None \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
	SSD2-25-10-LB	Bore: 25 mm \| Stroke: 10 mm \| Cushion: None \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-25-10-CB	Bore: 25 mm \| Stroke: 10 mm \| Cushion: None \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-25-10-FA	Bore: 25 mm \| Stroke: 10 mm \| Cushion: None \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-25-10-FB	Bore: 25 mm \| Stroke: 10 mm \| Cushion: None \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
	SSD2-25-15	Bore: 25 mm \| Stroke: 15 mm \| Cushion: None \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
	SSD2-25-15-LB	Bore: 25 mm \| Stroke: 15 mm \| Cushion: None \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-25-15-CB	Bore: 25 mm \| Stroke: 15 mm \| Cushion: None \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-25-15-FA	Bore: 25 mm \| Stroke: 15 mm \| Cushion: None \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-25-15-FB	Bore: 25 mm \| Stroke: 15 mm \| Cushion: None \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
	SSD2-25-20	Bore: 25 mm \| Stroke: 20 mm \| Cushion: None \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
	SSD2-25-20-LB	Bore: 25 mm \| Stroke: 20 mm \| Cushion: None \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-25-20-CB	Bore: 25 mm \| Stroke: 20 mm \| Cushion: None \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-25-20-FA	Bore: 25 mm \| Stroke: 20 mm \| Cushion: None \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-25-20-FB	Bore: 25 mm \| Stroke: 20 mm \| Cushion: None \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
	SSD2-25-25	Bore: 25 mm \| Stroke: 25 mm \| Cushion: None \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
	SSD2-25-25-LB	Bore: 25 mm \| Stroke: 25 mm \| Cushion: None \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-25-25-CB	Bore: 25 mm \| Stroke: 25 mm \| Cushion: None \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-25-25-FA	Bore: 25 mm \| Stroke: 25 mm \| Cushion: None \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-25-25-FB	Bore: 25 mm \| Stroke: 25 mm \| Cushion: None \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
	SSD2-25-30	Bore: 25 mm \| Stroke: 30 mm \| Cushion: None \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
	SSD2-25-30-LB	Bore: 25 mm \| Stroke: 30 mm \| Cushion: None \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-25-30-CB	Bore: 25 mm \| Stroke: 30 mm \| Cushion: None \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-25-30-FA	Bore: 25 mm \| Stroke: 30 mm \| Cushion: None \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-25-30-FB	Bore: 25 mm \| Stroke: 30 mm \| Cushion: None \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
	SSD2-25-35	Bore: 25 mm \| Stroke: 35 mm \| Cushion: None \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
	SSD2-25-35-LB	Bore: 25 mm \| Stroke: 35 mm \| Cushion: None \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-25-35-CB	Bore: 25 mm \| Stroke: 35 mm \| Cushion: None \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-25-35-FA	Bore: 25 mm \| Stroke: 35 mm \| Cushion: None \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-25-35-FB	Bore: 25 mm \| Stroke: 35 mm \| Cushion: None \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
	SSD2-25-40	Bore: 25 mm \| Stroke: 40 mm \| Cushion: None \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
	SSD2-25-40-LB	Bore: 25 mm \| Stroke: 40 mm \| Cushion: None \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-25-40-CB	Bore: 25 mm \| Stroke: 40 mm \| Cushion: None \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-25-40-FA	Bore: 25 mm \| Stroke: 40 mm \| Cushion: None \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-25-40-FB	Bore: 25 mm \| Stroke: 40 mm \| Cushion: None \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
	SSD2-25-45	Bore: 25 mm \| Stroke: 45 mm \| Cushion: None \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
	SSD2-25-45-LB	Bore: 25 mm \| Stroke: 45 mm \| Cushion: None \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-25-45-CB	Bore: 25 mm \| Stroke: 45 mm \| Cushion: None \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-25-45-FA	Bore: 25 mm \| Stroke: 45 mm \| Cushion: None \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-25-45-FB	Bore: 25 mm \| Stroke: 45 mm \| Cushion: None \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
	SSD2-25-50	Bore: 25 mm \| Stroke: 50 mm \| Cushion: None \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
	SSD2-25-50-LB	Bore: 25 mm \| Stroke: 50 mm \| Cushion: None \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-25-50-CB	Bore: 25 mm \| Stroke: 50 mm \| Cushion: None \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-25-50-FA	Bore: 25 mm \| Stroke: 50 mm \| Cushion: None \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-25-50-FB	Bore: 25 mm \| Stroke: 50 mm \| Cushion: None \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
	SSD2-25D-5	Bore: 25 mm \| Stroke: 5 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
	SSD2-25D-5-LB	Bore: 25 mm \| Stroke: 5 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-25D-5-CB	Bore: 25 mm \| Stroke: 5 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-25D-5-FA	Bore: 25 mm \| Stroke: 5 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-25D-5-FB	Bore: 25 mm \| Stroke: 5 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
	SSD2-25D-10	Bore: 25 mm \| Stroke: 10 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
	SSD2-25D-10-LB	Bore: 25 mm \| Stroke: 10 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-25D-10-CB	Bore: 25 mm \| Stroke: 10 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-25D-10-FA	Bore: 25 mm \| Stroke: 10 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-25D-10-FB	Bore: 25 mm \| Stroke: 10 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
	SSD2-25D-15	Bore: 25 mm \| Stroke: 15 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
	SSD2-25D-15-LB	Bore: 25 mm \| Stroke: 15 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-25D-15-CB	Bore: 25 mm \| Stroke: 15 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-25D-15-FA	Bore: 25 mm \| Stroke: 15 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-25D-15-FB	Bore: 25 mm \| Stroke: 15 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
	SSD2-25D-20	Bore: 25 mm \| Stroke: 20 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
	SSD2-25D-20-LB	Bore: 25 mm \| Stroke: 20 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-25D-20-CB	Bore: 25 mm \| Stroke: 20 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-25D-20-FA	Bore: 25 mm \| Stroke: 20 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-25D-20-FB	Bore: 25 mm \| Stroke: 20 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
	SSD2-25D-25	Bore: 25 mm \| Stroke: 25 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
	SSD2-25D-25-LB	Bore: 25 mm \| Stroke: 25 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-25D-25-CB	Bore: 25 mm \| Stroke: 25 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-25D-25-FA	Bore: 25 mm \| Stroke: 25 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-25D-25-FB	Bore: 25 mm \| Stroke: 25 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
	SSD2-25D-30	Bore: 25 mm \| Stroke: 30 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
	SSD2-25D-30-LB	Bore: 25 mm \| Stroke: 30 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-25D-30-CB	Bore: 25 mm \| Stroke: 30 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-25D-30-FA	Bore: 25 mm \| Stroke: 30 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-25D-30-FB	Bore: 25 mm \| Stroke: 30 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
	SSD2-25D-35	Bore: 25 mm \| Stroke: 35 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
	SSD2-25D-35-LB	Bore: 25 mm \| Stroke: 35 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-25D-35-CB	Bore: 25 mm \| Stroke: 35 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-25D-35-FA	Bore: 25 mm \| Stroke: 35 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-25D-35-FB	Bore: 25 mm \| Stroke: 35 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
	SSD2-25D-40	Bore: 25 mm \| Stroke: 40 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
	SSD2-25D-40-LB	Bore: 25 mm \| Stroke: 40 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-25D-40-CB	Bore: 25 mm \| Stroke: 40 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-25D-40-FA	Bore: 25 mm \| Stroke: 40 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-25D-40-FB	Bore: 25 mm \| Stroke: 40 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
	SSD2-25D-45	Bore: 25 mm \| Stroke: 45 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
	SSD2-25D-45-LB	Bore: 25 mm \| Stroke: 45 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-25D-45-CB	Bore: 25 mm \| Stroke: 45 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-25D-45-FA	Bore: 25 mm \| Stroke: 45 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-25D-45-FB	Bore: 25 mm \| Stroke: 45 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
	SSD2-25D-50	Bore: 25 mm \| Stroke: 50 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: None (basic) \| Port: M5
	SSD2-25D-50-LB	Bore: 25 mm \| Stroke: 50 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-25D-50-CB	Bore: 25 mm \| Stroke: 50 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-25D-50-FA	Bore: 25 mm \| Stroke: 50 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-25D-50-FB	Bore: 25 mm \| Stroke: 50 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: M5
	SSD2-32-5	Bore: 32 mm \| Stroke: 5 mm \| Cushion: None \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-32-5-LB	Bore: 32 mm \| Stroke: 5 mm \| Cushion: None \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-32-5-CB	Bore: 32 mm \| Stroke: 5 mm \| Cushion: None \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-32-5-FA	Bore: 32 mm \| Stroke: 5 mm \| Cushion: None \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-32-5-FB	Bore: 32 mm \| Stroke: 5 mm \| Cushion: None \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-32-10	Bore: 32 mm \| Stroke: 10 mm \| Cushion: None \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-32-10-LB	Bore: 32 mm \| Stroke: 10 mm \| Cushion: None \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-32-10-CB	Bore: 32 mm \| Stroke: 10 mm \| Cushion: None \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-32-10-FA	Bore: 32 mm \| Stroke: 10 mm \| Cushion: None \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-32-10-FB	Bore: 32 mm \| Stroke: 10 mm \| Cushion: None \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-32-15	Bore: 32 mm \| Stroke: 15 mm \| Cushion: None \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-32-15-LB	Bore: 32 mm \| Stroke: 15 mm \| Cushion: None \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-32-15-CB	Bore: 32 mm \| Stroke: 15 mm \| Cushion: None \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-32-15-FA	Bore: 32 mm \| Stroke: 15 mm \| Cushion: None \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-32-15-FB	Bore: 32 mm \| Stroke: 15 mm \| Cushion: None \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-32-20	Bore: 32 mm \| Stroke: 20 mm \| Cushion: None \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-32-20-LB	Bore: 32 mm \| Stroke: 20 mm \| Cushion: None \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-32-20-CB	Bore: 32 mm \| Stroke: 20 mm \| Cushion: None \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-32-20-FA	Bore: 32 mm \| Stroke: 20 mm \| Cushion: None \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-32-20-FB	Bore: 32 mm \| Stroke: 20 mm \| Cushion: None \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-32-25	Bore: 32 mm \| Stroke: 25 mm \| Cushion: None \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-32-25-LB	Bore: 32 mm \| Stroke: 25 mm \| Cushion: None \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-32-25-CB	Bore: 32 mm \| Stroke: 25 mm \| Cushion: None \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-32-25-FA	Bore: 32 mm \| Stroke: 25 mm \| Cushion: None \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-32-25-FB	Bore: 32 mm \| Stroke: 25 mm \| Cushion: None \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-32-30	Bore: 32 mm \| Stroke: 30 mm \| Cushion: None \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-32-30-LB	Bore: 32 mm \| Stroke: 30 mm \| Cushion: None \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-32-30-CB	Bore: 32 mm \| Stroke: 30 mm \| Cushion: None \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-32-30-FA	Bore: 32 mm \| Stroke: 30 mm \| Cushion: None \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-32-30-FB	Bore: 32 mm \| Stroke: 30 mm \| Cushion: None \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-32-35	Bore: 32 mm \| Stroke: 35 mm \| Cushion: None \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-32-35-LB	Bore: 32 mm \| Stroke: 35 mm \| Cushion: None \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-32-35-CB	Bore: 32 mm \| Stroke: 35 mm \| Cushion: None \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-32-35-FA	Bore: 32 mm \| Stroke: 35 mm \| Cushion: None \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-32-35-FB	Bore: 32 mm \| Stroke: 35 mm \| Cushion: None \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-32-40	Bore: 32 mm \| Stroke: 40 mm \| Cushion: None \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-32-40-LB	Bore: 32 mm \| Stroke: 40 mm \| Cushion: None \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-32-40-CB	Bore: 32 mm \| Stroke: 40 mm \| Cushion: None \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-32-40-FA	Bore: 32 mm \| Stroke: 40 mm \| Cushion: None \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-32-40-FB	Bore: 32 mm \| Stroke: 40 mm \| Cushion: None \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-32-45	Bore: 32 mm \| Stroke: 45 mm \| Cushion: None \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-32-45-LB	Bore: 32 mm \| Stroke: 45 mm \| Cushion: None \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-32-45-CB	Bore: 32 mm \| Stroke: 45 mm \| Cushion: None \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-32-45-FA	Bore: 32 mm \| Stroke: 45 mm \| Cushion: None \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-32-45-FB	Bore: 32 mm \| Stroke: 45 mm \| Cushion: None \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-32-50	Bore: 32 mm \| Stroke: 50 mm \| Cushion: None \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-32-50-LB	Bore: 32 mm \| Stroke: 50 mm \| Cushion: None \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-32-50-CB	Bore: 32 mm \| Stroke: 50 mm \| Cushion: None \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-32-50-FA	Bore: 32 mm \| Stroke: 50 mm \| Cushion: None \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-32-50-FB	Bore: 32 mm \| Stroke: 50 mm \| Cushion: None \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-32-75	Bore: 32 mm \| Stroke: 75 mm \| Cushion: None \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-32-75-LB	Bore: 32 mm \| Stroke: 75 mm \| Cushion: None \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-32-75-CB	Bore: 32 mm \| Stroke: 75 mm \| Cushion: None \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-32-75-FA	Bore: 32 mm \| Stroke: 75 mm \| Cushion: None \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-32-75-FB	Bore: 32 mm \| Stroke: 75 mm \| Cushion: None \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-32-100	Bore: 32 mm \| Stroke: 100 mm \| Cushion: None \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-32-100-LB	Bore: 32 mm \| Stroke: 100 mm \| Cushion: None \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-32-100-CB	Bore: 32 mm \| Stroke: 100 mm \| Cushion: None \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-32-100-FA	Bore: 32 mm \| Stroke: 100 mm \| Cushion: None \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-32-100-FB	Bore: 32 mm \| Stroke: 100 mm \| Cushion: None \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-32D-5	Bore: 32 mm \| Stroke: 5 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-32D-5-LB	Bore: 32 mm \| Stroke: 5 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-32D-5-CB	Bore: 32 mm \| Stroke: 5 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-32D-5-FA	Bore: 32 mm \| Stroke: 5 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-32D-5-FB	Bore: 32 mm \| Stroke: 5 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-32D-10	Bore: 32 mm \| Stroke: 10 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-32D-10-LB	Bore: 32 mm \| Stroke: 10 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-32D-10-CB	Bore: 32 mm \| Stroke: 10 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-32D-10-FA	Bore: 32 mm \| Stroke: 10 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-32D-10-FB	Bore: 32 mm \| Stroke: 10 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-32D-15	Bore: 32 mm \| Stroke: 15 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-32D-15-LB	Bore: 32 mm \| Stroke: 15 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-32D-15-CB	Bore: 32 mm \| Stroke: 15 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-32D-15-FA	Bore: 32 mm \| Stroke: 15 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-32D-15-FB	Bore: 32 mm \| Stroke: 15 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-32D-20	Bore: 32 mm \| Stroke: 20 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-32D-20-LB	Bore: 32 mm \| Stroke: 20 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-32D-20-CB	Bore: 32 mm \| Stroke: 20 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-32D-20-FA	Bore: 32 mm \| Stroke: 20 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-32D-20-FB	Bore: 32 mm \| Stroke: 20 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-32D-25	Bore: 32 mm \| Stroke: 25 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-32D-25-LB	Bore: 32 mm \| Stroke: 25 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-32D-25-CB	Bore: 32 mm \| Stroke: 25 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-32D-25-FA	Bore: 32 mm \| Stroke: 25 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-32D-25-FB	Bore: 32 mm \| Stroke: 25 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-32D-30	Bore: 32 mm \| Stroke: 30 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-32D-30-LB	Bore: 32 mm \| Stroke: 30 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-32D-30-CB	Bore: 32 mm \| Stroke: 30 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-32D-30-FA	Bore: 32 mm \| Stroke: 30 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-32D-30-FB	Bore: 32 mm \| Stroke: 30 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-32D-35	Bore: 32 mm \| Stroke: 35 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-32D-35-LB	Bore: 32 mm \| Stroke: 35 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-32D-35-CB	Bore: 32 mm \| Stroke: 35 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-32D-35-FA	Bore: 32 mm \| Stroke: 35 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-32D-35-FB	Bore: 32 mm \| Stroke: 35 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-32D-40	Bore: 32 mm \| Stroke: 40 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-32D-40-LB	Bore: 32 mm \| Stroke: 40 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-32D-40-CB	Bore: 32 mm \| Stroke: 40 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-32D-40-FA	Bore: 32 mm \| Stroke: 40 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-32D-40-FB	Bore: 32 mm \| Stroke: 40 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-32D-45	Bore: 32 mm \| Stroke: 45 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-32D-45-LB	Bore: 32 mm \| Stroke: 45 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-32D-45-CB	Bore: 32 mm \| Stroke: 45 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-32D-45-FA	Bore: 32 mm \| Stroke: 45 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-32D-45-FB	Bore: 32 mm \| Stroke: 45 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-32D-50	Bore: 32 mm \| Stroke: 50 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-32D-50-LB	Bore: 32 mm \| Stroke: 50 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-32D-50-CB	Bore: 32 mm \| Stroke: 50 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-32D-50-FA	Bore: 32 mm \| Stroke: 50 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-32D-50-FB	Bore: 32 mm \| Stroke: 50 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-32D-75	Bore: 32 mm \| Stroke: 75 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-32D-75-LB	Bore: 32 mm \| Stroke: 75 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-32D-75-CB	Bore: 32 mm \| Stroke: 75 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-32D-75-FA	Bore: 32 mm \| Stroke: 75 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-32D-75-FB	Bore: 32 mm \| Stroke: 75 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-32D-100	Bore: 32 mm \| Stroke: 100 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-32D-100-LB	Bore: 32 mm \| Stroke: 100 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-32D-100-CB	Bore: 32 mm \| Stroke: 100 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-32D-100-FA	Bore: 32 mm \| Stroke: 100 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-32D-100-FB	Bore: 32 mm \| Stroke: 100 mm \| Cushion: Rubber cushion \| Switch magnet: No \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-L-12-5	Bore: 12 mm \| Stroke: 5 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
	SSD2-L-12-5-LB	Bore: 12 mm \| Stroke: 5 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-L-12-5-CB	Bore: 12 mm \| Stroke: 5 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-L-12-5-FA	Bore: 12 mm \| Stroke: 5 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-L-12-5-FB	Bore: 12 mm \| Stroke: 5 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
	SSD2-L-12-10	Bore: 12 mm \| Stroke: 10 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
	SSD2-L-12-10-LB	Bore: 12 mm \| Stroke: 10 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-L-12-10-CB	Bore: 12 mm \| Stroke: 10 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-L-12-10-FA	Bore: 12 mm \| Stroke: 10 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-L-12-10-FB	Bore: 12 mm \| Stroke: 10 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
	SSD2-L-12-15	Bore: 12 mm \| Stroke: 15 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
	SSD2-L-12-15-LB	Bore: 12 mm \| Stroke: 15 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-L-12-15-CB	Bore: 12 mm \| Stroke: 15 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-L-12-15-FA	Bore: 12 mm \| Stroke: 15 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-L-12-15-FB	Bore: 12 mm \| Stroke: 15 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
	SSD2-L-12-20	Bore: 12 mm \| Stroke: 20 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
	SSD2-L-12-20-LB	Bore: 12 mm \| Stroke: 20 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-L-12-20-CB	Bore: 12 mm \| Stroke: 20 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-L-12-20-FA	Bore: 12 mm \| Stroke: 20 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-L-12-20-FB	Bore: 12 mm \| Stroke: 20 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
	SSD2-L-12-25	Bore: 12 mm \| Stroke: 25 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
	SSD2-L-12-25-LB	Bore: 12 mm \| Stroke: 25 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-L-12-25-CB	Bore: 12 mm \| Stroke: 25 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-L-12-25-FA	Bore: 12 mm \| Stroke: 25 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-L-12-25-FB	Bore: 12 mm \| Stroke: 25 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
	SSD2-L-12-30	Bore: 12 mm \| Stroke: 30 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
	SSD2-L-12-30-LB	Bore: 12 mm \| Stroke: 30 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-L-12-30-CB	Bore: 12 mm \| Stroke: 30 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-L-12-30-FA	Bore: 12 mm \| Stroke: 30 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-L-12-30-FB	Bore: 12 mm \| Stroke: 30 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
	SSD2-L-12D-5	Bore: 12 mm \| Stroke: 5 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
	SSD2-L-12D-5-LB	Bore: 12 mm \| Stroke: 5 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-L-12D-5-CB	Bore: 12 mm \| Stroke: 5 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-L-12D-5-FA	Bore: 12 mm \| Stroke: 5 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-L-12D-5-FB	Bore: 12 mm \| Stroke: 5 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
	SSD2-L-12D-10	Bore: 12 mm \| Stroke: 10 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
	SSD2-L-12D-10-LB	Bore: 12 mm \| Stroke: 10 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-L-12D-10-CB	Bore: 12 mm \| Stroke: 10 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-L-12D-10-FA	Bore: 12 mm \| Stroke: 10 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-L-12D-10-FB	Bore: 12 mm \| Stroke: 10 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
	SSD2-L-12D-15	Bore: 12 mm \| Stroke: 15 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
	SSD2-L-12D-15-LB	Bore: 12 mm \| Stroke: 15 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-L-12D-15-CB	Bore: 12 mm \| Stroke: 15 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-L-12D-15-FA	Bore: 12 mm \| Stroke: 15 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-L-12D-15-FB	Bore: 12 mm \| Stroke: 15 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
	SSD2-L-12D-20	Bore: 12 mm \| Stroke: 20 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
	SSD2-L-12D-20-LB	Bore: 12 mm \| Stroke: 20 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-L-12D-20-CB	Bore: 12 mm \| Stroke: 20 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-L-12D-20-FA	Bore: 12 mm \| Stroke: 20 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-L-12D-20-FB	Bore: 12 mm \| Stroke: 20 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
	SSD2-L-12D-25	Bore: 12 mm \| Stroke: 25 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
	SSD2-L-12D-25-LB	Bore: 12 mm \| Stroke: 25 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-L-12D-25-CB	Bore: 12 mm \| Stroke: 25 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-L-12D-25-FA	Bore: 12 mm \| Stroke: 25 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-L-12D-25-FB	Bore: 12 mm \| Stroke: 25 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
	SSD2-L-12D-30	Bore: 12 mm \| Stroke: 30 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
	SSD2-L-12D-30-LB	Bore: 12 mm \| Stroke: 30 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-L-12D-30-CB	Bore: 12 mm \| Stroke: 30 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-L-12D-30-FA	Bore: 12 mm \| Stroke: 30 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-L-12D-30-FB	Bore: 12 mm \| Stroke: 30 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
	SSD2-L-16-5	Bore: 16 mm \| Stroke: 5 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
	SSD2-L-16-5-LB	Bore: 16 mm \| Stroke: 5 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-L-16-5-CB	Bore: 16 mm \| Stroke: 5 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-L-16-5-FA	Bore: 16 mm \| Stroke: 5 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-L-16-5-FB	Bore: 16 mm \| Stroke: 5 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
	SSD2-L-16-10	Bore: 16 mm \| Stroke: 10 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
	SSD2-L-16-10-LB	Bore: 16 mm \| Stroke: 10 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-L-16-10-CB	Bore: 16 mm \| Stroke: 10 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-L-16-10-FA	Bore: 16 mm \| Stroke: 10 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-L-16-10-FB	Bore: 16 mm \| Stroke: 10 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
	SSD2-L-16-15	Bore: 16 mm \| Stroke: 15 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
	SSD2-L-16-15-LB	Bore: 16 mm \| Stroke: 15 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-L-16-15-CB	Bore: 16 mm \| Stroke: 15 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-L-16-15-FA	Bore: 16 mm \| Stroke: 15 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-L-16-15-FB	Bore: 16 mm \| Stroke: 15 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
	SSD2-L-16-20	Bore: 16 mm \| Stroke: 20 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
	SSD2-L-16-20-LB	Bore: 16 mm \| Stroke: 20 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-L-16-20-CB	Bore: 16 mm \| Stroke: 20 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-L-16-20-FA	Bore: 16 mm \| Stroke: 20 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-L-16-20-FB	Bore: 16 mm \| Stroke: 20 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
	SSD2-L-16-25	Bore: 16 mm \| Stroke: 25 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
	SSD2-L-16-25-LB	Bore: 16 mm \| Stroke: 25 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-L-16-25-CB	Bore: 16 mm \| Stroke: 25 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-L-16-25-FA	Bore: 16 mm \| Stroke: 25 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-L-16-25-FB	Bore: 16 mm \| Stroke: 25 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
	SSD2-L-16-30	Bore: 16 mm \| Stroke: 30 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
	SSD2-L-16-30-LB	Bore: 16 mm \| Stroke: 30 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-L-16-30-CB	Bore: 16 mm \| Stroke: 30 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-L-16-30-FA	Bore: 16 mm \| Stroke: 30 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-L-16-30-FB	Bore: 16 mm \| Stroke: 30 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
	SSD2-L-16D-5	Bore: 16 mm \| Stroke: 5 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
	SSD2-L-16D-5-LB	Bore: 16 mm \| Stroke: 5 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-L-16D-5-CB	Bore: 16 mm \| Stroke: 5 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-L-16D-5-FA	Bore: 16 mm \| Stroke: 5 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-L-16D-5-FB	Bore: 16 mm \| Stroke: 5 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
	SSD2-L-16D-10	Bore: 16 mm \| Stroke: 10 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
	SSD2-L-16D-10-LB	Bore: 16 mm \| Stroke: 10 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-L-16D-10-CB	Bore: 16 mm \| Stroke: 10 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-L-16D-10-FA	Bore: 16 mm \| Stroke: 10 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-L-16D-10-FB	Bore: 16 mm \| Stroke: 10 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
	SSD2-L-16D-15	Bore: 16 mm \| Stroke: 15 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
	SSD2-L-16D-15-LB	Bore: 16 mm \| Stroke: 15 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-L-16D-15-CB	Bore: 16 mm \| Stroke: 15 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-L-16D-15-FA	Bore: 16 mm \| Stroke: 15 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-L-16D-15-FB	Bore: 16 mm \| Stroke: 15 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
	SSD2-L-16D-20	Bore: 16 mm \| Stroke: 20 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
	SSD2-L-16D-20-LB	Bore: 16 mm \| Stroke: 20 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-L-16D-20-CB	Bore: 16 mm \| Stroke: 20 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-L-16D-20-FA	Bore: 16 mm \| Stroke: 20 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-L-16D-20-FB	Bore: 16 mm \| Stroke: 20 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
	SSD2-L-16D-25	Bore: 16 mm \| Stroke: 25 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
	SSD2-L-16D-25-LB	Bore: 16 mm \| Stroke: 25 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-L-16D-25-CB	Bore: 16 mm \| Stroke: 25 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-L-16D-25-FA	Bore: 16 mm \| Stroke: 25 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-L-16D-25-FB	Bore: 16 mm \| Stroke: 25 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
	SSD2-L-16D-30	Bore: 16 mm \| Stroke: 30 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
	SSD2-L-16D-30-LB	Bore: 16 mm \| Stroke: 30 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-L-16D-30-CB	Bore: 16 mm \| Stroke: 30 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-L-16D-30-FA	Bore: 16 mm \| Stroke: 30 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-L-16D-30-FB	Bore: 16 mm \| Stroke: 30 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
	SSD2-L-20-5	Bore: 20 mm \| Stroke: 5 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
	SSD2-L-20-5-LB	Bore: 20 mm \| Stroke: 5 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-L-20-5-CB	Bore: 20 mm \| Stroke: 5 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-L-20-5-FA	Bore: 20 mm \| Stroke: 5 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-L-20-5-FB	Bore: 20 mm \| Stroke: 5 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
	SSD2-L-20-10	Bore: 20 mm \| Stroke: 10 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
	SSD2-L-20-10-LB	Bore: 20 mm \| Stroke: 10 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-L-20-10-CB	Bore: 20 mm \| Stroke: 10 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-L-20-10-FA	Bore: 20 mm \| Stroke: 10 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-L-20-10-FB	Bore: 20 mm \| Stroke: 10 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
	SSD2-L-20-15	Bore: 20 mm \| Stroke: 15 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
	SSD2-L-20-15-LB	Bore: 20 mm \| Stroke: 15 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-L-20-15-CB	Bore: 20 mm \| Stroke: 15 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-L-20-15-FA	Bore: 20 mm \| Stroke: 15 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-L-20-15-FB	Bore: 20 mm \| Stroke: 15 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
	SSD2-L-20-20	Bore: 20 mm \| Stroke: 20 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
	SSD2-L-20-20-LB	Bore: 20 mm \| Stroke: 20 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-L-20-20-CB	Bore: 20 mm \| Stroke: 20 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-L-20-20-FA	Bore: 20 mm \| Stroke: 20 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-L-20-20-FB	Bore: 20 mm \| Stroke: 20 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
	SSD2-L-20-25	Bore: 20 mm \| Stroke: 25 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
	SSD2-L-20-25-LB	Bore: 20 mm \| Stroke: 25 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-L-20-25-CB	Bore: 20 mm \| Stroke: 25 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-L-20-25-FA	Bore: 20 mm \| Stroke: 25 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-L-20-25-FB	Bore: 20 mm \| Stroke: 25 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
	SSD2-L-20-30	Bore: 20 mm \| Stroke: 30 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
	SSD2-L-20-30-LB	Bore: 20 mm \| Stroke: 30 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-L-20-30-CB	Bore: 20 mm \| Stroke: 30 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-L-20-30-FA	Bore: 20 mm \| Stroke: 30 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-L-20-30-FB	Bore: 20 mm \| Stroke: 30 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
	SSD2-L-20-35	Bore: 20 mm \| Stroke: 35 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
	SSD2-L-20-35-LB	Bore: 20 mm \| Stroke: 35 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-L-20-35-CB	Bore: 20 mm \| Stroke: 35 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-L-20-35-FA	Bore: 20 mm \| Stroke: 35 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-L-20-35-FB	Bore: 20 mm \| Stroke: 35 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
	SSD2-L-20-40	Bore: 20 mm \| Stroke: 40 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
	SSD2-L-20-40-LB	Bore: 20 mm \| Stroke: 40 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-L-20-40-CB	Bore: 20 mm \| Stroke: 40 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-L-20-40-FA	Bore: 20 mm \| Stroke: 40 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-L-20-40-FB	Bore: 20 mm \| Stroke: 40 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
	SSD2-L-20-45	Bore: 20 mm \| Stroke: 45 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
	SSD2-L-20-45-LB	Bore: 20 mm \| Stroke: 45 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-L-20-45-CB	Bore: 20 mm \| Stroke: 45 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-L-20-45-FA	Bore: 20 mm \| Stroke: 45 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-L-20-45-FB	Bore: 20 mm \| Stroke: 45 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
	SSD2-L-20-50	Bore: 20 mm \| Stroke: 50 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
	SSD2-L-20-50-LB	Bore: 20 mm \| Stroke: 50 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-L-20-50-CB	Bore: 20 mm \| Stroke: 50 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-L-20-50-FA	Bore: 20 mm \| Stroke: 50 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-L-20-50-FB	Bore: 20 mm \| Stroke: 50 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
	SSD2-L-20D-5	Bore: 20 mm \| Stroke: 5 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
	SSD2-L-20D-5-LB	Bore: 20 mm \| Stroke: 5 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-L-20D-5-CB	Bore: 20 mm \| Stroke: 5 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-L-20D-5-FA	Bore: 20 mm \| Stroke: 5 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-L-20D-5-FB	Bore: 20 mm \| Stroke: 5 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
	SSD2-L-20D-10	Bore: 20 mm \| Stroke: 10 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
	SSD2-L-20D-10-LB	Bore: 20 mm \| Stroke: 10 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-L-20D-10-CB	Bore: 20 mm \| Stroke: 10 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-L-20D-10-FA	Bore: 20 mm \| Stroke: 10 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-L-20D-10-FB	Bore: 20 mm \| Stroke: 10 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
	SSD2-L-20D-15	Bore: 20 mm \| Stroke: 15 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
	SSD2-L-20D-15-LB	Bore: 20 mm \| Stroke: 15 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-L-20D-15-CB	Bore: 20 mm \| Stroke: 15 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-L-20D-15-FA	Bore: 20 mm \| Stroke: 15 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-L-20D-15-FB	Bore: 20 mm \| Stroke: 15 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
	SSD2-L-20D-20	Bore: 20 mm \| Stroke: 20 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
	SSD2-L-20D-20-LB	Bore: 20 mm \| Stroke: 20 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-L-20D-20-CB	Bore: 20 mm \| Stroke: 20 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-L-20D-20-FA	Bore: 20 mm \| Stroke: 20 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-L-20D-20-FB	Bore: 20 mm \| Stroke: 20 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
	SSD2-L-20D-25	Bore: 20 mm \| Stroke: 25 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
	SSD2-L-20D-25-LB	Bore: 20 mm \| Stroke: 25 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-L-20D-25-CB	Bore: 20 mm \| Stroke: 25 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-L-20D-25-FA	Bore: 20 mm \| Stroke: 25 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-L-20D-25-FB	Bore: 20 mm \| Stroke: 25 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
	SSD2-L-20D-30	Bore: 20 mm \| Stroke: 30 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
	SSD2-L-20D-30-LB	Bore: 20 mm \| Stroke: 30 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-L-20D-30-CB	Bore: 20 mm \| Stroke: 30 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-L-20D-30-FA	Bore: 20 mm \| Stroke: 30 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-L-20D-30-FB	Bore: 20 mm \| Stroke: 30 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
	SSD2-L-20D-35	Bore: 20 mm \| Stroke: 35 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
	SSD2-L-20D-35-LB	Bore: 20 mm \| Stroke: 35 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-L-20D-35-CB	Bore: 20 mm \| Stroke: 35 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-L-20D-35-FA	Bore: 20 mm \| Stroke: 35 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-L-20D-35-FB	Bore: 20 mm \| Stroke: 35 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
	SSD2-L-20D-40	Bore: 20 mm \| Stroke: 40 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
	SSD2-L-20D-40-LB	Bore: 20 mm \| Stroke: 40 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-L-20D-40-CB	Bore: 20 mm \| Stroke: 40 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-L-20D-40-FA	Bore: 20 mm \| Stroke: 40 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-L-20D-40-FB	Bore: 20 mm \| Stroke: 40 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
	SSD2-L-20D-45	Bore: 20 mm \| Stroke: 45 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
	SSD2-L-20D-45-LB	Bore: 20 mm \| Stroke: 45 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-L-20D-45-CB	Bore: 20 mm \| Stroke: 45 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-L-20D-45-FA	Bore: 20 mm \| Stroke: 45 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-L-20D-45-FB	Bore: 20 mm \| Stroke: 45 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
	SSD2-L-20D-50	Bore: 20 mm \| Stroke: 50 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
	SSD2-L-20D-50-LB	Bore: 20 mm \| Stroke: 50 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-L-20D-50-CB	Bore: 20 mm \| Stroke: 50 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-L-20D-50-FA	Bore: 20 mm \| Stroke: 50 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-L-20D-50-FB	Bore: 20 mm \| Stroke: 50 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
	SSD2-L-25-5	Bore: 25 mm \| Stroke: 5 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
	SSD2-L-25-5-LB	Bore: 25 mm \| Stroke: 5 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-L-25-5-CB	Bore: 25 mm \| Stroke: 5 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-L-25-5-FA	Bore: 25 mm \| Stroke: 5 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-L-25-5-FB	Bore: 25 mm \| Stroke: 5 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
	SSD2-L-25-10	Bore: 25 mm \| Stroke: 10 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
	SSD2-L-25-10-LB	Bore: 25 mm \| Stroke: 10 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-L-25-10-CB	Bore: 25 mm \| Stroke: 10 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-L-25-10-FA	Bore: 25 mm \| Stroke: 10 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-L-25-10-FB	Bore: 25 mm \| Stroke: 10 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
	SSD2-L-25-15	Bore: 25 mm \| Stroke: 15 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
	SSD2-L-25-15-LB	Bore: 25 mm \| Stroke: 15 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-L-25-15-CB	Bore: 25 mm \| Stroke: 15 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-L-25-15-FA	Bore: 25 mm \| Stroke: 15 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-L-25-15-FB	Bore: 25 mm \| Stroke: 15 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
	SSD2-L-25-20	Bore: 25 mm \| Stroke: 20 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
	SSD2-L-25-20-LB	Bore: 25 mm \| Stroke: 20 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-L-25-20-CB	Bore: 25 mm \| Stroke: 20 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-L-25-20-FA	Bore: 25 mm \| Stroke: 20 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-L-25-20-FB	Bore: 25 mm \| Stroke: 20 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
	SSD2-L-25-25	Bore: 25 mm \| Stroke: 25 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
	SSD2-L-25-25-LB	Bore: 25 mm \| Stroke: 25 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-L-25-25-CB	Bore: 25 mm \| Stroke: 25 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-L-25-25-FA	Bore: 25 mm \| Stroke: 25 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-L-25-25-FB	Bore: 25 mm \| Stroke: 25 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
	SSD2-L-25-30	Bore: 25 mm \| Stroke: 30 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
	SSD2-L-25-30-LB	Bore: 25 mm \| Stroke: 30 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-L-25-30-CB	Bore: 25 mm \| Stroke: 30 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-L-25-30-FA	Bore: 25 mm \| Stroke: 30 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-L-25-30-FB	Bore: 25 mm \| Stroke: 30 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
	SSD2-L-25-35	Bore: 25 mm \| Stroke: 35 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
	SSD2-L-25-35-LB	Bore: 25 mm \| Stroke: 35 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-L-25-35-CB	Bore: 25 mm \| Stroke: 35 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-L-25-35-FA	Bore: 25 mm \| Stroke: 35 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-L-25-35-FB	Bore: 25 mm \| Stroke: 35 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
	SSD2-L-25-40	Bore: 25 mm \| Stroke: 40 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
	SSD2-L-25-40-LB	Bore: 25 mm \| Stroke: 40 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-L-25-40-CB	Bore: 25 mm \| Stroke: 40 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-L-25-40-FA	Bore: 25 mm \| Stroke: 40 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-L-25-40-FB	Bore: 25 mm \| Stroke: 40 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
	SSD2-L-25-45	Bore: 25 mm \| Stroke: 45 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
	SSD2-L-25-45-LB	Bore: 25 mm \| Stroke: 45 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-L-25-45-CB	Bore: 25 mm \| Stroke: 45 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-L-25-45-FA	Bore: 25 mm \| Stroke: 45 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-L-25-45-FB	Bore: 25 mm \| Stroke: 45 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
	SSD2-L-25-50	Bore: 25 mm \| Stroke: 50 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
	SSD2-L-25-50-LB	Bore: 25 mm \| Stroke: 50 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-L-25-50-CB	Bore: 25 mm \| Stroke: 50 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-L-25-50-FA	Bore: 25 mm \| Stroke: 50 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-L-25-50-FB	Bore: 25 mm \| Stroke: 50 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
	SSD2-L-25D-5	Bore: 25 mm \| Stroke: 5 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
	SSD2-L-25D-5-LB	Bore: 25 mm \| Stroke: 5 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-L-25D-5-CB	Bore: 25 mm \| Stroke: 5 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-L-25D-5-FA	Bore: 25 mm \| Stroke: 5 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-L-25D-5-FB	Bore: 25 mm \| Stroke: 5 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
	SSD2-L-25D-10	Bore: 25 mm \| Stroke: 10 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
	SSD2-L-25D-10-LB	Bore: 25 mm \| Stroke: 10 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-L-25D-10-CB	Bore: 25 mm \| Stroke: 10 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-L-25D-10-FA	Bore: 25 mm \| Stroke: 10 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-L-25D-10-FB	Bore: 25 mm \| Stroke: 10 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
	SSD2-L-25D-15	Bore: 25 mm \| Stroke: 15 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
	SSD2-L-25D-15-LB	Bore: 25 mm \| Stroke: 15 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-L-25D-15-CB	Bore: 25 mm \| Stroke: 15 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-L-25D-15-FA	Bore: 25 mm \| Stroke: 15 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-L-25D-15-FB	Bore: 25 mm \| Stroke: 15 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
	SSD2-L-25D-20	Bore: 25 mm \| Stroke: 20 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
	SSD2-L-25D-20-LB	Bore: 25 mm \| Stroke: 20 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-L-25D-20-CB	Bore: 25 mm \| Stroke: 20 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-L-25D-20-FA	Bore: 25 mm \| Stroke: 20 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-L-25D-20-FB	Bore: 25 mm \| Stroke: 20 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
	SSD2-L-25D-25	Bore: 25 mm \| Stroke: 25 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
	SSD2-L-25D-25-LB	Bore: 25 mm \| Stroke: 25 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-L-25D-25-CB	Bore: 25 mm \| Stroke: 25 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-L-25D-25-FA	Bore: 25 mm \| Stroke: 25 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-L-25D-25-FB	Bore: 25 mm \| Stroke: 25 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
	SSD2-L-25D-30	Bore: 25 mm \| Stroke: 30 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
	SSD2-L-25D-30-LB	Bore: 25 mm \| Stroke: 30 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-L-25D-30-CB	Bore: 25 mm \| Stroke: 30 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-L-25D-30-FA	Bore: 25 mm \| Stroke: 30 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-L-25D-30-FB	Bore: 25 mm \| Stroke: 30 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
	SSD2-L-25D-35	Bore: 25 mm \| Stroke: 35 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
	SSD2-L-25D-35-LB	Bore: 25 mm \| Stroke: 35 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-L-25D-35-CB	Bore: 25 mm \| Stroke: 35 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-L-25D-35-FA	Bore: 25 mm \| Stroke: 35 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-L-25D-35-FB	Bore: 25 mm \| Stroke: 35 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
	SSD2-L-25D-40	Bore: 25 mm \| Stroke: 40 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
	SSD2-L-25D-40-LB	Bore: 25 mm \| Stroke: 40 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-L-25D-40-CB	Bore: 25 mm \| Stroke: 40 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-L-25D-40-FA	Bore: 25 mm \| Stroke: 40 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-L-25D-40-FB	Bore: 25 mm \| Stroke: 40 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
	SSD2-L-25D-45	Bore: 25 mm \| Stroke: 45 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
	SSD2-L-25D-45-LB	Bore: 25 mm \| Stroke: 45 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-L-25D-45-CB	Bore: 25 mm \| Stroke: 45 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-L-25D-45-FA	Bore: 25 mm \| Stroke: 45 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-L-25D-45-FB	Bore: 25 mm \| Stroke: 45 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
	SSD2-L-25D-50	Bore: 25 mm \| Stroke: 50 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: M5
	SSD2-L-25D-50-LB	Bore: 25 mm \| Stroke: 50 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-L-25D-50-CB	Bore: 25 mm \| Stroke: 50 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: M5
	SSD2-L-25D-50-FA	Bore: 25 mm \| Stroke: 50 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: M5
	SSD2-L-25D-50-FB	Bore: 25 mm \| Stroke: 50 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: M5
	SSD2-L-32-5	Bore: 32 mm \| Stroke: 5 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-L-32-5-LB	Bore: 32 mm \| Stroke: 5 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-L-32-5-CB	Bore: 32 mm \| Stroke: 5 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-L-32-5-FA	Bore: 32 mm \| Stroke: 5 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-L-32-5-FB	Bore: 32 mm \| Stroke: 5 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-L-32-10	Bore: 32 mm \| Stroke: 10 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-L-32-10-LB	Bore: 32 mm \| Stroke: 10 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-L-32-10-CB	Bore: 32 mm \| Stroke: 10 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-L-32-10-FA	Bore: 32 mm \| Stroke: 10 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-L-32-10-FB	Bore: 32 mm \| Stroke: 10 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-L-32-15	Bore: 32 mm \| Stroke: 15 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-L-32-15-LB	Bore: 32 mm \| Stroke: 15 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-L-32-15-CB	Bore: 32 mm \| Stroke: 15 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-L-32-15-FA	Bore: 32 mm \| Stroke: 15 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-L-32-15-FB	Bore: 32 mm \| Stroke: 15 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-L-32-20	Bore: 32 mm \| Stroke: 20 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-L-32-20-LB	Bore: 32 mm \| Stroke: 20 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-L-32-20-CB	Bore: 32 mm \| Stroke: 20 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-L-32-20-FA	Bore: 32 mm \| Stroke: 20 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-L-32-20-FB	Bore: 32 mm \| Stroke: 20 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-L-32-25	Bore: 32 mm \| Stroke: 25 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-L-32-25-LB	Bore: 32 mm \| Stroke: 25 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-L-32-25-CB	Bore: 32 mm \| Stroke: 25 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-L-32-25-FA	Bore: 32 mm \| Stroke: 25 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-L-32-25-FB	Bore: 32 mm \| Stroke: 25 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-L-32-30	Bore: 32 mm \| Stroke: 30 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-L-32-30-LB	Bore: 32 mm \| Stroke: 30 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-L-32-30-CB	Bore: 32 mm \| Stroke: 30 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-L-32-30-FA	Bore: 32 mm \| Stroke: 30 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-L-32-30-FB	Bore: 32 mm \| Stroke: 30 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-L-32-35	Bore: 32 mm \| Stroke: 35 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-L-32-35-LB	Bore: 32 mm \| Stroke: 35 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-L-32-35-CB	Bore: 32 mm \| Stroke: 35 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-L-32-35-FA	Bore: 32 mm \| Stroke: 35 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-L-32-35-FB	Bore: 32 mm \| Stroke: 35 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-L-32-40	Bore: 32 mm \| Stroke: 40 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-L-32-40-LB	Bore: 32 mm \| Stroke: 40 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-L-32-40-CB	Bore: 32 mm \| Stroke: 40 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-L-32-40-FA	Bore: 32 mm \| Stroke: 40 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-L-32-40-FB	Bore: 32 mm \| Stroke: 40 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-L-32-45	Bore: 32 mm \| Stroke: 45 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-L-32-45-LB	Bore: 32 mm \| Stroke: 45 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-L-32-45-CB	Bore: 32 mm \| Stroke: 45 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-L-32-45-FA	Bore: 32 mm \| Stroke: 45 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-L-32-45-FB	Bore: 32 mm \| Stroke: 45 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-L-32-50	Bore: 32 mm \| Stroke: 50 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-L-32-50-LB	Bore: 32 mm \| Stroke: 50 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-L-32-50-CB	Bore: 32 mm \| Stroke: 50 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-L-32-50-FA	Bore: 32 mm \| Stroke: 50 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-L-32-50-FB	Bore: 32 mm \| Stroke: 50 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-L-32-75	Bore: 32 mm \| Stroke: 75 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-L-32-75-LB	Bore: 32 mm \| Stroke: 75 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-L-32-75-CB	Bore: 32 mm \| Stroke: 75 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-L-32-75-FA	Bore: 32 mm \| Stroke: 75 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-L-32-75-FB	Bore: 32 mm \| Stroke: 75 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-L-32-100	Bore: 32 mm \| Stroke: 100 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-L-32-100-LB	Bore: 32 mm \| Stroke: 100 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-L-32-100-CB	Bore: 32 mm \| Stroke: 100 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-L-32-100-FA	Bore: 32 mm \| Stroke: 100 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-L-32-100-FB	Bore: 32 mm \| Stroke: 100 mm \| Cushion: None \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-L-32D-5	Bore: 32 mm \| Stroke: 5 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-L-32D-5-LB	Bore: 32 mm \| Stroke: 5 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-L-32D-5-CB	Bore: 32 mm \| Stroke: 5 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-L-32D-5-FA	Bore: 32 mm \| Stroke: 5 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-L-32D-5-FB	Bore: 32 mm \| Stroke: 5 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-L-32D-10	Bore: 32 mm \| Stroke: 10 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-L-32D-10-LB	Bore: 32 mm \| Stroke: 10 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-L-32D-10-CB	Bore: 32 mm \| Stroke: 10 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-L-32D-10-FA	Bore: 32 mm \| Stroke: 10 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-L-32D-10-FB	Bore: 32 mm \| Stroke: 10 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-L-32D-15	Bore: 32 mm \| Stroke: 15 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-L-32D-15-LB	Bore: 32 mm \| Stroke: 15 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-L-32D-15-CB	Bore: 32 mm \| Stroke: 15 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-L-32D-15-FA	Bore: 32 mm \| Stroke: 15 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-L-32D-15-FB	Bore: 32 mm \| Stroke: 15 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-L-32D-20	Bore: 32 mm \| Stroke: 20 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-L-32D-20-LB	Bore: 32 mm \| Stroke: 20 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-L-32D-20-CB	Bore: 32 mm \| Stroke: 20 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-L-32D-20-FA	Bore: 32 mm \| Stroke: 20 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-L-32D-20-FB	Bore: 32 mm \| Stroke: 20 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-L-32D-25	Bore: 32 mm \| Stroke: 25 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-L-32D-25-LB	Bore: 32 mm \| Stroke: 25 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-L-32D-25-CB	Bore: 32 mm \| Stroke: 25 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-L-32D-25-FA	Bore: 32 mm \| Stroke: 25 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-L-32D-25-FB	Bore: 32 mm \| Stroke: 25 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-L-32D-30	Bore: 32 mm \| Stroke: 30 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-L-32D-30-LB	Bore: 32 mm \| Stroke: 30 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-L-32D-30-CB	Bore: 32 mm \| Stroke: 30 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-L-32D-30-FA	Bore: 32 mm \| Stroke: 30 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-L-32D-30-FB	Bore: 32 mm \| Stroke: 30 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-L-32D-35	Bore: 32 mm \| Stroke: 35 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-L-32D-35-LB	Bore: 32 mm \| Stroke: 35 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-L-32D-35-CB	Bore: 32 mm \| Stroke: 35 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-L-32D-35-FA	Bore: 32 mm \| Stroke: 35 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-L-32D-35-FB	Bore: 32 mm \| Stroke: 35 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-L-32D-40	Bore: 32 mm \| Stroke: 40 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-L-32D-40-LB	Bore: 32 mm \| Stroke: 40 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-L-32D-40-CB	Bore: 32 mm \| Stroke: 40 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-L-32D-40-FA	Bore: 32 mm \| Stroke: 40 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-L-32D-40-FB	Bore: 32 mm \| Stroke: 40 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-L-32D-45	Bore: 32 mm \| Stroke: 45 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-L-32D-45-LB	Bore: 32 mm \| Stroke: 45 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-L-32D-45-CB	Bore: 32 mm \| Stroke: 45 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-L-32D-45-FA	Bore: 32 mm \| Stroke: 45 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-L-32D-45-FB	Bore: 32 mm \| Stroke: 45 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-L-32D-50	Bore: 32 mm \| Stroke: 50 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-L-32D-50-LB	Bore: 32 mm \| Stroke: 50 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-L-32D-50-CB	Bore: 32 mm \| Stroke: 50 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-L-32D-50-FA	Bore: 32 mm \| Stroke: 50 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-L-32D-50-FB	Bore: 32 mm \| Stroke: 50 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-L-32D-75	Bore: 32 mm \| Stroke: 75 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-L-32D-75-LB	Bore: 32 mm \| Stroke: 75 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-L-32D-75-CB	Bore: 32 mm \| Stroke: 75 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-L-32D-75-FA	Bore: 32 mm \| Stroke: 75 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-L-32D-75-FB	Bore: 32 mm \| Stroke: 75 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-L-32D-100	Bore: 32 mm \| Stroke: 100 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: None (basic) \| Port: Rc1/8
	SSD2-L-32D-100-LB	Bore: 32 mm \| Stroke: 100 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-L-32D-100-CB	Bore: 32 mm \| Stroke: 100 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Double clevis (CB) \| Port: Rc1/8
	SSD2-L-32D-100-FA	Bore: 32 mm \| Stroke: 100 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Rod flange (FA) \| Port: Rc1/8
	SSD2-L-32D-100-FB	Bore: 32 mm \| Stroke: 100 mm \| Cushion: Rubber cushion \| Switch magnet: Yes (SSD2-L) \| Mounting: Head flange (FB) \| Port: Rc1/8
	SSD2-LB-12	Legacy code \| Item: Foot bracket (LB), 2 pcs/set \| Bore: 12 mm
	SSD2-LB-16	Legacy code \| Item: Foot bracket (LB), 2 pcs/set \| Bore: 16 mm
	SSD2-LB-20	Legacy code \| Item: Foot bracket (LB), 2 pcs/set \| Bore: 20 mm
	SSD2-LB-25	Legacy code \| Item: Foot bracket (LB), 2 pcs/set \| Bore: 25 mm
	SSD2-LB-32	Legacy code \| Item: Foot bracket (LB), 2 pcs/set \| Bore: 32 mm
	SSD2-FA-12	Legacy code \| Item: Flange bracket (FA/FB) \| Bore: 12 mm
	SSD2-FA-16	Legacy code \| Item: Flange bracket (FA/FB) \| Bore: 16 mm
	SSD2-FA-20	Legacy code \| Item: Flange bracket (FA/FB) \| Bore: 20 mm
	SSD2-FA-25	Legacy code \| Item: Flange bracket (FA/FB) \| Bore: 25 mm
	SSD2-FA-32	Legacy code \| Item: Flange bracket (FA/FB) \| Bore: 32 mm
	SSD2-CB-12	Legacy code \| Item: Double clevis bracket (CB) \| Bore: 12 mm
	SSD2-CB-16	Legacy code \| Item: Double clevis bracket (CB) \| Bore: 16 mm
	SSD2-CB-20	Legacy code \| Item: Double clevis bracket (CB) \| Bore: 20 mm
	SSD2-CB-25	Legacy code \| Item: Double clevis bracket (CB) \| Bore: 25 mm
	SSD2-CB-32	Legacy code \| Item: Double clevis bracket (CB) \| Bore: 32 mm
	SSD2-P-12	Legacy code \| Item: Rod-end accessory (P) \| Bore: 12 mm
	SSD2-P-16	Legacy code \| Item: Rod-end accessory (P) \| Bore: 16 mm
	SSD2-P-20	Legacy code \| Item: Rod-end accessory (P) \| Bore: 20 mm
	SSD2-P-25	Legacy code \| Item: Rod-end accessory (P) \| Bore: 25 mm
	SSD2-P-32	Legacy code \| Item: Rod-end accessory (P) \| Bore: 32 mm
	SSD2-I-12	Legacy code \| Item: Single knuckle (I) \| Bore: 12 mm
	SSD2-I-16	Legacy code \| Item: Single knuckle (I) \| Bore: 16 mm
	SSD2-I-20	Legacy code \| Item: Single knuckle (I) \| Bore: 20 mm
	SSD2-I-25	Legacy code \| Item: Single knuckle (I) \| Bore: 25 mm
	SSD2-I-32	Legacy code \| Item: Single knuckle (I) \| Bore: 32 mm
	SSD2-Y-12	Legacy code \| Item: Double knuckle (Y) \| Bore: 12 mm
	SSD2-Y-16	Legacy code \| Item: Double knuckle (Y) \| Bore: 16 mm
	SSD2-Y-20	Legacy code \| Item: Double knuckle (Y) \| Bore: 20 mm
	SSD2-Y-25	Legacy code \| Item: Double knuckle (Y) \| Bore: 25 mm
	SSD2-Y-32	Legacy code \| Item: Double knuckle (Y) \| Bore: 32 mm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

CKD SSD2 Super Compact Cylinder (Double Acting, Bore 12-32)
