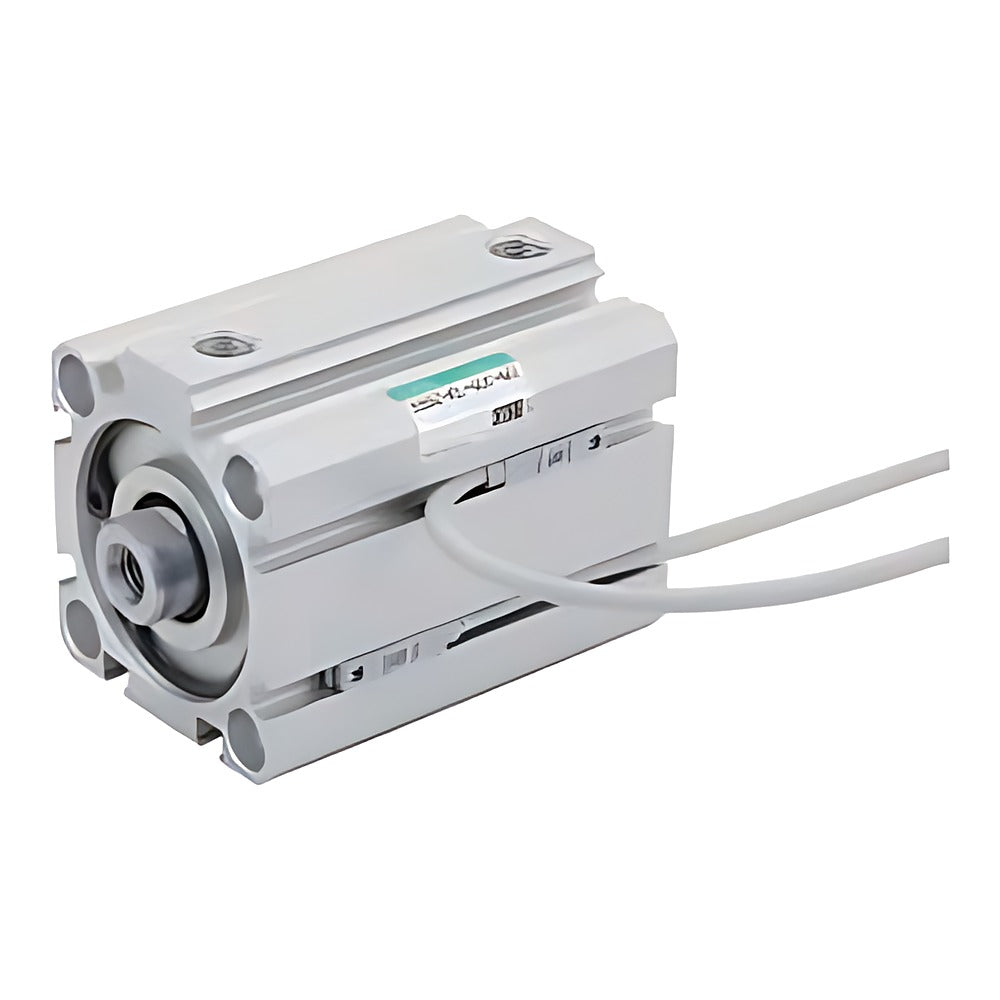

CKD SSD2 Super Compact Cylinder (Large Bore 125-200)

CKD SSD2 Super Compact Cylinder (Large Bore 125-200)

CKD SSD2 large-bore double-acting super compact cylinder in bores 125 to 200 mm with rubber cushions as standard.

Key features

  • Large-bore super compact body for high thrust in a short overall length
  • Rubber cushion fitted as standard
  • SSD2-L version with built-in magnet for T-type auto switches
  • Standard strokes 10-300 mm; intermediate strokes in 1 mm steps
  • Options: rod-end male thread (N), P4/P40 secondary-battery spec; NPT/G ports made to order (125-160)

Specifications

Operation Double acting, single rod
Fluid Compressed air
Max. operating pressure 1.0 MPa (125-160), 0.7 MPa (180-200)
Min. operating pressure 0.05 MPa
Proof pressure 1.6 MPa (125-160), 1.05 MPa (180-200)
Ambient temperature -10 to 60 C (no freezing)
Piston speed 50-300 mm/s (125-160), 20-300 mm/s (180-200)
Cushion Rubber cushion (standard)
Mounting Basic (through-hole / tapped)
Source CKD Korea catalog CB-029SK-9, p. 856-863
SSD2-125-10 Bore: 125 mm | Stroke: 10 mm | Switch magnet: No | Port: Rc3/8
SSD2-125-20 Bore: 125 mm | Stroke: 20 mm | Switch magnet: No | Port: Rc3/8
SSD2-125-30 Bore: 125 mm | Stroke: 30 mm | Switch magnet: No | Port: Rc3/8
SSD2-125-40 Bore: 125 mm | Stroke: 40 mm | Switch magnet: No | Port: Rc3/8
SSD2-125-50 Bore: 125 mm | Stroke: 50 mm | Switch magnet: No | Port: Rc3/8
SSD2-125-75 Bore: 125 mm | Stroke: 75 mm | Switch magnet: No | Port: Rc3/8
SSD2-125-100 Bore: 125 mm | Stroke: 100 mm | Switch magnet: No | Port: Rc3/8
SSD2-125-125 Bore: 125 mm | Stroke: 125 mm | Switch magnet: No | Port: Rc3/8
SSD2-125-150 Bore: 125 mm | Stroke: 150 mm | Switch magnet: No | Port: Rc3/8
SSD2-125-175 Bore: 125 mm | Stroke: 175 mm | Switch magnet: No | Port: Rc3/8
SSD2-125-200 Bore: 125 mm | Stroke: 200 mm | Switch magnet: No | Port: Rc3/8
SSD2-125-250 Bore: 125 mm | Stroke: 250 mm | Switch magnet: No | Port: Rc3/8
SSD2-125-300 Bore: 125 mm | Stroke: 300 mm | Switch magnet: No | Port: Rc3/8
SSD2-140-10 Bore: 140 mm | Stroke: 10 mm | Switch magnet: No | Port: Rc3/8
SSD2-140-20 Bore: 140 mm | Stroke: 20 mm | Switch magnet: No | Port: Rc3/8
SSD2-140-30 Bore: 140 mm | Stroke: 30 mm | Switch magnet: No | Port: Rc3/8
SSD2-140-40 Bore: 140 mm | Stroke: 40 mm | Switch magnet: No | Port: Rc3/8
SSD2-140-50 Bore: 140 mm | Stroke: 50 mm | Switch magnet: No | Port: Rc3/8
SSD2-140-75 Bore: 140 mm | Stroke: 75 mm | Switch magnet: No | Port: Rc3/8
SSD2-140-100 Bore: 140 mm | Stroke: 100 mm | Switch magnet: No | Port: Rc3/8
SSD2-140-125 Bore: 140 mm | Stroke: 125 mm | Switch magnet: No | Port: Rc3/8
SSD2-140-150 Bore: 140 mm | Stroke: 150 mm | Switch magnet: No | Port: Rc3/8
SSD2-140-175 Bore: 140 mm | Stroke: 175 mm | Switch magnet: No | Port: Rc3/8
SSD2-140-200 Bore: 140 mm | Stroke: 200 mm | Switch magnet: No | Port: Rc3/8
SSD2-140-250 Bore: 140 mm | Stroke: 250 mm | Switch magnet: No | Port: Rc3/8
SSD2-140-300 Bore: 140 mm | Stroke: 300 mm | Switch magnet: No | Port: Rc3/8
SSD2-160-10 Bore: 160 mm | Stroke: 10 mm | Switch magnet: No | Port: Rc3/8
SSD2-160-20 Bore: 160 mm | Stroke: 20 mm | Switch magnet: No | Port: Rc3/8
SSD2-160-30 Bore: 160 mm | Stroke: 30 mm | Switch magnet: No | Port: Rc3/8
SSD2-160-40 Bore: 160 mm | Stroke: 40 mm | Switch magnet: No | Port: Rc3/8
SSD2-160-50 Bore: 160 mm | Stroke: 50 mm | Switch magnet: No | Port: Rc3/8
SSD2-160-75 Bore: 160 mm | Stroke: 75 mm | Switch magnet: No | Port: Rc3/8
SSD2-160-100 Bore: 160 mm | Stroke: 100 mm | Switch magnet: No | Port: Rc3/8
SSD2-160-125 Bore: 160 mm | Stroke: 125 mm | Switch magnet: No | Port: Rc3/8
SSD2-160-150 Bore: 160 mm | Stroke: 150 mm | Switch magnet: No | Port: Rc3/8
SSD2-160-175 Bore: 160 mm | Stroke: 175 mm | Switch magnet: No | Port: Rc3/8
SSD2-160-200 Bore: 160 mm | Stroke: 200 mm | Switch magnet: No | Port: Rc3/8
SSD2-160-250 Bore: 160 mm | Stroke: 250 mm | Switch magnet: No | Port: Rc3/8
SSD2-160-300 Bore: 160 mm | Stroke: 300 mm | Switch magnet: No | Port: Rc3/8
SSD2-180-10 Bore: 180 mm | Stroke: 10 mm | Switch magnet: No | Port: Rc1/2
SSD2-180-20 Bore: 180 mm | Stroke: 20 mm | Switch magnet: No | Port: Rc1/2
SSD2-180-30 Bore: 180 mm | Stroke: 30 mm | Switch magnet: No | Port: Rc1/2
SSD2-180-40 Bore: 180 mm | Stroke: 40 mm | Switch magnet: No | Port: Rc1/2
SSD2-180-50 Bore: 180 mm | Stroke: 50 mm | Switch magnet: No | Port: Rc1/2
SSD2-180-75 Bore: 180 mm | Stroke: 75 mm | Switch magnet: No | Port: Rc1/2
SSD2-180-100 Bore: 180 mm | Stroke: 100 mm | Switch magnet: No | Port: Rc1/2
SSD2-180-125 Bore: 180 mm | Stroke: 125 mm | Switch magnet: No | Port: Rc1/2
SSD2-180-150 Bore: 180 mm | Stroke: 150 mm | Switch magnet: No | Port: Rc1/2
SSD2-180-175 Bore: 180 mm | Stroke: 175 mm | Switch magnet: No | Port: Rc1/2
SSD2-180-200 Bore: 180 mm | Stroke: 200 mm | Switch magnet: No | Port: Rc1/2
SSD2-180-250 Bore: 180 mm | Stroke: 250 mm | Switch magnet: No | Port: Rc1/2
SSD2-180-300 Bore: 180 mm | Stroke: 300 mm | Switch magnet: No | Port: Rc1/2
SSD2-200-10 Bore: 200 mm | Stroke: 10 mm | Switch magnet: No | Port: Rc1/2
SSD2-200-20 Bore: 200 mm | Stroke: 20 mm | Switch magnet: No | Port: Rc1/2
SSD2-200-30 Bore: 200 mm | Stroke: 30 mm | Switch magnet: No | Port: Rc1/2
SSD2-200-40 Bore: 200 mm | Stroke: 40 mm | Switch magnet: No | Port: Rc1/2
SSD2-200-50 Bore: 200 mm | Stroke: 50 mm | Switch magnet: No | Port: Rc1/2
SSD2-200-75 Bore: 200 mm | Stroke: 75 mm | Switch magnet: No | Port: Rc1/2
SSD2-200-100 Bore: 200 mm | Stroke: 100 mm | Switch magnet: No | Port: Rc1/2
SSD2-200-125 Bore: 200 mm | Stroke: 125 mm | Switch magnet: No | Port: Rc1/2
SSD2-200-150 Bore: 200 mm | Stroke: 150 mm | Switch magnet: No | Port: Rc1/2
SSD2-200-175 Bore: 200 mm | Stroke: 175 mm | Switch magnet: No | Port: Rc1/2
SSD2-200-200 Bore: 200 mm | Stroke: 200 mm | Switch magnet: No | Port: Rc1/2
SSD2-200-250 Bore: 200 mm | Stroke: 250 mm | Switch magnet: No | Port: Rc1/2
SSD2-200-300 Bore: 200 mm | Stroke: 300 mm | Switch magnet: No | Port: Rc1/2
SSD2-L-125-10 Bore: 125 mm | Stroke: 10 mm | Switch magnet: Yes (SSD2-L) | Port: Rc3/8
SSD2-L-125-20 Bore: 125 mm | Stroke: 20 mm | Switch magnet: Yes (SSD2-L) | Port: Rc3/8
SSD2-L-125-30 Bore: 125 mm | Stroke: 30 mm | Switch magnet: Yes (SSD2-L) | Port: Rc3/8
SSD2-L-125-40 Bore: 125 mm | Stroke: 40 mm | Switch magnet: Yes (SSD2-L) | Port: Rc3/8
SSD2-L-125-50 Bore: 125 mm | Stroke: 50 mm | Switch magnet: Yes (SSD2-L) | Port: Rc3/8
SSD2-L-125-75 Bore: 125 mm | Stroke: 75 mm | Switch magnet: Yes (SSD2-L) | Port: Rc3/8
SSD2-L-125-100 Bore: 125 mm | Stroke: 100 mm | Switch magnet: Yes (SSD2-L) | Port: Rc3/8
SSD2-L-125-125 Bore: 125 mm | Stroke: 125 mm | Switch magnet: Yes (SSD2-L) | Port: Rc3/8
SSD2-L-125-150 Bore: 125 mm | Stroke: 150 mm | Switch magnet: Yes (SSD2-L) | Port: Rc3/8
SSD2-L-125-175 Bore: 125 mm | Stroke: 175 mm | Switch magnet: Yes (SSD2-L) | Port: Rc3/8
SSD2-L-125-200 Bore: 125 mm | Stroke: 200 mm | Switch magnet: Yes (SSD2-L) | Port: Rc3/8
SSD2-L-125-250 Bore: 125 mm | Stroke: 250 mm | Switch magnet: Yes (SSD2-L) | Port: Rc3/8
SSD2-L-125-300 Bore: 125 mm | Stroke: 300 mm | Switch magnet: Yes (SSD2-L) | Port: Rc3/8
SSD2-L-140-10 Bore: 140 mm | Stroke: 10 mm | Switch magnet: Yes (SSD2-L) | Port: Rc3/8
SSD2-L-140-20 Bore: 140 mm | Stroke: 20 mm | Switch magnet: Yes (SSD2-L) | Port: Rc3/8
SSD2-L-140-30 Bore: 140 mm | Stroke: 30 mm | Switch magnet: Yes (SSD2-L) | Port: Rc3/8
SSD2-L-140-40 Bore: 140 mm | Stroke: 40 mm | Switch magnet: Yes (SSD2-L) | Port: Rc3/8
SSD2-L-140-50 Bore: 140 mm | Stroke: 50 mm | Switch magnet: Yes (SSD2-L) | Port: Rc3/8
SSD2-L-140-75 Bore: 140 mm | Stroke: 75 mm | Switch magnet: Yes (SSD2-L) | Port: Rc3/8
SSD2-L-140-100 Bore: 140 mm | Stroke: 100 mm | Switch magnet: Yes (SSD2-L) | Port: Rc3/8
SSD2-L-140-125 Bore: 140 mm | Stroke: 125 mm | Switch magnet: Yes (SSD2-L) | Port: Rc3/8
SSD2-L-140-150 Bore: 140 mm | Stroke: 150 mm | Switch magnet: Yes (SSD2-L) | Port: Rc3/8
SSD2-L-140-175 Bore: 140 mm | Stroke: 175 mm | Switch magnet: Yes (SSD2-L) | Port: Rc3/8
SSD2-L-140-200 Bore: 140 mm | Stroke: 200 mm | Switch magnet: Yes (SSD2-L) | Port: Rc3/8
SSD2-L-140-250 Bore: 140 mm | Stroke: 250 mm | Switch magnet: Yes (SSD2-L) | Port: Rc3/8
SSD2-L-140-300 Bore: 140 mm | Stroke: 300 mm | Switch magnet: Yes (SSD2-L) | Port: Rc3/8
SSD2-L-160-10 Bore: 160 mm | Stroke: 10 mm | Switch magnet: Yes (SSD2-L) | Port: Rc3/8
SSD2-L-160-20 Bore: 160 mm | Stroke: 20 mm | Switch magnet: Yes (SSD2-L) | Port: Rc3/8
SSD2-L-160-30 Bore: 160 mm | Stroke: 30 mm | Switch magnet: Yes (SSD2-L) | Port: Rc3/8
SSD2-L-160-40 Bore: 160 mm | Stroke: 40 mm | Switch magnet: Yes (SSD2-L) | Port: Rc3/8
SSD2-L-160-50 Bore: 160 mm | Stroke: 50 mm | Switch magnet: Yes (SSD2-L) | Port: Rc3/8
SSD2-L-160-75 Bore: 160 mm | Stroke: 75 mm | Switch magnet: Yes (SSD2-L) | Port: Rc3/8
SSD2-L-160-100 Bore: 160 mm | Stroke: 100 mm | Switch magnet: Yes (SSD2-L) | Port: Rc3/8
SSD2-L-160-125 Bore: 160 mm | Stroke: 125 mm | Switch magnet: Yes (SSD2-L) | Port: Rc3/8
SSD2-L-160-150 Bore: 160 mm | Stroke: 150 mm | Switch magnet: Yes (SSD2-L) | Port: Rc3/8
SSD2-L-160-175 Bore: 160 mm | Stroke: 175 mm | Switch magnet: Yes (SSD2-L) | Port: Rc3/8
SSD2-L-160-200 Bore: 160 mm | Stroke: 200 mm | Switch magnet: Yes (SSD2-L) | Port: Rc3/8
SSD2-L-160-250 Bore: 160 mm | Stroke: 250 mm | Switch magnet: Yes (SSD2-L) | Port: Rc3/8
SSD2-L-160-300 Bore: 160 mm | Stroke: 300 mm | Switch magnet: Yes (SSD2-L) | Port: Rc3/8
SSD2-L-180-10 Bore: 180 mm | Stroke: 10 mm | Switch magnet: Yes (SSD2-L) | Port: Rc1/2
SSD2-L-180-20 Bore: 180 mm | Stroke: 20 mm | Switch magnet: Yes (SSD2-L) | Port: Rc1/2
SSD2-L-180-30 Bore: 180 mm | Stroke: 30 mm | Switch magnet: Yes (SSD2-L) | Port: Rc1/2
SSD2-L-180-40 Bore: 180 mm | Stroke: 40 mm | Switch magnet: Yes (SSD2-L) | Port: Rc1/2
SSD2-L-180-50 Bore: 180 mm | Stroke: 50 mm | Switch magnet: Yes (SSD2-L) | Port: Rc1/2
SSD2-L-180-75 Bore: 180 mm | Stroke: 75 mm | Switch magnet: Yes (SSD2-L) | Port: Rc1/2
SSD2-L-180-100 Bore: 180 mm | Stroke: 100 mm | Switch magnet: Yes (SSD2-L) | Port: Rc1/2
SSD2-L-180-125 Bore: 180 mm | Stroke: 125 mm | Switch magnet: Yes (SSD2-L) | Port: Rc1/2
SSD2-L-180-150 Bore: 180 mm | Stroke: 150 mm | Switch magnet: Yes (SSD2-L) | Port: Rc1/2
SSD2-L-180-175 Bore: 180 mm | Stroke: 175 mm | Switch magnet: Yes (SSD2-L) | Port: Rc1/2
SSD2-L-180-200 Bore: 180 mm | Stroke: 200 mm | Switch magnet: Yes (SSD2-L) | Port: Rc1/2
SSD2-L-180-250 Bore: 180 mm | Stroke: 250 mm | Switch magnet: Yes (SSD2-L) | Port: Rc1/2
SSD2-L-180-300 Bore: 180 mm | Stroke: 300 mm | Switch magnet: Yes (SSD2-L) | Port: Rc1/2
SSD2-L-200-10 Bore: 200 mm | Stroke: 10 mm | Switch magnet: Yes (SSD2-L) | Port: Rc1/2
SSD2-L-200-20 Bore: 200 mm | Stroke: 20 mm | Switch magnet: Yes (SSD2-L) | Port: Rc1/2
SSD2-L-200-30 Bore: 200 mm | Stroke: 30 mm | Switch magnet: Yes (SSD2-L) | Port: Rc1/2
SSD2-L-200-40 Bore: 200 mm | Stroke: 40 mm | Switch magnet: Yes (SSD2-L) | Port: Rc1/2
SSD2-L-200-50 Bore: 200 mm | Stroke: 50 mm | Switch magnet: Yes (SSD2-L) | Port: Rc1/2
SSD2-L-200-75 Bore: 200 mm | Stroke: 75 mm | Switch magnet: Yes (SSD2-L) | Port: Rc1/2
SSD2-L-200-100 Bore: 200 mm | Stroke: 100 mm | Switch magnet: Yes (SSD2-L) | Port: Rc1/2
SSD2-L-200-125 Bore: 200 mm | Stroke: 125 mm | Switch magnet: Yes (SSD2-L) | Port: Rc1/2
SSD2-L-200-150 Bore: 200 mm | Stroke: 150 mm | Switch magnet: Yes (SSD2-L) | Port: Rc1/2
SSD2-L-200-175 Bore: 200 mm | Stroke: 175 mm | Switch magnet: Yes (SSD2-L) | Port: Rc1/2
SSD2-L-200-200 Bore: 200 mm | Stroke: 200 mm | Switch magnet: Yes (SSD2-L) | Port: Rc1/2
SSD2-L-200-250 Bore: 200 mm | Stroke: 250 mm | Switch magnet: Yes (SSD2-L) | Port: Rc1/2
SSD2-L-200-300 Bore: 200 mm | Stroke: 300 mm | Switch magnet: Yes (SSD2-L) | Port: Rc1/2
Compact CylindersCKD
130 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD SSD2 Super Compact Cylinder (Large Bore 125-200)

Brand CKD·Compact Cylinders

Available part numbers (130)

SSD2-125-10, SSD2-125-20, SSD2-125-30, SSD2-125-40, SSD2-125-50, SSD2-125-75, SSD2-125-100, SSD2-125-125, SSD2-125-150, SSD2-125-175 + 120 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SSD2-125-10Bore: 125 mm | Stroke: 10 mm | Switch magnet: No | Port: Rc3/8
SSD2-125-20Bore: 125 mm | Stroke: 20 mm | Switch magnet: No | Port: Rc3/8
SSD2-125-30Bore: 125 mm | Stroke: 30 mm | Switch magnet: No | Port: Rc3/8
SSD2-125-40Bore: 125 mm | Stroke: 40 mm | Switch magnet: No | Port: Rc3/8
SSD2-125-50Bore: 125 mm | Stroke: 50 mm | Switch magnet: No | Port: Rc3/8
SSD2-125-75Bore: 125 mm | Stroke: 75 mm | Switch magnet: No | Port: Rc3/8
SSD2-125-100Bore: 125 mm | Stroke: 100 mm | Switch magnet: No | Port: Rc3/8
SSD2-125-125Bore: 125 mm | Stroke: 125 mm | Switch magnet: No | Port: Rc3/8
SSD2-125-150Bore: 125 mm | Stroke: 150 mm | Switch magnet: No | Port: Rc3/8
SSD2-125-175Bore: 125 mm | Stroke: 175 mm | Switch magnet: No | Port: Rc3/8
SSD2-125-200Bore: 125 mm | Stroke: 200 mm | Switch magnet: No | Port: Rc3/8
SSD2-125-250Bore: 125 mm | Stroke: 250 mm | Switch magnet: No | Port: Rc3/8
SSD2-125-300Bore: 125 mm | Stroke: 300 mm | Switch magnet: No | Port: Rc3/8
SSD2-140-10Bore: 140 mm | Stroke: 10 mm | Switch magnet: No | Port: Rc3/8
SSD2-140-20Bore: 140 mm | Stroke: 20 mm | Switch magnet: No | Port: Rc3/8
SSD2-140-30Bore: 140 mm | Stroke: 30 mm | Switch magnet: No | Port: Rc3/8
SSD2-140-40Bore: 140 mm | Stroke: 40 mm | Switch magnet: No | Port: Rc3/8
SSD2-140-50Bore: 140 mm | Stroke: 50 mm | Switch magnet: No | Port: Rc3/8
SSD2-140-75Bore: 140 mm | Stroke: 75 mm | Switch magnet: No | Port: Rc3/8
SSD2-140-100Bore: 140 mm | Stroke: 100 mm | Switch magnet: No | Port: Rc3/8
SSD2-140-125Bore: 140 mm | Stroke: 125 mm | Switch magnet: No | Port: Rc3/8
SSD2-140-150Bore: 140 mm | Stroke: 150 mm | Switch magnet: No | Port: Rc3/8
SSD2-140-175Bore: 140 mm | Stroke: 175 mm | Switch magnet: No | Port: Rc3/8
SSD2-140-200Bore: 140 mm | Stroke: 200 mm | Switch magnet: No | Port: Rc3/8
SSD2-140-250Bore: 140 mm | Stroke: 250 mm | Switch magnet: No | Port: Rc3/8
SSD2-140-300Bore: 140 mm | Stroke: 300 mm | Switch magnet: No | Port: Rc3/8
SSD2-160-10Bore: 160 mm | Stroke: 10 mm | Switch magnet: No | Port: Rc3/8
SSD2-160-20Bore: 160 mm | Stroke: 20 mm | Switch magnet: No | Port: Rc3/8
SSD2-160-30Bore: 160 mm | Stroke: 30 mm | Switch magnet: No | Port: Rc3/8
SSD2-160-40Bore: 160 mm | Stroke: 40 mm | Switch magnet: No | Port: Rc3/8
SSD2-160-50Bore: 160 mm | Stroke: 50 mm | Switch magnet: No | Port: Rc3/8
SSD2-160-75Bore: 160 mm | Stroke: 75 mm | Switch magnet: No | Port: Rc3/8
SSD2-160-100Bore: 160 mm | Stroke: 100 mm | Switch magnet: No | Port: Rc3/8
SSD2-160-125Bore: 160 mm | Stroke: 125 mm | Switch magnet: No | Port: Rc3/8
SSD2-160-150Bore: 160 mm | Stroke: 150 mm | Switch magnet: No | Port: Rc3/8
SSD2-160-175Bore: 160 mm | Stroke: 175 mm | Switch magnet: No | Port: Rc3/8
SSD2-160-200Bore: 160 mm | Stroke: 200 mm | Switch magnet: No | Port: Rc3/8
SSD2-160-250Bore: 160 mm | Stroke: 250 mm | Switch magnet: No | Port: Rc3/8
SSD2-160-300Bore: 160 mm | Stroke: 300 mm | Switch magnet: No | Port: Rc3/8
SSD2-180-10Bore: 180 mm | Stroke: 10 mm | Switch magnet: No | Port: Rc1/2
SSD2-180-20Bore: 180 mm | Stroke: 20 mm | Switch magnet: No | Port: Rc1/2
SSD2-180-30Bore: 180 mm | Stroke: 30 mm | Switch magnet: No | Port: Rc1/2
SSD2-180-40Bore: 180 mm | Stroke: 40 mm | Switch magnet: No | Port: Rc1/2
SSD2-180-50Bore: 180 mm | Stroke: 50 mm | Switch magnet: No | Port: Rc1/2
SSD2-180-75Bore: 180 mm | Stroke: 75 mm | Switch magnet: No | Port: Rc1/2
SSD2-180-100Bore: 180 mm | Stroke: 100 mm | Switch magnet: No | Port: Rc1/2
SSD2-180-125Bore: 180 mm | Stroke: 125 mm | Switch magnet: No | Port: Rc1/2
SSD2-180-150Bore: 180 mm | Stroke: 150 mm | Switch magnet: No | Port: Rc1/2
SSD2-180-175Bore: 180 mm | Stroke: 175 mm | Switch magnet: No | Port: Rc1/2
SSD2-180-200Bore: 180 mm | Stroke: 200 mm | Switch magnet: No | Port: Rc1/2
SSD2-180-250Bore: 180 mm | Stroke: 250 mm | Switch magnet: No | Port: Rc1/2
SSD2-180-300Bore: 180 mm | Stroke: 300 mm | Switch magnet: No | Port: Rc1/2
SSD2-200-10Bore: 200 mm | Stroke: 10 mm | Switch magnet: No | Port: Rc1/2
SSD2-200-20Bore: 200 mm | Stroke: 20 mm | Switch magnet: No | Port: Rc1/2
SSD2-200-30Bore: 200 mm | Stroke: 30 mm | Switch magnet: No | Port: Rc1/2
SSD2-200-40Bore: 200 mm | Stroke: 40 mm | Switch magnet: No | Port: Rc1/2
SSD2-200-50Bore: 200 mm | Stroke: 50 mm | Switch magnet: No | Port: Rc1/2
SSD2-200-75Bore: 200 mm | Stroke: 75 mm | Switch magnet: No | Port: Rc1/2
SSD2-200-100Bore: 200 mm | Stroke: 100 mm | Switch magnet: No | Port: Rc1/2
SSD2-200-125Bore: 200 mm | Stroke: 125 mm | Switch magnet: No | Port: Rc1/2
SSD2-200-150Bore: 200 mm | Stroke: 150 mm | Switch magnet: No | Port: Rc1/2
SSD2-200-175Bore: 200 mm | Stroke: 175 mm | Switch magnet: No | Port: Rc1/2
SSD2-200-200Bore: 200 mm | Stroke: 200 mm | Switch magnet: No | Port: Rc1/2
SSD2-200-250Bore: 200 mm | Stroke: 250 mm | Switch magnet: No | Port: Rc1/2
SSD2-200-300Bore: 200 mm | Stroke: 300 mm | Switch magnet: No | Port: Rc1/2
SSD2-L-125-10Bore: 125 mm | Stroke: 10 mm | Switch magnet: Yes (SSD2-L) | Port: Rc3/8
SSD2-L-125-20Bore: 125 mm | Stroke: 20 mm | Switch magnet: Yes (SSD2-L) | Port: Rc3/8
SSD2-L-125-30Bore: 125 mm | Stroke: 30 mm | Switch magnet: Yes (SSD2-L) | Port: Rc3/8
SSD2-L-125-40Bore: 125 mm | Stroke: 40 mm | Switch magnet: Yes (SSD2-L) | Port: Rc3/8
SSD2-L-125-50Bore: 125 mm | Stroke: 50 mm | Switch magnet: Yes (SSD2-L) | Port: Rc3/8
SSD2-L-125-75Bore: 125 mm | Stroke: 75 mm | Switch magnet: Yes (SSD2-L) | Port: Rc3/8
SSD2-L-125-100Bore: 125 mm | Stroke: 100 mm | Switch magnet: Yes (SSD2-L) | Port: Rc3/8
SSD2-L-125-125Bore: 125 mm | Stroke: 125 mm | Switch magnet: Yes (SSD2-L) | Port: Rc3/8
SSD2-L-125-150Bore: 125 mm | Stroke: 150 mm | Switch magnet: Yes (SSD2-L) | Port: Rc3/8
SSD2-L-125-175Bore: 125 mm | Stroke: 175 mm | Switch magnet: Yes (SSD2-L) | Port: Rc3/8
SSD2-L-125-200Bore: 125 mm | Stroke: 200 mm | Switch magnet: Yes (SSD2-L) | Port: Rc3/8
SSD2-L-125-250Bore: 125 mm | Stroke: 250 mm | Switch magnet: Yes (SSD2-L) | Port: Rc3/8
SSD2-L-125-300Bore: 125 mm | Stroke: 300 mm | Switch magnet: Yes (SSD2-L) | Port: Rc3/8
SSD2-L-140-10Bore: 140 mm | Stroke: 10 mm | Switch magnet: Yes (SSD2-L) | Port: Rc3/8
SSD2-L-140-20Bore: 140 mm | Stroke: 20 mm | Switch magnet: Yes (SSD2-L) | Port: Rc3/8
SSD2-L-140-30Bore: 140 mm | Stroke: 30 mm | Switch magnet: Yes (SSD2-L) | Port: Rc3/8
SSD2-L-140-40Bore: 140 mm | Stroke: 40 mm | Switch magnet: Yes (SSD2-L) | Port: Rc3/8
SSD2-L-140-50Bore: 140 mm | Stroke: 50 mm | Switch magnet: Yes (SSD2-L) | Port: Rc3/8
SSD2-L-140-75Bore: 140 mm | Stroke: 75 mm | Switch magnet: Yes (SSD2-L) | Port: Rc3/8
SSD2-L-140-100Bore: 140 mm | Stroke: 100 mm | Switch magnet: Yes (SSD2-L) | Port: Rc3/8
SSD2-L-140-125Bore: 140 mm | Stroke: 125 mm | Switch magnet: Yes (SSD2-L) | Port: Rc3/8
SSD2-L-140-150Bore: 140 mm | Stroke: 150 mm | Switch magnet: Yes (SSD2-L) | Port: Rc3/8
SSD2-L-140-175Bore: 140 mm | Stroke: 175 mm | Switch magnet: Yes (SSD2-L) | Port: Rc3/8
SSD2-L-140-200Bore: 140 mm | Stroke: 200 mm | Switch magnet: Yes (SSD2-L) | Port: Rc3/8
SSD2-L-140-250Bore: 140 mm | Stroke: 250 mm | Switch magnet: Yes (SSD2-L) | Port: Rc3/8
SSD2-L-140-300Bore: 140 mm | Stroke: 300 mm | Switch magnet: Yes (SSD2-L) | Port: Rc3/8
SSD2-L-160-10Bore: 160 mm | Stroke: 10 mm | Switch magnet: Yes (SSD2-L) | Port: Rc3/8
SSD2-L-160-20Bore: 160 mm | Stroke: 20 mm | Switch magnet: Yes (SSD2-L) | Port: Rc3/8
SSD2-L-160-30Bore: 160 mm | Stroke: 30 mm | Switch magnet: Yes (SSD2-L) | Port: Rc3/8
SSD2-L-160-40Bore: 160 mm | Stroke: 40 mm | Switch magnet: Yes (SSD2-L) | Port: Rc3/8
SSD2-L-160-50Bore: 160 mm | Stroke: 50 mm | Switch magnet: Yes (SSD2-L) | Port: Rc3/8
SSD2-L-160-75Bore: 160 mm | Stroke: 75 mm | Switch magnet: Yes (SSD2-L) | Port: Rc3/8
SSD2-L-160-100Bore: 160 mm | Stroke: 100 mm | Switch magnet: Yes (SSD2-L) | Port: Rc3/8
SSD2-L-160-125Bore: 160 mm | Stroke: 125 mm | Switch magnet: Yes (SSD2-L) | Port: Rc3/8
SSD2-L-160-150Bore: 160 mm | Stroke: 150 mm | Switch magnet: Yes (SSD2-L) | Port: Rc3/8
SSD2-L-160-175Bore: 160 mm | Stroke: 175 mm | Switch magnet: Yes (SSD2-L) | Port: Rc3/8
SSD2-L-160-200Bore: 160 mm | Stroke: 200 mm | Switch magnet: Yes (SSD2-L) | Port: Rc3/8
SSD2-L-160-250Bore: 160 mm | Stroke: 250 mm | Switch magnet: Yes (SSD2-L) | Port: Rc3/8
SSD2-L-160-300Bore: 160 mm | Stroke: 300 mm | Switch magnet: Yes (SSD2-L) | Port: Rc3/8
SSD2-L-180-10Bore: 180 mm | Stroke: 10 mm | Switch magnet: Yes (SSD2-L) | Port: Rc1/2
SSD2-L-180-20Bore: 180 mm | Stroke: 20 mm | Switch magnet: Yes (SSD2-L) | Port: Rc1/2
SSD2-L-180-30Bore: 180 mm | Stroke: 30 mm | Switch magnet: Yes (SSD2-L) | Port: Rc1/2
SSD2-L-180-40Bore: 180 mm | Stroke: 40 mm | Switch magnet: Yes (SSD2-L) | Port: Rc1/2
SSD2-L-180-50Bore: 180 mm | Stroke: 50 mm | Switch magnet: Yes (SSD2-L) | Port: Rc1/2
SSD2-L-180-75Bore: 180 mm | Stroke: 75 mm | Switch magnet: Yes (SSD2-L) | Port: Rc1/2
SSD2-L-180-100Bore: 180 mm | Stroke: 100 mm | Switch magnet: Yes (SSD2-L) | Port: Rc1/2
SSD2-L-180-125Bore: 180 mm | Stroke: 125 mm | Switch magnet: Yes (SSD2-L) | Port: Rc1/2
SSD2-L-180-150Bore: 180 mm | Stroke: 150 mm | Switch magnet: Yes (SSD2-L) | Port: Rc1/2
SSD2-L-180-175Bore: 180 mm | Stroke: 175 mm | Switch magnet: Yes (SSD2-L) | Port: Rc1/2
SSD2-L-180-200Bore: 180 mm | Stroke: 200 mm | Switch magnet: Yes (SSD2-L) | Port: Rc1/2
SSD2-L-180-250Bore: 180 mm | Stroke: 250 mm | Switch magnet: Yes (SSD2-L) | Port: Rc1/2
SSD2-L-180-300Bore: 180 mm | Stroke: 300 mm | Switch magnet: Yes (SSD2-L) | Port: Rc1/2
SSD2-L-200-10Bore: 200 mm | Stroke: 10 mm | Switch magnet: Yes (SSD2-L) | Port: Rc1/2
SSD2-L-200-20Bore: 200 mm | Stroke: 20 mm | Switch magnet: Yes (SSD2-L) | Port: Rc1/2
SSD2-L-200-30Bore: 200 mm | Stroke: 30 mm | Switch magnet: Yes (SSD2-L) | Port: Rc1/2
SSD2-L-200-40Bore: 200 mm | Stroke: 40 mm | Switch magnet: Yes (SSD2-L) | Port: Rc1/2
SSD2-L-200-50Bore: 200 mm | Stroke: 50 mm | Switch magnet: Yes (SSD2-L) | Port: Rc1/2
SSD2-L-200-75Bore: 200 mm | Stroke: 75 mm | Switch magnet: Yes (SSD2-L) | Port: Rc1/2
SSD2-L-200-100Bore: 200 mm | Stroke: 100 mm | Switch magnet: Yes (SSD2-L) | Port: Rc1/2
SSD2-L-200-125Bore: 200 mm | Stroke: 125 mm | Switch magnet: Yes (SSD2-L) | Port: Rc1/2
SSD2-L-200-150Bore: 200 mm | Stroke: 150 mm | Switch magnet: Yes (SSD2-L) | Port: Rc1/2
SSD2-L-200-175Bore: 200 mm | Stroke: 175 mm | Switch magnet: Yes (SSD2-L) | Port: Rc1/2
SSD2-L-200-200Bore: 200 mm | Stroke: 200 mm | Switch magnet: Yes (SSD2-L) | Port: Rc1/2
SSD2-L-200-250Bore: 200 mm | Stroke: 250 mm | Switch magnet: Yes (SSD2-L) | Port: Rc1/2
SSD2-L-200-300Bore: 200 mm | Stroke: 300 mm | Switch magnet: Yes (SSD2-L) | Port: Rc1/2

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
