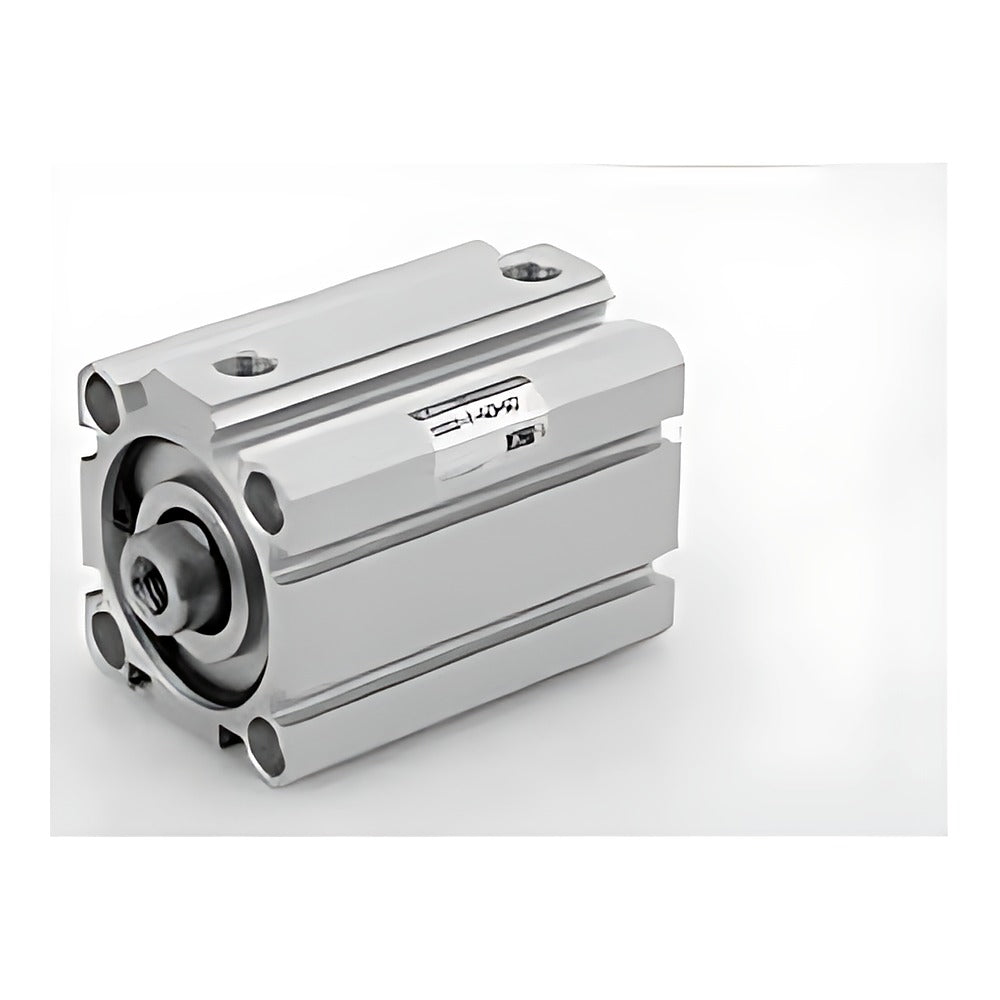

CKD SSD2-T1 Super Compact Cylinder (Heat Resistant 150 C)

CKD SSD2-T1 Super Compact Cylinder (Heat Resistant 150 C)

CKD SSD2-T1 is a heat-resistant double-acting super compact cylinder for ambient temperatures up to 150 C, bores 12-100 mm.

Key features

  • Heat-resistant seals for 5 to 150 C ambient
  • No switch magnet; no cushion
  • Mounting brackets LB, CB, FA, FB shipped attached when specified
  • Options: rod-end male thread (N), stainless piston rod (M)
  • Intermediate strokes in 1 mm steps via spacer in the next standard body

Specifications

Operation Double acting, single rod
Fluid Compressed air
Max. operating pressure 1.0 MPa
Min. operating pressure 0.1 MPa (0.05 MPa for 63-100)
Proof pressure 1.6 MPa
Ambient temperature 5 to 150 C
Piston speed 50-500 mm/s (50-300 mm/s for 63-100)
Lubrication Not allowed
Source CKD Korea catalog CB-029SK-9, p. 908-911
SSD2-T1-12-5 Bore: 12 mm | Stroke: 5 mm | Mounting: None (basic) | Port: M5
SSD2-T1-12-5-LB Bore: 12 mm | Stroke: 5 mm | Mounting: Axial foot (LB) | Port: M5
SSD2-T1-12-5-CB Bore: 12 mm | Stroke: 5 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-T1-12-5-FA Bore: 12 mm | Stroke: 5 mm | Mounting: Rod flange (FA) | Port: M5
SSD2-T1-12-5-FB Bore: 12 mm | Stroke: 5 mm | Mounting: Head flange (FB) | Port: M5
SSD2-T1-12-10 Bore: 12 mm | Stroke: 10 mm | Mounting: None (basic) | Port: M5
SSD2-T1-12-10-LB Bore: 12 mm | Stroke: 10 mm | Mounting: Axial foot (LB) | Port: M5
SSD2-T1-12-10-CB Bore: 12 mm | Stroke: 10 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-T1-12-10-FA Bore: 12 mm | Stroke: 10 mm | Mounting: Rod flange (FA) | Port: M5
SSD2-T1-12-10-FB Bore: 12 mm | Stroke: 10 mm | Mounting: Head flange (FB) | Port: M5
SSD2-T1-12-15 Bore: 12 mm | Stroke: 15 mm | Mounting: None (basic) | Port: M5
SSD2-T1-12-15-LB Bore: 12 mm | Stroke: 15 mm | Mounting: Axial foot (LB) | Port: M5
SSD2-T1-12-15-CB Bore: 12 mm | Stroke: 15 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-T1-12-15-FA Bore: 12 mm | Stroke: 15 mm | Mounting: Rod flange (FA) | Port: M5
SSD2-T1-12-15-FB Bore: 12 mm | Stroke: 15 mm | Mounting: Head flange (FB) | Port: M5
SSD2-T1-12-20 Bore: 12 mm | Stroke: 20 mm | Mounting: None (basic) | Port: M5
SSD2-T1-12-20-LB Bore: 12 mm | Stroke: 20 mm | Mounting: Axial foot (LB) | Port: M5
SSD2-T1-12-20-CB Bore: 12 mm | Stroke: 20 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-T1-12-20-FA Bore: 12 mm | Stroke: 20 mm | Mounting: Rod flange (FA) | Port: M5
SSD2-T1-12-20-FB Bore: 12 mm | Stroke: 20 mm | Mounting: Head flange (FB) | Port: M5
SSD2-T1-12-25 Bore: 12 mm | Stroke: 25 mm | Mounting: None (basic) | Port: M5
SSD2-T1-12-25-LB Bore: 12 mm | Stroke: 25 mm | Mounting: Axial foot (LB) | Port: M5
SSD2-T1-12-25-CB Bore: 12 mm | Stroke: 25 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-T1-12-25-FA Bore: 12 mm | Stroke: 25 mm | Mounting: Rod flange (FA) | Port: M5
SSD2-T1-12-25-FB Bore: 12 mm | Stroke: 25 mm | Mounting: Head flange (FB) | Port: M5
SSD2-T1-12-30 Bore: 12 mm | Stroke: 30 mm | Mounting: None (basic) | Port: M5
SSD2-T1-12-30-LB Bore: 12 mm | Stroke: 30 mm | Mounting: Axial foot (LB) | Port: M5
SSD2-T1-12-30-CB Bore: 12 mm | Stroke: 30 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-T1-12-30-FA Bore: 12 mm | Stroke: 30 mm | Mounting: Rod flange (FA) | Port: M5
SSD2-T1-12-30-FB Bore: 12 mm | Stroke: 30 mm | Mounting: Head flange (FB) | Port: M5
SSD2-T1-16-5 Bore: 16 mm | Stroke: 5 mm | Mounting: None (basic) | Port: M5
SSD2-T1-16-5-LB Bore: 16 mm | Stroke: 5 mm | Mounting: Axial foot (LB) | Port: M5
SSD2-T1-16-5-CB Bore: 16 mm | Stroke: 5 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-T1-16-5-FA Bore: 16 mm | Stroke: 5 mm | Mounting: Rod flange (FA) | Port: M5
SSD2-T1-16-5-FB Bore: 16 mm | Stroke: 5 mm | Mounting: Head flange (FB) | Port: M5
SSD2-T1-16-10 Bore: 16 mm | Stroke: 10 mm | Mounting: None (basic) | Port: M5
SSD2-T1-16-10-LB Bore: 16 mm | Stroke: 10 mm | Mounting: Axial foot (LB) | Port: M5
SSD2-T1-16-10-CB Bore: 16 mm | Stroke: 10 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-T1-16-10-FA Bore: 16 mm | Stroke: 10 mm | Mounting: Rod flange (FA) | Port: M5
SSD2-T1-16-10-FB Bore: 16 mm | Stroke: 10 mm | Mounting: Head flange (FB) | Port: M5
SSD2-T1-16-15 Bore: 16 mm | Stroke: 15 mm | Mounting: None (basic) | Port: M5
SSD2-T1-16-15-LB Bore: 16 mm | Stroke: 15 mm | Mounting: Axial foot (LB) | Port: M5
SSD2-T1-16-15-CB Bore: 16 mm | Stroke: 15 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-T1-16-15-FA Bore: 16 mm | Stroke: 15 mm | Mounting: Rod flange (FA) | Port: M5
SSD2-T1-16-15-FB Bore: 16 mm | Stroke: 15 mm | Mounting: Head flange (FB) | Port: M5
SSD2-T1-16-20 Bore: 16 mm | Stroke: 20 mm | Mounting: None (basic) | Port: M5
SSD2-T1-16-20-LB Bore: 16 mm | Stroke: 20 mm | Mounting: Axial foot (LB) | Port: M5
SSD2-T1-16-20-CB Bore: 16 mm | Stroke: 20 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-T1-16-20-FA Bore: 16 mm | Stroke: 20 mm | Mounting: Rod flange (FA) | Port: M5
SSD2-T1-16-20-FB Bore: 16 mm | Stroke: 20 mm | Mounting: Head flange (FB) | Port: M5
SSD2-T1-16-25 Bore: 16 mm | Stroke: 25 mm | Mounting: None (basic) | Port: M5
SSD2-T1-16-25-LB Bore: 16 mm | Stroke: 25 mm | Mounting: Axial foot (LB) | Port: M5
SSD2-T1-16-25-CB Bore: 16 mm | Stroke: 25 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-T1-16-25-FA Bore: 16 mm | Stroke: 25 mm | Mounting: Rod flange (FA) | Port: M5
SSD2-T1-16-25-FB Bore: 16 mm | Stroke: 25 mm | Mounting: Head flange (FB) | Port: M5
SSD2-T1-16-30 Bore: 16 mm | Stroke: 30 mm | Mounting: None (basic) | Port: M5
SSD2-T1-16-30-LB Bore: 16 mm | Stroke: 30 mm | Mounting: Axial foot (LB) | Port: M5
SSD2-T1-16-30-CB Bore: 16 mm | Stroke: 30 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-T1-16-30-FA Bore: 16 mm | Stroke: 30 mm | Mounting: Rod flange (FA) | Port: M5
SSD2-T1-16-30-FB Bore: 16 mm | Stroke: 30 mm | Mounting: Head flange (FB) | Port: M5
SSD2-T1-20-5 Bore: 20 mm | Stroke: 5 mm | Mounting: None (basic) | Port: M5
SSD2-T1-20-5-CB Bore: 20 mm | Stroke: 5 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-T1-20-5-FA Bore: 20 mm | Stroke: 5 mm | Mounting: Rod flange (FA) | Port: M5
SSD2-T1-20-5-FB Bore: 20 mm | Stroke: 5 mm | Mounting: Head flange (FB) | Port: M5
SSD2-T1-20-10 Bore: 20 mm | Stroke: 10 mm | Mounting: None (basic) | Port: M5
SSD2-T1-20-10-LB Bore: 20 mm | Stroke: 10 mm | Mounting: Axial foot (LB) | Port: M5
SSD2-T1-20-10-CB Bore: 20 mm | Stroke: 10 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-T1-20-10-FA Bore: 20 mm | Stroke: 10 mm | Mounting: Rod flange (FA) | Port: M5
SSD2-T1-20-10-FB Bore: 20 mm | Stroke: 10 mm | Mounting: Head flange (FB) | Port: M5
SSD2-T1-20-15 Bore: 20 mm | Stroke: 15 mm | Mounting: None (basic) | Port: M5
SSD2-T1-20-15-LB Bore: 20 mm | Stroke: 15 mm | Mounting: Axial foot (LB) | Port: M5
SSD2-T1-20-15-CB Bore: 20 mm | Stroke: 15 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-T1-20-15-FA Bore: 20 mm | Stroke: 15 mm | Mounting: Rod flange (FA) | Port: M5
SSD2-T1-20-15-FB Bore: 20 mm | Stroke: 15 mm | Mounting: Head flange (FB) | Port: M5
SSD2-T1-20-20 Bore: 20 mm | Stroke: 20 mm | Mounting: None (basic) | Port: M5
SSD2-T1-20-20-LB Bore: 20 mm | Stroke: 20 mm | Mounting: Axial foot (LB) | Port: M5
SSD2-T1-20-20-CB Bore: 20 mm | Stroke: 20 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-T1-20-20-FA Bore: 20 mm | Stroke: 20 mm | Mounting: Rod flange (FA) | Port: M5
SSD2-T1-20-20-FB Bore: 20 mm | Stroke: 20 mm | Mounting: Head flange (FB) | Port: M5
SSD2-T1-20-25 Bore: 20 mm | Stroke: 25 mm | Mounting: None (basic) | Port: M5
SSD2-T1-20-25-LB Bore: 20 mm | Stroke: 25 mm | Mounting: Axial foot (LB) | Port: M5
SSD2-T1-20-25-CB Bore: 20 mm | Stroke: 25 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-T1-20-25-FA Bore: 20 mm | Stroke: 25 mm | Mounting: Rod flange (FA) | Port: M5
SSD2-T1-20-25-FB Bore: 20 mm | Stroke: 25 mm | Mounting: Head flange (FB) | Port: M5
SSD2-T1-20-30 Bore: 20 mm | Stroke: 30 mm | Mounting: None (basic) | Port: M5
SSD2-T1-20-30-LB Bore: 20 mm | Stroke: 30 mm | Mounting: Axial foot (LB) | Port: M5
SSD2-T1-20-30-CB Bore: 20 mm | Stroke: 30 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-T1-20-30-FA Bore: 20 mm | Stroke: 30 mm | Mounting: Rod flange (FA) | Port: M5
SSD2-T1-20-30-FB Bore: 20 mm | Stroke: 30 mm | Mounting: Head flange (FB) | Port: M5
SSD2-T1-20-35 Bore: 20 mm | Stroke: 35 mm | Mounting: None (basic) | Port: M5
SSD2-T1-20-35-LB Bore: 20 mm | Stroke: 35 mm | Mounting: Axial foot (LB) | Port: M5
SSD2-T1-20-35-CB Bore: 20 mm | Stroke: 35 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-T1-20-35-FA Bore: 20 mm | Stroke: 35 mm | Mounting: Rod flange (FA) | Port: M5
SSD2-T1-20-35-FB Bore: 20 mm | Stroke: 35 mm | Mounting: Head flange (FB) | Port: M5
SSD2-T1-20-40 Bore: 20 mm | Stroke: 40 mm | Mounting: None (basic) | Port: M5
SSD2-T1-20-40-LB Bore: 20 mm | Stroke: 40 mm | Mounting: Axial foot (LB) | Port: M5
SSD2-T1-20-40-CB Bore: 20 mm | Stroke: 40 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-T1-20-40-FA Bore: 20 mm | Stroke: 40 mm | Mounting: Rod flange (FA) | Port: M5
SSD2-T1-20-40-FB Bore: 20 mm | Stroke: 40 mm | Mounting: Head flange (FB) | Port: M5
SSD2-T1-20-45 Bore: 20 mm | Stroke: 45 mm | Mounting: None (basic) | Port: M5
SSD2-T1-20-45-LB Bore: 20 mm | Stroke: 45 mm | Mounting: Axial foot (LB) | Port: M5
SSD2-T1-20-45-CB Bore: 20 mm | Stroke: 45 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-T1-20-45-FA Bore: 20 mm | Stroke: 45 mm | Mounting: Rod flange (FA) | Port: M5
SSD2-T1-20-45-FB Bore: 20 mm | Stroke: 45 mm | Mounting: Head flange (FB) | Port: M5
SSD2-T1-20-50 Bore: 20 mm | Stroke: 50 mm | Mounting: None (basic) | Port: M5
SSD2-T1-20-50-LB Bore: 20 mm | Stroke: 50 mm | Mounting: Axial foot (LB) | Port: M5
SSD2-T1-20-50-CB Bore: 20 mm | Stroke: 50 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-T1-20-50-FA Bore: 20 mm | Stroke: 50 mm | Mounting: Rod flange (FA) | Port: M5
SSD2-T1-20-50-FB Bore: 20 mm | Stroke: 50 mm | Mounting: Head flange (FB) | Port: M5
SSD2-T1-25-5 Bore: 25 mm | Stroke: 5 mm | Mounting: None (basic) | Port: M5
SSD2-T1-25-5-LB Bore: 25 mm | Stroke: 5 mm | Mounting: Axial foot (LB) | Port: M5
SSD2-T1-25-5-CB Bore: 25 mm | Stroke: 5 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-T1-25-5-FA Bore: 25 mm | Stroke: 5 mm | Mounting: Rod flange (FA) | Port: M5
SSD2-T1-25-5-FB Bore: 25 mm | Stroke: 5 mm | Mounting: Head flange (FB) | Port: M5
SSD2-T1-25-10 Bore: 25 mm | Stroke: 10 mm | Mounting: None (basic) | Port: M5
SSD2-T1-25-10-LB Bore: 25 mm | Stroke: 10 mm | Mounting: Axial foot (LB) | Port: M5
SSD2-T1-25-10-CB Bore: 25 mm | Stroke: 10 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-T1-25-10-FA Bore: 25 mm | Stroke: 10 mm | Mounting: Rod flange (FA) | Port: M5
SSD2-T1-25-10-FB Bore: 25 mm | Stroke: 10 mm | Mounting: Head flange (FB) | Port: M5
SSD2-T1-25-15 Bore: 25 mm | Stroke: 15 mm | Mounting: None (basic) | Port: M5
SSD2-T1-25-15-LB Bore: 25 mm | Stroke: 15 mm | Mounting: Axial foot (LB) | Port: M5
SSD2-T1-25-15-CB Bore: 25 mm | Stroke: 15 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-T1-25-15-FA Bore: 25 mm | Stroke: 15 mm | Mounting: Rod flange (FA) | Port: M5
SSD2-T1-25-15-FB Bore: 25 mm | Stroke: 15 mm | Mounting: Head flange (FB) | Port: M5
SSD2-T1-25-20 Bore: 25 mm | Stroke: 20 mm | Mounting: None (basic) | Port: M5
SSD2-T1-25-20-LB Bore: 25 mm | Stroke: 20 mm | Mounting: Axial foot (LB) | Port: M5
SSD2-T1-25-20-CB Bore: 25 mm | Stroke: 20 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-T1-25-20-FA Bore: 25 mm | Stroke: 20 mm | Mounting: Rod flange (FA) | Port: M5
SSD2-T1-25-20-FB Bore: 25 mm | Stroke: 20 mm | Mounting: Head flange (FB) | Port: M5
SSD2-T1-25-25 Bore: 25 mm | Stroke: 25 mm | Mounting: None (basic) | Port: M5
SSD2-T1-25-25-LB Bore: 25 mm | Stroke: 25 mm | Mounting: Axial foot (LB) | Port: M5
SSD2-T1-25-25-CB Bore: 25 mm | Stroke: 25 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-T1-25-25-FA Bore: 25 mm | Stroke: 25 mm | Mounting: Rod flange (FA) | Port: M5
SSD2-T1-25-25-FB Bore: 25 mm | Stroke: 25 mm | Mounting: Head flange (FB) | Port: M5
SSD2-T1-25-30 Bore: 25 mm | Stroke: 30 mm | Mounting: None (basic) | Port: M5
SSD2-T1-25-30-LB Bore: 25 mm | Stroke: 30 mm | Mounting: Axial foot (LB) | Port: M5
SSD2-T1-25-30-CB Bore: 25 mm | Stroke: 30 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-T1-25-30-FA Bore: 25 mm | Stroke: 30 mm | Mounting: Rod flange (FA) | Port: M5
SSD2-T1-25-30-FB Bore: 25 mm | Stroke: 30 mm | Mounting: Head flange (FB) | Port: M5
SSD2-T1-25-35 Bore: 25 mm | Stroke: 35 mm | Mounting: None (basic) | Port: M5
SSD2-T1-25-35-LB Bore: 25 mm | Stroke: 35 mm | Mounting: Axial foot (LB) | Port: M5
SSD2-T1-25-35-CB Bore: 25 mm | Stroke: 35 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-T1-25-35-FA Bore: 25 mm | Stroke: 35 mm | Mounting: Rod flange (FA) | Port: M5
SSD2-T1-25-35-FB Bore: 25 mm | Stroke: 35 mm | Mounting: Head flange (FB) | Port: M5
SSD2-T1-25-40 Bore: 25 mm | Stroke: 40 mm | Mounting: None (basic) | Port: M5
SSD2-T1-25-40-LB Bore: 25 mm | Stroke: 40 mm | Mounting: Axial foot (LB) | Port: M5
SSD2-T1-25-40-CB Bore: 25 mm | Stroke: 40 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-T1-25-40-FA Bore: 25 mm | Stroke: 40 mm | Mounting: Rod flange (FA) | Port: M5
SSD2-T1-25-40-FB Bore: 25 mm | Stroke: 40 mm | Mounting: Head flange (FB) | Port: M5
SSD2-T1-25-45 Bore: 25 mm | Stroke: 45 mm | Mounting: None (basic) | Port: M5
SSD2-T1-25-45-LB Bore: 25 mm | Stroke: 45 mm | Mounting: Axial foot (LB) | Port: M5
SSD2-T1-25-45-CB Bore: 25 mm | Stroke: 45 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-T1-25-45-FA Bore: 25 mm | Stroke: 45 mm | Mounting: Rod flange (FA) | Port: M5
SSD2-T1-25-45-FB Bore: 25 mm | Stroke: 45 mm | Mounting: Head flange (FB) | Port: M5
SSD2-T1-25-50 Bore: 25 mm | Stroke: 50 mm | Mounting: None (basic) | Port: M5
SSD2-T1-25-50-LB Bore: 25 mm | Stroke: 50 mm | Mounting: Axial foot (LB) | Port: M5
SSD2-T1-25-50-CB Bore: 25 mm | Stroke: 50 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-T1-25-50-FA Bore: 25 mm | Stroke: 50 mm | Mounting: Rod flange (FA) | Port: M5
SSD2-T1-25-50-FB Bore: 25 mm | Stroke: 50 mm | Mounting: Head flange (FB) | Port: M5
SSD2-T1-32-5 Bore: 32 mm | Stroke: 5 mm | Mounting: None (basic) | Port: Rc1/8
SSD2-T1-32-5-LB Bore: 32 mm | Stroke: 5 mm | Mounting: Axial foot (LB) | Port: Rc1/8
SSD2-T1-32-5-CB Bore: 32 mm | Stroke: 5 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-T1-32-5-FA Bore: 32 mm | Stroke: 5 mm | Mounting: Rod flange (FA) | Port: Rc1/8
SSD2-T1-32-5-FB Bore: 32 mm | Stroke: 5 mm | Mounting: Head flange (FB) | Port: Rc1/8
SSD2-T1-32-10 Bore: 32 mm | Stroke: 10 mm | Mounting: None (basic) | Port: Rc1/8
SSD2-T1-32-10-LB Bore: 32 mm | Stroke: 10 mm | Mounting: Axial foot (LB) | Port: Rc1/8
SSD2-T1-32-10-CB Bore: 32 mm | Stroke: 10 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-T1-32-10-FA Bore: 32 mm | Stroke: 10 mm | Mounting: Rod flange (FA) | Port: Rc1/8
SSD2-T1-32-10-FB Bore: 32 mm | Stroke: 10 mm | Mounting: Head flange (FB) | Port: Rc1/8
SSD2-T1-32-15 Bore: 32 mm | Stroke: 15 mm | Mounting: None (basic) | Port: Rc1/8
SSD2-T1-32-15-LB Bore: 32 mm | Stroke: 15 mm | Mounting: Axial foot (LB) | Port: Rc1/8
SSD2-T1-32-15-CB Bore: 32 mm | Stroke: 15 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-T1-32-15-FA Bore: 32 mm | Stroke: 15 mm | Mounting: Rod flange (FA) | Port: Rc1/8
SSD2-T1-32-15-FB Bore: 32 mm | Stroke: 15 mm | Mounting: Head flange (FB) | Port: Rc1/8
SSD2-T1-32-20 Bore: 32 mm | Stroke: 20 mm | Mounting: None (basic) | Port: Rc1/8
SSD2-T1-32-20-LB Bore: 32 mm | Stroke: 20 mm | Mounting: Axial foot (LB) | Port: Rc1/8
SSD2-T1-32-20-CB Bore: 32 mm | Stroke: 20 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-T1-32-20-FA Bore: 32 mm | Stroke: 20 mm | Mounting: Rod flange (FA) | Port: Rc1/8
SSD2-T1-32-20-FB Bore: 32 mm | Stroke: 20 mm | Mounting: Head flange (FB) | Port: Rc1/8
SSD2-T1-32-25 Bore: 32 mm | Stroke: 25 mm | Mounting: None (basic) | Port: Rc1/8
SSD2-T1-32-25-LB Bore: 32 mm | Stroke: 25 mm | Mounting: Axial foot (LB) | Port: Rc1/8
SSD2-T1-32-25-CB Bore: 32 mm | Stroke: 25 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-T1-32-25-FA Bore: 32 mm | Stroke: 25 mm | Mounting: Rod flange (FA) | Port: Rc1/8
SSD2-T1-32-25-FB Bore: 32 mm | Stroke: 25 mm | Mounting: Head flange (FB) | Port: Rc1/8
SSD2-T1-32-30 Bore: 32 mm | Stroke: 30 mm | Mounting: None (basic) | Port: Rc1/8
SSD2-T1-32-30-LB Bore: 32 mm | Stroke: 30 mm | Mounting: Axial foot (LB) | Port: Rc1/8
SSD2-T1-32-30-CB Bore: 32 mm | Stroke: 30 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-T1-32-30-FA Bore: 32 mm | Stroke: 30 mm | Mounting: Rod flange (FA) | Port: Rc1/8
SSD2-T1-32-30-FB Bore: 32 mm | Stroke: 30 mm | Mounting: Head flange (FB) | Port: Rc1/8
SSD2-T1-32-35 Bore: 32 mm | Stroke: 35 mm | Mounting: None (basic) | Port: Rc1/8
SSD2-T1-32-35-LB Bore: 32 mm | Stroke: 35 mm | Mounting: Axial foot (LB) | Port: Rc1/8
SSD2-T1-32-35-CB Bore: 32 mm | Stroke: 35 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-T1-32-35-FA Bore: 32 mm | Stroke: 35 mm | Mounting: Rod flange (FA) | Port: Rc1/8
SSD2-T1-32-35-FB Bore: 32 mm | Stroke: 35 mm | Mounting: Head flange (FB) | Port: Rc1/8
SSD2-T1-32-40 Bore: 32 mm | Stroke: 40 mm | Mounting: None (basic) | Port: Rc1/8
SSD2-T1-32-40-LB Bore: 32 mm | Stroke: 40 mm | Mounting: Axial foot (LB) | Port: Rc1/8
SSD2-T1-32-40-CB Bore: 32 mm | Stroke: 40 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-T1-32-40-FA Bore: 32 mm | Stroke: 40 mm | Mounting: Rod flange (FA) | Port: Rc1/8
SSD2-T1-32-40-FB Bore: 32 mm | Stroke: 40 mm | Mounting: Head flange (FB) | Port: Rc1/8
SSD2-T1-32-45 Bore: 32 mm | Stroke: 45 mm | Mounting: None (basic) | Port: Rc1/8
SSD2-T1-32-45-LB Bore: 32 mm | Stroke: 45 mm | Mounting: Axial foot (LB) | Port: Rc1/8
SSD2-T1-32-45-CB Bore: 32 mm | Stroke: 45 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-T1-32-45-FA Bore: 32 mm | Stroke: 45 mm | Mounting: Rod flange (FA) | Port: Rc1/8
SSD2-T1-32-45-FB Bore: 32 mm | Stroke: 45 mm | Mounting: Head flange (FB) | Port: Rc1/8
SSD2-T1-32-50 Bore: 32 mm | Stroke: 50 mm | Mounting: None (basic) | Port: Rc1/8
SSD2-T1-32-50-LB Bore: 32 mm | Stroke: 50 mm | Mounting: Axial foot (LB) | Port: Rc1/8
SSD2-T1-32-50-CB Bore: 32 mm | Stroke: 50 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-T1-32-50-FA Bore: 32 mm | Stroke: 50 mm | Mounting: Rod flange (FA) | Port: Rc1/8
SSD2-T1-32-50-FB Bore: 32 mm | Stroke: 50 mm | Mounting: Head flange (FB) | Port: Rc1/8
SSD2-T1-32-75 Bore: 32 mm | Stroke: 75 mm | Mounting: None (basic) | Port: Rc1/8
SSD2-T1-32-75-LB Bore: 32 mm | Stroke: 75 mm | Mounting: Axial foot (LB) | Port: Rc1/8
SSD2-T1-32-75-CB Bore: 32 mm | Stroke: 75 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-T1-32-75-FA Bore: 32 mm | Stroke: 75 mm | Mounting: Rod flange (FA) | Port: Rc1/8
SSD2-T1-32-75-FB Bore: 32 mm | Stroke: 75 mm | Mounting: Head flange (FB) | Port: Rc1/8
SSD2-T1-32-100 Bore: 32 mm | Stroke: 100 mm | Mounting: None (basic) | Port: Rc1/8
SSD2-T1-32-100-LB Bore: 32 mm | Stroke: 100 mm | Mounting: Axial foot (LB) | Port: Rc1/8
SSD2-T1-32-100-CB Bore: 32 mm | Stroke: 100 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-T1-32-100-FA Bore: 32 mm | Stroke: 100 mm | Mounting: Rod flange (FA) | Port: Rc1/8
SSD2-T1-32-100-FB Bore: 32 mm | Stroke: 100 mm | Mounting: Head flange (FB) | Port: Rc1/8
SSD2-T1-40-5 Bore: 40 mm | Stroke: 5 mm | Mounting: None (basic) | Port: Rc1/8
SSD2-T1-40-5-LB Bore: 40 mm | Stroke: 5 mm | Mounting: Axial foot (LB) | Port: Rc1/8
SSD2-T1-40-5-CB Bore: 40 mm | Stroke: 5 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-T1-40-5-FA Bore: 40 mm | Stroke: 5 mm | Mounting: Rod flange (FA) | Port: Rc1/8
SSD2-T1-40-5-FB Bore: 40 mm | Stroke: 5 mm | Mounting: Head flange (FB) | Port: Rc1/8
SSD2-T1-40-10 Bore: 40 mm | Stroke: 10 mm | Mounting: None (basic) | Port: Rc1/8
SSD2-T1-40-10-LB Bore: 40 mm | Stroke: 10 mm | Mounting: Axial foot (LB) | Port: Rc1/8
SSD2-T1-40-10-CB Bore: 40 mm | Stroke: 10 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-T1-40-10-FA Bore: 40 mm | Stroke: 10 mm | Mounting: Rod flange (FA) | Port: Rc1/8
SSD2-T1-40-10-FB Bore: 40 mm | Stroke: 10 mm | Mounting: Head flange (FB) | Port: Rc1/8
SSD2-T1-40-15 Bore: 40 mm | Stroke: 15 mm | Mounting: None (basic) | Port: Rc1/8
SSD2-T1-40-15-LB Bore: 40 mm | Stroke: 15 mm | Mounting: Axial foot (LB) | Port: Rc1/8
SSD2-T1-40-15-CB Bore: 40 mm | Stroke: 15 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-T1-40-15-FA Bore: 40 mm | Stroke: 15 mm | Mounting: Rod flange (FA) | Port: Rc1/8
SSD2-T1-40-15-FB Bore: 40 mm | Stroke: 15 mm | Mounting: Head flange (FB) | Port: Rc1/8
SSD2-T1-40-20 Bore: 40 mm | Stroke: 20 mm | Mounting: None (basic) | Port: Rc1/8
SSD2-T1-40-20-LB Bore: 40 mm | Stroke: 20 mm | Mounting: Axial foot (LB) | Port: Rc1/8
SSD2-T1-40-20-CB Bore: 40 mm | Stroke: 20 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-T1-40-20-FA Bore: 40 mm | Stroke: 20 mm | Mounting: Rod flange (FA) | Port: Rc1/8
SSD2-T1-40-20-FB Bore: 40 mm | Stroke: 20 mm | Mounting: Head flange (FB) | Port: Rc1/8
SSD2-T1-40-25 Bore: 40 mm | Stroke: 25 mm | Mounting: None (basic) | Port: Rc1/8
SSD2-T1-40-25-LB Bore: 40 mm | Stroke: 25 mm | Mounting: Axial foot (LB) | Port: Rc1/8
SSD2-T1-40-25-CB Bore: 40 mm | Stroke: 25 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-T1-40-25-FA Bore: 40 mm | Stroke: 25 mm | Mounting: Rod flange (FA) | Port: Rc1/8
SSD2-T1-40-25-FB Bore: 40 mm | Stroke: 25 mm | Mounting: Head flange (FB) | Port: Rc1/8
SSD2-T1-40-30 Bore: 40 mm | Stroke: 30 mm | Mounting: None (basic) | Port: Rc1/8
SSD2-T1-40-30-LB Bore: 40 mm | Stroke: 30 mm | Mounting: Axial foot (LB) | Port: Rc1/8
SSD2-T1-40-30-CB Bore: 40 mm | Stroke: 30 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-T1-40-30-FA Bore: 40 mm | Stroke: 30 mm | Mounting: Rod flange (FA) | Port: Rc1/8
SSD2-T1-40-30-FB Bore: 40 mm | Stroke: 30 mm | Mounting: Head flange (FB) | Port: Rc1/8
SSD2-T1-40-35 Bore: 40 mm | Stroke: 35 mm | Mounting: None (basic) | Port: Rc1/8
SSD2-T1-40-35-LB Bore: 40 mm | Stroke: 35 mm | Mounting: Axial foot (LB) | Port: Rc1/8
SSD2-T1-40-35-CB Bore: 40 mm | Stroke: 35 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-T1-40-35-FA Bore: 40 mm | Stroke: 35 mm | Mounting: Rod flange (FA) | Port: Rc1/8
SSD2-T1-40-35-FB Bore: 40 mm | Stroke: 35 mm | Mounting: Head flange (FB) | Port: Rc1/8
SSD2-T1-40-40 Bore: 40 mm | Stroke: 40 mm | Mounting: None (basic) | Port: Rc1/8
SSD2-T1-40-40-LB Bore: 40 mm | Stroke: 40 mm | Mounting: Axial foot (LB) | Port: Rc1/8
SSD2-T1-40-40-CB Bore: 40 mm | Stroke: 40 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-T1-40-40-FA Bore: 40 mm | Stroke: 40 mm | Mounting: Rod flange (FA) | Port: Rc1/8
SSD2-T1-40-40-FB Bore: 40 mm | Stroke: 40 mm | Mounting: Head flange (FB) | Port: Rc1/8
SSD2-T1-40-45 Bore: 40 mm | Stroke: 45 mm | Mounting: None (basic) | Port: Rc1/8
SSD2-T1-40-45-LB Bore: 40 mm | Stroke: 45 mm | Mounting: Axial foot (LB) | Port: Rc1/8
SSD2-T1-40-45-CB Bore: 40 mm | Stroke: 45 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-T1-40-45-FA Bore: 40 mm | Stroke: 45 mm | Mounting: Rod flange (FA) | Port: Rc1/8
SSD2-T1-40-45-FB Bore: 40 mm | Stroke: 45 mm | Mounting: Head flange (FB) | Port: Rc1/8
SSD2-T1-40-50 Bore: 40 mm | Stroke: 50 mm | Mounting: None (basic) | Port: Rc1/8
SSD2-T1-40-50-LB Bore: 40 mm | Stroke: 50 mm | Mounting: Axial foot (LB) | Port: Rc1/8
SSD2-T1-40-50-CB Bore: 40 mm | Stroke: 50 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-T1-40-50-FA Bore: 40 mm | Stroke: 50 mm | Mounting: Rod flange (FA) | Port: Rc1/8
SSD2-T1-40-50-FB Bore: 40 mm | Stroke: 50 mm | Mounting: Head flange (FB) | Port: Rc1/8
SSD2-T1-40-75 Bore: 40 mm | Stroke: 75 mm | Mounting: None (basic) | Port: Rc1/8
SSD2-T1-40-75-LB Bore: 40 mm | Stroke: 75 mm | Mounting: Axial foot (LB) | Port: Rc1/8
SSD2-T1-40-75-CB Bore: 40 mm | Stroke: 75 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-T1-40-75-FA Bore: 40 mm | Stroke: 75 mm | Mounting: Rod flange (FA) | Port: Rc1/8
SSD2-T1-40-75-FB Bore: 40 mm | Stroke: 75 mm | Mounting: Head flange (FB) | Port: Rc1/8
SSD2-T1-40-100 Bore: 40 mm | Stroke: 100 mm | Mounting: None (basic) | Port: Rc1/8
SSD2-T1-40-100-LB Bore: 40 mm | Stroke: 100 mm | Mounting: Axial foot (LB) | Port: Rc1/8
SSD2-T1-40-100-CB Bore: 40 mm | Stroke: 100 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-T1-40-100-FA Bore: 40 mm | Stroke: 100 mm | Mounting: Rod flange (FA) | Port: Rc1/8
SSD2-T1-40-100-FB Bore: 40 mm | Stroke: 100 mm | Mounting: Head flange (FB) | Port: Rc1/8
SSD2-T1-50-10 Bore: 50 mm | Stroke: 10 mm | Mounting: None (basic) | Port: Rc1/4
SSD2-T1-50-10-LB Bore: 50 mm | Stroke: 10 mm | Mounting: Axial foot (LB) | Port: Rc1/4
SSD2-T1-50-10-CB Bore: 50 mm | Stroke: 10 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-T1-50-10-FA Bore: 50 mm | Stroke: 10 mm | Mounting: Rod flange (FA) | Port: Rc1/4
SSD2-T1-50-10-FB Bore: 50 mm | Stroke: 10 mm | Mounting: Head flange (FB) | Port: Rc1/4
SSD2-T1-50-15 Bore: 50 mm | Stroke: 15 mm | Mounting: None (basic) | Port: Rc1/4
SSD2-T1-50-15-LB Bore: 50 mm | Stroke: 15 mm | Mounting: Axial foot (LB) | Port: Rc1/4
SSD2-T1-50-15-CB Bore: 50 mm | Stroke: 15 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-T1-50-15-FA Bore: 50 mm | Stroke: 15 mm | Mounting: Rod flange (FA) | Port: Rc1/4
SSD2-T1-50-15-FB Bore: 50 mm | Stroke: 15 mm | Mounting: Head flange (FB) | Port: Rc1/4
SSD2-T1-50-20 Bore: 50 mm | Stroke: 20 mm | Mounting: None (basic) | Port: Rc1/4
SSD2-T1-50-20-LB Bore: 50 mm | Stroke: 20 mm | Mounting: Axial foot (LB) | Port: Rc1/4
SSD2-T1-50-20-CB Bore: 50 mm | Stroke: 20 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-T1-50-20-FA Bore: 50 mm | Stroke: 20 mm | Mounting: Rod flange (FA) | Port: Rc1/4
SSD2-T1-50-20-FB Bore: 50 mm | Stroke: 20 mm | Mounting: Head flange (FB) | Port: Rc1/4
SSD2-T1-50-25 Bore: 50 mm | Stroke: 25 mm | Mounting: None (basic) | Port: Rc1/4
SSD2-T1-50-25-LB Bore: 50 mm | Stroke: 25 mm | Mounting: Axial foot (LB) | Port: Rc1/4
SSD2-T1-50-25-CB Bore: 50 mm | Stroke: 25 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-T1-50-25-FA Bore: 50 mm | Stroke: 25 mm | Mounting: Rod flange (FA) | Port: Rc1/4
SSD2-T1-50-25-FB Bore: 50 mm | Stroke: 25 mm | Mounting: Head flange (FB) | Port: Rc1/4
SSD2-T1-50-30 Bore: 50 mm | Stroke: 30 mm | Mounting: None (basic) | Port: Rc1/4
SSD2-T1-50-30-LB Bore: 50 mm | Stroke: 30 mm | Mounting: Axial foot (LB) | Port: Rc1/4
SSD2-T1-50-30-CB Bore: 50 mm | Stroke: 30 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-T1-50-30-FA Bore: 50 mm | Stroke: 30 mm | Mounting: Rod flange (FA) | Port: Rc1/4
SSD2-T1-50-30-FB Bore: 50 mm | Stroke: 30 mm | Mounting: Head flange (FB) | Port: Rc1/4
SSD2-T1-50-35 Bore: 50 mm | Stroke: 35 mm | Mounting: None (basic) | Port: Rc1/4
SSD2-T1-50-35-LB Bore: 50 mm | Stroke: 35 mm | Mounting: Axial foot (LB) | Port: Rc1/4
SSD2-T1-50-35-CB Bore: 50 mm | Stroke: 35 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-T1-50-35-FA Bore: 50 mm | Stroke: 35 mm | Mounting: Rod flange (FA) | Port: Rc1/4
SSD2-T1-50-35-FB Bore: 50 mm | Stroke: 35 mm | Mounting: Head flange (FB) | Port: Rc1/4
SSD2-T1-50-40 Bore: 50 mm | Stroke: 40 mm | Mounting: None (basic) | Port: Rc1/4
SSD2-T1-50-40-LB Bore: 50 mm | Stroke: 40 mm | Mounting: Axial foot (LB) | Port: Rc1/4
SSD2-T1-50-40-CB Bore: 50 mm | Stroke: 40 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-T1-50-40-FA Bore: 50 mm | Stroke: 40 mm | Mounting: Rod flange (FA) | Port: Rc1/4
SSD2-T1-50-40-FB Bore: 50 mm | Stroke: 40 mm | Mounting: Head flange (FB) | Port: Rc1/4
SSD2-T1-50-45 Bore: 50 mm | Stroke: 45 mm | Mounting: None (basic) | Port: Rc1/4
SSD2-T1-50-45-LB Bore: 50 mm | Stroke: 45 mm | Mounting: Axial foot (LB) | Port: Rc1/4
SSD2-T1-50-45-CB Bore: 50 mm | Stroke: 45 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-T1-50-45-FA Bore: 50 mm | Stroke: 45 mm | Mounting: Rod flange (FA) | Port: Rc1/4
SSD2-T1-50-45-FB Bore: 50 mm | Stroke: 45 mm | Mounting: Head flange (FB) | Port: Rc1/4
SSD2-T1-50-50 Bore: 50 mm | Stroke: 50 mm | Mounting: None (basic) | Port: Rc1/4
SSD2-T1-50-50-LB Bore: 50 mm | Stroke: 50 mm | Mounting: Axial foot (LB) | Port: Rc1/4
SSD2-T1-50-50-CB Bore: 50 mm | Stroke: 50 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-T1-50-50-FA Bore: 50 mm | Stroke: 50 mm | Mounting: Rod flange (FA) | Port: Rc1/4
SSD2-T1-50-50-FB Bore: 50 mm | Stroke: 50 mm | Mounting: Head flange (FB) | Port: Rc1/4
SSD2-T1-50-75 Bore: 50 mm | Stroke: 75 mm | Mounting: None (basic) | Port: Rc1/4
SSD2-T1-50-75-LB Bore: 50 mm | Stroke: 75 mm | Mounting: Axial foot (LB) | Port: Rc1/4
SSD2-T1-50-75-CB Bore: 50 mm | Stroke: 75 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-T1-50-75-FA Bore: 50 mm | Stroke: 75 mm | Mounting: Rod flange (FA) | Port: Rc1/4
SSD2-T1-50-75-FB Bore: 50 mm | Stroke: 75 mm | Mounting: Head flange (FB) | Port: Rc1/4
SSD2-T1-50-100 Bore: 50 mm | Stroke: 100 mm | Mounting: None (basic) | Port: Rc1/4
SSD2-T1-50-100-LB Bore: 50 mm | Stroke: 100 mm | Mounting: Axial foot (LB) | Port: Rc1/4
SSD2-T1-50-100-CB Bore: 50 mm | Stroke: 100 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-T1-50-100-FA Bore: 50 mm | Stroke: 100 mm | Mounting: Rod flange (FA) | Port: Rc1/4
SSD2-T1-50-100-FB Bore: 50 mm | Stroke: 100 mm | Mounting: Head flange (FB) | Port: Rc1/4
SSD2-T1-63-10 Bore: 63 mm | Stroke: 10 mm | Mounting: None (basic) | Port: Rc1/4
SSD2-T1-63-10-LB Bore: 63 mm | Stroke: 10 mm | Mounting: Axial foot (LB) | Port: Rc1/4
SSD2-T1-63-10-CB Bore: 63 mm | Stroke: 10 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-T1-63-10-FA Bore: 63 mm | Stroke: 10 mm | Mounting: Rod flange (FA) | Port: Rc1/4
SSD2-T1-63-10-FB Bore: 63 mm | Stroke: 10 mm | Mounting: Head flange (FB) | Port: Rc1/4
SSD2-T1-63-15 Bore: 63 mm | Stroke: 15 mm | Mounting: None (basic) | Port: Rc1/4
SSD2-T1-63-15-LB Bore: 63 mm | Stroke: 15 mm | Mounting: Axial foot (LB) | Port: Rc1/4
SSD2-T1-63-15-CB Bore: 63 mm | Stroke: 15 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-T1-63-15-FA Bore: 63 mm | Stroke: 15 mm | Mounting: Rod flange (FA) | Port: Rc1/4
SSD2-T1-63-15-FB Bore: 63 mm | Stroke: 15 mm | Mounting: Head flange (FB) | Port: Rc1/4
SSD2-T1-63-20 Bore: 63 mm | Stroke: 20 mm | Mounting: None (basic) | Port: Rc1/4
SSD2-T1-63-20-LB Bore: 63 mm | Stroke: 20 mm | Mounting: Axial foot (LB) | Port: Rc1/4
SSD2-T1-63-20-CB Bore: 63 mm | Stroke: 20 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-T1-63-20-FA Bore: 63 mm | Stroke: 20 mm | Mounting: Rod flange (FA) | Port: Rc1/4
SSD2-T1-63-20-FB Bore: 63 mm | Stroke: 20 mm | Mounting: Head flange (FB) | Port: Rc1/4
SSD2-T1-63-25 Bore: 63 mm | Stroke: 25 mm | Mounting: None (basic) | Port: Rc1/4
SSD2-T1-63-25-LB Bore: 63 mm | Stroke: 25 mm | Mounting: Axial foot (LB) | Port: Rc1/4
SSD2-T1-63-25-CB Bore: 63 mm | Stroke: 25 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-T1-63-25-FA Bore: 63 mm | Stroke: 25 mm | Mounting: Rod flange (FA) | Port: Rc1/4
SSD2-T1-63-25-FB Bore: 63 mm | Stroke: 25 mm | Mounting: Head flange (FB) | Port: Rc1/4
SSD2-T1-63-30 Bore: 63 mm | Stroke: 30 mm | Mounting: None (basic) | Port: Rc1/4
SSD2-T1-63-30-LB Bore: 63 mm | Stroke: 30 mm | Mounting: Axial foot (LB) | Port: Rc1/4
SSD2-T1-63-30-CB Bore: 63 mm | Stroke: 30 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-T1-63-30-FA Bore: 63 mm | Stroke: 30 mm | Mounting: Rod flange (FA) | Port: Rc1/4
SSD2-T1-63-30-FB Bore: 63 mm | Stroke: 30 mm | Mounting: Head flange (FB) | Port: Rc1/4
SSD2-T1-63-35 Bore: 63 mm | Stroke: 35 mm | Mounting: None (basic) | Port: Rc1/4
SSD2-T1-63-35-LB Bore: 63 mm | Stroke: 35 mm | Mounting: Axial foot (LB) | Port: Rc1/4
SSD2-T1-63-35-CB Bore: 63 mm | Stroke: 35 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-T1-63-35-FA Bore: 63 mm | Stroke: 35 mm | Mounting: Rod flange (FA) | Port: Rc1/4
SSD2-T1-63-35-FB Bore: 63 mm | Stroke: 35 mm | Mounting: Head flange (FB) | Port: Rc1/4
SSD2-T1-63-40 Bore: 63 mm | Stroke: 40 mm | Mounting: None (basic) | Port: Rc1/4
SSD2-T1-63-40-LB Bore: 63 mm | Stroke: 40 mm | Mounting: Axial foot (LB) | Port: Rc1/4
SSD2-T1-63-40-CB Bore: 63 mm | Stroke: 40 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-T1-63-40-FA Bore: 63 mm | Stroke: 40 mm | Mounting: Rod flange (FA) | Port: Rc1/4
SSD2-T1-63-40-FB Bore: 63 mm | Stroke: 40 mm | Mounting: Head flange (FB) | Port: Rc1/4
SSD2-T1-63-45 Bore: 63 mm | Stroke: 45 mm | Mounting: None (basic) | Port: Rc1/4
SSD2-T1-63-45-LB Bore: 63 mm | Stroke: 45 mm | Mounting: Axial foot (LB) | Port: Rc1/4
SSD2-T1-63-45-CB Bore: 63 mm | Stroke: 45 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-T1-63-45-FA Bore: 63 mm | Stroke: 45 mm | Mounting: Rod flange (FA) | Port: Rc1/4
SSD2-T1-63-45-FB Bore: 63 mm | Stroke: 45 mm | Mounting: Head flange (FB) | Port: Rc1/4
SSD2-T1-63-50 Bore: 63 mm | Stroke: 50 mm | Mounting: None (basic) | Port: Rc1/4
SSD2-T1-63-50-LB Bore: 63 mm | Stroke: 50 mm | Mounting: Axial foot (LB) | Port: Rc1/4
SSD2-T1-63-50-CB Bore: 63 mm | Stroke: 50 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-T1-63-50-FA Bore: 63 mm | Stroke: 50 mm | Mounting: Rod flange (FA) | Port: Rc1/4
SSD2-T1-63-50-FB Bore: 63 mm | Stroke: 50 mm | Mounting: Head flange (FB) | Port: Rc1/4
SSD2-T1-63-75 Bore: 63 mm | Stroke: 75 mm | Mounting: None (basic) | Port: Rc1/4
SSD2-T1-63-75-LB Bore: 63 mm | Stroke: 75 mm | Mounting: Axial foot (LB) | Port: Rc1/4
SSD2-T1-63-75-CB Bore: 63 mm | Stroke: 75 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-T1-63-75-FA Bore: 63 mm | Stroke: 75 mm | Mounting: Rod flange (FA) | Port: Rc1/4
SSD2-T1-63-75-FB Bore: 63 mm | Stroke: 75 mm | Mounting: Head flange (FB) | Port: Rc1/4
SSD2-T1-63-100 Bore: 63 mm | Stroke: 100 mm | Mounting: None (basic) | Port: Rc1/4
SSD2-T1-63-100-LB Bore: 63 mm | Stroke: 100 mm | Mounting: Axial foot (LB) | Port: Rc1/4
SSD2-T1-63-100-CB Bore: 63 mm | Stroke: 100 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-T1-63-100-FA Bore: 63 mm | Stroke: 100 mm | Mounting: Rod flange (FA) | Port: Rc1/4
SSD2-T1-63-100-FB Bore: 63 mm | Stroke: 100 mm | Mounting: Head flange (FB) | Port: Rc1/4
SSD2-T1-80-10 Bore: 80 mm | Stroke: 10 mm | Mounting: None (basic) | Port: Rc3/8
SSD2-T1-80-10-CB Bore: 80 mm | Stroke: 10 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-T1-80-10-FA Bore: 80 mm | Stroke: 10 mm | Mounting: Rod flange (FA) | Port: Rc3/8
SSD2-T1-80-10-FB Bore: 80 mm | Stroke: 10 mm | Mounting: Head flange (FB) | Port: Rc3/8
SSD2-T1-80-15 Bore: 80 mm | Stroke: 15 mm | Mounting: None (basic) | Port: Rc3/8
SSD2-T1-80-15-CB Bore: 80 mm | Stroke: 15 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-T1-80-15-FA Bore: 80 mm | Stroke: 15 mm | Mounting: Rod flange (FA) | Port: Rc3/8
SSD2-T1-80-15-FB Bore: 80 mm | Stroke: 15 mm | Mounting: Head flange (FB) | Port: Rc3/8
SSD2-T1-80-20 Bore: 80 mm | Stroke: 20 mm | Mounting: None (basic) | Port: Rc3/8
SSD2-T1-80-20-CB Bore: 80 mm | Stroke: 20 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-T1-80-20-FA Bore: 80 mm | Stroke: 20 mm | Mounting: Rod flange (FA) | Port: Rc3/8
SSD2-T1-80-20-FB Bore: 80 mm | Stroke: 20 mm | Mounting: Head flange (FB) | Port: Rc3/8
SSD2-T1-80-25 Bore: 80 mm | Stroke: 25 mm | Mounting: None (basic) | Port: Rc3/8
SSD2-T1-80-25-CB Bore: 80 mm | Stroke: 25 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-T1-80-25-FA Bore: 80 mm | Stroke: 25 mm | Mounting: Rod flange (FA) | Port: Rc3/8
SSD2-T1-80-25-FB Bore: 80 mm | Stroke: 25 mm | Mounting: Head flange (FB) | Port: Rc3/8
SSD2-T1-80-30 Bore: 80 mm | Stroke: 30 mm | Mounting: None (basic) | Port: Rc3/8
SSD2-T1-80-30-LB Bore: 80 mm | Stroke: 30 mm | Mounting: Axial foot (LB) | Port: Rc3/8
SSD2-T1-80-30-CB Bore: 80 mm | Stroke: 30 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-T1-80-30-FA Bore: 80 mm | Stroke: 30 mm | Mounting: Rod flange (FA) | Port: Rc3/8
SSD2-T1-80-30-FB Bore: 80 mm | Stroke: 30 mm | Mounting: Head flange (FB) | Port: Rc3/8
SSD2-T1-80-35 Bore: 80 mm | Stroke: 35 mm | Mounting: None (basic) | Port: Rc3/8
SSD2-T1-80-35-LB Bore: 80 mm | Stroke: 35 mm | Mounting: Axial foot (LB) | Port: Rc3/8
SSD2-T1-80-35-CB Bore: 80 mm | Stroke: 35 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-T1-80-35-FA Bore: 80 mm | Stroke: 35 mm | Mounting: Rod flange (FA) | Port: Rc3/8
SSD2-T1-80-35-FB Bore: 80 mm | Stroke: 35 mm | Mounting: Head flange (FB) | Port: Rc3/8
SSD2-T1-80-40 Bore: 80 mm | Stroke: 40 mm | Mounting: None (basic) | Port: Rc3/8
SSD2-T1-80-40-LB Bore: 80 mm | Stroke: 40 mm | Mounting: Axial foot (LB) | Port: Rc3/8
SSD2-T1-80-40-CB Bore: 80 mm | Stroke: 40 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-T1-80-40-FA Bore: 80 mm | Stroke: 40 mm | Mounting: Rod flange (FA) | Port: Rc3/8
SSD2-T1-80-40-FB Bore: 80 mm | Stroke: 40 mm | Mounting: Head flange (FB) | Port: Rc3/8
SSD2-T1-80-45 Bore: 80 mm | Stroke: 45 mm | Mounting: None (basic) | Port: Rc3/8
SSD2-T1-80-45-LB Bore: 80 mm | Stroke: 45 mm | Mounting: Axial foot (LB) | Port: Rc3/8
SSD2-T1-80-45-CB Bore: 80 mm | Stroke: 45 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-T1-80-45-FA Bore: 80 mm | Stroke: 45 mm | Mounting: Rod flange (FA) | Port: Rc3/8
SSD2-T1-80-45-FB Bore: 80 mm | Stroke: 45 mm | Mounting: Head flange (FB) | Port: Rc3/8
SSD2-T1-80-50 Bore: 80 mm | Stroke: 50 mm | Mounting: None (basic) | Port: Rc3/8
SSD2-T1-80-50-LB Bore: 80 mm | Stroke: 50 mm | Mounting: Axial foot (LB) | Port: Rc3/8
SSD2-T1-80-50-CB Bore: 80 mm | Stroke: 50 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-T1-80-50-FA Bore: 80 mm | Stroke: 50 mm | Mounting: Rod flange (FA) | Port: Rc3/8
SSD2-T1-80-50-FB Bore: 80 mm | Stroke: 50 mm | Mounting: Head flange (FB) | Port: Rc3/8
SSD2-T1-80-75 Bore: 80 mm | Stroke: 75 mm | Mounting: None (basic) | Port: Rc3/8
SSD2-T1-80-75-LB Bore: 80 mm | Stroke: 75 mm | Mounting: Axial foot (LB) | Port: Rc3/8
SSD2-T1-80-75-CB Bore: 80 mm | Stroke: 75 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-T1-80-75-FA Bore: 80 mm | Stroke: 75 mm | Mounting: Rod flange (FA) | Port: Rc3/8
SSD2-T1-80-75-FB Bore: 80 mm | Stroke: 75 mm | Mounting: Head flange (FB) | Port: Rc3/8
SSD2-T1-80-100 Bore: 80 mm | Stroke: 100 mm | Mounting: None (basic) | Port: Rc3/8
SSD2-T1-80-100-LB Bore: 80 mm | Stroke: 100 mm | Mounting: Axial foot (LB) | Port: Rc3/8
SSD2-T1-80-100-CB Bore: 80 mm | Stroke: 100 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-T1-80-100-FA Bore: 80 mm | Stroke: 100 mm | Mounting: Rod flange (FA) | Port: Rc3/8
SSD2-T1-80-100-FB Bore: 80 mm | Stroke: 100 mm | Mounting: Head flange (FB) | Port: Rc3/8
SSD2-T1-100-10 Bore: 100 mm | Stroke: 10 mm | Mounting: None (basic) | Port: Rc3/8
SSD2-T1-100-10-CB Bore: 100 mm | Stroke: 10 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-T1-100-10-FA Bore: 100 mm | Stroke: 10 mm | Mounting: Rod flange (FA) | Port: Rc3/8
SSD2-T1-100-10-FB Bore: 100 mm | Stroke: 10 mm | Mounting: Head flange (FB) | Port: Rc3/8
SSD2-T1-100-15 Bore: 100 mm | Stroke: 15 mm | Mounting: None (basic) | Port: Rc3/8
SSD2-T1-100-15-CB Bore: 100 mm | Stroke: 15 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-T1-100-15-FA Bore: 100 mm | Stroke: 15 mm | Mounting: Rod flange (FA) | Port: Rc3/8
SSD2-T1-100-15-FB Bore: 100 mm | Stroke: 15 mm | Mounting: Head flange (FB) | Port: Rc3/8
SSD2-T1-100-20 Bore: 100 mm | Stroke: 20 mm | Mounting: None (basic) | Port: Rc3/8
SSD2-T1-100-20-LB Bore: 100 mm | Stroke: 20 mm | Mounting: Axial foot (LB) | Port: Rc3/8
SSD2-T1-100-20-CB Bore: 100 mm | Stroke: 20 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-T1-100-20-FA Bore: 100 mm | Stroke: 20 mm | Mounting: Rod flange (FA) | Port: Rc3/8
SSD2-T1-100-20-FB Bore: 100 mm | Stroke: 20 mm | Mounting: Head flange (FB) | Port: Rc3/8
SSD2-T1-100-25 Bore: 100 mm | Stroke: 25 mm | Mounting: None (basic) | Port: Rc3/8
SSD2-T1-100-25-LB Bore: 100 mm | Stroke: 25 mm | Mounting: Axial foot (LB) | Port: Rc3/8
SSD2-T1-100-25-CB Bore: 100 mm | Stroke: 25 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-T1-100-25-FA Bore: 100 mm | Stroke: 25 mm | Mounting: Rod flange (FA) | Port: Rc3/8
SSD2-T1-100-25-FB Bore: 100 mm | Stroke: 25 mm | Mounting: Head flange (FB) | Port: Rc3/8
SSD2-T1-100-30 Bore: 100 mm | Stroke: 30 mm | Mounting: None (basic) | Port: Rc3/8
SSD2-T1-100-30-LB Bore: 100 mm | Stroke: 30 mm | Mounting: Axial foot (LB) | Port: Rc3/8
SSD2-T1-100-30-CB Bore: 100 mm | Stroke: 30 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-T1-100-30-FA Bore: 100 mm | Stroke: 30 mm | Mounting: Rod flange (FA) | Port: Rc3/8
SSD2-T1-100-30-FB Bore: 100 mm | Stroke: 30 mm | Mounting: Head flange (FB) | Port: Rc3/8
SSD2-T1-100-35 Bore: 100 mm | Stroke: 35 mm | Mounting: None (basic) | Port: Rc3/8
SSD2-T1-100-35-LB Bore: 100 mm | Stroke: 35 mm | Mounting: Axial foot (LB) | Port: Rc3/8
SSD2-T1-100-35-CB Bore: 100 mm | Stroke: 35 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-T1-100-35-FA Bore: 100 mm | Stroke: 35 mm | Mounting: Rod flange (FA) | Port: Rc3/8
SSD2-T1-100-35-FB Bore: 100 mm | Stroke: 35 mm | Mounting: Head flange (FB) | Port: Rc3/8
SSD2-T1-100-40 Bore: 100 mm | Stroke: 40 mm | Mounting: None (basic) | Port: Rc3/8
SSD2-T1-100-40-LB Bore: 100 mm | Stroke: 40 mm | Mounting: Axial foot (LB) | Port: Rc3/8
SSD2-T1-100-40-CB Bore: 100 mm | Stroke: 40 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-T1-100-40-FA Bore: 100 mm | Stroke: 40 mm | Mounting: Rod flange (FA) | Port: Rc3/8
SSD2-T1-100-40-FB Bore: 100 mm | Stroke: 40 mm | Mounting: Head flange (FB) | Port: Rc3/8
SSD2-T1-100-45 Bore: 100 mm | Stroke: 45 mm | Mounting: None (basic) | Port: Rc3/8
SSD2-T1-100-45-LB Bore: 100 mm | Stroke: 45 mm | Mounting: Axial foot (LB) | Port: Rc3/8
SSD2-T1-100-45-CB Bore: 100 mm | Stroke: 45 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-T1-100-45-FA Bore: 100 mm | Stroke: 45 mm | Mounting: Rod flange (FA) | Port: Rc3/8
SSD2-T1-100-45-FB Bore: 100 mm | Stroke: 45 mm | Mounting: Head flange (FB) | Port: Rc3/8
SSD2-T1-100-50 Bore: 100 mm | Stroke: 50 mm | Mounting: None (basic) | Port: Rc3/8
SSD2-T1-100-50-LB Bore: 100 mm | Stroke: 50 mm | Mounting: Axial foot (LB) | Port: Rc3/8
SSD2-T1-100-50-CB Bore: 100 mm | Stroke: 50 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-T1-100-50-FA Bore: 100 mm | Stroke: 50 mm | Mounting: Rod flange (FA) | Port: Rc3/8
SSD2-T1-100-50-FB Bore: 100 mm | Stroke: 50 mm | Mounting: Head flange (FB) | Port: Rc3/8
SSD2-T1-100-75 Bore: 100 mm | Stroke: 75 mm | Mounting: None (basic) | Port: Rc3/8
SSD2-T1-100-75-LB Bore: 100 mm | Stroke: 75 mm | Mounting: Axial foot (LB) | Port: Rc3/8
SSD2-T1-100-75-CB Bore: 100 mm | Stroke: 75 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-T1-100-75-FA Bore: 100 mm | Stroke: 75 mm | Mounting: Rod flange (FA) | Port: Rc3/8
SSD2-T1-100-75-FB Bore: 100 mm | Stroke: 75 mm | Mounting: Head flange (FB) | Port: Rc3/8
SSD2-T1-100-100 Bore: 100 mm | Stroke: 100 mm | Mounting: None (basic) | Port: Rc3/8
SSD2-T1-100-100-LB Bore: 100 mm | Stroke: 100 mm | Mounting: Axial foot (LB) | Port: Rc3/8
SSD2-T1-100-100-CB Bore: 100 mm | Stroke: 100 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-T1-100-100-FA Bore: 100 mm | Stroke: 100 mm | Mounting: Rod flange (FA) | Port: Rc3/8
SSD2-T1-100-100-FB Bore: 100 mm | Stroke: 100 mm | Mounting: Head flange (FB) | Port: Rc3/8
Compact CylindersCKD
493 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD SSD2-T1 Super Compact Cylinder (Heat Resistant 150 C)

Brand CKD·Compact Cylinders

Available part numbers (493)

SSD2-T1-12-5, SSD2-T1-12-5-LB, SSD2-T1-12-5-CB, SSD2-T1-12-5-FA, SSD2-T1-12-5-FB, SSD2-T1-12-10, SSD2-T1-12-10-LB, SSD2-T1-12-10-CB, SSD2-T1-12-10-FA, SSD2-T1-12-10-FB + 483 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SSD2-T1-12-5Bore: 12 mm | Stroke: 5 mm | Mounting: None (basic) | Port: M5
SSD2-T1-12-5-LBBore: 12 mm | Stroke: 5 mm | Mounting: Axial foot (LB) | Port: M5
SSD2-T1-12-5-CBBore: 12 mm | Stroke: 5 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-T1-12-5-FABore: 12 mm | Stroke: 5 mm | Mounting: Rod flange (FA) | Port: M5
SSD2-T1-12-5-FBBore: 12 mm | Stroke: 5 mm | Mounting: Head flange (FB) | Port: M5
SSD2-T1-12-10Bore: 12 mm | Stroke: 10 mm | Mounting: None (basic) | Port: M5
SSD2-T1-12-10-LBBore: 12 mm | Stroke: 10 mm | Mounting: Axial foot (LB) | Port: M5
SSD2-T1-12-10-CBBore: 12 mm | Stroke: 10 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-T1-12-10-FABore: 12 mm | Stroke: 10 mm | Mounting: Rod flange (FA) | Port: M5
SSD2-T1-12-10-FBBore: 12 mm | Stroke: 10 mm | Mounting: Head flange (FB) | Port: M5
SSD2-T1-12-15Bore: 12 mm | Stroke: 15 mm | Mounting: None (basic) | Port: M5
SSD2-T1-12-15-LBBore: 12 mm | Stroke: 15 mm | Mounting: Axial foot (LB) | Port: M5
SSD2-T1-12-15-CBBore: 12 mm | Stroke: 15 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-T1-12-15-FABore: 12 mm | Stroke: 15 mm | Mounting: Rod flange (FA) | Port: M5
SSD2-T1-12-15-FBBore: 12 mm | Stroke: 15 mm | Mounting: Head flange (FB) | Port: M5
SSD2-T1-12-20Bore: 12 mm | Stroke: 20 mm | Mounting: None (basic) | Port: M5
SSD2-T1-12-20-LBBore: 12 mm | Stroke: 20 mm | Mounting: Axial foot (LB) | Port: M5
SSD2-T1-12-20-CBBore: 12 mm | Stroke: 20 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-T1-12-20-FABore: 12 mm | Stroke: 20 mm | Mounting: Rod flange (FA) | Port: M5
SSD2-T1-12-20-FBBore: 12 mm | Stroke: 20 mm | Mounting: Head flange (FB) | Port: M5
SSD2-T1-12-25Bore: 12 mm | Stroke: 25 mm | Mounting: None (basic) | Port: M5
SSD2-T1-12-25-LBBore: 12 mm | Stroke: 25 mm | Mounting: Axial foot (LB) | Port: M5
SSD2-T1-12-25-CBBore: 12 mm | Stroke: 25 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-T1-12-25-FABore: 12 mm | Stroke: 25 mm | Mounting: Rod flange (FA) | Port: M5
SSD2-T1-12-25-FBBore: 12 mm | Stroke: 25 mm | Mounting: Head flange (FB) | Port: M5
SSD2-T1-12-30Bore: 12 mm | Stroke: 30 mm | Mounting: None (basic) | Port: M5
SSD2-T1-12-30-LBBore: 12 mm | Stroke: 30 mm | Mounting: Axial foot (LB) | Port: M5
SSD2-T1-12-30-CBBore: 12 mm | Stroke: 30 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-T1-12-30-FABore: 12 mm | Stroke: 30 mm | Mounting: Rod flange (FA) | Port: M5
SSD2-T1-12-30-FBBore: 12 mm | Stroke: 30 mm | Mounting: Head flange (FB) | Port: M5
SSD2-T1-16-5Bore: 16 mm | Stroke: 5 mm | Mounting: None (basic) | Port: M5
SSD2-T1-16-5-LBBore: 16 mm | Stroke: 5 mm | Mounting: Axial foot (LB) | Port: M5
SSD2-T1-16-5-CBBore: 16 mm | Stroke: 5 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-T1-16-5-FABore: 16 mm | Stroke: 5 mm | Mounting: Rod flange (FA) | Port: M5
SSD2-T1-16-5-FBBore: 16 mm | Stroke: 5 mm | Mounting: Head flange (FB) | Port: M5
SSD2-T1-16-10Bore: 16 mm | Stroke: 10 mm | Mounting: None (basic) | Port: M5
SSD2-T1-16-10-LBBore: 16 mm | Stroke: 10 mm | Mounting: Axial foot (LB) | Port: M5
SSD2-T1-16-10-CBBore: 16 mm | Stroke: 10 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-T1-16-10-FABore: 16 mm | Stroke: 10 mm | Mounting: Rod flange (FA) | Port: M5
SSD2-T1-16-10-FBBore: 16 mm | Stroke: 10 mm | Mounting: Head flange (FB) | Port: M5
SSD2-T1-16-15Bore: 16 mm | Stroke: 15 mm | Mounting: None (basic) | Port: M5
SSD2-T1-16-15-LBBore: 16 mm | Stroke: 15 mm | Mounting: Axial foot (LB) | Port: M5
SSD2-T1-16-15-CBBore: 16 mm | Stroke: 15 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-T1-16-15-FABore: 16 mm | Stroke: 15 mm | Mounting: Rod flange (FA) | Port: M5
SSD2-T1-16-15-FBBore: 16 mm | Stroke: 15 mm | Mounting: Head flange (FB) | Port: M5
SSD2-T1-16-20Bore: 16 mm | Stroke: 20 mm | Mounting: None (basic) | Port: M5
SSD2-T1-16-20-LBBore: 16 mm | Stroke: 20 mm | Mounting: Axial foot (LB) | Port: M5
SSD2-T1-16-20-CBBore: 16 mm | Stroke: 20 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-T1-16-20-FABore: 16 mm | Stroke: 20 mm | Mounting: Rod flange (FA) | Port: M5
SSD2-T1-16-20-FBBore: 16 mm | Stroke: 20 mm | Mounting: Head flange (FB) | Port: M5
SSD2-T1-16-25Bore: 16 mm | Stroke: 25 mm | Mounting: None (basic) | Port: M5
SSD2-T1-16-25-LBBore: 16 mm | Stroke: 25 mm | Mounting: Axial foot (LB) | Port: M5
SSD2-T1-16-25-CBBore: 16 mm | Stroke: 25 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-T1-16-25-FABore: 16 mm | Stroke: 25 mm | Mounting: Rod flange (FA) | Port: M5
SSD2-T1-16-25-FBBore: 16 mm | Stroke: 25 mm | Mounting: Head flange (FB) | Port: M5
SSD2-T1-16-30Bore: 16 mm | Stroke: 30 mm | Mounting: None (basic) | Port: M5
SSD2-T1-16-30-LBBore: 16 mm | Stroke: 30 mm | Mounting: Axial foot (LB) | Port: M5
SSD2-T1-16-30-CBBore: 16 mm | Stroke: 30 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-T1-16-30-FABore: 16 mm | Stroke: 30 mm | Mounting: Rod flange (FA) | Port: M5
SSD2-T1-16-30-FBBore: 16 mm | Stroke: 30 mm | Mounting: Head flange (FB) | Port: M5
SSD2-T1-20-5Bore: 20 mm | Stroke: 5 mm | Mounting: None (basic) | Port: M5
SSD2-T1-20-5-CBBore: 20 mm | Stroke: 5 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-T1-20-5-FABore: 20 mm | Stroke: 5 mm | Mounting: Rod flange (FA) | Port: M5
SSD2-T1-20-5-FBBore: 20 mm | Stroke: 5 mm | Mounting: Head flange (FB) | Port: M5
SSD2-T1-20-10Bore: 20 mm | Stroke: 10 mm | Mounting: None (basic) | Port: M5
SSD2-T1-20-10-LBBore: 20 mm | Stroke: 10 mm | Mounting: Axial foot (LB) | Port: M5
SSD2-T1-20-10-CBBore: 20 mm | Stroke: 10 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-T1-20-10-FABore: 20 mm | Stroke: 10 mm | Mounting: Rod flange (FA) | Port: M5
SSD2-T1-20-10-FBBore: 20 mm | Stroke: 10 mm | Mounting: Head flange (FB) | Port: M5
SSD2-T1-20-15Bore: 20 mm | Stroke: 15 mm | Mounting: None (basic) | Port: M5
SSD2-T1-20-15-LBBore: 20 mm | Stroke: 15 mm | Mounting: Axial foot (LB) | Port: M5
SSD2-T1-20-15-CBBore: 20 mm | Stroke: 15 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-T1-20-15-FABore: 20 mm | Stroke: 15 mm | Mounting: Rod flange (FA) | Port: M5
SSD2-T1-20-15-FBBore: 20 mm | Stroke: 15 mm | Mounting: Head flange (FB) | Port: M5
SSD2-T1-20-20Bore: 20 mm | Stroke: 20 mm | Mounting: None (basic) | Port: M5
SSD2-T1-20-20-LBBore: 20 mm | Stroke: 20 mm | Mounting: Axial foot (LB) | Port: M5
SSD2-T1-20-20-CBBore: 20 mm | Stroke: 20 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-T1-20-20-FABore: 20 mm | Stroke: 20 mm | Mounting: Rod flange (FA) | Port: M5
SSD2-T1-20-20-FBBore: 20 mm | Stroke: 20 mm | Mounting: Head flange (FB) | Port: M5
SSD2-T1-20-25Bore: 20 mm | Stroke: 25 mm | Mounting: None (basic) | Port: M5
SSD2-T1-20-25-LBBore: 20 mm | Stroke: 25 mm | Mounting: Axial foot (LB) | Port: M5
SSD2-T1-20-25-CBBore: 20 mm | Stroke: 25 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-T1-20-25-FABore: 20 mm | Stroke: 25 mm | Mounting: Rod flange (FA) | Port: M5
SSD2-T1-20-25-FBBore: 20 mm | Stroke: 25 mm | Mounting: Head flange (FB) | Port: M5
SSD2-T1-20-30Bore: 20 mm | Stroke: 30 mm | Mounting: None (basic) | Port: M5
SSD2-T1-20-30-LBBore: 20 mm | Stroke: 30 mm | Mounting: Axial foot (LB) | Port: M5
SSD2-T1-20-30-CBBore: 20 mm | Stroke: 30 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-T1-20-30-FABore: 20 mm | Stroke: 30 mm | Mounting: Rod flange (FA) | Port: M5
SSD2-T1-20-30-FBBore: 20 mm | Stroke: 30 mm | Mounting: Head flange (FB) | Port: M5
SSD2-T1-20-35Bore: 20 mm | Stroke: 35 mm | Mounting: None (basic) | Port: M5
SSD2-T1-20-35-LBBore: 20 mm | Stroke: 35 mm | Mounting: Axial foot (LB) | Port: M5
SSD2-T1-20-35-CBBore: 20 mm | Stroke: 35 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-T1-20-35-FABore: 20 mm | Stroke: 35 mm | Mounting: Rod flange (FA) | Port: M5
SSD2-T1-20-35-FBBore: 20 mm | Stroke: 35 mm | Mounting: Head flange (FB) | Port: M5
SSD2-T1-20-40Bore: 20 mm | Stroke: 40 mm | Mounting: None (basic) | Port: M5
SSD2-T1-20-40-LBBore: 20 mm | Stroke: 40 mm | Mounting: Axial foot (LB) | Port: M5
SSD2-T1-20-40-CBBore: 20 mm | Stroke: 40 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-T1-20-40-FABore: 20 mm | Stroke: 40 mm | Mounting: Rod flange (FA) | Port: M5
SSD2-T1-20-40-FBBore: 20 mm | Stroke: 40 mm | Mounting: Head flange (FB) | Port: M5
SSD2-T1-20-45Bore: 20 mm | Stroke: 45 mm | Mounting: None (basic) | Port: M5
SSD2-T1-20-45-LBBore: 20 mm | Stroke: 45 mm | Mounting: Axial foot (LB) | Port: M5
SSD2-T1-20-45-CBBore: 20 mm | Stroke: 45 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-T1-20-45-FABore: 20 mm | Stroke: 45 mm | Mounting: Rod flange (FA) | Port: M5
SSD2-T1-20-45-FBBore: 20 mm | Stroke: 45 mm | Mounting: Head flange (FB) | Port: M5
SSD2-T1-20-50Bore: 20 mm | Stroke: 50 mm | Mounting: None (basic) | Port: M5
SSD2-T1-20-50-LBBore: 20 mm | Stroke: 50 mm | Mounting: Axial foot (LB) | Port: M5
SSD2-T1-20-50-CBBore: 20 mm | Stroke: 50 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-T1-20-50-FABore: 20 mm | Stroke: 50 mm | Mounting: Rod flange (FA) | Port: M5
SSD2-T1-20-50-FBBore: 20 mm | Stroke: 50 mm | Mounting: Head flange (FB) | Port: M5
SSD2-T1-25-5Bore: 25 mm | Stroke: 5 mm | Mounting: None (basic) | Port: M5
SSD2-T1-25-5-LBBore: 25 mm | Stroke: 5 mm | Mounting: Axial foot (LB) | Port: M5
SSD2-T1-25-5-CBBore: 25 mm | Stroke: 5 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-T1-25-5-FABore: 25 mm | Stroke: 5 mm | Mounting: Rod flange (FA) | Port: M5
SSD2-T1-25-5-FBBore: 25 mm | Stroke: 5 mm | Mounting: Head flange (FB) | Port: M5
SSD2-T1-25-10Bore: 25 mm | Stroke: 10 mm | Mounting: None (basic) | Port: M5
SSD2-T1-25-10-LBBore: 25 mm | Stroke: 10 mm | Mounting: Axial foot (LB) | Port: M5
SSD2-T1-25-10-CBBore: 25 mm | Stroke: 10 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-T1-25-10-FABore: 25 mm | Stroke: 10 mm | Mounting: Rod flange (FA) | Port: M5
SSD2-T1-25-10-FBBore: 25 mm | Stroke: 10 mm | Mounting: Head flange (FB) | Port: M5
SSD2-T1-25-15Bore: 25 mm | Stroke: 15 mm | Mounting: None (basic) | Port: M5
SSD2-T1-25-15-LBBore: 25 mm | Stroke: 15 mm | Mounting: Axial foot (LB) | Port: M5
SSD2-T1-25-15-CBBore: 25 mm | Stroke: 15 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-T1-25-15-FABore: 25 mm | Stroke: 15 mm | Mounting: Rod flange (FA) | Port: M5
SSD2-T1-25-15-FBBore: 25 mm | Stroke: 15 mm | Mounting: Head flange (FB) | Port: M5
SSD2-T1-25-20Bore: 25 mm | Stroke: 20 mm | Mounting: None (basic) | Port: M5
SSD2-T1-25-20-LBBore: 25 mm | Stroke: 20 mm | Mounting: Axial foot (LB) | Port: M5
SSD2-T1-25-20-CBBore: 25 mm | Stroke: 20 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-T1-25-20-FABore: 25 mm | Stroke: 20 mm | Mounting: Rod flange (FA) | Port: M5
SSD2-T1-25-20-FBBore: 25 mm | Stroke: 20 mm | Mounting: Head flange (FB) | Port: M5
SSD2-T1-25-25Bore: 25 mm | Stroke: 25 mm | Mounting: None (basic) | Port: M5
SSD2-T1-25-25-LBBore: 25 mm | Stroke: 25 mm | Mounting: Axial foot (LB) | Port: M5
SSD2-T1-25-25-CBBore: 25 mm | Stroke: 25 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-T1-25-25-FABore: 25 mm | Stroke: 25 mm | Mounting: Rod flange (FA) | Port: M5
SSD2-T1-25-25-FBBore: 25 mm | Stroke: 25 mm | Mounting: Head flange (FB) | Port: M5
SSD2-T1-25-30Bore: 25 mm | Stroke: 30 mm | Mounting: None (basic) | Port: M5
SSD2-T1-25-30-LBBore: 25 mm | Stroke: 30 mm | Mounting: Axial foot (LB) | Port: M5
SSD2-T1-25-30-CBBore: 25 mm | Stroke: 30 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-T1-25-30-FABore: 25 mm | Stroke: 30 mm | Mounting: Rod flange (FA) | Port: M5
SSD2-T1-25-30-FBBore: 25 mm | Stroke: 30 mm | Mounting: Head flange (FB) | Port: M5
SSD2-T1-25-35Bore: 25 mm | Stroke: 35 mm | Mounting: None (basic) | Port: M5
SSD2-T1-25-35-LBBore: 25 mm | Stroke: 35 mm | Mounting: Axial foot (LB) | Port: M5
SSD2-T1-25-35-CBBore: 25 mm | Stroke: 35 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-T1-25-35-FABore: 25 mm | Stroke: 35 mm | Mounting: Rod flange (FA) | Port: M5
SSD2-T1-25-35-FBBore: 25 mm | Stroke: 35 mm | Mounting: Head flange (FB) | Port: M5
SSD2-T1-25-40Bore: 25 mm | Stroke: 40 mm | Mounting: None (basic) | Port: M5
SSD2-T1-25-40-LBBore: 25 mm | Stroke: 40 mm | Mounting: Axial foot (LB) | Port: M5
SSD2-T1-25-40-CBBore: 25 mm | Stroke: 40 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-T1-25-40-FABore: 25 mm | Stroke: 40 mm | Mounting: Rod flange (FA) | Port: M5
SSD2-T1-25-40-FBBore: 25 mm | Stroke: 40 mm | Mounting: Head flange (FB) | Port: M5
SSD2-T1-25-45Bore: 25 mm | Stroke: 45 mm | Mounting: None (basic) | Port: M5
SSD2-T1-25-45-LBBore: 25 mm | Stroke: 45 mm | Mounting: Axial foot (LB) | Port: M5
SSD2-T1-25-45-CBBore: 25 mm | Stroke: 45 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-T1-25-45-FABore: 25 mm | Stroke: 45 mm | Mounting: Rod flange (FA) | Port: M5
SSD2-T1-25-45-FBBore: 25 mm | Stroke: 45 mm | Mounting: Head flange (FB) | Port: M5
SSD2-T1-25-50Bore: 25 mm | Stroke: 50 mm | Mounting: None (basic) | Port: M5
SSD2-T1-25-50-LBBore: 25 mm | Stroke: 50 mm | Mounting: Axial foot (LB) | Port: M5
SSD2-T1-25-50-CBBore: 25 mm | Stroke: 50 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-T1-25-50-FABore: 25 mm | Stroke: 50 mm | Mounting: Rod flange (FA) | Port: M5
SSD2-T1-25-50-FBBore: 25 mm | Stroke: 50 mm | Mounting: Head flange (FB) | Port: M5
SSD2-T1-32-5Bore: 32 mm | Stroke: 5 mm | Mounting: None (basic) | Port: Rc1/8
SSD2-T1-32-5-LBBore: 32 mm | Stroke: 5 mm | Mounting: Axial foot (LB) | Port: Rc1/8
SSD2-T1-32-5-CBBore: 32 mm | Stroke: 5 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-T1-32-5-FABore: 32 mm | Stroke: 5 mm | Mounting: Rod flange (FA) | Port: Rc1/8
SSD2-T1-32-5-FBBore: 32 mm | Stroke: 5 mm | Mounting: Head flange (FB) | Port: Rc1/8
SSD2-T1-32-10Bore: 32 mm | Stroke: 10 mm | Mounting: None (basic) | Port: Rc1/8
SSD2-T1-32-10-LBBore: 32 mm | Stroke: 10 mm | Mounting: Axial foot (LB) | Port: Rc1/8
SSD2-T1-32-10-CBBore: 32 mm | Stroke: 10 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-T1-32-10-FABore: 32 mm | Stroke: 10 mm | Mounting: Rod flange (FA) | Port: Rc1/8
SSD2-T1-32-10-FBBore: 32 mm | Stroke: 10 mm | Mounting: Head flange (FB) | Port: Rc1/8
SSD2-T1-32-15Bore: 32 mm | Stroke: 15 mm | Mounting: None (basic) | Port: Rc1/8
SSD2-T1-32-15-LBBore: 32 mm | Stroke: 15 mm | Mounting: Axial foot (LB) | Port: Rc1/8
SSD2-T1-32-15-CBBore: 32 mm | Stroke: 15 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-T1-32-15-FABore: 32 mm | Stroke: 15 mm | Mounting: Rod flange (FA) | Port: Rc1/8
SSD2-T1-32-15-FBBore: 32 mm | Stroke: 15 mm | Mounting: Head flange (FB) | Port: Rc1/8
SSD2-T1-32-20Bore: 32 mm | Stroke: 20 mm | Mounting: None (basic) | Port: Rc1/8
SSD2-T1-32-20-LBBore: 32 mm | Stroke: 20 mm | Mounting: Axial foot (LB) | Port: Rc1/8
SSD2-T1-32-20-CBBore: 32 mm | Stroke: 20 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-T1-32-20-FABore: 32 mm | Stroke: 20 mm | Mounting: Rod flange (FA) | Port: Rc1/8
SSD2-T1-32-20-FBBore: 32 mm | Stroke: 20 mm | Mounting: Head flange (FB) | Port: Rc1/8
SSD2-T1-32-25Bore: 32 mm | Stroke: 25 mm | Mounting: None (basic) | Port: Rc1/8
SSD2-T1-32-25-LBBore: 32 mm | Stroke: 25 mm | Mounting: Axial foot (LB) | Port: Rc1/8
SSD2-T1-32-25-CBBore: 32 mm | Stroke: 25 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-T1-32-25-FABore: 32 mm | Stroke: 25 mm | Mounting: Rod flange (FA) | Port: Rc1/8
SSD2-T1-32-25-FBBore: 32 mm | Stroke: 25 mm | Mounting: Head flange (FB) | Port: Rc1/8
SSD2-T1-32-30Bore: 32 mm | Stroke: 30 mm | Mounting: None (basic) | Port: Rc1/8
SSD2-T1-32-30-LBBore: 32 mm | Stroke: 30 mm | Mounting: Axial foot (LB) | Port: Rc1/8
SSD2-T1-32-30-CBBore: 32 mm | Stroke: 30 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-T1-32-30-FABore: 32 mm | Stroke: 30 mm | Mounting: Rod flange (FA) | Port: Rc1/8
SSD2-T1-32-30-FBBore: 32 mm | Stroke: 30 mm | Mounting: Head flange (FB) | Port: Rc1/8
SSD2-T1-32-35Bore: 32 mm | Stroke: 35 mm | Mounting: None (basic) | Port: Rc1/8
SSD2-T1-32-35-LBBore: 32 mm | Stroke: 35 mm | Mounting: Axial foot (LB) | Port: Rc1/8
SSD2-T1-32-35-CBBore: 32 mm | Stroke: 35 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-T1-32-35-FABore: 32 mm | Stroke: 35 mm | Mounting: Rod flange (FA) | Port: Rc1/8
SSD2-T1-32-35-FBBore: 32 mm | Stroke: 35 mm | Mounting: Head flange (FB) | Port: Rc1/8
SSD2-T1-32-40Bore: 32 mm | Stroke: 40 mm | Mounting: None (basic) | Port: Rc1/8
SSD2-T1-32-40-LBBore: 32 mm | Stroke: 40 mm | Mounting: Axial foot (LB) | Port: Rc1/8
SSD2-T1-32-40-CBBore: 32 mm | Stroke: 40 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-T1-32-40-FABore: 32 mm | Stroke: 40 mm | Mounting: Rod flange (FA) | Port: Rc1/8
SSD2-T1-32-40-FBBore: 32 mm | Stroke: 40 mm | Mounting: Head flange (FB) | Port: Rc1/8
SSD2-T1-32-45Bore: 32 mm | Stroke: 45 mm | Mounting: None (basic) | Port: Rc1/8
SSD2-T1-32-45-LBBore: 32 mm | Stroke: 45 mm | Mounting: Axial foot (LB) | Port: Rc1/8
SSD2-T1-32-45-CBBore: 32 mm | Stroke: 45 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-T1-32-45-FABore: 32 mm | Stroke: 45 mm | Mounting: Rod flange (FA) | Port: Rc1/8
SSD2-T1-32-45-FBBore: 32 mm | Stroke: 45 mm | Mounting: Head flange (FB) | Port: Rc1/8
SSD2-T1-32-50Bore: 32 mm | Stroke: 50 mm | Mounting: None (basic) | Port: Rc1/8
SSD2-T1-32-50-LBBore: 32 mm | Stroke: 50 mm | Mounting: Axial foot (LB) | Port: Rc1/8
SSD2-T1-32-50-CBBore: 32 mm | Stroke: 50 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-T1-32-50-FABore: 32 mm | Stroke: 50 mm | Mounting: Rod flange (FA) | Port: Rc1/8
SSD2-T1-32-50-FBBore: 32 mm | Stroke: 50 mm | Mounting: Head flange (FB) | Port: Rc1/8
SSD2-T1-32-75Bore: 32 mm | Stroke: 75 mm | Mounting: None (basic) | Port: Rc1/8
SSD2-T1-32-75-LBBore: 32 mm | Stroke: 75 mm | Mounting: Axial foot (LB) | Port: Rc1/8
SSD2-T1-32-75-CBBore: 32 mm | Stroke: 75 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-T1-32-75-FABore: 32 mm | Stroke: 75 mm | Mounting: Rod flange (FA) | Port: Rc1/8
SSD2-T1-32-75-FBBore: 32 mm | Stroke: 75 mm | Mounting: Head flange (FB) | Port: Rc1/8
SSD2-T1-32-100Bore: 32 mm | Stroke: 100 mm | Mounting: None (basic) | Port: Rc1/8
SSD2-T1-32-100-LBBore: 32 mm | Stroke: 100 mm | Mounting: Axial foot (LB) | Port: Rc1/8
SSD2-T1-32-100-CBBore: 32 mm | Stroke: 100 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-T1-32-100-FABore: 32 mm | Stroke: 100 mm | Mounting: Rod flange (FA) | Port: Rc1/8
SSD2-T1-32-100-FBBore: 32 mm | Stroke: 100 mm | Mounting: Head flange (FB) | Port: Rc1/8
SSD2-T1-40-5Bore: 40 mm | Stroke: 5 mm | Mounting: None (basic) | Port: Rc1/8
SSD2-T1-40-5-LBBore: 40 mm | Stroke: 5 mm | Mounting: Axial foot (LB) | Port: Rc1/8
SSD2-T1-40-5-CBBore: 40 mm | Stroke: 5 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-T1-40-5-FABore: 40 mm | Stroke: 5 mm | Mounting: Rod flange (FA) | Port: Rc1/8
SSD2-T1-40-5-FBBore: 40 mm | Stroke: 5 mm | Mounting: Head flange (FB) | Port: Rc1/8
SSD2-T1-40-10Bore: 40 mm | Stroke: 10 mm | Mounting: None (basic) | Port: Rc1/8
SSD2-T1-40-10-LBBore: 40 mm | Stroke: 10 mm | Mounting: Axial foot (LB) | Port: Rc1/8
SSD2-T1-40-10-CBBore: 40 mm | Stroke: 10 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-T1-40-10-FABore: 40 mm | Stroke: 10 mm | Mounting: Rod flange (FA) | Port: Rc1/8
SSD2-T1-40-10-FBBore: 40 mm | Stroke: 10 mm | Mounting: Head flange (FB) | Port: Rc1/8
SSD2-T1-40-15Bore: 40 mm | Stroke: 15 mm | Mounting: None (basic) | Port: Rc1/8
SSD2-T1-40-15-LBBore: 40 mm | Stroke: 15 mm | Mounting: Axial foot (LB) | Port: Rc1/8
SSD2-T1-40-15-CBBore: 40 mm | Stroke: 15 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-T1-40-15-FABore: 40 mm | Stroke: 15 mm | Mounting: Rod flange (FA) | Port: Rc1/8
SSD2-T1-40-15-FBBore: 40 mm | Stroke: 15 mm | Mounting: Head flange (FB) | Port: Rc1/8
SSD2-T1-40-20Bore: 40 mm | Stroke: 20 mm | Mounting: None (basic) | Port: Rc1/8
SSD2-T1-40-20-LBBore: 40 mm | Stroke: 20 mm | Mounting: Axial foot (LB) | Port: Rc1/8
SSD2-T1-40-20-CBBore: 40 mm | Stroke: 20 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-T1-40-20-FABore: 40 mm | Stroke: 20 mm | Mounting: Rod flange (FA) | Port: Rc1/8
SSD2-T1-40-20-FBBore: 40 mm | Stroke: 20 mm | Mounting: Head flange (FB) | Port: Rc1/8
SSD2-T1-40-25Bore: 40 mm | Stroke: 25 mm | Mounting: None (basic) | Port: Rc1/8
SSD2-T1-40-25-LBBore: 40 mm | Stroke: 25 mm | Mounting: Axial foot (LB) | Port: Rc1/8
SSD2-T1-40-25-CBBore: 40 mm | Stroke: 25 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-T1-40-25-FABore: 40 mm | Stroke: 25 mm | Mounting: Rod flange (FA) | Port: Rc1/8
SSD2-T1-40-25-FBBore: 40 mm | Stroke: 25 mm | Mounting: Head flange (FB) | Port: Rc1/8
SSD2-T1-40-30Bore: 40 mm | Stroke: 30 mm | Mounting: None (basic) | Port: Rc1/8
SSD2-T1-40-30-LBBore: 40 mm | Stroke: 30 mm | Mounting: Axial foot (LB) | Port: Rc1/8
SSD2-T1-40-30-CBBore: 40 mm | Stroke: 30 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-T1-40-30-FABore: 40 mm | Stroke: 30 mm | Mounting: Rod flange (FA) | Port: Rc1/8
SSD2-T1-40-30-FBBore: 40 mm | Stroke: 30 mm | Mounting: Head flange (FB) | Port: Rc1/8
SSD2-T1-40-35Bore: 40 mm | Stroke: 35 mm | Mounting: None (basic) | Port: Rc1/8
SSD2-T1-40-35-LBBore: 40 mm | Stroke: 35 mm | Mounting: Axial foot (LB) | Port: Rc1/8
SSD2-T1-40-35-CBBore: 40 mm | Stroke: 35 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-T1-40-35-FABore: 40 mm | Stroke: 35 mm | Mounting: Rod flange (FA) | Port: Rc1/8
SSD2-T1-40-35-FBBore: 40 mm | Stroke: 35 mm | Mounting: Head flange (FB) | Port: Rc1/8
SSD2-T1-40-40Bore: 40 mm | Stroke: 40 mm | Mounting: None (basic) | Port: Rc1/8
SSD2-T1-40-40-LBBore: 40 mm | Stroke: 40 mm | Mounting: Axial foot (LB) | Port: Rc1/8
SSD2-T1-40-40-CBBore: 40 mm | Stroke: 40 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-T1-40-40-FABore: 40 mm | Stroke: 40 mm | Mounting: Rod flange (FA) | Port: Rc1/8
SSD2-T1-40-40-FBBore: 40 mm | Stroke: 40 mm | Mounting: Head flange (FB) | Port: Rc1/8
SSD2-T1-40-45Bore: 40 mm | Stroke: 45 mm | Mounting: None (basic) | Port: Rc1/8
SSD2-T1-40-45-LBBore: 40 mm | Stroke: 45 mm | Mounting: Axial foot (LB) | Port: Rc1/8
SSD2-T1-40-45-CBBore: 40 mm | Stroke: 45 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-T1-40-45-FABore: 40 mm | Stroke: 45 mm | Mounting: Rod flange (FA) | Port: Rc1/8
SSD2-T1-40-45-FBBore: 40 mm | Stroke: 45 mm | Mounting: Head flange (FB) | Port: Rc1/8
SSD2-T1-40-50Bore: 40 mm | Stroke: 50 mm | Mounting: None (basic) | Port: Rc1/8
SSD2-T1-40-50-LBBore: 40 mm | Stroke: 50 mm | Mounting: Axial foot (LB) | Port: Rc1/8
SSD2-T1-40-50-CBBore: 40 mm | Stroke: 50 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-T1-40-50-FABore: 40 mm | Stroke: 50 mm | Mounting: Rod flange (FA) | Port: Rc1/8
SSD2-T1-40-50-FBBore: 40 mm | Stroke: 50 mm | Mounting: Head flange (FB) | Port: Rc1/8
SSD2-T1-40-75Bore: 40 mm | Stroke: 75 mm | Mounting: None (basic) | Port: Rc1/8
SSD2-T1-40-75-LBBore: 40 mm | Stroke: 75 mm | Mounting: Axial foot (LB) | Port: Rc1/8
SSD2-T1-40-75-CBBore: 40 mm | Stroke: 75 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-T1-40-75-FABore: 40 mm | Stroke: 75 mm | Mounting: Rod flange (FA) | Port: Rc1/8
SSD2-T1-40-75-FBBore: 40 mm | Stroke: 75 mm | Mounting: Head flange (FB) | Port: Rc1/8
SSD2-T1-40-100Bore: 40 mm | Stroke: 100 mm | Mounting: None (basic) | Port: Rc1/8
SSD2-T1-40-100-LBBore: 40 mm | Stroke: 100 mm | Mounting: Axial foot (LB) | Port: Rc1/8
SSD2-T1-40-100-CBBore: 40 mm | Stroke: 100 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-T1-40-100-FABore: 40 mm | Stroke: 100 mm | Mounting: Rod flange (FA) | Port: Rc1/8
SSD2-T1-40-100-FBBore: 40 mm | Stroke: 100 mm | Mounting: Head flange (FB) | Port: Rc1/8
SSD2-T1-50-10Bore: 50 mm | Stroke: 10 mm | Mounting: None (basic) | Port: Rc1/4
SSD2-T1-50-10-LBBore: 50 mm | Stroke: 10 mm | Mounting: Axial foot (LB) | Port: Rc1/4
SSD2-T1-50-10-CBBore: 50 mm | Stroke: 10 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-T1-50-10-FABore: 50 mm | Stroke: 10 mm | Mounting: Rod flange (FA) | Port: Rc1/4
SSD2-T1-50-10-FBBore: 50 mm | Stroke: 10 mm | Mounting: Head flange (FB) | Port: Rc1/4
SSD2-T1-50-15Bore: 50 mm | Stroke: 15 mm | Mounting: None (basic) | Port: Rc1/4
SSD2-T1-50-15-LBBore: 50 mm | Stroke: 15 mm | Mounting: Axial foot (LB) | Port: Rc1/4
SSD2-T1-50-15-CBBore: 50 mm | Stroke: 15 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-T1-50-15-FABore: 50 mm | Stroke: 15 mm | Mounting: Rod flange (FA) | Port: Rc1/4
SSD2-T1-50-15-FBBore: 50 mm | Stroke: 15 mm | Mounting: Head flange (FB) | Port: Rc1/4
SSD2-T1-50-20Bore: 50 mm | Stroke: 20 mm | Mounting: None (basic) | Port: Rc1/4
SSD2-T1-50-20-LBBore: 50 mm | Stroke: 20 mm | Mounting: Axial foot (LB) | Port: Rc1/4
SSD2-T1-50-20-CBBore: 50 mm | Stroke: 20 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-T1-50-20-FABore: 50 mm | Stroke: 20 mm | Mounting: Rod flange (FA) | Port: Rc1/4
SSD2-T1-50-20-FBBore: 50 mm | Stroke: 20 mm | Mounting: Head flange (FB) | Port: Rc1/4
SSD2-T1-50-25Bore: 50 mm | Stroke: 25 mm | Mounting: None (basic) | Port: Rc1/4
SSD2-T1-50-25-LBBore: 50 mm | Stroke: 25 mm | Mounting: Axial foot (LB) | Port: Rc1/4
SSD2-T1-50-25-CBBore: 50 mm | Stroke: 25 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-T1-50-25-FABore: 50 mm | Stroke: 25 mm | Mounting: Rod flange (FA) | Port: Rc1/4
SSD2-T1-50-25-FBBore: 50 mm | Stroke: 25 mm | Mounting: Head flange (FB) | Port: Rc1/4
SSD2-T1-50-30Bore: 50 mm | Stroke: 30 mm | Mounting: None (basic) | Port: Rc1/4
SSD2-T1-50-30-LBBore: 50 mm | Stroke: 30 mm | Mounting: Axial foot (LB) | Port: Rc1/4
SSD2-T1-50-30-CBBore: 50 mm | Stroke: 30 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-T1-50-30-FABore: 50 mm | Stroke: 30 mm | Mounting: Rod flange (FA) | Port: Rc1/4
SSD2-T1-50-30-FBBore: 50 mm | Stroke: 30 mm | Mounting: Head flange (FB) | Port: Rc1/4
SSD2-T1-50-35Bore: 50 mm | Stroke: 35 mm | Mounting: None (basic) | Port: Rc1/4
SSD2-T1-50-35-LBBore: 50 mm | Stroke: 35 mm | Mounting: Axial foot (LB) | Port: Rc1/4
SSD2-T1-50-35-CBBore: 50 mm | Stroke: 35 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-T1-50-35-FABore: 50 mm | Stroke: 35 mm | Mounting: Rod flange (FA) | Port: Rc1/4
SSD2-T1-50-35-FBBore: 50 mm | Stroke: 35 mm | Mounting: Head flange (FB) | Port: Rc1/4
SSD2-T1-50-40Bore: 50 mm | Stroke: 40 mm | Mounting: None (basic) | Port: Rc1/4
SSD2-T1-50-40-LBBore: 50 mm | Stroke: 40 mm | Mounting: Axial foot (LB) | Port: Rc1/4
SSD2-T1-50-40-CBBore: 50 mm | Stroke: 40 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-T1-50-40-FABore: 50 mm | Stroke: 40 mm | Mounting: Rod flange (FA) | Port: Rc1/4
SSD2-T1-50-40-FBBore: 50 mm | Stroke: 40 mm | Mounting: Head flange (FB) | Port: Rc1/4
SSD2-T1-50-45Bore: 50 mm | Stroke: 45 mm | Mounting: None (basic) | Port: Rc1/4
SSD2-T1-50-45-LBBore: 50 mm | Stroke: 45 mm | Mounting: Axial foot (LB) | Port: Rc1/4
SSD2-T1-50-45-CBBore: 50 mm | Stroke: 45 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-T1-50-45-FABore: 50 mm | Stroke: 45 mm | Mounting: Rod flange (FA) | Port: Rc1/4
SSD2-T1-50-45-FBBore: 50 mm | Stroke: 45 mm | Mounting: Head flange (FB) | Port: Rc1/4
SSD2-T1-50-50Bore: 50 mm | Stroke: 50 mm | Mounting: None (basic) | Port: Rc1/4
SSD2-T1-50-50-LBBore: 50 mm | Stroke: 50 mm | Mounting: Axial foot (LB) | Port: Rc1/4
SSD2-T1-50-50-CBBore: 50 mm | Stroke: 50 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-T1-50-50-FABore: 50 mm | Stroke: 50 mm | Mounting: Rod flange (FA) | Port: Rc1/4
SSD2-T1-50-50-FBBore: 50 mm | Stroke: 50 mm | Mounting: Head flange (FB) | Port: Rc1/4
SSD2-T1-50-75Bore: 50 mm | Stroke: 75 mm | Mounting: None (basic) | Port: Rc1/4
SSD2-T1-50-75-LBBore: 50 mm | Stroke: 75 mm | Mounting: Axial foot (LB) | Port: Rc1/4
SSD2-T1-50-75-CBBore: 50 mm | Stroke: 75 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-T1-50-75-FABore: 50 mm | Stroke: 75 mm | Mounting: Rod flange (FA) | Port: Rc1/4
SSD2-T1-50-75-FBBore: 50 mm | Stroke: 75 mm | Mounting: Head flange (FB) | Port: Rc1/4
SSD2-T1-50-100Bore: 50 mm | Stroke: 100 mm | Mounting: None (basic) | Port: Rc1/4
SSD2-T1-50-100-LBBore: 50 mm | Stroke: 100 mm | Mounting: Axial foot (LB) | Port: Rc1/4
SSD2-T1-50-100-CBBore: 50 mm | Stroke: 100 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-T1-50-100-FABore: 50 mm | Stroke: 100 mm | Mounting: Rod flange (FA) | Port: Rc1/4
SSD2-T1-50-100-FBBore: 50 mm | Stroke: 100 mm | Mounting: Head flange (FB) | Port: Rc1/4
SSD2-T1-63-10Bore: 63 mm | Stroke: 10 mm | Mounting: None (basic) | Port: Rc1/4
SSD2-T1-63-10-LBBore: 63 mm | Stroke: 10 mm | Mounting: Axial foot (LB) | Port: Rc1/4
SSD2-T1-63-10-CBBore: 63 mm | Stroke: 10 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-T1-63-10-FABore: 63 mm | Stroke: 10 mm | Mounting: Rod flange (FA) | Port: Rc1/4
SSD2-T1-63-10-FBBore: 63 mm | Stroke: 10 mm | Mounting: Head flange (FB) | Port: Rc1/4
SSD2-T1-63-15Bore: 63 mm | Stroke: 15 mm | Mounting: None (basic) | Port: Rc1/4
SSD2-T1-63-15-LBBore: 63 mm | Stroke: 15 mm | Mounting: Axial foot (LB) | Port: Rc1/4
SSD2-T1-63-15-CBBore: 63 mm | Stroke: 15 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-T1-63-15-FABore: 63 mm | Stroke: 15 mm | Mounting: Rod flange (FA) | Port: Rc1/4
SSD2-T1-63-15-FBBore: 63 mm | Stroke: 15 mm | Mounting: Head flange (FB) | Port: Rc1/4
SSD2-T1-63-20Bore: 63 mm | Stroke: 20 mm | Mounting: None (basic) | Port: Rc1/4
SSD2-T1-63-20-LBBore: 63 mm | Stroke: 20 mm | Mounting: Axial foot (LB) | Port: Rc1/4
SSD2-T1-63-20-CBBore: 63 mm | Stroke: 20 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-T1-63-20-FABore: 63 mm | Stroke: 20 mm | Mounting: Rod flange (FA) | Port: Rc1/4
SSD2-T1-63-20-FBBore: 63 mm | Stroke: 20 mm | Mounting: Head flange (FB) | Port: Rc1/4
SSD2-T1-63-25Bore: 63 mm | Stroke: 25 mm | Mounting: None (basic) | Port: Rc1/4
SSD2-T1-63-25-LBBore: 63 mm | Stroke: 25 mm | Mounting: Axial foot (LB) | Port: Rc1/4
SSD2-T1-63-25-CBBore: 63 mm | Stroke: 25 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-T1-63-25-FABore: 63 mm | Stroke: 25 mm | Mounting: Rod flange (FA) | Port: Rc1/4
SSD2-T1-63-25-FBBore: 63 mm | Stroke: 25 mm | Mounting: Head flange (FB) | Port: Rc1/4
SSD2-T1-63-30Bore: 63 mm | Stroke: 30 mm | Mounting: None (basic) | Port: Rc1/4
SSD2-T1-63-30-LBBore: 63 mm | Stroke: 30 mm | Mounting: Axial foot (LB) | Port: Rc1/4
SSD2-T1-63-30-CBBore: 63 mm | Stroke: 30 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-T1-63-30-FABore: 63 mm | Stroke: 30 mm | Mounting: Rod flange (FA) | Port: Rc1/4
SSD2-T1-63-30-FBBore: 63 mm | Stroke: 30 mm | Mounting: Head flange (FB) | Port: Rc1/4
SSD2-T1-63-35Bore: 63 mm | Stroke: 35 mm | Mounting: None (basic) | Port: Rc1/4
SSD2-T1-63-35-LBBore: 63 mm | Stroke: 35 mm | Mounting: Axial foot (LB) | Port: Rc1/4
SSD2-T1-63-35-CBBore: 63 mm | Stroke: 35 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-T1-63-35-FABore: 63 mm | Stroke: 35 mm | Mounting: Rod flange (FA) | Port: Rc1/4
SSD2-T1-63-35-FBBore: 63 mm | Stroke: 35 mm | Mounting: Head flange (FB) | Port: Rc1/4
SSD2-T1-63-40Bore: 63 mm | Stroke: 40 mm | Mounting: None (basic) | Port: Rc1/4
SSD2-T1-63-40-LBBore: 63 mm | Stroke: 40 mm | Mounting: Axial foot (LB) | Port: Rc1/4
SSD2-T1-63-40-CBBore: 63 mm | Stroke: 40 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-T1-63-40-FABore: 63 mm | Stroke: 40 mm | Mounting: Rod flange (FA) | Port: Rc1/4
SSD2-T1-63-40-FBBore: 63 mm | Stroke: 40 mm | Mounting: Head flange (FB) | Port: Rc1/4
SSD2-T1-63-45Bore: 63 mm | Stroke: 45 mm | Mounting: None (basic) | Port: Rc1/4
SSD2-T1-63-45-LBBore: 63 mm | Stroke: 45 mm | Mounting: Axial foot (LB) | Port: Rc1/4
SSD2-T1-63-45-CBBore: 63 mm | Stroke: 45 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-T1-63-45-FABore: 63 mm | Stroke: 45 mm | Mounting: Rod flange (FA) | Port: Rc1/4
SSD2-T1-63-45-FBBore: 63 mm | Stroke: 45 mm | Mounting: Head flange (FB) | Port: Rc1/4
SSD2-T1-63-50Bore: 63 mm | Stroke: 50 mm | Mounting: None (basic) | Port: Rc1/4
SSD2-T1-63-50-LBBore: 63 mm | Stroke: 50 mm | Mounting: Axial foot (LB) | Port: Rc1/4
SSD2-T1-63-50-CBBore: 63 mm | Stroke: 50 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-T1-63-50-FABore: 63 mm | Stroke: 50 mm | Mounting: Rod flange (FA) | Port: Rc1/4
SSD2-T1-63-50-FBBore: 63 mm | Stroke: 50 mm | Mounting: Head flange (FB) | Port: Rc1/4
SSD2-T1-63-75Bore: 63 mm | Stroke: 75 mm | Mounting: None (basic) | Port: Rc1/4
SSD2-T1-63-75-LBBore: 63 mm | Stroke: 75 mm | Mounting: Axial foot (LB) | Port: Rc1/4
SSD2-T1-63-75-CBBore: 63 mm | Stroke: 75 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-T1-63-75-FABore: 63 mm | Stroke: 75 mm | Mounting: Rod flange (FA) | Port: Rc1/4
SSD2-T1-63-75-FBBore: 63 mm | Stroke: 75 mm | Mounting: Head flange (FB) | Port: Rc1/4
SSD2-T1-63-100Bore: 63 mm | Stroke: 100 mm | Mounting: None (basic) | Port: Rc1/4
SSD2-T1-63-100-LBBore: 63 mm | Stroke: 100 mm | Mounting: Axial foot (LB) | Port: Rc1/4
SSD2-T1-63-100-CBBore: 63 mm | Stroke: 100 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-T1-63-100-FABore: 63 mm | Stroke: 100 mm | Mounting: Rod flange (FA) | Port: Rc1/4
SSD2-T1-63-100-FBBore: 63 mm | Stroke: 100 mm | Mounting: Head flange (FB) | Port: Rc1/4
SSD2-T1-80-10Bore: 80 mm | Stroke: 10 mm | Mounting: None (basic) | Port: Rc3/8
SSD2-T1-80-10-CBBore: 80 mm | Stroke: 10 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-T1-80-10-FABore: 80 mm | Stroke: 10 mm | Mounting: Rod flange (FA) | Port: Rc3/8
SSD2-T1-80-10-FBBore: 80 mm | Stroke: 10 mm | Mounting: Head flange (FB) | Port: Rc3/8
SSD2-T1-80-15Bore: 80 mm | Stroke: 15 mm | Mounting: None (basic) | Port: Rc3/8
SSD2-T1-80-15-CBBore: 80 mm | Stroke: 15 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-T1-80-15-FABore: 80 mm | Stroke: 15 mm | Mounting: Rod flange (FA) | Port: Rc3/8
SSD2-T1-80-15-FBBore: 80 mm | Stroke: 15 mm | Mounting: Head flange (FB) | Port: Rc3/8
SSD2-T1-80-20Bore: 80 mm | Stroke: 20 mm | Mounting: None (basic) | Port: Rc3/8
SSD2-T1-80-20-CBBore: 80 mm | Stroke: 20 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-T1-80-20-FABore: 80 mm | Stroke: 20 mm | Mounting: Rod flange (FA) | Port: Rc3/8
SSD2-T1-80-20-FBBore: 80 mm | Stroke: 20 mm | Mounting: Head flange (FB) | Port: Rc3/8
SSD2-T1-80-25Bore: 80 mm | Stroke: 25 mm | Mounting: None (basic) | Port: Rc3/8
SSD2-T1-80-25-CBBore: 80 mm | Stroke: 25 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-T1-80-25-FABore: 80 mm | Stroke: 25 mm | Mounting: Rod flange (FA) | Port: Rc3/8
SSD2-T1-80-25-FBBore: 80 mm | Stroke: 25 mm | Mounting: Head flange (FB) | Port: Rc3/8
SSD2-T1-80-30Bore: 80 mm | Stroke: 30 mm | Mounting: None (basic) | Port: Rc3/8
SSD2-T1-80-30-LBBore: 80 mm | Stroke: 30 mm | Mounting: Axial foot (LB) | Port: Rc3/8
SSD2-T1-80-30-CBBore: 80 mm | Stroke: 30 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-T1-80-30-FABore: 80 mm | Stroke: 30 mm | Mounting: Rod flange (FA) | Port: Rc3/8
SSD2-T1-80-30-FBBore: 80 mm | Stroke: 30 mm | Mounting: Head flange (FB) | Port: Rc3/8
SSD2-T1-80-35Bore: 80 mm | Stroke: 35 mm | Mounting: None (basic) | Port: Rc3/8
SSD2-T1-80-35-LBBore: 80 mm | Stroke: 35 mm | Mounting: Axial foot (LB) | Port: Rc3/8
SSD2-T1-80-35-CBBore: 80 mm | Stroke: 35 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-T1-80-35-FABore: 80 mm | Stroke: 35 mm | Mounting: Rod flange (FA) | Port: Rc3/8
SSD2-T1-80-35-FBBore: 80 mm | Stroke: 35 mm | Mounting: Head flange (FB) | Port: Rc3/8
SSD2-T1-80-40Bore: 80 mm | Stroke: 40 mm | Mounting: None (basic) | Port: Rc3/8
SSD2-T1-80-40-LBBore: 80 mm | Stroke: 40 mm | Mounting: Axial foot (LB) | Port: Rc3/8
SSD2-T1-80-40-CBBore: 80 mm | Stroke: 40 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-T1-80-40-FABore: 80 mm | Stroke: 40 mm | Mounting: Rod flange (FA) | Port: Rc3/8
SSD2-T1-80-40-FBBore: 80 mm | Stroke: 40 mm | Mounting: Head flange (FB) | Port: Rc3/8
SSD2-T1-80-45Bore: 80 mm | Stroke: 45 mm | Mounting: None (basic) | Port: Rc3/8
SSD2-T1-80-45-LBBore: 80 mm | Stroke: 45 mm | Mounting: Axial foot (LB) | Port: Rc3/8
SSD2-T1-80-45-CBBore: 80 mm | Stroke: 45 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-T1-80-45-FABore: 80 mm | Stroke: 45 mm | Mounting: Rod flange (FA) | Port: Rc3/8
SSD2-T1-80-45-FBBore: 80 mm | Stroke: 45 mm | Mounting: Head flange (FB) | Port: Rc3/8
SSD2-T1-80-50Bore: 80 mm | Stroke: 50 mm | Mounting: None (basic) | Port: Rc3/8
SSD2-T1-80-50-LBBore: 80 mm | Stroke: 50 mm | Mounting: Axial foot (LB) | Port: Rc3/8
SSD2-T1-80-50-CBBore: 80 mm | Stroke: 50 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-T1-80-50-FABore: 80 mm | Stroke: 50 mm | Mounting: Rod flange (FA) | Port: Rc3/8
SSD2-T1-80-50-FBBore: 80 mm | Stroke: 50 mm | Mounting: Head flange (FB) | Port: Rc3/8
SSD2-T1-80-75Bore: 80 mm | Stroke: 75 mm | Mounting: None (basic) | Port: Rc3/8
SSD2-T1-80-75-LBBore: 80 mm | Stroke: 75 mm | Mounting: Axial foot (LB) | Port: Rc3/8
SSD2-T1-80-75-CBBore: 80 mm | Stroke: 75 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-T1-80-75-FABore: 80 mm | Stroke: 75 mm | Mounting: Rod flange (FA) | Port: Rc3/8
SSD2-T1-80-75-FBBore: 80 mm | Stroke: 75 mm | Mounting: Head flange (FB) | Port: Rc3/8
SSD2-T1-80-100Bore: 80 mm | Stroke: 100 mm | Mounting: None (basic) | Port: Rc3/8
SSD2-T1-80-100-LBBore: 80 mm | Stroke: 100 mm | Mounting: Axial foot (LB) | Port: Rc3/8
SSD2-T1-80-100-CBBore: 80 mm | Stroke: 100 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-T1-80-100-FABore: 80 mm | Stroke: 100 mm | Mounting: Rod flange (FA) | Port: Rc3/8
SSD2-T1-80-100-FBBore: 80 mm | Stroke: 100 mm | Mounting: Head flange (FB) | Port: Rc3/8
SSD2-T1-100-10Bore: 100 mm | Stroke: 10 mm | Mounting: None (basic) | Port: Rc3/8
SSD2-T1-100-10-CBBore: 100 mm | Stroke: 10 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-T1-100-10-FABore: 100 mm | Stroke: 10 mm | Mounting: Rod flange (FA) | Port: Rc3/8
SSD2-T1-100-10-FBBore: 100 mm | Stroke: 10 mm | Mounting: Head flange (FB) | Port: Rc3/8
SSD2-T1-100-15Bore: 100 mm | Stroke: 15 mm | Mounting: None (basic) | Port: Rc3/8
SSD2-T1-100-15-CBBore: 100 mm | Stroke: 15 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-T1-100-15-FABore: 100 mm | Stroke: 15 mm | Mounting: Rod flange (FA) | Port: Rc3/8
SSD2-T1-100-15-FBBore: 100 mm | Stroke: 15 mm | Mounting: Head flange (FB) | Port: Rc3/8
SSD2-T1-100-20Bore: 100 mm | Stroke: 20 mm | Mounting: None (basic) | Port: Rc3/8
SSD2-T1-100-20-LBBore: 100 mm | Stroke: 20 mm | Mounting: Axial foot (LB) | Port: Rc3/8
SSD2-T1-100-20-CBBore: 100 mm | Stroke: 20 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-T1-100-20-FABore: 100 mm | Stroke: 20 mm | Mounting: Rod flange (FA) | Port: Rc3/8
SSD2-T1-100-20-FBBore: 100 mm | Stroke: 20 mm | Mounting: Head flange (FB) | Port: Rc3/8
SSD2-T1-100-25Bore: 100 mm | Stroke: 25 mm | Mounting: None (basic) | Port: Rc3/8
SSD2-T1-100-25-LBBore: 100 mm | Stroke: 25 mm | Mounting: Axial foot (LB) | Port: Rc3/8
SSD2-T1-100-25-CBBore: 100 mm | Stroke: 25 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-T1-100-25-FABore: 100 mm | Stroke: 25 mm | Mounting: Rod flange (FA) | Port: Rc3/8
SSD2-T1-100-25-FBBore: 100 mm | Stroke: 25 mm | Mounting: Head flange (FB) | Port: Rc3/8
SSD2-T1-100-30Bore: 100 mm | Stroke: 30 mm | Mounting: None (basic) | Port: Rc3/8
SSD2-T1-100-30-LBBore: 100 mm | Stroke: 30 mm | Mounting: Axial foot (LB) | Port: Rc3/8
SSD2-T1-100-30-CBBore: 100 mm | Stroke: 30 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-T1-100-30-FABore: 100 mm | Stroke: 30 mm | Mounting: Rod flange (FA) | Port: Rc3/8
SSD2-T1-100-30-FBBore: 100 mm | Stroke: 30 mm | Mounting: Head flange (FB) | Port: Rc3/8
SSD2-T1-100-35Bore: 100 mm | Stroke: 35 mm | Mounting: None (basic) | Port: Rc3/8
SSD2-T1-100-35-LBBore: 100 mm | Stroke: 35 mm | Mounting: Axial foot (LB) | Port: Rc3/8
SSD2-T1-100-35-CBBore: 100 mm | Stroke: 35 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-T1-100-35-FABore: 100 mm | Stroke: 35 mm | Mounting: Rod flange (FA) | Port: Rc3/8
SSD2-T1-100-35-FBBore: 100 mm | Stroke: 35 mm | Mounting: Head flange (FB) | Port: Rc3/8
SSD2-T1-100-40Bore: 100 mm | Stroke: 40 mm | Mounting: None (basic) | Port: Rc3/8
SSD2-T1-100-40-LBBore: 100 mm | Stroke: 40 mm | Mounting: Axial foot (LB) | Port: Rc3/8
SSD2-T1-100-40-CBBore: 100 mm | Stroke: 40 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-T1-100-40-FABore: 100 mm | Stroke: 40 mm | Mounting: Rod flange (FA) | Port: Rc3/8
SSD2-T1-100-40-FBBore: 100 mm | Stroke: 40 mm | Mounting: Head flange (FB) | Port: Rc3/8
SSD2-T1-100-45Bore: 100 mm | Stroke: 45 mm | Mounting: None (basic) | Port: Rc3/8
SSD2-T1-100-45-LBBore: 100 mm | Stroke: 45 mm | Mounting: Axial foot (LB) | Port: Rc3/8
SSD2-T1-100-45-CBBore: 100 mm | Stroke: 45 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-T1-100-45-FABore: 100 mm | Stroke: 45 mm | Mounting: Rod flange (FA) | Port: Rc3/8
SSD2-T1-100-45-FBBore: 100 mm | Stroke: 45 mm | Mounting: Head flange (FB) | Port: Rc3/8
SSD2-T1-100-50Bore: 100 mm | Stroke: 50 mm | Mounting: None (basic) | Port: Rc3/8
SSD2-T1-100-50-LBBore: 100 mm | Stroke: 50 mm | Mounting: Axial foot (LB) | Port: Rc3/8
SSD2-T1-100-50-CBBore: 100 mm | Stroke: 50 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-T1-100-50-FABore: 100 mm | Stroke: 50 mm | Mounting: Rod flange (FA) | Port: Rc3/8
SSD2-T1-100-50-FBBore: 100 mm | Stroke: 50 mm | Mounting: Head flange (FB) | Port: Rc3/8
SSD2-T1-100-75Bore: 100 mm | Stroke: 75 mm | Mounting: None (basic) | Port: Rc3/8
SSD2-T1-100-75-LBBore: 100 mm | Stroke: 75 mm | Mounting: Axial foot (LB) | Port: Rc3/8
SSD2-T1-100-75-CBBore: 100 mm | Stroke: 75 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-T1-100-75-FABore: 100 mm | Stroke: 75 mm | Mounting: Rod flange (FA) | Port: Rc3/8
SSD2-T1-100-75-FBBore: 100 mm | Stroke: 75 mm | Mounting: Head flange (FB) | Port: Rc3/8
SSD2-T1-100-100Bore: 100 mm | Stroke: 100 mm | Mounting: None (basic) | Port: Rc3/8
SSD2-T1-100-100-LBBore: 100 mm | Stroke: 100 mm | Mounting: Axial foot (LB) | Port: Rc3/8
SSD2-T1-100-100-CBBore: 100 mm | Stroke: 100 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-T1-100-100-FABore: 100 mm | Stroke: 100 mm | Mounting: Rod flange (FA) | Port: Rc3/8
SSD2-T1-100-100-FBBore: 100 mm | Stroke: 100 mm | Mounting: Head flange (FB) | Port: Rc3/8

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
