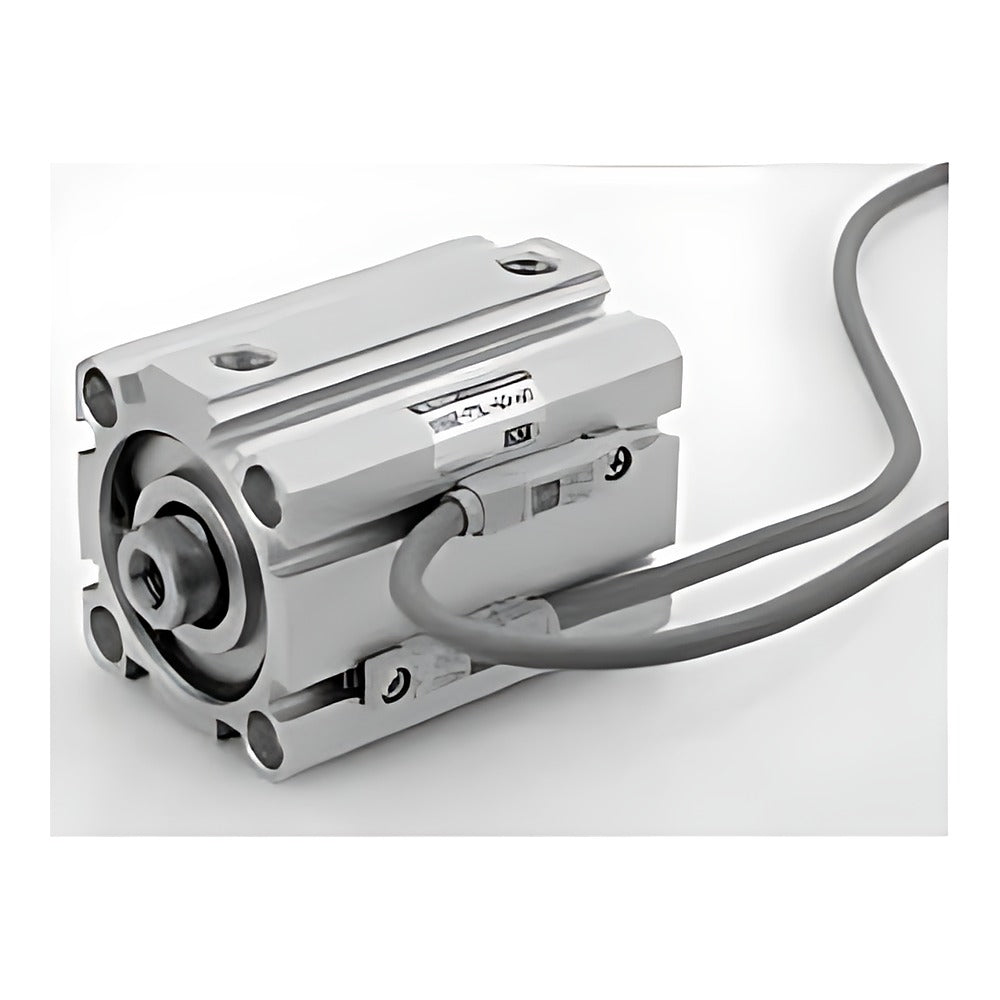

CKD SSD2-T1L Heat Resistant Compact Cylinder with Switch (Bore 16-25)

CKD SSD2-T1L Heat Resistant Compact Cylinder with Switch (Bore 16-25)

CKD SSD2-T1L is a heat-resistant super compact cylinder with ET0H/ET0V heat-resistant reed switches for up to 150 C, bores 16-25 mm.

Key features

  • Heat-resistant cylinder with heat-resistant reed switch (ET0H straight / ET0V L-type lead) for 5 to 150 C
  • Switch type and quantity (R, H, D) are part of the model code
  • Mounting brackets LB, CB, FA, FB shipped attached when specified
  • Options: rod-end male thread (N), stainless piston rod (M); knuckles I/Y with N
  • Intermediate strokes in 1 mm steps (7 mm minimum)

Specifications

Operation Double acting, single rod
Fluid Compressed air
Max. operating pressure 1.0 MPa
Min. operating pressure 0.1 MPa (0.05 MPa for 63)
Proof pressure 1.6 MPa
Ambient temperature 5 to 150 C
Switch Reed, 2-wire, AC/DC, for relay/PLC
Cushion None
Port size M5
Source CKD Korea catalog CB-029SK-9, p. 912-919
SSD2-T1L-16-10-ET0H-R Bore: 16 mm | Stroke: 10 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: None (basic)
SSD2-T1L-16-10-ET0H-R-LB Bore: 16 mm | Stroke: 10 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Axial foot (LB)
SSD2-T1L-16-10-ET0H-R-CB Bore: 16 mm | Stroke: 10 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Double clevis (CB)
SSD2-T1L-16-10-ET0H-R-FA Bore: 16 mm | Stroke: 10 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Rod flange (FA)
SSD2-T1L-16-10-ET0H-R-FB Bore: 16 mm | Stroke: 10 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Head flange (FB)
SSD2-T1L-16-10-ET0H-H Bore: 16 mm | Stroke: 10 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: None (basic)
SSD2-T1L-16-10-ET0H-H-LB Bore: 16 mm | Stroke: 10 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Axial foot (LB)
SSD2-T1L-16-10-ET0H-H-CB Bore: 16 mm | Stroke: 10 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Double clevis (CB)
SSD2-T1L-16-10-ET0H-H-FA Bore: 16 mm | Stroke: 10 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Rod flange (FA)
SSD2-T1L-16-10-ET0H-H-FB Bore: 16 mm | Stroke: 10 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Head flange (FB)
SSD2-T1L-16-10-ET0V-R Bore: 16 mm | Stroke: 10 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: None (basic)
SSD2-T1L-16-10-ET0V-R-LB Bore: 16 mm | Stroke: 10 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Axial foot (LB)
SSD2-T1L-16-10-ET0V-R-CB Bore: 16 mm | Stroke: 10 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Double clevis (CB)
SSD2-T1L-16-10-ET0V-R-FA Bore: 16 mm | Stroke: 10 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Rod flange (FA)
SSD2-T1L-16-10-ET0V-R-FB Bore: 16 mm | Stroke: 10 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Head flange (FB)
SSD2-T1L-16-10-ET0V-H Bore: 16 mm | Stroke: 10 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: None (basic)
SSD2-T1L-16-10-ET0V-H-LB Bore: 16 mm | Stroke: 10 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Axial foot (LB)
SSD2-T1L-16-10-ET0V-H-CB Bore: 16 mm | Stroke: 10 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Double clevis (CB)
SSD2-T1L-16-10-ET0V-H-FA Bore: 16 mm | Stroke: 10 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Rod flange (FA)
SSD2-T1L-16-10-ET0V-H-FB Bore: 16 mm | Stroke: 10 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Head flange (FB)
SSD2-T1L-16-15-ET0H-R Bore: 16 mm | Stroke: 15 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: None (basic)
SSD2-T1L-16-15-ET0H-R-LB Bore: 16 mm | Stroke: 15 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Axial foot (LB)
SSD2-T1L-16-15-ET0H-R-CB Bore: 16 mm | Stroke: 15 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Double clevis (CB)
SSD2-T1L-16-15-ET0H-R-FA Bore: 16 mm | Stroke: 15 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Rod flange (FA)
SSD2-T1L-16-15-ET0H-R-FB Bore: 16 mm | Stroke: 15 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Head flange (FB)
SSD2-T1L-16-15-ET0H-H Bore: 16 mm | Stroke: 15 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: None (basic)
SSD2-T1L-16-15-ET0H-H-LB Bore: 16 mm | Stroke: 15 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Axial foot (LB)
SSD2-T1L-16-15-ET0H-H-CB Bore: 16 mm | Stroke: 15 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Double clevis (CB)
SSD2-T1L-16-15-ET0H-H-FA Bore: 16 mm | Stroke: 15 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Rod flange (FA)
SSD2-T1L-16-15-ET0H-H-FB Bore: 16 mm | Stroke: 15 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Head flange (FB)
SSD2-T1L-16-15-ET0V-R Bore: 16 mm | Stroke: 15 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: None (basic)
SSD2-T1L-16-15-ET0V-R-LB Bore: 16 mm | Stroke: 15 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Axial foot (LB)
SSD2-T1L-16-15-ET0V-R-CB Bore: 16 mm | Stroke: 15 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Double clevis (CB)
SSD2-T1L-16-15-ET0V-R-FA Bore: 16 mm | Stroke: 15 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Rod flange (FA)
SSD2-T1L-16-15-ET0V-R-FB Bore: 16 mm | Stroke: 15 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Head flange (FB)
SSD2-T1L-16-15-ET0V-H Bore: 16 mm | Stroke: 15 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: None (basic)
SSD2-T1L-16-15-ET0V-H-LB Bore: 16 mm | Stroke: 15 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Axial foot (LB)
SSD2-T1L-16-15-ET0V-H-CB Bore: 16 mm | Stroke: 15 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Double clevis (CB)
SSD2-T1L-16-15-ET0V-H-FA Bore: 16 mm | Stroke: 15 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Rod flange (FA)
SSD2-T1L-16-15-ET0V-H-FB Bore: 16 mm | Stroke: 15 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Head flange (FB)
SSD2-T1L-16-20-ET0H-R Bore: 16 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: None (basic)
SSD2-T1L-16-20-ET0H-R-LB Bore: 16 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Axial foot (LB)
SSD2-T1L-16-20-ET0H-R-CB Bore: 16 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Double clevis (CB)
SSD2-T1L-16-20-ET0H-R-FA Bore: 16 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Rod flange (FA)
SSD2-T1L-16-20-ET0H-R-FB Bore: 16 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Head flange (FB)
SSD2-T1L-16-20-ET0H-H Bore: 16 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: None (basic)
SSD2-T1L-16-20-ET0H-H-LB Bore: 16 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Axial foot (LB)
SSD2-T1L-16-20-ET0H-H-CB Bore: 16 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Double clevis (CB)
SSD2-T1L-16-20-ET0H-H-FA Bore: 16 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Rod flange (FA)
SSD2-T1L-16-20-ET0H-H-FB Bore: 16 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Head flange (FB)
SSD2-T1L-16-20-ET0H-D Bore: 16 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: None (basic)
SSD2-T1L-16-20-ET0H-D-LB Bore: 16 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Axial foot (LB)
SSD2-T1L-16-20-ET0H-D-CB Bore: 16 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Double clevis (CB)
SSD2-T1L-16-20-ET0H-D-FA Bore: 16 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Rod flange (FA)
SSD2-T1L-16-20-ET0H-D-FB Bore: 16 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Head flange (FB)
SSD2-T1L-16-20-ET0V-R Bore: 16 mm | Stroke: 20 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: None (basic)
SSD2-T1L-16-20-ET0V-R-LB Bore: 16 mm | Stroke: 20 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Axial foot (LB)
SSD2-T1L-16-20-ET0V-R-CB Bore: 16 mm | Stroke: 20 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Double clevis (CB)
SSD2-T1L-16-20-ET0V-R-FA Bore: 16 mm | Stroke: 20 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Rod flange (FA)
SSD2-T1L-16-20-ET0V-R-FB Bore: 16 mm | Stroke: 20 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Head flange (FB)
SSD2-T1L-16-20-ET0V-H Bore: 16 mm | Stroke: 20 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: None (basic)
SSD2-T1L-16-20-ET0V-H-LB Bore: 16 mm | Stroke: 20 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Axial foot (LB)
SSD2-T1L-16-20-ET0V-H-CB Bore: 16 mm | Stroke: 20 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Double clevis (CB)
SSD2-T1L-16-20-ET0V-H-FA Bore: 16 mm | Stroke: 20 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Rod flange (FA)
SSD2-T1L-16-20-ET0V-H-FB Bore: 16 mm | Stroke: 20 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Head flange (FB)
SSD2-T1L-16-20-ET0V-D Bore: 16 mm | Stroke: 20 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: None (basic)
SSD2-T1L-16-20-ET0V-D-LB Bore: 16 mm | Stroke: 20 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Axial foot (LB)
SSD2-T1L-16-20-ET0V-D-CB Bore: 16 mm | Stroke: 20 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Double clevis (CB)
SSD2-T1L-16-20-ET0V-D-FA Bore: 16 mm | Stroke: 20 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Rod flange (FA)
SSD2-T1L-16-20-ET0V-D-FB Bore: 16 mm | Stroke: 20 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Head flange (FB)
SSD2-T1L-16-25-ET0H-R Bore: 16 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: None (basic)
SSD2-T1L-16-25-ET0H-R-LB Bore: 16 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Axial foot (LB)
SSD2-T1L-16-25-ET0H-R-CB Bore: 16 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Double clevis (CB)
SSD2-T1L-16-25-ET0H-R-FA Bore: 16 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Rod flange (FA)
SSD2-T1L-16-25-ET0H-R-FB Bore: 16 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Head flange (FB)
SSD2-T1L-16-25-ET0H-H Bore: 16 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: None (basic)
SSD2-T1L-16-25-ET0H-H-LB Bore: 16 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Axial foot (LB)
SSD2-T1L-16-25-ET0H-H-CB Bore: 16 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Double clevis (CB)
SSD2-T1L-16-25-ET0H-H-FA Bore: 16 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Rod flange (FA)
SSD2-T1L-16-25-ET0H-H-FB Bore: 16 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Head flange (FB)
SSD2-T1L-16-25-ET0H-D Bore: 16 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: None (basic)
SSD2-T1L-16-25-ET0H-D-LB Bore: 16 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Axial foot (LB)
SSD2-T1L-16-25-ET0H-D-CB Bore: 16 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Double clevis (CB)
SSD2-T1L-16-25-ET0H-D-FA Bore: 16 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Rod flange (FA)
SSD2-T1L-16-25-ET0H-D-FB Bore: 16 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Head flange (FB)
SSD2-T1L-16-25-ET0V-R Bore: 16 mm | Stroke: 25 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: None (basic)
SSD2-T1L-16-25-ET0V-R-LB Bore: 16 mm | Stroke: 25 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Axial foot (LB)
SSD2-T1L-16-25-ET0V-R-CB Bore: 16 mm | Stroke: 25 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Double clevis (CB)
SSD2-T1L-16-25-ET0V-R-FA Bore: 16 mm | Stroke: 25 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Rod flange (FA)
SSD2-T1L-16-25-ET0V-R-FB Bore: 16 mm | Stroke: 25 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Head flange (FB)
SSD2-T1L-16-25-ET0V-H Bore: 16 mm | Stroke: 25 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: None (basic)
SSD2-T1L-16-25-ET0V-H-LB Bore: 16 mm | Stroke: 25 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Axial foot (LB)
SSD2-T1L-16-25-ET0V-H-CB Bore: 16 mm | Stroke: 25 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Double clevis (CB)
SSD2-T1L-16-25-ET0V-H-FA Bore: 16 mm | Stroke: 25 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Rod flange (FA)
SSD2-T1L-16-25-ET0V-H-FB Bore: 16 mm | Stroke: 25 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Head flange (FB)
SSD2-T1L-16-25-ET0V-D Bore: 16 mm | Stroke: 25 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: None (basic)
SSD2-T1L-16-25-ET0V-D-LB Bore: 16 mm | Stroke: 25 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Axial foot (LB)
SSD2-T1L-16-25-ET0V-D-CB Bore: 16 mm | Stroke: 25 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Double clevis (CB)
SSD2-T1L-16-25-ET0V-D-FA Bore: 16 mm | Stroke: 25 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Rod flange (FA)
SSD2-T1L-16-25-ET0V-D-FB Bore: 16 mm | Stroke: 25 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Head flange (FB)
SSD2-T1L-16-30-ET0H-R Bore: 16 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: None (basic)
SSD2-T1L-16-30-ET0H-R-LB Bore: 16 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Axial foot (LB)
SSD2-T1L-16-30-ET0H-R-CB Bore: 16 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Double clevis (CB)
SSD2-T1L-16-30-ET0H-R-FA Bore: 16 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Rod flange (FA)
SSD2-T1L-16-30-ET0H-R-FB Bore: 16 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Head flange (FB)
SSD2-T1L-16-30-ET0H-H Bore: 16 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: None (basic)
SSD2-T1L-16-30-ET0H-H-LB Bore: 16 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Axial foot (LB)
SSD2-T1L-16-30-ET0H-H-CB Bore: 16 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Double clevis (CB)
SSD2-T1L-16-30-ET0H-H-FA Bore: 16 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Rod flange (FA)
SSD2-T1L-16-30-ET0H-H-FB Bore: 16 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Head flange (FB)
SSD2-T1L-16-30-ET0H-D Bore: 16 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: None (basic)
SSD2-T1L-16-30-ET0H-D-LB Bore: 16 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Axial foot (LB)
SSD2-T1L-16-30-ET0H-D-CB Bore: 16 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Double clevis (CB)
SSD2-T1L-16-30-ET0H-D-FA Bore: 16 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Rod flange (FA)
SSD2-T1L-16-30-ET0H-D-FB Bore: 16 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Head flange (FB)
SSD2-T1L-16-30-ET0V-R Bore: 16 mm | Stroke: 30 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: None (basic)
SSD2-T1L-16-30-ET0V-R-LB Bore: 16 mm | Stroke: 30 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Axial foot (LB)
SSD2-T1L-16-30-ET0V-R-CB Bore: 16 mm | Stroke: 30 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Double clevis (CB)
SSD2-T1L-16-30-ET0V-R-FA Bore: 16 mm | Stroke: 30 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Rod flange (FA)
SSD2-T1L-16-30-ET0V-R-FB Bore: 16 mm | Stroke: 30 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Head flange (FB)
SSD2-T1L-16-30-ET0V-H Bore: 16 mm | Stroke: 30 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: None (basic)
SSD2-T1L-16-30-ET0V-H-LB Bore: 16 mm | Stroke: 30 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Axial foot (LB)
SSD2-T1L-16-30-ET0V-H-CB Bore: 16 mm | Stroke: 30 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Double clevis (CB)
SSD2-T1L-16-30-ET0V-H-FA Bore: 16 mm | Stroke: 30 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Rod flange (FA)
SSD2-T1L-16-30-ET0V-H-FB Bore: 16 mm | Stroke: 30 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Head flange (FB)
SSD2-T1L-16-30-ET0V-D Bore: 16 mm | Stroke: 30 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: None (basic)
SSD2-T1L-16-30-ET0V-D-LB Bore: 16 mm | Stroke: 30 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Axial foot (LB)
SSD2-T1L-16-30-ET0V-D-CB Bore: 16 mm | Stroke: 30 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Double clevis (CB)
SSD2-T1L-16-30-ET0V-D-FA Bore: 16 mm | Stroke: 30 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Rod flange (FA)
SSD2-T1L-16-30-ET0V-D-FB Bore: 16 mm | Stroke: 30 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Head flange (FB)
SSD2-T1L-20-15-ET0H-R Bore: 20 mm | Stroke: 15 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: None (basic)
SSD2-T1L-20-15-ET0H-R-LB Bore: 20 mm | Stroke: 15 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Axial foot (LB)
SSD2-T1L-20-15-ET0H-R-CB Bore: 20 mm | Stroke: 15 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Double clevis (CB)
SSD2-T1L-20-15-ET0H-R-FA Bore: 20 mm | Stroke: 15 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Rod flange (FA)
SSD2-T1L-20-15-ET0H-R-FB Bore: 20 mm | Stroke: 15 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Head flange (FB)
SSD2-T1L-20-15-ET0H-H Bore: 20 mm | Stroke: 15 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: None (basic)
SSD2-T1L-20-15-ET0H-H-LB Bore: 20 mm | Stroke: 15 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Axial foot (LB)
SSD2-T1L-20-15-ET0H-H-CB Bore: 20 mm | Stroke: 15 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Double clevis (CB)
SSD2-T1L-20-15-ET0H-H-FA Bore: 20 mm | Stroke: 15 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Rod flange (FA)
SSD2-T1L-20-15-ET0H-H-FB Bore: 20 mm | Stroke: 15 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Head flange (FB)
SSD2-T1L-20-15-ET0V-R Bore: 20 mm | Stroke: 15 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: None (basic)
SSD2-T1L-20-15-ET0V-R-LB Bore: 20 mm | Stroke: 15 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Axial foot (LB)
SSD2-T1L-20-15-ET0V-R-CB Bore: 20 mm | Stroke: 15 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Double clevis (CB)
SSD2-T1L-20-15-ET0V-R-FA Bore: 20 mm | Stroke: 15 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Rod flange (FA)
SSD2-T1L-20-15-ET0V-R-FB Bore: 20 mm | Stroke: 15 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Head flange (FB)
SSD2-T1L-20-15-ET0V-H Bore: 20 mm | Stroke: 15 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: None (basic)
SSD2-T1L-20-15-ET0V-H-LB Bore: 20 mm | Stroke: 15 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Axial foot (LB)
SSD2-T1L-20-15-ET0V-H-CB Bore: 20 mm | Stroke: 15 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Double clevis (CB)
SSD2-T1L-20-15-ET0V-H-FA Bore: 20 mm | Stroke: 15 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Rod flange (FA)
SSD2-T1L-20-15-ET0V-H-FB Bore: 20 mm | Stroke: 15 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Head flange (FB)
SSD2-T1L-20-20-ET0H-R Bore: 20 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: None (basic)
SSD2-T1L-20-20-ET0H-R-LB Bore: 20 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Axial foot (LB)
SSD2-T1L-20-20-ET0H-R-CB Bore: 20 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Double clevis (CB)
SSD2-T1L-20-20-ET0H-R-FA Bore: 20 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Rod flange (FA)
SSD2-T1L-20-20-ET0H-R-FB Bore: 20 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Head flange (FB)
SSD2-T1L-20-20-ET0H-H Bore: 20 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: None (basic)
SSD2-T1L-20-20-ET0H-H-LB Bore: 20 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Axial foot (LB)
SSD2-T1L-20-20-ET0H-H-CB Bore: 20 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Double clevis (CB)
SSD2-T1L-20-20-ET0H-H-FA Bore: 20 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Rod flange (FA)
SSD2-T1L-20-20-ET0H-H-FB Bore: 20 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Head flange (FB)
SSD2-T1L-20-20-ET0V-R Bore: 20 mm | Stroke: 20 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: None (basic)
SSD2-T1L-20-20-ET0V-R-LB Bore: 20 mm | Stroke: 20 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Axial foot (LB)
SSD2-T1L-20-20-ET0V-R-CB Bore: 20 mm | Stroke: 20 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Double clevis (CB)
SSD2-T1L-20-20-ET0V-R-FA Bore: 20 mm | Stroke: 20 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Rod flange (FA)
SSD2-T1L-20-20-ET0V-R-FB Bore: 20 mm | Stroke: 20 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Head flange (FB)
SSD2-T1L-20-20-ET0V-H Bore: 20 mm | Stroke: 20 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: None (basic)
SSD2-T1L-20-20-ET0V-H-LB Bore: 20 mm | Stroke: 20 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Axial foot (LB)
SSD2-T1L-20-20-ET0V-H-CB Bore: 20 mm | Stroke: 20 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Double clevis (CB)
SSD2-T1L-20-20-ET0V-H-FA Bore: 20 mm | Stroke: 20 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Rod flange (FA)
SSD2-T1L-20-20-ET0V-H-FB Bore: 20 mm | Stroke: 20 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Head flange (FB)
SSD2-T1L-20-25-ET0H-R Bore: 20 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: None (basic)
SSD2-T1L-20-25-ET0H-R-LB Bore: 20 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Axial foot (LB)
SSD2-T1L-20-25-ET0H-R-CB Bore: 20 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Double clevis (CB)
SSD2-T1L-20-25-ET0H-R-FA Bore: 20 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Rod flange (FA)
SSD2-T1L-20-25-ET0H-R-FB Bore: 20 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Head flange (FB)
SSD2-T1L-20-25-ET0H-H Bore: 20 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: None (basic)
SSD2-T1L-20-25-ET0H-H-LB Bore: 20 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Axial foot (LB)
SSD2-T1L-20-25-ET0H-H-CB Bore: 20 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Double clevis (CB)
SSD2-T1L-20-25-ET0H-H-FA Bore: 20 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Rod flange (FA)
SSD2-T1L-20-25-ET0H-H-FB Bore: 20 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Head flange (FB)
SSD2-T1L-20-25-ET0H-D Bore: 20 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: None (basic)
SSD2-T1L-20-25-ET0H-D-LB Bore: 20 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Axial foot (LB)
SSD2-T1L-20-25-ET0H-D-CB Bore: 20 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Double clevis (CB)
SSD2-T1L-20-25-ET0H-D-FA Bore: 20 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Rod flange (FA)
SSD2-T1L-20-25-ET0H-D-FB Bore: 20 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Head flange (FB)
SSD2-T1L-20-25-ET0V-R Bore: 20 mm | Stroke: 25 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: None (basic)
SSD2-T1L-20-25-ET0V-R-LB Bore: 20 mm | Stroke: 25 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Axial foot (LB)
SSD2-T1L-20-25-ET0V-R-CB Bore: 20 mm | Stroke: 25 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Double clevis (CB)
SSD2-T1L-20-25-ET0V-R-FA Bore: 20 mm | Stroke: 25 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Rod flange (FA)
SSD2-T1L-20-25-ET0V-R-FB Bore: 20 mm | Stroke: 25 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Head flange (FB)
SSD2-T1L-20-25-ET0V-H Bore: 20 mm | Stroke: 25 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: None (basic)
SSD2-T1L-20-25-ET0V-H-LB Bore: 20 mm | Stroke: 25 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Axial foot (LB)
SSD2-T1L-20-25-ET0V-H-CB Bore: 20 mm | Stroke: 25 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Double clevis (CB)
SSD2-T1L-20-25-ET0V-H-FA Bore: 20 mm | Stroke: 25 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Rod flange (FA)
SSD2-T1L-20-25-ET0V-H-FB Bore: 20 mm | Stroke: 25 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Head flange (FB)
SSD2-T1L-20-25-ET0V-D Bore: 20 mm | Stroke: 25 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: None (basic)
SSD2-T1L-20-25-ET0V-D-LB Bore: 20 mm | Stroke: 25 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Axial foot (LB)
SSD2-T1L-20-25-ET0V-D-CB Bore: 20 mm | Stroke: 25 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Double clevis (CB)
SSD2-T1L-20-25-ET0V-D-FA Bore: 20 mm | Stroke: 25 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Rod flange (FA)
SSD2-T1L-20-25-ET0V-D-FB Bore: 20 mm | Stroke: 25 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Head flange (FB)
SSD2-T1L-20-30-ET0H-R Bore: 20 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: None (basic)
SSD2-T1L-20-30-ET0H-R-LB Bore: 20 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Axial foot (LB)
SSD2-T1L-20-30-ET0H-R-CB Bore: 20 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Double clevis (CB)
SSD2-T1L-20-30-ET0H-R-FA Bore: 20 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Rod flange (FA)
SSD2-T1L-20-30-ET0H-R-FB Bore: 20 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Head flange (FB)
SSD2-T1L-20-30-ET0H-H Bore: 20 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: None (basic)
SSD2-T1L-20-30-ET0H-H-LB Bore: 20 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Axial foot (LB)
SSD2-T1L-20-30-ET0H-H-CB Bore: 20 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Double clevis (CB)
SSD2-T1L-20-30-ET0H-H-FA Bore: 20 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Rod flange (FA)
SSD2-T1L-20-30-ET0H-H-FB Bore: 20 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Head flange (FB)
SSD2-T1L-20-30-ET0H-D Bore: 20 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: None (basic)
SSD2-T1L-20-30-ET0H-D-LB Bore: 20 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Axial foot (LB)
SSD2-T1L-20-30-ET0H-D-CB Bore: 20 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Double clevis (CB)
SSD2-T1L-20-30-ET0H-D-FA Bore: 20 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Rod flange (FA)
SSD2-T1L-20-30-ET0H-D-FB Bore: 20 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Head flange (FB)
SSD2-T1L-20-30-ET0V-R Bore: 20 mm | Stroke: 30 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: None (basic)
SSD2-T1L-20-30-ET0V-R-LB Bore: 20 mm | Stroke: 30 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Axial foot (LB)
SSD2-T1L-20-30-ET0V-R-CB Bore: 20 mm | Stroke: 30 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Double clevis (CB)
SSD2-T1L-20-30-ET0V-R-FA Bore: 20 mm | Stroke: 30 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Rod flange (FA)
SSD2-T1L-20-30-ET0V-R-FB Bore: 20 mm | Stroke: 30 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Head flange (FB)
SSD2-T1L-20-30-ET0V-H Bore: 20 mm | Stroke: 30 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: None (basic)
SSD2-T1L-20-30-ET0V-H-LB Bore: 20 mm | Stroke: 30 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Axial foot (LB)
SSD2-T1L-20-30-ET0V-H-CB Bore: 20 mm | Stroke: 30 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Double clevis (CB)
SSD2-T1L-20-30-ET0V-H-FA Bore: 20 mm | Stroke: 30 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Rod flange (FA)
SSD2-T1L-20-30-ET0V-H-FB Bore: 20 mm | Stroke: 30 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Head flange (FB)
SSD2-T1L-20-30-ET0V-D Bore: 20 mm | Stroke: 30 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: None (basic)
SSD2-T1L-20-30-ET0V-D-LB Bore: 20 mm | Stroke: 30 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Axial foot (LB)
SSD2-T1L-20-30-ET0V-D-CB Bore: 20 mm | Stroke: 30 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Double clevis (CB)
SSD2-T1L-20-30-ET0V-D-FA Bore: 20 mm | Stroke: 30 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Rod flange (FA)
SSD2-T1L-20-30-ET0V-D-FB Bore: 20 mm | Stroke: 30 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Head flange (FB)
SSD2-T1L-20-35-ET0H-R Bore: 20 mm | Stroke: 35 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: None (basic)
SSD2-T1L-20-35-ET0H-R-LB Bore: 20 mm | Stroke: 35 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Axial foot (LB)
SSD2-T1L-20-35-ET0H-R-CB Bore: 20 mm | Stroke: 35 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Double clevis (CB)
SSD2-T1L-20-35-ET0H-R-FA Bore: 20 mm | Stroke: 35 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Rod flange (FA)
SSD2-T1L-20-35-ET0H-R-FB Bore: 20 mm | Stroke: 35 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Head flange (FB)
SSD2-T1L-20-35-ET0H-H Bore: 20 mm | Stroke: 35 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: None (basic)
SSD2-T1L-20-35-ET0H-H-LB Bore: 20 mm | Stroke: 35 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Axial foot (LB)
SSD2-T1L-20-35-ET0H-H-CB Bore: 20 mm | Stroke: 35 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Double clevis (CB)
SSD2-T1L-20-35-ET0H-H-FA Bore: 20 mm | Stroke: 35 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Rod flange (FA)
SSD2-T1L-20-35-ET0H-H-FB Bore: 20 mm | Stroke: 35 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Head flange (FB)
SSD2-T1L-20-35-ET0H-D Bore: 20 mm | Stroke: 35 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: None (basic)
SSD2-T1L-20-35-ET0H-D-LB Bore: 20 mm | Stroke: 35 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Axial foot (LB)
SSD2-T1L-20-35-ET0H-D-CB Bore: 20 mm | Stroke: 35 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Double clevis (CB)
SSD2-T1L-20-35-ET0H-D-FA Bore: 20 mm | Stroke: 35 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Rod flange (FA)
SSD2-T1L-20-35-ET0H-D-FB Bore: 20 mm | Stroke: 35 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Head flange (FB)
SSD2-T1L-20-35-ET0V-R Bore: 20 mm | Stroke: 35 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: None (basic)
SSD2-T1L-20-35-ET0V-R-LB Bore: 20 mm | Stroke: 35 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Axial foot (LB)
SSD2-T1L-20-35-ET0V-R-CB Bore: 20 mm | Stroke: 35 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Double clevis (CB)
SSD2-T1L-20-35-ET0V-R-FA Bore: 20 mm | Stroke: 35 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Rod flange (FA)
SSD2-T1L-20-35-ET0V-R-FB Bore: 20 mm | Stroke: 35 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Head flange (FB)
SSD2-T1L-20-35-ET0V-H Bore: 20 mm | Stroke: 35 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: None (basic)
SSD2-T1L-20-35-ET0V-H-LB Bore: 20 mm | Stroke: 35 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Axial foot (LB)
SSD2-T1L-20-35-ET0V-H-CB Bore: 20 mm | Stroke: 35 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Double clevis (CB)
SSD2-T1L-20-35-ET0V-H-FA Bore: 20 mm | Stroke: 35 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Rod flange (FA)
SSD2-T1L-20-35-ET0V-H-FB Bore: 20 mm | Stroke: 35 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Head flange (FB)
SSD2-T1L-20-35-ET0V-D Bore: 20 mm | Stroke: 35 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: None (basic)
SSD2-T1L-20-35-ET0V-D-LB Bore: 20 mm | Stroke: 35 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Axial foot (LB)
SSD2-T1L-20-35-ET0V-D-CB Bore: 20 mm | Stroke: 35 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Double clevis (CB)
SSD2-T1L-20-35-ET0V-D-FA Bore: 20 mm | Stroke: 35 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Rod flange (FA)
SSD2-T1L-20-35-ET0V-D-FB Bore: 20 mm | Stroke: 35 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Head flange (FB)
SSD2-T1L-20-40-ET0H-R Bore: 20 mm | Stroke: 40 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: None (basic)
SSD2-T1L-20-40-ET0H-R-LB Bore: 20 mm | Stroke: 40 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Axial foot (LB)
SSD2-T1L-20-40-ET0H-R-CB Bore: 20 mm | Stroke: 40 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Double clevis (CB)
SSD2-T1L-20-40-ET0H-R-FA Bore: 20 mm | Stroke: 40 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Rod flange (FA)
SSD2-T1L-20-40-ET0H-R-FB Bore: 20 mm | Stroke: 40 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Head flange (FB)
SSD2-T1L-20-40-ET0H-H Bore: 20 mm | Stroke: 40 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: None (basic)
SSD2-T1L-20-40-ET0H-H-LB Bore: 20 mm | Stroke: 40 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Axial foot (LB)
SSD2-T1L-20-40-ET0H-H-CB Bore: 20 mm | Stroke: 40 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Double clevis (CB)
SSD2-T1L-20-40-ET0H-H-FA Bore: 20 mm | Stroke: 40 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Rod flange (FA)
SSD2-T1L-20-40-ET0H-H-FB Bore: 20 mm | Stroke: 40 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Head flange (FB)
SSD2-T1L-20-40-ET0H-D Bore: 20 mm | Stroke: 40 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: None (basic)
SSD2-T1L-20-40-ET0H-D-LB Bore: 20 mm | Stroke: 40 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Axial foot (LB)
SSD2-T1L-20-40-ET0H-D-CB Bore: 20 mm | Stroke: 40 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Double clevis (CB)
SSD2-T1L-20-40-ET0H-D-FA Bore: 20 mm | Stroke: 40 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Rod flange (FA)
SSD2-T1L-20-40-ET0H-D-FB Bore: 20 mm | Stroke: 40 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Head flange (FB)
SSD2-T1L-20-40-ET0V-R Bore: 20 mm | Stroke: 40 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: None (basic)
SSD2-T1L-20-40-ET0V-R-LB Bore: 20 mm | Stroke: 40 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Axial foot (LB)
SSD2-T1L-20-40-ET0V-R-CB Bore: 20 mm | Stroke: 40 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Double clevis (CB)
SSD2-T1L-20-40-ET0V-R-FA Bore: 20 mm | Stroke: 40 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Rod flange (FA)
SSD2-T1L-20-40-ET0V-R-FB Bore: 20 mm | Stroke: 40 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Head flange (FB)
SSD2-T1L-20-40-ET0V-H Bore: 20 mm | Stroke: 40 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: None (basic)
SSD2-T1L-20-40-ET0V-H-LB Bore: 20 mm | Stroke: 40 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Axial foot (LB)
SSD2-T1L-20-40-ET0V-H-CB Bore: 20 mm | Stroke: 40 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Double clevis (CB)
SSD2-T1L-20-40-ET0V-H-FA Bore: 20 mm | Stroke: 40 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Rod flange (FA)
SSD2-T1L-20-40-ET0V-H-FB Bore: 20 mm | Stroke: 40 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Head flange (FB)
SSD2-T1L-20-40-ET0V-D Bore: 20 mm | Stroke: 40 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: None (basic)
SSD2-T1L-20-40-ET0V-D-LB Bore: 20 mm | Stroke: 40 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Axial foot (LB)
SSD2-T1L-20-40-ET0V-D-CB Bore: 20 mm | Stroke: 40 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Double clevis (CB)
SSD2-T1L-20-40-ET0V-D-FA Bore: 20 mm | Stroke: 40 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Rod flange (FA)
SSD2-T1L-20-40-ET0V-D-FB Bore: 20 mm | Stroke: 40 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Head flange (FB)
SSD2-T1L-20-45-ET0H-R Bore: 20 mm | Stroke: 45 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: None (basic)
SSD2-T1L-20-45-ET0H-R-LB Bore: 20 mm | Stroke: 45 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Axial foot (LB)
SSD2-T1L-20-45-ET0H-R-CB Bore: 20 mm | Stroke: 45 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Double clevis (CB)
SSD2-T1L-20-45-ET0H-R-FA Bore: 20 mm | Stroke: 45 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Rod flange (FA)
SSD2-T1L-20-45-ET0H-R-FB Bore: 20 mm | Stroke: 45 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Head flange (FB)
SSD2-T1L-20-45-ET0H-H Bore: 20 mm | Stroke: 45 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: None (basic)
SSD2-T1L-20-45-ET0H-H-LB Bore: 20 mm | Stroke: 45 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Axial foot (LB)
SSD2-T1L-20-45-ET0H-H-CB Bore: 20 mm | Stroke: 45 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Double clevis (CB)
SSD2-T1L-20-45-ET0H-H-FA Bore: 20 mm | Stroke: 45 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Rod flange (FA)
SSD2-T1L-20-45-ET0H-H-FB Bore: 20 mm | Stroke: 45 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Head flange (FB)
SSD2-T1L-20-45-ET0H-D Bore: 20 mm | Stroke: 45 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: None (basic)
SSD2-T1L-20-45-ET0H-D-LB Bore: 20 mm | Stroke: 45 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Axial foot (LB)
SSD2-T1L-20-45-ET0H-D-CB Bore: 20 mm | Stroke: 45 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Double clevis (CB)
SSD2-T1L-20-45-ET0H-D-FA Bore: 20 mm | Stroke: 45 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Rod flange (FA)
SSD2-T1L-20-45-ET0H-D-FB Bore: 20 mm | Stroke: 45 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Head flange (FB)
SSD2-T1L-20-45-ET0V-R Bore: 20 mm | Stroke: 45 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: None (basic)
SSD2-T1L-20-45-ET0V-R-LB Bore: 20 mm | Stroke: 45 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Axial foot (LB)
SSD2-T1L-20-45-ET0V-R-CB Bore: 20 mm | Stroke: 45 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Double clevis (CB)
SSD2-T1L-20-45-ET0V-R-FA Bore: 20 mm | Stroke: 45 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Rod flange (FA)
SSD2-T1L-20-45-ET0V-R-FB Bore: 20 mm | Stroke: 45 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Head flange (FB)
SSD2-T1L-20-45-ET0V-H Bore: 20 mm | Stroke: 45 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: None (basic)
SSD2-T1L-20-45-ET0V-H-LB Bore: 20 mm | Stroke: 45 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Axial foot (LB)
SSD2-T1L-20-45-ET0V-H-CB Bore: 20 mm | Stroke: 45 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Double clevis (CB)
SSD2-T1L-20-45-ET0V-H-FA Bore: 20 mm | Stroke: 45 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Rod flange (FA)
SSD2-T1L-20-45-ET0V-H-FB Bore: 20 mm | Stroke: 45 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Head flange (FB)
SSD2-T1L-20-45-ET0V-D Bore: 20 mm | Stroke: 45 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: None (basic)
SSD2-T1L-20-45-ET0V-D-LB Bore: 20 mm | Stroke: 45 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Axial foot (LB)
SSD2-T1L-20-45-ET0V-D-CB Bore: 20 mm | Stroke: 45 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Double clevis (CB)
SSD2-T1L-20-45-ET0V-D-FA Bore: 20 mm | Stroke: 45 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Rod flange (FA)
SSD2-T1L-20-45-ET0V-D-FB Bore: 20 mm | Stroke: 45 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Head flange (FB)
SSD2-T1L-20-50-ET0H-R Bore: 20 mm | Stroke: 50 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: None (basic)
SSD2-T1L-20-50-ET0H-R-LB Bore: 20 mm | Stroke: 50 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Axial foot (LB)
SSD2-T1L-20-50-ET0H-R-CB Bore: 20 mm | Stroke: 50 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Double clevis (CB)
SSD2-T1L-20-50-ET0H-R-FA Bore: 20 mm | Stroke: 50 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Rod flange (FA)
SSD2-T1L-20-50-ET0H-R-FB Bore: 20 mm | Stroke: 50 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Head flange (FB)
SSD2-T1L-20-50-ET0H-H Bore: 20 mm | Stroke: 50 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: None (basic)
SSD2-T1L-20-50-ET0H-H-LB Bore: 20 mm | Stroke: 50 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Axial foot (LB)
SSD2-T1L-20-50-ET0H-H-CB Bore: 20 mm | Stroke: 50 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Double clevis (CB)
SSD2-T1L-20-50-ET0H-H-FA Bore: 20 mm | Stroke: 50 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Rod flange (FA)
SSD2-T1L-20-50-ET0H-H-FB Bore: 20 mm | Stroke: 50 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Head flange (FB)
SSD2-T1L-20-50-ET0H-D Bore: 20 mm | Stroke: 50 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: None (basic)
SSD2-T1L-20-50-ET0H-D-LB Bore: 20 mm | Stroke: 50 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Axial foot (LB)
SSD2-T1L-20-50-ET0H-D-CB Bore: 20 mm | Stroke: 50 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Double clevis (CB)
SSD2-T1L-20-50-ET0H-D-FA Bore: 20 mm | Stroke: 50 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Rod flange (FA)
SSD2-T1L-20-50-ET0H-D-FB Bore: 20 mm | Stroke: 50 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Head flange (FB)
SSD2-T1L-20-50-ET0V-R Bore: 20 mm | Stroke: 50 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: None (basic)
SSD2-T1L-20-50-ET0V-R-LB Bore: 20 mm | Stroke: 50 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Axial foot (LB)
SSD2-T1L-20-50-ET0V-R-CB Bore: 20 mm | Stroke: 50 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Double clevis (CB)
SSD2-T1L-20-50-ET0V-R-FA Bore: 20 mm | Stroke: 50 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Rod flange (FA)
SSD2-T1L-20-50-ET0V-R-FB Bore: 20 mm | Stroke: 50 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Head flange (FB)
SSD2-T1L-20-50-ET0V-H Bore: 20 mm | Stroke: 50 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: None (basic)
SSD2-T1L-20-50-ET0V-H-LB Bore: 20 mm | Stroke: 50 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Axial foot (LB)
SSD2-T1L-20-50-ET0V-H-CB Bore: 20 mm | Stroke: 50 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Double clevis (CB)
SSD2-T1L-20-50-ET0V-H-FA Bore: 20 mm | Stroke: 50 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Rod flange (FA)
SSD2-T1L-20-50-ET0V-H-FB Bore: 20 mm | Stroke: 50 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Head flange (FB)
SSD2-T1L-20-50-ET0V-D Bore: 20 mm | Stroke: 50 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: None (basic)
SSD2-T1L-20-50-ET0V-D-LB Bore: 20 mm | Stroke: 50 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Axial foot (LB)
SSD2-T1L-20-50-ET0V-D-CB Bore: 20 mm | Stroke: 50 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Double clevis (CB)
SSD2-T1L-20-50-ET0V-D-FA Bore: 20 mm | Stroke: 50 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Rod flange (FA)
SSD2-T1L-20-50-ET0V-D-FB Bore: 20 mm | Stroke: 50 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Head flange (FB)
SSD2-T1L-25-15-ET0H-R Bore: 25 mm | Stroke: 15 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: None (basic)
SSD2-T1L-25-15-ET0H-R-LB Bore: 25 mm | Stroke: 15 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Axial foot (LB)
SSD2-T1L-25-15-ET0H-R-CB Bore: 25 mm | Stroke: 15 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Double clevis (CB)
SSD2-T1L-25-15-ET0H-R-FA Bore: 25 mm | Stroke: 15 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Rod flange (FA)
SSD2-T1L-25-15-ET0H-R-FB Bore: 25 mm | Stroke: 15 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Head flange (FB)
SSD2-T1L-25-15-ET0H-H Bore: 25 mm | Stroke: 15 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: None (basic)
SSD2-T1L-25-15-ET0H-H-LB Bore: 25 mm | Stroke: 15 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Axial foot (LB)
SSD2-T1L-25-15-ET0H-H-CB Bore: 25 mm | Stroke: 15 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Double clevis (CB)
SSD2-T1L-25-15-ET0H-H-FA Bore: 25 mm | Stroke: 15 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Rod flange (FA)
SSD2-T1L-25-15-ET0H-H-FB Bore: 25 mm | Stroke: 15 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Head flange (FB)
SSD2-T1L-25-15-ET0V-R Bore: 25 mm | Stroke: 15 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: None (basic)
SSD2-T1L-25-15-ET0V-R-LB Bore: 25 mm | Stroke: 15 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Axial foot (LB)
SSD2-T1L-25-15-ET0V-R-CB Bore: 25 mm | Stroke: 15 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Double clevis (CB)
SSD2-T1L-25-15-ET0V-R-FA Bore: 25 mm | Stroke: 15 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Rod flange (FA)
SSD2-T1L-25-15-ET0V-R-FB Bore: 25 mm | Stroke: 15 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Head flange (FB)
SSD2-T1L-25-15-ET0V-H Bore: 25 mm | Stroke: 15 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: None (basic)
SSD2-T1L-25-15-ET0V-H-LB Bore: 25 mm | Stroke: 15 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Axial foot (LB)
SSD2-T1L-25-15-ET0V-H-CB Bore: 25 mm | Stroke: 15 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Double clevis (CB)
SSD2-T1L-25-15-ET0V-H-FA Bore: 25 mm | Stroke: 15 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Rod flange (FA)
SSD2-T1L-25-15-ET0V-H-FB Bore: 25 mm | Stroke: 15 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Head flange (FB)
SSD2-T1L-25-20-ET0H-R Bore: 25 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: None (basic)
SSD2-T1L-25-20-ET0H-R-LB Bore: 25 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Axial foot (LB)
SSD2-T1L-25-20-ET0H-R-CB Bore: 25 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Double clevis (CB)
SSD2-T1L-25-20-ET0H-R-FA Bore: 25 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Rod flange (FA)
SSD2-T1L-25-20-ET0H-R-FB Bore: 25 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Head flange (FB)
SSD2-T1L-25-20-ET0H-H Bore: 25 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: None (basic)
SSD2-T1L-25-20-ET0H-H-LB Bore: 25 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Axial foot (LB)
SSD2-T1L-25-20-ET0H-H-CB Bore: 25 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Double clevis (CB)
SSD2-T1L-25-20-ET0H-H-FA Bore: 25 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Rod flange (FA)
SSD2-T1L-25-20-ET0H-H-FB Bore: 25 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Head flange (FB)
SSD2-T1L-25-20-ET0H-D Bore: 25 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: None (basic)
SSD2-T1L-25-20-ET0H-D-LB Bore: 25 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Axial foot (LB)
SSD2-T1L-25-20-ET0H-D-CB Bore: 25 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Double clevis (CB)
SSD2-T1L-25-20-ET0H-D-FA Bore: 25 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Rod flange (FA)
SSD2-T1L-25-20-ET0H-D-FB Bore: 25 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Head flange (FB)
SSD2-T1L-25-20-ET0V-R Bore: 25 mm | Stroke: 20 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: None (basic)
SSD2-T1L-25-20-ET0V-R-LB Bore: 25 mm | Stroke: 20 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Axial foot (LB)
SSD2-T1L-25-20-ET0V-R-CB Bore: 25 mm | Stroke: 20 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Double clevis (CB)
SSD2-T1L-25-20-ET0V-R-FA Bore: 25 mm | Stroke: 20 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Rod flange (FA)
SSD2-T1L-25-20-ET0V-R-FB Bore: 25 mm | Stroke: 20 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Head flange (FB)
SSD2-T1L-25-20-ET0V-H Bore: 25 mm | Stroke: 20 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: None (basic)
SSD2-T1L-25-20-ET0V-H-LB Bore: 25 mm | Stroke: 20 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Axial foot (LB)
SSD2-T1L-25-20-ET0V-H-CB Bore: 25 mm | Stroke: 20 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Double clevis (CB)
SSD2-T1L-25-20-ET0V-H-FA Bore: 25 mm | Stroke: 20 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Rod flange (FA)
SSD2-T1L-25-20-ET0V-H-FB Bore: 25 mm | Stroke: 20 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Head flange (FB)
SSD2-T1L-25-20-ET0V-D Bore: 25 mm | Stroke: 20 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: None (basic)
SSD2-T1L-25-20-ET0V-D-LB Bore: 25 mm | Stroke: 20 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Axial foot (LB)
SSD2-T1L-25-20-ET0V-D-CB Bore: 25 mm | Stroke: 20 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Double clevis (CB)
SSD2-T1L-25-20-ET0V-D-FA Bore: 25 mm | Stroke: 20 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Rod flange (FA)
SSD2-T1L-25-20-ET0V-D-FB Bore: 25 mm | Stroke: 20 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Head flange (FB)
SSD2-T1L-25-25-ET0H-R Bore: 25 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: None (basic)
SSD2-T1L-25-25-ET0H-R-LB Bore: 25 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Axial foot (LB)
SSD2-T1L-25-25-ET0H-R-CB Bore: 25 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Double clevis (CB)
SSD2-T1L-25-25-ET0H-R-FA Bore: 25 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Rod flange (FA)
SSD2-T1L-25-25-ET0H-R-FB Bore: 25 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Head flange (FB)
SSD2-T1L-25-25-ET0H-H Bore: 25 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: None (basic)
SSD2-T1L-25-25-ET0H-H-LB Bore: 25 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Axial foot (LB)
SSD2-T1L-25-25-ET0H-H-CB Bore: 25 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Double clevis (CB)
SSD2-T1L-25-25-ET0H-H-FA Bore: 25 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Rod flange (FA)
SSD2-T1L-25-25-ET0H-H-FB Bore: 25 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Head flange (FB)
SSD2-T1L-25-25-ET0H-D Bore: 25 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: None (basic)
SSD2-T1L-25-25-ET0H-D-LB Bore: 25 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Axial foot (LB)
SSD2-T1L-25-25-ET0H-D-CB Bore: 25 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Double clevis (CB)
SSD2-T1L-25-25-ET0H-D-FA Bore: 25 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Rod flange (FA)
SSD2-T1L-25-25-ET0H-D-FB Bore: 25 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Head flange (FB)
SSD2-T1L-25-25-ET0V-R Bore: 25 mm | Stroke: 25 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: None (basic)
SSD2-T1L-25-25-ET0V-R-LB Bore: 25 mm | Stroke: 25 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Axial foot (LB)
SSD2-T1L-25-25-ET0V-R-CB Bore: 25 mm | Stroke: 25 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Double clevis (CB)
SSD2-T1L-25-25-ET0V-R-FA Bore: 25 mm | Stroke: 25 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Rod flange (FA)
SSD2-T1L-25-25-ET0V-R-FB Bore: 25 mm | Stroke: 25 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Head flange (FB)
SSD2-T1L-25-25-ET0V-H Bore: 25 mm | Stroke: 25 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: None (basic)
SSD2-T1L-25-25-ET0V-H-LB Bore: 25 mm | Stroke: 25 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Axial foot (LB)
SSD2-T1L-25-25-ET0V-H-CB Bore: 25 mm | Stroke: 25 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Double clevis (CB)
SSD2-T1L-25-25-ET0V-H-FA Bore: 25 mm | Stroke: 25 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Rod flange (FA)
SSD2-T1L-25-25-ET0V-H-FB Bore: 25 mm | Stroke: 25 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Head flange (FB)
SSD2-T1L-25-25-ET0V-D Bore: 25 mm | Stroke: 25 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: None (basic)
SSD2-T1L-25-25-ET0V-D-LB Bore: 25 mm | Stroke: 25 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Axial foot (LB)
SSD2-T1L-25-25-ET0V-D-CB Bore: 25 mm | Stroke: 25 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Double clevis (CB)
SSD2-T1L-25-25-ET0V-D-FA Bore: 25 mm | Stroke: 25 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Rod flange (FA)
SSD2-T1L-25-25-ET0V-D-FB Bore: 25 mm | Stroke: 25 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Head flange (FB)
SSD2-T1L-25-30-ET0H-R Bore: 25 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: None (basic)
SSD2-T1L-25-30-ET0H-R-LB Bore: 25 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Axial foot (LB)
SSD2-T1L-25-30-ET0H-R-CB Bore: 25 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Double clevis (CB)
SSD2-T1L-25-30-ET0H-R-FA Bore: 25 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Rod flange (FA)
SSD2-T1L-25-30-ET0H-R-FB Bore: 25 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Head flange (FB)
SSD2-T1L-25-30-ET0H-H Bore: 25 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: None (basic)
SSD2-T1L-25-30-ET0H-H-LB Bore: 25 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Axial foot (LB)
SSD2-T1L-25-30-ET0H-H-CB Bore: 25 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Double clevis (CB)
SSD2-T1L-25-30-ET0H-H-FA Bore: 25 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Rod flange (FA)
SSD2-T1L-25-30-ET0H-H-FB Bore: 25 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Head flange (FB)
SSD2-T1L-25-30-ET0H-D Bore: 25 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: None (basic)
SSD2-T1L-25-30-ET0H-D-LB Bore: 25 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Axial foot (LB)
SSD2-T1L-25-30-ET0H-D-CB Bore: 25 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Double clevis (CB)
SSD2-T1L-25-30-ET0H-D-FA Bore: 25 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Rod flange (FA)
SSD2-T1L-25-30-ET0H-D-FB Bore: 25 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Head flange (FB)
SSD2-T1L-25-30-ET0V-R Bore: 25 mm | Stroke: 30 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: None (basic)
SSD2-T1L-25-30-ET0V-R-LB Bore: 25 mm | Stroke: 30 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Axial foot (LB)
SSD2-T1L-25-30-ET0V-R-CB Bore: 25 mm | Stroke: 30 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Double clevis (CB)
SSD2-T1L-25-30-ET0V-R-FA Bore: 25 mm | Stroke: 30 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Rod flange (FA)
SSD2-T1L-25-30-ET0V-R-FB Bore: 25 mm | Stroke: 30 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Head flange (FB)
SSD2-T1L-25-30-ET0V-H Bore: 25 mm | Stroke: 30 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: None (basic)
SSD2-T1L-25-30-ET0V-H-LB Bore: 25 mm | Stroke: 30 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Axial foot (LB)
SSD2-T1L-25-30-ET0V-H-CB Bore: 25 mm | Stroke: 30 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Double clevis (CB)
SSD2-T1L-25-30-ET0V-H-FA Bore: 25 mm | Stroke: 30 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Rod flange (FA)
SSD2-T1L-25-30-ET0V-H-FB Bore: 25 mm | Stroke: 30 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Head flange (FB)
SSD2-T1L-25-30-ET0V-D Bore: 25 mm | Stroke: 30 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: None (basic)
SSD2-T1L-25-30-ET0V-D-LB Bore: 25 mm | Stroke: 30 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Axial foot (LB)
SSD2-T1L-25-30-ET0V-D-CB Bore: 25 mm | Stroke: 30 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Double clevis (CB)
SSD2-T1L-25-30-ET0V-D-FA Bore: 25 mm | Stroke: 30 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Rod flange (FA)
SSD2-T1L-25-30-ET0V-D-FB Bore: 25 mm | Stroke: 30 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Head flange (FB)
SSD2-T1L-25-35-ET0H-R Bore: 25 mm | Stroke: 35 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: None (basic)
SSD2-T1L-25-35-ET0H-R-LB Bore: 25 mm | Stroke: 35 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Axial foot (LB)
SSD2-T1L-25-35-ET0H-R-CB Bore: 25 mm | Stroke: 35 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Double clevis (CB)
SSD2-T1L-25-35-ET0H-R-FA Bore: 25 mm | Stroke: 35 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Rod flange (FA)
SSD2-T1L-25-35-ET0H-R-FB Bore: 25 mm | Stroke: 35 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Head flange (FB)
SSD2-T1L-25-35-ET0H-H Bore: 25 mm | Stroke: 35 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: None (basic)
SSD2-T1L-25-35-ET0H-H-LB Bore: 25 mm | Stroke: 35 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Axial foot (LB)
SSD2-T1L-25-35-ET0H-H-CB Bore: 25 mm | Stroke: 35 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Double clevis (CB)
SSD2-T1L-25-35-ET0H-H-FA Bore: 25 mm | Stroke: 35 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Rod flange (FA)
SSD2-T1L-25-35-ET0H-H-FB Bore: 25 mm | Stroke: 35 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Head flange (FB)
SSD2-T1L-25-35-ET0H-D Bore: 25 mm | Stroke: 35 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: None (basic)
SSD2-T1L-25-35-ET0H-D-LB Bore: 25 mm | Stroke: 35 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Axial foot (LB)
SSD2-T1L-25-35-ET0H-D-CB Bore: 25 mm | Stroke: 35 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Double clevis (CB)
SSD2-T1L-25-35-ET0H-D-FA Bore: 25 mm | Stroke: 35 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Rod flange (FA)
SSD2-T1L-25-35-ET0H-D-FB Bore: 25 mm | Stroke: 35 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Head flange (FB)
SSD2-T1L-25-35-ET0V-R Bore: 25 mm | Stroke: 35 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: None (basic)
SSD2-T1L-25-35-ET0V-R-LB Bore: 25 mm | Stroke: 35 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Axial foot (LB)
SSD2-T1L-25-35-ET0V-R-CB Bore: 25 mm | Stroke: 35 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Double clevis (CB)
SSD2-T1L-25-35-ET0V-R-FA Bore: 25 mm | Stroke: 35 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Rod flange (FA)
SSD2-T1L-25-35-ET0V-R-FB Bore: 25 mm | Stroke: 35 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Head flange (FB)
SSD2-T1L-25-35-ET0V-H Bore: 25 mm | Stroke: 35 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: None (basic)
SSD2-T1L-25-35-ET0V-H-LB Bore: 25 mm | Stroke: 35 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Axial foot (LB)
SSD2-T1L-25-35-ET0V-H-CB Bore: 25 mm | Stroke: 35 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Double clevis (CB)
SSD2-T1L-25-35-ET0V-H-FA Bore: 25 mm | Stroke: 35 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Rod flange (FA)
SSD2-T1L-25-35-ET0V-H-FB Bore: 25 mm | Stroke: 35 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Head flange (FB)
SSD2-T1L-25-35-ET0V-D Bore: 25 mm | Stroke: 35 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: None (basic)
SSD2-T1L-25-35-ET0V-D-LB Bore: 25 mm | Stroke: 35 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Axial foot (LB)
SSD2-T1L-25-35-ET0V-D-CB Bore: 25 mm | Stroke: 35 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Double clevis (CB)
SSD2-T1L-25-35-ET0V-D-FA Bore: 25 mm | Stroke: 35 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Rod flange (FA)
SSD2-T1L-25-35-ET0V-D-FB Bore: 25 mm | Stroke: 35 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Head flange (FB)
SSD2-T1L-25-40-ET0H-R Bore: 25 mm | Stroke: 40 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: None (basic)
SSD2-T1L-25-40-ET0H-R-LB Bore: 25 mm | Stroke: 40 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Axial foot (LB)
SSD2-T1L-25-40-ET0H-R-CB Bore: 25 mm | Stroke: 40 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Double clevis (CB)
SSD2-T1L-25-40-ET0H-R-FA Bore: 25 mm | Stroke: 40 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Rod flange (FA)
SSD2-T1L-25-40-ET0H-R-FB Bore: 25 mm | Stroke: 40 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Head flange (FB)
SSD2-T1L-25-40-ET0H-H Bore: 25 mm | Stroke: 40 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: None (basic)
SSD2-T1L-25-40-ET0H-H-LB Bore: 25 mm | Stroke: 40 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Axial foot (LB)
SSD2-T1L-25-40-ET0H-H-CB Bore: 25 mm | Stroke: 40 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Double clevis (CB)
SSD2-T1L-25-40-ET0H-H-FA Bore: 25 mm | Stroke: 40 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Rod flange (FA)
SSD2-T1L-25-40-ET0H-H-FB Bore: 25 mm | Stroke: 40 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Head flange (FB)
SSD2-T1L-25-40-ET0H-D Bore: 25 mm | Stroke: 40 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: None (basic)
SSD2-T1L-25-40-ET0H-D-LB Bore: 25 mm | Stroke: 40 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Axial foot (LB)
SSD2-T1L-25-40-ET0H-D-CB Bore: 25 mm | Stroke: 40 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Double clevis (CB)
SSD2-T1L-25-40-ET0H-D-FA Bore: 25 mm | Stroke: 40 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Rod flange (FA)
SSD2-T1L-25-40-ET0H-D-FB Bore: 25 mm | Stroke: 40 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Head flange (FB)
SSD2-T1L-25-40-ET0V-R Bore: 25 mm | Stroke: 40 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: None (basic)
SSD2-T1L-25-40-ET0V-R-LB Bore: 25 mm | Stroke: 40 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Axial foot (LB)
SSD2-T1L-25-40-ET0V-R-CB Bore: 25 mm | Stroke: 40 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Double clevis (CB)
SSD2-T1L-25-40-ET0V-R-FA Bore: 25 mm | Stroke: 40 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Rod flange (FA)
SSD2-T1L-25-40-ET0V-R-FB Bore: 25 mm | Stroke: 40 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Head flange (FB)
SSD2-T1L-25-40-ET0V-H Bore: 25 mm | Stroke: 40 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: None (basic)
SSD2-T1L-25-40-ET0V-H-LB Bore: 25 mm | Stroke: 40 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Axial foot (LB)
SSD2-T1L-25-40-ET0V-H-CB Bore: 25 mm | Stroke: 40 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Double clevis (CB)
SSD2-T1L-25-40-ET0V-H-FA Bore: 25 mm | Stroke: 40 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Rod flange (FA)
SSD2-T1L-25-40-ET0V-H-FB Bore: 25 mm | Stroke: 40 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Head flange (FB)
SSD2-T1L-25-40-ET0V-D Bore: 25 mm | Stroke: 40 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: None (basic)
SSD2-T1L-25-40-ET0V-D-LB Bore: 25 mm | Stroke: 40 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Axial foot (LB)
SSD2-T1L-25-40-ET0V-D-CB Bore: 25 mm | Stroke: 40 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Double clevis (CB)
SSD2-T1L-25-40-ET0V-D-FA Bore: 25 mm | Stroke: 40 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Rod flange (FA)
SSD2-T1L-25-40-ET0V-D-FB Bore: 25 mm | Stroke: 40 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Head flange (FB)
SSD2-T1L-25-45-ET0H-R Bore: 25 mm | Stroke: 45 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: None (basic)
SSD2-T1L-25-45-ET0H-R-LB Bore: 25 mm | Stroke: 45 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Axial foot (LB)
SSD2-T1L-25-45-ET0H-R-CB Bore: 25 mm | Stroke: 45 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Double clevis (CB)
SSD2-T1L-25-45-ET0H-R-FA Bore: 25 mm | Stroke: 45 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Rod flange (FA)
SSD2-T1L-25-45-ET0H-R-FB Bore: 25 mm | Stroke: 45 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Head flange (FB)
SSD2-T1L-25-45-ET0H-H Bore: 25 mm | Stroke: 45 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: None (basic)
SSD2-T1L-25-45-ET0H-H-LB Bore: 25 mm | Stroke: 45 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Axial foot (LB)
SSD2-T1L-25-45-ET0H-H-CB Bore: 25 mm | Stroke: 45 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Double clevis (CB)
SSD2-T1L-25-45-ET0H-H-FA Bore: 25 mm | Stroke: 45 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Rod flange (FA)
SSD2-T1L-25-45-ET0H-H-FB Bore: 25 mm | Stroke: 45 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Head flange (FB)
SSD2-T1L-25-45-ET0H-D Bore: 25 mm | Stroke: 45 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: None (basic)
SSD2-T1L-25-45-ET0H-D-LB Bore: 25 mm | Stroke: 45 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Axial foot (LB)
SSD2-T1L-25-45-ET0H-D-CB Bore: 25 mm | Stroke: 45 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Double clevis (CB)
SSD2-T1L-25-45-ET0H-D-FA Bore: 25 mm | Stroke: 45 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Rod flange (FA)
SSD2-T1L-25-45-ET0H-D-FB Bore: 25 mm | Stroke: 45 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Head flange (FB)
SSD2-T1L-25-45-ET0V-R Bore: 25 mm | Stroke: 45 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: None (basic)
SSD2-T1L-25-45-ET0V-R-LB Bore: 25 mm | Stroke: 45 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Axial foot (LB)
SSD2-T1L-25-45-ET0V-R-CB Bore: 25 mm | Stroke: 45 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Double clevis (CB)
SSD2-T1L-25-45-ET0V-R-FA Bore: 25 mm | Stroke: 45 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Rod flange (FA)
SSD2-T1L-25-45-ET0V-R-FB Bore: 25 mm | Stroke: 45 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Head flange (FB)
SSD2-T1L-25-45-ET0V-H Bore: 25 mm | Stroke: 45 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: None (basic)
SSD2-T1L-25-45-ET0V-H-LB Bore: 25 mm | Stroke: 45 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Axial foot (LB)
SSD2-T1L-25-45-ET0V-H-CB Bore: 25 mm | Stroke: 45 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Double clevis (CB)
SSD2-T1L-25-45-ET0V-H-FA Bore: 25 mm | Stroke: 45 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Rod flange (FA)
SSD2-T1L-25-45-ET0V-H-FB Bore: 25 mm | Stroke: 45 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Head flange (FB)
SSD2-T1L-25-45-ET0V-D Bore: 25 mm | Stroke: 45 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: None (basic)
SSD2-T1L-25-45-ET0V-D-LB Bore: 25 mm | Stroke: 45 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Axial foot (LB)
SSD2-T1L-25-45-ET0V-D-CB Bore: 25 mm | Stroke: 45 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Double clevis (CB)
SSD2-T1L-25-45-ET0V-D-FA Bore: 25 mm | Stroke: 45 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Rod flange (FA)
SSD2-T1L-25-45-ET0V-D-FB Bore: 25 mm | Stroke: 45 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Head flange (FB)
SSD2-T1L-25-50-ET0H-R Bore: 25 mm | Stroke: 50 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: None (basic)
SSD2-T1L-25-50-ET0H-R-LB Bore: 25 mm | Stroke: 50 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Axial foot (LB)
SSD2-T1L-25-50-ET0H-R-CB Bore: 25 mm | Stroke: 50 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Double clevis (CB)
SSD2-T1L-25-50-ET0H-R-FA Bore: 25 mm | Stroke: 50 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Rod flange (FA)
SSD2-T1L-25-50-ET0H-R-FB Bore: 25 mm | Stroke: 50 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Head flange (FB)
SSD2-T1L-25-50-ET0H-H Bore: 25 mm | Stroke: 50 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: None (basic)
SSD2-T1L-25-50-ET0H-H-LB Bore: 25 mm | Stroke: 50 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Axial foot (LB)
SSD2-T1L-25-50-ET0H-H-CB Bore: 25 mm | Stroke: 50 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Double clevis (CB)
SSD2-T1L-25-50-ET0H-H-FA Bore: 25 mm | Stroke: 50 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Rod flange (FA)
SSD2-T1L-25-50-ET0H-H-FB Bore: 25 mm | Stroke: 50 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Head flange (FB)
SSD2-T1L-25-50-ET0H-D Bore: 25 mm | Stroke: 50 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: None (basic)
SSD2-T1L-25-50-ET0H-D-LB Bore: 25 mm | Stroke: 50 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Axial foot (LB)
SSD2-T1L-25-50-ET0H-D-CB Bore: 25 mm | Stroke: 50 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Double clevis (CB)
SSD2-T1L-25-50-ET0H-D-FA Bore: 25 mm | Stroke: 50 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Rod flange (FA)
SSD2-T1L-25-50-ET0H-D-FB Bore: 25 mm | Stroke: 50 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Head flange (FB)
SSD2-T1L-25-50-ET0V-R Bore: 25 mm | Stroke: 50 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: None (basic)
SSD2-T1L-25-50-ET0V-R-LB Bore: 25 mm | Stroke: 50 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Axial foot (LB)
SSD2-T1L-25-50-ET0V-R-CB Bore: 25 mm | Stroke: 50 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Double clevis (CB)
SSD2-T1L-25-50-ET0V-R-FA Bore: 25 mm | Stroke: 50 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Rod flange (FA)
SSD2-T1L-25-50-ET0V-R-FB Bore: 25 mm | Stroke: 50 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Head flange (FB)
SSD2-T1L-25-50-ET0V-H Bore: 25 mm | Stroke: 50 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: None (basic)
SSD2-T1L-25-50-ET0V-H-LB Bore: 25 mm | Stroke: 50 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Axial foot (LB)
SSD2-T1L-25-50-ET0V-H-CB Bore: 25 mm | Stroke: 50 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Double clevis (CB)
SSD2-T1L-25-50-ET0V-H-FA Bore: 25 mm | Stroke: 50 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Rod flange (FA)
SSD2-T1L-25-50-ET0V-H-FB Bore: 25 mm | Stroke: 50 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Head flange (FB)
SSD2-T1L-25-50-ET0V-D Bore: 25 mm | Stroke: 50 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: None (basic)
SSD2-T1L-25-50-ET0V-D-LB Bore: 25 mm | Stroke: 50 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Axial foot (LB)
SSD2-T1L-25-50-ET0V-D-CB Bore: 25 mm | Stroke: 50 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Double clevis (CB)
SSD2-T1L-25-50-ET0V-D-FA Bore: 25 mm | Stroke: 50 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Rod flange (FA)
SSD2-T1L-25-50-ET0V-D-FB Bore: 25 mm | Stroke: 50 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Head flange (FB)
Compact CylindersCKD
580 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD SSD2-T1L Heat Resistant Compact Cylinder with Switch (Bore 16-25)

Brand CKD·Compact Cylinders

Available part numbers (580)

SSD2-T1L-16-10-ET0H-R, SSD2-T1L-16-10-ET0H-R-LB, SSD2-T1L-16-10-ET0H-R-CB, SSD2-T1L-16-10-ET0H-R-FA, SSD2-T1L-16-10-ET0H-R-FB, SSD2-T1L-16-10-ET0H-H, SSD2-T1L-16-10-ET0H-H-LB, SSD2-T1L-16-10-ET0H-H-CB, SSD2-T1L-16-10-ET0H-H-FA, SSD2-T1L-16-10-ET0H-H-FB + 570 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SSD2-T1L-16-10-ET0H-RBore: 16 mm | Stroke: 10 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: None (basic)
SSD2-T1L-16-10-ET0H-R-LBBore: 16 mm | Stroke: 10 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Axial foot (LB)
SSD2-T1L-16-10-ET0H-R-CBBore: 16 mm | Stroke: 10 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Double clevis (CB)
SSD2-T1L-16-10-ET0H-R-FABore: 16 mm | Stroke: 10 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Rod flange (FA)
SSD2-T1L-16-10-ET0H-R-FBBore: 16 mm | Stroke: 10 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Head flange (FB)
SSD2-T1L-16-10-ET0H-HBore: 16 mm | Stroke: 10 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: None (basic)
SSD2-T1L-16-10-ET0H-H-LBBore: 16 mm | Stroke: 10 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Axial foot (LB)
SSD2-T1L-16-10-ET0H-H-CBBore: 16 mm | Stroke: 10 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Double clevis (CB)
SSD2-T1L-16-10-ET0H-H-FABore: 16 mm | Stroke: 10 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Rod flange (FA)
SSD2-T1L-16-10-ET0H-H-FBBore: 16 mm | Stroke: 10 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Head flange (FB)
SSD2-T1L-16-10-ET0V-RBore: 16 mm | Stroke: 10 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: None (basic)
SSD2-T1L-16-10-ET0V-R-LBBore: 16 mm | Stroke: 10 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Axial foot (LB)
SSD2-T1L-16-10-ET0V-R-CBBore: 16 mm | Stroke: 10 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Double clevis (CB)
SSD2-T1L-16-10-ET0V-R-FABore: 16 mm | Stroke: 10 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Rod flange (FA)
SSD2-T1L-16-10-ET0V-R-FBBore: 16 mm | Stroke: 10 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Head flange (FB)
SSD2-T1L-16-10-ET0V-HBore: 16 mm | Stroke: 10 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: None (basic)
SSD2-T1L-16-10-ET0V-H-LBBore: 16 mm | Stroke: 10 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Axial foot (LB)
SSD2-T1L-16-10-ET0V-H-CBBore: 16 mm | Stroke: 10 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Double clevis (CB)
SSD2-T1L-16-10-ET0V-H-FABore: 16 mm | Stroke: 10 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Rod flange (FA)
SSD2-T1L-16-10-ET0V-H-FBBore: 16 mm | Stroke: 10 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Head flange (FB)
SSD2-T1L-16-15-ET0H-RBore: 16 mm | Stroke: 15 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: None (basic)
SSD2-T1L-16-15-ET0H-R-LBBore: 16 mm | Stroke: 15 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Axial foot (LB)
SSD2-T1L-16-15-ET0H-R-CBBore: 16 mm | Stroke: 15 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Double clevis (CB)
SSD2-T1L-16-15-ET0H-R-FABore: 16 mm | Stroke: 15 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Rod flange (FA)
SSD2-T1L-16-15-ET0H-R-FBBore: 16 mm | Stroke: 15 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Head flange (FB)
SSD2-T1L-16-15-ET0H-HBore: 16 mm | Stroke: 15 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: None (basic)
SSD2-T1L-16-15-ET0H-H-LBBore: 16 mm | Stroke: 15 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Axial foot (LB)
SSD2-T1L-16-15-ET0H-H-CBBore: 16 mm | Stroke: 15 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Double clevis (CB)
SSD2-T1L-16-15-ET0H-H-FABore: 16 mm | Stroke: 15 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Rod flange (FA)
SSD2-T1L-16-15-ET0H-H-FBBore: 16 mm | Stroke: 15 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Head flange (FB)
SSD2-T1L-16-15-ET0V-RBore: 16 mm | Stroke: 15 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: None (basic)
SSD2-T1L-16-15-ET0V-R-LBBore: 16 mm | Stroke: 15 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Axial foot (LB)
SSD2-T1L-16-15-ET0V-R-CBBore: 16 mm | Stroke: 15 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Double clevis (CB)
SSD2-T1L-16-15-ET0V-R-FABore: 16 mm | Stroke: 15 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Rod flange (FA)
SSD2-T1L-16-15-ET0V-R-FBBore: 16 mm | Stroke: 15 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Head flange (FB)
SSD2-T1L-16-15-ET0V-HBore: 16 mm | Stroke: 15 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: None (basic)
SSD2-T1L-16-15-ET0V-H-LBBore: 16 mm | Stroke: 15 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Axial foot (LB)
SSD2-T1L-16-15-ET0V-H-CBBore: 16 mm | Stroke: 15 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Double clevis (CB)
SSD2-T1L-16-15-ET0V-H-FABore: 16 mm | Stroke: 15 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Rod flange (FA)
SSD2-T1L-16-15-ET0V-H-FBBore: 16 mm | Stroke: 15 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Head flange (FB)
SSD2-T1L-16-20-ET0H-RBore: 16 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: None (basic)
SSD2-T1L-16-20-ET0H-R-LBBore: 16 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Axial foot (LB)
SSD2-T1L-16-20-ET0H-R-CBBore: 16 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Double clevis (CB)
SSD2-T1L-16-20-ET0H-R-FABore: 16 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Rod flange (FA)
SSD2-T1L-16-20-ET0H-R-FBBore: 16 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Head flange (FB)
SSD2-T1L-16-20-ET0H-HBore: 16 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: None (basic)
SSD2-T1L-16-20-ET0H-H-LBBore: 16 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Axial foot (LB)
SSD2-T1L-16-20-ET0H-H-CBBore: 16 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Double clevis (CB)
SSD2-T1L-16-20-ET0H-H-FABore: 16 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Rod flange (FA)
SSD2-T1L-16-20-ET0H-H-FBBore: 16 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Head flange (FB)
SSD2-T1L-16-20-ET0H-DBore: 16 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: None (basic)
SSD2-T1L-16-20-ET0H-D-LBBore: 16 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Axial foot (LB)
SSD2-T1L-16-20-ET0H-D-CBBore: 16 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Double clevis (CB)
SSD2-T1L-16-20-ET0H-D-FABore: 16 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Rod flange (FA)
SSD2-T1L-16-20-ET0H-D-FBBore: 16 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Head flange (FB)
SSD2-T1L-16-20-ET0V-RBore: 16 mm | Stroke: 20 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: None (basic)
SSD2-T1L-16-20-ET0V-R-LBBore: 16 mm | Stroke: 20 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Axial foot (LB)
SSD2-T1L-16-20-ET0V-R-CBBore: 16 mm | Stroke: 20 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Double clevis (CB)
SSD2-T1L-16-20-ET0V-R-FABore: 16 mm | Stroke: 20 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Rod flange (FA)
SSD2-T1L-16-20-ET0V-R-FBBore: 16 mm | Stroke: 20 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Head flange (FB)
SSD2-T1L-16-20-ET0V-HBore: 16 mm | Stroke: 20 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: None (basic)
SSD2-T1L-16-20-ET0V-H-LBBore: 16 mm | Stroke: 20 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Axial foot (LB)
SSD2-T1L-16-20-ET0V-H-CBBore: 16 mm | Stroke: 20 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Double clevis (CB)
SSD2-T1L-16-20-ET0V-H-FABore: 16 mm | Stroke: 20 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Rod flange (FA)
SSD2-T1L-16-20-ET0V-H-FBBore: 16 mm | Stroke: 20 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Head flange (FB)
SSD2-T1L-16-20-ET0V-DBore: 16 mm | Stroke: 20 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: None (basic)
SSD2-T1L-16-20-ET0V-D-LBBore: 16 mm | Stroke: 20 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Axial foot (LB)
SSD2-T1L-16-20-ET0V-D-CBBore: 16 mm | Stroke: 20 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Double clevis (CB)
SSD2-T1L-16-20-ET0V-D-FABore: 16 mm | Stroke: 20 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Rod flange (FA)
SSD2-T1L-16-20-ET0V-D-FBBore: 16 mm | Stroke: 20 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Head flange (FB)
SSD2-T1L-16-25-ET0H-RBore: 16 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: None (basic)
SSD2-T1L-16-25-ET0H-R-LBBore: 16 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Axial foot (LB)
SSD2-T1L-16-25-ET0H-R-CBBore: 16 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Double clevis (CB)
SSD2-T1L-16-25-ET0H-R-FABore: 16 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Rod flange (FA)
SSD2-T1L-16-25-ET0H-R-FBBore: 16 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Head flange (FB)
SSD2-T1L-16-25-ET0H-HBore: 16 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: None (basic)
SSD2-T1L-16-25-ET0H-H-LBBore: 16 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Axial foot (LB)
SSD2-T1L-16-25-ET0H-H-CBBore: 16 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Double clevis (CB)
SSD2-T1L-16-25-ET0H-H-FABore: 16 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Rod flange (FA)
SSD2-T1L-16-25-ET0H-H-FBBore: 16 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Head flange (FB)
SSD2-T1L-16-25-ET0H-DBore: 16 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: None (basic)
SSD2-T1L-16-25-ET0H-D-LBBore: 16 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Axial foot (LB)
SSD2-T1L-16-25-ET0H-D-CBBore: 16 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Double clevis (CB)
SSD2-T1L-16-25-ET0H-D-FABore: 16 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Rod flange (FA)
SSD2-T1L-16-25-ET0H-D-FBBore: 16 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Head flange (FB)
SSD2-T1L-16-25-ET0V-RBore: 16 mm | Stroke: 25 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: None (basic)
SSD2-T1L-16-25-ET0V-R-LBBore: 16 mm | Stroke: 25 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Axial foot (LB)
SSD2-T1L-16-25-ET0V-R-CBBore: 16 mm | Stroke: 25 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Double clevis (CB)
SSD2-T1L-16-25-ET0V-R-FABore: 16 mm | Stroke: 25 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Rod flange (FA)
SSD2-T1L-16-25-ET0V-R-FBBore: 16 mm | Stroke: 25 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Head flange (FB)
SSD2-T1L-16-25-ET0V-HBore: 16 mm | Stroke: 25 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: None (basic)
SSD2-T1L-16-25-ET0V-H-LBBore: 16 mm | Stroke: 25 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Axial foot (LB)
SSD2-T1L-16-25-ET0V-H-CBBore: 16 mm | Stroke: 25 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Double clevis (CB)
SSD2-T1L-16-25-ET0V-H-FABore: 16 mm | Stroke: 25 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Rod flange (FA)
SSD2-T1L-16-25-ET0V-H-FBBore: 16 mm | Stroke: 25 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Head flange (FB)
SSD2-T1L-16-25-ET0V-DBore: 16 mm | Stroke: 25 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: None (basic)
SSD2-T1L-16-25-ET0V-D-LBBore: 16 mm | Stroke: 25 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Axial foot (LB)
SSD2-T1L-16-25-ET0V-D-CBBore: 16 mm | Stroke: 25 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Double clevis (CB)
SSD2-T1L-16-25-ET0V-D-FABore: 16 mm | Stroke: 25 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Rod flange (FA)
SSD2-T1L-16-25-ET0V-D-FBBore: 16 mm | Stroke: 25 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Head flange (FB)
SSD2-T1L-16-30-ET0H-RBore: 16 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: None (basic)
SSD2-T1L-16-30-ET0H-R-LBBore: 16 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Axial foot (LB)
SSD2-T1L-16-30-ET0H-R-CBBore: 16 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Double clevis (CB)
SSD2-T1L-16-30-ET0H-R-FABore: 16 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Rod flange (FA)
SSD2-T1L-16-30-ET0H-R-FBBore: 16 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Head flange (FB)
SSD2-T1L-16-30-ET0H-HBore: 16 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: None (basic)
SSD2-T1L-16-30-ET0H-H-LBBore: 16 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Axial foot (LB)
SSD2-T1L-16-30-ET0H-H-CBBore: 16 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Double clevis (CB)
SSD2-T1L-16-30-ET0H-H-FABore: 16 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Rod flange (FA)
SSD2-T1L-16-30-ET0H-H-FBBore: 16 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Head flange (FB)
SSD2-T1L-16-30-ET0H-DBore: 16 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: None (basic)
SSD2-T1L-16-30-ET0H-D-LBBore: 16 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Axial foot (LB)
SSD2-T1L-16-30-ET0H-D-CBBore: 16 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Double clevis (CB)
SSD2-T1L-16-30-ET0H-D-FABore: 16 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Rod flange (FA)
SSD2-T1L-16-30-ET0H-D-FBBore: 16 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Head flange (FB)
SSD2-T1L-16-30-ET0V-RBore: 16 mm | Stroke: 30 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: None (basic)
SSD2-T1L-16-30-ET0V-R-LBBore: 16 mm | Stroke: 30 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Axial foot (LB)
SSD2-T1L-16-30-ET0V-R-CBBore: 16 mm | Stroke: 30 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Double clevis (CB)
SSD2-T1L-16-30-ET0V-R-FABore: 16 mm | Stroke: 30 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Rod flange (FA)
SSD2-T1L-16-30-ET0V-R-FBBore: 16 mm | Stroke: 30 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Head flange (FB)
SSD2-T1L-16-30-ET0V-HBore: 16 mm | Stroke: 30 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: None (basic)
SSD2-T1L-16-30-ET0V-H-LBBore: 16 mm | Stroke: 30 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Axial foot (LB)
SSD2-T1L-16-30-ET0V-H-CBBore: 16 mm | Stroke: 30 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Double clevis (CB)
SSD2-T1L-16-30-ET0V-H-FABore: 16 mm | Stroke: 30 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Rod flange (FA)
SSD2-T1L-16-30-ET0V-H-FBBore: 16 mm | Stroke: 30 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Head flange (FB)
SSD2-T1L-16-30-ET0V-DBore: 16 mm | Stroke: 30 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: None (basic)
SSD2-T1L-16-30-ET0V-D-LBBore: 16 mm | Stroke: 30 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Axial foot (LB)
SSD2-T1L-16-30-ET0V-D-CBBore: 16 mm | Stroke: 30 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Double clevis (CB)
SSD2-T1L-16-30-ET0V-D-FABore: 16 mm | Stroke: 30 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Rod flange (FA)
SSD2-T1L-16-30-ET0V-D-FBBore: 16 mm | Stroke: 30 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Head flange (FB)
SSD2-T1L-20-15-ET0H-RBore: 20 mm | Stroke: 15 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: None (basic)
SSD2-T1L-20-15-ET0H-R-LBBore: 20 mm | Stroke: 15 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Axial foot (LB)
SSD2-T1L-20-15-ET0H-R-CBBore: 20 mm | Stroke: 15 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Double clevis (CB)
SSD2-T1L-20-15-ET0H-R-FABore: 20 mm | Stroke: 15 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Rod flange (FA)
SSD2-T1L-20-15-ET0H-R-FBBore: 20 mm | Stroke: 15 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Head flange (FB)
SSD2-T1L-20-15-ET0H-HBore: 20 mm | Stroke: 15 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: None (basic)
SSD2-T1L-20-15-ET0H-H-LBBore: 20 mm | Stroke: 15 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Axial foot (LB)
SSD2-T1L-20-15-ET0H-H-CBBore: 20 mm | Stroke: 15 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Double clevis (CB)
SSD2-T1L-20-15-ET0H-H-FABore: 20 mm | Stroke: 15 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Rod flange (FA)
SSD2-T1L-20-15-ET0H-H-FBBore: 20 mm | Stroke: 15 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Head flange (FB)
SSD2-T1L-20-15-ET0V-RBore: 20 mm | Stroke: 15 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: None (basic)
SSD2-T1L-20-15-ET0V-R-LBBore: 20 mm | Stroke: 15 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Axial foot (LB)
SSD2-T1L-20-15-ET0V-R-CBBore: 20 mm | Stroke: 15 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Double clevis (CB)
SSD2-T1L-20-15-ET0V-R-FABore: 20 mm | Stroke: 15 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Rod flange (FA)
SSD2-T1L-20-15-ET0V-R-FBBore: 20 mm | Stroke: 15 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Head flange (FB)
SSD2-T1L-20-15-ET0V-HBore: 20 mm | Stroke: 15 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: None (basic)
SSD2-T1L-20-15-ET0V-H-LBBore: 20 mm | Stroke: 15 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Axial foot (LB)
SSD2-T1L-20-15-ET0V-H-CBBore: 20 mm | Stroke: 15 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Double clevis (CB)
SSD2-T1L-20-15-ET0V-H-FABore: 20 mm | Stroke: 15 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Rod flange (FA)
SSD2-T1L-20-15-ET0V-H-FBBore: 20 mm | Stroke: 15 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Head flange (FB)
SSD2-T1L-20-20-ET0H-RBore: 20 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: None (basic)
SSD2-T1L-20-20-ET0H-R-LBBore: 20 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Axial foot (LB)
SSD2-T1L-20-20-ET0H-R-CBBore: 20 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Double clevis (CB)
SSD2-T1L-20-20-ET0H-R-FABore: 20 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Rod flange (FA)
SSD2-T1L-20-20-ET0H-R-FBBore: 20 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Head flange (FB)
SSD2-T1L-20-20-ET0H-HBore: 20 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: None (basic)
SSD2-T1L-20-20-ET0H-H-LBBore: 20 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Axial foot (LB)
SSD2-T1L-20-20-ET0H-H-CBBore: 20 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Double clevis (CB)
SSD2-T1L-20-20-ET0H-H-FABore: 20 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Rod flange (FA)
SSD2-T1L-20-20-ET0H-H-FBBore: 20 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Head flange (FB)
SSD2-T1L-20-20-ET0V-RBore: 20 mm | Stroke: 20 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: None (basic)
SSD2-T1L-20-20-ET0V-R-LBBore: 20 mm | Stroke: 20 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Axial foot (LB)
SSD2-T1L-20-20-ET0V-R-CBBore: 20 mm | Stroke: 20 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Double clevis (CB)
SSD2-T1L-20-20-ET0V-R-FABore: 20 mm | Stroke: 20 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Rod flange (FA)
SSD2-T1L-20-20-ET0V-R-FBBore: 20 mm | Stroke: 20 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Head flange (FB)
SSD2-T1L-20-20-ET0V-HBore: 20 mm | Stroke: 20 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: None (basic)
SSD2-T1L-20-20-ET0V-H-LBBore: 20 mm | Stroke: 20 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Axial foot (LB)
SSD2-T1L-20-20-ET0V-H-CBBore: 20 mm | Stroke: 20 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Double clevis (CB)
SSD2-T1L-20-20-ET0V-H-FABore: 20 mm | Stroke: 20 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Rod flange (FA)
SSD2-T1L-20-20-ET0V-H-FBBore: 20 mm | Stroke: 20 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Head flange (FB)
SSD2-T1L-20-25-ET0H-RBore: 20 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: None (basic)
SSD2-T1L-20-25-ET0H-R-LBBore: 20 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Axial foot (LB)
SSD2-T1L-20-25-ET0H-R-CBBore: 20 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Double clevis (CB)
SSD2-T1L-20-25-ET0H-R-FABore: 20 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Rod flange (FA)
SSD2-T1L-20-25-ET0H-R-FBBore: 20 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Head flange (FB)
SSD2-T1L-20-25-ET0H-HBore: 20 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: None (basic)
SSD2-T1L-20-25-ET0H-H-LBBore: 20 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Axial foot (LB)
SSD2-T1L-20-25-ET0H-H-CBBore: 20 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Double clevis (CB)
SSD2-T1L-20-25-ET0H-H-FABore: 20 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Rod flange (FA)
SSD2-T1L-20-25-ET0H-H-FBBore: 20 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Head flange (FB)
SSD2-T1L-20-25-ET0H-DBore: 20 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: None (basic)
SSD2-T1L-20-25-ET0H-D-LBBore: 20 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Axial foot (LB)
SSD2-T1L-20-25-ET0H-D-CBBore: 20 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Double clevis (CB)
SSD2-T1L-20-25-ET0H-D-FABore: 20 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Rod flange (FA)
SSD2-T1L-20-25-ET0H-D-FBBore: 20 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Head flange (FB)
SSD2-T1L-20-25-ET0V-RBore: 20 mm | Stroke: 25 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: None (basic)
SSD2-T1L-20-25-ET0V-R-LBBore: 20 mm | Stroke: 25 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Axial foot (LB)
SSD2-T1L-20-25-ET0V-R-CBBore: 20 mm | Stroke: 25 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Double clevis (CB)
SSD2-T1L-20-25-ET0V-R-FABore: 20 mm | Stroke: 25 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Rod flange (FA)
SSD2-T1L-20-25-ET0V-R-FBBore: 20 mm | Stroke: 25 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Head flange (FB)
SSD2-T1L-20-25-ET0V-HBore: 20 mm | Stroke: 25 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: None (basic)
SSD2-T1L-20-25-ET0V-H-LBBore: 20 mm | Stroke: 25 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Axial foot (LB)
SSD2-T1L-20-25-ET0V-H-CBBore: 20 mm | Stroke: 25 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Double clevis (CB)
SSD2-T1L-20-25-ET0V-H-FABore: 20 mm | Stroke: 25 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Rod flange (FA)
SSD2-T1L-20-25-ET0V-H-FBBore: 20 mm | Stroke: 25 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Head flange (FB)
SSD2-T1L-20-25-ET0V-DBore: 20 mm | Stroke: 25 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: None (basic)
SSD2-T1L-20-25-ET0V-D-LBBore: 20 mm | Stroke: 25 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Axial foot (LB)
SSD2-T1L-20-25-ET0V-D-CBBore: 20 mm | Stroke: 25 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Double clevis (CB)
SSD2-T1L-20-25-ET0V-D-FABore: 20 mm | Stroke: 25 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Rod flange (FA)
SSD2-T1L-20-25-ET0V-D-FBBore: 20 mm | Stroke: 25 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Head flange (FB)
SSD2-T1L-20-30-ET0H-RBore: 20 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: None (basic)
SSD2-T1L-20-30-ET0H-R-LBBore: 20 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Axial foot (LB)
SSD2-T1L-20-30-ET0H-R-CBBore: 20 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Double clevis (CB)
SSD2-T1L-20-30-ET0H-R-FABore: 20 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Rod flange (FA)
SSD2-T1L-20-30-ET0H-R-FBBore: 20 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Head flange (FB)
SSD2-T1L-20-30-ET0H-HBore: 20 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: None (basic)
SSD2-T1L-20-30-ET0H-H-LBBore: 20 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Axial foot (LB)
SSD2-T1L-20-30-ET0H-H-CBBore: 20 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Double clevis (CB)
SSD2-T1L-20-30-ET0H-H-FABore: 20 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Rod flange (FA)
SSD2-T1L-20-30-ET0H-H-FBBore: 20 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Head flange (FB)
SSD2-T1L-20-30-ET0H-DBore: 20 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: None (basic)
SSD2-T1L-20-30-ET0H-D-LBBore: 20 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Axial foot (LB)
SSD2-T1L-20-30-ET0H-D-CBBore: 20 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Double clevis (CB)
SSD2-T1L-20-30-ET0H-D-FABore: 20 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Rod flange (FA)
SSD2-T1L-20-30-ET0H-D-FBBore: 20 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Head flange (FB)
SSD2-T1L-20-30-ET0V-RBore: 20 mm | Stroke: 30 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: None (basic)
SSD2-T1L-20-30-ET0V-R-LBBore: 20 mm | Stroke: 30 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Axial foot (LB)
SSD2-T1L-20-30-ET0V-R-CBBore: 20 mm | Stroke: 30 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Double clevis (CB)
SSD2-T1L-20-30-ET0V-R-FABore: 20 mm | Stroke: 30 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Rod flange (FA)
SSD2-T1L-20-30-ET0V-R-FBBore: 20 mm | Stroke: 30 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Head flange (FB)
SSD2-T1L-20-30-ET0V-HBore: 20 mm | Stroke: 30 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: None (basic)
SSD2-T1L-20-30-ET0V-H-LBBore: 20 mm | Stroke: 30 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Axial foot (LB)
SSD2-T1L-20-30-ET0V-H-CBBore: 20 mm | Stroke: 30 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Double clevis (CB)
SSD2-T1L-20-30-ET0V-H-FABore: 20 mm | Stroke: 30 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Rod flange (FA)
SSD2-T1L-20-30-ET0V-H-FBBore: 20 mm | Stroke: 30 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Head flange (FB)
SSD2-T1L-20-30-ET0V-DBore: 20 mm | Stroke: 30 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: None (basic)
SSD2-T1L-20-30-ET0V-D-LBBore: 20 mm | Stroke: 30 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Axial foot (LB)
SSD2-T1L-20-30-ET0V-D-CBBore: 20 mm | Stroke: 30 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Double clevis (CB)
SSD2-T1L-20-30-ET0V-D-FABore: 20 mm | Stroke: 30 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Rod flange (FA)
SSD2-T1L-20-30-ET0V-D-FBBore: 20 mm | Stroke: 30 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Head flange (FB)
SSD2-T1L-20-35-ET0H-RBore: 20 mm | Stroke: 35 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: None (basic)
SSD2-T1L-20-35-ET0H-R-LBBore: 20 mm | Stroke: 35 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Axial foot (LB)
SSD2-T1L-20-35-ET0H-R-CBBore: 20 mm | Stroke: 35 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Double clevis (CB)
SSD2-T1L-20-35-ET0H-R-FABore: 20 mm | Stroke: 35 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Rod flange (FA)
SSD2-T1L-20-35-ET0H-R-FBBore: 20 mm | Stroke: 35 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Head flange (FB)
SSD2-T1L-20-35-ET0H-HBore: 20 mm | Stroke: 35 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: None (basic)
SSD2-T1L-20-35-ET0H-H-LBBore: 20 mm | Stroke: 35 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Axial foot (LB)
SSD2-T1L-20-35-ET0H-H-CBBore: 20 mm | Stroke: 35 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Double clevis (CB)
SSD2-T1L-20-35-ET0H-H-FABore: 20 mm | Stroke: 35 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Rod flange (FA)
SSD2-T1L-20-35-ET0H-H-FBBore: 20 mm | Stroke: 35 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Head flange (FB)
SSD2-T1L-20-35-ET0H-DBore: 20 mm | Stroke: 35 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: None (basic)
SSD2-T1L-20-35-ET0H-D-LBBore: 20 mm | Stroke: 35 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Axial foot (LB)
SSD2-T1L-20-35-ET0H-D-CBBore: 20 mm | Stroke: 35 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Double clevis (CB)
SSD2-T1L-20-35-ET0H-D-FABore: 20 mm | Stroke: 35 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Rod flange (FA)
SSD2-T1L-20-35-ET0H-D-FBBore: 20 mm | Stroke: 35 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Head flange (FB)
SSD2-T1L-20-35-ET0V-RBore: 20 mm | Stroke: 35 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: None (basic)
SSD2-T1L-20-35-ET0V-R-LBBore: 20 mm | Stroke: 35 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Axial foot (LB)
SSD2-T1L-20-35-ET0V-R-CBBore: 20 mm | Stroke: 35 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Double clevis (CB)
SSD2-T1L-20-35-ET0V-R-FABore: 20 mm | Stroke: 35 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Rod flange (FA)
SSD2-T1L-20-35-ET0V-R-FBBore: 20 mm | Stroke: 35 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Head flange (FB)
SSD2-T1L-20-35-ET0V-HBore: 20 mm | Stroke: 35 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: None (basic)
SSD2-T1L-20-35-ET0V-H-LBBore: 20 mm | Stroke: 35 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Axial foot (LB)
SSD2-T1L-20-35-ET0V-H-CBBore: 20 mm | Stroke: 35 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Double clevis (CB)
SSD2-T1L-20-35-ET0V-H-FABore: 20 mm | Stroke: 35 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Rod flange (FA)
SSD2-T1L-20-35-ET0V-H-FBBore: 20 mm | Stroke: 35 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Head flange (FB)
SSD2-T1L-20-35-ET0V-DBore: 20 mm | Stroke: 35 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: None (basic)
SSD2-T1L-20-35-ET0V-D-LBBore: 20 mm | Stroke: 35 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Axial foot (LB)
SSD2-T1L-20-35-ET0V-D-CBBore: 20 mm | Stroke: 35 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Double clevis (CB)
SSD2-T1L-20-35-ET0V-D-FABore: 20 mm | Stroke: 35 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Rod flange (FA)
SSD2-T1L-20-35-ET0V-D-FBBore: 20 mm | Stroke: 35 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Head flange (FB)
SSD2-T1L-20-40-ET0H-RBore: 20 mm | Stroke: 40 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: None (basic)
SSD2-T1L-20-40-ET0H-R-LBBore: 20 mm | Stroke: 40 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Axial foot (LB)
SSD2-T1L-20-40-ET0H-R-CBBore: 20 mm | Stroke: 40 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Double clevis (CB)
SSD2-T1L-20-40-ET0H-R-FABore: 20 mm | Stroke: 40 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Rod flange (FA)
SSD2-T1L-20-40-ET0H-R-FBBore: 20 mm | Stroke: 40 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Head flange (FB)
SSD2-T1L-20-40-ET0H-HBore: 20 mm | Stroke: 40 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: None (basic)
SSD2-T1L-20-40-ET0H-H-LBBore: 20 mm | Stroke: 40 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Axial foot (LB)
SSD2-T1L-20-40-ET0H-H-CBBore: 20 mm | Stroke: 40 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Double clevis (CB)
SSD2-T1L-20-40-ET0H-H-FABore: 20 mm | Stroke: 40 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Rod flange (FA)
SSD2-T1L-20-40-ET0H-H-FBBore: 20 mm | Stroke: 40 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Head flange (FB)
SSD2-T1L-20-40-ET0H-DBore: 20 mm | Stroke: 40 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: None (basic)
SSD2-T1L-20-40-ET0H-D-LBBore: 20 mm | Stroke: 40 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Axial foot (LB)
SSD2-T1L-20-40-ET0H-D-CBBore: 20 mm | Stroke: 40 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Double clevis (CB)
SSD2-T1L-20-40-ET0H-D-FABore: 20 mm | Stroke: 40 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Rod flange (FA)
SSD2-T1L-20-40-ET0H-D-FBBore: 20 mm | Stroke: 40 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Head flange (FB)
SSD2-T1L-20-40-ET0V-RBore: 20 mm | Stroke: 40 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: None (basic)
SSD2-T1L-20-40-ET0V-R-LBBore: 20 mm | Stroke: 40 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Axial foot (LB)
SSD2-T1L-20-40-ET0V-R-CBBore: 20 mm | Stroke: 40 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Double clevis (CB)
SSD2-T1L-20-40-ET0V-R-FABore: 20 mm | Stroke: 40 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Rod flange (FA)
SSD2-T1L-20-40-ET0V-R-FBBore: 20 mm | Stroke: 40 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Head flange (FB)
SSD2-T1L-20-40-ET0V-HBore: 20 mm | Stroke: 40 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: None (basic)
SSD2-T1L-20-40-ET0V-H-LBBore: 20 mm | Stroke: 40 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Axial foot (LB)
SSD2-T1L-20-40-ET0V-H-CBBore: 20 mm | Stroke: 40 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Double clevis (CB)
SSD2-T1L-20-40-ET0V-H-FABore: 20 mm | Stroke: 40 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Rod flange (FA)
SSD2-T1L-20-40-ET0V-H-FBBore: 20 mm | Stroke: 40 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Head flange (FB)
SSD2-T1L-20-40-ET0V-DBore: 20 mm | Stroke: 40 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: None (basic)
SSD2-T1L-20-40-ET0V-D-LBBore: 20 mm | Stroke: 40 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Axial foot (LB)
SSD2-T1L-20-40-ET0V-D-CBBore: 20 mm | Stroke: 40 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Double clevis (CB)
SSD2-T1L-20-40-ET0V-D-FABore: 20 mm | Stroke: 40 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Rod flange (FA)
SSD2-T1L-20-40-ET0V-D-FBBore: 20 mm | Stroke: 40 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Head flange (FB)
SSD2-T1L-20-45-ET0H-RBore: 20 mm | Stroke: 45 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: None (basic)
SSD2-T1L-20-45-ET0H-R-LBBore: 20 mm | Stroke: 45 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Axial foot (LB)
SSD2-T1L-20-45-ET0H-R-CBBore: 20 mm | Stroke: 45 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Double clevis (CB)
SSD2-T1L-20-45-ET0H-R-FABore: 20 mm | Stroke: 45 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Rod flange (FA)
SSD2-T1L-20-45-ET0H-R-FBBore: 20 mm | Stroke: 45 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Head flange (FB)
SSD2-T1L-20-45-ET0H-HBore: 20 mm | Stroke: 45 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: None (basic)
SSD2-T1L-20-45-ET0H-H-LBBore: 20 mm | Stroke: 45 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Axial foot (LB)
SSD2-T1L-20-45-ET0H-H-CBBore: 20 mm | Stroke: 45 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Double clevis (CB)
SSD2-T1L-20-45-ET0H-H-FABore: 20 mm | Stroke: 45 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Rod flange (FA)
SSD2-T1L-20-45-ET0H-H-FBBore: 20 mm | Stroke: 45 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Head flange (FB)
SSD2-T1L-20-45-ET0H-DBore: 20 mm | Stroke: 45 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: None (basic)
SSD2-T1L-20-45-ET0H-D-LBBore: 20 mm | Stroke: 45 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Axial foot (LB)
SSD2-T1L-20-45-ET0H-D-CBBore: 20 mm | Stroke: 45 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Double clevis (CB)
SSD2-T1L-20-45-ET0H-D-FABore: 20 mm | Stroke: 45 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Rod flange (FA)
SSD2-T1L-20-45-ET0H-D-FBBore: 20 mm | Stroke: 45 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Head flange (FB)
SSD2-T1L-20-45-ET0V-RBore: 20 mm | Stroke: 45 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: None (basic)
SSD2-T1L-20-45-ET0V-R-LBBore: 20 mm | Stroke: 45 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Axial foot (LB)
SSD2-T1L-20-45-ET0V-R-CBBore: 20 mm | Stroke: 45 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Double clevis (CB)
SSD2-T1L-20-45-ET0V-R-FABore: 20 mm | Stroke: 45 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Rod flange (FA)
SSD2-T1L-20-45-ET0V-R-FBBore: 20 mm | Stroke: 45 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Head flange (FB)
SSD2-T1L-20-45-ET0V-HBore: 20 mm | Stroke: 45 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: None (basic)
SSD2-T1L-20-45-ET0V-H-LBBore: 20 mm | Stroke: 45 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Axial foot (LB)
SSD2-T1L-20-45-ET0V-H-CBBore: 20 mm | Stroke: 45 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Double clevis (CB)
SSD2-T1L-20-45-ET0V-H-FABore: 20 mm | Stroke: 45 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Rod flange (FA)
SSD2-T1L-20-45-ET0V-H-FBBore: 20 mm | Stroke: 45 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Head flange (FB)
SSD2-T1L-20-45-ET0V-DBore: 20 mm | Stroke: 45 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: None (basic)
SSD2-T1L-20-45-ET0V-D-LBBore: 20 mm | Stroke: 45 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Axial foot (LB)
SSD2-T1L-20-45-ET0V-D-CBBore: 20 mm | Stroke: 45 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Double clevis (CB)
SSD2-T1L-20-45-ET0V-D-FABore: 20 mm | Stroke: 45 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Rod flange (FA)
SSD2-T1L-20-45-ET0V-D-FBBore: 20 mm | Stroke: 45 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Head flange (FB)
SSD2-T1L-20-50-ET0H-RBore: 20 mm | Stroke: 50 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: None (basic)
SSD2-T1L-20-50-ET0H-R-LBBore: 20 mm | Stroke: 50 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Axial foot (LB)
SSD2-T1L-20-50-ET0H-R-CBBore: 20 mm | Stroke: 50 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Double clevis (CB)
SSD2-T1L-20-50-ET0H-R-FABore: 20 mm | Stroke: 50 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Rod flange (FA)
SSD2-T1L-20-50-ET0H-R-FBBore: 20 mm | Stroke: 50 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Head flange (FB)
SSD2-T1L-20-50-ET0H-HBore: 20 mm | Stroke: 50 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: None (basic)
SSD2-T1L-20-50-ET0H-H-LBBore: 20 mm | Stroke: 50 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Axial foot (LB)
SSD2-T1L-20-50-ET0H-H-CBBore: 20 mm | Stroke: 50 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Double clevis (CB)
SSD2-T1L-20-50-ET0H-H-FABore: 20 mm | Stroke: 50 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Rod flange (FA)
SSD2-T1L-20-50-ET0H-H-FBBore: 20 mm | Stroke: 50 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Head flange (FB)
SSD2-T1L-20-50-ET0H-DBore: 20 mm | Stroke: 50 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: None (basic)
SSD2-T1L-20-50-ET0H-D-LBBore: 20 mm | Stroke: 50 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Axial foot (LB)
SSD2-T1L-20-50-ET0H-D-CBBore: 20 mm | Stroke: 50 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Double clevis (CB)
SSD2-T1L-20-50-ET0H-D-FABore: 20 mm | Stroke: 50 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Rod flange (FA)
SSD2-T1L-20-50-ET0H-D-FBBore: 20 mm | Stroke: 50 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Head flange (FB)
SSD2-T1L-20-50-ET0V-RBore: 20 mm | Stroke: 50 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: None (basic)
SSD2-T1L-20-50-ET0V-R-LBBore: 20 mm | Stroke: 50 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Axial foot (LB)
SSD2-T1L-20-50-ET0V-R-CBBore: 20 mm | Stroke: 50 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Double clevis (CB)
SSD2-T1L-20-50-ET0V-R-FABore: 20 mm | Stroke: 50 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Rod flange (FA)
SSD2-T1L-20-50-ET0V-R-FBBore: 20 mm | Stroke: 50 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Head flange (FB)
SSD2-T1L-20-50-ET0V-HBore: 20 mm | Stroke: 50 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: None (basic)
SSD2-T1L-20-50-ET0V-H-LBBore: 20 mm | Stroke: 50 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Axial foot (LB)
SSD2-T1L-20-50-ET0V-H-CBBore: 20 mm | Stroke: 50 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Double clevis (CB)
SSD2-T1L-20-50-ET0V-H-FABore: 20 mm | Stroke: 50 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Rod flange (FA)
SSD2-T1L-20-50-ET0V-H-FBBore: 20 mm | Stroke: 50 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Head flange (FB)
SSD2-T1L-20-50-ET0V-DBore: 20 mm | Stroke: 50 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: None (basic)
SSD2-T1L-20-50-ET0V-D-LBBore: 20 mm | Stroke: 50 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Axial foot (LB)
SSD2-T1L-20-50-ET0V-D-CBBore: 20 mm | Stroke: 50 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Double clevis (CB)
SSD2-T1L-20-50-ET0V-D-FABore: 20 mm | Stroke: 50 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Rod flange (FA)
SSD2-T1L-20-50-ET0V-D-FBBore: 20 mm | Stroke: 50 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Head flange (FB)
SSD2-T1L-25-15-ET0H-RBore: 25 mm | Stroke: 15 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: None (basic)
SSD2-T1L-25-15-ET0H-R-LBBore: 25 mm | Stroke: 15 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Axial foot (LB)
SSD2-T1L-25-15-ET0H-R-CBBore: 25 mm | Stroke: 15 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Double clevis (CB)
SSD2-T1L-25-15-ET0H-R-FABore: 25 mm | Stroke: 15 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Rod flange (FA)
SSD2-T1L-25-15-ET0H-R-FBBore: 25 mm | Stroke: 15 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Head flange (FB)
SSD2-T1L-25-15-ET0H-HBore: 25 mm | Stroke: 15 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: None (basic)
SSD2-T1L-25-15-ET0H-H-LBBore: 25 mm | Stroke: 15 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Axial foot (LB)
SSD2-T1L-25-15-ET0H-H-CBBore: 25 mm | Stroke: 15 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Double clevis (CB)
SSD2-T1L-25-15-ET0H-H-FABore: 25 mm | Stroke: 15 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Rod flange (FA)
SSD2-T1L-25-15-ET0H-H-FBBore: 25 mm | Stroke: 15 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Head flange (FB)
SSD2-T1L-25-15-ET0V-RBore: 25 mm | Stroke: 15 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: None (basic)
SSD2-T1L-25-15-ET0V-R-LBBore: 25 mm | Stroke: 15 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Axial foot (LB)
SSD2-T1L-25-15-ET0V-R-CBBore: 25 mm | Stroke: 15 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Double clevis (CB)
SSD2-T1L-25-15-ET0V-R-FABore: 25 mm | Stroke: 15 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Rod flange (FA)
SSD2-T1L-25-15-ET0V-R-FBBore: 25 mm | Stroke: 15 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Head flange (FB)
SSD2-T1L-25-15-ET0V-HBore: 25 mm | Stroke: 15 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: None (basic)
SSD2-T1L-25-15-ET0V-H-LBBore: 25 mm | Stroke: 15 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Axial foot (LB)
SSD2-T1L-25-15-ET0V-H-CBBore: 25 mm | Stroke: 15 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Double clevis (CB)
SSD2-T1L-25-15-ET0V-H-FABore: 25 mm | Stroke: 15 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Rod flange (FA)
SSD2-T1L-25-15-ET0V-H-FBBore: 25 mm | Stroke: 15 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Head flange (FB)
SSD2-T1L-25-20-ET0H-RBore: 25 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: None (basic)
SSD2-T1L-25-20-ET0H-R-LBBore: 25 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Axial foot (LB)
SSD2-T1L-25-20-ET0H-R-CBBore: 25 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Double clevis (CB)
SSD2-T1L-25-20-ET0H-R-FABore: 25 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Rod flange (FA)
SSD2-T1L-25-20-ET0H-R-FBBore: 25 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Head flange (FB)
SSD2-T1L-25-20-ET0H-HBore: 25 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: None (basic)
SSD2-T1L-25-20-ET0H-H-LBBore: 25 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Axial foot (LB)
SSD2-T1L-25-20-ET0H-H-CBBore: 25 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Double clevis (CB)
SSD2-T1L-25-20-ET0H-H-FABore: 25 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Rod flange (FA)
SSD2-T1L-25-20-ET0H-H-FBBore: 25 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Head flange (FB)
SSD2-T1L-25-20-ET0H-DBore: 25 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: None (basic)
SSD2-T1L-25-20-ET0H-D-LBBore: 25 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Axial foot (LB)
SSD2-T1L-25-20-ET0H-D-CBBore: 25 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Double clevis (CB)
SSD2-T1L-25-20-ET0H-D-FABore: 25 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Rod flange (FA)
SSD2-T1L-25-20-ET0H-D-FBBore: 25 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Head flange (FB)
SSD2-T1L-25-20-ET0V-RBore: 25 mm | Stroke: 20 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: None (basic)
SSD2-T1L-25-20-ET0V-R-LBBore: 25 mm | Stroke: 20 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Axial foot (LB)
SSD2-T1L-25-20-ET0V-R-CBBore: 25 mm | Stroke: 20 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Double clevis (CB)
SSD2-T1L-25-20-ET0V-R-FABore: 25 mm | Stroke: 20 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Rod flange (FA)
SSD2-T1L-25-20-ET0V-R-FBBore: 25 mm | Stroke: 20 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Head flange (FB)
SSD2-T1L-25-20-ET0V-HBore: 25 mm | Stroke: 20 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: None (basic)
SSD2-T1L-25-20-ET0V-H-LBBore: 25 mm | Stroke: 20 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Axial foot (LB)
SSD2-T1L-25-20-ET0V-H-CBBore: 25 mm | Stroke: 20 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Double clevis (CB)
SSD2-T1L-25-20-ET0V-H-FABore: 25 mm | Stroke: 20 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Rod flange (FA)
SSD2-T1L-25-20-ET0V-H-FBBore: 25 mm | Stroke: 20 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Head flange (FB)
SSD2-T1L-25-20-ET0V-DBore: 25 mm | Stroke: 20 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: None (basic)
SSD2-T1L-25-20-ET0V-D-LBBore: 25 mm | Stroke: 20 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Axial foot (LB)
SSD2-T1L-25-20-ET0V-D-CBBore: 25 mm | Stroke: 20 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Double clevis (CB)
SSD2-T1L-25-20-ET0V-D-FABore: 25 mm | Stroke: 20 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Rod flange (FA)
SSD2-T1L-25-20-ET0V-D-FBBore: 25 mm | Stroke: 20 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Head flange (FB)
SSD2-T1L-25-25-ET0H-RBore: 25 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: None (basic)
SSD2-T1L-25-25-ET0H-R-LBBore: 25 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Axial foot (LB)
SSD2-T1L-25-25-ET0H-R-CBBore: 25 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Double clevis (CB)
SSD2-T1L-25-25-ET0H-R-FABore: 25 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Rod flange (FA)
SSD2-T1L-25-25-ET0H-R-FBBore: 25 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Head flange (FB)
SSD2-T1L-25-25-ET0H-HBore: 25 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: None (basic)
SSD2-T1L-25-25-ET0H-H-LBBore: 25 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Axial foot (LB)
SSD2-T1L-25-25-ET0H-H-CBBore: 25 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Double clevis (CB)
SSD2-T1L-25-25-ET0H-H-FABore: 25 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Rod flange (FA)
SSD2-T1L-25-25-ET0H-H-FBBore: 25 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Head flange (FB)
SSD2-T1L-25-25-ET0H-DBore: 25 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: None (basic)
SSD2-T1L-25-25-ET0H-D-LBBore: 25 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Axial foot (LB)
SSD2-T1L-25-25-ET0H-D-CBBore: 25 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Double clevis (CB)
SSD2-T1L-25-25-ET0H-D-FABore: 25 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Rod flange (FA)
SSD2-T1L-25-25-ET0H-D-FBBore: 25 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Head flange (FB)
SSD2-T1L-25-25-ET0V-RBore: 25 mm | Stroke: 25 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: None (basic)
SSD2-T1L-25-25-ET0V-R-LBBore: 25 mm | Stroke: 25 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Axial foot (LB)
SSD2-T1L-25-25-ET0V-R-CBBore: 25 mm | Stroke: 25 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Double clevis (CB)
SSD2-T1L-25-25-ET0V-R-FABore: 25 mm | Stroke: 25 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Rod flange (FA)
SSD2-T1L-25-25-ET0V-R-FBBore: 25 mm | Stroke: 25 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Head flange (FB)
SSD2-T1L-25-25-ET0V-HBore: 25 mm | Stroke: 25 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: None (basic)
SSD2-T1L-25-25-ET0V-H-LBBore: 25 mm | Stroke: 25 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Axial foot (LB)
SSD2-T1L-25-25-ET0V-H-CBBore: 25 mm | Stroke: 25 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Double clevis (CB)
SSD2-T1L-25-25-ET0V-H-FABore: 25 mm | Stroke: 25 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Rod flange (FA)
SSD2-T1L-25-25-ET0V-H-FBBore: 25 mm | Stroke: 25 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Head flange (FB)
SSD2-T1L-25-25-ET0V-DBore: 25 mm | Stroke: 25 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: None (basic)
SSD2-T1L-25-25-ET0V-D-LBBore: 25 mm | Stroke: 25 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Axial foot (LB)
SSD2-T1L-25-25-ET0V-D-CBBore: 25 mm | Stroke: 25 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Double clevis (CB)
SSD2-T1L-25-25-ET0V-D-FABore: 25 mm | Stroke: 25 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Rod flange (FA)
SSD2-T1L-25-25-ET0V-D-FBBore: 25 mm | Stroke: 25 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Head flange (FB)
SSD2-T1L-25-30-ET0H-RBore: 25 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: None (basic)
SSD2-T1L-25-30-ET0H-R-LBBore: 25 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Axial foot (LB)
SSD2-T1L-25-30-ET0H-R-CBBore: 25 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Double clevis (CB)
SSD2-T1L-25-30-ET0H-R-FABore: 25 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Rod flange (FA)
SSD2-T1L-25-30-ET0H-R-FBBore: 25 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Head flange (FB)
SSD2-T1L-25-30-ET0H-HBore: 25 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: None (basic)
SSD2-T1L-25-30-ET0H-H-LBBore: 25 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Axial foot (LB)
SSD2-T1L-25-30-ET0H-H-CBBore: 25 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Double clevis (CB)
SSD2-T1L-25-30-ET0H-H-FABore: 25 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Rod flange (FA)
SSD2-T1L-25-30-ET0H-H-FBBore: 25 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Head flange (FB)
SSD2-T1L-25-30-ET0H-DBore: 25 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: None (basic)
SSD2-T1L-25-30-ET0H-D-LBBore: 25 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Axial foot (LB)
SSD2-T1L-25-30-ET0H-D-CBBore: 25 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Double clevis (CB)
SSD2-T1L-25-30-ET0H-D-FABore: 25 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Rod flange (FA)
SSD2-T1L-25-30-ET0H-D-FBBore: 25 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Head flange (FB)
SSD2-T1L-25-30-ET0V-RBore: 25 mm | Stroke: 30 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: None (basic)
SSD2-T1L-25-30-ET0V-R-LBBore: 25 mm | Stroke: 30 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Axial foot (LB)
SSD2-T1L-25-30-ET0V-R-CBBore: 25 mm | Stroke: 30 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Double clevis (CB)
SSD2-T1L-25-30-ET0V-R-FABore: 25 mm | Stroke: 30 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Rod flange (FA)
SSD2-T1L-25-30-ET0V-R-FBBore: 25 mm | Stroke: 30 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Head flange (FB)
SSD2-T1L-25-30-ET0V-HBore: 25 mm | Stroke: 30 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: None (basic)
SSD2-T1L-25-30-ET0V-H-LBBore: 25 mm | Stroke: 30 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Axial foot (LB)
SSD2-T1L-25-30-ET0V-H-CBBore: 25 mm | Stroke: 30 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Double clevis (CB)
SSD2-T1L-25-30-ET0V-H-FABore: 25 mm | Stroke: 30 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Rod flange (FA)
SSD2-T1L-25-30-ET0V-H-FBBore: 25 mm | Stroke: 30 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Head flange (FB)
SSD2-T1L-25-30-ET0V-DBore: 25 mm | Stroke: 30 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: None (basic)
SSD2-T1L-25-30-ET0V-D-LBBore: 25 mm | Stroke: 30 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Axial foot (LB)
SSD2-T1L-25-30-ET0V-D-CBBore: 25 mm | Stroke: 30 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Double clevis (CB)
SSD2-T1L-25-30-ET0V-D-FABore: 25 mm | Stroke: 30 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Rod flange (FA)
SSD2-T1L-25-30-ET0V-D-FBBore: 25 mm | Stroke: 30 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Head flange (FB)
SSD2-T1L-25-35-ET0H-RBore: 25 mm | Stroke: 35 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: None (basic)
SSD2-T1L-25-35-ET0H-R-LBBore: 25 mm | Stroke: 35 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Axial foot (LB)
SSD2-T1L-25-35-ET0H-R-CBBore: 25 mm | Stroke: 35 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Double clevis (CB)
SSD2-T1L-25-35-ET0H-R-FABore: 25 mm | Stroke: 35 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Rod flange (FA)
SSD2-T1L-25-35-ET0H-R-FBBore: 25 mm | Stroke: 35 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Head flange (FB)
SSD2-T1L-25-35-ET0H-HBore: 25 mm | Stroke: 35 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: None (basic)
SSD2-T1L-25-35-ET0H-H-LBBore: 25 mm | Stroke: 35 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Axial foot (LB)
SSD2-T1L-25-35-ET0H-H-CBBore: 25 mm | Stroke: 35 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Double clevis (CB)
SSD2-T1L-25-35-ET0H-H-FABore: 25 mm | Stroke: 35 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Rod flange (FA)
SSD2-T1L-25-35-ET0H-H-FBBore: 25 mm | Stroke: 35 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Head flange (FB)
SSD2-T1L-25-35-ET0H-DBore: 25 mm | Stroke: 35 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: None (basic)
SSD2-T1L-25-35-ET0H-D-LBBore: 25 mm | Stroke: 35 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Axial foot (LB)
SSD2-T1L-25-35-ET0H-D-CBBore: 25 mm | Stroke: 35 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Double clevis (CB)
SSD2-T1L-25-35-ET0H-D-FABore: 25 mm | Stroke: 35 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Rod flange (FA)
SSD2-T1L-25-35-ET0H-D-FBBore: 25 mm | Stroke: 35 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Head flange (FB)
SSD2-T1L-25-35-ET0V-RBore: 25 mm | Stroke: 35 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: None (basic)
SSD2-T1L-25-35-ET0V-R-LBBore: 25 mm | Stroke: 35 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Axial foot (LB)
SSD2-T1L-25-35-ET0V-R-CBBore: 25 mm | Stroke: 35 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Double clevis (CB)
SSD2-T1L-25-35-ET0V-R-FABore: 25 mm | Stroke: 35 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Rod flange (FA)
SSD2-T1L-25-35-ET0V-R-FBBore: 25 mm | Stroke: 35 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Head flange (FB)
SSD2-T1L-25-35-ET0V-HBore: 25 mm | Stroke: 35 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: None (basic)
SSD2-T1L-25-35-ET0V-H-LBBore: 25 mm | Stroke: 35 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Axial foot (LB)
SSD2-T1L-25-35-ET0V-H-CBBore: 25 mm | Stroke: 35 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Double clevis (CB)
SSD2-T1L-25-35-ET0V-H-FABore: 25 mm | Stroke: 35 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Rod flange (FA)
SSD2-T1L-25-35-ET0V-H-FBBore: 25 mm | Stroke: 35 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Head flange (FB)
SSD2-T1L-25-35-ET0V-DBore: 25 mm | Stroke: 35 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: None (basic)
SSD2-T1L-25-35-ET0V-D-LBBore: 25 mm | Stroke: 35 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Axial foot (LB)
SSD2-T1L-25-35-ET0V-D-CBBore: 25 mm | Stroke: 35 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Double clevis (CB)
SSD2-T1L-25-35-ET0V-D-FABore: 25 mm | Stroke: 35 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Rod flange (FA)
SSD2-T1L-25-35-ET0V-D-FBBore: 25 mm | Stroke: 35 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Head flange (FB)
SSD2-T1L-25-40-ET0H-RBore: 25 mm | Stroke: 40 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: None (basic)
SSD2-T1L-25-40-ET0H-R-LBBore: 25 mm | Stroke: 40 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Axial foot (LB)
SSD2-T1L-25-40-ET0H-R-CBBore: 25 mm | Stroke: 40 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Double clevis (CB)
SSD2-T1L-25-40-ET0H-R-FABore: 25 mm | Stroke: 40 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Rod flange (FA)
SSD2-T1L-25-40-ET0H-R-FBBore: 25 mm | Stroke: 40 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Head flange (FB)
SSD2-T1L-25-40-ET0H-HBore: 25 mm | Stroke: 40 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: None (basic)
SSD2-T1L-25-40-ET0H-H-LBBore: 25 mm | Stroke: 40 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Axial foot (LB)
SSD2-T1L-25-40-ET0H-H-CBBore: 25 mm | Stroke: 40 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Double clevis (CB)
SSD2-T1L-25-40-ET0H-H-FABore: 25 mm | Stroke: 40 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Rod flange (FA)
SSD2-T1L-25-40-ET0H-H-FBBore: 25 mm | Stroke: 40 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Head flange (FB)
SSD2-T1L-25-40-ET0H-DBore: 25 mm | Stroke: 40 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: None (basic)
SSD2-T1L-25-40-ET0H-D-LBBore: 25 mm | Stroke: 40 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Axial foot (LB)
SSD2-T1L-25-40-ET0H-D-CBBore: 25 mm | Stroke: 40 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Double clevis (CB)
SSD2-T1L-25-40-ET0H-D-FABore: 25 mm | Stroke: 40 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Rod flange (FA)
SSD2-T1L-25-40-ET0H-D-FBBore: 25 mm | Stroke: 40 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Head flange (FB)
SSD2-T1L-25-40-ET0V-RBore: 25 mm | Stroke: 40 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: None (basic)
SSD2-T1L-25-40-ET0V-R-LBBore: 25 mm | Stroke: 40 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Axial foot (LB)
SSD2-T1L-25-40-ET0V-R-CBBore: 25 mm | Stroke: 40 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Double clevis (CB)
SSD2-T1L-25-40-ET0V-R-FABore: 25 mm | Stroke: 40 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Rod flange (FA)
SSD2-T1L-25-40-ET0V-R-FBBore: 25 mm | Stroke: 40 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Head flange (FB)
SSD2-T1L-25-40-ET0V-HBore: 25 mm | Stroke: 40 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: None (basic)
SSD2-T1L-25-40-ET0V-H-LBBore: 25 mm | Stroke: 40 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Axial foot (LB)
SSD2-T1L-25-40-ET0V-H-CBBore: 25 mm | Stroke: 40 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Double clevis (CB)
SSD2-T1L-25-40-ET0V-H-FABore: 25 mm | Stroke: 40 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Rod flange (FA)
SSD2-T1L-25-40-ET0V-H-FBBore: 25 mm | Stroke: 40 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Head flange (FB)
SSD2-T1L-25-40-ET0V-DBore: 25 mm | Stroke: 40 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: None (basic)
SSD2-T1L-25-40-ET0V-D-LBBore: 25 mm | Stroke: 40 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Axial foot (LB)
SSD2-T1L-25-40-ET0V-D-CBBore: 25 mm | Stroke: 40 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Double clevis (CB)
SSD2-T1L-25-40-ET0V-D-FABore: 25 mm | Stroke: 40 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Rod flange (FA)
SSD2-T1L-25-40-ET0V-D-FBBore: 25 mm | Stroke: 40 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Head flange (FB)
SSD2-T1L-25-45-ET0H-RBore: 25 mm | Stroke: 45 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: None (basic)
SSD2-T1L-25-45-ET0H-R-LBBore: 25 mm | Stroke: 45 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Axial foot (LB)
SSD2-T1L-25-45-ET0H-R-CBBore: 25 mm | Stroke: 45 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Double clevis (CB)
SSD2-T1L-25-45-ET0H-R-FABore: 25 mm | Stroke: 45 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Rod flange (FA)
SSD2-T1L-25-45-ET0H-R-FBBore: 25 mm | Stroke: 45 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Head flange (FB)
SSD2-T1L-25-45-ET0H-HBore: 25 mm | Stroke: 45 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: None (basic)
SSD2-T1L-25-45-ET0H-H-LBBore: 25 mm | Stroke: 45 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Axial foot (LB)
SSD2-T1L-25-45-ET0H-H-CBBore: 25 mm | Stroke: 45 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Double clevis (CB)
SSD2-T1L-25-45-ET0H-H-FABore: 25 mm | Stroke: 45 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Rod flange (FA)
SSD2-T1L-25-45-ET0H-H-FBBore: 25 mm | Stroke: 45 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Head flange (FB)
SSD2-T1L-25-45-ET0H-DBore: 25 mm | Stroke: 45 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: None (basic)
SSD2-T1L-25-45-ET0H-D-LBBore: 25 mm | Stroke: 45 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Axial foot (LB)
SSD2-T1L-25-45-ET0H-D-CBBore: 25 mm | Stroke: 45 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Double clevis (CB)
SSD2-T1L-25-45-ET0H-D-FABore: 25 mm | Stroke: 45 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Rod flange (FA)
SSD2-T1L-25-45-ET0H-D-FBBore: 25 mm | Stroke: 45 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Head flange (FB)
SSD2-T1L-25-45-ET0V-RBore: 25 mm | Stroke: 45 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: None (basic)
SSD2-T1L-25-45-ET0V-R-LBBore: 25 mm | Stroke: 45 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Axial foot (LB)
SSD2-T1L-25-45-ET0V-R-CBBore: 25 mm | Stroke: 45 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Double clevis (CB)
SSD2-T1L-25-45-ET0V-R-FABore: 25 mm | Stroke: 45 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Rod flange (FA)
SSD2-T1L-25-45-ET0V-R-FBBore: 25 mm | Stroke: 45 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Head flange (FB)
SSD2-T1L-25-45-ET0V-HBore: 25 mm | Stroke: 45 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: None (basic)
SSD2-T1L-25-45-ET0V-H-LBBore: 25 mm | Stroke: 45 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Axial foot (LB)
SSD2-T1L-25-45-ET0V-H-CBBore: 25 mm | Stroke: 45 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Double clevis (CB)
SSD2-T1L-25-45-ET0V-H-FABore: 25 mm | Stroke: 45 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Rod flange (FA)
SSD2-T1L-25-45-ET0V-H-FBBore: 25 mm | Stroke: 45 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Head flange (FB)
SSD2-T1L-25-45-ET0V-DBore: 25 mm | Stroke: 45 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: None (basic)
SSD2-T1L-25-45-ET0V-D-LBBore: 25 mm | Stroke: 45 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Axial foot (LB)
SSD2-T1L-25-45-ET0V-D-CBBore: 25 mm | Stroke: 45 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Double clevis (CB)
SSD2-T1L-25-45-ET0V-D-FABore: 25 mm | Stroke: 45 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Rod flange (FA)
SSD2-T1L-25-45-ET0V-D-FBBore: 25 mm | Stroke: 45 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Head flange (FB)
SSD2-T1L-25-50-ET0H-RBore: 25 mm | Stroke: 50 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: None (basic)
SSD2-T1L-25-50-ET0H-R-LBBore: 25 mm | Stroke: 50 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Axial foot (LB)
SSD2-T1L-25-50-ET0H-R-CBBore: 25 mm | Stroke: 50 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Double clevis (CB)
SSD2-T1L-25-50-ET0H-R-FABore: 25 mm | Stroke: 50 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Rod flange (FA)
SSD2-T1L-25-50-ET0H-R-FBBore: 25 mm | Stroke: 50 mm | Switch: ET0H (straight lead) | Switches: 1 (rod side) | Mounting: Head flange (FB)
SSD2-T1L-25-50-ET0H-HBore: 25 mm | Stroke: 50 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: None (basic)
SSD2-T1L-25-50-ET0H-H-LBBore: 25 mm | Stroke: 50 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Axial foot (LB)
SSD2-T1L-25-50-ET0H-H-CBBore: 25 mm | Stroke: 50 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Double clevis (CB)
SSD2-T1L-25-50-ET0H-H-FABore: 25 mm | Stroke: 50 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Rod flange (FA)
SSD2-T1L-25-50-ET0H-H-FBBore: 25 mm | Stroke: 50 mm | Switch: ET0H (straight lead) | Switches: 1 (head side) | Mounting: Head flange (FB)
SSD2-T1L-25-50-ET0H-DBore: 25 mm | Stroke: 50 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: None (basic)
SSD2-T1L-25-50-ET0H-D-LBBore: 25 mm | Stroke: 50 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Axial foot (LB)
SSD2-T1L-25-50-ET0H-D-CBBore: 25 mm | Stroke: 50 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Double clevis (CB)
SSD2-T1L-25-50-ET0H-D-FABore: 25 mm | Stroke: 50 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Rod flange (FA)
SSD2-T1L-25-50-ET0H-D-FBBore: 25 mm | Stroke: 50 mm | Switch: ET0H (straight lead) | Switches: 2 | Mounting: Head flange (FB)
SSD2-T1L-25-50-ET0V-RBore: 25 mm | Stroke: 50 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: None (basic)
SSD2-T1L-25-50-ET0V-R-LBBore: 25 mm | Stroke: 50 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Axial foot (LB)
SSD2-T1L-25-50-ET0V-R-CBBore: 25 mm | Stroke: 50 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Double clevis (CB)
SSD2-T1L-25-50-ET0V-R-FABore: 25 mm | Stroke: 50 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Rod flange (FA)
SSD2-T1L-25-50-ET0V-R-FBBore: 25 mm | Stroke: 50 mm | Switch: ET0V (L-type lead) | Switches: 1 (rod side) | Mounting: Head flange (FB)
SSD2-T1L-25-50-ET0V-HBore: 25 mm | Stroke: 50 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: None (basic)
SSD2-T1L-25-50-ET0V-H-LBBore: 25 mm | Stroke: 50 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Axial foot (LB)
SSD2-T1L-25-50-ET0V-H-CBBore: 25 mm | Stroke: 50 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Double clevis (CB)
SSD2-T1L-25-50-ET0V-H-FABore: 25 mm | Stroke: 50 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Rod flange (FA)
SSD2-T1L-25-50-ET0V-H-FBBore: 25 mm | Stroke: 50 mm | Switch: ET0V (L-type lead) | Switches: 1 (head side) | Mounting: Head flange (FB)
SSD2-T1L-25-50-ET0V-DBore: 25 mm | Stroke: 50 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: None (basic)
SSD2-T1L-25-50-ET0V-D-LBBore: 25 mm | Stroke: 50 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Axial foot (LB)
SSD2-T1L-25-50-ET0V-D-CBBore: 25 mm | Stroke: 50 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Double clevis (CB)
SSD2-T1L-25-50-ET0V-D-FABore: 25 mm | Stroke: 50 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Rod flange (FA)
SSD2-T1L-25-50-ET0V-D-FBBore: 25 mm | Stroke: 50 mm | Switch: ET0V (L-type lead) | Switches: 2 | Mounting: Head flange (FB)

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
