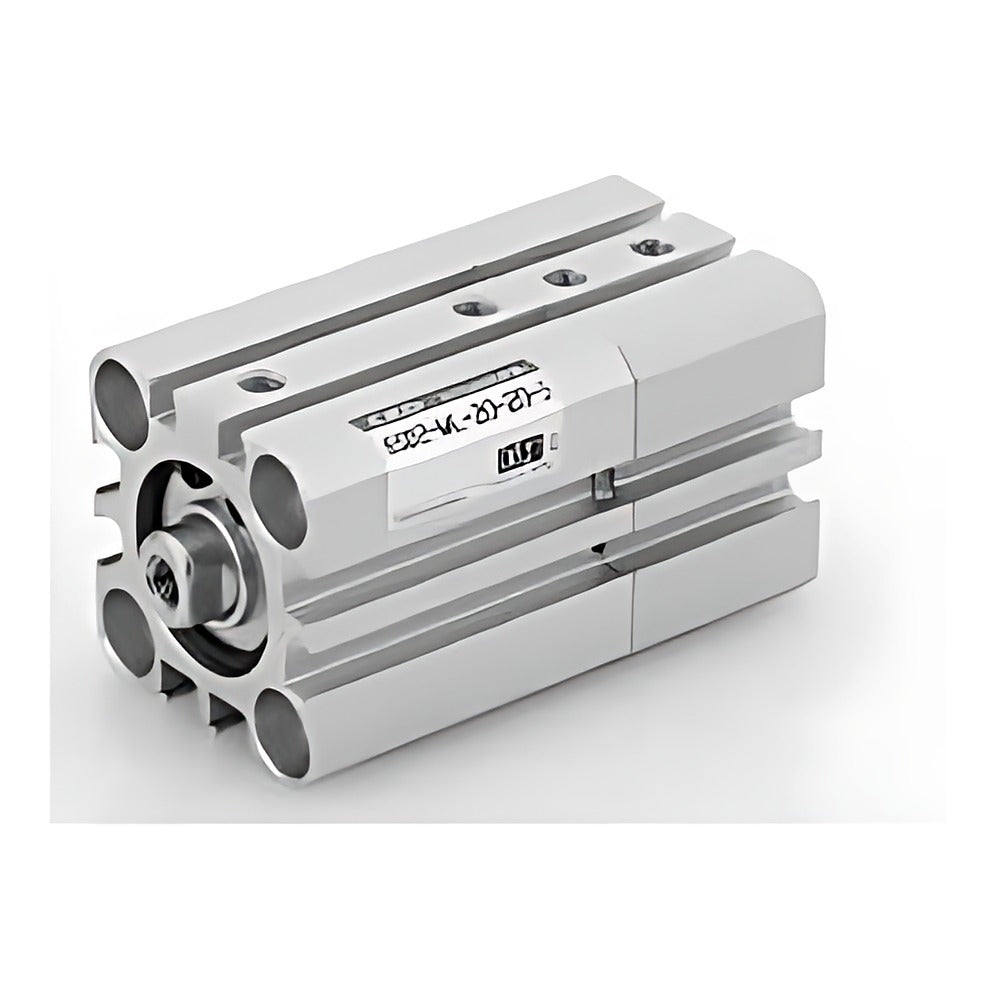

CKD SSD2-W Super Compact Cylinder (Two-Stage)

CKD SSD2-W two-stage super compact cylinder providing an intermediate stop at the 1st-stage stroke S2 within the total stroke S1.

Key features

Two-stage stroke: total stroke S1 and 1st-stage stroke S2
Bores 12 to 100 mm; strokes 5 to 50 mm
Max. 0.5 MPa when S1 equals S2
Switch-ready SSD2-WL version with built-in magnet
Options: male rod end (N), stainless piston rod (M), accessories I/Y

Specifications

Action	Double acting, two-stage
Fluid	Compressed air
Max. working pressure	1.0 MPa (0.5 MPa when S1 = S2)
Min. working pressure	0.15 MPa (80/100: 0.1 MPa)
Proof pressure	1.6 MPa
Ambient temperature	-10 to 60 C (no freezing)
Piston speed	50-500 mm/s (80/100: 50-300 mm/s)
Cushion	None
Source	CKD Korea catalog CB-029SK-9, p. 990-997

SSD2-W-12-5-5		Body: No switch magnet \| Bore: 12 mm \| Total stroke S1: 5 mm \| 1st stage stroke S2: 5 mm \| Port: M5
SSD2-W-12-10-5		Body: No switch magnet \| Bore: 12 mm \| Total stroke S1: 10 mm \| 1st stage stroke S2: 5 mm \| Port: M5
SSD2-W-12-10-10		Body: No switch magnet \| Bore: 12 mm \| Total stroke S1: 10 mm \| 1st stage stroke S2: 10 mm \| Port: M5
SSD2-W-12-15-5		Body: No switch magnet \| Bore: 12 mm \| Total stroke S1: 15 mm \| 1st stage stroke S2: 5 mm \| Port: M5
SSD2-W-12-15-10		Body: No switch magnet \| Bore: 12 mm \| Total stroke S1: 15 mm \| 1st stage stroke S2: 10 mm \| Port: M5
SSD2-W-12-15-15		Body: No switch magnet \| Bore: 12 mm \| Total stroke S1: 15 mm \| 1st stage stroke S2: 15 mm \| Port: M5
SSD2-W-12-20-5		Body: No switch magnet \| Bore: 12 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 5 mm \| Port: M5
SSD2-W-12-20-10		Body: No switch magnet \| Bore: 12 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 10 mm \| Port: M5
SSD2-W-12-20-15		Body: No switch magnet \| Bore: 12 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 15 mm \| Port: M5
SSD2-W-12-20-20		Body: No switch magnet \| Bore: 12 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 20 mm \| Port: M5
SSD2-W-12-25-5		Body: No switch magnet \| Bore: 12 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 5 mm \| Port: M5
SSD2-W-12-25-10		Body: No switch magnet \| Bore: 12 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 10 mm \| Port: M5
SSD2-W-12-25-15		Body: No switch magnet \| Bore: 12 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 15 mm \| Port: M5
SSD2-W-12-25-20		Body: No switch magnet \| Bore: 12 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 20 mm \| Port: M5
SSD2-W-12-25-25		Body: No switch magnet \| Bore: 12 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 25 mm \| Port: M5
SSD2-W-12-30-5		Body: No switch magnet \| Bore: 12 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 5 mm \| Port: M5
SSD2-W-12-30-10		Body: No switch magnet \| Bore: 12 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 10 mm \| Port: M5
SSD2-W-12-30-15		Body: No switch magnet \| Bore: 12 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 15 mm \| Port: M5
SSD2-W-12-30-20		Body: No switch magnet \| Bore: 12 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 20 mm \| Port: M5
SSD2-W-12-30-25		Body: No switch magnet \| Bore: 12 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 25 mm \| Port: M5
SSD2-W-12-30-30		Body: No switch magnet \| Bore: 12 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 30 mm \| Port: M5
SSD2-W-16-5-5		Body: No switch magnet \| Bore: 16 mm \| Total stroke S1: 5 mm \| 1st stage stroke S2: 5 mm \| Port: M5
SSD2-W-16-10-5		Body: No switch magnet \| Bore: 16 mm \| Total stroke S1: 10 mm \| 1st stage stroke S2: 5 mm \| Port: M5
SSD2-W-16-10-10		Body: No switch magnet \| Bore: 16 mm \| Total stroke S1: 10 mm \| 1st stage stroke S2: 10 mm \| Port: M5
SSD2-W-16-15-5		Body: No switch magnet \| Bore: 16 mm \| Total stroke S1: 15 mm \| 1st stage stroke S2: 5 mm \| Port: M5
SSD2-W-16-15-10		Body: No switch magnet \| Bore: 16 mm \| Total stroke S1: 15 mm \| 1st stage stroke S2: 10 mm \| Port: M5
SSD2-W-16-15-15		Body: No switch magnet \| Bore: 16 mm \| Total stroke S1: 15 mm \| 1st stage stroke S2: 15 mm \| Port: M5
SSD2-W-16-20-5		Body: No switch magnet \| Bore: 16 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 5 mm \| Port: M5
SSD2-W-16-20-10		Body: No switch magnet \| Bore: 16 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 10 mm \| Port: M5
SSD2-W-16-20-15		Body: No switch magnet \| Bore: 16 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 15 mm \| Port: M5
SSD2-W-16-20-20		Body: No switch magnet \| Bore: 16 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 20 mm \| Port: M5
SSD2-W-16-25-5		Body: No switch magnet \| Bore: 16 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 5 mm \| Port: M5
SSD2-W-16-25-10		Body: No switch magnet \| Bore: 16 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 10 mm \| Port: M5
SSD2-W-16-25-15		Body: No switch magnet \| Bore: 16 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 15 mm \| Port: M5
SSD2-W-16-25-20		Body: No switch magnet \| Bore: 16 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 20 mm \| Port: M5
SSD2-W-16-25-25		Body: No switch magnet \| Bore: 16 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 25 mm \| Port: M5
SSD2-W-16-30-5		Body: No switch magnet \| Bore: 16 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 5 mm \| Port: M5
SSD2-W-16-30-10		Body: No switch magnet \| Bore: 16 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 10 mm \| Port: M5
SSD2-W-16-30-15		Body: No switch magnet \| Bore: 16 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 15 mm \| Port: M5
SSD2-W-16-30-20		Body: No switch magnet \| Bore: 16 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 20 mm \| Port: M5
SSD2-W-16-30-25		Body: No switch magnet \| Bore: 16 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 25 mm \| Port: M5
SSD2-W-16-30-30		Body: No switch magnet \| Bore: 16 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 30 mm \| Port: M5
SSD2-W-20-5-5		Body: No switch magnet \| Bore: 20 mm \| Total stroke S1: 5 mm \| 1st stage stroke S2: 5 mm \| Port: M5
SSD2-W-20-10-5		Body: No switch magnet \| Bore: 20 mm \| Total stroke S1: 10 mm \| 1st stage stroke S2: 5 mm \| Port: M5
SSD2-W-20-10-10		Body: No switch magnet \| Bore: 20 mm \| Total stroke S1: 10 mm \| 1st stage stroke S2: 10 mm \| Port: M5
SSD2-W-20-15-5		Body: No switch magnet \| Bore: 20 mm \| Total stroke S1: 15 mm \| 1st stage stroke S2: 5 mm \| Port: M5
SSD2-W-20-15-10		Body: No switch magnet \| Bore: 20 mm \| Total stroke S1: 15 mm \| 1st stage stroke S2: 10 mm \| Port: M5
SSD2-W-20-15-15		Body: No switch magnet \| Bore: 20 mm \| Total stroke S1: 15 mm \| 1st stage stroke S2: 15 mm \| Port: M5
SSD2-W-20-20-5		Body: No switch magnet \| Bore: 20 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 5 mm \| Port: M5
SSD2-W-20-20-10		Body: No switch magnet \| Bore: 20 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 10 mm \| Port: M5
SSD2-W-20-20-15		Body: No switch magnet \| Bore: 20 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 15 mm \| Port: M5
SSD2-W-20-20-20		Body: No switch magnet \| Bore: 20 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 20 mm \| Port: M5
SSD2-W-20-25-5		Body: No switch magnet \| Bore: 20 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 5 mm \| Port: M5
SSD2-W-20-25-10		Body: No switch magnet \| Bore: 20 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 10 mm \| Port: M5
SSD2-W-20-25-15		Body: No switch magnet \| Bore: 20 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 15 mm \| Port: M5
SSD2-W-20-25-20		Body: No switch magnet \| Bore: 20 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 20 mm \| Port: M5
SSD2-W-20-25-25		Body: No switch magnet \| Bore: 20 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 25 mm \| Port: M5
SSD2-W-20-30-5		Body: No switch magnet \| Bore: 20 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 5 mm \| Port: M5
SSD2-W-20-30-10		Body: No switch magnet \| Bore: 20 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 10 mm \| Port: M5
SSD2-W-20-30-15		Body: No switch magnet \| Bore: 20 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 15 mm \| Port: M5
SSD2-W-20-30-20		Body: No switch magnet \| Bore: 20 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 20 mm \| Port: M5
SSD2-W-20-30-25		Body: No switch magnet \| Bore: 20 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 25 mm \| Port: M5
SSD2-W-20-30-30		Body: No switch magnet \| Bore: 20 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 30 mm \| Port: M5
SSD2-W-20-35-5		Body: No switch magnet \| Bore: 20 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 5 mm \| Port: M5
SSD2-W-20-35-10		Body: No switch magnet \| Bore: 20 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 10 mm \| Port: M5
SSD2-W-20-35-15		Body: No switch magnet \| Bore: 20 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 15 mm \| Port: M5
SSD2-W-20-35-20		Body: No switch magnet \| Bore: 20 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 20 mm \| Port: M5
SSD2-W-20-35-25		Body: No switch magnet \| Bore: 20 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 25 mm \| Port: M5
SSD2-W-20-35-30		Body: No switch magnet \| Bore: 20 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 30 mm \| Port: M5
SSD2-W-20-35-35		Body: No switch magnet \| Bore: 20 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 35 mm \| Port: M5
SSD2-W-20-40-5		Body: No switch magnet \| Bore: 20 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 5 mm \| Port: M5
SSD2-W-20-40-10		Body: No switch magnet \| Bore: 20 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 10 mm \| Port: M5
SSD2-W-20-40-15		Body: No switch magnet \| Bore: 20 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 15 mm \| Port: M5
SSD2-W-20-40-20		Body: No switch magnet \| Bore: 20 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 20 mm \| Port: M5
SSD2-W-20-40-25		Body: No switch magnet \| Bore: 20 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 25 mm \| Port: M5
SSD2-W-20-40-30		Body: No switch magnet \| Bore: 20 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 30 mm \| Port: M5
SSD2-W-20-40-35		Body: No switch magnet \| Bore: 20 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 35 mm \| Port: M5
SSD2-W-20-40-40		Body: No switch magnet \| Bore: 20 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 40 mm \| Port: M5
SSD2-W-20-45-5		Body: No switch magnet \| Bore: 20 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 5 mm \| Port: M5
SSD2-W-20-45-10		Body: No switch magnet \| Bore: 20 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 10 mm \| Port: M5
SSD2-W-20-45-15		Body: No switch magnet \| Bore: 20 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 15 mm \| Port: M5
SSD2-W-20-45-20		Body: No switch magnet \| Bore: 20 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 20 mm \| Port: M5
SSD2-W-20-45-25		Body: No switch magnet \| Bore: 20 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 25 mm \| Port: M5
SSD2-W-20-45-30		Body: No switch magnet \| Bore: 20 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 30 mm \| Port: M5
SSD2-W-20-45-35		Body: No switch magnet \| Bore: 20 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 35 mm \| Port: M5
SSD2-W-20-45-40		Body: No switch magnet \| Bore: 20 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 40 mm \| Port: M5
SSD2-W-20-45-45		Body: No switch magnet \| Bore: 20 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 45 mm \| Port: M5
SSD2-W-20-50-5		Body: No switch magnet \| Bore: 20 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 5 mm \| Port: M5
SSD2-W-20-50-10		Body: No switch magnet \| Bore: 20 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 10 mm \| Port: M5
SSD2-W-20-50-15		Body: No switch magnet \| Bore: 20 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 15 mm \| Port: M5
SSD2-W-20-50-20		Body: No switch magnet \| Bore: 20 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 20 mm \| Port: M5
SSD2-W-20-50-25		Body: No switch magnet \| Bore: 20 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm \| Port: M5
SSD2-W-20-50-30		Body: No switch magnet \| Bore: 20 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 30 mm \| Port: M5
SSD2-W-20-50-35		Body: No switch magnet \| Bore: 20 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 35 mm \| Port: M5
SSD2-W-20-50-40		Body: No switch magnet \| Bore: 20 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 40 mm \| Port: M5
SSD2-W-20-50-45		Body: No switch magnet \| Bore: 20 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 45 mm \| Port: M5
SSD2-W-20-50-50		Body: No switch magnet \| Bore: 20 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 50 mm \| Port: M5
SSD2-W-25-5-5		Body: No switch magnet \| Bore: 25 mm \| Total stroke S1: 5 mm \| 1st stage stroke S2: 5 mm \| Port: M5
SSD2-W-25-10-5		Body: No switch magnet \| Bore: 25 mm \| Total stroke S1: 10 mm \| 1st stage stroke S2: 5 mm \| Port: M5
SSD2-W-25-10-10		Body: No switch magnet \| Bore: 25 mm \| Total stroke S1: 10 mm \| 1st stage stroke S2: 10 mm \| Port: M5
SSD2-W-25-15-5		Body: No switch magnet \| Bore: 25 mm \| Total stroke S1: 15 mm \| 1st stage stroke S2: 5 mm \| Port: M5
SSD2-W-25-15-10		Body: No switch magnet \| Bore: 25 mm \| Total stroke S1: 15 mm \| 1st stage stroke S2: 10 mm \| Port: M5
SSD2-W-25-15-15		Body: No switch magnet \| Bore: 25 mm \| Total stroke S1: 15 mm \| 1st stage stroke S2: 15 mm \| Port: M5
SSD2-W-25-20-5		Body: No switch magnet \| Bore: 25 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 5 mm \| Port: M5
SSD2-W-25-20-10		Body: No switch magnet \| Bore: 25 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 10 mm \| Port: M5
SSD2-W-25-20-15		Body: No switch magnet \| Bore: 25 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 15 mm \| Port: M5
SSD2-W-25-20-20		Body: No switch magnet \| Bore: 25 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 20 mm \| Port: M5
SSD2-W-25-25-5		Body: No switch magnet \| Bore: 25 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 5 mm \| Port: M5
SSD2-W-25-25-10		Body: No switch magnet \| Bore: 25 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 10 mm \| Port: M5
SSD2-W-25-25-15		Body: No switch magnet \| Bore: 25 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 15 mm \| Port: M5
SSD2-W-25-25-20		Body: No switch magnet \| Bore: 25 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 20 mm \| Port: M5
SSD2-W-25-25-25		Body: No switch magnet \| Bore: 25 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 25 mm \| Port: M5
SSD2-W-25-30-5		Body: No switch magnet \| Bore: 25 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 5 mm \| Port: M5
SSD2-W-25-30-10		Body: No switch magnet \| Bore: 25 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 10 mm \| Port: M5
SSD2-W-25-30-15		Body: No switch magnet \| Bore: 25 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 15 mm \| Port: M5
SSD2-W-25-30-20		Body: No switch magnet \| Bore: 25 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 20 mm \| Port: M5
SSD2-W-25-30-25		Body: No switch magnet \| Bore: 25 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 25 mm \| Port: M5
SSD2-W-25-30-30		Body: No switch magnet \| Bore: 25 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 30 mm \| Port: M5
SSD2-W-25-35-5		Body: No switch magnet \| Bore: 25 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 5 mm \| Port: M5
SSD2-W-25-35-10		Body: No switch magnet \| Bore: 25 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 10 mm \| Port: M5
SSD2-W-25-35-15		Body: No switch magnet \| Bore: 25 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 15 mm \| Port: M5
SSD2-W-25-35-20		Body: No switch magnet \| Bore: 25 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 20 mm \| Port: M5
SSD2-W-25-35-25		Body: No switch magnet \| Bore: 25 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 25 mm \| Port: M5
SSD2-W-25-35-30		Body: No switch magnet \| Bore: 25 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 30 mm \| Port: M5
SSD2-W-25-35-35		Body: No switch magnet \| Bore: 25 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 35 mm \| Port: M5
SSD2-W-25-40-5		Body: No switch magnet \| Bore: 25 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 5 mm \| Port: M5
SSD2-W-25-40-10		Body: No switch magnet \| Bore: 25 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 10 mm \| Port: M5
SSD2-W-25-40-15		Body: No switch magnet \| Bore: 25 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 15 mm \| Port: M5
SSD2-W-25-40-20		Body: No switch magnet \| Bore: 25 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 20 mm \| Port: M5
SSD2-W-25-40-25		Body: No switch magnet \| Bore: 25 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 25 mm \| Port: M5
SSD2-W-25-40-30		Body: No switch magnet \| Bore: 25 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 30 mm \| Port: M5
SSD2-W-25-40-35		Body: No switch magnet \| Bore: 25 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 35 mm \| Port: M5
SSD2-W-25-40-40		Body: No switch magnet \| Bore: 25 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 40 mm \| Port: M5
SSD2-W-25-45-5		Body: No switch magnet \| Bore: 25 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 5 mm \| Port: M5
SSD2-W-25-45-10		Body: No switch magnet \| Bore: 25 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 10 mm \| Port: M5
SSD2-W-25-45-15		Body: No switch magnet \| Bore: 25 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 15 mm \| Port: M5
SSD2-W-25-45-20		Body: No switch magnet \| Bore: 25 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 20 mm \| Port: M5
SSD2-W-25-45-25		Body: No switch magnet \| Bore: 25 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 25 mm \| Port: M5
SSD2-W-25-45-30		Body: No switch magnet \| Bore: 25 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 30 mm \| Port: M5
SSD2-W-25-45-35		Body: No switch magnet \| Bore: 25 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 35 mm \| Port: M5
SSD2-W-25-45-40		Body: No switch magnet \| Bore: 25 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 40 mm \| Port: M5
SSD2-W-25-45-45		Body: No switch magnet \| Bore: 25 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 45 mm \| Port: M5
SSD2-W-25-50-5		Body: No switch magnet \| Bore: 25 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 5 mm \| Port: M5
SSD2-W-25-50-10		Body: No switch magnet \| Bore: 25 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 10 mm \| Port: M5
SSD2-W-25-50-15		Body: No switch magnet \| Bore: 25 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 15 mm \| Port: M5
SSD2-W-25-50-20		Body: No switch magnet \| Bore: 25 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 20 mm \| Port: M5
SSD2-W-25-50-25		Body: No switch magnet \| Bore: 25 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm \| Port: M5
SSD2-W-25-50-30		Body: No switch magnet \| Bore: 25 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 30 mm \| Port: M5
SSD2-W-25-50-35		Body: No switch magnet \| Bore: 25 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 35 mm \| Port: M5
SSD2-W-25-50-40		Body: No switch magnet \| Bore: 25 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 40 mm \| Port: M5
SSD2-W-25-50-45		Body: No switch magnet \| Bore: 25 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 45 mm \| Port: M5
SSD2-W-25-50-50		Body: No switch magnet \| Bore: 25 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 50 mm \| Port: M5
SSD2-W-32-5-5		Body: No switch magnet \| Bore: 32 mm \| Total stroke S1: 5 mm \| 1st stage stroke S2: 5 mm \| Port: Rc1/8
SSD2-W-32-10-5		Body: No switch magnet \| Bore: 32 mm \| Total stroke S1: 10 mm \| 1st stage stroke S2: 5 mm \| Port: Rc1/8
SSD2-W-32-10-10		Body: No switch magnet \| Bore: 32 mm \| Total stroke S1: 10 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/8
SSD2-W-32-15-5		Body: No switch magnet \| Bore: 32 mm \| Total stroke S1: 15 mm \| 1st stage stroke S2: 5 mm \| Port: Rc1/8
SSD2-W-32-15-10		Body: No switch magnet \| Bore: 32 mm \| Total stroke S1: 15 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/8
SSD2-W-32-15-15		Body: No switch magnet \| Bore: 32 mm \| Total stroke S1: 15 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/8
SSD2-W-32-20-5		Body: No switch magnet \| Bore: 32 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 5 mm \| Port: Rc1/8
SSD2-W-32-20-10		Body: No switch magnet \| Bore: 32 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/8
SSD2-W-32-20-15		Body: No switch magnet \| Bore: 32 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/8
SSD2-W-32-20-20		Body: No switch magnet \| Bore: 32 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 20 mm \| Port: Rc1/8
SSD2-W-32-25-5		Body: No switch magnet \| Bore: 32 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 5 mm \| Port: Rc1/8
SSD2-W-32-25-10		Body: No switch magnet \| Bore: 32 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/8
SSD2-W-32-25-15		Body: No switch magnet \| Bore: 32 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/8
SSD2-W-32-25-20		Body: No switch magnet \| Bore: 32 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 20 mm \| Port: Rc1/8
SSD2-W-32-25-25		Body: No switch magnet \| Bore: 32 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 25 mm \| Port: Rc1/8
SSD2-W-32-30-5		Body: No switch magnet \| Bore: 32 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 5 mm \| Port: Rc1/8
SSD2-W-32-30-10		Body: No switch magnet \| Bore: 32 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/8
SSD2-W-32-30-15		Body: No switch magnet \| Bore: 32 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/8
SSD2-W-32-30-20		Body: No switch magnet \| Bore: 32 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 20 mm \| Port: Rc1/8
SSD2-W-32-30-25		Body: No switch magnet \| Bore: 32 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 25 mm \| Port: Rc1/8
SSD2-W-32-30-30		Body: No switch magnet \| Bore: 32 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 30 mm \| Port: Rc1/8
SSD2-W-32-35-5		Body: No switch magnet \| Bore: 32 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 5 mm \| Port: Rc1/8
SSD2-W-32-35-10		Body: No switch magnet \| Bore: 32 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/8
SSD2-W-32-35-15		Body: No switch magnet \| Bore: 32 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/8
SSD2-W-32-35-20		Body: No switch magnet \| Bore: 32 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 20 mm \| Port: Rc1/8
SSD2-W-32-35-25		Body: No switch magnet \| Bore: 32 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 25 mm \| Port: Rc1/8
SSD2-W-32-35-30		Body: No switch magnet \| Bore: 32 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 30 mm \| Port: Rc1/8
SSD2-W-32-35-35		Body: No switch magnet \| Bore: 32 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 35 mm \| Port: Rc1/8
SSD2-W-32-40-5		Body: No switch magnet \| Bore: 32 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 5 mm \| Port: Rc1/8
SSD2-W-32-40-10		Body: No switch magnet \| Bore: 32 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/8
SSD2-W-32-40-15		Body: No switch magnet \| Bore: 32 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/8
SSD2-W-32-40-20		Body: No switch magnet \| Bore: 32 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 20 mm \| Port: Rc1/8
SSD2-W-32-40-25		Body: No switch magnet \| Bore: 32 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 25 mm \| Port: Rc1/8
SSD2-W-32-40-30		Body: No switch magnet \| Bore: 32 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 30 mm \| Port: Rc1/8
SSD2-W-32-40-35		Body: No switch magnet \| Bore: 32 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 35 mm \| Port: Rc1/8
SSD2-W-32-40-40		Body: No switch magnet \| Bore: 32 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 40 mm \| Port: Rc1/8
SSD2-W-32-45-5		Body: No switch magnet \| Bore: 32 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 5 mm \| Port: Rc1/8
SSD2-W-32-45-10		Body: No switch magnet \| Bore: 32 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/8
SSD2-W-32-45-15		Body: No switch magnet \| Bore: 32 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/8
SSD2-W-32-45-20		Body: No switch magnet \| Bore: 32 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 20 mm \| Port: Rc1/8
SSD2-W-32-45-25		Body: No switch magnet \| Bore: 32 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 25 mm \| Port: Rc1/8
SSD2-W-32-45-30		Body: No switch magnet \| Bore: 32 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 30 mm \| Port: Rc1/8
SSD2-W-32-45-35		Body: No switch magnet \| Bore: 32 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 35 mm \| Port: Rc1/8
SSD2-W-32-45-40		Body: No switch magnet \| Bore: 32 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 40 mm \| Port: Rc1/8
SSD2-W-32-45-45		Body: No switch magnet \| Bore: 32 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 45 mm \| Port: Rc1/8
SSD2-W-32-50-5		Body: No switch magnet \| Bore: 32 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 5 mm \| Port: Rc1/8
SSD2-W-32-50-10		Body: No switch magnet \| Bore: 32 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/8
SSD2-W-32-50-15		Body: No switch magnet \| Bore: 32 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/8
SSD2-W-32-50-20		Body: No switch magnet \| Bore: 32 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 20 mm \| Port: Rc1/8
SSD2-W-32-50-25		Body: No switch magnet \| Bore: 32 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm \| Port: Rc1/8
SSD2-W-32-50-30		Body: No switch magnet \| Bore: 32 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 30 mm \| Port: Rc1/8
SSD2-W-32-50-35		Body: No switch magnet \| Bore: 32 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 35 mm \| Port: Rc1/8
SSD2-W-32-50-40		Body: No switch magnet \| Bore: 32 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 40 mm \| Port: Rc1/8
SSD2-W-32-50-45		Body: No switch magnet \| Bore: 32 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 45 mm \| Port: Rc1/8
SSD2-W-32-50-50		Body: No switch magnet \| Bore: 32 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 50 mm \| Port: Rc1/8
SSD2-W-40-5-5		Body: No switch magnet \| Bore: 40 mm \| Total stroke S1: 5 mm \| 1st stage stroke S2: 5 mm \| Port: Rc1/8
SSD2-W-40-10-5		Body: No switch magnet \| Bore: 40 mm \| Total stroke S1: 10 mm \| 1st stage stroke S2: 5 mm \| Port: Rc1/8
SSD2-W-40-10-10		Body: No switch magnet \| Bore: 40 mm \| Total stroke S1: 10 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/8
SSD2-W-40-15-5		Body: No switch magnet \| Bore: 40 mm \| Total stroke S1: 15 mm \| 1st stage stroke S2: 5 mm \| Port: Rc1/8
SSD2-W-40-15-10		Body: No switch magnet \| Bore: 40 mm \| Total stroke S1: 15 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/8
SSD2-W-40-15-15		Body: No switch magnet \| Bore: 40 mm \| Total stroke S1: 15 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/8
SSD2-W-40-20-5		Body: No switch magnet \| Bore: 40 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 5 mm \| Port: Rc1/8
SSD2-W-40-20-10		Body: No switch magnet \| Bore: 40 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/8
SSD2-W-40-20-15		Body: No switch magnet \| Bore: 40 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/8
SSD2-W-40-20-20		Body: No switch magnet \| Bore: 40 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 20 mm \| Port: Rc1/8
SSD2-W-40-25-5		Body: No switch magnet \| Bore: 40 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 5 mm \| Port: Rc1/8
SSD2-W-40-25-10		Body: No switch magnet \| Bore: 40 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/8
SSD2-W-40-25-15		Body: No switch magnet \| Bore: 40 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/8
SSD2-W-40-25-20		Body: No switch magnet \| Bore: 40 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 20 mm \| Port: Rc1/8
SSD2-W-40-25-25		Body: No switch magnet \| Bore: 40 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 25 mm \| Port: Rc1/8
SSD2-W-40-30-5		Body: No switch magnet \| Bore: 40 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 5 mm \| Port: Rc1/8
SSD2-W-40-30-10		Body: No switch magnet \| Bore: 40 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/8
SSD2-W-40-30-15		Body: No switch magnet \| Bore: 40 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/8
SSD2-W-40-30-20		Body: No switch magnet \| Bore: 40 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 20 mm \| Port: Rc1/8
SSD2-W-40-30-25		Body: No switch magnet \| Bore: 40 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 25 mm \| Port: Rc1/8
SSD2-W-40-30-30		Body: No switch magnet \| Bore: 40 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 30 mm \| Port: Rc1/8
SSD2-W-40-35-5		Body: No switch magnet \| Bore: 40 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 5 mm \| Port: Rc1/8
SSD2-W-40-35-10		Body: No switch magnet \| Bore: 40 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/8
SSD2-W-40-35-15		Body: No switch magnet \| Bore: 40 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/8
SSD2-W-40-35-20		Body: No switch magnet \| Bore: 40 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 20 mm \| Port: Rc1/8
SSD2-W-40-35-25		Body: No switch magnet \| Bore: 40 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 25 mm \| Port: Rc1/8
SSD2-W-40-35-30		Body: No switch magnet \| Bore: 40 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 30 mm \| Port: Rc1/8
SSD2-W-40-35-35		Body: No switch magnet \| Bore: 40 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 35 mm \| Port: Rc1/8
SSD2-W-40-40-5		Body: No switch magnet \| Bore: 40 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 5 mm \| Port: Rc1/8
SSD2-W-40-40-10		Body: No switch magnet \| Bore: 40 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/8
SSD2-W-40-40-15		Body: No switch magnet \| Bore: 40 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/8
SSD2-W-40-40-20		Body: No switch magnet \| Bore: 40 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 20 mm \| Port: Rc1/8
SSD2-W-40-40-25		Body: No switch magnet \| Bore: 40 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 25 mm \| Port: Rc1/8
SSD2-W-40-40-30		Body: No switch magnet \| Bore: 40 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 30 mm \| Port: Rc1/8
SSD2-W-40-40-35		Body: No switch magnet \| Bore: 40 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 35 mm \| Port: Rc1/8
SSD2-W-40-40-40		Body: No switch magnet \| Bore: 40 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 40 mm \| Port: Rc1/8
SSD2-W-40-45-5		Body: No switch magnet \| Bore: 40 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 5 mm \| Port: Rc1/8
SSD2-W-40-45-10		Body: No switch magnet \| Bore: 40 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/8
SSD2-W-40-45-15		Body: No switch magnet \| Bore: 40 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/8
SSD2-W-40-45-20		Body: No switch magnet \| Bore: 40 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 20 mm \| Port: Rc1/8
SSD2-W-40-45-25		Body: No switch magnet \| Bore: 40 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 25 mm \| Port: Rc1/8
SSD2-W-40-45-30		Body: No switch magnet \| Bore: 40 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 30 mm \| Port: Rc1/8
SSD2-W-40-45-35		Body: No switch magnet \| Bore: 40 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 35 mm \| Port: Rc1/8
SSD2-W-40-45-40		Body: No switch magnet \| Bore: 40 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 40 mm \| Port: Rc1/8
SSD2-W-40-45-45		Body: No switch magnet \| Bore: 40 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 45 mm \| Port: Rc1/8
SSD2-W-40-50-5		Body: No switch magnet \| Bore: 40 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 5 mm \| Port: Rc1/8
SSD2-W-40-50-10		Body: No switch magnet \| Bore: 40 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/8
SSD2-W-40-50-15		Body: No switch magnet \| Bore: 40 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/8
SSD2-W-40-50-20		Body: No switch magnet \| Bore: 40 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 20 mm \| Port: Rc1/8
SSD2-W-40-50-25		Body: No switch magnet \| Bore: 40 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm \| Port: Rc1/8
SSD2-W-40-50-30		Body: No switch magnet \| Bore: 40 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 30 mm \| Port: Rc1/8
SSD2-W-40-50-35		Body: No switch magnet \| Bore: 40 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 35 mm \| Port: Rc1/8
SSD2-W-40-50-40		Body: No switch magnet \| Bore: 40 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 40 mm \| Port: Rc1/8
SSD2-W-40-50-45		Body: No switch magnet \| Bore: 40 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 45 mm \| Port: Rc1/8
SSD2-W-40-50-50		Body: No switch magnet \| Bore: 40 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 50 mm \| Port: Rc1/8
SSD2-W-50-10-10		Body: No switch magnet \| Bore: 50 mm \| Total stroke S1: 10 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/4
SSD2-W-50-15-10		Body: No switch magnet \| Bore: 50 mm \| Total stroke S1: 15 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/4
SSD2-W-50-15-15		Body: No switch magnet \| Bore: 50 mm \| Total stroke S1: 15 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/4
SSD2-W-50-20-10		Body: No switch magnet \| Bore: 50 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/4
SSD2-W-50-20-15		Body: No switch magnet \| Bore: 50 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/4
SSD2-W-50-20-20		Body: No switch magnet \| Bore: 50 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 20 mm \| Port: Rc1/4
SSD2-W-50-25-10		Body: No switch magnet \| Bore: 50 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/4
SSD2-W-50-25-15		Body: No switch magnet \| Bore: 50 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/4
SSD2-W-50-25-20		Body: No switch magnet \| Bore: 50 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 20 mm \| Port: Rc1/4
SSD2-W-50-25-25		Body: No switch magnet \| Bore: 50 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 25 mm \| Port: Rc1/4
SSD2-W-50-30-10		Body: No switch magnet \| Bore: 50 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/4
SSD2-W-50-30-15		Body: No switch magnet \| Bore: 50 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/4
SSD2-W-50-30-20		Body: No switch magnet \| Bore: 50 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 20 mm \| Port: Rc1/4
SSD2-W-50-30-25		Body: No switch magnet \| Bore: 50 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 25 mm \| Port: Rc1/4
SSD2-W-50-30-30		Body: No switch magnet \| Bore: 50 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 30 mm \| Port: Rc1/4
SSD2-W-50-35-10		Body: No switch magnet \| Bore: 50 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/4
SSD2-W-50-35-15		Body: No switch magnet \| Bore: 50 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/4
SSD2-W-50-35-20		Body: No switch magnet \| Bore: 50 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 20 mm \| Port: Rc1/4
SSD2-W-50-35-25		Body: No switch magnet \| Bore: 50 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 25 mm \| Port: Rc1/4
SSD2-W-50-35-30		Body: No switch magnet \| Bore: 50 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 30 mm \| Port: Rc1/4
SSD2-W-50-35-35		Body: No switch magnet \| Bore: 50 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 35 mm \| Port: Rc1/4
SSD2-W-50-40-10		Body: No switch magnet \| Bore: 50 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/4
SSD2-W-50-40-15		Body: No switch magnet \| Bore: 50 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/4
SSD2-W-50-40-20		Body: No switch magnet \| Bore: 50 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 20 mm \| Port: Rc1/4
SSD2-W-50-40-25		Body: No switch magnet \| Bore: 50 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 25 mm \| Port: Rc1/4
SSD2-W-50-40-30		Body: No switch magnet \| Bore: 50 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 30 mm \| Port: Rc1/4
SSD2-W-50-40-35		Body: No switch magnet \| Bore: 50 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 35 mm \| Port: Rc1/4
SSD2-W-50-40-40		Body: No switch magnet \| Bore: 50 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 40 mm \| Port: Rc1/4
SSD2-W-50-45-10		Body: No switch magnet \| Bore: 50 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/4
SSD2-W-50-45-15		Body: No switch magnet \| Bore: 50 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/4
SSD2-W-50-45-20		Body: No switch magnet \| Bore: 50 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 20 mm \| Port: Rc1/4
SSD2-W-50-45-25		Body: No switch magnet \| Bore: 50 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 25 mm \| Port: Rc1/4
SSD2-W-50-45-30		Body: No switch magnet \| Bore: 50 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 30 mm \| Port: Rc1/4
SSD2-W-50-45-35		Body: No switch magnet \| Bore: 50 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 35 mm \| Port: Rc1/4
SSD2-W-50-45-40		Body: No switch magnet \| Bore: 50 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 40 mm \| Port: Rc1/4
SSD2-W-50-45-45		Body: No switch magnet \| Bore: 50 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 45 mm \| Port: Rc1/4
SSD2-W-50-50-10		Body: No switch magnet \| Bore: 50 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/4
SSD2-W-50-50-15		Body: No switch magnet \| Bore: 50 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/4
SSD2-W-50-50-20		Body: No switch magnet \| Bore: 50 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 20 mm \| Port: Rc1/4
SSD2-W-50-50-25		Body: No switch magnet \| Bore: 50 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm \| Port: Rc1/4
SSD2-W-50-50-30		Body: No switch magnet \| Bore: 50 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 30 mm \| Port: Rc1/4
SSD2-W-50-50-35		Body: No switch magnet \| Bore: 50 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 35 mm \| Port: Rc1/4
SSD2-W-50-50-40		Body: No switch magnet \| Bore: 50 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 40 mm \| Port: Rc1/4
SSD2-W-50-50-45		Body: No switch magnet \| Bore: 50 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 45 mm \| Port: Rc1/4
SSD2-W-50-50-50		Body: No switch magnet \| Bore: 50 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 50 mm \| Port: Rc1/4
SSD2-W-63-10-10		Body: No switch magnet \| Bore: 63 mm \| Total stroke S1: 10 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/4
SSD2-W-63-15-10		Body: No switch magnet \| Bore: 63 mm \| Total stroke S1: 15 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/4
SSD2-W-63-15-15		Body: No switch magnet \| Bore: 63 mm \| Total stroke S1: 15 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/4
SSD2-W-63-20-10		Body: No switch magnet \| Bore: 63 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/4
SSD2-W-63-20-15		Body: No switch magnet \| Bore: 63 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/4
SSD2-W-63-20-20		Body: No switch magnet \| Bore: 63 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 20 mm \| Port: Rc1/4
SSD2-W-63-25-10		Body: No switch magnet \| Bore: 63 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/4
SSD2-W-63-25-15		Body: No switch magnet \| Bore: 63 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/4
SSD2-W-63-25-20		Body: No switch magnet \| Bore: 63 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 20 mm \| Port: Rc1/4
SSD2-W-63-25-25		Body: No switch magnet \| Bore: 63 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 25 mm \| Port: Rc1/4
SSD2-W-63-30-10		Body: No switch magnet \| Bore: 63 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/4
SSD2-W-63-30-15		Body: No switch magnet \| Bore: 63 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/4
SSD2-W-63-30-20		Body: No switch magnet \| Bore: 63 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 20 mm \| Port: Rc1/4
SSD2-W-63-30-25		Body: No switch magnet \| Bore: 63 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 25 mm \| Port: Rc1/4
SSD2-W-63-30-30		Body: No switch magnet \| Bore: 63 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 30 mm \| Port: Rc1/4
SSD2-W-63-35-10		Body: No switch magnet \| Bore: 63 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/4
SSD2-W-63-35-15		Body: No switch magnet \| Bore: 63 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/4
SSD2-W-63-35-20		Body: No switch magnet \| Bore: 63 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 20 mm \| Port: Rc1/4
SSD2-W-63-35-25		Body: No switch magnet \| Bore: 63 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 25 mm \| Port: Rc1/4
SSD2-W-63-35-30		Body: No switch magnet \| Bore: 63 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 30 mm \| Port: Rc1/4
SSD2-W-63-35-35		Body: No switch magnet \| Bore: 63 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 35 mm \| Port: Rc1/4
SSD2-W-63-40-10		Body: No switch magnet \| Bore: 63 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/4
SSD2-W-63-40-15		Body: No switch magnet \| Bore: 63 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/4
SSD2-W-63-40-20		Body: No switch magnet \| Bore: 63 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 20 mm \| Port: Rc1/4
SSD2-W-63-40-25		Body: No switch magnet \| Bore: 63 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 25 mm \| Port: Rc1/4
SSD2-W-63-40-30		Body: No switch magnet \| Bore: 63 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 30 mm \| Port: Rc1/4
SSD2-W-63-40-35		Body: No switch magnet \| Bore: 63 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 35 mm \| Port: Rc1/4
SSD2-W-63-40-40		Body: No switch magnet \| Bore: 63 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 40 mm \| Port: Rc1/4
SSD2-W-63-45-10		Body: No switch magnet \| Bore: 63 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/4
SSD2-W-63-45-15		Body: No switch magnet \| Bore: 63 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/4
SSD2-W-63-45-20		Body: No switch magnet \| Bore: 63 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 20 mm \| Port: Rc1/4
SSD2-W-63-45-25		Body: No switch magnet \| Bore: 63 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 25 mm \| Port: Rc1/4
SSD2-W-63-45-30		Body: No switch magnet \| Bore: 63 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 30 mm \| Port: Rc1/4
SSD2-W-63-45-35		Body: No switch magnet \| Bore: 63 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 35 mm \| Port: Rc1/4
SSD2-W-63-45-40		Body: No switch magnet \| Bore: 63 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 40 mm \| Port: Rc1/4
SSD2-W-63-45-45		Body: No switch magnet \| Bore: 63 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 45 mm \| Port: Rc1/4
SSD2-W-63-50-10		Body: No switch magnet \| Bore: 63 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/4
SSD2-W-63-50-15		Body: No switch magnet \| Bore: 63 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/4
SSD2-W-63-50-20		Body: No switch magnet \| Bore: 63 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 20 mm \| Port: Rc1/4
SSD2-W-63-50-25		Body: No switch magnet \| Bore: 63 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm \| Port: Rc1/4
SSD2-W-63-50-30		Body: No switch magnet \| Bore: 63 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 30 mm \| Port: Rc1/4
SSD2-W-63-50-35		Body: No switch magnet \| Bore: 63 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 35 mm \| Port: Rc1/4
SSD2-W-63-50-40		Body: No switch magnet \| Bore: 63 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 40 mm \| Port: Rc1/4
SSD2-W-63-50-45		Body: No switch magnet \| Bore: 63 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 45 mm \| Port: Rc1/4
SSD2-W-63-50-50		Body: No switch magnet \| Bore: 63 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 50 mm \| Port: Rc1/4
SSD2-W-80-10-10		Body: No switch magnet \| Bore: 80 mm \| Total stroke S1: 10 mm \| 1st stage stroke S2: 10 mm \| Port: Rc3/8
SSD2-W-80-15-10		Body: No switch magnet \| Bore: 80 mm \| Total stroke S1: 15 mm \| 1st stage stroke S2: 10 mm \| Port: Rc3/8
SSD2-W-80-15-15		Body: No switch magnet \| Bore: 80 mm \| Total stroke S1: 15 mm \| 1st stage stroke S2: 15 mm \| Port: Rc3/8
SSD2-W-80-20-10		Body: No switch magnet \| Bore: 80 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 10 mm \| Port: Rc3/8
SSD2-W-80-20-15		Body: No switch magnet \| Bore: 80 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 15 mm \| Port: Rc3/8
SSD2-W-80-20-20		Body: No switch magnet \| Bore: 80 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 20 mm \| Port: Rc3/8
SSD2-W-80-25-10		Body: No switch magnet \| Bore: 80 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 10 mm \| Port: Rc3/8
SSD2-W-80-25-15		Body: No switch magnet \| Bore: 80 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 15 mm \| Port: Rc3/8
SSD2-W-80-25-20		Body: No switch magnet \| Bore: 80 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 20 mm \| Port: Rc3/8
SSD2-W-80-25-25		Body: No switch magnet \| Bore: 80 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 25 mm \| Port: Rc3/8
SSD2-W-80-30-10		Body: No switch magnet \| Bore: 80 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 10 mm \| Port: Rc3/8
SSD2-W-80-30-15		Body: No switch magnet \| Bore: 80 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 15 mm \| Port: Rc3/8
SSD2-W-80-30-20		Body: No switch magnet \| Bore: 80 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 20 mm \| Port: Rc3/8
SSD2-W-80-30-25		Body: No switch magnet \| Bore: 80 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 25 mm \| Port: Rc3/8
SSD2-W-80-30-30		Body: No switch magnet \| Bore: 80 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 30 mm \| Port: Rc3/8
SSD2-W-80-35-10		Body: No switch magnet \| Bore: 80 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 10 mm \| Port: Rc3/8
SSD2-W-80-35-15		Body: No switch magnet \| Bore: 80 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 15 mm \| Port: Rc3/8
SSD2-W-80-35-20		Body: No switch magnet \| Bore: 80 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 20 mm \| Port: Rc3/8
SSD2-W-80-35-25		Body: No switch magnet \| Bore: 80 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 25 mm \| Port: Rc3/8
SSD2-W-80-35-30		Body: No switch magnet \| Bore: 80 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 30 mm \| Port: Rc3/8
SSD2-W-80-35-35		Body: No switch magnet \| Bore: 80 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 35 mm \| Port: Rc3/8
SSD2-W-80-40-10		Body: No switch magnet \| Bore: 80 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 10 mm \| Port: Rc3/8
SSD2-W-80-40-15		Body: No switch magnet \| Bore: 80 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 15 mm \| Port: Rc3/8
SSD2-W-80-40-20		Body: No switch magnet \| Bore: 80 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 20 mm \| Port: Rc3/8
SSD2-W-80-40-25		Body: No switch magnet \| Bore: 80 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 25 mm \| Port: Rc3/8
SSD2-W-80-40-30		Body: No switch magnet \| Bore: 80 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 30 mm \| Port: Rc3/8
SSD2-W-80-40-35		Body: No switch magnet \| Bore: 80 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 35 mm \| Port: Rc3/8
SSD2-W-80-40-40		Body: No switch magnet \| Bore: 80 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 40 mm \| Port: Rc3/8
SSD2-W-80-45-10		Body: No switch magnet \| Bore: 80 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 10 mm \| Port: Rc3/8
SSD2-W-80-45-15		Body: No switch magnet \| Bore: 80 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 15 mm \| Port: Rc3/8
SSD2-W-80-45-20		Body: No switch magnet \| Bore: 80 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 20 mm \| Port: Rc3/8
SSD2-W-80-45-25		Body: No switch magnet \| Bore: 80 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 25 mm \| Port: Rc3/8
SSD2-W-80-45-30		Body: No switch magnet \| Bore: 80 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 30 mm \| Port: Rc3/8
SSD2-W-80-45-35		Body: No switch magnet \| Bore: 80 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 35 mm \| Port: Rc3/8
SSD2-W-80-45-40		Body: No switch magnet \| Bore: 80 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 40 mm \| Port: Rc3/8
SSD2-W-80-45-45		Body: No switch magnet \| Bore: 80 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 45 mm \| Port: Rc3/8
SSD2-W-80-50-10		Body: No switch magnet \| Bore: 80 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 10 mm \| Port: Rc3/8
SSD2-W-80-50-15		Body: No switch magnet \| Bore: 80 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 15 mm \| Port: Rc3/8
SSD2-W-80-50-20		Body: No switch magnet \| Bore: 80 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 20 mm \| Port: Rc3/8
SSD2-W-80-50-25		Body: No switch magnet \| Bore: 80 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm \| Port: Rc3/8
SSD2-W-80-50-30		Body: No switch magnet \| Bore: 80 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 30 mm \| Port: Rc3/8
SSD2-W-80-50-35		Body: No switch magnet \| Bore: 80 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 35 mm \| Port: Rc3/8
SSD2-W-80-50-40		Body: No switch magnet \| Bore: 80 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 40 mm \| Port: Rc3/8
SSD2-W-80-50-45		Body: No switch magnet \| Bore: 80 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 45 mm \| Port: Rc3/8
SSD2-W-80-50-50		Body: No switch magnet \| Bore: 80 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 50 mm \| Port: Rc3/8
SSD2-W-100-10-10		Body: No switch magnet \| Bore: 100 mm \| Total stroke S1: 10 mm \| 1st stage stroke S2: 10 mm \| Port: Rc3/8
SSD2-W-100-15-10		Body: No switch magnet \| Bore: 100 mm \| Total stroke S1: 15 mm \| 1st stage stroke S2: 10 mm \| Port: Rc3/8
SSD2-W-100-15-15		Body: No switch magnet \| Bore: 100 mm \| Total stroke S1: 15 mm \| 1st stage stroke S2: 15 mm \| Port: Rc3/8
SSD2-W-100-20-10		Body: No switch magnet \| Bore: 100 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 10 mm \| Port: Rc3/8
SSD2-W-100-20-15		Body: No switch magnet \| Bore: 100 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 15 mm \| Port: Rc3/8
SSD2-W-100-20-20		Body: No switch magnet \| Bore: 100 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 20 mm \| Port: Rc3/8
SSD2-W-100-25-10		Body: No switch magnet \| Bore: 100 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 10 mm \| Port: Rc3/8
SSD2-W-100-25-15		Body: No switch magnet \| Bore: 100 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 15 mm \| Port: Rc3/8
SSD2-W-100-25-20		Body: No switch magnet \| Bore: 100 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 20 mm \| Port: Rc3/8
SSD2-W-100-25-25		Body: No switch magnet \| Bore: 100 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 25 mm \| Port: Rc3/8
SSD2-W-100-30-10		Body: No switch magnet \| Bore: 100 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 10 mm \| Port: Rc3/8
SSD2-W-100-30-15		Body: No switch magnet \| Bore: 100 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 15 mm \| Port: Rc3/8
SSD2-W-100-30-20		Body: No switch magnet \| Bore: 100 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 20 mm \| Port: Rc3/8
SSD2-W-100-30-25		Body: No switch magnet \| Bore: 100 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 25 mm \| Port: Rc3/8
SSD2-W-100-30-30		Body: No switch magnet \| Bore: 100 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 30 mm \| Port: Rc3/8
SSD2-W-100-35-10		Body: No switch magnet \| Bore: 100 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 10 mm \| Port: Rc3/8
SSD2-W-100-35-15		Body: No switch magnet \| Bore: 100 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 15 mm \| Port: Rc3/8
SSD2-W-100-35-20		Body: No switch magnet \| Bore: 100 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 20 mm \| Port: Rc3/8
SSD2-W-100-35-25		Body: No switch magnet \| Bore: 100 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 25 mm \| Port: Rc3/8
SSD2-W-100-35-30		Body: No switch magnet \| Bore: 100 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 30 mm \| Port: Rc3/8
SSD2-W-100-35-35		Body: No switch magnet \| Bore: 100 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 35 mm \| Port: Rc3/8
SSD2-W-100-40-10		Body: No switch magnet \| Bore: 100 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 10 mm \| Port: Rc3/8
SSD2-W-100-40-15		Body: No switch magnet \| Bore: 100 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 15 mm \| Port: Rc3/8
SSD2-W-100-40-20		Body: No switch magnet \| Bore: 100 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 20 mm \| Port: Rc3/8
SSD2-W-100-40-25		Body: No switch magnet \| Bore: 100 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 25 mm \| Port: Rc3/8
SSD2-W-100-40-30		Body: No switch magnet \| Bore: 100 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 30 mm \| Port: Rc3/8
SSD2-W-100-40-35		Body: No switch magnet \| Bore: 100 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 35 mm \| Port: Rc3/8
SSD2-W-100-40-40		Body: No switch magnet \| Bore: 100 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 40 mm \| Port: Rc3/8
SSD2-W-100-45-10		Body: No switch magnet \| Bore: 100 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 10 mm \| Port: Rc3/8
SSD2-W-100-45-15		Body: No switch magnet \| Bore: 100 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 15 mm \| Port: Rc3/8
SSD2-W-100-45-20		Body: No switch magnet \| Bore: 100 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 20 mm \| Port: Rc3/8
SSD2-W-100-45-25		Body: No switch magnet \| Bore: 100 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 25 mm \| Port: Rc3/8
SSD2-W-100-45-30		Body: No switch magnet \| Bore: 100 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 30 mm \| Port: Rc3/8
SSD2-W-100-45-35		Body: No switch magnet \| Bore: 100 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 35 mm \| Port: Rc3/8
SSD2-W-100-45-40		Body: No switch magnet \| Bore: 100 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 40 mm \| Port: Rc3/8
SSD2-W-100-45-45		Body: No switch magnet \| Bore: 100 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 45 mm \| Port: Rc3/8
SSD2-W-100-50-10		Body: No switch magnet \| Bore: 100 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 10 mm \| Port: Rc3/8
SSD2-W-100-50-15		Body: No switch magnet \| Bore: 100 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 15 mm \| Port: Rc3/8
SSD2-W-100-50-20		Body: No switch magnet \| Bore: 100 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 20 mm \| Port: Rc3/8
SSD2-W-100-50-25		Body: No switch magnet \| Bore: 100 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm \| Port: Rc3/8
SSD2-W-100-50-30		Body: No switch magnet \| Bore: 100 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 30 mm \| Port: Rc3/8
SSD2-W-100-50-35		Body: No switch magnet \| Bore: 100 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 35 mm \| Port: Rc3/8
SSD2-W-100-50-40		Body: No switch magnet \| Bore: 100 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 40 mm \| Port: Rc3/8
SSD2-W-100-50-45		Body: No switch magnet \| Bore: 100 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 45 mm \| Port: Rc3/8
SSD2-W-100-50-50		Body: No switch magnet \| Bore: 100 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 50 mm \| Port: Rc3/8
SSD2-WL-12-5-5		Body: Switch magnet built in \| Bore: 12 mm \| Total stroke S1: 5 mm \| 1st stage stroke S2: 5 mm \| Port: M5
SSD2-WL-12-10-5		Body: Switch magnet built in \| Bore: 12 mm \| Total stroke S1: 10 mm \| 1st stage stroke S2: 5 mm \| Port: M5
SSD2-WL-12-10-10		Body: Switch magnet built in \| Bore: 12 mm \| Total stroke S1: 10 mm \| 1st stage stroke S2: 10 mm \| Port: M5
SSD2-WL-12-15-5		Body: Switch magnet built in \| Bore: 12 mm \| Total stroke S1: 15 mm \| 1st stage stroke S2: 5 mm \| Port: M5
SSD2-WL-12-15-10		Body: Switch magnet built in \| Bore: 12 mm \| Total stroke S1: 15 mm \| 1st stage stroke S2: 10 mm \| Port: M5
SSD2-WL-12-15-15		Body: Switch magnet built in \| Bore: 12 mm \| Total stroke S1: 15 mm \| 1st stage stroke S2: 15 mm \| Port: M5
SSD2-WL-12-20-5		Body: Switch magnet built in \| Bore: 12 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 5 mm \| Port: M5
SSD2-WL-12-20-10		Body: Switch magnet built in \| Bore: 12 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 10 mm \| Port: M5
SSD2-WL-12-20-15		Body: Switch magnet built in \| Bore: 12 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 15 mm \| Port: M5
SSD2-WL-12-20-20		Body: Switch magnet built in \| Bore: 12 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 20 mm \| Port: M5
SSD2-WL-12-25-5		Body: Switch magnet built in \| Bore: 12 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 5 mm \| Port: M5
SSD2-WL-12-25-10		Body: Switch magnet built in \| Bore: 12 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 10 mm \| Port: M5
SSD2-WL-12-25-15		Body: Switch magnet built in \| Bore: 12 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 15 mm \| Port: M5
SSD2-WL-12-25-20		Body: Switch magnet built in \| Bore: 12 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 20 mm \| Port: M5
SSD2-WL-12-25-25		Body: Switch magnet built in \| Bore: 12 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 25 mm \| Port: M5
SSD2-WL-12-30-5		Body: Switch magnet built in \| Bore: 12 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 5 mm \| Port: M5
SSD2-WL-12-30-10		Body: Switch magnet built in \| Bore: 12 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 10 mm \| Port: M5
SSD2-WL-12-30-15		Body: Switch magnet built in \| Bore: 12 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 15 mm \| Port: M5
SSD2-WL-12-30-20		Body: Switch magnet built in \| Bore: 12 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 20 mm \| Port: M5
SSD2-WL-12-30-25		Body: Switch magnet built in \| Bore: 12 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 25 mm \| Port: M5
SSD2-WL-12-30-30		Body: Switch magnet built in \| Bore: 12 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 30 mm \| Port: M5
SSD2-WL-16-5-5		Body: Switch magnet built in \| Bore: 16 mm \| Total stroke S1: 5 mm \| 1st stage stroke S2: 5 mm \| Port: M5
SSD2-WL-16-10-5		Body: Switch magnet built in \| Bore: 16 mm \| Total stroke S1: 10 mm \| 1st stage stroke S2: 5 mm \| Port: M5
SSD2-WL-16-10-10		Body: Switch magnet built in \| Bore: 16 mm \| Total stroke S1: 10 mm \| 1st stage stroke S2: 10 mm \| Port: M5
SSD2-WL-16-15-5		Body: Switch magnet built in \| Bore: 16 mm \| Total stroke S1: 15 mm \| 1st stage stroke S2: 5 mm \| Port: M5
SSD2-WL-16-15-10		Body: Switch magnet built in \| Bore: 16 mm \| Total stroke S1: 15 mm \| 1st stage stroke S2: 10 mm \| Port: M5
SSD2-WL-16-15-15		Body: Switch magnet built in \| Bore: 16 mm \| Total stroke S1: 15 mm \| 1st stage stroke S2: 15 mm \| Port: M5
SSD2-WL-16-20-5		Body: Switch magnet built in \| Bore: 16 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 5 mm \| Port: M5
SSD2-WL-16-20-10		Body: Switch magnet built in \| Bore: 16 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 10 mm \| Port: M5
SSD2-WL-16-20-15		Body: Switch magnet built in \| Bore: 16 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 15 mm \| Port: M5
SSD2-WL-16-20-20		Body: Switch magnet built in \| Bore: 16 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 20 mm \| Port: M5
SSD2-WL-16-25-5		Body: Switch magnet built in \| Bore: 16 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 5 mm \| Port: M5
SSD2-WL-16-25-10		Body: Switch magnet built in \| Bore: 16 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 10 mm \| Port: M5
SSD2-WL-16-25-15		Body: Switch magnet built in \| Bore: 16 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 15 mm \| Port: M5
SSD2-WL-16-25-20		Body: Switch magnet built in \| Bore: 16 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 20 mm \| Port: M5
SSD2-WL-16-25-25		Body: Switch magnet built in \| Bore: 16 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 25 mm \| Port: M5
SSD2-WL-16-30-5		Body: Switch magnet built in \| Bore: 16 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 5 mm \| Port: M5
SSD2-WL-16-30-10		Body: Switch magnet built in \| Bore: 16 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 10 mm \| Port: M5
SSD2-WL-16-30-15		Body: Switch magnet built in \| Bore: 16 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 15 mm \| Port: M5
SSD2-WL-16-30-20		Body: Switch magnet built in \| Bore: 16 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 20 mm \| Port: M5
SSD2-WL-16-30-25		Body: Switch magnet built in \| Bore: 16 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 25 mm \| Port: M5
SSD2-WL-16-30-30		Body: Switch magnet built in \| Bore: 16 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 30 mm \| Port: M5
SSD2-WL-20-5-5		Body: Switch magnet built in \| Bore: 20 mm \| Total stroke S1: 5 mm \| 1st stage stroke S2: 5 mm \| Port: M5
SSD2-WL-20-10-5		Body: Switch magnet built in \| Bore: 20 mm \| Total stroke S1: 10 mm \| 1st stage stroke S2: 5 mm \| Port: M5
SSD2-WL-20-10-10		Body: Switch magnet built in \| Bore: 20 mm \| Total stroke S1: 10 mm \| 1st stage stroke S2: 10 mm \| Port: M5
SSD2-WL-20-15-5		Body: Switch magnet built in \| Bore: 20 mm \| Total stroke S1: 15 mm \| 1st stage stroke S2: 5 mm \| Port: M5
SSD2-WL-20-15-10		Body: Switch magnet built in \| Bore: 20 mm \| Total stroke S1: 15 mm \| 1st stage stroke S2: 10 mm \| Port: M5
SSD2-WL-20-15-15		Body: Switch magnet built in \| Bore: 20 mm \| Total stroke S1: 15 mm \| 1st stage stroke S2: 15 mm \| Port: M5
SSD2-WL-20-20-5		Body: Switch magnet built in \| Bore: 20 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 5 mm \| Port: M5
SSD2-WL-20-20-10		Body: Switch magnet built in \| Bore: 20 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 10 mm \| Port: M5
SSD2-WL-20-20-15		Body: Switch magnet built in \| Bore: 20 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 15 mm \| Port: M5
SSD2-WL-20-20-20		Body: Switch magnet built in \| Bore: 20 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 20 mm \| Port: M5
SSD2-WL-20-25-5		Body: Switch magnet built in \| Bore: 20 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 5 mm \| Port: M5
SSD2-WL-20-25-10		Body: Switch magnet built in \| Bore: 20 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 10 mm \| Port: M5
SSD2-WL-20-25-15		Body: Switch magnet built in \| Bore: 20 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 15 mm \| Port: M5
SSD2-WL-20-25-20		Body: Switch magnet built in \| Bore: 20 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 20 mm \| Port: M5
SSD2-WL-20-25-25		Body: Switch magnet built in \| Bore: 20 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 25 mm \| Port: M5
SSD2-WL-20-30-5		Body: Switch magnet built in \| Bore: 20 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 5 mm \| Port: M5
SSD2-WL-20-30-10		Body: Switch magnet built in \| Bore: 20 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 10 mm \| Port: M5
SSD2-WL-20-30-15		Body: Switch magnet built in \| Bore: 20 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 15 mm \| Port: M5
SSD2-WL-20-30-20		Body: Switch magnet built in \| Bore: 20 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 20 mm \| Port: M5
SSD2-WL-20-30-25		Body: Switch magnet built in \| Bore: 20 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 25 mm \| Port: M5
SSD2-WL-20-30-30		Body: Switch magnet built in \| Bore: 20 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 30 mm \| Port: M5
SSD2-WL-20-35-5		Body: Switch magnet built in \| Bore: 20 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 5 mm \| Port: M5
SSD2-WL-20-35-10		Body: Switch magnet built in \| Bore: 20 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 10 mm \| Port: M5
SSD2-WL-20-35-15		Body: Switch magnet built in \| Bore: 20 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 15 mm \| Port: M5
SSD2-WL-20-35-20		Body: Switch magnet built in \| Bore: 20 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 20 mm \| Port: M5
SSD2-WL-20-35-25		Body: Switch magnet built in \| Bore: 20 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 25 mm \| Port: M5
SSD2-WL-20-35-30		Body: Switch magnet built in \| Bore: 20 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 30 mm \| Port: M5
SSD2-WL-20-35-35		Body: Switch magnet built in \| Bore: 20 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 35 mm \| Port: M5
SSD2-WL-20-40-5		Body: Switch magnet built in \| Bore: 20 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 5 mm \| Port: M5
SSD2-WL-20-40-10		Body: Switch magnet built in \| Bore: 20 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 10 mm \| Port: M5
SSD2-WL-20-40-15		Body: Switch magnet built in \| Bore: 20 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 15 mm \| Port: M5
SSD2-WL-20-40-20		Body: Switch magnet built in \| Bore: 20 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 20 mm \| Port: M5
SSD2-WL-20-40-25		Body: Switch magnet built in \| Bore: 20 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 25 mm \| Port: M5
SSD2-WL-20-40-30		Body: Switch magnet built in \| Bore: 20 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 30 mm \| Port: M5
SSD2-WL-20-40-35		Body: Switch magnet built in \| Bore: 20 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 35 mm \| Port: M5
SSD2-WL-20-40-40		Body: Switch magnet built in \| Bore: 20 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 40 mm \| Port: M5
SSD2-WL-20-45-5		Body: Switch magnet built in \| Bore: 20 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 5 mm \| Port: M5
SSD2-WL-20-45-10		Body: Switch magnet built in \| Bore: 20 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 10 mm \| Port: M5
SSD2-WL-20-45-15		Body: Switch magnet built in \| Bore: 20 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 15 mm \| Port: M5
SSD2-WL-20-45-20		Body: Switch magnet built in \| Bore: 20 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 20 mm \| Port: M5
SSD2-WL-20-45-25		Body: Switch magnet built in \| Bore: 20 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 25 mm \| Port: M5
SSD2-WL-20-45-30		Body: Switch magnet built in \| Bore: 20 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 30 mm \| Port: M5
SSD2-WL-20-45-35		Body: Switch magnet built in \| Bore: 20 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 35 mm \| Port: M5
SSD2-WL-20-45-40		Body: Switch magnet built in \| Bore: 20 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 40 mm \| Port: M5
SSD2-WL-20-45-45		Body: Switch magnet built in \| Bore: 20 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 45 mm \| Port: M5
SSD2-WL-20-50-5		Body: Switch magnet built in \| Bore: 20 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 5 mm \| Port: M5
SSD2-WL-20-50-10		Body: Switch magnet built in \| Bore: 20 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 10 mm \| Port: M5
SSD2-WL-20-50-15		Body: Switch magnet built in \| Bore: 20 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 15 mm \| Port: M5
SSD2-WL-20-50-20		Body: Switch magnet built in \| Bore: 20 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 20 mm \| Port: M5
SSD2-WL-20-50-25		Body: Switch magnet built in \| Bore: 20 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm \| Port: M5
SSD2-WL-20-50-30		Body: Switch magnet built in \| Bore: 20 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 30 mm \| Port: M5
SSD2-WL-20-50-35		Body: Switch magnet built in \| Bore: 20 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 35 mm \| Port: M5
SSD2-WL-20-50-40		Body: Switch magnet built in \| Bore: 20 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 40 mm \| Port: M5
SSD2-WL-20-50-45		Body: Switch magnet built in \| Bore: 20 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 45 mm \| Port: M5
SSD2-WL-20-50-50		Body: Switch magnet built in \| Bore: 20 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 50 mm \| Port: M5
SSD2-WL-25-5-5		Body: Switch magnet built in \| Bore: 25 mm \| Total stroke S1: 5 mm \| 1st stage stroke S2: 5 mm \| Port: M5
SSD2-WL-25-10-5		Body: Switch magnet built in \| Bore: 25 mm \| Total stroke S1: 10 mm \| 1st stage stroke S2: 5 mm \| Port: M5
SSD2-WL-25-10-10		Body: Switch magnet built in \| Bore: 25 mm \| Total stroke S1: 10 mm \| 1st stage stroke S2: 10 mm \| Port: M5
SSD2-WL-25-15-5		Body: Switch magnet built in \| Bore: 25 mm \| Total stroke S1: 15 mm \| 1st stage stroke S2: 5 mm \| Port: M5
SSD2-WL-25-15-10		Body: Switch magnet built in \| Bore: 25 mm \| Total stroke S1: 15 mm \| 1st stage stroke S2: 10 mm \| Port: M5
SSD2-WL-25-15-15		Body: Switch magnet built in \| Bore: 25 mm \| Total stroke S1: 15 mm \| 1st stage stroke S2: 15 mm \| Port: M5
SSD2-WL-25-20-5		Body: Switch magnet built in \| Bore: 25 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 5 mm \| Port: M5
SSD2-WL-25-20-10		Body: Switch magnet built in \| Bore: 25 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 10 mm \| Port: M5
SSD2-WL-25-20-15		Body: Switch magnet built in \| Bore: 25 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 15 mm \| Port: M5
SSD2-WL-25-20-20		Body: Switch magnet built in \| Bore: 25 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 20 mm \| Port: M5
SSD2-WL-25-25-5		Body: Switch magnet built in \| Bore: 25 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 5 mm \| Port: M5
SSD2-WL-25-25-10		Body: Switch magnet built in \| Bore: 25 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 10 mm \| Port: M5
SSD2-WL-25-25-15		Body: Switch magnet built in \| Bore: 25 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 15 mm \| Port: M5
SSD2-WL-25-25-20		Body: Switch magnet built in \| Bore: 25 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 20 mm \| Port: M5
SSD2-WL-25-25-25		Body: Switch magnet built in \| Bore: 25 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 25 mm \| Port: M5
SSD2-WL-25-30-5		Body: Switch magnet built in \| Bore: 25 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 5 mm \| Port: M5
SSD2-WL-25-30-10		Body: Switch magnet built in \| Bore: 25 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 10 mm \| Port: M5
SSD2-WL-25-30-15		Body: Switch magnet built in \| Bore: 25 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 15 mm \| Port: M5
SSD2-WL-25-30-20		Body: Switch magnet built in \| Bore: 25 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 20 mm \| Port: M5
SSD2-WL-25-30-25		Body: Switch magnet built in \| Bore: 25 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 25 mm \| Port: M5
SSD2-WL-25-30-30		Body: Switch magnet built in \| Bore: 25 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 30 mm \| Port: M5
SSD2-WL-25-35-5		Body: Switch magnet built in \| Bore: 25 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 5 mm \| Port: M5
SSD2-WL-25-35-10		Body: Switch magnet built in \| Bore: 25 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 10 mm \| Port: M5
SSD2-WL-25-35-15		Body: Switch magnet built in \| Bore: 25 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 15 mm \| Port: M5
SSD2-WL-25-35-20		Body: Switch magnet built in \| Bore: 25 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 20 mm \| Port: M5
SSD2-WL-25-35-25		Body: Switch magnet built in \| Bore: 25 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 25 mm \| Port: M5
SSD2-WL-25-35-30		Body: Switch magnet built in \| Bore: 25 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 30 mm \| Port: M5
SSD2-WL-25-35-35		Body: Switch magnet built in \| Bore: 25 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 35 mm \| Port: M5
SSD2-WL-25-40-5		Body: Switch magnet built in \| Bore: 25 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 5 mm \| Port: M5
SSD2-WL-25-40-10		Body: Switch magnet built in \| Bore: 25 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 10 mm \| Port: M5
SSD2-WL-25-40-15		Body: Switch magnet built in \| Bore: 25 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 15 mm \| Port: M5
SSD2-WL-25-40-20		Body: Switch magnet built in \| Bore: 25 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 20 mm \| Port: M5
SSD2-WL-25-40-25		Body: Switch magnet built in \| Bore: 25 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 25 mm \| Port: M5
SSD2-WL-25-40-30		Body: Switch magnet built in \| Bore: 25 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 30 mm \| Port: M5
SSD2-WL-25-40-35		Body: Switch magnet built in \| Bore: 25 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 35 mm \| Port: M5
SSD2-WL-25-40-40		Body: Switch magnet built in \| Bore: 25 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 40 mm \| Port: M5
SSD2-WL-25-45-5		Body: Switch magnet built in \| Bore: 25 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 5 mm \| Port: M5
SSD2-WL-25-45-10		Body: Switch magnet built in \| Bore: 25 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 10 mm \| Port: M5
SSD2-WL-25-45-15		Body: Switch magnet built in \| Bore: 25 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 15 mm \| Port: M5
SSD2-WL-25-45-20		Body: Switch magnet built in \| Bore: 25 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 20 mm \| Port: M5
SSD2-WL-25-45-25		Body: Switch magnet built in \| Bore: 25 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 25 mm \| Port: M5
SSD2-WL-25-45-30		Body: Switch magnet built in \| Bore: 25 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 30 mm \| Port: M5
SSD2-WL-25-45-35		Body: Switch magnet built in \| Bore: 25 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 35 mm \| Port: M5
SSD2-WL-25-45-40		Body: Switch magnet built in \| Bore: 25 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 40 mm \| Port: M5
SSD2-WL-25-45-45		Body: Switch magnet built in \| Bore: 25 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 45 mm \| Port: M5
SSD2-WL-25-50-5		Body: Switch magnet built in \| Bore: 25 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 5 mm \| Port: M5
SSD2-WL-25-50-10		Body: Switch magnet built in \| Bore: 25 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 10 mm \| Port: M5
SSD2-WL-25-50-15		Body: Switch magnet built in \| Bore: 25 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 15 mm \| Port: M5
SSD2-WL-25-50-20		Body: Switch magnet built in \| Bore: 25 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 20 mm \| Port: M5
SSD2-WL-25-50-25		Body: Switch magnet built in \| Bore: 25 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm \| Port: M5
SSD2-WL-25-50-30		Body: Switch magnet built in \| Bore: 25 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 30 mm \| Port: M5
SSD2-WL-25-50-35		Body: Switch magnet built in \| Bore: 25 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 35 mm \| Port: M5
SSD2-WL-25-50-40		Body: Switch magnet built in \| Bore: 25 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 40 mm \| Port: M5
SSD2-WL-25-50-45		Body: Switch magnet built in \| Bore: 25 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 45 mm \| Port: M5
SSD2-WL-25-50-50		Body: Switch magnet built in \| Bore: 25 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 50 mm \| Port: M5
SSD2-WL-32-5-5		Body: Switch magnet built in \| Bore: 32 mm \| Total stroke S1: 5 mm \| 1st stage stroke S2: 5 mm \| Port: Rc1/8
SSD2-WL-32-10-5		Body: Switch magnet built in \| Bore: 32 mm \| Total stroke S1: 10 mm \| 1st stage stroke S2: 5 mm \| Port: Rc1/8
SSD2-WL-32-10-10		Body: Switch magnet built in \| Bore: 32 mm \| Total stroke S1: 10 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/8
SSD2-WL-32-15-5		Body: Switch magnet built in \| Bore: 32 mm \| Total stroke S1: 15 mm \| 1st stage stroke S2: 5 mm \| Port: Rc1/8
SSD2-WL-32-15-10		Body: Switch magnet built in \| Bore: 32 mm \| Total stroke S1: 15 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/8
SSD2-WL-32-15-15		Body: Switch magnet built in \| Bore: 32 mm \| Total stroke S1: 15 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/8
SSD2-WL-32-20-5		Body: Switch magnet built in \| Bore: 32 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 5 mm \| Port: Rc1/8
SSD2-WL-32-20-10		Body: Switch magnet built in \| Bore: 32 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/8
SSD2-WL-32-20-15		Body: Switch magnet built in \| Bore: 32 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/8
SSD2-WL-32-20-20		Body: Switch magnet built in \| Bore: 32 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 20 mm \| Port: Rc1/8
SSD2-WL-32-25-5		Body: Switch magnet built in \| Bore: 32 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 5 mm \| Port: Rc1/8
SSD2-WL-32-25-10		Body: Switch magnet built in \| Bore: 32 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/8
SSD2-WL-32-25-15		Body: Switch magnet built in \| Bore: 32 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/8
SSD2-WL-32-25-20		Body: Switch magnet built in \| Bore: 32 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 20 mm \| Port: Rc1/8
SSD2-WL-32-25-25		Body: Switch magnet built in \| Bore: 32 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 25 mm \| Port: Rc1/8
SSD2-WL-32-30-5		Body: Switch magnet built in \| Bore: 32 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 5 mm \| Port: Rc1/8
SSD2-WL-32-30-10		Body: Switch magnet built in \| Bore: 32 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/8
SSD2-WL-32-30-15		Body: Switch magnet built in \| Bore: 32 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/8
SSD2-WL-32-30-20		Body: Switch magnet built in \| Bore: 32 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 20 mm \| Port: Rc1/8
SSD2-WL-32-30-25		Body: Switch magnet built in \| Bore: 32 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 25 mm \| Port: Rc1/8
SSD2-WL-32-30-30		Body: Switch magnet built in \| Bore: 32 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 30 mm \| Port: Rc1/8
SSD2-WL-32-35-5		Body: Switch magnet built in \| Bore: 32 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 5 mm \| Port: Rc1/8
SSD2-WL-32-35-10		Body: Switch magnet built in \| Bore: 32 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/8
SSD2-WL-32-35-15		Body: Switch magnet built in \| Bore: 32 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/8
SSD2-WL-32-35-20		Body: Switch magnet built in \| Bore: 32 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 20 mm \| Port: Rc1/8
SSD2-WL-32-35-25		Body: Switch magnet built in \| Bore: 32 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 25 mm \| Port: Rc1/8
SSD2-WL-32-35-30		Body: Switch magnet built in \| Bore: 32 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 30 mm \| Port: Rc1/8
SSD2-WL-32-35-35		Body: Switch magnet built in \| Bore: 32 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 35 mm \| Port: Rc1/8
SSD2-WL-32-40-5		Body: Switch magnet built in \| Bore: 32 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 5 mm \| Port: Rc1/8
SSD2-WL-32-40-10		Body: Switch magnet built in \| Bore: 32 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/8
SSD2-WL-32-40-15		Body: Switch magnet built in \| Bore: 32 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/8
SSD2-WL-32-40-20		Body: Switch magnet built in \| Bore: 32 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 20 mm \| Port: Rc1/8
SSD2-WL-32-40-25		Body: Switch magnet built in \| Bore: 32 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 25 mm \| Port: Rc1/8
SSD2-WL-32-40-30		Body: Switch magnet built in \| Bore: 32 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 30 mm \| Port: Rc1/8
SSD2-WL-32-40-35		Body: Switch magnet built in \| Bore: 32 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 35 mm \| Port: Rc1/8
SSD2-WL-32-40-40		Body: Switch magnet built in \| Bore: 32 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 40 mm \| Port: Rc1/8
SSD2-WL-32-45-5		Body: Switch magnet built in \| Bore: 32 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 5 mm \| Port: Rc1/8
SSD2-WL-32-45-10		Body: Switch magnet built in \| Bore: 32 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/8
SSD2-WL-32-45-15		Body: Switch magnet built in \| Bore: 32 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/8
SSD2-WL-32-45-20		Body: Switch magnet built in \| Bore: 32 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 20 mm \| Port: Rc1/8
SSD2-WL-32-45-25		Body: Switch magnet built in \| Bore: 32 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 25 mm \| Port: Rc1/8
SSD2-WL-32-45-30		Body: Switch magnet built in \| Bore: 32 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 30 mm \| Port: Rc1/8
SSD2-WL-32-45-35		Body: Switch magnet built in \| Bore: 32 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 35 mm \| Port: Rc1/8
SSD2-WL-32-45-40		Body: Switch magnet built in \| Bore: 32 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 40 mm \| Port: Rc1/8
SSD2-WL-32-45-45		Body: Switch magnet built in \| Bore: 32 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 45 mm \| Port: Rc1/8
SSD2-WL-32-50-5		Body: Switch magnet built in \| Bore: 32 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 5 mm \| Port: Rc1/8
SSD2-WL-32-50-10		Body: Switch magnet built in \| Bore: 32 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/8
SSD2-WL-32-50-15		Body: Switch magnet built in \| Bore: 32 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/8
SSD2-WL-32-50-20		Body: Switch magnet built in \| Bore: 32 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 20 mm \| Port: Rc1/8
SSD2-WL-32-50-25		Body: Switch magnet built in \| Bore: 32 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm \| Port: Rc1/8
SSD2-WL-32-50-30		Body: Switch magnet built in \| Bore: 32 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 30 mm \| Port: Rc1/8
SSD2-WL-32-50-35		Body: Switch magnet built in \| Bore: 32 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 35 mm \| Port: Rc1/8
SSD2-WL-32-50-40		Body: Switch magnet built in \| Bore: 32 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 40 mm \| Port: Rc1/8
SSD2-WL-32-50-45		Body: Switch magnet built in \| Bore: 32 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 45 mm \| Port: Rc1/8
SSD2-WL-32-50-50		Body: Switch magnet built in \| Bore: 32 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 50 mm \| Port: Rc1/8
SSD2-WL-40-5-5		Body: Switch magnet built in \| Bore: 40 mm \| Total stroke S1: 5 mm \| 1st stage stroke S2: 5 mm \| Port: Rc1/8
SSD2-WL-40-10-5		Body: Switch magnet built in \| Bore: 40 mm \| Total stroke S1: 10 mm \| 1st stage stroke S2: 5 mm \| Port: Rc1/8
SSD2-WL-40-10-10		Body: Switch magnet built in \| Bore: 40 mm \| Total stroke S1: 10 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/8
SSD2-WL-40-15-5		Body: Switch magnet built in \| Bore: 40 mm \| Total stroke S1: 15 mm \| 1st stage stroke S2: 5 mm \| Port: Rc1/8
SSD2-WL-40-15-10		Body: Switch magnet built in \| Bore: 40 mm \| Total stroke S1: 15 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/8
SSD2-WL-40-15-15		Body: Switch magnet built in \| Bore: 40 mm \| Total stroke S1: 15 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/8
SSD2-WL-40-20-5		Body: Switch magnet built in \| Bore: 40 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 5 mm \| Port: Rc1/8
SSD2-WL-40-20-10		Body: Switch magnet built in \| Bore: 40 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/8
SSD2-WL-40-20-15		Body: Switch magnet built in \| Bore: 40 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/8
SSD2-WL-40-20-20		Body: Switch magnet built in \| Bore: 40 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 20 mm \| Port: Rc1/8
SSD2-WL-40-25-5		Body: Switch magnet built in \| Bore: 40 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 5 mm \| Port: Rc1/8
SSD2-WL-40-25-10		Body: Switch magnet built in \| Bore: 40 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/8
SSD2-WL-40-25-15		Body: Switch magnet built in \| Bore: 40 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/8
SSD2-WL-40-25-20		Body: Switch magnet built in \| Bore: 40 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 20 mm \| Port: Rc1/8
SSD2-WL-40-25-25		Body: Switch magnet built in \| Bore: 40 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 25 mm \| Port: Rc1/8
SSD2-WL-40-30-5		Body: Switch magnet built in \| Bore: 40 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 5 mm \| Port: Rc1/8
SSD2-WL-40-30-10		Body: Switch magnet built in \| Bore: 40 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/8
SSD2-WL-40-30-15		Body: Switch magnet built in \| Bore: 40 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/8
SSD2-WL-40-30-20		Body: Switch magnet built in \| Bore: 40 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 20 mm \| Port: Rc1/8
SSD2-WL-40-30-25		Body: Switch magnet built in \| Bore: 40 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 25 mm \| Port: Rc1/8
SSD2-WL-40-30-30		Body: Switch magnet built in \| Bore: 40 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 30 mm \| Port: Rc1/8
SSD2-WL-40-35-5		Body: Switch magnet built in \| Bore: 40 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 5 mm \| Port: Rc1/8
SSD2-WL-40-35-10		Body: Switch magnet built in \| Bore: 40 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/8
SSD2-WL-40-35-15		Body: Switch magnet built in \| Bore: 40 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/8
SSD2-WL-40-35-20		Body: Switch magnet built in \| Bore: 40 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 20 mm \| Port: Rc1/8
SSD2-WL-40-35-25		Body: Switch magnet built in \| Bore: 40 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 25 mm \| Port: Rc1/8
SSD2-WL-40-35-30		Body: Switch magnet built in \| Bore: 40 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 30 mm \| Port: Rc1/8
SSD2-WL-40-35-35		Body: Switch magnet built in \| Bore: 40 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 35 mm \| Port: Rc1/8
SSD2-WL-40-40-5		Body: Switch magnet built in \| Bore: 40 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 5 mm \| Port: Rc1/8
SSD2-WL-40-40-10		Body: Switch magnet built in \| Bore: 40 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/8
SSD2-WL-40-40-15		Body: Switch magnet built in \| Bore: 40 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/8
SSD2-WL-40-40-20		Body: Switch magnet built in \| Bore: 40 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 20 mm \| Port: Rc1/8
SSD2-WL-40-40-25		Body: Switch magnet built in \| Bore: 40 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 25 mm \| Port: Rc1/8
SSD2-WL-40-40-30		Body: Switch magnet built in \| Bore: 40 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 30 mm \| Port: Rc1/8
SSD2-WL-40-40-35		Body: Switch magnet built in \| Bore: 40 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 35 mm \| Port: Rc1/8
SSD2-WL-40-40-40		Body: Switch magnet built in \| Bore: 40 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 40 mm \| Port: Rc1/8
SSD2-WL-40-45-5		Body: Switch magnet built in \| Bore: 40 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 5 mm \| Port: Rc1/8
SSD2-WL-40-45-10		Body: Switch magnet built in \| Bore: 40 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/8
SSD2-WL-40-45-15		Body: Switch magnet built in \| Bore: 40 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/8
SSD2-WL-40-45-20		Body: Switch magnet built in \| Bore: 40 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 20 mm \| Port: Rc1/8
SSD2-WL-40-45-25		Body: Switch magnet built in \| Bore: 40 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 25 mm \| Port: Rc1/8
SSD2-WL-40-45-30		Body: Switch magnet built in \| Bore: 40 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 30 mm \| Port: Rc1/8
SSD2-WL-40-45-35		Body: Switch magnet built in \| Bore: 40 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 35 mm \| Port: Rc1/8
SSD2-WL-40-45-40		Body: Switch magnet built in \| Bore: 40 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 40 mm \| Port: Rc1/8
SSD2-WL-40-45-45		Body: Switch magnet built in \| Bore: 40 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 45 mm \| Port: Rc1/8
SSD2-WL-40-50-5		Body: Switch magnet built in \| Bore: 40 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 5 mm \| Port: Rc1/8
SSD2-WL-40-50-10		Body: Switch magnet built in \| Bore: 40 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/8
SSD2-WL-40-50-15		Body: Switch magnet built in \| Bore: 40 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/8
SSD2-WL-40-50-20		Body: Switch magnet built in \| Bore: 40 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 20 mm \| Port: Rc1/8
SSD2-WL-40-50-25		Body: Switch magnet built in \| Bore: 40 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm \| Port: Rc1/8
SSD2-WL-40-50-30		Body: Switch magnet built in \| Bore: 40 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 30 mm \| Port: Rc1/8
SSD2-WL-40-50-35		Body: Switch magnet built in \| Bore: 40 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 35 mm \| Port: Rc1/8
SSD2-WL-40-50-40		Body: Switch magnet built in \| Bore: 40 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 40 mm \| Port: Rc1/8
SSD2-WL-40-50-45		Body: Switch magnet built in \| Bore: 40 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 45 mm \| Port: Rc1/8
SSD2-WL-40-50-50		Body: Switch magnet built in \| Bore: 40 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 50 mm \| Port: Rc1/8
SSD2-WL-50-10-10		Body: Switch magnet built in \| Bore: 50 mm \| Total stroke S1: 10 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/4
SSD2-WL-50-15-10		Body: Switch magnet built in \| Bore: 50 mm \| Total stroke S1: 15 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/4
SSD2-WL-50-15-15		Body: Switch magnet built in \| Bore: 50 mm \| Total stroke S1: 15 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/4
SSD2-WL-50-20-10		Body: Switch magnet built in \| Bore: 50 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/4
SSD2-WL-50-20-15		Body: Switch magnet built in \| Bore: 50 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/4
SSD2-WL-50-20-20		Body: Switch magnet built in \| Bore: 50 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 20 mm \| Port: Rc1/4
SSD2-WL-50-25-10		Body: Switch magnet built in \| Bore: 50 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/4
SSD2-WL-50-25-15		Body: Switch magnet built in \| Bore: 50 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/4
SSD2-WL-50-25-20		Body: Switch magnet built in \| Bore: 50 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 20 mm \| Port: Rc1/4
SSD2-WL-50-25-25		Body: Switch magnet built in \| Bore: 50 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 25 mm \| Port: Rc1/4
SSD2-WL-50-30-10		Body: Switch magnet built in \| Bore: 50 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/4
SSD2-WL-50-30-15		Body: Switch magnet built in \| Bore: 50 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/4
SSD2-WL-50-30-20		Body: Switch magnet built in \| Bore: 50 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 20 mm \| Port: Rc1/4
SSD2-WL-50-30-25		Body: Switch magnet built in \| Bore: 50 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 25 mm \| Port: Rc1/4
SSD2-WL-50-30-30		Body: Switch magnet built in \| Bore: 50 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 30 mm \| Port: Rc1/4
SSD2-WL-50-35-10		Body: Switch magnet built in \| Bore: 50 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/4
SSD2-WL-50-35-15		Body: Switch magnet built in \| Bore: 50 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/4
SSD2-WL-50-35-20		Body: Switch magnet built in \| Bore: 50 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 20 mm \| Port: Rc1/4
SSD2-WL-50-35-25		Body: Switch magnet built in \| Bore: 50 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 25 mm \| Port: Rc1/4
SSD2-WL-50-35-30		Body: Switch magnet built in \| Bore: 50 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 30 mm \| Port: Rc1/4
SSD2-WL-50-35-35		Body: Switch magnet built in \| Bore: 50 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 35 mm \| Port: Rc1/4
SSD2-WL-50-40-10		Body: Switch magnet built in \| Bore: 50 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/4
SSD2-WL-50-40-15		Body: Switch magnet built in \| Bore: 50 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/4
SSD2-WL-50-40-20		Body: Switch magnet built in \| Bore: 50 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 20 mm \| Port: Rc1/4
SSD2-WL-50-40-25		Body: Switch magnet built in \| Bore: 50 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 25 mm \| Port: Rc1/4
SSD2-WL-50-40-30		Body: Switch magnet built in \| Bore: 50 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 30 mm \| Port: Rc1/4
SSD2-WL-50-40-35		Body: Switch magnet built in \| Bore: 50 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 35 mm \| Port: Rc1/4
SSD2-WL-50-40-40		Body: Switch magnet built in \| Bore: 50 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 40 mm \| Port: Rc1/4
SSD2-WL-50-45-10		Body: Switch magnet built in \| Bore: 50 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/4
SSD2-WL-50-45-15		Body: Switch magnet built in \| Bore: 50 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/4
SSD2-WL-50-45-20		Body: Switch magnet built in \| Bore: 50 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 20 mm \| Port: Rc1/4
SSD2-WL-50-45-25		Body: Switch magnet built in \| Bore: 50 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 25 mm \| Port: Rc1/4
SSD2-WL-50-45-30		Body: Switch magnet built in \| Bore: 50 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 30 mm \| Port: Rc1/4
SSD2-WL-50-45-35		Body: Switch magnet built in \| Bore: 50 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 35 mm \| Port: Rc1/4
SSD2-WL-50-45-40		Body: Switch magnet built in \| Bore: 50 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 40 mm \| Port: Rc1/4
SSD2-WL-50-45-45		Body: Switch magnet built in \| Bore: 50 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 45 mm \| Port: Rc1/4
SSD2-WL-50-50-10		Body: Switch magnet built in \| Bore: 50 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/4
SSD2-WL-50-50-15		Body: Switch magnet built in \| Bore: 50 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/4
SSD2-WL-50-50-20		Body: Switch magnet built in \| Bore: 50 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 20 mm \| Port: Rc1/4
SSD2-WL-50-50-25		Body: Switch magnet built in \| Bore: 50 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm \| Port: Rc1/4
SSD2-WL-50-50-30		Body: Switch magnet built in \| Bore: 50 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 30 mm \| Port: Rc1/4
SSD2-WL-50-50-35		Body: Switch magnet built in \| Bore: 50 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 35 mm \| Port: Rc1/4
SSD2-WL-50-50-40		Body: Switch magnet built in \| Bore: 50 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 40 mm \| Port: Rc1/4
SSD2-WL-50-50-45		Body: Switch magnet built in \| Bore: 50 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 45 mm \| Port: Rc1/4
SSD2-WL-50-50-50		Body: Switch magnet built in \| Bore: 50 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 50 mm \| Port: Rc1/4
SSD2-WL-63-10-10		Body: Switch magnet built in \| Bore: 63 mm \| Total stroke S1: 10 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/4
SSD2-WL-63-15-10		Body: Switch magnet built in \| Bore: 63 mm \| Total stroke S1: 15 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/4
SSD2-WL-63-15-15		Body: Switch magnet built in \| Bore: 63 mm \| Total stroke S1: 15 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/4
SSD2-WL-63-20-10		Body: Switch magnet built in \| Bore: 63 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/4
SSD2-WL-63-20-15		Body: Switch magnet built in \| Bore: 63 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/4
SSD2-WL-63-20-20		Body: Switch magnet built in \| Bore: 63 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 20 mm \| Port: Rc1/4
SSD2-WL-63-25-10		Body: Switch magnet built in \| Bore: 63 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/4
SSD2-WL-63-25-15		Body: Switch magnet built in \| Bore: 63 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/4
SSD2-WL-63-25-20		Body: Switch magnet built in \| Bore: 63 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 20 mm \| Port: Rc1/4
SSD2-WL-63-25-25		Body: Switch magnet built in \| Bore: 63 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 25 mm \| Port: Rc1/4
SSD2-WL-63-30-10		Body: Switch magnet built in \| Bore: 63 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/4
SSD2-WL-63-30-15		Body: Switch magnet built in \| Bore: 63 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/4
SSD2-WL-63-30-20		Body: Switch magnet built in \| Bore: 63 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 20 mm \| Port: Rc1/4
SSD2-WL-63-30-25		Body: Switch magnet built in \| Bore: 63 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 25 mm \| Port: Rc1/4
SSD2-WL-63-30-30		Body: Switch magnet built in \| Bore: 63 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 30 mm \| Port: Rc1/4
SSD2-WL-63-35-10		Body: Switch magnet built in \| Bore: 63 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/4
SSD2-WL-63-35-15		Body: Switch magnet built in \| Bore: 63 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/4
SSD2-WL-63-35-20		Body: Switch magnet built in \| Bore: 63 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 20 mm \| Port: Rc1/4
SSD2-WL-63-35-25		Body: Switch magnet built in \| Bore: 63 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 25 mm \| Port: Rc1/4
SSD2-WL-63-35-30		Body: Switch magnet built in \| Bore: 63 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 30 mm \| Port: Rc1/4
SSD2-WL-63-35-35		Body: Switch magnet built in \| Bore: 63 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 35 mm \| Port: Rc1/4
SSD2-WL-63-40-10		Body: Switch magnet built in \| Bore: 63 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/4
SSD2-WL-63-40-15		Body: Switch magnet built in \| Bore: 63 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/4
SSD2-WL-63-40-20		Body: Switch magnet built in \| Bore: 63 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 20 mm \| Port: Rc1/4
SSD2-WL-63-40-25		Body: Switch magnet built in \| Bore: 63 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 25 mm \| Port: Rc1/4
SSD2-WL-63-40-30		Body: Switch magnet built in \| Bore: 63 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 30 mm \| Port: Rc1/4
SSD2-WL-63-40-35		Body: Switch magnet built in \| Bore: 63 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 35 mm \| Port: Rc1/4
SSD2-WL-63-40-40		Body: Switch magnet built in \| Bore: 63 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 40 mm \| Port: Rc1/4
SSD2-WL-63-45-10		Body: Switch magnet built in \| Bore: 63 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/4
SSD2-WL-63-45-15		Body: Switch magnet built in \| Bore: 63 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/4
SSD2-WL-63-45-20		Body: Switch magnet built in \| Bore: 63 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 20 mm \| Port: Rc1/4
SSD2-WL-63-45-25		Body: Switch magnet built in \| Bore: 63 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 25 mm \| Port: Rc1/4
SSD2-WL-63-45-30		Body: Switch magnet built in \| Bore: 63 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 30 mm \| Port: Rc1/4
SSD2-WL-63-45-35		Body: Switch magnet built in \| Bore: 63 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 35 mm \| Port: Rc1/4
SSD2-WL-63-45-40		Body: Switch magnet built in \| Bore: 63 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 40 mm \| Port: Rc1/4
SSD2-WL-63-45-45		Body: Switch magnet built in \| Bore: 63 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 45 mm \| Port: Rc1/4
SSD2-WL-63-50-10		Body: Switch magnet built in \| Bore: 63 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/4
SSD2-WL-63-50-15		Body: Switch magnet built in \| Bore: 63 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/4
SSD2-WL-63-50-20		Body: Switch magnet built in \| Bore: 63 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 20 mm \| Port: Rc1/4
SSD2-WL-63-50-25		Body: Switch magnet built in \| Bore: 63 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm \| Port: Rc1/4
SSD2-WL-63-50-30		Body: Switch magnet built in \| Bore: 63 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 30 mm \| Port: Rc1/4
SSD2-WL-63-50-35		Body: Switch magnet built in \| Bore: 63 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 35 mm \| Port: Rc1/4
SSD2-WL-63-50-40		Body: Switch magnet built in \| Bore: 63 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 40 mm \| Port: Rc1/4
SSD2-WL-63-50-45		Body: Switch magnet built in \| Bore: 63 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 45 mm \| Port: Rc1/4
SSD2-WL-63-50-50		Body: Switch magnet built in \| Bore: 63 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 50 mm \| Port: Rc1/4
SSD2-WL-80-10-10		Body: Switch magnet built in \| Bore: 80 mm \| Total stroke S1: 10 mm \| 1st stage stroke S2: 10 mm \| Port: Rc3/8
SSD2-WL-80-15-10		Body: Switch magnet built in \| Bore: 80 mm \| Total stroke S1: 15 mm \| 1st stage stroke S2: 10 mm \| Port: Rc3/8
SSD2-WL-80-15-15		Body: Switch magnet built in \| Bore: 80 mm \| Total stroke S1: 15 mm \| 1st stage stroke S2: 15 mm \| Port: Rc3/8
SSD2-WL-80-20-10		Body: Switch magnet built in \| Bore: 80 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 10 mm \| Port: Rc3/8
SSD2-WL-80-20-15		Body: Switch magnet built in \| Bore: 80 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 15 mm \| Port: Rc3/8
SSD2-WL-80-20-20		Body: Switch magnet built in \| Bore: 80 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 20 mm \| Port: Rc3/8
SSD2-WL-80-25-10		Body: Switch magnet built in \| Bore: 80 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 10 mm \| Port: Rc3/8
SSD2-WL-80-25-15		Body: Switch magnet built in \| Bore: 80 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 15 mm \| Port: Rc3/8
SSD2-WL-80-25-20		Body: Switch magnet built in \| Bore: 80 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 20 mm \| Port: Rc3/8
SSD2-WL-80-25-25		Body: Switch magnet built in \| Bore: 80 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 25 mm \| Port: Rc3/8
SSD2-WL-80-30-10		Body: Switch magnet built in \| Bore: 80 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 10 mm \| Port: Rc3/8
SSD2-WL-80-30-15		Body: Switch magnet built in \| Bore: 80 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 15 mm \| Port: Rc3/8
SSD2-WL-80-30-20		Body: Switch magnet built in \| Bore: 80 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 20 mm \| Port: Rc3/8
SSD2-WL-80-30-25		Body: Switch magnet built in \| Bore: 80 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 25 mm \| Port: Rc3/8
SSD2-WL-80-30-30		Body: Switch magnet built in \| Bore: 80 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 30 mm \| Port: Rc3/8
SSD2-WL-80-35-10		Body: Switch magnet built in \| Bore: 80 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 10 mm \| Port: Rc3/8
SSD2-WL-80-35-15		Body: Switch magnet built in \| Bore: 80 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 15 mm \| Port: Rc3/8
SSD2-WL-80-35-20		Body: Switch magnet built in \| Bore: 80 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 20 mm \| Port: Rc3/8
SSD2-WL-80-35-25		Body: Switch magnet built in \| Bore: 80 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 25 mm \| Port: Rc3/8
SSD2-WL-80-35-30		Body: Switch magnet built in \| Bore: 80 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 30 mm \| Port: Rc3/8
SSD2-WL-80-35-35		Body: Switch magnet built in \| Bore: 80 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 35 mm \| Port: Rc3/8
SSD2-WL-80-40-10		Body: Switch magnet built in \| Bore: 80 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 10 mm \| Port: Rc3/8
SSD2-WL-80-40-15		Body: Switch magnet built in \| Bore: 80 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 15 mm \| Port: Rc3/8
SSD2-WL-80-40-20		Body: Switch magnet built in \| Bore: 80 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 20 mm \| Port: Rc3/8
SSD2-WL-80-40-25		Body: Switch magnet built in \| Bore: 80 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 25 mm \| Port: Rc3/8
SSD2-WL-80-40-30		Body: Switch magnet built in \| Bore: 80 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 30 mm \| Port: Rc3/8
SSD2-WL-80-40-35		Body: Switch magnet built in \| Bore: 80 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 35 mm \| Port: Rc3/8
SSD2-WL-80-40-40		Body: Switch magnet built in \| Bore: 80 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 40 mm \| Port: Rc3/8
SSD2-WL-80-45-10		Body: Switch magnet built in \| Bore: 80 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 10 mm \| Port: Rc3/8
SSD2-WL-80-45-15		Body: Switch magnet built in \| Bore: 80 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 15 mm \| Port: Rc3/8
SSD2-WL-80-45-20		Body: Switch magnet built in \| Bore: 80 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 20 mm \| Port: Rc3/8
SSD2-WL-80-45-25		Body: Switch magnet built in \| Bore: 80 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 25 mm \| Port: Rc3/8
SSD2-WL-80-45-30		Body: Switch magnet built in \| Bore: 80 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 30 mm \| Port: Rc3/8
SSD2-WL-80-45-35		Body: Switch magnet built in \| Bore: 80 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 35 mm \| Port: Rc3/8
SSD2-WL-80-45-40		Body: Switch magnet built in \| Bore: 80 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 40 mm \| Port: Rc3/8
SSD2-WL-80-45-45		Body: Switch magnet built in \| Bore: 80 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 45 mm \| Port: Rc3/8
SSD2-WL-80-50-10		Body: Switch magnet built in \| Bore: 80 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 10 mm \| Port: Rc3/8
SSD2-WL-80-50-15		Body: Switch magnet built in \| Bore: 80 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 15 mm \| Port: Rc3/8
SSD2-WL-80-50-20		Body: Switch magnet built in \| Bore: 80 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 20 mm \| Port: Rc3/8
SSD2-WL-80-50-25		Body: Switch magnet built in \| Bore: 80 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm \| Port: Rc3/8
SSD2-WL-80-50-30		Body: Switch magnet built in \| Bore: 80 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 30 mm \| Port: Rc3/8
SSD2-WL-80-50-35		Body: Switch magnet built in \| Bore: 80 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 35 mm \| Port: Rc3/8
SSD2-WL-80-50-40		Body: Switch magnet built in \| Bore: 80 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 40 mm \| Port: Rc3/8
SSD2-WL-80-50-45		Body: Switch magnet built in \| Bore: 80 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 45 mm \| Port: Rc3/8
SSD2-WL-80-50-50		Body: Switch magnet built in \| Bore: 80 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 50 mm \| Port: Rc3/8
SSD2-WL-100-10-10		Body: Switch magnet built in \| Bore: 100 mm \| Total stroke S1: 10 mm \| 1st stage stroke S2: 10 mm \| Port: Rc3/8
SSD2-WL-100-15-10		Body: Switch magnet built in \| Bore: 100 mm \| Total stroke S1: 15 mm \| 1st stage stroke S2: 10 mm \| Port: Rc3/8
SSD2-WL-100-15-15		Body: Switch magnet built in \| Bore: 100 mm \| Total stroke S1: 15 mm \| 1st stage stroke S2: 15 mm \| Port: Rc3/8
SSD2-WL-100-20-10		Body: Switch magnet built in \| Bore: 100 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 10 mm \| Port: Rc3/8
SSD2-WL-100-20-15		Body: Switch magnet built in \| Bore: 100 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 15 mm \| Port: Rc3/8
SSD2-WL-100-20-20		Body: Switch magnet built in \| Bore: 100 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 20 mm \| Port: Rc3/8
SSD2-WL-100-25-10		Body: Switch magnet built in \| Bore: 100 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 10 mm \| Port: Rc3/8
SSD2-WL-100-25-15		Body: Switch magnet built in \| Bore: 100 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 15 mm \| Port: Rc3/8
SSD2-WL-100-25-20		Body: Switch magnet built in \| Bore: 100 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 20 mm \| Port: Rc3/8
SSD2-WL-100-25-25		Body: Switch magnet built in \| Bore: 100 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 25 mm \| Port: Rc3/8
SSD2-WL-100-30-10		Body: Switch magnet built in \| Bore: 100 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 10 mm \| Port: Rc3/8
SSD2-WL-100-30-15		Body: Switch magnet built in \| Bore: 100 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 15 mm \| Port: Rc3/8
SSD2-WL-100-30-20		Body: Switch magnet built in \| Bore: 100 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 20 mm \| Port: Rc3/8
SSD2-WL-100-30-25		Body: Switch magnet built in \| Bore: 100 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 25 mm \| Port: Rc3/8
SSD2-WL-100-30-30		Body: Switch magnet built in \| Bore: 100 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 30 mm \| Port: Rc3/8
SSD2-WL-100-35-10		Body: Switch magnet built in \| Bore: 100 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 10 mm \| Port: Rc3/8
SSD2-WL-100-35-15		Body: Switch magnet built in \| Bore: 100 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 15 mm \| Port: Rc3/8
SSD2-WL-100-35-20		Body: Switch magnet built in \| Bore: 100 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 20 mm \| Port: Rc3/8
SSD2-WL-100-35-25		Body: Switch magnet built in \| Bore: 100 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 25 mm \| Port: Rc3/8
SSD2-WL-100-35-30		Body: Switch magnet built in \| Bore: 100 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 30 mm \| Port: Rc3/8
SSD2-WL-100-35-35		Body: Switch magnet built in \| Bore: 100 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 35 mm \| Port: Rc3/8
SSD2-WL-100-40-10		Body: Switch magnet built in \| Bore: 100 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 10 mm \| Port: Rc3/8
SSD2-WL-100-40-15		Body: Switch magnet built in \| Bore: 100 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 15 mm \| Port: Rc3/8
SSD2-WL-100-40-20		Body: Switch magnet built in \| Bore: 100 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 20 mm \| Port: Rc3/8
SSD2-WL-100-40-25		Body: Switch magnet built in \| Bore: 100 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 25 mm \| Port: Rc3/8
SSD2-WL-100-40-30		Body: Switch magnet built in \| Bore: 100 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 30 mm \| Port: Rc3/8
SSD2-WL-100-40-35		Body: Switch magnet built in \| Bore: 100 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 35 mm \| Port: Rc3/8
SSD2-WL-100-40-40		Body: Switch magnet built in \| Bore: 100 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 40 mm \| Port: Rc3/8
SSD2-WL-100-45-10		Body: Switch magnet built in \| Bore: 100 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 10 mm \| Port: Rc3/8
SSD2-WL-100-45-15		Body: Switch magnet built in \| Bore: 100 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 15 mm \| Port: Rc3/8
SSD2-WL-100-45-20		Body: Switch magnet built in \| Bore: 100 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 20 mm \| Port: Rc3/8
SSD2-WL-100-45-25		Body: Switch magnet built in \| Bore: 100 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 25 mm \| Port: Rc3/8
SSD2-WL-100-45-30		Body: Switch magnet built in \| Bore: 100 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 30 mm \| Port: Rc3/8
SSD2-WL-100-45-35		Body: Switch magnet built in \| Bore: 100 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 35 mm \| Port: Rc3/8
SSD2-WL-100-45-40		Body: Switch magnet built in \| Bore: 100 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 40 mm \| Port: Rc3/8
SSD2-WL-100-45-45		Body: Switch magnet built in \| Bore: 100 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 45 mm \| Port: Rc3/8
SSD2-WL-100-50-10		Body: Switch magnet built in \| Bore: 100 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 10 mm \| Port: Rc3/8
SSD2-WL-100-50-15		Body: Switch magnet built in \| Bore: 100 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 15 mm \| Port: Rc3/8
SSD2-WL-100-50-20		Body: Switch magnet built in \| Bore: 100 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 20 mm \| Port: Rc3/8
SSD2-WL-100-50-25		Body: Switch magnet built in \| Bore: 100 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm \| Port: Rc3/8
SSD2-WL-100-50-30		Body: Switch magnet built in \| Bore: 100 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 30 mm \| Port: Rc3/8
SSD2-WL-100-50-35		Body: Switch magnet built in \| Bore: 100 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 35 mm \| Port: Rc3/8
SSD2-WL-100-50-40		Body: Switch magnet built in \| Bore: 100 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 40 mm \| Port: Rc3/8
SSD2-WL-100-50-45		Body: Switch magnet built in \| Bore: 100 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 45 mm \| Port: Rc3/8
SSD2-WL-100-50-50		Body: Switch magnet built in \| Bore: 100 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 50 mm \| Port: Rc3/8

Compact CylindersCKD

884 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD SSD2-W Super Compact Cylinder (Two-Stage)

Brand CKD·Compact Cylinders

Available part numbers (884)

SSD2-W-12-5-5, SSD2-W-12-10-5, SSD2-W-12-10-10, SSD2-W-12-15-5, SSD2-W-12-15-10, SSD2-W-12-15-15, SSD2-W-12-20-5, SSD2-W-12-20-10, SSD2-W-12-20-15, SSD2-W-12-20-20 + 874 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	SSD2-W-12-5-5	Body: No switch magnet \| Bore: 12 mm \| Total stroke S1: 5 mm \| 1st stage stroke S2: 5 mm \| Port: M5
	SSD2-W-12-10-5	Body: No switch magnet \| Bore: 12 mm \| Total stroke S1: 10 mm \| 1st stage stroke S2: 5 mm \| Port: M5
	SSD2-W-12-10-10	Body: No switch magnet \| Bore: 12 mm \| Total stroke S1: 10 mm \| 1st stage stroke S2: 10 mm \| Port: M5
	SSD2-W-12-15-5	Body: No switch magnet \| Bore: 12 mm \| Total stroke S1: 15 mm \| 1st stage stroke S2: 5 mm \| Port: M5
	SSD2-W-12-15-10	Body: No switch magnet \| Bore: 12 mm \| Total stroke S1: 15 mm \| 1st stage stroke S2: 10 mm \| Port: M5
	SSD2-W-12-15-15	Body: No switch magnet \| Bore: 12 mm \| Total stroke S1: 15 mm \| 1st stage stroke S2: 15 mm \| Port: M5
	SSD2-W-12-20-5	Body: No switch magnet \| Bore: 12 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 5 mm \| Port: M5
	SSD2-W-12-20-10	Body: No switch magnet \| Bore: 12 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 10 mm \| Port: M5
	SSD2-W-12-20-15	Body: No switch magnet \| Bore: 12 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 15 mm \| Port: M5
	SSD2-W-12-20-20	Body: No switch magnet \| Bore: 12 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 20 mm \| Port: M5
	SSD2-W-12-25-5	Body: No switch magnet \| Bore: 12 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 5 mm \| Port: M5
	SSD2-W-12-25-10	Body: No switch magnet \| Bore: 12 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 10 mm \| Port: M5
	SSD2-W-12-25-15	Body: No switch magnet \| Bore: 12 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 15 mm \| Port: M5
	SSD2-W-12-25-20	Body: No switch magnet \| Bore: 12 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 20 mm \| Port: M5
	SSD2-W-12-25-25	Body: No switch magnet \| Bore: 12 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 25 mm \| Port: M5
	SSD2-W-12-30-5	Body: No switch magnet \| Bore: 12 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 5 mm \| Port: M5
	SSD2-W-12-30-10	Body: No switch magnet \| Bore: 12 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 10 mm \| Port: M5
	SSD2-W-12-30-15	Body: No switch magnet \| Bore: 12 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 15 mm \| Port: M5
	SSD2-W-12-30-20	Body: No switch magnet \| Bore: 12 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 20 mm \| Port: M5
	SSD2-W-12-30-25	Body: No switch magnet \| Bore: 12 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 25 mm \| Port: M5
	SSD2-W-12-30-30	Body: No switch magnet \| Bore: 12 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 30 mm \| Port: M5
	SSD2-W-16-5-5	Body: No switch magnet \| Bore: 16 mm \| Total stroke S1: 5 mm \| 1st stage stroke S2: 5 mm \| Port: M5
	SSD2-W-16-10-5	Body: No switch magnet \| Bore: 16 mm \| Total stroke S1: 10 mm \| 1st stage stroke S2: 5 mm \| Port: M5
	SSD2-W-16-10-10	Body: No switch magnet \| Bore: 16 mm \| Total stroke S1: 10 mm \| 1st stage stroke S2: 10 mm \| Port: M5
	SSD2-W-16-15-5	Body: No switch magnet \| Bore: 16 mm \| Total stroke S1: 15 mm \| 1st stage stroke S2: 5 mm \| Port: M5
	SSD2-W-16-15-10	Body: No switch magnet \| Bore: 16 mm \| Total stroke S1: 15 mm \| 1st stage stroke S2: 10 mm \| Port: M5
	SSD2-W-16-15-15	Body: No switch magnet \| Bore: 16 mm \| Total stroke S1: 15 mm \| 1st stage stroke S2: 15 mm \| Port: M5
	SSD2-W-16-20-5	Body: No switch magnet \| Bore: 16 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 5 mm \| Port: M5
	SSD2-W-16-20-10	Body: No switch magnet \| Bore: 16 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 10 mm \| Port: M5
	SSD2-W-16-20-15	Body: No switch magnet \| Bore: 16 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 15 mm \| Port: M5
	SSD2-W-16-20-20	Body: No switch magnet \| Bore: 16 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 20 mm \| Port: M5
	SSD2-W-16-25-5	Body: No switch magnet \| Bore: 16 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 5 mm \| Port: M5
	SSD2-W-16-25-10	Body: No switch magnet \| Bore: 16 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 10 mm \| Port: M5
	SSD2-W-16-25-15	Body: No switch magnet \| Bore: 16 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 15 mm \| Port: M5
	SSD2-W-16-25-20	Body: No switch magnet \| Bore: 16 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 20 mm \| Port: M5
	SSD2-W-16-25-25	Body: No switch magnet \| Bore: 16 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 25 mm \| Port: M5
	SSD2-W-16-30-5	Body: No switch magnet \| Bore: 16 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 5 mm \| Port: M5
	SSD2-W-16-30-10	Body: No switch magnet \| Bore: 16 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 10 mm \| Port: M5
	SSD2-W-16-30-15	Body: No switch magnet \| Bore: 16 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 15 mm \| Port: M5
	SSD2-W-16-30-20	Body: No switch magnet \| Bore: 16 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 20 mm \| Port: M5
	SSD2-W-16-30-25	Body: No switch magnet \| Bore: 16 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 25 mm \| Port: M5
	SSD2-W-16-30-30	Body: No switch magnet \| Bore: 16 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 30 mm \| Port: M5
	SSD2-W-20-5-5	Body: No switch magnet \| Bore: 20 mm \| Total stroke S1: 5 mm \| 1st stage stroke S2: 5 mm \| Port: M5
	SSD2-W-20-10-5	Body: No switch magnet \| Bore: 20 mm \| Total stroke S1: 10 mm \| 1st stage stroke S2: 5 mm \| Port: M5
	SSD2-W-20-10-10	Body: No switch magnet \| Bore: 20 mm \| Total stroke S1: 10 mm \| 1st stage stroke S2: 10 mm \| Port: M5
	SSD2-W-20-15-5	Body: No switch magnet \| Bore: 20 mm \| Total stroke S1: 15 mm \| 1st stage stroke S2: 5 mm \| Port: M5
	SSD2-W-20-15-10	Body: No switch magnet \| Bore: 20 mm \| Total stroke S1: 15 mm \| 1st stage stroke S2: 10 mm \| Port: M5
	SSD2-W-20-15-15	Body: No switch magnet \| Bore: 20 mm \| Total stroke S1: 15 mm \| 1st stage stroke S2: 15 mm \| Port: M5
	SSD2-W-20-20-5	Body: No switch magnet \| Bore: 20 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 5 mm \| Port: M5
	SSD2-W-20-20-10	Body: No switch magnet \| Bore: 20 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 10 mm \| Port: M5
	SSD2-W-20-20-15	Body: No switch magnet \| Bore: 20 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 15 mm \| Port: M5
	SSD2-W-20-20-20	Body: No switch magnet \| Bore: 20 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 20 mm \| Port: M5
	SSD2-W-20-25-5	Body: No switch magnet \| Bore: 20 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 5 mm \| Port: M5
	SSD2-W-20-25-10	Body: No switch magnet \| Bore: 20 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 10 mm \| Port: M5
	SSD2-W-20-25-15	Body: No switch magnet \| Bore: 20 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 15 mm \| Port: M5
	SSD2-W-20-25-20	Body: No switch magnet \| Bore: 20 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 20 mm \| Port: M5
	SSD2-W-20-25-25	Body: No switch magnet \| Bore: 20 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 25 mm \| Port: M5
	SSD2-W-20-30-5	Body: No switch magnet \| Bore: 20 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 5 mm \| Port: M5
	SSD2-W-20-30-10	Body: No switch magnet \| Bore: 20 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 10 mm \| Port: M5
	SSD2-W-20-30-15	Body: No switch magnet \| Bore: 20 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 15 mm \| Port: M5
	SSD2-W-20-30-20	Body: No switch magnet \| Bore: 20 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 20 mm \| Port: M5
	SSD2-W-20-30-25	Body: No switch magnet \| Bore: 20 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 25 mm \| Port: M5
	SSD2-W-20-30-30	Body: No switch magnet \| Bore: 20 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 30 mm \| Port: M5
	SSD2-W-20-35-5	Body: No switch magnet \| Bore: 20 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 5 mm \| Port: M5
	SSD2-W-20-35-10	Body: No switch magnet \| Bore: 20 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 10 mm \| Port: M5
	SSD2-W-20-35-15	Body: No switch magnet \| Bore: 20 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 15 mm \| Port: M5
	SSD2-W-20-35-20	Body: No switch magnet \| Bore: 20 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 20 mm \| Port: M5
	SSD2-W-20-35-25	Body: No switch magnet \| Bore: 20 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 25 mm \| Port: M5
	SSD2-W-20-35-30	Body: No switch magnet \| Bore: 20 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 30 mm \| Port: M5
	SSD2-W-20-35-35	Body: No switch magnet \| Bore: 20 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 35 mm \| Port: M5
	SSD2-W-20-40-5	Body: No switch magnet \| Bore: 20 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 5 mm \| Port: M5
	SSD2-W-20-40-10	Body: No switch magnet \| Bore: 20 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 10 mm \| Port: M5
	SSD2-W-20-40-15	Body: No switch magnet \| Bore: 20 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 15 mm \| Port: M5
	SSD2-W-20-40-20	Body: No switch magnet \| Bore: 20 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 20 mm \| Port: M5
	SSD2-W-20-40-25	Body: No switch magnet \| Bore: 20 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 25 mm \| Port: M5
	SSD2-W-20-40-30	Body: No switch magnet \| Bore: 20 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 30 mm \| Port: M5
	SSD2-W-20-40-35	Body: No switch magnet \| Bore: 20 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 35 mm \| Port: M5
	SSD2-W-20-40-40	Body: No switch magnet \| Bore: 20 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 40 mm \| Port: M5
	SSD2-W-20-45-5	Body: No switch magnet \| Bore: 20 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 5 mm \| Port: M5
	SSD2-W-20-45-10	Body: No switch magnet \| Bore: 20 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 10 mm \| Port: M5
	SSD2-W-20-45-15	Body: No switch magnet \| Bore: 20 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 15 mm \| Port: M5
	SSD2-W-20-45-20	Body: No switch magnet \| Bore: 20 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 20 mm \| Port: M5
	SSD2-W-20-45-25	Body: No switch magnet \| Bore: 20 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 25 mm \| Port: M5
	SSD2-W-20-45-30	Body: No switch magnet \| Bore: 20 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 30 mm \| Port: M5
	SSD2-W-20-45-35	Body: No switch magnet \| Bore: 20 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 35 mm \| Port: M5
	SSD2-W-20-45-40	Body: No switch magnet \| Bore: 20 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 40 mm \| Port: M5
	SSD2-W-20-45-45	Body: No switch magnet \| Bore: 20 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 45 mm \| Port: M5
	SSD2-W-20-50-5	Body: No switch magnet \| Bore: 20 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 5 mm \| Port: M5
	SSD2-W-20-50-10	Body: No switch magnet \| Bore: 20 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 10 mm \| Port: M5
	SSD2-W-20-50-15	Body: No switch magnet \| Bore: 20 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 15 mm \| Port: M5
	SSD2-W-20-50-20	Body: No switch magnet \| Bore: 20 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 20 mm \| Port: M5
	SSD2-W-20-50-25	Body: No switch magnet \| Bore: 20 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm \| Port: M5
	SSD2-W-20-50-30	Body: No switch magnet \| Bore: 20 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 30 mm \| Port: M5
	SSD2-W-20-50-35	Body: No switch magnet \| Bore: 20 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 35 mm \| Port: M5
	SSD2-W-20-50-40	Body: No switch magnet \| Bore: 20 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 40 mm \| Port: M5
	SSD2-W-20-50-45	Body: No switch magnet \| Bore: 20 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 45 mm \| Port: M5
	SSD2-W-20-50-50	Body: No switch magnet \| Bore: 20 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 50 mm \| Port: M5
	SSD2-W-25-5-5	Body: No switch magnet \| Bore: 25 mm \| Total stroke S1: 5 mm \| 1st stage stroke S2: 5 mm \| Port: M5
	SSD2-W-25-10-5	Body: No switch magnet \| Bore: 25 mm \| Total stroke S1: 10 mm \| 1st stage stroke S2: 5 mm \| Port: M5
	SSD2-W-25-10-10	Body: No switch magnet \| Bore: 25 mm \| Total stroke S1: 10 mm \| 1st stage stroke S2: 10 mm \| Port: M5
	SSD2-W-25-15-5	Body: No switch magnet \| Bore: 25 mm \| Total stroke S1: 15 mm \| 1st stage stroke S2: 5 mm \| Port: M5
	SSD2-W-25-15-10	Body: No switch magnet \| Bore: 25 mm \| Total stroke S1: 15 mm \| 1st stage stroke S2: 10 mm \| Port: M5
	SSD2-W-25-15-15	Body: No switch magnet \| Bore: 25 mm \| Total stroke S1: 15 mm \| 1st stage stroke S2: 15 mm \| Port: M5
	SSD2-W-25-20-5	Body: No switch magnet \| Bore: 25 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 5 mm \| Port: M5
	SSD2-W-25-20-10	Body: No switch magnet \| Bore: 25 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 10 mm \| Port: M5
	SSD2-W-25-20-15	Body: No switch magnet \| Bore: 25 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 15 mm \| Port: M5
	SSD2-W-25-20-20	Body: No switch magnet \| Bore: 25 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 20 mm \| Port: M5
	SSD2-W-25-25-5	Body: No switch magnet \| Bore: 25 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 5 mm \| Port: M5
	SSD2-W-25-25-10	Body: No switch magnet \| Bore: 25 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 10 mm \| Port: M5
	SSD2-W-25-25-15	Body: No switch magnet \| Bore: 25 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 15 mm \| Port: M5
	SSD2-W-25-25-20	Body: No switch magnet \| Bore: 25 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 20 mm \| Port: M5
	SSD2-W-25-25-25	Body: No switch magnet \| Bore: 25 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 25 mm \| Port: M5
	SSD2-W-25-30-5	Body: No switch magnet \| Bore: 25 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 5 mm \| Port: M5
	SSD2-W-25-30-10	Body: No switch magnet \| Bore: 25 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 10 mm \| Port: M5
	SSD2-W-25-30-15	Body: No switch magnet \| Bore: 25 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 15 mm \| Port: M5
	SSD2-W-25-30-20	Body: No switch magnet \| Bore: 25 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 20 mm \| Port: M5
	SSD2-W-25-30-25	Body: No switch magnet \| Bore: 25 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 25 mm \| Port: M5
	SSD2-W-25-30-30	Body: No switch magnet \| Bore: 25 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 30 mm \| Port: M5
	SSD2-W-25-35-5	Body: No switch magnet \| Bore: 25 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 5 mm \| Port: M5
	SSD2-W-25-35-10	Body: No switch magnet \| Bore: 25 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 10 mm \| Port: M5
	SSD2-W-25-35-15	Body: No switch magnet \| Bore: 25 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 15 mm \| Port: M5
	SSD2-W-25-35-20	Body: No switch magnet \| Bore: 25 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 20 mm \| Port: M5
	SSD2-W-25-35-25	Body: No switch magnet \| Bore: 25 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 25 mm \| Port: M5
	SSD2-W-25-35-30	Body: No switch magnet \| Bore: 25 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 30 mm \| Port: M5
	SSD2-W-25-35-35	Body: No switch magnet \| Bore: 25 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 35 mm \| Port: M5
	SSD2-W-25-40-5	Body: No switch magnet \| Bore: 25 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 5 mm \| Port: M5
	SSD2-W-25-40-10	Body: No switch magnet \| Bore: 25 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 10 mm \| Port: M5
	SSD2-W-25-40-15	Body: No switch magnet \| Bore: 25 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 15 mm \| Port: M5
	SSD2-W-25-40-20	Body: No switch magnet \| Bore: 25 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 20 mm \| Port: M5
	SSD2-W-25-40-25	Body: No switch magnet \| Bore: 25 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 25 mm \| Port: M5
	SSD2-W-25-40-30	Body: No switch magnet \| Bore: 25 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 30 mm \| Port: M5
	SSD2-W-25-40-35	Body: No switch magnet \| Bore: 25 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 35 mm \| Port: M5
	SSD2-W-25-40-40	Body: No switch magnet \| Bore: 25 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 40 mm \| Port: M5
	SSD2-W-25-45-5	Body: No switch magnet \| Bore: 25 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 5 mm \| Port: M5
	SSD2-W-25-45-10	Body: No switch magnet \| Bore: 25 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 10 mm \| Port: M5
	SSD2-W-25-45-15	Body: No switch magnet \| Bore: 25 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 15 mm \| Port: M5
	SSD2-W-25-45-20	Body: No switch magnet \| Bore: 25 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 20 mm \| Port: M5
	SSD2-W-25-45-25	Body: No switch magnet \| Bore: 25 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 25 mm \| Port: M5
	SSD2-W-25-45-30	Body: No switch magnet \| Bore: 25 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 30 mm \| Port: M5
	SSD2-W-25-45-35	Body: No switch magnet \| Bore: 25 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 35 mm \| Port: M5
	SSD2-W-25-45-40	Body: No switch magnet \| Bore: 25 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 40 mm \| Port: M5
	SSD2-W-25-45-45	Body: No switch magnet \| Bore: 25 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 45 mm \| Port: M5
	SSD2-W-25-50-5	Body: No switch magnet \| Bore: 25 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 5 mm \| Port: M5
	SSD2-W-25-50-10	Body: No switch magnet \| Bore: 25 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 10 mm \| Port: M5
	SSD2-W-25-50-15	Body: No switch magnet \| Bore: 25 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 15 mm \| Port: M5
	SSD2-W-25-50-20	Body: No switch magnet \| Bore: 25 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 20 mm \| Port: M5
	SSD2-W-25-50-25	Body: No switch magnet \| Bore: 25 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm \| Port: M5
	SSD2-W-25-50-30	Body: No switch magnet \| Bore: 25 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 30 mm \| Port: M5
	SSD2-W-25-50-35	Body: No switch magnet \| Bore: 25 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 35 mm \| Port: M5
	SSD2-W-25-50-40	Body: No switch magnet \| Bore: 25 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 40 mm \| Port: M5
	SSD2-W-25-50-45	Body: No switch magnet \| Bore: 25 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 45 mm \| Port: M5
	SSD2-W-25-50-50	Body: No switch magnet \| Bore: 25 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 50 mm \| Port: M5
	SSD2-W-32-5-5	Body: No switch magnet \| Bore: 32 mm \| Total stroke S1: 5 mm \| 1st stage stroke S2: 5 mm \| Port: Rc1/8
	SSD2-W-32-10-5	Body: No switch magnet \| Bore: 32 mm \| Total stroke S1: 10 mm \| 1st stage stroke S2: 5 mm \| Port: Rc1/8
	SSD2-W-32-10-10	Body: No switch magnet \| Bore: 32 mm \| Total stroke S1: 10 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/8
	SSD2-W-32-15-5	Body: No switch magnet \| Bore: 32 mm \| Total stroke S1: 15 mm \| 1st stage stroke S2: 5 mm \| Port: Rc1/8
	SSD2-W-32-15-10	Body: No switch magnet \| Bore: 32 mm \| Total stroke S1: 15 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/8
	SSD2-W-32-15-15	Body: No switch magnet \| Bore: 32 mm \| Total stroke S1: 15 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/8
	SSD2-W-32-20-5	Body: No switch magnet \| Bore: 32 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 5 mm \| Port: Rc1/8
	SSD2-W-32-20-10	Body: No switch magnet \| Bore: 32 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/8
	SSD2-W-32-20-15	Body: No switch magnet \| Bore: 32 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/8
	SSD2-W-32-20-20	Body: No switch magnet \| Bore: 32 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 20 mm \| Port: Rc1/8
	SSD2-W-32-25-5	Body: No switch magnet \| Bore: 32 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 5 mm \| Port: Rc1/8
	SSD2-W-32-25-10	Body: No switch magnet \| Bore: 32 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/8
	SSD2-W-32-25-15	Body: No switch magnet \| Bore: 32 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/8
	SSD2-W-32-25-20	Body: No switch magnet \| Bore: 32 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 20 mm \| Port: Rc1/8
	SSD2-W-32-25-25	Body: No switch magnet \| Bore: 32 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 25 mm \| Port: Rc1/8
	SSD2-W-32-30-5	Body: No switch magnet \| Bore: 32 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 5 mm \| Port: Rc1/8
	SSD2-W-32-30-10	Body: No switch magnet \| Bore: 32 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/8
	SSD2-W-32-30-15	Body: No switch magnet \| Bore: 32 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/8
	SSD2-W-32-30-20	Body: No switch magnet \| Bore: 32 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 20 mm \| Port: Rc1/8
	SSD2-W-32-30-25	Body: No switch magnet \| Bore: 32 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 25 mm \| Port: Rc1/8
	SSD2-W-32-30-30	Body: No switch magnet \| Bore: 32 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 30 mm \| Port: Rc1/8
	SSD2-W-32-35-5	Body: No switch magnet \| Bore: 32 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 5 mm \| Port: Rc1/8
	SSD2-W-32-35-10	Body: No switch magnet \| Bore: 32 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/8
	SSD2-W-32-35-15	Body: No switch magnet \| Bore: 32 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/8
	SSD2-W-32-35-20	Body: No switch magnet \| Bore: 32 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 20 mm \| Port: Rc1/8
	SSD2-W-32-35-25	Body: No switch magnet \| Bore: 32 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 25 mm \| Port: Rc1/8
	SSD2-W-32-35-30	Body: No switch magnet \| Bore: 32 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 30 mm \| Port: Rc1/8
	SSD2-W-32-35-35	Body: No switch magnet \| Bore: 32 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 35 mm \| Port: Rc1/8
	SSD2-W-32-40-5	Body: No switch magnet \| Bore: 32 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 5 mm \| Port: Rc1/8
	SSD2-W-32-40-10	Body: No switch magnet \| Bore: 32 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/8
	SSD2-W-32-40-15	Body: No switch magnet \| Bore: 32 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/8
	SSD2-W-32-40-20	Body: No switch magnet \| Bore: 32 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 20 mm \| Port: Rc1/8
	SSD2-W-32-40-25	Body: No switch magnet \| Bore: 32 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 25 mm \| Port: Rc1/8
	SSD2-W-32-40-30	Body: No switch magnet \| Bore: 32 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 30 mm \| Port: Rc1/8
	SSD2-W-32-40-35	Body: No switch magnet \| Bore: 32 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 35 mm \| Port: Rc1/8
	SSD2-W-32-40-40	Body: No switch magnet \| Bore: 32 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 40 mm \| Port: Rc1/8
	SSD2-W-32-45-5	Body: No switch magnet \| Bore: 32 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 5 mm \| Port: Rc1/8
	SSD2-W-32-45-10	Body: No switch magnet \| Bore: 32 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/8
	SSD2-W-32-45-15	Body: No switch magnet \| Bore: 32 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/8
	SSD2-W-32-45-20	Body: No switch magnet \| Bore: 32 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 20 mm \| Port: Rc1/8
	SSD2-W-32-45-25	Body: No switch magnet \| Bore: 32 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 25 mm \| Port: Rc1/8
	SSD2-W-32-45-30	Body: No switch magnet \| Bore: 32 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 30 mm \| Port: Rc1/8
	SSD2-W-32-45-35	Body: No switch magnet \| Bore: 32 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 35 mm \| Port: Rc1/8
	SSD2-W-32-45-40	Body: No switch magnet \| Bore: 32 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 40 mm \| Port: Rc1/8
	SSD2-W-32-45-45	Body: No switch magnet \| Bore: 32 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 45 mm \| Port: Rc1/8
	SSD2-W-32-50-5	Body: No switch magnet \| Bore: 32 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 5 mm \| Port: Rc1/8
	SSD2-W-32-50-10	Body: No switch magnet \| Bore: 32 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/8
	SSD2-W-32-50-15	Body: No switch magnet \| Bore: 32 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/8
	SSD2-W-32-50-20	Body: No switch magnet \| Bore: 32 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 20 mm \| Port: Rc1/8
	SSD2-W-32-50-25	Body: No switch magnet \| Bore: 32 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm \| Port: Rc1/8
	SSD2-W-32-50-30	Body: No switch magnet \| Bore: 32 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 30 mm \| Port: Rc1/8
	SSD2-W-32-50-35	Body: No switch magnet \| Bore: 32 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 35 mm \| Port: Rc1/8
	SSD2-W-32-50-40	Body: No switch magnet \| Bore: 32 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 40 mm \| Port: Rc1/8
	SSD2-W-32-50-45	Body: No switch magnet \| Bore: 32 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 45 mm \| Port: Rc1/8
	SSD2-W-32-50-50	Body: No switch magnet \| Bore: 32 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 50 mm \| Port: Rc1/8
	SSD2-W-40-5-5	Body: No switch magnet \| Bore: 40 mm \| Total stroke S1: 5 mm \| 1st stage stroke S2: 5 mm \| Port: Rc1/8
	SSD2-W-40-10-5	Body: No switch magnet \| Bore: 40 mm \| Total stroke S1: 10 mm \| 1st stage stroke S2: 5 mm \| Port: Rc1/8
	SSD2-W-40-10-10	Body: No switch magnet \| Bore: 40 mm \| Total stroke S1: 10 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/8
	SSD2-W-40-15-5	Body: No switch magnet \| Bore: 40 mm \| Total stroke S1: 15 mm \| 1st stage stroke S2: 5 mm \| Port: Rc1/8
	SSD2-W-40-15-10	Body: No switch magnet \| Bore: 40 mm \| Total stroke S1: 15 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/8
	SSD2-W-40-15-15	Body: No switch magnet \| Bore: 40 mm \| Total stroke S1: 15 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/8
	SSD2-W-40-20-5	Body: No switch magnet \| Bore: 40 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 5 mm \| Port: Rc1/8
	SSD2-W-40-20-10	Body: No switch magnet \| Bore: 40 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/8
	SSD2-W-40-20-15	Body: No switch magnet \| Bore: 40 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/8
	SSD2-W-40-20-20	Body: No switch magnet \| Bore: 40 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 20 mm \| Port: Rc1/8
	SSD2-W-40-25-5	Body: No switch magnet \| Bore: 40 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 5 mm \| Port: Rc1/8
	SSD2-W-40-25-10	Body: No switch magnet \| Bore: 40 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/8
	SSD2-W-40-25-15	Body: No switch magnet \| Bore: 40 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/8
	SSD2-W-40-25-20	Body: No switch magnet \| Bore: 40 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 20 mm \| Port: Rc1/8
	SSD2-W-40-25-25	Body: No switch magnet \| Bore: 40 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 25 mm \| Port: Rc1/8
	SSD2-W-40-30-5	Body: No switch magnet \| Bore: 40 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 5 mm \| Port: Rc1/8
	SSD2-W-40-30-10	Body: No switch magnet \| Bore: 40 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/8
	SSD2-W-40-30-15	Body: No switch magnet \| Bore: 40 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/8
	SSD2-W-40-30-20	Body: No switch magnet \| Bore: 40 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 20 mm \| Port: Rc1/8
	SSD2-W-40-30-25	Body: No switch magnet \| Bore: 40 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 25 mm \| Port: Rc1/8
	SSD2-W-40-30-30	Body: No switch magnet \| Bore: 40 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 30 mm \| Port: Rc1/8
	SSD2-W-40-35-5	Body: No switch magnet \| Bore: 40 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 5 mm \| Port: Rc1/8
	SSD2-W-40-35-10	Body: No switch magnet \| Bore: 40 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/8
	SSD2-W-40-35-15	Body: No switch magnet \| Bore: 40 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/8
	SSD2-W-40-35-20	Body: No switch magnet \| Bore: 40 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 20 mm \| Port: Rc1/8
	SSD2-W-40-35-25	Body: No switch magnet \| Bore: 40 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 25 mm \| Port: Rc1/8
	SSD2-W-40-35-30	Body: No switch magnet \| Bore: 40 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 30 mm \| Port: Rc1/8
	SSD2-W-40-35-35	Body: No switch magnet \| Bore: 40 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 35 mm \| Port: Rc1/8
	SSD2-W-40-40-5	Body: No switch magnet \| Bore: 40 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 5 mm \| Port: Rc1/8
	SSD2-W-40-40-10	Body: No switch magnet \| Bore: 40 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/8
	SSD2-W-40-40-15	Body: No switch magnet \| Bore: 40 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/8
	SSD2-W-40-40-20	Body: No switch magnet \| Bore: 40 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 20 mm \| Port: Rc1/8
	SSD2-W-40-40-25	Body: No switch magnet \| Bore: 40 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 25 mm \| Port: Rc1/8
	SSD2-W-40-40-30	Body: No switch magnet \| Bore: 40 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 30 mm \| Port: Rc1/8
	SSD2-W-40-40-35	Body: No switch magnet \| Bore: 40 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 35 mm \| Port: Rc1/8
	SSD2-W-40-40-40	Body: No switch magnet \| Bore: 40 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 40 mm \| Port: Rc1/8
	SSD2-W-40-45-5	Body: No switch magnet \| Bore: 40 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 5 mm \| Port: Rc1/8
	SSD2-W-40-45-10	Body: No switch magnet \| Bore: 40 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/8
	SSD2-W-40-45-15	Body: No switch magnet \| Bore: 40 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/8
	SSD2-W-40-45-20	Body: No switch magnet \| Bore: 40 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 20 mm \| Port: Rc1/8
	SSD2-W-40-45-25	Body: No switch magnet \| Bore: 40 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 25 mm \| Port: Rc1/8
	SSD2-W-40-45-30	Body: No switch magnet \| Bore: 40 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 30 mm \| Port: Rc1/8
	SSD2-W-40-45-35	Body: No switch magnet \| Bore: 40 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 35 mm \| Port: Rc1/8
	SSD2-W-40-45-40	Body: No switch magnet \| Bore: 40 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 40 mm \| Port: Rc1/8
	SSD2-W-40-45-45	Body: No switch magnet \| Bore: 40 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 45 mm \| Port: Rc1/8
	SSD2-W-40-50-5	Body: No switch magnet \| Bore: 40 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 5 mm \| Port: Rc1/8
	SSD2-W-40-50-10	Body: No switch magnet \| Bore: 40 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/8
	SSD2-W-40-50-15	Body: No switch magnet \| Bore: 40 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/8
	SSD2-W-40-50-20	Body: No switch magnet \| Bore: 40 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 20 mm \| Port: Rc1/8
	SSD2-W-40-50-25	Body: No switch magnet \| Bore: 40 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm \| Port: Rc1/8
	SSD2-W-40-50-30	Body: No switch magnet \| Bore: 40 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 30 mm \| Port: Rc1/8
	SSD2-W-40-50-35	Body: No switch magnet \| Bore: 40 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 35 mm \| Port: Rc1/8
	SSD2-W-40-50-40	Body: No switch magnet \| Bore: 40 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 40 mm \| Port: Rc1/8
	SSD2-W-40-50-45	Body: No switch magnet \| Bore: 40 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 45 mm \| Port: Rc1/8
	SSD2-W-40-50-50	Body: No switch magnet \| Bore: 40 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 50 mm \| Port: Rc1/8
	SSD2-W-50-10-10	Body: No switch magnet \| Bore: 50 mm \| Total stroke S1: 10 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/4
	SSD2-W-50-15-10	Body: No switch magnet \| Bore: 50 mm \| Total stroke S1: 15 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/4
	SSD2-W-50-15-15	Body: No switch magnet \| Bore: 50 mm \| Total stroke S1: 15 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/4
	SSD2-W-50-20-10	Body: No switch magnet \| Bore: 50 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/4
	SSD2-W-50-20-15	Body: No switch magnet \| Bore: 50 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/4
	SSD2-W-50-20-20	Body: No switch magnet \| Bore: 50 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 20 mm \| Port: Rc1/4
	SSD2-W-50-25-10	Body: No switch magnet \| Bore: 50 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/4
	SSD2-W-50-25-15	Body: No switch magnet \| Bore: 50 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/4
	SSD2-W-50-25-20	Body: No switch magnet \| Bore: 50 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 20 mm \| Port: Rc1/4
	SSD2-W-50-25-25	Body: No switch magnet \| Bore: 50 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 25 mm \| Port: Rc1/4
	SSD2-W-50-30-10	Body: No switch magnet \| Bore: 50 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/4
	SSD2-W-50-30-15	Body: No switch magnet \| Bore: 50 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/4
	SSD2-W-50-30-20	Body: No switch magnet \| Bore: 50 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 20 mm \| Port: Rc1/4
	SSD2-W-50-30-25	Body: No switch magnet \| Bore: 50 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 25 mm \| Port: Rc1/4
	SSD2-W-50-30-30	Body: No switch magnet \| Bore: 50 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 30 mm \| Port: Rc1/4
	SSD2-W-50-35-10	Body: No switch magnet \| Bore: 50 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/4
	SSD2-W-50-35-15	Body: No switch magnet \| Bore: 50 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/4
	SSD2-W-50-35-20	Body: No switch magnet \| Bore: 50 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 20 mm \| Port: Rc1/4
	SSD2-W-50-35-25	Body: No switch magnet \| Bore: 50 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 25 mm \| Port: Rc1/4
	SSD2-W-50-35-30	Body: No switch magnet \| Bore: 50 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 30 mm \| Port: Rc1/4
	SSD2-W-50-35-35	Body: No switch magnet \| Bore: 50 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 35 mm \| Port: Rc1/4
	SSD2-W-50-40-10	Body: No switch magnet \| Bore: 50 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/4
	SSD2-W-50-40-15	Body: No switch magnet \| Bore: 50 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/4
	SSD2-W-50-40-20	Body: No switch magnet \| Bore: 50 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 20 mm \| Port: Rc1/4
	SSD2-W-50-40-25	Body: No switch magnet \| Bore: 50 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 25 mm \| Port: Rc1/4
	SSD2-W-50-40-30	Body: No switch magnet \| Bore: 50 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 30 mm \| Port: Rc1/4
	SSD2-W-50-40-35	Body: No switch magnet \| Bore: 50 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 35 mm \| Port: Rc1/4
	SSD2-W-50-40-40	Body: No switch magnet \| Bore: 50 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 40 mm \| Port: Rc1/4
	SSD2-W-50-45-10	Body: No switch magnet \| Bore: 50 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/4
	SSD2-W-50-45-15	Body: No switch magnet \| Bore: 50 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/4
	SSD2-W-50-45-20	Body: No switch magnet \| Bore: 50 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 20 mm \| Port: Rc1/4
	SSD2-W-50-45-25	Body: No switch magnet \| Bore: 50 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 25 mm \| Port: Rc1/4
	SSD2-W-50-45-30	Body: No switch magnet \| Bore: 50 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 30 mm \| Port: Rc1/4
	SSD2-W-50-45-35	Body: No switch magnet \| Bore: 50 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 35 mm \| Port: Rc1/4
	SSD2-W-50-45-40	Body: No switch magnet \| Bore: 50 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 40 mm \| Port: Rc1/4
	SSD2-W-50-45-45	Body: No switch magnet \| Bore: 50 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 45 mm \| Port: Rc1/4
	SSD2-W-50-50-10	Body: No switch magnet \| Bore: 50 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/4
	SSD2-W-50-50-15	Body: No switch magnet \| Bore: 50 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/4
	SSD2-W-50-50-20	Body: No switch magnet \| Bore: 50 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 20 mm \| Port: Rc1/4
	SSD2-W-50-50-25	Body: No switch magnet \| Bore: 50 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm \| Port: Rc1/4
	SSD2-W-50-50-30	Body: No switch magnet \| Bore: 50 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 30 mm \| Port: Rc1/4
	SSD2-W-50-50-35	Body: No switch magnet \| Bore: 50 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 35 mm \| Port: Rc1/4
	SSD2-W-50-50-40	Body: No switch magnet \| Bore: 50 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 40 mm \| Port: Rc1/4
	SSD2-W-50-50-45	Body: No switch magnet \| Bore: 50 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 45 mm \| Port: Rc1/4
	SSD2-W-50-50-50	Body: No switch magnet \| Bore: 50 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 50 mm \| Port: Rc1/4
	SSD2-W-63-10-10	Body: No switch magnet \| Bore: 63 mm \| Total stroke S1: 10 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/4
	SSD2-W-63-15-10	Body: No switch magnet \| Bore: 63 mm \| Total stroke S1: 15 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/4
	SSD2-W-63-15-15	Body: No switch magnet \| Bore: 63 mm \| Total stroke S1: 15 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/4
	SSD2-W-63-20-10	Body: No switch magnet \| Bore: 63 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/4
	SSD2-W-63-20-15	Body: No switch magnet \| Bore: 63 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/4
	SSD2-W-63-20-20	Body: No switch magnet \| Bore: 63 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 20 mm \| Port: Rc1/4
	SSD2-W-63-25-10	Body: No switch magnet \| Bore: 63 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/4
	SSD2-W-63-25-15	Body: No switch magnet \| Bore: 63 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/4
	SSD2-W-63-25-20	Body: No switch magnet \| Bore: 63 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 20 mm \| Port: Rc1/4
	SSD2-W-63-25-25	Body: No switch magnet \| Bore: 63 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 25 mm \| Port: Rc1/4
	SSD2-W-63-30-10	Body: No switch magnet \| Bore: 63 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/4
	SSD2-W-63-30-15	Body: No switch magnet \| Bore: 63 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/4
	SSD2-W-63-30-20	Body: No switch magnet \| Bore: 63 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 20 mm \| Port: Rc1/4
	SSD2-W-63-30-25	Body: No switch magnet \| Bore: 63 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 25 mm \| Port: Rc1/4
	SSD2-W-63-30-30	Body: No switch magnet \| Bore: 63 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 30 mm \| Port: Rc1/4
	SSD2-W-63-35-10	Body: No switch magnet \| Bore: 63 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/4
	SSD2-W-63-35-15	Body: No switch magnet \| Bore: 63 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/4
	SSD2-W-63-35-20	Body: No switch magnet \| Bore: 63 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 20 mm \| Port: Rc1/4
	SSD2-W-63-35-25	Body: No switch magnet \| Bore: 63 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 25 mm \| Port: Rc1/4
	SSD2-W-63-35-30	Body: No switch magnet \| Bore: 63 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 30 mm \| Port: Rc1/4
	SSD2-W-63-35-35	Body: No switch magnet \| Bore: 63 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 35 mm \| Port: Rc1/4
	SSD2-W-63-40-10	Body: No switch magnet \| Bore: 63 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/4
	SSD2-W-63-40-15	Body: No switch magnet \| Bore: 63 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/4
	SSD2-W-63-40-20	Body: No switch magnet \| Bore: 63 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 20 mm \| Port: Rc1/4
	SSD2-W-63-40-25	Body: No switch magnet \| Bore: 63 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 25 mm \| Port: Rc1/4
	SSD2-W-63-40-30	Body: No switch magnet \| Bore: 63 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 30 mm \| Port: Rc1/4
	SSD2-W-63-40-35	Body: No switch magnet \| Bore: 63 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 35 mm \| Port: Rc1/4
	SSD2-W-63-40-40	Body: No switch magnet \| Bore: 63 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 40 mm \| Port: Rc1/4
	SSD2-W-63-45-10	Body: No switch magnet \| Bore: 63 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/4
	SSD2-W-63-45-15	Body: No switch magnet \| Bore: 63 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/4
	SSD2-W-63-45-20	Body: No switch magnet \| Bore: 63 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 20 mm \| Port: Rc1/4
	SSD2-W-63-45-25	Body: No switch magnet \| Bore: 63 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 25 mm \| Port: Rc1/4
	SSD2-W-63-45-30	Body: No switch magnet \| Bore: 63 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 30 mm \| Port: Rc1/4
	SSD2-W-63-45-35	Body: No switch magnet \| Bore: 63 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 35 mm \| Port: Rc1/4
	SSD2-W-63-45-40	Body: No switch magnet \| Bore: 63 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 40 mm \| Port: Rc1/4
	SSD2-W-63-45-45	Body: No switch magnet \| Bore: 63 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 45 mm \| Port: Rc1/4
	SSD2-W-63-50-10	Body: No switch magnet \| Bore: 63 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/4
	SSD2-W-63-50-15	Body: No switch magnet \| Bore: 63 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/4
	SSD2-W-63-50-20	Body: No switch magnet \| Bore: 63 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 20 mm \| Port: Rc1/4
	SSD2-W-63-50-25	Body: No switch magnet \| Bore: 63 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm \| Port: Rc1/4
	SSD2-W-63-50-30	Body: No switch magnet \| Bore: 63 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 30 mm \| Port: Rc1/4
	SSD2-W-63-50-35	Body: No switch magnet \| Bore: 63 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 35 mm \| Port: Rc1/4
	SSD2-W-63-50-40	Body: No switch magnet \| Bore: 63 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 40 mm \| Port: Rc1/4
	SSD2-W-63-50-45	Body: No switch magnet \| Bore: 63 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 45 mm \| Port: Rc1/4
	SSD2-W-63-50-50	Body: No switch magnet \| Bore: 63 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 50 mm \| Port: Rc1/4
	SSD2-W-80-10-10	Body: No switch magnet \| Bore: 80 mm \| Total stroke S1: 10 mm \| 1st stage stroke S2: 10 mm \| Port: Rc3/8
	SSD2-W-80-15-10	Body: No switch magnet \| Bore: 80 mm \| Total stroke S1: 15 mm \| 1st stage stroke S2: 10 mm \| Port: Rc3/8
	SSD2-W-80-15-15	Body: No switch magnet \| Bore: 80 mm \| Total stroke S1: 15 mm \| 1st stage stroke S2: 15 mm \| Port: Rc3/8
	SSD2-W-80-20-10	Body: No switch magnet \| Bore: 80 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 10 mm \| Port: Rc3/8
	SSD2-W-80-20-15	Body: No switch magnet \| Bore: 80 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 15 mm \| Port: Rc3/8
	SSD2-W-80-20-20	Body: No switch magnet \| Bore: 80 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 20 mm \| Port: Rc3/8
	SSD2-W-80-25-10	Body: No switch magnet \| Bore: 80 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 10 mm \| Port: Rc3/8
	SSD2-W-80-25-15	Body: No switch magnet \| Bore: 80 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 15 mm \| Port: Rc3/8
	SSD2-W-80-25-20	Body: No switch magnet \| Bore: 80 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 20 mm \| Port: Rc3/8
	SSD2-W-80-25-25	Body: No switch magnet \| Bore: 80 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 25 mm \| Port: Rc3/8
	SSD2-W-80-30-10	Body: No switch magnet \| Bore: 80 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 10 mm \| Port: Rc3/8
	SSD2-W-80-30-15	Body: No switch magnet \| Bore: 80 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 15 mm \| Port: Rc3/8
	SSD2-W-80-30-20	Body: No switch magnet \| Bore: 80 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 20 mm \| Port: Rc3/8
	SSD2-W-80-30-25	Body: No switch magnet \| Bore: 80 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 25 mm \| Port: Rc3/8
	SSD2-W-80-30-30	Body: No switch magnet \| Bore: 80 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 30 mm \| Port: Rc3/8
	SSD2-W-80-35-10	Body: No switch magnet \| Bore: 80 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 10 mm \| Port: Rc3/8
	SSD2-W-80-35-15	Body: No switch magnet \| Bore: 80 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 15 mm \| Port: Rc3/8
	SSD2-W-80-35-20	Body: No switch magnet \| Bore: 80 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 20 mm \| Port: Rc3/8
	SSD2-W-80-35-25	Body: No switch magnet \| Bore: 80 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 25 mm \| Port: Rc3/8
	SSD2-W-80-35-30	Body: No switch magnet \| Bore: 80 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 30 mm \| Port: Rc3/8
	SSD2-W-80-35-35	Body: No switch magnet \| Bore: 80 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 35 mm \| Port: Rc3/8
	SSD2-W-80-40-10	Body: No switch magnet \| Bore: 80 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 10 mm \| Port: Rc3/8
	SSD2-W-80-40-15	Body: No switch magnet \| Bore: 80 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 15 mm \| Port: Rc3/8
	SSD2-W-80-40-20	Body: No switch magnet \| Bore: 80 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 20 mm \| Port: Rc3/8
	SSD2-W-80-40-25	Body: No switch magnet \| Bore: 80 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 25 mm \| Port: Rc3/8
	SSD2-W-80-40-30	Body: No switch magnet \| Bore: 80 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 30 mm \| Port: Rc3/8
	SSD2-W-80-40-35	Body: No switch magnet \| Bore: 80 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 35 mm \| Port: Rc3/8
	SSD2-W-80-40-40	Body: No switch magnet \| Bore: 80 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 40 mm \| Port: Rc3/8
	SSD2-W-80-45-10	Body: No switch magnet \| Bore: 80 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 10 mm \| Port: Rc3/8
	SSD2-W-80-45-15	Body: No switch magnet \| Bore: 80 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 15 mm \| Port: Rc3/8
	SSD2-W-80-45-20	Body: No switch magnet \| Bore: 80 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 20 mm \| Port: Rc3/8
	SSD2-W-80-45-25	Body: No switch magnet \| Bore: 80 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 25 mm \| Port: Rc3/8
	SSD2-W-80-45-30	Body: No switch magnet \| Bore: 80 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 30 mm \| Port: Rc3/8
	SSD2-W-80-45-35	Body: No switch magnet \| Bore: 80 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 35 mm \| Port: Rc3/8
	SSD2-W-80-45-40	Body: No switch magnet \| Bore: 80 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 40 mm \| Port: Rc3/8
	SSD2-W-80-45-45	Body: No switch magnet \| Bore: 80 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 45 mm \| Port: Rc3/8
	SSD2-W-80-50-10	Body: No switch magnet \| Bore: 80 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 10 mm \| Port: Rc3/8
	SSD2-W-80-50-15	Body: No switch magnet \| Bore: 80 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 15 mm \| Port: Rc3/8
	SSD2-W-80-50-20	Body: No switch magnet \| Bore: 80 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 20 mm \| Port: Rc3/8
	SSD2-W-80-50-25	Body: No switch magnet \| Bore: 80 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm \| Port: Rc3/8
	SSD2-W-80-50-30	Body: No switch magnet \| Bore: 80 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 30 mm \| Port: Rc3/8
	SSD2-W-80-50-35	Body: No switch magnet \| Bore: 80 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 35 mm \| Port: Rc3/8
	SSD2-W-80-50-40	Body: No switch magnet \| Bore: 80 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 40 mm \| Port: Rc3/8
	SSD2-W-80-50-45	Body: No switch magnet \| Bore: 80 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 45 mm \| Port: Rc3/8
	SSD2-W-80-50-50	Body: No switch magnet \| Bore: 80 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 50 mm \| Port: Rc3/8
	SSD2-W-100-10-10	Body: No switch magnet \| Bore: 100 mm \| Total stroke S1: 10 mm \| 1st stage stroke S2: 10 mm \| Port: Rc3/8
	SSD2-W-100-15-10	Body: No switch magnet \| Bore: 100 mm \| Total stroke S1: 15 mm \| 1st stage stroke S2: 10 mm \| Port: Rc3/8
	SSD2-W-100-15-15	Body: No switch magnet \| Bore: 100 mm \| Total stroke S1: 15 mm \| 1st stage stroke S2: 15 mm \| Port: Rc3/8
	SSD2-W-100-20-10	Body: No switch magnet \| Bore: 100 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 10 mm \| Port: Rc3/8
	SSD2-W-100-20-15	Body: No switch magnet \| Bore: 100 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 15 mm \| Port: Rc3/8
	SSD2-W-100-20-20	Body: No switch magnet \| Bore: 100 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 20 mm \| Port: Rc3/8
	SSD2-W-100-25-10	Body: No switch magnet \| Bore: 100 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 10 mm \| Port: Rc3/8
	SSD2-W-100-25-15	Body: No switch magnet \| Bore: 100 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 15 mm \| Port: Rc3/8
	SSD2-W-100-25-20	Body: No switch magnet \| Bore: 100 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 20 mm \| Port: Rc3/8
	SSD2-W-100-25-25	Body: No switch magnet \| Bore: 100 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 25 mm \| Port: Rc3/8
	SSD2-W-100-30-10	Body: No switch magnet \| Bore: 100 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 10 mm \| Port: Rc3/8
	SSD2-W-100-30-15	Body: No switch magnet \| Bore: 100 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 15 mm \| Port: Rc3/8
	SSD2-W-100-30-20	Body: No switch magnet \| Bore: 100 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 20 mm \| Port: Rc3/8
	SSD2-W-100-30-25	Body: No switch magnet \| Bore: 100 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 25 mm \| Port: Rc3/8
	SSD2-W-100-30-30	Body: No switch magnet \| Bore: 100 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 30 mm \| Port: Rc3/8
	SSD2-W-100-35-10	Body: No switch magnet \| Bore: 100 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 10 mm \| Port: Rc3/8
	SSD2-W-100-35-15	Body: No switch magnet \| Bore: 100 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 15 mm \| Port: Rc3/8
	SSD2-W-100-35-20	Body: No switch magnet \| Bore: 100 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 20 mm \| Port: Rc3/8
	SSD2-W-100-35-25	Body: No switch magnet \| Bore: 100 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 25 mm \| Port: Rc3/8
	SSD2-W-100-35-30	Body: No switch magnet \| Bore: 100 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 30 mm \| Port: Rc3/8
	SSD2-W-100-35-35	Body: No switch magnet \| Bore: 100 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 35 mm \| Port: Rc3/8
	SSD2-W-100-40-10	Body: No switch magnet \| Bore: 100 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 10 mm \| Port: Rc3/8
	SSD2-W-100-40-15	Body: No switch magnet \| Bore: 100 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 15 mm \| Port: Rc3/8
	SSD2-W-100-40-20	Body: No switch magnet \| Bore: 100 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 20 mm \| Port: Rc3/8
	SSD2-W-100-40-25	Body: No switch magnet \| Bore: 100 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 25 mm \| Port: Rc3/8
	SSD2-W-100-40-30	Body: No switch magnet \| Bore: 100 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 30 mm \| Port: Rc3/8
	SSD2-W-100-40-35	Body: No switch magnet \| Bore: 100 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 35 mm \| Port: Rc3/8
	SSD2-W-100-40-40	Body: No switch magnet \| Bore: 100 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 40 mm \| Port: Rc3/8
	SSD2-W-100-45-10	Body: No switch magnet \| Bore: 100 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 10 mm \| Port: Rc3/8
	SSD2-W-100-45-15	Body: No switch magnet \| Bore: 100 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 15 mm \| Port: Rc3/8
	SSD2-W-100-45-20	Body: No switch magnet \| Bore: 100 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 20 mm \| Port: Rc3/8
	SSD2-W-100-45-25	Body: No switch magnet \| Bore: 100 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 25 mm \| Port: Rc3/8
	SSD2-W-100-45-30	Body: No switch magnet \| Bore: 100 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 30 mm \| Port: Rc3/8
	SSD2-W-100-45-35	Body: No switch magnet \| Bore: 100 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 35 mm \| Port: Rc3/8
	SSD2-W-100-45-40	Body: No switch magnet \| Bore: 100 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 40 mm \| Port: Rc3/8
	SSD2-W-100-45-45	Body: No switch magnet \| Bore: 100 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 45 mm \| Port: Rc3/8
	SSD2-W-100-50-10	Body: No switch magnet \| Bore: 100 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 10 mm \| Port: Rc3/8
	SSD2-W-100-50-15	Body: No switch magnet \| Bore: 100 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 15 mm \| Port: Rc3/8
	SSD2-W-100-50-20	Body: No switch magnet \| Bore: 100 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 20 mm \| Port: Rc3/8
	SSD2-W-100-50-25	Body: No switch magnet \| Bore: 100 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm \| Port: Rc3/8
	SSD2-W-100-50-30	Body: No switch magnet \| Bore: 100 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 30 mm \| Port: Rc3/8
	SSD2-W-100-50-35	Body: No switch magnet \| Bore: 100 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 35 mm \| Port: Rc3/8
	SSD2-W-100-50-40	Body: No switch magnet \| Bore: 100 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 40 mm \| Port: Rc3/8
	SSD2-W-100-50-45	Body: No switch magnet \| Bore: 100 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 45 mm \| Port: Rc3/8
	SSD2-W-100-50-50	Body: No switch magnet \| Bore: 100 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 50 mm \| Port: Rc3/8
	SSD2-WL-12-5-5	Body: Switch magnet built in \| Bore: 12 mm \| Total stroke S1: 5 mm \| 1st stage stroke S2: 5 mm \| Port: M5
	SSD2-WL-12-10-5	Body: Switch magnet built in \| Bore: 12 mm \| Total stroke S1: 10 mm \| 1st stage stroke S2: 5 mm \| Port: M5
	SSD2-WL-12-10-10	Body: Switch magnet built in \| Bore: 12 mm \| Total stroke S1: 10 mm \| 1st stage stroke S2: 10 mm \| Port: M5
	SSD2-WL-12-15-5	Body: Switch magnet built in \| Bore: 12 mm \| Total stroke S1: 15 mm \| 1st stage stroke S2: 5 mm \| Port: M5
	SSD2-WL-12-15-10	Body: Switch magnet built in \| Bore: 12 mm \| Total stroke S1: 15 mm \| 1st stage stroke S2: 10 mm \| Port: M5
	SSD2-WL-12-15-15	Body: Switch magnet built in \| Bore: 12 mm \| Total stroke S1: 15 mm \| 1st stage stroke S2: 15 mm \| Port: M5
	SSD2-WL-12-20-5	Body: Switch magnet built in \| Bore: 12 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 5 mm \| Port: M5
	SSD2-WL-12-20-10	Body: Switch magnet built in \| Bore: 12 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 10 mm \| Port: M5
	SSD2-WL-12-20-15	Body: Switch magnet built in \| Bore: 12 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 15 mm \| Port: M5
	SSD2-WL-12-20-20	Body: Switch magnet built in \| Bore: 12 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 20 mm \| Port: M5
	SSD2-WL-12-25-5	Body: Switch magnet built in \| Bore: 12 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 5 mm \| Port: M5
	SSD2-WL-12-25-10	Body: Switch magnet built in \| Bore: 12 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 10 mm \| Port: M5
	SSD2-WL-12-25-15	Body: Switch magnet built in \| Bore: 12 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 15 mm \| Port: M5
	SSD2-WL-12-25-20	Body: Switch magnet built in \| Bore: 12 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 20 mm \| Port: M5
	SSD2-WL-12-25-25	Body: Switch magnet built in \| Bore: 12 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 25 mm \| Port: M5
	SSD2-WL-12-30-5	Body: Switch magnet built in \| Bore: 12 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 5 mm \| Port: M5
	SSD2-WL-12-30-10	Body: Switch magnet built in \| Bore: 12 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 10 mm \| Port: M5
	SSD2-WL-12-30-15	Body: Switch magnet built in \| Bore: 12 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 15 mm \| Port: M5
	SSD2-WL-12-30-20	Body: Switch magnet built in \| Bore: 12 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 20 mm \| Port: M5
	SSD2-WL-12-30-25	Body: Switch magnet built in \| Bore: 12 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 25 mm \| Port: M5
	SSD2-WL-12-30-30	Body: Switch magnet built in \| Bore: 12 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 30 mm \| Port: M5
	SSD2-WL-16-5-5	Body: Switch magnet built in \| Bore: 16 mm \| Total stroke S1: 5 mm \| 1st stage stroke S2: 5 mm \| Port: M5
	SSD2-WL-16-10-5	Body: Switch magnet built in \| Bore: 16 mm \| Total stroke S1: 10 mm \| 1st stage stroke S2: 5 mm \| Port: M5
	SSD2-WL-16-10-10	Body: Switch magnet built in \| Bore: 16 mm \| Total stroke S1: 10 mm \| 1st stage stroke S2: 10 mm \| Port: M5
	SSD2-WL-16-15-5	Body: Switch magnet built in \| Bore: 16 mm \| Total stroke S1: 15 mm \| 1st stage stroke S2: 5 mm \| Port: M5
	SSD2-WL-16-15-10	Body: Switch magnet built in \| Bore: 16 mm \| Total stroke S1: 15 mm \| 1st stage stroke S2: 10 mm \| Port: M5
	SSD2-WL-16-15-15	Body: Switch magnet built in \| Bore: 16 mm \| Total stroke S1: 15 mm \| 1st stage stroke S2: 15 mm \| Port: M5
	SSD2-WL-16-20-5	Body: Switch magnet built in \| Bore: 16 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 5 mm \| Port: M5
	SSD2-WL-16-20-10	Body: Switch magnet built in \| Bore: 16 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 10 mm \| Port: M5
	SSD2-WL-16-20-15	Body: Switch magnet built in \| Bore: 16 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 15 mm \| Port: M5
	SSD2-WL-16-20-20	Body: Switch magnet built in \| Bore: 16 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 20 mm \| Port: M5
	SSD2-WL-16-25-5	Body: Switch magnet built in \| Bore: 16 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 5 mm \| Port: M5
	SSD2-WL-16-25-10	Body: Switch magnet built in \| Bore: 16 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 10 mm \| Port: M5
	SSD2-WL-16-25-15	Body: Switch magnet built in \| Bore: 16 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 15 mm \| Port: M5
	SSD2-WL-16-25-20	Body: Switch magnet built in \| Bore: 16 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 20 mm \| Port: M5
	SSD2-WL-16-25-25	Body: Switch magnet built in \| Bore: 16 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 25 mm \| Port: M5
	SSD2-WL-16-30-5	Body: Switch magnet built in \| Bore: 16 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 5 mm \| Port: M5
	SSD2-WL-16-30-10	Body: Switch magnet built in \| Bore: 16 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 10 mm \| Port: M5
	SSD2-WL-16-30-15	Body: Switch magnet built in \| Bore: 16 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 15 mm \| Port: M5
	SSD2-WL-16-30-20	Body: Switch magnet built in \| Bore: 16 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 20 mm \| Port: M5
	SSD2-WL-16-30-25	Body: Switch magnet built in \| Bore: 16 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 25 mm \| Port: M5
	SSD2-WL-16-30-30	Body: Switch magnet built in \| Bore: 16 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 30 mm \| Port: M5
	SSD2-WL-20-5-5	Body: Switch magnet built in \| Bore: 20 mm \| Total stroke S1: 5 mm \| 1st stage stroke S2: 5 mm \| Port: M5
	SSD2-WL-20-10-5	Body: Switch magnet built in \| Bore: 20 mm \| Total stroke S1: 10 mm \| 1st stage stroke S2: 5 mm \| Port: M5
	SSD2-WL-20-10-10	Body: Switch magnet built in \| Bore: 20 mm \| Total stroke S1: 10 mm \| 1st stage stroke S2: 10 mm \| Port: M5
	SSD2-WL-20-15-5	Body: Switch magnet built in \| Bore: 20 mm \| Total stroke S1: 15 mm \| 1st stage stroke S2: 5 mm \| Port: M5
	SSD2-WL-20-15-10	Body: Switch magnet built in \| Bore: 20 mm \| Total stroke S1: 15 mm \| 1st stage stroke S2: 10 mm \| Port: M5
	SSD2-WL-20-15-15	Body: Switch magnet built in \| Bore: 20 mm \| Total stroke S1: 15 mm \| 1st stage stroke S2: 15 mm \| Port: M5
	SSD2-WL-20-20-5	Body: Switch magnet built in \| Bore: 20 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 5 mm \| Port: M5
	SSD2-WL-20-20-10	Body: Switch magnet built in \| Bore: 20 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 10 mm \| Port: M5
	SSD2-WL-20-20-15	Body: Switch magnet built in \| Bore: 20 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 15 mm \| Port: M5
	SSD2-WL-20-20-20	Body: Switch magnet built in \| Bore: 20 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 20 mm \| Port: M5
	SSD2-WL-20-25-5	Body: Switch magnet built in \| Bore: 20 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 5 mm \| Port: M5
	SSD2-WL-20-25-10	Body: Switch magnet built in \| Bore: 20 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 10 mm \| Port: M5
	SSD2-WL-20-25-15	Body: Switch magnet built in \| Bore: 20 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 15 mm \| Port: M5
	SSD2-WL-20-25-20	Body: Switch magnet built in \| Bore: 20 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 20 mm \| Port: M5
	SSD2-WL-20-25-25	Body: Switch magnet built in \| Bore: 20 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 25 mm \| Port: M5
	SSD2-WL-20-30-5	Body: Switch magnet built in \| Bore: 20 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 5 mm \| Port: M5
	SSD2-WL-20-30-10	Body: Switch magnet built in \| Bore: 20 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 10 mm \| Port: M5
	SSD2-WL-20-30-15	Body: Switch magnet built in \| Bore: 20 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 15 mm \| Port: M5
	SSD2-WL-20-30-20	Body: Switch magnet built in \| Bore: 20 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 20 mm \| Port: M5
	SSD2-WL-20-30-25	Body: Switch magnet built in \| Bore: 20 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 25 mm \| Port: M5
	SSD2-WL-20-30-30	Body: Switch magnet built in \| Bore: 20 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 30 mm \| Port: M5
	SSD2-WL-20-35-5	Body: Switch magnet built in \| Bore: 20 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 5 mm \| Port: M5
	SSD2-WL-20-35-10	Body: Switch magnet built in \| Bore: 20 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 10 mm \| Port: M5
	SSD2-WL-20-35-15	Body: Switch magnet built in \| Bore: 20 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 15 mm \| Port: M5
	SSD2-WL-20-35-20	Body: Switch magnet built in \| Bore: 20 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 20 mm \| Port: M5
	SSD2-WL-20-35-25	Body: Switch magnet built in \| Bore: 20 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 25 mm \| Port: M5
	SSD2-WL-20-35-30	Body: Switch magnet built in \| Bore: 20 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 30 mm \| Port: M5
	SSD2-WL-20-35-35	Body: Switch magnet built in \| Bore: 20 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 35 mm \| Port: M5
	SSD2-WL-20-40-5	Body: Switch magnet built in \| Bore: 20 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 5 mm \| Port: M5
	SSD2-WL-20-40-10	Body: Switch magnet built in \| Bore: 20 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 10 mm \| Port: M5
	SSD2-WL-20-40-15	Body: Switch magnet built in \| Bore: 20 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 15 mm \| Port: M5
	SSD2-WL-20-40-20	Body: Switch magnet built in \| Bore: 20 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 20 mm \| Port: M5
	SSD2-WL-20-40-25	Body: Switch magnet built in \| Bore: 20 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 25 mm \| Port: M5
	SSD2-WL-20-40-30	Body: Switch magnet built in \| Bore: 20 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 30 mm \| Port: M5
	SSD2-WL-20-40-35	Body: Switch magnet built in \| Bore: 20 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 35 mm \| Port: M5
	SSD2-WL-20-40-40	Body: Switch magnet built in \| Bore: 20 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 40 mm \| Port: M5
	SSD2-WL-20-45-5	Body: Switch magnet built in \| Bore: 20 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 5 mm \| Port: M5
	SSD2-WL-20-45-10	Body: Switch magnet built in \| Bore: 20 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 10 mm \| Port: M5
	SSD2-WL-20-45-15	Body: Switch magnet built in \| Bore: 20 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 15 mm \| Port: M5
	SSD2-WL-20-45-20	Body: Switch magnet built in \| Bore: 20 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 20 mm \| Port: M5
	SSD2-WL-20-45-25	Body: Switch magnet built in \| Bore: 20 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 25 mm \| Port: M5
	SSD2-WL-20-45-30	Body: Switch magnet built in \| Bore: 20 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 30 mm \| Port: M5
	SSD2-WL-20-45-35	Body: Switch magnet built in \| Bore: 20 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 35 mm \| Port: M5
	SSD2-WL-20-45-40	Body: Switch magnet built in \| Bore: 20 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 40 mm \| Port: M5
	SSD2-WL-20-45-45	Body: Switch magnet built in \| Bore: 20 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 45 mm \| Port: M5
	SSD2-WL-20-50-5	Body: Switch magnet built in \| Bore: 20 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 5 mm \| Port: M5
	SSD2-WL-20-50-10	Body: Switch magnet built in \| Bore: 20 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 10 mm \| Port: M5
	SSD2-WL-20-50-15	Body: Switch magnet built in \| Bore: 20 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 15 mm \| Port: M5
	SSD2-WL-20-50-20	Body: Switch magnet built in \| Bore: 20 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 20 mm \| Port: M5
	SSD2-WL-20-50-25	Body: Switch magnet built in \| Bore: 20 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm \| Port: M5
	SSD2-WL-20-50-30	Body: Switch magnet built in \| Bore: 20 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 30 mm \| Port: M5
	SSD2-WL-20-50-35	Body: Switch magnet built in \| Bore: 20 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 35 mm \| Port: M5
	SSD2-WL-20-50-40	Body: Switch magnet built in \| Bore: 20 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 40 mm \| Port: M5
	SSD2-WL-20-50-45	Body: Switch magnet built in \| Bore: 20 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 45 mm \| Port: M5
	SSD2-WL-20-50-50	Body: Switch magnet built in \| Bore: 20 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 50 mm \| Port: M5
	SSD2-WL-25-5-5	Body: Switch magnet built in \| Bore: 25 mm \| Total stroke S1: 5 mm \| 1st stage stroke S2: 5 mm \| Port: M5
	SSD2-WL-25-10-5	Body: Switch magnet built in \| Bore: 25 mm \| Total stroke S1: 10 mm \| 1st stage stroke S2: 5 mm \| Port: M5
	SSD2-WL-25-10-10	Body: Switch magnet built in \| Bore: 25 mm \| Total stroke S1: 10 mm \| 1st stage stroke S2: 10 mm \| Port: M5
	SSD2-WL-25-15-5	Body: Switch magnet built in \| Bore: 25 mm \| Total stroke S1: 15 mm \| 1st stage stroke S2: 5 mm \| Port: M5
	SSD2-WL-25-15-10	Body: Switch magnet built in \| Bore: 25 mm \| Total stroke S1: 15 mm \| 1st stage stroke S2: 10 mm \| Port: M5
	SSD2-WL-25-15-15	Body: Switch magnet built in \| Bore: 25 mm \| Total stroke S1: 15 mm \| 1st stage stroke S2: 15 mm \| Port: M5
	SSD2-WL-25-20-5	Body: Switch magnet built in \| Bore: 25 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 5 mm \| Port: M5
	SSD2-WL-25-20-10	Body: Switch magnet built in \| Bore: 25 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 10 mm \| Port: M5
	SSD2-WL-25-20-15	Body: Switch magnet built in \| Bore: 25 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 15 mm \| Port: M5
	SSD2-WL-25-20-20	Body: Switch magnet built in \| Bore: 25 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 20 mm \| Port: M5
	SSD2-WL-25-25-5	Body: Switch magnet built in \| Bore: 25 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 5 mm \| Port: M5
	SSD2-WL-25-25-10	Body: Switch magnet built in \| Bore: 25 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 10 mm \| Port: M5
	SSD2-WL-25-25-15	Body: Switch magnet built in \| Bore: 25 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 15 mm \| Port: M5
	SSD2-WL-25-25-20	Body: Switch magnet built in \| Bore: 25 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 20 mm \| Port: M5
	SSD2-WL-25-25-25	Body: Switch magnet built in \| Bore: 25 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 25 mm \| Port: M5
	SSD2-WL-25-30-5	Body: Switch magnet built in \| Bore: 25 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 5 mm \| Port: M5
	SSD2-WL-25-30-10	Body: Switch magnet built in \| Bore: 25 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 10 mm \| Port: M5
	SSD2-WL-25-30-15	Body: Switch magnet built in \| Bore: 25 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 15 mm \| Port: M5
	SSD2-WL-25-30-20	Body: Switch magnet built in \| Bore: 25 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 20 mm \| Port: M5
	SSD2-WL-25-30-25	Body: Switch magnet built in \| Bore: 25 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 25 mm \| Port: M5
	SSD2-WL-25-30-30	Body: Switch magnet built in \| Bore: 25 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 30 mm \| Port: M5
	SSD2-WL-25-35-5	Body: Switch magnet built in \| Bore: 25 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 5 mm \| Port: M5
	SSD2-WL-25-35-10	Body: Switch magnet built in \| Bore: 25 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 10 mm \| Port: M5
	SSD2-WL-25-35-15	Body: Switch magnet built in \| Bore: 25 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 15 mm \| Port: M5
	SSD2-WL-25-35-20	Body: Switch magnet built in \| Bore: 25 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 20 mm \| Port: M5
	SSD2-WL-25-35-25	Body: Switch magnet built in \| Bore: 25 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 25 mm \| Port: M5
	SSD2-WL-25-35-30	Body: Switch magnet built in \| Bore: 25 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 30 mm \| Port: M5
	SSD2-WL-25-35-35	Body: Switch magnet built in \| Bore: 25 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 35 mm \| Port: M5
	SSD2-WL-25-40-5	Body: Switch magnet built in \| Bore: 25 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 5 mm \| Port: M5
	SSD2-WL-25-40-10	Body: Switch magnet built in \| Bore: 25 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 10 mm \| Port: M5
	SSD2-WL-25-40-15	Body: Switch magnet built in \| Bore: 25 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 15 mm \| Port: M5
	SSD2-WL-25-40-20	Body: Switch magnet built in \| Bore: 25 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 20 mm \| Port: M5
	SSD2-WL-25-40-25	Body: Switch magnet built in \| Bore: 25 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 25 mm \| Port: M5
	SSD2-WL-25-40-30	Body: Switch magnet built in \| Bore: 25 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 30 mm \| Port: M5
	SSD2-WL-25-40-35	Body: Switch magnet built in \| Bore: 25 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 35 mm \| Port: M5
	SSD2-WL-25-40-40	Body: Switch magnet built in \| Bore: 25 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 40 mm \| Port: M5
	SSD2-WL-25-45-5	Body: Switch magnet built in \| Bore: 25 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 5 mm \| Port: M5
	SSD2-WL-25-45-10	Body: Switch magnet built in \| Bore: 25 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 10 mm \| Port: M5
	SSD2-WL-25-45-15	Body: Switch magnet built in \| Bore: 25 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 15 mm \| Port: M5
	SSD2-WL-25-45-20	Body: Switch magnet built in \| Bore: 25 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 20 mm \| Port: M5
	SSD2-WL-25-45-25	Body: Switch magnet built in \| Bore: 25 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 25 mm \| Port: M5
	SSD2-WL-25-45-30	Body: Switch magnet built in \| Bore: 25 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 30 mm \| Port: M5
	SSD2-WL-25-45-35	Body: Switch magnet built in \| Bore: 25 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 35 mm \| Port: M5
	SSD2-WL-25-45-40	Body: Switch magnet built in \| Bore: 25 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 40 mm \| Port: M5
	SSD2-WL-25-45-45	Body: Switch magnet built in \| Bore: 25 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 45 mm \| Port: M5
	SSD2-WL-25-50-5	Body: Switch magnet built in \| Bore: 25 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 5 mm \| Port: M5
	SSD2-WL-25-50-10	Body: Switch magnet built in \| Bore: 25 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 10 mm \| Port: M5
	SSD2-WL-25-50-15	Body: Switch magnet built in \| Bore: 25 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 15 mm \| Port: M5
	SSD2-WL-25-50-20	Body: Switch magnet built in \| Bore: 25 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 20 mm \| Port: M5
	SSD2-WL-25-50-25	Body: Switch magnet built in \| Bore: 25 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm \| Port: M5
	SSD2-WL-25-50-30	Body: Switch magnet built in \| Bore: 25 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 30 mm \| Port: M5
	SSD2-WL-25-50-35	Body: Switch magnet built in \| Bore: 25 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 35 mm \| Port: M5
	SSD2-WL-25-50-40	Body: Switch magnet built in \| Bore: 25 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 40 mm \| Port: M5
	SSD2-WL-25-50-45	Body: Switch magnet built in \| Bore: 25 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 45 mm \| Port: M5
	SSD2-WL-25-50-50	Body: Switch magnet built in \| Bore: 25 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 50 mm \| Port: M5
	SSD2-WL-32-5-5	Body: Switch magnet built in \| Bore: 32 mm \| Total stroke S1: 5 mm \| 1st stage stroke S2: 5 mm \| Port: Rc1/8
	SSD2-WL-32-10-5	Body: Switch magnet built in \| Bore: 32 mm \| Total stroke S1: 10 mm \| 1st stage stroke S2: 5 mm \| Port: Rc1/8
	SSD2-WL-32-10-10	Body: Switch magnet built in \| Bore: 32 mm \| Total stroke S1: 10 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/8
	SSD2-WL-32-15-5	Body: Switch magnet built in \| Bore: 32 mm \| Total stroke S1: 15 mm \| 1st stage stroke S2: 5 mm \| Port: Rc1/8
	SSD2-WL-32-15-10	Body: Switch magnet built in \| Bore: 32 mm \| Total stroke S1: 15 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/8
	SSD2-WL-32-15-15	Body: Switch magnet built in \| Bore: 32 mm \| Total stroke S1: 15 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/8
	SSD2-WL-32-20-5	Body: Switch magnet built in \| Bore: 32 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 5 mm \| Port: Rc1/8
	SSD2-WL-32-20-10	Body: Switch magnet built in \| Bore: 32 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/8
	SSD2-WL-32-20-15	Body: Switch magnet built in \| Bore: 32 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/8
	SSD2-WL-32-20-20	Body: Switch magnet built in \| Bore: 32 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 20 mm \| Port: Rc1/8
	SSD2-WL-32-25-5	Body: Switch magnet built in \| Bore: 32 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 5 mm \| Port: Rc1/8
	SSD2-WL-32-25-10	Body: Switch magnet built in \| Bore: 32 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/8
	SSD2-WL-32-25-15	Body: Switch magnet built in \| Bore: 32 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/8
	SSD2-WL-32-25-20	Body: Switch magnet built in \| Bore: 32 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 20 mm \| Port: Rc1/8
	SSD2-WL-32-25-25	Body: Switch magnet built in \| Bore: 32 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 25 mm \| Port: Rc1/8
	SSD2-WL-32-30-5	Body: Switch magnet built in \| Bore: 32 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 5 mm \| Port: Rc1/8
	SSD2-WL-32-30-10	Body: Switch magnet built in \| Bore: 32 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/8
	SSD2-WL-32-30-15	Body: Switch magnet built in \| Bore: 32 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/8
	SSD2-WL-32-30-20	Body: Switch magnet built in \| Bore: 32 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 20 mm \| Port: Rc1/8
	SSD2-WL-32-30-25	Body: Switch magnet built in \| Bore: 32 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 25 mm \| Port: Rc1/8
	SSD2-WL-32-30-30	Body: Switch magnet built in \| Bore: 32 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 30 mm \| Port: Rc1/8
	SSD2-WL-32-35-5	Body: Switch magnet built in \| Bore: 32 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 5 mm \| Port: Rc1/8
	SSD2-WL-32-35-10	Body: Switch magnet built in \| Bore: 32 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/8
	SSD2-WL-32-35-15	Body: Switch magnet built in \| Bore: 32 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/8
	SSD2-WL-32-35-20	Body: Switch magnet built in \| Bore: 32 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 20 mm \| Port: Rc1/8
	SSD2-WL-32-35-25	Body: Switch magnet built in \| Bore: 32 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 25 mm \| Port: Rc1/8
	SSD2-WL-32-35-30	Body: Switch magnet built in \| Bore: 32 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 30 mm \| Port: Rc1/8
	SSD2-WL-32-35-35	Body: Switch magnet built in \| Bore: 32 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 35 mm \| Port: Rc1/8
	SSD2-WL-32-40-5	Body: Switch magnet built in \| Bore: 32 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 5 mm \| Port: Rc1/8
	SSD2-WL-32-40-10	Body: Switch magnet built in \| Bore: 32 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/8
	SSD2-WL-32-40-15	Body: Switch magnet built in \| Bore: 32 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/8
	SSD2-WL-32-40-20	Body: Switch magnet built in \| Bore: 32 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 20 mm \| Port: Rc1/8
	SSD2-WL-32-40-25	Body: Switch magnet built in \| Bore: 32 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 25 mm \| Port: Rc1/8
	SSD2-WL-32-40-30	Body: Switch magnet built in \| Bore: 32 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 30 mm \| Port: Rc1/8
	SSD2-WL-32-40-35	Body: Switch magnet built in \| Bore: 32 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 35 mm \| Port: Rc1/8
	SSD2-WL-32-40-40	Body: Switch magnet built in \| Bore: 32 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 40 mm \| Port: Rc1/8
	SSD2-WL-32-45-5	Body: Switch magnet built in \| Bore: 32 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 5 mm \| Port: Rc1/8
	SSD2-WL-32-45-10	Body: Switch magnet built in \| Bore: 32 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/8
	SSD2-WL-32-45-15	Body: Switch magnet built in \| Bore: 32 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/8
	SSD2-WL-32-45-20	Body: Switch magnet built in \| Bore: 32 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 20 mm \| Port: Rc1/8
	SSD2-WL-32-45-25	Body: Switch magnet built in \| Bore: 32 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 25 mm \| Port: Rc1/8
	SSD2-WL-32-45-30	Body: Switch magnet built in \| Bore: 32 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 30 mm \| Port: Rc1/8
	SSD2-WL-32-45-35	Body: Switch magnet built in \| Bore: 32 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 35 mm \| Port: Rc1/8
	SSD2-WL-32-45-40	Body: Switch magnet built in \| Bore: 32 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 40 mm \| Port: Rc1/8
	SSD2-WL-32-45-45	Body: Switch magnet built in \| Bore: 32 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 45 mm \| Port: Rc1/8
	SSD2-WL-32-50-5	Body: Switch magnet built in \| Bore: 32 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 5 mm \| Port: Rc1/8
	SSD2-WL-32-50-10	Body: Switch magnet built in \| Bore: 32 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/8
	SSD2-WL-32-50-15	Body: Switch magnet built in \| Bore: 32 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/8
	SSD2-WL-32-50-20	Body: Switch magnet built in \| Bore: 32 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 20 mm \| Port: Rc1/8
	SSD2-WL-32-50-25	Body: Switch magnet built in \| Bore: 32 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm \| Port: Rc1/8
	SSD2-WL-32-50-30	Body: Switch magnet built in \| Bore: 32 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 30 mm \| Port: Rc1/8
	SSD2-WL-32-50-35	Body: Switch magnet built in \| Bore: 32 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 35 mm \| Port: Rc1/8
	SSD2-WL-32-50-40	Body: Switch magnet built in \| Bore: 32 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 40 mm \| Port: Rc1/8
	SSD2-WL-32-50-45	Body: Switch magnet built in \| Bore: 32 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 45 mm \| Port: Rc1/8
	SSD2-WL-32-50-50	Body: Switch magnet built in \| Bore: 32 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 50 mm \| Port: Rc1/8
	SSD2-WL-40-5-5	Body: Switch magnet built in \| Bore: 40 mm \| Total stroke S1: 5 mm \| 1st stage stroke S2: 5 mm \| Port: Rc1/8
	SSD2-WL-40-10-5	Body: Switch magnet built in \| Bore: 40 mm \| Total stroke S1: 10 mm \| 1st stage stroke S2: 5 mm \| Port: Rc1/8
	SSD2-WL-40-10-10	Body: Switch magnet built in \| Bore: 40 mm \| Total stroke S1: 10 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/8
	SSD2-WL-40-15-5	Body: Switch magnet built in \| Bore: 40 mm \| Total stroke S1: 15 mm \| 1st stage stroke S2: 5 mm \| Port: Rc1/8
	SSD2-WL-40-15-10	Body: Switch magnet built in \| Bore: 40 mm \| Total stroke S1: 15 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/8
	SSD2-WL-40-15-15	Body: Switch magnet built in \| Bore: 40 mm \| Total stroke S1: 15 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/8
	SSD2-WL-40-20-5	Body: Switch magnet built in \| Bore: 40 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 5 mm \| Port: Rc1/8
	SSD2-WL-40-20-10	Body: Switch magnet built in \| Bore: 40 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/8
	SSD2-WL-40-20-15	Body: Switch magnet built in \| Bore: 40 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/8
	SSD2-WL-40-20-20	Body: Switch magnet built in \| Bore: 40 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 20 mm \| Port: Rc1/8
	SSD2-WL-40-25-5	Body: Switch magnet built in \| Bore: 40 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 5 mm \| Port: Rc1/8
	SSD2-WL-40-25-10	Body: Switch magnet built in \| Bore: 40 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/8
	SSD2-WL-40-25-15	Body: Switch magnet built in \| Bore: 40 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/8
	SSD2-WL-40-25-20	Body: Switch magnet built in \| Bore: 40 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 20 mm \| Port: Rc1/8
	SSD2-WL-40-25-25	Body: Switch magnet built in \| Bore: 40 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 25 mm \| Port: Rc1/8
	SSD2-WL-40-30-5	Body: Switch magnet built in \| Bore: 40 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 5 mm \| Port: Rc1/8
	SSD2-WL-40-30-10	Body: Switch magnet built in \| Bore: 40 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/8
	SSD2-WL-40-30-15	Body: Switch magnet built in \| Bore: 40 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/8
	SSD2-WL-40-30-20	Body: Switch magnet built in \| Bore: 40 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 20 mm \| Port: Rc1/8
	SSD2-WL-40-30-25	Body: Switch magnet built in \| Bore: 40 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 25 mm \| Port: Rc1/8
	SSD2-WL-40-30-30	Body: Switch magnet built in \| Bore: 40 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 30 mm \| Port: Rc1/8
	SSD2-WL-40-35-5	Body: Switch magnet built in \| Bore: 40 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 5 mm \| Port: Rc1/8
	SSD2-WL-40-35-10	Body: Switch magnet built in \| Bore: 40 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/8
	SSD2-WL-40-35-15	Body: Switch magnet built in \| Bore: 40 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/8
	SSD2-WL-40-35-20	Body: Switch magnet built in \| Bore: 40 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 20 mm \| Port: Rc1/8
	SSD2-WL-40-35-25	Body: Switch magnet built in \| Bore: 40 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 25 mm \| Port: Rc1/8
	SSD2-WL-40-35-30	Body: Switch magnet built in \| Bore: 40 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 30 mm \| Port: Rc1/8
	SSD2-WL-40-35-35	Body: Switch magnet built in \| Bore: 40 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 35 mm \| Port: Rc1/8
	SSD2-WL-40-40-5	Body: Switch magnet built in \| Bore: 40 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 5 mm \| Port: Rc1/8
	SSD2-WL-40-40-10	Body: Switch magnet built in \| Bore: 40 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/8
	SSD2-WL-40-40-15	Body: Switch magnet built in \| Bore: 40 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/8
	SSD2-WL-40-40-20	Body: Switch magnet built in \| Bore: 40 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 20 mm \| Port: Rc1/8
	SSD2-WL-40-40-25	Body: Switch magnet built in \| Bore: 40 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 25 mm \| Port: Rc1/8
	SSD2-WL-40-40-30	Body: Switch magnet built in \| Bore: 40 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 30 mm \| Port: Rc1/8
	SSD2-WL-40-40-35	Body: Switch magnet built in \| Bore: 40 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 35 mm \| Port: Rc1/8
	SSD2-WL-40-40-40	Body: Switch magnet built in \| Bore: 40 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 40 mm \| Port: Rc1/8
	SSD2-WL-40-45-5	Body: Switch magnet built in \| Bore: 40 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 5 mm \| Port: Rc1/8
	SSD2-WL-40-45-10	Body: Switch magnet built in \| Bore: 40 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/8
	SSD2-WL-40-45-15	Body: Switch magnet built in \| Bore: 40 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/8
	SSD2-WL-40-45-20	Body: Switch magnet built in \| Bore: 40 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 20 mm \| Port: Rc1/8
	SSD2-WL-40-45-25	Body: Switch magnet built in \| Bore: 40 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 25 mm \| Port: Rc1/8
	SSD2-WL-40-45-30	Body: Switch magnet built in \| Bore: 40 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 30 mm \| Port: Rc1/8
	SSD2-WL-40-45-35	Body: Switch magnet built in \| Bore: 40 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 35 mm \| Port: Rc1/8
	SSD2-WL-40-45-40	Body: Switch magnet built in \| Bore: 40 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 40 mm \| Port: Rc1/8
	SSD2-WL-40-45-45	Body: Switch magnet built in \| Bore: 40 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 45 mm \| Port: Rc1/8
	SSD2-WL-40-50-5	Body: Switch magnet built in \| Bore: 40 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 5 mm \| Port: Rc1/8
	SSD2-WL-40-50-10	Body: Switch magnet built in \| Bore: 40 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/8
	SSD2-WL-40-50-15	Body: Switch magnet built in \| Bore: 40 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/8
	SSD2-WL-40-50-20	Body: Switch magnet built in \| Bore: 40 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 20 mm \| Port: Rc1/8
	SSD2-WL-40-50-25	Body: Switch magnet built in \| Bore: 40 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm \| Port: Rc1/8
	SSD2-WL-40-50-30	Body: Switch magnet built in \| Bore: 40 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 30 mm \| Port: Rc1/8
	SSD2-WL-40-50-35	Body: Switch magnet built in \| Bore: 40 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 35 mm \| Port: Rc1/8
	SSD2-WL-40-50-40	Body: Switch magnet built in \| Bore: 40 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 40 mm \| Port: Rc1/8
	SSD2-WL-40-50-45	Body: Switch magnet built in \| Bore: 40 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 45 mm \| Port: Rc1/8
	SSD2-WL-40-50-50	Body: Switch magnet built in \| Bore: 40 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 50 mm \| Port: Rc1/8
	SSD2-WL-50-10-10	Body: Switch magnet built in \| Bore: 50 mm \| Total stroke S1: 10 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/4
	SSD2-WL-50-15-10	Body: Switch magnet built in \| Bore: 50 mm \| Total stroke S1: 15 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/4
	SSD2-WL-50-15-15	Body: Switch magnet built in \| Bore: 50 mm \| Total stroke S1: 15 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/4
	SSD2-WL-50-20-10	Body: Switch magnet built in \| Bore: 50 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/4
	SSD2-WL-50-20-15	Body: Switch magnet built in \| Bore: 50 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/4
	SSD2-WL-50-20-20	Body: Switch magnet built in \| Bore: 50 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 20 mm \| Port: Rc1/4
	SSD2-WL-50-25-10	Body: Switch magnet built in \| Bore: 50 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/4
	SSD2-WL-50-25-15	Body: Switch magnet built in \| Bore: 50 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/4
	SSD2-WL-50-25-20	Body: Switch magnet built in \| Bore: 50 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 20 mm \| Port: Rc1/4
	SSD2-WL-50-25-25	Body: Switch magnet built in \| Bore: 50 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 25 mm \| Port: Rc1/4
	SSD2-WL-50-30-10	Body: Switch magnet built in \| Bore: 50 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/4
	SSD2-WL-50-30-15	Body: Switch magnet built in \| Bore: 50 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/4
	SSD2-WL-50-30-20	Body: Switch magnet built in \| Bore: 50 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 20 mm \| Port: Rc1/4
	SSD2-WL-50-30-25	Body: Switch magnet built in \| Bore: 50 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 25 mm \| Port: Rc1/4
	SSD2-WL-50-30-30	Body: Switch magnet built in \| Bore: 50 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 30 mm \| Port: Rc1/4
	SSD2-WL-50-35-10	Body: Switch magnet built in \| Bore: 50 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/4
	SSD2-WL-50-35-15	Body: Switch magnet built in \| Bore: 50 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/4
	SSD2-WL-50-35-20	Body: Switch magnet built in \| Bore: 50 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 20 mm \| Port: Rc1/4
	SSD2-WL-50-35-25	Body: Switch magnet built in \| Bore: 50 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 25 mm \| Port: Rc1/4
	SSD2-WL-50-35-30	Body: Switch magnet built in \| Bore: 50 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 30 mm \| Port: Rc1/4
	SSD2-WL-50-35-35	Body: Switch magnet built in \| Bore: 50 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 35 mm \| Port: Rc1/4
	SSD2-WL-50-40-10	Body: Switch magnet built in \| Bore: 50 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/4
	SSD2-WL-50-40-15	Body: Switch magnet built in \| Bore: 50 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/4
	SSD2-WL-50-40-20	Body: Switch magnet built in \| Bore: 50 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 20 mm \| Port: Rc1/4
	SSD2-WL-50-40-25	Body: Switch magnet built in \| Bore: 50 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 25 mm \| Port: Rc1/4
	SSD2-WL-50-40-30	Body: Switch magnet built in \| Bore: 50 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 30 mm \| Port: Rc1/4
	SSD2-WL-50-40-35	Body: Switch magnet built in \| Bore: 50 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 35 mm \| Port: Rc1/4
	SSD2-WL-50-40-40	Body: Switch magnet built in \| Bore: 50 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 40 mm \| Port: Rc1/4
	SSD2-WL-50-45-10	Body: Switch magnet built in \| Bore: 50 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/4
	SSD2-WL-50-45-15	Body: Switch magnet built in \| Bore: 50 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/4
	SSD2-WL-50-45-20	Body: Switch magnet built in \| Bore: 50 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 20 mm \| Port: Rc1/4
	SSD2-WL-50-45-25	Body: Switch magnet built in \| Bore: 50 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 25 mm \| Port: Rc1/4
	SSD2-WL-50-45-30	Body: Switch magnet built in \| Bore: 50 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 30 mm \| Port: Rc1/4
	SSD2-WL-50-45-35	Body: Switch magnet built in \| Bore: 50 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 35 mm \| Port: Rc1/4
	SSD2-WL-50-45-40	Body: Switch magnet built in \| Bore: 50 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 40 mm \| Port: Rc1/4
	SSD2-WL-50-45-45	Body: Switch magnet built in \| Bore: 50 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 45 mm \| Port: Rc1/4
	SSD2-WL-50-50-10	Body: Switch magnet built in \| Bore: 50 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/4
	SSD2-WL-50-50-15	Body: Switch magnet built in \| Bore: 50 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/4
	SSD2-WL-50-50-20	Body: Switch magnet built in \| Bore: 50 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 20 mm \| Port: Rc1/4
	SSD2-WL-50-50-25	Body: Switch magnet built in \| Bore: 50 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm \| Port: Rc1/4
	SSD2-WL-50-50-30	Body: Switch magnet built in \| Bore: 50 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 30 mm \| Port: Rc1/4
	SSD2-WL-50-50-35	Body: Switch magnet built in \| Bore: 50 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 35 mm \| Port: Rc1/4
	SSD2-WL-50-50-40	Body: Switch magnet built in \| Bore: 50 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 40 mm \| Port: Rc1/4
	SSD2-WL-50-50-45	Body: Switch magnet built in \| Bore: 50 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 45 mm \| Port: Rc1/4
	SSD2-WL-50-50-50	Body: Switch magnet built in \| Bore: 50 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 50 mm \| Port: Rc1/4
	SSD2-WL-63-10-10	Body: Switch magnet built in \| Bore: 63 mm \| Total stroke S1: 10 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/4
	SSD2-WL-63-15-10	Body: Switch magnet built in \| Bore: 63 mm \| Total stroke S1: 15 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/4
	SSD2-WL-63-15-15	Body: Switch magnet built in \| Bore: 63 mm \| Total stroke S1: 15 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/4
	SSD2-WL-63-20-10	Body: Switch magnet built in \| Bore: 63 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/4
	SSD2-WL-63-20-15	Body: Switch magnet built in \| Bore: 63 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/4
	SSD2-WL-63-20-20	Body: Switch magnet built in \| Bore: 63 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 20 mm \| Port: Rc1/4
	SSD2-WL-63-25-10	Body: Switch magnet built in \| Bore: 63 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/4
	SSD2-WL-63-25-15	Body: Switch magnet built in \| Bore: 63 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/4
	SSD2-WL-63-25-20	Body: Switch magnet built in \| Bore: 63 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 20 mm \| Port: Rc1/4
	SSD2-WL-63-25-25	Body: Switch magnet built in \| Bore: 63 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 25 mm \| Port: Rc1/4
	SSD2-WL-63-30-10	Body: Switch magnet built in \| Bore: 63 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/4
	SSD2-WL-63-30-15	Body: Switch magnet built in \| Bore: 63 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/4
	SSD2-WL-63-30-20	Body: Switch magnet built in \| Bore: 63 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 20 mm \| Port: Rc1/4
	SSD2-WL-63-30-25	Body: Switch magnet built in \| Bore: 63 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 25 mm \| Port: Rc1/4
	SSD2-WL-63-30-30	Body: Switch magnet built in \| Bore: 63 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 30 mm \| Port: Rc1/4
	SSD2-WL-63-35-10	Body: Switch magnet built in \| Bore: 63 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/4
	SSD2-WL-63-35-15	Body: Switch magnet built in \| Bore: 63 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/4
	SSD2-WL-63-35-20	Body: Switch magnet built in \| Bore: 63 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 20 mm \| Port: Rc1/4
	SSD2-WL-63-35-25	Body: Switch magnet built in \| Bore: 63 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 25 mm \| Port: Rc1/4
	SSD2-WL-63-35-30	Body: Switch magnet built in \| Bore: 63 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 30 mm \| Port: Rc1/4
	SSD2-WL-63-35-35	Body: Switch magnet built in \| Bore: 63 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 35 mm \| Port: Rc1/4
	SSD2-WL-63-40-10	Body: Switch magnet built in \| Bore: 63 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/4
	SSD2-WL-63-40-15	Body: Switch magnet built in \| Bore: 63 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/4
	SSD2-WL-63-40-20	Body: Switch magnet built in \| Bore: 63 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 20 mm \| Port: Rc1/4
	SSD2-WL-63-40-25	Body: Switch magnet built in \| Bore: 63 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 25 mm \| Port: Rc1/4
	SSD2-WL-63-40-30	Body: Switch magnet built in \| Bore: 63 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 30 mm \| Port: Rc1/4
	SSD2-WL-63-40-35	Body: Switch magnet built in \| Bore: 63 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 35 mm \| Port: Rc1/4
	SSD2-WL-63-40-40	Body: Switch magnet built in \| Bore: 63 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 40 mm \| Port: Rc1/4
	SSD2-WL-63-45-10	Body: Switch magnet built in \| Bore: 63 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/4
	SSD2-WL-63-45-15	Body: Switch magnet built in \| Bore: 63 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/4
	SSD2-WL-63-45-20	Body: Switch magnet built in \| Bore: 63 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 20 mm \| Port: Rc1/4
	SSD2-WL-63-45-25	Body: Switch magnet built in \| Bore: 63 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 25 mm \| Port: Rc1/4
	SSD2-WL-63-45-30	Body: Switch magnet built in \| Bore: 63 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 30 mm \| Port: Rc1/4
	SSD2-WL-63-45-35	Body: Switch magnet built in \| Bore: 63 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 35 mm \| Port: Rc1/4
	SSD2-WL-63-45-40	Body: Switch magnet built in \| Bore: 63 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 40 mm \| Port: Rc1/4
	SSD2-WL-63-45-45	Body: Switch magnet built in \| Bore: 63 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 45 mm \| Port: Rc1/4
	SSD2-WL-63-50-10	Body: Switch magnet built in \| Bore: 63 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 10 mm \| Port: Rc1/4
	SSD2-WL-63-50-15	Body: Switch magnet built in \| Bore: 63 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 15 mm \| Port: Rc1/4
	SSD2-WL-63-50-20	Body: Switch magnet built in \| Bore: 63 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 20 mm \| Port: Rc1/4
	SSD2-WL-63-50-25	Body: Switch magnet built in \| Bore: 63 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm \| Port: Rc1/4
	SSD2-WL-63-50-30	Body: Switch magnet built in \| Bore: 63 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 30 mm \| Port: Rc1/4
	SSD2-WL-63-50-35	Body: Switch magnet built in \| Bore: 63 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 35 mm \| Port: Rc1/4
	SSD2-WL-63-50-40	Body: Switch magnet built in \| Bore: 63 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 40 mm \| Port: Rc1/4
	SSD2-WL-63-50-45	Body: Switch magnet built in \| Bore: 63 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 45 mm \| Port: Rc1/4
	SSD2-WL-63-50-50	Body: Switch magnet built in \| Bore: 63 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 50 mm \| Port: Rc1/4
	SSD2-WL-80-10-10	Body: Switch magnet built in \| Bore: 80 mm \| Total stroke S1: 10 mm \| 1st stage stroke S2: 10 mm \| Port: Rc3/8
	SSD2-WL-80-15-10	Body: Switch magnet built in \| Bore: 80 mm \| Total stroke S1: 15 mm \| 1st stage stroke S2: 10 mm \| Port: Rc3/8
	SSD2-WL-80-15-15	Body: Switch magnet built in \| Bore: 80 mm \| Total stroke S1: 15 mm \| 1st stage stroke S2: 15 mm \| Port: Rc3/8
	SSD2-WL-80-20-10	Body: Switch magnet built in \| Bore: 80 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 10 mm \| Port: Rc3/8
	SSD2-WL-80-20-15	Body: Switch magnet built in \| Bore: 80 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 15 mm \| Port: Rc3/8
	SSD2-WL-80-20-20	Body: Switch magnet built in \| Bore: 80 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 20 mm \| Port: Rc3/8
	SSD2-WL-80-25-10	Body: Switch magnet built in \| Bore: 80 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 10 mm \| Port: Rc3/8
	SSD2-WL-80-25-15	Body: Switch magnet built in \| Bore: 80 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 15 mm \| Port: Rc3/8
	SSD2-WL-80-25-20	Body: Switch magnet built in \| Bore: 80 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 20 mm \| Port: Rc3/8
	SSD2-WL-80-25-25	Body: Switch magnet built in \| Bore: 80 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 25 mm \| Port: Rc3/8
	SSD2-WL-80-30-10	Body: Switch magnet built in \| Bore: 80 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 10 mm \| Port: Rc3/8
	SSD2-WL-80-30-15	Body: Switch magnet built in \| Bore: 80 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 15 mm \| Port: Rc3/8
	SSD2-WL-80-30-20	Body: Switch magnet built in \| Bore: 80 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 20 mm \| Port: Rc3/8
	SSD2-WL-80-30-25	Body: Switch magnet built in \| Bore: 80 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 25 mm \| Port: Rc3/8
	SSD2-WL-80-30-30	Body: Switch magnet built in \| Bore: 80 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 30 mm \| Port: Rc3/8
	SSD2-WL-80-35-10	Body: Switch magnet built in \| Bore: 80 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 10 mm \| Port: Rc3/8
	SSD2-WL-80-35-15	Body: Switch magnet built in \| Bore: 80 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 15 mm \| Port: Rc3/8
	SSD2-WL-80-35-20	Body: Switch magnet built in \| Bore: 80 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 20 mm \| Port: Rc3/8
	SSD2-WL-80-35-25	Body: Switch magnet built in \| Bore: 80 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 25 mm \| Port: Rc3/8
	SSD2-WL-80-35-30	Body: Switch magnet built in \| Bore: 80 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 30 mm \| Port: Rc3/8
	SSD2-WL-80-35-35	Body: Switch magnet built in \| Bore: 80 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 35 mm \| Port: Rc3/8
	SSD2-WL-80-40-10	Body: Switch magnet built in \| Bore: 80 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 10 mm \| Port: Rc3/8
	SSD2-WL-80-40-15	Body: Switch magnet built in \| Bore: 80 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 15 mm \| Port: Rc3/8
	SSD2-WL-80-40-20	Body: Switch magnet built in \| Bore: 80 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 20 mm \| Port: Rc3/8
	SSD2-WL-80-40-25	Body: Switch magnet built in \| Bore: 80 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 25 mm \| Port: Rc3/8
	SSD2-WL-80-40-30	Body: Switch magnet built in \| Bore: 80 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 30 mm \| Port: Rc3/8
	SSD2-WL-80-40-35	Body: Switch magnet built in \| Bore: 80 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 35 mm \| Port: Rc3/8
	SSD2-WL-80-40-40	Body: Switch magnet built in \| Bore: 80 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 40 mm \| Port: Rc3/8
	SSD2-WL-80-45-10	Body: Switch magnet built in \| Bore: 80 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 10 mm \| Port: Rc3/8
	SSD2-WL-80-45-15	Body: Switch magnet built in \| Bore: 80 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 15 mm \| Port: Rc3/8
	SSD2-WL-80-45-20	Body: Switch magnet built in \| Bore: 80 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 20 mm \| Port: Rc3/8
	SSD2-WL-80-45-25	Body: Switch magnet built in \| Bore: 80 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 25 mm \| Port: Rc3/8
	SSD2-WL-80-45-30	Body: Switch magnet built in \| Bore: 80 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 30 mm \| Port: Rc3/8
	SSD2-WL-80-45-35	Body: Switch magnet built in \| Bore: 80 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 35 mm \| Port: Rc3/8
	SSD2-WL-80-45-40	Body: Switch magnet built in \| Bore: 80 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 40 mm \| Port: Rc3/8
	SSD2-WL-80-45-45	Body: Switch magnet built in \| Bore: 80 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 45 mm \| Port: Rc3/8
	SSD2-WL-80-50-10	Body: Switch magnet built in \| Bore: 80 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 10 mm \| Port: Rc3/8
	SSD2-WL-80-50-15	Body: Switch magnet built in \| Bore: 80 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 15 mm \| Port: Rc3/8
	SSD2-WL-80-50-20	Body: Switch magnet built in \| Bore: 80 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 20 mm \| Port: Rc3/8
	SSD2-WL-80-50-25	Body: Switch magnet built in \| Bore: 80 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm \| Port: Rc3/8
	SSD2-WL-80-50-30	Body: Switch magnet built in \| Bore: 80 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 30 mm \| Port: Rc3/8
	SSD2-WL-80-50-35	Body: Switch magnet built in \| Bore: 80 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 35 mm \| Port: Rc3/8
	SSD2-WL-80-50-40	Body: Switch magnet built in \| Bore: 80 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 40 mm \| Port: Rc3/8
	SSD2-WL-80-50-45	Body: Switch magnet built in \| Bore: 80 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 45 mm \| Port: Rc3/8
	SSD2-WL-80-50-50	Body: Switch magnet built in \| Bore: 80 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 50 mm \| Port: Rc3/8
	SSD2-WL-100-10-10	Body: Switch magnet built in \| Bore: 100 mm \| Total stroke S1: 10 mm \| 1st stage stroke S2: 10 mm \| Port: Rc3/8
	SSD2-WL-100-15-10	Body: Switch magnet built in \| Bore: 100 mm \| Total stroke S1: 15 mm \| 1st stage stroke S2: 10 mm \| Port: Rc3/8
	SSD2-WL-100-15-15	Body: Switch magnet built in \| Bore: 100 mm \| Total stroke S1: 15 mm \| 1st stage stroke S2: 15 mm \| Port: Rc3/8
	SSD2-WL-100-20-10	Body: Switch magnet built in \| Bore: 100 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 10 mm \| Port: Rc3/8
	SSD2-WL-100-20-15	Body: Switch magnet built in \| Bore: 100 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 15 mm \| Port: Rc3/8
	SSD2-WL-100-20-20	Body: Switch magnet built in \| Bore: 100 mm \| Total stroke S1: 20 mm \| 1st stage stroke S2: 20 mm \| Port: Rc3/8
	SSD2-WL-100-25-10	Body: Switch magnet built in \| Bore: 100 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 10 mm \| Port: Rc3/8
	SSD2-WL-100-25-15	Body: Switch magnet built in \| Bore: 100 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 15 mm \| Port: Rc3/8
	SSD2-WL-100-25-20	Body: Switch magnet built in \| Bore: 100 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 20 mm \| Port: Rc3/8
	SSD2-WL-100-25-25	Body: Switch magnet built in \| Bore: 100 mm \| Total stroke S1: 25 mm \| 1st stage stroke S2: 25 mm \| Port: Rc3/8
	SSD2-WL-100-30-10	Body: Switch magnet built in \| Bore: 100 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 10 mm \| Port: Rc3/8
	SSD2-WL-100-30-15	Body: Switch magnet built in \| Bore: 100 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 15 mm \| Port: Rc3/8
	SSD2-WL-100-30-20	Body: Switch magnet built in \| Bore: 100 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 20 mm \| Port: Rc3/8
	SSD2-WL-100-30-25	Body: Switch magnet built in \| Bore: 100 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 25 mm \| Port: Rc3/8
	SSD2-WL-100-30-30	Body: Switch magnet built in \| Bore: 100 mm \| Total stroke S1: 30 mm \| 1st stage stroke S2: 30 mm \| Port: Rc3/8
	SSD2-WL-100-35-10	Body: Switch magnet built in \| Bore: 100 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 10 mm \| Port: Rc3/8
	SSD2-WL-100-35-15	Body: Switch magnet built in \| Bore: 100 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 15 mm \| Port: Rc3/8
	SSD2-WL-100-35-20	Body: Switch magnet built in \| Bore: 100 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 20 mm \| Port: Rc3/8
	SSD2-WL-100-35-25	Body: Switch magnet built in \| Bore: 100 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 25 mm \| Port: Rc3/8
	SSD2-WL-100-35-30	Body: Switch magnet built in \| Bore: 100 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 30 mm \| Port: Rc3/8
	SSD2-WL-100-35-35	Body: Switch magnet built in \| Bore: 100 mm \| Total stroke S1: 35 mm \| 1st stage stroke S2: 35 mm \| Port: Rc3/8
	SSD2-WL-100-40-10	Body: Switch magnet built in \| Bore: 100 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 10 mm \| Port: Rc3/8
	SSD2-WL-100-40-15	Body: Switch magnet built in \| Bore: 100 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 15 mm \| Port: Rc3/8
	SSD2-WL-100-40-20	Body: Switch magnet built in \| Bore: 100 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 20 mm \| Port: Rc3/8
	SSD2-WL-100-40-25	Body: Switch magnet built in \| Bore: 100 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 25 mm \| Port: Rc3/8
	SSD2-WL-100-40-30	Body: Switch magnet built in \| Bore: 100 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 30 mm \| Port: Rc3/8
	SSD2-WL-100-40-35	Body: Switch magnet built in \| Bore: 100 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 35 mm \| Port: Rc3/8
	SSD2-WL-100-40-40	Body: Switch magnet built in \| Bore: 100 mm \| Total stroke S1: 40 mm \| 1st stage stroke S2: 40 mm \| Port: Rc3/8
	SSD2-WL-100-45-10	Body: Switch magnet built in \| Bore: 100 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 10 mm \| Port: Rc3/8
	SSD2-WL-100-45-15	Body: Switch magnet built in \| Bore: 100 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 15 mm \| Port: Rc3/8
	SSD2-WL-100-45-20	Body: Switch magnet built in \| Bore: 100 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 20 mm \| Port: Rc3/8
	SSD2-WL-100-45-25	Body: Switch magnet built in \| Bore: 100 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 25 mm \| Port: Rc3/8
	SSD2-WL-100-45-30	Body: Switch magnet built in \| Bore: 100 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 30 mm \| Port: Rc3/8
	SSD2-WL-100-45-35	Body: Switch magnet built in \| Bore: 100 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 35 mm \| Port: Rc3/8
	SSD2-WL-100-45-40	Body: Switch magnet built in \| Bore: 100 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 40 mm \| Port: Rc3/8
	SSD2-WL-100-45-45	Body: Switch magnet built in \| Bore: 100 mm \| Total stroke S1: 45 mm \| 1st stage stroke S2: 45 mm \| Port: Rc3/8
	SSD2-WL-100-50-10	Body: Switch magnet built in \| Bore: 100 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 10 mm \| Port: Rc3/8
	SSD2-WL-100-50-15	Body: Switch magnet built in \| Bore: 100 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 15 mm \| Port: Rc3/8
	SSD2-WL-100-50-20	Body: Switch magnet built in \| Bore: 100 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 20 mm \| Port: Rc3/8
	SSD2-WL-100-50-25	Body: Switch magnet built in \| Bore: 100 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 25 mm \| Port: Rc3/8
	SSD2-WL-100-50-30	Body: Switch magnet built in \| Bore: 100 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 30 mm \| Port: Rc3/8
	SSD2-WL-100-50-35	Body: Switch magnet built in \| Bore: 100 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 35 mm \| Port: Rc3/8
	SSD2-WL-100-50-40	Body: Switch magnet built in \| Bore: 100 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 40 mm \| Port: Rc3/8
	SSD2-WL-100-50-45	Body: Switch magnet built in \| Bore: 100 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 45 mm \| Port: Rc3/8
	SSD2-WL-100-50-50	Body: Switch magnet built in \| Bore: 100 mm \| Total stroke S1: 50 mm \| 1st stage stroke S2: 50 mm \| Port: Rc3/8

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

CKD SSD2-W Super Compact Cylinder (Two-Stage)
