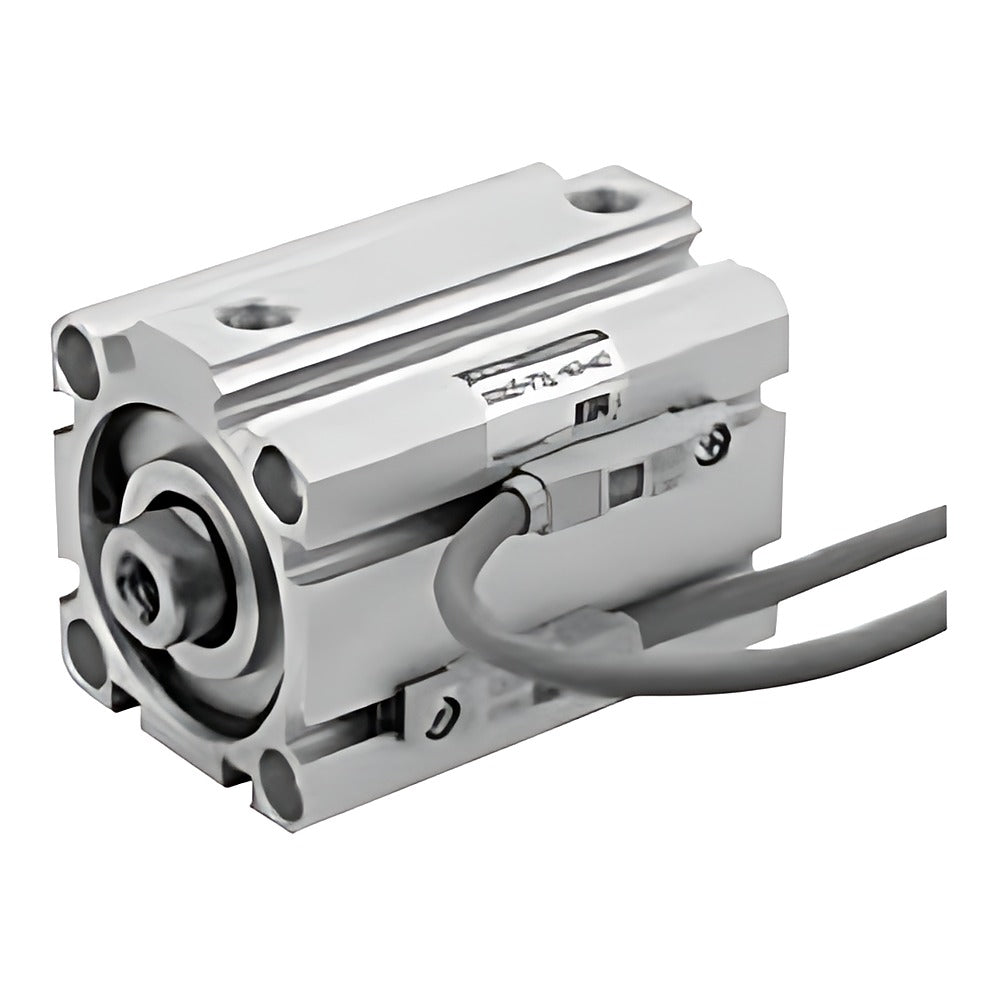

CKD SSD2-X/Y-FP1 Super Compact Cylinder (Single Acting, Bore 12-50)

CKD SSD2-X/Y-FP1 single-acting (push X / pull Y) super compact cylinder, bore 12-50 mm, with NSF H1 food-grade grease.

Key features

NSF H1 registered food-grade grease used on sliding parts (FP1 food processing specification)
Super compact cylinder; each type with (L) or without switch magnet; rubber cushion (D) or no cushion
Mounting bracket (LB, CB, FA, FB) is specified after FP1 and shipped with the cylinder
Auto switches (T0H, T2H, T2WH, F2H etc.) with count R/H/D, rod-end male thread N, stainless rod M, intermediate-stroke body S and knuckles I/Y ordered as suffixes
NPT/G threads (bore 32 and over) made to order
Standard strokes 5/10 mm (bore 50: 10/20 mm)

Specifications

Fluid	Compressed air
Max. operating pressure	1.0 MPa
Min. operating pressure	0.1 MPa (12-63), 0.05 MPa (80/100)
Proof pressure	1.6 MPa
Ambient temperature	-10 to 60 C
Port	M5 (12-25), Rc1/8 (32-40), Rc1/4 (50-63), Rc3/8 (80/100)
Source	CKD Korea catalog CC-1271K, p. 82-84

SSD2-X-12-5-FP1		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 12 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (cylinder only)
SSD2-X-12-5-FP1-LB		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 12 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot
SSD2-X-12-5-FP1-CB		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 12 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis
SSD2-X-12-5-FP1-FA		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 12 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod-side flange
SSD2-X-12-5-FP1-FB		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 12 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Head-side flange
SSD2-X-12-10-FP1		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 12 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only)
SSD2-X-12-10-FP1-LB		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 12 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot
SSD2-X-12-10-FP1-CB		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 12 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis
SSD2-X-12-10-FP1-FA		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 12 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-side flange
SSD2-X-12-10-FP1-FB		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 12 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Head-side flange
SSD2-X-12D-5-FP1		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 12 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: None (cylinder only)
SSD2-X-12D-5-FP1-LB		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 12 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Axial foot
SSD2-X-12D-5-FP1-CB		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 12 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Double clevis
SSD2-X-12D-5-FP1-FA		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 12 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Rod-side flange
SSD2-X-12D-5-FP1-FB		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 12 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Head-side flange
SSD2-X-12D-10-FP1		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 12 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: None (cylinder only)
SSD2-X-12D-10-FP1-LB		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 12 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Axial foot
SSD2-X-12D-10-FP1-CB		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 12 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Double clevis
SSD2-X-12D-10-FP1-FA		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 12 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Rod-side flange
SSD2-X-12D-10-FP1-FB		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 12 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Head-side flange
SSD2-X-16-5-FP1		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 16 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (cylinder only)
SSD2-X-16-5-FP1-LB		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 16 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot
SSD2-X-16-5-FP1-CB		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 16 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis
SSD2-X-16-5-FP1-FA		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 16 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod-side flange
SSD2-X-16-5-FP1-FB		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 16 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Head-side flange
SSD2-X-16-10-FP1		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 16 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only)
SSD2-X-16-10-FP1-LB		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 16 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot
SSD2-X-16-10-FP1-CB		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 16 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis
SSD2-X-16-10-FP1-FA		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 16 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-side flange
SSD2-X-16-10-FP1-FB		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 16 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Head-side flange
SSD2-X-16D-5-FP1		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 16 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: None (cylinder only)
SSD2-X-16D-5-FP1-LB		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 16 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Axial foot
SSD2-X-16D-5-FP1-CB		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 16 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Double clevis
SSD2-X-16D-5-FP1-FA		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 16 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Rod-side flange
SSD2-X-16D-5-FP1-FB		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 16 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Head-side flange
SSD2-X-16D-10-FP1		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 16 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: None (cylinder only)
SSD2-X-16D-10-FP1-LB		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 16 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Axial foot
SSD2-X-16D-10-FP1-CB		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 16 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Double clevis
SSD2-X-16D-10-FP1-FA		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 16 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Rod-side flange
SSD2-X-16D-10-FP1-FB		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 16 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Head-side flange
SSD2-X-20-5-FP1		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (cylinder only)
SSD2-X-20-5-FP1-LB		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot
SSD2-X-20-5-FP1-CB		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis
SSD2-X-20-5-FP1-FA		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod-side flange
SSD2-X-20-5-FP1-FB		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Head-side flange
SSD2-X-20-10-FP1		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only)
SSD2-X-20-10-FP1-LB		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot
SSD2-X-20-10-FP1-CB		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis
SSD2-X-20-10-FP1-FA		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-side flange
SSD2-X-20-10-FP1-FB		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Head-side flange
SSD2-X-20D-5-FP1		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: None (cylinder only)
SSD2-X-20D-5-FP1-LB		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Axial foot
SSD2-X-20D-5-FP1-CB		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Double clevis
SSD2-X-20D-5-FP1-FA		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Rod-side flange
SSD2-X-20D-5-FP1-FB		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Head-side flange
SSD2-X-20D-10-FP1		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: None (cylinder only)
SSD2-X-20D-10-FP1-LB		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Axial foot
SSD2-X-20D-10-FP1-CB		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Double clevis
SSD2-X-20D-10-FP1-FA		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Rod-side flange
SSD2-X-20D-10-FP1-FB		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Head-side flange
SSD2-X-25-5-FP1		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (cylinder only)
SSD2-X-25-5-FP1-LB		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot
SSD2-X-25-5-FP1-CB		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis
SSD2-X-25-5-FP1-FA		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod-side flange
SSD2-X-25-5-FP1-FB		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Head-side flange
SSD2-X-25-10-FP1		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only)
SSD2-X-25-10-FP1-LB		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot
SSD2-X-25-10-FP1-CB		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis
SSD2-X-25-10-FP1-FA		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-side flange
SSD2-X-25-10-FP1-FB		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Head-side flange
SSD2-X-25D-5-FP1		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: None (cylinder only)
SSD2-X-25D-5-FP1-LB		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Axial foot
SSD2-X-25D-5-FP1-CB		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Double clevis
SSD2-X-25D-5-FP1-FA		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Rod-side flange
SSD2-X-25D-5-FP1-FB		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Head-side flange
SSD2-X-25D-10-FP1		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: None (cylinder only)
SSD2-X-25D-10-FP1-LB		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Axial foot
SSD2-X-25D-10-FP1-CB		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Double clevis
SSD2-X-25D-10-FP1-FA		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Rod-side flange
SSD2-X-25D-10-FP1-FB		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Head-side flange
SSD2-X-32-5-FP1		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (cylinder only)
SSD2-X-32-5-FP1-LB		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot
SSD2-X-32-5-FP1-CB		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis
SSD2-X-32-5-FP1-FA		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod-side flange
SSD2-X-32-5-FP1-FB		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Head-side flange
SSD2-X-32-10-FP1		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only)
SSD2-X-32-10-FP1-LB		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot
SSD2-X-32-10-FP1-CB		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis
SSD2-X-32-10-FP1-FA		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-side flange
SSD2-X-32-10-FP1-FB		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Head-side flange
SSD2-X-32D-5-FP1		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: None (cylinder only)
SSD2-X-32D-5-FP1-LB		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Axial foot
SSD2-X-32D-5-FP1-CB		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Double clevis
SSD2-X-32D-5-FP1-FA		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Rod-side flange
SSD2-X-32D-5-FP1-FB		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Head-side flange
SSD2-X-32D-10-FP1		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: None (cylinder only)
SSD2-X-32D-10-FP1-LB		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Axial foot
SSD2-X-32D-10-FP1-CB		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Double clevis
SSD2-X-32D-10-FP1-FA		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Rod-side flange
SSD2-X-32D-10-FP1-FB		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Head-side flange
SSD2-X-40-5-FP1		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (cylinder only)
SSD2-X-40-5-FP1-LB		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot
SSD2-X-40-5-FP1-CB		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis
SSD2-X-40-5-FP1-FA		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod-side flange
SSD2-X-40-5-FP1-FB		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Head-side flange
SSD2-X-40-10-FP1		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only)
SSD2-X-40-10-FP1-LB		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot
SSD2-X-40-10-FP1-CB		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis
SSD2-X-40-10-FP1-FA		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-side flange
SSD2-X-40-10-FP1-FB		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Head-side flange
SSD2-X-40D-5-FP1		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: None (cylinder only)
SSD2-X-40D-5-FP1-LB		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Axial foot
SSD2-X-40D-5-FP1-CB		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Double clevis
SSD2-X-40D-5-FP1-FA		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Rod-side flange
SSD2-X-40D-5-FP1-FB		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Head-side flange
SSD2-X-40D-10-FP1		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: None (cylinder only)
SSD2-X-40D-10-FP1-LB		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Axial foot
SSD2-X-40D-10-FP1-CB		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Double clevis
SSD2-X-40D-10-FP1-FA		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Rod-side flange
SSD2-X-40D-10-FP1-FB		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Head-side flange
SSD2-X-50-10-FP1		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only)
SSD2-X-50-10-FP1-LB		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot
SSD2-X-50-10-FP1-CB		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis
SSD2-X-50-10-FP1-FA		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-side flange
SSD2-X-50-10-FP1-FB		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Head-side flange
SSD2-X-50-20-FP1		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: None (cylinder only)
SSD2-X-50-20-FP1-LB		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot
SSD2-X-50-20-FP1-CB		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Double clevis
SSD2-X-50-20-FP1-FA		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Rod-side flange
SSD2-X-50-20-FP1-FB		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Head-side flange
SSD2-X-50D-10-FP1		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: None (cylinder only)
SSD2-X-50D-10-FP1-LB		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Axial foot
SSD2-X-50D-10-FP1-CB		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Double clevis
SSD2-X-50D-10-FP1-FA		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Rod-side flange
SSD2-X-50D-10-FP1-FB		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Head-side flange
SSD2-X-50D-20-FP1		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: None (cylinder only)
SSD2-X-50D-20-FP1-LB		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Axial foot
SSD2-X-50D-20-FP1-CB		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Double clevis
SSD2-X-50D-20-FP1-FA		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Rod-side flange
SSD2-X-50D-20-FP1-FB		Type: Single acting, push (X) \| Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Head-side flange
SSD2-XL-12-5-FP1		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 12 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (cylinder only)
SSD2-XL-12-5-FP1-LB		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 12 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot
SSD2-XL-12-5-FP1-CB		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 12 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis
SSD2-XL-12-5-FP1-FA		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 12 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod-side flange
SSD2-XL-12-5-FP1-FB		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 12 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Head-side flange
SSD2-XL-12-10-FP1		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 12 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only)
SSD2-XL-12-10-FP1-LB		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 12 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot
SSD2-XL-12-10-FP1-CB		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 12 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis
SSD2-XL-12-10-FP1-FA		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 12 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-side flange
SSD2-XL-12-10-FP1-FB		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 12 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Head-side flange
SSD2-XL-12D-5-FP1		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 12 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: None (cylinder only)
SSD2-XL-12D-5-FP1-LB		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 12 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Axial foot
SSD2-XL-12D-5-FP1-CB		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 12 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Double clevis
SSD2-XL-12D-5-FP1-FA		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 12 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Rod-side flange
SSD2-XL-12D-5-FP1-FB		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 12 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Head-side flange
SSD2-XL-12D-10-FP1		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 12 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: None (cylinder only)
SSD2-XL-12D-10-FP1-LB		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 12 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Axial foot
SSD2-XL-12D-10-FP1-CB		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 12 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Double clevis
SSD2-XL-12D-10-FP1-FA		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 12 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Rod-side flange
SSD2-XL-12D-10-FP1-FB		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 12 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Head-side flange
SSD2-XL-16-5-FP1		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 16 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (cylinder only)
SSD2-XL-16-5-FP1-LB		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 16 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot
SSD2-XL-16-5-FP1-CB		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 16 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis
SSD2-XL-16-5-FP1-FA		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 16 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod-side flange
SSD2-XL-16-5-FP1-FB		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 16 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Head-side flange
SSD2-XL-16-10-FP1		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 16 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only)
SSD2-XL-16-10-FP1-LB		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 16 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot
SSD2-XL-16-10-FP1-CB		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 16 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis
SSD2-XL-16-10-FP1-FA		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 16 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-side flange
SSD2-XL-16-10-FP1-FB		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 16 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Head-side flange
SSD2-XL-16D-5-FP1		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 16 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: None (cylinder only)
SSD2-XL-16D-5-FP1-LB		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 16 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Axial foot
SSD2-XL-16D-5-FP1-CB		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 16 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Double clevis
SSD2-XL-16D-5-FP1-FA		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 16 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Rod-side flange
SSD2-XL-16D-5-FP1-FB		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 16 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Head-side flange
SSD2-XL-16D-10-FP1		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 16 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: None (cylinder only)
SSD2-XL-16D-10-FP1-LB		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 16 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Axial foot
SSD2-XL-16D-10-FP1-CB		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 16 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Double clevis
SSD2-XL-16D-10-FP1-FA		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 16 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Rod-side flange
SSD2-XL-16D-10-FP1-FB		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 16 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Head-side flange
SSD2-XL-20-5-FP1		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (cylinder only)
SSD2-XL-20-5-FP1-LB		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot
SSD2-XL-20-5-FP1-CB		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis
SSD2-XL-20-5-FP1-FA		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod-side flange
SSD2-XL-20-5-FP1-FB		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Head-side flange
SSD2-XL-20-10-FP1		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only)
SSD2-XL-20-10-FP1-LB		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot
SSD2-XL-20-10-FP1-CB		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis
SSD2-XL-20-10-FP1-FA		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-side flange
SSD2-XL-20-10-FP1-FB		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Head-side flange
SSD2-XL-20D-5-FP1		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: None (cylinder only)
SSD2-XL-20D-5-FP1-LB		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Axial foot
SSD2-XL-20D-5-FP1-CB		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Double clevis
SSD2-XL-20D-5-FP1-FA		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Rod-side flange
SSD2-XL-20D-5-FP1-FB		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Head-side flange
SSD2-XL-20D-10-FP1		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: None (cylinder only)
SSD2-XL-20D-10-FP1-LB		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Axial foot
SSD2-XL-20D-10-FP1-CB		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Double clevis
SSD2-XL-20D-10-FP1-FA		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Rod-side flange
SSD2-XL-20D-10-FP1-FB		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Head-side flange
SSD2-XL-25-5-FP1		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (cylinder only)
SSD2-XL-25-5-FP1-LB		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot
SSD2-XL-25-5-FP1-CB		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis
SSD2-XL-25-5-FP1-FA		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod-side flange
SSD2-XL-25-5-FP1-FB		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Head-side flange
SSD2-XL-25-10-FP1		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only)
SSD2-XL-25-10-FP1-LB		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot
SSD2-XL-25-10-FP1-CB		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis
SSD2-XL-25-10-FP1-FA		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-side flange
SSD2-XL-25-10-FP1-FB		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Head-side flange
SSD2-XL-25D-5-FP1		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: None (cylinder only)
SSD2-XL-25D-5-FP1-LB		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Axial foot
SSD2-XL-25D-5-FP1-CB		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Double clevis
SSD2-XL-25D-5-FP1-FA		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Rod-side flange
SSD2-XL-25D-5-FP1-FB		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Head-side flange
SSD2-XL-25D-10-FP1		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: None (cylinder only)
SSD2-XL-25D-10-FP1-LB		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Axial foot
SSD2-XL-25D-10-FP1-CB		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Double clevis
SSD2-XL-25D-10-FP1-FA		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Rod-side flange
SSD2-XL-25D-10-FP1-FB		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Head-side flange
SSD2-XL-32-5-FP1		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (cylinder only)
SSD2-XL-32-5-FP1-LB		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot
SSD2-XL-32-5-FP1-CB		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis
SSD2-XL-32-5-FP1-FA		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod-side flange
SSD2-XL-32-5-FP1-FB		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Head-side flange
SSD2-XL-32-10-FP1		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only)
SSD2-XL-32-10-FP1-LB		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot
SSD2-XL-32-10-FP1-CB		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis
SSD2-XL-32-10-FP1-FA		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-side flange
SSD2-XL-32-10-FP1-FB		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Head-side flange
SSD2-XL-32D-5-FP1		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: None (cylinder only)
SSD2-XL-32D-5-FP1-LB		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Axial foot
SSD2-XL-32D-5-FP1-CB		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Double clevis
SSD2-XL-32D-5-FP1-FA		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Rod-side flange
SSD2-XL-32D-5-FP1-FB		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Head-side flange
SSD2-XL-32D-10-FP1		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: None (cylinder only)
SSD2-XL-32D-10-FP1-LB		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Axial foot
SSD2-XL-32D-10-FP1-CB		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Double clevis
SSD2-XL-32D-10-FP1-FA		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Rod-side flange
SSD2-XL-32D-10-FP1-FB		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Head-side flange
SSD2-XL-40-5-FP1		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (cylinder only)
SSD2-XL-40-5-FP1-LB		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot
SSD2-XL-40-5-FP1-CB		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis
SSD2-XL-40-5-FP1-FA		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod-side flange
SSD2-XL-40-5-FP1-FB		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Head-side flange
SSD2-XL-40-10-FP1		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only)
SSD2-XL-40-10-FP1-LB		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot
SSD2-XL-40-10-FP1-CB		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis
SSD2-XL-40-10-FP1-FA		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-side flange
SSD2-XL-40-10-FP1-FB		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Head-side flange
SSD2-XL-40D-5-FP1		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: None (cylinder only)
SSD2-XL-40D-5-FP1-LB		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Axial foot
SSD2-XL-40D-5-FP1-CB		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Double clevis
SSD2-XL-40D-5-FP1-FA		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Rod-side flange
SSD2-XL-40D-5-FP1-FB		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Head-side flange
SSD2-XL-40D-10-FP1		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: None (cylinder only)
SSD2-XL-40D-10-FP1-LB		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Axial foot
SSD2-XL-40D-10-FP1-CB		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Double clevis
SSD2-XL-40D-10-FP1-FA		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Rod-side flange
SSD2-XL-40D-10-FP1-FB		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Head-side flange
SSD2-XL-50-10-FP1		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only)
SSD2-XL-50-10-FP1-LB		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot
SSD2-XL-50-10-FP1-CB		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis
SSD2-XL-50-10-FP1-FA		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-side flange
SSD2-XL-50-10-FP1-FB		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Head-side flange
SSD2-XL-50-20-FP1		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: None (cylinder only)
SSD2-XL-50-20-FP1-LB		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot
SSD2-XL-50-20-FP1-CB		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Double clevis
SSD2-XL-50-20-FP1-FA		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Rod-side flange
SSD2-XL-50-20-FP1-FB		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Head-side flange
SSD2-XL-50D-10-FP1		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: None (cylinder only)
SSD2-XL-50D-10-FP1-LB		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Axial foot
SSD2-XL-50D-10-FP1-CB		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Double clevis
SSD2-XL-50D-10-FP1-FA		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Rod-side flange
SSD2-XL-50D-10-FP1-FB		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Head-side flange
SSD2-XL-50D-20-FP1		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: None (cylinder only)
SSD2-XL-50D-20-FP1-LB		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Axial foot
SSD2-XL-50D-20-FP1-CB		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Double clevis
SSD2-XL-50D-20-FP1-FA		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Rod-side flange
SSD2-XL-50D-20-FP1-FB		Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Head-side flange
SSD2-Y-12-5-FP1		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 12 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (cylinder only)
SSD2-Y-12-5-FP1-LB		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 12 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot
SSD2-Y-12-5-FP1-CB		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 12 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis
SSD2-Y-12-5-FP1-FA		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 12 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod-side flange
SSD2-Y-12-5-FP1-FB		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 12 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Head-side flange
SSD2-Y-12-10-FP1		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 12 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only)
SSD2-Y-12-10-FP1-LB		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 12 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot
SSD2-Y-12-10-FP1-CB		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 12 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis
SSD2-Y-12-10-FP1-FA		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 12 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-side flange
SSD2-Y-12-10-FP1-FB		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 12 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Head-side flange
SSD2-Y-12D-5-FP1		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 12 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: None (cylinder only)
SSD2-Y-12D-5-FP1-LB		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 12 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Axial foot
SSD2-Y-12D-5-FP1-CB		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 12 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Double clevis
SSD2-Y-12D-5-FP1-FA		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 12 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Rod-side flange
SSD2-Y-12D-5-FP1-FB		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 12 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Head-side flange
SSD2-Y-12D-10-FP1		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 12 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: None (cylinder only)
SSD2-Y-12D-10-FP1-LB		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 12 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Axial foot
SSD2-Y-12D-10-FP1-CB		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 12 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Double clevis
SSD2-Y-12D-10-FP1-FA		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 12 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Rod-side flange
SSD2-Y-12D-10-FP1-FB		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 12 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Head-side flange
SSD2-Y-16-5-FP1		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 16 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (cylinder only)
SSD2-Y-16-5-FP1-LB		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 16 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot
SSD2-Y-16-5-FP1-CB		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 16 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis
SSD2-Y-16-5-FP1-FA		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 16 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod-side flange
SSD2-Y-16-5-FP1-FB		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 16 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Head-side flange
SSD2-Y-16-10-FP1		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 16 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only)
SSD2-Y-16-10-FP1-LB		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 16 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot
SSD2-Y-16-10-FP1-CB		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 16 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis
SSD2-Y-16-10-FP1-FA		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 16 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-side flange
SSD2-Y-16-10-FP1-FB		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 16 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Head-side flange
SSD2-Y-16D-5-FP1		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 16 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: None (cylinder only)
SSD2-Y-16D-5-FP1-LB		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 16 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Axial foot
SSD2-Y-16D-5-FP1-CB		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 16 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Double clevis
SSD2-Y-16D-5-FP1-FA		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 16 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Rod-side flange
SSD2-Y-16D-5-FP1-FB		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 16 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Head-side flange
SSD2-Y-16D-10-FP1		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 16 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: None (cylinder only)
SSD2-Y-16D-10-FP1-LB		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 16 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Axial foot
SSD2-Y-16D-10-FP1-CB		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 16 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Double clevis
SSD2-Y-16D-10-FP1-FA		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 16 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Rod-side flange
SSD2-Y-16D-10-FP1-FB		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 16 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Head-side flange
SSD2-Y-20-5-FP1		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (cylinder only)
SSD2-Y-20-5-FP1-LB		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot
SSD2-Y-20-5-FP1-CB		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis
SSD2-Y-20-5-FP1-FA		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod-side flange
SSD2-Y-20-5-FP1-FB		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Head-side flange
SSD2-Y-20-10-FP1		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only)
SSD2-Y-20-10-FP1-LB		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot
SSD2-Y-20-10-FP1-CB		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis
SSD2-Y-20-10-FP1-FA		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-side flange
SSD2-Y-20-10-FP1-FB		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Head-side flange
SSD2-Y-20D-5-FP1		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: None (cylinder only)
SSD2-Y-20D-5-FP1-LB		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Axial foot
SSD2-Y-20D-5-FP1-CB		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Double clevis
SSD2-Y-20D-5-FP1-FA		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Rod-side flange
SSD2-Y-20D-5-FP1-FB		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Head-side flange
SSD2-Y-20D-10-FP1		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: None (cylinder only)
SSD2-Y-20D-10-FP1-LB		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Axial foot
SSD2-Y-20D-10-FP1-CB		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Double clevis
SSD2-Y-20D-10-FP1-FA		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Rod-side flange
SSD2-Y-20D-10-FP1-FB		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Head-side flange
SSD2-Y-25-5-FP1		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (cylinder only)
SSD2-Y-25-5-FP1-LB		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot
SSD2-Y-25-5-FP1-CB		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis
SSD2-Y-25-5-FP1-FA		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod-side flange
SSD2-Y-25-5-FP1-FB		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Head-side flange
SSD2-Y-25-10-FP1		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only)
SSD2-Y-25-10-FP1-LB		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot
SSD2-Y-25-10-FP1-CB		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis
SSD2-Y-25-10-FP1-FA		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-side flange
SSD2-Y-25-10-FP1-FB		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Head-side flange
SSD2-Y-25D-5-FP1		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: None (cylinder only)
SSD2-Y-25D-5-FP1-LB		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Axial foot
SSD2-Y-25D-5-FP1-CB		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Double clevis
SSD2-Y-25D-5-FP1-FA		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Rod-side flange
SSD2-Y-25D-5-FP1-FB		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Head-side flange
SSD2-Y-25D-10-FP1		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: None (cylinder only)
SSD2-Y-25D-10-FP1-LB		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Axial foot
SSD2-Y-25D-10-FP1-CB		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Double clevis
SSD2-Y-25D-10-FP1-FA		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Rod-side flange
SSD2-Y-25D-10-FP1-FB		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Head-side flange
SSD2-Y-32-5-FP1		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (cylinder only)
SSD2-Y-32-5-FP1-LB		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot
SSD2-Y-32-5-FP1-CB		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis
SSD2-Y-32-5-FP1-FA		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod-side flange
SSD2-Y-32-5-FP1-FB		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Head-side flange
SSD2-Y-32-10-FP1		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only)
SSD2-Y-32-10-FP1-LB		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot
SSD2-Y-32-10-FP1-CB		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis
SSD2-Y-32-10-FP1-FA		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-side flange
SSD2-Y-32-10-FP1-FB		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Head-side flange
SSD2-Y-32D-5-FP1		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: None (cylinder only)
SSD2-Y-32D-5-FP1-LB		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Axial foot
SSD2-Y-32D-5-FP1-CB		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Double clevis
SSD2-Y-32D-5-FP1-FA		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Rod-side flange
SSD2-Y-32D-5-FP1-FB		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Head-side flange
SSD2-Y-32D-10-FP1		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: None (cylinder only)
SSD2-Y-32D-10-FP1-LB		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Axial foot
SSD2-Y-32D-10-FP1-CB		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Double clevis
SSD2-Y-32D-10-FP1-FA		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Rod-side flange
SSD2-Y-32D-10-FP1-FB		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Head-side flange
SSD2-Y-40-5-FP1		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (cylinder only)
SSD2-Y-40-5-FP1-LB		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot
SSD2-Y-40-5-FP1-CB		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis
SSD2-Y-40-5-FP1-FA		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod-side flange
SSD2-Y-40-5-FP1-FB		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Head-side flange
SSD2-Y-40-10-FP1		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only)
SSD2-Y-40-10-FP1-LB		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot
SSD2-Y-40-10-FP1-CB		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis
SSD2-Y-40-10-FP1-FA		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-side flange
SSD2-Y-40-10-FP1-FB		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Head-side flange
SSD2-Y-40D-5-FP1		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: None (cylinder only)
SSD2-Y-40D-5-FP1-LB		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Axial foot
SSD2-Y-40D-5-FP1-CB		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Double clevis
SSD2-Y-40D-5-FP1-FA		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Rod-side flange
SSD2-Y-40D-5-FP1-FB		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Head-side flange
SSD2-Y-40D-10-FP1		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: None (cylinder only)
SSD2-Y-40D-10-FP1-LB		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Axial foot
SSD2-Y-40D-10-FP1-CB		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Double clevis
SSD2-Y-40D-10-FP1-FA		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Rod-side flange
SSD2-Y-40D-10-FP1-FB		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Head-side flange
SSD2-Y-50-10-FP1		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only)
SSD2-Y-50-10-FP1-LB		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot
SSD2-Y-50-10-FP1-CB		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis
SSD2-Y-50-10-FP1-FA		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-side flange
SSD2-Y-50-10-FP1-FB		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Head-side flange
SSD2-Y-50-20-FP1		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: None (cylinder only)
SSD2-Y-50-20-FP1-LB		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot
SSD2-Y-50-20-FP1-CB		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Double clevis
SSD2-Y-50-20-FP1-FA		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Rod-side flange
SSD2-Y-50-20-FP1-FB		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Head-side flange
SSD2-Y-50D-10-FP1		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: None (cylinder only)
SSD2-Y-50D-10-FP1-LB		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Axial foot
SSD2-Y-50D-10-FP1-CB		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Double clevis
SSD2-Y-50D-10-FP1-FA		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Rod-side flange
SSD2-Y-50D-10-FP1-FB		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Head-side flange
SSD2-Y-50D-20-FP1		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: None (cylinder only)
SSD2-Y-50D-20-FP1-LB		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Axial foot
SSD2-Y-50D-20-FP1-CB		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Double clevis
SSD2-Y-50D-20-FP1-FA		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Rod-side flange
SSD2-Y-50D-20-FP1-FB		Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Head-side flange
SSD2-YL-12-5-FP1		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 12 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (cylinder only)
SSD2-YL-12-5-FP1-LB		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 12 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot
SSD2-YL-12-5-FP1-CB		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 12 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis
SSD2-YL-12-5-FP1-FA		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 12 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod-side flange
SSD2-YL-12-5-FP1-FB		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 12 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Head-side flange
SSD2-YL-12-10-FP1		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 12 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only)
SSD2-YL-12-10-FP1-LB		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 12 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot
SSD2-YL-12-10-FP1-CB		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 12 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis
SSD2-YL-12-10-FP1-FA		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 12 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-side flange
SSD2-YL-12-10-FP1-FB		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 12 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Head-side flange
SSD2-YL-12D-5-FP1		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 12 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: None (cylinder only)
SSD2-YL-12D-5-FP1-LB		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 12 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Axial foot
SSD2-YL-12D-5-FP1-CB		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 12 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Double clevis
SSD2-YL-12D-5-FP1-FA		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 12 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Rod-side flange
SSD2-YL-12D-5-FP1-FB		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 12 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Head-side flange
SSD2-YL-12D-10-FP1		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 12 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: None (cylinder only)
SSD2-YL-12D-10-FP1-LB		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 12 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Axial foot
SSD2-YL-12D-10-FP1-CB		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 12 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Double clevis
SSD2-YL-12D-10-FP1-FA		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 12 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Rod-side flange
SSD2-YL-12D-10-FP1-FB		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 12 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Head-side flange
SSD2-YL-16-5-FP1		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 16 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (cylinder only)
SSD2-YL-16-5-FP1-LB		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 16 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot
SSD2-YL-16-5-FP1-CB		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 16 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis
SSD2-YL-16-5-FP1-FA		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 16 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod-side flange
SSD2-YL-16-5-FP1-FB		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 16 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Head-side flange
SSD2-YL-16-10-FP1		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 16 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only)
SSD2-YL-16-10-FP1-LB		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 16 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot
SSD2-YL-16-10-FP1-CB		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 16 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis
SSD2-YL-16-10-FP1-FA		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 16 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-side flange
SSD2-YL-16-10-FP1-FB		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 16 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Head-side flange
SSD2-YL-16D-5-FP1		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 16 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: None (cylinder only)
SSD2-YL-16D-5-FP1-LB		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 16 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Axial foot
SSD2-YL-16D-5-FP1-CB		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 16 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Double clevis
SSD2-YL-16D-5-FP1-FA		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 16 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Rod-side flange
SSD2-YL-16D-5-FP1-FB		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 16 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Head-side flange
SSD2-YL-16D-10-FP1		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 16 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: None (cylinder only)
SSD2-YL-16D-10-FP1-LB		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 16 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Axial foot
SSD2-YL-16D-10-FP1-CB		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 16 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Double clevis
SSD2-YL-16D-10-FP1-FA		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 16 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Rod-side flange
SSD2-YL-16D-10-FP1-FB		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 16 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Head-side flange
SSD2-YL-20-5-FP1		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (cylinder only)
SSD2-YL-20-5-FP1-LB		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot
SSD2-YL-20-5-FP1-CB		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis
SSD2-YL-20-5-FP1-FA		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod-side flange
SSD2-YL-20-5-FP1-FB		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Head-side flange
SSD2-YL-20-10-FP1		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only)
SSD2-YL-20-10-FP1-LB		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot
SSD2-YL-20-10-FP1-CB		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis
SSD2-YL-20-10-FP1-FA		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-side flange
SSD2-YL-20-10-FP1-FB		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Head-side flange
SSD2-YL-20D-5-FP1		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: None (cylinder only)
SSD2-YL-20D-5-FP1-LB		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Axial foot
SSD2-YL-20D-5-FP1-CB		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Double clevis
SSD2-YL-20D-5-FP1-FA		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Rod-side flange
SSD2-YL-20D-5-FP1-FB		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Head-side flange
SSD2-YL-20D-10-FP1		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: None (cylinder only)
SSD2-YL-20D-10-FP1-LB		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Axial foot
SSD2-YL-20D-10-FP1-CB		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Double clevis
SSD2-YL-20D-10-FP1-FA		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Rod-side flange
SSD2-YL-20D-10-FP1-FB		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Head-side flange
SSD2-YL-25-5-FP1		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (cylinder only)
SSD2-YL-25-5-FP1-LB		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot
SSD2-YL-25-5-FP1-CB		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis
SSD2-YL-25-5-FP1-FA		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod-side flange
SSD2-YL-25-5-FP1-FB		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Head-side flange
SSD2-YL-25-10-FP1		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only)
SSD2-YL-25-10-FP1-LB		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot
SSD2-YL-25-10-FP1-CB		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis
SSD2-YL-25-10-FP1-FA		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-side flange
SSD2-YL-25-10-FP1-FB		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Head-side flange
SSD2-YL-25D-5-FP1		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: None (cylinder only)
SSD2-YL-25D-5-FP1-LB		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Axial foot
SSD2-YL-25D-5-FP1-CB		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Double clevis
SSD2-YL-25D-5-FP1-FA		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Rod-side flange
SSD2-YL-25D-5-FP1-FB		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Head-side flange
SSD2-YL-25D-10-FP1		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: None (cylinder only)
SSD2-YL-25D-10-FP1-LB		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Axial foot
SSD2-YL-25D-10-FP1-CB		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Double clevis
SSD2-YL-25D-10-FP1-FA		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Rod-side flange
SSD2-YL-25D-10-FP1-FB		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Head-side flange
SSD2-YL-32-5-FP1		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (cylinder only)
SSD2-YL-32-5-FP1-LB		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot
SSD2-YL-32-5-FP1-CB		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis
SSD2-YL-32-5-FP1-FA		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod-side flange
SSD2-YL-32-5-FP1-FB		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Head-side flange
SSD2-YL-32-10-FP1		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only)
SSD2-YL-32-10-FP1-LB		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot
SSD2-YL-32-10-FP1-CB		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis
SSD2-YL-32-10-FP1-FA		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-side flange
SSD2-YL-32-10-FP1-FB		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Head-side flange
SSD2-YL-32D-5-FP1		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: None (cylinder only)
SSD2-YL-32D-5-FP1-LB		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Axial foot
SSD2-YL-32D-5-FP1-CB		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Double clevis
SSD2-YL-32D-5-FP1-FA		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Rod-side flange
SSD2-YL-32D-5-FP1-FB		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Head-side flange
SSD2-YL-32D-10-FP1		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: None (cylinder only)
SSD2-YL-32D-10-FP1-LB		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Axial foot
SSD2-YL-32D-10-FP1-CB		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Double clevis
SSD2-YL-32D-10-FP1-FA		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Rod-side flange
SSD2-YL-32D-10-FP1-FB		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Head-side flange
SSD2-YL-40-5-FP1		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (cylinder only)
SSD2-YL-40-5-FP1-LB		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot
SSD2-YL-40-5-FP1-CB		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis
SSD2-YL-40-5-FP1-FA		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod-side flange
SSD2-YL-40-5-FP1-FB		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Head-side flange
SSD2-YL-40-10-FP1		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only)
SSD2-YL-40-10-FP1-LB		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot
SSD2-YL-40-10-FP1-CB		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis
SSD2-YL-40-10-FP1-FA		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-side flange
SSD2-YL-40-10-FP1-FB		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Head-side flange
SSD2-YL-40D-5-FP1		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: None (cylinder only)
SSD2-YL-40D-5-FP1-LB		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Axial foot
SSD2-YL-40D-5-FP1-CB		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Double clevis
SSD2-YL-40D-5-FP1-FA		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Rod-side flange
SSD2-YL-40D-5-FP1-FB		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Head-side flange
SSD2-YL-40D-10-FP1		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: None (cylinder only)
SSD2-YL-40D-10-FP1-LB		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Axial foot
SSD2-YL-40D-10-FP1-CB		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Double clevis
SSD2-YL-40D-10-FP1-FA		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Rod-side flange
SSD2-YL-40D-10-FP1-FB		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Head-side flange
SSD2-YL-50-10-FP1		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only)
SSD2-YL-50-10-FP1-LB		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot
SSD2-YL-50-10-FP1-CB		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis
SSD2-YL-50-10-FP1-FA		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-side flange
SSD2-YL-50-10-FP1-FB		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Head-side flange
SSD2-YL-50-20-FP1		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: None (cylinder only)
SSD2-YL-50-20-FP1-LB		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot
SSD2-YL-50-20-FP1-CB		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Double clevis
SSD2-YL-50-20-FP1-FA		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Rod-side flange
SSD2-YL-50-20-FP1-FB		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Head-side flange
SSD2-YL-50D-10-FP1		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: None (cylinder only)
SSD2-YL-50D-10-FP1-LB		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Axial foot
SSD2-YL-50D-10-FP1-CB		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Double clevis
SSD2-YL-50D-10-FP1-FA		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Rod-side flange
SSD2-YL-50D-10-FP1-FB		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Head-side flange
SSD2-YL-50D-20-FP1		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: None (cylinder only)
SSD2-YL-50D-20-FP1-LB		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Axial foot
SSD2-YL-50D-20-FP1-CB		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Double clevis
SSD2-YL-50D-20-FP1-FA		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Rod-side flange
SSD2-YL-50D-20-FP1-FB		Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Head-side flange

Compact CylindersCKD

560 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD SSD2-X/Y-FP1 Super Compact Cylinder (Single Acting, Bore 12-50)

Brand CKD·Compact Cylinders

Available part numbers (560)

SSD2-X-12-5-FP1, SSD2-X-12-5-FP1-LB, SSD2-X-12-5-FP1-CB, SSD2-X-12-5-FP1-FA, SSD2-X-12-5-FP1-FB, SSD2-X-12-10-FP1, SSD2-X-12-10-FP1-LB, SSD2-X-12-10-FP1-CB, SSD2-X-12-10-FP1-FA, SSD2-X-12-10-FP1-FB + 550 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	SSD2-X-12-5-FP1	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 12 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (cylinder only)
	SSD2-X-12-5-FP1-LB	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 12 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot
	SSD2-X-12-5-FP1-CB	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 12 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis
	SSD2-X-12-5-FP1-FA	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 12 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod-side flange
	SSD2-X-12-5-FP1-FB	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 12 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Head-side flange
	SSD2-X-12-10-FP1	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 12 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only)
	SSD2-X-12-10-FP1-LB	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 12 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot
	SSD2-X-12-10-FP1-CB	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 12 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis
	SSD2-X-12-10-FP1-FA	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 12 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-side flange
	SSD2-X-12-10-FP1-FB	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 12 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Head-side flange
	SSD2-X-12D-5-FP1	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 12 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: None (cylinder only)
	SSD2-X-12D-5-FP1-LB	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 12 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Axial foot
	SSD2-X-12D-5-FP1-CB	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 12 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Double clevis
	SSD2-X-12D-5-FP1-FA	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 12 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Rod-side flange
	SSD2-X-12D-5-FP1-FB	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 12 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Head-side flange
	SSD2-X-12D-10-FP1	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 12 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: None (cylinder only)
	SSD2-X-12D-10-FP1-LB	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 12 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Axial foot
	SSD2-X-12D-10-FP1-CB	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 12 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Double clevis
	SSD2-X-12D-10-FP1-FA	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 12 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Rod-side flange
	SSD2-X-12D-10-FP1-FB	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 12 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Head-side flange
	SSD2-X-16-5-FP1	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 16 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (cylinder only)
	SSD2-X-16-5-FP1-LB	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 16 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot
	SSD2-X-16-5-FP1-CB	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 16 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis
	SSD2-X-16-5-FP1-FA	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 16 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod-side flange
	SSD2-X-16-5-FP1-FB	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 16 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Head-side flange
	SSD2-X-16-10-FP1	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 16 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only)
	SSD2-X-16-10-FP1-LB	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 16 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot
	SSD2-X-16-10-FP1-CB	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 16 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis
	SSD2-X-16-10-FP1-FA	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 16 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-side flange
	SSD2-X-16-10-FP1-FB	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 16 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Head-side flange
	SSD2-X-16D-5-FP1	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 16 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: None (cylinder only)
	SSD2-X-16D-5-FP1-LB	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 16 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Axial foot
	SSD2-X-16D-5-FP1-CB	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 16 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Double clevis
	SSD2-X-16D-5-FP1-FA	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 16 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Rod-side flange
	SSD2-X-16D-5-FP1-FB	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 16 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Head-side flange
	SSD2-X-16D-10-FP1	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 16 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: None (cylinder only)
	SSD2-X-16D-10-FP1-LB	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 16 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Axial foot
	SSD2-X-16D-10-FP1-CB	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 16 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Double clevis
	SSD2-X-16D-10-FP1-FA	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 16 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Rod-side flange
	SSD2-X-16D-10-FP1-FB	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 16 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Head-side flange
	SSD2-X-20-5-FP1	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (cylinder only)
	SSD2-X-20-5-FP1-LB	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot
	SSD2-X-20-5-FP1-CB	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis
	SSD2-X-20-5-FP1-FA	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod-side flange
	SSD2-X-20-5-FP1-FB	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Head-side flange
	SSD2-X-20-10-FP1	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only)
	SSD2-X-20-10-FP1-LB	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot
	SSD2-X-20-10-FP1-CB	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis
	SSD2-X-20-10-FP1-FA	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-side flange
	SSD2-X-20-10-FP1-FB	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Head-side flange
	SSD2-X-20D-5-FP1	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: None (cylinder only)
	SSD2-X-20D-5-FP1-LB	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Axial foot
	SSD2-X-20D-5-FP1-CB	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Double clevis
	SSD2-X-20D-5-FP1-FA	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Rod-side flange
	SSD2-X-20D-5-FP1-FB	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Head-side flange
	SSD2-X-20D-10-FP1	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: None (cylinder only)
	SSD2-X-20D-10-FP1-LB	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Axial foot
	SSD2-X-20D-10-FP1-CB	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Double clevis
	SSD2-X-20D-10-FP1-FA	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Rod-side flange
	SSD2-X-20D-10-FP1-FB	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Head-side flange
	SSD2-X-25-5-FP1	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (cylinder only)
	SSD2-X-25-5-FP1-LB	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot
	SSD2-X-25-5-FP1-CB	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis
	SSD2-X-25-5-FP1-FA	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod-side flange
	SSD2-X-25-5-FP1-FB	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Head-side flange
	SSD2-X-25-10-FP1	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only)
	SSD2-X-25-10-FP1-LB	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot
	SSD2-X-25-10-FP1-CB	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis
	SSD2-X-25-10-FP1-FA	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-side flange
	SSD2-X-25-10-FP1-FB	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Head-side flange
	SSD2-X-25D-5-FP1	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: None (cylinder only)
	SSD2-X-25D-5-FP1-LB	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Axial foot
	SSD2-X-25D-5-FP1-CB	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Double clevis
	SSD2-X-25D-5-FP1-FA	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Rod-side flange
	SSD2-X-25D-5-FP1-FB	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Head-side flange
	SSD2-X-25D-10-FP1	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: None (cylinder only)
	SSD2-X-25D-10-FP1-LB	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Axial foot
	SSD2-X-25D-10-FP1-CB	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Double clevis
	SSD2-X-25D-10-FP1-FA	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Rod-side flange
	SSD2-X-25D-10-FP1-FB	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Head-side flange
	SSD2-X-32-5-FP1	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (cylinder only)
	SSD2-X-32-5-FP1-LB	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot
	SSD2-X-32-5-FP1-CB	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis
	SSD2-X-32-5-FP1-FA	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod-side flange
	SSD2-X-32-5-FP1-FB	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Head-side flange
	SSD2-X-32-10-FP1	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only)
	SSD2-X-32-10-FP1-LB	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot
	SSD2-X-32-10-FP1-CB	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis
	SSD2-X-32-10-FP1-FA	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-side flange
	SSD2-X-32-10-FP1-FB	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Head-side flange
	SSD2-X-32D-5-FP1	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: None (cylinder only)
	SSD2-X-32D-5-FP1-LB	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Axial foot
	SSD2-X-32D-5-FP1-CB	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Double clevis
	SSD2-X-32D-5-FP1-FA	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Rod-side flange
	SSD2-X-32D-5-FP1-FB	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Head-side flange
	SSD2-X-32D-10-FP1	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: None (cylinder only)
	SSD2-X-32D-10-FP1-LB	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Axial foot
	SSD2-X-32D-10-FP1-CB	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Double clevis
	SSD2-X-32D-10-FP1-FA	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Rod-side flange
	SSD2-X-32D-10-FP1-FB	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Head-side flange
	SSD2-X-40-5-FP1	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (cylinder only)
	SSD2-X-40-5-FP1-LB	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot
	SSD2-X-40-5-FP1-CB	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis
	SSD2-X-40-5-FP1-FA	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod-side flange
	SSD2-X-40-5-FP1-FB	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Head-side flange
	SSD2-X-40-10-FP1	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only)
	SSD2-X-40-10-FP1-LB	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot
	SSD2-X-40-10-FP1-CB	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis
	SSD2-X-40-10-FP1-FA	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-side flange
	SSD2-X-40-10-FP1-FB	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Head-side flange
	SSD2-X-40D-5-FP1	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: None (cylinder only)
	SSD2-X-40D-5-FP1-LB	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Axial foot
	SSD2-X-40D-5-FP1-CB	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Double clevis
	SSD2-X-40D-5-FP1-FA	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Rod-side flange
	SSD2-X-40D-5-FP1-FB	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Head-side flange
	SSD2-X-40D-10-FP1	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: None (cylinder only)
	SSD2-X-40D-10-FP1-LB	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Axial foot
	SSD2-X-40D-10-FP1-CB	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Double clevis
	SSD2-X-40D-10-FP1-FA	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Rod-side flange
	SSD2-X-40D-10-FP1-FB	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Head-side flange
	SSD2-X-50-10-FP1	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only)
	SSD2-X-50-10-FP1-LB	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot
	SSD2-X-50-10-FP1-CB	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis
	SSD2-X-50-10-FP1-FA	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-side flange
	SSD2-X-50-10-FP1-FB	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Head-side flange
	SSD2-X-50-20-FP1	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: None (cylinder only)
	SSD2-X-50-20-FP1-LB	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot
	SSD2-X-50-20-FP1-CB	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Double clevis
	SSD2-X-50-20-FP1-FA	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Rod-side flange
	SSD2-X-50-20-FP1-FB	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Head-side flange
	SSD2-X-50D-10-FP1	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: None (cylinder only)
	SSD2-X-50D-10-FP1-LB	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Axial foot
	SSD2-X-50D-10-FP1-CB	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Double clevis
	SSD2-X-50D-10-FP1-FA	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Rod-side flange
	SSD2-X-50D-10-FP1-FB	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Head-side flange
	SSD2-X-50D-20-FP1	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: None (cylinder only)
	SSD2-X-50D-20-FP1-LB	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Axial foot
	SSD2-X-50D-20-FP1-CB	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Double clevis
	SSD2-X-50D-20-FP1-FA	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Rod-side flange
	SSD2-X-50D-20-FP1-FB	Type: Single acting, push (X) \| Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Head-side flange
	SSD2-XL-12-5-FP1	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 12 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (cylinder only)
	SSD2-XL-12-5-FP1-LB	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 12 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot
	SSD2-XL-12-5-FP1-CB	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 12 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis
	SSD2-XL-12-5-FP1-FA	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 12 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod-side flange
	SSD2-XL-12-5-FP1-FB	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 12 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Head-side flange
	SSD2-XL-12-10-FP1	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 12 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only)
	SSD2-XL-12-10-FP1-LB	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 12 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot
	SSD2-XL-12-10-FP1-CB	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 12 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis
	SSD2-XL-12-10-FP1-FA	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 12 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-side flange
	SSD2-XL-12-10-FP1-FB	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 12 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Head-side flange
	SSD2-XL-12D-5-FP1	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 12 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: None (cylinder only)
	SSD2-XL-12D-5-FP1-LB	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 12 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Axial foot
	SSD2-XL-12D-5-FP1-CB	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 12 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Double clevis
	SSD2-XL-12D-5-FP1-FA	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 12 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Rod-side flange
	SSD2-XL-12D-5-FP1-FB	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 12 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Head-side flange
	SSD2-XL-12D-10-FP1	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 12 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: None (cylinder only)
	SSD2-XL-12D-10-FP1-LB	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 12 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Axial foot
	SSD2-XL-12D-10-FP1-CB	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 12 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Double clevis
	SSD2-XL-12D-10-FP1-FA	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 12 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Rod-side flange
	SSD2-XL-12D-10-FP1-FB	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 12 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Head-side flange
	SSD2-XL-16-5-FP1	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 16 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (cylinder only)
	SSD2-XL-16-5-FP1-LB	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 16 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot
	SSD2-XL-16-5-FP1-CB	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 16 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis
	SSD2-XL-16-5-FP1-FA	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 16 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod-side flange
	SSD2-XL-16-5-FP1-FB	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 16 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Head-side flange
	SSD2-XL-16-10-FP1	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 16 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only)
	SSD2-XL-16-10-FP1-LB	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 16 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot
	SSD2-XL-16-10-FP1-CB	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 16 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis
	SSD2-XL-16-10-FP1-FA	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 16 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-side flange
	SSD2-XL-16-10-FP1-FB	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 16 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Head-side flange
	SSD2-XL-16D-5-FP1	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 16 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: None (cylinder only)
	SSD2-XL-16D-5-FP1-LB	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 16 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Axial foot
	SSD2-XL-16D-5-FP1-CB	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 16 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Double clevis
	SSD2-XL-16D-5-FP1-FA	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 16 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Rod-side flange
	SSD2-XL-16D-5-FP1-FB	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 16 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Head-side flange
	SSD2-XL-16D-10-FP1	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 16 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: None (cylinder only)
	SSD2-XL-16D-10-FP1-LB	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 16 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Axial foot
	SSD2-XL-16D-10-FP1-CB	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 16 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Double clevis
	SSD2-XL-16D-10-FP1-FA	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 16 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Rod-side flange
	SSD2-XL-16D-10-FP1-FB	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 16 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Head-side flange
	SSD2-XL-20-5-FP1	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (cylinder only)
	SSD2-XL-20-5-FP1-LB	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot
	SSD2-XL-20-5-FP1-CB	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis
	SSD2-XL-20-5-FP1-FA	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod-side flange
	SSD2-XL-20-5-FP1-FB	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Head-side flange
	SSD2-XL-20-10-FP1	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only)
	SSD2-XL-20-10-FP1-LB	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot
	SSD2-XL-20-10-FP1-CB	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis
	SSD2-XL-20-10-FP1-FA	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-side flange
	SSD2-XL-20-10-FP1-FB	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Head-side flange
	SSD2-XL-20D-5-FP1	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: None (cylinder only)
	SSD2-XL-20D-5-FP1-LB	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Axial foot
	SSD2-XL-20D-5-FP1-CB	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Double clevis
	SSD2-XL-20D-5-FP1-FA	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Rod-side flange
	SSD2-XL-20D-5-FP1-FB	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Head-side flange
	SSD2-XL-20D-10-FP1	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: None (cylinder only)
	SSD2-XL-20D-10-FP1-LB	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Axial foot
	SSD2-XL-20D-10-FP1-CB	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Double clevis
	SSD2-XL-20D-10-FP1-FA	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Rod-side flange
	SSD2-XL-20D-10-FP1-FB	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Head-side flange
	SSD2-XL-25-5-FP1	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (cylinder only)
	SSD2-XL-25-5-FP1-LB	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot
	SSD2-XL-25-5-FP1-CB	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis
	SSD2-XL-25-5-FP1-FA	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod-side flange
	SSD2-XL-25-5-FP1-FB	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Head-side flange
	SSD2-XL-25-10-FP1	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only)
	SSD2-XL-25-10-FP1-LB	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot
	SSD2-XL-25-10-FP1-CB	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis
	SSD2-XL-25-10-FP1-FA	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-side flange
	SSD2-XL-25-10-FP1-FB	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Head-side flange
	SSD2-XL-25D-5-FP1	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: None (cylinder only)
	SSD2-XL-25D-5-FP1-LB	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Axial foot
	SSD2-XL-25D-5-FP1-CB	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Double clevis
	SSD2-XL-25D-5-FP1-FA	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Rod-side flange
	SSD2-XL-25D-5-FP1-FB	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Head-side flange
	SSD2-XL-25D-10-FP1	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: None (cylinder only)
	SSD2-XL-25D-10-FP1-LB	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Axial foot
	SSD2-XL-25D-10-FP1-CB	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Double clevis
	SSD2-XL-25D-10-FP1-FA	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Rod-side flange
	SSD2-XL-25D-10-FP1-FB	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Head-side flange
	SSD2-XL-32-5-FP1	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (cylinder only)
	SSD2-XL-32-5-FP1-LB	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot
	SSD2-XL-32-5-FP1-CB	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis
	SSD2-XL-32-5-FP1-FA	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod-side flange
	SSD2-XL-32-5-FP1-FB	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Head-side flange
	SSD2-XL-32-10-FP1	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only)
	SSD2-XL-32-10-FP1-LB	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot
	SSD2-XL-32-10-FP1-CB	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis
	SSD2-XL-32-10-FP1-FA	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-side flange
	SSD2-XL-32-10-FP1-FB	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Head-side flange
	SSD2-XL-32D-5-FP1	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: None (cylinder only)
	SSD2-XL-32D-5-FP1-LB	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Axial foot
	SSD2-XL-32D-5-FP1-CB	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Double clevis
	SSD2-XL-32D-5-FP1-FA	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Rod-side flange
	SSD2-XL-32D-5-FP1-FB	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Head-side flange
	SSD2-XL-32D-10-FP1	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: None (cylinder only)
	SSD2-XL-32D-10-FP1-LB	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Axial foot
	SSD2-XL-32D-10-FP1-CB	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Double clevis
	SSD2-XL-32D-10-FP1-FA	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Rod-side flange
	SSD2-XL-32D-10-FP1-FB	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Head-side flange
	SSD2-XL-40-5-FP1	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (cylinder only)
	SSD2-XL-40-5-FP1-LB	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot
	SSD2-XL-40-5-FP1-CB	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis
	SSD2-XL-40-5-FP1-FA	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod-side flange
	SSD2-XL-40-5-FP1-FB	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Head-side flange
	SSD2-XL-40-10-FP1	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only)
	SSD2-XL-40-10-FP1-LB	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot
	SSD2-XL-40-10-FP1-CB	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis
	SSD2-XL-40-10-FP1-FA	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-side flange
	SSD2-XL-40-10-FP1-FB	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Head-side flange
	SSD2-XL-40D-5-FP1	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: None (cylinder only)
	SSD2-XL-40D-5-FP1-LB	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Axial foot
	SSD2-XL-40D-5-FP1-CB	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Double clevis
	SSD2-XL-40D-5-FP1-FA	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Rod-side flange
	SSD2-XL-40D-5-FP1-FB	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Head-side flange
	SSD2-XL-40D-10-FP1	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: None (cylinder only)
	SSD2-XL-40D-10-FP1-LB	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Axial foot
	SSD2-XL-40D-10-FP1-CB	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Double clevis
	SSD2-XL-40D-10-FP1-FA	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Rod-side flange
	SSD2-XL-40D-10-FP1-FB	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Head-side flange
	SSD2-XL-50-10-FP1	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only)
	SSD2-XL-50-10-FP1-LB	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot
	SSD2-XL-50-10-FP1-CB	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis
	SSD2-XL-50-10-FP1-FA	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-side flange
	SSD2-XL-50-10-FP1-FB	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Head-side flange
	SSD2-XL-50-20-FP1	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: None (cylinder only)
	SSD2-XL-50-20-FP1-LB	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot
	SSD2-XL-50-20-FP1-CB	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Double clevis
	SSD2-XL-50-20-FP1-FA	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Rod-side flange
	SSD2-XL-50-20-FP1-FB	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Head-side flange
	SSD2-XL-50D-10-FP1	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: None (cylinder only)
	SSD2-XL-50D-10-FP1-LB	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Axial foot
	SSD2-XL-50D-10-FP1-CB	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Double clevis
	SSD2-XL-50D-10-FP1-FA	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Rod-side flange
	SSD2-XL-50D-10-FP1-FB	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Head-side flange
	SSD2-XL-50D-20-FP1	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: None (cylinder only)
	SSD2-XL-50D-20-FP1-LB	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Axial foot
	SSD2-XL-50D-20-FP1-CB	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Double clevis
	SSD2-XL-50D-20-FP1-FA	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Rod-side flange
	SSD2-XL-50D-20-FP1-FB	Type: Single acting, push (X) \| Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Head-side flange
	SSD2-Y-12-5-FP1	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 12 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (cylinder only)
	SSD2-Y-12-5-FP1-LB	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 12 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot
	SSD2-Y-12-5-FP1-CB	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 12 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis
	SSD2-Y-12-5-FP1-FA	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 12 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod-side flange
	SSD2-Y-12-5-FP1-FB	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 12 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Head-side flange
	SSD2-Y-12-10-FP1	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 12 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only)
	SSD2-Y-12-10-FP1-LB	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 12 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot
	SSD2-Y-12-10-FP1-CB	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 12 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis
	SSD2-Y-12-10-FP1-FA	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 12 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-side flange
	SSD2-Y-12-10-FP1-FB	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 12 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Head-side flange
	SSD2-Y-12D-5-FP1	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 12 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: None (cylinder only)
	SSD2-Y-12D-5-FP1-LB	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 12 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Axial foot
	SSD2-Y-12D-5-FP1-CB	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 12 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Double clevis
	SSD2-Y-12D-5-FP1-FA	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 12 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Rod-side flange
	SSD2-Y-12D-5-FP1-FB	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 12 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Head-side flange
	SSD2-Y-12D-10-FP1	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 12 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: None (cylinder only)
	SSD2-Y-12D-10-FP1-LB	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 12 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Axial foot
	SSD2-Y-12D-10-FP1-CB	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 12 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Double clevis
	SSD2-Y-12D-10-FP1-FA	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 12 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Rod-side flange
	SSD2-Y-12D-10-FP1-FB	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 12 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Head-side flange
	SSD2-Y-16-5-FP1	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 16 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (cylinder only)
	SSD2-Y-16-5-FP1-LB	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 16 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot
	SSD2-Y-16-5-FP1-CB	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 16 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis
	SSD2-Y-16-5-FP1-FA	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 16 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod-side flange
	SSD2-Y-16-5-FP1-FB	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 16 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Head-side flange
	SSD2-Y-16-10-FP1	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 16 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only)
	SSD2-Y-16-10-FP1-LB	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 16 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot
	SSD2-Y-16-10-FP1-CB	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 16 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis
	SSD2-Y-16-10-FP1-FA	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 16 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-side flange
	SSD2-Y-16-10-FP1-FB	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 16 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Head-side flange
	SSD2-Y-16D-5-FP1	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 16 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: None (cylinder only)
	SSD2-Y-16D-5-FP1-LB	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 16 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Axial foot
	SSD2-Y-16D-5-FP1-CB	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 16 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Double clevis
	SSD2-Y-16D-5-FP1-FA	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 16 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Rod-side flange
	SSD2-Y-16D-5-FP1-FB	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 16 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Head-side flange
	SSD2-Y-16D-10-FP1	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 16 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: None (cylinder only)
	SSD2-Y-16D-10-FP1-LB	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 16 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Axial foot
	SSD2-Y-16D-10-FP1-CB	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 16 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Double clevis
	SSD2-Y-16D-10-FP1-FA	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 16 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Rod-side flange
	SSD2-Y-16D-10-FP1-FB	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 16 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Head-side flange
	SSD2-Y-20-5-FP1	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (cylinder only)
	SSD2-Y-20-5-FP1-LB	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot
	SSD2-Y-20-5-FP1-CB	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis
	SSD2-Y-20-5-FP1-FA	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod-side flange
	SSD2-Y-20-5-FP1-FB	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Head-side flange
	SSD2-Y-20-10-FP1	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only)
	SSD2-Y-20-10-FP1-LB	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot
	SSD2-Y-20-10-FP1-CB	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis
	SSD2-Y-20-10-FP1-FA	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-side flange
	SSD2-Y-20-10-FP1-FB	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Head-side flange
	SSD2-Y-20D-5-FP1	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: None (cylinder only)
	SSD2-Y-20D-5-FP1-LB	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Axial foot
	SSD2-Y-20D-5-FP1-CB	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Double clevis
	SSD2-Y-20D-5-FP1-FA	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Rod-side flange
	SSD2-Y-20D-5-FP1-FB	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Head-side flange
	SSD2-Y-20D-10-FP1	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: None (cylinder only)
	SSD2-Y-20D-10-FP1-LB	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Axial foot
	SSD2-Y-20D-10-FP1-CB	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Double clevis
	SSD2-Y-20D-10-FP1-FA	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Rod-side flange
	SSD2-Y-20D-10-FP1-FB	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Head-side flange
	SSD2-Y-25-5-FP1	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (cylinder only)
	SSD2-Y-25-5-FP1-LB	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot
	SSD2-Y-25-5-FP1-CB	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis
	SSD2-Y-25-5-FP1-FA	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod-side flange
	SSD2-Y-25-5-FP1-FB	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Head-side flange
	SSD2-Y-25-10-FP1	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only)
	SSD2-Y-25-10-FP1-LB	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot
	SSD2-Y-25-10-FP1-CB	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis
	SSD2-Y-25-10-FP1-FA	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-side flange
	SSD2-Y-25-10-FP1-FB	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Head-side flange
	SSD2-Y-25D-5-FP1	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: None (cylinder only)
	SSD2-Y-25D-5-FP1-LB	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Axial foot
	SSD2-Y-25D-5-FP1-CB	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Double clevis
	SSD2-Y-25D-5-FP1-FA	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Rod-side flange
	SSD2-Y-25D-5-FP1-FB	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Head-side flange
	SSD2-Y-25D-10-FP1	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: None (cylinder only)
	SSD2-Y-25D-10-FP1-LB	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Axial foot
	SSD2-Y-25D-10-FP1-CB	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Double clevis
	SSD2-Y-25D-10-FP1-FA	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Rod-side flange
	SSD2-Y-25D-10-FP1-FB	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Head-side flange
	SSD2-Y-32-5-FP1	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (cylinder only)
	SSD2-Y-32-5-FP1-LB	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot
	SSD2-Y-32-5-FP1-CB	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis
	SSD2-Y-32-5-FP1-FA	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod-side flange
	SSD2-Y-32-5-FP1-FB	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Head-side flange
	SSD2-Y-32-10-FP1	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only)
	SSD2-Y-32-10-FP1-LB	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot
	SSD2-Y-32-10-FP1-CB	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis
	SSD2-Y-32-10-FP1-FA	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-side flange
	SSD2-Y-32-10-FP1-FB	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Head-side flange
	SSD2-Y-32D-5-FP1	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: None (cylinder only)
	SSD2-Y-32D-5-FP1-LB	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Axial foot
	SSD2-Y-32D-5-FP1-CB	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Double clevis
	SSD2-Y-32D-5-FP1-FA	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Rod-side flange
	SSD2-Y-32D-5-FP1-FB	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Head-side flange
	SSD2-Y-32D-10-FP1	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: None (cylinder only)
	SSD2-Y-32D-10-FP1-LB	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Axial foot
	SSD2-Y-32D-10-FP1-CB	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Double clevis
	SSD2-Y-32D-10-FP1-FA	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Rod-side flange
	SSD2-Y-32D-10-FP1-FB	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Head-side flange
	SSD2-Y-40-5-FP1	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (cylinder only)
	SSD2-Y-40-5-FP1-LB	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot
	SSD2-Y-40-5-FP1-CB	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis
	SSD2-Y-40-5-FP1-FA	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod-side flange
	SSD2-Y-40-5-FP1-FB	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Head-side flange
	SSD2-Y-40-10-FP1	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only)
	SSD2-Y-40-10-FP1-LB	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot
	SSD2-Y-40-10-FP1-CB	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis
	SSD2-Y-40-10-FP1-FA	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-side flange
	SSD2-Y-40-10-FP1-FB	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Head-side flange
	SSD2-Y-40D-5-FP1	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: None (cylinder only)
	SSD2-Y-40D-5-FP1-LB	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Axial foot
	SSD2-Y-40D-5-FP1-CB	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Double clevis
	SSD2-Y-40D-5-FP1-FA	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Rod-side flange
	SSD2-Y-40D-5-FP1-FB	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Head-side flange
	SSD2-Y-40D-10-FP1	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: None (cylinder only)
	SSD2-Y-40D-10-FP1-LB	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Axial foot
	SSD2-Y-40D-10-FP1-CB	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Double clevis
	SSD2-Y-40D-10-FP1-FA	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Rod-side flange
	SSD2-Y-40D-10-FP1-FB	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Head-side flange
	SSD2-Y-50-10-FP1	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only)
	SSD2-Y-50-10-FP1-LB	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot
	SSD2-Y-50-10-FP1-CB	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis
	SSD2-Y-50-10-FP1-FA	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-side flange
	SSD2-Y-50-10-FP1-FB	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Head-side flange
	SSD2-Y-50-20-FP1	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: None (cylinder only)
	SSD2-Y-50-20-FP1-LB	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot
	SSD2-Y-50-20-FP1-CB	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Double clevis
	SSD2-Y-50-20-FP1-FA	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Rod-side flange
	SSD2-Y-50-20-FP1-FB	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 50 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Head-side flange
	SSD2-Y-50D-10-FP1	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: None (cylinder only)
	SSD2-Y-50D-10-FP1-LB	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Axial foot
	SSD2-Y-50D-10-FP1-CB	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Double clevis
	SSD2-Y-50D-10-FP1-FA	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Rod-side flange
	SSD2-Y-50D-10-FP1-FB	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Head-side flange
	SSD2-Y-50D-20-FP1	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: None (cylinder only)
	SSD2-Y-50D-20-FP1-LB	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Axial foot
	SSD2-Y-50D-20-FP1-CB	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Double clevis
	SSD2-Y-50D-20-FP1-FA	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Rod-side flange
	SSD2-Y-50D-20-FP1-FB	Type: Single acting, pull (Y) \| Switch magnet: No \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Head-side flange
	SSD2-YL-12-5-FP1	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 12 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (cylinder only)
	SSD2-YL-12-5-FP1-LB	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 12 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot
	SSD2-YL-12-5-FP1-CB	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 12 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis
	SSD2-YL-12-5-FP1-FA	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 12 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod-side flange
	SSD2-YL-12-5-FP1-FB	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 12 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Head-side flange
	SSD2-YL-12-10-FP1	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 12 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only)
	SSD2-YL-12-10-FP1-LB	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 12 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot
	SSD2-YL-12-10-FP1-CB	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 12 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis
	SSD2-YL-12-10-FP1-FA	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 12 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-side flange
	SSD2-YL-12-10-FP1-FB	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 12 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Head-side flange
	SSD2-YL-12D-5-FP1	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 12 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: None (cylinder only)
	SSD2-YL-12D-5-FP1-LB	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 12 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Axial foot
	SSD2-YL-12D-5-FP1-CB	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 12 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Double clevis
	SSD2-YL-12D-5-FP1-FA	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 12 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Rod-side flange
	SSD2-YL-12D-5-FP1-FB	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 12 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Head-side flange
	SSD2-YL-12D-10-FP1	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 12 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: None (cylinder only)
	SSD2-YL-12D-10-FP1-LB	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 12 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Axial foot
	SSD2-YL-12D-10-FP1-CB	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 12 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Double clevis
	SSD2-YL-12D-10-FP1-FA	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 12 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Rod-side flange
	SSD2-YL-12D-10-FP1-FB	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 12 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Head-side flange
	SSD2-YL-16-5-FP1	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 16 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (cylinder only)
	SSD2-YL-16-5-FP1-LB	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 16 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot
	SSD2-YL-16-5-FP1-CB	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 16 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis
	SSD2-YL-16-5-FP1-FA	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 16 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod-side flange
	SSD2-YL-16-5-FP1-FB	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 16 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Head-side flange
	SSD2-YL-16-10-FP1	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 16 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only)
	SSD2-YL-16-10-FP1-LB	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 16 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot
	SSD2-YL-16-10-FP1-CB	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 16 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis
	SSD2-YL-16-10-FP1-FA	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 16 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-side flange
	SSD2-YL-16-10-FP1-FB	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 16 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Head-side flange
	SSD2-YL-16D-5-FP1	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 16 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: None (cylinder only)
	SSD2-YL-16D-5-FP1-LB	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 16 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Axial foot
	SSD2-YL-16D-5-FP1-CB	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 16 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Double clevis
	SSD2-YL-16D-5-FP1-FA	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 16 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Rod-side flange
	SSD2-YL-16D-5-FP1-FB	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 16 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Head-side flange
	SSD2-YL-16D-10-FP1	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 16 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: None (cylinder only)
	SSD2-YL-16D-10-FP1-LB	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 16 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Axial foot
	SSD2-YL-16D-10-FP1-CB	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 16 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Double clevis
	SSD2-YL-16D-10-FP1-FA	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 16 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Rod-side flange
	SSD2-YL-16D-10-FP1-FB	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 16 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Head-side flange
	SSD2-YL-20-5-FP1	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (cylinder only)
	SSD2-YL-20-5-FP1-LB	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot
	SSD2-YL-20-5-FP1-CB	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis
	SSD2-YL-20-5-FP1-FA	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod-side flange
	SSD2-YL-20-5-FP1-FB	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Head-side flange
	SSD2-YL-20-10-FP1	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only)
	SSD2-YL-20-10-FP1-LB	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot
	SSD2-YL-20-10-FP1-CB	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis
	SSD2-YL-20-10-FP1-FA	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-side flange
	SSD2-YL-20-10-FP1-FB	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Head-side flange
	SSD2-YL-20D-5-FP1	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: None (cylinder only)
	SSD2-YL-20D-5-FP1-LB	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Axial foot
	SSD2-YL-20D-5-FP1-CB	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Double clevis
	SSD2-YL-20D-5-FP1-FA	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Rod-side flange
	SSD2-YL-20D-5-FP1-FB	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Head-side flange
	SSD2-YL-20D-10-FP1	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: None (cylinder only)
	SSD2-YL-20D-10-FP1-LB	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Axial foot
	SSD2-YL-20D-10-FP1-CB	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Double clevis
	SSD2-YL-20D-10-FP1-FA	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Rod-side flange
	SSD2-YL-20D-10-FP1-FB	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Head-side flange
	SSD2-YL-25-5-FP1	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (cylinder only)
	SSD2-YL-25-5-FP1-LB	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot
	SSD2-YL-25-5-FP1-CB	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis
	SSD2-YL-25-5-FP1-FA	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod-side flange
	SSD2-YL-25-5-FP1-FB	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Head-side flange
	SSD2-YL-25-10-FP1	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only)
	SSD2-YL-25-10-FP1-LB	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot
	SSD2-YL-25-10-FP1-CB	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis
	SSD2-YL-25-10-FP1-FA	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-side flange
	SSD2-YL-25-10-FP1-FB	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Head-side flange
	SSD2-YL-25D-5-FP1	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: None (cylinder only)
	SSD2-YL-25D-5-FP1-LB	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Axial foot
	SSD2-YL-25D-5-FP1-CB	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Double clevis
	SSD2-YL-25D-5-FP1-FA	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Rod-side flange
	SSD2-YL-25D-5-FP1-FB	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Head-side flange
	SSD2-YL-25D-10-FP1	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: None (cylinder only)
	SSD2-YL-25D-10-FP1-LB	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Axial foot
	SSD2-YL-25D-10-FP1-CB	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Double clevis
	SSD2-YL-25D-10-FP1-FA	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Rod-side flange
	SSD2-YL-25D-10-FP1-FB	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Head-side flange
	SSD2-YL-32-5-FP1	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (cylinder only)
	SSD2-YL-32-5-FP1-LB	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot
	SSD2-YL-32-5-FP1-CB	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis
	SSD2-YL-32-5-FP1-FA	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod-side flange
	SSD2-YL-32-5-FP1-FB	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Head-side flange
	SSD2-YL-32-10-FP1	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only)
	SSD2-YL-32-10-FP1-LB	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot
	SSD2-YL-32-10-FP1-CB	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis
	SSD2-YL-32-10-FP1-FA	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-side flange
	SSD2-YL-32-10-FP1-FB	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Head-side flange
	SSD2-YL-32D-5-FP1	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: None (cylinder only)
	SSD2-YL-32D-5-FP1-LB	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Axial foot
	SSD2-YL-32D-5-FP1-CB	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Double clevis
	SSD2-YL-32D-5-FP1-FA	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Rod-side flange
	SSD2-YL-32D-5-FP1-FB	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Head-side flange
	SSD2-YL-32D-10-FP1	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: None (cylinder only)
	SSD2-YL-32D-10-FP1-LB	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Axial foot
	SSD2-YL-32D-10-FP1-CB	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Double clevis
	SSD2-YL-32D-10-FP1-FA	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Rod-side flange
	SSD2-YL-32D-10-FP1-FB	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Head-side flange
	SSD2-YL-40-5-FP1	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (cylinder only)
	SSD2-YL-40-5-FP1-LB	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot
	SSD2-YL-40-5-FP1-CB	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis
	SSD2-YL-40-5-FP1-FA	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod-side flange
	SSD2-YL-40-5-FP1-FB	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Head-side flange
	SSD2-YL-40-10-FP1	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only)
	SSD2-YL-40-10-FP1-LB	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot
	SSD2-YL-40-10-FP1-CB	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis
	SSD2-YL-40-10-FP1-FA	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-side flange
	SSD2-YL-40-10-FP1-FB	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Head-side flange
	SSD2-YL-40D-5-FP1	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: None (cylinder only)
	SSD2-YL-40D-5-FP1-LB	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Axial foot
	SSD2-YL-40D-5-FP1-CB	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Double clevis
	SSD2-YL-40D-5-FP1-FA	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Rod-side flange
	SSD2-YL-40D-5-FP1-FB	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Head-side flange
	SSD2-YL-40D-10-FP1	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: None (cylinder only)
	SSD2-YL-40D-10-FP1-LB	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Axial foot
	SSD2-YL-40D-10-FP1-CB	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Double clevis
	SSD2-YL-40D-10-FP1-FA	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Rod-side flange
	SSD2-YL-40D-10-FP1-FB	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Head-side flange
	SSD2-YL-50-10-FP1	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only)
	SSD2-YL-50-10-FP1-LB	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot
	SSD2-YL-50-10-FP1-CB	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis
	SSD2-YL-50-10-FP1-FA	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-side flange
	SSD2-YL-50-10-FP1-FB	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Head-side flange
	SSD2-YL-50-20-FP1	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: None (cylinder only)
	SSD2-YL-50-20-FP1-LB	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot
	SSD2-YL-50-20-FP1-CB	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Double clevis
	SSD2-YL-50-20-FP1-FA	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Rod-side flange
	SSD2-YL-50-20-FP1-FB	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 50 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Head-side flange
	SSD2-YL-50D-10-FP1	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: None (cylinder only)
	SSD2-YL-50D-10-FP1-LB	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Axial foot
	SSD2-YL-50D-10-FP1-CB	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Double clevis
	SSD2-YL-50D-10-FP1-FA	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Rod-side flange
	SSD2-YL-50D-10-FP1-FB	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Head-side flange
	SSD2-YL-50D-20-FP1	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: None (cylinder only)
	SSD2-YL-50D-20-FP1-LB	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Axial foot
	SSD2-YL-50D-20-FP1-CB	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Double clevis
	SSD2-YL-50D-20-FP1-FA	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Rod-side flange
	SSD2-YL-50D-20-FP1-FB	Type: Single acting, pull (Y) \| Switch magnet: Yes \| Bore: 50 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Head-side flange

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

CKD SSD2-X/Y-FP1 Super Compact Cylinder (Single Acting, Bore 12-50)
