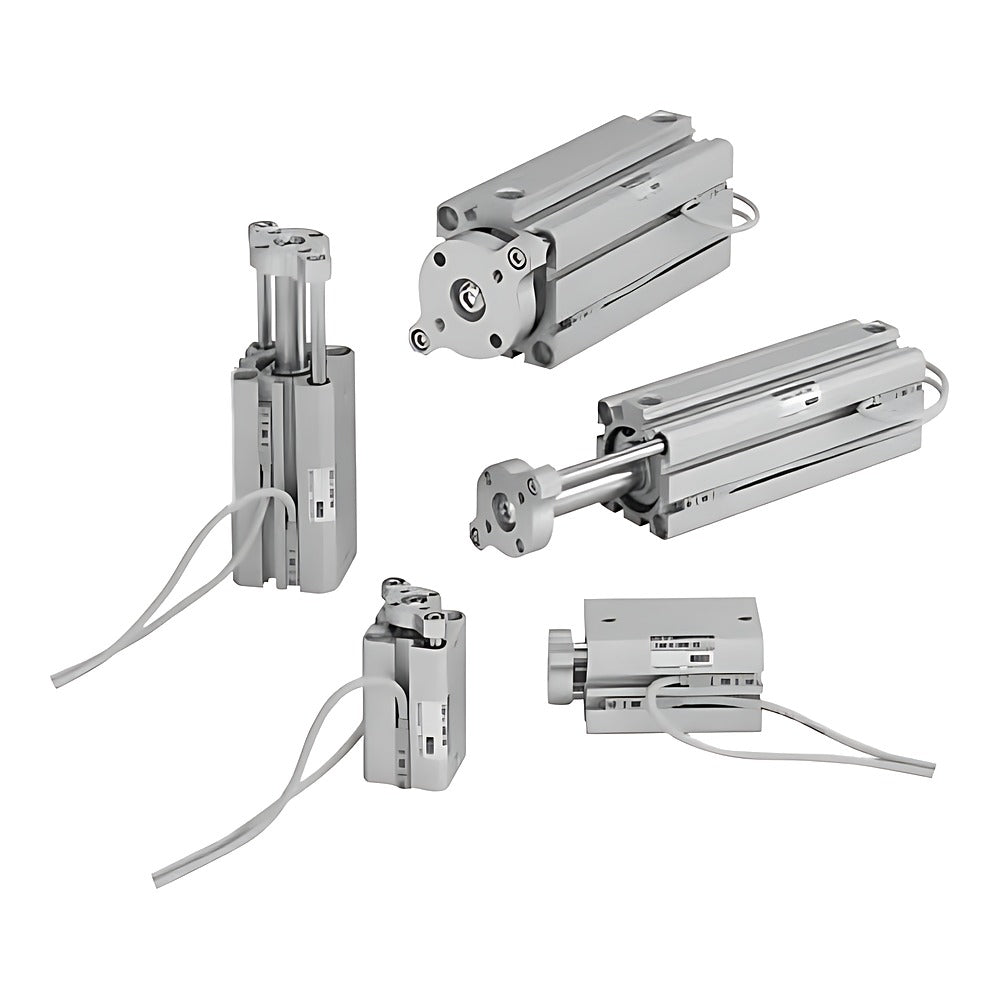

CKD SSG Super Compact Cylinder with Guide (Double Acting)

CKD SSG Super Compact Cylinder with Guide (Double Acting)

CKD SSG is a guided super compact cylinder that combines the SSD body with guide rods and an end plate so loads can be mounted directly.

Key features

  • Guide rods and end plate allow direct load mounting with high non-rotating accuracy
  • Space-saving body based on the SSD super compact cylinder, bores 12 to 100 mm
  • Cushion: none or rubber cushion both ends (D)
  • SSG-L built-in magnet for T/F-type switches; SSG-L1 for 2-color, off-delay and T1 switches (bore 12/16)
  • Mounting bolts ordered separately; intermediate strokes in 1 mm steps

Specifications

Action Double acting, single rod with guide
Bore 12 to 100 mm
Operating pressure 0.15 / 0.1 to 1.0 MPa
Proof pressure 1.6 MPa
Ambient temperature -10 to 60 C (no freezing)
Port size M5 to Rc3/8 (by bore)
Piston speed 50 to 500 mm/s (bore 12-63), 50 to 300 mm/s (80-100)
Source CKD Korea catalog CB-029SK-9, p. 1153-1167
SSG-12-5 Model: SSG (no magnet) | Bore: 12 mm | Cushion: None | Stroke: 5 mm
SSG-12D-5 Model: SSG (no magnet) | Bore: 12 mm | Cushion: Rubber, both ends | Stroke: 5 mm
SSG-12-10 Model: SSG (no magnet) | Bore: 12 mm | Cushion: None | Stroke: 10 mm
SSG-12D-10 Model: SSG (no magnet) | Bore: 12 mm | Cushion: Rubber, both ends | Stroke: 10 mm
SSG-12-15 Model: SSG (no magnet) | Bore: 12 mm | Cushion: None | Stroke: 15 mm
SSG-12D-15 Model: SSG (no magnet) | Bore: 12 mm | Cushion: Rubber, both ends | Stroke: 15 mm
SSG-12-20 Model: SSG (no magnet) | Bore: 12 mm | Cushion: None | Stroke: 20 mm
SSG-12D-20 Model: SSG (no magnet) | Bore: 12 mm | Cushion: Rubber, both ends | Stroke: 20 mm
SSG-12-25 Model: SSG (no magnet) | Bore: 12 mm | Cushion: None | Stroke: 25 mm
SSG-12D-25 Model: SSG (no magnet) | Bore: 12 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SSG-12-30 Model: SSG (no magnet) | Bore: 12 mm | Cushion: None | Stroke: 30 mm
SSG-12D-30 Model: SSG (no magnet) | Bore: 12 mm | Cushion: Rubber, both ends | Stroke: 30 mm
SSG-16-5 Model: SSG (no magnet) | Bore: 16 mm | Cushion: None | Stroke: 5 mm
SSG-16D-5 Model: SSG (no magnet) | Bore: 16 mm | Cushion: Rubber, both ends | Stroke: 5 mm
SSG-16-10 Model: SSG (no magnet) | Bore: 16 mm | Cushion: None | Stroke: 10 mm
SSG-16D-10 Model: SSG (no magnet) | Bore: 16 mm | Cushion: Rubber, both ends | Stroke: 10 mm
SSG-16-15 Model: SSG (no magnet) | Bore: 16 mm | Cushion: None | Stroke: 15 mm
SSG-16D-15 Model: SSG (no magnet) | Bore: 16 mm | Cushion: Rubber, both ends | Stroke: 15 mm
SSG-16-20 Model: SSG (no magnet) | Bore: 16 mm | Cushion: None | Stroke: 20 mm
SSG-16D-20 Model: SSG (no magnet) | Bore: 16 mm | Cushion: Rubber, both ends | Stroke: 20 mm
SSG-16-25 Model: SSG (no magnet) | Bore: 16 mm | Cushion: None | Stroke: 25 mm
SSG-16D-25 Model: SSG (no magnet) | Bore: 16 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SSG-16-30 Model: SSG (no magnet) | Bore: 16 mm | Cushion: None | Stroke: 30 mm
SSG-16D-30 Model: SSG (no magnet) | Bore: 16 mm | Cushion: Rubber, both ends | Stroke: 30 mm
SSG-20-5 Model: SSG (no magnet) | Bore: 20 mm | Cushion: None | Stroke: 5 mm
SSG-20D-5 Model: SSG (no magnet) | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 5 mm
SSG-20-10 Model: SSG (no magnet) | Bore: 20 mm | Cushion: None | Stroke: 10 mm
SSG-20D-10 Model: SSG (no magnet) | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 10 mm
SSG-20-15 Model: SSG (no magnet) | Bore: 20 mm | Cushion: None | Stroke: 15 mm
SSG-20D-15 Model: SSG (no magnet) | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 15 mm
SSG-20-20 Model: SSG (no magnet) | Bore: 20 mm | Cushion: None | Stroke: 20 mm
SSG-20D-20 Model: SSG (no magnet) | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 20 mm
SSG-20-25 Model: SSG (no magnet) | Bore: 20 mm | Cushion: None | Stroke: 25 mm
SSG-20D-25 Model: SSG (no magnet) | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SSG-20-30 Model: SSG (no magnet) | Bore: 20 mm | Cushion: None | Stroke: 30 mm
SSG-20D-30 Model: SSG (no magnet) | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 30 mm
SSG-20-35 Model: SSG (no magnet) | Bore: 20 mm | Cushion: None | Stroke: 35 mm
SSG-20D-35 Model: SSG (no magnet) | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 35 mm
SSG-20-40 Model: SSG (no magnet) | Bore: 20 mm | Cushion: None | Stroke: 40 mm
SSG-20D-40 Model: SSG (no magnet) | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 40 mm
SSG-20-45 Model: SSG (no magnet) | Bore: 20 mm | Cushion: None | Stroke: 45 mm
SSG-20D-45 Model: SSG (no magnet) | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 45 mm
SSG-20-50 Model: SSG (no magnet) | Bore: 20 mm | Cushion: None | Stroke: 50 mm
SSG-20D-50 Model: SSG (no magnet) | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SSG-25-5 Model: SSG (no magnet) | Bore: 25 mm | Cushion: None | Stroke: 5 mm
SSG-25D-5 Model: SSG (no magnet) | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 5 mm
SSG-25-10 Model: SSG (no magnet) | Bore: 25 mm | Cushion: None | Stroke: 10 mm
SSG-25D-10 Model: SSG (no magnet) | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 10 mm
SSG-25-15 Model: SSG (no magnet) | Bore: 25 mm | Cushion: None | Stroke: 15 mm
SSG-25D-15 Model: SSG (no magnet) | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 15 mm
SSG-25-20 Model: SSG (no magnet) | Bore: 25 mm | Cushion: None | Stroke: 20 mm
SSG-25D-20 Model: SSG (no magnet) | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 20 mm
SSG-25-25 Model: SSG (no magnet) | Bore: 25 mm | Cushion: None | Stroke: 25 mm
SSG-25D-25 Model: SSG (no magnet) | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SSG-25-30 Model: SSG (no magnet) | Bore: 25 mm | Cushion: None | Stroke: 30 mm
SSG-25D-30 Model: SSG (no magnet) | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 30 mm
SSG-25-35 Model: SSG (no magnet) | Bore: 25 mm | Cushion: None | Stroke: 35 mm
SSG-25D-35 Model: SSG (no magnet) | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 35 mm
SSG-25-40 Model: SSG (no magnet) | Bore: 25 mm | Cushion: None | Stroke: 40 mm
SSG-25D-40 Model: SSG (no magnet) | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 40 mm
SSG-25-45 Model: SSG (no magnet) | Bore: 25 mm | Cushion: None | Stroke: 45 mm
SSG-25D-45 Model: SSG (no magnet) | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 45 mm
SSG-25-50 Model: SSG (no magnet) | Bore: 25 mm | Cushion: None | Stroke: 50 mm
SSG-25D-50 Model: SSG (no magnet) | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SSG-32-5 Model: SSG (no magnet) | Bore: 32 mm | Cushion: None | Stroke: 5 mm
SSG-32D-5 Model: SSG (no magnet) | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 5 mm
SSG-32-10 Model: SSG (no magnet) | Bore: 32 mm | Cushion: None | Stroke: 10 mm
SSG-32D-10 Model: SSG (no magnet) | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 10 mm
SSG-32-15 Model: SSG (no magnet) | Bore: 32 mm | Cushion: None | Stroke: 15 mm
SSG-32D-15 Model: SSG (no magnet) | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 15 mm
SSG-32-20 Model: SSG (no magnet) | Bore: 32 mm | Cushion: None | Stroke: 20 mm
SSG-32D-20 Model: SSG (no magnet) | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 20 mm
SSG-32-25 Model: SSG (no magnet) | Bore: 32 mm | Cushion: None | Stroke: 25 mm
SSG-32D-25 Model: SSG (no magnet) | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SSG-32-30 Model: SSG (no magnet) | Bore: 32 mm | Cushion: None | Stroke: 30 mm
SSG-32D-30 Model: SSG (no magnet) | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 30 mm
SSG-32-35 Model: SSG (no magnet) | Bore: 32 mm | Cushion: None | Stroke: 35 mm
SSG-32D-35 Model: SSG (no magnet) | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 35 mm
SSG-32-40 Model: SSG (no magnet) | Bore: 32 mm | Cushion: None | Stroke: 40 mm
SSG-32D-40 Model: SSG (no magnet) | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 40 mm
SSG-32-45 Model: SSG (no magnet) | Bore: 32 mm | Cushion: None | Stroke: 45 mm
SSG-32D-45 Model: SSG (no magnet) | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 45 mm
SSG-32-50 Model: SSG (no magnet) | Bore: 32 mm | Cushion: None | Stroke: 50 mm
SSG-32D-50 Model: SSG (no magnet) | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SSG-32-75 Model: SSG (no magnet) | Bore: 32 mm | Cushion: None | Stroke: 75 mm
SSG-32D-75 Model: SSG (no magnet) | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 75 mm
SSG-32-100 Model: SSG (no magnet) | Bore: 32 mm | Cushion: None | Stroke: 100 mm
SSG-32D-100 Model: SSG (no magnet) | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 100 mm
SSG-40-5 Model: SSG (no magnet) | Bore: 40 mm | Cushion: None | Stroke: 5 mm
SSG-40D-5 Model: SSG (no magnet) | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 5 mm
SSG-40-10 Model: SSG (no magnet) | Bore: 40 mm | Cushion: None | Stroke: 10 mm
SSG-40D-10 Model: SSG (no magnet) | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 10 mm
SSG-40-15 Model: SSG (no magnet) | Bore: 40 mm | Cushion: None | Stroke: 15 mm
SSG-40D-15 Model: SSG (no magnet) | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 15 mm
SSG-40-20 Model: SSG (no magnet) | Bore: 40 mm | Cushion: None | Stroke: 20 mm
SSG-40D-20 Model: SSG (no magnet) | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 20 mm
SSG-40-25 Model: SSG (no magnet) | Bore: 40 mm | Cushion: None | Stroke: 25 mm
SSG-40D-25 Model: SSG (no magnet) | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SSG-40-30 Model: SSG (no magnet) | Bore: 40 mm | Cushion: None | Stroke: 30 mm
SSG-40D-30 Model: SSG (no magnet) | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 30 mm
SSG-40-35 Model: SSG (no magnet) | Bore: 40 mm | Cushion: None | Stroke: 35 mm
SSG-40D-35 Model: SSG (no magnet) | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 35 mm
SSG-40-40 Model: SSG (no magnet) | Bore: 40 mm | Cushion: None | Stroke: 40 mm
SSG-40D-40 Model: SSG (no magnet) | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 40 mm
SSG-40-45 Model: SSG (no magnet) | Bore: 40 mm | Cushion: None | Stroke: 45 mm
SSG-40D-45 Model: SSG (no magnet) | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 45 mm
SSG-40-50 Model: SSG (no magnet) | Bore: 40 mm | Cushion: None | Stroke: 50 mm
SSG-40D-50 Model: SSG (no magnet) | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SSG-40-75 Model: SSG (no magnet) | Bore: 40 mm | Cushion: None | Stroke: 75 mm
SSG-40D-75 Model: SSG (no magnet) | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 75 mm
SSG-40-100 Model: SSG (no magnet) | Bore: 40 mm | Cushion: None | Stroke: 100 mm
SSG-40D-100 Model: SSG (no magnet) | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 100 mm
SSG-50-10 Model: SSG (no magnet) | Bore: 50 mm | Cushion: None | Stroke: 10 mm
SSG-50D-10 Model: SSG (no magnet) | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 10 mm
SSG-50-15 Model: SSG (no magnet) | Bore: 50 mm | Cushion: None | Stroke: 15 mm
SSG-50D-15 Model: SSG (no magnet) | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 15 mm
SSG-50-20 Model: SSG (no magnet) | Bore: 50 mm | Cushion: None | Stroke: 20 mm
SSG-50D-20 Model: SSG (no magnet) | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 20 mm
SSG-50-25 Model: SSG (no magnet) | Bore: 50 mm | Cushion: None | Stroke: 25 mm
SSG-50D-25 Model: SSG (no magnet) | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SSG-50-30 Model: SSG (no magnet) | Bore: 50 mm | Cushion: None | Stroke: 30 mm
SSG-50D-30 Model: SSG (no magnet) | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 30 mm
SSG-50-35 Model: SSG (no magnet) | Bore: 50 mm | Cushion: None | Stroke: 35 mm
SSG-50D-35 Model: SSG (no magnet) | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 35 mm
SSG-50-40 Model: SSG (no magnet) | Bore: 50 mm | Cushion: None | Stroke: 40 mm
SSG-50D-40 Model: SSG (no magnet) | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 40 mm
SSG-50-45 Model: SSG (no magnet) | Bore: 50 mm | Cushion: None | Stroke: 45 mm
SSG-50D-45 Model: SSG (no magnet) | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 45 mm
SSG-50-50 Model: SSG (no magnet) | Bore: 50 mm | Cushion: None | Stroke: 50 mm
SSG-50D-50 Model: SSG (no magnet) | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SSG-50-75 Model: SSG (no magnet) | Bore: 50 mm | Cushion: None | Stroke: 75 mm
SSG-50D-75 Model: SSG (no magnet) | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 75 mm
SSG-50-100 Model: SSG (no magnet) | Bore: 50 mm | Cushion: None | Stroke: 100 mm
SSG-50D-100 Model: SSG (no magnet) | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 100 mm
SSG-63-10 Model: SSG (no magnet) | Bore: 63 mm | Cushion: None | Stroke: 10 mm
SSG-63D-10 Model: SSG (no magnet) | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 10 mm
SSG-63-15 Model: SSG (no magnet) | Bore: 63 mm | Cushion: None | Stroke: 15 mm
SSG-63D-15 Model: SSG (no magnet) | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 15 mm
SSG-63-20 Model: SSG (no magnet) | Bore: 63 mm | Cushion: None | Stroke: 20 mm
SSG-63D-20 Model: SSG (no magnet) | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 20 mm
SSG-63-25 Model: SSG (no magnet) | Bore: 63 mm | Cushion: None | Stroke: 25 mm
SSG-63D-25 Model: SSG (no magnet) | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SSG-63-30 Model: SSG (no magnet) | Bore: 63 mm | Cushion: None | Stroke: 30 mm
SSG-63D-30 Model: SSG (no magnet) | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 30 mm
SSG-63-35 Model: SSG (no magnet) | Bore: 63 mm | Cushion: None | Stroke: 35 mm
SSG-63D-35 Model: SSG (no magnet) | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 35 mm
SSG-63-40 Model: SSG (no magnet) | Bore: 63 mm | Cushion: None | Stroke: 40 mm
SSG-63D-40 Model: SSG (no magnet) | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 40 mm
SSG-63-45 Model: SSG (no magnet) | Bore: 63 mm | Cushion: None | Stroke: 45 mm
SSG-63D-45 Model: SSG (no magnet) | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 45 mm
SSG-63-50 Model: SSG (no magnet) | Bore: 63 mm | Cushion: None | Stroke: 50 mm
SSG-63D-50 Model: SSG (no magnet) | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SSG-63-75 Model: SSG (no magnet) | Bore: 63 mm | Cushion: None | Stroke: 75 mm
SSG-63D-75 Model: SSG (no magnet) | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 75 mm
SSG-63-100 Model: SSG (no magnet) | Bore: 63 mm | Cushion: None | Stroke: 100 mm
SSG-63D-100 Model: SSG (no magnet) | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 100 mm
SSG-80-10 Model: SSG (no magnet) | Bore: 80 mm | Cushion: None | Stroke: 10 mm
SSG-80D-10 Model: SSG (no magnet) | Bore: 80 mm | Cushion: Rubber, both ends | Stroke: 10 mm
SSG-80-15 Model: SSG (no magnet) | Bore: 80 mm | Cushion: None | Stroke: 15 mm
SSG-80D-15 Model: SSG (no magnet) | Bore: 80 mm | Cushion: Rubber, both ends | Stroke: 15 mm
SSG-80-20 Model: SSG (no magnet) | Bore: 80 mm | Cushion: None | Stroke: 20 mm
SSG-80D-20 Model: SSG (no magnet) | Bore: 80 mm | Cushion: Rubber, both ends | Stroke: 20 mm
SSG-80-25 Model: SSG (no magnet) | Bore: 80 mm | Cushion: None | Stroke: 25 mm
SSG-80D-25 Model: SSG (no magnet) | Bore: 80 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SSG-80-30 Model: SSG (no magnet) | Bore: 80 mm | Cushion: None | Stroke: 30 mm
SSG-80D-30 Model: SSG (no magnet) | Bore: 80 mm | Cushion: Rubber, both ends | Stroke: 30 mm
SSG-80-35 Model: SSG (no magnet) | Bore: 80 mm | Cushion: None | Stroke: 35 mm
SSG-80D-35 Model: SSG (no magnet) | Bore: 80 mm | Cushion: Rubber, both ends | Stroke: 35 mm
SSG-80-40 Model: SSG (no magnet) | Bore: 80 mm | Cushion: None | Stroke: 40 mm
SSG-80D-40 Model: SSG (no magnet) | Bore: 80 mm | Cushion: Rubber, both ends | Stroke: 40 mm
SSG-80-45 Model: SSG (no magnet) | Bore: 80 mm | Cushion: None | Stroke: 45 mm
SSG-80D-45 Model: SSG (no magnet) | Bore: 80 mm | Cushion: Rubber, both ends | Stroke: 45 mm
SSG-80-50 Model: SSG (no magnet) | Bore: 80 mm | Cushion: None | Stroke: 50 mm
SSG-80D-50 Model: SSG (no magnet) | Bore: 80 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SSG-80-75 Model: SSG (no magnet) | Bore: 80 mm | Cushion: None | Stroke: 75 mm
SSG-80D-75 Model: SSG (no magnet) | Bore: 80 mm | Cushion: Rubber, both ends | Stroke: 75 mm
SSG-80-100 Model: SSG (no magnet) | Bore: 80 mm | Cushion: None | Stroke: 100 mm
SSG-80D-100 Model: SSG (no magnet) | Bore: 80 mm | Cushion: Rubber, both ends | Stroke: 100 mm
SSG-100-10 Model: SSG (no magnet) | Bore: 100 mm | Cushion: None | Stroke: 10 mm
SSG-100D-10 Model: SSG (no magnet) | Bore: 100 mm | Cushion: Rubber, both ends | Stroke: 10 mm
SSG-100-15 Model: SSG (no magnet) | Bore: 100 mm | Cushion: None | Stroke: 15 mm
SSG-100D-15 Model: SSG (no magnet) | Bore: 100 mm | Cushion: Rubber, both ends | Stroke: 15 mm
SSG-100-20 Model: SSG (no magnet) | Bore: 100 mm | Cushion: None | Stroke: 20 mm
SSG-100D-20 Model: SSG (no magnet) | Bore: 100 mm | Cushion: Rubber, both ends | Stroke: 20 mm
SSG-100-25 Model: SSG (no magnet) | Bore: 100 mm | Cushion: None | Stroke: 25 mm
SSG-100D-25 Model: SSG (no magnet) | Bore: 100 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SSG-100-30 Model: SSG (no magnet) | Bore: 100 mm | Cushion: None | Stroke: 30 mm
SSG-100D-30 Model: SSG (no magnet) | Bore: 100 mm | Cushion: Rubber, both ends | Stroke: 30 mm
SSG-100-35 Model: SSG (no magnet) | Bore: 100 mm | Cushion: None | Stroke: 35 mm
SSG-100D-35 Model: SSG (no magnet) | Bore: 100 mm | Cushion: Rubber, both ends | Stroke: 35 mm
SSG-100-40 Model: SSG (no magnet) | Bore: 100 mm | Cushion: None | Stroke: 40 mm
SSG-100D-40 Model: SSG (no magnet) | Bore: 100 mm | Cushion: Rubber, both ends | Stroke: 40 mm
SSG-100-45 Model: SSG (no magnet) | Bore: 100 mm | Cushion: None | Stroke: 45 mm
SSG-100D-45 Model: SSG (no magnet) | Bore: 100 mm | Cushion: Rubber, both ends | Stroke: 45 mm
SSG-100-50 Model: SSG (no magnet) | Bore: 100 mm | Cushion: None | Stroke: 50 mm
SSG-100D-50 Model: SSG (no magnet) | Bore: 100 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SSG-100-75 Model: SSG (no magnet) | Bore: 100 mm | Cushion: None | Stroke: 75 mm
SSG-100D-75 Model: SSG (no magnet) | Bore: 100 mm | Cushion: Rubber, both ends | Stroke: 75 mm
SSG-100-100 Model: SSG (no magnet) | Bore: 100 mm | Cushion: None | Stroke: 100 mm
SSG-100D-100 Model: SSG (no magnet) | Bore: 100 mm | Cushion: Rubber, both ends | Stroke: 100 mm
SSG-L-12-5 Model: SSG-L (switch magnet) | Bore: 12 mm | Cushion: None | Stroke: 5 mm
SSG-L-12D-5 Model: SSG-L (switch magnet) | Bore: 12 mm | Cushion: Rubber, both ends | Stroke: 5 mm
SSG-L-12-10 Model: SSG-L (switch magnet) | Bore: 12 mm | Cushion: None | Stroke: 10 mm
SSG-L-12D-10 Model: SSG-L (switch magnet) | Bore: 12 mm | Cushion: Rubber, both ends | Stroke: 10 mm
SSG-L-12-15 Model: SSG-L (switch magnet) | Bore: 12 mm | Cushion: None | Stroke: 15 mm
SSG-L-12D-15 Model: SSG-L (switch magnet) | Bore: 12 mm | Cushion: Rubber, both ends | Stroke: 15 mm
SSG-L-12-20 Model: SSG-L (switch magnet) | Bore: 12 mm | Cushion: None | Stroke: 20 mm
SSG-L-12D-20 Model: SSG-L (switch magnet) | Bore: 12 mm | Cushion: Rubber, both ends | Stroke: 20 mm
SSG-L-12-25 Model: SSG-L (switch magnet) | Bore: 12 mm | Cushion: None | Stroke: 25 mm
SSG-L-12D-25 Model: SSG-L (switch magnet) | Bore: 12 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SSG-L-12-30 Model: SSG-L (switch magnet) | Bore: 12 mm | Cushion: None | Stroke: 30 mm
SSG-L-12D-30 Model: SSG-L (switch magnet) | Bore: 12 mm | Cushion: Rubber, both ends | Stroke: 30 mm
SSG-L-16-5 Model: SSG-L (switch magnet) | Bore: 16 mm | Cushion: None | Stroke: 5 mm
SSG-L-16D-5 Model: SSG-L (switch magnet) | Bore: 16 mm | Cushion: Rubber, both ends | Stroke: 5 mm
SSG-L-16-10 Model: SSG-L (switch magnet) | Bore: 16 mm | Cushion: None | Stroke: 10 mm
SSG-L-16D-10 Model: SSG-L (switch magnet) | Bore: 16 mm | Cushion: Rubber, both ends | Stroke: 10 mm
SSG-L-16-15 Model: SSG-L (switch magnet) | Bore: 16 mm | Cushion: None | Stroke: 15 mm
SSG-L-16D-15 Model: SSG-L (switch magnet) | Bore: 16 mm | Cushion: Rubber, both ends | Stroke: 15 mm
SSG-L-16-20 Model: SSG-L (switch magnet) | Bore: 16 mm | Cushion: None | Stroke: 20 mm
SSG-L-16D-20 Model: SSG-L (switch magnet) | Bore: 16 mm | Cushion: Rubber, both ends | Stroke: 20 mm
SSG-L-16-25 Model: SSG-L (switch magnet) | Bore: 16 mm | Cushion: None | Stroke: 25 mm
SSG-L-16D-25 Model: SSG-L (switch magnet) | Bore: 16 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SSG-L-16-30 Model: SSG-L (switch magnet) | Bore: 16 mm | Cushion: None | Stroke: 30 mm
SSG-L-16D-30 Model: SSG-L (switch magnet) | Bore: 16 mm | Cushion: Rubber, both ends | Stroke: 30 mm
SSG-L-20-5 Model: SSG-L (switch magnet) | Bore: 20 mm | Cushion: None | Stroke: 5 mm
SSG-L-20D-5 Model: SSG-L (switch magnet) | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 5 mm
SSG-L-20-10 Model: SSG-L (switch magnet) | Bore: 20 mm | Cushion: None | Stroke: 10 mm
SSG-L-20D-10 Model: SSG-L (switch magnet) | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 10 mm
SSG-L-20-15 Model: SSG-L (switch magnet) | Bore: 20 mm | Cushion: None | Stroke: 15 mm
SSG-L-20D-15 Model: SSG-L (switch magnet) | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 15 mm
SSG-L-20-20 Model: SSG-L (switch magnet) | Bore: 20 mm | Cushion: None | Stroke: 20 mm
SSG-L-20D-20 Model: SSG-L (switch magnet) | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 20 mm
SSG-L-20-25 Model: SSG-L (switch magnet) | Bore: 20 mm | Cushion: None | Stroke: 25 mm
SSG-L-20D-25 Model: SSG-L (switch magnet) | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SSG-L-20-30 Model: SSG-L (switch magnet) | Bore: 20 mm | Cushion: None | Stroke: 30 mm
SSG-L-20D-30 Model: SSG-L (switch magnet) | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 30 mm
SSG-L-20-35 Model: SSG-L (switch magnet) | Bore: 20 mm | Cushion: None | Stroke: 35 mm
SSG-L-20D-35 Model: SSG-L (switch magnet) | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 35 mm
SSG-L-20-40 Model: SSG-L (switch magnet) | Bore: 20 mm | Cushion: None | Stroke: 40 mm
SSG-L-20D-40 Model: SSG-L (switch magnet) | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 40 mm
SSG-L-20-45 Model: SSG-L (switch magnet) | Bore: 20 mm | Cushion: None | Stroke: 45 mm
SSG-L-20D-45 Model: SSG-L (switch magnet) | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 45 mm
SSG-L-20-50 Model: SSG-L (switch magnet) | Bore: 20 mm | Cushion: None | Stroke: 50 mm
SSG-L-20D-50 Model: SSG-L (switch magnet) | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SSG-L-25-5 Model: SSG-L (switch magnet) | Bore: 25 mm | Cushion: None | Stroke: 5 mm
SSG-L-25D-5 Model: SSG-L (switch magnet) | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 5 mm
SSG-L-25-10 Model: SSG-L (switch magnet) | Bore: 25 mm | Cushion: None | Stroke: 10 mm
SSG-L-25D-10 Model: SSG-L (switch magnet) | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 10 mm
SSG-L-25-15 Model: SSG-L (switch magnet) | Bore: 25 mm | Cushion: None | Stroke: 15 mm
SSG-L-25D-15 Model: SSG-L (switch magnet) | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 15 mm
SSG-L-25-20 Model: SSG-L (switch magnet) | Bore: 25 mm | Cushion: None | Stroke: 20 mm
SSG-L-25D-20 Model: SSG-L (switch magnet) | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 20 mm
SSG-L-25-25 Model: SSG-L (switch magnet) | Bore: 25 mm | Cushion: None | Stroke: 25 mm
SSG-L-25D-25 Model: SSG-L (switch magnet) | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SSG-L-25-30 Model: SSG-L (switch magnet) | Bore: 25 mm | Cushion: None | Stroke: 30 mm
SSG-L-25D-30 Model: SSG-L (switch magnet) | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 30 mm
SSG-L-25-35 Model: SSG-L (switch magnet) | Bore: 25 mm | Cushion: None | Stroke: 35 mm
SSG-L-25D-35 Model: SSG-L (switch magnet) | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 35 mm
SSG-L-25-40 Model: SSG-L (switch magnet) | Bore: 25 mm | Cushion: None | Stroke: 40 mm
SSG-L-25D-40 Model: SSG-L (switch magnet) | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 40 mm
SSG-L-25-45 Model: SSG-L (switch magnet) | Bore: 25 mm | Cushion: None | Stroke: 45 mm
SSG-L-25D-45 Model: SSG-L (switch magnet) | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 45 mm
SSG-L-25-50 Model: SSG-L (switch magnet) | Bore: 25 mm | Cushion: None | Stroke: 50 mm
SSG-L-25D-50 Model: SSG-L (switch magnet) | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SSG-L-32-5 Model: SSG-L (switch magnet) | Bore: 32 mm | Cushion: None | Stroke: 5 mm
SSG-L-32D-5 Model: SSG-L (switch magnet) | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 5 mm
SSG-L-32-10 Model: SSG-L (switch magnet) | Bore: 32 mm | Cushion: None | Stroke: 10 mm
SSG-L-32D-10 Model: SSG-L (switch magnet) | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 10 mm
SSG-L-32-15 Model: SSG-L (switch magnet) | Bore: 32 mm | Cushion: None | Stroke: 15 mm
SSG-L-32D-15 Model: SSG-L (switch magnet) | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 15 mm
SSG-L-32-20 Model: SSG-L (switch magnet) | Bore: 32 mm | Cushion: None | Stroke: 20 mm
SSG-L-32D-20 Model: SSG-L (switch magnet) | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 20 mm
SSG-L-32-25 Model: SSG-L (switch magnet) | Bore: 32 mm | Cushion: None | Stroke: 25 mm
SSG-L-32D-25 Model: SSG-L (switch magnet) | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SSG-L-32-30 Model: SSG-L (switch magnet) | Bore: 32 mm | Cushion: None | Stroke: 30 mm
SSG-L-32D-30 Model: SSG-L (switch magnet) | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 30 mm
SSG-L-32-35 Model: SSG-L (switch magnet) | Bore: 32 mm | Cushion: None | Stroke: 35 mm
SSG-L-32D-35 Model: SSG-L (switch magnet) | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 35 mm
SSG-L-32-40 Model: SSG-L (switch magnet) | Bore: 32 mm | Cushion: None | Stroke: 40 mm
SSG-L-32D-40 Model: SSG-L (switch magnet) | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 40 mm
SSG-L-32-45 Model: SSG-L (switch magnet) | Bore: 32 mm | Cushion: None | Stroke: 45 mm
SSG-L-32D-45 Model: SSG-L (switch magnet) | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 45 mm
SSG-L-32-50 Model: SSG-L (switch magnet) | Bore: 32 mm | Cushion: None | Stroke: 50 mm
SSG-L-32D-50 Model: SSG-L (switch magnet) | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SSG-L-32-75 Model: SSG-L (switch magnet) | Bore: 32 mm | Cushion: None | Stroke: 75 mm
SSG-L-32D-75 Model: SSG-L (switch magnet) | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 75 mm
SSG-L-32-100 Model: SSG-L (switch magnet) | Bore: 32 mm | Cushion: None | Stroke: 100 mm
SSG-L-32D-100 Model: SSG-L (switch magnet) | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 100 mm
SSG-L-40-5 Model: SSG-L (switch magnet) | Bore: 40 mm | Cushion: None | Stroke: 5 mm
SSG-L-40D-5 Model: SSG-L (switch magnet) | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 5 mm
SSG-L-40-10 Model: SSG-L (switch magnet) | Bore: 40 mm | Cushion: None | Stroke: 10 mm
SSG-L-40D-10 Model: SSG-L (switch magnet) | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 10 mm
SSG-L-40-15 Model: SSG-L (switch magnet) | Bore: 40 mm | Cushion: None | Stroke: 15 mm
SSG-L-40D-15 Model: SSG-L (switch magnet) | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 15 mm
SSG-L-40-20 Model: SSG-L (switch magnet) | Bore: 40 mm | Cushion: None | Stroke: 20 mm
SSG-L-40D-20 Model: SSG-L (switch magnet) | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 20 mm
SSG-L-40-25 Model: SSG-L (switch magnet) | Bore: 40 mm | Cushion: None | Stroke: 25 mm
SSG-L-40D-25 Model: SSG-L (switch magnet) | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SSG-L-40-30 Model: SSG-L (switch magnet) | Bore: 40 mm | Cushion: None | Stroke: 30 mm
SSG-L-40D-30 Model: SSG-L (switch magnet) | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 30 mm
SSG-L-40-35 Model: SSG-L (switch magnet) | Bore: 40 mm | Cushion: None | Stroke: 35 mm
SSG-L-40D-35 Model: SSG-L (switch magnet) | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 35 mm
SSG-L-40-40 Model: SSG-L (switch magnet) | Bore: 40 mm | Cushion: None | Stroke: 40 mm
SSG-L-40D-40 Model: SSG-L (switch magnet) | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 40 mm
SSG-L-40-45 Model: SSG-L (switch magnet) | Bore: 40 mm | Cushion: None | Stroke: 45 mm
SSG-L-40D-45 Model: SSG-L (switch magnet) | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 45 mm
SSG-L-40-50 Model: SSG-L (switch magnet) | Bore: 40 mm | Cushion: None | Stroke: 50 mm
SSG-L-40D-50 Model: SSG-L (switch magnet) | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SSG-L-40-75 Model: SSG-L (switch magnet) | Bore: 40 mm | Cushion: None | Stroke: 75 mm
SSG-L-40D-75 Model: SSG-L (switch magnet) | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 75 mm
SSG-L-40-100 Model: SSG-L (switch magnet) | Bore: 40 mm | Cushion: None | Stroke: 100 mm
SSG-L-40D-100 Model: SSG-L (switch magnet) | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 100 mm
SSG-L-50-10 Model: SSG-L (switch magnet) | Bore: 50 mm | Cushion: None | Stroke: 10 mm
SSG-L-50D-10 Model: SSG-L (switch magnet) | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 10 mm
SSG-L-50-15 Model: SSG-L (switch magnet) | Bore: 50 mm | Cushion: None | Stroke: 15 mm
SSG-L-50D-15 Model: SSG-L (switch magnet) | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 15 mm
SSG-L-50-20 Model: SSG-L (switch magnet) | Bore: 50 mm | Cushion: None | Stroke: 20 mm
SSG-L-50D-20 Model: SSG-L (switch magnet) | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 20 mm
SSG-L-50-25 Model: SSG-L (switch magnet) | Bore: 50 mm | Cushion: None | Stroke: 25 mm
SSG-L-50D-25 Model: SSG-L (switch magnet) | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SSG-L-50-30 Model: SSG-L (switch magnet) | Bore: 50 mm | Cushion: None | Stroke: 30 mm
SSG-L-50D-30 Model: SSG-L (switch magnet) | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 30 mm
SSG-L-50-35 Model: SSG-L (switch magnet) | Bore: 50 mm | Cushion: None | Stroke: 35 mm
SSG-L-50D-35 Model: SSG-L (switch magnet) | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 35 mm
SSG-L-50-40 Model: SSG-L (switch magnet) | Bore: 50 mm | Cushion: None | Stroke: 40 mm
SSG-L-50D-40 Model: SSG-L (switch magnet) | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 40 mm
SSG-L-50-45 Model: SSG-L (switch magnet) | Bore: 50 mm | Cushion: None | Stroke: 45 mm
SSG-L-50D-45 Model: SSG-L (switch magnet) | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 45 mm
SSG-L-50-50 Model: SSG-L (switch magnet) | Bore: 50 mm | Cushion: None | Stroke: 50 mm
SSG-L-50D-50 Model: SSG-L (switch magnet) | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SSG-L-50-75 Model: SSG-L (switch magnet) | Bore: 50 mm | Cushion: None | Stroke: 75 mm
SSG-L-50D-75 Model: SSG-L (switch magnet) | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 75 mm
SSG-L-50-100 Model: SSG-L (switch magnet) | Bore: 50 mm | Cushion: None | Stroke: 100 mm
SSG-L-50D-100 Model: SSG-L (switch magnet) | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 100 mm
SSG-L-63-10 Model: SSG-L (switch magnet) | Bore: 63 mm | Cushion: None | Stroke: 10 mm
SSG-L-63D-10 Model: SSG-L (switch magnet) | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 10 mm
SSG-L-63-15 Model: SSG-L (switch magnet) | Bore: 63 mm | Cushion: None | Stroke: 15 mm
SSG-L-63D-15 Model: SSG-L (switch magnet) | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 15 mm
SSG-L-63-20 Model: SSG-L (switch magnet) | Bore: 63 mm | Cushion: None | Stroke: 20 mm
SSG-L-63D-20 Model: SSG-L (switch magnet) | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 20 mm
SSG-L-63-25 Model: SSG-L (switch magnet) | Bore: 63 mm | Cushion: None | Stroke: 25 mm
SSG-L-63D-25 Model: SSG-L (switch magnet) | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SSG-L-63-30 Model: SSG-L (switch magnet) | Bore: 63 mm | Cushion: None | Stroke: 30 mm
SSG-L-63D-30 Model: SSG-L (switch magnet) | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 30 mm
SSG-L-63-35 Model: SSG-L (switch magnet) | Bore: 63 mm | Cushion: None | Stroke: 35 mm
SSG-L-63D-35 Model: SSG-L (switch magnet) | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 35 mm
SSG-L-63-40 Model: SSG-L (switch magnet) | Bore: 63 mm | Cushion: None | Stroke: 40 mm
SSG-L-63D-40 Model: SSG-L (switch magnet) | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 40 mm
SSG-L-63-45 Model: SSG-L (switch magnet) | Bore: 63 mm | Cushion: None | Stroke: 45 mm
SSG-L-63D-45 Model: SSG-L (switch magnet) | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 45 mm
SSG-L-63-50 Model: SSG-L (switch magnet) | Bore: 63 mm | Cushion: None | Stroke: 50 mm
SSG-L-63D-50 Model: SSG-L (switch magnet) | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SSG-L-63-75 Model: SSG-L (switch magnet) | Bore: 63 mm | Cushion: None | Stroke: 75 mm
SSG-L-63D-75 Model: SSG-L (switch magnet) | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 75 mm
SSG-L-63-100 Model: SSG-L (switch magnet) | Bore: 63 mm | Cushion: None | Stroke: 100 mm
SSG-L-63D-100 Model: SSG-L (switch magnet) | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 100 mm
SSG-L-80-10 Model: SSG-L (switch magnet) | Bore: 80 mm | Cushion: None | Stroke: 10 mm
SSG-L-80D-10 Model: SSG-L (switch magnet) | Bore: 80 mm | Cushion: Rubber, both ends | Stroke: 10 mm
SSG-L-80-15 Model: SSG-L (switch magnet) | Bore: 80 mm | Cushion: None | Stroke: 15 mm
SSG-L-80D-15 Model: SSG-L (switch magnet) | Bore: 80 mm | Cushion: Rubber, both ends | Stroke: 15 mm
SSG-L-80-20 Model: SSG-L (switch magnet) | Bore: 80 mm | Cushion: None | Stroke: 20 mm
SSG-L-80D-20 Model: SSG-L (switch magnet) | Bore: 80 mm | Cushion: Rubber, both ends | Stroke: 20 mm
SSG-L-80-25 Model: SSG-L (switch magnet) | Bore: 80 mm | Cushion: None | Stroke: 25 mm
SSG-L-80D-25 Model: SSG-L (switch magnet) | Bore: 80 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SSG-L-80-30 Model: SSG-L (switch magnet) | Bore: 80 mm | Cushion: None | Stroke: 30 mm
SSG-L-80D-30 Model: SSG-L (switch magnet) | Bore: 80 mm | Cushion: Rubber, both ends | Stroke: 30 mm
SSG-L-80-35 Model: SSG-L (switch magnet) | Bore: 80 mm | Cushion: None | Stroke: 35 mm
SSG-L-80D-35 Model: SSG-L (switch magnet) | Bore: 80 mm | Cushion: Rubber, both ends | Stroke: 35 mm
SSG-L-80-40 Model: SSG-L (switch magnet) | Bore: 80 mm | Cushion: None | Stroke: 40 mm
SSG-L-80D-40 Model: SSG-L (switch magnet) | Bore: 80 mm | Cushion: Rubber, both ends | Stroke: 40 mm
SSG-L-80-45 Model: SSG-L (switch magnet) | Bore: 80 mm | Cushion: None | Stroke: 45 mm
SSG-L-80D-45 Model: SSG-L (switch magnet) | Bore: 80 mm | Cushion: Rubber, both ends | Stroke: 45 mm
SSG-L-80-50 Model: SSG-L (switch magnet) | Bore: 80 mm | Cushion: None | Stroke: 50 mm
SSG-L-80D-50 Model: SSG-L (switch magnet) | Bore: 80 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SSG-L-80-75 Model: SSG-L (switch magnet) | Bore: 80 mm | Cushion: None | Stroke: 75 mm
SSG-L-80D-75 Model: SSG-L (switch magnet) | Bore: 80 mm | Cushion: Rubber, both ends | Stroke: 75 mm
SSG-L-80-100 Model: SSG-L (switch magnet) | Bore: 80 mm | Cushion: None | Stroke: 100 mm
SSG-L-80D-100 Model: SSG-L (switch magnet) | Bore: 80 mm | Cushion: Rubber, both ends | Stroke: 100 mm
SSG-L-100-10 Model: SSG-L (switch magnet) | Bore: 100 mm | Cushion: None | Stroke: 10 mm
SSG-L-100D-10 Model: SSG-L (switch magnet) | Bore: 100 mm | Cushion: Rubber, both ends | Stroke: 10 mm
SSG-L-100-15 Model: SSG-L (switch magnet) | Bore: 100 mm | Cushion: None | Stroke: 15 mm
SSG-L-100D-15 Model: SSG-L (switch magnet) | Bore: 100 mm | Cushion: Rubber, both ends | Stroke: 15 mm
SSG-L-100-20 Model: SSG-L (switch magnet) | Bore: 100 mm | Cushion: None | Stroke: 20 mm
SSG-L-100D-20 Model: SSG-L (switch magnet) | Bore: 100 mm | Cushion: Rubber, both ends | Stroke: 20 mm
SSG-L-100-25 Model: SSG-L (switch magnet) | Bore: 100 mm | Cushion: None | Stroke: 25 mm
SSG-L-100D-25 Model: SSG-L (switch magnet) | Bore: 100 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SSG-L-100-30 Model: SSG-L (switch magnet) | Bore: 100 mm | Cushion: None | Stroke: 30 mm
SSG-L-100D-30 Model: SSG-L (switch magnet) | Bore: 100 mm | Cushion: Rubber, both ends | Stroke: 30 mm
SSG-L-100-35 Model: SSG-L (switch magnet) | Bore: 100 mm | Cushion: None | Stroke: 35 mm
SSG-L-100D-35 Model: SSG-L (switch magnet) | Bore: 100 mm | Cushion: Rubber, both ends | Stroke: 35 mm
SSG-L-100-40 Model: SSG-L (switch magnet) | Bore: 100 mm | Cushion: None | Stroke: 40 mm
SSG-L-100D-40 Model: SSG-L (switch magnet) | Bore: 100 mm | Cushion: Rubber, both ends | Stroke: 40 mm
SSG-L-100-45 Model: SSG-L (switch magnet) | Bore: 100 mm | Cushion: None | Stroke: 45 mm
SSG-L-100D-45 Model: SSG-L (switch magnet) | Bore: 100 mm | Cushion: Rubber, both ends | Stroke: 45 mm
SSG-L-100-50 Model: SSG-L (switch magnet) | Bore: 100 mm | Cushion: None | Stroke: 50 mm
SSG-L-100D-50 Model: SSG-L (switch magnet) | Bore: 100 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SSG-L-100-75 Model: SSG-L (switch magnet) | Bore: 100 mm | Cushion: None | Stroke: 75 mm
SSG-L-100D-75 Model: SSG-L (switch magnet) | Bore: 100 mm | Cushion: Rubber, both ends | Stroke: 75 mm
SSG-L-100-100 Model: SSG-L (switch magnet) | Bore: 100 mm | Cushion: None | Stroke: 100 mm
SSG-L-100D-100 Model: SSG-L (switch magnet) | Bore: 100 mm | Cushion: Rubber, both ends | Stroke: 100 mm
SSG-L1-12-10 Model: SSG-L1 (2-color/T1 switch) | Bore: 12 mm | Cushion: None | Stroke: 10 mm
SSG-L1-12D-10 Model: SSG-L1 (2-color/T1 switch) | Bore: 12 mm | Cushion: Rubber, both ends | Stroke: 10 mm
SSG-L1-12-15 Model: SSG-L1 (2-color/T1 switch) | Bore: 12 mm | Cushion: None | Stroke: 15 mm
SSG-L1-12D-15 Model: SSG-L1 (2-color/T1 switch) | Bore: 12 mm | Cushion: Rubber, both ends | Stroke: 15 mm
SSG-L1-12-20 Model: SSG-L1 (2-color/T1 switch) | Bore: 12 mm | Cushion: None | Stroke: 20 mm
SSG-L1-12D-20 Model: SSG-L1 (2-color/T1 switch) | Bore: 12 mm | Cushion: Rubber, both ends | Stroke: 20 mm
SSG-L1-12-25 Model: SSG-L1 (2-color/T1 switch) | Bore: 12 mm | Cushion: None | Stroke: 25 mm
SSG-L1-12D-25 Model: SSG-L1 (2-color/T1 switch) | Bore: 12 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SSG-L1-12-30 Model: SSG-L1 (2-color/T1 switch) | Bore: 12 mm | Cushion: None | Stroke: 30 mm
SSG-L1-12D-30 Model: SSG-L1 (2-color/T1 switch) | Bore: 12 mm | Cushion: Rubber, both ends | Stroke: 30 mm
SSG-L1-16-10 Model: SSG-L1 (2-color/T1 switch) | Bore: 16 mm | Cushion: None | Stroke: 10 mm
SSG-L1-16D-10 Model: SSG-L1 (2-color/T1 switch) | Bore: 16 mm | Cushion: Rubber, both ends | Stroke: 10 mm
SSG-L1-16-15 Model: SSG-L1 (2-color/T1 switch) | Bore: 16 mm | Cushion: None | Stroke: 15 mm
SSG-L1-16D-15 Model: SSG-L1 (2-color/T1 switch) | Bore: 16 mm | Cushion: Rubber, both ends | Stroke: 15 mm
SSG-L1-16-20 Model: SSG-L1 (2-color/T1 switch) | Bore: 16 mm | Cushion: None | Stroke: 20 mm
SSG-L1-16D-20 Model: SSG-L1 (2-color/T1 switch) | Bore: 16 mm | Cushion: Rubber, both ends | Stroke: 20 mm
SSG-L1-16-25 Model: SSG-L1 (2-color/T1 switch) | Bore: 16 mm | Cushion: None | Stroke: 25 mm
SSG-L1-16D-25 Model: SSG-L1 (2-color/T1 switch) | Bore: 16 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SSG-L1-16-30 Model: SSG-L1 (2-color/T1 switch) | Bore: 16 mm | Cushion: None | Stroke: 30 mm
SSG-L1-16D-30 Model: SSG-L1 (2-color/T1 switch) | Bore: 16 mm | Cushion: Rubber, both ends | Stroke: 30 mm
Guided CylindersCKD
420 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD SSG Super Compact Cylinder with Guide (Double Acting)

Brand CKD·Guided Cylinders

Available part numbers (420)

SSG-12-5, SSG-12D-5, SSG-12-10, SSG-12D-10, SSG-12-15, SSG-12D-15, SSG-12-20, SSG-12D-20, SSG-12-25, SSG-12D-25 + 410 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SSG-12-5Model: SSG (no magnet) | Bore: 12 mm | Cushion: None | Stroke: 5 mm
SSG-12D-5Model: SSG (no magnet) | Bore: 12 mm | Cushion: Rubber, both ends | Stroke: 5 mm
SSG-12-10Model: SSG (no magnet) | Bore: 12 mm | Cushion: None | Stroke: 10 mm
SSG-12D-10Model: SSG (no magnet) | Bore: 12 mm | Cushion: Rubber, both ends | Stroke: 10 mm
SSG-12-15Model: SSG (no magnet) | Bore: 12 mm | Cushion: None | Stroke: 15 mm
SSG-12D-15Model: SSG (no magnet) | Bore: 12 mm | Cushion: Rubber, both ends | Stroke: 15 mm
SSG-12-20Model: SSG (no magnet) | Bore: 12 mm | Cushion: None | Stroke: 20 mm
SSG-12D-20Model: SSG (no magnet) | Bore: 12 mm | Cushion: Rubber, both ends | Stroke: 20 mm
SSG-12-25Model: SSG (no magnet) | Bore: 12 mm | Cushion: None | Stroke: 25 mm
SSG-12D-25Model: SSG (no magnet) | Bore: 12 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SSG-12-30Model: SSG (no magnet) | Bore: 12 mm | Cushion: None | Stroke: 30 mm
SSG-12D-30Model: SSG (no magnet) | Bore: 12 mm | Cushion: Rubber, both ends | Stroke: 30 mm
SSG-16-5Model: SSG (no magnet) | Bore: 16 mm | Cushion: None | Stroke: 5 mm
SSG-16D-5Model: SSG (no magnet) | Bore: 16 mm | Cushion: Rubber, both ends | Stroke: 5 mm
SSG-16-10Model: SSG (no magnet) | Bore: 16 mm | Cushion: None | Stroke: 10 mm
SSG-16D-10Model: SSG (no magnet) | Bore: 16 mm | Cushion: Rubber, both ends | Stroke: 10 mm
SSG-16-15Model: SSG (no magnet) | Bore: 16 mm | Cushion: None | Stroke: 15 mm
SSG-16D-15Model: SSG (no magnet) | Bore: 16 mm | Cushion: Rubber, both ends | Stroke: 15 mm
SSG-16-20Model: SSG (no magnet) | Bore: 16 mm | Cushion: None | Stroke: 20 mm
SSG-16D-20Model: SSG (no magnet) | Bore: 16 mm | Cushion: Rubber, both ends | Stroke: 20 mm
SSG-16-25Model: SSG (no magnet) | Bore: 16 mm | Cushion: None | Stroke: 25 mm
SSG-16D-25Model: SSG (no magnet) | Bore: 16 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SSG-16-30Model: SSG (no magnet) | Bore: 16 mm | Cushion: None | Stroke: 30 mm
SSG-16D-30Model: SSG (no magnet) | Bore: 16 mm | Cushion: Rubber, both ends | Stroke: 30 mm
SSG-20-5Model: SSG (no magnet) | Bore: 20 mm | Cushion: None | Stroke: 5 mm
SSG-20D-5Model: SSG (no magnet) | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 5 mm
SSG-20-10Model: SSG (no magnet) | Bore: 20 mm | Cushion: None | Stroke: 10 mm
SSG-20D-10Model: SSG (no magnet) | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 10 mm
SSG-20-15Model: SSG (no magnet) | Bore: 20 mm | Cushion: None | Stroke: 15 mm
SSG-20D-15Model: SSG (no magnet) | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 15 mm
SSG-20-20Model: SSG (no magnet) | Bore: 20 mm | Cushion: None | Stroke: 20 mm
SSG-20D-20Model: SSG (no magnet) | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 20 mm
SSG-20-25Model: SSG (no magnet) | Bore: 20 mm | Cushion: None | Stroke: 25 mm
SSG-20D-25Model: SSG (no magnet) | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SSG-20-30Model: SSG (no magnet) | Bore: 20 mm | Cushion: None | Stroke: 30 mm
SSG-20D-30Model: SSG (no magnet) | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 30 mm
SSG-20-35Model: SSG (no magnet) | Bore: 20 mm | Cushion: None | Stroke: 35 mm
SSG-20D-35Model: SSG (no magnet) | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 35 mm
SSG-20-40Model: SSG (no magnet) | Bore: 20 mm | Cushion: None | Stroke: 40 mm
SSG-20D-40Model: SSG (no magnet) | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 40 mm
SSG-20-45Model: SSG (no magnet) | Bore: 20 mm | Cushion: None | Stroke: 45 mm
SSG-20D-45Model: SSG (no magnet) | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 45 mm
SSG-20-50Model: SSG (no magnet) | Bore: 20 mm | Cushion: None | Stroke: 50 mm
SSG-20D-50Model: SSG (no magnet) | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SSG-25-5Model: SSG (no magnet) | Bore: 25 mm | Cushion: None | Stroke: 5 mm
SSG-25D-5Model: SSG (no magnet) | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 5 mm
SSG-25-10Model: SSG (no magnet) | Bore: 25 mm | Cushion: None | Stroke: 10 mm
SSG-25D-10Model: SSG (no magnet) | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 10 mm
SSG-25-15Model: SSG (no magnet) | Bore: 25 mm | Cushion: None | Stroke: 15 mm
SSG-25D-15Model: SSG (no magnet) | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 15 mm
SSG-25-20Model: SSG (no magnet) | Bore: 25 mm | Cushion: None | Stroke: 20 mm
SSG-25D-20Model: SSG (no magnet) | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 20 mm
SSG-25-25Model: SSG (no magnet) | Bore: 25 mm | Cushion: None | Stroke: 25 mm
SSG-25D-25Model: SSG (no magnet) | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SSG-25-30Model: SSG (no magnet) | Bore: 25 mm | Cushion: None | Stroke: 30 mm
SSG-25D-30Model: SSG (no magnet) | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 30 mm
SSG-25-35Model: SSG (no magnet) | Bore: 25 mm | Cushion: None | Stroke: 35 mm
SSG-25D-35Model: SSG (no magnet) | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 35 mm
SSG-25-40Model: SSG (no magnet) | Bore: 25 mm | Cushion: None | Stroke: 40 mm
SSG-25D-40Model: SSG (no magnet) | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 40 mm
SSG-25-45Model: SSG (no magnet) | Bore: 25 mm | Cushion: None | Stroke: 45 mm
SSG-25D-45Model: SSG (no magnet) | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 45 mm
SSG-25-50Model: SSG (no magnet) | Bore: 25 mm | Cushion: None | Stroke: 50 mm
SSG-25D-50Model: SSG (no magnet) | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SSG-32-5Model: SSG (no magnet) | Bore: 32 mm | Cushion: None | Stroke: 5 mm
SSG-32D-5Model: SSG (no magnet) | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 5 mm
SSG-32-10Model: SSG (no magnet) | Bore: 32 mm | Cushion: None | Stroke: 10 mm
SSG-32D-10Model: SSG (no magnet) | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 10 mm
SSG-32-15Model: SSG (no magnet) | Bore: 32 mm | Cushion: None | Stroke: 15 mm
SSG-32D-15Model: SSG (no magnet) | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 15 mm
SSG-32-20Model: SSG (no magnet) | Bore: 32 mm | Cushion: None | Stroke: 20 mm
SSG-32D-20Model: SSG (no magnet) | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 20 mm
SSG-32-25Model: SSG (no magnet) | Bore: 32 mm | Cushion: None | Stroke: 25 mm
SSG-32D-25Model: SSG (no magnet) | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SSG-32-30Model: SSG (no magnet) | Bore: 32 mm | Cushion: None | Stroke: 30 mm
SSG-32D-30Model: SSG (no magnet) | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 30 mm
SSG-32-35Model: SSG (no magnet) | Bore: 32 mm | Cushion: None | Stroke: 35 mm
SSG-32D-35Model: SSG (no magnet) | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 35 mm
SSG-32-40Model: SSG (no magnet) | Bore: 32 mm | Cushion: None | Stroke: 40 mm
SSG-32D-40Model: SSG (no magnet) | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 40 mm
SSG-32-45Model: SSG (no magnet) | Bore: 32 mm | Cushion: None | Stroke: 45 mm
SSG-32D-45Model: SSG (no magnet) | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 45 mm
SSG-32-50Model: SSG (no magnet) | Bore: 32 mm | Cushion: None | Stroke: 50 mm
SSG-32D-50Model: SSG (no magnet) | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SSG-32-75Model: SSG (no magnet) | Bore: 32 mm | Cushion: None | Stroke: 75 mm
SSG-32D-75Model: SSG (no magnet) | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 75 mm
SSG-32-100Model: SSG (no magnet) | Bore: 32 mm | Cushion: None | Stroke: 100 mm
SSG-32D-100Model: SSG (no magnet) | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 100 mm
SSG-40-5Model: SSG (no magnet) | Bore: 40 mm | Cushion: None | Stroke: 5 mm
SSG-40D-5Model: SSG (no magnet) | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 5 mm
SSG-40-10Model: SSG (no magnet) | Bore: 40 mm | Cushion: None | Stroke: 10 mm
SSG-40D-10Model: SSG (no magnet) | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 10 mm
SSG-40-15Model: SSG (no magnet) | Bore: 40 mm | Cushion: None | Stroke: 15 mm
SSG-40D-15Model: SSG (no magnet) | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 15 mm
SSG-40-20Model: SSG (no magnet) | Bore: 40 mm | Cushion: None | Stroke: 20 mm
SSG-40D-20Model: SSG (no magnet) | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 20 mm
SSG-40-25Model: SSG (no magnet) | Bore: 40 mm | Cushion: None | Stroke: 25 mm
SSG-40D-25Model: SSG (no magnet) | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SSG-40-30Model: SSG (no magnet) | Bore: 40 mm | Cushion: None | Stroke: 30 mm
SSG-40D-30Model: SSG (no magnet) | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 30 mm
SSG-40-35Model: SSG (no magnet) | Bore: 40 mm | Cushion: None | Stroke: 35 mm
SSG-40D-35Model: SSG (no magnet) | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 35 mm
SSG-40-40Model: SSG (no magnet) | Bore: 40 mm | Cushion: None | Stroke: 40 mm
SSG-40D-40Model: SSG (no magnet) | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 40 mm
SSG-40-45Model: SSG (no magnet) | Bore: 40 mm | Cushion: None | Stroke: 45 mm
SSG-40D-45Model: SSG (no magnet) | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 45 mm
SSG-40-50Model: SSG (no magnet) | Bore: 40 mm | Cushion: None | Stroke: 50 mm
SSG-40D-50Model: SSG (no magnet) | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SSG-40-75Model: SSG (no magnet) | Bore: 40 mm | Cushion: None | Stroke: 75 mm
SSG-40D-75Model: SSG (no magnet) | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 75 mm
SSG-40-100Model: SSG (no magnet) | Bore: 40 mm | Cushion: None | Stroke: 100 mm
SSG-40D-100Model: SSG (no magnet) | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 100 mm
SSG-50-10Model: SSG (no magnet) | Bore: 50 mm | Cushion: None | Stroke: 10 mm
SSG-50D-10Model: SSG (no magnet) | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 10 mm
SSG-50-15Model: SSG (no magnet) | Bore: 50 mm | Cushion: None | Stroke: 15 mm
SSG-50D-15Model: SSG (no magnet) | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 15 mm
SSG-50-20Model: SSG (no magnet) | Bore: 50 mm | Cushion: None | Stroke: 20 mm
SSG-50D-20Model: SSG (no magnet) | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 20 mm
SSG-50-25Model: SSG (no magnet) | Bore: 50 mm | Cushion: None | Stroke: 25 mm
SSG-50D-25Model: SSG (no magnet) | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SSG-50-30Model: SSG (no magnet) | Bore: 50 mm | Cushion: None | Stroke: 30 mm
SSG-50D-30Model: SSG (no magnet) | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 30 mm
SSG-50-35Model: SSG (no magnet) | Bore: 50 mm | Cushion: None | Stroke: 35 mm
SSG-50D-35Model: SSG (no magnet) | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 35 mm
SSG-50-40Model: SSG (no magnet) | Bore: 50 mm | Cushion: None | Stroke: 40 mm
SSG-50D-40Model: SSG (no magnet) | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 40 mm
SSG-50-45Model: SSG (no magnet) | Bore: 50 mm | Cushion: None | Stroke: 45 mm
SSG-50D-45Model: SSG (no magnet) | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 45 mm
SSG-50-50Model: SSG (no magnet) | Bore: 50 mm | Cushion: None | Stroke: 50 mm
SSG-50D-50Model: SSG (no magnet) | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SSG-50-75Model: SSG (no magnet) | Bore: 50 mm | Cushion: None | Stroke: 75 mm
SSG-50D-75Model: SSG (no magnet) | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 75 mm
SSG-50-100Model: SSG (no magnet) | Bore: 50 mm | Cushion: None | Stroke: 100 mm
SSG-50D-100Model: SSG (no magnet) | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 100 mm
SSG-63-10Model: SSG (no magnet) | Bore: 63 mm | Cushion: None | Stroke: 10 mm
SSG-63D-10Model: SSG (no magnet) | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 10 mm
SSG-63-15Model: SSG (no magnet) | Bore: 63 mm | Cushion: None | Stroke: 15 mm
SSG-63D-15Model: SSG (no magnet) | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 15 mm
SSG-63-20Model: SSG (no magnet) | Bore: 63 mm | Cushion: None | Stroke: 20 mm
SSG-63D-20Model: SSG (no magnet) | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 20 mm
SSG-63-25Model: SSG (no magnet) | Bore: 63 mm | Cushion: None | Stroke: 25 mm
SSG-63D-25Model: SSG (no magnet) | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SSG-63-30Model: SSG (no magnet) | Bore: 63 mm | Cushion: None | Stroke: 30 mm
SSG-63D-30Model: SSG (no magnet) | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 30 mm
SSG-63-35Model: SSG (no magnet) | Bore: 63 mm | Cushion: None | Stroke: 35 mm
SSG-63D-35Model: SSG (no magnet) | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 35 mm
SSG-63-40Model: SSG (no magnet) | Bore: 63 mm | Cushion: None | Stroke: 40 mm
SSG-63D-40Model: SSG (no magnet) | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 40 mm
SSG-63-45Model: SSG (no magnet) | Bore: 63 mm | Cushion: None | Stroke: 45 mm
SSG-63D-45Model: SSG (no magnet) | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 45 mm
SSG-63-50Model: SSG (no magnet) | Bore: 63 mm | Cushion: None | Stroke: 50 mm
SSG-63D-50Model: SSG (no magnet) | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SSG-63-75Model: SSG (no magnet) | Bore: 63 mm | Cushion: None | Stroke: 75 mm
SSG-63D-75Model: SSG (no magnet) | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 75 mm
SSG-63-100Model: SSG (no magnet) | Bore: 63 mm | Cushion: None | Stroke: 100 mm
SSG-63D-100Model: SSG (no magnet) | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 100 mm
SSG-80-10Model: SSG (no magnet) | Bore: 80 mm | Cushion: None | Stroke: 10 mm
SSG-80D-10Model: SSG (no magnet) | Bore: 80 mm | Cushion: Rubber, both ends | Stroke: 10 mm
SSG-80-15Model: SSG (no magnet) | Bore: 80 mm | Cushion: None | Stroke: 15 mm
SSG-80D-15Model: SSG (no magnet) | Bore: 80 mm | Cushion: Rubber, both ends | Stroke: 15 mm
SSG-80-20Model: SSG (no magnet) | Bore: 80 mm | Cushion: None | Stroke: 20 mm
SSG-80D-20Model: SSG (no magnet) | Bore: 80 mm | Cushion: Rubber, both ends | Stroke: 20 mm
SSG-80-25Model: SSG (no magnet) | Bore: 80 mm | Cushion: None | Stroke: 25 mm
SSG-80D-25Model: SSG (no magnet) | Bore: 80 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SSG-80-30Model: SSG (no magnet) | Bore: 80 mm | Cushion: None | Stroke: 30 mm
SSG-80D-30Model: SSG (no magnet) | Bore: 80 mm | Cushion: Rubber, both ends | Stroke: 30 mm
SSG-80-35Model: SSG (no magnet) | Bore: 80 mm | Cushion: None | Stroke: 35 mm
SSG-80D-35Model: SSG (no magnet) | Bore: 80 mm | Cushion: Rubber, both ends | Stroke: 35 mm
SSG-80-40Model: SSG (no magnet) | Bore: 80 mm | Cushion: None | Stroke: 40 mm
SSG-80D-40Model: SSG (no magnet) | Bore: 80 mm | Cushion: Rubber, both ends | Stroke: 40 mm
SSG-80-45Model: SSG (no magnet) | Bore: 80 mm | Cushion: None | Stroke: 45 mm
SSG-80D-45Model: SSG (no magnet) | Bore: 80 mm | Cushion: Rubber, both ends | Stroke: 45 mm
SSG-80-50Model: SSG (no magnet) | Bore: 80 mm | Cushion: None | Stroke: 50 mm
SSG-80D-50Model: SSG (no magnet) | Bore: 80 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SSG-80-75Model: SSG (no magnet) | Bore: 80 mm | Cushion: None | Stroke: 75 mm
SSG-80D-75Model: SSG (no magnet) | Bore: 80 mm | Cushion: Rubber, both ends | Stroke: 75 mm
SSG-80-100Model: SSG (no magnet) | Bore: 80 mm | Cushion: None | Stroke: 100 mm
SSG-80D-100Model: SSG (no magnet) | Bore: 80 mm | Cushion: Rubber, both ends | Stroke: 100 mm
SSG-100-10Model: SSG (no magnet) | Bore: 100 mm | Cushion: None | Stroke: 10 mm
SSG-100D-10Model: SSG (no magnet) | Bore: 100 mm | Cushion: Rubber, both ends | Stroke: 10 mm
SSG-100-15Model: SSG (no magnet) | Bore: 100 mm | Cushion: None | Stroke: 15 mm
SSG-100D-15Model: SSG (no magnet) | Bore: 100 mm | Cushion: Rubber, both ends | Stroke: 15 mm
SSG-100-20Model: SSG (no magnet) | Bore: 100 mm | Cushion: None | Stroke: 20 mm
SSG-100D-20Model: SSG (no magnet) | Bore: 100 mm | Cushion: Rubber, both ends | Stroke: 20 mm
SSG-100-25Model: SSG (no magnet) | Bore: 100 mm | Cushion: None | Stroke: 25 mm
SSG-100D-25Model: SSG (no magnet) | Bore: 100 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SSG-100-30Model: SSG (no magnet) | Bore: 100 mm | Cushion: None | Stroke: 30 mm
SSG-100D-30Model: SSG (no magnet) | Bore: 100 mm | Cushion: Rubber, both ends | Stroke: 30 mm
SSG-100-35Model: SSG (no magnet) | Bore: 100 mm | Cushion: None | Stroke: 35 mm
SSG-100D-35Model: SSG (no magnet) | Bore: 100 mm | Cushion: Rubber, both ends | Stroke: 35 mm
SSG-100-40Model: SSG (no magnet) | Bore: 100 mm | Cushion: None | Stroke: 40 mm
SSG-100D-40Model: SSG (no magnet) | Bore: 100 mm | Cushion: Rubber, both ends | Stroke: 40 mm
SSG-100-45Model: SSG (no magnet) | Bore: 100 mm | Cushion: None | Stroke: 45 mm
SSG-100D-45Model: SSG (no magnet) | Bore: 100 mm | Cushion: Rubber, both ends | Stroke: 45 mm
SSG-100-50Model: SSG (no magnet) | Bore: 100 mm | Cushion: None | Stroke: 50 mm
SSG-100D-50Model: SSG (no magnet) | Bore: 100 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SSG-100-75Model: SSG (no magnet) | Bore: 100 mm | Cushion: None | Stroke: 75 mm
SSG-100D-75Model: SSG (no magnet) | Bore: 100 mm | Cushion: Rubber, both ends | Stroke: 75 mm
SSG-100-100Model: SSG (no magnet) | Bore: 100 mm | Cushion: None | Stroke: 100 mm
SSG-100D-100Model: SSG (no magnet) | Bore: 100 mm | Cushion: Rubber, both ends | Stroke: 100 mm
SSG-L-12-5Model: SSG-L (switch magnet) | Bore: 12 mm | Cushion: None | Stroke: 5 mm
SSG-L-12D-5Model: SSG-L (switch magnet) | Bore: 12 mm | Cushion: Rubber, both ends | Stroke: 5 mm
SSG-L-12-10Model: SSG-L (switch magnet) | Bore: 12 mm | Cushion: None | Stroke: 10 mm
SSG-L-12D-10Model: SSG-L (switch magnet) | Bore: 12 mm | Cushion: Rubber, both ends | Stroke: 10 mm
SSG-L-12-15Model: SSG-L (switch magnet) | Bore: 12 mm | Cushion: None | Stroke: 15 mm
SSG-L-12D-15Model: SSG-L (switch magnet) | Bore: 12 mm | Cushion: Rubber, both ends | Stroke: 15 mm
SSG-L-12-20Model: SSG-L (switch magnet) | Bore: 12 mm | Cushion: None | Stroke: 20 mm
SSG-L-12D-20Model: SSG-L (switch magnet) | Bore: 12 mm | Cushion: Rubber, both ends | Stroke: 20 mm
SSG-L-12-25Model: SSG-L (switch magnet) | Bore: 12 mm | Cushion: None | Stroke: 25 mm
SSG-L-12D-25Model: SSG-L (switch magnet) | Bore: 12 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SSG-L-12-30Model: SSG-L (switch magnet) | Bore: 12 mm | Cushion: None | Stroke: 30 mm
SSG-L-12D-30Model: SSG-L (switch magnet) | Bore: 12 mm | Cushion: Rubber, both ends | Stroke: 30 mm
SSG-L-16-5Model: SSG-L (switch magnet) | Bore: 16 mm | Cushion: None | Stroke: 5 mm
SSG-L-16D-5Model: SSG-L (switch magnet) | Bore: 16 mm | Cushion: Rubber, both ends | Stroke: 5 mm
SSG-L-16-10Model: SSG-L (switch magnet) | Bore: 16 mm | Cushion: None | Stroke: 10 mm
SSG-L-16D-10Model: SSG-L (switch magnet) | Bore: 16 mm | Cushion: Rubber, both ends | Stroke: 10 mm
SSG-L-16-15Model: SSG-L (switch magnet) | Bore: 16 mm | Cushion: None | Stroke: 15 mm
SSG-L-16D-15Model: SSG-L (switch magnet) | Bore: 16 mm | Cushion: Rubber, both ends | Stroke: 15 mm
SSG-L-16-20Model: SSG-L (switch magnet) | Bore: 16 mm | Cushion: None | Stroke: 20 mm
SSG-L-16D-20Model: SSG-L (switch magnet) | Bore: 16 mm | Cushion: Rubber, both ends | Stroke: 20 mm
SSG-L-16-25Model: SSG-L (switch magnet) | Bore: 16 mm | Cushion: None | Stroke: 25 mm
SSG-L-16D-25Model: SSG-L (switch magnet) | Bore: 16 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SSG-L-16-30Model: SSG-L (switch magnet) | Bore: 16 mm | Cushion: None | Stroke: 30 mm
SSG-L-16D-30Model: SSG-L (switch magnet) | Bore: 16 mm | Cushion: Rubber, both ends | Stroke: 30 mm
SSG-L-20-5Model: SSG-L (switch magnet) | Bore: 20 mm | Cushion: None | Stroke: 5 mm
SSG-L-20D-5Model: SSG-L (switch magnet) | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 5 mm
SSG-L-20-10Model: SSG-L (switch magnet) | Bore: 20 mm | Cushion: None | Stroke: 10 mm
SSG-L-20D-10Model: SSG-L (switch magnet) | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 10 mm
SSG-L-20-15Model: SSG-L (switch magnet) | Bore: 20 mm | Cushion: None | Stroke: 15 mm
SSG-L-20D-15Model: SSG-L (switch magnet) | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 15 mm
SSG-L-20-20Model: SSG-L (switch magnet) | Bore: 20 mm | Cushion: None | Stroke: 20 mm
SSG-L-20D-20Model: SSG-L (switch magnet) | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 20 mm
SSG-L-20-25Model: SSG-L (switch magnet) | Bore: 20 mm | Cushion: None | Stroke: 25 mm
SSG-L-20D-25Model: SSG-L (switch magnet) | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SSG-L-20-30Model: SSG-L (switch magnet) | Bore: 20 mm | Cushion: None | Stroke: 30 mm
SSG-L-20D-30Model: SSG-L (switch magnet) | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 30 mm
SSG-L-20-35Model: SSG-L (switch magnet) | Bore: 20 mm | Cushion: None | Stroke: 35 mm
SSG-L-20D-35Model: SSG-L (switch magnet) | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 35 mm
SSG-L-20-40Model: SSG-L (switch magnet) | Bore: 20 mm | Cushion: None | Stroke: 40 mm
SSG-L-20D-40Model: SSG-L (switch magnet) | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 40 mm
SSG-L-20-45Model: SSG-L (switch magnet) | Bore: 20 mm | Cushion: None | Stroke: 45 mm
SSG-L-20D-45Model: SSG-L (switch magnet) | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 45 mm
SSG-L-20-50Model: SSG-L (switch magnet) | Bore: 20 mm | Cushion: None | Stroke: 50 mm
SSG-L-20D-50Model: SSG-L (switch magnet) | Bore: 20 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SSG-L-25-5Model: SSG-L (switch magnet) | Bore: 25 mm | Cushion: None | Stroke: 5 mm
SSG-L-25D-5Model: SSG-L (switch magnet) | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 5 mm
SSG-L-25-10Model: SSG-L (switch magnet) | Bore: 25 mm | Cushion: None | Stroke: 10 mm
SSG-L-25D-10Model: SSG-L (switch magnet) | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 10 mm
SSG-L-25-15Model: SSG-L (switch magnet) | Bore: 25 mm | Cushion: None | Stroke: 15 mm
SSG-L-25D-15Model: SSG-L (switch magnet) | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 15 mm
SSG-L-25-20Model: SSG-L (switch magnet) | Bore: 25 mm | Cushion: None | Stroke: 20 mm
SSG-L-25D-20Model: SSG-L (switch magnet) | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 20 mm
SSG-L-25-25Model: SSG-L (switch magnet) | Bore: 25 mm | Cushion: None | Stroke: 25 mm
SSG-L-25D-25Model: SSG-L (switch magnet) | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SSG-L-25-30Model: SSG-L (switch magnet) | Bore: 25 mm | Cushion: None | Stroke: 30 mm
SSG-L-25D-30Model: SSG-L (switch magnet) | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 30 mm
SSG-L-25-35Model: SSG-L (switch magnet) | Bore: 25 mm | Cushion: None | Stroke: 35 mm
SSG-L-25D-35Model: SSG-L (switch magnet) | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 35 mm
SSG-L-25-40Model: SSG-L (switch magnet) | Bore: 25 mm | Cushion: None | Stroke: 40 mm
SSG-L-25D-40Model: SSG-L (switch magnet) | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 40 mm
SSG-L-25-45Model: SSG-L (switch magnet) | Bore: 25 mm | Cushion: None | Stroke: 45 mm
SSG-L-25D-45Model: SSG-L (switch magnet) | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 45 mm
SSG-L-25-50Model: SSG-L (switch magnet) | Bore: 25 mm | Cushion: None | Stroke: 50 mm
SSG-L-25D-50Model: SSG-L (switch magnet) | Bore: 25 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SSG-L-32-5Model: SSG-L (switch magnet) | Bore: 32 mm | Cushion: None | Stroke: 5 mm
SSG-L-32D-5Model: SSG-L (switch magnet) | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 5 mm
SSG-L-32-10Model: SSG-L (switch magnet) | Bore: 32 mm | Cushion: None | Stroke: 10 mm
SSG-L-32D-10Model: SSG-L (switch magnet) | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 10 mm
SSG-L-32-15Model: SSG-L (switch magnet) | Bore: 32 mm | Cushion: None | Stroke: 15 mm
SSG-L-32D-15Model: SSG-L (switch magnet) | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 15 mm
SSG-L-32-20Model: SSG-L (switch magnet) | Bore: 32 mm | Cushion: None | Stroke: 20 mm
SSG-L-32D-20Model: SSG-L (switch magnet) | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 20 mm
SSG-L-32-25Model: SSG-L (switch magnet) | Bore: 32 mm | Cushion: None | Stroke: 25 mm
SSG-L-32D-25Model: SSG-L (switch magnet) | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SSG-L-32-30Model: SSG-L (switch magnet) | Bore: 32 mm | Cushion: None | Stroke: 30 mm
SSG-L-32D-30Model: SSG-L (switch magnet) | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 30 mm
SSG-L-32-35Model: SSG-L (switch magnet) | Bore: 32 mm | Cushion: None | Stroke: 35 mm
SSG-L-32D-35Model: SSG-L (switch magnet) | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 35 mm
SSG-L-32-40Model: SSG-L (switch magnet) | Bore: 32 mm | Cushion: None | Stroke: 40 mm
SSG-L-32D-40Model: SSG-L (switch magnet) | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 40 mm
SSG-L-32-45Model: SSG-L (switch magnet) | Bore: 32 mm | Cushion: None | Stroke: 45 mm
SSG-L-32D-45Model: SSG-L (switch magnet) | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 45 mm
SSG-L-32-50Model: SSG-L (switch magnet) | Bore: 32 mm | Cushion: None | Stroke: 50 mm
SSG-L-32D-50Model: SSG-L (switch magnet) | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SSG-L-32-75Model: SSG-L (switch magnet) | Bore: 32 mm | Cushion: None | Stroke: 75 mm
SSG-L-32D-75Model: SSG-L (switch magnet) | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 75 mm
SSG-L-32-100Model: SSG-L (switch magnet) | Bore: 32 mm | Cushion: None | Stroke: 100 mm
SSG-L-32D-100Model: SSG-L (switch magnet) | Bore: 32 mm | Cushion: Rubber, both ends | Stroke: 100 mm
SSG-L-40-5Model: SSG-L (switch magnet) | Bore: 40 mm | Cushion: None | Stroke: 5 mm
SSG-L-40D-5Model: SSG-L (switch magnet) | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 5 mm
SSG-L-40-10Model: SSG-L (switch magnet) | Bore: 40 mm | Cushion: None | Stroke: 10 mm
SSG-L-40D-10Model: SSG-L (switch magnet) | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 10 mm
SSG-L-40-15Model: SSG-L (switch magnet) | Bore: 40 mm | Cushion: None | Stroke: 15 mm
SSG-L-40D-15Model: SSG-L (switch magnet) | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 15 mm
SSG-L-40-20Model: SSG-L (switch magnet) | Bore: 40 mm | Cushion: None | Stroke: 20 mm
SSG-L-40D-20Model: SSG-L (switch magnet) | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 20 mm
SSG-L-40-25Model: SSG-L (switch magnet) | Bore: 40 mm | Cushion: None | Stroke: 25 mm
SSG-L-40D-25Model: SSG-L (switch magnet) | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SSG-L-40-30Model: SSG-L (switch magnet) | Bore: 40 mm | Cushion: None | Stroke: 30 mm
SSG-L-40D-30Model: SSG-L (switch magnet) | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 30 mm
SSG-L-40-35Model: SSG-L (switch magnet) | Bore: 40 mm | Cushion: None | Stroke: 35 mm
SSG-L-40D-35Model: SSG-L (switch magnet) | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 35 mm
SSG-L-40-40Model: SSG-L (switch magnet) | Bore: 40 mm | Cushion: None | Stroke: 40 mm
SSG-L-40D-40Model: SSG-L (switch magnet) | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 40 mm
SSG-L-40-45Model: SSG-L (switch magnet) | Bore: 40 mm | Cushion: None | Stroke: 45 mm
SSG-L-40D-45Model: SSG-L (switch magnet) | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 45 mm
SSG-L-40-50Model: SSG-L (switch magnet) | Bore: 40 mm | Cushion: None | Stroke: 50 mm
SSG-L-40D-50Model: SSG-L (switch magnet) | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SSG-L-40-75Model: SSG-L (switch magnet) | Bore: 40 mm | Cushion: None | Stroke: 75 mm
SSG-L-40D-75Model: SSG-L (switch magnet) | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 75 mm
SSG-L-40-100Model: SSG-L (switch magnet) | Bore: 40 mm | Cushion: None | Stroke: 100 mm
SSG-L-40D-100Model: SSG-L (switch magnet) | Bore: 40 mm | Cushion: Rubber, both ends | Stroke: 100 mm
SSG-L-50-10Model: SSG-L (switch magnet) | Bore: 50 mm | Cushion: None | Stroke: 10 mm
SSG-L-50D-10Model: SSG-L (switch magnet) | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 10 mm
SSG-L-50-15Model: SSG-L (switch magnet) | Bore: 50 mm | Cushion: None | Stroke: 15 mm
SSG-L-50D-15Model: SSG-L (switch magnet) | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 15 mm
SSG-L-50-20Model: SSG-L (switch magnet) | Bore: 50 mm | Cushion: None | Stroke: 20 mm
SSG-L-50D-20Model: SSG-L (switch magnet) | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 20 mm
SSG-L-50-25Model: SSG-L (switch magnet) | Bore: 50 mm | Cushion: None | Stroke: 25 mm
SSG-L-50D-25Model: SSG-L (switch magnet) | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SSG-L-50-30Model: SSG-L (switch magnet) | Bore: 50 mm | Cushion: None | Stroke: 30 mm
SSG-L-50D-30Model: SSG-L (switch magnet) | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 30 mm
SSG-L-50-35Model: SSG-L (switch magnet) | Bore: 50 mm | Cushion: None | Stroke: 35 mm
SSG-L-50D-35Model: SSG-L (switch magnet) | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 35 mm
SSG-L-50-40Model: SSG-L (switch magnet) | Bore: 50 mm | Cushion: None | Stroke: 40 mm
SSG-L-50D-40Model: SSG-L (switch magnet) | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 40 mm
SSG-L-50-45Model: SSG-L (switch magnet) | Bore: 50 mm | Cushion: None | Stroke: 45 mm
SSG-L-50D-45Model: SSG-L (switch magnet) | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 45 mm
SSG-L-50-50Model: SSG-L (switch magnet) | Bore: 50 mm | Cushion: None | Stroke: 50 mm
SSG-L-50D-50Model: SSG-L (switch magnet) | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SSG-L-50-75Model: SSG-L (switch magnet) | Bore: 50 mm | Cushion: None | Stroke: 75 mm
SSG-L-50D-75Model: SSG-L (switch magnet) | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 75 mm
SSG-L-50-100Model: SSG-L (switch magnet) | Bore: 50 mm | Cushion: None | Stroke: 100 mm
SSG-L-50D-100Model: SSG-L (switch magnet) | Bore: 50 mm | Cushion: Rubber, both ends | Stroke: 100 mm
SSG-L-63-10Model: SSG-L (switch magnet) | Bore: 63 mm | Cushion: None | Stroke: 10 mm
SSG-L-63D-10Model: SSG-L (switch magnet) | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 10 mm
SSG-L-63-15Model: SSG-L (switch magnet) | Bore: 63 mm | Cushion: None | Stroke: 15 mm
SSG-L-63D-15Model: SSG-L (switch magnet) | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 15 mm
SSG-L-63-20Model: SSG-L (switch magnet) | Bore: 63 mm | Cushion: None | Stroke: 20 mm
SSG-L-63D-20Model: SSG-L (switch magnet) | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 20 mm
SSG-L-63-25Model: SSG-L (switch magnet) | Bore: 63 mm | Cushion: None | Stroke: 25 mm
SSG-L-63D-25Model: SSG-L (switch magnet) | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SSG-L-63-30Model: SSG-L (switch magnet) | Bore: 63 mm | Cushion: None | Stroke: 30 mm
SSG-L-63D-30Model: SSG-L (switch magnet) | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 30 mm
SSG-L-63-35Model: SSG-L (switch magnet) | Bore: 63 mm | Cushion: None | Stroke: 35 mm
SSG-L-63D-35Model: SSG-L (switch magnet) | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 35 mm
SSG-L-63-40Model: SSG-L (switch magnet) | Bore: 63 mm | Cushion: None | Stroke: 40 mm
SSG-L-63D-40Model: SSG-L (switch magnet) | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 40 mm
SSG-L-63-45Model: SSG-L (switch magnet) | Bore: 63 mm | Cushion: None | Stroke: 45 mm
SSG-L-63D-45Model: SSG-L (switch magnet) | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 45 mm
SSG-L-63-50Model: SSG-L (switch magnet) | Bore: 63 mm | Cushion: None | Stroke: 50 mm
SSG-L-63D-50Model: SSG-L (switch magnet) | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SSG-L-63-75Model: SSG-L (switch magnet) | Bore: 63 mm | Cushion: None | Stroke: 75 mm
SSG-L-63D-75Model: SSG-L (switch magnet) | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 75 mm
SSG-L-63-100Model: SSG-L (switch magnet) | Bore: 63 mm | Cushion: None | Stroke: 100 mm
SSG-L-63D-100Model: SSG-L (switch magnet) | Bore: 63 mm | Cushion: Rubber, both ends | Stroke: 100 mm
SSG-L-80-10Model: SSG-L (switch magnet) | Bore: 80 mm | Cushion: None | Stroke: 10 mm
SSG-L-80D-10Model: SSG-L (switch magnet) | Bore: 80 mm | Cushion: Rubber, both ends | Stroke: 10 mm
SSG-L-80-15Model: SSG-L (switch magnet) | Bore: 80 mm | Cushion: None | Stroke: 15 mm
SSG-L-80D-15Model: SSG-L (switch magnet) | Bore: 80 mm | Cushion: Rubber, both ends | Stroke: 15 mm
SSG-L-80-20Model: SSG-L (switch magnet) | Bore: 80 mm | Cushion: None | Stroke: 20 mm
SSG-L-80D-20Model: SSG-L (switch magnet) | Bore: 80 mm | Cushion: Rubber, both ends | Stroke: 20 mm
SSG-L-80-25Model: SSG-L (switch magnet) | Bore: 80 mm | Cushion: None | Stroke: 25 mm
SSG-L-80D-25Model: SSG-L (switch magnet) | Bore: 80 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SSG-L-80-30Model: SSG-L (switch magnet) | Bore: 80 mm | Cushion: None | Stroke: 30 mm
SSG-L-80D-30Model: SSG-L (switch magnet) | Bore: 80 mm | Cushion: Rubber, both ends | Stroke: 30 mm
SSG-L-80-35Model: SSG-L (switch magnet) | Bore: 80 mm | Cushion: None | Stroke: 35 mm
SSG-L-80D-35Model: SSG-L (switch magnet) | Bore: 80 mm | Cushion: Rubber, both ends | Stroke: 35 mm
SSG-L-80-40Model: SSG-L (switch magnet) | Bore: 80 mm | Cushion: None | Stroke: 40 mm
SSG-L-80D-40Model: SSG-L (switch magnet) | Bore: 80 mm | Cushion: Rubber, both ends | Stroke: 40 mm
SSG-L-80-45Model: SSG-L (switch magnet) | Bore: 80 mm | Cushion: None | Stroke: 45 mm
SSG-L-80D-45Model: SSG-L (switch magnet) | Bore: 80 mm | Cushion: Rubber, both ends | Stroke: 45 mm
SSG-L-80-50Model: SSG-L (switch magnet) | Bore: 80 mm | Cushion: None | Stroke: 50 mm
SSG-L-80D-50Model: SSG-L (switch magnet) | Bore: 80 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SSG-L-80-75Model: SSG-L (switch magnet) | Bore: 80 mm | Cushion: None | Stroke: 75 mm
SSG-L-80D-75Model: SSG-L (switch magnet) | Bore: 80 mm | Cushion: Rubber, both ends | Stroke: 75 mm
SSG-L-80-100Model: SSG-L (switch magnet) | Bore: 80 mm | Cushion: None | Stroke: 100 mm
SSG-L-80D-100Model: SSG-L (switch magnet) | Bore: 80 mm | Cushion: Rubber, both ends | Stroke: 100 mm
SSG-L-100-10Model: SSG-L (switch magnet) | Bore: 100 mm | Cushion: None | Stroke: 10 mm
SSG-L-100D-10Model: SSG-L (switch magnet) | Bore: 100 mm | Cushion: Rubber, both ends | Stroke: 10 mm
SSG-L-100-15Model: SSG-L (switch magnet) | Bore: 100 mm | Cushion: None | Stroke: 15 mm
SSG-L-100D-15Model: SSG-L (switch magnet) | Bore: 100 mm | Cushion: Rubber, both ends | Stroke: 15 mm
SSG-L-100-20Model: SSG-L (switch magnet) | Bore: 100 mm | Cushion: None | Stroke: 20 mm
SSG-L-100D-20Model: SSG-L (switch magnet) | Bore: 100 mm | Cushion: Rubber, both ends | Stroke: 20 mm
SSG-L-100-25Model: SSG-L (switch magnet) | Bore: 100 mm | Cushion: None | Stroke: 25 mm
SSG-L-100D-25Model: SSG-L (switch magnet) | Bore: 100 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SSG-L-100-30Model: SSG-L (switch magnet) | Bore: 100 mm | Cushion: None | Stroke: 30 mm
SSG-L-100D-30Model: SSG-L (switch magnet) | Bore: 100 mm | Cushion: Rubber, both ends | Stroke: 30 mm
SSG-L-100-35Model: SSG-L (switch magnet) | Bore: 100 mm | Cushion: None | Stroke: 35 mm
SSG-L-100D-35Model: SSG-L (switch magnet) | Bore: 100 mm | Cushion: Rubber, both ends | Stroke: 35 mm
SSG-L-100-40Model: SSG-L (switch magnet) | Bore: 100 mm | Cushion: None | Stroke: 40 mm
SSG-L-100D-40Model: SSG-L (switch magnet) | Bore: 100 mm | Cushion: Rubber, both ends | Stroke: 40 mm
SSG-L-100-45Model: SSG-L (switch magnet) | Bore: 100 mm | Cushion: None | Stroke: 45 mm
SSG-L-100D-45Model: SSG-L (switch magnet) | Bore: 100 mm | Cushion: Rubber, both ends | Stroke: 45 mm
SSG-L-100-50Model: SSG-L (switch magnet) | Bore: 100 mm | Cushion: None | Stroke: 50 mm
SSG-L-100D-50Model: SSG-L (switch magnet) | Bore: 100 mm | Cushion: Rubber, both ends | Stroke: 50 mm
SSG-L-100-75Model: SSG-L (switch magnet) | Bore: 100 mm | Cushion: None | Stroke: 75 mm
SSG-L-100D-75Model: SSG-L (switch magnet) | Bore: 100 mm | Cushion: Rubber, both ends | Stroke: 75 mm
SSG-L-100-100Model: SSG-L (switch magnet) | Bore: 100 mm | Cushion: None | Stroke: 100 mm
SSG-L-100D-100Model: SSG-L (switch magnet) | Bore: 100 mm | Cushion: Rubber, both ends | Stroke: 100 mm
SSG-L1-12-10Model: SSG-L1 (2-color/T1 switch) | Bore: 12 mm | Cushion: None | Stroke: 10 mm
SSG-L1-12D-10Model: SSG-L1 (2-color/T1 switch) | Bore: 12 mm | Cushion: Rubber, both ends | Stroke: 10 mm
SSG-L1-12-15Model: SSG-L1 (2-color/T1 switch) | Bore: 12 mm | Cushion: None | Stroke: 15 mm
SSG-L1-12D-15Model: SSG-L1 (2-color/T1 switch) | Bore: 12 mm | Cushion: Rubber, both ends | Stroke: 15 mm
SSG-L1-12-20Model: SSG-L1 (2-color/T1 switch) | Bore: 12 mm | Cushion: None | Stroke: 20 mm
SSG-L1-12D-20Model: SSG-L1 (2-color/T1 switch) | Bore: 12 mm | Cushion: Rubber, both ends | Stroke: 20 mm
SSG-L1-12-25Model: SSG-L1 (2-color/T1 switch) | Bore: 12 mm | Cushion: None | Stroke: 25 mm
SSG-L1-12D-25Model: SSG-L1 (2-color/T1 switch) | Bore: 12 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SSG-L1-12-30Model: SSG-L1 (2-color/T1 switch) | Bore: 12 mm | Cushion: None | Stroke: 30 mm
SSG-L1-12D-30Model: SSG-L1 (2-color/T1 switch) | Bore: 12 mm | Cushion: Rubber, both ends | Stroke: 30 mm
SSG-L1-16-10Model: SSG-L1 (2-color/T1 switch) | Bore: 16 mm | Cushion: None | Stroke: 10 mm
SSG-L1-16D-10Model: SSG-L1 (2-color/T1 switch) | Bore: 16 mm | Cushion: Rubber, both ends | Stroke: 10 mm
SSG-L1-16-15Model: SSG-L1 (2-color/T1 switch) | Bore: 16 mm | Cushion: None | Stroke: 15 mm
SSG-L1-16D-15Model: SSG-L1 (2-color/T1 switch) | Bore: 16 mm | Cushion: Rubber, both ends | Stroke: 15 mm
SSG-L1-16-20Model: SSG-L1 (2-color/T1 switch) | Bore: 16 mm | Cushion: None | Stroke: 20 mm
SSG-L1-16D-20Model: SSG-L1 (2-color/T1 switch) | Bore: 16 mm | Cushion: Rubber, both ends | Stroke: 20 mm
SSG-L1-16-25Model: SSG-L1 (2-color/T1 switch) | Bore: 16 mm | Cushion: None | Stroke: 25 mm
SSG-L1-16D-25Model: SSG-L1 (2-color/T1 switch) | Bore: 16 mm | Cushion: Rubber, both ends | Stroke: 25 mm
SSG-L1-16-30Model: SSG-L1 (2-color/T1 switch) | Bore: 16 mm | Cushion: None | Stroke: 30 mm
SSG-L1-16D-30Model: SSG-L1 (2-color/T1 switch) | Bore: 16 mm | Cushion: Rubber, both ends | Stroke: 30 mm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
