CKD STG-B Guided Cylinder (Clean Room P72/P73, Ball Bearing)

CKD STG-B Guided Cylinder (Clean Room P72/P73, Ball Bearing)

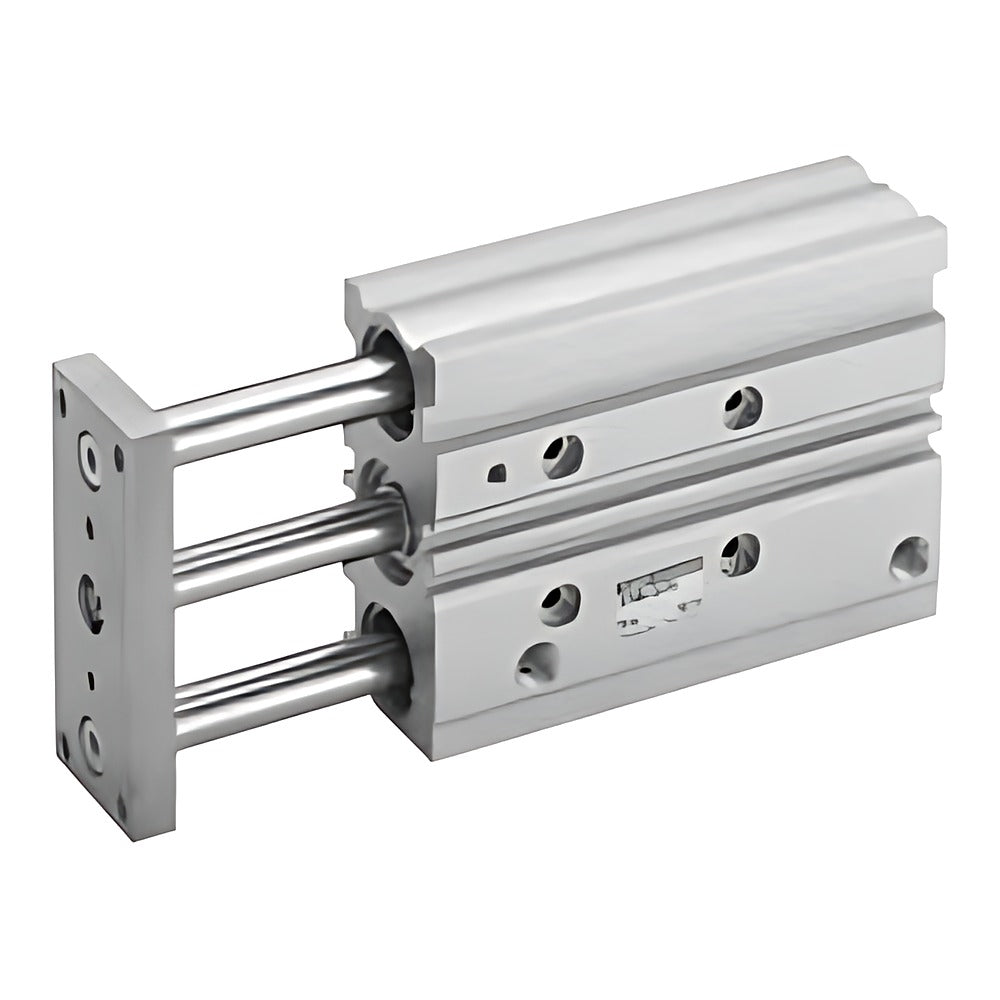

CKD STG-B clean-room guided cylinder with ball-bearing guide rods, bore 12-63 mm.

Key features

  • Ball (rolling) bearing guide rods with high lateral load capacity
  • Clean spec P72 (exhaust treatment) or P73 (vacuum suction)
  • Standard strokes 10-250 mm (12, 16), 20-400 mm (20, 25), 25-400 mm (32-63)
  • Switch magnet built in; T-type auto switches (T0/T5/T8/T1/T2/T3/T2W/T2Y/T3W/T3Y/T2J/T2YD) ordered in code
  • Intermediate strokes in 5 mm steps (overall length of next longer standard stroke)

Specifications

Operation Double-acting, single rod
Bearing Ball bearing (B)
Max. operating pressure 1.0 MPa
Min. operating pressure 0.1-0.2 MPa (by bore)
Proof pressure 1.6 MPa
Ambient temperature -10 to 60 C
Port size M5, Rc1/8, Rc1/4 (by bore)
Piston speed 50-500 mm/s (50-300 large bores)
Cushion Rubber cushion
Lubrication Not allowed
Source CKD Korea catalog CB-033S-4, p. 122-145
STG-B-16-10-P72 Bore: 16 mm | Stroke: 10 mm | Clean spec: P72 exhaust treatment
STG-B-16-10-P73 Bore: 16 mm | Stroke: 10 mm | Clean spec: P73 vacuum suction
Guided CylindersCKD
2 product codes available in this family
