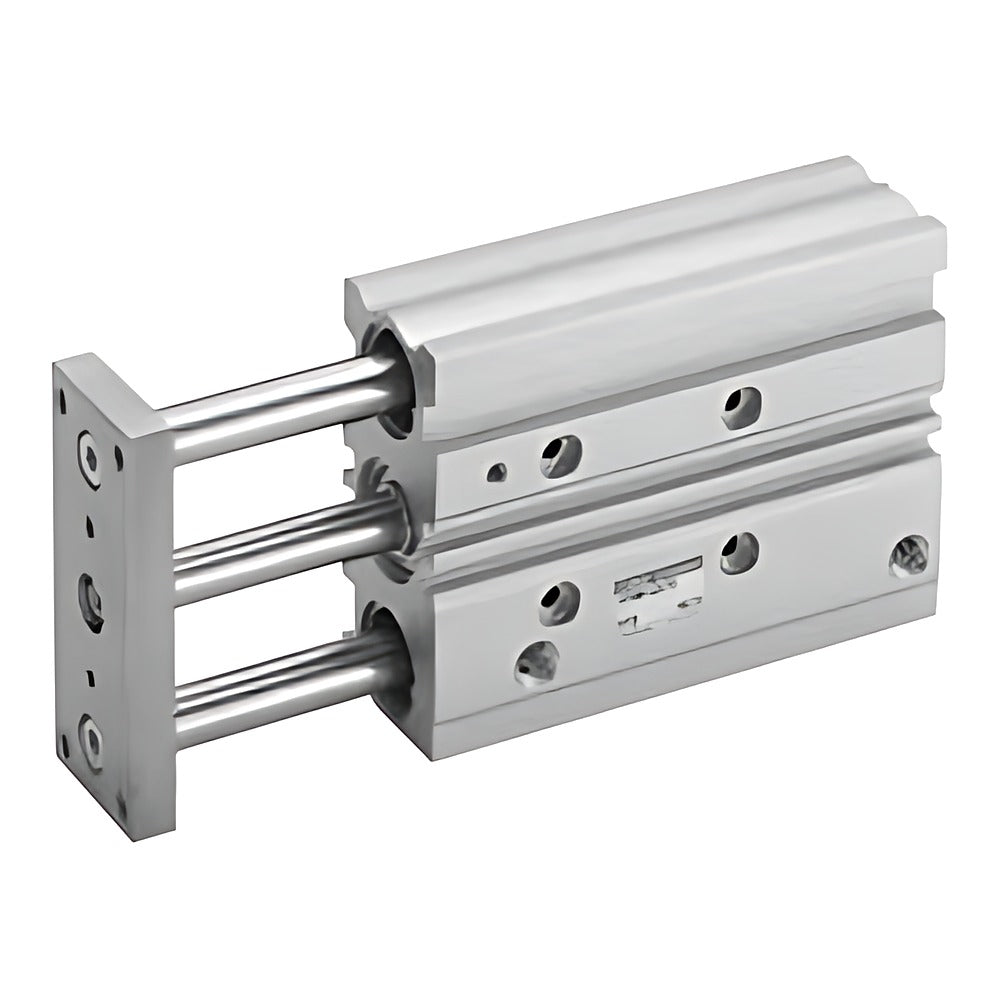

CKD STG-B-P7 Guided Cylinder (Clean Room, Bore 12-63)

CKD STG-B-P7 Guided Cylinder (Clean Room, Bore 12-63)

CKD STG-B-P7 clean-room guided cylinder with ball bushing guide, exhaust (P72) or vacuum suction (P73) structure, bore 12 to 63 mm.

Key features

  • Clean room specification with M5 relief port: P72 exhaust or P73 vacuum suction
  • Ball bushing (B) guide, double acting single rod, switch magnet built in
  • Fluorine grease used
  • Switches (T0/T5/T8 reed, T1/T2/T3/T3P/T2W/T2Y/T3W/T3Y/T2J/T2YD/T2YDT solid state) ordered as R/H/D/T, not multiplied; T8H/V not for bore 12/16
  • Intermediate strokes 5 mm steps

Specifications

Action Double acting, single rod
Bearing Ball bushing (B)
Fluid Compressed air
Max. operating pressure 1.0 MPa
Min. operating pressure 0.2 (12/16), 0.15 (20/25), 0.1 MPa (32-63)
Proof pressure 1.6 MPa
Relief port M5
Piston speed 50 to 500 mm/s (63: 50-300)
Lubrication Not allowed
Source CKD Korea catalog CB-030SK-9, p. 492-497
STG-B-12-10-P72 Bore: 12 mm | Stroke: 10 mm | Port: M5 | Clean spec: P72 exhaust
STG-B-12-10-P73 Bore: 12 mm | Stroke: 10 mm | Port: M5 | Clean spec: P73 vacuum suction
STG-B-12-20-P72 Bore: 12 mm | Stroke: 20 mm | Port: M5 | Clean spec: P72 exhaust
STG-B-12-20-P73 Bore: 12 mm | Stroke: 20 mm | Port: M5 | Clean spec: P73 vacuum suction
STG-B-12-30-P72 Bore: 12 mm | Stroke: 30 mm | Port: M5 | Clean spec: P72 exhaust
STG-B-12-30-P73 Bore: 12 mm | Stroke: 30 mm | Port: M5 | Clean spec: P73 vacuum suction
STG-B-12-40-P72 Bore: 12 mm | Stroke: 40 mm | Port: M5 | Clean spec: P72 exhaust
STG-B-12-40-P73 Bore: 12 mm | Stroke: 40 mm | Port: M5 | Clean spec: P73 vacuum suction
STG-B-12-50-P72 Bore: 12 mm | Stroke: 50 mm | Port: M5 | Clean spec: P72 exhaust
STG-B-12-50-P73 Bore: 12 mm | Stroke: 50 mm | Port: M5 | Clean spec: P73 vacuum suction
STG-B-12-75-P72 Bore: 12 mm | Stroke: 75 mm | Port: M5 | Clean spec: P72 exhaust
STG-B-12-75-P73 Bore: 12 mm | Stroke: 75 mm | Port: M5 | Clean spec: P73 vacuum suction
STG-B-12-100-P72 Bore: 12 mm | Stroke: 100 mm | Port: M5 | Clean spec: P72 exhaust
STG-B-12-100-P73 Bore: 12 mm | Stroke: 100 mm | Port: M5 | Clean spec: P73 vacuum suction
STG-B-12-125-P72 Bore: 12 mm | Stroke: 125 mm | Port: M5 | Clean spec: P72 exhaust
STG-B-12-125-P73 Bore: 12 mm | Stroke: 125 mm | Port: M5 | Clean spec: P73 vacuum suction
STG-B-12-150-P72 Bore: 12 mm | Stroke: 150 mm | Port: M5 | Clean spec: P72 exhaust
STG-B-12-150-P73 Bore: 12 mm | Stroke: 150 mm | Port: M5 | Clean spec: P73 vacuum suction
STG-B-12-175-P72 Bore: 12 mm | Stroke: 175 mm | Port: M5 | Clean spec: P72 exhaust
STG-B-12-175-P73 Bore: 12 mm | Stroke: 175 mm | Port: M5 | Clean spec: P73 vacuum suction
STG-B-12-200-P72 Bore: 12 mm | Stroke: 200 mm | Port: M5 | Clean spec: P72 exhaust
STG-B-12-200-P73 Bore: 12 mm | Stroke: 200 mm | Port: M5 | Clean spec: P73 vacuum suction
STG-B-12-250-P72 Bore: 12 mm | Stroke: 250 mm | Port: M5 | Clean spec: P72 exhaust
STG-B-12-250-P73 Bore: 12 mm | Stroke: 250 mm | Port: M5 | Clean spec: P73 vacuum suction
STG-B-16-20-P72 Bore: 16 mm | Stroke: 20 mm | Port: M5 | Clean spec: P72 exhaust
STG-B-16-20-P73 Bore: 16 mm | Stroke: 20 mm | Port: M5 | Clean spec: P73 vacuum suction
STG-B-16-30-P72 Bore: 16 mm | Stroke: 30 mm | Port: M5 | Clean spec: P72 exhaust
STG-B-16-30-P73 Bore: 16 mm | Stroke: 30 mm | Port: M5 | Clean spec: P73 vacuum suction
STG-B-16-40-P72 Bore: 16 mm | Stroke: 40 mm | Port: M5 | Clean spec: P72 exhaust
STG-B-16-40-P73 Bore: 16 mm | Stroke: 40 mm | Port: M5 | Clean spec: P73 vacuum suction
STG-B-16-50-P72 Bore: 16 mm | Stroke: 50 mm | Port: M5 | Clean spec: P72 exhaust
STG-B-16-50-P73 Bore: 16 mm | Stroke: 50 mm | Port: M5 | Clean spec: P73 vacuum suction
STG-B-16-75-P72 Bore: 16 mm | Stroke: 75 mm | Port: M5 | Clean spec: P72 exhaust
STG-B-16-75-P73 Bore: 16 mm | Stroke: 75 mm | Port: M5 | Clean spec: P73 vacuum suction
STG-B-16-100-P72 Bore: 16 mm | Stroke: 100 mm | Port: M5 | Clean spec: P72 exhaust
STG-B-16-100-P73 Bore: 16 mm | Stroke: 100 mm | Port: M5 | Clean spec: P73 vacuum suction
STG-B-16-125-P72 Bore: 16 mm | Stroke: 125 mm | Port: M5 | Clean spec: P72 exhaust
STG-B-16-125-P73 Bore: 16 mm | Stroke: 125 mm | Port: M5 | Clean spec: P73 vacuum suction
STG-B-16-150-P72 Bore: 16 mm | Stroke: 150 mm | Port: M5 | Clean spec: P72 exhaust
STG-B-16-150-P73 Bore: 16 mm | Stroke: 150 mm | Port: M5 | Clean spec: P73 vacuum suction
STG-B-16-175-P72 Bore: 16 mm | Stroke: 175 mm | Port: M5 | Clean spec: P72 exhaust
STG-B-16-175-P73 Bore: 16 mm | Stroke: 175 mm | Port: M5 | Clean spec: P73 vacuum suction
STG-B-16-200-P72 Bore: 16 mm | Stroke: 200 mm | Port: M5 | Clean spec: P72 exhaust
STG-B-16-200-P73 Bore: 16 mm | Stroke: 200 mm | Port: M5 | Clean spec: P73 vacuum suction
STG-B-16-250-P72 Bore: 16 mm | Stroke: 250 mm | Port: M5 | Clean spec: P72 exhaust
STG-B-16-250-P73 Bore: 16 mm | Stroke: 250 mm | Port: M5 | Clean spec: P73 vacuum suction
STG-B-20-20-P72 Bore: 20 mm | Stroke: 20 mm | Port: Rc1/8 | Clean spec: P72 exhaust
STG-B-20-20-P73 Bore: 20 mm | Stroke: 20 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STG-B-20-30-P72 Bore: 20 mm | Stroke: 30 mm | Port: Rc1/8 | Clean spec: P72 exhaust
STG-B-20-30-P73 Bore: 20 mm | Stroke: 30 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STG-B-20-40-P72 Bore: 20 mm | Stroke: 40 mm | Port: Rc1/8 | Clean spec: P72 exhaust
STG-B-20-40-P73 Bore: 20 mm | Stroke: 40 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STG-B-20-50-P72 Bore: 20 mm | Stroke: 50 mm | Port: Rc1/8 | Clean spec: P72 exhaust
STG-B-20-50-P73 Bore: 20 mm | Stroke: 50 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STG-B-20-75-P72 Bore: 20 mm | Stroke: 75 mm | Port: Rc1/8 | Clean spec: P72 exhaust
STG-B-20-75-P73 Bore: 20 mm | Stroke: 75 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STG-B-20-100-P72 Bore: 20 mm | Stroke: 100 mm | Port: Rc1/8 | Clean spec: P72 exhaust
STG-B-20-100-P73 Bore: 20 mm | Stroke: 100 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STG-B-20-125-P72 Bore: 20 mm | Stroke: 125 mm | Port: Rc1/8 | Clean spec: P72 exhaust
STG-B-20-125-P73 Bore: 20 mm | Stroke: 125 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STG-B-20-150-P72 Bore: 20 mm | Stroke: 150 mm | Port: Rc1/8 | Clean spec: P72 exhaust
STG-B-20-150-P73 Bore: 20 mm | Stroke: 150 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STG-B-20-175-P72 Bore: 20 mm | Stroke: 175 mm | Port: Rc1/8 | Clean spec: P72 exhaust
STG-B-20-175-P73 Bore: 20 mm | Stroke: 175 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STG-B-20-200-P72 Bore: 20 mm | Stroke: 200 mm | Port: Rc1/8 | Clean spec: P72 exhaust
STG-B-20-200-P73 Bore: 20 mm | Stroke: 200 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STG-B-20-250-P72 Bore: 20 mm | Stroke: 250 mm | Port: Rc1/8 | Clean spec: P72 exhaust
STG-B-20-250-P73 Bore: 20 mm | Stroke: 250 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STG-B-20-300-P72 Bore: 20 mm | Stroke: 300 mm | Port: Rc1/8 | Clean spec: P72 exhaust
STG-B-20-300-P73 Bore: 20 mm | Stroke: 300 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STG-B-20-350-P72 Bore: 20 mm | Stroke: 350 mm | Port: Rc1/8 | Clean spec: P72 exhaust
STG-B-20-350-P73 Bore: 20 mm | Stroke: 350 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STG-B-20-400-P72 Bore: 20 mm | Stroke: 400 mm | Port: Rc1/8 | Clean spec: P72 exhaust
STG-B-20-400-P73 Bore: 20 mm | Stroke: 400 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STG-B-25-20-P72 Bore: 25 mm | Stroke: 20 mm | Port: Rc1/8 | Clean spec: P72 exhaust
STG-B-25-20-P73 Bore: 25 mm | Stroke: 20 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STG-B-25-30-P72 Bore: 25 mm | Stroke: 30 mm | Port: Rc1/8 | Clean spec: P72 exhaust
STG-B-25-30-P73 Bore: 25 mm | Stroke: 30 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STG-B-25-40-P72 Bore: 25 mm | Stroke: 40 mm | Port: Rc1/8 | Clean spec: P72 exhaust
STG-B-25-40-P73 Bore: 25 mm | Stroke: 40 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STG-B-25-50-P72 Bore: 25 mm | Stroke: 50 mm | Port: Rc1/8 | Clean spec: P72 exhaust
STG-B-25-50-P73 Bore: 25 mm | Stroke: 50 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STG-B-25-75-P72 Bore: 25 mm | Stroke: 75 mm | Port: Rc1/8 | Clean spec: P72 exhaust
STG-B-25-75-P73 Bore: 25 mm | Stroke: 75 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STG-B-25-100-P72 Bore: 25 mm | Stroke: 100 mm | Port: Rc1/8 | Clean spec: P72 exhaust
STG-B-25-100-P73 Bore: 25 mm | Stroke: 100 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STG-B-25-125-P72 Bore: 25 mm | Stroke: 125 mm | Port: Rc1/8 | Clean spec: P72 exhaust
STG-B-25-125-P73 Bore: 25 mm | Stroke: 125 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STG-B-25-150-P72 Bore: 25 mm | Stroke: 150 mm | Port: Rc1/8 | Clean spec: P72 exhaust
STG-B-25-150-P73 Bore: 25 mm | Stroke: 150 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STG-B-25-175-P72 Bore: 25 mm | Stroke: 175 mm | Port: Rc1/8 | Clean spec: P72 exhaust
STG-B-25-175-P73 Bore: 25 mm | Stroke: 175 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STG-B-25-200-P72 Bore: 25 mm | Stroke: 200 mm | Port: Rc1/8 | Clean spec: P72 exhaust
STG-B-25-200-P73 Bore: 25 mm | Stroke: 200 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STG-B-25-250-P72 Bore: 25 mm | Stroke: 250 mm | Port: Rc1/8 | Clean spec: P72 exhaust
STG-B-25-250-P73 Bore: 25 mm | Stroke: 250 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STG-B-25-300-P72 Bore: 25 mm | Stroke: 300 mm | Port: Rc1/8 | Clean spec: P72 exhaust
STG-B-25-300-P73 Bore: 25 mm | Stroke: 300 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STG-B-25-350-P72 Bore: 25 mm | Stroke: 350 mm | Port: Rc1/8 | Clean spec: P72 exhaust
STG-B-25-350-P73 Bore: 25 mm | Stroke: 350 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STG-B-25-400-P72 Bore: 25 mm | Stroke: 400 mm | Port: Rc1/8 | Clean spec: P72 exhaust
STG-B-25-400-P73 Bore: 25 mm | Stroke: 400 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STG-B-32-25-P72 Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8 | Clean spec: P72 exhaust
STG-B-32-25-P73 Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STG-B-32-50-P72 Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8 | Clean spec: P72 exhaust
STG-B-32-50-P73 Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STG-B-32-75-P72 Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8 | Clean spec: P72 exhaust
STG-B-32-75-P73 Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STG-B-32-100-P72 Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8 | Clean spec: P72 exhaust
STG-B-32-100-P73 Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STG-B-32-125-P72 Bore: 32 mm | Stroke: 125 mm | Port: Rc1/8 | Clean spec: P72 exhaust
STG-B-32-125-P73 Bore: 32 mm | Stroke: 125 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STG-B-32-150-P72 Bore: 32 mm | Stroke: 150 mm | Port: Rc1/8 | Clean spec: P72 exhaust
STG-B-32-150-P73 Bore: 32 mm | Stroke: 150 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STG-B-32-175-P72 Bore: 32 mm | Stroke: 175 mm | Port: Rc1/8 | Clean spec: P72 exhaust
STG-B-32-175-P73 Bore: 32 mm | Stroke: 175 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STG-B-32-200-P72 Bore: 32 mm | Stroke: 200 mm | Port: Rc1/8 | Clean spec: P72 exhaust
STG-B-32-200-P73 Bore: 32 mm | Stroke: 200 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STG-B-32-250-P72 Bore: 32 mm | Stroke: 250 mm | Port: Rc1/8 | Clean spec: P72 exhaust
STG-B-32-250-P73 Bore: 32 mm | Stroke: 250 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STG-B-32-300-P72 Bore: 32 mm | Stroke: 300 mm | Port: Rc1/8 | Clean spec: P72 exhaust
STG-B-32-300-P73 Bore: 32 mm | Stroke: 300 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STG-B-32-350-P72 Bore: 32 mm | Stroke: 350 mm | Port: Rc1/8 | Clean spec: P72 exhaust
STG-B-32-350-P73 Bore: 32 mm | Stroke: 350 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STG-B-32-400-P72 Bore: 32 mm | Stroke: 400 mm | Port: Rc1/8 | Clean spec: P72 exhaust
STG-B-32-400-P73 Bore: 32 mm | Stroke: 400 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STG-B-40-25-P72 Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8 | Clean spec: P72 exhaust
STG-B-40-25-P73 Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STG-B-40-50-P72 Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8 | Clean spec: P72 exhaust
STG-B-40-50-P73 Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STG-B-40-75-P72 Bore: 40 mm | Stroke: 75 mm | Port: Rc1/8 | Clean spec: P72 exhaust
STG-B-40-75-P73 Bore: 40 mm | Stroke: 75 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STG-B-40-100-P72 Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8 | Clean spec: P72 exhaust
STG-B-40-100-P73 Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STG-B-40-125-P72 Bore: 40 mm | Stroke: 125 mm | Port: Rc1/8 | Clean spec: P72 exhaust
STG-B-40-125-P73 Bore: 40 mm | Stroke: 125 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STG-B-40-150-P72 Bore: 40 mm | Stroke: 150 mm | Port: Rc1/8 | Clean spec: P72 exhaust
STG-B-40-150-P73 Bore: 40 mm | Stroke: 150 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STG-B-40-175-P72 Bore: 40 mm | Stroke: 175 mm | Port: Rc1/8 | Clean spec: P72 exhaust
STG-B-40-175-P73 Bore: 40 mm | Stroke: 175 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STG-B-40-200-P72 Bore: 40 mm | Stroke: 200 mm | Port: Rc1/8 | Clean spec: P72 exhaust
STG-B-40-200-P73 Bore: 40 mm | Stroke: 200 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STG-B-40-250-P72 Bore: 40 mm | Stroke: 250 mm | Port: Rc1/8 | Clean spec: P72 exhaust
STG-B-40-250-P73 Bore: 40 mm | Stroke: 250 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STG-B-40-300-P72 Bore: 40 mm | Stroke: 300 mm | Port: Rc1/8 | Clean spec: P72 exhaust
STG-B-40-300-P73 Bore: 40 mm | Stroke: 300 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STG-B-40-350-P72 Bore: 40 mm | Stroke: 350 mm | Port: Rc1/8 | Clean spec: P72 exhaust
STG-B-40-350-P73 Bore: 40 mm | Stroke: 350 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STG-B-40-400-P72 Bore: 40 mm | Stroke: 400 mm | Port: Rc1/8 | Clean spec: P72 exhaust
STG-B-40-400-P73 Bore: 40 mm | Stroke: 400 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STG-B-50-25-P72 Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4 | Clean spec: P72 exhaust
STG-B-50-25-P73 Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4 | Clean spec: P73 vacuum suction
STG-B-50-50-P72 Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4 | Clean spec: P72 exhaust
STG-B-50-50-P73 Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4 | Clean spec: P73 vacuum suction
STG-B-50-75-P72 Bore: 50 mm | Stroke: 75 mm | Port: Rc1/4 | Clean spec: P72 exhaust
STG-B-50-75-P73 Bore: 50 mm | Stroke: 75 mm | Port: Rc1/4 | Clean spec: P73 vacuum suction
STG-B-50-100-P72 Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4 | Clean spec: P72 exhaust
STG-B-50-100-P73 Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4 | Clean spec: P73 vacuum suction
STG-B-50-125-P72 Bore: 50 mm | Stroke: 125 mm | Port: Rc1/4 | Clean spec: P72 exhaust
STG-B-50-125-P73 Bore: 50 mm | Stroke: 125 mm | Port: Rc1/4 | Clean spec: P73 vacuum suction
STG-B-50-150-P72 Bore: 50 mm | Stroke: 150 mm | Port: Rc1/4 | Clean spec: P72 exhaust
STG-B-50-150-P73 Bore: 50 mm | Stroke: 150 mm | Port: Rc1/4 | Clean spec: P73 vacuum suction
STG-B-50-175-P72 Bore: 50 mm | Stroke: 175 mm | Port: Rc1/4 | Clean spec: P72 exhaust
STG-B-50-175-P73 Bore: 50 mm | Stroke: 175 mm | Port: Rc1/4 | Clean spec: P73 vacuum suction
STG-B-50-200-P72 Bore: 50 mm | Stroke: 200 mm | Port: Rc1/4 | Clean spec: P72 exhaust
STG-B-50-200-P73 Bore: 50 mm | Stroke: 200 mm | Port: Rc1/4 | Clean spec: P73 vacuum suction
STG-B-50-250-P72 Bore: 50 mm | Stroke: 250 mm | Port: Rc1/4 | Clean spec: P72 exhaust
STG-B-50-250-P73 Bore: 50 mm | Stroke: 250 mm | Port: Rc1/4 | Clean spec: P73 vacuum suction
STG-B-50-300-P72 Bore: 50 mm | Stroke: 300 mm | Port: Rc1/4 | Clean spec: P72 exhaust
STG-B-50-300-P73 Bore: 50 mm | Stroke: 300 mm | Port: Rc1/4 | Clean spec: P73 vacuum suction
STG-B-50-350-P72 Bore: 50 mm | Stroke: 350 mm | Port: Rc1/4 | Clean spec: P72 exhaust
STG-B-50-350-P73 Bore: 50 mm | Stroke: 350 mm | Port: Rc1/4 | Clean spec: P73 vacuum suction
STG-B-50-400-P72 Bore: 50 mm | Stroke: 400 mm | Port: Rc1/4 | Clean spec: P72 exhaust
STG-B-50-400-P73 Bore: 50 mm | Stroke: 400 mm | Port: Rc1/4 | Clean spec: P73 vacuum suction
STG-B-63-25-P72 Bore: 63 mm | Stroke: 25 mm | Port: Rc1/4 | Clean spec: P72 exhaust
STG-B-63-25-P73 Bore: 63 mm | Stroke: 25 mm | Port: Rc1/4 | Clean spec: P73 vacuum suction
STG-B-63-50-P72 Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4 | Clean spec: P72 exhaust
STG-B-63-50-P73 Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4 | Clean spec: P73 vacuum suction
STG-B-63-75-P72 Bore: 63 mm | Stroke: 75 mm | Port: Rc1/4 | Clean spec: P72 exhaust
STG-B-63-75-P73 Bore: 63 mm | Stroke: 75 mm | Port: Rc1/4 | Clean spec: P73 vacuum suction
STG-B-63-100-P72 Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4 | Clean spec: P72 exhaust
STG-B-63-100-P73 Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4 | Clean spec: P73 vacuum suction
STG-B-63-125-P72 Bore: 63 mm | Stroke: 125 mm | Port: Rc1/4 | Clean spec: P72 exhaust
STG-B-63-125-P73 Bore: 63 mm | Stroke: 125 mm | Port: Rc1/4 | Clean spec: P73 vacuum suction
STG-B-63-150-P72 Bore: 63 mm | Stroke: 150 mm | Port: Rc1/4 | Clean spec: P72 exhaust
STG-B-63-150-P73 Bore: 63 mm | Stroke: 150 mm | Port: Rc1/4 | Clean spec: P73 vacuum suction
STG-B-63-175-P72 Bore: 63 mm | Stroke: 175 mm | Port: Rc1/4 | Clean spec: P72 exhaust
STG-B-63-175-P73 Bore: 63 mm | Stroke: 175 mm | Port: Rc1/4 | Clean spec: P73 vacuum suction
STG-B-63-200-P72 Bore: 63 mm | Stroke: 200 mm | Port: Rc1/4 | Clean spec: P72 exhaust
STG-B-63-200-P73 Bore: 63 mm | Stroke: 200 mm | Port: Rc1/4 | Clean spec: P73 vacuum suction
STG-B-63-250-P72 Bore: 63 mm | Stroke: 250 mm | Port: Rc1/4 | Clean spec: P72 exhaust
STG-B-63-250-P73 Bore: 63 mm | Stroke: 250 mm | Port: Rc1/4 | Clean spec: P73 vacuum suction
STG-B-63-300-P72 Bore: 63 mm | Stroke: 300 mm | Port: Rc1/4 | Clean spec: P72 exhaust
STG-B-63-300-P73 Bore: 63 mm | Stroke: 300 mm | Port: Rc1/4 | Clean spec: P73 vacuum suction
STG-B-63-350-P72 Bore: 63 mm | Stroke: 350 mm | Port: Rc1/4 | Clean spec: P72 exhaust
STG-B-63-350-P73 Bore: 63 mm | Stroke: 350 mm | Port: Rc1/4 | Clean spec: P73 vacuum suction
STG-B-63-400-P72 Bore: 63 mm | Stroke: 400 mm | Port: Rc1/4 | Clean spec: P72 exhaust
STG-B-63-400-P73 Bore: 63 mm | Stroke: 400 mm | Port: Rc1/4 | Clean spec: P73 vacuum suction
Guided CylindersCKD
198 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD STG-B-P7 Guided Cylinder (Clean Room, Bore 12-63)

Brand CKD·Guided Cylinders

Available part numbers (198)

STG-B-12-10-P72, STG-B-12-10-P73, STG-B-12-20-P72, STG-B-12-20-P73, STG-B-12-30-P72, STG-B-12-30-P73, STG-B-12-40-P72, STG-B-12-40-P73, STG-B-12-50-P72, STG-B-12-50-P73 + 188 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
STG-B-12-10-P72Bore: 12 mm | Stroke: 10 mm | Port: M5 | Clean spec: P72 exhaust
STG-B-12-10-P73Bore: 12 mm | Stroke: 10 mm | Port: M5 | Clean spec: P73 vacuum suction
STG-B-12-20-P72Bore: 12 mm | Stroke: 20 mm | Port: M5 | Clean spec: P72 exhaust
STG-B-12-20-P73Bore: 12 mm | Stroke: 20 mm | Port: M5 | Clean spec: P73 vacuum suction
STG-B-12-30-P72Bore: 12 mm | Stroke: 30 mm | Port: M5 | Clean spec: P72 exhaust
STG-B-12-30-P73Bore: 12 mm | Stroke: 30 mm | Port: M5 | Clean spec: P73 vacuum suction
STG-B-12-40-P72Bore: 12 mm | Stroke: 40 mm | Port: M5 | Clean spec: P72 exhaust
STG-B-12-40-P73Bore: 12 mm | Stroke: 40 mm | Port: M5 | Clean spec: P73 vacuum suction
STG-B-12-50-P72Bore: 12 mm | Stroke: 50 mm | Port: M5 | Clean spec: P72 exhaust
STG-B-12-50-P73Bore: 12 mm | Stroke: 50 mm | Port: M5 | Clean spec: P73 vacuum suction
STG-B-12-75-P72Bore: 12 mm | Stroke: 75 mm | Port: M5 | Clean spec: P72 exhaust
STG-B-12-75-P73Bore: 12 mm | Stroke: 75 mm | Port: M5 | Clean spec: P73 vacuum suction
STG-B-12-100-P72Bore: 12 mm | Stroke: 100 mm | Port: M5 | Clean spec: P72 exhaust
STG-B-12-100-P73Bore: 12 mm | Stroke: 100 mm | Port: M5 | Clean spec: P73 vacuum suction
STG-B-12-125-P72Bore: 12 mm | Stroke: 125 mm | Port: M5 | Clean spec: P72 exhaust
STG-B-12-125-P73Bore: 12 mm | Stroke: 125 mm | Port: M5 | Clean spec: P73 vacuum suction
STG-B-12-150-P72Bore: 12 mm | Stroke: 150 mm | Port: M5 | Clean spec: P72 exhaust
STG-B-12-150-P73Bore: 12 mm | Stroke: 150 mm | Port: M5 | Clean spec: P73 vacuum suction
STG-B-12-175-P72Bore: 12 mm | Stroke: 175 mm | Port: M5 | Clean spec: P72 exhaust
STG-B-12-175-P73Bore: 12 mm | Stroke: 175 mm | Port: M5 | Clean spec: P73 vacuum suction
STG-B-12-200-P72Bore: 12 mm | Stroke: 200 mm | Port: M5 | Clean spec: P72 exhaust
STG-B-12-200-P73Bore: 12 mm | Stroke: 200 mm | Port: M5 | Clean spec: P73 vacuum suction
STG-B-12-250-P72Bore: 12 mm | Stroke: 250 mm | Port: M5 | Clean spec: P72 exhaust
STG-B-12-250-P73Bore: 12 mm | Stroke: 250 mm | Port: M5 | Clean spec: P73 vacuum suction
STG-B-16-20-P72Bore: 16 mm | Stroke: 20 mm | Port: M5 | Clean spec: P72 exhaust
STG-B-16-20-P73Bore: 16 mm | Stroke: 20 mm | Port: M5 | Clean spec: P73 vacuum suction
STG-B-16-30-P72Bore: 16 mm | Stroke: 30 mm | Port: M5 | Clean spec: P72 exhaust
STG-B-16-30-P73Bore: 16 mm | Stroke: 30 mm | Port: M5 | Clean spec: P73 vacuum suction
STG-B-16-40-P72Bore: 16 mm | Stroke: 40 mm | Port: M5 | Clean spec: P72 exhaust
STG-B-16-40-P73Bore: 16 mm | Stroke: 40 mm | Port: M5 | Clean spec: P73 vacuum suction
STG-B-16-50-P72Bore: 16 mm | Stroke: 50 mm | Port: M5 | Clean spec: P72 exhaust
STG-B-16-50-P73Bore: 16 mm | Stroke: 50 mm | Port: M5 | Clean spec: P73 vacuum suction
STG-B-16-75-P72Bore: 16 mm | Stroke: 75 mm | Port: M5 | Clean spec: P72 exhaust
STG-B-16-75-P73Bore: 16 mm | Stroke: 75 mm | Port: M5 | Clean spec: P73 vacuum suction
STG-B-16-100-P72Bore: 16 mm | Stroke: 100 mm | Port: M5 | Clean spec: P72 exhaust
STG-B-16-100-P73Bore: 16 mm | Stroke: 100 mm | Port: M5 | Clean spec: P73 vacuum suction
STG-B-16-125-P72Bore: 16 mm | Stroke: 125 mm | Port: M5 | Clean spec: P72 exhaust
STG-B-16-125-P73Bore: 16 mm | Stroke: 125 mm | Port: M5 | Clean spec: P73 vacuum suction
STG-B-16-150-P72Bore: 16 mm | Stroke: 150 mm | Port: M5 | Clean spec: P72 exhaust
STG-B-16-150-P73Bore: 16 mm | Stroke: 150 mm | Port: M5 | Clean spec: P73 vacuum suction
STG-B-16-175-P72Bore: 16 mm | Stroke: 175 mm | Port: M5 | Clean spec: P72 exhaust
STG-B-16-175-P73Bore: 16 mm | Stroke: 175 mm | Port: M5 | Clean spec: P73 vacuum suction
STG-B-16-200-P72Bore: 16 mm | Stroke: 200 mm | Port: M5 | Clean spec: P72 exhaust
STG-B-16-200-P73Bore: 16 mm | Stroke: 200 mm | Port: M5 | Clean spec: P73 vacuum suction
STG-B-16-250-P72Bore: 16 mm | Stroke: 250 mm | Port: M5 | Clean spec: P72 exhaust
STG-B-16-250-P73Bore: 16 mm | Stroke: 250 mm | Port: M5 | Clean spec: P73 vacuum suction
STG-B-20-20-P72Bore: 20 mm | Stroke: 20 mm | Port: Rc1/8 | Clean spec: P72 exhaust
STG-B-20-20-P73Bore: 20 mm | Stroke: 20 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STG-B-20-30-P72Bore: 20 mm | Stroke: 30 mm | Port: Rc1/8 | Clean spec: P72 exhaust
STG-B-20-30-P73Bore: 20 mm | Stroke: 30 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STG-B-20-40-P72Bore: 20 mm | Stroke: 40 mm | Port: Rc1/8 | Clean spec: P72 exhaust
STG-B-20-40-P73Bore: 20 mm | Stroke: 40 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STG-B-20-50-P72Bore: 20 mm | Stroke: 50 mm | Port: Rc1/8 | Clean spec: P72 exhaust
STG-B-20-50-P73Bore: 20 mm | Stroke: 50 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STG-B-20-75-P72Bore: 20 mm | Stroke: 75 mm | Port: Rc1/8 | Clean spec: P72 exhaust
STG-B-20-75-P73Bore: 20 mm | Stroke: 75 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STG-B-20-100-P72Bore: 20 mm | Stroke: 100 mm | Port: Rc1/8 | Clean spec: P72 exhaust
STG-B-20-100-P73Bore: 20 mm | Stroke: 100 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STG-B-20-125-P72Bore: 20 mm | Stroke: 125 mm | Port: Rc1/8 | Clean spec: P72 exhaust
STG-B-20-125-P73Bore: 20 mm | Stroke: 125 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STG-B-20-150-P72Bore: 20 mm | Stroke: 150 mm | Port: Rc1/8 | Clean spec: P72 exhaust
STG-B-20-150-P73Bore: 20 mm | Stroke: 150 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STG-B-20-175-P72Bore: 20 mm | Stroke: 175 mm | Port: Rc1/8 | Clean spec: P72 exhaust
STG-B-20-175-P73Bore: 20 mm | Stroke: 175 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STG-B-20-200-P72Bore: 20 mm | Stroke: 200 mm | Port: Rc1/8 | Clean spec: P72 exhaust
STG-B-20-200-P73Bore: 20 mm | Stroke: 200 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STG-B-20-250-P72Bore: 20 mm | Stroke: 250 mm | Port: Rc1/8 | Clean spec: P72 exhaust
STG-B-20-250-P73Bore: 20 mm | Stroke: 250 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STG-B-20-300-P72Bore: 20 mm | Stroke: 300 mm | Port: Rc1/8 | Clean spec: P72 exhaust
STG-B-20-300-P73Bore: 20 mm | Stroke: 300 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STG-B-20-350-P72Bore: 20 mm | Stroke: 350 mm | Port: Rc1/8 | Clean spec: P72 exhaust
STG-B-20-350-P73Bore: 20 mm | Stroke: 350 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STG-B-20-400-P72Bore: 20 mm | Stroke: 400 mm | Port: Rc1/8 | Clean spec: P72 exhaust
STG-B-20-400-P73Bore: 20 mm | Stroke: 400 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STG-B-25-20-P72Bore: 25 mm | Stroke: 20 mm | Port: Rc1/8 | Clean spec: P72 exhaust
STG-B-25-20-P73Bore: 25 mm | Stroke: 20 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STG-B-25-30-P72Bore: 25 mm | Stroke: 30 mm | Port: Rc1/8 | Clean spec: P72 exhaust
STG-B-25-30-P73Bore: 25 mm | Stroke: 30 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STG-B-25-40-P72Bore: 25 mm | Stroke: 40 mm | Port: Rc1/8 | Clean spec: P72 exhaust
STG-B-25-40-P73Bore: 25 mm | Stroke: 40 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STG-B-25-50-P72Bore: 25 mm | Stroke: 50 mm | Port: Rc1/8 | Clean spec: P72 exhaust
STG-B-25-50-P73Bore: 25 mm | Stroke: 50 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STG-B-25-75-P72Bore: 25 mm | Stroke: 75 mm | Port: Rc1/8 | Clean spec: P72 exhaust
STG-B-25-75-P73Bore: 25 mm | Stroke: 75 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STG-B-25-100-P72Bore: 25 mm | Stroke: 100 mm | Port: Rc1/8 | Clean spec: P72 exhaust
STG-B-25-100-P73Bore: 25 mm | Stroke: 100 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STG-B-25-125-P72Bore: 25 mm | Stroke: 125 mm | Port: Rc1/8 | Clean spec: P72 exhaust
STG-B-25-125-P73Bore: 25 mm | Stroke: 125 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STG-B-25-150-P72Bore: 25 mm | Stroke: 150 mm | Port: Rc1/8 | Clean spec: P72 exhaust
STG-B-25-150-P73Bore: 25 mm | Stroke: 150 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STG-B-25-175-P72Bore: 25 mm | Stroke: 175 mm | Port: Rc1/8 | Clean spec: P72 exhaust
STG-B-25-175-P73Bore: 25 mm | Stroke: 175 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STG-B-25-200-P72Bore: 25 mm | Stroke: 200 mm | Port: Rc1/8 | Clean spec: P72 exhaust
STG-B-25-200-P73Bore: 25 mm | Stroke: 200 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STG-B-25-250-P72Bore: 25 mm | Stroke: 250 mm | Port: Rc1/8 | Clean spec: P72 exhaust
STG-B-25-250-P73Bore: 25 mm | Stroke: 250 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STG-B-25-300-P72Bore: 25 mm | Stroke: 300 mm | Port: Rc1/8 | Clean spec: P72 exhaust
STG-B-25-300-P73Bore: 25 mm | Stroke: 300 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STG-B-25-350-P72Bore: 25 mm | Stroke: 350 mm | Port: Rc1/8 | Clean spec: P72 exhaust
STG-B-25-350-P73Bore: 25 mm | Stroke: 350 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STG-B-25-400-P72Bore: 25 mm | Stroke: 400 mm | Port: Rc1/8 | Clean spec: P72 exhaust
STG-B-25-400-P73Bore: 25 mm | Stroke: 400 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STG-B-32-25-P72Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8 | Clean spec: P72 exhaust
STG-B-32-25-P73Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STG-B-32-50-P72Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8 | Clean spec: P72 exhaust
STG-B-32-50-P73Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STG-B-32-75-P72Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8 | Clean spec: P72 exhaust
STG-B-32-75-P73Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STG-B-32-100-P72Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8 | Clean spec: P72 exhaust
STG-B-32-100-P73Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STG-B-32-125-P72Bore: 32 mm | Stroke: 125 mm | Port: Rc1/8 | Clean spec: P72 exhaust
STG-B-32-125-P73Bore: 32 mm | Stroke: 125 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STG-B-32-150-P72Bore: 32 mm | Stroke: 150 mm | Port: Rc1/8 | Clean spec: P72 exhaust
STG-B-32-150-P73Bore: 32 mm | Stroke: 150 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STG-B-32-175-P72Bore: 32 mm | Stroke: 175 mm | Port: Rc1/8 | Clean spec: P72 exhaust
STG-B-32-175-P73Bore: 32 mm | Stroke: 175 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STG-B-32-200-P72Bore: 32 mm | Stroke: 200 mm | Port: Rc1/8 | Clean spec: P72 exhaust
STG-B-32-200-P73Bore: 32 mm | Stroke: 200 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STG-B-32-250-P72Bore: 32 mm | Stroke: 250 mm | Port: Rc1/8 | Clean spec: P72 exhaust
STG-B-32-250-P73Bore: 32 mm | Stroke: 250 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STG-B-32-300-P72Bore: 32 mm | Stroke: 300 mm | Port: Rc1/8 | Clean spec: P72 exhaust
STG-B-32-300-P73Bore: 32 mm | Stroke: 300 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STG-B-32-350-P72Bore: 32 mm | Stroke: 350 mm | Port: Rc1/8 | Clean spec: P72 exhaust
STG-B-32-350-P73Bore: 32 mm | Stroke: 350 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STG-B-32-400-P72Bore: 32 mm | Stroke: 400 mm | Port: Rc1/8 | Clean spec: P72 exhaust
STG-B-32-400-P73Bore: 32 mm | Stroke: 400 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STG-B-40-25-P72Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8 | Clean spec: P72 exhaust
STG-B-40-25-P73Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STG-B-40-50-P72Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8 | Clean spec: P72 exhaust
STG-B-40-50-P73Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STG-B-40-75-P72Bore: 40 mm | Stroke: 75 mm | Port: Rc1/8 | Clean spec: P72 exhaust
STG-B-40-75-P73Bore: 40 mm | Stroke: 75 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STG-B-40-100-P72Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8 | Clean spec: P72 exhaust
STG-B-40-100-P73Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STG-B-40-125-P72Bore: 40 mm | Stroke: 125 mm | Port: Rc1/8 | Clean spec: P72 exhaust
STG-B-40-125-P73Bore: 40 mm | Stroke: 125 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STG-B-40-150-P72Bore: 40 mm | Stroke: 150 mm | Port: Rc1/8 | Clean spec: P72 exhaust
STG-B-40-150-P73Bore: 40 mm | Stroke: 150 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STG-B-40-175-P72Bore: 40 mm | Stroke: 175 mm | Port: Rc1/8 | Clean spec: P72 exhaust
STG-B-40-175-P73Bore: 40 mm | Stroke: 175 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STG-B-40-200-P72Bore: 40 mm | Stroke: 200 mm | Port: Rc1/8 | Clean spec: P72 exhaust
STG-B-40-200-P73Bore: 40 mm | Stroke: 200 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STG-B-40-250-P72Bore: 40 mm | Stroke: 250 mm | Port: Rc1/8 | Clean spec: P72 exhaust
STG-B-40-250-P73Bore: 40 mm | Stroke: 250 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STG-B-40-300-P72Bore: 40 mm | Stroke: 300 mm | Port: Rc1/8 | Clean spec: P72 exhaust
STG-B-40-300-P73Bore: 40 mm | Stroke: 300 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STG-B-40-350-P72Bore: 40 mm | Stroke: 350 mm | Port: Rc1/8 | Clean spec: P72 exhaust
STG-B-40-350-P73Bore: 40 mm | Stroke: 350 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STG-B-40-400-P72Bore: 40 mm | Stroke: 400 mm | Port: Rc1/8 | Clean spec: P72 exhaust
STG-B-40-400-P73Bore: 40 mm | Stroke: 400 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STG-B-50-25-P72Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4 | Clean spec: P72 exhaust
STG-B-50-25-P73Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4 | Clean spec: P73 vacuum suction
STG-B-50-50-P72Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4 | Clean spec: P72 exhaust
STG-B-50-50-P73Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4 | Clean spec: P73 vacuum suction
STG-B-50-75-P72Bore: 50 mm | Stroke: 75 mm | Port: Rc1/4 | Clean spec: P72 exhaust
STG-B-50-75-P73Bore: 50 mm | Stroke: 75 mm | Port: Rc1/4 | Clean spec: P73 vacuum suction
STG-B-50-100-P72Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4 | Clean spec: P72 exhaust
STG-B-50-100-P73Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4 | Clean spec: P73 vacuum suction
STG-B-50-125-P72Bore: 50 mm | Stroke: 125 mm | Port: Rc1/4 | Clean spec: P72 exhaust
STG-B-50-125-P73Bore: 50 mm | Stroke: 125 mm | Port: Rc1/4 | Clean spec: P73 vacuum suction
STG-B-50-150-P72Bore: 50 mm | Stroke: 150 mm | Port: Rc1/4 | Clean spec: P72 exhaust
STG-B-50-150-P73Bore: 50 mm | Stroke: 150 mm | Port: Rc1/4 | Clean spec: P73 vacuum suction
STG-B-50-175-P72Bore: 50 mm | Stroke: 175 mm | Port: Rc1/4 | Clean spec: P72 exhaust
STG-B-50-175-P73Bore: 50 mm | Stroke: 175 mm | Port: Rc1/4 | Clean spec: P73 vacuum suction
STG-B-50-200-P72Bore: 50 mm | Stroke: 200 mm | Port: Rc1/4 | Clean spec: P72 exhaust
STG-B-50-200-P73Bore: 50 mm | Stroke: 200 mm | Port: Rc1/4 | Clean spec: P73 vacuum suction
STG-B-50-250-P72Bore: 50 mm | Stroke: 250 mm | Port: Rc1/4 | Clean spec: P72 exhaust
STG-B-50-250-P73Bore: 50 mm | Stroke: 250 mm | Port: Rc1/4 | Clean spec: P73 vacuum suction
STG-B-50-300-P72Bore: 50 mm | Stroke: 300 mm | Port: Rc1/4 | Clean spec: P72 exhaust
STG-B-50-300-P73Bore: 50 mm | Stroke: 300 mm | Port: Rc1/4 | Clean spec: P73 vacuum suction
STG-B-50-350-P72Bore: 50 mm | Stroke: 350 mm | Port: Rc1/4 | Clean spec: P72 exhaust
STG-B-50-350-P73Bore: 50 mm | Stroke: 350 mm | Port: Rc1/4 | Clean spec: P73 vacuum suction
STG-B-50-400-P72Bore: 50 mm | Stroke: 400 mm | Port: Rc1/4 | Clean spec: P72 exhaust
STG-B-50-400-P73Bore: 50 mm | Stroke: 400 mm | Port: Rc1/4 | Clean spec: P73 vacuum suction
STG-B-63-25-P72Bore: 63 mm | Stroke: 25 mm | Port: Rc1/4 | Clean spec: P72 exhaust
STG-B-63-25-P73Bore: 63 mm | Stroke: 25 mm | Port: Rc1/4 | Clean spec: P73 vacuum suction
STG-B-63-50-P72Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4 | Clean spec: P72 exhaust
STG-B-63-50-P73Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4 | Clean spec: P73 vacuum suction
STG-B-63-75-P72Bore: 63 mm | Stroke: 75 mm | Port: Rc1/4 | Clean spec: P72 exhaust
STG-B-63-75-P73Bore: 63 mm | Stroke: 75 mm | Port: Rc1/4 | Clean spec: P73 vacuum suction
STG-B-63-100-P72Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4 | Clean spec: P72 exhaust
STG-B-63-100-P73Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4 | Clean spec: P73 vacuum suction
STG-B-63-125-P72Bore: 63 mm | Stroke: 125 mm | Port: Rc1/4 | Clean spec: P72 exhaust
STG-B-63-125-P73Bore: 63 mm | Stroke: 125 mm | Port: Rc1/4 | Clean spec: P73 vacuum suction
STG-B-63-150-P72Bore: 63 mm | Stroke: 150 mm | Port: Rc1/4 | Clean spec: P72 exhaust
STG-B-63-150-P73Bore: 63 mm | Stroke: 150 mm | Port: Rc1/4 | Clean spec: P73 vacuum suction
STG-B-63-175-P72Bore: 63 mm | Stroke: 175 mm | Port: Rc1/4 | Clean spec: P72 exhaust
STG-B-63-175-P73Bore: 63 mm | Stroke: 175 mm | Port: Rc1/4 | Clean spec: P73 vacuum suction
STG-B-63-200-P72Bore: 63 mm | Stroke: 200 mm | Port: Rc1/4 | Clean spec: P72 exhaust
STG-B-63-200-P73Bore: 63 mm | Stroke: 200 mm | Port: Rc1/4 | Clean spec: P73 vacuum suction
STG-B-63-250-P72Bore: 63 mm | Stroke: 250 mm | Port: Rc1/4 | Clean spec: P72 exhaust
STG-B-63-250-P73Bore: 63 mm | Stroke: 250 mm | Port: Rc1/4 | Clean spec: P73 vacuum suction
STG-B-63-300-P72Bore: 63 mm | Stroke: 300 mm | Port: Rc1/4 | Clean spec: P72 exhaust
STG-B-63-300-P73Bore: 63 mm | Stroke: 300 mm | Port: Rc1/4 | Clean spec: P73 vacuum suction
STG-B-63-350-P72Bore: 63 mm | Stroke: 350 mm | Port: Rc1/4 | Clean spec: P72 exhaust
STG-B-63-350-P73Bore: 63 mm | Stroke: 350 mm | Port: Rc1/4 | Clean spec: P73 vacuum suction
STG-B-63-400-P72Bore: 63 mm | Stroke: 400 mm | Port: Rc1/4 | Clean spec: P72 exhaust
STG-B-63-400-P73Bore: 63 mm | Stroke: 400 mm | Port: Rc1/4 | Clean spec: P73 vacuum suction

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
