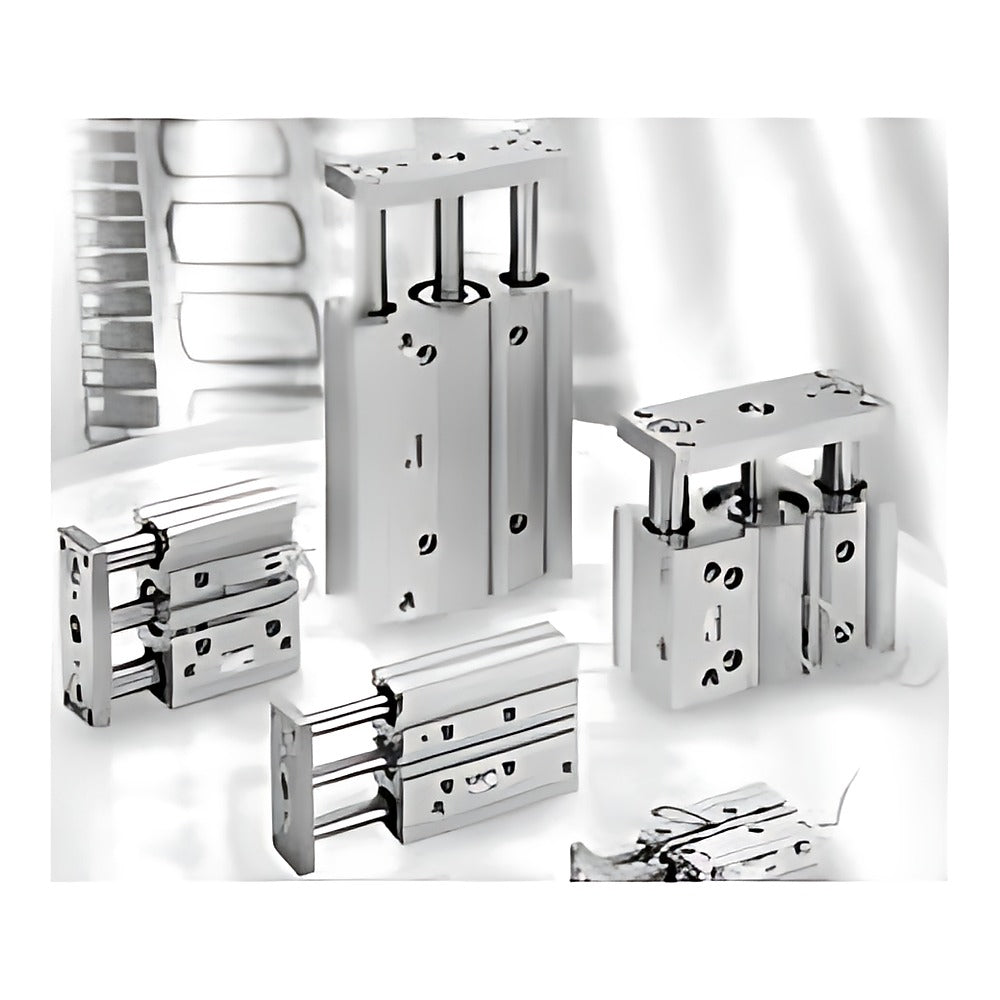

CKD STG-M/B-FP1 Guided Cylinder (Food Grade, Bore 12-100)

CKD STG-M/B-FP1 Guided Cylinder (Food Grade, Bore 12-100)

CKD STG-M/B-FP1 guided cylinder with slide (M) or ball (B) bearing guides, bore 12-100 mm, lubricated with NSF H1 food-grade grease.

Key features

  • NSF H1 registered food-grade grease used on sliding parts (FP1 food processing specification)
  • Slide bearing (M) or ball bearing (B) guide rods; switch magnet built in
  • Types: standard, air cushion C, strong scraper G, coolant-resistant G2/G3 and environment-resistant G5 (M only), rubber air cushion (bore C)
  • Standard strokes 10-400 mm by bore; intermediate strokes in 5 mm steps
  • Auto switches (T0H, T2H, T2WH etc.) with count R/H/D/T ordered as suffixes; NPT/G threads made to order

Specifications

Fluid Compressed air
Max. operating pressure 1.0 MPa
Min. operating pressure 0.15 MPa (12-25), 0.1 MPa (32-100)
Proof pressure 1.6 MPa
Ambient temperature -10 to 60 C
Port M5 (12/16), Rc1/8-Rc3/8 (20-100)
Piston speed 50-500 mm/s (12-63), 50-300 mm/s (80/100)
Source CKD Korea catalog CC-1271K, p. 88-91
STG-M-12-10-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 12 mm | Stroke: 10 mm
STG-M-12-20-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 12 mm | Stroke: 20 mm
STG-M-12-30-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 12 mm | Stroke: 30 mm
STG-M-12-40-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 12 mm | Stroke: 40 mm
STG-M-12-50-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 12 mm | Stroke: 50 mm
STG-M-12-75-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 12 mm | Stroke: 75 mm
STG-M-12-100-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 12 mm | Stroke: 100 mm
STG-M-12-125-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 12 mm | Stroke: 125 mm
STG-M-12-150-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 12 mm | Stroke: 150 mm
STG-M-12-175-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 12 mm | Stroke: 175 mm
STG-M-12-200-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 12 mm | Stroke: 200 mm
STG-M-12-250-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 12 mm | Stroke: 250 mm
STG-M-16-10-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 16 mm | Stroke: 10 mm
STG-M-16-20-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 16 mm | Stroke: 20 mm
STG-M-16-30-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 16 mm | Stroke: 30 mm
STG-M-16-40-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 16 mm | Stroke: 40 mm
STG-M-16-50-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 16 mm | Stroke: 50 mm
STG-M-16-75-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 16 mm | Stroke: 75 mm
STG-M-16-100-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 16 mm | Stroke: 100 mm
STG-M-16-125-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 16 mm | Stroke: 125 mm
STG-M-16-150-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 16 mm | Stroke: 150 mm
STG-M-16-175-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 16 mm | Stroke: 175 mm
STG-M-16-200-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 16 mm | Stroke: 200 mm
STG-M-16-250-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 16 mm | Stroke: 250 mm
STG-M-20-10-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 20 mm | Stroke: 10 mm
STG-M-20-20-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 20 mm | Stroke: 20 mm
STG-M-20-30-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 20 mm | Stroke: 30 mm
STG-M-20-40-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 20 mm | Stroke: 40 mm
STG-M-20-50-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 20 mm | Stroke: 50 mm
STG-M-20-75-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 20 mm | Stroke: 75 mm
STG-M-20-100-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 20 mm | Stroke: 100 mm
STG-M-20-125-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 20 mm | Stroke: 125 mm
STG-M-20-150-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 20 mm | Stroke: 150 mm
STG-M-20-175-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 20 mm | Stroke: 175 mm
STG-M-20-200-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 20 mm | Stroke: 200 mm
STG-M-20-250-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 20 mm | Stroke: 250 mm
STG-M-20-300-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 20 mm | Stroke: 300 mm
STG-M-20-350-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 20 mm | Stroke: 350 mm
STG-M-20-400-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 20 mm | Stroke: 400 mm
STG-M-25-10-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 25 mm | Stroke: 10 mm
STG-M-25-20-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 25 mm | Stroke: 20 mm
STG-M-25-30-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 25 mm | Stroke: 30 mm
STG-M-25-40-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 25 mm | Stroke: 40 mm
STG-M-25-50-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 25 mm | Stroke: 50 mm
STG-M-25-75-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 25 mm | Stroke: 75 mm
STG-M-25-100-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 25 mm | Stroke: 100 mm
STG-M-25-125-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 25 mm | Stroke: 125 mm
STG-M-25-150-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 25 mm | Stroke: 150 mm
STG-M-25-175-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 25 mm | Stroke: 175 mm
STG-M-25-200-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 25 mm | Stroke: 200 mm
STG-M-25-250-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 25 mm | Stroke: 250 mm
STG-M-25-300-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 25 mm | Stroke: 300 mm
STG-M-25-350-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 25 mm | Stroke: 350 mm
STG-M-25-400-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 25 mm | Stroke: 400 mm
STG-M-32-25-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 32 mm | Stroke: 25 mm
STG-M-32-50-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 32 mm | Stroke: 50 mm
STG-M-32-75-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 32 mm | Stroke: 75 mm
STG-M-32-100-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 32 mm | Stroke: 100 mm
STG-M-32-125-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 32 mm | Stroke: 125 mm
STG-M-32-150-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 32 mm | Stroke: 150 mm
STG-M-32-175-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 32 mm | Stroke: 175 mm
STG-M-32-200-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 32 mm | Stroke: 200 mm
STG-M-32-250-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 32 mm | Stroke: 250 mm
STG-M-32-300-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 32 mm | Stroke: 300 mm
STG-M-32-350-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 32 mm | Stroke: 350 mm
STG-M-32-400-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 32 mm | Stroke: 400 mm
STG-M-40-25-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 40 mm | Stroke: 25 mm
STG-M-40-50-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 40 mm | Stroke: 50 mm
STG-M-40-75-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 40 mm | Stroke: 75 mm
STG-M-40-100-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 40 mm | Stroke: 100 mm
STG-M-40-125-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 40 mm | Stroke: 125 mm
STG-M-40-150-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 40 mm | Stroke: 150 mm
STG-M-40-175-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 40 mm | Stroke: 175 mm
STG-M-40-200-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 40 mm | Stroke: 200 mm
STG-M-40-250-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 40 mm | Stroke: 250 mm
STG-M-40-300-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 40 mm | Stroke: 300 mm
STG-M-40-350-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 40 mm | Stroke: 350 mm
STG-M-40-400-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 40 mm | Stroke: 400 mm
STG-M-50-25-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 50 mm | Stroke: 25 mm
STG-M-50-50-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 50 mm | Stroke: 50 mm
STG-M-50-75-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 50 mm | Stroke: 75 mm
STG-M-50-100-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 50 mm | Stroke: 100 mm
STG-M-50-125-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 50 mm | Stroke: 125 mm
STG-M-50-150-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 50 mm | Stroke: 150 mm
STG-M-50-175-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 50 mm | Stroke: 175 mm
STG-M-50-200-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 50 mm | Stroke: 200 mm
STG-M-50-250-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 50 mm | Stroke: 250 mm
STG-M-50-300-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 50 mm | Stroke: 300 mm
STG-M-50-350-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 50 mm | Stroke: 350 mm
STG-M-50-400-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 50 mm | Stroke: 400 mm
STG-M-63-25-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 63 mm | Stroke: 25 mm
STG-M-63-50-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 63 mm | Stroke: 50 mm
STG-M-63-75-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 63 mm | Stroke: 75 mm
STG-M-63-100-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 63 mm | Stroke: 100 mm
STG-M-63-125-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 63 mm | Stroke: 125 mm
STG-M-63-150-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 63 mm | Stroke: 150 mm
STG-M-63-175-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 63 mm | Stroke: 175 mm
STG-M-63-200-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 63 mm | Stroke: 200 mm
STG-M-63-250-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 63 mm | Stroke: 250 mm
STG-M-63-300-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 63 mm | Stroke: 300 mm
STG-M-63-350-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 63 mm | Stroke: 350 mm
STG-M-63-400-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 63 mm | Stroke: 400 mm
STG-M-80-25-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 80 mm | Stroke: 25 mm
STG-M-80-50-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 80 mm | Stroke: 50 mm
STG-M-80-75-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 80 mm | Stroke: 75 mm
STG-M-80-100-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 80 mm | Stroke: 100 mm
STG-M-80-125-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 80 mm | Stroke: 125 mm
STG-M-80-150-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 80 mm | Stroke: 150 mm
STG-M-80-175-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 80 mm | Stroke: 175 mm
STG-M-80-200-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 80 mm | Stroke: 200 mm
STG-M-80-250-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 80 mm | Stroke: 250 mm
STG-M-80-300-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 80 mm | Stroke: 300 mm
STG-M-80-350-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 80 mm | Stroke: 350 mm
STG-M-80-400-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 80 mm | Stroke: 400 mm
STG-M-100-25-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 100 mm | Stroke: 25 mm
STG-M-100-50-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 100 mm | Stroke: 50 mm
STG-M-100-75-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 100 mm | Stroke: 75 mm
STG-M-100-100-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 100 mm | Stroke: 100 mm
STG-M-100-125-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 100 mm | Stroke: 125 mm
STG-M-100-150-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 100 mm | Stroke: 150 mm
STG-M-100-175-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 100 mm | Stroke: 175 mm
STG-M-100-200-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 100 mm | Stroke: 200 mm
STG-M-100-250-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 100 mm | Stroke: 250 mm
STG-M-100-300-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 100 mm | Stroke: 300 mm
STG-M-100-350-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 100 mm | Stroke: 350 mm
STG-M-100-400-FP1 Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 100 mm | Stroke: 400 mm
STG-B-12-10-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 12 mm | Stroke: 10 mm
STG-B-12-20-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 12 mm | Stroke: 20 mm
STG-B-12-30-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 12 mm | Stroke: 30 mm
STG-B-12-40-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 12 mm | Stroke: 40 mm
STG-B-12-50-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 12 mm | Stroke: 50 mm
STG-B-12-75-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 12 mm | Stroke: 75 mm
STG-B-12-100-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 12 mm | Stroke: 100 mm
STG-B-12-125-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 12 mm | Stroke: 125 mm
STG-B-12-150-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 12 mm | Stroke: 150 mm
STG-B-12-175-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 12 mm | Stroke: 175 mm
STG-B-12-200-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 12 mm | Stroke: 200 mm
STG-B-12-250-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 12 mm | Stroke: 250 mm
STG-B-16-10-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 16 mm | Stroke: 10 mm
STG-B-16-20-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 16 mm | Stroke: 20 mm
STG-B-16-30-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 16 mm | Stroke: 30 mm
STG-B-16-40-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 16 mm | Stroke: 40 mm
STG-B-16-50-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 16 mm | Stroke: 50 mm
STG-B-16-75-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 16 mm | Stroke: 75 mm
STG-B-16-100-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 16 mm | Stroke: 100 mm
STG-B-16-125-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 16 mm | Stroke: 125 mm
STG-B-16-150-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 16 mm | Stroke: 150 mm
STG-B-16-175-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 16 mm | Stroke: 175 mm
STG-B-16-200-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 16 mm | Stroke: 200 mm
STG-B-16-250-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 16 mm | Stroke: 250 mm
STG-B-20-10-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 20 mm | Stroke: 10 mm
STG-B-20-20-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 20 mm | Stroke: 20 mm
STG-B-20-30-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 20 mm | Stroke: 30 mm
STG-B-20-40-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 20 mm | Stroke: 40 mm
STG-B-20-50-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 20 mm | Stroke: 50 mm
STG-B-20-75-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 20 mm | Stroke: 75 mm
STG-B-20-100-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 20 mm | Stroke: 100 mm
STG-B-20-125-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 20 mm | Stroke: 125 mm
STG-B-20-150-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 20 mm | Stroke: 150 mm
STG-B-20-175-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 20 mm | Stroke: 175 mm
STG-B-20-200-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 20 mm | Stroke: 200 mm
STG-B-20-250-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 20 mm | Stroke: 250 mm
STG-B-20-300-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 20 mm | Stroke: 300 mm
STG-B-20-350-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 20 mm | Stroke: 350 mm
STG-B-20-400-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 20 mm | Stroke: 400 mm
STG-B-25-10-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 25 mm | Stroke: 10 mm
STG-B-25-20-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 25 mm | Stroke: 20 mm
STG-B-25-30-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 25 mm | Stroke: 30 mm
STG-B-25-40-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 25 mm | Stroke: 40 mm
STG-B-25-50-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 25 mm | Stroke: 50 mm
STG-B-25-75-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 25 mm | Stroke: 75 mm
STG-B-25-100-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 25 mm | Stroke: 100 mm
STG-B-25-125-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 25 mm | Stroke: 125 mm
STG-B-25-150-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 25 mm | Stroke: 150 mm
STG-B-25-175-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 25 mm | Stroke: 175 mm
STG-B-25-200-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 25 mm | Stroke: 200 mm
STG-B-25-250-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 25 mm | Stroke: 250 mm
STG-B-25-300-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 25 mm | Stroke: 300 mm
STG-B-25-350-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 25 mm | Stroke: 350 mm
STG-B-25-400-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 25 mm | Stroke: 400 mm
STG-B-32-25-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 32 mm | Stroke: 25 mm
STG-B-32-50-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 32 mm | Stroke: 50 mm
STG-B-32-75-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 32 mm | Stroke: 75 mm
STG-B-32-100-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 32 mm | Stroke: 100 mm
STG-B-32-125-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 32 mm | Stroke: 125 mm
STG-B-32-150-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 32 mm | Stroke: 150 mm
STG-B-32-175-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 32 mm | Stroke: 175 mm
STG-B-32-200-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 32 mm | Stroke: 200 mm
STG-B-32-250-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 32 mm | Stroke: 250 mm
STG-B-32-300-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 32 mm | Stroke: 300 mm
STG-B-32-350-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 32 mm | Stroke: 350 mm
STG-B-32-400-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 32 mm | Stroke: 400 mm
STG-B-40-25-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 40 mm | Stroke: 25 mm
STG-B-40-50-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 40 mm | Stroke: 50 mm
STG-B-40-75-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 40 mm | Stroke: 75 mm
STG-B-40-100-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 40 mm | Stroke: 100 mm
STG-B-40-125-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 40 mm | Stroke: 125 mm
STG-B-40-150-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 40 mm | Stroke: 150 mm
STG-B-40-175-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 40 mm | Stroke: 175 mm
STG-B-40-200-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 40 mm | Stroke: 200 mm
STG-B-40-250-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 40 mm | Stroke: 250 mm
STG-B-40-300-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 40 mm | Stroke: 300 mm
STG-B-40-350-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 40 mm | Stroke: 350 mm
STG-B-40-400-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 40 mm | Stroke: 400 mm
STG-B-50-25-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 50 mm | Stroke: 25 mm
STG-B-50-50-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 50 mm | Stroke: 50 mm
STG-B-50-75-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 50 mm | Stroke: 75 mm
STG-B-50-100-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 50 mm | Stroke: 100 mm
STG-B-50-125-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 50 mm | Stroke: 125 mm
STG-B-50-150-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 50 mm | Stroke: 150 mm
STG-B-50-175-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 50 mm | Stroke: 175 mm
STG-B-50-200-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 50 mm | Stroke: 200 mm
STG-B-50-250-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 50 mm | Stroke: 250 mm
STG-B-50-300-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 50 mm | Stroke: 300 mm
STG-B-50-350-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 50 mm | Stroke: 350 mm
STG-B-50-400-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 50 mm | Stroke: 400 mm
STG-B-63-25-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 63 mm | Stroke: 25 mm
STG-B-63-50-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 63 mm | Stroke: 50 mm
STG-B-63-75-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 63 mm | Stroke: 75 mm
STG-B-63-100-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 63 mm | Stroke: 100 mm
STG-B-63-125-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 63 mm | Stroke: 125 mm
STG-B-63-150-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 63 mm | Stroke: 150 mm
STG-B-63-175-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 63 mm | Stroke: 175 mm
STG-B-63-200-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 63 mm | Stroke: 200 mm
STG-B-63-250-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 63 mm | Stroke: 250 mm
STG-B-63-300-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 63 mm | Stroke: 300 mm
STG-B-63-350-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 63 mm | Stroke: 350 mm
STG-B-63-400-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 63 mm | Stroke: 400 mm
STG-B-80-25-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 80 mm | Stroke: 25 mm
STG-B-80-50-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 80 mm | Stroke: 50 mm
STG-B-80-75-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 80 mm | Stroke: 75 mm
STG-B-80-100-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 80 mm | Stroke: 100 mm
STG-B-80-125-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 80 mm | Stroke: 125 mm
STG-B-80-150-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 80 mm | Stroke: 150 mm
STG-B-80-175-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 80 mm | Stroke: 175 mm
STG-B-80-200-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 80 mm | Stroke: 200 mm
STG-B-80-250-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 80 mm | Stroke: 250 mm
STG-B-80-300-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 80 mm | Stroke: 300 mm
STG-B-80-350-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 80 mm | Stroke: 350 mm
STG-B-80-400-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 80 mm | Stroke: 400 mm
STG-B-100-25-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 100 mm | Stroke: 25 mm
STG-B-100-50-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 100 mm | Stroke: 50 mm
STG-B-100-75-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 100 mm | Stroke: 75 mm
STG-B-100-100-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 100 mm | Stroke: 100 mm
STG-B-100-125-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 100 mm | Stroke: 125 mm
STG-B-100-150-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 100 mm | Stroke: 150 mm
STG-B-100-175-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 100 mm | Stroke: 175 mm
STG-B-100-200-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 100 mm | Stroke: 200 mm
STG-B-100-250-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 100 mm | Stroke: 250 mm
STG-B-100-300-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 100 mm | Stroke: 300 mm
STG-B-100-350-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 100 mm | Stroke: 350 mm
STG-B-100-400-FP1 Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 100 mm | Stroke: 400 mm
STG-MC-16-25-FP1 Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 16 mm | Stroke: 25 mm
STG-MC-16-50-FP1 Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 16 mm | Stroke: 50 mm
STG-MC-16-75-FP1 Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 16 mm | Stroke: 75 mm
STG-MC-16-100-FP1 Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 16 mm | Stroke: 100 mm
STG-MC-16-125-FP1 Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 16 mm | Stroke: 125 mm
STG-MC-16-150-FP1 Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 16 mm | Stroke: 150 mm
STG-MC-16-175-FP1 Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 16 mm | Stroke: 175 mm
STG-MC-16-200-FP1 Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 16 mm | Stroke: 200 mm
STG-MC-16-250-FP1 Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 16 mm | Stroke: 250 mm
STG-MC-20-25-FP1 Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 20 mm | Stroke: 25 mm
STG-MC-20-50-FP1 Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 20 mm | Stroke: 50 mm
STG-MC-20-75-FP1 Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 20 mm | Stroke: 75 mm
STG-MC-20-100-FP1 Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 20 mm | Stroke: 100 mm
STG-MC-20-125-FP1 Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 20 mm | Stroke: 125 mm
STG-MC-20-150-FP1 Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 20 mm | Stroke: 150 mm
STG-MC-20-175-FP1 Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 20 mm | Stroke: 175 mm
STG-MC-20-200-FP1 Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 20 mm | Stroke: 200 mm
STG-MC-20-250-FP1 Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 20 mm | Stroke: 250 mm
STG-MC-20-300-FP1 Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 20 mm | Stroke: 300 mm
STG-MC-20-350-FP1 Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 20 mm | Stroke: 350 mm
STG-MC-20-400-FP1 Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 20 mm | Stroke: 400 mm
STG-MC-25-25-FP1 Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 25 mm | Stroke: 25 mm
STG-MC-25-50-FP1 Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 25 mm | Stroke: 50 mm
STG-MC-25-75-FP1 Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 25 mm | Stroke: 75 mm
STG-MC-25-100-FP1 Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 25 mm | Stroke: 100 mm
STG-MC-25-125-FP1 Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 25 mm | Stroke: 125 mm
STG-MC-25-150-FP1 Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 25 mm | Stroke: 150 mm
STG-MC-25-175-FP1 Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 25 mm | Stroke: 175 mm
STG-MC-25-200-FP1 Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 25 mm | Stroke: 200 mm
STG-MC-25-250-FP1 Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 25 mm | Stroke: 250 mm
STG-MC-25-300-FP1 Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 25 mm | Stroke: 300 mm
STG-MC-25-350-FP1 Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 25 mm | Stroke: 350 mm
STG-MC-25-400-FP1 Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 25 mm | Stroke: 400 mm
STG-MC-32-25-FP1 Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 32 mm | Stroke: 25 mm
STG-MC-32-50-FP1 Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 32 mm | Stroke: 50 mm
STG-MC-32-75-FP1 Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 32 mm | Stroke: 75 mm
STG-MC-32-100-FP1 Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 32 mm | Stroke: 100 mm
STG-MC-32-125-FP1 Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 32 mm | Stroke: 125 mm
STG-MC-32-150-FP1 Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 32 mm | Stroke: 150 mm
STG-MC-32-175-FP1 Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 32 mm | Stroke: 175 mm
STG-MC-32-200-FP1 Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 32 mm | Stroke: 200 mm
STG-MC-32-250-FP1 Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 32 mm | Stroke: 250 mm
STG-MC-32-300-FP1 Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 32 mm | Stroke: 300 mm
STG-MC-32-350-FP1 Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 32 mm | Stroke: 350 mm
STG-MC-32-400-FP1 Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 32 mm | Stroke: 400 mm
STG-MC-40-25-FP1 Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 40 mm | Stroke: 25 mm
STG-MC-40-50-FP1 Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 40 mm | Stroke: 50 mm
STG-MC-40-75-FP1 Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 40 mm | Stroke: 75 mm
STG-MC-40-100-FP1 Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 40 mm | Stroke: 100 mm
STG-MC-40-125-FP1 Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 40 mm | Stroke: 125 mm
STG-MC-40-150-FP1 Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 40 mm | Stroke: 150 mm
STG-MC-40-175-FP1 Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 40 mm | Stroke: 175 mm
STG-MC-40-200-FP1 Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 40 mm | Stroke: 200 mm
STG-MC-40-250-FP1 Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 40 mm | Stroke: 250 mm
STG-MC-40-300-FP1 Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 40 mm | Stroke: 300 mm
STG-MC-40-350-FP1 Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 40 mm | Stroke: 350 mm
STG-MC-40-400-FP1 Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 40 mm | Stroke: 400 mm
STG-MC-50-25-FP1 Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 50 mm | Stroke: 25 mm
STG-MC-50-50-FP1 Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 50 mm | Stroke: 50 mm
STG-MC-50-75-FP1 Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 50 mm | Stroke: 75 mm
STG-MC-50-100-FP1 Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 50 mm | Stroke: 100 mm
STG-MC-50-125-FP1 Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 50 mm | Stroke: 125 mm
STG-MC-50-150-FP1 Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 50 mm | Stroke: 150 mm
STG-MC-50-175-FP1 Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 50 mm | Stroke: 175 mm
STG-MC-50-200-FP1 Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 50 mm | Stroke: 200 mm
STG-MC-50-250-FP1 Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 50 mm | Stroke: 250 mm
STG-MC-50-300-FP1 Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 50 mm | Stroke: 300 mm
STG-MC-50-350-FP1 Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 50 mm | Stroke: 350 mm
STG-MC-50-400-FP1 Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 50 mm | Stroke: 400 mm
STG-MC-63-25-FP1 Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 63 mm | Stroke: 25 mm
STG-MC-63-50-FP1 Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 63 mm | Stroke: 50 mm
STG-MC-63-75-FP1 Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 63 mm | Stroke: 75 mm
STG-MC-63-100-FP1 Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 63 mm | Stroke: 100 mm
STG-MC-63-125-FP1 Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 63 mm | Stroke: 125 mm
STG-MC-63-150-FP1 Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 63 mm | Stroke: 150 mm
STG-MC-63-175-FP1 Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 63 mm | Stroke: 175 mm
STG-MC-63-200-FP1 Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 63 mm | Stroke: 200 mm
STG-MC-63-250-FP1 Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 63 mm | Stroke: 250 mm
STG-MC-63-300-FP1 Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 63 mm | Stroke: 300 mm
STG-MC-63-350-FP1 Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 63 mm | Stroke: 350 mm
STG-MC-63-400-FP1 Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 63 mm | Stroke: 400 mm
STG-BC-16-25-FP1 Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 16 mm | Stroke: 25 mm
STG-BC-16-50-FP1 Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 16 mm | Stroke: 50 mm
STG-BC-16-75-FP1 Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 16 mm | Stroke: 75 mm
STG-BC-16-100-FP1 Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 16 mm | Stroke: 100 mm
STG-BC-16-125-FP1 Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 16 mm | Stroke: 125 mm
STG-BC-16-150-FP1 Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 16 mm | Stroke: 150 mm
STG-BC-16-175-FP1 Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 16 mm | Stroke: 175 mm
STG-BC-16-200-FP1 Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 16 mm | Stroke: 200 mm
STG-BC-16-250-FP1 Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 16 mm | Stroke: 250 mm
STG-BC-20-25-FP1 Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 20 mm | Stroke: 25 mm
STG-BC-20-50-FP1 Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 20 mm | Stroke: 50 mm
STG-BC-20-75-FP1 Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 20 mm | Stroke: 75 mm
STG-BC-20-100-FP1 Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 20 mm | Stroke: 100 mm
STG-BC-20-125-FP1 Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 20 mm | Stroke: 125 mm
STG-BC-20-150-FP1 Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 20 mm | Stroke: 150 mm
STG-BC-20-175-FP1 Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 20 mm | Stroke: 175 mm
STG-BC-20-200-FP1 Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 20 mm | Stroke: 200 mm
STG-BC-20-250-FP1 Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 20 mm | Stroke: 250 mm
STG-BC-20-300-FP1 Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 20 mm | Stroke: 300 mm
STG-BC-20-350-FP1 Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 20 mm | Stroke: 350 mm
STG-BC-20-400-FP1 Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 20 mm | Stroke: 400 mm
STG-BC-25-25-FP1 Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 25 mm | Stroke: 25 mm
STG-BC-25-50-FP1 Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 25 mm | Stroke: 50 mm
STG-BC-25-75-FP1 Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 25 mm | Stroke: 75 mm
STG-BC-25-100-FP1 Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 25 mm | Stroke: 100 mm
STG-BC-25-125-FP1 Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 25 mm | Stroke: 125 mm
STG-BC-25-150-FP1 Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 25 mm | Stroke: 150 mm
STG-BC-25-175-FP1 Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 25 mm | Stroke: 175 mm
STG-BC-25-200-FP1 Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 25 mm | Stroke: 200 mm
STG-BC-25-250-FP1 Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 25 mm | Stroke: 250 mm
STG-BC-25-300-FP1 Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 25 mm | Stroke: 300 mm
STG-BC-25-350-FP1 Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 25 mm | Stroke: 350 mm
STG-BC-25-400-FP1 Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 25 mm | Stroke: 400 mm
STG-BC-32-25-FP1 Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 32 mm | Stroke: 25 mm
STG-BC-32-50-FP1 Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 32 mm | Stroke: 50 mm
STG-BC-32-75-FP1 Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 32 mm | Stroke: 75 mm
STG-BC-32-100-FP1 Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 32 mm | Stroke: 100 mm
STG-BC-32-125-FP1 Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 32 mm | Stroke: 125 mm
STG-BC-32-150-FP1 Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 32 mm | Stroke: 150 mm
STG-BC-32-175-FP1 Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 32 mm | Stroke: 175 mm
STG-BC-32-200-FP1 Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 32 mm | Stroke: 200 mm
STG-BC-32-250-FP1 Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 32 mm | Stroke: 250 mm
STG-BC-32-300-FP1 Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 32 mm | Stroke: 300 mm
STG-BC-32-350-FP1 Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 32 mm | Stroke: 350 mm
STG-BC-32-400-FP1 Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 32 mm | Stroke: 400 mm
STG-BC-40-25-FP1 Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 40 mm | Stroke: 25 mm
STG-BC-40-50-FP1 Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 40 mm | Stroke: 50 mm
STG-BC-40-75-FP1 Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 40 mm | Stroke: 75 mm
STG-BC-40-100-FP1 Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 40 mm | Stroke: 100 mm
STG-BC-40-125-FP1 Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 40 mm | Stroke: 125 mm
STG-BC-40-150-FP1 Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 40 mm | Stroke: 150 mm
STG-BC-40-175-FP1 Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 40 mm | Stroke: 175 mm
STG-BC-40-200-FP1 Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 40 mm | Stroke: 200 mm
STG-BC-40-250-FP1 Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 40 mm | Stroke: 250 mm
STG-BC-40-300-FP1 Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 40 mm | Stroke: 300 mm
STG-BC-40-350-FP1 Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 40 mm | Stroke: 350 mm
STG-BC-40-400-FP1 Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 40 mm | Stroke: 400 mm
STG-BC-50-25-FP1 Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 50 mm | Stroke: 25 mm
STG-BC-50-50-FP1 Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 50 mm | Stroke: 50 mm
STG-BC-50-75-FP1 Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 50 mm | Stroke: 75 mm
STG-BC-50-100-FP1 Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 50 mm | Stroke: 100 mm
STG-BC-50-125-FP1 Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 50 mm | Stroke: 125 mm
STG-BC-50-150-FP1 Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 50 mm | Stroke: 150 mm
STG-BC-50-175-FP1 Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 50 mm | Stroke: 175 mm
STG-BC-50-200-FP1 Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 50 mm | Stroke: 200 mm
STG-BC-50-250-FP1 Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 50 mm | Stroke: 250 mm
STG-BC-50-300-FP1 Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 50 mm | Stroke: 300 mm
STG-BC-50-350-FP1 Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 50 mm | Stroke: 350 mm
STG-BC-50-400-FP1 Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 50 mm | Stroke: 400 mm
STG-BC-63-25-FP1 Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 63 mm | Stroke: 25 mm
STG-BC-63-50-FP1 Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 63 mm | Stroke: 50 mm
STG-BC-63-75-FP1 Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 63 mm | Stroke: 75 mm
STG-BC-63-100-FP1 Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 63 mm | Stroke: 100 mm
STG-BC-63-125-FP1 Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 63 mm | Stroke: 125 mm
STG-BC-63-150-FP1 Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 63 mm | Stroke: 150 mm
STG-BC-63-175-FP1 Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 63 mm | Stroke: 175 mm
STG-BC-63-200-FP1 Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 63 mm | Stroke: 200 mm
STG-BC-63-250-FP1 Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 63 mm | Stroke: 250 mm
STG-BC-63-300-FP1 Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 63 mm | Stroke: 300 mm
STG-BC-63-350-FP1 Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 63 mm | Stroke: 350 mm
STG-BC-63-400-FP1 Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 63 mm | Stroke: 400 mm
STG-MG-20-20-FP1 Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 20 mm | Stroke: 20 mm
STG-MG-20-30-FP1 Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 20 mm | Stroke: 30 mm
STG-MG-20-40-FP1 Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 20 mm | Stroke: 40 mm
STG-MG-20-50-FP1 Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 20 mm | Stroke: 50 mm
STG-MG-20-75-FP1 Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 20 mm | Stroke: 75 mm
STG-MG-20-100-FP1 Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 20 mm | Stroke: 100 mm
STG-MG-20-125-FP1 Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 20 mm | Stroke: 125 mm
STG-MG-20-150-FP1 Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 20 mm | Stroke: 150 mm
STG-MG-20-175-FP1 Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 20 mm | Stroke: 175 mm
STG-MG-20-200-FP1 Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 20 mm | Stroke: 200 mm
STG-MG-20-250-FP1 Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 20 mm | Stroke: 250 mm
STG-MG-20-300-FP1 Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 20 mm | Stroke: 300 mm
STG-MG-20-350-FP1 Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 20 mm | Stroke: 350 mm
STG-MG-20-400-FP1 Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 20 mm | Stroke: 400 mm
STG-MG-25-20-FP1 Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 25 mm | Stroke: 20 mm
STG-MG-25-30-FP1 Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 25 mm | Stroke: 30 mm
STG-MG-25-40-FP1 Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 25 mm | Stroke: 40 mm
STG-MG-25-50-FP1 Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 25 mm | Stroke: 50 mm
STG-MG-25-75-FP1 Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 25 mm | Stroke: 75 mm
STG-MG-25-100-FP1 Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 25 mm | Stroke: 100 mm
STG-MG-25-125-FP1 Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 25 mm | Stroke: 125 mm
STG-MG-25-150-FP1 Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 25 mm | Stroke: 150 mm
STG-MG-25-175-FP1 Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 25 mm | Stroke: 175 mm
STG-MG-25-200-FP1 Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 25 mm | Stroke: 200 mm
STG-MG-25-250-FP1 Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 25 mm | Stroke: 250 mm
STG-MG-25-300-FP1 Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 25 mm | Stroke: 300 mm
STG-MG-25-350-FP1 Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 25 mm | Stroke: 350 mm
STG-MG-25-400-FP1 Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 25 mm | Stroke: 400 mm
STG-MG-32-25-FP1 Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 32 mm | Stroke: 25 mm
STG-MG-32-50-FP1 Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 32 mm | Stroke: 50 mm
STG-MG-32-75-FP1 Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 32 mm | Stroke: 75 mm
STG-MG-32-100-FP1 Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 32 mm | Stroke: 100 mm
STG-MG-32-125-FP1 Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 32 mm | Stroke: 125 mm
STG-MG-32-150-FP1 Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 32 mm | Stroke: 150 mm
STG-MG-32-175-FP1 Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 32 mm | Stroke: 175 mm
STG-MG-32-200-FP1 Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 32 mm | Stroke: 200 mm
STG-MG-32-250-FP1 Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 32 mm | Stroke: 250 mm
STG-MG-32-300-FP1 Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 32 mm | Stroke: 300 mm
STG-MG-32-350-FP1 Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 32 mm | Stroke: 350 mm
STG-MG-32-400-FP1 Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 32 mm | Stroke: 400 mm
STG-MG-40-25-FP1 Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 40 mm | Stroke: 25 mm
STG-MG-40-50-FP1 Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 40 mm | Stroke: 50 mm
STG-MG-40-75-FP1 Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 40 mm | Stroke: 75 mm
STG-MG-40-100-FP1 Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 40 mm | Stroke: 100 mm
STG-MG-40-125-FP1 Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 40 mm | Stroke: 125 mm
STG-MG-40-150-FP1 Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 40 mm | Stroke: 150 mm
STG-MG-40-175-FP1 Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 40 mm | Stroke: 175 mm
STG-MG-40-200-FP1 Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 40 mm | Stroke: 200 mm
STG-MG-40-250-FP1 Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 40 mm | Stroke: 250 mm
STG-MG-40-300-FP1 Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 40 mm | Stroke: 300 mm
STG-MG-40-350-FP1 Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 40 mm | Stroke: 350 mm
STG-MG-40-400-FP1 Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 40 mm | Stroke: 400 mm
STG-MG-50-25-FP1 Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 50 mm | Stroke: 25 mm
STG-MG-50-50-FP1 Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 50 mm | Stroke: 50 mm
STG-MG-50-75-FP1 Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 50 mm | Stroke: 75 mm
STG-MG-50-100-FP1 Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 50 mm | Stroke: 100 mm
STG-MG-50-125-FP1 Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 50 mm | Stroke: 125 mm
STG-MG-50-150-FP1 Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 50 mm | Stroke: 150 mm
STG-MG-50-175-FP1 Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 50 mm | Stroke: 175 mm
STG-MG-50-200-FP1 Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 50 mm | Stroke: 200 mm
STG-MG-50-250-FP1 Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 50 mm | Stroke: 250 mm
STG-MG-50-300-FP1 Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 50 mm | Stroke: 300 mm
STG-MG-50-350-FP1 Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 50 mm | Stroke: 350 mm
STG-MG-50-400-FP1 Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 50 mm | Stroke: 400 mm
STG-MG-63-25-FP1 Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 63 mm | Stroke: 25 mm
STG-MG-63-50-FP1 Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 63 mm | Stroke: 50 mm
STG-MG-63-75-FP1 Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 63 mm | Stroke: 75 mm
STG-MG-63-100-FP1 Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 63 mm | Stroke: 100 mm
STG-MG-63-125-FP1 Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 63 mm | Stroke: 125 mm
STG-MG-63-150-FP1 Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 63 mm | Stroke: 150 mm
STG-MG-63-175-FP1 Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 63 mm | Stroke: 175 mm
STG-MG-63-200-FP1 Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 63 mm | Stroke: 200 mm
STG-MG-63-250-FP1 Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 63 mm | Stroke: 250 mm
STG-MG-63-300-FP1 Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 63 mm | Stroke: 300 mm
STG-MG-63-350-FP1 Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 63 mm | Stroke: 350 mm
STG-MG-63-400-FP1 Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 63 mm | Stroke: 400 mm
STG-BG-20-20-FP1 Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 20 mm | Stroke: 20 mm
STG-BG-20-30-FP1 Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 20 mm | Stroke: 30 mm
STG-BG-20-40-FP1 Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 20 mm | Stroke: 40 mm
STG-BG-20-50-FP1 Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 20 mm | Stroke: 50 mm
STG-BG-20-75-FP1 Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 20 mm | Stroke: 75 mm
STG-BG-20-100-FP1 Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 20 mm | Stroke: 100 mm
STG-BG-20-125-FP1 Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 20 mm | Stroke: 125 mm
STG-BG-20-150-FP1 Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 20 mm | Stroke: 150 mm
STG-BG-20-175-FP1 Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 20 mm | Stroke: 175 mm
STG-BG-20-200-FP1 Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 20 mm | Stroke: 200 mm
STG-BG-20-250-FP1 Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 20 mm | Stroke: 250 mm
STG-BG-20-300-FP1 Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 20 mm | Stroke: 300 mm
STG-BG-20-350-FP1 Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 20 mm | Stroke: 350 mm
STG-BG-20-400-FP1 Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 20 mm | Stroke: 400 mm
STG-BG-25-20-FP1 Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 25 mm | Stroke: 20 mm
STG-BG-25-30-FP1 Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 25 mm | Stroke: 30 mm
STG-BG-25-40-FP1 Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 25 mm | Stroke: 40 mm
STG-BG-25-50-FP1 Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 25 mm | Stroke: 50 mm
STG-BG-25-75-FP1 Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 25 mm | Stroke: 75 mm
STG-BG-25-100-FP1 Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 25 mm | Stroke: 100 mm
STG-BG-25-125-FP1 Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 25 mm | Stroke: 125 mm
STG-BG-25-150-FP1 Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 25 mm | Stroke: 150 mm
STG-BG-25-175-FP1 Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 25 mm | Stroke: 175 mm
STG-BG-25-200-FP1 Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 25 mm | Stroke: 200 mm
STG-BG-25-250-FP1 Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 25 mm | Stroke: 250 mm
STG-BG-25-300-FP1 Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 25 mm | Stroke: 300 mm
STG-BG-25-350-FP1 Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 25 mm | Stroke: 350 mm
STG-BG-25-400-FP1 Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 25 mm | Stroke: 400 mm
STG-BG-32-25-FP1 Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 32 mm | Stroke: 25 mm
STG-BG-32-50-FP1 Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 32 mm | Stroke: 50 mm
STG-BG-32-75-FP1 Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 32 mm | Stroke: 75 mm
STG-BG-32-100-FP1 Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 32 mm | Stroke: 100 mm
STG-BG-32-125-FP1 Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 32 mm | Stroke: 125 mm
STG-BG-32-150-FP1 Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 32 mm | Stroke: 150 mm
STG-BG-32-175-FP1 Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 32 mm | Stroke: 175 mm
STG-BG-32-200-FP1 Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 32 mm | Stroke: 200 mm
STG-BG-32-250-FP1 Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 32 mm | Stroke: 250 mm
STG-BG-32-300-FP1 Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 32 mm | Stroke: 300 mm
STG-BG-32-350-FP1 Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 32 mm | Stroke: 350 mm
STG-BG-32-400-FP1 Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 32 mm | Stroke: 400 mm
STG-BG-40-25-FP1 Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 40 mm | Stroke: 25 mm
STG-BG-40-50-FP1 Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 40 mm | Stroke: 50 mm
STG-BG-40-75-FP1 Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 40 mm | Stroke: 75 mm
STG-BG-40-100-FP1 Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 40 mm | Stroke: 100 mm
STG-BG-40-125-FP1 Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 40 mm | Stroke: 125 mm
STG-BG-40-150-FP1 Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 40 mm | Stroke: 150 mm
STG-BG-40-175-FP1 Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 40 mm | Stroke: 175 mm
STG-BG-40-200-FP1 Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 40 mm | Stroke: 200 mm
STG-BG-40-250-FP1 Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 40 mm | Stroke: 250 mm
STG-BG-40-300-FP1 Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 40 mm | Stroke: 300 mm
STG-BG-40-350-FP1 Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 40 mm | Stroke: 350 mm
STG-BG-40-400-FP1 Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 40 mm | Stroke: 400 mm
STG-BG-50-25-FP1 Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 50 mm | Stroke: 25 mm
STG-BG-50-50-FP1 Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 50 mm | Stroke: 50 mm
STG-BG-50-75-FP1 Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 50 mm | Stroke: 75 mm
STG-BG-50-100-FP1 Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 50 mm | Stroke: 100 mm
STG-BG-50-125-FP1 Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 50 mm | Stroke: 125 mm
STG-BG-50-150-FP1 Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 50 mm | Stroke: 150 mm
STG-BG-50-175-FP1 Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 50 mm | Stroke: 175 mm
STG-BG-50-200-FP1 Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 50 mm | Stroke: 200 mm
STG-BG-50-250-FP1 Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 50 mm | Stroke: 250 mm
STG-BG-50-300-FP1 Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 50 mm | Stroke: 300 mm
STG-BG-50-350-FP1 Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 50 mm | Stroke: 350 mm
STG-BG-50-400-FP1 Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 50 mm | Stroke: 400 mm
STG-BG-63-25-FP1 Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 63 mm | Stroke: 25 mm
STG-BG-63-50-FP1 Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 63 mm | Stroke: 50 mm
STG-BG-63-75-FP1 Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 63 mm | Stroke: 75 mm
STG-BG-63-100-FP1 Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 63 mm | Stroke: 100 mm
STG-BG-63-125-FP1 Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 63 mm | Stroke: 125 mm
STG-BG-63-150-FP1 Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 63 mm | Stroke: 150 mm
STG-BG-63-175-FP1 Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 63 mm | Stroke: 175 mm
STG-BG-63-200-FP1 Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 63 mm | Stroke: 200 mm
STG-BG-63-250-FP1 Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 63 mm | Stroke: 250 mm
STG-BG-63-300-FP1 Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 63 mm | Stroke: 300 mm
STG-BG-63-350-FP1 Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 63 mm | Stroke: 350 mm
STG-BG-63-400-FP1 Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 63 mm | Stroke: 400 mm
STG-MG2-20-20-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 20 mm | Stroke: 20 mm
STG-MG2-20-30-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 20 mm | Stroke: 30 mm
STG-MG2-20-40-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 20 mm | Stroke: 40 mm
STG-MG2-20-50-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 20 mm | Stroke: 50 mm
STG-MG2-20-75-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 20 mm | Stroke: 75 mm
STG-MG2-20-100-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 20 mm | Stroke: 100 mm
STG-MG2-20-125-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 20 mm | Stroke: 125 mm
STG-MG2-20-150-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 20 mm | Stroke: 150 mm
STG-MG2-20-175-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 20 mm | Stroke: 175 mm
STG-MG2-20-200-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 20 mm | Stroke: 200 mm
STG-MG2-20-250-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 20 mm | Stroke: 250 mm
STG-MG2-20-300-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 20 mm | Stroke: 300 mm
STG-MG2-20-350-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 20 mm | Stroke: 350 mm
STG-MG2-20-400-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 20 mm | Stroke: 400 mm
STG-MG2-25-20-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 25 mm | Stroke: 20 mm
STG-MG2-25-30-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 25 mm | Stroke: 30 mm
STG-MG2-25-40-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 25 mm | Stroke: 40 mm
STG-MG2-25-50-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 25 mm | Stroke: 50 mm
STG-MG2-25-75-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 25 mm | Stroke: 75 mm
STG-MG2-25-100-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 25 mm | Stroke: 100 mm
STG-MG2-25-125-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 25 mm | Stroke: 125 mm
STG-MG2-25-150-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 25 mm | Stroke: 150 mm
STG-MG2-25-175-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 25 mm | Stroke: 175 mm
STG-MG2-25-200-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 25 mm | Stroke: 200 mm
STG-MG2-25-250-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 25 mm | Stroke: 250 mm
STG-MG2-25-300-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 25 mm | Stroke: 300 mm
STG-MG2-25-350-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 25 mm | Stroke: 350 mm
STG-MG2-25-400-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 25 mm | Stroke: 400 mm
STG-MG2-32-25-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 32 mm | Stroke: 25 mm
STG-MG2-32-50-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 32 mm | Stroke: 50 mm
STG-MG2-32-75-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 32 mm | Stroke: 75 mm
STG-MG2-32-100-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 32 mm | Stroke: 100 mm
STG-MG2-32-125-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 32 mm | Stroke: 125 mm
STG-MG2-32-150-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 32 mm | Stroke: 150 mm
STG-MG2-32-175-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 32 mm | Stroke: 175 mm
STG-MG2-32-200-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 32 mm | Stroke: 200 mm
STG-MG2-32-250-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 32 mm | Stroke: 250 mm
STG-MG2-32-300-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 32 mm | Stroke: 300 mm
STG-MG2-32-350-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 32 mm | Stroke: 350 mm
STG-MG2-32-400-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 32 mm | Stroke: 400 mm
STG-MG2-40-25-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 40 mm | Stroke: 25 mm
STG-MG2-40-50-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 40 mm | Stroke: 50 mm
STG-MG2-40-75-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 40 mm | Stroke: 75 mm
STG-MG2-40-100-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 40 mm | Stroke: 100 mm
STG-MG2-40-125-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 40 mm | Stroke: 125 mm
STG-MG2-40-150-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 40 mm | Stroke: 150 mm
STG-MG2-40-175-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 40 mm | Stroke: 175 mm
STG-MG2-40-200-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 40 mm | Stroke: 200 mm
STG-MG2-40-250-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 40 mm | Stroke: 250 mm
STG-MG2-40-300-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 40 mm | Stroke: 300 mm
STG-MG2-40-350-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 40 mm | Stroke: 350 mm
STG-MG2-40-400-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 40 mm | Stroke: 400 mm
STG-MG2-50-25-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 50 mm | Stroke: 25 mm
STG-MG2-50-50-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 50 mm | Stroke: 50 mm
STG-MG2-50-75-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 50 mm | Stroke: 75 mm
STG-MG2-50-100-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 50 mm | Stroke: 100 mm
STG-MG2-50-125-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 50 mm | Stroke: 125 mm
STG-MG2-50-150-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 50 mm | Stroke: 150 mm
STG-MG2-50-175-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 50 mm | Stroke: 175 mm
STG-MG2-50-200-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 50 mm | Stroke: 200 mm
STG-MG2-50-250-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 50 mm | Stroke: 250 mm
STG-MG2-50-300-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 50 mm | Stroke: 300 mm
STG-MG2-50-350-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 50 mm | Stroke: 350 mm
STG-MG2-50-400-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 50 mm | Stroke: 400 mm
STG-MG2-63-25-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 63 mm | Stroke: 25 mm
STG-MG2-63-50-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 63 mm | Stroke: 50 mm
STG-MG2-63-75-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 63 mm | Stroke: 75 mm
STG-MG2-63-100-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 63 mm | Stroke: 100 mm
STG-MG2-63-125-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 63 mm | Stroke: 125 mm
STG-MG2-63-150-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 63 mm | Stroke: 150 mm
STG-MG2-63-175-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 63 mm | Stroke: 175 mm
STG-MG2-63-200-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 63 mm | Stroke: 200 mm
STG-MG2-63-250-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 63 mm | Stroke: 250 mm
STG-MG2-63-300-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 63 mm | Stroke: 300 mm
STG-MG2-63-350-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 63 mm | Stroke: 350 mm
STG-MG2-63-400-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 63 mm | Stroke: 400 mm
STG-MG3-20-20-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 20 mm | Stroke: 20 mm
STG-MG3-20-30-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 20 mm | Stroke: 30 mm
STG-MG3-20-40-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 20 mm | Stroke: 40 mm
STG-MG3-20-50-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 20 mm | Stroke: 50 mm
STG-MG3-20-75-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 20 mm | Stroke: 75 mm
STG-MG3-20-100-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 20 mm | Stroke: 100 mm
STG-MG3-20-125-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 20 mm | Stroke: 125 mm
STG-MG3-20-150-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 20 mm | Stroke: 150 mm
STG-MG3-20-175-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 20 mm | Stroke: 175 mm
STG-MG3-20-200-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 20 mm | Stroke: 200 mm
STG-MG3-20-250-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 20 mm | Stroke: 250 mm
STG-MG3-20-300-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 20 mm | Stroke: 300 mm
STG-MG3-20-350-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 20 mm | Stroke: 350 mm
STG-MG3-20-400-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 20 mm | Stroke: 400 mm
STG-MG3-25-20-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 25 mm | Stroke: 20 mm
STG-MG3-25-30-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 25 mm | Stroke: 30 mm
STG-MG3-25-40-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 25 mm | Stroke: 40 mm
STG-MG3-25-50-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 25 mm | Stroke: 50 mm
STG-MG3-25-75-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 25 mm | Stroke: 75 mm
STG-MG3-25-100-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 25 mm | Stroke: 100 mm
STG-MG3-25-125-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 25 mm | Stroke: 125 mm
STG-MG3-25-150-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 25 mm | Stroke: 150 mm
STG-MG3-25-175-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 25 mm | Stroke: 175 mm
STG-MG3-25-200-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 25 mm | Stroke: 200 mm
STG-MG3-25-250-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 25 mm | Stroke: 250 mm
STG-MG3-25-300-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 25 mm | Stroke: 300 mm
STG-MG3-25-350-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 25 mm | Stroke: 350 mm
STG-MG3-25-400-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 25 mm | Stroke: 400 mm
STG-MG3-32-25-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 32 mm | Stroke: 25 mm
STG-MG3-32-50-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 32 mm | Stroke: 50 mm
STG-MG3-32-75-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 32 mm | Stroke: 75 mm
STG-MG3-32-100-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 32 mm | Stroke: 100 mm
STG-MG3-32-125-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 32 mm | Stroke: 125 mm
STG-MG3-32-150-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 32 mm | Stroke: 150 mm
STG-MG3-32-175-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 32 mm | Stroke: 175 mm
STG-MG3-32-200-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 32 mm | Stroke: 200 mm
STG-MG3-32-250-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 32 mm | Stroke: 250 mm
STG-MG3-32-300-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 32 mm | Stroke: 300 mm
STG-MG3-32-350-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 32 mm | Stroke: 350 mm
STG-MG3-32-400-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 32 mm | Stroke: 400 mm
STG-MG3-40-25-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 40 mm | Stroke: 25 mm
STG-MG3-40-50-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 40 mm | Stroke: 50 mm
STG-MG3-40-75-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 40 mm | Stroke: 75 mm
STG-MG3-40-100-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 40 mm | Stroke: 100 mm
STG-MG3-40-125-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 40 mm | Stroke: 125 mm
STG-MG3-40-150-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 40 mm | Stroke: 150 mm
STG-MG3-40-175-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 40 mm | Stroke: 175 mm
STG-MG3-40-200-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 40 mm | Stroke: 200 mm
STG-MG3-40-250-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 40 mm | Stroke: 250 mm
STG-MG3-40-300-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 40 mm | Stroke: 300 mm
STG-MG3-40-350-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 40 mm | Stroke: 350 mm
STG-MG3-40-400-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 40 mm | Stroke: 400 mm
STG-MG3-50-25-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 50 mm | Stroke: 25 mm
STG-MG3-50-50-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 50 mm | Stroke: 50 mm
STG-MG3-50-75-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 50 mm | Stroke: 75 mm
STG-MG3-50-100-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 50 mm | Stroke: 100 mm
STG-MG3-50-125-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 50 mm | Stroke: 125 mm
STG-MG3-50-150-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 50 mm | Stroke: 150 mm
STG-MG3-50-175-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 50 mm | Stroke: 175 mm
STG-MG3-50-200-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 50 mm | Stroke: 200 mm
STG-MG3-50-250-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 50 mm | Stroke: 250 mm
STG-MG3-50-300-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 50 mm | Stroke: 300 mm
STG-MG3-50-350-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 50 mm | Stroke: 350 mm
STG-MG3-50-400-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 50 mm | Stroke: 400 mm
STG-MG3-63-25-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 63 mm | Stroke: 25 mm
STG-MG3-63-50-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 63 mm | Stroke: 50 mm
STG-MG3-63-75-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 63 mm | Stroke: 75 mm
STG-MG3-63-100-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 63 mm | Stroke: 100 mm
STG-MG3-63-125-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 63 mm | Stroke: 125 mm
STG-MG3-63-150-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 63 mm | Stroke: 150 mm
STG-MG3-63-175-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 63 mm | Stroke: 175 mm
STG-MG3-63-200-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 63 mm | Stroke: 200 mm
STG-MG3-63-250-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 63 mm | Stroke: 250 mm
STG-MG3-63-300-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 63 mm | Stroke: 300 mm
STG-MG3-63-350-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 63 mm | Stroke: 350 mm
STG-MG3-63-400-FP1 Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 63 mm | Stroke: 400 mm
STG-MG5-20-20-FP1 Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 20 mm | Stroke: 20 mm
STG-MG5-20-30-FP1 Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 20 mm | Stroke: 30 mm
STG-MG5-20-40-FP1 Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 20 mm | Stroke: 40 mm
STG-MG5-20-50-FP1 Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 20 mm | Stroke: 50 mm
STG-MG5-20-75-FP1 Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 20 mm | Stroke: 75 mm
STG-MG5-20-100-FP1 Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 20 mm | Stroke: 100 mm
STG-MG5-20-125-FP1 Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 20 mm | Stroke: 125 mm
STG-MG5-20-150-FP1 Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 20 mm | Stroke: 150 mm
STG-MG5-20-175-FP1 Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 20 mm | Stroke: 175 mm
STG-MG5-20-200-FP1 Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 20 mm | Stroke: 200 mm
STG-MG5-20-250-FP1 Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 20 mm | Stroke: 250 mm
STG-MG5-20-300-FP1 Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 20 mm | Stroke: 300 mm
STG-MG5-20-350-FP1 Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 20 mm | Stroke: 350 mm
STG-MG5-20-400-FP1 Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 20 mm | Stroke: 400 mm
STG-MG5-25-20-FP1 Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 25 mm | Stroke: 20 mm
STG-MG5-25-30-FP1 Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 25 mm | Stroke: 30 mm
STG-MG5-25-40-FP1 Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 25 mm | Stroke: 40 mm
STG-MG5-25-50-FP1 Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 25 mm | Stroke: 50 mm
STG-MG5-25-75-FP1 Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 25 mm | Stroke: 75 mm
STG-MG5-25-100-FP1 Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 25 mm | Stroke: 100 mm
STG-MG5-25-125-FP1 Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 25 mm | Stroke: 125 mm
STG-MG5-25-150-FP1 Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 25 mm | Stroke: 150 mm
STG-MG5-25-175-FP1 Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 25 mm | Stroke: 175 mm
STG-MG5-25-200-FP1 Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 25 mm | Stroke: 200 mm
STG-MG5-25-250-FP1 Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 25 mm | Stroke: 250 mm
STG-MG5-25-300-FP1 Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 25 mm | Stroke: 300 mm
STG-MG5-25-350-FP1 Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 25 mm | Stroke: 350 mm
STG-MG5-25-400-FP1 Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 25 mm | Stroke: 400 mm
STG-MG5-32-25-FP1 Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 32 mm | Stroke: 25 mm
STG-MG5-32-50-FP1 Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 32 mm | Stroke: 50 mm
STG-MG5-32-75-FP1 Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 32 mm | Stroke: 75 mm
STG-MG5-32-100-FP1 Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 32 mm | Stroke: 100 mm
STG-MG5-32-125-FP1 Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 32 mm | Stroke: 125 mm
STG-MG5-32-150-FP1 Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 32 mm | Stroke: 150 mm
STG-MG5-32-175-FP1 Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 32 mm | Stroke: 175 mm
STG-MG5-32-200-FP1 Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 32 mm | Stroke: 200 mm
STG-MG5-32-250-FP1 Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 32 mm | Stroke: 250 mm
STG-MG5-32-300-FP1 Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 32 mm | Stroke: 300 mm
STG-MG5-32-350-FP1 Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 32 mm | Stroke: 350 mm
STG-MG5-32-400-FP1 Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 32 mm | Stroke: 400 mm
STG-MG5-40-25-FP1 Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 40 mm | Stroke: 25 mm
STG-MG5-40-50-FP1 Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 40 mm | Stroke: 50 mm
STG-MG5-40-75-FP1 Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 40 mm | Stroke: 75 mm
STG-MG5-40-100-FP1 Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 40 mm | Stroke: 100 mm
STG-MG5-40-125-FP1 Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 40 mm | Stroke: 125 mm
STG-MG5-40-150-FP1 Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 40 mm | Stroke: 150 mm
STG-MG5-40-175-FP1 Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 40 mm | Stroke: 175 mm
STG-MG5-40-200-FP1 Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 40 mm | Stroke: 200 mm
STG-MG5-40-250-FP1 Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 40 mm | Stroke: 250 mm
STG-MG5-40-300-FP1 Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 40 mm | Stroke: 300 mm
STG-MG5-40-350-FP1 Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 40 mm | Stroke: 350 mm
STG-MG5-40-400-FP1 Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 40 mm | Stroke: 400 mm
STG-MG5-50-25-FP1 Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 50 mm | Stroke: 25 mm
STG-MG5-50-50-FP1 Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 50 mm | Stroke: 50 mm
STG-MG5-50-75-FP1 Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 50 mm | Stroke: 75 mm
STG-MG5-50-100-FP1 Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 50 mm | Stroke: 100 mm
STG-MG5-50-125-FP1 Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 50 mm | Stroke: 125 mm
STG-MG5-50-150-FP1 Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 50 mm | Stroke: 150 mm
STG-MG5-50-175-FP1 Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 50 mm | Stroke: 175 mm
STG-MG5-50-200-FP1 Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 50 mm | Stroke: 200 mm
STG-MG5-50-250-FP1 Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 50 mm | Stroke: 250 mm
STG-MG5-50-300-FP1 Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 50 mm | Stroke: 300 mm
STG-MG5-50-350-FP1 Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 50 mm | Stroke: 350 mm
STG-MG5-50-400-FP1 Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 50 mm | Stroke: 400 mm
STG-MG5-63-25-FP1 Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 63 mm | Stroke: 25 mm
STG-MG5-63-50-FP1 Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 63 mm | Stroke: 50 mm
STG-MG5-63-75-FP1 Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 63 mm | Stroke: 75 mm
STG-MG5-63-100-FP1 Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 63 mm | Stroke: 100 mm
STG-MG5-63-125-FP1 Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 63 mm | Stroke: 125 mm
STG-MG5-63-150-FP1 Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 63 mm | Stroke: 150 mm
STG-MG5-63-175-FP1 Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 63 mm | Stroke: 175 mm
STG-MG5-63-200-FP1 Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 63 mm | Stroke: 200 mm
STG-MG5-63-250-FP1 Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 63 mm | Stroke: 250 mm
STG-MG5-63-300-FP1 Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 63 mm | Stroke: 300 mm
STG-MG5-63-350-FP1 Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 63 mm | Stroke: 350 mm
STG-MG5-63-400-FP1 Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 63 mm | Stroke: 400 mm
STG-MG5-80-25-FP1 Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 80 mm | Stroke: 25 mm
STG-MG5-80-50-FP1 Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 80 mm | Stroke: 50 mm
STG-MG5-80-75-FP1 Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 80 mm | Stroke: 75 mm
STG-MG5-80-100-FP1 Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 80 mm | Stroke: 100 mm
STG-MG5-80-125-FP1 Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 80 mm | Stroke: 125 mm
STG-MG5-80-150-FP1 Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 80 mm | Stroke: 150 mm
STG-MG5-80-175-FP1 Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 80 mm | Stroke: 175 mm
STG-MG5-80-200-FP1 Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 80 mm | Stroke: 200 mm
STG-MG5-80-250-FP1 Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 80 mm | Stroke: 250 mm
STG-MG5-80-300-FP1 Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 80 mm | Stroke: 300 mm
STG-MG5-80-350-FP1 Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 80 mm | Stroke: 350 mm
STG-MG5-80-400-FP1 Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 80 mm | Stroke: 400 mm
STG-MG5-100-25-FP1 Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 100 mm | Stroke: 25 mm
STG-MG5-100-50-FP1 Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 100 mm | Stroke: 50 mm
STG-MG5-100-75-FP1 Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 100 mm | Stroke: 75 mm
STG-MG5-100-100-FP1 Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 100 mm | Stroke: 100 mm
STG-MG5-100-125-FP1 Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 100 mm | Stroke: 125 mm
STG-MG5-100-150-FP1 Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 100 mm | Stroke: 150 mm
STG-MG5-100-175-FP1 Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 100 mm | Stroke: 175 mm
STG-MG5-100-200-FP1 Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 100 mm | Stroke: 200 mm
STG-MG5-100-250-FP1 Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 100 mm | Stroke: 250 mm
STG-MG5-100-300-FP1 Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 100 mm | Stroke: 300 mm
STG-MG5-100-350-FP1 Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 100 mm | Stroke: 350 mm
STG-MG5-100-400-FP1 Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 100 mm | Stroke: 400 mm
STG-M-32C-25-FP1 Bearing: Slide bearing (M) | Type: Double acting, rubber air cushion (xC) | Bore: 32 mm | Stroke: 25 mm
STG-M-32C-50-FP1 Bearing: Slide bearing (M) | Type: Double acting, rubber air cushion (xC) | Bore: 32 mm | Stroke: 50 mm
STG-M-32C-75-FP1 Bearing: Slide bearing (M) | Type: Double acting, rubber air cushion (xC) | Bore: 32 mm | Stroke: 75 mm
STG-M-32C-100-FP1 Bearing: Slide bearing (M) | Type: Double acting, rubber air cushion (xC) | Bore: 32 mm | Stroke: 100 mm
STG-M-32C-125-FP1 Bearing: Slide bearing (M) | Type: Double acting, rubber air cushion (xC) | Bore: 32 mm | Stroke: 125 mm
STG-M-32C-150-FP1 Bearing: Slide bearing (M) | Type: Double acting, rubber air cushion (xC) | Bore: 32 mm | Stroke: 150 mm
STG-M-32C-175-FP1 Bearing: Slide bearing (M) | Type: Double acting, rubber air cushion (xC) | Bore: 32 mm | Stroke: 175 mm
STG-M-32C-200-FP1 Bearing: Slide bearing (M) | Type: Double acting, rubber air cushion (xC) | Bore: 32 mm | Stroke: 200 mm
STG-M-32C-250-FP1 Bearing: Slide bearing (M) | Type: Double acting, rubber air cushion (xC) | Bore: 32 mm | Stroke: 250 mm
STG-M-32C-300-FP1 Bearing: Slide bearing (M) | Type: Double acting, rubber air cushion (xC) | Bore: 32 mm | Stroke: 300 mm
STG-M-32C-350-FP1 Bearing: Slide bearing (M) | Type: Double acting, rubber air cushion (xC) | Bore: 32 mm | Stroke: 350 mm
STG-M-32C-400-FP1 Bearing: Slide bearing (M) | Type: Double acting, rubber air cushion (xC) | Bore: 32 mm | Stroke: 400 mm
STG-M-40C-25-FP1 Bearing: Slide bearing (M) | Type: Double acting, rubber air cushion (xC) | Bore: 40 mm | Stroke: 25 mm
STG-M-40C-50-FP1 Bearing: Slide bearing (M) | Type: Double acting, rubber air cushion (xC) | Bore: 40 mm | Stroke: 50 mm
STG-M-40C-75-FP1 Bearing: Slide bearing (M) | Type: Double acting, rubber air cushion (xC) | Bore: 40 mm | Stroke: 75 mm
STG-M-40C-100-FP1 Bearing: Slide bearing (M) | Type: Double acting, rubber air cushion (xC) | Bore: 40 mm | Stroke: 100 mm
STG-M-40C-125-FP1 Bearing: Slide bearing (M) | Type: Double acting, rubber air cushion (xC) | Bore: 40 mm | Stroke: 125 mm
STG-M-40C-150-FP1 Bearing: Slide bearing (M) | Type: Double acting, rubber air cushion (xC) | Bore: 40 mm | Stroke: 150 mm
STG-M-40C-175-FP1 Bearing: Slide bearing (M) | Type: Double acting, rubber air cushion (xC) | Bore: 40 mm | Stroke: 175 mm
STG-M-40C-200-FP1 Bearing: Slide bearing (M) | Type: Double acting, rubber air cushion (xC) | Bore: 40 mm | Stroke: 200 mm
STG-M-40C-250-FP1 Bearing: Slide bearing (M) | Type: Double acting, rubber air cushion (xC) | Bore: 40 mm | Stroke: 250 mm
STG-M-40C-300-FP1 Bearing: Slide bearing (M) | Type: Double acting, rubber air cushion (xC) | Bore: 40 mm | Stroke: 300 mm
STG-M-40C-350-FP1 Bearing: Slide bearing (M) | Type: Double acting, rubber air cushion (xC) | Bore: 40 mm | Stroke: 350 mm
STG-M-40C-400-FP1 Bearing: Slide bearing (M) | Type: Double acting, rubber air cushion (xC) | Bore: 40 mm | Stroke: 400 mm
STG-M-50C-25-FP1 Bearing: Slide bearing (M) | Type: Double acting, rubber air cushion (xC) | Bore: 50 mm | Stroke: 25 mm
STG-M-50C-50-FP1 Bearing: Slide bearing (M) | Type: Double acting, rubber air cushion (xC) | Bore: 50 mm | Stroke: 50 mm
STG-M-50C-75-FP1 Bearing: Slide bearing (M) | Type: Double acting, rubber air cushion (xC) | Bore: 50 mm | Stroke: 75 mm
STG-M-50C-100-FP1 Bearing: Slide bearing (M) | Type: Double acting, rubber air cushion (xC) | Bore: 50 mm | Stroke: 100 mm
STG-M-50C-125-FP1 Bearing: Slide bearing (M) | Type: Double acting, rubber air cushion (xC) | Bore: 50 mm | Stroke: 125 mm
STG-M-50C-150-FP1 Bearing: Slide bearing (M) | Type: Double acting, rubber air cushion (xC) | Bore: 50 mm | Stroke: 150 mm
STG-M-50C-175-FP1 Bearing: Slide bearing (M) | Type: Double acting, rubber air cushion (xC) | Bore: 50 mm | Stroke: 175 mm
STG-M-50C-200-FP1 Bearing: Slide bearing (M) | Type: Double acting, rubber air cushion (xC) | Bore: 50 mm | Stroke: 200 mm
STG-M-50C-250-FP1 Bearing: Slide bearing (M) | Type: Double acting, rubber air cushion (xC) | Bore: 50 mm | Stroke: 250 mm
STG-M-50C-300-FP1 Bearing: Slide bearing (M) | Type: Double acting, rubber air cushion (xC) | Bore: 50 mm | Stroke: 300 mm
STG-M-50C-350-FP1 Bearing: Slide bearing (M) | Type: Double acting, rubber air cushion (xC) | Bore: 50 mm | Stroke: 350 mm
STG-M-50C-400-FP1 Bearing: Slide bearing (M) | Type: Double acting, rubber air cushion (xC) | Bore: 50 mm | Stroke: 400 mm
STG-M-63C-25-FP1 Bearing: Slide bearing (M) | Type: Double acting, rubber air cushion (xC) | Bore: 63 mm | Stroke: 25 mm
STG-M-63C-50-FP1 Bearing: Slide bearing (M) | Type: Double acting, rubber air cushion (xC) | Bore: 63 mm | Stroke: 50 mm
STG-M-63C-75-FP1 Bearing: Slide bearing (M) | Type: Double acting, rubber air cushion (xC) | Bore: 63 mm | Stroke: 75 mm
STG-M-63C-100-FP1 Bearing: Slide bearing (M) | Type: Double acting, rubber air cushion (xC) | Bore: 63 mm | Stroke: 100 mm
STG-M-63C-125-FP1 Bearing: Slide bearing (M) | Type: Double acting, rubber air cushion (xC) | Bore: 63 mm | Stroke: 125 mm
STG-M-63C-150-FP1 Bearing: Slide bearing (M) | Type: Double acting, rubber air cushion (xC) | Bore: 63 mm | Stroke: 150 mm
STG-M-63C-175-FP1 Bearing: Slide bearing (M) | Type: Double acting, rubber air cushion (xC) | Bore: 63 mm | Stroke: 175 mm
STG-M-63C-200-FP1 Bearing: Slide bearing (M) | Type: Double acting, rubber air cushion (xC) | Bore: 63 mm | Stroke: 200 mm
STG-M-63C-250-FP1 Bearing: Slide bearing (M) | Type: Double acting, rubber air cushion (xC) | Bore: 63 mm | Stroke: 250 mm
STG-M-63C-300-FP1 Bearing: Slide bearing (M) | Type: Double acting, rubber air cushion (xC) | Bore: 63 mm | Stroke: 300 mm
STG-M-63C-350-FP1 Bearing: Slide bearing (M) | Type: Double acting, rubber air cushion (xC) | Bore: 63 mm | Stroke: 350 mm
STG-M-63C-400-FP1 Bearing: Slide bearing (M) | Type: Double acting, rubber air cushion (xC) | Bore: 63 mm | Stroke: 400 mm
STG-B-32C-25-FP1 Bearing: Ball bearing (B) | Type: Double acting, rubber air cushion (xC) | Bore: 32 mm | Stroke: 25 mm
STG-B-32C-50-FP1 Bearing: Ball bearing (B) | Type: Double acting, rubber air cushion (xC) | Bore: 32 mm | Stroke: 50 mm
STG-B-32C-75-FP1 Bearing: Ball bearing (B) | Type: Double acting, rubber air cushion (xC) | Bore: 32 mm | Stroke: 75 mm
STG-B-32C-100-FP1 Bearing: Ball bearing (B) | Type: Double acting, rubber air cushion (xC) | Bore: 32 mm | Stroke: 100 mm
STG-B-32C-125-FP1 Bearing: Ball bearing (B) | Type: Double acting, rubber air cushion (xC) | Bore: 32 mm | Stroke: 125 mm
STG-B-32C-150-FP1 Bearing: Ball bearing (B) | Type: Double acting, rubber air cushion (xC) | Bore: 32 mm | Stroke: 150 mm
STG-B-32C-175-FP1 Bearing: Ball bearing (B) | Type: Double acting, rubber air cushion (xC) | Bore: 32 mm | Stroke: 175 mm
STG-B-32C-200-FP1 Bearing: Ball bearing (B) | Type: Double acting, rubber air cushion (xC) | Bore: 32 mm | Stroke: 200 mm
STG-B-32C-250-FP1 Bearing: Ball bearing (B) | Type: Double acting, rubber air cushion (xC) | Bore: 32 mm | Stroke: 250 mm
STG-B-32C-300-FP1 Bearing: Ball bearing (B) | Type: Double acting, rubber air cushion (xC) | Bore: 32 mm | Stroke: 300 mm
STG-B-32C-350-FP1 Bearing: Ball bearing (B) | Type: Double acting, rubber air cushion (xC) | Bore: 32 mm | Stroke: 350 mm
STG-B-32C-400-FP1 Bearing: Ball bearing (B) | Type: Double acting, rubber air cushion (xC) | Bore: 32 mm | Stroke: 400 mm
STG-B-40C-25-FP1 Bearing: Ball bearing (B) | Type: Double acting, rubber air cushion (xC) | Bore: 40 mm | Stroke: 25 mm
STG-B-40C-50-FP1 Bearing: Ball bearing (B) | Type: Double acting, rubber air cushion (xC) | Bore: 40 mm | Stroke: 50 mm
STG-B-40C-75-FP1 Bearing: Ball bearing (B) | Type: Double acting, rubber air cushion (xC) | Bore: 40 mm | Stroke: 75 mm
STG-B-40C-100-FP1 Bearing: Ball bearing (B) | Type: Double acting, rubber air cushion (xC) | Bore: 40 mm | Stroke: 100 mm
STG-B-40C-125-FP1 Bearing: Ball bearing (B) | Type: Double acting, rubber air cushion (xC) | Bore: 40 mm | Stroke: 125 mm
STG-B-40C-150-FP1 Bearing: Ball bearing (B) | Type: Double acting, rubber air cushion (xC) | Bore: 40 mm | Stroke: 150 mm
STG-B-40C-175-FP1 Bearing: Ball bearing (B) | Type: Double acting, rubber air cushion (xC) | Bore: 40 mm | Stroke: 175 mm
STG-B-40C-200-FP1 Bearing: Ball bearing (B) | Type: Double acting, rubber air cushion (xC) | Bore: 40 mm | Stroke: 200 mm
STG-B-40C-250-FP1 Bearing: Ball bearing (B) | Type: Double acting, rubber air cushion (xC) | Bore: 40 mm | Stroke: 250 mm
STG-B-40C-300-FP1 Bearing: Ball bearing (B) | Type: Double acting, rubber air cushion (xC) | Bore: 40 mm | Stroke: 300 mm
STG-B-40C-350-FP1 Bearing: Ball bearing (B) | Type: Double acting, rubber air cushion (xC) | Bore: 40 mm | Stroke: 350 mm
STG-B-40C-400-FP1 Bearing: Ball bearing (B) | Type: Double acting, rubber air cushion (xC) | Bore: 40 mm | Stroke: 400 mm
STG-B-50C-25-FP1 Bearing: Ball bearing (B) | Type: Double acting, rubber air cushion (xC) | Bore: 50 mm | Stroke: 25 mm
STG-B-50C-50-FP1 Bearing: Ball bearing (B) | Type: Double acting, rubber air cushion (xC) | Bore: 50 mm | Stroke: 50 mm
STG-B-50C-75-FP1 Bearing: Ball bearing (B) | Type: Double acting, rubber air cushion (xC) | Bore: 50 mm | Stroke: 75 mm
STG-B-50C-100-FP1 Bearing: Ball bearing (B) | Type: Double acting, rubber air cushion (xC) | Bore: 50 mm | Stroke: 100 mm
STG-B-50C-125-FP1 Bearing: Ball bearing (B) | Type: Double acting, rubber air cushion (xC) | Bore: 50 mm | Stroke: 125 mm
STG-B-50C-150-FP1 Bearing: Ball bearing (B) | Type: Double acting, rubber air cushion (xC) | Bore: 50 mm | Stroke: 150 mm
STG-B-50C-175-FP1 Bearing: Ball bearing (B) | Type: Double acting, rubber air cushion (xC) | Bore: 50 mm | Stroke: 175 mm
STG-B-50C-200-FP1 Bearing: Ball bearing (B) | Type: Double acting, rubber air cushion (xC) | Bore: 50 mm | Stroke: 200 mm
STG-B-50C-250-FP1 Bearing: Ball bearing (B) | Type: Double acting, rubber air cushion (xC) | Bore: 50 mm | Stroke: 250 mm
STG-B-50C-300-FP1 Bearing: Ball bearing (B) | Type: Double acting, rubber air cushion (xC) | Bore: 50 mm | Stroke: 300 mm
STG-B-50C-350-FP1 Bearing: Ball bearing (B) | Type: Double acting, rubber air cushion (xC) | Bore: 50 mm | Stroke: 350 mm
STG-B-50C-400-FP1 Bearing: Ball bearing (B) | Type: Double acting, rubber air cushion (xC) | Bore: 50 mm | Stroke: 400 mm
STG-B-63C-25-FP1 Bearing: Ball bearing (B) | Type: Double acting, rubber air cushion (xC) | Bore: 63 mm | Stroke: 25 mm
STG-B-63C-50-FP1 Bearing: Ball bearing (B) | Type: Double acting, rubber air cushion (xC) | Bore: 63 mm | Stroke: 50 mm
STG-B-63C-75-FP1 Bearing: Ball bearing (B) | Type: Double acting, rubber air cushion (xC) | Bore: 63 mm | Stroke: 75 mm
STG-B-63C-100-FP1 Bearing: Ball bearing (B) | Type: Double acting, rubber air cushion (xC) | Bore: 63 mm | Stroke: 100 mm
STG-B-63C-125-FP1 Bearing: Ball bearing (B) | Type: Double acting, rubber air cushion (xC) | Bore: 63 mm | Stroke: 125 mm
STG-B-63C-150-FP1 Bearing: Ball bearing (B) | Type: Double acting, rubber air cushion (xC) | Bore: 63 mm | Stroke: 150 mm
STG-B-63C-175-FP1 Bearing: Ball bearing (B) | Type: Double acting, rubber air cushion (xC) | Bore: 63 mm | Stroke: 175 mm
STG-B-63C-200-FP1 Bearing: Ball bearing (B) | Type: Double acting, rubber air cushion (xC) | Bore: 63 mm | Stroke: 200 mm
STG-B-63C-250-FP1 Bearing: Ball bearing (B) | Type: Double acting, rubber air cushion (xC) | Bore: 63 mm | Stroke: 250 mm
STG-B-63C-300-FP1 Bearing: Ball bearing (B) | Type: Double acting, rubber air cushion (xC) | Bore: 63 mm | Stroke: 300 mm
STG-B-63C-350-FP1 Bearing: Ball bearing (B) | Type: Double acting, rubber air cushion (xC) | Bore: 63 mm | Stroke: 350 mm
STG-B-63C-400-FP1 Bearing: Ball bearing (B) | Type: Double acting, rubber air cushion (xC) | Bore: 63 mm | Stroke: 400 mm
Guided CylindersCKD
914 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD STG-M/B-FP1 Guided Cylinder (Food Grade, Bore 12-100)

Brand CKD·Guided Cylinders

Available part numbers (914)

STG-M-12-10-FP1, STG-M-12-20-FP1, STG-M-12-30-FP1, STG-M-12-40-FP1, STG-M-12-50-FP1, STG-M-12-75-FP1, STG-M-12-100-FP1, STG-M-12-125-FP1, STG-M-12-150-FP1, STG-M-12-175-FP1 + 904 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
STG-M-12-10-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 12 mm | Stroke: 10 mm
STG-M-12-20-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 12 mm | Stroke: 20 mm
STG-M-12-30-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 12 mm | Stroke: 30 mm
STG-M-12-40-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 12 mm | Stroke: 40 mm
STG-M-12-50-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 12 mm | Stroke: 50 mm
STG-M-12-75-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 12 mm | Stroke: 75 mm
STG-M-12-100-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 12 mm | Stroke: 100 mm
STG-M-12-125-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 12 mm | Stroke: 125 mm
STG-M-12-150-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 12 mm | Stroke: 150 mm
STG-M-12-175-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 12 mm | Stroke: 175 mm
STG-M-12-200-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 12 mm | Stroke: 200 mm
STG-M-12-250-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 12 mm | Stroke: 250 mm
STG-M-16-10-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 16 mm | Stroke: 10 mm
STG-M-16-20-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 16 mm | Stroke: 20 mm
STG-M-16-30-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 16 mm | Stroke: 30 mm
STG-M-16-40-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 16 mm | Stroke: 40 mm
STG-M-16-50-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 16 mm | Stroke: 50 mm
STG-M-16-75-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 16 mm | Stroke: 75 mm
STG-M-16-100-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 16 mm | Stroke: 100 mm
STG-M-16-125-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 16 mm | Stroke: 125 mm
STG-M-16-150-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 16 mm | Stroke: 150 mm
STG-M-16-175-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 16 mm | Stroke: 175 mm
STG-M-16-200-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 16 mm | Stroke: 200 mm
STG-M-16-250-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 16 mm | Stroke: 250 mm
STG-M-20-10-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 20 mm | Stroke: 10 mm
STG-M-20-20-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 20 mm | Stroke: 20 mm
STG-M-20-30-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 20 mm | Stroke: 30 mm
STG-M-20-40-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 20 mm | Stroke: 40 mm
STG-M-20-50-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 20 mm | Stroke: 50 mm
STG-M-20-75-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 20 mm | Stroke: 75 mm
STG-M-20-100-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 20 mm | Stroke: 100 mm
STG-M-20-125-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 20 mm | Stroke: 125 mm
STG-M-20-150-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 20 mm | Stroke: 150 mm
STG-M-20-175-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 20 mm | Stroke: 175 mm
STG-M-20-200-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 20 mm | Stroke: 200 mm
STG-M-20-250-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 20 mm | Stroke: 250 mm
STG-M-20-300-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 20 mm | Stroke: 300 mm
STG-M-20-350-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 20 mm | Stroke: 350 mm
STG-M-20-400-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 20 mm | Stroke: 400 mm
STG-M-25-10-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 25 mm | Stroke: 10 mm
STG-M-25-20-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 25 mm | Stroke: 20 mm
STG-M-25-30-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 25 mm | Stroke: 30 mm
STG-M-25-40-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 25 mm | Stroke: 40 mm
STG-M-25-50-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 25 mm | Stroke: 50 mm
STG-M-25-75-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 25 mm | Stroke: 75 mm
STG-M-25-100-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 25 mm | Stroke: 100 mm
STG-M-25-125-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 25 mm | Stroke: 125 mm
STG-M-25-150-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 25 mm | Stroke: 150 mm
STG-M-25-175-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 25 mm | Stroke: 175 mm
STG-M-25-200-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 25 mm | Stroke: 200 mm
STG-M-25-250-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 25 mm | Stroke: 250 mm
STG-M-25-300-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 25 mm | Stroke: 300 mm
STG-M-25-350-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 25 mm | Stroke: 350 mm
STG-M-25-400-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 25 mm | Stroke: 400 mm
STG-M-32-25-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 32 mm | Stroke: 25 mm
STG-M-32-50-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 32 mm | Stroke: 50 mm
STG-M-32-75-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 32 mm | Stroke: 75 mm
STG-M-32-100-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 32 mm | Stroke: 100 mm
STG-M-32-125-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 32 mm | Stroke: 125 mm
STG-M-32-150-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 32 mm | Stroke: 150 mm
STG-M-32-175-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 32 mm | Stroke: 175 mm
STG-M-32-200-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 32 mm | Stroke: 200 mm
STG-M-32-250-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 32 mm | Stroke: 250 mm
STG-M-32-300-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 32 mm | Stroke: 300 mm
STG-M-32-350-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 32 mm | Stroke: 350 mm
STG-M-32-400-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 32 mm | Stroke: 400 mm
STG-M-40-25-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 40 mm | Stroke: 25 mm
STG-M-40-50-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 40 mm | Stroke: 50 mm
STG-M-40-75-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 40 mm | Stroke: 75 mm
STG-M-40-100-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 40 mm | Stroke: 100 mm
STG-M-40-125-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 40 mm | Stroke: 125 mm
STG-M-40-150-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 40 mm | Stroke: 150 mm
STG-M-40-175-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 40 mm | Stroke: 175 mm
STG-M-40-200-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 40 mm | Stroke: 200 mm
STG-M-40-250-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 40 mm | Stroke: 250 mm
STG-M-40-300-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 40 mm | Stroke: 300 mm
STG-M-40-350-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 40 mm | Stroke: 350 mm
STG-M-40-400-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 40 mm | Stroke: 400 mm
STG-M-50-25-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 50 mm | Stroke: 25 mm
STG-M-50-50-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 50 mm | Stroke: 50 mm
STG-M-50-75-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 50 mm | Stroke: 75 mm
STG-M-50-100-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 50 mm | Stroke: 100 mm
STG-M-50-125-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 50 mm | Stroke: 125 mm
STG-M-50-150-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 50 mm | Stroke: 150 mm
STG-M-50-175-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 50 mm | Stroke: 175 mm
STG-M-50-200-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 50 mm | Stroke: 200 mm
STG-M-50-250-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 50 mm | Stroke: 250 mm
STG-M-50-300-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 50 mm | Stroke: 300 mm
STG-M-50-350-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 50 mm | Stroke: 350 mm
STG-M-50-400-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 50 mm | Stroke: 400 mm
STG-M-63-25-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 63 mm | Stroke: 25 mm
STG-M-63-50-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 63 mm | Stroke: 50 mm
STG-M-63-75-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 63 mm | Stroke: 75 mm
STG-M-63-100-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 63 mm | Stroke: 100 mm
STG-M-63-125-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 63 mm | Stroke: 125 mm
STG-M-63-150-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 63 mm | Stroke: 150 mm
STG-M-63-175-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 63 mm | Stroke: 175 mm
STG-M-63-200-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 63 mm | Stroke: 200 mm
STG-M-63-250-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 63 mm | Stroke: 250 mm
STG-M-63-300-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 63 mm | Stroke: 300 mm
STG-M-63-350-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 63 mm | Stroke: 350 mm
STG-M-63-400-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 63 mm | Stroke: 400 mm
STG-M-80-25-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 80 mm | Stroke: 25 mm
STG-M-80-50-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 80 mm | Stroke: 50 mm
STG-M-80-75-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 80 mm | Stroke: 75 mm
STG-M-80-100-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 80 mm | Stroke: 100 mm
STG-M-80-125-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 80 mm | Stroke: 125 mm
STG-M-80-150-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 80 mm | Stroke: 150 mm
STG-M-80-175-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 80 mm | Stroke: 175 mm
STG-M-80-200-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 80 mm | Stroke: 200 mm
STG-M-80-250-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 80 mm | Stroke: 250 mm
STG-M-80-300-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 80 mm | Stroke: 300 mm
STG-M-80-350-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 80 mm | Stroke: 350 mm
STG-M-80-400-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 80 mm | Stroke: 400 mm
STG-M-100-25-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 100 mm | Stroke: 25 mm
STG-M-100-50-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 100 mm | Stroke: 50 mm
STG-M-100-75-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 100 mm | Stroke: 75 mm
STG-M-100-100-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 100 mm | Stroke: 100 mm
STG-M-100-125-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 100 mm | Stroke: 125 mm
STG-M-100-150-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 100 mm | Stroke: 150 mm
STG-M-100-175-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 100 mm | Stroke: 175 mm
STG-M-100-200-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 100 mm | Stroke: 200 mm
STG-M-100-250-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 100 mm | Stroke: 250 mm
STG-M-100-300-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 100 mm | Stroke: 300 mm
STG-M-100-350-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 100 mm | Stroke: 350 mm
STG-M-100-400-FP1Bearing: Slide bearing (M) | Type: Double acting, single rod | Bore: 100 mm | Stroke: 400 mm
STG-B-12-10-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 12 mm | Stroke: 10 mm
STG-B-12-20-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 12 mm | Stroke: 20 mm
STG-B-12-30-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 12 mm | Stroke: 30 mm
STG-B-12-40-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 12 mm | Stroke: 40 mm
STG-B-12-50-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 12 mm | Stroke: 50 mm
STG-B-12-75-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 12 mm | Stroke: 75 mm
STG-B-12-100-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 12 mm | Stroke: 100 mm
STG-B-12-125-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 12 mm | Stroke: 125 mm
STG-B-12-150-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 12 mm | Stroke: 150 mm
STG-B-12-175-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 12 mm | Stroke: 175 mm
STG-B-12-200-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 12 mm | Stroke: 200 mm
STG-B-12-250-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 12 mm | Stroke: 250 mm
STG-B-16-10-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 16 mm | Stroke: 10 mm
STG-B-16-20-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 16 mm | Stroke: 20 mm
STG-B-16-30-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 16 mm | Stroke: 30 mm
STG-B-16-40-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 16 mm | Stroke: 40 mm
STG-B-16-50-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 16 mm | Stroke: 50 mm
STG-B-16-75-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 16 mm | Stroke: 75 mm
STG-B-16-100-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 16 mm | Stroke: 100 mm
STG-B-16-125-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 16 mm | Stroke: 125 mm
STG-B-16-150-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 16 mm | Stroke: 150 mm
STG-B-16-175-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 16 mm | Stroke: 175 mm
STG-B-16-200-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 16 mm | Stroke: 200 mm
STG-B-16-250-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 16 mm | Stroke: 250 mm
STG-B-20-10-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 20 mm | Stroke: 10 mm
STG-B-20-20-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 20 mm | Stroke: 20 mm
STG-B-20-30-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 20 mm | Stroke: 30 mm
STG-B-20-40-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 20 mm | Stroke: 40 mm
STG-B-20-50-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 20 mm | Stroke: 50 mm
STG-B-20-75-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 20 mm | Stroke: 75 mm
STG-B-20-100-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 20 mm | Stroke: 100 mm
STG-B-20-125-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 20 mm | Stroke: 125 mm
STG-B-20-150-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 20 mm | Stroke: 150 mm
STG-B-20-175-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 20 mm | Stroke: 175 mm
STG-B-20-200-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 20 mm | Stroke: 200 mm
STG-B-20-250-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 20 mm | Stroke: 250 mm
STG-B-20-300-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 20 mm | Stroke: 300 mm
STG-B-20-350-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 20 mm | Stroke: 350 mm
STG-B-20-400-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 20 mm | Stroke: 400 mm
STG-B-25-10-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 25 mm | Stroke: 10 mm
STG-B-25-20-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 25 mm | Stroke: 20 mm
STG-B-25-30-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 25 mm | Stroke: 30 mm
STG-B-25-40-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 25 mm | Stroke: 40 mm
STG-B-25-50-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 25 mm | Stroke: 50 mm
STG-B-25-75-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 25 mm | Stroke: 75 mm
STG-B-25-100-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 25 mm | Stroke: 100 mm
STG-B-25-125-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 25 mm | Stroke: 125 mm
STG-B-25-150-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 25 mm | Stroke: 150 mm
STG-B-25-175-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 25 mm | Stroke: 175 mm
STG-B-25-200-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 25 mm | Stroke: 200 mm
STG-B-25-250-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 25 mm | Stroke: 250 mm
STG-B-25-300-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 25 mm | Stroke: 300 mm
STG-B-25-350-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 25 mm | Stroke: 350 mm
STG-B-25-400-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 25 mm | Stroke: 400 mm
STG-B-32-25-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 32 mm | Stroke: 25 mm
STG-B-32-50-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 32 mm | Stroke: 50 mm
STG-B-32-75-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 32 mm | Stroke: 75 mm
STG-B-32-100-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 32 mm | Stroke: 100 mm
STG-B-32-125-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 32 mm | Stroke: 125 mm
STG-B-32-150-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 32 mm | Stroke: 150 mm
STG-B-32-175-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 32 mm | Stroke: 175 mm
STG-B-32-200-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 32 mm | Stroke: 200 mm
STG-B-32-250-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 32 mm | Stroke: 250 mm
STG-B-32-300-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 32 mm | Stroke: 300 mm
STG-B-32-350-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 32 mm | Stroke: 350 mm
STG-B-32-400-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 32 mm | Stroke: 400 mm
STG-B-40-25-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 40 mm | Stroke: 25 mm
STG-B-40-50-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 40 mm | Stroke: 50 mm
STG-B-40-75-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 40 mm | Stroke: 75 mm
STG-B-40-100-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 40 mm | Stroke: 100 mm
STG-B-40-125-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 40 mm | Stroke: 125 mm
STG-B-40-150-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 40 mm | Stroke: 150 mm
STG-B-40-175-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 40 mm | Stroke: 175 mm
STG-B-40-200-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 40 mm | Stroke: 200 mm
STG-B-40-250-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 40 mm | Stroke: 250 mm
STG-B-40-300-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 40 mm | Stroke: 300 mm
STG-B-40-350-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 40 mm | Stroke: 350 mm
STG-B-40-400-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 40 mm | Stroke: 400 mm
STG-B-50-25-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 50 mm | Stroke: 25 mm
STG-B-50-50-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 50 mm | Stroke: 50 mm
STG-B-50-75-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 50 mm | Stroke: 75 mm
STG-B-50-100-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 50 mm | Stroke: 100 mm
STG-B-50-125-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 50 mm | Stroke: 125 mm
STG-B-50-150-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 50 mm | Stroke: 150 mm
STG-B-50-175-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 50 mm | Stroke: 175 mm
STG-B-50-200-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 50 mm | Stroke: 200 mm
STG-B-50-250-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 50 mm | Stroke: 250 mm
STG-B-50-300-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 50 mm | Stroke: 300 mm
STG-B-50-350-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 50 mm | Stroke: 350 mm
STG-B-50-400-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 50 mm | Stroke: 400 mm
STG-B-63-25-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 63 mm | Stroke: 25 mm
STG-B-63-50-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 63 mm | Stroke: 50 mm
STG-B-63-75-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 63 mm | Stroke: 75 mm
STG-B-63-100-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 63 mm | Stroke: 100 mm
STG-B-63-125-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 63 mm | Stroke: 125 mm
STG-B-63-150-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 63 mm | Stroke: 150 mm
STG-B-63-175-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 63 mm | Stroke: 175 mm
STG-B-63-200-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 63 mm | Stroke: 200 mm
STG-B-63-250-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 63 mm | Stroke: 250 mm
STG-B-63-300-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 63 mm | Stroke: 300 mm
STG-B-63-350-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 63 mm | Stroke: 350 mm
STG-B-63-400-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 63 mm | Stroke: 400 mm
STG-B-80-25-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 80 mm | Stroke: 25 mm
STG-B-80-50-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 80 mm | Stroke: 50 mm
STG-B-80-75-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 80 mm | Stroke: 75 mm
STG-B-80-100-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 80 mm | Stroke: 100 mm
STG-B-80-125-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 80 mm | Stroke: 125 mm
STG-B-80-150-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 80 mm | Stroke: 150 mm
STG-B-80-175-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 80 mm | Stroke: 175 mm
STG-B-80-200-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 80 mm | Stroke: 200 mm
STG-B-80-250-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 80 mm | Stroke: 250 mm
STG-B-80-300-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 80 mm | Stroke: 300 mm
STG-B-80-350-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 80 mm | Stroke: 350 mm
STG-B-80-400-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 80 mm | Stroke: 400 mm
STG-B-100-25-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 100 mm | Stroke: 25 mm
STG-B-100-50-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 100 mm | Stroke: 50 mm
STG-B-100-75-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 100 mm | Stroke: 75 mm
STG-B-100-100-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 100 mm | Stroke: 100 mm
STG-B-100-125-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 100 mm | Stroke: 125 mm
STG-B-100-150-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 100 mm | Stroke: 150 mm
STG-B-100-175-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 100 mm | Stroke: 175 mm
STG-B-100-200-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 100 mm | Stroke: 200 mm
STG-B-100-250-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 100 mm | Stroke: 250 mm
STG-B-100-300-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 100 mm | Stroke: 300 mm
STG-B-100-350-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 100 mm | Stroke: 350 mm
STG-B-100-400-FP1Bearing: Ball bearing (B) | Type: Double acting, single rod | Bore: 100 mm | Stroke: 400 mm
STG-MC-16-25-FP1Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 16 mm | Stroke: 25 mm
STG-MC-16-50-FP1Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 16 mm | Stroke: 50 mm
STG-MC-16-75-FP1Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 16 mm | Stroke: 75 mm
STG-MC-16-100-FP1Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 16 mm | Stroke: 100 mm
STG-MC-16-125-FP1Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 16 mm | Stroke: 125 mm
STG-MC-16-150-FP1Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 16 mm | Stroke: 150 mm
STG-MC-16-175-FP1Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 16 mm | Stroke: 175 mm
STG-MC-16-200-FP1Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 16 mm | Stroke: 200 mm
STG-MC-16-250-FP1Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 16 mm | Stroke: 250 mm
STG-MC-20-25-FP1Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 20 mm | Stroke: 25 mm
STG-MC-20-50-FP1Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 20 mm | Stroke: 50 mm
STG-MC-20-75-FP1Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 20 mm | Stroke: 75 mm
STG-MC-20-100-FP1Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 20 mm | Stroke: 100 mm
STG-MC-20-125-FP1Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 20 mm | Stroke: 125 mm
STG-MC-20-150-FP1Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 20 mm | Stroke: 150 mm
STG-MC-20-175-FP1Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 20 mm | Stroke: 175 mm
STG-MC-20-200-FP1Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 20 mm | Stroke: 200 mm
STG-MC-20-250-FP1Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 20 mm | Stroke: 250 mm
STG-MC-20-300-FP1Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 20 mm | Stroke: 300 mm
STG-MC-20-350-FP1Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 20 mm | Stroke: 350 mm
STG-MC-20-400-FP1Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 20 mm | Stroke: 400 mm
STG-MC-25-25-FP1Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 25 mm | Stroke: 25 mm
STG-MC-25-50-FP1Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 25 mm | Stroke: 50 mm
STG-MC-25-75-FP1Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 25 mm | Stroke: 75 mm
STG-MC-25-100-FP1Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 25 mm | Stroke: 100 mm
STG-MC-25-125-FP1Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 25 mm | Stroke: 125 mm
STG-MC-25-150-FP1Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 25 mm | Stroke: 150 mm
STG-MC-25-175-FP1Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 25 mm | Stroke: 175 mm
STG-MC-25-200-FP1Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 25 mm | Stroke: 200 mm
STG-MC-25-250-FP1Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 25 mm | Stroke: 250 mm
STG-MC-25-300-FP1Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 25 mm | Stroke: 300 mm
STG-MC-25-350-FP1Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 25 mm | Stroke: 350 mm
STG-MC-25-400-FP1Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 25 mm | Stroke: 400 mm
STG-MC-32-25-FP1Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 32 mm | Stroke: 25 mm
STG-MC-32-50-FP1Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 32 mm | Stroke: 50 mm
STG-MC-32-75-FP1Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 32 mm | Stroke: 75 mm
STG-MC-32-100-FP1Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 32 mm | Stroke: 100 mm
STG-MC-32-125-FP1Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 32 mm | Stroke: 125 mm
STG-MC-32-150-FP1Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 32 mm | Stroke: 150 mm
STG-MC-32-175-FP1Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 32 mm | Stroke: 175 mm
STG-MC-32-200-FP1Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 32 mm | Stroke: 200 mm
STG-MC-32-250-FP1Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 32 mm | Stroke: 250 mm
STG-MC-32-300-FP1Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 32 mm | Stroke: 300 mm
STG-MC-32-350-FP1Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 32 mm | Stroke: 350 mm
STG-MC-32-400-FP1Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 32 mm | Stroke: 400 mm
STG-MC-40-25-FP1Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 40 mm | Stroke: 25 mm
STG-MC-40-50-FP1Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 40 mm | Stroke: 50 mm
STG-MC-40-75-FP1Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 40 mm | Stroke: 75 mm
STG-MC-40-100-FP1Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 40 mm | Stroke: 100 mm
STG-MC-40-125-FP1Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 40 mm | Stroke: 125 mm
STG-MC-40-150-FP1Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 40 mm | Stroke: 150 mm
STG-MC-40-175-FP1Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 40 mm | Stroke: 175 mm
STG-MC-40-200-FP1Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 40 mm | Stroke: 200 mm
STG-MC-40-250-FP1Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 40 mm | Stroke: 250 mm
STG-MC-40-300-FP1Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 40 mm | Stroke: 300 mm
STG-MC-40-350-FP1Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 40 mm | Stroke: 350 mm
STG-MC-40-400-FP1Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 40 mm | Stroke: 400 mm
STG-MC-50-25-FP1Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 50 mm | Stroke: 25 mm
STG-MC-50-50-FP1Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 50 mm | Stroke: 50 mm
STG-MC-50-75-FP1Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 50 mm | Stroke: 75 mm
STG-MC-50-100-FP1Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 50 mm | Stroke: 100 mm
STG-MC-50-125-FP1Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 50 mm | Stroke: 125 mm
STG-MC-50-150-FP1Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 50 mm | Stroke: 150 mm
STG-MC-50-175-FP1Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 50 mm | Stroke: 175 mm
STG-MC-50-200-FP1Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 50 mm | Stroke: 200 mm
STG-MC-50-250-FP1Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 50 mm | Stroke: 250 mm
STG-MC-50-300-FP1Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 50 mm | Stroke: 300 mm
STG-MC-50-350-FP1Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 50 mm | Stroke: 350 mm
STG-MC-50-400-FP1Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 50 mm | Stroke: 400 mm
STG-MC-63-25-FP1Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 63 mm | Stroke: 25 mm
STG-MC-63-50-FP1Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 63 mm | Stroke: 50 mm
STG-MC-63-75-FP1Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 63 mm | Stroke: 75 mm
STG-MC-63-100-FP1Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 63 mm | Stroke: 100 mm
STG-MC-63-125-FP1Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 63 mm | Stroke: 125 mm
STG-MC-63-150-FP1Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 63 mm | Stroke: 150 mm
STG-MC-63-175-FP1Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 63 mm | Stroke: 175 mm
STG-MC-63-200-FP1Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 63 mm | Stroke: 200 mm
STG-MC-63-250-FP1Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 63 mm | Stroke: 250 mm
STG-MC-63-300-FP1Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 63 mm | Stroke: 300 mm
STG-MC-63-350-FP1Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 63 mm | Stroke: 350 mm
STG-MC-63-400-FP1Bearing: Slide bearing (M) | Type: Double acting, air cushion (C) | Bore: 63 mm | Stroke: 400 mm
STG-BC-16-25-FP1Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 16 mm | Stroke: 25 mm
STG-BC-16-50-FP1Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 16 mm | Stroke: 50 mm
STG-BC-16-75-FP1Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 16 mm | Stroke: 75 mm
STG-BC-16-100-FP1Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 16 mm | Stroke: 100 mm
STG-BC-16-125-FP1Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 16 mm | Stroke: 125 mm
STG-BC-16-150-FP1Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 16 mm | Stroke: 150 mm
STG-BC-16-175-FP1Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 16 mm | Stroke: 175 mm
STG-BC-16-200-FP1Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 16 mm | Stroke: 200 mm
STG-BC-16-250-FP1Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 16 mm | Stroke: 250 mm
STG-BC-20-25-FP1Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 20 mm | Stroke: 25 mm
STG-BC-20-50-FP1Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 20 mm | Stroke: 50 mm
STG-BC-20-75-FP1Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 20 mm | Stroke: 75 mm
STG-BC-20-100-FP1Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 20 mm | Stroke: 100 mm
STG-BC-20-125-FP1Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 20 mm | Stroke: 125 mm
STG-BC-20-150-FP1Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 20 mm | Stroke: 150 mm
STG-BC-20-175-FP1Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 20 mm | Stroke: 175 mm
STG-BC-20-200-FP1Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 20 mm | Stroke: 200 mm
STG-BC-20-250-FP1Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 20 mm | Stroke: 250 mm
STG-BC-20-300-FP1Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 20 mm | Stroke: 300 mm
STG-BC-20-350-FP1Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 20 mm | Stroke: 350 mm
STG-BC-20-400-FP1Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 20 mm | Stroke: 400 mm
STG-BC-25-25-FP1Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 25 mm | Stroke: 25 mm
STG-BC-25-50-FP1Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 25 mm | Stroke: 50 mm
STG-BC-25-75-FP1Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 25 mm | Stroke: 75 mm
STG-BC-25-100-FP1Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 25 mm | Stroke: 100 mm
STG-BC-25-125-FP1Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 25 mm | Stroke: 125 mm
STG-BC-25-150-FP1Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 25 mm | Stroke: 150 mm
STG-BC-25-175-FP1Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 25 mm | Stroke: 175 mm
STG-BC-25-200-FP1Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 25 mm | Stroke: 200 mm
STG-BC-25-250-FP1Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 25 mm | Stroke: 250 mm
STG-BC-25-300-FP1Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 25 mm | Stroke: 300 mm
STG-BC-25-350-FP1Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 25 mm | Stroke: 350 mm
STG-BC-25-400-FP1Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 25 mm | Stroke: 400 mm
STG-BC-32-25-FP1Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 32 mm | Stroke: 25 mm
STG-BC-32-50-FP1Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 32 mm | Stroke: 50 mm
STG-BC-32-75-FP1Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 32 mm | Stroke: 75 mm
STG-BC-32-100-FP1Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 32 mm | Stroke: 100 mm
STG-BC-32-125-FP1Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 32 mm | Stroke: 125 mm
STG-BC-32-150-FP1Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 32 mm | Stroke: 150 mm
STG-BC-32-175-FP1Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 32 mm | Stroke: 175 mm
STG-BC-32-200-FP1Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 32 mm | Stroke: 200 mm
STG-BC-32-250-FP1Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 32 mm | Stroke: 250 mm
STG-BC-32-300-FP1Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 32 mm | Stroke: 300 mm
STG-BC-32-350-FP1Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 32 mm | Stroke: 350 mm
STG-BC-32-400-FP1Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 32 mm | Stroke: 400 mm
STG-BC-40-25-FP1Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 40 mm | Stroke: 25 mm
STG-BC-40-50-FP1Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 40 mm | Stroke: 50 mm
STG-BC-40-75-FP1Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 40 mm | Stroke: 75 mm
STG-BC-40-100-FP1Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 40 mm | Stroke: 100 mm
STG-BC-40-125-FP1Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 40 mm | Stroke: 125 mm
STG-BC-40-150-FP1Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 40 mm | Stroke: 150 mm
STG-BC-40-175-FP1Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 40 mm | Stroke: 175 mm
STG-BC-40-200-FP1Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 40 mm | Stroke: 200 mm
STG-BC-40-250-FP1Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 40 mm | Stroke: 250 mm
STG-BC-40-300-FP1Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 40 mm | Stroke: 300 mm
STG-BC-40-350-FP1Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 40 mm | Stroke: 350 mm
STG-BC-40-400-FP1Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 40 mm | Stroke: 400 mm
STG-BC-50-25-FP1Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 50 mm | Stroke: 25 mm
STG-BC-50-50-FP1Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 50 mm | Stroke: 50 mm
STG-BC-50-75-FP1Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 50 mm | Stroke: 75 mm
STG-BC-50-100-FP1Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 50 mm | Stroke: 100 mm
STG-BC-50-125-FP1Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 50 mm | Stroke: 125 mm
STG-BC-50-150-FP1Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 50 mm | Stroke: 150 mm
STG-BC-50-175-FP1Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 50 mm | Stroke: 175 mm
STG-BC-50-200-FP1Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 50 mm | Stroke: 200 mm
STG-BC-50-250-FP1Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 50 mm | Stroke: 250 mm
STG-BC-50-300-FP1Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 50 mm | Stroke: 300 mm
STG-BC-50-350-FP1Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 50 mm | Stroke: 350 mm
STG-BC-50-400-FP1Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 50 mm | Stroke: 400 mm
STG-BC-63-25-FP1Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 63 mm | Stroke: 25 mm
STG-BC-63-50-FP1Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 63 mm | Stroke: 50 mm
STG-BC-63-75-FP1Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 63 mm | Stroke: 75 mm
STG-BC-63-100-FP1Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 63 mm | Stroke: 100 mm
STG-BC-63-125-FP1Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 63 mm | Stroke: 125 mm
STG-BC-63-150-FP1Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 63 mm | Stroke: 150 mm
STG-BC-63-175-FP1Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 63 mm | Stroke: 175 mm
STG-BC-63-200-FP1Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 63 mm | Stroke: 200 mm
STG-BC-63-250-FP1Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 63 mm | Stroke: 250 mm
STG-BC-63-300-FP1Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 63 mm | Stroke: 300 mm
STG-BC-63-350-FP1Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 63 mm | Stroke: 350 mm
STG-BC-63-400-FP1Bearing: Ball bearing (B) | Type: Double acting, air cushion (C) | Bore: 63 mm | Stroke: 400 mm
STG-MG-20-20-FP1Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 20 mm | Stroke: 20 mm
STG-MG-20-30-FP1Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 20 mm | Stroke: 30 mm
STG-MG-20-40-FP1Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 20 mm | Stroke: 40 mm
STG-MG-20-50-FP1Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 20 mm | Stroke: 50 mm
STG-MG-20-75-FP1Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 20 mm | Stroke: 75 mm
STG-MG-20-100-FP1Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 20 mm | Stroke: 100 mm
STG-MG-20-125-FP1Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 20 mm | Stroke: 125 mm
STG-MG-20-150-FP1Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 20 mm | Stroke: 150 mm
STG-MG-20-175-FP1Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 20 mm | Stroke: 175 mm
STG-MG-20-200-FP1Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 20 mm | Stroke: 200 mm
STG-MG-20-250-FP1Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 20 mm | Stroke: 250 mm
STG-MG-20-300-FP1Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 20 mm | Stroke: 300 mm
STG-MG-20-350-FP1Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 20 mm | Stroke: 350 mm
STG-MG-20-400-FP1Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 20 mm | Stroke: 400 mm
STG-MG-25-20-FP1Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 25 mm | Stroke: 20 mm
STG-MG-25-30-FP1Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 25 mm | Stroke: 30 mm
STG-MG-25-40-FP1Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 25 mm | Stroke: 40 mm
STG-MG-25-50-FP1Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 25 mm | Stroke: 50 mm
STG-MG-25-75-FP1Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 25 mm | Stroke: 75 mm
STG-MG-25-100-FP1Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 25 mm | Stroke: 100 mm
STG-MG-25-125-FP1Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 25 mm | Stroke: 125 mm
STG-MG-25-150-FP1Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 25 mm | Stroke: 150 mm
STG-MG-25-175-FP1Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 25 mm | Stroke: 175 mm
STG-MG-25-200-FP1Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 25 mm | Stroke: 200 mm
STG-MG-25-250-FP1Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 25 mm | Stroke: 250 mm
STG-MG-25-300-FP1Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 25 mm | Stroke: 300 mm
STG-MG-25-350-FP1Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 25 mm | Stroke: 350 mm
STG-MG-25-400-FP1Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 25 mm | Stroke: 400 mm
STG-MG-32-25-FP1Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 32 mm | Stroke: 25 mm
STG-MG-32-50-FP1Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 32 mm | Stroke: 50 mm
STG-MG-32-75-FP1Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 32 mm | Stroke: 75 mm
STG-MG-32-100-FP1Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 32 mm | Stroke: 100 mm
STG-MG-32-125-FP1Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 32 mm | Stroke: 125 mm
STG-MG-32-150-FP1Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 32 mm | Stroke: 150 mm
STG-MG-32-175-FP1Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 32 mm | Stroke: 175 mm
STG-MG-32-200-FP1Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 32 mm | Stroke: 200 mm
STG-MG-32-250-FP1Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 32 mm | Stroke: 250 mm
STG-MG-32-300-FP1Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 32 mm | Stroke: 300 mm
STG-MG-32-350-FP1Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 32 mm | Stroke: 350 mm
STG-MG-32-400-FP1Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 32 mm | Stroke: 400 mm
STG-MG-40-25-FP1Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 40 mm | Stroke: 25 mm
STG-MG-40-50-FP1Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 40 mm | Stroke: 50 mm
STG-MG-40-75-FP1Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 40 mm | Stroke: 75 mm
STG-MG-40-100-FP1Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 40 mm | Stroke: 100 mm
STG-MG-40-125-FP1Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 40 mm | Stroke: 125 mm
STG-MG-40-150-FP1Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 40 mm | Stroke: 150 mm
STG-MG-40-175-FP1Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 40 mm | Stroke: 175 mm
STG-MG-40-200-FP1Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 40 mm | Stroke: 200 mm
STG-MG-40-250-FP1Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 40 mm | Stroke: 250 mm
STG-MG-40-300-FP1Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 40 mm | Stroke: 300 mm
STG-MG-40-350-FP1Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 40 mm | Stroke: 350 mm
STG-MG-40-400-FP1Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 40 mm | Stroke: 400 mm
STG-MG-50-25-FP1Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 50 mm | Stroke: 25 mm
STG-MG-50-50-FP1Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 50 mm | Stroke: 50 mm
STG-MG-50-75-FP1Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 50 mm | Stroke: 75 mm
STG-MG-50-100-FP1Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 50 mm | Stroke: 100 mm
STG-MG-50-125-FP1Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 50 mm | Stroke: 125 mm
STG-MG-50-150-FP1Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 50 mm | Stroke: 150 mm
STG-MG-50-175-FP1Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 50 mm | Stroke: 175 mm
STG-MG-50-200-FP1Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 50 mm | Stroke: 200 mm
STG-MG-50-250-FP1Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 50 mm | Stroke: 250 mm
STG-MG-50-300-FP1Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 50 mm | Stroke: 300 mm
STG-MG-50-350-FP1Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 50 mm | Stroke: 350 mm
STG-MG-50-400-FP1Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 50 mm | Stroke: 400 mm
STG-MG-63-25-FP1Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 63 mm | Stroke: 25 mm
STG-MG-63-50-FP1Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 63 mm | Stroke: 50 mm
STG-MG-63-75-FP1Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 63 mm | Stroke: 75 mm
STG-MG-63-100-FP1Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 63 mm | Stroke: 100 mm
STG-MG-63-125-FP1Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 63 mm | Stroke: 125 mm
STG-MG-63-150-FP1Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 63 mm | Stroke: 150 mm
STG-MG-63-175-FP1Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 63 mm | Stroke: 175 mm
STG-MG-63-200-FP1Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 63 mm | Stroke: 200 mm
STG-MG-63-250-FP1Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 63 mm | Stroke: 250 mm
STG-MG-63-300-FP1Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 63 mm | Stroke: 300 mm
STG-MG-63-350-FP1Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 63 mm | Stroke: 350 mm
STG-MG-63-400-FP1Bearing: Slide bearing (M) | Type: Double acting, strong scraper (G) | Bore: 63 mm | Stroke: 400 mm
STG-BG-20-20-FP1Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 20 mm | Stroke: 20 mm
STG-BG-20-30-FP1Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 20 mm | Stroke: 30 mm
STG-BG-20-40-FP1Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 20 mm | Stroke: 40 mm
STG-BG-20-50-FP1Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 20 mm | Stroke: 50 mm
STG-BG-20-75-FP1Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 20 mm | Stroke: 75 mm
STG-BG-20-100-FP1Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 20 mm | Stroke: 100 mm
STG-BG-20-125-FP1Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 20 mm | Stroke: 125 mm
STG-BG-20-150-FP1Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 20 mm | Stroke: 150 mm
STG-BG-20-175-FP1Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 20 mm | Stroke: 175 mm
STG-BG-20-200-FP1Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 20 mm | Stroke: 200 mm
STG-BG-20-250-FP1Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 20 mm | Stroke: 250 mm
STG-BG-20-300-FP1Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 20 mm | Stroke: 300 mm
STG-BG-20-350-FP1Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 20 mm | Stroke: 350 mm
STG-BG-20-400-FP1Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 20 mm | Stroke: 400 mm
STG-BG-25-20-FP1Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 25 mm | Stroke: 20 mm
STG-BG-25-30-FP1Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 25 mm | Stroke: 30 mm
STG-BG-25-40-FP1Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 25 mm | Stroke: 40 mm
STG-BG-25-50-FP1Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 25 mm | Stroke: 50 mm
STG-BG-25-75-FP1Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 25 mm | Stroke: 75 mm
STG-BG-25-100-FP1Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 25 mm | Stroke: 100 mm
STG-BG-25-125-FP1Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 25 mm | Stroke: 125 mm
STG-BG-25-150-FP1Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 25 mm | Stroke: 150 mm
STG-BG-25-175-FP1Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 25 mm | Stroke: 175 mm
STG-BG-25-200-FP1Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 25 mm | Stroke: 200 mm
STG-BG-25-250-FP1Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 25 mm | Stroke: 250 mm
STG-BG-25-300-FP1Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 25 mm | Stroke: 300 mm
STG-BG-25-350-FP1Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 25 mm | Stroke: 350 mm
STG-BG-25-400-FP1Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 25 mm | Stroke: 400 mm
STG-BG-32-25-FP1Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 32 mm | Stroke: 25 mm
STG-BG-32-50-FP1Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 32 mm | Stroke: 50 mm
STG-BG-32-75-FP1Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 32 mm | Stroke: 75 mm
STG-BG-32-100-FP1Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 32 mm | Stroke: 100 mm
STG-BG-32-125-FP1Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 32 mm | Stroke: 125 mm
STG-BG-32-150-FP1Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 32 mm | Stroke: 150 mm
STG-BG-32-175-FP1Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 32 mm | Stroke: 175 mm
STG-BG-32-200-FP1Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 32 mm | Stroke: 200 mm
STG-BG-32-250-FP1Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 32 mm | Stroke: 250 mm
STG-BG-32-300-FP1Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 32 mm | Stroke: 300 mm
STG-BG-32-350-FP1Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 32 mm | Stroke: 350 mm
STG-BG-32-400-FP1Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 32 mm | Stroke: 400 mm
STG-BG-40-25-FP1Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 40 mm | Stroke: 25 mm
STG-BG-40-50-FP1Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 40 mm | Stroke: 50 mm
STG-BG-40-75-FP1Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 40 mm | Stroke: 75 mm
STG-BG-40-100-FP1Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 40 mm | Stroke: 100 mm
STG-BG-40-125-FP1Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 40 mm | Stroke: 125 mm
STG-BG-40-150-FP1Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 40 mm | Stroke: 150 mm
STG-BG-40-175-FP1Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 40 mm | Stroke: 175 mm
STG-BG-40-200-FP1Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 40 mm | Stroke: 200 mm
STG-BG-40-250-FP1Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 40 mm | Stroke: 250 mm
STG-BG-40-300-FP1Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 40 mm | Stroke: 300 mm
STG-BG-40-350-FP1Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 40 mm | Stroke: 350 mm
STG-BG-40-400-FP1Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 40 mm | Stroke: 400 mm
STG-BG-50-25-FP1Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 50 mm | Stroke: 25 mm
STG-BG-50-50-FP1Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 50 mm | Stroke: 50 mm
STG-BG-50-75-FP1Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 50 mm | Stroke: 75 mm
STG-BG-50-100-FP1Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 50 mm | Stroke: 100 mm
STG-BG-50-125-FP1Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 50 mm | Stroke: 125 mm
STG-BG-50-150-FP1Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 50 mm | Stroke: 150 mm
STG-BG-50-175-FP1Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 50 mm | Stroke: 175 mm
STG-BG-50-200-FP1Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 50 mm | Stroke: 200 mm
STG-BG-50-250-FP1Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 50 mm | Stroke: 250 mm
STG-BG-50-300-FP1Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 50 mm | Stroke: 300 mm
STG-BG-50-350-FP1Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 50 mm | Stroke: 350 mm
STG-BG-50-400-FP1Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 50 mm | Stroke: 400 mm
STG-BG-63-25-FP1Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 63 mm | Stroke: 25 mm
STG-BG-63-50-FP1Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 63 mm | Stroke: 50 mm
STG-BG-63-75-FP1Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 63 mm | Stroke: 75 mm
STG-BG-63-100-FP1Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 63 mm | Stroke: 100 mm
STG-BG-63-125-FP1Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 63 mm | Stroke: 125 mm
STG-BG-63-150-FP1Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 63 mm | Stroke: 150 mm
STG-BG-63-175-FP1Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 63 mm | Stroke: 175 mm
STG-BG-63-200-FP1Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 63 mm | Stroke: 200 mm
STG-BG-63-250-FP1Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 63 mm | Stroke: 250 mm
STG-BG-63-300-FP1Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 63 mm | Stroke: 300 mm
STG-BG-63-350-FP1Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 63 mm | Stroke: 350 mm
STG-BG-63-400-FP1Bearing: Ball bearing (B) | Type: Double acting, strong scraper (G) | Bore: 63 mm | Stroke: 400 mm
STG-MG2-20-20-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 20 mm | Stroke: 20 mm
STG-MG2-20-30-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 20 mm | Stroke: 30 mm
STG-MG2-20-40-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 20 mm | Stroke: 40 mm
STG-MG2-20-50-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 20 mm | Stroke: 50 mm
STG-MG2-20-75-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 20 mm | Stroke: 75 mm
STG-MG2-20-100-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 20 mm | Stroke: 100 mm
STG-MG2-20-125-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 20 mm | Stroke: 125 mm
STG-MG2-20-150-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 20 mm | Stroke: 150 mm
STG-MG2-20-175-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 20 mm | Stroke: 175 mm
STG-MG2-20-200-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 20 mm | Stroke: 200 mm
STG-MG2-20-250-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 20 mm | Stroke: 250 mm
STG-MG2-20-300-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 20 mm | Stroke: 300 mm
STG-MG2-20-350-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 20 mm | Stroke: 350 mm
STG-MG2-20-400-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 20 mm | Stroke: 400 mm
STG-MG2-25-20-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 25 mm | Stroke: 20 mm
STG-MG2-25-30-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 25 mm | Stroke: 30 mm
STG-MG2-25-40-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 25 mm | Stroke: 40 mm
STG-MG2-25-50-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 25 mm | Stroke: 50 mm
STG-MG2-25-75-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 25 mm | Stroke: 75 mm
STG-MG2-25-100-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 25 mm | Stroke: 100 mm
STG-MG2-25-125-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 25 mm | Stroke: 125 mm
STG-MG2-25-150-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 25 mm | Stroke: 150 mm
STG-MG2-25-175-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 25 mm | Stroke: 175 mm
STG-MG2-25-200-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 25 mm | Stroke: 200 mm
STG-MG2-25-250-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 25 mm | Stroke: 250 mm
STG-MG2-25-300-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 25 mm | Stroke: 300 mm
STG-MG2-25-350-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 25 mm | Stroke: 350 mm
STG-MG2-25-400-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 25 mm | Stroke: 400 mm
STG-MG2-32-25-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 32 mm | Stroke: 25 mm
STG-MG2-32-50-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 32 mm | Stroke: 50 mm
STG-MG2-32-75-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 32 mm | Stroke: 75 mm
STG-MG2-32-100-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 32 mm | Stroke: 100 mm
STG-MG2-32-125-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 32 mm | Stroke: 125 mm
STG-MG2-32-150-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 32 mm | Stroke: 150 mm
STG-MG2-32-175-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 32 mm | Stroke: 175 mm
STG-MG2-32-200-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 32 mm | Stroke: 200 mm
STG-MG2-32-250-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 32 mm | Stroke: 250 mm
STG-MG2-32-300-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 32 mm | Stroke: 300 mm
STG-MG2-32-350-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 32 mm | Stroke: 350 mm
STG-MG2-32-400-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 32 mm | Stroke: 400 mm
STG-MG2-40-25-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 40 mm | Stroke: 25 mm
STG-MG2-40-50-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 40 mm | Stroke: 50 mm
STG-MG2-40-75-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 40 mm | Stroke: 75 mm
STG-MG2-40-100-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 40 mm | Stroke: 100 mm
STG-MG2-40-125-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 40 mm | Stroke: 125 mm
STG-MG2-40-150-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 40 mm | Stroke: 150 mm
STG-MG2-40-175-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 40 mm | Stroke: 175 mm
STG-MG2-40-200-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 40 mm | Stroke: 200 mm
STG-MG2-40-250-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 40 mm | Stroke: 250 mm
STG-MG2-40-300-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 40 mm | Stroke: 300 mm
STG-MG2-40-350-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 40 mm | Stroke: 350 mm
STG-MG2-40-400-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 40 mm | Stroke: 400 mm
STG-MG2-50-25-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 50 mm | Stroke: 25 mm
STG-MG2-50-50-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 50 mm | Stroke: 50 mm
STG-MG2-50-75-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 50 mm | Stroke: 75 mm
STG-MG2-50-100-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 50 mm | Stroke: 100 mm
STG-MG2-50-125-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 50 mm | Stroke: 125 mm
STG-MG2-50-150-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 50 mm | Stroke: 150 mm
STG-MG2-50-175-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 50 mm | Stroke: 175 mm
STG-MG2-50-200-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 50 mm | Stroke: 200 mm
STG-MG2-50-250-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 50 mm | Stroke: 250 mm
STG-MG2-50-300-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 50 mm | Stroke: 300 mm
STG-MG2-50-350-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 50 mm | Stroke: 350 mm
STG-MG2-50-400-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 50 mm | Stroke: 400 mm
STG-MG2-63-25-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 63 mm | Stroke: 25 mm
STG-MG2-63-50-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 63 mm | Stroke: 50 mm
STG-MG2-63-75-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 63 mm | Stroke: 75 mm
STG-MG2-63-100-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 63 mm | Stroke: 100 mm
STG-MG2-63-125-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 63 mm | Stroke: 125 mm
STG-MG2-63-150-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 63 mm | Stroke: 150 mm
STG-MG2-63-175-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 63 mm | Stroke: 175 mm
STG-MG2-63-200-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 63 mm | Stroke: 200 mm
STG-MG2-63-250-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 63 mm | Stroke: 250 mm
STG-MG2-63-300-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 63 mm | Stroke: 300 mm
STG-MG2-63-350-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 63 mm | Stroke: 350 mm
STG-MG2-63-400-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, NBR packing (G2) | Bore: 63 mm | Stroke: 400 mm
STG-MG3-20-20-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 20 mm | Stroke: 20 mm
STG-MG3-20-30-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 20 mm | Stroke: 30 mm
STG-MG3-20-40-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 20 mm | Stroke: 40 mm
STG-MG3-20-50-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 20 mm | Stroke: 50 mm
STG-MG3-20-75-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 20 mm | Stroke: 75 mm
STG-MG3-20-100-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 20 mm | Stroke: 100 mm
STG-MG3-20-125-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 20 mm | Stroke: 125 mm
STG-MG3-20-150-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 20 mm | Stroke: 150 mm
STG-MG3-20-175-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 20 mm | Stroke: 175 mm
STG-MG3-20-200-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 20 mm | Stroke: 200 mm
STG-MG3-20-250-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 20 mm | Stroke: 250 mm
STG-MG3-20-300-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 20 mm | Stroke: 300 mm
STG-MG3-20-350-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 20 mm | Stroke: 350 mm
STG-MG3-20-400-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 20 mm | Stroke: 400 mm
STG-MG3-25-20-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 25 mm | Stroke: 20 mm
STG-MG3-25-30-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 25 mm | Stroke: 30 mm
STG-MG3-25-40-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 25 mm | Stroke: 40 mm
STG-MG3-25-50-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 25 mm | Stroke: 50 mm
STG-MG3-25-75-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 25 mm | Stroke: 75 mm
STG-MG3-25-100-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 25 mm | Stroke: 100 mm
STG-MG3-25-125-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 25 mm | Stroke: 125 mm
STG-MG3-25-150-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 25 mm | Stroke: 150 mm
STG-MG3-25-175-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 25 mm | Stroke: 175 mm
STG-MG3-25-200-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 25 mm | Stroke: 200 mm
STG-MG3-25-250-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 25 mm | Stroke: 250 mm
STG-MG3-25-300-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 25 mm | Stroke: 300 mm
STG-MG3-25-350-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 25 mm | Stroke: 350 mm
STG-MG3-25-400-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 25 mm | Stroke: 400 mm
STG-MG3-32-25-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 32 mm | Stroke: 25 mm
STG-MG3-32-50-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 32 mm | Stroke: 50 mm
STG-MG3-32-75-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 32 mm | Stroke: 75 mm
STG-MG3-32-100-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 32 mm | Stroke: 100 mm
STG-MG3-32-125-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 32 mm | Stroke: 125 mm
STG-MG3-32-150-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 32 mm | Stroke: 150 mm
STG-MG3-32-175-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 32 mm | Stroke: 175 mm
STG-MG3-32-200-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 32 mm | Stroke: 200 mm
STG-MG3-32-250-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 32 mm | Stroke: 250 mm
STG-MG3-32-300-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 32 mm | Stroke: 300 mm
STG-MG3-32-350-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 32 mm | Stroke: 350 mm
STG-MG3-32-400-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 32 mm | Stroke: 400 mm
STG-MG3-40-25-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 40 mm | Stroke: 25 mm
STG-MG3-40-50-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 40 mm | Stroke: 50 mm
STG-MG3-40-75-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 40 mm | Stroke: 75 mm
STG-MG3-40-100-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 40 mm | Stroke: 100 mm
STG-MG3-40-125-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 40 mm | Stroke: 125 mm
STG-MG3-40-150-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 40 mm | Stroke: 150 mm
STG-MG3-40-175-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 40 mm | Stroke: 175 mm
STG-MG3-40-200-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 40 mm | Stroke: 200 mm
STG-MG3-40-250-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 40 mm | Stroke: 250 mm
STG-MG3-40-300-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 40 mm | Stroke: 300 mm
STG-MG3-40-350-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 40 mm | Stroke: 350 mm
STG-MG3-40-400-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 40 mm | Stroke: 400 mm
STG-MG3-50-25-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 50 mm | Stroke: 25 mm
STG-MG3-50-50-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 50 mm | Stroke: 50 mm
STG-MG3-50-75-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 50 mm | Stroke: 75 mm
STG-MG3-50-100-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 50 mm | Stroke: 100 mm
STG-MG3-50-125-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 50 mm | Stroke: 125 mm
STG-MG3-50-150-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 50 mm | Stroke: 150 mm
STG-MG3-50-175-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 50 mm | Stroke: 175 mm
STG-MG3-50-200-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 50 mm | Stroke: 200 mm
STG-MG3-50-250-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 50 mm | Stroke: 250 mm
STG-MG3-50-300-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 50 mm | Stroke: 300 mm
STG-MG3-50-350-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 50 mm | Stroke: 350 mm
STG-MG3-50-400-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 50 mm | Stroke: 400 mm
STG-MG3-63-25-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 63 mm | Stroke: 25 mm
STG-MG3-63-50-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 63 mm | Stroke: 50 mm
STG-MG3-63-75-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 63 mm | Stroke: 75 mm
STG-MG3-63-100-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 63 mm | Stroke: 100 mm
STG-MG3-63-125-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 63 mm | Stroke: 125 mm
STG-MG3-63-150-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 63 mm | Stroke: 150 mm
STG-MG3-63-175-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 63 mm | Stroke: 175 mm
STG-MG3-63-200-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 63 mm | Stroke: 200 mm
STG-MG3-63-250-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 63 mm | Stroke: 250 mm
STG-MG3-63-300-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 63 mm | Stroke: 300 mm
STG-MG3-63-350-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 63 mm | Stroke: 350 mm
STG-MG3-63-400-FP1Bearing: Slide bearing (M) | Type: Coolant resistant, FKM packing (G3) | Bore: 63 mm | Stroke: 400 mm
STG-MG5-20-20-FP1Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 20 mm | Stroke: 20 mm
STG-MG5-20-30-FP1Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 20 mm | Stroke: 30 mm
STG-MG5-20-40-FP1Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 20 mm | Stroke: 40 mm
STG-MG5-20-50-FP1Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 20 mm | Stroke: 50 mm
STG-MG5-20-75-FP1Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 20 mm | Stroke: 75 mm
STG-MG5-20-100-FP1Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 20 mm | Stroke: 100 mm
STG-MG5-20-125-FP1Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 20 mm | Stroke: 125 mm
STG-MG5-20-150-FP1Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 20 mm | Stroke: 150 mm
STG-MG5-20-175-FP1Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 20 mm | Stroke: 175 mm
STG-MG5-20-200-FP1Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 20 mm | Stroke: 200 mm
STG-MG5-20-250-FP1Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 20 mm | Stroke: 250 mm
STG-MG5-20-300-FP1Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 20 mm | Stroke: 300 mm
STG-MG5-20-350-FP1Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 20 mm | Stroke: 350 mm
STG-MG5-20-400-FP1Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 20 mm | Stroke: 400 mm
STG-MG5-25-20-FP1Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 25 mm | Stroke: 20 mm
STG-MG5-25-30-FP1Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 25 mm | Stroke: 30 mm
STG-MG5-25-40-FP1Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 25 mm | Stroke: 40 mm
STG-MG5-25-50-FP1Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 25 mm | Stroke: 50 mm
STG-MG5-25-75-FP1Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 25 mm | Stroke: 75 mm
STG-MG5-25-100-FP1Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 25 mm | Stroke: 100 mm
STG-MG5-25-125-FP1Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 25 mm | Stroke: 125 mm
STG-MG5-25-150-FP1Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 25 mm | Stroke: 150 mm
STG-MG5-25-175-FP1Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 25 mm | Stroke: 175 mm
STG-MG5-25-200-FP1Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 25 mm | Stroke: 200 mm
STG-MG5-25-250-FP1Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 25 mm | Stroke: 250 mm
STG-MG5-25-300-FP1Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 25 mm | Stroke: 300 mm
STG-MG5-25-350-FP1Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 25 mm | Stroke: 350 mm
STG-MG5-25-400-FP1Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 25 mm | Stroke: 400 mm
STG-MG5-32-25-FP1Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 32 mm | Stroke: 25 mm
STG-MG5-32-50-FP1Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 32 mm | Stroke: 50 mm
STG-MG5-32-75-FP1Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 32 mm | Stroke: 75 mm
STG-MG5-32-100-FP1Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 32 mm | Stroke: 100 mm
STG-MG5-32-125-FP1Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 32 mm | Stroke: 125 mm
STG-MG5-32-150-FP1Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 32 mm | Stroke: 150 mm
STG-MG5-32-175-FP1Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 32 mm | Stroke: 175 mm
STG-MG5-32-200-FP1Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 32 mm | Stroke: 200 mm
STG-MG5-32-250-FP1Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 32 mm | Stroke: 250 mm
STG-MG5-32-300-FP1Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 32 mm | Stroke: 300 mm
STG-MG5-32-350-FP1Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 32 mm | Stroke: 350 mm
STG-MG5-32-400-FP1Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 32 mm | Stroke: 400 mm
STG-MG5-40-25-FP1Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 40 mm | Stroke: 25 mm
STG-MG5-40-50-FP1Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 40 mm | Stroke: 50 mm
STG-MG5-40-75-FP1Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 40 mm | Stroke: 75 mm
STG-MG5-40-100-FP1Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 40 mm | Stroke: 100 mm
STG-MG5-40-125-FP1Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 40 mm | Stroke: 125 mm
STG-MG5-40-150-FP1Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 40 mm | Stroke: 150 mm
STG-MG5-40-175-FP1Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 40 mm | Stroke: 175 mm
STG-MG5-40-200-FP1Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 40 mm | Stroke: 200 mm
STG-MG5-40-250-FP1Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 40 mm | Stroke: 250 mm
STG-MG5-40-300-FP1Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 40 mm | Stroke: 300 mm
STG-MG5-40-350-FP1Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 40 mm | Stroke: 350 mm
STG-MG5-40-400-FP1Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 40 mm | Stroke: 400 mm
STG-MG5-50-25-FP1Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 50 mm | Stroke: 25 mm
STG-MG5-50-50-FP1Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 50 mm | Stroke: 50 mm
STG-MG5-50-75-FP1Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 50 mm | Stroke: 75 mm
STG-MG5-50-100-FP1Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 50 mm | Stroke: 100 mm
STG-MG5-50-125-FP1Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 50 mm | Stroke: 125 mm
STG-MG5-50-150-FP1Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 50 mm | Stroke: 150 mm
STG-MG5-50-175-FP1Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 50 mm | Stroke: 175 mm
STG-MG5-50-200-FP1Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 50 mm | Stroke: 200 mm
STG-MG5-50-250-FP1Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 50 mm | Stroke: 250 mm
STG-MG5-50-300-FP1Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 50 mm | Stroke: 300 mm
STG-MG5-50-350-FP1Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 50 mm | Stroke: 350 mm
STG-MG5-50-400-FP1Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 50 mm | Stroke: 400 mm
STG-MG5-63-25-FP1Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 63 mm | Stroke: 25 mm
STG-MG5-63-50-FP1Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 63 mm | Stroke: 50 mm
STG-MG5-63-75-FP1Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 63 mm | Stroke: 75 mm
STG-MG5-63-100-FP1Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 63 mm | Stroke: 100 mm
STG-MG5-63-125-FP1Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 63 mm | Stroke: 125 mm
STG-MG5-63-150-FP1Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 63 mm | Stroke: 150 mm
STG-MG5-63-175-FP1Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 63 mm | Stroke: 175 mm
STG-MG5-63-200-FP1Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 63 mm | Stroke: 200 mm
STG-MG5-63-250-FP1Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 63 mm | Stroke: 250 mm
STG-MG5-63-300-FP1Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 63 mm | Stroke: 300 mm
STG-MG5-63-350-FP1Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 63 mm | Stroke: 350 mm
STG-MG5-63-400-FP1Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 63 mm | Stroke: 400 mm
STG-MG5-80-25-FP1Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 80 mm | Stroke: 25 mm
STG-MG5-80-50-FP1Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 80 mm | Stroke: 50 mm
STG-MG5-80-75-FP1Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 80 mm | Stroke: 75 mm
STG-MG5-80-100-FP1Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 80 mm | Stroke: 100 mm
STG-MG5-80-125-FP1Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 80 mm | Stroke: 125 mm
STG-MG5-80-150-FP1Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 80 mm | Stroke: 150 mm
STG-MG5-80-175-FP1Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 80 mm | Stroke: 175 mm
STG-MG5-80-200-FP1Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 80 mm | Stroke: 200 mm
STG-MG5-80-250-FP1Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 80 mm | Stroke: 250 mm
STG-MG5-80-300-FP1Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 80 mm | Stroke: 300 mm
STG-MG5-80-350-FP1Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 80 mm | Stroke: 350 mm
STG-MG5-80-400-FP1Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 80 mm | Stroke: 400 mm
STG-MG5-100-25-FP1Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 100 mm | Stroke: 25 mm
STG-MG5-100-50-FP1Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 100 mm | Stroke: 50 mm
STG-MG5-100-75-FP1Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 100 mm | Stroke: 75 mm
STG-MG5-100-100-FP1Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 100 mm | Stroke: 100 mm
STG-MG5-100-125-FP1Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 100 mm | Stroke: 125 mm
STG-MG5-100-150-FP1Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 100 mm | Stroke: 150 mm
STG-MG5-100-175-FP1Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 100 mm | Stroke: 175 mm
STG-MG5-100-200-FP1Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 100 mm | Stroke: 200 mm
STG-MG5-100-250-FP1Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 100 mm | Stroke: 250 mm
STG-MG5-100-300-FP1Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 100 mm | Stroke: 300 mm
STG-MG5-100-350-FP1Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 100 mm | Stroke: 350 mm
STG-MG5-100-400-FP1Bearing: Slide bearing (M) | Type: Environment resistant scraper (G5) | Bore: 100 mm | Stroke: 400 mm
STG-M-32C-25-FP1Bearing: Slide bearing (M) | Type: Double acting, rubber air cushion (xC) | Bore: 32 mm | Stroke: 25 mm
STG-M-32C-50-FP1Bearing: Slide bearing (M) | Type: Double acting, rubber air cushion (xC) | Bore: 32 mm | Stroke: 50 mm
STG-M-32C-75-FP1Bearing: Slide bearing (M) | Type: Double acting, rubber air cushion (xC) | Bore: 32 mm | Stroke: 75 mm
STG-M-32C-100-FP1Bearing: Slide bearing (M) | Type: Double acting, rubber air cushion (xC) | Bore: 32 mm | Stroke: 100 mm
STG-M-32C-125-FP1Bearing: Slide bearing (M) | Type: Double acting, rubber air cushion (xC) | Bore: 32 mm | Stroke: 125 mm
STG-M-32C-150-FP1Bearing: Slide bearing (M) | Type: Double acting, rubber air cushion (xC) | Bore: 32 mm | Stroke: 150 mm
STG-M-32C-175-FP1Bearing: Slide bearing (M) | Type: Double acting, rubber air cushion (xC) | Bore: 32 mm | Stroke: 175 mm
STG-M-32C-200-FP1Bearing: Slide bearing (M) | Type: Double acting, rubber air cushion (xC) | Bore: 32 mm | Stroke: 200 mm
STG-M-32C-250-FP1Bearing: Slide bearing (M) | Type: Double acting, rubber air cushion (xC) | Bore: 32 mm | Stroke: 250 mm
STG-M-32C-300-FP1Bearing: Slide bearing (M) | Type: Double acting, rubber air cushion (xC) | Bore: 32 mm | Stroke: 300 mm
STG-M-32C-350-FP1Bearing: Slide bearing (M) | Type: Double acting, rubber air cushion (xC) | Bore: 32 mm | Stroke: 350 mm
STG-M-32C-400-FP1Bearing: Slide bearing (M) | Type: Double acting, rubber air cushion (xC) | Bore: 32 mm | Stroke: 400 mm
STG-M-40C-25-FP1Bearing: Slide bearing (M) | Type: Double acting, rubber air cushion (xC) | Bore: 40 mm | Stroke: 25 mm
STG-M-40C-50-FP1Bearing: Slide bearing (M) | Type: Double acting, rubber air cushion (xC) | Bore: 40 mm | Stroke: 50 mm
STG-M-40C-75-FP1Bearing: Slide bearing (M) | Type: Double acting, rubber air cushion (xC) | Bore: 40 mm | Stroke: 75 mm
STG-M-40C-100-FP1Bearing: Slide bearing (M) | Type: Double acting, rubber air cushion (xC) | Bore: 40 mm | Stroke: 100 mm
STG-M-40C-125-FP1Bearing: Slide bearing (M) | Type: Double acting, rubber air cushion (xC) | Bore: 40 mm | Stroke: 125 mm
STG-M-40C-150-FP1Bearing: Slide bearing (M) | Type: Double acting, rubber air cushion (xC) | Bore: 40 mm | Stroke: 150 mm
STG-M-40C-175-FP1Bearing: Slide bearing (M) | Type: Double acting, rubber air cushion (xC) | Bore: 40 mm | Stroke: 175 mm
STG-M-40C-200-FP1Bearing: Slide bearing (M) | Type: Double acting, rubber air cushion (xC) | Bore: 40 mm | Stroke: 200 mm
STG-M-40C-250-FP1Bearing: Slide bearing (M) | Type: Double acting, rubber air cushion (xC) | Bore: 40 mm | Stroke: 250 mm
STG-M-40C-300-FP1Bearing: Slide bearing (M) | Type: Double acting, rubber air cushion (xC) | Bore: 40 mm | Stroke: 300 mm
STG-M-40C-350-FP1Bearing: Slide bearing (M) | Type: Double acting, rubber air cushion (xC) | Bore: 40 mm | Stroke: 350 mm
STG-M-40C-400-FP1Bearing: Slide bearing (M) | Type: Double acting, rubber air cushion (xC) | Bore: 40 mm | Stroke: 400 mm
STG-M-50C-25-FP1Bearing: Slide bearing (M) | Type: Double acting, rubber air cushion (xC) | Bore: 50 mm | Stroke: 25 mm
STG-M-50C-50-FP1Bearing: Slide bearing (M) | Type: Double acting, rubber air cushion (xC) | Bore: 50 mm | Stroke: 50 mm
STG-M-50C-75-FP1Bearing: Slide bearing (M) | Type: Double acting, rubber air cushion (xC) | Bore: 50 mm | Stroke: 75 mm
STG-M-50C-100-FP1Bearing: Slide bearing (M) | Type: Double acting, rubber air cushion (xC) | Bore: 50 mm | Stroke: 100 mm
STG-M-50C-125-FP1Bearing: Slide bearing (M) | Type: Double acting, rubber air cushion (xC) | Bore: 50 mm | Stroke: 125 mm
STG-M-50C-150-FP1Bearing: Slide bearing (M) | Type: Double acting, rubber air cushion (xC) | Bore: 50 mm | Stroke: 150 mm
STG-M-50C-175-FP1Bearing: Slide bearing (M) | Type: Double acting, rubber air cushion (xC) | Bore: 50 mm | Stroke: 175 mm
STG-M-50C-200-FP1Bearing: Slide bearing (M) | Type: Double acting, rubber air cushion (xC) | Bore: 50 mm | Stroke: 200 mm
STG-M-50C-250-FP1Bearing: Slide bearing (M) | Type: Double acting, rubber air cushion (xC) | Bore: 50 mm | Stroke: 250 mm
STG-M-50C-300-FP1Bearing: Slide bearing (M) | Type: Double acting, rubber air cushion (xC) | Bore: 50 mm | Stroke: 300 mm
STG-M-50C-350-FP1Bearing: Slide bearing (M) | Type: Double acting, rubber air cushion (xC) | Bore: 50 mm | Stroke: 350 mm
STG-M-50C-400-FP1Bearing: Slide bearing (M) | Type: Double acting, rubber air cushion (xC) | Bore: 50 mm | Stroke: 400 mm
STG-M-63C-25-FP1Bearing: Slide bearing (M) | Type: Double acting, rubber air cushion (xC) | Bore: 63 mm | Stroke: 25 mm
STG-M-63C-50-FP1Bearing: Slide bearing (M) | Type: Double acting, rubber air cushion (xC) | Bore: 63 mm | Stroke: 50 mm
STG-M-63C-75-FP1Bearing: Slide bearing (M) | Type: Double acting, rubber air cushion (xC) | Bore: 63 mm | Stroke: 75 mm
STG-M-63C-100-FP1Bearing: Slide bearing (M) | Type: Double acting, rubber air cushion (xC) | Bore: 63 mm | Stroke: 100 mm
STG-M-63C-125-FP1Bearing: Slide bearing (M) | Type: Double acting, rubber air cushion (xC) | Bore: 63 mm | Stroke: 125 mm
STG-M-63C-150-FP1Bearing: Slide bearing (M) | Type: Double acting, rubber air cushion (xC) | Bore: 63 mm | Stroke: 150 mm
STG-M-63C-175-FP1Bearing: Slide bearing (M) | Type: Double acting, rubber air cushion (xC) | Bore: 63 mm | Stroke: 175 mm
STG-M-63C-200-FP1Bearing: Slide bearing (M) | Type: Double acting, rubber air cushion (xC) | Bore: 63 mm | Stroke: 200 mm
STG-M-63C-250-FP1Bearing: Slide bearing (M) | Type: Double acting, rubber air cushion (xC) | Bore: 63 mm | Stroke: 250 mm
STG-M-63C-300-FP1Bearing: Slide bearing (M) | Type: Double acting, rubber air cushion (xC) | Bore: 63 mm | Stroke: 300 mm
STG-M-63C-350-FP1Bearing: Slide bearing (M) | Type: Double acting, rubber air cushion (xC) | Bore: 63 mm | Stroke: 350 mm
STG-M-63C-400-FP1Bearing: Slide bearing (M) | Type: Double acting, rubber air cushion (xC) | Bore: 63 mm | Stroke: 400 mm
STG-B-32C-25-FP1Bearing: Ball bearing (B) | Type: Double acting, rubber air cushion (xC) | Bore: 32 mm | Stroke: 25 mm
STG-B-32C-50-FP1Bearing: Ball bearing (B) | Type: Double acting, rubber air cushion (xC) | Bore: 32 mm | Stroke: 50 mm
STG-B-32C-75-FP1Bearing: Ball bearing (B) | Type: Double acting, rubber air cushion (xC) | Bore: 32 mm | Stroke: 75 mm
STG-B-32C-100-FP1Bearing: Ball bearing (B) | Type: Double acting, rubber air cushion (xC) | Bore: 32 mm | Stroke: 100 mm
STG-B-32C-125-FP1Bearing: Ball bearing (B) | Type: Double acting, rubber air cushion (xC) | Bore: 32 mm | Stroke: 125 mm
STG-B-32C-150-FP1Bearing: Ball bearing (B) | Type: Double acting, rubber air cushion (xC) | Bore: 32 mm | Stroke: 150 mm
STG-B-32C-175-FP1Bearing: Ball bearing (B) | Type: Double acting, rubber air cushion (xC) | Bore: 32 mm | Stroke: 175 mm
STG-B-32C-200-FP1Bearing: Ball bearing (B) | Type: Double acting, rubber air cushion (xC) | Bore: 32 mm | Stroke: 200 mm
STG-B-32C-250-FP1Bearing: Ball bearing (B) | Type: Double acting, rubber air cushion (xC) | Bore: 32 mm | Stroke: 250 mm
STG-B-32C-300-FP1Bearing: Ball bearing (B) | Type: Double acting, rubber air cushion (xC) | Bore: 32 mm | Stroke: 300 mm
STG-B-32C-350-FP1Bearing: Ball bearing (B) | Type: Double acting, rubber air cushion (xC) | Bore: 32 mm | Stroke: 350 mm
STG-B-32C-400-FP1Bearing: Ball bearing (B) | Type: Double acting, rubber air cushion (xC) | Bore: 32 mm | Stroke: 400 mm
STG-B-40C-25-FP1Bearing: Ball bearing (B) | Type: Double acting, rubber air cushion (xC) | Bore: 40 mm | Stroke: 25 mm
STG-B-40C-50-FP1Bearing: Ball bearing (B) | Type: Double acting, rubber air cushion (xC) | Bore: 40 mm | Stroke: 50 mm
STG-B-40C-75-FP1Bearing: Ball bearing (B) | Type: Double acting, rubber air cushion (xC) | Bore: 40 mm | Stroke: 75 mm
STG-B-40C-100-FP1Bearing: Ball bearing (B) | Type: Double acting, rubber air cushion (xC) | Bore: 40 mm | Stroke: 100 mm
STG-B-40C-125-FP1Bearing: Ball bearing (B) | Type: Double acting, rubber air cushion (xC) | Bore: 40 mm | Stroke: 125 mm
STG-B-40C-150-FP1Bearing: Ball bearing (B) | Type: Double acting, rubber air cushion (xC) | Bore: 40 mm | Stroke: 150 mm
STG-B-40C-175-FP1Bearing: Ball bearing (B) | Type: Double acting, rubber air cushion (xC) | Bore: 40 mm | Stroke: 175 mm
STG-B-40C-200-FP1Bearing: Ball bearing (B) | Type: Double acting, rubber air cushion (xC) | Bore: 40 mm | Stroke: 200 mm
STG-B-40C-250-FP1Bearing: Ball bearing (B) | Type: Double acting, rubber air cushion (xC) | Bore: 40 mm | Stroke: 250 mm
STG-B-40C-300-FP1Bearing: Ball bearing (B) | Type: Double acting, rubber air cushion (xC) | Bore: 40 mm | Stroke: 300 mm
STG-B-40C-350-FP1Bearing: Ball bearing (B) | Type: Double acting, rubber air cushion (xC) | Bore: 40 mm | Stroke: 350 mm
STG-B-40C-400-FP1Bearing: Ball bearing (B) | Type: Double acting, rubber air cushion (xC) | Bore: 40 mm | Stroke: 400 mm
STG-B-50C-25-FP1Bearing: Ball bearing (B) | Type: Double acting, rubber air cushion (xC) | Bore: 50 mm | Stroke: 25 mm
STG-B-50C-50-FP1Bearing: Ball bearing (B) | Type: Double acting, rubber air cushion (xC) | Bore: 50 mm | Stroke: 50 mm
STG-B-50C-75-FP1Bearing: Ball bearing (B) | Type: Double acting, rubber air cushion (xC) | Bore: 50 mm | Stroke: 75 mm
STG-B-50C-100-FP1Bearing: Ball bearing (B) | Type: Double acting, rubber air cushion (xC) | Bore: 50 mm | Stroke: 100 mm
STG-B-50C-125-FP1Bearing: Ball bearing (B) | Type: Double acting, rubber air cushion (xC) | Bore: 50 mm | Stroke: 125 mm
STG-B-50C-150-FP1Bearing: Ball bearing (B) | Type: Double acting, rubber air cushion (xC) | Bore: 50 mm | Stroke: 150 mm
STG-B-50C-175-FP1Bearing: Ball bearing (B) | Type: Double acting, rubber air cushion (xC) | Bore: 50 mm | Stroke: 175 mm
STG-B-50C-200-FP1Bearing: Ball bearing (B) | Type: Double acting, rubber air cushion (xC) | Bore: 50 mm | Stroke: 200 mm
STG-B-50C-250-FP1Bearing: Ball bearing (B) | Type: Double acting, rubber air cushion (xC) | Bore: 50 mm | Stroke: 250 mm
STG-B-50C-300-FP1Bearing: Ball bearing (B) | Type: Double acting, rubber air cushion (xC) | Bore: 50 mm | Stroke: 300 mm
STG-B-50C-350-FP1Bearing: Ball bearing (B) | Type: Double acting, rubber air cushion (xC) | Bore: 50 mm | Stroke: 350 mm
STG-B-50C-400-FP1Bearing: Ball bearing (B) | Type: Double acting, rubber air cushion (xC) | Bore: 50 mm | Stroke: 400 mm
STG-B-63C-25-FP1Bearing: Ball bearing (B) | Type: Double acting, rubber air cushion (xC) | Bore: 63 mm | Stroke: 25 mm
STG-B-63C-50-FP1Bearing: Ball bearing (B) | Type: Double acting, rubber air cushion (xC) | Bore: 63 mm | Stroke: 50 mm
STG-B-63C-75-FP1Bearing: Ball bearing (B) | Type: Double acting, rubber air cushion (xC) | Bore: 63 mm | Stroke: 75 mm
STG-B-63C-100-FP1Bearing: Ball bearing (B) | Type: Double acting, rubber air cushion (xC) | Bore: 63 mm | Stroke: 100 mm
STG-B-63C-125-FP1Bearing: Ball bearing (B) | Type: Double acting, rubber air cushion (xC) | Bore: 63 mm | Stroke: 125 mm
STG-B-63C-150-FP1Bearing: Ball bearing (B) | Type: Double acting, rubber air cushion (xC) | Bore: 63 mm | Stroke: 150 mm
STG-B-63C-175-FP1Bearing: Ball bearing (B) | Type: Double acting, rubber air cushion (xC) | Bore: 63 mm | Stroke: 175 mm
STG-B-63C-200-FP1Bearing: Ball bearing (B) | Type: Double acting, rubber air cushion (xC) | Bore: 63 mm | Stroke: 200 mm
STG-B-63C-250-FP1Bearing: Ball bearing (B) | Type: Double acting, rubber air cushion (xC) | Bore: 63 mm | Stroke: 250 mm
STG-B-63C-300-FP1Bearing: Ball bearing (B) | Type: Double acting, rubber air cushion (xC) | Bore: 63 mm | Stroke: 300 mm
STG-B-63C-350-FP1Bearing: Ball bearing (B) | Type: Double acting, rubber air cushion (xC) | Bore: 63 mm | Stroke: 350 mm
STG-B-63C-400-FP1Bearing: Ball bearing (B) | Type: Double acting, rubber air cushion (xC) | Bore: 63 mm | Stroke: 400 mm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
