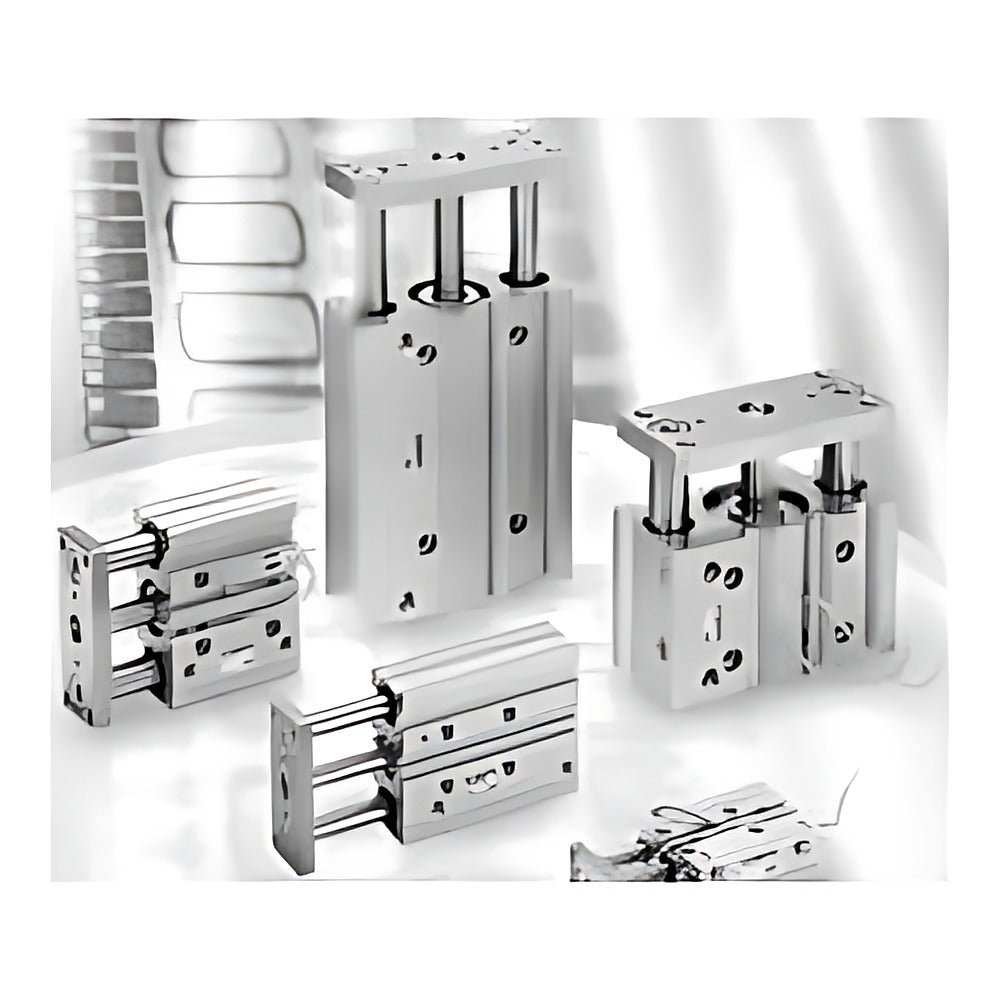

CKD STG-M/B G-FP1-HP1 Guided Cylinder (Food Process, Strong Scraper)

CKD STG-M/B G-FP1-HP1 Guided Cylinder (Food Process, Strong Scraper)

CKD STG-MG/BG-FP1-HP1 guided cylinder with strong scraper and NSF-H1 food-grade grease, bore ø12 to ø100.

Key features

  • Food-grade (NSF-H1) grease in sliding and flow-path parts (FP1); materials and dimensions same as standard
  • Strong scraper (G) environment-resistant construction with HP1 long-life sealing
  • Slide bearing (MG) or ball bearing (BG) guide; rubber cushion
  • Standard strokes 10-400 mm by bore; intermediate 5 mm steps
  • Switch magnet built in; example STG-MG-40-50-T0H-H-FP1-HP1

Specifications

Specification Food process FP1 (NSF-H1 grease), HP1
Action Double acting, guided
Max. operating pressure 1.0 MPa
Body thread M5 / Rc (NPT/G MTO)
Cushion Rubber cushion
Source CKD Korea catalog CC-1421KR-7, p. 252-253
STG-MG-12-10-FP1-HP1 Bearing: Slide bearing | Bore: 12 mm | Stroke: 10 mm
STG-MG-12-20-FP1-HP1 Bearing: Slide bearing | Bore: 12 mm | Stroke: 20 mm
STG-MG-12-30-FP1-HP1 Bearing: Slide bearing | Bore: 12 mm | Stroke: 30 mm
STG-MG-12-40-FP1-HP1 Bearing: Slide bearing | Bore: 12 mm | Stroke: 40 mm
STG-MG-12-50-FP1-HP1 Bearing: Slide bearing | Bore: 12 mm | Stroke: 50 mm
STG-MG-12-75-FP1-HP1 Bearing: Slide bearing | Bore: 12 mm | Stroke: 75 mm
STG-MG-12-100-FP1-HP1 Bearing: Slide bearing | Bore: 12 mm | Stroke: 100 mm
STG-MG-12-125-FP1-HP1 Bearing: Slide bearing | Bore: 12 mm | Stroke: 125 mm
STG-MG-12-150-FP1-HP1 Bearing: Slide bearing | Bore: 12 mm | Stroke: 150 mm
STG-MG-12-175-FP1-HP1 Bearing: Slide bearing | Bore: 12 mm | Stroke: 175 mm
STG-MG-12-200-FP1-HP1 Bearing: Slide bearing | Bore: 12 mm | Stroke: 200 mm
STG-MG-12-250-FP1-HP1 Bearing: Slide bearing | Bore: 12 mm | Stroke: 250 mm
STG-MG-16-10-FP1-HP1 Bearing: Slide bearing | Bore: 16 mm | Stroke: 10 mm
STG-MG-16-20-FP1-HP1 Bearing: Slide bearing | Bore: 16 mm | Stroke: 20 mm
STG-MG-16-30-FP1-HP1 Bearing: Slide bearing | Bore: 16 mm | Stroke: 30 mm
STG-MG-16-40-FP1-HP1 Bearing: Slide bearing | Bore: 16 mm | Stroke: 40 mm
STG-MG-16-50-FP1-HP1 Bearing: Slide bearing | Bore: 16 mm | Stroke: 50 mm
STG-MG-16-75-FP1-HP1 Bearing: Slide bearing | Bore: 16 mm | Stroke: 75 mm
STG-MG-16-100-FP1-HP1 Bearing: Slide bearing | Bore: 16 mm | Stroke: 100 mm
STG-MG-16-125-FP1-HP1 Bearing: Slide bearing | Bore: 16 mm | Stroke: 125 mm
STG-MG-16-150-FP1-HP1 Bearing: Slide bearing | Bore: 16 mm | Stroke: 150 mm
STG-MG-16-175-FP1-HP1 Bearing: Slide bearing | Bore: 16 mm | Stroke: 175 mm
STG-MG-16-200-FP1-HP1 Bearing: Slide bearing | Bore: 16 mm | Stroke: 200 mm
STG-MG-16-250-FP1-HP1 Bearing: Slide bearing | Bore: 16 mm | Stroke: 250 mm
STG-MG-20-20-FP1-HP1 Bearing: Slide bearing | Bore: 20 mm | Stroke: 20 mm
STG-MG-20-30-FP1-HP1 Bearing: Slide bearing | Bore: 20 mm | Stroke: 30 mm
STG-MG-20-40-FP1-HP1 Bearing: Slide bearing | Bore: 20 mm | Stroke: 40 mm
STG-MG-20-50-FP1-HP1 Bearing: Slide bearing | Bore: 20 mm | Stroke: 50 mm
STG-MG-20-75-FP1-HP1 Bearing: Slide bearing | Bore: 20 mm | Stroke: 75 mm
STG-MG-20-100-FP1-HP1 Bearing: Slide bearing | Bore: 20 mm | Stroke: 100 mm
STG-MG-20-125-FP1-HP1 Bearing: Slide bearing | Bore: 20 mm | Stroke: 125 mm
STG-MG-20-150-FP1-HP1 Bearing: Slide bearing | Bore: 20 mm | Stroke: 150 mm
STG-MG-20-175-FP1-HP1 Bearing: Slide bearing | Bore: 20 mm | Stroke: 175 mm
STG-MG-20-200-FP1-HP1 Bearing: Slide bearing | Bore: 20 mm | Stroke: 200 mm
STG-MG-20-250-FP1-HP1 Bearing: Slide bearing | Bore: 20 mm | Stroke: 250 mm
STG-MG-20-300-FP1-HP1 Bearing: Slide bearing | Bore: 20 mm | Stroke: 300 mm
STG-MG-20-350-FP1-HP1 Bearing: Slide bearing | Bore: 20 mm | Stroke: 350 mm
STG-MG-20-400-FP1-HP1 Bearing: Slide bearing | Bore: 20 mm | Stroke: 400 mm
STG-MG-25-20-FP1-HP1 Bearing: Slide bearing | Bore: 25 mm | Stroke: 20 mm
STG-MG-25-30-FP1-HP1 Bearing: Slide bearing | Bore: 25 mm | Stroke: 30 mm
STG-MG-25-40-FP1-HP1 Bearing: Slide bearing | Bore: 25 mm | Stroke: 40 mm
STG-MG-25-50-FP1-HP1 Bearing: Slide bearing | Bore: 25 mm | Stroke: 50 mm
STG-MG-25-75-FP1-HP1 Bearing: Slide bearing | Bore: 25 mm | Stroke: 75 mm
STG-MG-25-100-FP1-HP1 Bearing: Slide bearing | Bore: 25 mm | Stroke: 100 mm
STG-MG-25-125-FP1-HP1 Bearing: Slide bearing | Bore: 25 mm | Stroke: 125 mm
STG-MG-25-150-FP1-HP1 Bearing: Slide bearing | Bore: 25 mm | Stroke: 150 mm
STG-MG-25-175-FP1-HP1 Bearing: Slide bearing | Bore: 25 mm | Stroke: 175 mm
STG-MG-25-200-FP1-HP1 Bearing: Slide bearing | Bore: 25 mm | Stroke: 200 mm
STG-MG-25-250-FP1-HP1 Bearing: Slide bearing | Bore: 25 mm | Stroke: 250 mm
STG-MG-25-300-FP1-HP1 Bearing: Slide bearing | Bore: 25 mm | Stroke: 300 mm
STG-MG-25-350-FP1-HP1 Bearing: Slide bearing | Bore: 25 mm | Stroke: 350 mm
STG-MG-25-400-FP1-HP1 Bearing: Slide bearing | Bore: 25 mm | Stroke: 400 mm
STG-MG-32-25-FP1-HP1 Bearing: Slide bearing | Bore: 32 mm | Stroke: 25 mm
STG-MG-32-50-FP1-HP1 Bearing: Slide bearing | Bore: 32 mm | Stroke: 50 mm
STG-MG-32-75-FP1-HP1 Bearing: Slide bearing | Bore: 32 mm | Stroke: 75 mm
STG-MG-32-100-FP1-HP1 Bearing: Slide bearing | Bore: 32 mm | Stroke: 100 mm
STG-MG-32-125-FP1-HP1 Bearing: Slide bearing | Bore: 32 mm | Stroke: 125 mm
STG-MG-32-150-FP1-HP1 Bearing: Slide bearing | Bore: 32 mm | Stroke: 150 mm
STG-MG-32-175-FP1-HP1 Bearing: Slide bearing | Bore: 32 mm | Stroke: 175 mm
STG-MG-32-200-FP1-HP1 Bearing: Slide bearing | Bore: 32 mm | Stroke: 200 mm
STG-MG-32-250-FP1-HP1 Bearing: Slide bearing | Bore: 32 mm | Stroke: 250 mm
STG-MG-32-300-FP1-HP1 Bearing: Slide bearing | Bore: 32 mm | Stroke: 300 mm
STG-MG-32-350-FP1-HP1 Bearing: Slide bearing | Bore: 32 mm | Stroke: 350 mm
STG-MG-32-400-FP1-HP1 Bearing: Slide bearing | Bore: 32 mm | Stroke: 400 mm
STG-MG-40-25-FP1-HP1 Bearing: Slide bearing | Bore: 40 mm | Stroke: 25 mm
STG-MG-40-50-FP1-HP1 Bearing: Slide bearing | Bore: 40 mm | Stroke: 50 mm
STG-MG-40-75-FP1-HP1 Bearing: Slide bearing | Bore: 40 mm | Stroke: 75 mm
STG-MG-40-100-FP1-HP1 Bearing: Slide bearing | Bore: 40 mm | Stroke: 100 mm
STG-MG-40-125-FP1-HP1 Bearing: Slide bearing | Bore: 40 mm | Stroke: 125 mm
STG-MG-40-150-FP1-HP1 Bearing: Slide bearing | Bore: 40 mm | Stroke: 150 mm
STG-MG-40-175-FP1-HP1 Bearing: Slide bearing | Bore: 40 mm | Stroke: 175 mm
STG-MG-40-200-FP1-HP1 Bearing: Slide bearing | Bore: 40 mm | Stroke: 200 mm
STG-MG-40-250-FP1-HP1 Bearing: Slide bearing | Bore: 40 mm | Stroke: 250 mm
STG-MG-40-300-FP1-HP1 Bearing: Slide bearing | Bore: 40 mm | Stroke: 300 mm
STG-MG-40-350-FP1-HP1 Bearing: Slide bearing | Bore: 40 mm | Stroke: 350 mm
STG-MG-40-400-FP1-HP1 Bearing: Slide bearing | Bore: 40 mm | Stroke: 400 mm
STG-MG-50-25-FP1-HP1 Bearing: Slide bearing | Bore: 50 mm | Stroke: 25 mm
STG-MG-50-50-FP1-HP1 Bearing: Slide bearing | Bore: 50 mm | Stroke: 50 mm
STG-MG-50-75-FP1-HP1 Bearing: Slide bearing | Bore: 50 mm | Stroke: 75 mm
STG-MG-50-100-FP1-HP1 Bearing: Slide bearing | Bore: 50 mm | Stroke: 100 mm
STG-MG-50-125-FP1-HP1 Bearing: Slide bearing | Bore: 50 mm | Stroke: 125 mm
STG-MG-50-150-FP1-HP1 Bearing: Slide bearing | Bore: 50 mm | Stroke: 150 mm
STG-MG-50-175-FP1-HP1 Bearing: Slide bearing | Bore: 50 mm | Stroke: 175 mm
STG-MG-50-200-FP1-HP1 Bearing: Slide bearing | Bore: 50 mm | Stroke: 200 mm
STG-MG-50-250-FP1-HP1 Bearing: Slide bearing | Bore: 50 mm | Stroke: 250 mm
STG-MG-50-300-FP1-HP1 Bearing: Slide bearing | Bore: 50 mm | Stroke: 300 mm
STG-MG-50-350-FP1-HP1 Bearing: Slide bearing | Bore: 50 mm | Stroke: 350 mm
STG-MG-50-400-FP1-HP1 Bearing: Slide bearing | Bore: 50 mm | Stroke: 400 mm
STG-MG-63-25-FP1-HP1 Bearing: Slide bearing | Bore: 63 mm | Stroke: 25 mm
STG-MG-63-50-FP1-HP1 Bearing: Slide bearing | Bore: 63 mm | Stroke: 50 mm
STG-MG-63-75-FP1-HP1 Bearing: Slide bearing | Bore: 63 mm | Stroke: 75 mm
STG-MG-63-100-FP1-HP1 Bearing: Slide bearing | Bore: 63 mm | Stroke: 100 mm
STG-MG-63-125-FP1-HP1 Bearing: Slide bearing | Bore: 63 mm | Stroke: 125 mm
STG-MG-63-150-FP1-HP1 Bearing: Slide bearing | Bore: 63 mm | Stroke: 150 mm
STG-MG-63-175-FP1-HP1 Bearing: Slide bearing | Bore: 63 mm | Stroke: 175 mm
STG-MG-63-200-FP1-HP1 Bearing: Slide bearing | Bore: 63 mm | Stroke: 200 mm
STG-MG-63-250-FP1-HP1 Bearing: Slide bearing | Bore: 63 mm | Stroke: 250 mm
STG-MG-63-300-FP1-HP1 Bearing: Slide bearing | Bore: 63 mm | Stroke: 300 mm
STG-MG-63-350-FP1-HP1 Bearing: Slide bearing | Bore: 63 mm | Stroke: 350 mm
STG-MG-63-400-FP1-HP1 Bearing: Slide bearing | Bore: 63 mm | Stroke: 400 mm
STG-MG-80-25-FP1-HP1 Bearing: Slide bearing | Bore: 80 mm | Stroke: 25 mm
STG-MG-80-50-FP1-HP1 Bearing: Slide bearing | Bore: 80 mm | Stroke: 50 mm
STG-MG-80-75-FP1-HP1 Bearing: Slide bearing | Bore: 80 mm | Stroke: 75 mm
STG-MG-80-100-FP1-HP1 Bearing: Slide bearing | Bore: 80 mm | Stroke: 100 mm
STG-MG-80-125-FP1-HP1 Bearing: Slide bearing | Bore: 80 mm | Stroke: 125 mm
STG-MG-80-150-FP1-HP1 Bearing: Slide bearing | Bore: 80 mm | Stroke: 150 mm
STG-MG-80-175-FP1-HP1 Bearing: Slide bearing | Bore: 80 mm | Stroke: 175 mm
STG-MG-80-200-FP1-HP1 Bearing: Slide bearing | Bore: 80 mm | Stroke: 200 mm
STG-MG-80-250-FP1-HP1 Bearing: Slide bearing | Bore: 80 mm | Stroke: 250 mm
STG-MG-80-300-FP1-HP1 Bearing: Slide bearing | Bore: 80 mm | Stroke: 300 mm
STG-MG-80-350-FP1-HP1 Bearing: Slide bearing | Bore: 80 mm | Stroke: 350 mm
STG-MG-80-400-FP1-HP1 Bearing: Slide bearing | Bore: 80 mm | Stroke: 400 mm
STG-MG-100-25-FP1-HP1 Bearing: Slide bearing | Bore: 100 mm | Stroke: 25 mm
STG-MG-100-50-FP1-HP1 Bearing: Slide bearing | Bore: 100 mm | Stroke: 50 mm
STG-MG-100-75-FP1-HP1 Bearing: Slide bearing | Bore: 100 mm | Stroke: 75 mm
STG-MG-100-100-FP1-HP1 Bearing: Slide bearing | Bore: 100 mm | Stroke: 100 mm
STG-MG-100-125-FP1-HP1 Bearing: Slide bearing | Bore: 100 mm | Stroke: 125 mm
STG-MG-100-150-FP1-HP1 Bearing: Slide bearing | Bore: 100 mm | Stroke: 150 mm
STG-MG-100-175-FP1-HP1 Bearing: Slide bearing | Bore: 100 mm | Stroke: 175 mm
STG-MG-100-200-FP1-HP1 Bearing: Slide bearing | Bore: 100 mm | Stroke: 200 mm
STG-MG-100-250-FP1-HP1 Bearing: Slide bearing | Bore: 100 mm | Stroke: 250 mm
STG-MG-100-300-FP1-HP1 Bearing: Slide bearing | Bore: 100 mm | Stroke: 300 mm
STG-MG-100-350-FP1-HP1 Bearing: Slide bearing | Bore: 100 mm | Stroke: 350 mm
STG-MG-100-400-FP1-HP1 Bearing: Slide bearing | Bore: 100 mm | Stroke: 400 mm
STG-BG-12-10-FP1-HP1 Bearing: Ball bearing | Bore: 12 mm | Stroke: 10 mm
STG-BG-12-20-FP1-HP1 Bearing: Ball bearing | Bore: 12 mm | Stroke: 20 mm
STG-BG-12-30-FP1-HP1 Bearing: Ball bearing | Bore: 12 mm | Stroke: 30 mm
STG-BG-12-40-FP1-HP1 Bearing: Ball bearing | Bore: 12 mm | Stroke: 40 mm
STG-BG-12-50-FP1-HP1 Bearing: Ball bearing | Bore: 12 mm | Stroke: 50 mm
STG-BG-12-75-FP1-HP1 Bearing: Ball bearing | Bore: 12 mm | Stroke: 75 mm
STG-BG-12-100-FP1-HP1 Bearing: Ball bearing | Bore: 12 mm | Stroke: 100 mm
STG-BG-12-125-FP1-HP1 Bearing: Ball bearing | Bore: 12 mm | Stroke: 125 mm
STG-BG-12-150-FP1-HP1 Bearing: Ball bearing | Bore: 12 mm | Stroke: 150 mm
STG-BG-12-175-FP1-HP1 Bearing: Ball bearing | Bore: 12 mm | Stroke: 175 mm
STG-BG-12-200-FP1-HP1 Bearing: Ball bearing | Bore: 12 mm | Stroke: 200 mm
STG-BG-12-250-FP1-HP1 Bearing: Ball bearing | Bore: 12 mm | Stroke: 250 mm
STG-BG-16-10-FP1-HP1 Bearing: Ball bearing | Bore: 16 mm | Stroke: 10 mm
STG-BG-16-20-FP1-HP1 Bearing: Ball bearing | Bore: 16 mm | Stroke: 20 mm
STG-BG-16-30-FP1-HP1 Bearing: Ball bearing | Bore: 16 mm | Stroke: 30 mm
STG-BG-16-40-FP1-HP1 Bearing: Ball bearing | Bore: 16 mm | Stroke: 40 mm
STG-BG-16-50-FP1-HP1 Bearing: Ball bearing | Bore: 16 mm | Stroke: 50 mm
STG-BG-16-75-FP1-HP1 Bearing: Ball bearing | Bore: 16 mm | Stroke: 75 mm
STG-BG-16-100-FP1-HP1 Bearing: Ball bearing | Bore: 16 mm | Stroke: 100 mm
STG-BG-16-125-FP1-HP1 Bearing: Ball bearing | Bore: 16 mm | Stroke: 125 mm
STG-BG-16-150-FP1-HP1 Bearing: Ball bearing | Bore: 16 mm | Stroke: 150 mm
STG-BG-16-175-FP1-HP1 Bearing: Ball bearing | Bore: 16 mm | Stroke: 175 mm
STG-BG-16-200-FP1-HP1 Bearing: Ball bearing | Bore: 16 mm | Stroke: 200 mm
STG-BG-16-250-FP1-HP1 Bearing: Ball bearing | Bore: 16 mm | Stroke: 250 mm
STG-BG-20-20-FP1-HP1 Bearing: Ball bearing | Bore: 20 mm | Stroke: 20 mm
STG-BG-20-30-FP1-HP1 Bearing: Ball bearing | Bore: 20 mm | Stroke: 30 mm
STG-BG-20-40-FP1-HP1 Bearing: Ball bearing | Bore: 20 mm | Stroke: 40 mm
STG-BG-20-50-FP1-HP1 Bearing: Ball bearing | Bore: 20 mm | Stroke: 50 mm
STG-BG-20-75-FP1-HP1 Bearing: Ball bearing | Bore: 20 mm | Stroke: 75 mm
STG-BG-20-100-FP1-HP1 Bearing: Ball bearing | Bore: 20 mm | Stroke: 100 mm
STG-BG-20-125-FP1-HP1 Bearing: Ball bearing | Bore: 20 mm | Stroke: 125 mm
STG-BG-20-150-FP1-HP1 Bearing: Ball bearing | Bore: 20 mm | Stroke: 150 mm
STG-BG-20-175-FP1-HP1 Bearing: Ball bearing | Bore: 20 mm | Stroke: 175 mm
STG-BG-20-200-FP1-HP1 Bearing: Ball bearing | Bore: 20 mm | Stroke: 200 mm
STG-BG-20-250-FP1-HP1 Bearing: Ball bearing | Bore: 20 mm | Stroke: 250 mm
STG-BG-20-300-FP1-HP1 Bearing: Ball bearing | Bore: 20 mm | Stroke: 300 mm
STG-BG-20-350-FP1-HP1 Bearing: Ball bearing | Bore: 20 mm | Stroke: 350 mm
STG-BG-20-400-FP1-HP1 Bearing: Ball bearing | Bore: 20 mm | Stroke: 400 mm
STG-BG-25-20-FP1-HP1 Bearing: Ball bearing | Bore: 25 mm | Stroke: 20 mm
STG-BG-25-30-FP1-HP1 Bearing: Ball bearing | Bore: 25 mm | Stroke: 30 mm
STG-BG-25-40-FP1-HP1 Bearing: Ball bearing | Bore: 25 mm | Stroke: 40 mm
STG-BG-25-50-FP1-HP1 Bearing: Ball bearing | Bore: 25 mm | Stroke: 50 mm
STG-BG-25-75-FP1-HP1 Bearing: Ball bearing | Bore: 25 mm | Stroke: 75 mm
STG-BG-25-100-FP1-HP1 Bearing: Ball bearing | Bore: 25 mm | Stroke: 100 mm
STG-BG-25-125-FP1-HP1 Bearing: Ball bearing | Bore: 25 mm | Stroke: 125 mm
STG-BG-25-150-FP1-HP1 Bearing: Ball bearing | Bore: 25 mm | Stroke: 150 mm
STG-BG-25-175-FP1-HP1 Bearing: Ball bearing | Bore: 25 mm | Stroke: 175 mm
STG-BG-25-200-FP1-HP1 Bearing: Ball bearing | Bore: 25 mm | Stroke: 200 mm
STG-BG-25-250-FP1-HP1 Bearing: Ball bearing | Bore: 25 mm | Stroke: 250 mm
STG-BG-25-300-FP1-HP1 Bearing: Ball bearing | Bore: 25 mm | Stroke: 300 mm
STG-BG-25-350-FP1-HP1 Bearing: Ball bearing | Bore: 25 mm | Stroke: 350 mm
STG-BG-25-400-FP1-HP1 Bearing: Ball bearing | Bore: 25 mm | Stroke: 400 mm
STG-BG-32-25-FP1-HP1 Bearing: Ball bearing | Bore: 32 mm | Stroke: 25 mm
STG-BG-32-50-FP1-HP1 Bearing: Ball bearing | Bore: 32 mm | Stroke: 50 mm
STG-BG-32-75-FP1-HP1 Bearing: Ball bearing | Bore: 32 mm | Stroke: 75 mm
STG-BG-32-100-FP1-HP1 Bearing: Ball bearing | Bore: 32 mm | Stroke: 100 mm
STG-BG-32-125-FP1-HP1 Bearing: Ball bearing | Bore: 32 mm | Stroke: 125 mm
STG-BG-32-150-FP1-HP1 Bearing: Ball bearing | Bore: 32 mm | Stroke: 150 mm
STG-BG-32-175-FP1-HP1 Bearing: Ball bearing | Bore: 32 mm | Stroke: 175 mm
STG-BG-32-200-FP1-HP1 Bearing: Ball bearing | Bore: 32 mm | Stroke: 200 mm
STG-BG-32-250-FP1-HP1 Bearing: Ball bearing | Bore: 32 mm | Stroke: 250 mm
STG-BG-32-300-FP1-HP1 Bearing: Ball bearing | Bore: 32 mm | Stroke: 300 mm
STG-BG-32-350-FP1-HP1 Bearing: Ball bearing | Bore: 32 mm | Stroke: 350 mm
STG-BG-32-400-FP1-HP1 Bearing: Ball bearing | Bore: 32 mm | Stroke: 400 mm
STG-BG-40-25-FP1-HP1 Bearing: Ball bearing | Bore: 40 mm | Stroke: 25 mm
STG-BG-40-50-FP1-HP1 Bearing: Ball bearing | Bore: 40 mm | Stroke: 50 mm
STG-BG-40-75-FP1-HP1 Bearing: Ball bearing | Bore: 40 mm | Stroke: 75 mm
STG-BG-40-100-FP1-HP1 Bearing: Ball bearing | Bore: 40 mm | Stroke: 100 mm
STG-BG-40-125-FP1-HP1 Bearing: Ball bearing | Bore: 40 mm | Stroke: 125 mm
STG-BG-40-150-FP1-HP1 Bearing: Ball bearing | Bore: 40 mm | Stroke: 150 mm
STG-BG-40-175-FP1-HP1 Bearing: Ball bearing | Bore: 40 mm | Stroke: 175 mm
STG-BG-40-200-FP1-HP1 Bearing: Ball bearing | Bore: 40 mm | Stroke: 200 mm
STG-BG-40-250-FP1-HP1 Bearing: Ball bearing | Bore: 40 mm | Stroke: 250 mm
STG-BG-40-300-FP1-HP1 Bearing: Ball bearing | Bore: 40 mm | Stroke: 300 mm
STG-BG-40-350-FP1-HP1 Bearing: Ball bearing | Bore: 40 mm | Stroke: 350 mm
STG-BG-40-400-FP1-HP1 Bearing: Ball bearing | Bore: 40 mm | Stroke: 400 mm
STG-BG-50-25-FP1-HP1 Bearing: Ball bearing | Bore: 50 mm | Stroke: 25 mm
STG-BG-50-50-FP1-HP1 Bearing: Ball bearing | Bore: 50 mm | Stroke: 50 mm
STG-BG-50-75-FP1-HP1 Bearing: Ball bearing | Bore: 50 mm | Stroke: 75 mm
STG-BG-50-100-FP1-HP1 Bearing: Ball bearing | Bore: 50 mm | Stroke: 100 mm
STG-BG-50-125-FP1-HP1 Bearing: Ball bearing | Bore: 50 mm | Stroke: 125 mm
STG-BG-50-150-FP1-HP1 Bearing: Ball bearing | Bore: 50 mm | Stroke: 150 mm
STG-BG-50-175-FP1-HP1 Bearing: Ball bearing | Bore: 50 mm | Stroke: 175 mm
STG-BG-50-200-FP1-HP1 Bearing: Ball bearing | Bore: 50 mm | Stroke: 200 mm
STG-BG-50-250-FP1-HP1 Bearing: Ball bearing | Bore: 50 mm | Stroke: 250 mm
STG-BG-50-300-FP1-HP1 Bearing: Ball bearing | Bore: 50 mm | Stroke: 300 mm
STG-BG-50-350-FP1-HP1 Bearing: Ball bearing | Bore: 50 mm | Stroke: 350 mm
STG-BG-50-400-FP1-HP1 Bearing: Ball bearing | Bore: 50 mm | Stroke: 400 mm
STG-BG-63-25-FP1-HP1 Bearing: Ball bearing | Bore: 63 mm | Stroke: 25 mm
STG-BG-63-50-FP1-HP1 Bearing: Ball bearing | Bore: 63 mm | Stroke: 50 mm
STG-BG-63-75-FP1-HP1 Bearing: Ball bearing | Bore: 63 mm | Stroke: 75 mm
STG-BG-63-100-FP1-HP1 Bearing: Ball bearing | Bore: 63 mm | Stroke: 100 mm
STG-BG-63-125-FP1-HP1 Bearing: Ball bearing | Bore: 63 mm | Stroke: 125 mm
STG-BG-63-150-FP1-HP1 Bearing: Ball bearing | Bore: 63 mm | Stroke: 150 mm
STG-BG-63-175-FP1-HP1 Bearing: Ball bearing | Bore: 63 mm | Stroke: 175 mm
STG-BG-63-200-FP1-HP1 Bearing: Ball bearing | Bore: 63 mm | Stroke: 200 mm
STG-BG-63-250-FP1-HP1 Bearing: Ball bearing | Bore: 63 mm | Stroke: 250 mm
STG-BG-63-300-FP1-HP1 Bearing: Ball bearing | Bore: 63 mm | Stroke: 300 mm
STG-BG-63-350-FP1-HP1 Bearing: Ball bearing | Bore: 63 mm | Stroke: 350 mm
STG-BG-63-400-FP1-HP1 Bearing: Ball bearing | Bore: 63 mm | Stroke: 400 mm
STG-BG-80-25-FP1-HP1 Bearing: Ball bearing | Bore: 80 mm | Stroke: 25 mm
STG-BG-80-50-FP1-HP1 Bearing: Ball bearing | Bore: 80 mm | Stroke: 50 mm
STG-BG-80-75-FP1-HP1 Bearing: Ball bearing | Bore: 80 mm | Stroke: 75 mm
STG-BG-80-100-FP1-HP1 Bearing: Ball bearing | Bore: 80 mm | Stroke: 100 mm
STG-BG-80-125-FP1-HP1 Bearing: Ball bearing | Bore: 80 mm | Stroke: 125 mm
STG-BG-80-150-FP1-HP1 Bearing: Ball bearing | Bore: 80 mm | Stroke: 150 mm
STG-BG-80-175-FP1-HP1 Bearing: Ball bearing | Bore: 80 mm | Stroke: 175 mm
STG-BG-80-200-FP1-HP1 Bearing: Ball bearing | Bore: 80 mm | Stroke: 200 mm
STG-BG-80-250-FP1-HP1 Bearing: Ball bearing | Bore: 80 mm | Stroke: 250 mm
STG-BG-80-300-FP1-HP1 Bearing: Ball bearing | Bore: 80 mm | Stroke: 300 mm
STG-BG-80-350-FP1-HP1 Bearing: Ball bearing | Bore: 80 mm | Stroke: 350 mm
STG-BG-80-400-FP1-HP1 Bearing: Ball bearing | Bore: 80 mm | Stroke: 400 mm
STG-BG-100-25-FP1-HP1 Bearing: Ball bearing | Bore: 100 mm | Stroke: 25 mm
STG-BG-100-50-FP1-HP1 Bearing: Ball bearing | Bore: 100 mm | Stroke: 50 mm
STG-BG-100-75-FP1-HP1 Bearing: Ball bearing | Bore: 100 mm | Stroke: 75 mm
STG-BG-100-100-FP1-HP1 Bearing: Ball bearing | Bore: 100 mm | Stroke: 100 mm
STG-BG-100-125-FP1-HP1 Bearing: Ball bearing | Bore: 100 mm | Stroke: 125 mm
STG-BG-100-150-FP1-HP1 Bearing: Ball bearing | Bore: 100 mm | Stroke: 150 mm
STG-BG-100-175-FP1-HP1 Bearing: Ball bearing | Bore: 100 mm | Stroke: 175 mm
STG-BG-100-200-FP1-HP1 Bearing: Ball bearing | Bore: 100 mm | Stroke: 200 mm
STG-BG-100-250-FP1-HP1 Bearing: Ball bearing | Bore: 100 mm | Stroke: 250 mm
STG-BG-100-300-FP1-HP1 Bearing: Ball bearing | Bore: 100 mm | Stroke: 300 mm
STG-BG-100-350-FP1-HP1 Bearing: Ball bearing | Bore: 100 mm | Stroke: 350 mm
STG-BG-100-400-FP1-HP1 Bearing: Ball bearing | Bore: 100 mm | Stroke: 400 mm
Guided CylindersCKD
248 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD STG-M/B G-FP1-HP1 Guided Cylinder (Food Process, Strong Scraper)

Brand CKD·Guided Cylinders

Available part numbers (248)

STG-MG-12-10-FP1-HP1, STG-MG-12-20-FP1-HP1, STG-MG-12-30-FP1-HP1, STG-MG-12-40-FP1-HP1, STG-MG-12-50-FP1-HP1, STG-MG-12-75-FP1-HP1, STG-MG-12-100-FP1-HP1, STG-MG-12-125-FP1-HP1, STG-MG-12-150-FP1-HP1, STG-MG-12-175-FP1-HP1 + 238 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
STG-MG-12-10-FP1-HP1Bearing: Slide bearing | Bore: 12 mm | Stroke: 10 mm
STG-MG-12-20-FP1-HP1Bearing: Slide bearing | Bore: 12 mm | Stroke: 20 mm
STG-MG-12-30-FP1-HP1Bearing: Slide bearing | Bore: 12 mm | Stroke: 30 mm
STG-MG-12-40-FP1-HP1Bearing: Slide bearing | Bore: 12 mm | Stroke: 40 mm
STG-MG-12-50-FP1-HP1Bearing: Slide bearing | Bore: 12 mm | Stroke: 50 mm
STG-MG-12-75-FP1-HP1Bearing: Slide bearing | Bore: 12 mm | Stroke: 75 mm
STG-MG-12-100-FP1-HP1Bearing: Slide bearing | Bore: 12 mm | Stroke: 100 mm
STG-MG-12-125-FP1-HP1Bearing: Slide bearing | Bore: 12 mm | Stroke: 125 mm
STG-MG-12-150-FP1-HP1Bearing: Slide bearing | Bore: 12 mm | Stroke: 150 mm
STG-MG-12-175-FP1-HP1Bearing: Slide bearing | Bore: 12 mm | Stroke: 175 mm
STG-MG-12-200-FP1-HP1Bearing: Slide bearing | Bore: 12 mm | Stroke: 200 mm
STG-MG-12-250-FP1-HP1Bearing: Slide bearing | Bore: 12 mm | Stroke: 250 mm
STG-MG-16-10-FP1-HP1Bearing: Slide bearing | Bore: 16 mm | Stroke: 10 mm
STG-MG-16-20-FP1-HP1Bearing: Slide bearing | Bore: 16 mm | Stroke: 20 mm
STG-MG-16-30-FP1-HP1Bearing: Slide bearing | Bore: 16 mm | Stroke: 30 mm
STG-MG-16-40-FP1-HP1Bearing: Slide bearing | Bore: 16 mm | Stroke: 40 mm
STG-MG-16-50-FP1-HP1Bearing: Slide bearing | Bore: 16 mm | Stroke: 50 mm
STG-MG-16-75-FP1-HP1Bearing: Slide bearing | Bore: 16 mm | Stroke: 75 mm
STG-MG-16-100-FP1-HP1Bearing: Slide bearing | Bore: 16 mm | Stroke: 100 mm
STG-MG-16-125-FP1-HP1Bearing: Slide bearing | Bore: 16 mm | Stroke: 125 mm
STG-MG-16-150-FP1-HP1Bearing: Slide bearing | Bore: 16 mm | Stroke: 150 mm
STG-MG-16-175-FP1-HP1Bearing: Slide bearing | Bore: 16 mm | Stroke: 175 mm
STG-MG-16-200-FP1-HP1Bearing: Slide bearing | Bore: 16 mm | Stroke: 200 mm
STG-MG-16-250-FP1-HP1Bearing: Slide bearing | Bore: 16 mm | Stroke: 250 mm
STG-MG-20-20-FP1-HP1Bearing: Slide bearing | Bore: 20 mm | Stroke: 20 mm
STG-MG-20-30-FP1-HP1Bearing: Slide bearing | Bore: 20 mm | Stroke: 30 mm
STG-MG-20-40-FP1-HP1Bearing: Slide bearing | Bore: 20 mm | Stroke: 40 mm
STG-MG-20-50-FP1-HP1Bearing: Slide bearing | Bore: 20 mm | Stroke: 50 mm
STG-MG-20-75-FP1-HP1Bearing: Slide bearing | Bore: 20 mm | Stroke: 75 mm
STG-MG-20-100-FP1-HP1Bearing: Slide bearing | Bore: 20 mm | Stroke: 100 mm
STG-MG-20-125-FP1-HP1Bearing: Slide bearing | Bore: 20 mm | Stroke: 125 mm
STG-MG-20-150-FP1-HP1Bearing: Slide bearing | Bore: 20 mm | Stroke: 150 mm
STG-MG-20-175-FP1-HP1Bearing: Slide bearing | Bore: 20 mm | Stroke: 175 mm
STG-MG-20-200-FP1-HP1Bearing: Slide bearing | Bore: 20 mm | Stroke: 200 mm
STG-MG-20-250-FP1-HP1Bearing: Slide bearing | Bore: 20 mm | Stroke: 250 mm
STG-MG-20-300-FP1-HP1Bearing: Slide bearing | Bore: 20 mm | Stroke: 300 mm
STG-MG-20-350-FP1-HP1Bearing: Slide bearing | Bore: 20 mm | Stroke: 350 mm
STG-MG-20-400-FP1-HP1Bearing: Slide bearing | Bore: 20 mm | Stroke: 400 mm
STG-MG-25-20-FP1-HP1Bearing: Slide bearing | Bore: 25 mm | Stroke: 20 mm
STG-MG-25-30-FP1-HP1Bearing: Slide bearing | Bore: 25 mm | Stroke: 30 mm
STG-MG-25-40-FP1-HP1Bearing: Slide bearing | Bore: 25 mm | Stroke: 40 mm
STG-MG-25-50-FP1-HP1Bearing: Slide bearing | Bore: 25 mm | Stroke: 50 mm
STG-MG-25-75-FP1-HP1Bearing: Slide bearing | Bore: 25 mm | Stroke: 75 mm
STG-MG-25-100-FP1-HP1Bearing: Slide bearing | Bore: 25 mm | Stroke: 100 mm
STG-MG-25-125-FP1-HP1Bearing: Slide bearing | Bore: 25 mm | Stroke: 125 mm
STG-MG-25-150-FP1-HP1Bearing: Slide bearing | Bore: 25 mm | Stroke: 150 mm
STG-MG-25-175-FP1-HP1Bearing: Slide bearing | Bore: 25 mm | Stroke: 175 mm
STG-MG-25-200-FP1-HP1Bearing: Slide bearing | Bore: 25 mm | Stroke: 200 mm
STG-MG-25-250-FP1-HP1Bearing: Slide bearing | Bore: 25 mm | Stroke: 250 mm
STG-MG-25-300-FP1-HP1Bearing: Slide bearing | Bore: 25 mm | Stroke: 300 mm
STG-MG-25-350-FP1-HP1Bearing: Slide bearing | Bore: 25 mm | Stroke: 350 mm
STG-MG-25-400-FP1-HP1Bearing: Slide bearing | Bore: 25 mm | Stroke: 400 mm
STG-MG-32-25-FP1-HP1Bearing: Slide bearing | Bore: 32 mm | Stroke: 25 mm
STG-MG-32-50-FP1-HP1Bearing: Slide bearing | Bore: 32 mm | Stroke: 50 mm
STG-MG-32-75-FP1-HP1Bearing: Slide bearing | Bore: 32 mm | Stroke: 75 mm
STG-MG-32-100-FP1-HP1Bearing: Slide bearing | Bore: 32 mm | Stroke: 100 mm
STG-MG-32-125-FP1-HP1Bearing: Slide bearing | Bore: 32 mm | Stroke: 125 mm
STG-MG-32-150-FP1-HP1Bearing: Slide bearing | Bore: 32 mm | Stroke: 150 mm
STG-MG-32-175-FP1-HP1Bearing: Slide bearing | Bore: 32 mm | Stroke: 175 mm
STG-MG-32-200-FP1-HP1Bearing: Slide bearing | Bore: 32 mm | Stroke: 200 mm
STG-MG-32-250-FP1-HP1Bearing: Slide bearing | Bore: 32 mm | Stroke: 250 mm
STG-MG-32-300-FP1-HP1Bearing: Slide bearing | Bore: 32 mm | Stroke: 300 mm
STG-MG-32-350-FP1-HP1Bearing: Slide bearing | Bore: 32 mm | Stroke: 350 mm
STG-MG-32-400-FP1-HP1Bearing: Slide bearing | Bore: 32 mm | Stroke: 400 mm
STG-MG-40-25-FP1-HP1Bearing: Slide bearing | Bore: 40 mm | Stroke: 25 mm
STG-MG-40-50-FP1-HP1Bearing: Slide bearing | Bore: 40 mm | Stroke: 50 mm
STG-MG-40-75-FP1-HP1Bearing: Slide bearing | Bore: 40 mm | Stroke: 75 mm
STG-MG-40-100-FP1-HP1Bearing: Slide bearing | Bore: 40 mm | Stroke: 100 mm
STG-MG-40-125-FP1-HP1Bearing: Slide bearing | Bore: 40 mm | Stroke: 125 mm
STG-MG-40-150-FP1-HP1Bearing: Slide bearing | Bore: 40 mm | Stroke: 150 mm
STG-MG-40-175-FP1-HP1Bearing: Slide bearing | Bore: 40 mm | Stroke: 175 mm
STG-MG-40-200-FP1-HP1Bearing: Slide bearing | Bore: 40 mm | Stroke: 200 mm
STG-MG-40-250-FP1-HP1Bearing: Slide bearing | Bore: 40 mm | Stroke: 250 mm
STG-MG-40-300-FP1-HP1Bearing: Slide bearing | Bore: 40 mm | Stroke: 300 mm
STG-MG-40-350-FP1-HP1Bearing: Slide bearing | Bore: 40 mm | Stroke: 350 mm
STG-MG-40-400-FP1-HP1Bearing: Slide bearing | Bore: 40 mm | Stroke: 400 mm
STG-MG-50-25-FP1-HP1Bearing: Slide bearing | Bore: 50 mm | Stroke: 25 mm
STG-MG-50-50-FP1-HP1Bearing: Slide bearing | Bore: 50 mm | Stroke: 50 mm
STG-MG-50-75-FP1-HP1Bearing: Slide bearing | Bore: 50 mm | Stroke: 75 mm
STG-MG-50-100-FP1-HP1Bearing: Slide bearing | Bore: 50 mm | Stroke: 100 mm
STG-MG-50-125-FP1-HP1Bearing: Slide bearing | Bore: 50 mm | Stroke: 125 mm
STG-MG-50-150-FP1-HP1Bearing: Slide bearing | Bore: 50 mm | Stroke: 150 mm
STG-MG-50-175-FP1-HP1Bearing: Slide bearing | Bore: 50 mm | Stroke: 175 mm
STG-MG-50-200-FP1-HP1Bearing: Slide bearing | Bore: 50 mm | Stroke: 200 mm
STG-MG-50-250-FP1-HP1Bearing: Slide bearing | Bore: 50 mm | Stroke: 250 mm
STG-MG-50-300-FP1-HP1Bearing: Slide bearing | Bore: 50 mm | Stroke: 300 mm
STG-MG-50-350-FP1-HP1Bearing: Slide bearing | Bore: 50 mm | Stroke: 350 mm
STG-MG-50-400-FP1-HP1Bearing: Slide bearing | Bore: 50 mm | Stroke: 400 mm
STG-MG-63-25-FP1-HP1Bearing: Slide bearing | Bore: 63 mm | Stroke: 25 mm
STG-MG-63-50-FP1-HP1Bearing: Slide bearing | Bore: 63 mm | Stroke: 50 mm
STG-MG-63-75-FP1-HP1Bearing: Slide bearing | Bore: 63 mm | Stroke: 75 mm
STG-MG-63-100-FP1-HP1Bearing: Slide bearing | Bore: 63 mm | Stroke: 100 mm
STG-MG-63-125-FP1-HP1Bearing: Slide bearing | Bore: 63 mm | Stroke: 125 mm
STG-MG-63-150-FP1-HP1Bearing: Slide bearing | Bore: 63 mm | Stroke: 150 mm
STG-MG-63-175-FP1-HP1Bearing: Slide bearing | Bore: 63 mm | Stroke: 175 mm
STG-MG-63-200-FP1-HP1Bearing: Slide bearing | Bore: 63 mm | Stroke: 200 mm
STG-MG-63-250-FP1-HP1Bearing: Slide bearing | Bore: 63 mm | Stroke: 250 mm
STG-MG-63-300-FP1-HP1Bearing: Slide bearing | Bore: 63 mm | Stroke: 300 mm
STG-MG-63-350-FP1-HP1Bearing: Slide bearing | Bore: 63 mm | Stroke: 350 mm
STG-MG-63-400-FP1-HP1Bearing: Slide bearing | Bore: 63 mm | Stroke: 400 mm
STG-MG-80-25-FP1-HP1Bearing: Slide bearing | Bore: 80 mm | Stroke: 25 mm
STG-MG-80-50-FP1-HP1Bearing: Slide bearing | Bore: 80 mm | Stroke: 50 mm
STG-MG-80-75-FP1-HP1Bearing: Slide bearing | Bore: 80 mm | Stroke: 75 mm
STG-MG-80-100-FP1-HP1Bearing: Slide bearing | Bore: 80 mm | Stroke: 100 mm
STG-MG-80-125-FP1-HP1Bearing: Slide bearing | Bore: 80 mm | Stroke: 125 mm
STG-MG-80-150-FP1-HP1Bearing: Slide bearing | Bore: 80 mm | Stroke: 150 mm
STG-MG-80-175-FP1-HP1Bearing: Slide bearing | Bore: 80 mm | Stroke: 175 mm
STG-MG-80-200-FP1-HP1Bearing: Slide bearing | Bore: 80 mm | Stroke: 200 mm
STG-MG-80-250-FP1-HP1Bearing: Slide bearing | Bore: 80 mm | Stroke: 250 mm
STG-MG-80-300-FP1-HP1Bearing: Slide bearing | Bore: 80 mm | Stroke: 300 mm
STG-MG-80-350-FP1-HP1Bearing: Slide bearing | Bore: 80 mm | Stroke: 350 mm
STG-MG-80-400-FP1-HP1Bearing: Slide bearing | Bore: 80 mm | Stroke: 400 mm
STG-MG-100-25-FP1-HP1Bearing: Slide bearing | Bore: 100 mm | Stroke: 25 mm
STG-MG-100-50-FP1-HP1Bearing: Slide bearing | Bore: 100 mm | Stroke: 50 mm
STG-MG-100-75-FP1-HP1Bearing: Slide bearing | Bore: 100 mm | Stroke: 75 mm
STG-MG-100-100-FP1-HP1Bearing: Slide bearing | Bore: 100 mm | Stroke: 100 mm
STG-MG-100-125-FP1-HP1Bearing: Slide bearing | Bore: 100 mm | Stroke: 125 mm
STG-MG-100-150-FP1-HP1Bearing: Slide bearing | Bore: 100 mm | Stroke: 150 mm
STG-MG-100-175-FP1-HP1Bearing: Slide bearing | Bore: 100 mm | Stroke: 175 mm
STG-MG-100-200-FP1-HP1Bearing: Slide bearing | Bore: 100 mm | Stroke: 200 mm
STG-MG-100-250-FP1-HP1Bearing: Slide bearing | Bore: 100 mm | Stroke: 250 mm
STG-MG-100-300-FP1-HP1Bearing: Slide bearing | Bore: 100 mm | Stroke: 300 mm
STG-MG-100-350-FP1-HP1Bearing: Slide bearing | Bore: 100 mm | Stroke: 350 mm
STG-MG-100-400-FP1-HP1Bearing: Slide bearing | Bore: 100 mm | Stroke: 400 mm
STG-BG-12-10-FP1-HP1Bearing: Ball bearing | Bore: 12 mm | Stroke: 10 mm
STG-BG-12-20-FP1-HP1Bearing: Ball bearing | Bore: 12 mm | Stroke: 20 mm
STG-BG-12-30-FP1-HP1Bearing: Ball bearing | Bore: 12 mm | Stroke: 30 mm
STG-BG-12-40-FP1-HP1Bearing: Ball bearing | Bore: 12 mm | Stroke: 40 mm
STG-BG-12-50-FP1-HP1Bearing: Ball bearing | Bore: 12 mm | Stroke: 50 mm
STG-BG-12-75-FP1-HP1Bearing: Ball bearing | Bore: 12 mm | Stroke: 75 mm
STG-BG-12-100-FP1-HP1Bearing: Ball bearing | Bore: 12 mm | Stroke: 100 mm
STG-BG-12-125-FP1-HP1Bearing: Ball bearing | Bore: 12 mm | Stroke: 125 mm
STG-BG-12-150-FP1-HP1Bearing: Ball bearing | Bore: 12 mm | Stroke: 150 mm
STG-BG-12-175-FP1-HP1Bearing: Ball bearing | Bore: 12 mm | Stroke: 175 mm
STG-BG-12-200-FP1-HP1Bearing: Ball bearing | Bore: 12 mm | Stroke: 200 mm
STG-BG-12-250-FP1-HP1Bearing: Ball bearing | Bore: 12 mm | Stroke: 250 mm
STG-BG-16-10-FP1-HP1Bearing: Ball bearing | Bore: 16 mm | Stroke: 10 mm
STG-BG-16-20-FP1-HP1Bearing: Ball bearing | Bore: 16 mm | Stroke: 20 mm
STG-BG-16-30-FP1-HP1Bearing: Ball bearing | Bore: 16 mm | Stroke: 30 mm
STG-BG-16-40-FP1-HP1Bearing: Ball bearing | Bore: 16 mm | Stroke: 40 mm
STG-BG-16-50-FP1-HP1Bearing: Ball bearing | Bore: 16 mm | Stroke: 50 mm
STG-BG-16-75-FP1-HP1Bearing: Ball bearing | Bore: 16 mm | Stroke: 75 mm
STG-BG-16-100-FP1-HP1Bearing: Ball bearing | Bore: 16 mm | Stroke: 100 mm
STG-BG-16-125-FP1-HP1Bearing: Ball bearing | Bore: 16 mm | Stroke: 125 mm
STG-BG-16-150-FP1-HP1Bearing: Ball bearing | Bore: 16 mm | Stroke: 150 mm
STG-BG-16-175-FP1-HP1Bearing: Ball bearing | Bore: 16 mm | Stroke: 175 mm
STG-BG-16-200-FP1-HP1Bearing: Ball bearing | Bore: 16 mm | Stroke: 200 mm
STG-BG-16-250-FP1-HP1Bearing: Ball bearing | Bore: 16 mm | Stroke: 250 mm
STG-BG-20-20-FP1-HP1Bearing: Ball bearing | Bore: 20 mm | Stroke: 20 mm
STG-BG-20-30-FP1-HP1Bearing: Ball bearing | Bore: 20 mm | Stroke: 30 mm
STG-BG-20-40-FP1-HP1Bearing: Ball bearing | Bore: 20 mm | Stroke: 40 mm
STG-BG-20-50-FP1-HP1Bearing: Ball bearing | Bore: 20 mm | Stroke: 50 mm
STG-BG-20-75-FP1-HP1Bearing: Ball bearing | Bore: 20 mm | Stroke: 75 mm
STG-BG-20-100-FP1-HP1Bearing: Ball bearing | Bore: 20 mm | Stroke: 100 mm
STG-BG-20-125-FP1-HP1Bearing: Ball bearing | Bore: 20 mm | Stroke: 125 mm
STG-BG-20-150-FP1-HP1Bearing: Ball bearing | Bore: 20 mm | Stroke: 150 mm
STG-BG-20-175-FP1-HP1Bearing: Ball bearing | Bore: 20 mm | Stroke: 175 mm
STG-BG-20-200-FP1-HP1Bearing: Ball bearing | Bore: 20 mm | Stroke: 200 mm
STG-BG-20-250-FP1-HP1Bearing: Ball bearing | Bore: 20 mm | Stroke: 250 mm
STG-BG-20-300-FP1-HP1Bearing: Ball bearing | Bore: 20 mm | Stroke: 300 mm
STG-BG-20-350-FP1-HP1Bearing: Ball bearing | Bore: 20 mm | Stroke: 350 mm
STG-BG-20-400-FP1-HP1Bearing: Ball bearing | Bore: 20 mm | Stroke: 400 mm
STG-BG-25-20-FP1-HP1Bearing: Ball bearing | Bore: 25 mm | Stroke: 20 mm
STG-BG-25-30-FP1-HP1Bearing: Ball bearing | Bore: 25 mm | Stroke: 30 mm
STG-BG-25-40-FP1-HP1Bearing: Ball bearing | Bore: 25 mm | Stroke: 40 mm
STG-BG-25-50-FP1-HP1Bearing: Ball bearing | Bore: 25 mm | Stroke: 50 mm
STG-BG-25-75-FP1-HP1Bearing: Ball bearing | Bore: 25 mm | Stroke: 75 mm
STG-BG-25-100-FP1-HP1Bearing: Ball bearing | Bore: 25 mm | Stroke: 100 mm
STG-BG-25-125-FP1-HP1Bearing: Ball bearing | Bore: 25 mm | Stroke: 125 mm
STG-BG-25-150-FP1-HP1Bearing: Ball bearing | Bore: 25 mm | Stroke: 150 mm
STG-BG-25-175-FP1-HP1Bearing: Ball bearing | Bore: 25 mm | Stroke: 175 mm
STG-BG-25-200-FP1-HP1Bearing: Ball bearing | Bore: 25 mm | Stroke: 200 mm
STG-BG-25-250-FP1-HP1Bearing: Ball bearing | Bore: 25 mm | Stroke: 250 mm
STG-BG-25-300-FP1-HP1Bearing: Ball bearing | Bore: 25 mm | Stroke: 300 mm
STG-BG-25-350-FP1-HP1Bearing: Ball bearing | Bore: 25 mm | Stroke: 350 mm
STG-BG-25-400-FP1-HP1Bearing: Ball bearing | Bore: 25 mm | Stroke: 400 mm
STG-BG-32-25-FP1-HP1Bearing: Ball bearing | Bore: 32 mm | Stroke: 25 mm
STG-BG-32-50-FP1-HP1Bearing: Ball bearing | Bore: 32 mm | Stroke: 50 mm
STG-BG-32-75-FP1-HP1Bearing: Ball bearing | Bore: 32 mm | Stroke: 75 mm
STG-BG-32-100-FP1-HP1Bearing: Ball bearing | Bore: 32 mm | Stroke: 100 mm
STG-BG-32-125-FP1-HP1Bearing: Ball bearing | Bore: 32 mm | Stroke: 125 mm
STG-BG-32-150-FP1-HP1Bearing: Ball bearing | Bore: 32 mm | Stroke: 150 mm
STG-BG-32-175-FP1-HP1Bearing: Ball bearing | Bore: 32 mm | Stroke: 175 mm
STG-BG-32-200-FP1-HP1Bearing: Ball bearing | Bore: 32 mm | Stroke: 200 mm
STG-BG-32-250-FP1-HP1Bearing: Ball bearing | Bore: 32 mm | Stroke: 250 mm
STG-BG-32-300-FP1-HP1Bearing: Ball bearing | Bore: 32 mm | Stroke: 300 mm
STG-BG-32-350-FP1-HP1Bearing: Ball bearing | Bore: 32 mm | Stroke: 350 mm
STG-BG-32-400-FP1-HP1Bearing: Ball bearing | Bore: 32 mm | Stroke: 400 mm
STG-BG-40-25-FP1-HP1Bearing: Ball bearing | Bore: 40 mm | Stroke: 25 mm
STG-BG-40-50-FP1-HP1Bearing: Ball bearing | Bore: 40 mm | Stroke: 50 mm
STG-BG-40-75-FP1-HP1Bearing: Ball bearing | Bore: 40 mm | Stroke: 75 mm
STG-BG-40-100-FP1-HP1Bearing: Ball bearing | Bore: 40 mm | Stroke: 100 mm
STG-BG-40-125-FP1-HP1Bearing: Ball bearing | Bore: 40 mm | Stroke: 125 mm
STG-BG-40-150-FP1-HP1Bearing: Ball bearing | Bore: 40 mm | Stroke: 150 mm
STG-BG-40-175-FP1-HP1Bearing: Ball bearing | Bore: 40 mm | Stroke: 175 mm
STG-BG-40-200-FP1-HP1Bearing: Ball bearing | Bore: 40 mm | Stroke: 200 mm
STG-BG-40-250-FP1-HP1Bearing: Ball bearing | Bore: 40 mm | Stroke: 250 mm
STG-BG-40-300-FP1-HP1Bearing: Ball bearing | Bore: 40 mm | Stroke: 300 mm
STG-BG-40-350-FP1-HP1Bearing: Ball bearing | Bore: 40 mm | Stroke: 350 mm
STG-BG-40-400-FP1-HP1Bearing: Ball bearing | Bore: 40 mm | Stroke: 400 mm
STG-BG-50-25-FP1-HP1Bearing: Ball bearing | Bore: 50 mm | Stroke: 25 mm
STG-BG-50-50-FP1-HP1Bearing: Ball bearing | Bore: 50 mm | Stroke: 50 mm
STG-BG-50-75-FP1-HP1Bearing: Ball bearing | Bore: 50 mm | Stroke: 75 mm
STG-BG-50-100-FP1-HP1Bearing: Ball bearing | Bore: 50 mm | Stroke: 100 mm
STG-BG-50-125-FP1-HP1Bearing: Ball bearing | Bore: 50 mm | Stroke: 125 mm
STG-BG-50-150-FP1-HP1Bearing: Ball bearing | Bore: 50 mm | Stroke: 150 mm
STG-BG-50-175-FP1-HP1Bearing: Ball bearing | Bore: 50 mm | Stroke: 175 mm
STG-BG-50-200-FP1-HP1Bearing: Ball bearing | Bore: 50 mm | Stroke: 200 mm
STG-BG-50-250-FP1-HP1Bearing: Ball bearing | Bore: 50 mm | Stroke: 250 mm
STG-BG-50-300-FP1-HP1Bearing: Ball bearing | Bore: 50 mm | Stroke: 300 mm
STG-BG-50-350-FP1-HP1Bearing: Ball bearing | Bore: 50 mm | Stroke: 350 mm
STG-BG-50-400-FP1-HP1Bearing: Ball bearing | Bore: 50 mm | Stroke: 400 mm
STG-BG-63-25-FP1-HP1Bearing: Ball bearing | Bore: 63 mm | Stroke: 25 mm
STG-BG-63-50-FP1-HP1Bearing: Ball bearing | Bore: 63 mm | Stroke: 50 mm
STG-BG-63-75-FP1-HP1Bearing: Ball bearing | Bore: 63 mm | Stroke: 75 mm
STG-BG-63-100-FP1-HP1Bearing: Ball bearing | Bore: 63 mm | Stroke: 100 mm
STG-BG-63-125-FP1-HP1Bearing: Ball bearing | Bore: 63 mm | Stroke: 125 mm
STG-BG-63-150-FP1-HP1Bearing: Ball bearing | Bore: 63 mm | Stroke: 150 mm
STG-BG-63-175-FP1-HP1Bearing: Ball bearing | Bore: 63 mm | Stroke: 175 mm
STG-BG-63-200-FP1-HP1Bearing: Ball bearing | Bore: 63 mm | Stroke: 200 mm
STG-BG-63-250-FP1-HP1Bearing: Ball bearing | Bore: 63 mm | Stroke: 250 mm
STG-BG-63-300-FP1-HP1Bearing: Ball bearing | Bore: 63 mm | Stroke: 300 mm
STG-BG-63-350-FP1-HP1Bearing: Ball bearing | Bore: 63 mm | Stroke: 350 mm
STG-BG-63-400-FP1-HP1Bearing: Ball bearing | Bore: 63 mm | Stroke: 400 mm
STG-BG-80-25-FP1-HP1Bearing: Ball bearing | Bore: 80 mm | Stroke: 25 mm
STG-BG-80-50-FP1-HP1Bearing: Ball bearing | Bore: 80 mm | Stroke: 50 mm
STG-BG-80-75-FP1-HP1Bearing: Ball bearing | Bore: 80 mm | Stroke: 75 mm
STG-BG-80-100-FP1-HP1Bearing: Ball bearing | Bore: 80 mm | Stroke: 100 mm
STG-BG-80-125-FP1-HP1Bearing: Ball bearing | Bore: 80 mm | Stroke: 125 mm
STG-BG-80-150-FP1-HP1Bearing: Ball bearing | Bore: 80 mm | Stroke: 150 mm
STG-BG-80-175-FP1-HP1Bearing: Ball bearing | Bore: 80 mm | Stroke: 175 mm
STG-BG-80-200-FP1-HP1Bearing: Ball bearing | Bore: 80 mm | Stroke: 200 mm
STG-BG-80-250-FP1-HP1Bearing: Ball bearing | Bore: 80 mm | Stroke: 250 mm
STG-BG-80-300-FP1-HP1Bearing: Ball bearing | Bore: 80 mm | Stroke: 300 mm
STG-BG-80-350-FP1-HP1Bearing: Ball bearing | Bore: 80 mm | Stroke: 350 mm
STG-BG-80-400-FP1-HP1Bearing: Ball bearing | Bore: 80 mm | Stroke: 400 mm
STG-BG-100-25-FP1-HP1Bearing: Ball bearing | Bore: 100 mm | Stroke: 25 mm
STG-BG-100-50-FP1-HP1Bearing: Ball bearing | Bore: 100 mm | Stroke: 50 mm
STG-BG-100-75-FP1-HP1Bearing: Ball bearing | Bore: 100 mm | Stroke: 75 mm
STG-BG-100-100-FP1-HP1Bearing: Ball bearing | Bore: 100 mm | Stroke: 100 mm
STG-BG-100-125-FP1-HP1Bearing: Ball bearing | Bore: 100 mm | Stroke: 125 mm
STG-BG-100-150-FP1-HP1Bearing: Ball bearing | Bore: 100 mm | Stroke: 150 mm
STG-BG-100-175-FP1-HP1Bearing: Ball bearing | Bore: 100 mm | Stroke: 175 mm
STG-BG-100-200-FP1-HP1Bearing: Ball bearing | Bore: 100 mm | Stroke: 200 mm
STG-BG-100-250-FP1-HP1Bearing: Ball bearing | Bore: 100 mm | Stroke: 250 mm
STG-BG-100-300-FP1-HP1Bearing: Ball bearing | Bore: 100 mm | Stroke: 300 mm
STG-BG-100-350-FP1-HP1Bearing: Ball bearing | Bore: 100 mm | Stroke: 350 mm
STG-BG-100-400-FP1-HP1Bearing: Ball bearing | Bore: 100 mm | Stroke: 400 mm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
