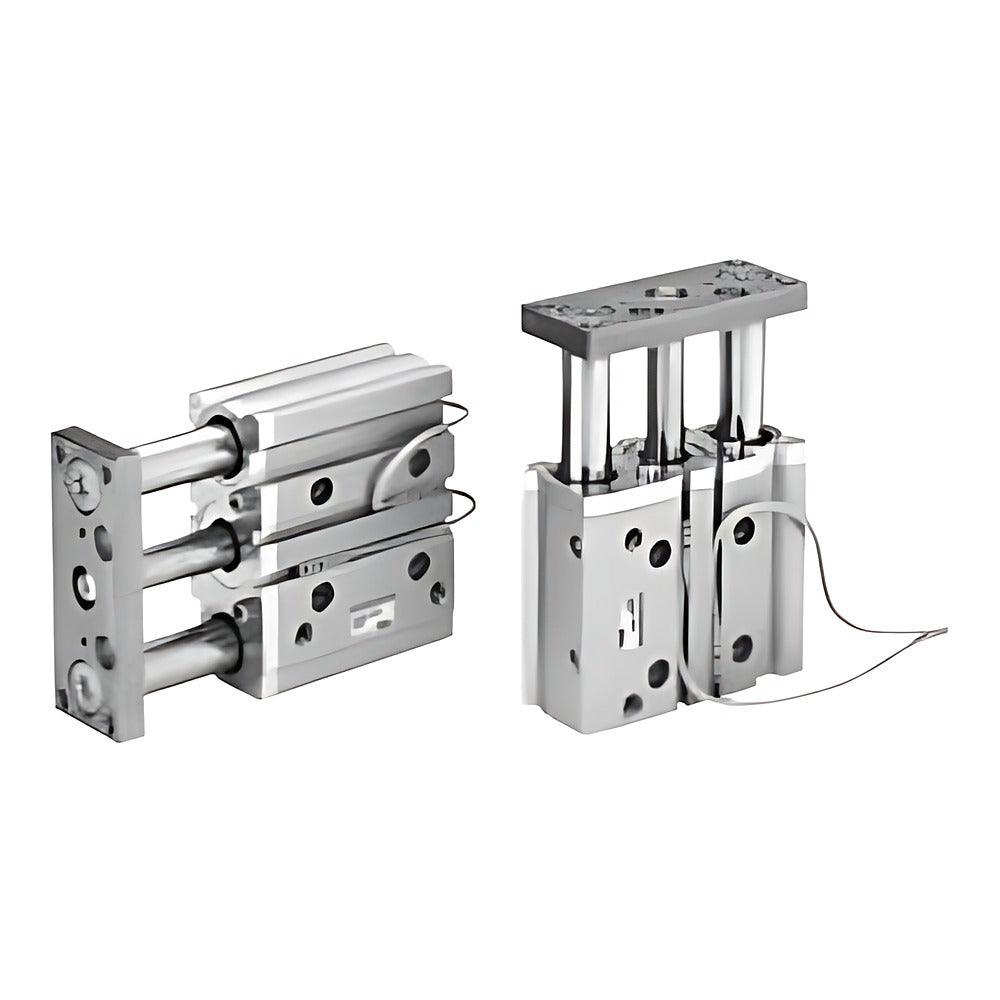

CKD STG-G4 Guided Cylinder (Weld Spatter Resistant, Bore 40-63)

CKD STG-G4 Guided Cylinder (Weld Spatter Resistant, Bore 40-63)

CKD STG-G4 weld-spatter resistant guided cylinder with coil scrapers and lube keepers, bore 40 to 63 mm.

Key features

  • Spatter-resistant construction with coil scrapers and lube keepers on rods
  • Guide: slide bearing (MG4) or ball bushing (BG4)
  • For welding lines: T2YD / T2YDT AC-magnetic-field switches only, R/H/D/T
  • NPT (NN) / G (GN) port threads made to order; intermediate strokes 5 mm steps

Specifications

Action Double acting, spatter resistant
Fluid Compressed air
Operating pressure 0.15 to 1.0 MPa
Proof pressure 1.6 MPa
Ambient temperature -10 to 60 C (no freezing)
Piston speed 50 to 500 mm/s (63: 50-300)
Cushion Rubber cushion
Lubrication Not required
Source CKD Korea catalog CB-030SK-9, p. 476-481
