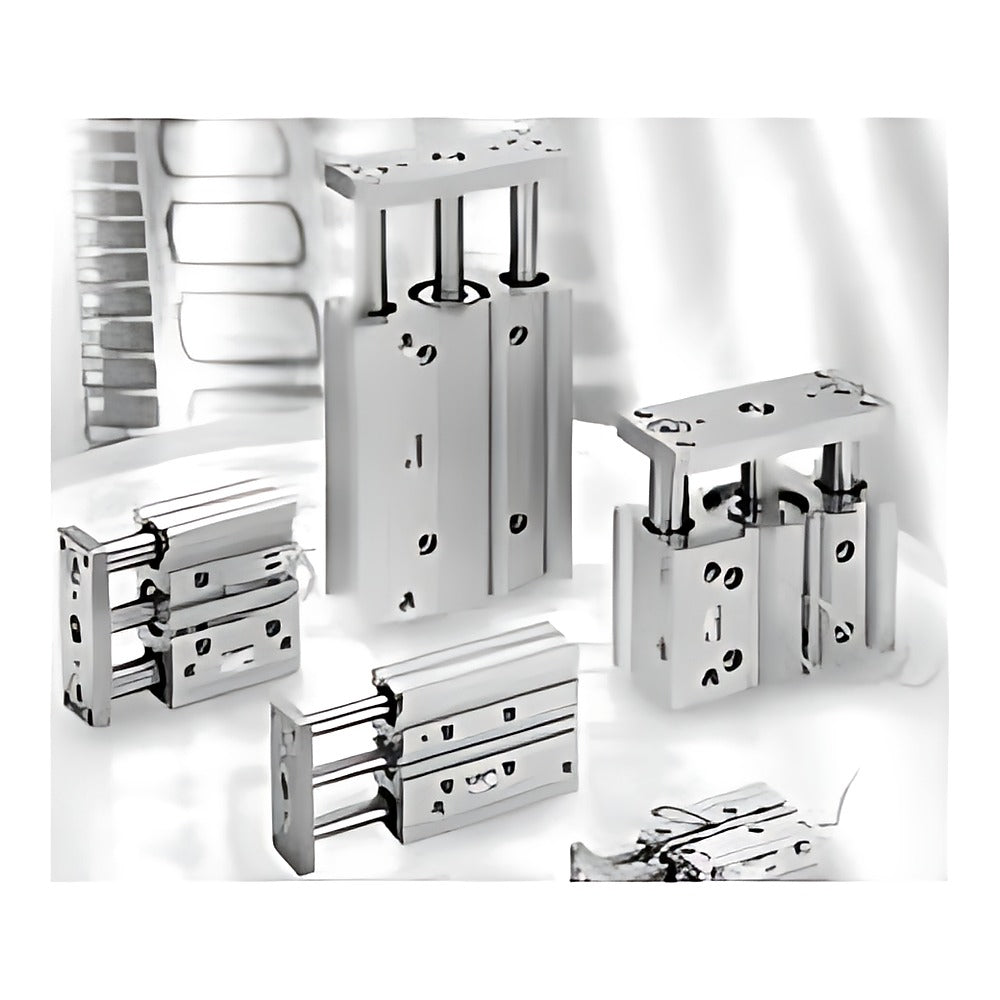

CKD STG Guided Cylinder (Standard, Bore 12-100)

CKD STG Guided Cylinder (Standard, Bore 12-100)

CKD STG guided cylinder, double acting single rod, with slide bearing (M) or ball bushing (B) guide rods, bore 12 to 100 mm.

Key features

  • Lightweight, resource-saving body with improved guide rod bearing and higher load resistance
  • Guide: slide bearing (M) or ball bushing (B); switch magnet built in
  • Piping from 2 directions, 3 mounting directions; piston rod fixed with hex wrench for easy maintenance
  • NPT (NN) / G (GN) port threads for bore 20+ and P6 non-copper spec (standard on B 12-32) available
  • Switches (T0/T5/T8 reed, T1/T2/T3/T3P/T2W/T2Y/T3W/T3Y/T2J/T2YD/T2YDT solid state) ordered as R/H/D/T, not multiplied
  • Intermediate strokes in 5 mm steps via spacers; P4 secondary-battery spec available

Specifications

Action Double acting, single rod
Fluid Compressed air
Max. operating pressure 1.0 MPa
Min. operating pressure 0.15 MPa (12-25), 0.1 MPa (32-100)
Proof pressure 1.6 MPa
Ambient temperature -10 to 60 C (no freezing)
Piston speed 50 to 500 mm/s (80/100: 50-300)
Cushion Rubber cushion
Stroke tolerance +2.0/0 mm
Lubrication Not required
Source CKD Korea catalog CB-030SK-9, p. 417-436
STG-M-12-10 Bearing: Slide bearing (M) | Bore: 12 mm | Stroke: 10 mm | Port: M5
STG-M-12-20 Bearing: Slide bearing (M) | Bore: 12 mm | Stroke: 20 mm | Port: M5
STG-M-12-30 Bearing: Slide bearing (M) | Bore: 12 mm | Stroke: 30 mm | Port: M5
STG-M-12-40 Bearing: Slide bearing (M) | Bore: 12 mm | Stroke: 40 mm | Port: M5
STG-M-12-50 Bearing: Slide bearing (M) | Bore: 12 mm | Stroke: 50 mm | Port: M5
STG-M-12-75 Bearing: Slide bearing (M) | Bore: 12 mm | Stroke: 75 mm | Port: M5
STG-M-12-100 Bearing: Slide bearing (M) | Bore: 12 mm | Stroke: 100 mm | Port: M5
STG-M-12-125 Bearing: Slide bearing (M) | Bore: 12 mm | Stroke: 125 mm | Port: M5
STG-M-12-150 Bearing: Slide bearing (M) | Bore: 12 mm | Stroke: 150 mm | Port: M5
STG-M-12-175 Bearing: Slide bearing (M) | Bore: 12 mm | Stroke: 175 mm | Port: M5
STG-M-12-200 Bearing: Slide bearing (M) | Bore: 12 mm | Stroke: 200 mm | Port: M5
STG-M-12-250 Bearing: Slide bearing (M) | Bore: 12 mm | Stroke: 250 mm | Port: M5
STG-M-16-20 Bearing: Slide bearing (M) | Bore: 16 mm | Stroke: 20 mm | Port: M5
STG-M-16-30 Bearing: Slide bearing (M) | Bore: 16 mm | Stroke: 30 mm | Port: M5
STG-M-16-40 Bearing: Slide bearing (M) | Bore: 16 mm | Stroke: 40 mm | Port: M5
STG-M-16-50 Bearing: Slide bearing (M) | Bore: 16 mm | Stroke: 50 mm | Port: M5
STG-M-16-75 Bearing: Slide bearing (M) | Bore: 16 mm | Stroke: 75 mm | Port: M5
STG-M-16-100 Bearing: Slide bearing (M) | Bore: 16 mm | Stroke: 100 mm | Port: M5
STG-M-16-125 Bearing: Slide bearing (M) | Bore: 16 mm | Stroke: 125 mm | Port: M5
STG-M-16-150 Bearing: Slide bearing (M) | Bore: 16 mm | Stroke: 150 mm | Port: M5
STG-M-16-175 Bearing: Slide bearing (M) | Bore: 16 mm | Stroke: 175 mm | Port: M5
STG-M-16-200 Bearing: Slide bearing (M) | Bore: 16 mm | Stroke: 200 mm | Port: M5
STG-M-16-250 Bearing: Slide bearing (M) | Bore: 16 mm | Stroke: 250 mm | Port: M5
STG-M-20-20 Bearing: Slide bearing (M) | Bore: 20 mm | Stroke: 20 mm | Port: Rc1/8
STG-M-20-30 Bearing: Slide bearing (M) | Bore: 20 mm | Stroke: 30 mm | Port: Rc1/8
STG-M-20-40 Bearing: Slide bearing (M) | Bore: 20 mm | Stroke: 40 mm | Port: Rc1/8
STG-M-20-50 Bearing: Slide bearing (M) | Bore: 20 mm | Stroke: 50 mm | Port: Rc1/8
STG-M-20-75 Bearing: Slide bearing (M) | Bore: 20 mm | Stroke: 75 mm | Port: Rc1/8
STG-M-20-100 Bearing: Slide bearing (M) | Bore: 20 mm | Stroke: 100 mm | Port: Rc1/8
STG-M-20-125 Bearing: Slide bearing (M) | Bore: 20 mm | Stroke: 125 mm | Port: Rc1/8
STG-M-20-150 Bearing: Slide bearing (M) | Bore: 20 mm | Stroke: 150 mm | Port: Rc1/8
STG-M-20-175 Bearing: Slide bearing (M) | Bore: 20 mm | Stroke: 175 mm | Port: Rc1/8
STG-M-20-200 Bearing: Slide bearing (M) | Bore: 20 mm | Stroke: 200 mm | Port: Rc1/8
STG-M-20-250 Bearing: Slide bearing (M) | Bore: 20 mm | Stroke: 250 mm | Port: Rc1/8
STG-M-20-300 Bearing: Slide bearing (M) | Bore: 20 mm | Stroke: 300 mm | Port: Rc1/8
STG-M-20-350 Bearing: Slide bearing (M) | Bore: 20 mm | Stroke: 350 mm | Port: Rc1/8
STG-M-20-400 Bearing: Slide bearing (M) | Bore: 20 mm | Stroke: 400 mm | Port: Rc1/8
STG-M-25-20 Bearing: Slide bearing (M) | Bore: 25 mm | Stroke: 20 mm | Port: Rc1/8
STG-M-25-30 Bearing: Slide bearing (M) | Bore: 25 mm | Stroke: 30 mm | Port: Rc1/8
STG-M-25-40 Bearing: Slide bearing (M) | Bore: 25 mm | Stroke: 40 mm | Port: Rc1/8
STG-M-25-50 Bearing: Slide bearing (M) | Bore: 25 mm | Stroke: 50 mm | Port: Rc1/8
STG-M-25-75 Bearing: Slide bearing (M) | Bore: 25 mm | Stroke: 75 mm | Port: Rc1/8
STG-M-25-100 Bearing: Slide bearing (M) | Bore: 25 mm | Stroke: 100 mm | Port: Rc1/8
STG-M-25-125 Bearing: Slide bearing (M) | Bore: 25 mm | Stroke: 125 mm | Port: Rc1/8
STG-M-25-150 Bearing: Slide bearing (M) | Bore: 25 mm | Stroke: 150 mm | Port: Rc1/8
STG-M-25-175 Bearing: Slide bearing (M) | Bore: 25 mm | Stroke: 175 mm | Port: Rc1/8
STG-M-25-200 Bearing: Slide bearing (M) | Bore: 25 mm | Stroke: 200 mm | Port: Rc1/8
STG-M-25-250 Bearing: Slide bearing (M) | Bore: 25 mm | Stroke: 250 mm | Port: Rc1/8
STG-M-25-300 Bearing: Slide bearing (M) | Bore: 25 mm | Stroke: 300 mm | Port: Rc1/8
STG-M-25-350 Bearing: Slide bearing (M) | Bore: 25 mm | Stroke: 350 mm | Port: Rc1/8
STG-M-25-400 Bearing: Slide bearing (M) | Bore: 25 mm | Stroke: 400 mm | Port: Rc1/8
STG-M-32-25 Bearing: Slide bearing (M) | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
STG-M-32-50 Bearing: Slide bearing (M) | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
STG-M-32-75 Bearing: Slide bearing (M) | Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8
STG-M-32-100 Bearing: Slide bearing (M) | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
STG-M-32-125 Bearing: Slide bearing (M) | Bore: 32 mm | Stroke: 125 mm | Port: Rc1/8
STG-M-32-150 Bearing: Slide bearing (M) | Bore: 32 mm | Stroke: 150 mm | Port: Rc1/8
STG-M-32-175 Bearing: Slide bearing (M) | Bore: 32 mm | Stroke: 175 mm | Port: Rc1/8
STG-M-32-200 Bearing: Slide bearing (M) | Bore: 32 mm | Stroke: 200 mm | Port: Rc1/8
STG-M-32-250 Bearing: Slide bearing (M) | Bore: 32 mm | Stroke: 250 mm | Port: Rc1/8
STG-M-32-300 Bearing: Slide bearing (M) | Bore: 32 mm | Stroke: 300 mm | Port: Rc1/8
STG-M-32-350 Bearing: Slide bearing (M) | Bore: 32 mm | Stroke: 350 mm | Port: Rc1/8
STG-M-32-400 Bearing: Slide bearing (M) | Bore: 32 mm | Stroke: 400 mm | Port: Rc1/8
STG-M-40-25 Bearing: Slide bearing (M) | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
STG-M-40-50 Bearing: Slide bearing (M) | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
STG-M-40-75 Bearing: Slide bearing (M) | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/8
STG-M-40-100 Bearing: Slide bearing (M) | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8
STG-M-40-125 Bearing: Slide bearing (M) | Bore: 40 mm | Stroke: 125 mm | Port: Rc1/8
STG-M-40-150 Bearing: Slide bearing (M) | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/8
STG-M-40-175 Bearing: Slide bearing (M) | Bore: 40 mm | Stroke: 175 mm | Port: Rc1/8
STG-M-40-200 Bearing: Slide bearing (M) | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/8
STG-M-40-250 Bearing: Slide bearing (M) | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/8
STG-M-40-300 Bearing: Slide bearing (M) | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/8
STG-M-40-350 Bearing: Slide bearing (M) | Bore: 40 mm | Stroke: 350 mm | Port: Rc1/8
STG-M-40-400 Bearing: Slide bearing (M) | Bore: 40 mm | Stroke: 400 mm | Port: Rc1/8
STG-M-50-25 Bearing: Slide bearing (M) | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
STG-M-50-50 Bearing: Slide bearing (M) | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
STG-M-50-75 Bearing: Slide bearing (M) | Bore: 50 mm | Stroke: 75 mm | Port: Rc1/4
STG-M-50-100 Bearing: Slide bearing (M) | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
STG-M-50-125 Bearing: Slide bearing (M) | Bore: 50 mm | Stroke: 125 mm | Port: Rc1/4
STG-M-50-150 Bearing: Slide bearing (M) | Bore: 50 mm | Stroke: 150 mm | Port: Rc1/4
STG-M-50-175 Bearing: Slide bearing (M) | Bore: 50 mm | Stroke: 175 mm | Port: Rc1/4
STG-M-50-200 Bearing: Slide bearing (M) | Bore: 50 mm | Stroke: 200 mm | Port: Rc1/4
STG-M-50-250 Bearing: Slide bearing (M) | Bore: 50 mm | Stroke: 250 mm | Port: Rc1/4
STG-M-50-300 Bearing: Slide bearing (M) | Bore: 50 mm | Stroke: 300 mm | Port: Rc1/4
STG-M-50-350 Bearing: Slide bearing (M) | Bore: 50 mm | Stroke: 350 mm | Port: Rc1/4
STG-M-50-400 Bearing: Slide bearing (M) | Bore: 50 mm | Stroke: 400 mm | Port: Rc1/4
STG-M-63-25 Bearing: Slide bearing (M) | Bore: 63 mm | Stroke: 25 mm | Port: Rc1/4
STG-M-63-50 Bearing: Slide bearing (M) | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
STG-M-63-75 Bearing: Slide bearing (M) | Bore: 63 mm | Stroke: 75 mm | Port: Rc1/4
STG-M-63-100 Bearing: Slide bearing (M) | Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4
STG-M-63-125 Bearing: Slide bearing (M) | Bore: 63 mm | Stroke: 125 mm | Port: Rc1/4
STG-M-63-150 Bearing: Slide bearing (M) | Bore: 63 mm | Stroke: 150 mm | Port: Rc1/4
STG-M-63-175 Bearing: Slide bearing (M) | Bore: 63 mm | Stroke: 175 mm | Port: Rc1/4
STG-M-63-200 Bearing: Slide bearing (M) | Bore: 63 mm | Stroke: 200 mm | Port: Rc1/4
STG-M-63-250 Bearing: Slide bearing (M) | Bore: 63 mm | Stroke: 250 mm | Port: Rc1/4
STG-M-63-300 Bearing: Slide bearing (M) | Bore: 63 mm | Stroke: 300 mm | Port: Rc1/4
STG-M-63-350 Bearing: Slide bearing (M) | Bore: 63 mm | Stroke: 350 mm | Port: Rc1/4
STG-M-63-400 Bearing: Slide bearing (M) | Bore: 63 mm | Stroke: 400 mm | Port: Rc1/4
STG-M-80-25 Bearing: Slide bearing (M) | Bore: 80 mm | Stroke: 25 mm | Port: Rc3/8
STG-M-80-50 Bearing: Slide bearing (M) | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
STG-M-80-75 Bearing: Slide bearing (M) | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
STG-M-80-100 Bearing: Slide bearing (M) | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
STG-M-80-125 Bearing: Slide bearing (M) | Bore: 80 mm | Stroke: 125 mm | Port: Rc3/8
STG-M-80-150 Bearing: Slide bearing (M) | Bore: 80 mm | Stroke: 150 mm | Port: Rc3/8
STG-M-80-175 Bearing: Slide bearing (M) | Bore: 80 mm | Stroke: 175 mm | Port: Rc3/8
STG-M-80-200 Bearing: Slide bearing (M) | Bore: 80 mm | Stroke: 200 mm | Port: Rc3/8
STG-M-80-250 Bearing: Slide bearing (M) | Bore: 80 mm | Stroke: 250 mm | Port: Rc3/8
STG-M-80-300 Bearing: Slide bearing (M) | Bore: 80 mm | Stroke: 300 mm | Port: Rc3/8
STG-M-80-350 Bearing: Slide bearing (M) | Bore: 80 mm | Stroke: 350 mm | Port: Rc3/8
STG-M-80-400 Bearing: Slide bearing (M) | Bore: 80 mm | Stroke: 400 mm | Port: Rc3/8
STG-M-100-25 Bearing: Slide bearing (M) | Bore: 100 mm | Stroke: 25 mm | Port: Rc3/8
STG-M-100-50 Bearing: Slide bearing (M) | Bore: 100 mm | Stroke: 50 mm | Port: Rc3/8
STG-M-100-75 Bearing: Slide bearing (M) | Bore: 100 mm | Stroke: 75 mm | Port: Rc3/8
STG-M-100-100 Bearing: Slide bearing (M) | Bore: 100 mm | Stroke: 100 mm | Port: Rc3/8
STG-M-100-125 Bearing: Slide bearing (M) | Bore: 100 mm | Stroke: 125 mm | Port: Rc3/8
STG-M-100-150 Bearing: Slide bearing (M) | Bore: 100 mm | Stroke: 150 mm | Port: Rc3/8
STG-M-100-175 Bearing: Slide bearing (M) | Bore: 100 mm | Stroke: 175 mm | Port: Rc3/8
STG-M-100-200 Bearing: Slide bearing (M) | Bore: 100 mm | Stroke: 200 mm | Port: Rc3/8
STG-M-100-250 Bearing: Slide bearing (M) | Bore: 100 mm | Stroke: 250 mm | Port: Rc3/8
STG-M-100-300 Bearing: Slide bearing (M) | Bore: 100 mm | Stroke: 300 mm | Port: Rc3/8
STG-M-100-350 Bearing: Slide bearing (M) | Bore: 100 mm | Stroke: 350 mm | Port: Rc3/8
STG-M-100-400 Bearing: Slide bearing (M) | Bore: 100 mm | Stroke: 400 mm | Port: Rc3/8
STG-B-12-10 Bearing: Ball bushing (B) | Bore: 12 mm | Stroke: 10 mm | Port: M5
STG-B-12-20 Bearing: Ball bushing (B) | Bore: 12 mm | Stroke: 20 mm | Port: M5
STG-B-12-30 Bearing: Ball bushing (B) | Bore: 12 mm | Stroke: 30 mm | Port: M5
STG-B-12-40 Bearing: Ball bushing (B) | Bore: 12 mm | Stroke: 40 mm | Port: M5
STG-B-12-50 Bearing: Ball bushing (B) | Bore: 12 mm | Stroke: 50 mm | Port: M5
STG-B-12-75 Bearing: Ball bushing (B) | Bore: 12 mm | Stroke: 75 mm | Port: M5
STG-B-12-100 Bearing: Ball bushing (B) | Bore: 12 mm | Stroke: 100 mm | Port: M5
STG-B-12-125 Bearing: Ball bushing (B) | Bore: 12 mm | Stroke: 125 mm | Port: M5
STG-B-12-150 Bearing: Ball bushing (B) | Bore: 12 mm | Stroke: 150 mm | Port: M5
STG-B-12-175 Bearing: Ball bushing (B) | Bore: 12 mm | Stroke: 175 mm | Port: M5
STG-B-12-200 Bearing: Ball bushing (B) | Bore: 12 mm | Stroke: 200 mm | Port: M5
STG-B-12-250 Bearing: Ball bushing (B) | Bore: 12 mm | Stroke: 250 mm | Port: M5
STG-B-16-20 Bearing: Ball bushing (B) | Bore: 16 mm | Stroke: 20 mm | Port: M5
STG-B-16-30 Bearing: Ball bushing (B) | Bore: 16 mm | Stroke: 30 mm | Port: M5
STG-B-16-40 Bearing: Ball bushing (B) | Bore: 16 mm | Stroke: 40 mm | Port: M5
STG-B-16-50 Bearing: Ball bushing (B) | Bore: 16 mm | Stroke: 50 mm | Port: M5
STG-B-16-75 Bearing: Ball bushing (B) | Bore: 16 mm | Stroke: 75 mm | Port: M5
STG-B-16-100 Bearing: Ball bushing (B) | Bore: 16 mm | Stroke: 100 mm | Port: M5
STG-B-16-125 Bearing: Ball bushing (B) | Bore: 16 mm | Stroke: 125 mm | Port: M5
STG-B-16-150 Bearing: Ball bushing (B) | Bore: 16 mm | Stroke: 150 mm | Port: M5
STG-B-16-175 Bearing: Ball bushing (B) | Bore: 16 mm | Stroke: 175 mm | Port: M5
STG-B-16-200 Bearing: Ball bushing (B) | Bore: 16 mm | Stroke: 200 mm | Port: M5
STG-B-16-250 Bearing: Ball bushing (B) | Bore: 16 mm | Stroke: 250 mm | Port: M5
STG-B-20-20 Bearing: Ball bushing (B) | Bore: 20 mm | Stroke: 20 mm | Port: Rc1/8
STG-B-20-30 Bearing: Ball bushing (B) | Bore: 20 mm | Stroke: 30 mm | Port: Rc1/8
STG-B-20-40 Bearing: Ball bushing (B) | Bore: 20 mm | Stroke: 40 mm | Port: Rc1/8
STG-B-20-50 Bearing: Ball bushing (B) | Bore: 20 mm | Stroke: 50 mm | Port: Rc1/8
STG-B-20-75 Bearing: Ball bushing (B) | Bore: 20 mm | Stroke: 75 mm | Port: Rc1/8
STG-B-20-100 Bearing: Ball bushing (B) | Bore: 20 mm | Stroke: 100 mm | Port: Rc1/8
STG-B-20-125 Bearing: Ball bushing (B) | Bore: 20 mm | Stroke: 125 mm | Port: Rc1/8
STG-B-20-150 Bearing: Ball bushing (B) | Bore: 20 mm | Stroke: 150 mm | Port: Rc1/8
STG-B-20-175 Bearing: Ball bushing (B) | Bore: 20 mm | Stroke: 175 mm | Port: Rc1/8
STG-B-20-200 Bearing: Ball bushing (B) | Bore: 20 mm | Stroke: 200 mm | Port: Rc1/8
STG-B-20-250 Bearing: Ball bushing (B) | Bore: 20 mm | Stroke: 250 mm | Port: Rc1/8
STG-B-20-300 Bearing: Ball bushing (B) | Bore: 20 mm | Stroke: 300 mm | Port: Rc1/8
STG-B-20-350 Bearing: Ball bushing (B) | Bore: 20 mm | Stroke: 350 mm | Port: Rc1/8
STG-B-20-400 Bearing: Ball bushing (B) | Bore: 20 mm | Stroke: 400 mm | Port: Rc1/8
STG-B-25-20 Bearing: Ball bushing (B) | Bore: 25 mm | Stroke: 20 mm | Port: Rc1/8
STG-B-25-30 Bearing: Ball bushing (B) | Bore: 25 mm | Stroke: 30 mm | Port: Rc1/8
STG-B-25-40 Bearing: Ball bushing (B) | Bore: 25 mm | Stroke: 40 mm | Port: Rc1/8
STG-B-25-50 Bearing: Ball bushing (B) | Bore: 25 mm | Stroke: 50 mm | Port: Rc1/8
STG-B-25-75 Bearing: Ball bushing (B) | Bore: 25 mm | Stroke: 75 mm | Port: Rc1/8
STG-B-25-100 Bearing: Ball bushing (B) | Bore: 25 mm | Stroke: 100 mm | Port: Rc1/8
STG-B-25-125 Bearing: Ball bushing (B) | Bore: 25 mm | Stroke: 125 mm | Port: Rc1/8
STG-B-25-150 Bearing: Ball bushing (B) | Bore: 25 mm | Stroke: 150 mm | Port: Rc1/8
STG-B-25-175 Bearing: Ball bushing (B) | Bore: 25 mm | Stroke: 175 mm | Port: Rc1/8
STG-B-25-200 Bearing: Ball bushing (B) | Bore: 25 mm | Stroke: 200 mm | Port: Rc1/8
STG-B-25-250 Bearing: Ball bushing (B) | Bore: 25 mm | Stroke: 250 mm | Port: Rc1/8
STG-B-25-300 Bearing: Ball bushing (B) | Bore: 25 mm | Stroke: 300 mm | Port: Rc1/8
STG-B-25-350 Bearing: Ball bushing (B) | Bore: 25 mm | Stroke: 350 mm | Port: Rc1/8
STG-B-25-400 Bearing: Ball bushing (B) | Bore: 25 mm | Stroke: 400 mm | Port: Rc1/8
STG-B-32-25 Bearing: Ball bushing (B) | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
STG-B-32-50 Bearing: Ball bushing (B) | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
STG-B-32-75 Bearing: Ball bushing (B) | Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8
STG-B-32-100 Bearing: Ball bushing (B) | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
STG-B-32-125 Bearing: Ball bushing (B) | Bore: 32 mm | Stroke: 125 mm | Port: Rc1/8
STG-B-32-150 Bearing: Ball bushing (B) | Bore: 32 mm | Stroke: 150 mm | Port: Rc1/8
STG-B-32-175 Bearing: Ball bushing (B) | Bore: 32 mm | Stroke: 175 mm | Port: Rc1/8
STG-B-32-200 Bearing: Ball bushing (B) | Bore: 32 mm | Stroke: 200 mm | Port: Rc1/8
STG-B-32-250 Bearing: Ball bushing (B) | Bore: 32 mm | Stroke: 250 mm | Port: Rc1/8
STG-B-32-300 Bearing: Ball bushing (B) | Bore: 32 mm | Stroke: 300 mm | Port: Rc1/8
STG-B-32-350 Bearing: Ball bushing (B) | Bore: 32 mm | Stroke: 350 mm | Port: Rc1/8
STG-B-32-400 Bearing: Ball bushing (B) | Bore: 32 mm | Stroke: 400 mm | Port: Rc1/8
STG-B-40-25 Bearing: Ball bushing (B) | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
STG-B-40-50 Bearing: Ball bushing (B) | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
STG-B-40-75 Bearing: Ball bushing (B) | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/8
STG-B-40-100 Bearing: Ball bushing (B) | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8
STG-B-40-125 Bearing: Ball bushing (B) | Bore: 40 mm | Stroke: 125 mm | Port: Rc1/8
STG-B-40-150 Bearing: Ball bushing (B) | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/8
STG-B-40-175 Bearing: Ball bushing (B) | Bore: 40 mm | Stroke: 175 mm | Port: Rc1/8
STG-B-40-200 Bearing: Ball bushing (B) | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/8
STG-B-40-250 Bearing: Ball bushing (B) | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/8
STG-B-40-300 Bearing: Ball bushing (B) | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/8
STG-B-40-350 Bearing: Ball bushing (B) | Bore: 40 mm | Stroke: 350 mm | Port: Rc1/8
STG-B-40-400 Bearing: Ball bushing (B) | Bore: 40 mm | Stroke: 400 mm | Port: Rc1/8
STG-B-50-25 Bearing: Ball bushing (B) | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
STG-B-50-50 Bearing: Ball bushing (B) | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
STG-B-50-75 Bearing: Ball bushing (B) | Bore: 50 mm | Stroke: 75 mm | Port: Rc1/4
STG-B-50-100 Bearing: Ball bushing (B) | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
STG-B-50-125 Bearing: Ball bushing (B) | Bore: 50 mm | Stroke: 125 mm | Port: Rc1/4
STG-B-50-150 Bearing: Ball bushing (B) | Bore: 50 mm | Stroke: 150 mm | Port: Rc1/4
STG-B-50-175 Bearing: Ball bushing (B) | Bore: 50 mm | Stroke: 175 mm | Port: Rc1/4
STG-B-50-200 Bearing: Ball bushing (B) | Bore: 50 mm | Stroke: 200 mm | Port: Rc1/4
STG-B-50-250 Bearing: Ball bushing (B) | Bore: 50 mm | Stroke: 250 mm | Port: Rc1/4
STG-B-50-300 Bearing: Ball bushing (B) | Bore: 50 mm | Stroke: 300 mm | Port: Rc1/4
STG-B-50-350 Bearing: Ball bushing (B) | Bore: 50 mm | Stroke: 350 mm | Port: Rc1/4
STG-B-50-400 Bearing: Ball bushing (B) | Bore: 50 mm | Stroke: 400 mm | Port: Rc1/4
STG-B-63-25 Bearing: Ball bushing (B) | Bore: 63 mm | Stroke: 25 mm | Port: Rc1/4
STG-B-63-50 Bearing: Ball bushing (B) | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
STG-B-63-75 Bearing: Ball bushing (B) | Bore: 63 mm | Stroke: 75 mm | Port: Rc1/4
STG-B-63-100 Bearing: Ball bushing (B) | Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4
STG-B-63-125 Bearing: Ball bushing (B) | Bore: 63 mm | Stroke: 125 mm | Port: Rc1/4
STG-B-63-150 Bearing: Ball bushing (B) | Bore: 63 mm | Stroke: 150 mm | Port: Rc1/4
STG-B-63-175 Bearing: Ball bushing (B) | Bore: 63 mm | Stroke: 175 mm | Port: Rc1/4
STG-B-63-200 Bearing: Ball bushing (B) | Bore: 63 mm | Stroke: 200 mm | Port: Rc1/4
STG-B-63-250 Bearing: Ball bushing (B) | Bore: 63 mm | Stroke: 250 mm | Port: Rc1/4
STG-B-63-300 Bearing: Ball bushing (B) | Bore: 63 mm | Stroke: 300 mm | Port: Rc1/4
STG-B-63-350 Bearing: Ball bushing (B) | Bore: 63 mm | Stroke: 350 mm | Port: Rc1/4
STG-B-63-400 Bearing: Ball bushing (B) | Bore: 63 mm | Stroke: 400 mm | Port: Rc1/4
STG-B-80-25 Bearing: Ball bushing (B) | Bore: 80 mm | Stroke: 25 mm | Port: Rc3/8
STG-B-80-50 Bearing: Ball bushing (B) | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
STG-B-80-75 Bearing: Ball bushing (B) | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
STG-B-80-100 Bearing: Ball bushing (B) | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
STG-B-80-125 Bearing: Ball bushing (B) | Bore: 80 mm | Stroke: 125 mm | Port: Rc3/8
STG-B-80-150 Bearing: Ball bushing (B) | Bore: 80 mm | Stroke: 150 mm | Port: Rc3/8
STG-B-80-175 Bearing: Ball bushing (B) | Bore: 80 mm | Stroke: 175 mm | Port: Rc3/8
STG-B-80-200 Bearing: Ball bushing (B) | Bore: 80 mm | Stroke: 200 mm | Port: Rc3/8
STG-B-80-250 Bearing: Ball bushing (B) | Bore: 80 mm | Stroke: 250 mm | Port: Rc3/8
STG-B-80-300 Bearing: Ball bushing (B) | Bore: 80 mm | Stroke: 300 mm | Port: Rc3/8
STG-B-80-350 Bearing: Ball bushing (B) | Bore: 80 mm | Stroke: 350 mm | Port: Rc3/8
STG-B-80-400 Bearing: Ball bushing (B) | Bore: 80 mm | Stroke: 400 mm | Port: Rc3/8
STG-B-100-25 Bearing: Ball bushing (B) | Bore: 100 mm | Stroke: 25 mm | Port: Rc3/8
STG-B-100-50 Bearing: Ball bushing (B) | Bore: 100 mm | Stroke: 50 mm | Port: Rc3/8
STG-B-100-75 Bearing: Ball bushing (B) | Bore: 100 mm | Stroke: 75 mm | Port: Rc3/8
STG-B-100-100 Bearing: Ball bushing (B) | Bore: 100 mm | Stroke: 100 mm | Port: Rc3/8
STG-B-100-125 Bearing: Ball bushing (B) | Bore: 100 mm | Stroke: 125 mm | Port: Rc3/8
STG-B-100-150 Bearing: Ball bushing (B) | Bore: 100 mm | Stroke: 150 mm | Port: Rc3/8
STG-B-100-175 Bearing: Ball bushing (B) | Bore: 100 mm | Stroke: 175 mm | Port: Rc3/8
STG-B-100-200 Bearing: Ball bushing (B) | Bore: 100 mm | Stroke: 200 mm | Port: Rc3/8
STG-B-100-250 Bearing: Ball bushing (B) | Bore: 100 mm | Stroke: 250 mm | Port: Rc3/8
STG-B-100-300 Bearing: Ball bushing (B) | Bore: 100 mm | Stroke: 300 mm | Port: Rc3/8
STG-B-100-350 Bearing: Ball bushing (B) | Bore: 100 mm | Stroke: 350 mm | Port: Rc3/8
STG-B-100-400 Bearing: Ball bushing (B) | Bore: 100 mm | Stroke: 400 mm | Port: Rc3/8
Guided CylindersCKD
246 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD STG Guided Cylinder (Standard, Bore 12-100)

Brand CKD·Guided Cylinders

Available part numbers (246)

STG-M-12-10, STG-M-12-20, STG-M-12-30, STG-M-12-40, STG-M-12-50, STG-M-12-75, STG-M-12-100, STG-M-12-125, STG-M-12-150, STG-M-12-175 + 236 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
STG-M-12-10Bearing: Slide bearing (M) | Bore: 12 mm | Stroke: 10 mm | Port: M5
STG-M-12-20Bearing: Slide bearing (M) | Bore: 12 mm | Stroke: 20 mm | Port: M5
STG-M-12-30Bearing: Slide bearing (M) | Bore: 12 mm | Stroke: 30 mm | Port: M5
STG-M-12-40Bearing: Slide bearing (M) | Bore: 12 mm | Stroke: 40 mm | Port: M5
STG-M-12-50Bearing: Slide bearing (M) | Bore: 12 mm | Stroke: 50 mm | Port: M5
STG-M-12-75Bearing: Slide bearing (M) | Bore: 12 mm | Stroke: 75 mm | Port: M5
STG-M-12-100Bearing: Slide bearing (M) | Bore: 12 mm | Stroke: 100 mm | Port: M5
STG-M-12-125Bearing: Slide bearing (M) | Bore: 12 mm | Stroke: 125 mm | Port: M5
STG-M-12-150Bearing: Slide bearing (M) | Bore: 12 mm | Stroke: 150 mm | Port: M5
STG-M-12-175Bearing: Slide bearing (M) | Bore: 12 mm | Stroke: 175 mm | Port: M5
STG-M-12-200Bearing: Slide bearing (M) | Bore: 12 mm | Stroke: 200 mm | Port: M5
STG-M-12-250Bearing: Slide bearing (M) | Bore: 12 mm | Stroke: 250 mm | Port: M5
STG-M-16-20Bearing: Slide bearing (M) | Bore: 16 mm | Stroke: 20 mm | Port: M5
STG-M-16-30Bearing: Slide bearing (M) | Bore: 16 mm | Stroke: 30 mm | Port: M5
STG-M-16-40Bearing: Slide bearing (M) | Bore: 16 mm | Stroke: 40 mm | Port: M5
STG-M-16-50Bearing: Slide bearing (M) | Bore: 16 mm | Stroke: 50 mm | Port: M5
STG-M-16-75Bearing: Slide bearing (M) | Bore: 16 mm | Stroke: 75 mm | Port: M5
STG-M-16-100Bearing: Slide bearing (M) | Bore: 16 mm | Stroke: 100 mm | Port: M5
STG-M-16-125Bearing: Slide bearing (M) | Bore: 16 mm | Stroke: 125 mm | Port: M5
STG-M-16-150Bearing: Slide bearing (M) | Bore: 16 mm | Stroke: 150 mm | Port: M5
STG-M-16-175Bearing: Slide bearing (M) | Bore: 16 mm | Stroke: 175 mm | Port: M5
STG-M-16-200Bearing: Slide bearing (M) | Bore: 16 mm | Stroke: 200 mm | Port: M5
STG-M-16-250Bearing: Slide bearing (M) | Bore: 16 mm | Stroke: 250 mm | Port: M5
STG-M-20-20Bearing: Slide bearing (M) | Bore: 20 mm | Stroke: 20 mm | Port: Rc1/8
STG-M-20-30Bearing: Slide bearing (M) | Bore: 20 mm | Stroke: 30 mm | Port: Rc1/8
STG-M-20-40Bearing: Slide bearing (M) | Bore: 20 mm | Stroke: 40 mm | Port: Rc1/8
STG-M-20-50Bearing: Slide bearing (M) | Bore: 20 mm | Stroke: 50 mm | Port: Rc1/8
STG-M-20-75Bearing: Slide bearing (M) | Bore: 20 mm | Stroke: 75 mm | Port: Rc1/8
STG-M-20-100Bearing: Slide bearing (M) | Bore: 20 mm | Stroke: 100 mm | Port: Rc1/8
STG-M-20-125Bearing: Slide bearing (M) | Bore: 20 mm | Stroke: 125 mm | Port: Rc1/8
STG-M-20-150Bearing: Slide bearing (M) | Bore: 20 mm | Stroke: 150 mm | Port: Rc1/8
STG-M-20-175Bearing: Slide bearing (M) | Bore: 20 mm | Stroke: 175 mm | Port: Rc1/8
STG-M-20-200Bearing: Slide bearing (M) | Bore: 20 mm | Stroke: 200 mm | Port: Rc1/8
STG-M-20-250Bearing: Slide bearing (M) | Bore: 20 mm | Stroke: 250 mm | Port: Rc1/8
STG-M-20-300Bearing: Slide bearing (M) | Bore: 20 mm | Stroke: 300 mm | Port: Rc1/8
STG-M-20-350Bearing: Slide bearing (M) | Bore: 20 mm | Stroke: 350 mm | Port: Rc1/8
STG-M-20-400Bearing: Slide bearing (M) | Bore: 20 mm | Stroke: 400 mm | Port: Rc1/8
STG-M-25-20Bearing: Slide bearing (M) | Bore: 25 mm | Stroke: 20 mm | Port: Rc1/8
STG-M-25-30Bearing: Slide bearing (M) | Bore: 25 mm | Stroke: 30 mm | Port: Rc1/8
STG-M-25-40Bearing: Slide bearing (M) | Bore: 25 mm | Stroke: 40 mm | Port: Rc1/8
STG-M-25-50Bearing: Slide bearing (M) | Bore: 25 mm | Stroke: 50 mm | Port: Rc1/8
STG-M-25-75Bearing: Slide bearing (M) | Bore: 25 mm | Stroke: 75 mm | Port: Rc1/8
STG-M-25-100Bearing: Slide bearing (M) | Bore: 25 mm | Stroke: 100 mm | Port: Rc1/8
STG-M-25-125Bearing: Slide bearing (M) | Bore: 25 mm | Stroke: 125 mm | Port: Rc1/8
STG-M-25-150Bearing: Slide bearing (M) | Bore: 25 mm | Stroke: 150 mm | Port: Rc1/8
STG-M-25-175Bearing: Slide bearing (M) | Bore: 25 mm | Stroke: 175 mm | Port: Rc1/8
STG-M-25-200Bearing: Slide bearing (M) | Bore: 25 mm | Stroke: 200 mm | Port: Rc1/8
STG-M-25-250Bearing: Slide bearing (M) | Bore: 25 mm | Stroke: 250 mm | Port: Rc1/8
STG-M-25-300Bearing: Slide bearing (M) | Bore: 25 mm | Stroke: 300 mm | Port: Rc1/8
STG-M-25-350Bearing: Slide bearing (M) | Bore: 25 mm | Stroke: 350 mm | Port: Rc1/8
STG-M-25-400Bearing: Slide bearing (M) | Bore: 25 mm | Stroke: 400 mm | Port: Rc1/8
STG-M-32-25Bearing: Slide bearing (M) | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
STG-M-32-50Bearing: Slide bearing (M) | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
STG-M-32-75Bearing: Slide bearing (M) | Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8
STG-M-32-100Bearing: Slide bearing (M) | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
STG-M-32-125Bearing: Slide bearing (M) | Bore: 32 mm | Stroke: 125 mm | Port: Rc1/8
STG-M-32-150Bearing: Slide bearing (M) | Bore: 32 mm | Stroke: 150 mm | Port: Rc1/8
STG-M-32-175Bearing: Slide bearing (M) | Bore: 32 mm | Stroke: 175 mm | Port: Rc1/8
STG-M-32-200Bearing: Slide bearing (M) | Bore: 32 mm | Stroke: 200 mm | Port: Rc1/8
STG-M-32-250Bearing: Slide bearing (M) | Bore: 32 mm | Stroke: 250 mm | Port: Rc1/8
STG-M-32-300Bearing: Slide bearing (M) | Bore: 32 mm | Stroke: 300 mm | Port: Rc1/8
STG-M-32-350Bearing: Slide bearing (M) | Bore: 32 mm | Stroke: 350 mm | Port: Rc1/8
STG-M-32-400Bearing: Slide bearing (M) | Bore: 32 mm | Stroke: 400 mm | Port: Rc1/8
STG-M-40-25Bearing: Slide bearing (M) | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
STG-M-40-50Bearing: Slide bearing (M) | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
STG-M-40-75Bearing: Slide bearing (M) | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/8
STG-M-40-100Bearing: Slide bearing (M) | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8
STG-M-40-125Bearing: Slide bearing (M) | Bore: 40 mm | Stroke: 125 mm | Port: Rc1/8
STG-M-40-150Bearing: Slide bearing (M) | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/8
STG-M-40-175Bearing: Slide bearing (M) | Bore: 40 mm | Stroke: 175 mm | Port: Rc1/8
STG-M-40-200Bearing: Slide bearing (M) | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/8
STG-M-40-250Bearing: Slide bearing (M) | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/8
STG-M-40-300Bearing: Slide bearing (M) | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/8
STG-M-40-350Bearing: Slide bearing (M) | Bore: 40 mm | Stroke: 350 mm | Port: Rc1/8
STG-M-40-400Bearing: Slide bearing (M) | Bore: 40 mm | Stroke: 400 mm | Port: Rc1/8
STG-M-50-25Bearing: Slide bearing (M) | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
STG-M-50-50Bearing: Slide bearing (M) | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
STG-M-50-75Bearing: Slide bearing (M) | Bore: 50 mm | Stroke: 75 mm | Port: Rc1/4
STG-M-50-100Bearing: Slide bearing (M) | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
STG-M-50-125Bearing: Slide bearing (M) | Bore: 50 mm | Stroke: 125 mm | Port: Rc1/4
STG-M-50-150Bearing: Slide bearing (M) | Bore: 50 mm | Stroke: 150 mm | Port: Rc1/4
STG-M-50-175Bearing: Slide bearing (M) | Bore: 50 mm | Stroke: 175 mm | Port: Rc1/4
STG-M-50-200Bearing: Slide bearing (M) | Bore: 50 mm | Stroke: 200 mm | Port: Rc1/4
STG-M-50-250Bearing: Slide bearing (M) | Bore: 50 mm | Stroke: 250 mm | Port: Rc1/4
STG-M-50-300Bearing: Slide bearing (M) | Bore: 50 mm | Stroke: 300 mm | Port: Rc1/4
STG-M-50-350Bearing: Slide bearing (M) | Bore: 50 mm | Stroke: 350 mm | Port: Rc1/4
STG-M-50-400Bearing: Slide bearing (M) | Bore: 50 mm | Stroke: 400 mm | Port: Rc1/4
STG-M-63-25Bearing: Slide bearing (M) | Bore: 63 mm | Stroke: 25 mm | Port: Rc1/4
STG-M-63-50Bearing: Slide bearing (M) | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
STG-M-63-75Bearing: Slide bearing (M) | Bore: 63 mm | Stroke: 75 mm | Port: Rc1/4
STG-M-63-100Bearing: Slide bearing (M) | Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4
STG-M-63-125Bearing: Slide bearing (M) | Bore: 63 mm | Stroke: 125 mm | Port: Rc1/4
STG-M-63-150Bearing: Slide bearing (M) | Bore: 63 mm | Stroke: 150 mm | Port: Rc1/4
STG-M-63-175Bearing: Slide bearing (M) | Bore: 63 mm | Stroke: 175 mm | Port: Rc1/4
STG-M-63-200Bearing: Slide bearing (M) | Bore: 63 mm | Stroke: 200 mm | Port: Rc1/4
STG-M-63-250Bearing: Slide bearing (M) | Bore: 63 mm | Stroke: 250 mm | Port: Rc1/4
STG-M-63-300Bearing: Slide bearing (M) | Bore: 63 mm | Stroke: 300 mm | Port: Rc1/4
STG-M-63-350Bearing: Slide bearing (M) | Bore: 63 mm | Stroke: 350 mm | Port: Rc1/4
STG-M-63-400Bearing: Slide bearing (M) | Bore: 63 mm | Stroke: 400 mm | Port: Rc1/4
STG-M-80-25Bearing: Slide bearing (M) | Bore: 80 mm | Stroke: 25 mm | Port: Rc3/8
STG-M-80-50Bearing: Slide bearing (M) | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
STG-M-80-75Bearing: Slide bearing (M) | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
STG-M-80-100Bearing: Slide bearing (M) | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
STG-M-80-125Bearing: Slide bearing (M) | Bore: 80 mm | Stroke: 125 mm | Port: Rc3/8
STG-M-80-150Bearing: Slide bearing (M) | Bore: 80 mm | Stroke: 150 mm | Port: Rc3/8
STG-M-80-175Bearing: Slide bearing (M) | Bore: 80 mm | Stroke: 175 mm | Port: Rc3/8
STG-M-80-200Bearing: Slide bearing (M) | Bore: 80 mm | Stroke: 200 mm | Port: Rc3/8
STG-M-80-250Bearing: Slide bearing (M) | Bore: 80 mm | Stroke: 250 mm | Port: Rc3/8
STG-M-80-300Bearing: Slide bearing (M) | Bore: 80 mm | Stroke: 300 mm | Port: Rc3/8
STG-M-80-350Bearing: Slide bearing (M) | Bore: 80 mm | Stroke: 350 mm | Port: Rc3/8
STG-M-80-400Bearing: Slide bearing (M) | Bore: 80 mm | Stroke: 400 mm | Port: Rc3/8
STG-M-100-25Bearing: Slide bearing (M) | Bore: 100 mm | Stroke: 25 mm | Port: Rc3/8
STG-M-100-50Bearing: Slide bearing (M) | Bore: 100 mm | Stroke: 50 mm | Port: Rc3/8
STG-M-100-75Bearing: Slide bearing (M) | Bore: 100 mm | Stroke: 75 mm | Port: Rc3/8
STG-M-100-100Bearing: Slide bearing (M) | Bore: 100 mm | Stroke: 100 mm | Port: Rc3/8
STG-M-100-125Bearing: Slide bearing (M) | Bore: 100 mm | Stroke: 125 mm | Port: Rc3/8
STG-M-100-150Bearing: Slide bearing (M) | Bore: 100 mm | Stroke: 150 mm | Port: Rc3/8
STG-M-100-175Bearing: Slide bearing (M) | Bore: 100 mm | Stroke: 175 mm | Port: Rc3/8
STG-M-100-200Bearing: Slide bearing (M) | Bore: 100 mm | Stroke: 200 mm | Port: Rc3/8
STG-M-100-250Bearing: Slide bearing (M) | Bore: 100 mm | Stroke: 250 mm | Port: Rc3/8
STG-M-100-300Bearing: Slide bearing (M) | Bore: 100 mm | Stroke: 300 mm | Port: Rc3/8
STG-M-100-350Bearing: Slide bearing (M) | Bore: 100 mm | Stroke: 350 mm | Port: Rc3/8
STG-M-100-400Bearing: Slide bearing (M) | Bore: 100 mm | Stroke: 400 mm | Port: Rc3/8
STG-B-12-10Bearing: Ball bushing (B) | Bore: 12 mm | Stroke: 10 mm | Port: M5
STG-B-12-20Bearing: Ball bushing (B) | Bore: 12 mm | Stroke: 20 mm | Port: M5
STG-B-12-30Bearing: Ball bushing (B) | Bore: 12 mm | Stroke: 30 mm | Port: M5
STG-B-12-40Bearing: Ball bushing (B) | Bore: 12 mm | Stroke: 40 mm | Port: M5
STG-B-12-50Bearing: Ball bushing (B) | Bore: 12 mm | Stroke: 50 mm | Port: M5
STG-B-12-75Bearing: Ball bushing (B) | Bore: 12 mm | Stroke: 75 mm | Port: M5
STG-B-12-100Bearing: Ball bushing (B) | Bore: 12 mm | Stroke: 100 mm | Port: M5
STG-B-12-125Bearing: Ball bushing (B) | Bore: 12 mm | Stroke: 125 mm | Port: M5
STG-B-12-150Bearing: Ball bushing (B) | Bore: 12 mm | Stroke: 150 mm | Port: M5
STG-B-12-175Bearing: Ball bushing (B) | Bore: 12 mm | Stroke: 175 mm | Port: M5
STG-B-12-200Bearing: Ball bushing (B) | Bore: 12 mm | Stroke: 200 mm | Port: M5
STG-B-12-250Bearing: Ball bushing (B) | Bore: 12 mm | Stroke: 250 mm | Port: M5
STG-B-16-20Bearing: Ball bushing (B) | Bore: 16 mm | Stroke: 20 mm | Port: M5
STG-B-16-30Bearing: Ball bushing (B) | Bore: 16 mm | Stroke: 30 mm | Port: M5
STG-B-16-40Bearing: Ball bushing (B) | Bore: 16 mm | Stroke: 40 mm | Port: M5
STG-B-16-50Bearing: Ball bushing (B) | Bore: 16 mm | Stroke: 50 mm | Port: M5
STG-B-16-75Bearing: Ball bushing (B) | Bore: 16 mm | Stroke: 75 mm | Port: M5
STG-B-16-100Bearing: Ball bushing (B) | Bore: 16 mm | Stroke: 100 mm | Port: M5
STG-B-16-125Bearing: Ball bushing (B) | Bore: 16 mm | Stroke: 125 mm | Port: M5
STG-B-16-150Bearing: Ball bushing (B) | Bore: 16 mm | Stroke: 150 mm | Port: M5
STG-B-16-175Bearing: Ball bushing (B) | Bore: 16 mm | Stroke: 175 mm | Port: M5
STG-B-16-200Bearing: Ball bushing (B) | Bore: 16 mm | Stroke: 200 mm | Port: M5
STG-B-16-250Bearing: Ball bushing (B) | Bore: 16 mm | Stroke: 250 mm | Port: M5
STG-B-20-20Bearing: Ball bushing (B) | Bore: 20 mm | Stroke: 20 mm | Port: Rc1/8
STG-B-20-30Bearing: Ball bushing (B) | Bore: 20 mm | Stroke: 30 mm | Port: Rc1/8
STG-B-20-40Bearing: Ball bushing (B) | Bore: 20 mm | Stroke: 40 mm | Port: Rc1/8
STG-B-20-50Bearing: Ball bushing (B) | Bore: 20 mm | Stroke: 50 mm | Port: Rc1/8
STG-B-20-75Bearing: Ball bushing (B) | Bore: 20 mm | Stroke: 75 mm | Port: Rc1/8
STG-B-20-100Bearing: Ball bushing (B) | Bore: 20 mm | Stroke: 100 mm | Port: Rc1/8
STG-B-20-125Bearing: Ball bushing (B) | Bore: 20 mm | Stroke: 125 mm | Port: Rc1/8
STG-B-20-150Bearing: Ball bushing (B) | Bore: 20 mm | Stroke: 150 mm | Port: Rc1/8
STG-B-20-175Bearing: Ball bushing (B) | Bore: 20 mm | Stroke: 175 mm | Port: Rc1/8
STG-B-20-200Bearing: Ball bushing (B) | Bore: 20 mm | Stroke: 200 mm | Port: Rc1/8
STG-B-20-250Bearing: Ball bushing (B) | Bore: 20 mm | Stroke: 250 mm | Port: Rc1/8
STG-B-20-300Bearing: Ball bushing (B) | Bore: 20 mm | Stroke: 300 mm | Port: Rc1/8
STG-B-20-350Bearing: Ball bushing (B) | Bore: 20 mm | Stroke: 350 mm | Port: Rc1/8
STG-B-20-400Bearing: Ball bushing (B) | Bore: 20 mm | Stroke: 400 mm | Port: Rc1/8
STG-B-25-20Bearing: Ball bushing (B) | Bore: 25 mm | Stroke: 20 mm | Port: Rc1/8
STG-B-25-30Bearing: Ball bushing (B) | Bore: 25 mm | Stroke: 30 mm | Port: Rc1/8
STG-B-25-40Bearing: Ball bushing (B) | Bore: 25 mm | Stroke: 40 mm | Port: Rc1/8
STG-B-25-50Bearing: Ball bushing (B) | Bore: 25 mm | Stroke: 50 mm | Port: Rc1/8
STG-B-25-75Bearing: Ball bushing (B) | Bore: 25 mm | Stroke: 75 mm | Port: Rc1/8
STG-B-25-100Bearing: Ball bushing (B) | Bore: 25 mm | Stroke: 100 mm | Port: Rc1/8
STG-B-25-125Bearing: Ball bushing (B) | Bore: 25 mm | Stroke: 125 mm | Port: Rc1/8
STG-B-25-150Bearing: Ball bushing (B) | Bore: 25 mm | Stroke: 150 mm | Port: Rc1/8
STG-B-25-175Bearing: Ball bushing (B) | Bore: 25 mm | Stroke: 175 mm | Port: Rc1/8
STG-B-25-200Bearing: Ball bushing (B) | Bore: 25 mm | Stroke: 200 mm | Port: Rc1/8
STG-B-25-250Bearing: Ball bushing (B) | Bore: 25 mm | Stroke: 250 mm | Port: Rc1/8
STG-B-25-300Bearing: Ball bushing (B) | Bore: 25 mm | Stroke: 300 mm | Port: Rc1/8
STG-B-25-350Bearing: Ball bushing (B) | Bore: 25 mm | Stroke: 350 mm | Port: Rc1/8
STG-B-25-400Bearing: Ball bushing (B) | Bore: 25 mm | Stroke: 400 mm | Port: Rc1/8
STG-B-32-25Bearing: Ball bushing (B) | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
STG-B-32-50Bearing: Ball bushing (B) | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
STG-B-32-75Bearing: Ball bushing (B) | Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8
STG-B-32-100Bearing: Ball bushing (B) | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
STG-B-32-125Bearing: Ball bushing (B) | Bore: 32 mm | Stroke: 125 mm | Port: Rc1/8
STG-B-32-150Bearing: Ball bushing (B) | Bore: 32 mm | Stroke: 150 mm | Port: Rc1/8
STG-B-32-175Bearing: Ball bushing (B) | Bore: 32 mm | Stroke: 175 mm | Port: Rc1/8
STG-B-32-200Bearing: Ball bushing (B) | Bore: 32 mm | Stroke: 200 mm | Port: Rc1/8
STG-B-32-250Bearing: Ball bushing (B) | Bore: 32 mm | Stroke: 250 mm | Port: Rc1/8
STG-B-32-300Bearing: Ball bushing (B) | Bore: 32 mm | Stroke: 300 mm | Port: Rc1/8
STG-B-32-350Bearing: Ball bushing (B) | Bore: 32 mm | Stroke: 350 mm | Port: Rc1/8
STG-B-32-400Bearing: Ball bushing (B) | Bore: 32 mm | Stroke: 400 mm | Port: Rc1/8
STG-B-40-25Bearing: Ball bushing (B) | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
STG-B-40-50Bearing: Ball bushing (B) | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
STG-B-40-75Bearing: Ball bushing (B) | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/8
STG-B-40-100Bearing: Ball bushing (B) | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8
STG-B-40-125Bearing: Ball bushing (B) | Bore: 40 mm | Stroke: 125 mm | Port: Rc1/8
STG-B-40-150Bearing: Ball bushing (B) | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/8
STG-B-40-175Bearing: Ball bushing (B) | Bore: 40 mm | Stroke: 175 mm | Port: Rc1/8
STG-B-40-200Bearing: Ball bushing (B) | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/8
STG-B-40-250Bearing: Ball bushing (B) | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/8
STG-B-40-300Bearing: Ball bushing (B) | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/8
STG-B-40-350Bearing: Ball bushing (B) | Bore: 40 mm | Stroke: 350 mm | Port: Rc1/8
STG-B-40-400Bearing: Ball bushing (B) | Bore: 40 mm | Stroke: 400 mm | Port: Rc1/8
STG-B-50-25Bearing: Ball bushing (B) | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
STG-B-50-50Bearing: Ball bushing (B) | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
STG-B-50-75Bearing: Ball bushing (B) | Bore: 50 mm | Stroke: 75 mm | Port: Rc1/4
STG-B-50-100Bearing: Ball bushing (B) | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
STG-B-50-125Bearing: Ball bushing (B) | Bore: 50 mm | Stroke: 125 mm | Port: Rc1/4
STG-B-50-150Bearing: Ball bushing (B) | Bore: 50 mm | Stroke: 150 mm | Port: Rc1/4
STG-B-50-175Bearing: Ball bushing (B) | Bore: 50 mm | Stroke: 175 mm | Port: Rc1/4
STG-B-50-200Bearing: Ball bushing (B) | Bore: 50 mm | Stroke: 200 mm | Port: Rc1/4
STG-B-50-250Bearing: Ball bushing (B) | Bore: 50 mm | Stroke: 250 mm | Port: Rc1/4
STG-B-50-300Bearing: Ball bushing (B) | Bore: 50 mm | Stroke: 300 mm | Port: Rc1/4
STG-B-50-350Bearing: Ball bushing (B) | Bore: 50 mm | Stroke: 350 mm | Port: Rc1/4
STG-B-50-400Bearing: Ball bushing (B) | Bore: 50 mm | Stroke: 400 mm | Port: Rc1/4
STG-B-63-25Bearing: Ball bushing (B) | Bore: 63 mm | Stroke: 25 mm | Port: Rc1/4
STG-B-63-50Bearing: Ball bushing (B) | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
STG-B-63-75Bearing: Ball bushing (B) | Bore: 63 mm | Stroke: 75 mm | Port: Rc1/4
STG-B-63-100Bearing: Ball bushing (B) | Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4
STG-B-63-125Bearing: Ball bushing (B) | Bore: 63 mm | Stroke: 125 mm | Port: Rc1/4
STG-B-63-150Bearing: Ball bushing (B) | Bore: 63 mm | Stroke: 150 mm | Port: Rc1/4
STG-B-63-175Bearing: Ball bushing (B) | Bore: 63 mm | Stroke: 175 mm | Port: Rc1/4
STG-B-63-200Bearing: Ball bushing (B) | Bore: 63 mm | Stroke: 200 mm | Port: Rc1/4
STG-B-63-250Bearing: Ball bushing (B) | Bore: 63 mm | Stroke: 250 mm | Port: Rc1/4
STG-B-63-300Bearing: Ball bushing (B) | Bore: 63 mm | Stroke: 300 mm | Port: Rc1/4
STG-B-63-350Bearing: Ball bushing (B) | Bore: 63 mm | Stroke: 350 mm | Port: Rc1/4
STG-B-63-400Bearing: Ball bushing (B) | Bore: 63 mm | Stroke: 400 mm | Port: Rc1/4
STG-B-80-25Bearing: Ball bushing (B) | Bore: 80 mm | Stroke: 25 mm | Port: Rc3/8
STG-B-80-50Bearing: Ball bushing (B) | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
STG-B-80-75Bearing: Ball bushing (B) | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
STG-B-80-100Bearing: Ball bushing (B) | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
STG-B-80-125Bearing: Ball bushing (B) | Bore: 80 mm | Stroke: 125 mm | Port: Rc3/8
STG-B-80-150Bearing: Ball bushing (B) | Bore: 80 mm | Stroke: 150 mm | Port: Rc3/8
STG-B-80-175Bearing: Ball bushing (B) | Bore: 80 mm | Stroke: 175 mm | Port: Rc3/8
STG-B-80-200Bearing: Ball bushing (B) | Bore: 80 mm | Stroke: 200 mm | Port: Rc3/8
STG-B-80-250Bearing: Ball bushing (B) | Bore: 80 mm | Stroke: 250 mm | Port: Rc3/8
STG-B-80-300Bearing: Ball bushing (B) | Bore: 80 mm | Stroke: 300 mm | Port: Rc3/8
STG-B-80-350Bearing: Ball bushing (B) | Bore: 80 mm | Stroke: 350 mm | Port: Rc3/8
STG-B-80-400Bearing: Ball bushing (B) | Bore: 80 mm | Stroke: 400 mm | Port: Rc3/8
STG-B-100-25Bearing: Ball bushing (B) | Bore: 100 mm | Stroke: 25 mm | Port: Rc3/8
STG-B-100-50Bearing: Ball bushing (B) | Bore: 100 mm | Stroke: 50 mm | Port: Rc3/8
STG-B-100-75Bearing: Ball bushing (B) | Bore: 100 mm | Stroke: 75 mm | Port: Rc3/8
STG-B-100-100Bearing: Ball bushing (B) | Bore: 100 mm | Stroke: 100 mm | Port: Rc3/8
STG-B-100-125Bearing: Ball bushing (B) | Bore: 100 mm | Stroke: 125 mm | Port: Rc3/8
STG-B-100-150Bearing: Ball bushing (B) | Bore: 100 mm | Stroke: 150 mm | Port: Rc3/8
STG-B-100-175Bearing: Ball bushing (B) | Bore: 100 mm | Stroke: 175 mm | Port: Rc3/8
STG-B-100-200Bearing: Ball bushing (B) | Bore: 100 mm | Stroke: 200 mm | Port: Rc3/8
STG-B-100-250Bearing: Ball bushing (B) | Bore: 100 mm | Stroke: 250 mm | Port: Rc3/8
STG-B-100-300Bearing: Ball bushing (B) | Bore: 100 mm | Stroke: 300 mm | Port: Rc3/8
STG-B-100-350Bearing: Ball bushing (B) | Bore: 100 mm | Stroke: 350 mm | Port: Rc3/8
STG-B-100-400Bearing: Ball bushing (B) | Bore: 100 mm | Stroke: 400 mm | Port: Rc3/8

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
