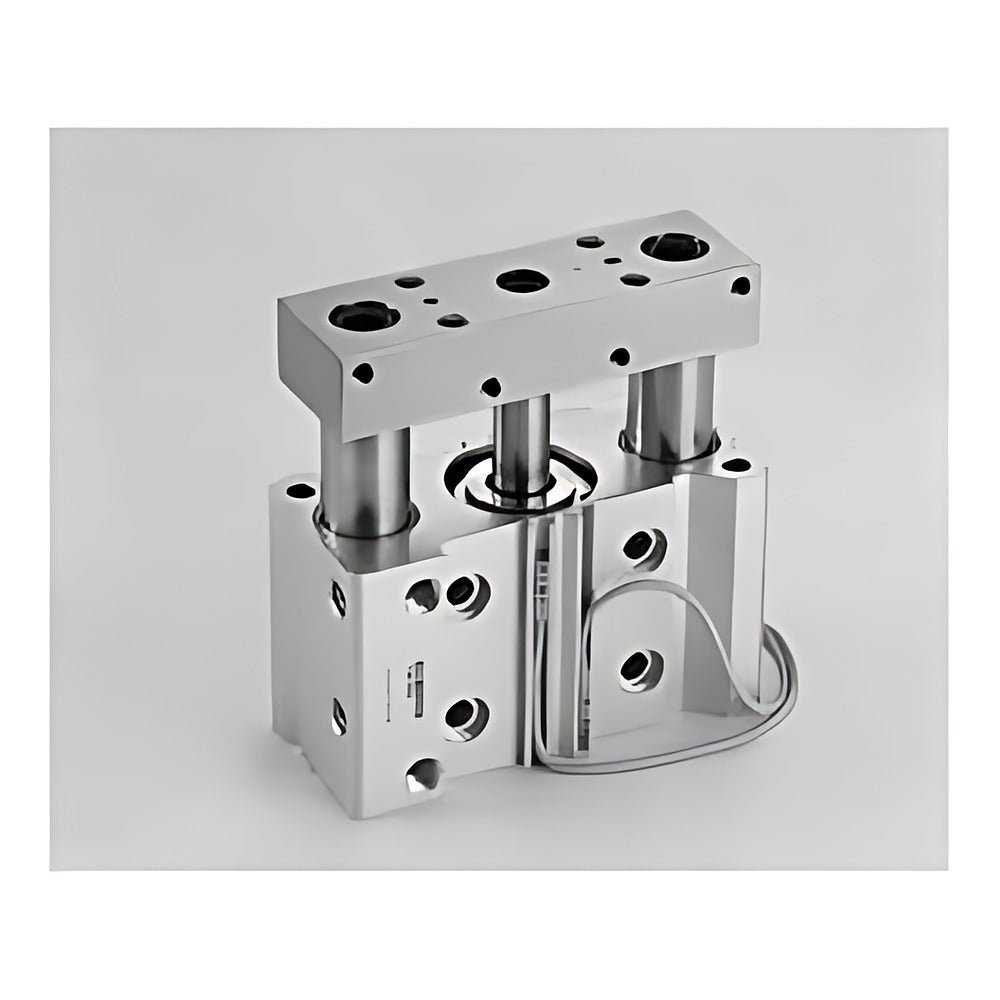

CKD STG-K Guided Cylinder (Heavy-Duty Guide Rod, Bore 32/50)

CKD STG-K Guided Cylinder (Heavy-Duty Guide Rod, Bore 32/50)

CKD STG-K series double-acting guided cylinder with heavy-duty guide rods and slide bearings, offering higher load and impact resistance than the standard STG-M for stopper and pusher duty.

Key features

  • Heavy-duty guide rod type (K) with slide bearing; improved load and impact resistance versus STG-M
  • Bore 32 and 50 mm; standard strokes 25 to 200 mm in 25 mm steps (intermediate strokes in 5 mm steps)
  • Rubber cushion standard; rubber air cushion (C) available as a main code option
  • Switch-ready (magnet built in); T0H/T0V, T5, T8, T1, T2, T3, 2-colour and AC-field switches added as suffixes with switch quantity R/H/D/T
  • NPT (NN) and G (GN) port threads are made to order; consumable kits STG-32K / STG-50K

Specifications

Action Double acting
Fluid Compressed air
Max. operating pressure 1.0 MPa
Min. operating pressure 0.1 MPa (0.2 MPa with rubber air cushion)
Proof pressure 1.6 MPa
Ambient temperature -10 to 60°C (no freezing)
Piston speed 50 to 400 mm/s
Allowable absorbed energy 0.401 J (bore 32), 0.980 J (bore 50)
Bearing Slide bearing
Source CKD Korea catalog CB-030SK-9, p. 518-528
