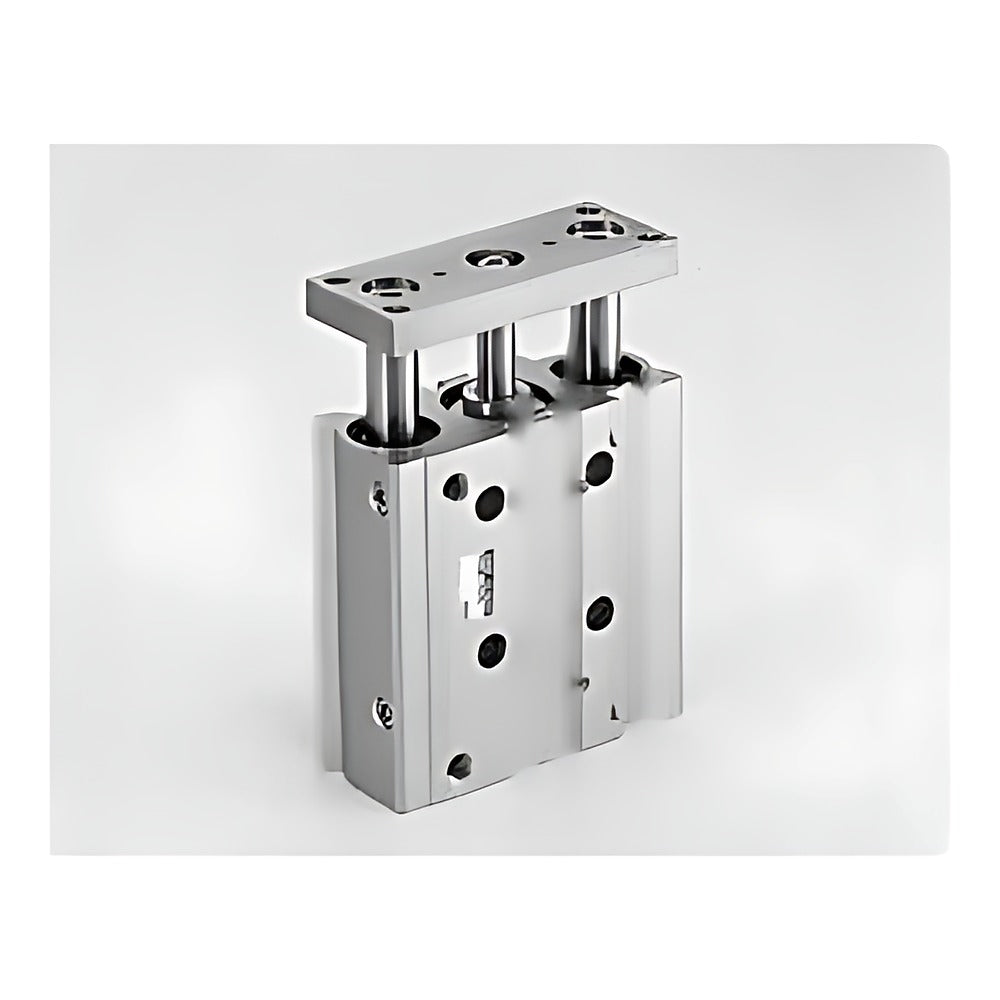

CKD STG-MC/BC Guided Cylinder (Air Cushion, Bore 16-63)

CKD STG-MC/BC Guided Cylinder (Air Cushion, Bore 16-63)

CKD STG-MC/BC guided cylinder with adjustable air cushion, double acting, slide bearing or ball bushing guide, bore 16 to 63 mm.

Key features

  • Air cushion at both ends for higher allowable kinetic energy (0.3 to 5.5 J)
  • Guide: slide bearing (MC) or ball bushing (BC); switch magnet built in
  • Minimum stroke 15 mm (below that select the basic type); intermediate strokes 1 mm steps made to order
  • NPT (NN) / G (GN) port threads for bore 20+ made to order
  • Switches (T0/T5/T8 reed, T1/T2/T3/T3P/T2W/T2Y/T3W/T3Y/T2J/T2YD/T2YDT solid state) ordered as R/H/D/T, not multiplied

Specifications

Action Double acting, air cushion
Fluid Compressed air
Max. operating pressure 1.0 MPa
Min. operating pressure 0.15 MPa (16-25), 0.1 MPa (32-63)
Proof pressure 1.6 MPa
Ambient temperature -10 to 60 C (no freezing)
Piston speed 50 to 500 mm/s (63: 50-300)
Lubrication Not required
Source CKD Korea catalog CB-030SK-9, p. 446-455
STG-MC-16-25 Bearing: Slide bearing (M) | Bore: 16 mm | Stroke: 25 mm | Port: M5
STG-MC-16-50 Bearing: Slide bearing (M) | Bore: 16 mm | Stroke: 50 mm | Port: M5
STG-MC-16-75 Bearing: Slide bearing (M) | Bore: 16 mm | Stroke: 75 mm | Port: M5
STG-MC-16-100 Bearing: Slide bearing (M) | Bore: 16 mm | Stroke: 100 mm | Port: M5
STG-MC-16-125 Bearing: Slide bearing (M) | Bore: 16 mm | Stroke: 125 mm | Port: M5
STG-MC-16-150 Bearing: Slide bearing (M) | Bore: 16 mm | Stroke: 150 mm | Port: M5
STG-MC-16-175 Bearing: Slide bearing (M) | Bore: 16 mm | Stroke: 175 mm | Port: M5
STG-MC-16-200 Bearing: Slide bearing (M) | Bore: 16 mm | Stroke: 200 mm | Port: M5
STG-MC-16-250 Bearing: Slide bearing (M) | Bore: 16 mm | Stroke: 250 mm | Port: M5
STG-MC-20-25 Bearing: Slide bearing (M) | Bore: 20 mm | Stroke: 25 mm | Port: Rc1/8
STG-MC-20-50 Bearing: Slide bearing (M) | Bore: 20 mm | Stroke: 50 mm | Port: Rc1/8
STG-MC-20-75 Bearing: Slide bearing (M) | Bore: 20 mm | Stroke: 75 mm | Port: Rc1/8
STG-MC-20-100 Bearing: Slide bearing (M) | Bore: 20 mm | Stroke: 100 mm | Port: Rc1/8
STG-MC-20-125 Bearing: Slide bearing (M) | Bore: 20 mm | Stroke: 125 mm | Port: Rc1/8
STG-MC-20-150 Bearing: Slide bearing (M) | Bore: 20 mm | Stroke: 150 mm | Port: Rc1/8
STG-MC-20-175 Bearing: Slide bearing (M) | Bore: 20 mm | Stroke: 175 mm | Port: Rc1/8
STG-MC-20-200 Bearing: Slide bearing (M) | Bore: 20 mm | Stroke: 200 mm | Port: Rc1/8
STG-MC-20-250 Bearing: Slide bearing (M) | Bore: 20 mm | Stroke: 250 mm | Port: Rc1/8
STG-MC-20-300 Bearing: Slide bearing (M) | Bore: 20 mm | Stroke: 300 mm | Port: Rc1/8
STG-MC-20-350 Bearing: Slide bearing (M) | Bore: 20 mm | Stroke: 350 mm | Port: Rc1/8
STG-MC-20-400 Bearing: Slide bearing (M) | Bore: 20 mm | Stroke: 400 mm | Port: Rc1/8
STG-MC-25-25 Bearing: Slide bearing (M) | Bore: 25 mm | Stroke: 25 mm | Port: Rc1/8
STG-MC-25-50 Bearing: Slide bearing (M) | Bore: 25 mm | Stroke: 50 mm | Port: Rc1/8
STG-MC-25-75 Bearing: Slide bearing (M) | Bore: 25 mm | Stroke: 75 mm | Port: Rc1/8
STG-MC-25-100 Bearing: Slide bearing (M) | Bore: 25 mm | Stroke: 100 mm | Port: Rc1/8
STG-MC-25-125 Bearing: Slide bearing (M) | Bore: 25 mm | Stroke: 125 mm | Port: Rc1/8
STG-MC-25-150 Bearing: Slide bearing (M) | Bore: 25 mm | Stroke: 150 mm | Port: Rc1/8
STG-MC-25-175 Bearing: Slide bearing (M) | Bore: 25 mm | Stroke: 175 mm | Port: Rc1/8
STG-MC-25-200 Bearing: Slide bearing (M) | Bore: 25 mm | Stroke: 200 mm | Port: Rc1/8
STG-MC-25-250 Bearing: Slide bearing (M) | Bore: 25 mm | Stroke: 250 mm | Port: Rc1/8
STG-MC-25-300 Bearing: Slide bearing (M) | Bore: 25 mm | Stroke: 300 mm | Port: Rc1/8
STG-MC-25-350 Bearing: Slide bearing (M) | Bore: 25 mm | Stroke: 350 mm | Port: Rc1/8
STG-MC-25-400 Bearing: Slide bearing (M) | Bore: 25 mm | Stroke: 400 mm | Port: Rc1/8
STG-MC-32-25 Bearing: Slide bearing (M) | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
STG-MC-32-50 Bearing: Slide bearing (M) | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
STG-MC-32-75 Bearing: Slide bearing (M) | Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8
STG-MC-32-100 Bearing: Slide bearing (M) | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
STG-MC-32-125 Bearing: Slide bearing (M) | Bore: 32 mm | Stroke: 125 mm | Port: Rc1/8
STG-MC-32-150 Bearing: Slide bearing (M) | Bore: 32 mm | Stroke: 150 mm | Port: Rc1/8
STG-MC-32-175 Bearing: Slide bearing (M) | Bore: 32 mm | Stroke: 175 mm | Port: Rc1/8
STG-MC-32-200 Bearing: Slide bearing (M) | Bore: 32 mm | Stroke: 200 mm | Port: Rc1/8
STG-MC-32-250 Bearing: Slide bearing (M) | Bore: 32 mm | Stroke: 250 mm | Port: Rc1/8
STG-MC-32-300 Bearing: Slide bearing (M) | Bore: 32 mm | Stroke: 300 mm | Port: Rc1/8
STG-MC-32-350 Bearing: Slide bearing (M) | Bore: 32 mm | Stroke: 350 mm | Port: Rc1/8
STG-MC-32-400 Bearing: Slide bearing (M) | Bore: 32 mm | Stroke: 400 mm | Port: Rc1/8
STG-MC-40-25 Bearing: Slide bearing (M) | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
STG-MC-40-50 Bearing: Slide bearing (M) | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
STG-MC-40-75 Bearing: Slide bearing (M) | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/8
STG-MC-40-100 Bearing: Slide bearing (M) | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8
STG-MC-40-125 Bearing: Slide bearing (M) | Bore: 40 mm | Stroke: 125 mm | Port: Rc1/8
STG-MC-40-150 Bearing: Slide bearing (M) | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/8
STG-MC-40-175 Bearing: Slide bearing (M) | Bore: 40 mm | Stroke: 175 mm | Port: Rc1/8
STG-MC-40-200 Bearing: Slide bearing (M) | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/8
STG-MC-40-250 Bearing: Slide bearing (M) | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/8
STG-MC-40-300 Bearing: Slide bearing (M) | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/8
STG-MC-40-350 Bearing: Slide bearing (M) | Bore: 40 mm | Stroke: 350 mm | Port: Rc1/8
STG-MC-40-400 Bearing: Slide bearing (M) | Bore: 40 mm | Stroke: 400 mm | Port: Rc1/8
STG-MC-50-25 Bearing: Slide bearing (M) | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
STG-MC-50-50 Bearing: Slide bearing (M) | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
STG-MC-50-75 Bearing: Slide bearing (M) | Bore: 50 mm | Stroke: 75 mm | Port: Rc1/4
STG-MC-50-100 Bearing: Slide bearing (M) | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
STG-MC-50-125 Bearing: Slide bearing (M) | Bore: 50 mm | Stroke: 125 mm | Port: Rc1/4
STG-MC-50-150 Bearing: Slide bearing (M) | Bore: 50 mm | Stroke: 150 mm | Port: Rc1/4
STG-MC-50-175 Bearing: Slide bearing (M) | Bore: 50 mm | Stroke: 175 mm | Port: Rc1/4
STG-MC-50-200 Bearing: Slide bearing (M) | Bore: 50 mm | Stroke: 200 mm | Port: Rc1/4
STG-MC-50-250 Bearing: Slide bearing (M) | Bore: 50 mm | Stroke: 250 mm | Port: Rc1/4
STG-MC-50-300 Bearing: Slide bearing (M) | Bore: 50 mm | Stroke: 300 mm | Port: Rc1/4
STG-MC-50-350 Bearing: Slide bearing (M) | Bore: 50 mm | Stroke: 350 mm | Port: Rc1/4
STG-MC-50-400 Bearing: Slide bearing (M) | Bore: 50 mm | Stroke: 400 mm | Port: Rc1/4
STG-MC-63-25 Bearing: Slide bearing (M) | Bore: 63 mm | Stroke: 25 mm | Port: Rc1/4
STG-MC-63-50 Bearing: Slide bearing (M) | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
STG-MC-63-75 Bearing: Slide bearing (M) | Bore: 63 mm | Stroke: 75 mm | Port: Rc1/4
STG-MC-63-100 Bearing: Slide bearing (M) | Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4
STG-MC-63-125 Bearing: Slide bearing (M) | Bore: 63 mm | Stroke: 125 mm | Port: Rc1/4
STG-MC-63-150 Bearing: Slide bearing (M) | Bore: 63 mm | Stroke: 150 mm | Port: Rc1/4
STG-MC-63-175 Bearing: Slide bearing (M) | Bore: 63 mm | Stroke: 175 mm | Port: Rc1/4
STG-MC-63-200 Bearing: Slide bearing (M) | Bore: 63 mm | Stroke: 200 mm | Port: Rc1/4
STG-MC-63-250 Bearing: Slide bearing (M) | Bore: 63 mm | Stroke: 250 mm | Port: Rc1/4
STG-MC-63-300 Bearing: Slide bearing (M) | Bore: 63 mm | Stroke: 300 mm | Port: Rc1/4
STG-MC-63-350 Bearing: Slide bearing (M) | Bore: 63 mm | Stroke: 350 mm | Port: Rc1/4
STG-MC-63-400 Bearing: Slide bearing (M) | Bore: 63 mm | Stroke: 400 mm | Port: Rc1/4
STG-BC-16-25 Bearing: Ball bushing (B) | Bore: 16 mm | Stroke: 25 mm | Port: M5
STG-BC-16-50 Bearing: Ball bushing (B) | Bore: 16 mm | Stroke: 50 mm | Port: M5
STG-BC-16-75 Bearing: Ball bushing (B) | Bore: 16 mm | Stroke: 75 mm | Port: M5
STG-BC-16-100 Bearing: Ball bushing (B) | Bore: 16 mm | Stroke: 100 mm | Port: M5
STG-BC-16-125 Bearing: Ball bushing (B) | Bore: 16 mm | Stroke: 125 mm | Port: M5
STG-BC-16-150 Bearing: Ball bushing (B) | Bore: 16 mm | Stroke: 150 mm | Port: M5
STG-BC-16-175 Bearing: Ball bushing (B) | Bore: 16 mm | Stroke: 175 mm | Port: M5
STG-BC-16-200 Bearing: Ball bushing (B) | Bore: 16 mm | Stroke: 200 mm | Port: M5
STG-BC-16-250 Bearing: Ball bushing (B) | Bore: 16 mm | Stroke: 250 mm | Port: M5
STG-BC-20-25 Bearing: Ball bushing (B) | Bore: 20 mm | Stroke: 25 mm | Port: Rc1/8
STG-BC-20-50 Bearing: Ball bushing (B) | Bore: 20 mm | Stroke: 50 mm | Port: Rc1/8
STG-BC-20-75 Bearing: Ball bushing (B) | Bore: 20 mm | Stroke: 75 mm | Port: Rc1/8
STG-BC-20-100 Bearing: Ball bushing (B) | Bore: 20 mm | Stroke: 100 mm | Port: Rc1/8
STG-BC-20-125 Bearing: Ball bushing (B) | Bore: 20 mm | Stroke: 125 mm | Port: Rc1/8
STG-BC-20-150 Bearing: Ball bushing (B) | Bore: 20 mm | Stroke: 150 mm | Port: Rc1/8
STG-BC-20-175 Bearing: Ball bushing (B) | Bore: 20 mm | Stroke: 175 mm | Port: Rc1/8
STG-BC-20-200 Bearing: Ball bushing (B) | Bore: 20 mm | Stroke: 200 mm | Port: Rc1/8
STG-BC-20-250 Bearing: Ball bushing (B) | Bore: 20 mm | Stroke: 250 mm | Port: Rc1/8
STG-BC-20-300 Bearing: Ball bushing (B) | Bore: 20 mm | Stroke: 300 mm | Port: Rc1/8
STG-BC-20-350 Bearing: Ball bushing (B) | Bore: 20 mm | Stroke: 350 mm | Port: Rc1/8
STG-BC-20-400 Bearing: Ball bushing (B) | Bore: 20 mm | Stroke: 400 mm | Port: Rc1/8
STG-BC-25-25 Bearing: Ball bushing (B) | Bore: 25 mm | Stroke: 25 mm | Port: Rc1/8
STG-BC-25-50 Bearing: Ball bushing (B) | Bore: 25 mm | Stroke: 50 mm | Port: Rc1/8
STG-BC-25-75 Bearing: Ball bushing (B) | Bore: 25 mm | Stroke: 75 mm | Port: Rc1/8
STG-BC-25-100 Bearing: Ball bushing (B) | Bore: 25 mm | Stroke: 100 mm | Port: Rc1/8
STG-BC-25-125 Bearing: Ball bushing (B) | Bore: 25 mm | Stroke: 125 mm | Port: Rc1/8
STG-BC-25-150 Bearing: Ball bushing (B) | Bore: 25 mm | Stroke: 150 mm | Port: Rc1/8
STG-BC-25-175 Bearing: Ball bushing (B) | Bore: 25 mm | Stroke: 175 mm | Port: Rc1/8
STG-BC-25-200 Bearing: Ball bushing (B) | Bore: 25 mm | Stroke: 200 mm | Port: Rc1/8
STG-BC-25-250 Bearing: Ball bushing (B) | Bore: 25 mm | Stroke: 250 mm | Port: Rc1/8
STG-BC-25-300 Bearing: Ball bushing (B) | Bore: 25 mm | Stroke: 300 mm | Port: Rc1/8
STG-BC-25-350 Bearing: Ball bushing (B) | Bore: 25 mm | Stroke: 350 mm | Port: Rc1/8
STG-BC-25-400 Bearing: Ball bushing (B) | Bore: 25 mm | Stroke: 400 mm | Port: Rc1/8
STG-BC-32-25 Bearing: Ball bushing (B) | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
STG-BC-32-50 Bearing: Ball bushing (B) | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
STG-BC-32-75 Bearing: Ball bushing (B) | Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8
STG-BC-32-100 Bearing: Ball bushing (B) | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
STG-BC-32-125 Bearing: Ball bushing (B) | Bore: 32 mm | Stroke: 125 mm | Port: Rc1/8
STG-BC-32-150 Bearing: Ball bushing (B) | Bore: 32 mm | Stroke: 150 mm | Port: Rc1/8
STG-BC-32-175 Bearing: Ball bushing (B) | Bore: 32 mm | Stroke: 175 mm | Port: Rc1/8
STG-BC-32-200 Bearing: Ball bushing (B) | Bore: 32 mm | Stroke: 200 mm | Port: Rc1/8
STG-BC-32-250 Bearing: Ball bushing (B) | Bore: 32 mm | Stroke: 250 mm | Port: Rc1/8
STG-BC-32-300 Bearing: Ball bushing (B) | Bore: 32 mm | Stroke: 300 mm | Port: Rc1/8
STG-BC-32-350 Bearing: Ball bushing (B) | Bore: 32 mm | Stroke: 350 mm | Port: Rc1/8
STG-BC-32-400 Bearing: Ball bushing (B) | Bore: 32 mm | Stroke: 400 mm | Port: Rc1/8
STG-BC-40-25 Bearing: Ball bushing (B) | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
STG-BC-40-50 Bearing: Ball bushing (B) | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
STG-BC-40-75 Bearing: Ball bushing (B) | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/8
STG-BC-40-100 Bearing: Ball bushing (B) | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8
STG-BC-40-125 Bearing: Ball bushing (B) | Bore: 40 mm | Stroke: 125 mm | Port: Rc1/8
STG-BC-40-150 Bearing: Ball bushing (B) | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/8
STG-BC-40-175 Bearing: Ball bushing (B) | Bore: 40 mm | Stroke: 175 mm | Port: Rc1/8
STG-BC-40-200 Bearing: Ball bushing (B) | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/8
STG-BC-40-250 Bearing: Ball bushing (B) | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/8
STG-BC-40-300 Bearing: Ball bushing (B) | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/8
STG-BC-40-350 Bearing: Ball bushing (B) | Bore: 40 mm | Stroke: 350 mm | Port: Rc1/8
STG-BC-40-400 Bearing: Ball bushing (B) | Bore: 40 mm | Stroke: 400 mm | Port: Rc1/8
STG-BC-50-25 Bearing: Ball bushing (B) | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
STG-BC-50-50 Bearing: Ball bushing (B) | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
STG-BC-50-75 Bearing: Ball bushing (B) | Bore: 50 mm | Stroke: 75 mm | Port: Rc1/4
STG-BC-50-100 Bearing: Ball bushing (B) | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
STG-BC-50-125 Bearing: Ball bushing (B) | Bore: 50 mm | Stroke: 125 mm | Port: Rc1/4
STG-BC-50-150 Bearing: Ball bushing (B) | Bore: 50 mm | Stroke: 150 mm | Port: Rc1/4
STG-BC-50-175 Bearing: Ball bushing (B) | Bore: 50 mm | Stroke: 175 mm | Port: Rc1/4
STG-BC-50-200 Bearing: Ball bushing (B) | Bore: 50 mm | Stroke: 200 mm | Port: Rc1/4
STG-BC-50-250 Bearing: Ball bushing (B) | Bore: 50 mm | Stroke: 250 mm | Port: Rc1/4
STG-BC-50-300 Bearing: Ball bushing (B) | Bore: 50 mm | Stroke: 300 mm | Port: Rc1/4
STG-BC-50-350 Bearing: Ball bushing (B) | Bore: 50 mm | Stroke: 350 mm | Port: Rc1/4
STG-BC-50-400 Bearing: Ball bushing (B) | Bore: 50 mm | Stroke: 400 mm | Port: Rc1/4
STG-BC-63-25 Bearing: Ball bushing (B) | Bore: 63 mm | Stroke: 25 mm | Port: Rc1/4
STG-BC-63-50 Bearing: Ball bushing (B) | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
STG-BC-63-75 Bearing: Ball bushing (B) | Bore: 63 mm | Stroke: 75 mm | Port: Rc1/4
STG-BC-63-100 Bearing: Ball bushing (B) | Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4
STG-BC-63-125 Bearing: Ball bushing (B) | Bore: 63 mm | Stroke: 125 mm | Port: Rc1/4
STG-BC-63-150 Bearing: Ball bushing (B) | Bore: 63 mm | Stroke: 150 mm | Port: Rc1/4
STG-BC-63-175 Bearing: Ball bushing (B) | Bore: 63 mm | Stroke: 175 mm | Port: Rc1/4
STG-BC-63-200 Bearing: Ball bushing (B) | Bore: 63 mm | Stroke: 200 mm | Port: Rc1/4
STG-BC-63-250 Bearing: Ball bushing (B) | Bore: 63 mm | Stroke: 250 mm | Port: Rc1/4
STG-BC-63-300 Bearing: Ball bushing (B) | Bore: 63 mm | Stroke: 300 mm | Port: Rc1/4
STG-BC-63-350 Bearing: Ball bushing (B) | Bore: 63 mm | Stroke: 350 mm | Port: Rc1/4
STG-BC-63-400 Bearing: Ball bushing (B) | Bore: 63 mm | Stroke: 400 mm | Port: Rc1/4
Guided CylindersCKD
162 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD STG-MC/BC Guided Cylinder (Air Cushion, Bore 16-63)

Brand CKD·Guided Cylinders

Available part numbers (162)

STG-MC-16-25, STG-MC-16-50, STG-MC-16-75, STG-MC-16-100, STG-MC-16-125, STG-MC-16-150, STG-MC-16-175, STG-MC-16-200, STG-MC-16-250, STG-MC-20-25 + 152 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
STG-MC-16-25Bearing: Slide bearing (M) | Bore: 16 mm | Stroke: 25 mm | Port: M5
STG-MC-16-50Bearing: Slide bearing (M) | Bore: 16 mm | Stroke: 50 mm | Port: M5
STG-MC-16-75Bearing: Slide bearing (M) | Bore: 16 mm | Stroke: 75 mm | Port: M5
STG-MC-16-100Bearing: Slide bearing (M) | Bore: 16 mm | Stroke: 100 mm | Port: M5
STG-MC-16-125Bearing: Slide bearing (M) | Bore: 16 mm | Stroke: 125 mm | Port: M5
STG-MC-16-150Bearing: Slide bearing (M) | Bore: 16 mm | Stroke: 150 mm | Port: M5
STG-MC-16-175Bearing: Slide bearing (M) | Bore: 16 mm | Stroke: 175 mm | Port: M5
STG-MC-16-200Bearing: Slide bearing (M) | Bore: 16 mm | Stroke: 200 mm | Port: M5
STG-MC-16-250Bearing: Slide bearing (M) | Bore: 16 mm | Stroke: 250 mm | Port: M5
STG-MC-20-25Bearing: Slide bearing (M) | Bore: 20 mm | Stroke: 25 mm | Port: Rc1/8
STG-MC-20-50Bearing: Slide bearing (M) | Bore: 20 mm | Stroke: 50 mm | Port: Rc1/8
STG-MC-20-75Bearing: Slide bearing (M) | Bore: 20 mm | Stroke: 75 mm | Port: Rc1/8
STG-MC-20-100Bearing: Slide bearing (M) | Bore: 20 mm | Stroke: 100 mm | Port: Rc1/8
STG-MC-20-125Bearing: Slide bearing (M) | Bore: 20 mm | Stroke: 125 mm | Port: Rc1/8
STG-MC-20-150Bearing: Slide bearing (M) | Bore: 20 mm | Stroke: 150 mm | Port: Rc1/8
STG-MC-20-175Bearing: Slide bearing (M) | Bore: 20 mm | Stroke: 175 mm | Port: Rc1/8
STG-MC-20-200Bearing: Slide bearing (M) | Bore: 20 mm | Stroke: 200 mm | Port: Rc1/8
STG-MC-20-250Bearing: Slide bearing (M) | Bore: 20 mm | Stroke: 250 mm | Port: Rc1/8
STG-MC-20-300Bearing: Slide bearing (M) | Bore: 20 mm | Stroke: 300 mm | Port: Rc1/8
STG-MC-20-350Bearing: Slide bearing (M) | Bore: 20 mm | Stroke: 350 mm | Port: Rc1/8
STG-MC-20-400Bearing: Slide bearing (M) | Bore: 20 mm | Stroke: 400 mm | Port: Rc1/8
STG-MC-25-25Bearing: Slide bearing (M) | Bore: 25 mm | Stroke: 25 mm | Port: Rc1/8
STG-MC-25-50Bearing: Slide bearing (M) | Bore: 25 mm | Stroke: 50 mm | Port: Rc1/8
STG-MC-25-75Bearing: Slide bearing (M) | Bore: 25 mm | Stroke: 75 mm | Port: Rc1/8
STG-MC-25-100Bearing: Slide bearing (M) | Bore: 25 mm | Stroke: 100 mm | Port: Rc1/8
STG-MC-25-125Bearing: Slide bearing (M) | Bore: 25 mm | Stroke: 125 mm | Port: Rc1/8
STG-MC-25-150Bearing: Slide bearing (M) | Bore: 25 mm | Stroke: 150 mm | Port: Rc1/8
STG-MC-25-175Bearing: Slide bearing (M) | Bore: 25 mm | Stroke: 175 mm | Port: Rc1/8
STG-MC-25-200Bearing: Slide bearing (M) | Bore: 25 mm | Stroke: 200 mm | Port: Rc1/8
STG-MC-25-250Bearing: Slide bearing (M) | Bore: 25 mm | Stroke: 250 mm | Port: Rc1/8
STG-MC-25-300Bearing: Slide bearing (M) | Bore: 25 mm | Stroke: 300 mm | Port: Rc1/8
STG-MC-25-350Bearing: Slide bearing (M) | Bore: 25 mm | Stroke: 350 mm | Port: Rc1/8
STG-MC-25-400Bearing: Slide bearing (M) | Bore: 25 mm | Stroke: 400 mm | Port: Rc1/8
STG-MC-32-25Bearing: Slide bearing (M) | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
STG-MC-32-50Bearing: Slide bearing (M) | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
STG-MC-32-75Bearing: Slide bearing (M) | Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8
STG-MC-32-100Bearing: Slide bearing (M) | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
STG-MC-32-125Bearing: Slide bearing (M) | Bore: 32 mm | Stroke: 125 mm | Port: Rc1/8
STG-MC-32-150Bearing: Slide bearing (M) | Bore: 32 mm | Stroke: 150 mm | Port: Rc1/8
STG-MC-32-175Bearing: Slide bearing (M) | Bore: 32 mm | Stroke: 175 mm | Port: Rc1/8
STG-MC-32-200Bearing: Slide bearing (M) | Bore: 32 mm | Stroke: 200 mm | Port: Rc1/8
STG-MC-32-250Bearing: Slide bearing (M) | Bore: 32 mm | Stroke: 250 mm | Port: Rc1/8
STG-MC-32-300Bearing: Slide bearing (M) | Bore: 32 mm | Stroke: 300 mm | Port: Rc1/8
STG-MC-32-350Bearing: Slide bearing (M) | Bore: 32 mm | Stroke: 350 mm | Port: Rc1/8
STG-MC-32-400Bearing: Slide bearing (M) | Bore: 32 mm | Stroke: 400 mm | Port: Rc1/8
STG-MC-40-25Bearing: Slide bearing (M) | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
STG-MC-40-50Bearing: Slide bearing (M) | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
STG-MC-40-75Bearing: Slide bearing (M) | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/8
STG-MC-40-100Bearing: Slide bearing (M) | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8
STG-MC-40-125Bearing: Slide bearing (M) | Bore: 40 mm | Stroke: 125 mm | Port: Rc1/8
STG-MC-40-150Bearing: Slide bearing (M) | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/8
STG-MC-40-175Bearing: Slide bearing (M) | Bore: 40 mm | Stroke: 175 mm | Port: Rc1/8
STG-MC-40-200Bearing: Slide bearing (M) | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/8
STG-MC-40-250Bearing: Slide bearing (M) | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/8
STG-MC-40-300Bearing: Slide bearing (M) | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/8
STG-MC-40-350Bearing: Slide bearing (M) | Bore: 40 mm | Stroke: 350 mm | Port: Rc1/8
STG-MC-40-400Bearing: Slide bearing (M) | Bore: 40 mm | Stroke: 400 mm | Port: Rc1/8
STG-MC-50-25Bearing: Slide bearing (M) | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
STG-MC-50-50Bearing: Slide bearing (M) | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
STG-MC-50-75Bearing: Slide bearing (M) | Bore: 50 mm | Stroke: 75 mm | Port: Rc1/4
STG-MC-50-100Bearing: Slide bearing (M) | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
STG-MC-50-125Bearing: Slide bearing (M) | Bore: 50 mm | Stroke: 125 mm | Port: Rc1/4
STG-MC-50-150Bearing: Slide bearing (M) | Bore: 50 mm | Stroke: 150 mm | Port: Rc1/4
STG-MC-50-175Bearing: Slide bearing (M) | Bore: 50 mm | Stroke: 175 mm | Port: Rc1/4
STG-MC-50-200Bearing: Slide bearing (M) | Bore: 50 mm | Stroke: 200 mm | Port: Rc1/4
STG-MC-50-250Bearing: Slide bearing (M) | Bore: 50 mm | Stroke: 250 mm | Port: Rc1/4
STG-MC-50-300Bearing: Slide bearing (M) | Bore: 50 mm | Stroke: 300 mm | Port: Rc1/4
STG-MC-50-350Bearing: Slide bearing (M) | Bore: 50 mm | Stroke: 350 mm | Port: Rc1/4
STG-MC-50-400Bearing: Slide bearing (M) | Bore: 50 mm | Stroke: 400 mm | Port: Rc1/4
STG-MC-63-25Bearing: Slide bearing (M) | Bore: 63 mm | Stroke: 25 mm | Port: Rc1/4
STG-MC-63-50Bearing: Slide bearing (M) | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
STG-MC-63-75Bearing: Slide bearing (M) | Bore: 63 mm | Stroke: 75 mm | Port: Rc1/4
STG-MC-63-100Bearing: Slide bearing (M) | Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4
STG-MC-63-125Bearing: Slide bearing (M) | Bore: 63 mm | Stroke: 125 mm | Port: Rc1/4
STG-MC-63-150Bearing: Slide bearing (M) | Bore: 63 mm | Stroke: 150 mm | Port: Rc1/4
STG-MC-63-175Bearing: Slide bearing (M) | Bore: 63 mm | Stroke: 175 mm | Port: Rc1/4
STG-MC-63-200Bearing: Slide bearing (M) | Bore: 63 mm | Stroke: 200 mm | Port: Rc1/4
STG-MC-63-250Bearing: Slide bearing (M) | Bore: 63 mm | Stroke: 250 mm | Port: Rc1/4
STG-MC-63-300Bearing: Slide bearing (M) | Bore: 63 mm | Stroke: 300 mm | Port: Rc1/4
STG-MC-63-350Bearing: Slide bearing (M) | Bore: 63 mm | Stroke: 350 mm | Port: Rc1/4
STG-MC-63-400Bearing: Slide bearing (M) | Bore: 63 mm | Stroke: 400 mm | Port: Rc1/4
STG-BC-16-25Bearing: Ball bushing (B) | Bore: 16 mm | Stroke: 25 mm | Port: M5
STG-BC-16-50Bearing: Ball bushing (B) | Bore: 16 mm | Stroke: 50 mm | Port: M5
STG-BC-16-75Bearing: Ball bushing (B) | Bore: 16 mm | Stroke: 75 mm | Port: M5
STG-BC-16-100Bearing: Ball bushing (B) | Bore: 16 mm | Stroke: 100 mm | Port: M5
STG-BC-16-125Bearing: Ball bushing (B) | Bore: 16 mm | Stroke: 125 mm | Port: M5
STG-BC-16-150Bearing: Ball bushing (B) | Bore: 16 mm | Stroke: 150 mm | Port: M5
STG-BC-16-175Bearing: Ball bushing (B) | Bore: 16 mm | Stroke: 175 mm | Port: M5
STG-BC-16-200Bearing: Ball bushing (B) | Bore: 16 mm | Stroke: 200 mm | Port: M5
STG-BC-16-250Bearing: Ball bushing (B) | Bore: 16 mm | Stroke: 250 mm | Port: M5
STG-BC-20-25Bearing: Ball bushing (B) | Bore: 20 mm | Stroke: 25 mm | Port: Rc1/8
STG-BC-20-50Bearing: Ball bushing (B) | Bore: 20 mm | Stroke: 50 mm | Port: Rc1/8
STG-BC-20-75Bearing: Ball bushing (B) | Bore: 20 mm | Stroke: 75 mm | Port: Rc1/8
STG-BC-20-100Bearing: Ball bushing (B) | Bore: 20 mm | Stroke: 100 mm | Port: Rc1/8
STG-BC-20-125Bearing: Ball bushing (B) | Bore: 20 mm | Stroke: 125 mm | Port: Rc1/8
STG-BC-20-150Bearing: Ball bushing (B) | Bore: 20 mm | Stroke: 150 mm | Port: Rc1/8
STG-BC-20-175Bearing: Ball bushing (B) | Bore: 20 mm | Stroke: 175 mm | Port: Rc1/8
STG-BC-20-200Bearing: Ball bushing (B) | Bore: 20 mm | Stroke: 200 mm | Port: Rc1/8
STG-BC-20-250Bearing: Ball bushing (B) | Bore: 20 mm | Stroke: 250 mm | Port: Rc1/8
STG-BC-20-300Bearing: Ball bushing (B) | Bore: 20 mm | Stroke: 300 mm | Port: Rc1/8
STG-BC-20-350Bearing: Ball bushing (B) | Bore: 20 mm | Stroke: 350 mm | Port: Rc1/8
STG-BC-20-400Bearing: Ball bushing (B) | Bore: 20 mm | Stroke: 400 mm | Port: Rc1/8
STG-BC-25-25Bearing: Ball bushing (B) | Bore: 25 mm | Stroke: 25 mm | Port: Rc1/8
STG-BC-25-50Bearing: Ball bushing (B) | Bore: 25 mm | Stroke: 50 mm | Port: Rc1/8
STG-BC-25-75Bearing: Ball bushing (B) | Bore: 25 mm | Stroke: 75 mm | Port: Rc1/8
STG-BC-25-100Bearing: Ball bushing (B) | Bore: 25 mm | Stroke: 100 mm | Port: Rc1/8
STG-BC-25-125Bearing: Ball bushing (B) | Bore: 25 mm | Stroke: 125 mm | Port: Rc1/8
STG-BC-25-150Bearing: Ball bushing (B) | Bore: 25 mm | Stroke: 150 mm | Port: Rc1/8
STG-BC-25-175Bearing: Ball bushing (B) | Bore: 25 mm | Stroke: 175 mm | Port: Rc1/8
STG-BC-25-200Bearing: Ball bushing (B) | Bore: 25 mm | Stroke: 200 mm | Port: Rc1/8
STG-BC-25-250Bearing: Ball bushing (B) | Bore: 25 mm | Stroke: 250 mm | Port: Rc1/8
STG-BC-25-300Bearing: Ball bushing (B) | Bore: 25 mm | Stroke: 300 mm | Port: Rc1/8
STG-BC-25-350Bearing: Ball bushing (B) | Bore: 25 mm | Stroke: 350 mm | Port: Rc1/8
STG-BC-25-400Bearing: Ball bushing (B) | Bore: 25 mm | Stroke: 400 mm | Port: Rc1/8
STG-BC-32-25Bearing: Ball bushing (B) | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
STG-BC-32-50Bearing: Ball bushing (B) | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
STG-BC-32-75Bearing: Ball bushing (B) | Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8
STG-BC-32-100Bearing: Ball bushing (B) | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
STG-BC-32-125Bearing: Ball bushing (B) | Bore: 32 mm | Stroke: 125 mm | Port: Rc1/8
STG-BC-32-150Bearing: Ball bushing (B) | Bore: 32 mm | Stroke: 150 mm | Port: Rc1/8
STG-BC-32-175Bearing: Ball bushing (B) | Bore: 32 mm | Stroke: 175 mm | Port: Rc1/8
STG-BC-32-200Bearing: Ball bushing (B) | Bore: 32 mm | Stroke: 200 mm | Port: Rc1/8
STG-BC-32-250Bearing: Ball bushing (B) | Bore: 32 mm | Stroke: 250 mm | Port: Rc1/8
STG-BC-32-300Bearing: Ball bushing (B) | Bore: 32 mm | Stroke: 300 mm | Port: Rc1/8
STG-BC-32-350Bearing: Ball bushing (B) | Bore: 32 mm | Stroke: 350 mm | Port: Rc1/8
STG-BC-32-400Bearing: Ball bushing (B) | Bore: 32 mm | Stroke: 400 mm | Port: Rc1/8
STG-BC-40-25Bearing: Ball bushing (B) | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
STG-BC-40-50Bearing: Ball bushing (B) | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
STG-BC-40-75Bearing: Ball bushing (B) | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/8
STG-BC-40-100Bearing: Ball bushing (B) | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8
STG-BC-40-125Bearing: Ball bushing (B) | Bore: 40 mm | Stroke: 125 mm | Port: Rc1/8
STG-BC-40-150Bearing: Ball bushing (B) | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/8
STG-BC-40-175Bearing: Ball bushing (B) | Bore: 40 mm | Stroke: 175 mm | Port: Rc1/8
STG-BC-40-200Bearing: Ball bushing (B) | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/8
STG-BC-40-250Bearing: Ball bushing (B) | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/8
STG-BC-40-300Bearing: Ball bushing (B) | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/8
STG-BC-40-350Bearing: Ball bushing (B) | Bore: 40 mm | Stroke: 350 mm | Port: Rc1/8
STG-BC-40-400Bearing: Ball bushing (B) | Bore: 40 mm | Stroke: 400 mm | Port: Rc1/8
STG-BC-50-25Bearing: Ball bushing (B) | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
STG-BC-50-50Bearing: Ball bushing (B) | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
STG-BC-50-75Bearing: Ball bushing (B) | Bore: 50 mm | Stroke: 75 mm | Port: Rc1/4
STG-BC-50-100Bearing: Ball bushing (B) | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
STG-BC-50-125Bearing: Ball bushing (B) | Bore: 50 mm | Stroke: 125 mm | Port: Rc1/4
STG-BC-50-150Bearing: Ball bushing (B) | Bore: 50 mm | Stroke: 150 mm | Port: Rc1/4
STG-BC-50-175Bearing: Ball bushing (B) | Bore: 50 mm | Stroke: 175 mm | Port: Rc1/4
STG-BC-50-200Bearing: Ball bushing (B) | Bore: 50 mm | Stroke: 200 mm | Port: Rc1/4
STG-BC-50-250Bearing: Ball bushing (B) | Bore: 50 mm | Stroke: 250 mm | Port: Rc1/4
STG-BC-50-300Bearing: Ball bushing (B) | Bore: 50 mm | Stroke: 300 mm | Port: Rc1/4
STG-BC-50-350Bearing: Ball bushing (B) | Bore: 50 mm | Stroke: 350 mm | Port: Rc1/4
STG-BC-50-400Bearing: Ball bushing (B) | Bore: 50 mm | Stroke: 400 mm | Port: Rc1/4
STG-BC-63-25Bearing: Ball bushing (B) | Bore: 63 mm | Stroke: 25 mm | Port: Rc1/4
STG-BC-63-50Bearing: Ball bushing (B) | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
STG-BC-63-75Bearing: Ball bushing (B) | Bore: 63 mm | Stroke: 75 mm | Port: Rc1/4
STG-BC-63-100Bearing: Ball bushing (B) | Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4
STG-BC-63-125Bearing: Ball bushing (B) | Bore: 63 mm | Stroke: 125 mm | Port: Rc1/4
STG-BC-63-150Bearing: Ball bushing (B) | Bore: 63 mm | Stroke: 150 mm | Port: Rc1/4
STG-BC-63-175Bearing: Ball bushing (B) | Bore: 63 mm | Stroke: 175 mm | Port: Rc1/4
STG-BC-63-200Bearing: Ball bushing (B) | Bore: 63 mm | Stroke: 200 mm | Port: Rc1/4
STG-BC-63-250Bearing: Ball bushing (B) | Bore: 63 mm | Stroke: 250 mm | Port: Rc1/4
STG-BC-63-300Bearing: Ball bushing (B) | Bore: 63 mm | Stroke: 300 mm | Port: Rc1/4
STG-BC-63-350Bearing: Ball bushing (B) | Bore: 63 mm | Stroke: 350 mm | Port: Rc1/4
STG-BC-63-400Bearing: Ball bushing (B) | Bore: 63 mm | Stroke: 400 mm | Port: Rc1/4

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
