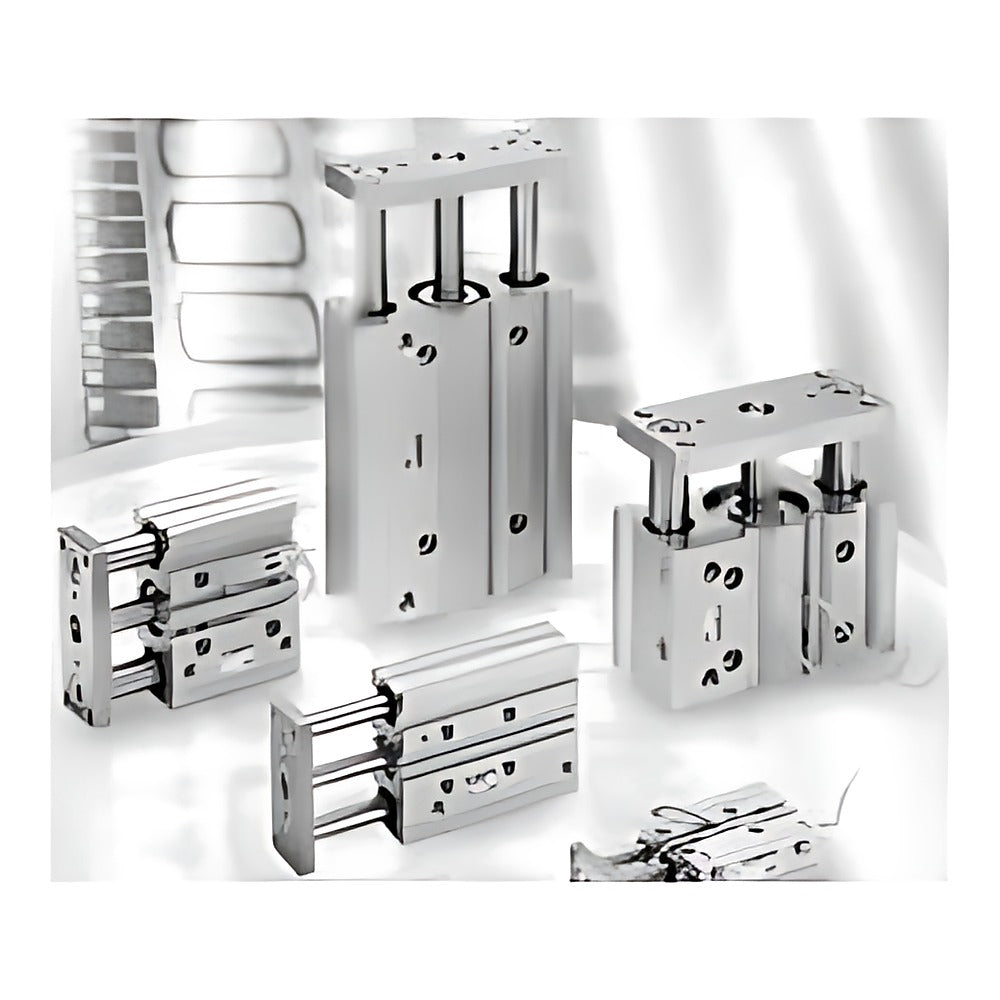

CKD STG-MG2/MG3 Guided Cylinder (Coolant Resistant, Bore 20-63)

CKD STG-MG2/MG3 Guided Cylinder (Coolant Resistant, Bore 20-63)

CKD STG-MG2/MG3 coolant-resistant guided cylinder with slide bearing, NBR (G2) or FKM (G3) packings, bore 20 to 63 mm.

Key features

  • Cutting-oil resistant scraper with NBR (G2) or fluororubber FKM (G3) packings
  • Slide bearing guide; urethane rubber cushion; switch magnet built in
  • Switches T2YLH/T2YLV and T3YLH/T3YLV (2-color, oil resistant) ordered as R/H/D/T
  • NPT (NN) / G (GN) port threads made to order; intermediate strokes 5 mm steps
  • Seal kits STG-MG2/MG3-<bore>K

Specifications

Action Double acting, coolant resistant
Bearing Slide bearing (M)
Fluid Compressed air
Max. operating pressure 1.0 MPa
Min. operating pressure 0.2 MPa (20/25), 0.15 MPa (32-63)
Proof pressure 1.6 MPa
Ambient temperature -10 to 60 C (no freezing)
Piston speed 50 to 500 mm/s (63: 50-300)
Lubrication Not required
Source CKD Korea catalog CB-030SK-9, p. 470-475
STG-MG2-20-20 Protection: Coolant scraper + NBR packing | Bore: 20 mm | Stroke: 20 mm | Port: Rc1/8
STG-MG2-20-30 Protection: Coolant scraper + NBR packing | Bore: 20 mm | Stroke: 30 mm | Port: Rc1/8
STG-MG2-20-40 Protection: Coolant scraper + NBR packing | Bore: 20 mm | Stroke: 40 mm | Port: Rc1/8
STG-MG2-20-50 Protection: Coolant scraper + NBR packing | Bore: 20 mm | Stroke: 50 mm | Port: Rc1/8
STG-MG2-20-75 Protection: Coolant scraper + NBR packing | Bore: 20 mm | Stroke: 75 mm | Port: Rc1/8
STG-MG2-20-100 Protection: Coolant scraper + NBR packing | Bore: 20 mm | Stroke: 100 mm | Port: Rc1/8
STG-MG2-20-125 Protection: Coolant scraper + NBR packing | Bore: 20 mm | Stroke: 125 mm | Port: Rc1/8
STG-MG2-20-150 Protection: Coolant scraper + NBR packing | Bore: 20 mm | Stroke: 150 mm | Port: Rc1/8
STG-MG2-20-175 Protection: Coolant scraper + NBR packing | Bore: 20 mm | Stroke: 175 mm | Port: Rc1/8
STG-MG2-20-200 Protection: Coolant scraper + NBR packing | Bore: 20 mm | Stroke: 200 mm | Port: Rc1/8
STG-MG2-20-250 Protection: Coolant scraper + NBR packing | Bore: 20 mm | Stroke: 250 mm | Port: Rc1/8
STG-MG2-20-300 Protection: Coolant scraper + NBR packing | Bore: 20 mm | Stroke: 300 mm | Port: Rc1/8
STG-MG2-20-350 Protection: Coolant scraper + NBR packing | Bore: 20 mm | Stroke: 350 mm | Port: Rc1/8
STG-MG2-20-400 Protection: Coolant scraper + NBR packing | Bore: 20 mm | Stroke: 400 mm | Port: Rc1/8
STG-MG2-25-20 Protection: Coolant scraper + NBR packing | Bore: 25 mm | Stroke: 20 mm | Port: Rc1/8
STG-MG2-25-30 Protection: Coolant scraper + NBR packing | Bore: 25 mm | Stroke: 30 mm | Port: Rc1/8
STG-MG2-25-40 Protection: Coolant scraper + NBR packing | Bore: 25 mm | Stroke: 40 mm | Port: Rc1/8
STG-MG2-25-50 Protection: Coolant scraper + NBR packing | Bore: 25 mm | Stroke: 50 mm | Port: Rc1/8
STG-MG2-25-75 Protection: Coolant scraper + NBR packing | Bore: 25 mm | Stroke: 75 mm | Port: Rc1/8
STG-MG2-25-100 Protection: Coolant scraper + NBR packing | Bore: 25 mm | Stroke: 100 mm | Port: Rc1/8
STG-MG2-25-125 Protection: Coolant scraper + NBR packing | Bore: 25 mm | Stroke: 125 mm | Port: Rc1/8
STG-MG2-25-150 Protection: Coolant scraper + NBR packing | Bore: 25 mm | Stroke: 150 mm | Port: Rc1/8
STG-MG2-25-175 Protection: Coolant scraper + NBR packing | Bore: 25 mm | Stroke: 175 mm | Port: Rc1/8
STG-MG2-25-200 Protection: Coolant scraper + NBR packing | Bore: 25 mm | Stroke: 200 mm | Port: Rc1/8
STG-MG2-25-250 Protection: Coolant scraper + NBR packing | Bore: 25 mm | Stroke: 250 mm | Port: Rc1/8
STG-MG2-25-300 Protection: Coolant scraper + NBR packing | Bore: 25 mm | Stroke: 300 mm | Port: Rc1/8
STG-MG2-25-350 Protection: Coolant scraper + NBR packing | Bore: 25 mm | Stroke: 350 mm | Port: Rc1/8
STG-MG2-25-400 Protection: Coolant scraper + NBR packing | Bore: 25 mm | Stroke: 400 mm | Port: Rc1/8
STG-MG2-32-25 Protection: Coolant scraper + NBR packing | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
STG-MG2-32-50 Protection: Coolant scraper + NBR packing | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
STG-MG2-32-75 Protection: Coolant scraper + NBR packing | Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8
STG-MG2-32-100 Protection: Coolant scraper + NBR packing | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
STG-MG2-32-125 Protection: Coolant scraper + NBR packing | Bore: 32 mm | Stroke: 125 mm | Port: Rc1/8
STG-MG2-32-150 Protection: Coolant scraper + NBR packing | Bore: 32 mm | Stroke: 150 mm | Port: Rc1/8
STG-MG2-32-175 Protection: Coolant scraper + NBR packing | Bore: 32 mm | Stroke: 175 mm | Port: Rc1/8
STG-MG2-32-200 Protection: Coolant scraper + NBR packing | Bore: 32 mm | Stroke: 200 mm | Port: Rc1/8
STG-MG2-32-250 Protection: Coolant scraper + NBR packing | Bore: 32 mm | Stroke: 250 mm | Port: Rc1/8
STG-MG2-32-300 Protection: Coolant scraper + NBR packing | Bore: 32 mm | Stroke: 300 mm | Port: Rc1/8
STG-MG2-32-350 Protection: Coolant scraper + NBR packing | Bore: 32 mm | Stroke: 350 mm | Port: Rc1/8
STG-MG2-32-400 Protection: Coolant scraper + NBR packing | Bore: 32 mm | Stroke: 400 mm | Port: Rc1/8
STG-MG2-40-25 Protection: Coolant scraper + NBR packing | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
STG-MG2-40-50 Protection: Coolant scraper + NBR packing | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
STG-MG2-40-75 Protection: Coolant scraper + NBR packing | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/8
STG-MG2-40-100 Protection: Coolant scraper + NBR packing | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8
STG-MG2-40-125 Protection: Coolant scraper + NBR packing | Bore: 40 mm | Stroke: 125 mm | Port: Rc1/8
STG-MG2-40-150 Protection: Coolant scraper + NBR packing | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/8
STG-MG2-40-175 Protection: Coolant scraper + NBR packing | Bore: 40 mm | Stroke: 175 mm | Port: Rc1/8
STG-MG2-40-200 Protection: Coolant scraper + NBR packing | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/8
STG-MG2-40-250 Protection: Coolant scraper + NBR packing | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/8
STG-MG2-40-300 Protection: Coolant scraper + NBR packing | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/8
STG-MG2-40-350 Protection: Coolant scraper + NBR packing | Bore: 40 mm | Stroke: 350 mm | Port: Rc1/8
STG-MG2-40-400 Protection: Coolant scraper + NBR packing | Bore: 40 mm | Stroke: 400 mm | Port: Rc1/8
STG-MG2-50-25 Protection: Coolant scraper + NBR packing | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
STG-MG2-50-50 Protection: Coolant scraper + NBR packing | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
STG-MG2-50-75 Protection: Coolant scraper + NBR packing | Bore: 50 mm | Stroke: 75 mm | Port: Rc1/4
STG-MG2-50-100 Protection: Coolant scraper + NBR packing | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
STG-MG2-50-125 Protection: Coolant scraper + NBR packing | Bore: 50 mm | Stroke: 125 mm | Port: Rc1/4
STG-MG2-50-150 Protection: Coolant scraper + NBR packing | Bore: 50 mm | Stroke: 150 mm | Port: Rc1/4
STG-MG2-50-175 Protection: Coolant scraper + NBR packing | Bore: 50 mm | Stroke: 175 mm | Port: Rc1/4
STG-MG2-50-200 Protection: Coolant scraper + NBR packing | Bore: 50 mm | Stroke: 200 mm | Port: Rc1/4
STG-MG2-50-250 Protection: Coolant scraper + NBR packing | Bore: 50 mm | Stroke: 250 mm | Port: Rc1/4
STG-MG2-50-300 Protection: Coolant scraper + NBR packing | Bore: 50 mm | Stroke: 300 mm | Port: Rc1/4
STG-MG2-50-350 Protection: Coolant scraper + NBR packing | Bore: 50 mm | Stroke: 350 mm | Port: Rc1/4
STG-MG2-50-400 Protection: Coolant scraper + NBR packing | Bore: 50 mm | Stroke: 400 mm | Port: Rc1/4
STG-MG2-63-25 Protection: Coolant scraper + NBR packing | Bore: 63 mm | Stroke: 25 mm | Port: Rc1/4
STG-MG2-63-50 Protection: Coolant scraper + NBR packing | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
STG-MG2-63-75 Protection: Coolant scraper + NBR packing | Bore: 63 mm | Stroke: 75 mm | Port: Rc1/4
STG-MG2-63-100 Protection: Coolant scraper + NBR packing | Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4
STG-MG2-63-125 Protection: Coolant scraper + NBR packing | Bore: 63 mm | Stroke: 125 mm | Port: Rc1/4
STG-MG2-63-150 Protection: Coolant scraper + NBR packing | Bore: 63 mm | Stroke: 150 mm | Port: Rc1/4
STG-MG2-63-175 Protection: Coolant scraper + NBR packing | Bore: 63 mm | Stroke: 175 mm | Port: Rc1/4
STG-MG2-63-200 Protection: Coolant scraper + NBR packing | Bore: 63 mm | Stroke: 200 mm | Port: Rc1/4
STG-MG2-63-250 Protection: Coolant scraper + NBR packing | Bore: 63 mm | Stroke: 250 mm | Port: Rc1/4
STG-MG2-63-300 Protection: Coolant scraper + NBR packing | Bore: 63 mm | Stroke: 300 mm | Port: Rc1/4
STG-MG2-63-350 Protection: Coolant scraper + NBR packing | Bore: 63 mm | Stroke: 350 mm | Port: Rc1/4
STG-MG2-63-400 Protection: Coolant scraper + NBR packing | Bore: 63 mm | Stroke: 400 mm | Port: Rc1/4
STG-MG3-20-20 Protection: Coolant scraper + FKM packing | Bore: 20 mm | Stroke: 20 mm | Port: Rc1/8
STG-MG3-20-30 Protection: Coolant scraper + FKM packing | Bore: 20 mm | Stroke: 30 mm | Port: Rc1/8
STG-MG3-20-40 Protection: Coolant scraper + FKM packing | Bore: 20 mm | Stroke: 40 mm | Port: Rc1/8
STG-MG3-20-50 Protection: Coolant scraper + FKM packing | Bore: 20 mm | Stroke: 50 mm | Port: Rc1/8
STG-MG3-20-75 Protection: Coolant scraper + FKM packing | Bore: 20 mm | Stroke: 75 mm | Port: Rc1/8
STG-MG3-20-100 Protection: Coolant scraper + FKM packing | Bore: 20 mm | Stroke: 100 mm | Port: Rc1/8
STG-MG3-20-125 Protection: Coolant scraper + FKM packing | Bore: 20 mm | Stroke: 125 mm | Port: Rc1/8
STG-MG3-20-150 Protection: Coolant scraper + FKM packing | Bore: 20 mm | Stroke: 150 mm | Port: Rc1/8
STG-MG3-20-175 Protection: Coolant scraper + FKM packing | Bore: 20 mm | Stroke: 175 mm | Port: Rc1/8
STG-MG3-20-200 Protection: Coolant scraper + FKM packing | Bore: 20 mm | Stroke: 200 mm | Port: Rc1/8
STG-MG3-20-250 Protection: Coolant scraper + FKM packing | Bore: 20 mm | Stroke: 250 mm | Port: Rc1/8
STG-MG3-20-300 Protection: Coolant scraper + FKM packing | Bore: 20 mm | Stroke: 300 mm | Port: Rc1/8
STG-MG3-20-350 Protection: Coolant scraper + FKM packing | Bore: 20 mm | Stroke: 350 mm | Port: Rc1/8
STG-MG3-20-400 Protection: Coolant scraper + FKM packing | Bore: 20 mm | Stroke: 400 mm | Port: Rc1/8
STG-MG3-25-20 Protection: Coolant scraper + FKM packing | Bore: 25 mm | Stroke: 20 mm | Port: Rc1/8
STG-MG3-25-30 Protection: Coolant scraper + FKM packing | Bore: 25 mm | Stroke: 30 mm | Port: Rc1/8
STG-MG3-25-40 Protection: Coolant scraper + FKM packing | Bore: 25 mm | Stroke: 40 mm | Port: Rc1/8
STG-MG3-25-50 Protection: Coolant scraper + FKM packing | Bore: 25 mm | Stroke: 50 mm | Port: Rc1/8
STG-MG3-25-75 Protection: Coolant scraper + FKM packing | Bore: 25 mm | Stroke: 75 mm | Port: Rc1/8
STG-MG3-25-100 Protection: Coolant scraper + FKM packing | Bore: 25 mm | Stroke: 100 mm | Port: Rc1/8
STG-MG3-25-125 Protection: Coolant scraper + FKM packing | Bore: 25 mm | Stroke: 125 mm | Port: Rc1/8
STG-MG3-25-150 Protection: Coolant scraper + FKM packing | Bore: 25 mm | Stroke: 150 mm | Port: Rc1/8
STG-MG3-25-175 Protection: Coolant scraper + FKM packing | Bore: 25 mm | Stroke: 175 mm | Port: Rc1/8
STG-MG3-25-200 Protection: Coolant scraper + FKM packing | Bore: 25 mm | Stroke: 200 mm | Port: Rc1/8
STG-MG3-25-250 Protection: Coolant scraper + FKM packing | Bore: 25 mm | Stroke: 250 mm | Port: Rc1/8
STG-MG3-25-300 Protection: Coolant scraper + FKM packing | Bore: 25 mm | Stroke: 300 mm | Port: Rc1/8
STG-MG3-25-350 Protection: Coolant scraper + FKM packing | Bore: 25 mm | Stroke: 350 mm | Port: Rc1/8
STG-MG3-25-400 Protection: Coolant scraper + FKM packing | Bore: 25 mm | Stroke: 400 mm | Port: Rc1/8
STG-MG3-32-25 Protection: Coolant scraper + FKM packing | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
STG-MG3-32-50 Protection: Coolant scraper + FKM packing | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
STG-MG3-32-75 Protection: Coolant scraper + FKM packing | Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8
STG-MG3-32-100 Protection: Coolant scraper + FKM packing | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
STG-MG3-32-125 Protection: Coolant scraper + FKM packing | Bore: 32 mm | Stroke: 125 mm | Port: Rc1/8
STG-MG3-32-150 Protection: Coolant scraper + FKM packing | Bore: 32 mm | Stroke: 150 mm | Port: Rc1/8
STG-MG3-32-175 Protection: Coolant scraper + FKM packing | Bore: 32 mm | Stroke: 175 mm | Port: Rc1/8
STG-MG3-32-200 Protection: Coolant scraper + FKM packing | Bore: 32 mm | Stroke: 200 mm | Port: Rc1/8
STG-MG3-32-250 Protection: Coolant scraper + FKM packing | Bore: 32 mm | Stroke: 250 mm | Port: Rc1/8
STG-MG3-32-300 Protection: Coolant scraper + FKM packing | Bore: 32 mm | Stroke: 300 mm | Port: Rc1/8
STG-MG3-32-350 Protection: Coolant scraper + FKM packing | Bore: 32 mm | Stroke: 350 mm | Port: Rc1/8
STG-MG3-32-400 Protection: Coolant scraper + FKM packing | Bore: 32 mm | Stroke: 400 mm | Port: Rc1/8
STG-MG3-40-25 Protection: Coolant scraper + FKM packing | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
STG-MG3-40-50 Protection: Coolant scraper + FKM packing | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
STG-MG3-40-75 Protection: Coolant scraper + FKM packing | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/8
STG-MG3-40-100 Protection: Coolant scraper + FKM packing | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8
STG-MG3-40-125 Protection: Coolant scraper + FKM packing | Bore: 40 mm | Stroke: 125 mm | Port: Rc1/8
STG-MG3-40-150 Protection: Coolant scraper + FKM packing | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/8
STG-MG3-40-175 Protection: Coolant scraper + FKM packing | Bore: 40 mm | Stroke: 175 mm | Port: Rc1/8
STG-MG3-40-200 Protection: Coolant scraper + FKM packing | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/8
STG-MG3-40-250 Protection: Coolant scraper + FKM packing | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/8
STG-MG3-40-300 Protection: Coolant scraper + FKM packing | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/8
STG-MG3-40-350 Protection: Coolant scraper + FKM packing | Bore: 40 mm | Stroke: 350 mm | Port: Rc1/8
STG-MG3-40-400 Protection: Coolant scraper + FKM packing | Bore: 40 mm | Stroke: 400 mm | Port: Rc1/8
STG-MG3-50-25 Protection: Coolant scraper + FKM packing | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
STG-MG3-50-50 Protection: Coolant scraper + FKM packing | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
STG-MG3-50-75 Protection: Coolant scraper + FKM packing | Bore: 50 mm | Stroke: 75 mm | Port: Rc1/4
STG-MG3-50-100 Protection: Coolant scraper + FKM packing | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
STG-MG3-50-125 Protection: Coolant scraper + FKM packing | Bore: 50 mm | Stroke: 125 mm | Port: Rc1/4
STG-MG3-50-150 Protection: Coolant scraper + FKM packing | Bore: 50 mm | Stroke: 150 mm | Port: Rc1/4
STG-MG3-50-175 Protection: Coolant scraper + FKM packing | Bore: 50 mm | Stroke: 175 mm | Port: Rc1/4
STG-MG3-50-200 Protection: Coolant scraper + FKM packing | Bore: 50 mm | Stroke: 200 mm | Port: Rc1/4
STG-MG3-50-250 Protection: Coolant scraper + FKM packing | Bore: 50 mm | Stroke: 250 mm | Port: Rc1/4
STG-MG3-50-300 Protection: Coolant scraper + FKM packing | Bore: 50 mm | Stroke: 300 mm | Port: Rc1/4
STG-MG3-50-350 Protection: Coolant scraper + FKM packing | Bore: 50 mm | Stroke: 350 mm | Port: Rc1/4
STG-MG3-50-400 Protection: Coolant scraper + FKM packing | Bore: 50 mm | Stroke: 400 mm | Port: Rc1/4
STG-MG3-63-25 Protection: Coolant scraper + FKM packing | Bore: 63 mm | Stroke: 25 mm | Port: Rc1/4
STG-MG3-63-50 Protection: Coolant scraper + FKM packing | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
STG-MG3-63-75 Protection: Coolant scraper + FKM packing | Bore: 63 mm | Stroke: 75 mm | Port: Rc1/4
STG-MG3-63-100 Protection: Coolant scraper + FKM packing | Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4
STG-MG3-63-125 Protection: Coolant scraper + FKM packing | Bore: 63 mm | Stroke: 125 mm | Port: Rc1/4
STG-MG3-63-150 Protection: Coolant scraper + FKM packing | Bore: 63 mm | Stroke: 150 mm | Port: Rc1/4
STG-MG3-63-175 Protection: Coolant scraper + FKM packing | Bore: 63 mm | Stroke: 175 mm | Port: Rc1/4
STG-MG3-63-200 Protection: Coolant scraper + FKM packing | Bore: 63 mm | Stroke: 200 mm | Port: Rc1/4
STG-MG3-63-250 Protection: Coolant scraper + FKM packing | Bore: 63 mm | Stroke: 250 mm | Port: Rc1/4
STG-MG3-63-300 Protection: Coolant scraper + FKM packing | Bore: 63 mm | Stroke: 300 mm | Port: Rc1/4
STG-MG3-63-350 Protection: Coolant scraper + FKM packing | Bore: 63 mm | Stroke: 350 mm | Port: Rc1/4
STG-MG3-63-400 Protection: Coolant scraper + FKM packing | Bore: 63 mm | Stroke: 400 mm | Port: Rc1/4
Guided CylindersCKD
152 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD STG-MG2/MG3 Guided Cylinder (Coolant Resistant, Bore 20-63)

Brand CKD·Guided Cylinders

Available part numbers (152)

STG-MG2-20-20, STG-MG2-20-30, STG-MG2-20-40, STG-MG2-20-50, STG-MG2-20-75, STG-MG2-20-100, STG-MG2-20-125, STG-MG2-20-150, STG-MG2-20-175, STG-MG2-20-200 + 142 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
STG-MG2-20-20Protection: Coolant scraper + NBR packing | Bore: 20 mm | Stroke: 20 mm | Port: Rc1/8
STG-MG2-20-30Protection: Coolant scraper + NBR packing | Bore: 20 mm | Stroke: 30 mm | Port: Rc1/8
STG-MG2-20-40Protection: Coolant scraper + NBR packing | Bore: 20 mm | Stroke: 40 mm | Port: Rc1/8
STG-MG2-20-50Protection: Coolant scraper + NBR packing | Bore: 20 mm | Stroke: 50 mm | Port: Rc1/8
STG-MG2-20-75Protection: Coolant scraper + NBR packing | Bore: 20 mm | Stroke: 75 mm | Port: Rc1/8
STG-MG2-20-100Protection: Coolant scraper + NBR packing | Bore: 20 mm | Stroke: 100 mm | Port: Rc1/8
STG-MG2-20-125Protection: Coolant scraper + NBR packing | Bore: 20 mm | Stroke: 125 mm | Port: Rc1/8
STG-MG2-20-150Protection: Coolant scraper + NBR packing | Bore: 20 mm | Stroke: 150 mm | Port: Rc1/8
STG-MG2-20-175Protection: Coolant scraper + NBR packing | Bore: 20 mm | Stroke: 175 mm | Port: Rc1/8
STG-MG2-20-200Protection: Coolant scraper + NBR packing | Bore: 20 mm | Stroke: 200 mm | Port: Rc1/8
STG-MG2-20-250Protection: Coolant scraper + NBR packing | Bore: 20 mm | Stroke: 250 mm | Port: Rc1/8
STG-MG2-20-300Protection: Coolant scraper + NBR packing | Bore: 20 mm | Stroke: 300 mm | Port: Rc1/8
STG-MG2-20-350Protection: Coolant scraper + NBR packing | Bore: 20 mm | Stroke: 350 mm | Port: Rc1/8
STG-MG2-20-400Protection: Coolant scraper + NBR packing | Bore: 20 mm | Stroke: 400 mm | Port: Rc1/8
STG-MG2-25-20Protection: Coolant scraper + NBR packing | Bore: 25 mm | Stroke: 20 mm | Port: Rc1/8
STG-MG2-25-30Protection: Coolant scraper + NBR packing | Bore: 25 mm | Stroke: 30 mm | Port: Rc1/8
STG-MG2-25-40Protection: Coolant scraper + NBR packing | Bore: 25 mm | Stroke: 40 mm | Port: Rc1/8
STG-MG2-25-50Protection: Coolant scraper + NBR packing | Bore: 25 mm | Stroke: 50 mm | Port: Rc1/8
STG-MG2-25-75Protection: Coolant scraper + NBR packing | Bore: 25 mm | Stroke: 75 mm | Port: Rc1/8
STG-MG2-25-100Protection: Coolant scraper + NBR packing | Bore: 25 mm | Stroke: 100 mm | Port: Rc1/8
STG-MG2-25-125Protection: Coolant scraper + NBR packing | Bore: 25 mm | Stroke: 125 mm | Port: Rc1/8
STG-MG2-25-150Protection: Coolant scraper + NBR packing | Bore: 25 mm | Stroke: 150 mm | Port: Rc1/8
STG-MG2-25-175Protection: Coolant scraper + NBR packing | Bore: 25 mm | Stroke: 175 mm | Port: Rc1/8
STG-MG2-25-200Protection: Coolant scraper + NBR packing | Bore: 25 mm | Stroke: 200 mm | Port: Rc1/8
STG-MG2-25-250Protection: Coolant scraper + NBR packing | Bore: 25 mm | Stroke: 250 mm | Port: Rc1/8
STG-MG2-25-300Protection: Coolant scraper + NBR packing | Bore: 25 mm | Stroke: 300 mm | Port: Rc1/8
STG-MG2-25-350Protection: Coolant scraper + NBR packing | Bore: 25 mm | Stroke: 350 mm | Port: Rc1/8
STG-MG2-25-400Protection: Coolant scraper + NBR packing | Bore: 25 mm | Stroke: 400 mm | Port: Rc1/8
STG-MG2-32-25Protection: Coolant scraper + NBR packing | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
STG-MG2-32-50Protection: Coolant scraper + NBR packing | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
STG-MG2-32-75Protection: Coolant scraper + NBR packing | Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8
STG-MG2-32-100Protection: Coolant scraper + NBR packing | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
STG-MG2-32-125Protection: Coolant scraper + NBR packing | Bore: 32 mm | Stroke: 125 mm | Port: Rc1/8
STG-MG2-32-150Protection: Coolant scraper + NBR packing | Bore: 32 mm | Stroke: 150 mm | Port: Rc1/8
STG-MG2-32-175Protection: Coolant scraper + NBR packing | Bore: 32 mm | Stroke: 175 mm | Port: Rc1/8
STG-MG2-32-200Protection: Coolant scraper + NBR packing | Bore: 32 mm | Stroke: 200 mm | Port: Rc1/8
STG-MG2-32-250Protection: Coolant scraper + NBR packing | Bore: 32 mm | Stroke: 250 mm | Port: Rc1/8
STG-MG2-32-300Protection: Coolant scraper + NBR packing | Bore: 32 mm | Stroke: 300 mm | Port: Rc1/8
STG-MG2-32-350Protection: Coolant scraper + NBR packing | Bore: 32 mm | Stroke: 350 mm | Port: Rc1/8
STG-MG2-32-400Protection: Coolant scraper + NBR packing | Bore: 32 mm | Stroke: 400 mm | Port: Rc1/8
STG-MG2-40-25Protection: Coolant scraper + NBR packing | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
STG-MG2-40-50Protection: Coolant scraper + NBR packing | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
STG-MG2-40-75Protection: Coolant scraper + NBR packing | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/8
STG-MG2-40-100Protection: Coolant scraper + NBR packing | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8
STG-MG2-40-125Protection: Coolant scraper + NBR packing | Bore: 40 mm | Stroke: 125 mm | Port: Rc1/8
STG-MG2-40-150Protection: Coolant scraper + NBR packing | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/8
STG-MG2-40-175Protection: Coolant scraper + NBR packing | Bore: 40 mm | Stroke: 175 mm | Port: Rc1/8
STG-MG2-40-200Protection: Coolant scraper + NBR packing | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/8
STG-MG2-40-250Protection: Coolant scraper + NBR packing | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/8
STG-MG2-40-300Protection: Coolant scraper + NBR packing | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/8
STG-MG2-40-350Protection: Coolant scraper + NBR packing | Bore: 40 mm | Stroke: 350 mm | Port: Rc1/8
STG-MG2-40-400Protection: Coolant scraper + NBR packing | Bore: 40 mm | Stroke: 400 mm | Port: Rc1/8
STG-MG2-50-25Protection: Coolant scraper + NBR packing | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
STG-MG2-50-50Protection: Coolant scraper + NBR packing | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
STG-MG2-50-75Protection: Coolant scraper + NBR packing | Bore: 50 mm | Stroke: 75 mm | Port: Rc1/4
STG-MG2-50-100Protection: Coolant scraper + NBR packing | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
STG-MG2-50-125Protection: Coolant scraper + NBR packing | Bore: 50 mm | Stroke: 125 mm | Port: Rc1/4
STG-MG2-50-150Protection: Coolant scraper + NBR packing | Bore: 50 mm | Stroke: 150 mm | Port: Rc1/4
STG-MG2-50-175Protection: Coolant scraper + NBR packing | Bore: 50 mm | Stroke: 175 mm | Port: Rc1/4
STG-MG2-50-200Protection: Coolant scraper + NBR packing | Bore: 50 mm | Stroke: 200 mm | Port: Rc1/4
STG-MG2-50-250Protection: Coolant scraper + NBR packing | Bore: 50 mm | Stroke: 250 mm | Port: Rc1/4
STG-MG2-50-300Protection: Coolant scraper + NBR packing | Bore: 50 mm | Stroke: 300 mm | Port: Rc1/4
STG-MG2-50-350Protection: Coolant scraper + NBR packing | Bore: 50 mm | Stroke: 350 mm | Port: Rc1/4
STG-MG2-50-400Protection: Coolant scraper + NBR packing | Bore: 50 mm | Stroke: 400 mm | Port: Rc1/4
STG-MG2-63-25Protection: Coolant scraper + NBR packing | Bore: 63 mm | Stroke: 25 mm | Port: Rc1/4
STG-MG2-63-50Protection: Coolant scraper + NBR packing | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
STG-MG2-63-75Protection: Coolant scraper + NBR packing | Bore: 63 mm | Stroke: 75 mm | Port: Rc1/4
STG-MG2-63-100Protection: Coolant scraper + NBR packing | Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4
STG-MG2-63-125Protection: Coolant scraper + NBR packing | Bore: 63 mm | Stroke: 125 mm | Port: Rc1/4
STG-MG2-63-150Protection: Coolant scraper + NBR packing | Bore: 63 mm | Stroke: 150 mm | Port: Rc1/4
STG-MG2-63-175Protection: Coolant scraper + NBR packing | Bore: 63 mm | Stroke: 175 mm | Port: Rc1/4
STG-MG2-63-200Protection: Coolant scraper + NBR packing | Bore: 63 mm | Stroke: 200 mm | Port: Rc1/4
STG-MG2-63-250Protection: Coolant scraper + NBR packing | Bore: 63 mm | Stroke: 250 mm | Port: Rc1/4
STG-MG2-63-300Protection: Coolant scraper + NBR packing | Bore: 63 mm | Stroke: 300 mm | Port: Rc1/4
STG-MG2-63-350Protection: Coolant scraper + NBR packing | Bore: 63 mm | Stroke: 350 mm | Port: Rc1/4
STG-MG2-63-400Protection: Coolant scraper + NBR packing | Bore: 63 mm | Stroke: 400 mm | Port: Rc1/4
STG-MG3-20-20Protection: Coolant scraper + FKM packing | Bore: 20 mm | Stroke: 20 mm | Port: Rc1/8
STG-MG3-20-30Protection: Coolant scraper + FKM packing | Bore: 20 mm | Stroke: 30 mm | Port: Rc1/8
STG-MG3-20-40Protection: Coolant scraper + FKM packing | Bore: 20 mm | Stroke: 40 mm | Port: Rc1/8
STG-MG3-20-50Protection: Coolant scraper + FKM packing | Bore: 20 mm | Stroke: 50 mm | Port: Rc1/8
STG-MG3-20-75Protection: Coolant scraper + FKM packing | Bore: 20 mm | Stroke: 75 mm | Port: Rc1/8
STG-MG3-20-100Protection: Coolant scraper + FKM packing | Bore: 20 mm | Stroke: 100 mm | Port: Rc1/8
STG-MG3-20-125Protection: Coolant scraper + FKM packing | Bore: 20 mm | Stroke: 125 mm | Port: Rc1/8
STG-MG3-20-150Protection: Coolant scraper + FKM packing | Bore: 20 mm | Stroke: 150 mm | Port: Rc1/8
STG-MG3-20-175Protection: Coolant scraper + FKM packing | Bore: 20 mm | Stroke: 175 mm | Port: Rc1/8
STG-MG3-20-200Protection: Coolant scraper + FKM packing | Bore: 20 mm | Stroke: 200 mm | Port: Rc1/8
STG-MG3-20-250Protection: Coolant scraper + FKM packing | Bore: 20 mm | Stroke: 250 mm | Port: Rc1/8
STG-MG3-20-300Protection: Coolant scraper + FKM packing | Bore: 20 mm | Stroke: 300 mm | Port: Rc1/8
STG-MG3-20-350Protection: Coolant scraper + FKM packing | Bore: 20 mm | Stroke: 350 mm | Port: Rc1/8
STG-MG3-20-400Protection: Coolant scraper + FKM packing | Bore: 20 mm | Stroke: 400 mm | Port: Rc1/8
STG-MG3-25-20Protection: Coolant scraper + FKM packing | Bore: 25 mm | Stroke: 20 mm | Port: Rc1/8
STG-MG3-25-30Protection: Coolant scraper + FKM packing | Bore: 25 mm | Stroke: 30 mm | Port: Rc1/8
STG-MG3-25-40Protection: Coolant scraper + FKM packing | Bore: 25 mm | Stroke: 40 mm | Port: Rc1/8
STG-MG3-25-50Protection: Coolant scraper + FKM packing | Bore: 25 mm | Stroke: 50 mm | Port: Rc1/8
STG-MG3-25-75Protection: Coolant scraper + FKM packing | Bore: 25 mm | Stroke: 75 mm | Port: Rc1/8
STG-MG3-25-100Protection: Coolant scraper + FKM packing | Bore: 25 mm | Stroke: 100 mm | Port: Rc1/8
STG-MG3-25-125Protection: Coolant scraper + FKM packing | Bore: 25 mm | Stroke: 125 mm | Port: Rc1/8
STG-MG3-25-150Protection: Coolant scraper + FKM packing | Bore: 25 mm | Stroke: 150 mm | Port: Rc1/8
STG-MG3-25-175Protection: Coolant scraper + FKM packing | Bore: 25 mm | Stroke: 175 mm | Port: Rc1/8
STG-MG3-25-200Protection: Coolant scraper + FKM packing | Bore: 25 mm | Stroke: 200 mm | Port: Rc1/8
STG-MG3-25-250Protection: Coolant scraper + FKM packing | Bore: 25 mm | Stroke: 250 mm | Port: Rc1/8
STG-MG3-25-300Protection: Coolant scraper + FKM packing | Bore: 25 mm | Stroke: 300 mm | Port: Rc1/8
STG-MG3-25-350Protection: Coolant scraper + FKM packing | Bore: 25 mm | Stroke: 350 mm | Port: Rc1/8
STG-MG3-25-400Protection: Coolant scraper + FKM packing | Bore: 25 mm | Stroke: 400 mm | Port: Rc1/8
STG-MG3-32-25Protection: Coolant scraper + FKM packing | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
STG-MG3-32-50Protection: Coolant scraper + FKM packing | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
STG-MG3-32-75Protection: Coolant scraper + FKM packing | Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8
STG-MG3-32-100Protection: Coolant scraper + FKM packing | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
STG-MG3-32-125Protection: Coolant scraper + FKM packing | Bore: 32 mm | Stroke: 125 mm | Port: Rc1/8
STG-MG3-32-150Protection: Coolant scraper + FKM packing | Bore: 32 mm | Stroke: 150 mm | Port: Rc1/8
STG-MG3-32-175Protection: Coolant scraper + FKM packing | Bore: 32 mm | Stroke: 175 mm | Port: Rc1/8
STG-MG3-32-200Protection: Coolant scraper + FKM packing | Bore: 32 mm | Stroke: 200 mm | Port: Rc1/8
STG-MG3-32-250Protection: Coolant scraper + FKM packing | Bore: 32 mm | Stroke: 250 mm | Port: Rc1/8
STG-MG3-32-300Protection: Coolant scraper + FKM packing | Bore: 32 mm | Stroke: 300 mm | Port: Rc1/8
STG-MG3-32-350Protection: Coolant scraper + FKM packing | Bore: 32 mm | Stroke: 350 mm | Port: Rc1/8
STG-MG3-32-400Protection: Coolant scraper + FKM packing | Bore: 32 mm | Stroke: 400 mm | Port: Rc1/8
STG-MG3-40-25Protection: Coolant scraper + FKM packing | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
STG-MG3-40-50Protection: Coolant scraper + FKM packing | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
STG-MG3-40-75Protection: Coolant scraper + FKM packing | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/8
STG-MG3-40-100Protection: Coolant scraper + FKM packing | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8
STG-MG3-40-125Protection: Coolant scraper + FKM packing | Bore: 40 mm | Stroke: 125 mm | Port: Rc1/8
STG-MG3-40-150Protection: Coolant scraper + FKM packing | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/8
STG-MG3-40-175Protection: Coolant scraper + FKM packing | Bore: 40 mm | Stroke: 175 mm | Port: Rc1/8
STG-MG3-40-200Protection: Coolant scraper + FKM packing | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/8
STG-MG3-40-250Protection: Coolant scraper + FKM packing | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/8
STG-MG3-40-300Protection: Coolant scraper + FKM packing | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/8
STG-MG3-40-350Protection: Coolant scraper + FKM packing | Bore: 40 mm | Stroke: 350 mm | Port: Rc1/8
STG-MG3-40-400Protection: Coolant scraper + FKM packing | Bore: 40 mm | Stroke: 400 mm | Port: Rc1/8
STG-MG3-50-25Protection: Coolant scraper + FKM packing | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
STG-MG3-50-50Protection: Coolant scraper + FKM packing | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
STG-MG3-50-75Protection: Coolant scraper + FKM packing | Bore: 50 mm | Stroke: 75 mm | Port: Rc1/4
STG-MG3-50-100Protection: Coolant scraper + FKM packing | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
STG-MG3-50-125Protection: Coolant scraper + FKM packing | Bore: 50 mm | Stroke: 125 mm | Port: Rc1/4
STG-MG3-50-150Protection: Coolant scraper + FKM packing | Bore: 50 mm | Stroke: 150 mm | Port: Rc1/4
STG-MG3-50-175Protection: Coolant scraper + FKM packing | Bore: 50 mm | Stroke: 175 mm | Port: Rc1/4
STG-MG3-50-200Protection: Coolant scraper + FKM packing | Bore: 50 mm | Stroke: 200 mm | Port: Rc1/4
STG-MG3-50-250Protection: Coolant scraper + FKM packing | Bore: 50 mm | Stroke: 250 mm | Port: Rc1/4
STG-MG3-50-300Protection: Coolant scraper + FKM packing | Bore: 50 mm | Stroke: 300 mm | Port: Rc1/4
STG-MG3-50-350Protection: Coolant scraper + FKM packing | Bore: 50 mm | Stroke: 350 mm | Port: Rc1/4
STG-MG3-50-400Protection: Coolant scraper + FKM packing | Bore: 50 mm | Stroke: 400 mm | Port: Rc1/4
STG-MG3-63-25Protection: Coolant scraper + FKM packing | Bore: 63 mm | Stroke: 25 mm | Port: Rc1/4
STG-MG3-63-50Protection: Coolant scraper + FKM packing | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
STG-MG3-63-75Protection: Coolant scraper + FKM packing | Bore: 63 mm | Stroke: 75 mm | Port: Rc1/4
STG-MG3-63-100Protection: Coolant scraper + FKM packing | Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4
STG-MG3-63-125Protection: Coolant scraper + FKM packing | Bore: 63 mm | Stroke: 125 mm | Port: Rc1/4
STG-MG3-63-150Protection: Coolant scraper + FKM packing | Bore: 63 mm | Stroke: 150 mm | Port: Rc1/4
STG-MG3-63-175Protection: Coolant scraper + FKM packing | Bore: 63 mm | Stroke: 175 mm | Port: Rc1/4
STG-MG3-63-200Protection: Coolant scraper + FKM packing | Bore: 63 mm | Stroke: 200 mm | Port: Rc1/4
STG-MG3-63-250Protection: Coolant scraper + FKM packing | Bore: 63 mm | Stroke: 250 mm | Port: Rc1/4
STG-MG3-63-300Protection: Coolant scraper + FKM packing | Bore: 63 mm | Stroke: 300 mm | Port: Rc1/4
STG-MG3-63-350Protection: Coolant scraper + FKM packing | Bore: 63 mm | Stroke: 350 mm | Port: Rc1/4
STG-MG3-63-400Protection: Coolant scraper + FKM packing | Bore: 63 mm | Stroke: 400 mm | Port: Rc1/4

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
