CKD STG-MG5 Guided Cylinder (Env. Resistant Scraper, Bore 20-100)

CKD STG-MG5 Guided Cylinder (Env. Resistant Scraper, Bore 20-100)

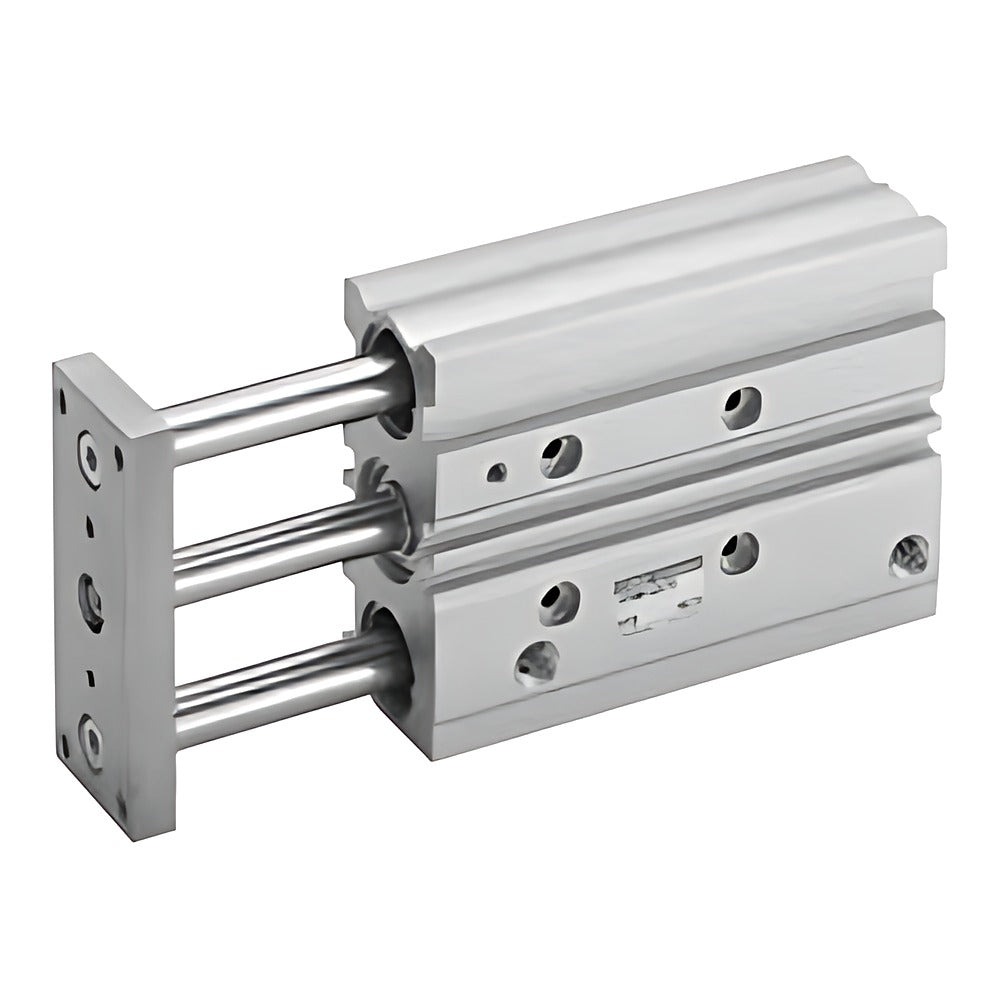

CKD STG-MG5 guided cylinder with environment-resistant scraper and slide bearing, bore 20 to 100 mm (made to order).

Key features

  • Environment-resistant scraper type for harsh, dusty or wet locations
  • Slide bearing guide; switch magnet built in
  • Made-to-order product; NPT (NN) / G (GN) port threads also made to order
  • Switches (T0/T5/T8 reed, T1/T2/T3/T3P/T2W/T2Y/T3W/T3Y/T2J/T2YD/T2YDT solid state) ordered as R/H/D/T, not multiplied
  • Seal kits STG-MG5-<bore>K

Specifications

Action Double acting, single rod
Bearing Slide bearing (M)
Fluid Compressed air
Max. operating pressure 1.0 MPa
Min. operating pressure 0.25 MPa (20-50), 0.2 MPa (63-100)
Proof pressure 1.6 MPa
Ambient temperature -10 to 60 C (no freezing)
Piston speed 50 to 500 mm/s (63-100: 50-300)
Cushion Rubber cushion
Source CKD Korea catalog CB-030SK-9, p. 482-491
STG-MG5-20-20 Bore: 20 mm | Stroke: 20 mm | Port: Rc1/8
STG-MG5-20-30 Bore: 20 mm | Stroke: 30 mm | Port: Rc1/8
STG-MG5-20-40 Bore: 20 mm | Stroke: 40 mm | Port: Rc1/8
STG-MG5-20-50 Bore: 20 mm | Stroke: 50 mm | Port: Rc1/8
STG-MG5-20-75 Bore: 20 mm | Stroke: 75 mm | Port: Rc1/8
STG-MG5-20-100 Bore: 20 mm | Stroke: 100 mm | Port: Rc1/8
STG-MG5-20-125 Bore: 20 mm | Stroke: 125 mm | Port: Rc1/8
STG-MG5-20-150 Bore: 20 mm | Stroke: 150 mm | Port: Rc1/8
STG-MG5-20-175 Bore: 20 mm | Stroke: 175 mm | Port: Rc1/8
STG-MG5-20-200 Bore: 20 mm | Stroke: 200 mm | Port: Rc1/8
STG-MG5-20-250 Bore: 20 mm | Stroke: 250 mm | Port: Rc1/8
STG-MG5-20-300 Bore: 20 mm | Stroke: 300 mm | Port: Rc1/8
STG-MG5-20-350 Bore: 20 mm | Stroke: 350 mm | Port: Rc1/8
STG-MG5-20-400 Bore: 20 mm | Stroke: 400 mm | Port: Rc1/8
STG-MG5-25-20 Bore: 25 mm | Stroke: 20 mm | Port: Rc1/8
STG-MG5-25-30 Bore: 25 mm | Stroke: 30 mm | Port: Rc1/8
STG-MG5-25-40 Bore: 25 mm | Stroke: 40 mm | Port: Rc1/8
STG-MG5-25-50 Bore: 25 mm | Stroke: 50 mm | Port: Rc1/8
STG-MG5-25-75 Bore: 25 mm | Stroke: 75 mm | Port: Rc1/8
STG-MG5-25-100 Bore: 25 mm | Stroke: 100 mm | Port: Rc1/8
STG-MG5-25-125 Bore: 25 mm | Stroke: 125 mm | Port: Rc1/8
STG-MG5-25-150 Bore: 25 mm | Stroke: 150 mm | Port: Rc1/8
STG-MG5-25-175 Bore: 25 mm | Stroke: 175 mm | Port: Rc1/8
STG-MG5-25-200 Bore: 25 mm | Stroke: 200 mm | Port: Rc1/8
STG-MG5-25-250 Bore: 25 mm | Stroke: 250 mm | Port: Rc1/8
STG-MG5-25-300 Bore: 25 mm | Stroke: 300 mm | Port: Rc1/8
STG-MG5-25-350 Bore: 25 mm | Stroke: 350 mm | Port: Rc1/8
STG-MG5-25-400 Bore: 25 mm | Stroke: 400 mm | Port: Rc1/8
STG-MG5-32-25 Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
STG-MG5-32-50 Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
STG-MG5-32-75 Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8
STG-MG5-32-100 Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
STG-MG5-32-125 Bore: 32 mm | Stroke: 125 mm | Port: Rc1/8
STG-MG5-32-150 Bore: 32 mm | Stroke: 150 mm | Port: Rc1/8
STG-MG5-32-175 Bore: 32 mm | Stroke: 175 mm | Port: Rc1/8
STG-MG5-32-200 Bore: 32 mm | Stroke: 200 mm | Port: Rc1/8
STG-MG5-32-250 Bore: 32 mm | Stroke: 250 mm | Port: Rc1/8
STG-MG5-32-300 Bore: 32 mm | Stroke: 300 mm | Port: Rc1/8
STG-MG5-32-350 Bore: 32 mm | Stroke: 350 mm | Port: Rc1/8
STG-MG5-32-400 Bore: 32 mm | Stroke: 400 mm | Port: Rc1/8
STG-MG5-40-25 Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
STG-MG5-40-50 Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
STG-MG5-40-75 Bore: 40 mm | Stroke: 75 mm | Port: Rc1/8
STG-MG5-40-100 Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8
STG-MG5-40-125 Bore: 40 mm | Stroke: 125 mm | Port: Rc1/8
STG-MG5-40-150 Bore: 40 mm | Stroke: 150 mm | Port: Rc1/8
STG-MG5-40-175 Bore: 40 mm | Stroke: 175 mm | Port: Rc1/8
STG-MG5-40-200 Bore: 40 mm | Stroke: 200 mm | Port: Rc1/8
STG-MG5-40-250 Bore: 40 mm | Stroke: 250 mm | Port: Rc1/8
STG-MG5-40-300 Bore: 40 mm | Stroke: 300 mm | Port: Rc1/8
STG-MG5-40-350 Bore: 40 mm | Stroke: 350 mm | Port: Rc1/8
STG-MG5-40-400 Bore: 40 mm | Stroke: 400 mm | Port: Rc1/8
STG-MG5-50-25 Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
STG-MG5-50-50 Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
STG-MG5-50-75 Bore: 50 mm | Stroke: 75 mm | Port: Rc1/4
STG-MG5-50-100 Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
STG-MG5-50-125 Bore: 50 mm | Stroke: 125 mm | Port: Rc1/4
STG-MG5-50-150 Bore: 50 mm | Stroke: 150 mm | Port: Rc1/4
STG-MG5-50-175 Bore: 50 mm | Stroke: 175 mm | Port: Rc1/4
STG-MG5-50-200 Bore: 50 mm | Stroke: 200 mm | Port: Rc1/4
STG-MG5-50-250 Bore: 50 mm | Stroke: 250 mm | Port: Rc1/4
STG-MG5-50-300 Bore: 50 mm | Stroke: 300 mm | Port: Rc1/4
STG-MG5-50-350 Bore: 50 mm | Stroke: 350 mm | Port: Rc1/4
STG-MG5-50-400 Bore: 50 mm | Stroke: 400 mm | Port: Rc1/4
STG-MG5-63-25 Bore: 63 mm | Stroke: 25 mm | Port: Rc1/4
STG-MG5-63-50 Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
STG-MG5-63-75 Bore: 63 mm | Stroke: 75 mm | Port: Rc1/4
STG-MG5-63-100 Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4
STG-MG5-63-125 Bore: 63 mm | Stroke: 125 mm | Port: Rc1/4
STG-MG5-63-150 Bore: 63 mm | Stroke: 150 mm | Port: Rc1/4
STG-MG5-63-175 Bore: 63 mm | Stroke: 175 mm | Port: Rc1/4
STG-MG5-63-200 Bore: 63 mm | Stroke: 200 mm | Port: Rc1/4
STG-MG5-63-250 Bore: 63 mm | Stroke: 250 mm | Port: Rc1/4
STG-MG5-63-300 Bore: 63 mm | Stroke: 300 mm | Port: Rc1/4
STG-MG5-63-350 Bore: 63 mm | Stroke: 350 mm | Port: Rc1/4
STG-MG5-63-400 Bore: 63 mm | Stroke: 400 mm | Port: Rc1/4
STG-MG5-80-25 Bore: 80 mm | Stroke: 25 mm | Port: Rc3/8
STG-MG5-80-50 Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
STG-MG5-80-75 Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
STG-MG5-80-100 Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
STG-MG5-80-125 Bore: 80 mm | Stroke: 125 mm | Port: Rc3/8
STG-MG5-80-150 Bore: 80 mm | Stroke: 150 mm | Port: Rc3/8
STG-MG5-80-175 Bore: 80 mm | Stroke: 175 mm | Port: Rc3/8
STG-MG5-80-200 Bore: 80 mm | Stroke: 200 mm | Port: Rc3/8
STG-MG5-80-250 Bore: 80 mm | Stroke: 250 mm | Port: Rc3/8
STG-MG5-80-300 Bore: 80 mm | Stroke: 300 mm | Port: Rc3/8
STG-MG5-80-350 Bore: 80 mm | Stroke: 350 mm | Port: Rc3/8
STG-MG5-80-400 Bore: 80 mm | Stroke: 400 mm | Port: Rc3/8
STG-MG5-100-25 Bore: 100 mm | Stroke: 25 mm | Port: Rc3/8
STG-MG5-100-50 Bore: 100 mm | Stroke: 50 mm | Port: Rc3/8
STG-MG5-100-75 Bore: 100 mm | Stroke: 75 mm | Port: Rc3/8
STG-MG5-100-100 Bore: 100 mm | Stroke: 100 mm | Port: Rc3/8
STG-MG5-100-125 Bore: 100 mm | Stroke: 125 mm | Port: Rc3/8
STG-MG5-100-150 Bore: 100 mm | Stroke: 150 mm | Port: Rc3/8
STG-MG5-100-175 Bore: 100 mm | Stroke: 175 mm | Port: Rc3/8
STG-MG5-100-200 Bore: 100 mm | Stroke: 200 mm | Port: Rc3/8
STG-MG5-100-250 Bore: 100 mm | Stroke: 250 mm | Port: Rc3/8
STG-MG5-100-300 Bore: 100 mm | Stroke: 300 mm | Port: Rc3/8
STG-MG5-100-350 Bore: 100 mm | Stroke: 350 mm | Port: Rc3/8
STG-MG5-100-400 Bore: 100 mm | Stroke: 400 mm | Port: Rc3/8
