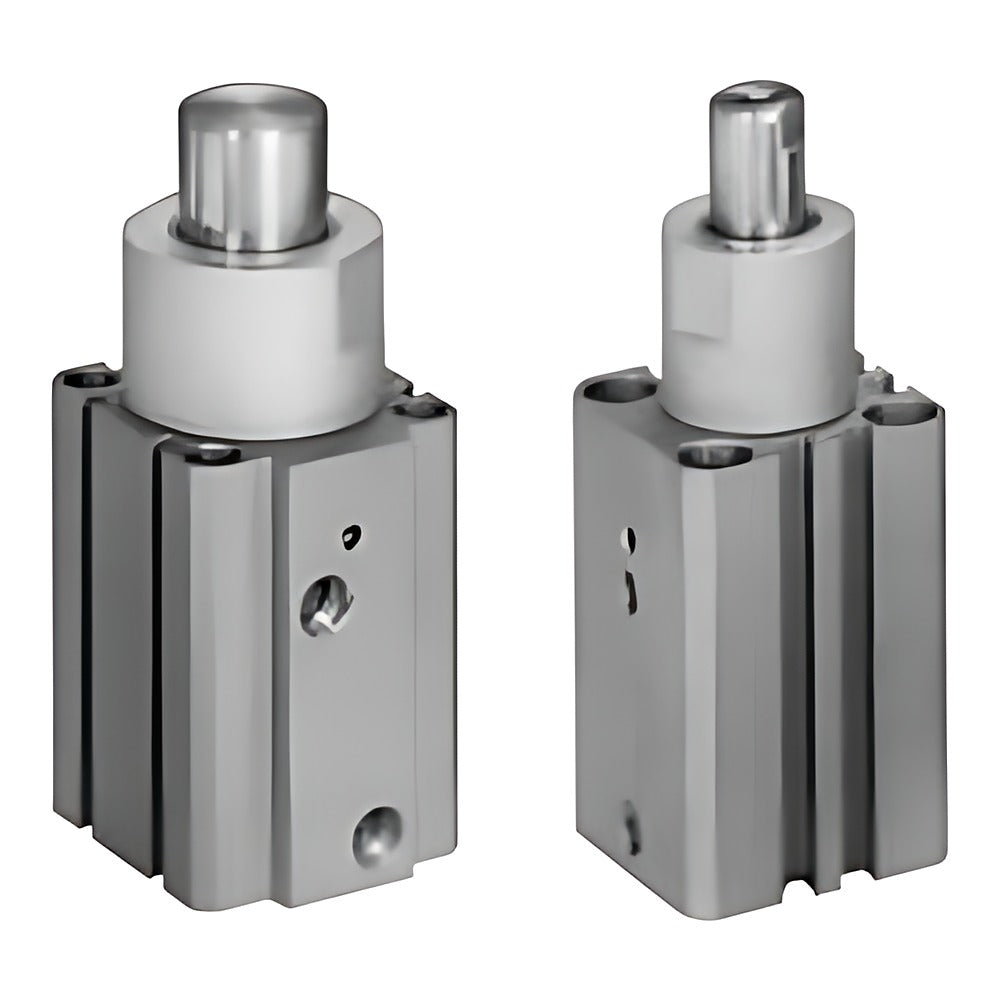

CKD STK-JY1 Stopper Cylinder (Double Acting w/ Spring, Roller Rod)

CKD STK-JY1 Stopper Cylinder (Double Acting w/ Spring, Roller Rod)

CKD STK-JY1 stopper cylinder, double acting with spring, with roller rod end, bore 20 to 50 mm.

Key features

  • Stopper cylinder for stopping conveyed workpieces; roller piston rod end resists lateral load
  • Switch magnet built in as standard
  • Standard strokes 10/15/20 mm (bore 20, 32) and 20/25/30 mm (bore 40, 50); others made to order
  • Auto switches (not multiplied): reed T0H/V, T5H/V, T8H/V; solid state T1H/V, T2H/V, T3H/V, T3PH/V, T2WH/V, T2YH/V, T3WH/V, T3YH/V, T2JH/V; lead 1/3/5 m; switch qty R/H/D
  • Repair seal kit STK-Y1-K (bore number in ); NPT (NN) / G (GN) ports for bore 32+ made to order

Specifications

Fluid Compressed air
Action Double acting with spring
Rod end shape Roller rod end
Min. working pressure 0.22 MPa (20), 0.12 MPa (32-50)
Max. working pressure 1.0 MPa
Proof pressure 1.6 MPa
Ambient temperature -10 to 60°C (no freezing)
Piston speed 50 to 500 mm/s
Stroke tolerance +2.0/0 mm
Cushion Rubber cushion
Source CKD Korea catalog CB-029SK-9, p. 1642-1646
STK-JY1-20-10 Bore: 20 mm | Stroke: 10 mm | Port: M5
STK-JY1-20-15 Bore: 20 mm | Stroke: 15 mm | Port: M5
STK-JY1-20-20 Bore: 20 mm | Stroke: 20 mm | Port: M5
STK-JY1-32-10 Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
STK-JY1-32-15 Bore: 32 mm | Stroke: 15 mm | Port: Rc1/8
STK-JY1-32-20 Bore: 32 mm | Stroke: 20 mm | Port: Rc1/8
STK-JY1-40-20 Bore: 40 mm | Stroke: 20 mm | Port: Rc1/8
STK-JY1-40-25 Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
STK-JY1-40-30 Bore: 40 mm | Stroke: 30 mm | Port: Rc1/8
STK-JY1-50-20 Bore: 50 mm | Stroke: 20 mm | Port: Rc1/4
STK-JY1-50-25 Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
STK-JY1-50-30 Bore: 50 mm | Stroke: 30 mm | Port: Rc1/4
