CKD STK-M Stopper Cylinder (Double Acting, Chamfered Rod)

CKD STK-M Stopper Cylinder (Double Acting, Chamfered Rod)

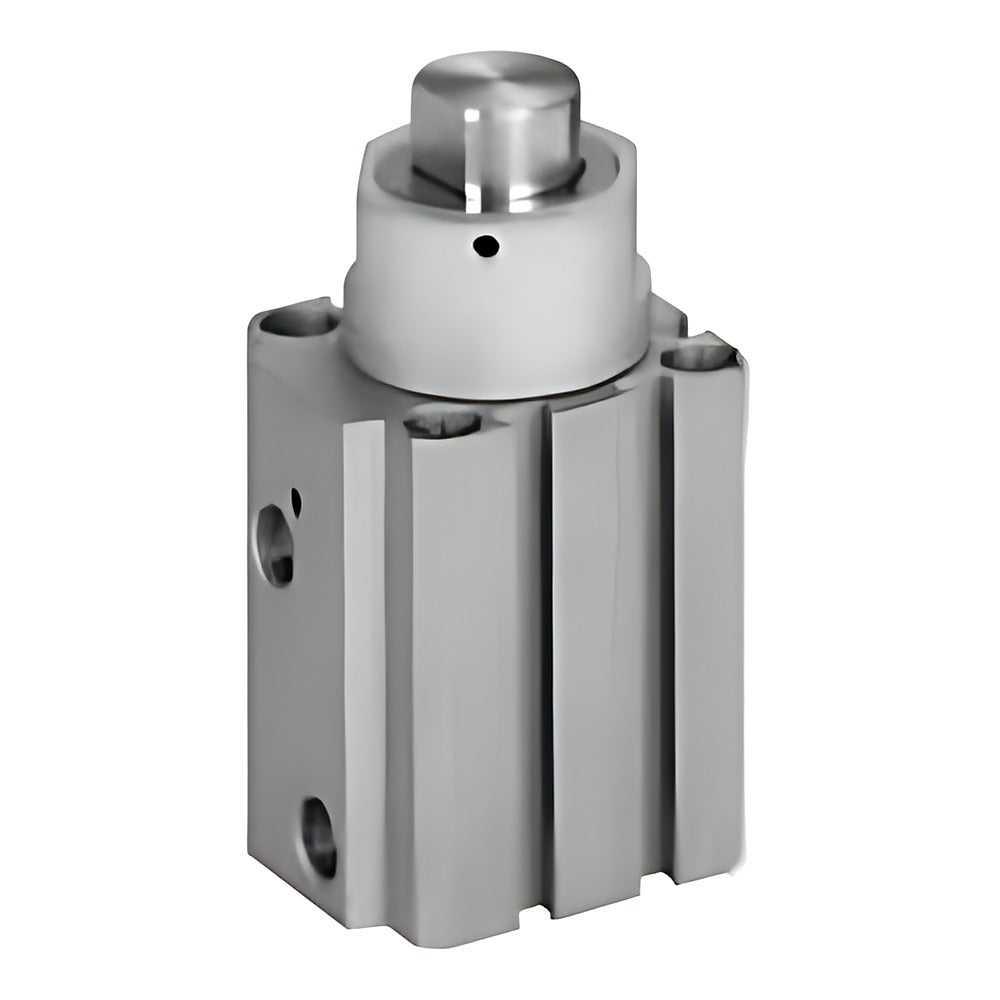

CKD STK-M stopper cylinder, double acting, with chamfered rod end, bore 20 to 50 mm.

Key features

  • Stopper cylinder for stopping conveyed workpieces; chamfered piston rod end resists lateral load
  • Switch magnet built in as standard
  • Standard strokes 10/15/20 mm (bore 20, 32) and 20/25/30 mm (bore 40, 50); others made to order
  • Option N11: female thread in rod end (semi-standard)
  • Auto switches (not multiplied): reed T0H/V, T5H/V, T8H/V; solid state T1H/V, T2H/V, T3H/V, T3PH/V, T2WH/V, T2YH/V, T3WH/V, T3YH/V, T2JH/V; lead 1/3/5 m; switch qty R/H/D
  • Repair seal kit STK-K (bore number in ); NPT (NN) / G (GN) ports for bore 32+ made to order

Specifications

Fluid Compressed air
Action Double acting
Rod end shape Chamfered rod end
Min. working pressure 0.15 MPa (20), 0.1 MPa (32-50)
Max. working pressure 1.0 MPa
Proof pressure 1.6 MPa
Ambient temperature -10 to 60°C (no freezing)
Piston speed 50 to 500 mm/s
Stroke tolerance +2.0/0 mm
Cushion Rubber cushion
Source CKD Korea catalog CB-029SK-9, p. 1618-1623
