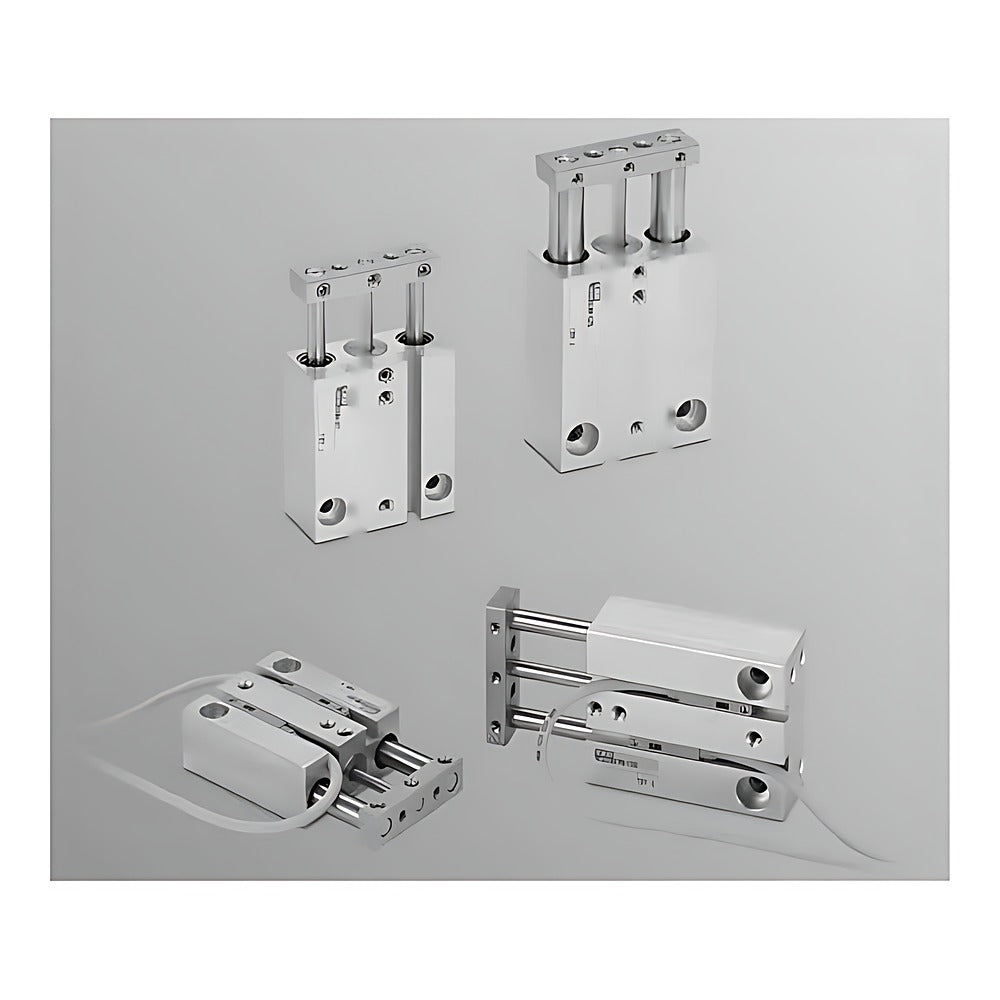

CKD STM-B-P7 Guided Cylinder (Clean Room, Bore 6-10)

CKD STM-B-P7 Guided Cylinder (Clean Room, Bore 6-10)

CKD STM-B-P7 clean-room guided cylinder with ball bushing guide, exhaust (P72) or vacuum suction (P73) type, bore 6 and 10 mm.

Key features

  • Clean room specification with M3 relief port: P72 exhaust or P73 vacuum suction
  • Ball bushing (B) guide, double acting single rod, switch magnet built in
  • Option: side mounting (A)
  • Solid-state switches F2/F3/F3P/F2Y/F3Y ordered as R/H/D
  • Fluorine grease used; do not smoke with grease on hands

Specifications

Action Double acting, single rod
Bearing Ball bushing (B)
Fluid Compressed air
Operating pressure 0.2 to 0.7 MPa
Proof pressure 1.05 MPa
Port size M3
Relief port M3
Piston speed 50 to 500 mm/s
Cushion Rubber cushion
Lubrication Not allowed
Source CKD Korea catalog CB-030SK-9, p. 408-411
STM-B-6-5-P72 Bore: 6 mm | Stroke: 5 mm | Option: Standard | Clean spec: P72 exhaust
STM-B-6-5-P73 Bore: 6 mm | Stroke: 5 mm | Option: Standard | Clean spec: P73 vacuum suction
STM-B-6-5-A-P72 Bore: 6 mm | Stroke: 5 mm | Option: Side mounting (A) | Clean spec: P72 exhaust
STM-B-6-5-A-P73 Bore: 6 mm | Stroke: 5 mm | Option: Side mounting (A) | Clean spec: P73 vacuum suction
STM-B-6-10-P72 Bore: 6 mm | Stroke: 10 mm | Option: Standard | Clean spec: P72 exhaust
STM-B-6-10-P73 Bore: 6 mm | Stroke: 10 mm | Option: Standard | Clean spec: P73 vacuum suction
STM-B-6-10-A-P72 Bore: 6 mm | Stroke: 10 mm | Option: Side mounting (A) | Clean spec: P72 exhaust
STM-B-6-10-A-P73 Bore: 6 mm | Stroke: 10 mm | Option: Side mounting (A) | Clean spec: P73 vacuum suction
STM-B-6-15-P72 Bore: 6 mm | Stroke: 15 mm | Option: Standard | Clean spec: P72 exhaust
STM-B-6-15-P73 Bore: 6 mm | Stroke: 15 mm | Option: Standard | Clean spec: P73 vacuum suction
STM-B-6-15-A-P72 Bore: 6 mm | Stroke: 15 mm | Option: Side mounting (A) | Clean spec: P72 exhaust
STM-B-6-15-A-P73 Bore: 6 mm | Stroke: 15 mm | Option: Side mounting (A) | Clean spec: P73 vacuum suction
STM-B-10-5-P72 Bore: 10 mm | Stroke: 5 mm | Option: Standard | Clean spec: P72 exhaust
STM-B-10-5-P73 Bore: 10 mm | Stroke: 5 mm | Option: Standard | Clean spec: P73 vacuum suction
STM-B-10-5-A-P72 Bore: 10 mm | Stroke: 5 mm | Option: Side mounting (A) | Clean spec: P72 exhaust
STM-B-10-5-A-P73 Bore: 10 mm | Stroke: 5 mm | Option: Side mounting (A) | Clean spec: P73 vacuum suction
STM-B-10-10-P72 Bore: 10 mm | Stroke: 10 mm | Option: Standard | Clean spec: P72 exhaust
STM-B-10-10-P73 Bore: 10 mm | Stroke: 10 mm | Option: Standard | Clean spec: P73 vacuum suction
STM-B-10-10-A-P72 Bore: 10 mm | Stroke: 10 mm | Option: Side mounting (A) | Clean spec: P72 exhaust
STM-B-10-10-A-P73 Bore: 10 mm | Stroke: 10 mm | Option: Side mounting (A) | Clean spec: P73 vacuum suction
STM-B-10-15-P72 Bore: 10 mm | Stroke: 15 mm | Option: Standard | Clean spec: P72 exhaust
STM-B-10-15-P73 Bore: 10 mm | Stroke: 15 mm | Option: Standard | Clean spec: P73 vacuum suction
STM-B-10-15-A-P72 Bore: 10 mm | Stroke: 15 mm | Option: Side mounting (A) | Clean spec: P72 exhaust
STM-B-10-15-A-P73 Bore: 10 mm | Stroke: 15 mm | Option: Side mounting (A) | Clean spec: P73 vacuum suction
STM-B-10-20-P72 Bore: 10 mm | Stroke: 20 mm | Option: Standard | Clean spec: P72 exhaust
STM-B-10-20-P73 Bore: 10 mm | Stroke: 20 mm | Option: Standard | Clean spec: P73 vacuum suction
STM-B-10-20-A-P72 Bore: 10 mm | Stroke: 20 mm | Option: Side mounting (A) | Clean spec: P72 exhaust
STM-B-10-20-A-P73 Bore: 10 mm | Stroke: 20 mm | Option: Side mounting (A) | Clean spec: P73 vacuum suction
Guided CylindersCKD
28 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD STM-B-P7 Guided Cylinder (Clean Room, Bore 6-10)

Brand CKD·Guided Cylinders

Available part numbers (28)

STM-B-6-5-P72, STM-B-6-5-P73, STM-B-6-5-A-P72, STM-B-6-5-A-P73, STM-B-6-10-P72, STM-B-6-10-P73, STM-B-6-10-A-P72, STM-B-6-10-A-P73, STM-B-6-15-P72, STM-B-6-15-P73 + 18 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
STM-B-6-5-P72Bore: 6 mm | Stroke: 5 mm | Option: Standard | Clean spec: P72 exhaust
STM-B-6-5-P73Bore: 6 mm | Stroke: 5 mm | Option: Standard | Clean spec: P73 vacuum suction
STM-B-6-5-A-P72Bore: 6 mm | Stroke: 5 mm | Option: Side mounting (A) | Clean spec: P72 exhaust
STM-B-6-5-A-P73Bore: 6 mm | Stroke: 5 mm | Option: Side mounting (A) | Clean spec: P73 vacuum suction
STM-B-6-10-P72Bore: 6 mm | Stroke: 10 mm | Option: Standard | Clean spec: P72 exhaust
STM-B-6-10-P73Bore: 6 mm | Stroke: 10 mm | Option: Standard | Clean spec: P73 vacuum suction
STM-B-6-10-A-P72Bore: 6 mm | Stroke: 10 mm | Option: Side mounting (A) | Clean spec: P72 exhaust
STM-B-6-10-A-P73Bore: 6 mm | Stroke: 10 mm | Option: Side mounting (A) | Clean spec: P73 vacuum suction
STM-B-6-15-P72Bore: 6 mm | Stroke: 15 mm | Option: Standard | Clean spec: P72 exhaust
STM-B-6-15-P73Bore: 6 mm | Stroke: 15 mm | Option: Standard | Clean spec: P73 vacuum suction
STM-B-6-15-A-P72Bore: 6 mm | Stroke: 15 mm | Option: Side mounting (A) | Clean spec: P72 exhaust
STM-B-6-15-A-P73Bore: 6 mm | Stroke: 15 mm | Option: Side mounting (A) | Clean spec: P73 vacuum suction
STM-B-10-5-P72Bore: 10 mm | Stroke: 5 mm | Option: Standard | Clean spec: P72 exhaust
STM-B-10-5-P73Bore: 10 mm | Stroke: 5 mm | Option: Standard | Clean spec: P73 vacuum suction
STM-B-10-5-A-P72Bore: 10 mm | Stroke: 5 mm | Option: Side mounting (A) | Clean spec: P72 exhaust
STM-B-10-5-A-P73Bore: 10 mm | Stroke: 5 mm | Option: Side mounting (A) | Clean spec: P73 vacuum suction
STM-B-10-10-P72Bore: 10 mm | Stroke: 10 mm | Option: Standard | Clean spec: P72 exhaust
STM-B-10-10-P73Bore: 10 mm | Stroke: 10 mm | Option: Standard | Clean spec: P73 vacuum suction
STM-B-10-10-A-P72Bore: 10 mm | Stroke: 10 mm | Option: Side mounting (A) | Clean spec: P72 exhaust
STM-B-10-10-A-P73Bore: 10 mm | Stroke: 10 mm | Option: Side mounting (A) | Clean spec: P73 vacuum suction
STM-B-10-15-P72Bore: 10 mm | Stroke: 15 mm | Option: Standard | Clean spec: P72 exhaust
STM-B-10-15-P73Bore: 10 mm | Stroke: 15 mm | Option: Standard | Clean spec: P73 vacuum suction
STM-B-10-15-A-P72Bore: 10 mm | Stroke: 15 mm | Option: Side mounting (A) | Clean spec: P72 exhaust
STM-B-10-15-A-P73Bore: 10 mm | Stroke: 15 mm | Option: Side mounting (A) | Clean spec: P73 vacuum suction
STM-B-10-20-P72Bore: 10 mm | Stroke: 20 mm | Option: Standard | Clean spec: P72 exhaust
STM-B-10-20-P73Bore: 10 mm | Stroke: 20 mm | Option: Standard | Clean spec: P73 vacuum suction
STM-B-10-20-A-P72Bore: 10 mm | Stroke: 20 mm | Option: Side mounting (A) | Clean spec: P72 exhaust
STM-B-10-20-A-P73Bore: 10 mm | Stroke: 20 mm | Option: Side mounting (A) | Clean spec: P73 vacuum suction
