CKD STM Guided Cylinder (Bore 6-10)

CKD STM Guided Cylinder (Bore 6-10)

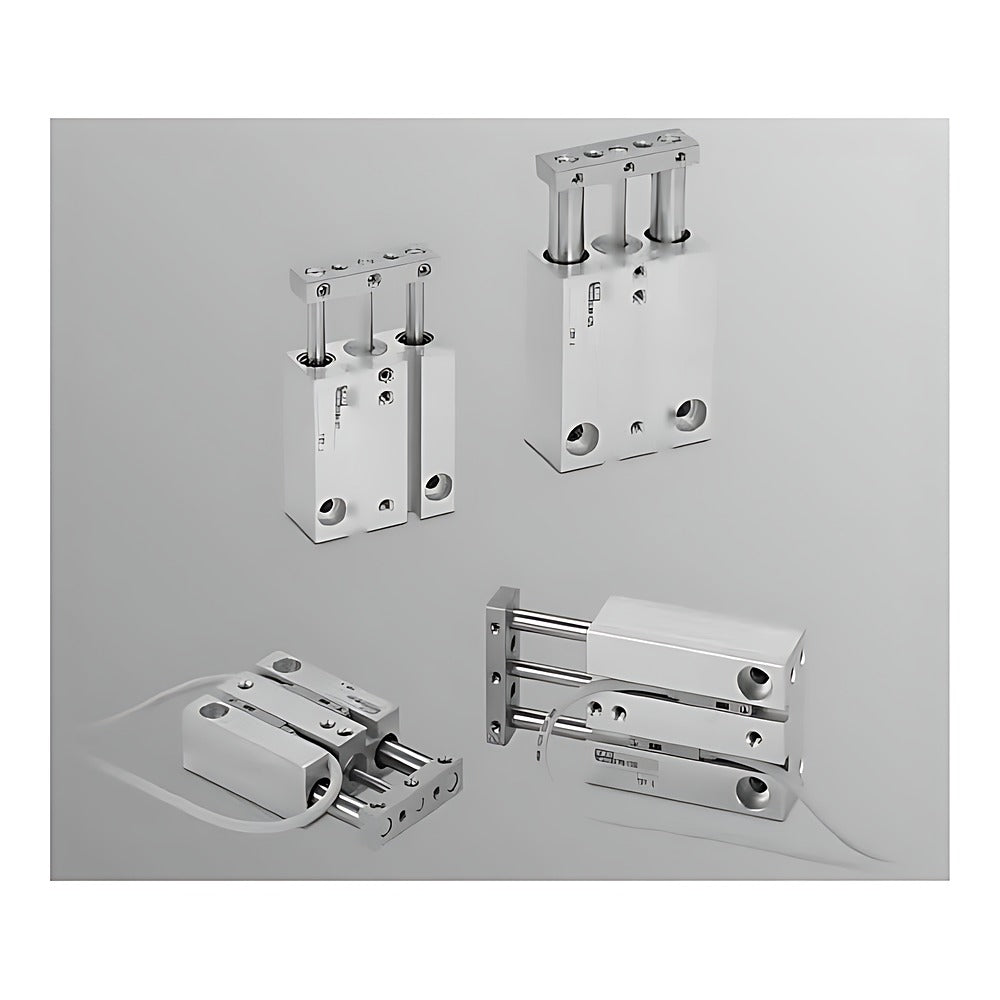

CKD STM super-small guided cylinder, double acting single rod, with slide bearing (M) or ball bushing (B) guide, bore 6 and 10 mm.

Key features

  • Super-small guided cylinder with free mounting and wide product range
  • Guide: slide bearing (M) or ball bushing (B); switch magnet built in
  • Options: side mounting (A) or rear piping (R)
  • Solid-state switches F2/F3/F3P/F2Y/F3Y (straight H or L-type V lead) ordered as R/H/D
  • Non-standard strokes are made to order; unit cannot be disassembled

Specifications

Action Double acting, single rod
Fluid Compressed air
Operating pressure 0.15 to 0.7 MPa
Proof pressure 1.05 MPa
Ambient temperature -10 to 60 C (no freezing)
Port size M3
Piston speed 50 to 500 mm/s
Cushion Rubber cushion
Stroke tolerance +1.5/0 mm
Lubrication Not required
Source CKD Korea catalog CB-030SK-9, p. 397-407
STM-M-6-5 Bearing: Slide bearing (M) | Bore: 6 mm | Stroke: 5 mm | Option: Standard
STM-M-6-5-A Bearing: Slide bearing (M) | Bore: 6 mm | Stroke: 5 mm | Option: Side mounting (A)
STM-M-6-5-R Bearing: Slide bearing (M) | Bore: 6 mm | Stroke: 5 mm | Option: Rear piping (R)
STM-M-6-10 Bearing: Slide bearing (M) | Bore: 6 mm | Stroke: 10 mm | Option: Standard
STM-M-6-10-A Bearing: Slide bearing (M) | Bore: 6 mm | Stroke: 10 mm | Option: Side mounting (A)
STM-M-6-10-R Bearing: Slide bearing (M) | Bore: 6 mm | Stroke: 10 mm | Option: Rear piping (R)
STM-M-6-15 Bearing: Slide bearing (M) | Bore: 6 mm | Stroke: 15 mm | Option: Standard
STM-M-6-15-A Bearing: Slide bearing (M) | Bore: 6 mm | Stroke: 15 mm | Option: Side mounting (A)
STM-M-6-15-R Bearing: Slide bearing (M) | Bore: 6 mm | Stroke: 15 mm | Option: Rear piping (R)
STM-M-10-5 Bearing: Slide bearing (M) | Bore: 10 mm | Stroke: 5 mm | Option: Standard
STM-M-10-5-A Bearing: Slide bearing (M) | Bore: 10 mm | Stroke: 5 mm | Option: Side mounting (A)
STM-M-10-5-R Bearing: Slide bearing (M) | Bore: 10 mm | Stroke: 5 mm | Option: Rear piping (R)
STM-M-10-10 Bearing: Slide bearing (M) | Bore: 10 mm | Stroke: 10 mm | Option: Standard
STM-M-10-10-A Bearing: Slide bearing (M) | Bore: 10 mm | Stroke: 10 mm | Option: Side mounting (A)
STM-M-10-10-R Bearing: Slide bearing (M) | Bore: 10 mm | Stroke: 10 mm | Option: Rear piping (R)
STM-M-10-15 Bearing: Slide bearing (M) | Bore: 10 mm | Stroke: 15 mm | Option: Standard
STM-M-10-15-A Bearing: Slide bearing (M) | Bore: 10 mm | Stroke: 15 mm | Option: Side mounting (A)
STM-M-10-15-R Bearing: Slide bearing (M) | Bore: 10 mm | Stroke: 15 mm | Option: Rear piping (R)
STM-M-10-20 Bearing: Slide bearing (M) | Bore: 10 mm | Stroke: 20 mm | Option: Standard
STM-M-10-20-A Bearing: Slide bearing (M) | Bore: 10 mm | Stroke: 20 mm | Option: Side mounting (A)
STM-M-10-20-R Bearing: Slide bearing (M) | Bore: 10 mm | Stroke: 20 mm | Option: Rear piping (R)
STM-B-6-5 Bearing: Ball bushing (B) | Bore: 6 mm | Stroke: 5 mm | Option: Standard
STM-B-6-5-A Bearing: Ball bushing (B) | Bore: 6 mm | Stroke: 5 mm | Option: Side mounting (A)
STM-B-6-5-R Bearing: Ball bushing (B) | Bore: 6 mm | Stroke: 5 mm | Option: Rear piping (R)
STM-B-6-10 Bearing: Ball bushing (B) | Bore: 6 mm | Stroke: 10 mm | Option: Standard
STM-B-6-10-A Bearing: Ball bushing (B) | Bore: 6 mm | Stroke: 10 mm | Option: Side mounting (A)
STM-B-6-10-R Bearing: Ball bushing (B) | Bore: 6 mm | Stroke: 10 mm | Option: Rear piping (R)
STM-B-6-15 Bearing: Ball bushing (B) | Bore: 6 mm | Stroke: 15 mm | Option: Standard
STM-B-6-15-A Bearing: Ball bushing (B) | Bore: 6 mm | Stroke: 15 mm | Option: Side mounting (A)
STM-B-6-15-R Bearing: Ball bushing (B) | Bore: 6 mm | Stroke: 15 mm | Option: Rear piping (R)
STM-B-10-5 Bearing: Ball bushing (B) | Bore: 10 mm | Stroke: 5 mm | Option: Standard
STM-B-10-5-A Bearing: Ball bushing (B) | Bore: 10 mm | Stroke: 5 mm | Option: Side mounting (A)
STM-B-10-5-R Bearing: Ball bushing (B) | Bore: 10 mm | Stroke: 5 mm | Option: Rear piping (R)
STM-B-10-10 Bearing: Ball bushing (B) | Bore: 10 mm | Stroke: 10 mm | Option: Standard
STM-B-10-10-A Bearing: Ball bushing (B) | Bore: 10 mm | Stroke: 10 mm | Option: Side mounting (A)
STM-B-10-10-R Bearing: Ball bushing (B) | Bore: 10 mm | Stroke: 10 mm | Option: Rear piping (R)
STM-B-10-15 Bearing: Ball bushing (B) | Bore: 10 mm | Stroke: 15 mm | Option: Standard
STM-B-10-15-A Bearing: Ball bushing (B) | Bore: 10 mm | Stroke: 15 mm | Option: Side mounting (A)
STM-B-10-15-R Bearing: Ball bushing (B) | Bore: 10 mm | Stroke: 15 mm | Option: Rear piping (R)
STM-B-10-20 Bearing: Ball bushing (B) | Bore: 10 mm | Stroke: 20 mm | Option: Standard
STM-B-10-20-A Bearing: Ball bushing (B) | Bore: 10 mm | Stroke: 20 mm | Option: Side mounting (A)
STM-B-10-20-R Bearing: Ball bushing (B) | Bore: 10 mm | Stroke: 20 mm | Option: Rear piping (R)
