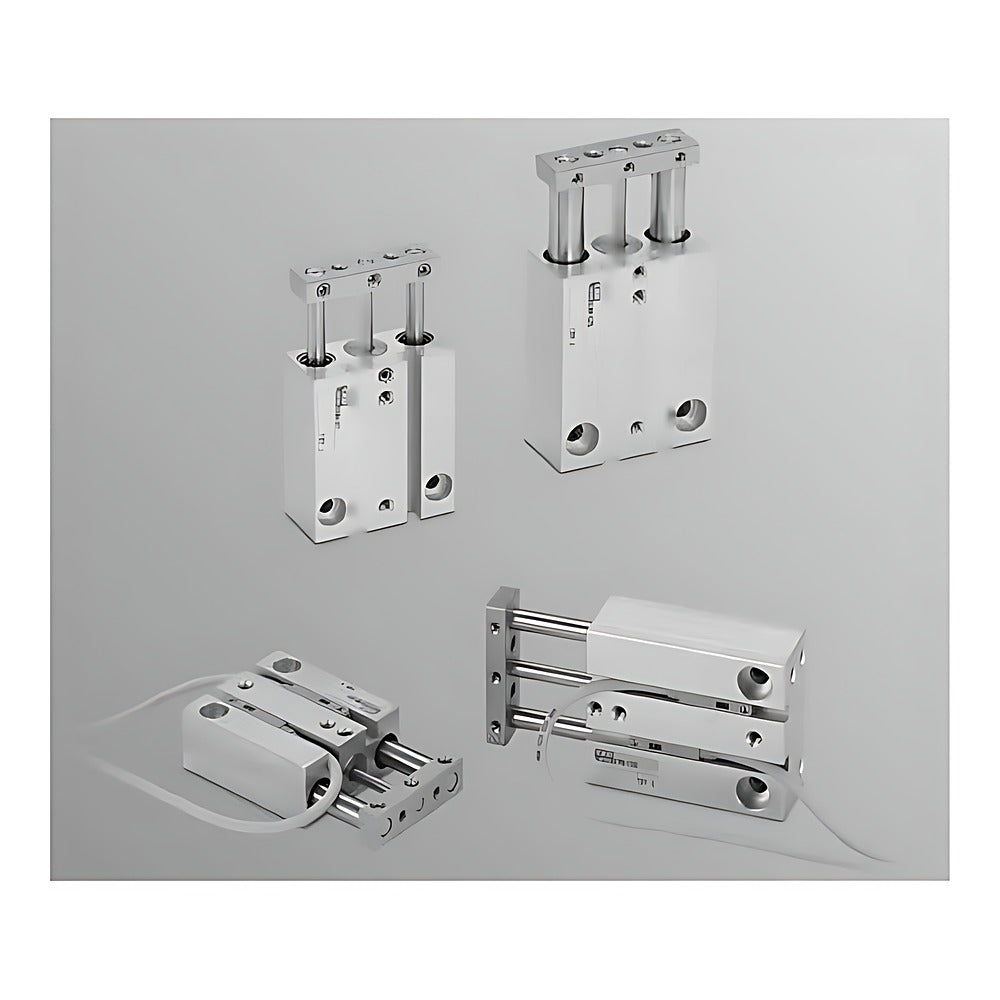

CKD STM-M/B-P4/P40-HP1 Guided Cylinder (Secondary Battery)

CKD STM-M/B-P4/P40-HP1 Guided Cylinder (Secondary Battery)

CKD STM-M/B-P4/P40-HP1 miniature guided cylinder, bore ø6 and ø10, for secondary-battery production equipment.

Key features

  • Secondary-battery (P4 series) material restrictions: copper, zinc and nickel based materials and Zn/electroless Ni plating limited
  • Ultra-low dew point grease: long life even at -70°C dew point, durability 10 million cycles or more (CKD conditions)
  • Slide (M) or ball (B) bearing guide; options A (side mounting) and R (rear piping)
  • Standard strokes 5-15 (ø6) and 5-20 mm (ø10); others made to order
  • Switch magnet built in; example form STM-M-10-15-SW83-D-A-P4-HP1

Specifications

Specification Secondary-battery P4/P40, long-life HP1
Action Double acting, guided
Max. operating pressure 0.7 MPa
Port size M3
Cushion Rubber cushion
Source CKD Korea catalog CC-1421KR-7, p. 208-209
STM-M-6-5-P4-HP1 Bearing: Slide bearing | Bore: 6 mm | Stroke: 5 mm | Option: None | Version: P4
STM-M-6-5-P40-HP1 Bearing: Slide bearing | Bore: 6 mm | Stroke: 5 mm | Option: None | Version: P40
STM-M-6-5-A-P4-HP1 Bearing: Slide bearing | Bore: 6 mm | Stroke: 5 mm | Option: Side mounting | Version: P4
STM-M-6-5-A-P40-HP1 Bearing: Slide bearing | Bore: 6 mm | Stroke: 5 mm | Option: Side mounting | Version: P40
STM-M-6-5-R-P4-HP1 Bearing: Slide bearing | Bore: 6 mm | Stroke: 5 mm | Option: Rear piping | Version: P4
STM-M-6-5-R-P40-HP1 Bearing: Slide bearing | Bore: 6 mm | Stroke: 5 mm | Option: Rear piping | Version: P40
STM-M-6-10-P4-HP1 Bearing: Slide bearing | Bore: 6 mm | Stroke: 10 mm | Option: None | Version: P4
STM-M-6-10-P40-HP1 Bearing: Slide bearing | Bore: 6 mm | Stroke: 10 mm | Option: None | Version: P40
STM-M-6-10-A-P4-HP1 Bearing: Slide bearing | Bore: 6 mm | Stroke: 10 mm | Option: Side mounting | Version: P4
STM-M-6-10-A-P40-HP1 Bearing: Slide bearing | Bore: 6 mm | Stroke: 10 mm | Option: Side mounting | Version: P40
STM-M-6-10-R-P4-HP1 Bearing: Slide bearing | Bore: 6 mm | Stroke: 10 mm | Option: Rear piping | Version: P4
STM-M-6-10-R-P40-HP1 Bearing: Slide bearing | Bore: 6 mm | Stroke: 10 mm | Option: Rear piping | Version: P40
STM-M-6-15-P4-HP1 Bearing: Slide bearing | Bore: 6 mm | Stroke: 15 mm | Option: None | Version: P4
STM-M-6-15-P40-HP1 Bearing: Slide bearing | Bore: 6 mm | Stroke: 15 mm | Option: None | Version: P40
STM-M-6-15-A-P4-HP1 Bearing: Slide bearing | Bore: 6 mm | Stroke: 15 mm | Option: Side mounting | Version: P4
STM-M-6-15-A-P40-HP1 Bearing: Slide bearing | Bore: 6 mm | Stroke: 15 mm | Option: Side mounting | Version: P40
STM-M-6-15-R-P4-HP1 Bearing: Slide bearing | Bore: 6 mm | Stroke: 15 mm | Option: Rear piping | Version: P4
STM-M-6-15-R-P40-HP1 Bearing: Slide bearing | Bore: 6 mm | Stroke: 15 mm | Option: Rear piping | Version: P40
STM-M-10-5-P4-HP1 Bearing: Slide bearing | Bore: 10 mm | Stroke: 5 mm | Option: None | Version: P4
STM-M-10-5-P40-HP1 Bearing: Slide bearing | Bore: 10 mm | Stroke: 5 mm | Option: None | Version: P40
STM-M-10-5-A-P4-HP1 Bearing: Slide bearing | Bore: 10 mm | Stroke: 5 mm | Option: Side mounting | Version: P4
STM-M-10-5-A-P40-HP1 Bearing: Slide bearing | Bore: 10 mm | Stroke: 5 mm | Option: Side mounting | Version: P40
STM-M-10-5-R-P4-HP1 Bearing: Slide bearing | Bore: 10 mm | Stroke: 5 mm | Option: Rear piping | Version: P4
STM-M-10-5-R-P40-HP1 Bearing: Slide bearing | Bore: 10 mm | Stroke: 5 mm | Option: Rear piping | Version: P40
STM-M-10-10-P4-HP1 Bearing: Slide bearing | Bore: 10 mm | Stroke: 10 mm | Option: None | Version: P4
STM-M-10-10-P40-HP1 Bearing: Slide bearing | Bore: 10 mm | Stroke: 10 mm | Option: None | Version: P40
STM-M-10-10-A-P4-HP1 Bearing: Slide bearing | Bore: 10 mm | Stroke: 10 mm | Option: Side mounting | Version: P4
STM-M-10-10-A-P40-HP1 Bearing: Slide bearing | Bore: 10 mm | Stroke: 10 mm | Option: Side mounting | Version: P40
STM-M-10-10-R-P4-HP1 Bearing: Slide bearing | Bore: 10 mm | Stroke: 10 mm | Option: Rear piping | Version: P4
STM-M-10-10-R-P40-HP1 Bearing: Slide bearing | Bore: 10 mm | Stroke: 10 mm | Option: Rear piping | Version: P40
STM-M-10-15-P4-HP1 Bearing: Slide bearing | Bore: 10 mm | Stroke: 15 mm | Option: None | Version: P4
STM-M-10-15-P40-HP1 Bearing: Slide bearing | Bore: 10 mm | Stroke: 15 mm | Option: None | Version: P40
STM-M-10-15-A-P4-HP1 Bearing: Slide bearing | Bore: 10 mm | Stroke: 15 mm | Option: Side mounting | Version: P4
STM-M-10-15-A-P40-HP1 Bearing: Slide bearing | Bore: 10 mm | Stroke: 15 mm | Option: Side mounting | Version: P40
STM-M-10-15-R-P4-HP1 Bearing: Slide bearing | Bore: 10 mm | Stroke: 15 mm | Option: Rear piping | Version: P4
STM-M-10-15-R-P40-HP1 Bearing: Slide bearing | Bore: 10 mm | Stroke: 15 mm | Option: Rear piping | Version: P40
STM-M-10-20-P4-HP1 Bearing: Slide bearing | Bore: 10 mm | Stroke: 20 mm | Option: None | Version: P4
STM-M-10-20-P40-HP1 Bearing: Slide bearing | Bore: 10 mm | Stroke: 20 mm | Option: None | Version: P40
STM-M-10-20-A-P4-HP1 Bearing: Slide bearing | Bore: 10 mm | Stroke: 20 mm | Option: Side mounting | Version: P4
STM-M-10-20-A-P40-HP1 Bearing: Slide bearing | Bore: 10 mm | Stroke: 20 mm | Option: Side mounting | Version: P40
STM-M-10-20-R-P4-HP1 Bearing: Slide bearing | Bore: 10 mm | Stroke: 20 mm | Option: Rear piping | Version: P4
STM-M-10-20-R-P40-HP1 Bearing: Slide bearing | Bore: 10 mm | Stroke: 20 mm | Option: Rear piping | Version: P40
STM-B-6-5-P4-HP1 Bearing: Ball bearing | Bore: 6 mm | Stroke: 5 mm | Option: None | Version: P4
STM-B-6-5-P40-HP1 Bearing: Ball bearing | Bore: 6 mm | Stroke: 5 mm | Option: None | Version: P40
STM-B-6-5-A-P4-HP1 Bearing: Ball bearing | Bore: 6 mm | Stroke: 5 mm | Option: Side mounting | Version: P4
STM-B-6-5-A-P40-HP1 Bearing: Ball bearing | Bore: 6 mm | Stroke: 5 mm | Option: Side mounting | Version: P40
STM-B-6-5-R-P4-HP1 Bearing: Ball bearing | Bore: 6 mm | Stroke: 5 mm | Option: Rear piping | Version: P4
STM-B-6-5-R-P40-HP1 Bearing: Ball bearing | Bore: 6 mm | Stroke: 5 mm | Option: Rear piping | Version: P40
STM-B-6-10-P4-HP1 Bearing: Ball bearing | Bore: 6 mm | Stroke: 10 mm | Option: None | Version: P4
STM-B-6-10-P40-HP1 Bearing: Ball bearing | Bore: 6 mm | Stroke: 10 mm | Option: None | Version: P40
STM-B-6-10-A-P4-HP1 Bearing: Ball bearing | Bore: 6 mm | Stroke: 10 mm | Option: Side mounting | Version: P4
STM-B-6-10-A-P40-HP1 Bearing: Ball bearing | Bore: 6 mm | Stroke: 10 mm | Option: Side mounting | Version: P40
STM-B-6-10-R-P4-HP1 Bearing: Ball bearing | Bore: 6 mm | Stroke: 10 mm | Option: Rear piping | Version: P4
STM-B-6-10-R-P40-HP1 Bearing: Ball bearing | Bore: 6 mm | Stroke: 10 mm | Option: Rear piping | Version: P40
STM-B-6-15-P4-HP1 Bearing: Ball bearing | Bore: 6 mm | Stroke: 15 mm | Option: None | Version: P4
STM-B-6-15-P40-HP1 Bearing: Ball bearing | Bore: 6 mm | Stroke: 15 mm | Option: None | Version: P40
STM-B-6-15-A-P4-HP1 Bearing: Ball bearing | Bore: 6 mm | Stroke: 15 mm | Option: Side mounting | Version: P4
STM-B-6-15-A-P40-HP1 Bearing: Ball bearing | Bore: 6 mm | Stroke: 15 mm | Option: Side mounting | Version: P40
STM-B-6-15-R-P4-HP1 Bearing: Ball bearing | Bore: 6 mm | Stroke: 15 mm | Option: Rear piping | Version: P4
STM-B-6-15-R-P40-HP1 Bearing: Ball bearing | Bore: 6 mm | Stroke: 15 mm | Option: Rear piping | Version: P40
STM-B-10-5-P4-HP1 Bearing: Ball bearing | Bore: 10 mm | Stroke: 5 mm | Option: None | Version: P4
STM-B-10-5-P40-HP1 Bearing: Ball bearing | Bore: 10 mm | Stroke: 5 mm | Option: None | Version: P40
STM-B-10-5-A-P4-HP1 Bearing: Ball bearing | Bore: 10 mm | Stroke: 5 mm | Option: Side mounting | Version: P4
STM-B-10-5-A-P40-HP1 Bearing: Ball bearing | Bore: 10 mm | Stroke: 5 mm | Option: Side mounting | Version: P40
STM-B-10-5-R-P4-HP1 Bearing: Ball bearing | Bore: 10 mm | Stroke: 5 mm | Option: Rear piping | Version: P4
STM-B-10-5-R-P40-HP1 Bearing: Ball bearing | Bore: 10 mm | Stroke: 5 mm | Option: Rear piping | Version: P40
STM-B-10-10-P4-HP1 Bearing: Ball bearing | Bore: 10 mm | Stroke: 10 mm | Option: None | Version: P4
STM-B-10-10-P40-HP1 Bearing: Ball bearing | Bore: 10 mm | Stroke: 10 mm | Option: None | Version: P40
STM-B-10-10-A-P4-HP1 Bearing: Ball bearing | Bore: 10 mm | Stroke: 10 mm | Option: Side mounting | Version: P4
STM-B-10-10-A-P40-HP1 Bearing: Ball bearing | Bore: 10 mm | Stroke: 10 mm | Option: Side mounting | Version: P40
STM-B-10-10-R-P4-HP1 Bearing: Ball bearing | Bore: 10 mm | Stroke: 10 mm | Option: Rear piping | Version: P4
STM-B-10-10-R-P40-HP1 Bearing: Ball bearing | Bore: 10 mm | Stroke: 10 mm | Option: Rear piping | Version: P40
STM-B-10-15-P4-HP1 Bearing: Ball bearing | Bore: 10 mm | Stroke: 15 mm | Option: None | Version: P4
STM-B-10-15-P40-HP1 Bearing: Ball bearing | Bore: 10 mm | Stroke: 15 mm | Option: None | Version: P40
STM-B-10-15-A-P4-HP1 Bearing: Ball bearing | Bore: 10 mm | Stroke: 15 mm | Option: Side mounting | Version: P4
STM-B-10-15-A-P40-HP1 Bearing: Ball bearing | Bore: 10 mm | Stroke: 15 mm | Option: Side mounting | Version: P40
STM-B-10-15-R-P4-HP1 Bearing: Ball bearing | Bore: 10 mm | Stroke: 15 mm | Option: Rear piping | Version: P4
STM-B-10-15-R-P40-HP1 Bearing: Ball bearing | Bore: 10 mm | Stroke: 15 mm | Option: Rear piping | Version: P40
STM-B-10-20-P4-HP1 Bearing: Ball bearing | Bore: 10 mm | Stroke: 20 mm | Option: None | Version: P4
STM-B-10-20-P40-HP1 Bearing: Ball bearing | Bore: 10 mm | Stroke: 20 mm | Option: None | Version: P40
STM-B-10-20-A-P4-HP1 Bearing: Ball bearing | Bore: 10 mm | Stroke: 20 mm | Option: Side mounting | Version: P4
STM-B-10-20-A-P40-HP1 Bearing: Ball bearing | Bore: 10 mm | Stroke: 20 mm | Option: Side mounting | Version: P40
STM-B-10-20-R-P4-HP1 Bearing: Ball bearing | Bore: 10 mm | Stroke: 20 mm | Option: Rear piping | Version: P4
STM-B-10-20-R-P40-HP1 Bearing: Ball bearing | Bore: 10 mm | Stroke: 20 mm | Option: Rear piping | Version: P40
Guided CylindersCKD
84 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD STM-M/B-P4/P40-HP1 Guided Cylinder (Secondary Battery)

Brand CKD·Guided Cylinders

Available part numbers (84)

STM-M-6-5-P4-HP1, STM-M-6-5-P40-HP1, STM-M-6-5-A-P4-HP1, STM-M-6-5-A-P40-HP1, STM-M-6-5-R-P4-HP1, STM-M-6-5-R-P40-HP1, STM-M-6-10-P4-HP1, STM-M-6-10-P40-HP1, STM-M-6-10-A-P4-HP1, STM-M-6-10-A-P40-HP1 + 74 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
