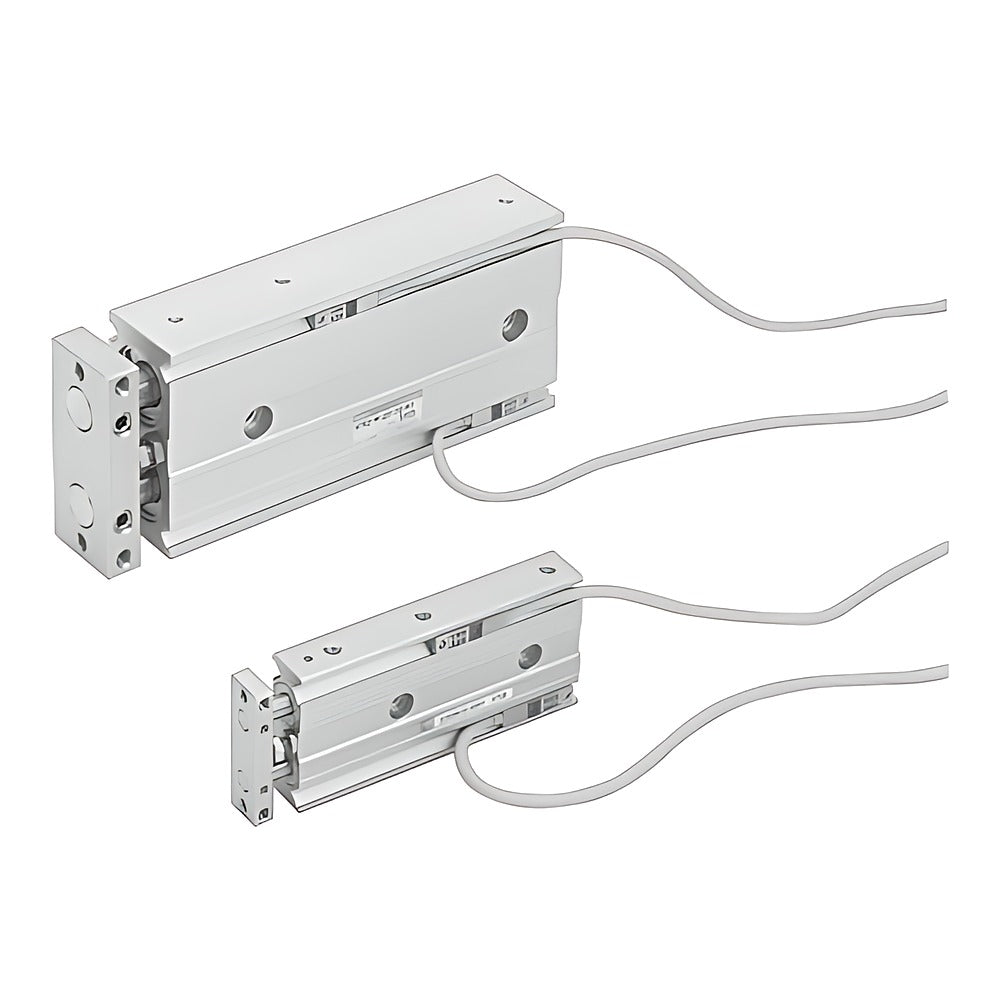

CKD STR2-B Super Twin Rod Cylinder (Clean Room P7/P5, Bore 6-32)

CKD STR2-B Super Twin Rod Cylinder (Clean Room P7/P5, Bore 6-32)

CKD STR2-B clean-room super twin rod cylinder with rolling-bearing piston rods, in P7 and copper/silicone/halogen-free P5 clean specifications.

Key features

  • Twin piston rods on rolling (ball) bearings for high non-rotating accuracy and guide performance
  • P7 series: P72 exhaust processing or P73 vacuum suction
  • P5 series: P52/P53 with copper-free, silicone-free and halogen-free (F, Cl, Br) material restriction
  • Stroke adjustment range 0 to 5 mm; rubber cushion; built-in switch magnet
  • Option O: piping port position changed by 180 deg; K-series auto switches, lead length and quantity are added code blocks
  • Intermediate strokes available in 1 mm increments (overall length as next standard stroke)

Specifications

Operation Double acting, twin rod
Fluid Compressed air
Max. operating pressure 0.7 MPa
Min. operating pressure 0.2 (6), 0.15 (10), 0.1 MPa (16-32)
Proof pressure 1.05 MPa
Ambient temperature -10 to 60 C (no freezing)
Piston speed 50 to 500 mm/s
Bearing Rolling bearing (B)
Cushion Rubber cushion
Lubrication Not allowed
Source CKD Korea catalog CB-033S-4, p. 254-262
STR2-B-6-10-P72 Bore: 6 mm | Stroke: 10 mm | Port: M5 | Clean spec: P72 exhaust processing
STR2-B-6-10-P73 Bore: 6 mm | Stroke: 10 mm | Port: M5 | Clean spec: P73 vacuum suction
STR2-B-6-10-P52 Bore: 6 mm | Stroke: 10 mm | Port: M5 | Clean spec: P52 exhaust, Cu/Si/halogen-free
STR2-B-6-10-P53 Bore: 6 mm | Stroke: 10 mm | Port: M5 | Clean spec: P53 vacuum, Cu/Si/halogen-free
STR2-B-6-20-P72 Bore: 6 mm | Stroke: 20 mm | Port: M5 | Clean spec: P72 exhaust processing
STR2-B-6-20-P73 Bore: 6 mm | Stroke: 20 mm | Port: M5 | Clean spec: P73 vacuum suction
STR2-B-6-20-P52 Bore: 6 mm | Stroke: 20 mm | Port: M5 | Clean spec: P52 exhaust, Cu/Si/halogen-free
STR2-B-6-20-P53 Bore: 6 mm | Stroke: 20 mm | Port: M5 | Clean spec: P53 vacuum, Cu/Si/halogen-free
STR2-B-6-30-P72 Bore: 6 mm | Stroke: 30 mm | Port: M5 | Clean spec: P72 exhaust processing
STR2-B-6-30-P73 Bore: 6 mm | Stroke: 30 mm | Port: M5 | Clean spec: P73 vacuum suction
STR2-B-6-30-P52 Bore: 6 mm | Stroke: 30 mm | Port: M5 | Clean spec: P52 exhaust, Cu/Si/halogen-free
STR2-B-6-30-P53 Bore: 6 mm | Stroke: 30 mm | Port: M5 | Clean spec: P53 vacuum, Cu/Si/halogen-free
STR2-B-6-40-P72 Bore: 6 mm | Stroke: 40 mm | Port: M5 | Clean spec: P72 exhaust processing
STR2-B-6-40-P73 Bore: 6 mm | Stroke: 40 mm | Port: M5 | Clean spec: P73 vacuum suction
STR2-B-6-40-P52 Bore: 6 mm | Stroke: 40 mm | Port: M5 | Clean spec: P52 exhaust, Cu/Si/halogen-free
STR2-B-6-40-P53 Bore: 6 mm | Stroke: 40 mm | Port: M5 | Clean spec: P53 vacuum, Cu/Si/halogen-free
STR2-B-6-50-P72 Bore: 6 mm | Stroke: 50 mm | Port: M5 | Clean spec: P72 exhaust processing
STR2-B-6-50-P73 Bore: 6 mm | Stroke: 50 mm | Port: M5 | Clean spec: P73 vacuum suction
STR2-B-6-50-P52 Bore: 6 mm | Stroke: 50 mm | Port: M5 | Clean spec: P52 exhaust, Cu/Si/halogen-free
STR2-B-6-50-P53 Bore: 6 mm | Stroke: 50 mm | Port: M5 | Clean spec: P53 vacuum, Cu/Si/halogen-free
STR2-B-10-10-P72 Bore: 10 mm | Stroke: 10 mm | Port: M5 | Clean spec: P72 exhaust processing
STR2-B-10-10-P73 Bore: 10 mm | Stroke: 10 mm | Port: M5 | Clean spec: P73 vacuum suction
STR2-B-10-10-P52 Bore: 10 mm | Stroke: 10 mm | Port: M5 | Clean spec: P52 exhaust, Cu/Si/halogen-free
STR2-B-10-10-P53 Bore: 10 mm | Stroke: 10 mm | Port: M5 | Clean spec: P53 vacuum, Cu/Si/halogen-free
STR2-B-10-20-P72 Bore: 10 mm | Stroke: 20 mm | Port: M5 | Clean spec: P72 exhaust processing
STR2-B-10-20-P73 Bore: 10 mm | Stroke: 20 mm | Port: M5 | Clean spec: P73 vacuum suction
STR2-B-10-20-P52 Bore: 10 mm | Stroke: 20 mm | Port: M5 | Clean spec: P52 exhaust, Cu/Si/halogen-free
STR2-B-10-20-P53 Bore: 10 mm | Stroke: 20 mm | Port: M5 | Clean spec: P53 vacuum, Cu/Si/halogen-free
STR2-B-10-30-P72 Bore: 10 mm | Stroke: 30 mm | Port: M5 | Clean spec: P72 exhaust processing
STR2-B-10-30-P73 Bore: 10 mm | Stroke: 30 mm | Port: M5 | Clean spec: P73 vacuum suction
STR2-B-10-30-P52 Bore: 10 mm | Stroke: 30 mm | Port: M5 | Clean spec: P52 exhaust, Cu/Si/halogen-free
STR2-B-10-30-P53 Bore: 10 mm | Stroke: 30 mm | Port: M5 | Clean spec: P53 vacuum, Cu/Si/halogen-free
STR2-B-10-40-P72 Bore: 10 mm | Stroke: 40 mm | Port: M5 | Clean spec: P72 exhaust processing
STR2-B-10-40-P73 Bore: 10 mm | Stroke: 40 mm | Port: M5 | Clean spec: P73 vacuum suction
STR2-B-10-40-P52 Bore: 10 mm | Stroke: 40 mm | Port: M5 | Clean spec: P52 exhaust, Cu/Si/halogen-free
STR2-B-10-40-P53 Bore: 10 mm | Stroke: 40 mm | Port: M5 | Clean spec: P53 vacuum, Cu/Si/halogen-free
STR2-B-10-50-P72 Bore: 10 mm | Stroke: 50 mm | Port: M5 | Clean spec: P72 exhaust processing
STR2-B-10-50-P73 Bore: 10 mm | Stroke: 50 mm | Port: M5 | Clean spec: P73 vacuum suction
STR2-B-10-50-P52 Bore: 10 mm | Stroke: 50 mm | Port: M5 | Clean spec: P52 exhaust, Cu/Si/halogen-free
STR2-B-10-50-P53 Bore: 10 mm | Stroke: 50 mm | Port: M5 | Clean spec: P53 vacuum, Cu/Si/halogen-free
STR2-B-16-10-P72 Bore: 16 mm | Stroke: 10 mm | Port: M5 | Clean spec: P72 exhaust processing
STR2-B-16-10-P73 Bore: 16 mm | Stroke: 10 mm | Port: M5 | Clean spec: P73 vacuum suction
STR2-B-16-10-P52 Bore: 16 mm | Stroke: 10 mm | Port: M5 | Clean spec: P52 exhaust, Cu/Si/halogen-free
STR2-B-16-10-P53 Bore: 16 mm | Stroke: 10 mm | Port: M5 | Clean spec: P53 vacuum, Cu/Si/halogen-free
STR2-B-16-20-P72 Bore: 16 mm | Stroke: 20 mm | Port: M5 | Clean spec: P72 exhaust processing
STR2-B-16-20-P73 Bore: 16 mm | Stroke: 20 mm | Port: M5 | Clean spec: P73 vacuum suction
STR2-B-16-20-P52 Bore: 16 mm | Stroke: 20 mm | Port: M5 | Clean spec: P52 exhaust, Cu/Si/halogen-free
STR2-B-16-20-P53 Bore: 16 mm | Stroke: 20 mm | Port: M5 | Clean spec: P53 vacuum, Cu/Si/halogen-free
STR2-B-16-30-P72 Bore: 16 mm | Stroke: 30 mm | Port: M5 | Clean spec: P72 exhaust processing
STR2-B-16-30-P73 Bore: 16 mm | Stroke: 30 mm | Port: M5 | Clean spec: P73 vacuum suction
STR2-B-16-30-P52 Bore: 16 mm | Stroke: 30 mm | Port: M5 | Clean spec: P52 exhaust, Cu/Si/halogen-free
STR2-B-16-30-P53 Bore: 16 mm | Stroke: 30 mm | Port: M5 | Clean spec: P53 vacuum, Cu/Si/halogen-free
STR2-B-16-40-P72 Bore: 16 mm | Stroke: 40 mm | Port: M5 | Clean spec: P72 exhaust processing
STR2-B-16-40-P73 Bore: 16 mm | Stroke: 40 mm | Port: M5 | Clean spec: P73 vacuum suction
STR2-B-16-40-P52 Bore: 16 mm | Stroke: 40 mm | Port: M5 | Clean spec: P52 exhaust, Cu/Si/halogen-free
STR2-B-16-40-P53 Bore: 16 mm | Stroke: 40 mm | Port: M5 | Clean spec: P53 vacuum, Cu/Si/halogen-free
STR2-B-16-50-P72 Bore: 16 mm | Stroke: 50 mm | Port: M5 | Clean spec: P72 exhaust processing
STR2-B-16-50-P73 Bore: 16 mm | Stroke: 50 mm | Port: M5 | Clean spec: P73 vacuum suction
STR2-B-16-50-P52 Bore: 16 mm | Stroke: 50 mm | Port: M5 | Clean spec: P52 exhaust, Cu/Si/halogen-free
STR2-B-16-50-P53 Bore: 16 mm | Stroke: 50 mm | Port: M5 | Clean spec: P53 vacuum, Cu/Si/halogen-free
STR2-B-16-60-P72 Bore: 16 mm | Stroke: 60 mm | Port: M5 | Clean spec: P72 exhaust processing
STR2-B-16-60-P73 Bore: 16 mm | Stroke: 60 mm | Port: M5 | Clean spec: P73 vacuum suction
STR2-B-16-60-P52 Bore: 16 mm | Stroke: 60 mm | Port: M5 | Clean spec: P52 exhaust, Cu/Si/halogen-free
STR2-B-16-60-P53 Bore: 16 mm | Stroke: 60 mm | Port: M5 | Clean spec: P53 vacuum, Cu/Si/halogen-free
STR2-B-16-70-P72 Bore: 16 mm | Stroke: 70 mm | Port: M5 | Clean spec: P72 exhaust processing
STR2-B-16-70-P73 Bore: 16 mm | Stroke: 70 mm | Port: M5 | Clean spec: P73 vacuum suction
STR2-B-16-70-P52 Bore: 16 mm | Stroke: 70 mm | Port: M5 | Clean spec: P52 exhaust, Cu/Si/halogen-free
STR2-B-16-70-P53 Bore: 16 mm | Stroke: 70 mm | Port: M5 | Clean spec: P53 vacuum, Cu/Si/halogen-free
STR2-B-16-80-P72 Bore: 16 mm | Stroke: 80 mm | Port: M5 | Clean spec: P72 exhaust processing
STR2-B-16-80-P73 Bore: 16 mm | Stroke: 80 mm | Port: M5 | Clean spec: P73 vacuum suction
STR2-B-16-80-P52 Bore: 16 mm | Stroke: 80 mm | Port: M5 | Clean spec: P52 exhaust, Cu/Si/halogen-free
STR2-B-16-80-P53 Bore: 16 mm | Stroke: 80 mm | Port: M5 | Clean spec: P53 vacuum, Cu/Si/halogen-free
STR2-B-16-90-P72 Bore: 16 mm | Stroke: 90 mm | Port: M5 | Clean spec: P72 exhaust processing
STR2-B-16-90-P73 Bore: 16 mm | Stroke: 90 mm | Port: M5 | Clean spec: P73 vacuum suction
STR2-B-16-90-P52 Bore: 16 mm | Stroke: 90 mm | Port: M5 | Clean spec: P52 exhaust, Cu/Si/halogen-free
STR2-B-16-90-P53 Bore: 16 mm | Stroke: 90 mm | Port: M5 | Clean spec: P53 vacuum, Cu/Si/halogen-free
STR2-B-16-100-P72 Bore: 16 mm | Stroke: 100 mm | Port: M5 | Clean spec: P72 exhaust processing
STR2-B-16-100-P73 Bore: 16 mm | Stroke: 100 mm | Port: M5 | Clean spec: P73 vacuum suction
STR2-B-16-100-P52 Bore: 16 mm | Stroke: 100 mm | Port: M5 | Clean spec: P52 exhaust, Cu/Si/halogen-free
STR2-B-16-100-P53 Bore: 16 mm | Stroke: 100 mm | Port: M5 | Clean spec: P53 vacuum, Cu/Si/halogen-free
STR2-B-20-10-P72 Bore: 20 mm | Stroke: 10 mm | Port: M5 | Clean spec: P72 exhaust processing
STR2-B-20-10-P73 Bore: 20 mm | Stroke: 10 mm | Port: M5 | Clean spec: P73 vacuum suction
STR2-B-20-10-P52 Bore: 20 mm | Stroke: 10 mm | Port: M5 | Clean spec: P52 exhaust, Cu/Si/halogen-free
STR2-B-20-10-P53 Bore: 20 mm | Stroke: 10 mm | Port: M5 | Clean spec: P53 vacuum, Cu/Si/halogen-free
STR2-B-20-20-P72 Bore: 20 mm | Stroke: 20 mm | Port: M5 | Clean spec: P72 exhaust processing
STR2-B-20-20-P73 Bore: 20 mm | Stroke: 20 mm | Port: M5 | Clean spec: P73 vacuum suction
STR2-B-20-20-P52 Bore: 20 mm | Stroke: 20 mm | Port: M5 | Clean spec: P52 exhaust, Cu/Si/halogen-free
STR2-B-20-20-P53 Bore: 20 mm | Stroke: 20 mm | Port: M5 | Clean spec: P53 vacuum, Cu/Si/halogen-free
STR2-B-20-30-P72 Bore: 20 mm | Stroke: 30 mm | Port: M5 | Clean spec: P72 exhaust processing
STR2-B-20-30-P73 Bore: 20 mm | Stroke: 30 mm | Port: M5 | Clean spec: P73 vacuum suction
STR2-B-20-30-P52 Bore: 20 mm | Stroke: 30 mm | Port: M5 | Clean spec: P52 exhaust, Cu/Si/halogen-free
STR2-B-20-30-P53 Bore: 20 mm | Stroke: 30 mm | Port: M5 | Clean spec: P53 vacuum, Cu/Si/halogen-free
STR2-B-20-40-P72 Bore: 20 mm | Stroke: 40 mm | Port: M5 | Clean spec: P72 exhaust processing
STR2-B-20-40-P73 Bore: 20 mm | Stroke: 40 mm | Port: M5 | Clean spec: P73 vacuum suction
STR2-B-20-40-P52 Bore: 20 mm | Stroke: 40 mm | Port: M5 | Clean spec: P52 exhaust, Cu/Si/halogen-free
STR2-B-20-40-P53 Bore: 20 mm | Stroke: 40 mm | Port: M5 | Clean spec: P53 vacuum, Cu/Si/halogen-free
STR2-B-20-50-P72 Bore: 20 mm | Stroke: 50 mm | Port: M5 | Clean spec: P72 exhaust processing
STR2-B-20-50-P73 Bore: 20 mm | Stroke: 50 mm | Port: M5 | Clean spec: P73 vacuum suction
STR2-B-20-50-P52 Bore: 20 mm | Stroke: 50 mm | Port: M5 | Clean spec: P52 exhaust, Cu/Si/halogen-free
STR2-B-20-50-P53 Bore: 20 mm | Stroke: 50 mm | Port: M5 | Clean spec: P53 vacuum, Cu/Si/halogen-free
STR2-B-20-60-P72 Bore: 20 mm | Stroke: 60 mm | Port: M5 | Clean spec: P72 exhaust processing
STR2-B-20-60-P73 Bore: 20 mm | Stroke: 60 mm | Port: M5 | Clean spec: P73 vacuum suction
STR2-B-20-60-P52 Bore: 20 mm | Stroke: 60 mm | Port: M5 | Clean spec: P52 exhaust, Cu/Si/halogen-free
STR2-B-20-60-P53 Bore: 20 mm | Stroke: 60 mm | Port: M5 | Clean spec: P53 vacuum, Cu/Si/halogen-free
STR2-B-20-70-P72 Bore: 20 mm | Stroke: 70 mm | Port: M5 | Clean spec: P72 exhaust processing
STR2-B-20-70-P73 Bore: 20 mm | Stroke: 70 mm | Port: M5 | Clean spec: P73 vacuum suction
STR2-B-20-70-P52 Bore: 20 mm | Stroke: 70 mm | Port: M5 | Clean spec: P52 exhaust, Cu/Si/halogen-free
STR2-B-20-70-P53 Bore: 20 mm | Stroke: 70 mm | Port: M5 | Clean spec: P53 vacuum, Cu/Si/halogen-free
STR2-B-20-80-P72 Bore: 20 mm | Stroke: 80 mm | Port: M5 | Clean spec: P72 exhaust processing
STR2-B-20-80-P73 Bore: 20 mm | Stroke: 80 mm | Port: M5 | Clean spec: P73 vacuum suction
STR2-B-20-80-P52 Bore: 20 mm | Stroke: 80 mm | Port: M5 | Clean spec: P52 exhaust, Cu/Si/halogen-free
STR2-B-20-80-P53 Bore: 20 mm | Stroke: 80 mm | Port: M5 | Clean spec: P53 vacuum, Cu/Si/halogen-free
STR2-B-20-90-P72 Bore: 20 mm | Stroke: 90 mm | Port: M5 | Clean spec: P72 exhaust processing
STR2-B-20-90-P73 Bore: 20 mm | Stroke: 90 mm | Port: M5 | Clean spec: P73 vacuum suction
STR2-B-20-90-P52 Bore: 20 mm | Stroke: 90 mm | Port: M5 | Clean spec: P52 exhaust, Cu/Si/halogen-free
STR2-B-20-90-P53 Bore: 20 mm | Stroke: 90 mm | Port: M5 | Clean spec: P53 vacuum, Cu/Si/halogen-free
STR2-B-20-100-P72 Bore: 20 mm | Stroke: 100 mm | Port: M5 | Clean spec: P72 exhaust processing
STR2-B-20-100-P73 Bore: 20 mm | Stroke: 100 mm | Port: M5 | Clean spec: P73 vacuum suction
STR2-B-20-100-P52 Bore: 20 mm | Stroke: 100 mm | Port: M5 | Clean spec: P52 exhaust, Cu/Si/halogen-free
STR2-B-20-100-P53 Bore: 20 mm | Stroke: 100 mm | Port: M5 | Clean spec: P53 vacuum, Cu/Si/halogen-free
STR2-B-25-10-P72 Bore: 25 mm | Stroke: 10 mm | Port: M5 | Clean spec: P72 exhaust processing
STR2-B-25-10-P73 Bore: 25 mm | Stroke: 10 mm | Port: M5 | Clean spec: P73 vacuum suction
STR2-B-25-10-P52 Bore: 25 mm | Stroke: 10 mm | Port: M5 | Clean spec: P52 exhaust, Cu/Si/halogen-free
STR2-B-25-10-P53 Bore: 25 mm | Stroke: 10 mm | Port: M5 | Clean spec: P53 vacuum, Cu/Si/halogen-free
STR2-B-25-20-P72 Bore: 25 mm | Stroke: 20 mm | Port: M5 | Clean spec: P72 exhaust processing
STR2-B-25-20-P73 Bore: 25 mm | Stroke: 20 mm | Port: M5 | Clean spec: P73 vacuum suction
STR2-B-25-20-P52 Bore: 25 mm | Stroke: 20 mm | Port: M5 | Clean spec: P52 exhaust, Cu/Si/halogen-free
STR2-B-25-20-P53 Bore: 25 mm | Stroke: 20 mm | Port: M5 | Clean spec: P53 vacuum, Cu/Si/halogen-free
STR2-B-25-30-P72 Bore: 25 mm | Stroke: 30 mm | Port: M5 | Clean spec: P72 exhaust processing
STR2-B-25-30-P73 Bore: 25 mm | Stroke: 30 mm | Port: M5 | Clean spec: P73 vacuum suction
STR2-B-25-30-P52 Bore: 25 mm | Stroke: 30 mm | Port: M5 | Clean spec: P52 exhaust, Cu/Si/halogen-free
STR2-B-25-30-P53 Bore: 25 mm | Stroke: 30 mm | Port: M5 | Clean spec: P53 vacuum, Cu/Si/halogen-free
STR2-B-25-40-P72 Bore: 25 mm | Stroke: 40 mm | Port: M5 | Clean spec: P72 exhaust processing
STR2-B-25-40-P73 Bore: 25 mm | Stroke: 40 mm | Port: M5 | Clean spec: P73 vacuum suction
STR2-B-25-40-P52 Bore: 25 mm | Stroke: 40 mm | Port: M5 | Clean spec: P52 exhaust, Cu/Si/halogen-free
STR2-B-25-40-P53 Bore: 25 mm | Stroke: 40 mm | Port: M5 | Clean spec: P53 vacuum, Cu/Si/halogen-free
STR2-B-25-50-P72 Bore: 25 mm | Stroke: 50 mm | Port: M5 | Clean spec: P72 exhaust processing
STR2-B-25-50-P73 Bore: 25 mm | Stroke: 50 mm | Port: M5 | Clean spec: P73 vacuum suction
STR2-B-25-50-P52 Bore: 25 mm | Stroke: 50 mm | Port: M5 | Clean spec: P52 exhaust, Cu/Si/halogen-free
STR2-B-25-50-P53 Bore: 25 mm | Stroke: 50 mm | Port: M5 | Clean spec: P53 vacuum, Cu/Si/halogen-free
STR2-B-25-60-P72 Bore: 25 mm | Stroke: 60 mm | Port: M5 | Clean spec: P72 exhaust processing
STR2-B-25-60-P73 Bore: 25 mm | Stroke: 60 mm | Port: M5 | Clean spec: P73 vacuum suction
STR2-B-25-60-P52 Bore: 25 mm | Stroke: 60 mm | Port: M5 | Clean spec: P52 exhaust, Cu/Si/halogen-free
STR2-B-25-60-P53 Bore: 25 mm | Stroke: 60 mm | Port: M5 | Clean spec: P53 vacuum, Cu/Si/halogen-free
STR2-B-25-70-P72 Bore: 25 mm | Stroke: 70 mm | Port: M5 | Clean spec: P72 exhaust processing
STR2-B-25-70-P73 Bore: 25 mm | Stroke: 70 mm | Port: M5 | Clean spec: P73 vacuum suction
STR2-B-25-70-P52 Bore: 25 mm | Stroke: 70 mm | Port: M5 | Clean spec: P52 exhaust, Cu/Si/halogen-free
STR2-B-25-70-P53 Bore: 25 mm | Stroke: 70 mm | Port: M5 | Clean spec: P53 vacuum, Cu/Si/halogen-free
STR2-B-25-80-P72 Bore: 25 mm | Stroke: 80 mm | Port: M5 | Clean spec: P72 exhaust processing
STR2-B-25-80-P73 Bore: 25 mm | Stroke: 80 mm | Port: M5 | Clean spec: P73 vacuum suction
STR2-B-25-80-P52 Bore: 25 mm | Stroke: 80 mm | Port: M5 | Clean spec: P52 exhaust, Cu/Si/halogen-free
STR2-B-25-80-P53 Bore: 25 mm | Stroke: 80 mm | Port: M5 | Clean spec: P53 vacuum, Cu/Si/halogen-free
STR2-B-25-90-P72 Bore: 25 mm | Stroke: 90 mm | Port: M5 | Clean spec: P72 exhaust processing
STR2-B-25-90-P73 Bore: 25 mm | Stroke: 90 mm | Port: M5 | Clean spec: P73 vacuum suction
STR2-B-25-90-P52 Bore: 25 mm | Stroke: 90 mm | Port: M5 | Clean spec: P52 exhaust, Cu/Si/halogen-free
STR2-B-25-90-P53 Bore: 25 mm | Stroke: 90 mm | Port: M5 | Clean spec: P53 vacuum, Cu/Si/halogen-free
STR2-B-25-100-P72 Bore: 25 mm | Stroke: 100 mm | Port: M5 | Clean spec: P72 exhaust processing
STR2-B-25-100-P73 Bore: 25 mm | Stroke: 100 mm | Port: M5 | Clean spec: P73 vacuum suction
STR2-B-25-100-P52 Bore: 25 mm | Stroke: 100 mm | Port: M5 | Clean spec: P52 exhaust, Cu/Si/halogen-free
STR2-B-25-100-P53 Bore: 25 mm | Stroke: 100 mm | Port: M5 | Clean spec: P53 vacuum, Cu/Si/halogen-free
STR2-B-32-10-P72 Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8 | Clean spec: P72 exhaust processing
STR2-B-32-10-P73 Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STR2-B-32-10-P52 Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8 | Clean spec: P52 exhaust, Cu/Si/halogen-free
STR2-B-32-10-P53 Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8 | Clean spec: P53 vacuum, Cu/Si/halogen-free
STR2-B-32-20-P72 Bore: 32 mm | Stroke: 20 mm | Port: Rc1/8 | Clean spec: P72 exhaust processing
STR2-B-32-20-P73 Bore: 32 mm | Stroke: 20 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STR2-B-32-20-P52 Bore: 32 mm | Stroke: 20 mm | Port: Rc1/8 | Clean spec: P52 exhaust, Cu/Si/halogen-free
STR2-B-32-20-P53 Bore: 32 mm | Stroke: 20 mm | Port: Rc1/8 | Clean spec: P53 vacuum, Cu/Si/halogen-free
STR2-B-32-30-P72 Bore: 32 mm | Stroke: 30 mm | Port: Rc1/8 | Clean spec: P72 exhaust processing
STR2-B-32-30-P73 Bore: 32 mm | Stroke: 30 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STR2-B-32-30-P52 Bore: 32 mm | Stroke: 30 mm | Port: Rc1/8 | Clean spec: P52 exhaust, Cu/Si/halogen-free
STR2-B-32-30-P53 Bore: 32 mm | Stroke: 30 mm | Port: Rc1/8 | Clean spec: P53 vacuum, Cu/Si/halogen-free
STR2-B-32-40-P72 Bore: 32 mm | Stroke: 40 mm | Port: Rc1/8 | Clean spec: P72 exhaust processing
STR2-B-32-40-P73 Bore: 32 mm | Stroke: 40 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STR2-B-32-40-P52 Bore: 32 mm | Stroke: 40 mm | Port: Rc1/8 | Clean spec: P52 exhaust, Cu/Si/halogen-free
STR2-B-32-40-P53 Bore: 32 mm | Stroke: 40 mm | Port: Rc1/8 | Clean spec: P53 vacuum, Cu/Si/halogen-free
STR2-B-32-50-P72 Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8 | Clean spec: P72 exhaust processing
STR2-B-32-50-P73 Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STR2-B-32-50-P52 Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8 | Clean spec: P52 exhaust, Cu/Si/halogen-free
STR2-B-32-50-P53 Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8 | Clean spec: P53 vacuum, Cu/Si/halogen-free
STR2-B-32-60-P72 Bore: 32 mm | Stroke: 60 mm | Port: Rc1/8 | Clean spec: P72 exhaust processing
STR2-B-32-60-P73 Bore: 32 mm | Stroke: 60 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STR2-B-32-60-P52 Bore: 32 mm | Stroke: 60 mm | Port: Rc1/8 | Clean spec: P52 exhaust, Cu/Si/halogen-free
STR2-B-32-60-P53 Bore: 32 mm | Stroke: 60 mm | Port: Rc1/8 | Clean spec: P53 vacuum, Cu/Si/halogen-free
STR2-B-32-70-P72 Bore: 32 mm | Stroke: 70 mm | Port: Rc1/8 | Clean spec: P72 exhaust processing
STR2-B-32-70-P73 Bore: 32 mm | Stroke: 70 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STR2-B-32-70-P52 Bore: 32 mm | Stroke: 70 mm | Port: Rc1/8 | Clean spec: P52 exhaust, Cu/Si/halogen-free
STR2-B-32-70-P53 Bore: 32 mm | Stroke: 70 mm | Port: Rc1/8 | Clean spec: P53 vacuum, Cu/Si/halogen-free
STR2-B-32-80-P72 Bore: 32 mm | Stroke: 80 mm | Port: Rc1/8 | Clean spec: P72 exhaust processing
STR2-B-32-80-P73 Bore: 32 mm | Stroke: 80 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STR2-B-32-80-P52 Bore: 32 mm | Stroke: 80 mm | Port: Rc1/8 | Clean spec: P52 exhaust, Cu/Si/halogen-free
STR2-B-32-80-P53 Bore: 32 mm | Stroke: 80 mm | Port: Rc1/8 | Clean spec: P53 vacuum, Cu/Si/halogen-free
STR2-B-32-90-P72 Bore: 32 mm | Stroke: 90 mm | Port: Rc1/8 | Clean spec: P72 exhaust processing
STR2-B-32-90-P73 Bore: 32 mm | Stroke: 90 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STR2-B-32-90-P52 Bore: 32 mm | Stroke: 90 mm | Port: Rc1/8 | Clean spec: P52 exhaust, Cu/Si/halogen-free
STR2-B-32-90-P53 Bore: 32 mm | Stroke: 90 mm | Port: Rc1/8 | Clean spec: P53 vacuum, Cu/Si/halogen-free
STR2-B-32-100-P72 Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8 | Clean spec: P72 exhaust processing
STR2-B-32-100-P73 Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STR2-B-32-100-P52 Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8 | Clean spec: P52 exhaust, Cu/Si/halogen-free
STR2-B-32-100-P53 Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8 | Clean spec: P53 vacuum, Cu/Si/halogen-free
Guided CylindersCKD
200 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD STR2-B Super Twin Rod Cylinder (Clean Room P7/P5, Bore 6-32)

Brand CKD·Guided Cylinders

Available part numbers (200)

STR2-B-6-10-P72, STR2-B-6-10-P73, STR2-B-6-10-P52, STR2-B-6-10-P53, STR2-B-6-20-P72, STR2-B-6-20-P73, STR2-B-6-20-P52, STR2-B-6-20-P53, STR2-B-6-30-P72, STR2-B-6-30-P73 + 190 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
STR2-B-6-10-P72Bore: 6 mm | Stroke: 10 mm | Port: M5 | Clean spec: P72 exhaust processing
STR2-B-6-10-P73Bore: 6 mm | Stroke: 10 mm | Port: M5 | Clean spec: P73 vacuum suction
STR2-B-6-10-P52Bore: 6 mm | Stroke: 10 mm | Port: M5 | Clean spec: P52 exhaust, Cu/Si/halogen-free
STR2-B-6-10-P53Bore: 6 mm | Stroke: 10 mm | Port: M5 | Clean spec: P53 vacuum, Cu/Si/halogen-free
STR2-B-6-20-P72Bore: 6 mm | Stroke: 20 mm | Port: M5 | Clean spec: P72 exhaust processing
STR2-B-6-20-P73Bore: 6 mm | Stroke: 20 mm | Port: M5 | Clean spec: P73 vacuum suction
STR2-B-6-20-P52Bore: 6 mm | Stroke: 20 mm | Port: M5 | Clean spec: P52 exhaust, Cu/Si/halogen-free
STR2-B-6-20-P53Bore: 6 mm | Stroke: 20 mm | Port: M5 | Clean spec: P53 vacuum, Cu/Si/halogen-free
STR2-B-6-30-P72Bore: 6 mm | Stroke: 30 mm | Port: M5 | Clean spec: P72 exhaust processing
STR2-B-6-30-P73Bore: 6 mm | Stroke: 30 mm | Port: M5 | Clean spec: P73 vacuum suction
STR2-B-6-30-P52Bore: 6 mm | Stroke: 30 mm | Port: M5 | Clean spec: P52 exhaust, Cu/Si/halogen-free
STR2-B-6-30-P53Bore: 6 mm | Stroke: 30 mm | Port: M5 | Clean spec: P53 vacuum, Cu/Si/halogen-free
STR2-B-6-40-P72Bore: 6 mm | Stroke: 40 mm | Port: M5 | Clean spec: P72 exhaust processing
STR2-B-6-40-P73Bore: 6 mm | Stroke: 40 mm | Port: M5 | Clean spec: P73 vacuum suction
STR2-B-6-40-P52Bore: 6 mm | Stroke: 40 mm | Port: M5 | Clean spec: P52 exhaust, Cu/Si/halogen-free
STR2-B-6-40-P53Bore: 6 mm | Stroke: 40 mm | Port: M5 | Clean spec: P53 vacuum, Cu/Si/halogen-free
STR2-B-6-50-P72Bore: 6 mm | Stroke: 50 mm | Port: M5 | Clean spec: P72 exhaust processing
STR2-B-6-50-P73Bore: 6 mm | Stroke: 50 mm | Port: M5 | Clean spec: P73 vacuum suction
STR2-B-6-50-P52Bore: 6 mm | Stroke: 50 mm | Port: M5 | Clean spec: P52 exhaust, Cu/Si/halogen-free
STR2-B-6-50-P53Bore: 6 mm | Stroke: 50 mm | Port: M5 | Clean spec: P53 vacuum, Cu/Si/halogen-free
STR2-B-10-10-P72Bore: 10 mm | Stroke: 10 mm | Port: M5 | Clean spec: P72 exhaust processing
STR2-B-10-10-P73Bore: 10 mm | Stroke: 10 mm | Port: M5 | Clean spec: P73 vacuum suction
STR2-B-10-10-P52Bore: 10 mm | Stroke: 10 mm | Port: M5 | Clean spec: P52 exhaust, Cu/Si/halogen-free
STR2-B-10-10-P53Bore: 10 mm | Stroke: 10 mm | Port: M5 | Clean spec: P53 vacuum, Cu/Si/halogen-free
STR2-B-10-20-P72Bore: 10 mm | Stroke: 20 mm | Port: M5 | Clean spec: P72 exhaust processing
STR2-B-10-20-P73Bore: 10 mm | Stroke: 20 mm | Port: M5 | Clean spec: P73 vacuum suction
STR2-B-10-20-P52Bore: 10 mm | Stroke: 20 mm | Port: M5 | Clean spec: P52 exhaust, Cu/Si/halogen-free
STR2-B-10-20-P53Bore: 10 mm | Stroke: 20 mm | Port: M5 | Clean spec: P53 vacuum, Cu/Si/halogen-free
STR2-B-10-30-P72Bore: 10 mm | Stroke: 30 mm | Port: M5 | Clean spec: P72 exhaust processing
STR2-B-10-30-P73Bore: 10 mm | Stroke: 30 mm | Port: M5 | Clean spec: P73 vacuum suction
STR2-B-10-30-P52Bore: 10 mm | Stroke: 30 mm | Port: M5 | Clean spec: P52 exhaust, Cu/Si/halogen-free
STR2-B-10-30-P53Bore: 10 mm | Stroke: 30 mm | Port: M5 | Clean spec: P53 vacuum, Cu/Si/halogen-free
STR2-B-10-40-P72Bore: 10 mm | Stroke: 40 mm | Port: M5 | Clean spec: P72 exhaust processing
STR2-B-10-40-P73Bore: 10 mm | Stroke: 40 mm | Port: M5 | Clean spec: P73 vacuum suction
STR2-B-10-40-P52Bore: 10 mm | Stroke: 40 mm | Port: M5 | Clean spec: P52 exhaust, Cu/Si/halogen-free
STR2-B-10-40-P53Bore: 10 mm | Stroke: 40 mm | Port: M5 | Clean spec: P53 vacuum, Cu/Si/halogen-free
STR2-B-10-50-P72Bore: 10 mm | Stroke: 50 mm | Port: M5 | Clean spec: P72 exhaust processing
STR2-B-10-50-P73Bore: 10 mm | Stroke: 50 mm | Port: M5 | Clean spec: P73 vacuum suction
STR2-B-10-50-P52Bore: 10 mm | Stroke: 50 mm | Port: M5 | Clean spec: P52 exhaust, Cu/Si/halogen-free
STR2-B-10-50-P53Bore: 10 mm | Stroke: 50 mm | Port: M5 | Clean spec: P53 vacuum, Cu/Si/halogen-free
STR2-B-16-10-P72Bore: 16 mm | Stroke: 10 mm | Port: M5 | Clean spec: P72 exhaust processing
STR2-B-16-10-P73Bore: 16 mm | Stroke: 10 mm | Port: M5 | Clean spec: P73 vacuum suction
STR2-B-16-10-P52Bore: 16 mm | Stroke: 10 mm | Port: M5 | Clean spec: P52 exhaust, Cu/Si/halogen-free
STR2-B-16-10-P53Bore: 16 mm | Stroke: 10 mm | Port: M5 | Clean spec: P53 vacuum, Cu/Si/halogen-free
STR2-B-16-20-P72Bore: 16 mm | Stroke: 20 mm | Port: M5 | Clean spec: P72 exhaust processing
STR2-B-16-20-P73Bore: 16 mm | Stroke: 20 mm | Port: M5 | Clean spec: P73 vacuum suction
STR2-B-16-20-P52Bore: 16 mm | Stroke: 20 mm | Port: M5 | Clean spec: P52 exhaust, Cu/Si/halogen-free
STR2-B-16-20-P53Bore: 16 mm | Stroke: 20 mm | Port: M5 | Clean spec: P53 vacuum, Cu/Si/halogen-free
STR2-B-16-30-P72Bore: 16 mm | Stroke: 30 mm | Port: M5 | Clean spec: P72 exhaust processing
STR2-B-16-30-P73Bore: 16 mm | Stroke: 30 mm | Port: M5 | Clean spec: P73 vacuum suction
STR2-B-16-30-P52Bore: 16 mm | Stroke: 30 mm | Port: M5 | Clean spec: P52 exhaust, Cu/Si/halogen-free
STR2-B-16-30-P53Bore: 16 mm | Stroke: 30 mm | Port: M5 | Clean spec: P53 vacuum, Cu/Si/halogen-free
STR2-B-16-40-P72Bore: 16 mm | Stroke: 40 mm | Port: M5 | Clean spec: P72 exhaust processing
STR2-B-16-40-P73Bore: 16 mm | Stroke: 40 mm | Port: M5 | Clean spec: P73 vacuum suction
STR2-B-16-40-P52Bore: 16 mm | Stroke: 40 mm | Port: M5 | Clean spec: P52 exhaust, Cu/Si/halogen-free
STR2-B-16-40-P53Bore: 16 mm | Stroke: 40 mm | Port: M5 | Clean spec: P53 vacuum, Cu/Si/halogen-free
STR2-B-16-50-P72Bore: 16 mm | Stroke: 50 mm | Port: M5 | Clean spec: P72 exhaust processing
STR2-B-16-50-P73Bore: 16 mm | Stroke: 50 mm | Port: M5 | Clean spec: P73 vacuum suction
STR2-B-16-50-P52Bore: 16 mm | Stroke: 50 mm | Port: M5 | Clean spec: P52 exhaust, Cu/Si/halogen-free
STR2-B-16-50-P53Bore: 16 mm | Stroke: 50 mm | Port: M5 | Clean spec: P53 vacuum, Cu/Si/halogen-free
STR2-B-16-60-P72Bore: 16 mm | Stroke: 60 mm | Port: M5 | Clean spec: P72 exhaust processing
STR2-B-16-60-P73Bore: 16 mm | Stroke: 60 mm | Port: M5 | Clean spec: P73 vacuum suction
STR2-B-16-60-P52Bore: 16 mm | Stroke: 60 mm | Port: M5 | Clean spec: P52 exhaust, Cu/Si/halogen-free
STR2-B-16-60-P53Bore: 16 mm | Stroke: 60 mm | Port: M5 | Clean spec: P53 vacuum, Cu/Si/halogen-free
STR2-B-16-70-P72Bore: 16 mm | Stroke: 70 mm | Port: M5 | Clean spec: P72 exhaust processing
STR2-B-16-70-P73Bore: 16 mm | Stroke: 70 mm | Port: M5 | Clean spec: P73 vacuum suction
STR2-B-16-70-P52Bore: 16 mm | Stroke: 70 mm | Port: M5 | Clean spec: P52 exhaust, Cu/Si/halogen-free
STR2-B-16-70-P53Bore: 16 mm | Stroke: 70 mm | Port: M5 | Clean spec: P53 vacuum, Cu/Si/halogen-free
STR2-B-16-80-P72Bore: 16 mm | Stroke: 80 mm | Port: M5 | Clean spec: P72 exhaust processing
STR2-B-16-80-P73Bore: 16 mm | Stroke: 80 mm | Port: M5 | Clean spec: P73 vacuum suction
STR2-B-16-80-P52Bore: 16 mm | Stroke: 80 mm | Port: M5 | Clean spec: P52 exhaust, Cu/Si/halogen-free
STR2-B-16-80-P53Bore: 16 mm | Stroke: 80 mm | Port: M5 | Clean spec: P53 vacuum, Cu/Si/halogen-free
STR2-B-16-90-P72Bore: 16 mm | Stroke: 90 mm | Port: M5 | Clean spec: P72 exhaust processing
STR2-B-16-90-P73Bore: 16 mm | Stroke: 90 mm | Port: M5 | Clean spec: P73 vacuum suction
STR2-B-16-90-P52Bore: 16 mm | Stroke: 90 mm | Port: M5 | Clean spec: P52 exhaust, Cu/Si/halogen-free
STR2-B-16-90-P53Bore: 16 mm | Stroke: 90 mm | Port: M5 | Clean spec: P53 vacuum, Cu/Si/halogen-free
STR2-B-16-100-P72Bore: 16 mm | Stroke: 100 mm | Port: M5 | Clean spec: P72 exhaust processing
STR2-B-16-100-P73Bore: 16 mm | Stroke: 100 mm | Port: M5 | Clean spec: P73 vacuum suction
STR2-B-16-100-P52Bore: 16 mm | Stroke: 100 mm | Port: M5 | Clean spec: P52 exhaust, Cu/Si/halogen-free
STR2-B-16-100-P53Bore: 16 mm | Stroke: 100 mm | Port: M5 | Clean spec: P53 vacuum, Cu/Si/halogen-free
STR2-B-20-10-P72Bore: 20 mm | Stroke: 10 mm | Port: M5 | Clean spec: P72 exhaust processing
STR2-B-20-10-P73Bore: 20 mm | Stroke: 10 mm | Port: M5 | Clean spec: P73 vacuum suction
STR2-B-20-10-P52Bore: 20 mm | Stroke: 10 mm | Port: M5 | Clean spec: P52 exhaust, Cu/Si/halogen-free
STR2-B-20-10-P53Bore: 20 mm | Stroke: 10 mm | Port: M5 | Clean spec: P53 vacuum, Cu/Si/halogen-free
STR2-B-20-20-P72Bore: 20 mm | Stroke: 20 mm | Port: M5 | Clean spec: P72 exhaust processing
STR2-B-20-20-P73Bore: 20 mm | Stroke: 20 mm | Port: M5 | Clean spec: P73 vacuum suction
STR2-B-20-20-P52Bore: 20 mm | Stroke: 20 mm | Port: M5 | Clean spec: P52 exhaust, Cu/Si/halogen-free
STR2-B-20-20-P53Bore: 20 mm | Stroke: 20 mm | Port: M5 | Clean spec: P53 vacuum, Cu/Si/halogen-free
STR2-B-20-30-P72Bore: 20 mm | Stroke: 30 mm | Port: M5 | Clean spec: P72 exhaust processing
STR2-B-20-30-P73Bore: 20 mm | Stroke: 30 mm | Port: M5 | Clean spec: P73 vacuum suction
STR2-B-20-30-P52Bore: 20 mm | Stroke: 30 mm | Port: M5 | Clean spec: P52 exhaust, Cu/Si/halogen-free
STR2-B-20-30-P53Bore: 20 mm | Stroke: 30 mm | Port: M5 | Clean spec: P53 vacuum, Cu/Si/halogen-free
STR2-B-20-40-P72Bore: 20 mm | Stroke: 40 mm | Port: M5 | Clean spec: P72 exhaust processing
STR2-B-20-40-P73Bore: 20 mm | Stroke: 40 mm | Port: M5 | Clean spec: P73 vacuum suction
STR2-B-20-40-P52Bore: 20 mm | Stroke: 40 mm | Port: M5 | Clean spec: P52 exhaust, Cu/Si/halogen-free
STR2-B-20-40-P53Bore: 20 mm | Stroke: 40 mm | Port: M5 | Clean spec: P53 vacuum, Cu/Si/halogen-free
STR2-B-20-50-P72Bore: 20 mm | Stroke: 50 mm | Port: M5 | Clean spec: P72 exhaust processing
STR2-B-20-50-P73Bore: 20 mm | Stroke: 50 mm | Port: M5 | Clean spec: P73 vacuum suction
STR2-B-20-50-P52Bore: 20 mm | Stroke: 50 mm | Port: M5 | Clean spec: P52 exhaust, Cu/Si/halogen-free
STR2-B-20-50-P53Bore: 20 mm | Stroke: 50 mm | Port: M5 | Clean spec: P53 vacuum, Cu/Si/halogen-free
STR2-B-20-60-P72Bore: 20 mm | Stroke: 60 mm | Port: M5 | Clean spec: P72 exhaust processing
STR2-B-20-60-P73Bore: 20 mm | Stroke: 60 mm | Port: M5 | Clean spec: P73 vacuum suction
STR2-B-20-60-P52Bore: 20 mm | Stroke: 60 mm | Port: M5 | Clean spec: P52 exhaust, Cu/Si/halogen-free
STR2-B-20-60-P53Bore: 20 mm | Stroke: 60 mm | Port: M5 | Clean spec: P53 vacuum, Cu/Si/halogen-free
STR2-B-20-70-P72Bore: 20 mm | Stroke: 70 mm | Port: M5 | Clean spec: P72 exhaust processing
STR2-B-20-70-P73Bore: 20 mm | Stroke: 70 mm | Port: M5 | Clean spec: P73 vacuum suction
STR2-B-20-70-P52Bore: 20 mm | Stroke: 70 mm | Port: M5 | Clean spec: P52 exhaust, Cu/Si/halogen-free
STR2-B-20-70-P53Bore: 20 mm | Stroke: 70 mm | Port: M5 | Clean spec: P53 vacuum, Cu/Si/halogen-free
STR2-B-20-80-P72Bore: 20 mm | Stroke: 80 mm | Port: M5 | Clean spec: P72 exhaust processing
STR2-B-20-80-P73Bore: 20 mm | Stroke: 80 mm | Port: M5 | Clean spec: P73 vacuum suction
STR2-B-20-80-P52Bore: 20 mm | Stroke: 80 mm | Port: M5 | Clean spec: P52 exhaust, Cu/Si/halogen-free
STR2-B-20-80-P53Bore: 20 mm | Stroke: 80 mm | Port: M5 | Clean spec: P53 vacuum, Cu/Si/halogen-free
STR2-B-20-90-P72Bore: 20 mm | Stroke: 90 mm | Port: M5 | Clean spec: P72 exhaust processing
STR2-B-20-90-P73Bore: 20 mm | Stroke: 90 mm | Port: M5 | Clean spec: P73 vacuum suction
STR2-B-20-90-P52Bore: 20 mm | Stroke: 90 mm | Port: M5 | Clean spec: P52 exhaust, Cu/Si/halogen-free
STR2-B-20-90-P53Bore: 20 mm | Stroke: 90 mm | Port: M5 | Clean spec: P53 vacuum, Cu/Si/halogen-free
STR2-B-20-100-P72Bore: 20 mm | Stroke: 100 mm | Port: M5 | Clean spec: P72 exhaust processing
STR2-B-20-100-P73Bore: 20 mm | Stroke: 100 mm | Port: M5 | Clean spec: P73 vacuum suction
STR2-B-20-100-P52Bore: 20 mm | Stroke: 100 mm | Port: M5 | Clean spec: P52 exhaust, Cu/Si/halogen-free
STR2-B-20-100-P53Bore: 20 mm | Stroke: 100 mm | Port: M5 | Clean spec: P53 vacuum, Cu/Si/halogen-free
STR2-B-25-10-P72Bore: 25 mm | Stroke: 10 mm | Port: M5 | Clean spec: P72 exhaust processing
STR2-B-25-10-P73Bore: 25 mm | Stroke: 10 mm | Port: M5 | Clean spec: P73 vacuum suction
STR2-B-25-10-P52Bore: 25 mm | Stroke: 10 mm | Port: M5 | Clean spec: P52 exhaust, Cu/Si/halogen-free
STR2-B-25-10-P53Bore: 25 mm | Stroke: 10 mm | Port: M5 | Clean spec: P53 vacuum, Cu/Si/halogen-free
STR2-B-25-20-P72Bore: 25 mm | Stroke: 20 mm | Port: M5 | Clean spec: P72 exhaust processing
STR2-B-25-20-P73Bore: 25 mm | Stroke: 20 mm | Port: M5 | Clean spec: P73 vacuum suction
STR2-B-25-20-P52Bore: 25 mm | Stroke: 20 mm | Port: M5 | Clean spec: P52 exhaust, Cu/Si/halogen-free
STR2-B-25-20-P53Bore: 25 mm | Stroke: 20 mm | Port: M5 | Clean spec: P53 vacuum, Cu/Si/halogen-free
STR2-B-25-30-P72Bore: 25 mm | Stroke: 30 mm | Port: M5 | Clean spec: P72 exhaust processing
STR2-B-25-30-P73Bore: 25 mm | Stroke: 30 mm | Port: M5 | Clean spec: P73 vacuum suction
STR2-B-25-30-P52Bore: 25 mm | Stroke: 30 mm | Port: M5 | Clean spec: P52 exhaust, Cu/Si/halogen-free
STR2-B-25-30-P53Bore: 25 mm | Stroke: 30 mm | Port: M5 | Clean spec: P53 vacuum, Cu/Si/halogen-free
STR2-B-25-40-P72Bore: 25 mm | Stroke: 40 mm | Port: M5 | Clean spec: P72 exhaust processing
STR2-B-25-40-P73Bore: 25 mm | Stroke: 40 mm | Port: M5 | Clean spec: P73 vacuum suction
STR2-B-25-40-P52Bore: 25 mm | Stroke: 40 mm | Port: M5 | Clean spec: P52 exhaust, Cu/Si/halogen-free
STR2-B-25-40-P53Bore: 25 mm | Stroke: 40 mm | Port: M5 | Clean spec: P53 vacuum, Cu/Si/halogen-free
STR2-B-25-50-P72Bore: 25 mm | Stroke: 50 mm | Port: M5 | Clean spec: P72 exhaust processing
STR2-B-25-50-P73Bore: 25 mm | Stroke: 50 mm | Port: M5 | Clean spec: P73 vacuum suction
STR2-B-25-50-P52Bore: 25 mm | Stroke: 50 mm | Port: M5 | Clean spec: P52 exhaust, Cu/Si/halogen-free
STR2-B-25-50-P53Bore: 25 mm | Stroke: 50 mm | Port: M5 | Clean spec: P53 vacuum, Cu/Si/halogen-free
STR2-B-25-60-P72Bore: 25 mm | Stroke: 60 mm | Port: M5 | Clean spec: P72 exhaust processing
STR2-B-25-60-P73Bore: 25 mm | Stroke: 60 mm | Port: M5 | Clean spec: P73 vacuum suction
STR2-B-25-60-P52Bore: 25 mm | Stroke: 60 mm | Port: M5 | Clean spec: P52 exhaust, Cu/Si/halogen-free
STR2-B-25-60-P53Bore: 25 mm | Stroke: 60 mm | Port: M5 | Clean spec: P53 vacuum, Cu/Si/halogen-free
STR2-B-25-70-P72Bore: 25 mm | Stroke: 70 mm | Port: M5 | Clean spec: P72 exhaust processing
STR2-B-25-70-P73Bore: 25 mm | Stroke: 70 mm | Port: M5 | Clean spec: P73 vacuum suction
STR2-B-25-70-P52Bore: 25 mm | Stroke: 70 mm | Port: M5 | Clean spec: P52 exhaust, Cu/Si/halogen-free
STR2-B-25-70-P53Bore: 25 mm | Stroke: 70 mm | Port: M5 | Clean spec: P53 vacuum, Cu/Si/halogen-free
STR2-B-25-80-P72Bore: 25 mm | Stroke: 80 mm | Port: M5 | Clean spec: P72 exhaust processing
STR2-B-25-80-P73Bore: 25 mm | Stroke: 80 mm | Port: M5 | Clean spec: P73 vacuum suction
STR2-B-25-80-P52Bore: 25 mm | Stroke: 80 mm | Port: M5 | Clean spec: P52 exhaust, Cu/Si/halogen-free
STR2-B-25-80-P53Bore: 25 mm | Stroke: 80 mm | Port: M5 | Clean spec: P53 vacuum, Cu/Si/halogen-free
STR2-B-25-90-P72Bore: 25 mm | Stroke: 90 mm | Port: M5 | Clean spec: P72 exhaust processing
STR2-B-25-90-P73Bore: 25 mm | Stroke: 90 mm | Port: M5 | Clean spec: P73 vacuum suction
STR2-B-25-90-P52Bore: 25 mm | Stroke: 90 mm | Port: M5 | Clean spec: P52 exhaust, Cu/Si/halogen-free
STR2-B-25-90-P53Bore: 25 mm | Stroke: 90 mm | Port: M5 | Clean spec: P53 vacuum, Cu/Si/halogen-free
STR2-B-25-100-P72Bore: 25 mm | Stroke: 100 mm | Port: M5 | Clean spec: P72 exhaust processing
STR2-B-25-100-P73Bore: 25 mm | Stroke: 100 mm | Port: M5 | Clean spec: P73 vacuum suction
STR2-B-25-100-P52Bore: 25 mm | Stroke: 100 mm | Port: M5 | Clean spec: P52 exhaust, Cu/Si/halogen-free
STR2-B-25-100-P53Bore: 25 mm | Stroke: 100 mm | Port: M5 | Clean spec: P53 vacuum, Cu/Si/halogen-free
STR2-B-32-10-P72Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8 | Clean spec: P72 exhaust processing
STR2-B-32-10-P73Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STR2-B-32-10-P52Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8 | Clean spec: P52 exhaust, Cu/Si/halogen-free
STR2-B-32-10-P53Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8 | Clean spec: P53 vacuum, Cu/Si/halogen-free
STR2-B-32-20-P72Bore: 32 mm | Stroke: 20 mm | Port: Rc1/8 | Clean spec: P72 exhaust processing
STR2-B-32-20-P73Bore: 32 mm | Stroke: 20 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STR2-B-32-20-P52Bore: 32 mm | Stroke: 20 mm | Port: Rc1/8 | Clean spec: P52 exhaust, Cu/Si/halogen-free
STR2-B-32-20-P53Bore: 32 mm | Stroke: 20 mm | Port: Rc1/8 | Clean spec: P53 vacuum, Cu/Si/halogen-free
STR2-B-32-30-P72Bore: 32 mm | Stroke: 30 mm | Port: Rc1/8 | Clean spec: P72 exhaust processing
STR2-B-32-30-P73Bore: 32 mm | Stroke: 30 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STR2-B-32-30-P52Bore: 32 mm | Stroke: 30 mm | Port: Rc1/8 | Clean spec: P52 exhaust, Cu/Si/halogen-free
STR2-B-32-30-P53Bore: 32 mm | Stroke: 30 mm | Port: Rc1/8 | Clean spec: P53 vacuum, Cu/Si/halogen-free
STR2-B-32-40-P72Bore: 32 mm | Stroke: 40 mm | Port: Rc1/8 | Clean spec: P72 exhaust processing
STR2-B-32-40-P73Bore: 32 mm | Stroke: 40 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STR2-B-32-40-P52Bore: 32 mm | Stroke: 40 mm | Port: Rc1/8 | Clean spec: P52 exhaust, Cu/Si/halogen-free
STR2-B-32-40-P53Bore: 32 mm | Stroke: 40 mm | Port: Rc1/8 | Clean spec: P53 vacuum, Cu/Si/halogen-free
STR2-B-32-50-P72Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8 | Clean spec: P72 exhaust processing
STR2-B-32-50-P73Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STR2-B-32-50-P52Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8 | Clean spec: P52 exhaust, Cu/Si/halogen-free
STR2-B-32-50-P53Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8 | Clean spec: P53 vacuum, Cu/Si/halogen-free
STR2-B-32-60-P72Bore: 32 mm | Stroke: 60 mm | Port: Rc1/8 | Clean spec: P72 exhaust processing
STR2-B-32-60-P73Bore: 32 mm | Stroke: 60 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STR2-B-32-60-P52Bore: 32 mm | Stroke: 60 mm | Port: Rc1/8 | Clean spec: P52 exhaust, Cu/Si/halogen-free
STR2-B-32-60-P53Bore: 32 mm | Stroke: 60 mm | Port: Rc1/8 | Clean spec: P53 vacuum, Cu/Si/halogen-free
STR2-B-32-70-P72Bore: 32 mm | Stroke: 70 mm | Port: Rc1/8 | Clean spec: P72 exhaust processing
STR2-B-32-70-P73Bore: 32 mm | Stroke: 70 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STR2-B-32-70-P52Bore: 32 mm | Stroke: 70 mm | Port: Rc1/8 | Clean spec: P52 exhaust, Cu/Si/halogen-free
STR2-B-32-70-P53Bore: 32 mm | Stroke: 70 mm | Port: Rc1/8 | Clean spec: P53 vacuum, Cu/Si/halogen-free
STR2-B-32-80-P72Bore: 32 mm | Stroke: 80 mm | Port: Rc1/8 | Clean spec: P72 exhaust processing
STR2-B-32-80-P73Bore: 32 mm | Stroke: 80 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STR2-B-32-80-P52Bore: 32 mm | Stroke: 80 mm | Port: Rc1/8 | Clean spec: P52 exhaust, Cu/Si/halogen-free
STR2-B-32-80-P53Bore: 32 mm | Stroke: 80 mm | Port: Rc1/8 | Clean spec: P53 vacuum, Cu/Si/halogen-free
STR2-B-32-90-P72Bore: 32 mm | Stroke: 90 mm | Port: Rc1/8 | Clean spec: P72 exhaust processing
STR2-B-32-90-P73Bore: 32 mm | Stroke: 90 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STR2-B-32-90-P52Bore: 32 mm | Stroke: 90 mm | Port: Rc1/8 | Clean spec: P52 exhaust, Cu/Si/halogen-free
STR2-B-32-90-P53Bore: 32 mm | Stroke: 90 mm | Port: Rc1/8 | Clean spec: P53 vacuum, Cu/Si/halogen-free
STR2-B-32-100-P72Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8 | Clean spec: P72 exhaust processing
STR2-B-32-100-P73Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STR2-B-32-100-P52Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8 | Clean spec: P52 exhaust, Cu/Si/halogen-free
STR2-B-32-100-P53Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8 | Clean spec: P53 vacuum, Cu/Si/halogen-free

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
