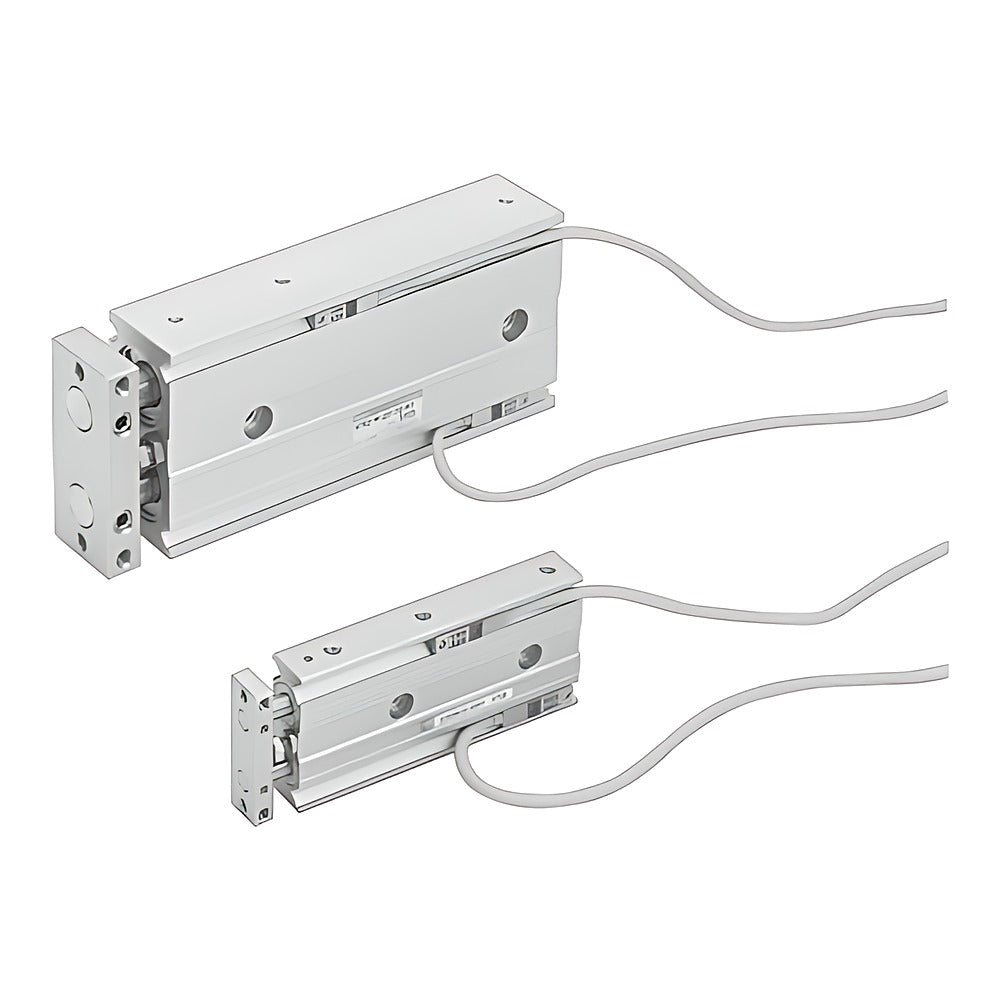

CKD STR2-BF Super Twin Rod Cylinder (Low Speed, Clean Room P7)

CKD STR2-BF Super Twin Rod Cylinder (Low Speed, Clean Room P7)

CKD STR2-BF low-speed clean-room super twin rod cylinder with rolling-bearing rods, for smooth motion from 1 mm/s.

Key features

  • Low-speed type: stable operation at 1 to 200 mm/s
  • Twin piston rods on rolling bearings; non-rotating accuracy +/-0.1 deg (10-20), +/-0.3 deg (25, 32)
  • Clean-room P7 series: P72 exhaust processing (exhaust piped out via relief port) or P73 vacuum suction (vacuum sweep of the relief port)
  • Stroke adjustment range 0 to 5 mm; rubber cushion; built-in switch magnet
  • Option O: piping port position changed by 180 deg; K-series auto switches are added code blocks
  • Intermediate strokes in 1 mm increments; for bore 6 the STR2-0 low-speed type is recommended

Specifications

Operation Double acting, twin rod, low speed
Fluid Compressed air
Max. operating pressure 0.70 MPa
Min. operating pressure 0.15 (10), 0.1 MPa (16-32)
Ambient temperature 5 to 60 C
Piston speed 1 to 200 mm/s
Bearing Rolling bearing (B)
Cushion Rubber cushion
Lubrication Not allowed
Source CKD Korea catalog CB-033S-4, p. 263-265
STR2-BF-10-10-P72 Bore: 10 mm | Stroke: 10 mm | Port: M5 | Clean spec: P72 exhaust processing
STR2-BF-10-10-P73 Bore: 10 mm | Stroke: 10 mm | Port: M5 | Clean spec: P73 vacuum suction
STR2-BF-10-20-P72 Bore: 10 mm | Stroke: 20 mm | Port: M5 | Clean spec: P72 exhaust processing
STR2-BF-10-20-P73 Bore: 10 mm | Stroke: 20 mm | Port: M5 | Clean spec: P73 vacuum suction
STR2-BF-10-30-P72 Bore: 10 mm | Stroke: 30 mm | Port: M5 | Clean spec: P72 exhaust processing
STR2-BF-10-30-P73 Bore: 10 mm | Stroke: 30 mm | Port: M5 | Clean spec: P73 vacuum suction
STR2-BF-10-40-P72 Bore: 10 mm | Stroke: 40 mm | Port: M5 | Clean spec: P72 exhaust processing
STR2-BF-10-40-P73 Bore: 10 mm | Stroke: 40 mm | Port: M5 | Clean spec: P73 vacuum suction
STR2-BF-10-50-P72 Bore: 10 mm | Stroke: 50 mm | Port: M5 | Clean spec: P72 exhaust processing
STR2-BF-10-50-P73 Bore: 10 mm | Stroke: 50 mm | Port: M5 | Clean spec: P73 vacuum suction
STR2-BF-16-10-P72 Bore: 16 mm | Stroke: 10 mm | Port: M5 | Clean spec: P72 exhaust processing
STR2-BF-16-10-P73 Bore: 16 mm | Stroke: 10 mm | Port: M5 | Clean spec: P73 vacuum suction
STR2-BF-16-20-P72 Bore: 16 mm | Stroke: 20 mm | Port: M5 | Clean spec: P72 exhaust processing
STR2-BF-16-20-P73 Bore: 16 mm | Stroke: 20 mm | Port: M5 | Clean spec: P73 vacuum suction
STR2-BF-16-30-P72 Bore: 16 mm | Stroke: 30 mm | Port: M5 | Clean spec: P72 exhaust processing
STR2-BF-16-30-P73 Bore: 16 mm | Stroke: 30 mm | Port: M5 | Clean spec: P73 vacuum suction
STR2-BF-16-40-P72 Bore: 16 mm | Stroke: 40 mm | Port: M5 | Clean spec: P72 exhaust processing
STR2-BF-16-40-P73 Bore: 16 mm | Stroke: 40 mm | Port: M5 | Clean spec: P73 vacuum suction
STR2-BF-16-50-P72 Bore: 16 mm | Stroke: 50 mm | Port: M5 | Clean spec: P72 exhaust processing
STR2-BF-16-50-P73 Bore: 16 mm | Stroke: 50 mm | Port: M5 | Clean spec: P73 vacuum suction
STR2-BF-16-60-P72 Bore: 16 mm | Stroke: 60 mm | Port: M5 | Clean spec: P72 exhaust processing
STR2-BF-16-60-P73 Bore: 16 mm | Stroke: 60 mm | Port: M5 | Clean spec: P73 vacuum suction
STR2-BF-16-70-P72 Bore: 16 mm | Stroke: 70 mm | Port: M5 | Clean spec: P72 exhaust processing
STR2-BF-16-70-P73 Bore: 16 mm | Stroke: 70 mm | Port: M5 | Clean spec: P73 vacuum suction
STR2-BF-16-80-P72 Bore: 16 mm | Stroke: 80 mm | Port: M5 | Clean spec: P72 exhaust processing
STR2-BF-16-80-P73 Bore: 16 mm | Stroke: 80 mm | Port: M5 | Clean spec: P73 vacuum suction
STR2-BF-16-90-P72 Bore: 16 mm | Stroke: 90 mm | Port: M5 | Clean spec: P72 exhaust processing
STR2-BF-16-90-P73 Bore: 16 mm | Stroke: 90 mm | Port: M5 | Clean spec: P73 vacuum suction
STR2-BF-16-100-P72 Bore: 16 mm | Stroke: 100 mm | Port: M5 | Clean spec: P72 exhaust processing
STR2-BF-16-100-P73 Bore: 16 mm | Stroke: 100 mm | Port: M5 | Clean spec: P73 vacuum suction
STR2-BF-20-10-P72 Bore: 20 mm | Stroke: 10 mm | Port: M5 | Clean spec: P72 exhaust processing
STR2-BF-20-10-P73 Bore: 20 mm | Stroke: 10 mm | Port: M5 | Clean spec: P73 vacuum suction
STR2-BF-20-20-P72 Bore: 20 mm | Stroke: 20 mm | Port: M5 | Clean spec: P72 exhaust processing
STR2-BF-20-20-P73 Bore: 20 mm | Stroke: 20 mm | Port: M5 | Clean spec: P73 vacuum suction
STR2-BF-20-30-P72 Bore: 20 mm | Stroke: 30 mm | Port: M5 | Clean spec: P72 exhaust processing
STR2-BF-20-30-P73 Bore: 20 mm | Stroke: 30 mm | Port: M5 | Clean spec: P73 vacuum suction
STR2-BF-20-40-P72 Bore: 20 mm | Stroke: 40 mm | Port: M5 | Clean spec: P72 exhaust processing
STR2-BF-20-40-P73 Bore: 20 mm | Stroke: 40 mm | Port: M5 | Clean spec: P73 vacuum suction
STR2-BF-20-50-P72 Bore: 20 mm | Stroke: 50 mm | Port: M5 | Clean spec: P72 exhaust processing
STR2-BF-20-50-P73 Bore: 20 mm | Stroke: 50 mm | Port: M5 | Clean spec: P73 vacuum suction
STR2-BF-20-60-P72 Bore: 20 mm | Stroke: 60 mm | Port: M5 | Clean spec: P72 exhaust processing
STR2-BF-20-60-P73 Bore: 20 mm | Stroke: 60 mm | Port: M5 | Clean spec: P73 vacuum suction
STR2-BF-20-70-P72 Bore: 20 mm | Stroke: 70 mm | Port: M5 | Clean spec: P72 exhaust processing
STR2-BF-20-70-P73 Bore: 20 mm | Stroke: 70 mm | Port: M5 | Clean spec: P73 vacuum suction
STR2-BF-20-80-P72 Bore: 20 mm | Stroke: 80 mm | Port: M5 | Clean spec: P72 exhaust processing
STR2-BF-20-80-P73 Bore: 20 mm | Stroke: 80 mm | Port: M5 | Clean spec: P73 vacuum suction
STR2-BF-20-90-P72 Bore: 20 mm | Stroke: 90 mm | Port: M5 | Clean spec: P72 exhaust processing
STR2-BF-20-90-P73 Bore: 20 mm | Stroke: 90 mm | Port: M5 | Clean spec: P73 vacuum suction
STR2-BF-20-100-P72 Bore: 20 mm | Stroke: 100 mm | Port: M5 | Clean spec: P72 exhaust processing
STR2-BF-20-100-P73 Bore: 20 mm | Stroke: 100 mm | Port: M5 | Clean spec: P73 vacuum suction
STR2-BF-25-10-P72 Bore: 25 mm | Stroke: 10 mm | Port: M5 | Clean spec: P72 exhaust processing
STR2-BF-25-10-P73 Bore: 25 mm | Stroke: 10 mm | Port: M5 | Clean spec: P73 vacuum suction
STR2-BF-25-20-P72 Bore: 25 mm | Stroke: 20 mm | Port: M5 | Clean spec: P72 exhaust processing
STR2-BF-25-20-P73 Bore: 25 mm | Stroke: 20 mm | Port: M5 | Clean spec: P73 vacuum suction
STR2-BF-25-30-P72 Bore: 25 mm | Stroke: 30 mm | Port: M5 | Clean spec: P72 exhaust processing
STR2-BF-25-30-P73 Bore: 25 mm | Stroke: 30 mm | Port: M5 | Clean spec: P73 vacuum suction
STR2-BF-25-40-P72 Bore: 25 mm | Stroke: 40 mm | Port: M5 | Clean spec: P72 exhaust processing
STR2-BF-25-40-P73 Bore: 25 mm | Stroke: 40 mm | Port: M5 | Clean spec: P73 vacuum suction
STR2-BF-25-50-P72 Bore: 25 mm | Stroke: 50 mm | Port: M5 | Clean spec: P72 exhaust processing
STR2-BF-25-50-P73 Bore: 25 mm | Stroke: 50 mm | Port: M5 | Clean spec: P73 vacuum suction
STR2-BF-25-60-P72 Bore: 25 mm | Stroke: 60 mm | Port: M5 | Clean spec: P72 exhaust processing
STR2-BF-25-60-P73 Bore: 25 mm | Stroke: 60 mm | Port: M5 | Clean spec: P73 vacuum suction
STR2-BF-25-70-P72 Bore: 25 mm | Stroke: 70 mm | Port: M5 | Clean spec: P72 exhaust processing
STR2-BF-25-70-P73 Bore: 25 mm | Stroke: 70 mm | Port: M5 | Clean spec: P73 vacuum suction
STR2-BF-25-80-P72 Bore: 25 mm | Stroke: 80 mm | Port: M5 | Clean spec: P72 exhaust processing
STR2-BF-25-80-P73 Bore: 25 mm | Stroke: 80 mm | Port: M5 | Clean spec: P73 vacuum suction
STR2-BF-25-90-P72 Bore: 25 mm | Stroke: 90 mm | Port: M5 | Clean spec: P72 exhaust processing
STR2-BF-25-90-P73 Bore: 25 mm | Stroke: 90 mm | Port: M5 | Clean spec: P73 vacuum suction
STR2-BF-25-100-P72 Bore: 25 mm | Stroke: 100 mm | Port: M5 | Clean spec: P72 exhaust processing
STR2-BF-25-100-P73 Bore: 25 mm | Stroke: 100 mm | Port: M5 | Clean spec: P73 vacuum suction
STR2-BF-32-10-P72 Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8 | Clean spec: P72 exhaust processing
STR2-BF-32-10-P73 Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STR2-BF-32-20-P72 Bore: 32 mm | Stroke: 20 mm | Port: Rc1/8 | Clean spec: P72 exhaust processing
STR2-BF-32-20-P73 Bore: 32 mm | Stroke: 20 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STR2-BF-32-30-P72 Bore: 32 mm | Stroke: 30 mm | Port: Rc1/8 | Clean spec: P72 exhaust processing
STR2-BF-32-30-P73 Bore: 32 mm | Stroke: 30 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STR2-BF-32-40-P72 Bore: 32 mm | Stroke: 40 mm | Port: Rc1/8 | Clean spec: P72 exhaust processing
STR2-BF-32-40-P73 Bore: 32 mm | Stroke: 40 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STR2-BF-32-50-P72 Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8 | Clean spec: P72 exhaust processing
STR2-BF-32-50-P73 Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STR2-BF-32-60-P72 Bore: 32 mm | Stroke: 60 mm | Port: Rc1/8 | Clean spec: P72 exhaust processing
STR2-BF-32-60-P73 Bore: 32 mm | Stroke: 60 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STR2-BF-32-70-P72 Bore: 32 mm | Stroke: 70 mm | Port: Rc1/8 | Clean spec: P72 exhaust processing
STR2-BF-32-70-P73 Bore: 32 mm | Stroke: 70 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STR2-BF-32-80-P72 Bore: 32 mm | Stroke: 80 mm | Port: Rc1/8 | Clean spec: P72 exhaust processing
STR2-BF-32-80-P73 Bore: 32 mm | Stroke: 80 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STR2-BF-32-90-P72 Bore: 32 mm | Stroke: 90 mm | Port: Rc1/8 | Clean spec: P72 exhaust processing
STR2-BF-32-90-P73 Bore: 32 mm | Stroke: 90 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
STR2-BF-32-100-P72 Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8 | Clean spec: P72 exhaust processing
STR2-BF-32-100-P73 Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8 | Clean spec: P73 vacuum suction
