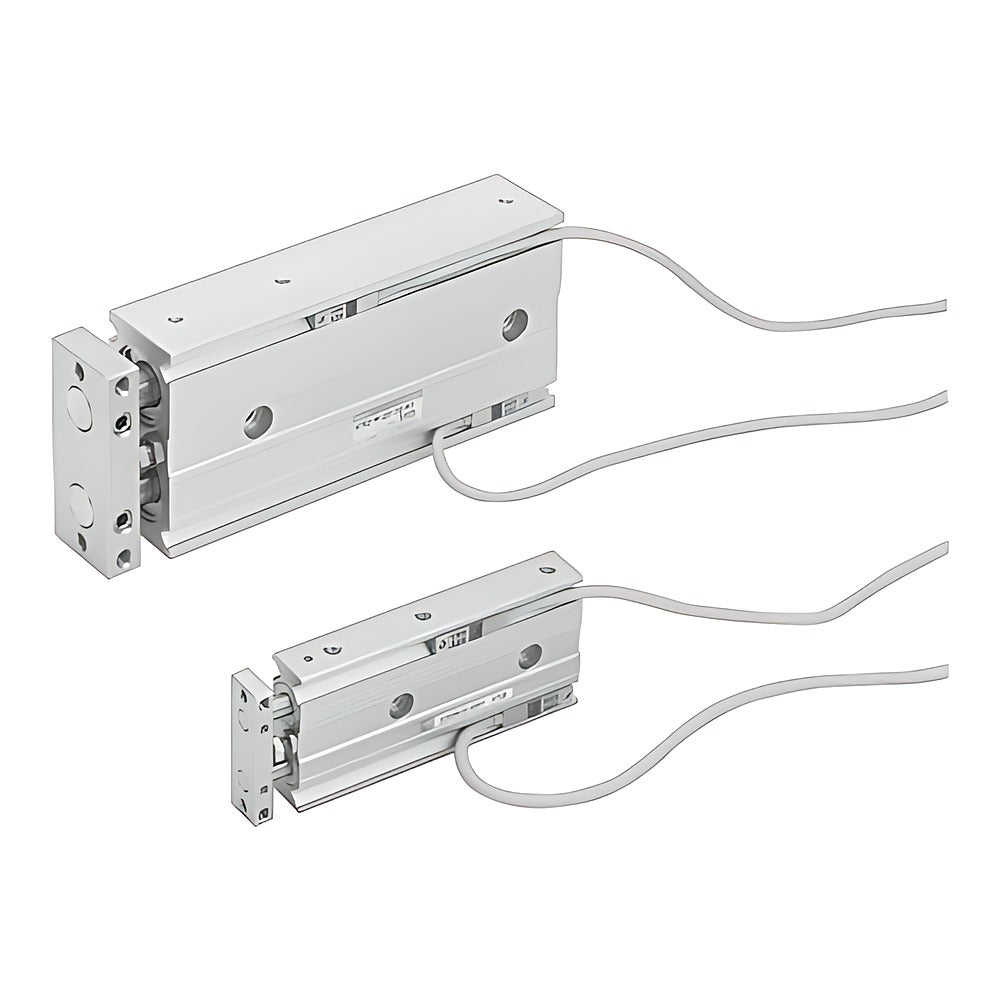

CKD STR2-M/B-P4/P40-HP1 Super Twin Rod Cylinder (Battery)

CKD STR2-M/B-P4/P40-HP1 super twin rod cylinder with slide or ball bearing, bore ø6 to ø32, for secondary-battery lines.

Key features

Secondary-battery (P4 series) material restrictions: copper, zinc and nickel based materials and Zn/electroless Ni plating limited
Ultra-low dew point grease: long life even at -70°C dew point, durability 10 million cycles or more (CKD conditions)
Twin rods for non-rotation; stroke adjustment 0 to -5 mm
Slide bearing M listed as P40 (catalog note: M in HP1 already meets P4), ball bearing B as P4/P40
Options O (port position 180°) and R (rear piping, max. stroke 50-70 mm by bore)
Switch magnet built in; reed switches not usable on STR2-B-6/10

Specifications

Specification	Secondary-battery P4/P40, long-life HP1
Action	Double acting
Max. operating pressure	0.7 MPa
Port size	M5 / Rc1/8
Cushion	Rubber cushion
Source	CKD Korea catalog CC-1421KR-7, p. 218-219

STR2-M-6-10-P40-HP1		Bearing: Slide bearing \| Bore: 6 mm \| Stroke: 10 mm \| Piping: Standard \| Version: P40
STR2-M-6-10-OP40-HP1		Bearing: Slide bearing \| Bore: 6 mm \| Stroke: 10 mm \| Piping: Port 180° changed \| Version: P40
STR2-M-6-10-RP40-HP1		Bearing: Slide bearing \| Bore: 6 mm \| Stroke: 10 mm \| Piping: Rear piping \| Version: P40
STR2-M-6-20-P40-HP1		Bearing: Slide bearing \| Bore: 6 mm \| Stroke: 20 mm \| Piping: Standard \| Version: P40
STR2-M-6-20-OP40-HP1		Bearing: Slide bearing \| Bore: 6 mm \| Stroke: 20 mm \| Piping: Port 180° changed \| Version: P40
STR2-M-6-20-RP40-HP1		Bearing: Slide bearing \| Bore: 6 mm \| Stroke: 20 mm \| Piping: Rear piping \| Version: P40
STR2-M-6-30-P40-HP1		Bearing: Slide bearing \| Bore: 6 mm \| Stroke: 30 mm \| Piping: Standard \| Version: P40
STR2-M-6-30-OP40-HP1		Bearing: Slide bearing \| Bore: 6 mm \| Stroke: 30 mm \| Piping: Port 180° changed \| Version: P40
STR2-M-6-30-RP40-HP1		Bearing: Slide bearing \| Bore: 6 mm \| Stroke: 30 mm \| Piping: Rear piping \| Version: P40
STR2-M-6-40-P40-HP1		Bearing: Slide bearing \| Bore: 6 mm \| Stroke: 40 mm \| Piping: Standard \| Version: P40
STR2-M-6-40-OP40-HP1		Bearing: Slide bearing \| Bore: 6 mm \| Stroke: 40 mm \| Piping: Port 180° changed \| Version: P40
STR2-M-6-40-RP40-HP1		Bearing: Slide bearing \| Bore: 6 mm \| Stroke: 40 mm \| Piping: Rear piping \| Version: P40
STR2-M-6-50-P40-HP1		Bearing: Slide bearing \| Bore: 6 mm \| Stroke: 50 mm \| Piping: Standard \| Version: P40
STR2-M-6-50-OP40-HP1		Bearing: Slide bearing \| Bore: 6 mm \| Stroke: 50 mm \| Piping: Port 180° changed \| Version: P40
STR2-M-6-50-RP40-HP1		Bearing: Slide bearing \| Bore: 6 mm \| Stroke: 50 mm \| Piping: Rear piping \| Version: P40
STR2-M-10-10-P40-HP1		Bearing: Slide bearing \| Bore: 10 mm \| Stroke: 10 mm \| Piping: Standard \| Version: P40
STR2-M-10-10-OP40-HP1		Bearing: Slide bearing \| Bore: 10 mm \| Stroke: 10 mm \| Piping: Port 180° changed \| Version: P40
STR2-M-10-10-RP40-HP1		Bearing: Slide bearing \| Bore: 10 mm \| Stroke: 10 mm \| Piping: Rear piping \| Version: P40
STR2-M-10-20-P40-HP1		Bearing: Slide bearing \| Bore: 10 mm \| Stroke: 20 mm \| Piping: Standard \| Version: P40
STR2-M-10-20-OP40-HP1		Bearing: Slide bearing \| Bore: 10 mm \| Stroke: 20 mm \| Piping: Port 180° changed \| Version: P40
STR2-M-10-20-RP40-HP1		Bearing: Slide bearing \| Bore: 10 mm \| Stroke: 20 mm \| Piping: Rear piping \| Version: P40
STR2-M-10-30-P40-HP1		Bearing: Slide bearing \| Bore: 10 mm \| Stroke: 30 mm \| Piping: Standard \| Version: P40
STR2-M-10-30-OP40-HP1		Bearing: Slide bearing \| Bore: 10 mm \| Stroke: 30 mm \| Piping: Port 180° changed \| Version: P40
STR2-M-10-30-RP40-HP1		Bearing: Slide bearing \| Bore: 10 mm \| Stroke: 30 mm \| Piping: Rear piping \| Version: P40
STR2-M-10-40-P40-HP1		Bearing: Slide bearing \| Bore: 10 mm \| Stroke: 40 mm \| Piping: Standard \| Version: P40
STR2-M-10-40-OP40-HP1		Bearing: Slide bearing \| Bore: 10 mm \| Stroke: 40 mm \| Piping: Port 180° changed \| Version: P40
STR2-M-10-40-RP40-HP1		Bearing: Slide bearing \| Bore: 10 mm \| Stroke: 40 mm \| Piping: Rear piping \| Version: P40
STR2-M-10-50-P40-HP1		Bearing: Slide bearing \| Bore: 10 mm \| Stroke: 50 mm \| Piping: Standard \| Version: P40
STR2-M-10-50-OP40-HP1		Bearing: Slide bearing \| Bore: 10 mm \| Stroke: 50 mm \| Piping: Port 180° changed \| Version: P40
STR2-M-10-50-RP40-HP1		Bearing: Slide bearing \| Bore: 10 mm \| Stroke: 50 mm \| Piping: Rear piping \| Version: P40
STR2-M-16-10-P40-HP1		Bearing: Slide bearing \| Bore: 16 mm \| Stroke: 10 mm \| Piping: Standard \| Version: P40
STR2-M-16-10-OP40-HP1		Bearing: Slide bearing \| Bore: 16 mm \| Stroke: 10 mm \| Piping: Port 180° changed \| Version: P40
STR2-M-16-10-RP40-HP1		Bearing: Slide bearing \| Bore: 16 mm \| Stroke: 10 mm \| Piping: Rear piping \| Version: P40
STR2-M-16-20-P40-HP1		Bearing: Slide bearing \| Bore: 16 mm \| Stroke: 20 mm \| Piping: Standard \| Version: P40
STR2-M-16-20-OP40-HP1		Bearing: Slide bearing \| Bore: 16 mm \| Stroke: 20 mm \| Piping: Port 180° changed \| Version: P40
STR2-M-16-20-RP40-HP1		Bearing: Slide bearing \| Bore: 16 mm \| Stroke: 20 mm \| Piping: Rear piping \| Version: P40
STR2-M-16-30-P40-HP1		Bearing: Slide bearing \| Bore: 16 mm \| Stroke: 30 mm \| Piping: Standard \| Version: P40
STR2-M-16-30-OP40-HP1		Bearing: Slide bearing \| Bore: 16 mm \| Stroke: 30 mm \| Piping: Port 180° changed \| Version: P40
STR2-M-16-30-RP40-HP1		Bearing: Slide bearing \| Bore: 16 mm \| Stroke: 30 mm \| Piping: Rear piping \| Version: P40
STR2-M-16-40-P40-HP1		Bearing: Slide bearing \| Bore: 16 mm \| Stroke: 40 mm \| Piping: Standard \| Version: P40
STR2-M-16-40-OP40-HP1		Bearing: Slide bearing \| Bore: 16 mm \| Stroke: 40 mm \| Piping: Port 180° changed \| Version: P40
STR2-M-16-40-RP40-HP1		Bearing: Slide bearing \| Bore: 16 mm \| Stroke: 40 mm \| Piping: Rear piping \| Version: P40
STR2-M-16-50-P40-HP1		Bearing: Slide bearing \| Bore: 16 mm \| Stroke: 50 mm \| Piping: Standard \| Version: P40
STR2-M-16-50-OP40-HP1		Bearing: Slide bearing \| Bore: 16 mm \| Stroke: 50 mm \| Piping: Port 180° changed \| Version: P40
STR2-M-16-50-RP40-HP1		Bearing: Slide bearing \| Bore: 16 mm \| Stroke: 50 mm \| Piping: Rear piping \| Version: P40
STR2-M-16-60-P40-HP1		Bearing: Slide bearing \| Bore: 16 mm \| Stroke: 60 mm \| Piping: Standard \| Version: P40
STR2-M-16-60-OP40-HP1		Bearing: Slide bearing \| Bore: 16 mm \| Stroke: 60 mm \| Piping: Port 180° changed \| Version: P40
STR2-M-16-60-RP40-HP1		Bearing: Slide bearing \| Bore: 16 mm \| Stroke: 60 mm \| Piping: Rear piping \| Version: P40
STR2-M-16-70-P40-HP1		Bearing: Slide bearing \| Bore: 16 mm \| Stroke: 70 mm \| Piping: Standard \| Version: P40
STR2-M-16-70-OP40-HP1		Bearing: Slide bearing \| Bore: 16 mm \| Stroke: 70 mm \| Piping: Port 180° changed \| Version: P40
STR2-M-16-70-RP40-HP1		Bearing: Slide bearing \| Bore: 16 mm \| Stroke: 70 mm \| Piping: Rear piping \| Version: P40
STR2-M-16-80-P40-HP1		Bearing: Slide bearing \| Bore: 16 mm \| Stroke: 80 mm \| Piping: Standard \| Version: P40
STR2-M-16-80-OP40-HP1		Bearing: Slide bearing \| Bore: 16 mm \| Stroke: 80 mm \| Piping: Port 180° changed \| Version: P40
STR2-M-16-90-P40-HP1		Bearing: Slide bearing \| Bore: 16 mm \| Stroke: 90 mm \| Piping: Standard \| Version: P40
STR2-M-16-90-OP40-HP1		Bearing: Slide bearing \| Bore: 16 mm \| Stroke: 90 mm \| Piping: Port 180° changed \| Version: P40
STR2-M-16-100-P40-HP1		Bearing: Slide bearing \| Bore: 16 mm \| Stroke: 100 mm \| Piping: Standard \| Version: P40
STR2-M-16-100-OP40-HP1		Bearing: Slide bearing \| Bore: 16 mm \| Stroke: 100 mm \| Piping: Port 180° changed \| Version: P40
STR2-M-20-10-P40-HP1		Bearing: Slide bearing \| Bore: 20 mm \| Stroke: 10 mm \| Piping: Standard \| Version: P40
STR2-M-20-10-OP40-HP1		Bearing: Slide bearing \| Bore: 20 mm \| Stroke: 10 mm \| Piping: Port 180° changed \| Version: P40
STR2-M-20-10-RP40-HP1		Bearing: Slide bearing \| Bore: 20 mm \| Stroke: 10 mm \| Piping: Rear piping \| Version: P40
STR2-M-20-20-P40-HP1		Bearing: Slide bearing \| Bore: 20 mm \| Stroke: 20 mm \| Piping: Standard \| Version: P40
STR2-M-20-20-OP40-HP1		Bearing: Slide bearing \| Bore: 20 mm \| Stroke: 20 mm \| Piping: Port 180° changed \| Version: P40
STR2-M-20-20-RP40-HP1		Bearing: Slide bearing \| Bore: 20 mm \| Stroke: 20 mm \| Piping: Rear piping \| Version: P40
STR2-M-20-30-P40-HP1		Bearing: Slide bearing \| Bore: 20 mm \| Stroke: 30 mm \| Piping: Standard \| Version: P40
STR2-M-20-30-OP40-HP1		Bearing: Slide bearing \| Bore: 20 mm \| Stroke: 30 mm \| Piping: Port 180° changed \| Version: P40
STR2-M-20-30-RP40-HP1		Bearing: Slide bearing \| Bore: 20 mm \| Stroke: 30 mm \| Piping: Rear piping \| Version: P40
STR2-M-20-40-P40-HP1		Bearing: Slide bearing \| Bore: 20 mm \| Stroke: 40 mm \| Piping: Standard \| Version: P40
STR2-M-20-40-OP40-HP1		Bearing: Slide bearing \| Bore: 20 mm \| Stroke: 40 mm \| Piping: Port 180° changed \| Version: P40
STR2-M-20-40-RP40-HP1		Bearing: Slide bearing \| Bore: 20 mm \| Stroke: 40 mm \| Piping: Rear piping \| Version: P40
STR2-M-20-50-P40-HP1		Bearing: Slide bearing \| Bore: 20 mm \| Stroke: 50 mm \| Piping: Standard \| Version: P40
STR2-M-20-50-OP40-HP1		Bearing: Slide bearing \| Bore: 20 mm \| Stroke: 50 mm \| Piping: Port 180° changed \| Version: P40
STR2-M-20-50-RP40-HP1		Bearing: Slide bearing \| Bore: 20 mm \| Stroke: 50 mm \| Piping: Rear piping \| Version: P40
STR2-M-20-60-P40-HP1		Bearing: Slide bearing \| Bore: 20 mm \| Stroke: 60 mm \| Piping: Standard \| Version: P40
STR2-M-20-60-OP40-HP1		Bearing: Slide bearing \| Bore: 20 mm \| Stroke: 60 mm \| Piping: Port 180° changed \| Version: P40
STR2-M-20-60-RP40-HP1		Bearing: Slide bearing \| Bore: 20 mm \| Stroke: 60 mm \| Piping: Rear piping \| Version: P40
STR2-M-20-70-P40-HP1		Bearing: Slide bearing \| Bore: 20 mm \| Stroke: 70 mm \| Piping: Standard \| Version: P40
STR2-M-20-70-OP40-HP1		Bearing: Slide bearing \| Bore: 20 mm \| Stroke: 70 mm \| Piping: Port 180° changed \| Version: P40
STR2-M-20-80-P40-HP1		Bearing: Slide bearing \| Bore: 20 mm \| Stroke: 80 mm \| Piping: Standard \| Version: P40
STR2-M-20-80-OP40-HP1		Bearing: Slide bearing \| Bore: 20 mm \| Stroke: 80 mm \| Piping: Port 180° changed \| Version: P40
STR2-M-20-90-P40-HP1		Bearing: Slide bearing \| Bore: 20 mm \| Stroke: 90 mm \| Piping: Standard \| Version: P40
STR2-M-20-90-OP40-HP1		Bearing: Slide bearing \| Bore: 20 mm \| Stroke: 90 mm \| Piping: Port 180° changed \| Version: P40
STR2-M-20-100-P40-HP1		Bearing: Slide bearing \| Bore: 20 mm \| Stroke: 100 mm \| Piping: Standard \| Version: P40
STR2-M-20-100-OP40-HP1		Bearing: Slide bearing \| Bore: 20 mm \| Stroke: 100 mm \| Piping: Port 180° changed \| Version: P40
STR2-M-25-10-P40-HP1		Bearing: Slide bearing \| Bore: 25 mm \| Stroke: 10 mm \| Piping: Standard \| Version: P40
STR2-M-25-10-OP40-HP1		Bearing: Slide bearing \| Bore: 25 mm \| Stroke: 10 mm \| Piping: Port 180° changed \| Version: P40
STR2-M-25-10-RP40-HP1		Bearing: Slide bearing \| Bore: 25 mm \| Stroke: 10 mm \| Piping: Rear piping \| Version: P40
STR2-M-25-20-P40-HP1		Bearing: Slide bearing \| Bore: 25 mm \| Stroke: 20 mm \| Piping: Standard \| Version: P40
STR2-M-25-20-OP40-HP1		Bearing: Slide bearing \| Bore: 25 mm \| Stroke: 20 mm \| Piping: Port 180° changed \| Version: P40
STR2-M-25-20-RP40-HP1		Bearing: Slide bearing \| Bore: 25 mm \| Stroke: 20 mm \| Piping: Rear piping \| Version: P40
STR2-M-25-30-P40-HP1		Bearing: Slide bearing \| Bore: 25 mm \| Stroke: 30 mm \| Piping: Standard \| Version: P40
STR2-M-25-30-OP40-HP1		Bearing: Slide bearing \| Bore: 25 mm \| Stroke: 30 mm \| Piping: Port 180° changed \| Version: P40
STR2-M-25-30-RP40-HP1		Bearing: Slide bearing \| Bore: 25 mm \| Stroke: 30 mm \| Piping: Rear piping \| Version: P40
STR2-M-25-40-P40-HP1		Bearing: Slide bearing \| Bore: 25 mm \| Stroke: 40 mm \| Piping: Standard \| Version: P40
STR2-M-25-40-OP40-HP1		Bearing: Slide bearing \| Bore: 25 mm \| Stroke: 40 mm \| Piping: Port 180° changed \| Version: P40
STR2-M-25-40-RP40-HP1		Bearing: Slide bearing \| Bore: 25 mm \| Stroke: 40 mm \| Piping: Rear piping \| Version: P40
STR2-M-25-50-P40-HP1		Bearing: Slide bearing \| Bore: 25 mm \| Stroke: 50 mm \| Piping: Standard \| Version: P40
STR2-M-25-50-OP40-HP1		Bearing: Slide bearing \| Bore: 25 mm \| Stroke: 50 mm \| Piping: Port 180° changed \| Version: P40
STR2-M-25-50-RP40-HP1		Bearing: Slide bearing \| Bore: 25 mm \| Stroke: 50 mm \| Piping: Rear piping \| Version: P40
STR2-M-25-60-P40-HP1		Bearing: Slide bearing \| Bore: 25 mm \| Stroke: 60 mm \| Piping: Standard \| Version: P40
STR2-M-25-60-OP40-HP1		Bearing: Slide bearing \| Bore: 25 mm \| Stroke: 60 mm \| Piping: Port 180° changed \| Version: P40
STR2-M-25-60-RP40-HP1		Bearing: Slide bearing \| Bore: 25 mm \| Stroke: 60 mm \| Piping: Rear piping \| Version: P40
STR2-M-25-70-P40-HP1		Bearing: Slide bearing \| Bore: 25 mm \| Stroke: 70 mm \| Piping: Standard \| Version: P40
STR2-M-25-70-OP40-HP1		Bearing: Slide bearing \| Bore: 25 mm \| Stroke: 70 mm \| Piping: Port 180° changed \| Version: P40
STR2-M-25-80-P40-HP1		Bearing: Slide bearing \| Bore: 25 mm \| Stroke: 80 mm \| Piping: Standard \| Version: P40
STR2-M-25-80-OP40-HP1		Bearing: Slide bearing \| Bore: 25 mm \| Stroke: 80 mm \| Piping: Port 180° changed \| Version: P40
STR2-M-25-90-P40-HP1		Bearing: Slide bearing \| Bore: 25 mm \| Stroke: 90 mm \| Piping: Standard \| Version: P40
STR2-M-25-90-OP40-HP1		Bearing: Slide bearing \| Bore: 25 mm \| Stroke: 90 mm \| Piping: Port 180° changed \| Version: P40
STR2-M-25-100-P40-HP1		Bearing: Slide bearing \| Bore: 25 mm \| Stroke: 100 mm \| Piping: Standard \| Version: P40
STR2-M-25-100-OP40-HP1		Bearing: Slide bearing \| Bore: 25 mm \| Stroke: 100 mm \| Piping: Port 180° changed \| Version: P40
STR2-M-32-10-P40-HP1		Bearing: Slide bearing \| Bore: 32 mm \| Stroke: 10 mm \| Piping: Standard \| Version: P40
STR2-M-32-10-OP40-HP1		Bearing: Slide bearing \| Bore: 32 mm \| Stroke: 10 mm \| Piping: Port 180° changed \| Version: P40
STR2-M-32-10-RP40-HP1		Bearing: Slide bearing \| Bore: 32 mm \| Stroke: 10 mm \| Piping: Rear piping \| Version: P40
STR2-M-32-20-P40-HP1		Bearing: Slide bearing \| Bore: 32 mm \| Stroke: 20 mm \| Piping: Standard \| Version: P40
STR2-M-32-20-OP40-HP1		Bearing: Slide bearing \| Bore: 32 mm \| Stroke: 20 mm \| Piping: Port 180° changed \| Version: P40
STR2-M-32-20-RP40-HP1		Bearing: Slide bearing \| Bore: 32 mm \| Stroke: 20 mm \| Piping: Rear piping \| Version: P40
STR2-M-32-30-P40-HP1		Bearing: Slide bearing \| Bore: 32 mm \| Stroke: 30 mm \| Piping: Standard \| Version: P40
STR2-M-32-30-OP40-HP1		Bearing: Slide bearing \| Bore: 32 mm \| Stroke: 30 mm \| Piping: Port 180° changed \| Version: P40
STR2-M-32-30-RP40-HP1		Bearing: Slide bearing \| Bore: 32 mm \| Stroke: 30 mm \| Piping: Rear piping \| Version: P40
STR2-M-32-40-P40-HP1		Bearing: Slide bearing \| Bore: 32 mm \| Stroke: 40 mm \| Piping: Standard \| Version: P40
STR2-M-32-40-OP40-HP1		Bearing: Slide bearing \| Bore: 32 mm \| Stroke: 40 mm \| Piping: Port 180° changed \| Version: P40
STR2-M-32-40-RP40-HP1		Bearing: Slide bearing \| Bore: 32 mm \| Stroke: 40 mm \| Piping: Rear piping \| Version: P40
STR2-M-32-50-P40-HP1		Bearing: Slide bearing \| Bore: 32 mm \| Stroke: 50 mm \| Piping: Standard \| Version: P40
STR2-M-32-50-OP40-HP1		Bearing: Slide bearing \| Bore: 32 mm \| Stroke: 50 mm \| Piping: Port 180° changed \| Version: P40
STR2-M-32-50-RP40-HP1		Bearing: Slide bearing \| Bore: 32 mm \| Stroke: 50 mm \| Piping: Rear piping \| Version: P40
STR2-M-32-60-P40-HP1		Bearing: Slide bearing \| Bore: 32 mm \| Stroke: 60 mm \| Piping: Standard \| Version: P40
STR2-M-32-60-OP40-HP1		Bearing: Slide bearing \| Bore: 32 mm \| Stroke: 60 mm \| Piping: Port 180° changed \| Version: P40
STR2-M-32-70-P40-HP1		Bearing: Slide bearing \| Bore: 32 mm \| Stroke: 70 mm \| Piping: Standard \| Version: P40
STR2-M-32-70-OP40-HP1		Bearing: Slide bearing \| Bore: 32 mm \| Stroke: 70 mm \| Piping: Port 180° changed \| Version: P40
STR2-M-32-80-P40-HP1		Bearing: Slide bearing \| Bore: 32 mm \| Stroke: 80 mm \| Piping: Standard \| Version: P40
STR2-M-32-80-OP40-HP1		Bearing: Slide bearing \| Bore: 32 mm \| Stroke: 80 mm \| Piping: Port 180° changed \| Version: P40
STR2-M-32-90-P40-HP1		Bearing: Slide bearing \| Bore: 32 mm \| Stroke: 90 mm \| Piping: Standard \| Version: P40
STR2-M-32-90-OP40-HP1		Bearing: Slide bearing \| Bore: 32 mm \| Stroke: 90 mm \| Piping: Port 180° changed \| Version: P40
STR2-M-32-100-P40-HP1		Bearing: Slide bearing \| Bore: 32 mm \| Stroke: 100 mm \| Piping: Standard \| Version: P40
STR2-M-32-100-OP40-HP1		Bearing: Slide bearing \| Bore: 32 mm \| Stroke: 100 mm \| Piping: Port 180° changed \| Version: P40
STR2-B-6-10-P4-HP1		Bearing: Ball bearing \| Bore: 6 mm \| Stroke: 10 mm \| Piping: Standard \| Version: P4
STR2-B-6-10-P40-HP1		Bearing: Ball bearing \| Bore: 6 mm \| Stroke: 10 mm \| Piping: Standard \| Version: P40
STR2-B-6-10-OP4-HP1		Bearing: Ball bearing \| Bore: 6 mm \| Stroke: 10 mm \| Piping: Port 180° changed \| Version: P4
STR2-B-6-10-OP40-HP1		Bearing: Ball bearing \| Bore: 6 mm \| Stroke: 10 mm \| Piping: Port 180° changed \| Version: P40
STR2-B-6-10-RP4-HP1		Bearing: Ball bearing \| Bore: 6 mm \| Stroke: 10 mm \| Piping: Rear piping \| Version: P4
STR2-B-6-10-RP40-HP1		Bearing: Ball bearing \| Bore: 6 mm \| Stroke: 10 mm \| Piping: Rear piping \| Version: P40
STR2-B-6-20-P4-HP1		Bearing: Ball bearing \| Bore: 6 mm \| Stroke: 20 mm \| Piping: Standard \| Version: P4
STR2-B-6-20-P40-HP1		Bearing: Ball bearing \| Bore: 6 mm \| Stroke: 20 mm \| Piping: Standard \| Version: P40
STR2-B-6-20-OP4-HP1		Bearing: Ball bearing \| Bore: 6 mm \| Stroke: 20 mm \| Piping: Port 180° changed \| Version: P4
STR2-B-6-20-OP40-HP1		Bearing: Ball bearing \| Bore: 6 mm \| Stroke: 20 mm \| Piping: Port 180° changed \| Version: P40
STR2-B-6-20-RP4-HP1		Bearing: Ball bearing \| Bore: 6 mm \| Stroke: 20 mm \| Piping: Rear piping \| Version: P4
STR2-B-6-20-RP40-HP1		Bearing: Ball bearing \| Bore: 6 mm \| Stroke: 20 mm \| Piping: Rear piping \| Version: P40
STR2-B-6-30-P4-HP1		Bearing: Ball bearing \| Bore: 6 mm \| Stroke: 30 mm \| Piping: Standard \| Version: P4
STR2-B-6-30-P40-HP1		Bearing: Ball bearing \| Bore: 6 mm \| Stroke: 30 mm \| Piping: Standard \| Version: P40
STR2-B-6-30-OP4-HP1		Bearing: Ball bearing \| Bore: 6 mm \| Stroke: 30 mm \| Piping: Port 180° changed \| Version: P4
STR2-B-6-30-OP40-HP1		Bearing: Ball bearing \| Bore: 6 mm \| Stroke: 30 mm \| Piping: Port 180° changed \| Version: P40
STR2-B-6-30-RP4-HP1		Bearing: Ball bearing \| Bore: 6 mm \| Stroke: 30 mm \| Piping: Rear piping \| Version: P4
STR2-B-6-30-RP40-HP1		Bearing: Ball bearing \| Bore: 6 mm \| Stroke: 30 mm \| Piping: Rear piping \| Version: P40
STR2-B-6-40-P4-HP1		Bearing: Ball bearing \| Bore: 6 mm \| Stroke: 40 mm \| Piping: Standard \| Version: P4
STR2-B-6-40-P40-HP1		Bearing: Ball bearing \| Bore: 6 mm \| Stroke: 40 mm \| Piping: Standard \| Version: P40
STR2-B-6-40-OP4-HP1		Bearing: Ball bearing \| Bore: 6 mm \| Stroke: 40 mm \| Piping: Port 180° changed \| Version: P4
STR2-B-6-40-OP40-HP1		Bearing: Ball bearing \| Bore: 6 mm \| Stroke: 40 mm \| Piping: Port 180° changed \| Version: P40
STR2-B-6-40-RP4-HP1		Bearing: Ball bearing \| Bore: 6 mm \| Stroke: 40 mm \| Piping: Rear piping \| Version: P4
STR2-B-6-40-RP40-HP1		Bearing: Ball bearing \| Bore: 6 mm \| Stroke: 40 mm \| Piping: Rear piping \| Version: P40
STR2-B-6-50-P4-HP1		Bearing: Ball bearing \| Bore: 6 mm \| Stroke: 50 mm \| Piping: Standard \| Version: P4
STR2-B-6-50-P40-HP1		Bearing: Ball bearing \| Bore: 6 mm \| Stroke: 50 mm \| Piping: Standard \| Version: P40
STR2-B-6-50-OP4-HP1		Bearing: Ball bearing \| Bore: 6 mm \| Stroke: 50 mm \| Piping: Port 180° changed \| Version: P4
STR2-B-6-50-OP40-HP1		Bearing: Ball bearing \| Bore: 6 mm \| Stroke: 50 mm \| Piping: Port 180° changed \| Version: P40
STR2-B-6-50-RP4-HP1		Bearing: Ball bearing \| Bore: 6 mm \| Stroke: 50 mm \| Piping: Rear piping \| Version: P4
STR2-B-6-50-RP40-HP1		Bearing: Ball bearing \| Bore: 6 mm \| Stroke: 50 mm \| Piping: Rear piping \| Version: P40
STR2-B-10-10-P4-HP1		Bearing: Ball bearing \| Bore: 10 mm \| Stroke: 10 mm \| Piping: Standard \| Version: P4
STR2-B-10-10-P40-HP1		Bearing: Ball bearing \| Bore: 10 mm \| Stroke: 10 mm \| Piping: Standard \| Version: P40
STR2-B-10-10-OP4-HP1		Bearing: Ball bearing \| Bore: 10 mm \| Stroke: 10 mm \| Piping: Port 180° changed \| Version: P4
STR2-B-10-10-OP40-HP1		Bearing: Ball bearing \| Bore: 10 mm \| Stroke: 10 mm \| Piping: Port 180° changed \| Version: P40
STR2-B-10-10-RP4-HP1		Bearing: Ball bearing \| Bore: 10 mm \| Stroke: 10 mm \| Piping: Rear piping \| Version: P4
STR2-B-10-10-RP40-HP1		Bearing: Ball bearing \| Bore: 10 mm \| Stroke: 10 mm \| Piping: Rear piping \| Version: P40
STR2-B-10-20-P4-HP1		Bearing: Ball bearing \| Bore: 10 mm \| Stroke: 20 mm \| Piping: Standard \| Version: P4
STR2-B-10-20-P40-HP1		Bearing: Ball bearing \| Bore: 10 mm \| Stroke: 20 mm \| Piping: Standard \| Version: P40
STR2-B-10-20-OP4-HP1		Bearing: Ball bearing \| Bore: 10 mm \| Stroke: 20 mm \| Piping: Port 180° changed \| Version: P4
STR2-B-10-20-OP40-HP1		Bearing: Ball bearing \| Bore: 10 mm \| Stroke: 20 mm \| Piping: Port 180° changed \| Version: P40
STR2-B-10-20-RP4-HP1		Bearing: Ball bearing \| Bore: 10 mm \| Stroke: 20 mm \| Piping: Rear piping \| Version: P4
STR2-B-10-20-RP40-HP1		Bearing: Ball bearing \| Bore: 10 mm \| Stroke: 20 mm \| Piping: Rear piping \| Version: P40
STR2-B-10-30-P4-HP1		Bearing: Ball bearing \| Bore: 10 mm \| Stroke: 30 mm \| Piping: Standard \| Version: P4
STR2-B-10-30-P40-HP1		Bearing: Ball bearing \| Bore: 10 mm \| Stroke: 30 mm \| Piping: Standard \| Version: P40
STR2-B-10-30-OP4-HP1		Bearing: Ball bearing \| Bore: 10 mm \| Stroke: 30 mm \| Piping: Port 180° changed \| Version: P4
STR2-B-10-30-OP40-HP1		Bearing: Ball bearing \| Bore: 10 mm \| Stroke: 30 mm \| Piping: Port 180° changed \| Version: P40
STR2-B-10-30-RP4-HP1		Bearing: Ball bearing \| Bore: 10 mm \| Stroke: 30 mm \| Piping: Rear piping \| Version: P4
STR2-B-10-30-RP40-HP1		Bearing: Ball bearing \| Bore: 10 mm \| Stroke: 30 mm \| Piping: Rear piping \| Version: P40
STR2-B-10-40-P4-HP1		Bearing: Ball bearing \| Bore: 10 mm \| Stroke: 40 mm \| Piping: Standard \| Version: P4
STR2-B-10-40-P40-HP1		Bearing: Ball bearing \| Bore: 10 mm \| Stroke: 40 mm \| Piping: Standard \| Version: P40
STR2-B-10-40-OP4-HP1		Bearing: Ball bearing \| Bore: 10 mm \| Stroke: 40 mm \| Piping: Port 180° changed \| Version: P4
STR2-B-10-40-OP40-HP1		Bearing: Ball bearing \| Bore: 10 mm \| Stroke: 40 mm \| Piping: Port 180° changed \| Version: P40
STR2-B-10-40-RP4-HP1		Bearing: Ball bearing \| Bore: 10 mm \| Stroke: 40 mm \| Piping: Rear piping \| Version: P4
STR2-B-10-40-RP40-HP1		Bearing: Ball bearing \| Bore: 10 mm \| Stroke: 40 mm \| Piping: Rear piping \| Version: P40
STR2-B-10-50-P4-HP1		Bearing: Ball bearing \| Bore: 10 mm \| Stroke: 50 mm \| Piping: Standard \| Version: P4
STR2-B-10-50-P40-HP1		Bearing: Ball bearing \| Bore: 10 mm \| Stroke: 50 mm \| Piping: Standard \| Version: P40
STR2-B-10-50-OP4-HP1		Bearing: Ball bearing \| Bore: 10 mm \| Stroke: 50 mm \| Piping: Port 180° changed \| Version: P4
STR2-B-10-50-OP40-HP1		Bearing: Ball bearing \| Bore: 10 mm \| Stroke: 50 mm \| Piping: Port 180° changed \| Version: P40
STR2-B-10-50-RP4-HP1		Bearing: Ball bearing \| Bore: 10 mm \| Stroke: 50 mm \| Piping: Rear piping \| Version: P4
STR2-B-10-50-RP40-HP1		Bearing: Ball bearing \| Bore: 10 mm \| Stroke: 50 mm \| Piping: Rear piping \| Version: P40
STR2-B-16-10-P4-HP1		Bearing: Ball bearing \| Bore: 16 mm \| Stroke: 10 mm \| Piping: Standard \| Version: P4
STR2-B-16-10-P40-HP1		Bearing: Ball bearing \| Bore: 16 mm \| Stroke: 10 mm \| Piping: Standard \| Version: P40
STR2-B-16-10-OP4-HP1		Bearing: Ball bearing \| Bore: 16 mm \| Stroke: 10 mm \| Piping: Port 180° changed \| Version: P4
STR2-B-16-10-OP40-HP1		Bearing: Ball bearing \| Bore: 16 mm \| Stroke: 10 mm \| Piping: Port 180° changed \| Version: P40
STR2-B-16-10-RP4-HP1		Bearing: Ball bearing \| Bore: 16 mm \| Stroke: 10 mm \| Piping: Rear piping \| Version: P4
STR2-B-16-10-RP40-HP1		Bearing: Ball bearing \| Bore: 16 mm \| Stroke: 10 mm \| Piping: Rear piping \| Version: P40
STR2-B-16-20-P4-HP1		Bearing: Ball bearing \| Bore: 16 mm \| Stroke: 20 mm \| Piping: Standard \| Version: P4
STR2-B-16-20-P40-HP1		Bearing: Ball bearing \| Bore: 16 mm \| Stroke: 20 mm \| Piping: Standard \| Version: P40
STR2-B-16-20-OP4-HP1		Bearing: Ball bearing \| Bore: 16 mm \| Stroke: 20 mm \| Piping: Port 180° changed \| Version: P4
STR2-B-16-20-OP40-HP1		Bearing: Ball bearing \| Bore: 16 mm \| Stroke: 20 mm \| Piping: Port 180° changed \| Version: P40
STR2-B-16-20-RP4-HP1		Bearing: Ball bearing \| Bore: 16 mm \| Stroke: 20 mm \| Piping: Rear piping \| Version: P4
STR2-B-16-20-RP40-HP1		Bearing: Ball bearing \| Bore: 16 mm \| Stroke: 20 mm \| Piping: Rear piping \| Version: P40
STR2-B-16-30-P4-HP1		Bearing: Ball bearing \| Bore: 16 mm \| Stroke: 30 mm \| Piping: Standard \| Version: P4
STR2-B-16-30-P40-HP1		Bearing: Ball bearing \| Bore: 16 mm \| Stroke: 30 mm \| Piping: Standard \| Version: P40
STR2-B-16-30-OP4-HP1		Bearing: Ball bearing \| Bore: 16 mm \| Stroke: 30 mm \| Piping: Port 180° changed \| Version: P4
STR2-B-16-30-OP40-HP1		Bearing: Ball bearing \| Bore: 16 mm \| Stroke: 30 mm \| Piping: Port 180° changed \| Version: P40
STR2-B-16-30-RP4-HP1		Bearing: Ball bearing \| Bore: 16 mm \| Stroke: 30 mm \| Piping: Rear piping \| Version: P4
STR2-B-16-30-RP40-HP1		Bearing: Ball bearing \| Bore: 16 mm \| Stroke: 30 mm \| Piping: Rear piping \| Version: P40
STR2-B-16-40-P4-HP1		Bearing: Ball bearing \| Bore: 16 mm \| Stroke: 40 mm \| Piping: Standard \| Version: P4
STR2-B-16-40-P40-HP1		Bearing: Ball bearing \| Bore: 16 mm \| Stroke: 40 mm \| Piping: Standard \| Version: P40
STR2-B-16-40-OP4-HP1		Bearing: Ball bearing \| Bore: 16 mm \| Stroke: 40 mm \| Piping: Port 180° changed \| Version: P4
STR2-B-16-40-OP40-HP1		Bearing: Ball bearing \| Bore: 16 mm \| Stroke: 40 mm \| Piping: Port 180° changed \| Version: P40
STR2-B-16-40-RP4-HP1		Bearing: Ball bearing \| Bore: 16 mm \| Stroke: 40 mm \| Piping: Rear piping \| Version: P4
STR2-B-16-40-RP40-HP1		Bearing: Ball bearing \| Bore: 16 mm \| Stroke: 40 mm \| Piping: Rear piping \| Version: P40
STR2-B-16-50-P4-HP1		Bearing: Ball bearing \| Bore: 16 mm \| Stroke: 50 mm \| Piping: Standard \| Version: P4
STR2-B-16-50-P40-HP1		Bearing: Ball bearing \| Bore: 16 mm \| Stroke: 50 mm \| Piping: Standard \| Version: P40
STR2-B-16-50-OP4-HP1		Bearing: Ball bearing \| Bore: 16 mm \| Stroke: 50 mm \| Piping: Port 180° changed \| Version: P4
STR2-B-16-50-OP40-HP1		Bearing: Ball bearing \| Bore: 16 mm \| Stroke: 50 mm \| Piping: Port 180° changed \| Version: P40
STR2-B-16-50-RP4-HP1		Bearing: Ball bearing \| Bore: 16 mm \| Stroke: 50 mm \| Piping: Rear piping \| Version: P4
STR2-B-16-50-RP40-HP1		Bearing: Ball bearing \| Bore: 16 mm \| Stroke: 50 mm \| Piping: Rear piping \| Version: P40
STR2-B-16-60-P4-HP1		Bearing: Ball bearing \| Bore: 16 mm \| Stroke: 60 mm \| Piping: Standard \| Version: P4
STR2-B-16-60-P40-HP1		Bearing: Ball bearing \| Bore: 16 mm \| Stroke: 60 mm \| Piping: Standard \| Version: P40
STR2-B-16-60-OP4-HP1		Bearing: Ball bearing \| Bore: 16 mm \| Stroke: 60 mm \| Piping: Port 180° changed \| Version: P4
STR2-B-16-60-OP40-HP1		Bearing: Ball bearing \| Bore: 16 mm \| Stroke: 60 mm \| Piping: Port 180° changed \| Version: P40
STR2-B-16-60-RP4-HP1		Bearing: Ball bearing \| Bore: 16 mm \| Stroke: 60 mm \| Piping: Rear piping \| Version: P4
STR2-B-16-60-RP40-HP1		Bearing: Ball bearing \| Bore: 16 mm \| Stroke: 60 mm \| Piping: Rear piping \| Version: P40
STR2-B-16-70-P4-HP1		Bearing: Ball bearing \| Bore: 16 mm \| Stroke: 70 mm \| Piping: Standard \| Version: P4
STR2-B-16-70-P40-HP1		Bearing: Ball bearing \| Bore: 16 mm \| Stroke: 70 mm \| Piping: Standard \| Version: P40
STR2-B-16-70-OP4-HP1		Bearing: Ball bearing \| Bore: 16 mm \| Stroke: 70 mm \| Piping: Port 180° changed \| Version: P4
STR2-B-16-70-OP40-HP1		Bearing: Ball bearing \| Bore: 16 mm \| Stroke: 70 mm \| Piping: Port 180° changed \| Version: P40
STR2-B-16-70-RP4-HP1		Bearing: Ball bearing \| Bore: 16 mm \| Stroke: 70 mm \| Piping: Rear piping \| Version: P4
STR2-B-16-70-RP40-HP1		Bearing: Ball bearing \| Bore: 16 mm \| Stroke: 70 mm \| Piping: Rear piping \| Version: P40
STR2-B-16-80-P4-HP1		Bearing: Ball bearing \| Bore: 16 mm \| Stroke: 80 mm \| Piping: Standard \| Version: P4
STR2-B-16-80-P40-HP1		Bearing: Ball bearing \| Bore: 16 mm \| Stroke: 80 mm \| Piping: Standard \| Version: P40
STR2-B-16-80-OP4-HP1		Bearing: Ball bearing \| Bore: 16 mm \| Stroke: 80 mm \| Piping: Port 180° changed \| Version: P4
STR2-B-16-80-OP40-HP1		Bearing: Ball bearing \| Bore: 16 mm \| Stroke: 80 mm \| Piping: Port 180° changed \| Version: P40
STR2-B-16-90-P4-HP1		Bearing: Ball bearing \| Bore: 16 mm \| Stroke: 90 mm \| Piping: Standard \| Version: P4
STR2-B-16-90-P40-HP1		Bearing: Ball bearing \| Bore: 16 mm \| Stroke: 90 mm \| Piping: Standard \| Version: P40
STR2-B-16-90-OP4-HP1		Bearing: Ball bearing \| Bore: 16 mm \| Stroke: 90 mm \| Piping: Port 180° changed \| Version: P4
STR2-B-16-90-OP40-HP1		Bearing: Ball bearing \| Bore: 16 mm \| Stroke: 90 mm \| Piping: Port 180° changed \| Version: P40
STR2-B-16-100-P4-HP1		Bearing: Ball bearing \| Bore: 16 mm \| Stroke: 100 mm \| Piping: Standard \| Version: P4
STR2-B-16-100-P40-HP1		Bearing: Ball bearing \| Bore: 16 mm \| Stroke: 100 mm \| Piping: Standard \| Version: P40
STR2-B-16-100-OP4-HP1		Bearing: Ball bearing \| Bore: 16 mm \| Stroke: 100 mm \| Piping: Port 180° changed \| Version: P4
STR2-B-16-100-OP40-HP1		Bearing: Ball bearing \| Bore: 16 mm \| Stroke: 100 mm \| Piping: Port 180° changed \| Version: P40
STR2-B-20-10-P4-HP1		Bearing: Ball bearing \| Bore: 20 mm \| Stroke: 10 mm \| Piping: Standard \| Version: P4
STR2-B-20-10-P40-HP1		Bearing: Ball bearing \| Bore: 20 mm \| Stroke: 10 mm \| Piping: Standard \| Version: P40
STR2-B-20-10-OP4-HP1		Bearing: Ball bearing \| Bore: 20 mm \| Stroke: 10 mm \| Piping: Port 180° changed \| Version: P4
STR2-B-20-10-OP40-HP1		Bearing: Ball bearing \| Bore: 20 mm \| Stroke: 10 mm \| Piping: Port 180° changed \| Version: P40
STR2-B-20-10-RP4-HP1		Bearing: Ball bearing \| Bore: 20 mm \| Stroke: 10 mm \| Piping: Rear piping \| Version: P4
STR2-B-20-10-RP40-HP1		Bearing: Ball bearing \| Bore: 20 mm \| Stroke: 10 mm \| Piping: Rear piping \| Version: P40
STR2-B-20-20-P4-HP1		Bearing: Ball bearing \| Bore: 20 mm \| Stroke: 20 mm \| Piping: Standard \| Version: P4
STR2-B-20-20-P40-HP1		Bearing: Ball bearing \| Bore: 20 mm \| Stroke: 20 mm \| Piping: Standard \| Version: P40
STR2-B-20-20-OP4-HP1		Bearing: Ball bearing \| Bore: 20 mm \| Stroke: 20 mm \| Piping: Port 180° changed \| Version: P4
STR2-B-20-20-OP40-HP1		Bearing: Ball bearing \| Bore: 20 mm \| Stroke: 20 mm \| Piping: Port 180° changed \| Version: P40
STR2-B-20-20-RP4-HP1		Bearing: Ball bearing \| Bore: 20 mm \| Stroke: 20 mm \| Piping: Rear piping \| Version: P4
STR2-B-20-20-RP40-HP1		Bearing: Ball bearing \| Bore: 20 mm \| Stroke: 20 mm \| Piping: Rear piping \| Version: P40
STR2-B-20-30-P4-HP1		Bearing: Ball bearing \| Bore: 20 mm \| Stroke: 30 mm \| Piping: Standard \| Version: P4
STR2-B-20-30-P40-HP1		Bearing: Ball bearing \| Bore: 20 mm \| Stroke: 30 mm \| Piping: Standard \| Version: P40
STR2-B-20-30-OP4-HP1		Bearing: Ball bearing \| Bore: 20 mm \| Stroke: 30 mm \| Piping: Port 180° changed \| Version: P4
STR2-B-20-30-OP40-HP1		Bearing: Ball bearing \| Bore: 20 mm \| Stroke: 30 mm \| Piping: Port 180° changed \| Version: P40
STR2-B-20-30-RP4-HP1		Bearing: Ball bearing \| Bore: 20 mm \| Stroke: 30 mm \| Piping: Rear piping \| Version: P4
STR2-B-20-30-RP40-HP1		Bearing: Ball bearing \| Bore: 20 mm \| Stroke: 30 mm \| Piping: Rear piping \| Version: P40
STR2-B-20-40-P4-HP1		Bearing: Ball bearing \| Bore: 20 mm \| Stroke: 40 mm \| Piping: Standard \| Version: P4
STR2-B-20-40-P40-HP1		Bearing: Ball bearing \| Bore: 20 mm \| Stroke: 40 mm \| Piping: Standard \| Version: P40
STR2-B-20-40-OP4-HP1		Bearing: Ball bearing \| Bore: 20 mm \| Stroke: 40 mm \| Piping: Port 180° changed \| Version: P4
STR2-B-20-40-OP40-HP1		Bearing: Ball bearing \| Bore: 20 mm \| Stroke: 40 mm \| Piping: Port 180° changed \| Version: P40
STR2-B-20-40-RP4-HP1		Bearing: Ball bearing \| Bore: 20 mm \| Stroke: 40 mm \| Piping: Rear piping \| Version: P4
STR2-B-20-40-RP40-HP1		Bearing: Ball bearing \| Bore: 20 mm \| Stroke: 40 mm \| Piping: Rear piping \| Version: P40
STR2-B-20-50-P4-HP1		Bearing: Ball bearing \| Bore: 20 mm \| Stroke: 50 mm \| Piping: Standard \| Version: P4
STR2-B-20-50-P40-HP1		Bearing: Ball bearing \| Bore: 20 mm \| Stroke: 50 mm \| Piping: Standard \| Version: P40
STR2-B-20-50-OP4-HP1		Bearing: Ball bearing \| Bore: 20 mm \| Stroke: 50 mm \| Piping: Port 180° changed \| Version: P4
STR2-B-20-50-OP40-HP1		Bearing: Ball bearing \| Bore: 20 mm \| Stroke: 50 mm \| Piping: Port 180° changed \| Version: P40
STR2-B-20-50-RP4-HP1		Bearing: Ball bearing \| Bore: 20 mm \| Stroke: 50 mm \| Piping: Rear piping \| Version: P4
STR2-B-20-50-RP40-HP1		Bearing: Ball bearing \| Bore: 20 mm \| Stroke: 50 mm \| Piping: Rear piping \| Version: P40
STR2-B-20-60-P4-HP1		Bearing: Ball bearing \| Bore: 20 mm \| Stroke: 60 mm \| Piping: Standard \| Version: P4
STR2-B-20-60-P40-HP1		Bearing: Ball bearing \| Bore: 20 mm \| Stroke: 60 mm \| Piping: Standard \| Version: P40
STR2-B-20-60-OP4-HP1		Bearing: Ball bearing \| Bore: 20 mm \| Stroke: 60 mm \| Piping: Port 180° changed \| Version: P4
STR2-B-20-60-OP40-HP1		Bearing: Ball bearing \| Bore: 20 mm \| Stroke: 60 mm \| Piping: Port 180° changed \| Version: P40
STR2-B-20-60-RP4-HP1		Bearing: Ball bearing \| Bore: 20 mm \| Stroke: 60 mm \| Piping: Rear piping \| Version: P4
STR2-B-20-60-RP40-HP1		Bearing: Ball bearing \| Bore: 20 mm \| Stroke: 60 mm \| Piping: Rear piping \| Version: P40
STR2-B-20-70-P4-HP1		Bearing: Ball bearing \| Bore: 20 mm \| Stroke: 70 mm \| Piping: Standard \| Version: P4
STR2-B-20-70-P40-HP1		Bearing: Ball bearing \| Bore: 20 mm \| Stroke: 70 mm \| Piping: Standard \| Version: P40
STR2-B-20-70-OP4-HP1		Bearing: Ball bearing \| Bore: 20 mm \| Stroke: 70 mm \| Piping: Port 180° changed \| Version: P4
STR2-B-20-70-OP40-HP1		Bearing: Ball bearing \| Bore: 20 mm \| Stroke: 70 mm \| Piping: Port 180° changed \| Version: P40
STR2-B-20-80-P4-HP1		Bearing: Ball bearing \| Bore: 20 mm \| Stroke: 80 mm \| Piping: Standard \| Version: P4
STR2-B-20-80-P40-HP1		Bearing: Ball bearing \| Bore: 20 mm \| Stroke: 80 mm \| Piping: Standard \| Version: P40
STR2-B-20-80-OP4-HP1		Bearing: Ball bearing \| Bore: 20 mm \| Stroke: 80 mm \| Piping: Port 180° changed \| Version: P4
STR2-B-20-80-OP40-HP1		Bearing: Ball bearing \| Bore: 20 mm \| Stroke: 80 mm \| Piping: Port 180° changed \| Version: P40
STR2-B-20-90-P4-HP1		Bearing: Ball bearing \| Bore: 20 mm \| Stroke: 90 mm \| Piping: Standard \| Version: P4
STR2-B-20-90-P40-HP1		Bearing: Ball bearing \| Bore: 20 mm \| Stroke: 90 mm \| Piping: Standard \| Version: P40
STR2-B-20-90-OP4-HP1		Bearing: Ball bearing \| Bore: 20 mm \| Stroke: 90 mm \| Piping: Port 180° changed \| Version: P4
STR2-B-20-90-OP40-HP1		Bearing: Ball bearing \| Bore: 20 mm \| Stroke: 90 mm \| Piping: Port 180° changed \| Version: P40
STR2-B-20-100-P4-HP1		Bearing: Ball bearing \| Bore: 20 mm \| Stroke: 100 mm \| Piping: Standard \| Version: P4
STR2-B-20-100-P40-HP1		Bearing: Ball bearing \| Bore: 20 mm \| Stroke: 100 mm \| Piping: Standard \| Version: P40
STR2-B-20-100-OP4-HP1		Bearing: Ball bearing \| Bore: 20 mm \| Stroke: 100 mm \| Piping: Port 180° changed \| Version: P4
STR2-B-20-100-OP40-HP1		Bearing: Ball bearing \| Bore: 20 mm \| Stroke: 100 mm \| Piping: Port 180° changed \| Version: P40
STR2-B-25-10-P4-HP1		Bearing: Ball bearing \| Bore: 25 mm \| Stroke: 10 mm \| Piping: Standard \| Version: P4
STR2-B-25-10-P40-HP1		Bearing: Ball bearing \| Bore: 25 mm \| Stroke: 10 mm \| Piping: Standard \| Version: P40
STR2-B-25-10-OP4-HP1		Bearing: Ball bearing \| Bore: 25 mm \| Stroke: 10 mm \| Piping: Port 180° changed \| Version: P4
STR2-B-25-10-OP40-HP1		Bearing: Ball bearing \| Bore: 25 mm \| Stroke: 10 mm \| Piping: Port 180° changed \| Version: P40
STR2-B-25-10-RP4-HP1		Bearing: Ball bearing \| Bore: 25 mm \| Stroke: 10 mm \| Piping: Rear piping \| Version: P4
STR2-B-25-10-RP40-HP1		Bearing: Ball bearing \| Bore: 25 mm \| Stroke: 10 mm \| Piping: Rear piping \| Version: P40
STR2-B-25-20-P4-HP1		Bearing: Ball bearing \| Bore: 25 mm \| Stroke: 20 mm \| Piping: Standard \| Version: P4
STR2-B-25-20-P40-HP1		Bearing: Ball bearing \| Bore: 25 mm \| Stroke: 20 mm \| Piping: Standard \| Version: P40
STR2-B-25-20-OP4-HP1		Bearing: Ball bearing \| Bore: 25 mm \| Stroke: 20 mm \| Piping: Port 180° changed \| Version: P4
STR2-B-25-20-OP40-HP1		Bearing: Ball bearing \| Bore: 25 mm \| Stroke: 20 mm \| Piping: Port 180° changed \| Version: P40
STR2-B-25-20-RP4-HP1		Bearing: Ball bearing \| Bore: 25 mm \| Stroke: 20 mm \| Piping: Rear piping \| Version: P4
STR2-B-25-20-RP40-HP1		Bearing: Ball bearing \| Bore: 25 mm \| Stroke: 20 mm \| Piping: Rear piping \| Version: P40
STR2-B-25-30-P4-HP1		Bearing: Ball bearing \| Bore: 25 mm \| Stroke: 30 mm \| Piping: Standard \| Version: P4
STR2-B-25-30-P40-HP1		Bearing: Ball bearing \| Bore: 25 mm \| Stroke: 30 mm \| Piping: Standard \| Version: P40
STR2-B-25-30-OP4-HP1		Bearing: Ball bearing \| Bore: 25 mm \| Stroke: 30 mm \| Piping: Port 180° changed \| Version: P4
STR2-B-25-30-OP40-HP1		Bearing: Ball bearing \| Bore: 25 mm \| Stroke: 30 mm \| Piping: Port 180° changed \| Version: P40
STR2-B-25-30-RP4-HP1		Bearing: Ball bearing \| Bore: 25 mm \| Stroke: 30 mm \| Piping: Rear piping \| Version: P4
STR2-B-25-30-RP40-HP1		Bearing: Ball bearing \| Bore: 25 mm \| Stroke: 30 mm \| Piping: Rear piping \| Version: P40
STR2-B-25-40-P4-HP1		Bearing: Ball bearing \| Bore: 25 mm \| Stroke: 40 mm \| Piping: Standard \| Version: P4
STR2-B-25-40-P40-HP1		Bearing: Ball bearing \| Bore: 25 mm \| Stroke: 40 mm \| Piping: Standard \| Version: P40
STR2-B-25-40-OP4-HP1		Bearing: Ball bearing \| Bore: 25 mm \| Stroke: 40 mm \| Piping: Port 180° changed \| Version: P4
STR2-B-25-40-OP40-HP1		Bearing: Ball bearing \| Bore: 25 mm \| Stroke: 40 mm \| Piping: Port 180° changed \| Version: P40
STR2-B-25-40-RP4-HP1		Bearing: Ball bearing \| Bore: 25 mm \| Stroke: 40 mm \| Piping: Rear piping \| Version: P4
STR2-B-25-40-RP40-HP1		Bearing: Ball bearing \| Bore: 25 mm \| Stroke: 40 mm \| Piping: Rear piping \| Version: P40
STR2-B-25-50-P4-HP1		Bearing: Ball bearing \| Bore: 25 mm \| Stroke: 50 mm \| Piping: Standard \| Version: P4
STR2-B-25-50-P40-HP1		Bearing: Ball bearing \| Bore: 25 mm \| Stroke: 50 mm \| Piping: Standard \| Version: P40
STR2-B-25-50-OP4-HP1		Bearing: Ball bearing \| Bore: 25 mm \| Stroke: 50 mm \| Piping: Port 180° changed \| Version: P4
STR2-B-25-50-OP40-HP1		Bearing: Ball bearing \| Bore: 25 mm \| Stroke: 50 mm \| Piping: Port 180° changed \| Version: P40
STR2-B-25-50-RP4-HP1		Bearing: Ball bearing \| Bore: 25 mm \| Stroke: 50 mm \| Piping: Rear piping \| Version: P4
STR2-B-25-50-RP40-HP1		Bearing: Ball bearing \| Bore: 25 mm \| Stroke: 50 mm \| Piping: Rear piping \| Version: P40
STR2-B-25-60-P4-HP1		Bearing: Ball bearing \| Bore: 25 mm \| Stroke: 60 mm \| Piping: Standard \| Version: P4
STR2-B-25-60-P40-HP1		Bearing: Ball bearing \| Bore: 25 mm \| Stroke: 60 mm \| Piping: Standard \| Version: P40
STR2-B-25-60-OP4-HP1		Bearing: Ball bearing \| Bore: 25 mm \| Stroke: 60 mm \| Piping: Port 180° changed \| Version: P4
STR2-B-25-60-OP40-HP1		Bearing: Ball bearing \| Bore: 25 mm \| Stroke: 60 mm \| Piping: Port 180° changed \| Version: P40
STR2-B-25-60-RP4-HP1		Bearing: Ball bearing \| Bore: 25 mm \| Stroke: 60 mm \| Piping: Rear piping \| Version: P4
STR2-B-25-60-RP40-HP1		Bearing: Ball bearing \| Bore: 25 mm \| Stroke: 60 mm \| Piping: Rear piping \| Version: P40
STR2-B-25-70-P4-HP1		Bearing: Ball bearing \| Bore: 25 mm \| Stroke: 70 mm \| Piping: Standard \| Version: P4
STR2-B-25-70-P40-HP1		Bearing: Ball bearing \| Bore: 25 mm \| Stroke: 70 mm \| Piping: Standard \| Version: P40
STR2-B-25-70-OP4-HP1		Bearing: Ball bearing \| Bore: 25 mm \| Stroke: 70 mm \| Piping: Port 180° changed \| Version: P4
STR2-B-25-70-OP40-HP1		Bearing: Ball bearing \| Bore: 25 mm \| Stroke: 70 mm \| Piping: Port 180° changed \| Version: P40
STR2-B-25-80-P4-HP1		Bearing: Ball bearing \| Bore: 25 mm \| Stroke: 80 mm \| Piping: Standard \| Version: P4
STR2-B-25-80-P40-HP1		Bearing: Ball bearing \| Bore: 25 mm \| Stroke: 80 mm \| Piping: Standard \| Version: P40
STR2-B-25-80-OP4-HP1		Bearing: Ball bearing \| Bore: 25 mm \| Stroke: 80 mm \| Piping: Port 180° changed \| Version: P4
STR2-B-25-80-OP40-HP1		Bearing: Ball bearing \| Bore: 25 mm \| Stroke: 80 mm \| Piping: Port 180° changed \| Version: P40
STR2-B-25-90-P4-HP1		Bearing: Ball bearing \| Bore: 25 mm \| Stroke: 90 mm \| Piping: Standard \| Version: P4
STR2-B-25-90-P40-HP1		Bearing: Ball bearing \| Bore: 25 mm \| Stroke: 90 mm \| Piping: Standard \| Version: P40
STR2-B-25-90-OP4-HP1		Bearing: Ball bearing \| Bore: 25 mm \| Stroke: 90 mm \| Piping: Port 180° changed \| Version: P4
STR2-B-25-90-OP40-HP1		Bearing: Ball bearing \| Bore: 25 mm \| Stroke: 90 mm \| Piping: Port 180° changed \| Version: P40
STR2-B-25-100-P4-HP1		Bearing: Ball bearing \| Bore: 25 mm \| Stroke: 100 mm \| Piping: Standard \| Version: P4
STR2-B-25-100-P40-HP1		Bearing: Ball bearing \| Bore: 25 mm \| Stroke: 100 mm \| Piping: Standard \| Version: P40
STR2-B-25-100-OP4-HP1		Bearing: Ball bearing \| Bore: 25 mm \| Stroke: 100 mm \| Piping: Port 180° changed \| Version: P4
STR2-B-25-100-OP40-HP1		Bearing: Ball bearing \| Bore: 25 mm \| Stroke: 100 mm \| Piping: Port 180° changed \| Version: P40
STR2-B-32-10-P4-HP1		Bearing: Ball bearing \| Bore: 32 mm \| Stroke: 10 mm \| Piping: Standard \| Version: P4
STR2-B-32-10-P40-HP1		Bearing: Ball bearing \| Bore: 32 mm \| Stroke: 10 mm \| Piping: Standard \| Version: P40
STR2-B-32-10-OP4-HP1		Bearing: Ball bearing \| Bore: 32 mm \| Stroke: 10 mm \| Piping: Port 180° changed \| Version: P4
STR2-B-32-10-OP40-HP1		Bearing: Ball bearing \| Bore: 32 mm \| Stroke: 10 mm \| Piping: Port 180° changed \| Version: P40
STR2-B-32-10-RP4-HP1		Bearing: Ball bearing \| Bore: 32 mm \| Stroke: 10 mm \| Piping: Rear piping \| Version: P4
STR2-B-32-10-RP40-HP1		Bearing: Ball bearing \| Bore: 32 mm \| Stroke: 10 mm \| Piping: Rear piping \| Version: P40
STR2-B-32-20-P4-HP1		Bearing: Ball bearing \| Bore: 32 mm \| Stroke: 20 mm \| Piping: Standard \| Version: P4
STR2-B-32-20-P40-HP1		Bearing: Ball bearing \| Bore: 32 mm \| Stroke: 20 mm \| Piping: Standard \| Version: P40
STR2-B-32-20-OP4-HP1		Bearing: Ball bearing \| Bore: 32 mm \| Stroke: 20 mm \| Piping: Port 180° changed \| Version: P4
STR2-B-32-20-OP40-HP1		Bearing: Ball bearing \| Bore: 32 mm \| Stroke: 20 mm \| Piping: Port 180° changed \| Version: P40
STR2-B-32-20-RP4-HP1		Bearing: Ball bearing \| Bore: 32 mm \| Stroke: 20 mm \| Piping: Rear piping \| Version: P4
STR2-B-32-20-RP40-HP1		Bearing: Ball bearing \| Bore: 32 mm \| Stroke: 20 mm \| Piping: Rear piping \| Version: P40
STR2-B-32-30-P4-HP1		Bearing: Ball bearing \| Bore: 32 mm \| Stroke: 30 mm \| Piping: Standard \| Version: P4
STR2-B-32-30-P40-HP1		Bearing: Ball bearing \| Bore: 32 mm \| Stroke: 30 mm \| Piping: Standard \| Version: P40
STR2-B-32-30-OP4-HP1		Bearing: Ball bearing \| Bore: 32 mm \| Stroke: 30 mm \| Piping: Port 180° changed \| Version: P4
STR2-B-32-30-OP40-HP1		Bearing: Ball bearing \| Bore: 32 mm \| Stroke: 30 mm \| Piping: Port 180° changed \| Version: P40
STR2-B-32-30-RP4-HP1		Bearing: Ball bearing \| Bore: 32 mm \| Stroke: 30 mm \| Piping: Rear piping \| Version: P4
STR2-B-32-30-RP40-HP1		Bearing: Ball bearing \| Bore: 32 mm \| Stroke: 30 mm \| Piping: Rear piping \| Version: P40
STR2-B-32-40-P4-HP1		Bearing: Ball bearing \| Bore: 32 mm \| Stroke: 40 mm \| Piping: Standard \| Version: P4
STR2-B-32-40-P40-HP1		Bearing: Ball bearing \| Bore: 32 mm \| Stroke: 40 mm \| Piping: Standard \| Version: P40
STR2-B-32-40-OP4-HP1		Bearing: Ball bearing \| Bore: 32 mm \| Stroke: 40 mm \| Piping: Port 180° changed \| Version: P4
STR2-B-32-40-OP40-HP1		Bearing: Ball bearing \| Bore: 32 mm \| Stroke: 40 mm \| Piping: Port 180° changed \| Version: P40
STR2-B-32-40-RP4-HP1		Bearing: Ball bearing \| Bore: 32 mm \| Stroke: 40 mm \| Piping: Rear piping \| Version: P4
STR2-B-32-40-RP40-HP1		Bearing: Ball bearing \| Bore: 32 mm \| Stroke: 40 mm \| Piping: Rear piping \| Version: P40
STR2-B-32-50-P4-HP1		Bearing: Ball bearing \| Bore: 32 mm \| Stroke: 50 mm \| Piping: Standard \| Version: P4
STR2-B-32-50-P40-HP1		Bearing: Ball bearing \| Bore: 32 mm \| Stroke: 50 mm \| Piping: Standard \| Version: P40
STR2-B-32-50-OP4-HP1		Bearing: Ball bearing \| Bore: 32 mm \| Stroke: 50 mm \| Piping: Port 180° changed \| Version: P4
STR2-B-32-50-OP40-HP1		Bearing: Ball bearing \| Bore: 32 mm \| Stroke: 50 mm \| Piping: Port 180° changed \| Version: P40
STR2-B-32-50-RP4-HP1		Bearing: Ball bearing \| Bore: 32 mm \| Stroke: 50 mm \| Piping: Rear piping \| Version: P4
STR2-B-32-50-RP40-HP1		Bearing: Ball bearing \| Bore: 32 mm \| Stroke: 50 mm \| Piping: Rear piping \| Version: P40
STR2-B-32-60-P4-HP1		Bearing: Ball bearing \| Bore: 32 mm \| Stroke: 60 mm \| Piping: Standard \| Version: P4
STR2-B-32-60-P40-HP1		Bearing: Ball bearing \| Bore: 32 mm \| Stroke: 60 mm \| Piping: Standard \| Version: P40
STR2-B-32-60-OP4-HP1		Bearing: Ball bearing \| Bore: 32 mm \| Stroke: 60 mm \| Piping: Port 180° changed \| Version: P4
STR2-B-32-60-OP40-HP1		Bearing: Ball bearing \| Bore: 32 mm \| Stroke: 60 mm \| Piping: Port 180° changed \| Version: P40
STR2-B-32-70-P4-HP1		Bearing: Ball bearing \| Bore: 32 mm \| Stroke: 70 mm \| Piping: Standard \| Version: P4
STR2-B-32-70-P40-HP1		Bearing: Ball bearing \| Bore: 32 mm \| Stroke: 70 mm \| Piping: Standard \| Version: P40
STR2-B-32-70-OP4-HP1		Bearing: Ball bearing \| Bore: 32 mm \| Stroke: 70 mm \| Piping: Port 180° changed \| Version: P4
STR2-B-32-70-OP40-HP1		Bearing: Ball bearing \| Bore: 32 mm \| Stroke: 70 mm \| Piping: Port 180° changed \| Version: P40
STR2-B-32-80-P4-HP1		Bearing: Ball bearing \| Bore: 32 mm \| Stroke: 80 mm \| Piping: Standard \| Version: P4
STR2-B-32-80-P40-HP1		Bearing: Ball bearing \| Bore: 32 mm \| Stroke: 80 mm \| Piping: Standard \| Version: P40
STR2-B-32-80-OP4-HP1		Bearing: Ball bearing \| Bore: 32 mm \| Stroke: 80 mm \| Piping: Port 180° changed \| Version: P4
STR2-B-32-80-OP40-HP1		Bearing: Ball bearing \| Bore: 32 mm \| Stroke: 80 mm \| Piping: Port 180° changed \| Version: P40
STR2-B-32-90-P4-HP1		Bearing: Ball bearing \| Bore: 32 mm \| Stroke: 90 mm \| Piping: Standard \| Version: P4
STR2-B-32-90-P40-HP1		Bearing: Ball bearing \| Bore: 32 mm \| Stroke: 90 mm \| Piping: Standard \| Version: P40
STR2-B-32-90-OP4-HP1		Bearing: Ball bearing \| Bore: 32 mm \| Stroke: 90 mm \| Piping: Port 180° changed \| Version: P4
STR2-B-32-90-OP40-HP1		Bearing: Ball bearing \| Bore: 32 mm \| Stroke: 90 mm \| Piping: Port 180° changed \| Version: P40
STR2-B-32-100-P4-HP1		Bearing: Ball bearing \| Bore: 32 mm \| Stroke: 100 mm \| Piping: Standard \| Version: P4
STR2-B-32-100-P40-HP1		Bearing: Ball bearing \| Bore: 32 mm \| Stroke: 100 mm \| Piping: Standard \| Version: P40
STR2-B-32-100-OP4-HP1		Bearing: Ball bearing \| Bore: 32 mm \| Stroke: 100 mm \| Piping: Port 180° changed \| Version: P4
STR2-B-32-100-OP40-HP1		Bearing: Ball bearing \| Bore: 32 mm \| Stroke: 100 mm \| Piping: Port 180° changed \| Version: P40

Guided CylindersCKD

402 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD STR2-M/B-P4/P40-HP1 Super Twin Rod Cylinder (Battery)

Brand CKD·Guided Cylinders

Available part numbers (402)

STR2-M-6-10-P40-HP1, STR2-M-6-10-OP40-HP1, STR2-M-6-10-RP40-HP1, STR2-M-6-20-P40-HP1, STR2-M-6-20-OP40-HP1, STR2-M-6-20-RP40-HP1, STR2-M-6-30-P40-HP1, STR2-M-6-30-OP40-HP1, STR2-M-6-30-RP40-HP1, STR2-M-6-40-P40-HP1 + 392 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	STR2-M-6-10-P40-HP1	Bearing: Slide bearing \| Bore: 6 mm \| Stroke: 10 mm \| Piping: Standard \| Version: P40
	STR2-M-6-10-OP40-HP1	Bearing: Slide bearing \| Bore: 6 mm \| Stroke: 10 mm \| Piping: Port 180° changed \| Version: P40
	STR2-M-6-10-RP40-HP1	Bearing: Slide bearing \| Bore: 6 mm \| Stroke: 10 mm \| Piping: Rear piping \| Version: P40
	STR2-M-6-20-P40-HP1	Bearing: Slide bearing \| Bore: 6 mm \| Stroke: 20 mm \| Piping: Standard \| Version: P40
	STR2-M-6-20-OP40-HP1	Bearing: Slide bearing \| Bore: 6 mm \| Stroke: 20 mm \| Piping: Port 180° changed \| Version: P40
	STR2-M-6-20-RP40-HP1	Bearing: Slide bearing \| Bore: 6 mm \| Stroke: 20 mm \| Piping: Rear piping \| Version: P40
	STR2-M-6-30-P40-HP1	Bearing: Slide bearing \| Bore: 6 mm \| Stroke: 30 mm \| Piping: Standard \| Version: P40
	STR2-M-6-30-OP40-HP1	Bearing: Slide bearing \| Bore: 6 mm \| Stroke: 30 mm \| Piping: Port 180° changed \| Version: P40
	STR2-M-6-30-RP40-HP1	Bearing: Slide bearing \| Bore: 6 mm \| Stroke: 30 mm \| Piping: Rear piping \| Version: P40
	STR2-M-6-40-P40-HP1	Bearing: Slide bearing \| Bore: 6 mm \| Stroke: 40 mm \| Piping: Standard \| Version: P40
	STR2-M-6-40-OP40-HP1	Bearing: Slide bearing \| Bore: 6 mm \| Stroke: 40 mm \| Piping: Port 180° changed \| Version: P40
	STR2-M-6-40-RP40-HP1	Bearing: Slide bearing \| Bore: 6 mm \| Stroke: 40 mm \| Piping: Rear piping \| Version: P40
	STR2-M-6-50-P40-HP1	Bearing: Slide bearing \| Bore: 6 mm \| Stroke: 50 mm \| Piping: Standard \| Version: P40
	STR2-M-6-50-OP40-HP1	Bearing: Slide bearing \| Bore: 6 mm \| Stroke: 50 mm \| Piping: Port 180° changed \| Version: P40
	STR2-M-6-50-RP40-HP1	Bearing: Slide bearing \| Bore: 6 mm \| Stroke: 50 mm \| Piping: Rear piping \| Version: P40
	STR2-M-10-10-P40-HP1	Bearing: Slide bearing \| Bore: 10 mm \| Stroke: 10 mm \| Piping: Standard \| Version: P40
	STR2-M-10-10-OP40-HP1	Bearing: Slide bearing \| Bore: 10 mm \| Stroke: 10 mm \| Piping: Port 180° changed \| Version: P40
	STR2-M-10-10-RP40-HP1	Bearing: Slide bearing \| Bore: 10 mm \| Stroke: 10 mm \| Piping: Rear piping \| Version: P40
	STR2-M-10-20-P40-HP1	Bearing: Slide bearing \| Bore: 10 mm \| Stroke: 20 mm \| Piping: Standard \| Version: P40
	STR2-M-10-20-OP40-HP1	Bearing: Slide bearing \| Bore: 10 mm \| Stroke: 20 mm \| Piping: Port 180° changed \| Version: P40
	STR2-M-10-20-RP40-HP1	Bearing: Slide bearing \| Bore: 10 mm \| Stroke: 20 mm \| Piping: Rear piping \| Version: P40
	STR2-M-10-30-P40-HP1	Bearing: Slide bearing \| Bore: 10 mm \| Stroke: 30 mm \| Piping: Standard \| Version: P40
	STR2-M-10-30-OP40-HP1	Bearing: Slide bearing \| Bore: 10 mm \| Stroke: 30 mm \| Piping: Port 180° changed \| Version: P40
	STR2-M-10-30-RP40-HP1	Bearing: Slide bearing \| Bore: 10 mm \| Stroke: 30 mm \| Piping: Rear piping \| Version: P40
	STR2-M-10-40-P40-HP1	Bearing: Slide bearing \| Bore: 10 mm \| Stroke: 40 mm \| Piping: Standard \| Version: P40
	STR2-M-10-40-OP40-HP1	Bearing: Slide bearing \| Bore: 10 mm \| Stroke: 40 mm \| Piping: Port 180° changed \| Version: P40
	STR2-M-10-40-RP40-HP1	Bearing: Slide bearing \| Bore: 10 mm \| Stroke: 40 mm \| Piping: Rear piping \| Version: P40
	STR2-M-10-50-P40-HP1	Bearing: Slide bearing \| Bore: 10 mm \| Stroke: 50 mm \| Piping: Standard \| Version: P40
	STR2-M-10-50-OP40-HP1	Bearing: Slide bearing \| Bore: 10 mm \| Stroke: 50 mm \| Piping: Port 180° changed \| Version: P40
	STR2-M-10-50-RP40-HP1	Bearing: Slide bearing \| Bore: 10 mm \| Stroke: 50 mm \| Piping: Rear piping \| Version: P40
	STR2-M-16-10-P40-HP1	Bearing: Slide bearing \| Bore: 16 mm \| Stroke: 10 mm \| Piping: Standard \| Version: P40
	STR2-M-16-10-OP40-HP1	Bearing: Slide bearing \| Bore: 16 mm \| Stroke: 10 mm \| Piping: Port 180° changed \| Version: P40
	STR2-M-16-10-RP40-HP1	Bearing: Slide bearing \| Bore: 16 mm \| Stroke: 10 mm \| Piping: Rear piping \| Version: P40
	STR2-M-16-20-P40-HP1	Bearing: Slide bearing \| Bore: 16 mm \| Stroke: 20 mm \| Piping: Standard \| Version: P40
	STR2-M-16-20-OP40-HP1	Bearing: Slide bearing \| Bore: 16 mm \| Stroke: 20 mm \| Piping: Port 180° changed \| Version: P40
	STR2-M-16-20-RP40-HP1	Bearing: Slide bearing \| Bore: 16 mm \| Stroke: 20 mm \| Piping: Rear piping \| Version: P40
	STR2-M-16-30-P40-HP1	Bearing: Slide bearing \| Bore: 16 mm \| Stroke: 30 mm \| Piping: Standard \| Version: P40
	STR2-M-16-30-OP40-HP1	Bearing: Slide bearing \| Bore: 16 mm \| Stroke: 30 mm \| Piping: Port 180° changed \| Version: P40
	STR2-M-16-30-RP40-HP1	Bearing: Slide bearing \| Bore: 16 mm \| Stroke: 30 mm \| Piping: Rear piping \| Version: P40
	STR2-M-16-40-P40-HP1	Bearing: Slide bearing \| Bore: 16 mm \| Stroke: 40 mm \| Piping: Standard \| Version: P40
	STR2-M-16-40-OP40-HP1	Bearing: Slide bearing \| Bore: 16 mm \| Stroke: 40 mm \| Piping: Port 180° changed \| Version: P40
	STR2-M-16-40-RP40-HP1	Bearing: Slide bearing \| Bore: 16 mm \| Stroke: 40 mm \| Piping: Rear piping \| Version: P40
	STR2-M-16-50-P40-HP1	Bearing: Slide bearing \| Bore: 16 mm \| Stroke: 50 mm \| Piping: Standard \| Version: P40
	STR2-M-16-50-OP40-HP1	Bearing: Slide bearing \| Bore: 16 mm \| Stroke: 50 mm \| Piping: Port 180° changed \| Version: P40
	STR2-M-16-50-RP40-HP1	Bearing: Slide bearing \| Bore: 16 mm \| Stroke: 50 mm \| Piping: Rear piping \| Version: P40
	STR2-M-16-60-P40-HP1	Bearing: Slide bearing \| Bore: 16 mm \| Stroke: 60 mm \| Piping: Standard \| Version: P40
	STR2-M-16-60-OP40-HP1	Bearing: Slide bearing \| Bore: 16 mm \| Stroke: 60 mm \| Piping: Port 180° changed \| Version: P40
	STR2-M-16-60-RP40-HP1	Bearing: Slide bearing \| Bore: 16 mm \| Stroke: 60 mm \| Piping: Rear piping \| Version: P40
	STR2-M-16-70-P40-HP1	Bearing: Slide bearing \| Bore: 16 mm \| Stroke: 70 mm \| Piping: Standard \| Version: P40
	STR2-M-16-70-OP40-HP1	Bearing: Slide bearing \| Bore: 16 mm \| Stroke: 70 mm \| Piping: Port 180° changed \| Version: P40
	STR2-M-16-70-RP40-HP1	Bearing: Slide bearing \| Bore: 16 mm \| Stroke: 70 mm \| Piping: Rear piping \| Version: P40
	STR2-M-16-80-P40-HP1	Bearing: Slide bearing \| Bore: 16 mm \| Stroke: 80 mm \| Piping: Standard \| Version: P40
	STR2-M-16-80-OP40-HP1	Bearing: Slide bearing \| Bore: 16 mm \| Stroke: 80 mm \| Piping: Port 180° changed \| Version: P40
	STR2-M-16-90-P40-HP1	Bearing: Slide bearing \| Bore: 16 mm \| Stroke: 90 mm \| Piping: Standard \| Version: P40
	STR2-M-16-90-OP40-HP1	Bearing: Slide bearing \| Bore: 16 mm \| Stroke: 90 mm \| Piping: Port 180° changed \| Version: P40
	STR2-M-16-100-P40-HP1	Bearing: Slide bearing \| Bore: 16 mm \| Stroke: 100 mm \| Piping: Standard \| Version: P40
	STR2-M-16-100-OP40-HP1	Bearing: Slide bearing \| Bore: 16 mm \| Stroke: 100 mm \| Piping: Port 180° changed \| Version: P40
	STR2-M-20-10-P40-HP1	Bearing: Slide bearing \| Bore: 20 mm \| Stroke: 10 mm \| Piping: Standard \| Version: P40
	STR2-M-20-10-OP40-HP1	Bearing: Slide bearing \| Bore: 20 mm \| Stroke: 10 mm \| Piping: Port 180° changed \| Version: P40
	STR2-M-20-10-RP40-HP1	Bearing: Slide bearing \| Bore: 20 mm \| Stroke: 10 mm \| Piping: Rear piping \| Version: P40
	STR2-M-20-20-P40-HP1	Bearing: Slide bearing \| Bore: 20 mm \| Stroke: 20 mm \| Piping: Standard \| Version: P40
	STR2-M-20-20-OP40-HP1	Bearing: Slide bearing \| Bore: 20 mm \| Stroke: 20 mm \| Piping: Port 180° changed \| Version: P40
	STR2-M-20-20-RP40-HP1	Bearing: Slide bearing \| Bore: 20 mm \| Stroke: 20 mm \| Piping: Rear piping \| Version: P40
	STR2-M-20-30-P40-HP1	Bearing: Slide bearing \| Bore: 20 mm \| Stroke: 30 mm \| Piping: Standard \| Version: P40
	STR2-M-20-30-OP40-HP1	Bearing: Slide bearing \| Bore: 20 mm \| Stroke: 30 mm \| Piping: Port 180° changed \| Version: P40
	STR2-M-20-30-RP40-HP1	Bearing: Slide bearing \| Bore: 20 mm \| Stroke: 30 mm \| Piping: Rear piping \| Version: P40
	STR2-M-20-40-P40-HP1	Bearing: Slide bearing \| Bore: 20 mm \| Stroke: 40 mm \| Piping: Standard \| Version: P40
	STR2-M-20-40-OP40-HP1	Bearing: Slide bearing \| Bore: 20 mm \| Stroke: 40 mm \| Piping: Port 180° changed \| Version: P40
	STR2-M-20-40-RP40-HP1	Bearing: Slide bearing \| Bore: 20 mm \| Stroke: 40 mm \| Piping: Rear piping \| Version: P40
	STR2-M-20-50-P40-HP1	Bearing: Slide bearing \| Bore: 20 mm \| Stroke: 50 mm \| Piping: Standard \| Version: P40
	STR2-M-20-50-OP40-HP1	Bearing: Slide bearing \| Bore: 20 mm \| Stroke: 50 mm \| Piping: Port 180° changed \| Version: P40
	STR2-M-20-50-RP40-HP1	Bearing: Slide bearing \| Bore: 20 mm \| Stroke: 50 mm \| Piping: Rear piping \| Version: P40
	STR2-M-20-60-P40-HP1	Bearing: Slide bearing \| Bore: 20 mm \| Stroke: 60 mm \| Piping: Standard \| Version: P40
	STR2-M-20-60-OP40-HP1	Bearing: Slide bearing \| Bore: 20 mm \| Stroke: 60 mm \| Piping: Port 180° changed \| Version: P40
	STR2-M-20-60-RP40-HP1	Bearing: Slide bearing \| Bore: 20 mm \| Stroke: 60 mm \| Piping: Rear piping \| Version: P40
	STR2-M-20-70-P40-HP1	Bearing: Slide bearing \| Bore: 20 mm \| Stroke: 70 mm \| Piping: Standard \| Version: P40
	STR2-M-20-70-OP40-HP1	Bearing: Slide bearing \| Bore: 20 mm \| Stroke: 70 mm \| Piping: Port 180° changed \| Version: P40
	STR2-M-20-80-P40-HP1	Bearing: Slide bearing \| Bore: 20 mm \| Stroke: 80 mm \| Piping: Standard \| Version: P40
	STR2-M-20-80-OP40-HP1	Bearing: Slide bearing \| Bore: 20 mm \| Stroke: 80 mm \| Piping: Port 180° changed \| Version: P40
	STR2-M-20-90-P40-HP1	Bearing: Slide bearing \| Bore: 20 mm \| Stroke: 90 mm \| Piping: Standard \| Version: P40
	STR2-M-20-90-OP40-HP1	Bearing: Slide bearing \| Bore: 20 mm \| Stroke: 90 mm \| Piping: Port 180° changed \| Version: P40
	STR2-M-20-100-P40-HP1	Bearing: Slide bearing \| Bore: 20 mm \| Stroke: 100 mm \| Piping: Standard \| Version: P40
	STR2-M-20-100-OP40-HP1	Bearing: Slide bearing \| Bore: 20 mm \| Stroke: 100 mm \| Piping: Port 180° changed \| Version: P40
	STR2-M-25-10-P40-HP1	Bearing: Slide bearing \| Bore: 25 mm \| Stroke: 10 mm \| Piping: Standard \| Version: P40
	STR2-M-25-10-OP40-HP1	Bearing: Slide bearing \| Bore: 25 mm \| Stroke: 10 mm \| Piping: Port 180° changed \| Version: P40
	STR2-M-25-10-RP40-HP1	Bearing: Slide bearing \| Bore: 25 mm \| Stroke: 10 mm \| Piping: Rear piping \| Version: P40
	STR2-M-25-20-P40-HP1	Bearing: Slide bearing \| Bore: 25 mm \| Stroke: 20 mm \| Piping: Standard \| Version: P40
	STR2-M-25-20-OP40-HP1	Bearing: Slide bearing \| Bore: 25 mm \| Stroke: 20 mm \| Piping: Port 180° changed \| Version: P40
	STR2-M-25-20-RP40-HP1	Bearing: Slide bearing \| Bore: 25 mm \| Stroke: 20 mm \| Piping: Rear piping \| Version: P40
	STR2-M-25-30-P40-HP1	Bearing: Slide bearing \| Bore: 25 mm \| Stroke: 30 mm \| Piping: Standard \| Version: P40
	STR2-M-25-30-OP40-HP1	Bearing: Slide bearing \| Bore: 25 mm \| Stroke: 30 mm \| Piping: Port 180° changed \| Version: P40
	STR2-M-25-30-RP40-HP1	Bearing: Slide bearing \| Bore: 25 mm \| Stroke: 30 mm \| Piping: Rear piping \| Version: P40
	STR2-M-25-40-P40-HP1	Bearing: Slide bearing \| Bore: 25 mm \| Stroke: 40 mm \| Piping: Standard \| Version: P40
	STR2-M-25-40-OP40-HP1	Bearing: Slide bearing \| Bore: 25 mm \| Stroke: 40 mm \| Piping: Port 180° changed \| Version: P40
	STR2-M-25-40-RP40-HP1	Bearing: Slide bearing \| Bore: 25 mm \| Stroke: 40 mm \| Piping: Rear piping \| Version: P40
	STR2-M-25-50-P40-HP1	Bearing: Slide bearing \| Bore: 25 mm \| Stroke: 50 mm \| Piping: Standard \| Version: P40
	STR2-M-25-50-OP40-HP1	Bearing: Slide bearing \| Bore: 25 mm \| Stroke: 50 mm \| Piping: Port 180° changed \| Version: P40
	STR2-M-25-50-RP40-HP1	Bearing: Slide bearing \| Bore: 25 mm \| Stroke: 50 mm \| Piping: Rear piping \| Version: P40
	STR2-M-25-60-P40-HP1	Bearing: Slide bearing \| Bore: 25 mm \| Stroke: 60 mm \| Piping: Standard \| Version: P40
	STR2-M-25-60-OP40-HP1	Bearing: Slide bearing \| Bore: 25 mm \| Stroke: 60 mm \| Piping: Port 180° changed \| Version: P40
	STR2-M-25-60-RP40-HP1	Bearing: Slide bearing \| Bore: 25 mm \| Stroke: 60 mm \| Piping: Rear piping \| Version: P40
	STR2-M-25-70-P40-HP1	Bearing: Slide bearing \| Bore: 25 mm \| Stroke: 70 mm \| Piping: Standard \| Version: P40
	STR2-M-25-70-OP40-HP1	Bearing: Slide bearing \| Bore: 25 mm \| Stroke: 70 mm \| Piping: Port 180° changed \| Version: P40
	STR2-M-25-80-P40-HP1	Bearing: Slide bearing \| Bore: 25 mm \| Stroke: 80 mm \| Piping: Standard \| Version: P40
	STR2-M-25-80-OP40-HP1	Bearing: Slide bearing \| Bore: 25 mm \| Stroke: 80 mm \| Piping: Port 180° changed \| Version: P40
	STR2-M-25-90-P40-HP1	Bearing: Slide bearing \| Bore: 25 mm \| Stroke: 90 mm \| Piping: Standard \| Version: P40
	STR2-M-25-90-OP40-HP1	Bearing: Slide bearing \| Bore: 25 mm \| Stroke: 90 mm \| Piping: Port 180° changed \| Version: P40
	STR2-M-25-100-P40-HP1	Bearing: Slide bearing \| Bore: 25 mm \| Stroke: 100 mm \| Piping: Standard \| Version: P40
	STR2-M-25-100-OP40-HP1	Bearing: Slide bearing \| Bore: 25 mm \| Stroke: 100 mm \| Piping: Port 180° changed \| Version: P40
	STR2-M-32-10-P40-HP1	Bearing: Slide bearing \| Bore: 32 mm \| Stroke: 10 mm \| Piping: Standard \| Version: P40
	STR2-M-32-10-OP40-HP1	Bearing: Slide bearing \| Bore: 32 mm \| Stroke: 10 mm \| Piping: Port 180° changed \| Version: P40
	STR2-M-32-10-RP40-HP1	Bearing: Slide bearing \| Bore: 32 mm \| Stroke: 10 mm \| Piping: Rear piping \| Version: P40
	STR2-M-32-20-P40-HP1	Bearing: Slide bearing \| Bore: 32 mm \| Stroke: 20 mm \| Piping: Standard \| Version: P40
	STR2-M-32-20-OP40-HP1	Bearing: Slide bearing \| Bore: 32 mm \| Stroke: 20 mm \| Piping: Port 180° changed \| Version: P40
	STR2-M-32-20-RP40-HP1	Bearing: Slide bearing \| Bore: 32 mm \| Stroke: 20 mm \| Piping: Rear piping \| Version: P40
	STR2-M-32-30-P40-HP1	Bearing: Slide bearing \| Bore: 32 mm \| Stroke: 30 mm \| Piping: Standard \| Version: P40
	STR2-M-32-30-OP40-HP1	Bearing: Slide bearing \| Bore: 32 mm \| Stroke: 30 mm \| Piping: Port 180° changed \| Version: P40
	STR2-M-32-30-RP40-HP1	Bearing: Slide bearing \| Bore: 32 mm \| Stroke: 30 mm \| Piping: Rear piping \| Version: P40
	STR2-M-32-40-P40-HP1	Bearing: Slide bearing \| Bore: 32 mm \| Stroke: 40 mm \| Piping: Standard \| Version: P40
	STR2-M-32-40-OP40-HP1	Bearing: Slide bearing \| Bore: 32 mm \| Stroke: 40 mm \| Piping: Port 180° changed \| Version: P40
	STR2-M-32-40-RP40-HP1	Bearing: Slide bearing \| Bore: 32 mm \| Stroke: 40 mm \| Piping: Rear piping \| Version: P40
	STR2-M-32-50-P40-HP1	Bearing: Slide bearing \| Bore: 32 mm \| Stroke: 50 mm \| Piping: Standard \| Version: P40
	STR2-M-32-50-OP40-HP1	Bearing: Slide bearing \| Bore: 32 mm \| Stroke: 50 mm \| Piping: Port 180° changed \| Version: P40
	STR2-M-32-50-RP40-HP1	Bearing: Slide bearing \| Bore: 32 mm \| Stroke: 50 mm \| Piping: Rear piping \| Version: P40
	STR2-M-32-60-P40-HP1	Bearing: Slide bearing \| Bore: 32 mm \| Stroke: 60 mm \| Piping: Standard \| Version: P40
	STR2-M-32-60-OP40-HP1	Bearing: Slide bearing \| Bore: 32 mm \| Stroke: 60 mm \| Piping: Port 180° changed \| Version: P40
	STR2-M-32-70-P40-HP1	Bearing: Slide bearing \| Bore: 32 mm \| Stroke: 70 mm \| Piping: Standard \| Version: P40
	STR2-M-32-70-OP40-HP1	Bearing: Slide bearing \| Bore: 32 mm \| Stroke: 70 mm \| Piping: Port 180° changed \| Version: P40
	STR2-M-32-80-P40-HP1	Bearing: Slide bearing \| Bore: 32 mm \| Stroke: 80 mm \| Piping: Standard \| Version: P40
	STR2-M-32-80-OP40-HP1	Bearing: Slide bearing \| Bore: 32 mm \| Stroke: 80 mm \| Piping: Port 180° changed \| Version: P40
	STR2-M-32-90-P40-HP1	Bearing: Slide bearing \| Bore: 32 mm \| Stroke: 90 mm \| Piping: Standard \| Version: P40
	STR2-M-32-90-OP40-HP1	Bearing: Slide bearing \| Bore: 32 mm \| Stroke: 90 mm \| Piping: Port 180° changed \| Version: P40
	STR2-M-32-100-P40-HP1	Bearing: Slide bearing \| Bore: 32 mm \| Stroke: 100 mm \| Piping: Standard \| Version: P40
	STR2-M-32-100-OP40-HP1	Bearing: Slide bearing \| Bore: 32 mm \| Stroke: 100 mm \| Piping: Port 180° changed \| Version: P40
	STR2-B-6-10-P4-HP1	Bearing: Ball bearing \| Bore: 6 mm \| Stroke: 10 mm \| Piping: Standard \| Version: P4
	STR2-B-6-10-P40-HP1	Bearing: Ball bearing \| Bore: 6 mm \| Stroke: 10 mm \| Piping: Standard \| Version: P40
	STR2-B-6-10-OP4-HP1	Bearing: Ball bearing \| Bore: 6 mm \| Stroke: 10 mm \| Piping: Port 180° changed \| Version: P4
	STR2-B-6-10-OP40-HP1	Bearing: Ball bearing \| Bore: 6 mm \| Stroke: 10 mm \| Piping: Port 180° changed \| Version: P40
	STR2-B-6-10-RP4-HP1	Bearing: Ball bearing \| Bore: 6 mm \| Stroke: 10 mm \| Piping: Rear piping \| Version: P4
	STR2-B-6-10-RP40-HP1	Bearing: Ball bearing \| Bore: 6 mm \| Stroke: 10 mm \| Piping: Rear piping \| Version: P40
	STR2-B-6-20-P4-HP1	Bearing: Ball bearing \| Bore: 6 mm \| Stroke: 20 mm \| Piping: Standard \| Version: P4
	STR2-B-6-20-P40-HP1	Bearing: Ball bearing \| Bore: 6 mm \| Stroke: 20 mm \| Piping: Standard \| Version: P40
	STR2-B-6-20-OP4-HP1	Bearing: Ball bearing \| Bore: 6 mm \| Stroke: 20 mm \| Piping: Port 180° changed \| Version: P4
	STR2-B-6-20-OP40-HP1	Bearing: Ball bearing \| Bore: 6 mm \| Stroke: 20 mm \| Piping: Port 180° changed \| Version: P40
	STR2-B-6-20-RP4-HP1	Bearing: Ball bearing \| Bore: 6 mm \| Stroke: 20 mm \| Piping: Rear piping \| Version: P4
	STR2-B-6-20-RP40-HP1	Bearing: Ball bearing \| Bore: 6 mm \| Stroke: 20 mm \| Piping: Rear piping \| Version: P40
	STR2-B-6-30-P4-HP1	Bearing: Ball bearing \| Bore: 6 mm \| Stroke: 30 mm \| Piping: Standard \| Version: P4
	STR2-B-6-30-P40-HP1	Bearing: Ball bearing \| Bore: 6 mm \| Stroke: 30 mm \| Piping: Standard \| Version: P40
	STR2-B-6-30-OP4-HP1	Bearing: Ball bearing \| Bore: 6 mm \| Stroke: 30 mm \| Piping: Port 180° changed \| Version: P4
	STR2-B-6-30-OP40-HP1	Bearing: Ball bearing \| Bore: 6 mm \| Stroke: 30 mm \| Piping: Port 180° changed \| Version: P40
	STR2-B-6-30-RP4-HP1	Bearing: Ball bearing \| Bore: 6 mm \| Stroke: 30 mm \| Piping: Rear piping \| Version: P4
	STR2-B-6-30-RP40-HP1	Bearing: Ball bearing \| Bore: 6 mm \| Stroke: 30 mm \| Piping: Rear piping \| Version: P40
	STR2-B-6-40-P4-HP1	Bearing: Ball bearing \| Bore: 6 mm \| Stroke: 40 mm \| Piping: Standard \| Version: P4
	STR2-B-6-40-P40-HP1	Bearing: Ball bearing \| Bore: 6 mm \| Stroke: 40 mm \| Piping: Standard \| Version: P40
	STR2-B-6-40-OP4-HP1	Bearing: Ball bearing \| Bore: 6 mm \| Stroke: 40 mm \| Piping: Port 180° changed \| Version: P4
	STR2-B-6-40-OP40-HP1	Bearing: Ball bearing \| Bore: 6 mm \| Stroke: 40 mm \| Piping: Port 180° changed \| Version: P40
	STR2-B-6-40-RP4-HP1	Bearing: Ball bearing \| Bore: 6 mm \| Stroke: 40 mm \| Piping: Rear piping \| Version: P4
	STR2-B-6-40-RP40-HP1	Bearing: Ball bearing \| Bore: 6 mm \| Stroke: 40 mm \| Piping: Rear piping \| Version: P40
	STR2-B-6-50-P4-HP1	Bearing: Ball bearing \| Bore: 6 mm \| Stroke: 50 mm \| Piping: Standard \| Version: P4
	STR2-B-6-50-P40-HP1	Bearing: Ball bearing \| Bore: 6 mm \| Stroke: 50 mm \| Piping: Standard \| Version: P40
	STR2-B-6-50-OP4-HP1	Bearing: Ball bearing \| Bore: 6 mm \| Stroke: 50 mm \| Piping: Port 180° changed \| Version: P4
	STR2-B-6-50-OP40-HP1	Bearing: Ball bearing \| Bore: 6 mm \| Stroke: 50 mm \| Piping: Port 180° changed \| Version: P40
	STR2-B-6-50-RP4-HP1	Bearing: Ball bearing \| Bore: 6 mm \| Stroke: 50 mm \| Piping: Rear piping \| Version: P4
	STR2-B-6-50-RP40-HP1	Bearing: Ball bearing \| Bore: 6 mm \| Stroke: 50 mm \| Piping: Rear piping \| Version: P40
	STR2-B-10-10-P4-HP1	Bearing: Ball bearing \| Bore: 10 mm \| Stroke: 10 mm \| Piping: Standard \| Version: P4
	STR2-B-10-10-P40-HP1	Bearing: Ball bearing \| Bore: 10 mm \| Stroke: 10 mm \| Piping: Standard \| Version: P40
	STR2-B-10-10-OP4-HP1	Bearing: Ball bearing \| Bore: 10 mm \| Stroke: 10 mm \| Piping: Port 180° changed \| Version: P4
	STR2-B-10-10-OP40-HP1	Bearing: Ball bearing \| Bore: 10 mm \| Stroke: 10 mm \| Piping: Port 180° changed \| Version: P40
	STR2-B-10-10-RP4-HP1	Bearing: Ball bearing \| Bore: 10 mm \| Stroke: 10 mm \| Piping: Rear piping \| Version: P4
	STR2-B-10-10-RP40-HP1	Bearing: Ball bearing \| Bore: 10 mm \| Stroke: 10 mm \| Piping: Rear piping \| Version: P40
	STR2-B-10-20-P4-HP1	Bearing: Ball bearing \| Bore: 10 mm \| Stroke: 20 mm \| Piping: Standard \| Version: P4
	STR2-B-10-20-P40-HP1	Bearing: Ball bearing \| Bore: 10 mm \| Stroke: 20 mm \| Piping: Standard \| Version: P40
	STR2-B-10-20-OP4-HP1	Bearing: Ball bearing \| Bore: 10 mm \| Stroke: 20 mm \| Piping: Port 180° changed \| Version: P4
	STR2-B-10-20-OP40-HP1	Bearing: Ball bearing \| Bore: 10 mm \| Stroke: 20 mm \| Piping: Port 180° changed \| Version: P40
	STR2-B-10-20-RP4-HP1	Bearing: Ball bearing \| Bore: 10 mm \| Stroke: 20 mm \| Piping: Rear piping \| Version: P4
	STR2-B-10-20-RP40-HP1	Bearing: Ball bearing \| Bore: 10 mm \| Stroke: 20 mm \| Piping: Rear piping \| Version: P40
	STR2-B-10-30-P4-HP1	Bearing: Ball bearing \| Bore: 10 mm \| Stroke: 30 mm \| Piping: Standard \| Version: P4
	STR2-B-10-30-P40-HP1	Bearing: Ball bearing \| Bore: 10 mm \| Stroke: 30 mm \| Piping: Standard \| Version: P40
	STR2-B-10-30-OP4-HP1	Bearing: Ball bearing \| Bore: 10 mm \| Stroke: 30 mm \| Piping: Port 180° changed \| Version: P4
	STR2-B-10-30-OP40-HP1	Bearing: Ball bearing \| Bore: 10 mm \| Stroke: 30 mm \| Piping: Port 180° changed \| Version: P40
	STR2-B-10-30-RP4-HP1	Bearing: Ball bearing \| Bore: 10 mm \| Stroke: 30 mm \| Piping: Rear piping \| Version: P4
	STR2-B-10-30-RP40-HP1	Bearing: Ball bearing \| Bore: 10 mm \| Stroke: 30 mm \| Piping: Rear piping \| Version: P40
	STR2-B-10-40-P4-HP1	Bearing: Ball bearing \| Bore: 10 mm \| Stroke: 40 mm \| Piping: Standard \| Version: P4
	STR2-B-10-40-P40-HP1	Bearing: Ball bearing \| Bore: 10 mm \| Stroke: 40 mm \| Piping: Standard \| Version: P40
	STR2-B-10-40-OP4-HP1	Bearing: Ball bearing \| Bore: 10 mm \| Stroke: 40 mm \| Piping: Port 180° changed \| Version: P4
	STR2-B-10-40-OP40-HP1	Bearing: Ball bearing \| Bore: 10 mm \| Stroke: 40 mm \| Piping: Port 180° changed \| Version: P40
	STR2-B-10-40-RP4-HP1	Bearing: Ball bearing \| Bore: 10 mm \| Stroke: 40 mm \| Piping: Rear piping \| Version: P4
	STR2-B-10-40-RP40-HP1	Bearing: Ball bearing \| Bore: 10 mm \| Stroke: 40 mm \| Piping: Rear piping \| Version: P40
	STR2-B-10-50-P4-HP1	Bearing: Ball bearing \| Bore: 10 mm \| Stroke: 50 mm \| Piping: Standard \| Version: P4
	STR2-B-10-50-P40-HP1	Bearing: Ball bearing \| Bore: 10 mm \| Stroke: 50 mm \| Piping: Standard \| Version: P40
	STR2-B-10-50-OP4-HP1	Bearing: Ball bearing \| Bore: 10 mm \| Stroke: 50 mm \| Piping: Port 180° changed \| Version: P4
	STR2-B-10-50-OP40-HP1	Bearing: Ball bearing \| Bore: 10 mm \| Stroke: 50 mm \| Piping: Port 180° changed \| Version: P40
	STR2-B-10-50-RP4-HP1	Bearing: Ball bearing \| Bore: 10 mm \| Stroke: 50 mm \| Piping: Rear piping \| Version: P4
	STR2-B-10-50-RP40-HP1	Bearing: Ball bearing \| Bore: 10 mm \| Stroke: 50 mm \| Piping: Rear piping \| Version: P40
	STR2-B-16-10-P4-HP1	Bearing: Ball bearing \| Bore: 16 mm \| Stroke: 10 mm \| Piping: Standard \| Version: P4
	STR2-B-16-10-P40-HP1	Bearing: Ball bearing \| Bore: 16 mm \| Stroke: 10 mm \| Piping: Standard \| Version: P40
	STR2-B-16-10-OP4-HP1	Bearing: Ball bearing \| Bore: 16 mm \| Stroke: 10 mm \| Piping: Port 180° changed \| Version: P4
	STR2-B-16-10-OP40-HP1	Bearing: Ball bearing \| Bore: 16 mm \| Stroke: 10 mm \| Piping: Port 180° changed \| Version: P40
	STR2-B-16-10-RP4-HP1	Bearing: Ball bearing \| Bore: 16 mm \| Stroke: 10 mm \| Piping: Rear piping \| Version: P4
	STR2-B-16-10-RP40-HP1	Bearing: Ball bearing \| Bore: 16 mm \| Stroke: 10 mm \| Piping: Rear piping \| Version: P40
	STR2-B-16-20-P4-HP1	Bearing: Ball bearing \| Bore: 16 mm \| Stroke: 20 mm \| Piping: Standard \| Version: P4
	STR2-B-16-20-P40-HP1	Bearing: Ball bearing \| Bore: 16 mm \| Stroke: 20 mm \| Piping: Standard \| Version: P40
	STR2-B-16-20-OP4-HP1	Bearing: Ball bearing \| Bore: 16 mm \| Stroke: 20 mm \| Piping: Port 180° changed \| Version: P4
	STR2-B-16-20-OP40-HP1	Bearing: Ball bearing \| Bore: 16 mm \| Stroke: 20 mm \| Piping: Port 180° changed \| Version: P40
	STR2-B-16-20-RP4-HP1	Bearing: Ball bearing \| Bore: 16 mm \| Stroke: 20 mm \| Piping: Rear piping \| Version: P4
	STR2-B-16-20-RP40-HP1	Bearing: Ball bearing \| Bore: 16 mm \| Stroke: 20 mm \| Piping: Rear piping \| Version: P40
	STR2-B-16-30-P4-HP1	Bearing: Ball bearing \| Bore: 16 mm \| Stroke: 30 mm \| Piping: Standard \| Version: P4
	STR2-B-16-30-P40-HP1	Bearing: Ball bearing \| Bore: 16 mm \| Stroke: 30 mm \| Piping: Standard \| Version: P40
	STR2-B-16-30-OP4-HP1	Bearing: Ball bearing \| Bore: 16 mm \| Stroke: 30 mm \| Piping: Port 180° changed \| Version: P4
	STR2-B-16-30-OP40-HP1	Bearing: Ball bearing \| Bore: 16 mm \| Stroke: 30 mm \| Piping: Port 180° changed \| Version: P40
	STR2-B-16-30-RP4-HP1	Bearing: Ball bearing \| Bore: 16 mm \| Stroke: 30 mm \| Piping: Rear piping \| Version: P4
	STR2-B-16-30-RP40-HP1	Bearing: Ball bearing \| Bore: 16 mm \| Stroke: 30 mm \| Piping: Rear piping \| Version: P40
	STR2-B-16-40-P4-HP1	Bearing: Ball bearing \| Bore: 16 mm \| Stroke: 40 mm \| Piping: Standard \| Version: P4
	STR2-B-16-40-P40-HP1	Bearing: Ball bearing \| Bore: 16 mm \| Stroke: 40 mm \| Piping: Standard \| Version: P40
	STR2-B-16-40-OP4-HP1	Bearing: Ball bearing \| Bore: 16 mm \| Stroke: 40 mm \| Piping: Port 180° changed \| Version: P4
	STR2-B-16-40-OP40-HP1	Bearing: Ball bearing \| Bore: 16 mm \| Stroke: 40 mm \| Piping: Port 180° changed \| Version: P40
	STR2-B-16-40-RP4-HP1	Bearing: Ball bearing \| Bore: 16 mm \| Stroke: 40 mm \| Piping: Rear piping \| Version: P4
	STR2-B-16-40-RP40-HP1	Bearing: Ball bearing \| Bore: 16 mm \| Stroke: 40 mm \| Piping: Rear piping \| Version: P40
	STR2-B-16-50-P4-HP1	Bearing: Ball bearing \| Bore: 16 mm \| Stroke: 50 mm \| Piping: Standard \| Version: P4
	STR2-B-16-50-P40-HP1	Bearing: Ball bearing \| Bore: 16 mm \| Stroke: 50 mm \| Piping: Standard \| Version: P40
	STR2-B-16-50-OP4-HP1	Bearing: Ball bearing \| Bore: 16 mm \| Stroke: 50 mm \| Piping: Port 180° changed \| Version: P4
	STR2-B-16-50-OP40-HP1	Bearing: Ball bearing \| Bore: 16 mm \| Stroke: 50 mm \| Piping: Port 180° changed \| Version: P40
	STR2-B-16-50-RP4-HP1	Bearing: Ball bearing \| Bore: 16 mm \| Stroke: 50 mm \| Piping: Rear piping \| Version: P4
	STR2-B-16-50-RP40-HP1	Bearing: Ball bearing \| Bore: 16 mm \| Stroke: 50 mm \| Piping: Rear piping \| Version: P40
	STR2-B-16-60-P4-HP1	Bearing: Ball bearing \| Bore: 16 mm \| Stroke: 60 mm \| Piping: Standard \| Version: P4
	STR2-B-16-60-P40-HP1	Bearing: Ball bearing \| Bore: 16 mm \| Stroke: 60 mm \| Piping: Standard \| Version: P40
	STR2-B-16-60-OP4-HP1	Bearing: Ball bearing \| Bore: 16 mm \| Stroke: 60 mm \| Piping: Port 180° changed \| Version: P4
	STR2-B-16-60-OP40-HP1	Bearing: Ball bearing \| Bore: 16 mm \| Stroke: 60 mm \| Piping: Port 180° changed \| Version: P40
	STR2-B-16-60-RP4-HP1	Bearing: Ball bearing \| Bore: 16 mm \| Stroke: 60 mm \| Piping: Rear piping \| Version: P4
	STR2-B-16-60-RP40-HP1	Bearing: Ball bearing \| Bore: 16 mm \| Stroke: 60 mm \| Piping: Rear piping \| Version: P40
	STR2-B-16-70-P4-HP1	Bearing: Ball bearing \| Bore: 16 mm \| Stroke: 70 mm \| Piping: Standard \| Version: P4
	STR2-B-16-70-P40-HP1	Bearing: Ball bearing \| Bore: 16 mm \| Stroke: 70 mm \| Piping: Standard \| Version: P40
	STR2-B-16-70-OP4-HP1	Bearing: Ball bearing \| Bore: 16 mm \| Stroke: 70 mm \| Piping: Port 180° changed \| Version: P4
	STR2-B-16-70-OP40-HP1	Bearing: Ball bearing \| Bore: 16 mm \| Stroke: 70 mm \| Piping: Port 180° changed \| Version: P40
	STR2-B-16-70-RP4-HP1	Bearing: Ball bearing \| Bore: 16 mm \| Stroke: 70 mm \| Piping: Rear piping \| Version: P4
	STR2-B-16-70-RP40-HP1	Bearing: Ball bearing \| Bore: 16 mm \| Stroke: 70 mm \| Piping: Rear piping \| Version: P40
	STR2-B-16-80-P4-HP1	Bearing: Ball bearing \| Bore: 16 mm \| Stroke: 80 mm \| Piping: Standard \| Version: P4
	STR2-B-16-80-P40-HP1	Bearing: Ball bearing \| Bore: 16 mm \| Stroke: 80 mm \| Piping: Standard \| Version: P40
	STR2-B-16-80-OP4-HP1	Bearing: Ball bearing \| Bore: 16 mm \| Stroke: 80 mm \| Piping: Port 180° changed \| Version: P4
	STR2-B-16-80-OP40-HP1	Bearing: Ball bearing \| Bore: 16 mm \| Stroke: 80 mm \| Piping: Port 180° changed \| Version: P40
	STR2-B-16-90-P4-HP1	Bearing: Ball bearing \| Bore: 16 mm \| Stroke: 90 mm \| Piping: Standard \| Version: P4
	STR2-B-16-90-P40-HP1	Bearing: Ball bearing \| Bore: 16 mm \| Stroke: 90 mm \| Piping: Standard \| Version: P40
	STR2-B-16-90-OP4-HP1	Bearing: Ball bearing \| Bore: 16 mm \| Stroke: 90 mm \| Piping: Port 180° changed \| Version: P4
	STR2-B-16-90-OP40-HP1	Bearing: Ball bearing \| Bore: 16 mm \| Stroke: 90 mm \| Piping: Port 180° changed \| Version: P40
	STR2-B-16-100-P4-HP1	Bearing: Ball bearing \| Bore: 16 mm \| Stroke: 100 mm \| Piping: Standard \| Version: P4
	STR2-B-16-100-P40-HP1	Bearing: Ball bearing \| Bore: 16 mm \| Stroke: 100 mm \| Piping: Standard \| Version: P40
	STR2-B-16-100-OP4-HP1	Bearing: Ball bearing \| Bore: 16 mm \| Stroke: 100 mm \| Piping: Port 180° changed \| Version: P4
	STR2-B-16-100-OP40-HP1	Bearing: Ball bearing \| Bore: 16 mm \| Stroke: 100 mm \| Piping: Port 180° changed \| Version: P40
	STR2-B-20-10-P4-HP1	Bearing: Ball bearing \| Bore: 20 mm \| Stroke: 10 mm \| Piping: Standard \| Version: P4
	STR2-B-20-10-P40-HP1	Bearing: Ball bearing \| Bore: 20 mm \| Stroke: 10 mm \| Piping: Standard \| Version: P40
	STR2-B-20-10-OP4-HP1	Bearing: Ball bearing \| Bore: 20 mm \| Stroke: 10 mm \| Piping: Port 180° changed \| Version: P4
	STR2-B-20-10-OP40-HP1	Bearing: Ball bearing \| Bore: 20 mm \| Stroke: 10 mm \| Piping: Port 180° changed \| Version: P40
	STR2-B-20-10-RP4-HP1	Bearing: Ball bearing \| Bore: 20 mm \| Stroke: 10 mm \| Piping: Rear piping \| Version: P4
	STR2-B-20-10-RP40-HP1	Bearing: Ball bearing \| Bore: 20 mm \| Stroke: 10 mm \| Piping: Rear piping \| Version: P40
	STR2-B-20-20-P4-HP1	Bearing: Ball bearing \| Bore: 20 mm \| Stroke: 20 mm \| Piping: Standard \| Version: P4
	STR2-B-20-20-P40-HP1	Bearing: Ball bearing \| Bore: 20 mm \| Stroke: 20 mm \| Piping: Standard \| Version: P40
	STR2-B-20-20-OP4-HP1	Bearing: Ball bearing \| Bore: 20 mm \| Stroke: 20 mm \| Piping: Port 180° changed \| Version: P4
	STR2-B-20-20-OP40-HP1	Bearing: Ball bearing \| Bore: 20 mm \| Stroke: 20 mm \| Piping: Port 180° changed \| Version: P40
	STR2-B-20-20-RP4-HP1	Bearing: Ball bearing \| Bore: 20 mm \| Stroke: 20 mm \| Piping: Rear piping \| Version: P4
	STR2-B-20-20-RP40-HP1	Bearing: Ball bearing \| Bore: 20 mm \| Stroke: 20 mm \| Piping: Rear piping \| Version: P40
	STR2-B-20-30-P4-HP1	Bearing: Ball bearing \| Bore: 20 mm \| Stroke: 30 mm \| Piping: Standard \| Version: P4
	STR2-B-20-30-P40-HP1	Bearing: Ball bearing \| Bore: 20 mm \| Stroke: 30 mm \| Piping: Standard \| Version: P40
	STR2-B-20-30-OP4-HP1	Bearing: Ball bearing \| Bore: 20 mm \| Stroke: 30 mm \| Piping: Port 180° changed \| Version: P4
	STR2-B-20-30-OP40-HP1	Bearing: Ball bearing \| Bore: 20 mm \| Stroke: 30 mm \| Piping: Port 180° changed \| Version: P40
	STR2-B-20-30-RP4-HP1	Bearing: Ball bearing \| Bore: 20 mm \| Stroke: 30 mm \| Piping: Rear piping \| Version: P4
	STR2-B-20-30-RP40-HP1	Bearing: Ball bearing \| Bore: 20 mm \| Stroke: 30 mm \| Piping: Rear piping \| Version: P40
	STR2-B-20-40-P4-HP1	Bearing: Ball bearing \| Bore: 20 mm \| Stroke: 40 mm \| Piping: Standard \| Version: P4
	STR2-B-20-40-P40-HP1	Bearing: Ball bearing \| Bore: 20 mm \| Stroke: 40 mm \| Piping: Standard \| Version: P40
	STR2-B-20-40-OP4-HP1	Bearing: Ball bearing \| Bore: 20 mm \| Stroke: 40 mm \| Piping: Port 180° changed \| Version: P4
	STR2-B-20-40-OP40-HP1	Bearing: Ball bearing \| Bore: 20 mm \| Stroke: 40 mm \| Piping: Port 180° changed \| Version: P40
	STR2-B-20-40-RP4-HP1	Bearing: Ball bearing \| Bore: 20 mm \| Stroke: 40 mm \| Piping: Rear piping \| Version: P4
	STR2-B-20-40-RP40-HP1	Bearing: Ball bearing \| Bore: 20 mm \| Stroke: 40 mm \| Piping: Rear piping \| Version: P40
	STR2-B-20-50-P4-HP1	Bearing: Ball bearing \| Bore: 20 mm \| Stroke: 50 mm \| Piping: Standard \| Version: P4
	STR2-B-20-50-P40-HP1	Bearing: Ball bearing \| Bore: 20 mm \| Stroke: 50 mm \| Piping: Standard \| Version: P40
	STR2-B-20-50-OP4-HP1	Bearing: Ball bearing \| Bore: 20 mm \| Stroke: 50 mm \| Piping: Port 180° changed \| Version: P4
	STR2-B-20-50-OP40-HP1	Bearing: Ball bearing \| Bore: 20 mm \| Stroke: 50 mm \| Piping: Port 180° changed \| Version: P40
	STR2-B-20-50-RP4-HP1	Bearing: Ball bearing \| Bore: 20 mm \| Stroke: 50 mm \| Piping: Rear piping \| Version: P4
	STR2-B-20-50-RP40-HP1	Bearing: Ball bearing \| Bore: 20 mm \| Stroke: 50 mm \| Piping: Rear piping \| Version: P40
	STR2-B-20-60-P4-HP1	Bearing: Ball bearing \| Bore: 20 mm \| Stroke: 60 mm \| Piping: Standard \| Version: P4
	STR2-B-20-60-P40-HP1	Bearing: Ball bearing \| Bore: 20 mm \| Stroke: 60 mm \| Piping: Standard \| Version: P40
	STR2-B-20-60-OP4-HP1	Bearing: Ball bearing \| Bore: 20 mm \| Stroke: 60 mm \| Piping: Port 180° changed \| Version: P4
	STR2-B-20-60-OP40-HP1	Bearing: Ball bearing \| Bore: 20 mm \| Stroke: 60 mm \| Piping: Port 180° changed \| Version: P40
	STR2-B-20-60-RP4-HP1	Bearing: Ball bearing \| Bore: 20 mm \| Stroke: 60 mm \| Piping: Rear piping \| Version: P4
	STR2-B-20-60-RP40-HP1	Bearing: Ball bearing \| Bore: 20 mm \| Stroke: 60 mm \| Piping: Rear piping \| Version: P40
	STR2-B-20-70-P4-HP1	Bearing: Ball bearing \| Bore: 20 mm \| Stroke: 70 mm \| Piping: Standard \| Version: P4
	STR2-B-20-70-P40-HP1	Bearing: Ball bearing \| Bore: 20 mm \| Stroke: 70 mm \| Piping: Standard \| Version: P40
	STR2-B-20-70-OP4-HP1	Bearing: Ball bearing \| Bore: 20 mm \| Stroke: 70 mm \| Piping: Port 180° changed \| Version: P4
	STR2-B-20-70-OP40-HP1	Bearing: Ball bearing \| Bore: 20 mm \| Stroke: 70 mm \| Piping: Port 180° changed \| Version: P40
	STR2-B-20-80-P4-HP1	Bearing: Ball bearing \| Bore: 20 mm \| Stroke: 80 mm \| Piping: Standard \| Version: P4
	STR2-B-20-80-P40-HP1	Bearing: Ball bearing \| Bore: 20 mm \| Stroke: 80 mm \| Piping: Standard \| Version: P40
	STR2-B-20-80-OP4-HP1	Bearing: Ball bearing \| Bore: 20 mm \| Stroke: 80 mm \| Piping: Port 180° changed \| Version: P4
	STR2-B-20-80-OP40-HP1	Bearing: Ball bearing \| Bore: 20 mm \| Stroke: 80 mm \| Piping: Port 180° changed \| Version: P40
	STR2-B-20-90-P4-HP1	Bearing: Ball bearing \| Bore: 20 mm \| Stroke: 90 mm \| Piping: Standard \| Version: P4
	STR2-B-20-90-P40-HP1	Bearing: Ball bearing \| Bore: 20 mm \| Stroke: 90 mm \| Piping: Standard \| Version: P40
	STR2-B-20-90-OP4-HP1	Bearing: Ball bearing \| Bore: 20 mm \| Stroke: 90 mm \| Piping: Port 180° changed \| Version: P4
	STR2-B-20-90-OP40-HP1	Bearing: Ball bearing \| Bore: 20 mm \| Stroke: 90 mm \| Piping: Port 180° changed \| Version: P40
	STR2-B-20-100-P4-HP1	Bearing: Ball bearing \| Bore: 20 mm \| Stroke: 100 mm \| Piping: Standard \| Version: P4
	STR2-B-20-100-P40-HP1	Bearing: Ball bearing \| Bore: 20 mm \| Stroke: 100 mm \| Piping: Standard \| Version: P40
	STR2-B-20-100-OP4-HP1	Bearing: Ball bearing \| Bore: 20 mm \| Stroke: 100 mm \| Piping: Port 180° changed \| Version: P4
	STR2-B-20-100-OP40-HP1	Bearing: Ball bearing \| Bore: 20 mm \| Stroke: 100 mm \| Piping: Port 180° changed \| Version: P40
	STR2-B-25-10-P4-HP1	Bearing: Ball bearing \| Bore: 25 mm \| Stroke: 10 mm \| Piping: Standard \| Version: P4
	STR2-B-25-10-P40-HP1	Bearing: Ball bearing \| Bore: 25 mm \| Stroke: 10 mm \| Piping: Standard \| Version: P40
	STR2-B-25-10-OP4-HP1	Bearing: Ball bearing \| Bore: 25 mm \| Stroke: 10 mm \| Piping: Port 180° changed \| Version: P4
	STR2-B-25-10-OP40-HP1	Bearing: Ball bearing \| Bore: 25 mm \| Stroke: 10 mm \| Piping: Port 180° changed \| Version: P40
	STR2-B-25-10-RP4-HP1	Bearing: Ball bearing \| Bore: 25 mm \| Stroke: 10 mm \| Piping: Rear piping \| Version: P4
	STR2-B-25-10-RP40-HP1	Bearing: Ball bearing \| Bore: 25 mm \| Stroke: 10 mm \| Piping: Rear piping \| Version: P40
	STR2-B-25-20-P4-HP1	Bearing: Ball bearing \| Bore: 25 mm \| Stroke: 20 mm \| Piping: Standard \| Version: P4
	STR2-B-25-20-P40-HP1	Bearing: Ball bearing \| Bore: 25 mm \| Stroke: 20 mm \| Piping: Standard \| Version: P40
	STR2-B-25-20-OP4-HP1	Bearing: Ball bearing \| Bore: 25 mm \| Stroke: 20 mm \| Piping: Port 180° changed \| Version: P4
	STR2-B-25-20-OP40-HP1	Bearing: Ball bearing \| Bore: 25 mm \| Stroke: 20 mm \| Piping: Port 180° changed \| Version: P40
	STR2-B-25-20-RP4-HP1	Bearing: Ball bearing \| Bore: 25 mm \| Stroke: 20 mm \| Piping: Rear piping \| Version: P4
	STR2-B-25-20-RP40-HP1	Bearing: Ball bearing \| Bore: 25 mm \| Stroke: 20 mm \| Piping: Rear piping \| Version: P40
	STR2-B-25-30-P4-HP1	Bearing: Ball bearing \| Bore: 25 mm \| Stroke: 30 mm \| Piping: Standard \| Version: P4
	STR2-B-25-30-P40-HP1	Bearing: Ball bearing \| Bore: 25 mm \| Stroke: 30 mm \| Piping: Standard \| Version: P40
	STR2-B-25-30-OP4-HP1	Bearing: Ball bearing \| Bore: 25 mm \| Stroke: 30 mm \| Piping: Port 180° changed \| Version: P4
	STR2-B-25-30-OP40-HP1	Bearing: Ball bearing \| Bore: 25 mm \| Stroke: 30 mm \| Piping: Port 180° changed \| Version: P40
	STR2-B-25-30-RP4-HP1	Bearing: Ball bearing \| Bore: 25 mm \| Stroke: 30 mm \| Piping: Rear piping \| Version: P4
	STR2-B-25-30-RP40-HP1	Bearing: Ball bearing \| Bore: 25 mm \| Stroke: 30 mm \| Piping: Rear piping \| Version: P40
	STR2-B-25-40-P4-HP1	Bearing: Ball bearing \| Bore: 25 mm \| Stroke: 40 mm \| Piping: Standard \| Version: P4
	STR2-B-25-40-P40-HP1	Bearing: Ball bearing \| Bore: 25 mm \| Stroke: 40 mm \| Piping: Standard \| Version: P40
	STR2-B-25-40-OP4-HP1	Bearing: Ball bearing \| Bore: 25 mm \| Stroke: 40 mm \| Piping: Port 180° changed \| Version: P4
	STR2-B-25-40-OP40-HP1	Bearing: Ball bearing \| Bore: 25 mm \| Stroke: 40 mm \| Piping: Port 180° changed \| Version: P40
	STR2-B-25-40-RP4-HP1	Bearing: Ball bearing \| Bore: 25 mm \| Stroke: 40 mm \| Piping: Rear piping \| Version: P4
	STR2-B-25-40-RP40-HP1	Bearing: Ball bearing \| Bore: 25 mm \| Stroke: 40 mm \| Piping: Rear piping \| Version: P40
	STR2-B-25-50-P4-HP1	Bearing: Ball bearing \| Bore: 25 mm \| Stroke: 50 mm \| Piping: Standard \| Version: P4
	STR2-B-25-50-P40-HP1	Bearing: Ball bearing \| Bore: 25 mm \| Stroke: 50 mm \| Piping: Standard \| Version: P40
	STR2-B-25-50-OP4-HP1	Bearing: Ball bearing \| Bore: 25 mm \| Stroke: 50 mm \| Piping: Port 180° changed \| Version: P4
	STR2-B-25-50-OP40-HP1	Bearing: Ball bearing \| Bore: 25 mm \| Stroke: 50 mm \| Piping: Port 180° changed \| Version: P40
	STR2-B-25-50-RP4-HP1	Bearing: Ball bearing \| Bore: 25 mm \| Stroke: 50 mm \| Piping: Rear piping \| Version: P4
	STR2-B-25-50-RP40-HP1	Bearing: Ball bearing \| Bore: 25 mm \| Stroke: 50 mm \| Piping: Rear piping \| Version: P40
	STR2-B-25-60-P4-HP1	Bearing: Ball bearing \| Bore: 25 mm \| Stroke: 60 mm \| Piping: Standard \| Version: P4
	STR2-B-25-60-P40-HP1	Bearing: Ball bearing \| Bore: 25 mm \| Stroke: 60 mm \| Piping: Standard \| Version: P40
	STR2-B-25-60-OP4-HP1	Bearing: Ball bearing \| Bore: 25 mm \| Stroke: 60 mm \| Piping: Port 180° changed \| Version: P4
	STR2-B-25-60-OP40-HP1	Bearing: Ball bearing \| Bore: 25 mm \| Stroke: 60 mm \| Piping: Port 180° changed \| Version: P40
	STR2-B-25-60-RP4-HP1	Bearing: Ball bearing \| Bore: 25 mm \| Stroke: 60 mm \| Piping: Rear piping \| Version: P4
	STR2-B-25-60-RP40-HP1	Bearing: Ball bearing \| Bore: 25 mm \| Stroke: 60 mm \| Piping: Rear piping \| Version: P40
	STR2-B-25-70-P4-HP1	Bearing: Ball bearing \| Bore: 25 mm \| Stroke: 70 mm \| Piping: Standard \| Version: P4
	STR2-B-25-70-P40-HP1	Bearing: Ball bearing \| Bore: 25 mm \| Stroke: 70 mm \| Piping: Standard \| Version: P40
	STR2-B-25-70-OP4-HP1	Bearing: Ball bearing \| Bore: 25 mm \| Stroke: 70 mm \| Piping: Port 180° changed \| Version: P4
	STR2-B-25-70-OP40-HP1	Bearing: Ball bearing \| Bore: 25 mm \| Stroke: 70 mm \| Piping: Port 180° changed \| Version: P40
	STR2-B-25-80-P4-HP1	Bearing: Ball bearing \| Bore: 25 mm \| Stroke: 80 mm \| Piping: Standard \| Version: P4
	STR2-B-25-80-P40-HP1	Bearing: Ball bearing \| Bore: 25 mm \| Stroke: 80 mm \| Piping: Standard \| Version: P40
	STR2-B-25-80-OP4-HP1	Bearing: Ball bearing \| Bore: 25 mm \| Stroke: 80 mm \| Piping: Port 180° changed \| Version: P4
	STR2-B-25-80-OP40-HP1	Bearing: Ball bearing \| Bore: 25 mm \| Stroke: 80 mm \| Piping: Port 180° changed \| Version: P40
	STR2-B-25-90-P4-HP1	Bearing: Ball bearing \| Bore: 25 mm \| Stroke: 90 mm \| Piping: Standard \| Version: P4
	STR2-B-25-90-P40-HP1	Bearing: Ball bearing \| Bore: 25 mm \| Stroke: 90 mm \| Piping: Standard \| Version: P40
	STR2-B-25-90-OP4-HP1	Bearing: Ball bearing \| Bore: 25 mm \| Stroke: 90 mm \| Piping: Port 180° changed \| Version: P4
	STR2-B-25-90-OP40-HP1	Bearing: Ball bearing \| Bore: 25 mm \| Stroke: 90 mm \| Piping: Port 180° changed \| Version: P40
	STR2-B-25-100-P4-HP1	Bearing: Ball bearing \| Bore: 25 mm \| Stroke: 100 mm \| Piping: Standard \| Version: P4
	STR2-B-25-100-P40-HP1	Bearing: Ball bearing \| Bore: 25 mm \| Stroke: 100 mm \| Piping: Standard \| Version: P40
	STR2-B-25-100-OP4-HP1	Bearing: Ball bearing \| Bore: 25 mm \| Stroke: 100 mm \| Piping: Port 180° changed \| Version: P4
	STR2-B-25-100-OP40-HP1	Bearing: Ball bearing \| Bore: 25 mm \| Stroke: 100 mm \| Piping: Port 180° changed \| Version: P40
	STR2-B-32-10-P4-HP1	Bearing: Ball bearing \| Bore: 32 mm \| Stroke: 10 mm \| Piping: Standard \| Version: P4
	STR2-B-32-10-P40-HP1	Bearing: Ball bearing \| Bore: 32 mm \| Stroke: 10 mm \| Piping: Standard \| Version: P40
	STR2-B-32-10-OP4-HP1	Bearing: Ball bearing \| Bore: 32 mm \| Stroke: 10 mm \| Piping: Port 180° changed \| Version: P4
	STR2-B-32-10-OP40-HP1	Bearing: Ball bearing \| Bore: 32 mm \| Stroke: 10 mm \| Piping: Port 180° changed \| Version: P40
	STR2-B-32-10-RP4-HP1	Bearing: Ball bearing \| Bore: 32 mm \| Stroke: 10 mm \| Piping: Rear piping \| Version: P4
	STR2-B-32-10-RP40-HP1	Bearing: Ball bearing \| Bore: 32 mm \| Stroke: 10 mm \| Piping: Rear piping \| Version: P40
	STR2-B-32-20-P4-HP1	Bearing: Ball bearing \| Bore: 32 mm \| Stroke: 20 mm \| Piping: Standard \| Version: P4
	STR2-B-32-20-P40-HP1	Bearing: Ball bearing \| Bore: 32 mm \| Stroke: 20 mm \| Piping: Standard \| Version: P40
	STR2-B-32-20-OP4-HP1	Bearing: Ball bearing \| Bore: 32 mm \| Stroke: 20 mm \| Piping: Port 180° changed \| Version: P4
	STR2-B-32-20-OP40-HP1	Bearing: Ball bearing \| Bore: 32 mm \| Stroke: 20 mm \| Piping: Port 180° changed \| Version: P40
	STR2-B-32-20-RP4-HP1	Bearing: Ball bearing \| Bore: 32 mm \| Stroke: 20 mm \| Piping: Rear piping \| Version: P4
	STR2-B-32-20-RP40-HP1	Bearing: Ball bearing \| Bore: 32 mm \| Stroke: 20 mm \| Piping: Rear piping \| Version: P40
	STR2-B-32-30-P4-HP1	Bearing: Ball bearing \| Bore: 32 mm \| Stroke: 30 mm \| Piping: Standard \| Version: P4
	STR2-B-32-30-P40-HP1	Bearing: Ball bearing \| Bore: 32 mm \| Stroke: 30 mm \| Piping: Standard \| Version: P40
	STR2-B-32-30-OP4-HP1	Bearing: Ball bearing \| Bore: 32 mm \| Stroke: 30 mm \| Piping: Port 180° changed \| Version: P4
	STR2-B-32-30-OP40-HP1	Bearing: Ball bearing \| Bore: 32 mm \| Stroke: 30 mm \| Piping: Port 180° changed \| Version: P40
	STR2-B-32-30-RP4-HP1	Bearing: Ball bearing \| Bore: 32 mm \| Stroke: 30 mm \| Piping: Rear piping \| Version: P4
	STR2-B-32-30-RP40-HP1	Bearing: Ball bearing \| Bore: 32 mm \| Stroke: 30 mm \| Piping: Rear piping \| Version: P40
	STR2-B-32-40-P4-HP1	Bearing: Ball bearing \| Bore: 32 mm \| Stroke: 40 mm \| Piping: Standard \| Version: P4
	STR2-B-32-40-P40-HP1	Bearing: Ball bearing \| Bore: 32 mm \| Stroke: 40 mm \| Piping: Standard \| Version: P40
	STR2-B-32-40-OP4-HP1	Bearing: Ball bearing \| Bore: 32 mm \| Stroke: 40 mm \| Piping: Port 180° changed \| Version: P4
	STR2-B-32-40-OP40-HP1	Bearing: Ball bearing \| Bore: 32 mm \| Stroke: 40 mm \| Piping: Port 180° changed \| Version: P40
	STR2-B-32-40-RP4-HP1	Bearing: Ball bearing \| Bore: 32 mm \| Stroke: 40 mm \| Piping: Rear piping \| Version: P4
	STR2-B-32-40-RP40-HP1	Bearing: Ball bearing \| Bore: 32 mm \| Stroke: 40 mm \| Piping: Rear piping \| Version: P40
	STR2-B-32-50-P4-HP1	Bearing: Ball bearing \| Bore: 32 mm \| Stroke: 50 mm \| Piping: Standard \| Version: P4
	STR2-B-32-50-P40-HP1	Bearing: Ball bearing \| Bore: 32 mm \| Stroke: 50 mm \| Piping: Standard \| Version: P40
	STR2-B-32-50-OP4-HP1	Bearing: Ball bearing \| Bore: 32 mm \| Stroke: 50 mm \| Piping: Port 180° changed \| Version: P4
	STR2-B-32-50-OP40-HP1	Bearing: Ball bearing \| Bore: 32 mm \| Stroke: 50 mm \| Piping: Port 180° changed \| Version: P40
	STR2-B-32-50-RP4-HP1	Bearing: Ball bearing \| Bore: 32 mm \| Stroke: 50 mm \| Piping: Rear piping \| Version: P4
	STR2-B-32-50-RP40-HP1	Bearing: Ball bearing \| Bore: 32 mm \| Stroke: 50 mm \| Piping: Rear piping \| Version: P40
	STR2-B-32-60-P4-HP1	Bearing: Ball bearing \| Bore: 32 mm \| Stroke: 60 mm \| Piping: Standard \| Version: P4
	STR2-B-32-60-P40-HP1	Bearing: Ball bearing \| Bore: 32 mm \| Stroke: 60 mm \| Piping: Standard \| Version: P40
	STR2-B-32-60-OP4-HP1	Bearing: Ball bearing \| Bore: 32 mm \| Stroke: 60 mm \| Piping: Port 180° changed \| Version: P4
	STR2-B-32-60-OP40-HP1	Bearing: Ball bearing \| Bore: 32 mm \| Stroke: 60 mm \| Piping: Port 180° changed \| Version: P40
	STR2-B-32-70-P4-HP1	Bearing: Ball bearing \| Bore: 32 mm \| Stroke: 70 mm \| Piping: Standard \| Version: P4
	STR2-B-32-70-P40-HP1	Bearing: Ball bearing \| Bore: 32 mm \| Stroke: 70 mm \| Piping: Standard \| Version: P40
	STR2-B-32-70-OP4-HP1	Bearing: Ball bearing \| Bore: 32 mm \| Stroke: 70 mm \| Piping: Port 180° changed \| Version: P4
	STR2-B-32-70-OP40-HP1	Bearing: Ball bearing \| Bore: 32 mm \| Stroke: 70 mm \| Piping: Port 180° changed \| Version: P40
	STR2-B-32-80-P4-HP1	Bearing: Ball bearing \| Bore: 32 mm \| Stroke: 80 mm \| Piping: Standard \| Version: P4
	STR2-B-32-80-P40-HP1	Bearing: Ball bearing \| Bore: 32 mm \| Stroke: 80 mm \| Piping: Standard \| Version: P40
	STR2-B-32-80-OP4-HP1	Bearing: Ball bearing \| Bore: 32 mm \| Stroke: 80 mm \| Piping: Port 180° changed \| Version: P4
	STR2-B-32-80-OP40-HP1	Bearing: Ball bearing \| Bore: 32 mm \| Stroke: 80 mm \| Piping: Port 180° changed \| Version: P40
	STR2-B-32-90-P4-HP1	Bearing: Ball bearing \| Bore: 32 mm \| Stroke: 90 mm \| Piping: Standard \| Version: P4
	STR2-B-32-90-P40-HP1	Bearing: Ball bearing \| Bore: 32 mm \| Stroke: 90 mm \| Piping: Standard \| Version: P40
	STR2-B-32-90-OP4-HP1	Bearing: Ball bearing \| Bore: 32 mm \| Stroke: 90 mm \| Piping: Port 180° changed \| Version: P4
	STR2-B-32-90-OP40-HP1	Bearing: Ball bearing \| Bore: 32 mm \| Stroke: 90 mm \| Piping: Port 180° changed \| Version: P40
	STR2-B-32-100-P4-HP1	Bearing: Ball bearing \| Bore: 32 mm \| Stroke: 100 mm \| Piping: Standard \| Version: P4
	STR2-B-32-100-P40-HP1	Bearing: Ball bearing \| Bore: 32 mm \| Stroke: 100 mm \| Piping: Standard \| Version: P40
	STR2-B-32-100-OP4-HP1	Bearing: Ball bearing \| Bore: 32 mm \| Stroke: 100 mm \| Piping: Port 180° changed \| Version: P4
	STR2-B-32-100-OP40-HP1	Bearing: Ball bearing \| Bore: 32 mm \| Stroke: 100 mm \| Piping: Port 180° changed \| Version: P40

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

CKD STR2-M/B-P4/P40-HP1 Super Twin Rod Cylinder (Battery)
