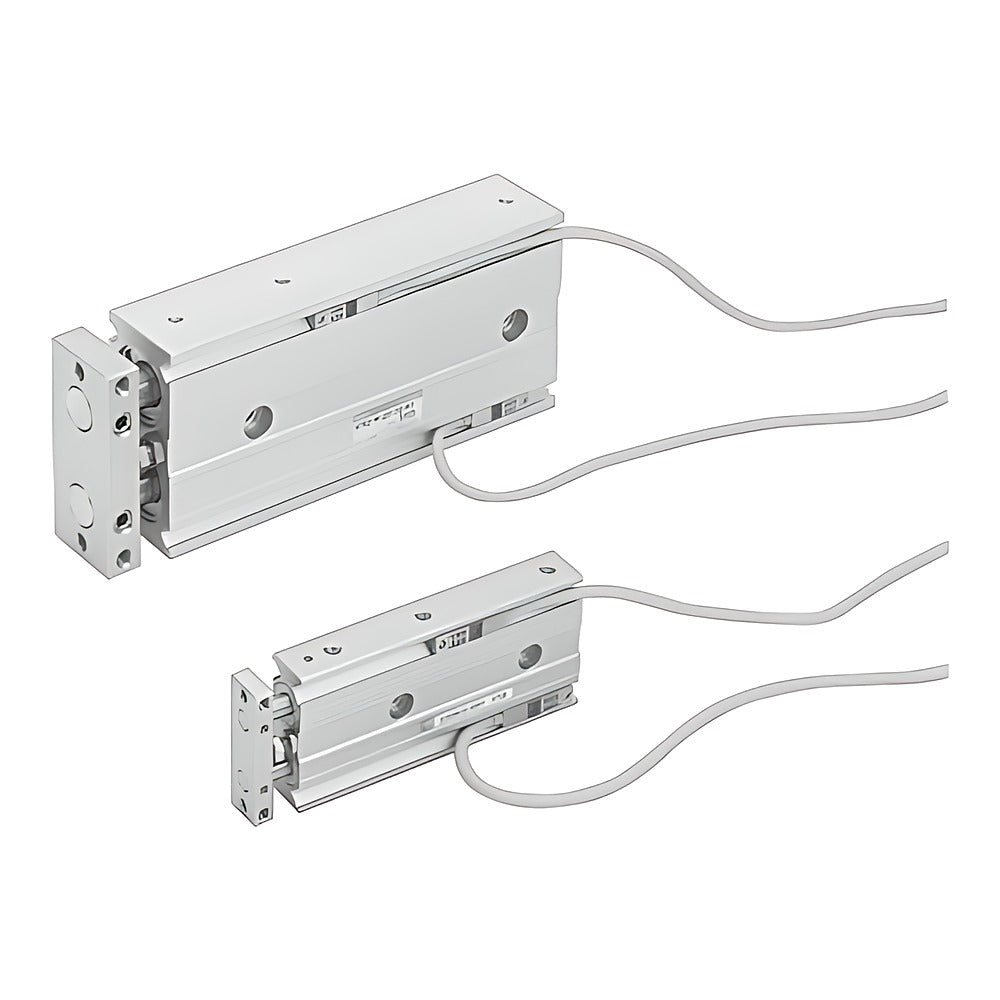

CKD STR2 Super Twin Rod Cylinder (Bore 6-32 mm)

CKD STR2 Super Twin Rod Cylinder (Bore 6-32 mm)

CKD STR2 super twin rod cylinder: two parallel single-rod cylinders joined by an end plate for double thrust and high non-rotating accuracy, bore 6 to 32 mm, in slide (M) or ball (B) bearing versions.

Key features

  • Double piston structure gives twice the thrust of a single cylinder plus non-rotating plate guidance
  • Variants: standard, drop prevention (Q, head or rod side lock), low speed (O), fine speed (F) and double rod (D)
  • Slide bearing (STR2-M) or ball bearing (STR2-B) guide; switch magnet built in as standard
  • Auto switches (K0H, K2H, K3H, K2YH etc.) mount on two faces without protrusion; ordered as code suffix with switch quantity R/H/D
  • Options: steel end plate (F), non-purple P6, port position rotated 180 deg (O), rear piping (R); NPT (NN) / G (GN) ports for bore 32 made to order
  • Intermediate strokes in 1 mm steps (standard/O/F types); total length follows next standard stroke

Specifications

Action Double acting
Fluid Compressed air
Max. operating pressure 0.7 MPa
Min. operating pressure 0.1-0.2 MPa (standard), 0.15 MPa (Q)
Proof pressure 1.05 MPa
Ambient temperature -10 to 60 C (no freezing)
Piston speed 50-500 mm/s (F: fine speed, O: low speed)
Stroke tolerance +2.0/0 mm
Cushion Rubber cushion
Lubrication Not required
Source CKD Korea catalog CB-030SK-9, p. 663-707
STR2-M-6-10 Type: Standard | Bearing: Slide bearing | Bore: 6 mm | Stroke: 10 mm | Port: M5
STR2-M-6-20 Type: Standard | Bearing: Slide bearing | Bore: 6 mm | Stroke: 20 mm | Port: M5
STR2-M-6-30 Type: Standard | Bearing: Slide bearing | Bore: 6 mm | Stroke: 30 mm | Port: M5
STR2-M-6-40 Type: Standard | Bearing: Slide bearing | Bore: 6 mm | Stroke: 40 mm | Port: M5
STR2-M-6-50 Type: Standard | Bearing: Slide bearing | Bore: 6 mm | Stroke: 50 mm | Port: M5
STR2-M-10-10 Type: Standard | Bearing: Slide bearing | Bore: 10 mm | Stroke: 10 mm | Port: M5
STR2-M-10-20 Type: Standard | Bearing: Slide bearing | Bore: 10 mm | Stroke: 20 mm | Port: M5
STR2-M-10-30 Type: Standard | Bearing: Slide bearing | Bore: 10 mm | Stroke: 30 mm | Port: M5
STR2-M-10-40 Type: Standard | Bearing: Slide bearing | Bore: 10 mm | Stroke: 40 mm | Port: M5
STR2-M-10-50 Type: Standard | Bearing: Slide bearing | Bore: 10 mm | Stroke: 50 mm | Port: M5
STR2-M-16-10 Type: Standard | Bearing: Slide bearing | Bore: 16 mm | Stroke: 10 mm | Port: M5
STR2-M-16-20 Type: Standard | Bearing: Slide bearing | Bore: 16 mm | Stroke: 20 mm | Port: M5
STR2-M-16-30 Type: Standard | Bearing: Slide bearing | Bore: 16 mm | Stroke: 30 mm | Port: M5
STR2-M-16-40 Type: Standard | Bearing: Slide bearing | Bore: 16 mm | Stroke: 40 mm | Port: M5
STR2-M-16-50 Type: Standard | Bearing: Slide bearing | Bore: 16 mm | Stroke: 50 mm | Port: M5
STR2-M-16-60 Type: Standard | Bearing: Slide bearing | Bore: 16 mm | Stroke: 60 mm | Port: M5
STR2-M-16-70 Type: Standard | Bearing: Slide bearing | Bore: 16 mm | Stroke: 70 mm | Port: M5
STR2-M-16-80 Type: Standard | Bearing: Slide bearing | Bore: 16 mm | Stroke: 80 mm | Port: M5
STR2-M-16-90 Type: Standard | Bearing: Slide bearing | Bore: 16 mm | Stroke: 90 mm | Port: M5
STR2-M-16-100 Type: Standard | Bearing: Slide bearing | Bore: 16 mm | Stroke: 100 mm | Port: M5
STR2-M-20-10 Type: Standard | Bearing: Slide bearing | Bore: 20 mm | Stroke: 10 mm | Port: M5
STR2-M-20-20 Type: Standard | Bearing: Slide bearing | Bore: 20 mm | Stroke: 20 mm | Port: M5
STR2-M-20-30 Type: Standard | Bearing: Slide bearing | Bore: 20 mm | Stroke: 30 mm | Port: M5
STR2-M-20-40 Type: Standard | Bearing: Slide bearing | Bore: 20 mm | Stroke: 40 mm | Port: M5
STR2-M-20-50 Type: Standard | Bearing: Slide bearing | Bore: 20 mm | Stroke: 50 mm | Port: M5
STR2-M-20-60 Type: Standard | Bearing: Slide bearing | Bore: 20 mm | Stroke: 60 mm | Port: M5
STR2-M-20-70 Type: Standard | Bearing: Slide bearing | Bore: 20 mm | Stroke: 70 mm | Port: M5
STR2-M-20-80 Type: Standard | Bearing: Slide bearing | Bore: 20 mm | Stroke: 80 mm | Port: M5
STR2-M-20-90 Type: Standard | Bearing: Slide bearing | Bore: 20 mm | Stroke: 90 mm | Port: M5
STR2-M-20-100 Type: Standard | Bearing: Slide bearing | Bore: 20 mm | Stroke: 100 mm | Port: M5
STR2-M-25-10 Type: Standard | Bearing: Slide bearing | Bore: 25 mm | Stroke: 10 mm | Port: M5
STR2-M-25-20 Type: Standard | Bearing: Slide bearing | Bore: 25 mm | Stroke: 20 mm | Port: M5
STR2-M-25-30 Type: Standard | Bearing: Slide bearing | Bore: 25 mm | Stroke: 30 mm | Port: M5
STR2-M-25-40 Type: Standard | Bearing: Slide bearing | Bore: 25 mm | Stroke: 40 mm | Port: M5
STR2-M-25-50 Type: Standard | Bearing: Slide bearing | Bore: 25 mm | Stroke: 50 mm | Port: M5
STR2-M-25-60 Type: Standard | Bearing: Slide bearing | Bore: 25 mm | Stroke: 60 mm | Port: M5
STR2-M-25-70 Type: Standard | Bearing: Slide bearing | Bore: 25 mm | Stroke: 70 mm | Port: M5
STR2-M-25-80 Type: Standard | Bearing: Slide bearing | Bore: 25 mm | Stroke: 80 mm | Port: M5
STR2-M-25-90 Type: Standard | Bearing: Slide bearing | Bore: 25 mm | Stroke: 90 mm | Port: M5
STR2-M-25-100 Type: Standard | Bearing: Slide bearing | Bore: 25 mm | Stroke: 100 mm | Port: M5
STR2-M-32-10 Type: Standard | Bearing: Slide bearing | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
STR2-M-32-20 Type: Standard | Bearing: Slide bearing | Bore: 32 mm | Stroke: 20 mm | Port: Rc1/8
STR2-M-32-30 Type: Standard | Bearing: Slide bearing | Bore: 32 mm | Stroke: 30 mm | Port: Rc1/8
STR2-M-32-40 Type: Standard | Bearing: Slide bearing | Bore: 32 mm | Stroke: 40 mm | Port: Rc1/8
STR2-M-32-50 Type: Standard | Bearing: Slide bearing | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
STR2-M-32-60 Type: Standard | Bearing: Slide bearing | Bore: 32 mm | Stroke: 60 mm | Port: Rc1/8
STR2-M-32-70 Type: Standard | Bearing: Slide bearing | Bore: 32 mm | Stroke: 70 mm | Port: Rc1/8
STR2-M-32-80 Type: Standard | Bearing: Slide bearing | Bore: 32 mm | Stroke: 80 mm | Port: Rc1/8
STR2-M-32-90 Type: Standard | Bearing: Slide bearing | Bore: 32 mm | Stroke: 90 mm | Port: Rc1/8
STR2-M-32-100 Type: Standard | Bearing: Slide bearing | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
STR2-B-6-10 Type: Standard | Bearing: Ball bearing | Bore: 6 mm | Stroke: 10 mm | Port: M5
STR2-B-6-20 Type: Standard | Bearing: Ball bearing | Bore: 6 mm | Stroke: 20 mm | Port: M5
STR2-B-6-30 Type: Standard | Bearing: Ball bearing | Bore: 6 mm | Stroke: 30 mm | Port: M5
STR2-B-6-40 Type: Standard | Bearing: Ball bearing | Bore: 6 mm | Stroke: 40 mm | Port: M5
STR2-B-6-50 Type: Standard | Bearing: Ball bearing | Bore: 6 mm | Stroke: 50 mm | Port: M5
STR2-B-10-10 Type: Standard | Bearing: Ball bearing | Bore: 10 mm | Stroke: 10 mm | Port: M5
STR2-B-10-20 Type: Standard | Bearing: Ball bearing | Bore: 10 mm | Stroke: 20 mm | Port: M5
STR2-B-10-30 Type: Standard | Bearing: Ball bearing | Bore: 10 mm | Stroke: 30 mm | Port: M5
STR2-B-10-40 Type: Standard | Bearing: Ball bearing | Bore: 10 mm | Stroke: 40 mm | Port: M5
STR2-B-10-50 Type: Standard | Bearing: Ball bearing | Bore: 10 mm | Stroke: 50 mm | Port: M5
STR2-B-16-10 Type: Standard | Bearing: Ball bearing | Bore: 16 mm | Stroke: 10 mm | Port: M5
STR2-B-16-20 Type: Standard | Bearing: Ball bearing | Bore: 16 mm | Stroke: 20 mm | Port: M5
STR2-B-16-30 Type: Standard | Bearing: Ball bearing | Bore: 16 mm | Stroke: 30 mm | Port: M5
STR2-B-16-40 Type: Standard | Bearing: Ball bearing | Bore: 16 mm | Stroke: 40 mm | Port: M5
STR2-B-16-50 Type: Standard | Bearing: Ball bearing | Bore: 16 mm | Stroke: 50 mm | Port: M5
STR2-B-16-60 Type: Standard | Bearing: Ball bearing | Bore: 16 mm | Stroke: 60 mm | Port: M5
STR2-B-16-70 Type: Standard | Bearing: Ball bearing | Bore: 16 mm | Stroke: 70 mm | Port: M5
STR2-B-16-80 Type: Standard | Bearing: Ball bearing | Bore: 16 mm | Stroke: 80 mm | Port: M5
STR2-B-16-90 Type: Standard | Bearing: Ball bearing | Bore: 16 mm | Stroke: 90 mm | Port: M5
STR2-B-16-100 Type: Standard | Bearing: Ball bearing | Bore: 16 mm | Stroke: 100 mm | Port: M5
STR2-B-20-10 Type: Standard | Bearing: Ball bearing | Bore: 20 mm | Stroke: 10 mm | Port: M5
STR2-B-20-20 Type: Standard | Bearing: Ball bearing | Bore: 20 mm | Stroke: 20 mm | Port: M5
STR2-B-20-30 Type: Standard | Bearing: Ball bearing | Bore: 20 mm | Stroke: 30 mm | Port: M5
STR2-B-20-40 Type: Standard | Bearing: Ball bearing | Bore: 20 mm | Stroke: 40 mm | Port: M5
STR2-B-20-50 Type: Standard | Bearing: Ball bearing | Bore: 20 mm | Stroke: 50 mm | Port: M5
STR2-B-20-60 Type: Standard | Bearing: Ball bearing | Bore: 20 mm | Stroke: 60 mm | Port: M5
STR2-B-20-70 Type: Standard | Bearing: Ball bearing | Bore: 20 mm | Stroke: 70 mm | Port: M5
STR2-B-20-80 Type: Standard | Bearing: Ball bearing | Bore: 20 mm | Stroke: 80 mm | Port: M5
STR2-B-20-90 Type: Standard | Bearing: Ball bearing | Bore: 20 mm | Stroke: 90 mm | Port: M5
STR2-B-20-100 Type: Standard | Bearing: Ball bearing | Bore: 20 mm | Stroke: 100 mm | Port: M5
STR2-B-25-10 Type: Standard | Bearing: Ball bearing | Bore: 25 mm | Stroke: 10 mm | Port: M5
STR2-B-25-20 Type: Standard | Bearing: Ball bearing | Bore: 25 mm | Stroke: 20 mm | Port: M5
STR2-B-25-30 Type: Standard | Bearing: Ball bearing | Bore: 25 mm | Stroke: 30 mm | Port: M5
STR2-B-25-40 Type: Standard | Bearing: Ball bearing | Bore: 25 mm | Stroke: 40 mm | Port: M5
STR2-B-25-50 Type: Standard | Bearing: Ball bearing | Bore: 25 mm | Stroke: 50 mm | Port: M5
STR2-B-25-60 Type: Standard | Bearing: Ball bearing | Bore: 25 mm | Stroke: 60 mm | Port: M5
STR2-B-25-70 Type: Standard | Bearing: Ball bearing | Bore: 25 mm | Stroke: 70 mm | Port: M5
STR2-B-25-80 Type: Standard | Bearing: Ball bearing | Bore: 25 mm | Stroke: 80 mm | Port: M5
STR2-B-25-90 Type: Standard | Bearing: Ball bearing | Bore: 25 mm | Stroke: 90 mm | Port: M5
STR2-B-25-100 Type: Standard | Bearing: Ball bearing | Bore: 25 mm | Stroke: 100 mm | Port: M5
STR2-B-32-10 Type: Standard | Bearing: Ball bearing | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
STR2-B-32-20 Type: Standard | Bearing: Ball bearing | Bore: 32 mm | Stroke: 20 mm | Port: Rc1/8
STR2-B-32-30 Type: Standard | Bearing: Ball bearing | Bore: 32 mm | Stroke: 30 mm | Port: Rc1/8
STR2-B-32-40 Type: Standard | Bearing: Ball bearing | Bore: 32 mm | Stroke: 40 mm | Port: Rc1/8
STR2-B-32-50 Type: Standard | Bearing: Ball bearing | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
STR2-B-32-60 Type: Standard | Bearing: Ball bearing | Bore: 32 mm | Stroke: 60 mm | Port: Rc1/8
STR2-B-32-70 Type: Standard | Bearing: Ball bearing | Bore: 32 mm | Stroke: 70 mm | Port: Rc1/8
STR2-B-32-80 Type: Standard | Bearing: Ball bearing | Bore: 32 mm | Stroke: 80 mm | Port: Rc1/8
STR2-B-32-90 Type: Standard | Bearing: Ball bearing | Bore: 32 mm | Stroke: 90 mm | Port: Rc1/8
STR2-B-32-100 Type: Standard | Bearing: Ball bearing | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
STR2-MQ-16-10-H Type: Drop prevention (Head side lock) | Bearing: Slide bearing | Bore: 16 mm | Stroke: 10 mm | Port: M5
STR2-MQ-16-10-R Type: Drop prevention (Rod side lock) | Bearing: Slide bearing | Bore: 16 mm | Stroke: 10 mm | Port: M5
STR2-MQ-16-20-H Type: Drop prevention (Head side lock) | Bearing: Slide bearing | Bore: 16 mm | Stroke: 20 mm | Port: M5
STR2-MQ-16-20-R Type: Drop prevention (Rod side lock) | Bearing: Slide bearing | Bore: 16 mm | Stroke: 20 mm | Port: M5
STR2-MQ-16-30-H Type: Drop prevention (Head side lock) | Bearing: Slide bearing | Bore: 16 mm | Stroke: 30 mm | Port: M5
STR2-MQ-16-30-R Type: Drop prevention (Rod side lock) | Bearing: Slide bearing | Bore: 16 mm | Stroke: 30 mm | Port: M5
STR2-MQ-16-40-H Type: Drop prevention (Head side lock) | Bearing: Slide bearing | Bore: 16 mm | Stroke: 40 mm | Port: M5
STR2-MQ-16-40-R Type: Drop prevention (Rod side lock) | Bearing: Slide bearing | Bore: 16 mm | Stroke: 40 mm | Port: M5
STR2-MQ-16-50-H Type: Drop prevention (Head side lock) | Bearing: Slide bearing | Bore: 16 mm | Stroke: 50 mm | Port: M5
STR2-MQ-16-50-R Type: Drop prevention (Rod side lock) | Bearing: Slide bearing | Bore: 16 mm | Stroke: 50 mm | Port: M5
STR2-MQ-16-60-H Type: Drop prevention (Head side lock) | Bearing: Slide bearing | Bore: 16 mm | Stroke: 60 mm | Port: M5
STR2-MQ-16-60-R Type: Drop prevention (Rod side lock) | Bearing: Slide bearing | Bore: 16 mm | Stroke: 60 mm | Port: M5
STR2-MQ-16-70-H Type: Drop prevention (Head side lock) | Bearing: Slide bearing | Bore: 16 mm | Stroke: 70 mm | Port: M5
STR2-MQ-16-70-R Type: Drop prevention (Rod side lock) | Bearing: Slide bearing | Bore: 16 mm | Stroke: 70 mm | Port: M5
STR2-MQ-16-80-H Type: Drop prevention (Head side lock) | Bearing: Slide bearing | Bore: 16 mm | Stroke: 80 mm | Port: M5
STR2-MQ-16-80-R Type: Drop prevention (Rod side lock) | Bearing: Slide bearing | Bore: 16 mm | Stroke: 80 mm | Port: M5
STR2-MQ-16-90-H Type: Drop prevention (Head side lock) | Bearing: Slide bearing | Bore: 16 mm | Stroke: 90 mm | Port: M5
STR2-MQ-16-90-R Type: Drop prevention (Rod side lock) | Bearing: Slide bearing | Bore: 16 mm | Stroke: 90 mm | Port: M5
STR2-MQ-16-100-H Type: Drop prevention (Head side lock) | Bearing: Slide bearing | Bore: 16 mm | Stroke: 100 mm | Port: M5
STR2-MQ-16-100-R Type: Drop prevention (Rod side lock) | Bearing: Slide bearing | Bore: 16 mm | Stroke: 100 mm | Port: M5
STR2-MQ-20-10-H Type: Drop prevention (Head side lock) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 10 mm | Port: M5
STR2-MQ-20-10-R Type: Drop prevention (Rod side lock) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 10 mm | Port: M5
STR2-MQ-20-20-H Type: Drop prevention (Head side lock) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 20 mm | Port: M5
STR2-MQ-20-20-R Type: Drop prevention (Rod side lock) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 20 mm | Port: M5
STR2-MQ-20-30-H Type: Drop prevention (Head side lock) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 30 mm | Port: M5
STR2-MQ-20-30-R Type: Drop prevention (Rod side lock) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 30 mm | Port: M5
STR2-MQ-20-40-H Type: Drop prevention (Head side lock) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 40 mm | Port: M5
STR2-MQ-20-40-R Type: Drop prevention (Rod side lock) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 40 mm | Port: M5
STR2-MQ-20-50-H Type: Drop prevention (Head side lock) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 50 mm | Port: M5
STR2-MQ-20-50-R Type: Drop prevention (Rod side lock) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 50 mm | Port: M5
STR2-MQ-20-60-H Type: Drop prevention (Head side lock) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 60 mm | Port: M5
STR2-MQ-20-60-R Type: Drop prevention (Rod side lock) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 60 mm | Port: M5
STR2-MQ-20-70-H Type: Drop prevention (Head side lock) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 70 mm | Port: M5
STR2-MQ-20-70-R Type: Drop prevention (Rod side lock) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 70 mm | Port: M5
STR2-MQ-20-80-H Type: Drop prevention (Head side lock) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 80 mm | Port: M5
STR2-MQ-20-80-R Type: Drop prevention (Rod side lock) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 80 mm | Port: M5
STR2-MQ-20-90-H Type: Drop prevention (Head side lock) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 90 mm | Port: M5
STR2-MQ-20-90-R Type: Drop prevention (Rod side lock) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 90 mm | Port: M5
STR2-MQ-20-100-H Type: Drop prevention (Head side lock) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 100 mm | Port: M5
STR2-MQ-20-100-R Type: Drop prevention (Rod side lock) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 100 mm | Port: M5
STR2-MQ-25-10-H Type: Drop prevention (Head side lock) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 10 mm | Port: M5
STR2-MQ-25-10-R Type: Drop prevention (Rod side lock) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 10 mm | Port: M5
STR2-MQ-25-20-H Type: Drop prevention (Head side lock) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 20 mm | Port: M5
STR2-MQ-25-20-R Type: Drop prevention (Rod side lock) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 20 mm | Port: M5
STR2-MQ-25-30-H Type: Drop prevention (Head side lock) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 30 mm | Port: M5
STR2-MQ-25-30-R Type: Drop prevention (Rod side lock) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 30 mm | Port: M5
STR2-MQ-25-40-H Type: Drop prevention (Head side lock) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 40 mm | Port: M5
STR2-MQ-25-40-R Type: Drop prevention (Rod side lock) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 40 mm | Port: M5
STR2-MQ-25-50-H Type: Drop prevention (Head side lock) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 50 mm | Port: M5
STR2-MQ-25-50-R Type: Drop prevention (Rod side lock) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 50 mm | Port: M5
STR2-MQ-25-60-H Type: Drop prevention (Head side lock) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 60 mm | Port: M5
STR2-MQ-25-60-R Type: Drop prevention (Rod side lock) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 60 mm | Port: M5
STR2-MQ-25-70-H Type: Drop prevention (Head side lock) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 70 mm | Port: M5
STR2-MQ-25-70-R Type: Drop prevention (Rod side lock) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 70 mm | Port: M5
STR2-MQ-25-80-H Type: Drop prevention (Head side lock) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 80 mm | Port: M5
STR2-MQ-25-80-R Type: Drop prevention (Rod side lock) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 80 mm | Port: M5
STR2-MQ-25-90-H Type: Drop prevention (Head side lock) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 90 mm | Port: M5
STR2-MQ-25-90-R Type: Drop prevention (Rod side lock) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 90 mm | Port: M5
STR2-MQ-25-100-H Type: Drop prevention (Head side lock) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 100 mm | Port: M5
STR2-MQ-25-100-R Type: Drop prevention (Rod side lock) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 100 mm | Port: M5
STR2-MQ-32-10-H Type: Drop prevention (Head side lock) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
STR2-MQ-32-10-R Type: Drop prevention (Rod side lock) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
STR2-MQ-32-20-H Type: Drop prevention (Head side lock) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 20 mm | Port: Rc1/8
STR2-MQ-32-20-R Type: Drop prevention (Rod side lock) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 20 mm | Port: Rc1/8
STR2-MQ-32-30-H Type: Drop prevention (Head side lock) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 30 mm | Port: Rc1/8
STR2-MQ-32-30-R Type: Drop prevention (Rod side lock) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 30 mm | Port: Rc1/8
STR2-MQ-32-40-H Type: Drop prevention (Head side lock) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 40 mm | Port: Rc1/8
STR2-MQ-32-40-R Type: Drop prevention (Rod side lock) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 40 mm | Port: Rc1/8
STR2-MQ-32-50-H Type: Drop prevention (Head side lock) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
STR2-MQ-32-50-R Type: Drop prevention (Rod side lock) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
STR2-MQ-32-60-H Type: Drop prevention (Head side lock) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 60 mm | Port: Rc1/8
STR2-MQ-32-60-R Type: Drop prevention (Rod side lock) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 60 mm | Port: Rc1/8
STR2-MQ-32-70-H Type: Drop prevention (Head side lock) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 70 mm | Port: Rc1/8
STR2-MQ-32-70-R Type: Drop prevention (Rod side lock) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 70 mm | Port: Rc1/8
STR2-MQ-32-80-H Type: Drop prevention (Head side lock) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 80 mm | Port: Rc1/8
STR2-MQ-32-80-R Type: Drop prevention (Rod side lock) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 80 mm | Port: Rc1/8
STR2-MQ-32-90-H Type: Drop prevention (Head side lock) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 90 mm | Port: Rc1/8
STR2-MQ-32-90-R Type: Drop prevention (Rod side lock) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 90 mm | Port: Rc1/8
STR2-MQ-32-100-H Type: Drop prevention (Head side lock) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
STR2-MQ-32-100-R Type: Drop prevention (Rod side lock) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
STR2-BQ-16-10-H Type: Drop prevention (Head side lock) | Bearing: Ball bearing | Bore: 16 mm | Stroke: 10 mm | Port: M5
STR2-BQ-16-10-R Type: Drop prevention (Rod side lock) | Bearing: Ball bearing | Bore: 16 mm | Stroke: 10 mm | Port: M5
STR2-BQ-16-20-H Type: Drop prevention (Head side lock) | Bearing: Ball bearing | Bore: 16 mm | Stroke: 20 mm | Port: M5
STR2-BQ-16-20-R Type: Drop prevention (Rod side lock) | Bearing: Ball bearing | Bore: 16 mm | Stroke: 20 mm | Port: M5
STR2-BQ-16-30-H Type: Drop prevention (Head side lock) | Bearing: Ball bearing | Bore: 16 mm | Stroke: 30 mm | Port: M5
STR2-BQ-16-30-R Type: Drop prevention (Rod side lock) | Bearing: Ball bearing | Bore: 16 mm | Stroke: 30 mm | Port: M5
STR2-BQ-16-40-H Type: Drop prevention (Head side lock) | Bearing: Ball bearing | Bore: 16 mm | Stroke: 40 mm | Port: M5
STR2-BQ-16-40-R Type: Drop prevention (Rod side lock) | Bearing: Ball bearing | Bore: 16 mm | Stroke: 40 mm | Port: M5
STR2-BQ-16-50-H Type: Drop prevention (Head side lock) | Bearing: Ball bearing | Bore: 16 mm | Stroke: 50 mm | Port: M5
STR2-BQ-16-50-R Type: Drop prevention (Rod side lock) | Bearing: Ball bearing | Bore: 16 mm | Stroke: 50 mm | Port: M5
STR2-BQ-16-60-H Type: Drop prevention (Head side lock) | Bearing: Ball bearing | Bore: 16 mm | Stroke: 60 mm | Port: M5
STR2-BQ-16-60-R Type: Drop prevention (Rod side lock) | Bearing: Ball bearing | Bore: 16 mm | Stroke: 60 mm | Port: M5
STR2-BQ-16-70-H Type: Drop prevention (Head side lock) | Bearing: Ball bearing | Bore: 16 mm | Stroke: 70 mm | Port: M5
STR2-BQ-16-70-R Type: Drop prevention (Rod side lock) | Bearing: Ball bearing | Bore: 16 mm | Stroke: 70 mm | Port: M5
STR2-BQ-16-80-H Type: Drop prevention (Head side lock) | Bearing: Ball bearing | Bore: 16 mm | Stroke: 80 mm | Port: M5
STR2-BQ-16-80-R Type: Drop prevention (Rod side lock) | Bearing: Ball bearing | Bore: 16 mm | Stroke: 80 mm | Port: M5
STR2-BQ-16-90-H Type: Drop prevention (Head side lock) | Bearing: Ball bearing | Bore: 16 mm | Stroke: 90 mm | Port: M5
STR2-BQ-16-90-R Type: Drop prevention (Rod side lock) | Bearing: Ball bearing | Bore: 16 mm | Stroke: 90 mm | Port: M5
STR2-BQ-16-100-H Type: Drop prevention (Head side lock) | Bearing: Ball bearing | Bore: 16 mm | Stroke: 100 mm | Port: M5
STR2-BQ-16-100-R Type: Drop prevention (Rod side lock) | Bearing: Ball bearing | Bore: 16 mm | Stroke: 100 mm | Port: M5
STR2-BQ-20-10-H Type: Drop prevention (Head side lock) | Bearing: Ball bearing | Bore: 20 mm | Stroke: 10 mm | Port: M5
STR2-BQ-20-10-R Type: Drop prevention (Rod side lock) | Bearing: Ball bearing | Bore: 20 mm | Stroke: 10 mm | Port: M5
STR2-BQ-20-20-H Type: Drop prevention (Head side lock) | Bearing: Ball bearing | Bore: 20 mm | Stroke: 20 mm | Port: M5
STR2-BQ-20-20-R Type: Drop prevention (Rod side lock) | Bearing: Ball bearing | Bore: 20 mm | Stroke: 20 mm | Port: M5
STR2-BQ-20-30-H Type: Drop prevention (Head side lock) | Bearing: Ball bearing | Bore: 20 mm | Stroke: 30 mm | Port: M5
STR2-BQ-20-30-R Type: Drop prevention (Rod side lock) | Bearing: Ball bearing | Bore: 20 mm | Stroke: 30 mm | Port: M5
STR2-BQ-20-40-H Type: Drop prevention (Head side lock) | Bearing: Ball bearing | Bore: 20 mm | Stroke: 40 mm | Port: M5
STR2-BQ-20-40-R Type: Drop prevention (Rod side lock) | Bearing: Ball bearing | Bore: 20 mm | Stroke: 40 mm | Port: M5
STR2-BQ-20-50-H Type: Drop prevention (Head side lock) | Bearing: Ball bearing | Bore: 20 mm | Stroke: 50 mm | Port: M5
STR2-BQ-20-50-R Type: Drop prevention (Rod side lock) | Bearing: Ball bearing | Bore: 20 mm | Stroke: 50 mm | Port: M5
STR2-BQ-20-60-H Type: Drop prevention (Head side lock) | Bearing: Ball bearing | Bore: 20 mm | Stroke: 60 mm | Port: M5
STR2-BQ-20-60-R Type: Drop prevention (Rod side lock) | Bearing: Ball bearing | Bore: 20 mm | Stroke: 60 mm | Port: M5
STR2-BQ-20-70-H Type: Drop prevention (Head side lock) | Bearing: Ball bearing | Bore: 20 mm | Stroke: 70 mm | Port: M5
STR2-BQ-20-70-R Type: Drop prevention (Rod side lock) | Bearing: Ball bearing | Bore: 20 mm | Stroke: 70 mm | Port: M5
STR2-BQ-20-80-H Type: Drop prevention (Head side lock) | Bearing: Ball bearing | Bore: 20 mm | Stroke: 80 mm | Port: M5
STR2-BQ-20-80-R Type: Drop prevention (Rod side lock) | Bearing: Ball bearing | Bore: 20 mm | Stroke: 80 mm | Port: M5
STR2-BQ-20-90-H Type: Drop prevention (Head side lock) | Bearing: Ball bearing | Bore: 20 mm | Stroke: 90 mm | Port: M5
STR2-BQ-20-90-R Type: Drop prevention (Rod side lock) | Bearing: Ball bearing | Bore: 20 mm | Stroke: 90 mm | Port: M5
STR2-BQ-20-100-H Type: Drop prevention (Head side lock) | Bearing: Ball bearing | Bore: 20 mm | Stroke: 100 mm | Port: M5
STR2-BQ-20-100-R Type: Drop prevention (Rod side lock) | Bearing: Ball bearing | Bore: 20 mm | Stroke: 100 mm | Port: M5
STR2-BQ-25-10-H Type: Drop prevention (Head side lock) | Bearing: Ball bearing | Bore: 25 mm | Stroke: 10 mm | Port: M5
STR2-BQ-25-10-R Type: Drop prevention (Rod side lock) | Bearing: Ball bearing | Bore: 25 mm | Stroke: 10 mm | Port: M5
STR2-BQ-25-20-H Type: Drop prevention (Head side lock) | Bearing: Ball bearing | Bore: 25 mm | Stroke: 20 mm | Port: M5
STR2-BQ-25-20-R Type: Drop prevention (Rod side lock) | Bearing: Ball bearing | Bore: 25 mm | Stroke: 20 mm | Port: M5
STR2-BQ-25-30-H Type: Drop prevention (Head side lock) | Bearing: Ball bearing | Bore: 25 mm | Stroke: 30 mm | Port: M5
STR2-BQ-25-30-R Type: Drop prevention (Rod side lock) | Bearing: Ball bearing | Bore: 25 mm | Stroke: 30 mm | Port: M5
STR2-BQ-25-40-H Type: Drop prevention (Head side lock) | Bearing: Ball bearing | Bore: 25 mm | Stroke: 40 mm | Port: M5
STR2-BQ-25-40-R Type: Drop prevention (Rod side lock) | Bearing: Ball bearing | Bore: 25 mm | Stroke: 40 mm | Port: M5
STR2-BQ-25-50-H Type: Drop prevention (Head side lock) | Bearing: Ball bearing | Bore: 25 mm | Stroke: 50 mm | Port: M5
STR2-BQ-25-50-R Type: Drop prevention (Rod side lock) | Bearing: Ball bearing | Bore: 25 mm | Stroke: 50 mm | Port: M5
STR2-BQ-25-60-H Type: Drop prevention (Head side lock) | Bearing: Ball bearing | Bore: 25 mm | Stroke: 60 mm | Port: M5
STR2-BQ-25-60-R Type: Drop prevention (Rod side lock) | Bearing: Ball bearing | Bore: 25 mm | Stroke: 60 mm | Port: M5
STR2-BQ-25-70-H Type: Drop prevention (Head side lock) | Bearing: Ball bearing | Bore: 25 mm | Stroke: 70 mm | Port: M5
STR2-BQ-25-70-R Type: Drop prevention (Rod side lock) | Bearing: Ball bearing | Bore: 25 mm | Stroke: 70 mm | Port: M5
STR2-BQ-25-80-H Type: Drop prevention (Head side lock) | Bearing: Ball bearing | Bore: 25 mm | Stroke: 80 mm | Port: M5
STR2-BQ-25-80-R Type: Drop prevention (Rod side lock) | Bearing: Ball bearing | Bore: 25 mm | Stroke: 80 mm | Port: M5
STR2-BQ-25-90-H Type: Drop prevention (Head side lock) | Bearing: Ball bearing | Bore: 25 mm | Stroke: 90 mm | Port: M5
STR2-BQ-25-90-R Type: Drop prevention (Rod side lock) | Bearing: Ball bearing | Bore: 25 mm | Stroke: 90 mm | Port: M5
STR2-BQ-25-100-H Type: Drop prevention (Head side lock) | Bearing: Ball bearing | Bore: 25 mm | Stroke: 100 mm | Port: M5
STR2-BQ-25-100-R Type: Drop prevention (Rod side lock) | Bearing: Ball bearing | Bore: 25 mm | Stroke: 100 mm | Port: M5
STR2-BQ-32-10-H Type: Drop prevention (Head side lock) | Bearing: Ball bearing | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
STR2-BQ-32-10-R Type: Drop prevention (Rod side lock) | Bearing: Ball bearing | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
STR2-BQ-32-20-H Type: Drop prevention (Head side lock) | Bearing: Ball bearing | Bore: 32 mm | Stroke: 20 mm | Port: Rc1/8
STR2-BQ-32-20-R Type: Drop prevention (Rod side lock) | Bearing: Ball bearing | Bore: 32 mm | Stroke: 20 mm | Port: Rc1/8
STR2-BQ-32-30-H Type: Drop prevention (Head side lock) | Bearing: Ball bearing | Bore: 32 mm | Stroke: 30 mm | Port: Rc1/8
STR2-BQ-32-30-R Type: Drop prevention (Rod side lock) | Bearing: Ball bearing | Bore: 32 mm | Stroke: 30 mm | Port: Rc1/8
STR2-BQ-32-40-H Type: Drop prevention (Head side lock) | Bearing: Ball bearing | Bore: 32 mm | Stroke: 40 mm | Port: Rc1/8
STR2-BQ-32-40-R Type: Drop prevention (Rod side lock) | Bearing: Ball bearing | Bore: 32 mm | Stroke: 40 mm | Port: Rc1/8
STR2-BQ-32-50-H Type: Drop prevention (Head side lock) | Bearing: Ball bearing | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
STR2-BQ-32-50-R Type: Drop prevention (Rod side lock) | Bearing: Ball bearing | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
STR2-BQ-32-60-H Type: Drop prevention (Head side lock) | Bearing: Ball bearing | Bore: 32 mm | Stroke: 60 mm | Port: Rc1/8
STR2-BQ-32-60-R Type: Drop prevention (Rod side lock) | Bearing: Ball bearing | Bore: 32 mm | Stroke: 60 mm | Port: Rc1/8
STR2-BQ-32-70-H Type: Drop prevention (Head side lock) | Bearing: Ball bearing | Bore: 32 mm | Stroke: 70 mm | Port: Rc1/8
STR2-BQ-32-70-R Type: Drop prevention (Rod side lock) | Bearing: Ball bearing | Bore: 32 mm | Stroke: 70 mm | Port: Rc1/8
STR2-BQ-32-80-H Type: Drop prevention (Head side lock) | Bearing: Ball bearing | Bore: 32 mm | Stroke: 80 mm | Port: Rc1/8
STR2-BQ-32-80-R Type: Drop prevention (Rod side lock) | Bearing: Ball bearing | Bore: 32 mm | Stroke: 80 mm | Port: Rc1/8
STR2-BQ-32-90-H Type: Drop prevention (Head side lock) | Bearing: Ball bearing | Bore: 32 mm | Stroke: 90 mm | Port: Rc1/8
STR2-BQ-32-90-R Type: Drop prevention (Rod side lock) | Bearing: Ball bearing | Bore: 32 mm | Stroke: 90 mm | Port: Rc1/8
STR2-BQ-32-100-H Type: Drop prevention (Head side lock) | Bearing: Ball bearing | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
STR2-BQ-32-100-R Type: Drop prevention (Rod side lock) | Bearing: Ball bearing | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
STR2-MO-6-10 Type: Low speed | Bearing: Slide bearing | Bore: 6 mm | Stroke: 10 mm | Port: M5
STR2-MO-6-20 Type: Low speed | Bearing: Slide bearing | Bore: 6 mm | Stroke: 20 mm | Port: M5
STR2-MO-6-30 Type: Low speed | Bearing: Slide bearing | Bore: 6 mm | Stroke: 30 mm | Port: M5
STR2-MO-6-40 Type: Low speed | Bearing: Slide bearing | Bore: 6 mm | Stroke: 40 mm | Port: M5
STR2-MO-6-50 Type: Low speed | Bearing: Slide bearing | Bore: 6 mm | Stroke: 50 mm | Port: M5
STR2-MO-10-10 Type: Low speed | Bearing: Slide bearing | Bore: 10 mm | Stroke: 10 mm | Port: M5
STR2-MO-10-20 Type: Low speed | Bearing: Slide bearing | Bore: 10 mm | Stroke: 20 mm | Port: M5
STR2-MO-10-30 Type: Low speed | Bearing: Slide bearing | Bore: 10 mm | Stroke: 30 mm | Port: M5
STR2-MO-10-40 Type: Low speed | Bearing: Slide bearing | Bore: 10 mm | Stroke: 40 mm | Port: M5
STR2-MO-10-50 Type: Low speed | Bearing: Slide bearing | Bore: 10 mm | Stroke: 50 mm | Port: M5
STR2-MO-16-10 Type: Low speed | Bearing: Slide bearing | Bore: 16 mm | Stroke: 10 mm | Port: M5
STR2-MO-16-20 Type: Low speed | Bearing: Slide bearing | Bore: 16 mm | Stroke: 20 mm | Port: M5
STR2-MO-16-30 Type: Low speed | Bearing: Slide bearing | Bore: 16 mm | Stroke: 30 mm | Port: M5
STR2-MO-16-40 Type: Low speed | Bearing: Slide bearing | Bore: 16 mm | Stroke: 40 mm | Port: M5
STR2-MO-16-50 Type: Low speed | Bearing: Slide bearing | Bore: 16 mm | Stroke: 50 mm | Port: M5
STR2-MO-16-60 Type: Low speed | Bearing: Slide bearing | Bore: 16 mm | Stroke: 60 mm | Port: M5
STR2-MO-16-70 Type: Low speed | Bearing: Slide bearing | Bore: 16 mm | Stroke: 70 mm | Port: M5
STR2-MO-16-80 Type: Low speed | Bearing: Slide bearing | Bore: 16 mm | Stroke: 80 mm | Port: M5
STR2-MO-16-90 Type: Low speed | Bearing: Slide bearing | Bore: 16 mm | Stroke: 90 mm | Port: M5
STR2-MO-16-100 Type: Low speed | Bearing: Slide bearing | Bore: 16 mm | Stroke: 100 mm | Port: M5
STR2-MO-20-10 Type: Low speed | Bearing: Slide bearing | Bore: 20 mm | Stroke: 10 mm | Port: M5
STR2-MO-20-20 Type: Low speed | Bearing: Slide bearing | Bore: 20 mm | Stroke: 20 mm | Port: M5
STR2-MO-20-30 Type: Low speed | Bearing: Slide bearing | Bore: 20 mm | Stroke: 30 mm | Port: M5
STR2-MO-20-40 Type: Low speed | Bearing: Slide bearing | Bore: 20 mm | Stroke: 40 mm | Port: M5
STR2-MO-20-50 Type: Low speed | Bearing: Slide bearing | Bore: 20 mm | Stroke: 50 mm | Port: M5
STR2-MO-20-60 Type: Low speed | Bearing: Slide bearing | Bore: 20 mm | Stroke: 60 mm | Port: M5
STR2-MO-20-70 Type: Low speed | Bearing: Slide bearing | Bore: 20 mm | Stroke: 70 mm | Port: M5
STR2-MO-20-80 Type: Low speed | Bearing: Slide bearing | Bore: 20 mm | Stroke: 80 mm | Port: M5
STR2-MO-20-90 Type: Low speed | Bearing: Slide bearing | Bore: 20 mm | Stroke: 90 mm | Port: M5
STR2-MO-20-100 Type: Low speed | Bearing: Slide bearing | Bore: 20 mm | Stroke: 100 mm | Port: M5
STR2-MO-25-10 Type: Low speed | Bearing: Slide bearing | Bore: 25 mm | Stroke: 10 mm | Port: M5
STR2-MO-25-20 Type: Low speed | Bearing: Slide bearing | Bore: 25 mm | Stroke: 20 mm | Port: M5
STR2-MO-25-30 Type: Low speed | Bearing: Slide bearing | Bore: 25 mm | Stroke: 30 mm | Port: M5
STR2-MO-25-40 Type: Low speed | Bearing: Slide bearing | Bore: 25 mm | Stroke: 40 mm | Port: M5
STR2-MO-25-50 Type: Low speed | Bearing: Slide bearing | Bore: 25 mm | Stroke: 50 mm | Port: M5
STR2-MO-25-60 Type: Low speed | Bearing: Slide bearing | Bore: 25 mm | Stroke: 60 mm | Port: M5
STR2-MO-25-70 Type: Low speed | Bearing: Slide bearing | Bore: 25 mm | Stroke: 70 mm | Port: M5
STR2-MO-25-80 Type: Low speed | Bearing: Slide bearing | Bore: 25 mm | Stroke: 80 mm | Port: M5
STR2-MO-25-90 Type: Low speed | Bearing: Slide bearing | Bore: 25 mm | Stroke: 90 mm | Port: M5
STR2-MO-25-100 Type: Low speed | Bearing: Slide bearing | Bore: 25 mm | Stroke: 100 mm | Port: M5
STR2-MO-32-10 Type: Low speed | Bearing: Slide bearing | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
STR2-MO-32-20 Type: Low speed | Bearing: Slide bearing | Bore: 32 mm | Stroke: 20 mm | Port: Rc1/8
STR2-MO-32-30 Type: Low speed | Bearing: Slide bearing | Bore: 32 mm | Stroke: 30 mm | Port: Rc1/8
STR2-MO-32-40 Type: Low speed | Bearing: Slide bearing | Bore: 32 mm | Stroke: 40 mm | Port: Rc1/8
STR2-MO-32-50 Type: Low speed | Bearing: Slide bearing | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
STR2-MO-32-60 Type: Low speed | Bearing: Slide bearing | Bore: 32 mm | Stroke: 60 mm | Port: Rc1/8
STR2-MO-32-70 Type: Low speed | Bearing: Slide bearing | Bore: 32 mm | Stroke: 70 mm | Port: Rc1/8
STR2-MO-32-80 Type: Low speed | Bearing: Slide bearing | Bore: 32 mm | Stroke: 80 mm | Port: Rc1/8
STR2-MO-32-90 Type: Low speed | Bearing: Slide bearing | Bore: 32 mm | Stroke: 90 mm | Port: Rc1/8
STR2-MO-32-100 Type: Low speed | Bearing: Slide bearing | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
STR2-BO-6-10 Type: Low speed | Bearing: Ball bearing | Bore: 6 mm | Stroke: 10 mm | Port: M5
STR2-BO-6-20 Type: Low speed | Bearing: Ball bearing | Bore: 6 mm | Stroke: 20 mm | Port: M5
STR2-BO-6-30 Type: Low speed | Bearing: Ball bearing | Bore: 6 mm | Stroke: 30 mm | Port: M5
STR2-BO-6-40 Type: Low speed | Bearing: Ball bearing | Bore: 6 mm | Stroke: 40 mm | Port: M5
STR2-BO-6-50 Type: Low speed | Bearing: Ball bearing | Bore: 6 mm | Stroke: 50 mm | Port: M5
STR2-BO-10-10 Type: Low speed | Bearing: Ball bearing | Bore: 10 mm | Stroke: 10 mm | Port: M5
STR2-BO-10-20 Type: Low speed | Bearing: Ball bearing | Bore: 10 mm | Stroke: 20 mm | Port: M5
STR2-BO-10-30 Type: Low speed | Bearing: Ball bearing | Bore: 10 mm | Stroke: 30 mm | Port: M5
STR2-BO-10-40 Type: Low speed | Bearing: Ball bearing | Bore: 10 mm | Stroke: 40 mm | Port: M5
STR2-BO-10-50 Type: Low speed | Bearing: Ball bearing | Bore: 10 mm | Stroke: 50 mm | Port: M5
STR2-BO-16-10 Type: Low speed | Bearing: Ball bearing | Bore: 16 mm | Stroke: 10 mm | Port: M5
STR2-BO-16-20 Type: Low speed | Bearing: Ball bearing | Bore: 16 mm | Stroke: 20 mm | Port: M5
STR2-BO-16-30 Type: Low speed | Bearing: Ball bearing | Bore: 16 mm | Stroke: 30 mm | Port: M5
STR2-BO-16-40 Type: Low speed | Bearing: Ball bearing | Bore: 16 mm | Stroke: 40 mm | Port: M5
STR2-BO-16-50 Type: Low speed | Bearing: Ball bearing | Bore: 16 mm | Stroke: 50 mm | Port: M5
STR2-BO-16-60 Type: Low speed | Bearing: Ball bearing | Bore: 16 mm | Stroke: 60 mm | Port: M5
STR2-BO-16-70 Type: Low speed | Bearing: Ball bearing | Bore: 16 mm | Stroke: 70 mm | Port: M5
STR2-BO-16-80 Type: Low speed | Bearing: Ball bearing | Bore: 16 mm | Stroke: 80 mm | Port: M5
STR2-BO-16-90 Type: Low speed | Bearing: Ball bearing | Bore: 16 mm | Stroke: 90 mm | Port: M5
STR2-BO-16-100 Type: Low speed | Bearing: Ball bearing | Bore: 16 mm | Stroke: 100 mm | Port: M5
STR2-BO-20-10 Type: Low speed | Bearing: Ball bearing | Bore: 20 mm | Stroke: 10 mm | Port: M5
STR2-BO-20-20 Type: Low speed | Bearing: Ball bearing | Bore: 20 mm | Stroke: 20 mm | Port: M5
STR2-BO-20-30 Type: Low speed | Bearing: Ball bearing | Bore: 20 mm | Stroke: 30 mm | Port: M5
STR2-BO-20-40 Type: Low speed | Bearing: Ball bearing | Bore: 20 mm | Stroke: 40 mm | Port: M5
STR2-BO-20-50 Type: Low speed | Bearing: Ball bearing | Bore: 20 mm | Stroke: 50 mm | Port: M5
STR2-BO-20-60 Type: Low speed | Bearing: Ball bearing | Bore: 20 mm | Stroke: 60 mm | Port: M5
STR2-BO-20-70 Type: Low speed | Bearing: Ball bearing | Bore: 20 mm | Stroke: 70 mm | Port: M5
STR2-BO-20-80 Type: Low speed | Bearing: Ball bearing | Bore: 20 mm | Stroke: 80 mm | Port: M5
STR2-BO-20-90 Type: Low speed | Bearing: Ball bearing | Bore: 20 mm | Stroke: 90 mm | Port: M5
STR2-BO-20-100 Type: Low speed | Bearing: Ball bearing | Bore: 20 mm | Stroke: 100 mm | Port: M5
STR2-BO-25-10 Type: Low speed | Bearing: Ball bearing | Bore: 25 mm | Stroke: 10 mm | Port: M5
STR2-BO-25-20 Type: Low speed | Bearing: Ball bearing | Bore: 25 mm | Stroke: 20 mm | Port: M5
STR2-BO-25-30 Type: Low speed | Bearing: Ball bearing | Bore: 25 mm | Stroke: 30 mm | Port: M5
STR2-BO-25-40 Type: Low speed | Bearing: Ball bearing | Bore: 25 mm | Stroke: 40 mm | Port: M5
STR2-BO-25-50 Type: Low speed | Bearing: Ball bearing | Bore: 25 mm | Stroke: 50 mm | Port: M5
STR2-BO-25-60 Type: Low speed | Bearing: Ball bearing | Bore: 25 mm | Stroke: 60 mm | Port: M5
STR2-BO-25-70 Type: Low speed | Bearing: Ball bearing | Bore: 25 mm | Stroke: 70 mm | Port: M5
STR2-BO-25-80 Type: Low speed | Bearing: Ball bearing | Bore: 25 mm | Stroke: 80 mm | Port: M5
STR2-BO-25-90 Type: Low speed | Bearing: Ball bearing | Bore: 25 mm | Stroke: 90 mm | Port: M5
STR2-BO-25-100 Type: Low speed | Bearing: Ball bearing | Bore: 25 mm | Stroke: 100 mm | Port: M5
STR2-BO-32-10 Type: Low speed | Bearing: Ball bearing | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
STR2-BO-32-20 Type: Low speed | Bearing: Ball bearing | Bore: 32 mm | Stroke: 20 mm | Port: Rc1/8
STR2-BO-32-30 Type: Low speed | Bearing: Ball bearing | Bore: 32 mm | Stroke: 30 mm | Port: Rc1/8
STR2-BO-32-40 Type: Low speed | Bearing: Ball bearing | Bore: 32 mm | Stroke: 40 mm | Port: Rc1/8
STR2-BO-32-50 Type: Low speed | Bearing: Ball bearing | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
STR2-BO-32-60 Type: Low speed | Bearing: Ball bearing | Bore: 32 mm | Stroke: 60 mm | Port: Rc1/8
STR2-BO-32-70 Type: Low speed | Bearing: Ball bearing | Bore: 32 mm | Stroke: 70 mm | Port: Rc1/8
STR2-BO-32-80 Type: Low speed | Bearing: Ball bearing | Bore: 32 mm | Stroke: 80 mm | Port: Rc1/8
STR2-BO-32-90 Type: Low speed | Bearing: Ball bearing | Bore: 32 mm | Stroke: 90 mm | Port: Rc1/8
STR2-BO-32-100 Type: Low speed | Bearing: Ball bearing | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
STR2-MF-10-10 Type: Fine speed | Bearing: Slide bearing | Bore: 10 mm | Stroke: 10 mm | Port: M5
STR2-MF-10-20 Type: Fine speed | Bearing: Slide bearing | Bore: 10 mm | Stroke: 20 mm | Port: M5
STR2-MF-10-30 Type: Fine speed | Bearing: Slide bearing | Bore: 10 mm | Stroke: 30 mm | Port: M5
STR2-MF-10-40 Type: Fine speed | Bearing: Slide bearing | Bore: 10 mm | Stroke: 40 mm | Port: M5
STR2-MF-10-50 Type: Fine speed | Bearing: Slide bearing | Bore: 10 mm | Stroke: 50 mm | Port: M5
STR2-MF-16-10 Type: Fine speed | Bearing: Slide bearing | Bore: 16 mm | Stroke: 10 mm | Port: M5
STR2-MF-16-20 Type: Fine speed | Bearing: Slide bearing | Bore: 16 mm | Stroke: 20 mm | Port: M5
STR2-MF-16-30 Type: Fine speed | Bearing: Slide bearing | Bore: 16 mm | Stroke: 30 mm | Port: M5
STR2-MF-16-40 Type: Fine speed | Bearing: Slide bearing | Bore: 16 mm | Stroke: 40 mm | Port: M5
STR2-MF-16-50 Type: Fine speed | Bearing: Slide bearing | Bore: 16 mm | Stroke: 50 mm | Port: M5
STR2-MF-16-60 Type: Fine speed | Bearing: Slide bearing | Bore: 16 mm | Stroke: 60 mm | Port: M5
STR2-MF-16-70 Type: Fine speed | Bearing: Slide bearing | Bore: 16 mm | Stroke: 70 mm | Port: M5
STR2-MF-16-80 Type: Fine speed | Bearing: Slide bearing | Bore: 16 mm | Stroke: 80 mm | Port: M5
STR2-MF-16-90 Type: Fine speed | Bearing: Slide bearing | Bore: 16 mm | Stroke: 90 mm | Port: M5
STR2-MF-16-100 Type: Fine speed | Bearing: Slide bearing | Bore: 16 mm | Stroke: 100 mm | Port: M5
STR2-MF-20-10 Type: Fine speed | Bearing: Slide bearing | Bore: 20 mm | Stroke: 10 mm | Port: M5
STR2-MF-20-20 Type: Fine speed | Bearing: Slide bearing | Bore: 20 mm | Stroke: 20 mm | Port: M5
STR2-MF-20-30 Type: Fine speed | Bearing: Slide bearing | Bore: 20 mm | Stroke: 30 mm | Port: M5
STR2-MF-20-40 Type: Fine speed | Bearing: Slide bearing | Bore: 20 mm | Stroke: 40 mm | Port: M5
STR2-MF-20-50 Type: Fine speed | Bearing: Slide bearing | Bore: 20 mm | Stroke: 50 mm | Port: M5
STR2-MF-20-60 Type: Fine speed | Bearing: Slide bearing | Bore: 20 mm | Stroke: 60 mm | Port: M5
STR2-MF-20-70 Type: Fine speed | Bearing: Slide bearing | Bore: 20 mm | Stroke: 70 mm | Port: M5
STR2-MF-20-80 Type: Fine speed | Bearing: Slide bearing | Bore: 20 mm | Stroke: 80 mm | Port: M5
STR2-MF-20-90 Type: Fine speed | Bearing: Slide bearing | Bore: 20 mm | Stroke: 90 mm | Port: M5
STR2-MF-20-100 Type: Fine speed | Bearing: Slide bearing | Bore: 20 mm | Stroke: 100 mm | Port: M5
STR2-MF-25-10 Type: Fine speed | Bearing: Slide bearing | Bore: 25 mm | Stroke: 10 mm | Port: M5
STR2-MF-25-20 Type: Fine speed | Bearing: Slide bearing | Bore: 25 mm | Stroke: 20 mm | Port: M5
STR2-MF-25-30 Type: Fine speed | Bearing: Slide bearing | Bore: 25 mm | Stroke: 30 mm | Port: M5
STR2-MF-25-40 Type: Fine speed | Bearing: Slide bearing | Bore: 25 mm | Stroke: 40 mm | Port: M5
STR2-MF-25-50 Type: Fine speed | Bearing: Slide bearing | Bore: 25 mm | Stroke: 50 mm | Port: M5
STR2-MF-25-60 Type: Fine speed | Bearing: Slide bearing | Bore: 25 mm | Stroke: 60 mm | Port: M5
STR2-MF-25-70 Type: Fine speed | Bearing: Slide bearing | Bore: 25 mm | Stroke: 70 mm | Port: M5
STR2-MF-25-80 Type: Fine speed | Bearing: Slide bearing | Bore: 25 mm | Stroke: 80 mm | Port: M5
STR2-MF-25-90 Type: Fine speed | Bearing: Slide bearing | Bore: 25 mm | Stroke: 90 mm | Port: M5
STR2-MF-25-100 Type: Fine speed | Bearing: Slide bearing | Bore: 25 mm | Stroke: 100 mm | Port: M5
STR2-MF-32-10 Type: Fine speed | Bearing: Slide bearing | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
STR2-MF-32-20 Type: Fine speed | Bearing: Slide bearing | Bore: 32 mm | Stroke: 20 mm | Port: Rc1/8
STR2-MF-32-30 Type: Fine speed | Bearing: Slide bearing | Bore: 32 mm | Stroke: 30 mm | Port: Rc1/8
STR2-MF-32-40 Type: Fine speed | Bearing: Slide bearing | Bore: 32 mm | Stroke: 40 mm | Port: Rc1/8
STR2-MF-32-50 Type: Fine speed | Bearing: Slide bearing | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
STR2-MF-32-60 Type: Fine speed | Bearing: Slide bearing | Bore: 32 mm | Stroke: 60 mm | Port: Rc1/8
STR2-MF-32-70 Type: Fine speed | Bearing: Slide bearing | Bore: 32 mm | Stroke: 70 mm | Port: Rc1/8
STR2-MF-32-80 Type: Fine speed | Bearing: Slide bearing | Bore: 32 mm | Stroke: 80 mm | Port: Rc1/8
STR2-MF-32-90 Type: Fine speed | Bearing: Slide bearing | Bore: 32 mm | Stroke: 90 mm | Port: Rc1/8
STR2-MF-32-100 Type: Fine speed | Bearing: Slide bearing | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
STR2-BF-10-10 Type: Fine speed | Bearing: Ball bearing | Bore: 10 mm | Stroke: 10 mm | Port: M5
STR2-BF-10-20 Type: Fine speed | Bearing: Ball bearing | Bore: 10 mm | Stroke: 20 mm | Port: M5
STR2-BF-10-30 Type: Fine speed | Bearing: Ball bearing | Bore: 10 mm | Stroke: 30 mm | Port: M5
STR2-BF-10-40 Type: Fine speed | Bearing: Ball bearing | Bore: 10 mm | Stroke: 40 mm | Port: M5
STR2-BF-10-50 Type: Fine speed | Bearing: Ball bearing | Bore: 10 mm | Stroke: 50 mm | Port: M5
STR2-BF-16-10 Type: Fine speed | Bearing: Ball bearing | Bore: 16 mm | Stroke: 10 mm | Port: M5
STR2-BF-16-20 Type: Fine speed | Bearing: Ball bearing | Bore: 16 mm | Stroke: 20 mm | Port: M5
STR2-BF-16-30 Type: Fine speed | Bearing: Ball bearing | Bore: 16 mm | Stroke: 30 mm | Port: M5
STR2-BF-16-40 Type: Fine speed | Bearing: Ball bearing | Bore: 16 mm | Stroke: 40 mm | Port: M5
STR2-BF-16-50 Type: Fine speed | Bearing: Ball bearing | Bore: 16 mm | Stroke: 50 mm | Port: M5
STR2-BF-16-60 Type: Fine speed | Bearing: Ball bearing | Bore: 16 mm | Stroke: 60 mm | Port: M5
STR2-BF-16-70 Type: Fine speed | Bearing: Ball bearing | Bore: 16 mm | Stroke: 70 mm | Port: M5
STR2-BF-16-80 Type: Fine speed | Bearing: Ball bearing | Bore: 16 mm | Stroke: 80 mm | Port: M5
STR2-BF-16-90 Type: Fine speed | Bearing: Ball bearing | Bore: 16 mm | Stroke: 90 mm | Port: M5
STR2-BF-16-100 Type: Fine speed | Bearing: Ball bearing | Bore: 16 mm | Stroke: 100 mm | Port: M5
STR2-BF-20-10 Type: Fine speed | Bearing: Ball bearing | Bore: 20 mm | Stroke: 10 mm | Port: M5
STR2-BF-20-20 Type: Fine speed | Bearing: Ball bearing | Bore: 20 mm | Stroke: 20 mm | Port: M5
STR2-BF-20-30 Type: Fine speed | Bearing: Ball bearing | Bore: 20 mm | Stroke: 30 mm | Port: M5
STR2-BF-20-40 Type: Fine speed | Bearing: Ball bearing | Bore: 20 mm | Stroke: 40 mm | Port: M5
STR2-BF-20-50 Type: Fine speed | Bearing: Ball bearing | Bore: 20 mm | Stroke: 50 mm | Port: M5
STR2-BF-20-60 Type: Fine speed | Bearing: Ball bearing | Bore: 20 mm | Stroke: 60 mm | Port: M5
STR2-BF-20-70 Type: Fine speed | Bearing: Ball bearing | Bore: 20 mm | Stroke: 70 mm | Port: M5
STR2-BF-20-80 Type: Fine speed | Bearing: Ball bearing | Bore: 20 mm | Stroke: 80 mm | Port: M5
STR2-BF-20-90 Type: Fine speed | Bearing: Ball bearing | Bore: 20 mm | Stroke: 90 mm | Port: M5
STR2-BF-20-100 Type: Fine speed | Bearing: Ball bearing | Bore: 20 mm | Stroke: 100 mm | Port: M5
STR2-BF-25-10 Type: Fine speed | Bearing: Ball bearing | Bore: 25 mm | Stroke: 10 mm | Port: M5
STR2-BF-25-20 Type: Fine speed | Bearing: Ball bearing | Bore: 25 mm | Stroke: 20 mm | Port: M5
STR2-BF-25-30 Type: Fine speed | Bearing: Ball bearing | Bore: 25 mm | Stroke: 30 mm | Port: M5
STR2-BF-25-40 Type: Fine speed | Bearing: Ball bearing | Bore: 25 mm | Stroke: 40 mm | Port: M5
STR2-BF-25-50 Type: Fine speed | Bearing: Ball bearing | Bore: 25 mm | Stroke: 50 mm | Port: M5
STR2-BF-25-60 Type: Fine speed | Bearing: Ball bearing | Bore: 25 mm | Stroke: 60 mm | Port: M5
STR2-BF-25-70 Type: Fine speed | Bearing: Ball bearing | Bore: 25 mm | Stroke: 70 mm | Port: M5
STR2-BF-25-80 Type: Fine speed | Bearing: Ball bearing | Bore: 25 mm | Stroke: 80 mm | Port: M5
STR2-BF-25-90 Type: Fine speed | Bearing: Ball bearing | Bore: 25 mm | Stroke: 90 mm | Port: M5
STR2-BF-25-100 Type: Fine speed | Bearing: Ball bearing | Bore: 25 mm | Stroke: 100 mm | Port: M5
STR2-BF-32-10 Type: Fine speed | Bearing: Ball bearing | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
STR2-BF-32-20 Type: Fine speed | Bearing: Ball bearing | Bore: 32 mm | Stroke: 20 mm | Port: Rc1/8
STR2-BF-32-30 Type: Fine speed | Bearing: Ball bearing | Bore: 32 mm | Stroke: 30 mm | Port: Rc1/8
STR2-BF-32-40 Type: Fine speed | Bearing: Ball bearing | Bore: 32 mm | Stroke: 40 mm | Port: Rc1/8
STR2-BF-32-50 Type: Fine speed | Bearing: Ball bearing | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
STR2-BF-32-60 Type: Fine speed | Bearing: Ball bearing | Bore: 32 mm | Stroke: 60 mm | Port: Rc1/8
STR2-BF-32-70 Type: Fine speed | Bearing: Ball bearing | Bore: 32 mm | Stroke: 70 mm | Port: Rc1/8
STR2-BF-32-80 Type: Fine speed | Bearing: Ball bearing | Bore: 32 mm | Stroke: 80 mm | Port: Rc1/8
STR2-BF-32-90 Type: Fine speed | Bearing: Ball bearing | Bore: 32 mm | Stroke: 90 mm | Port: Rc1/8
STR2-BF-32-100 Type: Fine speed | Bearing: Ball bearing | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
STR2-MD-6-10 Type: Double rod | Bearing: Slide bearing | Bore: 6 mm | Stroke: 10 mm | Port: M5
STR2-MD-6-20 Type: Double rod | Bearing: Slide bearing | Bore: 6 mm | Stroke: 20 mm | Port: M5
STR2-MD-6-30 Type: Double rod | Bearing: Slide bearing | Bore: 6 mm | Stroke: 30 mm | Port: M5
STR2-MD-6-40 Type: Double rod | Bearing: Slide bearing | Bore: 6 mm | Stroke: 40 mm | Port: M5
STR2-MD-6-50 Type: Double rod | Bearing: Slide bearing | Bore: 6 mm | Stroke: 50 mm | Port: M5
STR2-MD-10-10 Type: Double rod | Bearing: Slide bearing | Bore: 10 mm | Stroke: 10 mm | Port: M5
STR2-MD-10-20 Type: Double rod | Bearing: Slide bearing | Bore: 10 mm | Stroke: 20 mm | Port: M5
STR2-MD-10-30 Type: Double rod | Bearing: Slide bearing | Bore: 10 mm | Stroke: 30 mm | Port: M5
STR2-MD-10-40 Type: Double rod | Bearing: Slide bearing | Bore: 10 mm | Stroke: 40 mm | Port: M5
STR2-MD-10-50 Type: Double rod | Bearing: Slide bearing | Bore: 10 mm | Stroke: 50 mm | Port: M5
STR2-MD-16-10 Type: Double rod | Bearing: Slide bearing | Bore: 16 mm | Stroke: 10 mm | Port: M5
STR2-MD-16-20 Type: Double rod | Bearing: Slide bearing | Bore: 16 mm | Stroke: 20 mm | Port: M5
STR2-MD-16-30 Type: Double rod | Bearing: Slide bearing | Bore: 16 mm | Stroke: 30 mm | Port: M5
STR2-MD-16-40 Type: Double rod | Bearing: Slide bearing | Bore: 16 mm | Stroke: 40 mm | Port: M5
STR2-MD-16-50 Type: Double rod | Bearing: Slide bearing | Bore: 16 mm | Stroke: 50 mm | Port: M5
STR2-MD-16-60 Type: Double rod | Bearing: Slide bearing | Bore: 16 mm | Stroke: 60 mm | Port: M5
STR2-MD-16-70 Type: Double rod | Bearing: Slide bearing | Bore: 16 mm | Stroke: 70 mm | Port: M5
STR2-MD-16-80 Type: Double rod | Bearing: Slide bearing | Bore: 16 mm | Stroke: 80 mm | Port: M5
STR2-MD-16-90 Type: Double rod | Bearing: Slide bearing | Bore: 16 mm | Stroke: 90 mm | Port: M5
STR2-MD-16-100 Type: Double rod | Bearing: Slide bearing | Bore: 16 mm | Stroke: 100 mm | Port: M5
STR2-MD-20-10 Type: Double rod | Bearing: Slide bearing | Bore: 20 mm | Stroke: 10 mm | Port: M5
STR2-MD-20-20 Type: Double rod | Bearing: Slide bearing | Bore: 20 mm | Stroke: 20 mm | Port: M5
STR2-MD-20-30 Type: Double rod | Bearing: Slide bearing | Bore: 20 mm | Stroke: 30 mm | Port: M5
STR2-MD-20-40 Type: Double rod | Bearing: Slide bearing | Bore: 20 mm | Stroke: 40 mm | Port: M5
STR2-MD-20-50 Type: Double rod | Bearing: Slide bearing | Bore: 20 mm | Stroke: 50 mm | Port: M5
STR2-MD-20-60 Type: Double rod | Bearing: Slide bearing | Bore: 20 mm | Stroke: 60 mm | Port: M5
STR2-MD-20-70 Type: Double rod | Bearing: Slide bearing | Bore: 20 mm | Stroke: 70 mm | Port: M5
STR2-MD-20-80 Type: Double rod | Bearing: Slide bearing | Bore: 20 mm | Stroke: 80 mm | Port: M5
STR2-MD-20-90 Type: Double rod | Bearing: Slide bearing | Bore: 20 mm | Stroke: 90 mm | Port: M5
STR2-MD-20-100 Type: Double rod | Bearing: Slide bearing | Bore: 20 mm | Stroke: 100 mm | Port: M5
STR2-MD-25-10 Type: Double rod | Bearing: Slide bearing | Bore: 25 mm | Stroke: 10 mm | Port: M5
STR2-MD-25-20 Type: Double rod | Bearing: Slide bearing | Bore: 25 mm | Stroke: 20 mm | Port: M5
STR2-MD-25-30 Type: Double rod | Bearing: Slide bearing | Bore: 25 mm | Stroke: 30 mm | Port: M5
STR2-MD-25-40 Type: Double rod | Bearing: Slide bearing | Bore: 25 mm | Stroke: 40 mm | Port: M5
STR2-MD-25-50 Type: Double rod | Bearing: Slide bearing | Bore: 25 mm | Stroke: 50 mm | Port: M5
STR2-MD-25-60 Type: Double rod | Bearing: Slide bearing | Bore: 25 mm | Stroke: 60 mm | Port: M5
STR2-MD-25-70 Type: Double rod | Bearing: Slide bearing | Bore: 25 mm | Stroke: 70 mm | Port: M5
STR2-MD-25-80 Type: Double rod | Bearing: Slide bearing | Bore: 25 mm | Stroke: 80 mm | Port: M5
STR2-MD-25-90 Type: Double rod | Bearing: Slide bearing | Bore: 25 mm | Stroke: 90 mm | Port: M5
STR2-MD-25-100 Type: Double rod | Bearing: Slide bearing | Bore: 25 mm | Stroke: 100 mm | Port: M5
STR2-MD-32-10 Type: Double rod | Bearing: Slide bearing | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
STR2-MD-32-20 Type: Double rod | Bearing: Slide bearing | Bore: 32 mm | Stroke: 20 mm | Port: Rc1/8
STR2-MD-32-30 Type: Double rod | Bearing: Slide bearing | Bore: 32 mm | Stroke: 30 mm | Port: Rc1/8
STR2-MD-32-40 Type: Double rod | Bearing: Slide bearing | Bore: 32 mm | Stroke: 40 mm | Port: Rc1/8
STR2-MD-32-50 Type: Double rod | Bearing: Slide bearing | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
STR2-MD-32-60 Type: Double rod | Bearing: Slide bearing | Bore: 32 mm | Stroke: 60 mm | Port: Rc1/8
STR2-MD-32-70 Type: Double rod | Bearing: Slide bearing | Bore: 32 mm | Stroke: 70 mm | Port: Rc1/8
STR2-MD-32-80 Type: Double rod | Bearing: Slide bearing | Bore: 32 mm | Stroke: 80 mm | Port: Rc1/8
STR2-MD-32-90 Type: Double rod | Bearing: Slide bearing | Bore: 32 mm | Stroke: 90 mm | Port: Rc1/8
STR2-MD-32-100 Type: Double rod | Bearing: Slide bearing | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
STR2-BD-6-10 Type: Double rod | Bearing: Ball bearing | Bore: 6 mm | Stroke: 10 mm | Port: M5
STR2-BD-6-20 Type: Double rod | Bearing: Ball bearing | Bore: 6 mm | Stroke: 20 mm | Port: M5
STR2-BD-6-30 Type: Double rod | Bearing: Ball bearing | Bore: 6 mm | Stroke: 30 mm | Port: M5
STR2-BD-6-40 Type: Double rod | Bearing: Ball bearing | Bore: 6 mm | Stroke: 40 mm | Port: M5
STR2-BD-6-50 Type: Double rod | Bearing: Ball bearing | Bore: 6 mm | Stroke: 50 mm | Port: M5
STR2-BD-10-10 Type: Double rod | Bearing: Ball bearing | Bore: 10 mm | Stroke: 10 mm | Port: M5
STR2-BD-10-20 Type: Double rod | Bearing: Ball bearing | Bore: 10 mm | Stroke: 20 mm | Port: M5
STR2-BD-10-30 Type: Double rod | Bearing: Ball bearing | Bore: 10 mm | Stroke: 30 mm | Port: M5
STR2-BD-10-40 Type: Double rod | Bearing: Ball bearing | Bore: 10 mm | Stroke: 40 mm | Port: M5
STR2-BD-10-50 Type: Double rod | Bearing: Ball bearing | Bore: 10 mm | Stroke: 50 mm | Port: M5
STR2-BD-16-10 Type: Double rod | Bearing: Ball bearing | Bore: 16 mm | Stroke: 10 mm | Port: M5
STR2-BD-16-20 Type: Double rod | Bearing: Ball bearing | Bore: 16 mm | Stroke: 20 mm | Port: M5
STR2-BD-16-30 Type: Double rod | Bearing: Ball bearing | Bore: 16 mm | Stroke: 30 mm | Port: M5
STR2-BD-16-40 Type: Double rod | Bearing: Ball bearing | Bore: 16 mm | Stroke: 40 mm | Port: M5
STR2-BD-16-50 Type: Double rod | Bearing: Ball bearing | Bore: 16 mm | Stroke: 50 mm | Port: M5
STR2-BD-16-60 Type: Double rod | Bearing: Ball bearing | Bore: 16 mm | Stroke: 60 mm | Port: M5
STR2-BD-16-70 Type: Double rod | Bearing: Ball bearing | Bore: 16 mm | Stroke: 70 mm | Port: M5
STR2-BD-16-80 Type: Double rod | Bearing: Ball bearing | Bore: 16 mm | Stroke: 80 mm | Port: M5
STR2-BD-16-90 Type: Double rod | Bearing: Ball bearing | Bore: 16 mm | Stroke: 90 mm | Port: M5
STR2-BD-16-100 Type: Double rod | Bearing: Ball bearing | Bore: 16 mm | Stroke: 100 mm | Port: M5
STR2-BD-20-10 Type: Double rod | Bearing: Ball bearing | Bore: 20 mm | Stroke: 10 mm | Port: M5
STR2-BD-20-20 Type: Double rod | Bearing: Ball bearing | Bore: 20 mm | Stroke: 20 mm | Port: M5
STR2-BD-20-30 Type: Double rod | Bearing: Ball bearing | Bore: 20 mm | Stroke: 30 mm | Port: M5
STR2-BD-20-40 Type: Double rod | Bearing: Ball bearing | Bore: 20 mm | Stroke: 40 mm | Port: M5
STR2-BD-20-50 Type: Double rod | Bearing: Ball bearing | Bore: 20 mm | Stroke: 50 mm | Port: M5
STR2-BD-20-60 Type: Double rod | Bearing: Ball bearing | Bore: 20 mm | Stroke: 60 mm | Port: M5
STR2-BD-20-70 Type: Double rod | Bearing: Ball bearing | Bore: 20 mm | Stroke: 70 mm | Port: M5
STR2-BD-20-80 Type: Double rod | Bearing: Ball bearing | Bore: 20 mm | Stroke: 80 mm | Port: M5
STR2-BD-20-90 Type: Double rod | Bearing: Ball bearing | Bore: 20 mm | Stroke: 90 mm | Port: M5
STR2-BD-20-100 Type: Double rod | Bearing: Ball bearing | Bore: 20 mm | Stroke: 100 mm | Port: M5
STR2-BD-25-10 Type: Double rod | Bearing: Ball bearing | Bore: 25 mm | Stroke: 10 mm | Port: M5
STR2-BD-25-20 Type: Double rod | Bearing: Ball bearing | Bore: 25 mm | Stroke: 20 mm | Port: M5
STR2-BD-25-30 Type: Double rod | Bearing: Ball bearing | Bore: 25 mm | Stroke: 30 mm | Port: M5
STR2-BD-25-40 Type: Double rod | Bearing: Ball bearing | Bore: 25 mm | Stroke: 40 mm | Port: M5
STR2-BD-25-50 Type: Double rod | Bearing: Ball bearing | Bore: 25 mm | Stroke: 50 mm | Port: M5
STR2-BD-25-60 Type: Double rod | Bearing: Ball bearing | Bore: 25 mm | Stroke: 60 mm | Port: M5
STR2-BD-25-70 Type: Double rod | Bearing: Ball bearing | Bore: 25 mm | Stroke: 70 mm | Port: M5
STR2-BD-25-80 Type: Double rod | Bearing: Ball bearing | Bore: 25 mm | Stroke: 80 mm | Port: M5
STR2-BD-25-90 Type: Double rod | Bearing: Ball bearing | Bore: 25 mm | Stroke: 90 mm | Port: M5
STR2-BD-25-100 Type: Double rod | Bearing: Ball bearing | Bore: 25 mm | Stroke: 100 mm | Port: M5
STR2-BD-32-10 Type: Double rod | Bearing: Ball bearing | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
STR2-BD-32-20 Type: Double rod | Bearing: Ball bearing | Bore: 32 mm | Stroke: 20 mm | Port: Rc1/8
STR2-BD-32-30 Type: Double rod | Bearing: Ball bearing | Bore: 32 mm | Stroke: 30 mm | Port: Rc1/8
STR2-BD-32-40 Type: Double rod | Bearing: Ball bearing | Bore: 32 mm | Stroke: 40 mm | Port: Rc1/8
STR2-BD-32-50 Type: Double rod | Bearing: Ball bearing | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
STR2-BD-32-60 Type: Double rod | Bearing: Ball bearing | Bore: 32 mm | Stroke: 60 mm | Port: Rc1/8
STR2-BD-32-70 Type: Double rod | Bearing: Ball bearing | Bore: 32 mm | Stroke: 70 mm | Port: Rc1/8
STR2-BD-32-80 Type: Double rod | Bearing: Ball bearing | Bore: 32 mm | Stroke: 80 mm | Port: Rc1/8
STR2-BD-32-90 Type: Double rod | Bearing: Ball bearing | Bore: 32 mm | Stroke: 90 mm | Port: Rc1/8
STR2-BD-32-100 Type: Double rod | Bearing: Ball bearing | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
Guided CylindersCKD
550 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD STR2 Super Twin Rod Cylinder (Bore 6-32 mm)

Brand CKD·Guided Cylinders

Available part numbers (550)

STR2-M-6-10, STR2-M-6-20, STR2-M-6-30, STR2-M-6-40, STR2-M-6-50, STR2-M-10-10, STR2-M-10-20, STR2-M-10-30, STR2-M-10-40, STR2-M-10-50 + 540 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
STR2-M-6-10Type: Standard | Bearing: Slide bearing | Bore: 6 mm | Stroke: 10 mm | Port: M5
STR2-M-6-20Type: Standard | Bearing: Slide bearing | Bore: 6 mm | Stroke: 20 mm | Port: M5
STR2-M-6-30Type: Standard | Bearing: Slide bearing | Bore: 6 mm | Stroke: 30 mm | Port: M5
STR2-M-6-40Type: Standard | Bearing: Slide bearing | Bore: 6 mm | Stroke: 40 mm | Port: M5
STR2-M-6-50Type: Standard | Bearing: Slide bearing | Bore: 6 mm | Stroke: 50 mm | Port: M5
STR2-M-10-10Type: Standard | Bearing: Slide bearing | Bore: 10 mm | Stroke: 10 mm | Port: M5
STR2-M-10-20Type: Standard | Bearing: Slide bearing | Bore: 10 mm | Stroke: 20 mm | Port: M5
STR2-M-10-30Type: Standard | Bearing: Slide bearing | Bore: 10 mm | Stroke: 30 mm | Port: M5
STR2-M-10-40Type: Standard | Bearing: Slide bearing | Bore: 10 mm | Stroke: 40 mm | Port: M5
STR2-M-10-50Type: Standard | Bearing: Slide bearing | Bore: 10 mm | Stroke: 50 mm | Port: M5
STR2-M-16-10Type: Standard | Bearing: Slide bearing | Bore: 16 mm | Stroke: 10 mm | Port: M5
STR2-M-16-20Type: Standard | Bearing: Slide bearing | Bore: 16 mm | Stroke: 20 mm | Port: M5
STR2-M-16-30Type: Standard | Bearing: Slide bearing | Bore: 16 mm | Stroke: 30 mm | Port: M5
STR2-M-16-40Type: Standard | Bearing: Slide bearing | Bore: 16 mm | Stroke: 40 mm | Port: M5
STR2-M-16-50Type: Standard | Bearing: Slide bearing | Bore: 16 mm | Stroke: 50 mm | Port: M5
STR2-M-16-60Type: Standard | Bearing: Slide bearing | Bore: 16 mm | Stroke: 60 mm | Port: M5
STR2-M-16-70Type: Standard | Bearing: Slide bearing | Bore: 16 mm | Stroke: 70 mm | Port: M5
STR2-M-16-80Type: Standard | Bearing: Slide bearing | Bore: 16 mm | Stroke: 80 mm | Port: M5
STR2-M-16-90Type: Standard | Bearing: Slide bearing | Bore: 16 mm | Stroke: 90 mm | Port: M5
STR2-M-16-100Type: Standard | Bearing: Slide bearing | Bore: 16 mm | Stroke: 100 mm | Port: M5
STR2-M-20-10Type: Standard | Bearing: Slide bearing | Bore: 20 mm | Stroke: 10 mm | Port: M5
STR2-M-20-20Type: Standard | Bearing: Slide bearing | Bore: 20 mm | Stroke: 20 mm | Port: M5
STR2-M-20-30Type: Standard | Bearing: Slide bearing | Bore: 20 mm | Stroke: 30 mm | Port: M5
STR2-M-20-40Type: Standard | Bearing: Slide bearing | Bore: 20 mm | Stroke: 40 mm | Port: M5
STR2-M-20-50Type: Standard | Bearing: Slide bearing | Bore: 20 mm | Stroke: 50 mm | Port: M5
STR2-M-20-60Type: Standard | Bearing: Slide bearing | Bore: 20 mm | Stroke: 60 mm | Port: M5
STR2-M-20-70Type: Standard | Bearing: Slide bearing | Bore: 20 mm | Stroke: 70 mm | Port: M5
STR2-M-20-80Type: Standard | Bearing: Slide bearing | Bore: 20 mm | Stroke: 80 mm | Port: M5
STR2-M-20-90Type: Standard | Bearing: Slide bearing | Bore: 20 mm | Stroke: 90 mm | Port: M5
STR2-M-20-100Type: Standard | Bearing: Slide bearing | Bore: 20 mm | Stroke: 100 mm | Port: M5
STR2-M-25-10Type: Standard | Bearing: Slide bearing | Bore: 25 mm | Stroke: 10 mm | Port: M5
STR2-M-25-20Type: Standard | Bearing: Slide bearing | Bore: 25 mm | Stroke: 20 mm | Port: M5
STR2-M-25-30Type: Standard | Bearing: Slide bearing | Bore: 25 mm | Stroke: 30 mm | Port: M5
STR2-M-25-40Type: Standard | Bearing: Slide bearing | Bore: 25 mm | Stroke: 40 mm | Port: M5
STR2-M-25-50Type: Standard | Bearing: Slide bearing | Bore: 25 mm | Stroke: 50 mm | Port: M5
STR2-M-25-60Type: Standard | Bearing: Slide bearing | Bore: 25 mm | Stroke: 60 mm | Port: M5
STR2-M-25-70Type: Standard | Bearing: Slide bearing | Bore: 25 mm | Stroke: 70 mm | Port: M5
STR2-M-25-80Type: Standard | Bearing: Slide bearing | Bore: 25 mm | Stroke: 80 mm | Port: M5
STR2-M-25-90Type: Standard | Bearing: Slide bearing | Bore: 25 mm | Stroke: 90 mm | Port: M5
STR2-M-25-100Type: Standard | Bearing: Slide bearing | Bore: 25 mm | Stroke: 100 mm | Port: M5
STR2-M-32-10Type: Standard | Bearing: Slide bearing | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
STR2-M-32-20Type: Standard | Bearing: Slide bearing | Bore: 32 mm | Stroke: 20 mm | Port: Rc1/8
STR2-M-32-30Type: Standard | Bearing: Slide bearing | Bore: 32 mm | Stroke: 30 mm | Port: Rc1/8
STR2-M-32-40Type: Standard | Bearing: Slide bearing | Bore: 32 mm | Stroke: 40 mm | Port: Rc1/8
STR2-M-32-50Type: Standard | Bearing: Slide bearing | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
STR2-M-32-60Type: Standard | Bearing: Slide bearing | Bore: 32 mm | Stroke: 60 mm | Port: Rc1/8
STR2-M-32-70Type: Standard | Bearing: Slide bearing | Bore: 32 mm | Stroke: 70 mm | Port: Rc1/8
STR2-M-32-80Type: Standard | Bearing: Slide bearing | Bore: 32 mm | Stroke: 80 mm | Port: Rc1/8
STR2-M-32-90Type: Standard | Bearing: Slide bearing | Bore: 32 mm | Stroke: 90 mm | Port: Rc1/8
STR2-M-32-100Type: Standard | Bearing: Slide bearing | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
STR2-B-6-10Type: Standard | Bearing: Ball bearing | Bore: 6 mm | Stroke: 10 mm | Port: M5
STR2-B-6-20Type: Standard | Bearing: Ball bearing | Bore: 6 mm | Stroke: 20 mm | Port: M5
STR2-B-6-30Type: Standard | Bearing: Ball bearing | Bore: 6 mm | Stroke: 30 mm | Port: M5
STR2-B-6-40Type: Standard | Bearing: Ball bearing | Bore: 6 mm | Stroke: 40 mm | Port: M5
STR2-B-6-50Type: Standard | Bearing: Ball bearing | Bore: 6 mm | Stroke: 50 mm | Port: M5
STR2-B-10-10Type: Standard | Bearing: Ball bearing | Bore: 10 mm | Stroke: 10 mm | Port: M5
STR2-B-10-20Type: Standard | Bearing: Ball bearing | Bore: 10 mm | Stroke: 20 mm | Port: M5
STR2-B-10-30Type: Standard | Bearing: Ball bearing | Bore: 10 mm | Stroke: 30 mm | Port: M5
STR2-B-10-40Type: Standard | Bearing: Ball bearing | Bore: 10 mm | Stroke: 40 mm | Port: M5
STR2-B-10-50Type: Standard | Bearing: Ball bearing | Bore: 10 mm | Stroke: 50 mm | Port: M5
STR2-B-16-10Type: Standard | Bearing: Ball bearing | Bore: 16 mm | Stroke: 10 mm | Port: M5
STR2-B-16-20Type: Standard | Bearing: Ball bearing | Bore: 16 mm | Stroke: 20 mm | Port: M5
STR2-B-16-30Type: Standard | Bearing: Ball bearing | Bore: 16 mm | Stroke: 30 mm | Port: M5
STR2-B-16-40Type: Standard | Bearing: Ball bearing | Bore: 16 mm | Stroke: 40 mm | Port: M5
STR2-B-16-50Type: Standard | Bearing: Ball bearing | Bore: 16 mm | Stroke: 50 mm | Port: M5
STR2-B-16-60Type: Standard | Bearing: Ball bearing | Bore: 16 mm | Stroke: 60 mm | Port: M5
STR2-B-16-70Type: Standard | Bearing: Ball bearing | Bore: 16 mm | Stroke: 70 mm | Port: M5
STR2-B-16-80Type: Standard | Bearing: Ball bearing | Bore: 16 mm | Stroke: 80 mm | Port: M5
STR2-B-16-90Type: Standard | Bearing: Ball bearing | Bore: 16 mm | Stroke: 90 mm | Port: M5
STR2-B-16-100Type: Standard | Bearing: Ball bearing | Bore: 16 mm | Stroke: 100 mm | Port: M5
STR2-B-20-10Type: Standard | Bearing: Ball bearing | Bore: 20 mm | Stroke: 10 mm | Port: M5
STR2-B-20-20Type: Standard | Bearing: Ball bearing | Bore: 20 mm | Stroke: 20 mm | Port: M5
STR2-B-20-30Type: Standard | Bearing: Ball bearing | Bore: 20 mm | Stroke: 30 mm | Port: M5
STR2-B-20-40Type: Standard | Bearing: Ball bearing | Bore: 20 mm | Stroke: 40 mm | Port: M5
STR2-B-20-50Type: Standard | Bearing: Ball bearing | Bore: 20 mm | Stroke: 50 mm | Port: M5
STR2-B-20-60Type: Standard | Bearing: Ball bearing | Bore: 20 mm | Stroke: 60 mm | Port: M5
STR2-B-20-70Type: Standard | Bearing: Ball bearing | Bore: 20 mm | Stroke: 70 mm | Port: M5
STR2-B-20-80Type: Standard | Bearing: Ball bearing | Bore: 20 mm | Stroke: 80 mm | Port: M5
STR2-B-20-90Type: Standard | Bearing: Ball bearing | Bore: 20 mm | Stroke: 90 mm | Port: M5
STR2-B-20-100Type: Standard | Bearing: Ball bearing | Bore: 20 mm | Stroke: 100 mm | Port: M5
STR2-B-25-10Type: Standard | Bearing: Ball bearing | Bore: 25 mm | Stroke: 10 mm | Port: M5
STR2-B-25-20Type: Standard | Bearing: Ball bearing | Bore: 25 mm | Stroke: 20 mm | Port: M5
STR2-B-25-30Type: Standard | Bearing: Ball bearing | Bore: 25 mm | Stroke: 30 mm | Port: M5
STR2-B-25-40Type: Standard | Bearing: Ball bearing | Bore: 25 mm | Stroke: 40 mm | Port: M5
STR2-B-25-50Type: Standard | Bearing: Ball bearing | Bore: 25 mm | Stroke: 50 mm | Port: M5
STR2-B-25-60Type: Standard | Bearing: Ball bearing | Bore: 25 mm | Stroke: 60 mm | Port: M5
STR2-B-25-70Type: Standard | Bearing: Ball bearing | Bore: 25 mm | Stroke: 70 mm | Port: M5
STR2-B-25-80Type: Standard | Bearing: Ball bearing | Bore: 25 mm | Stroke: 80 mm | Port: M5
STR2-B-25-90Type: Standard | Bearing: Ball bearing | Bore: 25 mm | Stroke: 90 mm | Port: M5
STR2-B-25-100Type: Standard | Bearing: Ball bearing | Bore: 25 mm | Stroke: 100 mm | Port: M5
STR2-B-32-10Type: Standard | Bearing: Ball bearing | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
STR2-B-32-20Type: Standard | Bearing: Ball bearing | Bore: 32 mm | Stroke: 20 mm | Port: Rc1/8
STR2-B-32-30Type: Standard | Bearing: Ball bearing | Bore: 32 mm | Stroke: 30 mm | Port: Rc1/8
STR2-B-32-40Type: Standard | Bearing: Ball bearing | Bore: 32 mm | Stroke: 40 mm | Port: Rc1/8
STR2-B-32-50Type: Standard | Bearing: Ball bearing | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
STR2-B-32-60Type: Standard | Bearing: Ball bearing | Bore: 32 mm | Stroke: 60 mm | Port: Rc1/8
STR2-B-32-70Type: Standard | Bearing: Ball bearing | Bore: 32 mm | Stroke: 70 mm | Port: Rc1/8
STR2-B-32-80Type: Standard | Bearing: Ball bearing | Bore: 32 mm | Stroke: 80 mm | Port: Rc1/8
STR2-B-32-90Type: Standard | Bearing: Ball bearing | Bore: 32 mm | Stroke: 90 mm | Port: Rc1/8
STR2-B-32-100Type: Standard | Bearing: Ball bearing | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
STR2-MQ-16-10-HType: Drop prevention (Head side lock) | Bearing: Slide bearing | Bore: 16 mm | Stroke: 10 mm | Port: M5
STR2-MQ-16-10-RType: Drop prevention (Rod side lock) | Bearing: Slide bearing | Bore: 16 mm | Stroke: 10 mm | Port: M5
STR2-MQ-16-20-HType: Drop prevention (Head side lock) | Bearing: Slide bearing | Bore: 16 mm | Stroke: 20 mm | Port: M5
STR2-MQ-16-20-RType: Drop prevention (Rod side lock) | Bearing: Slide bearing | Bore: 16 mm | Stroke: 20 mm | Port: M5
STR2-MQ-16-30-HType: Drop prevention (Head side lock) | Bearing: Slide bearing | Bore: 16 mm | Stroke: 30 mm | Port: M5
STR2-MQ-16-30-RType: Drop prevention (Rod side lock) | Bearing: Slide bearing | Bore: 16 mm | Stroke: 30 mm | Port: M5
STR2-MQ-16-40-HType: Drop prevention (Head side lock) | Bearing: Slide bearing | Bore: 16 mm | Stroke: 40 mm | Port: M5
STR2-MQ-16-40-RType: Drop prevention (Rod side lock) | Bearing: Slide bearing | Bore: 16 mm | Stroke: 40 mm | Port: M5
STR2-MQ-16-50-HType: Drop prevention (Head side lock) | Bearing: Slide bearing | Bore: 16 mm | Stroke: 50 mm | Port: M5
STR2-MQ-16-50-RType: Drop prevention (Rod side lock) | Bearing: Slide bearing | Bore: 16 mm | Stroke: 50 mm | Port: M5
STR2-MQ-16-60-HType: Drop prevention (Head side lock) | Bearing: Slide bearing | Bore: 16 mm | Stroke: 60 mm | Port: M5
STR2-MQ-16-60-RType: Drop prevention (Rod side lock) | Bearing: Slide bearing | Bore: 16 mm | Stroke: 60 mm | Port: M5
STR2-MQ-16-70-HType: Drop prevention (Head side lock) | Bearing: Slide bearing | Bore: 16 mm | Stroke: 70 mm | Port: M5
STR2-MQ-16-70-RType: Drop prevention (Rod side lock) | Bearing: Slide bearing | Bore: 16 mm | Stroke: 70 mm | Port: M5
STR2-MQ-16-80-HType: Drop prevention (Head side lock) | Bearing: Slide bearing | Bore: 16 mm | Stroke: 80 mm | Port: M5
STR2-MQ-16-80-RType: Drop prevention (Rod side lock) | Bearing: Slide bearing | Bore: 16 mm | Stroke: 80 mm | Port: M5
STR2-MQ-16-90-HType: Drop prevention (Head side lock) | Bearing: Slide bearing | Bore: 16 mm | Stroke: 90 mm | Port: M5
STR2-MQ-16-90-RType: Drop prevention (Rod side lock) | Bearing: Slide bearing | Bore: 16 mm | Stroke: 90 mm | Port: M5
STR2-MQ-16-100-HType: Drop prevention (Head side lock) | Bearing: Slide bearing | Bore: 16 mm | Stroke: 100 mm | Port: M5
STR2-MQ-16-100-RType: Drop prevention (Rod side lock) | Bearing: Slide bearing | Bore: 16 mm | Stroke: 100 mm | Port: M5
STR2-MQ-20-10-HType: Drop prevention (Head side lock) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 10 mm | Port: M5
STR2-MQ-20-10-RType: Drop prevention (Rod side lock) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 10 mm | Port: M5
STR2-MQ-20-20-HType: Drop prevention (Head side lock) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 20 mm | Port: M5
STR2-MQ-20-20-RType: Drop prevention (Rod side lock) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 20 mm | Port: M5
STR2-MQ-20-30-HType: Drop prevention (Head side lock) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 30 mm | Port: M5
STR2-MQ-20-30-RType: Drop prevention (Rod side lock) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 30 mm | Port: M5
STR2-MQ-20-40-HType: Drop prevention (Head side lock) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 40 mm | Port: M5
STR2-MQ-20-40-RType: Drop prevention (Rod side lock) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 40 mm | Port: M5
STR2-MQ-20-50-HType: Drop prevention (Head side lock) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 50 mm | Port: M5
STR2-MQ-20-50-RType: Drop prevention (Rod side lock) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 50 mm | Port: M5
STR2-MQ-20-60-HType: Drop prevention (Head side lock) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 60 mm | Port: M5
STR2-MQ-20-60-RType: Drop prevention (Rod side lock) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 60 mm | Port: M5
STR2-MQ-20-70-HType: Drop prevention (Head side lock) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 70 mm | Port: M5
STR2-MQ-20-70-RType: Drop prevention (Rod side lock) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 70 mm | Port: M5
STR2-MQ-20-80-HType: Drop prevention (Head side lock) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 80 mm | Port: M5
STR2-MQ-20-80-RType: Drop prevention (Rod side lock) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 80 mm | Port: M5
STR2-MQ-20-90-HType: Drop prevention (Head side lock) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 90 mm | Port: M5
STR2-MQ-20-90-RType: Drop prevention (Rod side lock) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 90 mm | Port: M5
STR2-MQ-20-100-HType: Drop prevention (Head side lock) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 100 mm | Port: M5
STR2-MQ-20-100-RType: Drop prevention (Rod side lock) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 100 mm | Port: M5
STR2-MQ-25-10-HType: Drop prevention (Head side lock) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 10 mm | Port: M5
STR2-MQ-25-10-RType: Drop prevention (Rod side lock) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 10 mm | Port: M5
STR2-MQ-25-20-HType: Drop prevention (Head side lock) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 20 mm | Port: M5
STR2-MQ-25-20-RType: Drop prevention (Rod side lock) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 20 mm | Port: M5
STR2-MQ-25-30-HType: Drop prevention (Head side lock) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 30 mm | Port: M5
STR2-MQ-25-30-RType: Drop prevention (Rod side lock) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 30 mm | Port: M5
STR2-MQ-25-40-HType: Drop prevention (Head side lock) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 40 mm | Port: M5
STR2-MQ-25-40-RType: Drop prevention (Rod side lock) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 40 mm | Port: M5
STR2-MQ-25-50-HType: Drop prevention (Head side lock) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 50 mm | Port: M5
STR2-MQ-25-50-RType: Drop prevention (Rod side lock) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 50 mm | Port: M5
STR2-MQ-25-60-HType: Drop prevention (Head side lock) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 60 mm | Port: M5
STR2-MQ-25-60-RType: Drop prevention (Rod side lock) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 60 mm | Port: M5
STR2-MQ-25-70-HType: Drop prevention (Head side lock) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 70 mm | Port: M5
STR2-MQ-25-70-RType: Drop prevention (Rod side lock) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 70 mm | Port: M5
STR2-MQ-25-80-HType: Drop prevention (Head side lock) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 80 mm | Port: M5
STR2-MQ-25-80-RType: Drop prevention (Rod side lock) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 80 mm | Port: M5
STR2-MQ-25-90-HType: Drop prevention (Head side lock) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 90 mm | Port: M5
STR2-MQ-25-90-RType: Drop prevention (Rod side lock) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 90 mm | Port: M5
STR2-MQ-25-100-HType: Drop prevention (Head side lock) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 100 mm | Port: M5
STR2-MQ-25-100-RType: Drop prevention (Rod side lock) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 100 mm | Port: M5
STR2-MQ-32-10-HType: Drop prevention (Head side lock) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
STR2-MQ-32-10-RType: Drop prevention (Rod side lock) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
STR2-MQ-32-20-HType: Drop prevention (Head side lock) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 20 mm | Port: Rc1/8
STR2-MQ-32-20-RType: Drop prevention (Rod side lock) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 20 mm | Port: Rc1/8
STR2-MQ-32-30-HType: Drop prevention (Head side lock) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 30 mm | Port: Rc1/8
STR2-MQ-32-30-RType: Drop prevention (Rod side lock) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 30 mm | Port: Rc1/8
STR2-MQ-32-40-HType: Drop prevention (Head side lock) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 40 mm | Port: Rc1/8
STR2-MQ-32-40-RType: Drop prevention (Rod side lock) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 40 mm | Port: Rc1/8
STR2-MQ-32-50-HType: Drop prevention (Head side lock) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
STR2-MQ-32-50-RType: Drop prevention (Rod side lock) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
STR2-MQ-32-60-HType: Drop prevention (Head side lock) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 60 mm | Port: Rc1/8
STR2-MQ-32-60-RType: Drop prevention (Rod side lock) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 60 mm | Port: Rc1/8
STR2-MQ-32-70-HType: Drop prevention (Head side lock) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 70 mm | Port: Rc1/8
STR2-MQ-32-70-RType: Drop prevention (Rod side lock) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 70 mm | Port: Rc1/8
STR2-MQ-32-80-HType: Drop prevention (Head side lock) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 80 mm | Port: Rc1/8
STR2-MQ-32-80-RType: Drop prevention (Rod side lock) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 80 mm | Port: Rc1/8
STR2-MQ-32-90-HType: Drop prevention (Head side lock) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 90 mm | Port: Rc1/8
STR2-MQ-32-90-RType: Drop prevention (Rod side lock) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 90 mm | Port: Rc1/8
STR2-MQ-32-100-HType: Drop prevention (Head side lock) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
STR2-MQ-32-100-RType: Drop prevention (Rod side lock) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
STR2-BQ-16-10-HType: Drop prevention (Head side lock) | Bearing: Ball bearing | Bore: 16 mm | Stroke: 10 mm | Port: M5
STR2-BQ-16-10-RType: Drop prevention (Rod side lock) | Bearing: Ball bearing | Bore: 16 mm | Stroke: 10 mm | Port: M5
STR2-BQ-16-20-HType: Drop prevention (Head side lock) | Bearing: Ball bearing | Bore: 16 mm | Stroke: 20 mm | Port: M5
STR2-BQ-16-20-RType: Drop prevention (Rod side lock) | Bearing: Ball bearing | Bore: 16 mm | Stroke: 20 mm | Port: M5
STR2-BQ-16-30-HType: Drop prevention (Head side lock) | Bearing: Ball bearing | Bore: 16 mm | Stroke: 30 mm | Port: M5
STR2-BQ-16-30-RType: Drop prevention (Rod side lock) | Bearing: Ball bearing | Bore: 16 mm | Stroke: 30 mm | Port: M5
STR2-BQ-16-40-HType: Drop prevention (Head side lock) | Bearing: Ball bearing | Bore: 16 mm | Stroke: 40 mm | Port: M5
STR2-BQ-16-40-RType: Drop prevention (Rod side lock) | Bearing: Ball bearing | Bore: 16 mm | Stroke: 40 mm | Port: M5
STR2-BQ-16-50-HType: Drop prevention (Head side lock) | Bearing: Ball bearing | Bore: 16 mm | Stroke: 50 mm | Port: M5
STR2-BQ-16-50-RType: Drop prevention (Rod side lock) | Bearing: Ball bearing | Bore: 16 mm | Stroke: 50 mm | Port: M5
STR2-BQ-16-60-HType: Drop prevention (Head side lock) | Bearing: Ball bearing | Bore: 16 mm | Stroke: 60 mm | Port: M5
STR2-BQ-16-60-RType: Drop prevention (Rod side lock) | Bearing: Ball bearing | Bore: 16 mm | Stroke: 60 mm | Port: M5
STR2-BQ-16-70-HType: Drop prevention (Head side lock) | Bearing: Ball bearing | Bore: 16 mm | Stroke: 70 mm | Port: M5
STR2-BQ-16-70-RType: Drop prevention (Rod side lock) | Bearing: Ball bearing | Bore: 16 mm | Stroke: 70 mm | Port: M5
STR2-BQ-16-80-HType: Drop prevention (Head side lock) | Bearing: Ball bearing | Bore: 16 mm | Stroke: 80 mm | Port: M5
STR2-BQ-16-80-RType: Drop prevention (Rod side lock) | Bearing: Ball bearing | Bore: 16 mm | Stroke: 80 mm | Port: M5
STR2-BQ-16-90-HType: Drop prevention (Head side lock) | Bearing: Ball bearing | Bore: 16 mm | Stroke: 90 mm | Port: M5
STR2-BQ-16-90-RType: Drop prevention (Rod side lock) | Bearing: Ball bearing | Bore: 16 mm | Stroke: 90 mm | Port: M5
STR2-BQ-16-100-HType: Drop prevention (Head side lock) | Bearing: Ball bearing | Bore: 16 mm | Stroke: 100 mm | Port: M5
STR2-BQ-16-100-RType: Drop prevention (Rod side lock) | Bearing: Ball bearing | Bore: 16 mm | Stroke: 100 mm | Port: M5
STR2-BQ-20-10-HType: Drop prevention (Head side lock) | Bearing: Ball bearing | Bore: 20 mm | Stroke: 10 mm | Port: M5
STR2-BQ-20-10-RType: Drop prevention (Rod side lock) | Bearing: Ball bearing | Bore: 20 mm | Stroke: 10 mm | Port: M5
STR2-BQ-20-20-HType: Drop prevention (Head side lock) | Bearing: Ball bearing | Bore: 20 mm | Stroke: 20 mm | Port: M5
STR2-BQ-20-20-RType: Drop prevention (Rod side lock) | Bearing: Ball bearing | Bore: 20 mm | Stroke: 20 mm | Port: M5
STR2-BQ-20-30-HType: Drop prevention (Head side lock) | Bearing: Ball bearing | Bore: 20 mm | Stroke: 30 mm | Port: M5
STR2-BQ-20-30-RType: Drop prevention (Rod side lock) | Bearing: Ball bearing | Bore: 20 mm | Stroke: 30 mm | Port: M5
STR2-BQ-20-40-HType: Drop prevention (Head side lock) | Bearing: Ball bearing | Bore: 20 mm | Stroke: 40 mm | Port: M5
STR2-BQ-20-40-RType: Drop prevention (Rod side lock) | Bearing: Ball bearing | Bore: 20 mm | Stroke: 40 mm | Port: M5
STR2-BQ-20-50-HType: Drop prevention (Head side lock) | Bearing: Ball bearing | Bore: 20 mm | Stroke: 50 mm | Port: M5
STR2-BQ-20-50-RType: Drop prevention (Rod side lock) | Bearing: Ball bearing | Bore: 20 mm | Stroke: 50 mm | Port: M5
STR2-BQ-20-60-HType: Drop prevention (Head side lock) | Bearing: Ball bearing | Bore: 20 mm | Stroke: 60 mm | Port: M5
STR2-BQ-20-60-RType: Drop prevention (Rod side lock) | Bearing: Ball bearing | Bore: 20 mm | Stroke: 60 mm | Port: M5
STR2-BQ-20-70-HType: Drop prevention (Head side lock) | Bearing: Ball bearing | Bore: 20 mm | Stroke: 70 mm | Port: M5
STR2-BQ-20-70-RType: Drop prevention (Rod side lock) | Bearing: Ball bearing | Bore: 20 mm | Stroke: 70 mm | Port: M5
STR2-BQ-20-80-HType: Drop prevention (Head side lock) | Bearing: Ball bearing | Bore: 20 mm | Stroke: 80 mm | Port: M5
STR2-BQ-20-80-RType: Drop prevention (Rod side lock) | Bearing: Ball bearing | Bore: 20 mm | Stroke: 80 mm | Port: M5
STR2-BQ-20-90-HType: Drop prevention (Head side lock) | Bearing: Ball bearing | Bore: 20 mm | Stroke: 90 mm | Port: M5
STR2-BQ-20-90-RType: Drop prevention (Rod side lock) | Bearing: Ball bearing | Bore: 20 mm | Stroke: 90 mm | Port: M5
STR2-BQ-20-100-HType: Drop prevention (Head side lock) | Bearing: Ball bearing | Bore: 20 mm | Stroke: 100 mm | Port: M5
STR2-BQ-20-100-RType: Drop prevention (Rod side lock) | Bearing: Ball bearing | Bore: 20 mm | Stroke: 100 mm | Port: M5
STR2-BQ-25-10-HType: Drop prevention (Head side lock) | Bearing: Ball bearing | Bore: 25 mm | Stroke: 10 mm | Port: M5
STR2-BQ-25-10-RType: Drop prevention (Rod side lock) | Bearing: Ball bearing | Bore: 25 mm | Stroke: 10 mm | Port: M5
STR2-BQ-25-20-HType: Drop prevention (Head side lock) | Bearing: Ball bearing | Bore: 25 mm | Stroke: 20 mm | Port: M5
STR2-BQ-25-20-RType: Drop prevention (Rod side lock) | Bearing: Ball bearing | Bore: 25 mm | Stroke: 20 mm | Port: M5
STR2-BQ-25-30-HType: Drop prevention (Head side lock) | Bearing: Ball bearing | Bore: 25 mm | Stroke: 30 mm | Port: M5
STR2-BQ-25-30-RType: Drop prevention (Rod side lock) | Bearing: Ball bearing | Bore: 25 mm | Stroke: 30 mm | Port: M5
STR2-BQ-25-40-HType: Drop prevention (Head side lock) | Bearing: Ball bearing | Bore: 25 mm | Stroke: 40 mm | Port: M5
STR2-BQ-25-40-RType: Drop prevention (Rod side lock) | Bearing: Ball bearing | Bore: 25 mm | Stroke: 40 mm | Port: M5
STR2-BQ-25-50-HType: Drop prevention (Head side lock) | Bearing: Ball bearing | Bore: 25 mm | Stroke: 50 mm | Port: M5
STR2-BQ-25-50-RType: Drop prevention (Rod side lock) | Bearing: Ball bearing | Bore: 25 mm | Stroke: 50 mm | Port: M5
STR2-BQ-25-60-HType: Drop prevention (Head side lock) | Bearing: Ball bearing | Bore: 25 mm | Stroke: 60 mm | Port: M5
STR2-BQ-25-60-RType: Drop prevention (Rod side lock) | Bearing: Ball bearing | Bore: 25 mm | Stroke: 60 mm | Port: M5
STR2-BQ-25-70-HType: Drop prevention (Head side lock) | Bearing: Ball bearing | Bore: 25 mm | Stroke: 70 mm | Port: M5
STR2-BQ-25-70-RType: Drop prevention (Rod side lock) | Bearing: Ball bearing | Bore: 25 mm | Stroke: 70 mm | Port: M5
STR2-BQ-25-80-HType: Drop prevention (Head side lock) | Bearing: Ball bearing | Bore: 25 mm | Stroke: 80 mm | Port: M5
STR2-BQ-25-80-RType: Drop prevention (Rod side lock) | Bearing: Ball bearing | Bore: 25 mm | Stroke: 80 mm | Port: M5
STR2-BQ-25-90-HType: Drop prevention (Head side lock) | Bearing: Ball bearing | Bore: 25 mm | Stroke: 90 mm | Port: M5
STR2-BQ-25-90-RType: Drop prevention (Rod side lock) | Bearing: Ball bearing | Bore: 25 mm | Stroke: 90 mm | Port: M5
STR2-BQ-25-100-HType: Drop prevention (Head side lock) | Bearing: Ball bearing | Bore: 25 mm | Stroke: 100 mm | Port: M5
STR2-BQ-25-100-RType: Drop prevention (Rod side lock) | Bearing: Ball bearing | Bore: 25 mm | Stroke: 100 mm | Port: M5
STR2-BQ-32-10-HType: Drop prevention (Head side lock) | Bearing: Ball bearing | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
STR2-BQ-32-10-RType: Drop prevention (Rod side lock) | Bearing: Ball bearing | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
STR2-BQ-32-20-HType: Drop prevention (Head side lock) | Bearing: Ball bearing | Bore: 32 mm | Stroke: 20 mm | Port: Rc1/8
STR2-BQ-32-20-RType: Drop prevention (Rod side lock) | Bearing: Ball bearing | Bore: 32 mm | Stroke: 20 mm | Port: Rc1/8
STR2-BQ-32-30-HType: Drop prevention (Head side lock) | Bearing: Ball bearing | Bore: 32 mm | Stroke: 30 mm | Port: Rc1/8
STR2-BQ-32-30-RType: Drop prevention (Rod side lock) | Bearing: Ball bearing | Bore: 32 mm | Stroke: 30 mm | Port: Rc1/8
STR2-BQ-32-40-HType: Drop prevention (Head side lock) | Bearing: Ball bearing | Bore: 32 mm | Stroke: 40 mm | Port: Rc1/8
STR2-BQ-32-40-RType: Drop prevention (Rod side lock) | Bearing: Ball bearing | Bore: 32 mm | Stroke: 40 mm | Port: Rc1/8
STR2-BQ-32-50-HType: Drop prevention (Head side lock) | Bearing: Ball bearing | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
STR2-BQ-32-50-RType: Drop prevention (Rod side lock) | Bearing: Ball bearing | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
STR2-BQ-32-60-HType: Drop prevention (Head side lock) | Bearing: Ball bearing | Bore: 32 mm | Stroke: 60 mm | Port: Rc1/8
STR2-BQ-32-60-RType: Drop prevention (Rod side lock) | Bearing: Ball bearing | Bore: 32 mm | Stroke: 60 mm | Port: Rc1/8
STR2-BQ-32-70-HType: Drop prevention (Head side lock) | Bearing: Ball bearing | Bore: 32 mm | Stroke: 70 mm | Port: Rc1/8
STR2-BQ-32-70-RType: Drop prevention (Rod side lock) | Bearing: Ball bearing | Bore: 32 mm | Stroke: 70 mm | Port: Rc1/8
STR2-BQ-32-80-HType: Drop prevention (Head side lock) | Bearing: Ball bearing | Bore: 32 mm | Stroke: 80 mm | Port: Rc1/8
STR2-BQ-32-80-RType: Drop prevention (Rod side lock) | Bearing: Ball bearing | Bore: 32 mm | Stroke: 80 mm | Port: Rc1/8
STR2-BQ-32-90-HType: Drop prevention (Head side lock) | Bearing: Ball bearing | Bore: 32 mm | Stroke: 90 mm | Port: Rc1/8
STR2-BQ-32-90-RType: Drop prevention (Rod side lock) | Bearing: Ball bearing | Bore: 32 mm | Stroke: 90 mm | Port: Rc1/8
STR2-BQ-32-100-HType: Drop prevention (Head side lock) | Bearing: Ball bearing | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
STR2-BQ-32-100-RType: Drop prevention (Rod side lock) | Bearing: Ball bearing | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
STR2-MO-6-10Type: Low speed | Bearing: Slide bearing | Bore: 6 mm | Stroke: 10 mm | Port: M5
STR2-MO-6-20Type: Low speed | Bearing: Slide bearing | Bore: 6 mm | Stroke: 20 mm | Port: M5
STR2-MO-6-30Type: Low speed | Bearing: Slide bearing | Bore: 6 mm | Stroke: 30 mm | Port: M5
STR2-MO-6-40Type: Low speed | Bearing: Slide bearing | Bore: 6 mm | Stroke: 40 mm | Port: M5
STR2-MO-6-50Type: Low speed | Bearing: Slide bearing | Bore: 6 mm | Stroke: 50 mm | Port: M5
STR2-MO-10-10Type: Low speed | Bearing: Slide bearing | Bore: 10 mm | Stroke: 10 mm | Port: M5
STR2-MO-10-20Type: Low speed | Bearing: Slide bearing | Bore: 10 mm | Stroke: 20 mm | Port: M5
STR2-MO-10-30Type: Low speed | Bearing: Slide bearing | Bore: 10 mm | Stroke: 30 mm | Port: M5
STR2-MO-10-40Type: Low speed | Bearing: Slide bearing | Bore: 10 mm | Stroke: 40 mm | Port: M5
STR2-MO-10-50Type: Low speed | Bearing: Slide bearing | Bore: 10 mm | Stroke: 50 mm | Port: M5
STR2-MO-16-10Type: Low speed | Bearing: Slide bearing | Bore: 16 mm | Stroke: 10 mm | Port: M5
STR2-MO-16-20Type: Low speed | Bearing: Slide bearing | Bore: 16 mm | Stroke: 20 mm | Port: M5
STR2-MO-16-30Type: Low speed | Bearing: Slide bearing | Bore: 16 mm | Stroke: 30 mm | Port: M5
STR2-MO-16-40Type: Low speed | Bearing: Slide bearing | Bore: 16 mm | Stroke: 40 mm | Port: M5
STR2-MO-16-50Type: Low speed | Bearing: Slide bearing | Bore: 16 mm | Stroke: 50 mm | Port: M5
STR2-MO-16-60Type: Low speed | Bearing: Slide bearing | Bore: 16 mm | Stroke: 60 mm | Port: M5
STR2-MO-16-70Type: Low speed | Bearing: Slide bearing | Bore: 16 mm | Stroke: 70 mm | Port: M5
STR2-MO-16-80Type: Low speed | Bearing: Slide bearing | Bore: 16 mm | Stroke: 80 mm | Port: M5
STR2-MO-16-90Type: Low speed | Bearing: Slide bearing | Bore: 16 mm | Stroke: 90 mm | Port: M5
STR2-MO-16-100Type: Low speed | Bearing: Slide bearing | Bore: 16 mm | Stroke: 100 mm | Port: M5
STR2-MO-20-10Type: Low speed | Bearing: Slide bearing | Bore: 20 mm | Stroke: 10 mm | Port: M5
STR2-MO-20-20Type: Low speed | Bearing: Slide bearing | Bore: 20 mm | Stroke: 20 mm | Port: M5
STR2-MO-20-30Type: Low speed | Bearing: Slide bearing | Bore: 20 mm | Stroke: 30 mm | Port: M5
STR2-MO-20-40Type: Low speed | Bearing: Slide bearing | Bore: 20 mm | Stroke: 40 mm | Port: M5
STR2-MO-20-50Type: Low speed | Bearing: Slide bearing | Bore: 20 mm | Stroke: 50 mm | Port: M5
STR2-MO-20-60Type: Low speed | Bearing: Slide bearing | Bore: 20 mm | Stroke: 60 mm | Port: M5
STR2-MO-20-70Type: Low speed | Bearing: Slide bearing | Bore: 20 mm | Stroke: 70 mm | Port: M5
STR2-MO-20-80Type: Low speed | Bearing: Slide bearing | Bore: 20 mm | Stroke: 80 mm | Port: M5
STR2-MO-20-90Type: Low speed | Bearing: Slide bearing | Bore: 20 mm | Stroke: 90 mm | Port: M5
STR2-MO-20-100Type: Low speed | Bearing: Slide bearing | Bore: 20 mm | Stroke: 100 mm | Port: M5
STR2-MO-25-10Type: Low speed | Bearing: Slide bearing | Bore: 25 mm | Stroke: 10 mm | Port: M5
STR2-MO-25-20Type: Low speed | Bearing: Slide bearing | Bore: 25 mm | Stroke: 20 mm | Port: M5
STR2-MO-25-30Type: Low speed | Bearing: Slide bearing | Bore: 25 mm | Stroke: 30 mm | Port: M5
STR2-MO-25-40Type: Low speed | Bearing: Slide bearing | Bore: 25 mm | Stroke: 40 mm | Port: M5
STR2-MO-25-50Type: Low speed | Bearing: Slide bearing | Bore: 25 mm | Stroke: 50 mm | Port: M5
STR2-MO-25-60Type: Low speed | Bearing: Slide bearing | Bore: 25 mm | Stroke: 60 mm | Port: M5
STR2-MO-25-70Type: Low speed | Bearing: Slide bearing | Bore: 25 mm | Stroke: 70 mm | Port: M5
STR2-MO-25-80Type: Low speed | Bearing: Slide bearing | Bore: 25 mm | Stroke: 80 mm | Port: M5
STR2-MO-25-90Type: Low speed | Bearing: Slide bearing | Bore: 25 mm | Stroke: 90 mm | Port: M5
STR2-MO-25-100Type: Low speed | Bearing: Slide bearing | Bore: 25 mm | Stroke: 100 mm | Port: M5
STR2-MO-32-10Type: Low speed | Bearing: Slide bearing | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
STR2-MO-32-20Type: Low speed | Bearing: Slide bearing | Bore: 32 mm | Stroke: 20 mm | Port: Rc1/8
STR2-MO-32-30Type: Low speed | Bearing: Slide bearing | Bore: 32 mm | Stroke: 30 mm | Port: Rc1/8
STR2-MO-32-40Type: Low speed | Bearing: Slide bearing | Bore: 32 mm | Stroke: 40 mm | Port: Rc1/8
STR2-MO-32-50Type: Low speed | Bearing: Slide bearing | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
STR2-MO-32-60Type: Low speed | Bearing: Slide bearing | Bore: 32 mm | Stroke: 60 mm | Port: Rc1/8
STR2-MO-32-70Type: Low speed | Bearing: Slide bearing | Bore: 32 mm | Stroke: 70 mm | Port: Rc1/8
STR2-MO-32-80Type: Low speed | Bearing: Slide bearing | Bore: 32 mm | Stroke: 80 mm | Port: Rc1/8
STR2-MO-32-90Type: Low speed | Bearing: Slide bearing | Bore: 32 mm | Stroke: 90 mm | Port: Rc1/8
STR2-MO-32-100Type: Low speed | Bearing: Slide bearing | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
STR2-BO-6-10Type: Low speed | Bearing: Ball bearing | Bore: 6 mm | Stroke: 10 mm | Port: M5
STR2-BO-6-20Type: Low speed | Bearing: Ball bearing | Bore: 6 mm | Stroke: 20 mm | Port: M5
STR2-BO-6-30Type: Low speed | Bearing: Ball bearing | Bore: 6 mm | Stroke: 30 mm | Port: M5
STR2-BO-6-40Type: Low speed | Bearing: Ball bearing | Bore: 6 mm | Stroke: 40 mm | Port: M5
STR2-BO-6-50Type: Low speed | Bearing: Ball bearing | Bore: 6 mm | Stroke: 50 mm | Port: M5
STR2-BO-10-10Type: Low speed | Bearing: Ball bearing | Bore: 10 mm | Stroke: 10 mm | Port: M5
STR2-BO-10-20Type: Low speed | Bearing: Ball bearing | Bore: 10 mm | Stroke: 20 mm | Port: M5
STR2-BO-10-30Type: Low speed | Bearing: Ball bearing | Bore: 10 mm | Stroke: 30 mm | Port: M5
STR2-BO-10-40Type: Low speed | Bearing: Ball bearing | Bore: 10 mm | Stroke: 40 mm | Port: M5
STR2-BO-10-50Type: Low speed | Bearing: Ball bearing | Bore: 10 mm | Stroke: 50 mm | Port: M5
STR2-BO-16-10Type: Low speed | Bearing: Ball bearing | Bore: 16 mm | Stroke: 10 mm | Port: M5
STR2-BO-16-20Type: Low speed | Bearing: Ball bearing | Bore: 16 mm | Stroke: 20 mm | Port: M5
STR2-BO-16-30Type: Low speed | Bearing: Ball bearing | Bore: 16 mm | Stroke: 30 mm | Port: M5
STR2-BO-16-40Type: Low speed | Bearing: Ball bearing | Bore: 16 mm | Stroke: 40 mm | Port: M5
STR2-BO-16-50Type: Low speed | Bearing: Ball bearing | Bore: 16 mm | Stroke: 50 mm | Port: M5
STR2-BO-16-60Type: Low speed | Bearing: Ball bearing | Bore: 16 mm | Stroke: 60 mm | Port: M5
STR2-BO-16-70Type: Low speed | Bearing: Ball bearing | Bore: 16 mm | Stroke: 70 mm | Port: M5
STR2-BO-16-80Type: Low speed | Bearing: Ball bearing | Bore: 16 mm | Stroke: 80 mm | Port: M5
STR2-BO-16-90Type: Low speed | Bearing: Ball bearing | Bore: 16 mm | Stroke: 90 mm | Port: M5
STR2-BO-16-100Type: Low speed | Bearing: Ball bearing | Bore: 16 mm | Stroke: 100 mm | Port: M5
STR2-BO-20-10Type: Low speed | Bearing: Ball bearing | Bore: 20 mm | Stroke: 10 mm | Port: M5
STR2-BO-20-20Type: Low speed | Bearing: Ball bearing | Bore: 20 mm | Stroke: 20 mm | Port: M5
STR2-BO-20-30Type: Low speed | Bearing: Ball bearing | Bore: 20 mm | Stroke: 30 mm | Port: M5
STR2-BO-20-40Type: Low speed | Bearing: Ball bearing | Bore: 20 mm | Stroke: 40 mm | Port: M5
STR2-BO-20-50Type: Low speed | Bearing: Ball bearing | Bore: 20 mm | Stroke: 50 mm | Port: M5
STR2-BO-20-60Type: Low speed | Bearing: Ball bearing | Bore: 20 mm | Stroke: 60 mm | Port: M5
STR2-BO-20-70Type: Low speed | Bearing: Ball bearing | Bore: 20 mm | Stroke: 70 mm | Port: M5
STR2-BO-20-80Type: Low speed | Bearing: Ball bearing | Bore: 20 mm | Stroke: 80 mm | Port: M5
STR2-BO-20-90Type: Low speed | Bearing: Ball bearing | Bore: 20 mm | Stroke: 90 mm | Port: M5
STR2-BO-20-100Type: Low speed | Bearing: Ball bearing | Bore: 20 mm | Stroke: 100 mm | Port: M5
STR2-BO-25-10Type: Low speed | Bearing: Ball bearing | Bore: 25 mm | Stroke: 10 mm | Port: M5
STR2-BO-25-20Type: Low speed | Bearing: Ball bearing | Bore: 25 mm | Stroke: 20 mm | Port: M5
STR2-BO-25-30Type: Low speed | Bearing: Ball bearing | Bore: 25 mm | Stroke: 30 mm | Port: M5
STR2-BO-25-40Type: Low speed | Bearing: Ball bearing | Bore: 25 mm | Stroke: 40 mm | Port: M5
STR2-BO-25-50Type: Low speed | Bearing: Ball bearing | Bore: 25 mm | Stroke: 50 mm | Port: M5
STR2-BO-25-60Type: Low speed | Bearing: Ball bearing | Bore: 25 mm | Stroke: 60 mm | Port: M5
STR2-BO-25-70Type: Low speed | Bearing: Ball bearing | Bore: 25 mm | Stroke: 70 mm | Port: M5
STR2-BO-25-80Type: Low speed | Bearing: Ball bearing | Bore: 25 mm | Stroke: 80 mm | Port: M5
STR2-BO-25-90Type: Low speed | Bearing: Ball bearing | Bore: 25 mm | Stroke: 90 mm | Port: M5
STR2-BO-25-100Type: Low speed | Bearing: Ball bearing | Bore: 25 mm | Stroke: 100 mm | Port: M5
STR2-BO-32-10Type: Low speed | Bearing: Ball bearing | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
STR2-BO-32-20Type: Low speed | Bearing: Ball bearing | Bore: 32 mm | Stroke: 20 mm | Port: Rc1/8
STR2-BO-32-30Type: Low speed | Bearing: Ball bearing | Bore: 32 mm | Stroke: 30 mm | Port: Rc1/8
STR2-BO-32-40Type: Low speed | Bearing: Ball bearing | Bore: 32 mm | Stroke: 40 mm | Port: Rc1/8
STR2-BO-32-50Type: Low speed | Bearing: Ball bearing | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
STR2-BO-32-60Type: Low speed | Bearing: Ball bearing | Bore: 32 mm | Stroke: 60 mm | Port: Rc1/8
STR2-BO-32-70Type: Low speed | Bearing: Ball bearing | Bore: 32 mm | Stroke: 70 mm | Port: Rc1/8
STR2-BO-32-80Type: Low speed | Bearing: Ball bearing | Bore: 32 mm | Stroke: 80 mm | Port: Rc1/8
STR2-BO-32-90Type: Low speed | Bearing: Ball bearing | Bore: 32 mm | Stroke: 90 mm | Port: Rc1/8
STR2-BO-32-100Type: Low speed | Bearing: Ball bearing | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
STR2-MF-10-10Type: Fine speed | Bearing: Slide bearing | Bore: 10 mm | Stroke: 10 mm | Port: M5
STR2-MF-10-20Type: Fine speed | Bearing: Slide bearing | Bore: 10 mm | Stroke: 20 mm | Port: M5
STR2-MF-10-30Type: Fine speed | Bearing: Slide bearing | Bore: 10 mm | Stroke: 30 mm | Port: M5
STR2-MF-10-40Type: Fine speed | Bearing: Slide bearing | Bore: 10 mm | Stroke: 40 mm | Port: M5
STR2-MF-10-50Type: Fine speed | Bearing: Slide bearing | Bore: 10 mm | Stroke: 50 mm | Port: M5
STR2-MF-16-10Type: Fine speed | Bearing: Slide bearing | Bore: 16 mm | Stroke: 10 mm | Port: M5
STR2-MF-16-20Type: Fine speed | Bearing: Slide bearing | Bore: 16 mm | Stroke: 20 mm | Port: M5
STR2-MF-16-30Type: Fine speed | Bearing: Slide bearing | Bore: 16 mm | Stroke: 30 mm | Port: M5
STR2-MF-16-40Type: Fine speed | Bearing: Slide bearing | Bore: 16 mm | Stroke: 40 mm | Port: M5
STR2-MF-16-50Type: Fine speed | Bearing: Slide bearing | Bore: 16 mm | Stroke: 50 mm | Port: M5
STR2-MF-16-60Type: Fine speed | Bearing: Slide bearing | Bore: 16 mm | Stroke: 60 mm | Port: M5
STR2-MF-16-70Type: Fine speed | Bearing: Slide bearing | Bore: 16 mm | Stroke: 70 mm | Port: M5
STR2-MF-16-80Type: Fine speed | Bearing: Slide bearing | Bore: 16 mm | Stroke: 80 mm | Port: M5
STR2-MF-16-90Type: Fine speed | Bearing: Slide bearing | Bore: 16 mm | Stroke: 90 mm | Port: M5
STR2-MF-16-100Type: Fine speed | Bearing: Slide bearing | Bore: 16 mm | Stroke: 100 mm | Port: M5
STR2-MF-20-10Type: Fine speed | Bearing: Slide bearing | Bore: 20 mm | Stroke: 10 mm | Port: M5
STR2-MF-20-20Type: Fine speed | Bearing: Slide bearing | Bore: 20 mm | Stroke: 20 mm | Port: M5
STR2-MF-20-30Type: Fine speed | Bearing: Slide bearing | Bore: 20 mm | Stroke: 30 mm | Port: M5
STR2-MF-20-40Type: Fine speed | Bearing: Slide bearing | Bore: 20 mm | Stroke: 40 mm | Port: M5
STR2-MF-20-50Type: Fine speed | Bearing: Slide bearing | Bore: 20 mm | Stroke: 50 mm | Port: M5
STR2-MF-20-60Type: Fine speed | Bearing: Slide bearing | Bore: 20 mm | Stroke: 60 mm | Port: M5
STR2-MF-20-70Type: Fine speed | Bearing: Slide bearing | Bore: 20 mm | Stroke: 70 mm | Port: M5
STR2-MF-20-80Type: Fine speed | Bearing: Slide bearing | Bore: 20 mm | Stroke: 80 mm | Port: M5
STR2-MF-20-90Type: Fine speed | Bearing: Slide bearing | Bore: 20 mm | Stroke: 90 mm | Port: M5
STR2-MF-20-100Type: Fine speed | Bearing: Slide bearing | Bore: 20 mm | Stroke: 100 mm | Port: M5
STR2-MF-25-10Type: Fine speed | Bearing: Slide bearing | Bore: 25 mm | Stroke: 10 mm | Port: M5
STR2-MF-25-20Type: Fine speed | Bearing: Slide bearing | Bore: 25 mm | Stroke: 20 mm | Port: M5
STR2-MF-25-30Type: Fine speed | Bearing: Slide bearing | Bore: 25 mm | Stroke: 30 mm | Port: M5
STR2-MF-25-40Type: Fine speed | Bearing: Slide bearing | Bore: 25 mm | Stroke: 40 mm | Port: M5
STR2-MF-25-50Type: Fine speed | Bearing: Slide bearing | Bore: 25 mm | Stroke: 50 mm | Port: M5
STR2-MF-25-60Type: Fine speed | Bearing: Slide bearing | Bore: 25 mm | Stroke: 60 mm | Port: M5
STR2-MF-25-70Type: Fine speed | Bearing: Slide bearing | Bore: 25 mm | Stroke: 70 mm | Port: M5
STR2-MF-25-80Type: Fine speed | Bearing: Slide bearing | Bore: 25 mm | Stroke: 80 mm | Port: M5
STR2-MF-25-90Type: Fine speed | Bearing: Slide bearing | Bore: 25 mm | Stroke: 90 mm | Port: M5
STR2-MF-25-100Type: Fine speed | Bearing: Slide bearing | Bore: 25 mm | Stroke: 100 mm | Port: M5
STR2-MF-32-10Type: Fine speed | Bearing: Slide bearing | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
STR2-MF-32-20Type: Fine speed | Bearing: Slide bearing | Bore: 32 mm | Stroke: 20 mm | Port: Rc1/8
STR2-MF-32-30Type: Fine speed | Bearing: Slide bearing | Bore: 32 mm | Stroke: 30 mm | Port: Rc1/8
STR2-MF-32-40Type: Fine speed | Bearing: Slide bearing | Bore: 32 mm | Stroke: 40 mm | Port: Rc1/8
STR2-MF-32-50Type: Fine speed | Bearing: Slide bearing | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
STR2-MF-32-60Type: Fine speed | Bearing: Slide bearing | Bore: 32 mm | Stroke: 60 mm | Port: Rc1/8
STR2-MF-32-70Type: Fine speed | Bearing: Slide bearing | Bore: 32 mm | Stroke: 70 mm | Port: Rc1/8
STR2-MF-32-80Type: Fine speed | Bearing: Slide bearing | Bore: 32 mm | Stroke: 80 mm | Port: Rc1/8
STR2-MF-32-90Type: Fine speed | Bearing: Slide bearing | Bore: 32 mm | Stroke: 90 mm | Port: Rc1/8
STR2-MF-32-100Type: Fine speed | Bearing: Slide bearing | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
STR2-BF-10-10Type: Fine speed | Bearing: Ball bearing | Bore: 10 mm | Stroke: 10 mm | Port: M5
STR2-BF-10-20Type: Fine speed | Bearing: Ball bearing | Bore: 10 mm | Stroke: 20 mm | Port: M5
STR2-BF-10-30Type: Fine speed | Bearing: Ball bearing | Bore: 10 mm | Stroke: 30 mm | Port: M5
STR2-BF-10-40Type: Fine speed | Bearing: Ball bearing | Bore: 10 mm | Stroke: 40 mm | Port: M5
STR2-BF-10-50Type: Fine speed | Bearing: Ball bearing | Bore: 10 mm | Stroke: 50 mm | Port: M5
STR2-BF-16-10Type: Fine speed | Bearing: Ball bearing | Bore: 16 mm | Stroke: 10 mm | Port: M5
STR2-BF-16-20Type: Fine speed | Bearing: Ball bearing | Bore: 16 mm | Stroke: 20 mm | Port: M5
STR2-BF-16-30Type: Fine speed | Bearing: Ball bearing | Bore: 16 mm | Stroke: 30 mm | Port: M5
STR2-BF-16-40Type: Fine speed | Bearing: Ball bearing | Bore: 16 mm | Stroke: 40 mm | Port: M5
STR2-BF-16-50Type: Fine speed | Bearing: Ball bearing | Bore: 16 mm | Stroke: 50 mm | Port: M5
STR2-BF-16-60Type: Fine speed | Bearing: Ball bearing | Bore: 16 mm | Stroke: 60 mm | Port: M5
STR2-BF-16-70Type: Fine speed | Bearing: Ball bearing | Bore: 16 mm | Stroke: 70 mm | Port: M5
STR2-BF-16-80Type: Fine speed | Bearing: Ball bearing | Bore: 16 mm | Stroke: 80 mm | Port: M5
STR2-BF-16-90Type: Fine speed | Bearing: Ball bearing | Bore: 16 mm | Stroke: 90 mm | Port: M5
STR2-BF-16-100Type: Fine speed | Bearing: Ball bearing | Bore: 16 mm | Stroke: 100 mm | Port: M5
STR2-BF-20-10Type: Fine speed | Bearing: Ball bearing | Bore: 20 mm | Stroke: 10 mm | Port: M5
STR2-BF-20-20Type: Fine speed | Bearing: Ball bearing | Bore: 20 mm | Stroke: 20 mm | Port: M5
STR2-BF-20-30Type: Fine speed | Bearing: Ball bearing | Bore: 20 mm | Stroke: 30 mm | Port: M5
STR2-BF-20-40Type: Fine speed | Bearing: Ball bearing | Bore: 20 mm | Stroke: 40 mm | Port: M5
STR2-BF-20-50Type: Fine speed | Bearing: Ball bearing | Bore: 20 mm | Stroke: 50 mm | Port: M5
STR2-BF-20-60Type: Fine speed | Bearing: Ball bearing | Bore: 20 mm | Stroke: 60 mm | Port: M5
STR2-BF-20-70Type: Fine speed | Bearing: Ball bearing | Bore: 20 mm | Stroke: 70 mm | Port: M5
STR2-BF-20-80Type: Fine speed | Bearing: Ball bearing | Bore: 20 mm | Stroke: 80 mm | Port: M5
STR2-BF-20-90Type: Fine speed | Bearing: Ball bearing | Bore: 20 mm | Stroke: 90 mm | Port: M5
STR2-BF-20-100Type: Fine speed | Bearing: Ball bearing | Bore: 20 mm | Stroke: 100 mm | Port: M5
STR2-BF-25-10Type: Fine speed | Bearing: Ball bearing | Bore: 25 mm | Stroke: 10 mm | Port: M5
STR2-BF-25-20Type: Fine speed | Bearing: Ball bearing | Bore: 25 mm | Stroke: 20 mm | Port: M5
STR2-BF-25-30Type: Fine speed | Bearing: Ball bearing | Bore: 25 mm | Stroke: 30 mm | Port: M5
STR2-BF-25-40Type: Fine speed | Bearing: Ball bearing | Bore: 25 mm | Stroke: 40 mm | Port: M5
STR2-BF-25-50Type: Fine speed | Bearing: Ball bearing | Bore: 25 mm | Stroke: 50 mm | Port: M5
STR2-BF-25-60Type: Fine speed | Bearing: Ball bearing | Bore: 25 mm | Stroke: 60 mm | Port: M5
STR2-BF-25-70Type: Fine speed | Bearing: Ball bearing | Bore: 25 mm | Stroke: 70 mm | Port: M5
STR2-BF-25-80Type: Fine speed | Bearing: Ball bearing | Bore: 25 mm | Stroke: 80 mm | Port: M5
STR2-BF-25-90Type: Fine speed | Bearing: Ball bearing | Bore: 25 mm | Stroke: 90 mm | Port: M5
STR2-BF-25-100Type: Fine speed | Bearing: Ball bearing | Bore: 25 mm | Stroke: 100 mm | Port: M5
STR2-BF-32-10Type: Fine speed | Bearing: Ball bearing | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
STR2-BF-32-20Type: Fine speed | Bearing: Ball bearing | Bore: 32 mm | Stroke: 20 mm | Port: Rc1/8
STR2-BF-32-30Type: Fine speed | Bearing: Ball bearing | Bore: 32 mm | Stroke: 30 mm | Port: Rc1/8
STR2-BF-32-40Type: Fine speed | Bearing: Ball bearing | Bore: 32 mm | Stroke: 40 mm | Port: Rc1/8
STR2-BF-32-50Type: Fine speed | Bearing: Ball bearing | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
STR2-BF-32-60Type: Fine speed | Bearing: Ball bearing | Bore: 32 mm | Stroke: 60 mm | Port: Rc1/8
STR2-BF-32-70Type: Fine speed | Bearing: Ball bearing | Bore: 32 mm | Stroke: 70 mm | Port: Rc1/8
STR2-BF-32-80Type: Fine speed | Bearing: Ball bearing | Bore: 32 mm | Stroke: 80 mm | Port: Rc1/8
STR2-BF-32-90Type: Fine speed | Bearing: Ball bearing | Bore: 32 mm | Stroke: 90 mm | Port: Rc1/8
STR2-BF-32-100Type: Fine speed | Bearing: Ball bearing | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
STR2-MD-6-10Type: Double rod | Bearing: Slide bearing | Bore: 6 mm | Stroke: 10 mm | Port: M5
STR2-MD-6-20Type: Double rod | Bearing: Slide bearing | Bore: 6 mm | Stroke: 20 mm | Port: M5
STR2-MD-6-30Type: Double rod | Bearing: Slide bearing | Bore: 6 mm | Stroke: 30 mm | Port: M5
STR2-MD-6-40Type: Double rod | Bearing: Slide bearing | Bore: 6 mm | Stroke: 40 mm | Port: M5
STR2-MD-6-50Type: Double rod | Bearing: Slide bearing | Bore: 6 mm | Stroke: 50 mm | Port: M5
STR2-MD-10-10Type: Double rod | Bearing: Slide bearing | Bore: 10 mm | Stroke: 10 mm | Port: M5
STR2-MD-10-20Type: Double rod | Bearing: Slide bearing | Bore: 10 mm | Stroke: 20 mm | Port: M5
STR2-MD-10-30Type: Double rod | Bearing: Slide bearing | Bore: 10 mm | Stroke: 30 mm | Port: M5
STR2-MD-10-40Type: Double rod | Bearing: Slide bearing | Bore: 10 mm | Stroke: 40 mm | Port: M5
STR2-MD-10-50Type: Double rod | Bearing: Slide bearing | Bore: 10 mm | Stroke: 50 mm | Port: M5
STR2-MD-16-10Type: Double rod | Bearing: Slide bearing | Bore: 16 mm | Stroke: 10 mm | Port: M5
STR2-MD-16-20Type: Double rod | Bearing: Slide bearing | Bore: 16 mm | Stroke: 20 mm | Port: M5
STR2-MD-16-30Type: Double rod | Bearing: Slide bearing | Bore: 16 mm | Stroke: 30 mm | Port: M5
STR2-MD-16-40Type: Double rod | Bearing: Slide bearing | Bore: 16 mm | Stroke: 40 mm | Port: M5
STR2-MD-16-50Type: Double rod | Bearing: Slide bearing | Bore: 16 mm | Stroke: 50 mm | Port: M5
STR2-MD-16-60Type: Double rod | Bearing: Slide bearing | Bore: 16 mm | Stroke: 60 mm | Port: M5
STR2-MD-16-70Type: Double rod | Bearing: Slide bearing | Bore: 16 mm | Stroke: 70 mm | Port: M5
STR2-MD-16-80Type: Double rod | Bearing: Slide bearing | Bore: 16 mm | Stroke: 80 mm | Port: M5
STR2-MD-16-90Type: Double rod | Bearing: Slide bearing | Bore: 16 mm | Stroke: 90 mm | Port: M5
STR2-MD-16-100Type: Double rod | Bearing: Slide bearing | Bore: 16 mm | Stroke: 100 mm | Port: M5
STR2-MD-20-10Type: Double rod | Bearing: Slide bearing | Bore: 20 mm | Stroke: 10 mm | Port: M5
STR2-MD-20-20Type: Double rod | Bearing: Slide bearing | Bore: 20 mm | Stroke: 20 mm | Port: M5
STR2-MD-20-30Type: Double rod | Bearing: Slide bearing | Bore: 20 mm | Stroke: 30 mm | Port: M5
STR2-MD-20-40Type: Double rod | Bearing: Slide bearing | Bore: 20 mm | Stroke: 40 mm | Port: M5
STR2-MD-20-50Type: Double rod | Bearing: Slide bearing | Bore: 20 mm | Stroke: 50 mm | Port: M5
STR2-MD-20-60Type: Double rod | Bearing: Slide bearing | Bore: 20 mm | Stroke: 60 mm | Port: M5
STR2-MD-20-70Type: Double rod | Bearing: Slide bearing | Bore: 20 mm | Stroke: 70 mm | Port: M5
STR2-MD-20-80Type: Double rod | Bearing: Slide bearing | Bore: 20 mm | Stroke: 80 mm | Port: M5
STR2-MD-20-90Type: Double rod | Bearing: Slide bearing | Bore: 20 mm | Stroke: 90 mm | Port: M5
STR2-MD-20-100Type: Double rod | Bearing: Slide bearing | Bore: 20 mm | Stroke: 100 mm | Port: M5
STR2-MD-25-10Type: Double rod | Bearing: Slide bearing | Bore: 25 mm | Stroke: 10 mm | Port: M5
STR2-MD-25-20Type: Double rod | Bearing: Slide bearing | Bore: 25 mm | Stroke: 20 mm | Port: M5
STR2-MD-25-30Type: Double rod | Bearing: Slide bearing | Bore: 25 mm | Stroke: 30 mm | Port: M5
STR2-MD-25-40Type: Double rod | Bearing: Slide bearing | Bore: 25 mm | Stroke: 40 mm | Port: M5
STR2-MD-25-50Type: Double rod | Bearing: Slide bearing | Bore: 25 mm | Stroke: 50 mm | Port: M5
STR2-MD-25-60Type: Double rod | Bearing: Slide bearing | Bore: 25 mm | Stroke: 60 mm | Port: M5
STR2-MD-25-70Type: Double rod | Bearing: Slide bearing | Bore: 25 mm | Stroke: 70 mm | Port: M5
STR2-MD-25-80Type: Double rod | Bearing: Slide bearing | Bore: 25 mm | Stroke: 80 mm | Port: M5
STR2-MD-25-90Type: Double rod | Bearing: Slide bearing | Bore: 25 mm | Stroke: 90 mm | Port: M5
STR2-MD-25-100Type: Double rod | Bearing: Slide bearing | Bore: 25 mm | Stroke: 100 mm | Port: M5
STR2-MD-32-10Type: Double rod | Bearing: Slide bearing | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
STR2-MD-32-20Type: Double rod | Bearing: Slide bearing | Bore: 32 mm | Stroke: 20 mm | Port: Rc1/8
STR2-MD-32-30Type: Double rod | Bearing: Slide bearing | Bore: 32 mm | Stroke: 30 mm | Port: Rc1/8
STR2-MD-32-40Type: Double rod | Bearing: Slide bearing | Bore: 32 mm | Stroke: 40 mm | Port: Rc1/8
STR2-MD-32-50Type: Double rod | Bearing: Slide bearing | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
STR2-MD-32-60Type: Double rod | Bearing: Slide bearing | Bore: 32 mm | Stroke: 60 mm | Port: Rc1/8
STR2-MD-32-70Type: Double rod | Bearing: Slide bearing | Bore: 32 mm | Stroke: 70 mm | Port: Rc1/8
STR2-MD-32-80Type: Double rod | Bearing: Slide bearing | Bore: 32 mm | Stroke: 80 mm | Port: Rc1/8
STR2-MD-32-90Type: Double rod | Bearing: Slide bearing | Bore: 32 mm | Stroke: 90 mm | Port: Rc1/8
STR2-MD-32-100Type: Double rod | Bearing: Slide bearing | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
STR2-BD-6-10Type: Double rod | Bearing: Ball bearing | Bore: 6 mm | Stroke: 10 mm | Port: M5
STR2-BD-6-20Type: Double rod | Bearing: Ball bearing | Bore: 6 mm | Stroke: 20 mm | Port: M5
STR2-BD-6-30Type: Double rod | Bearing: Ball bearing | Bore: 6 mm | Stroke: 30 mm | Port: M5
STR2-BD-6-40Type: Double rod | Bearing: Ball bearing | Bore: 6 mm | Stroke: 40 mm | Port: M5
STR2-BD-6-50Type: Double rod | Bearing: Ball bearing | Bore: 6 mm | Stroke: 50 mm | Port: M5
STR2-BD-10-10Type: Double rod | Bearing: Ball bearing | Bore: 10 mm | Stroke: 10 mm | Port: M5
STR2-BD-10-20Type: Double rod | Bearing: Ball bearing | Bore: 10 mm | Stroke: 20 mm | Port: M5
STR2-BD-10-30Type: Double rod | Bearing: Ball bearing | Bore: 10 mm | Stroke: 30 mm | Port: M5
STR2-BD-10-40Type: Double rod | Bearing: Ball bearing | Bore: 10 mm | Stroke: 40 mm | Port: M5
STR2-BD-10-50Type: Double rod | Bearing: Ball bearing | Bore: 10 mm | Stroke: 50 mm | Port: M5
STR2-BD-16-10Type: Double rod | Bearing: Ball bearing | Bore: 16 mm | Stroke: 10 mm | Port: M5
STR2-BD-16-20Type: Double rod | Bearing: Ball bearing | Bore: 16 mm | Stroke: 20 mm | Port: M5
STR2-BD-16-30Type: Double rod | Bearing: Ball bearing | Bore: 16 mm | Stroke: 30 mm | Port: M5
STR2-BD-16-40Type: Double rod | Bearing: Ball bearing | Bore: 16 mm | Stroke: 40 mm | Port: M5
STR2-BD-16-50Type: Double rod | Bearing: Ball bearing | Bore: 16 mm | Stroke: 50 mm | Port: M5
STR2-BD-16-60Type: Double rod | Bearing: Ball bearing | Bore: 16 mm | Stroke: 60 mm | Port: M5
STR2-BD-16-70Type: Double rod | Bearing: Ball bearing | Bore: 16 mm | Stroke: 70 mm | Port: M5
STR2-BD-16-80Type: Double rod | Bearing: Ball bearing | Bore: 16 mm | Stroke: 80 mm | Port: M5
STR2-BD-16-90Type: Double rod | Bearing: Ball bearing | Bore: 16 mm | Stroke: 90 mm | Port: M5
STR2-BD-16-100Type: Double rod | Bearing: Ball bearing | Bore: 16 mm | Stroke: 100 mm | Port: M5
STR2-BD-20-10Type: Double rod | Bearing: Ball bearing | Bore: 20 mm | Stroke: 10 mm | Port: M5
STR2-BD-20-20Type: Double rod | Bearing: Ball bearing | Bore: 20 mm | Stroke: 20 mm | Port: M5
STR2-BD-20-30Type: Double rod | Bearing: Ball bearing | Bore: 20 mm | Stroke: 30 mm | Port: M5
STR2-BD-20-40Type: Double rod | Bearing: Ball bearing | Bore: 20 mm | Stroke: 40 mm | Port: M5
STR2-BD-20-50Type: Double rod | Bearing: Ball bearing | Bore: 20 mm | Stroke: 50 mm | Port: M5
STR2-BD-20-60Type: Double rod | Bearing: Ball bearing | Bore: 20 mm | Stroke: 60 mm | Port: M5
STR2-BD-20-70Type: Double rod | Bearing: Ball bearing | Bore: 20 mm | Stroke: 70 mm | Port: M5
STR2-BD-20-80Type: Double rod | Bearing: Ball bearing | Bore: 20 mm | Stroke: 80 mm | Port: M5
STR2-BD-20-90Type: Double rod | Bearing: Ball bearing | Bore: 20 mm | Stroke: 90 mm | Port: M5
STR2-BD-20-100Type: Double rod | Bearing: Ball bearing | Bore: 20 mm | Stroke: 100 mm | Port: M5
STR2-BD-25-10Type: Double rod | Bearing: Ball bearing | Bore: 25 mm | Stroke: 10 mm | Port: M5
STR2-BD-25-20Type: Double rod | Bearing: Ball bearing | Bore: 25 mm | Stroke: 20 mm | Port: M5
STR2-BD-25-30Type: Double rod | Bearing: Ball bearing | Bore: 25 mm | Stroke: 30 mm | Port: M5
STR2-BD-25-40Type: Double rod | Bearing: Ball bearing | Bore: 25 mm | Stroke: 40 mm | Port: M5
STR2-BD-25-50Type: Double rod | Bearing: Ball bearing | Bore: 25 mm | Stroke: 50 mm | Port: M5
STR2-BD-25-60Type: Double rod | Bearing: Ball bearing | Bore: 25 mm | Stroke: 60 mm | Port: M5
STR2-BD-25-70Type: Double rod | Bearing: Ball bearing | Bore: 25 mm | Stroke: 70 mm | Port: M5
STR2-BD-25-80Type: Double rod | Bearing: Ball bearing | Bore: 25 mm | Stroke: 80 mm | Port: M5
STR2-BD-25-90Type: Double rod | Bearing: Ball bearing | Bore: 25 mm | Stroke: 90 mm | Port: M5
STR2-BD-25-100Type: Double rod | Bearing: Ball bearing | Bore: 25 mm | Stroke: 100 mm | Port: M5
STR2-BD-32-10Type: Double rod | Bearing: Ball bearing | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
STR2-BD-32-20Type: Double rod | Bearing: Ball bearing | Bore: 32 mm | Stroke: 20 mm | Port: Rc1/8
STR2-BD-32-30Type: Double rod | Bearing: Ball bearing | Bore: 32 mm | Stroke: 30 mm | Port: Rc1/8
STR2-BD-32-40Type: Double rod | Bearing: Ball bearing | Bore: 32 mm | Stroke: 40 mm | Port: Rc1/8
STR2-BD-32-50Type: Double rod | Bearing: Ball bearing | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
STR2-BD-32-60Type: Double rod | Bearing: Ball bearing | Bore: 32 mm | Stroke: 60 mm | Port: Rc1/8
STR2-BD-32-70Type: Double rod | Bearing: Ball bearing | Bore: 32 mm | Stroke: 70 mm | Port: Rc1/8
STR2-BD-32-80Type: Double rod | Bearing: Ball bearing | Bore: 32 mm | Stroke: 80 mm | Port: Rc1/8
STR2-BD-32-90Type: Double rod | Bearing: Ball bearing | Bore: 32 mm | Stroke: 90 mm | Port: Rc1/8
STR2-BD-32-100Type: Double rod | Bearing: Ball bearing | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
