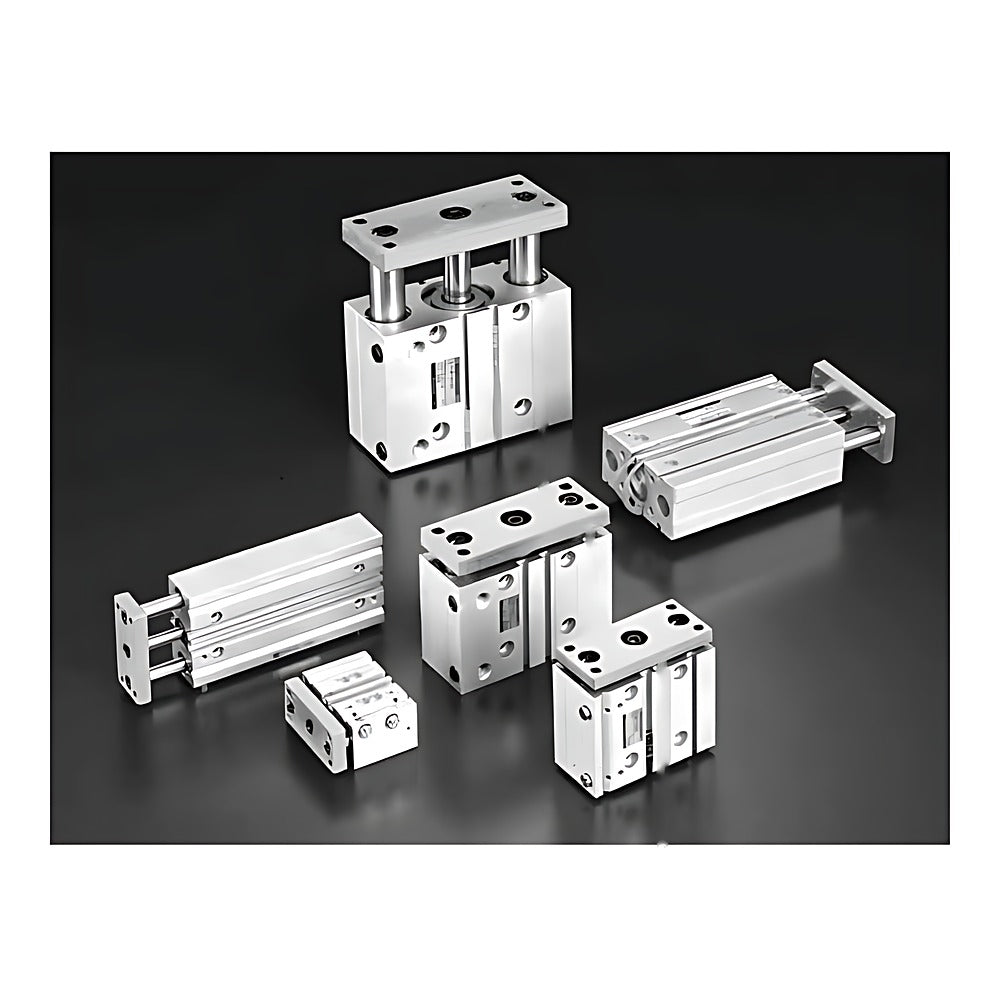

CKD STS-G-HP1 Environment-resistant Guided Cylinder (Short Stroke)

CKD STS-G-HP1 Environment-resistant Guided Cylinder (Short Stroke)

CKD STS-MG/BG-HP1 environment-resistant long-life short-stroke guided cylinder, bores 8-100 mm.

Key features

  • G-HP1 environment-resistant design: strong scraper and long-life seals for dusty / swarf environments
  • Slide bearing (MG) or ball bushing bearing (BG) guide; BG 8-25 is anti-particle P6 spec as standard
  • End plate standard or steel (F)
  • Options not expanded: NN/GN threads (32+), M/M1 corrosion-resistant (made to order), T-type auto switches
  • Standard strokes 10-50 (8-16), 25/50 (20-63), 25-100 mm (80, 100); max. 50/100 mm

Specifications

Operation Double acting, guided, strong scraper
Fluid Compressed air
Max. operating pressure 1.0 MPa
Min. operating pressure 0.25 MPa (to 25), 0.2 MPa (32-100)
Proof pressure 1.6 MPa
Ambient temperature -10 to 60 C (no freezing)
Port size M5 / Rc1/8 / Rc1/4 / Rc3/8 by bore
Piston speed 50-500 mm/s (80, 100: 50-300)
Cushion Rubber cushion
Code format STS-<bearing>G-<bore>-<stroke>[-F]-HP1
Source CKD Korea catalog CC-1421KR-7, p. 124-136
STS-MG-8-10-HP1 Bearing: Slide bearing | Bore: 8 mm | Stroke: 10 mm | End plate: Standard
STS-MG-8-10-F-HP1 Bearing: Slide bearing | Bore: 8 mm | Stroke: 10 mm | End plate: Steel (F)
STS-MG-8-20-HP1 Bearing: Slide bearing | Bore: 8 mm | Stroke: 20 mm | End plate: Standard
STS-MG-8-20-F-HP1 Bearing: Slide bearing | Bore: 8 mm | Stroke: 20 mm | End plate: Steel (F)
STS-MG-8-30-HP1 Bearing: Slide bearing | Bore: 8 mm | Stroke: 30 mm | End plate: Standard
STS-MG-8-30-F-HP1 Bearing: Slide bearing | Bore: 8 mm | Stroke: 30 mm | End plate: Steel (F)
STS-MG-8-40-HP1 Bearing: Slide bearing | Bore: 8 mm | Stroke: 40 mm | End plate: Standard
STS-MG-8-40-F-HP1 Bearing: Slide bearing | Bore: 8 mm | Stroke: 40 mm | End plate: Steel (F)
STS-MG-8-50-HP1 Bearing: Slide bearing | Bore: 8 mm | Stroke: 50 mm | End plate: Standard
STS-MG-8-50-F-HP1 Bearing: Slide bearing | Bore: 8 mm | Stroke: 50 mm | End plate: Steel (F)
STS-MG-12-10-HP1 Bearing: Slide bearing | Bore: 12 mm | Stroke: 10 mm | End plate: Standard
STS-MG-12-10-F-HP1 Bearing: Slide bearing | Bore: 12 mm | Stroke: 10 mm | End plate: Steel (F)
STS-MG-12-20-HP1 Bearing: Slide bearing | Bore: 12 mm | Stroke: 20 mm | End plate: Standard
STS-MG-12-20-F-HP1 Bearing: Slide bearing | Bore: 12 mm | Stroke: 20 mm | End plate: Steel (F)
STS-MG-12-30-HP1 Bearing: Slide bearing | Bore: 12 mm | Stroke: 30 mm | End plate: Standard
STS-MG-12-30-F-HP1 Bearing: Slide bearing | Bore: 12 mm | Stroke: 30 mm | End plate: Steel (F)
STS-MG-12-40-HP1 Bearing: Slide bearing | Bore: 12 mm | Stroke: 40 mm | End plate: Standard
STS-MG-12-40-F-HP1 Bearing: Slide bearing | Bore: 12 mm | Stroke: 40 mm | End plate: Steel (F)
STS-MG-12-50-HP1 Bearing: Slide bearing | Bore: 12 mm | Stroke: 50 mm | End plate: Standard
STS-MG-12-50-F-HP1 Bearing: Slide bearing | Bore: 12 mm | Stroke: 50 mm | End plate: Steel (F)
STS-MG-16-10-HP1 Bearing: Slide bearing | Bore: 16 mm | Stroke: 10 mm | End plate: Standard
STS-MG-16-10-F-HP1 Bearing: Slide bearing | Bore: 16 mm | Stroke: 10 mm | End plate: Steel (F)
STS-MG-16-20-HP1 Bearing: Slide bearing | Bore: 16 mm | Stroke: 20 mm | End plate: Standard
STS-MG-16-20-F-HP1 Bearing: Slide bearing | Bore: 16 mm | Stroke: 20 mm | End plate: Steel (F)
STS-MG-16-30-HP1 Bearing: Slide bearing | Bore: 16 mm | Stroke: 30 mm | End plate: Standard
STS-MG-16-30-F-HP1 Bearing: Slide bearing | Bore: 16 mm | Stroke: 30 mm | End plate: Steel (F)
STS-MG-16-40-HP1 Bearing: Slide bearing | Bore: 16 mm | Stroke: 40 mm | End plate: Standard
STS-MG-16-40-F-HP1 Bearing: Slide bearing | Bore: 16 mm | Stroke: 40 mm | End plate: Steel (F)
STS-MG-16-50-HP1 Bearing: Slide bearing | Bore: 16 mm | Stroke: 50 mm | End plate: Standard
STS-MG-16-50-F-HP1 Bearing: Slide bearing | Bore: 16 mm | Stroke: 50 mm | End plate: Steel (F)
STS-MG-20-25-HP1 Bearing: Slide bearing | Bore: 20 mm | Stroke: 25 mm | End plate: Standard
STS-MG-20-25-F-HP1 Bearing: Slide bearing | Bore: 20 mm | Stroke: 25 mm | End plate: Steel (F)
STS-MG-20-50-HP1 Bearing: Slide bearing | Bore: 20 mm | Stroke: 50 mm | End plate: Standard
STS-MG-20-50-F-HP1 Bearing: Slide bearing | Bore: 20 mm | Stroke: 50 mm | End plate: Steel (F)
STS-MG-25-25-HP1 Bearing: Slide bearing | Bore: 25 mm | Stroke: 25 mm | End plate: Standard
STS-MG-25-25-F-HP1 Bearing: Slide bearing | Bore: 25 mm | Stroke: 25 mm | End plate: Steel (F)
STS-MG-25-50-HP1 Bearing: Slide bearing | Bore: 25 mm | Stroke: 50 mm | End plate: Standard
STS-MG-25-50-F-HP1 Bearing: Slide bearing | Bore: 25 mm | Stroke: 50 mm | End plate: Steel (F)
STS-MG-32-25-HP1 Bearing: Slide bearing | Bore: 32 mm | Stroke: 25 mm | End plate: Standard
STS-MG-32-25-F-HP1 Bearing: Slide bearing | Bore: 32 mm | Stroke: 25 mm | End plate: Steel (F)
STS-MG-32-50-HP1 Bearing: Slide bearing | Bore: 32 mm | Stroke: 50 mm | End plate: Standard
STS-MG-32-50-F-HP1 Bearing: Slide bearing | Bore: 32 mm | Stroke: 50 mm | End plate: Steel (F)
STS-MG-40-25-HP1 Bearing: Slide bearing | Bore: 40 mm | Stroke: 25 mm | End plate: Standard
STS-MG-40-25-F-HP1 Bearing: Slide bearing | Bore: 40 mm | Stroke: 25 mm | End plate: Steel (F)
STS-MG-40-50-HP1 Bearing: Slide bearing | Bore: 40 mm | Stroke: 50 mm | End plate: Standard
STS-MG-40-50-F-HP1 Bearing: Slide bearing | Bore: 40 mm | Stroke: 50 mm | End plate: Steel (F)
STS-MG-50-25-HP1 Bearing: Slide bearing | Bore: 50 mm | Stroke: 25 mm | End plate: Standard
STS-MG-50-25-F-HP1 Bearing: Slide bearing | Bore: 50 mm | Stroke: 25 mm | End plate: Steel (F)
STS-MG-50-50-HP1 Bearing: Slide bearing | Bore: 50 mm | Stroke: 50 mm | End plate: Standard
STS-MG-50-50-F-HP1 Bearing: Slide bearing | Bore: 50 mm | Stroke: 50 mm | End plate: Steel (F)
STS-MG-63-25-HP1 Bearing: Slide bearing | Bore: 63 mm | Stroke: 25 mm | End plate: Standard
STS-MG-63-25-F-HP1 Bearing: Slide bearing | Bore: 63 mm | Stroke: 25 mm | End plate: Steel (F)
STS-MG-63-50-HP1 Bearing: Slide bearing | Bore: 63 mm | Stroke: 50 mm | End plate: Standard
STS-MG-63-50-F-HP1 Bearing: Slide bearing | Bore: 63 mm | Stroke: 50 mm | End plate: Steel (F)
STS-MG-80-25-HP1 Bearing: Slide bearing | Bore: 80 mm | Stroke: 25 mm | End plate: Standard
STS-MG-80-25-F-HP1 Bearing: Slide bearing | Bore: 80 mm | Stroke: 25 mm | End plate: Steel (F)
STS-MG-80-50-HP1 Bearing: Slide bearing | Bore: 80 mm | Stroke: 50 mm | End plate: Standard
STS-MG-80-50-F-HP1 Bearing: Slide bearing | Bore: 80 mm | Stroke: 50 mm | End plate: Steel (F)
STS-MG-80-75-HP1 Bearing: Slide bearing | Bore: 80 mm | Stroke: 75 mm | End plate: Standard
STS-MG-80-75-F-HP1 Bearing: Slide bearing | Bore: 80 mm | Stroke: 75 mm | End plate: Steel (F)
STS-MG-80-100-HP1 Bearing: Slide bearing | Bore: 80 mm | Stroke: 100 mm | End plate: Standard
STS-MG-80-100-F-HP1 Bearing: Slide bearing | Bore: 80 mm | Stroke: 100 mm | End plate: Steel (F)
STS-MG-100-25-HP1 Bearing: Slide bearing | Bore: 100 mm | Stroke: 25 mm | End plate: Standard
STS-MG-100-25-F-HP1 Bearing: Slide bearing | Bore: 100 mm | Stroke: 25 mm | End plate: Steel (F)
STS-MG-100-50-HP1 Bearing: Slide bearing | Bore: 100 mm | Stroke: 50 mm | End plate: Standard
STS-MG-100-50-F-HP1 Bearing: Slide bearing | Bore: 100 mm | Stroke: 50 mm | End plate: Steel (F)
STS-MG-100-75-HP1 Bearing: Slide bearing | Bore: 100 mm | Stroke: 75 mm | End plate: Standard
STS-MG-100-75-F-HP1 Bearing: Slide bearing | Bore: 100 mm | Stroke: 75 mm | End plate: Steel (F)
STS-MG-100-100-HP1 Bearing: Slide bearing | Bore: 100 mm | Stroke: 100 mm | End plate: Standard
STS-MG-100-100-F-HP1 Bearing: Slide bearing | Bore: 100 mm | Stroke: 100 mm | End plate: Steel (F)
STS-BG-8-10-HP1 Bearing: Ball bushing bearing | Bore: 8 mm | Stroke: 10 mm | End plate: Standard
STS-BG-8-10-F-HP1 Bearing: Ball bushing bearing | Bore: 8 mm | Stroke: 10 mm | End plate: Steel (F)
STS-BG-8-20-HP1 Bearing: Ball bushing bearing | Bore: 8 mm | Stroke: 20 mm | End plate: Standard
STS-BG-8-20-F-HP1 Bearing: Ball bushing bearing | Bore: 8 mm | Stroke: 20 mm | End plate: Steel (F)
STS-BG-8-30-HP1 Bearing: Ball bushing bearing | Bore: 8 mm | Stroke: 30 mm | End plate: Standard
STS-BG-8-30-F-HP1 Bearing: Ball bushing bearing | Bore: 8 mm | Stroke: 30 mm | End plate: Steel (F)
STS-BG-8-40-HP1 Bearing: Ball bushing bearing | Bore: 8 mm | Stroke: 40 mm | End plate: Standard
STS-BG-8-40-F-HP1 Bearing: Ball bushing bearing | Bore: 8 mm | Stroke: 40 mm | End plate: Steel (F)
STS-BG-8-50-HP1 Bearing: Ball bushing bearing | Bore: 8 mm | Stroke: 50 mm | End plate: Standard
STS-BG-8-50-F-HP1 Bearing: Ball bushing bearing | Bore: 8 mm | Stroke: 50 mm | End plate: Steel (F)
STS-BG-12-10-HP1 Bearing: Ball bushing bearing | Bore: 12 mm | Stroke: 10 mm | End plate: Standard
STS-BG-12-10-F-HP1 Bearing: Ball bushing bearing | Bore: 12 mm | Stroke: 10 mm | End plate: Steel (F)
STS-BG-12-20-HP1 Bearing: Ball bushing bearing | Bore: 12 mm | Stroke: 20 mm | End plate: Standard
STS-BG-12-20-F-HP1 Bearing: Ball bushing bearing | Bore: 12 mm | Stroke: 20 mm | End plate: Steel (F)
STS-BG-12-30-HP1 Bearing: Ball bushing bearing | Bore: 12 mm | Stroke: 30 mm | End plate: Standard
STS-BG-12-30-F-HP1 Bearing: Ball bushing bearing | Bore: 12 mm | Stroke: 30 mm | End plate: Steel (F)
STS-BG-12-40-HP1 Bearing: Ball bushing bearing | Bore: 12 mm | Stroke: 40 mm | End plate: Standard
STS-BG-12-40-F-HP1 Bearing: Ball bushing bearing | Bore: 12 mm | Stroke: 40 mm | End plate: Steel (F)
STS-BG-12-50-HP1 Bearing: Ball bushing bearing | Bore: 12 mm | Stroke: 50 mm | End plate: Standard
STS-BG-12-50-F-HP1 Bearing: Ball bushing bearing | Bore: 12 mm | Stroke: 50 mm | End plate: Steel (F)
STS-BG-16-10-HP1 Bearing: Ball bushing bearing | Bore: 16 mm | Stroke: 10 mm | End plate: Standard
STS-BG-16-10-F-HP1 Bearing: Ball bushing bearing | Bore: 16 mm | Stroke: 10 mm | End plate: Steel (F)
STS-BG-16-20-HP1 Bearing: Ball bushing bearing | Bore: 16 mm | Stroke: 20 mm | End plate: Standard
STS-BG-16-20-F-HP1 Bearing: Ball bushing bearing | Bore: 16 mm | Stroke: 20 mm | End plate: Steel (F)
STS-BG-16-30-HP1 Bearing: Ball bushing bearing | Bore: 16 mm | Stroke: 30 mm | End plate: Standard
STS-BG-16-30-F-HP1 Bearing: Ball bushing bearing | Bore: 16 mm | Stroke: 30 mm | End plate: Steel (F)
STS-BG-16-40-HP1 Bearing: Ball bushing bearing | Bore: 16 mm | Stroke: 40 mm | End plate: Standard
STS-BG-16-40-F-HP1 Bearing: Ball bushing bearing | Bore: 16 mm | Stroke: 40 mm | End plate: Steel (F)
STS-BG-16-50-HP1 Bearing: Ball bushing bearing | Bore: 16 mm | Stroke: 50 mm | End plate: Standard
STS-BG-16-50-F-HP1 Bearing: Ball bushing bearing | Bore: 16 mm | Stroke: 50 mm | End plate: Steel (F)
STS-BG-20-25-HP1 Bearing: Ball bushing bearing | Bore: 20 mm | Stroke: 25 mm | End plate: Standard
STS-BG-20-25-F-HP1 Bearing: Ball bushing bearing | Bore: 20 mm | Stroke: 25 mm | End plate: Steel (F)
STS-BG-20-50-HP1 Bearing: Ball bushing bearing | Bore: 20 mm | Stroke: 50 mm | End plate: Standard
STS-BG-20-50-F-HP1 Bearing: Ball bushing bearing | Bore: 20 mm | Stroke: 50 mm | End plate: Steel (F)
STS-BG-25-25-HP1 Bearing: Ball bushing bearing | Bore: 25 mm | Stroke: 25 mm | End plate: Standard
STS-BG-25-25-F-HP1 Bearing: Ball bushing bearing | Bore: 25 mm | Stroke: 25 mm | End plate: Steel (F)
STS-BG-25-50-HP1 Bearing: Ball bushing bearing | Bore: 25 mm | Stroke: 50 mm | End plate: Standard
STS-BG-25-50-F-HP1 Bearing: Ball bushing bearing | Bore: 25 mm | Stroke: 50 mm | End plate: Steel (F)
STS-BG-32-25-HP1 Bearing: Ball bushing bearing | Bore: 32 mm | Stroke: 25 mm | End plate: Standard
STS-BG-32-25-F-HP1 Bearing: Ball bushing bearing | Bore: 32 mm | Stroke: 25 mm | End plate: Steel (F)
STS-BG-32-50-HP1 Bearing: Ball bushing bearing | Bore: 32 mm | Stroke: 50 mm | End plate: Standard
STS-BG-32-50-F-HP1 Bearing: Ball bushing bearing | Bore: 32 mm | Stroke: 50 mm | End plate: Steel (F)
STS-BG-40-25-HP1 Bearing: Ball bushing bearing | Bore: 40 mm | Stroke: 25 mm | End plate: Standard
STS-BG-40-25-F-HP1 Bearing: Ball bushing bearing | Bore: 40 mm | Stroke: 25 mm | End plate: Steel (F)
STS-BG-40-50-HP1 Bearing: Ball bushing bearing | Bore: 40 mm | Stroke: 50 mm | End plate: Standard
STS-BG-40-50-F-HP1 Bearing: Ball bushing bearing | Bore: 40 mm | Stroke: 50 mm | End plate: Steel (F)
STS-BG-50-25-HP1 Bearing: Ball bushing bearing | Bore: 50 mm | Stroke: 25 mm | End plate: Standard
STS-BG-50-25-F-HP1 Bearing: Ball bushing bearing | Bore: 50 mm | Stroke: 25 mm | End plate: Steel (F)
STS-BG-50-50-HP1 Bearing: Ball bushing bearing | Bore: 50 mm | Stroke: 50 mm | End plate: Standard
STS-BG-50-50-F-HP1 Bearing: Ball bushing bearing | Bore: 50 mm | Stroke: 50 mm | End plate: Steel (F)
STS-BG-63-25-HP1 Bearing: Ball bushing bearing | Bore: 63 mm | Stroke: 25 mm | End plate: Standard
STS-BG-63-25-F-HP1 Bearing: Ball bushing bearing | Bore: 63 mm | Stroke: 25 mm | End plate: Steel (F)
STS-BG-63-50-HP1 Bearing: Ball bushing bearing | Bore: 63 mm | Stroke: 50 mm | End plate: Standard
STS-BG-63-50-F-HP1 Bearing: Ball bushing bearing | Bore: 63 mm | Stroke: 50 mm | End plate: Steel (F)
STS-BG-80-25-HP1 Bearing: Ball bushing bearing | Bore: 80 mm | Stroke: 25 mm | End plate: Standard
STS-BG-80-25-F-HP1 Bearing: Ball bushing bearing | Bore: 80 mm | Stroke: 25 mm | End plate: Steel (F)
STS-BG-80-50-HP1 Bearing: Ball bushing bearing | Bore: 80 mm | Stroke: 50 mm | End plate: Standard
STS-BG-80-50-F-HP1 Bearing: Ball bushing bearing | Bore: 80 mm | Stroke: 50 mm | End plate: Steel (F)
STS-BG-80-75-HP1 Bearing: Ball bushing bearing | Bore: 80 mm | Stroke: 75 mm | End plate: Standard
STS-BG-80-75-F-HP1 Bearing: Ball bushing bearing | Bore: 80 mm | Stroke: 75 mm | End plate: Steel (F)
STS-BG-80-100-HP1 Bearing: Ball bushing bearing | Bore: 80 mm | Stroke: 100 mm | End plate: Standard
STS-BG-80-100-F-HP1 Bearing: Ball bushing bearing | Bore: 80 mm | Stroke: 100 mm | End plate: Steel (F)
STS-BG-100-25-HP1 Bearing: Ball bushing bearing | Bore: 100 mm | Stroke: 25 mm | End plate: Standard
STS-BG-100-25-F-HP1 Bearing: Ball bushing bearing | Bore: 100 mm | Stroke: 25 mm | End plate: Steel (F)
STS-BG-100-50-HP1 Bearing: Ball bushing bearing | Bore: 100 mm | Stroke: 50 mm | End plate: Standard
STS-BG-100-50-F-HP1 Bearing: Ball bushing bearing | Bore: 100 mm | Stroke: 50 mm | End plate: Steel (F)
STS-BG-100-75-HP1 Bearing: Ball bushing bearing | Bore: 100 mm | Stroke: 75 mm | End plate: Standard
STS-BG-100-75-F-HP1 Bearing: Ball bushing bearing | Bore: 100 mm | Stroke: 75 mm | End plate: Steel (F)
STS-BG-100-100-HP1 Bearing: Ball bushing bearing | Bore: 100 mm | Stroke: 100 mm | End plate: Standard
STS-BG-100-100-F-HP1 Bearing: Ball bushing bearing | Bore: 100 mm | Stroke: 100 mm | End plate: Steel (F)
Guided CylindersCKD
140 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD STS-G-HP1 Environment-resistant Guided Cylinder (Short Stroke)

Brand CKD·Guided Cylinders

Available part numbers (140)

STS-MG-8-10-HP1, STS-MG-8-10-F-HP1, STS-MG-8-20-HP1, STS-MG-8-20-F-HP1, STS-MG-8-30-HP1, STS-MG-8-30-F-HP1, STS-MG-8-40-HP1, STS-MG-8-40-F-HP1, STS-MG-8-50-HP1, STS-MG-8-50-F-HP1 + 130 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
STS-MG-8-10-HP1Bearing: Slide bearing | Bore: 8 mm | Stroke: 10 mm | End plate: Standard
STS-MG-8-10-F-HP1Bearing: Slide bearing | Bore: 8 mm | Stroke: 10 mm | End plate: Steel (F)
STS-MG-8-20-HP1Bearing: Slide bearing | Bore: 8 mm | Stroke: 20 mm | End plate: Standard
STS-MG-8-20-F-HP1Bearing: Slide bearing | Bore: 8 mm | Stroke: 20 mm | End plate: Steel (F)
STS-MG-8-30-HP1Bearing: Slide bearing | Bore: 8 mm | Stroke: 30 mm | End plate: Standard
STS-MG-8-30-F-HP1Bearing: Slide bearing | Bore: 8 mm | Stroke: 30 mm | End plate: Steel (F)
STS-MG-8-40-HP1Bearing: Slide bearing | Bore: 8 mm | Stroke: 40 mm | End plate: Standard
STS-MG-8-40-F-HP1Bearing: Slide bearing | Bore: 8 mm | Stroke: 40 mm | End plate: Steel (F)
STS-MG-8-50-HP1Bearing: Slide bearing | Bore: 8 mm | Stroke: 50 mm | End plate: Standard
STS-MG-8-50-F-HP1Bearing: Slide bearing | Bore: 8 mm | Stroke: 50 mm | End plate: Steel (F)
STS-MG-12-10-HP1Bearing: Slide bearing | Bore: 12 mm | Stroke: 10 mm | End plate: Standard
STS-MG-12-10-F-HP1Bearing: Slide bearing | Bore: 12 mm | Stroke: 10 mm | End plate: Steel (F)
STS-MG-12-20-HP1Bearing: Slide bearing | Bore: 12 mm | Stroke: 20 mm | End plate: Standard
STS-MG-12-20-F-HP1Bearing: Slide bearing | Bore: 12 mm | Stroke: 20 mm | End plate: Steel (F)
STS-MG-12-30-HP1Bearing: Slide bearing | Bore: 12 mm | Stroke: 30 mm | End plate: Standard
STS-MG-12-30-F-HP1Bearing: Slide bearing | Bore: 12 mm | Stroke: 30 mm | End plate: Steel (F)
STS-MG-12-40-HP1Bearing: Slide bearing | Bore: 12 mm | Stroke: 40 mm | End plate: Standard
STS-MG-12-40-F-HP1Bearing: Slide bearing | Bore: 12 mm | Stroke: 40 mm | End plate: Steel (F)
STS-MG-12-50-HP1Bearing: Slide bearing | Bore: 12 mm | Stroke: 50 mm | End plate: Standard
STS-MG-12-50-F-HP1Bearing: Slide bearing | Bore: 12 mm | Stroke: 50 mm | End plate: Steel (F)
STS-MG-16-10-HP1Bearing: Slide bearing | Bore: 16 mm | Stroke: 10 mm | End plate: Standard
STS-MG-16-10-F-HP1Bearing: Slide bearing | Bore: 16 mm | Stroke: 10 mm | End plate: Steel (F)
STS-MG-16-20-HP1Bearing: Slide bearing | Bore: 16 mm | Stroke: 20 mm | End plate: Standard
STS-MG-16-20-F-HP1Bearing: Slide bearing | Bore: 16 mm | Stroke: 20 mm | End plate: Steel (F)
STS-MG-16-30-HP1Bearing: Slide bearing | Bore: 16 mm | Stroke: 30 mm | End plate: Standard
STS-MG-16-30-F-HP1Bearing: Slide bearing | Bore: 16 mm | Stroke: 30 mm | End plate: Steel (F)
STS-MG-16-40-HP1Bearing: Slide bearing | Bore: 16 mm | Stroke: 40 mm | End plate: Standard
STS-MG-16-40-F-HP1Bearing: Slide bearing | Bore: 16 mm | Stroke: 40 mm | End plate: Steel (F)
STS-MG-16-50-HP1Bearing: Slide bearing | Bore: 16 mm | Stroke: 50 mm | End plate: Standard
STS-MG-16-50-F-HP1Bearing: Slide bearing | Bore: 16 mm | Stroke: 50 mm | End plate: Steel (F)
STS-MG-20-25-HP1Bearing: Slide bearing | Bore: 20 mm | Stroke: 25 mm | End plate: Standard
STS-MG-20-25-F-HP1Bearing: Slide bearing | Bore: 20 mm | Stroke: 25 mm | End plate: Steel (F)
STS-MG-20-50-HP1Bearing: Slide bearing | Bore: 20 mm | Stroke: 50 mm | End plate: Standard
STS-MG-20-50-F-HP1Bearing: Slide bearing | Bore: 20 mm | Stroke: 50 mm | End plate: Steel (F)
STS-MG-25-25-HP1Bearing: Slide bearing | Bore: 25 mm | Stroke: 25 mm | End plate: Standard
STS-MG-25-25-F-HP1Bearing: Slide bearing | Bore: 25 mm | Stroke: 25 mm | End plate: Steel (F)
STS-MG-25-50-HP1Bearing: Slide bearing | Bore: 25 mm | Stroke: 50 mm | End plate: Standard
STS-MG-25-50-F-HP1Bearing: Slide bearing | Bore: 25 mm | Stroke: 50 mm | End plate: Steel (F)
STS-MG-32-25-HP1Bearing: Slide bearing | Bore: 32 mm | Stroke: 25 mm | End plate: Standard
STS-MG-32-25-F-HP1Bearing: Slide bearing | Bore: 32 mm | Stroke: 25 mm | End plate: Steel (F)
STS-MG-32-50-HP1Bearing: Slide bearing | Bore: 32 mm | Stroke: 50 mm | End plate: Standard
STS-MG-32-50-F-HP1Bearing: Slide bearing | Bore: 32 mm | Stroke: 50 mm | End plate: Steel (F)
STS-MG-40-25-HP1Bearing: Slide bearing | Bore: 40 mm | Stroke: 25 mm | End plate: Standard
STS-MG-40-25-F-HP1Bearing: Slide bearing | Bore: 40 mm | Stroke: 25 mm | End plate: Steel (F)
STS-MG-40-50-HP1Bearing: Slide bearing | Bore: 40 mm | Stroke: 50 mm | End plate: Standard
STS-MG-40-50-F-HP1Bearing: Slide bearing | Bore: 40 mm | Stroke: 50 mm | End plate: Steel (F)
STS-MG-50-25-HP1Bearing: Slide bearing | Bore: 50 mm | Stroke: 25 mm | End plate: Standard
STS-MG-50-25-F-HP1Bearing: Slide bearing | Bore: 50 mm | Stroke: 25 mm | End plate: Steel (F)
STS-MG-50-50-HP1Bearing: Slide bearing | Bore: 50 mm | Stroke: 50 mm | End plate: Standard
STS-MG-50-50-F-HP1Bearing: Slide bearing | Bore: 50 mm | Stroke: 50 mm | End plate: Steel (F)
STS-MG-63-25-HP1Bearing: Slide bearing | Bore: 63 mm | Stroke: 25 mm | End plate: Standard
STS-MG-63-25-F-HP1Bearing: Slide bearing | Bore: 63 mm | Stroke: 25 mm | End plate: Steel (F)
STS-MG-63-50-HP1Bearing: Slide bearing | Bore: 63 mm | Stroke: 50 mm | End plate: Standard
STS-MG-63-50-F-HP1Bearing: Slide bearing | Bore: 63 mm | Stroke: 50 mm | End plate: Steel (F)
STS-MG-80-25-HP1Bearing: Slide bearing | Bore: 80 mm | Stroke: 25 mm | End plate: Standard
STS-MG-80-25-F-HP1Bearing: Slide bearing | Bore: 80 mm | Stroke: 25 mm | End plate: Steel (F)
STS-MG-80-50-HP1Bearing: Slide bearing | Bore: 80 mm | Stroke: 50 mm | End plate: Standard
STS-MG-80-50-F-HP1Bearing: Slide bearing | Bore: 80 mm | Stroke: 50 mm | End plate: Steel (F)
STS-MG-80-75-HP1Bearing: Slide bearing | Bore: 80 mm | Stroke: 75 mm | End plate: Standard
STS-MG-80-75-F-HP1Bearing: Slide bearing | Bore: 80 mm | Stroke: 75 mm | End plate: Steel (F)
STS-MG-80-100-HP1Bearing: Slide bearing | Bore: 80 mm | Stroke: 100 mm | End plate: Standard
STS-MG-80-100-F-HP1Bearing: Slide bearing | Bore: 80 mm | Stroke: 100 mm | End plate: Steel (F)
STS-MG-100-25-HP1Bearing: Slide bearing | Bore: 100 mm | Stroke: 25 mm | End plate: Standard
STS-MG-100-25-F-HP1Bearing: Slide bearing | Bore: 100 mm | Stroke: 25 mm | End plate: Steel (F)
STS-MG-100-50-HP1Bearing: Slide bearing | Bore: 100 mm | Stroke: 50 mm | End plate: Standard
STS-MG-100-50-F-HP1Bearing: Slide bearing | Bore: 100 mm | Stroke: 50 mm | End plate: Steel (F)
STS-MG-100-75-HP1Bearing: Slide bearing | Bore: 100 mm | Stroke: 75 mm | End plate: Standard
STS-MG-100-75-F-HP1Bearing: Slide bearing | Bore: 100 mm | Stroke: 75 mm | End plate: Steel (F)
STS-MG-100-100-HP1Bearing: Slide bearing | Bore: 100 mm | Stroke: 100 mm | End plate: Standard
STS-MG-100-100-F-HP1Bearing: Slide bearing | Bore: 100 mm | Stroke: 100 mm | End plate: Steel (F)
STS-BG-8-10-HP1Bearing: Ball bushing bearing | Bore: 8 mm | Stroke: 10 mm | End plate: Standard
STS-BG-8-10-F-HP1Bearing: Ball bushing bearing | Bore: 8 mm | Stroke: 10 mm | End plate: Steel (F)
STS-BG-8-20-HP1Bearing: Ball bushing bearing | Bore: 8 mm | Stroke: 20 mm | End plate: Standard
STS-BG-8-20-F-HP1Bearing: Ball bushing bearing | Bore: 8 mm | Stroke: 20 mm | End plate: Steel (F)
STS-BG-8-30-HP1Bearing: Ball bushing bearing | Bore: 8 mm | Stroke: 30 mm | End plate: Standard
STS-BG-8-30-F-HP1Bearing: Ball bushing bearing | Bore: 8 mm | Stroke: 30 mm | End plate: Steel (F)
STS-BG-8-40-HP1Bearing: Ball bushing bearing | Bore: 8 mm | Stroke: 40 mm | End plate: Standard
STS-BG-8-40-F-HP1Bearing: Ball bushing bearing | Bore: 8 mm | Stroke: 40 mm | End plate: Steel (F)
STS-BG-8-50-HP1Bearing: Ball bushing bearing | Bore: 8 mm | Stroke: 50 mm | End plate: Standard
STS-BG-8-50-F-HP1Bearing: Ball bushing bearing | Bore: 8 mm | Stroke: 50 mm | End plate: Steel (F)
STS-BG-12-10-HP1Bearing: Ball bushing bearing | Bore: 12 mm | Stroke: 10 mm | End plate: Standard
STS-BG-12-10-F-HP1Bearing: Ball bushing bearing | Bore: 12 mm | Stroke: 10 mm | End plate: Steel (F)
STS-BG-12-20-HP1Bearing: Ball bushing bearing | Bore: 12 mm | Stroke: 20 mm | End plate: Standard
STS-BG-12-20-F-HP1Bearing: Ball bushing bearing | Bore: 12 mm | Stroke: 20 mm | End plate: Steel (F)
STS-BG-12-30-HP1Bearing: Ball bushing bearing | Bore: 12 mm | Stroke: 30 mm | End plate: Standard
STS-BG-12-30-F-HP1Bearing: Ball bushing bearing | Bore: 12 mm | Stroke: 30 mm | End plate: Steel (F)
STS-BG-12-40-HP1Bearing: Ball bushing bearing | Bore: 12 mm | Stroke: 40 mm | End plate: Standard
STS-BG-12-40-F-HP1Bearing: Ball bushing bearing | Bore: 12 mm | Stroke: 40 mm | End plate: Steel (F)
STS-BG-12-50-HP1Bearing: Ball bushing bearing | Bore: 12 mm | Stroke: 50 mm | End plate: Standard
STS-BG-12-50-F-HP1Bearing: Ball bushing bearing | Bore: 12 mm | Stroke: 50 mm | End plate: Steel (F)
STS-BG-16-10-HP1Bearing: Ball bushing bearing | Bore: 16 mm | Stroke: 10 mm | End plate: Standard
STS-BG-16-10-F-HP1Bearing: Ball bushing bearing | Bore: 16 mm | Stroke: 10 mm | End plate: Steel (F)
STS-BG-16-20-HP1Bearing: Ball bushing bearing | Bore: 16 mm | Stroke: 20 mm | End plate: Standard
STS-BG-16-20-F-HP1Bearing: Ball bushing bearing | Bore: 16 mm | Stroke: 20 mm | End plate: Steel (F)
STS-BG-16-30-HP1Bearing: Ball bushing bearing | Bore: 16 mm | Stroke: 30 mm | End plate: Standard
STS-BG-16-30-F-HP1Bearing: Ball bushing bearing | Bore: 16 mm | Stroke: 30 mm | End plate: Steel (F)
STS-BG-16-40-HP1Bearing: Ball bushing bearing | Bore: 16 mm | Stroke: 40 mm | End plate: Standard
STS-BG-16-40-F-HP1Bearing: Ball bushing bearing | Bore: 16 mm | Stroke: 40 mm | End plate: Steel (F)
STS-BG-16-50-HP1Bearing: Ball bushing bearing | Bore: 16 mm | Stroke: 50 mm | End plate: Standard
STS-BG-16-50-F-HP1Bearing: Ball bushing bearing | Bore: 16 mm | Stroke: 50 mm | End plate: Steel (F)
STS-BG-20-25-HP1Bearing: Ball bushing bearing | Bore: 20 mm | Stroke: 25 mm | End plate: Standard
STS-BG-20-25-F-HP1Bearing: Ball bushing bearing | Bore: 20 mm | Stroke: 25 mm | End plate: Steel (F)
STS-BG-20-50-HP1Bearing: Ball bushing bearing | Bore: 20 mm | Stroke: 50 mm | End plate: Standard
STS-BG-20-50-F-HP1Bearing: Ball bushing bearing | Bore: 20 mm | Stroke: 50 mm | End plate: Steel (F)
STS-BG-25-25-HP1Bearing: Ball bushing bearing | Bore: 25 mm | Stroke: 25 mm | End plate: Standard
STS-BG-25-25-F-HP1Bearing: Ball bushing bearing | Bore: 25 mm | Stroke: 25 mm | End plate: Steel (F)
STS-BG-25-50-HP1Bearing: Ball bushing bearing | Bore: 25 mm | Stroke: 50 mm | End plate: Standard
STS-BG-25-50-F-HP1Bearing: Ball bushing bearing | Bore: 25 mm | Stroke: 50 mm | End plate: Steel (F)
STS-BG-32-25-HP1Bearing: Ball bushing bearing | Bore: 32 mm | Stroke: 25 mm | End plate: Standard
STS-BG-32-25-F-HP1Bearing: Ball bushing bearing | Bore: 32 mm | Stroke: 25 mm | End plate: Steel (F)
STS-BG-32-50-HP1Bearing: Ball bushing bearing | Bore: 32 mm | Stroke: 50 mm | End plate: Standard
STS-BG-32-50-F-HP1Bearing: Ball bushing bearing | Bore: 32 mm | Stroke: 50 mm | End plate: Steel (F)
STS-BG-40-25-HP1Bearing: Ball bushing bearing | Bore: 40 mm | Stroke: 25 mm | End plate: Standard
STS-BG-40-25-F-HP1Bearing: Ball bushing bearing | Bore: 40 mm | Stroke: 25 mm | End plate: Steel (F)
STS-BG-40-50-HP1Bearing: Ball bushing bearing | Bore: 40 mm | Stroke: 50 mm | End plate: Standard
STS-BG-40-50-F-HP1Bearing: Ball bushing bearing | Bore: 40 mm | Stroke: 50 mm | End plate: Steel (F)
STS-BG-50-25-HP1Bearing: Ball bushing bearing | Bore: 50 mm | Stroke: 25 mm | End plate: Standard
STS-BG-50-25-F-HP1Bearing: Ball bushing bearing | Bore: 50 mm | Stroke: 25 mm | End plate: Steel (F)
STS-BG-50-50-HP1Bearing: Ball bushing bearing | Bore: 50 mm | Stroke: 50 mm | End plate: Standard
STS-BG-50-50-F-HP1Bearing: Ball bushing bearing | Bore: 50 mm | Stroke: 50 mm | End plate: Steel (F)
STS-BG-63-25-HP1Bearing: Ball bushing bearing | Bore: 63 mm | Stroke: 25 mm | End plate: Standard
STS-BG-63-25-F-HP1Bearing: Ball bushing bearing | Bore: 63 mm | Stroke: 25 mm | End plate: Steel (F)
STS-BG-63-50-HP1Bearing: Ball bushing bearing | Bore: 63 mm | Stroke: 50 mm | End plate: Standard
STS-BG-63-50-F-HP1Bearing: Ball bushing bearing | Bore: 63 mm | Stroke: 50 mm | End plate: Steel (F)
STS-BG-80-25-HP1Bearing: Ball bushing bearing | Bore: 80 mm | Stroke: 25 mm | End plate: Standard
STS-BG-80-25-F-HP1Bearing: Ball bushing bearing | Bore: 80 mm | Stroke: 25 mm | End plate: Steel (F)
STS-BG-80-50-HP1Bearing: Ball bushing bearing | Bore: 80 mm | Stroke: 50 mm | End plate: Standard
STS-BG-80-50-F-HP1Bearing: Ball bushing bearing | Bore: 80 mm | Stroke: 50 mm | End plate: Steel (F)
STS-BG-80-75-HP1Bearing: Ball bushing bearing | Bore: 80 mm | Stroke: 75 mm | End plate: Standard
STS-BG-80-75-F-HP1Bearing: Ball bushing bearing | Bore: 80 mm | Stroke: 75 mm | End plate: Steel (F)
STS-BG-80-100-HP1Bearing: Ball bushing bearing | Bore: 80 mm | Stroke: 100 mm | End plate: Standard
STS-BG-80-100-F-HP1Bearing: Ball bushing bearing | Bore: 80 mm | Stroke: 100 mm | End plate: Steel (F)
STS-BG-100-25-HP1Bearing: Ball bushing bearing | Bore: 100 mm | Stroke: 25 mm | End plate: Standard
STS-BG-100-25-F-HP1Bearing: Ball bushing bearing | Bore: 100 mm | Stroke: 25 mm | End plate: Steel (F)
STS-BG-100-50-HP1Bearing: Ball bushing bearing | Bore: 100 mm | Stroke: 50 mm | End plate: Standard
STS-BG-100-50-F-HP1Bearing: Ball bushing bearing | Bore: 100 mm | Stroke: 50 mm | End plate: Steel (F)
STS-BG-100-75-HP1Bearing: Ball bushing bearing | Bore: 100 mm | Stroke: 75 mm | End plate: Standard
STS-BG-100-75-F-HP1Bearing: Ball bushing bearing | Bore: 100 mm | Stroke: 75 mm | End plate: Steel (F)
STS-BG-100-100-HP1Bearing: Ball bushing bearing | Bore: 100 mm | Stroke: 100 mm | End plate: Standard
STS-BG-100-100-F-HP1Bearing: Ball bushing bearing | Bore: 100 mm | Stroke: 100 mm | End plate: Steel (F)

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
