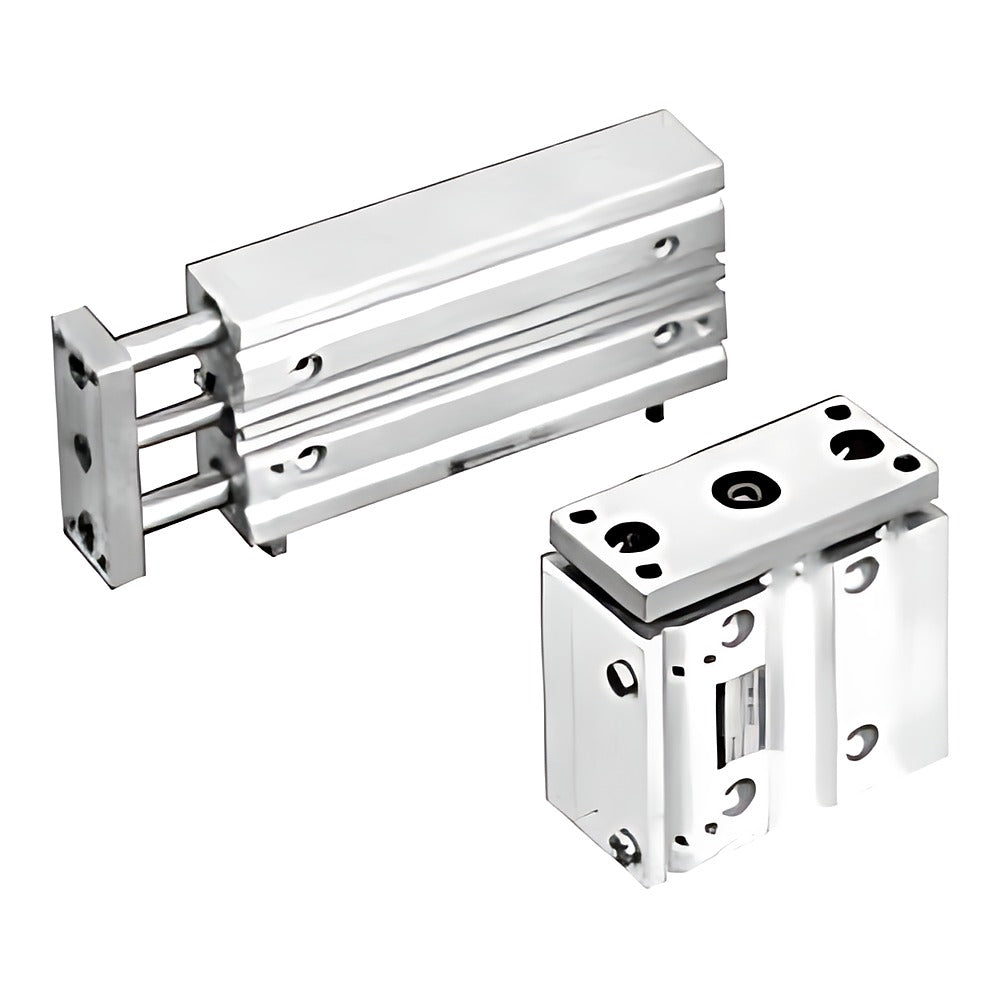

CKD STS/STL-F Guided Cylinder (Fine Speed, 1-200 mm/s)

CKD STS/STL-F Guided Cylinder (Fine Speed, 1-200 mm/s)

CKD STS/STL-F fine-speed guided cylinder for smooth, stick-slip-free motion at piston speeds from 1 to 200 mm/s.

Key features

  • Fine-speed type: stable operation from 1 mm/s; lubrication not allowed
  • Bores 8 to 80 mm; STS strokes 10-100 mm, STL strokes 50-200 mm
  • Slide bearing (M) or ball bushing (B) guide rods
  • Switch-ready (magnet built in); auto switches (T0H/T0V, T5, T8, T1, T2, T3, T3P, T2W/T2Y/T3W/T3Y 2-colour, T2J off-delay, T2YD AC-field), lead length and switch quantity (R/H/D/T) are added as suffixes
  • Options: F steel end plate; M / M1 SUS parts and NN / GN threads made to order

Specifications

Action Double acting, fine speed
Fluid Compressed air
Max. operating pressure 1.0 MPa
Min. operating pressure 0.15 MPa (bore 8-25), 0.1 MPa (bore 32+)
Proof pressure 1.6 MPa
Ambient temperature 5 to 60°C
Piston speed 1 to 200 mm/s
Cushion Rubber cushion
Lubrication Not allowed
Source CKD Korea catalog CB-030SK-9, p. 600-601
STS-MF-8-10 Series: STS (short stroke) | Bearing: Slide bearing | Bore: 8 mm | Stroke: 10 mm | Port: M5
STS-MF-8-20 Series: STS (short stroke) | Bearing: Slide bearing | Bore: 8 mm | Stroke: 20 mm | Port: M5
STS-MF-8-30 Series: STS (short stroke) | Bearing: Slide bearing | Bore: 8 mm | Stroke: 30 mm | Port: M5
STS-MF-8-40 Series: STS (short stroke) | Bearing: Slide bearing | Bore: 8 mm | Stroke: 40 mm | Port: M5
STS-MF-8-50 Series: STS (short stroke) | Bearing: Slide bearing | Bore: 8 mm | Stroke: 50 mm | Port: M5
STS-MF-12-10 Series: STS (short stroke) | Bearing: Slide bearing | Bore: 12 mm | Stroke: 10 mm | Port: M5
STS-MF-12-20 Series: STS (short stroke) | Bearing: Slide bearing | Bore: 12 mm | Stroke: 20 mm | Port: M5
STS-MF-12-30 Series: STS (short stroke) | Bearing: Slide bearing | Bore: 12 mm | Stroke: 30 mm | Port: M5
STS-MF-12-40 Series: STS (short stroke) | Bearing: Slide bearing | Bore: 12 mm | Stroke: 40 mm | Port: M5
STS-MF-12-50 Series: STS (short stroke) | Bearing: Slide bearing | Bore: 12 mm | Stroke: 50 mm | Port: M5
STS-MF-16-10 Series: STS (short stroke) | Bearing: Slide bearing | Bore: 16 mm | Stroke: 10 mm | Port: M5
STS-MF-16-20 Series: STS (short stroke) | Bearing: Slide bearing | Bore: 16 mm | Stroke: 20 mm | Port: M5
STS-MF-16-30 Series: STS (short stroke) | Bearing: Slide bearing | Bore: 16 mm | Stroke: 30 mm | Port: M5
STS-MF-16-40 Series: STS (short stroke) | Bearing: Slide bearing | Bore: 16 mm | Stroke: 40 mm | Port: M5
STS-MF-16-50 Series: STS (short stroke) | Bearing: Slide bearing | Bore: 16 mm | Stroke: 50 mm | Port: M5
STS-MF-20-25 Series: STS (short stroke) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 25 mm | Port: M5
STS-MF-20-50 Series: STS (short stroke) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 50 mm | Port: M5
STS-MF-25-25 Series: STS (short stroke) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 25 mm | Port: M5
STS-MF-25-50 Series: STS (short stroke) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 50 mm | Port: M5
STS-MF-32-25 Series: STS (short stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
STS-MF-32-50 Series: STS (short stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
STS-MF-40-25 Series: STS (short stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
STS-MF-40-50 Series: STS (short stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
STS-MF-50-25 Series: STS (short stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
STS-MF-50-50 Series: STS (short stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
STS-MF-63-25 Series: STS (short stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 25 mm | Port: Rc1/4
STS-MF-63-50 Series: STS (short stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
STS-MF-80-25 Series: STS (short stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 25 mm | Port: Rc3/8
STS-MF-80-50 Series: STS (short stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
STS-MF-80-75 Series: STS (short stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
STS-MF-80-100 Series: STS (short stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
STS-BF-8-10 Series: STS (short stroke) | Bearing: Ball bushing | Bore: 8 mm | Stroke: 10 mm | Port: M5
STS-BF-8-20 Series: STS (short stroke) | Bearing: Ball bushing | Bore: 8 mm | Stroke: 20 mm | Port: M5
STS-BF-8-30 Series: STS (short stroke) | Bearing: Ball bushing | Bore: 8 mm | Stroke: 30 mm | Port: M5
STS-BF-8-40 Series: STS (short stroke) | Bearing: Ball bushing | Bore: 8 mm | Stroke: 40 mm | Port: M5
STS-BF-8-50 Series: STS (short stroke) | Bearing: Ball bushing | Bore: 8 mm | Stroke: 50 mm | Port: M5
STS-BF-12-10 Series: STS (short stroke) | Bearing: Ball bushing | Bore: 12 mm | Stroke: 10 mm | Port: M5
STS-BF-12-20 Series: STS (short stroke) | Bearing: Ball bushing | Bore: 12 mm | Stroke: 20 mm | Port: M5
STS-BF-12-30 Series: STS (short stroke) | Bearing: Ball bushing | Bore: 12 mm | Stroke: 30 mm | Port: M5
STS-BF-12-40 Series: STS (short stroke) | Bearing: Ball bushing | Bore: 12 mm | Stroke: 40 mm | Port: M5
STS-BF-12-50 Series: STS (short stroke) | Bearing: Ball bushing | Bore: 12 mm | Stroke: 50 mm | Port: M5
STS-BF-16-10 Series: STS (short stroke) | Bearing: Ball bushing | Bore: 16 mm | Stroke: 10 mm | Port: M5
STS-BF-16-20 Series: STS (short stroke) | Bearing: Ball bushing | Bore: 16 mm | Stroke: 20 mm | Port: M5
STS-BF-16-30 Series: STS (short stroke) | Bearing: Ball bushing | Bore: 16 mm | Stroke: 30 mm | Port: M5
STS-BF-16-40 Series: STS (short stroke) | Bearing: Ball bushing | Bore: 16 mm | Stroke: 40 mm | Port: M5
STS-BF-16-50 Series: STS (short stroke) | Bearing: Ball bushing | Bore: 16 mm | Stroke: 50 mm | Port: M5
STS-BF-20-25 Series: STS (short stroke) | Bearing: Ball bushing | Bore: 20 mm | Stroke: 25 mm | Port: M5
STS-BF-20-50 Series: STS (short stroke) | Bearing: Ball bushing | Bore: 20 mm | Stroke: 50 mm | Port: M5
STS-BF-25-25 Series: STS (short stroke) | Bearing: Ball bushing | Bore: 25 mm | Stroke: 25 mm | Port: M5
STS-BF-25-50 Series: STS (short stroke) | Bearing: Ball bushing | Bore: 25 mm | Stroke: 50 mm | Port: M5
STS-BF-32-25 Series: STS (short stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
STS-BF-32-50 Series: STS (short stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
STS-BF-40-25 Series: STS (short stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
STS-BF-40-50 Series: STS (short stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
STS-BF-50-25 Series: STS (short stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
STS-BF-50-50 Series: STS (short stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
STS-BF-63-25 Series: STS (short stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 25 mm | Port: Rc1/4
STS-BF-63-50 Series: STS (short stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
STS-BF-80-25 Series: STS (short stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 25 mm | Port: Rc3/8
STS-BF-80-50 Series: STS (short stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
STS-BF-80-75 Series: STS (short stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
STS-BF-80-100 Series: STS (short stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
STL-MF-8-50 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 8 mm | Stroke: 50 mm | Port: M5
STL-MF-8-75 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 8 mm | Stroke: 75 mm | Port: M5
STL-MF-8-100 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 8 mm | Stroke: 100 mm | Port: M5
STL-MF-8-125 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 8 mm | Stroke: 125 mm | Port: M5
STL-MF-8-150 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 8 mm | Stroke: 150 mm | Port: M5
STL-MF-8-175 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 8 mm | Stroke: 175 mm | Port: M5
STL-MF-8-200 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 8 mm | Stroke: 200 mm | Port: M5
STL-MF-12-50 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 12 mm | Stroke: 50 mm | Port: M5
STL-MF-12-75 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 12 mm | Stroke: 75 mm | Port: M5
STL-MF-12-100 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 12 mm | Stroke: 100 mm | Port: M5
STL-MF-12-125 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 12 mm | Stroke: 125 mm | Port: M5
STL-MF-12-150 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 12 mm | Stroke: 150 mm | Port: M5
STL-MF-12-175 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 12 mm | Stroke: 175 mm | Port: M5
STL-MF-12-200 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 12 mm | Stroke: 200 mm | Port: M5
STL-MF-16-50 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 16 mm | Stroke: 50 mm | Port: M5
STL-MF-16-75 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 16 mm | Stroke: 75 mm | Port: M5
STL-MF-16-100 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 16 mm | Stroke: 100 mm | Port: M5
STL-MF-16-125 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 16 mm | Stroke: 125 mm | Port: M5
STL-MF-16-150 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 16 mm | Stroke: 150 mm | Port: M5
STL-MF-16-175 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 16 mm | Stroke: 175 mm | Port: M5
STL-MF-16-200 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 16 mm | Stroke: 200 mm | Port: M5
STL-MF-20-50 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 50 mm | Port: M5
STL-MF-20-75 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 75 mm | Port: M5
STL-MF-20-100 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 100 mm | Port: M5
STL-MF-20-125 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 125 mm | Port: M5
STL-MF-20-150 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 150 mm | Port: M5
STL-MF-20-175 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 175 mm | Port: M5
STL-MF-20-200 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 200 mm | Port: M5
STL-MF-25-50 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 50 mm | Port: M5
STL-MF-25-75 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 75 mm | Port: M5
STL-MF-25-100 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 100 mm | Port: M5
STL-MF-25-125 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 125 mm | Port: M5
STL-MF-25-150 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 150 mm | Port: M5
STL-MF-25-175 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 175 mm | Port: M5
STL-MF-25-200 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 200 mm | Port: M5
STL-MF-32-50 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
STL-MF-32-75 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8
STL-MF-32-100 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
STL-MF-32-125 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 125 mm | Port: Rc1/8
STL-MF-32-150 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 150 mm | Port: Rc1/8
STL-MF-32-175 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 175 mm | Port: Rc1/8
STL-MF-32-200 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 200 mm | Port: Rc1/8
STL-MF-40-50 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
STL-MF-40-75 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/8
STL-MF-40-100 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8
STL-MF-40-125 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 125 mm | Port: Rc1/8
STL-MF-40-150 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/8
STL-MF-40-175 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 175 mm | Port: Rc1/8
STL-MF-40-200 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/8
STL-MF-50-50 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
STL-MF-50-75 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 75 mm | Port: Rc1/4
STL-MF-50-100 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
STL-MF-50-125 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 125 mm | Port: Rc1/4
STL-MF-50-150 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 150 mm | Port: Rc1/4
STL-MF-50-175 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 175 mm | Port: Rc1/4
STL-MF-50-200 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 200 mm | Port: Rc1/4
STL-MF-63-50 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
STL-MF-63-75 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 75 mm | Port: Rc1/4
STL-MF-63-100 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4
STL-MF-63-125 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 125 mm | Port: Rc1/4
STL-MF-63-150 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 150 mm | Port: Rc1/4
STL-MF-63-175 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 175 mm | Port: Rc1/4
STL-MF-63-200 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 200 mm | Port: Rc1/4
STL-MF-80-75 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
STL-MF-80-100 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
STL-MF-80-125 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 125 mm | Port: Rc3/8
STL-MF-80-150 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 150 mm | Port: Rc3/8
STL-MF-80-175 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 175 mm | Port: Rc3/8
STL-MF-80-200 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 200 mm | Port: Rc3/8
STL-BF-8-50 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 8 mm | Stroke: 50 mm | Port: M5
STL-BF-8-75 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 8 mm | Stroke: 75 mm | Port: M5
STL-BF-8-100 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 8 mm | Stroke: 100 mm | Port: M5
STL-BF-8-125 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 8 mm | Stroke: 125 mm | Port: M5
STL-BF-8-150 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 8 mm | Stroke: 150 mm | Port: M5
STL-BF-8-175 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 8 mm | Stroke: 175 mm | Port: M5
STL-BF-8-200 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 8 mm | Stroke: 200 mm | Port: M5
STL-BF-12-50 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 12 mm | Stroke: 50 mm | Port: M5
STL-BF-12-75 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 12 mm | Stroke: 75 mm | Port: M5
STL-BF-12-100 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 12 mm | Stroke: 100 mm | Port: M5
STL-BF-12-125 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 12 mm | Stroke: 125 mm | Port: M5
STL-BF-12-150 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 12 mm | Stroke: 150 mm | Port: M5
STL-BF-12-175 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 12 mm | Stroke: 175 mm | Port: M5
STL-BF-12-200 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 12 mm | Stroke: 200 mm | Port: M5
STL-BF-16-50 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 16 mm | Stroke: 50 mm | Port: M5
STL-BF-16-75 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 16 mm | Stroke: 75 mm | Port: M5
STL-BF-16-100 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 16 mm | Stroke: 100 mm | Port: M5
STL-BF-16-125 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 16 mm | Stroke: 125 mm | Port: M5
STL-BF-16-150 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 16 mm | Stroke: 150 mm | Port: M5
STL-BF-16-175 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 16 mm | Stroke: 175 mm | Port: M5
STL-BF-16-200 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 16 mm | Stroke: 200 mm | Port: M5
STL-BF-20-50 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 20 mm | Stroke: 50 mm | Port: M5
STL-BF-20-75 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 20 mm | Stroke: 75 mm | Port: M5
STL-BF-20-100 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 20 mm | Stroke: 100 mm | Port: M5
STL-BF-20-125 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 20 mm | Stroke: 125 mm | Port: M5
STL-BF-20-150 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 20 mm | Stroke: 150 mm | Port: M5
STL-BF-20-175 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 20 mm | Stroke: 175 mm | Port: M5
STL-BF-20-200 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 20 mm | Stroke: 200 mm | Port: M5
STL-BF-25-50 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 25 mm | Stroke: 50 mm | Port: M5
STL-BF-25-75 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 25 mm | Stroke: 75 mm | Port: M5
STL-BF-25-100 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 25 mm | Stroke: 100 mm | Port: M5
STL-BF-25-125 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 25 mm | Stroke: 125 mm | Port: M5
STL-BF-25-150 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 25 mm | Stroke: 150 mm | Port: M5
STL-BF-25-175 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 25 mm | Stroke: 175 mm | Port: M5
STL-BF-25-200 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 25 mm | Stroke: 200 mm | Port: M5
STL-BF-32-50 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
STL-BF-32-75 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8
STL-BF-32-100 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
STL-BF-32-125 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 125 mm | Port: Rc1/8
STL-BF-32-150 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 150 mm | Port: Rc1/8
STL-BF-32-175 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 175 mm | Port: Rc1/8
STL-BF-32-200 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 200 mm | Port: Rc1/8
STL-BF-40-50 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
STL-BF-40-75 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/8
STL-BF-40-100 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8
STL-BF-40-125 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 125 mm | Port: Rc1/8
STL-BF-40-150 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/8
STL-BF-40-175 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 175 mm | Port: Rc1/8
STL-BF-40-200 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/8
STL-BF-50-50 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
STL-BF-50-75 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 75 mm | Port: Rc1/4
STL-BF-50-100 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
STL-BF-50-125 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 125 mm | Port: Rc1/4
STL-BF-50-150 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 150 mm | Port: Rc1/4
STL-BF-50-175 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 175 mm | Port: Rc1/4
STL-BF-50-200 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 200 mm | Port: Rc1/4
STL-BF-63-50 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
STL-BF-63-75 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 75 mm | Port: Rc1/4
STL-BF-63-100 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4
STL-BF-63-125 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 125 mm | Port: Rc1/4
STL-BF-63-150 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 150 mm | Port: Rc1/4
STL-BF-63-175 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 175 mm | Port: Rc1/4
STL-BF-63-200 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 200 mm | Port: Rc1/4
STL-BF-80-75 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
STL-BF-80-100 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
STL-BF-80-125 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 125 mm | Port: Rc3/8
STL-BF-80-150 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 150 mm | Port: Rc3/8
STL-BF-80-175 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 175 mm | Port: Rc3/8
STL-BF-80-200 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 200 mm | Port: Rc3/8
Guided CylindersCKD
200 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD STS/STL-F Guided Cylinder (Fine Speed, 1-200 mm/s)

Brand CKD·Guided Cylinders

Available part numbers (200)

STS-MF-8-10, STS-MF-8-20, STS-MF-8-30, STS-MF-8-40, STS-MF-8-50, STS-MF-12-10, STS-MF-12-20, STS-MF-12-30, STS-MF-12-40, STS-MF-12-50 + 190 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
STS-MF-8-10Series: STS (short stroke) | Bearing: Slide bearing | Bore: 8 mm | Stroke: 10 mm | Port: M5
STS-MF-8-20Series: STS (short stroke) | Bearing: Slide bearing | Bore: 8 mm | Stroke: 20 mm | Port: M5
STS-MF-8-30Series: STS (short stroke) | Bearing: Slide bearing | Bore: 8 mm | Stroke: 30 mm | Port: M5
STS-MF-8-40Series: STS (short stroke) | Bearing: Slide bearing | Bore: 8 mm | Stroke: 40 mm | Port: M5
STS-MF-8-50Series: STS (short stroke) | Bearing: Slide bearing | Bore: 8 mm | Stroke: 50 mm | Port: M5
STS-MF-12-10Series: STS (short stroke) | Bearing: Slide bearing | Bore: 12 mm | Stroke: 10 mm | Port: M5
STS-MF-12-20Series: STS (short stroke) | Bearing: Slide bearing | Bore: 12 mm | Stroke: 20 mm | Port: M5
STS-MF-12-30Series: STS (short stroke) | Bearing: Slide bearing | Bore: 12 mm | Stroke: 30 mm | Port: M5
STS-MF-12-40Series: STS (short stroke) | Bearing: Slide bearing | Bore: 12 mm | Stroke: 40 mm | Port: M5
STS-MF-12-50Series: STS (short stroke) | Bearing: Slide bearing | Bore: 12 mm | Stroke: 50 mm | Port: M5
STS-MF-16-10Series: STS (short stroke) | Bearing: Slide bearing | Bore: 16 mm | Stroke: 10 mm | Port: M5
STS-MF-16-20Series: STS (short stroke) | Bearing: Slide bearing | Bore: 16 mm | Stroke: 20 mm | Port: M5
STS-MF-16-30Series: STS (short stroke) | Bearing: Slide bearing | Bore: 16 mm | Stroke: 30 mm | Port: M5
STS-MF-16-40Series: STS (short stroke) | Bearing: Slide bearing | Bore: 16 mm | Stroke: 40 mm | Port: M5
STS-MF-16-50Series: STS (short stroke) | Bearing: Slide bearing | Bore: 16 mm | Stroke: 50 mm | Port: M5
STS-MF-20-25Series: STS (short stroke) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 25 mm | Port: M5
STS-MF-20-50Series: STS (short stroke) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 50 mm | Port: M5
STS-MF-25-25Series: STS (short stroke) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 25 mm | Port: M5
STS-MF-25-50Series: STS (short stroke) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 50 mm | Port: M5
STS-MF-32-25Series: STS (short stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
STS-MF-32-50Series: STS (short stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
STS-MF-40-25Series: STS (short stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
STS-MF-40-50Series: STS (short stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
STS-MF-50-25Series: STS (short stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
STS-MF-50-50Series: STS (short stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
STS-MF-63-25Series: STS (short stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 25 mm | Port: Rc1/4
STS-MF-63-50Series: STS (short stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
STS-MF-80-25Series: STS (short stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 25 mm | Port: Rc3/8
STS-MF-80-50Series: STS (short stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
STS-MF-80-75Series: STS (short stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
STS-MF-80-100Series: STS (short stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
STS-BF-8-10Series: STS (short stroke) | Bearing: Ball bushing | Bore: 8 mm | Stroke: 10 mm | Port: M5
STS-BF-8-20Series: STS (short stroke) | Bearing: Ball bushing | Bore: 8 mm | Stroke: 20 mm | Port: M5
STS-BF-8-30Series: STS (short stroke) | Bearing: Ball bushing | Bore: 8 mm | Stroke: 30 mm | Port: M5
STS-BF-8-40Series: STS (short stroke) | Bearing: Ball bushing | Bore: 8 mm | Stroke: 40 mm | Port: M5
STS-BF-8-50Series: STS (short stroke) | Bearing: Ball bushing | Bore: 8 mm | Stroke: 50 mm | Port: M5
STS-BF-12-10Series: STS (short stroke) | Bearing: Ball bushing | Bore: 12 mm | Stroke: 10 mm | Port: M5
STS-BF-12-20Series: STS (short stroke) | Bearing: Ball bushing | Bore: 12 mm | Stroke: 20 mm | Port: M5
STS-BF-12-30Series: STS (short stroke) | Bearing: Ball bushing | Bore: 12 mm | Stroke: 30 mm | Port: M5
STS-BF-12-40Series: STS (short stroke) | Bearing: Ball bushing | Bore: 12 mm | Stroke: 40 mm | Port: M5
STS-BF-12-50Series: STS (short stroke) | Bearing: Ball bushing | Bore: 12 mm | Stroke: 50 mm | Port: M5
STS-BF-16-10Series: STS (short stroke) | Bearing: Ball bushing | Bore: 16 mm | Stroke: 10 mm | Port: M5
STS-BF-16-20Series: STS (short stroke) | Bearing: Ball bushing | Bore: 16 mm | Stroke: 20 mm | Port: M5
STS-BF-16-30Series: STS (short stroke) | Bearing: Ball bushing | Bore: 16 mm | Stroke: 30 mm | Port: M5
STS-BF-16-40Series: STS (short stroke) | Bearing: Ball bushing | Bore: 16 mm | Stroke: 40 mm | Port: M5
STS-BF-16-50Series: STS (short stroke) | Bearing: Ball bushing | Bore: 16 mm | Stroke: 50 mm | Port: M5
STS-BF-20-25Series: STS (short stroke) | Bearing: Ball bushing | Bore: 20 mm | Stroke: 25 mm | Port: M5
STS-BF-20-50Series: STS (short stroke) | Bearing: Ball bushing | Bore: 20 mm | Stroke: 50 mm | Port: M5
STS-BF-25-25Series: STS (short stroke) | Bearing: Ball bushing | Bore: 25 mm | Stroke: 25 mm | Port: M5
STS-BF-25-50Series: STS (short stroke) | Bearing: Ball bushing | Bore: 25 mm | Stroke: 50 mm | Port: M5
STS-BF-32-25Series: STS (short stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
STS-BF-32-50Series: STS (short stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
STS-BF-40-25Series: STS (short stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
STS-BF-40-50Series: STS (short stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
STS-BF-50-25Series: STS (short stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
STS-BF-50-50Series: STS (short stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
STS-BF-63-25Series: STS (short stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 25 mm | Port: Rc1/4
STS-BF-63-50Series: STS (short stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
STS-BF-80-25Series: STS (short stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 25 mm | Port: Rc3/8
STS-BF-80-50Series: STS (short stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
STS-BF-80-75Series: STS (short stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
STS-BF-80-100Series: STS (short stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
STL-MF-8-50Series: STL (long stroke) | Bearing: Slide bearing | Bore: 8 mm | Stroke: 50 mm | Port: M5
STL-MF-8-75Series: STL (long stroke) | Bearing: Slide bearing | Bore: 8 mm | Stroke: 75 mm | Port: M5
STL-MF-8-100Series: STL (long stroke) | Bearing: Slide bearing | Bore: 8 mm | Stroke: 100 mm | Port: M5
STL-MF-8-125Series: STL (long stroke) | Bearing: Slide bearing | Bore: 8 mm | Stroke: 125 mm | Port: M5
STL-MF-8-150Series: STL (long stroke) | Bearing: Slide bearing | Bore: 8 mm | Stroke: 150 mm | Port: M5
STL-MF-8-175Series: STL (long stroke) | Bearing: Slide bearing | Bore: 8 mm | Stroke: 175 mm | Port: M5
STL-MF-8-200Series: STL (long stroke) | Bearing: Slide bearing | Bore: 8 mm | Stroke: 200 mm | Port: M5
STL-MF-12-50Series: STL (long stroke) | Bearing: Slide bearing | Bore: 12 mm | Stroke: 50 mm | Port: M5
STL-MF-12-75Series: STL (long stroke) | Bearing: Slide bearing | Bore: 12 mm | Stroke: 75 mm | Port: M5
STL-MF-12-100Series: STL (long stroke) | Bearing: Slide bearing | Bore: 12 mm | Stroke: 100 mm | Port: M5
STL-MF-12-125Series: STL (long stroke) | Bearing: Slide bearing | Bore: 12 mm | Stroke: 125 mm | Port: M5
STL-MF-12-150Series: STL (long stroke) | Bearing: Slide bearing | Bore: 12 mm | Stroke: 150 mm | Port: M5
STL-MF-12-175Series: STL (long stroke) | Bearing: Slide bearing | Bore: 12 mm | Stroke: 175 mm | Port: M5
STL-MF-12-200Series: STL (long stroke) | Bearing: Slide bearing | Bore: 12 mm | Stroke: 200 mm | Port: M5
STL-MF-16-50Series: STL (long stroke) | Bearing: Slide bearing | Bore: 16 mm | Stroke: 50 mm | Port: M5
STL-MF-16-75Series: STL (long stroke) | Bearing: Slide bearing | Bore: 16 mm | Stroke: 75 mm | Port: M5
STL-MF-16-100Series: STL (long stroke) | Bearing: Slide bearing | Bore: 16 mm | Stroke: 100 mm | Port: M5
STL-MF-16-125Series: STL (long stroke) | Bearing: Slide bearing | Bore: 16 mm | Stroke: 125 mm | Port: M5
STL-MF-16-150Series: STL (long stroke) | Bearing: Slide bearing | Bore: 16 mm | Stroke: 150 mm | Port: M5
STL-MF-16-175Series: STL (long stroke) | Bearing: Slide bearing | Bore: 16 mm | Stroke: 175 mm | Port: M5
STL-MF-16-200Series: STL (long stroke) | Bearing: Slide bearing | Bore: 16 mm | Stroke: 200 mm | Port: M5
STL-MF-20-50Series: STL (long stroke) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 50 mm | Port: M5
STL-MF-20-75Series: STL (long stroke) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 75 mm | Port: M5
STL-MF-20-100Series: STL (long stroke) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 100 mm | Port: M5
STL-MF-20-125Series: STL (long stroke) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 125 mm | Port: M5
STL-MF-20-150Series: STL (long stroke) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 150 mm | Port: M5
STL-MF-20-175Series: STL (long stroke) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 175 mm | Port: M5
STL-MF-20-200Series: STL (long stroke) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 200 mm | Port: M5
STL-MF-25-50Series: STL (long stroke) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 50 mm | Port: M5
STL-MF-25-75Series: STL (long stroke) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 75 mm | Port: M5
STL-MF-25-100Series: STL (long stroke) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 100 mm | Port: M5
STL-MF-25-125Series: STL (long stroke) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 125 mm | Port: M5
STL-MF-25-150Series: STL (long stroke) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 150 mm | Port: M5
STL-MF-25-175Series: STL (long stroke) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 175 mm | Port: M5
STL-MF-25-200Series: STL (long stroke) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 200 mm | Port: M5
STL-MF-32-50Series: STL (long stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
STL-MF-32-75Series: STL (long stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8
STL-MF-32-100Series: STL (long stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
STL-MF-32-125Series: STL (long stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 125 mm | Port: Rc1/8
STL-MF-32-150Series: STL (long stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 150 mm | Port: Rc1/8
STL-MF-32-175Series: STL (long stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 175 mm | Port: Rc1/8
STL-MF-32-200Series: STL (long stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 200 mm | Port: Rc1/8
STL-MF-40-50Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
STL-MF-40-75Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/8
STL-MF-40-100Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8
STL-MF-40-125Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 125 mm | Port: Rc1/8
STL-MF-40-150Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/8
STL-MF-40-175Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 175 mm | Port: Rc1/8
STL-MF-40-200Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/8
STL-MF-50-50Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
STL-MF-50-75Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 75 mm | Port: Rc1/4
STL-MF-50-100Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
STL-MF-50-125Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 125 mm | Port: Rc1/4
STL-MF-50-150Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 150 mm | Port: Rc1/4
STL-MF-50-175Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 175 mm | Port: Rc1/4
STL-MF-50-200Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 200 mm | Port: Rc1/4
STL-MF-63-50Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
STL-MF-63-75Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 75 mm | Port: Rc1/4
STL-MF-63-100Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4
STL-MF-63-125Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 125 mm | Port: Rc1/4
STL-MF-63-150Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 150 mm | Port: Rc1/4
STL-MF-63-175Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 175 mm | Port: Rc1/4
STL-MF-63-200Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 200 mm | Port: Rc1/4
STL-MF-80-75Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
STL-MF-80-100Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
STL-MF-80-125Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 125 mm | Port: Rc3/8
STL-MF-80-150Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 150 mm | Port: Rc3/8
STL-MF-80-175Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 175 mm | Port: Rc3/8
STL-MF-80-200Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 200 mm | Port: Rc3/8
STL-BF-8-50Series: STL (long stroke) | Bearing: Ball bushing | Bore: 8 mm | Stroke: 50 mm | Port: M5
STL-BF-8-75Series: STL (long stroke) | Bearing: Ball bushing | Bore: 8 mm | Stroke: 75 mm | Port: M5
STL-BF-8-100Series: STL (long stroke) | Bearing: Ball bushing | Bore: 8 mm | Stroke: 100 mm | Port: M5
STL-BF-8-125Series: STL (long stroke) | Bearing: Ball bushing | Bore: 8 mm | Stroke: 125 mm | Port: M5
STL-BF-8-150Series: STL (long stroke) | Bearing: Ball bushing | Bore: 8 mm | Stroke: 150 mm | Port: M5
STL-BF-8-175Series: STL (long stroke) | Bearing: Ball bushing | Bore: 8 mm | Stroke: 175 mm | Port: M5
STL-BF-8-200Series: STL (long stroke) | Bearing: Ball bushing | Bore: 8 mm | Stroke: 200 mm | Port: M5
STL-BF-12-50Series: STL (long stroke) | Bearing: Ball bushing | Bore: 12 mm | Stroke: 50 mm | Port: M5
STL-BF-12-75Series: STL (long stroke) | Bearing: Ball bushing | Bore: 12 mm | Stroke: 75 mm | Port: M5
STL-BF-12-100Series: STL (long stroke) | Bearing: Ball bushing | Bore: 12 mm | Stroke: 100 mm | Port: M5
STL-BF-12-125Series: STL (long stroke) | Bearing: Ball bushing | Bore: 12 mm | Stroke: 125 mm | Port: M5
STL-BF-12-150Series: STL (long stroke) | Bearing: Ball bushing | Bore: 12 mm | Stroke: 150 mm | Port: M5
STL-BF-12-175Series: STL (long stroke) | Bearing: Ball bushing | Bore: 12 mm | Stroke: 175 mm | Port: M5
STL-BF-12-200Series: STL (long stroke) | Bearing: Ball bushing | Bore: 12 mm | Stroke: 200 mm | Port: M5
STL-BF-16-50Series: STL (long stroke) | Bearing: Ball bushing | Bore: 16 mm | Stroke: 50 mm | Port: M5
STL-BF-16-75Series: STL (long stroke) | Bearing: Ball bushing | Bore: 16 mm | Stroke: 75 mm | Port: M5
STL-BF-16-100Series: STL (long stroke) | Bearing: Ball bushing | Bore: 16 mm | Stroke: 100 mm | Port: M5
STL-BF-16-125Series: STL (long stroke) | Bearing: Ball bushing | Bore: 16 mm | Stroke: 125 mm | Port: M5
STL-BF-16-150Series: STL (long stroke) | Bearing: Ball bushing | Bore: 16 mm | Stroke: 150 mm | Port: M5
STL-BF-16-175Series: STL (long stroke) | Bearing: Ball bushing | Bore: 16 mm | Stroke: 175 mm | Port: M5
STL-BF-16-200Series: STL (long stroke) | Bearing: Ball bushing | Bore: 16 mm | Stroke: 200 mm | Port: M5
STL-BF-20-50Series: STL (long stroke) | Bearing: Ball bushing | Bore: 20 mm | Stroke: 50 mm | Port: M5
STL-BF-20-75Series: STL (long stroke) | Bearing: Ball bushing | Bore: 20 mm | Stroke: 75 mm | Port: M5
STL-BF-20-100Series: STL (long stroke) | Bearing: Ball bushing | Bore: 20 mm | Stroke: 100 mm | Port: M5
STL-BF-20-125Series: STL (long stroke) | Bearing: Ball bushing | Bore: 20 mm | Stroke: 125 mm | Port: M5
STL-BF-20-150Series: STL (long stroke) | Bearing: Ball bushing | Bore: 20 mm | Stroke: 150 mm | Port: M5
STL-BF-20-175Series: STL (long stroke) | Bearing: Ball bushing | Bore: 20 mm | Stroke: 175 mm | Port: M5
STL-BF-20-200Series: STL (long stroke) | Bearing: Ball bushing | Bore: 20 mm | Stroke: 200 mm | Port: M5
STL-BF-25-50Series: STL (long stroke) | Bearing: Ball bushing | Bore: 25 mm | Stroke: 50 mm | Port: M5
STL-BF-25-75Series: STL (long stroke) | Bearing: Ball bushing | Bore: 25 mm | Stroke: 75 mm | Port: M5
STL-BF-25-100Series: STL (long stroke) | Bearing: Ball bushing | Bore: 25 mm | Stroke: 100 mm | Port: M5
STL-BF-25-125Series: STL (long stroke) | Bearing: Ball bushing | Bore: 25 mm | Stroke: 125 mm | Port: M5
STL-BF-25-150Series: STL (long stroke) | Bearing: Ball bushing | Bore: 25 mm | Stroke: 150 mm | Port: M5
STL-BF-25-175Series: STL (long stroke) | Bearing: Ball bushing | Bore: 25 mm | Stroke: 175 mm | Port: M5
STL-BF-25-200Series: STL (long stroke) | Bearing: Ball bushing | Bore: 25 mm | Stroke: 200 mm | Port: M5
STL-BF-32-50Series: STL (long stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
STL-BF-32-75Series: STL (long stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8
STL-BF-32-100Series: STL (long stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
STL-BF-32-125Series: STL (long stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 125 mm | Port: Rc1/8
STL-BF-32-150Series: STL (long stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 150 mm | Port: Rc1/8
STL-BF-32-175Series: STL (long stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 175 mm | Port: Rc1/8
STL-BF-32-200Series: STL (long stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 200 mm | Port: Rc1/8
STL-BF-40-50Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
STL-BF-40-75Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/8
STL-BF-40-100Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8
STL-BF-40-125Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 125 mm | Port: Rc1/8
STL-BF-40-150Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/8
STL-BF-40-175Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 175 mm | Port: Rc1/8
STL-BF-40-200Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/8
STL-BF-50-50Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
STL-BF-50-75Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 75 mm | Port: Rc1/4
STL-BF-50-100Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
STL-BF-50-125Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 125 mm | Port: Rc1/4
STL-BF-50-150Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 150 mm | Port: Rc1/4
STL-BF-50-175Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 175 mm | Port: Rc1/4
STL-BF-50-200Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 200 mm | Port: Rc1/4
STL-BF-63-50Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
STL-BF-63-75Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 75 mm | Port: Rc1/4
STL-BF-63-100Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4
STL-BF-63-125Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 125 mm | Port: Rc1/4
STL-BF-63-150Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 150 mm | Port: Rc1/4
STL-BF-63-175Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 175 mm | Port: Rc1/4
STL-BF-63-200Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 200 mm | Port: Rc1/4
STL-BF-80-75Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
STL-BF-80-100Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
STL-BF-80-125Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 125 mm | Port: Rc3/8
STL-BF-80-150Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 150 mm | Port: Rc3/8
STL-BF-80-175Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 175 mm | Port: Rc3/8
STL-BF-80-200Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 200 mm | Port: Rc3/8

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
