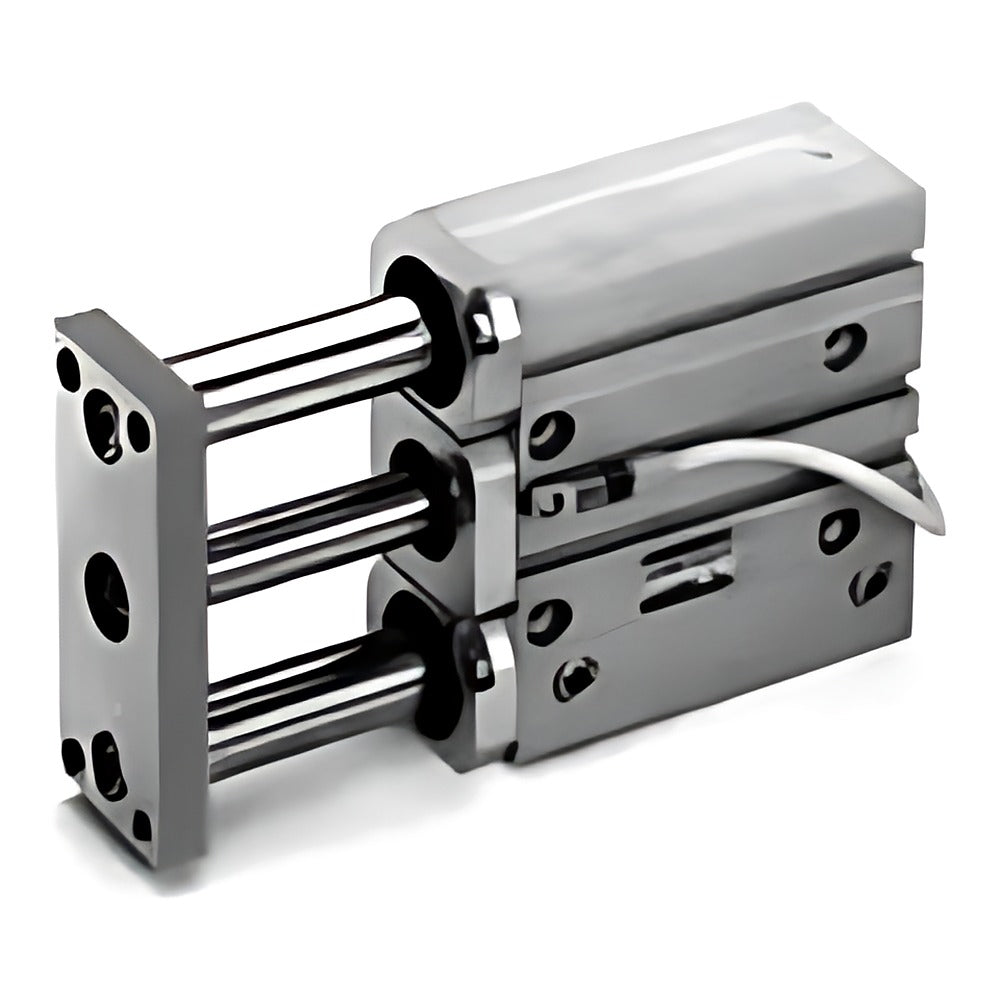

CKD STS/STL-G/G1 Guided Cylinder (Strong / Coil Scraper)

CKD STS/STL-G/G1 Guided Cylinder (Strong / Coil Scraper)

CKD STS/STL-G (strong scraper) and -G1 (coil scraper) guided cylinders for dusty or spatter-prone environments, with scrapers protecting the piston rod and guide rods.

Key features

  • G: strong scraper; G1: coil scraper for welding spatter and adhering debris
  • Bores 20 to 80 mm; STS strokes 25-100 mm, STL strokes 50-400 mm
  • Slide bearing (M) or ball bushing (B) guide rods
  • Switch-ready (magnet built in); auto switches (T0H/T0V, T5, T8, T1, T2, T3, T3P, T2W/T2Y/T3W/T3Y 2-colour, T2J off-delay, T2YD AC-field), lead length and switch quantity (R/H/D/T) are added as suffixes
  • Options: F steel end plate; M / M1 SUS parts, P6 non-copper (G only) and NN / GN threads made to order

Specifications

Action Double acting
Fluid Compressed air
Max. operating pressure 1.0 MPa
Proof pressure 1.6 MPa
Ambient temperature -10 to 60°C (no freezing)
Stroke tolerance +2.0 / 0 mm
Lubrication Not required (ISO VG32 turbine oil if used)
Min. operating pressure 0.2 MPa (bore 20-25), 0.15 MPa (bore 32+)
Piston speed 50 to 500 mm/s (bore 20-50), 50 to 300 mm/s (bore 63-80)
Cushion Rubber cushion
Source CKD Korea catalog CB-030SK-9, p. 606-613
STS-MG-20-25 Series: STS (short stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 20 mm | Stroke: 25 mm | Port: M5
STS-MG-20-50 Series: STS (short stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 20 mm | Stroke: 50 mm | Port: M5
STS-MG-25-25 Series: STS (short stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 25 mm | Stroke: 25 mm | Port: M5
STS-MG-25-50 Series: STS (short stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 25 mm | Stroke: 50 mm | Port: M5
STS-MG-32-25 Series: STS (short stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
STS-MG-32-50 Series: STS (short stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
STS-MG-40-25 Series: STS (short stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
STS-MG-40-50 Series: STS (short stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
STS-MG-50-25 Series: STS (short stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
STS-MG-50-50 Series: STS (short stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
STS-MG-63-25 Series: STS (short stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 63 mm | Stroke: 25 mm | Port: Rc1/4
STS-MG-63-50 Series: STS (short stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
STS-MG-80-25 Series: STS (short stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 80 mm | Stroke: 25 mm | Port: Rc3/8
STS-MG-80-50 Series: STS (short stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
STS-MG-80-75 Series: STS (short stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
STS-MG-80-100 Series: STS (short stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
STS-MG1-20-25 Series: STS (short stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 20 mm | Stroke: 25 mm | Port: M5
STS-MG1-20-50 Series: STS (short stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 20 mm | Stroke: 50 mm | Port: M5
STS-MG1-25-25 Series: STS (short stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 25 mm | Stroke: 25 mm | Port: M5
STS-MG1-25-50 Series: STS (short stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 25 mm | Stroke: 50 mm | Port: M5
STS-MG1-32-25 Series: STS (short stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
STS-MG1-32-50 Series: STS (short stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
STS-MG1-40-25 Series: STS (short stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
STS-MG1-40-50 Series: STS (short stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
STS-MG1-50-25 Series: STS (short stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
STS-MG1-50-50 Series: STS (short stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
STS-MG1-63-25 Series: STS (short stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 63 mm | Stroke: 25 mm | Port: Rc1/4
STS-MG1-63-50 Series: STS (short stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
STS-MG1-80-25 Series: STS (short stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 80 mm | Stroke: 25 mm | Port: Rc3/8
STS-MG1-80-50 Series: STS (short stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
STS-MG1-80-75 Series: STS (short stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
STS-MG1-80-100 Series: STS (short stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
STS-BG-20-25 Series: STS (short stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 20 mm | Stroke: 25 mm | Port: M5
STS-BG-20-50 Series: STS (short stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 20 mm | Stroke: 50 mm | Port: M5
STS-BG-25-25 Series: STS (short stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 25 mm | Stroke: 25 mm | Port: M5
STS-BG-25-50 Series: STS (short stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 25 mm | Stroke: 50 mm | Port: M5
STS-BG-32-25 Series: STS (short stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
STS-BG-32-50 Series: STS (short stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
STS-BG-40-25 Series: STS (short stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
STS-BG-40-50 Series: STS (short stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
STS-BG-50-25 Series: STS (short stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
STS-BG-50-50 Series: STS (short stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
STS-BG-63-25 Series: STS (short stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 63 mm | Stroke: 25 mm | Port: Rc1/4
STS-BG-63-50 Series: STS (short stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
STS-BG-80-25 Series: STS (short stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 80 mm | Stroke: 25 mm | Port: Rc3/8
STS-BG-80-50 Series: STS (short stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
STS-BG-80-75 Series: STS (short stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
STS-BG-80-100 Series: STS (short stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
STS-BG1-20-25 Series: STS (short stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 20 mm | Stroke: 25 mm | Port: M5
STS-BG1-20-50 Series: STS (short stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 20 mm | Stroke: 50 mm | Port: M5
STS-BG1-25-25 Series: STS (short stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 25 mm | Stroke: 25 mm | Port: M5
STS-BG1-25-50 Series: STS (short stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 25 mm | Stroke: 50 mm | Port: M5
STS-BG1-32-25 Series: STS (short stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
STS-BG1-32-50 Series: STS (short stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
STS-BG1-40-25 Series: STS (short stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
STS-BG1-40-50 Series: STS (short stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
STS-BG1-50-25 Series: STS (short stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
STS-BG1-50-50 Series: STS (short stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
STS-BG1-63-25 Series: STS (short stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 63 mm | Stroke: 25 mm | Port: Rc1/4
STS-BG1-63-50 Series: STS (short stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
STS-BG1-80-25 Series: STS (short stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 80 mm | Stroke: 25 mm | Port: Rc3/8
STS-BG1-80-50 Series: STS (short stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
STS-BG1-80-75 Series: STS (short stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
STS-BG1-80-100 Series: STS (short stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
STL-MG-20-50 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 20 mm | Stroke: 50 mm | Port: M5
STL-MG-20-75 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 20 mm | Stroke: 75 mm | Port: M5
STL-MG-20-100 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 20 mm | Stroke: 100 mm | Port: M5
STL-MG-20-125 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 20 mm | Stroke: 125 mm | Port: M5
STL-MG-20-150 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 20 mm | Stroke: 150 mm | Port: M5
STL-MG-20-175 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 20 mm | Stroke: 175 mm | Port: M5
STL-MG-20-200 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 20 mm | Stroke: 200 mm | Port: M5
STL-MG-20-225 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 20 mm | Stroke: 225 mm | Port: M5
STL-MG-20-250 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 20 mm | Stroke: 250 mm | Port: M5
STL-MG-20-275 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 20 mm | Stroke: 275 mm | Port: M5
STL-MG-20-300 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 20 mm | Stroke: 300 mm | Port: M5
STL-MG-20-325 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 20 mm | Stroke: 325 mm | Port: M5
STL-MG-20-350 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 20 mm | Stroke: 350 mm | Port: M5
STL-MG-20-375 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 20 mm | Stroke: 375 mm | Port: M5
STL-MG-20-400 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 20 mm | Stroke: 400 mm | Port: M5
STL-MG-25-50 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 25 mm | Stroke: 50 mm | Port: M5
STL-MG-25-75 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 25 mm | Stroke: 75 mm | Port: M5
STL-MG-25-100 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 25 mm | Stroke: 100 mm | Port: M5
STL-MG-25-125 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 25 mm | Stroke: 125 mm | Port: M5
STL-MG-25-150 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 25 mm | Stroke: 150 mm | Port: M5
STL-MG-25-175 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 25 mm | Stroke: 175 mm | Port: M5
STL-MG-25-200 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 25 mm | Stroke: 200 mm | Port: M5
STL-MG-25-225 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 25 mm | Stroke: 225 mm | Port: M5
STL-MG-25-250 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 25 mm | Stroke: 250 mm | Port: M5
STL-MG-25-275 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 25 mm | Stroke: 275 mm | Port: M5
STL-MG-25-300 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 25 mm | Stroke: 300 mm | Port: M5
STL-MG-25-325 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 25 mm | Stroke: 325 mm | Port: M5
STL-MG-25-350 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 25 mm | Stroke: 350 mm | Port: M5
STL-MG-25-375 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 25 mm | Stroke: 375 mm | Port: M5
STL-MG-25-400 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 25 mm | Stroke: 400 mm | Port: M5
STL-MG-32-50 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
STL-MG-32-75 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8
STL-MG-32-100 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
STL-MG-32-125 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 32 mm | Stroke: 125 mm | Port: Rc1/8
STL-MG-32-150 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 32 mm | Stroke: 150 mm | Port: Rc1/8
STL-MG-32-175 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 32 mm | Stroke: 175 mm | Port: Rc1/8
STL-MG-32-200 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 32 mm | Stroke: 200 mm | Port: Rc1/8
STL-MG-32-225 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 32 mm | Stroke: 225 mm | Port: Rc1/8
STL-MG-32-250 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 32 mm | Stroke: 250 mm | Port: Rc1/8
STL-MG-32-275 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 32 mm | Stroke: 275 mm | Port: Rc1/8
STL-MG-32-300 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 32 mm | Stroke: 300 mm | Port: Rc1/8
STL-MG-32-325 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 32 mm | Stroke: 325 mm | Port: Rc1/8
STL-MG-32-350 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 32 mm | Stroke: 350 mm | Port: Rc1/8
STL-MG-32-375 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 32 mm | Stroke: 375 mm | Port: Rc1/8
STL-MG-32-400 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 32 mm | Stroke: 400 mm | Port: Rc1/8
STL-MG-40-50 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
STL-MG-40-75 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/8
STL-MG-40-100 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8
STL-MG-40-125 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 40 mm | Stroke: 125 mm | Port: Rc1/8
STL-MG-40-150 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/8
STL-MG-40-175 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 40 mm | Stroke: 175 mm | Port: Rc1/8
STL-MG-40-200 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/8
STL-MG-40-225 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 40 mm | Stroke: 225 mm | Port: Rc1/8
STL-MG-40-250 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/8
STL-MG-40-275 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 40 mm | Stroke: 275 mm | Port: Rc1/8
STL-MG-40-300 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/8
STL-MG-40-325 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 40 mm | Stroke: 325 mm | Port: Rc1/8
STL-MG-40-350 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 40 mm | Stroke: 350 mm | Port: Rc1/8
STL-MG-40-375 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 40 mm | Stroke: 375 mm | Port: Rc1/8
STL-MG-40-400 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 40 mm | Stroke: 400 mm | Port: Rc1/8
STL-MG-50-50 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
STL-MG-50-75 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 50 mm | Stroke: 75 mm | Port: Rc1/4
STL-MG-50-100 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
STL-MG-50-125 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 50 mm | Stroke: 125 mm | Port: Rc1/4
STL-MG-50-150 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 50 mm | Stroke: 150 mm | Port: Rc1/4
STL-MG-50-175 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 50 mm | Stroke: 175 mm | Port: Rc1/4
STL-MG-50-200 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 50 mm | Stroke: 200 mm | Port: Rc1/4
STL-MG-50-225 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 50 mm | Stroke: 225 mm | Port: Rc1/4
STL-MG-50-250 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 50 mm | Stroke: 250 mm | Port: Rc1/4
STL-MG-50-275 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 50 mm | Stroke: 275 mm | Port: Rc1/4
STL-MG-50-300 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 50 mm | Stroke: 300 mm | Port: Rc1/4
STL-MG-50-325 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 50 mm | Stroke: 325 mm | Port: Rc1/4
STL-MG-50-350 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 50 mm | Stroke: 350 mm | Port: Rc1/4
STL-MG-50-375 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 50 mm | Stroke: 375 mm | Port: Rc1/4
STL-MG-50-400 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 50 mm | Stroke: 400 mm | Port: Rc1/4
STL-MG-63-50 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
STL-MG-63-75 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 63 mm | Stroke: 75 mm | Port: Rc1/4
STL-MG-63-100 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4
STL-MG-63-125 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 63 mm | Stroke: 125 mm | Port: Rc1/4
STL-MG-63-150 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 63 mm | Stroke: 150 mm | Port: Rc1/4
STL-MG-63-175 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 63 mm | Stroke: 175 mm | Port: Rc1/4
STL-MG-63-200 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 63 mm | Stroke: 200 mm | Port: Rc1/4
STL-MG-63-225 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 63 mm | Stroke: 225 mm | Port: Rc1/4
STL-MG-63-250 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 63 mm | Stroke: 250 mm | Port: Rc1/4
STL-MG-63-275 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 63 mm | Stroke: 275 mm | Port: Rc1/4
STL-MG-63-300 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 63 mm | Stroke: 300 mm | Port: Rc1/4
STL-MG-63-325 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 63 mm | Stroke: 325 mm | Port: Rc1/4
STL-MG-63-350 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 63 mm | Stroke: 350 mm | Port: Rc1/4
STL-MG-63-375 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 63 mm | Stroke: 375 mm | Port: Rc1/4
STL-MG-63-400 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 63 mm | Stroke: 400 mm | Port: Rc1/4
STL-MG-80-75 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
STL-MG-80-100 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
STL-MG-80-125 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 80 mm | Stroke: 125 mm | Port: Rc3/8
STL-MG-80-150 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 80 mm | Stroke: 150 mm | Port: Rc3/8
STL-MG-80-175 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 80 mm | Stroke: 175 mm | Port: Rc3/8
STL-MG-80-200 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 80 mm | Stroke: 200 mm | Port: Rc3/8
STL-MG-80-225 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 80 mm | Stroke: 225 mm | Port: Rc3/8
STL-MG-80-250 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 80 mm | Stroke: 250 mm | Port: Rc3/8
STL-MG-80-275 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 80 mm | Stroke: 275 mm | Port: Rc3/8
STL-MG-80-300 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 80 mm | Stroke: 300 mm | Port: Rc3/8
STL-MG-80-325 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 80 mm | Stroke: 325 mm | Port: Rc3/8
STL-MG-80-350 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 80 mm | Stroke: 350 mm | Port: Rc3/8
STL-MG-80-375 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 80 mm | Stroke: 375 mm | Port: Rc3/8
STL-MG-80-400 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 80 mm | Stroke: 400 mm | Port: Rc3/8
STL-MG1-20-50 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 20 mm | Stroke: 50 mm | Port: M5
STL-MG1-20-75 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 20 mm | Stroke: 75 mm | Port: M5
STL-MG1-20-100 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 20 mm | Stroke: 100 mm | Port: M5
STL-MG1-20-125 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 20 mm | Stroke: 125 mm | Port: M5
STL-MG1-20-150 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 20 mm | Stroke: 150 mm | Port: M5
STL-MG1-20-175 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 20 mm | Stroke: 175 mm | Port: M5
STL-MG1-20-200 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 20 mm | Stroke: 200 mm | Port: M5
STL-MG1-20-225 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 20 mm | Stroke: 225 mm | Port: M5
STL-MG1-20-250 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 20 mm | Stroke: 250 mm | Port: M5
STL-MG1-20-275 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 20 mm | Stroke: 275 mm | Port: M5
STL-MG1-20-300 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 20 mm | Stroke: 300 mm | Port: M5
STL-MG1-20-325 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 20 mm | Stroke: 325 mm | Port: M5
STL-MG1-20-350 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 20 mm | Stroke: 350 mm | Port: M5
STL-MG1-20-375 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 20 mm | Stroke: 375 mm | Port: M5
STL-MG1-20-400 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 20 mm | Stroke: 400 mm | Port: M5
STL-MG1-25-50 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 25 mm | Stroke: 50 mm | Port: M5
STL-MG1-25-75 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 25 mm | Stroke: 75 mm | Port: M5
STL-MG1-25-100 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 25 mm | Stroke: 100 mm | Port: M5
STL-MG1-25-125 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 25 mm | Stroke: 125 mm | Port: M5
STL-MG1-25-150 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 25 mm | Stroke: 150 mm | Port: M5
STL-MG1-25-175 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 25 mm | Stroke: 175 mm | Port: M5
STL-MG1-25-200 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 25 mm | Stroke: 200 mm | Port: M5
STL-MG1-25-225 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 25 mm | Stroke: 225 mm | Port: M5
STL-MG1-25-250 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 25 mm | Stroke: 250 mm | Port: M5
STL-MG1-25-275 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 25 mm | Stroke: 275 mm | Port: M5
STL-MG1-25-300 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 25 mm | Stroke: 300 mm | Port: M5
STL-MG1-25-325 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 25 mm | Stroke: 325 mm | Port: M5
STL-MG1-25-350 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 25 mm | Stroke: 350 mm | Port: M5
STL-MG1-25-375 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 25 mm | Stroke: 375 mm | Port: M5
STL-MG1-25-400 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 25 mm | Stroke: 400 mm | Port: M5
STL-MG1-32-50 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
STL-MG1-32-75 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8
STL-MG1-32-100 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
STL-MG1-32-125 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 32 mm | Stroke: 125 mm | Port: Rc1/8
STL-MG1-32-150 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 32 mm | Stroke: 150 mm | Port: Rc1/8
STL-MG1-32-175 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 32 mm | Stroke: 175 mm | Port: Rc1/8
STL-MG1-32-200 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 32 mm | Stroke: 200 mm | Port: Rc1/8
STL-MG1-32-225 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 32 mm | Stroke: 225 mm | Port: Rc1/8
STL-MG1-32-250 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 32 mm | Stroke: 250 mm | Port: Rc1/8
STL-MG1-32-275 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 32 mm | Stroke: 275 mm | Port: Rc1/8
STL-MG1-32-300 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 32 mm | Stroke: 300 mm | Port: Rc1/8
STL-MG1-32-325 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 32 mm | Stroke: 325 mm | Port: Rc1/8
STL-MG1-32-350 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 32 mm | Stroke: 350 mm | Port: Rc1/8
STL-MG1-32-375 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 32 mm | Stroke: 375 mm | Port: Rc1/8
STL-MG1-32-400 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 32 mm | Stroke: 400 mm | Port: Rc1/8
STL-MG1-40-50 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
STL-MG1-40-75 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/8
STL-MG1-40-100 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8
STL-MG1-40-125 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 40 mm | Stroke: 125 mm | Port: Rc1/8
STL-MG1-40-150 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/8
STL-MG1-40-175 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 40 mm | Stroke: 175 mm | Port: Rc1/8
STL-MG1-40-200 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/8
STL-MG1-40-225 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 40 mm | Stroke: 225 mm | Port: Rc1/8
STL-MG1-40-250 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/8
STL-MG1-40-275 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 40 mm | Stroke: 275 mm | Port: Rc1/8
STL-MG1-40-300 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/8
STL-MG1-40-325 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 40 mm | Stroke: 325 mm | Port: Rc1/8
STL-MG1-40-350 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 40 mm | Stroke: 350 mm | Port: Rc1/8
STL-MG1-40-375 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 40 mm | Stroke: 375 mm | Port: Rc1/8
STL-MG1-40-400 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 40 mm | Stroke: 400 mm | Port: Rc1/8
STL-MG1-50-50 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
STL-MG1-50-75 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 50 mm | Stroke: 75 mm | Port: Rc1/4
STL-MG1-50-100 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
STL-MG1-50-125 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 50 mm | Stroke: 125 mm | Port: Rc1/4
STL-MG1-50-150 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 50 mm | Stroke: 150 mm | Port: Rc1/4
STL-MG1-50-175 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 50 mm | Stroke: 175 mm | Port: Rc1/4
STL-MG1-50-200 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 50 mm | Stroke: 200 mm | Port: Rc1/4
STL-MG1-50-225 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 50 mm | Stroke: 225 mm | Port: Rc1/4
STL-MG1-50-250 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 50 mm | Stroke: 250 mm | Port: Rc1/4
STL-MG1-50-275 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 50 mm | Stroke: 275 mm | Port: Rc1/4
STL-MG1-50-300 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 50 mm | Stroke: 300 mm | Port: Rc1/4
STL-MG1-50-325 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 50 mm | Stroke: 325 mm | Port: Rc1/4
STL-MG1-50-350 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 50 mm | Stroke: 350 mm | Port: Rc1/4
STL-MG1-50-375 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 50 mm | Stroke: 375 mm | Port: Rc1/4
STL-MG1-50-400 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 50 mm | Stroke: 400 mm | Port: Rc1/4
STL-MG1-63-50 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
STL-MG1-63-75 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 63 mm | Stroke: 75 mm | Port: Rc1/4
STL-MG1-63-100 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4
STL-MG1-63-125 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 63 mm | Stroke: 125 mm | Port: Rc1/4
STL-MG1-63-150 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 63 mm | Stroke: 150 mm | Port: Rc1/4
STL-MG1-63-175 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 63 mm | Stroke: 175 mm | Port: Rc1/4
STL-MG1-63-200 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 63 mm | Stroke: 200 mm | Port: Rc1/4
STL-MG1-63-225 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 63 mm | Stroke: 225 mm | Port: Rc1/4
STL-MG1-63-250 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 63 mm | Stroke: 250 mm | Port: Rc1/4
STL-MG1-63-275 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 63 mm | Stroke: 275 mm | Port: Rc1/4
STL-MG1-63-300 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 63 mm | Stroke: 300 mm | Port: Rc1/4
STL-MG1-63-325 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 63 mm | Stroke: 325 mm | Port: Rc1/4
STL-MG1-63-350 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 63 mm | Stroke: 350 mm | Port: Rc1/4
STL-MG1-63-375 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 63 mm | Stroke: 375 mm | Port: Rc1/4
STL-MG1-63-400 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 63 mm | Stroke: 400 mm | Port: Rc1/4
STL-MG1-80-75 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
STL-MG1-80-100 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
STL-MG1-80-125 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 80 mm | Stroke: 125 mm | Port: Rc3/8
STL-MG1-80-150 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 80 mm | Stroke: 150 mm | Port: Rc3/8
STL-MG1-80-175 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 80 mm | Stroke: 175 mm | Port: Rc3/8
STL-MG1-80-200 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 80 mm | Stroke: 200 mm | Port: Rc3/8
STL-MG1-80-225 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 80 mm | Stroke: 225 mm | Port: Rc3/8
STL-MG1-80-250 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 80 mm | Stroke: 250 mm | Port: Rc3/8
STL-MG1-80-275 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 80 mm | Stroke: 275 mm | Port: Rc3/8
STL-MG1-80-300 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 80 mm | Stroke: 300 mm | Port: Rc3/8
STL-MG1-80-325 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 80 mm | Stroke: 325 mm | Port: Rc3/8
STL-MG1-80-350 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 80 mm | Stroke: 350 mm | Port: Rc3/8
STL-MG1-80-375 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 80 mm | Stroke: 375 mm | Port: Rc3/8
STL-MG1-80-400 Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 80 mm | Stroke: 400 mm | Port: Rc3/8
STL-BG-20-50 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 20 mm | Stroke: 50 mm | Port: M5
STL-BG-20-75 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 20 mm | Stroke: 75 mm | Port: M5
STL-BG-20-100 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 20 mm | Stroke: 100 mm | Port: M5
STL-BG-20-125 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 20 mm | Stroke: 125 mm | Port: M5
STL-BG-20-150 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 20 mm | Stroke: 150 mm | Port: M5
STL-BG-20-175 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 20 mm | Stroke: 175 mm | Port: M5
STL-BG-20-200 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 20 mm | Stroke: 200 mm | Port: M5
STL-BG-20-225 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 20 mm | Stroke: 225 mm | Port: M5
STL-BG-20-250 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 20 mm | Stroke: 250 mm | Port: M5
STL-BG-20-275 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 20 mm | Stroke: 275 mm | Port: M5
STL-BG-20-300 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 20 mm | Stroke: 300 mm | Port: M5
STL-BG-20-325 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 20 mm | Stroke: 325 mm | Port: M5
STL-BG-20-350 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 20 mm | Stroke: 350 mm | Port: M5
STL-BG-20-375 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 20 mm | Stroke: 375 mm | Port: M5
STL-BG-20-400 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 20 mm | Stroke: 400 mm | Port: M5
STL-BG-25-50 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 25 mm | Stroke: 50 mm | Port: M5
STL-BG-25-75 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 25 mm | Stroke: 75 mm | Port: M5
STL-BG-25-100 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 25 mm | Stroke: 100 mm | Port: M5
STL-BG-25-125 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 25 mm | Stroke: 125 mm | Port: M5
STL-BG-25-150 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 25 mm | Stroke: 150 mm | Port: M5
STL-BG-25-175 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 25 mm | Stroke: 175 mm | Port: M5
STL-BG-25-200 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 25 mm | Stroke: 200 mm | Port: M5
STL-BG-25-225 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 25 mm | Stroke: 225 mm | Port: M5
STL-BG-25-250 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 25 mm | Stroke: 250 mm | Port: M5
STL-BG-25-275 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 25 mm | Stroke: 275 mm | Port: M5
STL-BG-25-300 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 25 mm | Stroke: 300 mm | Port: M5
STL-BG-25-325 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 25 mm | Stroke: 325 mm | Port: M5
STL-BG-25-350 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 25 mm | Stroke: 350 mm | Port: M5
STL-BG-25-375 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 25 mm | Stroke: 375 mm | Port: M5
STL-BG-25-400 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 25 mm | Stroke: 400 mm | Port: M5
STL-BG-32-50 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
STL-BG-32-75 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8
STL-BG-32-100 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
STL-BG-32-125 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 32 mm | Stroke: 125 mm | Port: Rc1/8
STL-BG-32-150 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 32 mm | Stroke: 150 mm | Port: Rc1/8
STL-BG-32-175 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 32 mm | Stroke: 175 mm | Port: Rc1/8
STL-BG-32-200 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 32 mm | Stroke: 200 mm | Port: Rc1/8
STL-BG-32-225 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 32 mm | Stroke: 225 mm | Port: Rc1/8
STL-BG-32-250 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 32 mm | Stroke: 250 mm | Port: Rc1/8
STL-BG-32-275 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 32 mm | Stroke: 275 mm | Port: Rc1/8
STL-BG-32-300 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 32 mm | Stroke: 300 mm | Port: Rc1/8
STL-BG-32-325 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 32 mm | Stroke: 325 mm | Port: Rc1/8
STL-BG-32-350 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 32 mm | Stroke: 350 mm | Port: Rc1/8
STL-BG-32-375 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 32 mm | Stroke: 375 mm | Port: Rc1/8
STL-BG-32-400 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 32 mm | Stroke: 400 mm | Port: Rc1/8
STL-BG-40-50 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
STL-BG-40-75 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/8
STL-BG-40-100 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8
STL-BG-40-125 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 40 mm | Stroke: 125 mm | Port: Rc1/8
STL-BG-40-150 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/8
STL-BG-40-175 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 40 mm | Stroke: 175 mm | Port: Rc1/8
STL-BG-40-200 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/8
STL-BG-40-225 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 40 mm | Stroke: 225 mm | Port: Rc1/8
STL-BG-40-250 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/8
STL-BG-40-275 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 40 mm | Stroke: 275 mm | Port: Rc1/8
STL-BG-40-300 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/8
STL-BG-40-325 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 40 mm | Stroke: 325 mm | Port: Rc1/8
STL-BG-40-350 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 40 mm | Stroke: 350 mm | Port: Rc1/8
STL-BG-40-375 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 40 mm | Stroke: 375 mm | Port: Rc1/8
STL-BG-40-400 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 40 mm | Stroke: 400 mm | Port: Rc1/8
STL-BG-50-50 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
STL-BG-50-75 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 50 mm | Stroke: 75 mm | Port: Rc1/4
STL-BG-50-100 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
STL-BG-50-125 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 50 mm | Stroke: 125 mm | Port: Rc1/4
STL-BG-50-150 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 50 mm | Stroke: 150 mm | Port: Rc1/4
STL-BG-50-175 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 50 mm | Stroke: 175 mm | Port: Rc1/4
STL-BG-50-200 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 50 mm | Stroke: 200 mm | Port: Rc1/4
STL-BG-50-225 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 50 mm | Stroke: 225 mm | Port: Rc1/4
STL-BG-50-250 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 50 mm | Stroke: 250 mm | Port: Rc1/4
STL-BG-50-275 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 50 mm | Stroke: 275 mm | Port: Rc1/4
STL-BG-50-300 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 50 mm | Stroke: 300 mm | Port: Rc1/4
STL-BG-50-325 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 50 mm | Stroke: 325 mm | Port: Rc1/4
STL-BG-50-350 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 50 mm | Stroke: 350 mm | Port: Rc1/4
STL-BG-50-375 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 50 mm | Stroke: 375 mm | Port: Rc1/4
STL-BG-50-400 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 50 mm | Stroke: 400 mm | Port: Rc1/4
STL-BG-63-50 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
STL-BG-63-75 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 63 mm | Stroke: 75 mm | Port: Rc1/4
STL-BG-63-100 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4
STL-BG-63-125 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 63 mm | Stroke: 125 mm | Port: Rc1/4
STL-BG-63-150 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 63 mm | Stroke: 150 mm | Port: Rc1/4
STL-BG-63-175 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 63 mm | Stroke: 175 mm | Port: Rc1/4
STL-BG-63-200 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 63 mm | Stroke: 200 mm | Port: Rc1/4
STL-BG-63-225 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 63 mm | Stroke: 225 mm | Port: Rc1/4
STL-BG-63-250 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 63 mm | Stroke: 250 mm | Port: Rc1/4
STL-BG-63-275 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 63 mm | Stroke: 275 mm | Port: Rc1/4
STL-BG-63-300 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 63 mm | Stroke: 300 mm | Port: Rc1/4
STL-BG-63-325 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 63 mm | Stroke: 325 mm | Port: Rc1/4
STL-BG-63-350 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 63 mm | Stroke: 350 mm | Port: Rc1/4
STL-BG-63-375 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 63 mm | Stroke: 375 mm | Port: Rc1/4
STL-BG-63-400 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 63 mm | Stroke: 400 mm | Port: Rc1/4
STL-BG-80-75 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
STL-BG-80-100 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
STL-BG-80-125 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 80 mm | Stroke: 125 mm | Port: Rc3/8
STL-BG-80-150 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 80 mm | Stroke: 150 mm | Port: Rc3/8
STL-BG-80-175 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 80 mm | Stroke: 175 mm | Port: Rc3/8
STL-BG-80-200 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 80 mm | Stroke: 200 mm | Port: Rc3/8
STL-BG-80-225 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 80 mm | Stroke: 225 mm | Port: Rc3/8
STL-BG-80-250 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 80 mm | Stroke: 250 mm | Port: Rc3/8
STL-BG-80-275 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 80 mm | Stroke: 275 mm | Port: Rc3/8
STL-BG-80-300 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 80 mm | Stroke: 300 mm | Port: Rc3/8
STL-BG-80-325 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 80 mm | Stroke: 325 mm | Port: Rc3/8
STL-BG-80-350 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 80 mm | Stroke: 350 mm | Port: Rc3/8
STL-BG-80-375 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 80 mm | Stroke: 375 mm | Port: Rc3/8
STL-BG-80-400 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 80 mm | Stroke: 400 mm | Port: Rc3/8
STL-BG1-20-50 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 20 mm | Stroke: 50 mm | Port: M5
STL-BG1-20-75 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 20 mm | Stroke: 75 mm | Port: M5
STL-BG1-20-100 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 20 mm | Stroke: 100 mm | Port: M5
STL-BG1-20-125 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 20 mm | Stroke: 125 mm | Port: M5
STL-BG1-20-150 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 20 mm | Stroke: 150 mm | Port: M5
STL-BG1-20-175 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 20 mm | Stroke: 175 mm | Port: M5
STL-BG1-20-200 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 20 mm | Stroke: 200 mm | Port: M5
STL-BG1-20-225 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 20 mm | Stroke: 225 mm | Port: M5
STL-BG1-20-250 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 20 mm | Stroke: 250 mm | Port: M5
STL-BG1-20-275 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 20 mm | Stroke: 275 mm | Port: M5
STL-BG1-20-300 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 20 mm | Stroke: 300 mm | Port: M5
STL-BG1-20-325 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 20 mm | Stroke: 325 mm | Port: M5
STL-BG1-20-350 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 20 mm | Stroke: 350 mm | Port: M5
STL-BG1-20-375 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 20 mm | Stroke: 375 mm | Port: M5
STL-BG1-20-400 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 20 mm | Stroke: 400 mm | Port: M5
STL-BG1-25-50 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 25 mm | Stroke: 50 mm | Port: M5
STL-BG1-25-75 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 25 mm | Stroke: 75 mm | Port: M5
STL-BG1-25-100 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 25 mm | Stroke: 100 mm | Port: M5
STL-BG1-25-125 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 25 mm | Stroke: 125 mm | Port: M5
STL-BG1-25-150 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 25 mm | Stroke: 150 mm | Port: M5
STL-BG1-25-175 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 25 mm | Stroke: 175 mm | Port: M5
STL-BG1-25-200 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 25 mm | Stroke: 200 mm | Port: M5
STL-BG1-25-225 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 25 mm | Stroke: 225 mm | Port: M5
STL-BG1-25-250 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 25 mm | Stroke: 250 mm | Port: M5
STL-BG1-25-275 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 25 mm | Stroke: 275 mm | Port: M5
STL-BG1-25-300 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 25 mm | Stroke: 300 mm | Port: M5
STL-BG1-25-325 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 25 mm | Stroke: 325 mm | Port: M5
STL-BG1-25-350 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 25 mm | Stroke: 350 mm | Port: M5
STL-BG1-25-375 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 25 mm | Stroke: 375 mm | Port: M5
STL-BG1-25-400 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 25 mm | Stroke: 400 mm | Port: M5
STL-BG1-32-50 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
STL-BG1-32-75 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8
STL-BG1-32-100 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
STL-BG1-32-125 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 32 mm | Stroke: 125 mm | Port: Rc1/8
STL-BG1-32-150 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 32 mm | Stroke: 150 mm | Port: Rc1/8
STL-BG1-32-175 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 32 mm | Stroke: 175 mm | Port: Rc1/8
STL-BG1-32-200 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 32 mm | Stroke: 200 mm | Port: Rc1/8
STL-BG1-32-225 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 32 mm | Stroke: 225 mm | Port: Rc1/8
STL-BG1-32-250 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 32 mm | Stroke: 250 mm | Port: Rc1/8
STL-BG1-32-275 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 32 mm | Stroke: 275 mm | Port: Rc1/8
STL-BG1-32-300 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 32 mm | Stroke: 300 mm | Port: Rc1/8
STL-BG1-32-325 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 32 mm | Stroke: 325 mm | Port: Rc1/8
STL-BG1-32-350 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 32 mm | Stroke: 350 mm | Port: Rc1/8
STL-BG1-32-375 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 32 mm | Stroke: 375 mm | Port: Rc1/8
STL-BG1-32-400 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 32 mm | Stroke: 400 mm | Port: Rc1/8
STL-BG1-40-50 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
STL-BG1-40-75 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/8
STL-BG1-40-100 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8
STL-BG1-40-125 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 40 mm | Stroke: 125 mm | Port: Rc1/8
STL-BG1-40-150 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/8
STL-BG1-40-175 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 40 mm | Stroke: 175 mm | Port: Rc1/8
STL-BG1-40-200 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/8
STL-BG1-40-225 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 40 mm | Stroke: 225 mm | Port: Rc1/8
STL-BG1-40-250 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/8
STL-BG1-40-275 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 40 mm | Stroke: 275 mm | Port: Rc1/8
STL-BG1-40-300 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/8
STL-BG1-40-325 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 40 mm | Stroke: 325 mm | Port: Rc1/8
STL-BG1-40-350 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 40 mm | Stroke: 350 mm | Port: Rc1/8
STL-BG1-40-375 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 40 mm | Stroke: 375 mm | Port: Rc1/8
STL-BG1-40-400 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 40 mm | Stroke: 400 mm | Port: Rc1/8
STL-BG1-50-50 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
STL-BG1-50-75 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 50 mm | Stroke: 75 mm | Port: Rc1/4
STL-BG1-50-100 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
STL-BG1-50-125 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 50 mm | Stroke: 125 mm | Port: Rc1/4
STL-BG1-50-150 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 50 mm | Stroke: 150 mm | Port: Rc1/4
STL-BG1-50-175 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 50 mm | Stroke: 175 mm | Port: Rc1/4
STL-BG1-50-200 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 50 mm | Stroke: 200 mm | Port: Rc1/4
STL-BG1-50-225 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 50 mm | Stroke: 225 mm | Port: Rc1/4
STL-BG1-50-250 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 50 mm | Stroke: 250 mm | Port: Rc1/4
STL-BG1-50-275 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 50 mm | Stroke: 275 mm | Port: Rc1/4
STL-BG1-50-300 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 50 mm | Stroke: 300 mm | Port: Rc1/4
STL-BG1-50-325 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 50 mm | Stroke: 325 mm | Port: Rc1/4
STL-BG1-50-350 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 50 mm | Stroke: 350 mm | Port: Rc1/4
STL-BG1-50-375 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 50 mm | Stroke: 375 mm | Port: Rc1/4
STL-BG1-50-400 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 50 mm | Stroke: 400 mm | Port: Rc1/4
STL-BG1-63-50 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
STL-BG1-63-75 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 63 mm | Stroke: 75 mm | Port: Rc1/4
STL-BG1-63-100 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4
STL-BG1-63-125 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 63 mm | Stroke: 125 mm | Port: Rc1/4
STL-BG1-63-150 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 63 mm | Stroke: 150 mm | Port: Rc1/4
STL-BG1-63-175 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 63 mm | Stroke: 175 mm | Port: Rc1/4
STL-BG1-63-200 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 63 mm | Stroke: 200 mm | Port: Rc1/4
STL-BG1-63-225 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 63 mm | Stroke: 225 mm | Port: Rc1/4
STL-BG1-63-250 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 63 mm | Stroke: 250 mm | Port: Rc1/4
STL-BG1-63-275 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 63 mm | Stroke: 275 mm | Port: Rc1/4
STL-BG1-63-300 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 63 mm | Stroke: 300 mm | Port: Rc1/4
STL-BG1-63-325 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 63 mm | Stroke: 325 mm | Port: Rc1/4
STL-BG1-63-350 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 63 mm | Stroke: 350 mm | Port: Rc1/4
STL-BG1-63-375 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 63 mm | Stroke: 375 mm | Port: Rc1/4
STL-BG1-63-400 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 63 mm | Stroke: 400 mm | Port: Rc1/4
STL-BG1-80-75 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
STL-BG1-80-100 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
STL-BG1-80-125 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 80 mm | Stroke: 125 mm | Port: Rc3/8
STL-BG1-80-150 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 80 mm | Stroke: 150 mm | Port: Rc3/8
STL-BG1-80-175 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 80 mm | Stroke: 175 mm | Port: Rc3/8
STL-BG1-80-200 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 80 mm | Stroke: 200 mm | Port: Rc3/8
STL-BG1-80-225 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 80 mm | Stroke: 225 mm | Port: Rc3/8
STL-BG1-80-250 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 80 mm | Stroke: 250 mm | Port: Rc3/8
STL-BG1-80-275 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 80 mm | Stroke: 275 mm | Port: Rc3/8
STL-BG1-80-300 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 80 mm | Stroke: 300 mm | Port: Rc3/8
STL-BG1-80-325 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 80 mm | Stroke: 325 mm | Port: Rc3/8
STL-BG1-80-350 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 80 mm | Stroke: 350 mm | Port: Rc3/8
STL-BG1-80-375 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 80 mm | Stroke: 375 mm | Port: Rc3/8
STL-BG1-80-400 Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 80 mm | Stroke: 400 mm | Port: Rc3/8
Guided CylindersCKD
480 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD STS/STL-G/G1 Guided Cylinder (Strong / Coil Scraper)

Brand CKD·Guided Cylinders

Available part numbers (480)

STS-MG-20-25, STS-MG-20-50, STS-MG-25-25, STS-MG-25-50, STS-MG-32-25, STS-MG-32-50, STS-MG-40-25, STS-MG-40-50, STS-MG-50-25, STS-MG-50-50 + 470 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
STS-MG-20-25Series: STS (short stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 20 mm | Stroke: 25 mm | Port: M5
STS-MG-20-50Series: STS (short stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 20 mm | Stroke: 50 mm | Port: M5
STS-MG-25-25Series: STS (short stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 25 mm | Stroke: 25 mm | Port: M5
STS-MG-25-50Series: STS (short stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 25 mm | Stroke: 50 mm | Port: M5
STS-MG-32-25Series: STS (short stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
STS-MG-32-50Series: STS (short stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
STS-MG-40-25Series: STS (short stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
STS-MG-40-50Series: STS (short stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
STS-MG-50-25Series: STS (short stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
STS-MG-50-50Series: STS (short stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
STS-MG-63-25Series: STS (short stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 63 mm | Stroke: 25 mm | Port: Rc1/4
STS-MG-63-50Series: STS (short stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
STS-MG-80-25Series: STS (short stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 80 mm | Stroke: 25 mm | Port: Rc3/8
STS-MG-80-50Series: STS (short stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
STS-MG-80-75Series: STS (short stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
STS-MG-80-100Series: STS (short stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
STS-MG1-20-25Series: STS (short stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 20 mm | Stroke: 25 mm | Port: M5
STS-MG1-20-50Series: STS (short stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 20 mm | Stroke: 50 mm | Port: M5
STS-MG1-25-25Series: STS (short stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 25 mm | Stroke: 25 mm | Port: M5
STS-MG1-25-50Series: STS (short stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 25 mm | Stroke: 50 mm | Port: M5
STS-MG1-32-25Series: STS (short stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
STS-MG1-32-50Series: STS (short stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
STS-MG1-40-25Series: STS (short stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
STS-MG1-40-50Series: STS (short stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
STS-MG1-50-25Series: STS (short stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
STS-MG1-50-50Series: STS (short stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
STS-MG1-63-25Series: STS (short stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 63 mm | Stroke: 25 mm | Port: Rc1/4
STS-MG1-63-50Series: STS (short stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
STS-MG1-80-25Series: STS (short stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 80 mm | Stroke: 25 mm | Port: Rc3/8
STS-MG1-80-50Series: STS (short stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
STS-MG1-80-75Series: STS (short stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
STS-MG1-80-100Series: STS (short stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
STS-BG-20-25Series: STS (short stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 20 mm | Stroke: 25 mm | Port: M5
STS-BG-20-50Series: STS (short stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 20 mm | Stroke: 50 mm | Port: M5
STS-BG-25-25Series: STS (short stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 25 mm | Stroke: 25 mm | Port: M5
STS-BG-25-50Series: STS (short stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 25 mm | Stroke: 50 mm | Port: M5
STS-BG-32-25Series: STS (short stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
STS-BG-32-50Series: STS (short stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
STS-BG-40-25Series: STS (short stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
STS-BG-40-50Series: STS (short stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
STS-BG-50-25Series: STS (short stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
STS-BG-50-50Series: STS (short stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
STS-BG-63-25Series: STS (short stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 63 mm | Stroke: 25 mm | Port: Rc1/4
STS-BG-63-50Series: STS (short stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
STS-BG-80-25Series: STS (short stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 80 mm | Stroke: 25 mm | Port: Rc3/8
STS-BG-80-50Series: STS (short stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
STS-BG-80-75Series: STS (short stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
STS-BG-80-100Series: STS (short stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
STS-BG1-20-25Series: STS (short stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 20 mm | Stroke: 25 mm | Port: M5
STS-BG1-20-50Series: STS (short stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 20 mm | Stroke: 50 mm | Port: M5
STS-BG1-25-25Series: STS (short stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 25 mm | Stroke: 25 mm | Port: M5
STS-BG1-25-50Series: STS (short stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 25 mm | Stroke: 50 mm | Port: M5
STS-BG1-32-25Series: STS (short stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
STS-BG1-32-50Series: STS (short stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
STS-BG1-40-25Series: STS (short stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
STS-BG1-40-50Series: STS (short stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
STS-BG1-50-25Series: STS (short stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
STS-BG1-50-50Series: STS (short stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
STS-BG1-63-25Series: STS (short stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 63 mm | Stroke: 25 mm | Port: Rc1/4
STS-BG1-63-50Series: STS (short stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
STS-BG1-80-25Series: STS (short stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 80 mm | Stroke: 25 mm | Port: Rc3/8
STS-BG1-80-50Series: STS (short stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
STS-BG1-80-75Series: STS (short stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
STS-BG1-80-100Series: STS (short stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
STL-MG-20-50Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 20 mm | Stroke: 50 mm | Port: M5
STL-MG-20-75Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 20 mm | Stroke: 75 mm | Port: M5
STL-MG-20-100Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 20 mm | Stroke: 100 mm | Port: M5
STL-MG-20-125Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 20 mm | Stroke: 125 mm | Port: M5
STL-MG-20-150Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 20 mm | Stroke: 150 mm | Port: M5
STL-MG-20-175Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 20 mm | Stroke: 175 mm | Port: M5
STL-MG-20-200Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 20 mm | Stroke: 200 mm | Port: M5
STL-MG-20-225Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 20 mm | Stroke: 225 mm | Port: M5
STL-MG-20-250Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 20 mm | Stroke: 250 mm | Port: M5
STL-MG-20-275Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 20 mm | Stroke: 275 mm | Port: M5
STL-MG-20-300Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 20 mm | Stroke: 300 mm | Port: M5
STL-MG-20-325Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 20 mm | Stroke: 325 mm | Port: M5
STL-MG-20-350Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 20 mm | Stroke: 350 mm | Port: M5
STL-MG-20-375Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 20 mm | Stroke: 375 mm | Port: M5
STL-MG-20-400Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 20 mm | Stroke: 400 mm | Port: M5
STL-MG-25-50Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 25 mm | Stroke: 50 mm | Port: M5
STL-MG-25-75Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 25 mm | Stroke: 75 mm | Port: M5
STL-MG-25-100Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 25 mm | Stroke: 100 mm | Port: M5
STL-MG-25-125Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 25 mm | Stroke: 125 mm | Port: M5
STL-MG-25-150Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 25 mm | Stroke: 150 mm | Port: M5
STL-MG-25-175Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 25 mm | Stroke: 175 mm | Port: M5
STL-MG-25-200Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 25 mm | Stroke: 200 mm | Port: M5
STL-MG-25-225Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 25 mm | Stroke: 225 mm | Port: M5
STL-MG-25-250Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 25 mm | Stroke: 250 mm | Port: M5
STL-MG-25-275Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 25 mm | Stroke: 275 mm | Port: M5
STL-MG-25-300Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 25 mm | Stroke: 300 mm | Port: M5
STL-MG-25-325Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 25 mm | Stroke: 325 mm | Port: M5
STL-MG-25-350Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 25 mm | Stroke: 350 mm | Port: M5
STL-MG-25-375Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 25 mm | Stroke: 375 mm | Port: M5
STL-MG-25-400Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 25 mm | Stroke: 400 mm | Port: M5
STL-MG-32-50Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
STL-MG-32-75Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8
STL-MG-32-100Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
STL-MG-32-125Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 32 mm | Stroke: 125 mm | Port: Rc1/8
STL-MG-32-150Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 32 mm | Stroke: 150 mm | Port: Rc1/8
STL-MG-32-175Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 32 mm | Stroke: 175 mm | Port: Rc1/8
STL-MG-32-200Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 32 mm | Stroke: 200 mm | Port: Rc1/8
STL-MG-32-225Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 32 mm | Stroke: 225 mm | Port: Rc1/8
STL-MG-32-250Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 32 mm | Stroke: 250 mm | Port: Rc1/8
STL-MG-32-275Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 32 mm | Stroke: 275 mm | Port: Rc1/8
STL-MG-32-300Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 32 mm | Stroke: 300 mm | Port: Rc1/8
STL-MG-32-325Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 32 mm | Stroke: 325 mm | Port: Rc1/8
STL-MG-32-350Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 32 mm | Stroke: 350 mm | Port: Rc1/8
STL-MG-32-375Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 32 mm | Stroke: 375 mm | Port: Rc1/8
STL-MG-32-400Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 32 mm | Stroke: 400 mm | Port: Rc1/8
STL-MG-40-50Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
STL-MG-40-75Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/8
STL-MG-40-100Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8
STL-MG-40-125Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 40 mm | Stroke: 125 mm | Port: Rc1/8
STL-MG-40-150Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/8
STL-MG-40-175Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 40 mm | Stroke: 175 mm | Port: Rc1/8
STL-MG-40-200Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/8
STL-MG-40-225Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 40 mm | Stroke: 225 mm | Port: Rc1/8
STL-MG-40-250Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/8
STL-MG-40-275Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 40 mm | Stroke: 275 mm | Port: Rc1/8
STL-MG-40-300Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/8
STL-MG-40-325Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 40 mm | Stroke: 325 mm | Port: Rc1/8
STL-MG-40-350Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 40 mm | Stroke: 350 mm | Port: Rc1/8
STL-MG-40-375Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 40 mm | Stroke: 375 mm | Port: Rc1/8
STL-MG-40-400Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 40 mm | Stroke: 400 mm | Port: Rc1/8
STL-MG-50-50Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
STL-MG-50-75Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 50 mm | Stroke: 75 mm | Port: Rc1/4
STL-MG-50-100Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
STL-MG-50-125Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 50 mm | Stroke: 125 mm | Port: Rc1/4
STL-MG-50-150Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 50 mm | Stroke: 150 mm | Port: Rc1/4
STL-MG-50-175Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 50 mm | Stroke: 175 mm | Port: Rc1/4
STL-MG-50-200Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 50 mm | Stroke: 200 mm | Port: Rc1/4
STL-MG-50-225Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 50 mm | Stroke: 225 mm | Port: Rc1/4
STL-MG-50-250Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 50 mm | Stroke: 250 mm | Port: Rc1/4
STL-MG-50-275Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 50 mm | Stroke: 275 mm | Port: Rc1/4
STL-MG-50-300Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 50 mm | Stroke: 300 mm | Port: Rc1/4
STL-MG-50-325Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 50 mm | Stroke: 325 mm | Port: Rc1/4
STL-MG-50-350Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 50 mm | Stroke: 350 mm | Port: Rc1/4
STL-MG-50-375Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 50 mm | Stroke: 375 mm | Port: Rc1/4
STL-MG-50-400Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 50 mm | Stroke: 400 mm | Port: Rc1/4
STL-MG-63-50Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
STL-MG-63-75Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 63 mm | Stroke: 75 mm | Port: Rc1/4
STL-MG-63-100Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4
STL-MG-63-125Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 63 mm | Stroke: 125 mm | Port: Rc1/4
STL-MG-63-150Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 63 mm | Stroke: 150 mm | Port: Rc1/4
STL-MG-63-175Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 63 mm | Stroke: 175 mm | Port: Rc1/4
STL-MG-63-200Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 63 mm | Stroke: 200 mm | Port: Rc1/4
STL-MG-63-225Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 63 mm | Stroke: 225 mm | Port: Rc1/4
STL-MG-63-250Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 63 mm | Stroke: 250 mm | Port: Rc1/4
STL-MG-63-275Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 63 mm | Stroke: 275 mm | Port: Rc1/4
STL-MG-63-300Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 63 mm | Stroke: 300 mm | Port: Rc1/4
STL-MG-63-325Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 63 mm | Stroke: 325 mm | Port: Rc1/4
STL-MG-63-350Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 63 mm | Stroke: 350 mm | Port: Rc1/4
STL-MG-63-375Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 63 mm | Stroke: 375 mm | Port: Rc1/4
STL-MG-63-400Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 63 mm | Stroke: 400 mm | Port: Rc1/4
STL-MG-80-75Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
STL-MG-80-100Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
STL-MG-80-125Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 80 mm | Stroke: 125 mm | Port: Rc3/8
STL-MG-80-150Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 80 mm | Stroke: 150 mm | Port: Rc3/8
STL-MG-80-175Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 80 mm | Stroke: 175 mm | Port: Rc3/8
STL-MG-80-200Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 80 mm | Stroke: 200 mm | Port: Rc3/8
STL-MG-80-225Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 80 mm | Stroke: 225 mm | Port: Rc3/8
STL-MG-80-250Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 80 mm | Stroke: 250 mm | Port: Rc3/8
STL-MG-80-275Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 80 mm | Stroke: 275 mm | Port: Rc3/8
STL-MG-80-300Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 80 mm | Stroke: 300 mm | Port: Rc3/8
STL-MG-80-325Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 80 mm | Stroke: 325 mm | Port: Rc3/8
STL-MG-80-350Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 80 mm | Stroke: 350 mm | Port: Rc3/8
STL-MG-80-375Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 80 mm | Stroke: 375 mm | Port: Rc3/8
STL-MG-80-400Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Strong scraper (G) | Bore: 80 mm | Stroke: 400 mm | Port: Rc3/8
STL-MG1-20-50Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 20 mm | Stroke: 50 mm | Port: M5
STL-MG1-20-75Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 20 mm | Stroke: 75 mm | Port: M5
STL-MG1-20-100Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 20 mm | Stroke: 100 mm | Port: M5
STL-MG1-20-125Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 20 mm | Stroke: 125 mm | Port: M5
STL-MG1-20-150Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 20 mm | Stroke: 150 mm | Port: M5
STL-MG1-20-175Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 20 mm | Stroke: 175 mm | Port: M5
STL-MG1-20-200Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 20 mm | Stroke: 200 mm | Port: M5
STL-MG1-20-225Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 20 mm | Stroke: 225 mm | Port: M5
STL-MG1-20-250Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 20 mm | Stroke: 250 mm | Port: M5
STL-MG1-20-275Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 20 mm | Stroke: 275 mm | Port: M5
STL-MG1-20-300Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 20 mm | Stroke: 300 mm | Port: M5
STL-MG1-20-325Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 20 mm | Stroke: 325 mm | Port: M5
STL-MG1-20-350Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 20 mm | Stroke: 350 mm | Port: M5
STL-MG1-20-375Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 20 mm | Stroke: 375 mm | Port: M5
STL-MG1-20-400Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 20 mm | Stroke: 400 mm | Port: M5
STL-MG1-25-50Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 25 mm | Stroke: 50 mm | Port: M5
STL-MG1-25-75Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 25 mm | Stroke: 75 mm | Port: M5
STL-MG1-25-100Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 25 mm | Stroke: 100 mm | Port: M5
STL-MG1-25-125Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 25 mm | Stroke: 125 mm | Port: M5
STL-MG1-25-150Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 25 mm | Stroke: 150 mm | Port: M5
STL-MG1-25-175Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 25 mm | Stroke: 175 mm | Port: M5
STL-MG1-25-200Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 25 mm | Stroke: 200 mm | Port: M5
STL-MG1-25-225Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 25 mm | Stroke: 225 mm | Port: M5
STL-MG1-25-250Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 25 mm | Stroke: 250 mm | Port: M5
STL-MG1-25-275Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 25 mm | Stroke: 275 mm | Port: M5
STL-MG1-25-300Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 25 mm | Stroke: 300 mm | Port: M5
STL-MG1-25-325Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 25 mm | Stroke: 325 mm | Port: M5
STL-MG1-25-350Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 25 mm | Stroke: 350 mm | Port: M5
STL-MG1-25-375Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 25 mm | Stroke: 375 mm | Port: M5
STL-MG1-25-400Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 25 mm | Stroke: 400 mm | Port: M5
STL-MG1-32-50Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
STL-MG1-32-75Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8
STL-MG1-32-100Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
STL-MG1-32-125Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 32 mm | Stroke: 125 mm | Port: Rc1/8
STL-MG1-32-150Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 32 mm | Stroke: 150 mm | Port: Rc1/8
STL-MG1-32-175Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 32 mm | Stroke: 175 mm | Port: Rc1/8
STL-MG1-32-200Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 32 mm | Stroke: 200 mm | Port: Rc1/8
STL-MG1-32-225Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 32 mm | Stroke: 225 mm | Port: Rc1/8
STL-MG1-32-250Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 32 mm | Stroke: 250 mm | Port: Rc1/8
STL-MG1-32-275Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 32 mm | Stroke: 275 mm | Port: Rc1/8
STL-MG1-32-300Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 32 mm | Stroke: 300 mm | Port: Rc1/8
STL-MG1-32-325Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 32 mm | Stroke: 325 mm | Port: Rc1/8
STL-MG1-32-350Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 32 mm | Stroke: 350 mm | Port: Rc1/8
STL-MG1-32-375Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 32 mm | Stroke: 375 mm | Port: Rc1/8
STL-MG1-32-400Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 32 mm | Stroke: 400 mm | Port: Rc1/8
STL-MG1-40-50Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
STL-MG1-40-75Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/8
STL-MG1-40-100Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8
STL-MG1-40-125Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 40 mm | Stroke: 125 mm | Port: Rc1/8
STL-MG1-40-150Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/8
STL-MG1-40-175Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 40 mm | Stroke: 175 mm | Port: Rc1/8
STL-MG1-40-200Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/8
STL-MG1-40-225Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 40 mm | Stroke: 225 mm | Port: Rc1/8
STL-MG1-40-250Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/8
STL-MG1-40-275Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 40 mm | Stroke: 275 mm | Port: Rc1/8
STL-MG1-40-300Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/8
STL-MG1-40-325Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 40 mm | Stroke: 325 mm | Port: Rc1/8
STL-MG1-40-350Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 40 mm | Stroke: 350 mm | Port: Rc1/8
STL-MG1-40-375Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 40 mm | Stroke: 375 mm | Port: Rc1/8
STL-MG1-40-400Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 40 mm | Stroke: 400 mm | Port: Rc1/8
STL-MG1-50-50Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
STL-MG1-50-75Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 50 mm | Stroke: 75 mm | Port: Rc1/4
STL-MG1-50-100Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
STL-MG1-50-125Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 50 mm | Stroke: 125 mm | Port: Rc1/4
STL-MG1-50-150Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 50 mm | Stroke: 150 mm | Port: Rc1/4
STL-MG1-50-175Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 50 mm | Stroke: 175 mm | Port: Rc1/4
STL-MG1-50-200Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 50 mm | Stroke: 200 mm | Port: Rc1/4
STL-MG1-50-225Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 50 mm | Stroke: 225 mm | Port: Rc1/4
STL-MG1-50-250Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 50 mm | Stroke: 250 mm | Port: Rc1/4
STL-MG1-50-275Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 50 mm | Stroke: 275 mm | Port: Rc1/4
STL-MG1-50-300Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 50 mm | Stroke: 300 mm | Port: Rc1/4
STL-MG1-50-325Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 50 mm | Stroke: 325 mm | Port: Rc1/4
STL-MG1-50-350Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 50 mm | Stroke: 350 mm | Port: Rc1/4
STL-MG1-50-375Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 50 mm | Stroke: 375 mm | Port: Rc1/4
STL-MG1-50-400Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 50 mm | Stroke: 400 mm | Port: Rc1/4
STL-MG1-63-50Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
STL-MG1-63-75Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 63 mm | Stroke: 75 mm | Port: Rc1/4
STL-MG1-63-100Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4
STL-MG1-63-125Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 63 mm | Stroke: 125 mm | Port: Rc1/4
STL-MG1-63-150Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 63 mm | Stroke: 150 mm | Port: Rc1/4
STL-MG1-63-175Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 63 mm | Stroke: 175 mm | Port: Rc1/4
STL-MG1-63-200Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 63 mm | Stroke: 200 mm | Port: Rc1/4
STL-MG1-63-225Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 63 mm | Stroke: 225 mm | Port: Rc1/4
STL-MG1-63-250Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 63 mm | Stroke: 250 mm | Port: Rc1/4
STL-MG1-63-275Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 63 mm | Stroke: 275 mm | Port: Rc1/4
STL-MG1-63-300Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 63 mm | Stroke: 300 mm | Port: Rc1/4
STL-MG1-63-325Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 63 mm | Stroke: 325 mm | Port: Rc1/4
STL-MG1-63-350Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 63 mm | Stroke: 350 mm | Port: Rc1/4
STL-MG1-63-375Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 63 mm | Stroke: 375 mm | Port: Rc1/4
STL-MG1-63-400Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 63 mm | Stroke: 400 mm | Port: Rc1/4
STL-MG1-80-75Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
STL-MG1-80-100Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
STL-MG1-80-125Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 80 mm | Stroke: 125 mm | Port: Rc3/8
STL-MG1-80-150Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 80 mm | Stroke: 150 mm | Port: Rc3/8
STL-MG1-80-175Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 80 mm | Stroke: 175 mm | Port: Rc3/8
STL-MG1-80-200Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 80 mm | Stroke: 200 mm | Port: Rc3/8
STL-MG1-80-225Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 80 mm | Stroke: 225 mm | Port: Rc3/8
STL-MG1-80-250Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 80 mm | Stroke: 250 mm | Port: Rc3/8
STL-MG1-80-275Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 80 mm | Stroke: 275 mm | Port: Rc3/8
STL-MG1-80-300Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 80 mm | Stroke: 300 mm | Port: Rc3/8
STL-MG1-80-325Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 80 mm | Stroke: 325 mm | Port: Rc3/8
STL-MG1-80-350Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 80 mm | Stroke: 350 mm | Port: Rc3/8
STL-MG1-80-375Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 80 mm | Stroke: 375 mm | Port: Rc3/8
STL-MG1-80-400Series: STL (long stroke) | Bearing: Slide bearing | Scraper: Coil scraper (G1) | Bore: 80 mm | Stroke: 400 mm | Port: Rc3/8
STL-BG-20-50Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 20 mm | Stroke: 50 mm | Port: M5
STL-BG-20-75Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 20 mm | Stroke: 75 mm | Port: M5
STL-BG-20-100Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 20 mm | Stroke: 100 mm | Port: M5
STL-BG-20-125Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 20 mm | Stroke: 125 mm | Port: M5
STL-BG-20-150Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 20 mm | Stroke: 150 mm | Port: M5
STL-BG-20-175Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 20 mm | Stroke: 175 mm | Port: M5
STL-BG-20-200Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 20 mm | Stroke: 200 mm | Port: M5
STL-BG-20-225Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 20 mm | Stroke: 225 mm | Port: M5
STL-BG-20-250Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 20 mm | Stroke: 250 mm | Port: M5
STL-BG-20-275Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 20 mm | Stroke: 275 mm | Port: M5
STL-BG-20-300Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 20 mm | Stroke: 300 mm | Port: M5
STL-BG-20-325Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 20 mm | Stroke: 325 mm | Port: M5
STL-BG-20-350Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 20 mm | Stroke: 350 mm | Port: M5
STL-BG-20-375Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 20 mm | Stroke: 375 mm | Port: M5
STL-BG-20-400Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 20 mm | Stroke: 400 mm | Port: M5
STL-BG-25-50Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 25 mm | Stroke: 50 mm | Port: M5
STL-BG-25-75Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 25 mm | Stroke: 75 mm | Port: M5
STL-BG-25-100Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 25 mm | Stroke: 100 mm | Port: M5
STL-BG-25-125Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 25 mm | Stroke: 125 mm | Port: M5
STL-BG-25-150Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 25 mm | Stroke: 150 mm | Port: M5
STL-BG-25-175Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 25 mm | Stroke: 175 mm | Port: M5
STL-BG-25-200Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 25 mm | Stroke: 200 mm | Port: M5
STL-BG-25-225Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 25 mm | Stroke: 225 mm | Port: M5
STL-BG-25-250Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 25 mm | Stroke: 250 mm | Port: M5
STL-BG-25-275Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 25 mm | Stroke: 275 mm | Port: M5
STL-BG-25-300Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 25 mm | Stroke: 300 mm | Port: M5
STL-BG-25-325Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 25 mm | Stroke: 325 mm | Port: M5
STL-BG-25-350Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 25 mm | Stroke: 350 mm | Port: M5
STL-BG-25-375Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 25 mm | Stroke: 375 mm | Port: M5
STL-BG-25-400Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 25 mm | Stroke: 400 mm | Port: M5
STL-BG-32-50Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
STL-BG-32-75Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8
STL-BG-32-100Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
STL-BG-32-125Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 32 mm | Stroke: 125 mm | Port: Rc1/8
STL-BG-32-150Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 32 mm | Stroke: 150 mm | Port: Rc1/8
STL-BG-32-175Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 32 mm | Stroke: 175 mm | Port: Rc1/8
STL-BG-32-200Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 32 mm | Stroke: 200 mm | Port: Rc1/8
STL-BG-32-225Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 32 mm | Stroke: 225 mm | Port: Rc1/8
STL-BG-32-250Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 32 mm | Stroke: 250 mm | Port: Rc1/8
STL-BG-32-275Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 32 mm | Stroke: 275 mm | Port: Rc1/8
STL-BG-32-300Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 32 mm | Stroke: 300 mm | Port: Rc1/8
STL-BG-32-325Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 32 mm | Stroke: 325 mm | Port: Rc1/8
STL-BG-32-350Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 32 mm | Stroke: 350 mm | Port: Rc1/8
STL-BG-32-375Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 32 mm | Stroke: 375 mm | Port: Rc1/8
STL-BG-32-400Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 32 mm | Stroke: 400 mm | Port: Rc1/8
STL-BG-40-50Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
STL-BG-40-75Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/8
STL-BG-40-100Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8
STL-BG-40-125Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 40 mm | Stroke: 125 mm | Port: Rc1/8
STL-BG-40-150Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/8
STL-BG-40-175Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 40 mm | Stroke: 175 mm | Port: Rc1/8
STL-BG-40-200Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/8
STL-BG-40-225Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 40 mm | Stroke: 225 mm | Port: Rc1/8
STL-BG-40-250Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/8
STL-BG-40-275Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 40 mm | Stroke: 275 mm | Port: Rc1/8
STL-BG-40-300Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/8
STL-BG-40-325Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 40 mm | Stroke: 325 mm | Port: Rc1/8
STL-BG-40-350Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 40 mm | Stroke: 350 mm | Port: Rc1/8
STL-BG-40-375Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 40 mm | Stroke: 375 mm | Port: Rc1/8
STL-BG-40-400Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 40 mm | Stroke: 400 mm | Port: Rc1/8
STL-BG-50-50Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
STL-BG-50-75Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 50 mm | Stroke: 75 mm | Port: Rc1/4
STL-BG-50-100Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
STL-BG-50-125Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 50 mm | Stroke: 125 mm | Port: Rc1/4
STL-BG-50-150Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 50 mm | Stroke: 150 mm | Port: Rc1/4
STL-BG-50-175Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 50 mm | Stroke: 175 mm | Port: Rc1/4
STL-BG-50-200Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 50 mm | Stroke: 200 mm | Port: Rc1/4
STL-BG-50-225Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 50 mm | Stroke: 225 mm | Port: Rc1/4
STL-BG-50-250Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 50 mm | Stroke: 250 mm | Port: Rc1/4
STL-BG-50-275Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 50 mm | Stroke: 275 mm | Port: Rc1/4
STL-BG-50-300Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 50 mm | Stroke: 300 mm | Port: Rc1/4
STL-BG-50-325Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 50 mm | Stroke: 325 mm | Port: Rc1/4
STL-BG-50-350Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 50 mm | Stroke: 350 mm | Port: Rc1/4
STL-BG-50-375Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 50 mm | Stroke: 375 mm | Port: Rc1/4
STL-BG-50-400Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 50 mm | Stroke: 400 mm | Port: Rc1/4
STL-BG-63-50Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
STL-BG-63-75Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 63 mm | Stroke: 75 mm | Port: Rc1/4
STL-BG-63-100Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4
STL-BG-63-125Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 63 mm | Stroke: 125 mm | Port: Rc1/4
STL-BG-63-150Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 63 mm | Stroke: 150 mm | Port: Rc1/4
STL-BG-63-175Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 63 mm | Stroke: 175 mm | Port: Rc1/4
STL-BG-63-200Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 63 mm | Stroke: 200 mm | Port: Rc1/4
STL-BG-63-225Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 63 mm | Stroke: 225 mm | Port: Rc1/4
STL-BG-63-250Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 63 mm | Stroke: 250 mm | Port: Rc1/4
STL-BG-63-275Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 63 mm | Stroke: 275 mm | Port: Rc1/4
STL-BG-63-300Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 63 mm | Stroke: 300 mm | Port: Rc1/4
STL-BG-63-325Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 63 mm | Stroke: 325 mm | Port: Rc1/4
STL-BG-63-350Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 63 mm | Stroke: 350 mm | Port: Rc1/4
STL-BG-63-375Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 63 mm | Stroke: 375 mm | Port: Rc1/4
STL-BG-63-400Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 63 mm | Stroke: 400 mm | Port: Rc1/4
STL-BG-80-75Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
STL-BG-80-100Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
STL-BG-80-125Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 80 mm | Stroke: 125 mm | Port: Rc3/8
STL-BG-80-150Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 80 mm | Stroke: 150 mm | Port: Rc3/8
STL-BG-80-175Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 80 mm | Stroke: 175 mm | Port: Rc3/8
STL-BG-80-200Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 80 mm | Stroke: 200 mm | Port: Rc3/8
STL-BG-80-225Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 80 mm | Stroke: 225 mm | Port: Rc3/8
STL-BG-80-250Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 80 mm | Stroke: 250 mm | Port: Rc3/8
STL-BG-80-275Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 80 mm | Stroke: 275 mm | Port: Rc3/8
STL-BG-80-300Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 80 mm | Stroke: 300 mm | Port: Rc3/8
STL-BG-80-325Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 80 mm | Stroke: 325 mm | Port: Rc3/8
STL-BG-80-350Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 80 mm | Stroke: 350 mm | Port: Rc3/8
STL-BG-80-375Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 80 mm | Stroke: 375 mm | Port: Rc3/8
STL-BG-80-400Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Strong scraper (G) | Bore: 80 mm | Stroke: 400 mm | Port: Rc3/8
STL-BG1-20-50Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 20 mm | Stroke: 50 mm | Port: M5
STL-BG1-20-75Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 20 mm | Stroke: 75 mm | Port: M5
STL-BG1-20-100Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 20 mm | Stroke: 100 mm | Port: M5
STL-BG1-20-125Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 20 mm | Stroke: 125 mm | Port: M5
STL-BG1-20-150Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 20 mm | Stroke: 150 mm | Port: M5
STL-BG1-20-175Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 20 mm | Stroke: 175 mm | Port: M5
STL-BG1-20-200Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 20 mm | Stroke: 200 mm | Port: M5
STL-BG1-20-225Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 20 mm | Stroke: 225 mm | Port: M5
STL-BG1-20-250Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 20 mm | Stroke: 250 mm | Port: M5
STL-BG1-20-275Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 20 mm | Stroke: 275 mm | Port: M5
STL-BG1-20-300Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 20 mm | Stroke: 300 mm | Port: M5
STL-BG1-20-325Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 20 mm | Stroke: 325 mm | Port: M5
STL-BG1-20-350Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 20 mm | Stroke: 350 mm | Port: M5
STL-BG1-20-375Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 20 mm | Stroke: 375 mm | Port: M5
STL-BG1-20-400Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 20 mm | Stroke: 400 mm | Port: M5
STL-BG1-25-50Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 25 mm | Stroke: 50 mm | Port: M5
STL-BG1-25-75Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 25 mm | Stroke: 75 mm | Port: M5
STL-BG1-25-100Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 25 mm | Stroke: 100 mm | Port: M5
STL-BG1-25-125Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 25 mm | Stroke: 125 mm | Port: M5
STL-BG1-25-150Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 25 mm | Stroke: 150 mm | Port: M5
STL-BG1-25-175Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 25 mm | Stroke: 175 mm | Port: M5
STL-BG1-25-200Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 25 mm | Stroke: 200 mm | Port: M5
STL-BG1-25-225Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 25 mm | Stroke: 225 mm | Port: M5
STL-BG1-25-250Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 25 mm | Stroke: 250 mm | Port: M5
STL-BG1-25-275Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 25 mm | Stroke: 275 mm | Port: M5
STL-BG1-25-300Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 25 mm | Stroke: 300 mm | Port: M5
STL-BG1-25-325Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 25 mm | Stroke: 325 mm | Port: M5
STL-BG1-25-350Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 25 mm | Stroke: 350 mm | Port: M5
STL-BG1-25-375Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 25 mm | Stroke: 375 mm | Port: M5
STL-BG1-25-400Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 25 mm | Stroke: 400 mm | Port: M5
STL-BG1-32-50Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
STL-BG1-32-75Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8
STL-BG1-32-100Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
STL-BG1-32-125Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 32 mm | Stroke: 125 mm | Port: Rc1/8
STL-BG1-32-150Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 32 mm | Stroke: 150 mm | Port: Rc1/8
STL-BG1-32-175Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 32 mm | Stroke: 175 mm | Port: Rc1/8
STL-BG1-32-200Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 32 mm | Stroke: 200 mm | Port: Rc1/8
STL-BG1-32-225Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 32 mm | Stroke: 225 mm | Port: Rc1/8
STL-BG1-32-250Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 32 mm | Stroke: 250 mm | Port: Rc1/8
STL-BG1-32-275Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 32 mm | Stroke: 275 mm | Port: Rc1/8
STL-BG1-32-300Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 32 mm | Stroke: 300 mm | Port: Rc1/8
STL-BG1-32-325Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 32 mm | Stroke: 325 mm | Port: Rc1/8
STL-BG1-32-350Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 32 mm | Stroke: 350 mm | Port: Rc1/8
STL-BG1-32-375Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 32 mm | Stroke: 375 mm | Port: Rc1/8
STL-BG1-32-400Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 32 mm | Stroke: 400 mm | Port: Rc1/8
STL-BG1-40-50Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
STL-BG1-40-75Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/8
STL-BG1-40-100Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8
STL-BG1-40-125Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 40 mm | Stroke: 125 mm | Port: Rc1/8
STL-BG1-40-150Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/8
STL-BG1-40-175Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 40 mm | Stroke: 175 mm | Port: Rc1/8
STL-BG1-40-200Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/8
STL-BG1-40-225Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 40 mm | Stroke: 225 mm | Port: Rc1/8
STL-BG1-40-250Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/8
STL-BG1-40-275Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 40 mm | Stroke: 275 mm | Port: Rc1/8
STL-BG1-40-300Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/8
STL-BG1-40-325Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 40 mm | Stroke: 325 mm | Port: Rc1/8
STL-BG1-40-350Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 40 mm | Stroke: 350 mm | Port: Rc1/8
STL-BG1-40-375Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 40 mm | Stroke: 375 mm | Port: Rc1/8
STL-BG1-40-400Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 40 mm | Stroke: 400 mm | Port: Rc1/8
STL-BG1-50-50Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
STL-BG1-50-75Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 50 mm | Stroke: 75 mm | Port: Rc1/4
STL-BG1-50-100Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
STL-BG1-50-125Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 50 mm | Stroke: 125 mm | Port: Rc1/4
STL-BG1-50-150Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 50 mm | Stroke: 150 mm | Port: Rc1/4
STL-BG1-50-175Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 50 mm | Stroke: 175 mm | Port: Rc1/4
STL-BG1-50-200Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 50 mm | Stroke: 200 mm | Port: Rc1/4
STL-BG1-50-225Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 50 mm | Stroke: 225 mm | Port: Rc1/4
STL-BG1-50-250Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 50 mm | Stroke: 250 mm | Port: Rc1/4
STL-BG1-50-275Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 50 mm | Stroke: 275 mm | Port: Rc1/4
STL-BG1-50-300Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 50 mm | Stroke: 300 mm | Port: Rc1/4
STL-BG1-50-325Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 50 mm | Stroke: 325 mm | Port: Rc1/4
STL-BG1-50-350Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 50 mm | Stroke: 350 mm | Port: Rc1/4
STL-BG1-50-375Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 50 mm | Stroke: 375 mm | Port: Rc1/4
STL-BG1-50-400Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 50 mm | Stroke: 400 mm | Port: Rc1/4
STL-BG1-63-50Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
STL-BG1-63-75Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 63 mm | Stroke: 75 mm | Port: Rc1/4
STL-BG1-63-100Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4
STL-BG1-63-125Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 63 mm | Stroke: 125 mm | Port: Rc1/4
STL-BG1-63-150Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 63 mm | Stroke: 150 mm | Port: Rc1/4
STL-BG1-63-175Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 63 mm | Stroke: 175 mm | Port: Rc1/4
STL-BG1-63-200Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 63 mm | Stroke: 200 mm | Port: Rc1/4
STL-BG1-63-225Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 63 mm | Stroke: 225 mm | Port: Rc1/4
STL-BG1-63-250Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 63 mm | Stroke: 250 mm | Port: Rc1/4
STL-BG1-63-275Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 63 mm | Stroke: 275 mm | Port: Rc1/4
STL-BG1-63-300Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 63 mm | Stroke: 300 mm | Port: Rc1/4
STL-BG1-63-325Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 63 mm | Stroke: 325 mm | Port: Rc1/4
STL-BG1-63-350Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 63 mm | Stroke: 350 mm | Port: Rc1/4
STL-BG1-63-375Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 63 mm | Stroke: 375 mm | Port: Rc1/4
STL-BG1-63-400Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 63 mm | Stroke: 400 mm | Port: Rc1/4
STL-BG1-80-75Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
STL-BG1-80-100Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
STL-BG1-80-125Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 80 mm | Stroke: 125 mm | Port: Rc3/8
STL-BG1-80-150Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 80 mm | Stroke: 150 mm | Port: Rc3/8
STL-BG1-80-175Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 80 mm | Stroke: 175 mm | Port: Rc3/8
STL-BG1-80-200Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 80 mm | Stroke: 200 mm | Port: Rc3/8
STL-BG1-80-225Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 80 mm | Stroke: 225 mm | Port: Rc3/8
STL-BG1-80-250Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 80 mm | Stroke: 250 mm | Port: Rc3/8
STL-BG1-80-275Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 80 mm | Stroke: 275 mm | Port: Rc3/8
STL-BG1-80-300Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 80 mm | Stroke: 300 mm | Port: Rc3/8
STL-BG1-80-325Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 80 mm | Stroke: 325 mm | Port: Rc3/8
STL-BG1-80-350Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 80 mm | Stroke: 350 mm | Port: Rc3/8
STL-BG1-80-375Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 80 mm | Stroke: 375 mm | Port: Rc3/8
STL-BG1-80-400Series: STL (long stroke) | Bearing: Ball bushing | Scraper: Coil scraper (G1) | Bore: 80 mm | Stroke: 400 mm | Port: Rc3/8

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
