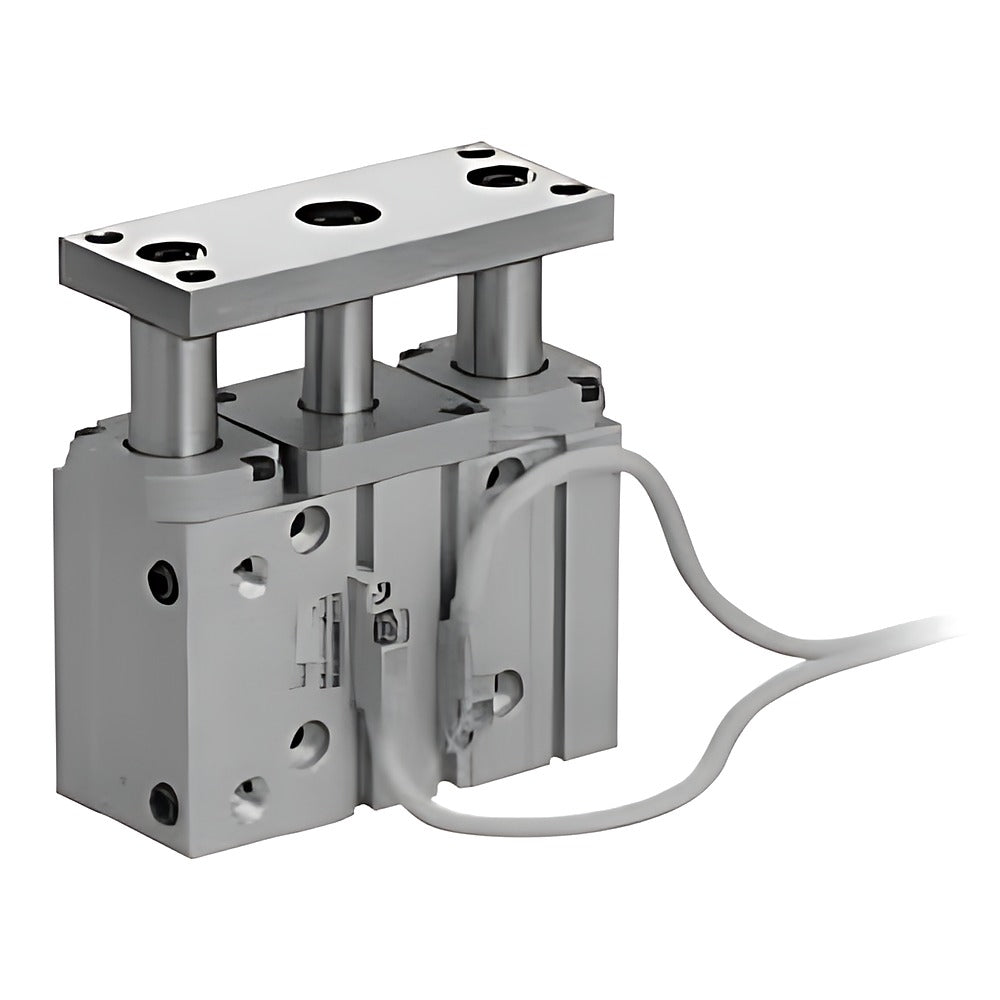

CKD STS/STL-G2/G3 Guided Cylinder (Coolant Resistant)

CKD STS/STL-G2/G3 Guided Cylinder (Coolant Resistant)

CKD STS/STL-G2/G3 cutting-fluid-resistant guided cylinder with coolant-resistant rod-side scraper and NBR (G2) or FKM (G3) packings for machine-tool environments.

Key features

  • G2: coolant-resistant scraper + NBR packing; G3: coolant-resistant scraper + FKM packing
  • Rod side has a scraper; head side has none, so protect it with a cover
  • Bores 20 to 80 mm; STS strokes 25-100 mm, STL strokes 50-400 mm
  • Switch-ready; T2YLH/T2YLV (2-wire) and T3YLH/T3YLV (3-wire) 2-colour coolant-resistant switches added as suffixes with quantity R/H/D
  • Option M1 (SUS parts) and NN / GN threads made to order

Specifications

Action Double acting
Fluid Compressed air
Max. operating pressure 1.0 MPa
Proof pressure 1.6 MPa
Ambient temperature -10 to 60°C (no freezing)
Stroke tolerance +2.0 / 0 mm
Lubrication Not required (ISO VG32 turbine oil if used)
Min. operating pressure 0.2 MPa (bore 20-25), 0.15 MPa (bore 32+)
Piston speed 50 to 500 mm/s (bore 20-50), 50 to 300 mm/s (bore 63-80)
Cushion Rubber cushion (urethane)
Source CKD Korea catalog CB-030SK-9, p. 614-623
STS-MG2-20-25 Series: STS (short stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 20 mm | Stroke: 25 mm | Port: M5
STS-MG2-20-50 Series: STS (short stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 20 mm | Stroke: 50 mm | Port: M5
STS-MG2-25-25 Series: STS (short stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 25 mm | Stroke: 25 mm | Port: M5
STS-MG2-25-50 Series: STS (short stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 25 mm | Stroke: 50 mm | Port: M5
STS-MG2-32-25 Series: STS (short stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
STS-MG2-32-50 Series: STS (short stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
STS-MG2-40-25 Series: STS (short stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
STS-MG2-40-50 Series: STS (short stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
STS-MG2-50-25 Series: STS (short stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
STS-MG2-50-50 Series: STS (short stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
STS-MG2-63-25 Series: STS (short stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 63 mm | Stroke: 25 mm | Port: Rc1/4
STS-MG2-63-50 Series: STS (short stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
STS-MG2-80-25 Series: STS (short stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 80 mm | Stroke: 25 mm | Port: Rc3/8
STS-MG2-80-50 Series: STS (short stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
STS-MG2-80-75 Series: STS (short stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
STS-MG2-80-100 Series: STS (short stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
STS-MG3-20-25 Series: STS (short stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 20 mm | Stroke: 25 mm | Port: M5
STS-MG3-20-50 Series: STS (short stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 20 mm | Stroke: 50 mm | Port: M5
STS-MG3-25-25 Series: STS (short stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 25 mm | Stroke: 25 mm | Port: M5
STS-MG3-25-50 Series: STS (short stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 25 mm | Stroke: 50 mm | Port: M5
STS-MG3-32-25 Series: STS (short stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
STS-MG3-32-50 Series: STS (short stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
STS-MG3-40-25 Series: STS (short stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
STS-MG3-40-50 Series: STS (short stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
STS-MG3-50-25 Series: STS (short stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
STS-MG3-50-50 Series: STS (short stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
STS-MG3-63-25 Series: STS (short stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 63 mm | Stroke: 25 mm | Port: Rc1/4
STS-MG3-63-50 Series: STS (short stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
STS-MG3-80-25 Series: STS (short stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 80 mm | Stroke: 25 mm | Port: Rc3/8
STS-MG3-80-50 Series: STS (short stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
STS-MG3-80-75 Series: STS (short stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
STS-MG3-80-100 Series: STS (short stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
STS-BG2-20-25 Series: STS (short stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 20 mm | Stroke: 25 mm | Port: M5
STS-BG2-20-50 Series: STS (short stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 20 mm | Stroke: 50 mm | Port: M5
STS-BG2-25-25 Series: STS (short stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 25 mm | Stroke: 25 mm | Port: M5
STS-BG2-25-50 Series: STS (short stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 25 mm | Stroke: 50 mm | Port: M5
STS-BG2-32-25 Series: STS (short stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
STS-BG2-32-50 Series: STS (short stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
STS-BG2-40-25 Series: STS (short stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
STS-BG2-40-50 Series: STS (short stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
STS-BG2-50-25 Series: STS (short stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
STS-BG2-50-50 Series: STS (short stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
STS-BG2-63-25 Series: STS (short stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 63 mm | Stroke: 25 mm | Port: Rc1/4
STS-BG2-63-50 Series: STS (short stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
STS-BG2-80-25 Series: STS (short stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 80 mm | Stroke: 25 mm | Port: Rc3/8
STS-BG2-80-50 Series: STS (short stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
STS-BG2-80-75 Series: STS (short stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
STS-BG2-80-100 Series: STS (short stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
STS-BG3-20-25 Series: STS (short stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 20 mm | Stroke: 25 mm | Port: M5
STS-BG3-20-50 Series: STS (short stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 20 mm | Stroke: 50 mm | Port: M5
STS-BG3-25-25 Series: STS (short stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 25 mm | Stroke: 25 mm | Port: M5
STS-BG3-25-50 Series: STS (short stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 25 mm | Stroke: 50 mm | Port: M5
STS-BG3-32-25 Series: STS (short stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
STS-BG3-32-50 Series: STS (short stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
STS-BG3-40-25 Series: STS (short stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
STS-BG3-40-50 Series: STS (short stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
STS-BG3-50-25 Series: STS (short stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
STS-BG3-50-50 Series: STS (short stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
STS-BG3-63-25 Series: STS (short stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 63 mm | Stroke: 25 mm | Port: Rc1/4
STS-BG3-63-50 Series: STS (short stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
STS-BG3-80-25 Series: STS (short stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 80 mm | Stroke: 25 mm | Port: Rc3/8
STS-BG3-80-50 Series: STS (short stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
STS-BG3-80-75 Series: STS (short stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
STS-BG3-80-100 Series: STS (short stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
STL-MG2-20-50 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 20 mm | Stroke: 50 mm | Port: M5
STL-MG2-20-75 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 20 mm | Stroke: 75 mm | Port: M5
STL-MG2-20-100 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 20 mm | Stroke: 100 mm | Port: M5
STL-MG2-20-125 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 20 mm | Stroke: 125 mm | Port: M5
STL-MG2-20-150 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 20 mm | Stroke: 150 mm | Port: M5
STL-MG2-20-175 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 20 mm | Stroke: 175 mm | Port: M5
STL-MG2-20-200 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 20 mm | Stroke: 200 mm | Port: M5
STL-MG2-20-225 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 20 mm | Stroke: 225 mm | Port: M5
STL-MG2-20-250 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 20 mm | Stroke: 250 mm | Port: M5
STL-MG2-20-275 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 20 mm | Stroke: 275 mm | Port: M5
STL-MG2-20-300 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 20 mm | Stroke: 300 mm | Port: M5
STL-MG2-20-325 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 20 mm | Stroke: 325 mm | Port: M5
STL-MG2-20-350 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 20 mm | Stroke: 350 mm | Port: M5
STL-MG2-20-375 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 20 mm | Stroke: 375 mm | Port: M5
STL-MG2-20-400 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 20 mm | Stroke: 400 mm | Port: M5
STL-MG2-25-50 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 25 mm | Stroke: 50 mm | Port: M5
STL-MG2-25-75 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 25 mm | Stroke: 75 mm | Port: M5
STL-MG2-25-100 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 25 mm | Stroke: 100 mm | Port: M5
STL-MG2-25-125 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 25 mm | Stroke: 125 mm | Port: M5
STL-MG2-25-150 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 25 mm | Stroke: 150 mm | Port: M5
STL-MG2-25-175 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 25 mm | Stroke: 175 mm | Port: M5
STL-MG2-25-200 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 25 mm | Stroke: 200 mm | Port: M5
STL-MG2-25-225 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 25 mm | Stroke: 225 mm | Port: M5
STL-MG2-25-250 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 25 mm | Stroke: 250 mm | Port: M5
STL-MG2-25-275 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 25 mm | Stroke: 275 mm | Port: M5
STL-MG2-25-300 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 25 mm | Stroke: 300 mm | Port: M5
STL-MG2-25-325 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 25 mm | Stroke: 325 mm | Port: M5
STL-MG2-25-350 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 25 mm | Stroke: 350 mm | Port: M5
STL-MG2-25-375 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 25 mm | Stroke: 375 mm | Port: M5
STL-MG2-25-400 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 25 mm | Stroke: 400 mm | Port: M5
STL-MG2-32-50 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
STL-MG2-32-75 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8
STL-MG2-32-100 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
STL-MG2-32-125 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 32 mm | Stroke: 125 mm | Port: Rc1/8
STL-MG2-32-150 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 32 mm | Stroke: 150 mm | Port: Rc1/8
STL-MG2-32-175 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 32 mm | Stroke: 175 mm | Port: Rc1/8
STL-MG2-32-200 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 32 mm | Stroke: 200 mm | Port: Rc1/8
STL-MG2-32-225 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 32 mm | Stroke: 225 mm | Port: Rc1/8
STL-MG2-32-250 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 32 mm | Stroke: 250 mm | Port: Rc1/8
STL-MG2-32-275 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 32 mm | Stroke: 275 mm | Port: Rc1/8
STL-MG2-32-300 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 32 mm | Stroke: 300 mm | Port: Rc1/8
STL-MG2-32-325 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 32 mm | Stroke: 325 mm | Port: Rc1/8
STL-MG2-32-350 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 32 mm | Stroke: 350 mm | Port: Rc1/8
STL-MG2-32-375 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 32 mm | Stroke: 375 mm | Port: Rc1/8
STL-MG2-32-400 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 32 mm | Stroke: 400 mm | Port: Rc1/8
STL-MG2-40-50 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
STL-MG2-40-75 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/8
STL-MG2-40-100 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8
STL-MG2-40-125 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 40 mm | Stroke: 125 mm | Port: Rc1/8
STL-MG2-40-150 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/8
STL-MG2-40-175 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 40 mm | Stroke: 175 mm | Port: Rc1/8
STL-MG2-40-200 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/8
STL-MG2-40-225 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 40 mm | Stroke: 225 mm | Port: Rc1/8
STL-MG2-40-250 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/8
STL-MG2-40-275 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 40 mm | Stroke: 275 mm | Port: Rc1/8
STL-MG2-40-300 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/8
STL-MG2-40-325 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 40 mm | Stroke: 325 mm | Port: Rc1/8
STL-MG2-40-350 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 40 mm | Stroke: 350 mm | Port: Rc1/8
STL-MG2-40-375 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 40 mm | Stroke: 375 mm | Port: Rc1/8
STL-MG2-40-400 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 40 mm | Stroke: 400 mm | Port: Rc1/8
STL-MG2-50-50 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
STL-MG2-50-75 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 50 mm | Stroke: 75 mm | Port: Rc1/4
STL-MG2-50-100 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
STL-MG2-50-125 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 50 mm | Stroke: 125 mm | Port: Rc1/4
STL-MG2-50-150 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 50 mm | Stroke: 150 mm | Port: Rc1/4
STL-MG2-50-175 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 50 mm | Stroke: 175 mm | Port: Rc1/4
STL-MG2-50-200 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 50 mm | Stroke: 200 mm | Port: Rc1/4
STL-MG2-50-225 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 50 mm | Stroke: 225 mm | Port: Rc1/4
STL-MG2-50-250 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 50 mm | Stroke: 250 mm | Port: Rc1/4
STL-MG2-50-275 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 50 mm | Stroke: 275 mm | Port: Rc1/4
STL-MG2-50-300 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 50 mm | Stroke: 300 mm | Port: Rc1/4
STL-MG2-50-325 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 50 mm | Stroke: 325 mm | Port: Rc1/4
STL-MG2-50-350 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 50 mm | Stroke: 350 mm | Port: Rc1/4
STL-MG2-50-375 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 50 mm | Stroke: 375 mm | Port: Rc1/4
STL-MG2-50-400 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 50 mm | Stroke: 400 mm | Port: Rc1/4
STL-MG2-63-50 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
STL-MG2-63-75 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 63 mm | Stroke: 75 mm | Port: Rc1/4
STL-MG2-63-100 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4
STL-MG2-63-125 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 63 mm | Stroke: 125 mm | Port: Rc1/4
STL-MG2-63-150 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 63 mm | Stroke: 150 mm | Port: Rc1/4
STL-MG2-63-175 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 63 mm | Stroke: 175 mm | Port: Rc1/4
STL-MG2-63-200 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 63 mm | Stroke: 200 mm | Port: Rc1/4
STL-MG2-63-225 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 63 mm | Stroke: 225 mm | Port: Rc1/4
STL-MG2-63-250 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 63 mm | Stroke: 250 mm | Port: Rc1/4
STL-MG2-63-275 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 63 mm | Stroke: 275 mm | Port: Rc1/4
STL-MG2-63-300 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 63 mm | Stroke: 300 mm | Port: Rc1/4
STL-MG2-63-325 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 63 mm | Stroke: 325 mm | Port: Rc1/4
STL-MG2-63-350 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 63 mm | Stroke: 350 mm | Port: Rc1/4
STL-MG2-63-375 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 63 mm | Stroke: 375 mm | Port: Rc1/4
STL-MG2-63-400 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 63 mm | Stroke: 400 mm | Port: Rc1/4
STL-MG2-80-75 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
STL-MG2-80-100 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
STL-MG2-80-125 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 80 mm | Stroke: 125 mm | Port: Rc3/8
STL-MG2-80-150 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 80 mm | Stroke: 150 mm | Port: Rc3/8
STL-MG2-80-175 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 80 mm | Stroke: 175 mm | Port: Rc3/8
STL-MG2-80-200 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 80 mm | Stroke: 200 mm | Port: Rc3/8
STL-MG2-80-225 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 80 mm | Stroke: 225 mm | Port: Rc3/8
STL-MG2-80-250 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 80 mm | Stroke: 250 mm | Port: Rc3/8
STL-MG2-80-275 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 80 mm | Stroke: 275 mm | Port: Rc3/8
STL-MG2-80-300 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 80 mm | Stroke: 300 mm | Port: Rc3/8
STL-MG2-80-325 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 80 mm | Stroke: 325 mm | Port: Rc3/8
STL-MG2-80-350 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 80 mm | Stroke: 350 mm | Port: Rc3/8
STL-MG2-80-375 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 80 mm | Stroke: 375 mm | Port: Rc3/8
STL-MG2-80-400 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 80 mm | Stroke: 400 mm | Port: Rc3/8
STL-MG3-20-50 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 20 mm | Stroke: 50 mm | Port: M5
STL-MG3-20-75 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 20 mm | Stroke: 75 mm | Port: M5
STL-MG3-20-100 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 20 mm | Stroke: 100 mm | Port: M5
STL-MG3-20-125 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 20 mm | Stroke: 125 mm | Port: M5
STL-MG3-20-150 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 20 mm | Stroke: 150 mm | Port: M5
STL-MG3-20-175 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 20 mm | Stroke: 175 mm | Port: M5
STL-MG3-20-200 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 20 mm | Stroke: 200 mm | Port: M5
STL-MG3-20-225 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 20 mm | Stroke: 225 mm | Port: M5
STL-MG3-20-250 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 20 mm | Stroke: 250 mm | Port: M5
STL-MG3-20-275 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 20 mm | Stroke: 275 mm | Port: M5
STL-MG3-20-300 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 20 mm | Stroke: 300 mm | Port: M5
STL-MG3-20-325 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 20 mm | Stroke: 325 mm | Port: M5
STL-MG3-20-350 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 20 mm | Stroke: 350 mm | Port: M5
STL-MG3-20-375 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 20 mm | Stroke: 375 mm | Port: M5
STL-MG3-20-400 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 20 mm | Stroke: 400 mm | Port: M5
STL-MG3-25-50 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 25 mm | Stroke: 50 mm | Port: M5
STL-MG3-25-75 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 25 mm | Stroke: 75 mm | Port: M5
STL-MG3-25-100 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 25 mm | Stroke: 100 mm | Port: M5
STL-MG3-25-125 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 25 mm | Stroke: 125 mm | Port: M5
STL-MG3-25-150 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 25 mm | Stroke: 150 mm | Port: M5
STL-MG3-25-175 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 25 mm | Stroke: 175 mm | Port: M5
STL-MG3-25-200 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 25 mm | Stroke: 200 mm | Port: M5
STL-MG3-25-225 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 25 mm | Stroke: 225 mm | Port: M5
STL-MG3-25-250 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 25 mm | Stroke: 250 mm | Port: M5
STL-MG3-25-275 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 25 mm | Stroke: 275 mm | Port: M5
STL-MG3-25-300 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 25 mm | Stroke: 300 mm | Port: M5
STL-MG3-25-325 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 25 mm | Stroke: 325 mm | Port: M5
STL-MG3-25-350 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 25 mm | Stroke: 350 mm | Port: M5
STL-MG3-25-375 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 25 mm | Stroke: 375 mm | Port: M5
STL-MG3-25-400 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 25 mm | Stroke: 400 mm | Port: M5
STL-MG3-32-50 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
STL-MG3-32-75 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8
STL-MG3-32-100 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
STL-MG3-32-125 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 32 mm | Stroke: 125 mm | Port: Rc1/8
STL-MG3-32-150 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 32 mm | Stroke: 150 mm | Port: Rc1/8
STL-MG3-32-175 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 32 mm | Stroke: 175 mm | Port: Rc1/8
STL-MG3-32-200 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 32 mm | Stroke: 200 mm | Port: Rc1/8
STL-MG3-32-225 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 32 mm | Stroke: 225 mm | Port: Rc1/8
STL-MG3-32-250 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 32 mm | Stroke: 250 mm | Port: Rc1/8
STL-MG3-32-275 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 32 mm | Stroke: 275 mm | Port: Rc1/8
STL-MG3-32-300 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 32 mm | Stroke: 300 mm | Port: Rc1/8
STL-MG3-32-325 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 32 mm | Stroke: 325 mm | Port: Rc1/8
STL-MG3-32-350 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 32 mm | Stroke: 350 mm | Port: Rc1/8
STL-MG3-32-375 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 32 mm | Stroke: 375 mm | Port: Rc1/8
STL-MG3-32-400 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 32 mm | Stroke: 400 mm | Port: Rc1/8
STL-MG3-40-50 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
STL-MG3-40-75 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/8
STL-MG3-40-100 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8
STL-MG3-40-125 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 40 mm | Stroke: 125 mm | Port: Rc1/8
STL-MG3-40-150 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/8
STL-MG3-40-175 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 40 mm | Stroke: 175 mm | Port: Rc1/8
STL-MG3-40-200 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/8
STL-MG3-40-225 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 40 mm | Stroke: 225 mm | Port: Rc1/8
STL-MG3-40-250 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/8
STL-MG3-40-275 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 40 mm | Stroke: 275 mm | Port: Rc1/8
STL-MG3-40-300 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/8
STL-MG3-40-325 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 40 mm | Stroke: 325 mm | Port: Rc1/8
STL-MG3-40-350 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 40 mm | Stroke: 350 mm | Port: Rc1/8
STL-MG3-40-375 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 40 mm | Stroke: 375 mm | Port: Rc1/8
STL-MG3-40-400 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 40 mm | Stroke: 400 mm | Port: Rc1/8
STL-MG3-50-50 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
STL-MG3-50-75 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 50 mm | Stroke: 75 mm | Port: Rc1/4
STL-MG3-50-100 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
STL-MG3-50-125 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 50 mm | Stroke: 125 mm | Port: Rc1/4
STL-MG3-50-150 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 50 mm | Stroke: 150 mm | Port: Rc1/4
STL-MG3-50-175 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 50 mm | Stroke: 175 mm | Port: Rc1/4
STL-MG3-50-200 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 50 mm | Stroke: 200 mm | Port: Rc1/4
STL-MG3-50-225 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 50 mm | Stroke: 225 mm | Port: Rc1/4
STL-MG3-50-250 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 50 mm | Stroke: 250 mm | Port: Rc1/4
STL-MG3-50-275 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 50 mm | Stroke: 275 mm | Port: Rc1/4
STL-MG3-50-300 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 50 mm | Stroke: 300 mm | Port: Rc1/4
STL-MG3-50-325 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 50 mm | Stroke: 325 mm | Port: Rc1/4
STL-MG3-50-350 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 50 mm | Stroke: 350 mm | Port: Rc1/4
STL-MG3-50-375 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 50 mm | Stroke: 375 mm | Port: Rc1/4
STL-MG3-50-400 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 50 mm | Stroke: 400 mm | Port: Rc1/4
STL-MG3-63-50 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
STL-MG3-63-75 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 63 mm | Stroke: 75 mm | Port: Rc1/4
STL-MG3-63-100 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4
STL-MG3-63-125 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 63 mm | Stroke: 125 mm | Port: Rc1/4
STL-MG3-63-150 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 63 mm | Stroke: 150 mm | Port: Rc1/4
STL-MG3-63-175 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 63 mm | Stroke: 175 mm | Port: Rc1/4
STL-MG3-63-200 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 63 mm | Stroke: 200 mm | Port: Rc1/4
STL-MG3-63-225 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 63 mm | Stroke: 225 mm | Port: Rc1/4
STL-MG3-63-250 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 63 mm | Stroke: 250 mm | Port: Rc1/4
STL-MG3-63-275 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 63 mm | Stroke: 275 mm | Port: Rc1/4
STL-MG3-63-300 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 63 mm | Stroke: 300 mm | Port: Rc1/4
STL-MG3-63-325 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 63 mm | Stroke: 325 mm | Port: Rc1/4
STL-MG3-63-350 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 63 mm | Stroke: 350 mm | Port: Rc1/4
STL-MG3-63-375 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 63 mm | Stroke: 375 mm | Port: Rc1/4
STL-MG3-63-400 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 63 mm | Stroke: 400 mm | Port: Rc1/4
STL-MG3-80-75 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
STL-MG3-80-100 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
STL-MG3-80-125 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 80 mm | Stroke: 125 mm | Port: Rc3/8
STL-MG3-80-150 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 80 mm | Stroke: 150 mm | Port: Rc3/8
STL-MG3-80-175 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 80 mm | Stroke: 175 mm | Port: Rc3/8
STL-MG3-80-200 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 80 mm | Stroke: 200 mm | Port: Rc3/8
STL-MG3-80-225 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 80 mm | Stroke: 225 mm | Port: Rc3/8
STL-MG3-80-250 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 80 mm | Stroke: 250 mm | Port: Rc3/8
STL-MG3-80-275 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 80 mm | Stroke: 275 mm | Port: Rc3/8
STL-MG3-80-300 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 80 mm | Stroke: 300 mm | Port: Rc3/8
STL-MG3-80-325 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 80 mm | Stroke: 325 mm | Port: Rc3/8
STL-MG3-80-350 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 80 mm | Stroke: 350 mm | Port: Rc3/8
STL-MG3-80-375 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 80 mm | Stroke: 375 mm | Port: Rc3/8
STL-MG3-80-400 Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 80 mm | Stroke: 400 mm | Port: Rc3/8
STL-BG2-20-50 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 20 mm | Stroke: 50 mm | Port: M5
STL-BG2-20-75 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 20 mm | Stroke: 75 mm | Port: M5
STL-BG2-20-100 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 20 mm | Stroke: 100 mm | Port: M5
STL-BG2-20-125 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 20 mm | Stroke: 125 mm | Port: M5
STL-BG2-20-150 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 20 mm | Stroke: 150 mm | Port: M5
STL-BG2-20-175 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 20 mm | Stroke: 175 mm | Port: M5
STL-BG2-20-200 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 20 mm | Stroke: 200 mm | Port: M5
STL-BG2-20-225 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 20 mm | Stroke: 225 mm | Port: M5
STL-BG2-20-250 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 20 mm | Stroke: 250 mm | Port: M5
STL-BG2-20-275 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 20 mm | Stroke: 275 mm | Port: M5
STL-BG2-20-300 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 20 mm | Stroke: 300 mm | Port: M5
STL-BG2-20-325 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 20 mm | Stroke: 325 mm | Port: M5
STL-BG2-20-350 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 20 mm | Stroke: 350 mm | Port: M5
STL-BG2-20-375 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 20 mm | Stroke: 375 mm | Port: M5
STL-BG2-20-400 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 20 mm | Stroke: 400 mm | Port: M5
STL-BG2-25-50 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 25 mm | Stroke: 50 mm | Port: M5
STL-BG2-25-75 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 25 mm | Stroke: 75 mm | Port: M5
STL-BG2-25-100 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 25 mm | Stroke: 100 mm | Port: M5
STL-BG2-25-125 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 25 mm | Stroke: 125 mm | Port: M5
STL-BG2-25-150 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 25 mm | Stroke: 150 mm | Port: M5
STL-BG2-25-175 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 25 mm | Stroke: 175 mm | Port: M5
STL-BG2-25-200 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 25 mm | Stroke: 200 mm | Port: M5
STL-BG2-25-225 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 25 mm | Stroke: 225 mm | Port: M5
STL-BG2-25-250 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 25 mm | Stroke: 250 mm | Port: M5
STL-BG2-25-275 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 25 mm | Stroke: 275 mm | Port: M5
STL-BG2-25-300 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 25 mm | Stroke: 300 mm | Port: M5
STL-BG2-25-325 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 25 mm | Stroke: 325 mm | Port: M5
STL-BG2-25-350 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 25 mm | Stroke: 350 mm | Port: M5
STL-BG2-25-375 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 25 mm | Stroke: 375 mm | Port: M5
STL-BG2-25-400 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 25 mm | Stroke: 400 mm | Port: M5
STL-BG2-32-50 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
STL-BG2-32-75 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8
STL-BG2-32-100 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
STL-BG2-32-125 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 32 mm | Stroke: 125 mm | Port: Rc1/8
STL-BG2-32-150 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 32 mm | Stroke: 150 mm | Port: Rc1/8
STL-BG2-32-175 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 32 mm | Stroke: 175 mm | Port: Rc1/8
STL-BG2-32-200 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 32 mm | Stroke: 200 mm | Port: Rc1/8
STL-BG2-32-225 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 32 mm | Stroke: 225 mm | Port: Rc1/8
STL-BG2-32-250 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 32 mm | Stroke: 250 mm | Port: Rc1/8
STL-BG2-32-275 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 32 mm | Stroke: 275 mm | Port: Rc1/8
STL-BG2-32-300 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 32 mm | Stroke: 300 mm | Port: Rc1/8
STL-BG2-32-325 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 32 mm | Stroke: 325 mm | Port: Rc1/8
STL-BG2-32-350 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 32 mm | Stroke: 350 mm | Port: Rc1/8
STL-BG2-32-375 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 32 mm | Stroke: 375 mm | Port: Rc1/8
STL-BG2-32-400 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 32 mm | Stroke: 400 mm | Port: Rc1/8
STL-BG2-40-50 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
STL-BG2-40-75 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/8
STL-BG2-40-100 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8
STL-BG2-40-125 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 40 mm | Stroke: 125 mm | Port: Rc1/8
STL-BG2-40-150 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/8
STL-BG2-40-175 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 40 mm | Stroke: 175 mm | Port: Rc1/8
STL-BG2-40-200 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/8
STL-BG2-40-225 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 40 mm | Stroke: 225 mm | Port: Rc1/8
STL-BG2-40-250 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/8
STL-BG2-40-275 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 40 mm | Stroke: 275 mm | Port: Rc1/8
STL-BG2-40-300 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/8
STL-BG2-40-325 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 40 mm | Stroke: 325 mm | Port: Rc1/8
STL-BG2-40-350 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 40 mm | Stroke: 350 mm | Port: Rc1/8
STL-BG2-40-375 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 40 mm | Stroke: 375 mm | Port: Rc1/8
STL-BG2-40-400 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 40 mm | Stroke: 400 mm | Port: Rc1/8
STL-BG2-50-50 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
STL-BG2-50-75 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 50 mm | Stroke: 75 mm | Port: Rc1/4
STL-BG2-50-100 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
STL-BG2-50-125 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 50 mm | Stroke: 125 mm | Port: Rc1/4
STL-BG2-50-150 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 50 mm | Stroke: 150 mm | Port: Rc1/4
STL-BG2-50-175 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 50 mm | Stroke: 175 mm | Port: Rc1/4
STL-BG2-50-200 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 50 mm | Stroke: 200 mm | Port: Rc1/4
STL-BG2-50-225 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 50 mm | Stroke: 225 mm | Port: Rc1/4
STL-BG2-50-250 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 50 mm | Stroke: 250 mm | Port: Rc1/4
STL-BG2-50-275 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 50 mm | Stroke: 275 mm | Port: Rc1/4
STL-BG2-50-300 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 50 mm | Stroke: 300 mm | Port: Rc1/4
STL-BG2-50-325 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 50 mm | Stroke: 325 mm | Port: Rc1/4
STL-BG2-50-350 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 50 mm | Stroke: 350 mm | Port: Rc1/4
STL-BG2-50-375 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 50 mm | Stroke: 375 mm | Port: Rc1/4
STL-BG2-50-400 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 50 mm | Stroke: 400 mm | Port: Rc1/4
STL-BG2-63-50 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
STL-BG2-63-75 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 63 mm | Stroke: 75 mm | Port: Rc1/4
STL-BG2-63-100 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4
STL-BG2-63-125 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 63 mm | Stroke: 125 mm | Port: Rc1/4
STL-BG2-63-150 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 63 mm | Stroke: 150 mm | Port: Rc1/4
STL-BG2-63-175 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 63 mm | Stroke: 175 mm | Port: Rc1/4
STL-BG2-63-200 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 63 mm | Stroke: 200 mm | Port: Rc1/4
STL-BG2-63-225 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 63 mm | Stroke: 225 mm | Port: Rc1/4
STL-BG2-63-250 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 63 mm | Stroke: 250 mm | Port: Rc1/4
STL-BG2-63-275 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 63 mm | Stroke: 275 mm | Port: Rc1/4
STL-BG2-63-300 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 63 mm | Stroke: 300 mm | Port: Rc1/4
STL-BG2-63-325 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 63 mm | Stroke: 325 mm | Port: Rc1/4
STL-BG2-63-350 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 63 mm | Stroke: 350 mm | Port: Rc1/4
STL-BG2-63-375 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 63 mm | Stroke: 375 mm | Port: Rc1/4
STL-BG2-63-400 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 63 mm | Stroke: 400 mm | Port: Rc1/4
STL-BG2-80-75 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
STL-BG2-80-100 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
STL-BG2-80-125 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 80 mm | Stroke: 125 mm | Port: Rc3/8
STL-BG2-80-150 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 80 mm | Stroke: 150 mm | Port: Rc3/8
STL-BG2-80-175 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 80 mm | Stroke: 175 mm | Port: Rc3/8
STL-BG2-80-200 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 80 mm | Stroke: 200 mm | Port: Rc3/8
STL-BG2-80-225 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 80 mm | Stroke: 225 mm | Port: Rc3/8
STL-BG2-80-250 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 80 mm | Stroke: 250 mm | Port: Rc3/8
STL-BG2-80-275 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 80 mm | Stroke: 275 mm | Port: Rc3/8
STL-BG2-80-300 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 80 mm | Stroke: 300 mm | Port: Rc3/8
STL-BG2-80-325 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 80 mm | Stroke: 325 mm | Port: Rc3/8
STL-BG2-80-350 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 80 mm | Stroke: 350 mm | Port: Rc3/8
STL-BG2-80-375 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 80 mm | Stroke: 375 mm | Port: Rc3/8
STL-BG2-80-400 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 80 mm | Stroke: 400 mm | Port: Rc3/8
STL-BG3-20-50 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 20 mm | Stroke: 50 mm | Port: M5
STL-BG3-20-75 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 20 mm | Stroke: 75 mm | Port: M5
STL-BG3-20-100 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 20 mm | Stroke: 100 mm | Port: M5
STL-BG3-20-125 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 20 mm | Stroke: 125 mm | Port: M5
STL-BG3-20-150 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 20 mm | Stroke: 150 mm | Port: M5
STL-BG3-20-175 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 20 mm | Stroke: 175 mm | Port: M5
STL-BG3-20-200 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 20 mm | Stroke: 200 mm | Port: M5
STL-BG3-20-225 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 20 mm | Stroke: 225 mm | Port: M5
STL-BG3-20-250 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 20 mm | Stroke: 250 mm | Port: M5
STL-BG3-20-275 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 20 mm | Stroke: 275 mm | Port: M5
STL-BG3-20-300 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 20 mm | Stroke: 300 mm | Port: M5
STL-BG3-20-325 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 20 mm | Stroke: 325 mm | Port: M5
STL-BG3-20-350 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 20 mm | Stroke: 350 mm | Port: M5
STL-BG3-20-375 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 20 mm | Stroke: 375 mm | Port: M5
STL-BG3-20-400 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 20 mm | Stroke: 400 mm | Port: M5
STL-BG3-25-50 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 25 mm | Stroke: 50 mm | Port: M5
STL-BG3-25-75 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 25 mm | Stroke: 75 mm | Port: M5
STL-BG3-25-100 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 25 mm | Stroke: 100 mm | Port: M5
STL-BG3-25-125 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 25 mm | Stroke: 125 mm | Port: M5
STL-BG3-25-150 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 25 mm | Stroke: 150 mm | Port: M5
STL-BG3-25-175 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 25 mm | Stroke: 175 mm | Port: M5
STL-BG3-25-200 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 25 mm | Stroke: 200 mm | Port: M5
STL-BG3-25-225 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 25 mm | Stroke: 225 mm | Port: M5
STL-BG3-25-250 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 25 mm | Stroke: 250 mm | Port: M5
STL-BG3-25-275 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 25 mm | Stroke: 275 mm | Port: M5
STL-BG3-25-300 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 25 mm | Stroke: 300 mm | Port: M5
STL-BG3-25-325 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 25 mm | Stroke: 325 mm | Port: M5
STL-BG3-25-350 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 25 mm | Stroke: 350 mm | Port: M5
STL-BG3-25-375 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 25 mm | Stroke: 375 mm | Port: M5
STL-BG3-25-400 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 25 mm | Stroke: 400 mm | Port: M5
STL-BG3-32-50 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
STL-BG3-32-75 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8
STL-BG3-32-100 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
STL-BG3-32-125 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 32 mm | Stroke: 125 mm | Port: Rc1/8
STL-BG3-32-150 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 32 mm | Stroke: 150 mm | Port: Rc1/8
STL-BG3-32-175 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 32 mm | Stroke: 175 mm | Port: Rc1/8
STL-BG3-32-200 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 32 mm | Stroke: 200 mm | Port: Rc1/8
STL-BG3-32-225 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 32 mm | Stroke: 225 mm | Port: Rc1/8
STL-BG3-32-250 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 32 mm | Stroke: 250 mm | Port: Rc1/8
STL-BG3-32-275 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 32 mm | Stroke: 275 mm | Port: Rc1/8
STL-BG3-32-300 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 32 mm | Stroke: 300 mm | Port: Rc1/8
STL-BG3-32-325 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 32 mm | Stroke: 325 mm | Port: Rc1/8
STL-BG3-32-350 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 32 mm | Stroke: 350 mm | Port: Rc1/8
STL-BG3-32-375 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 32 mm | Stroke: 375 mm | Port: Rc1/8
STL-BG3-32-400 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 32 mm | Stroke: 400 mm | Port: Rc1/8
STL-BG3-40-50 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
STL-BG3-40-75 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/8
STL-BG3-40-100 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8
STL-BG3-40-125 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 40 mm | Stroke: 125 mm | Port: Rc1/8
STL-BG3-40-150 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/8
STL-BG3-40-175 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 40 mm | Stroke: 175 mm | Port: Rc1/8
STL-BG3-40-200 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/8
STL-BG3-40-225 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 40 mm | Stroke: 225 mm | Port: Rc1/8
STL-BG3-40-250 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/8
STL-BG3-40-275 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 40 mm | Stroke: 275 mm | Port: Rc1/8
STL-BG3-40-300 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/8
STL-BG3-40-325 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 40 mm | Stroke: 325 mm | Port: Rc1/8
STL-BG3-40-350 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 40 mm | Stroke: 350 mm | Port: Rc1/8
STL-BG3-40-375 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 40 mm | Stroke: 375 mm | Port: Rc1/8
STL-BG3-40-400 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 40 mm | Stroke: 400 mm | Port: Rc1/8
STL-BG3-50-50 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
STL-BG3-50-75 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 50 mm | Stroke: 75 mm | Port: Rc1/4
STL-BG3-50-100 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
STL-BG3-50-125 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 50 mm | Stroke: 125 mm | Port: Rc1/4
STL-BG3-50-150 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 50 mm | Stroke: 150 mm | Port: Rc1/4
STL-BG3-50-175 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 50 mm | Stroke: 175 mm | Port: Rc1/4
STL-BG3-50-200 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 50 mm | Stroke: 200 mm | Port: Rc1/4
STL-BG3-50-225 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 50 mm | Stroke: 225 mm | Port: Rc1/4
STL-BG3-50-250 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 50 mm | Stroke: 250 mm | Port: Rc1/4
STL-BG3-50-275 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 50 mm | Stroke: 275 mm | Port: Rc1/4
STL-BG3-50-300 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 50 mm | Stroke: 300 mm | Port: Rc1/4
STL-BG3-50-325 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 50 mm | Stroke: 325 mm | Port: Rc1/4
STL-BG3-50-350 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 50 mm | Stroke: 350 mm | Port: Rc1/4
STL-BG3-50-375 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 50 mm | Stroke: 375 mm | Port: Rc1/4
STL-BG3-50-400 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 50 mm | Stroke: 400 mm | Port: Rc1/4
STL-BG3-63-50 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
STL-BG3-63-75 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 63 mm | Stroke: 75 mm | Port: Rc1/4
STL-BG3-63-100 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4
STL-BG3-63-125 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 63 mm | Stroke: 125 mm | Port: Rc1/4
STL-BG3-63-150 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 63 mm | Stroke: 150 mm | Port: Rc1/4
STL-BG3-63-175 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 63 mm | Stroke: 175 mm | Port: Rc1/4
STL-BG3-63-200 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 63 mm | Stroke: 200 mm | Port: Rc1/4
STL-BG3-63-225 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 63 mm | Stroke: 225 mm | Port: Rc1/4
STL-BG3-63-250 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 63 mm | Stroke: 250 mm | Port: Rc1/4
STL-BG3-63-275 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 63 mm | Stroke: 275 mm | Port: Rc1/4
STL-BG3-63-300 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 63 mm | Stroke: 300 mm | Port: Rc1/4
STL-BG3-63-325 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 63 mm | Stroke: 325 mm | Port: Rc1/4
STL-BG3-63-350 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 63 mm | Stroke: 350 mm | Port: Rc1/4
STL-BG3-63-375 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 63 mm | Stroke: 375 mm | Port: Rc1/4
STL-BG3-63-400 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 63 mm | Stroke: 400 mm | Port: Rc1/4
STL-BG3-80-75 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
STL-BG3-80-100 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
STL-BG3-80-125 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 80 mm | Stroke: 125 mm | Port: Rc3/8
STL-BG3-80-150 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 80 mm | Stroke: 150 mm | Port: Rc3/8
STL-BG3-80-175 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 80 mm | Stroke: 175 mm | Port: Rc3/8
STL-BG3-80-200 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 80 mm | Stroke: 200 mm | Port: Rc3/8
STL-BG3-80-225 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 80 mm | Stroke: 225 mm | Port: Rc3/8
STL-BG3-80-250 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 80 mm | Stroke: 250 mm | Port: Rc3/8
STL-BG3-80-275 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 80 mm | Stroke: 275 mm | Port: Rc3/8
STL-BG3-80-300 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 80 mm | Stroke: 300 mm | Port: Rc3/8
STL-BG3-80-325 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 80 mm | Stroke: 325 mm | Port: Rc3/8
STL-BG3-80-350 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 80 mm | Stroke: 350 mm | Port: Rc3/8
STL-BG3-80-375 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 80 mm | Stroke: 375 mm | Port: Rc3/8
STL-BG3-80-400 Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 80 mm | Stroke: 400 mm | Port: Rc3/8
Guided CylindersCKD
480 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD STS/STL-G2/G3 Guided Cylinder (Coolant Resistant)

Brand CKD·Guided Cylinders

Available part numbers (480)

STS-MG2-20-25, STS-MG2-20-50, STS-MG2-25-25, STS-MG2-25-50, STS-MG2-32-25, STS-MG2-32-50, STS-MG2-40-25, STS-MG2-40-50, STS-MG2-50-25, STS-MG2-50-50 + 470 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
STS-MG2-20-25Series: STS (short stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 20 mm | Stroke: 25 mm | Port: M5
STS-MG2-20-50Series: STS (short stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 20 mm | Stroke: 50 mm | Port: M5
STS-MG2-25-25Series: STS (short stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 25 mm | Stroke: 25 mm | Port: M5
STS-MG2-25-50Series: STS (short stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 25 mm | Stroke: 50 mm | Port: M5
STS-MG2-32-25Series: STS (short stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
STS-MG2-32-50Series: STS (short stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
STS-MG2-40-25Series: STS (short stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
STS-MG2-40-50Series: STS (short stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
STS-MG2-50-25Series: STS (short stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
STS-MG2-50-50Series: STS (short stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
STS-MG2-63-25Series: STS (short stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 63 mm | Stroke: 25 mm | Port: Rc1/4
STS-MG2-63-50Series: STS (short stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
STS-MG2-80-25Series: STS (short stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 80 mm | Stroke: 25 mm | Port: Rc3/8
STS-MG2-80-50Series: STS (short stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
STS-MG2-80-75Series: STS (short stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
STS-MG2-80-100Series: STS (short stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
STS-MG3-20-25Series: STS (short stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 20 mm | Stroke: 25 mm | Port: M5
STS-MG3-20-50Series: STS (short stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 20 mm | Stroke: 50 mm | Port: M5
STS-MG3-25-25Series: STS (short stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 25 mm | Stroke: 25 mm | Port: M5
STS-MG3-25-50Series: STS (short stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 25 mm | Stroke: 50 mm | Port: M5
STS-MG3-32-25Series: STS (short stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
STS-MG3-32-50Series: STS (short stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
STS-MG3-40-25Series: STS (short stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
STS-MG3-40-50Series: STS (short stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
STS-MG3-50-25Series: STS (short stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
STS-MG3-50-50Series: STS (short stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
STS-MG3-63-25Series: STS (short stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 63 mm | Stroke: 25 mm | Port: Rc1/4
STS-MG3-63-50Series: STS (short stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
STS-MG3-80-25Series: STS (short stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 80 mm | Stroke: 25 mm | Port: Rc3/8
STS-MG3-80-50Series: STS (short stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
STS-MG3-80-75Series: STS (short stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
STS-MG3-80-100Series: STS (short stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
STS-BG2-20-25Series: STS (short stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 20 mm | Stroke: 25 mm | Port: M5
STS-BG2-20-50Series: STS (short stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 20 mm | Stroke: 50 mm | Port: M5
STS-BG2-25-25Series: STS (short stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 25 mm | Stroke: 25 mm | Port: M5
STS-BG2-25-50Series: STS (short stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 25 mm | Stroke: 50 mm | Port: M5
STS-BG2-32-25Series: STS (short stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
STS-BG2-32-50Series: STS (short stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
STS-BG2-40-25Series: STS (short stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
STS-BG2-40-50Series: STS (short stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
STS-BG2-50-25Series: STS (short stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
STS-BG2-50-50Series: STS (short stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
STS-BG2-63-25Series: STS (short stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 63 mm | Stroke: 25 mm | Port: Rc1/4
STS-BG2-63-50Series: STS (short stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
STS-BG2-80-25Series: STS (short stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 80 mm | Stroke: 25 mm | Port: Rc3/8
STS-BG2-80-50Series: STS (short stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
STS-BG2-80-75Series: STS (short stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
STS-BG2-80-100Series: STS (short stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
STS-BG3-20-25Series: STS (short stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 20 mm | Stroke: 25 mm | Port: M5
STS-BG3-20-50Series: STS (short stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 20 mm | Stroke: 50 mm | Port: M5
STS-BG3-25-25Series: STS (short stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 25 mm | Stroke: 25 mm | Port: M5
STS-BG3-25-50Series: STS (short stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 25 mm | Stroke: 50 mm | Port: M5
STS-BG3-32-25Series: STS (short stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
STS-BG3-32-50Series: STS (short stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
STS-BG3-40-25Series: STS (short stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
STS-BG3-40-50Series: STS (short stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
STS-BG3-50-25Series: STS (short stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
STS-BG3-50-50Series: STS (short stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
STS-BG3-63-25Series: STS (short stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 63 mm | Stroke: 25 mm | Port: Rc1/4
STS-BG3-63-50Series: STS (short stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
STS-BG3-80-25Series: STS (short stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 80 mm | Stroke: 25 mm | Port: Rc3/8
STS-BG3-80-50Series: STS (short stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
STS-BG3-80-75Series: STS (short stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
STS-BG3-80-100Series: STS (short stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
STL-MG2-20-50Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 20 mm | Stroke: 50 mm | Port: M5
STL-MG2-20-75Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 20 mm | Stroke: 75 mm | Port: M5
STL-MG2-20-100Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 20 mm | Stroke: 100 mm | Port: M5
STL-MG2-20-125Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 20 mm | Stroke: 125 mm | Port: M5
STL-MG2-20-150Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 20 mm | Stroke: 150 mm | Port: M5
STL-MG2-20-175Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 20 mm | Stroke: 175 mm | Port: M5
STL-MG2-20-200Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 20 mm | Stroke: 200 mm | Port: M5
STL-MG2-20-225Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 20 mm | Stroke: 225 mm | Port: M5
STL-MG2-20-250Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 20 mm | Stroke: 250 mm | Port: M5
STL-MG2-20-275Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 20 mm | Stroke: 275 mm | Port: M5
STL-MG2-20-300Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 20 mm | Stroke: 300 mm | Port: M5
STL-MG2-20-325Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 20 mm | Stroke: 325 mm | Port: M5
STL-MG2-20-350Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 20 mm | Stroke: 350 mm | Port: M5
STL-MG2-20-375Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 20 mm | Stroke: 375 mm | Port: M5
STL-MG2-20-400Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 20 mm | Stroke: 400 mm | Port: M5
STL-MG2-25-50Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 25 mm | Stroke: 50 mm | Port: M5
STL-MG2-25-75Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 25 mm | Stroke: 75 mm | Port: M5
STL-MG2-25-100Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 25 mm | Stroke: 100 mm | Port: M5
STL-MG2-25-125Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 25 mm | Stroke: 125 mm | Port: M5
STL-MG2-25-150Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 25 mm | Stroke: 150 mm | Port: M5
STL-MG2-25-175Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 25 mm | Stroke: 175 mm | Port: M5
STL-MG2-25-200Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 25 mm | Stroke: 200 mm | Port: M5
STL-MG2-25-225Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 25 mm | Stroke: 225 mm | Port: M5
STL-MG2-25-250Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 25 mm | Stroke: 250 mm | Port: M5
STL-MG2-25-275Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 25 mm | Stroke: 275 mm | Port: M5
STL-MG2-25-300Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 25 mm | Stroke: 300 mm | Port: M5
STL-MG2-25-325Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 25 mm | Stroke: 325 mm | Port: M5
STL-MG2-25-350Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 25 mm | Stroke: 350 mm | Port: M5
STL-MG2-25-375Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 25 mm | Stroke: 375 mm | Port: M5
STL-MG2-25-400Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 25 mm | Stroke: 400 mm | Port: M5
STL-MG2-32-50Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
STL-MG2-32-75Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8
STL-MG2-32-100Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
STL-MG2-32-125Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 32 mm | Stroke: 125 mm | Port: Rc1/8
STL-MG2-32-150Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 32 mm | Stroke: 150 mm | Port: Rc1/8
STL-MG2-32-175Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 32 mm | Stroke: 175 mm | Port: Rc1/8
STL-MG2-32-200Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 32 mm | Stroke: 200 mm | Port: Rc1/8
STL-MG2-32-225Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 32 mm | Stroke: 225 mm | Port: Rc1/8
STL-MG2-32-250Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 32 mm | Stroke: 250 mm | Port: Rc1/8
STL-MG2-32-275Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 32 mm | Stroke: 275 mm | Port: Rc1/8
STL-MG2-32-300Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 32 mm | Stroke: 300 mm | Port: Rc1/8
STL-MG2-32-325Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 32 mm | Stroke: 325 mm | Port: Rc1/8
STL-MG2-32-350Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 32 mm | Stroke: 350 mm | Port: Rc1/8
STL-MG2-32-375Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 32 mm | Stroke: 375 mm | Port: Rc1/8
STL-MG2-32-400Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 32 mm | Stroke: 400 mm | Port: Rc1/8
STL-MG2-40-50Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
STL-MG2-40-75Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/8
STL-MG2-40-100Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8
STL-MG2-40-125Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 40 mm | Stroke: 125 mm | Port: Rc1/8
STL-MG2-40-150Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/8
STL-MG2-40-175Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 40 mm | Stroke: 175 mm | Port: Rc1/8
STL-MG2-40-200Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/8
STL-MG2-40-225Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 40 mm | Stroke: 225 mm | Port: Rc1/8
STL-MG2-40-250Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/8
STL-MG2-40-275Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 40 mm | Stroke: 275 mm | Port: Rc1/8
STL-MG2-40-300Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/8
STL-MG2-40-325Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 40 mm | Stroke: 325 mm | Port: Rc1/8
STL-MG2-40-350Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 40 mm | Stroke: 350 mm | Port: Rc1/8
STL-MG2-40-375Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 40 mm | Stroke: 375 mm | Port: Rc1/8
STL-MG2-40-400Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 40 mm | Stroke: 400 mm | Port: Rc1/8
STL-MG2-50-50Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
STL-MG2-50-75Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 50 mm | Stroke: 75 mm | Port: Rc1/4
STL-MG2-50-100Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
STL-MG2-50-125Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 50 mm | Stroke: 125 mm | Port: Rc1/4
STL-MG2-50-150Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 50 mm | Stroke: 150 mm | Port: Rc1/4
STL-MG2-50-175Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 50 mm | Stroke: 175 mm | Port: Rc1/4
STL-MG2-50-200Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 50 mm | Stroke: 200 mm | Port: Rc1/4
STL-MG2-50-225Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 50 mm | Stroke: 225 mm | Port: Rc1/4
STL-MG2-50-250Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 50 mm | Stroke: 250 mm | Port: Rc1/4
STL-MG2-50-275Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 50 mm | Stroke: 275 mm | Port: Rc1/4
STL-MG2-50-300Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 50 mm | Stroke: 300 mm | Port: Rc1/4
STL-MG2-50-325Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 50 mm | Stroke: 325 mm | Port: Rc1/4
STL-MG2-50-350Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 50 mm | Stroke: 350 mm | Port: Rc1/4
STL-MG2-50-375Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 50 mm | Stroke: 375 mm | Port: Rc1/4
STL-MG2-50-400Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 50 mm | Stroke: 400 mm | Port: Rc1/4
STL-MG2-63-50Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
STL-MG2-63-75Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 63 mm | Stroke: 75 mm | Port: Rc1/4
STL-MG2-63-100Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4
STL-MG2-63-125Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 63 mm | Stroke: 125 mm | Port: Rc1/4
STL-MG2-63-150Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 63 mm | Stroke: 150 mm | Port: Rc1/4
STL-MG2-63-175Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 63 mm | Stroke: 175 mm | Port: Rc1/4
STL-MG2-63-200Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 63 mm | Stroke: 200 mm | Port: Rc1/4
STL-MG2-63-225Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 63 mm | Stroke: 225 mm | Port: Rc1/4
STL-MG2-63-250Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 63 mm | Stroke: 250 mm | Port: Rc1/4
STL-MG2-63-275Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 63 mm | Stroke: 275 mm | Port: Rc1/4
STL-MG2-63-300Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 63 mm | Stroke: 300 mm | Port: Rc1/4
STL-MG2-63-325Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 63 mm | Stroke: 325 mm | Port: Rc1/4
STL-MG2-63-350Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 63 mm | Stroke: 350 mm | Port: Rc1/4
STL-MG2-63-375Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 63 mm | Stroke: 375 mm | Port: Rc1/4
STL-MG2-63-400Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 63 mm | Stroke: 400 mm | Port: Rc1/4
STL-MG2-80-75Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
STL-MG2-80-100Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
STL-MG2-80-125Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 80 mm | Stroke: 125 mm | Port: Rc3/8
STL-MG2-80-150Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 80 mm | Stroke: 150 mm | Port: Rc3/8
STL-MG2-80-175Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 80 mm | Stroke: 175 mm | Port: Rc3/8
STL-MG2-80-200Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 80 mm | Stroke: 200 mm | Port: Rc3/8
STL-MG2-80-225Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 80 mm | Stroke: 225 mm | Port: Rc3/8
STL-MG2-80-250Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 80 mm | Stroke: 250 mm | Port: Rc3/8
STL-MG2-80-275Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 80 mm | Stroke: 275 mm | Port: Rc3/8
STL-MG2-80-300Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 80 mm | Stroke: 300 mm | Port: Rc3/8
STL-MG2-80-325Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 80 mm | Stroke: 325 mm | Port: Rc3/8
STL-MG2-80-350Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 80 mm | Stroke: 350 mm | Port: Rc3/8
STL-MG2-80-375Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 80 mm | Stroke: 375 mm | Port: Rc3/8
STL-MG2-80-400Series: STL (long stroke) | Bearing: Slide bearing | Protection: G2 scraper + NBR packing | Bore: 80 mm | Stroke: 400 mm | Port: Rc3/8
STL-MG3-20-50Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 20 mm | Stroke: 50 mm | Port: M5
STL-MG3-20-75Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 20 mm | Stroke: 75 mm | Port: M5
STL-MG3-20-100Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 20 mm | Stroke: 100 mm | Port: M5
STL-MG3-20-125Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 20 mm | Stroke: 125 mm | Port: M5
STL-MG3-20-150Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 20 mm | Stroke: 150 mm | Port: M5
STL-MG3-20-175Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 20 mm | Stroke: 175 mm | Port: M5
STL-MG3-20-200Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 20 mm | Stroke: 200 mm | Port: M5
STL-MG3-20-225Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 20 mm | Stroke: 225 mm | Port: M5
STL-MG3-20-250Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 20 mm | Stroke: 250 mm | Port: M5
STL-MG3-20-275Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 20 mm | Stroke: 275 mm | Port: M5
STL-MG3-20-300Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 20 mm | Stroke: 300 mm | Port: M5
STL-MG3-20-325Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 20 mm | Stroke: 325 mm | Port: M5
STL-MG3-20-350Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 20 mm | Stroke: 350 mm | Port: M5
STL-MG3-20-375Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 20 mm | Stroke: 375 mm | Port: M5
STL-MG3-20-400Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 20 mm | Stroke: 400 mm | Port: M5
STL-MG3-25-50Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 25 mm | Stroke: 50 mm | Port: M5
STL-MG3-25-75Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 25 mm | Stroke: 75 mm | Port: M5
STL-MG3-25-100Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 25 mm | Stroke: 100 mm | Port: M5
STL-MG3-25-125Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 25 mm | Stroke: 125 mm | Port: M5
STL-MG3-25-150Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 25 mm | Stroke: 150 mm | Port: M5
STL-MG3-25-175Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 25 mm | Stroke: 175 mm | Port: M5
STL-MG3-25-200Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 25 mm | Stroke: 200 mm | Port: M5
STL-MG3-25-225Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 25 mm | Stroke: 225 mm | Port: M5
STL-MG3-25-250Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 25 mm | Stroke: 250 mm | Port: M5
STL-MG3-25-275Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 25 mm | Stroke: 275 mm | Port: M5
STL-MG3-25-300Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 25 mm | Stroke: 300 mm | Port: M5
STL-MG3-25-325Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 25 mm | Stroke: 325 mm | Port: M5
STL-MG3-25-350Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 25 mm | Stroke: 350 mm | Port: M5
STL-MG3-25-375Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 25 mm | Stroke: 375 mm | Port: M5
STL-MG3-25-400Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 25 mm | Stroke: 400 mm | Port: M5
STL-MG3-32-50Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
STL-MG3-32-75Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8
STL-MG3-32-100Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
STL-MG3-32-125Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 32 mm | Stroke: 125 mm | Port: Rc1/8
STL-MG3-32-150Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 32 mm | Stroke: 150 mm | Port: Rc1/8
STL-MG3-32-175Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 32 mm | Stroke: 175 mm | Port: Rc1/8
STL-MG3-32-200Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 32 mm | Stroke: 200 mm | Port: Rc1/8
STL-MG3-32-225Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 32 mm | Stroke: 225 mm | Port: Rc1/8
STL-MG3-32-250Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 32 mm | Stroke: 250 mm | Port: Rc1/8
STL-MG3-32-275Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 32 mm | Stroke: 275 mm | Port: Rc1/8
STL-MG3-32-300Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 32 mm | Stroke: 300 mm | Port: Rc1/8
STL-MG3-32-325Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 32 mm | Stroke: 325 mm | Port: Rc1/8
STL-MG3-32-350Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 32 mm | Stroke: 350 mm | Port: Rc1/8
STL-MG3-32-375Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 32 mm | Stroke: 375 mm | Port: Rc1/8
STL-MG3-32-400Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 32 mm | Stroke: 400 mm | Port: Rc1/8
STL-MG3-40-50Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
STL-MG3-40-75Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/8
STL-MG3-40-100Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8
STL-MG3-40-125Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 40 mm | Stroke: 125 mm | Port: Rc1/8
STL-MG3-40-150Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/8
STL-MG3-40-175Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 40 mm | Stroke: 175 mm | Port: Rc1/8
STL-MG3-40-200Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/8
STL-MG3-40-225Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 40 mm | Stroke: 225 mm | Port: Rc1/8
STL-MG3-40-250Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/8
STL-MG3-40-275Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 40 mm | Stroke: 275 mm | Port: Rc1/8
STL-MG3-40-300Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/8
STL-MG3-40-325Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 40 mm | Stroke: 325 mm | Port: Rc1/8
STL-MG3-40-350Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 40 mm | Stroke: 350 mm | Port: Rc1/8
STL-MG3-40-375Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 40 mm | Stroke: 375 mm | Port: Rc1/8
STL-MG3-40-400Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 40 mm | Stroke: 400 mm | Port: Rc1/8
STL-MG3-50-50Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
STL-MG3-50-75Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 50 mm | Stroke: 75 mm | Port: Rc1/4
STL-MG3-50-100Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
STL-MG3-50-125Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 50 mm | Stroke: 125 mm | Port: Rc1/4
STL-MG3-50-150Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 50 mm | Stroke: 150 mm | Port: Rc1/4
STL-MG3-50-175Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 50 mm | Stroke: 175 mm | Port: Rc1/4
STL-MG3-50-200Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 50 mm | Stroke: 200 mm | Port: Rc1/4
STL-MG3-50-225Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 50 mm | Stroke: 225 mm | Port: Rc1/4
STL-MG3-50-250Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 50 mm | Stroke: 250 mm | Port: Rc1/4
STL-MG3-50-275Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 50 mm | Stroke: 275 mm | Port: Rc1/4
STL-MG3-50-300Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 50 mm | Stroke: 300 mm | Port: Rc1/4
STL-MG3-50-325Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 50 mm | Stroke: 325 mm | Port: Rc1/4
STL-MG3-50-350Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 50 mm | Stroke: 350 mm | Port: Rc1/4
STL-MG3-50-375Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 50 mm | Stroke: 375 mm | Port: Rc1/4
STL-MG3-50-400Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 50 mm | Stroke: 400 mm | Port: Rc1/4
STL-MG3-63-50Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
STL-MG3-63-75Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 63 mm | Stroke: 75 mm | Port: Rc1/4
STL-MG3-63-100Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4
STL-MG3-63-125Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 63 mm | Stroke: 125 mm | Port: Rc1/4
STL-MG3-63-150Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 63 mm | Stroke: 150 mm | Port: Rc1/4
STL-MG3-63-175Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 63 mm | Stroke: 175 mm | Port: Rc1/4
STL-MG3-63-200Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 63 mm | Stroke: 200 mm | Port: Rc1/4
STL-MG3-63-225Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 63 mm | Stroke: 225 mm | Port: Rc1/4
STL-MG3-63-250Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 63 mm | Stroke: 250 mm | Port: Rc1/4
STL-MG3-63-275Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 63 mm | Stroke: 275 mm | Port: Rc1/4
STL-MG3-63-300Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 63 mm | Stroke: 300 mm | Port: Rc1/4
STL-MG3-63-325Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 63 mm | Stroke: 325 mm | Port: Rc1/4
STL-MG3-63-350Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 63 mm | Stroke: 350 mm | Port: Rc1/4
STL-MG3-63-375Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 63 mm | Stroke: 375 mm | Port: Rc1/4
STL-MG3-63-400Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 63 mm | Stroke: 400 mm | Port: Rc1/4
STL-MG3-80-75Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
STL-MG3-80-100Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
STL-MG3-80-125Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 80 mm | Stroke: 125 mm | Port: Rc3/8
STL-MG3-80-150Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 80 mm | Stroke: 150 mm | Port: Rc3/8
STL-MG3-80-175Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 80 mm | Stroke: 175 mm | Port: Rc3/8
STL-MG3-80-200Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 80 mm | Stroke: 200 mm | Port: Rc3/8
STL-MG3-80-225Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 80 mm | Stroke: 225 mm | Port: Rc3/8
STL-MG3-80-250Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 80 mm | Stroke: 250 mm | Port: Rc3/8
STL-MG3-80-275Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 80 mm | Stroke: 275 mm | Port: Rc3/8
STL-MG3-80-300Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 80 mm | Stroke: 300 mm | Port: Rc3/8
STL-MG3-80-325Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 80 mm | Stroke: 325 mm | Port: Rc3/8
STL-MG3-80-350Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 80 mm | Stroke: 350 mm | Port: Rc3/8
STL-MG3-80-375Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 80 mm | Stroke: 375 mm | Port: Rc3/8
STL-MG3-80-400Series: STL (long stroke) | Bearing: Slide bearing | Protection: G3 scraper + FKM packing | Bore: 80 mm | Stroke: 400 mm | Port: Rc3/8
STL-BG2-20-50Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 20 mm | Stroke: 50 mm | Port: M5
STL-BG2-20-75Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 20 mm | Stroke: 75 mm | Port: M5
STL-BG2-20-100Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 20 mm | Stroke: 100 mm | Port: M5
STL-BG2-20-125Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 20 mm | Stroke: 125 mm | Port: M5
STL-BG2-20-150Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 20 mm | Stroke: 150 mm | Port: M5
STL-BG2-20-175Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 20 mm | Stroke: 175 mm | Port: M5
STL-BG2-20-200Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 20 mm | Stroke: 200 mm | Port: M5
STL-BG2-20-225Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 20 mm | Stroke: 225 mm | Port: M5
STL-BG2-20-250Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 20 mm | Stroke: 250 mm | Port: M5
STL-BG2-20-275Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 20 mm | Stroke: 275 mm | Port: M5
STL-BG2-20-300Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 20 mm | Stroke: 300 mm | Port: M5
STL-BG2-20-325Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 20 mm | Stroke: 325 mm | Port: M5
STL-BG2-20-350Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 20 mm | Stroke: 350 mm | Port: M5
STL-BG2-20-375Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 20 mm | Stroke: 375 mm | Port: M5
STL-BG2-20-400Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 20 mm | Stroke: 400 mm | Port: M5
STL-BG2-25-50Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 25 mm | Stroke: 50 mm | Port: M5
STL-BG2-25-75Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 25 mm | Stroke: 75 mm | Port: M5
STL-BG2-25-100Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 25 mm | Stroke: 100 mm | Port: M5
STL-BG2-25-125Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 25 mm | Stroke: 125 mm | Port: M5
STL-BG2-25-150Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 25 mm | Stroke: 150 mm | Port: M5
STL-BG2-25-175Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 25 mm | Stroke: 175 mm | Port: M5
STL-BG2-25-200Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 25 mm | Stroke: 200 mm | Port: M5
STL-BG2-25-225Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 25 mm | Stroke: 225 mm | Port: M5
STL-BG2-25-250Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 25 mm | Stroke: 250 mm | Port: M5
STL-BG2-25-275Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 25 mm | Stroke: 275 mm | Port: M5
STL-BG2-25-300Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 25 mm | Stroke: 300 mm | Port: M5
STL-BG2-25-325Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 25 mm | Stroke: 325 mm | Port: M5
STL-BG2-25-350Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 25 mm | Stroke: 350 mm | Port: M5
STL-BG2-25-375Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 25 mm | Stroke: 375 mm | Port: M5
STL-BG2-25-400Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 25 mm | Stroke: 400 mm | Port: M5
STL-BG2-32-50Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
STL-BG2-32-75Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8
STL-BG2-32-100Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
STL-BG2-32-125Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 32 mm | Stroke: 125 mm | Port: Rc1/8
STL-BG2-32-150Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 32 mm | Stroke: 150 mm | Port: Rc1/8
STL-BG2-32-175Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 32 mm | Stroke: 175 mm | Port: Rc1/8
STL-BG2-32-200Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 32 mm | Stroke: 200 mm | Port: Rc1/8
STL-BG2-32-225Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 32 mm | Stroke: 225 mm | Port: Rc1/8
STL-BG2-32-250Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 32 mm | Stroke: 250 mm | Port: Rc1/8
STL-BG2-32-275Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 32 mm | Stroke: 275 mm | Port: Rc1/8
STL-BG2-32-300Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 32 mm | Stroke: 300 mm | Port: Rc1/8
STL-BG2-32-325Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 32 mm | Stroke: 325 mm | Port: Rc1/8
STL-BG2-32-350Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 32 mm | Stroke: 350 mm | Port: Rc1/8
STL-BG2-32-375Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 32 mm | Stroke: 375 mm | Port: Rc1/8
STL-BG2-32-400Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 32 mm | Stroke: 400 mm | Port: Rc1/8
STL-BG2-40-50Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
STL-BG2-40-75Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/8
STL-BG2-40-100Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8
STL-BG2-40-125Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 40 mm | Stroke: 125 mm | Port: Rc1/8
STL-BG2-40-150Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/8
STL-BG2-40-175Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 40 mm | Stroke: 175 mm | Port: Rc1/8
STL-BG2-40-200Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/8
STL-BG2-40-225Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 40 mm | Stroke: 225 mm | Port: Rc1/8
STL-BG2-40-250Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/8
STL-BG2-40-275Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 40 mm | Stroke: 275 mm | Port: Rc1/8
STL-BG2-40-300Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/8
STL-BG2-40-325Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 40 mm | Stroke: 325 mm | Port: Rc1/8
STL-BG2-40-350Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 40 mm | Stroke: 350 mm | Port: Rc1/8
STL-BG2-40-375Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 40 mm | Stroke: 375 mm | Port: Rc1/8
STL-BG2-40-400Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 40 mm | Stroke: 400 mm | Port: Rc1/8
STL-BG2-50-50Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
STL-BG2-50-75Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 50 mm | Stroke: 75 mm | Port: Rc1/4
STL-BG2-50-100Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
STL-BG2-50-125Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 50 mm | Stroke: 125 mm | Port: Rc1/4
STL-BG2-50-150Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 50 mm | Stroke: 150 mm | Port: Rc1/4
STL-BG2-50-175Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 50 mm | Stroke: 175 mm | Port: Rc1/4
STL-BG2-50-200Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 50 mm | Stroke: 200 mm | Port: Rc1/4
STL-BG2-50-225Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 50 mm | Stroke: 225 mm | Port: Rc1/4
STL-BG2-50-250Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 50 mm | Stroke: 250 mm | Port: Rc1/4
STL-BG2-50-275Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 50 mm | Stroke: 275 mm | Port: Rc1/4
STL-BG2-50-300Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 50 mm | Stroke: 300 mm | Port: Rc1/4
STL-BG2-50-325Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 50 mm | Stroke: 325 mm | Port: Rc1/4
STL-BG2-50-350Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 50 mm | Stroke: 350 mm | Port: Rc1/4
STL-BG2-50-375Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 50 mm | Stroke: 375 mm | Port: Rc1/4
STL-BG2-50-400Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 50 mm | Stroke: 400 mm | Port: Rc1/4
STL-BG2-63-50Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
STL-BG2-63-75Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 63 mm | Stroke: 75 mm | Port: Rc1/4
STL-BG2-63-100Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4
STL-BG2-63-125Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 63 mm | Stroke: 125 mm | Port: Rc1/4
STL-BG2-63-150Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 63 mm | Stroke: 150 mm | Port: Rc1/4
STL-BG2-63-175Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 63 mm | Stroke: 175 mm | Port: Rc1/4
STL-BG2-63-200Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 63 mm | Stroke: 200 mm | Port: Rc1/4
STL-BG2-63-225Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 63 mm | Stroke: 225 mm | Port: Rc1/4
STL-BG2-63-250Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 63 mm | Stroke: 250 mm | Port: Rc1/4
STL-BG2-63-275Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 63 mm | Stroke: 275 mm | Port: Rc1/4
STL-BG2-63-300Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 63 mm | Stroke: 300 mm | Port: Rc1/4
STL-BG2-63-325Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 63 mm | Stroke: 325 mm | Port: Rc1/4
STL-BG2-63-350Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 63 mm | Stroke: 350 mm | Port: Rc1/4
STL-BG2-63-375Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 63 mm | Stroke: 375 mm | Port: Rc1/4
STL-BG2-63-400Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 63 mm | Stroke: 400 mm | Port: Rc1/4
STL-BG2-80-75Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
STL-BG2-80-100Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
STL-BG2-80-125Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 80 mm | Stroke: 125 mm | Port: Rc3/8
STL-BG2-80-150Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 80 mm | Stroke: 150 mm | Port: Rc3/8
STL-BG2-80-175Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 80 mm | Stroke: 175 mm | Port: Rc3/8
STL-BG2-80-200Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 80 mm | Stroke: 200 mm | Port: Rc3/8
STL-BG2-80-225Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 80 mm | Stroke: 225 mm | Port: Rc3/8
STL-BG2-80-250Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 80 mm | Stroke: 250 mm | Port: Rc3/8
STL-BG2-80-275Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 80 mm | Stroke: 275 mm | Port: Rc3/8
STL-BG2-80-300Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 80 mm | Stroke: 300 mm | Port: Rc3/8
STL-BG2-80-325Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 80 mm | Stroke: 325 mm | Port: Rc3/8
STL-BG2-80-350Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 80 mm | Stroke: 350 mm | Port: Rc3/8
STL-BG2-80-375Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 80 mm | Stroke: 375 mm | Port: Rc3/8
STL-BG2-80-400Series: STL (long stroke) | Bearing: Ball bushing | Protection: G2 scraper + NBR packing | Bore: 80 mm | Stroke: 400 mm | Port: Rc3/8
STL-BG3-20-50Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 20 mm | Stroke: 50 mm | Port: M5
STL-BG3-20-75Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 20 mm | Stroke: 75 mm | Port: M5
STL-BG3-20-100Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 20 mm | Stroke: 100 mm | Port: M5
STL-BG3-20-125Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 20 mm | Stroke: 125 mm | Port: M5
STL-BG3-20-150Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 20 mm | Stroke: 150 mm | Port: M5
STL-BG3-20-175Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 20 mm | Stroke: 175 mm | Port: M5
STL-BG3-20-200Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 20 mm | Stroke: 200 mm | Port: M5
STL-BG3-20-225Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 20 mm | Stroke: 225 mm | Port: M5
STL-BG3-20-250Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 20 mm | Stroke: 250 mm | Port: M5
STL-BG3-20-275Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 20 mm | Stroke: 275 mm | Port: M5
STL-BG3-20-300Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 20 mm | Stroke: 300 mm | Port: M5
STL-BG3-20-325Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 20 mm | Stroke: 325 mm | Port: M5
STL-BG3-20-350Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 20 mm | Stroke: 350 mm | Port: M5
STL-BG3-20-375Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 20 mm | Stroke: 375 mm | Port: M5
STL-BG3-20-400Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 20 mm | Stroke: 400 mm | Port: M5
STL-BG3-25-50Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 25 mm | Stroke: 50 mm | Port: M5
STL-BG3-25-75Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 25 mm | Stroke: 75 mm | Port: M5
STL-BG3-25-100Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 25 mm | Stroke: 100 mm | Port: M5
STL-BG3-25-125Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 25 mm | Stroke: 125 mm | Port: M5
STL-BG3-25-150Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 25 mm | Stroke: 150 mm | Port: M5
STL-BG3-25-175Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 25 mm | Stroke: 175 mm | Port: M5
STL-BG3-25-200Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 25 mm | Stroke: 200 mm | Port: M5
STL-BG3-25-225Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 25 mm | Stroke: 225 mm | Port: M5
STL-BG3-25-250Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 25 mm | Stroke: 250 mm | Port: M5
STL-BG3-25-275Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 25 mm | Stroke: 275 mm | Port: M5
STL-BG3-25-300Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 25 mm | Stroke: 300 mm | Port: M5
STL-BG3-25-325Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 25 mm | Stroke: 325 mm | Port: M5
STL-BG3-25-350Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 25 mm | Stroke: 350 mm | Port: M5
STL-BG3-25-375Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 25 mm | Stroke: 375 mm | Port: M5
STL-BG3-25-400Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 25 mm | Stroke: 400 mm | Port: M5
STL-BG3-32-50Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
STL-BG3-32-75Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8
STL-BG3-32-100Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
STL-BG3-32-125Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 32 mm | Stroke: 125 mm | Port: Rc1/8
STL-BG3-32-150Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 32 mm | Stroke: 150 mm | Port: Rc1/8
STL-BG3-32-175Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 32 mm | Stroke: 175 mm | Port: Rc1/8
STL-BG3-32-200Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 32 mm | Stroke: 200 mm | Port: Rc1/8
STL-BG3-32-225Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 32 mm | Stroke: 225 mm | Port: Rc1/8
STL-BG3-32-250Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 32 mm | Stroke: 250 mm | Port: Rc1/8
STL-BG3-32-275Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 32 mm | Stroke: 275 mm | Port: Rc1/8
STL-BG3-32-300Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 32 mm | Stroke: 300 mm | Port: Rc1/8
STL-BG3-32-325Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 32 mm | Stroke: 325 mm | Port: Rc1/8
STL-BG3-32-350Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 32 mm | Stroke: 350 mm | Port: Rc1/8
STL-BG3-32-375Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 32 mm | Stroke: 375 mm | Port: Rc1/8
STL-BG3-32-400Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 32 mm | Stroke: 400 mm | Port: Rc1/8
STL-BG3-40-50Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
STL-BG3-40-75Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/8
STL-BG3-40-100Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8
STL-BG3-40-125Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 40 mm | Stroke: 125 mm | Port: Rc1/8
STL-BG3-40-150Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/8
STL-BG3-40-175Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 40 mm | Stroke: 175 mm | Port: Rc1/8
STL-BG3-40-200Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/8
STL-BG3-40-225Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 40 mm | Stroke: 225 mm | Port: Rc1/8
STL-BG3-40-250Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/8
STL-BG3-40-275Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 40 mm | Stroke: 275 mm | Port: Rc1/8
STL-BG3-40-300Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/8
STL-BG3-40-325Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 40 mm | Stroke: 325 mm | Port: Rc1/8
STL-BG3-40-350Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 40 mm | Stroke: 350 mm | Port: Rc1/8
STL-BG3-40-375Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 40 mm | Stroke: 375 mm | Port: Rc1/8
STL-BG3-40-400Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 40 mm | Stroke: 400 mm | Port: Rc1/8
STL-BG3-50-50Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
STL-BG3-50-75Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 50 mm | Stroke: 75 mm | Port: Rc1/4
STL-BG3-50-100Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
STL-BG3-50-125Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 50 mm | Stroke: 125 mm | Port: Rc1/4
STL-BG3-50-150Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 50 mm | Stroke: 150 mm | Port: Rc1/4
STL-BG3-50-175Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 50 mm | Stroke: 175 mm | Port: Rc1/4
STL-BG3-50-200Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 50 mm | Stroke: 200 mm | Port: Rc1/4
STL-BG3-50-225Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 50 mm | Stroke: 225 mm | Port: Rc1/4
STL-BG3-50-250Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 50 mm | Stroke: 250 mm | Port: Rc1/4
STL-BG3-50-275Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 50 mm | Stroke: 275 mm | Port: Rc1/4
STL-BG3-50-300Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 50 mm | Stroke: 300 mm | Port: Rc1/4
STL-BG3-50-325Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 50 mm | Stroke: 325 mm | Port: Rc1/4
STL-BG3-50-350Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 50 mm | Stroke: 350 mm | Port: Rc1/4
STL-BG3-50-375Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 50 mm | Stroke: 375 mm | Port: Rc1/4
STL-BG3-50-400Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 50 mm | Stroke: 400 mm | Port: Rc1/4
STL-BG3-63-50Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
STL-BG3-63-75Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 63 mm | Stroke: 75 mm | Port: Rc1/4
STL-BG3-63-100Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4
STL-BG3-63-125Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 63 mm | Stroke: 125 mm | Port: Rc1/4
STL-BG3-63-150Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 63 mm | Stroke: 150 mm | Port: Rc1/4
STL-BG3-63-175Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 63 mm | Stroke: 175 mm | Port: Rc1/4
STL-BG3-63-200Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 63 mm | Stroke: 200 mm | Port: Rc1/4
STL-BG3-63-225Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 63 mm | Stroke: 225 mm | Port: Rc1/4
STL-BG3-63-250Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 63 mm | Stroke: 250 mm | Port: Rc1/4
STL-BG3-63-275Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 63 mm | Stroke: 275 mm | Port: Rc1/4
STL-BG3-63-300Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 63 mm | Stroke: 300 mm | Port: Rc1/4
STL-BG3-63-325Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 63 mm | Stroke: 325 mm | Port: Rc1/4
STL-BG3-63-350Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 63 mm | Stroke: 350 mm | Port: Rc1/4
STL-BG3-63-375Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 63 mm | Stroke: 375 mm | Port: Rc1/4
STL-BG3-63-400Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 63 mm | Stroke: 400 mm | Port: Rc1/4
STL-BG3-80-75Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
STL-BG3-80-100Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
STL-BG3-80-125Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 80 mm | Stroke: 125 mm | Port: Rc3/8
STL-BG3-80-150Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 80 mm | Stroke: 150 mm | Port: Rc3/8
STL-BG3-80-175Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 80 mm | Stroke: 175 mm | Port: Rc3/8
STL-BG3-80-200Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 80 mm | Stroke: 200 mm | Port: Rc3/8
STL-BG3-80-225Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 80 mm | Stroke: 225 mm | Port: Rc3/8
STL-BG3-80-250Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 80 mm | Stroke: 250 mm | Port: Rc3/8
STL-BG3-80-275Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 80 mm | Stroke: 275 mm | Port: Rc3/8
STL-BG3-80-300Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 80 mm | Stroke: 300 mm | Port: Rc3/8
STL-BG3-80-325Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 80 mm | Stroke: 325 mm | Port: Rc3/8
STL-BG3-80-350Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 80 mm | Stroke: 350 mm | Port: Rc3/8
STL-BG3-80-375Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 80 mm | Stroke: 375 mm | Port: Rc3/8
STL-BG3-80-400Series: STL (long stroke) | Bearing: Ball bushing | Protection: G3 scraper + FKM packing | Bore: 80 mm | Stroke: 400 mm | Port: Rc3/8

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
