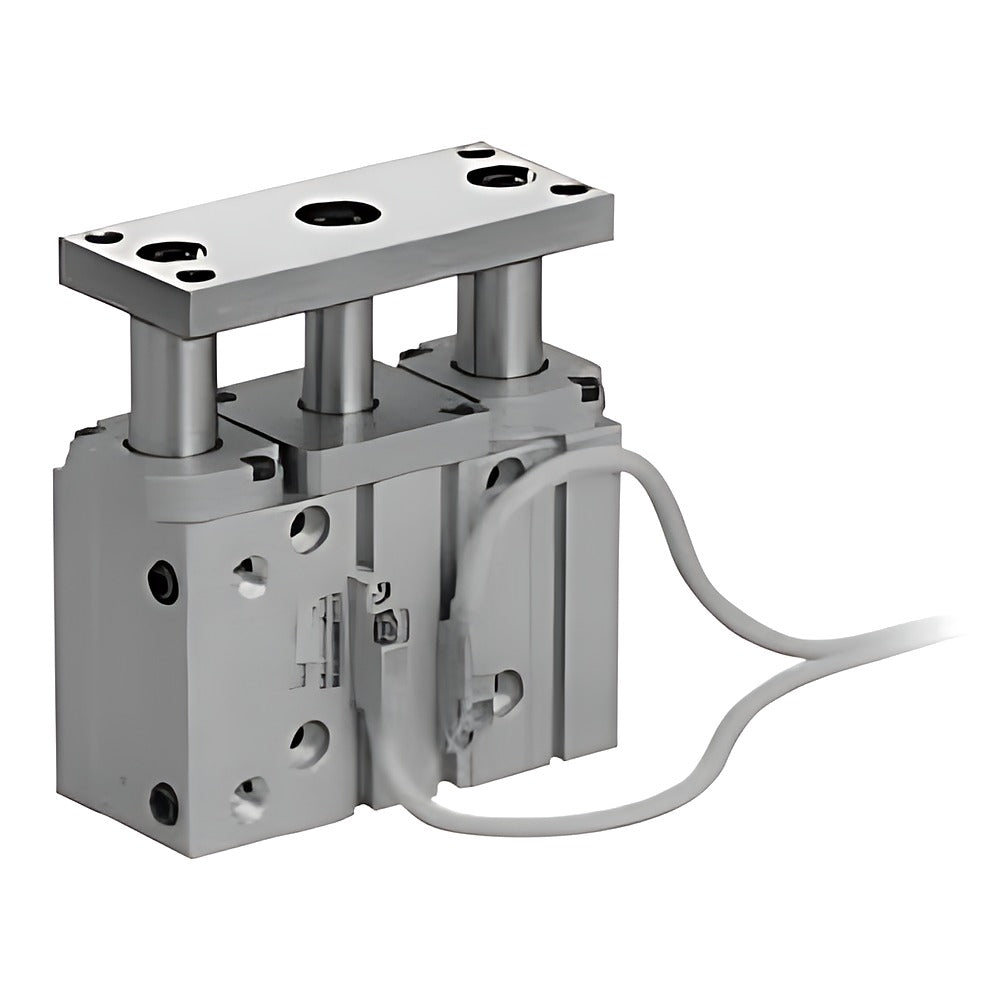

CKD STS/STL-G4 Guided Cylinder (Spatter Resistant, Bore 40-80)

CKD STS/STL-G4 Guided Cylinder (Spatter Resistant, Bore 40-80)

CKD STS/STL-G4 spatter-resistant guided cylinder for welding lines, used with T2YD/T2YDT AC-magnetic-field switches.

Key features

  • Anti-spatter-adhesion construction for welding environments
  • Bores 40 to 80 mm; STS strokes 25-100 mm, STL strokes 50-400 mm
  • Code includes the fixed L1 block for the AC magnetic field switch rail
  • Switch-ready; T2YD / T2YDT AC-field 2-colour switches with quantity R/H/D/T added as suffixes
  • Options: F steel end plate; M / M1 SUS parts and NN / GN threads made to order

Specifications

Action Double acting
Fluid Compressed air
Max. operating pressure 1.0 MPa
Proof pressure 1.6 MPa
Ambient temperature -10 to 60°C (no freezing)
Stroke tolerance +2.0 / 0 mm
Lubrication Not required (ISO VG32 turbine oil if used)
Min. operating pressure 0.15 MPa
Piston speed 50 to 500 mm/s (bore 40-50), 50 to 300 mm/s (bore 63-80)
Cushion Rubber cushion
Source CKD Korea catalog CB-030SK-9, p. 624-631
STS-MG4-L1-40-25 Series: STS (short stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
STS-MG4-L1-40-50 Series: STS (short stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
STS-MG4-L1-50-25 Series: STS (short stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
STS-MG4-L1-50-50 Series: STS (short stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
STS-MG4-L1-63-25 Series: STS (short stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 25 mm | Port: Rc1/4
STS-MG4-L1-63-50 Series: STS (short stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
STS-MG4-L1-80-25 Series: STS (short stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 25 mm | Port: Rc3/8
STS-MG4-L1-80-50 Series: STS (short stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
STS-MG4-L1-80-75 Series: STS (short stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
STS-MG4-L1-80-100 Series: STS (short stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
STS-BG4-L1-40-25 Series: STS (short stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
STS-BG4-L1-40-50 Series: STS (short stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
STS-BG4-L1-50-25 Series: STS (short stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
STS-BG4-L1-50-50 Series: STS (short stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
STS-BG4-L1-63-25 Series: STS (short stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 25 mm | Port: Rc1/4
STS-BG4-L1-63-50 Series: STS (short stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
STS-BG4-L1-80-25 Series: STS (short stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 25 mm | Port: Rc3/8
STS-BG4-L1-80-50 Series: STS (short stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
STS-BG4-L1-80-75 Series: STS (short stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
STS-BG4-L1-80-100 Series: STS (short stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
STL-MG4-L1-40-50 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
STL-MG4-L1-40-75 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/8
STL-MG4-L1-40-100 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8
STL-MG4-L1-40-125 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 125 mm | Port: Rc1/8
STL-MG4-L1-40-150 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/8
STL-MG4-L1-40-175 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 175 mm | Port: Rc1/8
STL-MG4-L1-40-200 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/8
STL-MG4-L1-40-225 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 225 mm | Port: Rc1/8
STL-MG4-L1-40-250 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/8
STL-MG4-L1-40-275 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 275 mm | Port: Rc1/8
STL-MG4-L1-40-300 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/8
STL-MG4-L1-40-325 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 325 mm | Port: Rc1/8
STL-MG4-L1-40-350 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 350 mm | Port: Rc1/8
STL-MG4-L1-40-375 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 375 mm | Port: Rc1/8
STL-MG4-L1-40-400 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 400 mm | Port: Rc1/8
STL-MG4-L1-50-50 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
STL-MG4-L1-50-75 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 75 mm | Port: Rc1/4
STL-MG4-L1-50-100 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
STL-MG4-L1-50-125 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 125 mm | Port: Rc1/4
STL-MG4-L1-50-150 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 150 mm | Port: Rc1/4
STL-MG4-L1-50-175 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 175 mm | Port: Rc1/4
STL-MG4-L1-50-200 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 200 mm | Port: Rc1/4
STL-MG4-L1-50-225 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 225 mm | Port: Rc1/4
STL-MG4-L1-50-250 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 250 mm | Port: Rc1/4
STL-MG4-L1-50-275 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 275 mm | Port: Rc1/4
STL-MG4-L1-50-300 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 300 mm | Port: Rc1/4
STL-MG4-L1-50-325 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 325 mm | Port: Rc1/4
STL-MG4-L1-50-350 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 350 mm | Port: Rc1/4
STL-MG4-L1-50-375 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 375 mm | Port: Rc1/4
STL-MG4-L1-50-400 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 400 mm | Port: Rc1/4
STL-MG4-L1-63-50 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
STL-MG4-L1-63-75 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 75 mm | Port: Rc1/4
STL-MG4-L1-63-100 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4
STL-MG4-L1-63-125 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 125 mm | Port: Rc1/4
STL-MG4-L1-63-150 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 150 mm | Port: Rc1/4
STL-MG4-L1-63-175 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 175 mm | Port: Rc1/4
STL-MG4-L1-63-200 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 200 mm | Port: Rc1/4
STL-MG4-L1-63-225 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 225 mm | Port: Rc1/4
STL-MG4-L1-63-250 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 250 mm | Port: Rc1/4
STL-MG4-L1-63-275 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 275 mm | Port: Rc1/4
STL-MG4-L1-63-300 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 300 mm | Port: Rc1/4
STL-MG4-L1-63-325 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 325 mm | Port: Rc1/4
STL-MG4-L1-63-350 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 350 mm | Port: Rc1/4
STL-MG4-L1-63-375 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 375 mm | Port: Rc1/4
STL-MG4-L1-63-400 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 400 mm | Port: Rc1/4
STL-MG4-L1-80-75 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
STL-MG4-L1-80-100 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
STL-MG4-L1-80-125 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 125 mm | Port: Rc3/8
STL-MG4-L1-80-150 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 150 mm | Port: Rc3/8
STL-MG4-L1-80-175 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 175 mm | Port: Rc3/8
STL-MG4-L1-80-200 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 200 mm | Port: Rc3/8
STL-MG4-L1-80-225 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 225 mm | Port: Rc3/8
STL-MG4-L1-80-250 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 250 mm | Port: Rc3/8
STL-MG4-L1-80-275 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 275 mm | Port: Rc3/8
STL-MG4-L1-80-300 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 300 mm | Port: Rc3/8
STL-MG4-L1-80-325 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 325 mm | Port: Rc3/8
STL-MG4-L1-80-350 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 350 mm | Port: Rc3/8
STL-MG4-L1-80-375 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 375 mm | Port: Rc3/8
STL-MG4-L1-80-400 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 400 mm | Port: Rc3/8
STL-BG4-L1-40-50 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
STL-BG4-L1-40-75 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/8
STL-BG4-L1-40-100 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8
STL-BG4-L1-40-125 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 125 mm | Port: Rc1/8
STL-BG4-L1-40-150 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/8
STL-BG4-L1-40-175 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 175 mm | Port: Rc1/8
STL-BG4-L1-40-200 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/8
STL-BG4-L1-40-225 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 225 mm | Port: Rc1/8
STL-BG4-L1-40-250 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/8
STL-BG4-L1-40-275 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 275 mm | Port: Rc1/8
STL-BG4-L1-40-300 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/8
STL-BG4-L1-40-325 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 325 mm | Port: Rc1/8
STL-BG4-L1-40-350 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 350 mm | Port: Rc1/8
STL-BG4-L1-40-375 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 375 mm | Port: Rc1/8
STL-BG4-L1-40-400 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 400 mm | Port: Rc1/8
STL-BG4-L1-50-50 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
STL-BG4-L1-50-75 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 75 mm | Port: Rc1/4
STL-BG4-L1-50-100 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
STL-BG4-L1-50-125 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 125 mm | Port: Rc1/4
STL-BG4-L1-50-150 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 150 mm | Port: Rc1/4
STL-BG4-L1-50-175 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 175 mm | Port: Rc1/4
STL-BG4-L1-50-200 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 200 mm | Port: Rc1/4
STL-BG4-L1-50-225 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 225 mm | Port: Rc1/4
STL-BG4-L1-50-250 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 250 mm | Port: Rc1/4
STL-BG4-L1-50-275 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 275 mm | Port: Rc1/4
STL-BG4-L1-50-300 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 300 mm | Port: Rc1/4
STL-BG4-L1-50-325 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 325 mm | Port: Rc1/4
STL-BG4-L1-50-350 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 350 mm | Port: Rc1/4
STL-BG4-L1-50-375 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 375 mm | Port: Rc1/4
STL-BG4-L1-50-400 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 400 mm | Port: Rc1/4
STL-BG4-L1-63-50 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
STL-BG4-L1-63-75 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 75 mm | Port: Rc1/4
STL-BG4-L1-63-100 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4
STL-BG4-L1-63-125 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 125 mm | Port: Rc1/4
STL-BG4-L1-63-150 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 150 mm | Port: Rc1/4
STL-BG4-L1-63-175 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 175 mm | Port: Rc1/4
STL-BG4-L1-63-200 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 200 mm | Port: Rc1/4
STL-BG4-L1-63-225 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 225 mm | Port: Rc1/4
STL-BG4-L1-63-250 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 250 mm | Port: Rc1/4
STL-BG4-L1-63-275 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 275 mm | Port: Rc1/4
STL-BG4-L1-63-300 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 300 mm | Port: Rc1/4
STL-BG4-L1-63-325 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 325 mm | Port: Rc1/4
STL-BG4-L1-63-350 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 350 mm | Port: Rc1/4
STL-BG4-L1-63-375 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 375 mm | Port: Rc1/4
STL-BG4-L1-63-400 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 400 mm | Port: Rc1/4
STL-BG4-L1-80-75 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
STL-BG4-L1-80-100 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
STL-BG4-L1-80-125 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 125 mm | Port: Rc3/8
STL-BG4-L1-80-150 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 150 mm | Port: Rc3/8
STL-BG4-L1-80-175 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 175 mm | Port: Rc3/8
STL-BG4-L1-80-200 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 200 mm | Port: Rc3/8
STL-BG4-L1-80-225 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 225 mm | Port: Rc3/8
STL-BG4-L1-80-250 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 250 mm | Port: Rc3/8
STL-BG4-L1-80-275 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 275 mm | Port: Rc3/8
STL-BG4-L1-80-300 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 300 mm | Port: Rc3/8
STL-BG4-L1-80-325 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 325 mm | Port: Rc3/8
STL-BG4-L1-80-350 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 350 mm | Port: Rc3/8
STL-BG4-L1-80-375 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 375 mm | Port: Rc3/8
STL-BG4-L1-80-400 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 400 mm | Port: Rc3/8
Guided CylindersCKD
138 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD STS/STL-G4 Guided Cylinder (Spatter Resistant, Bore 40-80)

Brand CKD·Guided Cylinders

Available part numbers (138)

STS-MG4-L1-40-25, STS-MG4-L1-40-50, STS-MG4-L1-50-25, STS-MG4-L1-50-50, STS-MG4-L1-63-25, STS-MG4-L1-63-50, STS-MG4-L1-80-25, STS-MG4-L1-80-50, STS-MG4-L1-80-75, STS-MG4-L1-80-100 + 128 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
STS-MG4-L1-40-25Series: STS (short stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
STS-MG4-L1-40-50Series: STS (short stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
STS-MG4-L1-50-25Series: STS (short stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
STS-MG4-L1-50-50Series: STS (short stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
STS-MG4-L1-63-25Series: STS (short stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 25 mm | Port: Rc1/4
STS-MG4-L1-63-50Series: STS (short stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
STS-MG4-L1-80-25Series: STS (short stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 25 mm | Port: Rc3/8
STS-MG4-L1-80-50Series: STS (short stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
STS-MG4-L1-80-75Series: STS (short stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
STS-MG4-L1-80-100Series: STS (short stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
STS-BG4-L1-40-25Series: STS (short stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
STS-BG4-L1-40-50Series: STS (short stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
STS-BG4-L1-50-25Series: STS (short stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
STS-BG4-L1-50-50Series: STS (short stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
STS-BG4-L1-63-25Series: STS (short stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 25 mm | Port: Rc1/4
STS-BG4-L1-63-50Series: STS (short stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
STS-BG4-L1-80-25Series: STS (short stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 25 mm | Port: Rc3/8
STS-BG4-L1-80-50Series: STS (short stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
STS-BG4-L1-80-75Series: STS (short stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
STS-BG4-L1-80-100Series: STS (short stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
STL-MG4-L1-40-50Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
STL-MG4-L1-40-75Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/8
STL-MG4-L1-40-100Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8
STL-MG4-L1-40-125Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 125 mm | Port: Rc1/8
STL-MG4-L1-40-150Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/8
STL-MG4-L1-40-175Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 175 mm | Port: Rc1/8
STL-MG4-L1-40-200Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/8
STL-MG4-L1-40-225Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 225 mm | Port: Rc1/8
STL-MG4-L1-40-250Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/8
STL-MG4-L1-40-275Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 275 mm | Port: Rc1/8
STL-MG4-L1-40-300Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/8
STL-MG4-L1-40-325Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 325 mm | Port: Rc1/8
STL-MG4-L1-40-350Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 350 mm | Port: Rc1/8
STL-MG4-L1-40-375Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 375 mm | Port: Rc1/8
STL-MG4-L1-40-400Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 400 mm | Port: Rc1/8
STL-MG4-L1-50-50Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
STL-MG4-L1-50-75Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 75 mm | Port: Rc1/4
STL-MG4-L1-50-100Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
STL-MG4-L1-50-125Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 125 mm | Port: Rc1/4
STL-MG4-L1-50-150Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 150 mm | Port: Rc1/4
STL-MG4-L1-50-175Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 175 mm | Port: Rc1/4
STL-MG4-L1-50-200Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 200 mm | Port: Rc1/4
STL-MG4-L1-50-225Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 225 mm | Port: Rc1/4
STL-MG4-L1-50-250Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 250 mm | Port: Rc1/4
STL-MG4-L1-50-275Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 275 mm | Port: Rc1/4
STL-MG4-L1-50-300Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 300 mm | Port: Rc1/4
STL-MG4-L1-50-325Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 325 mm | Port: Rc1/4
STL-MG4-L1-50-350Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 350 mm | Port: Rc1/4
STL-MG4-L1-50-375Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 375 mm | Port: Rc1/4
STL-MG4-L1-50-400Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 400 mm | Port: Rc1/4
STL-MG4-L1-63-50Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
STL-MG4-L1-63-75Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 75 mm | Port: Rc1/4
STL-MG4-L1-63-100Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4
STL-MG4-L1-63-125Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 125 mm | Port: Rc1/4
STL-MG4-L1-63-150Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 150 mm | Port: Rc1/4
STL-MG4-L1-63-175Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 175 mm | Port: Rc1/4
STL-MG4-L1-63-200Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 200 mm | Port: Rc1/4
STL-MG4-L1-63-225Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 225 mm | Port: Rc1/4
STL-MG4-L1-63-250Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 250 mm | Port: Rc1/4
STL-MG4-L1-63-275Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 275 mm | Port: Rc1/4
STL-MG4-L1-63-300Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 300 mm | Port: Rc1/4
STL-MG4-L1-63-325Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 325 mm | Port: Rc1/4
STL-MG4-L1-63-350Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 350 mm | Port: Rc1/4
STL-MG4-L1-63-375Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 375 mm | Port: Rc1/4
STL-MG4-L1-63-400Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 400 mm | Port: Rc1/4
STL-MG4-L1-80-75Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
STL-MG4-L1-80-100Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
STL-MG4-L1-80-125Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 125 mm | Port: Rc3/8
STL-MG4-L1-80-150Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 150 mm | Port: Rc3/8
STL-MG4-L1-80-175Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 175 mm | Port: Rc3/8
STL-MG4-L1-80-200Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 200 mm | Port: Rc3/8
STL-MG4-L1-80-225Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 225 mm | Port: Rc3/8
STL-MG4-L1-80-250Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 250 mm | Port: Rc3/8
STL-MG4-L1-80-275Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 275 mm | Port: Rc3/8
STL-MG4-L1-80-300Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 300 mm | Port: Rc3/8
STL-MG4-L1-80-325Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 325 mm | Port: Rc3/8
STL-MG4-L1-80-350Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 350 mm | Port: Rc3/8
STL-MG4-L1-80-375Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 375 mm | Port: Rc3/8
STL-MG4-L1-80-400Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 400 mm | Port: Rc3/8
STL-BG4-L1-40-50Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
STL-BG4-L1-40-75Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/8
STL-BG4-L1-40-100Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8
STL-BG4-L1-40-125Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 125 mm | Port: Rc1/8
STL-BG4-L1-40-150Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/8
STL-BG4-L1-40-175Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 175 mm | Port: Rc1/8
STL-BG4-L1-40-200Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/8
STL-BG4-L1-40-225Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 225 mm | Port: Rc1/8
STL-BG4-L1-40-250Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/8
STL-BG4-L1-40-275Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 275 mm | Port: Rc1/8
STL-BG4-L1-40-300Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/8
STL-BG4-L1-40-325Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 325 mm | Port: Rc1/8
STL-BG4-L1-40-350Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 350 mm | Port: Rc1/8
STL-BG4-L1-40-375Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 375 mm | Port: Rc1/8
STL-BG4-L1-40-400Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 400 mm | Port: Rc1/8
STL-BG4-L1-50-50Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
STL-BG4-L1-50-75Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 75 mm | Port: Rc1/4
STL-BG4-L1-50-100Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
STL-BG4-L1-50-125Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 125 mm | Port: Rc1/4
STL-BG4-L1-50-150Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 150 mm | Port: Rc1/4
STL-BG4-L1-50-175Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 175 mm | Port: Rc1/4
STL-BG4-L1-50-200Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 200 mm | Port: Rc1/4
STL-BG4-L1-50-225Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 225 mm | Port: Rc1/4
STL-BG4-L1-50-250Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 250 mm | Port: Rc1/4
STL-BG4-L1-50-275Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 275 mm | Port: Rc1/4
STL-BG4-L1-50-300Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 300 mm | Port: Rc1/4
STL-BG4-L1-50-325Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 325 mm | Port: Rc1/4
STL-BG4-L1-50-350Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 350 mm | Port: Rc1/4
STL-BG4-L1-50-375Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 375 mm | Port: Rc1/4
STL-BG4-L1-50-400Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 400 mm | Port: Rc1/4
STL-BG4-L1-63-50Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
STL-BG4-L1-63-75Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 75 mm | Port: Rc1/4
STL-BG4-L1-63-100Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4
STL-BG4-L1-63-125Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 125 mm | Port: Rc1/4
STL-BG4-L1-63-150Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 150 mm | Port: Rc1/4
STL-BG4-L1-63-175Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 175 mm | Port: Rc1/4
STL-BG4-L1-63-200Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 200 mm | Port: Rc1/4
STL-BG4-L1-63-225Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 225 mm | Port: Rc1/4
STL-BG4-L1-63-250Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 250 mm | Port: Rc1/4
STL-BG4-L1-63-275Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 275 mm | Port: Rc1/4
STL-BG4-L1-63-300Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 300 mm | Port: Rc1/4
STL-BG4-L1-63-325Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 325 mm | Port: Rc1/4
STL-BG4-L1-63-350Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 350 mm | Port: Rc1/4
STL-BG4-L1-63-375Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 375 mm | Port: Rc1/4
STL-BG4-L1-63-400Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 400 mm | Port: Rc1/4
STL-BG4-L1-80-75Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
STL-BG4-L1-80-100Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
STL-BG4-L1-80-125Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 125 mm | Port: Rc3/8
STL-BG4-L1-80-150Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 150 mm | Port: Rc3/8
STL-BG4-L1-80-175Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 175 mm | Port: Rc3/8
STL-BG4-L1-80-200Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 200 mm | Port: Rc3/8
STL-BG4-L1-80-225Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 225 mm | Port: Rc3/8
STL-BG4-L1-80-250Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 250 mm | Port: Rc3/8
STL-BG4-L1-80-275Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 275 mm | Port: Rc3/8
STL-BG4-L1-80-300Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 300 mm | Port: Rc3/8
STL-BG4-L1-80-325Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 325 mm | Port: Rc3/8
STL-BG4-L1-80-350Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 350 mm | Port: Rc3/8
STL-BG4-L1-80-375Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 375 mm | Port: Rc3/8
STL-BG4-L1-80-400Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 400 mm | Port: Rc3/8

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
