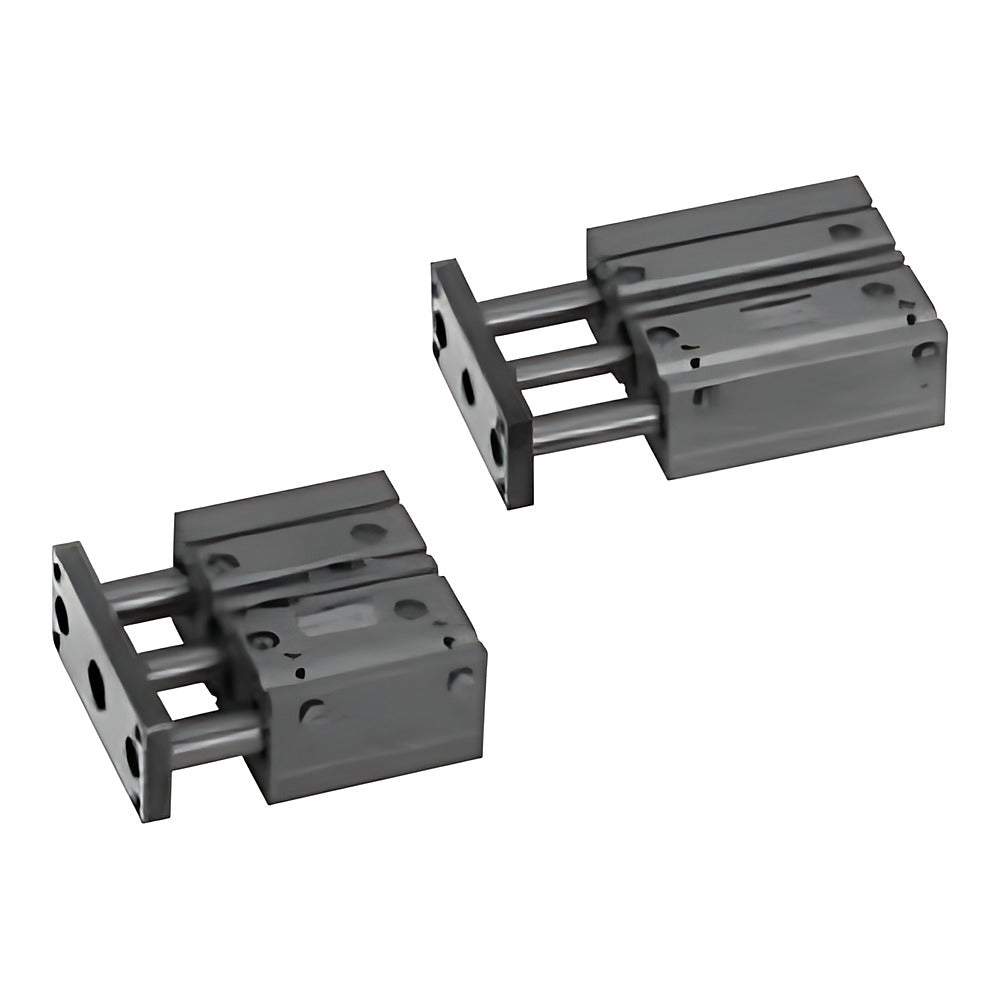

CKD STS/STL-C Guided Cylinder (Rubber Air Cushion, Bore 32-80)

CKD STS/STL-C Guided Cylinder (Rubber Air Cushion, Bore 32-80)

CKD STS/STL-M/B-※C guided cylinder with rubber air cushion, combining a sealed air pocket and rubber cushion to cut end-of-stroke impact noise and acceleration.

Key features

  • Rubber air cushion: cover contact forms a sealed air chamber that absorbs energy, plus rubber cushion deformation
  • Lower collision noise and impact acceleration than the rubber-cushion type; allowable energy 0.401-2.510 J
  • Bores 32 to 80 mm; STS strokes 25-100 mm, STL strokes 50-400 mm
  • Switch-ready (magnet built in); auto switches (T0H/T0V, T5, T8, T1, T2, T3, T3P, T2W/T2Y/T3W/T3Y 2-colour, T2J off-delay, T2YD AC-field), lead length and switch quantity (R/H/D/T) are added as suffixes
  • Options: F steel end plate; M / M1 SUS parts, P6 non-copper and N / G threads made to order; kits STS-32CK to STS-80CK

Specifications

Action Double acting
Fluid Compressed air
Max. operating pressure 1.0 MPa
Proof pressure 1.6 MPa
Ambient temperature -10 to 60°C (no freezing)
Stroke tolerance +2.0 / 0 mm
Lubrication Not required (ISO VG32 turbine oil if used)
Min. operating pressure 0.2 MPa
Piston speed 50 to 500 mm/s (bore 32-50), 50 to 300 mm/s (bore 63-80)
Cushion Rubber air cushion
Source CKD Korea catalog CB-030SK-9, p. 574-579
STS-M-32C-25 Series: STS (short stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
STS-M-32C-50 Series: STS (short stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
STS-M-40C-25 Series: STS (short stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
STS-M-40C-50 Series: STS (short stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
STS-M-50C-25 Series: STS (short stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
STS-M-50C-50 Series: STS (short stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
STS-M-63C-25 Series: STS (short stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 25 mm | Port: Rc1/4
STS-M-63C-50 Series: STS (short stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
STS-M-80C-25 Series: STS (short stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 25 mm | Port: Rc3/8
STS-M-80C-50 Series: STS (short stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
STS-M-80C-75 Series: STS (short stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
STS-M-80C-100 Series: STS (short stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
STS-B-32C-25 Series: STS (short stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
STS-B-32C-50 Series: STS (short stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
STS-B-40C-25 Series: STS (short stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
STS-B-40C-50 Series: STS (short stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
STS-B-50C-25 Series: STS (short stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
STS-B-50C-50 Series: STS (short stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
STS-B-63C-25 Series: STS (short stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 25 mm | Port: Rc1/4
STS-B-63C-50 Series: STS (short stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
STS-B-80C-25 Series: STS (short stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 25 mm | Port: Rc3/8
STS-B-80C-50 Series: STS (short stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
STS-B-80C-75 Series: STS (short stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
STS-B-80C-100 Series: STS (short stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
STL-M-32C-50 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
STL-M-32C-75 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8
STL-M-32C-100 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
STL-M-32C-125 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 125 mm | Port: Rc1/8
STL-M-32C-150 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 150 mm | Port: Rc1/8
STL-M-32C-175 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 175 mm | Port: Rc1/8
STL-M-32C-200 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 200 mm | Port: Rc1/8
STL-M-32C-225 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 225 mm | Port: Rc1/8
STL-M-32C-250 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 250 mm | Port: Rc1/8
STL-M-32C-275 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 275 mm | Port: Rc1/8
STL-M-32C-300 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 300 mm | Port: Rc1/8
STL-M-32C-325 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 325 mm | Port: Rc1/8
STL-M-32C-350 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 350 mm | Port: Rc1/8
STL-M-32C-375 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 375 mm | Port: Rc1/8
STL-M-32C-400 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 400 mm | Port: Rc1/8
STL-M-40C-50 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
STL-M-40C-75 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/8
STL-M-40C-100 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8
STL-M-40C-125 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 125 mm | Port: Rc1/8
STL-M-40C-150 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/8
STL-M-40C-175 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 175 mm | Port: Rc1/8
STL-M-40C-200 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/8
STL-M-40C-225 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 225 mm | Port: Rc1/8
STL-M-40C-250 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/8
STL-M-40C-275 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 275 mm | Port: Rc1/8
STL-M-40C-300 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/8
STL-M-40C-325 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 325 mm | Port: Rc1/8
STL-M-40C-350 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 350 mm | Port: Rc1/8
STL-M-40C-375 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 375 mm | Port: Rc1/8
STL-M-40C-400 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 400 mm | Port: Rc1/8
STL-M-50C-50 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
STL-M-50C-75 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 75 mm | Port: Rc1/4
STL-M-50C-100 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
STL-M-50C-125 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 125 mm | Port: Rc1/4
STL-M-50C-150 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 150 mm | Port: Rc1/4
STL-M-50C-175 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 175 mm | Port: Rc1/4
STL-M-50C-200 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 200 mm | Port: Rc1/4
STL-M-50C-225 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 225 mm | Port: Rc1/4
STL-M-50C-250 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 250 mm | Port: Rc1/4
STL-M-50C-275 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 275 mm | Port: Rc1/4
STL-M-50C-300 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 300 mm | Port: Rc1/4
STL-M-50C-325 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 325 mm | Port: Rc1/4
STL-M-50C-350 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 350 mm | Port: Rc1/4
STL-M-50C-375 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 375 mm | Port: Rc1/4
STL-M-50C-400 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 400 mm | Port: Rc1/4
STL-M-63C-50 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
STL-M-63C-75 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 75 mm | Port: Rc1/4
STL-M-63C-100 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4
STL-M-63C-125 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 125 mm | Port: Rc1/4
STL-M-63C-150 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 150 mm | Port: Rc1/4
STL-M-63C-175 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 175 mm | Port: Rc1/4
STL-M-63C-200 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 200 mm | Port: Rc1/4
STL-M-63C-225 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 225 mm | Port: Rc1/4
STL-M-63C-250 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 250 mm | Port: Rc1/4
STL-M-63C-275 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 275 mm | Port: Rc1/4
STL-M-63C-300 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 300 mm | Port: Rc1/4
STL-M-63C-325 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 325 mm | Port: Rc1/4
STL-M-63C-350 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 350 mm | Port: Rc1/4
STL-M-63C-375 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 375 mm | Port: Rc1/4
STL-M-63C-400 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 400 mm | Port: Rc1/4
STL-M-80C-75 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
STL-M-80C-100 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
STL-M-80C-125 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 125 mm | Port: Rc3/8
STL-M-80C-150 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 150 mm | Port: Rc3/8
STL-M-80C-175 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 175 mm | Port: Rc3/8
STL-M-80C-200 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 200 mm | Port: Rc3/8
STL-M-80C-225 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 225 mm | Port: Rc3/8
STL-M-80C-250 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 250 mm | Port: Rc3/8
STL-M-80C-275 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 275 mm | Port: Rc3/8
STL-M-80C-300 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 300 mm | Port: Rc3/8
STL-M-80C-325 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 325 mm | Port: Rc3/8
STL-M-80C-350 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 350 mm | Port: Rc3/8
STL-M-80C-375 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 375 mm | Port: Rc3/8
STL-M-80C-400 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 400 mm | Port: Rc3/8
STL-B-32C-50 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
STL-B-32C-75 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8
STL-B-32C-100 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
STL-B-32C-125 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 125 mm | Port: Rc1/8
STL-B-32C-150 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 150 mm | Port: Rc1/8
STL-B-32C-175 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 175 mm | Port: Rc1/8
STL-B-32C-200 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 200 mm | Port: Rc1/8
STL-B-32C-225 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 225 mm | Port: Rc1/8
STL-B-32C-250 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 250 mm | Port: Rc1/8
STL-B-32C-275 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 275 mm | Port: Rc1/8
STL-B-32C-300 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 300 mm | Port: Rc1/8
STL-B-32C-325 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 325 mm | Port: Rc1/8
STL-B-32C-350 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 350 mm | Port: Rc1/8
STL-B-32C-375 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 375 mm | Port: Rc1/8
STL-B-32C-400 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 400 mm | Port: Rc1/8
STL-B-40C-50 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
STL-B-40C-75 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/8
STL-B-40C-100 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8
STL-B-40C-125 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 125 mm | Port: Rc1/8
STL-B-40C-150 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/8
STL-B-40C-175 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 175 mm | Port: Rc1/8
STL-B-40C-200 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/8
STL-B-40C-225 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 225 mm | Port: Rc1/8
STL-B-40C-250 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/8
STL-B-40C-275 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 275 mm | Port: Rc1/8
STL-B-40C-300 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/8
STL-B-40C-325 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 325 mm | Port: Rc1/8
STL-B-40C-350 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 350 mm | Port: Rc1/8
STL-B-40C-375 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 375 mm | Port: Rc1/8
STL-B-40C-400 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 400 mm | Port: Rc1/8
STL-B-50C-50 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
STL-B-50C-75 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 75 mm | Port: Rc1/4
STL-B-50C-100 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
STL-B-50C-125 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 125 mm | Port: Rc1/4
STL-B-50C-150 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 150 mm | Port: Rc1/4
STL-B-50C-175 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 175 mm | Port: Rc1/4
STL-B-50C-200 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 200 mm | Port: Rc1/4
STL-B-50C-225 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 225 mm | Port: Rc1/4
STL-B-50C-250 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 250 mm | Port: Rc1/4
STL-B-50C-275 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 275 mm | Port: Rc1/4
STL-B-50C-300 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 300 mm | Port: Rc1/4
STL-B-50C-325 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 325 mm | Port: Rc1/4
STL-B-50C-350 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 350 mm | Port: Rc1/4
STL-B-50C-375 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 375 mm | Port: Rc1/4
STL-B-50C-400 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 400 mm | Port: Rc1/4
STL-B-63C-50 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
STL-B-63C-75 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 75 mm | Port: Rc1/4
STL-B-63C-100 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4
STL-B-63C-125 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 125 mm | Port: Rc1/4
STL-B-63C-150 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 150 mm | Port: Rc1/4
STL-B-63C-175 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 175 mm | Port: Rc1/4
STL-B-63C-200 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 200 mm | Port: Rc1/4
STL-B-63C-225 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 225 mm | Port: Rc1/4
STL-B-63C-250 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 250 mm | Port: Rc1/4
STL-B-63C-275 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 275 mm | Port: Rc1/4
STL-B-63C-300 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 300 mm | Port: Rc1/4
STL-B-63C-325 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 325 mm | Port: Rc1/4
STL-B-63C-350 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 350 mm | Port: Rc1/4
STL-B-63C-375 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 375 mm | Port: Rc1/4
STL-B-63C-400 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 400 mm | Port: Rc1/4
STL-B-80C-75 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
STL-B-80C-100 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
STL-B-80C-125 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 125 mm | Port: Rc3/8
STL-B-80C-150 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 150 mm | Port: Rc3/8
STL-B-80C-175 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 175 mm | Port: Rc3/8
STL-B-80C-200 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 200 mm | Port: Rc3/8
STL-B-80C-225 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 225 mm | Port: Rc3/8
STL-B-80C-250 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 250 mm | Port: Rc3/8
STL-B-80C-275 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 275 mm | Port: Rc3/8
STL-B-80C-300 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 300 mm | Port: Rc3/8
STL-B-80C-325 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 325 mm | Port: Rc3/8
STL-B-80C-350 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 350 mm | Port: Rc3/8
STL-B-80C-375 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 375 mm | Port: Rc3/8
STL-B-80C-400 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 400 mm | Port: Rc3/8
Guided CylindersCKD
172 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD STS/STL-C Guided Cylinder (Rubber Air Cushion, Bore 32-80)

Brand CKD·Guided Cylinders

Available part numbers (172)

STS-M-32C-25, STS-M-32C-50, STS-M-40C-25, STS-M-40C-50, STS-M-50C-25, STS-M-50C-50, STS-M-63C-25, STS-M-63C-50, STS-M-80C-25, STS-M-80C-50 + 162 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
STS-M-32C-25Series: STS (short stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
STS-M-32C-50Series: STS (short stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
STS-M-40C-25Series: STS (short stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
STS-M-40C-50Series: STS (short stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
STS-M-50C-25Series: STS (short stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
STS-M-50C-50Series: STS (short stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
STS-M-63C-25Series: STS (short stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 25 mm | Port: Rc1/4
STS-M-63C-50Series: STS (short stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
STS-M-80C-25Series: STS (short stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 25 mm | Port: Rc3/8
STS-M-80C-50Series: STS (short stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
STS-M-80C-75Series: STS (short stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
STS-M-80C-100Series: STS (short stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
STS-B-32C-25Series: STS (short stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
STS-B-32C-50Series: STS (short stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
STS-B-40C-25Series: STS (short stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
STS-B-40C-50Series: STS (short stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
STS-B-50C-25Series: STS (short stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
STS-B-50C-50Series: STS (short stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
STS-B-63C-25Series: STS (short stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 25 mm | Port: Rc1/4
STS-B-63C-50Series: STS (short stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
STS-B-80C-25Series: STS (short stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 25 mm | Port: Rc3/8
STS-B-80C-50Series: STS (short stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
STS-B-80C-75Series: STS (short stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
STS-B-80C-100Series: STS (short stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
STL-M-32C-50Series: STL (long stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
STL-M-32C-75Series: STL (long stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8
STL-M-32C-100Series: STL (long stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
STL-M-32C-125Series: STL (long stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 125 mm | Port: Rc1/8
STL-M-32C-150Series: STL (long stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 150 mm | Port: Rc1/8
STL-M-32C-175Series: STL (long stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 175 mm | Port: Rc1/8
STL-M-32C-200Series: STL (long stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 200 mm | Port: Rc1/8
STL-M-32C-225Series: STL (long stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 225 mm | Port: Rc1/8
STL-M-32C-250Series: STL (long stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 250 mm | Port: Rc1/8
STL-M-32C-275Series: STL (long stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 275 mm | Port: Rc1/8
STL-M-32C-300Series: STL (long stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 300 mm | Port: Rc1/8
STL-M-32C-325Series: STL (long stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 325 mm | Port: Rc1/8
STL-M-32C-350Series: STL (long stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 350 mm | Port: Rc1/8
STL-M-32C-375Series: STL (long stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 375 mm | Port: Rc1/8
STL-M-32C-400Series: STL (long stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 400 mm | Port: Rc1/8
STL-M-40C-50Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
STL-M-40C-75Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/8
STL-M-40C-100Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8
STL-M-40C-125Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 125 mm | Port: Rc1/8
STL-M-40C-150Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/8
STL-M-40C-175Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 175 mm | Port: Rc1/8
STL-M-40C-200Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/8
STL-M-40C-225Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 225 mm | Port: Rc1/8
STL-M-40C-250Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/8
STL-M-40C-275Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 275 mm | Port: Rc1/8
STL-M-40C-300Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/8
STL-M-40C-325Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 325 mm | Port: Rc1/8
STL-M-40C-350Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 350 mm | Port: Rc1/8
STL-M-40C-375Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 375 mm | Port: Rc1/8
STL-M-40C-400Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 400 mm | Port: Rc1/8
STL-M-50C-50Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
STL-M-50C-75Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 75 mm | Port: Rc1/4
STL-M-50C-100Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
STL-M-50C-125Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 125 mm | Port: Rc1/4
STL-M-50C-150Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 150 mm | Port: Rc1/4
STL-M-50C-175Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 175 mm | Port: Rc1/4
STL-M-50C-200Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 200 mm | Port: Rc1/4
STL-M-50C-225Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 225 mm | Port: Rc1/4
STL-M-50C-250Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 250 mm | Port: Rc1/4
STL-M-50C-275Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 275 mm | Port: Rc1/4
STL-M-50C-300Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 300 mm | Port: Rc1/4
STL-M-50C-325Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 325 mm | Port: Rc1/4
STL-M-50C-350Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 350 mm | Port: Rc1/4
STL-M-50C-375Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 375 mm | Port: Rc1/4
STL-M-50C-400Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 400 mm | Port: Rc1/4
STL-M-63C-50Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
STL-M-63C-75Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 75 mm | Port: Rc1/4
STL-M-63C-100Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4
STL-M-63C-125Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 125 mm | Port: Rc1/4
STL-M-63C-150Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 150 mm | Port: Rc1/4
STL-M-63C-175Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 175 mm | Port: Rc1/4
STL-M-63C-200Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 200 mm | Port: Rc1/4
STL-M-63C-225Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 225 mm | Port: Rc1/4
STL-M-63C-250Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 250 mm | Port: Rc1/4
STL-M-63C-275Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 275 mm | Port: Rc1/4
STL-M-63C-300Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 300 mm | Port: Rc1/4
STL-M-63C-325Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 325 mm | Port: Rc1/4
STL-M-63C-350Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 350 mm | Port: Rc1/4
STL-M-63C-375Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 375 mm | Port: Rc1/4
STL-M-63C-400Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 400 mm | Port: Rc1/4
STL-M-80C-75Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
STL-M-80C-100Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
STL-M-80C-125Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 125 mm | Port: Rc3/8
STL-M-80C-150Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 150 mm | Port: Rc3/8
STL-M-80C-175Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 175 mm | Port: Rc3/8
STL-M-80C-200Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 200 mm | Port: Rc3/8
STL-M-80C-225Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 225 mm | Port: Rc3/8
STL-M-80C-250Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 250 mm | Port: Rc3/8
STL-M-80C-275Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 275 mm | Port: Rc3/8
STL-M-80C-300Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 300 mm | Port: Rc3/8
STL-M-80C-325Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 325 mm | Port: Rc3/8
STL-M-80C-350Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 350 mm | Port: Rc3/8
STL-M-80C-375Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 375 mm | Port: Rc3/8
STL-M-80C-400Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 400 mm | Port: Rc3/8
STL-B-32C-50Series: STL (long stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
STL-B-32C-75Series: STL (long stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8
STL-B-32C-100Series: STL (long stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
STL-B-32C-125Series: STL (long stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 125 mm | Port: Rc1/8
STL-B-32C-150Series: STL (long stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 150 mm | Port: Rc1/8
STL-B-32C-175Series: STL (long stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 175 mm | Port: Rc1/8
STL-B-32C-200Series: STL (long stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 200 mm | Port: Rc1/8
STL-B-32C-225Series: STL (long stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 225 mm | Port: Rc1/8
STL-B-32C-250Series: STL (long stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 250 mm | Port: Rc1/8
STL-B-32C-275Series: STL (long stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 275 mm | Port: Rc1/8
STL-B-32C-300Series: STL (long stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 300 mm | Port: Rc1/8
STL-B-32C-325Series: STL (long stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 325 mm | Port: Rc1/8
STL-B-32C-350Series: STL (long stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 350 mm | Port: Rc1/8
STL-B-32C-375Series: STL (long stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 375 mm | Port: Rc1/8
STL-B-32C-400Series: STL (long stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 400 mm | Port: Rc1/8
STL-B-40C-50Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
STL-B-40C-75Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/8
STL-B-40C-100Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8
STL-B-40C-125Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 125 mm | Port: Rc1/8
STL-B-40C-150Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/8
STL-B-40C-175Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 175 mm | Port: Rc1/8
STL-B-40C-200Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/8
STL-B-40C-225Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 225 mm | Port: Rc1/8
STL-B-40C-250Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/8
STL-B-40C-275Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 275 mm | Port: Rc1/8
STL-B-40C-300Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/8
STL-B-40C-325Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 325 mm | Port: Rc1/8
STL-B-40C-350Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 350 mm | Port: Rc1/8
STL-B-40C-375Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 375 mm | Port: Rc1/8
STL-B-40C-400Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 400 mm | Port: Rc1/8
STL-B-50C-50Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
STL-B-50C-75Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 75 mm | Port: Rc1/4
STL-B-50C-100Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
STL-B-50C-125Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 125 mm | Port: Rc1/4
STL-B-50C-150Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 150 mm | Port: Rc1/4
STL-B-50C-175Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 175 mm | Port: Rc1/4
STL-B-50C-200Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 200 mm | Port: Rc1/4
STL-B-50C-225Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 225 mm | Port: Rc1/4
STL-B-50C-250Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 250 mm | Port: Rc1/4
STL-B-50C-275Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 275 mm | Port: Rc1/4
STL-B-50C-300Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 300 mm | Port: Rc1/4
STL-B-50C-325Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 325 mm | Port: Rc1/4
STL-B-50C-350Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 350 mm | Port: Rc1/4
STL-B-50C-375Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 375 mm | Port: Rc1/4
STL-B-50C-400Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 400 mm | Port: Rc1/4
STL-B-63C-50Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
STL-B-63C-75Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 75 mm | Port: Rc1/4
STL-B-63C-100Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4
STL-B-63C-125Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 125 mm | Port: Rc1/4
STL-B-63C-150Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 150 mm | Port: Rc1/4
STL-B-63C-175Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 175 mm | Port: Rc1/4
STL-B-63C-200Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 200 mm | Port: Rc1/4
STL-B-63C-225Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 225 mm | Port: Rc1/4
STL-B-63C-250Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 250 mm | Port: Rc1/4
STL-B-63C-275Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 275 mm | Port: Rc1/4
STL-B-63C-300Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 300 mm | Port: Rc1/4
STL-B-63C-325Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 325 mm | Port: Rc1/4
STL-B-63C-350Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 350 mm | Port: Rc1/4
STL-B-63C-375Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 375 mm | Port: Rc1/4
STL-B-63C-400Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 400 mm | Port: Rc1/4
STL-B-80C-75Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
STL-B-80C-100Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
STL-B-80C-125Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 125 mm | Port: Rc3/8
STL-B-80C-150Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 150 mm | Port: Rc3/8
STL-B-80C-175Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 175 mm | Port: Rc3/8
STL-B-80C-200Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 200 mm | Port: Rc3/8
STL-B-80C-225Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 225 mm | Port: Rc3/8
STL-B-80C-250Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 250 mm | Port: Rc3/8
STL-B-80C-275Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 275 mm | Port: Rc3/8
STL-B-80C-300Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 300 mm | Port: Rc3/8
STL-B-80C-325Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 325 mm | Port: Rc3/8
STL-B-80C-350Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 350 mm | Port: Rc3/8
STL-B-80C-375Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 375 mm | Port: Rc3/8
STL-B-80C-400Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 400 mm | Port: Rc3/8

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
