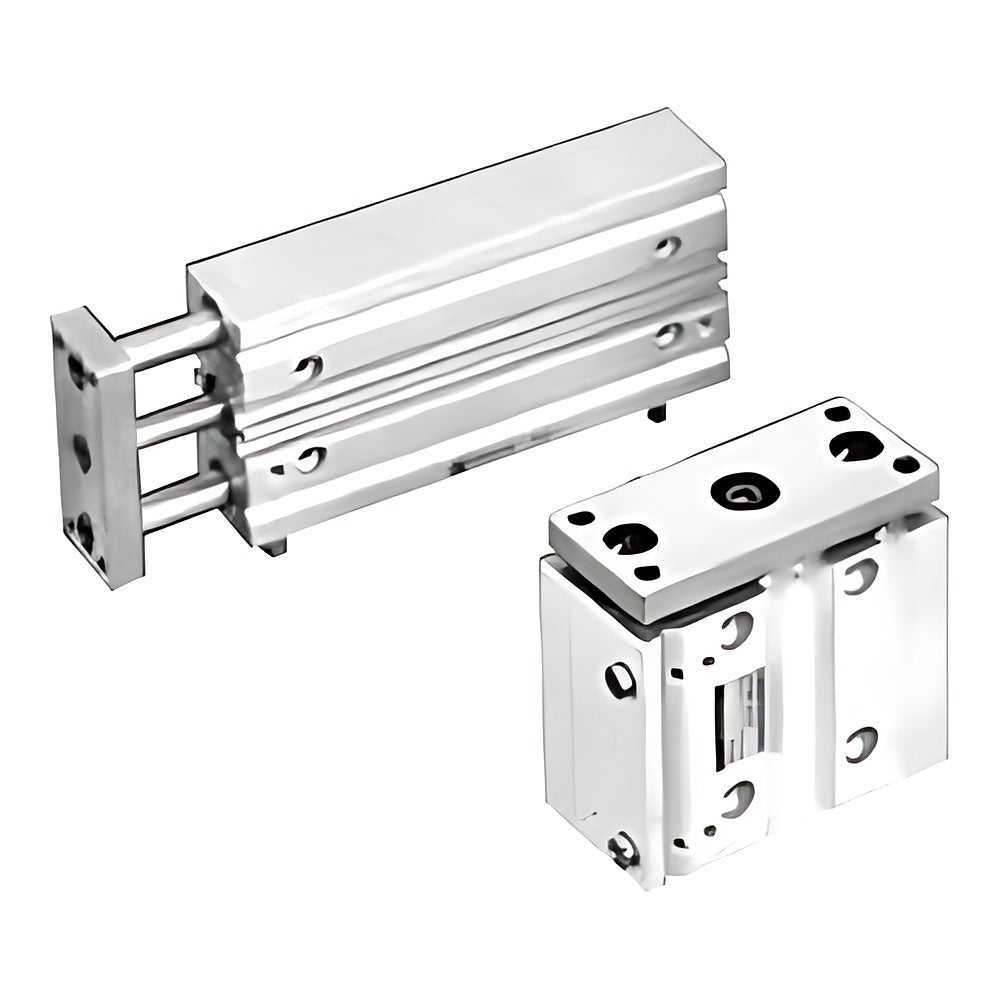

CKD STS/STL-P Guided Cylinder (Stroke Adjusting Type)

CKD STS/STL-P Guided Cylinder (Stroke Adjusting Type)

CKD STS/STL-P double-acting guided cylinder with a stroke adjusting mechanism and shock absorber on the extend side, for precise end positioning.

Key features

  • Stroke adjustment range 25 mm on the push side; shock absorber fitted for extend-end deceleration
  • Bores 8 to 80 mm; STS strokes 10-100 mm, STL strokes 50-400 mm (no intermediate strokes; adjust with the stopper)
  • Slide bearing (M) or ball bushing (B) guide rods
  • Switch-ready (magnet built in); auto switches (T0H/T0V, T5, T8, T1, T2, T3, T3P, T2W/T2Y/T3W/T3Y 2-colour, T2J off-delay, T2YD AC-field), lead length and switch quantity (R/H/D/T) are added as suffixes
  • Options: F steel end plate; NPT (NN) / G (GN) port threads made to order

Specifications

Action Double acting
Fluid Compressed air
Max. operating pressure 1.0 MPa
Proof pressure 1.6 MPa
Ambient temperature -10 to 60°C (no freezing)
Stroke tolerance +2.0 / 0 mm
Lubrication Not required (ISO VG32 turbine oil if used)
Min. operating pressure 0.2 MPa (bore 8-25), 0.15 MPa (bore 32+)
Stroke adjusting range 25 mm
Cushion Rubber cushion; shock absorber on push side
Source CKD Korea catalog CB-030SK-9, p. 558-563
STS-MP-8-10 Series: STS (short stroke) | Bearing: Slide bearing | Bore: 8 mm | Stroke: 10 mm | Port: M5
STS-MP-8-20 Series: STS (short stroke) | Bearing: Slide bearing | Bore: 8 mm | Stroke: 20 mm | Port: M5
STS-MP-8-30 Series: STS (short stroke) | Bearing: Slide bearing | Bore: 8 mm | Stroke: 30 mm | Port: M5
STS-MP-8-40 Series: STS (short stroke) | Bearing: Slide bearing | Bore: 8 mm | Stroke: 40 mm | Port: M5
STS-MP-8-50 Series: STS (short stroke) | Bearing: Slide bearing | Bore: 8 mm | Stroke: 50 mm | Port: M5
STS-MP-12-10 Series: STS (short stroke) | Bearing: Slide bearing | Bore: 12 mm | Stroke: 10 mm | Port: M5
STS-MP-12-20 Series: STS (short stroke) | Bearing: Slide bearing | Bore: 12 mm | Stroke: 20 mm | Port: M5
STS-MP-12-30 Series: STS (short stroke) | Bearing: Slide bearing | Bore: 12 mm | Stroke: 30 mm | Port: M5
STS-MP-12-40 Series: STS (short stroke) | Bearing: Slide bearing | Bore: 12 mm | Stroke: 40 mm | Port: M5
STS-MP-12-50 Series: STS (short stroke) | Bearing: Slide bearing | Bore: 12 mm | Stroke: 50 mm | Port: M5
STS-MP-16-10 Series: STS (short stroke) | Bearing: Slide bearing | Bore: 16 mm | Stroke: 10 mm | Port: M5
STS-MP-16-20 Series: STS (short stroke) | Bearing: Slide bearing | Bore: 16 mm | Stroke: 20 mm | Port: M5
STS-MP-16-30 Series: STS (short stroke) | Bearing: Slide bearing | Bore: 16 mm | Stroke: 30 mm | Port: M5
STS-MP-16-40 Series: STS (short stroke) | Bearing: Slide bearing | Bore: 16 mm | Stroke: 40 mm | Port: M5
STS-MP-16-50 Series: STS (short stroke) | Bearing: Slide bearing | Bore: 16 mm | Stroke: 50 mm | Port: M5
STS-MP-20-25 Series: STS (short stroke) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 25 mm | Port: M5
STS-MP-20-50 Series: STS (short stroke) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 50 mm | Port: M5
STS-MP-25-25 Series: STS (short stroke) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 25 mm | Port: M5
STS-MP-25-50 Series: STS (short stroke) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 50 mm | Port: M5
STS-MP-32-25 Series: STS (short stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
STS-MP-32-50 Series: STS (short stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
STS-MP-40-25 Series: STS (short stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
STS-MP-40-50 Series: STS (short stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
STS-MP-50-25 Series: STS (short stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
STS-MP-50-50 Series: STS (short stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
STS-MP-63-25 Series: STS (short stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 25 mm | Port: Rc1/4
STS-MP-63-50 Series: STS (short stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
STS-MP-80-25 Series: STS (short stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 25 mm | Port: Rc3/8
STS-MP-80-50 Series: STS (short stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
STS-MP-80-75 Series: STS (short stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
STS-MP-80-100 Series: STS (short stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
STS-BP-8-10 Series: STS (short stroke) | Bearing: Ball bushing | Bore: 8 mm | Stroke: 10 mm | Port: M5
STS-BP-8-20 Series: STS (short stroke) | Bearing: Ball bushing | Bore: 8 mm | Stroke: 20 mm | Port: M5
STS-BP-8-30 Series: STS (short stroke) | Bearing: Ball bushing | Bore: 8 mm | Stroke: 30 mm | Port: M5
STS-BP-8-40 Series: STS (short stroke) | Bearing: Ball bushing | Bore: 8 mm | Stroke: 40 mm | Port: M5
STS-BP-8-50 Series: STS (short stroke) | Bearing: Ball bushing | Bore: 8 mm | Stroke: 50 mm | Port: M5
STS-BP-12-10 Series: STS (short stroke) | Bearing: Ball bushing | Bore: 12 mm | Stroke: 10 mm | Port: M5
STS-BP-12-20 Series: STS (short stroke) | Bearing: Ball bushing | Bore: 12 mm | Stroke: 20 mm | Port: M5
STS-BP-12-30 Series: STS (short stroke) | Bearing: Ball bushing | Bore: 12 mm | Stroke: 30 mm | Port: M5
STS-BP-12-40 Series: STS (short stroke) | Bearing: Ball bushing | Bore: 12 mm | Stroke: 40 mm | Port: M5
STS-BP-12-50 Series: STS (short stroke) | Bearing: Ball bushing | Bore: 12 mm | Stroke: 50 mm | Port: M5
STS-BP-16-10 Series: STS (short stroke) | Bearing: Ball bushing | Bore: 16 mm | Stroke: 10 mm | Port: M5
STS-BP-16-20 Series: STS (short stroke) | Bearing: Ball bushing | Bore: 16 mm | Stroke: 20 mm | Port: M5
STS-BP-16-30 Series: STS (short stroke) | Bearing: Ball bushing | Bore: 16 mm | Stroke: 30 mm | Port: M5
STS-BP-16-40 Series: STS (short stroke) | Bearing: Ball bushing | Bore: 16 mm | Stroke: 40 mm | Port: M5
STS-BP-16-50 Series: STS (short stroke) | Bearing: Ball bushing | Bore: 16 mm | Stroke: 50 mm | Port: M5
STS-BP-20-25 Series: STS (short stroke) | Bearing: Ball bushing | Bore: 20 mm | Stroke: 25 mm | Port: M5
STS-BP-20-50 Series: STS (short stroke) | Bearing: Ball bushing | Bore: 20 mm | Stroke: 50 mm | Port: M5
STS-BP-25-25 Series: STS (short stroke) | Bearing: Ball bushing | Bore: 25 mm | Stroke: 25 mm | Port: M5
STS-BP-25-50 Series: STS (short stroke) | Bearing: Ball bushing | Bore: 25 mm | Stroke: 50 mm | Port: M5
STS-BP-32-25 Series: STS (short stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
STS-BP-32-50 Series: STS (short stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
STS-BP-40-25 Series: STS (short stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
STS-BP-40-50 Series: STS (short stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
STS-BP-50-25 Series: STS (short stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
STS-BP-50-50 Series: STS (short stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
STS-BP-63-25 Series: STS (short stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 25 mm | Port: Rc1/4
STS-BP-63-50 Series: STS (short stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
STS-BP-80-25 Series: STS (short stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 25 mm | Port: Rc3/8
STS-BP-80-50 Series: STS (short stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
STS-BP-80-75 Series: STS (short stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
STS-BP-80-100 Series: STS (short stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
STL-MP-8-50 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 8 mm | Stroke: 50 mm | Port: M5
STL-MP-8-75 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 8 mm | Stroke: 75 mm | Port: M5
STL-MP-8-100 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 8 mm | Stroke: 100 mm | Port: M5
STL-MP-8-125 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 8 mm | Stroke: 125 mm | Port: M5
STL-MP-8-150 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 8 mm | Stroke: 150 mm | Port: M5
STL-MP-8-175 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 8 mm | Stroke: 175 mm | Port: M5
STL-MP-8-200 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 8 mm | Stroke: 200 mm | Port: M5
STL-MP-12-50 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 12 mm | Stroke: 50 mm | Port: M5
STL-MP-12-75 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 12 mm | Stroke: 75 mm | Port: M5
STL-MP-12-100 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 12 mm | Stroke: 100 mm | Port: M5
STL-MP-12-125 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 12 mm | Stroke: 125 mm | Port: M5
STL-MP-12-150 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 12 mm | Stroke: 150 mm | Port: M5
STL-MP-12-175 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 12 mm | Stroke: 175 mm | Port: M5
STL-MP-12-200 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 12 mm | Stroke: 200 mm | Port: M5
STL-MP-16-50 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 16 mm | Stroke: 50 mm | Port: M5
STL-MP-16-75 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 16 mm | Stroke: 75 mm | Port: M5
STL-MP-16-100 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 16 mm | Stroke: 100 mm | Port: M5
STL-MP-16-125 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 16 mm | Stroke: 125 mm | Port: M5
STL-MP-16-150 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 16 mm | Stroke: 150 mm | Port: M5
STL-MP-16-175 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 16 mm | Stroke: 175 mm | Port: M5
STL-MP-16-200 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 16 mm | Stroke: 200 mm | Port: M5
STL-MP-20-50 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 50 mm | Port: M5
STL-MP-20-75 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 75 mm | Port: M5
STL-MP-20-100 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 100 mm | Port: M5
STL-MP-20-125 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 125 mm | Port: M5
STL-MP-20-150 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 150 mm | Port: M5
STL-MP-20-175 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 175 mm | Port: M5
STL-MP-20-200 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 200 mm | Port: M5
STL-MP-20-225 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 225 mm | Port: M5
STL-MP-20-250 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 250 mm | Port: M5
STL-MP-20-275 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 275 mm | Port: M5
STL-MP-20-300 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 300 mm | Port: M5
STL-MP-20-325 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 325 mm | Port: M5
STL-MP-20-350 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 350 mm | Port: M5
STL-MP-20-375 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 375 mm | Port: M5
STL-MP-20-400 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 400 mm | Port: M5
STL-MP-25-50 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 50 mm | Port: M5
STL-MP-25-75 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 75 mm | Port: M5
STL-MP-25-100 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 100 mm | Port: M5
STL-MP-25-125 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 125 mm | Port: M5
STL-MP-25-150 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 150 mm | Port: M5
STL-MP-25-175 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 175 mm | Port: M5
STL-MP-25-200 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 200 mm | Port: M5
STL-MP-25-225 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 225 mm | Port: M5
STL-MP-25-250 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 250 mm | Port: M5
STL-MP-25-275 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 275 mm | Port: M5
STL-MP-25-300 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 300 mm | Port: M5
STL-MP-25-325 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 325 mm | Port: M5
STL-MP-25-350 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 350 mm | Port: M5
STL-MP-25-375 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 375 mm | Port: M5
STL-MP-25-400 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 400 mm | Port: M5
STL-MP-32-50 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
STL-MP-32-75 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8
STL-MP-32-100 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
STL-MP-32-125 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 125 mm | Port: Rc1/8
STL-MP-32-150 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 150 mm | Port: Rc1/8
STL-MP-32-175 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 175 mm | Port: Rc1/8
STL-MP-32-200 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 200 mm | Port: Rc1/8
STL-MP-32-225 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 225 mm | Port: Rc1/8
STL-MP-32-250 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 250 mm | Port: Rc1/8
STL-MP-32-275 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 275 mm | Port: Rc1/8
STL-MP-32-300 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 300 mm | Port: Rc1/8
STL-MP-32-325 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 325 mm | Port: Rc1/8
STL-MP-32-350 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 350 mm | Port: Rc1/8
STL-MP-32-375 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 375 mm | Port: Rc1/8
STL-MP-32-400 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 400 mm | Port: Rc1/8
STL-MP-40-50 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
STL-MP-40-75 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/8
STL-MP-40-100 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8
STL-MP-40-125 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 125 mm | Port: Rc1/8
STL-MP-40-150 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/8
STL-MP-40-175 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 175 mm | Port: Rc1/8
STL-MP-40-200 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/8
STL-MP-40-225 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 225 mm | Port: Rc1/8
STL-MP-40-250 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/8
STL-MP-40-275 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 275 mm | Port: Rc1/8
STL-MP-40-300 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/8
STL-MP-40-325 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 325 mm | Port: Rc1/8
STL-MP-40-350 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 350 mm | Port: Rc1/8
STL-MP-40-375 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 375 mm | Port: Rc1/8
STL-MP-40-400 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 400 mm | Port: Rc1/8
STL-MP-50-50 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
STL-MP-50-75 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 75 mm | Port: Rc1/4
STL-MP-50-100 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
STL-MP-50-125 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 125 mm | Port: Rc1/4
STL-MP-50-150 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 150 mm | Port: Rc1/4
STL-MP-50-175 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 175 mm | Port: Rc1/4
STL-MP-50-200 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 200 mm | Port: Rc1/4
STL-MP-50-225 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 225 mm | Port: Rc1/4
STL-MP-50-250 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 250 mm | Port: Rc1/4
STL-MP-50-275 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 275 mm | Port: Rc1/4
STL-MP-50-300 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 300 mm | Port: Rc1/4
STL-MP-50-325 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 325 mm | Port: Rc1/4
STL-MP-50-350 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 350 mm | Port: Rc1/4
STL-MP-50-375 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 375 mm | Port: Rc1/4
STL-MP-50-400 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 400 mm | Port: Rc1/4
STL-MP-63-50 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
STL-MP-63-75 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 75 mm | Port: Rc1/4
STL-MP-63-100 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4
STL-MP-63-125 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 125 mm | Port: Rc1/4
STL-MP-63-150 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 150 mm | Port: Rc1/4
STL-MP-63-175 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 175 mm | Port: Rc1/4
STL-MP-63-200 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 200 mm | Port: Rc1/4
STL-MP-63-225 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 225 mm | Port: Rc1/4
STL-MP-63-250 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 250 mm | Port: Rc1/4
STL-MP-63-275 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 275 mm | Port: Rc1/4
STL-MP-63-300 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 300 mm | Port: Rc1/4
STL-MP-63-325 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 325 mm | Port: Rc1/4
STL-MP-63-350 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 350 mm | Port: Rc1/4
STL-MP-63-375 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 375 mm | Port: Rc1/4
STL-MP-63-400 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 400 mm | Port: Rc1/4
STL-MP-80-75 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
STL-MP-80-100 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
STL-MP-80-125 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 125 mm | Port: Rc3/8
STL-MP-80-150 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 150 mm | Port: Rc3/8
STL-MP-80-175 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 175 mm | Port: Rc3/8
STL-MP-80-200 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 200 mm | Port: Rc3/8
STL-MP-80-225 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 225 mm | Port: Rc3/8
STL-MP-80-250 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 250 mm | Port: Rc3/8
STL-MP-80-275 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 275 mm | Port: Rc3/8
STL-MP-80-300 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 300 mm | Port: Rc3/8
STL-MP-80-325 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 325 mm | Port: Rc3/8
STL-MP-80-350 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 350 mm | Port: Rc3/8
STL-MP-80-375 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 375 mm | Port: Rc3/8
STL-MP-80-400 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 400 mm | Port: Rc3/8
STL-BP-8-50 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 8 mm | Stroke: 50 mm | Port: M5
STL-BP-8-75 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 8 mm | Stroke: 75 mm | Port: M5
STL-BP-8-100 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 8 mm | Stroke: 100 mm | Port: M5
STL-BP-8-125 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 8 mm | Stroke: 125 mm | Port: M5
STL-BP-8-150 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 8 mm | Stroke: 150 mm | Port: M5
STL-BP-8-175 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 8 mm | Stroke: 175 mm | Port: M5
STL-BP-8-200 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 8 mm | Stroke: 200 mm | Port: M5
STL-BP-12-50 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 12 mm | Stroke: 50 mm | Port: M5
STL-BP-12-75 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 12 mm | Stroke: 75 mm | Port: M5
STL-BP-12-100 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 12 mm | Stroke: 100 mm | Port: M5
STL-BP-12-125 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 12 mm | Stroke: 125 mm | Port: M5
STL-BP-12-150 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 12 mm | Stroke: 150 mm | Port: M5
STL-BP-12-175 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 12 mm | Stroke: 175 mm | Port: M5
STL-BP-12-200 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 12 mm | Stroke: 200 mm | Port: M5
STL-BP-16-50 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 16 mm | Stroke: 50 mm | Port: M5
STL-BP-16-75 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 16 mm | Stroke: 75 mm | Port: M5
STL-BP-16-100 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 16 mm | Stroke: 100 mm | Port: M5
STL-BP-16-125 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 16 mm | Stroke: 125 mm | Port: M5
STL-BP-16-150 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 16 mm | Stroke: 150 mm | Port: M5
STL-BP-16-175 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 16 mm | Stroke: 175 mm | Port: M5
STL-BP-16-200 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 16 mm | Stroke: 200 mm | Port: M5
STL-BP-20-50 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 20 mm | Stroke: 50 mm | Port: M5
STL-BP-20-75 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 20 mm | Stroke: 75 mm | Port: M5
STL-BP-20-100 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 20 mm | Stroke: 100 mm | Port: M5
STL-BP-20-125 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 20 mm | Stroke: 125 mm | Port: M5
STL-BP-20-150 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 20 mm | Stroke: 150 mm | Port: M5
STL-BP-20-175 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 20 mm | Stroke: 175 mm | Port: M5
STL-BP-20-200 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 20 mm | Stroke: 200 mm | Port: M5
STL-BP-20-225 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 20 mm | Stroke: 225 mm | Port: M5
STL-BP-20-250 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 20 mm | Stroke: 250 mm | Port: M5
STL-BP-20-275 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 20 mm | Stroke: 275 mm | Port: M5
STL-BP-20-300 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 20 mm | Stroke: 300 mm | Port: M5
STL-BP-20-325 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 20 mm | Stroke: 325 mm | Port: M5
STL-BP-20-350 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 20 mm | Stroke: 350 mm | Port: M5
STL-BP-20-375 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 20 mm | Stroke: 375 mm | Port: M5
STL-BP-20-400 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 20 mm | Stroke: 400 mm | Port: M5
STL-BP-25-50 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 25 mm | Stroke: 50 mm | Port: M5
STL-BP-25-75 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 25 mm | Stroke: 75 mm | Port: M5
STL-BP-25-100 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 25 mm | Stroke: 100 mm | Port: M5
STL-BP-25-125 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 25 mm | Stroke: 125 mm | Port: M5
STL-BP-25-150 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 25 mm | Stroke: 150 mm | Port: M5
STL-BP-25-175 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 25 mm | Stroke: 175 mm | Port: M5
STL-BP-25-200 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 25 mm | Stroke: 200 mm | Port: M5
STL-BP-25-225 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 25 mm | Stroke: 225 mm | Port: M5
STL-BP-25-250 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 25 mm | Stroke: 250 mm | Port: M5
STL-BP-25-275 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 25 mm | Stroke: 275 mm | Port: M5
STL-BP-25-300 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 25 mm | Stroke: 300 mm | Port: M5
STL-BP-25-325 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 25 mm | Stroke: 325 mm | Port: M5
STL-BP-25-350 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 25 mm | Stroke: 350 mm | Port: M5
STL-BP-25-375 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 25 mm | Stroke: 375 mm | Port: M5
STL-BP-25-400 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 25 mm | Stroke: 400 mm | Port: M5
STL-BP-32-50 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
STL-BP-32-75 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8
STL-BP-32-100 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
STL-BP-32-125 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 125 mm | Port: Rc1/8
STL-BP-32-150 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 150 mm | Port: Rc1/8
STL-BP-32-175 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 175 mm | Port: Rc1/8
STL-BP-32-200 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 200 mm | Port: Rc1/8
STL-BP-32-225 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 225 mm | Port: Rc1/8
STL-BP-32-250 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 250 mm | Port: Rc1/8
STL-BP-32-275 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 275 mm | Port: Rc1/8
STL-BP-32-300 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 300 mm | Port: Rc1/8
STL-BP-32-325 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 325 mm | Port: Rc1/8
STL-BP-32-350 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 350 mm | Port: Rc1/8
STL-BP-32-375 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 375 mm | Port: Rc1/8
STL-BP-32-400 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 400 mm | Port: Rc1/8
STL-BP-40-50 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
STL-BP-40-75 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/8
STL-BP-40-100 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8
STL-BP-40-125 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 125 mm | Port: Rc1/8
STL-BP-40-150 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/8
STL-BP-40-175 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 175 mm | Port: Rc1/8
STL-BP-40-200 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/8
STL-BP-40-225 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 225 mm | Port: Rc1/8
STL-BP-40-250 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/8
STL-BP-40-275 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 275 mm | Port: Rc1/8
STL-BP-40-300 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/8
STL-BP-40-325 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 325 mm | Port: Rc1/8
STL-BP-40-350 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 350 mm | Port: Rc1/8
STL-BP-40-375 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 375 mm | Port: Rc1/8
STL-BP-40-400 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 400 mm | Port: Rc1/8
STL-BP-50-50 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
STL-BP-50-75 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 75 mm | Port: Rc1/4
STL-BP-50-100 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
STL-BP-50-125 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 125 mm | Port: Rc1/4
STL-BP-50-150 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 150 mm | Port: Rc1/4
STL-BP-50-175 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 175 mm | Port: Rc1/4
STL-BP-50-200 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 200 mm | Port: Rc1/4
STL-BP-50-225 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 225 mm | Port: Rc1/4
STL-BP-50-250 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 250 mm | Port: Rc1/4
STL-BP-50-275 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 275 mm | Port: Rc1/4
STL-BP-50-300 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 300 mm | Port: Rc1/4
STL-BP-50-325 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 325 mm | Port: Rc1/4
STL-BP-50-350 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 350 mm | Port: Rc1/4
STL-BP-50-375 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 375 mm | Port: Rc1/4
STL-BP-50-400 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 400 mm | Port: Rc1/4
STL-BP-63-50 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
STL-BP-63-75 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 75 mm | Port: Rc1/4
STL-BP-63-100 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4
STL-BP-63-125 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 125 mm | Port: Rc1/4
STL-BP-63-150 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 150 mm | Port: Rc1/4
STL-BP-63-175 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 175 mm | Port: Rc1/4
STL-BP-63-200 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 200 mm | Port: Rc1/4
STL-BP-63-225 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 225 mm | Port: Rc1/4
STL-BP-63-250 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 250 mm | Port: Rc1/4
STL-BP-63-275 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 275 mm | Port: Rc1/4
STL-BP-63-300 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 300 mm | Port: Rc1/4
STL-BP-63-325 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 325 mm | Port: Rc1/4
STL-BP-63-350 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 350 mm | Port: Rc1/4
STL-BP-63-375 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 375 mm | Port: Rc1/4
STL-BP-63-400 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 400 mm | Port: Rc1/4
STL-BP-80-75 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
STL-BP-80-100 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
STL-BP-80-125 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 125 mm | Port: Rc3/8
STL-BP-80-150 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 150 mm | Port: Rc3/8
STL-BP-80-175 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 175 mm | Port: Rc3/8
STL-BP-80-200 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 200 mm | Port: Rc3/8
STL-BP-80-225 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 225 mm | Port: Rc3/8
STL-BP-80-250 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 250 mm | Port: Rc3/8
STL-BP-80-275 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 275 mm | Port: Rc3/8
STL-BP-80-300 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 300 mm | Port: Rc3/8
STL-BP-80-325 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 325 mm | Port: Rc3/8
STL-BP-80-350 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 350 mm | Port: Rc3/8
STL-BP-80-375 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 375 mm | Port: Rc3/8
STL-BP-80-400 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 400 mm | Port: Rc3/8
Guided CylindersCKD
312 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD STS/STL-P Guided Cylinder (Stroke Adjusting Type)

Brand CKD·Guided Cylinders

Available part numbers (312)

STS-MP-8-10, STS-MP-8-20, STS-MP-8-30, STS-MP-8-40, STS-MP-8-50, STS-MP-12-10, STS-MP-12-20, STS-MP-12-30, STS-MP-12-40, STS-MP-12-50 + 302 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
STS-MP-8-10Series: STS (short stroke) | Bearing: Slide bearing | Bore: 8 mm | Stroke: 10 mm | Port: M5
STS-MP-8-20Series: STS (short stroke) | Bearing: Slide bearing | Bore: 8 mm | Stroke: 20 mm | Port: M5
STS-MP-8-30Series: STS (short stroke) | Bearing: Slide bearing | Bore: 8 mm | Stroke: 30 mm | Port: M5
STS-MP-8-40Series: STS (short stroke) | Bearing: Slide bearing | Bore: 8 mm | Stroke: 40 mm | Port: M5
STS-MP-8-50Series: STS (short stroke) | Bearing: Slide bearing | Bore: 8 mm | Stroke: 50 mm | Port: M5
STS-MP-12-10Series: STS (short stroke) | Bearing: Slide bearing | Bore: 12 mm | Stroke: 10 mm | Port: M5
STS-MP-12-20Series: STS (short stroke) | Bearing: Slide bearing | Bore: 12 mm | Stroke: 20 mm | Port: M5
STS-MP-12-30Series: STS (short stroke) | Bearing: Slide bearing | Bore: 12 mm | Stroke: 30 mm | Port: M5
STS-MP-12-40Series: STS (short stroke) | Bearing: Slide bearing | Bore: 12 mm | Stroke: 40 mm | Port: M5
STS-MP-12-50Series: STS (short stroke) | Bearing: Slide bearing | Bore: 12 mm | Stroke: 50 mm | Port: M5
STS-MP-16-10Series: STS (short stroke) | Bearing: Slide bearing | Bore: 16 mm | Stroke: 10 mm | Port: M5
STS-MP-16-20Series: STS (short stroke) | Bearing: Slide bearing | Bore: 16 mm | Stroke: 20 mm | Port: M5
STS-MP-16-30Series: STS (short stroke) | Bearing: Slide bearing | Bore: 16 mm | Stroke: 30 mm | Port: M5
STS-MP-16-40Series: STS (short stroke) | Bearing: Slide bearing | Bore: 16 mm | Stroke: 40 mm | Port: M5
STS-MP-16-50Series: STS (short stroke) | Bearing: Slide bearing | Bore: 16 mm | Stroke: 50 mm | Port: M5
STS-MP-20-25Series: STS (short stroke) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 25 mm | Port: M5
STS-MP-20-50Series: STS (short stroke) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 50 mm | Port: M5
STS-MP-25-25Series: STS (short stroke) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 25 mm | Port: M5
STS-MP-25-50Series: STS (short stroke) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 50 mm | Port: M5
STS-MP-32-25Series: STS (short stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
STS-MP-32-50Series: STS (short stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
STS-MP-40-25Series: STS (short stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
STS-MP-40-50Series: STS (short stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
STS-MP-50-25Series: STS (short stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
STS-MP-50-50Series: STS (short stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
STS-MP-63-25Series: STS (short stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 25 mm | Port: Rc1/4
STS-MP-63-50Series: STS (short stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
STS-MP-80-25Series: STS (short stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 25 mm | Port: Rc3/8
STS-MP-80-50Series: STS (short stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
STS-MP-80-75Series: STS (short stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
STS-MP-80-100Series: STS (short stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
STS-BP-8-10Series: STS (short stroke) | Bearing: Ball bushing | Bore: 8 mm | Stroke: 10 mm | Port: M5
STS-BP-8-20Series: STS (short stroke) | Bearing: Ball bushing | Bore: 8 mm | Stroke: 20 mm | Port: M5
STS-BP-8-30Series: STS (short stroke) | Bearing: Ball bushing | Bore: 8 mm | Stroke: 30 mm | Port: M5
STS-BP-8-40Series: STS (short stroke) | Bearing: Ball bushing | Bore: 8 mm | Stroke: 40 mm | Port: M5
STS-BP-8-50Series: STS (short stroke) | Bearing: Ball bushing | Bore: 8 mm | Stroke: 50 mm | Port: M5
STS-BP-12-10Series: STS (short stroke) | Bearing: Ball bushing | Bore: 12 mm | Stroke: 10 mm | Port: M5
STS-BP-12-20Series: STS (short stroke) | Bearing: Ball bushing | Bore: 12 mm | Stroke: 20 mm | Port: M5
STS-BP-12-30Series: STS (short stroke) | Bearing: Ball bushing | Bore: 12 mm | Stroke: 30 mm | Port: M5
STS-BP-12-40Series: STS (short stroke) | Bearing: Ball bushing | Bore: 12 mm | Stroke: 40 mm | Port: M5
STS-BP-12-50Series: STS (short stroke) | Bearing: Ball bushing | Bore: 12 mm | Stroke: 50 mm | Port: M5
STS-BP-16-10Series: STS (short stroke) | Bearing: Ball bushing | Bore: 16 mm | Stroke: 10 mm | Port: M5
STS-BP-16-20Series: STS (short stroke) | Bearing: Ball bushing | Bore: 16 mm | Stroke: 20 mm | Port: M5
STS-BP-16-30Series: STS (short stroke) | Bearing: Ball bushing | Bore: 16 mm | Stroke: 30 mm | Port: M5
STS-BP-16-40Series: STS (short stroke) | Bearing: Ball bushing | Bore: 16 mm | Stroke: 40 mm | Port: M5
STS-BP-16-50Series: STS (short stroke) | Bearing: Ball bushing | Bore: 16 mm | Stroke: 50 mm | Port: M5
STS-BP-20-25Series: STS (short stroke) | Bearing: Ball bushing | Bore: 20 mm | Stroke: 25 mm | Port: M5
STS-BP-20-50Series: STS (short stroke) | Bearing: Ball bushing | Bore: 20 mm | Stroke: 50 mm | Port: M5
STS-BP-25-25Series: STS (short stroke) | Bearing: Ball bushing | Bore: 25 mm | Stroke: 25 mm | Port: M5
STS-BP-25-50Series: STS (short stroke) | Bearing: Ball bushing | Bore: 25 mm | Stroke: 50 mm | Port: M5
STS-BP-32-25Series: STS (short stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
STS-BP-32-50Series: STS (short stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
STS-BP-40-25Series: STS (short stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
STS-BP-40-50Series: STS (short stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
STS-BP-50-25Series: STS (short stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
STS-BP-50-50Series: STS (short stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
STS-BP-63-25Series: STS (short stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 25 mm | Port: Rc1/4
STS-BP-63-50Series: STS (short stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
STS-BP-80-25Series: STS (short stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 25 mm | Port: Rc3/8
STS-BP-80-50Series: STS (short stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
STS-BP-80-75Series: STS (short stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
STS-BP-80-100Series: STS (short stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
STL-MP-8-50Series: STL (long stroke) | Bearing: Slide bearing | Bore: 8 mm | Stroke: 50 mm | Port: M5
STL-MP-8-75Series: STL (long stroke) | Bearing: Slide bearing | Bore: 8 mm | Stroke: 75 mm | Port: M5
STL-MP-8-100Series: STL (long stroke) | Bearing: Slide bearing | Bore: 8 mm | Stroke: 100 mm | Port: M5
STL-MP-8-125Series: STL (long stroke) | Bearing: Slide bearing | Bore: 8 mm | Stroke: 125 mm | Port: M5
STL-MP-8-150Series: STL (long stroke) | Bearing: Slide bearing | Bore: 8 mm | Stroke: 150 mm | Port: M5
STL-MP-8-175Series: STL (long stroke) | Bearing: Slide bearing | Bore: 8 mm | Stroke: 175 mm | Port: M5
STL-MP-8-200Series: STL (long stroke) | Bearing: Slide bearing | Bore: 8 mm | Stroke: 200 mm | Port: M5
STL-MP-12-50Series: STL (long stroke) | Bearing: Slide bearing | Bore: 12 mm | Stroke: 50 mm | Port: M5
STL-MP-12-75Series: STL (long stroke) | Bearing: Slide bearing | Bore: 12 mm | Stroke: 75 mm | Port: M5
STL-MP-12-100Series: STL (long stroke) | Bearing: Slide bearing | Bore: 12 mm | Stroke: 100 mm | Port: M5
STL-MP-12-125Series: STL (long stroke) | Bearing: Slide bearing | Bore: 12 mm | Stroke: 125 mm | Port: M5
STL-MP-12-150Series: STL (long stroke) | Bearing: Slide bearing | Bore: 12 mm | Stroke: 150 mm | Port: M5
STL-MP-12-175Series: STL (long stroke) | Bearing: Slide bearing | Bore: 12 mm | Stroke: 175 mm | Port: M5
STL-MP-12-200Series: STL (long stroke) | Bearing: Slide bearing | Bore: 12 mm | Stroke: 200 mm | Port: M5
STL-MP-16-50Series: STL (long stroke) | Bearing: Slide bearing | Bore: 16 mm | Stroke: 50 mm | Port: M5
STL-MP-16-75Series: STL (long stroke) | Bearing: Slide bearing | Bore: 16 mm | Stroke: 75 mm | Port: M5
STL-MP-16-100Series: STL (long stroke) | Bearing: Slide bearing | Bore: 16 mm | Stroke: 100 mm | Port: M5
STL-MP-16-125Series: STL (long stroke) | Bearing: Slide bearing | Bore: 16 mm | Stroke: 125 mm | Port: M5
STL-MP-16-150Series: STL (long stroke) | Bearing: Slide bearing | Bore: 16 mm | Stroke: 150 mm | Port: M5
STL-MP-16-175Series: STL (long stroke) | Bearing: Slide bearing | Bore: 16 mm | Stroke: 175 mm | Port: M5
STL-MP-16-200Series: STL (long stroke) | Bearing: Slide bearing | Bore: 16 mm | Stroke: 200 mm | Port: M5
STL-MP-20-50Series: STL (long stroke) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 50 mm | Port: M5
STL-MP-20-75Series: STL (long stroke) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 75 mm | Port: M5
STL-MP-20-100Series: STL (long stroke) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 100 mm | Port: M5
STL-MP-20-125Series: STL (long stroke) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 125 mm | Port: M5
STL-MP-20-150Series: STL (long stroke) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 150 mm | Port: M5
STL-MP-20-175Series: STL (long stroke) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 175 mm | Port: M5
STL-MP-20-200Series: STL (long stroke) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 200 mm | Port: M5
STL-MP-20-225Series: STL (long stroke) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 225 mm | Port: M5
STL-MP-20-250Series: STL (long stroke) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 250 mm | Port: M5
STL-MP-20-275Series: STL (long stroke) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 275 mm | Port: M5
STL-MP-20-300Series: STL (long stroke) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 300 mm | Port: M5
STL-MP-20-325Series: STL (long stroke) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 325 mm | Port: M5
STL-MP-20-350Series: STL (long stroke) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 350 mm | Port: M5
STL-MP-20-375Series: STL (long stroke) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 375 mm | Port: M5
STL-MP-20-400Series: STL (long stroke) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 400 mm | Port: M5
STL-MP-25-50Series: STL (long stroke) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 50 mm | Port: M5
STL-MP-25-75Series: STL (long stroke) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 75 mm | Port: M5
STL-MP-25-100Series: STL (long stroke) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 100 mm | Port: M5
STL-MP-25-125Series: STL (long stroke) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 125 mm | Port: M5
STL-MP-25-150Series: STL (long stroke) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 150 mm | Port: M5
STL-MP-25-175Series: STL (long stroke) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 175 mm | Port: M5
STL-MP-25-200Series: STL (long stroke) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 200 mm | Port: M5
STL-MP-25-225Series: STL (long stroke) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 225 mm | Port: M5
STL-MP-25-250Series: STL (long stroke) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 250 mm | Port: M5
STL-MP-25-275Series: STL (long stroke) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 275 mm | Port: M5
STL-MP-25-300Series: STL (long stroke) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 300 mm | Port: M5
STL-MP-25-325Series: STL (long stroke) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 325 mm | Port: M5
STL-MP-25-350Series: STL (long stroke) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 350 mm | Port: M5
STL-MP-25-375Series: STL (long stroke) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 375 mm | Port: M5
STL-MP-25-400Series: STL (long stroke) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 400 mm | Port: M5
STL-MP-32-50Series: STL (long stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
STL-MP-32-75Series: STL (long stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8
STL-MP-32-100Series: STL (long stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
STL-MP-32-125Series: STL (long stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 125 mm | Port: Rc1/8
STL-MP-32-150Series: STL (long stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 150 mm | Port: Rc1/8
STL-MP-32-175Series: STL (long stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 175 mm | Port: Rc1/8
STL-MP-32-200Series: STL (long stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 200 mm | Port: Rc1/8
STL-MP-32-225Series: STL (long stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 225 mm | Port: Rc1/8
STL-MP-32-250Series: STL (long stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 250 mm | Port: Rc1/8
STL-MP-32-275Series: STL (long stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 275 mm | Port: Rc1/8
STL-MP-32-300Series: STL (long stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 300 mm | Port: Rc1/8
STL-MP-32-325Series: STL (long stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 325 mm | Port: Rc1/8
STL-MP-32-350Series: STL (long stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 350 mm | Port: Rc1/8
STL-MP-32-375Series: STL (long stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 375 mm | Port: Rc1/8
STL-MP-32-400Series: STL (long stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 400 mm | Port: Rc1/8
STL-MP-40-50Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
STL-MP-40-75Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/8
STL-MP-40-100Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8
STL-MP-40-125Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 125 mm | Port: Rc1/8
STL-MP-40-150Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/8
STL-MP-40-175Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 175 mm | Port: Rc1/8
STL-MP-40-200Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/8
STL-MP-40-225Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 225 mm | Port: Rc1/8
STL-MP-40-250Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/8
STL-MP-40-275Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 275 mm | Port: Rc1/8
STL-MP-40-300Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/8
STL-MP-40-325Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 325 mm | Port: Rc1/8
STL-MP-40-350Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 350 mm | Port: Rc1/8
STL-MP-40-375Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 375 mm | Port: Rc1/8
STL-MP-40-400Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 400 mm | Port: Rc1/8
STL-MP-50-50Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
STL-MP-50-75Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 75 mm | Port: Rc1/4
STL-MP-50-100Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
STL-MP-50-125Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 125 mm | Port: Rc1/4
STL-MP-50-150Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 150 mm | Port: Rc1/4
STL-MP-50-175Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 175 mm | Port: Rc1/4
STL-MP-50-200Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 200 mm | Port: Rc1/4
STL-MP-50-225Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 225 mm | Port: Rc1/4
STL-MP-50-250Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 250 mm | Port: Rc1/4
STL-MP-50-275Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 275 mm | Port: Rc1/4
STL-MP-50-300Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 300 mm | Port: Rc1/4
STL-MP-50-325Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 325 mm | Port: Rc1/4
STL-MP-50-350Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 350 mm | Port: Rc1/4
STL-MP-50-375Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 375 mm | Port: Rc1/4
STL-MP-50-400Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 400 mm | Port: Rc1/4
STL-MP-63-50Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
STL-MP-63-75Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 75 mm | Port: Rc1/4
STL-MP-63-100Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4
STL-MP-63-125Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 125 mm | Port: Rc1/4
STL-MP-63-150Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 150 mm | Port: Rc1/4
STL-MP-63-175Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 175 mm | Port: Rc1/4
STL-MP-63-200Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 200 mm | Port: Rc1/4
STL-MP-63-225Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 225 mm | Port: Rc1/4
STL-MP-63-250Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 250 mm | Port: Rc1/4
STL-MP-63-275Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 275 mm | Port: Rc1/4
STL-MP-63-300Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 300 mm | Port: Rc1/4
STL-MP-63-325Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 325 mm | Port: Rc1/4
STL-MP-63-350Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 350 mm | Port: Rc1/4
STL-MP-63-375Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 375 mm | Port: Rc1/4
STL-MP-63-400Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 400 mm | Port: Rc1/4
STL-MP-80-75Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
STL-MP-80-100Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
STL-MP-80-125Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 125 mm | Port: Rc3/8
STL-MP-80-150Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 150 mm | Port: Rc3/8
STL-MP-80-175Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 175 mm | Port: Rc3/8
STL-MP-80-200Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 200 mm | Port: Rc3/8
STL-MP-80-225Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 225 mm | Port: Rc3/8
STL-MP-80-250Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 250 mm | Port: Rc3/8
STL-MP-80-275Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 275 mm | Port: Rc3/8
STL-MP-80-300Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 300 mm | Port: Rc3/8
STL-MP-80-325Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 325 mm | Port: Rc3/8
STL-MP-80-350Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 350 mm | Port: Rc3/8
STL-MP-80-375Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 375 mm | Port: Rc3/8
STL-MP-80-400Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 400 mm | Port: Rc3/8
STL-BP-8-50Series: STL (long stroke) | Bearing: Ball bushing | Bore: 8 mm | Stroke: 50 mm | Port: M5
STL-BP-8-75Series: STL (long stroke) | Bearing: Ball bushing | Bore: 8 mm | Stroke: 75 mm | Port: M5
STL-BP-8-100Series: STL (long stroke) | Bearing: Ball bushing | Bore: 8 mm | Stroke: 100 mm | Port: M5
STL-BP-8-125Series: STL (long stroke) | Bearing: Ball bushing | Bore: 8 mm | Stroke: 125 mm | Port: M5
STL-BP-8-150Series: STL (long stroke) | Bearing: Ball bushing | Bore: 8 mm | Stroke: 150 mm | Port: M5
STL-BP-8-175Series: STL (long stroke) | Bearing: Ball bushing | Bore: 8 mm | Stroke: 175 mm | Port: M5
STL-BP-8-200Series: STL (long stroke) | Bearing: Ball bushing | Bore: 8 mm | Stroke: 200 mm | Port: M5
STL-BP-12-50Series: STL (long stroke) | Bearing: Ball bushing | Bore: 12 mm | Stroke: 50 mm | Port: M5
STL-BP-12-75Series: STL (long stroke) | Bearing: Ball bushing | Bore: 12 mm | Stroke: 75 mm | Port: M5
STL-BP-12-100Series: STL (long stroke) | Bearing: Ball bushing | Bore: 12 mm | Stroke: 100 mm | Port: M5
STL-BP-12-125Series: STL (long stroke) | Bearing: Ball bushing | Bore: 12 mm | Stroke: 125 mm | Port: M5
STL-BP-12-150Series: STL (long stroke) | Bearing: Ball bushing | Bore: 12 mm | Stroke: 150 mm | Port: M5
STL-BP-12-175Series: STL (long stroke) | Bearing: Ball bushing | Bore: 12 mm | Stroke: 175 mm | Port: M5
STL-BP-12-200Series: STL (long stroke) | Bearing: Ball bushing | Bore: 12 mm | Stroke: 200 mm | Port: M5
STL-BP-16-50Series: STL (long stroke) | Bearing: Ball bushing | Bore: 16 mm | Stroke: 50 mm | Port: M5
STL-BP-16-75Series: STL (long stroke) | Bearing: Ball bushing | Bore: 16 mm | Stroke: 75 mm | Port: M5
STL-BP-16-100Series: STL (long stroke) | Bearing: Ball bushing | Bore: 16 mm | Stroke: 100 mm | Port: M5
STL-BP-16-125Series: STL (long stroke) | Bearing: Ball bushing | Bore: 16 mm | Stroke: 125 mm | Port: M5
STL-BP-16-150Series: STL (long stroke) | Bearing: Ball bushing | Bore: 16 mm | Stroke: 150 mm | Port: M5
STL-BP-16-175Series: STL (long stroke) | Bearing: Ball bushing | Bore: 16 mm | Stroke: 175 mm | Port: M5
STL-BP-16-200Series: STL (long stroke) | Bearing: Ball bushing | Bore: 16 mm | Stroke: 200 mm | Port: M5
STL-BP-20-50Series: STL (long stroke) | Bearing: Ball bushing | Bore: 20 mm | Stroke: 50 mm | Port: M5
STL-BP-20-75Series: STL (long stroke) | Bearing: Ball bushing | Bore: 20 mm | Stroke: 75 mm | Port: M5
STL-BP-20-100Series: STL (long stroke) | Bearing: Ball bushing | Bore: 20 mm | Stroke: 100 mm | Port: M5
STL-BP-20-125Series: STL (long stroke) | Bearing: Ball bushing | Bore: 20 mm | Stroke: 125 mm | Port: M5
STL-BP-20-150Series: STL (long stroke) | Bearing: Ball bushing | Bore: 20 mm | Stroke: 150 mm | Port: M5
STL-BP-20-175Series: STL (long stroke) | Bearing: Ball bushing | Bore: 20 mm | Stroke: 175 mm | Port: M5
STL-BP-20-200Series: STL (long stroke) | Bearing: Ball bushing | Bore: 20 mm | Stroke: 200 mm | Port: M5
STL-BP-20-225Series: STL (long stroke) | Bearing: Ball bushing | Bore: 20 mm | Stroke: 225 mm | Port: M5
STL-BP-20-250Series: STL (long stroke) | Bearing: Ball bushing | Bore: 20 mm | Stroke: 250 mm | Port: M5
STL-BP-20-275Series: STL (long stroke) | Bearing: Ball bushing | Bore: 20 mm | Stroke: 275 mm | Port: M5
STL-BP-20-300Series: STL (long stroke) | Bearing: Ball bushing | Bore: 20 mm | Stroke: 300 mm | Port: M5
STL-BP-20-325Series: STL (long stroke) | Bearing: Ball bushing | Bore: 20 mm | Stroke: 325 mm | Port: M5
STL-BP-20-350Series: STL (long stroke) | Bearing: Ball bushing | Bore: 20 mm | Stroke: 350 mm | Port: M5
STL-BP-20-375Series: STL (long stroke) | Bearing: Ball bushing | Bore: 20 mm | Stroke: 375 mm | Port: M5
STL-BP-20-400Series: STL (long stroke) | Bearing: Ball bushing | Bore: 20 mm | Stroke: 400 mm | Port: M5
STL-BP-25-50Series: STL (long stroke) | Bearing: Ball bushing | Bore: 25 mm | Stroke: 50 mm | Port: M5
STL-BP-25-75Series: STL (long stroke) | Bearing: Ball bushing | Bore: 25 mm | Stroke: 75 mm | Port: M5
STL-BP-25-100Series: STL (long stroke) | Bearing: Ball bushing | Bore: 25 mm | Stroke: 100 mm | Port: M5
STL-BP-25-125Series: STL (long stroke) | Bearing: Ball bushing | Bore: 25 mm | Stroke: 125 mm | Port: M5
STL-BP-25-150Series: STL (long stroke) | Bearing: Ball bushing | Bore: 25 mm | Stroke: 150 mm | Port: M5
STL-BP-25-175Series: STL (long stroke) | Bearing: Ball bushing | Bore: 25 mm | Stroke: 175 mm | Port: M5
STL-BP-25-200Series: STL (long stroke) | Bearing: Ball bushing | Bore: 25 mm | Stroke: 200 mm | Port: M5
STL-BP-25-225Series: STL (long stroke) | Bearing: Ball bushing | Bore: 25 mm | Stroke: 225 mm | Port: M5
STL-BP-25-250Series: STL (long stroke) | Bearing: Ball bushing | Bore: 25 mm | Stroke: 250 mm | Port: M5
STL-BP-25-275Series: STL (long stroke) | Bearing: Ball bushing | Bore: 25 mm | Stroke: 275 mm | Port: M5
STL-BP-25-300Series: STL (long stroke) | Bearing: Ball bushing | Bore: 25 mm | Stroke: 300 mm | Port: M5
STL-BP-25-325Series: STL (long stroke) | Bearing: Ball bushing | Bore: 25 mm | Stroke: 325 mm | Port: M5
STL-BP-25-350Series: STL (long stroke) | Bearing: Ball bushing | Bore: 25 mm | Stroke: 350 mm | Port: M5
STL-BP-25-375Series: STL (long stroke) | Bearing: Ball bushing | Bore: 25 mm | Stroke: 375 mm | Port: M5
STL-BP-25-400Series: STL (long stroke) | Bearing: Ball bushing | Bore: 25 mm | Stroke: 400 mm | Port: M5
STL-BP-32-50Series: STL (long stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
STL-BP-32-75Series: STL (long stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8
STL-BP-32-100Series: STL (long stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
STL-BP-32-125Series: STL (long stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 125 mm | Port: Rc1/8
STL-BP-32-150Series: STL (long stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 150 mm | Port: Rc1/8
STL-BP-32-175Series: STL (long stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 175 mm | Port: Rc1/8
STL-BP-32-200Series: STL (long stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 200 mm | Port: Rc1/8
STL-BP-32-225Series: STL (long stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 225 mm | Port: Rc1/8
STL-BP-32-250Series: STL (long stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 250 mm | Port: Rc1/8
STL-BP-32-275Series: STL (long stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 275 mm | Port: Rc1/8
STL-BP-32-300Series: STL (long stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 300 mm | Port: Rc1/8
STL-BP-32-325Series: STL (long stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 325 mm | Port: Rc1/8
STL-BP-32-350Series: STL (long stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 350 mm | Port: Rc1/8
STL-BP-32-375Series: STL (long stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 375 mm | Port: Rc1/8
STL-BP-32-400Series: STL (long stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 400 mm | Port: Rc1/8
STL-BP-40-50Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
STL-BP-40-75Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/8
STL-BP-40-100Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8
STL-BP-40-125Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 125 mm | Port: Rc1/8
STL-BP-40-150Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/8
STL-BP-40-175Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 175 mm | Port: Rc1/8
STL-BP-40-200Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/8
STL-BP-40-225Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 225 mm | Port: Rc1/8
STL-BP-40-250Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/8
STL-BP-40-275Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 275 mm | Port: Rc1/8
STL-BP-40-300Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/8
STL-BP-40-325Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 325 mm | Port: Rc1/8
STL-BP-40-350Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 350 mm | Port: Rc1/8
STL-BP-40-375Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 375 mm | Port: Rc1/8
STL-BP-40-400Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 400 mm | Port: Rc1/8
STL-BP-50-50Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
STL-BP-50-75Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 75 mm | Port: Rc1/4
STL-BP-50-100Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
STL-BP-50-125Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 125 mm | Port: Rc1/4
STL-BP-50-150Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 150 mm | Port: Rc1/4
STL-BP-50-175Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 175 mm | Port: Rc1/4
STL-BP-50-200Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 200 mm | Port: Rc1/4
STL-BP-50-225Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 225 mm | Port: Rc1/4
STL-BP-50-250Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 250 mm | Port: Rc1/4
STL-BP-50-275Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 275 mm | Port: Rc1/4
STL-BP-50-300Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 300 mm | Port: Rc1/4
STL-BP-50-325Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 325 mm | Port: Rc1/4
STL-BP-50-350Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 350 mm | Port: Rc1/4
STL-BP-50-375Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 375 mm | Port: Rc1/4
STL-BP-50-400Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 400 mm | Port: Rc1/4
STL-BP-63-50Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
STL-BP-63-75Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 75 mm | Port: Rc1/4
STL-BP-63-100Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4
STL-BP-63-125Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 125 mm | Port: Rc1/4
STL-BP-63-150Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 150 mm | Port: Rc1/4
STL-BP-63-175Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 175 mm | Port: Rc1/4
STL-BP-63-200Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 200 mm | Port: Rc1/4
STL-BP-63-225Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 225 mm | Port: Rc1/4
STL-BP-63-250Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 250 mm | Port: Rc1/4
STL-BP-63-275Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 275 mm | Port: Rc1/4
STL-BP-63-300Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 300 mm | Port: Rc1/4
STL-BP-63-325Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 325 mm | Port: Rc1/4
STL-BP-63-350Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 350 mm | Port: Rc1/4
STL-BP-63-375Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 375 mm | Port: Rc1/4
STL-BP-63-400Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 400 mm | Port: Rc1/4
STL-BP-80-75Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
STL-BP-80-100Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
STL-BP-80-125Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 125 mm | Port: Rc3/8
STL-BP-80-150Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 150 mm | Port: Rc3/8
STL-BP-80-175Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 175 mm | Port: Rc3/8
STL-BP-80-200Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 200 mm | Port: Rc3/8
STL-BP-80-225Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 225 mm | Port: Rc3/8
STL-BP-80-250Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 250 mm | Port: Rc3/8
STL-BP-80-275Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 275 mm | Port: Rc3/8
STL-BP-80-300Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 300 mm | Port: Rc3/8
STL-BP-80-325Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 325 mm | Port: Rc3/8
STL-BP-80-350Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 350 mm | Port: Rc3/8
STL-BP-80-375Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 375 mm | Port: Rc3/8
STL-BP-80-400Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 400 mm | Port: Rc3/8

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
