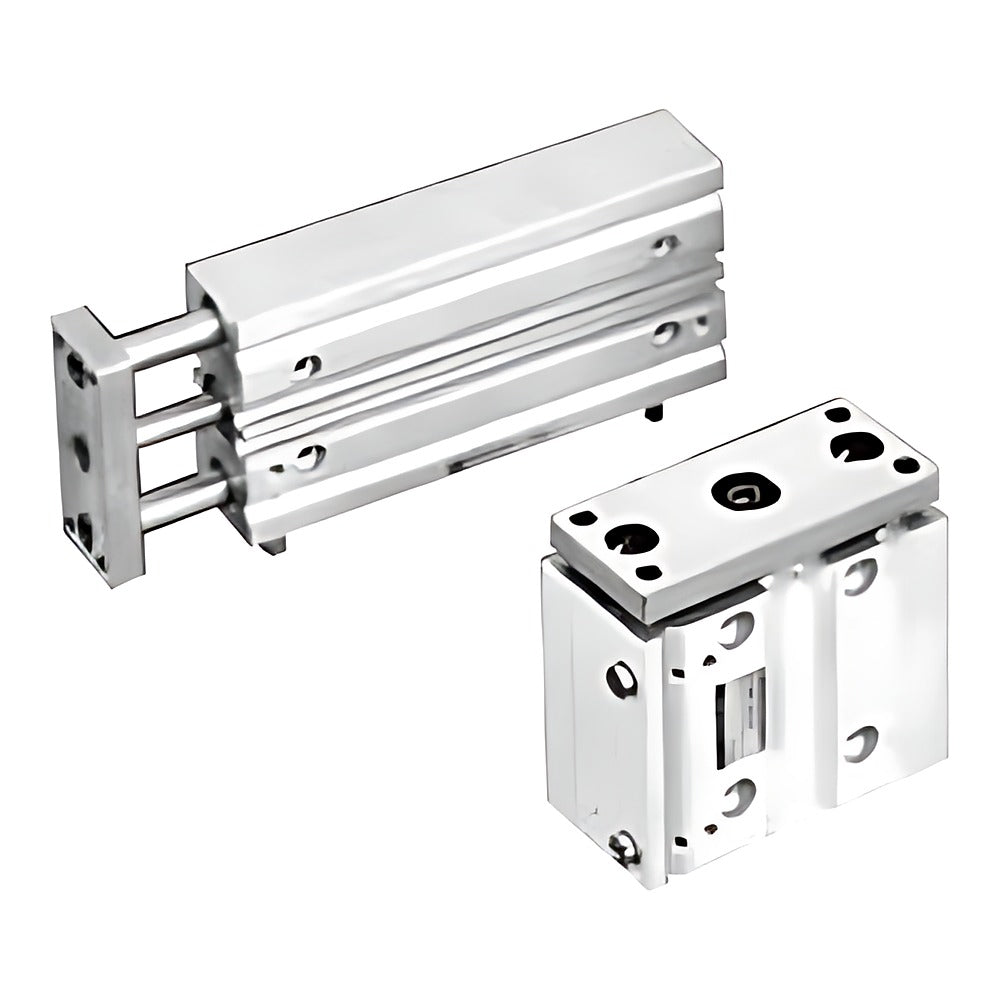

CKD STS/STL-T2 Guided Cylinder (Fluororubber Packing)

CKD STS/STL-T2 Guided Cylinder (Fluororubber Packing)

CKD STS/STL-T2 double-acting guided cylinder with fluororubber (FKM) packings for applications where nitrile seals are unsuitable.

Key features

  • Packing material fluororubber (FKM); otherwise equivalent to the standard STS/STL
  • Bores 12 to 80 mm; STS strokes 10-100 mm, STL strokes 50-400 mm
  • Slide bearing (M) or ball bushing (B) guide rods
  • Switch-ready (magnet built in); auto switches (T0H/T0V, T5, T8, T1, T2, T3, T3P, T2W/T2Y/T3W/T3Y 2-colour, T2J off-delay, T2YD AC-field), lead length and switch quantity (R/H/D/T) are added as suffixes
  • Options: F steel end plate; M / M1 SUS parts and NN / GN threads made to order; consumable kits STS-T2-12K to STS-T2-80K

Specifications

Action Double acting
Fluid Compressed air
Max. operating pressure 1.0 MPa
Proof pressure 1.6 MPa
Ambient temperature -10 to 60°C (no freezing)
Stroke tolerance +2.0 / 0 mm
Lubrication Not required (ISO VG32 turbine oil if used)
Min. operating pressure 0.15 MPa (bore 12-25), 0.1 MPa (bore 32+)
Packing material Fluororubber (FKM)
Cushion Rubber cushion
Source CKD Korea catalog CB-030SK-9, p. 568-572
STS-MT2-12-10 Series: STS (short stroke) | Bearing: Slide bearing | Bore: 12 mm | Stroke: 10 mm | Port: M5
STS-MT2-12-20 Series: STS (short stroke) | Bearing: Slide bearing | Bore: 12 mm | Stroke: 20 mm | Port: M5
STS-MT2-12-30 Series: STS (short stroke) | Bearing: Slide bearing | Bore: 12 mm | Stroke: 30 mm | Port: M5
STS-MT2-12-40 Series: STS (short stroke) | Bearing: Slide bearing | Bore: 12 mm | Stroke: 40 mm | Port: M5
STS-MT2-12-50 Series: STS (short stroke) | Bearing: Slide bearing | Bore: 12 mm | Stroke: 50 mm | Port: M5
STS-MT2-16-10 Series: STS (short stroke) | Bearing: Slide bearing | Bore: 16 mm | Stroke: 10 mm | Port: M5
STS-MT2-16-20 Series: STS (short stroke) | Bearing: Slide bearing | Bore: 16 mm | Stroke: 20 mm | Port: M5
STS-MT2-16-30 Series: STS (short stroke) | Bearing: Slide bearing | Bore: 16 mm | Stroke: 30 mm | Port: M5
STS-MT2-16-40 Series: STS (short stroke) | Bearing: Slide bearing | Bore: 16 mm | Stroke: 40 mm | Port: M5
STS-MT2-16-50 Series: STS (short stroke) | Bearing: Slide bearing | Bore: 16 mm | Stroke: 50 mm | Port: M5
STS-MT2-20-25 Series: STS (short stroke) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 25 mm | Port: M5
STS-MT2-20-50 Series: STS (short stroke) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 50 mm | Port: M5
STS-MT2-25-25 Series: STS (short stroke) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 25 mm | Port: M5
STS-MT2-25-50 Series: STS (short stroke) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 50 mm | Port: M5
STS-MT2-32-25 Series: STS (short stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
STS-MT2-32-50 Series: STS (short stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
STS-MT2-40-25 Series: STS (short stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
STS-MT2-40-50 Series: STS (short stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
STS-MT2-50-25 Series: STS (short stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
STS-MT2-50-50 Series: STS (short stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
STS-MT2-63-25 Series: STS (short stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 25 mm | Port: Rc1/4
STS-MT2-63-50 Series: STS (short stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
STS-MT2-80-25 Series: STS (short stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 25 mm | Port: Rc3/8
STS-MT2-80-50 Series: STS (short stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
STS-MT2-80-75 Series: STS (short stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
STS-MT2-80-100 Series: STS (short stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
STS-BT2-12-10 Series: STS (short stroke) | Bearing: Ball bushing | Bore: 12 mm | Stroke: 10 mm | Port: M5
STS-BT2-12-20 Series: STS (short stroke) | Bearing: Ball bushing | Bore: 12 mm | Stroke: 20 mm | Port: M5
STS-BT2-12-30 Series: STS (short stroke) | Bearing: Ball bushing | Bore: 12 mm | Stroke: 30 mm | Port: M5
STS-BT2-12-40 Series: STS (short stroke) | Bearing: Ball bushing | Bore: 12 mm | Stroke: 40 mm | Port: M5
STS-BT2-12-50 Series: STS (short stroke) | Bearing: Ball bushing | Bore: 12 mm | Stroke: 50 mm | Port: M5
STS-BT2-16-10 Series: STS (short stroke) | Bearing: Ball bushing | Bore: 16 mm | Stroke: 10 mm | Port: M5
STS-BT2-16-20 Series: STS (short stroke) | Bearing: Ball bushing | Bore: 16 mm | Stroke: 20 mm | Port: M5
STS-BT2-16-30 Series: STS (short stroke) | Bearing: Ball bushing | Bore: 16 mm | Stroke: 30 mm | Port: M5
STS-BT2-16-40 Series: STS (short stroke) | Bearing: Ball bushing | Bore: 16 mm | Stroke: 40 mm | Port: M5
STS-BT2-16-50 Series: STS (short stroke) | Bearing: Ball bushing | Bore: 16 mm | Stroke: 50 mm | Port: M5
STS-BT2-20-25 Series: STS (short stroke) | Bearing: Ball bushing | Bore: 20 mm | Stroke: 25 mm | Port: M5
STS-BT2-20-50 Series: STS (short stroke) | Bearing: Ball bushing | Bore: 20 mm | Stroke: 50 mm | Port: M5
STS-BT2-25-25 Series: STS (short stroke) | Bearing: Ball bushing | Bore: 25 mm | Stroke: 25 mm | Port: M5
STS-BT2-25-50 Series: STS (short stroke) | Bearing: Ball bushing | Bore: 25 mm | Stroke: 50 mm | Port: M5
STS-BT2-32-25 Series: STS (short stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
STS-BT2-32-50 Series: STS (short stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
STS-BT2-40-25 Series: STS (short stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
STS-BT2-40-50 Series: STS (short stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
STS-BT2-50-25 Series: STS (short stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
STS-BT2-50-50 Series: STS (short stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
STS-BT2-63-25 Series: STS (short stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 25 mm | Port: Rc1/4
STS-BT2-63-50 Series: STS (short stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
STS-BT2-80-25 Series: STS (short stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 25 mm | Port: Rc3/8
STS-BT2-80-50 Series: STS (short stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
STS-BT2-80-75 Series: STS (short stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
STS-BT2-80-100 Series: STS (short stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
STL-MT2-12-50 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 12 mm | Stroke: 50 mm | Port: M5
STL-MT2-12-75 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 12 mm | Stroke: 75 mm | Port: M5
STL-MT2-12-100 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 12 mm | Stroke: 100 mm | Port: M5
STL-MT2-12-125 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 12 mm | Stroke: 125 mm | Port: M5
STL-MT2-12-150 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 12 mm | Stroke: 150 mm | Port: M5
STL-MT2-12-175 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 12 mm | Stroke: 175 mm | Port: M5
STL-MT2-12-200 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 12 mm | Stroke: 200 mm | Port: M5
STL-MT2-16-50 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 16 mm | Stroke: 50 mm | Port: M5
STL-MT2-16-75 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 16 mm | Stroke: 75 mm | Port: M5
STL-MT2-16-100 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 16 mm | Stroke: 100 mm | Port: M5
STL-MT2-16-125 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 16 mm | Stroke: 125 mm | Port: M5
STL-MT2-16-150 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 16 mm | Stroke: 150 mm | Port: M5
STL-MT2-16-175 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 16 mm | Stroke: 175 mm | Port: M5
STL-MT2-16-200 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 16 mm | Stroke: 200 mm | Port: M5
STL-MT2-20-50 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 50 mm | Port: M5
STL-MT2-20-75 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 75 mm | Port: M5
STL-MT2-20-100 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 100 mm | Port: M5
STL-MT2-20-125 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 125 mm | Port: M5
STL-MT2-20-150 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 150 mm | Port: M5
STL-MT2-20-175 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 175 mm | Port: M5
STL-MT2-20-200 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 200 mm | Port: M5
STL-MT2-20-225 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 225 mm | Port: M5
STL-MT2-20-250 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 250 mm | Port: M5
STL-MT2-20-275 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 275 mm | Port: M5
STL-MT2-20-300 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 300 mm | Port: M5
STL-MT2-20-325 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 325 mm | Port: M5
STL-MT2-20-350 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 350 mm | Port: M5
STL-MT2-20-375 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 375 mm | Port: M5
STL-MT2-20-400 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 400 mm | Port: M5
STL-MT2-25-50 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 50 mm | Port: M5
STL-MT2-25-75 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 75 mm | Port: M5
STL-MT2-25-100 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 100 mm | Port: M5
STL-MT2-25-125 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 125 mm | Port: M5
STL-MT2-25-150 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 150 mm | Port: M5
STL-MT2-25-175 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 175 mm | Port: M5
STL-MT2-25-200 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 200 mm | Port: M5
STL-MT2-25-225 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 225 mm | Port: M5
STL-MT2-25-250 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 250 mm | Port: M5
STL-MT2-25-275 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 275 mm | Port: M5
STL-MT2-25-300 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 300 mm | Port: M5
STL-MT2-25-325 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 325 mm | Port: M5
STL-MT2-25-350 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 350 mm | Port: M5
STL-MT2-25-375 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 375 mm | Port: M5
STL-MT2-25-400 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 400 mm | Port: M5
STL-MT2-32-50 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
STL-MT2-32-75 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8
STL-MT2-32-100 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
STL-MT2-32-125 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 125 mm | Port: Rc1/8
STL-MT2-32-150 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 150 mm | Port: Rc1/8
STL-MT2-32-175 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 175 mm | Port: Rc1/8
STL-MT2-32-200 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 200 mm | Port: Rc1/8
STL-MT2-32-225 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 225 mm | Port: Rc1/8
STL-MT2-32-250 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 250 mm | Port: Rc1/8
STL-MT2-32-275 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 275 mm | Port: Rc1/8
STL-MT2-32-300 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 300 mm | Port: Rc1/8
STL-MT2-32-325 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 325 mm | Port: Rc1/8
STL-MT2-32-350 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 350 mm | Port: Rc1/8
STL-MT2-32-375 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 375 mm | Port: Rc1/8
STL-MT2-32-400 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 400 mm | Port: Rc1/8
STL-MT2-40-50 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
STL-MT2-40-75 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/8
STL-MT2-40-100 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8
STL-MT2-40-125 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 125 mm | Port: Rc1/8
STL-MT2-40-150 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/8
STL-MT2-40-175 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 175 mm | Port: Rc1/8
STL-MT2-40-200 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/8
STL-MT2-40-225 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 225 mm | Port: Rc1/8
STL-MT2-40-250 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/8
STL-MT2-40-275 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 275 mm | Port: Rc1/8
STL-MT2-40-300 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/8
STL-MT2-40-325 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 325 mm | Port: Rc1/8
STL-MT2-40-350 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 350 mm | Port: Rc1/8
STL-MT2-40-375 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 375 mm | Port: Rc1/8
STL-MT2-40-400 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 400 mm | Port: Rc1/8
STL-MT2-50-50 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
STL-MT2-50-75 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 75 mm | Port: Rc1/4
STL-MT2-50-100 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
STL-MT2-50-125 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 125 mm | Port: Rc1/4
STL-MT2-50-150 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 150 mm | Port: Rc1/4
STL-MT2-50-175 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 175 mm | Port: Rc1/4
STL-MT2-50-200 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 200 mm | Port: Rc1/4
STL-MT2-50-225 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 225 mm | Port: Rc1/4
STL-MT2-50-250 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 250 mm | Port: Rc1/4
STL-MT2-50-275 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 275 mm | Port: Rc1/4
STL-MT2-50-300 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 300 mm | Port: Rc1/4
STL-MT2-50-325 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 325 mm | Port: Rc1/4
STL-MT2-50-350 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 350 mm | Port: Rc1/4
STL-MT2-50-375 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 375 mm | Port: Rc1/4
STL-MT2-50-400 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 400 mm | Port: Rc1/4
STL-MT2-63-50 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
STL-MT2-63-75 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 75 mm | Port: Rc1/4
STL-MT2-63-100 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4
STL-MT2-63-125 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 125 mm | Port: Rc1/4
STL-MT2-63-150 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 150 mm | Port: Rc1/4
STL-MT2-63-175 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 175 mm | Port: Rc1/4
STL-MT2-63-200 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 200 mm | Port: Rc1/4
STL-MT2-63-225 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 225 mm | Port: Rc1/4
STL-MT2-63-250 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 250 mm | Port: Rc1/4
STL-MT2-63-275 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 275 mm | Port: Rc1/4
STL-MT2-63-300 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 300 mm | Port: Rc1/4
STL-MT2-63-325 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 325 mm | Port: Rc1/4
STL-MT2-63-350 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 350 mm | Port: Rc1/4
STL-MT2-63-375 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 375 mm | Port: Rc1/4
STL-MT2-63-400 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 400 mm | Port: Rc1/4
STL-MT2-80-75 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
STL-MT2-80-100 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
STL-MT2-80-125 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 125 mm | Port: Rc3/8
STL-MT2-80-150 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 150 mm | Port: Rc3/8
STL-MT2-80-175 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 175 mm | Port: Rc3/8
STL-MT2-80-200 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 200 mm | Port: Rc3/8
STL-MT2-80-225 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 225 mm | Port: Rc3/8
STL-MT2-80-250 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 250 mm | Port: Rc3/8
STL-MT2-80-275 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 275 mm | Port: Rc3/8
STL-MT2-80-300 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 300 mm | Port: Rc3/8
STL-MT2-80-325 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 325 mm | Port: Rc3/8
STL-MT2-80-350 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 350 mm | Port: Rc3/8
STL-MT2-80-375 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 375 mm | Port: Rc3/8
STL-MT2-80-400 Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 400 mm | Port: Rc3/8
STL-BT2-12-50 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 12 mm | Stroke: 50 mm | Port: M5
STL-BT2-12-75 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 12 mm | Stroke: 75 mm | Port: M5
STL-BT2-12-100 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 12 mm | Stroke: 100 mm | Port: M5
STL-BT2-12-125 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 12 mm | Stroke: 125 mm | Port: M5
STL-BT2-12-150 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 12 mm | Stroke: 150 mm | Port: M5
STL-BT2-12-175 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 12 mm | Stroke: 175 mm | Port: M5
STL-BT2-12-200 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 12 mm | Stroke: 200 mm | Port: M5
STL-BT2-16-50 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 16 mm | Stroke: 50 mm | Port: M5
STL-BT2-16-75 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 16 mm | Stroke: 75 mm | Port: M5
STL-BT2-16-100 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 16 mm | Stroke: 100 mm | Port: M5
STL-BT2-16-125 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 16 mm | Stroke: 125 mm | Port: M5
STL-BT2-16-150 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 16 mm | Stroke: 150 mm | Port: M5
STL-BT2-16-175 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 16 mm | Stroke: 175 mm | Port: M5
STL-BT2-16-200 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 16 mm | Stroke: 200 mm | Port: M5
STL-BT2-20-50 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 20 mm | Stroke: 50 mm | Port: M5
STL-BT2-20-75 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 20 mm | Stroke: 75 mm | Port: M5
STL-BT2-20-100 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 20 mm | Stroke: 100 mm | Port: M5
STL-BT2-20-125 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 20 mm | Stroke: 125 mm | Port: M5
STL-BT2-20-150 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 20 mm | Stroke: 150 mm | Port: M5
STL-BT2-20-175 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 20 mm | Stroke: 175 mm | Port: M5
STL-BT2-20-200 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 20 mm | Stroke: 200 mm | Port: M5
STL-BT2-20-225 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 20 mm | Stroke: 225 mm | Port: M5
STL-BT2-20-250 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 20 mm | Stroke: 250 mm | Port: M5
STL-BT2-20-275 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 20 mm | Stroke: 275 mm | Port: M5
STL-BT2-20-300 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 20 mm | Stroke: 300 mm | Port: M5
STL-BT2-20-325 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 20 mm | Stroke: 325 mm | Port: M5
STL-BT2-20-350 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 20 mm | Stroke: 350 mm | Port: M5
STL-BT2-20-375 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 20 mm | Stroke: 375 mm | Port: M5
STL-BT2-20-400 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 20 mm | Stroke: 400 mm | Port: M5
STL-BT2-25-50 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 25 mm | Stroke: 50 mm | Port: M5
STL-BT2-25-75 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 25 mm | Stroke: 75 mm | Port: M5
STL-BT2-25-100 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 25 mm | Stroke: 100 mm | Port: M5
STL-BT2-25-125 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 25 mm | Stroke: 125 mm | Port: M5
STL-BT2-25-150 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 25 mm | Stroke: 150 mm | Port: M5
STL-BT2-25-175 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 25 mm | Stroke: 175 mm | Port: M5
STL-BT2-25-200 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 25 mm | Stroke: 200 mm | Port: M5
STL-BT2-25-225 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 25 mm | Stroke: 225 mm | Port: M5
STL-BT2-25-250 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 25 mm | Stroke: 250 mm | Port: M5
STL-BT2-25-275 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 25 mm | Stroke: 275 mm | Port: M5
STL-BT2-25-300 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 25 mm | Stroke: 300 mm | Port: M5
STL-BT2-25-325 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 25 mm | Stroke: 325 mm | Port: M5
STL-BT2-25-350 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 25 mm | Stroke: 350 mm | Port: M5
STL-BT2-25-375 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 25 mm | Stroke: 375 mm | Port: M5
STL-BT2-25-400 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 25 mm | Stroke: 400 mm | Port: M5
STL-BT2-32-50 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
STL-BT2-32-75 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8
STL-BT2-32-100 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
STL-BT2-32-125 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 125 mm | Port: Rc1/8
STL-BT2-32-150 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 150 mm | Port: Rc1/8
STL-BT2-32-175 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 175 mm | Port: Rc1/8
STL-BT2-32-200 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 200 mm | Port: Rc1/8
STL-BT2-32-225 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 225 mm | Port: Rc1/8
STL-BT2-32-250 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 250 mm | Port: Rc1/8
STL-BT2-32-275 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 275 mm | Port: Rc1/8
STL-BT2-32-300 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 300 mm | Port: Rc1/8
STL-BT2-32-325 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 325 mm | Port: Rc1/8
STL-BT2-32-350 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 350 mm | Port: Rc1/8
STL-BT2-32-375 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 375 mm | Port: Rc1/8
STL-BT2-32-400 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 400 mm | Port: Rc1/8
STL-BT2-40-50 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
STL-BT2-40-75 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/8
STL-BT2-40-100 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8
STL-BT2-40-125 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 125 mm | Port: Rc1/8
STL-BT2-40-150 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/8
STL-BT2-40-175 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 175 mm | Port: Rc1/8
STL-BT2-40-200 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/8
STL-BT2-40-225 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 225 mm | Port: Rc1/8
STL-BT2-40-250 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/8
STL-BT2-40-275 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 275 mm | Port: Rc1/8
STL-BT2-40-300 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/8
STL-BT2-40-325 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 325 mm | Port: Rc1/8
STL-BT2-40-350 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 350 mm | Port: Rc1/8
STL-BT2-40-375 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 375 mm | Port: Rc1/8
STL-BT2-40-400 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 400 mm | Port: Rc1/8
STL-BT2-50-50 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
STL-BT2-50-75 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 75 mm | Port: Rc1/4
STL-BT2-50-100 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
STL-BT2-50-125 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 125 mm | Port: Rc1/4
STL-BT2-50-150 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 150 mm | Port: Rc1/4
STL-BT2-50-175 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 175 mm | Port: Rc1/4
STL-BT2-50-200 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 200 mm | Port: Rc1/4
STL-BT2-50-225 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 225 mm | Port: Rc1/4
STL-BT2-50-250 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 250 mm | Port: Rc1/4
STL-BT2-50-275 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 275 mm | Port: Rc1/4
STL-BT2-50-300 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 300 mm | Port: Rc1/4
STL-BT2-50-325 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 325 mm | Port: Rc1/4
STL-BT2-50-350 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 350 mm | Port: Rc1/4
STL-BT2-50-375 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 375 mm | Port: Rc1/4
STL-BT2-50-400 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 400 mm | Port: Rc1/4
STL-BT2-63-50 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
STL-BT2-63-75 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 75 mm | Port: Rc1/4
STL-BT2-63-100 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4
STL-BT2-63-125 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 125 mm | Port: Rc1/4
STL-BT2-63-150 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 150 mm | Port: Rc1/4
STL-BT2-63-175 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 175 mm | Port: Rc1/4
STL-BT2-63-200 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 200 mm | Port: Rc1/4
STL-BT2-63-225 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 225 mm | Port: Rc1/4
STL-BT2-63-250 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 250 mm | Port: Rc1/4
STL-BT2-63-275 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 275 mm | Port: Rc1/4
STL-BT2-63-300 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 300 mm | Port: Rc1/4
STL-BT2-63-325 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 325 mm | Port: Rc1/4
STL-BT2-63-350 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 350 mm | Port: Rc1/4
STL-BT2-63-375 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 375 mm | Port: Rc1/4
STL-BT2-63-400 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 400 mm | Port: Rc1/4
STL-BT2-80-75 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
STL-BT2-80-100 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
STL-BT2-80-125 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 125 mm | Port: Rc3/8
STL-BT2-80-150 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 150 mm | Port: Rc3/8
STL-BT2-80-175 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 175 mm | Port: Rc3/8
STL-BT2-80-200 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 200 mm | Port: Rc3/8
STL-BT2-80-225 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 225 mm | Port: Rc3/8
STL-BT2-80-250 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 250 mm | Port: Rc3/8
STL-BT2-80-275 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 275 mm | Port: Rc3/8
STL-BT2-80-300 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 300 mm | Port: Rc3/8
STL-BT2-80-325 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 325 mm | Port: Rc3/8
STL-BT2-80-350 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 350 mm | Port: Rc3/8
STL-BT2-80-375 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 375 mm | Port: Rc3/8
STL-BT2-80-400 Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 400 mm | Port: Rc3/8
Guided CylindersCKD
288 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD STS/STL-T2 Guided Cylinder (Fluororubber Packing)

Brand CKD·Guided Cylinders

Available part numbers (288)

STS-MT2-12-10, STS-MT2-12-20, STS-MT2-12-30, STS-MT2-12-40, STS-MT2-12-50, STS-MT2-16-10, STS-MT2-16-20, STS-MT2-16-30, STS-MT2-16-40, STS-MT2-16-50 + 278 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
STS-MT2-12-10Series: STS (short stroke) | Bearing: Slide bearing | Bore: 12 mm | Stroke: 10 mm | Port: M5
STS-MT2-12-20Series: STS (short stroke) | Bearing: Slide bearing | Bore: 12 mm | Stroke: 20 mm | Port: M5
STS-MT2-12-30Series: STS (short stroke) | Bearing: Slide bearing | Bore: 12 mm | Stroke: 30 mm | Port: M5
STS-MT2-12-40Series: STS (short stroke) | Bearing: Slide bearing | Bore: 12 mm | Stroke: 40 mm | Port: M5
STS-MT2-12-50Series: STS (short stroke) | Bearing: Slide bearing | Bore: 12 mm | Stroke: 50 mm | Port: M5
STS-MT2-16-10Series: STS (short stroke) | Bearing: Slide bearing | Bore: 16 mm | Stroke: 10 mm | Port: M5
STS-MT2-16-20Series: STS (short stroke) | Bearing: Slide bearing | Bore: 16 mm | Stroke: 20 mm | Port: M5
STS-MT2-16-30Series: STS (short stroke) | Bearing: Slide bearing | Bore: 16 mm | Stroke: 30 mm | Port: M5
STS-MT2-16-40Series: STS (short stroke) | Bearing: Slide bearing | Bore: 16 mm | Stroke: 40 mm | Port: M5
STS-MT2-16-50Series: STS (short stroke) | Bearing: Slide bearing | Bore: 16 mm | Stroke: 50 mm | Port: M5
STS-MT2-20-25Series: STS (short stroke) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 25 mm | Port: M5
STS-MT2-20-50Series: STS (short stroke) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 50 mm | Port: M5
STS-MT2-25-25Series: STS (short stroke) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 25 mm | Port: M5
STS-MT2-25-50Series: STS (short stroke) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 50 mm | Port: M5
STS-MT2-32-25Series: STS (short stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
STS-MT2-32-50Series: STS (short stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
STS-MT2-40-25Series: STS (short stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
STS-MT2-40-50Series: STS (short stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
STS-MT2-50-25Series: STS (short stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
STS-MT2-50-50Series: STS (short stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
STS-MT2-63-25Series: STS (short stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 25 mm | Port: Rc1/4
STS-MT2-63-50Series: STS (short stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
STS-MT2-80-25Series: STS (short stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 25 mm | Port: Rc3/8
STS-MT2-80-50Series: STS (short stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
STS-MT2-80-75Series: STS (short stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
STS-MT2-80-100Series: STS (short stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
STS-BT2-12-10Series: STS (short stroke) | Bearing: Ball bushing | Bore: 12 mm | Stroke: 10 mm | Port: M5
STS-BT2-12-20Series: STS (short stroke) | Bearing: Ball bushing | Bore: 12 mm | Stroke: 20 mm | Port: M5
STS-BT2-12-30Series: STS (short stroke) | Bearing: Ball bushing | Bore: 12 mm | Stroke: 30 mm | Port: M5
STS-BT2-12-40Series: STS (short stroke) | Bearing: Ball bushing | Bore: 12 mm | Stroke: 40 mm | Port: M5
STS-BT2-12-50Series: STS (short stroke) | Bearing: Ball bushing | Bore: 12 mm | Stroke: 50 mm | Port: M5
STS-BT2-16-10Series: STS (short stroke) | Bearing: Ball bushing | Bore: 16 mm | Stroke: 10 mm | Port: M5
STS-BT2-16-20Series: STS (short stroke) | Bearing: Ball bushing | Bore: 16 mm | Stroke: 20 mm | Port: M5
STS-BT2-16-30Series: STS (short stroke) | Bearing: Ball bushing | Bore: 16 mm | Stroke: 30 mm | Port: M5
STS-BT2-16-40Series: STS (short stroke) | Bearing: Ball bushing | Bore: 16 mm | Stroke: 40 mm | Port: M5
STS-BT2-16-50Series: STS (short stroke) | Bearing: Ball bushing | Bore: 16 mm | Stroke: 50 mm | Port: M5
STS-BT2-20-25Series: STS (short stroke) | Bearing: Ball bushing | Bore: 20 mm | Stroke: 25 mm | Port: M5
STS-BT2-20-50Series: STS (short stroke) | Bearing: Ball bushing | Bore: 20 mm | Stroke: 50 mm | Port: M5
STS-BT2-25-25Series: STS (short stroke) | Bearing: Ball bushing | Bore: 25 mm | Stroke: 25 mm | Port: M5
STS-BT2-25-50Series: STS (short stroke) | Bearing: Ball bushing | Bore: 25 mm | Stroke: 50 mm | Port: M5
STS-BT2-32-25Series: STS (short stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
STS-BT2-32-50Series: STS (short stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
STS-BT2-40-25Series: STS (short stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
STS-BT2-40-50Series: STS (short stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
STS-BT2-50-25Series: STS (short stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
STS-BT2-50-50Series: STS (short stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
STS-BT2-63-25Series: STS (short stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 25 mm | Port: Rc1/4
STS-BT2-63-50Series: STS (short stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
STS-BT2-80-25Series: STS (short stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 25 mm | Port: Rc3/8
STS-BT2-80-50Series: STS (short stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
STS-BT2-80-75Series: STS (short stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
STS-BT2-80-100Series: STS (short stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
STL-MT2-12-50Series: STL (long stroke) | Bearing: Slide bearing | Bore: 12 mm | Stroke: 50 mm | Port: M5
STL-MT2-12-75Series: STL (long stroke) | Bearing: Slide bearing | Bore: 12 mm | Stroke: 75 mm | Port: M5
STL-MT2-12-100Series: STL (long stroke) | Bearing: Slide bearing | Bore: 12 mm | Stroke: 100 mm | Port: M5
STL-MT2-12-125Series: STL (long stroke) | Bearing: Slide bearing | Bore: 12 mm | Stroke: 125 mm | Port: M5
STL-MT2-12-150Series: STL (long stroke) | Bearing: Slide bearing | Bore: 12 mm | Stroke: 150 mm | Port: M5
STL-MT2-12-175Series: STL (long stroke) | Bearing: Slide bearing | Bore: 12 mm | Stroke: 175 mm | Port: M5
STL-MT2-12-200Series: STL (long stroke) | Bearing: Slide bearing | Bore: 12 mm | Stroke: 200 mm | Port: M5
STL-MT2-16-50Series: STL (long stroke) | Bearing: Slide bearing | Bore: 16 mm | Stroke: 50 mm | Port: M5
STL-MT2-16-75Series: STL (long stroke) | Bearing: Slide bearing | Bore: 16 mm | Stroke: 75 mm | Port: M5
STL-MT2-16-100Series: STL (long stroke) | Bearing: Slide bearing | Bore: 16 mm | Stroke: 100 mm | Port: M5
STL-MT2-16-125Series: STL (long stroke) | Bearing: Slide bearing | Bore: 16 mm | Stroke: 125 mm | Port: M5
STL-MT2-16-150Series: STL (long stroke) | Bearing: Slide bearing | Bore: 16 mm | Stroke: 150 mm | Port: M5
STL-MT2-16-175Series: STL (long stroke) | Bearing: Slide bearing | Bore: 16 mm | Stroke: 175 mm | Port: M5
STL-MT2-16-200Series: STL (long stroke) | Bearing: Slide bearing | Bore: 16 mm | Stroke: 200 mm | Port: M5
STL-MT2-20-50Series: STL (long stroke) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 50 mm | Port: M5
STL-MT2-20-75Series: STL (long stroke) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 75 mm | Port: M5
STL-MT2-20-100Series: STL (long stroke) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 100 mm | Port: M5
STL-MT2-20-125Series: STL (long stroke) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 125 mm | Port: M5
STL-MT2-20-150Series: STL (long stroke) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 150 mm | Port: M5
STL-MT2-20-175Series: STL (long stroke) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 175 mm | Port: M5
STL-MT2-20-200Series: STL (long stroke) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 200 mm | Port: M5
STL-MT2-20-225Series: STL (long stroke) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 225 mm | Port: M5
STL-MT2-20-250Series: STL (long stroke) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 250 mm | Port: M5
STL-MT2-20-275Series: STL (long stroke) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 275 mm | Port: M5
STL-MT2-20-300Series: STL (long stroke) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 300 mm | Port: M5
STL-MT2-20-325Series: STL (long stroke) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 325 mm | Port: M5
STL-MT2-20-350Series: STL (long stroke) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 350 mm | Port: M5
STL-MT2-20-375Series: STL (long stroke) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 375 mm | Port: M5
STL-MT2-20-400Series: STL (long stroke) | Bearing: Slide bearing | Bore: 20 mm | Stroke: 400 mm | Port: M5
STL-MT2-25-50Series: STL (long stroke) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 50 mm | Port: M5
STL-MT2-25-75Series: STL (long stroke) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 75 mm | Port: M5
STL-MT2-25-100Series: STL (long stroke) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 100 mm | Port: M5
STL-MT2-25-125Series: STL (long stroke) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 125 mm | Port: M5
STL-MT2-25-150Series: STL (long stroke) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 150 mm | Port: M5
STL-MT2-25-175Series: STL (long stroke) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 175 mm | Port: M5
STL-MT2-25-200Series: STL (long stroke) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 200 mm | Port: M5
STL-MT2-25-225Series: STL (long stroke) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 225 mm | Port: M5
STL-MT2-25-250Series: STL (long stroke) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 250 mm | Port: M5
STL-MT2-25-275Series: STL (long stroke) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 275 mm | Port: M5
STL-MT2-25-300Series: STL (long stroke) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 300 mm | Port: M5
STL-MT2-25-325Series: STL (long stroke) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 325 mm | Port: M5
STL-MT2-25-350Series: STL (long stroke) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 350 mm | Port: M5
STL-MT2-25-375Series: STL (long stroke) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 375 mm | Port: M5
STL-MT2-25-400Series: STL (long stroke) | Bearing: Slide bearing | Bore: 25 mm | Stroke: 400 mm | Port: M5
STL-MT2-32-50Series: STL (long stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
STL-MT2-32-75Series: STL (long stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8
STL-MT2-32-100Series: STL (long stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
STL-MT2-32-125Series: STL (long stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 125 mm | Port: Rc1/8
STL-MT2-32-150Series: STL (long stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 150 mm | Port: Rc1/8
STL-MT2-32-175Series: STL (long stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 175 mm | Port: Rc1/8
STL-MT2-32-200Series: STL (long stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 200 mm | Port: Rc1/8
STL-MT2-32-225Series: STL (long stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 225 mm | Port: Rc1/8
STL-MT2-32-250Series: STL (long stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 250 mm | Port: Rc1/8
STL-MT2-32-275Series: STL (long stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 275 mm | Port: Rc1/8
STL-MT2-32-300Series: STL (long stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 300 mm | Port: Rc1/8
STL-MT2-32-325Series: STL (long stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 325 mm | Port: Rc1/8
STL-MT2-32-350Series: STL (long stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 350 mm | Port: Rc1/8
STL-MT2-32-375Series: STL (long stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 375 mm | Port: Rc1/8
STL-MT2-32-400Series: STL (long stroke) | Bearing: Slide bearing | Bore: 32 mm | Stroke: 400 mm | Port: Rc1/8
STL-MT2-40-50Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
STL-MT2-40-75Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/8
STL-MT2-40-100Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8
STL-MT2-40-125Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 125 mm | Port: Rc1/8
STL-MT2-40-150Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/8
STL-MT2-40-175Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 175 mm | Port: Rc1/8
STL-MT2-40-200Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/8
STL-MT2-40-225Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 225 mm | Port: Rc1/8
STL-MT2-40-250Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/8
STL-MT2-40-275Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 275 mm | Port: Rc1/8
STL-MT2-40-300Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/8
STL-MT2-40-325Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 325 mm | Port: Rc1/8
STL-MT2-40-350Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 350 mm | Port: Rc1/8
STL-MT2-40-375Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 375 mm | Port: Rc1/8
STL-MT2-40-400Series: STL (long stroke) | Bearing: Slide bearing | Bore: 40 mm | Stroke: 400 mm | Port: Rc1/8
STL-MT2-50-50Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
STL-MT2-50-75Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 75 mm | Port: Rc1/4
STL-MT2-50-100Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
STL-MT2-50-125Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 125 mm | Port: Rc1/4
STL-MT2-50-150Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 150 mm | Port: Rc1/4
STL-MT2-50-175Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 175 mm | Port: Rc1/4
STL-MT2-50-200Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 200 mm | Port: Rc1/4
STL-MT2-50-225Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 225 mm | Port: Rc1/4
STL-MT2-50-250Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 250 mm | Port: Rc1/4
STL-MT2-50-275Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 275 mm | Port: Rc1/4
STL-MT2-50-300Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 300 mm | Port: Rc1/4
STL-MT2-50-325Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 325 mm | Port: Rc1/4
STL-MT2-50-350Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 350 mm | Port: Rc1/4
STL-MT2-50-375Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 375 mm | Port: Rc1/4
STL-MT2-50-400Series: STL (long stroke) | Bearing: Slide bearing | Bore: 50 mm | Stroke: 400 mm | Port: Rc1/4
STL-MT2-63-50Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
STL-MT2-63-75Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 75 mm | Port: Rc1/4
STL-MT2-63-100Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4
STL-MT2-63-125Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 125 mm | Port: Rc1/4
STL-MT2-63-150Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 150 mm | Port: Rc1/4
STL-MT2-63-175Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 175 mm | Port: Rc1/4
STL-MT2-63-200Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 200 mm | Port: Rc1/4
STL-MT2-63-225Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 225 mm | Port: Rc1/4
STL-MT2-63-250Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 250 mm | Port: Rc1/4
STL-MT2-63-275Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 275 mm | Port: Rc1/4
STL-MT2-63-300Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 300 mm | Port: Rc1/4
STL-MT2-63-325Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 325 mm | Port: Rc1/4
STL-MT2-63-350Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 350 mm | Port: Rc1/4
STL-MT2-63-375Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 375 mm | Port: Rc1/4
STL-MT2-63-400Series: STL (long stroke) | Bearing: Slide bearing | Bore: 63 mm | Stroke: 400 mm | Port: Rc1/4
STL-MT2-80-75Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
STL-MT2-80-100Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
STL-MT2-80-125Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 125 mm | Port: Rc3/8
STL-MT2-80-150Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 150 mm | Port: Rc3/8
STL-MT2-80-175Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 175 mm | Port: Rc3/8
STL-MT2-80-200Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 200 mm | Port: Rc3/8
STL-MT2-80-225Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 225 mm | Port: Rc3/8
STL-MT2-80-250Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 250 mm | Port: Rc3/8
STL-MT2-80-275Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 275 mm | Port: Rc3/8
STL-MT2-80-300Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 300 mm | Port: Rc3/8
STL-MT2-80-325Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 325 mm | Port: Rc3/8
STL-MT2-80-350Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 350 mm | Port: Rc3/8
STL-MT2-80-375Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 375 mm | Port: Rc3/8
STL-MT2-80-400Series: STL (long stroke) | Bearing: Slide bearing | Bore: 80 mm | Stroke: 400 mm | Port: Rc3/8
STL-BT2-12-50Series: STL (long stroke) | Bearing: Ball bushing | Bore: 12 mm | Stroke: 50 mm | Port: M5
STL-BT2-12-75Series: STL (long stroke) | Bearing: Ball bushing | Bore: 12 mm | Stroke: 75 mm | Port: M5
STL-BT2-12-100Series: STL (long stroke) | Bearing: Ball bushing | Bore: 12 mm | Stroke: 100 mm | Port: M5
STL-BT2-12-125Series: STL (long stroke) | Bearing: Ball bushing | Bore: 12 mm | Stroke: 125 mm | Port: M5
STL-BT2-12-150Series: STL (long stroke) | Bearing: Ball bushing | Bore: 12 mm | Stroke: 150 mm | Port: M5
STL-BT2-12-175Series: STL (long stroke) | Bearing: Ball bushing | Bore: 12 mm | Stroke: 175 mm | Port: M5
STL-BT2-12-200Series: STL (long stroke) | Bearing: Ball bushing | Bore: 12 mm | Stroke: 200 mm | Port: M5
STL-BT2-16-50Series: STL (long stroke) | Bearing: Ball bushing | Bore: 16 mm | Stroke: 50 mm | Port: M5
STL-BT2-16-75Series: STL (long stroke) | Bearing: Ball bushing | Bore: 16 mm | Stroke: 75 mm | Port: M5
STL-BT2-16-100Series: STL (long stroke) | Bearing: Ball bushing | Bore: 16 mm | Stroke: 100 mm | Port: M5
STL-BT2-16-125Series: STL (long stroke) | Bearing: Ball bushing | Bore: 16 mm | Stroke: 125 mm | Port: M5
STL-BT2-16-150Series: STL (long stroke) | Bearing: Ball bushing | Bore: 16 mm | Stroke: 150 mm | Port: M5
STL-BT2-16-175Series: STL (long stroke) | Bearing: Ball bushing | Bore: 16 mm | Stroke: 175 mm | Port: M5
STL-BT2-16-200Series: STL (long stroke) | Bearing: Ball bushing | Bore: 16 mm | Stroke: 200 mm | Port: M5
STL-BT2-20-50Series: STL (long stroke) | Bearing: Ball bushing | Bore: 20 mm | Stroke: 50 mm | Port: M5
STL-BT2-20-75Series: STL (long stroke) | Bearing: Ball bushing | Bore: 20 mm | Stroke: 75 mm | Port: M5
STL-BT2-20-100Series: STL (long stroke) | Bearing: Ball bushing | Bore: 20 mm | Stroke: 100 mm | Port: M5
STL-BT2-20-125Series: STL (long stroke) | Bearing: Ball bushing | Bore: 20 mm | Stroke: 125 mm | Port: M5
STL-BT2-20-150Series: STL (long stroke) | Bearing: Ball bushing | Bore: 20 mm | Stroke: 150 mm | Port: M5
STL-BT2-20-175Series: STL (long stroke) | Bearing: Ball bushing | Bore: 20 mm | Stroke: 175 mm | Port: M5
STL-BT2-20-200Series: STL (long stroke) | Bearing: Ball bushing | Bore: 20 mm | Stroke: 200 mm | Port: M5
STL-BT2-20-225Series: STL (long stroke) | Bearing: Ball bushing | Bore: 20 mm | Stroke: 225 mm | Port: M5
STL-BT2-20-250Series: STL (long stroke) | Bearing: Ball bushing | Bore: 20 mm | Stroke: 250 mm | Port: M5
STL-BT2-20-275Series: STL (long stroke) | Bearing: Ball bushing | Bore: 20 mm | Stroke: 275 mm | Port: M5
STL-BT2-20-300Series: STL (long stroke) | Bearing: Ball bushing | Bore: 20 mm | Stroke: 300 mm | Port: M5
STL-BT2-20-325Series: STL (long stroke) | Bearing: Ball bushing | Bore: 20 mm | Stroke: 325 mm | Port: M5
STL-BT2-20-350Series: STL (long stroke) | Bearing: Ball bushing | Bore: 20 mm | Stroke: 350 mm | Port: M5
STL-BT2-20-375Series: STL (long stroke) | Bearing: Ball bushing | Bore: 20 mm | Stroke: 375 mm | Port: M5
STL-BT2-20-400Series: STL (long stroke) | Bearing: Ball bushing | Bore: 20 mm | Stroke: 400 mm | Port: M5
STL-BT2-25-50Series: STL (long stroke) | Bearing: Ball bushing | Bore: 25 mm | Stroke: 50 mm | Port: M5
STL-BT2-25-75Series: STL (long stroke) | Bearing: Ball bushing | Bore: 25 mm | Stroke: 75 mm | Port: M5
STL-BT2-25-100Series: STL (long stroke) | Bearing: Ball bushing | Bore: 25 mm | Stroke: 100 mm | Port: M5
STL-BT2-25-125Series: STL (long stroke) | Bearing: Ball bushing | Bore: 25 mm | Stroke: 125 mm | Port: M5
STL-BT2-25-150Series: STL (long stroke) | Bearing: Ball bushing | Bore: 25 mm | Stroke: 150 mm | Port: M5
STL-BT2-25-175Series: STL (long stroke) | Bearing: Ball bushing | Bore: 25 mm | Stroke: 175 mm | Port: M5
STL-BT2-25-200Series: STL (long stroke) | Bearing: Ball bushing | Bore: 25 mm | Stroke: 200 mm | Port: M5
STL-BT2-25-225Series: STL (long stroke) | Bearing: Ball bushing | Bore: 25 mm | Stroke: 225 mm | Port: M5
STL-BT2-25-250Series: STL (long stroke) | Bearing: Ball bushing | Bore: 25 mm | Stroke: 250 mm | Port: M5
STL-BT2-25-275Series: STL (long stroke) | Bearing: Ball bushing | Bore: 25 mm | Stroke: 275 mm | Port: M5
STL-BT2-25-300Series: STL (long stroke) | Bearing: Ball bushing | Bore: 25 mm | Stroke: 300 mm | Port: M5
STL-BT2-25-325Series: STL (long stroke) | Bearing: Ball bushing | Bore: 25 mm | Stroke: 325 mm | Port: M5
STL-BT2-25-350Series: STL (long stroke) | Bearing: Ball bushing | Bore: 25 mm | Stroke: 350 mm | Port: M5
STL-BT2-25-375Series: STL (long stroke) | Bearing: Ball bushing | Bore: 25 mm | Stroke: 375 mm | Port: M5
STL-BT2-25-400Series: STL (long stroke) | Bearing: Ball bushing | Bore: 25 mm | Stroke: 400 mm | Port: M5
STL-BT2-32-50Series: STL (long stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
STL-BT2-32-75Series: STL (long stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8
STL-BT2-32-100Series: STL (long stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
STL-BT2-32-125Series: STL (long stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 125 mm | Port: Rc1/8
STL-BT2-32-150Series: STL (long stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 150 mm | Port: Rc1/8
STL-BT2-32-175Series: STL (long stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 175 mm | Port: Rc1/8
STL-BT2-32-200Series: STL (long stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 200 mm | Port: Rc1/8
STL-BT2-32-225Series: STL (long stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 225 mm | Port: Rc1/8
STL-BT2-32-250Series: STL (long stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 250 mm | Port: Rc1/8
STL-BT2-32-275Series: STL (long stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 275 mm | Port: Rc1/8
STL-BT2-32-300Series: STL (long stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 300 mm | Port: Rc1/8
STL-BT2-32-325Series: STL (long stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 325 mm | Port: Rc1/8
STL-BT2-32-350Series: STL (long stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 350 mm | Port: Rc1/8
STL-BT2-32-375Series: STL (long stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 375 mm | Port: Rc1/8
STL-BT2-32-400Series: STL (long stroke) | Bearing: Ball bushing | Bore: 32 mm | Stroke: 400 mm | Port: Rc1/8
STL-BT2-40-50Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
STL-BT2-40-75Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/8
STL-BT2-40-100Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8
STL-BT2-40-125Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 125 mm | Port: Rc1/8
STL-BT2-40-150Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/8
STL-BT2-40-175Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 175 mm | Port: Rc1/8
STL-BT2-40-200Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/8
STL-BT2-40-225Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 225 mm | Port: Rc1/8
STL-BT2-40-250Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/8
STL-BT2-40-275Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 275 mm | Port: Rc1/8
STL-BT2-40-300Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/8
STL-BT2-40-325Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 325 mm | Port: Rc1/8
STL-BT2-40-350Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 350 mm | Port: Rc1/8
STL-BT2-40-375Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 375 mm | Port: Rc1/8
STL-BT2-40-400Series: STL (long stroke) | Bearing: Ball bushing | Bore: 40 mm | Stroke: 400 mm | Port: Rc1/8
STL-BT2-50-50Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
STL-BT2-50-75Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 75 mm | Port: Rc1/4
STL-BT2-50-100Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
STL-BT2-50-125Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 125 mm | Port: Rc1/4
STL-BT2-50-150Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 150 mm | Port: Rc1/4
STL-BT2-50-175Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 175 mm | Port: Rc1/4
STL-BT2-50-200Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 200 mm | Port: Rc1/4
STL-BT2-50-225Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 225 mm | Port: Rc1/4
STL-BT2-50-250Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 250 mm | Port: Rc1/4
STL-BT2-50-275Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 275 mm | Port: Rc1/4
STL-BT2-50-300Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 300 mm | Port: Rc1/4
STL-BT2-50-325Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 325 mm | Port: Rc1/4
STL-BT2-50-350Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 350 mm | Port: Rc1/4
STL-BT2-50-375Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 375 mm | Port: Rc1/4
STL-BT2-50-400Series: STL (long stroke) | Bearing: Ball bushing | Bore: 50 mm | Stroke: 400 mm | Port: Rc1/4
STL-BT2-63-50Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
STL-BT2-63-75Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 75 mm | Port: Rc1/4
STL-BT2-63-100Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4
STL-BT2-63-125Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 125 mm | Port: Rc1/4
STL-BT2-63-150Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 150 mm | Port: Rc1/4
STL-BT2-63-175Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 175 mm | Port: Rc1/4
STL-BT2-63-200Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 200 mm | Port: Rc1/4
STL-BT2-63-225Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 225 mm | Port: Rc1/4
STL-BT2-63-250Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 250 mm | Port: Rc1/4
STL-BT2-63-275Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 275 mm | Port: Rc1/4
STL-BT2-63-300Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 300 mm | Port: Rc1/4
STL-BT2-63-325Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 325 mm | Port: Rc1/4
STL-BT2-63-350Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 350 mm | Port: Rc1/4
STL-BT2-63-375Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 375 mm | Port: Rc1/4
STL-BT2-63-400Series: STL (long stroke) | Bearing: Ball bushing | Bore: 63 mm | Stroke: 400 mm | Port: Rc1/4
STL-BT2-80-75Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
STL-BT2-80-100Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
STL-BT2-80-125Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 125 mm | Port: Rc3/8
STL-BT2-80-150Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 150 mm | Port: Rc3/8
STL-BT2-80-175Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 175 mm | Port: Rc3/8
STL-BT2-80-200Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 200 mm | Port: Rc3/8
STL-BT2-80-225Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 225 mm | Port: Rc3/8
STL-BT2-80-250Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 250 mm | Port: Rc3/8
STL-BT2-80-275Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 275 mm | Port: Rc3/8
STL-BT2-80-300Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 300 mm | Port: Rc3/8
STL-BT2-80-325Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 325 mm | Port: Rc3/8
STL-BT2-80-350Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 350 mm | Port: Rc3/8
STL-BT2-80-375Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 375 mm | Port: Rc3/8
STL-BT2-80-400Series: STL (long stroke) | Bearing: Ball bushing | Bore: 80 mm | Stroke: 400 mm | Port: Rc3/8

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
