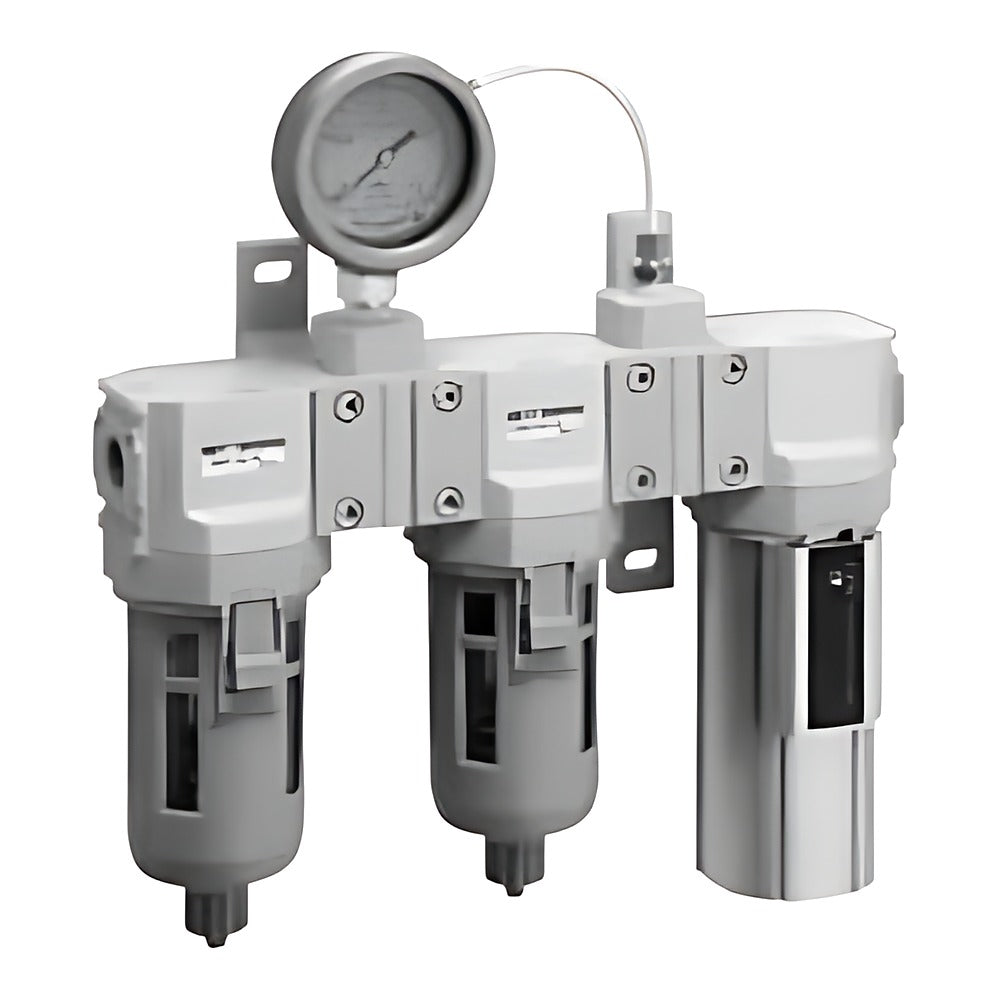

CKD SU300D/SU400D/SD300D/SD400D-W-FP1 Super Dryer (Food Grade)

CKD SU300D/SU400D/SD300D/SD400D-W-FP1 Super Dryer (Food Grade)

CKD D-series high-performance slim-body super dryers and units for installation inside equipment.

Key features

  • FP1 food-processing series using NSF H1 registered grease
  • Hollow-fibre membrane dryer, outlet atmospheric dew point -20 C
  • Units C1 (mist filter + dryer), C2 (adds air filter and differential gauge), C3 (adds regulator and gauge); SD dryer alone
  • Inlet pressure code 05 (below 0.7 MPa) or 07 (0.7 MPa or more)
  • Options E (collected purge exhaust), X1 (reverse IN/OUT), B (C bracket, SD) not multiplied

Specifications

Fluid Compressed air
Inlet pressure range 0.4 to 1.0 MPa
Proof pressure 1.5 MPa
Inlet/ambient temperature 5 to 50 C
Outlet dew point -20 C (atmospheric)
Oil mist filter 0.1 mg/m3 (approx. 0.1 ppm)
Source CKD Korea catalog CC-1271K-5, p. 318-319
SU301D-05-W-C1-FP1 Model: SU301D unit | Inlet pressure: Below 0.7 MPa | Configuration: Mist filter + dryer | Inlet flow: 125 L/min (ANR)
SU301D-05-W-C2-FP1 Model: SU301D unit | Inlet pressure: Below 0.7 MPa | Configuration: Filter + mist filter + dryer | Inlet flow: 125 L/min (ANR)
SU301D-05-W-C3-FP1 Model: SU301D unit | Inlet pressure: Below 0.7 MPa | Configuration: Filter + mist + dryer + regulator | Inlet flow: 125 L/min (ANR)
SD301D-05-W-FP1 Model: SD301D dryer | Inlet pressure: Below 0.7 MPa | Configuration: Super dryer only | Inlet flow: 125 L/min (ANR)
SU301D-07-W-C1-FP1 Model: SU301D unit | Inlet pressure: 0.7 MPa or more | Configuration: Mist filter + dryer | Inlet flow: 125 L/min (ANR)
SU301D-07-W-C2-FP1 Model: SU301D unit | Inlet pressure: 0.7 MPa or more | Configuration: Filter + mist filter + dryer | Inlet flow: 125 L/min (ANR)
SU301D-07-W-C3-FP1 Model: SU301D unit | Inlet pressure: 0.7 MPa or more | Configuration: Filter + mist + dryer + regulator | Inlet flow: 125 L/min (ANR)
SD301D-07-W-FP1 Model: SD301D dryer | Inlet pressure: 0.7 MPa or more | Configuration: Super dryer only | Inlet flow: 125 L/min (ANR)
SU302D-05-W-C1-FP1 Model: SU302D unit | Inlet pressure: Below 0.7 MPa | Configuration: Mist filter + dryer | Inlet flow: 250 L/min (ANR)
SU302D-05-W-C2-FP1 Model: SU302D unit | Inlet pressure: Below 0.7 MPa | Configuration: Filter + mist filter + dryer | Inlet flow: 250 L/min (ANR)
SU302D-05-W-C3-FP1 Model: SU302D unit | Inlet pressure: Below 0.7 MPa | Configuration: Filter + mist + dryer + regulator | Inlet flow: 250 L/min (ANR)
SD302D-05-W-FP1 Model: SD302D dryer | Inlet pressure: Below 0.7 MPa | Configuration: Super dryer only | Inlet flow: 250 L/min (ANR)
SU302D-07-W-C1-FP1 Model: SU302D unit | Inlet pressure: 0.7 MPa or more | Configuration: Mist filter + dryer | Inlet flow: 250 L/min (ANR)
SU302D-07-W-C2-FP1 Model: SU302D unit | Inlet pressure: 0.7 MPa or more | Configuration: Filter + mist filter + dryer | Inlet flow: 250 L/min (ANR)
SU302D-07-W-C3-FP1 Model: SU302D unit | Inlet pressure: 0.7 MPa or more | Configuration: Filter + mist + dryer + regulator | Inlet flow: 250 L/min (ANR)
SD302D-07-W-FP1 Model: SD302D dryer | Inlet pressure: 0.7 MPa or more | Configuration: Super dryer only | Inlet flow: 250 L/min (ANR)
SU401D-05-W-C1-FP1 Model: SU401D unit | Inlet pressure: Below 0.7 MPa | Configuration: Mist filter + dryer | Inlet flow: 500 L/min (ANR)
SU401D-05-W-C2-FP1 Model: SU401D unit | Inlet pressure: Below 0.7 MPa | Configuration: Filter + mist filter + dryer | Inlet flow: 500 L/min (ANR)
SU401D-05-W-C3-FP1 Model: SU401D unit | Inlet pressure: Below 0.7 MPa | Configuration: Filter + mist + dryer + regulator | Inlet flow: 500 L/min (ANR)
SD401D-05-W-FP1 Model: SD401D dryer | Inlet pressure: Below 0.7 MPa | Configuration: Super dryer only | Inlet flow: 500 L/min (ANR)
SU401D-07-W-C1-FP1 Model: SU401D unit | Inlet pressure: 0.7 MPa or more | Configuration: Mist filter + dryer | Inlet flow: 500 L/min (ANR)
SU401D-07-W-C2-FP1 Model: SU401D unit | Inlet pressure: 0.7 MPa or more | Configuration: Filter + mist filter + dryer | Inlet flow: 500 L/min (ANR)
SU401D-07-W-C3-FP1 Model: SU401D unit | Inlet pressure: 0.7 MPa or more | Configuration: Filter + mist + dryer + regulator | Inlet flow: 500 L/min (ANR)
SD401D-07-W-FP1 Model: SD401D dryer | Inlet pressure: 0.7 MPa or more | Configuration: Super dryer only | Inlet flow: 500 L/min (ANR)
SU402D-05-W-C1-FP1 Model: SU402D unit | Inlet pressure: Below 0.7 MPa | Configuration: Mist filter + dryer | Inlet flow: 750 L/min (ANR)
SU402D-05-W-C2-FP1 Model: SU402D unit | Inlet pressure: Below 0.7 MPa | Configuration: Filter + mist filter + dryer | Inlet flow: 750 L/min (ANR)
SU402D-05-W-C3-FP1 Model: SU402D unit | Inlet pressure: Below 0.7 MPa | Configuration: Filter + mist + dryer + regulator | Inlet flow: 750 L/min (ANR)
SD402D-05-W-FP1 Model: SD402D dryer | Inlet pressure: Below 0.7 MPa | Configuration: Super dryer only | Inlet flow: 750 L/min (ANR)
SU402D-07-W-C1-FP1 Model: SU402D unit | Inlet pressure: 0.7 MPa or more | Configuration: Mist filter + dryer | Inlet flow: 750 L/min (ANR)
SU402D-07-W-C2-FP1 Model: SU402D unit | Inlet pressure: 0.7 MPa or more | Configuration: Filter + mist filter + dryer | Inlet flow: 750 L/min (ANR)
SU402D-07-W-C3-FP1 Model: SU402D unit | Inlet pressure: 0.7 MPa or more | Configuration: Filter + mist + dryer + regulator | Inlet flow: 750 L/min (ANR)
SD402D-07-W-FP1 Model: SD402D dryer | Inlet pressure: 0.7 MPa or more | Configuration: Super dryer only | Inlet flow: 750 L/min (ANR)
