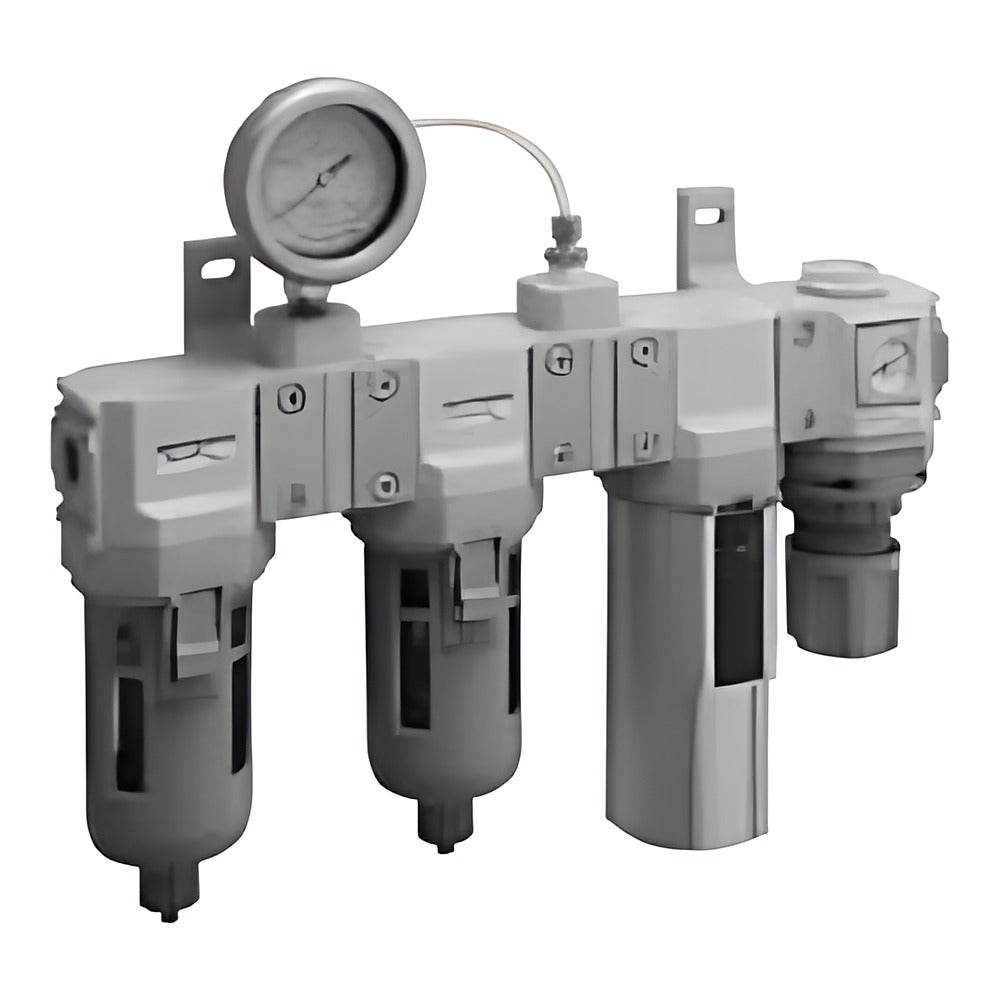

CKD SU300E/SU400E/SD300E/SD400E-W-FP1 Super Dryer (Food Grade)

CKD SU300E/SU400E/SD300E/SD400E-W-FP1 Super Dryer (Food Grade)

CKD E-series super dryers and units with low air loss (10% purge), usable like a filter in food-processing lines.

Key features

  • FP1 food-processing series using NSF H1 registered grease
  • Hollow-fibre membrane dryer, outlet atmospheric dew point -15 C
  • Units C1 (mist filter + dryer), C2 (adds air filter and differential gauge), C3 (adds regulator and gauge); SD dryer alone
  • Inlet pressure code 05 (below 0.7 MPa) or 07 (0.7 MPa or more)
  • Options E (collected purge exhaust), X1 (reverse IN/OUT), B (C bracket, SD) not multiplied

Specifications

Fluid Compressed air
Inlet pressure range 0.4 to 1.0 MPa
Proof pressure 1.5 MPa
Inlet/ambient temperature 5 to 50 C
Outlet dew point -15 C (atmospheric)
Oil mist filter 0.1 mg/m3 (approx. 0.1 ppm)
Source CKD Korea catalog CC-1271K-5, p. 316-317
SU301E-05-W-C1-FP1 Model: SU301E unit | Inlet pressure: Below 0.7 MPa | Configuration: Mist filter + dryer | Inlet flow: 75 L/min (ANR)
SU301E-05-W-C2-FP1 Model: SU301E unit | Inlet pressure: Below 0.7 MPa | Configuration: Filter + mist filter + dryer | Inlet flow: 75 L/min (ANR)
SU301E-05-W-C3-FP1 Model: SU301E unit | Inlet pressure: Below 0.7 MPa | Configuration: Filter + mist + dryer + regulator | Inlet flow: 75 L/min (ANR)
SD301E-05-W-FP1 Model: SD301E dryer | Inlet pressure: Below 0.7 MPa | Configuration: Super dryer only | Inlet flow: 75 L/min (ANR)
SU301E-07-W-C1-FP1 Model: SU301E unit | Inlet pressure: 0.7 MPa or more | Configuration: Mist filter + dryer | Inlet flow: 75 L/min (ANR)
SU301E-07-W-C2-FP1 Model: SU301E unit | Inlet pressure: 0.7 MPa or more | Configuration: Filter + mist filter + dryer | Inlet flow: 75 L/min (ANR)
SU301E-07-W-C3-FP1 Model: SU301E unit | Inlet pressure: 0.7 MPa or more | Configuration: Filter + mist + dryer + regulator | Inlet flow: 75 L/min (ANR)
SD301E-07-W-FP1 Model: SD301E dryer | Inlet pressure: 0.7 MPa or more | Configuration: Super dryer only | Inlet flow: 75 L/min (ANR)
SU302E-05-W-C1-FP1 Model: SU302E unit | Inlet pressure: Below 0.7 MPa | Configuration: Mist filter + dryer | Inlet flow: 150 L/min (ANR)
SU302E-05-W-C2-FP1 Model: SU302E unit | Inlet pressure: Below 0.7 MPa | Configuration: Filter + mist filter + dryer | Inlet flow: 150 L/min (ANR)
SU302E-05-W-C3-FP1 Model: SU302E unit | Inlet pressure: Below 0.7 MPa | Configuration: Filter + mist + dryer + regulator | Inlet flow: 150 L/min (ANR)
SD302E-05-W-FP1 Model: SD302E dryer | Inlet pressure: Below 0.7 MPa | Configuration: Super dryer only | Inlet flow: 150 L/min (ANR)
SU302E-07-W-C1-FP1 Model: SU302E unit | Inlet pressure: 0.7 MPa or more | Configuration: Mist filter + dryer | Inlet flow: 150 L/min (ANR)
SU302E-07-W-C2-FP1 Model: SU302E unit | Inlet pressure: 0.7 MPa or more | Configuration: Filter + mist filter + dryer | Inlet flow: 150 L/min (ANR)
SU302E-07-W-C3-FP1 Model: SU302E unit | Inlet pressure: 0.7 MPa or more | Configuration: Filter + mist + dryer + regulator | Inlet flow: 150 L/min (ANR)
SD302E-07-W-FP1 Model: SD302E dryer | Inlet pressure: 0.7 MPa or more | Configuration: Super dryer only | Inlet flow: 150 L/min (ANR)
SU401E-05-W-C1-FP1 Model: SU401E unit | Inlet pressure: Below 0.7 MPa | Configuration: Mist filter + dryer | Inlet flow: 300 L/min (ANR)
SU401E-05-W-C2-FP1 Model: SU401E unit | Inlet pressure: Below 0.7 MPa | Configuration: Filter + mist filter + dryer | Inlet flow: 300 L/min (ANR)
SU401E-05-W-C3-FP1 Model: SU401E unit | Inlet pressure: Below 0.7 MPa | Configuration: Filter + mist + dryer + regulator | Inlet flow: 300 L/min (ANR)
SD401E-05-W-FP1 Model: SD401E dryer | Inlet pressure: Below 0.7 MPa | Configuration: Super dryer only | Inlet flow: 300 L/min (ANR)
SU401E-07-W-C1-FP1 Model: SU401E unit | Inlet pressure: 0.7 MPa or more | Configuration: Mist filter + dryer | Inlet flow: 300 L/min (ANR)
SU401E-07-W-C2-FP1 Model: SU401E unit | Inlet pressure: 0.7 MPa or more | Configuration: Filter + mist filter + dryer | Inlet flow: 300 L/min (ANR)
SU401E-07-W-C3-FP1 Model: SU401E unit | Inlet pressure: 0.7 MPa or more | Configuration: Filter + mist + dryer + regulator | Inlet flow: 300 L/min (ANR)
SD401E-07-W-FP1 Model: SD401E dryer | Inlet pressure: 0.7 MPa or more | Configuration: Super dryer only | Inlet flow: 300 L/min (ANR)
SU402E-05-W-C1-FP1 Model: SU402E unit | Inlet pressure: Below 0.7 MPa | Configuration: Mist filter + dryer | Inlet flow: 450 L/min (ANR)
SU402E-05-W-C2-FP1 Model: SU402E unit | Inlet pressure: Below 0.7 MPa | Configuration: Filter + mist filter + dryer | Inlet flow: 450 L/min (ANR)
SU402E-05-W-C3-FP1 Model: SU402E unit | Inlet pressure: Below 0.7 MPa | Configuration: Filter + mist + dryer + regulator | Inlet flow: 450 L/min (ANR)
SD402E-05-W-FP1 Model: SD402E dryer | Inlet pressure: Below 0.7 MPa | Configuration: Super dryer only | Inlet flow: 450 L/min (ANR)
SU402E-07-W-C1-FP1 Model: SU402E unit | Inlet pressure: 0.7 MPa or more | Configuration: Mist filter + dryer | Inlet flow: 450 L/min (ANR)
SU402E-07-W-C2-FP1 Model: SU402E unit | Inlet pressure: 0.7 MPa or more | Configuration: Filter + mist filter + dryer | Inlet flow: 450 L/min (ANR)
SU402E-07-W-C3-FP1 Model: SU402E unit | Inlet pressure: 0.7 MPa or more | Configuration: Filter + mist + dryer + regulator | Inlet flow: 450 L/min (ANR)
SD402E-07-W-FP1 Model: SD402E dryer | Inlet pressure: 0.7 MPa or more | Configuration: Super dryer only | Inlet flow: 450 L/min (ANR)
Air DryersCKD
32 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD SU300E/SU400E/SD300E/SD400E-W-FP1 Super Dryer (Food Grade)

Brand CKD·Air Dryers

Available part numbers (32)

SU301E-05-W-C1-FP1, SU301E-05-W-C2-FP1, SU301E-05-W-C3-FP1, SD301E-05-W-FP1, SU301E-07-W-C1-FP1, SU301E-07-W-C2-FP1, SU301E-07-W-C3-FP1, SD301E-07-W-FP1, SU302E-05-W-C1-FP1, SU302E-05-W-C2-FP1 + 22 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
