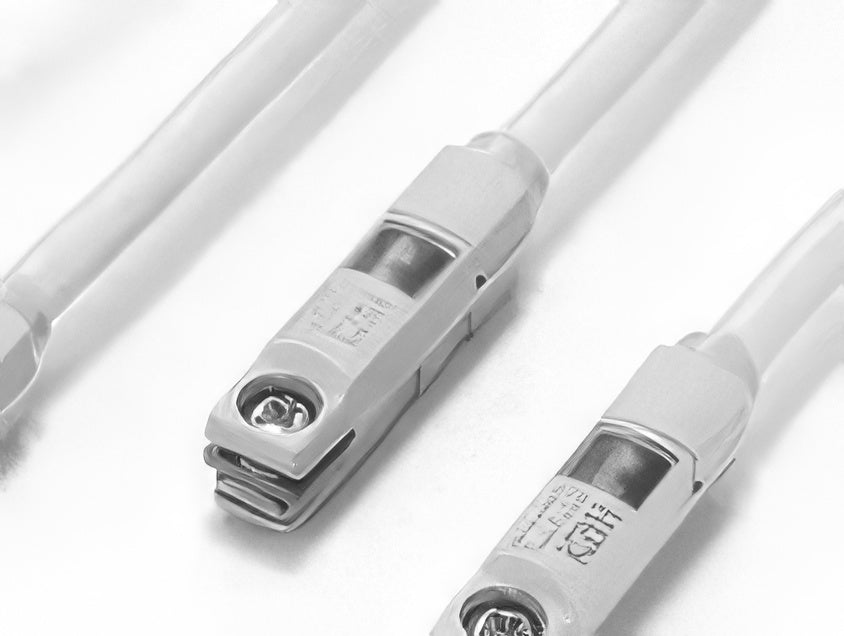

CKD T Series Cylinder Switch (Solid State and Reed)

CKD T Series Cylinder Switch (Solid State and Reed)

CKD T series cylinder (auto) switches, solid state and reed types, for SCPD3, SCM, SSD2, STM, STG, MRL2, LCR, LCG, LCX and GRC actuators.

Key features

  • Solid-state 2-wire (T1, T2, T2J off-delay, T2Y/T2W 2-color) and 3-wire NPN/PNP (T3, T3P, T3Y, T3W) types
  • Reed types T0 (DC12/24V, AC110V), T5 (no indicator, IC circuits) and T8 (with contact protection, up to AC220V)
  • T2YD/T2YDT AC magnetic-field resistant types for spot-welding lines; T2YDU with M12 connector is made-to-order
  • H = straight lead, V = L-shaped lead; standard 1 m lead, 3 m and 5 m optional (suffix 3/5)
  • Protection IEC IP67, JIS C0920 watertight, oil resistant; CE marked except T1, T8

Specifications

Ambient temperature -10 to 60 C
Protection IP67, oil resistant
Shock resistance 980 m/s2 (solid state), 294 m/s2 (reed)
Load voltage (2-wire DC) DC10-30 V
Power supply (3-wire) DC10-28 V
Standard lead length 1 m
Order format SW-<switch model>
Source CKD Korea catalog CB-033S-4, p. 324-340
SW-T1H Switch model: T1H | Contact: Solid state 2-wire AC/DC | Lead wiring: Straight | Indicator: 1-color LED
SW-T1V Switch model: T1V | Contact: Solid state 2-wire AC/DC | Lead wiring: L-shaped | Indicator: 1-color LED
SW-T2H Switch model: T2H | Contact: Solid state 2-wire DC | Lead wiring: Straight | Indicator: 1-color LED
SW-T2V Switch model: T2V | Contact: Solid state 2-wire DC | Lead wiring: L-shaped | Indicator: 1-color LED
SW-T2HR3 Switch model: T2HR3 | Contact: Solid state 2-wire DC | Lead wiring: Straight | Indicator: 1-color LED
SW-T2VR3 Switch model: T2VR3 | Contact: Solid state 2-wire DC | Lead wiring: L-shaped | Indicator: 1-color LED
SW-T2JH Switch model: T2JH | Contact: Solid state 2-wire DC | Lead wiring: Straight | Indicator: 1-color LED
SW-T2JV Switch model: T2JV | Contact: Solid state 2-wire DC | Lead wiring: L-shaped | Indicator: 1-color LED
SW-T2YH Switch model: T2YH | Contact: Solid state 2-wire DC | Lead wiring: Straight | Indicator: 2-color LED
SW-T2YV Switch model: T2YV | Contact: Solid state 2-wire DC | Lead wiring: L-shaped | Indicator: 2-color LED
SW-T2WH Switch model: T2WH | Contact: Solid state 2-wire DC | Lead wiring: Straight | Indicator: 2-color LED
SW-T2WV Switch model: T2WV | Contact: Solid state 2-wire DC | Lead wiring: L-shaped | Indicator: 2-color LED
SW-T3H Switch model: T3H | Contact: Solid state 3-wire NPN | Lead wiring: Straight | Indicator: 1-color LED
SW-T3V Switch model: T3V | Contact: Solid state 3-wire NPN | Lead wiring: L-shaped | Indicator: 1-color LED
SW-T3PH Switch model: T3PH | Contact: Solid state 3-wire PNP | Lead wiring: Straight | Indicator: 1-color LED
SW-T3PV Switch model: T3PV | Contact: Solid state 3-wire PNP | Lead wiring: L-shaped | Indicator: 1-color LED
SW-T3YH Switch model: T3YH | Contact: Solid state 3-wire NPN | Lead wiring: Straight | Indicator: 2-color LED
SW-T3YV Switch model: T3YV | Contact: Solid state 3-wire NPN | Lead wiring: L-shaped | Indicator: 2-color LED
SW-T3WH Switch model: T3WH | Contact: Solid state 3-wire NPN | Lead wiring: Straight | Indicator: 2-color LED
SW-T3WV Switch model: T3WV | Contact: Solid state 3-wire NPN | Lead wiring: L-shaped | Indicator: 2-color LED
SW-T0H Switch model: T0H | Contact: Reed 2-wire | Lead wiring: Straight | Indicator: 1-color LED
SW-T0V Switch model: T0V | Contact: Reed 2-wire | Lead wiring: L-shaped | Indicator: 1-color LED
SW-T8H Switch model: T8H | Contact: Reed 2-wire | Lead wiring: Straight | Indicator: 1-color LED
SW-T8V Switch model: T8V | Contact: Reed 2-wire | Lead wiring: L-shaped | Indicator: 1-color LED
SW-T5H Switch model: T5H | Contact: Reed 2-wire | Lead wiring: Straight | Indicator: None
SW-T5V Switch model: T5V | Contact: Reed 2-wire | Lead wiring: L-shaped | Indicator: None
SW-T2YD Switch model: T2YD | Contact: Solid state 2-wire DC, AC magnetic field | Lead wiring: Straight | Indicator: 2-color LED
SW-T2YDT Switch model: T2YDT | Contact: Solid state 2-wire DC, AC magnetic field | Lead wiring: Straight | Indicator: 2-color LED
SW-T2YDU Switch model: T2YDU | Contact: Solid state 2-wire DC, AC magnetic field | Lead wiring: Straight | Indicator: 2-color LED
T2YDU Legacy code: previous store code
Cylinder SwitchesCKD
30 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD T Series Cylinder Switch (Solid State and Reed)

Brand CKD·Cylinder Switches

Available part numbers (30)

SW-T1H, SW-T1V, SW-T2H, SW-T2V, SW-T2HR3, SW-T2VR3, SW-T2JH, SW-T2JV, SW-T2YH, SW-T2YV + 20 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SW-T1HSwitch model: T1H | Contact: Solid state 2-wire AC/DC | Lead wiring: Straight | Indicator: 1-color LED
SW-T1VSwitch model: T1V | Contact: Solid state 2-wire AC/DC | Lead wiring: L-shaped | Indicator: 1-color LED
SW-T2HSwitch model: T2H | Contact: Solid state 2-wire DC | Lead wiring: Straight | Indicator: 1-color LED
SW-T2VSwitch model: T2V | Contact: Solid state 2-wire DC | Lead wiring: L-shaped | Indicator: 1-color LED
SW-T2HR3Switch model: T2HR3 | Contact: Solid state 2-wire DC | Lead wiring: Straight | Indicator: 1-color LED
SW-T2VR3Switch model: T2VR3 | Contact: Solid state 2-wire DC | Lead wiring: L-shaped | Indicator: 1-color LED
SW-T2JHSwitch model: T2JH | Contact: Solid state 2-wire DC | Lead wiring: Straight | Indicator: 1-color LED
SW-T2JVSwitch model: T2JV | Contact: Solid state 2-wire DC | Lead wiring: L-shaped | Indicator: 1-color LED
SW-T2YHSwitch model: T2YH | Contact: Solid state 2-wire DC | Lead wiring: Straight | Indicator: 2-color LED
SW-T2YVSwitch model: T2YV | Contact: Solid state 2-wire DC | Lead wiring: L-shaped | Indicator: 2-color LED
SW-T2WHSwitch model: T2WH | Contact: Solid state 2-wire DC | Lead wiring: Straight | Indicator: 2-color LED
SW-T2WVSwitch model: T2WV | Contact: Solid state 2-wire DC | Lead wiring: L-shaped | Indicator: 2-color LED
SW-T3HSwitch model: T3H | Contact: Solid state 3-wire NPN | Lead wiring: Straight | Indicator: 1-color LED
SW-T3VSwitch model: T3V | Contact: Solid state 3-wire NPN | Lead wiring: L-shaped | Indicator: 1-color LED
SW-T3PHSwitch model: T3PH | Contact: Solid state 3-wire PNP | Lead wiring: Straight | Indicator: 1-color LED
SW-T3PVSwitch model: T3PV | Contact: Solid state 3-wire PNP | Lead wiring: L-shaped | Indicator: 1-color LED
SW-T3YHSwitch model: T3YH | Contact: Solid state 3-wire NPN | Lead wiring: Straight | Indicator: 2-color LED
SW-T3YVSwitch model: T3YV | Contact: Solid state 3-wire NPN | Lead wiring: L-shaped | Indicator: 2-color LED
SW-T3WHSwitch model: T3WH | Contact: Solid state 3-wire NPN | Lead wiring: Straight | Indicator: 2-color LED
SW-T3WVSwitch model: T3WV | Contact: Solid state 3-wire NPN | Lead wiring: L-shaped | Indicator: 2-color LED
SW-T0HSwitch model: T0H | Contact: Reed 2-wire | Lead wiring: Straight | Indicator: 1-color LED
SW-T0VSwitch model: T0V | Contact: Reed 2-wire | Lead wiring: L-shaped | Indicator: 1-color LED
SW-T8HSwitch model: T8H | Contact: Reed 2-wire | Lead wiring: Straight | Indicator: 1-color LED
SW-T8VSwitch model: T8V | Contact: Reed 2-wire | Lead wiring: L-shaped | Indicator: 1-color LED
SW-T5HSwitch model: T5H | Contact: Reed 2-wire | Lead wiring: Straight | Indicator: None
SW-T5VSwitch model: T5V | Contact: Reed 2-wire | Lead wiring: L-shaped | Indicator: None
SW-T2YDSwitch model: T2YD | Contact: Solid state 2-wire DC, AC magnetic field | Lead wiring: Straight | Indicator: 2-color LED
SW-T2YDTSwitch model: T2YDT | Contact: Solid state 2-wire DC, AC magnetic field | Lead wiring: Straight | Indicator: 2-color LED
SW-T2YDUSwitch model: T2YDU | Contact: Solid state 2-wire DC, AC magnetic field | Lead wiring: Straight | Indicator: 2-color LED
T2YDULegacy code: previous store code
