CKD UCAC-N32/N40 Lightweight Clamp Cylinder with Drop Prevention

CKD UCAC-N32/N40 Lightweight Clamp Cylinder with Drop Prevention

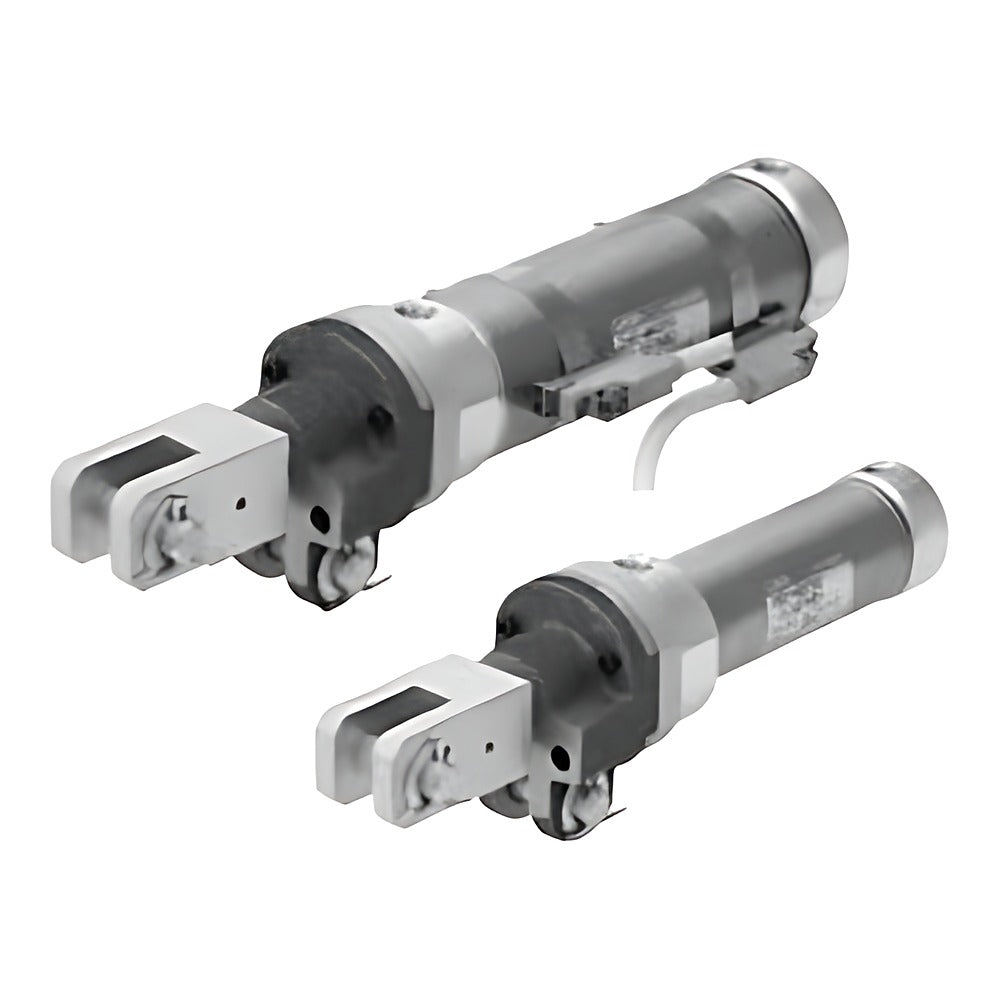

CKD UCAC-N32/N40 lightweight double-clevis clamp cylinder with a forward or backward direction rod lock that prevents drop when air is lost.

Key features

  • Lock mechanism with holding force 631 N, forward (F) or backward (B) direction
  • Lightweight compact body; rubber cushion; built-in switch magnet
  • Manual lock release by screwing an M4 hex socket bolt into the lock metal
  • T-type switches with tie-rod or band mounting; double knuckle Y as accessory
  • Shares CAC-N-Y knuckle and CAC-N-P pin with CAC-N

Specifications

Action Double acting, single rod
Fluid Compressed air
Max. operating pressure 1.0 MPa (N32), 0.7 MPa (N40)
Min. operating pressure 0.25 MPa
Ambient temperature -10 to 60 C (no freezing)
Port size Rc1/8
Piston speed 50-500 (N32), 50-400 (N40) mm/s
Lock force 631 N
Mounting Double clevis
Source CKD Korea catalog CB-030SK-9, p. 1140-1149
UCAC-N32-50-F Bore: 32 mm | Stroke: 50 mm | Lock: F - Forward direction
UCAC-N32-50-B Bore: 32 mm | Stroke: 50 mm | Lock: B - Backward direction
UCAC-N32-75-F Bore: 32 mm | Stroke: 75 mm | Lock: F - Forward direction
UCAC-N32-75-B Bore: 32 mm | Stroke: 75 mm | Lock: B - Backward direction
UCAC-N32-100-F Bore: 32 mm | Stroke: 100 mm | Lock: F - Forward direction
UCAC-N32-100-B Bore: 32 mm | Stroke: 100 mm | Lock: B - Backward direction
UCAC-N32-125-F Bore: 32 mm | Stroke: 125 mm | Lock: F - Forward direction
UCAC-N32-125-B Bore: 32 mm | Stroke: 125 mm | Lock: B - Backward direction
UCAC-N32-150-F Bore: 32 mm | Stroke: 150 mm | Lock: F - Forward direction
UCAC-N32-150-B Bore: 32 mm | Stroke: 150 mm | Lock: B - Backward direction
UCAC-N40-50-F Bore: 40 mm | Stroke: 50 mm | Lock: F - Forward direction
UCAC-N40-50-B Bore: 40 mm | Stroke: 50 mm | Lock: B - Backward direction
UCAC-N40-75-F Bore: 40 mm | Stroke: 75 mm | Lock: F - Forward direction
UCAC-N40-75-B Bore: 40 mm | Stroke: 75 mm | Lock: B - Backward direction
UCAC-N40-100-F Bore: 40 mm | Stroke: 100 mm | Lock: F - Forward direction
UCAC-N40-100-B Bore: 40 mm | Stroke: 100 mm | Lock: B - Backward direction
UCAC-N40-125-F Bore: 40 mm | Stroke: 125 mm | Lock: F - Forward direction
UCAC-N40-125-B Bore: 40 mm | Stroke: 125 mm | Lock: B - Backward direction
UCAC-N40-150-F Bore: 40 mm | Stroke: 150 mm | Lock: F - Forward direction
UCAC-N40-150-B Bore: 40 mm | Stroke: 150 mm | Lock: B - Backward direction
Clamp CylindersCKD
20 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD UCAC-N32/N40 Lightweight Clamp Cylinder with Drop Prevention

Brand CKD·Clamp Cylinders

Available part numbers (20)

UCAC-N32-50-F, UCAC-N32-50-B, UCAC-N32-75-F, UCAC-N32-75-B, UCAC-N32-100-F, UCAC-N32-100-B, UCAC-N32-125-F, UCAC-N32-125-B, UCAC-N32-150-F, UCAC-N32-150-B + 10 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
UCAC-N32-50-FBore: 32 mm | Stroke: 50 mm | Lock: F - Forward direction
UCAC-N32-50-BBore: 32 mm | Stroke: 50 mm | Lock: B - Backward direction
UCAC-N32-75-FBore: 32 mm | Stroke: 75 mm | Lock: F - Forward direction
UCAC-N32-75-BBore: 32 mm | Stroke: 75 mm | Lock: B - Backward direction
UCAC-N32-100-FBore: 32 mm | Stroke: 100 mm | Lock: F - Forward direction
UCAC-N32-100-BBore: 32 mm | Stroke: 100 mm | Lock: B - Backward direction
UCAC-N32-125-FBore: 32 mm | Stroke: 125 mm | Lock: F - Forward direction
UCAC-N32-125-BBore: 32 mm | Stroke: 125 mm | Lock: B - Backward direction
UCAC-N32-150-FBore: 32 mm | Stroke: 150 mm | Lock: F - Forward direction
UCAC-N32-150-BBore: 32 mm | Stroke: 150 mm | Lock: B - Backward direction
UCAC-N40-50-FBore: 40 mm | Stroke: 50 mm | Lock: F - Forward direction
UCAC-N40-50-BBore: 40 mm | Stroke: 50 mm | Lock: B - Backward direction
UCAC-N40-75-FBore: 40 mm | Stroke: 75 mm | Lock: F - Forward direction
UCAC-N40-75-BBore: 40 mm | Stroke: 75 mm | Lock: B - Backward direction
UCAC-N40-100-FBore: 40 mm | Stroke: 100 mm | Lock: F - Forward direction
UCAC-N40-100-BBore: 40 mm | Stroke: 100 mm | Lock: B - Backward direction
UCAC-N40-125-FBore: 40 mm | Stroke: 125 mm | Lock: F - Forward direction
UCAC-N40-125-BBore: 40 mm | Stroke: 125 mm | Lock: B - Backward direction
UCAC-N40-150-FBore: 40 mm | Stroke: 150 mm | Lock: F - Forward direction
UCAC-N40-150-BBore: 40 mm | Stroke: 150 mm | Lock: B - Backward direction

Need a different model, or a part not listed here? Send us your parts list →
