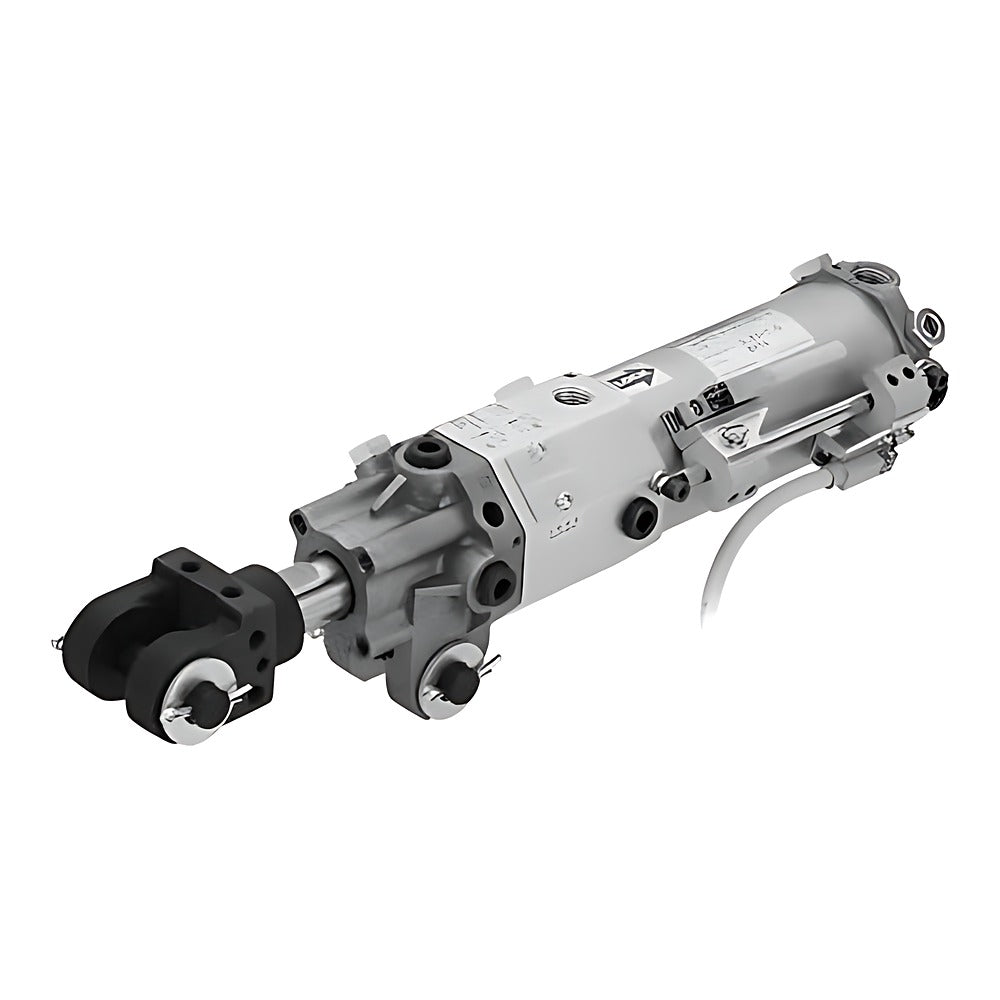

CKD UCAC2 Clamp Cylinder with Drop Prevention (Bore 50)

CKD UCAC2 Clamp Cylinder with Drop Prevention (Bore 50)

CKD UCAC2 bore 50 double-clevis clamp cylinder with swash-plate rod lock that holds the load at any position when air supply stops.

Key features

  • Swash plate lock mechanism: drop prevention at any position over the full stroke, holding force 1470 N
  • Forward-direction lock (F/F1/F2 with bypass tube position) or backward-direction lock (B)
  • One-way lock: rod is free in the opposite direction for emergency work removal
  • Clevis width A/B (AL/BL with axial foot), built-in speed needles, head-end air cushion
  • Switch magnet built in; T-type, strong-field H0/H0Y (UCAC2-L2) switches, tie-rod or band mounting
  • Not disassemblable; accessories Y, Y1, I, K, D, D1, Q shared with CAC4

Specifications

Bore 50 mm
Action Double acting, single rod
Fluid Compressed air
Max. operating pressure 1.0 MPa
Min. operating pressure 0.25 MPa
Proof pressure 1.6 MPa
Ambient temperature -10 to 60 C (no freezing)
Port size Rc1/4
Piston speed 50 to 400 mm/s
Lubrication Not allowed
Source CKD Korea catalog CB-030SK-9, p. 1117-1129
UCAC2-A-50-50-F Clevis: A 16.5 mm | Cushion: Head end | Stroke: 50 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50-50-F1 Clevis: A 16.5 mm | Cushion: Head end | Stroke: 50 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50-50-F2 Clevis: A 16.5 mm | Cushion: Head end | Stroke: 50 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50-50-B Clevis: A 16.5 mm | Cushion: Head end | Stroke: 50 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-A-50-50R-F Clevis: A 16.5 mm | Cushion: Head end | Stroke: 50 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50-50R-F1 Clevis: A 16.5 mm | Cushion: Head end | Stroke: 50 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50-50R-F2 Clevis: A 16.5 mm | Cushion: Head end | Stroke: 50 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50-50R-B Clevis: A 16.5 mm | Cushion: Head end | Stroke: 50 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-A-50-50H-F Clevis: A 16.5 mm | Cushion: Head end | Stroke: 50 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50-50H-F1 Clevis: A 16.5 mm | Cushion: Head end | Stroke: 50 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50-50H-F2 Clevis: A 16.5 mm | Cushion: Head end | Stroke: 50 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50-50H-B Clevis: A 16.5 mm | Cushion: Head end | Stroke: 50 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-A-50-50N-F Clevis: A 16.5 mm | Cushion: Head end | Stroke: 50 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50-50N-F1 Clevis: A 16.5 mm | Cushion: Head end | Stroke: 50 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50-50N-F2 Clevis: A 16.5 mm | Cushion: Head end | Stroke: 50 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50-50N-B Clevis: A 16.5 mm | Cushion: Head end | Stroke: 50 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-A-50-75-F Clevis: A 16.5 mm | Cushion: Head end | Stroke: 75 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50-75-F1 Clevis: A 16.5 mm | Cushion: Head end | Stroke: 75 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50-75-F2 Clevis: A 16.5 mm | Cushion: Head end | Stroke: 75 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50-75-B Clevis: A 16.5 mm | Cushion: Head end | Stroke: 75 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-A-50-75R-F Clevis: A 16.5 mm | Cushion: Head end | Stroke: 75 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50-75R-F1 Clevis: A 16.5 mm | Cushion: Head end | Stroke: 75 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50-75R-F2 Clevis: A 16.5 mm | Cushion: Head end | Stroke: 75 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50-75R-B Clevis: A 16.5 mm | Cushion: Head end | Stroke: 75 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-A-50-75H-F Clevis: A 16.5 mm | Cushion: Head end | Stroke: 75 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50-75H-F1 Clevis: A 16.5 mm | Cushion: Head end | Stroke: 75 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50-75H-F2 Clevis: A 16.5 mm | Cushion: Head end | Stroke: 75 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50-75H-B Clevis: A 16.5 mm | Cushion: Head end | Stroke: 75 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-A-50-75N-F Clevis: A 16.5 mm | Cushion: Head end | Stroke: 75 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50-75N-F1 Clevis: A 16.5 mm | Cushion: Head end | Stroke: 75 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50-75N-F2 Clevis: A 16.5 mm | Cushion: Head end | Stroke: 75 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50-75N-B Clevis: A 16.5 mm | Cushion: Head end | Stroke: 75 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-A-50-100-F Clevis: A 16.5 mm | Cushion: Head end | Stroke: 100 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50-100-F1 Clevis: A 16.5 mm | Cushion: Head end | Stroke: 100 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50-100-F2 Clevis: A 16.5 mm | Cushion: Head end | Stroke: 100 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50-100-B Clevis: A 16.5 mm | Cushion: Head end | Stroke: 100 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-A-50-100R-F Clevis: A 16.5 mm | Cushion: Head end | Stroke: 100 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50-100R-F1 Clevis: A 16.5 mm | Cushion: Head end | Stroke: 100 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50-100R-F2 Clevis: A 16.5 mm | Cushion: Head end | Stroke: 100 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50-100R-B Clevis: A 16.5 mm | Cushion: Head end | Stroke: 100 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-A-50-100H-F Clevis: A 16.5 mm | Cushion: Head end | Stroke: 100 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50-100H-F1 Clevis: A 16.5 mm | Cushion: Head end | Stroke: 100 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50-100H-F2 Clevis: A 16.5 mm | Cushion: Head end | Stroke: 100 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50-100H-B Clevis: A 16.5 mm | Cushion: Head end | Stroke: 100 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-A-50-100N-F Clevis: A 16.5 mm | Cushion: Head end | Stroke: 100 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50-100N-F1 Clevis: A 16.5 mm | Cushion: Head end | Stroke: 100 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50-100N-F2 Clevis: A 16.5 mm | Cushion: Head end | Stroke: 100 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50-100N-B Clevis: A 16.5 mm | Cushion: Head end | Stroke: 100 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-A-50-125-F Clevis: A 16.5 mm | Cushion: Head end | Stroke: 125 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50-125-F1 Clevis: A 16.5 mm | Cushion: Head end | Stroke: 125 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50-125-F2 Clevis: A 16.5 mm | Cushion: Head end | Stroke: 125 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50-125-B Clevis: A 16.5 mm | Cushion: Head end | Stroke: 125 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-A-50-125R-F Clevis: A 16.5 mm | Cushion: Head end | Stroke: 125 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50-125R-F1 Clevis: A 16.5 mm | Cushion: Head end | Stroke: 125 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50-125R-F2 Clevis: A 16.5 mm | Cushion: Head end | Stroke: 125 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50-125R-B Clevis: A 16.5 mm | Cushion: Head end | Stroke: 125 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-A-50-125H-F Clevis: A 16.5 mm | Cushion: Head end | Stroke: 125 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50-125H-F1 Clevis: A 16.5 mm | Cushion: Head end | Stroke: 125 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50-125H-F2 Clevis: A 16.5 mm | Cushion: Head end | Stroke: 125 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50-125H-B Clevis: A 16.5 mm | Cushion: Head end | Stroke: 125 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-A-50-125N-F Clevis: A 16.5 mm | Cushion: Head end | Stroke: 125 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50-125N-F1 Clevis: A 16.5 mm | Cushion: Head end | Stroke: 125 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50-125N-F2 Clevis: A 16.5 mm | Cushion: Head end | Stroke: 125 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50-125N-B Clevis: A 16.5 mm | Cushion: Head end | Stroke: 125 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-A-50-150-F Clevis: A 16.5 mm | Cushion: Head end | Stroke: 150 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50-150-F1 Clevis: A 16.5 mm | Cushion: Head end | Stroke: 150 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50-150-F2 Clevis: A 16.5 mm | Cushion: Head end | Stroke: 150 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50-150-B Clevis: A 16.5 mm | Cushion: Head end | Stroke: 150 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-A-50-150R-F Clevis: A 16.5 mm | Cushion: Head end | Stroke: 150 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50-150R-F1 Clevis: A 16.5 mm | Cushion: Head end | Stroke: 150 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50-150R-F2 Clevis: A 16.5 mm | Cushion: Head end | Stroke: 150 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50-150R-B Clevis: A 16.5 mm | Cushion: Head end | Stroke: 150 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-A-50-150H-F Clevis: A 16.5 mm | Cushion: Head end | Stroke: 150 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50-150H-F1 Clevis: A 16.5 mm | Cushion: Head end | Stroke: 150 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50-150H-F2 Clevis: A 16.5 mm | Cushion: Head end | Stroke: 150 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50-150H-B Clevis: A 16.5 mm | Cushion: Head end | Stroke: 150 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-A-50-150N-F Clevis: A 16.5 mm | Cushion: Head end | Stroke: 150 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50-150N-F1 Clevis: A 16.5 mm | Cushion: Head end | Stroke: 150 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50-150N-F2 Clevis: A 16.5 mm | Cushion: Head end | Stroke: 150 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50-150N-B Clevis: A 16.5 mm | Cushion: Head end | Stroke: 150 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-A-50B-50-F Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 50 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50B-50-F1 Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 50 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50B-50-F2 Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 50 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50B-50-B Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 50 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-A-50B-50R-F Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 50 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50B-50R-F1 Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 50 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50B-50R-F2 Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 50 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50B-50R-B Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 50 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-A-50B-50H-F Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 50 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50B-50H-F1 Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 50 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50B-50H-F2 Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 50 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50B-50H-B Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 50 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-A-50B-50N-F Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 50 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50B-50N-F1 Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 50 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50B-50N-F2 Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 50 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50B-50N-B Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 50 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-A-50B-75-F Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 75 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50B-75-F1 Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 75 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50B-75-F2 Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 75 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50B-75-B Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 75 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-A-50B-75R-F Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 75 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50B-75R-F1 Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 75 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50B-75R-F2 Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 75 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50B-75R-B Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 75 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-A-50B-75H-F Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 75 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50B-75H-F1 Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 75 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50B-75H-F2 Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 75 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50B-75H-B Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 75 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-A-50B-75N-F Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 75 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50B-75N-F1 Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 75 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50B-75N-F2 Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 75 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50B-75N-B Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 75 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-A-50B-100-F Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 100 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50B-100-F1 Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 100 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50B-100-F2 Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 100 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50B-100-B Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 100 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-A-50B-100R-F Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 100 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50B-100R-F1 Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 100 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50B-100R-F2 Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 100 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50B-100R-B Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 100 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-A-50B-100H-F Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 100 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50B-100H-F1 Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 100 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50B-100H-F2 Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 100 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50B-100H-B Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 100 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-A-50B-100N-F Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 100 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50B-100N-F1 Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 100 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50B-100N-F2 Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 100 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50B-100N-B Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 100 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-A-50B-125-F Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 125 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50B-125-F1 Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 125 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50B-125-F2 Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 125 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50B-125-B Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 125 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-A-50B-125R-F Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 125 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50B-125R-F1 Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 125 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50B-125R-F2 Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 125 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50B-125R-B Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 125 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-A-50B-125H-F Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 125 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50B-125H-F1 Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 125 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50B-125H-F2 Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 125 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50B-125H-B Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 125 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-A-50B-125N-F Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 125 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50B-125N-F1 Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 125 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50B-125N-F2 Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 125 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50B-125N-B Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 125 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-A-50B-150-F Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 150 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50B-150-F1 Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 150 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50B-150-F2 Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 150 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50B-150-B Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 150 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-A-50B-150R-F Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 150 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50B-150R-F1 Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 150 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50B-150R-F2 Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 150 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50B-150R-B Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 150 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-A-50B-150H-F Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 150 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50B-150H-F1 Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 150 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50B-150H-F2 Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 150 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50B-150H-B Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 150 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-A-50B-150N-F Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 150 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50B-150N-F1 Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 150 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50B-150N-F2 Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 150 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50B-150N-B Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 150 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-A-50N-50-F Clevis: A 16.5 mm | Cushion: None | Stroke: 50 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50N-50-F1 Clevis: A 16.5 mm | Cushion: None | Stroke: 50 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50N-50-F2 Clevis: A 16.5 mm | Cushion: None | Stroke: 50 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50N-50-B Clevis: A 16.5 mm | Cushion: None | Stroke: 50 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-A-50N-50R-F Clevis: A 16.5 mm | Cushion: None | Stroke: 50 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50N-50R-F1 Clevis: A 16.5 mm | Cushion: None | Stroke: 50 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50N-50R-F2 Clevis: A 16.5 mm | Cushion: None | Stroke: 50 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50N-50R-B Clevis: A 16.5 mm | Cushion: None | Stroke: 50 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-A-50N-50H-F Clevis: A 16.5 mm | Cushion: None | Stroke: 50 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50N-50H-F1 Clevis: A 16.5 mm | Cushion: None | Stroke: 50 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50N-50H-F2 Clevis: A 16.5 mm | Cushion: None | Stroke: 50 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50N-50H-B Clevis: A 16.5 mm | Cushion: None | Stroke: 50 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-A-50N-50N-F Clevis: A 16.5 mm | Cushion: None | Stroke: 50 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50N-50N-F1 Clevis: A 16.5 mm | Cushion: None | Stroke: 50 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50N-50N-F2 Clevis: A 16.5 mm | Cushion: None | Stroke: 50 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50N-50N-B Clevis: A 16.5 mm | Cushion: None | Stroke: 50 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-A-50N-75-F Clevis: A 16.5 mm | Cushion: None | Stroke: 75 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50N-75-F1 Clevis: A 16.5 mm | Cushion: None | Stroke: 75 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50N-75-F2 Clevis: A 16.5 mm | Cushion: None | Stroke: 75 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50N-75-B Clevis: A 16.5 mm | Cushion: None | Stroke: 75 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-A-50N-75R-F Clevis: A 16.5 mm | Cushion: None | Stroke: 75 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50N-75R-F1 Clevis: A 16.5 mm | Cushion: None | Stroke: 75 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50N-75R-F2 Clevis: A 16.5 mm | Cushion: None | Stroke: 75 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50N-75R-B Clevis: A 16.5 mm | Cushion: None | Stroke: 75 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-A-50N-75H-F Clevis: A 16.5 mm | Cushion: None | Stroke: 75 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50N-75H-F1 Clevis: A 16.5 mm | Cushion: None | Stroke: 75 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50N-75H-F2 Clevis: A 16.5 mm | Cushion: None | Stroke: 75 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50N-75H-B Clevis: A 16.5 mm | Cushion: None | Stroke: 75 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-A-50N-75N-F Clevis: A 16.5 mm | Cushion: None | Stroke: 75 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50N-75N-F1 Clevis: A 16.5 mm | Cushion: None | Stroke: 75 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50N-75N-F2 Clevis: A 16.5 mm | Cushion: None | Stroke: 75 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50N-75N-B Clevis: A 16.5 mm | Cushion: None | Stroke: 75 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-A-50N-100-F Clevis: A 16.5 mm | Cushion: None | Stroke: 100 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50N-100-F1 Clevis: A 16.5 mm | Cushion: None | Stroke: 100 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50N-100-F2 Clevis: A 16.5 mm | Cushion: None | Stroke: 100 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50N-100-B Clevis: A 16.5 mm | Cushion: None | Stroke: 100 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-A-50N-100R-F Clevis: A 16.5 mm | Cushion: None | Stroke: 100 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50N-100R-F1 Clevis: A 16.5 mm | Cushion: None | Stroke: 100 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50N-100R-F2 Clevis: A 16.5 mm | Cushion: None | Stroke: 100 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50N-100R-B Clevis: A 16.5 mm | Cushion: None | Stroke: 100 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-A-50N-100H-F Clevis: A 16.5 mm | Cushion: None | Stroke: 100 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50N-100H-F1 Clevis: A 16.5 mm | Cushion: None | Stroke: 100 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50N-100H-F2 Clevis: A 16.5 mm | Cushion: None | Stroke: 100 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50N-100H-B Clevis: A 16.5 mm | Cushion: None | Stroke: 100 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-A-50N-100N-F Clevis: A 16.5 mm | Cushion: None | Stroke: 100 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50N-100N-F1 Clevis: A 16.5 mm | Cushion: None | Stroke: 100 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50N-100N-F2 Clevis: A 16.5 mm | Cushion: None | Stroke: 100 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50N-100N-B Clevis: A 16.5 mm | Cushion: None | Stroke: 100 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-A-50N-125-F Clevis: A 16.5 mm | Cushion: None | Stroke: 125 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50N-125-F1 Clevis: A 16.5 mm | Cushion: None | Stroke: 125 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50N-125-F2 Clevis: A 16.5 mm | Cushion: None | Stroke: 125 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50N-125-B Clevis: A 16.5 mm | Cushion: None | Stroke: 125 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-A-50N-125R-F Clevis: A 16.5 mm | Cushion: None | Stroke: 125 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50N-125R-F1 Clevis: A 16.5 mm | Cushion: None | Stroke: 125 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50N-125R-F2 Clevis: A 16.5 mm | Cushion: None | Stroke: 125 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50N-125R-B Clevis: A 16.5 mm | Cushion: None | Stroke: 125 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-A-50N-125H-F Clevis: A 16.5 mm | Cushion: None | Stroke: 125 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50N-125H-F1 Clevis: A 16.5 mm | Cushion: None | Stroke: 125 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50N-125H-F2 Clevis: A 16.5 mm | Cushion: None | Stroke: 125 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50N-125H-B Clevis: A 16.5 mm | Cushion: None | Stroke: 125 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-A-50N-125N-F Clevis: A 16.5 mm | Cushion: None | Stroke: 125 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50N-125N-F1 Clevis: A 16.5 mm | Cushion: None | Stroke: 125 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50N-125N-F2 Clevis: A 16.5 mm | Cushion: None | Stroke: 125 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50N-125N-B Clevis: A 16.5 mm | Cushion: None | Stroke: 125 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-A-50N-150-F Clevis: A 16.5 mm | Cushion: None | Stroke: 150 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50N-150-F1 Clevis: A 16.5 mm | Cushion: None | Stroke: 150 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50N-150-F2 Clevis: A 16.5 mm | Cushion: None | Stroke: 150 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50N-150-B Clevis: A 16.5 mm | Cushion: None | Stroke: 150 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-A-50N-150R-F Clevis: A 16.5 mm | Cushion: None | Stroke: 150 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50N-150R-F1 Clevis: A 16.5 mm | Cushion: None | Stroke: 150 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50N-150R-F2 Clevis: A 16.5 mm | Cushion: None | Stroke: 150 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50N-150R-B Clevis: A 16.5 mm | Cushion: None | Stroke: 150 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-A-50N-150H-F Clevis: A 16.5 mm | Cushion: None | Stroke: 150 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50N-150H-F1 Clevis: A 16.5 mm | Cushion: None | Stroke: 150 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50N-150H-F2 Clevis: A 16.5 mm | Cushion: None | Stroke: 150 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50N-150H-B Clevis: A 16.5 mm | Cushion: None | Stroke: 150 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-A-50N-150N-F Clevis: A 16.5 mm | Cushion: None | Stroke: 150 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50N-150N-F1 Clevis: A 16.5 mm | Cushion: None | Stroke: 150 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50N-150N-F2 Clevis: A 16.5 mm | Cushion: None | Stroke: 150 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50N-150N-B Clevis: A 16.5 mm | Cushion: None | Stroke: 150 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-B-50-50-F Clevis: B 19.5 mm | Cushion: Head end | Stroke: 50 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50-50-F1 Clevis: B 19.5 mm | Cushion: Head end | Stroke: 50 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50-50-F2 Clevis: B 19.5 mm | Cushion: Head end | Stroke: 50 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50-50-B Clevis: B 19.5 mm | Cushion: Head end | Stroke: 50 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-B-50-50R-F Clevis: B 19.5 mm | Cushion: Head end | Stroke: 50 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50-50R-F1 Clevis: B 19.5 mm | Cushion: Head end | Stroke: 50 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50-50R-F2 Clevis: B 19.5 mm | Cushion: Head end | Stroke: 50 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50-50R-B Clevis: B 19.5 mm | Cushion: Head end | Stroke: 50 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-B-50-50H-F Clevis: B 19.5 mm | Cushion: Head end | Stroke: 50 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50-50H-F1 Clevis: B 19.5 mm | Cushion: Head end | Stroke: 50 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50-50H-F2 Clevis: B 19.5 mm | Cushion: Head end | Stroke: 50 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50-50H-B Clevis: B 19.5 mm | Cushion: Head end | Stroke: 50 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-B-50-50N-F Clevis: B 19.5 mm | Cushion: Head end | Stroke: 50 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50-50N-F1 Clevis: B 19.5 mm | Cushion: Head end | Stroke: 50 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50-50N-F2 Clevis: B 19.5 mm | Cushion: Head end | Stroke: 50 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50-50N-B Clevis: B 19.5 mm | Cushion: Head end | Stroke: 50 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-B-50-75-F Clevis: B 19.5 mm | Cushion: Head end | Stroke: 75 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50-75-F1 Clevis: B 19.5 mm | Cushion: Head end | Stroke: 75 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50-75-F2 Clevis: B 19.5 mm | Cushion: Head end | Stroke: 75 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50-75-B Clevis: B 19.5 mm | Cushion: Head end | Stroke: 75 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-B-50-75R-F Clevis: B 19.5 mm | Cushion: Head end | Stroke: 75 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50-75R-F1 Clevis: B 19.5 mm | Cushion: Head end | Stroke: 75 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50-75R-F2 Clevis: B 19.5 mm | Cushion: Head end | Stroke: 75 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50-75R-B Clevis: B 19.5 mm | Cushion: Head end | Stroke: 75 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-B-50-75H-F Clevis: B 19.5 mm | Cushion: Head end | Stroke: 75 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50-75H-F1 Clevis: B 19.5 mm | Cushion: Head end | Stroke: 75 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50-75H-F2 Clevis: B 19.5 mm | Cushion: Head end | Stroke: 75 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50-75H-B Clevis: B 19.5 mm | Cushion: Head end | Stroke: 75 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-B-50-75N-F Clevis: B 19.5 mm | Cushion: Head end | Stroke: 75 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50-75N-F1 Clevis: B 19.5 mm | Cushion: Head end | Stroke: 75 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50-75N-F2 Clevis: B 19.5 mm | Cushion: Head end | Stroke: 75 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50-75N-B Clevis: B 19.5 mm | Cushion: Head end | Stroke: 75 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-B-50-100-F Clevis: B 19.5 mm | Cushion: Head end | Stroke: 100 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50-100-F1 Clevis: B 19.5 mm | Cushion: Head end | Stroke: 100 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50-100-F2 Clevis: B 19.5 mm | Cushion: Head end | Stroke: 100 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50-100-B Clevis: B 19.5 mm | Cushion: Head end | Stroke: 100 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-B-50-100R-F Clevis: B 19.5 mm | Cushion: Head end | Stroke: 100 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50-100R-F1 Clevis: B 19.5 mm | Cushion: Head end | Stroke: 100 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50-100R-F2 Clevis: B 19.5 mm | Cushion: Head end | Stroke: 100 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50-100R-B Clevis: B 19.5 mm | Cushion: Head end | Stroke: 100 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-B-50-100H-F Clevis: B 19.5 mm | Cushion: Head end | Stroke: 100 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50-100H-F1 Clevis: B 19.5 mm | Cushion: Head end | Stroke: 100 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50-100H-F2 Clevis: B 19.5 mm | Cushion: Head end | Stroke: 100 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50-100H-B Clevis: B 19.5 mm | Cushion: Head end | Stroke: 100 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-B-50-100N-F Clevis: B 19.5 mm | Cushion: Head end | Stroke: 100 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50-100N-F1 Clevis: B 19.5 mm | Cushion: Head end | Stroke: 100 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50-100N-F2 Clevis: B 19.5 mm | Cushion: Head end | Stroke: 100 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50-100N-B Clevis: B 19.5 mm | Cushion: Head end | Stroke: 100 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-B-50-125-F Clevis: B 19.5 mm | Cushion: Head end | Stroke: 125 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50-125-F1 Clevis: B 19.5 mm | Cushion: Head end | Stroke: 125 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50-125-F2 Clevis: B 19.5 mm | Cushion: Head end | Stroke: 125 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50-125-B Clevis: B 19.5 mm | Cushion: Head end | Stroke: 125 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-B-50-125R-F Clevis: B 19.5 mm | Cushion: Head end | Stroke: 125 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50-125R-F1 Clevis: B 19.5 mm | Cushion: Head end | Stroke: 125 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50-125R-F2 Clevis: B 19.5 mm | Cushion: Head end | Stroke: 125 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50-125R-B Clevis: B 19.5 mm | Cushion: Head end | Stroke: 125 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-B-50-125H-F Clevis: B 19.5 mm | Cushion: Head end | Stroke: 125 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50-125H-F1 Clevis: B 19.5 mm | Cushion: Head end | Stroke: 125 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50-125H-F2 Clevis: B 19.5 mm | Cushion: Head end | Stroke: 125 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50-125H-B Clevis: B 19.5 mm | Cushion: Head end | Stroke: 125 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-B-50-125N-F Clevis: B 19.5 mm | Cushion: Head end | Stroke: 125 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50-125N-F1 Clevis: B 19.5 mm | Cushion: Head end | Stroke: 125 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50-125N-F2 Clevis: B 19.5 mm | Cushion: Head end | Stroke: 125 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50-125N-B Clevis: B 19.5 mm | Cushion: Head end | Stroke: 125 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-B-50-150-F Clevis: B 19.5 mm | Cushion: Head end | Stroke: 150 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50-150-F1 Clevis: B 19.5 mm | Cushion: Head end | Stroke: 150 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50-150-F2 Clevis: B 19.5 mm | Cushion: Head end | Stroke: 150 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50-150-B Clevis: B 19.5 mm | Cushion: Head end | Stroke: 150 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-B-50-150R-F Clevis: B 19.5 mm | Cushion: Head end | Stroke: 150 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50-150R-F1 Clevis: B 19.5 mm | Cushion: Head end | Stroke: 150 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50-150R-F2 Clevis: B 19.5 mm | Cushion: Head end | Stroke: 150 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50-150R-B Clevis: B 19.5 mm | Cushion: Head end | Stroke: 150 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-B-50-150H-F Clevis: B 19.5 mm | Cushion: Head end | Stroke: 150 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50-150H-F1 Clevis: B 19.5 mm | Cushion: Head end | Stroke: 150 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50-150H-F2 Clevis: B 19.5 mm | Cushion: Head end | Stroke: 150 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50-150H-B Clevis: B 19.5 mm | Cushion: Head end | Stroke: 150 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-B-50-150N-F Clevis: B 19.5 mm | Cushion: Head end | Stroke: 150 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50-150N-F1 Clevis: B 19.5 mm | Cushion: Head end | Stroke: 150 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50-150N-F2 Clevis: B 19.5 mm | Cushion: Head end | Stroke: 150 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50-150N-B Clevis: B 19.5 mm | Cushion: Head end | Stroke: 150 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-B-50B-50-F Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 50 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50B-50-F1 Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 50 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50B-50-F2 Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 50 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50B-50-B Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 50 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-B-50B-50R-F Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 50 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50B-50R-F1 Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 50 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50B-50R-F2 Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 50 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50B-50R-B Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 50 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-B-50B-50H-F Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 50 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50B-50H-F1 Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 50 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50B-50H-F2 Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 50 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50B-50H-B Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 50 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-B-50B-50N-F Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 50 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50B-50N-F1 Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 50 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50B-50N-F2 Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 50 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50B-50N-B Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 50 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-B-50B-75-F Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 75 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50B-75-F1 Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 75 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50B-75-F2 Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 75 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50B-75-B Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 75 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-B-50B-75R-F Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 75 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50B-75R-F1 Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 75 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50B-75R-F2 Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 75 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50B-75R-B Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 75 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-B-50B-75H-F Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 75 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50B-75H-F1 Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 75 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50B-75H-F2 Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 75 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50B-75H-B Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 75 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-B-50B-75N-F Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 75 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50B-75N-F1 Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 75 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50B-75N-F2 Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 75 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50B-75N-B Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 75 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-B-50B-100-F Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 100 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50B-100-F1 Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 100 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50B-100-F2 Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 100 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50B-100-B Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 100 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-B-50B-100R-F Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 100 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50B-100R-F1 Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 100 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50B-100R-F2 Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 100 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50B-100R-B Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 100 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-B-50B-100H-F Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 100 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50B-100H-F1 Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 100 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50B-100H-F2 Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 100 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50B-100H-B Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 100 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-B-50B-100N-F Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 100 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50B-100N-F1 Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 100 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50B-100N-F2 Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 100 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50B-100N-B Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 100 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-B-50B-125-F Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 125 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50B-125-F1 Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 125 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50B-125-F2 Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 125 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50B-125-B Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 125 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-B-50B-125R-F Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 125 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50B-125R-F1 Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 125 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50B-125R-F2 Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 125 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50B-125R-B Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 125 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-B-50B-125H-F Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 125 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50B-125H-F1 Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 125 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50B-125H-F2 Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 125 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50B-125H-B Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 125 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-B-50B-125N-F Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 125 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50B-125N-F1 Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 125 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50B-125N-F2 Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 125 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50B-125N-B Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 125 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-B-50B-150-F Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 150 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50B-150-F1 Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 150 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50B-150-F2 Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 150 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50B-150-B Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 150 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-B-50B-150R-F Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 150 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50B-150R-F1 Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 150 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50B-150R-F2 Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 150 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50B-150R-B Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 150 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-B-50B-150H-F Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 150 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50B-150H-F1 Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 150 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50B-150H-F2 Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 150 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50B-150H-B Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 150 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-B-50B-150N-F Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 150 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50B-150N-F1 Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 150 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50B-150N-F2 Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 150 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50B-150N-B Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 150 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-B-50N-50-F Clevis: B 19.5 mm | Cushion: None | Stroke: 50 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50N-50-F1 Clevis: B 19.5 mm | Cushion: None | Stroke: 50 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50N-50-F2 Clevis: B 19.5 mm | Cushion: None | Stroke: 50 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50N-50-B Clevis: B 19.5 mm | Cushion: None | Stroke: 50 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-B-50N-50R-F Clevis: B 19.5 mm | Cushion: None | Stroke: 50 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50N-50R-F1 Clevis: B 19.5 mm | Cushion: None | Stroke: 50 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50N-50R-F2 Clevis: B 19.5 mm | Cushion: None | Stroke: 50 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50N-50R-B Clevis: B 19.5 mm | Cushion: None | Stroke: 50 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-B-50N-50H-F Clevis: B 19.5 mm | Cushion: None | Stroke: 50 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50N-50H-F1 Clevis: B 19.5 mm | Cushion: None | Stroke: 50 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50N-50H-F2 Clevis: B 19.5 mm | Cushion: None | Stroke: 50 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50N-50H-B Clevis: B 19.5 mm | Cushion: None | Stroke: 50 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-B-50N-50N-F Clevis: B 19.5 mm | Cushion: None | Stroke: 50 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50N-50N-F1 Clevis: B 19.5 mm | Cushion: None | Stroke: 50 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50N-50N-F2 Clevis: B 19.5 mm | Cushion: None | Stroke: 50 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50N-50N-B Clevis: B 19.5 mm | Cushion: None | Stroke: 50 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-B-50N-75-F Clevis: B 19.5 mm | Cushion: None | Stroke: 75 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50N-75-F1 Clevis: B 19.5 mm | Cushion: None | Stroke: 75 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50N-75-F2 Clevis: B 19.5 mm | Cushion: None | Stroke: 75 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50N-75-B Clevis: B 19.5 mm | Cushion: None | Stroke: 75 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-B-50N-75R-F Clevis: B 19.5 mm | Cushion: None | Stroke: 75 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50N-75R-F1 Clevis: B 19.5 mm | Cushion: None | Stroke: 75 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50N-75R-F2 Clevis: B 19.5 mm | Cushion: None | Stroke: 75 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50N-75R-B Clevis: B 19.5 mm | Cushion: None | Stroke: 75 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-B-50N-75H-F Clevis: B 19.5 mm | Cushion: None | Stroke: 75 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50N-75H-F1 Clevis: B 19.5 mm | Cushion: None | Stroke: 75 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50N-75H-F2 Clevis: B 19.5 mm | Cushion: None | Stroke: 75 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50N-75H-B Clevis: B 19.5 mm | Cushion: None | Stroke: 75 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-B-50N-75N-F Clevis: B 19.5 mm | Cushion: None | Stroke: 75 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50N-75N-F1 Clevis: B 19.5 mm | Cushion: None | Stroke: 75 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50N-75N-F2 Clevis: B 19.5 mm | Cushion: None | Stroke: 75 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50N-75N-B Clevis: B 19.5 mm | Cushion: None | Stroke: 75 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-B-50N-100-F Clevis: B 19.5 mm | Cushion: None | Stroke: 100 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50N-100-F1 Clevis: B 19.5 mm | Cushion: None | Stroke: 100 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50N-100-F2 Clevis: B 19.5 mm | Cushion: None | Stroke: 100 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50N-100-B Clevis: B 19.5 mm | Cushion: None | Stroke: 100 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-B-50N-100R-F Clevis: B 19.5 mm | Cushion: None | Stroke: 100 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50N-100R-F1 Clevis: B 19.5 mm | Cushion: None | Stroke: 100 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50N-100R-F2 Clevis: B 19.5 mm | Cushion: None | Stroke: 100 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50N-100R-B Clevis: B 19.5 mm | Cushion: None | Stroke: 100 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-B-50N-100H-F Clevis: B 19.5 mm | Cushion: None | Stroke: 100 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50N-100H-F1 Clevis: B 19.5 mm | Cushion: None | Stroke: 100 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50N-100H-F2 Clevis: B 19.5 mm | Cushion: None | Stroke: 100 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50N-100H-B Clevis: B 19.5 mm | Cushion: None | Stroke: 100 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-B-50N-100N-F Clevis: B 19.5 mm | Cushion: None | Stroke: 100 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50N-100N-F1 Clevis: B 19.5 mm | Cushion: None | Stroke: 100 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50N-100N-F2 Clevis: B 19.5 mm | Cushion: None | Stroke: 100 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50N-100N-B Clevis: B 19.5 mm | Cushion: None | Stroke: 100 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-B-50N-125-F Clevis: B 19.5 mm | Cushion: None | Stroke: 125 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50N-125-F1 Clevis: B 19.5 mm | Cushion: None | Stroke: 125 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50N-125-F2 Clevis: B 19.5 mm | Cushion: None | Stroke: 125 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50N-125-B Clevis: B 19.5 mm | Cushion: None | Stroke: 125 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-B-50N-125R-F Clevis: B 19.5 mm | Cushion: None | Stroke: 125 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50N-125R-F1 Clevis: B 19.5 mm | Cushion: None | Stroke: 125 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50N-125R-F2 Clevis: B 19.5 mm | Cushion: None | Stroke: 125 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50N-125R-B Clevis: B 19.5 mm | Cushion: None | Stroke: 125 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-B-50N-125H-F Clevis: B 19.5 mm | Cushion: None | Stroke: 125 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50N-125H-F1 Clevis: B 19.5 mm | Cushion: None | Stroke: 125 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50N-125H-F2 Clevis: B 19.5 mm | Cushion: None | Stroke: 125 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50N-125H-B Clevis: B 19.5 mm | Cushion: None | Stroke: 125 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-B-50N-125N-F Clevis: B 19.5 mm | Cushion: None | Stroke: 125 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50N-125N-F1 Clevis: B 19.5 mm | Cushion: None | Stroke: 125 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50N-125N-F2 Clevis: B 19.5 mm | Cushion: None | Stroke: 125 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50N-125N-B Clevis: B 19.5 mm | Cushion: None | Stroke: 125 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-B-50N-150-F Clevis: B 19.5 mm | Cushion: None | Stroke: 150 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50N-150-F1 Clevis: B 19.5 mm | Cushion: None | Stroke: 150 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50N-150-F2 Clevis: B 19.5 mm | Cushion: None | Stroke: 150 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50N-150-B Clevis: B 19.5 mm | Cushion: None | Stroke: 150 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-B-50N-150R-F Clevis: B 19.5 mm | Cushion: None | Stroke: 150 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50N-150R-F1 Clevis: B 19.5 mm | Cushion: None | Stroke: 150 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50N-150R-F2 Clevis: B 19.5 mm | Cushion: None | Stroke: 150 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50N-150R-B Clevis: B 19.5 mm | Cushion: None | Stroke: 150 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-B-50N-150H-F Clevis: B 19.5 mm | Cushion: None | Stroke: 150 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50N-150H-F1 Clevis: B 19.5 mm | Cushion: None | Stroke: 150 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50N-150H-F2 Clevis: B 19.5 mm | Cushion: None | Stroke: 150 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50N-150H-B Clevis: B 19.5 mm | Cushion: None | Stroke: 150 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-B-50N-150N-F Clevis: B 19.5 mm | Cushion: None | Stroke: 150 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50N-150N-F1 Clevis: B 19.5 mm | Cushion: None | Stroke: 150 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50N-150N-F2 Clevis: B 19.5 mm | Cushion: None | Stroke: 150 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50N-150N-B Clevis: B 19.5 mm | Cushion: None | Stroke: 150 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-AL-50-50-F Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 50 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50-50-F1 Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 50 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50-50-F2 Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 50 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50-50-B Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 50 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-AL-50-50R-F Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 50 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50-50R-F1 Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 50 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50-50R-F2 Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 50 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50-50R-B Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 50 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-AL-50-50H-F Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 50 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50-50H-F1 Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 50 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50-50H-F2 Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 50 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50-50H-B Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 50 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-AL-50-50N-F Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 50 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50-50N-F1 Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 50 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50-50N-F2 Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 50 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50-50N-B Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 50 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-AL-50-75-F Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 75 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50-75-F1 Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 75 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50-75-F2 Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 75 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50-75-B Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 75 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-AL-50-75R-F Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 75 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50-75R-F1 Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 75 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50-75R-F2 Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 75 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50-75R-B Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 75 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-AL-50-75H-F Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 75 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50-75H-F1 Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 75 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50-75H-F2 Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 75 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50-75H-B Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 75 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-AL-50-75N-F Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 75 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50-75N-F1 Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 75 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50-75N-F2 Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 75 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50-75N-B Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 75 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-AL-50-100-F Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 100 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50-100-F1 Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 100 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50-100-F2 Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 100 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50-100-B Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 100 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-AL-50-100R-F Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 100 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50-100R-F1 Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 100 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50-100R-F2 Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 100 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50-100R-B Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 100 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-AL-50-100H-F Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 100 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50-100H-F1 Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 100 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50-100H-F2 Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 100 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50-100H-B Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 100 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-AL-50-100N-F Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 100 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50-100N-F1 Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 100 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50-100N-F2 Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 100 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50-100N-B Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 100 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-AL-50-125-F Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 125 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50-125-F1 Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 125 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50-125-F2 Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 125 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50-125-B Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 125 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-AL-50-125R-F Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 125 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50-125R-F1 Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 125 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50-125R-F2 Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 125 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50-125R-B Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 125 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-AL-50-125H-F Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 125 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50-125H-F1 Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 125 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50-125H-F2 Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 125 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50-125H-B Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 125 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-AL-50-125N-F Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 125 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50-125N-F1 Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 125 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50-125N-F2 Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 125 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50-125N-B Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 125 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-AL-50-150-F Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 150 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50-150-F1 Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 150 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50-150-F2 Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 150 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50-150-B Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 150 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-AL-50-150R-F Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 150 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50-150R-F1 Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 150 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50-150R-F2 Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 150 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50-150R-B Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 150 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-AL-50-150H-F Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 150 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50-150H-F1 Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 150 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50-150H-F2 Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 150 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50-150H-B Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 150 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-AL-50-150N-F Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 150 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50-150N-F1 Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 150 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50-150N-F2 Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 150 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50-150N-B Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 150 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-AL-50B-50-F Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 50 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50B-50-F1 Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 50 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50B-50-F2 Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 50 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50B-50-B Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 50 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-AL-50B-50R-F Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 50 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50B-50R-F1 Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 50 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50B-50R-F2 Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 50 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50B-50R-B Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 50 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-AL-50B-50H-F Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 50 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50B-50H-F1 Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 50 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50B-50H-F2 Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 50 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50B-50H-B Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 50 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-AL-50B-50N-F Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 50 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50B-50N-F1 Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 50 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50B-50N-F2 Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 50 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50B-50N-B Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 50 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-AL-50B-75-F Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 75 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50B-75-F1 Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 75 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50B-75-F2 Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 75 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50B-75-B Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 75 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-AL-50B-75R-F Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 75 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50B-75R-F1 Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 75 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50B-75R-F2 Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 75 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50B-75R-B Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 75 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-AL-50B-75H-F Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 75 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50B-75H-F1 Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 75 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50B-75H-F2 Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 75 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50B-75H-B Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 75 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-AL-50B-75N-F Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 75 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50B-75N-F1 Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 75 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50B-75N-F2 Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 75 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50B-75N-B Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 75 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-AL-50B-100-F Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 100 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50B-100-F1 Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 100 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50B-100-F2 Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 100 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50B-100-B Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 100 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-AL-50B-100R-F Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 100 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50B-100R-F1 Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 100 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50B-100R-F2 Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 100 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50B-100R-B Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 100 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-AL-50B-100H-F Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 100 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50B-100H-F1 Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 100 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50B-100H-F2 Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 100 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50B-100H-B Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 100 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-AL-50B-100N-F Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 100 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50B-100N-F1 Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 100 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50B-100N-F2 Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 100 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50B-100N-B Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 100 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-AL-50B-125-F Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 125 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50B-125-F1 Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 125 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50B-125-F2 Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 125 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50B-125-B Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 125 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-AL-50B-125R-F Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 125 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50B-125R-F1 Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 125 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50B-125R-F2 Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 125 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50B-125R-B Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 125 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-AL-50B-125H-F Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 125 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50B-125H-F1 Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 125 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50B-125H-F2 Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 125 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50B-125H-B Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 125 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-AL-50B-125N-F Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 125 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50B-125N-F1 Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 125 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50B-125N-F2 Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 125 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50B-125N-B Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 125 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-AL-50B-150-F Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 150 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50B-150-F1 Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 150 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50B-150-F2 Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 150 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50B-150-B Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 150 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-AL-50B-150R-F Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 150 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50B-150R-F1 Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 150 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50B-150R-F2 Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 150 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50B-150R-B Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 150 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-AL-50B-150H-F Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 150 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50B-150H-F1 Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 150 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50B-150H-F2 Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 150 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50B-150H-B Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 150 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-AL-50B-150N-F Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 150 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50B-150N-F1 Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 150 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50B-150N-F2 Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 150 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50B-150N-B Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 150 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-AL-50N-50-F Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 50 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50N-50-F1 Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 50 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50N-50-F2 Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 50 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50N-50-B Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 50 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-AL-50N-50R-F Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 50 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50N-50R-F1 Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 50 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50N-50R-F2 Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 50 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50N-50R-B Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 50 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-AL-50N-50H-F Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 50 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50N-50H-F1 Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 50 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50N-50H-F2 Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 50 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50N-50H-B Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 50 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-AL-50N-50N-F Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 50 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50N-50N-F1 Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 50 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50N-50N-F2 Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 50 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50N-50N-B Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 50 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-AL-50N-75-F Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 75 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50N-75-F1 Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 75 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50N-75-F2 Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 75 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50N-75-B Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 75 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-AL-50N-75R-F Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 75 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50N-75R-F1 Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 75 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50N-75R-F2 Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 75 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50N-75R-B Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 75 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-AL-50N-75H-F Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 75 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50N-75H-F1 Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 75 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50N-75H-F2 Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 75 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50N-75H-B Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 75 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-AL-50N-75N-F Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 75 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50N-75N-F1 Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 75 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50N-75N-F2 Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 75 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50N-75N-B Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 75 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-AL-50N-100-F Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 100 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50N-100-F1 Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 100 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50N-100-F2 Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 100 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50N-100-B Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 100 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-AL-50N-100R-F Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 100 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50N-100R-F1 Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 100 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50N-100R-F2 Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 100 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50N-100R-B Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 100 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-AL-50N-100H-F Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 100 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50N-100H-F1 Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 100 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50N-100H-F2 Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 100 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50N-100H-B Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 100 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-AL-50N-100N-F Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 100 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50N-100N-F1 Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 100 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50N-100N-F2 Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 100 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50N-100N-B Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 100 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-AL-50N-125-F Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 125 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50N-125-F1 Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 125 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50N-125-F2 Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 125 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50N-125-B Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 125 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-AL-50N-125R-F Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 125 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50N-125R-F1 Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 125 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50N-125R-F2 Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 125 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50N-125R-B Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 125 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-AL-50N-125H-F Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 125 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50N-125H-F1 Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 125 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50N-125H-F2 Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 125 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50N-125H-B Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 125 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-AL-50N-125N-F Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 125 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50N-125N-F1 Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 125 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50N-125N-F2 Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 125 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50N-125N-B Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 125 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-AL-50N-150-F Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 150 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50N-150-F1 Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 150 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50N-150-F2 Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 150 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50N-150-B Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 150 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-AL-50N-150R-F Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 150 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50N-150R-F1 Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 150 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50N-150R-F2 Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 150 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50N-150R-B Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 150 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-AL-50N-150H-F Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 150 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50N-150H-F1 Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 150 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50N-150H-F2 Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 150 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50N-150H-B Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 150 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-AL-50N-150N-F Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 150 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50N-150N-F1 Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 150 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50N-150N-F2 Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 150 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50N-150N-B Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 150 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-BL-50-50-F Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 50 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50-50-F1 Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 50 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50-50-F2 Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 50 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50-50-B Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 50 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-BL-50-50R-F Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 50 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50-50R-F1 Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 50 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50-50R-F2 Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 50 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50-50R-B Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 50 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-BL-50-50H-F Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 50 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50-50H-F1 Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 50 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50-50H-F2 Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 50 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50-50H-B Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 50 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-BL-50-50N-F Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 50 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50-50N-F1 Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 50 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50-50N-F2 Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 50 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50-50N-B Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 50 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-BL-50-75-F Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 75 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50-75-F1 Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 75 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50-75-F2 Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 75 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50-75-B Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 75 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-BL-50-75R-F Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 75 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50-75R-F1 Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 75 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50-75R-F2 Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 75 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50-75R-B Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 75 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-BL-50-75H-F Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 75 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50-75H-F1 Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 75 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50-75H-F2 Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 75 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50-75H-B Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 75 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-BL-50-75N-F Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 75 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50-75N-F1 Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 75 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50-75N-F2 Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 75 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50-75N-B Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 75 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-BL-50-100-F Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 100 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50-100-F1 Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 100 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50-100-F2 Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 100 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50-100-B Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 100 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-BL-50-100R-F Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 100 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50-100R-F1 Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 100 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50-100R-F2 Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 100 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50-100R-B Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 100 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-BL-50-100H-F Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 100 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50-100H-F1 Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 100 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50-100H-F2 Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 100 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50-100H-B Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 100 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-BL-50-100N-F Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 100 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50-100N-F1 Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 100 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50-100N-F2 Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 100 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50-100N-B Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 100 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-BL-50-125-F Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 125 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50-125-F1 Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 125 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50-125-F2 Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 125 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50-125-B Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 125 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-BL-50-125R-F Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 125 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50-125R-F1 Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 125 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50-125R-F2 Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 125 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50-125R-B Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 125 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-BL-50-125H-F Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 125 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50-125H-F1 Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 125 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50-125H-F2 Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 125 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50-125H-B Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 125 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-BL-50-125N-F Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 125 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50-125N-F1 Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 125 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50-125N-F2 Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 125 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50-125N-B Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 125 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-BL-50-150-F Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 150 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50-150-F1 Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 150 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50-150-F2 Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 150 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50-150-B Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 150 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-BL-50-150R-F Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 150 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50-150R-F1 Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 150 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50-150R-F2 Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 150 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50-150R-B Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 150 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-BL-50-150H-F Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 150 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50-150H-F1 Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 150 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50-150H-F2 Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 150 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50-150H-B Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 150 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-BL-50-150N-F Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 150 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50-150N-F1 Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 150 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50-150N-F2 Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 150 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50-150N-B Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 150 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-BL-50B-50-F Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 50 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50B-50-F1 Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 50 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50B-50-F2 Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 50 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50B-50-B Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 50 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-BL-50B-50R-F Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 50 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50B-50R-F1 Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 50 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50B-50R-F2 Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 50 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50B-50R-B Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 50 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-BL-50B-50H-F Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 50 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50B-50H-F1 Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 50 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50B-50H-F2 Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 50 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50B-50H-B Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 50 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-BL-50B-50N-F Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 50 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50B-50N-F1 Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 50 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50B-50N-F2 Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 50 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50B-50N-B Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 50 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-BL-50B-75-F Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 75 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50B-75-F1 Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 75 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50B-75-F2 Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 75 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50B-75-B Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 75 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-BL-50B-75R-F Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 75 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50B-75R-F1 Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 75 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50B-75R-F2 Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 75 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50B-75R-B Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 75 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-BL-50B-75H-F Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 75 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50B-75H-F1 Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 75 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50B-75H-F2 Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 75 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50B-75H-B Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 75 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-BL-50B-75N-F Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 75 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50B-75N-F1 Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 75 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50B-75N-F2 Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 75 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50B-75N-B Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 75 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-BL-50B-100-F Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 100 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50B-100-F1 Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 100 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50B-100-F2 Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 100 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50B-100-B Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 100 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-BL-50B-100R-F Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 100 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50B-100R-F1 Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 100 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50B-100R-F2 Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 100 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50B-100R-B Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 100 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-BL-50B-100H-F Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 100 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50B-100H-F1 Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 100 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50B-100H-F2 Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 100 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50B-100H-B Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 100 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-BL-50B-100N-F Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 100 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50B-100N-F1 Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 100 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50B-100N-F2 Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 100 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50B-100N-B Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 100 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-BL-50B-125-F Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 125 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50B-125-F1 Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 125 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50B-125-F2 Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 125 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50B-125-B Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 125 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-BL-50B-125R-F Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 125 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50B-125R-F1 Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 125 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50B-125R-F2 Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 125 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50B-125R-B Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 125 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-BL-50B-125H-F Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 125 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50B-125H-F1 Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 125 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50B-125H-F2 Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 125 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50B-125H-B Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 125 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-BL-50B-125N-F Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 125 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50B-125N-F1 Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 125 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50B-125N-F2 Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 125 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50B-125N-B Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 125 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-BL-50B-150-F Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 150 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50B-150-F1 Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 150 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50B-150-F2 Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 150 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50B-150-B Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 150 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-BL-50B-150R-F Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 150 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50B-150R-F1 Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 150 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50B-150R-F2 Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 150 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50B-150R-B Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 150 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-BL-50B-150H-F Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 150 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50B-150H-F1 Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 150 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50B-150H-F2 Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 150 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50B-150H-B Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 150 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-BL-50B-150N-F Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 150 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50B-150N-F1 Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 150 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50B-150N-F2 Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 150 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50B-150N-B Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 150 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-BL-50N-50-F Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 50 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50N-50-F1 Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 50 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50N-50-F2 Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 50 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50N-50-B Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 50 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-BL-50N-50R-F Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 50 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50N-50R-F1 Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 50 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50N-50R-F2 Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 50 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50N-50R-B Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 50 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-BL-50N-50H-F Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 50 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50N-50H-F1 Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 50 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50N-50H-F2 Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 50 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50N-50H-B Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 50 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-BL-50N-50N-F Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 50 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50N-50N-F1 Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 50 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50N-50N-F2 Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 50 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50N-50N-B Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 50 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-BL-50N-75-F Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 75 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50N-75-F1 Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 75 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50N-75-F2 Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 75 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50N-75-B Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 75 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-BL-50N-75R-F Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 75 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50N-75R-F1 Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 75 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50N-75R-F2 Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 75 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50N-75R-B Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 75 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-BL-50N-75H-F Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 75 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50N-75H-F1 Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 75 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50N-75H-F2 Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 75 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50N-75H-B Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 75 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-BL-50N-75N-F Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 75 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50N-75N-F1 Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 75 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50N-75N-F2 Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 75 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50N-75N-B Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 75 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-BL-50N-100-F Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 100 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50N-100-F1 Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 100 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50N-100-F2 Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 100 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50N-100-B Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 100 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-BL-50N-100R-F Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 100 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50N-100R-F1 Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 100 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50N-100R-F2 Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 100 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50N-100R-B Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 100 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-BL-50N-100H-F Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 100 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50N-100H-F1 Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 100 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50N-100H-F2 Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 100 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50N-100H-B Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 100 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-BL-50N-100N-F Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 100 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50N-100N-F1 Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 100 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50N-100N-F2 Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 100 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50N-100N-B Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 100 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-BL-50N-125-F Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 125 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50N-125-F1 Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 125 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50N-125-F2 Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 125 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50N-125-B Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 125 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-BL-50N-125R-F Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 125 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50N-125R-F1 Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 125 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50N-125R-F2 Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 125 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50N-125R-B Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 125 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-BL-50N-125H-F Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 125 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50N-125H-F1 Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 125 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50N-125H-F2 Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 125 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50N-125H-B Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 125 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-BL-50N-125N-F Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 125 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50N-125N-F1 Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 125 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50N-125N-F2 Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 125 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50N-125N-B Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 125 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-BL-50N-150-F Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 150 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50N-150-F1 Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 150 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50N-150-F2 Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 150 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50N-150-B Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 150 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-BL-50N-150R-F Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 150 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50N-150R-F1 Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 150 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50N-150R-F2 Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 150 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50N-150R-B Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 150 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-BL-50N-150H-F Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 150 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50N-150H-F1 Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 150 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50N-150H-F2 Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 150 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50N-150H-B Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 150 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-BL-50N-150N-F Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 150 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50N-150N-F1 Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 150 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50N-150N-F2 Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 150 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50N-150N-B Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 150 mm | Speed needle: None | Lock: B - Backward lock
Clamp CylindersCKD
960 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD UCAC2 Clamp Cylinder with Drop Prevention (Bore 50)

Brand CKD·Clamp Cylinders

Available part numbers (960)

UCAC2-A-50-50-F, UCAC2-A-50-50-F1, UCAC2-A-50-50-F2, UCAC2-A-50-50-B, UCAC2-A-50-50R-F, UCAC2-A-50-50R-F1, UCAC2-A-50-50R-F2, UCAC2-A-50-50R-B, UCAC2-A-50-50H-F, UCAC2-A-50-50H-F1 + 950 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
UCAC2-A-50-50-FClevis: A 16.5 mm | Cushion: Head end | Stroke: 50 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50-50-F1Clevis: A 16.5 mm | Cushion: Head end | Stroke: 50 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50-50-F2Clevis: A 16.5 mm | Cushion: Head end | Stroke: 50 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50-50-BClevis: A 16.5 mm | Cushion: Head end | Stroke: 50 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-A-50-50R-FClevis: A 16.5 mm | Cushion: Head end | Stroke: 50 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50-50R-F1Clevis: A 16.5 mm | Cushion: Head end | Stroke: 50 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50-50R-F2Clevis: A 16.5 mm | Cushion: Head end | Stroke: 50 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50-50R-BClevis: A 16.5 mm | Cushion: Head end | Stroke: 50 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-A-50-50H-FClevis: A 16.5 mm | Cushion: Head end | Stroke: 50 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50-50H-F1Clevis: A 16.5 mm | Cushion: Head end | Stroke: 50 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50-50H-F2Clevis: A 16.5 mm | Cushion: Head end | Stroke: 50 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50-50H-BClevis: A 16.5 mm | Cushion: Head end | Stroke: 50 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-A-50-50N-FClevis: A 16.5 mm | Cushion: Head end | Stroke: 50 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50-50N-F1Clevis: A 16.5 mm | Cushion: Head end | Stroke: 50 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50-50N-F2Clevis: A 16.5 mm | Cushion: Head end | Stroke: 50 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50-50N-BClevis: A 16.5 mm | Cushion: Head end | Stroke: 50 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-A-50-75-FClevis: A 16.5 mm | Cushion: Head end | Stroke: 75 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50-75-F1Clevis: A 16.5 mm | Cushion: Head end | Stroke: 75 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50-75-F2Clevis: A 16.5 mm | Cushion: Head end | Stroke: 75 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50-75-BClevis: A 16.5 mm | Cushion: Head end | Stroke: 75 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-A-50-75R-FClevis: A 16.5 mm | Cushion: Head end | Stroke: 75 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50-75R-F1Clevis: A 16.5 mm | Cushion: Head end | Stroke: 75 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50-75R-F2Clevis: A 16.5 mm | Cushion: Head end | Stroke: 75 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50-75R-BClevis: A 16.5 mm | Cushion: Head end | Stroke: 75 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-A-50-75H-FClevis: A 16.5 mm | Cushion: Head end | Stroke: 75 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50-75H-F1Clevis: A 16.5 mm | Cushion: Head end | Stroke: 75 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50-75H-F2Clevis: A 16.5 mm | Cushion: Head end | Stroke: 75 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50-75H-BClevis: A 16.5 mm | Cushion: Head end | Stroke: 75 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-A-50-75N-FClevis: A 16.5 mm | Cushion: Head end | Stroke: 75 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50-75N-F1Clevis: A 16.5 mm | Cushion: Head end | Stroke: 75 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50-75N-F2Clevis: A 16.5 mm | Cushion: Head end | Stroke: 75 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50-75N-BClevis: A 16.5 mm | Cushion: Head end | Stroke: 75 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-A-50-100-FClevis: A 16.5 mm | Cushion: Head end | Stroke: 100 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50-100-F1Clevis: A 16.5 mm | Cushion: Head end | Stroke: 100 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50-100-F2Clevis: A 16.5 mm | Cushion: Head end | Stroke: 100 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50-100-BClevis: A 16.5 mm | Cushion: Head end | Stroke: 100 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-A-50-100R-FClevis: A 16.5 mm | Cushion: Head end | Stroke: 100 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50-100R-F1Clevis: A 16.5 mm | Cushion: Head end | Stroke: 100 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50-100R-F2Clevis: A 16.5 mm | Cushion: Head end | Stroke: 100 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50-100R-BClevis: A 16.5 mm | Cushion: Head end | Stroke: 100 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-A-50-100H-FClevis: A 16.5 mm | Cushion: Head end | Stroke: 100 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50-100H-F1Clevis: A 16.5 mm | Cushion: Head end | Stroke: 100 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50-100H-F2Clevis: A 16.5 mm | Cushion: Head end | Stroke: 100 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50-100H-BClevis: A 16.5 mm | Cushion: Head end | Stroke: 100 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-A-50-100N-FClevis: A 16.5 mm | Cushion: Head end | Stroke: 100 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50-100N-F1Clevis: A 16.5 mm | Cushion: Head end | Stroke: 100 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50-100N-F2Clevis: A 16.5 mm | Cushion: Head end | Stroke: 100 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50-100N-BClevis: A 16.5 mm | Cushion: Head end | Stroke: 100 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-A-50-125-FClevis: A 16.5 mm | Cushion: Head end | Stroke: 125 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50-125-F1Clevis: A 16.5 mm | Cushion: Head end | Stroke: 125 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50-125-F2Clevis: A 16.5 mm | Cushion: Head end | Stroke: 125 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50-125-BClevis: A 16.5 mm | Cushion: Head end | Stroke: 125 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-A-50-125R-FClevis: A 16.5 mm | Cushion: Head end | Stroke: 125 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50-125R-F1Clevis: A 16.5 mm | Cushion: Head end | Stroke: 125 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50-125R-F2Clevis: A 16.5 mm | Cushion: Head end | Stroke: 125 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50-125R-BClevis: A 16.5 mm | Cushion: Head end | Stroke: 125 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-A-50-125H-FClevis: A 16.5 mm | Cushion: Head end | Stroke: 125 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50-125H-F1Clevis: A 16.5 mm | Cushion: Head end | Stroke: 125 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50-125H-F2Clevis: A 16.5 mm | Cushion: Head end | Stroke: 125 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50-125H-BClevis: A 16.5 mm | Cushion: Head end | Stroke: 125 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-A-50-125N-FClevis: A 16.5 mm | Cushion: Head end | Stroke: 125 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50-125N-F1Clevis: A 16.5 mm | Cushion: Head end | Stroke: 125 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50-125N-F2Clevis: A 16.5 mm | Cushion: Head end | Stroke: 125 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50-125N-BClevis: A 16.5 mm | Cushion: Head end | Stroke: 125 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-A-50-150-FClevis: A 16.5 mm | Cushion: Head end | Stroke: 150 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50-150-F1Clevis: A 16.5 mm | Cushion: Head end | Stroke: 150 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50-150-F2Clevis: A 16.5 mm | Cushion: Head end | Stroke: 150 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50-150-BClevis: A 16.5 mm | Cushion: Head end | Stroke: 150 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-A-50-150R-FClevis: A 16.5 mm | Cushion: Head end | Stroke: 150 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50-150R-F1Clevis: A 16.5 mm | Cushion: Head end | Stroke: 150 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50-150R-F2Clevis: A 16.5 mm | Cushion: Head end | Stroke: 150 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50-150R-BClevis: A 16.5 mm | Cushion: Head end | Stroke: 150 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-A-50-150H-FClevis: A 16.5 mm | Cushion: Head end | Stroke: 150 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50-150H-F1Clevis: A 16.5 mm | Cushion: Head end | Stroke: 150 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50-150H-F2Clevis: A 16.5 mm | Cushion: Head end | Stroke: 150 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50-150H-BClevis: A 16.5 mm | Cushion: Head end | Stroke: 150 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-A-50-150N-FClevis: A 16.5 mm | Cushion: Head end | Stroke: 150 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50-150N-F1Clevis: A 16.5 mm | Cushion: Head end | Stroke: 150 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50-150N-F2Clevis: A 16.5 mm | Cushion: Head end | Stroke: 150 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50-150N-BClevis: A 16.5 mm | Cushion: Head end | Stroke: 150 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-A-50B-50-FClevis: A 16.5 mm | Cushion: Both ends | Stroke: 50 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50B-50-F1Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 50 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50B-50-F2Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 50 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50B-50-BClevis: A 16.5 mm | Cushion: Both ends | Stroke: 50 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-A-50B-50R-FClevis: A 16.5 mm | Cushion: Both ends | Stroke: 50 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50B-50R-F1Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 50 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50B-50R-F2Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 50 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50B-50R-BClevis: A 16.5 mm | Cushion: Both ends | Stroke: 50 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-A-50B-50H-FClevis: A 16.5 mm | Cushion: Both ends | Stroke: 50 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50B-50H-F1Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 50 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50B-50H-F2Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 50 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50B-50H-BClevis: A 16.5 mm | Cushion: Both ends | Stroke: 50 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-A-50B-50N-FClevis: A 16.5 mm | Cushion: Both ends | Stroke: 50 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50B-50N-F1Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 50 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50B-50N-F2Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 50 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50B-50N-BClevis: A 16.5 mm | Cushion: Both ends | Stroke: 50 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-A-50B-75-FClevis: A 16.5 mm | Cushion: Both ends | Stroke: 75 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50B-75-F1Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 75 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50B-75-F2Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 75 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50B-75-BClevis: A 16.5 mm | Cushion: Both ends | Stroke: 75 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-A-50B-75R-FClevis: A 16.5 mm | Cushion: Both ends | Stroke: 75 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50B-75R-F1Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 75 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50B-75R-F2Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 75 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50B-75R-BClevis: A 16.5 mm | Cushion: Both ends | Stroke: 75 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-A-50B-75H-FClevis: A 16.5 mm | Cushion: Both ends | Stroke: 75 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50B-75H-F1Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 75 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50B-75H-F2Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 75 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50B-75H-BClevis: A 16.5 mm | Cushion: Both ends | Stroke: 75 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-A-50B-75N-FClevis: A 16.5 mm | Cushion: Both ends | Stroke: 75 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50B-75N-F1Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 75 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50B-75N-F2Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 75 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50B-75N-BClevis: A 16.5 mm | Cushion: Both ends | Stroke: 75 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-A-50B-100-FClevis: A 16.5 mm | Cushion: Both ends | Stroke: 100 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50B-100-F1Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 100 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50B-100-F2Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 100 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50B-100-BClevis: A 16.5 mm | Cushion: Both ends | Stroke: 100 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-A-50B-100R-FClevis: A 16.5 mm | Cushion: Both ends | Stroke: 100 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50B-100R-F1Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 100 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50B-100R-F2Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 100 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50B-100R-BClevis: A 16.5 mm | Cushion: Both ends | Stroke: 100 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-A-50B-100H-FClevis: A 16.5 mm | Cushion: Both ends | Stroke: 100 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50B-100H-F1Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 100 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50B-100H-F2Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 100 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50B-100H-BClevis: A 16.5 mm | Cushion: Both ends | Stroke: 100 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-A-50B-100N-FClevis: A 16.5 mm | Cushion: Both ends | Stroke: 100 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50B-100N-F1Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 100 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50B-100N-F2Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 100 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50B-100N-BClevis: A 16.5 mm | Cushion: Both ends | Stroke: 100 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-A-50B-125-FClevis: A 16.5 mm | Cushion: Both ends | Stroke: 125 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50B-125-F1Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 125 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50B-125-F2Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 125 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50B-125-BClevis: A 16.5 mm | Cushion: Both ends | Stroke: 125 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-A-50B-125R-FClevis: A 16.5 mm | Cushion: Both ends | Stroke: 125 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50B-125R-F1Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 125 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50B-125R-F2Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 125 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50B-125R-BClevis: A 16.5 mm | Cushion: Both ends | Stroke: 125 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-A-50B-125H-FClevis: A 16.5 mm | Cushion: Both ends | Stroke: 125 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50B-125H-F1Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 125 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50B-125H-F2Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 125 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50B-125H-BClevis: A 16.5 mm | Cushion: Both ends | Stroke: 125 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-A-50B-125N-FClevis: A 16.5 mm | Cushion: Both ends | Stroke: 125 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50B-125N-F1Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 125 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50B-125N-F2Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 125 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50B-125N-BClevis: A 16.5 mm | Cushion: Both ends | Stroke: 125 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-A-50B-150-FClevis: A 16.5 mm | Cushion: Both ends | Stroke: 150 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50B-150-F1Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 150 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50B-150-F2Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 150 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50B-150-BClevis: A 16.5 mm | Cushion: Both ends | Stroke: 150 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-A-50B-150R-FClevis: A 16.5 mm | Cushion: Both ends | Stroke: 150 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50B-150R-F1Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 150 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50B-150R-F2Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 150 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50B-150R-BClevis: A 16.5 mm | Cushion: Both ends | Stroke: 150 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-A-50B-150H-FClevis: A 16.5 mm | Cushion: Both ends | Stroke: 150 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50B-150H-F1Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 150 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50B-150H-F2Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 150 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50B-150H-BClevis: A 16.5 mm | Cushion: Both ends | Stroke: 150 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-A-50B-150N-FClevis: A 16.5 mm | Cushion: Both ends | Stroke: 150 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50B-150N-F1Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 150 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50B-150N-F2Clevis: A 16.5 mm | Cushion: Both ends | Stroke: 150 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50B-150N-BClevis: A 16.5 mm | Cushion: Both ends | Stroke: 150 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-A-50N-50-FClevis: A 16.5 mm | Cushion: None | Stroke: 50 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50N-50-F1Clevis: A 16.5 mm | Cushion: None | Stroke: 50 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50N-50-F2Clevis: A 16.5 mm | Cushion: None | Stroke: 50 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50N-50-BClevis: A 16.5 mm | Cushion: None | Stroke: 50 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-A-50N-50R-FClevis: A 16.5 mm | Cushion: None | Stroke: 50 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50N-50R-F1Clevis: A 16.5 mm | Cushion: None | Stroke: 50 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50N-50R-F2Clevis: A 16.5 mm | Cushion: None | Stroke: 50 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50N-50R-BClevis: A 16.5 mm | Cushion: None | Stroke: 50 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-A-50N-50H-FClevis: A 16.5 mm | Cushion: None | Stroke: 50 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50N-50H-F1Clevis: A 16.5 mm | Cushion: None | Stroke: 50 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50N-50H-F2Clevis: A 16.5 mm | Cushion: None | Stroke: 50 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50N-50H-BClevis: A 16.5 mm | Cushion: None | Stroke: 50 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-A-50N-50N-FClevis: A 16.5 mm | Cushion: None | Stroke: 50 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50N-50N-F1Clevis: A 16.5 mm | Cushion: None | Stroke: 50 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50N-50N-F2Clevis: A 16.5 mm | Cushion: None | Stroke: 50 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50N-50N-BClevis: A 16.5 mm | Cushion: None | Stroke: 50 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-A-50N-75-FClevis: A 16.5 mm | Cushion: None | Stroke: 75 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50N-75-F1Clevis: A 16.5 mm | Cushion: None | Stroke: 75 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50N-75-F2Clevis: A 16.5 mm | Cushion: None | Stroke: 75 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50N-75-BClevis: A 16.5 mm | Cushion: None | Stroke: 75 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-A-50N-75R-FClevis: A 16.5 mm | Cushion: None | Stroke: 75 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50N-75R-F1Clevis: A 16.5 mm | Cushion: None | Stroke: 75 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50N-75R-F2Clevis: A 16.5 mm | Cushion: None | Stroke: 75 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50N-75R-BClevis: A 16.5 mm | Cushion: None | Stroke: 75 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-A-50N-75H-FClevis: A 16.5 mm | Cushion: None | Stroke: 75 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50N-75H-F1Clevis: A 16.5 mm | Cushion: None | Stroke: 75 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50N-75H-F2Clevis: A 16.5 mm | Cushion: None | Stroke: 75 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50N-75H-BClevis: A 16.5 mm | Cushion: None | Stroke: 75 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-A-50N-75N-FClevis: A 16.5 mm | Cushion: None | Stroke: 75 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50N-75N-F1Clevis: A 16.5 mm | Cushion: None | Stroke: 75 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50N-75N-F2Clevis: A 16.5 mm | Cushion: None | Stroke: 75 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50N-75N-BClevis: A 16.5 mm | Cushion: None | Stroke: 75 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-A-50N-100-FClevis: A 16.5 mm | Cushion: None | Stroke: 100 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50N-100-F1Clevis: A 16.5 mm | Cushion: None | Stroke: 100 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50N-100-F2Clevis: A 16.5 mm | Cushion: None | Stroke: 100 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50N-100-BClevis: A 16.5 mm | Cushion: None | Stroke: 100 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-A-50N-100R-FClevis: A 16.5 mm | Cushion: None | Stroke: 100 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50N-100R-F1Clevis: A 16.5 mm | Cushion: None | Stroke: 100 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50N-100R-F2Clevis: A 16.5 mm | Cushion: None | Stroke: 100 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50N-100R-BClevis: A 16.5 mm | Cushion: None | Stroke: 100 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-A-50N-100H-FClevis: A 16.5 mm | Cushion: None | Stroke: 100 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50N-100H-F1Clevis: A 16.5 mm | Cushion: None | Stroke: 100 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50N-100H-F2Clevis: A 16.5 mm | Cushion: None | Stroke: 100 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50N-100H-BClevis: A 16.5 mm | Cushion: None | Stroke: 100 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-A-50N-100N-FClevis: A 16.5 mm | Cushion: None | Stroke: 100 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50N-100N-F1Clevis: A 16.5 mm | Cushion: None | Stroke: 100 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50N-100N-F2Clevis: A 16.5 mm | Cushion: None | Stroke: 100 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50N-100N-BClevis: A 16.5 mm | Cushion: None | Stroke: 100 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-A-50N-125-FClevis: A 16.5 mm | Cushion: None | Stroke: 125 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50N-125-F1Clevis: A 16.5 mm | Cushion: None | Stroke: 125 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50N-125-F2Clevis: A 16.5 mm | Cushion: None | Stroke: 125 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50N-125-BClevis: A 16.5 mm | Cushion: None | Stroke: 125 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-A-50N-125R-FClevis: A 16.5 mm | Cushion: None | Stroke: 125 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50N-125R-F1Clevis: A 16.5 mm | Cushion: None | Stroke: 125 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50N-125R-F2Clevis: A 16.5 mm | Cushion: None | Stroke: 125 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50N-125R-BClevis: A 16.5 mm | Cushion: None | Stroke: 125 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-A-50N-125H-FClevis: A 16.5 mm | Cushion: None | Stroke: 125 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50N-125H-F1Clevis: A 16.5 mm | Cushion: None | Stroke: 125 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50N-125H-F2Clevis: A 16.5 mm | Cushion: None | Stroke: 125 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50N-125H-BClevis: A 16.5 mm | Cushion: None | Stroke: 125 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-A-50N-125N-FClevis: A 16.5 mm | Cushion: None | Stroke: 125 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50N-125N-F1Clevis: A 16.5 mm | Cushion: None | Stroke: 125 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50N-125N-F2Clevis: A 16.5 mm | Cushion: None | Stroke: 125 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50N-125N-BClevis: A 16.5 mm | Cushion: None | Stroke: 125 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-A-50N-150-FClevis: A 16.5 mm | Cushion: None | Stroke: 150 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50N-150-F1Clevis: A 16.5 mm | Cushion: None | Stroke: 150 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50N-150-F2Clevis: A 16.5 mm | Cushion: None | Stroke: 150 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50N-150-BClevis: A 16.5 mm | Cushion: None | Stroke: 150 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-A-50N-150R-FClevis: A 16.5 mm | Cushion: None | Stroke: 150 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50N-150R-F1Clevis: A 16.5 mm | Cushion: None | Stroke: 150 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50N-150R-F2Clevis: A 16.5 mm | Cushion: None | Stroke: 150 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50N-150R-BClevis: A 16.5 mm | Cushion: None | Stroke: 150 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-A-50N-150H-FClevis: A 16.5 mm | Cushion: None | Stroke: 150 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50N-150H-F1Clevis: A 16.5 mm | Cushion: None | Stroke: 150 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50N-150H-F2Clevis: A 16.5 mm | Cushion: None | Stroke: 150 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50N-150H-BClevis: A 16.5 mm | Cushion: None | Stroke: 150 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-A-50N-150N-FClevis: A 16.5 mm | Cushion: None | Stroke: 150 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-A-50N-150N-F1Clevis: A 16.5 mm | Cushion: None | Stroke: 150 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-A-50N-150N-F2Clevis: A 16.5 mm | Cushion: None | Stroke: 150 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-A-50N-150N-BClevis: A 16.5 mm | Cushion: None | Stroke: 150 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-B-50-50-FClevis: B 19.5 mm | Cushion: Head end | Stroke: 50 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50-50-F1Clevis: B 19.5 mm | Cushion: Head end | Stroke: 50 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50-50-F2Clevis: B 19.5 mm | Cushion: Head end | Stroke: 50 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50-50-BClevis: B 19.5 mm | Cushion: Head end | Stroke: 50 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-B-50-50R-FClevis: B 19.5 mm | Cushion: Head end | Stroke: 50 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50-50R-F1Clevis: B 19.5 mm | Cushion: Head end | Stroke: 50 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50-50R-F2Clevis: B 19.5 mm | Cushion: Head end | Stroke: 50 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50-50R-BClevis: B 19.5 mm | Cushion: Head end | Stroke: 50 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-B-50-50H-FClevis: B 19.5 mm | Cushion: Head end | Stroke: 50 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50-50H-F1Clevis: B 19.5 mm | Cushion: Head end | Stroke: 50 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50-50H-F2Clevis: B 19.5 mm | Cushion: Head end | Stroke: 50 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50-50H-BClevis: B 19.5 mm | Cushion: Head end | Stroke: 50 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-B-50-50N-FClevis: B 19.5 mm | Cushion: Head end | Stroke: 50 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50-50N-F1Clevis: B 19.5 mm | Cushion: Head end | Stroke: 50 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50-50N-F2Clevis: B 19.5 mm | Cushion: Head end | Stroke: 50 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50-50N-BClevis: B 19.5 mm | Cushion: Head end | Stroke: 50 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-B-50-75-FClevis: B 19.5 mm | Cushion: Head end | Stroke: 75 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50-75-F1Clevis: B 19.5 mm | Cushion: Head end | Stroke: 75 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50-75-F2Clevis: B 19.5 mm | Cushion: Head end | Stroke: 75 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50-75-BClevis: B 19.5 mm | Cushion: Head end | Stroke: 75 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-B-50-75R-FClevis: B 19.5 mm | Cushion: Head end | Stroke: 75 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50-75R-F1Clevis: B 19.5 mm | Cushion: Head end | Stroke: 75 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50-75R-F2Clevis: B 19.5 mm | Cushion: Head end | Stroke: 75 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50-75R-BClevis: B 19.5 mm | Cushion: Head end | Stroke: 75 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-B-50-75H-FClevis: B 19.5 mm | Cushion: Head end | Stroke: 75 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50-75H-F1Clevis: B 19.5 mm | Cushion: Head end | Stroke: 75 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50-75H-F2Clevis: B 19.5 mm | Cushion: Head end | Stroke: 75 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50-75H-BClevis: B 19.5 mm | Cushion: Head end | Stroke: 75 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-B-50-75N-FClevis: B 19.5 mm | Cushion: Head end | Stroke: 75 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50-75N-F1Clevis: B 19.5 mm | Cushion: Head end | Stroke: 75 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50-75N-F2Clevis: B 19.5 mm | Cushion: Head end | Stroke: 75 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50-75N-BClevis: B 19.5 mm | Cushion: Head end | Stroke: 75 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-B-50-100-FClevis: B 19.5 mm | Cushion: Head end | Stroke: 100 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50-100-F1Clevis: B 19.5 mm | Cushion: Head end | Stroke: 100 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50-100-F2Clevis: B 19.5 mm | Cushion: Head end | Stroke: 100 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50-100-BClevis: B 19.5 mm | Cushion: Head end | Stroke: 100 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-B-50-100R-FClevis: B 19.5 mm | Cushion: Head end | Stroke: 100 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50-100R-F1Clevis: B 19.5 mm | Cushion: Head end | Stroke: 100 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50-100R-F2Clevis: B 19.5 mm | Cushion: Head end | Stroke: 100 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50-100R-BClevis: B 19.5 mm | Cushion: Head end | Stroke: 100 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-B-50-100H-FClevis: B 19.5 mm | Cushion: Head end | Stroke: 100 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50-100H-F1Clevis: B 19.5 mm | Cushion: Head end | Stroke: 100 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50-100H-F2Clevis: B 19.5 mm | Cushion: Head end | Stroke: 100 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50-100H-BClevis: B 19.5 mm | Cushion: Head end | Stroke: 100 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-B-50-100N-FClevis: B 19.5 mm | Cushion: Head end | Stroke: 100 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50-100N-F1Clevis: B 19.5 mm | Cushion: Head end | Stroke: 100 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50-100N-F2Clevis: B 19.5 mm | Cushion: Head end | Stroke: 100 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50-100N-BClevis: B 19.5 mm | Cushion: Head end | Stroke: 100 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-B-50-125-FClevis: B 19.5 mm | Cushion: Head end | Stroke: 125 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50-125-F1Clevis: B 19.5 mm | Cushion: Head end | Stroke: 125 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50-125-F2Clevis: B 19.5 mm | Cushion: Head end | Stroke: 125 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50-125-BClevis: B 19.5 mm | Cushion: Head end | Stroke: 125 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-B-50-125R-FClevis: B 19.5 mm | Cushion: Head end | Stroke: 125 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50-125R-F1Clevis: B 19.5 mm | Cushion: Head end | Stroke: 125 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50-125R-F2Clevis: B 19.5 mm | Cushion: Head end | Stroke: 125 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50-125R-BClevis: B 19.5 mm | Cushion: Head end | Stroke: 125 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-B-50-125H-FClevis: B 19.5 mm | Cushion: Head end | Stroke: 125 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50-125H-F1Clevis: B 19.5 mm | Cushion: Head end | Stroke: 125 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50-125H-F2Clevis: B 19.5 mm | Cushion: Head end | Stroke: 125 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50-125H-BClevis: B 19.5 mm | Cushion: Head end | Stroke: 125 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-B-50-125N-FClevis: B 19.5 mm | Cushion: Head end | Stroke: 125 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50-125N-F1Clevis: B 19.5 mm | Cushion: Head end | Stroke: 125 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50-125N-F2Clevis: B 19.5 mm | Cushion: Head end | Stroke: 125 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50-125N-BClevis: B 19.5 mm | Cushion: Head end | Stroke: 125 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-B-50-150-FClevis: B 19.5 mm | Cushion: Head end | Stroke: 150 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50-150-F1Clevis: B 19.5 mm | Cushion: Head end | Stroke: 150 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50-150-F2Clevis: B 19.5 mm | Cushion: Head end | Stroke: 150 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50-150-BClevis: B 19.5 mm | Cushion: Head end | Stroke: 150 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-B-50-150R-FClevis: B 19.5 mm | Cushion: Head end | Stroke: 150 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50-150R-F1Clevis: B 19.5 mm | Cushion: Head end | Stroke: 150 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50-150R-F2Clevis: B 19.5 mm | Cushion: Head end | Stroke: 150 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50-150R-BClevis: B 19.5 mm | Cushion: Head end | Stroke: 150 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-B-50-150H-FClevis: B 19.5 mm | Cushion: Head end | Stroke: 150 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50-150H-F1Clevis: B 19.5 mm | Cushion: Head end | Stroke: 150 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50-150H-F2Clevis: B 19.5 mm | Cushion: Head end | Stroke: 150 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50-150H-BClevis: B 19.5 mm | Cushion: Head end | Stroke: 150 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-B-50-150N-FClevis: B 19.5 mm | Cushion: Head end | Stroke: 150 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50-150N-F1Clevis: B 19.5 mm | Cushion: Head end | Stroke: 150 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50-150N-F2Clevis: B 19.5 mm | Cushion: Head end | Stroke: 150 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50-150N-BClevis: B 19.5 mm | Cushion: Head end | Stroke: 150 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-B-50B-50-FClevis: B 19.5 mm | Cushion: Both ends | Stroke: 50 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50B-50-F1Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 50 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50B-50-F2Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 50 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50B-50-BClevis: B 19.5 mm | Cushion: Both ends | Stroke: 50 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-B-50B-50R-FClevis: B 19.5 mm | Cushion: Both ends | Stroke: 50 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50B-50R-F1Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 50 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50B-50R-F2Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 50 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50B-50R-BClevis: B 19.5 mm | Cushion: Both ends | Stroke: 50 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-B-50B-50H-FClevis: B 19.5 mm | Cushion: Both ends | Stroke: 50 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50B-50H-F1Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 50 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50B-50H-F2Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 50 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50B-50H-BClevis: B 19.5 mm | Cushion: Both ends | Stroke: 50 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-B-50B-50N-FClevis: B 19.5 mm | Cushion: Both ends | Stroke: 50 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50B-50N-F1Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 50 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50B-50N-F2Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 50 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50B-50N-BClevis: B 19.5 mm | Cushion: Both ends | Stroke: 50 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-B-50B-75-FClevis: B 19.5 mm | Cushion: Both ends | Stroke: 75 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50B-75-F1Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 75 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50B-75-F2Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 75 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50B-75-BClevis: B 19.5 mm | Cushion: Both ends | Stroke: 75 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-B-50B-75R-FClevis: B 19.5 mm | Cushion: Both ends | Stroke: 75 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50B-75R-F1Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 75 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50B-75R-F2Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 75 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50B-75R-BClevis: B 19.5 mm | Cushion: Both ends | Stroke: 75 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-B-50B-75H-FClevis: B 19.5 mm | Cushion: Both ends | Stroke: 75 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50B-75H-F1Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 75 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50B-75H-F2Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 75 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50B-75H-BClevis: B 19.5 mm | Cushion: Both ends | Stroke: 75 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-B-50B-75N-FClevis: B 19.5 mm | Cushion: Both ends | Stroke: 75 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50B-75N-F1Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 75 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50B-75N-F2Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 75 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50B-75N-BClevis: B 19.5 mm | Cushion: Both ends | Stroke: 75 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-B-50B-100-FClevis: B 19.5 mm | Cushion: Both ends | Stroke: 100 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50B-100-F1Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 100 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50B-100-F2Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 100 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50B-100-BClevis: B 19.5 mm | Cushion: Both ends | Stroke: 100 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-B-50B-100R-FClevis: B 19.5 mm | Cushion: Both ends | Stroke: 100 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50B-100R-F1Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 100 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50B-100R-F2Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 100 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50B-100R-BClevis: B 19.5 mm | Cushion: Both ends | Stroke: 100 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-B-50B-100H-FClevis: B 19.5 mm | Cushion: Both ends | Stroke: 100 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50B-100H-F1Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 100 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50B-100H-F2Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 100 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50B-100H-BClevis: B 19.5 mm | Cushion: Both ends | Stroke: 100 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-B-50B-100N-FClevis: B 19.5 mm | Cushion: Both ends | Stroke: 100 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50B-100N-F1Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 100 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50B-100N-F2Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 100 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50B-100N-BClevis: B 19.5 mm | Cushion: Both ends | Stroke: 100 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-B-50B-125-FClevis: B 19.5 mm | Cushion: Both ends | Stroke: 125 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50B-125-F1Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 125 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50B-125-F2Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 125 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50B-125-BClevis: B 19.5 mm | Cushion: Both ends | Stroke: 125 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-B-50B-125R-FClevis: B 19.5 mm | Cushion: Both ends | Stroke: 125 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50B-125R-F1Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 125 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50B-125R-F2Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 125 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50B-125R-BClevis: B 19.5 mm | Cushion: Both ends | Stroke: 125 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-B-50B-125H-FClevis: B 19.5 mm | Cushion: Both ends | Stroke: 125 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50B-125H-F1Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 125 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50B-125H-F2Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 125 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50B-125H-BClevis: B 19.5 mm | Cushion: Both ends | Stroke: 125 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-B-50B-125N-FClevis: B 19.5 mm | Cushion: Both ends | Stroke: 125 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50B-125N-F1Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 125 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50B-125N-F2Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 125 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50B-125N-BClevis: B 19.5 mm | Cushion: Both ends | Stroke: 125 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-B-50B-150-FClevis: B 19.5 mm | Cushion: Both ends | Stroke: 150 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50B-150-F1Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 150 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50B-150-F2Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 150 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50B-150-BClevis: B 19.5 mm | Cushion: Both ends | Stroke: 150 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-B-50B-150R-FClevis: B 19.5 mm | Cushion: Both ends | Stroke: 150 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50B-150R-F1Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 150 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50B-150R-F2Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 150 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50B-150R-BClevis: B 19.5 mm | Cushion: Both ends | Stroke: 150 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-B-50B-150H-FClevis: B 19.5 mm | Cushion: Both ends | Stroke: 150 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50B-150H-F1Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 150 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50B-150H-F2Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 150 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50B-150H-BClevis: B 19.5 mm | Cushion: Both ends | Stroke: 150 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-B-50B-150N-FClevis: B 19.5 mm | Cushion: Both ends | Stroke: 150 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50B-150N-F1Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 150 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50B-150N-F2Clevis: B 19.5 mm | Cushion: Both ends | Stroke: 150 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50B-150N-BClevis: B 19.5 mm | Cushion: Both ends | Stroke: 150 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-B-50N-50-FClevis: B 19.5 mm | Cushion: None | Stroke: 50 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50N-50-F1Clevis: B 19.5 mm | Cushion: None | Stroke: 50 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50N-50-F2Clevis: B 19.5 mm | Cushion: None | Stroke: 50 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50N-50-BClevis: B 19.5 mm | Cushion: None | Stroke: 50 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-B-50N-50R-FClevis: B 19.5 mm | Cushion: None | Stroke: 50 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50N-50R-F1Clevis: B 19.5 mm | Cushion: None | Stroke: 50 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50N-50R-F2Clevis: B 19.5 mm | Cushion: None | Stroke: 50 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50N-50R-BClevis: B 19.5 mm | Cushion: None | Stroke: 50 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-B-50N-50H-FClevis: B 19.5 mm | Cushion: None | Stroke: 50 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50N-50H-F1Clevis: B 19.5 mm | Cushion: None | Stroke: 50 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50N-50H-F2Clevis: B 19.5 mm | Cushion: None | Stroke: 50 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50N-50H-BClevis: B 19.5 mm | Cushion: None | Stroke: 50 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-B-50N-50N-FClevis: B 19.5 mm | Cushion: None | Stroke: 50 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50N-50N-F1Clevis: B 19.5 mm | Cushion: None | Stroke: 50 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50N-50N-F2Clevis: B 19.5 mm | Cushion: None | Stroke: 50 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50N-50N-BClevis: B 19.5 mm | Cushion: None | Stroke: 50 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-B-50N-75-FClevis: B 19.5 mm | Cushion: None | Stroke: 75 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50N-75-F1Clevis: B 19.5 mm | Cushion: None | Stroke: 75 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50N-75-F2Clevis: B 19.5 mm | Cushion: None | Stroke: 75 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50N-75-BClevis: B 19.5 mm | Cushion: None | Stroke: 75 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-B-50N-75R-FClevis: B 19.5 mm | Cushion: None | Stroke: 75 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50N-75R-F1Clevis: B 19.5 mm | Cushion: None | Stroke: 75 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50N-75R-F2Clevis: B 19.5 mm | Cushion: None | Stroke: 75 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50N-75R-BClevis: B 19.5 mm | Cushion: None | Stroke: 75 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-B-50N-75H-FClevis: B 19.5 mm | Cushion: None | Stroke: 75 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50N-75H-F1Clevis: B 19.5 mm | Cushion: None | Stroke: 75 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50N-75H-F2Clevis: B 19.5 mm | Cushion: None | Stroke: 75 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50N-75H-BClevis: B 19.5 mm | Cushion: None | Stroke: 75 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-B-50N-75N-FClevis: B 19.5 mm | Cushion: None | Stroke: 75 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50N-75N-F1Clevis: B 19.5 mm | Cushion: None | Stroke: 75 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50N-75N-F2Clevis: B 19.5 mm | Cushion: None | Stroke: 75 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50N-75N-BClevis: B 19.5 mm | Cushion: None | Stroke: 75 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-B-50N-100-FClevis: B 19.5 mm | Cushion: None | Stroke: 100 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50N-100-F1Clevis: B 19.5 mm | Cushion: None | Stroke: 100 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50N-100-F2Clevis: B 19.5 mm | Cushion: None | Stroke: 100 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50N-100-BClevis: B 19.5 mm | Cushion: None | Stroke: 100 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-B-50N-100R-FClevis: B 19.5 mm | Cushion: None | Stroke: 100 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50N-100R-F1Clevis: B 19.5 mm | Cushion: None | Stroke: 100 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50N-100R-F2Clevis: B 19.5 mm | Cushion: None | Stroke: 100 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50N-100R-BClevis: B 19.5 mm | Cushion: None | Stroke: 100 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-B-50N-100H-FClevis: B 19.5 mm | Cushion: None | Stroke: 100 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50N-100H-F1Clevis: B 19.5 mm | Cushion: None | Stroke: 100 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50N-100H-F2Clevis: B 19.5 mm | Cushion: None | Stroke: 100 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50N-100H-BClevis: B 19.5 mm | Cushion: None | Stroke: 100 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-B-50N-100N-FClevis: B 19.5 mm | Cushion: None | Stroke: 100 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50N-100N-F1Clevis: B 19.5 mm | Cushion: None | Stroke: 100 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50N-100N-F2Clevis: B 19.5 mm | Cushion: None | Stroke: 100 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50N-100N-BClevis: B 19.5 mm | Cushion: None | Stroke: 100 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-B-50N-125-FClevis: B 19.5 mm | Cushion: None | Stroke: 125 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50N-125-F1Clevis: B 19.5 mm | Cushion: None | Stroke: 125 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50N-125-F2Clevis: B 19.5 mm | Cushion: None | Stroke: 125 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50N-125-BClevis: B 19.5 mm | Cushion: None | Stroke: 125 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-B-50N-125R-FClevis: B 19.5 mm | Cushion: None | Stroke: 125 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50N-125R-F1Clevis: B 19.5 mm | Cushion: None | Stroke: 125 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50N-125R-F2Clevis: B 19.5 mm | Cushion: None | Stroke: 125 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50N-125R-BClevis: B 19.5 mm | Cushion: None | Stroke: 125 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-B-50N-125H-FClevis: B 19.5 mm | Cushion: None | Stroke: 125 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50N-125H-F1Clevis: B 19.5 mm | Cushion: None | Stroke: 125 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50N-125H-F2Clevis: B 19.5 mm | Cushion: None | Stroke: 125 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50N-125H-BClevis: B 19.5 mm | Cushion: None | Stroke: 125 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-B-50N-125N-FClevis: B 19.5 mm | Cushion: None | Stroke: 125 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50N-125N-F1Clevis: B 19.5 mm | Cushion: None | Stroke: 125 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50N-125N-F2Clevis: B 19.5 mm | Cushion: None | Stroke: 125 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50N-125N-BClevis: B 19.5 mm | Cushion: None | Stroke: 125 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-B-50N-150-FClevis: B 19.5 mm | Cushion: None | Stroke: 150 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50N-150-F1Clevis: B 19.5 mm | Cushion: None | Stroke: 150 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50N-150-F2Clevis: B 19.5 mm | Cushion: None | Stroke: 150 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50N-150-BClevis: B 19.5 mm | Cushion: None | Stroke: 150 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-B-50N-150R-FClevis: B 19.5 mm | Cushion: None | Stroke: 150 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50N-150R-F1Clevis: B 19.5 mm | Cushion: None | Stroke: 150 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50N-150R-F2Clevis: B 19.5 mm | Cushion: None | Stroke: 150 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50N-150R-BClevis: B 19.5 mm | Cushion: None | Stroke: 150 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-B-50N-150H-FClevis: B 19.5 mm | Cushion: None | Stroke: 150 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50N-150H-F1Clevis: B 19.5 mm | Cushion: None | Stroke: 150 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50N-150H-F2Clevis: B 19.5 mm | Cushion: None | Stroke: 150 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50N-150H-BClevis: B 19.5 mm | Cushion: None | Stroke: 150 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-B-50N-150N-FClevis: B 19.5 mm | Cushion: None | Stroke: 150 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-B-50N-150N-F1Clevis: B 19.5 mm | Cushion: None | Stroke: 150 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-B-50N-150N-F2Clevis: B 19.5 mm | Cushion: None | Stroke: 150 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-B-50N-150N-BClevis: B 19.5 mm | Cushion: None | Stroke: 150 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-AL-50-50-FClevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 50 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50-50-F1Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 50 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50-50-F2Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 50 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50-50-BClevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 50 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-AL-50-50R-FClevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 50 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50-50R-F1Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 50 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50-50R-F2Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 50 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50-50R-BClevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 50 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-AL-50-50H-FClevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 50 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50-50H-F1Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 50 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50-50H-F2Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 50 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50-50H-BClevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 50 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-AL-50-50N-FClevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 50 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50-50N-F1Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 50 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50-50N-F2Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 50 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50-50N-BClevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 50 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-AL-50-75-FClevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 75 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50-75-F1Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 75 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50-75-F2Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 75 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50-75-BClevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 75 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-AL-50-75R-FClevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 75 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50-75R-F1Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 75 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50-75R-F2Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 75 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50-75R-BClevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 75 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-AL-50-75H-FClevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 75 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50-75H-F1Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 75 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50-75H-F2Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 75 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50-75H-BClevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 75 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-AL-50-75N-FClevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 75 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50-75N-F1Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 75 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50-75N-F2Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 75 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50-75N-BClevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 75 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-AL-50-100-FClevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 100 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50-100-F1Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 100 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50-100-F2Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 100 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50-100-BClevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 100 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-AL-50-100R-FClevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 100 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50-100R-F1Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 100 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50-100R-F2Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 100 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50-100R-BClevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 100 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-AL-50-100H-FClevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 100 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50-100H-F1Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 100 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50-100H-F2Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 100 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50-100H-BClevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 100 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-AL-50-100N-FClevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 100 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50-100N-F1Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 100 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50-100N-F2Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 100 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50-100N-BClevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 100 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-AL-50-125-FClevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 125 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50-125-F1Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 125 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50-125-F2Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 125 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50-125-BClevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 125 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-AL-50-125R-FClevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 125 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50-125R-F1Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 125 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50-125R-F2Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 125 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50-125R-BClevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 125 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-AL-50-125H-FClevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 125 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50-125H-F1Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 125 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50-125H-F2Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 125 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50-125H-BClevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 125 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-AL-50-125N-FClevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 125 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50-125N-F1Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 125 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50-125N-F2Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 125 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50-125N-BClevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 125 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-AL-50-150-FClevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 150 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50-150-F1Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 150 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50-150-F2Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 150 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50-150-BClevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 150 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-AL-50-150R-FClevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 150 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50-150R-F1Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 150 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50-150R-F2Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 150 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50-150R-BClevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 150 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-AL-50-150H-FClevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 150 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50-150H-F1Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 150 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50-150H-F2Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 150 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50-150H-BClevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 150 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-AL-50-150N-FClevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 150 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50-150N-F1Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 150 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50-150N-F2Clevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 150 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50-150N-BClevis: AL 16.5 mm, axial foot | Cushion: Head end | Stroke: 150 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-AL-50B-50-FClevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 50 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50B-50-F1Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 50 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50B-50-F2Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 50 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50B-50-BClevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 50 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-AL-50B-50R-FClevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 50 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50B-50R-F1Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 50 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50B-50R-F2Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 50 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50B-50R-BClevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 50 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-AL-50B-50H-FClevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 50 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50B-50H-F1Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 50 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50B-50H-F2Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 50 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50B-50H-BClevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 50 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-AL-50B-50N-FClevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 50 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50B-50N-F1Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 50 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50B-50N-F2Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 50 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50B-50N-BClevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 50 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-AL-50B-75-FClevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 75 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50B-75-F1Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 75 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50B-75-F2Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 75 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50B-75-BClevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 75 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-AL-50B-75R-FClevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 75 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50B-75R-F1Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 75 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50B-75R-F2Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 75 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50B-75R-BClevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 75 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-AL-50B-75H-FClevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 75 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50B-75H-F1Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 75 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50B-75H-F2Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 75 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50B-75H-BClevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 75 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-AL-50B-75N-FClevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 75 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50B-75N-F1Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 75 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50B-75N-F2Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 75 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50B-75N-BClevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 75 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-AL-50B-100-FClevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 100 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50B-100-F1Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 100 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50B-100-F2Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 100 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50B-100-BClevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 100 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-AL-50B-100R-FClevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 100 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50B-100R-F1Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 100 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50B-100R-F2Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 100 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50B-100R-BClevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 100 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-AL-50B-100H-FClevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 100 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50B-100H-F1Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 100 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50B-100H-F2Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 100 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50B-100H-BClevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 100 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-AL-50B-100N-FClevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 100 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50B-100N-F1Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 100 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50B-100N-F2Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 100 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50B-100N-BClevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 100 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-AL-50B-125-FClevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 125 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50B-125-F1Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 125 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50B-125-F2Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 125 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50B-125-BClevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 125 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-AL-50B-125R-FClevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 125 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50B-125R-F1Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 125 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50B-125R-F2Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 125 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50B-125R-BClevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 125 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-AL-50B-125H-FClevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 125 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50B-125H-F1Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 125 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50B-125H-F2Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 125 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50B-125H-BClevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 125 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-AL-50B-125N-FClevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 125 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50B-125N-F1Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 125 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50B-125N-F2Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 125 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50B-125N-BClevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 125 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-AL-50B-150-FClevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 150 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50B-150-F1Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 150 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50B-150-F2Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 150 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50B-150-BClevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 150 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-AL-50B-150R-FClevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 150 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50B-150R-F1Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 150 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50B-150R-F2Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 150 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50B-150R-BClevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 150 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-AL-50B-150H-FClevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 150 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50B-150H-F1Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 150 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50B-150H-F2Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 150 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50B-150H-BClevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 150 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-AL-50B-150N-FClevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 150 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50B-150N-F1Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 150 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50B-150N-F2Clevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 150 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50B-150N-BClevis: AL 16.5 mm, axial foot | Cushion: Both ends | Stroke: 150 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-AL-50N-50-FClevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 50 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50N-50-F1Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 50 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50N-50-F2Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 50 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50N-50-BClevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 50 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-AL-50N-50R-FClevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 50 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50N-50R-F1Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 50 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50N-50R-F2Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 50 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50N-50R-BClevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 50 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-AL-50N-50H-FClevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 50 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50N-50H-F1Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 50 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50N-50H-F2Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 50 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50N-50H-BClevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 50 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-AL-50N-50N-FClevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 50 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50N-50N-F1Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 50 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50N-50N-F2Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 50 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50N-50N-BClevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 50 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-AL-50N-75-FClevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 75 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50N-75-F1Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 75 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50N-75-F2Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 75 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50N-75-BClevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 75 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-AL-50N-75R-FClevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 75 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50N-75R-F1Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 75 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50N-75R-F2Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 75 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50N-75R-BClevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 75 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-AL-50N-75H-FClevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 75 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50N-75H-F1Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 75 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50N-75H-F2Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 75 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50N-75H-BClevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 75 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-AL-50N-75N-FClevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 75 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50N-75N-F1Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 75 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50N-75N-F2Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 75 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50N-75N-BClevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 75 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-AL-50N-100-FClevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 100 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50N-100-F1Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 100 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50N-100-F2Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 100 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50N-100-BClevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 100 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-AL-50N-100R-FClevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 100 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50N-100R-F1Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 100 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50N-100R-F2Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 100 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50N-100R-BClevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 100 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-AL-50N-100H-FClevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 100 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50N-100H-F1Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 100 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50N-100H-F2Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 100 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50N-100H-BClevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 100 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-AL-50N-100N-FClevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 100 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50N-100N-F1Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 100 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50N-100N-F2Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 100 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50N-100N-BClevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 100 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-AL-50N-125-FClevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 125 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50N-125-F1Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 125 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50N-125-F2Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 125 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50N-125-BClevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 125 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-AL-50N-125R-FClevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 125 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50N-125R-F1Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 125 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50N-125R-F2Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 125 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50N-125R-BClevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 125 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-AL-50N-125H-FClevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 125 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50N-125H-F1Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 125 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50N-125H-F2Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 125 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50N-125H-BClevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 125 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-AL-50N-125N-FClevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 125 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50N-125N-F1Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 125 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50N-125N-F2Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 125 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50N-125N-BClevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 125 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-AL-50N-150-FClevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 150 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50N-150-F1Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 150 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50N-150-F2Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 150 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50N-150-BClevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 150 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-AL-50N-150R-FClevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 150 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50N-150R-F1Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 150 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50N-150R-F2Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 150 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50N-150R-BClevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 150 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-AL-50N-150H-FClevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 150 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50N-150H-F1Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 150 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50N-150H-F2Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 150 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50N-150H-BClevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 150 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-AL-50N-150N-FClevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 150 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-AL-50N-150N-F1Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 150 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-AL-50N-150N-F2Clevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 150 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-AL-50N-150N-BClevis: AL 16.5 mm, axial foot | Cushion: None | Stroke: 150 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-BL-50-50-FClevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 50 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50-50-F1Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 50 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50-50-F2Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 50 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50-50-BClevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 50 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-BL-50-50R-FClevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 50 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50-50R-F1Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 50 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50-50R-F2Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 50 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50-50R-BClevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 50 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-BL-50-50H-FClevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 50 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50-50H-F1Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 50 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50-50H-F2Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 50 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50-50H-BClevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 50 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-BL-50-50N-FClevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 50 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50-50N-F1Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 50 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50-50N-F2Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 50 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50-50N-BClevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 50 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-BL-50-75-FClevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 75 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50-75-F1Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 75 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50-75-F2Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 75 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50-75-BClevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 75 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-BL-50-75R-FClevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 75 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50-75R-F1Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 75 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50-75R-F2Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 75 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50-75R-BClevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 75 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-BL-50-75H-FClevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 75 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50-75H-F1Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 75 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50-75H-F2Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 75 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50-75H-BClevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 75 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-BL-50-75N-FClevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 75 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50-75N-F1Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 75 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50-75N-F2Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 75 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50-75N-BClevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 75 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-BL-50-100-FClevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 100 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50-100-F1Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 100 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50-100-F2Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 100 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50-100-BClevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 100 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-BL-50-100R-FClevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 100 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50-100R-F1Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 100 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50-100R-F2Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 100 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50-100R-BClevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 100 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-BL-50-100H-FClevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 100 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50-100H-F1Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 100 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50-100H-F2Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 100 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50-100H-BClevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 100 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-BL-50-100N-FClevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 100 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50-100N-F1Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 100 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50-100N-F2Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 100 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50-100N-BClevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 100 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-BL-50-125-FClevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 125 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50-125-F1Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 125 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50-125-F2Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 125 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50-125-BClevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 125 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-BL-50-125R-FClevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 125 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50-125R-F1Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 125 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50-125R-F2Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 125 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50-125R-BClevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 125 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-BL-50-125H-FClevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 125 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50-125H-F1Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 125 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50-125H-F2Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 125 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50-125H-BClevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 125 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-BL-50-125N-FClevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 125 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50-125N-F1Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 125 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50-125N-F2Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 125 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50-125N-BClevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 125 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-BL-50-150-FClevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 150 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50-150-F1Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 150 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50-150-F2Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 150 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50-150-BClevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 150 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-BL-50-150R-FClevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 150 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50-150R-F1Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 150 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50-150R-F2Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 150 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50-150R-BClevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 150 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-BL-50-150H-FClevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 150 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50-150H-F1Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 150 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50-150H-F2Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 150 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50-150H-BClevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 150 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-BL-50-150N-FClevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 150 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50-150N-F1Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 150 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50-150N-F2Clevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 150 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50-150N-BClevis: BL 19.5 mm, axial foot | Cushion: Head end | Stroke: 150 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-BL-50B-50-FClevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 50 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50B-50-F1Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 50 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50B-50-F2Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 50 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50B-50-BClevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 50 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-BL-50B-50R-FClevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 50 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50B-50R-F1Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 50 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50B-50R-F2Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 50 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50B-50R-BClevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 50 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-BL-50B-50H-FClevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 50 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50B-50H-F1Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 50 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50B-50H-F2Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 50 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50B-50H-BClevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 50 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-BL-50B-50N-FClevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 50 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50B-50N-F1Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 50 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50B-50N-F2Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 50 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50B-50N-BClevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 50 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-BL-50B-75-FClevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 75 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50B-75-F1Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 75 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50B-75-F2Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 75 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50B-75-BClevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 75 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-BL-50B-75R-FClevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 75 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50B-75R-F1Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 75 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50B-75R-F2Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 75 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50B-75R-BClevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 75 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-BL-50B-75H-FClevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 75 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50B-75H-F1Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 75 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50B-75H-F2Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 75 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50B-75H-BClevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 75 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-BL-50B-75N-FClevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 75 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50B-75N-F1Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 75 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50B-75N-F2Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 75 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50B-75N-BClevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 75 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-BL-50B-100-FClevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 100 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50B-100-F1Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 100 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50B-100-F2Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 100 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50B-100-BClevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 100 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-BL-50B-100R-FClevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 100 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50B-100R-F1Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 100 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50B-100R-F2Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 100 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50B-100R-BClevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 100 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-BL-50B-100H-FClevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 100 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50B-100H-F1Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 100 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50B-100H-F2Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 100 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50B-100H-BClevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 100 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-BL-50B-100N-FClevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 100 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50B-100N-F1Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 100 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50B-100N-F2Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 100 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50B-100N-BClevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 100 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-BL-50B-125-FClevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 125 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50B-125-F1Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 125 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50B-125-F2Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 125 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50B-125-BClevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 125 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-BL-50B-125R-FClevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 125 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50B-125R-F1Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 125 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50B-125R-F2Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 125 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50B-125R-BClevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 125 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-BL-50B-125H-FClevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 125 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50B-125H-F1Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 125 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50B-125H-F2Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 125 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50B-125H-BClevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 125 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-BL-50B-125N-FClevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 125 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50B-125N-F1Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 125 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50B-125N-F2Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 125 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50B-125N-BClevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 125 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-BL-50B-150-FClevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 150 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50B-150-F1Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 150 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50B-150-F2Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 150 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50B-150-BClevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 150 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-BL-50B-150R-FClevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 150 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50B-150R-F1Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 150 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50B-150R-F2Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 150 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50B-150R-BClevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 150 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-BL-50B-150H-FClevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 150 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50B-150H-F1Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 150 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50B-150H-F2Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 150 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50B-150H-BClevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 150 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-BL-50B-150N-FClevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 150 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50B-150N-F1Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 150 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50B-150N-F2Clevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 150 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50B-150N-BClevis: BL 19.5 mm, axial foot | Cushion: Both ends | Stroke: 150 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-BL-50N-50-FClevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 50 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50N-50-F1Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 50 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50N-50-F2Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 50 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50N-50-BClevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 50 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-BL-50N-50R-FClevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 50 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50N-50R-F1Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 50 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50N-50R-F2Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 50 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50N-50R-BClevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 50 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-BL-50N-50H-FClevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 50 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50N-50H-F1Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 50 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50N-50H-F2Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 50 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50N-50H-BClevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 50 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-BL-50N-50N-FClevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 50 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50N-50N-F1Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 50 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50N-50N-F2Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 50 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50N-50N-BClevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 50 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-BL-50N-75-FClevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 75 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50N-75-F1Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 75 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50N-75-F2Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 75 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50N-75-BClevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 75 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-BL-50N-75R-FClevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 75 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50N-75R-F1Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 75 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50N-75R-F2Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 75 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50N-75R-BClevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 75 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-BL-50N-75H-FClevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 75 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50N-75H-F1Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 75 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50N-75H-F2Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 75 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50N-75H-BClevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 75 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-BL-50N-75N-FClevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 75 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50N-75N-F1Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 75 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50N-75N-F2Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 75 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50N-75N-BClevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 75 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-BL-50N-100-FClevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 100 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50N-100-F1Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 100 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50N-100-F2Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 100 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50N-100-BClevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 100 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-BL-50N-100R-FClevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 100 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50N-100R-F1Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 100 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50N-100R-F2Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 100 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50N-100R-BClevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 100 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-BL-50N-100H-FClevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 100 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50N-100H-F1Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 100 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50N-100H-F2Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 100 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50N-100H-BClevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 100 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-BL-50N-100N-FClevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 100 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50N-100N-F1Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 100 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50N-100N-F2Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 100 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50N-100N-BClevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 100 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-BL-50N-125-FClevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 125 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50N-125-F1Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 125 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50N-125-F2Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 125 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50N-125-BClevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 125 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-BL-50N-125R-FClevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 125 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50N-125R-F1Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 125 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50N-125R-F2Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 125 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50N-125R-BClevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 125 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-BL-50N-125H-FClevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 125 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50N-125H-F1Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 125 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50N-125H-F2Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 125 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50N-125H-BClevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 125 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-BL-50N-125N-FClevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 125 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50N-125N-F1Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 125 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50N-125N-F2Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 125 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50N-125N-BClevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 125 mm | Speed needle: None | Lock: B - Backward lock
UCAC2-BL-50N-150-FClevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 150 mm | Speed needle: Both ends | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50N-150-F1Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 150 mm | Speed needle: Both ends | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50N-150-F2Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 150 mm | Speed needle: Both ends | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50N-150-BClevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 150 mm | Speed needle: Both ends | Lock: B - Backward lock
UCAC2-BL-50N-150R-FClevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 150 mm | Speed needle: Rod end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50N-150R-F1Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 150 mm | Speed needle: Rod end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50N-150R-F2Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 150 mm | Speed needle: Rod end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50N-150R-BClevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 150 mm | Speed needle: Rod end | Lock: B - Backward lock
UCAC2-BL-50N-150H-FClevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 150 mm | Speed needle: Head end | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50N-150H-F1Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 150 mm | Speed needle: Head end | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50N-150H-F2Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 150 mm | Speed needle: Head end | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50N-150H-BClevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 150 mm | Speed needle: Head end | Lock: B - Backward lock
UCAC2-BL-50N-150N-FClevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 150 mm | Speed needle: None | Lock: F - Fwd lock, bypass F, port F1
UCAC2-BL-50N-150N-F1Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 150 mm | Speed needle: None | Lock: F1 - Fwd lock, bypass F1, port F2
UCAC2-BL-50N-150N-F2Clevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 150 mm | Speed needle: None | Lock: F2 - Fwd lock, bypass F2, port F1
UCAC2-BL-50N-150N-BClevis: BL 19.5 mm, axial foot | Cushion: None | Stroke: 150 mm | Speed needle: None | Lock: B - Backward lock

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
