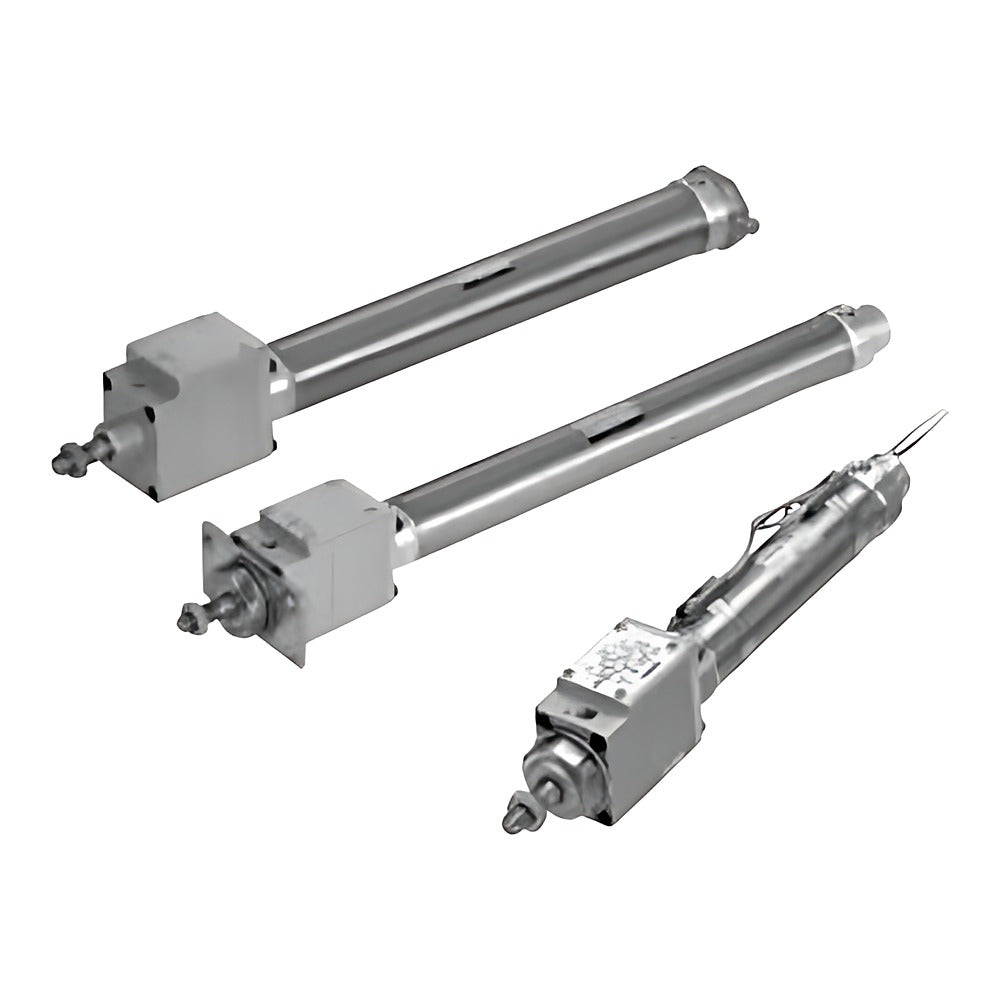

CKD ULK / ULK-V Cell-Top Cylinder with Brake (Bore 20-40 mm)

CKD ULK cell-top cylinder: a double-acting cylinder with a built-in brake for intermediate stopping, drop prevention and emergency stop, bore 20 to 40 mm, also with brake release valve (ULK-V).

Key features

Built-in brake unit; holding force 251-1005 N; stop accuracy approx. +/-1.0 mm
ULK-V adds a brake release valve (P5136) with AC100V (1), AC200V (2) or DC24V (3) coil
8 mounting styles: 00, LB, FA, CA, CC, CC1, TA, TB; switch magnet built in
T-type auto switches (T0H, T2H, T3H, T2YH, T2WH, T8H etc.) with switch count R/H/D/T ordered as suffix
Options: bellows J (100 C) / L (250 C), stainless piston rod (M), boss cut (V); accessories I, Y, B2
Intermediate strokes in 1 mm steps up to 700 mm

Specifications

Action	Double acting, with brake
Fluid	Compressed air
Max. operating pressure	1.0 MPa (ULK-V brake 0.6 MPa)
Min. operating pressure	Cylinder 0.15 MPa, brake 0.3 MPa
Proof pressure	1.6 MPa
Port	Rc1/8 (cylinder and brake)
Piston speed	50-500 mm/s
Ambient temperature	-10 to 60 C (ULK-V -10 to 50 C)
Cushion	Rubber cushion
Source	CKD Korea catalog CB-030SK-9, p. 757-788

ULK-00-20-25		Brake valve: None \| Mounting: Basic \| Bore: 20 mm \| Stroke: 25 mm
ULK-00-20-50		Brake valve: None \| Mounting: Basic \| Bore: 20 mm \| Stroke: 50 mm
ULK-00-20-75		Brake valve: None \| Mounting: Basic \| Bore: 20 mm \| Stroke: 75 mm
ULK-00-20-100		Brake valve: None \| Mounting: Basic \| Bore: 20 mm \| Stroke: 100 mm
ULK-00-20-150		Brake valve: None \| Mounting: Basic \| Bore: 20 mm \| Stroke: 150 mm
ULK-00-20-200		Brake valve: None \| Mounting: Basic \| Bore: 20 mm \| Stroke: 200 mm
ULK-00-20-250		Brake valve: None \| Mounting: Basic \| Bore: 20 mm \| Stroke: 250 mm
ULK-00-20-300		Brake valve: None \| Mounting: Basic \| Bore: 20 mm \| Stroke: 300 mm
ULK-00-25-25		Brake valve: None \| Mounting: Basic \| Bore: 25 mm \| Stroke: 25 mm
ULK-00-25-50		Brake valve: None \| Mounting: Basic \| Bore: 25 mm \| Stroke: 50 mm
ULK-00-25-75		Brake valve: None \| Mounting: Basic \| Bore: 25 mm \| Stroke: 75 mm
ULK-00-25-100		Brake valve: None \| Mounting: Basic \| Bore: 25 mm \| Stroke: 100 mm
ULK-00-25-150		Brake valve: None \| Mounting: Basic \| Bore: 25 mm \| Stroke: 150 mm
ULK-00-25-200		Brake valve: None \| Mounting: Basic \| Bore: 25 mm \| Stroke: 200 mm
ULK-00-25-250		Brake valve: None \| Mounting: Basic \| Bore: 25 mm \| Stroke: 250 mm
ULK-00-25-300		Brake valve: None \| Mounting: Basic \| Bore: 25 mm \| Stroke: 300 mm
ULK-00-32-25		Brake valve: None \| Mounting: Basic \| Bore: 32 mm \| Stroke: 25 mm
ULK-00-32-50		Brake valve: None \| Mounting: Basic \| Bore: 32 mm \| Stroke: 50 mm
ULK-00-32-75		Brake valve: None \| Mounting: Basic \| Bore: 32 mm \| Stroke: 75 mm
ULK-00-32-100		Brake valve: None \| Mounting: Basic \| Bore: 32 mm \| Stroke: 100 mm
ULK-00-32-150		Brake valve: None \| Mounting: Basic \| Bore: 32 mm \| Stroke: 150 mm
ULK-00-32-200		Brake valve: None \| Mounting: Basic \| Bore: 32 mm \| Stroke: 200 mm
ULK-00-32-250		Brake valve: None \| Mounting: Basic \| Bore: 32 mm \| Stroke: 250 mm
ULK-00-32-300		Brake valve: None \| Mounting: Basic \| Bore: 32 mm \| Stroke: 300 mm
ULK-00-40-25		Brake valve: None \| Mounting: Basic \| Bore: 40 mm \| Stroke: 25 mm
ULK-00-40-50		Brake valve: None \| Mounting: Basic \| Bore: 40 mm \| Stroke: 50 mm
ULK-00-40-75		Brake valve: None \| Mounting: Basic \| Bore: 40 mm \| Stroke: 75 mm
ULK-00-40-100		Brake valve: None \| Mounting: Basic \| Bore: 40 mm \| Stroke: 100 mm
ULK-00-40-150		Brake valve: None \| Mounting: Basic \| Bore: 40 mm \| Stroke: 150 mm
ULK-00-40-200		Brake valve: None \| Mounting: Basic \| Bore: 40 mm \| Stroke: 200 mm
ULK-00-40-250		Brake valve: None \| Mounting: Basic \| Bore: 40 mm \| Stroke: 250 mm
ULK-00-40-300		Brake valve: None \| Mounting: Basic \| Bore: 40 mm \| Stroke: 300 mm
ULK-LB-20-25		Brake valve: None \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 25 mm
ULK-LB-20-50		Brake valve: None \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 50 mm
ULK-LB-20-75		Brake valve: None \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 75 mm
ULK-LB-20-100		Brake valve: None \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 100 mm
ULK-LB-20-150		Brake valve: None \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 150 mm
ULK-LB-20-200		Brake valve: None \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 200 mm
ULK-LB-20-250		Brake valve: None \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 250 mm
ULK-LB-20-300		Brake valve: None \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 300 mm
ULK-LB-25-25		Brake valve: None \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 25 mm
ULK-LB-25-50		Brake valve: None \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 50 mm
ULK-LB-25-75		Brake valve: None \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 75 mm
ULK-LB-25-100		Brake valve: None \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 100 mm
ULK-LB-25-150		Brake valve: None \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 150 mm
ULK-LB-25-200		Brake valve: None \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 200 mm
ULK-LB-25-250		Brake valve: None \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 250 mm
ULK-LB-25-300		Brake valve: None \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 300 mm
ULK-LB-32-25		Brake valve: None \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 25 mm
ULK-LB-32-50		Brake valve: None \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 50 mm
ULK-LB-32-75		Brake valve: None \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 75 mm
ULK-LB-32-100		Brake valve: None \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 100 mm
ULK-LB-32-150		Brake valve: None \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 150 mm
ULK-LB-32-200		Brake valve: None \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 200 mm
ULK-LB-32-250		Brake valve: None \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 250 mm
ULK-LB-32-300		Brake valve: None \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 300 mm
ULK-LB-40-25		Brake valve: None \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 25 mm
ULK-LB-40-50		Brake valve: None \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 50 mm
ULK-LB-40-75		Brake valve: None \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 75 mm
ULK-LB-40-100		Brake valve: None \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 100 mm
ULK-LB-40-150		Brake valve: None \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 150 mm
ULK-LB-40-200		Brake valve: None \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 200 mm
ULK-LB-40-250		Brake valve: None \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 250 mm
ULK-LB-40-300		Brake valve: None \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 300 mm
ULK-FA-20-25		Brake valve: None \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 25 mm
ULK-FA-20-50		Brake valve: None \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 50 mm
ULK-FA-20-75		Brake valve: None \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 75 mm
ULK-FA-20-100		Brake valve: None \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 100 mm
ULK-FA-20-150		Brake valve: None \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 150 mm
ULK-FA-20-200		Brake valve: None \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 200 mm
ULK-FA-20-250		Brake valve: None \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 250 mm
ULK-FA-20-300		Brake valve: None \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 300 mm
ULK-FA-25-25		Brake valve: None \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 25 mm
ULK-FA-25-50		Brake valve: None \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 50 mm
ULK-FA-25-75		Brake valve: None \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 75 mm
ULK-FA-25-100		Brake valve: None \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 100 mm
ULK-FA-25-150		Brake valve: None \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 150 mm
ULK-FA-25-200		Brake valve: None \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 200 mm
ULK-FA-25-250		Brake valve: None \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 250 mm
ULK-FA-25-300		Brake valve: None \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 300 mm
ULK-FA-32-25		Brake valve: None \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 25 mm
ULK-FA-32-50		Brake valve: None \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 50 mm
ULK-FA-32-75		Brake valve: None \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 75 mm
ULK-FA-32-100		Brake valve: None \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 100 mm
ULK-FA-32-150		Brake valve: None \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 150 mm
ULK-FA-32-200		Brake valve: None \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 200 mm
ULK-FA-32-250		Brake valve: None \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 250 mm
ULK-FA-32-300		Brake valve: None \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 300 mm
ULK-FA-40-25		Brake valve: None \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 25 mm
ULK-FA-40-50		Brake valve: None \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 50 mm
ULK-FA-40-75		Brake valve: None \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 75 mm
ULK-FA-40-100		Brake valve: None \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 100 mm
ULK-FA-40-150		Brake valve: None \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 150 mm
ULK-FA-40-200		Brake valve: None \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 200 mm
ULK-FA-40-250		Brake valve: None \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 250 mm
ULK-FA-40-300		Brake valve: None \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 300 mm
ULK-CA-20-25		Brake valve: None \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 25 mm
ULK-CA-20-50		Brake valve: None \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 50 mm
ULK-CA-20-75		Brake valve: None \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 75 mm
ULK-CA-20-100		Brake valve: None \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 100 mm
ULK-CA-20-150		Brake valve: None \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 150 mm
ULK-CA-20-200		Brake valve: None \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 200 mm
ULK-CA-20-250		Brake valve: None \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 250 mm
ULK-CA-20-300		Brake valve: None \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 300 mm
ULK-CA-25-25		Brake valve: None \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 25 mm
ULK-CA-25-50		Brake valve: None \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 50 mm
ULK-CA-25-75		Brake valve: None \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 75 mm
ULK-CA-25-100		Brake valve: None \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 100 mm
ULK-CA-25-150		Brake valve: None \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 150 mm
ULK-CA-25-200		Brake valve: None \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 200 mm
ULK-CA-25-250		Brake valve: None \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 250 mm
ULK-CA-25-300		Brake valve: None \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 300 mm
ULK-CA-32-25		Brake valve: None \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 25 mm
ULK-CA-32-50		Brake valve: None \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 50 mm
ULK-CA-32-75		Brake valve: None \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 75 mm
ULK-CA-32-100		Brake valve: None \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 100 mm
ULK-CA-32-150		Brake valve: None \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 150 mm
ULK-CA-32-200		Brake valve: None \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 200 mm
ULK-CA-32-250		Brake valve: None \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 250 mm
ULK-CA-32-300		Brake valve: None \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 300 mm
ULK-CA-40-25		Brake valve: None \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 25 mm
ULK-CA-40-50		Brake valve: None \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 50 mm
ULK-CA-40-75		Brake valve: None \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 75 mm
ULK-CA-40-100		Brake valve: None \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 100 mm
ULK-CA-40-150		Brake valve: None \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 150 mm
ULK-CA-40-200		Brake valve: None \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 200 mm
ULK-CA-40-250		Brake valve: None \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 250 mm
ULK-CA-40-300		Brake valve: None \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 300 mm
ULK-CC-20-25		Brake valve: None \| Mounting: Single clevis integral \| Bore: 20 mm \| Stroke: 25 mm
ULK-CC-20-50		Brake valve: None \| Mounting: Single clevis integral \| Bore: 20 mm \| Stroke: 50 mm
ULK-CC-20-75		Brake valve: None \| Mounting: Single clevis integral \| Bore: 20 mm \| Stroke: 75 mm
ULK-CC-20-100		Brake valve: None \| Mounting: Single clevis integral \| Bore: 20 mm \| Stroke: 100 mm
ULK-CC-20-150		Brake valve: None \| Mounting: Single clevis integral \| Bore: 20 mm \| Stroke: 150 mm
ULK-CC-20-200		Brake valve: None \| Mounting: Single clevis integral \| Bore: 20 mm \| Stroke: 200 mm
ULK-CC-20-250		Brake valve: None \| Mounting: Single clevis integral \| Bore: 20 mm \| Stroke: 250 mm
ULK-CC-20-300		Brake valve: None \| Mounting: Single clevis integral \| Bore: 20 mm \| Stroke: 300 mm
ULK-CC-25-25		Brake valve: None \| Mounting: Single clevis integral \| Bore: 25 mm \| Stroke: 25 mm
ULK-CC-25-50		Brake valve: None \| Mounting: Single clevis integral \| Bore: 25 mm \| Stroke: 50 mm
ULK-CC-25-75		Brake valve: None \| Mounting: Single clevis integral \| Bore: 25 mm \| Stroke: 75 mm
ULK-CC-25-100		Brake valve: None \| Mounting: Single clevis integral \| Bore: 25 mm \| Stroke: 100 mm
ULK-CC-25-150		Brake valve: None \| Mounting: Single clevis integral \| Bore: 25 mm \| Stroke: 150 mm
ULK-CC-25-200		Brake valve: None \| Mounting: Single clevis integral \| Bore: 25 mm \| Stroke: 200 mm
ULK-CC-25-250		Brake valve: None \| Mounting: Single clevis integral \| Bore: 25 mm \| Stroke: 250 mm
ULK-CC-25-300		Brake valve: None \| Mounting: Single clevis integral \| Bore: 25 mm \| Stroke: 300 mm
ULK-CC-32-25		Brake valve: None \| Mounting: Single clevis integral \| Bore: 32 mm \| Stroke: 25 mm
ULK-CC-32-50		Brake valve: None \| Mounting: Single clevis integral \| Bore: 32 mm \| Stroke: 50 mm
ULK-CC-32-75		Brake valve: None \| Mounting: Single clevis integral \| Bore: 32 mm \| Stroke: 75 mm
ULK-CC-32-100		Brake valve: None \| Mounting: Single clevis integral \| Bore: 32 mm \| Stroke: 100 mm
ULK-CC-32-150		Brake valve: None \| Mounting: Single clevis integral \| Bore: 32 mm \| Stroke: 150 mm
ULK-CC-32-200		Brake valve: None \| Mounting: Single clevis integral \| Bore: 32 mm \| Stroke: 200 mm
ULK-CC-32-250		Brake valve: None \| Mounting: Single clevis integral \| Bore: 32 mm \| Stroke: 250 mm
ULK-CC-32-300		Brake valve: None \| Mounting: Single clevis integral \| Bore: 32 mm \| Stroke: 300 mm
ULK-CC-40-25		Brake valve: None \| Mounting: Single clevis integral \| Bore: 40 mm \| Stroke: 25 mm
ULK-CC-40-50		Brake valve: None \| Mounting: Single clevis integral \| Bore: 40 mm \| Stroke: 50 mm
ULK-CC-40-75		Brake valve: None \| Mounting: Single clevis integral \| Bore: 40 mm \| Stroke: 75 mm
ULK-CC-40-100		Brake valve: None \| Mounting: Single clevis integral \| Bore: 40 mm \| Stroke: 100 mm
ULK-CC-40-150		Brake valve: None \| Mounting: Single clevis integral \| Bore: 40 mm \| Stroke: 150 mm
ULK-CC-40-200		Brake valve: None \| Mounting: Single clevis integral \| Bore: 40 mm \| Stroke: 200 mm
ULK-CC-40-250		Brake valve: None \| Mounting: Single clevis integral \| Bore: 40 mm \| Stroke: 250 mm
ULK-CC-40-300		Brake valve: None \| Mounting: Single clevis integral \| Bore: 40 mm \| Stroke: 300 mm
ULK-CC1-20-25		Brake valve: None \| Mounting: Clevis bush press-fit \| Bore: 20 mm \| Stroke: 25 mm
ULK-CC1-20-50		Brake valve: None \| Mounting: Clevis bush press-fit \| Bore: 20 mm \| Stroke: 50 mm
ULK-CC1-20-75		Brake valve: None \| Mounting: Clevis bush press-fit \| Bore: 20 mm \| Stroke: 75 mm
ULK-CC1-20-100		Brake valve: None \| Mounting: Clevis bush press-fit \| Bore: 20 mm \| Stroke: 100 mm
ULK-CC1-20-150		Brake valve: None \| Mounting: Clevis bush press-fit \| Bore: 20 mm \| Stroke: 150 mm
ULK-CC1-20-200		Brake valve: None \| Mounting: Clevis bush press-fit \| Bore: 20 mm \| Stroke: 200 mm
ULK-CC1-20-250		Brake valve: None \| Mounting: Clevis bush press-fit \| Bore: 20 mm \| Stroke: 250 mm
ULK-CC1-20-300		Brake valve: None \| Mounting: Clevis bush press-fit \| Bore: 20 mm \| Stroke: 300 mm
ULK-CC1-25-25		Brake valve: None \| Mounting: Clevis bush press-fit \| Bore: 25 mm \| Stroke: 25 mm
ULK-CC1-25-50		Brake valve: None \| Mounting: Clevis bush press-fit \| Bore: 25 mm \| Stroke: 50 mm
ULK-CC1-25-75		Brake valve: None \| Mounting: Clevis bush press-fit \| Bore: 25 mm \| Stroke: 75 mm
ULK-CC1-25-100		Brake valve: None \| Mounting: Clevis bush press-fit \| Bore: 25 mm \| Stroke: 100 mm
ULK-CC1-25-150		Brake valve: None \| Mounting: Clevis bush press-fit \| Bore: 25 mm \| Stroke: 150 mm
ULK-CC1-25-200		Brake valve: None \| Mounting: Clevis bush press-fit \| Bore: 25 mm \| Stroke: 200 mm
ULK-CC1-25-250		Brake valve: None \| Mounting: Clevis bush press-fit \| Bore: 25 mm \| Stroke: 250 mm
ULK-CC1-25-300		Brake valve: None \| Mounting: Clevis bush press-fit \| Bore: 25 mm \| Stroke: 300 mm
ULK-CC1-32-25		Brake valve: None \| Mounting: Clevis bush press-fit \| Bore: 32 mm \| Stroke: 25 mm
ULK-CC1-32-50		Brake valve: None \| Mounting: Clevis bush press-fit \| Bore: 32 mm \| Stroke: 50 mm
ULK-CC1-32-75		Brake valve: None \| Mounting: Clevis bush press-fit \| Bore: 32 mm \| Stroke: 75 mm
ULK-CC1-32-100		Brake valve: None \| Mounting: Clevis bush press-fit \| Bore: 32 mm \| Stroke: 100 mm
ULK-CC1-32-150		Brake valve: None \| Mounting: Clevis bush press-fit \| Bore: 32 mm \| Stroke: 150 mm
ULK-CC1-32-200		Brake valve: None \| Mounting: Clevis bush press-fit \| Bore: 32 mm \| Stroke: 200 mm
ULK-CC1-32-250		Brake valve: None \| Mounting: Clevis bush press-fit \| Bore: 32 mm \| Stroke: 250 mm
ULK-CC1-32-300		Brake valve: None \| Mounting: Clevis bush press-fit \| Bore: 32 mm \| Stroke: 300 mm
ULK-CC1-40-25		Brake valve: None \| Mounting: Clevis bush press-fit \| Bore: 40 mm \| Stroke: 25 mm
ULK-CC1-40-50		Brake valve: None \| Mounting: Clevis bush press-fit \| Bore: 40 mm \| Stroke: 50 mm
ULK-CC1-40-75		Brake valve: None \| Mounting: Clevis bush press-fit \| Bore: 40 mm \| Stroke: 75 mm
ULK-CC1-40-100		Brake valve: None \| Mounting: Clevis bush press-fit \| Bore: 40 mm \| Stroke: 100 mm
ULK-CC1-40-150		Brake valve: None \| Mounting: Clevis bush press-fit \| Bore: 40 mm \| Stroke: 150 mm
ULK-CC1-40-200		Brake valve: None \| Mounting: Clevis bush press-fit \| Bore: 40 mm \| Stroke: 200 mm
ULK-CC1-40-250		Brake valve: None \| Mounting: Clevis bush press-fit \| Bore: 40 mm \| Stroke: 250 mm
ULK-CC1-40-300		Brake valve: None \| Mounting: Clevis bush press-fit \| Bore: 40 mm \| Stroke: 300 mm
ULK-TA-20-25		Brake valve: None \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 25 mm
ULK-TA-20-50		Brake valve: None \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 50 mm
ULK-TA-20-75		Brake valve: None \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 75 mm
ULK-TA-20-100		Brake valve: None \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 100 mm
ULK-TA-20-150		Brake valve: None \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 150 mm
ULK-TA-20-200		Brake valve: None \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 200 mm
ULK-TA-20-250		Brake valve: None \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 250 mm
ULK-TA-20-300		Brake valve: None \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 300 mm
ULK-TA-25-25		Brake valve: None \| Mounting: Rod trunnion \| Bore: 25 mm \| Stroke: 25 mm
ULK-TA-25-50		Brake valve: None \| Mounting: Rod trunnion \| Bore: 25 mm \| Stroke: 50 mm
ULK-TA-25-75		Brake valve: None \| Mounting: Rod trunnion \| Bore: 25 mm \| Stroke: 75 mm
ULK-TA-25-100		Brake valve: None \| Mounting: Rod trunnion \| Bore: 25 mm \| Stroke: 100 mm
ULK-TA-25-150		Brake valve: None \| Mounting: Rod trunnion \| Bore: 25 mm \| Stroke: 150 mm
ULK-TA-25-200		Brake valve: None \| Mounting: Rod trunnion \| Bore: 25 mm \| Stroke: 200 mm
ULK-TA-25-250		Brake valve: None \| Mounting: Rod trunnion \| Bore: 25 mm \| Stroke: 250 mm
ULK-TA-25-300		Brake valve: None \| Mounting: Rod trunnion \| Bore: 25 mm \| Stroke: 300 mm
ULK-TA-32-25		Brake valve: None \| Mounting: Rod trunnion \| Bore: 32 mm \| Stroke: 25 mm
ULK-TA-32-50		Brake valve: None \| Mounting: Rod trunnion \| Bore: 32 mm \| Stroke: 50 mm
ULK-TA-32-75		Brake valve: None \| Mounting: Rod trunnion \| Bore: 32 mm \| Stroke: 75 mm
ULK-TA-32-100		Brake valve: None \| Mounting: Rod trunnion \| Bore: 32 mm \| Stroke: 100 mm
ULK-TA-32-150		Brake valve: None \| Mounting: Rod trunnion \| Bore: 32 mm \| Stroke: 150 mm
ULK-TA-32-200		Brake valve: None \| Mounting: Rod trunnion \| Bore: 32 mm \| Stroke: 200 mm
ULK-TA-32-250		Brake valve: None \| Mounting: Rod trunnion \| Bore: 32 mm \| Stroke: 250 mm
ULK-TA-32-300		Brake valve: None \| Mounting: Rod trunnion \| Bore: 32 mm \| Stroke: 300 mm
ULK-TA-40-25		Brake valve: None \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 25 mm
ULK-TA-40-50		Brake valve: None \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 50 mm
ULK-TA-40-75		Brake valve: None \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 75 mm
ULK-TA-40-100		Brake valve: None \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 100 mm
ULK-TA-40-150		Brake valve: None \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 150 mm
ULK-TA-40-200		Brake valve: None \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 200 mm
ULK-TA-40-250		Brake valve: None \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 250 mm
ULK-TA-40-300		Brake valve: None \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 300 mm
ULK-TB-20-25		Brake valve: None \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 25 mm
ULK-TB-20-50		Brake valve: None \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 50 mm
ULK-TB-20-75		Brake valve: None \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 75 mm
ULK-TB-20-100		Brake valve: None \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 100 mm
ULK-TB-20-150		Brake valve: None \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 150 mm
ULK-TB-20-200		Brake valve: None \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 200 mm
ULK-TB-20-250		Brake valve: None \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 250 mm
ULK-TB-20-300		Brake valve: None \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 300 mm
ULK-TB-25-25		Brake valve: None \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 25 mm
ULK-TB-25-50		Brake valve: None \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 50 mm
ULK-TB-25-75		Brake valve: None \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 75 mm
ULK-TB-25-100		Brake valve: None \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 100 mm
ULK-TB-25-150		Brake valve: None \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 150 mm
ULK-TB-25-200		Brake valve: None \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 200 mm
ULK-TB-25-250		Brake valve: None \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 250 mm
ULK-TB-25-300		Brake valve: None \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 300 mm
ULK-TB-32-25		Brake valve: None \| Mounting: Head trunnion \| Bore: 32 mm \| Stroke: 25 mm
ULK-TB-32-50		Brake valve: None \| Mounting: Head trunnion \| Bore: 32 mm \| Stroke: 50 mm
ULK-TB-32-75		Brake valve: None \| Mounting: Head trunnion \| Bore: 32 mm \| Stroke: 75 mm
ULK-TB-32-100		Brake valve: None \| Mounting: Head trunnion \| Bore: 32 mm \| Stroke: 100 mm
ULK-TB-32-150		Brake valve: None \| Mounting: Head trunnion \| Bore: 32 mm \| Stroke: 150 mm
ULK-TB-32-200		Brake valve: None \| Mounting: Head trunnion \| Bore: 32 mm \| Stroke: 200 mm
ULK-TB-32-250		Brake valve: None \| Mounting: Head trunnion \| Bore: 32 mm \| Stroke: 250 mm
ULK-TB-32-300		Brake valve: None \| Mounting: Head trunnion \| Bore: 32 mm \| Stroke: 300 mm
ULK-TB-40-25		Brake valve: None \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 25 mm
ULK-TB-40-50		Brake valve: None \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 50 mm
ULK-TB-40-75		Brake valve: None \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 75 mm
ULK-TB-40-100		Brake valve: None \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 100 mm
ULK-TB-40-150		Brake valve: None \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 150 mm
ULK-TB-40-200		Brake valve: None \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 200 mm
ULK-TB-40-250		Brake valve: None \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 250 mm
ULK-TB-40-300		Brake valve: None \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 300 mm
ULK-V-00-20-25-1		Brake valve: AC100V \| Mounting: Basic \| Bore: 20 mm \| Stroke: 25 mm
ULK-V-00-20-25-2		Brake valve: AC200V \| Mounting: Basic \| Bore: 20 mm \| Stroke: 25 mm
ULK-V-00-20-25-3		Brake valve: DC24V \| Mounting: Basic \| Bore: 20 mm \| Stroke: 25 mm
ULK-V-00-20-50-1		Brake valve: AC100V \| Mounting: Basic \| Bore: 20 mm \| Stroke: 50 mm
ULK-V-00-20-50-2		Brake valve: AC200V \| Mounting: Basic \| Bore: 20 mm \| Stroke: 50 mm
ULK-V-00-20-50-3		Brake valve: DC24V \| Mounting: Basic \| Bore: 20 mm \| Stroke: 50 mm
ULK-V-00-20-75-1		Brake valve: AC100V \| Mounting: Basic \| Bore: 20 mm \| Stroke: 75 mm
ULK-V-00-20-75-2		Brake valve: AC200V \| Mounting: Basic \| Bore: 20 mm \| Stroke: 75 mm
ULK-V-00-20-75-3		Brake valve: DC24V \| Mounting: Basic \| Bore: 20 mm \| Stroke: 75 mm
ULK-V-00-20-100-1		Brake valve: AC100V \| Mounting: Basic \| Bore: 20 mm \| Stroke: 100 mm
ULK-V-00-20-100-2		Brake valve: AC200V \| Mounting: Basic \| Bore: 20 mm \| Stroke: 100 mm
ULK-V-00-20-100-3		Brake valve: DC24V \| Mounting: Basic \| Bore: 20 mm \| Stroke: 100 mm
ULK-V-00-20-150-1		Brake valve: AC100V \| Mounting: Basic \| Bore: 20 mm \| Stroke: 150 mm
ULK-V-00-20-150-2		Brake valve: AC200V \| Mounting: Basic \| Bore: 20 mm \| Stroke: 150 mm
ULK-V-00-20-150-3		Brake valve: DC24V \| Mounting: Basic \| Bore: 20 mm \| Stroke: 150 mm
ULK-V-00-20-200-1		Brake valve: AC100V \| Mounting: Basic \| Bore: 20 mm \| Stroke: 200 mm
ULK-V-00-20-200-2		Brake valve: AC200V \| Mounting: Basic \| Bore: 20 mm \| Stroke: 200 mm
ULK-V-00-20-200-3		Brake valve: DC24V \| Mounting: Basic \| Bore: 20 mm \| Stroke: 200 mm
ULK-V-00-20-250-1		Brake valve: AC100V \| Mounting: Basic \| Bore: 20 mm \| Stroke: 250 mm
ULK-V-00-20-250-2		Brake valve: AC200V \| Mounting: Basic \| Bore: 20 mm \| Stroke: 250 mm
ULK-V-00-20-250-3		Brake valve: DC24V \| Mounting: Basic \| Bore: 20 mm \| Stroke: 250 mm
ULK-V-00-20-300-1		Brake valve: AC100V \| Mounting: Basic \| Bore: 20 mm \| Stroke: 300 mm
ULK-V-00-20-300-2		Brake valve: AC200V \| Mounting: Basic \| Bore: 20 mm \| Stroke: 300 mm
ULK-V-00-20-300-3		Brake valve: DC24V \| Mounting: Basic \| Bore: 20 mm \| Stroke: 300 mm
ULK-V-00-25-25-1		Brake valve: AC100V \| Mounting: Basic \| Bore: 25 mm \| Stroke: 25 mm
ULK-V-00-25-25-2		Brake valve: AC200V \| Mounting: Basic \| Bore: 25 mm \| Stroke: 25 mm
ULK-V-00-25-25-3		Brake valve: DC24V \| Mounting: Basic \| Bore: 25 mm \| Stroke: 25 mm
ULK-V-00-25-50-1		Brake valve: AC100V \| Mounting: Basic \| Bore: 25 mm \| Stroke: 50 mm
ULK-V-00-25-50-2		Brake valve: AC200V \| Mounting: Basic \| Bore: 25 mm \| Stroke: 50 mm
ULK-V-00-25-50-3		Brake valve: DC24V \| Mounting: Basic \| Bore: 25 mm \| Stroke: 50 mm
ULK-V-00-25-75-1		Brake valve: AC100V \| Mounting: Basic \| Bore: 25 mm \| Stroke: 75 mm
ULK-V-00-25-75-2		Brake valve: AC200V \| Mounting: Basic \| Bore: 25 mm \| Stroke: 75 mm
ULK-V-00-25-75-3		Brake valve: DC24V \| Mounting: Basic \| Bore: 25 mm \| Stroke: 75 mm
ULK-V-00-25-100-1		Brake valve: AC100V \| Mounting: Basic \| Bore: 25 mm \| Stroke: 100 mm
ULK-V-00-25-100-2		Brake valve: AC200V \| Mounting: Basic \| Bore: 25 mm \| Stroke: 100 mm
ULK-V-00-25-100-3		Brake valve: DC24V \| Mounting: Basic \| Bore: 25 mm \| Stroke: 100 mm
ULK-V-00-25-150-1		Brake valve: AC100V \| Mounting: Basic \| Bore: 25 mm \| Stroke: 150 mm
ULK-V-00-25-150-2		Brake valve: AC200V \| Mounting: Basic \| Bore: 25 mm \| Stroke: 150 mm
ULK-V-00-25-150-3		Brake valve: DC24V \| Mounting: Basic \| Bore: 25 mm \| Stroke: 150 mm
ULK-V-00-25-200-1		Brake valve: AC100V \| Mounting: Basic \| Bore: 25 mm \| Stroke: 200 mm
ULK-V-00-25-200-2		Brake valve: AC200V \| Mounting: Basic \| Bore: 25 mm \| Stroke: 200 mm
ULK-V-00-25-200-3		Brake valve: DC24V \| Mounting: Basic \| Bore: 25 mm \| Stroke: 200 mm
ULK-V-00-25-250-1		Brake valve: AC100V \| Mounting: Basic \| Bore: 25 mm \| Stroke: 250 mm
ULK-V-00-25-250-2		Brake valve: AC200V \| Mounting: Basic \| Bore: 25 mm \| Stroke: 250 mm
ULK-V-00-25-250-3		Brake valve: DC24V \| Mounting: Basic \| Bore: 25 mm \| Stroke: 250 mm
ULK-V-00-25-300-1		Brake valve: AC100V \| Mounting: Basic \| Bore: 25 mm \| Stroke: 300 mm
ULK-V-00-25-300-2		Brake valve: AC200V \| Mounting: Basic \| Bore: 25 mm \| Stroke: 300 mm
ULK-V-00-25-300-3		Brake valve: DC24V \| Mounting: Basic \| Bore: 25 mm \| Stroke: 300 mm
ULK-V-00-32-25-1		Brake valve: AC100V \| Mounting: Basic \| Bore: 32 mm \| Stroke: 25 mm
ULK-V-00-32-25-2		Brake valve: AC200V \| Mounting: Basic \| Bore: 32 mm \| Stroke: 25 mm
ULK-V-00-32-25-3		Brake valve: DC24V \| Mounting: Basic \| Bore: 32 mm \| Stroke: 25 mm
ULK-V-00-32-50-1		Brake valve: AC100V \| Mounting: Basic \| Bore: 32 mm \| Stroke: 50 mm
ULK-V-00-32-50-2		Brake valve: AC200V \| Mounting: Basic \| Bore: 32 mm \| Stroke: 50 mm
ULK-V-00-32-50-3		Brake valve: DC24V \| Mounting: Basic \| Bore: 32 mm \| Stroke: 50 mm
ULK-V-00-32-75-1		Brake valve: AC100V \| Mounting: Basic \| Bore: 32 mm \| Stroke: 75 mm
ULK-V-00-32-75-2		Brake valve: AC200V \| Mounting: Basic \| Bore: 32 mm \| Stroke: 75 mm
ULK-V-00-32-75-3		Brake valve: DC24V \| Mounting: Basic \| Bore: 32 mm \| Stroke: 75 mm
ULK-V-00-32-100-1		Brake valve: AC100V \| Mounting: Basic \| Bore: 32 mm \| Stroke: 100 mm
ULK-V-00-32-100-2		Brake valve: AC200V \| Mounting: Basic \| Bore: 32 mm \| Stroke: 100 mm
ULK-V-00-32-100-3		Brake valve: DC24V \| Mounting: Basic \| Bore: 32 mm \| Stroke: 100 mm
ULK-V-00-32-150-1		Brake valve: AC100V \| Mounting: Basic \| Bore: 32 mm \| Stroke: 150 mm
ULK-V-00-32-150-2		Brake valve: AC200V \| Mounting: Basic \| Bore: 32 mm \| Stroke: 150 mm
ULK-V-00-32-150-3		Brake valve: DC24V \| Mounting: Basic \| Bore: 32 mm \| Stroke: 150 mm
ULK-V-00-32-200-1		Brake valve: AC100V \| Mounting: Basic \| Bore: 32 mm \| Stroke: 200 mm
ULK-V-00-32-200-2		Brake valve: AC200V \| Mounting: Basic \| Bore: 32 mm \| Stroke: 200 mm
ULK-V-00-32-200-3		Brake valve: DC24V \| Mounting: Basic \| Bore: 32 mm \| Stroke: 200 mm
ULK-V-00-32-250-1		Brake valve: AC100V \| Mounting: Basic \| Bore: 32 mm \| Stroke: 250 mm
ULK-V-00-32-250-2		Brake valve: AC200V \| Mounting: Basic \| Bore: 32 mm \| Stroke: 250 mm
ULK-V-00-32-250-3		Brake valve: DC24V \| Mounting: Basic \| Bore: 32 mm \| Stroke: 250 mm
ULK-V-00-32-300-1		Brake valve: AC100V \| Mounting: Basic \| Bore: 32 mm \| Stroke: 300 mm
ULK-V-00-32-300-2		Brake valve: AC200V \| Mounting: Basic \| Bore: 32 mm \| Stroke: 300 mm
ULK-V-00-32-300-3		Brake valve: DC24V \| Mounting: Basic \| Bore: 32 mm \| Stroke: 300 mm
ULK-V-00-40-25-1		Brake valve: AC100V \| Mounting: Basic \| Bore: 40 mm \| Stroke: 25 mm
ULK-V-00-40-25-2		Brake valve: AC200V \| Mounting: Basic \| Bore: 40 mm \| Stroke: 25 mm
ULK-V-00-40-25-3		Brake valve: DC24V \| Mounting: Basic \| Bore: 40 mm \| Stroke: 25 mm
ULK-V-00-40-50-1		Brake valve: AC100V \| Mounting: Basic \| Bore: 40 mm \| Stroke: 50 mm
ULK-V-00-40-50-2		Brake valve: AC200V \| Mounting: Basic \| Bore: 40 mm \| Stroke: 50 mm
ULK-V-00-40-50-3		Brake valve: DC24V \| Mounting: Basic \| Bore: 40 mm \| Stroke: 50 mm
ULK-V-00-40-75-1		Brake valve: AC100V \| Mounting: Basic \| Bore: 40 mm \| Stroke: 75 mm
ULK-V-00-40-75-2		Brake valve: AC200V \| Mounting: Basic \| Bore: 40 mm \| Stroke: 75 mm
ULK-V-00-40-75-3		Brake valve: DC24V \| Mounting: Basic \| Bore: 40 mm \| Stroke: 75 mm
ULK-V-00-40-100-1		Brake valve: AC100V \| Mounting: Basic \| Bore: 40 mm \| Stroke: 100 mm
ULK-V-00-40-100-2		Brake valve: AC200V \| Mounting: Basic \| Bore: 40 mm \| Stroke: 100 mm
ULK-V-00-40-100-3		Brake valve: DC24V \| Mounting: Basic \| Bore: 40 mm \| Stroke: 100 mm
ULK-V-00-40-150-1		Brake valve: AC100V \| Mounting: Basic \| Bore: 40 mm \| Stroke: 150 mm
ULK-V-00-40-150-2		Brake valve: AC200V \| Mounting: Basic \| Bore: 40 mm \| Stroke: 150 mm
ULK-V-00-40-150-3		Brake valve: DC24V \| Mounting: Basic \| Bore: 40 mm \| Stroke: 150 mm
ULK-V-00-40-200-1		Brake valve: AC100V \| Mounting: Basic \| Bore: 40 mm \| Stroke: 200 mm
ULK-V-00-40-200-2		Brake valve: AC200V \| Mounting: Basic \| Bore: 40 mm \| Stroke: 200 mm
ULK-V-00-40-200-3		Brake valve: DC24V \| Mounting: Basic \| Bore: 40 mm \| Stroke: 200 mm
ULK-V-00-40-250-1		Brake valve: AC100V \| Mounting: Basic \| Bore: 40 mm \| Stroke: 250 mm
ULK-V-00-40-250-2		Brake valve: AC200V \| Mounting: Basic \| Bore: 40 mm \| Stroke: 250 mm
ULK-V-00-40-250-3		Brake valve: DC24V \| Mounting: Basic \| Bore: 40 mm \| Stroke: 250 mm
ULK-V-00-40-300-1		Brake valve: AC100V \| Mounting: Basic \| Bore: 40 mm \| Stroke: 300 mm
ULK-V-00-40-300-2		Brake valve: AC200V \| Mounting: Basic \| Bore: 40 mm \| Stroke: 300 mm
ULK-V-00-40-300-3		Brake valve: DC24V \| Mounting: Basic \| Bore: 40 mm \| Stroke: 300 mm
ULK-V-LB-20-25-1		Brake valve: AC100V \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 25 mm
ULK-V-LB-20-25-2		Brake valve: AC200V \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 25 mm
ULK-V-LB-20-25-3		Brake valve: DC24V \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 25 mm
ULK-V-LB-20-50-1		Brake valve: AC100V \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 50 mm
ULK-V-LB-20-50-2		Brake valve: AC200V \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 50 mm
ULK-V-LB-20-50-3		Brake valve: DC24V \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 50 mm
ULK-V-LB-20-75-1		Brake valve: AC100V \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 75 mm
ULK-V-LB-20-75-2		Brake valve: AC200V \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 75 mm
ULK-V-LB-20-75-3		Brake valve: DC24V \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 75 mm
ULK-V-LB-20-100-1		Brake valve: AC100V \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 100 mm
ULK-V-LB-20-100-2		Brake valve: AC200V \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 100 mm
ULK-V-LB-20-100-3		Brake valve: DC24V \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 100 mm
ULK-V-LB-20-150-1		Brake valve: AC100V \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 150 mm
ULK-V-LB-20-150-2		Brake valve: AC200V \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 150 mm
ULK-V-LB-20-150-3		Brake valve: DC24V \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 150 mm
ULK-V-LB-20-200-1		Brake valve: AC100V \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 200 mm
ULK-V-LB-20-200-2		Brake valve: AC200V \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 200 mm
ULK-V-LB-20-200-3		Brake valve: DC24V \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 200 mm
ULK-V-LB-20-250-1		Brake valve: AC100V \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 250 mm
ULK-V-LB-20-250-2		Brake valve: AC200V \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 250 mm
ULK-V-LB-20-250-3		Brake valve: DC24V \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 250 mm
ULK-V-LB-20-300-1		Brake valve: AC100V \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 300 mm
ULK-V-LB-20-300-2		Brake valve: AC200V \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 300 mm
ULK-V-LB-20-300-3		Brake valve: DC24V \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 300 mm
ULK-V-LB-25-25-1		Brake valve: AC100V \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 25 mm
ULK-V-LB-25-25-2		Brake valve: AC200V \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 25 mm
ULK-V-LB-25-25-3		Brake valve: DC24V \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 25 mm
ULK-V-LB-25-50-1		Brake valve: AC100V \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 50 mm
ULK-V-LB-25-50-2		Brake valve: AC200V \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 50 mm
ULK-V-LB-25-50-3		Brake valve: DC24V \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 50 mm
ULK-V-LB-25-75-1		Brake valve: AC100V \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 75 mm
ULK-V-LB-25-75-2		Brake valve: AC200V \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 75 mm
ULK-V-LB-25-75-3		Brake valve: DC24V \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 75 mm
ULK-V-LB-25-100-1		Brake valve: AC100V \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 100 mm
ULK-V-LB-25-100-2		Brake valve: AC200V \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 100 mm
ULK-V-LB-25-100-3		Brake valve: DC24V \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 100 mm
ULK-V-LB-25-150-1		Brake valve: AC100V \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 150 mm
ULK-V-LB-25-150-2		Brake valve: AC200V \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 150 mm
ULK-V-LB-25-150-3		Brake valve: DC24V \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 150 mm
ULK-V-LB-25-200-1		Brake valve: AC100V \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 200 mm
ULK-V-LB-25-200-2		Brake valve: AC200V \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 200 mm
ULK-V-LB-25-200-3		Brake valve: DC24V \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 200 mm
ULK-V-LB-25-250-1		Brake valve: AC100V \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 250 mm
ULK-V-LB-25-250-2		Brake valve: AC200V \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 250 mm
ULK-V-LB-25-250-3		Brake valve: DC24V \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 250 mm
ULK-V-LB-25-300-1		Brake valve: AC100V \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 300 mm
ULK-V-LB-25-300-2		Brake valve: AC200V \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 300 mm
ULK-V-LB-25-300-3		Brake valve: DC24V \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 300 mm
ULK-V-LB-32-25-1		Brake valve: AC100V \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 25 mm
ULK-V-LB-32-25-2		Brake valve: AC200V \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 25 mm
ULK-V-LB-32-25-3		Brake valve: DC24V \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 25 mm
ULK-V-LB-32-50-1		Brake valve: AC100V \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 50 mm
ULK-V-LB-32-50-2		Brake valve: AC200V \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 50 mm
ULK-V-LB-32-50-3		Brake valve: DC24V \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 50 mm
ULK-V-LB-32-75-1		Brake valve: AC100V \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 75 mm
ULK-V-LB-32-75-2		Brake valve: AC200V \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 75 mm
ULK-V-LB-32-75-3		Brake valve: DC24V \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 75 mm
ULK-V-LB-32-100-1		Brake valve: AC100V \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 100 mm
ULK-V-LB-32-100-2		Brake valve: AC200V \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 100 mm
ULK-V-LB-32-100-3		Brake valve: DC24V \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 100 mm
ULK-V-LB-32-150-1		Brake valve: AC100V \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 150 mm
ULK-V-LB-32-150-2		Brake valve: AC200V \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 150 mm
ULK-V-LB-32-150-3		Brake valve: DC24V \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 150 mm
ULK-V-LB-32-200-1		Brake valve: AC100V \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 200 mm
ULK-V-LB-32-200-2		Brake valve: AC200V \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 200 mm
ULK-V-LB-32-200-3		Brake valve: DC24V \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 200 mm
ULK-V-LB-32-250-1		Brake valve: AC100V \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 250 mm
ULK-V-LB-32-250-2		Brake valve: AC200V \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 250 mm
ULK-V-LB-32-250-3		Brake valve: DC24V \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 250 mm
ULK-V-LB-32-300-1		Brake valve: AC100V \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 300 mm
ULK-V-LB-32-300-2		Brake valve: AC200V \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 300 mm
ULK-V-LB-32-300-3		Brake valve: DC24V \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 300 mm
ULK-V-LB-40-25-1		Brake valve: AC100V \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 25 mm
ULK-V-LB-40-25-2		Brake valve: AC200V \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 25 mm
ULK-V-LB-40-25-3		Brake valve: DC24V \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 25 mm
ULK-V-LB-40-50-1		Brake valve: AC100V \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 50 mm
ULK-V-LB-40-50-2		Brake valve: AC200V \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 50 mm
ULK-V-LB-40-50-3		Brake valve: DC24V \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 50 mm
ULK-V-LB-40-75-1		Brake valve: AC100V \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 75 mm
ULK-V-LB-40-75-2		Brake valve: AC200V \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 75 mm
ULK-V-LB-40-75-3		Brake valve: DC24V \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 75 mm
ULK-V-LB-40-100-1		Brake valve: AC100V \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 100 mm
ULK-V-LB-40-100-2		Brake valve: AC200V \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 100 mm
ULK-V-LB-40-100-3		Brake valve: DC24V \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 100 mm
ULK-V-LB-40-150-1		Brake valve: AC100V \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 150 mm
ULK-V-LB-40-150-2		Brake valve: AC200V \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 150 mm
ULK-V-LB-40-150-3		Brake valve: DC24V \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 150 mm
ULK-V-LB-40-200-1		Brake valve: AC100V \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 200 mm
ULK-V-LB-40-200-2		Brake valve: AC200V \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 200 mm
ULK-V-LB-40-200-3		Brake valve: DC24V \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 200 mm
ULK-V-LB-40-250-1		Brake valve: AC100V \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 250 mm
ULK-V-LB-40-250-2		Brake valve: AC200V \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 250 mm
ULK-V-LB-40-250-3		Brake valve: DC24V \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 250 mm
ULK-V-LB-40-300-1		Brake valve: AC100V \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 300 mm
ULK-V-LB-40-300-2		Brake valve: AC200V \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 300 mm
ULK-V-LB-40-300-3		Brake valve: DC24V \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 300 mm
ULK-V-FA-20-25-1		Brake valve: AC100V \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 25 mm
ULK-V-FA-20-25-2		Brake valve: AC200V \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 25 mm
ULK-V-FA-20-25-3		Brake valve: DC24V \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 25 mm
ULK-V-FA-20-50-1		Brake valve: AC100V \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 50 mm
ULK-V-FA-20-50-2		Brake valve: AC200V \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 50 mm
ULK-V-FA-20-50-3		Brake valve: DC24V \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 50 mm
ULK-V-FA-20-75-1		Brake valve: AC100V \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 75 mm
ULK-V-FA-20-75-2		Brake valve: AC200V \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 75 mm
ULK-V-FA-20-75-3		Brake valve: DC24V \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 75 mm
ULK-V-FA-20-100-1		Brake valve: AC100V \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 100 mm
ULK-V-FA-20-100-2		Brake valve: AC200V \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 100 mm
ULK-V-FA-20-100-3		Brake valve: DC24V \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 100 mm
ULK-V-FA-20-150-1		Brake valve: AC100V \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 150 mm
ULK-V-FA-20-150-2		Brake valve: AC200V \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 150 mm
ULK-V-FA-20-150-3		Brake valve: DC24V \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 150 mm
ULK-V-FA-20-200-1		Brake valve: AC100V \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 200 mm
ULK-V-FA-20-200-2		Brake valve: AC200V \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 200 mm
ULK-V-FA-20-200-3		Brake valve: DC24V \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 200 mm
ULK-V-FA-20-250-1		Brake valve: AC100V \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 250 mm
ULK-V-FA-20-250-2		Brake valve: AC200V \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 250 mm
ULK-V-FA-20-250-3		Brake valve: DC24V \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 250 mm
ULK-V-FA-20-300-1		Brake valve: AC100V \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 300 mm
ULK-V-FA-20-300-2		Brake valve: AC200V \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 300 mm
ULK-V-FA-20-300-3		Brake valve: DC24V \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 300 mm
ULK-V-FA-25-25-1		Brake valve: AC100V \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 25 mm
ULK-V-FA-25-25-2		Brake valve: AC200V \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 25 mm
ULK-V-FA-25-25-3		Brake valve: DC24V \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 25 mm
ULK-V-FA-25-50-1		Brake valve: AC100V \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 50 mm
ULK-V-FA-25-50-2		Brake valve: AC200V \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 50 mm
ULK-V-FA-25-50-3		Brake valve: DC24V \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 50 mm
ULK-V-FA-25-75-1		Brake valve: AC100V \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 75 mm
ULK-V-FA-25-75-2		Brake valve: AC200V \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 75 mm
ULK-V-FA-25-75-3		Brake valve: DC24V \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 75 mm
ULK-V-FA-25-100-1		Brake valve: AC100V \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 100 mm
ULK-V-FA-25-100-2		Brake valve: AC200V \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 100 mm
ULK-V-FA-25-100-3		Brake valve: DC24V \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 100 mm
ULK-V-FA-25-150-1		Brake valve: AC100V \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 150 mm
ULK-V-FA-25-150-2		Brake valve: AC200V \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 150 mm
ULK-V-FA-25-150-3		Brake valve: DC24V \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 150 mm
ULK-V-FA-25-200-1		Brake valve: AC100V \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 200 mm
ULK-V-FA-25-200-2		Brake valve: AC200V \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 200 mm
ULK-V-FA-25-200-3		Brake valve: DC24V \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 200 mm
ULK-V-FA-25-250-1		Brake valve: AC100V \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 250 mm
ULK-V-FA-25-250-2		Brake valve: AC200V \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 250 mm
ULK-V-FA-25-250-3		Brake valve: DC24V \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 250 mm
ULK-V-FA-25-300-1		Brake valve: AC100V \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 300 mm
ULK-V-FA-25-300-2		Brake valve: AC200V \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 300 mm
ULK-V-FA-25-300-3		Brake valve: DC24V \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 300 mm
ULK-V-FA-32-25-1		Brake valve: AC100V \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 25 mm
ULK-V-FA-32-25-2		Brake valve: AC200V \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 25 mm
ULK-V-FA-32-25-3		Brake valve: DC24V \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 25 mm
ULK-V-FA-32-50-1		Brake valve: AC100V \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 50 mm
ULK-V-FA-32-50-2		Brake valve: AC200V \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 50 mm
ULK-V-FA-32-50-3		Brake valve: DC24V \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 50 mm
ULK-V-FA-32-75-1		Brake valve: AC100V \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 75 mm
ULK-V-FA-32-75-2		Brake valve: AC200V \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 75 mm
ULK-V-FA-32-75-3		Brake valve: DC24V \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 75 mm
ULK-V-FA-32-100-1		Brake valve: AC100V \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 100 mm
ULK-V-FA-32-100-2		Brake valve: AC200V \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 100 mm
ULK-V-FA-32-100-3		Brake valve: DC24V \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 100 mm
ULK-V-FA-32-150-1		Brake valve: AC100V \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 150 mm
ULK-V-FA-32-150-2		Brake valve: AC200V \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 150 mm
ULK-V-FA-32-150-3		Brake valve: DC24V \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 150 mm
ULK-V-FA-32-200-1		Brake valve: AC100V \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 200 mm
ULK-V-FA-32-200-2		Brake valve: AC200V \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 200 mm
ULK-V-FA-32-200-3		Brake valve: DC24V \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 200 mm
ULK-V-FA-32-250-1		Brake valve: AC100V \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 250 mm
ULK-V-FA-32-250-2		Brake valve: AC200V \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 250 mm
ULK-V-FA-32-250-3		Brake valve: DC24V \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 250 mm
ULK-V-FA-32-300-1		Brake valve: AC100V \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 300 mm
ULK-V-FA-32-300-2		Brake valve: AC200V \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 300 mm
ULK-V-FA-32-300-3		Brake valve: DC24V \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 300 mm
ULK-V-FA-40-25-1		Brake valve: AC100V \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 25 mm
ULK-V-FA-40-25-2		Brake valve: AC200V \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 25 mm
ULK-V-FA-40-25-3		Brake valve: DC24V \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 25 mm
ULK-V-FA-40-50-1		Brake valve: AC100V \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 50 mm
ULK-V-FA-40-50-2		Brake valve: AC200V \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 50 mm
ULK-V-FA-40-50-3		Brake valve: DC24V \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 50 mm
ULK-V-FA-40-75-1		Brake valve: AC100V \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 75 mm
ULK-V-FA-40-75-2		Brake valve: AC200V \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 75 mm
ULK-V-FA-40-75-3		Brake valve: DC24V \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 75 mm
ULK-V-FA-40-100-1		Brake valve: AC100V \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 100 mm
ULK-V-FA-40-100-2		Brake valve: AC200V \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 100 mm
ULK-V-FA-40-100-3		Brake valve: DC24V \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 100 mm
ULK-V-FA-40-150-1		Brake valve: AC100V \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 150 mm
ULK-V-FA-40-150-2		Brake valve: AC200V \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 150 mm
ULK-V-FA-40-150-3		Brake valve: DC24V \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 150 mm
ULK-V-FA-40-200-1		Brake valve: AC100V \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 200 mm
ULK-V-FA-40-200-2		Brake valve: AC200V \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 200 mm
ULK-V-FA-40-200-3		Brake valve: DC24V \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 200 mm
ULK-V-FA-40-250-1		Brake valve: AC100V \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 250 mm
ULK-V-FA-40-250-2		Brake valve: AC200V \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 250 mm
ULK-V-FA-40-250-3		Brake valve: DC24V \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 250 mm
ULK-V-FA-40-300-1		Brake valve: AC100V \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 300 mm
ULK-V-FA-40-300-2		Brake valve: AC200V \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 300 mm
ULK-V-FA-40-300-3		Brake valve: DC24V \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 300 mm
ULK-V-CA-20-25-1		Brake valve: AC100V \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 25 mm
ULK-V-CA-20-25-2		Brake valve: AC200V \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 25 mm
ULK-V-CA-20-25-3		Brake valve: DC24V \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 25 mm
ULK-V-CA-20-50-1		Brake valve: AC100V \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 50 mm
ULK-V-CA-20-50-2		Brake valve: AC200V \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 50 mm
ULK-V-CA-20-50-3		Brake valve: DC24V \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 50 mm
ULK-V-CA-20-75-1		Brake valve: AC100V \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 75 mm
ULK-V-CA-20-75-2		Brake valve: AC200V \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 75 mm
ULK-V-CA-20-75-3		Brake valve: DC24V \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 75 mm
ULK-V-CA-20-100-1		Brake valve: AC100V \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 100 mm
ULK-V-CA-20-100-2		Brake valve: AC200V \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 100 mm
ULK-V-CA-20-100-3		Brake valve: DC24V \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 100 mm
ULK-V-CA-20-150-1		Brake valve: AC100V \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 150 mm
ULK-V-CA-20-150-2		Brake valve: AC200V \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 150 mm
ULK-V-CA-20-150-3		Brake valve: DC24V \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 150 mm
ULK-V-CA-20-200-1		Brake valve: AC100V \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 200 mm
ULK-V-CA-20-200-2		Brake valve: AC200V \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 200 mm
ULK-V-CA-20-200-3		Brake valve: DC24V \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 200 mm
ULK-V-CA-20-250-1		Brake valve: AC100V \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 250 mm
ULK-V-CA-20-250-2		Brake valve: AC200V \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 250 mm
ULK-V-CA-20-250-3		Brake valve: DC24V \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 250 mm
ULK-V-CA-20-300-1		Brake valve: AC100V \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 300 mm
ULK-V-CA-20-300-2		Brake valve: AC200V \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 300 mm
ULK-V-CA-20-300-3		Brake valve: DC24V \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 300 mm
ULK-V-CA-25-25-1		Brake valve: AC100V \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 25 mm
ULK-V-CA-25-25-2		Brake valve: AC200V \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 25 mm
ULK-V-CA-25-25-3		Brake valve: DC24V \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 25 mm
ULK-V-CA-25-50-1		Brake valve: AC100V \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 50 mm
ULK-V-CA-25-50-2		Brake valve: AC200V \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 50 mm
ULK-V-CA-25-50-3		Brake valve: DC24V \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 50 mm
ULK-V-CA-25-75-1		Brake valve: AC100V \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 75 mm
ULK-V-CA-25-75-2		Brake valve: AC200V \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 75 mm
ULK-V-CA-25-75-3		Brake valve: DC24V \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 75 mm
ULK-V-CA-25-100-1		Brake valve: AC100V \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 100 mm
ULK-V-CA-25-100-2		Brake valve: AC200V \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 100 mm
ULK-V-CA-25-100-3		Brake valve: DC24V \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 100 mm
ULK-V-CA-25-150-1		Brake valve: AC100V \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 150 mm
ULK-V-CA-25-150-2		Brake valve: AC200V \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 150 mm
ULK-V-CA-25-150-3		Brake valve: DC24V \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 150 mm
ULK-V-CA-25-200-1		Brake valve: AC100V \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 200 mm
ULK-V-CA-25-200-2		Brake valve: AC200V \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 200 mm
ULK-V-CA-25-200-3		Brake valve: DC24V \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 200 mm
ULK-V-CA-25-250-1		Brake valve: AC100V \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 250 mm
ULK-V-CA-25-250-2		Brake valve: AC200V \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 250 mm
ULK-V-CA-25-250-3		Brake valve: DC24V \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 250 mm
ULK-V-CA-25-300-1		Brake valve: AC100V \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 300 mm
ULK-V-CA-25-300-2		Brake valve: AC200V \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 300 mm
ULK-V-CA-25-300-3		Brake valve: DC24V \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 300 mm
ULK-V-CA-32-25-1		Brake valve: AC100V \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 25 mm
ULK-V-CA-32-25-2		Brake valve: AC200V \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 25 mm
ULK-V-CA-32-25-3		Brake valve: DC24V \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 25 mm
ULK-V-CA-32-50-1		Brake valve: AC100V \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 50 mm
ULK-V-CA-32-50-2		Brake valve: AC200V \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 50 mm
ULK-V-CA-32-50-3		Brake valve: DC24V \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 50 mm
ULK-V-CA-32-75-1		Brake valve: AC100V \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 75 mm
ULK-V-CA-32-75-2		Brake valve: AC200V \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 75 mm
ULK-V-CA-32-75-3		Brake valve: DC24V \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 75 mm
ULK-V-CA-32-100-1		Brake valve: AC100V \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 100 mm
ULK-V-CA-32-100-2		Brake valve: AC200V \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 100 mm
ULK-V-CA-32-100-3		Brake valve: DC24V \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 100 mm
ULK-V-CA-32-150-1		Brake valve: AC100V \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 150 mm
ULK-V-CA-32-150-2		Brake valve: AC200V \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 150 mm
ULK-V-CA-32-150-3		Brake valve: DC24V \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 150 mm
ULK-V-CA-32-200-1		Brake valve: AC100V \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 200 mm
ULK-V-CA-32-200-2		Brake valve: AC200V \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 200 mm
ULK-V-CA-32-200-3		Brake valve: DC24V \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 200 mm
ULK-V-CA-32-250-1		Brake valve: AC100V \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 250 mm
ULK-V-CA-32-250-2		Brake valve: AC200V \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 250 mm
ULK-V-CA-32-250-3		Brake valve: DC24V \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 250 mm
ULK-V-CA-32-300-1		Brake valve: AC100V \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 300 mm
ULK-V-CA-32-300-2		Brake valve: AC200V \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 300 mm
ULK-V-CA-32-300-3		Brake valve: DC24V \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 300 mm
ULK-V-CA-40-25-1		Brake valve: AC100V \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 25 mm
ULK-V-CA-40-25-2		Brake valve: AC200V \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 25 mm
ULK-V-CA-40-25-3		Brake valve: DC24V \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 25 mm
ULK-V-CA-40-50-1		Brake valve: AC100V \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 50 mm
ULK-V-CA-40-50-2		Brake valve: AC200V \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 50 mm
ULK-V-CA-40-50-3		Brake valve: DC24V \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 50 mm
ULK-V-CA-40-75-1		Brake valve: AC100V \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 75 mm
ULK-V-CA-40-75-2		Brake valve: AC200V \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 75 mm
ULK-V-CA-40-75-3		Brake valve: DC24V \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 75 mm
ULK-V-CA-40-100-1		Brake valve: AC100V \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 100 mm
ULK-V-CA-40-100-2		Brake valve: AC200V \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 100 mm
ULK-V-CA-40-100-3		Brake valve: DC24V \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 100 mm
ULK-V-CA-40-150-1		Brake valve: AC100V \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 150 mm
ULK-V-CA-40-150-2		Brake valve: AC200V \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 150 mm
ULK-V-CA-40-150-3		Brake valve: DC24V \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 150 mm
ULK-V-CA-40-200-1		Brake valve: AC100V \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 200 mm
ULK-V-CA-40-200-2		Brake valve: AC200V \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 200 mm
ULK-V-CA-40-200-3		Brake valve: DC24V \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 200 mm
ULK-V-CA-40-250-1		Brake valve: AC100V \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 250 mm
ULK-V-CA-40-250-2		Brake valve: AC200V \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 250 mm
ULK-V-CA-40-250-3		Brake valve: DC24V \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 250 mm
ULK-V-CA-40-300-1		Brake valve: AC100V \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 300 mm
ULK-V-CA-40-300-2		Brake valve: AC200V \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 300 mm
ULK-V-CA-40-300-3		Brake valve: DC24V \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 300 mm
ULK-V-CC-20-25-1		Brake valve: AC100V \| Mounting: Single clevis integral \| Bore: 20 mm \| Stroke: 25 mm
ULK-V-CC-20-25-2		Brake valve: AC200V \| Mounting: Single clevis integral \| Bore: 20 mm \| Stroke: 25 mm
ULK-V-CC-20-25-3		Brake valve: DC24V \| Mounting: Single clevis integral \| Bore: 20 mm \| Stroke: 25 mm
ULK-V-CC-20-50-1		Brake valve: AC100V \| Mounting: Single clevis integral \| Bore: 20 mm \| Stroke: 50 mm
ULK-V-CC-20-50-2		Brake valve: AC200V \| Mounting: Single clevis integral \| Bore: 20 mm \| Stroke: 50 mm
ULK-V-CC-20-50-3		Brake valve: DC24V \| Mounting: Single clevis integral \| Bore: 20 mm \| Stroke: 50 mm
ULK-V-CC-20-75-1		Brake valve: AC100V \| Mounting: Single clevis integral \| Bore: 20 mm \| Stroke: 75 mm
ULK-V-CC-20-75-2		Brake valve: AC200V \| Mounting: Single clevis integral \| Bore: 20 mm \| Stroke: 75 mm
ULK-V-CC-20-75-3		Brake valve: DC24V \| Mounting: Single clevis integral \| Bore: 20 mm \| Stroke: 75 mm
ULK-V-CC-20-100-1		Brake valve: AC100V \| Mounting: Single clevis integral \| Bore: 20 mm \| Stroke: 100 mm
ULK-V-CC-20-100-2		Brake valve: AC200V \| Mounting: Single clevis integral \| Bore: 20 mm \| Stroke: 100 mm
ULK-V-CC-20-100-3		Brake valve: DC24V \| Mounting: Single clevis integral \| Bore: 20 mm \| Stroke: 100 mm
ULK-V-CC-20-150-1		Brake valve: AC100V \| Mounting: Single clevis integral \| Bore: 20 mm \| Stroke: 150 mm
ULK-V-CC-20-150-2		Brake valve: AC200V \| Mounting: Single clevis integral \| Bore: 20 mm \| Stroke: 150 mm
ULK-V-CC-20-150-3		Brake valve: DC24V \| Mounting: Single clevis integral \| Bore: 20 mm \| Stroke: 150 mm
ULK-V-CC-20-200-1		Brake valve: AC100V \| Mounting: Single clevis integral \| Bore: 20 mm \| Stroke: 200 mm
ULK-V-CC-20-200-2		Brake valve: AC200V \| Mounting: Single clevis integral \| Bore: 20 mm \| Stroke: 200 mm
ULK-V-CC-20-200-3		Brake valve: DC24V \| Mounting: Single clevis integral \| Bore: 20 mm \| Stroke: 200 mm
ULK-V-CC-20-250-1		Brake valve: AC100V \| Mounting: Single clevis integral \| Bore: 20 mm \| Stroke: 250 mm
ULK-V-CC-20-250-2		Brake valve: AC200V \| Mounting: Single clevis integral \| Bore: 20 mm \| Stroke: 250 mm
ULK-V-CC-20-250-3		Brake valve: DC24V \| Mounting: Single clevis integral \| Bore: 20 mm \| Stroke: 250 mm
ULK-V-CC-20-300-1		Brake valve: AC100V \| Mounting: Single clevis integral \| Bore: 20 mm \| Stroke: 300 mm
ULK-V-CC-20-300-2		Brake valve: AC200V \| Mounting: Single clevis integral \| Bore: 20 mm \| Stroke: 300 mm
ULK-V-CC-20-300-3		Brake valve: DC24V \| Mounting: Single clevis integral \| Bore: 20 mm \| Stroke: 300 mm
ULK-V-CC-25-25-1		Brake valve: AC100V \| Mounting: Single clevis integral \| Bore: 25 mm \| Stroke: 25 mm
ULK-V-CC-25-25-2		Brake valve: AC200V \| Mounting: Single clevis integral \| Bore: 25 mm \| Stroke: 25 mm
ULK-V-CC-25-25-3		Brake valve: DC24V \| Mounting: Single clevis integral \| Bore: 25 mm \| Stroke: 25 mm
ULK-V-CC-25-50-1		Brake valve: AC100V \| Mounting: Single clevis integral \| Bore: 25 mm \| Stroke: 50 mm
ULK-V-CC-25-50-2		Brake valve: AC200V \| Mounting: Single clevis integral \| Bore: 25 mm \| Stroke: 50 mm
ULK-V-CC-25-50-3		Brake valve: DC24V \| Mounting: Single clevis integral \| Bore: 25 mm \| Stroke: 50 mm
ULK-V-CC-25-75-1		Brake valve: AC100V \| Mounting: Single clevis integral \| Bore: 25 mm \| Stroke: 75 mm
ULK-V-CC-25-75-2		Brake valve: AC200V \| Mounting: Single clevis integral \| Bore: 25 mm \| Stroke: 75 mm
ULK-V-CC-25-75-3		Brake valve: DC24V \| Mounting: Single clevis integral \| Bore: 25 mm \| Stroke: 75 mm
ULK-V-CC-25-100-1		Brake valve: AC100V \| Mounting: Single clevis integral \| Bore: 25 mm \| Stroke: 100 mm
ULK-V-CC-25-100-2		Brake valve: AC200V \| Mounting: Single clevis integral \| Bore: 25 mm \| Stroke: 100 mm
ULK-V-CC-25-100-3		Brake valve: DC24V \| Mounting: Single clevis integral \| Bore: 25 mm \| Stroke: 100 mm
ULK-V-CC-25-150-1		Brake valve: AC100V \| Mounting: Single clevis integral \| Bore: 25 mm \| Stroke: 150 mm
ULK-V-CC-25-150-2		Brake valve: AC200V \| Mounting: Single clevis integral \| Bore: 25 mm \| Stroke: 150 mm
ULK-V-CC-25-150-3		Brake valve: DC24V \| Mounting: Single clevis integral \| Bore: 25 mm \| Stroke: 150 mm
ULK-V-CC-25-200-1		Brake valve: AC100V \| Mounting: Single clevis integral \| Bore: 25 mm \| Stroke: 200 mm
ULK-V-CC-25-200-2		Brake valve: AC200V \| Mounting: Single clevis integral \| Bore: 25 mm \| Stroke: 200 mm
ULK-V-CC-25-200-3		Brake valve: DC24V \| Mounting: Single clevis integral \| Bore: 25 mm \| Stroke: 200 mm
ULK-V-CC-25-250-1		Brake valve: AC100V \| Mounting: Single clevis integral \| Bore: 25 mm \| Stroke: 250 mm
ULK-V-CC-25-250-2		Brake valve: AC200V \| Mounting: Single clevis integral \| Bore: 25 mm \| Stroke: 250 mm
ULK-V-CC-25-250-3		Brake valve: DC24V \| Mounting: Single clevis integral \| Bore: 25 mm \| Stroke: 250 mm
ULK-V-CC-25-300-1		Brake valve: AC100V \| Mounting: Single clevis integral \| Bore: 25 mm \| Stroke: 300 mm
ULK-V-CC-25-300-2		Brake valve: AC200V \| Mounting: Single clevis integral \| Bore: 25 mm \| Stroke: 300 mm
ULK-V-CC-25-300-3		Brake valve: DC24V \| Mounting: Single clevis integral \| Bore: 25 mm \| Stroke: 300 mm
ULK-V-CC-32-25-1		Brake valve: AC100V \| Mounting: Single clevis integral \| Bore: 32 mm \| Stroke: 25 mm
ULK-V-CC-32-25-2		Brake valve: AC200V \| Mounting: Single clevis integral \| Bore: 32 mm \| Stroke: 25 mm
ULK-V-CC-32-25-3		Brake valve: DC24V \| Mounting: Single clevis integral \| Bore: 32 mm \| Stroke: 25 mm
ULK-V-CC-32-50-1		Brake valve: AC100V \| Mounting: Single clevis integral \| Bore: 32 mm \| Stroke: 50 mm
ULK-V-CC-32-50-2		Brake valve: AC200V \| Mounting: Single clevis integral \| Bore: 32 mm \| Stroke: 50 mm
ULK-V-CC-32-50-3		Brake valve: DC24V \| Mounting: Single clevis integral \| Bore: 32 mm \| Stroke: 50 mm
ULK-V-CC-32-75-1		Brake valve: AC100V \| Mounting: Single clevis integral \| Bore: 32 mm \| Stroke: 75 mm
ULK-V-CC-32-75-2		Brake valve: AC200V \| Mounting: Single clevis integral \| Bore: 32 mm \| Stroke: 75 mm
ULK-V-CC-32-75-3		Brake valve: DC24V \| Mounting: Single clevis integral \| Bore: 32 mm \| Stroke: 75 mm
ULK-V-CC-32-100-1		Brake valve: AC100V \| Mounting: Single clevis integral \| Bore: 32 mm \| Stroke: 100 mm
ULK-V-CC-32-100-2		Brake valve: AC200V \| Mounting: Single clevis integral \| Bore: 32 mm \| Stroke: 100 mm
ULK-V-CC-32-100-3		Brake valve: DC24V \| Mounting: Single clevis integral \| Bore: 32 mm \| Stroke: 100 mm
ULK-V-CC-32-150-1		Brake valve: AC100V \| Mounting: Single clevis integral \| Bore: 32 mm \| Stroke: 150 mm
ULK-V-CC-32-150-2		Brake valve: AC200V \| Mounting: Single clevis integral \| Bore: 32 mm \| Stroke: 150 mm
ULK-V-CC-32-150-3		Brake valve: DC24V \| Mounting: Single clevis integral \| Bore: 32 mm \| Stroke: 150 mm
ULK-V-CC-32-200-1		Brake valve: AC100V \| Mounting: Single clevis integral \| Bore: 32 mm \| Stroke: 200 mm
ULK-V-CC-32-200-2		Brake valve: AC200V \| Mounting: Single clevis integral \| Bore: 32 mm \| Stroke: 200 mm
ULK-V-CC-32-200-3		Brake valve: DC24V \| Mounting: Single clevis integral \| Bore: 32 mm \| Stroke: 200 mm
ULK-V-CC-32-250-1		Brake valve: AC100V \| Mounting: Single clevis integral \| Bore: 32 mm \| Stroke: 250 mm
ULK-V-CC-32-250-2		Brake valve: AC200V \| Mounting: Single clevis integral \| Bore: 32 mm \| Stroke: 250 mm
ULK-V-CC-32-250-3		Brake valve: DC24V \| Mounting: Single clevis integral \| Bore: 32 mm \| Stroke: 250 mm
ULK-V-CC-32-300-1		Brake valve: AC100V \| Mounting: Single clevis integral \| Bore: 32 mm \| Stroke: 300 mm
ULK-V-CC-32-300-2		Brake valve: AC200V \| Mounting: Single clevis integral \| Bore: 32 mm \| Stroke: 300 mm
ULK-V-CC-32-300-3		Brake valve: DC24V \| Mounting: Single clevis integral \| Bore: 32 mm \| Stroke: 300 mm
ULK-V-CC-40-25-1		Brake valve: AC100V \| Mounting: Single clevis integral \| Bore: 40 mm \| Stroke: 25 mm
ULK-V-CC-40-25-2		Brake valve: AC200V \| Mounting: Single clevis integral \| Bore: 40 mm \| Stroke: 25 mm
ULK-V-CC-40-25-3		Brake valve: DC24V \| Mounting: Single clevis integral \| Bore: 40 mm \| Stroke: 25 mm
ULK-V-CC-40-50-1		Brake valve: AC100V \| Mounting: Single clevis integral \| Bore: 40 mm \| Stroke: 50 mm
ULK-V-CC-40-50-2		Brake valve: AC200V \| Mounting: Single clevis integral \| Bore: 40 mm \| Stroke: 50 mm
ULK-V-CC-40-50-3		Brake valve: DC24V \| Mounting: Single clevis integral \| Bore: 40 mm \| Stroke: 50 mm
ULK-V-CC-40-75-1		Brake valve: AC100V \| Mounting: Single clevis integral \| Bore: 40 mm \| Stroke: 75 mm
ULK-V-CC-40-75-2		Brake valve: AC200V \| Mounting: Single clevis integral \| Bore: 40 mm \| Stroke: 75 mm
ULK-V-CC-40-75-3		Brake valve: DC24V \| Mounting: Single clevis integral \| Bore: 40 mm \| Stroke: 75 mm
ULK-V-CC-40-100-1		Brake valve: AC100V \| Mounting: Single clevis integral \| Bore: 40 mm \| Stroke: 100 mm
ULK-V-CC-40-100-2		Brake valve: AC200V \| Mounting: Single clevis integral \| Bore: 40 mm \| Stroke: 100 mm
ULK-V-CC-40-100-3		Brake valve: DC24V \| Mounting: Single clevis integral \| Bore: 40 mm \| Stroke: 100 mm
ULK-V-CC-40-150-1		Brake valve: AC100V \| Mounting: Single clevis integral \| Bore: 40 mm \| Stroke: 150 mm
ULK-V-CC-40-150-2		Brake valve: AC200V \| Mounting: Single clevis integral \| Bore: 40 mm \| Stroke: 150 mm
ULK-V-CC-40-150-3		Brake valve: DC24V \| Mounting: Single clevis integral \| Bore: 40 mm \| Stroke: 150 mm
ULK-V-CC-40-200-1		Brake valve: AC100V \| Mounting: Single clevis integral \| Bore: 40 mm \| Stroke: 200 mm
ULK-V-CC-40-200-2		Brake valve: AC200V \| Mounting: Single clevis integral \| Bore: 40 mm \| Stroke: 200 mm
ULK-V-CC-40-200-3		Brake valve: DC24V \| Mounting: Single clevis integral \| Bore: 40 mm \| Stroke: 200 mm
ULK-V-CC-40-250-1		Brake valve: AC100V \| Mounting: Single clevis integral \| Bore: 40 mm \| Stroke: 250 mm
ULK-V-CC-40-250-2		Brake valve: AC200V \| Mounting: Single clevis integral \| Bore: 40 mm \| Stroke: 250 mm
ULK-V-CC-40-250-3		Brake valve: DC24V \| Mounting: Single clevis integral \| Bore: 40 mm \| Stroke: 250 mm
ULK-V-CC-40-300-1		Brake valve: AC100V \| Mounting: Single clevis integral \| Bore: 40 mm \| Stroke: 300 mm
ULK-V-CC-40-300-2		Brake valve: AC200V \| Mounting: Single clevis integral \| Bore: 40 mm \| Stroke: 300 mm
ULK-V-CC-40-300-3		Brake valve: DC24V \| Mounting: Single clevis integral \| Bore: 40 mm \| Stroke: 300 mm
ULK-V-CC1-20-25-1		Brake valve: AC100V \| Mounting: Clevis bush press-fit \| Bore: 20 mm \| Stroke: 25 mm
ULK-V-CC1-20-25-2		Brake valve: AC200V \| Mounting: Clevis bush press-fit \| Bore: 20 mm \| Stroke: 25 mm
ULK-V-CC1-20-25-3		Brake valve: DC24V \| Mounting: Clevis bush press-fit \| Bore: 20 mm \| Stroke: 25 mm
ULK-V-CC1-20-50-1		Brake valve: AC100V \| Mounting: Clevis bush press-fit \| Bore: 20 mm \| Stroke: 50 mm
ULK-V-CC1-20-50-2		Brake valve: AC200V \| Mounting: Clevis bush press-fit \| Bore: 20 mm \| Stroke: 50 mm
ULK-V-CC1-20-50-3		Brake valve: DC24V \| Mounting: Clevis bush press-fit \| Bore: 20 mm \| Stroke: 50 mm
ULK-V-CC1-20-75-1		Brake valve: AC100V \| Mounting: Clevis bush press-fit \| Bore: 20 mm \| Stroke: 75 mm
ULK-V-CC1-20-75-2		Brake valve: AC200V \| Mounting: Clevis bush press-fit \| Bore: 20 mm \| Stroke: 75 mm
ULK-V-CC1-20-75-3		Brake valve: DC24V \| Mounting: Clevis bush press-fit \| Bore: 20 mm \| Stroke: 75 mm
ULK-V-CC1-20-100-1		Brake valve: AC100V \| Mounting: Clevis bush press-fit \| Bore: 20 mm \| Stroke: 100 mm
ULK-V-CC1-20-100-2		Brake valve: AC200V \| Mounting: Clevis bush press-fit \| Bore: 20 mm \| Stroke: 100 mm
ULK-V-CC1-20-100-3		Brake valve: DC24V \| Mounting: Clevis bush press-fit \| Bore: 20 mm \| Stroke: 100 mm
ULK-V-CC1-20-150-1		Brake valve: AC100V \| Mounting: Clevis bush press-fit \| Bore: 20 mm \| Stroke: 150 mm
ULK-V-CC1-20-150-2		Brake valve: AC200V \| Mounting: Clevis bush press-fit \| Bore: 20 mm \| Stroke: 150 mm
ULK-V-CC1-20-150-3		Brake valve: DC24V \| Mounting: Clevis bush press-fit \| Bore: 20 mm \| Stroke: 150 mm
ULK-V-CC1-20-200-1		Brake valve: AC100V \| Mounting: Clevis bush press-fit \| Bore: 20 mm \| Stroke: 200 mm
ULK-V-CC1-20-200-2		Brake valve: AC200V \| Mounting: Clevis bush press-fit \| Bore: 20 mm \| Stroke: 200 mm
ULK-V-CC1-20-200-3		Brake valve: DC24V \| Mounting: Clevis bush press-fit \| Bore: 20 mm \| Stroke: 200 mm
ULK-V-CC1-20-250-1		Brake valve: AC100V \| Mounting: Clevis bush press-fit \| Bore: 20 mm \| Stroke: 250 mm
ULK-V-CC1-20-250-2		Brake valve: AC200V \| Mounting: Clevis bush press-fit \| Bore: 20 mm \| Stroke: 250 mm
ULK-V-CC1-20-250-3		Brake valve: DC24V \| Mounting: Clevis bush press-fit \| Bore: 20 mm \| Stroke: 250 mm
ULK-V-CC1-20-300-1		Brake valve: AC100V \| Mounting: Clevis bush press-fit \| Bore: 20 mm \| Stroke: 300 mm
ULK-V-CC1-20-300-2		Brake valve: AC200V \| Mounting: Clevis bush press-fit \| Bore: 20 mm \| Stroke: 300 mm
ULK-V-CC1-20-300-3		Brake valve: DC24V \| Mounting: Clevis bush press-fit \| Bore: 20 mm \| Stroke: 300 mm
ULK-V-CC1-25-25-1		Brake valve: AC100V \| Mounting: Clevis bush press-fit \| Bore: 25 mm \| Stroke: 25 mm
ULK-V-CC1-25-25-2		Brake valve: AC200V \| Mounting: Clevis bush press-fit \| Bore: 25 mm \| Stroke: 25 mm
ULK-V-CC1-25-25-3		Brake valve: DC24V \| Mounting: Clevis bush press-fit \| Bore: 25 mm \| Stroke: 25 mm
ULK-V-CC1-25-50-1		Brake valve: AC100V \| Mounting: Clevis bush press-fit \| Bore: 25 mm \| Stroke: 50 mm
ULK-V-CC1-25-50-2		Brake valve: AC200V \| Mounting: Clevis bush press-fit \| Bore: 25 mm \| Stroke: 50 mm
ULK-V-CC1-25-50-3		Brake valve: DC24V \| Mounting: Clevis bush press-fit \| Bore: 25 mm \| Stroke: 50 mm
ULK-V-CC1-25-75-1		Brake valve: AC100V \| Mounting: Clevis bush press-fit \| Bore: 25 mm \| Stroke: 75 mm
ULK-V-CC1-25-75-2		Brake valve: AC200V \| Mounting: Clevis bush press-fit \| Bore: 25 mm \| Stroke: 75 mm
ULK-V-CC1-25-75-3		Brake valve: DC24V \| Mounting: Clevis bush press-fit \| Bore: 25 mm \| Stroke: 75 mm
ULK-V-CC1-25-100-1		Brake valve: AC100V \| Mounting: Clevis bush press-fit \| Bore: 25 mm \| Stroke: 100 mm
ULK-V-CC1-25-100-2		Brake valve: AC200V \| Mounting: Clevis bush press-fit \| Bore: 25 mm \| Stroke: 100 mm
ULK-V-CC1-25-100-3		Brake valve: DC24V \| Mounting: Clevis bush press-fit \| Bore: 25 mm \| Stroke: 100 mm
ULK-V-CC1-25-150-1		Brake valve: AC100V \| Mounting: Clevis bush press-fit \| Bore: 25 mm \| Stroke: 150 mm
ULK-V-CC1-25-150-2		Brake valve: AC200V \| Mounting: Clevis bush press-fit \| Bore: 25 mm \| Stroke: 150 mm
ULK-V-CC1-25-150-3		Brake valve: DC24V \| Mounting: Clevis bush press-fit \| Bore: 25 mm \| Stroke: 150 mm
ULK-V-CC1-25-200-1		Brake valve: AC100V \| Mounting: Clevis bush press-fit \| Bore: 25 mm \| Stroke: 200 mm
ULK-V-CC1-25-200-2		Brake valve: AC200V \| Mounting: Clevis bush press-fit \| Bore: 25 mm \| Stroke: 200 mm
ULK-V-CC1-25-200-3		Brake valve: DC24V \| Mounting: Clevis bush press-fit \| Bore: 25 mm \| Stroke: 200 mm
ULK-V-CC1-25-250-1		Brake valve: AC100V \| Mounting: Clevis bush press-fit \| Bore: 25 mm \| Stroke: 250 mm
ULK-V-CC1-25-250-2		Brake valve: AC200V \| Mounting: Clevis bush press-fit \| Bore: 25 mm \| Stroke: 250 mm
ULK-V-CC1-25-250-3		Brake valve: DC24V \| Mounting: Clevis bush press-fit \| Bore: 25 mm \| Stroke: 250 mm
ULK-V-CC1-25-300-1		Brake valve: AC100V \| Mounting: Clevis bush press-fit \| Bore: 25 mm \| Stroke: 300 mm
ULK-V-CC1-25-300-2		Brake valve: AC200V \| Mounting: Clevis bush press-fit \| Bore: 25 mm \| Stroke: 300 mm
ULK-V-CC1-25-300-3		Brake valve: DC24V \| Mounting: Clevis bush press-fit \| Bore: 25 mm \| Stroke: 300 mm
ULK-V-CC1-32-25-1		Brake valve: AC100V \| Mounting: Clevis bush press-fit \| Bore: 32 mm \| Stroke: 25 mm
ULK-V-CC1-32-25-2		Brake valve: AC200V \| Mounting: Clevis bush press-fit \| Bore: 32 mm \| Stroke: 25 mm
ULK-V-CC1-32-25-3		Brake valve: DC24V \| Mounting: Clevis bush press-fit \| Bore: 32 mm \| Stroke: 25 mm
ULK-V-CC1-32-50-1		Brake valve: AC100V \| Mounting: Clevis bush press-fit \| Bore: 32 mm \| Stroke: 50 mm
ULK-V-CC1-32-50-2		Brake valve: AC200V \| Mounting: Clevis bush press-fit \| Bore: 32 mm \| Stroke: 50 mm
ULK-V-CC1-32-50-3		Brake valve: DC24V \| Mounting: Clevis bush press-fit \| Bore: 32 mm \| Stroke: 50 mm
ULK-V-CC1-32-75-1		Brake valve: AC100V \| Mounting: Clevis bush press-fit \| Bore: 32 mm \| Stroke: 75 mm
ULK-V-CC1-32-75-2		Brake valve: AC200V \| Mounting: Clevis bush press-fit \| Bore: 32 mm \| Stroke: 75 mm
ULK-V-CC1-32-75-3		Brake valve: DC24V \| Mounting: Clevis bush press-fit \| Bore: 32 mm \| Stroke: 75 mm
ULK-V-CC1-32-100-1		Brake valve: AC100V \| Mounting: Clevis bush press-fit \| Bore: 32 mm \| Stroke: 100 mm
ULK-V-CC1-32-100-2		Brake valve: AC200V \| Mounting: Clevis bush press-fit \| Bore: 32 mm \| Stroke: 100 mm
ULK-V-CC1-32-100-3		Brake valve: DC24V \| Mounting: Clevis bush press-fit \| Bore: 32 mm \| Stroke: 100 mm
ULK-V-CC1-32-150-1		Brake valve: AC100V \| Mounting: Clevis bush press-fit \| Bore: 32 mm \| Stroke: 150 mm
ULK-V-CC1-32-150-2		Brake valve: AC200V \| Mounting: Clevis bush press-fit \| Bore: 32 mm \| Stroke: 150 mm
ULK-V-CC1-32-150-3		Brake valve: DC24V \| Mounting: Clevis bush press-fit \| Bore: 32 mm \| Stroke: 150 mm
ULK-V-CC1-32-200-1		Brake valve: AC100V \| Mounting: Clevis bush press-fit \| Bore: 32 mm \| Stroke: 200 mm
ULK-V-CC1-32-200-2		Brake valve: AC200V \| Mounting: Clevis bush press-fit \| Bore: 32 mm \| Stroke: 200 mm
ULK-V-CC1-32-200-3		Brake valve: DC24V \| Mounting: Clevis bush press-fit \| Bore: 32 mm \| Stroke: 200 mm
ULK-V-CC1-32-250-1		Brake valve: AC100V \| Mounting: Clevis bush press-fit \| Bore: 32 mm \| Stroke: 250 mm
ULK-V-CC1-32-250-2		Brake valve: AC200V \| Mounting: Clevis bush press-fit \| Bore: 32 mm \| Stroke: 250 mm
ULK-V-CC1-32-250-3		Brake valve: DC24V \| Mounting: Clevis bush press-fit \| Bore: 32 mm \| Stroke: 250 mm
ULK-V-CC1-32-300-1		Brake valve: AC100V \| Mounting: Clevis bush press-fit \| Bore: 32 mm \| Stroke: 300 mm
ULK-V-CC1-32-300-2		Brake valve: AC200V \| Mounting: Clevis bush press-fit \| Bore: 32 mm \| Stroke: 300 mm
ULK-V-CC1-32-300-3		Brake valve: DC24V \| Mounting: Clevis bush press-fit \| Bore: 32 mm \| Stroke: 300 mm
ULK-V-CC1-40-25-1		Brake valve: AC100V \| Mounting: Clevis bush press-fit \| Bore: 40 mm \| Stroke: 25 mm
ULK-V-CC1-40-25-2		Brake valve: AC200V \| Mounting: Clevis bush press-fit \| Bore: 40 mm \| Stroke: 25 mm
ULK-V-CC1-40-25-3		Brake valve: DC24V \| Mounting: Clevis bush press-fit \| Bore: 40 mm \| Stroke: 25 mm
ULK-V-CC1-40-50-1		Brake valve: AC100V \| Mounting: Clevis bush press-fit \| Bore: 40 mm \| Stroke: 50 mm
ULK-V-CC1-40-50-2		Brake valve: AC200V \| Mounting: Clevis bush press-fit \| Bore: 40 mm \| Stroke: 50 mm
ULK-V-CC1-40-50-3		Brake valve: DC24V \| Mounting: Clevis bush press-fit \| Bore: 40 mm \| Stroke: 50 mm
ULK-V-CC1-40-75-1		Brake valve: AC100V \| Mounting: Clevis bush press-fit \| Bore: 40 mm \| Stroke: 75 mm
ULK-V-CC1-40-75-2		Brake valve: AC200V \| Mounting: Clevis bush press-fit \| Bore: 40 mm \| Stroke: 75 mm
ULK-V-CC1-40-75-3		Brake valve: DC24V \| Mounting: Clevis bush press-fit \| Bore: 40 mm \| Stroke: 75 mm
ULK-V-CC1-40-100-1		Brake valve: AC100V \| Mounting: Clevis bush press-fit \| Bore: 40 mm \| Stroke: 100 mm
ULK-V-CC1-40-100-2		Brake valve: AC200V \| Mounting: Clevis bush press-fit \| Bore: 40 mm \| Stroke: 100 mm
ULK-V-CC1-40-100-3		Brake valve: DC24V \| Mounting: Clevis bush press-fit \| Bore: 40 mm \| Stroke: 100 mm
ULK-V-CC1-40-150-1		Brake valve: AC100V \| Mounting: Clevis bush press-fit \| Bore: 40 mm \| Stroke: 150 mm
ULK-V-CC1-40-150-2		Brake valve: AC200V \| Mounting: Clevis bush press-fit \| Bore: 40 mm \| Stroke: 150 mm
ULK-V-CC1-40-150-3		Brake valve: DC24V \| Mounting: Clevis bush press-fit \| Bore: 40 mm \| Stroke: 150 mm
ULK-V-CC1-40-200-1		Brake valve: AC100V \| Mounting: Clevis bush press-fit \| Bore: 40 mm \| Stroke: 200 mm
ULK-V-CC1-40-200-2		Brake valve: AC200V \| Mounting: Clevis bush press-fit \| Bore: 40 mm \| Stroke: 200 mm
ULK-V-CC1-40-200-3		Brake valve: DC24V \| Mounting: Clevis bush press-fit \| Bore: 40 mm \| Stroke: 200 mm
ULK-V-CC1-40-250-1		Brake valve: AC100V \| Mounting: Clevis bush press-fit \| Bore: 40 mm \| Stroke: 250 mm
ULK-V-CC1-40-250-2		Brake valve: AC200V \| Mounting: Clevis bush press-fit \| Bore: 40 mm \| Stroke: 250 mm
ULK-V-CC1-40-250-3		Brake valve: DC24V \| Mounting: Clevis bush press-fit \| Bore: 40 mm \| Stroke: 250 mm
ULK-V-CC1-40-300-1		Brake valve: AC100V \| Mounting: Clevis bush press-fit \| Bore: 40 mm \| Stroke: 300 mm
ULK-V-CC1-40-300-2		Brake valve: AC200V \| Mounting: Clevis bush press-fit \| Bore: 40 mm \| Stroke: 300 mm
ULK-V-CC1-40-300-3		Brake valve: DC24V \| Mounting: Clevis bush press-fit \| Bore: 40 mm \| Stroke: 300 mm
ULK-V-TA-20-25-1		Brake valve: AC100V \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 25 mm
ULK-V-TA-20-25-2		Brake valve: AC200V \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 25 mm
ULK-V-TA-20-25-3		Brake valve: DC24V \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 25 mm
ULK-V-TA-20-50-1		Brake valve: AC100V \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 50 mm
ULK-V-TA-20-50-2		Brake valve: AC200V \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 50 mm
ULK-V-TA-20-50-3		Brake valve: DC24V \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 50 mm
ULK-V-TA-20-75-1		Brake valve: AC100V \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 75 mm
ULK-V-TA-20-75-2		Brake valve: AC200V \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 75 mm
ULK-V-TA-20-75-3		Brake valve: DC24V \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 75 mm
ULK-V-TA-20-100-1		Brake valve: AC100V \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 100 mm
ULK-V-TA-20-100-2		Brake valve: AC200V \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 100 mm
ULK-V-TA-20-100-3		Brake valve: DC24V \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 100 mm
ULK-V-TA-20-150-1		Brake valve: AC100V \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 150 mm
ULK-V-TA-20-150-2		Brake valve: AC200V \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 150 mm
ULK-V-TA-20-150-3		Brake valve: DC24V \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 150 mm
ULK-V-TA-20-200-1		Brake valve: AC100V \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 200 mm
ULK-V-TA-20-200-2		Brake valve: AC200V \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 200 mm
ULK-V-TA-20-200-3		Brake valve: DC24V \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 200 mm
ULK-V-TA-20-250-1		Brake valve: AC100V \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 250 mm
ULK-V-TA-20-250-2		Brake valve: AC200V \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 250 mm
ULK-V-TA-20-250-3		Brake valve: DC24V \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 250 mm
ULK-V-TA-20-300-1		Brake valve: AC100V \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 300 mm
ULK-V-TA-20-300-2		Brake valve: AC200V \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 300 mm
ULK-V-TA-20-300-3		Brake valve: DC24V \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 300 mm
ULK-V-TA-25-25-1		Brake valve: AC100V \| Mounting: Rod trunnion \| Bore: 25 mm \| Stroke: 25 mm
ULK-V-TA-25-25-2		Brake valve: AC200V \| Mounting: Rod trunnion \| Bore: 25 mm \| Stroke: 25 mm
ULK-V-TA-25-25-3		Brake valve: DC24V \| Mounting: Rod trunnion \| Bore: 25 mm \| Stroke: 25 mm
ULK-V-TA-25-50-1		Brake valve: AC100V \| Mounting: Rod trunnion \| Bore: 25 mm \| Stroke: 50 mm
ULK-V-TA-25-50-2		Brake valve: AC200V \| Mounting: Rod trunnion \| Bore: 25 mm \| Stroke: 50 mm
ULK-V-TA-25-50-3		Brake valve: DC24V \| Mounting: Rod trunnion \| Bore: 25 mm \| Stroke: 50 mm
ULK-V-TA-25-75-1		Brake valve: AC100V \| Mounting: Rod trunnion \| Bore: 25 mm \| Stroke: 75 mm
ULK-V-TA-25-75-2		Brake valve: AC200V \| Mounting: Rod trunnion \| Bore: 25 mm \| Stroke: 75 mm
ULK-V-TA-25-75-3		Brake valve: DC24V \| Mounting: Rod trunnion \| Bore: 25 mm \| Stroke: 75 mm
ULK-V-TA-25-100-1		Brake valve: AC100V \| Mounting: Rod trunnion \| Bore: 25 mm \| Stroke: 100 mm
ULK-V-TA-25-100-2		Brake valve: AC200V \| Mounting: Rod trunnion \| Bore: 25 mm \| Stroke: 100 mm
ULK-V-TA-25-100-3		Brake valve: DC24V \| Mounting: Rod trunnion \| Bore: 25 mm \| Stroke: 100 mm
ULK-V-TA-25-150-1		Brake valve: AC100V \| Mounting: Rod trunnion \| Bore: 25 mm \| Stroke: 150 mm
ULK-V-TA-25-150-2		Brake valve: AC200V \| Mounting: Rod trunnion \| Bore: 25 mm \| Stroke: 150 mm
ULK-V-TA-25-150-3		Brake valve: DC24V \| Mounting: Rod trunnion \| Bore: 25 mm \| Stroke: 150 mm
ULK-V-TA-25-200-1		Brake valve: AC100V \| Mounting: Rod trunnion \| Bore: 25 mm \| Stroke: 200 mm
ULK-V-TA-25-200-2		Brake valve: AC200V \| Mounting: Rod trunnion \| Bore: 25 mm \| Stroke: 200 mm
ULK-V-TA-25-200-3		Brake valve: DC24V \| Mounting: Rod trunnion \| Bore: 25 mm \| Stroke: 200 mm
ULK-V-TA-25-250-1		Brake valve: AC100V \| Mounting: Rod trunnion \| Bore: 25 mm \| Stroke: 250 mm
ULK-V-TA-25-250-2		Brake valve: AC200V \| Mounting: Rod trunnion \| Bore: 25 mm \| Stroke: 250 mm
ULK-V-TA-25-250-3		Brake valve: DC24V \| Mounting: Rod trunnion \| Bore: 25 mm \| Stroke: 250 mm
ULK-V-TA-25-300-1		Brake valve: AC100V \| Mounting: Rod trunnion \| Bore: 25 mm \| Stroke: 300 mm
ULK-V-TA-25-300-2		Brake valve: AC200V \| Mounting: Rod trunnion \| Bore: 25 mm \| Stroke: 300 mm
ULK-V-TA-25-300-3		Brake valve: DC24V \| Mounting: Rod trunnion \| Bore: 25 mm \| Stroke: 300 mm
ULK-V-TA-32-25-1		Brake valve: AC100V \| Mounting: Rod trunnion \| Bore: 32 mm \| Stroke: 25 mm
ULK-V-TA-32-25-2		Brake valve: AC200V \| Mounting: Rod trunnion \| Bore: 32 mm \| Stroke: 25 mm
ULK-V-TA-32-25-3		Brake valve: DC24V \| Mounting: Rod trunnion \| Bore: 32 mm \| Stroke: 25 mm
ULK-V-TA-32-50-1		Brake valve: AC100V \| Mounting: Rod trunnion \| Bore: 32 mm \| Stroke: 50 mm
ULK-V-TA-32-50-2		Brake valve: AC200V \| Mounting: Rod trunnion \| Bore: 32 mm \| Stroke: 50 mm
ULK-V-TA-32-50-3		Brake valve: DC24V \| Mounting: Rod trunnion \| Bore: 32 mm \| Stroke: 50 mm
ULK-V-TA-32-75-1		Brake valve: AC100V \| Mounting: Rod trunnion \| Bore: 32 mm \| Stroke: 75 mm
ULK-V-TA-32-75-2		Brake valve: AC200V \| Mounting: Rod trunnion \| Bore: 32 mm \| Stroke: 75 mm
ULK-V-TA-32-75-3		Brake valve: DC24V \| Mounting: Rod trunnion \| Bore: 32 mm \| Stroke: 75 mm
ULK-V-TA-32-100-1		Brake valve: AC100V \| Mounting: Rod trunnion \| Bore: 32 mm \| Stroke: 100 mm
ULK-V-TA-32-100-2		Brake valve: AC200V \| Mounting: Rod trunnion \| Bore: 32 mm \| Stroke: 100 mm
ULK-V-TA-32-100-3		Brake valve: DC24V \| Mounting: Rod trunnion \| Bore: 32 mm \| Stroke: 100 mm
ULK-V-TA-32-150-1		Brake valve: AC100V \| Mounting: Rod trunnion \| Bore: 32 mm \| Stroke: 150 mm
ULK-V-TA-32-150-2		Brake valve: AC200V \| Mounting: Rod trunnion \| Bore: 32 mm \| Stroke: 150 mm
ULK-V-TA-32-150-3		Brake valve: DC24V \| Mounting: Rod trunnion \| Bore: 32 mm \| Stroke: 150 mm
ULK-V-TA-32-200-1		Brake valve: AC100V \| Mounting: Rod trunnion \| Bore: 32 mm \| Stroke: 200 mm
ULK-V-TA-32-200-2		Brake valve: AC200V \| Mounting: Rod trunnion \| Bore: 32 mm \| Stroke: 200 mm
ULK-V-TA-32-200-3		Brake valve: DC24V \| Mounting: Rod trunnion \| Bore: 32 mm \| Stroke: 200 mm
ULK-V-TA-32-250-1		Brake valve: AC100V \| Mounting: Rod trunnion \| Bore: 32 mm \| Stroke: 250 mm
ULK-V-TA-32-250-2		Brake valve: AC200V \| Mounting: Rod trunnion \| Bore: 32 mm \| Stroke: 250 mm
ULK-V-TA-32-250-3		Brake valve: DC24V \| Mounting: Rod trunnion \| Bore: 32 mm \| Stroke: 250 mm
ULK-V-TA-32-300-1		Brake valve: AC100V \| Mounting: Rod trunnion \| Bore: 32 mm \| Stroke: 300 mm
ULK-V-TA-32-300-2		Brake valve: AC200V \| Mounting: Rod trunnion \| Bore: 32 mm \| Stroke: 300 mm
ULK-V-TA-32-300-3		Brake valve: DC24V \| Mounting: Rod trunnion \| Bore: 32 mm \| Stroke: 300 mm
ULK-V-TA-40-25-1		Brake valve: AC100V \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 25 mm
ULK-V-TA-40-25-2		Brake valve: AC200V \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 25 mm
ULK-V-TA-40-25-3		Brake valve: DC24V \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 25 mm
ULK-V-TA-40-50-1		Brake valve: AC100V \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 50 mm
ULK-V-TA-40-50-2		Brake valve: AC200V \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 50 mm
ULK-V-TA-40-50-3		Brake valve: DC24V \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 50 mm
ULK-V-TA-40-75-1		Brake valve: AC100V \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 75 mm
ULK-V-TA-40-75-2		Brake valve: AC200V \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 75 mm
ULK-V-TA-40-75-3		Brake valve: DC24V \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 75 mm
ULK-V-TA-40-100-1		Brake valve: AC100V \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 100 mm
ULK-V-TA-40-100-2		Brake valve: AC200V \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 100 mm
ULK-V-TA-40-100-3		Brake valve: DC24V \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 100 mm
ULK-V-TA-40-150-1		Brake valve: AC100V \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 150 mm
ULK-V-TA-40-150-2		Brake valve: AC200V \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 150 mm
ULK-V-TA-40-150-3		Brake valve: DC24V \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 150 mm
ULK-V-TA-40-200-1		Brake valve: AC100V \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 200 mm
ULK-V-TA-40-200-2		Brake valve: AC200V \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 200 mm
ULK-V-TA-40-200-3		Brake valve: DC24V \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 200 mm
ULK-V-TA-40-250-1		Brake valve: AC100V \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 250 mm
ULK-V-TA-40-250-2		Brake valve: AC200V \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 250 mm
ULK-V-TA-40-250-3		Brake valve: DC24V \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 250 mm
ULK-V-TA-40-300-1		Brake valve: AC100V \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 300 mm
ULK-V-TA-40-300-2		Brake valve: AC200V \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 300 mm
ULK-V-TA-40-300-3		Brake valve: DC24V \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 300 mm
ULK-V-TB-20-25-1		Brake valve: AC100V \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 25 mm
ULK-V-TB-20-25-2		Brake valve: AC200V \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 25 mm
ULK-V-TB-20-25-3		Brake valve: DC24V \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 25 mm
ULK-V-TB-20-50-1		Brake valve: AC100V \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 50 mm
ULK-V-TB-20-50-2		Brake valve: AC200V \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 50 mm
ULK-V-TB-20-50-3		Brake valve: DC24V \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 50 mm
ULK-V-TB-20-75-1		Brake valve: AC100V \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 75 mm
ULK-V-TB-20-75-2		Brake valve: AC200V \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 75 mm
ULK-V-TB-20-75-3		Brake valve: DC24V \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 75 mm
ULK-V-TB-20-100-1		Brake valve: AC100V \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 100 mm
ULK-V-TB-20-100-2		Brake valve: AC200V \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 100 mm
ULK-V-TB-20-100-3		Brake valve: DC24V \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 100 mm
ULK-V-TB-20-150-1		Brake valve: AC100V \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 150 mm
ULK-V-TB-20-150-2		Brake valve: AC200V \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 150 mm
ULK-V-TB-20-150-3		Brake valve: DC24V \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 150 mm
ULK-V-TB-20-200-1		Brake valve: AC100V \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 200 mm
ULK-V-TB-20-200-2		Brake valve: AC200V \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 200 mm
ULK-V-TB-20-200-3		Brake valve: DC24V \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 200 mm
ULK-V-TB-20-250-1		Brake valve: AC100V \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 250 mm
ULK-V-TB-20-250-2		Brake valve: AC200V \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 250 mm
ULK-V-TB-20-250-3		Brake valve: DC24V \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 250 mm
ULK-V-TB-20-300-1		Brake valve: AC100V \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 300 mm
ULK-V-TB-20-300-2		Brake valve: AC200V \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 300 mm
ULK-V-TB-20-300-3		Brake valve: DC24V \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 300 mm
ULK-V-TB-25-25-1		Brake valve: AC100V \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 25 mm
ULK-V-TB-25-25-2		Brake valve: AC200V \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 25 mm
ULK-V-TB-25-25-3		Brake valve: DC24V \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 25 mm
ULK-V-TB-25-50-1		Brake valve: AC100V \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 50 mm
ULK-V-TB-25-50-2		Brake valve: AC200V \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 50 mm
ULK-V-TB-25-50-3		Brake valve: DC24V \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 50 mm
ULK-V-TB-25-75-1		Brake valve: AC100V \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 75 mm
ULK-V-TB-25-75-2		Brake valve: AC200V \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 75 mm
ULK-V-TB-25-75-3		Brake valve: DC24V \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 75 mm
ULK-V-TB-25-100-1		Brake valve: AC100V \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 100 mm
ULK-V-TB-25-100-2		Brake valve: AC200V \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 100 mm
ULK-V-TB-25-100-3		Brake valve: DC24V \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 100 mm
ULK-V-TB-25-150-1		Brake valve: AC100V \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 150 mm
ULK-V-TB-25-150-2		Brake valve: AC200V \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 150 mm
ULK-V-TB-25-150-3		Brake valve: DC24V \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 150 mm
ULK-V-TB-25-200-1		Brake valve: AC100V \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 200 mm
ULK-V-TB-25-200-2		Brake valve: AC200V \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 200 mm
ULK-V-TB-25-200-3		Brake valve: DC24V \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 200 mm
ULK-V-TB-25-250-1		Brake valve: AC100V \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 250 mm
ULK-V-TB-25-250-2		Brake valve: AC200V \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 250 mm
ULK-V-TB-25-250-3		Brake valve: DC24V \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 250 mm
ULK-V-TB-25-300-1		Brake valve: AC100V \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 300 mm
ULK-V-TB-25-300-2		Brake valve: AC200V \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 300 mm
ULK-V-TB-25-300-3		Brake valve: DC24V \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 300 mm
ULK-V-TB-32-25-1		Brake valve: AC100V \| Mounting: Head trunnion \| Bore: 32 mm \| Stroke: 25 mm
ULK-V-TB-32-25-2		Brake valve: AC200V \| Mounting: Head trunnion \| Bore: 32 mm \| Stroke: 25 mm
ULK-V-TB-32-25-3		Brake valve: DC24V \| Mounting: Head trunnion \| Bore: 32 mm \| Stroke: 25 mm
ULK-V-TB-32-50-1		Brake valve: AC100V \| Mounting: Head trunnion \| Bore: 32 mm \| Stroke: 50 mm
ULK-V-TB-32-50-2		Brake valve: AC200V \| Mounting: Head trunnion \| Bore: 32 mm \| Stroke: 50 mm
ULK-V-TB-32-50-3		Brake valve: DC24V \| Mounting: Head trunnion \| Bore: 32 mm \| Stroke: 50 mm
ULK-V-TB-32-75-1		Brake valve: AC100V \| Mounting: Head trunnion \| Bore: 32 mm \| Stroke: 75 mm
ULK-V-TB-32-75-2		Brake valve: AC200V \| Mounting: Head trunnion \| Bore: 32 mm \| Stroke: 75 mm
ULK-V-TB-32-75-3		Brake valve: DC24V \| Mounting: Head trunnion \| Bore: 32 mm \| Stroke: 75 mm
ULK-V-TB-32-100-1		Brake valve: AC100V \| Mounting: Head trunnion \| Bore: 32 mm \| Stroke: 100 mm
ULK-V-TB-32-100-2		Brake valve: AC200V \| Mounting: Head trunnion \| Bore: 32 mm \| Stroke: 100 mm
ULK-V-TB-32-100-3		Brake valve: DC24V \| Mounting: Head trunnion \| Bore: 32 mm \| Stroke: 100 mm
ULK-V-TB-32-150-1		Brake valve: AC100V \| Mounting: Head trunnion \| Bore: 32 mm \| Stroke: 150 mm
ULK-V-TB-32-150-2		Brake valve: AC200V \| Mounting: Head trunnion \| Bore: 32 mm \| Stroke: 150 mm
ULK-V-TB-32-150-3		Brake valve: DC24V \| Mounting: Head trunnion \| Bore: 32 mm \| Stroke: 150 mm
ULK-V-TB-32-200-1		Brake valve: AC100V \| Mounting: Head trunnion \| Bore: 32 mm \| Stroke: 200 mm
ULK-V-TB-32-200-2		Brake valve: AC200V \| Mounting: Head trunnion \| Bore: 32 mm \| Stroke: 200 mm
ULK-V-TB-32-200-3		Brake valve: DC24V \| Mounting: Head trunnion \| Bore: 32 mm \| Stroke: 200 mm
ULK-V-TB-32-250-1		Brake valve: AC100V \| Mounting: Head trunnion \| Bore: 32 mm \| Stroke: 250 mm
ULK-V-TB-32-250-2		Brake valve: AC200V \| Mounting: Head trunnion \| Bore: 32 mm \| Stroke: 250 mm
ULK-V-TB-32-250-3		Brake valve: DC24V \| Mounting: Head trunnion \| Bore: 32 mm \| Stroke: 250 mm
ULK-V-TB-32-300-1		Brake valve: AC100V \| Mounting: Head trunnion \| Bore: 32 mm \| Stroke: 300 mm
ULK-V-TB-32-300-2		Brake valve: AC200V \| Mounting: Head trunnion \| Bore: 32 mm \| Stroke: 300 mm
ULK-V-TB-32-300-3		Brake valve: DC24V \| Mounting: Head trunnion \| Bore: 32 mm \| Stroke: 300 mm
ULK-V-TB-40-25-1		Brake valve: AC100V \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 25 mm
ULK-V-TB-40-25-2		Brake valve: AC200V \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 25 mm
ULK-V-TB-40-25-3		Brake valve: DC24V \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 25 mm
ULK-V-TB-40-50-1		Brake valve: AC100V \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 50 mm
ULK-V-TB-40-50-2		Brake valve: AC200V \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 50 mm
ULK-V-TB-40-50-3		Brake valve: DC24V \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 50 mm
ULK-V-TB-40-75-1		Brake valve: AC100V \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 75 mm
ULK-V-TB-40-75-2		Brake valve: AC200V \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 75 mm
ULK-V-TB-40-75-3		Brake valve: DC24V \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 75 mm
ULK-V-TB-40-100-1		Brake valve: AC100V \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 100 mm
ULK-V-TB-40-100-2		Brake valve: AC200V \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 100 mm
ULK-V-TB-40-100-3		Brake valve: DC24V \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 100 mm
ULK-V-TB-40-150-1		Brake valve: AC100V \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 150 mm
ULK-V-TB-40-150-2		Brake valve: AC200V \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 150 mm
ULK-V-TB-40-150-3		Brake valve: DC24V \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 150 mm
ULK-V-TB-40-200-1		Brake valve: AC100V \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 200 mm
ULK-V-TB-40-200-2		Brake valve: AC200V \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 200 mm
ULK-V-TB-40-200-3		Brake valve: DC24V \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 200 mm
ULK-V-TB-40-250-1		Brake valve: AC100V \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 250 mm
ULK-V-TB-40-250-2		Brake valve: AC200V \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 250 mm
ULK-V-TB-40-250-3		Brake valve: DC24V \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 250 mm
ULK-V-TB-40-300-1		Brake valve: AC100V \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 300 mm
ULK-V-TB-40-300-2		Brake valve: AC200V \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 300 mm
ULK-V-TB-40-300-3		Brake valve: DC24V \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 300 mm

Pneumatic CylindersCKD

1024 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD ULK / ULK-V Cell-Top Cylinder with Brake (Bore 20-40 mm)

Brand CKD·Pneumatic Cylinders

Available part numbers (1024)

ULK-00-20-25, ULK-00-20-50, ULK-00-20-75, ULK-00-20-100, ULK-00-20-150, ULK-00-20-200, ULK-00-20-250, ULK-00-20-300, ULK-00-25-25, ULK-00-25-50 + 1014 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	ULK-00-20-25	Brake valve: None \| Mounting: Basic \| Bore: 20 mm \| Stroke: 25 mm
	ULK-00-20-50	Brake valve: None \| Mounting: Basic \| Bore: 20 mm \| Stroke: 50 mm
	ULK-00-20-75	Brake valve: None \| Mounting: Basic \| Bore: 20 mm \| Stroke: 75 mm
	ULK-00-20-100	Brake valve: None \| Mounting: Basic \| Bore: 20 mm \| Stroke: 100 mm
	ULK-00-20-150	Brake valve: None \| Mounting: Basic \| Bore: 20 mm \| Stroke: 150 mm
	ULK-00-20-200	Brake valve: None \| Mounting: Basic \| Bore: 20 mm \| Stroke: 200 mm
	ULK-00-20-250	Brake valve: None \| Mounting: Basic \| Bore: 20 mm \| Stroke: 250 mm
	ULK-00-20-300	Brake valve: None \| Mounting: Basic \| Bore: 20 mm \| Stroke: 300 mm
	ULK-00-25-25	Brake valve: None \| Mounting: Basic \| Bore: 25 mm \| Stroke: 25 mm
	ULK-00-25-50	Brake valve: None \| Mounting: Basic \| Bore: 25 mm \| Stroke: 50 mm
	ULK-00-25-75	Brake valve: None \| Mounting: Basic \| Bore: 25 mm \| Stroke: 75 mm
	ULK-00-25-100	Brake valve: None \| Mounting: Basic \| Bore: 25 mm \| Stroke: 100 mm
	ULK-00-25-150	Brake valve: None \| Mounting: Basic \| Bore: 25 mm \| Stroke: 150 mm
	ULK-00-25-200	Brake valve: None \| Mounting: Basic \| Bore: 25 mm \| Stroke: 200 mm
	ULK-00-25-250	Brake valve: None \| Mounting: Basic \| Bore: 25 mm \| Stroke: 250 mm
	ULK-00-25-300	Brake valve: None \| Mounting: Basic \| Bore: 25 mm \| Stroke: 300 mm
	ULK-00-32-25	Brake valve: None \| Mounting: Basic \| Bore: 32 mm \| Stroke: 25 mm
	ULK-00-32-50	Brake valve: None \| Mounting: Basic \| Bore: 32 mm \| Stroke: 50 mm
	ULK-00-32-75	Brake valve: None \| Mounting: Basic \| Bore: 32 mm \| Stroke: 75 mm
	ULK-00-32-100	Brake valve: None \| Mounting: Basic \| Bore: 32 mm \| Stroke: 100 mm
	ULK-00-32-150	Brake valve: None \| Mounting: Basic \| Bore: 32 mm \| Stroke: 150 mm
	ULK-00-32-200	Brake valve: None \| Mounting: Basic \| Bore: 32 mm \| Stroke: 200 mm
	ULK-00-32-250	Brake valve: None \| Mounting: Basic \| Bore: 32 mm \| Stroke: 250 mm
	ULK-00-32-300	Brake valve: None \| Mounting: Basic \| Bore: 32 mm \| Stroke: 300 mm
	ULK-00-40-25	Brake valve: None \| Mounting: Basic \| Bore: 40 mm \| Stroke: 25 mm
	ULK-00-40-50	Brake valve: None \| Mounting: Basic \| Bore: 40 mm \| Stroke: 50 mm
	ULK-00-40-75	Brake valve: None \| Mounting: Basic \| Bore: 40 mm \| Stroke: 75 mm
	ULK-00-40-100	Brake valve: None \| Mounting: Basic \| Bore: 40 mm \| Stroke: 100 mm
	ULK-00-40-150	Brake valve: None \| Mounting: Basic \| Bore: 40 mm \| Stroke: 150 mm
	ULK-00-40-200	Brake valve: None \| Mounting: Basic \| Bore: 40 mm \| Stroke: 200 mm
	ULK-00-40-250	Brake valve: None \| Mounting: Basic \| Bore: 40 mm \| Stroke: 250 mm
	ULK-00-40-300	Brake valve: None \| Mounting: Basic \| Bore: 40 mm \| Stroke: 300 mm
	ULK-LB-20-25	Brake valve: None \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 25 mm
	ULK-LB-20-50	Brake valve: None \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 50 mm
	ULK-LB-20-75	Brake valve: None \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 75 mm
	ULK-LB-20-100	Brake valve: None \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 100 mm
	ULK-LB-20-150	Brake valve: None \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 150 mm
	ULK-LB-20-200	Brake valve: None \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 200 mm
	ULK-LB-20-250	Brake valve: None \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 250 mm
	ULK-LB-20-300	Brake valve: None \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 300 mm
	ULK-LB-25-25	Brake valve: None \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 25 mm
	ULK-LB-25-50	Brake valve: None \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 50 mm
	ULK-LB-25-75	Brake valve: None \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 75 mm
	ULK-LB-25-100	Brake valve: None \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 100 mm
	ULK-LB-25-150	Brake valve: None \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 150 mm
	ULK-LB-25-200	Brake valve: None \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 200 mm
	ULK-LB-25-250	Brake valve: None \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 250 mm
	ULK-LB-25-300	Brake valve: None \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 300 mm
	ULK-LB-32-25	Brake valve: None \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 25 mm
	ULK-LB-32-50	Brake valve: None \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 50 mm
	ULK-LB-32-75	Brake valve: None \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 75 mm
	ULK-LB-32-100	Brake valve: None \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 100 mm
	ULK-LB-32-150	Brake valve: None \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 150 mm
	ULK-LB-32-200	Brake valve: None \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 200 mm
	ULK-LB-32-250	Brake valve: None \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 250 mm
	ULK-LB-32-300	Brake valve: None \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 300 mm
	ULK-LB-40-25	Brake valve: None \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 25 mm
	ULK-LB-40-50	Brake valve: None \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 50 mm
	ULK-LB-40-75	Brake valve: None \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 75 mm
	ULK-LB-40-100	Brake valve: None \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 100 mm
	ULK-LB-40-150	Brake valve: None \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 150 mm
	ULK-LB-40-200	Brake valve: None \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 200 mm
	ULK-LB-40-250	Brake valve: None \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 250 mm
	ULK-LB-40-300	Brake valve: None \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 300 mm
	ULK-FA-20-25	Brake valve: None \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 25 mm
	ULK-FA-20-50	Brake valve: None \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 50 mm
	ULK-FA-20-75	Brake valve: None \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 75 mm
	ULK-FA-20-100	Brake valve: None \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 100 mm
	ULK-FA-20-150	Brake valve: None \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 150 mm
	ULK-FA-20-200	Brake valve: None \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 200 mm
	ULK-FA-20-250	Brake valve: None \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 250 mm
	ULK-FA-20-300	Brake valve: None \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 300 mm
	ULK-FA-25-25	Brake valve: None \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 25 mm
	ULK-FA-25-50	Brake valve: None \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 50 mm
	ULK-FA-25-75	Brake valve: None \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 75 mm
	ULK-FA-25-100	Brake valve: None \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 100 mm
	ULK-FA-25-150	Brake valve: None \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 150 mm
	ULK-FA-25-200	Brake valve: None \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 200 mm
	ULK-FA-25-250	Brake valve: None \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 250 mm
	ULK-FA-25-300	Brake valve: None \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 300 mm
	ULK-FA-32-25	Brake valve: None \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 25 mm
	ULK-FA-32-50	Brake valve: None \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 50 mm
	ULK-FA-32-75	Brake valve: None \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 75 mm
	ULK-FA-32-100	Brake valve: None \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 100 mm
	ULK-FA-32-150	Brake valve: None \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 150 mm
	ULK-FA-32-200	Brake valve: None \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 200 mm
	ULK-FA-32-250	Brake valve: None \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 250 mm
	ULK-FA-32-300	Brake valve: None \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 300 mm
	ULK-FA-40-25	Brake valve: None \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 25 mm
	ULK-FA-40-50	Brake valve: None \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 50 mm
	ULK-FA-40-75	Brake valve: None \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 75 mm
	ULK-FA-40-100	Brake valve: None \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 100 mm
	ULK-FA-40-150	Brake valve: None \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 150 mm
	ULK-FA-40-200	Brake valve: None \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 200 mm
	ULK-FA-40-250	Brake valve: None \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 250 mm
	ULK-FA-40-300	Brake valve: None \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 300 mm
	ULK-CA-20-25	Brake valve: None \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 25 mm
	ULK-CA-20-50	Brake valve: None \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 50 mm
	ULK-CA-20-75	Brake valve: None \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 75 mm
	ULK-CA-20-100	Brake valve: None \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 100 mm
	ULK-CA-20-150	Brake valve: None \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 150 mm
	ULK-CA-20-200	Brake valve: None \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 200 mm
	ULK-CA-20-250	Brake valve: None \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 250 mm
	ULK-CA-20-300	Brake valve: None \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 300 mm
	ULK-CA-25-25	Brake valve: None \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 25 mm
	ULK-CA-25-50	Brake valve: None \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 50 mm
	ULK-CA-25-75	Brake valve: None \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 75 mm
	ULK-CA-25-100	Brake valve: None \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 100 mm
	ULK-CA-25-150	Brake valve: None \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 150 mm
	ULK-CA-25-200	Brake valve: None \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 200 mm
	ULK-CA-25-250	Brake valve: None \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 250 mm
	ULK-CA-25-300	Brake valve: None \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 300 mm
	ULK-CA-32-25	Brake valve: None \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 25 mm
	ULK-CA-32-50	Brake valve: None \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 50 mm
	ULK-CA-32-75	Brake valve: None \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 75 mm
	ULK-CA-32-100	Brake valve: None \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 100 mm
	ULK-CA-32-150	Brake valve: None \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 150 mm
	ULK-CA-32-200	Brake valve: None \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 200 mm
	ULK-CA-32-250	Brake valve: None \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 250 mm
	ULK-CA-32-300	Brake valve: None \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 300 mm
	ULK-CA-40-25	Brake valve: None \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 25 mm
	ULK-CA-40-50	Brake valve: None \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 50 mm
	ULK-CA-40-75	Brake valve: None \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 75 mm
	ULK-CA-40-100	Brake valve: None \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 100 mm
	ULK-CA-40-150	Brake valve: None \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 150 mm
	ULK-CA-40-200	Brake valve: None \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 200 mm
	ULK-CA-40-250	Brake valve: None \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 250 mm
	ULK-CA-40-300	Brake valve: None \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 300 mm
	ULK-CC-20-25	Brake valve: None \| Mounting: Single clevis integral \| Bore: 20 mm \| Stroke: 25 mm
	ULK-CC-20-50	Brake valve: None \| Mounting: Single clevis integral \| Bore: 20 mm \| Stroke: 50 mm
	ULK-CC-20-75	Brake valve: None \| Mounting: Single clevis integral \| Bore: 20 mm \| Stroke: 75 mm
	ULK-CC-20-100	Brake valve: None \| Mounting: Single clevis integral \| Bore: 20 mm \| Stroke: 100 mm
	ULK-CC-20-150	Brake valve: None \| Mounting: Single clevis integral \| Bore: 20 mm \| Stroke: 150 mm
	ULK-CC-20-200	Brake valve: None \| Mounting: Single clevis integral \| Bore: 20 mm \| Stroke: 200 mm
	ULK-CC-20-250	Brake valve: None \| Mounting: Single clevis integral \| Bore: 20 mm \| Stroke: 250 mm
	ULK-CC-20-300	Brake valve: None \| Mounting: Single clevis integral \| Bore: 20 mm \| Stroke: 300 mm
	ULK-CC-25-25	Brake valve: None \| Mounting: Single clevis integral \| Bore: 25 mm \| Stroke: 25 mm
	ULK-CC-25-50	Brake valve: None \| Mounting: Single clevis integral \| Bore: 25 mm \| Stroke: 50 mm
	ULK-CC-25-75	Brake valve: None \| Mounting: Single clevis integral \| Bore: 25 mm \| Stroke: 75 mm
	ULK-CC-25-100	Brake valve: None \| Mounting: Single clevis integral \| Bore: 25 mm \| Stroke: 100 mm
	ULK-CC-25-150	Brake valve: None \| Mounting: Single clevis integral \| Bore: 25 mm \| Stroke: 150 mm
	ULK-CC-25-200	Brake valve: None \| Mounting: Single clevis integral \| Bore: 25 mm \| Stroke: 200 mm
	ULK-CC-25-250	Brake valve: None \| Mounting: Single clevis integral \| Bore: 25 mm \| Stroke: 250 mm
	ULK-CC-25-300	Brake valve: None \| Mounting: Single clevis integral \| Bore: 25 mm \| Stroke: 300 mm
	ULK-CC-32-25	Brake valve: None \| Mounting: Single clevis integral \| Bore: 32 mm \| Stroke: 25 mm
	ULK-CC-32-50	Brake valve: None \| Mounting: Single clevis integral \| Bore: 32 mm \| Stroke: 50 mm
	ULK-CC-32-75	Brake valve: None \| Mounting: Single clevis integral \| Bore: 32 mm \| Stroke: 75 mm
	ULK-CC-32-100	Brake valve: None \| Mounting: Single clevis integral \| Bore: 32 mm \| Stroke: 100 mm
	ULK-CC-32-150	Brake valve: None \| Mounting: Single clevis integral \| Bore: 32 mm \| Stroke: 150 mm
	ULK-CC-32-200	Brake valve: None \| Mounting: Single clevis integral \| Bore: 32 mm \| Stroke: 200 mm
	ULK-CC-32-250	Brake valve: None \| Mounting: Single clevis integral \| Bore: 32 mm \| Stroke: 250 mm
	ULK-CC-32-300	Brake valve: None \| Mounting: Single clevis integral \| Bore: 32 mm \| Stroke: 300 mm
	ULK-CC-40-25	Brake valve: None \| Mounting: Single clevis integral \| Bore: 40 mm \| Stroke: 25 mm
	ULK-CC-40-50	Brake valve: None \| Mounting: Single clevis integral \| Bore: 40 mm \| Stroke: 50 mm
	ULK-CC-40-75	Brake valve: None \| Mounting: Single clevis integral \| Bore: 40 mm \| Stroke: 75 mm
	ULK-CC-40-100	Brake valve: None \| Mounting: Single clevis integral \| Bore: 40 mm \| Stroke: 100 mm
	ULK-CC-40-150	Brake valve: None \| Mounting: Single clevis integral \| Bore: 40 mm \| Stroke: 150 mm
	ULK-CC-40-200	Brake valve: None \| Mounting: Single clevis integral \| Bore: 40 mm \| Stroke: 200 mm
	ULK-CC-40-250	Brake valve: None \| Mounting: Single clevis integral \| Bore: 40 mm \| Stroke: 250 mm
	ULK-CC-40-300	Brake valve: None \| Mounting: Single clevis integral \| Bore: 40 mm \| Stroke: 300 mm
	ULK-CC1-20-25	Brake valve: None \| Mounting: Clevis bush press-fit \| Bore: 20 mm \| Stroke: 25 mm
	ULK-CC1-20-50	Brake valve: None \| Mounting: Clevis bush press-fit \| Bore: 20 mm \| Stroke: 50 mm
	ULK-CC1-20-75	Brake valve: None \| Mounting: Clevis bush press-fit \| Bore: 20 mm \| Stroke: 75 mm
	ULK-CC1-20-100	Brake valve: None \| Mounting: Clevis bush press-fit \| Bore: 20 mm \| Stroke: 100 mm
	ULK-CC1-20-150	Brake valve: None \| Mounting: Clevis bush press-fit \| Bore: 20 mm \| Stroke: 150 mm
	ULK-CC1-20-200	Brake valve: None \| Mounting: Clevis bush press-fit \| Bore: 20 mm \| Stroke: 200 mm
	ULK-CC1-20-250	Brake valve: None \| Mounting: Clevis bush press-fit \| Bore: 20 mm \| Stroke: 250 mm
	ULK-CC1-20-300	Brake valve: None \| Mounting: Clevis bush press-fit \| Bore: 20 mm \| Stroke: 300 mm
	ULK-CC1-25-25	Brake valve: None \| Mounting: Clevis bush press-fit \| Bore: 25 mm \| Stroke: 25 mm
	ULK-CC1-25-50	Brake valve: None \| Mounting: Clevis bush press-fit \| Bore: 25 mm \| Stroke: 50 mm
	ULK-CC1-25-75	Brake valve: None \| Mounting: Clevis bush press-fit \| Bore: 25 mm \| Stroke: 75 mm
	ULK-CC1-25-100	Brake valve: None \| Mounting: Clevis bush press-fit \| Bore: 25 mm \| Stroke: 100 mm
	ULK-CC1-25-150	Brake valve: None \| Mounting: Clevis bush press-fit \| Bore: 25 mm \| Stroke: 150 mm
	ULK-CC1-25-200	Brake valve: None \| Mounting: Clevis bush press-fit \| Bore: 25 mm \| Stroke: 200 mm
	ULK-CC1-25-250	Brake valve: None \| Mounting: Clevis bush press-fit \| Bore: 25 mm \| Stroke: 250 mm
	ULK-CC1-25-300	Brake valve: None \| Mounting: Clevis bush press-fit \| Bore: 25 mm \| Stroke: 300 mm
	ULK-CC1-32-25	Brake valve: None \| Mounting: Clevis bush press-fit \| Bore: 32 mm \| Stroke: 25 mm
	ULK-CC1-32-50	Brake valve: None \| Mounting: Clevis bush press-fit \| Bore: 32 mm \| Stroke: 50 mm
	ULK-CC1-32-75	Brake valve: None \| Mounting: Clevis bush press-fit \| Bore: 32 mm \| Stroke: 75 mm
	ULK-CC1-32-100	Brake valve: None \| Mounting: Clevis bush press-fit \| Bore: 32 mm \| Stroke: 100 mm
	ULK-CC1-32-150	Brake valve: None \| Mounting: Clevis bush press-fit \| Bore: 32 mm \| Stroke: 150 mm
	ULK-CC1-32-200	Brake valve: None \| Mounting: Clevis bush press-fit \| Bore: 32 mm \| Stroke: 200 mm
	ULK-CC1-32-250	Brake valve: None \| Mounting: Clevis bush press-fit \| Bore: 32 mm \| Stroke: 250 mm
	ULK-CC1-32-300	Brake valve: None \| Mounting: Clevis bush press-fit \| Bore: 32 mm \| Stroke: 300 mm
	ULK-CC1-40-25	Brake valve: None \| Mounting: Clevis bush press-fit \| Bore: 40 mm \| Stroke: 25 mm
	ULK-CC1-40-50	Brake valve: None \| Mounting: Clevis bush press-fit \| Bore: 40 mm \| Stroke: 50 mm
	ULK-CC1-40-75	Brake valve: None \| Mounting: Clevis bush press-fit \| Bore: 40 mm \| Stroke: 75 mm
	ULK-CC1-40-100	Brake valve: None \| Mounting: Clevis bush press-fit \| Bore: 40 mm \| Stroke: 100 mm
	ULK-CC1-40-150	Brake valve: None \| Mounting: Clevis bush press-fit \| Bore: 40 mm \| Stroke: 150 mm
	ULK-CC1-40-200	Brake valve: None \| Mounting: Clevis bush press-fit \| Bore: 40 mm \| Stroke: 200 mm
	ULK-CC1-40-250	Brake valve: None \| Mounting: Clevis bush press-fit \| Bore: 40 mm \| Stroke: 250 mm
	ULK-CC1-40-300	Brake valve: None \| Mounting: Clevis bush press-fit \| Bore: 40 mm \| Stroke: 300 mm
	ULK-TA-20-25	Brake valve: None \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 25 mm
	ULK-TA-20-50	Brake valve: None \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 50 mm
	ULK-TA-20-75	Brake valve: None \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 75 mm
	ULK-TA-20-100	Brake valve: None \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 100 mm
	ULK-TA-20-150	Brake valve: None \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 150 mm
	ULK-TA-20-200	Brake valve: None \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 200 mm
	ULK-TA-20-250	Brake valve: None \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 250 mm
	ULK-TA-20-300	Brake valve: None \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 300 mm
	ULK-TA-25-25	Brake valve: None \| Mounting: Rod trunnion \| Bore: 25 mm \| Stroke: 25 mm
	ULK-TA-25-50	Brake valve: None \| Mounting: Rod trunnion \| Bore: 25 mm \| Stroke: 50 mm
	ULK-TA-25-75	Brake valve: None \| Mounting: Rod trunnion \| Bore: 25 mm \| Stroke: 75 mm
	ULK-TA-25-100	Brake valve: None \| Mounting: Rod trunnion \| Bore: 25 mm \| Stroke: 100 mm
	ULK-TA-25-150	Brake valve: None \| Mounting: Rod trunnion \| Bore: 25 mm \| Stroke: 150 mm
	ULK-TA-25-200	Brake valve: None \| Mounting: Rod trunnion \| Bore: 25 mm \| Stroke: 200 mm
	ULK-TA-25-250	Brake valve: None \| Mounting: Rod trunnion \| Bore: 25 mm \| Stroke: 250 mm
	ULK-TA-25-300	Brake valve: None \| Mounting: Rod trunnion \| Bore: 25 mm \| Stroke: 300 mm
	ULK-TA-32-25	Brake valve: None \| Mounting: Rod trunnion \| Bore: 32 mm \| Stroke: 25 mm
	ULK-TA-32-50	Brake valve: None \| Mounting: Rod trunnion \| Bore: 32 mm \| Stroke: 50 mm
	ULK-TA-32-75	Brake valve: None \| Mounting: Rod trunnion \| Bore: 32 mm \| Stroke: 75 mm
	ULK-TA-32-100	Brake valve: None \| Mounting: Rod trunnion \| Bore: 32 mm \| Stroke: 100 mm
	ULK-TA-32-150	Brake valve: None \| Mounting: Rod trunnion \| Bore: 32 mm \| Stroke: 150 mm
	ULK-TA-32-200	Brake valve: None \| Mounting: Rod trunnion \| Bore: 32 mm \| Stroke: 200 mm
	ULK-TA-32-250	Brake valve: None \| Mounting: Rod trunnion \| Bore: 32 mm \| Stroke: 250 mm
	ULK-TA-32-300	Brake valve: None \| Mounting: Rod trunnion \| Bore: 32 mm \| Stroke: 300 mm
	ULK-TA-40-25	Brake valve: None \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 25 mm
	ULK-TA-40-50	Brake valve: None \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 50 mm
	ULK-TA-40-75	Brake valve: None \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 75 mm
	ULK-TA-40-100	Brake valve: None \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 100 mm
	ULK-TA-40-150	Brake valve: None \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 150 mm
	ULK-TA-40-200	Brake valve: None \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 200 mm
	ULK-TA-40-250	Brake valve: None \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 250 mm
	ULK-TA-40-300	Brake valve: None \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 300 mm
	ULK-TB-20-25	Brake valve: None \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 25 mm
	ULK-TB-20-50	Brake valve: None \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 50 mm
	ULK-TB-20-75	Brake valve: None \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 75 mm
	ULK-TB-20-100	Brake valve: None \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 100 mm
	ULK-TB-20-150	Brake valve: None \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 150 mm
	ULK-TB-20-200	Brake valve: None \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 200 mm
	ULK-TB-20-250	Brake valve: None \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 250 mm
	ULK-TB-20-300	Brake valve: None \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 300 mm
	ULK-TB-25-25	Brake valve: None \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 25 mm
	ULK-TB-25-50	Brake valve: None \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 50 mm
	ULK-TB-25-75	Brake valve: None \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 75 mm
	ULK-TB-25-100	Brake valve: None \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 100 mm
	ULK-TB-25-150	Brake valve: None \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 150 mm
	ULK-TB-25-200	Brake valve: None \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 200 mm
	ULK-TB-25-250	Brake valve: None \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 250 mm
	ULK-TB-25-300	Brake valve: None \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 300 mm
	ULK-TB-32-25	Brake valve: None \| Mounting: Head trunnion \| Bore: 32 mm \| Stroke: 25 mm
	ULK-TB-32-50	Brake valve: None \| Mounting: Head trunnion \| Bore: 32 mm \| Stroke: 50 mm
	ULK-TB-32-75	Brake valve: None \| Mounting: Head trunnion \| Bore: 32 mm \| Stroke: 75 mm
	ULK-TB-32-100	Brake valve: None \| Mounting: Head trunnion \| Bore: 32 mm \| Stroke: 100 mm
	ULK-TB-32-150	Brake valve: None \| Mounting: Head trunnion \| Bore: 32 mm \| Stroke: 150 mm
	ULK-TB-32-200	Brake valve: None \| Mounting: Head trunnion \| Bore: 32 mm \| Stroke: 200 mm
	ULK-TB-32-250	Brake valve: None \| Mounting: Head trunnion \| Bore: 32 mm \| Stroke: 250 mm
	ULK-TB-32-300	Brake valve: None \| Mounting: Head trunnion \| Bore: 32 mm \| Stroke: 300 mm
	ULK-TB-40-25	Brake valve: None \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 25 mm
	ULK-TB-40-50	Brake valve: None \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 50 mm
	ULK-TB-40-75	Brake valve: None \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 75 mm
	ULK-TB-40-100	Brake valve: None \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 100 mm
	ULK-TB-40-150	Brake valve: None \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 150 mm
	ULK-TB-40-200	Brake valve: None \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 200 mm
	ULK-TB-40-250	Brake valve: None \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 250 mm
	ULK-TB-40-300	Brake valve: None \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 300 mm
	ULK-V-00-20-25-1	Brake valve: AC100V \| Mounting: Basic \| Bore: 20 mm \| Stroke: 25 mm
	ULK-V-00-20-25-2	Brake valve: AC200V \| Mounting: Basic \| Bore: 20 mm \| Stroke: 25 mm
	ULK-V-00-20-25-3	Brake valve: DC24V \| Mounting: Basic \| Bore: 20 mm \| Stroke: 25 mm
	ULK-V-00-20-50-1	Brake valve: AC100V \| Mounting: Basic \| Bore: 20 mm \| Stroke: 50 mm
	ULK-V-00-20-50-2	Brake valve: AC200V \| Mounting: Basic \| Bore: 20 mm \| Stroke: 50 mm
	ULK-V-00-20-50-3	Brake valve: DC24V \| Mounting: Basic \| Bore: 20 mm \| Stroke: 50 mm
	ULK-V-00-20-75-1	Brake valve: AC100V \| Mounting: Basic \| Bore: 20 mm \| Stroke: 75 mm
	ULK-V-00-20-75-2	Brake valve: AC200V \| Mounting: Basic \| Bore: 20 mm \| Stroke: 75 mm
	ULK-V-00-20-75-3	Brake valve: DC24V \| Mounting: Basic \| Bore: 20 mm \| Stroke: 75 mm
	ULK-V-00-20-100-1	Brake valve: AC100V \| Mounting: Basic \| Bore: 20 mm \| Stroke: 100 mm
	ULK-V-00-20-100-2	Brake valve: AC200V \| Mounting: Basic \| Bore: 20 mm \| Stroke: 100 mm
	ULK-V-00-20-100-3	Brake valve: DC24V \| Mounting: Basic \| Bore: 20 mm \| Stroke: 100 mm
	ULK-V-00-20-150-1	Brake valve: AC100V \| Mounting: Basic \| Bore: 20 mm \| Stroke: 150 mm
	ULK-V-00-20-150-2	Brake valve: AC200V \| Mounting: Basic \| Bore: 20 mm \| Stroke: 150 mm
	ULK-V-00-20-150-3	Brake valve: DC24V \| Mounting: Basic \| Bore: 20 mm \| Stroke: 150 mm
	ULK-V-00-20-200-1	Brake valve: AC100V \| Mounting: Basic \| Bore: 20 mm \| Stroke: 200 mm
	ULK-V-00-20-200-2	Brake valve: AC200V \| Mounting: Basic \| Bore: 20 mm \| Stroke: 200 mm
	ULK-V-00-20-200-3	Brake valve: DC24V \| Mounting: Basic \| Bore: 20 mm \| Stroke: 200 mm
	ULK-V-00-20-250-1	Brake valve: AC100V \| Mounting: Basic \| Bore: 20 mm \| Stroke: 250 mm
	ULK-V-00-20-250-2	Brake valve: AC200V \| Mounting: Basic \| Bore: 20 mm \| Stroke: 250 mm
	ULK-V-00-20-250-3	Brake valve: DC24V \| Mounting: Basic \| Bore: 20 mm \| Stroke: 250 mm
	ULK-V-00-20-300-1	Brake valve: AC100V \| Mounting: Basic \| Bore: 20 mm \| Stroke: 300 mm
	ULK-V-00-20-300-2	Brake valve: AC200V \| Mounting: Basic \| Bore: 20 mm \| Stroke: 300 mm
	ULK-V-00-20-300-3	Brake valve: DC24V \| Mounting: Basic \| Bore: 20 mm \| Stroke: 300 mm
	ULK-V-00-25-25-1	Brake valve: AC100V \| Mounting: Basic \| Bore: 25 mm \| Stroke: 25 mm
	ULK-V-00-25-25-2	Brake valve: AC200V \| Mounting: Basic \| Bore: 25 mm \| Stroke: 25 mm
	ULK-V-00-25-25-3	Brake valve: DC24V \| Mounting: Basic \| Bore: 25 mm \| Stroke: 25 mm
	ULK-V-00-25-50-1	Brake valve: AC100V \| Mounting: Basic \| Bore: 25 mm \| Stroke: 50 mm
	ULK-V-00-25-50-2	Brake valve: AC200V \| Mounting: Basic \| Bore: 25 mm \| Stroke: 50 mm
	ULK-V-00-25-50-3	Brake valve: DC24V \| Mounting: Basic \| Bore: 25 mm \| Stroke: 50 mm
	ULK-V-00-25-75-1	Brake valve: AC100V \| Mounting: Basic \| Bore: 25 mm \| Stroke: 75 mm
	ULK-V-00-25-75-2	Brake valve: AC200V \| Mounting: Basic \| Bore: 25 mm \| Stroke: 75 mm
	ULK-V-00-25-75-3	Brake valve: DC24V \| Mounting: Basic \| Bore: 25 mm \| Stroke: 75 mm
	ULK-V-00-25-100-1	Brake valve: AC100V \| Mounting: Basic \| Bore: 25 mm \| Stroke: 100 mm
	ULK-V-00-25-100-2	Brake valve: AC200V \| Mounting: Basic \| Bore: 25 mm \| Stroke: 100 mm
	ULK-V-00-25-100-3	Brake valve: DC24V \| Mounting: Basic \| Bore: 25 mm \| Stroke: 100 mm
	ULK-V-00-25-150-1	Brake valve: AC100V \| Mounting: Basic \| Bore: 25 mm \| Stroke: 150 mm
	ULK-V-00-25-150-2	Brake valve: AC200V \| Mounting: Basic \| Bore: 25 mm \| Stroke: 150 mm
	ULK-V-00-25-150-3	Brake valve: DC24V \| Mounting: Basic \| Bore: 25 mm \| Stroke: 150 mm
	ULK-V-00-25-200-1	Brake valve: AC100V \| Mounting: Basic \| Bore: 25 mm \| Stroke: 200 mm
	ULK-V-00-25-200-2	Brake valve: AC200V \| Mounting: Basic \| Bore: 25 mm \| Stroke: 200 mm
	ULK-V-00-25-200-3	Brake valve: DC24V \| Mounting: Basic \| Bore: 25 mm \| Stroke: 200 mm
	ULK-V-00-25-250-1	Brake valve: AC100V \| Mounting: Basic \| Bore: 25 mm \| Stroke: 250 mm
	ULK-V-00-25-250-2	Brake valve: AC200V \| Mounting: Basic \| Bore: 25 mm \| Stroke: 250 mm
	ULK-V-00-25-250-3	Brake valve: DC24V \| Mounting: Basic \| Bore: 25 mm \| Stroke: 250 mm
	ULK-V-00-25-300-1	Brake valve: AC100V \| Mounting: Basic \| Bore: 25 mm \| Stroke: 300 mm
	ULK-V-00-25-300-2	Brake valve: AC200V \| Mounting: Basic \| Bore: 25 mm \| Stroke: 300 mm
	ULK-V-00-25-300-3	Brake valve: DC24V \| Mounting: Basic \| Bore: 25 mm \| Stroke: 300 mm
	ULK-V-00-32-25-1	Brake valve: AC100V \| Mounting: Basic \| Bore: 32 mm \| Stroke: 25 mm
	ULK-V-00-32-25-2	Brake valve: AC200V \| Mounting: Basic \| Bore: 32 mm \| Stroke: 25 mm
	ULK-V-00-32-25-3	Brake valve: DC24V \| Mounting: Basic \| Bore: 32 mm \| Stroke: 25 mm
	ULK-V-00-32-50-1	Brake valve: AC100V \| Mounting: Basic \| Bore: 32 mm \| Stroke: 50 mm
	ULK-V-00-32-50-2	Brake valve: AC200V \| Mounting: Basic \| Bore: 32 mm \| Stroke: 50 mm
	ULK-V-00-32-50-3	Brake valve: DC24V \| Mounting: Basic \| Bore: 32 mm \| Stroke: 50 mm
	ULK-V-00-32-75-1	Brake valve: AC100V \| Mounting: Basic \| Bore: 32 mm \| Stroke: 75 mm
	ULK-V-00-32-75-2	Brake valve: AC200V \| Mounting: Basic \| Bore: 32 mm \| Stroke: 75 mm
	ULK-V-00-32-75-3	Brake valve: DC24V \| Mounting: Basic \| Bore: 32 mm \| Stroke: 75 mm
	ULK-V-00-32-100-1	Brake valve: AC100V \| Mounting: Basic \| Bore: 32 mm \| Stroke: 100 mm
	ULK-V-00-32-100-2	Brake valve: AC200V \| Mounting: Basic \| Bore: 32 mm \| Stroke: 100 mm
	ULK-V-00-32-100-3	Brake valve: DC24V \| Mounting: Basic \| Bore: 32 mm \| Stroke: 100 mm
	ULK-V-00-32-150-1	Brake valve: AC100V \| Mounting: Basic \| Bore: 32 mm \| Stroke: 150 mm
	ULK-V-00-32-150-2	Brake valve: AC200V \| Mounting: Basic \| Bore: 32 mm \| Stroke: 150 mm
	ULK-V-00-32-150-3	Brake valve: DC24V \| Mounting: Basic \| Bore: 32 mm \| Stroke: 150 mm
	ULK-V-00-32-200-1	Brake valve: AC100V \| Mounting: Basic \| Bore: 32 mm \| Stroke: 200 mm
	ULK-V-00-32-200-2	Brake valve: AC200V \| Mounting: Basic \| Bore: 32 mm \| Stroke: 200 mm
	ULK-V-00-32-200-3	Brake valve: DC24V \| Mounting: Basic \| Bore: 32 mm \| Stroke: 200 mm
	ULK-V-00-32-250-1	Brake valve: AC100V \| Mounting: Basic \| Bore: 32 mm \| Stroke: 250 mm
	ULK-V-00-32-250-2	Brake valve: AC200V \| Mounting: Basic \| Bore: 32 mm \| Stroke: 250 mm
	ULK-V-00-32-250-3	Brake valve: DC24V \| Mounting: Basic \| Bore: 32 mm \| Stroke: 250 mm
	ULK-V-00-32-300-1	Brake valve: AC100V \| Mounting: Basic \| Bore: 32 mm \| Stroke: 300 mm
	ULK-V-00-32-300-2	Brake valve: AC200V \| Mounting: Basic \| Bore: 32 mm \| Stroke: 300 mm
	ULK-V-00-32-300-3	Brake valve: DC24V \| Mounting: Basic \| Bore: 32 mm \| Stroke: 300 mm
	ULK-V-00-40-25-1	Brake valve: AC100V \| Mounting: Basic \| Bore: 40 mm \| Stroke: 25 mm
	ULK-V-00-40-25-2	Brake valve: AC200V \| Mounting: Basic \| Bore: 40 mm \| Stroke: 25 mm
	ULK-V-00-40-25-3	Brake valve: DC24V \| Mounting: Basic \| Bore: 40 mm \| Stroke: 25 mm
	ULK-V-00-40-50-1	Brake valve: AC100V \| Mounting: Basic \| Bore: 40 mm \| Stroke: 50 mm
	ULK-V-00-40-50-2	Brake valve: AC200V \| Mounting: Basic \| Bore: 40 mm \| Stroke: 50 mm
	ULK-V-00-40-50-3	Brake valve: DC24V \| Mounting: Basic \| Bore: 40 mm \| Stroke: 50 mm
	ULK-V-00-40-75-1	Brake valve: AC100V \| Mounting: Basic \| Bore: 40 mm \| Stroke: 75 mm
	ULK-V-00-40-75-2	Brake valve: AC200V \| Mounting: Basic \| Bore: 40 mm \| Stroke: 75 mm
	ULK-V-00-40-75-3	Brake valve: DC24V \| Mounting: Basic \| Bore: 40 mm \| Stroke: 75 mm
	ULK-V-00-40-100-1	Brake valve: AC100V \| Mounting: Basic \| Bore: 40 mm \| Stroke: 100 mm
	ULK-V-00-40-100-2	Brake valve: AC200V \| Mounting: Basic \| Bore: 40 mm \| Stroke: 100 mm
	ULK-V-00-40-100-3	Brake valve: DC24V \| Mounting: Basic \| Bore: 40 mm \| Stroke: 100 mm
	ULK-V-00-40-150-1	Brake valve: AC100V \| Mounting: Basic \| Bore: 40 mm \| Stroke: 150 mm
	ULK-V-00-40-150-2	Brake valve: AC200V \| Mounting: Basic \| Bore: 40 mm \| Stroke: 150 mm
	ULK-V-00-40-150-3	Brake valve: DC24V \| Mounting: Basic \| Bore: 40 mm \| Stroke: 150 mm
	ULK-V-00-40-200-1	Brake valve: AC100V \| Mounting: Basic \| Bore: 40 mm \| Stroke: 200 mm
	ULK-V-00-40-200-2	Brake valve: AC200V \| Mounting: Basic \| Bore: 40 mm \| Stroke: 200 mm
	ULK-V-00-40-200-3	Brake valve: DC24V \| Mounting: Basic \| Bore: 40 mm \| Stroke: 200 mm
	ULK-V-00-40-250-1	Brake valve: AC100V \| Mounting: Basic \| Bore: 40 mm \| Stroke: 250 mm
	ULK-V-00-40-250-2	Brake valve: AC200V \| Mounting: Basic \| Bore: 40 mm \| Stroke: 250 mm
	ULK-V-00-40-250-3	Brake valve: DC24V \| Mounting: Basic \| Bore: 40 mm \| Stroke: 250 mm
	ULK-V-00-40-300-1	Brake valve: AC100V \| Mounting: Basic \| Bore: 40 mm \| Stroke: 300 mm
	ULK-V-00-40-300-2	Brake valve: AC200V \| Mounting: Basic \| Bore: 40 mm \| Stroke: 300 mm
	ULK-V-00-40-300-3	Brake valve: DC24V \| Mounting: Basic \| Bore: 40 mm \| Stroke: 300 mm
	ULK-V-LB-20-25-1	Brake valve: AC100V \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 25 mm
	ULK-V-LB-20-25-2	Brake valve: AC200V \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 25 mm
	ULK-V-LB-20-25-3	Brake valve: DC24V \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 25 mm
	ULK-V-LB-20-50-1	Brake valve: AC100V \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 50 mm
	ULK-V-LB-20-50-2	Brake valve: AC200V \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 50 mm
	ULK-V-LB-20-50-3	Brake valve: DC24V \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 50 mm
	ULK-V-LB-20-75-1	Brake valve: AC100V \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 75 mm
	ULK-V-LB-20-75-2	Brake valve: AC200V \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 75 mm
	ULK-V-LB-20-75-3	Brake valve: DC24V \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 75 mm
	ULK-V-LB-20-100-1	Brake valve: AC100V \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 100 mm
	ULK-V-LB-20-100-2	Brake valve: AC200V \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 100 mm
	ULK-V-LB-20-100-3	Brake valve: DC24V \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 100 mm
	ULK-V-LB-20-150-1	Brake valve: AC100V \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 150 mm
	ULK-V-LB-20-150-2	Brake valve: AC200V \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 150 mm
	ULK-V-LB-20-150-3	Brake valve: DC24V \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 150 mm
	ULK-V-LB-20-200-1	Brake valve: AC100V \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 200 mm
	ULK-V-LB-20-200-2	Brake valve: AC200V \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 200 mm
	ULK-V-LB-20-200-3	Brake valve: DC24V \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 200 mm
	ULK-V-LB-20-250-1	Brake valve: AC100V \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 250 mm
	ULK-V-LB-20-250-2	Brake valve: AC200V \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 250 mm
	ULK-V-LB-20-250-3	Brake valve: DC24V \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 250 mm
	ULK-V-LB-20-300-1	Brake valve: AC100V \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 300 mm
	ULK-V-LB-20-300-2	Brake valve: AC200V \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 300 mm
	ULK-V-LB-20-300-3	Brake valve: DC24V \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 300 mm
	ULK-V-LB-25-25-1	Brake valve: AC100V \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 25 mm
	ULK-V-LB-25-25-2	Brake valve: AC200V \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 25 mm
	ULK-V-LB-25-25-3	Brake valve: DC24V \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 25 mm
	ULK-V-LB-25-50-1	Brake valve: AC100V \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 50 mm
	ULK-V-LB-25-50-2	Brake valve: AC200V \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 50 mm
	ULK-V-LB-25-50-3	Brake valve: DC24V \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 50 mm
	ULK-V-LB-25-75-1	Brake valve: AC100V \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 75 mm
	ULK-V-LB-25-75-2	Brake valve: AC200V \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 75 mm
	ULK-V-LB-25-75-3	Brake valve: DC24V \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 75 mm
	ULK-V-LB-25-100-1	Brake valve: AC100V \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 100 mm
	ULK-V-LB-25-100-2	Brake valve: AC200V \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 100 mm
	ULK-V-LB-25-100-3	Brake valve: DC24V \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 100 mm
	ULK-V-LB-25-150-1	Brake valve: AC100V \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 150 mm
	ULK-V-LB-25-150-2	Brake valve: AC200V \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 150 mm
	ULK-V-LB-25-150-3	Brake valve: DC24V \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 150 mm
	ULK-V-LB-25-200-1	Brake valve: AC100V \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 200 mm
	ULK-V-LB-25-200-2	Brake valve: AC200V \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 200 mm
	ULK-V-LB-25-200-3	Brake valve: DC24V \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 200 mm
	ULK-V-LB-25-250-1	Brake valve: AC100V \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 250 mm
	ULK-V-LB-25-250-2	Brake valve: AC200V \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 250 mm
	ULK-V-LB-25-250-3	Brake valve: DC24V \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 250 mm
	ULK-V-LB-25-300-1	Brake valve: AC100V \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 300 mm
	ULK-V-LB-25-300-2	Brake valve: AC200V \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 300 mm
	ULK-V-LB-25-300-3	Brake valve: DC24V \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 300 mm
	ULK-V-LB-32-25-1	Brake valve: AC100V \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 25 mm
	ULK-V-LB-32-25-2	Brake valve: AC200V \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 25 mm
	ULK-V-LB-32-25-3	Brake valve: DC24V \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 25 mm
	ULK-V-LB-32-50-1	Brake valve: AC100V \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 50 mm
	ULK-V-LB-32-50-2	Brake valve: AC200V \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 50 mm
	ULK-V-LB-32-50-3	Brake valve: DC24V \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 50 mm
	ULK-V-LB-32-75-1	Brake valve: AC100V \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 75 mm
	ULK-V-LB-32-75-2	Brake valve: AC200V \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 75 mm
	ULK-V-LB-32-75-3	Brake valve: DC24V \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 75 mm
	ULK-V-LB-32-100-1	Brake valve: AC100V \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 100 mm
	ULK-V-LB-32-100-2	Brake valve: AC200V \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 100 mm
	ULK-V-LB-32-100-3	Brake valve: DC24V \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 100 mm
	ULK-V-LB-32-150-1	Brake valve: AC100V \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 150 mm
	ULK-V-LB-32-150-2	Brake valve: AC200V \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 150 mm
	ULK-V-LB-32-150-3	Brake valve: DC24V \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 150 mm
	ULK-V-LB-32-200-1	Brake valve: AC100V \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 200 mm
	ULK-V-LB-32-200-2	Brake valve: AC200V \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 200 mm
	ULK-V-LB-32-200-3	Brake valve: DC24V \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 200 mm
	ULK-V-LB-32-250-1	Brake valve: AC100V \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 250 mm
	ULK-V-LB-32-250-2	Brake valve: AC200V \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 250 mm
	ULK-V-LB-32-250-3	Brake valve: DC24V \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 250 mm
	ULK-V-LB-32-300-1	Brake valve: AC100V \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 300 mm
	ULK-V-LB-32-300-2	Brake valve: AC200V \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 300 mm
	ULK-V-LB-32-300-3	Brake valve: DC24V \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 300 mm
	ULK-V-LB-40-25-1	Brake valve: AC100V \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 25 mm
	ULK-V-LB-40-25-2	Brake valve: AC200V \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 25 mm
	ULK-V-LB-40-25-3	Brake valve: DC24V \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 25 mm
	ULK-V-LB-40-50-1	Brake valve: AC100V \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 50 mm
	ULK-V-LB-40-50-2	Brake valve: AC200V \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 50 mm
	ULK-V-LB-40-50-3	Brake valve: DC24V \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 50 mm
	ULK-V-LB-40-75-1	Brake valve: AC100V \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 75 mm
	ULK-V-LB-40-75-2	Brake valve: AC200V \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 75 mm
	ULK-V-LB-40-75-3	Brake valve: DC24V \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 75 mm
	ULK-V-LB-40-100-1	Brake valve: AC100V \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 100 mm
	ULK-V-LB-40-100-2	Brake valve: AC200V \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 100 mm
	ULK-V-LB-40-100-3	Brake valve: DC24V \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 100 mm
	ULK-V-LB-40-150-1	Brake valve: AC100V \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 150 mm
	ULK-V-LB-40-150-2	Brake valve: AC200V \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 150 mm
	ULK-V-LB-40-150-3	Brake valve: DC24V \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 150 mm
	ULK-V-LB-40-200-1	Brake valve: AC100V \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 200 mm
	ULK-V-LB-40-200-2	Brake valve: AC200V \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 200 mm
	ULK-V-LB-40-200-3	Brake valve: DC24V \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 200 mm
	ULK-V-LB-40-250-1	Brake valve: AC100V \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 250 mm
	ULK-V-LB-40-250-2	Brake valve: AC200V \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 250 mm
	ULK-V-LB-40-250-3	Brake valve: DC24V \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 250 mm
	ULK-V-LB-40-300-1	Brake valve: AC100V \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 300 mm
	ULK-V-LB-40-300-2	Brake valve: AC200V \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 300 mm
	ULK-V-LB-40-300-3	Brake valve: DC24V \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 300 mm
	ULK-V-FA-20-25-1	Brake valve: AC100V \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 25 mm
	ULK-V-FA-20-25-2	Brake valve: AC200V \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 25 mm
	ULK-V-FA-20-25-3	Brake valve: DC24V \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 25 mm
	ULK-V-FA-20-50-1	Brake valve: AC100V \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 50 mm
	ULK-V-FA-20-50-2	Brake valve: AC200V \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 50 mm
	ULK-V-FA-20-50-3	Brake valve: DC24V \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 50 mm
	ULK-V-FA-20-75-1	Brake valve: AC100V \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 75 mm
	ULK-V-FA-20-75-2	Brake valve: AC200V \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 75 mm
	ULK-V-FA-20-75-3	Brake valve: DC24V \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 75 mm
	ULK-V-FA-20-100-1	Brake valve: AC100V \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 100 mm
	ULK-V-FA-20-100-2	Brake valve: AC200V \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 100 mm
	ULK-V-FA-20-100-3	Brake valve: DC24V \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 100 mm
	ULK-V-FA-20-150-1	Brake valve: AC100V \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 150 mm
	ULK-V-FA-20-150-2	Brake valve: AC200V \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 150 mm
	ULK-V-FA-20-150-3	Brake valve: DC24V \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 150 mm
	ULK-V-FA-20-200-1	Brake valve: AC100V \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 200 mm
	ULK-V-FA-20-200-2	Brake valve: AC200V \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 200 mm
	ULK-V-FA-20-200-3	Brake valve: DC24V \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 200 mm
	ULK-V-FA-20-250-1	Brake valve: AC100V \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 250 mm
	ULK-V-FA-20-250-2	Brake valve: AC200V \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 250 mm
	ULK-V-FA-20-250-3	Brake valve: DC24V \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 250 mm
	ULK-V-FA-20-300-1	Brake valve: AC100V \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 300 mm
	ULK-V-FA-20-300-2	Brake valve: AC200V \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 300 mm
	ULK-V-FA-20-300-3	Brake valve: DC24V \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 300 mm
	ULK-V-FA-25-25-1	Brake valve: AC100V \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 25 mm
	ULK-V-FA-25-25-2	Brake valve: AC200V \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 25 mm
	ULK-V-FA-25-25-3	Brake valve: DC24V \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 25 mm
	ULK-V-FA-25-50-1	Brake valve: AC100V \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 50 mm
	ULK-V-FA-25-50-2	Brake valve: AC200V \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 50 mm
	ULK-V-FA-25-50-3	Brake valve: DC24V \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 50 mm
	ULK-V-FA-25-75-1	Brake valve: AC100V \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 75 mm
	ULK-V-FA-25-75-2	Brake valve: AC200V \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 75 mm
	ULK-V-FA-25-75-3	Brake valve: DC24V \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 75 mm
	ULK-V-FA-25-100-1	Brake valve: AC100V \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 100 mm
	ULK-V-FA-25-100-2	Brake valve: AC200V \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 100 mm
	ULK-V-FA-25-100-3	Brake valve: DC24V \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 100 mm
	ULK-V-FA-25-150-1	Brake valve: AC100V \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 150 mm
	ULK-V-FA-25-150-2	Brake valve: AC200V \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 150 mm
	ULK-V-FA-25-150-3	Brake valve: DC24V \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 150 mm
	ULK-V-FA-25-200-1	Brake valve: AC100V \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 200 mm
	ULK-V-FA-25-200-2	Brake valve: AC200V \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 200 mm
	ULK-V-FA-25-200-3	Brake valve: DC24V \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 200 mm
	ULK-V-FA-25-250-1	Brake valve: AC100V \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 250 mm
	ULK-V-FA-25-250-2	Brake valve: AC200V \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 250 mm
	ULK-V-FA-25-250-3	Brake valve: DC24V \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 250 mm
	ULK-V-FA-25-300-1	Brake valve: AC100V \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 300 mm
	ULK-V-FA-25-300-2	Brake valve: AC200V \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 300 mm
	ULK-V-FA-25-300-3	Brake valve: DC24V \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 300 mm
	ULK-V-FA-32-25-1	Brake valve: AC100V \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 25 mm
	ULK-V-FA-32-25-2	Brake valve: AC200V \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 25 mm
	ULK-V-FA-32-25-3	Brake valve: DC24V \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 25 mm
	ULK-V-FA-32-50-1	Brake valve: AC100V \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 50 mm
	ULK-V-FA-32-50-2	Brake valve: AC200V \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 50 mm
	ULK-V-FA-32-50-3	Brake valve: DC24V \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 50 mm
	ULK-V-FA-32-75-1	Brake valve: AC100V \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 75 mm
	ULK-V-FA-32-75-2	Brake valve: AC200V \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 75 mm
	ULK-V-FA-32-75-3	Brake valve: DC24V \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 75 mm
	ULK-V-FA-32-100-1	Brake valve: AC100V \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 100 mm
	ULK-V-FA-32-100-2	Brake valve: AC200V \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 100 mm
	ULK-V-FA-32-100-3	Brake valve: DC24V \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 100 mm
	ULK-V-FA-32-150-1	Brake valve: AC100V \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 150 mm
	ULK-V-FA-32-150-2	Brake valve: AC200V \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 150 mm
	ULK-V-FA-32-150-3	Brake valve: DC24V \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 150 mm
	ULK-V-FA-32-200-1	Brake valve: AC100V \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 200 mm
	ULK-V-FA-32-200-2	Brake valve: AC200V \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 200 mm
	ULK-V-FA-32-200-3	Brake valve: DC24V \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 200 mm
	ULK-V-FA-32-250-1	Brake valve: AC100V \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 250 mm
	ULK-V-FA-32-250-2	Brake valve: AC200V \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 250 mm
	ULK-V-FA-32-250-3	Brake valve: DC24V \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 250 mm
	ULK-V-FA-32-300-1	Brake valve: AC100V \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 300 mm
	ULK-V-FA-32-300-2	Brake valve: AC200V \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 300 mm
	ULK-V-FA-32-300-3	Brake valve: DC24V \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 300 mm
	ULK-V-FA-40-25-1	Brake valve: AC100V \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 25 mm
	ULK-V-FA-40-25-2	Brake valve: AC200V \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 25 mm
	ULK-V-FA-40-25-3	Brake valve: DC24V \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 25 mm
	ULK-V-FA-40-50-1	Brake valve: AC100V \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 50 mm
	ULK-V-FA-40-50-2	Brake valve: AC200V \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 50 mm
	ULK-V-FA-40-50-3	Brake valve: DC24V \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 50 mm
	ULK-V-FA-40-75-1	Brake valve: AC100V \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 75 mm
	ULK-V-FA-40-75-2	Brake valve: AC200V \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 75 mm
	ULK-V-FA-40-75-3	Brake valve: DC24V \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 75 mm
	ULK-V-FA-40-100-1	Brake valve: AC100V \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 100 mm
	ULK-V-FA-40-100-2	Brake valve: AC200V \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 100 mm
	ULK-V-FA-40-100-3	Brake valve: DC24V \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 100 mm
	ULK-V-FA-40-150-1	Brake valve: AC100V \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 150 mm
	ULK-V-FA-40-150-2	Brake valve: AC200V \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 150 mm
	ULK-V-FA-40-150-3	Brake valve: DC24V \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 150 mm
	ULK-V-FA-40-200-1	Brake valve: AC100V \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 200 mm
	ULK-V-FA-40-200-2	Brake valve: AC200V \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 200 mm
	ULK-V-FA-40-200-3	Brake valve: DC24V \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 200 mm
	ULK-V-FA-40-250-1	Brake valve: AC100V \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 250 mm
	ULK-V-FA-40-250-2	Brake valve: AC200V \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 250 mm
	ULK-V-FA-40-250-3	Brake valve: DC24V \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 250 mm
	ULK-V-FA-40-300-1	Brake valve: AC100V \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 300 mm
	ULK-V-FA-40-300-2	Brake valve: AC200V \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 300 mm
	ULK-V-FA-40-300-3	Brake valve: DC24V \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 300 mm
	ULK-V-CA-20-25-1	Brake valve: AC100V \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 25 mm
	ULK-V-CA-20-25-2	Brake valve: AC200V \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 25 mm
	ULK-V-CA-20-25-3	Brake valve: DC24V \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 25 mm
	ULK-V-CA-20-50-1	Brake valve: AC100V \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 50 mm
	ULK-V-CA-20-50-2	Brake valve: AC200V \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 50 mm
	ULK-V-CA-20-50-3	Brake valve: DC24V \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 50 mm
	ULK-V-CA-20-75-1	Brake valve: AC100V \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 75 mm
	ULK-V-CA-20-75-2	Brake valve: AC200V \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 75 mm
	ULK-V-CA-20-75-3	Brake valve: DC24V \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 75 mm
	ULK-V-CA-20-100-1	Brake valve: AC100V \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 100 mm
	ULK-V-CA-20-100-2	Brake valve: AC200V \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 100 mm
	ULK-V-CA-20-100-3	Brake valve: DC24V \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 100 mm
	ULK-V-CA-20-150-1	Brake valve: AC100V \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 150 mm
	ULK-V-CA-20-150-2	Brake valve: AC200V \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 150 mm
	ULK-V-CA-20-150-3	Brake valve: DC24V \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 150 mm
	ULK-V-CA-20-200-1	Brake valve: AC100V \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 200 mm
	ULK-V-CA-20-200-2	Brake valve: AC200V \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 200 mm
	ULK-V-CA-20-200-3	Brake valve: DC24V \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 200 mm
	ULK-V-CA-20-250-1	Brake valve: AC100V \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 250 mm
	ULK-V-CA-20-250-2	Brake valve: AC200V \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 250 mm
	ULK-V-CA-20-250-3	Brake valve: DC24V \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 250 mm
	ULK-V-CA-20-300-1	Brake valve: AC100V \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 300 mm
	ULK-V-CA-20-300-2	Brake valve: AC200V \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 300 mm
	ULK-V-CA-20-300-3	Brake valve: DC24V \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 300 mm
	ULK-V-CA-25-25-1	Brake valve: AC100V \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 25 mm
	ULK-V-CA-25-25-2	Brake valve: AC200V \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 25 mm
	ULK-V-CA-25-25-3	Brake valve: DC24V \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 25 mm
	ULK-V-CA-25-50-1	Brake valve: AC100V \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 50 mm
	ULK-V-CA-25-50-2	Brake valve: AC200V \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 50 mm
	ULK-V-CA-25-50-3	Brake valve: DC24V \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 50 mm
	ULK-V-CA-25-75-1	Brake valve: AC100V \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 75 mm
	ULK-V-CA-25-75-2	Brake valve: AC200V \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 75 mm
	ULK-V-CA-25-75-3	Brake valve: DC24V \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 75 mm
	ULK-V-CA-25-100-1	Brake valve: AC100V \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 100 mm
	ULK-V-CA-25-100-2	Brake valve: AC200V \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 100 mm
	ULK-V-CA-25-100-3	Brake valve: DC24V \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 100 mm
	ULK-V-CA-25-150-1	Brake valve: AC100V \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 150 mm
	ULK-V-CA-25-150-2	Brake valve: AC200V \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 150 mm
	ULK-V-CA-25-150-3	Brake valve: DC24V \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 150 mm
	ULK-V-CA-25-200-1	Brake valve: AC100V \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 200 mm
	ULK-V-CA-25-200-2	Brake valve: AC200V \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 200 mm
	ULK-V-CA-25-200-3	Brake valve: DC24V \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 200 mm
	ULK-V-CA-25-250-1	Brake valve: AC100V \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 250 mm
	ULK-V-CA-25-250-2	Brake valve: AC200V \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 250 mm
	ULK-V-CA-25-250-3	Brake valve: DC24V \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 250 mm
	ULK-V-CA-25-300-1	Brake valve: AC100V \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 300 mm
	ULK-V-CA-25-300-2	Brake valve: AC200V \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 300 mm
	ULK-V-CA-25-300-3	Brake valve: DC24V \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 300 mm
	ULK-V-CA-32-25-1	Brake valve: AC100V \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 25 mm
	ULK-V-CA-32-25-2	Brake valve: AC200V \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 25 mm
	ULK-V-CA-32-25-3	Brake valve: DC24V \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 25 mm
	ULK-V-CA-32-50-1	Brake valve: AC100V \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 50 mm
	ULK-V-CA-32-50-2	Brake valve: AC200V \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 50 mm
	ULK-V-CA-32-50-3	Brake valve: DC24V \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 50 mm
	ULK-V-CA-32-75-1	Brake valve: AC100V \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 75 mm
	ULK-V-CA-32-75-2	Brake valve: AC200V \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 75 mm
	ULK-V-CA-32-75-3	Brake valve: DC24V \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 75 mm
	ULK-V-CA-32-100-1	Brake valve: AC100V \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 100 mm
	ULK-V-CA-32-100-2	Brake valve: AC200V \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 100 mm
	ULK-V-CA-32-100-3	Brake valve: DC24V \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 100 mm
	ULK-V-CA-32-150-1	Brake valve: AC100V \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 150 mm
	ULK-V-CA-32-150-2	Brake valve: AC200V \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 150 mm
	ULK-V-CA-32-150-3	Brake valve: DC24V \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 150 mm
	ULK-V-CA-32-200-1	Brake valve: AC100V \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 200 mm
	ULK-V-CA-32-200-2	Brake valve: AC200V \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 200 mm
	ULK-V-CA-32-200-3	Brake valve: DC24V \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 200 mm
	ULK-V-CA-32-250-1	Brake valve: AC100V \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 250 mm
	ULK-V-CA-32-250-2	Brake valve: AC200V \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 250 mm
	ULK-V-CA-32-250-3	Brake valve: DC24V \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 250 mm
	ULK-V-CA-32-300-1	Brake valve: AC100V \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 300 mm
	ULK-V-CA-32-300-2	Brake valve: AC200V \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 300 mm
	ULK-V-CA-32-300-3	Brake valve: DC24V \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 300 mm
	ULK-V-CA-40-25-1	Brake valve: AC100V \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 25 mm
	ULK-V-CA-40-25-2	Brake valve: AC200V \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 25 mm
	ULK-V-CA-40-25-3	Brake valve: DC24V \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 25 mm
	ULK-V-CA-40-50-1	Brake valve: AC100V \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 50 mm
	ULK-V-CA-40-50-2	Brake valve: AC200V \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 50 mm
	ULK-V-CA-40-50-3	Brake valve: DC24V \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 50 mm
	ULK-V-CA-40-75-1	Brake valve: AC100V \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 75 mm
	ULK-V-CA-40-75-2	Brake valve: AC200V \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 75 mm
	ULK-V-CA-40-75-3	Brake valve: DC24V \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 75 mm
	ULK-V-CA-40-100-1	Brake valve: AC100V \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 100 mm
	ULK-V-CA-40-100-2	Brake valve: AC200V \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 100 mm
	ULK-V-CA-40-100-3	Brake valve: DC24V \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 100 mm
	ULK-V-CA-40-150-1	Brake valve: AC100V \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 150 mm
	ULK-V-CA-40-150-2	Brake valve: AC200V \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 150 mm
	ULK-V-CA-40-150-3	Brake valve: DC24V \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 150 mm
	ULK-V-CA-40-200-1	Brake valve: AC100V \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 200 mm
	ULK-V-CA-40-200-2	Brake valve: AC200V \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 200 mm
	ULK-V-CA-40-200-3	Brake valve: DC24V \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 200 mm
	ULK-V-CA-40-250-1	Brake valve: AC100V \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 250 mm
	ULK-V-CA-40-250-2	Brake valve: AC200V \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 250 mm
	ULK-V-CA-40-250-3	Brake valve: DC24V \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 250 mm
	ULK-V-CA-40-300-1	Brake valve: AC100V \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 300 mm
	ULK-V-CA-40-300-2	Brake valve: AC200V \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 300 mm
	ULK-V-CA-40-300-3	Brake valve: DC24V \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 300 mm
	ULK-V-CC-20-25-1	Brake valve: AC100V \| Mounting: Single clevis integral \| Bore: 20 mm \| Stroke: 25 mm
	ULK-V-CC-20-25-2	Brake valve: AC200V \| Mounting: Single clevis integral \| Bore: 20 mm \| Stroke: 25 mm
	ULK-V-CC-20-25-3	Brake valve: DC24V \| Mounting: Single clevis integral \| Bore: 20 mm \| Stroke: 25 mm
	ULK-V-CC-20-50-1	Brake valve: AC100V \| Mounting: Single clevis integral \| Bore: 20 mm \| Stroke: 50 mm
	ULK-V-CC-20-50-2	Brake valve: AC200V \| Mounting: Single clevis integral \| Bore: 20 mm \| Stroke: 50 mm
	ULK-V-CC-20-50-3	Brake valve: DC24V \| Mounting: Single clevis integral \| Bore: 20 mm \| Stroke: 50 mm
	ULK-V-CC-20-75-1	Brake valve: AC100V \| Mounting: Single clevis integral \| Bore: 20 mm \| Stroke: 75 mm
	ULK-V-CC-20-75-2	Brake valve: AC200V \| Mounting: Single clevis integral \| Bore: 20 mm \| Stroke: 75 mm
	ULK-V-CC-20-75-3	Brake valve: DC24V \| Mounting: Single clevis integral \| Bore: 20 mm \| Stroke: 75 mm
	ULK-V-CC-20-100-1	Brake valve: AC100V \| Mounting: Single clevis integral \| Bore: 20 mm \| Stroke: 100 mm
	ULK-V-CC-20-100-2	Brake valve: AC200V \| Mounting: Single clevis integral \| Bore: 20 mm \| Stroke: 100 mm
	ULK-V-CC-20-100-3	Brake valve: DC24V \| Mounting: Single clevis integral \| Bore: 20 mm \| Stroke: 100 mm
	ULK-V-CC-20-150-1	Brake valve: AC100V \| Mounting: Single clevis integral \| Bore: 20 mm \| Stroke: 150 mm
	ULK-V-CC-20-150-2	Brake valve: AC200V \| Mounting: Single clevis integral \| Bore: 20 mm \| Stroke: 150 mm
	ULK-V-CC-20-150-3	Brake valve: DC24V \| Mounting: Single clevis integral \| Bore: 20 mm \| Stroke: 150 mm
	ULK-V-CC-20-200-1	Brake valve: AC100V \| Mounting: Single clevis integral \| Bore: 20 mm \| Stroke: 200 mm
	ULK-V-CC-20-200-2	Brake valve: AC200V \| Mounting: Single clevis integral \| Bore: 20 mm \| Stroke: 200 mm
	ULK-V-CC-20-200-3	Brake valve: DC24V \| Mounting: Single clevis integral \| Bore: 20 mm \| Stroke: 200 mm
	ULK-V-CC-20-250-1	Brake valve: AC100V \| Mounting: Single clevis integral \| Bore: 20 mm \| Stroke: 250 mm
	ULK-V-CC-20-250-2	Brake valve: AC200V \| Mounting: Single clevis integral \| Bore: 20 mm \| Stroke: 250 mm
	ULK-V-CC-20-250-3	Brake valve: DC24V \| Mounting: Single clevis integral \| Bore: 20 mm \| Stroke: 250 mm
	ULK-V-CC-20-300-1	Brake valve: AC100V \| Mounting: Single clevis integral \| Bore: 20 mm \| Stroke: 300 mm
	ULK-V-CC-20-300-2	Brake valve: AC200V \| Mounting: Single clevis integral \| Bore: 20 mm \| Stroke: 300 mm
	ULK-V-CC-20-300-3	Brake valve: DC24V \| Mounting: Single clevis integral \| Bore: 20 mm \| Stroke: 300 mm
	ULK-V-CC-25-25-1	Brake valve: AC100V \| Mounting: Single clevis integral \| Bore: 25 mm \| Stroke: 25 mm
	ULK-V-CC-25-25-2	Brake valve: AC200V \| Mounting: Single clevis integral \| Bore: 25 mm \| Stroke: 25 mm
	ULK-V-CC-25-25-3	Brake valve: DC24V \| Mounting: Single clevis integral \| Bore: 25 mm \| Stroke: 25 mm
	ULK-V-CC-25-50-1	Brake valve: AC100V \| Mounting: Single clevis integral \| Bore: 25 mm \| Stroke: 50 mm
	ULK-V-CC-25-50-2	Brake valve: AC200V \| Mounting: Single clevis integral \| Bore: 25 mm \| Stroke: 50 mm
	ULK-V-CC-25-50-3	Brake valve: DC24V \| Mounting: Single clevis integral \| Bore: 25 mm \| Stroke: 50 mm
	ULK-V-CC-25-75-1	Brake valve: AC100V \| Mounting: Single clevis integral \| Bore: 25 mm \| Stroke: 75 mm
	ULK-V-CC-25-75-2	Brake valve: AC200V \| Mounting: Single clevis integral \| Bore: 25 mm \| Stroke: 75 mm
	ULK-V-CC-25-75-3	Brake valve: DC24V \| Mounting: Single clevis integral \| Bore: 25 mm \| Stroke: 75 mm
	ULK-V-CC-25-100-1	Brake valve: AC100V \| Mounting: Single clevis integral \| Bore: 25 mm \| Stroke: 100 mm
	ULK-V-CC-25-100-2	Brake valve: AC200V \| Mounting: Single clevis integral \| Bore: 25 mm \| Stroke: 100 mm
	ULK-V-CC-25-100-3	Brake valve: DC24V \| Mounting: Single clevis integral \| Bore: 25 mm \| Stroke: 100 mm
	ULK-V-CC-25-150-1	Brake valve: AC100V \| Mounting: Single clevis integral \| Bore: 25 mm \| Stroke: 150 mm
	ULK-V-CC-25-150-2	Brake valve: AC200V \| Mounting: Single clevis integral \| Bore: 25 mm \| Stroke: 150 mm
	ULK-V-CC-25-150-3	Brake valve: DC24V \| Mounting: Single clevis integral \| Bore: 25 mm \| Stroke: 150 mm
	ULK-V-CC-25-200-1	Brake valve: AC100V \| Mounting: Single clevis integral \| Bore: 25 mm \| Stroke: 200 mm
	ULK-V-CC-25-200-2	Brake valve: AC200V \| Mounting: Single clevis integral \| Bore: 25 mm \| Stroke: 200 mm
	ULK-V-CC-25-200-3	Brake valve: DC24V \| Mounting: Single clevis integral \| Bore: 25 mm \| Stroke: 200 mm
	ULK-V-CC-25-250-1	Brake valve: AC100V \| Mounting: Single clevis integral \| Bore: 25 mm \| Stroke: 250 mm
	ULK-V-CC-25-250-2	Brake valve: AC200V \| Mounting: Single clevis integral \| Bore: 25 mm \| Stroke: 250 mm
	ULK-V-CC-25-250-3	Brake valve: DC24V \| Mounting: Single clevis integral \| Bore: 25 mm \| Stroke: 250 mm
	ULK-V-CC-25-300-1	Brake valve: AC100V \| Mounting: Single clevis integral \| Bore: 25 mm \| Stroke: 300 mm
	ULK-V-CC-25-300-2	Brake valve: AC200V \| Mounting: Single clevis integral \| Bore: 25 mm \| Stroke: 300 mm
	ULK-V-CC-25-300-3	Brake valve: DC24V \| Mounting: Single clevis integral \| Bore: 25 mm \| Stroke: 300 mm
	ULK-V-CC-32-25-1	Brake valve: AC100V \| Mounting: Single clevis integral \| Bore: 32 mm \| Stroke: 25 mm
	ULK-V-CC-32-25-2	Brake valve: AC200V \| Mounting: Single clevis integral \| Bore: 32 mm \| Stroke: 25 mm
	ULK-V-CC-32-25-3	Brake valve: DC24V \| Mounting: Single clevis integral \| Bore: 32 mm \| Stroke: 25 mm
	ULK-V-CC-32-50-1	Brake valve: AC100V \| Mounting: Single clevis integral \| Bore: 32 mm \| Stroke: 50 mm
	ULK-V-CC-32-50-2	Brake valve: AC200V \| Mounting: Single clevis integral \| Bore: 32 mm \| Stroke: 50 mm
	ULK-V-CC-32-50-3	Brake valve: DC24V \| Mounting: Single clevis integral \| Bore: 32 mm \| Stroke: 50 mm
	ULK-V-CC-32-75-1	Brake valve: AC100V \| Mounting: Single clevis integral \| Bore: 32 mm \| Stroke: 75 mm
	ULK-V-CC-32-75-2	Brake valve: AC200V \| Mounting: Single clevis integral \| Bore: 32 mm \| Stroke: 75 mm
	ULK-V-CC-32-75-3	Brake valve: DC24V \| Mounting: Single clevis integral \| Bore: 32 mm \| Stroke: 75 mm
	ULK-V-CC-32-100-1	Brake valve: AC100V \| Mounting: Single clevis integral \| Bore: 32 mm \| Stroke: 100 mm
	ULK-V-CC-32-100-2	Brake valve: AC200V \| Mounting: Single clevis integral \| Bore: 32 mm \| Stroke: 100 mm
	ULK-V-CC-32-100-3	Brake valve: DC24V \| Mounting: Single clevis integral \| Bore: 32 mm \| Stroke: 100 mm
	ULK-V-CC-32-150-1	Brake valve: AC100V \| Mounting: Single clevis integral \| Bore: 32 mm \| Stroke: 150 mm
	ULK-V-CC-32-150-2	Brake valve: AC200V \| Mounting: Single clevis integral \| Bore: 32 mm \| Stroke: 150 mm
	ULK-V-CC-32-150-3	Brake valve: DC24V \| Mounting: Single clevis integral \| Bore: 32 mm \| Stroke: 150 mm
	ULK-V-CC-32-200-1	Brake valve: AC100V \| Mounting: Single clevis integral \| Bore: 32 mm \| Stroke: 200 mm
	ULK-V-CC-32-200-2	Brake valve: AC200V \| Mounting: Single clevis integral \| Bore: 32 mm \| Stroke: 200 mm
	ULK-V-CC-32-200-3	Brake valve: DC24V \| Mounting: Single clevis integral \| Bore: 32 mm \| Stroke: 200 mm
	ULK-V-CC-32-250-1	Brake valve: AC100V \| Mounting: Single clevis integral \| Bore: 32 mm \| Stroke: 250 mm
	ULK-V-CC-32-250-2	Brake valve: AC200V \| Mounting: Single clevis integral \| Bore: 32 mm \| Stroke: 250 mm
	ULK-V-CC-32-250-3	Brake valve: DC24V \| Mounting: Single clevis integral \| Bore: 32 mm \| Stroke: 250 mm
	ULK-V-CC-32-300-1	Brake valve: AC100V \| Mounting: Single clevis integral \| Bore: 32 mm \| Stroke: 300 mm
	ULK-V-CC-32-300-2	Brake valve: AC200V \| Mounting: Single clevis integral \| Bore: 32 mm \| Stroke: 300 mm
	ULK-V-CC-32-300-3	Brake valve: DC24V \| Mounting: Single clevis integral \| Bore: 32 mm \| Stroke: 300 mm
	ULK-V-CC-40-25-1	Brake valve: AC100V \| Mounting: Single clevis integral \| Bore: 40 mm \| Stroke: 25 mm
	ULK-V-CC-40-25-2	Brake valve: AC200V \| Mounting: Single clevis integral \| Bore: 40 mm \| Stroke: 25 mm
	ULK-V-CC-40-25-3	Brake valve: DC24V \| Mounting: Single clevis integral \| Bore: 40 mm \| Stroke: 25 mm
	ULK-V-CC-40-50-1	Brake valve: AC100V \| Mounting: Single clevis integral \| Bore: 40 mm \| Stroke: 50 mm
	ULK-V-CC-40-50-2	Brake valve: AC200V \| Mounting: Single clevis integral \| Bore: 40 mm \| Stroke: 50 mm
	ULK-V-CC-40-50-3	Brake valve: DC24V \| Mounting: Single clevis integral \| Bore: 40 mm \| Stroke: 50 mm
	ULK-V-CC-40-75-1	Brake valve: AC100V \| Mounting: Single clevis integral \| Bore: 40 mm \| Stroke: 75 mm
	ULK-V-CC-40-75-2	Brake valve: AC200V \| Mounting: Single clevis integral \| Bore: 40 mm \| Stroke: 75 mm
	ULK-V-CC-40-75-3	Brake valve: DC24V \| Mounting: Single clevis integral \| Bore: 40 mm \| Stroke: 75 mm
	ULK-V-CC-40-100-1	Brake valve: AC100V \| Mounting: Single clevis integral \| Bore: 40 mm \| Stroke: 100 mm
	ULK-V-CC-40-100-2	Brake valve: AC200V \| Mounting: Single clevis integral \| Bore: 40 mm \| Stroke: 100 mm
	ULK-V-CC-40-100-3	Brake valve: DC24V \| Mounting: Single clevis integral \| Bore: 40 mm \| Stroke: 100 mm
	ULK-V-CC-40-150-1	Brake valve: AC100V \| Mounting: Single clevis integral \| Bore: 40 mm \| Stroke: 150 mm
	ULK-V-CC-40-150-2	Brake valve: AC200V \| Mounting: Single clevis integral \| Bore: 40 mm \| Stroke: 150 mm
	ULK-V-CC-40-150-3	Brake valve: DC24V \| Mounting: Single clevis integral \| Bore: 40 mm \| Stroke: 150 mm
	ULK-V-CC-40-200-1	Brake valve: AC100V \| Mounting: Single clevis integral \| Bore: 40 mm \| Stroke: 200 mm
	ULK-V-CC-40-200-2	Brake valve: AC200V \| Mounting: Single clevis integral \| Bore: 40 mm \| Stroke: 200 mm
	ULK-V-CC-40-200-3	Brake valve: DC24V \| Mounting: Single clevis integral \| Bore: 40 mm \| Stroke: 200 mm
	ULK-V-CC-40-250-1	Brake valve: AC100V \| Mounting: Single clevis integral \| Bore: 40 mm \| Stroke: 250 mm
	ULK-V-CC-40-250-2	Brake valve: AC200V \| Mounting: Single clevis integral \| Bore: 40 mm \| Stroke: 250 mm
	ULK-V-CC-40-250-3	Brake valve: DC24V \| Mounting: Single clevis integral \| Bore: 40 mm \| Stroke: 250 mm
	ULK-V-CC-40-300-1	Brake valve: AC100V \| Mounting: Single clevis integral \| Bore: 40 mm \| Stroke: 300 mm
	ULK-V-CC-40-300-2	Brake valve: AC200V \| Mounting: Single clevis integral \| Bore: 40 mm \| Stroke: 300 mm
	ULK-V-CC-40-300-3	Brake valve: DC24V \| Mounting: Single clevis integral \| Bore: 40 mm \| Stroke: 300 mm
	ULK-V-CC1-20-25-1	Brake valve: AC100V \| Mounting: Clevis bush press-fit \| Bore: 20 mm \| Stroke: 25 mm
	ULK-V-CC1-20-25-2	Brake valve: AC200V \| Mounting: Clevis bush press-fit \| Bore: 20 mm \| Stroke: 25 mm
	ULK-V-CC1-20-25-3	Brake valve: DC24V \| Mounting: Clevis bush press-fit \| Bore: 20 mm \| Stroke: 25 mm
	ULK-V-CC1-20-50-1	Brake valve: AC100V \| Mounting: Clevis bush press-fit \| Bore: 20 mm \| Stroke: 50 mm
	ULK-V-CC1-20-50-2	Brake valve: AC200V \| Mounting: Clevis bush press-fit \| Bore: 20 mm \| Stroke: 50 mm
	ULK-V-CC1-20-50-3	Brake valve: DC24V \| Mounting: Clevis bush press-fit \| Bore: 20 mm \| Stroke: 50 mm
	ULK-V-CC1-20-75-1	Brake valve: AC100V \| Mounting: Clevis bush press-fit \| Bore: 20 mm \| Stroke: 75 mm
	ULK-V-CC1-20-75-2	Brake valve: AC200V \| Mounting: Clevis bush press-fit \| Bore: 20 mm \| Stroke: 75 mm
	ULK-V-CC1-20-75-3	Brake valve: DC24V \| Mounting: Clevis bush press-fit \| Bore: 20 mm \| Stroke: 75 mm
	ULK-V-CC1-20-100-1	Brake valve: AC100V \| Mounting: Clevis bush press-fit \| Bore: 20 mm \| Stroke: 100 mm
	ULK-V-CC1-20-100-2	Brake valve: AC200V \| Mounting: Clevis bush press-fit \| Bore: 20 mm \| Stroke: 100 mm
	ULK-V-CC1-20-100-3	Brake valve: DC24V \| Mounting: Clevis bush press-fit \| Bore: 20 mm \| Stroke: 100 mm
	ULK-V-CC1-20-150-1	Brake valve: AC100V \| Mounting: Clevis bush press-fit \| Bore: 20 mm \| Stroke: 150 mm
	ULK-V-CC1-20-150-2	Brake valve: AC200V \| Mounting: Clevis bush press-fit \| Bore: 20 mm \| Stroke: 150 mm
	ULK-V-CC1-20-150-3	Brake valve: DC24V \| Mounting: Clevis bush press-fit \| Bore: 20 mm \| Stroke: 150 mm
	ULK-V-CC1-20-200-1	Brake valve: AC100V \| Mounting: Clevis bush press-fit \| Bore: 20 mm \| Stroke: 200 mm
	ULK-V-CC1-20-200-2	Brake valve: AC200V \| Mounting: Clevis bush press-fit \| Bore: 20 mm \| Stroke: 200 mm
	ULK-V-CC1-20-200-3	Brake valve: DC24V \| Mounting: Clevis bush press-fit \| Bore: 20 mm \| Stroke: 200 mm
	ULK-V-CC1-20-250-1	Brake valve: AC100V \| Mounting: Clevis bush press-fit \| Bore: 20 mm \| Stroke: 250 mm
	ULK-V-CC1-20-250-2	Brake valve: AC200V \| Mounting: Clevis bush press-fit \| Bore: 20 mm \| Stroke: 250 mm
	ULK-V-CC1-20-250-3	Brake valve: DC24V \| Mounting: Clevis bush press-fit \| Bore: 20 mm \| Stroke: 250 mm
	ULK-V-CC1-20-300-1	Brake valve: AC100V \| Mounting: Clevis bush press-fit \| Bore: 20 mm \| Stroke: 300 mm
	ULK-V-CC1-20-300-2	Brake valve: AC200V \| Mounting: Clevis bush press-fit \| Bore: 20 mm \| Stroke: 300 mm
	ULK-V-CC1-20-300-3	Brake valve: DC24V \| Mounting: Clevis bush press-fit \| Bore: 20 mm \| Stroke: 300 mm
	ULK-V-CC1-25-25-1	Brake valve: AC100V \| Mounting: Clevis bush press-fit \| Bore: 25 mm \| Stroke: 25 mm
	ULK-V-CC1-25-25-2	Brake valve: AC200V \| Mounting: Clevis bush press-fit \| Bore: 25 mm \| Stroke: 25 mm
	ULK-V-CC1-25-25-3	Brake valve: DC24V \| Mounting: Clevis bush press-fit \| Bore: 25 mm \| Stroke: 25 mm
	ULK-V-CC1-25-50-1	Brake valve: AC100V \| Mounting: Clevis bush press-fit \| Bore: 25 mm \| Stroke: 50 mm
	ULK-V-CC1-25-50-2	Brake valve: AC200V \| Mounting: Clevis bush press-fit \| Bore: 25 mm \| Stroke: 50 mm
	ULK-V-CC1-25-50-3	Brake valve: DC24V \| Mounting: Clevis bush press-fit \| Bore: 25 mm \| Stroke: 50 mm
	ULK-V-CC1-25-75-1	Brake valve: AC100V \| Mounting: Clevis bush press-fit \| Bore: 25 mm \| Stroke: 75 mm
	ULK-V-CC1-25-75-2	Brake valve: AC200V \| Mounting: Clevis bush press-fit \| Bore: 25 mm \| Stroke: 75 mm
	ULK-V-CC1-25-75-3	Brake valve: DC24V \| Mounting: Clevis bush press-fit \| Bore: 25 mm \| Stroke: 75 mm
	ULK-V-CC1-25-100-1	Brake valve: AC100V \| Mounting: Clevis bush press-fit \| Bore: 25 mm \| Stroke: 100 mm
	ULK-V-CC1-25-100-2	Brake valve: AC200V \| Mounting: Clevis bush press-fit \| Bore: 25 mm \| Stroke: 100 mm
	ULK-V-CC1-25-100-3	Brake valve: DC24V \| Mounting: Clevis bush press-fit \| Bore: 25 mm \| Stroke: 100 mm
	ULK-V-CC1-25-150-1	Brake valve: AC100V \| Mounting: Clevis bush press-fit \| Bore: 25 mm \| Stroke: 150 mm
	ULK-V-CC1-25-150-2	Brake valve: AC200V \| Mounting: Clevis bush press-fit \| Bore: 25 mm \| Stroke: 150 mm
	ULK-V-CC1-25-150-3	Brake valve: DC24V \| Mounting: Clevis bush press-fit \| Bore: 25 mm \| Stroke: 150 mm
	ULK-V-CC1-25-200-1	Brake valve: AC100V \| Mounting: Clevis bush press-fit \| Bore: 25 mm \| Stroke: 200 mm
	ULK-V-CC1-25-200-2	Brake valve: AC200V \| Mounting: Clevis bush press-fit \| Bore: 25 mm \| Stroke: 200 mm
	ULK-V-CC1-25-200-3	Brake valve: DC24V \| Mounting: Clevis bush press-fit \| Bore: 25 mm \| Stroke: 200 mm
	ULK-V-CC1-25-250-1	Brake valve: AC100V \| Mounting: Clevis bush press-fit \| Bore: 25 mm \| Stroke: 250 mm
	ULK-V-CC1-25-250-2	Brake valve: AC200V \| Mounting: Clevis bush press-fit \| Bore: 25 mm \| Stroke: 250 mm
	ULK-V-CC1-25-250-3	Brake valve: DC24V \| Mounting: Clevis bush press-fit \| Bore: 25 mm \| Stroke: 250 mm
	ULK-V-CC1-25-300-1	Brake valve: AC100V \| Mounting: Clevis bush press-fit \| Bore: 25 mm \| Stroke: 300 mm
	ULK-V-CC1-25-300-2	Brake valve: AC200V \| Mounting: Clevis bush press-fit \| Bore: 25 mm \| Stroke: 300 mm
	ULK-V-CC1-25-300-3	Brake valve: DC24V \| Mounting: Clevis bush press-fit \| Bore: 25 mm \| Stroke: 300 mm
	ULK-V-CC1-32-25-1	Brake valve: AC100V \| Mounting: Clevis bush press-fit \| Bore: 32 mm \| Stroke: 25 mm
	ULK-V-CC1-32-25-2	Brake valve: AC200V \| Mounting: Clevis bush press-fit \| Bore: 32 mm \| Stroke: 25 mm
	ULK-V-CC1-32-25-3	Brake valve: DC24V \| Mounting: Clevis bush press-fit \| Bore: 32 mm \| Stroke: 25 mm
	ULK-V-CC1-32-50-1	Brake valve: AC100V \| Mounting: Clevis bush press-fit \| Bore: 32 mm \| Stroke: 50 mm
	ULK-V-CC1-32-50-2	Brake valve: AC200V \| Mounting: Clevis bush press-fit \| Bore: 32 mm \| Stroke: 50 mm
	ULK-V-CC1-32-50-3	Brake valve: DC24V \| Mounting: Clevis bush press-fit \| Bore: 32 mm \| Stroke: 50 mm
	ULK-V-CC1-32-75-1	Brake valve: AC100V \| Mounting: Clevis bush press-fit \| Bore: 32 mm \| Stroke: 75 mm
	ULK-V-CC1-32-75-2	Brake valve: AC200V \| Mounting: Clevis bush press-fit \| Bore: 32 mm \| Stroke: 75 mm
	ULK-V-CC1-32-75-3	Brake valve: DC24V \| Mounting: Clevis bush press-fit \| Bore: 32 mm \| Stroke: 75 mm
	ULK-V-CC1-32-100-1	Brake valve: AC100V \| Mounting: Clevis bush press-fit \| Bore: 32 mm \| Stroke: 100 mm
	ULK-V-CC1-32-100-2	Brake valve: AC200V \| Mounting: Clevis bush press-fit \| Bore: 32 mm \| Stroke: 100 mm
	ULK-V-CC1-32-100-3	Brake valve: DC24V \| Mounting: Clevis bush press-fit \| Bore: 32 mm \| Stroke: 100 mm
	ULK-V-CC1-32-150-1	Brake valve: AC100V \| Mounting: Clevis bush press-fit \| Bore: 32 mm \| Stroke: 150 mm
	ULK-V-CC1-32-150-2	Brake valve: AC200V \| Mounting: Clevis bush press-fit \| Bore: 32 mm \| Stroke: 150 mm
	ULK-V-CC1-32-150-3	Brake valve: DC24V \| Mounting: Clevis bush press-fit \| Bore: 32 mm \| Stroke: 150 mm
	ULK-V-CC1-32-200-1	Brake valve: AC100V \| Mounting: Clevis bush press-fit \| Bore: 32 mm \| Stroke: 200 mm
	ULK-V-CC1-32-200-2	Brake valve: AC200V \| Mounting: Clevis bush press-fit \| Bore: 32 mm \| Stroke: 200 mm
	ULK-V-CC1-32-200-3	Brake valve: DC24V \| Mounting: Clevis bush press-fit \| Bore: 32 mm \| Stroke: 200 mm
	ULK-V-CC1-32-250-1	Brake valve: AC100V \| Mounting: Clevis bush press-fit \| Bore: 32 mm \| Stroke: 250 mm
	ULK-V-CC1-32-250-2	Brake valve: AC200V \| Mounting: Clevis bush press-fit \| Bore: 32 mm \| Stroke: 250 mm
	ULK-V-CC1-32-250-3	Brake valve: DC24V \| Mounting: Clevis bush press-fit \| Bore: 32 mm \| Stroke: 250 mm
	ULK-V-CC1-32-300-1	Brake valve: AC100V \| Mounting: Clevis bush press-fit \| Bore: 32 mm \| Stroke: 300 mm
	ULK-V-CC1-32-300-2	Brake valve: AC200V \| Mounting: Clevis bush press-fit \| Bore: 32 mm \| Stroke: 300 mm
	ULK-V-CC1-32-300-3	Brake valve: DC24V \| Mounting: Clevis bush press-fit \| Bore: 32 mm \| Stroke: 300 mm
	ULK-V-CC1-40-25-1	Brake valve: AC100V \| Mounting: Clevis bush press-fit \| Bore: 40 mm \| Stroke: 25 mm
	ULK-V-CC1-40-25-2	Brake valve: AC200V \| Mounting: Clevis bush press-fit \| Bore: 40 mm \| Stroke: 25 mm
	ULK-V-CC1-40-25-3	Brake valve: DC24V \| Mounting: Clevis bush press-fit \| Bore: 40 mm \| Stroke: 25 mm
	ULK-V-CC1-40-50-1	Brake valve: AC100V \| Mounting: Clevis bush press-fit \| Bore: 40 mm \| Stroke: 50 mm
	ULK-V-CC1-40-50-2	Brake valve: AC200V \| Mounting: Clevis bush press-fit \| Bore: 40 mm \| Stroke: 50 mm
	ULK-V-CC1-40-50-3	Brake valve: DC24V \| Mounting: Clevis bush press-fit \| Bore: 40 mm \| Stroke: 50 mm
	ULK-V-CC1-40-75-1	Brake valve: AC100V \| Mounting: Clevis bush press-fit \| Bore: 40 mm \| Stroke: 75 mm
	ULK-V-CC1-40-75-2	Brake valve: AC200V \| Mounting: Clevis bush press-fit \| Bore: 40 mm \| Stroke: 75 mm
	ULK-V-CC1-40-75-3	Brake valve: DC24V \| Mounting: Clevis bush press-fit \| Bore: 40 mm \| Stroke: 75 mm
	ULK-V-CC1-40-100-1	Brake valve: AC100V \| Mounting: Clevis bush press-fit \| Bore: 40 mm \| Stroke: 100 mm
	ULK-V-CC1-40-100-2	Brake valve: AC200V \| Mounting: Clevis bush press-fit \| Bore: 40 mm \| Stroke: 100 mm
	ULK-V-CC1-40-100-3	Brake valve: DC24V \| Mounting: Clevis bush press-fit \| Bore: 40 mm \| Stroke: 100 mm
	ULK-V-CC1-40-150-1	Brake valve: AC100V \| Mounting: Clevis bush press-fit \| Bore: 40 mm \| Stroke: 150 mm
	ULK-V-CC1-40-150-2	Brake valve: AC200V \| Mounting: Clevis bush press-fit \| Bore: 40 mm \| Stroke: 150 mm
	ULK-V-CC1-40-150-3	Brake valve: DC24V \| Mounting: Clevis bush press-fit \| Bore: 40 mm \| Stroke: 150 mm
	ULK-V-CC1-40-200-1	Brake valve: AC100V \| Mounting: Clevis bush press-fit \| Bore: 40 mm \| Stroke: 200 mm
	ULK-V-CC1-40-200-2	Brake valve: AC200V \| Mounting: Clevis bush press-fit \| Bore: 40 mm \| Stroke: 200 mm
	ULK-V-CC1-40-200-3	Brake valve: DC24V \| Mounting: Clevis bush press-fit \| Bore: 40 mm \| Stroke: 200 mm
	ULK-V-CC1-40-250-1	Brake valve: AC100V \| Mounting: Clevis bush press-fit \| Bore: 40 mm \| Stroke: 250 mm
	ULK-V-CC1-40-250-2	Brake valve: AC200V \| Mounting: Clevis bush press-fit \| Bore: 40 mm \| Stroke: 250 mm
	ULK-V-CC1-40-250-3	Brake valve: DC24V \| Mounting: Clevis bush press-fit \| Bore: 40 mm \| Stroke: 250 mm
	ULK-V-CC1-40-300-1	Brake valve: AC100V \| Mounting: Clevis bush press-fit \| Bore: 40 mm \| Stroke: 300 mm
	ULK-V-CC1-40-300-2	Brake valve: AC200V \| Mounting: Clevis bush press-fit \| Bore: 40 mm \| Stroke: 300 mm
	ULK-V-CC1-40-300-3	Brake valve: DC24V \| Mounting: Clevis bush press-fit \| Bore: 40 mm \| Stroke: 300 mm
	ULK-V-TA-20-25-1	Brake valve: AC100V \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 25 mm
	ULK-V-TA-20-25-2	Brake valve: AC200V \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 25 mm
	ULK-V-TA-20-25-3	Brake valve: DC24V \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 25 mm
	ULK-V-TA-20-50-1	Brake valve: AC100V \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 50 mm
	ULK-V-TA-20-50-2	Brake valve: AC200V \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 50 mm
	ULK-V-TA-20-50-3	Brake valve: DC24V \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 50 mm
	ULK-V-TA-20-75-1	Brake valve: AC100V \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 75 mm
	ULK-V-TA-20-75-2	Brake valve: AC200V \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 75 mm
	ULK-V-TA-20-75-3	Brake valve: DC24V \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 75 mm
	ULK-V-TA-20-100-1	Brake valve: AC100V \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 100 mm
	ULK-V-TA-20-100-2	Brake valve: AC200V \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 100 mm
	ULK-V-TA-20-100-3	Brake valve: DC24V \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 100 mm
	ULK-V-TA-20-150-1	Brake valve: AC100V \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 150 mm
	ULK-V-TA-20-150-2	Brake valve: AC200V \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 150 mm
	ULK-V-TA-20-150-3	Brake valve: DC24V \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 150 mm
	ULK-V-TA-20-200-1	Brake valve: AC100V \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 200 mm
	ULK-V-TA-20-200-2	Brake valve: AC200V \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 200 mm
	ULK-V-TA-20-200-3	Brake valve: DC24V \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 200 mm
	ULK-V-TA-20-250-1	Brake valve: AC100V \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 250 mm
	ULK-V-TA-20-250-2	Brake valve: AC200V \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 250 mm
	ULK-V-TA-20-250-3	Brake valve: DC24V \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 250 mm
	ULK-V-TA-20-300-1	Brake valve: AC100V \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 300 mm
	ULK-V-TA-20-300-2	Brake valve: AC200V \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 300 mm
	ULK-V-TA-20-300-3	Brake valve: DC24V \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 300 mm
	ULK-V-TA-25-25-1	Brake valve: AC100V \| Mounting: Rod trunnion \| Bore: 25 mm \| Stroke: 25 mm
	ULK-V-TA-25-25-2	Brake valve: AC200V \| Mounting: Rod trunnion \| Bore: 25 mm \| Stroke: 25 mm
	ULK-V-TA-25-25-3	Brake valve: DC24V \| Mounting: Rod trunnion \| Bore: 25 mm \| Stroke: 25 mm
	ULK-V-TA-25-50-1	Brake valve: AC100V \| Mounting: Rod trunnion \| Bore: 25 mm \| Stroke: 50 mm
	ULK-V-TA-25-50-2	Brake valve: AC200V \| Mounting: Rod trunnion \| Bore: 25 mm \| Stroke: 50 mm
	ULK-V-TA-25-50-3	Brake valve: DC24V \| Mounting: Rod trunnion \| Bore: 25 mm \| Stroke: 50 mm
	ULK-V-TA-25-75-1	Brake valve: AC100V \| Mounting: Rod trunnion \| Bore: 25 mm \| Stroke: 75 mm
	ULK-V-TA-25-75-2	Brake valve: AC200V \| Mounting: Rod trunnion \| Bore: 25 mm \| Stroke: 75 mm
	ULK-V-TA-25-75-3	Brake valve: DC24V \| Mounting: Rod trunnion \| Bore: 25 mm \| Stroke: 75 mm
	ULK-V-TA-25-100-1	Brake valve: AC100V \| Mounting: Rod trunnion \| Bore: 25 mm \| Stroke: 100 mm
	ULK-V-TA-25-100-2	Brake valve: AC200V \| Mounting: Rod trunnion \| Bore: 25 mm \| Stroke: 100 mm
	ULK-V-TA-25-100-3	Brake valve: DC24V \| Mounting: Rod trunnion \| Bore: 25 mm \| Stroke: 100 mm
	ULK-V-TA-25-150-1	Brake valve: AC100V \| Mounting: Rod trunnion \| Bore: 25 mm \| Stroke: 150 mm
	ULK-V-TA-25-150-2	Brake valve: AC200V \| Mounting: Rod trunnion \| Bore: 25 mm \| Stroke: 150 mm
	ULK-V-TA-25-150-3	Brake valve: DC24V \| Mounting: Rod trunnion \| Bore: 25 mm \| Stroke: 150 mm
	ULK-V-TA-25-200-1	Brake valve: AC100V \| Mounting: Rod trunnion \| Bore: 25 mm \| Stroke: 200 mm
	ULK-V-TA-25-200-2	Brake valve: AC200V \| Mounting: Rod trunnion \| Bore: 25 mm \| Stroke: 200 mm
	ULK-V-TA-25-200-3	Brake valve: DC24V \| Mounting: Rod trunnion \| Bore: 25 mm \| Stroke: 200 mm
	ULK-V-TA-25-250-1	Brake valve: AC100V \| Mounting: Rod trunnion \| Bore: 25 mm \| Stroke: 250 mm
	ULK-V-TA-25-250-2	Brake valve: AC200V \| Mounting: Rod trunnion \| Bore: 25 mm \| Stroke: 250 mm
	ULK-V-TA-25-250-3	Brake valve: DC24V \| Mounting: Rod trunnion \| Bore: 25 mm \| Stroke: 250 mm
	ULK-V-TA-25-300-1	Brake valve: AC100V \| Mounting: Rod trunnion \| Bore: 25 mm \| Stroke: 300 mm
	ULK-V-TA-25-300-2	Brake valve: AC200V \| Mounting: Rod trunnion \| Bore: 25 mm \| Stroke: 300 mm
	ULK-V-TA-25-300-3	Brake valve: DC24V \| Mounting: Rod trunnion \| Bore: 25 mm \| Stroke: 300 mm
	ULK-V-TA-32-25-1	Brake valve: AC100V \| Mounting: Rod trunnion \| Bore: 32 mm \| Stroke: 25 mm
	ULK-V-TA-32-25-2	Brake valve: AC200V \| Mounting: Rod trunnion \| Bore: 32 mm \| Stroke: 25 mm
	ULK-V-TA-32-25-3	Brake valve: DC24V \| Mounting: Rod trunnion \| Bore: 32 mm \| Stroke: 25 mm
	ULK-V-TA-32-50-1	Brake valve: AC100V \| Mounting: Rod trunnion \| Bore: 32 mm \| Stroke: 50 mm
	ULK-V-TA-32-50-2	Brake valve: AC200V \| Mounting: Rod trunnion \| Bore: 32 mm \| Stroke: 50 mm
	ULK-V-TA-32-50-3	Brake valve: DC24V \| Mounting: Rod trunnion \| Bore: 32 mm \| Stroke: 50 mm
	ULK-V-TA-32-75-1	Brake valve: AC100V \| Mounting: Rod trunnion \| Bore: 32 mm \| Stroke: 75 mm
	ULK-V-TA-32-75-2	Brake valve: AC200V \| Mounting: Rod trunnion \| Bore: 32 mm \| Stroke: 75 mm
	ULK-V-TA-32-75-3	Brake valve: DC24V \| Mounting: Rod trunnion \| Bore: 32 mm \| Stroke: 75 mm
	ULK-V-TA-32-100-1	Brake valve: AC100V \| Mounting: Rod trunnion \| Bore: 32 mm \| Stroke: 100 mm
	ULK-V-TA-32-100-2	Brake valve: AC200V \| Mounting: Rod trunnion \| Bore: 32 mm \| Stroke: 100 mm
	ULK-V-TA-32-100-3	Brake valve: DC24V \| Mounting: Rod trunnion \| Bore: 32 mm \| Stroke: 100 mm
	ULK-V-TA-32-150-1	Brake valve: AC100V \| Mounting: Rod trunnion \| Bore: 32 mm \| Stroke: 150 mm
	ULK-V-TA-32-150-2	Brake valve: AC200V \| Mounting: Rod trunnion \| Bore: 32 mm \| Stroke: 150 mm
	ULK-V-TA-32-150-3	Brake valve: DC24V \| Mounting: Rod trunnion \| Bore: 32 mm \| Stroke: 150 mm
	ULK-V-TA-32-200-1	Brake valve: AC100V \| Mounting: Rod trunnion \| Bore: 32 mm \| Stroke: 200 mm
	ULK-V-TA-32-200-2	Brake valve: AC200V \| Mounting: Rod trunnion \| Bore: 32 mm \| Stroke: 200 mm
	ULK-V-TA-32-200-3	Brake valve: DC24V \| Mounting: Rod trunnion \| Bore: 32 mm \| Stroke: 200 mm
	ULK-V-TA-32-250-1	Brake valve: AC100V \| Mounting: Rod trunnion \| Bore: 32 mm \| Stroke: 250 mm
	ULK-V-TA-32-250-2	Brake valve: AC200V \| Mounting: Rod trunnion \| Bore: 32 mm \| Stroke: 250 mm
	ULK-V-TA-32-250-3	Brake valve: DC24V \| Mounting: Rod trunnion \| Bore: 32 mm \| Stroke: 250 mm
	ULK-V-TA-32-300-1	Brake valve: AC100V \| Mounting: Rod trunnion \| Bore: 32 mm \| Stroke: 300 mm
	ULK-V-TA-32-300-2	Brake valve: AC200V \| Mounting: Rod trunnion \| Bore: 32 mm \| Stroke: 300 mm
	ULK-V-TA-32-300-3	Brake valve: DC24V \| Mounting: Rod trunnion \| Bore: 32 mm \| Stroke: 300 mm
	ULK-V-TA-40-25-1	Brake valve: AC100V \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 25 mm
	ULK-V-TA-40-25-2	Brake valve: AC200V \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 25 mm
	ULK-V-TA-40-25-3	Brake valve: DC24V \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 25 mm
	ULK-V-TA-40-50-1	Brake valve: AC100V \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 50 mm
	ULK-V-TA-40-50-2	Brake valve: AC200V \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 50 mm
	ULK-V-TA-40-50-3	Brake valve: DC24V \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 50 mm
	ULK-V-TA-40-75-1	Brake valve: AC100V \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 75 mm
	ULK-V-TA-40-75-2	Brake valve: AC200V \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 75 mm
	ULK-V-TA-40-75-3	Brake valve: DC24V \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 75 mm
	ULK-V-TA-40-100-1	Brake valve: AC100V \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 100 mm
	ULK-V-TA-40-100-2	Brake valve: AC200V \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 100 mm
	ULK-V-TA-40-100-3	Brake valve: DC24V \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 100 mm
	ULK-V-TA-40-150-1	Brake valve: AC100V \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 150 mm
	ULK-V-TA-40-150-2	Brake valve: AC200V \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 150 mm
	ULK-V-TA-40-150-3	Brake valve: DC24V \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 150 mm
	ULK-V-TA-40-200-1	Brake valve: AC100V \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 200 mm
	ULK-V-TA-40-200-2	Brake valve: AC200V \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 200 mm
	ULK-V-TA-40-200-3	Brake valve: DC24V \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 200 mm
	ULK-V-TA-40-250-1	Brake valve: AC100V \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 250 mm
	ULK-V-TA-40-250-2	Brake valve: AC200V \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 250 mm
	ULK-V-TA-40-250-3	Brake valve: DC24V \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 250 mm
	ULK-V-TA-40-300-1	Brake valve: AC100V \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 300 mm
	ULK-V-TA-40-300-2	Brake valve: AC200V \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 300 mm
	ULK-V-TA-40-300-3	Brake valve: DC24V \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 300 mm
	ULK-V-TB-20-25-1	Brake valve: AC100V \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 25 mm
	ULK-V-TB-20-25-2	Brake valve: AC200V \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 25 mm
	ULK-V-TB-20-25-3	Brake valve: DC24V \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 25 mm
	ULK-V-TB-20-50-1	Brake valve: AC100V \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 50 mm
	ULK-V-TB-20-50-2	Brake valve: AC200V \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 50 mm
	ULK-V-TB-20-50-3	Brake valve: DC24V \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 50 mm
	ULK-V-TB-20-75-1	Brake valve: AC100V \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 75 mm
	ULK-V-TB-20-75-2	Brake valve: AC200V \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 75 mm
	ULK-V-TB-20-75-3	Brake valve: DC24V \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 75 mm
	ULK-V-TB-20-100-1	Brake valve: AC100V \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 100 mm
	ULK-V-TB-20-100-2	Brake valve: AC200V \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 100 mm
	ULK-V-TB-20-100-3	Brake valve: DC24V \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 100 mm
	ULK-V-TB-20-150-1	Brake valve: AC100V \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 150 mm
	ULK-V-TB-20-150-2	Brake valve: AC200V \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 150 mm
	ULK-V-TB-20-150-3	Brake valve: DC24V \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 150 mm
	ULK-V-TB-20-200-1	Brake valve: AC100V \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 200 mm
	ULK-V-TB-20-200-2	Brake valve: AC200V \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 200 mm
	ULK-V-TB-20-200-3	Brake valve: DC24V \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 200 mm
	ULK-V-TB-20-250-1	Brake valve: AC100V \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 250 mm
	ULK-V-TB-20-250-2	Brake valve: AC200V \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 250 mm
	ULK-V-TB-20-250-3	Brake valve: DC24V \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 250 mm
	ULK-V-TB-20-300-1	Brake valve: AC100V \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 300 mm
	ULK-V-TB-20-300-2	Brake valve: AC200V \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 300 mm
	ULK-V-TB-20-300-3	Brake valve: DC24V \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 300 mm
	ULK-V-TB-25-25-1	Brake valve: AC100V \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 25 mm
	ULK-V-TB-25-25-2	Brake valve: AC200V \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 25 mm
	ULK-V-TB-25-25-3	Brake valve: DC24V \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 25 mm
	ULK-V-TB-25-50-1	Brake valve: AC100V \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 50 mm
	ULK-V-TB-25-50-2	Brake valve: AC200V \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 50 mm
	ULK-V-TB-25-50-3	Brake valve: DC24V \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 50 mm
	ULK-V-TB-25-75-1	Brake valve: AC100V \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 75 mm
	ULK-V-TB-25-75-2	Brake valve: AC200V \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 75 mm
	ULK-V-TB-25-75-3	Brake valve: DC24V \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 75 mm
	ULK-V-TB-25-100-1	Brake valve: AC100V \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 100 mm
	ULK-V-TB-25-100-2	Brake valve: AC200V \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 100 mm
	ULK-V-TB-25-100-3	Brake valve: DC24V \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 100 mm
	ULK-V-TB-25-150-1	Brake valve: AC100V \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 150 mm
	ULK-V-TB-25-150-2	Brake valve: AC200V \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 150 mm
	ULK-V-TB-25-150-3	Brake valve: DC24V \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 150 mm
	ULK-V-TB-25-200-1	Brake valve: AC100V \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 200 mm
	ULK-V-TB-25-200-2	Brake valve: AC200V \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 200 mm
	ULK-V-TB-25-200-3	Brake valve: DC24V \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 200 mm
	ULK-V-TB-25-250-1	Brake valve: AC100V \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 250 mm
	ULK-V-TB-25-250-2	Brake valve: AC200V \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 250 mm
	ULK-V-TB-25-250-3	Brake valve: DC24V \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 250 mm
	ULK-V-TB-25-300-1	Brake valve: AC100V \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 300 mm
	ULK-V-TB-25-300-2	Brake valve: AC200V \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 300 mm
	ULK-V-TB-25-300-3	Brake valve: DC24V \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 300 mm
	ULK-V-TB-32-25-1	Brake valve: AC100V \| Mounting: Head trunnion \| Bore: 32 mm \| Stroke: 25 mm
	ULK-V-TB-32-25-2	Brake valve: AC200V \| Mounting: Head trunnion \| Bore: 32 mm \| Stroke: 25 mm
	ULK-V-TB-32-25-3	Brake valve: DC24V \| Mounting: Head trunnion \| Bore: 32 mm \| Stroke: 25 mm
	ULK-V-TB-32-50-1	Brake valve: AC100V \| Mounting: Head trunnion \| Bore: 32 mm \| Stroke: 50 mm
	ULK-V-TB-32-50-2	Brake valve: AC200V \| Mounting: Head trunnion \| Bore: 32 mm \| Stroke: 50 mm
	ULK-V-TB-32-50-3	Brake valve: DC24V \| Mounting: Head trunnion \| Bore: 32 mm \| Stroke: 50 mm
	ULK-V-TB-32-75-1	Brake valve: AC100V \| Mounting: Head trunnion \| Bore: 32 mm \| Stroke: 75 mm
	ULK-V-TB-32-75-2	Brake valve: AC200V \| Mounting: Head trunnion \| Bore: 32 mm \| Stroke: 75 mm
	ULK-V-TB-32-75-3	Brake valve: DC24V \| Mounting: Head trunnion \| Bore: 32 mm \| Stroke: 75 mm
	ULK-V-TB-32-100-1	Brake valve: AC100V \| Mounting: Head trunnion \| Bore: 32 mm \| Stroke: 100 mm
	ULK-V-TB-32-100-2	Brake valve: AC200V \| Mounting: Head trunnion \| Bore: 32 mm \| Stroke: 100 mm
	ULK-V-TB-32-100-3	Brake valve: DC24V \| Mounting: Head trunnion \| Bore: 32 mm \| Stroke: 100 mm
	ULK-V-TB-32-150-1	Brake valve: AC100V \| Mounting: Head trunnion \| Bore: 32 mm \| Stroke: 150 mm
	ULK-V-TB-32-150-2	Brake valve: AC200V \| Mounting: Head trunnion \| Bore: 32 mm \| Stroke: 150 mm
	ULK-V-TB-32-150-3	Brake valve: DC24V \| Mounting: Head trunnion \| Bore: 32 mm \| Stroke: 150 mm
	ULK-V-TB-32-200-1	Brake valve: AC100V \| Mounting: Head trunnion \| Bore: 32 mm \| Stroke: 200 mm
	ULK-V-TB-32-200-2	Brake valve: AC200V \| Mounting: Head trunnion \| Bore: 32 mm \| Stroke: 200 mm
	ULK-V-TB-32-200-3	Brake valve: DC24V \| Mounting: Head trunnion \| Bore: 32 mm \| Stroke: 200 mm
	ULK-V-TB-32-250-1	Brake valve: AC100V \| Mounting: Head trunnion \| Bore: 32 mm \| Stroke: 250 mm
	ULK-V-TB-32-250-2	Brake valve: AC200V \| Mounting: Head trunnion \| Bore: 32 mm \| Stroke: 250 mm
	ULK-V-TB-32-250-3	Brake valve: DC24V \| Mounting: Head trunnion \| Bore: 32 mm \| Stroke: 250 mm
	ULK-V-TB-32-300-1	Brake valve: AC100V \| Mounting: Head trunnion \| Bore: 32 mm \| Stroke: 300 mm
	ULK-V-TB-32-300-2	Brake valve: AC200V \| Mounting: Head trunnion \| Bore: 32 mm \| Stroke: 300 mm
	ULK-V-TB-32-300-3	Brake valve: DC24V \| Mounting: Head trunnion \| Bore: 32 mm \| Stroke: 300 mm
	ULK-V-TB-40-25-1	Brake valve: AC100V \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 25 mm
	ULK-V-TB-40-25-2	Brake valve: AC200V \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 25 mm
	ULK-V-TB-40-25-3	Brake valve: DC24V \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 25 mm
	ULK-V-TB-40-50-1	Brake valve: AC100V \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 50 mm
	ULK-V-TB-40-50-2	Brake valve: AC200V \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 50 mm
	ULK-V-TB-40-50-3	Brake valve: DC24V \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 50 mm
	ULK-V-TB-40-75-1	Brake valve: AC100V \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 75 mm
	ULK-V-TB-40-75-2	Brake valve: AC200V \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 75 mm
	ULK-V-TB-40-75-3	Brake valve: DC24V \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 75 mm
	ULK-V-TB-40-100-1	Brake valve: AC100V \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 100 mm
	ULK-V-TB-40-100-2	Brake valve: AC200V \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 100 mm
	ULK-V-TB-40-100-3	Brake valve: DC24V \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 100 mm
	ULK-V-TB-40-150-1	Brake valve: AC100V \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 150 mm
	ULK-V-TB-40-150-2	Brake valve: AC200V \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 150 mm
	ULK-V-TB-40-150-3	Brake valve: DC24V \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 150 mm
	ULK-V-TB-40-200-1	Brake valve: AC100V \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 200 mm
	ULK-V-TB-40-200-2	Brake valve: AC200V \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 200 mm
	ULK-V-TB-40-200-3	Brake valve: DC24V \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 200 mm
	ULK-V-TB-40-250-1	Brake valve: AC100V \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 250 mm
	ULK-V-TB-40-250-2	Brake valve: AC200V \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 250 mm
	ULK-V-TB-40-250-3	Brake valve: DC24V \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 250 mm
	ULK-V-TB-40-300-1	Brake valve: AC100V \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 300 mm
	ULK-V-TB-40-300-2	Brake valve: AC200V \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 300 mm
	ULK-V-TB-40-300-3	Brake valve: DC24V \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 300 mm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

CKD ULK / ULK-V Cell-Top Cylinder with Brake (Bore 20-40 mm)
