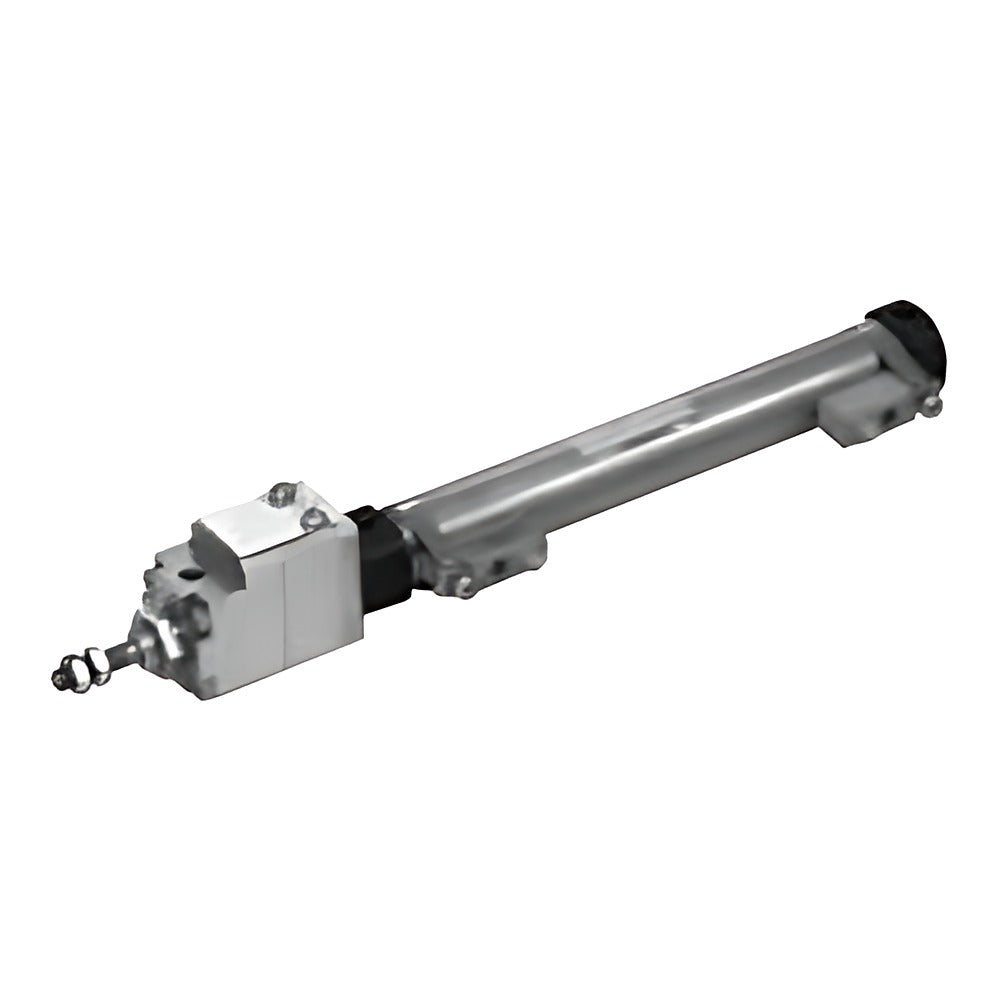

CKD ULKP Cell-Top Cylinder with Brake (Bore 16 mm)

CKD ULKP Cell-Top Cylinder with Brake (Bore 16 mm)

CKD ULKP cell-top cylinder: a bore 16 mm double-acting single-rod cylinder with a compact built-in brake unit for intermediate stopping and drop prevention.

Key features

  • Compact low-height brake unit; holding force 160 N
  • Stainless steel cylinder tube; rubber cushion
  • ULKP without switch magnet, ULKP-L with magnet for M-type auto switches (M0V, M2V, M3V, M2WV etc.)
  • Mountings: basic (00), rod-side foot (LS), rod flange (FA), double clevis (CB); head port vertical or axial (0, not with CB)
  • Accessories I, Y knuckles and B1, B2 brackets; intermediate strokes in 1 mm steps up to 260 mm
  • Made-to-order product

Specifications

Action Double acting, with brake
Fluid Compressed air
Bore 16 mm
Max. operating pressure 1.0 MPa
Min. operating pressure Cylinder 0.15 MPa, brake 0.3 MPa
Proof pressure 1.6 MPa
Port M5
Piston speed 50-500 mm/s
Ambient temperature -10 to 60 C (no freezing)
Source CKD Korea catalog CB-030SK-9, p. 757-767
ULKP-00-16-15 Switch magnet: No | Mounting: Basic | Stroke: 15 mm | Head port: Vertical
ULKP-00-16-15-0 Switch magnet: No | Mounting: Basic | Stroke: 15 mm | Head port: Axial
ULKP-00-16-30 Switch magnet: No | Mounting: Basic | Stroke: 30 mm | Head port: Vertical
ULKP-00-16-30-0 Switch magnet: No | Mounting: Basic | Stroke: 30 mm | Head port: Axial
ULKP-00-16-45 Switch magnet: No | Mounting: Basic | Stroke: 45 mm | Head port: Vertical
ULKP-00-16-45-0 Switch magnet: No | Mounting: Basic | Stroke: 45 mm | Head port: Axial
ULKP-00-16-60 Switch magnet: No | Mounting: Basic | Stroke: 60 mm | Head port: Vertical
ULKP-00-16-60-0 Switch magnet: No | Mounting: Basic | Stroke: 60 mm | Head port: Axial
ULKP-LS-16-15 Switch magnet: No | Mounting: Foot (rod side) | Stroke: 15 mm | Head port: Vertical
ULKP-LS-16-15-0 Switch magnet: No | Mounting: Foot (rod side) | Stroke: 15 mm | Head port: Axial
ULKP-LS-16-30 Switch magnet: No | Mounting: Foot (rod side) | Stroke: 30 mm | Head port: Vertical
ULKP-LS-16-30-0 Switch magnet: No | Mounting: Foot (rod side) | Stroke: 30 mm | Head port: Axial
ULKP-LS-16-45 Switch magnet: No | Mounting: Foot (rod side) | Stroke: 45 mm | Head port: Vertical
ULKP-LS-16-45-0 Switch magnet: No | Mounting: Foot (rod side) | Stroke: 45 mm | Head port: Axial
ULKP-LS-16-60 Switch magnet: No | Mounting: Foot (rod side) | Stroke: 60 mm | Head port: Vertical
ULKP-LS-16-60-0 Switch magnet: No | Mounting: Foot (rod side) | Stroke: 60 mm | Head port: Axial
ULKP-FA-16-15 Switch magnet: No | Mounting: Rod flange | Stroke: 15 mm | Head port: Vertical
ULKP-FA-16-15-0 Switch magnet: No | Mounting: Rod flange | Stroke: 15 mm | Head port: Axial
ULKP-FA-16-30 Switch magnet: No | Mounting: Rod flange | Stroke: 30 mm | Head port: Vertical
ULKP-FA-16-30-0 Switch magnet: No | Mounting: Rod flange | Stroke: 30 mm | Head port: Axial
ULKP-FA-16-45 Switch magnet: No | Mounting: Rod flange | Stroke: 45 mm | Head port: Vertical
ULKP-FA-16-45-0 Switch magnet: No | Mounting: Rod flange | Stroke: 45 mm | Head port: Axial
ULKP-FA-16-60 Switch magnet: No | Mounting: Rod flange | Stroke: 60 mm | Head port: Vertical
ULKP-FA-16-60-0 Switch magnet: No | Mounting: Rod flange | Stroke: 60 mm | Head port: Axial
ULKP-CB-16-15 Switch magnet: No | Mounting: Double clevis | Stroke: 15 mm | Head port: Vertical
ULKP-CB-16-30 Switch magnet: No | Mounting: Double clevis | Stroke: 30 mm | Head port: Vertical
ULKP-CB-16-45 Switch magnet: No | Mounting: Double clevis | Stroke: 45 mm | Head port: Vertical
ULKP-CB-16-60 Switch magnet: No | Mounting: Double clevis | Stroke: 60 mm | Head port: Vertical
ULKP-L-00-16-15 Switch magnet: Yes | Mounting: Basic | Stroke: 15 mm | Head port: Vertical
ULKP-L-00-16-15-0 Switch magnet: Yes | Mounting: Basic | Stroke: 15 mm | Head port: Axial
ULKP-L-00-16-30 Switch magnet: Yes | Mounting: Basic | Stroke: 30 mm | Head port: Vertical
ULKP-L-00-16-30-0 Switch magnet: Yes | Mounting: Basic | Stroke: 30 mm | Head port: Axial
ULKP-L-00-16-45 Switch magnet: Yes | Mounting: Basic | Stroke: 45 mm | Head port: Vertical
ULKP-L-00-16-45-0 Switch magnet: Yes | Mounting: Basic | Stroke: 45 mm | Head port: Axial
ULKP-L-00-16-60 Switch magnet: Yes | Mounting: Basic | Stroke: 60 mm | Head port: Vertical
ULKP-L-00-16-60-0 Switch magnet: Yes | Mounting: Basic | Stroke: 60 mm | Head port: Axial
ULKP-L-LS-16-15 Switch magnet: Yes | Mounting: Foot (rod side) | Stroke: 15 mm | Head port: Vertical
ULKP-L-LS-16-15-0 Switch magnet: Yes | Mounting: Foot (rod side) | Stroke: 15 mm | Head port: Axial
ULKP-L-LS-16-30 Switch magnet: Yes | Mounting: Foot (rod side) | Stroke: 30 mm | Head port: Vertical
ULKP-L-LS-16-30-0 Switch magnet: Yes | Mounting: Foot (rod side) | Stroke: 30 mm | Head port: Axial
ULKP-L-LS-16-45 Switch magnet: Yes | Mounting: Foot (rod side) | Stroke: 45 mm | Head port: Vertical
ULKP-L-LS-16-45-0 Switch magnet: Yes | Mounting: Foot (rod side) | Stroke: 45 mm | Head port: Axial
ULKP-L-LS-16-60 Switch magnet: Yes | Mounting: Foot (rod side) | Stroke: 60 mm | Head port: Vertical
ULKP-L-LS-16-60-0 Switch magnet: Yes | Mounting: Foot (rod side) | Stroke: 60 mm | Head port: Axial
ULKP-L-FA-16-15 Switch magnet: Yes | Mounting: Rod flange | Stroke: 15 mm | Head port: Vertical
ULKP-L-FA-16-15-0 Switch magnet: Yes | Mounting: Rod flange | Stroke: 15 mm | Head port: Axial
ULKP-L-FA-16-30 Switch magnet: Yes | Mounting: Rod flange | Stroke: 30 mm | Head port: Vertical
ULKP-L-FA-16-30-0 Switch magnet: Yes | Mounting: Rod flange | Stroke: 30 mm | Head port: Axial
ULKP-L-FA-16-45 Switch magnet: Yes | Mounting: Rod flange | Stroke: 45 mm | Head port: Vertical
ULKP-L-FA-16-45-0 Switch magnet: Yes | Mounting: Rod flange | Stroke: 45 mm | Head port: Axial
ULKP-L-FA-16-60 Switch magnet: Yes | Mounting: Rod flange | Stroke: 60 mm | Head port: Vertical
ULKP-L-FA-16-60-0 Switch magnet: Yes | Mounting: Rod flange | Stroke: 60 mm | Head port: Axial
ULKP-L-CB-16-15 Switch magnet: Yes | Mounting: Double clevis | Stroke: 15 mm | Head port: Vertical
ULKP-L-CB-16-30 Switch magnet: Yes | Mounting: Double clevis | Stroke: 30 mm | Head port: Vertical
ULKP-L-CB-16-45 Switch magnet: Yes | Mounting: Double clevis | Stroke: 45 mm | Head port: Vertical
ULKP-L-CB-16-60 Switch magnet: Yes | Mounting: Double clevis | Stroke: 60 mm | Head port: Vertical
Pneumatic CylindersCKD
56 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD ULKP Cell-Top Cylinder with Brake (Bore 16 mm)

Brand CKD·Pneumatic Cylinders

Available part numbers (56)

ULKP-00-16-15, ULKP-00-16-15-0, ULKP-00-16-30, ULKP-00-16-30-0, ULKP-00-16-45, ULKP-00-16-45-0, ULKP-00-16-60, ULKP-00-16-60-0, ULKP-LS-16-15, ULKP-LS-16-15-0 + 46 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
